Quick Start Guide
For Android Tablet
TC79RA2
1
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
Caution:
Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation
2
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure
to radio waves. This device is designed and manufactured not to
exceed the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of the
U.S. Government.
The exposure standard employs a unit of measurement known
as the Specific Absorption Rate, or SAR. The SAR limit set by
the FCC is 1.6 W/kg. Tests for SAR are conducted using
standard operating positions accepted by the FCC with the EUT
transmitting at the specified power level in different channels.
The highest SAR value for the device as reported to the FCC is
1.30 W/kg when placed next to the body.
This symbol indicates this Tablet PC complies with the
Directive 2004/108/EC, 1999/5/EC and the European
Union’s Low Voltage Directive 2006/95/EC.
BATTERY CAUTION
※ Risk of explosion if the battery is replaced with an incorrect
type one.
※ Dispose of used batteries according to the instructions.
※ Only use batteries designed for this computer. The wrong
battery type may explode, leak or damage the computer.
※ Do not remove any batteries from the computer while it is
powered on.
3
※ Recharge the batteries using the Tablet PC system.
Incorrect recharging may make the battery explode.
※ Do not try to repair a battery pack. Refer any battery pack
repair or replacement to your service representative or
qualified service personnel.
To prevent possible hearing damage, do not listen at
high volume levels for long periods.
Package contents
Carefully unpack your box and take out the items listed
below. If any of the items are missing or damaged, please
contact your dealer immediately:
• One tablet • One AC adapter • One USB cable
• This guide
4

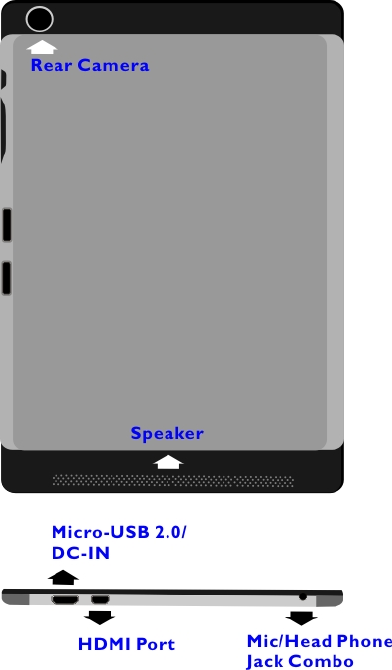

Tablet layout
5
6
Charging your tablet
If your tablet is just being unpacked from the box, you need
to charge the tablet first. It will take around 3 to 4 hours to be
fully charged.
1. Plug the USB head of the cable into the adapter.
2. Plug the micro-USB head of the cable - with the side
marked with “B” or an icon facing down - into the
micro-USB port on your tablet.
3. Plug the adapter into a wall-socket.
7
Powering ON/OFF your tablet
To power on your tablet
Press and hold the power button
down until the screen turn on.
To power off your tablet
1. Press and hold the Power button.
2. A menu appears as shown below. Touch Power off.
3. Touch OK to power down your tablet.
8
Inserting a storage card
Your tablet supports micro-SD cards with maximum storage
space up to 32G. You can insert the micro SD card and pull
it out without powering down the tablet. To do so, follow the
steps below.
Install your Micro SD Card
1. Hold your tablet with front side up.
2. Insert your micro SD card in the direction as shown.
Remove your Micro SD Card
1. Push and release the micro SD card. This will
unlock the card.
2. Pull out the micro SD card.
9
Specifications
Processor
z Intel BayTrail-T CR Z3735 Quad
core
z 1.33 GHz, 2MB L2 Cache,
Memory z DDR3L
z Default 2 GB
Storage z eMMC v4.4.1
z 16 GB, Up to 32 GB
Wireless z Wi-Fi 802.11b/g/n
z Bluetooth 4.0
Touchscreen
z 7.85-inch TFT LCD
z Retina 1536 x 2048 pixels
z 5-points multi-touch support
Cameras z Front: 2.0 M (4:3)
z Rear: 5.0 M (16:10)
Battery
z 1 Cell, 1S1P
z Li-polymer
z 3900 mAh
Input/Output
z 1 x micro-USB 2.0, OTG port
(Type B)
z 1 x Mic/head phone jack combo
z 1 x micro-SD card slot (Support
128M-32G TF Card)
z 1 x SIM Card
z 1 x Micro HDMI
10
Speaker & Mic
z Build-in Speaker x 2
z Analog MIC x 1
AC-Adapter
z DC Output: 5V/2A
z Input Voltage: 100 - 240VAC
z Input Frequency: 47 - 63Hz
Dimension
(mm) z 200.5 (D) x 8.6 (H) x 139.6 (W)
Weight z TBC
