Realtek Semiconductor RTL8723DE 802.11 b/g/n RTL8723DE Combo module User Manual
Realtek Semiconductor Corp. 802.11 b/g/n RTL8723DE Combo module
User Manual
RTL8723DE
User’s Manual
RTL8723DE
PCI-Express NGFF1630-S2-E User’s
Manual
Realtek Semiconductor Corp.
No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan
Tel.: +886-3-578-0211. Fax: +886-3-577-6047
www.realtek.com.tw
RTL8723DE
User’s Manual
Installing the Wireless PCIe NGFF1630
module Hardware
Step . Shut down the computer.
Step . Installing PCIe NGFF module to PCIe NGFF connector.
RTL8723DE
User’s Manual
Step
.
Connect two external Wi-Fi antennas on I-PEX connectors.
step%. Power on the computer.
RTL8723DE
User’s Manual
Un-installing the Wireless PCIe NGFF1630
module Hardware
Step . Shut down the computer.
Step . Remove external Wi-Fi Antennas from the Wireless PCIe NGFF
module board.
Step . Remove the Wireless PCIe NGFF module board from PCIe
RTL8723DE
User’s Manual
NGFF connector port.
Step %. Power on the computer.
Installing the Wireless PCIe NGFF1630
module Software
Before you proceed with the installation, please notice following descriptions.
Note1: The following installation was operated under Windows 7.
Note2: If you have installed the WLAN driver & utility before, please
uninstall the old version first.
If you install the “Realtek11n Single Chip PCIE WLAN NIC Mass
production kit” into your laptop computer before installing the software
RTL8723DE
User’s Manual
program from
the CD.
A. Insert the Installation CD to your CD-ROM Drive. Execute the “setup”
Program, Click “Next” to process the installation
B. Click “Install” to process the installation
RTL8723DE
User’s Manual
C. Click Install this driver software anyway
D. After step “C” please press Next button.
E. Please click “YES” to install BT package.
RTL8723DE
User’s Manual

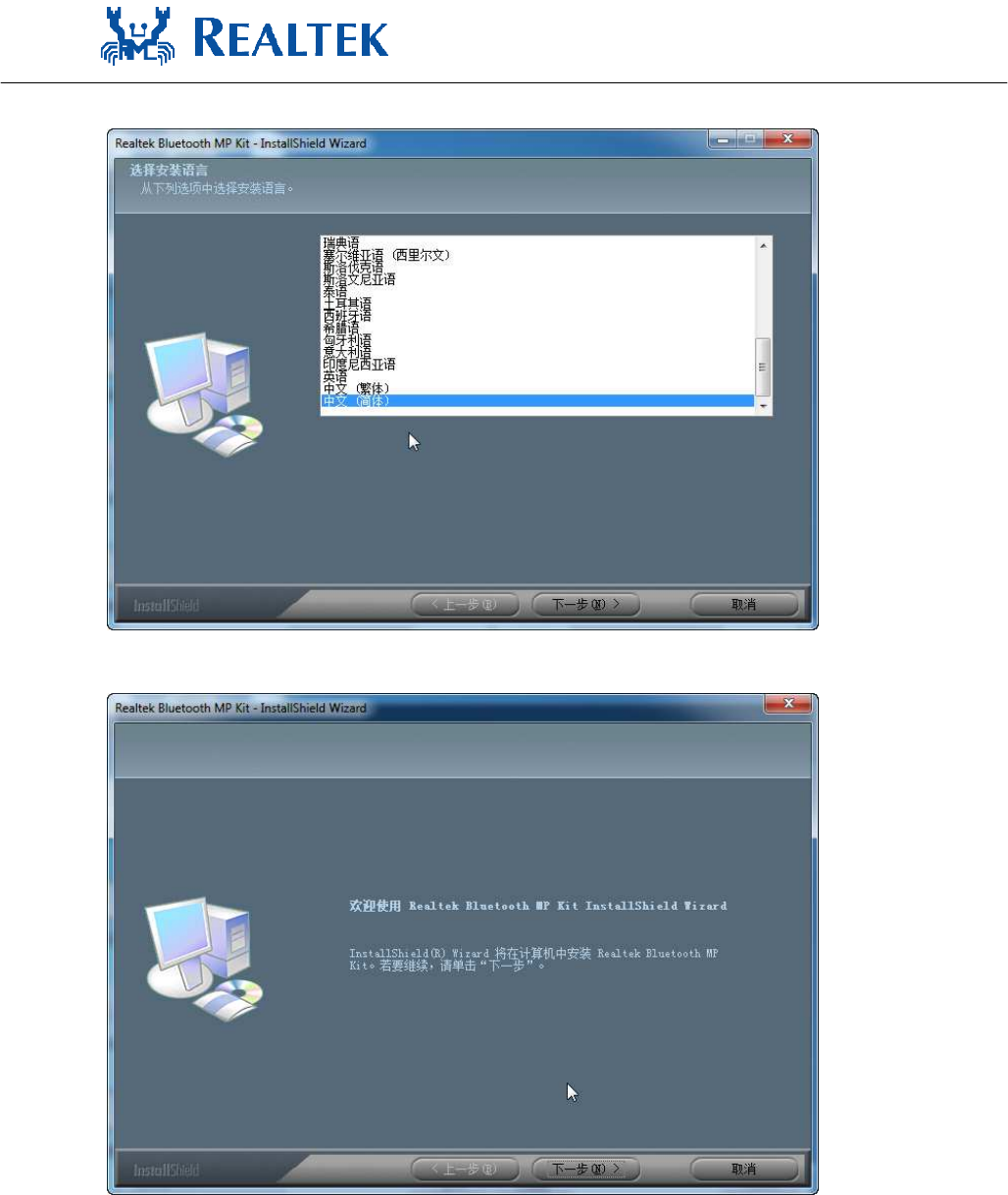

F. Please click “下一步”to continue.
G. Please click “下一步”to continue.
RTL8723DE
User’s Manual

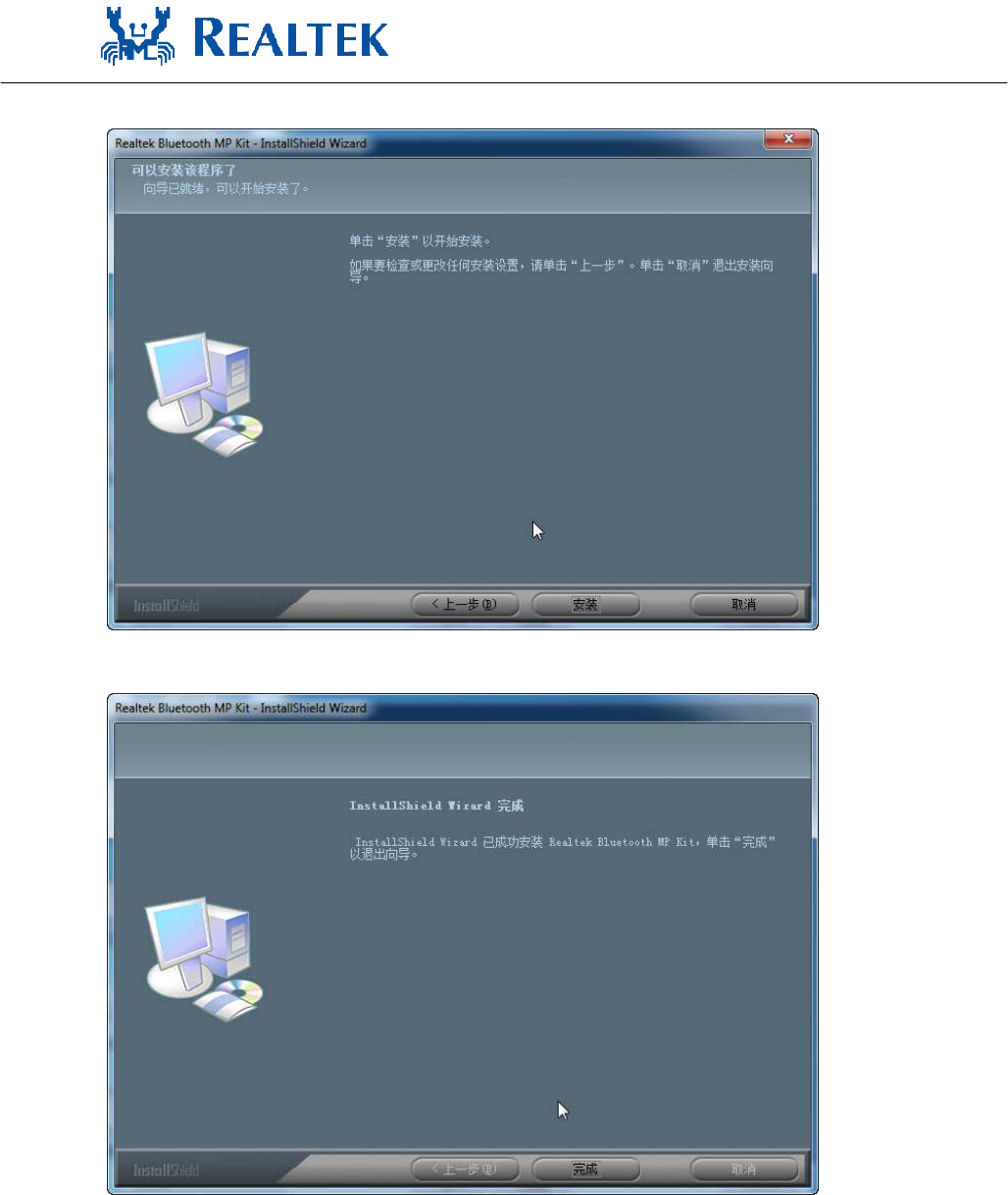

H. Please click “安装”to start installation.
I. Please click “完成”to finish the installation.
RTL8723DE
User’s Manual
J. Press Finish button to complete the install process
RTL8723DE
User’s Manual
Un-installing the Wireless PCIe NGFF1630 module
Software
If you install Realtek11n Single Chip PCIE WLAN NIC Mass production kit into your
laptop computer after installing the software program from the CD.
When you install Realtek11n Single Chip WLAN PCIE NGFF1630 Adapter,
the following dialog will be shown.

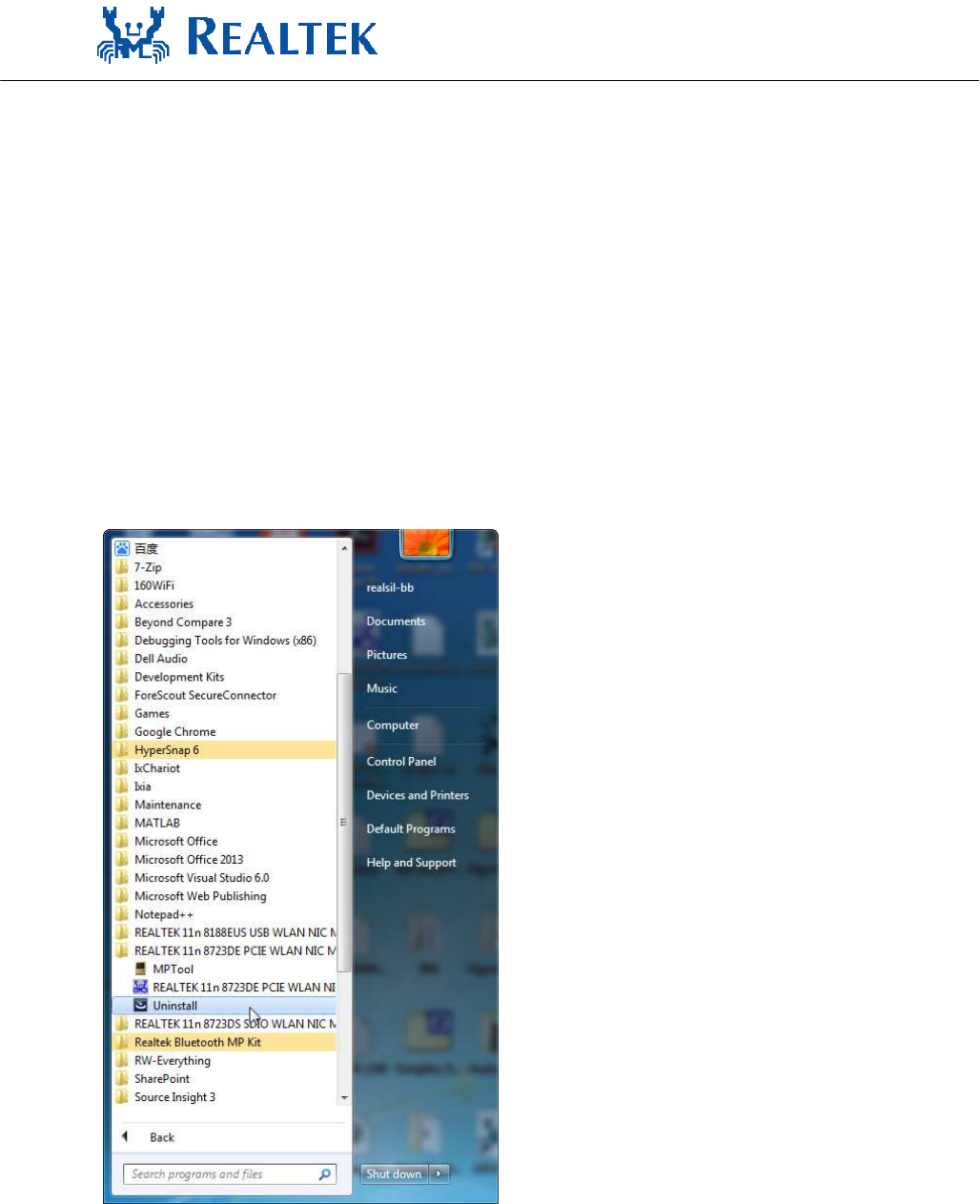

A. Uninstall the RTL8723DE WLAN Driver from “Start”→ “All Programs”→
“REALTEK 11n 8723DE PCIE WLAN NIC Massproduction kit”
Please click “Uninstall” to remove RTL8723DE WLAN driver.
RTL8723DE
User’s Manual
Installing the Bluetooth USB Module
Software
A. Insert the NGFF1630 card into system connector.

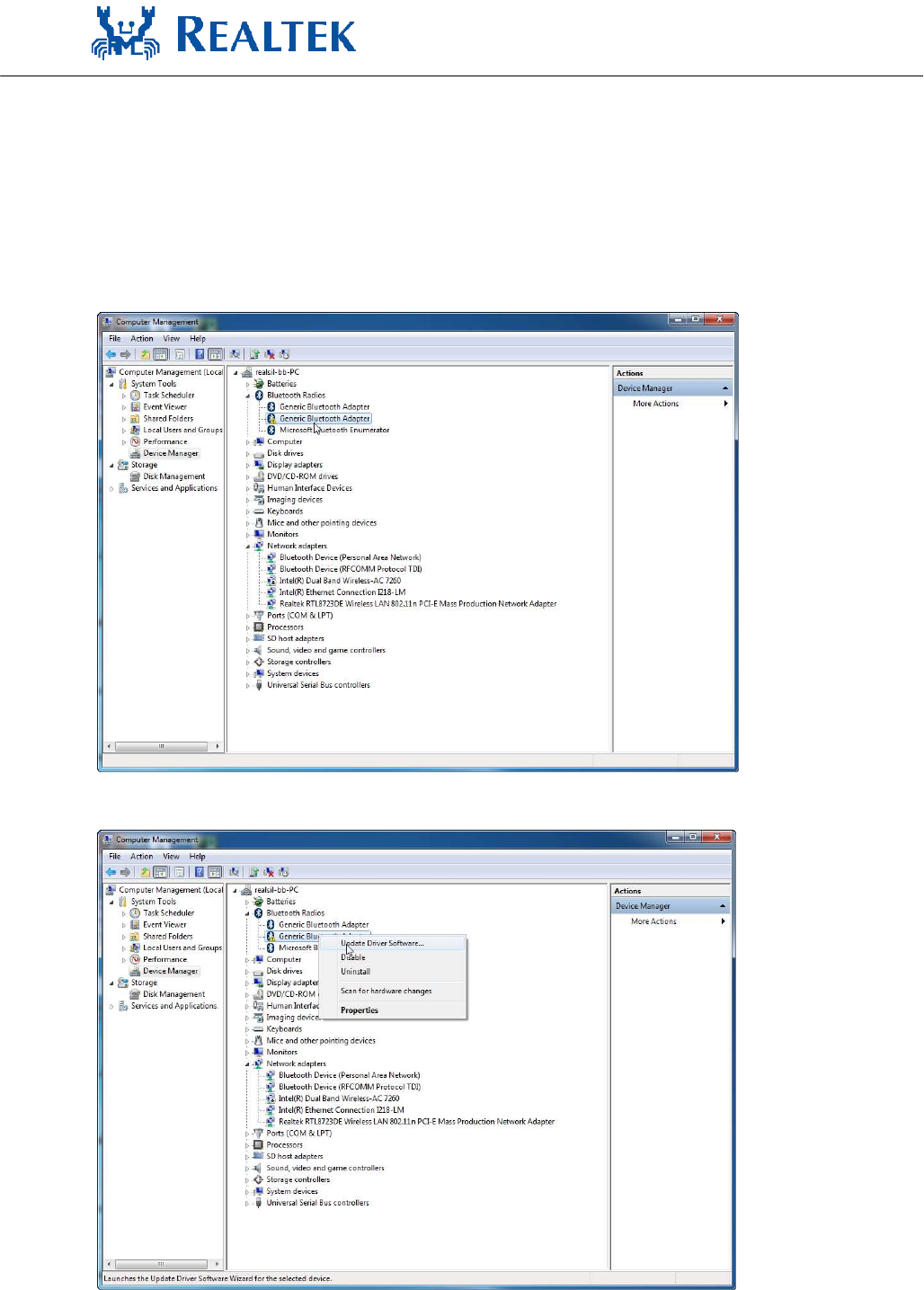

B. Boot on system then the “Geniric Bluttooth Adapter” device will show up in device
manager.
C. Click right button on “RT Bluetooth Radio” and select “Update Driver”.
RTL8723DE
User’s Manual

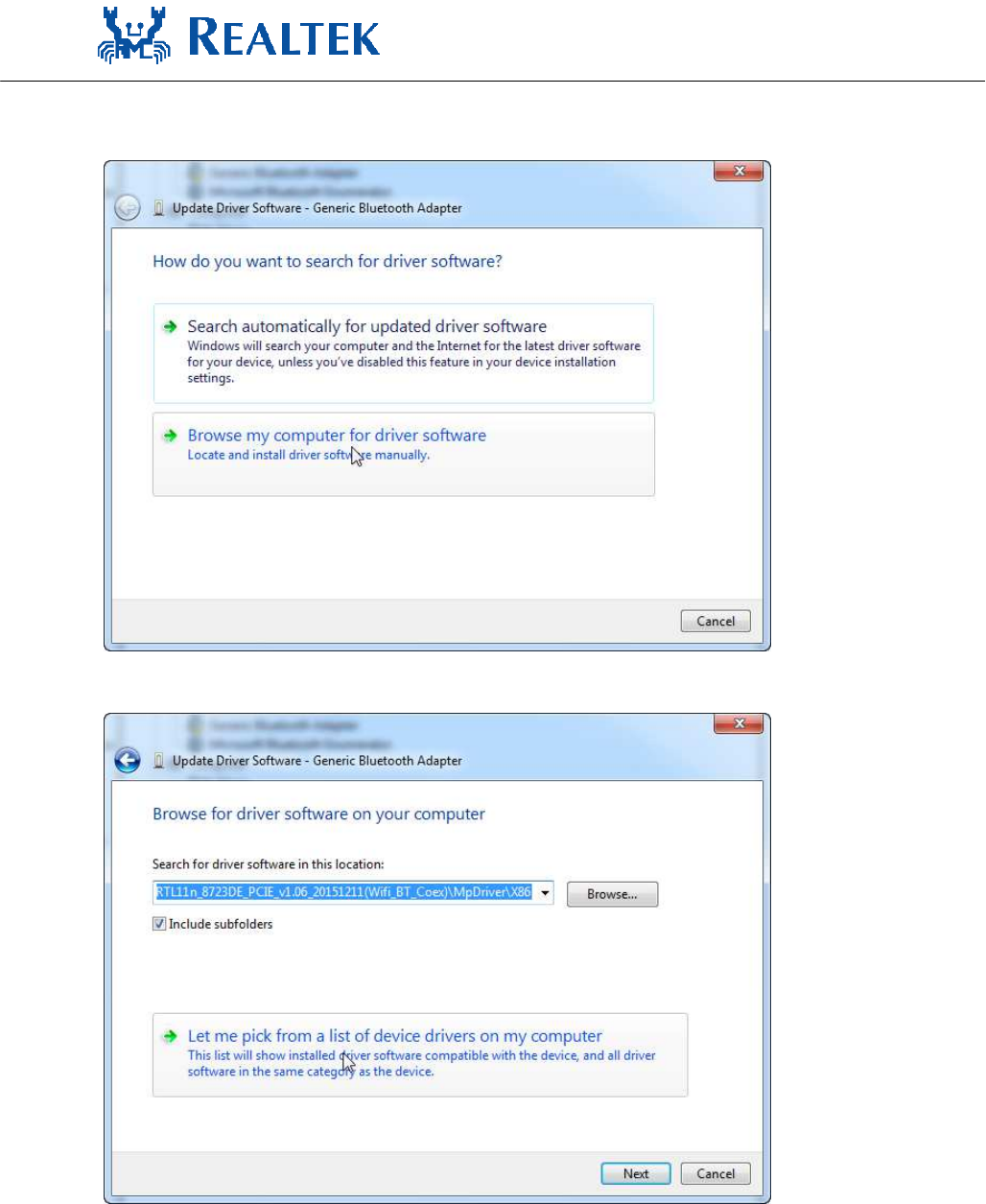

D. After select “Update Driver Software ” then the Hardware Update Wizard will pop up,
please select “Browse my computer for driver software” and press Next button.
E. After step “D” please Select “Let me pick from a list of device drivers on my computer ”.
RTL8723DE
User’s Manual
F. Finish step “E” then select “Have Disk..”
G. Now select browse to find the driver for device and press Next button.(The driver’s
locate is the same with WiFi driver )
RTL8723DE
User’s Manual
RTL8723DE
User’s Manual

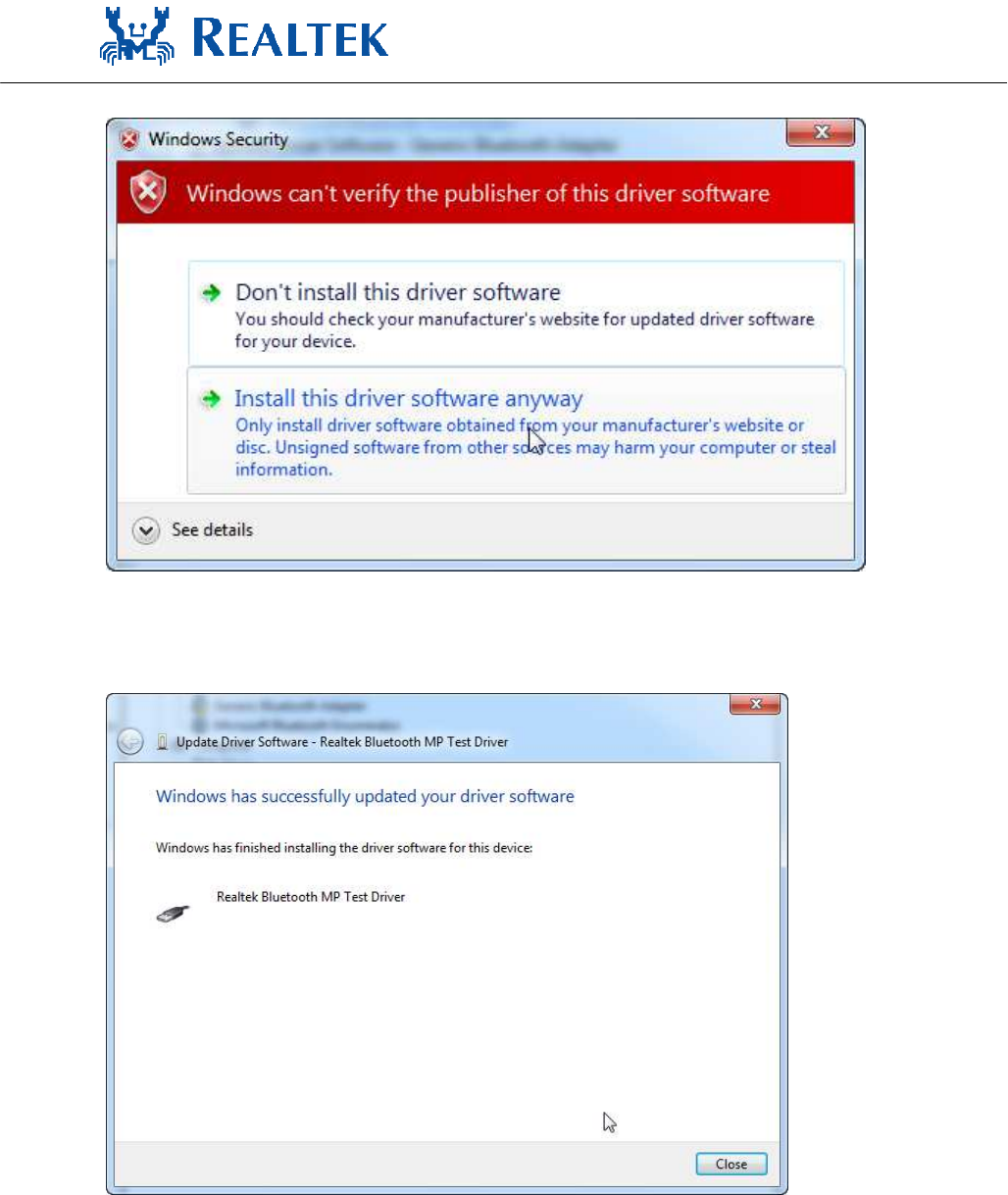

H. Then click “Install this driver software anyway” to continue.
I. Press close button to complete the install process and you can see the Driver will be
show up in Device Manager.
RTL8723DE
User’s Manual
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This EUT is compliance with SAR for general population/uncontrolled exposure limits in ANSI/IEEE
C95.1-1999 and had been tested in accordance with the measurement methods and procedures
specified in OET Bulletin 65 Supplement C. This equipment should be installed and operated with
minimum distance 0.5 cm between the radiator & your body.
RTL8723DE
User’s Manual
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1
through 13.
This device and its antenna(s) must not be co-located with any other transmitters except in
accordance with FCC multi-transmitter product procedures.
This module is intended for OEM integrator. The OEM integrator is responsible for the compliance
to all the rules that apply to the product into which this certified RF module is integrated.
Additional testing and certification may be necessary when multiple modules are used.
Ant.
Brand Model Name
(P/N)
Antenna
Type Connector Gain(dBi)
1 LYNwave ALA110-222050-300011
PIFA I-PEX 3.5dBi
2 PSA RFDPA171320EMLB301
Dipole I-PEX 3.14dBi
Any changes or modifications not expressly approved by the manufacturer could void the user's authority to
operate this equipment.
USERS MANUAL OF THE END PRODUCT:
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this
module. The end user manual shall include all required regulatory information/warning as show in
this manual.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID:
TX2-RTL8723DE ". If the size of the end product is larger than 8x10cm, then the following FCC part
15.19 statement has to also be available on the label: This device complies with Part 15 of FCC
rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that
may cause undesired operation.
RTL8723DE
User’s Manual
Industry Canada Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired
operation of the device
French translation:
Ce dispositif est conforme aux CNR d'IndustrieCanada applicable aux appareils radio exempts de
licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas
produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y
compris un brouillage susceptible de provoquer un fonctionnement indésirable.
This device has been designed to operate with an antenna having a maximum gain of 3.5dBi.
Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The
required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the EIRP is not more than required for successful communication.
French translation:
Ce dispositif a été conçu pour fonctionner avec une antenne ayant un gain maximum de 3.5 dBi.
Une antenne à gain plus élevé est strictement interdite par les règlements d'Industrie Canada.
L'impédance d'antenne requise est de 50 ohms.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio
peutfonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé
pourl'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectriqueà l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de
sorte que lapuissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire
àl'établissement d'une communication satisfaisante.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
RTL8723DE
User’s Manual
French translation:
NOTE IMPORTANTE: (Pour l'utilisation de dispositifs mobiles)
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de
20 cm de distance entre la source de rayonnement et votre corps.
For product available in the Canada market, only channel 1~13 can be operated. Selection of
other channels is not possible.
Pour les produits disponibles aux Canada du marché, seul le canal 1 à 13 peuvent être
exploités. Sélection d'autres canaux n'est pas possible.
This device and its antenna(s) must not be co-located with any other transmitters except in
accordance with IC multi-transmitter product procedures.
Refering to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be
operated simultaneously without reassessment permissive change.
Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association
avec une autre antenne ou transmetteur.
This module is intended for OEM integrator. The OEM integrator is still responsible for the IC
compliance requirement of the end product, which integrates this module.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm
separation with the antenna while this end product is installed and operated. The end user
has to be informed that the IC radio-frequency exposure guidelines for an uncontrolled
environment can be satisfied. The end user has to also be informed that any changes or
modifications not expressly approved by the manufacturer could void the user's authority to
operate this equipment. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
RTL8723DE
User’s Manual
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains IC :
6317A-RTL8723DE ".
The Host Model Number (HMN) must be indicated at any location on the exterior of the end
product or product packaging or product literature which shall be available with the end
product or online.
This radio transmitter (IC:6317A-RTL8723DE) has been approved by Industry Canada to
operate with the antenna types listed below with the maximum permissible gain and required
antenna impedance for each antenna type indicated. Antenna types not included in this list,
having a gain greater than the maximum gain indicated for that type, are strictly prohibited
for use with this device.
Le présent émetteur radio(IC:6317A-RTL8723DE) a été approuvé par Industrie Canada pour
fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible
maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus
dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement
interdits pour l'exploitation de l'émetteur.
Ant.
Brand Model Name
(P/N)
Antenna
Type Connector Gain(dBi)
1 LYNwave ALA110-222050-300011
PIFA I-PEX 3.5dBi
2 PSA RFDPA171320EMLB301
Dipole I-PEX 3.14dBi
Any changes or modifications not expressly approved by the manufacturer could void the user's authority to
operate this equipment.
NCC 警語
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、
加大功率或變更原設計之特性及功能。
RTL8723DE
User’s Manual
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停
用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
本模組於取得認證後將依規定於模組本體標示審合格籤。
系統廠商應於平台上標示「本產品內含射頻模組： XXXyyyLPDzzzz-x (NCC ID) 」字樣。
Japan Statement
Host system must be labeled with "Contains MIC ID:xxxxxx“, MIC ID displayed on label
