Recsol I&C; Co., Ltd. ADSL Modem Card RecSpeed 2020p Installation Guide
users manual
DW-8000P
Installation Guide
i
Copyright
2000, DAEWOO Corporation
All rights reserved.
This manual and software described in it are copyrighted with all rights reserved. This manual may not
be copied, in whole or in part, without the written consent of DAEWOO Corporation. DW-8000P is a
trademark of DAEWOO Corporation. All other product names are trademarks and or registered
trademarks of their respective companies. Part Number UG8000P-xx
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measure:
Reorient or relocated the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Shielded cables must be used to comply with FCC regulations.
WARNING(Part15,Section 15.21)
Changes or modifications not expressly approved by the manufacturer could void the user’s authority
to operate the equipment.
DW-8000P
Installation Guide
ii
BEFORE YOU START! ........................................................................................................................1/
STEP 1 – GATHER SYSTEM AND SERVICE CONNECTION INFORMATION.........................2/
SYSTEM REQUIREMENTS......................................................................................................................2/
DETERMINING YOUR OPERATING SYSTEM...........................................................................................2/
DETERMINING YOUR CONNECTION ADDRESS AND CONFIGURATION...................................................3/
STEP 2 – INSTALL THE ADSL MODEM CARD..............................................................................4/
HARDWARE INSTALLATION..................................................................................................................4/
STEP3 – INSTALL THE DRIVERS.....................................................................................................5/
DRIVER INSTALLATION AND INTERNET SERVICE CONNECTION ...........................................................5/
NDIS DRIVER INSTALL FOR WINDOWS 95/98......................................................................................6/
NDIS DRIVER INSTALL FOR WINDOWS 2000.......................................................................................9/
NDIS DRIVER INSTALL FOR WINDOWS NT4......................................................................................10/
APPENDIX A - CONNECTOR PINOUT...........................................................................................12/
APPENDIX B - TROUBLE SHOOTING...........................................................................................13/
APPENDIX C - REMOVING DW-8000P DRIVERS........................................................................14/
WINDOWS 95/98.................................................................................................................................14/
WINDOWS 2000..................................................................................................................................14/
WINDOWS NT4.0 ...............................................................................................................................14/
DW-8000P
Installation Guide
1
Before you Start!
The DW-8000P Installation Guide tells you everything you need to know to install and use the DW-
8000P card. This guide is designed to walk you through the installation of the DW-8000P card and
drivers, and then through the establishment of an Internet service connection.
This is a (3) step process.
Step 1 – Gather system and service connection information
Step 2 – Install the ADSL modem card
Step 3 – Install the drivers and establish an Internet service connection
If you’re a beginner to the Internet – or if you’re experienced but have never installed an
ADSL PCI card before – Start at the beginning and work your way carefully through the
instructions. It is important to gather all the information required before you actually install the
PCI card and ADSL drivers.
If you’re familiar with installing PCI cards and drivers - you may be able to browse the
chapters to get the basics - However, it is still important to gather all the information required
before you actually install the PCI card and ADSL drivers.
Your ADSL board only has one RJ-11 connector for ADSL connection. POTS splitters or
microfilters can be plugged outside from the board using multiple port phone jacks.
hkzs
hj{
jyj
spur
kh{h
DW-8000P
Installation Guide
2
Step 1 – Gather system and service connection information
System Requirements
Make sure your PC system meets ALL of the following minimum hardware and software requirements:
Hardware:
IBM PC/AT or compatible
Pentium 66Mhz or faster
2Mbytes available hard disk space or more
2x CD-ROM drive or better
32Mbyte available system memory or more
Software: Your Operating System must be one of the following:
Microsoft Windows 95 – Win 95A, Win 95B
Microsoft Windows 98 – Win 98, Win 98A
Microsoft Windows Millennium Edition – Win ME
Microsoft Windows NT 4.0 with Service Pack 5 or latest – Win NT
Microsoft Windows 2000 – Win 2k
Determining Your Operating System
You will need to know the exact version of Microsoft Windows installed in your computer. If you
do not know or are unsure, please proceed as follows to determine your version of the Microsoft
Operating System. On the desktop, right click My Computer. Then select Properties. The
version number of the Microsoft Windows Operating System installed in your computer will be
displayed on the General tab. Refer to the following table for more detailed information.
Version System Description Release Name
Win 95A 4.00.950A Windows 95 OSR1
Win 95B 4.00.950B Windows 95 OSR2
Win 98 4.10.1998 Windows 98
Win 98A 4.10.2222A Windows 98 2nd Edition
Win 2k 5.00 2195 Windows 2000
Win NT 4.00.1381 Windows NT 4.0
Win ME 4.90.3000 Windows Millennium Edition
DW-8000P
Installation Guide
3
Determining Your Connection Address and Configuration
You will need to know the connection address and configuration for your Internet service. Find your
Internet Service Protocol below and proceed gathering the connection address and configuration. If you
are unsure or do not have all the information, please contact your Internet Service Provider (ISP).
RFC1483 - Bridged Ethernet over ATM service requires the following information:
IP Address . . .
Subnet Mask . . .
Gateway . . .
(Domain Name Service) DNS Host
DNS Domain
DNS Server . . .
VPI value VPI = ____ (Default VPI=0)
VCI value VCI = ____ (Default VCI=32)
ADSL Mode Type ANSI T1.413 Issue 2
ITU G.992.1 Annex A (G.dmt)
ITU G.992.2 Annex A (G.lite)
DW-8000P
Installation Guide
4
Step 2 – Install the ADSL modem card

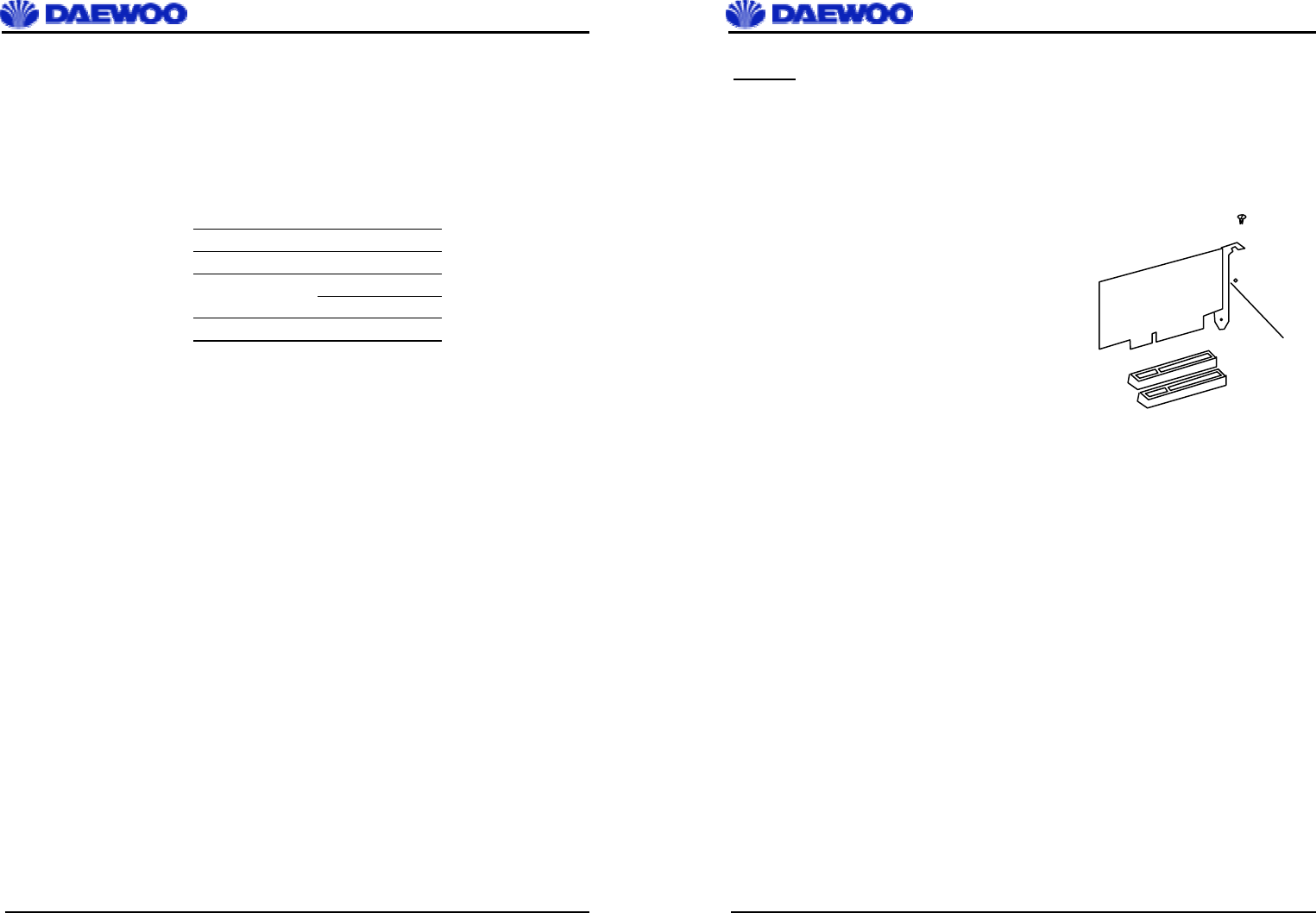

Hardware Installation
WARNING! To avoid possible damage to your DW-8000P card you need to use an anti-static
grounding device or hold onto the metal chassis of the PC to provide anti-static grounding.
1. Shut down the system and switch the power off.
2. Unplug the AC power cable from the PC.
3. Remove the cover from the PC chassis.
4. Unscrew the “slot cover bracket” from an unused PCI slot.
5. Insert the card into an empty PCI slot.
6. Firmly press the DW-8000P card into the slot and secure
the card to the chassis with the chassis bracket screw.
7. Connect one end of a phone cable to the RJ-11 port on the
DW-8000P card and plug the other end of the cable into
the ADSL data service.
8. Replace the cover of the PC chassis
DW-8000P
Installation Guide
5
Step3 – Install the drivers
Driver Installation and Internet Service Connection
Installing from floppy disk
The supplied CD-ROM contains both NDIS (RFC1483) and NDISWAN (PPPoATM) software drivers.
It is recommended to copy desired drivers from the CD-ROM to the root directory of a blank formatted
floppy disk for software driver installation. NDIS comes in three parts, two device drivers (ADI PCI
NIC and CommAgent) and a Connection Manager (CM). NDISWAN comes with PPP driver.
Installing latest service pack
It is important to remember to install/reinstall latest service pack for Windows whenever you are adding
components to your system since older system files may be copied back to Windows during installation.
And after that you should reboot machine again.
NOTE: You may need the Microsoft Windows Operating System installation files (CAB files) to
complete the installation. The CAB files are contained in the Microsoft’s system CD. Some systems
may have already installed the CAB files to the hard drive, but you should have the Microsoft CD handy
just in case.
DW-8000P
Installation Guide
6
NDIS Driver Install for Windows 95/98
To install ADI PCI NIC device drivers for Windows 95/98:
1. Start Windows 95/98 on your computer with the DW-8000P board installed.

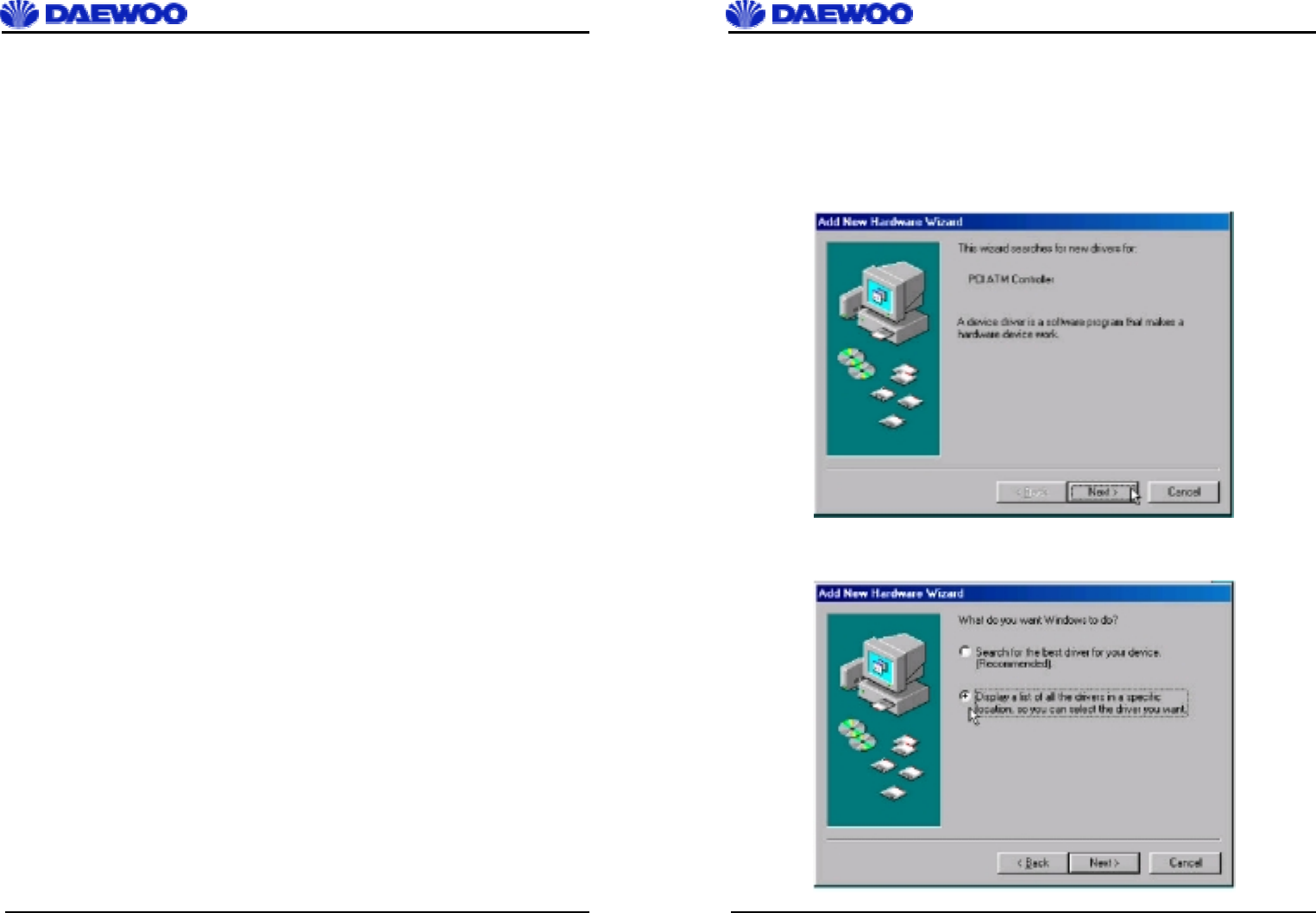

2. Windows 95/98 will open a window called “Add New Hardware Wizard” to indicate that it
found a “PCI ATM Controller” board.

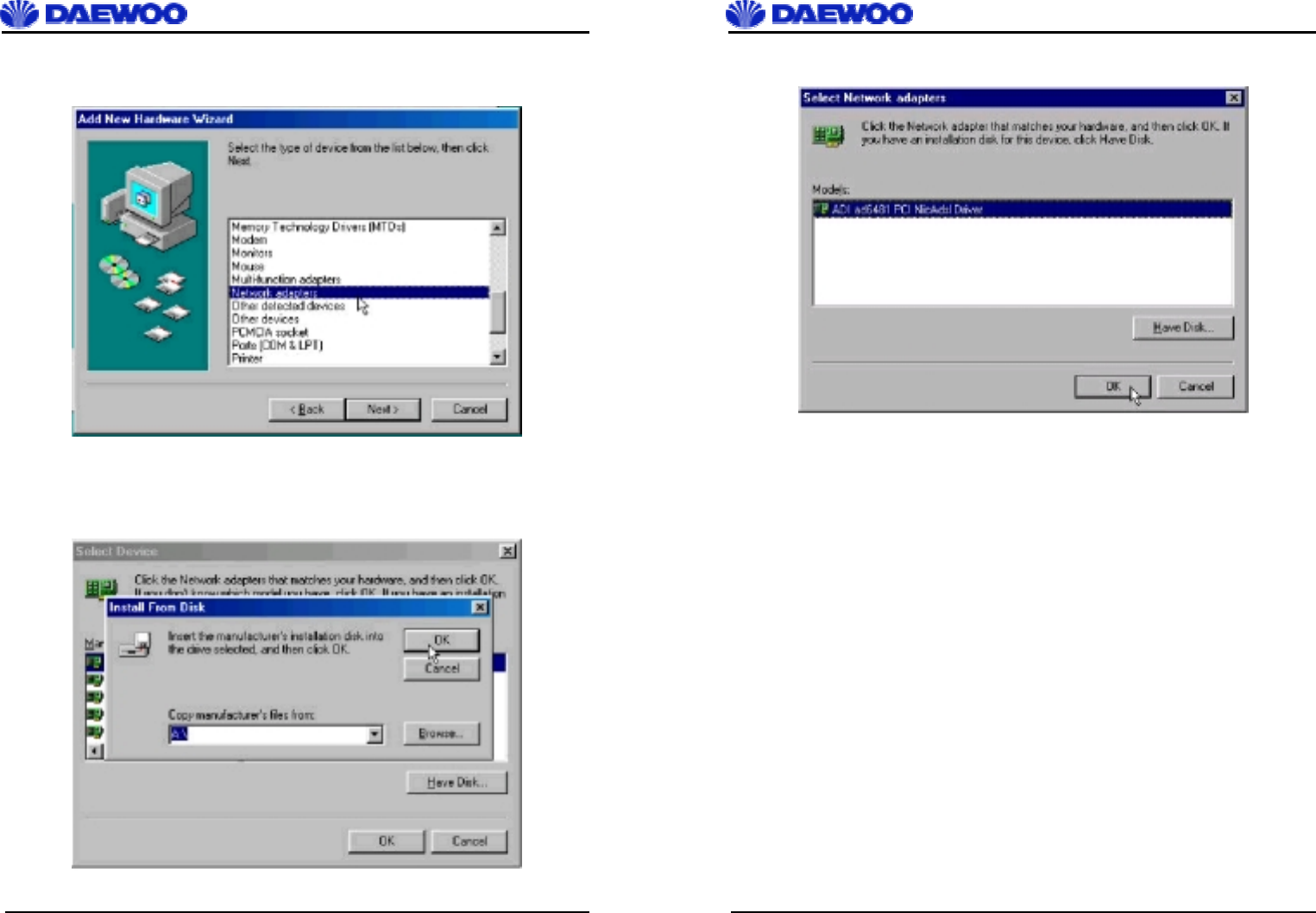

3. Click “Next” then select the bullet next to “Display a list of all the drivers….”
DW-8000P
Installation Guide
7
4. Click “Next” and select the device type as “Network adapters”.
5. Click “Next” then select “Have Disk”, Win95/98 will display the “Install From Disk”
window. At this time insert the floppy disk or CD-ROM, which contain the drivers and
“Browse” to the desired directory, then click “OK”.
DW-8000P
Installation Guide
8
6. New window will display the “ADI AD6481 PCI NIC ADSL NDIS Driver”.
7. You should see a “Copying Files” window.
8. Win95/98 has finished copying the driver.
9. You can set the IP configuration.
10. System reboot is required to have the board and the driver fully operational.
11. It is important to remember to install/reinstall latest service pack for Windows whenever you
are adding components to your system since older system files may be copied back to
Windows during installation. And after that you should reboot machine again.
DW-8000P
Installation Guide
9
NDIS Driver Install for Windows 2000
To install ADI PCI NIC device drivers for Windows 95/98:
1. Start Windows 2000 on your computer with the NIC board installed.
2. Windows 2000 will open a window called “Add New Hardware Wizard” to indicate that it
found a “PCI ATM Controller” board.
3. Click “Next” then select the bullet next to “Display a list of all the drivers….”
4. Click Next and select the device type as “Network adapters”.
5. Click “Next” then select “Have Disk”, Windows 2000 will display the “Install From Disk”
window. At this time insert the floppy disk or CD-ROM, which contain the drivers and
“Browse” to the desired directory, then click “OK”.
6. New window will display the ADI AD6481 PCI NIC ADSL driver.
7. You should see a “Copying Files” window.
8. Windows has finished copying the files
9. You can set the IP configuration.
10. System reboot is required to have the board and the driver fully operational.
DW-8000P
Installation Guide
10
NDIS Driver Install for Windows NT4
1. Copy desired driver from CD-ROM to floppy disk.
2. To install the drivers, follow the instructions below.
To install the drivers for Windows NT4:
1. Open the Control Panel via “Start->Settings->Control Panel”
2. Open the Network by double clicking on “Network” icon (shown below).
3. Display the Adapters menu by selecting “Adapters”.
4. Select “Add…” to begin installing the ADI PCI NIC PC driver.
5. Select “Have Disk…” and type the driver you inserted the CD (for example d:) followed by
the desired subdirectory name and press ENTER. For floppy installatioin, simply press
ENTER.
6. Select adapter “ADI NicAdsl PCI Ethernet Adapter” and press “OK”
7. Select protocol “RFC 1483 Bridged” and press “OK”
8. You should see “ADI NicAdsl PCI Ethernet Driver” in the Adapters menu. (See below.
What you see will differ depending on the equipment you have already installed in your
PC.)
DW-8000P
Installation Guide
11
9. You can set the IP configuration.
10. The driver installation is now almost completed. Click on “Close” for exit. You should see
various window messages.
11. It is important to remember to install/reinstall latest service pack for Windows whenever
you are adding components to your system since older system files may be copied back to
Windows during installation. And after that you should reboot machine again.
DW-8000P
Installation Guide
12

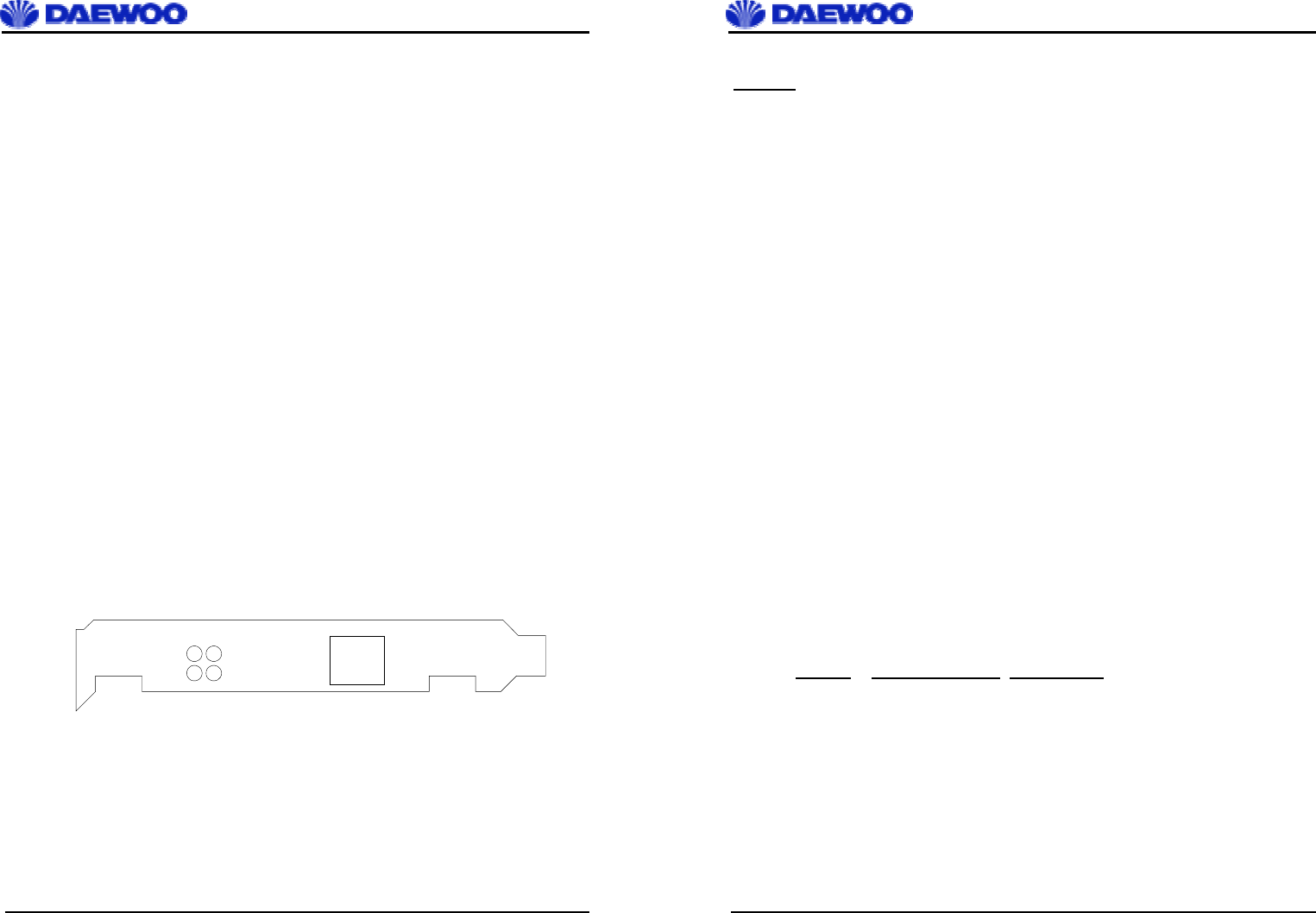

Appendix A - Connector Pinout
The DW-8000P card is equipped with a RJ-11 jack for connection to the ADSL
data port – identified by the ADSL installation. The center two pins, pins 3 and 4,
are used for ADSL data. For the DW-8000P card to make a proper ADSL
connection, the installed ADSL data port should also use pins 3 and 4 for data. If the
ADSL data port installation uses pins 2 and 5 for data, then a wiring converter will be required. Do not
alter or remove the wiring converter if present.
NOTE: Consult with your ADSL provider before attempting any wiring changes.
DW-8000P
Installation Guide
13
Appendix B - Trouble Shooting
Please use the following checklist to help debugging problems with your ADI PCI NIC product.
Determine if ADI PCI NIC driver is installed correctly.
Open the Network panel in the Control Panel. The ‘ADI PCI NIC PCI Adapter’ entry under the Adapter
tab should exist. This shows that ADI PCI NIC driver is correctly installed.
Determine if modem is trained.
On your ADI PCI NIC board, when LED “LINK” is blinking, it indicates that the modem is correctly
linked to the central office modem. If the modem is not trained, please retrain the modem by rebooting
the machine.
Determine if CRCs are occurring.
On your ADI PCI NIC board, when LED “CRC” is blinking, it indicates that CRCs are occurring over
the ADSL link. CRCs can cause a reduction in data flow. To remove CRCs, please retrain the modem
and check improvement.
Determine if data flow is occurring.
To determine if data flow is occurring, please execute the program Netstat.exe (e.g. ‘netstat –e’ to view
Ethernet statistics). If data flow is occurring, the values given by Netstat should be increasing every time
it is executed.
Determine if you MAC address is valid.
To determine your MAC address, please execute the program ipconfig.exe (e.g. ‘ipconfig /all). The
MAC address is located on the line ‘Physical Address’. For example:
Physical Address ………: 00-60-F9-01-02-03
Please report your MAC address to your network administrator or service provider to determine if it is
valid or not. No duplicated address is allowed for all systems in the same network.
Determine if your IP address is valid.
To determine your IP address, please execute the program ipconfig.exe (e.g. ‘ipconfig /all’). The IP
address is located on the line ‘IP address’. For example:
IP Address …………………: 196.168.0.2
Please report your IP address to your network administrator or service provider to determine if it is
valid or not.
DW-8000P
Installation Guide
14
Appendix C - Removing DW-8000P Drivers
Windows 95/98
1. To Delete DW-8000P drivers; on the desktop, right-click on My Computer, then select
Properties, then click on the Device Manager tab, then double click Network adapters.
2. Select the ADI AD6481 PCI NIC ADSL Driver, then click on the Remove button.
3. A warning message “You are about to remove this device from your system” will appear. Click
OK to remove drivers or click Cancel to abort the driver removal.
4. The PC system must be restarted for the changes to take effect. Click Yes.
Windows 2000
1. On the desktop; right-click on the Network neighborhood icon, then select Properties.
Right-click on the Local Area Connection icon, then select Properties.
2. Click the Configure in the Local Area Connection Properties.
3. Select Drivers tab in the ADI AD6481 PCI NIC ADSL Driver Properties, then click Remove.
4. Click Yes.
Windows NT4.0
NOTE: For driver removal, you need to logon as Administrator.
1. On the desktop; double click My Computer, double click Control Panel, double click the
Network icon and select the Adapters tab.
2. Select the ADI NIC ADSL PCI Ethernet Adapter, then click Remove.
3. A warning message will inform you that a component is about to be removed. Click Yes.
4. Once the ADI NIC ADSL PCI Ethernet Adapter is removed from the adapter list, click Close.
5. The PC system must be restarted for the changes to take effect. Click Yes.
