RedOctane 95905805 GH5 Wireless Guitar Controller for Xbox 360 User Manual Specification mode

RedOctane, Inc. GH5 Wireless Guitar Controller for Xbox 360 Specification mode

Contents

Specification mode

Controller Specification
GH5 Wireless Guitar Controller for Xbox 360
Activision part number: 95905.805
R2
Features
• 2.4GHz wireless technology with 30-foot range (10 meters)
• Multi-touch Neck Slider
• Improved surface finishes and effects
• Faceplates - Customize your controller with designs to match your personal style
• Detachable neck – Guitar packs down small when on tour (and for storage)
• Use up to four controllers simultaneously on one console
• Auto-sleep mode saves battery power
• Use the Xbox 360 Guide button to keep track of your friends, access your games and media, or power on and off
your Xbox 360 console
Package contents
• GH5 Wireless Guitar Controller for X360
• User Documentation
• Two AA alkaline batteries
• Adjustable strap
• Manufacturers warranty
Specification
Controls
Fret Buttons (cycle life) > 1,000,000
Fret Buttons Spec. (button feel etc..) 120g
Whammy Bar Potentiometer (cycle life) > 300,000
Whammy Bar Potentiometer (range and precision) 50° ± 10°
Whammy Bar Mechanical Assembly (cycle life) > 500,000
Strum Bar (button cycle life) > 1,000,000
Strum Bar Mechanical Assembly (cycle life) > 1,000,000
START & BACK buttons (cycle life) 100g @ > 1,000,000
Guide button & Dpad 120g @ > 1,000,000
Touch Sensitive Slider (Cycle Life) >1,000,000
Effects Pedal Expansion (optional – not released)
Functionality Digital Switch
Pedal (cycle life) > 1,000,000
Connector Type RJ-11
RJ-11 insertions/extraction (cycle life) > 5000
MOTION SENSING FEATURE
Accelerometer Spec. Freescale MMA 7318
BATTERY AA (LR6)
Sealed/User-Replaceable User-Replaceable
Format / Chemistry 2 x AA (LR6) Alkaline
Voltage / Capacity 1.5V / variable capacity
Charge Time N/A
Charge Mechanism N/A
Battery Life (10% voice duty cycle) 2 x AA 2500mAh
Alkaline ~50hrs (no rumble) calculated figure
Battery Life (25% voice duty cycle) 2 x AA 2500mAh
Alkaline ~43hrs (no rumble) calculated figure
Battery Life (10% voice duty cycle) 2 x AA 2850mAh
Alkaline* ~57hrs (no rumble) calculated figure
Battery Life (25% voice duty cycle) 2 x AA 2850mAh
Alkaline* ~49hrs (no rumble) calculated figure
Operable while charging? N/A
Electrical
Wireless Protocol Microsoft proprietary
Number of Guitars supported simultaneously on Xbox 360 4pcs
Wireless Signal Range 30 feet (10 meters)
System of addressing multiple Guitars RoL LEDs on Guitar
Specific countries Guitars are distributed to Global
Vibration feedback Not supported
Paper Parts
Ratings sticker (1C) 64*34mm
Quick Start Poster (4C) 390*552mm
Insert (Instruction Manual (4C) 360*520mm
Packaging
For initial shipments - Individual guitars in white
boxes
White Box Board Spec. (weight and finish etc) K9A, brown box
Inner Tray Board Spec. (weight and finish etc) Recycled Pulp tray
Switch to printed boxes once the artwork is approved
Printed Box Board Spec. (weight and finish etc) TBC
Print Spec. (process, finish etc) TBC
Units per master carton 6pcs
Master carton spec. 32 lb crush, 200lb burst
Incoming label requirements Master carton to be printed on 4 sides - RO to approve
artwork provided by CM’s
Giftbox / Shipping information
Giftbox dimensions 575mm X 350mm X 65mm
Giftbox volume 0.0130812 cbm
Master carton dimensions 600mm x 418mm x 390mm
Master carton volume 0.097812 cbm
Number of inner cartons to a master carton 6pcs
Number of units to a HQ container 4,488pcs
Function Mapping (key assignments)
Game Function Xbox 360 Standard Controller Guitar
Game Dependent Right Trigger Body Accelerometer Axis
Game Dependent Left Trigger Neck Accelerometer Axis
Not Used Left Stick Left/Right Not Used
Not Used Left Stick Up/Down Not Used
Game Dependent Right Stick Left/Right Whammy Bar (-32Kextended)
Game Dependent Right Stick Up/Down Y Rotation (+32K neck up)
Accelerometer
Game Dependent / Menu Navigation Directional Pad Up Strum / D-pad Up
Game Dependent / Menu Navigation Directional Pad Down Strum / D-pad Down
Game Dependent / Menu Navigation Directional Pad Left D-pad Left
Game Dependent / Menu Navigation Directional Pad Right D-pad Right
Game Dependent A Button 1st Neck Button
Game Dependent B Button 2nd Neck Button
Game Dependent Y Button 3rd Neck Button
Game Dependent X Button 4th Neck Button
Game Dependent Left Bumper 5th Neck Button
Game Dependent Right Bumper Foot Switch
Not Used Left Stick Button Not Used
Not Used Right Stick Button Not Used
Pause / Wakes controller from USB
Suspend to signal USB Remote Wake
Up.
START Button START Button
Back BACK Button BACK Button
Opens Xbox 360 Console’s on screen
menu. Wakes controller from USB
Suspend to signal USB Remote Wake
Up.
Xbox Guide Button Xbox Guide Button*
Player 1 / Status Indicator Ring of Light Quadrant 1 LED Ring of Light Quadrant 1 LED
Player 2 / Status Indicator Ring of Light Quadrant 2 LED Ring of Light Quadrant 2 LED
Player 3 / Status Indicator Ring of Light Quadrant 3 LED Ring of Light Quadrant 3 LED
Player 4 / Status Indicator Ring of Light Quadrant 4 LED Ring of Light Quadrant 4 LED
QA Focus:
• Fret buttons - ‘Sticking’ so they do not reset fast enough
• Strum Bar – False and double triggers. ‘Squeaking’ noise during use
• Whammy bar – ‘Squeaking’ noise during use
• Neck connection – Solid mechanical and electrical connection
• Star Power activation (accelerometer method) – Trigger occurs at the correct angle
QA secondary items:
• Faceplate – Colors and placement are within agreed limits
• Pad-Printing – Color and placement accuracy
• Pack out – Inclusion of all components
• Plastics – weld-lines and sink marks are within agreed limits.

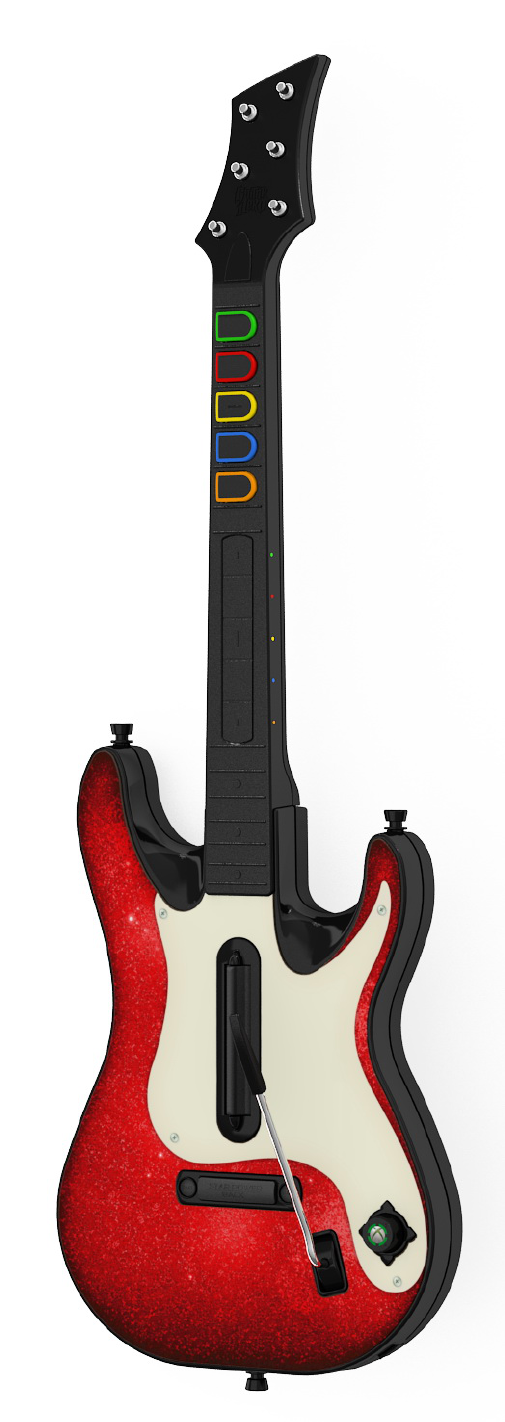

Render of final hardware
