Redwood Interactive RPSWG-D Redgear Pro series wireless gamepad User Manual

Redwood Interactive Redgear Pro series wireless gamepad

User Manual

XIJ-25364 2.4G Wireless Game Controllers Users Manual
1. Product information

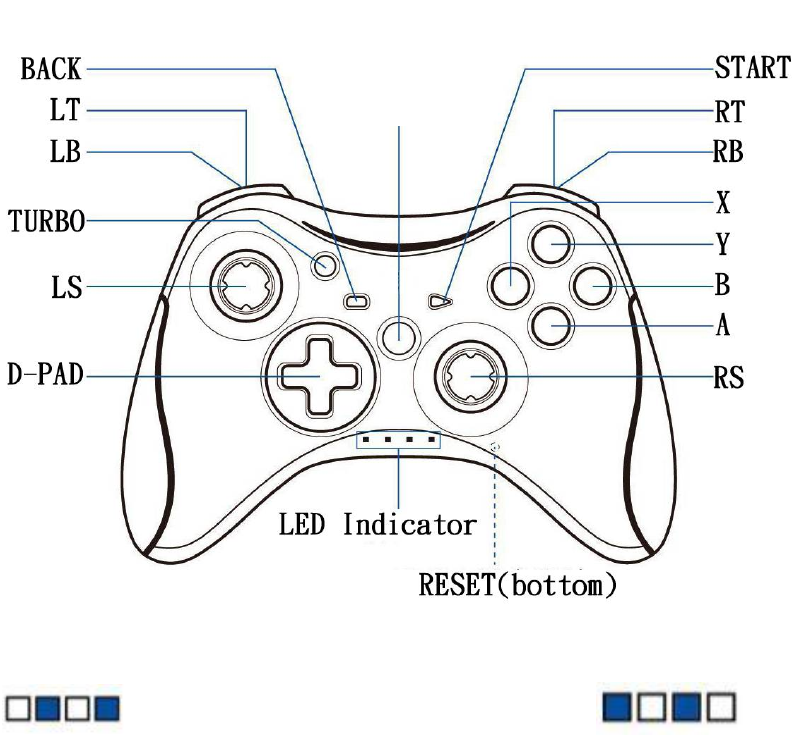

Key Function
Mode and LED Indicator
Xinput Directinput
2. Applicable Description
(1) Application and Connection
PCWindows XP/7/8/8.1/10
(2) Driver Description
PCNo need driver on Xinput mode except Windows XP , plug and play; If you need to open the
vibration mode in DirectInput, need to install driver.
HOME
3.Operating Instructions
Operating menu
First connecting
(1) Plug the receiver into the device, and open the device, the device will identify the receiver
(2) Press HOME to start the gamepad
(3) 4 LED Indicator flash , gamepad is pairing with the wireless receiver automatically
(4) When the pairing is successful ,Will be one of the three Xinput , Directinput mode
(NoteIf the pairing is unsuccessful, unplug the wireless receiver , turn off the gamepad and Repeat
the above steps)
Automatic reconnect
gamepad is turned off under normal connection, but the wireless receiver is still working properly , Press
HOME key to start the gamepad to quick connect automatically

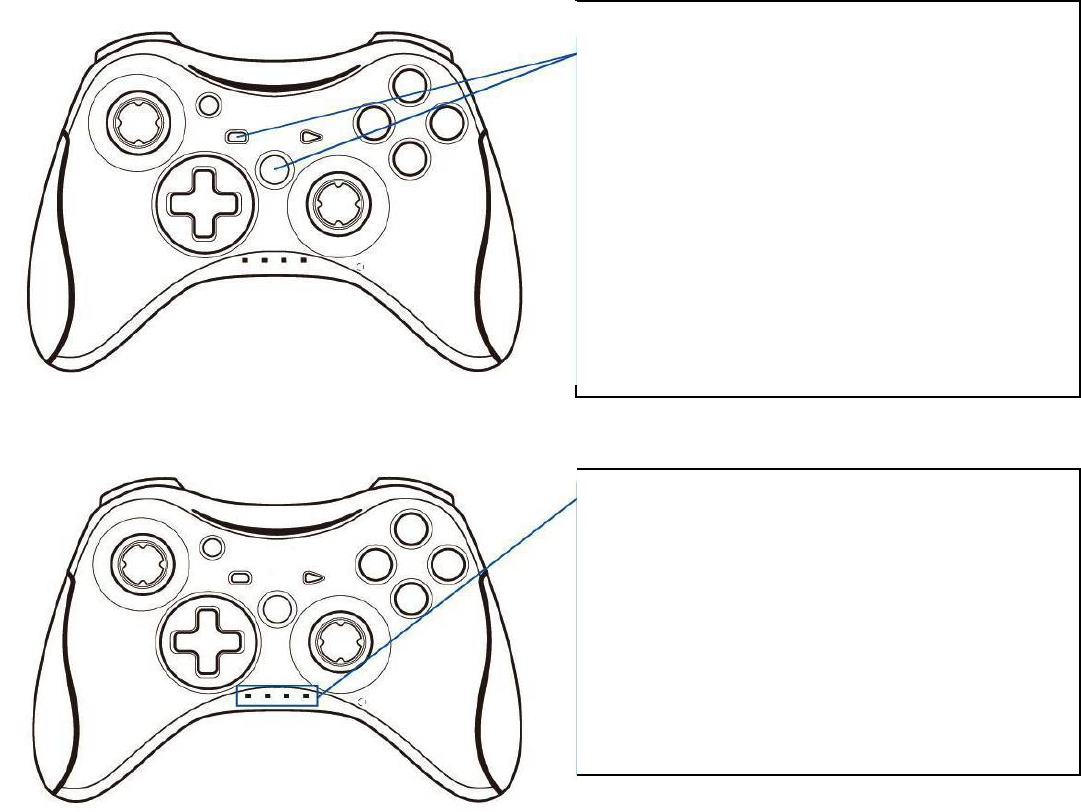

Charge Indicator
(1)No batteryLED indicator and ABXY backlight
are OFF
(2)Low batterythe lights flashing
(3)Chargingthe LED indicator flashes slowly
(4)FullIf the gamepad in sleep mode ,the indicator
will be off, In operation, the indicator shows
the current mode
Power ON/OFF/sleep mode
(1) Power on : (Press HOME to start gamepad.)
(2) Power off: (Press "BACK"+"B" 5 seconds, the
LED Indicator and ABXY back light turn off , the
gamepad shutdown)
(3) Sleep mode:(Wait for more than 5 minutes for no
activate , light OFF, The gamepad is turned off)

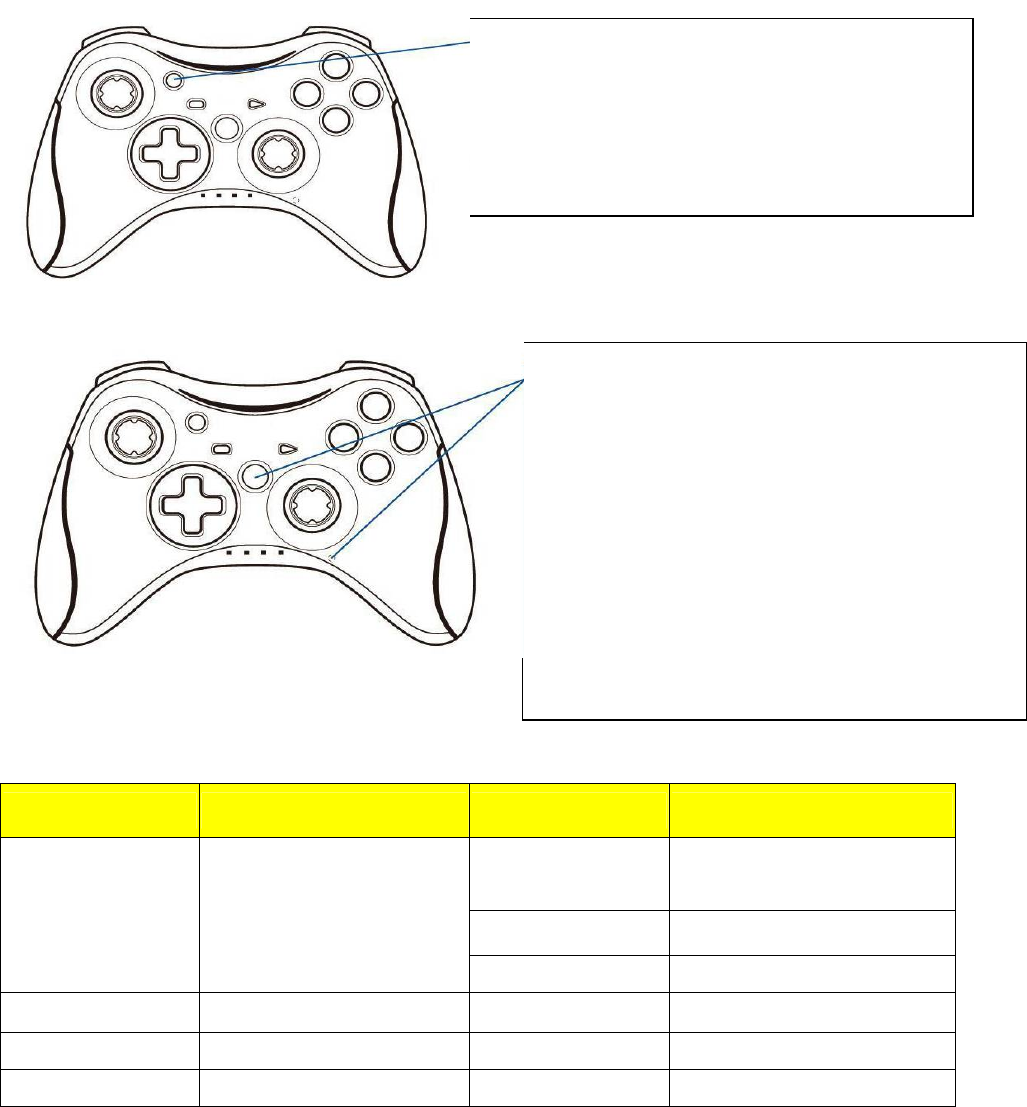

Mode switch
Hold the HOME key about 5 seconds, to switch the
mode between Xinput, DirectInput
Specification
Product Name wireless 2.4G Gamepad
Product Type XIJ-25364
Operating
Temperature -20 ~ + 65
Humidity 20 ~ 80%
Application PC(Windows XP/7/8)
Operating Mode
Xinput/DirectInput
Charging voltage
3.7~5V Charging current
1A~2A
Charging duration
3~6h working Current
Last 150mA
Size 155x110x60mm Product weight 205g
Suggestion: Based on the characters of Li-ion battery, please charge the battery at least
once every 6 months to achieve the maximum battery life span.
NOTE:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating
instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The portable device is designed to meet the requirements for
exposure to radio waves established by the Federal Communications
Commission (USA). These requirements set a SAR limit of 1.6 W/kg
averaged over one gram of tissue. The highest SAR value reported under
this standard during product certification for use when properly worn on the body
Bursts
Press and hold the "TURBO" while pressing the
button you want to bursts, such as: "TURBO"+"A",
then A key feature is enabled bursts. to repeat above
steps to cancel the bursts.
JD-Switch Function
(Press the BACK + LS(left stick), the function of
D-pad and LS stick will be exchanged
Reset gamepad
When an exception occurs gamepad, such as Keys
disorder, or crash, Unable to connect. Try to restart
the devicegamepad or select Reset gamepad
Reset modeInsert into the hole on the back of
gamepad with sharp article, Press the RESET button
to reset the gamepad
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
* RF warning for Portable device:
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable
exposure condition without restriction.
