XIJ-25364 2.4G Wireless Game Controllers User’s Manual
1. Product information

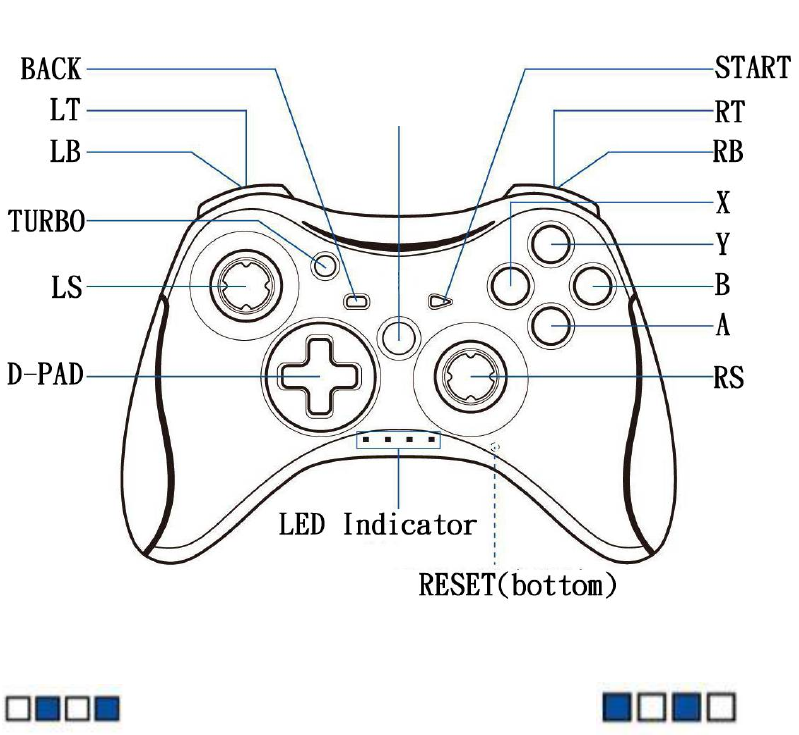

Key Function
Mode and LED Indicator
Xinput： Directinput
2. Applicable Description
(1) Application and Connection
PC：Windows XP/7/8/8.1/10
(2) Driver Description
PC：No need driver on Xinput mode except Windows XP , plug and play; If you need to open the
vibration mode in DirectInput, need to install driver.
HOME
3.Operating Instructions
Operating menu
First connecting

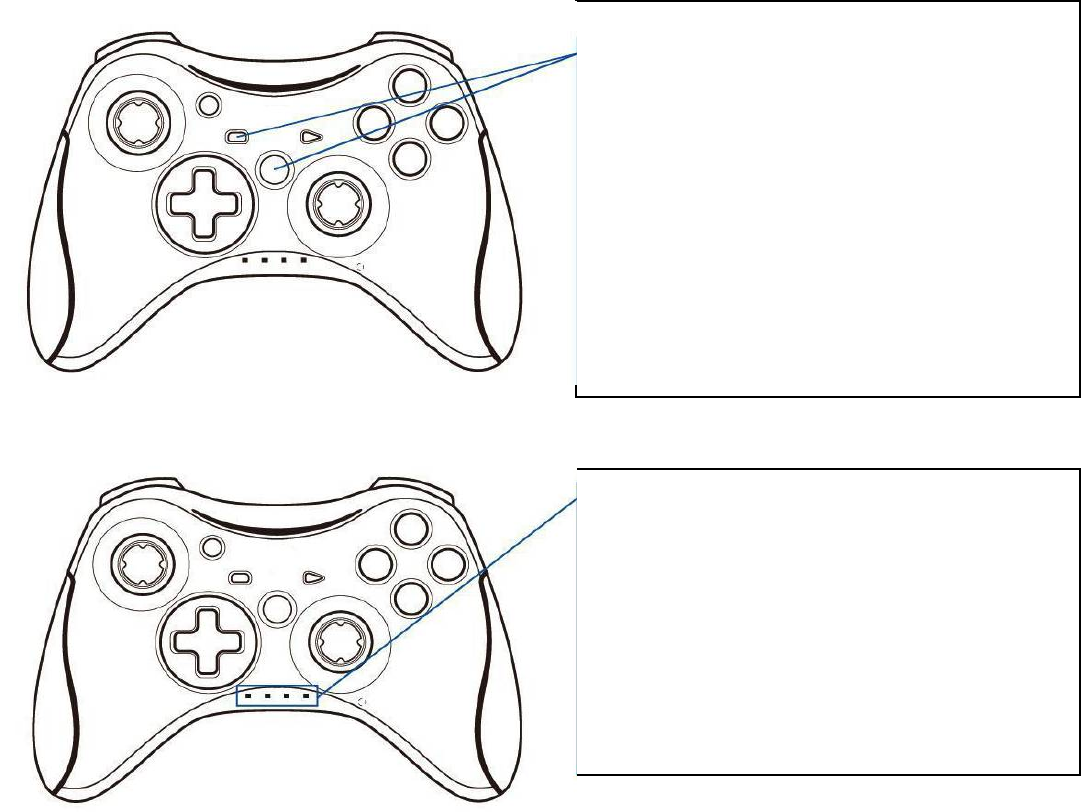

(1) Plug the receiver into the device, and open the device, the device will identify the receiver
(2) Press HOME to start the gamepad
(3) 4 LED Indicator flash , gamepad is pairing with the wireless receiver automatically
(4) When the pairing is successful ,Will be one of the three Xinput , Directinput mode
(Note：If the pairing is unsuccessful, unplug the wireless receiver , turn off the gamepad and Repeat
the above steps)
Automatic reconnect
gamepad is turned off under normal connection, but the wireless receiver is still working properly , Press
HOME key to start the gamepad to quick connect automatically
Charge Indicator
(1)No battery：LED indicator and ABXY backlight
are OFF
(2)Low battery：the lights flashing
(3)Charging：the LED indicator flashes slowly
(4)Full：If the gamepad in sleep mode ,the indicator
will be off, In operation, the indicator shows
the current mode
Power ON/OFF/sleep mode
(1) Power on : (Press HOME to start gamepad.)
(2) Power off: (Press "BACK"+"B" 5 seconds, the
LED Indicator and ABXY back light turn off , the
gamepad shutdown)
(3) Sleep mode:(Wait for more than 5 minutes for no
activate , light OFF, The gamepad is turned off)

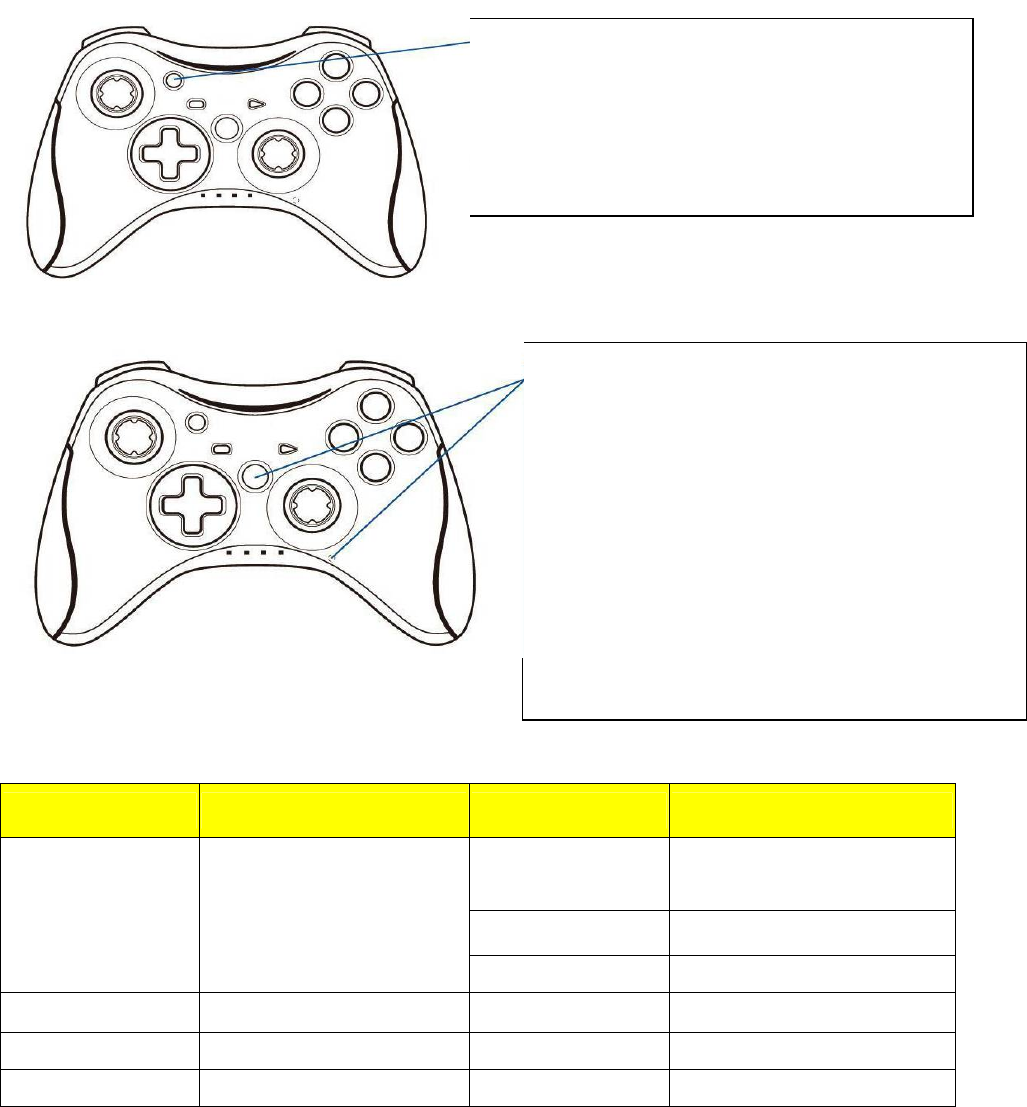

Mode switch
Hold the HOME key about 5 seconds, to switch the
mode between Xinput, DirectInput
Specification
Product Name wireless 2.4G Gamepad
Product Type XIJ-25364
Operating
Temperature -20 ℃ ~ + 65 ℃
Humidity 20 ~ 80%
Application PC(Windows XP/7/8)
Operating Mode
Xinput/DirectInput
Charging voltage
3.7~5V Charging current
1A~2A
Charging duration
3~6h working Current
Last 150mA
Size 155x110x60mm Product weight 205g
Suggestion: Based on the characters of Li-ion battery, please charge the battery at least
once every 6 months to achieve the maximum battery life span.
NOTE:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating
instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The portable device is designed to meet the requirements for
exposure to radio waves established by the Federal Communications
Commission (USA). These requirements set a SAR limit of 1.6 W/kg
averaged over one gram of tissue. The highest SAR value reported under
this standard during product certification for use when properly worn on the body
Bursts
Press and hold the "TURBO" while pressing the
button you want to bursts, such as: "TURBO"+"A",
then A key feature is enabled bursts. to repeat above
steps to cancel the bursts.
JD-Switch Function
(Press the BACK + LS(left stick), the function of
D-pad and LS stick will be exchanged
Reset gamepad
When an exception occurs gamepad, such as Keys
disorder, or crash, Unable to connect. Try to restart
the device、gamepad or select Reset gamepad
Reset mode：Insert into the hole on the back of
gamepad with sharp article, Press the RESET button
to reset the gamepad
