CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Serial Number

Decal (under frame)

Model No. RBEX13010.0

Serial No.

Write the serial number in the

space above for reference.

USER'S MANUAL

QUESTIONS?

If you have questions, or if parts are

damaged or missing, DO NOT

CONTACT THE STORE; please

contact Customer Care.

IMPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer Care.

CALL TOLL-FREE:

1-877-994-4999

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.reebokservice.com

www.reebokfitness.com

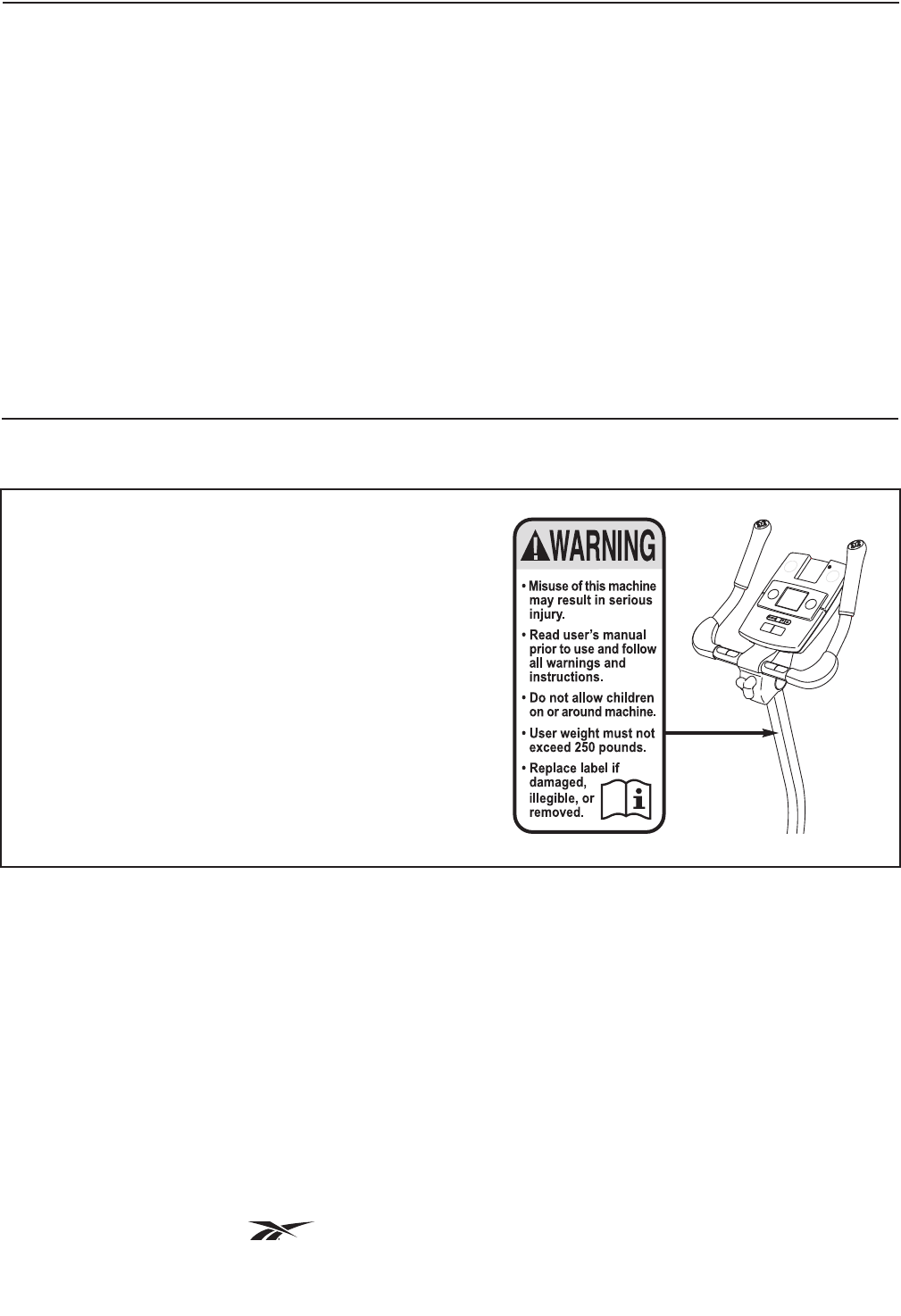

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a

free replacement decal. Apply the decal in the

location shown. Note: The decal(s) may not be

shown at actual size.

TABLE OF CONTENTS

WARNINGDECALPLACEMENT ..............................................................2

IMPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................4

ASSEMBLY ...............................................................................5

HOWTOUSETHEEXERCISEBIKE .........................................................10

FCCINFORMATION.......................................................................18

MAINTENANCEANDTROUBLESHOOTING ...................................................19

EXERCISEGUIDELINES ...................................................................21

PARTLIST ..............................................................................22

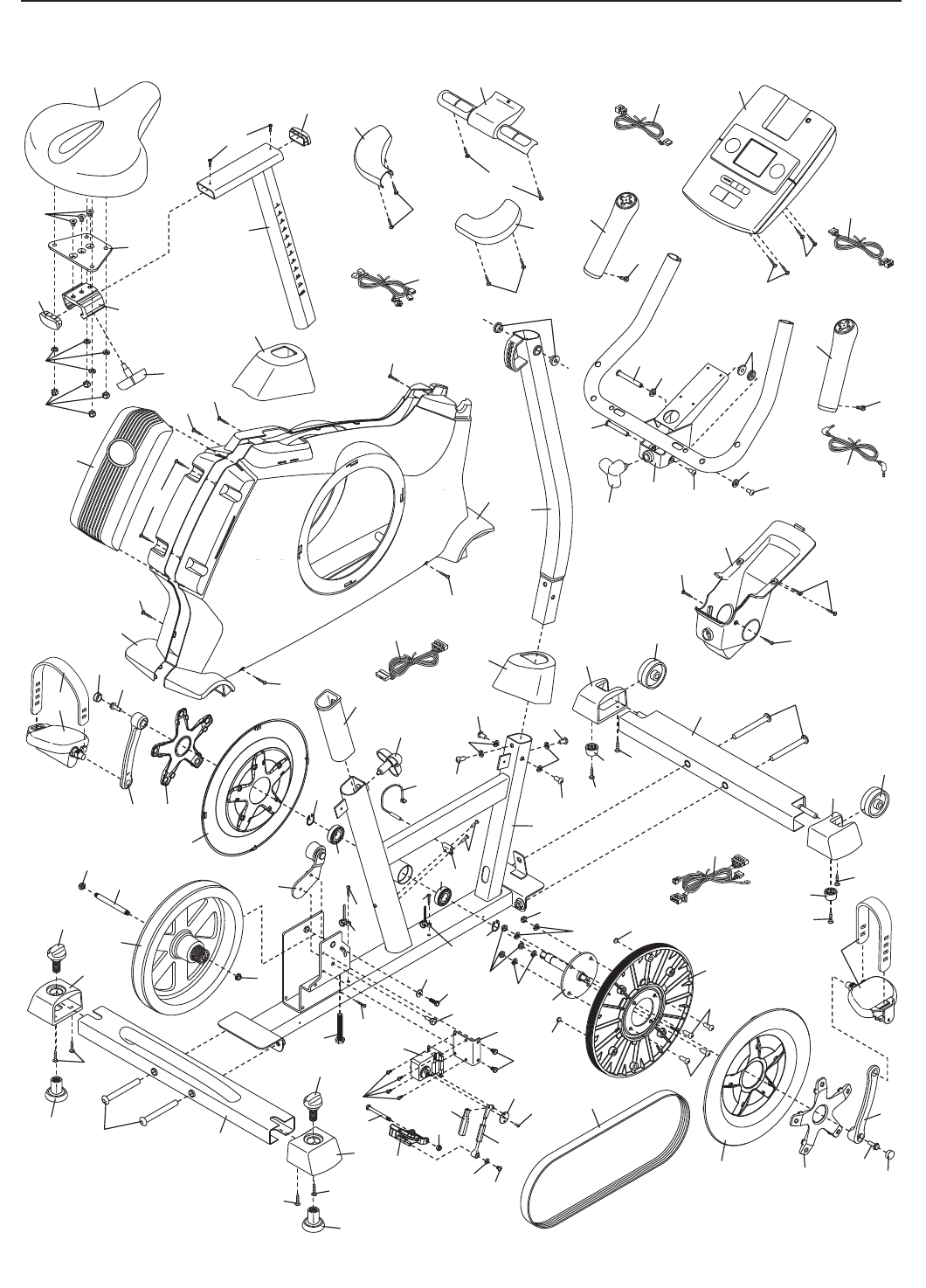

EXPLODEDDRAWING ....................................................................23

ORDERINGREPLACEMENTPARTS ..................................................BackCover

LIMITEDWARRANTY ..............................................................BackCover

REEBOK and the Vector Logo are registered trademarks and service marks of Reebok. This product is

manufactured and distributed under license from Reebok International.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your exercise bike before using your exercise bike.

ICON assumes no responsibility for personal injury or property damage sustained by or through the

use of this product.

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

2. Use the exercise bike only as described in

this manual.

3. It is the responsibility of the owner to ensure

that all users of the exercise bike are ade-

quately informed of all precautions.

4. The exercise bike is intended for home use

only. Do not use the exercise bike in a com-

mercial, rental, or institutional setting.

5. Keep the exercise bike indoors, away from

moisture and dust. Do not put the exercise

bike in a garage or covered patio, or near

water.

6. Place the exercise bike on a level surface

with at least 2 ft. (0.6 m) of clearance around

the exercise bike. To protect the floor or

carpet from damage, place a mat under the

exercise bike.

7. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

8. Keep children under age 12 and pets away

from the exercise bike at all times.

9. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the exercise bike. Always wear

athletic shoes for foot protection.

10. The exercise bike should not be used by

persons weighing more than 250 lbs.

(113 kg).

11. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

12. Always keep your back straight while using

the exercise bike; do not arch your back.

13. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

IMPORTANT PRECAUTIONS

Thank you for selecting the new REEBOK®TRAINER

RX 2.0 exercise bike. Cycling is an effective exercise

for increasing cardiovascular fitness, building

endurance, and toning the body. The TRAINER RX

2.0 exercise bike provides an impressive selection of

features designed to make your workouts at home

more effective and enjoyable.

For your benefit, read this manual carefully before

you use the exercise bike. If you have questions

after reading this manual, please see the front cover

of this manual. To help us assist you, note the product

model number and serial number before contacting

us. The model number and the location of the serial

number decal are shown on the front cover of this

manual.

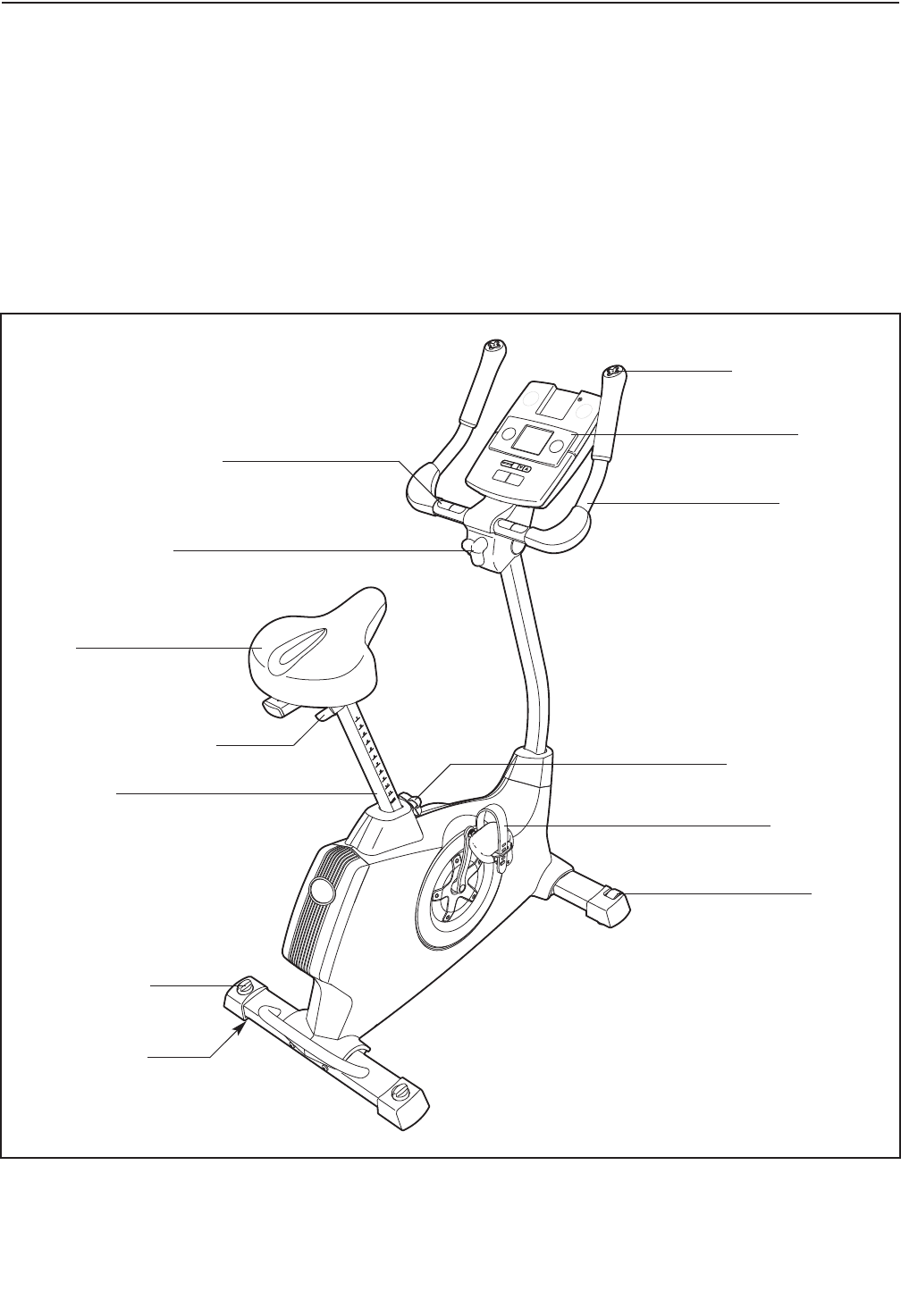

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handgrip Pulse Sensor

Seat

Seat Post

Seat Adjustment Knob

Leveling Foot

Leveling Knob

Wheel

Pedal/Strap

Console

Handlebar

Adjustment Knob

BEFORE YOU BEGIN

Game Controller

M10 x 95mm Patch

Screw (76)–4

M8 x 20mm

Patch Screw (74)–4

M6 x 60mm Bolt Set (51)–1

M4 x 16mm

Screw (90)–8

M4 x 5mm

Bright Screw

(91)–1

M8 Split

Washer (75)–8 M8 Washer

(43)–2

M8 Locknut

(72)–4

M6 x 70mm Bolt Set (50)–1

ASSEMBLY

To hire an authorized service technician to assemble the exercise bike, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing

materials. Do not dispose of the packing materials until assembly is completed.

In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable

wrench , and a rubber mallet .

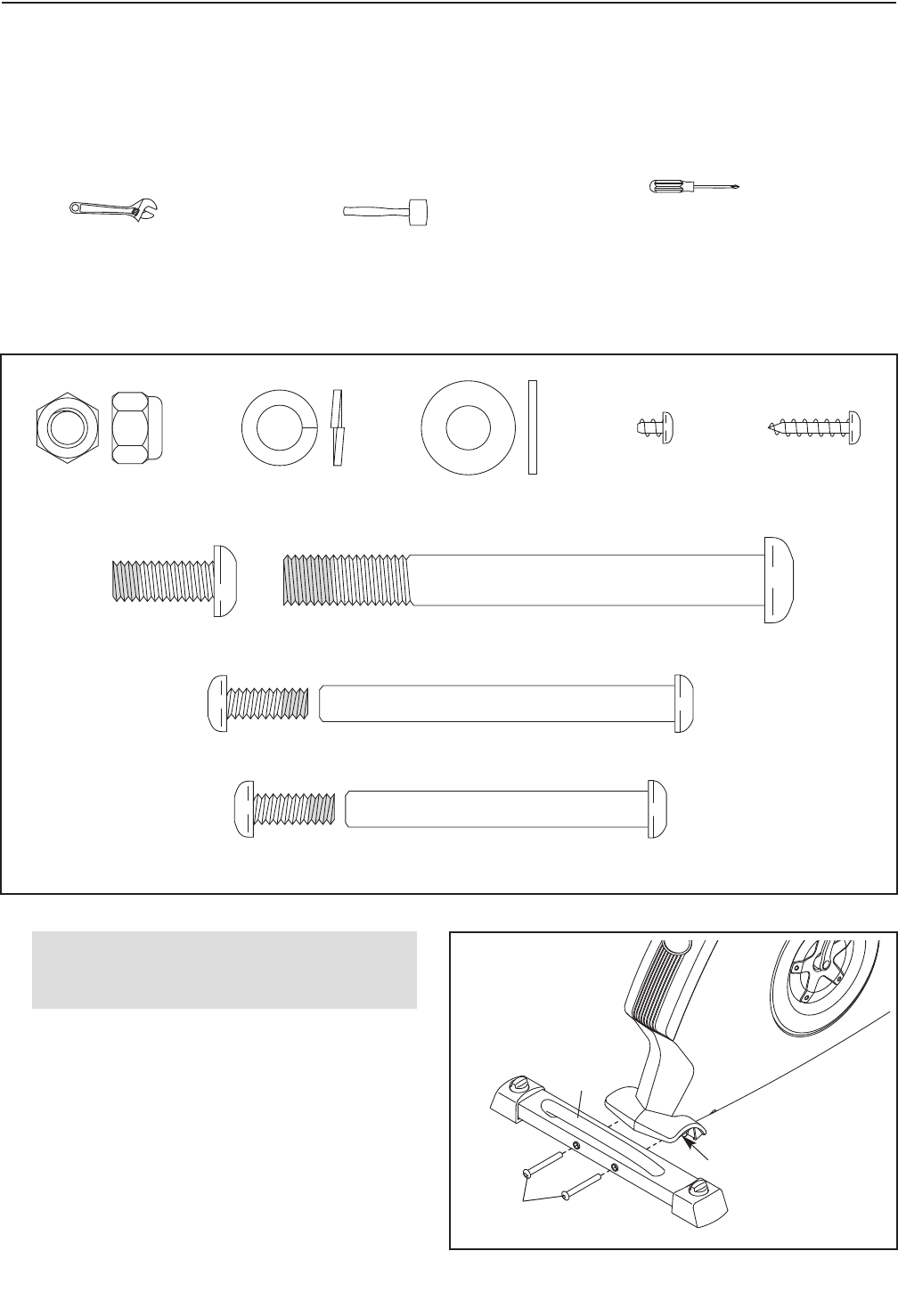

See the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following

the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if

it has been preassembled. To avoid damaging parts, do not use power tools for assembly.

Attach the Rear Stabilizer (3) to the Frame (1)

with two M10 x 95mm Patch Screws (76).

To make assembly easier, read the

information above before you begin.

Adjustment

Holes

91 6

3. Loosen the Adjustment Knob (27) in the Frame

(1) a few turns.

Orient the Seat Post (6) as shown. Then, pull

the Adjustment Knob (27) outward and insert

the Seat Post into the Frame (1). Slide the Seat

Post upward or downward to the desired posi-

tion, and release the Adjustment Knob.

Move the Seat Post (6) upward or downward

slightly to make sure that the Adjustment

Knob (27) is engaged in one of the adjust-

ment holes in the Seat Post. Then, tighten the

Adjustment Knob.

4. Orient the Seat (23) and the Seat Carriage (24)

as shown.

Attach the Seat (23) to the Seat Carriage (24)

with four M8 Locknuts (72) and four M8 Split

Washers (75).

Next, slide the Seat Carriage (24) onto the Seat

Post (6). Slide the Seat Carriage all the way for-

ward, and tighten the Seat Adjustment Knob

(26).

Then, tighten an M4 x 5mm Bright Screw (91)

into the rear of the Seat Post (6).

2. Attach the Front Stabilizer (2) to the Frame (1)

with two M10 x 95mm Patch Screws (76). 2

276

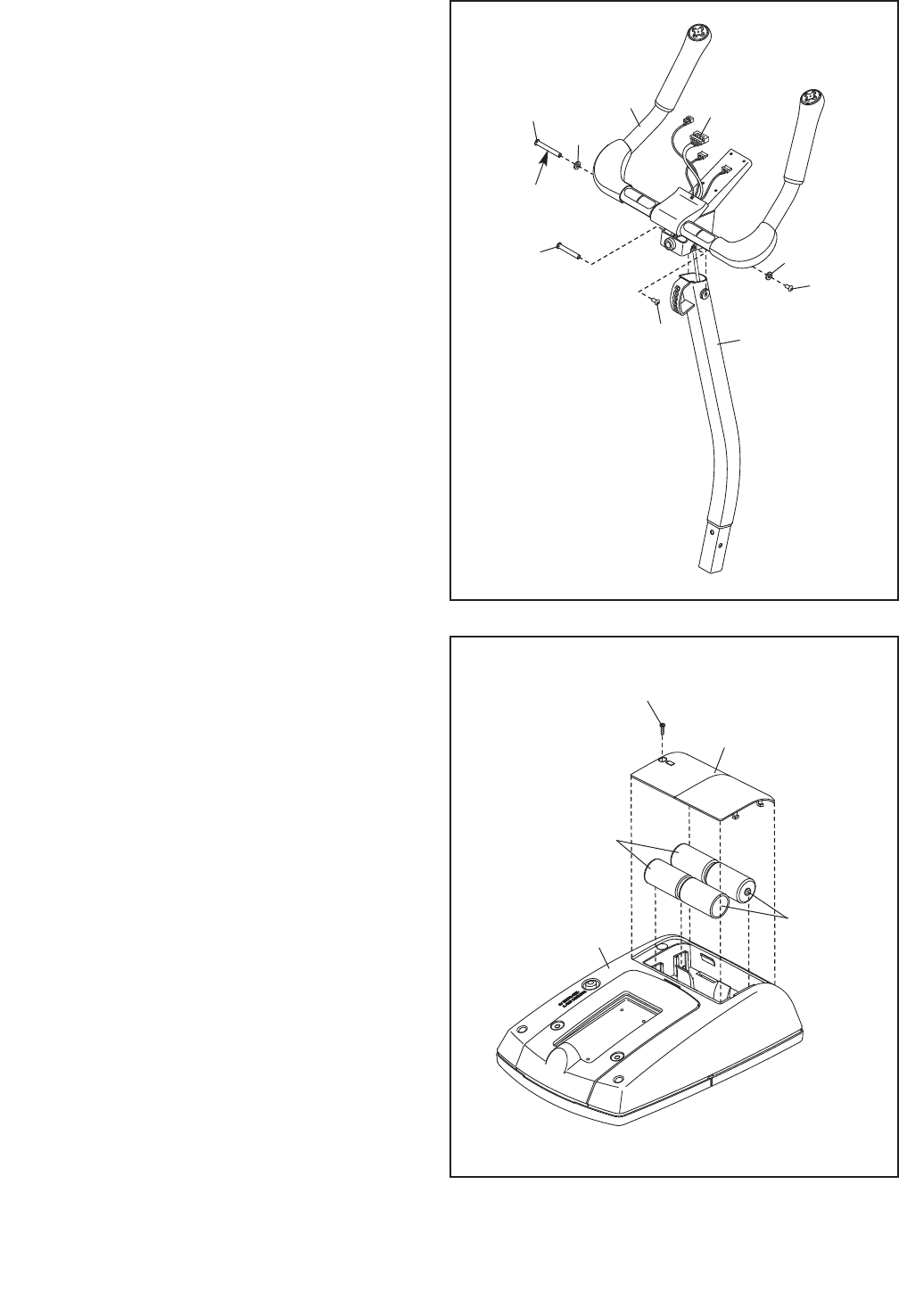

5. Apply some of the included grease to an M6 x

70mm Bolt Set (50).

Orient the Handlebar (5) and the Upright (4) as

shown.

While a second person holds the Handlebar (5)

near the Upright (4), insert the Extension Wire

(59) upward through the Handlebar.

Tip: Avoid pinching the Extension Wire (59).

Attach the Handlebar (5) to the Upright (4) with

the M6 x 70mm Bolt Set (50) and two M8

Washers (43).

Then, attach an M6 x 60mm Bolt Set (51)

through the lower bracket on the Handlebar (5).

Grease

Avoid pinching the

Extension Wire (59)

6. The Console (13) can use four D batteries (not

included); alkaline batteries are recommended.

IMPORTANT: If the Console has been

exposed to cold temperatures, allow it to

warm to room temperature before inserting

batteries. Otherwise, you may damage the

console displays or other electronic compo-

nents. Remove the indicated screw, remove the

battery cover and insert the batteries into the

battery compartment. Make sure to orient the

batteries as shown by the diagrams inside

the battery compartment. Then, reattach the

battery cover.

To purchase an optional power adapter, call

the telephone number on the front cover of

this manual. To avoid damaging the console,

use only a manufacturer-supplied power

adapter. Plug one end of the power adapter

into the jack on the console; plug the other end

into an outlet installed in accordance with all

local codes and ordinances.

Batteries

Screw

Battery

Cover

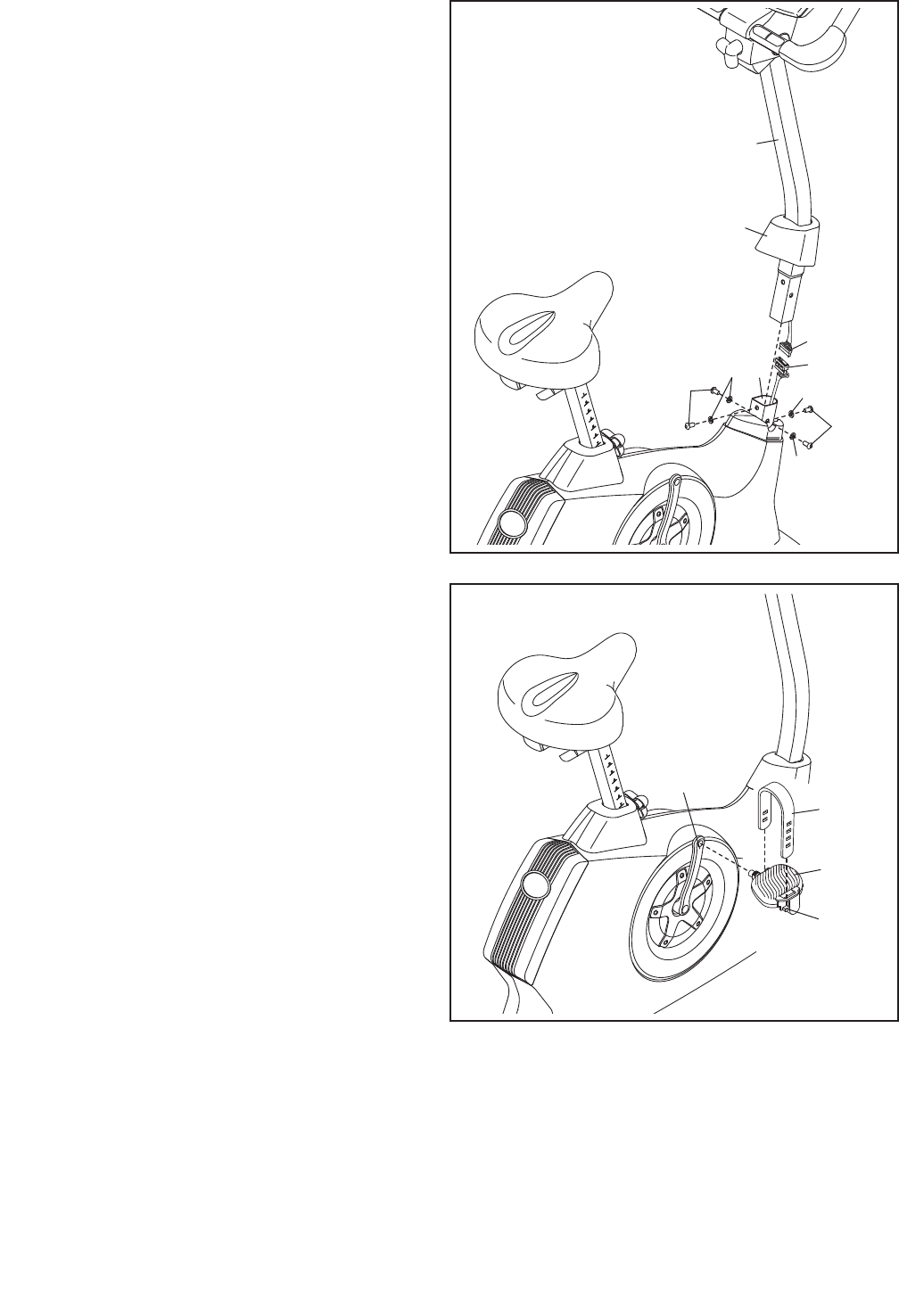

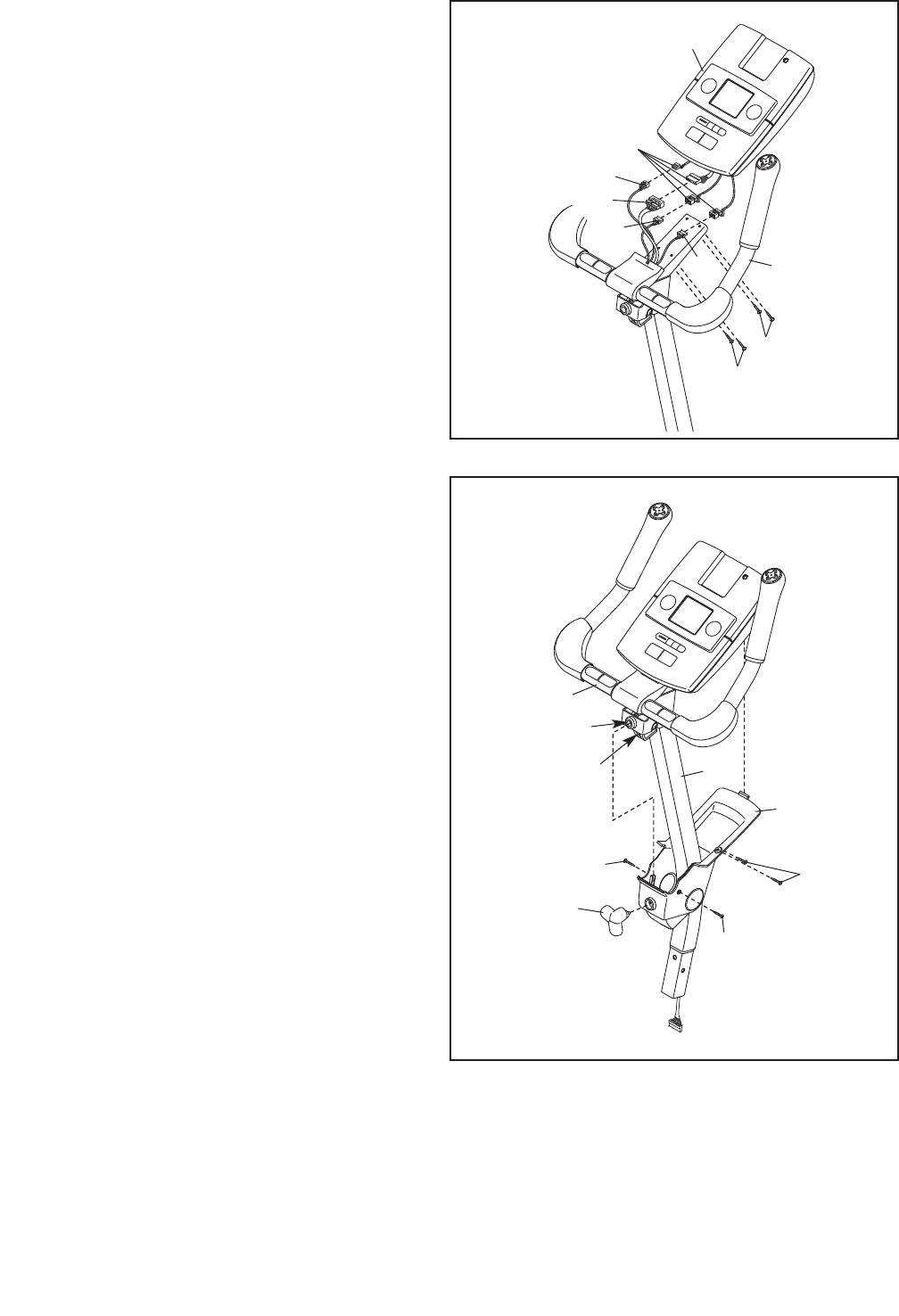

8. Orient the Upright (4) assembly and the Pivot

Cover (12) as shown.

Slide the Pivot Cover (12) upward to the

Handlebar (5). Tip: Bend and flex the Pivot

Cover slightly to slide it over the Handlebar.

Attach the Pivot Cover (12) to the Handlebar (5)

with four M4 x 16mm Screws (90).

Next, pivot the Handlebar (5) until the hole in

the Handlebar is aligned with an adjustment

hole in the Upright (4).

Tighten an Adjustment Knob (27) into the

Handlebar (5) and into an adjustment hole in

the Upright (4). Make sure that the

Adjustment Knob is engaged in one of the

adjustment holes.

Hole

Adjustment

Holes

7. While another person holds the Console (13)

near the Handlebar (5), connect the console

wires to the Extension Wire (59), the Pulse Wire

(61), the Left Controller Wire (66), and the Right

Controller Wire (67). Look at the tags on the

wires and make sure that the Left and Right

Controller Wires are connected to the cor-

rect wires on the console.

Insert the excess wire downward into the

Handlebar (5) or upward into the Console (13).

Tip: Avoid pinching the wires. Attach the

Console (13) to the Handlebar (5) with four M4

x 16mm Screws (90).

Avoid pinching

the wires

Console

Wires

67 5

9. Slide the Front Shield Cover (7) upward onto

the Upright (4).

While another person holds the Upright (4) near

the Frame (1), connect the Extension Wire (59)

to the Wire Harness (58).

Insert the Upright (4) into the Frame (1).

Tip: Avoid pinching the wires. Attach the

Upright (4) with four M8 x 20mm Patch Screws

(74) and four M8 Split Washers (75).

Then, slide the Front Shield Cover (7) down-

ward to the Frame (1) and press it into place.

Avoid pinching

the wires

10. Identify the Right Pedal (21), which is marked

with an “R.”

Using an adjustable wrench, firmly tighten the

Right Pedal (21) clockwise into the Right

Crank Arm (19).

Tighten the Left Pedal (not shown) counter-

clockwise into the Left Crank Arm (not shown).

Adjust the strap on the Right Pedal (21) to the

desired position, and press the ends of the

straps onto the tabs on the Right Pedal. Adjust

the strap on the Left Pedal (not shown) in

the same way.

Strap

Tab

11. Make sure that all parts are properly tightened before you use the exercise bike. Note: Some hard-

ware may be left over after assembly is completed. Place a mat under the exercise bike to protect the

floor or carpet.

HOW TO ADJUST THE HEIGHT OF THE SEAT

For effective exercise, the seat should be at the

proper height. As you pedal, there should be a slight

bend in your knees when the pedals are in the lowest

position.

To adjust the

seat, first loosen

the adjustment

knob a few turns.

Next, pull the

knob outward,

slide the seat

post upward or

downward to the

desired position,

and then release

the knob. Move

the seat post

upward or

downward

slightly to make

sure that the

knob is engaged in one of the adjustment holes in

the seat post. Then, tighten the knob.

HOW TO ADJUST THE LATERAL POSITION OF

THE SEAT

To adjust the lat-

eral position of

the seat, first

loosen the seat

adjustment knob

a few turns.

Then, move the

seat forward or

backward to the

desired position,

and firmly tighten

the knob.

HOW TO ADJUST THE PEDAL STRAPS

To loosen the

pedal straps, pull

the straps

upward. To

tighten the pedal

staps, adjust the

straps to the

desired position,

and press the

ends of the straps

onto the tabs on

the pedals.

HOW TO ADJUST THE ANGLE OF THE

HANDLEBAR

To adjust the

angle of the han-

dlebar, first

loosen the adjust-

ment knob a few

turns. Next, pull

the knob outward,

pivot the handle-

bar to the desired

angle, and then

release the knob

into an adjust-

ment hole. Make

sure that the

knob is engaged

in one of the

adjustment holes. Then, tighten the knob.

HOW TO LEVEL THE EXERCISE BIKE

If the exercise

bike rocks slightly

on your floor dur-

ing use, turn one

or both of the lev-

eling knobs on

the rear stabilizer

and adjust the

leveling feet until

the rocking

motion is elimi-

nated.

Seat

Knob

Holes

Seat Post

Seat

Seat Knob

Seat Post

Tab

Strap

Knob

Handlebar

Leveling

Knobs

Holes

HOW TO USE THE EXERCISE BIKE

FEATURES OF THE CONSOLE

This revolutionary console offers an array of features

designed to make your workouts more effective and

enjoyable.

When you use the manual mode of the console, you

can change the resistance of the pedals with the touch

of a button. While you exercise, the console will dis-

play continuous exercise feedback. You can even

measure your heart rate using the handgrip pulse sen-

sor.

The console offers sixteen preset workouts—eight

weight loss workouts and eight aerobic/performance

workouts. Each workout automatically changes the

resistance of the pedals and prompts you to vary your

pedaling speed as it guides you through an effective

workout.

The console also features two motivational interactive

games. Using the dual game controllers, play the chal-

lenging Fat Blocker™ game or the fast-paced Calorie

Destroyer™ game during your workouts—the harder

you exercise, the greater your advantage!

The console also features the iFit interactive workout

system, which enables the console to accept iFit cards

containing workouts designed to help you achieve

specific fitness goals. For example, lose unwanted

pounds with the 8-week Weight Loss workout. iFit

workouts control the resistance of the pedals while the

voice of a personal trainer coaches you through your

workouts. iFit cards are available separately. To pur-

chase iFit cards, go to www.iFit.com or see the

front cover of this manual. iFit cards are also

available at select stores.

You can even connect your MP3 player or CD player

to the consoleʼs sound system and listen to your

favorite workout music or audio books while you exer-

cise.

To use the manual mode, see page 12. To use a

preset workout, see page 14. To play the Fat

Blocker game, see page 15. To play the Calorie

Destroyer game, see page 16. To use an iFit work-

out, see page 17. To use the sound system, see

page 17. To change the console settings, see page

17.

Note: If there is a sheet of plastic on the face of the

console, remove the plastic.

Display

Button

Workout

Buttons Game

Buttons

Resistance

Buttons

Volume

Button

Volume

Button

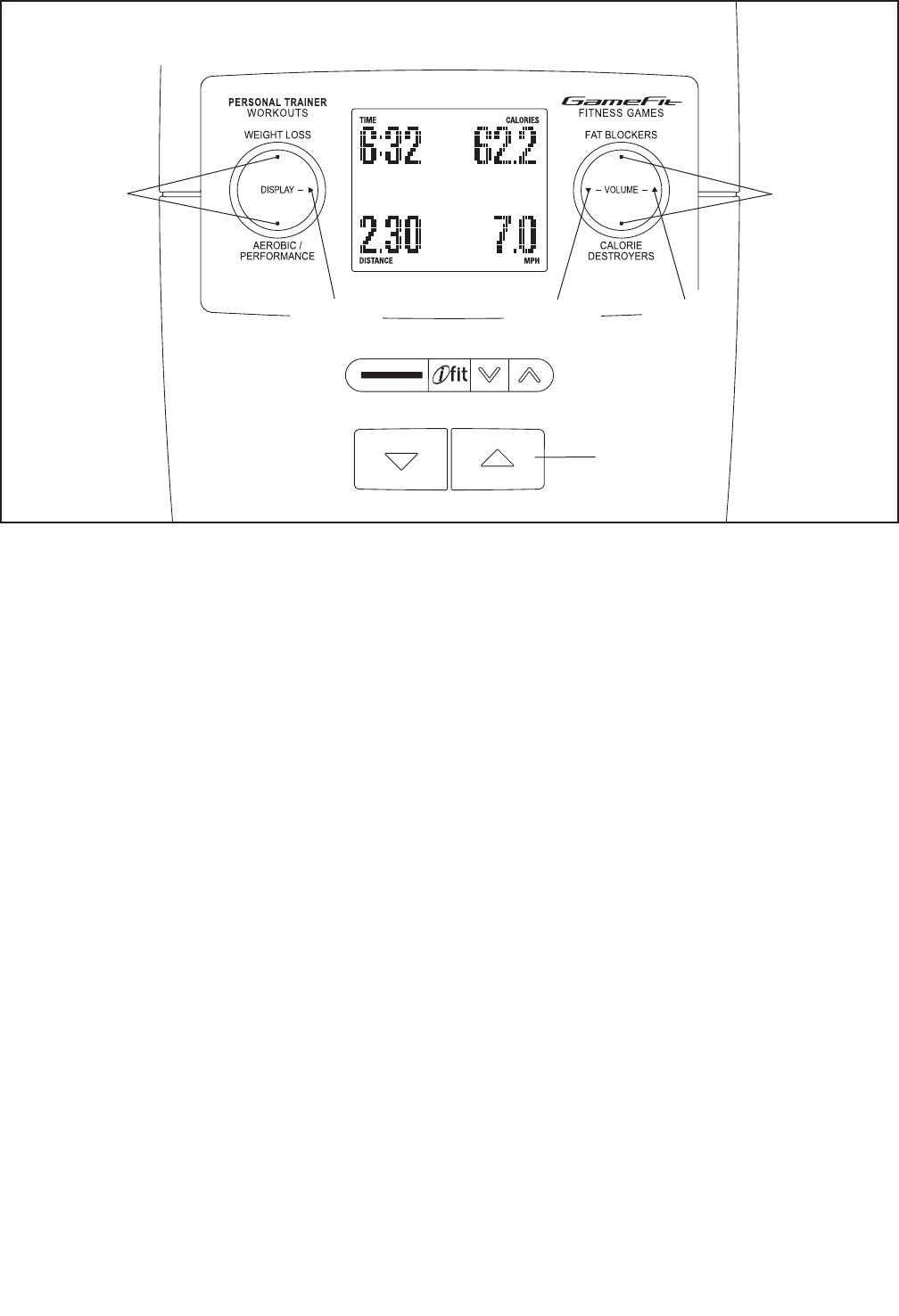

CONSOLE DIAGRAM

HOW TO USE THE MANUAL MODE

1. Begin pedaling or press any button on the

console to turn on the console.

When you turn on the console, the display will turn

on. The console will then be ready for use.

2. Select the manual mode.

Each time you turn on the console, the manual

mode will be selected.

If you have selected a workout, press any of the

Workouts or Fitness Games buttons (see the

drawing on page 11) repeatedly until zeroes

appear in the display.

3. Change the resistance of the pedals as

desired.

As you pedal,

change the resis-

tance of the

pedals by press-

ing the resistance

increase and

decrease buttons

(see the drawing

on page 11) repeatedly. Note: After you press the

buttons, it will take a moment for the pedals to

reach the selected resistance level.

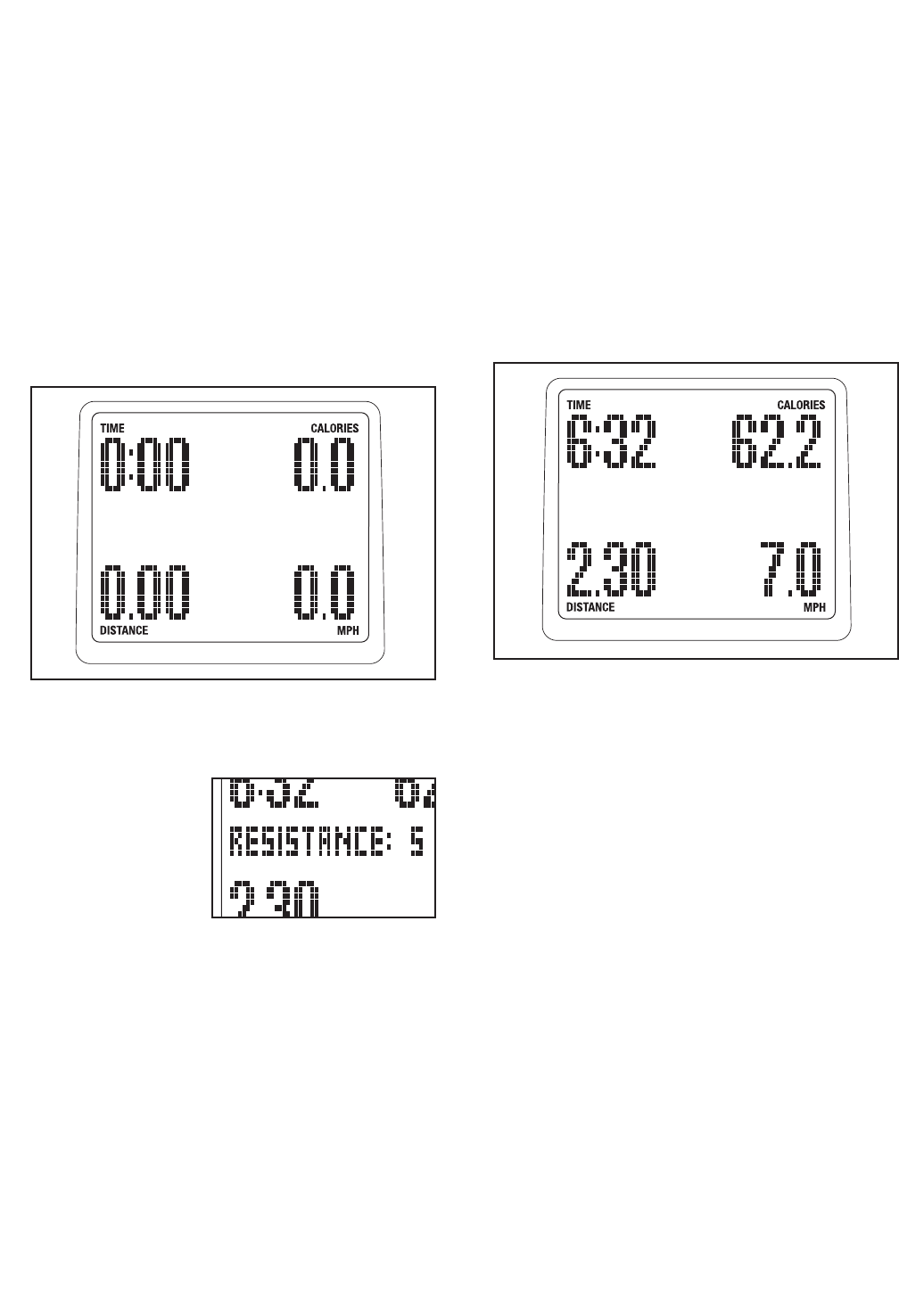

4. Follow your progress with the display.

The console offers several display modes. The

display mode that you select will determine which

workout information is shown. Press the Display

button (see the drawing on page 11) repeatedly to

select the desired display mode.

The display can show the following workout infor-

mation:

Time—When the manual mode is selected, this

display will show the elapsed time. When a work-

out is selected, the display will show the time

remaining in the workout instead of the elapsed

time.

Speed—This display will show your pedaling

speed, in miles per hour (MPH) or kilometers per

hour (KM/H).

Distance—This display will show the distance you

have pedaled, in miles or kilometers.

Calories—This display will show the approximate

number of calories you have burned.

Watts—This display will show your approximate

power output in watts.

Pulse—This display will show your heart rate

when you use the handgrip pulse sensor (see step

5 below).

Resistance—This display will show the resistance

level of the pedals for a few seconds each time

the resistance level changes.

Profile—When a workout is selected, this display

will show a profile of the resistance settings for the

workout.

Display Settings—The console offers a display

settings mode that can be entered when the words

HOLD DISPLAY FOR SETTINGS appear in the

display. To change the display settings, see HOW

TO CHANGE THE CONSOLE SETTINGS on page

17.

Change the volume level of the console by press-

ing the Volume increase and decrease buttons.

Note: The console can show pedaling speed and

distance in either miles or kilometers. The letters

MPH or KM/H will appear in the display to show

which unit of measurement is selected. To change

the unit of measurement, see step 3 of HOW TO

CHANGE THE CONSOLE SETTINGS on page 17.

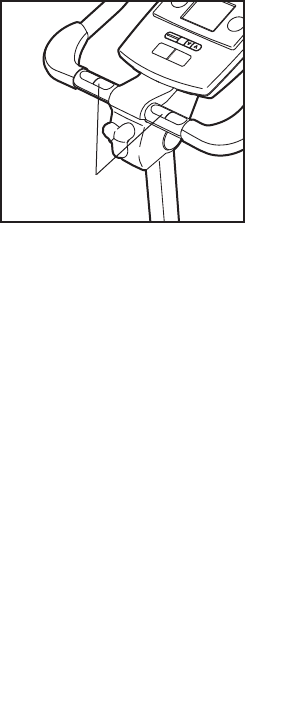

5. Measure your heart rate if desired.

If there are

sheets of plastic

on the metal con-

tacts on the

handgrip pulse

sensor, remove

the plastic. To

measure your

heart rate, hold the

handgrip pulse

sensor with your

palms resting against the metal contacts. Avoid

moving your hands or gripping the contacts

tightly.

When your pulse is detected, dashes will appear

in the display, and then your heart rate will be

shown. For the most accurate heart rate reading,

hold the contacts for at least 15 seconds. Note: If

you continue to hold the handgrip pulse sensor,

the display will show your heart rate for up to 30

seconds.

If the display does not show your heart rate, make

sure that your hands are positioned as described.

Be careful not to move your hands excessively or

to squeeze the metal contacts tightly. For optimal

performance, clean the metal contacts using a soft

cloth; never use alcohol, abrasives, or chemi-

cals to clean the contacts.

6. When you are finished exercising, the console

will turn off automatically.

If the pedals do not move for several seconds, a

tone will sound, the console will pause, and the

time will flash in the display. To resume your work-

out, simply resume pedaling.

If the pedals do not move for several minutes and

the buttons are not pressed, the console will turn

off and the display will be reset.

Contacts

HOW TO USE A PRESET WORKOUT

1. Begin pedaling or press any button on the

console to turn on the console.

When you turn on the console, the display will turn

on. The console will then be ready for use.

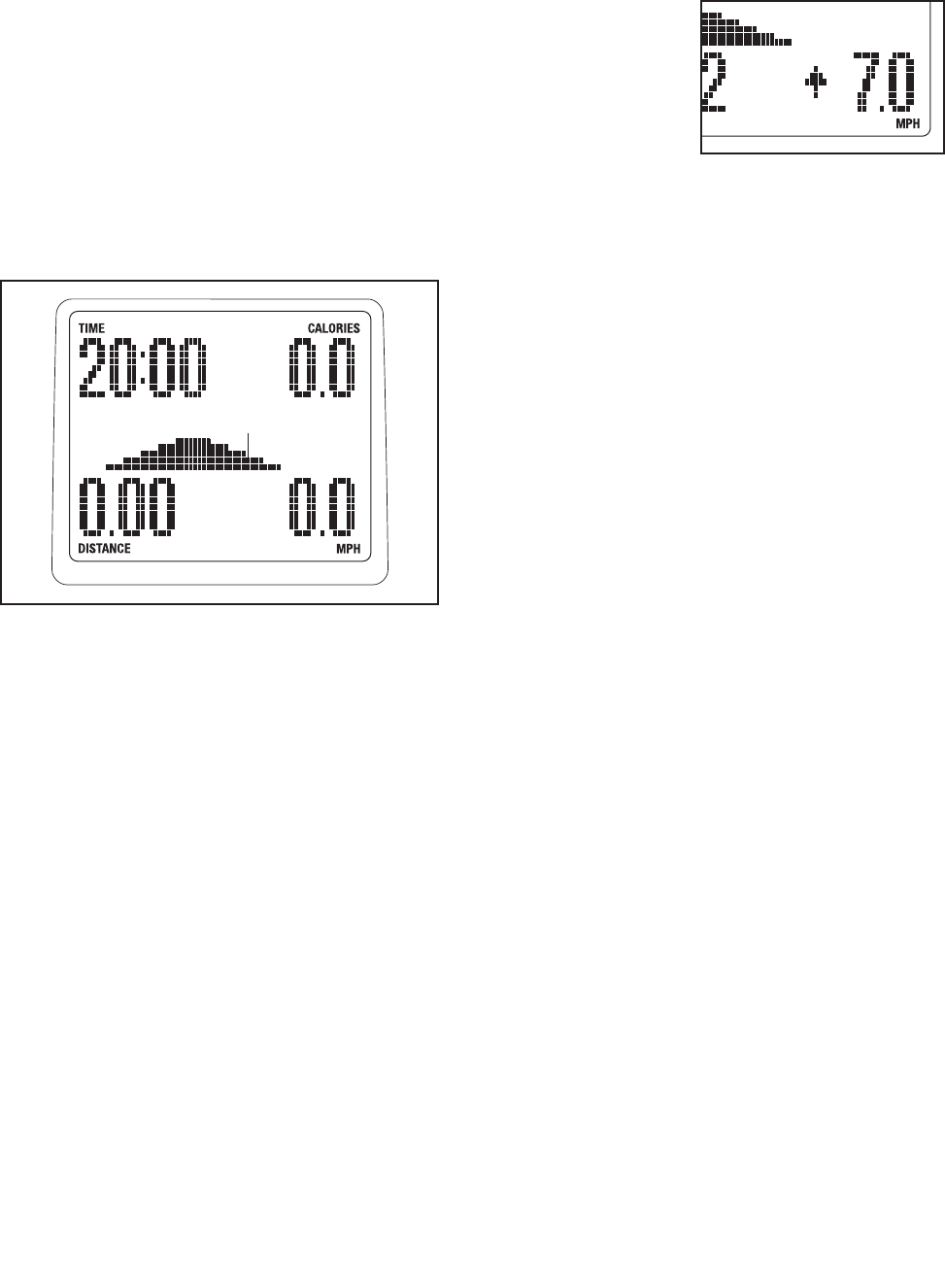

2. Select a preset workout.

To select a preset workout, press the Weight Loss

or the Aerobic/Performance button repeatedly until

the profile of the desired workout appears in the

display.

The workout time and a profile of the resistance

levels for the workout will appear in the display.

3. Begin pedaling to start the workout.

Each workout is divided into 20 or 30 one-minute

segments. One resistance level and one target

speed are programmed for each segment. Note:

The same resistance level and/or target speed

may be programmed for consecutive segments.

During the workout, the workout profile will show

your progress. The flashing segment of the profile

represents the current segment of the workout.

The height of the flashing segment indicates the

resistance level for the current segment.

At the end of each segment of the workout, a

series of tones will sound and the next segment of

the profile will begin to flash. The resistance level

and the target speed will also appear in the dis-

play.

If a different resistance level and/or target speed is

programmed for the next segment, the resistance

level and/or the target speed will flash in the dis-

play for a few seconds to alert you. The resistance

of the pedals will then change.

As you exercise,

you will be

prompted to keep

your pedaling

speed near the

target speed for

the current seg-

ment. When an

upward-pointing arrow appears in the display,

increase your speed. When a downward-pointing

arrow appears in the display, decrease your

speed. When no arrows appear, maintain your cur-

rent speed.

IMPORTANT: The target speed is intended only

to provide motivation. Your actual speed may

be slower than the target speed. Make sure to

exercise at a speed that is comfortable for you.

If the resistance level for the current segment is

too high or too low, you can manually override the

setting by pressing the resistance buttons.

IMPORTANT: When the current segment of the

workout ends, the pedals will automatically

adjust to the resistance level for the next seg-

ment.

The workout will continue in this way until the last

segment ends. To stop the workout at any time,

stop pedaling. A tone will sound, the console will

pause, and the time will begin to flash in the dis-

play. To restart the workout, simply resume

pedaling.

4. Follow your progress with the display.

See step 4 on page 12.

5. Measure your heart rate if desired.

See step 5 on page 13.

6. When you are finished exercising, the console

will turn off automatically.

See step 6 on page 13.

Profile

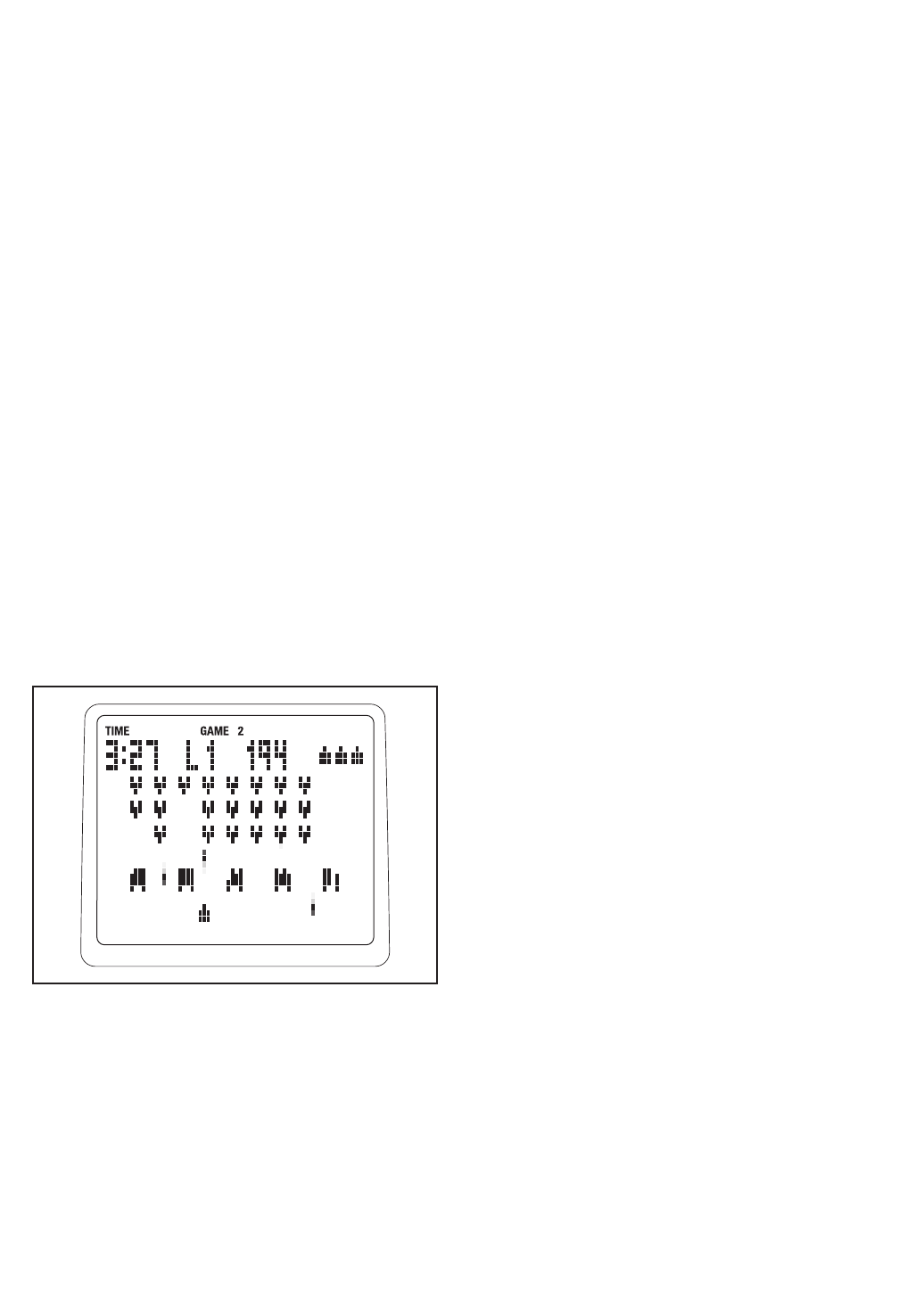

HOW TO PLAY THE FAT BLOCKER GAME

The Fat Blocker game requires quick thinking and fast

reflexes. In addition to the console buttons, you will

use the four-button game controllers on the handlebar

to play the game. Follow the steps below to play the

Fat Blocker game.

1. Begin pedaling or press any button on the

console to turn on the console.

When you turn on the console, the display will turn

on. The console will then be ready for use.

2. Select the Fat Blocker game.

To select the Fat Blocker game, press the Fat

Blockers button (see the drawing on page 11).

3. Begin pedaling or press a button on either

controller to start the game.

When you start the Fat Blocker game, a game

arena will appear in the center of the display.

A block composed of four or five black squares will

slowly move downward until it reaches the bottom

of the arena. Another block will then move down-

ward. Blocks come in eight different shapes. As

each block falls, you can move it to the left or right

using the left and right buttons on the left con-

troller. In addition, you can rotate the block

counterclockwise or clockwise using the left and

right buttons on the right controller. Once you have

positioned and oriented a block, you can speed its

motion to the bottom of the arena, if desired, by

pressing the down button on either controller.

Your goal is to

maneuver the

blocks so that they

form a complete

row of black

squares across

the entire arena.

Each time you

complete a row of black squares, the row will dis-

appear, and all blocks above will move downward

one row.

As you play, the blocks will fall faster and faster;

however, the faster you pedal, the more slowly the

blocks will fall, giving you extra time to position

and orient the blocks. The game will continue until

any part of a stacked block reaches the top of the

arena.

When the game ends, the display will show your

final score and the level of play that you reached.

The display will then show the four highest scores

recorded since the scores were reset. If desired,

press and hold down the right button on either

controller to reset the scores. Note: If your score is

one of the four highest, the display will prompt you

to enter a name consisting of three letters or dig-

its. While the line below the first letter is flashing,

press the up and down buttons on either controller

to select the desired letter or digit. Next, press the

right button on either controller and select another

letter or digit. Repeat this process to select a third

letter or digit. Then, press the right button on either

controller again. The display will then show the

four highest scores recorded since the scores

were reset.

4. Follow your progress with the display.

While you exercise and play the Fat Blocker

game, the corners of the display will show the

elapsed time, the approximate number of calories

you have burned, and your pedaling speed. In

addition, the display will show your current score

and the game level that you have reached.

To pause the game, press the Display button. To

resume the game, press the Display button

repeatedly until the words FAT BLOCKER appear

at the top of the display, and then press a button

on either controller.

5. When you are finished exercising, the console

will turn off automatically.

See step 6 on page 13.

Complete Row

HOW TO PLAY THE CALORIE DESTROYER GAME

The Calorie Destroyer game is a fast-paced game that

pits you against a squadron of laser-firing drones. In

addition to the console buttons, you will use the four-

button game controllers on the handlebar to play the

game. Follow the steps below to play the Calorie

Destroyer game.

1. Begin pedaling or press any button on the

console to turn on the console.

When you turn on the console, the display will turn

on. The console will then be ready for use.

2. Select the Calorie Destroyer game.

To select the Calorie Destroyer game, press the

Calorie Destroyers button (see the drawing on

page 11).

3. Press a button on either controller to start the

game.

When you start the Calorie Destroyer game, a

game arena will appear in the display. Three rows

of drones will begin to move across the top of the

arena, periodically firing their lasers downward.

Each time the drones reach the left or right side of

the arena, they will reverse direction and move

downward.

At the bottom of the arena is a laser blaster. You

can fire the laser blaster at the drones by pressing

the up button on either controller. In addition, while

you are pedaling, you can move the laser blaster

to the left or right using the left and right buttons

on either controller. The faster you pedal, the

faster the laser blaster will move.

Between the drones and the laser blaster are five

shields. You can hide the laser blaster below a

shield if desired. However, each time a shield is hit

by a laser, a piece will be vaporized.

Your goal is to keep the laser blaster from being

hit and to keep any drone from reaching the bot-

tom of the arena. If the laser blaster is hit, it will be

disabled and another laser blaster will appear in its

place; there are a total of four laser blasters. If you

vaporize the entire squadron of drones, a new

squadron will appear.

As you play, the drones will move faster and

faster. The game will continue until all four laser

blasters are disabled or a drone reaches the bot-

tom of the arena.

When the game ends, the display will show the

level of play that you reached and your final score.

The display will then show the four highest scores

recorded since the scores were reset. If desired,

press and hold down the right button on either

controller to reset the scores. Note: If your score is

one of the four highest, the display will prompt you

to enter a name consisting of three letters or dig-

its. While the line below the first letter is flashing,

press the up and down buttons on either controller

to select the desired letter or digit. Next, press the

right button on either controller and select another

letter or digit. Repeat this process to select a third

letter or digit. Then, press the right button on either

controller again. The display will then show the

four highest scores recorded since the scores

were reset.

4. Follow your progress with the display.

While you exercise and play the Calorie Destroyer

game, the upper left corner of the display will

show the elapsed time. In addition, the display will

show the game level that you have reached and

your current score.

To pause the game, press the Display button. To

resume the game, press the Display button

repeatedly until the word DESTROYER appears at

the top of the display, and then press a button on

either controller.

5. When you are finished exercising, the console

will turn off automatically.

See step 6 on page 13.

HOW TO USE AN IFIT WORKOUT

iFit cards are available separately. To purchase iFit

cards, go to www.iFit.com or see the front cover of this

manual. iFit cards are also available at select stores.

1. Begin pedaling or press any button on the con-

sole to turn on the console.

When you turn on the console, the display will turn

on. The console will then be ready for use.

2. Insert an iFit card and select a workout.

To use an iFit workout, insert an iFit card into the

iFit slot; make sure that the iFit card is oriented so

that the metal contacts are face down and are fac-

ing the slot. When the iFit card is properly

inserted, the indicator next to the slot will turn on

and text will appear in the display.

Next, select the desired workout on the iFit card

by pressing the increase and decrease buttons

next to the iFit slot.

A moment after you select a workout, the voice of

a personal trainer will begin guiding you through

your workout.

iFit workouts function in the same way as preset

workouts. To use the workout, see steps 3 to 6 on

page 14.

3. When you are finished exercising, remove the

iFit card.

Remove the iFit card when you are finished exer-

cising. Store the iFit card in a secure place.

HOW TO USE THE SOUND SYSTEM

To play music or audio books through the consoleʼs

sound system while you exercise, plug the included

audio cable into the jack on the console and into a

jack on your MP3 player or CD player; make sure

that the audio cable is fully plugged in.

Next, press the play button on your MP3 player or CD

player. Adjust the volume level using the volume con-

trol on your MP3 player or CD player or press the

Volume increase and decrease buttons on the con-

sole. When not in use, unplug the audio cable from

the jack on the console.

HOW TO CHANGE THE CONSOLE SETTINGS

The console features a display settings mode that

allows you to select a backlight option, to select a unit

of measurement for the console, and to turn the game

sounds on or off. Follow the steps below to change

the console settings.

1. Enter the display settings mode.

To enter the display settings mode, first press the

Display button repeatedly until the words HOLD

DISPLAY FOR SETTINGS appear in the display.

Then, press and hold the Display button until the

display settings information appears in the display.

2. Select a backlight option if desired.

The console has three backlight options. The ON

option keeps the backlight on while the console is

on. The AUTO option keeps the backlight on only

while you are pedaling. The OFF option turns the

backlight off.

An X will appear next to the currently selected

backlight option. To change the backlight option,

press the resistance increase and decrease but-

tons to choose the desired backlight option.

Then, press the Display button to proceed to the

next option.

iFit Slot

iFit Card

3. Select a unit of measurement if desired.

The console can show pedaling speed and dis-

tance in either miles or kilometers.

The word ENGLISH for English miles or the word

METRIC for metric kilometers will appear in the

display. An X will appear next to the currently

selected unit of measurement.

To change the unit of measurement, press the

resistance increase and decrease buttons to

choose the desired unit of measurement.

Then, press the Display button to proceed to the

next option.

4. Turn the game sounds on or off if desired.

The console game sounds can be turned on or

turned off. The words OFF and ON will appear in

the display. An X will appear next to the currently

selected option.

To change the option, press the resistance

increase and decrease buttons to choose ON or

OFF.

5. Exit the display settings mode.

Press the Display button to save your settings and

exit the display settings mode.

FCC INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING: Per FCC rules, changes or modifications not expressly approved by ICON could void the

user's authority to operate the equipment.

Inspect and tighten all parts of the exercise bike regu-

larly. Replace any worn parts immediately.

To clean the exercise bike, use a damp cloth and a

small amount of mild soap. IMPORTANT: To avoid

damage to the console, keep liquids away from

the console and keep the console out of direct

sunlight.

CONSOLE TROUBLESHOOTING

If the console does not display your heart rate when

you use the handgrip pulse sensor, see step 5 on

page 13.

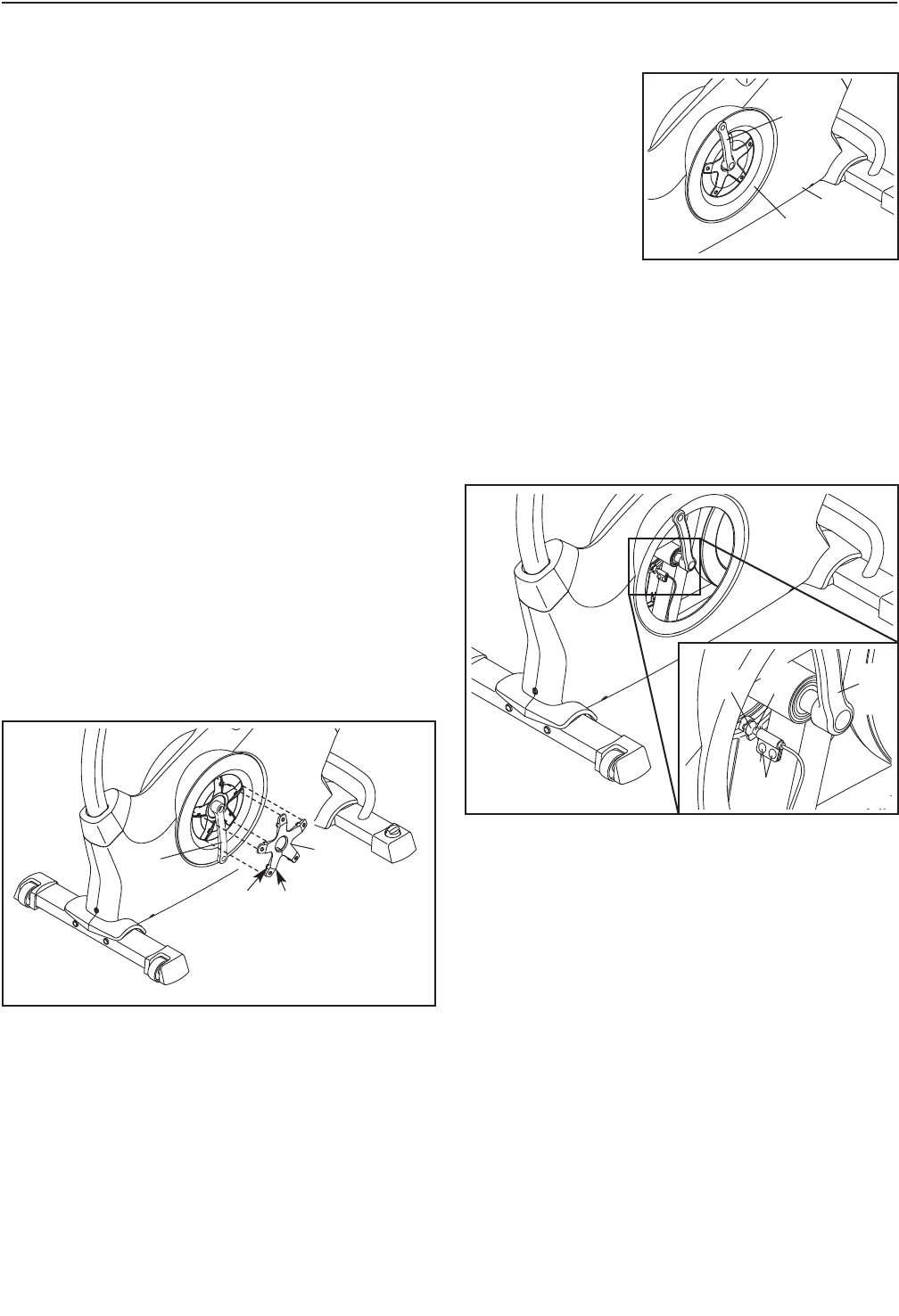

HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the

reed switch should be adjusted. To adjust the reed

switch, you must first remove the left pedal, the left

disc cover, and the left pedal disc (see the instructions

below).

Using an adjustable wrench, turn the left pedal clock-

wise and remove it.

Next, rotate the Left Crank Arm (20) to a vertical posi-

tion with the end of the Left Crank Arm pointing

downward.

Using a flat screwdriver, release the tabs on each

point of the left Disc Cover (18). Carefully work the left

Disc Cover over the Left Crank Arm (20) and remove

the left Disc Cover.

Next, rotate the

Left Crank Arm

(20) to a vertical

position with the

end of the Left

Crank Arm point-

ing upward.

Rotate the left Pedal Disc (17) clockwise to release it

from the Left Shield (11).

Then, work the left Pedal Disc (17) upward and

remove it from the Left Crank Arm (20).

Locate the Reed Switch (57). Loosen, but do not

remove, the two M4 x 12.7mm Flange Screws (63).

Next, rotate the Left Crank Arm (20) until a Magnet

(55) is aligned with the Reed Switch (57). Slide the

Reed Switch slightly toward or away from the Magnet.

Then, retighten the M4 x 12.7mm Flange Screws (63).

Rotate the Left Crank Arm (20) for a moment. Repeat

these actions until the console displays correct feed-

back.

When the reed switch is correctly adjusted, reattach

the left pedal disc, the left disc cover, and the left

pedal.

MAINTENANCE AND TROUBLESHOOTING

20 18

Tab

55 20

HOW TO ADJUST THE DRIVE BELT

If you can feel the pedals slip while you are pedaling,

even when the resistance is adjusted to the highest

level, the drive belt may need to be adjusted.

To adjust the drive belt, you must first remove the right

pedal, the seat post, the top shield cover, the rear

shield cover, the front shield cover, the right disc

cover, the right pedal disc, and the right shield (see

the instructions below).

Using an adjustable wrench, turn the Right Pedal (21)

counterclockwise and remove it.

Next, remove the indicated Adjustment Knob (27) and

remove the Seat Post (6).

Using a flat screwdriver, remove the Top Shield Cover

(8) and the Rear Shield Cover (9). Then, use the flat

screwdriver to release the Front Shield Cover (7).

Rotate the Right Crank Arm (19) to a vertical position

with the end of the Right Crank Arm pointing down-

ward.

Using a flat screwdriver, release the tabs on each

point of the right Disc Cover (18). Carefully work the

right Disc Cover over the Right Crank Arm (19) and

remove the right Disc Cover. Note: See the drawings

on page 19 for more detail.

Next, rotate the Right Crank Arm (19) to a vertical

position with the end of the Right Crank Arm pointing

upward.

Rotate the right Pedal Disc (17) clockwise to release it

from the Right Shield (10).

Then, work the right Pedal Disc (17) upward and

remove it from the Right Crank Arm (19).

See the EXPLODED DRAWING on page 23 and

remove the M4 x 19mm Screws (89) and the M4 x

25mm Screws (62) from the Right and Left Shields

(10, 11). Then, remove the Right Shield.

Next, loosen the M6 x 20mm Hex Screw (85). Then,

tighten the M10 x 50mm Hex Screw (86) until the

Drive Belt (54) is tight.

When the Drive Belt (54) is tight, tighten the M6 x

20mm Hex Screw (85).

Then, reattach the right shield, the right pedal disc, the

right disc cover, the front shield cover, the rear shield

cover, the top shield cover, the seat post, and the right

pedal.

18 17

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

To find the proper intensity level, find your age at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your “training zone.” The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses carbohydrate calories for energy. Only after

the first few minutes of exercise does your body begin

to use stored fat calories for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise—If your goal is to strengthen your

cardiovascular system, you must perform aerobic

exercise, which is activity that requires large amounts

of oxygen for prolonged periods of time. For aerobic

exercise, adjust the intensity of your exercise until

your heart rate is near the highest number in your

training zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretching

and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise—Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise–never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of

stretching. Stretching increases the flexibility of your

muscles and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each

week, if desired. Remember, the key to success is to

make exercise a regular and enjoyable part of your

everyday life.

EXERCISE GUIDELINES

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for persons

over age 35 or persons with pre-existing

health problems.

The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

11 Frame

21Front Stabilizer

31Rear Stabilizer

41Upright

51Handlebar

6 1 Seat Post

71Front Shield Cover

81Top Shield Cover

91Rear Shield Cover

10 1 Right Shield

11 1 Left Shield

12 1 Pivot Cover

13 1 Console

14 1 Right Pad

15 1 Left Pad

16 1 Pulse Sensor

17 2 Pedal Disc

18 2 Disc Cover

19 1 Right Crank Arm

20 1 Left Crank Arm

21 1 Right Pedal/Strap

22 1 Left Pedal/Strap

23 1 Seat

24 1 Seat Carriage

25 2 Seat Post Cap

26 1 Seat Adjustment Knob

27 2 Adjustment Knob

28 1 Seat Post Sleeve

29 2 Leveling Knob

30 1 Seat Bracket

31 2 Leveling Foot

32 2 Rear Stabilizer Cap

33 1 Right Stabilizer Cap

34 1 Left Stabilizer Cap

35 2 Wheel

36 2 Foot

37 2 Game Grip

38 1 Pulley

39 1 Crank

40 2 Crank Bearing

41 2 Snap Ring

42 1 Flywheel

43 2 M8 Washer

44 1 Flywheel Axle

45 1 Idler

46 1 Motor Bracket

47 1 Resistance Motor

48 1 Resistance Disc

49 1 Resistance Arm

50 1 M6 x 70mm Bolt Set

51 1 M6 x 60mm Bolt Set

52 1 Arm Lock

53 1 C-magnet

54 1 Drive Belt

55 2 Magnet

56 1 Clamp

57 1 Reed Switch/Wire

58 1 Wire Harness

59 1 Extension Wire

60 2 Wire Clamp

61 1 Pulse Wire

62 2 M4 x 25mm Screw

63 2 M4 x 12.7mm Flange Screw

64 1 Audio Cable

65 3 M8 x 17mm Flat Head Screw

66 1 Left Controller Wire

67 1 Right Controller Wire

68 2 Crank Cap

69 2 Upright Pivot Bushing

70 2 5/16" Flange Screw

71 4 M8 x 20mm Button Bolt

72 8 M8 Locknut

73 2 M8 Jam Nut

74 4 M8 x 20mm Patch Screw

75 12 M8 Split Washer

76 4 M10 x 95mm Patch Screw

77 1 M6 x 65mm Hex Screw

78 1 M6 Locknut

79 4 M4 x 12mm Flange Screw

80 2 M6 x 8mm Hex Screw

81 1 M5 Washer

82 1 M5 x 7mm Screw

83 1 M6 x 14.67mm Shoulder Screw

84 1 M6 Washer

85 1 M6 x 20mm Hex Screw

86 1 M10 x 50mm Hex Screw

87 1 M3.5 x 12mm Screw

88 1 M4 x 12.7mm Bright Screw

89 14 M4 x 19mm Screw

90 12 M4 x 16mm Screw

91 2 M4 x 5mm Bright Screw

92 2 Handlebar Pivot Bushing

93 6 M4 x 19mm Flat Head Screw

*–Assembly Tool

*–Userʼs Manual

Key No. Qty. Description Key No. Qty. Description

PART LIST—Model No. RBEX13010.0 R0910A

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see

the back cover of this manual. *These parts are not illustrated.

90 90

22 28

44 45

77 78

81 82

84 85

89 89

89 62

60 60

EXPLODED DRAWING—Model No. RBEX13010.0 R0910A

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED

DRAWING near the end of this manual)

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and

material, under normal use and service conditions. The frame is warranted for seven (7) years from the

date of purchase. Parts and labor are warranted for ninety (90) days from the date of purchase.

This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to

repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All

repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to

a service center, freight charges to and from the service center will be the customerʼs responsibility. For

replacement parts shipped while the product is under warranty, the customer will be responsible for a min-

imal handling charge. For in-home service, the customer will be responsible for a minimal trip charge. This

warranty does not extend to any damage to a product caused by or attributable to freight damage, abuse,

misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to

products used for commercial or rental purposes or as store display models; or to products transported

or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by

ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-

nection with the use or performance of the product; damages with respect to any economic loss, loss of

property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other

consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-

dental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the

above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights that vary from state to state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

LIMITED WARRANTY

IMPORTANT: You must register this product within 30 days of the purchase date to avoid added

fees for service needed under warranty. Go to www.reebokservice.com/registration.

Reebok Rbex130100 Owners Manual 285430

Navigation menu

Versions of this User Manual:

Views

Navigation
