Slide Projection

and Accessories

XX

Product

Overview

2

To me, slides are the best

means to visualize a feeling -

unsurpassed in expressing

colours, shapes, light, and

moods in a differentiated

manner. Hans Thurner

Multimediale

Performances*

* www.hans-thurner.at

Slide projection – no longer up-to-date?

Especially nowadays, when everybody is talking

about megapixels and gigabytes, it seems to

be an anachronism when committing oneself to

slides and the related technology. With the entire

euphoria for digital photos, however, the ad-

vantages of slides are often forgotten. Compared

to an average digital photo, slides contain a

hundred times more information which is the

reason why the quality of the image projected

from a slide is stilled unrivalled:

Completely without pixels, flicker-free, and

unbeatable both in contrasting and colour rende-

ring.

Besides, the problem of archiving digital

photos has not yet been solved. Digital and com-

puter technology are subject to a fast change.

Therefore, you cannot take it for granted, for

example, that you will be able to read CDs or

DVDs which are written today in 10 or 20 years

with the devices of the time. But carefully manu-

factured and stored silver gelatin prints will last

for several centuries. For digital photos, there

is still no solution for a durable and colourfast

archiving.

After all, slides can be digitised for effects,

electronic mailing and storing by scanning. The

reversed way from a digital photo to an analogue

slide is also possible, but involves considerable

costs, and the result strongly depends on the

resolution used when taking the picture.

Contents Page

2000 series.........................................................................4

AFM 2000...........................................................................6

2500 series.........................................................................8

3000 series.......................................................................10

Dissolve set 150 / 250.......................................................11

Projection lenses...............................................................12

Slide magazines and mounts..............................................14

Slide mounters..................................................................15

Accessories (lamps, bags, etc.)..........................................16

Slide viewers.....................................................................17

Large light panels..............................................................18

Small light panels..............................................................19

Folding monitor.................................................................19

Projection tables ...............................................................20

Production........................................................................22

THE WORLD OF SLIDES BY REFLECTA

INTRODUCTION AND OVERVIEW

3

2000 2000 2500 2500 3000 AFM

AF AF-IR AF AF-IR IC 2000

Magazines

PAXIMAT flat magazines (36/50 slides) ––

•••–

PAXIMAT rotary magazines (100 slides) ––

•••–

PAXIMAT Multimag compact magazines (50 slides) ––

•••–

Universal magazines ••••••

CS magazines ••••••

LKM magazines ••••••

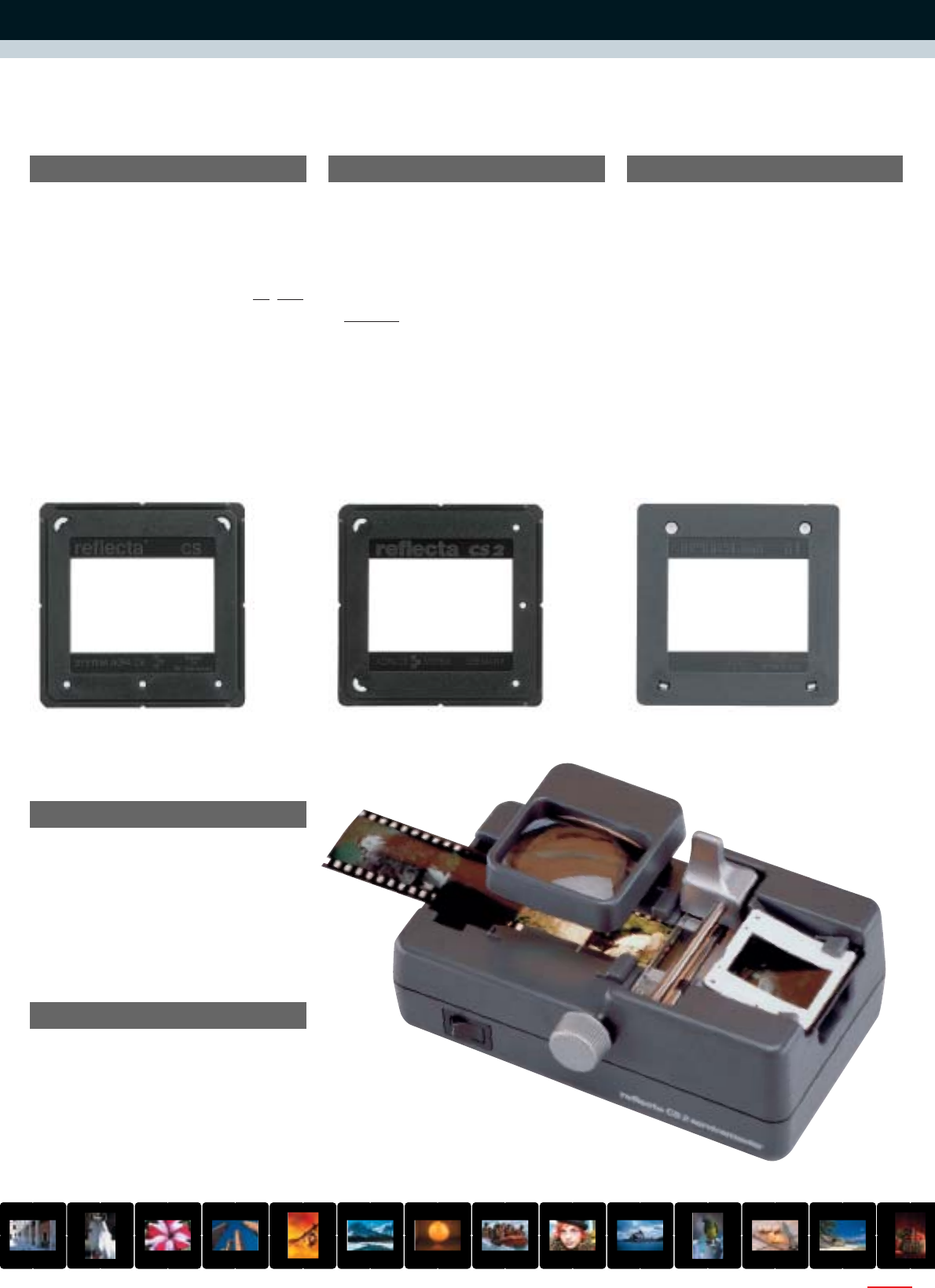

Slide

Format up to 24 mm x 36 mm in 5 cm x 5 cm mount ••••••

Changing slides

Manually via slide changing arm ••••••

Automatically via cable remote control •–•––

•

Automatically via infrared remote control –•–••–

Focusing

Manually for basic focus (via focusing wheel) –•••••

Manually via remote control (override function) ––––•–

Automatically via autofocus ••

(IR) •(IR) •(IR) •(IR) •(IR)

Autofocus can be deactivated ––––

•–

Remote control

Cable remote control (can be integrated) •–•––

•

Infrared remote control (can be integrated) –•–••–

Remote control (illuminated/can be illuminated) ––––

•–

Features

Microprocessor control ––––

•–

Halogen lamp 24 V / 150 W ••–––

•

Halogen lamp 24 V / 250 W – –•••–

Continuously adjustable brightness control with memo light ––––

•–

Timer (integrated) ––––

•–

Dissolve function (without cable) via remote control (with second projector) ––––

•–

Timed fading in/out ––––

•–

Automatic brightness reduction during slide change ––––

•–

Illuminated LCD display on projector (2 brightness levels) ––––

•–

Slide lift for single slide projection ••••••

Anti-jam system ••••••

Ball-bearing precision lens guidance –•••••

Turbo cooling fan and thermal safety switch ••••••

Height adjustment via turning foot ••––––

Lamp adjustment, height adjustment via turning feet –/––

/–•/••

/••

/•–/•

Power cord compartment, carrying handle –/––

/–•/••

/••

/••

/•

Slide light panel with sliding cover (with lighting point) ––

•••–

Dissolve control via PC ––––

•–

Dissolve control via control unit (DUO series) ––––

•–

14 pin AV socket (for timer/transmitter/tape recorder) ––––

•–

8 pin AV socket (for serial RS232 interface) ––––

•–

”Made in Germany” ••••••

2 year warranty ••••••

Weight (kg) 3.5 3.6 5.6 5.7 6.0 4.4

Dimensions (cm) Length 24.5 24.5 30.4 30.4 30.4 35

Width 24.5 24.5 29.1 29.1 29.1 26

Height 11.9 12.3 13.6 13.6 13.6 13

Item no. (with reflecta Agomar 1:2.8/85 mm MC) 16110 16120 16702 16802 16909 16601

Item no. (with reflecta Agomar 1:3.5/70-120 mm MC) – 16130 – 16902 – –

SLIDE PROJECTORS

SERIES 2500

SERIES 2000 SERIES 3000AFM 2000 DISSOLVE SET

Short description:

Automatic slide projector of the compact

class for three magazine systems. A well-priced

product for outstanding projections.

Technical data and features:

■For three magazine systems

Universal, CS, or LKM magazines can be used.

The projector is adjusted to the magazine type

by setting the lever on the slide changing arm

to the appropriate position.

■Automatic focusing

The first slide is focused by turning the lens.

The autofocus system screens each slide with

a light beam and corrects minor blurs by the

tenth of a second.

■Slide lift

The slide lift makes the projector particularly

suited for projecting individual slides. Gently

press the slide lift down to open it to the top.

Now, you can insert a slide from the side.

This may also be helpful during a show.

■Halogen lamp 24 V / 150 Watt

The lucent bright light of the halogen lamp

illuminates your slides perfectly and projects

the photo in brilliant colours.

■Anti-jam system

The anti-jam system prevents slides from

being jammed in the slide changing arm or

being damaged. When the slide changing

mechanism faces a defined resistance, the

arm is disengaged to avoid damage.

■Thermal safety switch

A powerful cooling fan ensures a projection

which is gentle on your precious slides.

A thermal safety switch switches the projector

off when a critical temperature is reached.

■Lens

reflecta Agomar 2.8 / 85 mm

■Cable remote control

■Weight 3.8 kg

■Dimensions 245 mm x 244 mm x 119 mm

■Made in Germany

Item no.:

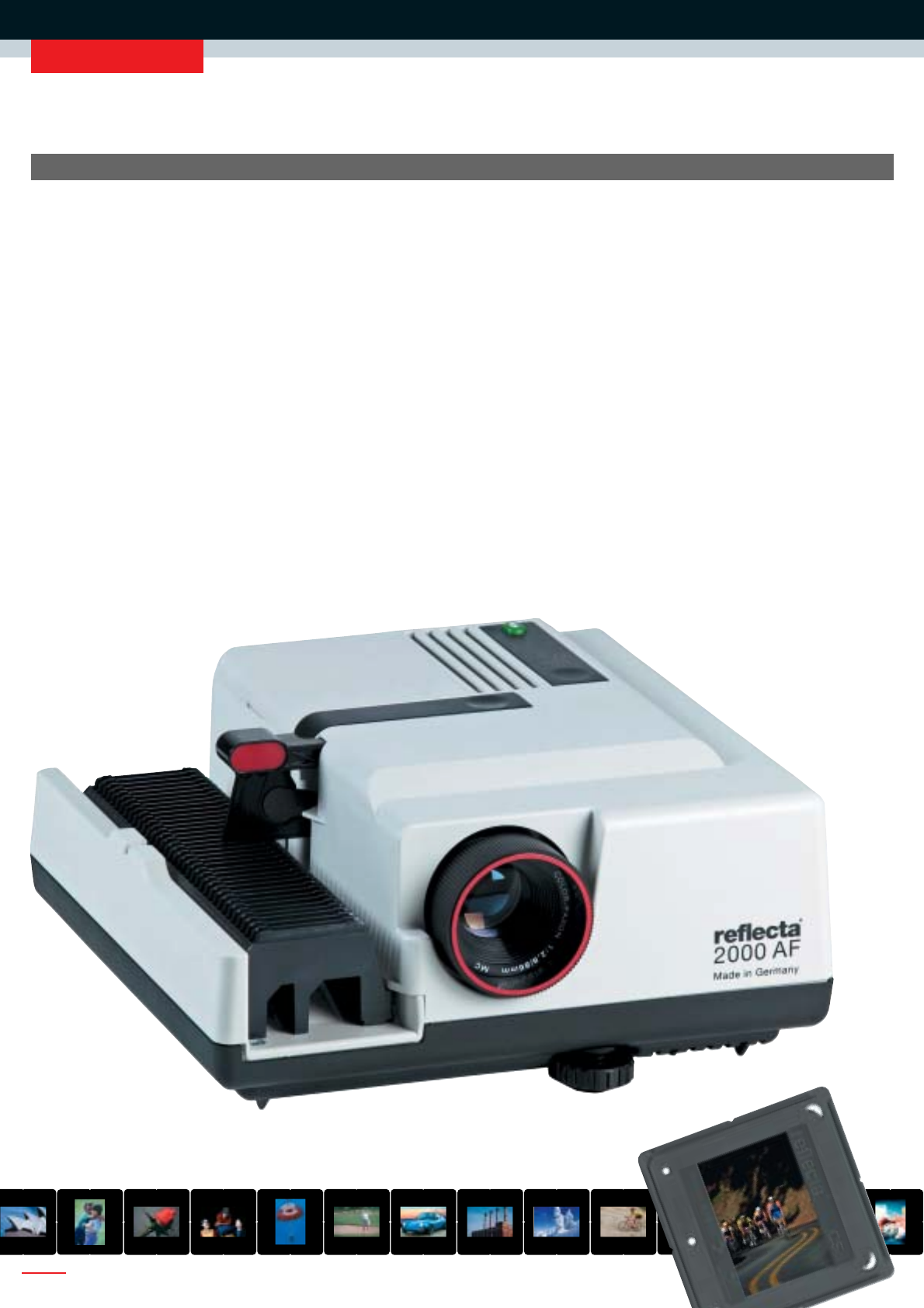

reflecta 2000-AF........................Item no. 16110

reflecta 2000-AF

4

Short description:

Like reflecta 2000 AF, except

■Automatic slide projector

With infrared remote control

■Focusing wheel

The wheel is used to easily set the exact basic

focus for the first slide

■Ball-bearing precision lens guidance

The ball-bearing lens guidance allows for a

particularly soft and precise automatic

focusing

■IR autofocus system

Item no.:

reflecta 2000 AF-IR....................Item no. 16120

Short description:

Like reflecta 2000 AF-IR, except

■Zoom lens

reflecta Agomar 3.5 / 70-120 mm

Item no.:

reflecta 2000 AF-IR Zoom..........Item no. 16130

■Projector bag

■Interchangeable lenses (zoom, wide angle

or high aperture lenses)

■Slide mounts (with/without glass) and

magazines (universal or original CS maga-

zines, rotary tray) according to DIN standard

■Projection screens

■Lamps

■Projection tables

reflecta 2000 AF-IR reflecta 2000 AF-IR Zoom Accessories

5

6

Short description:

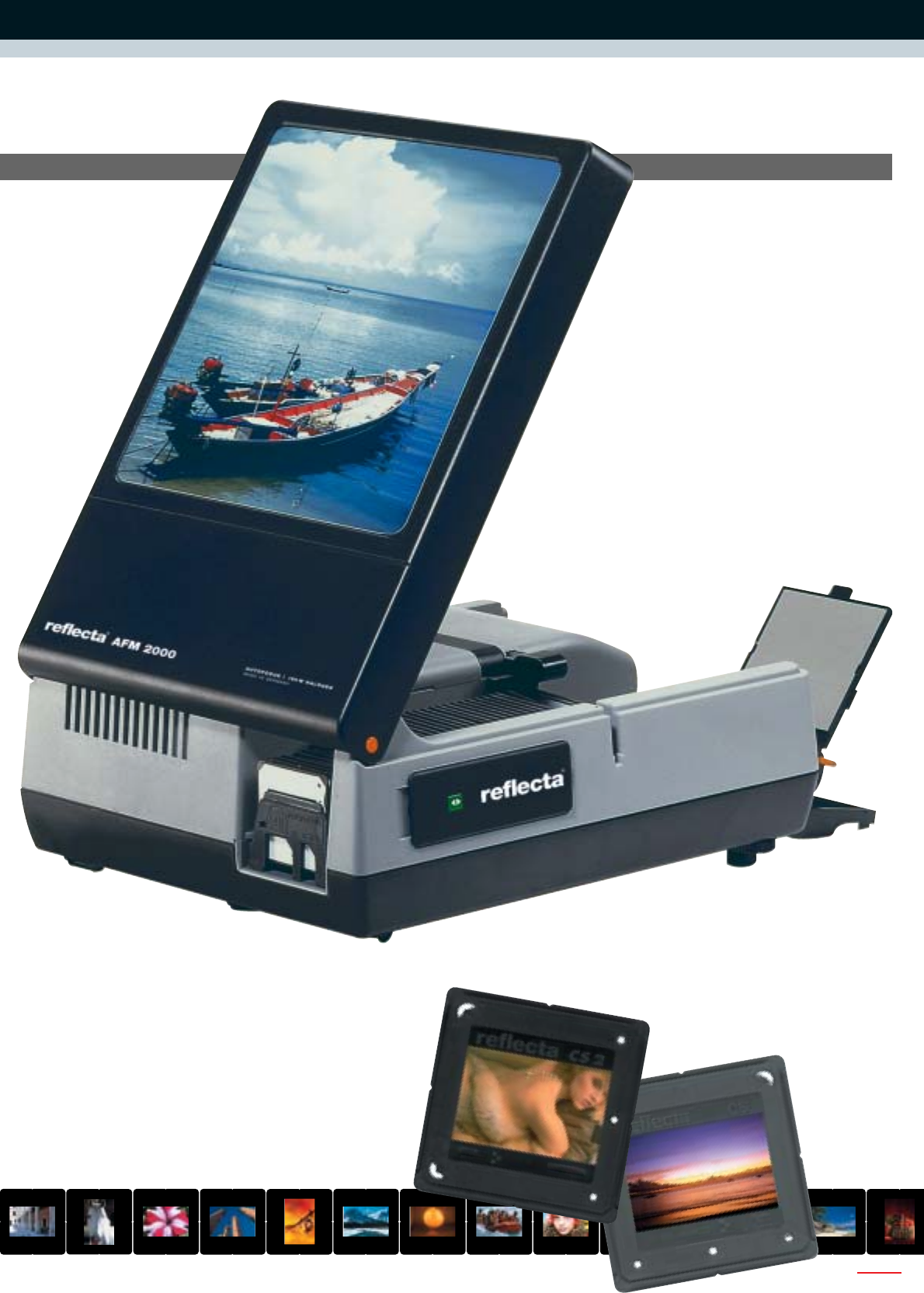

The new reflecta AFM 2000 is almost ideal for

monitor and screen projections. Simply remove

the monitor to view your slides at an impressive

size on a projection screen.

The slide projector is suited for three magazine

systems: universal magazines, CS magazines and

LKM magazines.

Technical data and features:

■Cable remote control

Press the green button to control the forward

and backward slide transport

■IR autofocus system

For automatic focusing

■Large focusing wheel

For a precise focusing of the first slide

■Halogen lamp 24 V / 150 W

A light intense halogen lamp ensures a

brilliant colour rendering

■Ball-bearing precision lens guidance

The ball-bearing lens guidance allows for a

particularly soft and precise automatic

focusing

■Slide lift for single slide projection

Ideal for previewing the slides

■Anti-jam system

■Case projector with integrated carrying handle

■Turbo cooling fan with thermal safety switch

■Two height-adjustable feet

■Automatic unfolding monitor with specially

ground glass screen 21.5 cm x 21.5 cm

■Folding mirror for screen projection

■For 24 mm x 36 mm slides in 5 cm x 5 cm

mounts

■Weight: 4.4 kg

■Dimensions (LxWxH): 35 cm x 26 cm x 13 cm

■Lens: reflecta Agomar MC 1:2,8 / 85 mm

Item no.:

reflecta AFM 2000......................Item no. 16601

reflecta AFM 2000

SLIDE PROJECTORS

SERIES 2000 AFM 2000 SERIES 2500 SERIES 3000 DISSOLVE SET

7

8

SLIDE PROJECTORS

SERIES 2000 SERIES 2500

AFM 2000 SERIES 3000 DISSOLVE SET

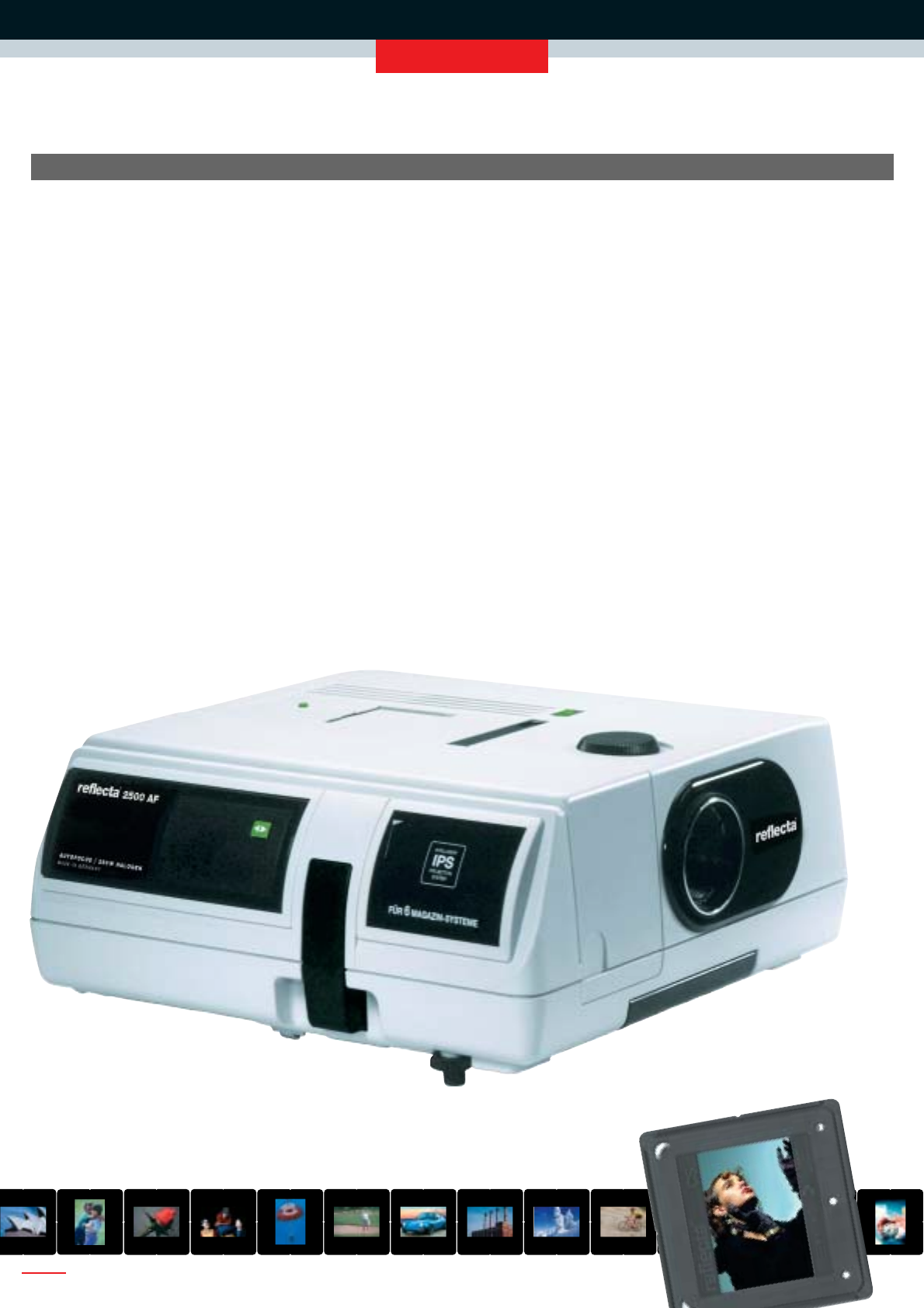

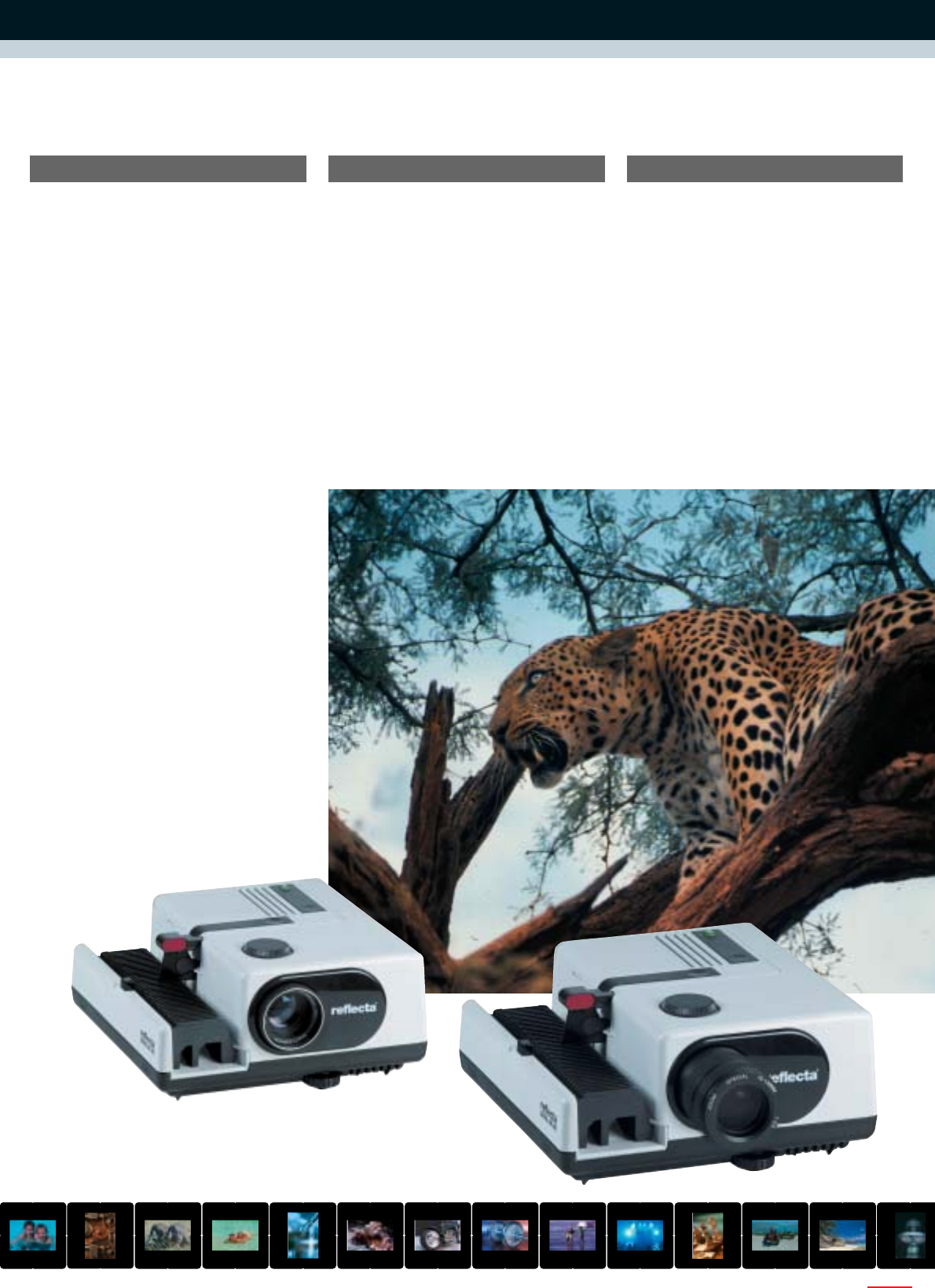

reflecta 2500 AF

Short description:

The reflecta 2500 AF is an autofocus slide pro-

jector representing the model to enter the

250 Watt projector category. Equipped for six

magazine systems with automatic magazine

adjustment, automatic focusing and a 250 Watt

halogen lamp, the reflecta 2500 AF offers great

convenience.

Technical data and features:

■Cable remote control

With a button for forward and backward slide

transport

■IR autofocus system

For automatic focusing

■Large focusing wheel

For a precise focusing of the first slide

■Halogen lamp 24 V / 250 W

A light intense halogen lamp ensures a

brilliant colour rendering

■Ball-bearing precision lens guidance

For an extremely soft and quick focusing,

especially when using a heavy zoom lens or

a lens with a long focal length

■Slide soft lift

For single slide projection

■Slide light panel

■Anti-jam system

■Extendable carrying handle

■Power switch and power cord compartment

■Lens: 2.8 / 85 mm MC

■Dimensions: 304 mm x 291 mm x 136 mm

■Weight: 5.6 kg

Item no.:

reflecta 2500 AF ........................Item no. 16703

9

reflecta 2500 AF-IR

reflecta 2500 AF-IR Zoom

Accessories

Short description:

Like reflecta 2500 AF-IR, except

■Zoom lens:

3.5 / 70-120mm MC

Item no.:

reflecta 2500 AF-IR Zoom..........Item no. 16902

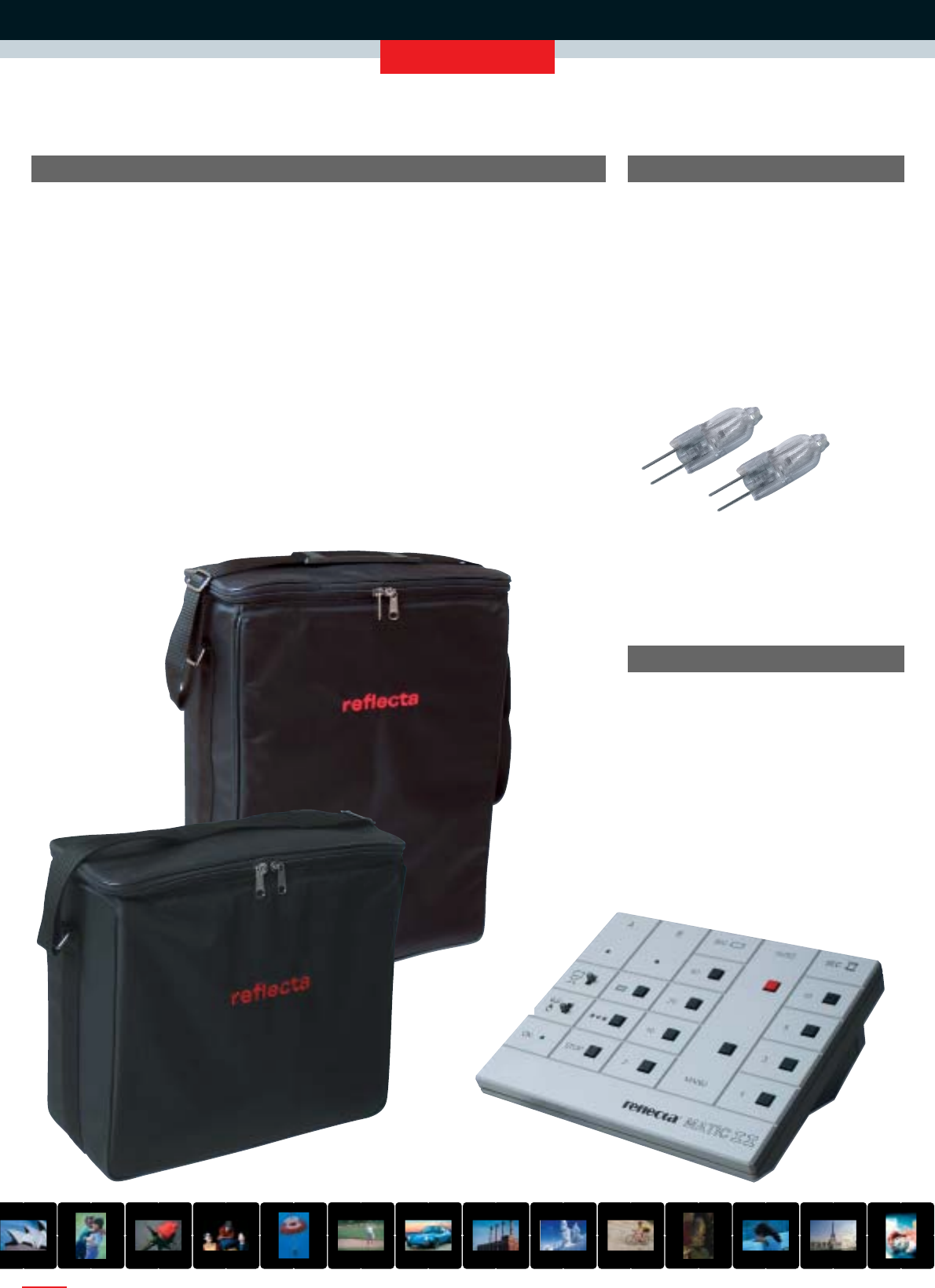

■Projector bag

■Rotary tray (for 100 slides)

■Interchangeable lenses (zoom, wide angle

or high aperture lenses)

■Slide mounts (with/without glass) and maga-

zines (universal, original CS system)

according to DIN standard

■Projection screens

■Lamps

■Projection tables

Short description:

Like reflecta 2500 AF, except

■Infrared (IR) remote control

With a button for the forward and backward

slide transport and a mount for the optionally

available laser pointer

Item no.:

reflecta 2500 AF-IR....................Item no. 16802

Short description:

The reflecta 3000 IC with microprocessor is

the flagship of the reflecta slide projectors.

This projector unites comprehensive technical

features with maximum operating convenience.

Technical data and features:

■Multi-feature infrared remote control with

illuminated keys and connection for optionally

available laser pointer

■Slide change with fade in

Fade-in interval of the lamp can be set to

1.5, 2.5, or 3.5 seconds

■Selective infrared autofocus

The autofocus can be corrected with two

focusing keys. The autofocus can also be

deactivated completely.

■Large focusing wheel

For a precise focusing of the first slide

■Wireless dissolving control

Possible in combination with a second 3000 IC

projector. Dissolving intervals of 0, 3, 5 or 8

seconds; you only need the IR remote control

■Large LCD display

For all operating functions

■Halogen lamp 24 V / 250 W

A light intense halogen lamp ensures a

brilliant colour rendering

■Electronic timer

For automatic forward and backward slide

change (0 to 99 seconds)

■Slide counter with digital display

■RS232 computer interface

■Slide soft lift for single slide projection

■Slide light panel

■Ball-bearing precision lens guidance

■Anti-jam system

■14 pin AV socket

■Extendable carrying handle

■Lens: 2.8 / 85 mm MC

■Dimensions: 304 mm x 291 mm x 136 mm

■Weight: 5.9 kg

Item no.:

reflecta 3000 IC.......................Item no. 16909

reflecta 3000 IC

10

SLIDE PROJECTORS

SERIES 2000 SERIES 3000

AFM 2000 SERIES 2500 DISSOLVE SET

11

SLIDE PROJECTORS

SERIES 2000 DISSOLVE SET

AFM 2000 SERIES 2500 SERIES 3000

Short description:

Two dissolve slide projectors with combined

rack for dissolving installation and reflecta mat

manual control make slide shows a true experi-

ence. 150 or 250 Watt projectors with autofocus

and integrated triac.

Technical data and features:

■24 mm x 36 mm slides (in 5 cm x 5 cm mount)

■24 V / 150/250 W halogen lamp

■Multi-coated Agomar lens MC 2.8/90 mm

(heloical shaft 42.5 mm diameter)

■Autofocus system can be deactivated and

adjusted manually

■Integrated remote control with integrated

light pointer

■Connecting socket for triac control and

adding sound to a slide show

■Congruent projection with a minimum

distance of 1.6 m in the combined rack

■reflecta mat manual control for dissolve pro-

jections can be connected to both projectors

via adapter cable

■Flat slide changing arms can be controlled

separately for dissolving effects

■Thermal safety switch

■Single slide editor

■Carrying handle

■Different magazines can be used

(standard magazines, CS and LKM)

■AV socket (to connect tape recorder)

■Timer connection

Accessories:

■Projector bag

■Interchangeable lenses (zoom, wide angle or

high aperture lenses)

■Slide mounts (with/without glass) and maga-

zines (universal, original CS system) accor-

ding to DIN standard

■Projection screens

■Lamps

■Projection tables

Item no.:

Dissolve Set 150........................Item no. 16102

Dissolve Set 250........................Item no. 16702

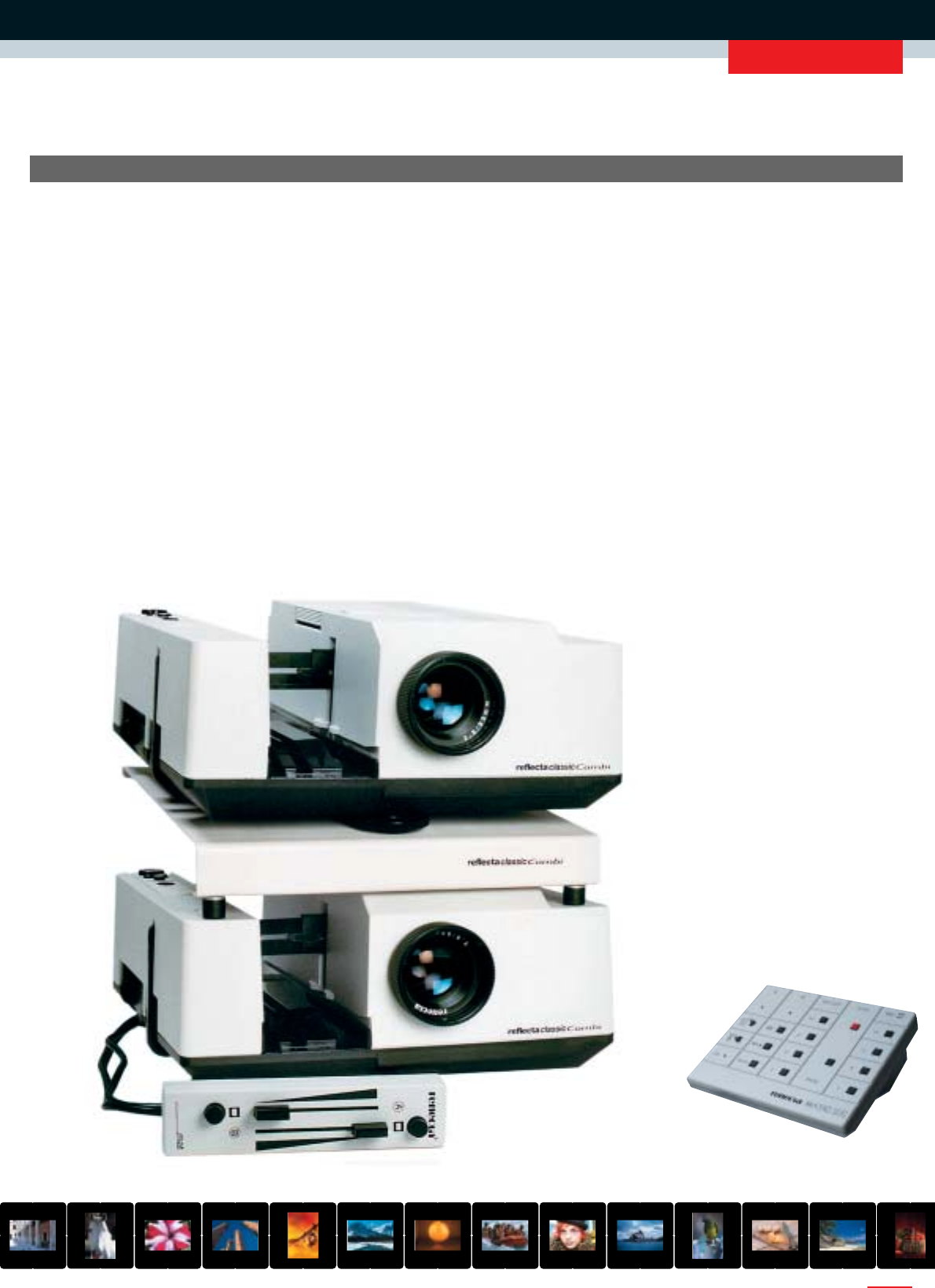

Dissolve Set 150 / 250

Optional accessory:

■Dissolve control unit

Combimatic (see page 16)

12

Short description:

■Powerful multi-coated wide-angle lens with

5 elements for a large projected picture even

at short projection distances.

■Focal length 55 mm

■Shaft 42.5 mm for Classic series projectors

and 1800 AF

Item no.:

Agomar MC 2.8/55 ......................Item no. 1009

Short description:

■Wide aperture, rapid, multi-coated lens with

4 elements, top quality

■Focal length 90 mm

■Shaft 42.5 mm for Classic series projectors

and 1800 AF

Item no.:

Agomar MC 2.4/90 ......................Item no. 1052

Short description:

■Three-element coated lens with long focal

length for large rooms

■Focal length 150 mm

■Shaft 42.5 mm for Classic series projectors

and 1800 AF

Item no.:

Agomar MC 3.5/150.....................Item no. 1011

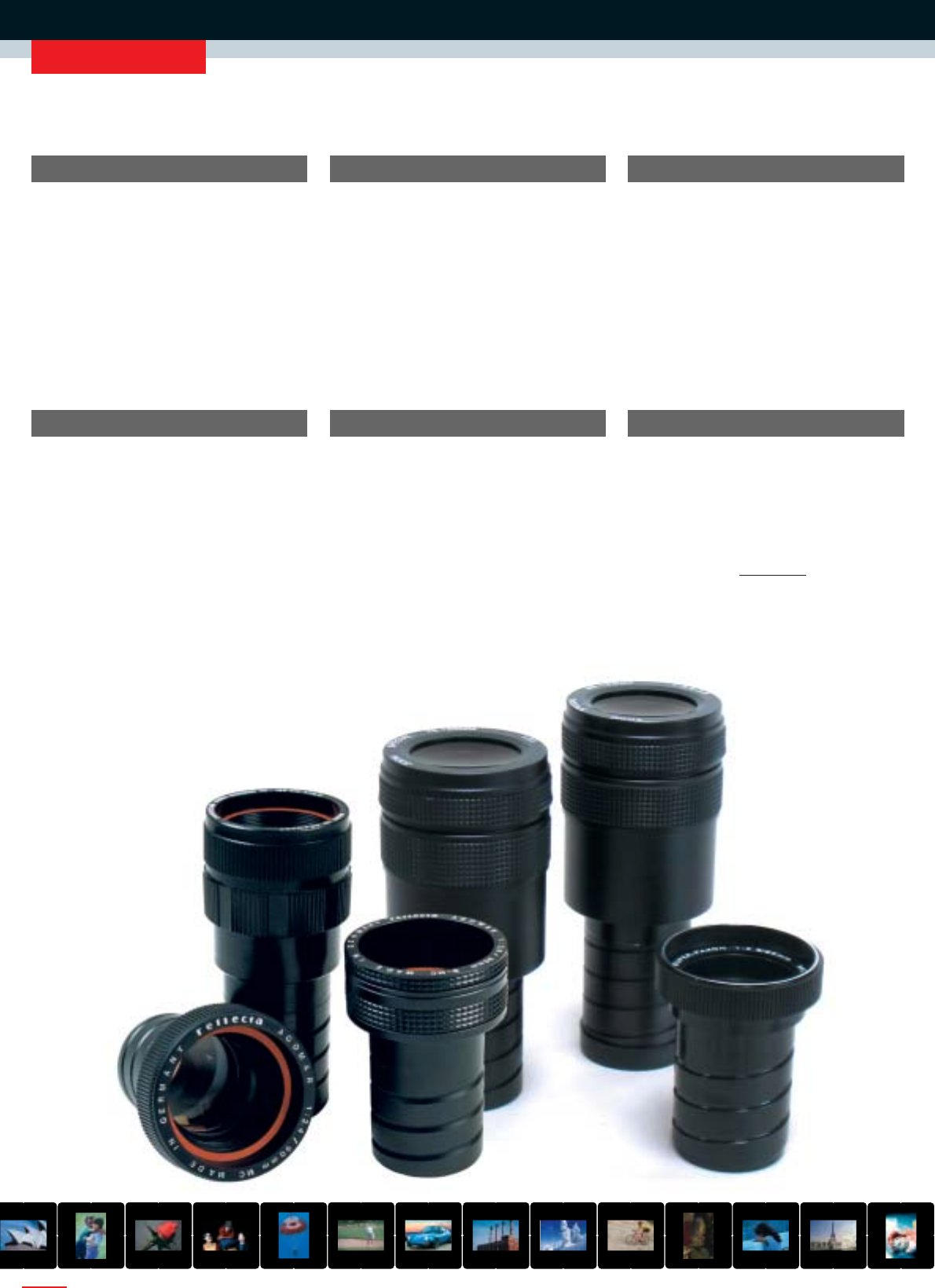

Agomar MC 2.8/55 Agomar MC 2.4/90 Agomar MC 3.5/150

Short description:

■Zoom lens which adapts to any projection

situation. Covers a larger range of focal

lengths, 7 elements, coated.

■Focal length 85 mm to 150 mm

■Shaft 42.5 mm for Classic series projectors

and 1800 AF

Item no.:

Vario Agomar MC 4.0 / 85-150 ....Item no. 1054

Short description:

■Wide aperture, rapid, multi-coated lens with

4 elements, top quality. Particularly suited for

the projection of curved slides. Not suited for

glass mounted slides.

■Focal length 85 mm

■Shaft 42 mm for series 2500/3000 projectors

and 2000 AF/AF-IR

Item no.:

Agomar CF 2.5/85 MC................Item no. 16951

Short description:

■Wide aperture, rapid, multi-coated lens with

4 elements, top quality

■Focal length 85 mm

■Shaft 42 mm for series 2500/3000 projectors

and 2000 AF-IR (not 2000 AF)

Item no.:

Agomar 2.8/85 MC.....................Item no. 16950

Vario-Agomar MC 4.0/85-150

Agomar CF 2.5/85 mm MC Agomar 2.8/85 mm MC

ACCESSORIES

VIEWERS

LENSES LIGHT PANELSMAGAZINES/MOUNTS TABLES

13

Short description:

■Three-element coated lens with long focal

length for large rooms

■Focal length 180 mm

■Shaft 42.5 mm for Classic series projectors

and 1800 AF

Item no.:

Agomar MC 3.5/180.....................Item no. 1047

Agomar MC 3.5/180 Focal length table

Short description:

■Wide aperture, rapid, multi-coated lens with

4 elements, top quality

■Focal length 85 mm

■Shaft 42 mm, for 2000 AF projector only

Item no.:

Agomar 2.8/85 MC.....................Item no. 16954

Agomar 2.8/85 mm MC

Short description:

■Zoom lens which adapts to any projection

situation. Covers a larger range of focal

lengths, 7 elements, coated.

■Focal length 70 mm to 120 mm

■Shaft 42 mm for series 2500/3000 projectors

and 2000 AF/AF-IR

Item no.:

Vario Agomar MC 3.5 / 70-120...Item no. 16952

Vario-Agomar MC 3.5/70-120

Short description:

■Zoom lens which adapts to any projection

situation. Covers a larger range of focal

lengths, 7 elements, coated.

■Focal length 85 mm to 150 mm

■Shaft 42 mm for series 2500/3000 projectors

and 2000 AF/AF-IR

Item no.:

Vario Agomar MC 3.5 / 85-150...Item no. 16953

Vario-Agomar MC 3.5/85-150

Calculating the focal length of a lens:

Slide width (mm) x projection distance (mm)

Projection screen width (mm) =Focal length of lens (mm)

Example: 36 mm x 4500 mm

1800 mm =90 mm

Calculating the projection distance:

Focal length of lens (mm) x Projection screen width (mm)

Slide width (mm) =Projection distance (mm)

Calculating the projection screen width:

Slide width (mm) x projection distance (mm)

Focal length of lens (mm) =Projection screen width (mm)

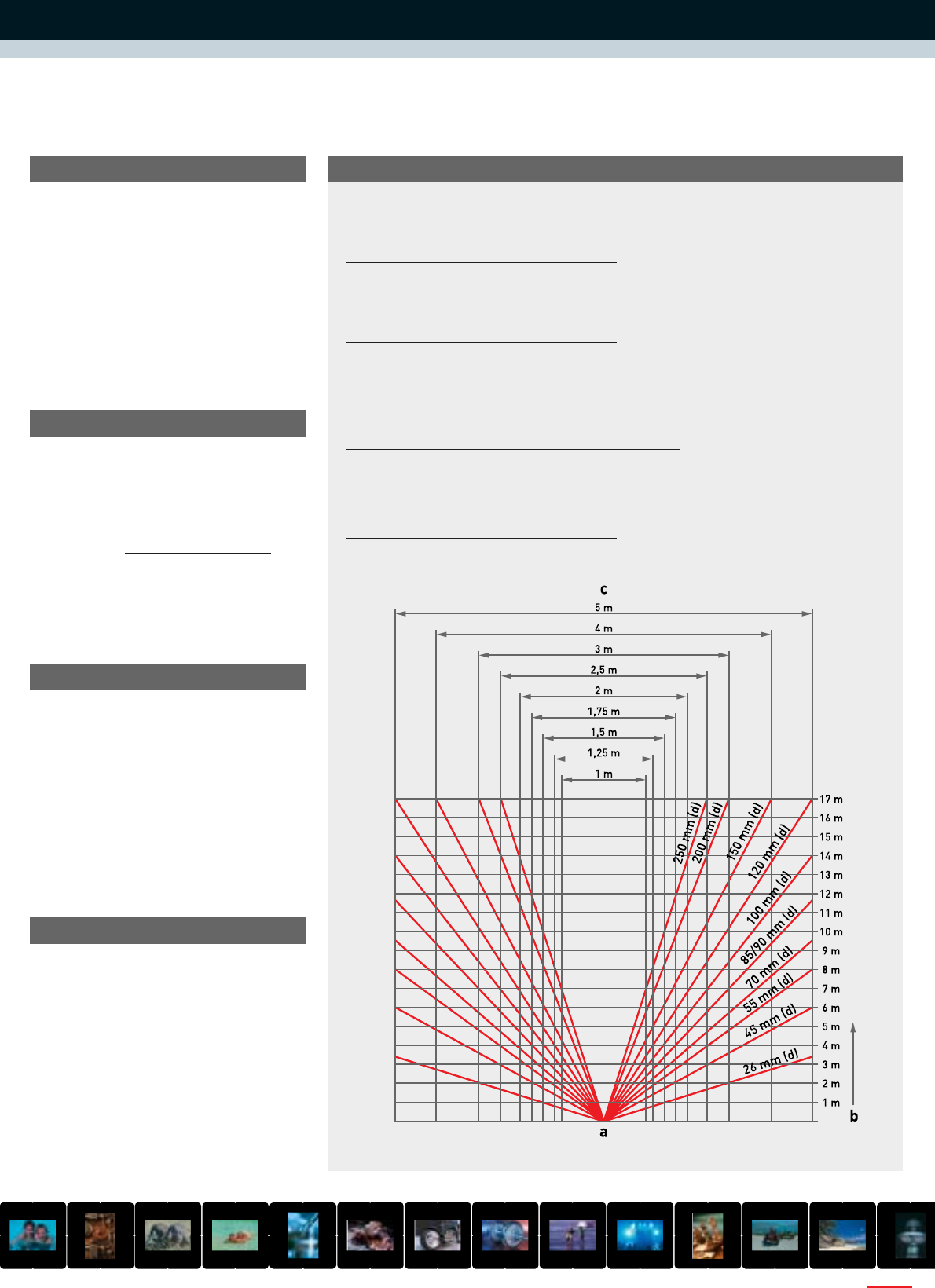

a = Light angle b= Projection distance c = Slide width d = Focal length

Short description:

■The original reflecta CS system

■Slide archiving box for 200 reflecta CS slides

■Box holds two magazines with 100 slides each

■Spill-proof when transporting, handling, etc.

■Stacking system

Item no.:

Slide magazine 2 x 100................Item no. 1007

Short description:

■The original reflecta CS system

■Slide archiving box for 160 reflecta CS slides

■Box holds four magazines with 40 slides each

■Spill-proof when transporting, handling, etc.

■Stacking system

Item no.:

Slide magazine 4 x 40..................Item no. 1006

Short description:

■Quality according to DIN 108

■2 slide archiving boxes for 100 slides each

■Each box holds 2 magazines with 50 slides each

■Stacking system

Item no.:

Slide magazine 2 x 50

(twin set)...............................Item no. 1020002

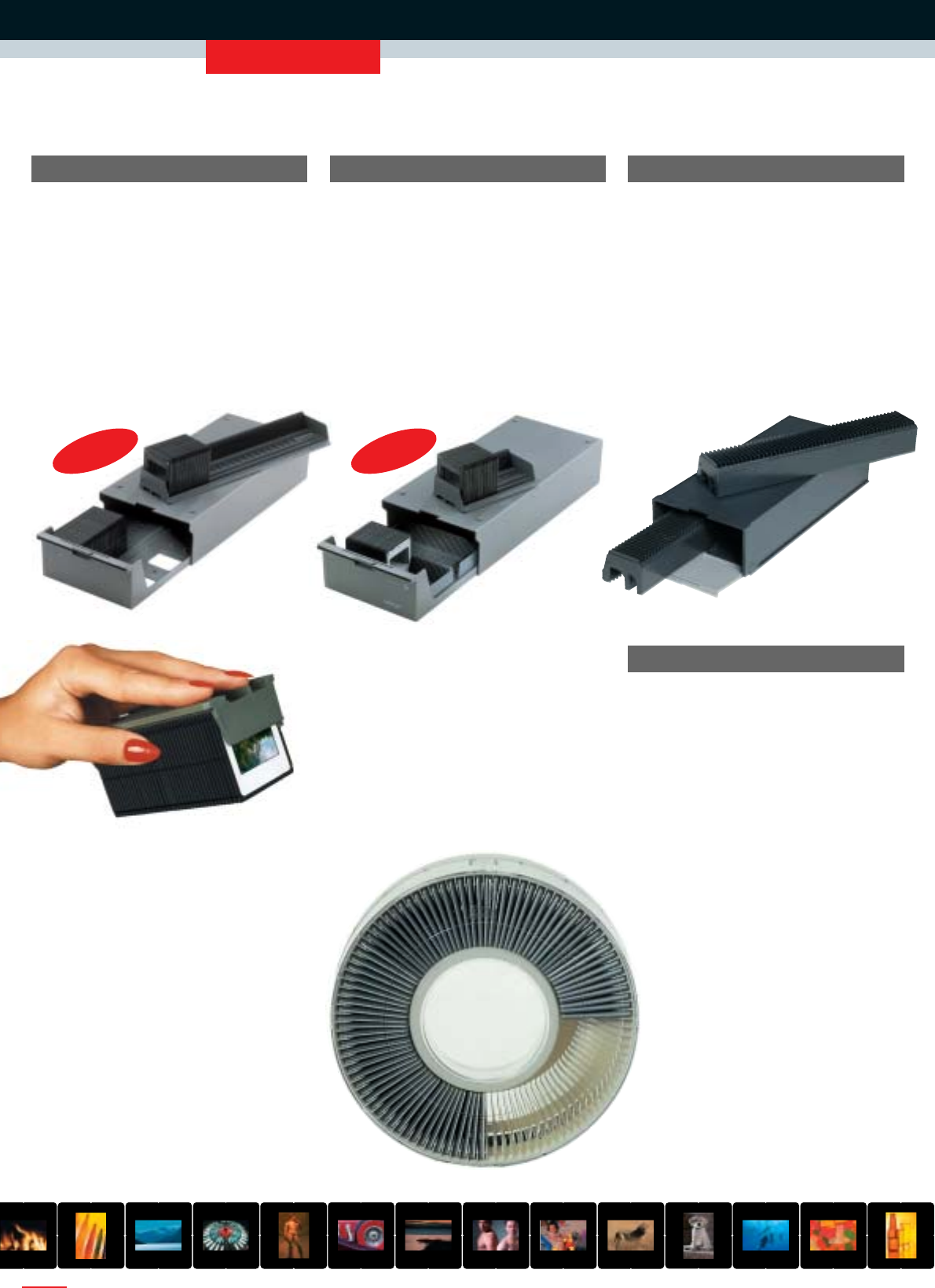

Slide magazine 2 x 100 Slide magazine 4 x 40 Slide magazine Universal

14

The original

The original

Short description:

■Rotary slide tray for 100 slides with a thick-

ness of 2 mm to 3.2 mm (rotary tray 100)

■Rotary slide tray for 100 glassless slides with

a thickness of up to 2 mm (rotary tray 100 S)

■Only for projectors of the 2500 and 3000

series (no adapter required)

Item no.:

Rotary tray 100..........................Item no. 16063

Rotary tray 100 S ......................Item no. 16064

Rotary tray 100 / 100 S

Held securely...

Slides in CS and CS 2 mounts are

securely stored in the CS magazines.

Slides will not slip out even if a filled

magazine falls down.

ACCESSORIES

VIEWERS

MAGAZINES/MOUNTS LIGHT PANELSLENSES TABLES

Short description:

■Glassless slide mount (DIN 108)

■Spill-proof, saves 50% space in original

reflecta CS magazine (100 or 40 slides)

■Single-piece mount, folds on 36 mm long side

■Two-coloured, clicks to close

■1.8 mm thick

■For 24 mm x 36 mm slides

■External dimension 5 cm x 5 cm

Item no.:

100 pcs. box................................Item no. 1005

200 pcs. box................................Item no. 1042

Short description:

■Glassless slide mount (DIN 108)

■Spill-proof, saves 50% space in original

reflecta CS magazine (100 or 40 slides)

■Single-piece mount, folds on 24 mm

short side

■Two-coloured, clicks to close

■1.8 mm thick

■For 24 mm x 36 mm slides

■External dimension 5 cm x 5 cm

Item no.:

100 pcs. box..............................Item no. 61311

200 pcs. box..............................Item no. 61312

CS slide mounts CS 2 slide mounts

Short description:

■Glass slide mount (DIN 108)

■Anti-Newton glass (GL-AN)

■Single-piece mount

■Two-coloured, clicks to close

■3.2 mm thick

■Suitable for mounting stereo photography slides

■For 24 mm x 36 mm slides

■External dimension 5 cm x 5 cm

Item no.:

100 pcs. box

(GL)............................................Item no. 1197

(GL-AN).......................................Item no. 1198

GL/GL-AN slide mounts

Short description:

■Slide mounter for reflecta CS 2 slide mounts

(item no. 61311 / 61312)

Item no.:

Servicemaster CS 2 ...................Item no. 63311

Servicemaster CS 2

Short description:

■Slide mounter for reflecta CS slide mounts

(item no. 1005 / 1042 )

Item no.:

Servicemaster CS .....................Item no. 63211

Servicemaster CS (not shown)

15

16

ACCESSORIES

LENSES VIEWERS LIGHT PANELSMAGAZINES/MOUNTS TABLES

Short description:

■Halogen lamp for recording,

projecting and dark room

■24 Volt

■150 or 250 Watt

Item no.:

Halogen lamp 150 W............Item no. 2063

Halogen lamp 250 W............Item no. 2064

Short description:

■Water-repelling, abrasion-resistant material

■Black, with embroidered reflecta logo

■Padded, two-way zip on the top lid

■Reinforced bag base with integrated

rest button

■Anti-skid shoulder strap

Modell »Midi«:

■360 mm x 170 mm x 300 mm

■600 g

■For Classic, 1800 AF, Galaxy...

Item no.:

Midi...........................................Item no. 50601

Modell »Maxi«:

■360 mm x 170 mm x 450 mm

■760 g

■For AFM, monitor set and all other

reflecta projectors

■Offers ample space for accessories

Item no.:

Maxi..........................................Item no. 50602

Halogen lampsProjector bags

Short description:

■Dissolve control unit with 4 slide

show times and 4 dissolve times,

automatic/manual operation

■Blinking, sandwich projection,

integrated freehead amplifier

■14 pin AV socket

Item no.:

Matic II................................Item no. 1057

Matic II

Short description:

■36 mm x 36 mm light panel

■Bright and even light

■Battery operated

■Compact and lightweight

■Dimensions: 10 cm x 6 cm x 1.5 cm

Item no.:

B36.............................................Item no. 1036

Viewer B36

Short description:

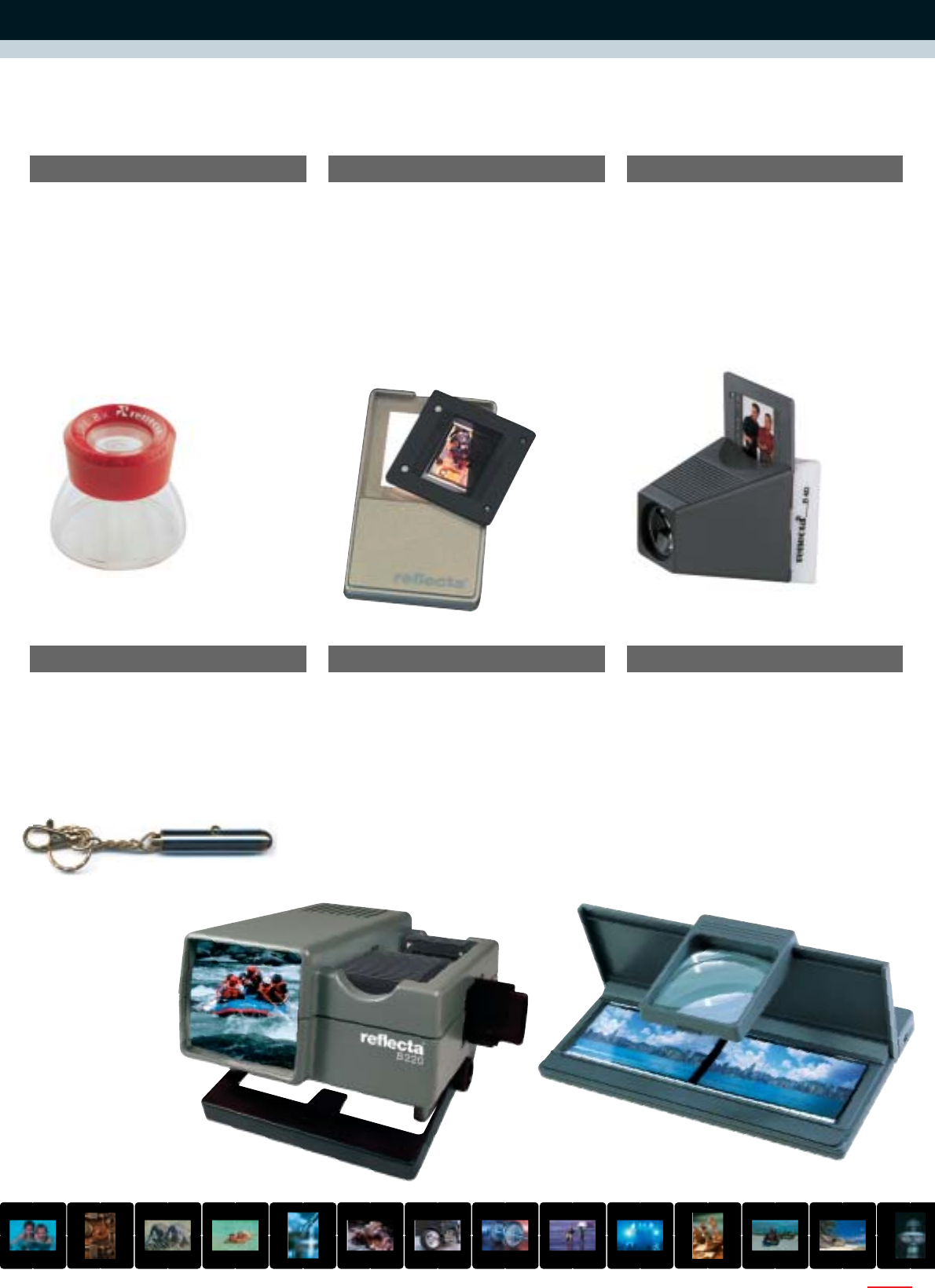

■The famous reflecta magnifier

■8-times magnification

Item no.:

Magnifying glass ..............Item no. 1185.010

(available in set of 10 pcs. only)

Magnifying glass

Short description:

■Mains-operated slide viewer

■Slot for fast slide change

■2.5-times magnification

■Supply slot and collecting tray

Item no.:

B220...........................................Item no. 1038

Viewer B220

Short description:

■Can be used with distance up to 50 m

■Laser class 2

Item no.:

Laser pointer...............................Item no. 1891

Laser pointer

Short description:

■2-times magnification

■Battery or mains operated

■For slides and film strips 24 mm x 36 mm

or 120 roll films

■Fluorescent lamp 5000 °K

■Power adapter (accessory), item no.10330

Item no.:

B250 .........................................Item no. 10305

Viewer B250

Short description:

■Solar-operated slide viewer

■For slides or film strips

■2-times magnification

Item no.:

B40 ......................................Item no. 1030.012

(available in set of 12 pcs. only)

Viewer B40

17

18

Short description:

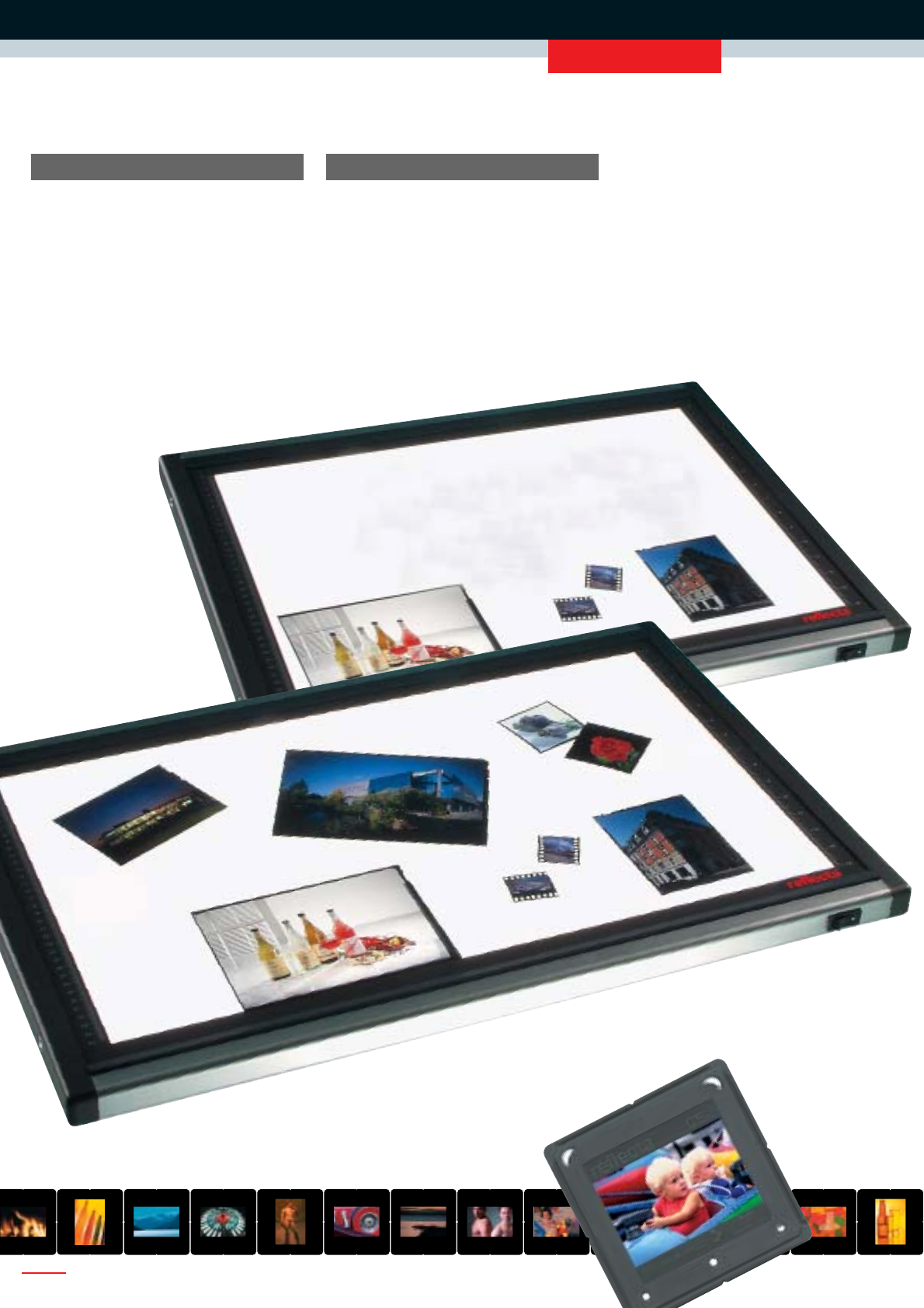

■610 mm x 300 mm

■Can be mounted to a wall

■Mains-operated, power adapter 24 V, 2000 mA

■Colour temperature 5000 °K +/- 270 °K

■Dimensions: 703 mm x 405 mm x 30 mm

Item no.:

L1800........................................Item no. 10307

Light panel L1800

Short description:

■450 mm x 300 mm

■Can be mounted to a wall

■Mains-operated, power adapter 24 V, 2000 mA

■Colour temperature 5000 °K +/- 270 °K

■Dimensions: 550 mm x 405 mm x 30 mm

Item no.:

L1400........................................Item no. 10306

Light panel L1400

ACCESSORIES

LENSES LIGHT PANELS

VIEWERSMAGAZINES/MOUNTS TABLES

Short description:

■Viewing area 127 mm x 100 mm

■Battery operated (6 x 1.5 V, micro) or

mains operated

■Power adapter (accessory) 9 V, 600 mA,

Item no.10330

■Colour temperature 5000 °K +/- 270 °K

■Lamp life is 10,000 h

■Dimensions: 158 mm x 150 mm x 14 mm

Item no.:

L130..........................................Item no. 10301

Light panel L130

Short description:

■Viewing area 178 x 127 mm

■Battery operated (6 x 1.5 V, micro) or

mains operated

■Power adapter (accessory) 9 V, 600 mA,

Item no.10330

■Colour temperature 5000 °K +/- 270 °K

■Lamp life is 10,000 h

■Dimensions: 220 mm x 190 mm x 21 mm

Item no.:

L230..........................................Item no. 10302

Light panel L230

Short description:

■Viewing area 200 x 150 mm

■Mains-operated, power adapter 12 V, 1000 mA

■Colour temperature 5000 °K +/- 270 °K

■Lamp life is 10,000 h

■Dimensions: 246 mm x 193 mm x 20 mm

Item no.:

L300..........................................Item no. 10303

Light panel L300

Short description:

■Viewing area 300 x 200 mm

■Mains-operated, power adapter

12 V, 1000 mA

■Colour temperature 5000 °K +/- 270 °K

■Lamp life is 10,000 h

■Dimensions:

370 mm x 275 mm x 25 mm

Item no.:

L600.............................Item no. 10304

Optional power adapter

Item no.:

Power adapter...............Item no. 10330

(for L130, L230, B250)

Power adapter...............Item no. 10331

(for L300 and L600)

Light panel L600

19

Short description:

■Folding monitor for all projectors for viewing

either on the monitor or a projection screen

■Monitor size 20 cm x 20 cm

Item no.:

Folding monitor...........................Item no. 1501

Folding monitor

Short description:

■Height can be adjusted from 63 cm

to 98 cm

■Viewing area 38 cm x 37 cm

■Movable rollers, two locking rollers

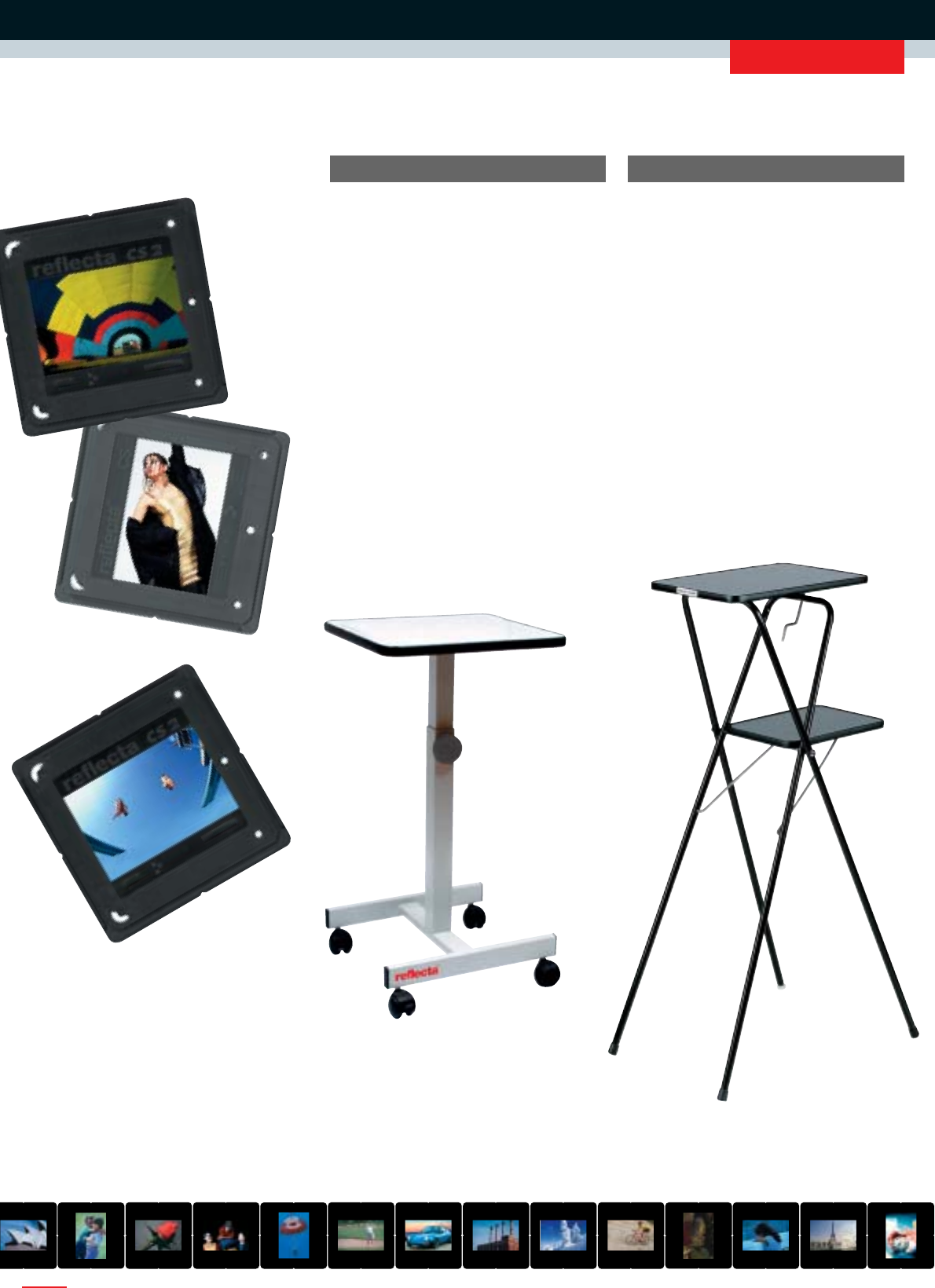

■Maximum load 25 kg

Item no.:

Dino .....................................Item no. 6055

Projection table Dino

Short description:

■Stable and versatile projection table

■2 trays, top tray can be inclined via

crank handle

■Adjustable foot to level off uneven floor

■Top tray 41 cm x 28 cm / bottom tray

30 cm x 22 cm

■Height 100 cm

Item no.:

Petro ....................................Item no. 6050

Projection table Petro

20

ACCESSORIES

LENSES TABLES

VIEWERSMAGAZINES/MOUNTS LIGHT PANELS

Short description:

■Stable and versatile projection table

■2 trays, top tray can be inclined via crank

handle

■Adjustable foot to level off uneven floor

■Top tray 49 cm x 35 cm / bottom tray

41 cm x 28 cm

■Height 100 cm

Item no.:

Senior...................................Item no. 6051

Projection table Senior

Short description:

■Stable and versatile projection table

■3 trays, top tray can be inclined via crank

handle

■Adjustable foot to level off uneven floor

■2 offset top trays 49 cm x 35 cm / bottom

tray 41 cm x 28 cm

■Height 105 cm

Item no.:

Carlos...................................Item no. 6052

Projection table Carlos

21

22

THE WORLD OF SLIDES BY REFLECTA

PRODUCTION

The latest manufacturing methods are used to

produce slide projectors which live up to the quality

standards set by the reflecta brand.

The high requirements in the quality of our slide

projectors with even more effective production

led our company to introduce the latest manufac-

turing methods for the production of our projec-

tors.

So far, several persons assembled slide

projectors on assembly lines. This type of manu-

facturing was very intensive in human resour-

ces and revealed certain weaknesses regarding

quality.

This is the reason why our projectors have

been mounted on assembly tables since 2000.

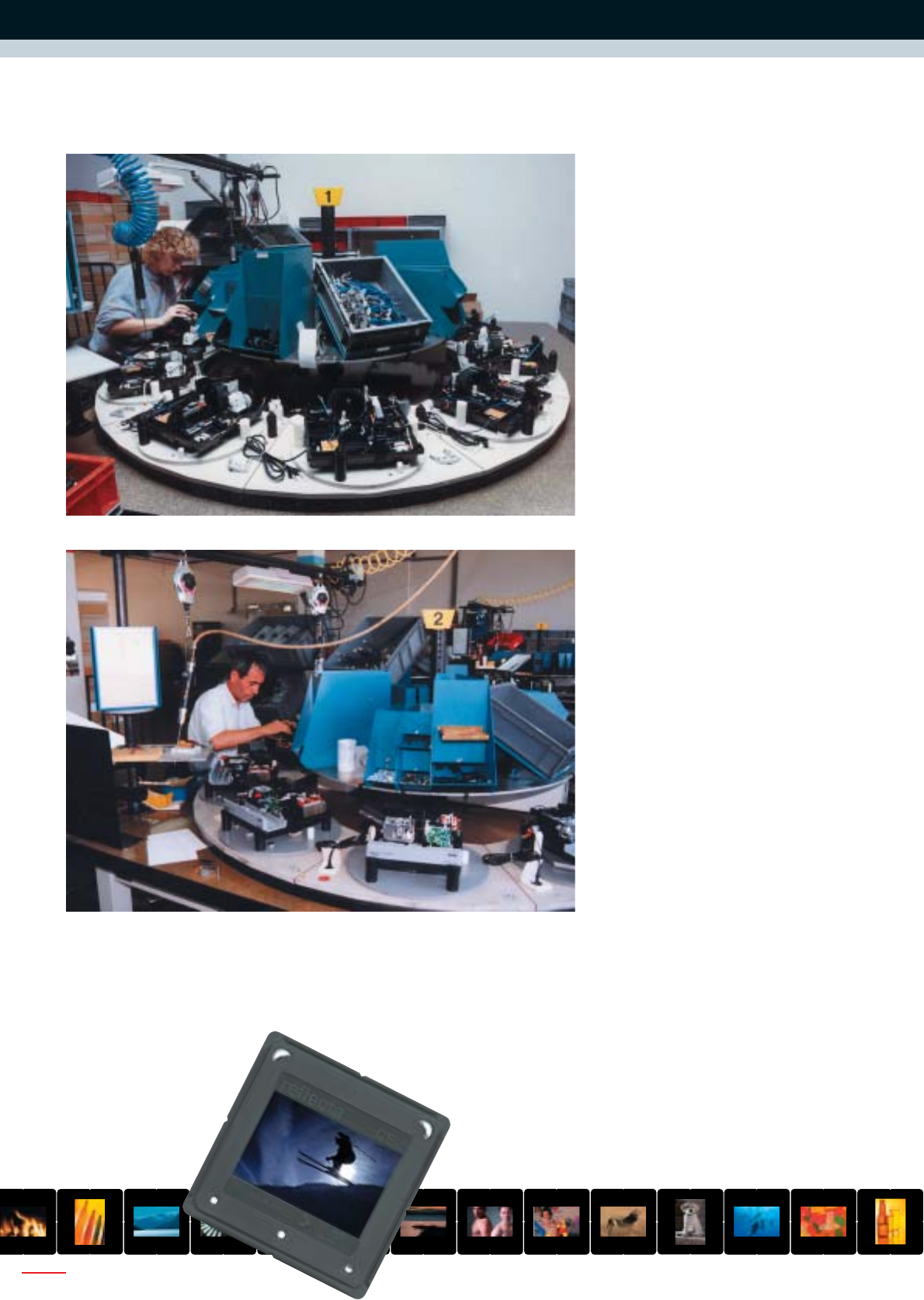

On a rotating assembly table, the same person

builds ten complete slide projectors in a single

workflow. The tables are designed in a way that

all required parts and tools are within direct

reach. The first functional check is also carried

out at this table, and the employees identify

”their“ products with a corresponding coding.

This type of manufacturing provides for a signifi-

cantly larger identification of our employees with

the units they produce. This, in turns, leads to

greater work fulfilment, higher efficiency and

better quality. In a separate final check, all slide

projectors are tested for all functions immedia-

tely after their completion. This allows for an

immediate feedback to manufacturing where

necessary. This method helped to reduce the

margin of error to a minimum.

Every year, thousands of slide projectors

”Made in Germany“ leave our premises.

Assembling the 2500 and 3000 series

Assembling the 2000 series

23

Our product range:

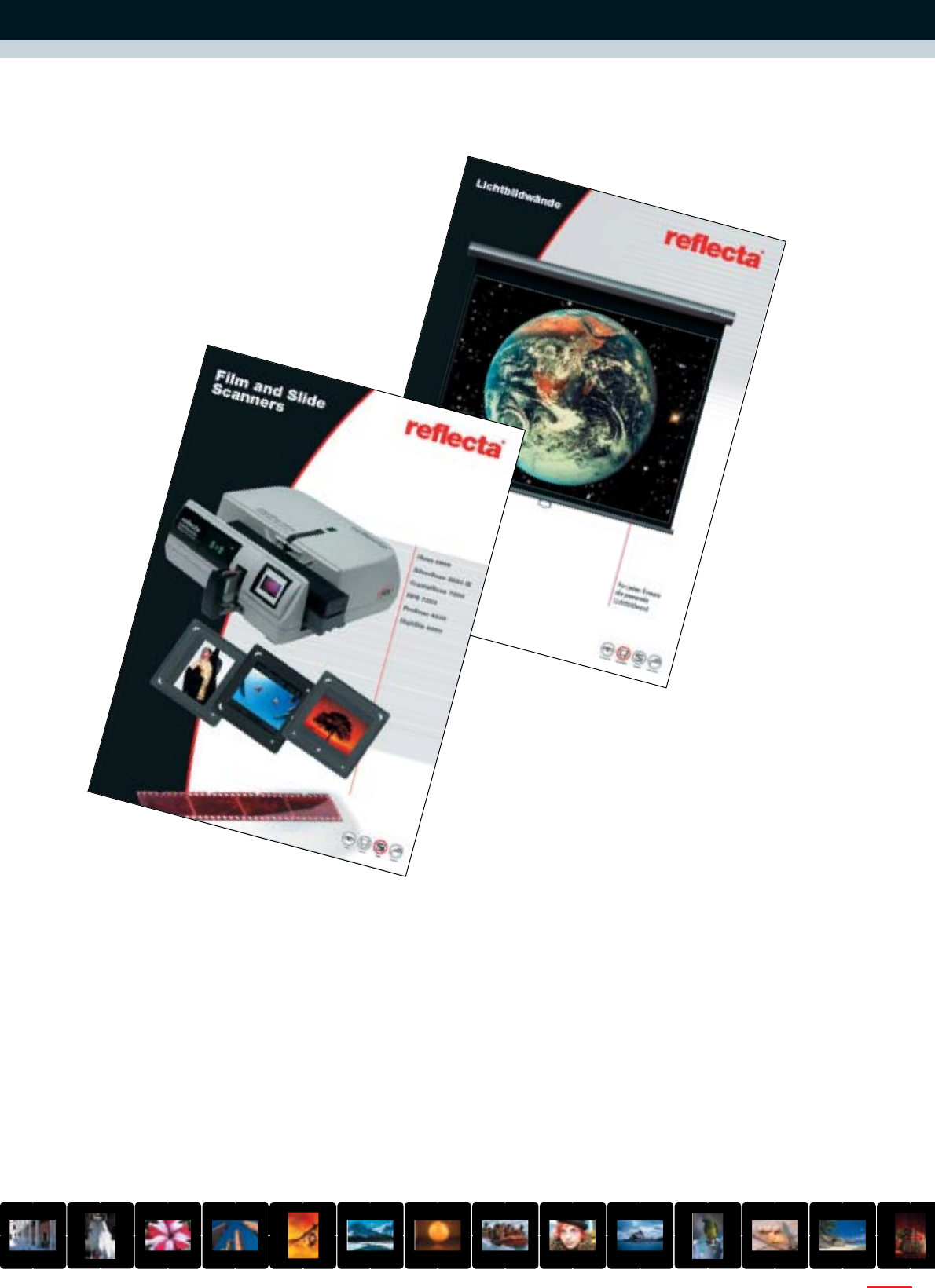

We have detailed catalogues for our other pro-

duct sectors. Please ask us – we will be pleased

to send you a copy.

• Projection screens

• Film and slide scanners

reflecta GmbH

Junghansring 70

D-72108 Rottenburg

Phone +49(0)7457/9465-60

Fax +49(0)7457/9465-72

mail@reflecta.de

www.reflecta.de

reflecta GmbH

Junghansring 70

D-72108 Rottenburg

Telefon 07457/9465-60

As part of our continued efforts to improve the quality of our products,

we reserve the right to change our products without notification.

Item no. 72204, © reflecta Germany
