Reflying Electronic RF32 Mini wireless speaker User Manual

Shenzhen Reflying Electronic Co., Ltd. Mini wireless speaker

User Manual

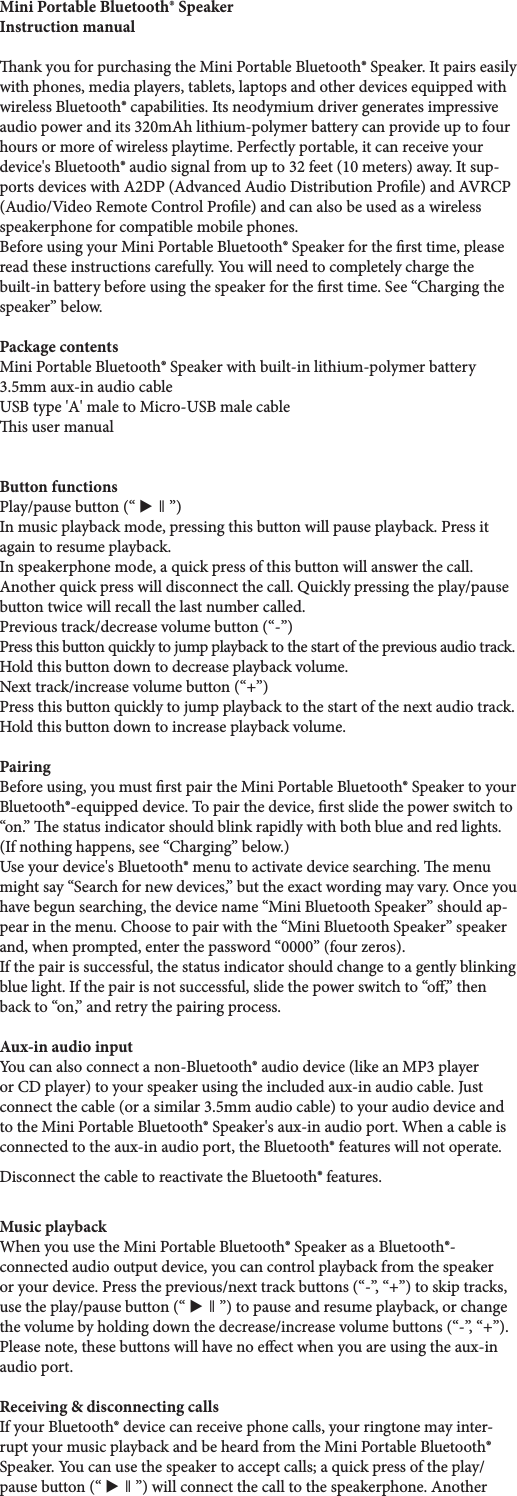

Mini Portable Bluetooth® Speaker
Instruction manual
ank you for purchasing the Mini Portable Bluetooth® Speaker. It pairs easily
with phones, media players, tablets, laptops and other devices equipped with
wireless Bluetooth® capabilities. Its neodymium driver generates impressive
audio power and its 320mAh lithium-polymer battery can provide up to four
hours or more of wireless playtime. Perfectly portable, it can receive your
device's Bluetooth® audio signal from up to 32 feet (10 meters) away. It sup-
ports devices with A2DP (Advanced Audio Distribution Prole) and AVRCP
(Audio/Video Remote Control Prole) and can also be used as a wireless
speakerphone for compatible mobile phones.
Before using your Mini Portable Bluetooth® Speaker for the rst time, please
read these instructions carefully. You will need to completely charge the
built-in battery before using the speaker for the rst time. See “Charging the
speaker” below.
Package contents
Mini Portable Bluetooth® Speaker with built-in lithium-polymer battery
3.5mm aux-in audio cable
USB type 'A' male to Micro-USB male cable
is user manual
Button functions
Play/pause button (“ ▶ ∥ ”)
In music playback mode, pressing this button will pause playback. Press it
again to resume playback.
In speakerphone mode, a quick press of this button will answer the call.
Another quick press will disconnect the call. Quickly pressing the play/pause
button twice will recall the last number called.
Previous track/decrease volume button (“-”)
Press this button quickly to jump playback to the start of the previous audio track.
Hold this button down to decrease playback volume.
Next track/increase volume button (“+”)
Press this button quickly to jump playback to the start of the next audio track.
Hold this button down to increase playback volume.
Pairing
Before using, you must rst pair the Mini Portable Bluetooth® Speaker to your
Bluetooth®-equipped device. To pair the device, rst slide the power switch to
“on.” e status indicator should blink rapidly with both blue and red lights.
(If nothing happens, see “Charging” below.)
Use your device's Bluetooth® menu to activate device searching. e menu
might say “Search for new devices,” but the exact wording may vary. Once you
have begun searching, the device name “Mini Bluetooth Speaker” should ap-
pear in the menu. Choose to pair with the “Mini Bluetooth Speaker” speaker
and, when prompted, enter the password “0000” (four zeros).
If the pair is successful, the status indicator should change to a gently blinking
blue light. If the pair is not successful, slide the power switch to “o,” then
back to “on,” and retry the pairing process.
Aux-in audio input
You can also connect a non-Bluetooth® audio device (like an MP3 player
or CD player) to your speaker using the included aux-in audio cable. Just
connect the cable (or a similar 3.5mm audio cable) to your audio device and
to the Mini Portable Bluetooth® Speaker's aux-in audio port. When a cable is
connected to the aux-in audio port, the Bluetooth® features will not operate.
Disconnect the cable to reactivate the Bluetooth® features.
Music playback
When you use the Mini Portable Bluetooth® Speaker as a Bluetooth®-
connected audio output device, you can control playback from the speaker
or your device. Press the previous/next track buttons (“-”, “+”) to skip tracks,
use the play/pause button (“ ▶ ∥ ”) to pause and resume playback, or change
the volume by holding down the decrease/increase volume buttons (“-”, “+”).
Please note, these buttons will have no eect when you are using the aux-in
audio port.
Receiving & disconnecting calls
If your Bluetooth® device can receive phone calls, your ringtone may inter-
rupt your music playback and be heard from the Mini Portable Bluetooth®
Speaker. You can use the speaker to accept calls; a quick press of the play/
pause button (“ ▶ ∥ ”) will connect the call to the speakerphone. Another
quick press will disconnect the call. Quickly pressing the play/pause button
twice will recall the last number called.

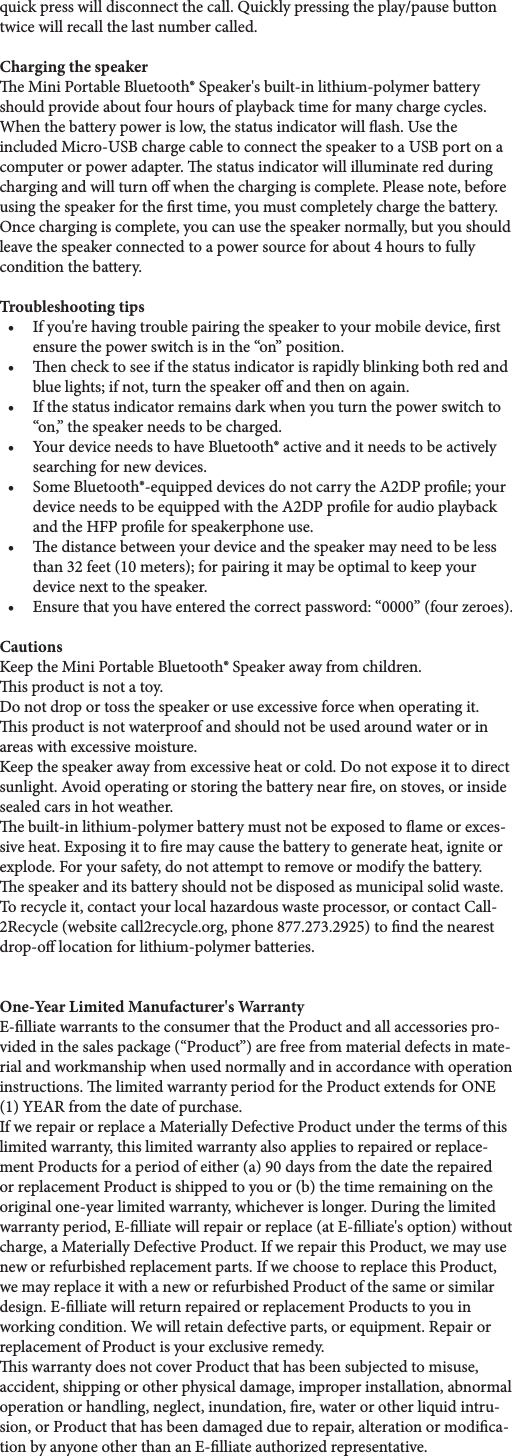

Charging the speaker
e Mini Portable Bluetooth® Speaker's built-in lithium-polymer battery
should provide about four hours of playback time for many charge cycles.
When the battery power is low, the status indicator will ash. Use the
included Micro-USB charge cable to connect the speaker to a USB port on a
computer or power adapter. e status indicator will illuminate red during
charging and will turn o when the charging is complete. Please note, before
using the speaker for the rst time, you must completely charge the battery.
Once charging is complete, you can use the speaker normally, but you should
leave the speaker connected to a power source for about 4 hours to fully
condition the battery.
Troubleshooting tips
• Ifyou'rehavingtroublepairingthespeakertoyourmobiledevice,rst
ensure the power switch is in the “on” position.
• enchecktoseeifthestatusindicatorisrapidlyblinkingbothredand
blue lights; if not, turn the speaker o and then on again.
• Ifthestatusindicatorremainsdarkwhenyouturnthepowerswitchto
“on,” the speaker needs to be charged.
• YourdeviceneedstohaveBluetooth®activeanditneedstobeactively
searching for new devices.
• SomeBluetooth®-equippeddevicesdonotcarrytheA2DPprole;your
device needs to be equipped with the A2DP prole for audio playback
and the HFP prole for speakerphone use.
• edistancebetweenyourdeviceandthespeakermayneedtobeless
than 32 feet (10 meters); for pairing it may be optimal to keep your
device next to the speaker.
• Ensurethatyouhaveenteredthecorrectpassword:“0000”(fourzeroes).
Cautions
Keep the Mini Portable Bluetooth® Speaker away from children.
is product is not a toy.
Do not drop or toss the speaker or use excessive force when operating it.
is product is not waterproof and should not be used around water or in
areas with excessive moisture.
Keep the speaker away from excessive heat or cold. Do not expose it to direct
sunlight. Avoid operating or storing the battery near re, on stoves, or inside
sealed cars in hot weather.
e built-in lithium-polymer battery must not be exposed to ame or exces-
siveheat.Exposingittoremaycausethebatterytogenerateheat,igniteor
explode. For your safety, do not attempt to remove or modify the battery.
e speaker and its battery should not be disposed as municipal solid waste.
To recycle it, contact your local hazardous waste processor, or contact Call-
2Recycle (website call2recycle.org, phone 877.273.2925) to nd the nearest
drop-o location for lithium-polymer batteries.
One-Year Limited Manufacturer's Warranty
E-lliatewarrantstotheconsumerthattheProductandallaccessoriespro-
vided in the sales package (“Product”) are free from material defects in mate-
rial and workmanship when used normally and in accordance with operation
instructions.elimitedwarrantyperiodfortheProductextendsforONE
(1)YEARfromthedateofpurchase.
If we repair or replace a Materially Defective Product under the terms of this
limited warranty, this limited warranty also applies to repaired or replace-
ment Products for a period of either (a) 90 days from the date the repaired
or replacement Product is shipped to you or (b) the time remaining on the
original one-year limited warranty, whichever is longer. During the limited
warrantyperiod,E-lliatewillrepairorreplace(atE-lliate'soption)without
charge, a Materially Defective Product. If we repair this Product, we may use
new or refurbished replacement parts. If we choose to replace this Product,
we may replace it with a new or refurbished Product of the same or similar
design.E-lliatewillreturnrepairedorreplacementProductstoyouin
working condition. We will retain defective parts, or equipment. Repair or
replacement of Product is your exclusive remedy.
is warranty does not cover Product that has been subjected to misuse,
accident, shipping or other physical damage, improper installation, abnormal
operation or handling, neglect, inundation, re, water or other liquid intru-
sion, or Product that has been damaged due to repair, alteration or modica-
tionbyanyoneotherthananE-lliateauthorizedrepresentative.
Mini Portable Bluetooth® Speaker
Instruction manual
ank you for purchasing the Mini Portable Bluetooth® Speaker. It pairs easily
with phones, media players, tablets, laptops and other devices equipped with
wireless Bluetooth® capabilities. Its neodymium driver generates impressive
audio power and its 320mAh lithium-polymer battery can provide up to four
hours or more of wireless playtime. Perfectly portable, it can receive your
device's Bluetooth® audio signal from up to 32 feet (10 meters) away. It sup-
ports devices with A2DP (Advanced Audio Distribution Prole) and AVRCP
(Audio/Video Remote Control Prole) and can also be used as a wireless
speakerphone for compatible mobile phones.
Before using your Mini Portable Bluetooth® Speaker for the rst time, please
read these instructions carefully. You will need to completely charge the
built-in battery before using the speaker for the rst time. See “Charging the
speaker” below.
Package contents
Mini Portable Bluetooth® Speaker with built-in lithium-polymer battery
3.5mm aux-in audio cable
USB type 'A' male to Micro-USB male cable
is user manual
Button functions
Play/pause button (“ ▶ ∥ ”)
In music playback mode, pressing this button will pause playback. Press it
again to resume playback.
In speakerphone mode, a quick press of this button will answer the call.
Another quick press will disconnect the call. Quickly pressing the play/pause
button twice will recall the last number called.
Previous track/decrease volume button (“-”)
Press this button quickly to jump playback to the start of the previous audio track.
Hold this button down to decrease playback volume.
Next track/increase volume button (“+”)
Press this button quickly to jump playback to the start of the next audio track.
Hold this button down to increase playback volume.
Pairing
Before using, you must rst pair the Mini Portable Bluetooth® Speaker to your
Bluetooth®-equipped device. To pair the device, rst slide the power switch to
“on.” e status indicator should blink rapidly with both blue and red lights.
(If nothing happens, see “Charging” below.)
Use your device's Bluetooth® menu to activate device searching. e menu
might say “Search for new devices,” but the exact wording may vary. Once you
have begun searching, the device name “Mini Bluetooth Speaker” should ap-
pear in the menu. Choose to pair with the “Mini Bluetooth Speaker” speaker
and, when prompted, enter the password “0000” (four zeros).
If the pair is successful, the status indicator should change to a gently blinking
blue light. If the pair is not successful, slide the power switch to “o,” then
back to “on,” and retry the pairing process.
Aux-in audio input
You can also connect a non-Bluetooth® audio device (like an MP3 player
or CD player) to your speaker using the included aux-in audio cable. Just
connect the cable (or a similar 3.5mm audio cable) to your audio device and
to the Mini Portable Bluetooth® Speaker's aux-in audio port. When a cable is
connected to the aux-in audio port, the Bluetooth® features will not operate.
Disconnect the cable to reactivate the Bluetooth® features.
Music playback
When you use the Mini Portable Bluetooth® Speaker as a Bluetooth®-
connected audio output device, you can control playback from the speaker
or your device. Press the previous/next track buttons (“-”, “+”) to skip tracks,
use the play/pause button (“ ▶ ∥ ”) to pause and resume playback, or change
the volume by holding down the decrease/increase volume buttons (“-”, “+”).
Please note, these buttons will have no eect when you are using the aux-in
audio port.
Receiving & disconnecting calls
If your Bluetooth® device can receive phone calls, your ringtone may inter-
rupt your music playback and be heard from the Mini Portable Bluetooth®
Speaker. You can use the speaker to accept calls; a quick press of the play/
pause button (“ ▶ ∥ ”) will connect the call to the speakerphone. Another
quick press will disconnect the call. Quickly pressing the play/pause button
twice will recall the last number called.
Charging the speaker
e Mini Portable Bluetooth® Speaker's built-in lithium-polymer battery
should provide about four hours of playback time for many charge cycles.
When the battery power is low, the status indicator will ash. Use the
included Micro-USB charge cable to connect the speaker to a USB port on a
computer or power adapter. e status indicator will illuminate red during
charging and will turn o when the charging is complete. Please note, before
using the speaker for the rst time, you must completely charge the battery.
Once charging is complete, you can use the speaker normally, but you should
leave the speaker connected to a power source for about 4 hours to fully
condition the battery.
Troubleshooting tips
• Ifyou'rehavingtroublepairingthespeakertoyourmobiledevice,rst
ensure the power switch is in the “on” position.
• enchecktoseeifthestatusindicatorisrapidlyblinkingbothredand
blue lights; if not, turn the speaker o and then on again.
• Ifthestatusindicatorremainsdarkwhenyouturnthepowerswitchto
“on,” the speaker needs to be charged.
• YourdeviceneedstohaveBluetooth®activeanditneedstobeactively
searching for new devices.
• SomeBluetooth®-equippeddevicesdonotcarrytheA2DPprole;your
device needs to be equipped with the A2DP prole for audio playback
and the HFP prole for speakerphone use.
• edistancebetweenyourdeviceandthespeakermayneedtobeless
than 32 feet (10 meters); for pairing it may be optimal to keep your
device next to the speaker.
• Ensurethatyouhaveenteredthecorrectpassword:“0000”(fourzeroes).
Cautions
Keep the Mini Portable Bluetooth® Speaker away from children.
is product is not a toy.
Do not drop or toss the speaker or use excessive force when operating it.
is product is not waterproof and should not be used around water or in
areas with excessive moisture.
Keep the speaker away from excessive heat or cold. Do not expose it to direct
sunlight. Avoid operating or storing the battery near re, on stoves, or inside
sealed cars in hot weather.
e built-in lithium-polymer battery must not be exposed to ame or exces-
siveheat.Exposingittoremaycausethebatterytogenerateheat,igniteor
explode. For your safety, do not attempt to remove or modify the battery.
e speaker and its battery should not be disposed as municipal solid waste.
To recycle it, contact your local hazardous waste processor, or contact Call-
2Recycle (website call2recycle.org, phone 877.273.2925) to nd the nearest
drop-o location for lithium-polymer batteries.
One-Year Limited Manufacturer's Warranty
E-lliatewarrantstotheconsumerthattheProductandallaccessoriespro-
vided in the sales package (“Product”) are free from material defects in mate-
rial and workmanship when used normally and in accordance with operation
instructions.elimitedwarrantyperiodfortheProductextendsforONE
(1)YEARfromthedateofpurchase.
If we repair or replace a Materially Defective Product under the terms of this
limited warranty, this limited warranty also applies to repaired or replace-
ment Products for a period of either (a) 90 days from the date the repaired
or replacement Product is shipped to you or (b) the time remaining on the
original one-year limited warranty, whichever is longer. During the limited
warrantyperiod,E-lliatewillrepairorreplace(atE-lliate'soption)without
charge, a Materially Defective Product. If we repair this Product, we may use
new or refurbished replacement parts. If we choose to replace this Product,
we may replace it with a new or refurbished Product of the same or similar
design.E-lliatewillreturnrepairedorreplacementProductstoyouin
working condition. We will retain defective parts, or equipment. Repair or
replacement of Product is your exclusive remedy.
is warranty does not cover Product that has been subjected to misuse,
accident, shipping or other physical damage, improper installation, abnormal
operation or handling, neglect, inundation, re, water or other liquid intru-
sion, or Product that has been damaged due to repair, alteration or modica-
tionbyanyoneotherthananE-lliateauthorizedrepresentative.

Navigation menu
