WARNING:

If the information in these instructions are not followed exactly

a fire or explosion may result causing property damage

personal injury or loss of life.

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors an

liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualifie

installer, service agency or the gas supplier.

FOR YOUR SAFETY

What to do if you smell gas:

!Do not try to light any appliance

!Do not touch any electrical switch

do not use any phone in you

building.

!Immediately call your gas supplie

from a neighbour's phone. Follow

the gas supplier's instructions.

!If you cannot reach your ga

supplier, call the fire department.

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

908-727

MODELS: U41-NG3 Natural Gas U41-LP3 Propane

10/08/03

U41 Gas Insert

Owners &

Installation Manual

www.regency-fire.com

Tested by: Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

2Regency U41-3 ULTIMATE Gas Fireplace Insert

Note: Oversize faceplate 44-1/4" x 31-1/8"

Extra Oversize Faceplate 50-1/4" x 35-1/8"

TO THE NEW OWNER

Congratulations! You are the owner of a state-of-the-art Gas Insert by FIREPLACE PRODUCTS

INTERNATIONAL LTD. The Regency ULTIMATE Gas Fireplace Series of hand crafted appliances

has been designed to provide you with all the warmth and charm of a fireplace, at the flick of a switch.

The models U41-NG3 and U41-LP3 of this series have been approved by Warnock Hersey for both

safety and efficiency. As it also bears our own mark, it promises to provide you with economy, comfort,

and security for many trouble free years to follow. Please take a moment now to acquaint yourself

with these instructions and the many features of your Regency Fireplace.

REGENCY

GAS FIREPLACE INSERT

gas inlet

pipe on the

appliance

7-5/8"

(194mm)

13-1/8"

(333mm)

19-1/2"(495mm)

21-1/2"

(546mm)

22-1/2"

(572mm)

20"

(508mm)

1-7/8"

(48mm)

9-1/2"

(241mm)

29-1/4"(743mm)

44-3/8"(1127mm)

28-5/16"

(719mm)

29-1/4" (743mm)

13-1/4"(336mm)

26-1/2" (673mm)

3-1/4"

(83mm)

8-1/2"

(216mm)

10-1/2"

(267mm)

gas inlet

pipe on the

appliance

Regency U41-3 ULTIMATE Gas Fireplace Insert

TABLE OF CONTENTS

REGENCY ULTIMATE GAS FIREPLACE INSERT

SAFETY LABEL

Safety Labels ............................................ 4

INSTALLATION REQUIREMENTS

For your safety ................................................ 5

Gas Pipe Testing............................................. 5

Specifications .................................................. 5

Installation into a Factory Built Fireplace ......... 5

Installation into Zero Clearance Fireplace ......... 5

Before You Start ................................................ 5

General Safety Information ................................ 5

Materials Required ........................................... 5

Installation Checklist........................................ 6

Clearances

-Minimum Fireplace Clearances ............... 6

-Clearances to Combustibles.................... 6

-Clearances to Combustible Mantels .......... 7

INSTALLATION INSTRUCTIONS

System Data Table ........................................... 7

High Elevation.................................................... 7

Gas Connection .............................................. 8

Draft Hood Connection .................................... 8

Combustion and Ventilation Air ......................... 8

Venting ............................................................ 8

Gas Pressure Test............................................ 9

Aeration System ................................................ 9

Test For Flue Spillage ....................................... 9

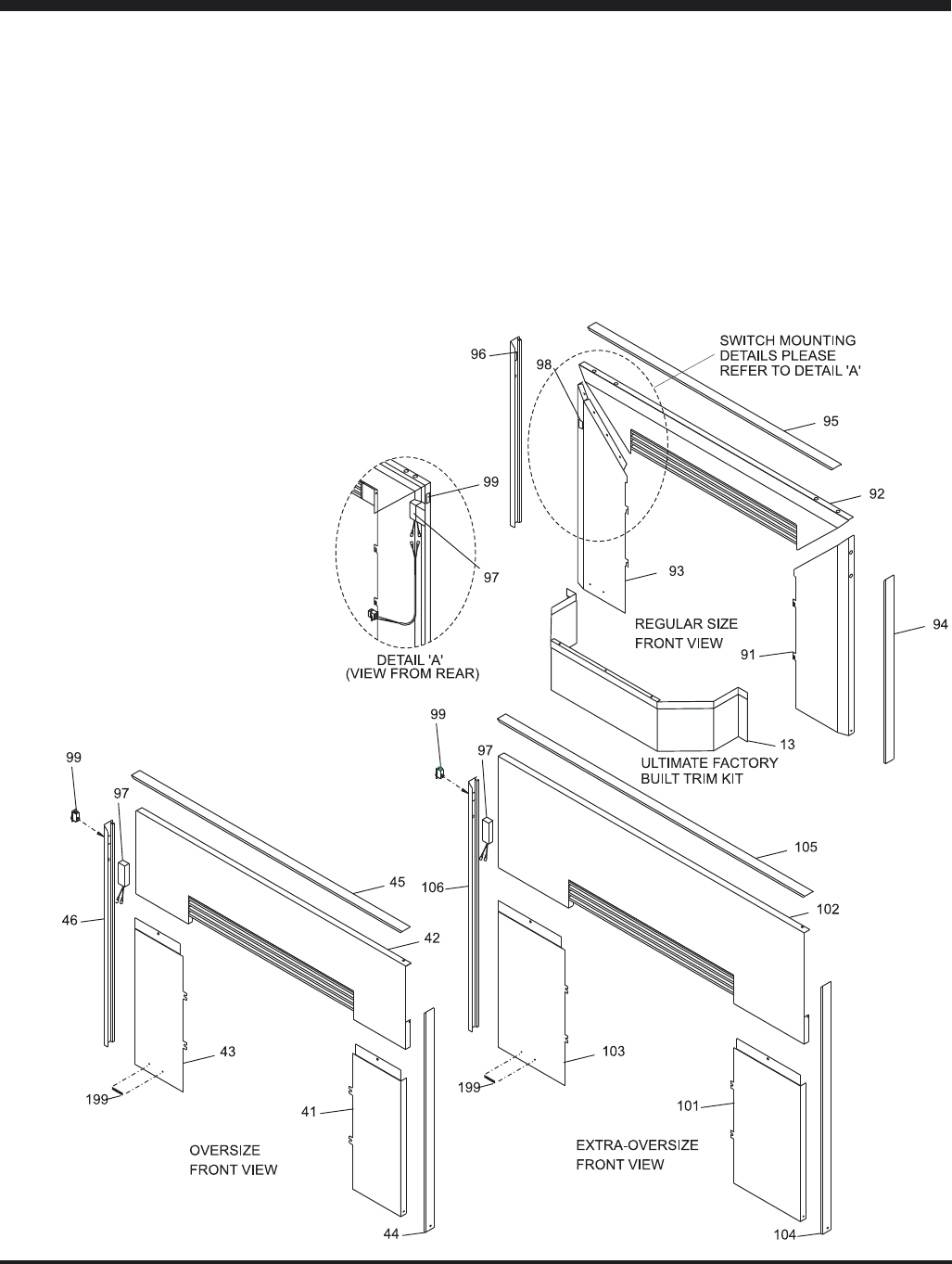

Faceplate & Trim Installation ........................... 10

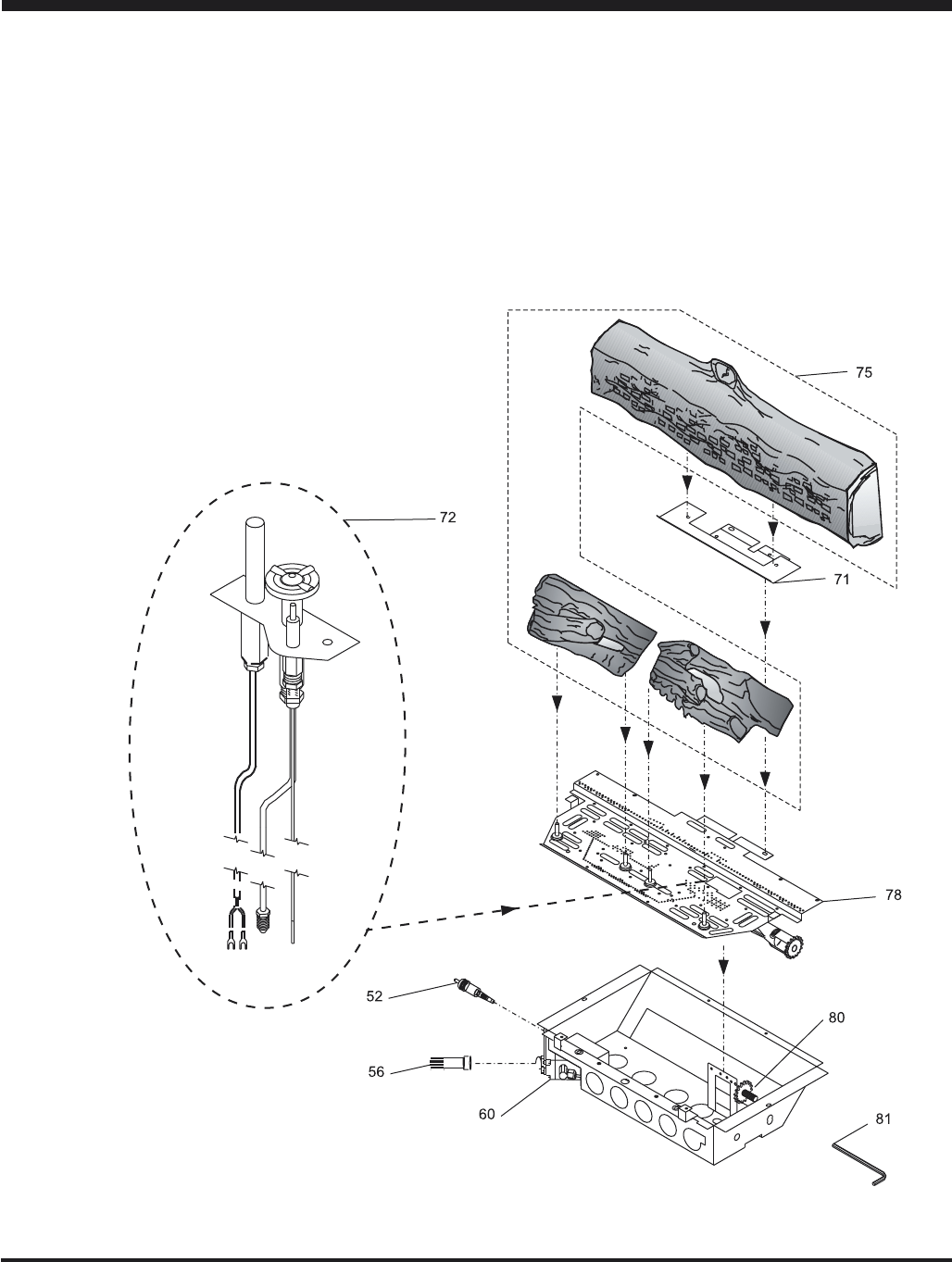

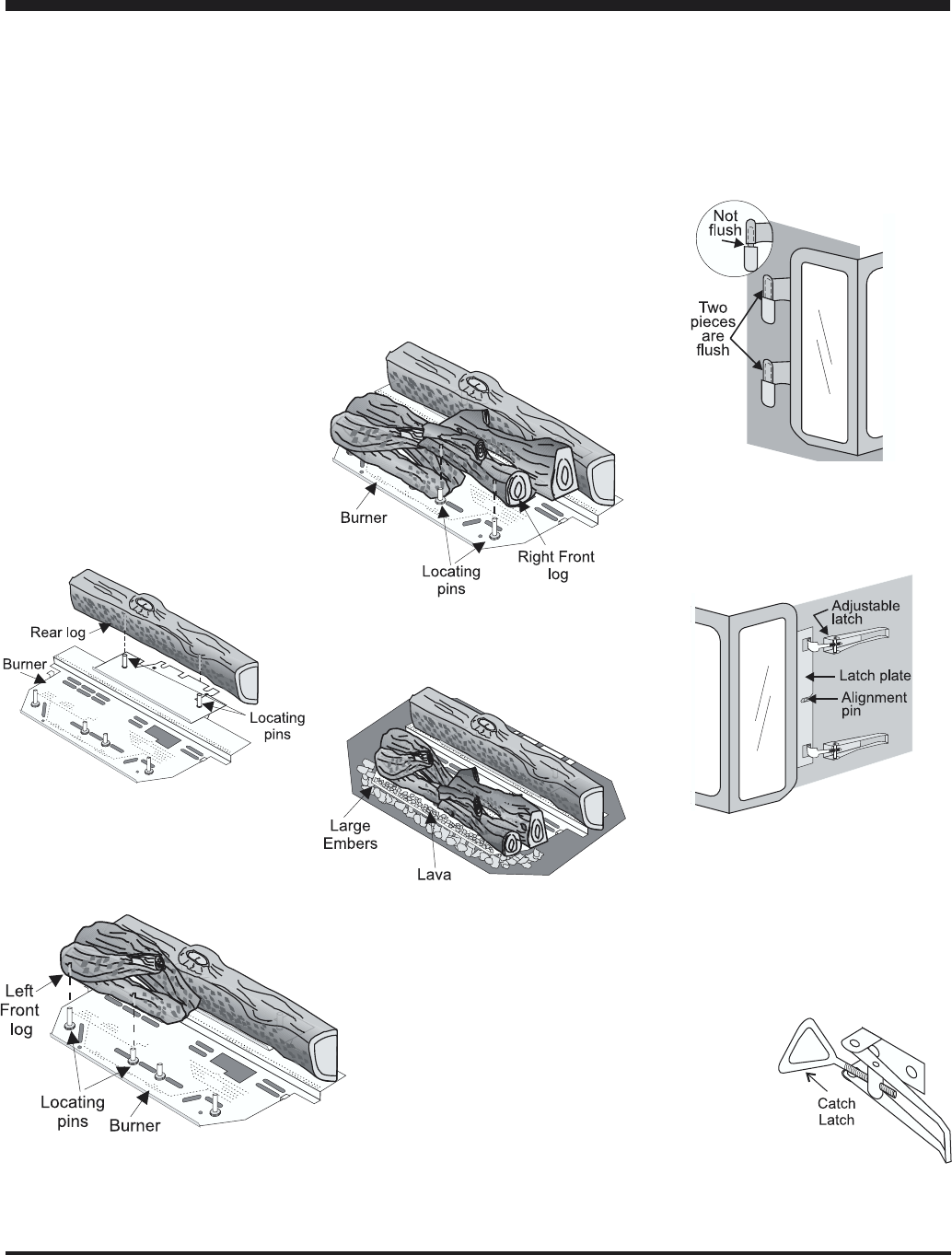

Log Installation................................................. 11

Door Installation & Door Latches..................... 11

Optional Remote Control Installation ............... 12

Optional Wall Thermostat Installation.............. 12

Final Check............................................... 12

Wiring Diagram ............................................. 13

OPERATING INSTRUCTIONS

Operating Instructions ..................................... 14

Lighting Procedure .......................................... 14

Shutdown Procedure ...................................... 14

First Fire .......................................................... 14

Automatic Convection Fan Operation ............. 14

Copy of Lighting Plate Instructions .................. 15

Normal Operating Sounds of Gas Appliances. 16

MAINTENANCE

Maintenance .................................................... 16

Log Replacement ............................................ 17

Gold Plated Doors ........................................... 17

Door Gasket and Glass Gasket ...................... 17

Latch Adjustment ............................................ 17

Glass Replacement ........................................ 17

- Mitred Door.............................................. 17

- Panel Door .............................................. 17

Fan Maintenance ............................................. 18

-Replacing fan ........................................... 18

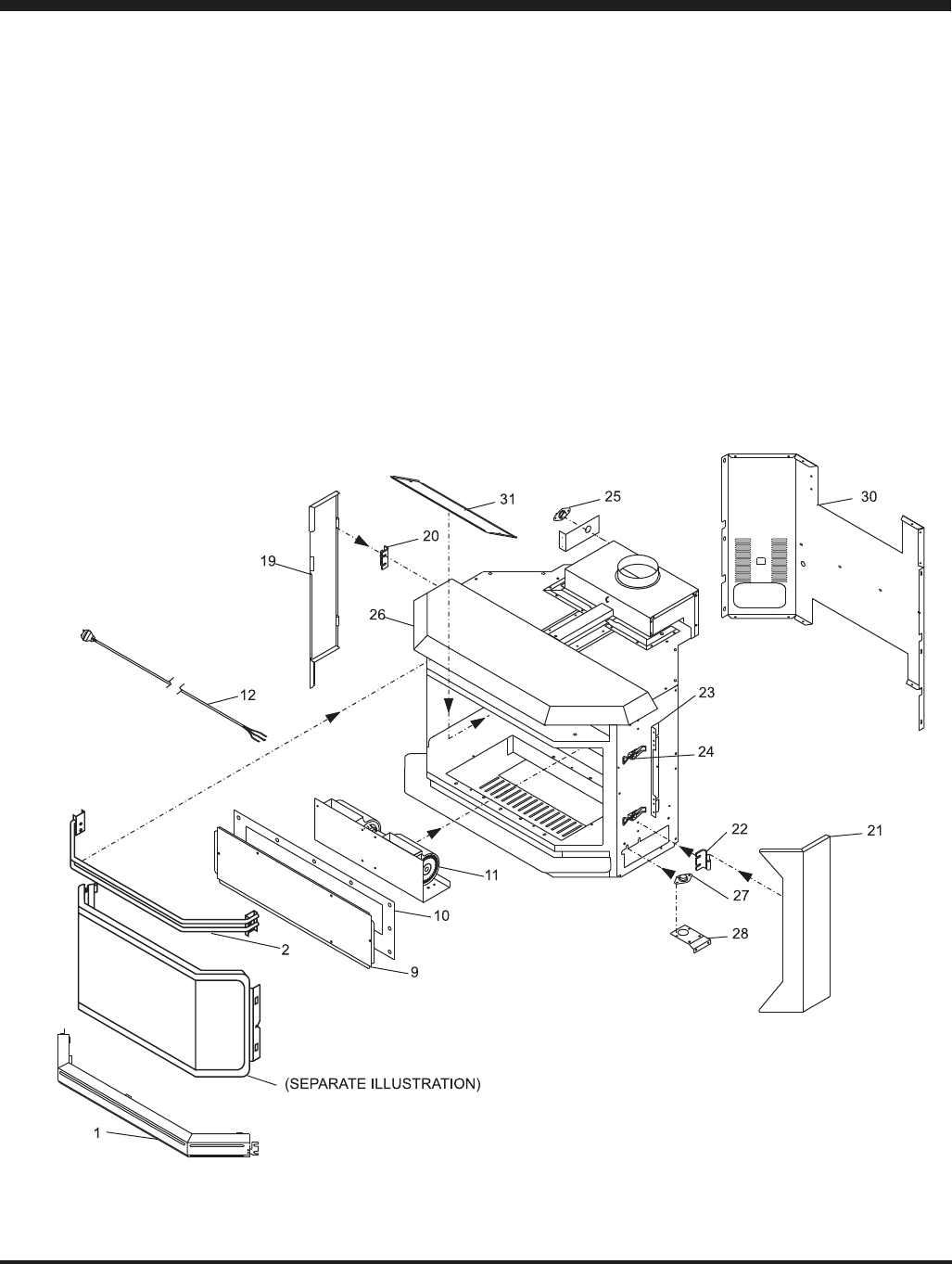

Parts List ......................................................... 19

WARRANTY

Warranty ......................................................... 23

4Regency U41-3 ULTIMATE Gas Fireplace Insert

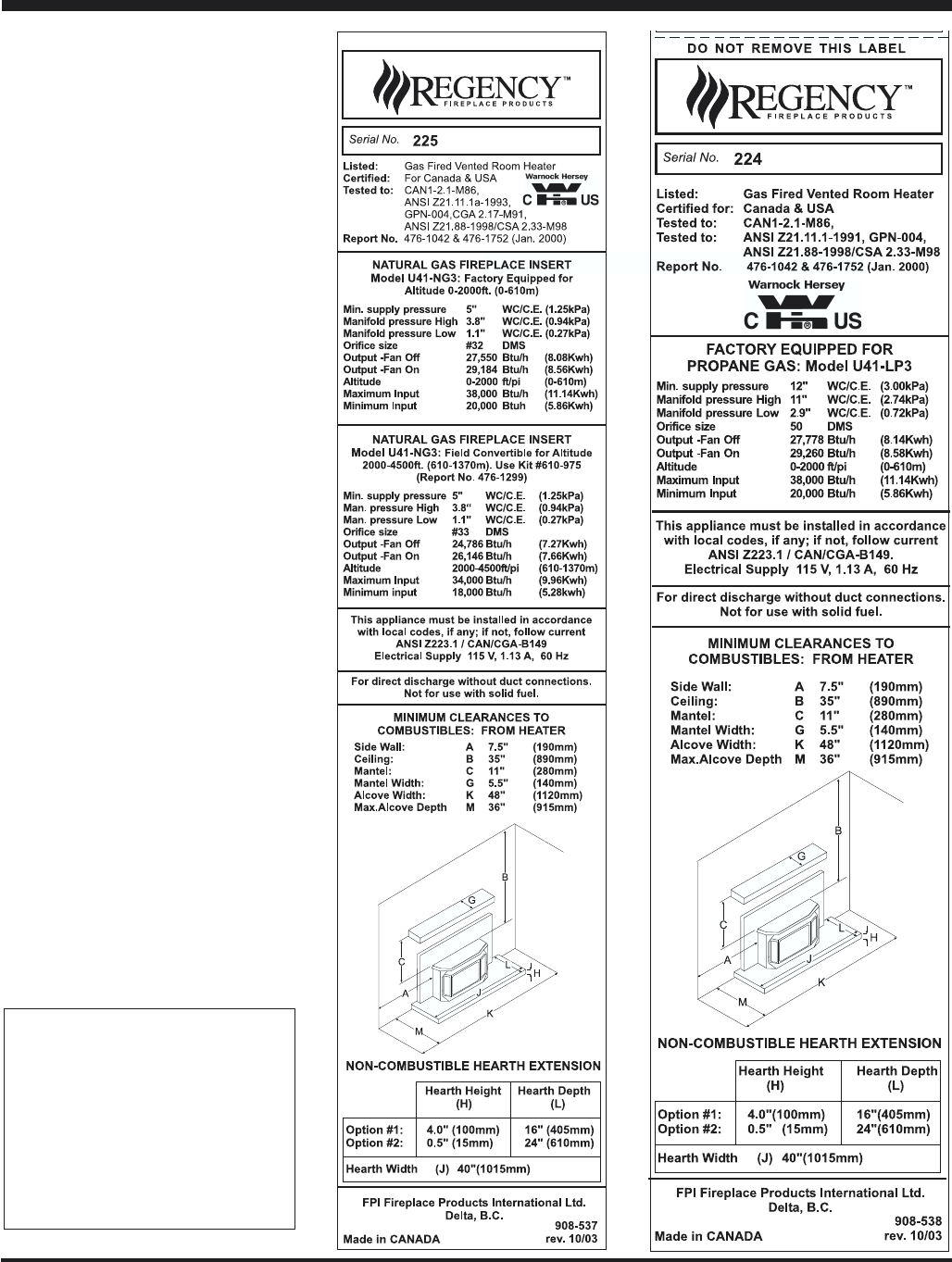

This is a copy of the label that accompanies

each Regency ULTIMATE Gas Insert. We

have printed a copy of the contents here for

your review. The safety label is located on

the right side door panel.

NOTE: Regency units are constantly being

improved. Check the label on the unit and if

there is a difference, the label on the unit is

the correct one.

SAFETY LABEL

For the State of Massachusetts, installation

and repair must be done by a plumber or

gasfitter licensed in the Commonwealth of

Massachusetts.

For the State of Massachusetts, flexible

connectors shall not exceed 36 inches in

length.

For the State of Massachusetts, the appli-

ances individual manual shut-off must be a

t-handle type valve.

Regency U41-3 ULTIMATE Gas Fireplace Insert

Fireplace Trim Kit, Part # 610-940, is available.

If the factory built fireplace height is too

low for your Insert, you may remove the

smoke shelf, baffle plate, and damper

plate from the factory built fireplace if

removable without cutting or torching,

as long as these items are saved and are

re-installed in the event that the Insert is

removed.

INSTALLATION INTO

ZERO CLEARANCE

FIREPLACES

The ULTIMATE Gas Inserts are only approved

for installation into the ULTIMATE Gas

Insert Zero Clearance Fireplace Kit, mod-

el # 660-900.

BEFORE YOU START

Safe installation and operation of this appliance

requires common sense, however, we are

required by the Canadian Safety Standards

and ANSI Standards to make you aware of the

following:

General Safety Information

1) The appliance installation must conform

with local codes or in the absence of local

codes, with current CAN/CGA B149 (in

Canada) or the current National Fuel Gas

Code ANSI Z223.1. This appliance MUST be

installed by a qualified gas fitter technician

only.

2) Installation and repair should be done

by a qualified service person.

3) The appliance should be inspected before

use and at least annually by a professional

service person. More frequent cleaning

may be required due to excessive lint from

carpeting, bedding material, etc. It is imper-

ative that control compartments, burners

and circulating air passageways of the

appliance be kept clean and free from

excessive lint from carpeting.

4) See general construction and assembly

instructions. This appliance may only be

installed in a vented, non-combustible fire-

place. The appliance and vent should be

enclosed when installed in or passing

through a living area, where children may

come in contact with it.

5) This appliance is Listed for bedroom instal-

lations when used with a Listed Millivolt

IMPORTANT:

SAVE THESE

INSTRUCTIONS

The Regency Gas Fireplace must be installed

in accordance with these instructions. Care-

fully read all the instructions in this manual first.

Consult the building authority having jurisdic-

tion to determine the need for a permit prior to

starting the installation.

Note: Failure to follow these instruc-

tions could cause a malfunction of

the heater which could result in

death, serious bodily injury, and/

or property damage. Failure to

follow these instructions may also

void your fire insurance and/or

warranty.

FOR YOUR SAFETY

This appliance requires air for proper combus-

tion. Always provide adequate combustion

and ventilation air. Follow instructions and

information in the current CAN/CGA B149 (in

Canada) or the current National Fuel Gas Code

ANSI Z223.1 (in the USA), regarding require-

ments for combustion and ventilation air.

GAS PIPE TESTING

The appliance must be isolated from the gas

supply piping system by closing its individual

manual shutoff valve during any pressure

testing of the gas supply piping system at test

pressures equal to or less than 1/2 psig. (3.45

kPa).

SPECIFICATIONS

Fuel: Natural gas or Propane

Electrical: 120V A.C. system.

Fan/Blower: Variable speed, 125/75 CFM.

Log Sets: Ceramic fiber, 3 per set.

Vent System: Listed minimum 4" B-Vent or

listed double thickness

aluminium flex liner.

INSTALLATION INTO A

FACTORY BUILT

FIREPLACE

The ULTIMATE Gas Inserts have been tested

and approved to be vented into any approved

Factory Built Fireplace that will allow the Insert

to physically fit into the firebox. A Factory Built

INSTALLATION

Thermostat. Some areas may have further

requirements, check local codes before

installation.

6) This unit is not approved for installation into

a mobile home.

7) Always connect this fireplace to a chimney

and vent to the outside of the building

envelope. Never vent to another room or

inside a building. Make sure that the vent is

properly sized and is of adequate height to

provide the proper draft.

8) Inspect the venting system annually for

blockage and any signs of deterioration.

9) Any safety glass removed for servicing

must be replaced prior to operating the

appliance.

10)To prevent injury, do not allow anyone who

is unfamiliar with the operation to use the

fireplace.

11)Due to high temperatures, the appliance

should be located out of high traffic areas

and away from furniture and draperies.

Children and adults should be alerted to the

hazards of high surface temperatures,

especially the fireplace glass and gold trims,

and should stay away to avoid burns or

clothing ignition. Young children should be

carefully supervised when they are in the

same room as the appliance. Clothing or

other flammable material should not be placed

on or near the appliance.

12) WARNING: Failure to position the parts

in accordance with the diagrams in

this manual or failure to use only parts

specifically approved with this appli-

ance may result in property damage

or personal injury.

13) WARNING: Operation of this appliance

when not connected to a properly installed

and maintained venting system or tamper-

ing with the blocked vent shut-off system

can result in carbon monoxide (CO) poison-

ing and possible death.

14)This appliance needs fresh air for safe

operation and must be installed so there are

provisions for adequate combustion and

ventilation air.

MATERIALS

REQUIRED

No electrical power supply is required for the

gas control to operate. A 120 Volt AC power

Emissions from burning wood or gas could

contain chemicals known to the State of

California to cause cancer, birth defects or

other reproductive harm.

6Regency U41-3 ULTIMATE Gas Fireplace Insert

cord is hooked up to the fan switch and blower.

Plug 3 wire cord into a suitable receptacle. Do

not cut the ground terminal off under any

circumstances.

When connected with 120 volts, the appliance

must be electrically grounded in accordance

with local codes, with a current version of CSA

C22.1 (in Canada) or in the absence of local

codes, with the National Electrical Code ANSI/

NFPA 70-1987.

Note: This unit is equipped with a heat

sensor thermodisc which will

prevent the blower from operat-

ing until the unit reaches the cor-

rect temperature.

INSTALLATION

CHECKLIST

The Regency Gas Insert is installed as listed

below.

1) Unit Location - check Clearances to Com-

bustibles on pages 6 and 7.

2) Make the gas connections and electrical

connection for fan and vent spill switch.

See page 8.

3) Install the flue or liner to the sliding draft

hood. See page 8.

4) Install Venting, page 8. Slide the unit into the

fireplace and level. Attach draft hood to the

insert.

5) Test gas pressure, page 9. Check aeration,

page 9.

6) Test for flue spillage, page 9.

7) Assemble and install the faceplate and trim.

See page 10.

8) Install the log set. See page 11.

9) Install Doors. See page 11.

10)Install Optional Remote Control, and Op-

tional Wall Thermostat, page 12.

11)Explain controls to the homeowner.

12) Final check: Before leaving this unit with

the customer, the installer must ensure that

the appliance is firing correctly. This in-

cludes:

a) Clocking the appliance to ensure the

correct firing rate.

b) Adjusting the primary air, if required,

to ensure that the flame does not

carbon. See page 9.

c) Ensuring that the appliance is vent-

ing correctly. See page 8.

INSTALLATION

CLEARANCES

Top View

Clearances to Combustibles

From Unit

Sides A 7.5" / 190 mm

Ceiling B 35" / 890 mm

Mantel C(My) 11 / 280 mm

From Surround

Sides D 2" / 50 mm

Ceiling E 25.5" / 650 mm

Mantel F 3" / 75 mm

Min. Alcove Width J 48" / 1120 mm

Mantel Depth G(Mx) 7.5" / 190 mm

Facing (Mantel Leg)

Side* K 1" / 25 mm

Top L 1" / 25 mm

Minimum Fireplace Clearances

The minimum fireplace clearances for the Re-

gency gas fireplace insert are shown in the

following diagrams:

*Max. width of 1" at 1" from surround, calculate

depth at 45o as shown in the diagram.

Regency U41-3 ULTIMATE Gas Fireplace Insert

Burner Inlet Orifice Sizes:

Natural Gas

Burner #33

Max. Input Rating - Natural Gas 34,000 btu/h

Min. Input Rating - Natural Gas 18,000 btu/h

Output Capacity with blower Off

Natural Gas 24,786

Max. Output Capacity with blower On

Natural Gas 26,146

System Data

For 0 to 2000 feet altitude

Burner Inlet Orifice Sizes:

Natural Gas Propane

Burner #32 #50

*Above 2000 ft. see National Code Orifice Chart.

Max. Input - Natural Gas/Propane 38,000 btu/h

Min. Input - Natural Gas/Propane 20,000 btu/h

Min. Output Capacity with blower Off

Natural Gas 27,550 btu/h

Propane 27,778 btu/h

Max. Output Capacity with blower On

Natural Gas 29,184 btu/h

Propane 29,260 btu/h

Supply Pressure: Natural Gas min. 5" w.c.

Propane min. 12" w.c.

Manifold Pressure

Natural Gas 3.8" +/- 0.2" w.c.

Propane 11" +/- 0.2" w.c.

System Data - HIGH ELEVATION

For 2,000 - 4,500 feet altitude

HIGH ELEVATION

This unit is approved in Canada for altitude 2000 ft. to 4500 ft. (CAN/CGA-

2.17-M91) with the orifice kit Part # 611-975. For Natural Gas installations

above 4500 ft. follow current CAN/CGA-B149.1.

In U.S.A., for installations above 2000 ft. refer to current ANSI Z223.1 Sc8-

8.1.2a appendix F, for resizing orifice.

INSTALLATION

Combustible Mantel Clearances

Depth (Mx) 5-1/2" 6" 6-1/2" 7" 7-1/2" 8" 8-1/2" 9" 9-1/2"

Clearance (My) 11" 11-3/8" 11-3/4" 12-1/4" 12-1/2" 12-5/8" 12-3/4" 12-7/8" 13"

Non-combustible Hearth Extension

Height (Hy) 0" 5/8" 1-1/4" 1-7/8" 2-3/8" 2-3/4" 3-1/8" 3-1/2" 3-3/4" 4"

Depth (Hx) 25" 24" 23" 22" 21" 20" 19" 18" 17" 16"

Note: A non-combustible mantel may be installed at a lower height if the framing is

made of metal studs covered with a non-combustible board.

8Regency U41-3 ULTIMATE Gas Fireplace Insert

DRAFT HOOD

CONNECTION

1) Attach the vent to the flue collar on the

detachable draft hood. The flue collar of the

appliance will fit inside a standard vent and

may be fastened directly to the vent by

sheet metal screw or a B-Vent, single wall

vent connector.

2) Before pushing the appliance into position

inside the fireplace, align the draft hood

with the guides on the insert top and push

forward. While pushing the unit back into

place keep pulling the draft hood forward

until the screw hole in the spill tube-rear

aligns with the screw hole in the spill tube-

front. (If screw holes do not line up then

draft hood is not positioned correctly.)

Secure the two spill tubes with a screw.

Note: Final gas connection should be

after unit is in place to

avoid damage to line

when pushing the

unit into position.

Draft Hood

Flue

uides

screw

holes

Spill Tube

Rear

Spill Tube

Front

INSTALLATION

1) If the appliance is to be installed into an

existing chimney system, thoroughly clean

the masonry fireplace and have the chim-

ney swept.

GAS CONNECTION WARNING:

Only persons licensed to work

with gas piping may make the

necessary gas connections to

this appliance.

GAS CONNECTION

For minimum and maximum supply pressure

see the System Data table on page 7.

Note: Prior to any pressure testing of

the gas supply piping system that

exceeds test pressures of 1/2

psig, this appliance and its individ-

ual shut-off valve must be discon-

nected from the piping system. If

test pressures equal to or less

than 1/2 psig are used then this

appliance must be isolated from

the piping system by closing its

individual manual shut-off valve

during the testing.

Valve Access: Loosen and remove the wing-

nuts on the both sides of the bottom louver and

then remove the louver.

2) The gas connection is a 3/8" NPT male pipe

on the rear left side of the unit. The gas line

can be rigid pipe or to make installation

easier use a listed flexible connector and

manual shut-off valve if allowed by local

building codes. A 1/2" gas supply pipe must

be brought near this inlet hole.

3) Locate the center point where the vent will

pass through the chimney above the appli-

ance. Move the appliance into the exact

location where it is to be installed. Ensure

that the Insert is level.

4) The gas control valve is provided with two

"IN" and "OUT" pressure taps, and are

easily accessible for a test gauge connec-

tion (see diagram on page 9).

5) Once the gas has been connected ensure

that the pilot valve is in line with burner.

CAUTION: If the door is removed or

opened for servicing, it must be replaced

and closed prior to operating the appli-

ance. The glass must be fixed in the door

when operating.

COMBUSTION &

VENTILATION AIR

WARNING: This appliance needs fresh air

for safe operation and must be installed

with provisions for adequate combus-

tion and ventilation air available to the

room in which it is to be operating.

Follow CAN/CGA B149 (in Canada) or ANSI

Z223.1 (in the USA) requirements, and any

local codes or regulations of the enforcing

authority.

Air for combustion is drawn in through the front

of the unit, therefore, the front of the unit must

be kept clear of any obstructions.

VENTING

THE APPLIANCE MUST NOT BE CON-

NECTED TO A CHIMNEY FLUE SERV-

ING A SEPARATE SOLID FUEL BURN-

ING APPLIANCE.

This appliance is designed to attach to a 4"

diameter type B-Vent or double thickness alu-

minium flex liner running the full length of the

chimney. A minimum flue height of 12 feet is

recommended. B-Vent must be supported by a

vent support - supplied by vent manufacturer.

There must be at least 3 feet of chimney above

the roof level.

Stack the pipe onto your finish support to a

minimum height of 3 feet above the roof pene-

tration, or 2 feet above any point within 10 feet

measured horizontally. B-Vent chimneys re-

quire a 1" clearance to combustibles.

Regency U41-3 ULTIMATE Gas Fireplace Insert

INSTALLATION

9 for spillage test.)

Before installing vent system ensure that the

damper plate is locked into the open position and

secure to prevent the damper plate from falling

down and crushing the liner.

GAS PRESSURE TEST

The unit is preset to give the correct gas input

at the specified manifold pressures shown on

the label. The maximum gas manifold pressure

is:

Natural Gas: 3.8" w.c.

Propane 11" w.c.

The manifold pressure is controlled by a regu-

lator built into the gas control, and should be

checked at the pressure test point. The pres-

sure check should be carried out with the unit

burning and the setting should be with in the

AERATION SYSTEM

The burner aeration is factory set but may need

adjusting due to either the local gas supply, air

supply or altitude.

Natural Gas: 3/16" open

Propane: 1/2" open

The aeration adjustment gears are located on

the right side of the burner box and can be

accessed from the side or from the front when

the louvers are removed.

limits specified.

Note: Use the same manner to check the

inlet pressure.

The Regency Insert incorporates its own inter-

nal draft hood, so no additional external draft

hood is required. Periodically check that the

vent is unrestricted

and an adequate

draft is present

when the unit is in

operation. (See page

To adjust the aeration: use the allen key to turn

the turning gear which will adjust the air shutter.

Open the air shutter for a blue flame or close it

for a yellower flame.

Clockwise to open,

counter-clockwise to close.

Caution: Carbon will be produced if the

air shutter is closed too much.

Note: Any damage due to carboning re-

sulting from improperly setting

the aeration controls is NOT cov-

ered under warranty.

Note: Aeration Adjustment should only

be performed by an authorized

Regency Installer at the time of

installation or service.

TEST FOR FLUE

SPILLAGE

A “spillage” test must be made before the

installed unit is left with the customer. Follow

the procedure below:

1) Start all exhaust fans in the home and then

close all doors and windows in the room.

2) Light the unit and set controls to maximum.

Turn fan off.

3) After five minutes, test that there is a “pull”

on the flue by placing a smoke match,

cigarette or similar device which gives off

smoke, in front of the spill tube. To ensure

a valid test, place a scrap piece of sheet

metal (or other non-combustible material)

between the spill tube and the upper lou-

ver, this will prevent the natural convection

of the unit from interfering with the test. See

diagrams below.

normal draft downdraft or

blocked flue

Spill T ube

Non-combustib

Scrap

The smoke should be drawn into the spill tube,

if it does not, leave the unit for a further five

minutes and retest as above. If the smoke is still

not drawn into the spill tube, turn the unit off and

check for the cause of the lack of draft. If

necessary, seek expert advice.

For wind turbulent sites, a wind cap may

remedy the problem.

Note: The thermally activated safety

switch will sense the change in

10 Regency U41-3 ULTIMATE Gas Fireplace Insert

INSTALLATION

3) Using the trim clips provided, join the left

side gold trim (the one with the ON/OFF

switch and variable speed FAN switch) to

the top gold trim. See diagram 2. Repeat this

step for right side.

8) Fan Switch wires: Connect the plug end

from the fan switches to the matching plug

from the unit. See Diagram 5. Make sure the

plugs are pushed together as far as they

can go. Push the connection into the hole in

the side of the insert so it is locked into place.

9) ON/OFF wires: Hook up the ON/OFF wires

to the switch on the left side trim. Diagram

Diagram 3

Diagram 4

Diagram 5

FACEPLATE AND TRIM

INSTALLATION

Hint: Before doing the faceplate installa-

tion, leave the Insert out approximate-

ly 4" so wires may be hooked up more

easily.

1) Lay the faceplate panels flat, face down on

something soft so they don't scratch.

2) Take the top faceplate and align the holes

in it with the holes in the side panels.

Attach, using the screws provided. See

diagram 1.

Diagram 1

Diagram 2

temperature and shut down the

gas valve in the event of a severe

downdraft of air or a blocked or

disconnected vent. The switch

acts as a safety shut-off to pre-

vent a build up of carbon monox-

ide. If the flue is blocked or has no

"draw", the switch will automati-

cally shut off the supply of gas

within 5 - 10 minutes. Tampering

with the switch can result in car-

bon monoxide (CO) poisoning and

possible death.

If the heater turns off because of

lack of draft during the spillage

test, check for the cause and if

necessary, seek expert advice.

The thermally actuated safety

switch will automatically reset

after it has reduced in tempera-

ture. The switch will continue to

cycle until the draft problem is

corrected. DO NOT BYPASS OR DIS-

CONNECT THIS SWITCH.

Note: The holes in the top panel are slight-

ly larger than the holes in the side

panel to facilitate easier installa-

tion.

Hint: Don't tighten the screws down complete-

ly at this point, first do a trial fit to the unit. Make

any necessary adjustments and when it fits

properly then tighten down the screws.

4) Place the trim on the assembled faceplate

panels, aligning the wires from the switch-

es with the notch in the left side faceplate

panel.

The power cord should be run behind the

faceplate panel.

5) Push the Regency logo plate into the two

holes in the bottom left corner of the face-

plate.

6) Secure the brass trim to the faceplate by

drilling a 1/8" hole through into the faceplate

side flange, using the hole in the brass trim

as a guide. Now fasten with the two brass

plated screws provided.

7) Lift the assembled faceplate up and over

the top of the insert and then lower it down

so the faceplate tabs are in line with the

faceplate brackets. See diagram 3. Once

everything is properly lined up you can

tighten the 4 screws on the faceplate

brackets. See diagram 4.

Note: If you are making custom face-

plates, you must use the faceplate

louvers. Failure to do so will void

the certification on your unit. The

faceplate louvers can be purchased

separately.

Regency U41-3 ULTIMATE Gas Fireplace Insert

DOOR INSTALLATION

(Packaged Separately)

1) Open the two side doors.

2) Slide the door onto the two hinge pins

making sure the two pieces are flush to-

gether. See diagram 1.

Diagram 1

Diagram 3

Diagram 2

Diagram 4

Diagram 2

Diagram 1

Diagram 3

LOG INSTALLATION

Note: Do not force logs down.

INSTALLATION

3) Place the left front log, carefully sliding it

down onto the left pins of the front burner.

See diagram 2.

4) Place the right front log, carefully sliding it

down onto the right pins of the front burner.

See diagram 3.

5) Distribute the embers along the front burner

but do not cover the burner ports and

around the logs. Place the large embers on

the floor of the firebox. Place the lava on the

burner tray in front of the left and right front

logs. See diagram 4.

WARNING: Dangerous operating condi-

tions may occur if these logs are not

positioned in their approved locations.

Read the instructions below carefully and

refer to the diagrams. If logs are broken

do not use the unit until they are replaced.

Broken logs can interfere with the pilot

and burner operation.

The gas log kit contains the following:

a) Front Right Log - Part # 902-245

b) Front Left Log - Part # 902-244

c) Rear log - Part # 902-246

d) Embers - Part # 902-151 (2 bags)

e) Lava - Part # 902-154 (1 bag)

(Part # 653-930 for the set of three logs)

1) Remove the logs from the box and carefully

unwrap them. The logs are fragile, handle

with care - DO NOT FORCE into position.

2) Place the rear log, carefully sliding it down

onto the pins, with the flat side of the log

facing the back of the unit. See diagram 1.

3) Close the door. The latch plate must be

centered around the alignment pin. See

diagram 2. If the latch plate interferes with

the corner of the stove you may want to

angle the plate slightly so the door closes

more easily.

4) The latches should already be at the proper

setting. If they are too hard or too easy to

close, you may want to adjust them by

turning the latch. See diagram 3.

5) Remove the blue plastic protective coating.

6) Test the seal around the door by placing a

piece of paper between the unit and the

door, close the door and try to pull the paper

out. If it slips out easily, then the door is not

properly

sealed. Turn

the adjustable

catch to tight-

en or loosen the

latch. See diagram 3.

Note: The door latch

may require

adjustment as

the door gasket material com-

presses after a few fires and after

glass replacement. Turn the latch

to tighten or loosen the latch.

12 Regency U41-3 ULTIMATE Gas Fireplace Insert

14 GA.

16 GA.

18 GA.

20 GA.

22 GA.

50 Ft.

32 Ft.

20 Ft.

12 Ft.

9 Ft.

Recommended Maximum Lead Length

(Two-Wire) When Using Wall

Thermostat (CP-2 System)

Wire Size Max. Length

INSTALLATION

Thermostat Wire Table

OPTIONAL WALL

THERMOSTAT

A wall thermostat may be installed if desired.

Connect the wires as per the wiring diagrams.

Note that the wires are connected to the "TH"

on the gas valve. Use table on page 14 to

determine the maximum wire length:

Note: Preferable if the thermostat is in-

stalled on an interior wall.

Regency offers an optional programmable ther-

mostat but any 250-750 millivolt rated non-

anticipator type thermostat that is CSA, ULC or

UL approved may be used.

CAUTION

Do not connect the millivolt

wall thermostat wires

to the 120V wires.

OPTIONAL REMOTE

CONTROL

Use the Regency Remote Control Kit approved

for this unit. Use of other systems may void

your warranty.

The remote control kit comes with a hand held

transmitter, a receiver and a wall mounting

plate.

1) Choose a convenient location on the wall to

install the receiver and the receptacle box

(protection from extreme heat is very im-

portant). Run wires from the fireplace to

that location, use Thermostat Wire Table.

2) Connect the wires as per the wiring dia-

gram above.

CAUTION

Do not connect the millivolt

remote control wires to

the 120V wires.

3) Install 3 AAA alkaline batteries in transmit-

ter and 4 AA alkaline batteries in the

receiver. Install the receiver and its cover

in the wall. Switch the remote receiver to

"remote" mode. The remote control is now

ready for operation.

FINAL CHECK

Before leaving this unit with the customer, the

installer must ensure that the appliance is firing

correctly. This includes:

1) Clocking the appliance to ensure the cor-

rect firing rate (rate noted on label) at 15

minutes.

2) If required, adjusting the primary air to

ensure that the flame does not carbon. First

allow the unit to burn for 15 min. to stabilize.

CAUTION

Any alteration to the product that causes

sooting or carboning that results in dam-

age to the exterior facia is not the respon-

sibility of the manufacturer.

3) Ensuring that the appliance is venting cor-

rectly. See page 8.

Regency U41-3 ULTIMATE Gas Fireplace Insert

WIRING DIAGRAM

CAUTION: Label all wires prior to

disconnection when servicing con-

trols. Wiring errors can cause im-

proper and dangerous operation.

WARNING: Electrical Grounding Instructions

This appliance is equipped with a three pronged (grounding) plug for your protection against shock hazard and should be

plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.

This heater does not require a 120V A.C. supply

for operation. In case of a power failure, the

burner switch and the optional remote control/

thermostat will continue to operate. However,

a 120V A.C. power supply is needed for the fan/

blower operation.

Caution: Ensure that the wires do

not touch any hot surfaces and are

away from sharp edges.

INSTALLATION

14 Regency U41-3 ULTIMATE Gas Fireplace Insert

OPERATING INSTRUCTIONS

OPERATING

INSTRUCTIONS

Before operating this appliance, proceed

through the following check list.

1) Read and understand these Instructions

before operating this appliance.

2) Check to see that all wiring is correct and

enclosed to prevent possible shock.

3) Check to ensure there are no gas leaks.

4) Make sure the three door glass pieces are

in place. Never operate the appliance with

any of the door glass removed or with the

door open. Do not strike the glass or slam

the door shut.

Warning: Do not operate appliance

with glass front removed, cracked

or broken. Replacement of the glass

should be done by a licensed or

qualified service person.

5) Verify that all venting and the cap is unob-

structed.

6) Verify log placement. If the pilot cannot be

seen when lighting the unit - the logs or the

embers have been incorrectly positioned.

7) The unit should never to turned off and on

without a minimum of a 60 second wait.

8) When lighting the appliance, the inside of

the glass may fog up. This will burn off after

a few minutes of operation.

DO NOT BURN THE APPLIANCE WITH THE

DOOR OPEN.

LIGHTING

PROCEDURE

IMPORTANT: Gas cock knob cannot be

turned from "PILOT" to "OFF" unless it is

partially depressed.

1) Open the left side door when lighting the

pilot, but once the pilot is lit, DO NOT operate

the unit with the front glass door open.

2) Open the bottom louver assembly by turn-

ing the wing nut and swinging the louvers

out. (See page 8 for diagram.)

3) If the control knob is in the "OFF" position

proceed to Step 5.

4) Push in gas control knob slightly and turn

clockwise to "OFF".

5) Wait five minutes to allow gas, that may

have accumulated in the main burner com-

partment, to escape. If you do smell gas,

follow the instructions on the front of this

manual. If you don't smell gas continue on

to the next step.

6) Turn the gas control counterclockwise to

"PILOT".

7) Push in control knob all the way and hold

in. Immediately push black button on spark

igniter until pilot lights. Continue to hold the

control knob in for approximately one

minute, then release the gas control knob.

The pilot flame should continue to burn. If

the pilot does not remain lit, repeat opera-

tion allowing a longer period before re-

leasing gas control knob.

8) Turn gas control knob counterclockwise

to "ON".

9) Use rocker switch to operate main burner.

10)Rotate the variable flame control to adjust

the flame height higher or lower.

11)Close the bottom louver assembly and

tighten the wingnut.

12)The door must be closed when operating

the unit.

Knob cannot be turned from "PILOT" to

"OFF" unless knob is pushed in slightly.

Do not force.

FIRST FIRE

The first fire in your stove is part of the paint

curing process. To ensure that the paint is

properly cured, it is recommended that you

burn your fireplace for at least four (4) hours

the first time you use it with the fan on. When

first operated, the unit will release an odour

caused by the curing of the paint, the burning

off of any oils remaining from manufacturing.

Smoke detectors in the house may go off at this

time. Open a few windows to ventilate the

room for a couple of hours.

The glass panel may require cleaning

after the unit has cooled down. DO

NOT ATTEMPT TO CLEAN THE

GLASS WHILE IT IS HOT.

Note: When the glass is cold and the

appliance is lit, it may cause con-

densation and fog the glass. This

condensation is normal and will

disappear in a few minutes as the

glass heats up.

DO NOT BURN THE APPLIANCE

WITHOUT THE GLASS FRONT IN

PLACE.

AUTOMATIC

CONVECTION FAN

OPERATION

The fan operates automatically, turn the knob

on the side of the faceplate to adjust to the

desired speed. The fan will turn on as the stove

comes up to operating temperature. After the

unit has been turned off and the unit cooled to

below a useful heat output range the fan will

shut off automatically.

SHUTDOWN

PROCEDURE

1) Use the rocker switch to turn off the main

burner.

2) Open the bottom louver assembly by turn-

ing the wing nut and swinging the louvers

out.

3) Push in the gas control knob slightly and

turn clockwise to "OFF". Do not force.

4) Disconnect all electric power to the appli-

ance if service is to be performed.

Regency U41-3 ULTIMATE Gas Fireplace Insert

COPY OF THE LIGHTING PLATE INSTRUCTIONS

LIGHTING INSTRUCTIONS

2) Wait five (5) minutes to clear out any gas. If you

then smell gas STOP! follow “B” in the safety

information above on this label. If you don’t

smell gas, go to the next step.

3) Turn knob on gas control counterclockwise

to “PILOT”.

4) Push in control knob all the way and hold in.

Immediately push black button on spark igniter

until pilot lights. Continue to hold the control

knob in for about 1/2 minute after the pilot is lit.

Release knob and it will pop back up. Pilot should

remain lit. If it goes out, repeat steps 3) and 4).

If knob does not pop up when released, stop and

immediately call your service technician or gas

supplier.

If the pilot will not stay lit after several tries, turn

the gas control knob to “OFF” and call your

service technician or gas supplier.

5) Turn gas control knob counterclockwise to

“ON”.

6) Use rocker switch to operate main burner.

STOP! Read the safety information above on this

label.

1) Push in gas control knob slightly and turn clock-

wise to “OFF”. Knob cannot be turned from

“PILOT” to “OFF” unless knob is pushed in

slightly. Do not force.

TO TURN OFF GAS APPLIANCE

1) Push in the gas control knob slightly and turn

clockwise to “OFF”. Do not force.

2) Turn off all electric power to the appliance if

service is to be performed.

DO NOT REMOVE THIS

INSTRUCTION PLATE

Made in Canada 908-432

A)This appliance has a pilot which must be lighted

by hand, following the instructions below

exactly.

B)BEFORE LIGHTING smell all around the appli-

ance area for gas. Be sure to smell next to the floor

because some gas is heavier than air and will

settle on the floor.

WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance

- Do not touch any electric switch, do not use any

phone in your building

- Immediately call your gas supplier from a neigh-

bours phone. Follow the gas supplier’s instruc-

tions.

- If you cannot reach your gas supplier, call the

fire department.

C)Use only your hand to push in or turn the gas

control knob. Never use tools. If the knob will not

push in or turn by hand, don’t try to repair it, call

a qualified service technician. Force or attempted

repair may result in a fire or explosion.

D)Do not use this appliance if any part has been

under water. Immediately call a qualified service

technician to inspect the appliance and to replace

any part of the control system and any gas control

which has been under water.

CAUTION: Hot while in operation. Do

not touch. Due to high surface

temperatures keep children, clothing

and furniture, away. Keep burner and

control compartment clean.

See installation and operating

instructions accompanying appliance.

WARNING: If you do not follow these

instructions exactly, a fire or explosion

may result causing property damage,

personal injury or loss of life. Improper

installation, adjustment, alteration,

service or maintenance can cause injury

or property damage. Refer to the owner’s

information manual provided with this

appliance. For assistance or additional

information consult a qualified installer,

service agency or gas supplier.

FOR YOUR SAFETY

READ BEFORE LIGHTING

This appliance must be installed in accordance

with local codes, if any; if not, follow the current

CAN1-B149/ANSI Z 223.1 (Australia: AG601 /

New Zealand: NZS 5261)

This appliance needs fresh air for safe operation and

must be installed so there are provisions for adequate

combustion and ventilation air.

OPERATING INSTRUCTIONS

16 Regency U41-3 ULTIMATE Gas Fireplace Insert

MAINTENANCE

NORMAL OPERATING

SOUNDS OF

GAS APPLIANCES

It is possible that you will hear some sounds

from your gas appliance. This is perfectly

normal due to the fact that there are various

gauges and types of steel used within your

appliance. Listed below are some examples.

All are normal operating sounds and should

not be considered as defects in your appliance.

Blower:

Regency gas appliances use high tech blow-

ers to push heated air farther into the room. It

is not unusual for the fan to make a "whirring"

sound when ON. This sound will increase or

decrease in volume depending on the speed

setting of your fan speed control.

Burner Tray:

The burner tray is positioned directly under the

burner tube(s) and logs and is made of a

different gauge material from the rest of the

firebox and body. Therefore, the varying thick-

nesses of steel will expand and contract at

slightly different rates which can cause "tick-

ing" and "cracking" sounds. You should also be

aware that as there are temperature changes

within the unit these sounds will likely re-occur.

Again, this is normal for steel fireboxes.

Blower Thermodisc:

When this thermally activated switch turns ON

it will create a small "clicking" sound. This is the

switch contacts closing and is normal.

Pilot Flame:

While the pilot flame is on it can make a very

slight "whisper" sound.

Gas Control Valve:

As the gas control valve turns ON and OFF, a

dull clicking sound may be audible, this is normal

operation of a gas regulator or valve.

Unit Body/Firebox:

Different types and thicknesses of steel will

expand and contract at different rates resulting

in some "cracking" and "ticking" sounds will be

heard throughout the cycling process.

MAINTENANCE

INSTRUCTIONS

1) Always turn off the gas valve before

cleaning. For re-lighting, refer to lighting

instructions. Keep the burner and control

compartment clean by brushing and vacu-

uming at least once a year.

When cleaning the logs, use a clean soft

paint brush as the logs are fragile and

easily damaged.

2) Clean glass (never when unit is hot), appli-

ance, door and louvers with a damp cloth.

Never use an abrasive cleaner. The gold

louvers (and optional gold door) may be

scratched if abrasives are used to clean

them.

The heater is finished in a heat resistant

paint and should only be refinished with

heat resistant paint (not with wall paint).

Regency uses Stove Brite Paint - Metallic

Black #6309.

3) Make a periodic check of burner for proper

position and condition. Visually check the

flame of the burner periodically, making

sure the flames are steady; not lifting or

floating. If there is a problem, call a qualified

service person.

4) The appliance and venting system must be

inspected before use, and at least annual-

ly, by a qualified field service person, to

ensure that the flow of combustion and

ventilation air is not obstructed.

During the annual service call, the burners

should be removed from the burner tray

and cleaned. Replace the embers but do

not block the pilot.

5) Verify proper operation after servicing.

6) Keep the area near the appliance clear and

free from combustible materials, gasoline

and other flammable vapours and liquids.

WARNING: CHILDREN AND

ADULTS SHOULD BE ALERTED TO

THE HAZARDS OF HIGH SURFACE

TEMPERATURE AND SHOULD

STAY AWAY TO AVOID BURNS OR

CLOTHING IGNITION. YOUNG

CHILDREN SHOULD BE CARE-

FULLY SUPERVISED WHEN THEY

ARE IN THE SAME ROOM AS THE

APPLIANCE.

CAUTION: ANY SAFETY SCREEN

OR GUARD REMOVED FOR SERV-

ICING AN APPLIANCE MUST BE

REPLACED PRIOR TO OPERAT-

ING THE APPLIANCE.

CLOTHING OR OTHER FLAMMA-

BLE MATERIAL SHOULD NOT BE

PLACED ON OR NEAR THE AP-

PLIANCE.

7) Each time the appliance is lit, it may cause

condensation and fog the glass. This con-

densation and fog is normal and will disap-

pear in a few minutes as the glass heats up.

Never operate the appliance without

the glass properly secured in place or

with the door open.

8) Periodically check the pilot flames. Correct

flame pattern has three strong blue flames:

1 flowing around the thermopile, 1 flowing

across the rear of the burner and 1 reaching

towards the right (it does not have to be

touching the burner ports.

Note: If you have an incorrect flame pat-

tern, contact your Regency dealer

for further instructions.

Top View of pilot flame.

Incorrect flame pattern will have small, probably

yellow flames, not coming into proper contact

with the rear of the burner or thermopile.

Top View of pilot flame

Regency U41-3 ULTIMATE Gas Fireplace Insert

Installing Glass

1) Install both center and side glass onto

extrusions as per diagram.

2) Place glass assembly into door frame.

3) Install retainers by placing 1 drop of glue

where previously glued and put in place.

4) Install side retainers.

5) Install door catch plate.

6) Install the 24 nuts loosely, do not tighten yet.

7) Tighten side panels nuts using the following

procedure:

a. tighten top &

bottom outside

corner nuts (2)

b. tighten inside

nuts (3)

c. tighten top &

bottom inside

corners (2)

GLASS

REPLACEMENT

Your Regency stove is supplied with high

temperature, 5 mm Neoceram ceramic glass

that will withstand the highest heat that your

unit will produce. In the event that you break

your glass by impact, purchase your replace-

ment from an authorized Regency dealer only,

and follow our step-by-step instructions for

replacement.

LOG REPLACEMENT

The unit should never be used with broken logs.

Turn off the gas valve and allow the unit to cool

before opening door to carefully remove the

logs. The pilot light generates enough heat to

burn someone. If for any reason a log should

need replacement, you must use the proper

replacement log. The position of these logs

must be as shown in the diagram under Log

Installation.

NOTE: Improper positioning of logs may

create carbon build-up and will

alter the unit’s performance which

is not covered under warranty.

GOLD-PLATED DOORS

The 24 carat gold plated finish on the door

requires little maintenance, and need only be

cleaned with a damp cloth. DO NOT use

abrasive materials or chemical cleaners, as

they may harm the finish and void the warranty.

Clean any fingerprints off before turning the

unit on. If gasket seal is not tight - door

may discolour.

DOOR GASKET AND

GLASS GASKET

If the door gasket requires replacement use 7/

8" diameter oval door gasket (Part # 650-920).

The glass requires 5/8" flat glass gasket (Part

# 936-243). See your Regency Dealer.

LATCH ADJUSTMENT

The door latch may require adjustment as the

door gasket material compresses after a few

fires and after glass

replacement. Turn the

adjustable latch to tight-

en or loosen the latch.

8) Tighten the 10 nuts on center glass retain-

er.

9) Repeat step 7 for other side panel.

10)Replace new gasket by gluing it in place.

11)Install door onto stove and check the seal.

PANEL DOOR

1) Remove the door from the unit and place on

a soft surface to prevent scratching.

2) Pull out the door gasket.

3) Remove the nuts holding the glass retain-

ers in place.

4) Remove the glass retainers (sides, top and

bottom) and the door catch plate.

5) Replace the glass. The glass must have

gasketing around it.

6) Reverse the previous steps, replace the

retainers and fasten with the nuts but do

not overtighten, as this can break the glass.

Note: the door catch plate fits on top of the

left side retainer.

7) Put gasket glue on the retainers, but do not

put glue on the screws. Replace the door

gasket, the two ends butt tight together on

the bottom edge of the door.

8) Replace door on the stove and check the

seal.

MITRED DOOR

Removing Glass

Note: Wearing gloves will protect your

hands while handling glass.

1) Remove the door from the unit and place on

a soft surface to prevent scratching.

2) Pull out the door gasket.

3) Remove the 24 nuts holding the glass retain-

ers in place. Do not remove the nuts under-

neath the retainers.

4) Remove the door catch plate.

5) Remove glass retainers on sides first (3

each side) then remove two center retain-

ers.

Note: Center glass retainers are glued to

center glass.

6) Remove glass from extrusions. When re-

moving center glass, leave white insulation

in place.

MAINTENANCE

18 Regency U41-3 ULTIMATE Gas Fireplace Insert

MAINTENANCE

CAUTION:

Label all wires prior to disconnection when servicing controls.

Wiring errors can cause improper and dangerous operation.

IMPORTANT

Disconnect power supply

before servicing

WARNING: Electrical Grounding

Instructions

This appliance is equipped with a

three pronged (grounding) plug

for your protection against shock

hazard and should be plugged

directly into a properly grounded

three-prong receptacle. Do not

cut or remove the grounding

prong from this plug.

FAN MAINTENANCE

To remove fan:

1) Unplug or disconnect power source to

stove.

2) Remove all logs and the rear log support,

then remove the 6 screws holding the

access panel in place.

3) Disconnect white wire from fan to power

cord.

4) Disconnect black wire from molex plug to

thermodisc.

5) Unplug wire harness on left rear side panel

(from inside the stove).

6) Disconnect green ground wire from fan

body.

7) Lift fan off of the 2 pins, tip forward and pull

through firebox opening.

If your fan requires maintenance or replace-

ment, access to the fan is through the access

panel on the rear wall of the firebox. NOTE: the

unit MUST NOT be operated without the

fan access panel securely in place and

correctly sealed.

IMPORTANT: These fans do collect a

lot of dust from within your home.

Ensure you maintain these fan mo-

tors on a regular basis by vacuuming

out the fan squirrel cages.

Replacing fan:

Reverse above steps. Hint for pushing fan down

onto pins - rub a bit of dish soap on the grommet

so it will slide more easily onto the pin. Check to

make sure the fan is seated properly on the pins

- try to move the fan back and forth, there should

be no noise, if there is check that the grommets

haven't come loose.

Caution: Ensure that the wires do not

touch a hot surface.

Regency U41-3 ULTIMATE Gas Fireplace Insert

PARTS LIST

MAIN ASSEMBLY

Part # Description Part # Description

27) 910-142 Thermodisc - Fan Auto/On/Off

28) * Thermodisc Bracket

30) 610-175 Rear Panel

31) 591-187 Firebox Baffle Plate

908-727 Manual

*Not available as a replacement part.

1) 611-525 Bottom Louver Assy

2) 653-535/02 Top Louver Assy

9) 590-105 Fan Cover

10) 936-196 Fan Cover Gasket

610-517/P Fan Assembly (120 V)

11) 910-157/P Fan Motor

12) 910-794 Power Cord (120 V)

910-770 Wire Harness (stove connection end)

19) 613-520 Side Panel Assy - Left

20) 650-527 Side Panel Hinge Bracket - Left

21) 613-522 Side Panel Assy - Right

22) 650-528 Side Panel Hinge Bracket - Right

23) 710-028 Faceplate Mounting Bracket

24) 948-241 Door Latch

25) 910-325 Spill Switch

26) 610-576 False Top Assembly

836-220 False Top Insulation

20 Regency U41-3 ULTIMATE Gas Fireplace Insert

PARTS LIST

BURNER & LOGS

Part # Description

52) 910-190 Piezo Ignitor and nut

56) 910-426 Knob - Flame Hi/Low Extension

613-524/P Valve Assembly -NG

613-526/P Valve Assembly - LP

60) 910-028 Valve - RS - NG

910-029 Valve - RS - LP

904-688 Orifice - #32 NG

904-641 Orifice - #50 LP

71) * Log Stand

72) 910-034 Pilot Hood Assy- 3 Flame NG

910-035 Pilot Hood Assy- 3 Flame LP

75) 653-930 Log Set

78) 653-531 Burner Assy

80) 260-565 Air Shutter Gear Assembly (Female)

81) 904-565 Hex Key 3/16" A/F

*Not available as a replacement part.

Regency U41-3 ULTIMATE Gas Fireplace Insert

FACEPLATE & TRIM

Part # Description Part # Description

103) * Faceplate - Extra Oversize - Side Left Assy

613-538 Trim Pkg. - Extra Oversize -Black

104) * Trim - Extra Oversize - Right

105) * Trim - Extra Oversize - Top

106) * Trim - Extra Oversize - Left

663-911 Zero Clearance Faceplate

663-522 Trim Pkg. - Zero Clearance - Black

199) 948-216 Logo Plate

*Not available as a replacement part.

13) 611-930 Ultimate Factory Built Trim Kit

613-918 Faceplate & Trim - Complete - Oversize

41) * Faceplate - Oversize - Side Right

42) * Faceplate - Oversize - Top Assy

43) * Faceplate - Oversize - Side Left Assy

613-536 Trim Pkg. - Oversize - Black

44) * Trim - Oversize - Right

45) * Trim - Oversize - Top

46) * Trim - Oversize - Left

613-914 Faceplate & Trim - Complete - Regular

91) * Faceplate - Regular - Side Right

92) * Faceplate - Regular - Top Assy

93) * Faceplate - Regular - Side Left Assy

with Speed Control

613-534 Trim Pkg. - Regular - Black

613-950 Trim Pkg. - Regular - Brass

94) * Trim - Regular - Right

95) * Trim - Regular - Top

96) * Trim - Regular - Left Assy with

Burner Switch

97) 910-330 Fan Speed Controller

98) 904-569 Knob - Fan Speed Control

99) 910-246 Burner On/Off Switch

910-810 Wire Harness

(Faceplate end)

613-919 Faceplate & Trim - Complete

- Extra Oversize

101) * Faceplate - Extra Oversize

- Side Right

102) * Faceplate - Extra Oversize

- Top Assy

PARTS LIST

22 Regency U41-3 ULTIMATE Gas Fireplace Insert

NOTES

_____________________________________________________________________________________

____________________________________________________________

__________________________________________________________

____________________________________________________________

_______________________________________________________

_____________________________________________________

__________________________________________________________

_________________________________________________________

______________________________________________________

_______________________________________________________________

___________________________________________________________

__________________________________________________________

____________________________________________________________

_____________________________________________________________

__________________________________________________________

_____________________________________________________

________________________________________________________

_________________________________________________________

Regency U41-3 ULTIMATE Gas Fireplace Insert

WARRANTY

Regency Fireplace Products, are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance

Team carefully inspects each unit thoroughly before it leaves our door. Regency Industries Ltd. is pleased to extend this limited

lifetime warranty to the original purchaser of a Regency Product.

The Warranty: Lifetime

Covered under the agreement are the following components: Combustion chamber, heat exchanger, burner tubes, logs, embers,

glass (thermal breakage) and all gold plating (against defective manufacture).

The above will be covered for parts and labour for the first five years and parts only thereafter. Electrical components such as blowers,

fan motor, switches, wiring, thermodiscs, remote control, thermopiles, thermocouples, pilot assemblies, and gas valves are

covered for one year from the date of purchase.

Conditions:

All installations must be performed by a qualified gas fitter and installed according to all applicable local and national codes. Also,

all service work must be carried out by a qualified gas service person who is recommended by the selling dealer. It is the

responsibility of the installer to ensure that the appliance is firing as per rating plate. Any part or parts of this unit which in our

judgement show evidence of such defect will be repaired or replaced at Regency's option, through an accredited distributor or agent

provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.

Exclusions:

This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing or trim. It does not cover installation

and operational related problems such as over-firing, downdrafts or spillage caused by environmental conditions, nearby trees,

buildings, hilltops, mountains, inadequate venting or ventilation, excessive offsets, negative air pressures caused by insufficient

make up air, mechanical systems such as furnaces, fans, clothes dryers etc.

The warranty does not extend to any part or parts which show evidence of misuse or abuse, neglect, accident or lack of maintenance.

Products made by other manufacturers and used in conjunction with the operation of this appliance without authorization from

Regency, may nullify your warranty on this product.

Regency Industries Ltd., shall in no event be liable for any special, indirect consequential damages of any nature whatsoever which

are in excess of the original purchase price of the product. Any alteration to the unit which causes sooting or carboning that results

in damage to the exterior facia is not the responsibility of Regency Industries Ltd.

Note: Warranty is not transferable.

Vent Components:

The venting components are under warranty from Simpson Dura-Vent Inc.

General:

It is essential that all submitted claims provide all of the necessary information including purchase date, serial #, type of unit and

part or parts requested.

Installer: Please complete the following information

Dealer Name & Address:______________________________________________

__________________________________________________________________

Installer: ___________________________________________________________

Phone #: ___________________________________________________________

Date Installed: ______________________________________________________

Serial No.: _________________________________________________________

Printed in Canada

Regency fireplace products are designed

with reliability and simplicity in mind. In

addition, our internal Quality Assurance

Team carefully inspects each unit

thoroughly before it leaves our

door.

Fireplace Products International

Ltd. is pleased to extend this

Limited Lifetime Warranty to the

original purchaser of a Regency Prod-

uct.

See the inside back cover for details.

Regency and energy are trademarks of FPI Fireplace Products International Ltd.

http://www.regency-fire.com

Regency U41 Gas Insert Lp3 Users Manual 908 727.PMD

U41-LP3 to the manual 7d9edca3-255a-4cdf-9e36-85f525039dc0

Navigation menu

Versions of this User Manual:

Views

Navigation
