WARNING:

If the information in these instructions are not followed ex-

actly, a ﬁ re or explosion may result causing property damage,

personal injury or loss of life.

FOR YOUR SAFETY

Do not store or use gasoline or other ﬂ ammable vapors and

liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualiﬁ ed

installer, service agency or the gas supplier.

FOR YOUR SAFETY

What to do if you smell gas:

Do not try to light any appliance

Do not touch any electrical

switch: do not use any phone in

your building.

Immediately call your gas supplier

from a neighbour's phone. Follow

the gas supplier's instructions.

If you cannot reach your gas sup-

plier, call the ﬁ re department.

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

918-529b

MODELS: U37-NG1 Natural Gas U37-LP1 Propane

ULTIMATE U37 Rear Vent

Direct Vent Freestanding Gas Stove

11/22/07

Owners &

Installation Manual

www.regency-ﬁ re.com

Tested by:

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

2 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove

To the New Owner:

Congratulations! You are the owner of a state-of-the-art ULTIMATE Rear Vent Direct Vent Gas Stove by FPI Fireplace

Products International. The Regency® Gas Series of hand crafted appliances has been designed to provide you with

all the warmth and charm of a woodstove, at the ﬂ ick of a switch. The models U37-NG1, and U37-LP1 of this series

has been approved by Warnock Hersey for both safety and efﬁ ciency. As it also bears our own mark, it promises to

provide you with economy, comfort and security for many trouble free years to follow. Please take a moment now to

acquaint yourself with these instructions and the many features of your ULTIMATE Rear Vent Direct Vent Freestand-

ing Gas Stove.

INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE

This Regency® product has been tested and listed by Warnock Hersey as a Direct Vent Wall Furnace to the following standards: ANSI Z21.88b-

2003/CSA 2.33b-2003, and CAN/CGA-2.17-M91.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home

Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations,

Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow

the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the U.S.A., and the current CAN/CGA

B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.

This Regency® Mobile/Manufactured

Home Listed appliance comes factory

equipped with a means to secure the

unit.

This Regency® Mobile/Manufactured

Home listed appliance comes equipped

with a dedicated #8 ground lug to which an

8 gauge copper wire from the steel chassis

ground must be attached.

U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 3

TABLE OF CONTENTS

SAFETY LABEL

Copy of Serial No. Decal ...............................................4

REQUIREMENTS

MA Code - CO Detector ................................................5

INSTALLATION

Important Message ......................................................6

Speciﬁ cations ................................................................6

Before You Start ............................................................6

General Safety Information ...........................................6

Installation Checklist ......................................................7

Manufactured Mobile Home Additional Requirements ..7

Clearances to Combustibles .........................................7

Locating Your Gas Stove ...............................................7

Combustion and Ventilation Air .....................................7

Venting ..........................................................................7

Exterior Vent Terminal Locations ...................................8

Venting Installation .......................................................9

Precautions ...................................................................9

Safety Precautions for the Installer ...............................9

Planning Your Venting Installation .................................9

4” x 6-5/8” Rigid Pipe Cross Reference Chart .............10

Rigid Pipe Venting - Vertical Terminations ..................12

Residential and Manufactured Homes /

Mobile Homes Installations .........................................13

Horizontal Terminations ...............................................13

Vertical Termination with Co-linear Flex System .........15

Converting Class-A Metal Chimney or

Masonry Chimney to Direct Vent System ....................16

Converting Masonry Chimney .....................................17

Conversion Kit# 514-969 from NG to LP .....................18

Gas Connection ...........................................................20

High Elevation .............................................................20

Aeration Adjustment ....................................................20

Log Set Installation ......................................................20

Door Installation ..........................................................22

Gas Pipe Pressure Testing ..........................................22

Louver Installation .......................................................23

Wall Thermostat .........................................................23

Optional Remote Control ............................................23

Final Check .................................................................23

Wiring Diagram ............................................................24

OPERATING INSTRUCTIONS

Operating Instructions .................................................25

Lighting Procedure ......................................................25

Shutdown Procedure ...................................................25

First Fire ......................................................................25

Convection Fan Operation ..........................................25

Normal Operating Sounds of Gas Appliances .............25

Copy of the Lighting Plate Instructions .......................26

MAINTENANCE

Maintenance Instructions ............................................27

General Vent Maintenance ..........................................27

Log Replacement ........................................................27

Gold-Plated Doors .......................................................27

Door Gasket ...............................................................27

Latch Adjustment .........................................................28

Glass Replacement .....................................................28

Fan Maintenance .........................................................29

Removing Valve ...........................................................29

DC Sparker Battery Replacement ...............................30

PARTS LIST

Main Assembly ............................................................31

Burner & Log Assembly ...............................................32

Door Assemblies .........................................................33

WARRANTY

Warranty ......................................................................35

4 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove

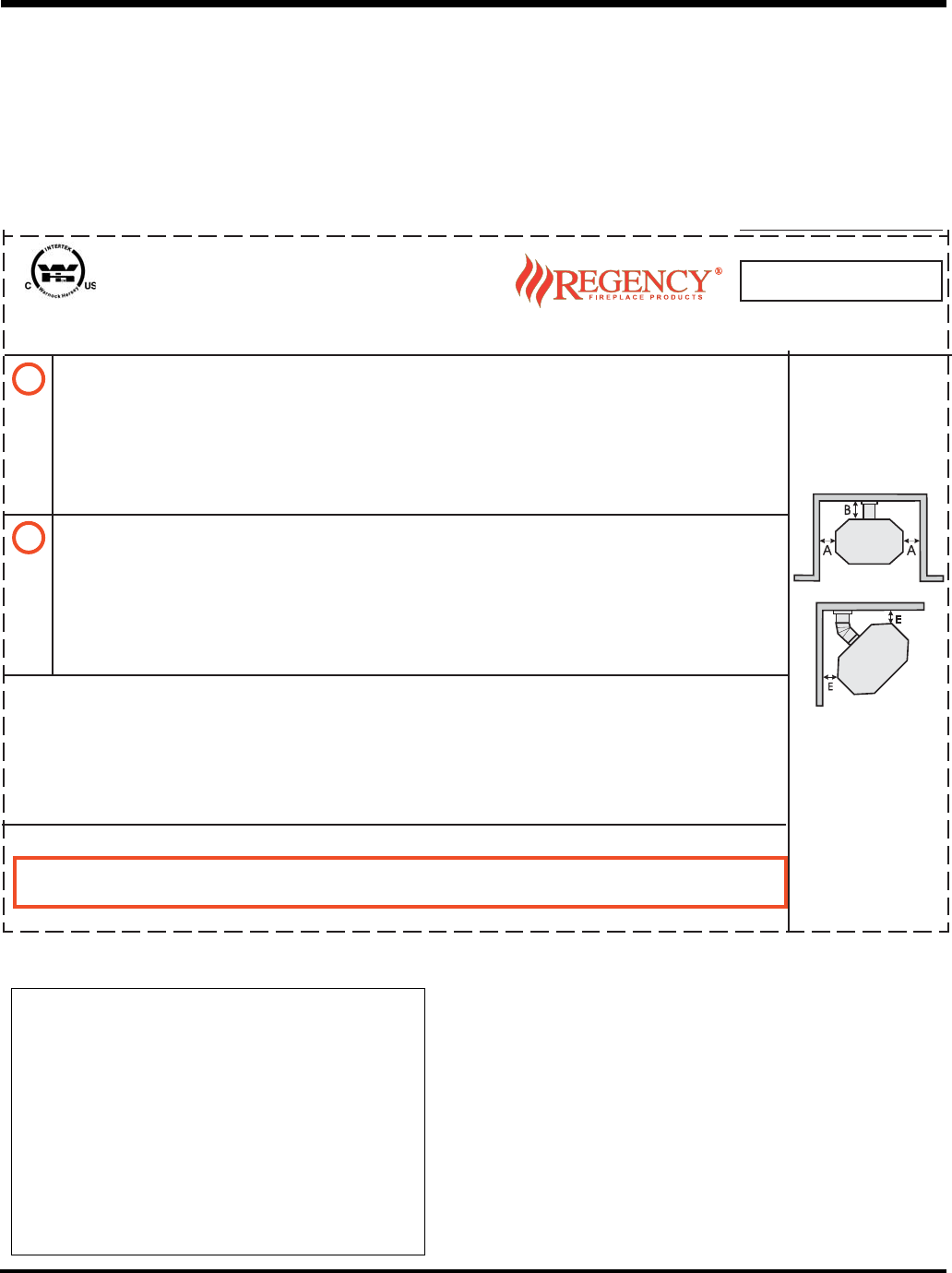

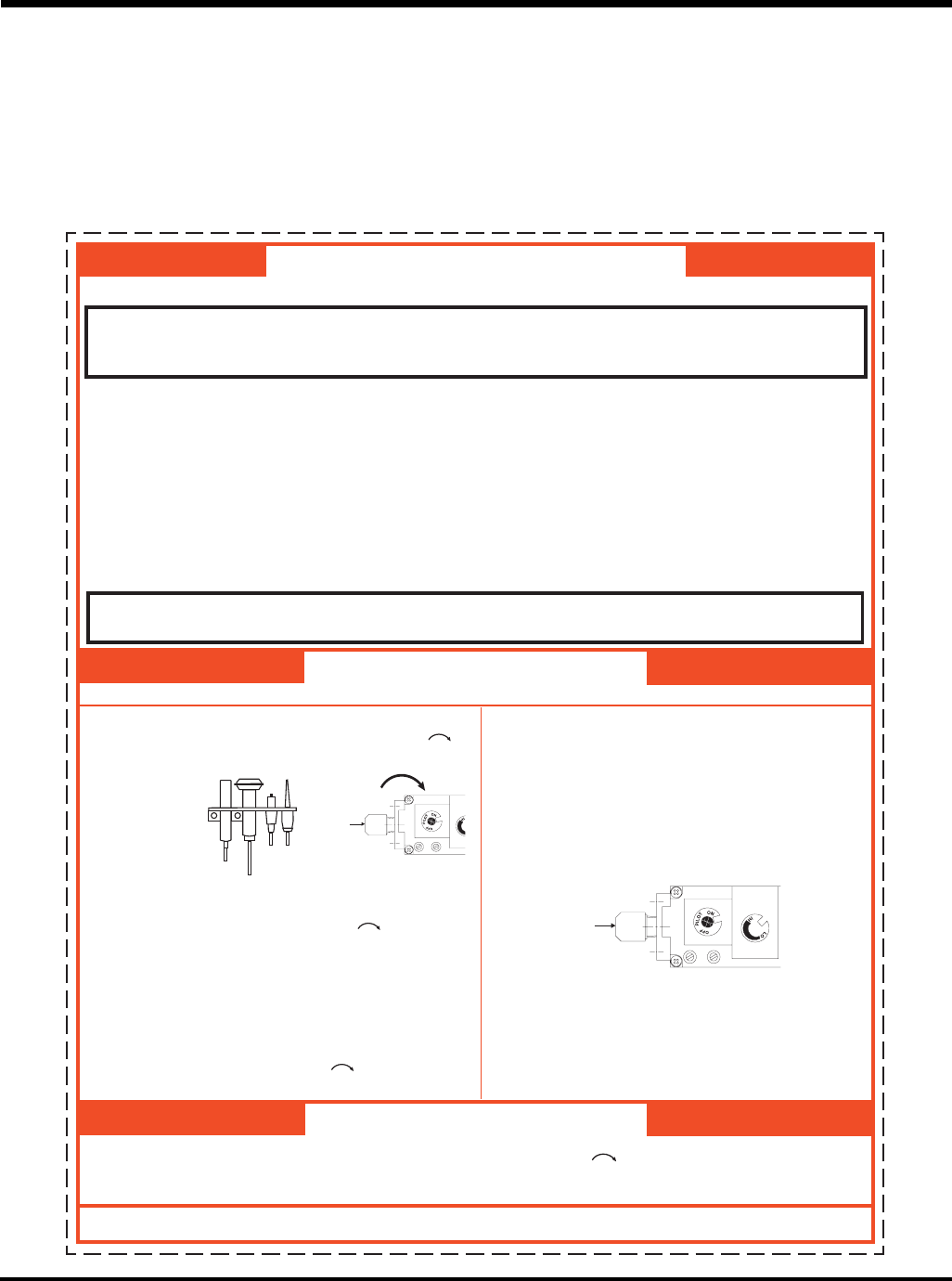

This is a copy of the label that accompanies

each ULTIMATE Rear Vent Direct Vent Free-

standing Gas Stove. We have printed a copy

of the contents here for your review. The safety

label is located on the inside of the drop down

pedestal door.

SAFETY LABEL

NOTE: Regency® units are constantly being

improved. Check the label on the unit and if

there is a difference, the label on the unit is the

correct one.

Copy of Safety Label for U37

DOOR SEAL ADJUSTMENT:

Please check that door is properly sealed.

Periodic adjustment of latch may be required.

FPI Fireplace Products International Ltd., Delta, BC, Canada MADE IN CANADA / FABRIQUE AU CANADA

A 7-1/2" /190 mm

B 3" /76 mm

E 4-1/2" /114 mm

Min. Ceiling

Height from top of

unit / Min. Plafond

Hauteur en haut

de l'appareil:

36" / 914 mm

Minimum Clearances

to Combustibles/

Degagement Minimum

Des Materiaux

Combustibles

Serial No./No de serie

VENTING: Only for direct discharge without duct connection. This appliance must be installed in accordance

with the manufacturer's installation instructions and with local codes, if any; if not, follow the current ANSI

Z223.1 in the USA or the current CAN/CGA-B149 in Canada. For Manufactured Home Installation: This Direct

Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and

Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for

Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and

with CAN/CSA Z240 MH Mobile Home Standard in Canada.

Electrical supply 115VAC, 1.13 A, 60 Hz. Not for use with solid fuel.

DO NOT REMOVE THIS LABEL /

NE PAS ENLEVER CETTE ÉTIQUETTE

Model/Modele:

U37-NG1

Listed: GRAVITY DIRECT VENT WALL FURNACE

Certiﬁ ed for/Certiﬁ ée pour: CANADA AND U.S.A.

Tested to: CGA 2-17-M91, ANSI Z21.88b-2003/CSA 2.33b-2003

REPORT NO. 476-1846-00 (Oct. 2000)

MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE

FACTORY EQUIPPED FOR NATURAL GAS: Model U37-NG1

Min. supply pressure 5.0" WC/C.E. (1.24Kpa)

Manifold pressure High 3.8" WC/C.E. (0.947Kpa)

Manifold pressure Low 1.1" WC/C.E. (0.27Kpa)

Oriﬁ ce size #37 DMS

Altitude 0-4500 ft/pi (0-1370m)

Maximum Input 30,000 Btu/h (8.79Kw/h)

Minimum Input 15,000 Btu/h (4.39Kw/h)

ÉQUIPÉ À L'UISINE POUR GAZ NATURAL:

ÉQUIPÉ À L'UISINE POUR GAZ PROPANE:

Pression d’alimentation minimum

Pression à la tubulure d’échappement élevée

Dimensions de l’oriﬁ ce

L’altitude

Débit caloriﬁ que maximum selon

Débit caloriﬁ que minimum selon

918-507

Model/Modele:

U37-LP1

313

FACTORY EQUIPPED FOR PROPANE: Model U37-LP1

Min. supply pressure 12" WC/C.E. (3.00Kpa)

Manifold pressure High 11" WC/C.E. (2.74Kpa)

Manifold pressure Low 2.9" WC/C.E. (0.72Kpa)

Oriﬁ ce size #52 DMS

Altitude 0-4500 ft/pi (0-1370m)

Maximum Input 30,000 Btu/h (8.79Kw/h)

Minimum Input 15,000 Btu/h (4.39Kw/h)

Pression d’alimentation minimum

Pression à la tubulure d’échappement élevée

Dimensions de l’oriﬁ ce

L’altitude

Débit caloriﬁ que maximum selon

Débit caloriﬁ que minimum selon

For the State of Massachusetts, installation and repair must be

done by a plumber or gasﬁ tter licensed in the Commonwealth

of Massachusetts.

For the State of Massachusetts, ﬂ exible connectors shall not

exceed 36 inches in length.

For the State of Massachusetts, the appliances individual

manual shut-off must be a t-handle type valve.

The State of Massachusetts requires the installation of a

carbon monoxide alarm in accordance with NFPA 720 and a

CO alarm with battery back up in the same room where the

gas appliance is installed.

U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 5

REQUIREMENTS

5.08: Modifications to NFPA-54, Chapter 10

(2) Revise 10.8.3 by adding the following additional requirements:

(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for

residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than

seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall

be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled

equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is

installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery

operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure

served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of

qualified licensed professionals for the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon

monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of

thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon

monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions

shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight

(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The

sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL

OBSTRUCTIONS".

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation

unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR

5.08(2)(a)1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by

the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or

structure used in whole or in part for residential purposes.

Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the

instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a

Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies

"special venting systems", the following requirements shall be satisfied by the manufacturer:

1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and

2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and

detailed installation instructions.

(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,

all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of

the installation.

MA Code - CO Detector

(for the State of Massachusetts only)

6 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove

IMPORTANT MESSAGE

SAVE THESE

INSTRUCTIONS

The ULTIMATE Rear Vent Direct Vent Freestand-

ing Gas Stove must be installed in accordance

with these instructions. Carefully read all the

instructions in this manual ﬁ rst. Consult the

building authority having jurisdiction to deter-

mine the need for a permit prior to starting the

installation.

Note: Failure to follow the instructions

could cause a malfunction of the

heater which could result in death,

serious bodily injury, and/or prop-

erty damage. Failure to follow these

instructions may also void your ﬁ re

insurance and/or warranty.

SPECIFICATIONS

Fuels: U37-NG1 is approved for use with

natural gas.

U37-LP1 is approved for use with liq-

ueﬁ ed petroleum gases (propane).

Electrical: 120 V A.C. system.

Circulation Fan: Variable speed, 125/75.

Log Sets: Ceramic ﬁ bre, 7 per set.

Vent System:

Axial (6-5/8" outer / 4" inner liner) rigid

ﬂ ue and Riser Vent Terminal.

BEFORE YOU START

Safe installation and operation of this appli-

ance requires common sense, however, we

are required by the Canadian Safety Standards

and ANSI Standards to make you aware of the

following:

INSTALLATION

into a manufactured home the unit must be

bolted down to the ﬂ oor.

4) We recommend that you plan your instal-

lation on paper using exact measurements

for clearances and ﬂ oor protection before

actually installing this appliance. Have a

qualiﬁ ed building inspector review your plans

before installation.

GENERAL SAFETY

INFORMATION

1) The appliance installation must conform with

local Canadian Electrical Code.

2) The appliance when installed, must be

electrically grounded in accordance with

local codes, or in the absence of local codes

with the current National Electrical Code,

ANSI/NFPA 70 or CSA C22.1 Canadian

Electrical Code.

3) The appliance should be inspected for

shipping damage before use and serv-

iced annually by a professional service

person. More frequent cleaning may be

required due to excessive lint from carpet-

ing, bedding material, etc. It is imperative

that control compartments, and circulating

air passageways of the appliance be kept

clean and free from excessive lint from

carpeting.

4) See general construction and assembly

instructions. The appliance and vent should

be enclosed when installed in or passing

through a living area, where children may

come in contact with it.

5) This appliance must be connected to the

speciﬁ ed vent and termination cap to the

outside of the building envelope. Never vent

to another room or inside a building. Make

sure that the vent is ﬁ tted as per the instruc-

tions starting in the "Venting" section.

6) Inspect the venting system annually for

blockage and any signs of deterioration.

7) Venting terminals shall not be recessed into

a wall or siding.

8) Any safety glass removed for servicing

must be replaced prior to operating the ap-

pliance.

9) To prevent injury, do not allow anyone who

is unfamiliar with the operation to use the

ﬁ replace.

1) Provide adequate clearances for servicing,

proper operation and around the air openings

into the combustion chamber.

2) The appliance must be installed on a ﬂ at,

solid, continuous surface (e.g. wood, metal,

concrete). This may be the ﬂ oor, or it can be

raised up on a platform to enhance its visual

impact. The appliance may be installed on

carpeting, tile, wood ﬂ ooring or other com-

bustible material, because the appliance's

metal pedestal base extends the full width

and depth of the appliance. The ULTIMATE

Rear Vent Direct Vent Freestanding Gas

Stove can be installed in a wide variety of

ways and will ﬁ t nearly any room layout.

It may be installed in a recessed position,

framed out into the room, or across a cor-

ner.

3) The ULTIMATE Rear Vent Direct Vent

Freestanding Gas Stove is approved for

manufactured home installations, see

"Clearances to Combustible" to "Rigid Pipe

Venting - Vertical Terminations" section for

the required vent arrangements. If installed

Emissions from burning wood or gas could

contain chemicals known to the State of Cali-

fornia to cause cancer, birth defects or other

reproductive harm.

DUE TO HIGH TEMPERATURES,

THE APPLIANCE SHOULD BE

LOCATED OUT OF TRAFFIC AND

AWAY FROM FURNITURE AND

DRAPERIES.

WARNING: FAILURE TO INSTALL

THIS APPLIANCE CORRECTLY

WILL VOID YOUR WARRANTY AND

MAY CAUSE A SERIOUS HOUSE

FIRE.

CHILDREN AND ADULTS SHOULD

BE ALERTED TO THE HAZARDS

OF HIGH SURFACE TEMPERA-

TURES, ESPECIALLY THE FIRE-

PLACE GLASS, AND SHOULD

STAY AWAY TO AVOID BURNS OR

CLOTHING IGNITION.

YOUNG CHILDREN SHOULD BE

CAREFULLY SUPERVISED WHEN

THEY ARE IN THE SAME ROOM AS

THE APPLIANCE.

CLOTHING OR OTHER FLAM-

MABLE MATERIAL SHOULD NOT

BE PLACED ON OR NEAR THE

APPLIANCE.

INSTALLATION AND REPAIRS

SHOULD BE DONE BY A QUALI-

FIED SERVICE PERSON. THIS AP-

PLIANCE SHOULD BE INSTALLED,

REPAIRED, INSPECTED BEFORE

USE AND AT LEAST ANNUALLY

BY A QUALIFIED SERVICE PER-

SON. MORE FREQUENT CLEAN-

ING MAY BE REQUIRED DUE TO

EXCESSIVE LINT FROM CARPET-

ING, ETC. IT IS IMPERATIVE THAT

THE CONTROL COMPARTMENT,

BURNERS AND CIRCULATING AIR

PASSAGEWAYS OF THE APPLI-

ANCE BE KEPT CLEAN.

U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 7

COMBUSTION AND

VENTILATION AIR

The combustion air from this appliance is drawn

from outside the building through the outer ﬂ ue.

Extra provision for combustion air inside the

room is not required.

VENTING

The Regency® Direct Vent System (Horizontal

Termination Kit (640-944) and the Vertical

Termination with the Co-linear Flex System in

combination with the ULTIMATE Direct Vent-

Rear Freestanding Gas Stoves (U37-NG1 and

U37-LP1) have been tested and listed as direct

vent heater systems by Warnock Hersey.

The Horiz. Termination Kit (640-944) includes

everything required for a straight through the

wall installation, or add a 45o elbow for a corner

installation. If a snorkel termination is required,

the Simpson Dura-Vent Direct Vent System

Model DVGS terminals are available.

INSTALLATION

CHECKLIST

1) Locate your appliance. Refer to the following

sections:

a. Clearances to Combustibles

b. Locating your Ultimate Gas Stove

c. "Venting" to "Rigid Pipe Venting -

Vertical Terminations" sections.

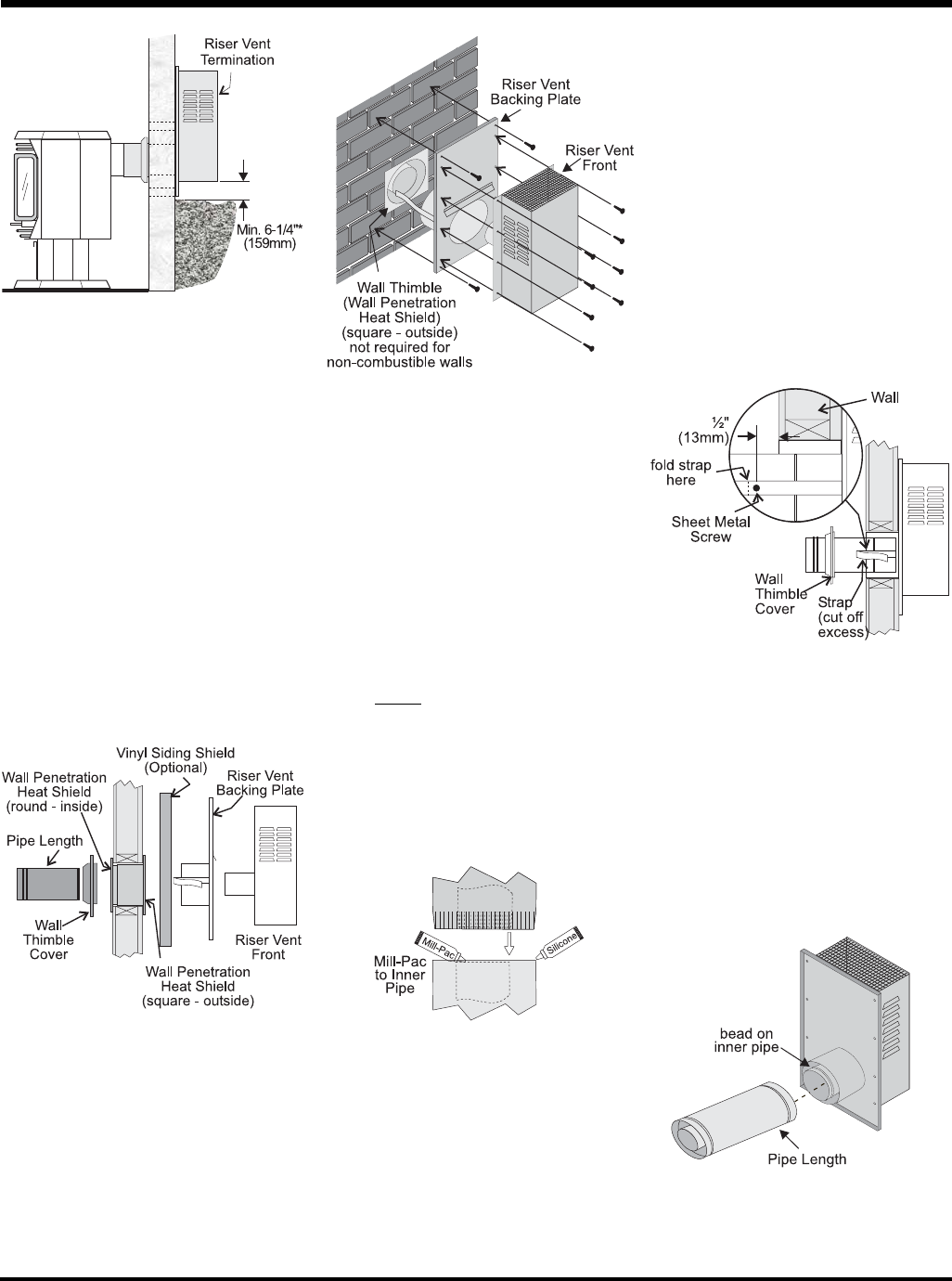

2) Install venting. See "Planning Your Venting

Installation" to "Vertical Termination with

Co-Linear Flex System" sections.

3) Make gas connections. Refer to the "Gas

Connection" section.

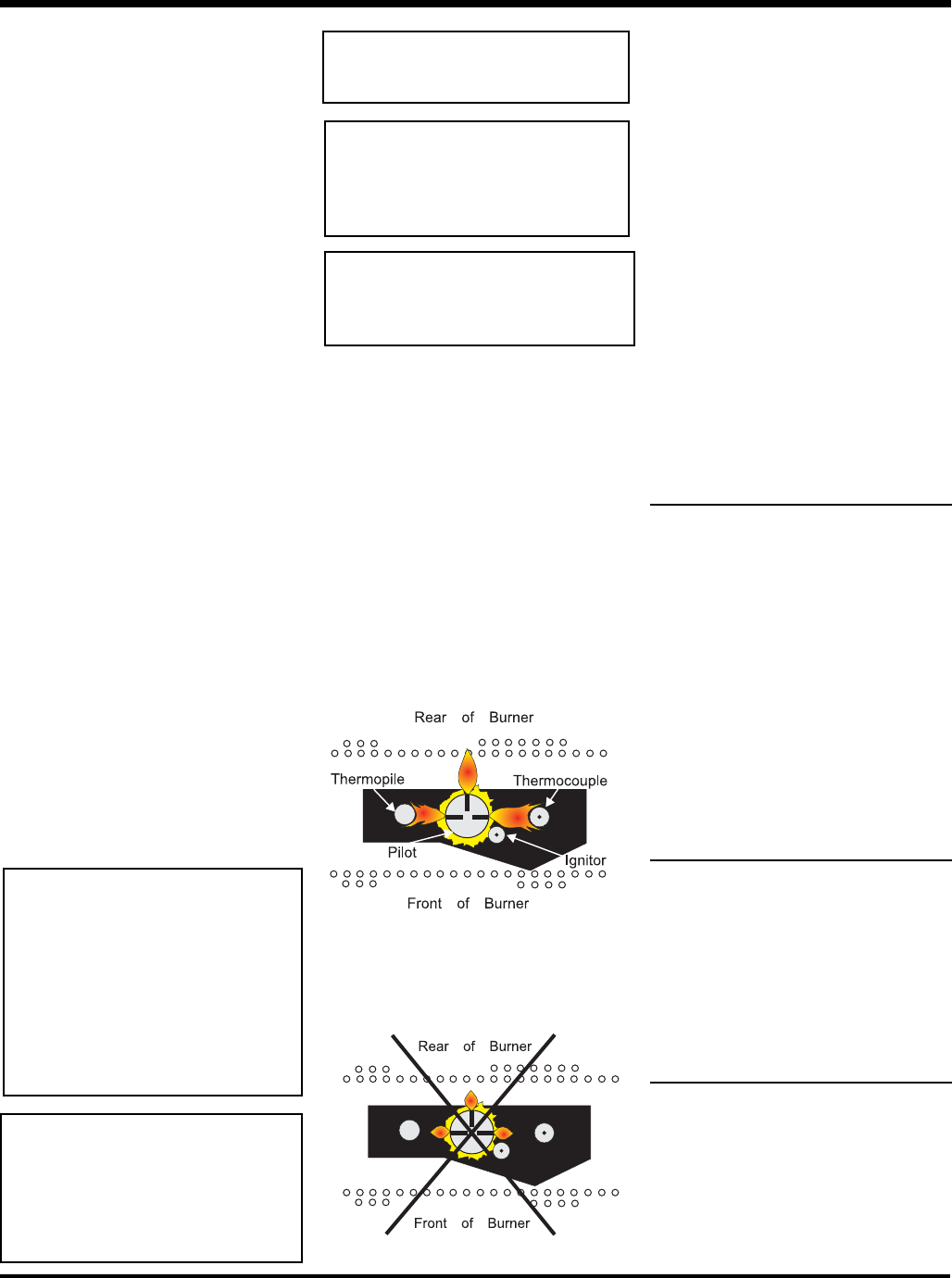

Test the pilot. Must be as per diagram in the

"Maintenance Instructions" section.

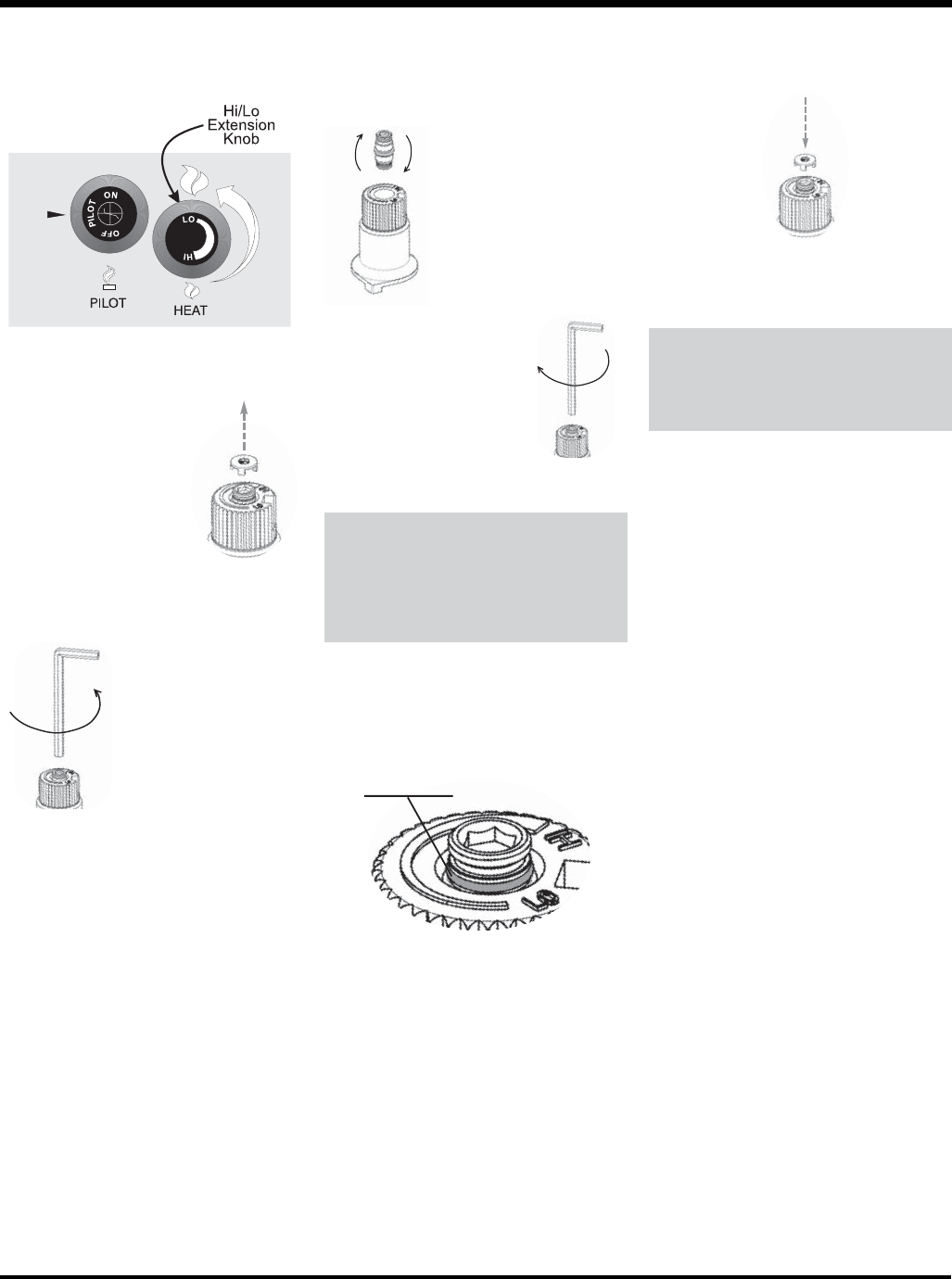

4) If necessary, convert from Natural Gas to

Propane. Refer to the "Conversion Kit from

NG to LPG" section.

5) Installl standard and optional features. Refer

to the following sections where applicable:

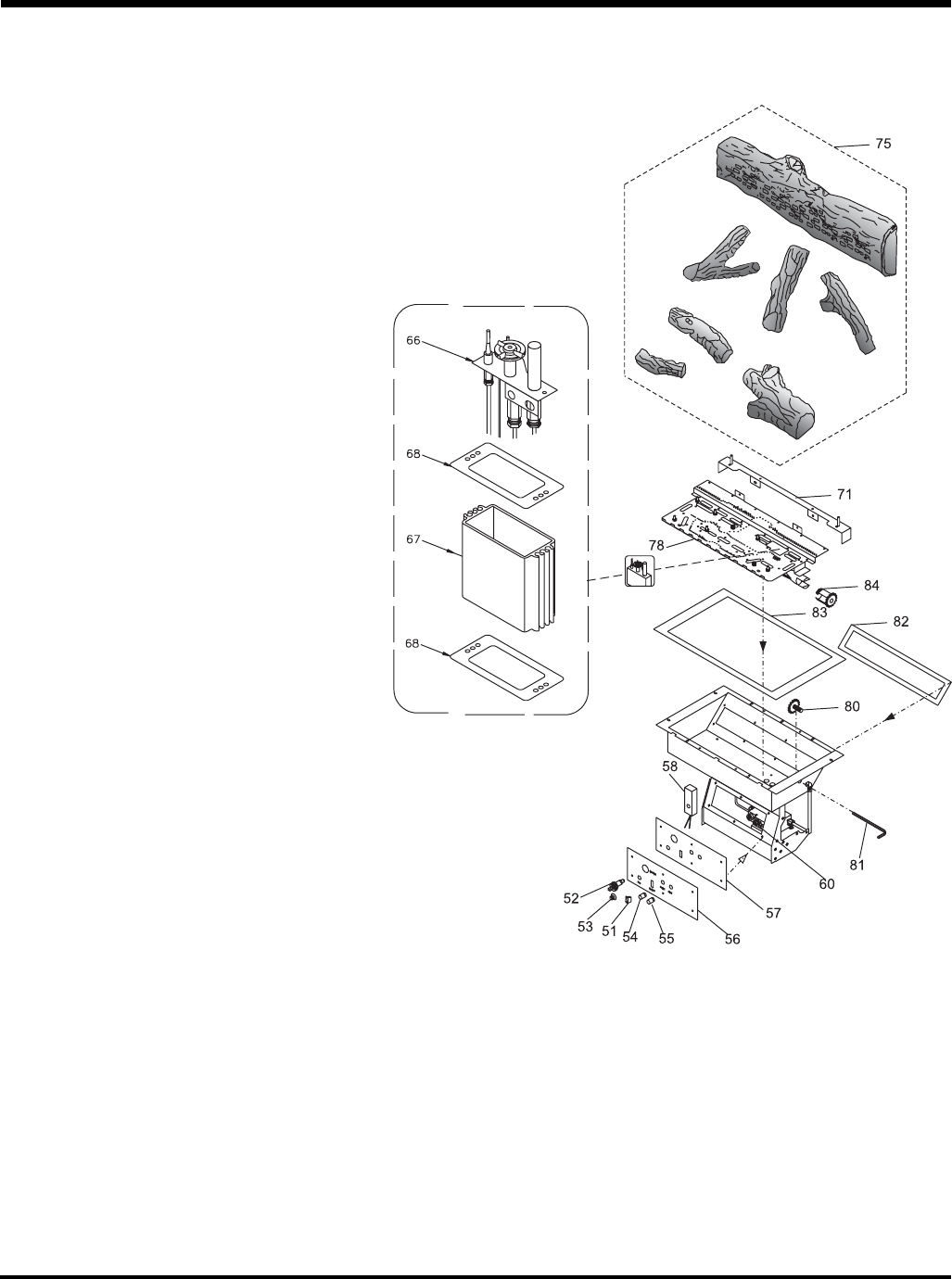

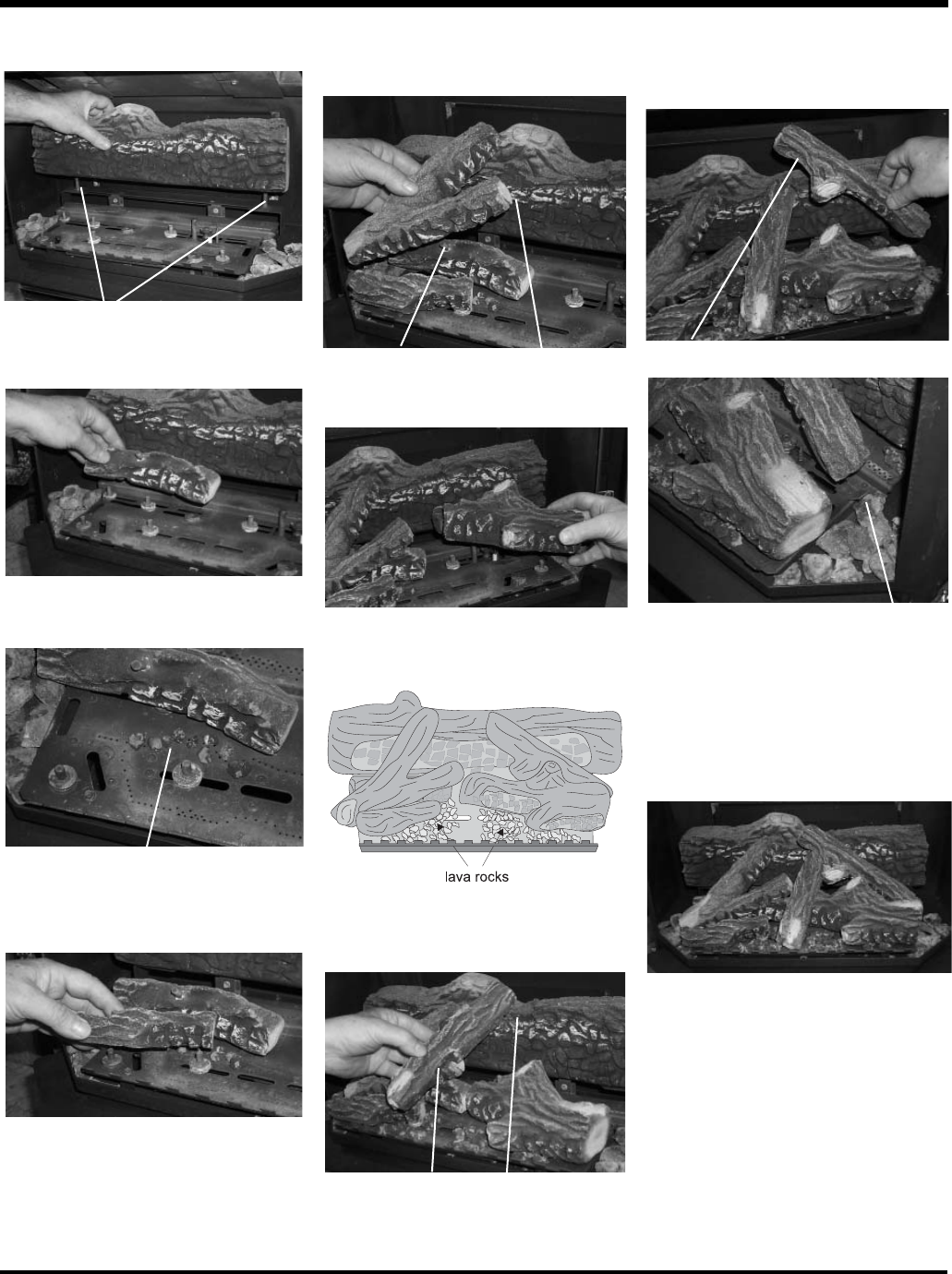

a. Log Set Installation

b. Door Installation

c. Louver Installation

d. Wall Thermostat

e. Remote Control

6) Final check. Refer to the "Final Check" sec-

tion.

Before leaving this unit with the customer, the

installer must ensure that the appliance is ﬁ r-

ing correctly and operation fully explained

to customer.

This includes:

1) Clocking the appliance to ensure the correct

ﬁ ring rate (rate noted on label) after burning

appliance for 15 minutes.

2) If required, adjusting the primary air to ensure

that the ﬂ ame does not carbon. First allow

the unit to burn for 15-20 min. to stabilize.

CAUTION: Any alteration to the product that

causes sooting or carboning that results

in damage is not the responsibility of the

manufacturer.

MANUFACTURED

MOBILE HOME

ADDITIONAL

REQUIREMENTS

1) Ensure that structural members are not cut

or weakened during installation.

2) Ensure proper grounding using the #8 ground

lug provided.

3) Appliance must be anchored to the ﬂ oor with

the supplied anchoring methods.

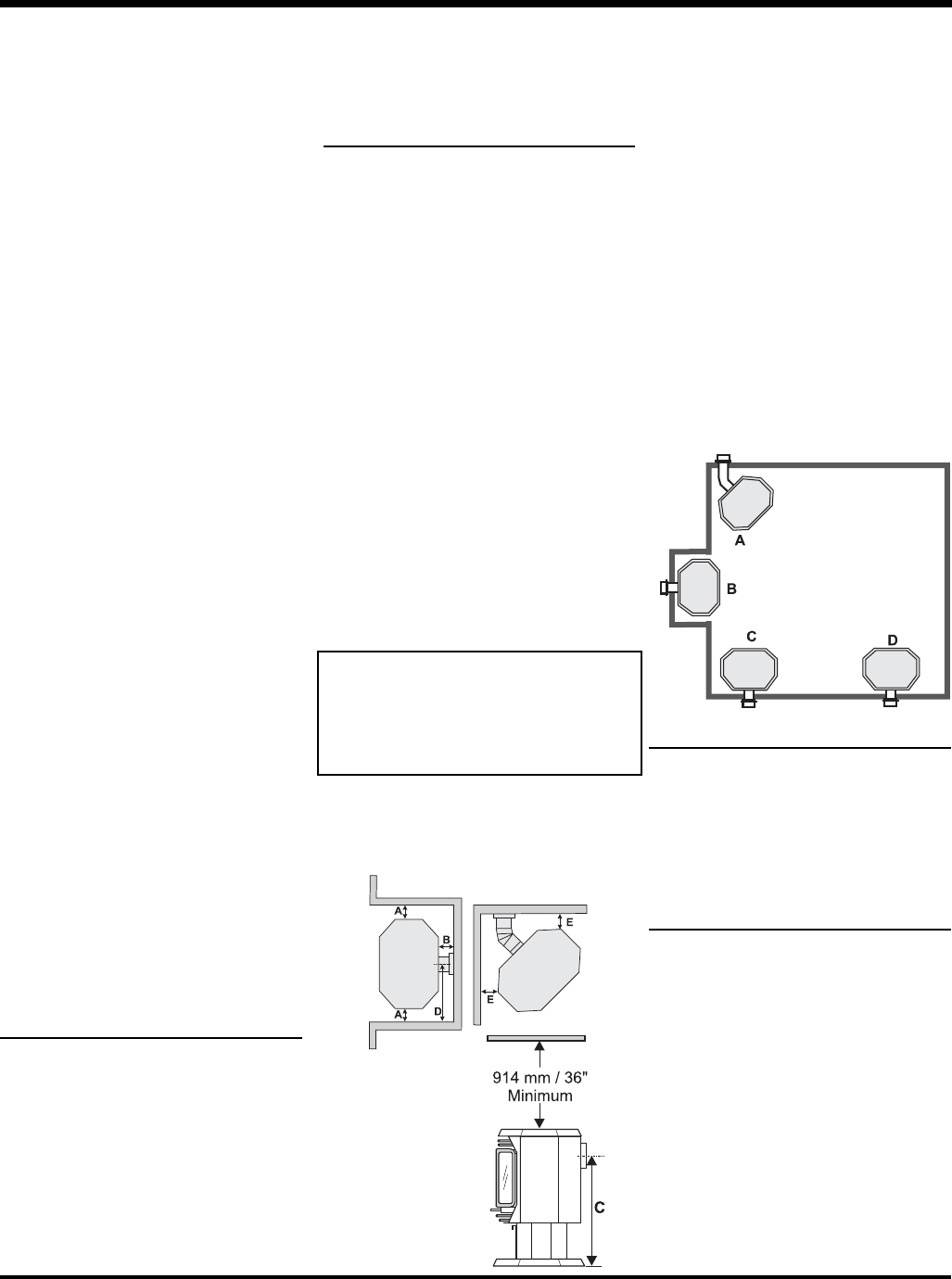

CLEARANCES TO

COMBUSTIBLES

The clearances listed are MINIMUM distances.

Measure the clearance to both the appliance and

the chimney connector. The farthest distance is

correct if the two clearances do not coincide.

For example, if the appliance is set as indicated

in one of the diagrams but the connector is too

close, move the stove until the correct clearance

to the connector is obtained.

This appliance may be installed only with the

clearances as shown in the situations pictured.

Do not combine clearances from one type of

installation with another in order to achieve

closer clearances.

This unit can be installed on a solid combustible

surface like a wood ﬂ oor. This unit can also be

installed directly on carpeting or vinyl when the

bottom pedestal cover plate (provided with unit)

is installed.

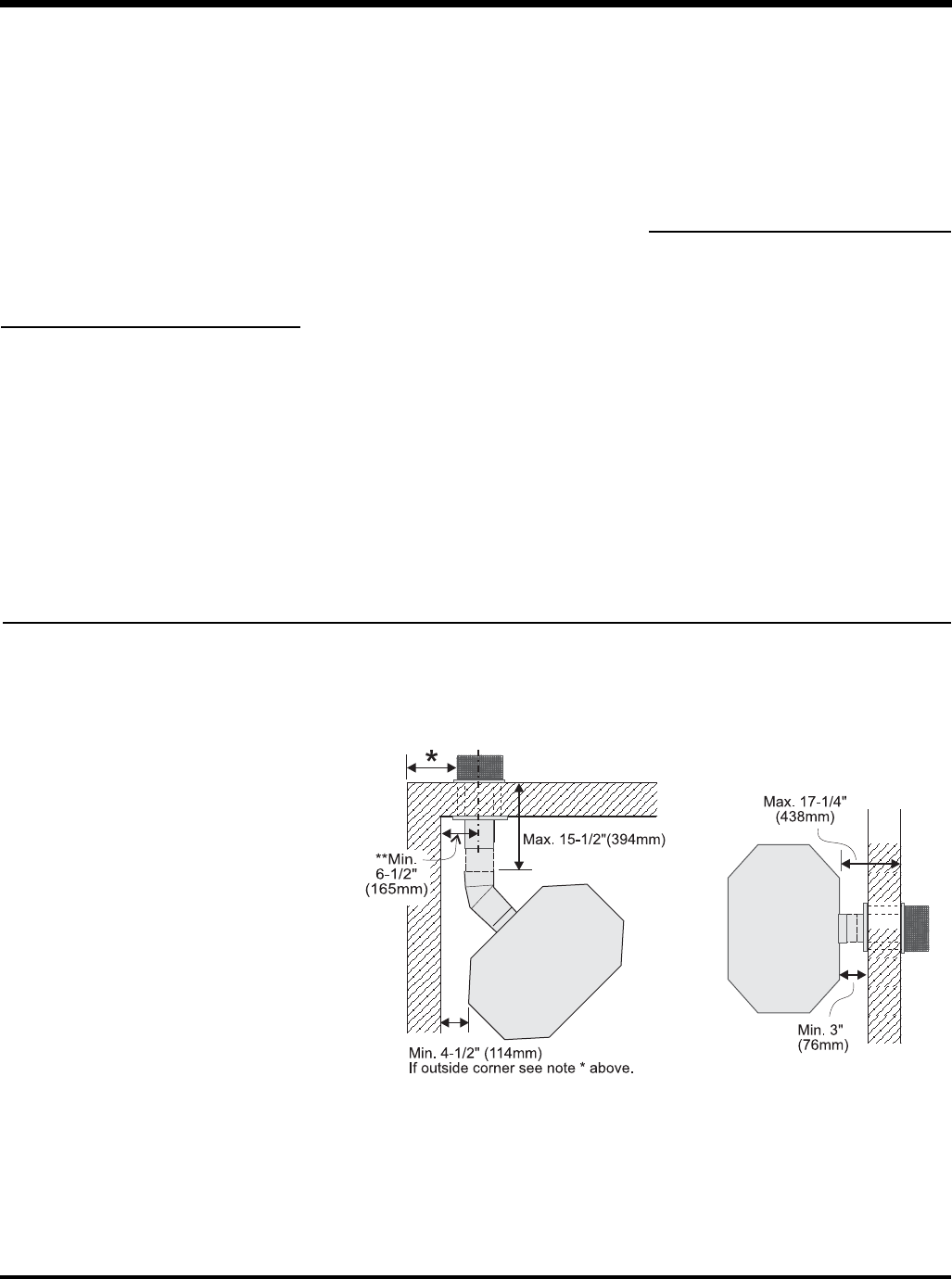

Use the minimum clearances shown in the dia-

grams below:

Clearances

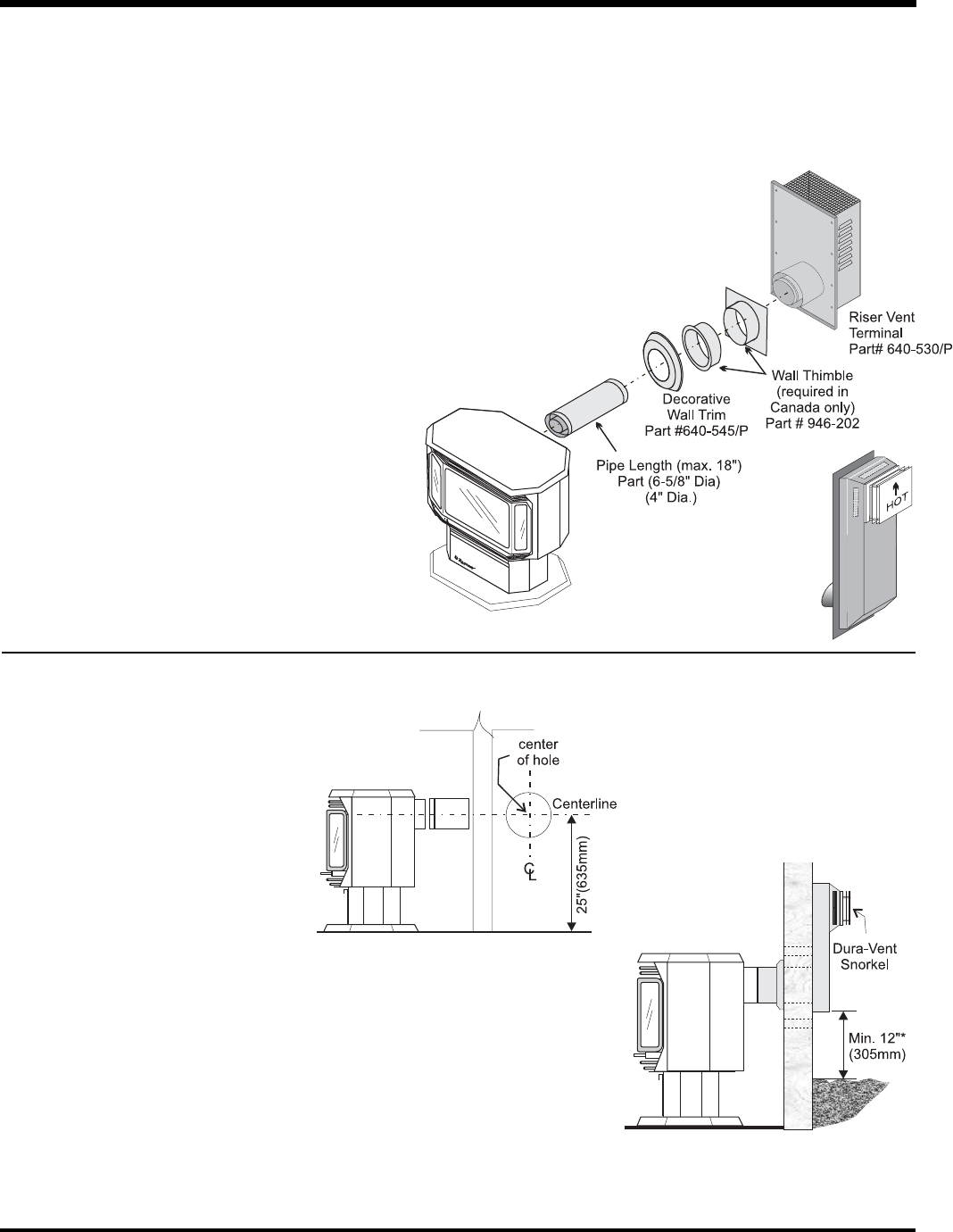

A Side Wall to Unit 7-1/2" / 190 mm

B Back Wall to Unit 3" / 76 mm

E Side Wall to Unit 4-1/2" / 114 mm

Reference Dimensions

C Floor to Flue Centerline 25" / 635 mm

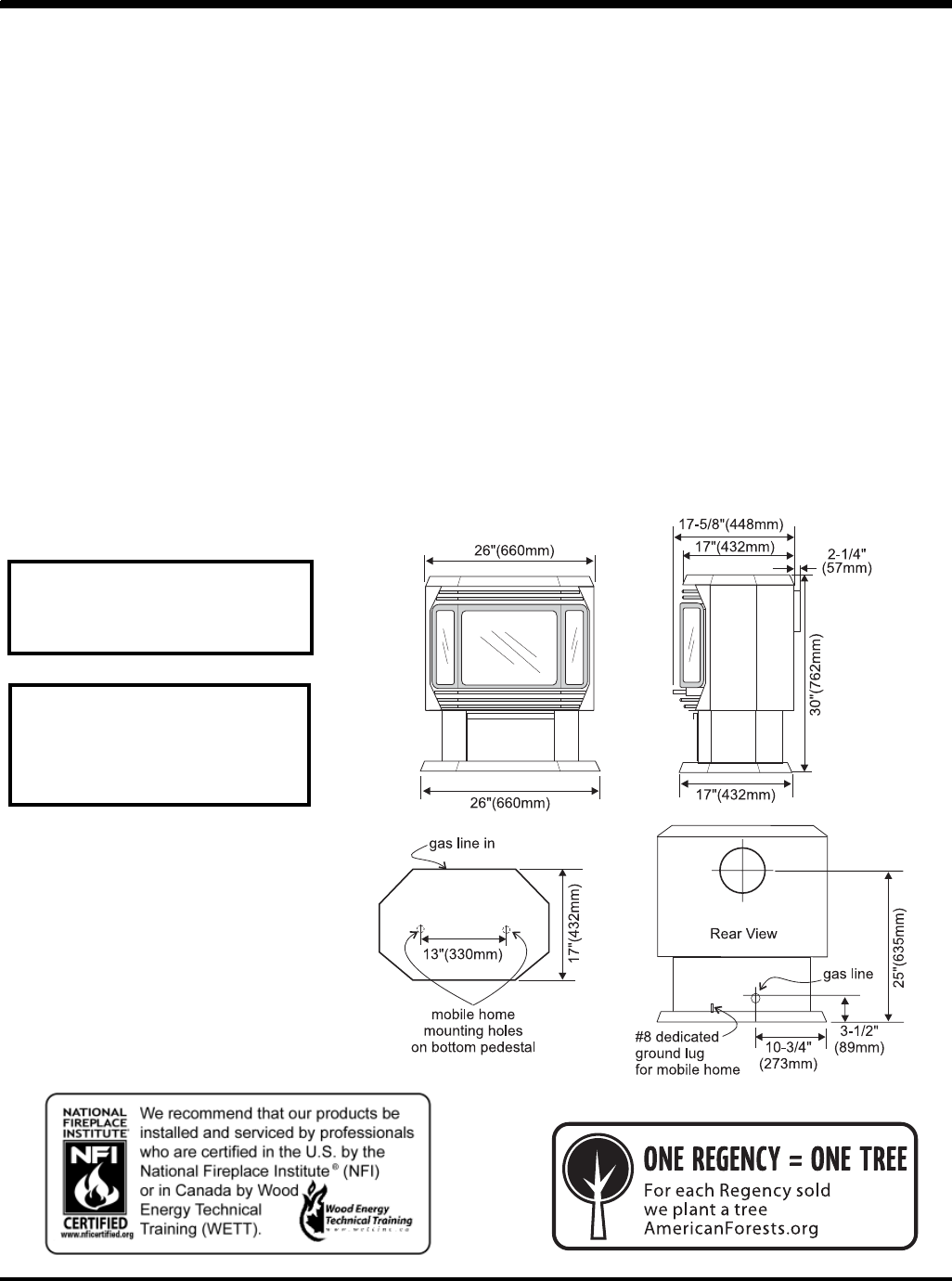

D SideWall to Flue Centerline20-1/2" / 521 mm

INSTALLATION

LOCATING YOUR

GAS STOVE

When selecting a location for your stove, ensure

that the clearances listed above are met as well

as ensuring that there is adequate accessibility

for servicing and proper operation.

For Vent Termination requirements, see the

"Exterior Vent Terminal Locations" section.

This appliance is Listed for bedroom installations

when used with a Listed Millivolt Thermostat.

Some areas may have further requirements,

check local codes before installation.

This appliance is Listed for Alcove installations,

maintain minimum Alcove clearances as follows,

minimum ceiling height of 66"(1.7m), minimum

width of 41"(1.0m) and a maximum depth of

36"(0.9m).

Minimum ceiling height

is 36" / 914 mm from

top of unit.

A) Cross Corner

B) Flush with Wall/Alcove

C) Flat on Wall Corner

D) Flat on Wall

8 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove

INSTALLATION

EXTERIOR VENT TERMINAL LOCATIONS

A= Clearance above grade, veranda, porch, deck, or balcony *(min. 12"/30cm)

B= Clearance to window or door that may be opened *(12"/30cm) #(9"/23cm)

C= Clearance to permanently closed window *(min. 12"/30cm)

D= Vertical clearance to ventilated sofﬁ t located above the terminal within a horizontal

distance of (24"/60cm) from the centerline of the terminal (min. 22"/55cm) check with

local code.

E= Clearance to unventilated sofﬁ t (min. 12"/30cm)

F= Clearance to outside corner (12"/30cm)

G= Clearance to inside corner (12"/30cm)

H= Not to be installed above a meter/regulator assembly within

(3'/90cm) horizontally from the centerline of the regulator.

J= Clearance to service regulator vent outlet *(min. 36"/90cm)

K= Clearance to non-mechanical air supply inlet to building

or the combustion air inlet to any other appliance *(12"/30cm) #(9"/23cm)

L= Clearance to a mechanical air supply inlet *(min. 72"/1.8m)

#3' (91cm) above if within 10' (3m) horizontally.

M= **Clearance above paved sidewalk or a paved driveway located

on public property *(min. 84"/2.1m)

N= Clearance under veranda, porch, deck, or balcony *(min.

12"/30cm)***

Note: * As speciﬁ ed in CGA B149 Installation Code. Note: Local codes or regulations may require different clearances.

**A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings.

***Only permitted if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the ﬂ oor.

# In accordance with the current ANSI Z223.1/NFPA 54, National Gas Code

U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 9

PLANNING YOUR VENTING INSTALLATION

INSTALLATION

IMPORTANT

Read all instructions carefully before starting

the installation. Failure to follow these instruc-

tions may create a ﬁ re or other safety hazard,

and will void the warranty. Be sure to check the

venting and clearance to combustible require-

ments in "Clearances to Combustibles" to "Rigid

Pipe Venting - Vertical Termination" sections.

Consult your local building codes before begin-

ning installation.

The location of the termination cap must con-

form to the requirements in the" Exterior Vent

Terminal Locations" section.

VENTING

INSTALLATION

PRECAUTIONS

The Regency® Direct Vent System and the

Vertical Termination with the Co-linear Flex

System are engineered products that have

been designed and tested for use with the

U37-NG1, and U37-LP1. The Regency® war-

ranty will be voided and serious ﬁ re, health or

other safety hazards may result from any of the

following actions:

1) Installation of any damaged Direct Vent

component

2) Unauthorized modiﬁ cation of the Direct Vent

System

3) Installation of any component part not

manufactured or approved by Regency®

Industries Ltd.

4) Installation other than as instructed by

Regency® Industries Ltd.

Warning: Always maintain required

clearances (air spaces) to nearby com-

bustibles to prevent a ﬁ re hazard. Do

not ﬁ ll air spaces with insulation.

The minimum clearance requirements between

the outer wall of the vent pipe and nearby com-

bustible surfaces is 1-1/4 inch. Be sure to check

the vent termination clearance requirements

from decks, windows, sofﬁ ts, gas regulators, air

supply inlets and public walkways as speciﬁ ed

in the "Exterior Vent Terminal Locations" section

and in your local building codes.

The gas appliance and vent system

must be vented directly to the outside

of the building, and never be attached

to a chimney serving a separate solid

fuel or gas-burning appliance.

Each direct vent gas appliance must use its own

separate vent system. Common vent systems

are prohibited.

SAFETY PRECAUTIONS

FOR THE INSTALLER

1) Wear gloves and safety glasses for protec-

tion.

2) Exercise extreme caution when using lad-

ders or on roof tops.

3) Be aware of electrical wiring locations in

walls and ceilings.

See the "Exterior Vent Terminal Locations"

section for the requirements. .

When planning your installation, it will be nec-

essary to select the proper length of vent pipe

for your particular requirements. Determine the

minimum clearance to combustibles from the

rear of the unit to the wall. It is also important to

note the wall thickness. Before cutting the vent

hole through the wall ensure that ALL vent and

termination clearances (see the "Exterior Vent

Terminal Locations" section) will be met.

*If this is an outside corner, the minimum distance between the vent and the outside corner

is 12" (30cm). See "F" on the diagram in the "Exterior Vent Terminal Locations" section.

NOTE: Ensure compliance with the outside vent terminal location before cutting hole as both dimensions must be met.

For corner installation, Restrictor must

be set at 1-1/4" open.

For straight rear installation, Restrictor

must be set at 1-1/8" open.

10 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove

4” X 6-5/8” RIGID PIPE CROSS REFERENCE CHART

Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI.

Description Simpson

Direct Vent Pro®

Simpson

Direct Vent GS®

Discontinued

Selkirk

Direct-Temp™

American Metal

Products®

Amerivent Direct

Metal-Fab®

Sure Seal Security

Secure Vent®

6” Pipe Length, Galvanized 46DVA-06 908 4DT-6 N/A 4D6 SV4L6

6” Pipe Length, Black 46DVA-06B 908B 4DT-6B N/A 4D6B SV4LB6

7” Pipe Length, Galvanized N/A N/A N/A 4D7 N/A N/A

7” Pipe Length, Black N/A N/A N/A 4D7B N/A N/A

9” Pipe Length, Galvanized 46DVA-09 907 4DT-9 N/A N/A N/A

9” Pipe Length, Black 46DVA-09B 907B 4DT-9B N/A N/A N/A

12” Pipe Length, Galvanized 46DVA-12 906 4DT-12 4D12 4D12 SV4L12

12” Pipe Length, Black 46DVA-12B 906B 4DT-12B 4D12B 4D12B SV4LB12

18” Pipe Length, Galvanized 46DVA-18 N/A 4DT-18 N/A 4D18 SV4LA

18” Pipe Length, Black 46DVA-18B N/A 4DT-18B N/A 4D18B SV4LA

24” Pipe Length, Galvanized 46DVA-24 904 4DT-24 4D2 4D24 SV4L24

24” Pipe Length, Black 46DVA-24B 904B 4DT-24B 4D2B 4D24B SV4LB24

36” Pipe Length, Galvanized 46DVA-36 903 4DT-36 4D3 4D36 SV4L36

36” Pipe Length, Black 46DVA-36B 903B 4DT-36B 4D3B 4D36B SV4LB36

48” Pipe Length, Galvanized 46DVA-48 902 4DT-48 4D4 4D48 SV4L48

48” Pipe Length, Black 46DVA-48B 902B 4DT-48B 4D4B 4D48B SV4LB48

60” Pipe Length, Galvanized 46DVA-60 N/A N/A N/A N/A N/A

60” Pipe Length, Black 46DVA-60B N/A N/A N/A N/A N/A

Adjustable Length 3”-10”, Galvanized N/A N/A N/A N/A 4DAL N/A

Adjustable Length 3”-10”, Black N/A N/A N/A N/A 4DALB N/A

Adjustable Length 11”-14”, Galvanized Disc - See 46DV-08A N/A 4DT-AJ N/A N/A N/A

Adjustable Length 11”-14”, Black Disc - See 46DV-08AB 911B 4DT-AJB N/A N/A N/A

Adjustable Length 17”-24”, Galvanized Disc - See 46DV-16A 917 - N/A from FPI N/A N/A N/A N/A

Adjustable Length 17”-24”, Black Disc - See 46DV-16AB 917B N/A N/A N/A SV4LBA24

Adjustable Length 7”, Galvanized N/A N/A N/A 4D7A N/A N/A

Adjustable Length 7”, Black N/A N/A N/A 4D7AB N/A N/A

Extension Pipe 8-1/2”, Galvanized 46DVA-08A N/A N/A N/A N/A N/A

Extension Pipe 8-1/2”, Black 46DVA-08AB N/A N/A N/A N/A N/A

Adjustable Length 12”, Galvanized N/A N/A N/A 4D12A N/A SV4LA12

Adjustable Length 12”, Black N/A N/A N/A 4D12AB N/A SV4LBA12

Extension Pipe 16”, Galvanized 46DVA-16A N/A N/A N/A N/A N/A

Extension Pipe 16”, Black 46DVA-16AB N/A N/A N/A N/A N/A

45º Elbow, Galvanized 46DVA-E45 945 4DT-EL45 4D45L N/A N/A

45º Elbow, Black 46DVA-E45B 945B 4DT-EL45B 4D45LB N/A N/A

45º Elbow, Swivel, Galvanized Disc - See 46DVA-E45 945G N/A N/A 4D45L SV4E45

45º Elbow, Swivel, Black Disc - See 46DVA-

E45B 945BG N/A N/A 4D45LB SV4EB45

90º Elbow, Galvanized 46DVA-E90 990 4DT-EL90S 4D90LS N/A N/A

90º Elbow, Black 46DVA-E90B 990B 4DT-EL90SB 4D90LBS N/A SV4EBR90-1

90º Elbow, Swivel, Galvanized Disc - See 46DVA-E90 990G N/A N/A 4D90L SV4E90-1

90º Elbow, Swivel, Black Disc - See 46DVA-

E90B 990BG N/A N/A 4D90LB SV4EB90-1

90º Starter Elbow, Swivel, Galvanized* N/A N/A N/A N/A 4D90A N/A

Adaptor* N/A N/A N/A N/A 4DDA N/A

Ceiling Support N/A 949 - N/A from FPI 4DT-CS 4DFSP 4DSP SV4SD

Cathedral Support Box 46DVA-CS 941 4DT-CSS 4DRSB 4DRS SV4CSB

Wall Support/Band 46DVA-WS 988 4DT-WS/B 4DWS 4DWS SV4BM

Offset Support 46DVA-ES - N/A from FPI 989 - N/A from FPI 4DT-OS N/A N/A SV4SU

Wall Thimble, Black 46DVA-WT 942 4DT-WT 4DWT 4DWT SV4RSM

Wall Thimble Support Box/Ceiling Support 46DVA-DC N/A N/A N/A N/A SV4PF

Firestop Spacer 46DVA-FS 963 4DT-FS 4DFSP 4DFS SV4BF

Trim Plate, Black N/A N/A 4DT-TP 4DFPB 4DCP SV4LA

Masonry Chimney Flashing N/A N/A N/A N/A N/A N/A

Brass Trim for Wall Thimble/Ceiling Support DISC. 3951 N/A N/A N/A N/A

INSTALLATION

U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 11

Description Simpson

Direct Vent Pro®

Simpson

Direct Vent GS®

Discontinued

Selkirk

Direct-Temp™

American Metal

Products®

Amerivent Direct

Metal-Fab®

Sure Seal Security

Secure Vent®

Attic Insulation Shield 12” 46DVA-IS - N/A from FPI N/A N/A 4DAIS12 N/A SV4RSA

Attic Insulation Shield - Cold Climates 36” N/A N/A N/A 4DAIS36 N/A N/A

Basic Horizontal Termination Kit (A) DISC. 970 4DT-HKA 4DHTK2 4DHTKA SV - SHK

Horizontal Termination Kit (B) 46DVA-KHA

(Changed Components) 971 4DT-HKB 4DHTK1 4DHTKB SV - HK

Vertical Termination Kit DISC. 978 4DT-VKC 4DVTK 4DVTK SV - FK

High Wind Vertical Cap 46DVA-VCH 991 N/A N/A N/A N/A

High Wind Horizontal Cap 46DVA-HC 985 N/A N/A N/A N/A

Horizontal Square Termination Cap Disc - See 46DVA-HC 984 4DT-HHC 4DHC 4DHT SV4CHC-1

Vertical Termination Cap 46DVA-VC 980 4DT-HVC 4DVC 4DVT SV4CGV-1

Storm Collar 46DVA-SC 953 4DT-SC 4DSC 4DSC SV4FC

Adjustable Flashing, 0/12-6/12 46DVA-F6 943 4DT-AF6 4DF 4DF SV4FA

Adjustable Flashing, 6/12-12/12 46DVA-F12 943S 4DT-AF12 4DF12 4DF-12 SV4FB

Vinyl Siding Standoff 46DVA-VSS 950 4DT-VS N/A 4DVS SV4VS

Vinyl Siding Shield Plate N/A N/A 4DT-VSP N/A N/A SV4VS

Snorkel Termination 14” 46DVA-SNK14 982 4DT-ST14 4D12S 4DST14 SV4STC14

Snorkel Termination 36” N/A 981 4DT-ST36 4D36S 4DST36 SV4STC36

Restrictor Disk 46DVA-RD 929 N/A N/A N/A N/A

Extended Vertical Termination Cap 46DVA-VCE 930 N/A N/A N/A N/A

Chimney Conversion Kit A 46DVA-KCA 931 N/A N/A N/A N/A

Chimney Conversion Kit B 46DVA-KCB 932 N/A N/A N/A N/A

Chimney Conversion Kit C 46DVA-KCC 933 N/A N/A N/A N/A

Chimney Conversion Kit Masonry 46DVA-KMC 934 N/A N/A N/A N/A

Mansonry Chimney Conversion Kit

(includes: Cap Adapter 18”x18” Flashing) 46DVA-KCT 935 N/A N/A N/A N/A

Wall Firestop 46DVA-WFS 947 N/A N/A N/A N/A

Colinear Flex Connectors 46DVA-ADF 923F N/A N/A N/A N/A

FPI

946-506/P Vent Guard (Optional) for AstropCap 946-205 Vinyl Siding Shield for Riser Vent Terminal

510-994 Rigid Pipe Adapter (Must use with all Rigid Piping) 946-208/P Vent Guard (Optional) for Riser Vent Terminal

640-530/P Riser Vent Terminal 946-523/P AstroCap Horizontal Cap

946-206 Vinyl Siding Standoff for AstroCap

4” x 6-5/8” Rigid Pipe Cross Reference Chart (Cont.)

Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI.

*NOTE: When using Metal-Fab Sure Seal Rigid Piping please note that either the Adaptor (4DDA) or 90º Starter Elbow (4D90A)

must be used in conjunction with FPI Rigid Pipe Adaptor (510-994).

Offset Pipe Selection:

Use this table to determine offset pipe lengths.

Pipe Length 4” x 6-5/8” Venting

Run (X) Rise (Y)

0”(0mm) 4-7/8”(124mm) 13-3/8”(340mm)

6”(152mm) 8”(203mm) 16-1/2”(419mm)

9”(229mm) 10-1/8”(257mm) 18-5/8”(473mm)

12”(305mm) 12-1/4”(311mm) 20-3/4”(527mm)

24”(610mm) 20-5/8”(524mm) 29-1/8”(740mm)

36”(914mm) 29”(737mm) 37-1/2”(953mm)

48”(1219mm) 37-7/16”(951mm) 45-15/16”(1167mm)

NOTE: Horizontal runs of vent must be level, or have a 1/4 inch rise for every 1 foot of run towards

the termination. Never allow the vent to run downward. This could cause high temperatures and

may present a possible ﬁ re hazard.

For speciﬁ c instructions or details on particular

venting components please visit the following

websites:

Simpson Direct Vent Pro: www.duravent.com

Selkirk Direct-Temp: www.selkirkcorp.com

American Metal Products Amerivent Direct:

www.americanmetalproducts.com

Metal-Fab Sure Seal: www.mtlfab.com

Security Secure Vent: www.securitychimneys.com

INSTALLATION

12 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove

INSTALLATION

RIGID PIPE VENTING - VERTICAL TERMINATIONS

FOR BOTH RESIDENTIAL & MANUFACTURED HOMES/MOBILE HOMES

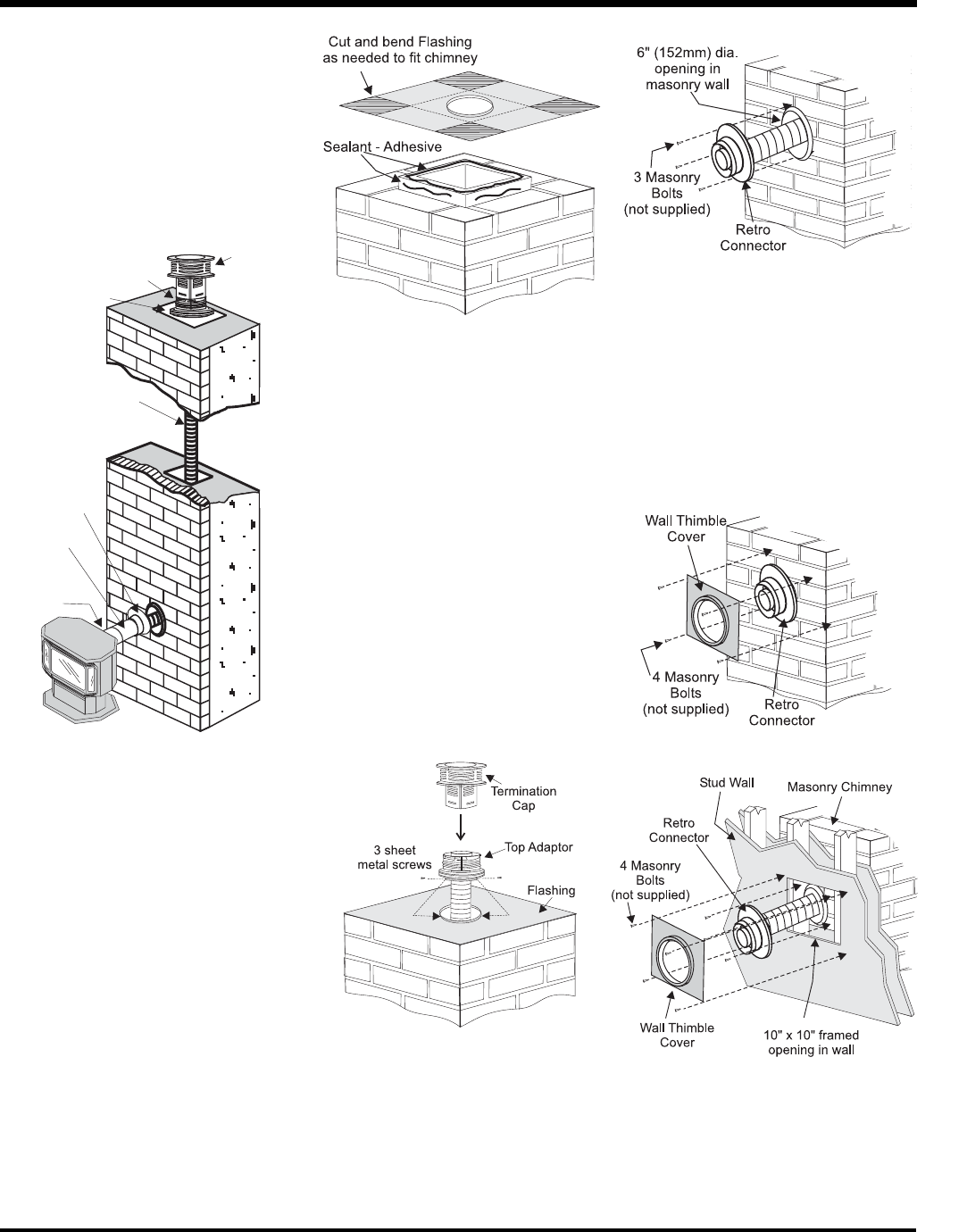

Offset to Vertical Terminations

Vertical Terminations

with Co-linear Flex System

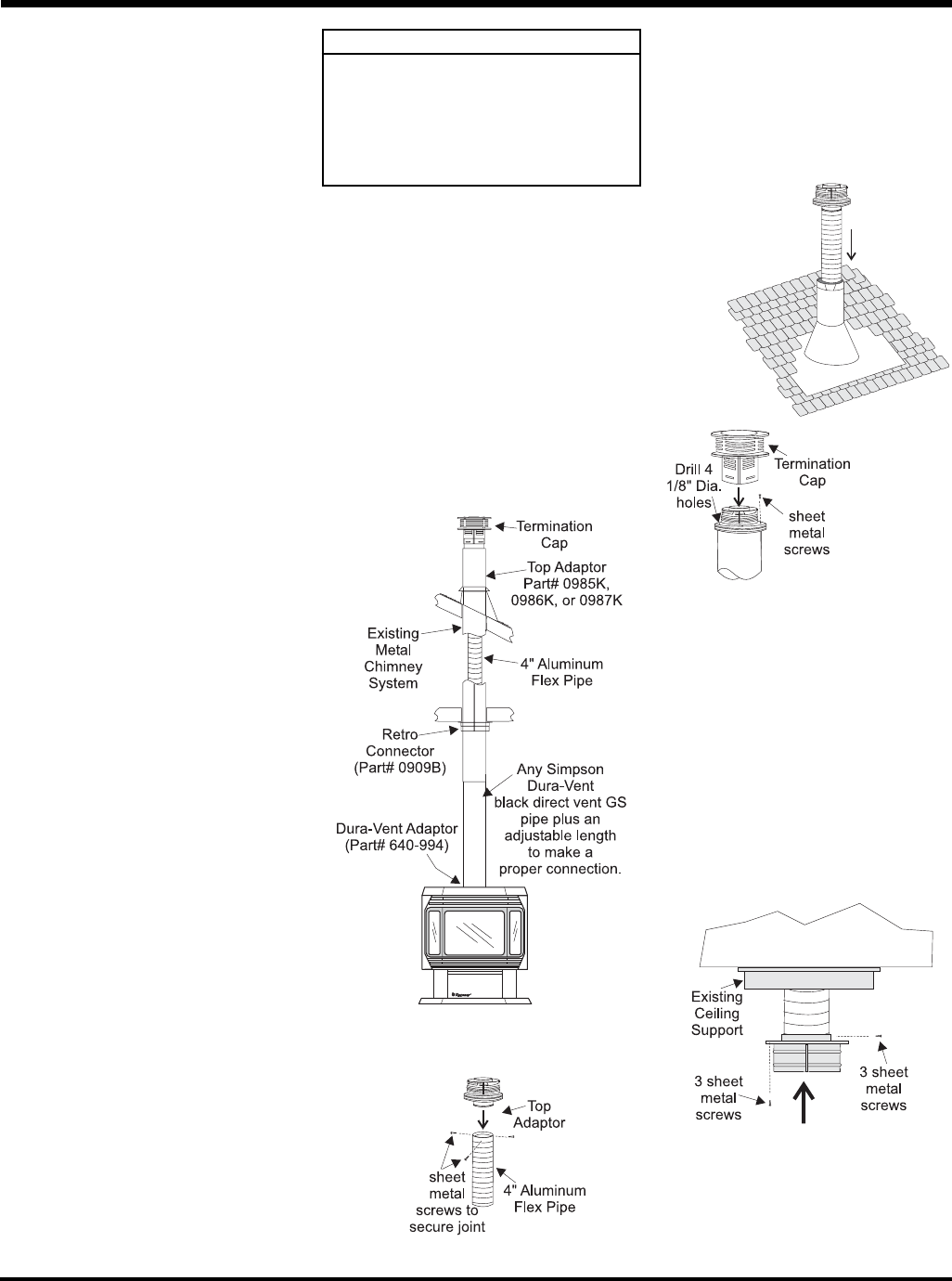

The shaded area in the diagram shows the allowable vertical

terminations installed in a masonry chimney. All vertical vent instal-

lations require the Vent Restrictor to be set to 1-1/4" (32mm) open.

Vertical Terminations

using Rigid Piping Systems

The shaded areas in the two diagrams below show all allowable

combinations of straight vertical and offset to vertical runs with

vertical terminations. Maximum one 90o elbow. All vertical and

offset to vertical vent installations require Vent Restrictor to be set to

1-1/4" (32mm) open. If the vent is ENCLOSED in a chase (min. size

9" x 9") maintain a 1-1/4" (32mm) clearance to combustibles.

Straight Vertical Terminations

Vent Restrictor Position

Vent restriction is required for

certain venting installations,

see the diagrams in "Venting

Arrangment" section to deter-

mine if they are required for your

installation.

To set the Vent restriction as

indicated in the diagram, simply

loosen the screws and push the

vent restrictor plate to the correct

position. Tighten the screws.

If using a Rigid Pipe Venting Sys-

tem a rigid pipe adaptor #640-994

is required.

Rigid Pipe

Adapter

This product has been evaluated by Intertek for

using a Rigid Pipe Adaptor in conjunction with

Duravent Direct-Vent GS, Selkirk Direct-Temp,

Ameri Vent Direct venting and Security Secure

Vent systems. Use of these systems with the

Rigid Pipe adaptor is deemed acceptable

and does not affect the Intertek WHI listing of

components.

WARNING:

Do not combine venting components from

different venting systems.

However use of the the AstroCapTM and FPI

Riser is acceptable with all systems.

When using Rigid Vent other than

Simpson Dura-Vent, 3 screws must be

used to secure rigid pipe to adaptor.

The FPI AstroCapTM and FPI Riser Vent terminal are

certiﬁ ed for installations using FPI venting systems

as well as Simpson Dura-Vent® Direct Vent GS,

American Metal Products Ameri Vent Direct Vent,

Security Secure Vent®, Selkirk Direct-Temp. Astro-

CapTM is a proprietary trademark of FPI Fireplace

Products International Ltd. Dura-Vent® and Direct

Vent GS are registered and/or proprietary trademarks

of Simpson Dura-Vent Co. Inc.

U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 13

INSTALLATION

Diagram 2a

HORIZONTAL TERMINATIONS

Diagram 1

*Dia 2a & 2b: As speciﬁ ed in CGA B149 Instal-

lation Code. Local codes or regulations may

require different clearances.

RESIDENTIAL AND MANUFACTURED HOMES /

MOBILE HOMES INSTALLATIONS

You will require the following components with your new Regency® Rear Vent Direct Vent Freestanding Gas Stove. Please review your product to

make sure you have everything you need. In the event that you are missing any part, contact your dealer. Decorative brass or chrome trim kits are

available from Simpson Dura-Vent for their wall thimbles, as well as a square wall thimble cover.

Note: These are the minimum pieces required.

Other parts may be required for your particular installation.

Minimum components for a Horizontal Installation:

640-944 Horizontal Termination Kit which includes:

1 6-5/8" Dia. x 18" Black Pipe

1 4" Dia. x 18" Aluminum Vent

1 640-530/P Riser Vent Terminal

1 946-202 Wall Penetration Heat Shield (Wall Thimble) (2 pcs)

1 640-545/P Decorative Wall Trim (Black)

1 948-128 Tube Mill-Pac

Screws

Optional Components:

946-204 45o Elbow - 6-5/8" Black pipe and 4"

Aluminum Vent

946-205 Vinyl Siding Shield for Riser Vent

Terminal

946-208/P Vent Guard

940 Square Wall Thimble Cover*

981 Snorkel Termination (36")*

982 Snorkel Termination (14")*

942 Wall Penetration

Heat Shield*

* Simpson Dura-Vent components

Alternate Snorkel

Termination Cap

Part # 982 (14")

Part # 981 (36")

1) Set the unit in its desired location. Check to

determine if wall studs are in the way when

the venting system is attached. If this is the

case, you may want to adjust the location

of the unit.

2) Assemble the desired combination of pipe

and elbow to the appliance adapter with

pipe seams oriented down. Offset the pipe

seams as double seams in one place will

cause the outer pipe to take an oval shape.

Kit comes complete with 18" of straight vent

- 6-5/8" dia. black outer pipe and 4" dia. inner

vent.

3) With the pipe attached to the stove, slide the

stove into its correct location, and mark the

wall for a 9-1/2" (inside dimensions) round

hole. The center of the round hole should line

up with the centerline of the horizontal pipe,

as shown in diagram 1. Cut and frame the

9-1/2 round hole in the exterior wall where

the vent will be terminated. If the wall being

penetrated is constructed of non-combusti-

ble material, i.e. masonry block or concrete,

a 7" diameter hole is acceptable.

Note:

a) The horizontal run of vent should have

a 1/4 inch rise for every 1 foot of run

towards the termination. Never allow the

vent to run downward. This could cause

high temperatures and may present the

possibility of a ﬁ re.

b) The location of the horizontal vent ter-

mination on an exterior wall must meet

all local and national building codes,

and must not be blocked or obstructed.

For External Vent Terminal Locations,

see diagram in "Exterior Vent Terminal

Locations" section.

c) Snorkel Terminations:

For installations requiring a vertical rise

on the exterior of the building, 14-inch

and 36-inch tall Snorkel Terminations

as shown in Dia. 2 are available, as

well as the standard Riser Vent. Follow

the same installation procedures as

used for standard Horizontal Termina-

tion. NEVER install the snorkel upside

down.

14 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove

Diagram 5

Diagram 4

Below Grade Snorkel Installation

If the Snorkel Termination must be

installed below grade, i.e. basement

application, proper drainage must be

provided to prevent water from enter-

ing the Snorkel Termination. Refer to

Dura-Vent Installation instructions for

details.. Do not attempt to enclose the

Snorkel within the wall, or any other type

of enclosure.

4) Install wall penetration heat shield in the

center of the 9-1/2" round hole and attach

with wood screws. The four wood screws

provided should be replaced with appropri-

ate fasteners for stucco, brick, concrete, or

other types of sidings. Dia. 3.

NOTE: For Snorkel terminations in ABOVE

grade installations, follow national or

local code requirements.

Diagram 2b

Diagram 3

5) If installing termination on a siding covered wall,

a vinyl siding standoff or furring strips must

be used to ensure that the termination is not

recessed into the siding. Dia. 3.

6) Take the Riser Vent terminal and separate the

Backing Plate from the Riser Vent Front by

removing 8 screws as shown in diagram 4.

7) Install the Backing Plate into the wall penetration

heat shield and attach using 4 screws. Dia. 4.

8) Connect all pipe sections to unit and install

into wall:

a) Measure pipe length required and cut

to length. Hint: use the cut end of the

6-5/8" dia. outer pipe at the vent terminal

end.

b) Push the pipe sections completely

together, the minimum pipe overlap is

1-1/4". Secure all outer pipe joints by

using at least two screws. Locate the

screws at the bottom of the pipe so that

the screw heads are hidden on the ﬁ nal

installation.

NOTE: For best results and optimum

performance with each approved

venting system, it is highly recom-

mended to apply “Mill-Pac” sealant

(supplied) to every inner pipe con-

nection. Failure to do so may result

in drafting or performance issues not

covered under warranty. Silicone (red

RTV) is optional.

Hint: Apply sealant to female end.

c) Before connecting the vent pipe to the

vent termination, slide the black deco-

rative wall thimble cover over the vent

pipe, then slide the Wall Penetration

Heat Shield (Part # 946-202) over the

vent pipe. Dia. 3.

d) Slide the appliance and vent assembly

towards the wall carefully inserting the

vent pipe into the riser vent terminal

assembly. It is important that the vent

pipe extends into the Riser Vent Backing

Plate a sufﬁ cient distance so as to result

in a minimum pipe overlap of

1-1/4 inches. Secure the connection

between the vent pipe and the vent cap

by attaching the two sheet metal strips

extending from the Riser Vent Backing

Plate into the outer wall of the vent pipe.

Use two aluminum screws provided to

connect the strips to the pipe section.

Bend any remaining portion of the sheet

metal strip back towards the vent cap and

cut off any excess, it will be concealed

by the decorative wall thimble cover. See

diagram 5.

8) Slide the decorative wall thimble up to the

wall surface being careful not to scratch the

paint. See diagram 5.

9) Back outside: Apply sealant to the 4" inner

ﬂ ue and slide the Riser Vent Front into the

Backing Plate and fasten with 8 screws.

IMPORTANT:

When connecting the pipe to the Riser

Vent, apply Mill-Pac to the inner pipe on

the Riser Vent Terminal, around the bead.

Ensure that the vent pipe is pushed past

the bead for a secure ﬁ t.

10) Seal around the outer edge of the Riser Vent

Backing Plate.

INSTALLATION

U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 15

Flex Liner

Exhaust

Flue

Air Intake

Co-Linear

Flex

Adapter

with Kit#

946-563

Co-linear DV

Vertical Termination

Cap # 946-529

Inner Pipe

Adapter

with Kit#

946-563

U37 Rigid Pipe

Adaptor

Part # 640-994

Outer

Pipe

with Kit#

946-563

Check local

codes whether

a continuous

length is re-

quired or if

certified joiner

kits may

be used.

#948-305

(35 ft)

VERTICAL TERMINATION WITH

CO-LINEAR FLEX SYSTEM

THE APPLIANCE MUST NOT BE CONNECTED TO A CHIMNEY FLUE SERVING

A SEPARATE SOLID FUEL BURNING APPLIANCE.

This appliance is designed to be attached to two 3" (76mm) co-linear aluminium ﬂ ex running the full length of the chimney. See the Venting Ar-

rangements chart in the "Rigid Pipe Venting - Vertical Terminations" section for minimum and maximum ﬂ ue lengths.See chart below for minimum

distances from roof. Periodically check that the vent is unrestricted.

Masonry chimneys may take various contours which the ﬂ exible liner will accommodate. However, keep the ﬂ exible liner as straight as possible,

avoid unnecessary bending.

The Air Intake pipe must be attached to the inlet air collar of the termination cap.

Required Parts:

Part # Description

946-529 Co-linear DV Vertical Termination Cap

948-305 3" Flex - 35 ft.

640-994 U37 Rigid Pipe Adaptor

946-563 Co-Axial to Co-Linear Adapter Kit

which contains the following:

Co-linear Flex Adapter (270-585)

Outer Pipe (946-257)

Inner Pipe Adapter (946-219)

Alternate Approved Caps

980 Vertical Termination Cap

991 High Wind Cap

923GK 3" Co-linear Adapter

with ﬂ ashing

INSTALLATION

16 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove

CONVERTING CLASS-A

METAL CHIMNEY OR

MASONRY CHIMNEY TO

DIRECT VENT SYSTEM

General

There are two different types of direct vent

conversion systems listed below. Follow the

appropriate directions for your installation.

A) Through an existing factory built metal

chimney going through the ceiling: A typical

conversion of this type is shown in diagram

1. The concept of direct vent conversion is

to connect an adaptor to an Underwriters

Laboratories (UL) listed 4 inch diameter

aluminum ﬂ ex pipe which is then passed

down through the center of the existing metal

chimney system. Three sizes of Top Adap-

tors are available from Simpson Dura-Vent.

The Retro Connector (909B) is attached to

the bottom of the ﬂ ex pipe. The Top Adaptor

and the Retro Connector are attached to the

existing chimney with sheet metal screws.

The appliance is then connected to the

chimney with appropriate black direct vent

pipe and an adjustable length section.

B) Through the wall of an existing masonry

chimney: A typical conversion of an existing

masonry chimney is shown in Diagram 6. A

Top Adaptor (985K) and Flashing are used at

the top of the masonry chimney. The 4 inch

aluminum liner is connected to the adaptor

and is passed down the chimney and out

through the masonry wall and attached

to the Retro Connector (909B). The Retro

Connector is attached to the masonry wall

and then connected to the direct vent pipe

leading to the appliance.

Prior to installation and connection of the

vent system to a factory-built or masonry

chimney, the chimney must be inspected and

thoroughly cleaned by a qualiﬁ ed service

person, such as a certiﬁ ed chimney sweep

or home inspection service.

The direct vent system must not be con-

nected to a damaged factory-built or masonry

chimney.

For factory built, zero clearance, and ma-

sonry chimneys cleanout doors and caps

or plugs for cleanout tee ﬁ ttings and ash

dumps shall be secured in place and sealed

before installing a Direct Vent system within

the chimney.

If the appliance shuts off during operation,

contact a qualiﬁ ed service person to de-

termine if a negative pressure and/or leaky

chimney condition exists. Do not operate the

appliance until the problem is corrected.

Diagram 1

Diagram 2

Approved for US Installations Only

The use of an existing chimney as an air

intake is not covered under the ANSI Z21.88b-

2003/CSA 2.33b-2003 test methods and the

resulting ITS/WHI product certiﬁ cation. The

code Authority Having Jurisdiction must

be consulted prior to proceeding with this

installation method.

Converting a Factory

Built Metal Chimney

1) Remove the existing chimney cap.

2) Measure the distance from the top end of the

chimney to the bottom of the ceiling support

box, add 3" (76mm) to this measurement,

and cut a section of the 4" ﬂ ex pipe to that

length (the ﬂ ex should already be extended

to its nominal length).

3) Connect the end of the ﬂ ex pipe section to

the underside of the Top Adaptor using 3

sheet metal screws.

Diagram 2.

Diagram 3

Diagram 4

Diagram 5

4) Pass the ﬂ ex pipe down through the center of

the chimney system, and center the adaptor

on the top of the chimney pipe. Drill four 1/8"

diameter holes through the adaptor and into

the chimney top. Insure that you are in fact,

drilling into the metal on the chimney. Twist-

lock the Termination Cap (Part# 980 or 991)

onto the Adaptor. (Diagram 3 and 4).

5) Pull the ﬂ ex pipe down through the ceiling

support box, until it protrudes approximately

3" (76mm). Connect the ﬂ ex pipe to the Retro

Connector by slipping it into the

4-3/4" diameter sleeve on the top side of

the Connector. Use 3 sheet metal screws

to assemble these two parts.

6) Push the ﬂ ex pipe back up into the ceiling

support box, center the Retro Connector, and

attach it to the support box, or decorative

sleeve for double wall solid packed pipe,

with the sheet metal screws (supplied).

The holes in the Retro Connector are pre-

punched. Diagram 5.

7) The connection between the appliance and

the Retro Connector may be completed with

sections of black direct vent pipe, together

with an adjustable length.

INSTALLATION

U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 17

CONVERTING

MASONRY CHIMNEY

Important: The existing masonry ﬂ ue open-

ing needs to have an area of at least a 36 sq.

in. to insure proper intake/exhaust ﬂ ow.

1) Before cutting any holes, assemble the

desired sections of black direct vent pipe

to determine the center of the masonry

penetration.

Diagram 6

2) Once the center point of the penetration has

been determined, cut a 6" (152mm) dia. hole

in the masonry. Be careful, if the hole is too

large, the Retro Connector might not mount

properly, and if the hole is too small, then

the appliance might starve for intake air. If

there is a frame wall in front of the masonry

wall, cut and frame a 10" (254mm) clear

square opening in the wall (centered around

the 6" (152mm) masonry opening). IF there

is sheet rock only (no studs) in front of the

masonry, the 10" (254mm) clear opening is

still needed, but does not need to be framed.

This allows the Retro Connector to mount

directly on the masonry and provide clear-

ance to the combustibles. Diagram 11.

3) Secure the Flashing (Part # 705C) to the

top of the masonry chimney using a bead

of non-hardening sealant-adhesive. If the

Flashing is larger than the top of the chimney,

then cut and fold ﬂ ashing as needed to ﬁ t

chimney. Diagram 7.

Diagram 7

4) To determine the length of ﬂ ex required,

measure from 3" (76mm) above the top of

the Flashing down to the level of the open-

ing. Add to this measurement the distance

from the center of the chimney to out through

the wall. Cut a piece of 4" ﬂ ex to this length

(the ﬂ ex should already be extended to its

nominal length).

5) Connect the 4" ﬂ ex liner to the Top Adaptor

(Part # 985K) using 3 sheet metal screws.

Diagram 2.

6) Feed the 4" ﬂ ex liner through the Flashing

into the chimney. Continue to feed the liner

out through the opening in the masonry

wall.

7) Secure the Top Adaptor to the Flashing. Use

3 sheet metal screws through the side of

the adaptor into the ﬂ ange on the Flashing

(diagram 8). Twist lock the Termination Cap

(Part # 980 or 991) on to the Top Adaptor.

Diagram 8

8) Attach the ﬂ ex to the Retro Connector. Use

3 sheet metal screws to attach the ﬂ ex liner

to the Connector. Diagram 9. Mount the

Retro Connector to the masonry wall using

masonry bolts. Re-drill larger holes on con-

nector as needed. Be careful to insure that

the connector is centered in the opening and

the mounting holes line up with the masonry

wall.

Diagram 9

9) Slide the Wall Thimble Cover (Part # 940)

over the Retro Connector and secure with

masonry bolts. Diagram 10. If you have a

framed wall in front of the masonry, use wood

screws to mount the Wall Thimble Cover to

the framed wall, over the Retro Connector

and the 10" (254mm) square framed open-

ing. Diagram 11. If needed, add a section

of direct vent pipe to the Retro Connector in

order to extend through the opening in the

Wall Thimble Cover.

Diagram 10

Diagram 11

10) The connection between the appliance and

the Retro Connector may be completed with

a section of black direct vent pipe, together

with an adjustable length pipe section.

INSTALLATION

Termination

Cap

Top Adaptor

Flashing

4" Flex Liner

Retro

Connector

Black

Direct Vent

Pipe

Rigid Pipe

Adaptor

640-994

18 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove

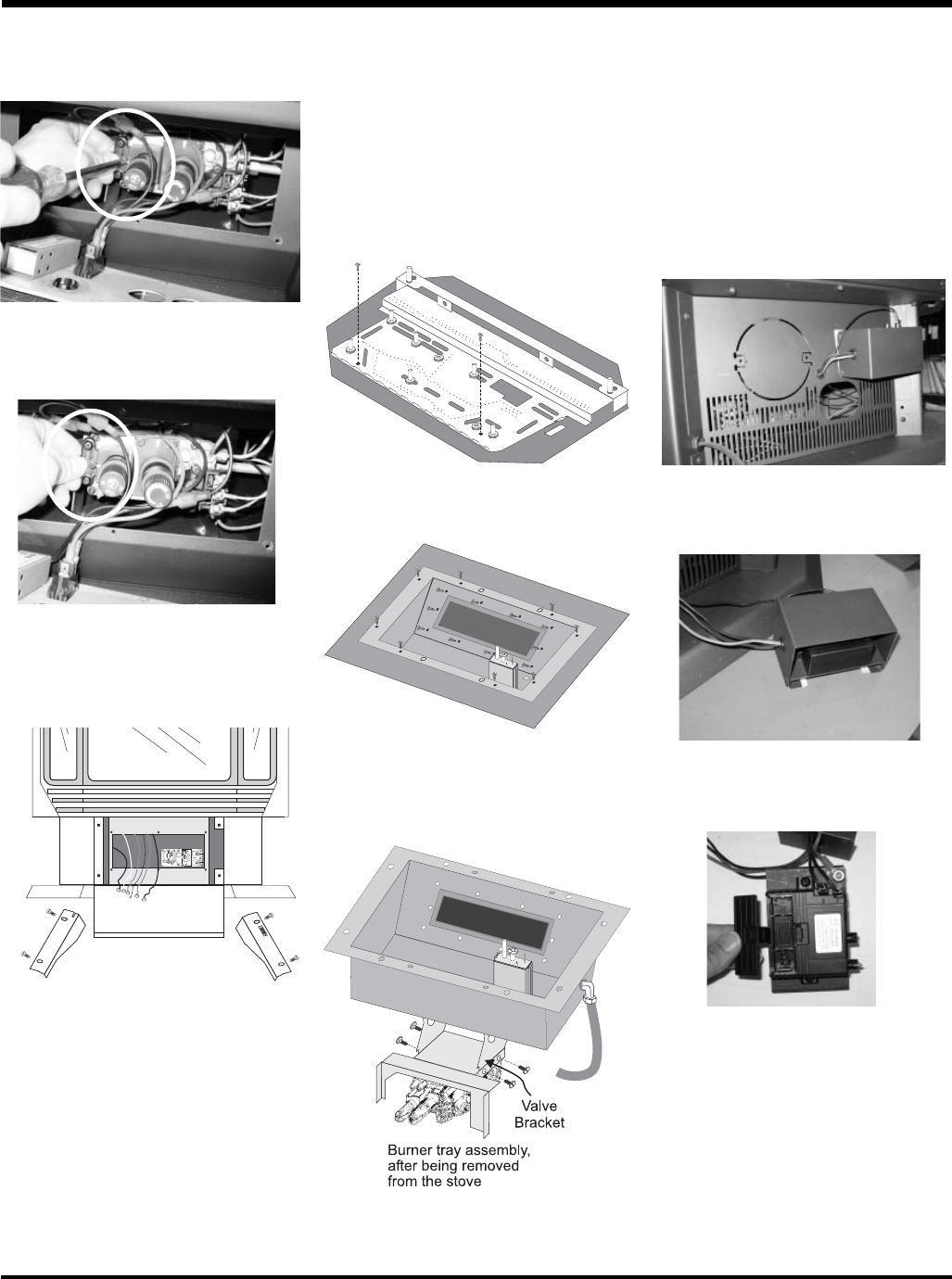

CONVERSION KIT# 514-969 FROM NG TO LP

THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER IF IN DOUBT DO NOT DO THIS CONVERSION !!

Each Kit contains one LPG

Conversion Kit and one DC

Sparker Kit.

Conversion Kit Contains:

Qty. Part # Description

1 904-390 Burner Oriﬁ ce #52

1 904-529 5/32" Allen Key

1 918-590 Decal "Converted

to LPG"

1 908-528 Red "LPG" label

1 910-037 LPG Injector

(Pilot Oriﬁ ce)

1 918-481 Instruction Sheet

DC Sparker Kit Contains:

Qty. Part # Description

1 820-475 Bracket DC Sparker

1 820-476 Bracket DC Sparker

1 904-153 Washer #8 External Star

1 904-330 Nut 8-32 Hex

1 904-438 Plug Nylon 0.750 Hole,

Black

2 904-531 Bushing Split Plastic

0.500 in.

1 904-543 Screw 8-32 x 3/4 Pan

Head

2 904-553 Screw #8 x 1/2 Type "B",

Black Oxide

1 910-073 Spark Generator Battery

Holder

1 910-074 Spark Generator Switch

C/W Wire

1 910-078 Battery Size AA

Energizer En91

2 910-199 Clip Wire Holder

1 910-903 Wire Fan To Power Cord

Ground 30 in.

904-781 Velcro Hook, Black

904-782 Velcro Hook, Black

Installation of LPG

Conversion Kit:

1) Shut off the gas supply.

2) Open the front door and carefully re-

move the logs and lava rock.

3) Remove burner. See diagram below.

Note: Use a magnetic type screwdriver if

possible.

Pilot assembly is now accessible.

4) Pull off the pilot cap to expose the pilot

oriﬁ ce.

5) Unscrew the pilot oriﬁ ce with the allen

key; then replace with the LPG pilot

oriﬁ ce and the pilot cap, provided in the

kit.

6) Remove burner oriﬁ ce with a 1/2"

wrench. Use another wrench to hold on

to the elbow behind the oriﬁ ce. Discard

oriﬁ ce.

Burner Oriﬁ ce

7) Reinstall new burner oriﬁ ce LPG

stamped #52 and tighten.

8) Turn control knob to the “OFF” position.

INSTALLATION

U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 19

15) Verify that if the conversion is from NG

to LPG, the screw must be re-assem-

bled with the red o-ring visible (Fig. 5).

LPG Configuration

Red o-ring visible

Fig.5

16) Re-assemble the black protection cap

(Fig. 6).

Fig.6

WARNING!

Also check that the pilot and main

burner injectors are appropriate for

the gas type.

18) Attach the label "This unit has been

converted to LPG" near or on top of the

serial # decal.

19) Replace yellow "NG" label with red

"LPG" label.

17) Reverse steps 4 - 1.

13) Flip the screw (Fig. 3).

Fig.4

Fig.3

14) Using the Allen wrench

as shown in Fig.4, rotate

the screw clockwise until

snug, do not overtighten.

11) Insert a 5/32” or 4mm

Allen wrench into the

hexagonal key-way

of the screw (Fig.

2), rotate it counter-

clockwise until it is free

and extract it.

12) Check that the screw is clean and if

necessary remove dirt.

WARNING!

Do not over tighten the screw.

Recommended to

grip the wrench by the short side.

20) Check for gas leaks.

21) Check inlet and outlet pressures.

22) Check operation of ﬂ ame control.

23) Check for proper ﬂ ame appearance and

glow on logs.

Fig.1

10) Remove the black

protection cap by hand

from the hi-low knob

(Fig.1).

9) Pull off the Hi/Lo gas extension knob to

access the oriﬁ ce.

INSTALLATION

20 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove

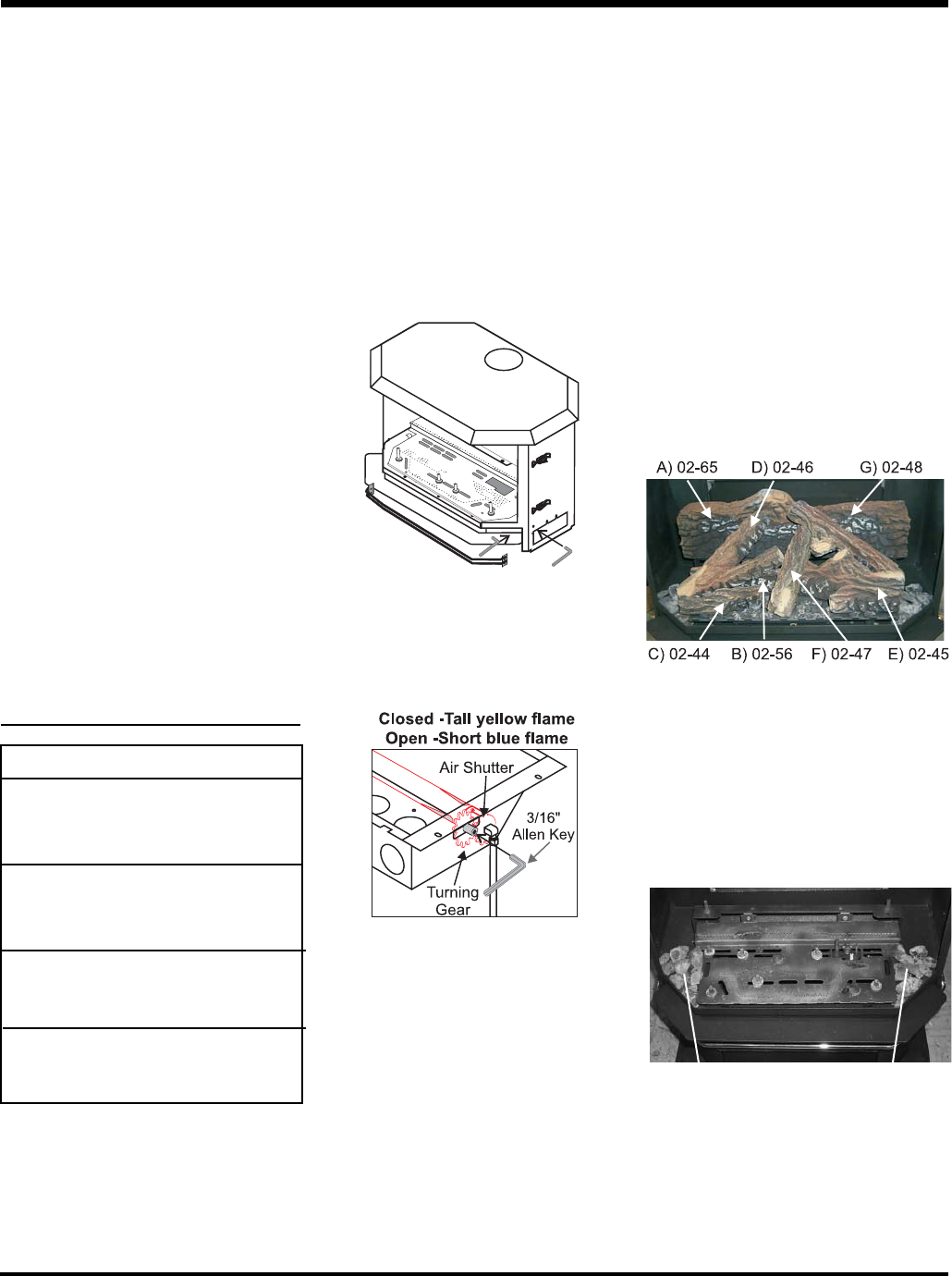

AERATION

ADJUSTMENT

The burner aeration is factory set but may need

adjusting due to either the local gas supply, air

supply or altitude.

Natural Gas: 1/4" open

Propane: 3/8" open

The aeration adjustment gears are located on

the right side of the burner box and can be ac-

cessed from the side or from the front when the

louvers are removed.

To adjust the aeration: use the allen key to turn

the turning gear which will adjust the air shutter.

Open the air shutter for a blue ﬂ ame or close it

for a yellower ﬂ ame. The factory setting should

be sufﬁ cient for most installations.

Clockwise to open,

counter-clockwise to close.

Caution: Carbon will be produced if the air

shutter is closed too much.

Note: Any damage due to carboning result-

ing from improperly setting the aera-

tion controls is NOT covered under

warranty.

Note: Aeration Adjustment should only be

performed by an authorized Regency®

Installer at the time of installation or

service.

LOG SET

INSTALLATION

Read the instructions below carefully and

refer to the diagrams. If logs are broken

do not use the unit until they are replaced.

Broken logs can interfere with the pilot

operation.

The gas log kit contains the following:

a) 02-65 Rear Log

b) 02-56 Middle Left Log

c) 02-44 Front Left Log

d) 02-46 Left Top Log

e) 02-45 Front Right Log

f) 02-47 Center Log

g) 02-48 Middle Right Log

h) Embers 902-151

i) Lava 902-154

Embers Embers

The "02" refer numbers (i.e. 02-65) are

molded into the rear of each log.

1) Carefully remove the logs from the box and

unwrap them. The logs are fragile, handle

with care - do not force into position.

2) Sprinkle the embers on the left and right

sides of the ﬁ rebox base.

GAS CONNECTION

The gas connection is a 3/8" NPT 90o elbow.

The gas line can be rigid pipe or to make in-

stallation easier, use a listed ﬂ exible connector

and/or copper tubing if allowed by local codes.

Since some municipalities have additional local

codes it is always best to consult with your local

authorities and the CAN/CGA B149 installation

codes. For USA installations follow local codes

and/or the current National Fuel Gas Code,

ANSI Z223.1.

When using copper or ﬂ ex connectors use only

approved ﬁ ttings. Always provide a union so

that gas lines can be easily disconnected for

burner and/or valve servicing. Flare nuts for

copper lines and ﬂ ex connectors are usually

considered to meet this requirement.

Important: Always check for gas leaks with a

soap and water solution or gas leak detector.

Do not use open ﬂ ame for leak testing.

Note: Prior to any pressure testing of

the gas supply piping system

that exceeds test pressures of

1/2 psig, this appliance must be

disconnected from the piping

system. If test pressures equal to

or less than 1/2 psig are used then

this appliance must be isolated

from the piping system by clos-

ing its individual manual shut-off

valve during the testing.

HIGH ELEVATION

This unit is approved in Canada for altitude 0 ft.

to 4500 ft. (CAN/CGA-2.17-M91). For Natural

Gas installations above 4500 ft. follow current

CAN/CGA-B149.1.

System Data - U37

For 0 to 4500 feet altitude

Burner Inlet Oriﬁ ce Sizes:

Natural Gas Propane

Burner #37 #52

Max. Input Rating 30,000 Btu/h

Min. Input Rating 15,000 Btu/h

Supply Pressure

Natural Gas min. 5.0" w.c.

Propane min. 12.0" w.c.

Manifold Pressure

Natural Gas 3.8" +/- 0.2" w.c.

Propane 11" +/- 0.2" w.c.

INSTALLATION

U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 21

Cutout

Pin Notch

D)02-46

B)02-56

A)02-65

E)02-45

Bracket

A)02-65

The bottom right edge of Log G)02-48 must

sit snugly against the bracket

Side View

G)02-48

E)02-45

F)02-47

7) Place the Left Top Log D)02-46 on the pin

on Log B)02-56 and on top of the cutout

on Log A)02-65.

E)02-45

C)02-44

8) Place Front Right Log E)02-45 on the two

pins as shown.

9) Place the lava rock in the area between

the left and right logs, leaving a space in

the middle for log (F) 02-47.

Cutout

Notch

F)02-47

E)02-45

10) Place the notch in Center Log F)02-47 over

Log E)02-45 and across the cutout on Log

A)02-65.

11) Position notch in Front Right Log G)02-48

on Log F)02-47 and push the bottom right

edge against the bracket on the burner

tray.

G)02-48

12) Test ﬁ re to ensure proper light off (make

sure ﬂ ame ﬂ ows smoothly from one end

of burner to the other. If there is any ﬂ ame

hesitation, check that area for any blockage

of the burner port.

F)02-47

E)02-45

A)02-65

G)02-48

D)02-46

B)02-56

C)02-44

Pins on Rear Log Support

A)02-65

B)02-56

3) Place Rear Log A)02-65 on the two pins on

the rear log support.

4) Place the Middle Left Log B)02-56 on the

two pins as shown.

5) Sprinkle some lava rock just in front of B)

02-56 on the burner holes.

lava rock

B)02-56

6) Place Front Left Log C)02-44 onto the 2

front pins as shown.

INSTALLATION

22 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove

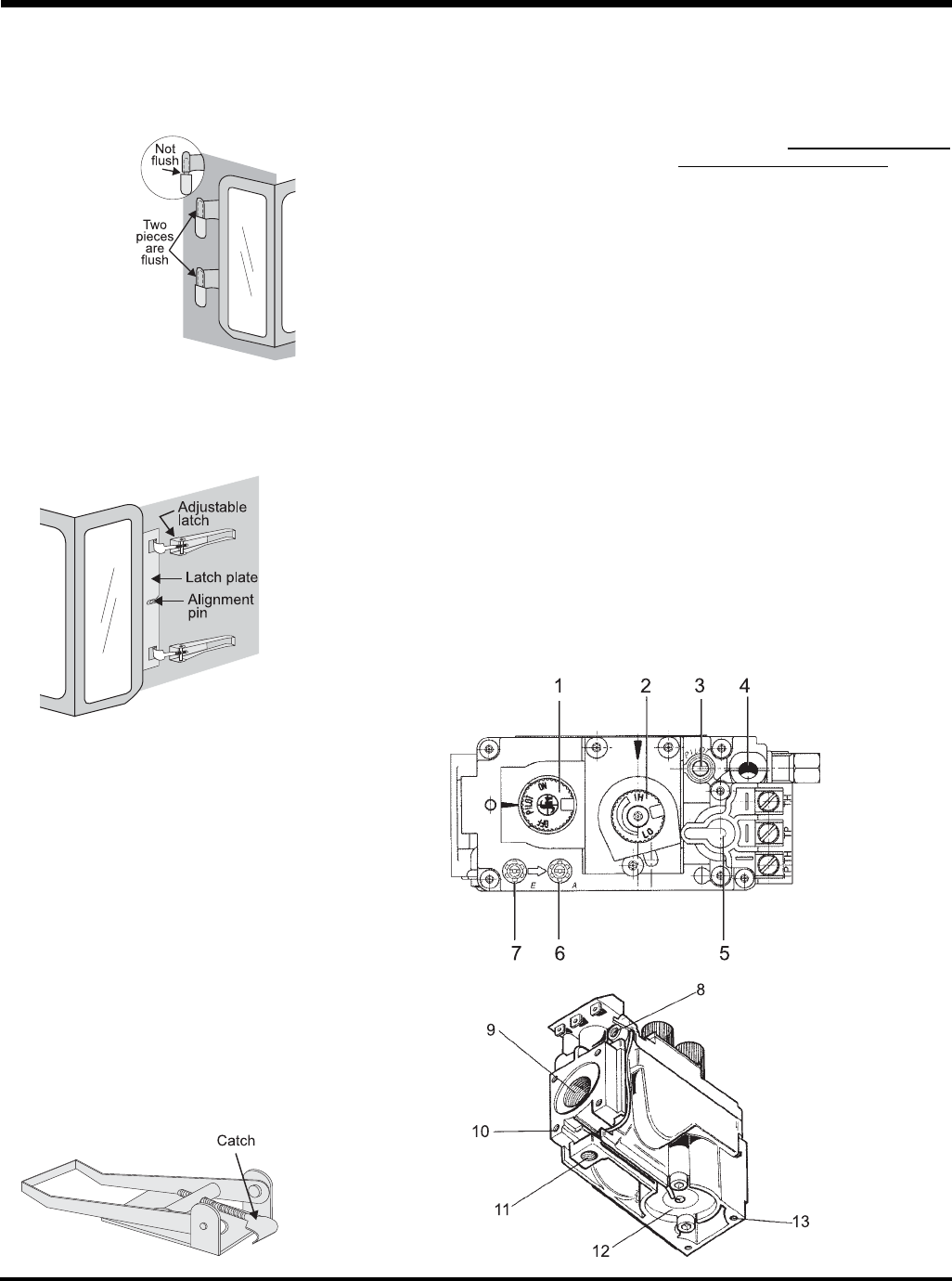

INSTALLATION

GAS PIPE PRESSURE TESTING

The appliance must be isolated from the gas

supply piping system by closing its individual

manual shut-off valve during any pressure

testing of the gas supply piping system at test

pressures equal to or less than 1/2 psig. (3.45

kPa). Disconnect piping from valve at pressures

over 1/2 psig.

The manifold pressure is controlled by a regu-

lator built into the gas control, and should be

checked at the pressure test point.

Note: To properly check gas pressure, both

inlet and manifold pressures should

be checked using the valve pressure

ports on the valve.

1) Make sure the valve is in the "OFF" posi-

tion.

2) Loosen the "IN" and/or "OUT" pressure

tap(s), turning counterclockwise with a 1/8"

wide ﬂ at screwdriver.

3) Attach manometer to "IN" and/or "OUT"

pressure tap(s) using a 5/16" ID hose.

4) Light the pilot and turn the valve to "ON"

position. Read manometer.

5) The pressure check should be carried out

with the unit burning and the setting should

be within the limits speciﬁ ed on the safety

label.

Diagram 2

4) The latches should already be at the proper

setting. If they are too hard or too easy

to close, you may want to adjust them by

loosening the locking nut and turning the

latch catch. See diagram 3.

5) Remove the blue plastic protective coating

from the glass.

6) Test the seal around the door by placing

a piece of paper between the unit and

the door, close the door and try to pull

the paper out. If it slips out easily, then

the door is not properly sealed. Tighten or

loosen the latch by turning the latch catch

inward or outward. See diagram 3.

Note: The door latch may require adjust-

ment as the door gasket material

compresses after a few ﬁ res and

after glass replacement. Turn the

latch catch inward or outward.

Diagram 1

DOOR INSTALLATION

(Packaged Separately)

1) Open the two side panels.

2) Slide the door

onto the two

hinge pins mak-

ing sure the

two pieces are

ﬂ ush together.

See diagram

3) Close the door. The

latch plate must be

centered around the

alignment pin. See

diagram 2. If the latch

plate interferes with the

corner of the stove you

may want to angle the

plate slightly so the door

closes easier.

6) When ﬁ nished reading manometer, turn

off the gas valve, disconnect the hose and

tighten the screw (clockwise) with a 1/8"

ﬂ at screwdriver. Note: Screw should be

snug, but do not over tighten.

Valve Description

1) Gas on/off knob

2) Manual high/low adjustment

3) Pilot Adjustment

4) Thermocouple Connection

5) Main Operator

6) Outlet Pressure Tap (Manifold Pressure)

7) Inlet Pressure Tap (Supply Pressure)

8) Pilot Outlet

9) Main Gas Outlet

10) Flange Securing Screw Holes

11) Alternative TC Connection Point

12) Thermoelectric Unit

13) Additional Valve Mounting Hole

Diagram 3

U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 23

WALL THERMOSTAT

A wall thermostat may be installed if desired.

Connect the wires as per the wiring diagrams.

Note that the wires are connected to the "TH"

on the gas valve. Use table below to determine

the maximum wire length:

Note: Preferable if the thermostat is installed

on an interior wall.

Regency® offers an optional programmable

thermostat but any 250-750 millivolt rated non-

anticipator type thermostat that is CSA, ULC or

UL approved may be used.

CAUTION

Do not connect the millivolt

wall thermostat wires

to the 120V wires.

LOUVER

INSTALLATION

Attach the top & bottom louvers to the side stove

panel using 2 screws per side.

Thermostat Wire Table

FINAL CHECK

Before leaving this unit with the customer, the

installer must ensure that the appliance is ﬁ ring

correctly. This includes:

1) Clocking the appliance to ensure the cor-

rect ﬁ ring rate (rate noted on label) at 15

minutes.

2) If required, adjusting the primary air to ensure

that the ﬂ ame does not carbon. First allow

the unit to burn for 15 min. to stabilize.

CAUTION

Any alteration to the product that causes

sooting or carboning that results in damage

to the exterior facia is not the responsibility

of the manufacturer.

OPTIONAL REMOTE

CONTROL

Use the Regency® Remote Control Kit approved

for this unit. Use of other systems may void

your warranty.

The remote control kit comes with a hand held

transmitter, a receiver and a wall mounting

plate.

1) Choose a convenient location on the wall

to install the receiver and the receptacle

box (protection from extreme heat is very

important). Run wires from the ﬁ replace to

that location, use Thermostat Wire Table.

2) Connect the wires as per the wiring diagram

above.

CAUTION

Do not connect the millivolt remote

control wires to the 120V wires.

3) Install 3 AAA alkaline batteries in transmitter

and 4 AA alkaline batteries in the receiver.

Install the receiver and its cover in the wall.

Switch the remote receiver to "remote"

mode. The remote control is now ready for

operation.

INSTALLATION

14 GA.

16 GA.

18 GA.

20 GA.

22 GA.

50 Ft.

32 Ft.

20 Ft.

12 Ft.

9 Ft.

Recommended Maximum Lead Length

(Two-Wire) When Using Wall

Thermostat (CP-2 System)

Wire Size Max. Length

24 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove

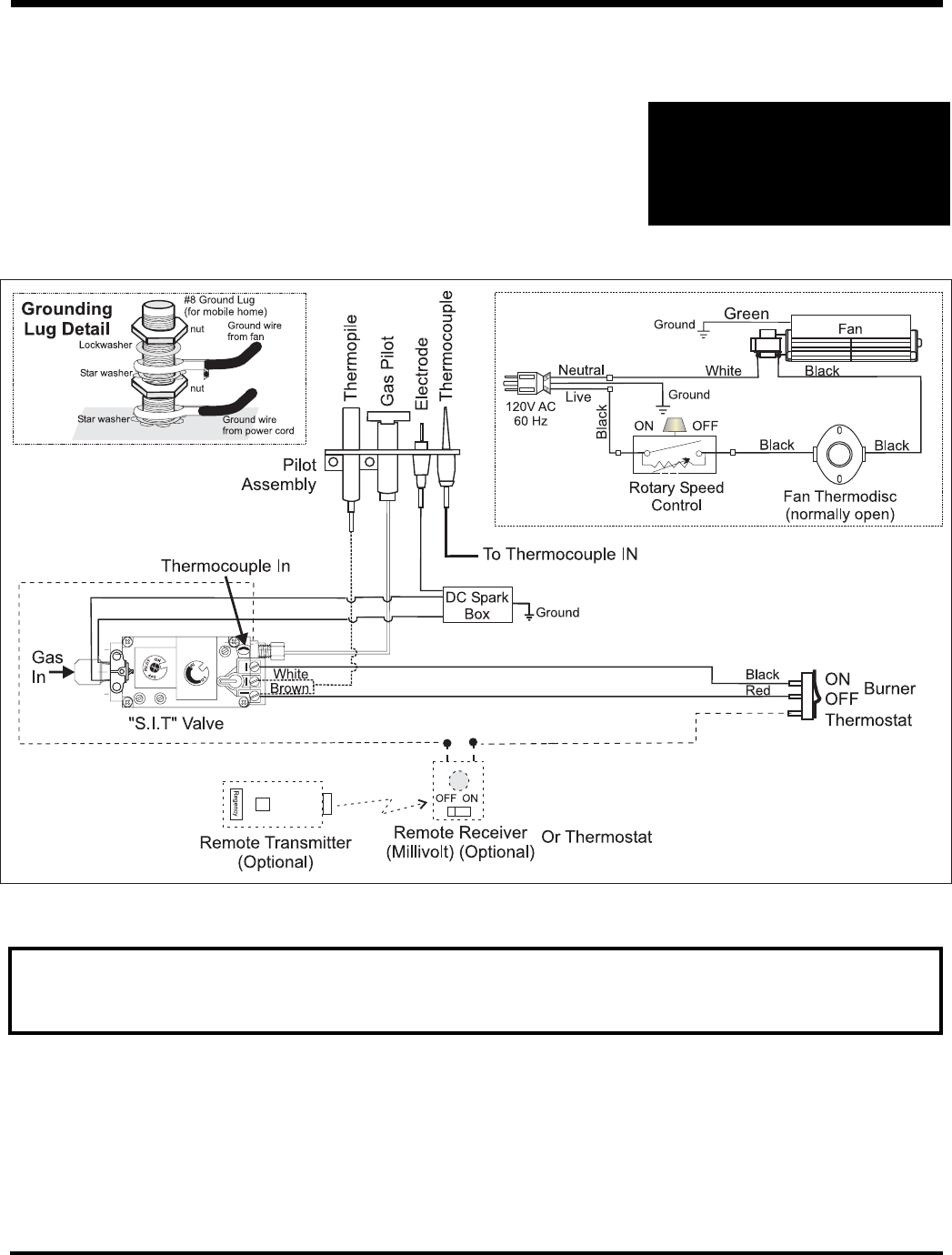

WIRING DIAGRAM

This heater does not require a 120V A.C. sup-

ply for operation. In case of a power failure, the

burner switch and the optional remote control/

thermostat will continue to operate. However,

a 120V A.C. power supply is needed for the

fan/blower operation.

Caution: Ensure that the wires do

not touch any hot surfaces and are

away from sharp edges.

INSTALLATION

CAUTION: Label all wires prior

to disconnection when servicing

controls. Wiring errors can cause

improper and dangerous opera-

tion.

WARNING: Electrical Grounding Instructions

This appliance is equipped with a three pronged (grounding) plug for your protection against shock hazard and should

be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from

this plug.

U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 25

OPERATING INSTRUCTIONS

OPERATING

INSTRUCTIONS

1) Read and understand these instructions

before operating this appliance.

2) Check to see that all wiring is correct and

enclosed to prevent possible shock.

3) Check to ensure there are no gas leaks.

4) Make sure the glass in the door frame is

properly positioned. Never operate the ap-

pliance with the glass removed.

5) Verify that the venting and cap are unob-

structed.

6) Verify log placement. If the pilot cannot be

seen when lighting the unit - the logs have

been incorrectly positioned.

7) The unit should never be turned off, and on

again without a minimum of a 60 second

wait.

SHUTDOWN

PROCEDURE

1) Use the thermostat or remote control to turn

off the main burner.

2) Turn the main gas control clockwise to the

"OFF" position to turn off the pilot (push

knob in slightly).

3) Turn off all electric power to appliance if

service is to be performed.

FIRST FIRE

The ﬁ rst ﬁ re in your stove is part of the paint

curing process. To ensure that the paint is

properly cured, it is recommended that you

burn your ﬁ replace for at least four (4) hours

the ﬁ rst time you use it with the fan on. When

ﬁ rst operated, the unit will release an odour

caused by the curing of the paint, the burning

off of any oils remaining from manufacturing.

Smoke detectors in the house may go off at

this time. Open a few windows to ventilate the

room for a couple of hours.

The glass panel may require cleaning

after the unit has cooled down.

DO NOT ATTEMPT TO CLEAN THE

GLASS WHILE IT IS HOT.

Note: When the glass is cold and the appli-

ance is lit, it may cause condensation

and fog the glass. This condensation

is normal and will disappear in a few

minutes as the glass heats up.

DO NOT BURN THE APPLIANCE

WITHOUT THE GLASS FRONT IN

PLACE.

NORMAL OPERATING

SOUNDS OF GAS

APPLIANCES

It is possible that you will hear some sounds

from your gas appliance. This is perfectly normal

due to the fact that there are various gauges

and types of steel used within your appliance.

Listed below are some examples. All are normal

operating sounds and should not be considered

as defects in your appliance.

Blower:

Regency® gas appliances use high tech blowers

to push heated air farther into the room. It is not

unusual for the fan to make a "whirring" sound

when ON. This sound will increase or decrease

in volume depending on the speed setting of

your fan speed control.

Burner Tray:

The burner tray is positioned directly under the

burner tube(s) and logs and is made of a differ-

ent gauge material from the rest of the ﬁ rebox

and body. Therefore, the varying thicknesses of

steel will expand and contract at slightly different

rates which can cause "ticking" and "cracking"

sounds. You should also be aware that as there

are temperature changes within the unit these

sounds will likely re-occur. Again, this is normal

for steel ﬁ reboxes.

LIGHTING

PROCEDURE

1) Push in gas control knob slightly and turn

to "PILOT" position.

2) Push in control knob all the way and hold in

until the pilot lights up. Continue to hold the

control knob in for about 20 seconds after

the pilot is lit. Release knob.

3) Push in gas control knob slightly and turn

to "ON" position.

4) Turn ON the ﬂ ame switch.

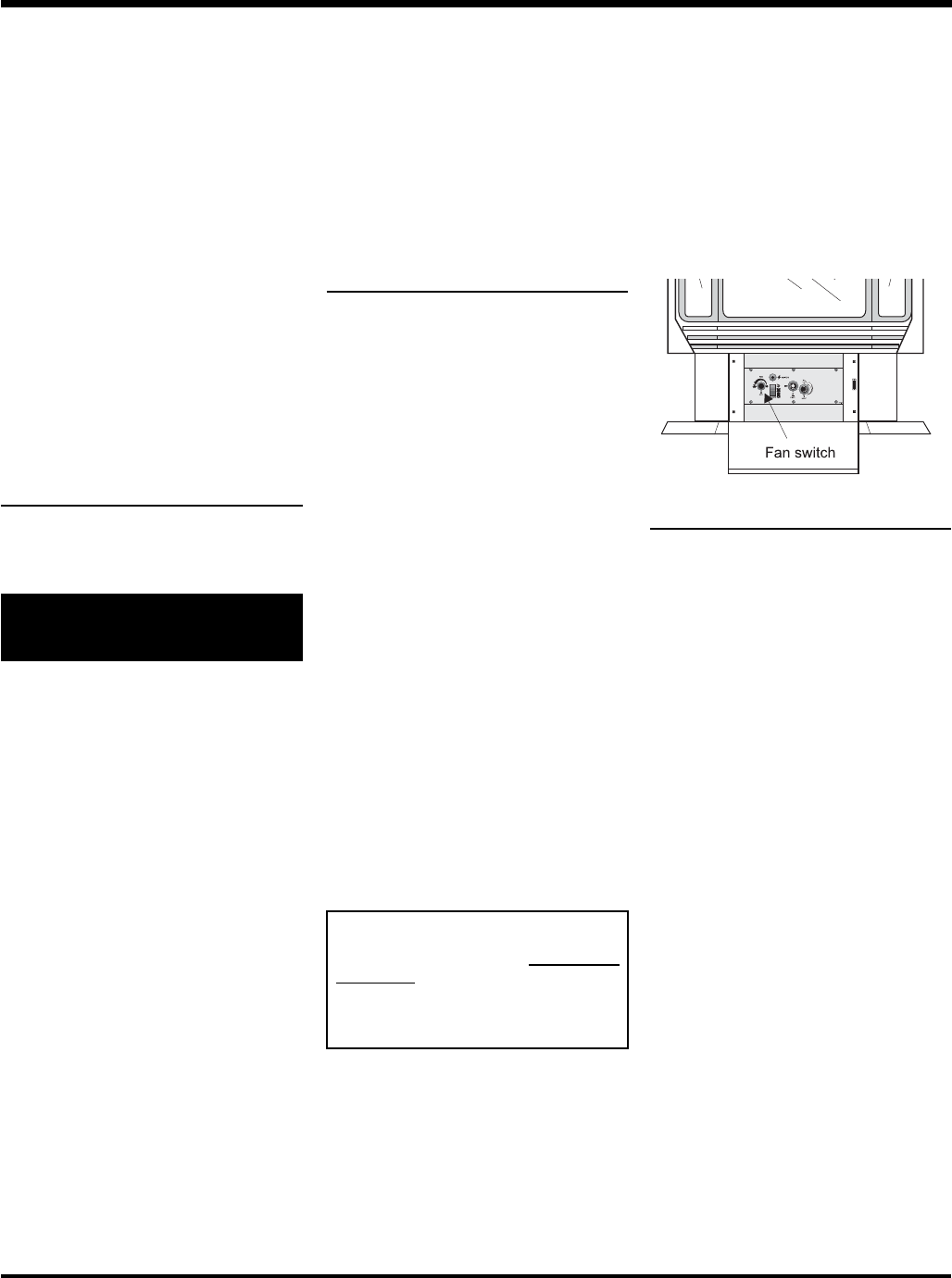

CONVECTION FAN

OPERATION

The fan operates automatically - turn the knob

on the pedestal control panel to adjust to the

desired speed. The fan will turn on as the stove

comes up to operating temperature. After the

unit has been turned off and the unit cooled to

below a useful heat output range the fan will

shut off automatically.

During the ﬁ rst few ﬁ res, a white ﬁ lm

may develop on the glass front as part

of the curing process. The glass should

be cleaned or the ﬁ lm will bake on and

become very difﬁ cult to remove. Use a

non-abrasive cleaner and NEVER clean

the glass while it is hot.

IMPORTANT

To ignite or reignite the pilot, the

door to the ﬁ rebox must be opened.

Only when the pilot holds, without pressure

being applied to the control knob, should the

door to the ﬁ rebox be closed. The unit must

never be operated with the glass or door

open.

26 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove

COPY OF THE LIGHTING PLATE INSTRUCTIONS

OPERATING INSTRUCTIONS

1) Push in gas control knob slightly and turn to “PILOT” position.

2) Push in control knob all the way and hold in until the pilot lights

up. Continue to hold the control knob in for about 20 seconds

after the pilot is lit. Release knob.

3) Push in gas control knob slightly and turn to "ON" position.

4) Turn ON the ﬂ ame switch.

2) Wait ﬁ ve (5) minutes to clear out any gas. If you then smell gas

STOP! follow “B” in the safety information above on this label. If

you don’t smell gas, go to the next step.

3) Turn knob on gas control counterclockwise to “PILOT”.

4) Push in control knob all the way and hold in. Immediately push

black button on spark igniter until pilot lights. Continue to hold the

control knob in for about 1/2 minute after the pilot is lit. Release

knob and it will pop back up. Pilot should remain lit. If it goes out,

repeat steps 3) and 4).

If knob does not pop up when released, stop and immediately call

your service technician or gas supplier.

If the pilot will not stay lit after several tries, turn the gas control

knob to “OFF” and call your service technician or gas supplier.

5) Turn gas control knob counterclockwise to “ON”.

6) Use rocker switch to operate main burner.

DO NOT REMOVE THIS INSTRUCTION PLATE

FOR YOUR SAFETY READ BEFORE LIGHTING

A) This appliance has a pilot which must be lighted by hand, following the instructions below exactly.

B) BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the ﬂ oor because some gas is heavier than

air and will settle on the ﬂ oor.

WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance

- Do not touch any electric switch, do not use any phone in your building

- Immediately call your gas supplier from a neighbors phone. Follow the gas supplier’s instructions.

- If you cannot reach your gas supplier, call the ﬁ re department.

C) Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not push in or turn by hand, don’t try to

repair it, call a qualiﬁ ed service technician. Force or attempted repair may result in a ﬁ re or explosion.

D) Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician to inspect the appliance and

to replace any part of the control system and any gas control which has been under water.

E) This appliance needs fresh air for safe operation and must be installed so there are provisions for adequate combustion and ventilation air.

918-474a

Gas Inlet

OFF

WARNING: If you do not follow these instructions exactly, a ﬁ re or explosion may result causing property damage,

personal injury or loss of life. Improper installation, adjustment, alteration, service or maintenance can cause

injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance

or additional information consult a qualiﬁ ed installer, service agency or gas supplier.

LIGHTING INSTRUCTIONS

TO TURN OFF GAS APPLIANCE

THERMOPILE

ELEMENT

THERMO-

ELECTRIQUE

PILOT BURNER

VEILLEUSE

This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1/

NFPA 54, or Natural Gas and Propane Installation Codes, CSA B149.1. (Australia: AS5601-2004, New Zealand: NZS 5261)

FOR UNITS NOT EQUIPPED WITH ELECTRIC SPARK:

CAUTION: Hot while in operation. Do not touch. Severe Burns may result. Due to high surface temperatures

keep children, clothing and furniture, gasoline and other liquids having fammable vapors away. Keep burner

and control compartment clean. See installation and operating instructions accompanying appliance.

STOP! Read the safety information above on this label.

FOR ALL PROPANE UNITS AND

UNITS EQUIPPED WITH ELECTRIC SPARK BOXES:

Push in gas control knob slightly and turn clockwise

“OFF”. Knob cannot be turned from “PILOT” to “OFF” unless

knob is pushed in slightly. Do not force.

Gas Inlet

1) Turn off the flame switch.

2) Push in the gas control knob slightly and turn clockwise to “OFF”. Do not force.

3) Turn off all electric power to the appliance if service is to be performed.

You may shut off the pilot during prolonged non use periods to conserve fuel.

Blower Thermodisc:

When this thermally activated switch turns ON

it will create a small "clicking" sound. This is the

switch contacts closing and is normal.

Pilot Flame:

While the pilot ﬂ ame is on it can make a very

slight "whisper" sound.

Gas Control Valve:

As the gas control valve turns ON and OFF, a

dull clicking sound may be audible, this is normal

operation of a gas regulator or valve.

Unit Body/Firebox:

Different types and thicknesses of steel will

expand and contract at different rates resulting

in some "cracking" and "ticking" sounds will be

heard throughout the cycling process.

U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 27

MAINTENANCE

INSTRUCTIONS

1) Always turn off the valve before cleaning.

For relighting, refer to lighting instructions.

Keep the burner and control compartment

clean by brushing and vacuuming at least

once a year. When cleaning the logs, use a

soft clean paint brush as the logs are fragile

and easily damaged.

2) Clean glass (never when unit is hot), appli-

ance, louvers, and door with a damp cloth.

Never use an abrasive cleaner. The gold

louvers (and optional gold door) may be

scratched if abrasives are used to clean

them.

The heater is ﬁ nished in a heat resistant

paint and should only be reﬁ nished with

heat resistant paint (not with wall paint).

Regency® uses StoveBright Paint - Metallic

Black #6309.

3) Make a periodic check of burner for proper

position and condition. Visually check the

ﬂ ame of the burner periodically, making sure

the ﬂ ames are steady; not lifting or ﬂ oating.

If there is a problem, call a qualiﬁ ed service

person.

4) The appliance and venting system must be

inspected before use, and at least annually,

by a qualiﬁ ed ﬁ eld service person, to ensure

that the ﬂ ow of combustion and ventilation

air is not obstructed.

During the annual service call, the burners

should be removed from the burner tray

and cleaned. Replace the embers but do

not block the pilot.

5) Keep the area near the appliance clear and

free from combustible materials, gasoline,

and other ﬂ ammable vapours and liquids.

Top View of pilot ﬂ ame

GENERAL

VENT MAINTENANCE

Conduct an inspection of the venting system

semi-annually. Recommended areas to inspect

as follows:

1) Check the Venting System for corrosion in

areas that are exposed to the elements.

These will appear as rust spots or streaks,

and in extreme cases, holes. These com-

ponents should be replaced immediately.

2) Check for evidences of excessive condensa-

tion, such as water droplets forming in the

inner liner, and subsequently dripping out the

joints, Continuous condensation can cause

corrosion of caps, pipe, and ﬁ ttings. It may

be caused by having exterior portions of the

system being exposed to cold weather.

3) Inspect joints, to verify that no pipe sec-

tions or ﬁ ttings have been disturbed, and

consequently loosened.

LOG REPLACEMENT

The unit should never be used with broken logs.

Turn off the gas valve and allow the unit to cool

before opening door to carefully remove the

logs. The pilot light generates enough heat to

burn someone. If for any reason a log should

need replacement, you must use the proper

replacement log. The position of these logs

must be as shown in the diagram under Log

Installation.

Note: Improper positioning of logs may

create carbon build-up and will alter

the unit’s performance which is not

covered under warranty.

GOLD-PLATED DOORS

The 24 carat gold plated ﬁ nish on the door

requires little maintenance, and need only be

cleaned with a damp cloth. DO NOT use abrasive

materials or chemical cleaners, as they may

harm the ﬁ nish and void the warranty. Clean any

ﬁ ngerprints off before turning the unit on. If the

door starts to discolour, check the gasket

seal and replace if necessary.

DOOR GASKET

If the door gasket requires replacement use

7/8" diameter oval door gasket (Part # 650-

920).

Top View of pilot ﬂ ame

Incorrect ﬂ ame pattern will have small, probably

yellow ﬂ ames, not coming into proper contact

with the rear of the burner or thermopile.

6) Each time the appliance is lit, it may cause

condensation and fog the glass. This

condensation and fog is normal and will

disappear in a few minutes as the glass

heats up.

Never operate the appliance without the

glass properly secured in place or with

the door open.

7) Periodically check the pilot ﬂ ames. Correct

ﬂ ame pattern has three strong blue ﬂ ames:

1 ﬂ owing around the thermopile and 1

around the thermocouple, and 1 ﬂ owing

across the rear of the burner (it does not

have to be touching the burner).

Note: If you have an incorrect ﬂ ame pat-

tern, contact your Regency® dealer

for further instructions.

PART OF CONTROL SYSTEM AND

ANY GAS CONTROL WHICH HAS

BEEN UNDER WATER.

CAUTION: ANY SAFETY SCREEN

OR GUARD REMOVED FOR SERV-

ICING AN APPLIANCE MUST BE

REPLACED PRIOR TO OPERAT-

ING THE APPLIANCE.

CLOTHING OR OTHER FLAM-

MABLE MATERIAL SHOULD NOT

BE PLACED ON OR NEAR THE

APPLIANCE.

WARNING: CHILDREN AND

ADULTS SHOULD BE ALERTED

TO THE HAZARDS OF HIGH

SURFACE TEMPERATURE AND

SHOULD STAY AWAY TO AVOID

BURNS OR CLOTHING IGNITION.

YOUNG CHILDREN SHOULD BE

CAREFULLY SUPERVISED WHEN

THEY ARE IN THE SAME ROOM

AS THE APPLIANCE.

DO NOT USE THIS APPLIANCE

IF ANY PART HAS BEEN UNDER

WATER. IMMEDIATELY CALL A

QUALIFIED SERVICE TECHNI-

CIAN TO INSPECT THE APPLI-

ANCE AND TO REPLACE ANY

28 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove

MAINTENANCE

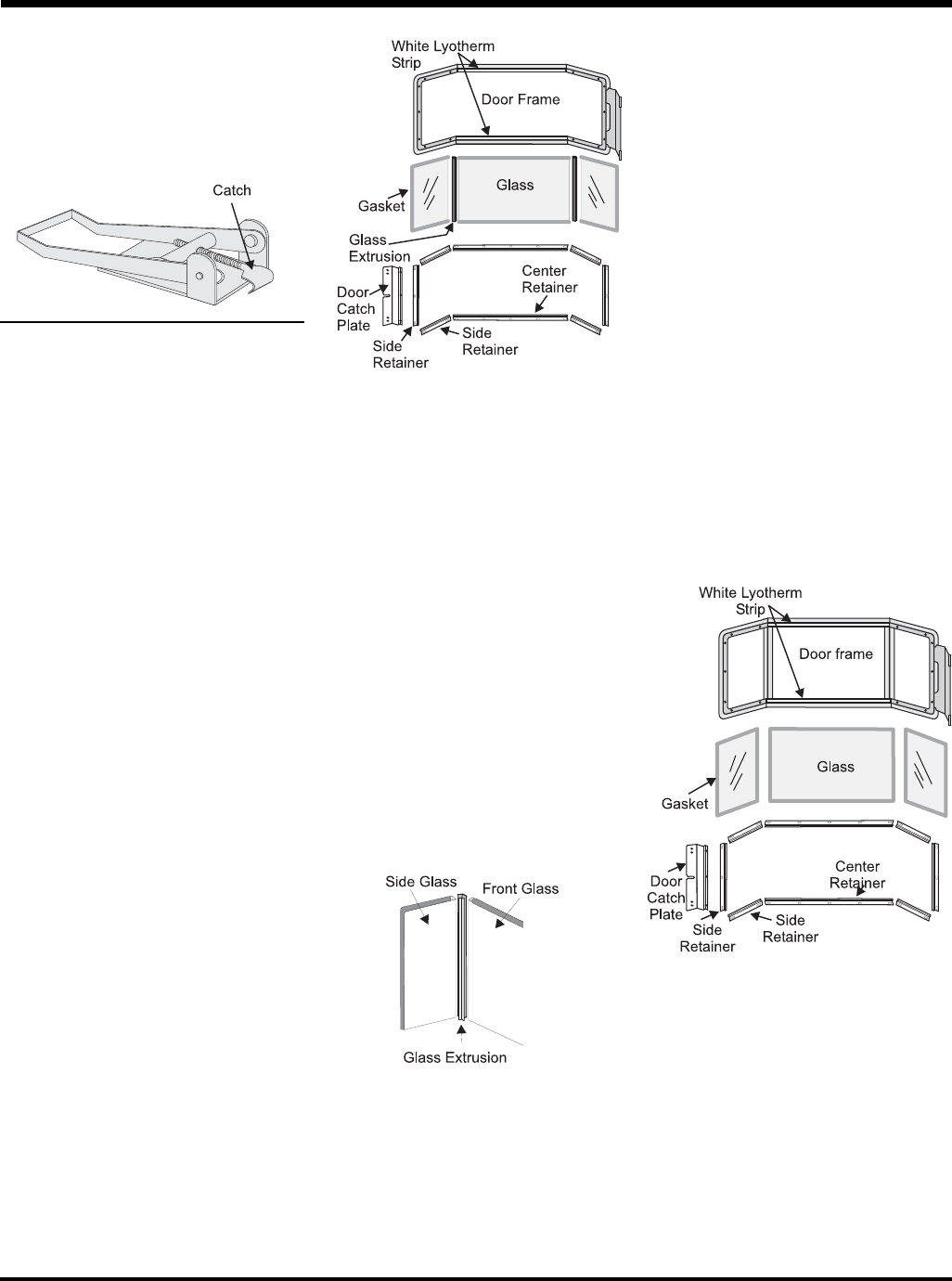

LATCH ADJUSTMENT

The door latch may require adjustment as the

door gasket material compresses after a few

ﬁ res and after glass replacement. Turn the

handle on the adjustable catch to tighten or

loosen the latch.

GLASS REPLACEMENT

Your Regency® stove is supplied with high tem-

perature, 5 mm Neoceram ceramic glass that

will withstand the highest heat that your unit will

produce. In the event that you break your glass,

purchase your replacement from an authorized

Regency®

dealer only, and follow the step-by-step

instructions for replacement.

Never operate your unit with broken

glass.

WARNING: Do not operate appliance

with the glass front removed, cracked

or broken. Replacement of the glass

should be done by a licensed or quali-

ﬁ ed service person.

MITRED DOOR

Removing Glass:

Note: Wearing gloves will protect your

hands while handling glass.

1) Remove the door from the unit and place on

a soft surface to prevent scratching.

2) Pull out the door gasket.

3) Remove the 24 nuts holding the glass

retainers in place. Do not remove the nuts

underneath the retainers.

4) Remove the door catch plate.

5) Remove glass retainers on sides ﬁ rst (3 each

side) then remove two center retainers.

Note: Center glass retainers are glued to

center glass.

6) Remove glass from extrusions. When re-

moving center glass, leave white insulation

in place.

Installing Glass

1) Install both center and side glass onto

extrusions as per diagram.

2) Place glass assembly into door frame.

3) Install retainers by placing 1 drop of glue

where previously glued and put in place.

4) Install side retainers.

5) Install door catch plate.

6) Install the 24 nuts loosely, do not tighten

yet.

7) Tighten side panels nuts using the following

procedure:

a. tighten top & bottom outside corner

nuts (2)

b. tighten inside nuts (3)

c. tighten top & bottom inside corners

(2)

PANEL DOOR

1) Remove the door from the unit and place

on a soft surface to prevent scratching.

2) Pull out the door gasket.

3) Remove the nuts holding the glass retainers

in place.

4) Remove the glass retainers (sides, top and

bottom) and the door catch plate.

5) Replace the glass. The glass must have

gasketing around it.

6) Reverse the previous steps, replace the

retainers and fasten with the nuts but do

not overtighten, as this can break the glass.

Note: the door catch plate ﬁ ts on top of the

left side retainer.

7) Put gasket glue on the retainers, but do not

put glue on the screws. Replace the door

gasket, the two ends butt tight together on

the bottom edge of the door.

8) Replace door on the stove and check the

seal.

8) Tighten the 10 nuts on center glass re-

tainer.

9) Repeat step 7 for other side panel.

10) Replace new gasket by gluing it in place.

11) Install door onto stove and check the

seal.

U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 29

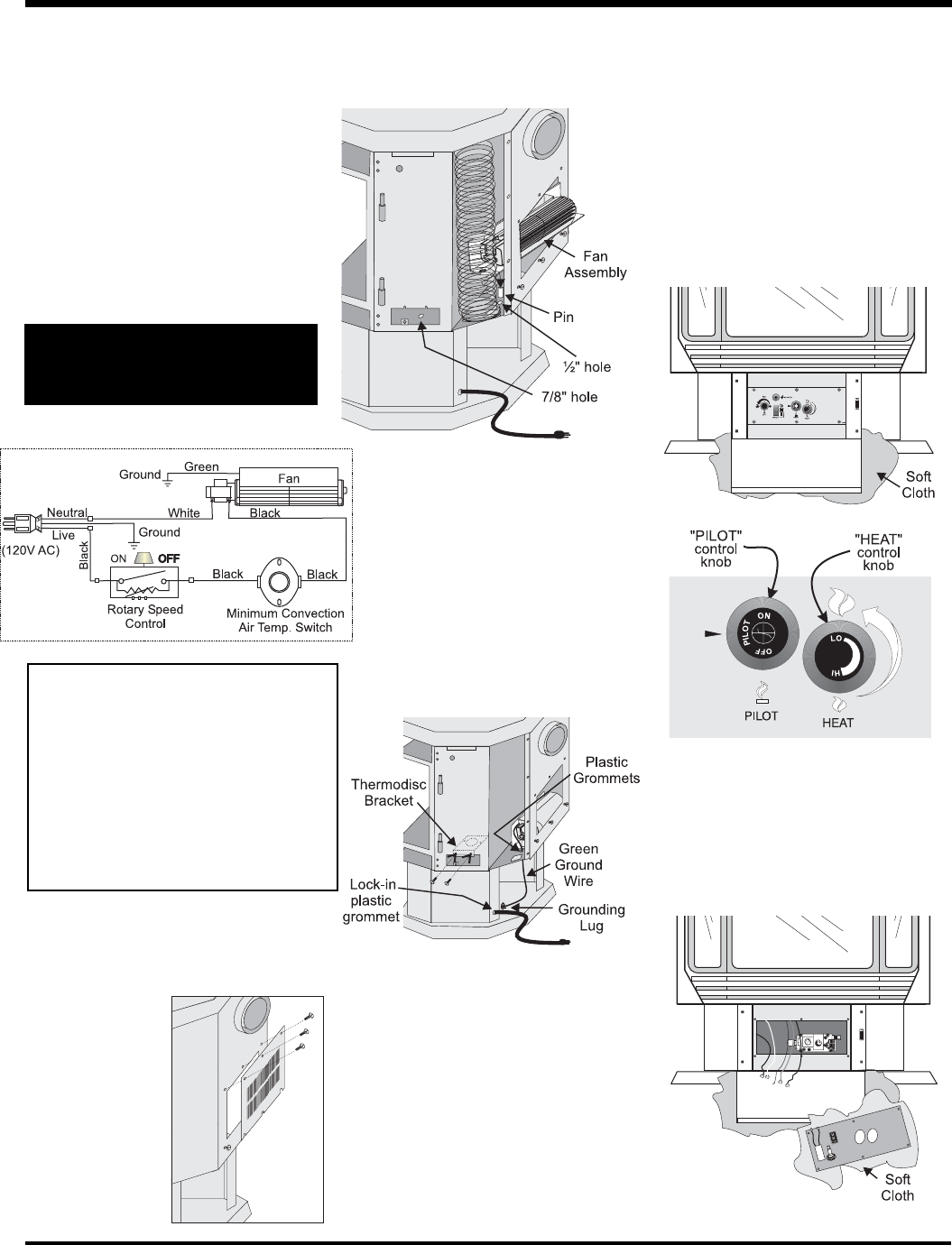

REMOVING VALVE

If your valve requires maintenance or replace-

ment, use the following instructions:

Note: Always close off the gas supply before

removing the valve.

1) Open front pedestal door. You may want to

put a soft cloth on the base of the unit so that

when the pedestal door is open it doesn't

scratch the paint. See diagram below.

FAN MAINTENANCE

If your fan requires maintenance or replacement,

access to the fan is through the plate on the rear

wall of the ﬁ rebox. NOTE: the unit MUST NOT

be operated without the fan access panel

securely in place and correctly sealed.

IMPORTANT: These fans collect a lot of

dust from within your home. Ensure you

maintain these fan motors on a regular

basis by vacuuming out the fan squirrel

cages, around the motor, and around the

grills on the back of the stove.

To Remove Fan:

1) Unplug or disconnect power source to

stove.

2) Remove the rear

access panel

on the back of

the stove. The

fan can only be

accessed from

the back of the

stove.

3) Unclip the black

and white wires

from the fan mo-

tor.

WARNING:

Electrical Grounding Instructions

This appliance is equipped with

a three pronged (grounding) plug

for your protection against shock

hazard and should be plugged

directly into a properly grounded

three-prong receptacle. Do not cut

or remove the grounding prong from

this plug.

4) Lift fan off of the 2 pins, tip back and pull

through the opening. Disconnect the green

ground wire from the right side of the fan as

soon as you can reach it.

Replacing Fan:

Reverse the above steps (1 - 4). Make

sure the fan wires and the ground wire

are reattached.

Hint for pushing fan down onto pins - rub

a bit of dish soap on the grommet so it

will slide more easily onto the pin. Check

to make sure the fan is seated properly

on the pins - try to move the fan back

and forth, there should be no noise, if

there is check that the grommets haven't

come loose.

2) Undo the six screws holding the control panel

in place.

3) Disconnect all wires from the back of the con-

trol panel and then remove panel. You should

lay the panel on a soft cloth so it doesn't get

marked up. See diagram above.

MAINTENANCE

IMPORTANT

Disconnect power supply

before servicing

30 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove

6) Remove the two outside frame pieces by

removing two screws per side. See diagram

below.

7) At this point you should disconnect the gas

at the valve. You can access it through the

front now that the control panel is off, or you

can access it through the rear pedestal cover

plate.

8) Carefully remove the logs and embers.

9) Remove burner. See diagram below.

Note: Use a magnetic type screwdriver if

possible.

10) Remove all 18 screws holding the burner

tray assembly in place.

11) Carefully lift the burner tray assembly out.

Be careful not to tear gaskets when lifting

out the valve tray; these gaskets seal the

valve from the exterior of the ﬁ rebox.

12) To replace the burner tray assembly, simply

reverse these instructions.

MAINTENANCE

5) Disconnect the DC spark generator wires

from the valve.

4) Remove the screw that holds the DC

spark generator wires in place on the

valve.

DC SPARKER

BATTERY

REPLACEMENT

The battery in the DC Spark box needs to be

replaced annually.

1) Remove the DC Spark box from the back

of the pedestal cover by removing the heat

shield.

2) Remove the Heat Shield from the DC

Spark Box.

3) Place 1 AA battery into the DC Spark Box

by opening the battery compartment.

4) Reverse steps to put back in place.

U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 31

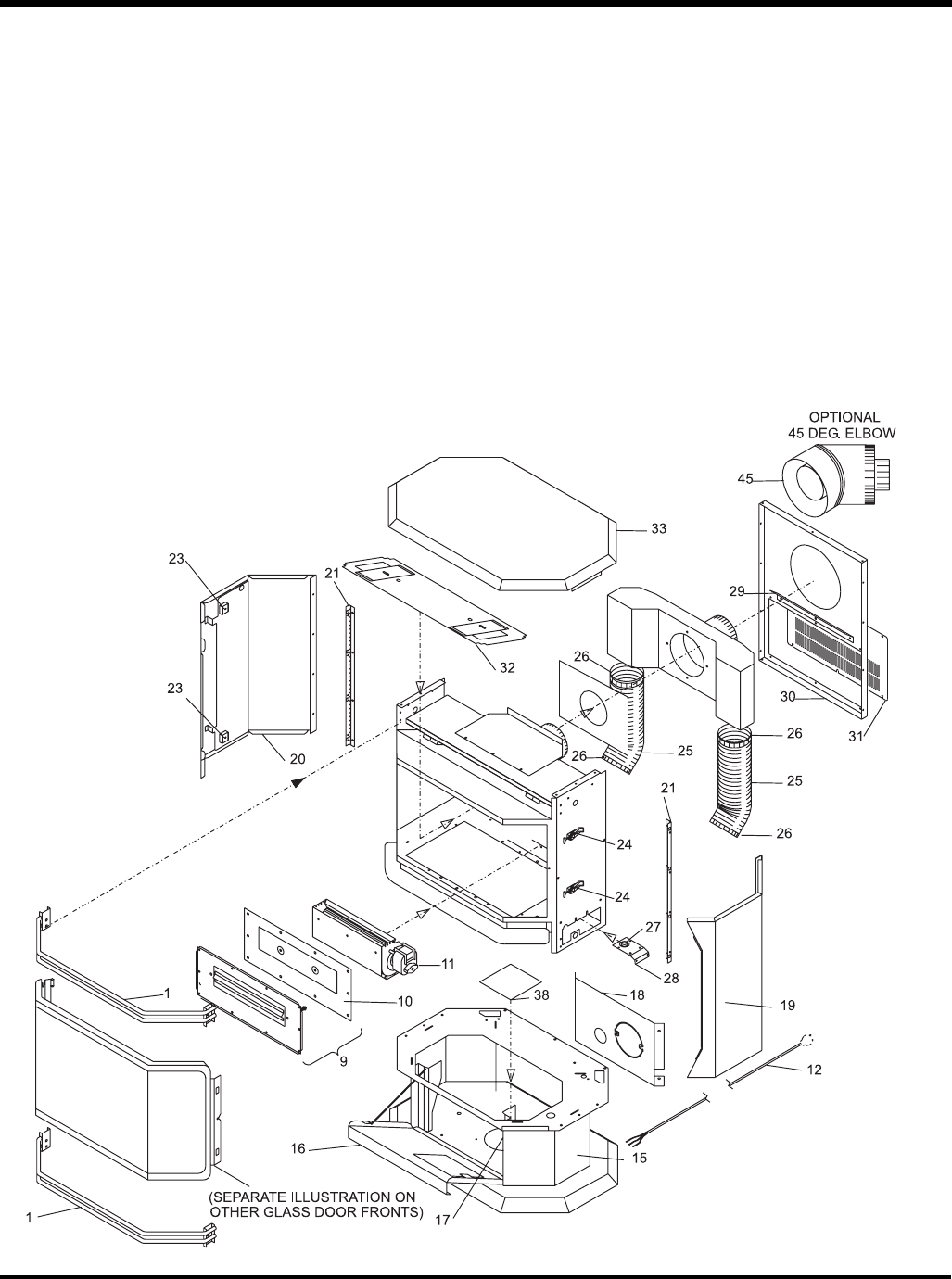

PARTS LIST

1) 560-920 Louver Assy - Gold

560-921 Louver Assy - Brush Nickel

560-922 Louver Assy - Black

9) 730-560 Relief Door Assembly

10) 730-034 Mounting Plate Gasket

11) 730-517/P Fan Assembly (120 V)

910-331/P Fan Motor

12) 910-794 Power Cord (120 V)

15) * Pedestal Assembly

16) 730-039 Pedestal Door

17) 904-257 Pedestal Door Magnet

18) 560-025 Pedestal Back

19) 730-530 Side Panel Door Assy (Right Side)

20) 730-525 Side Panel Door Assy (Left Side)

21) 560-031 Side Panel Door Hinge

23) 904-258 Side Panel Door (c/w Hook) Magnet

24) 948-255 Door Latch

25) * Flex Pipe (3" ID)

26) * Clamp for Flex Pipe

MAIN ASSEMBLY

Part # Description Part # Description

27) 910-233 Thermodisc

28) * Mounting Bracket - Thermodisc

29) * Air Deﬂ ector

30) 680-019 Rear Panel

31) 630-021 Fan Access Panel

32) 730-565 Firebox Bafﬂ e

33) 640-520 False Top Assembly

38) 820-058 Pedestal Base Cover

45) 946-204 45o Elbow

910-073 Spark Generator Battery Holder

910-074 Spark Generator Switch c/w Wire

640-944 Horizontal Termination Venting Kit

640-530/P Riser Terminal

948-216 Logo Plate

918-529 Manual

*Not available as a replacement part.

32 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove

PARTS LIST

BURNER & LOG ASSEMBLY

51) 910-241 Burner ON/OFF Switch (3-way)

52) 910-190 Piezo Ignitor & Nut

53) 904-586 Knob - Fan Control Switch

54) 910-373 Knob - Pilot Valve Extension

55) 910-372 Flame Adjusting Knob

56) 908-646 Control Panel Decal

57) 650-220 Control Panel Plate

58) 910-330 Fan Speed Control (120 V)

680-574/P Valve Assembly - Natural Gas

680-576/P Valve Assembly - Propane

60) 910-478 Valve - S.I.T. - NG/LP

66) 910-038 Pilot Assy - S.I.T. - 3 Flame NG

910-039 Pilot Assy - S.I.T. - 3 Flame LP

904-240 #37 Oriﬁ ce - N.G.

904-390 #52 Oriﬁ ce - Propane

936-170 Oriﬁ ce Gasket

67) * Pilot Holder

68) W840470 Pilot Assembly Gasket

71) 730-528 Rear Bracket Assembly

75) 730-935 Log Set

78) 730-550 Burner Assy - NG/LP

80) 260-565 Air Shutter Gear Assembly (Female)

81) 904-565 Hex Key 3/16" AF

82) 630-009 Gasket - Burner Tray / Air Passage

83) 630-008 Gasket - Burner Tray / Firebox

84) * Air Shutter Gear Assembly (Male)

*Not available as a replacement part.

Part # Description

U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 33

DOOR ASSEMBLIES

Part # Description

730-923 Brush Nickel Mitred Door - Complete

730-924 Gold Mitred Door - Complete

730-926 Black Mitred Door - Complete

730-932 Gold Wrap Door - Complete

730-928 Gold Panel Door - Complete

101) 650-920 Door Gasket Kit

105) * Ceramic Paper

106) 940-323/P Side Glass

107) 936-243 Glass Gasket

108) 940-322/P Centre Glass

111) * Door Frame Fibre Paper

112) 750-015 Door Glass Extrusion

208) 940-325/P Wrap Glass

*Not available as a replacement part.

PARTS LIST

34 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove

NOTES

___________________________________________________

U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 35

WARRANTY

Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit

thoroughly before it leaves our facility. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the original purchaser

of a Regency Product. This warranty is not transferable.

The Warranty: Limited Lifetime

The combustion chamber, heat exchanger, burner tubes/pans, logs and gold plating (against defective manufacture only) are covered under the Limited Lifetime War-

ranty for ﬁ ve (5) years for parts and subsidized labour* and parts only thereafter.

Glass is covered for lifetime against thermal breakage only, parts and subsidized labour* for ﬁ ve (5) years and parts only thereafter from date of purchase.

Special Finishes - One year on brushed nickel, louvers and doors. You can expect some changes in color as the product "ages" with constant heating and cooling. FPI

warranties the product for any manufacturing defects on the original product. However, the manufacturers warranty does not cover changing colors and marks, ie. ﬁ nger

prints, etc applied after the purchase of the product. Damage from the use of abrasive cleaners is not covered by warranty.

Electrical and mechanical components such as blowers, switches, wiring, thermodiscs, FPI remote controls, spill switches, thermopiles, thermocouples, pilot assembly

components, and gas valves are covered for two years parts and one year subsidized labour* from the date of purchase. Blowers and valves replaced under warranty

are considered repairs and continue as if new with appliance. ie. twelve (12) months from original purchase date of appliance with a minimum of three (3) months cover-

age from date of replacement.

FPI venting components (Direct Vent units) are covered parts and subsidized labour* for three (3) years from date of purchase.

Simpson Dura-Vent venting components (Direct Vent units) are covered by Simpson Dura-Vent Inc. warranty.

Repair/replacement parts purchased by the consumer from FPI after the original coverage has expired on the unit will carry a 90 day warranty, valid with a receipt only.

Any item shown to be defective will be repaired or replaced at our discretion. No labor coverage is included with these parts.

Conditions:

Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent

provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.

It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evalu-

ated for manufacturer defect.

The authorized selling dealer is responsible for all in-ﬁ eld service work carried out on your Regency product. FPI will not be liable for results or costs of workmanship

from unauthorized service persons or dealers.

At all times FPI reserves the right to inspect product in the ﬁ eld which is claimed to be defective.

All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer

name, purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.

Exclusions:

This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing or trim.

At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit once

manufactured. ie. as products evolve, ﬁ eld modiﬁ cations or upgrades will not be performed.

FPI will not be liable for travel costs for service work.

Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy.

Embers, glass and door gaskets, door handles and paint are not covered under the terms of this warranty policy.

Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.

The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse, improper installation,

negligence or accident, spillage or downdrafts caused by environmental or geographical conditions, inadequate ventilation, excessive offsets, negative air pressure

caused by mechanical systems such as furnaces, fans, clothes dryer, etc.

Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.

FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.

Performance problems due to operator error will not be covered by this warranty policy.

Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from FPI, may nullify your

warranty on this product.

Any alteration to the unit which causes sooting or carboning that results in damage to the interior / exterior facia is not the responsibility of FPI.

* Subsidy according to job scale as predetermined by FPI.

Installer: Please complete the following information

Dealer Name & Address: ______________________________________________

___________________________________________________________________

Installer: ___________________________________________________________

Phone #: ___________________________________________________________

Date Installed: ______________________________________________________

Serial No.: __________________________________________________________

Printed in Canada

Regency® ﬁ replace products are designed

with reliability and simplicity in mind. In

addition, our internal Quality Assur-

ance Team carefully inspects each

unit thoroughly before it leaves our

door.

Fireplace Products International

Ltd. is pleased to extend this Lim-

ited Lifetime Warranty to the original

purchaser of a Regency® Product.

See the inside back cover for details.

Regency® is a trademark of FPI Fireplace Products International Ltd.

http://www.regency-ﬁ re.com

Regency Ultimate U37 Lp1 Users Manual 918 529b (11 22 07)

U37-LP1 to the manual e252f53e-30ef-4718-8d7a-bfb409e58d6e

Navigation menu

Versions of this User Manual:

Views

Navigation
