Reiie intelligent technology RT505 Dog remote trainer User Manual 505
Shenzhen Reiie intelligent technology Co., ltd Dog remote trainer 505

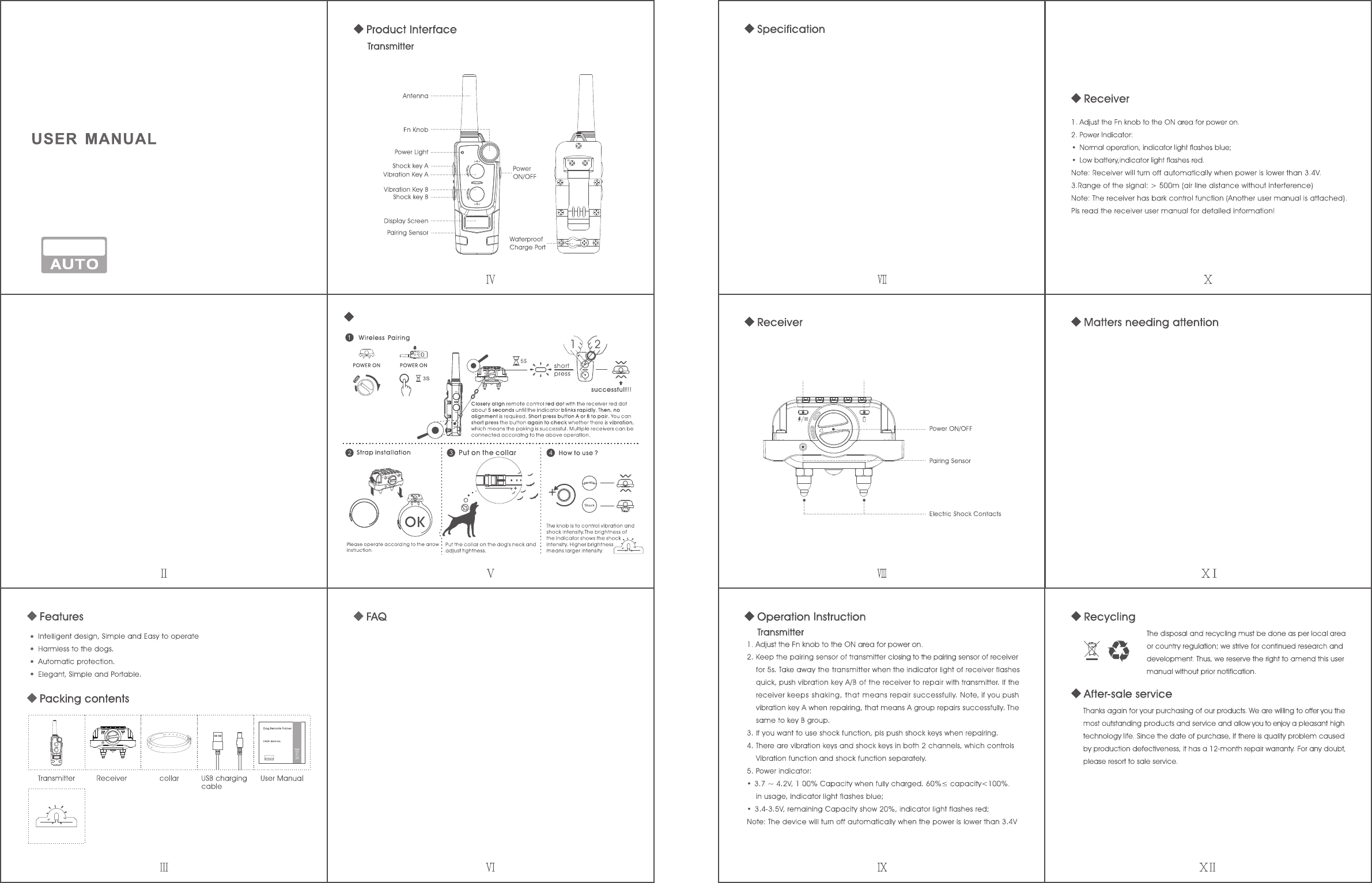

User Manual
Blue LED
Vibration Electric Shock
Red LED
Charging Low Power
Q1: Is the electric shock harmful to the dogs?
A: No, the maximum electric shock power is 0.7mW. Do not shock the dog with
maximum degree(degree 127) too often.
Q2: Can the dog wear the dog trainer when bathing?
A: Yes. the dog trainer is waterproof.
Q3: Why the receiver does not respond to the transmitter?
A: When the transmitter and the receiver are powered on and paired successfully,
the transmitter degree can not be set at 0.
Q4: What is the transmission distance of the transmitter?
A: In the open air and good weather, the direct transmission is up to 1KM if
there is no obstacle blocking signal; in most circumstances, the direct
distance is 500 meters.
Q5: Can it be used to control multiple dogs?
A: Yes, one remote has two channels. Each channel can be paired with multiple
receivers.
Quick Guide
M/C:06505207002
Intensity Testing Indicator
New product with
Dog Friendly, Safe and Healthy
IN LINE WITH THE POLICY OF CONTINUED DEVELOPMENT THE
MANUFACTURER RESERVES THE RIGHT TO AMEND THE SPECIFICATIONS
WITHOUT PRIOR NOTIFICATION, PRODUCT IMAGES, PRESENTATIONS
AND ALL OTHER INFORMATION IS FOR REFERENCE ONLY, GOODS IN
M/C:06505207002
VER : 2.0
New product with
Dog Friendly, Safe and Healthy
IN LINE WITH THE POLICY OF CONTINUED DEVELOPMENT THE
MANUFACTURER RESERVES THE RIGHT TO AMEND THE SPECIFICATIONS
WITHOUT PRIOR NOTIFICATION, PRODUCT IMAGES, PRESENTATIONS
AND ALL OTHER INFORMATION IS FOR REFERENCE ONLY, GOODS IN
KIND PREVAIL.
Thanks for your selecting Petfere Dog Remote Trainer. This is specially designed
for you to manage and train your dog. You only need to put the receiver on
your dog’s neck and train it with the transmitter. Of course you should adjust the
sensitivity grade on the Receiver(also named Dog Bark Control) based on the
dog’s size and weight(Pls refer to the user manual for detailed explanation) and
adjust the collar to a proper tightness. After that, the trainer can work. Pls definitely
don’t worry about its safety. The vibration and shock of this trainer do not harm
your dog. Pls read the user manual carefully before operation.
• Product name: Dog remote trainer
• Product size: 168x45x36mm
• Main Unit Size/Weight: 75x49x56mm/2.9x1.9x2.2in/95g
• For Dogs Weight for 60-120pounds
• Main Unit Size/Weight: 70x46x56mm/2.7x1.8x2.0in/90g
• For Dogs Weight for 15-59pounds
• Product weight: 120g
• Input voltage: DC 5V
• Working voltage: DC 3 3V-4 2V
• Working current: <220mA (3 7V)
• Stand by current: <2mA (3 7V)
• Sleep mode current: <500uA (3.7V)
• Working current: <220MA (5V)
• Electric shock level: 0-127 level
• Control distance: >500m(up to 1KM if there is no obstacle)
• Working frequency: 868MHz
• Electric Shock Power: <0.7W
6.
Charging: when charging, the red light will be on. The green light will be on
when it’s fully charged, and then you can pull out the charging cable.
7.
Backlit: when transmitter is in standby mode, backlit will turn off automatically
if there is no pressing keys more than 6 seconds. And backlit will turn on when
press any key.
1. When it is used for the first time, if the dog is allergic to the circle, please do
not use any more.
2. Do not set the collar too tight, to avoid dog choking.
Please check whether there is scratch or wound after use, and stop using or
loose the collar if there is.
3. This bark control is not a common collar. If you use a chain for the dog, please
use a common collar.
4. Please make sure the dog will not bite the device to avoid damage.
5. The bark control Fn knob should be placed facing the sky.
6. Please remove the bark control when bathing the dog.
Rotate the knob clock-wisely to turn
on the receiver and long press the
right button to turn on the control.
Dog remote trainer
Model: RT505
M/C:06505207002
IN LINE WITH THE POLICY OF CONTINUED DEVELOPMENT THE
MANUFACTURER RESERVES THE RIGHT TO AMEND THE SPECIFICATIONS
WITHOUT PRIOR NOTIFICATION, PRODUCT IMAGES, PRESENTATIONS
AND ALL OTHER INFORMATION IS FOR REFERENCE ONLY, GOODS IN
KIND PREVAIL.
FCC Statement:FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
--- Reorient or relocate the receiving antenna.
--- Increase the separation between the equipment and receiver.
--- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--- Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to
operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure
condition without restriction.
