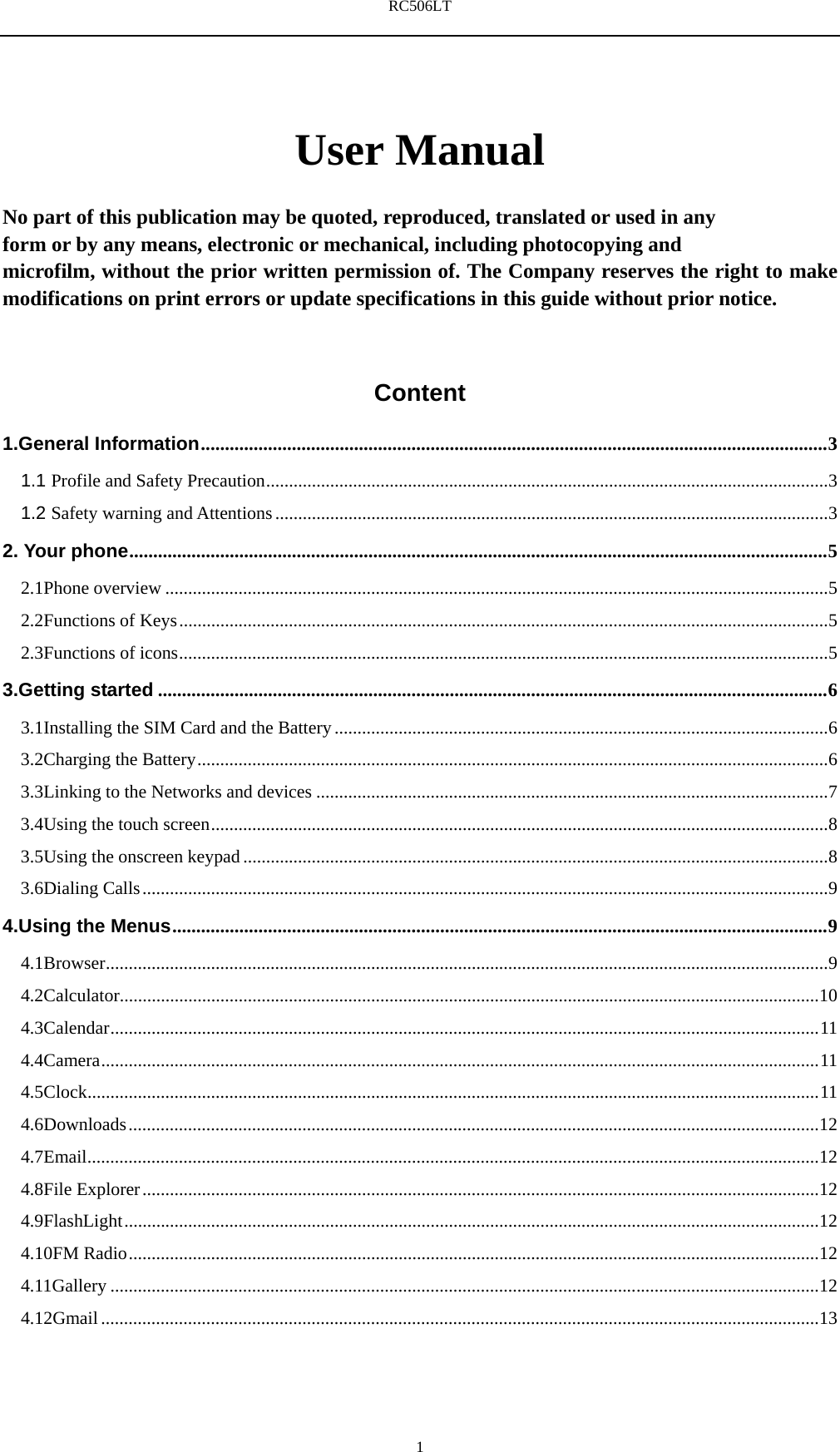

RC506LT 1User Manual No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of. The Company reserves the right to make modifications on print errors or update specifications in this guide without prior notice. Content 1.General Information ................................................................................................................................... 3 1.1 Profile and Safety Precaution ........................................................................................................................... 3 1.2 Safety warning and Attentions ......................................................................................................................... 3 2. Your phone .................................................................................................................................................. 5 2.1Phone overview ................................................................................................................................................. 5 2.2Functions of Keys .............................................................................................................................................. 5 2.3Functions of icons .............................................................................................................................................. 5 3.Getting started ............................................................................................................................................ 6 3.1Installing the SIM Card and the Battery ............................................................................................................ 6 3.2Charging the Battery .......................................................................................................................................... 6 3.3Linking to the Networks and devices ................................................................................................................ 7 3.4Using the touch screen ....................................................................................................................................... 8 3.5Using the onscreen keypad ................................................................................................................................ 8 3.6Dialing Calls ...................................................................................................................................................... 9 4.Using the Menus ......................................................................................................................................... 9 4.1Browser .............................................................................................................................................................. 9 4.2Calculator......................................................................................................................................................... 10 4.3Calendar ........................................................................................................................................................... 11 4.4Camera ............................................................................................................................................................. 11 4.5Clock ................................................................................................................................................................ 11 4.6Downloads ....................................................................................................................................................... 12 4.7Email ................................................................................................................................................................ 12 4.8File Explorer .................................................................................................................................................... 12 4.9FlashLight ........................................................................................................................................................ 12 4.10FM Radio ....................................................................................................................................................... 12 4.11Gallery ........................................................................................................................................................... 12 4.12Gmail ............................................................................................................................................................. 13

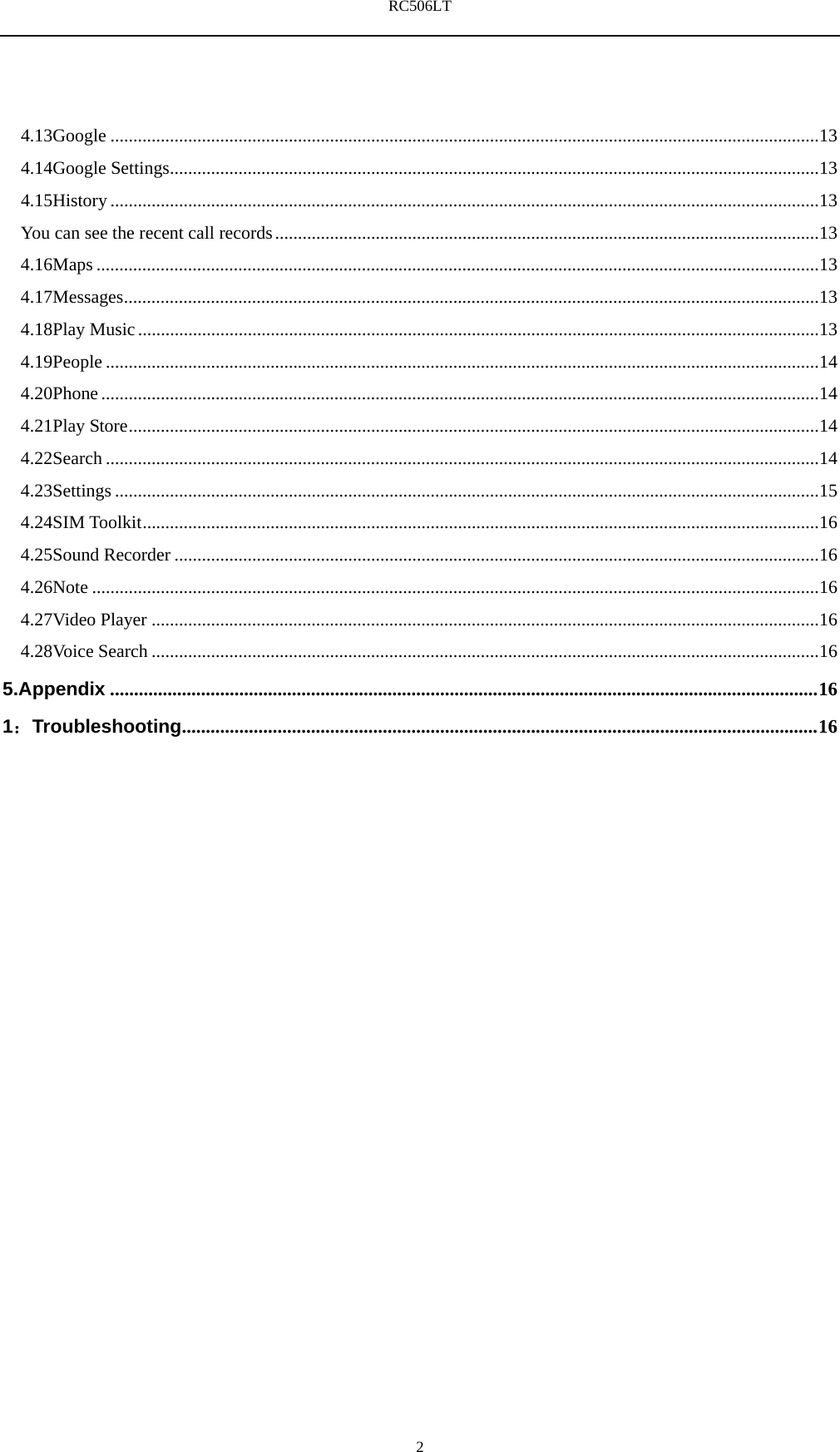

RC506LT 24.13Google ........................................................................................................................................................... 13 4.14Google Settings .............................................................................................................................................. 13 4.15History ........................................................................................................................................................... 13 You can see the recent call records ....................................................................................................................... 13 4.16Maps .............................................................................................................................................................. 13 4.17Messages ........................................................................................................................................................ 13 4.18Play Music ..................................................................................................................................................... 13 4.19People ............................................................................................................................................................ 14 4.20Phone ............................................................................................................................................................. 14 4.21Play Store ....................................................................................................................................................... 14 4.22Search ............................................................................................................................................................ 14 4.23Settings .......................................................................................................................................................... 15 4.24SIM Toolkit .................................................................................................................................................... 16 4.25Sound Recorder ............................................................................................................................................. 16 4.26Note ............................................................................................................................................................... 16 4.27Video Player .................................................................................................................................................. 16 4.28Voice Search .................................................................................................................................................. 16 5.Appendix .................................................................................................................................................... 16 1：Troubleshooting ..................................................................................................................................... 16

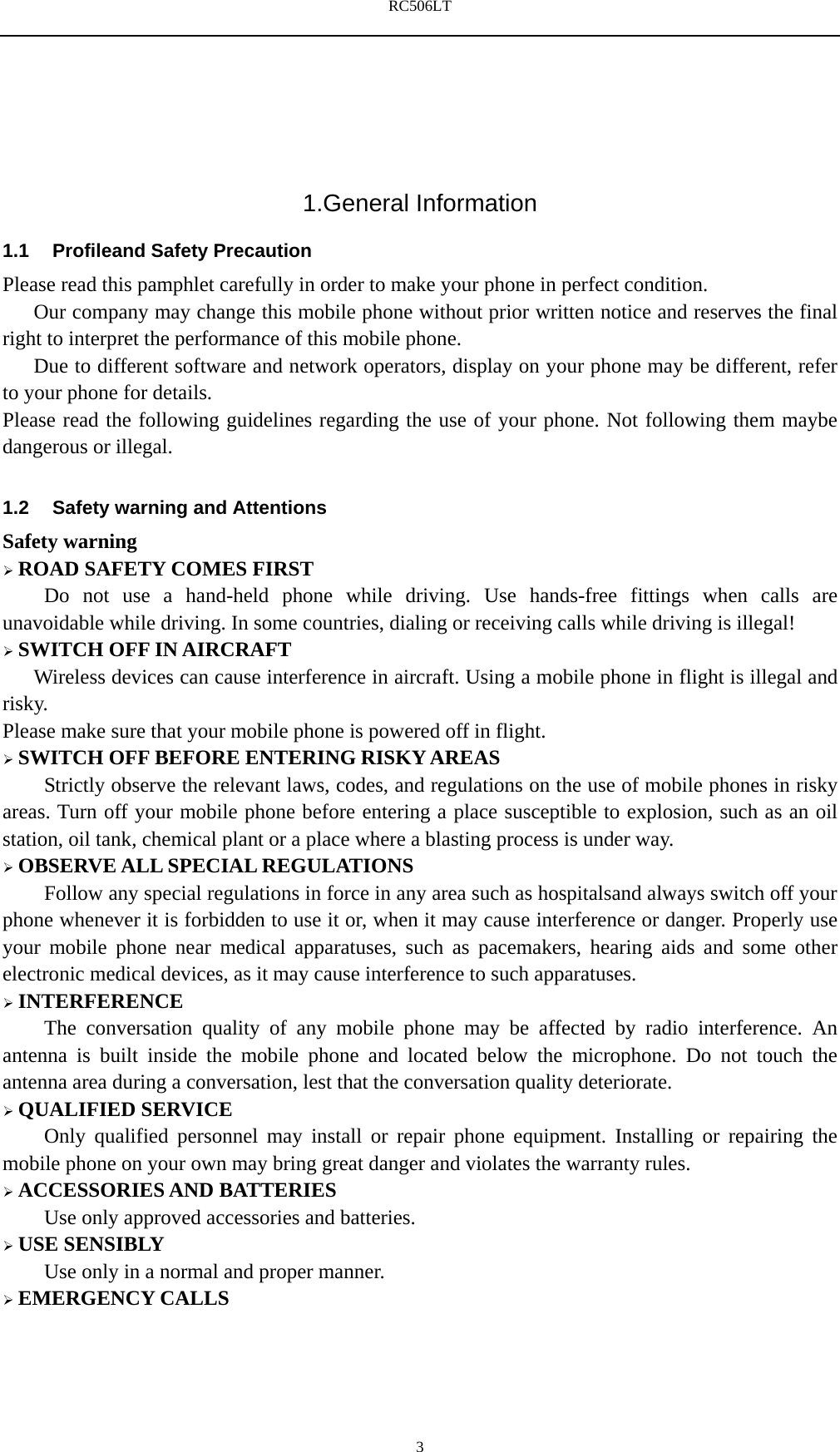

RC506LT 3 1.General Information 1.1 Profileand Safety Precaution Please read this pamphlet carefully in order to make your phone in perfect condition. Our company may change this mobile phone without prior written notice and reserves the final right to interpret the performance of this mobile phone. Due to different software and network operators, display on your phone may be different, refer to your phone for details. Please read the following guidelines regarding the use of your phone. Not following them maybe dangerous or illegal. 1.2 Safety warning and Attentions Safety warning  ROAD SAFETY COMES FIRST Do not use a hand-held phone while driving. Use hands-free fittings when calls are unavoidable while driving. In some countries, dialing or receiving calls while driving is illegal!  SWITCH OFF IN AIRCRAFT Wireless devices can cause interference in aircraft. Using a mobile phone in flight is illegal and risky. Please make sure that your mobile phone is powered off in flight.  SWITCH OFF BEFORE ENTERING RISKY AREAS Strictly observe the relevant laws, codes, and regulations on the use of mobile phones in risky areas. Turn off your mobile phone before entering a place susceptible to explosion, such as an oil station, oil tank, chemical plant or a place where a blasting process is under way.  OBSERVE ALL SPECIAL REGULATIONS Follow any special regulations in force in any area such as hospitalsand always switch off your phone whenever it is forbidden to use it or, when it may cause interference or danger. Properly use your mobile phone near medical apparatuses, such as pacemakers, hearing aids and some other electronic medical devices, as it may cause interference to such apparatuses.  INTERFERENCE The conversation quality of any mobile phone may be affected by radio interference. An antenna is built inside the mobile phone and located below the microphone. Do not touch the antenna area during a conversation, lest that the conversation quality deteriorate.  QUALIFIED SERVICE Only qualified personnel may install or repair phone equipment. Installing or repairing the mobile phone on your own may bring great danger and violates the warranty rules.  ACCESSORIES AND BATTERIES Use only approved accessories and batteries.  USE SENSIBLY Use only in a normal and proper manner.  EMERGENCY CALLS

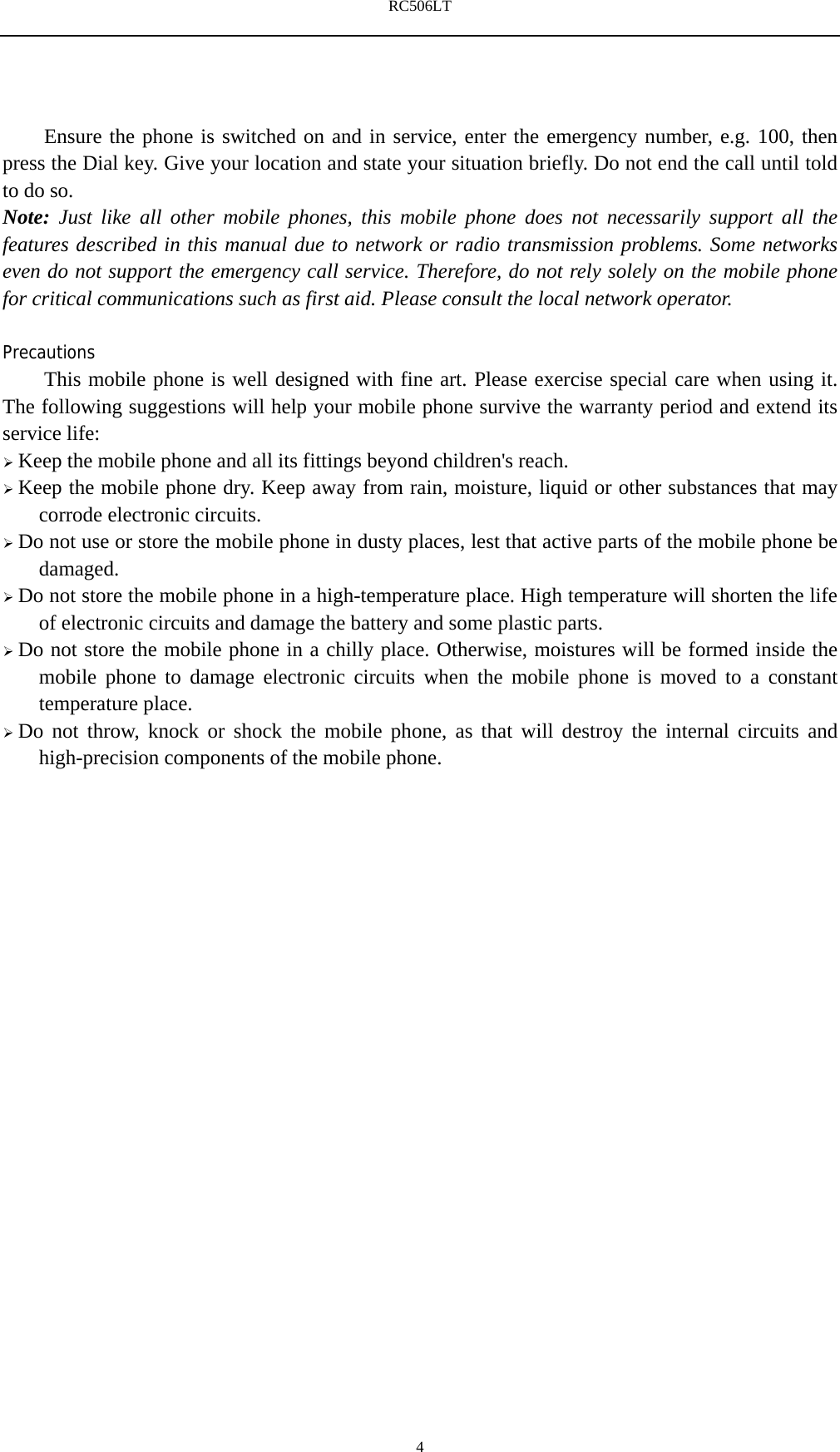

RC506LT 4Ensure the phone is switched on and in service, enter the emergency number, e.g. 100, then press the Dial key. Give your location and state your situation briefly. Do not end the call until told to do so. Note: Just like all other mobile phones, this mobile phone does not necessarily support all the features described in this manual due to network or radio transmission problems. Some networks even do not support the emergency call service. Therefore, do not rely solely on the mobile phone for critical communications such as first aid. Please consult the local network operator. Precautions This mobile phone is well designed with fine art. Please exercise special care when using it. The following suggestions will help your mobile phone survive the warranty period and extend its service life:  Keep the mobile phone and all its fittings beyond children's reach.  Keep the mobile phone dry. Keep away from rain, moisture, liquid or other substances that may corrode electronic circuits.  Do not use or store the mobile phone in dusty places, lest that active parts of the mobile phone be damaged.  Do not store the mobile phone in a high-temperature place. High temperature will shorten the life of electronic circuits and damage the battery and some plastic parts.  Do not store the mobile phone in a chilly place. Otherwise, moistures will be formed inside the mobile phone to damage electronic circuits when the mobile phone is moved to a constant temperature place.  Do not throw, knock or shock the mobile phone, as that will destroy the internal circuits and high-precision components of the mobile phone.

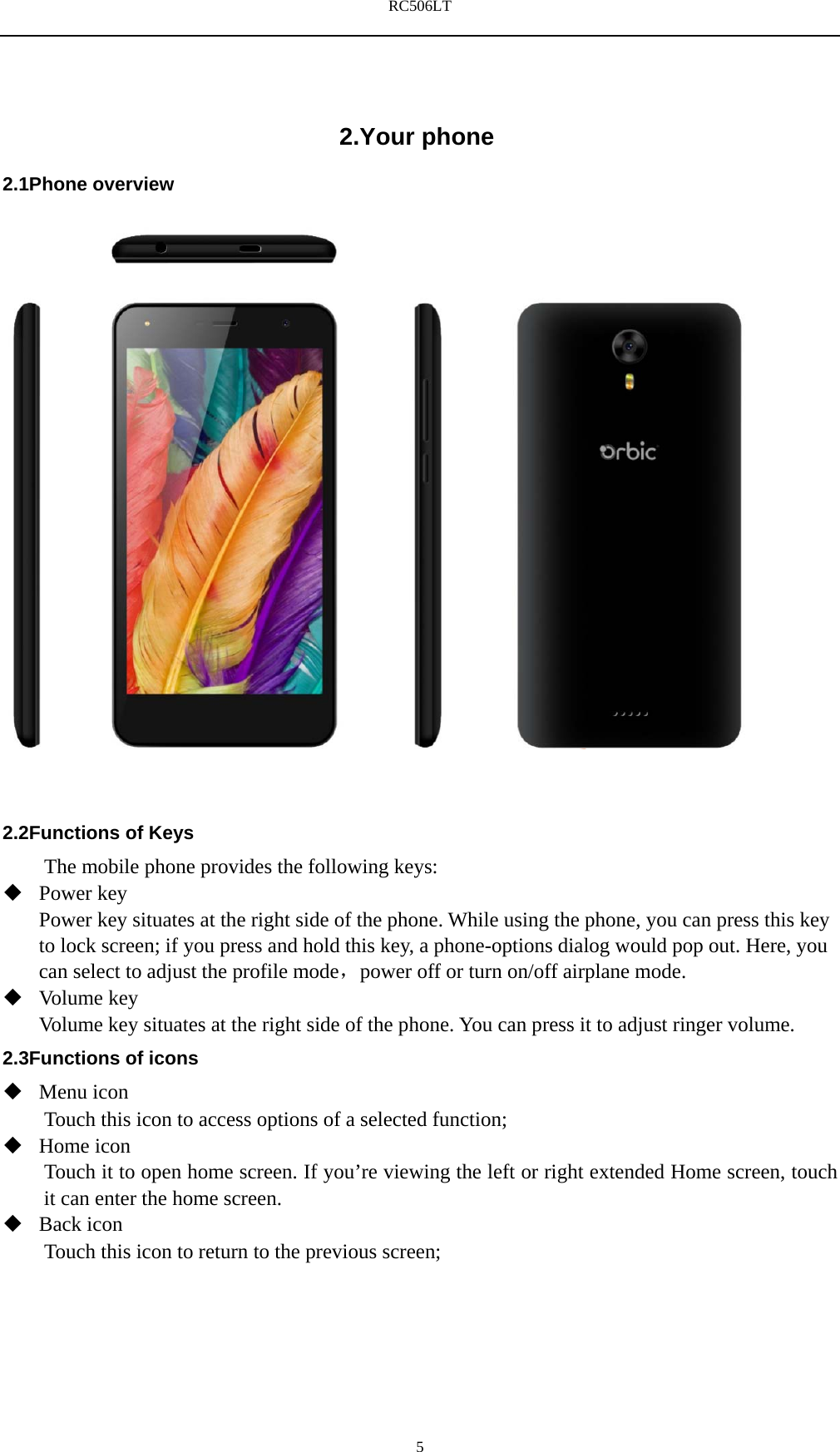

RC506LT 52.Your phone 2.1Phone overview 2.2Functions of Keys The mobile phone provides the following keys:  Power key Power key situates at the right side of the phone. While using the phone, you can press this key to lock screen; if you press and hold this key, a phone-options dialog would pop out. Here, you can select to adjust the profile mode，power off or turn on/off airplane mode.  Volume key Volume key situates at the right side of the phone. You can press it to adjust ringer volume. 2.3Functions of icons  Menu icon Touch this icon to access options of a selected function;  Home icon Touch it to open home screen. If you’re viewing the left or right extended Home screen, touch it can enter the home screen.  Back icon Touch this icon to return to the previous screen;

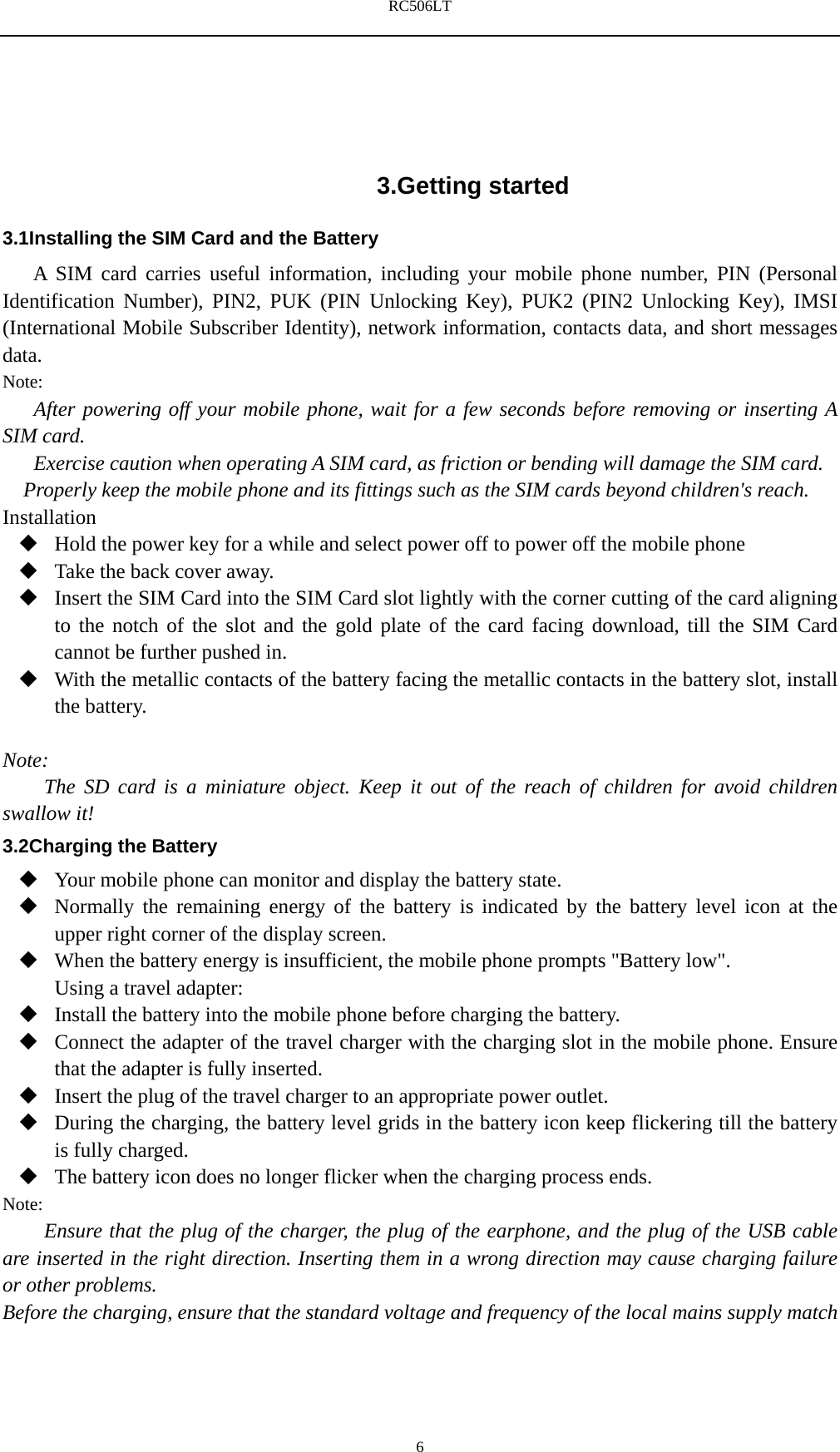

RC506LT 6 3.Getting started 3.1Installing the SIM Card and the Battery A SIM card carries useful information, including your mobile phone number, PIN (Personal Identification Number), PIN2, PUK (PIN Unlocking Key), PUK2 (PIN2 Unlocking Key), IMSI (International Mobile Subscriber Identity), network information, contacts data, and short messages data. Note: After powering off your mobile phone, wait for a few seconds before removing or inserting A SIM card. Exercise caution when operating A SIM card, as friction or bending will damage the SIM card. Properly keep the mobile phone and its fittings such as the SIM cards beyond children's reach. Installation  Hold the power key for a while and select power off to power off the mobile phone  Take the back cover away.  Insert the SIM Card into the SIM Card slot lightly with the corner cutting of the card aligning to the notch of the slot and the gold plate of the card facing download, till the SIM Card cannot be further pushed in.  With the metallic contacts of the battery facing the metallic contacts in the battery slot, install the battery. Note: The SD card is a miniature object. Keep it out of the reach of children for avoid children swallow it! 3.2Charging the Battery  Your mobile phone can monitor and display the battery state.  Normally the remaining energy of the battery is indicated by the battery level icon at the upper right corner of the display screen.  When the battery energy is insufficient, the mobile phone prompts "Battery low". Using a travel adapter:  Install the battery into the mobile phone before charging the battery.  Connect the adapter of the travel charger with the charging slot in the mobile phone. Ensure that the adapter is fully inserted.  Insert the plug of the travel charger to an appropriate power outlet.  During the charging, the battery level grids in the battery icon keep flickering till the battery is fully charged.  The battery icon does no longer flicker when the charging process ends. Note: Ensure that the plug of the charger, the plug of the earphone, and the plug of the USB cable are inserted in the right direction. Inserting them in a wrong direction may cause charging failure or other problems. Before the charging, ensure that the standard voltage and frequency of the local mains supply match

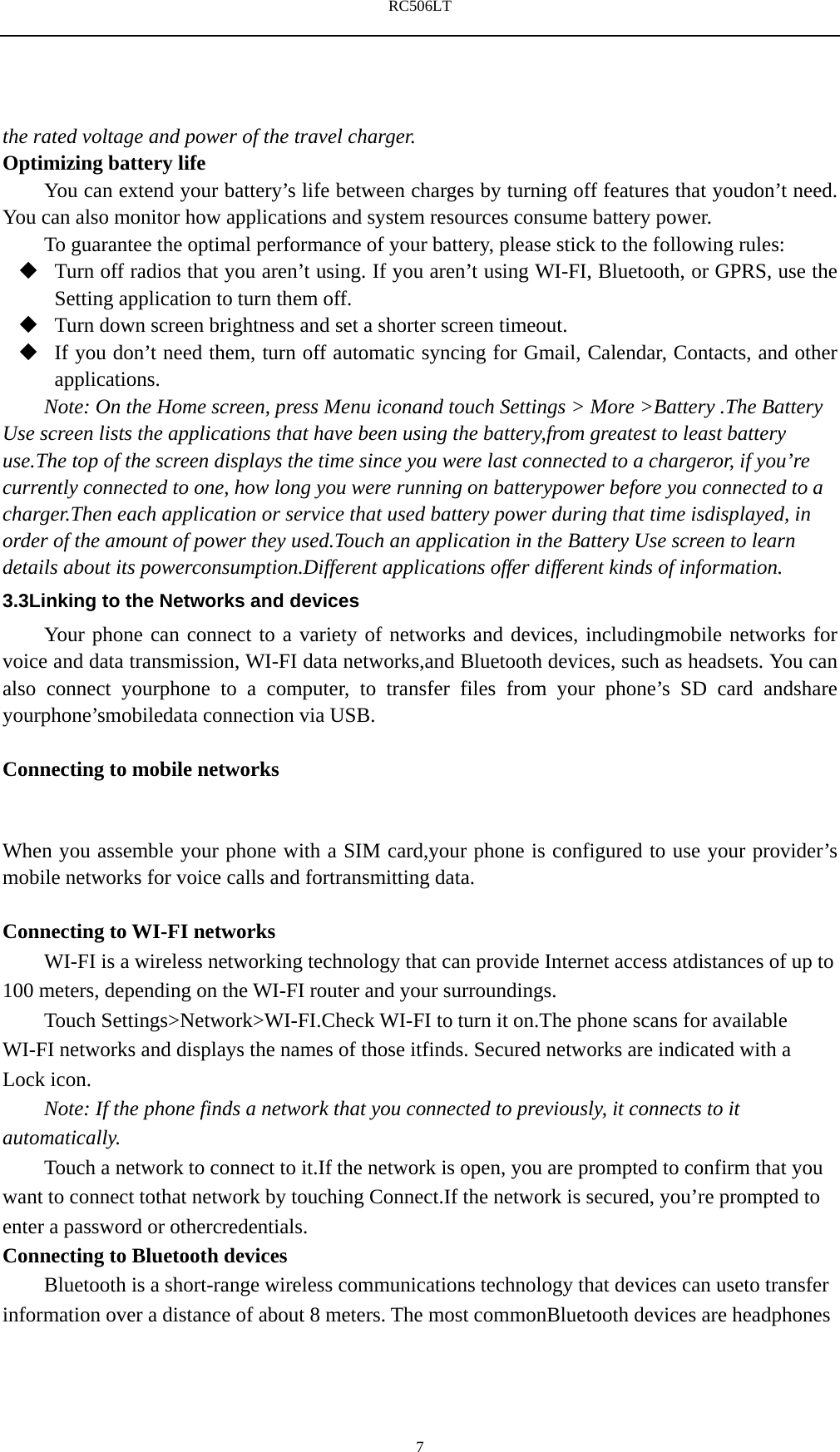

RC506LT 7the rated voltage and power of the travel charger. Optimizing battery life You can extend your battery’s life between charges by turning off features that youdon’t need. You can also monitor how applications and system resources consume battery power. To guarantee the optimal performance of your battery, please stick to the following rules:  Turn off radios that you aren’t using. If you aren’t using WI-FI, Bluetooth, or GPRS, use the Setting application to turn them off.  Turn down screen brightness and set a shorter screen timeout.  If you don’t need them, turn off automatic syncing for Gmail, Calendar, Contacts, and other applications. Note: On the Home screen, press Menu iconand touch Settings > More >Battery .The Battery Use screen lists the applications that have been using the battery,from greatest to least battery use.The top of the screen displays the time since you were last connected to a chargeror, if you’re currently connected to one, how long you were running on batterypower before you connected to a charger.Then each application or service that used battery power during that time isdisplayed, in order of the amount of power they used.Touch an application in the Battery Use screen to learn details about its powerconsumption.Different applications offer different kinds of information. 3.3Linking to the Networks and devices Your phone can connect to a variety of networks and devices, includingmobile networks for voice and data transmission, WI-FI data networks,and Bluetooth devices, such as headsets. You can also connect yourphone to a computer, to transfer files from your phone’s SD card andshare yourphone’smobiledata connection via USB. Connecting to mobile networks When you assemble your phone with a SIM card,your phone is configured to use your provider’s mobile networks for voice calls and fortransmitting data. Connecting to WI-FI networks WI-FI is a wireless networking technology that can provide Internet access atdistances of up to 100 meters, depending on the WI-FI router and your surroundings. Touch Settings>Network>WI-FI.Check WI-FI to turn it on.The phone scans for available WI-FI networks and displays the names of those itfinds. Secured networks are indicated with a Lock icon. Note: If the phone finds a network that you connected to previously, it connects to it automatically. Touch a network to connect to it.If the network is open, you are prompted to confirm that you want to connect tothat network by touching Connect.If the network is secured, you’re prompted to enter a password or othercredentials. Connecting to Bluetooth devices Bluetooth is a short-range wireless communications technology that devices can useto transfer information over a distance of about 8 meters. The most commonBluetooth devices are headphones

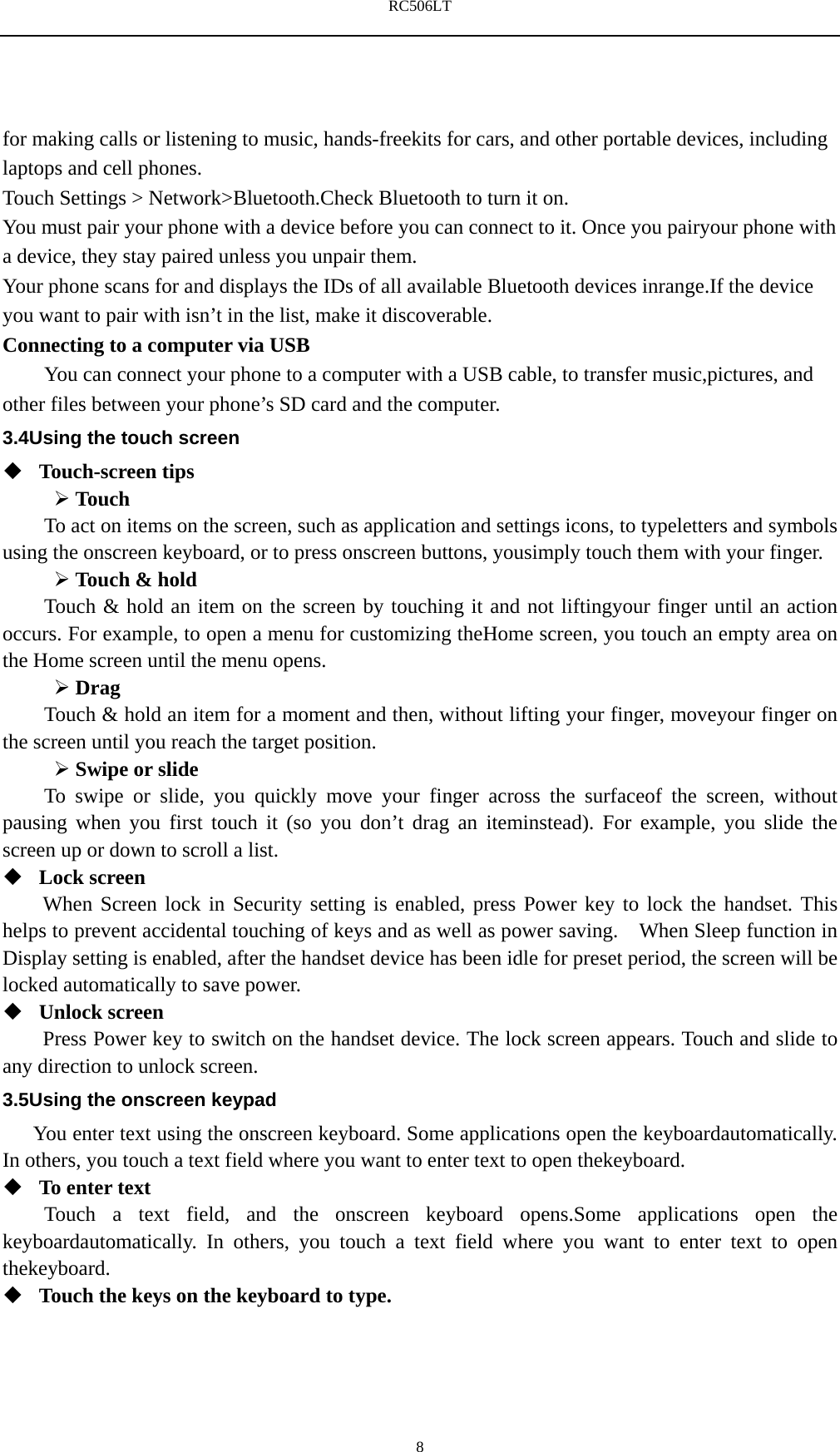

RC506LT 8for making calls or listening to music, hands-freekits for cars, and other portable devices, including laptops and cell phones. Touch Settings > Network>Bluetooth.Check Bluetooth to turn it on. You must pair your phone with a device before you can connect to it. Once you pairyour phone with a device, they stay paired unless you unpair them. Your phone scans for and displays the IDs of all available Bluetooth devices inrange.If the device you want to pair with isn’t in the list, make it discoverable. Connecting to a computer via USB You can connect your phone to a computer with a USB cable, to transfer music,pictures, and other files between your phone’s SD card and the computer. 3.4Using the touch screen  Touch-screen tips  Touch To act on items on the screen, such as application and settings icons, to typeletters and symbols using the onscreen keyboard, or to press onscreen buttons, yousimply touch them with your finger.  Touch & hold Touch & hold an item on the screen by touching it and not liftingyour finger until an action occurs. For example, to open a menu for customizing theHome screen, you touch an empty area on the Home screen until the menu opens.  Drag Touch & hold an item for a moment and then, without lifting your finger, moveyour finger on the screen until you reach the target position.  Swipe or slide To swipe or slide, you quickly move your finger across the surfaceof the screen, without pausing when you first touch it (so you don’t drag an iteminstead). For example, you slide the screen up or down to scroll a list.  Lock screen When Screen lock in Security setting is enabled, press Power key to lock the handset. This helps to prevent accidental touching of keys and as well as power saving. When Sleep function in Display setting is enabled, after the handset device has been idle for preset period, the screen will be locked automatically to save power.  Unlock screen Press Power key to switch on the handset device. The lock screen appears. Touch and slide to any direction to unlock screen. 3.5Using the onscreen keypad You enter text using the onscreen keyboard. Some applications open the keyboardautomatically. In others, you touch a text field where you want to enter text to open thekeyboard.  To enter text Touch a text field, and the onscreen keyboard opens.Some applications open the keyboardautomatically. In others, you touch a text field where you want to enter text to open thekeyboard.  Touch the keys on the keyboard to type.

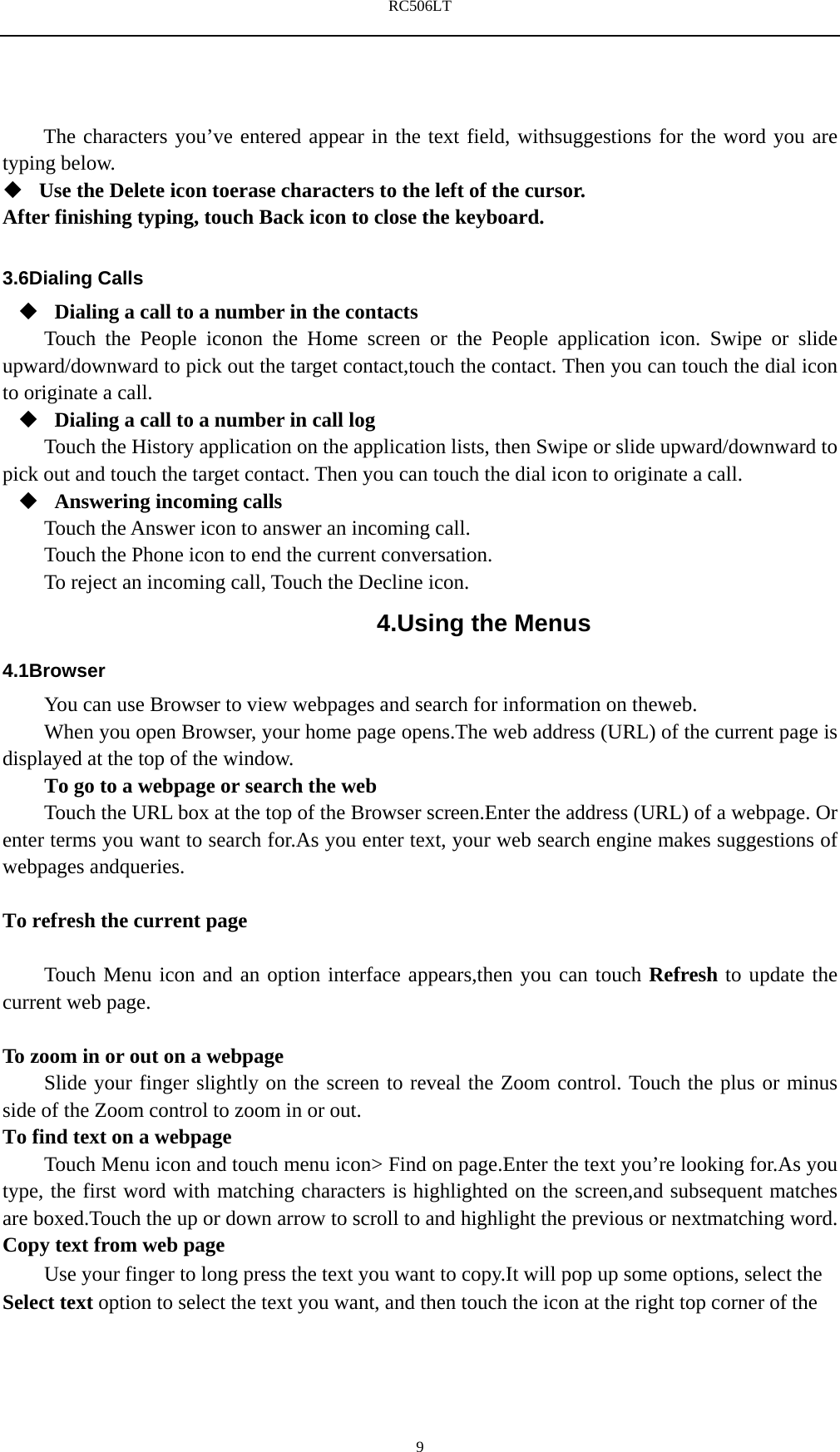

RC506LT 9The characters you’ve entered appear in the text field, withsuggestions for the word you are typing below.  Use the Delete icon toerase characters to the left of the cursor. After finishing typing, touch Back icon to close the keyboard. 3.6Dialing Calls  Dialing a call to a number in the contacts Touch the People iconon the Home screen or the People application icon. Swipe or slide upward/downward to pick out the target contact,touch the contact. Then you can touch the dial icon to originate a call.  Dialing a call to a number in call log Touch the History application on the application lists, then Swipe or slide upward/downward to pick out and touch the target contact. Then you can touch the dial icon to originate a call.  Answering incoming calls Touch the Answer icon to answer an incoming call. Touch the Phone icon to end the current conversation. To reject an incoming call, Touch the Decline icon. 4.Using the Menus 4.1Browser You can use Browser to view webpages and search for information on theweb. When you open Browser, your home page opens.The web address (URL) of the current page is displayed at the top of the window. To go to a webpage or search the web Touch the URL box at the top of the Browser screen.Enter the address (URL) of a webpage. Or enter terms you want to search for.As you enter text, your web search engine makes suggestions of webpages andqueries. To refresh the current page Touch Menu icon and an option interface appears,then you can touch Refresh to update the current web page. To zoom in or out on a webpage Slide your finger slightly on the screen to reveal the Zoom control. Touch the plus or minus side of the Zoom control to zoom in or out. To find text on a webpage Touch Menu icon and touch menu icon> Find on page.Enter the text you’re looking for.As you type, the first word with matching characters is highlighted on the screen,and subsequent matches are boxed.Touch the up or down arrow to scroll to and highlight the previous or nextmatching word. Copy text from web page Use your finger to long press the text you want to copy.It will pop up some options, select the Select text option to select the text you want, and then touch the icon at the right top corner of the

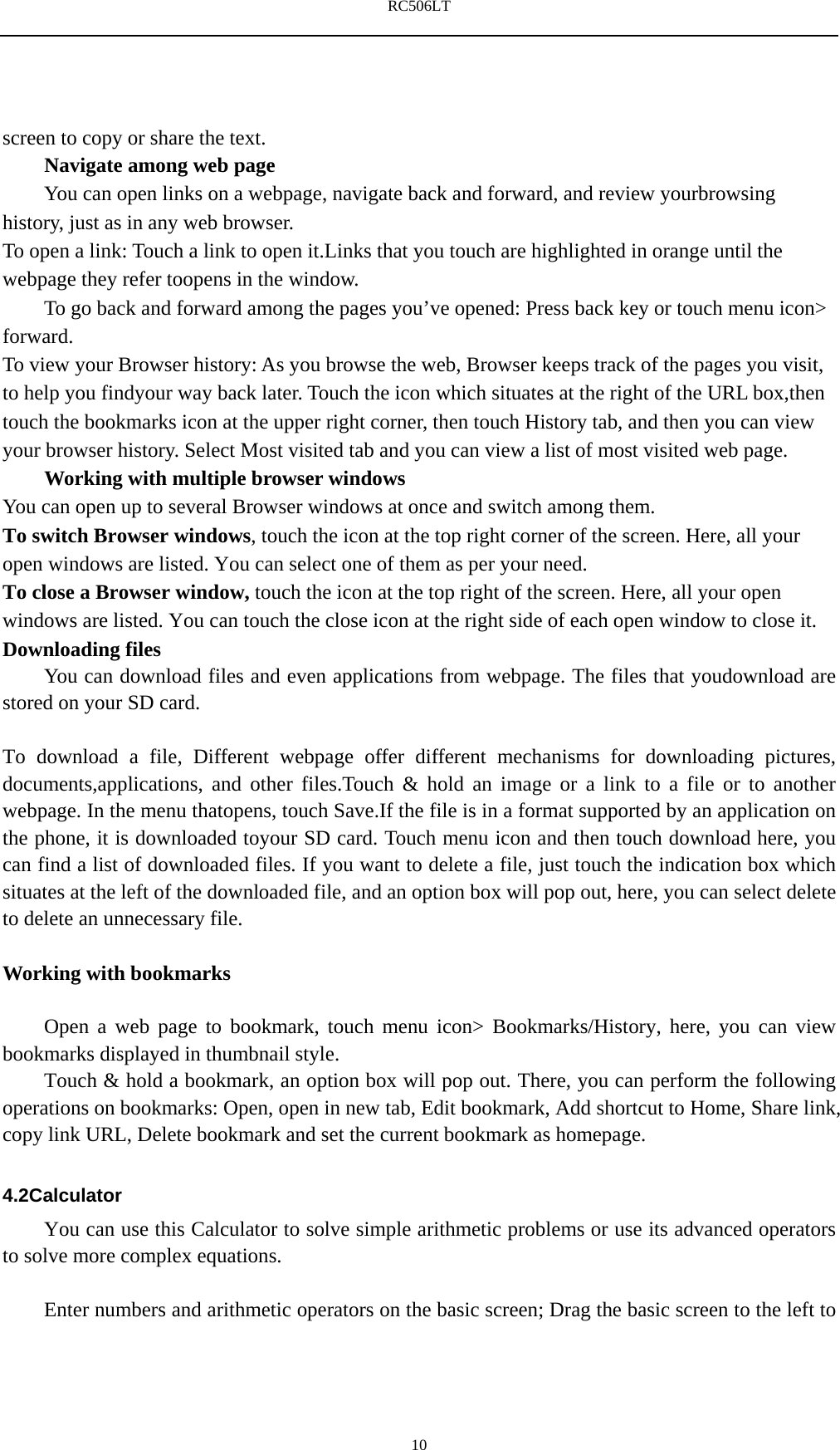

RC506LT 10screen to copy or share the text. Navigate among web page You can open links on a webpage, navigate back and forward, and review yourbrowsing history, just as in any web browser. To open a link: Touch a link to open it.Links that you touch are highlighted in orange until the webpage they refer toopens in the window. To go back and forward among the pages you’ve opened: Press back key or touch menu icon> forward. To view your Browser history: As you browse the web, Browser keeps track of the pages you visit, to help you findyour way back later. Touch the icon which situates at the right of the URL box,then touch the bookmarks icon at the upper right corner, then touch History tab, and then you can view your browser history. Select Most visited tab and you can view a list of most visited web page. Working with multiple browser windows You can open up to several Browser windows at once and switch among them. To switch Browser windows, touch the icon at the top right corner of the screen. Here, all your open windows are listed. You can select one of them as per your need. To close a Browser window, touch the icon at the top right of the screen. Here, all your open windows are listed. You can touch the close icon at the right side of each open window to close it. Downloading files You can download files and even applications from webpage. The files that youdownload are stored on your SD card. To download a file, Different webpage offer different mechanisms for downloading pictures, documents,applications, and other files.Touch & hold an image or a link to a file or to another webpage. In the menu thatopens, touch Save.If the file is in a format supported by an application on the phone, it is downloaded toyour SD card. Touch menu icon and then touch download here, you can find a list of downloaded files. If you want to delete a file, just touch the indication box which situates at the left of the downloaded file, and an option box will pop out, here, you can select delete to delete an unnecessary file. Working with bookmarks Open a web page to bookmark, touch menu icon> Bookmarks/History, here, you can view bookmarks displayed in thumbnail style. Touch & hold a bookmark, an option box will pop out. There, you can perform the following operations on bookmarks: Open, open in new tab, Edit bookmark, Add shortcut to Home, Share link, copy link URL, Delete bookmark and set the current bookmark as homepage. 4.2Calculator You can use this Calculator to solve simple arithmetic problems or use its advanced operators to solve more complex equations. Enter numbers and arithmetic operators on the basic screen; Drag the basic screen to the left to

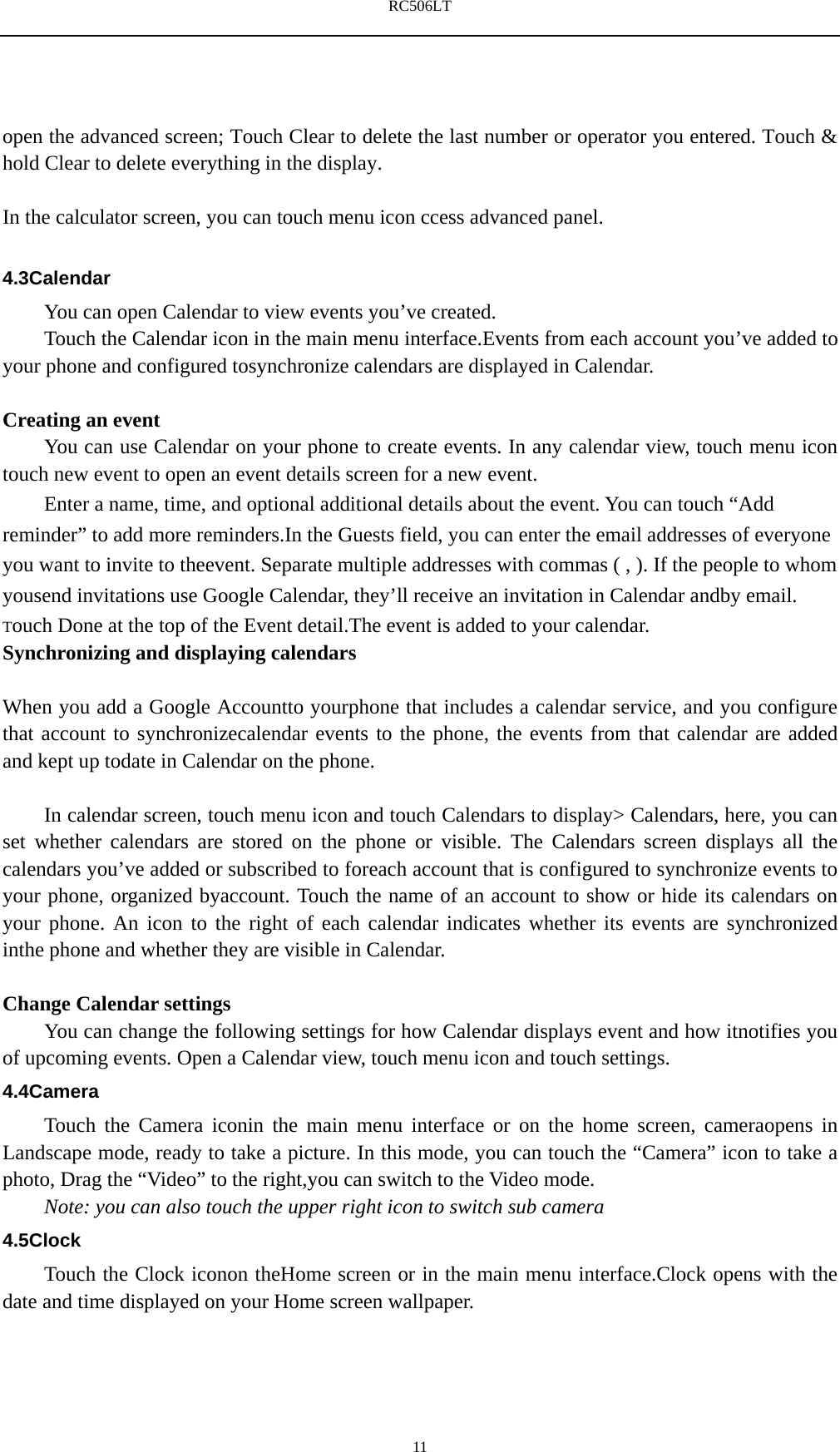

RC506LT 11 open the advanced screen; Touch Clear to delete the last number or operator you entered. Touch & hold Clear to delete everything in the display. In the calculator screen, you can touch menu icon ccess advanced panel. 4.3Calendar You can open Calendar to view events you’ve created. Touch the Calendar icon in the main menu interface.Events from each account you’ve added to your phone and configured tosynchronize calendars are displayed in Calendar. Creating an event You can use Calendar on your phone to create events. In any calendar view, touch menu icon touch new event to open an event details screen for a new event. Enter a name, time, and optional additional details about the event. You can touch “Add reminder” to add more reminders.In the Guests field, you can enter the email addresses of everyone you want to invite to theevent. Separate multiple addresses with commas ( , ). If the people to whom yousend invitations use Google Calendar, they’ll receive an invitation in Calendar andby email. Touch Done at the top of the Event detail.The event is added to your calendar. Synchronizing and displaying calendars When you add a Google Accountto yourphone that includes a calendar service, and you configure that account to synchronizecalendar events to the phone, the events from that calendar are added and kept up todate in Calendar on the phone. In calendar screen, touch menu icon and touch Calendars to display> Calendars, here, you can set whether calendars are stored on the phone or visible. The Calendars screen displays all the calendars you’ve added or subscribed to foreach account that is configured to synchronize events to your phone, organized byaccount. Touch the name of an account to show or hide its calendars on your phone. An icon to the right of each calendar indicates whether its events are synchronized inthe phone and whether they are visible in Calendar. Change Calendar settings You can change the following settings for how Calendar displays event and how itnotifies you of upcoming events. Open a Calendar view, touch menu icon and touch settings. 4.4Camera Touch the Camera iconin the main menu interface or on the home screen, cameraopens in Landscape mode, ready to take a picture. In this mode, you can touch the “Camera” icon to take a photo, Drag the “Video” to the right,you can switch to the Video mode. Note: you can also touch the upper right icon to switch sub camera 4.5Clock Touch the Clock iconon theHome screen or in the main menu interface.Clock opens with the date and time displayed on your Home screen wallpaper.

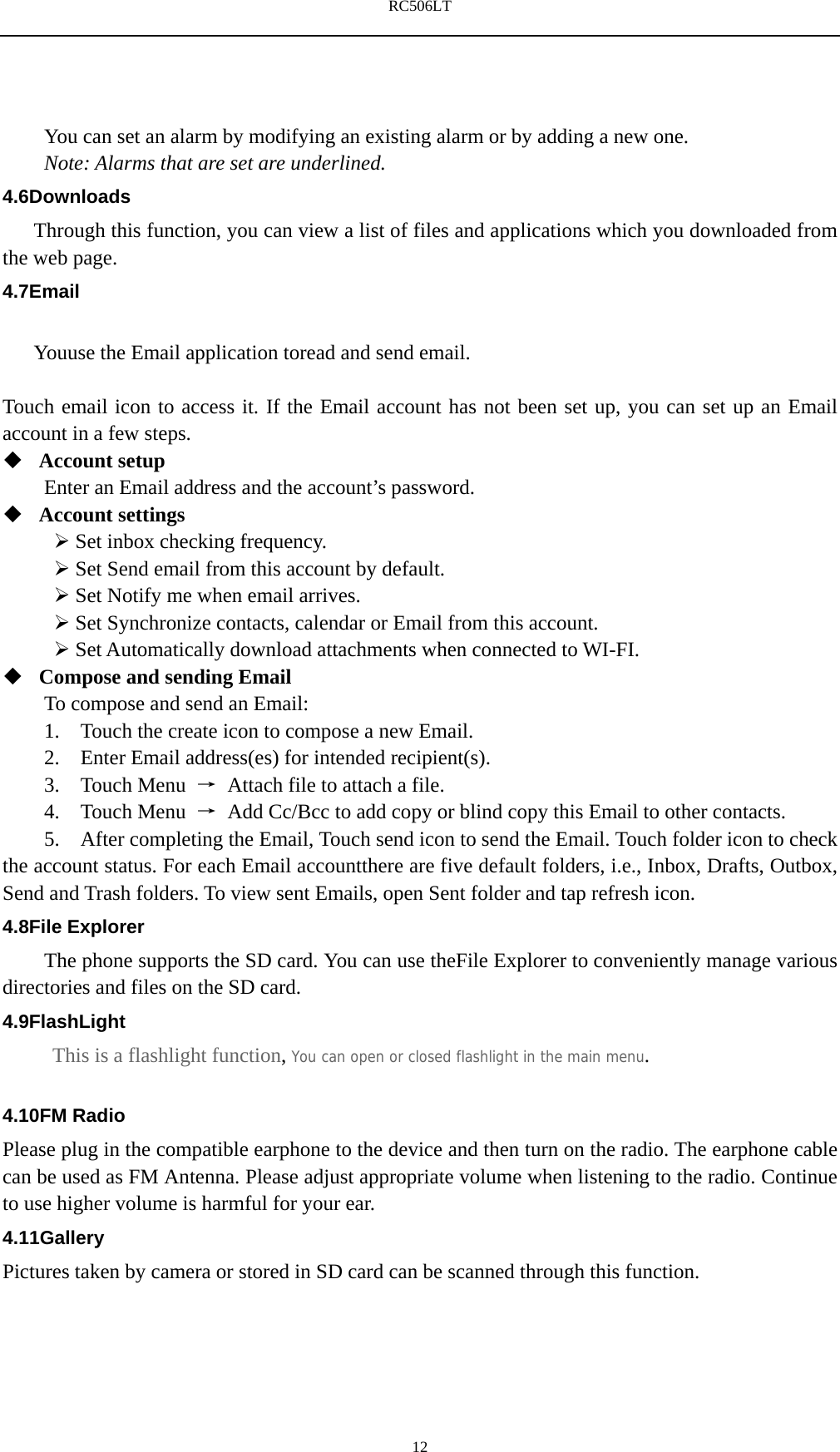

RC506LT 12You can set an alarm by modifying an existing alarm or by adding a new one. Note: Alarms that are set are underlined. 4.6Downloads Through this function, you can view a list of files and applications which you downloaded from the web page. 4.7Email Youuse the Email application toread and send email. Touch email icon to access it. If the Email account has not been set up, you can set up an Email account in a few steps.  Account setup Enter an Email address and the account’s password.  Account settings  Set inbox checking frequency.  Set Send email from this account by default.  Set Notify me when email arrives.  Set Synchronize contacts, calendar or Email from this account.  Set Automatically download attachments when connected to WI-FI.  Compose and sending Email To compose and send an Email: 1. Touch the create icon to compose a new Email. 2. Enter Email address(es) for intended recipient(s). 3. Touch Menu → Attach file to attach a file. 4. Touch Menu → Add Cc/Bcc to add copy or blind copy this Email to other contacts. 5. After completing the Email, Touch send icon to send the Email. Touch folder icon to check the account status. For each Email accountthere are five default folders, i.e., Inbox, Drafts, Outbox, Send and Trash folders. To view sent Emails, open Sent folder and tap refresh icon. 4.8File Explorer The phone supports the SD card. You can use theFile Explorer to conveniently manage various directories and files on the SD card. 4.9FlashLight This is a flashlight function, You can open or closed flashlight in the main menu. 4.10FM Radio Please plug in the compatible earphone to the device and then turn on the radio. The earphone cable can be used as FM Antenna. Please adjust appropriate volume when listening to the radio. Continue to use higher volume is harmful for your ear. 4.11Gallery Pictures taken by camera or stored in SD card can be scanned through this function.

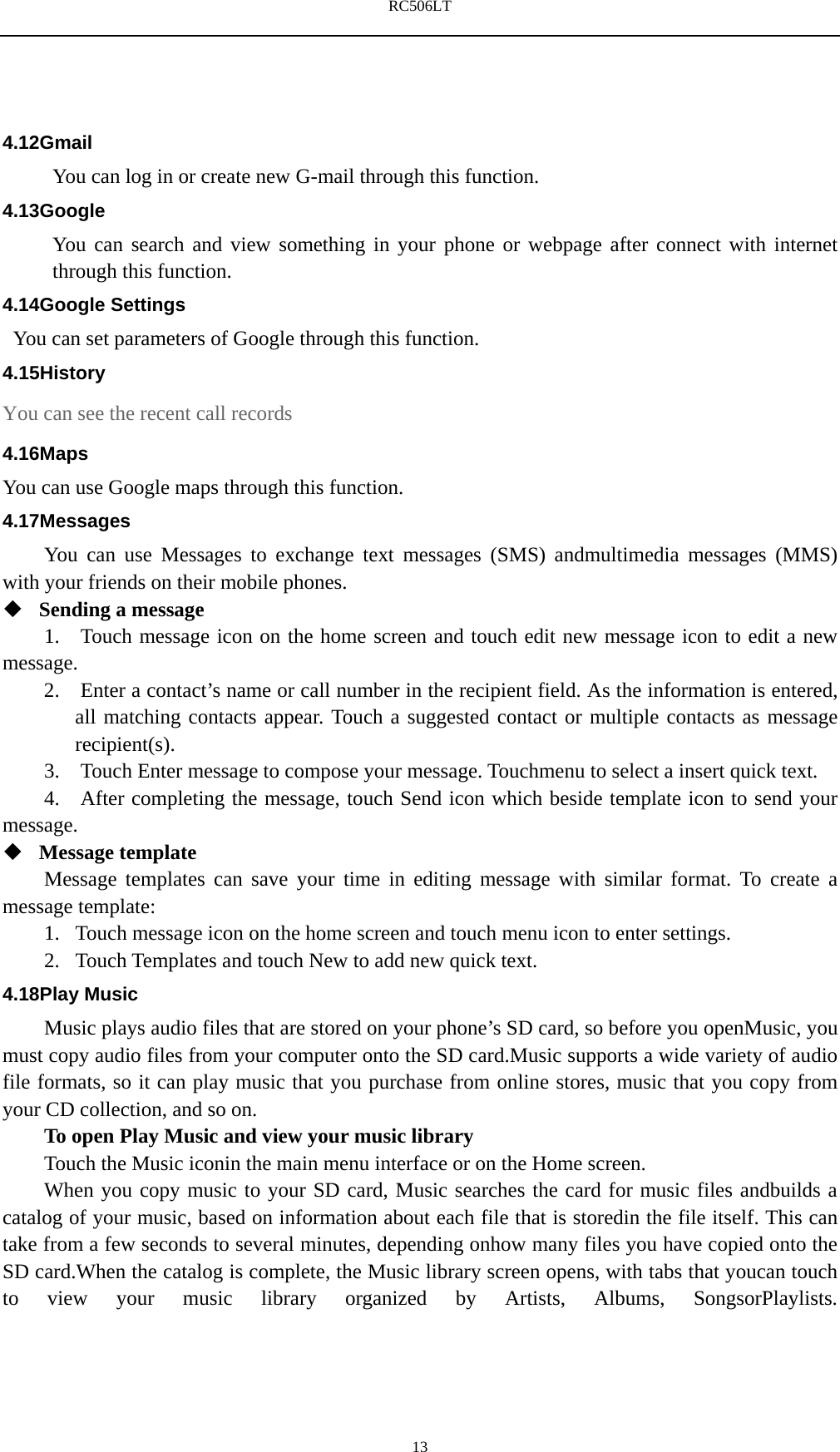

RC506LT 134.12Gmail You can log in or create new G-mail through this function. 4.13Google You can search and view something in your phone or webpage after connect with internet through this function. 4.14Google Settings You can set parameters of Google through this function. 4.15History You can see the recent call records 4.16Maps You can use Google maps through this function. 4.17Messages You can use Messages to exchange text messages (SMS) andmultimedia messages (MMS) with your friends on their mobile phones.  Sending a message 1. Touch message icon on the home screen and touch edit new message icon to edit a new message. 2. Enter a contact’s name or call number in the recipient field. As the information is entered, all matching contacts appear. Touch a suggested contact or multiple contacts as message recipient(s). 3. Touch Enter message to compose your message. Touchmenu to select a insert quick text. 4. After completing the message, touch Send icon which beside template icon to send your message.  Message template Message templates can save your time in editing message with similar format. To create a message template: 1. Touch message icon on the home screen and touch menu icon to enter settings. 2. Touch Templates and touch New to add new quick text. 4.18Play Music Music plays audio files that are stored on your phone’s SD card, so before you openMusic, you must copy audio files from your computer onto the SD card.Music supports a wide variety of audio file formats, so it can play music that you purchase from online stores, music that you copy from your CD collection, and so on. To open Play Music and view your music library Touch the Music iconin the main menu interface or on the Home screen. When you copy music to your SD card, Music searches the card for music files andbuilds a catalog of your music, based on information about each file that is storedin the file itself. This can take from a few seconds to several minutes, depending onhow many files you have copied onto the SD card.When the catalog is complete, the Music library screen opens, with tabs that youcan touch to view your music library organized by Artists, Albums, SongsorPlaylists.

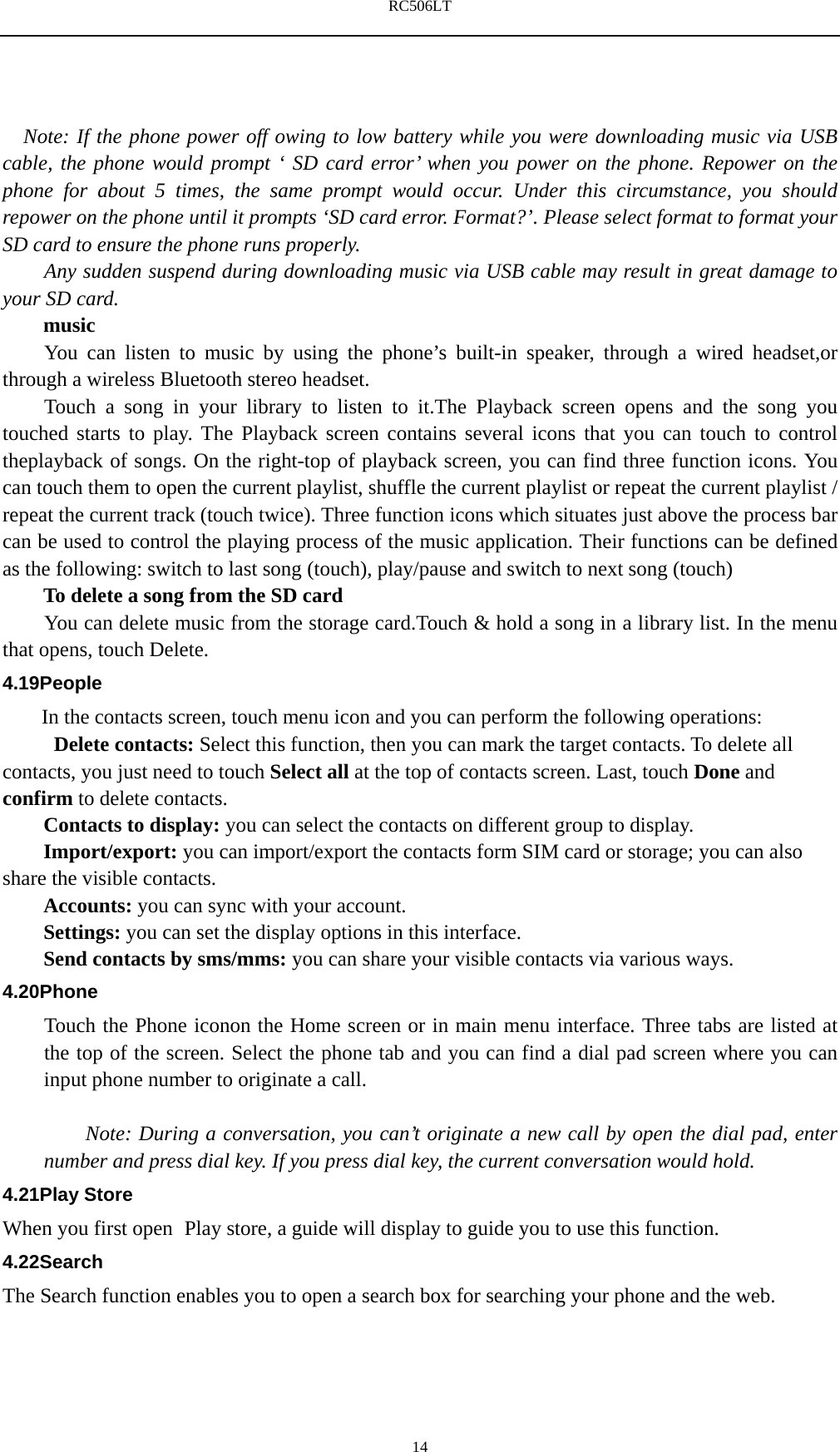

RC506LT 14 Note: If the phone power off owing to low battery while you were downloading music via USB cable, the phone would prompt ‘ SD card error’ when you power on the phone. Repower on the phone for about 5 times, the same prompt would occur. Under this circumstance, you should repower on the phone until it prompts ‘SD card error. Format?’. Please select format to format your SD card to ensure the phone runs properly. Any sudden suspend during downloading music via USB cable may result in great damage to your SD card. music You can listen to music by using the phone’s built-in speaker, through a wired headset,or through a wireless Bluetooth stereo headset. Touch a song in your library to listen to it.The Playback screen opens and the song you touched starts to play. The Playback screen contains several icons that you can touch to control theplayback of songs. On the right-top of playback screen, you can find three function icons. You can touch them to open the current playlist, shuffle the current playlist or repeat the current playlist / repeat the current track (touch twice). Three function icons which situates just above the process bar can be used to control the playing process of the music application. Their functions can be defined as the following: switch to last song (touch), play/pause and switch to next song (touch) To delete a song from the SD card You can delete music from the storage card.Touch & hold a song in a library list. In the menu that opens, touch Delete. 4.19People In the contacts screen, touch menu icon and you can perform the following operations: Delete contacts: Select this function, then you can mark the target contacts. To delete all contacts, you just need to touch Select all at the top of contacts screen. Last, touch Done and confirm to delete contacts. Contacts to display: you can select the contacts on different group to display. Import/export: you can import/export the contacts form SIM card or storage; you can also share the visible contacts. Accounts: you can sync with your account. Settings: you can set the display options in this interface. Send contacts by sms/mms: you can share your visible contacts via various ways. 4.20Phone Touch the Phone iconon the Home screen or in main menu interface. Three tabs are listed at the top of the screen. Select the phone tab and you can find a dial pad screen where you can input phone number to originate a call. Note: During a conversation, you can’t originate a new call by open the dial pad, enter number and press dial key. If you press dial key, the current conversation would hold. 4.21Play Store When you first open Play store, a guide will display to guide you to use this function. 4.22Search The Search function enables you to open a search box for searching your phone and the web.

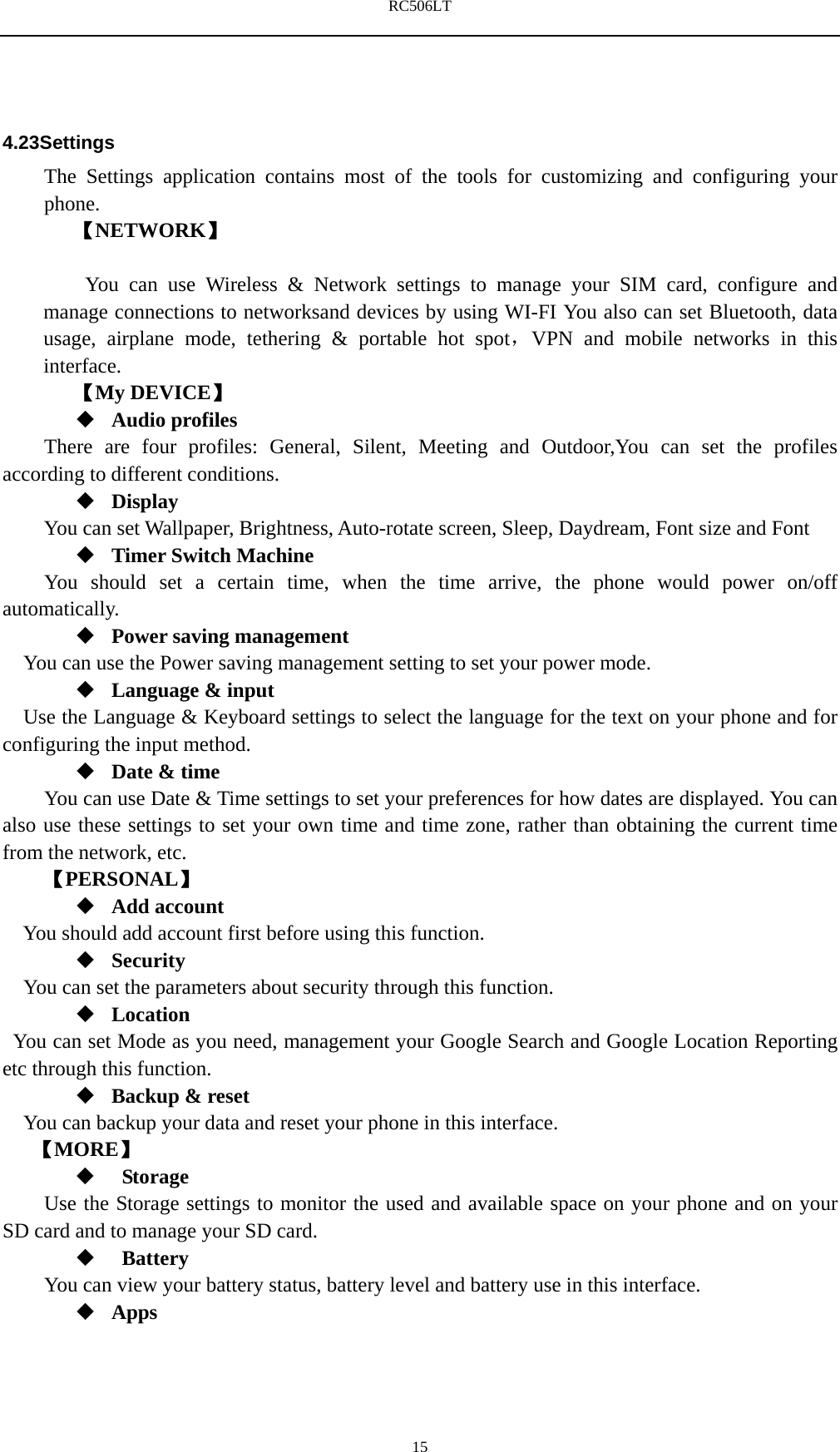

RC506LT 154.23Settings The Settings application contains most of the tools for customizing and configuring your phone. 【NETWORK】 You can use Wireless & Network settings to manage your SIM card, configure and manage connections to networksand devices by using WI-FI You also can set Bluetooth, data usage, airplane mode, tethering & portable hot spot，VPN and mobile networks in this interface. 【My DEVICE】  Audio profiles There are four profiles: General, Silent, Meeting and Outdoor,You can set the profiles according to different conditions.  Display You can set Wallpaper, Brightness, Auto-rotate screen, Sleep, Daydream, Font size and Font  Timer Switch Machine You should set a certain time, when the time arrive, the phone would power on/off automatically.  Power saving management You can use the Power saving management setting to set your power mode.  Language & input Use the Language & Keyboard settings to select the language for the text on your phone and for configuring the input method.  Date & time You can use Date & Time settings to set your preferences for how dates are displayed. You can also use these settings to set your own time and time zone, rather than obtaining the current time from the network, etc. 【PERSONAL】  Add account You should add account first before using this function.  Security You can set the parameters about security through this function.  Location You can set Mode as you need, management your Google Search and Google Location Reporting etc through this function.  Backup & reset You can backup your data and reset your phone in this interface. 【MORE】  Storage Use the Storage settings to monitor the used and available space on your phone and on your SD card and to manage your SD card.  Battery You can view your battery status, battery level and battery use in this interface.  Apps

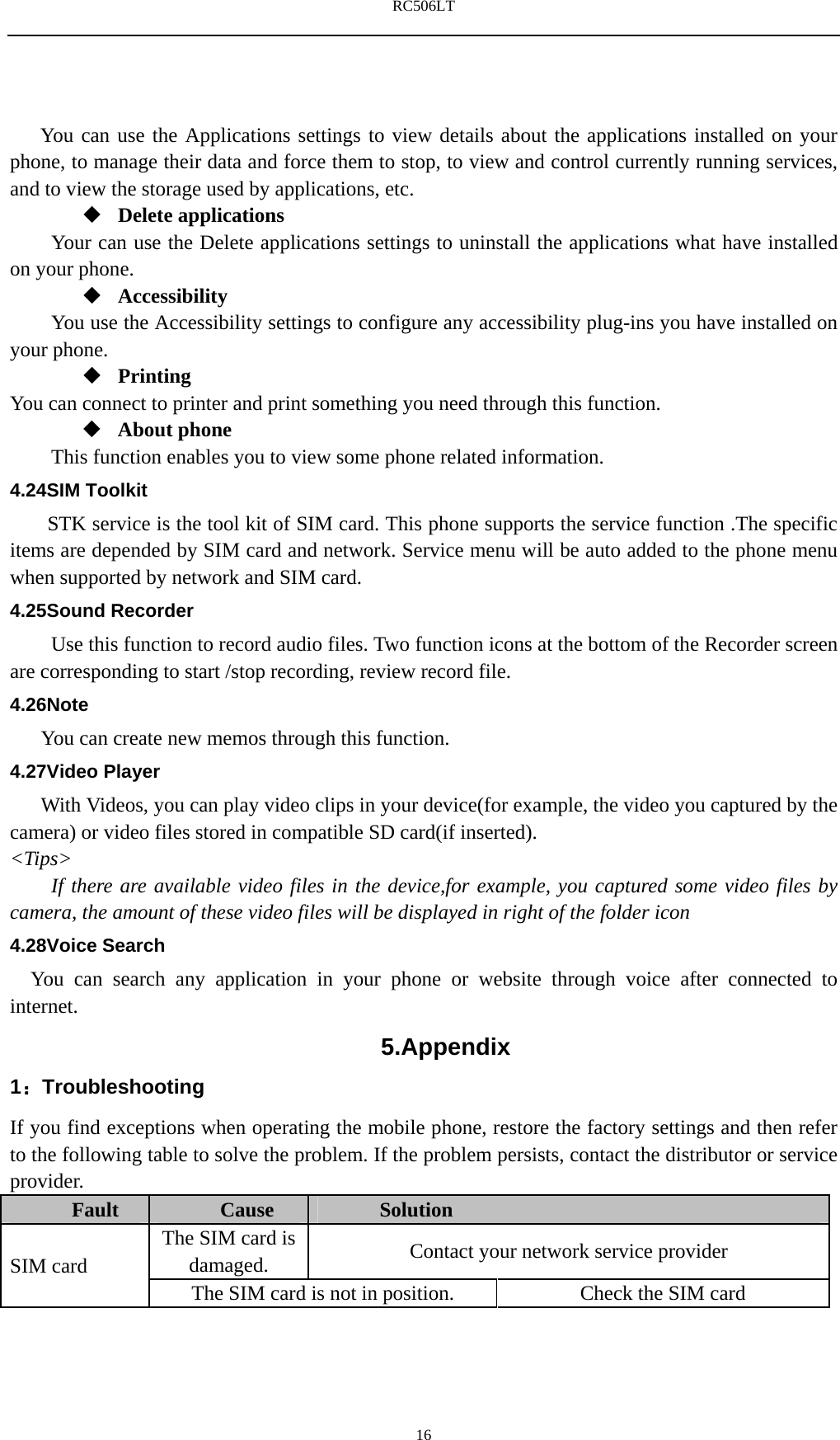

RC506LT 16You can use the Applications settings to view details about the applications installed on your phone, to manage their data and force them to stop, to view and control currently running services, and to view the storage used by applications, etc.  Delete applications Your can use the Delete applications settings to uninstall the applications what have installed on your phone.  Accessibility You use the Accessibility settings to configure any accessibility plug-ins you have installed on your phone.  Printing You can connect to printer and print something you need through this function.  About phone This function enables you to view some phone related information. 4.24SIM Toolkit STK service is the tool kit of SIM card. This phone supports the service function .The specific items are depended by SIM card and network. Service menu will be auto added to the phone menu when supported by network and SIM card. 4.25Sound Recorder Use this function to record audio files. Two function icons at the bottom of the Recorder screen are corresponding to start /stop recording, review record file. 4.26Note You can create new memos through this function. 4.27Video Player With Videos, you can play video clips in your device(for example, the video you captured by the camera) or video files stored in compatible SD card(if inserted). <Tips> If there are available video files in the device,for example, you captured some video files by camera, the amount of these video files will be displayed in right of the folder icon 4.28Voice Search You can search any application in your phone or website through voice after connected to internet. 5.Appendix 1：Troubleshooting If you find exceptions when operating the mobile phone, restore the factory settings and then refer to the following table to solve the problem. If the problem persists, contact the distributor or service provider. Fault Cause Solution SIM card The SIM card is damaged. Contact your network service provider The SIM card is not in position. Check the SIM card

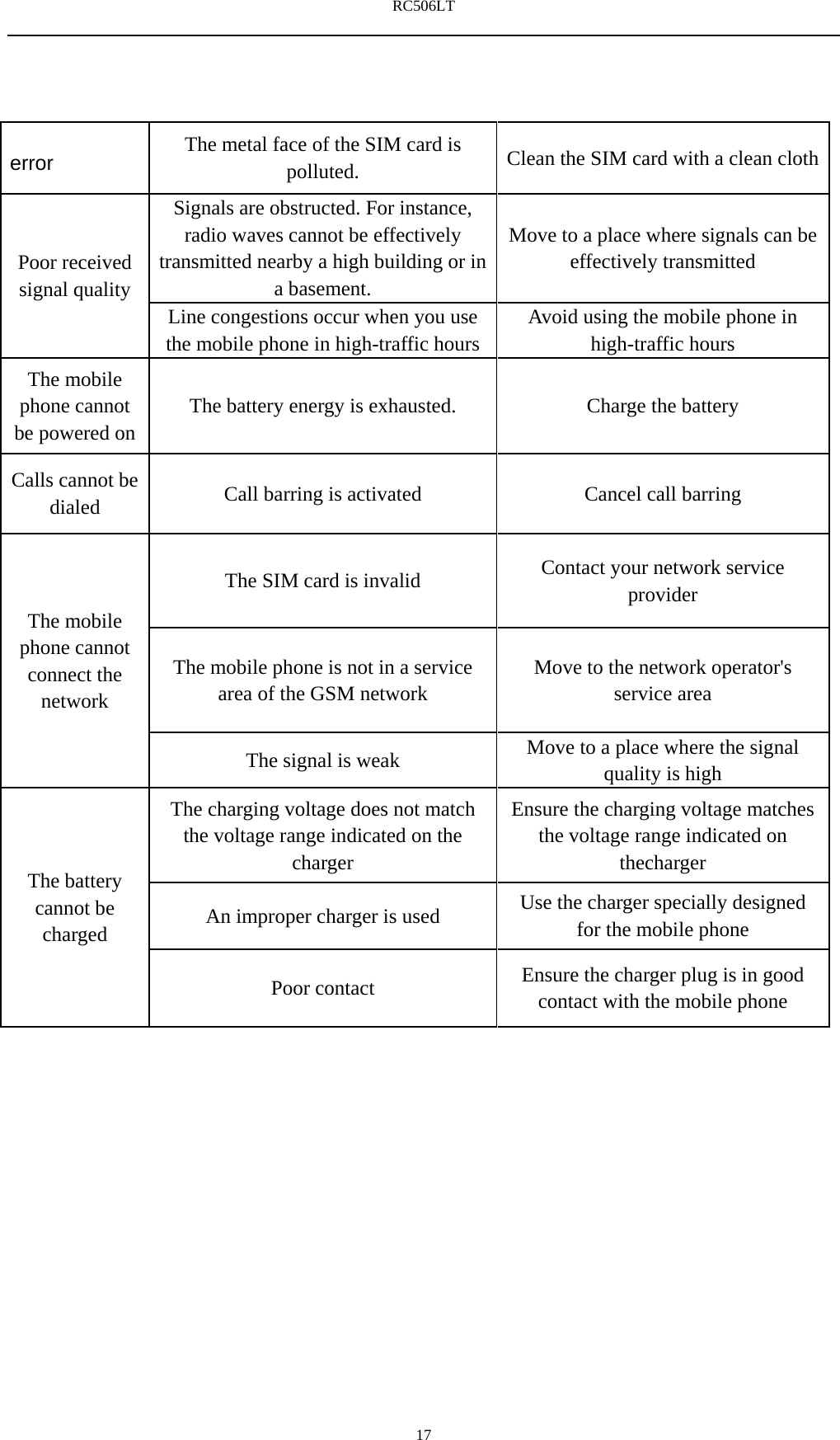

RC506LT 17 error The metal face of the SIM card is polluted. Clean the SIM card with a clean clothPoor received signal quality Signals are obstructed. For instance, radio waves cannot be effectively transmitted nearby a high building or in a basement. Move to a place where signals can be effectively transmitted Line congestions occur when you use the mobile phone in high-traffic hours Avoid using the mobile phone in high-traffic hours The mobile phone cannot be powered on The battery energy is exhausted. Charge the battery Calls cannot be dialed Call barring is activated Cancel call barring The mobile phone cannot connect the network The SIM card is invalid Contact your network service provider The mobile phone is not in a service area of the GSM network Move to the network operator's service area The signal is weak Move to a place where the signal quality is high The battery cannot be charged The charging voltage does not match the voltage range indicated on the charger Ensure the charging voltage matches the voltage range indicated on thecharger An improper charger is used Use the charger specially designed for the mobile phone Poor contact Ensure the charger plug is in good contact with the mobile phone

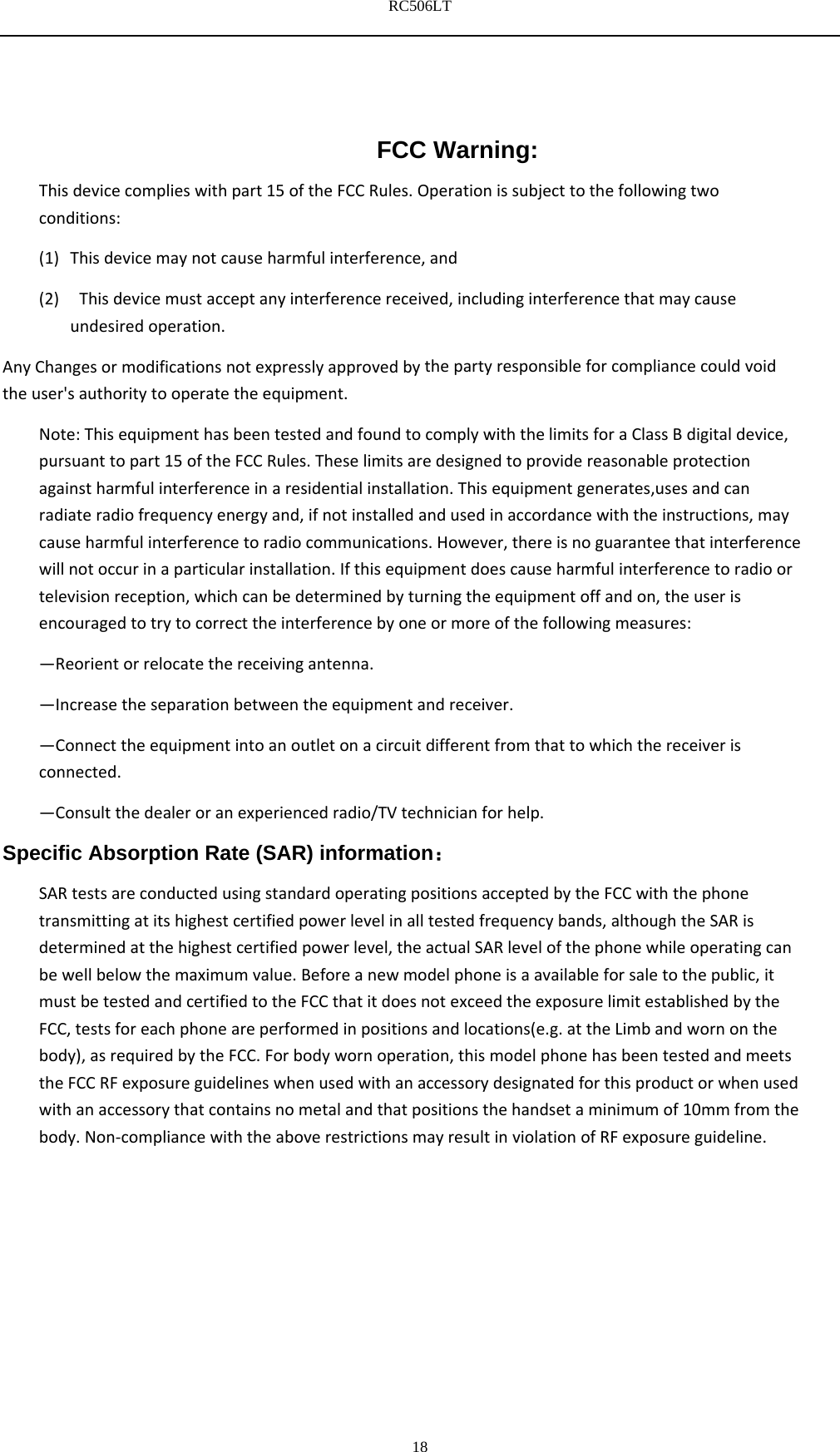

RC506LT 18FCC Warning: Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1) Thisdevicemaynotcauseharmfulinterference,and(2) Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser'sauthoritytooperatetheequipment.Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:—Reorientorrelocatethereceivingantenna.—Increasetheseparationbetweentheequipmentandreceiver.—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.Specific Absorption Rate (SAR) information： SARtestsareconductedusingstandardoperatingpositionsacceptedbytheFCCwiththephonetransmittingatitshighestcertifiedpowerlevelinalltestedfrequencybands,althoughtheSARisdeterminedatthehighestcertifiedpowerlevel,theactualSARlevelofthephonewhileoperatingcanbewellbelowthemaximumvalue.Beforeanewmodelphoneisaavailableforsaletothepublic,itmustbetestedandcertifiedtotheFCCthatitdoesnotexceedtheexposurelimitestablishedbytheFCC,testsforeachphoneareperformedinpositionsandlocations(e.g.attheLimbandwornonthebody),asrequiredbytheFCC.Forbodywornoperation,thismodelphonehasbeentestedandmeetstheFCCRFexposureguidelineswhenusedwithanaccessorydesignatedforthisproductorwhenusedwithanaccessorythatcontainsnometalandthatpositionsthehandsetaminimumof10mmfromthebody.Non‐compliancewiththeaboverestrictionsmayresultinviolationofRFexposureguideline.
