REMIN N

8' ELECTRIC=TElESCOPING POLE SAW

INTRODUCTION

Your Remington Telesooping Pole Saw is a

dual purpose product. The electric chain

saw is a separate operating unit when not

assembled to the telescoping pole. Before

operating either the chain saw or the Pole

Saw, make certain you read and understand

all Safety Warnings.

ASAFETY

WARNINGS

Make Certain you read and

understand all Safety Warnings

on pages 2 and 3. Improper use

of this Pole Saw can cause severe

injury or death from fire, electrical

shock, body contactwRh moving

chain, or falling wood.

BEFORE OPERATING SAW

1. Read and understand both chain saw

and Pole Saw manuals before operat-

ing saws.

2. Watch what you are doing. Usa com-

mon sense. Do not operate saw when

you aretired.

3. Use chain saw for cutting wood only.

Do not use chain saw for purpose not

intended. Do not use for cutting non-

wood items.

4. Only well-iusmtcted adults should op-

erate Pole Saw or chain saw. Nero al-

low children to operate saws.

5. Use only electrical voltage noted on

model plate of chain saw..

6. Use only extension cords marked for

outdoor use. See Operating Chain Saw

section of chain saw manual for exten-

sion cord requirements,

7. Do not operate Polo Saw or chain saw

•while under the influence of alcohol,

medication, or drugs

•in rain or in damp or wet areas

• if tfiggex does not turn saw on and

off. Chain must stop moving when

you release trigger. Haye faulty

switch replaced by authorizedservice

center.See chain saw manual for list-

ing of authorized service centers.

•whiin in a hurry

•wl_e in tree or on a ladder

•while on aerial booms, buckets or 5.

pisiforms

8. Wear sung-fittlng clothes when oper-

ating Pole Saw or chain saw. Do_not

wear loose clothing or jewelry. They 6.

can get caught in moving saw chain.

9. Wear the following safety gear when 7.

operatingsaws:

• heavy-duty gloves (wear rubber

gloves when working outdoors) 8.

• steel-toed safety footweur with non-

skid soles 9.

• eye protection such as safety glasses,

goggles, or face screen 10.

•safetybardhat ,

•ear mufflers or ear plugs

•haircoveting to contain long hair 11.

• faceor dust mask (ifwortdng in dasty

areas)

10. Before cutting, always provide the fol- 12.

lowing:

•clearwork area

•secure footing

• planned retreat path from falling 13.

limbs

II. Inspecttree hefore trimming. Make al-

lowance for branches to fall freely to

the ground.

12. Do not Use your Polo Saw to fell sap- 14.

lings. Use the chain saw without pole

attachemenL .::7"i _

13. To reducethe risk of electric shock, this

saw has a polarized plug (one blade is

widerthan the other). This plug will fit

in a polarized oudet only one way. If

the ping does not fit fully in the oudet

of your extension cord, reverse the

plug. If it still does not fit, a polarized 15.

extension cord will be necessary. Do

not change the plug in any way.

• where highly flammable liquids or

gasesarapresent WHILE OPERATING POLE SAW

•if pule or saw is damaged, edjusted ....... ,.... -_- ..........

1. Ot_y tutti* Ub_ _;UI_dLUUU _cnse willie

wrong, or not fully and securely ..... -_pe._dn_ _uni-L ............

assembled •-"="-" _`

2. Keepwork areaclean.Clutteredareas

inviteinjuries.

3. Be aware ofexteusion cord while op-

orating chain saw. Be cerefiq not to trip

over €ord. Keep cord awa'. _m chain

and operator at all times.

- 4. Keep children, animals, and bystand-

ers away from Pole Saw and extension

cord.OnlyPoleSaw usershouldhein

work area.

Do not use the Pole Saw to cut down

trees. Use the chain saw without pole

attachment and only if you are trained

or have expert help.

Do not use near power lines. Keep at

least I0 feet away fromelectricallines.

GripPoleSaw securely-onehandon

thepole,theotheronthehandle.

Keep fingeroff_gges undlreadyto

make cut.

BeforestartingPoleSaw, make sure

chainis nottounldnganything.

Toguardagainstelec=icalshock,avoid

body contactwithgroundedobjects

suchaspipes,fences,andmetalposm.

Keepallparrsofbodyawayfromchain

when saw isrunning.

Do not force chain saw while cutting.

Apply light pressure.It will do thejob

better and safer at the rate for which it

was intended.

When cuttinglimbortreetrunkthatis

under tension, use extreme caution.Be

alert for wood springingback. When

wood tensionisreleased,limbcould

springbackand strikeoperatorcaus-

ingsevereinjuryordeath.

CarryPoleSaw fromoneplacetoan-

other

• withunitunplugged

• with telescoping pole returned to

shortest position

• by holding pole at balance point

(close to saw end)

•with guide bar and chain to rear

Do notcutsmallbrushand saplings

with the Pole Saw. Use the chainsaw

only, with extreme care. Slender mat-

ter may catch in the chain and be

whippedtoward you.Thiscouldalso

pull youoff balance.

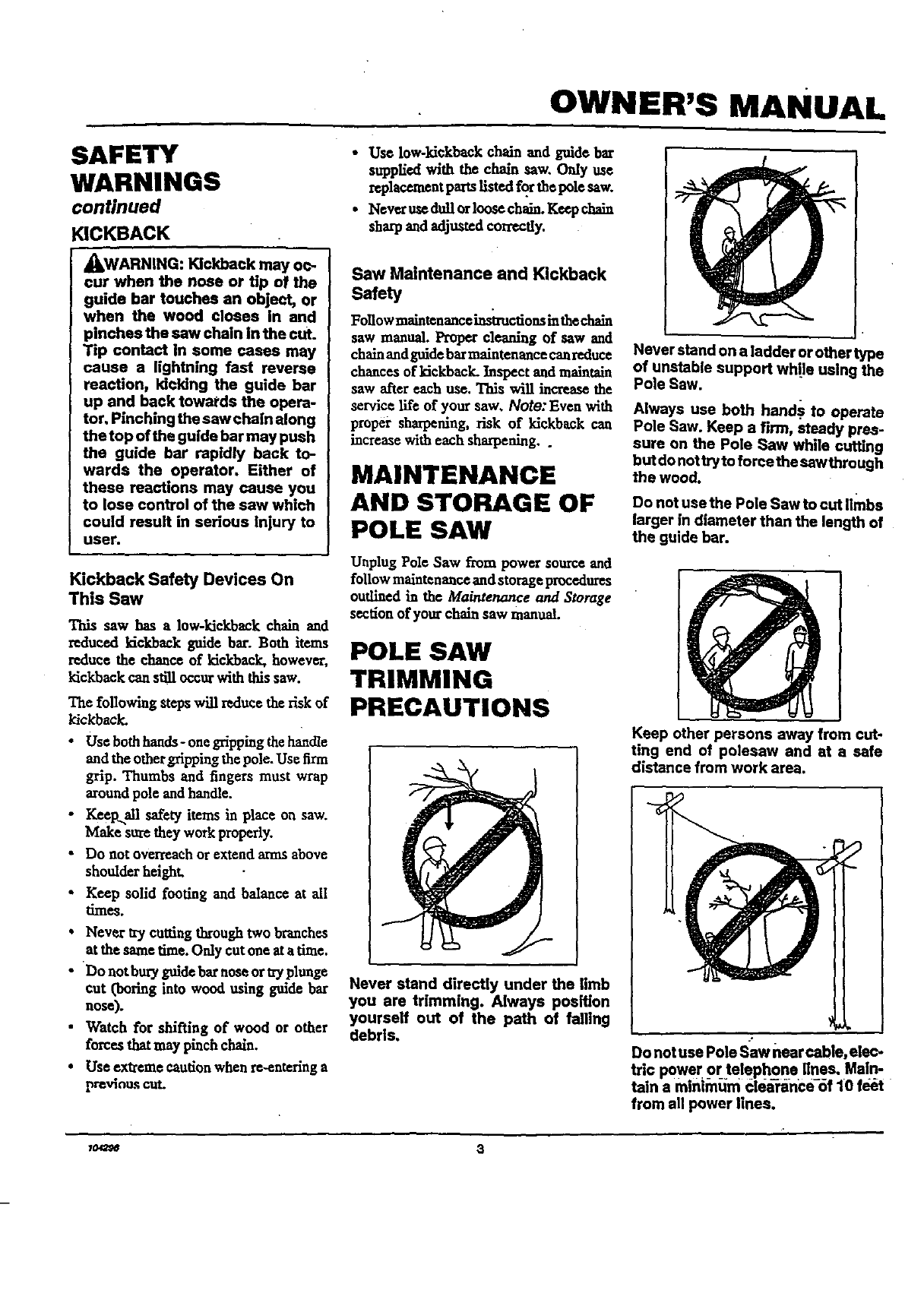

OWNER'S MANUAL

SAFETY

WARNINGS

continued

KICKBACK

_WARNING: Kickback may oc-

cur when the nose or tip of the

guide bar touches an object, or

when the wood closes In and

pinches the saw chain in the cut.

Tip contact in some cases may

cause a lightning fast reverse

reaction, Idcldng the guide bar

up and back towards the opera-

tor, Pinching the saw chain along

thetop of the guide bar may push

the guide bar rapidly back to-

wards the operator. Either of

these reactions may cause you

to lose control of the saw which

could result in serious Injury to

user.

Kickback Safety Devices On

This Saw

This saw has a low-kickback chain and

reducedkickbackguidebar.Both items

reduce the chance of kickback, however,

kickback can still occur with this saw.

The following steps will reduce the risk of

kickback..

• Use both hands- one gripping the han_e

andthe otherg_ppingthepole.Use firm

grip. Thumbs and fingers must wrap

around pole and handle.

•_ep,..a]lsafeP]items in place on saw.

Make sum they work properly.

• Do not overreach or extend arms above

shoulder height.

•Keep solid footing and balance at all

times.

• Never try cu_ingthroughtwo branches

at the sametime. Only cutone at atime.

•Do not burygnidebar neseorIzyplunge

cut (boring into wood using guide bar

nose).

•Watch for sldt'tingof wood or other

forces that may pinch chain.

•Use ex_¢me caution when re-entering a

•Use low-kickbackchainand guidebar

suppliedwith thechain saw, Only use

replacementpartsListedf_ the polesaw.

•Neveru_ dni] c_loo_ chain.Kecp chain

sharp and adjusted correctly.

Saw Maintenance and Kickback

Safety

Followmaintenanceinstxuctiousinthechain

saw manual.Propercleaning of saw and

chainandguidebarmaintenancecanreduce

chancesofkickback.Inspectandmaintain

saw after each use. This will increase the

service life of your saw, Note: Even with

propersharpening,riskof kickbackcan

increase with each sha_aning..

MAINTENANCE

AND STORAGE OF

POLE SAW

UnplugPoleSaw from power sourceand

followmaintananc¢ andstorageprocedures

outlined in the Maintenance and Storage

section of yoor chain saw manual.

POLE SAW

TRIMMING

PRECAUTIONS

Never stand directly under the limb

you are trimming. Always position

yourself out of the path of falling

debris.

Never stand on a ladder or other type

of unstable support while using the

Pole Saw.

Always use both hand_ to operate

Pole Saw. Keep a firm, steady pres-

sure on the Pole Saw while cutting

but do nottry to force the sawthrough

the wood.

Do not use the Pole Saw to cut limbs

larger in diameter than the length of

the guide bar.

Keep other persons away from cut-

ting end of polesaw and at a safe

distance from work area.

Do not use Pole Saw near cable, elec-

tric power or telephone lines. Main-

taln a mlni_num ciea-rance-of 10 f_t

from all power lines.

Io_ 3

REMIN N

8' ELECTRIC TELESCOPING POLE SAW

PRODUCT

IDENTIFICATION

HandGuard

Saw Chain

Gr_ Area

Power

Cor_

Coupling_.

Nut

Inner Pole

Guide Bar

HandleBracket

OuterPole

Tdgger

Switch

Lock-out

_Power Cord

Figure 1-Pole Saw Product Identification

POLE SAW NAMES

AND TERMS

Coupling Nut Thieaded collar(loosento

slide inner pole, dghtea to hold pole in

position).

Guide Bar Metal bar that extends from

saw body. The guide bar supports and guide*

chain.

Inner Pole The moveable section of rob-

ing m which the saw is attached.

Kickback Quick backward and upward

motion of guide bar. Kickback may occur

when tip of guide bar touches an object

wkile chain is moving. The guide bar will

kick up and back towards operator.

Oiler Control System for oiling guidebar

andchain.

Outer Pole Retains the moveable inner

pole.

Saw Chain (Chain) Loopofchef.ring

cutting teeth for cutting wood. The motor

ddve.sChain.The guidebar supports chain.

Sprocket Toothed wheel that drives chain.

Switch Device thatcompletes orinterrupts

electrical circuit to motor of saw.

Switch Lockout Devine that reduces

accidentalstartingof saw.

Trigger Device that turns saw on and off.

Squeezing trigger turns saw on.

Releasing trigger turns saw off.

Trimming (Pruning) Processof cutting

limb(s) from a living tree.

Undercut An upward cut fzom underside

of log or limb. This is done while in normal

cutting position and cutting with top of

guide bar.

UNPACKING

1. Remove allitems from carton.

2. Chock allitems for any aldpp'mg dam-

age, If you find any damage or ff any

parts are missing, promptly inform

deelar where you bought the Pole Saw.

ASSEMBLY

The plastic hardware bag for the Pole Saw

should include the following:

CHAIN SAW HARDWARE

(2) Guidebar bolts

• (2) Guidebar outs

• (1) Phillips sdftapping screw

• (1) Saw chain

• (I) Guide bar

•(1) Hand g_rd

•(1) Scabbard

POLE SAW HARDWARE

•(1) Handlebracket

• (4) #I0 x 24 Phlnlpsscrews

•(4) #101ockwashers

ASSEMBLY OF CHAIN SAW

Asserable the chain saw before assembling

the pole. Refer to chain saw manual for

assembly iustructions.

,_ CAUTION: Do not place chain

on saw backwards. If chain is

backwards, saw will vibrate badly

and will not cut.

Make sure cutting edges of chain are facing

in the right direction. Position chain so cut-

flog edges on top of guide barface gradebar

nose (see Figure 2).

Towards Cutting

Guide Bar. ",Edge

Nose

Edge

Chain

F?gum2- Chain Position

OWNER'S MANUA

SAW CHAIN TENSION

ADJUSTMENT

WARNING: Maintaln proper

chain tension. A loose chain will

increase the risk of kick back. A

loose chain may jump out of

guide bar groove. This may in-

jure operator and damage chain.

A loose chain will cause chain,

guide bar and sprocket to wear

rapidly.

1. To adjust chain tension, make sure

guide bar nuts are only finger fight.

Also make sure adjusting block is in

oval adjust_g hole on guide bar.

2. Turn adjusting screw cIockwlsu until

all slack is out of chain. Note: Them

should be no gap between side links of

chain and bottom of guide bar.

3. Wearing protectivegloves,move chain

aroundguidebar. Chain should move

freely. If chain does not move freely,

loosen chainby turningadjusting screw

counterclockwise,

.After chain tension is correct, tighten

guide bar nuts firmly. If not, guide bar

will move and loosen chain tension.

This will increase the risk of kickback.

This can also damage saw.

ASSEMBLY OF POLE SAW _'/:

•l. Slip handle bracket over chain saw

handle fromthe fightside (see Hga_ 5).

Note: The trigger must be depressed

before the bracket will go onto the

handle,

•Push the lockout buttonanddepresstbe

trigger, While holding the trigger in,

place the trigger supportportion of the

bracket under the trigger and slide the

bracket onto the chain saw handle.The

bracket will keep thetriggerin the "on"

posifiou,

2_ Align holes in pole bracket with holes

in handle bracket. Install Phillips head

screws with lcokwasb_ throughpole

bracketfromleft side and threadinto

theweld nutson thehandlebracket.

Tightenscrewssecurelybyhand.

3. Plugthesawpowercordintoreceptacle

cordatendofinnerpole.

Bracket

Trigger

Support

Figure 5 -Bracket with Trigger Support

Figure 3 - Turning Adjusting Screw

incorrectTension

Figure 4-Saw ChainAdjustment

Figure 6- Assembly ofPoleSawBrackef

to,_ 5

REMIN N!

8' ELECTRIC TELESCOPING POLE SAW

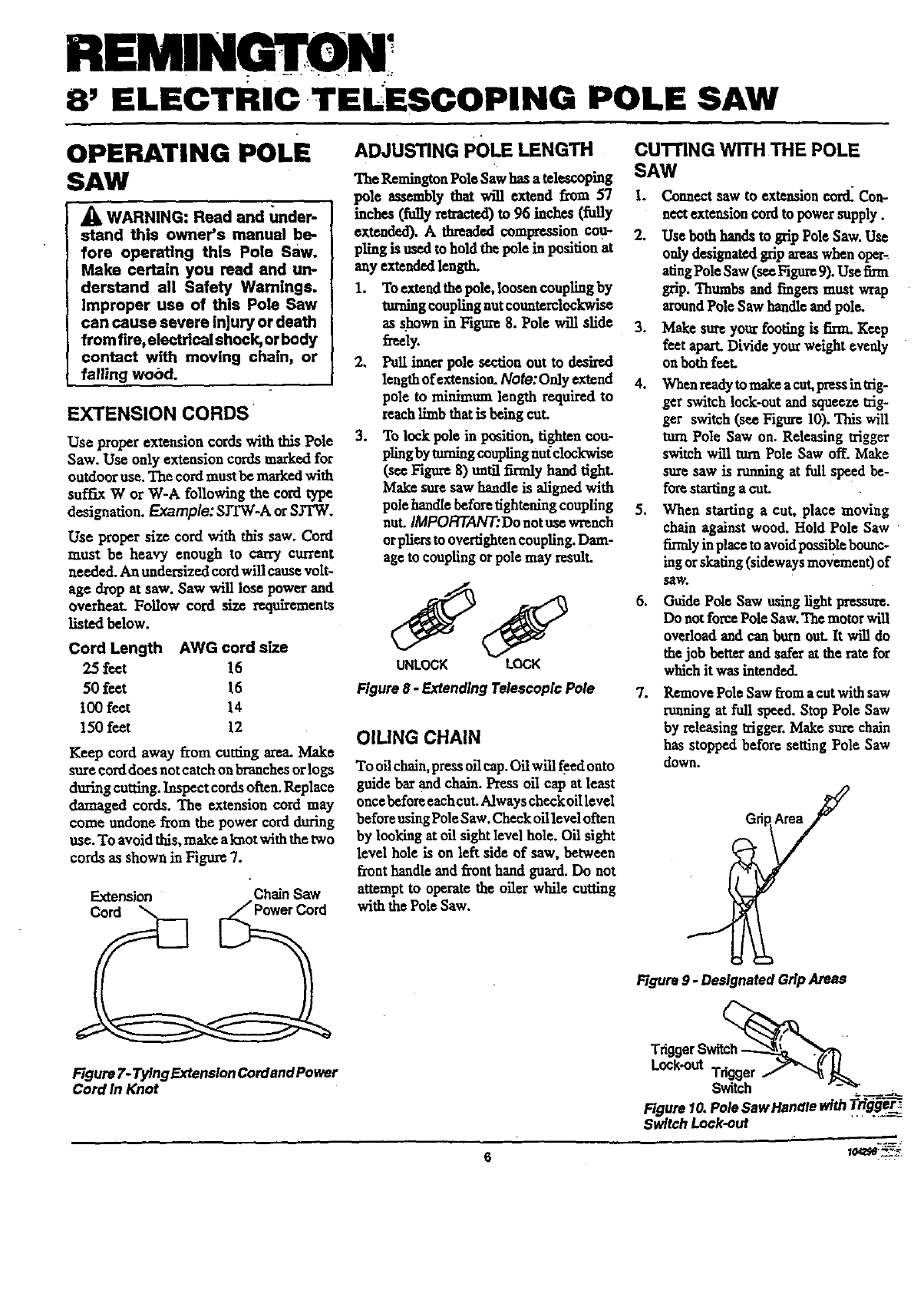

OPERATING PoLE

SAW

WARNING: Read end under-

stand this owner's manual be-

fore operating this Pole saw.

Make certain you read and un-

derstand all Safety Warnings.

Improper use of this Pole Saw

can cause severe in)ury or death

from fh'e, electrical shock, or body

contact with moving cha|n, or

falling wood.

EXTENSION CORDS

Use properextensioncordswiththisPole

Saw. Use onlyextensioncordsmarkedfor

outdooruse.The cordmustbemarkedwith

suffixW orW-A followingthecordtype

designation.Example:SJTW-A orsyrw.

Use propersizecordwiththissaw.Cord

must be heavy enough to carrycurrent

needed.An undersizedcordwillcausevolt-

age dropatsaw.Saw willlosepowerand

overheat. Follow cord size requ£rements

listed below.

Cord Length AWG cord size

25 feet 16

50 feet 16

1oofeet 14

150 feet 12

Keep cordaway from cuUingarea.Make

surecorddoesnotcatchon branchesorlogs

duringcutting.Inspectcordsofinu.Replace

damaged cords.The extensioncordmay

come undonefrom thepowercordduring

use.To avoidthis,make aknotwiththetwo

cords as shown in Pigum ?.

Extension Chain Saw

Figure 7- TyingExtensionCordand Power

Cord In Knot

ADJUSTING POLE LENGTH

The RemingtonPoleSaw hasa tele,_oping

pole assemblythatwin extend _57

inches(fullyretracted) to 96 inches(fully

extended).A threadedcompressioncou-

plingis used to hold the polein position at

any extendedlength.

1. To extendthepole,loosencouplingby

turning couplingnut €ountemlockwise

asshowninFigure8.Polewillslide

freely.

2. Pullinnerpolesectionouttodesired

length ofexteusinn. Note: Only extend

pole to minimum length required to

reachlimbthatisbeingcut.

3. To lockpoleinposition,tightencou-

plingbyturningcouplingnu_clockwise

(see Figure 8) un_ _mIy hand tight.

Maim sure sawhandle is alignedwith

pole handle before tightening coupling

nut. IMPOFfFANT:Do not use wrench

or pliers to ove_ghtea coupling. Dam-

age to coupling or pole may result.

UNLOCK LOCK

Figure 8 -Extending Telescopic Pole

OILING CHAIN

To oilchain,pressoilcap.Oilwillfeedonto

guidebarandchain.Pressoilcap at least

oncebeforeeachcut.Alwayscheckoillevel

beforeusingPoleSaw.Checkoilleveioften

bylookingatoilsightlevelhole.Oilsight

level hole is on left side of saw, between

front handle and front hand guard. Do not

attempt to operate the oiler while cutting

with the Pole Saw.

CUTTING WiTH THE POLE

SAW

I. Connectsaw to extensioncord_Con-

nect extension cord to power supply.

2. Use beth hands to grip Pole Saw. Use

only designated grip areaswhen oper_

atingPole Saw (see Fignre 9). Use firm

grip. Thumbs and fingers must wrap

aroundPole Saw handle and pole.

3. Make s_e your footing is firm. Keep

feet apart. Divide your weight evenly

on both feet.

4. Whea reedytomake acat,pressintrig-

gerswitchlock-outandsqueeze_g-

ger switch(seeFigure10).Thiswill

turnPoleSaw on.Releasingu-igger

switchwillturnPoleSaw off.Make

suresaw isrunningatfullspeedbe-

forestarlingacot.

5. When startinga cut,placemoving

chainagainstwood.Hold PoleSaw

firmlyinplacetoavoidpossiblebounc-

ingorskating(sidewaysmo,iameat)of

saw.

.GuidePoleSaw usinglight pressure.

Do notforcePoleSaw.Themotorwill

overloadandcanbum out.Itwilldo

thejobbetterandsaferattheratefor

whichitwasintended.

.Remove Pole Saw froma cut with saw

runningatfullspeed. Stop Pole Saw

byreleasingtrigger.Make surechain

hasstoppedbeforesettingPoleSaw

down.

Figure 9-Designated Gdp Areas

TriggerSwRch_"

Figurelo.Polesa,,,en ie

Switch Lock-out

OWNER'S MANUAL

OPERATING POLE

SAW

Continued

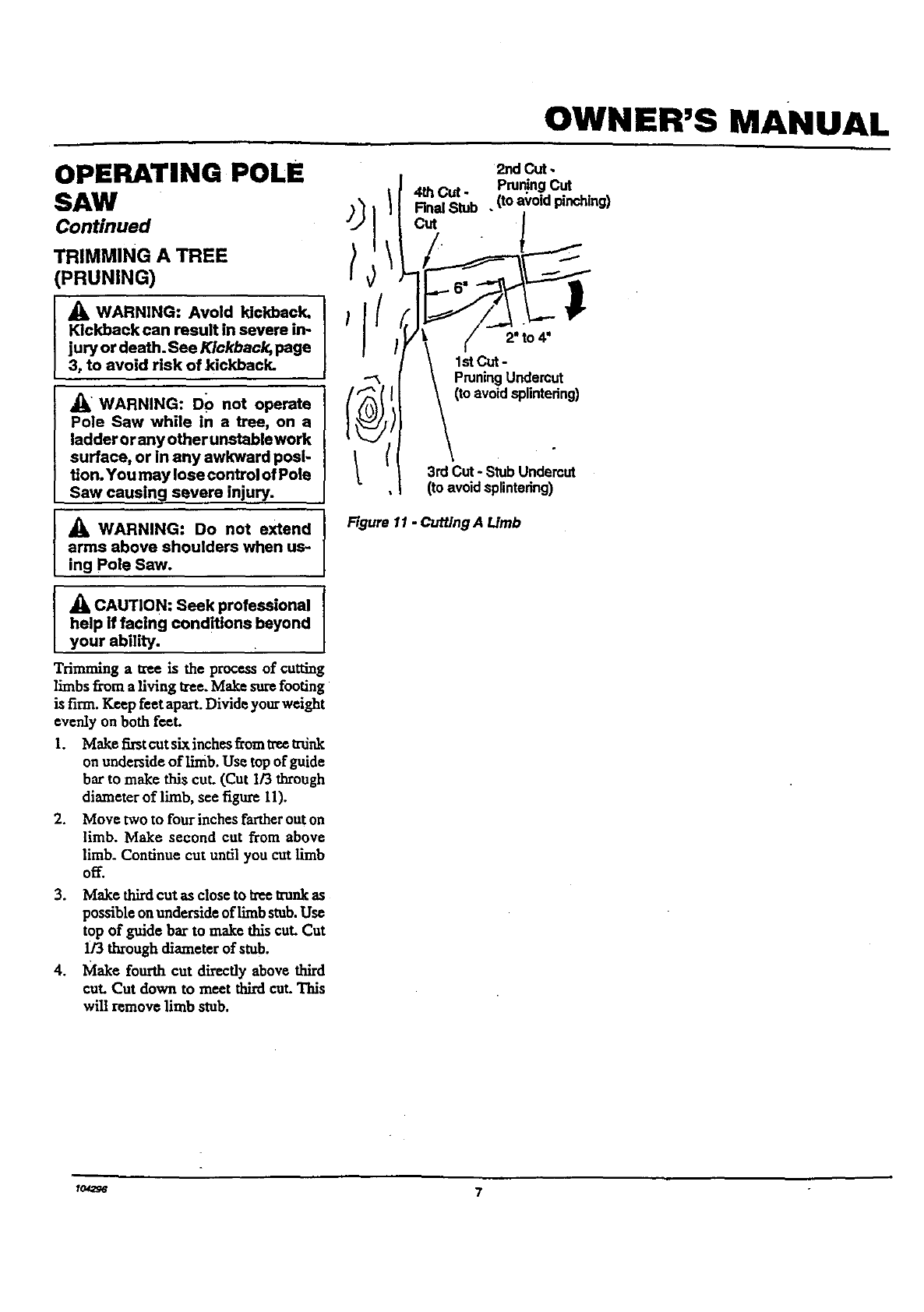

TRIMMING A TREE

PRUNING)

WARNING: Avoid kickback.

Kickback can result in severe in-

jury or death. See Kickback, page

3, to avoid risk of kickback.

_WARNING: D_) not operate

Pole Saw while in a tree, on a

ladder or any other unstable work

surface, or in any awkward posi-

tion. You may lose control of Pole

Saw causing severe injury.

*(_ WARNING: Do not extend

arms above shoulders when us-

ing Pole Saw.

CAUTION: Seek professional

help if facing conditions beyond

your ability.

Tdmmlng a treeistheprocc,ssof cutting

limbsfrom alivingt_e.Make surefooting

is firm. Keep feet aparLDivide your weight

evenly on both feet.

1. Make firstcut six inches f_om tree trdnk

on underside of limb. Use top of guide

bar to make this cut. (Cut I/3 through

diameter of limb, see figure Il).

2. Move two to four inches farther out on

limb. Make second cut from above

limb. Continue cut until you cut limb

off.

3. Make third cut as close to tree trunkas

possible on underside of limb stub. Use

top of guide bar to make this cut. Cut

1/3 through diameter of stub.

4. Make fourth cut directly above third

cut. Cut down to meet third cut. This

will remove limb stub.

2rid Cut.

i I Pmn.ingCut

I I( 2.io,.

1st Cut-

-._ PruningUndercut

(to avoidsplintedng)

3rd Cut- Stub Undercut

(toavoidsplintering)

Figure 11 -Cutting A Limb

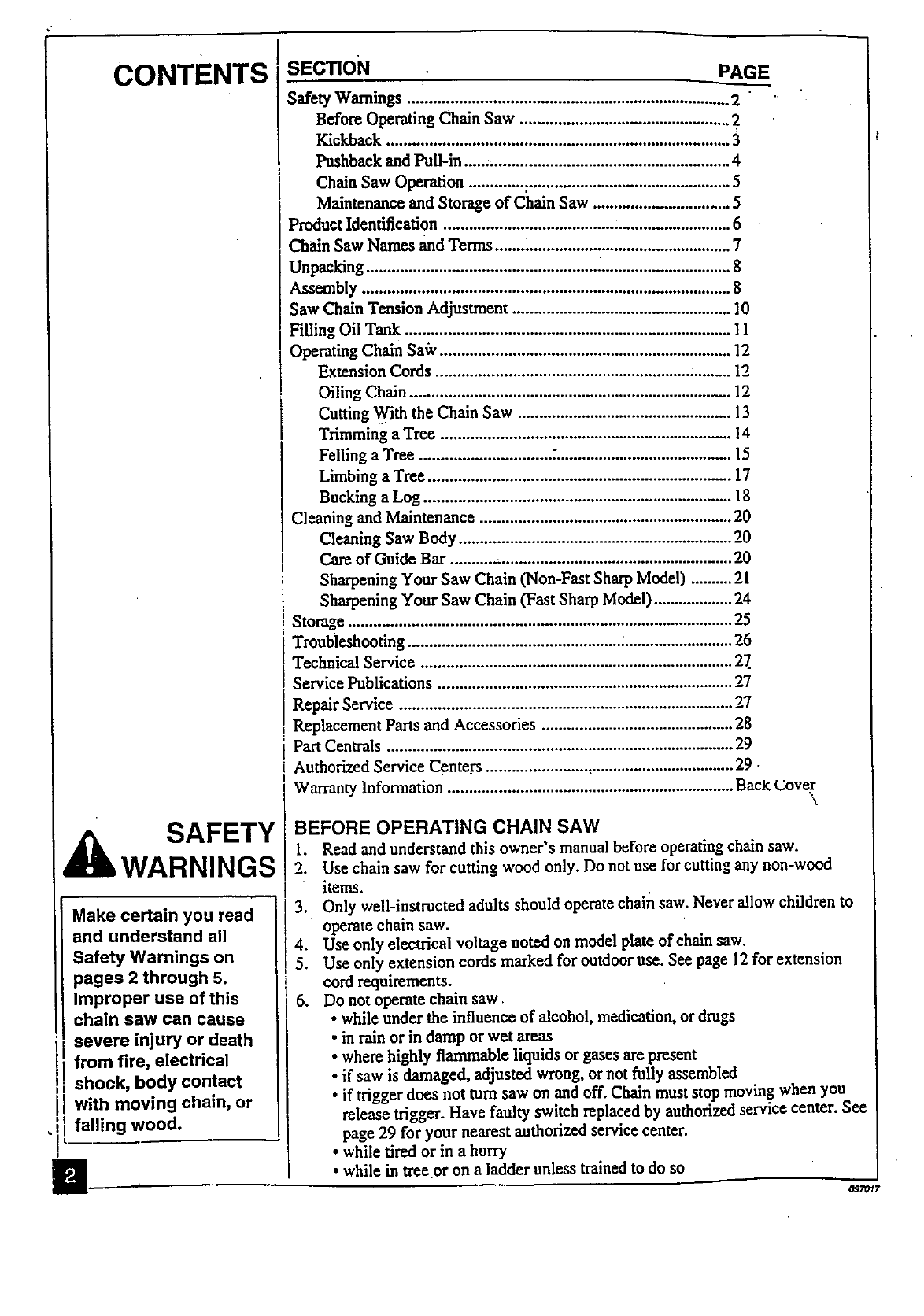

CONTENTS

SAFETY

WARNINGS

Make certain you read

and understand all

Safety Warnings on

pages 2 through 5.

Improper use of this

chain saw can cause

severe injury or death

from fire, electrical

shock, body contact

with moving chain, or

falling wood.

SECTION PAGE

Safety Warnings ............................................................................ 2

Before Operating Chain Saw .................................................. 2

Kickback ................................................................................. 3

Pushback and Pull-in .....; ......................................................... 4

Chain Saw Operation ............. :................................................ 5

Maintenance and Storage of Chain Saw ................................ 5

Product Identification .... .................................... :........................... 6

Chain Saw Names and Terms ....... ................................................. 7

Unpacking ...................................................... ................................ 8

Assembly ....................................................................................... 8

Saw Chain Tension Adjustment .................................................... l0

Filling Oil Tank ............................................................................. l 1

Operating Chain Saw ..................................................................... 12

Extension Cords ............................................................ :......... 12

[Oiling Chain ........................................................................... 12

ICutting With the Chain Saw ................................................... 13

Trimming a Tree ..................................................................... 14

Felling a Tree ............................... :.......................................... 15

Limbing a Tree ........................................................................ 17

Bucking a Log ......................................................................... 18

Cleaning and Maintenance ............................................................ 20

Cleaning Saw Body ................................................................. 20

Care of Guide Bar ................................................................... 20

Sharpening Your Saw Chain (Non-Fast Sharp Model) .......... 21

Sharpening Your Saw Chain (Fast Sharp Model) ................... 24

Storage...........................................................................................25

Troubleshooting..................................................:..........................26

TechnicalService..................._......................................................27.

ServicePublications......................................................................27

RepairService...............................................................................27

ReplacementPartsand Accessories..............................................28

PartCentrals..................................................................................29

AuthorizedServiceCente_ ........................_..................................29

WarrantyInformation....................................................................Back €,.;ove,r

BEFORE OPERATING CHAIN SAW

I. Read and understand this owner's manual before operating chain saw.

2. Use chain saw for cutting wood only. Do not use for cutting any non-wood

items.

3. Only well-instructed adults should operate chain saw. Never allow children to

operate chain saw.

4. Use only electrical voltage noted on model plate of chain saw.

5. Use only extension cords marked for outdoor use. See page 12 for extension

cord requirements.

6. Do not operate chain saw.

• while under the influence of alcohol, medication, or drags

• in rain or in damp or wet areas

• where highly flammable liquids or gases are present

• if saw is damaged, adjusted wrong, or not fully assembled

• if trigger does not turn saw on and off. Chain must stop moving when you

release trigger. Have faulty switch replaced by authorized service center. See

page 29 for your nearest authorized service center.

• while tired or in a hurry

• while in treeior on a ladder unless trained to do so

_7017

ASAFETY

WARNINGS

Make certain you read

and understand all

Safety Warnings on

pages 2 through 5.

Improper use of this

chain saw can cause

severe injury or death

from fire, electrical

shock, body contact

with moving chain, or

failing wood.

_7017

7. Wear snug-fitting clothes when operating chain saw. Do not wear loose cloth-

ing orjewelry.Theycan get caught in moving saw chain.

8. Wear the following safety gear when operating chain saw,

•heavy-duty gloves (wear robber gloves when working outdoors)

•steal-toed safety footwear with non-skid soles

• eye protection such as safety glasses, goggles, or face screen

•safety hard hat

•ear mufflers or ear plugs •

• hair covering to contain long hair

• face or dust mask (if working in dusty areas)-

Before cutting, always provide the following:

•clear work area

• securefooting

• planned retreat path from falling tree

I0. Inspect tree before cutting down. Make sure there are no dead limbs or

branches that may fall on you.

19.

KICKBACK

Avoid Kickback. Kickback can cause you to lose control of chain saw.

Kickback can cause severe injury or death.

Kickback Safety Devices On This Saw

This saw has a low-kickback chain and reduced kickback guide bar. Both items

reduce the chance of kickback. Kickback can still occur with this saw. Do not let ti

of guide bar touch anything when chain is moving.

Properly install front hand guard. This item can reduce injuries from kickback.

Follow assembly instructions on page 8. Do not remove front hand guard. Do not

replace front hand guard with substitute.

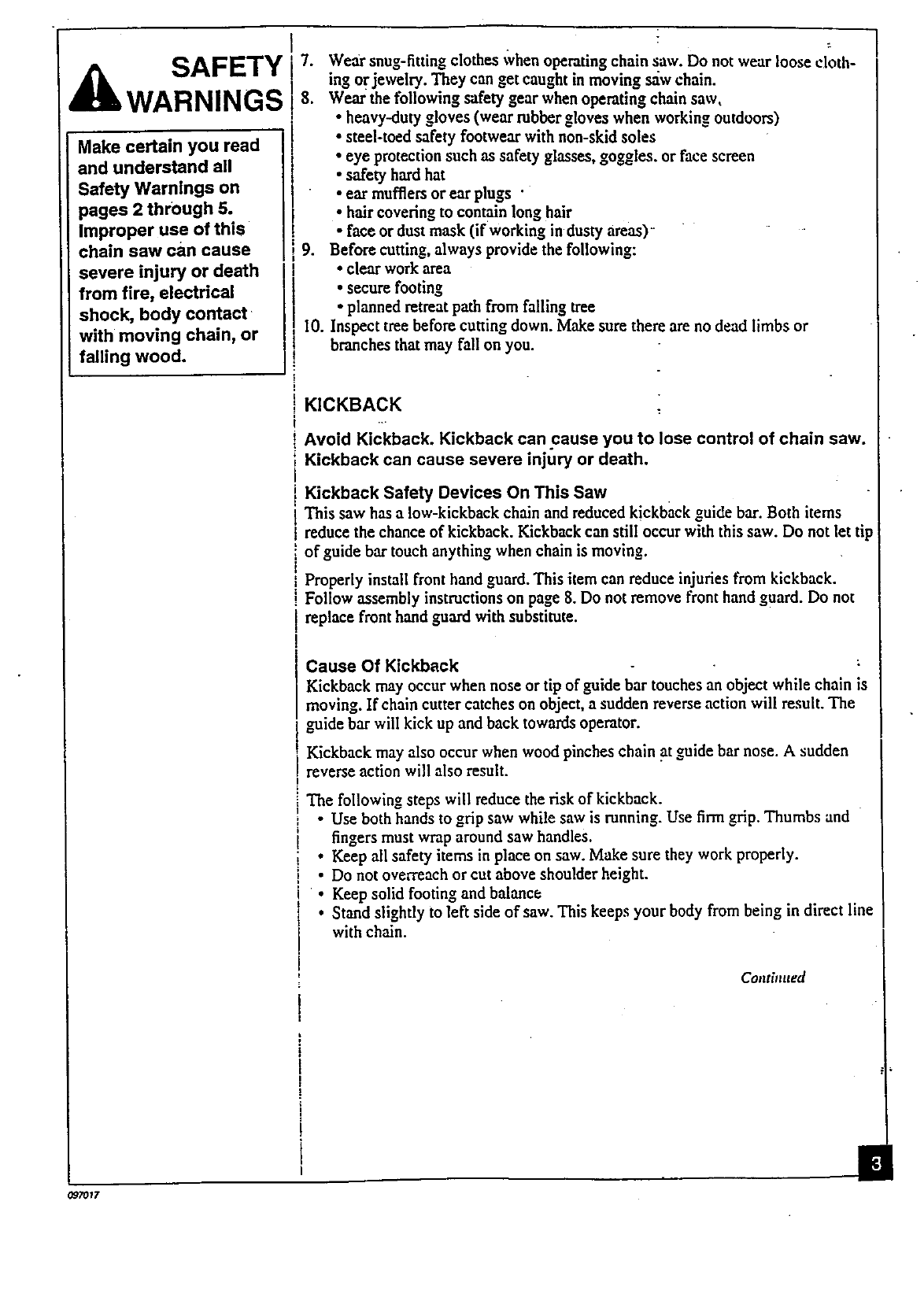

Cause Of Kickback

Kickback may occur when nose or tip of guide bar touches an object while chain is

moving. If chain cuttercatches on object, a sudden reverse action will result. The

guide bar will kick up and back towards operator.

Kickback may also occur when wood pinches chain at guide bar nose. A sudden

reverse action will also result.

The following steps will reduce the risk of kickback.

• Use both hands to grip saw while saw is running. Use firm grip. Thumbs and

fingers must wrap around saw handles.

• Keep all safety items in place on saw. Make sure they work properly.

• Do not overreach or cut above shoulder height.

••Keep solid footing and balance

• Stand slightly to left side of saw. This keeps your body from being in direct line

with chain.

Contbtued

SAFETY

WARNINGS

Make certain you read

and understand all

Safety Warnings on

pages 2 through 5.

Improper use of this

chain saw can cause

severe injury or death

from fire, electrical

shock, body contact

with moving chain, or

falling wood.

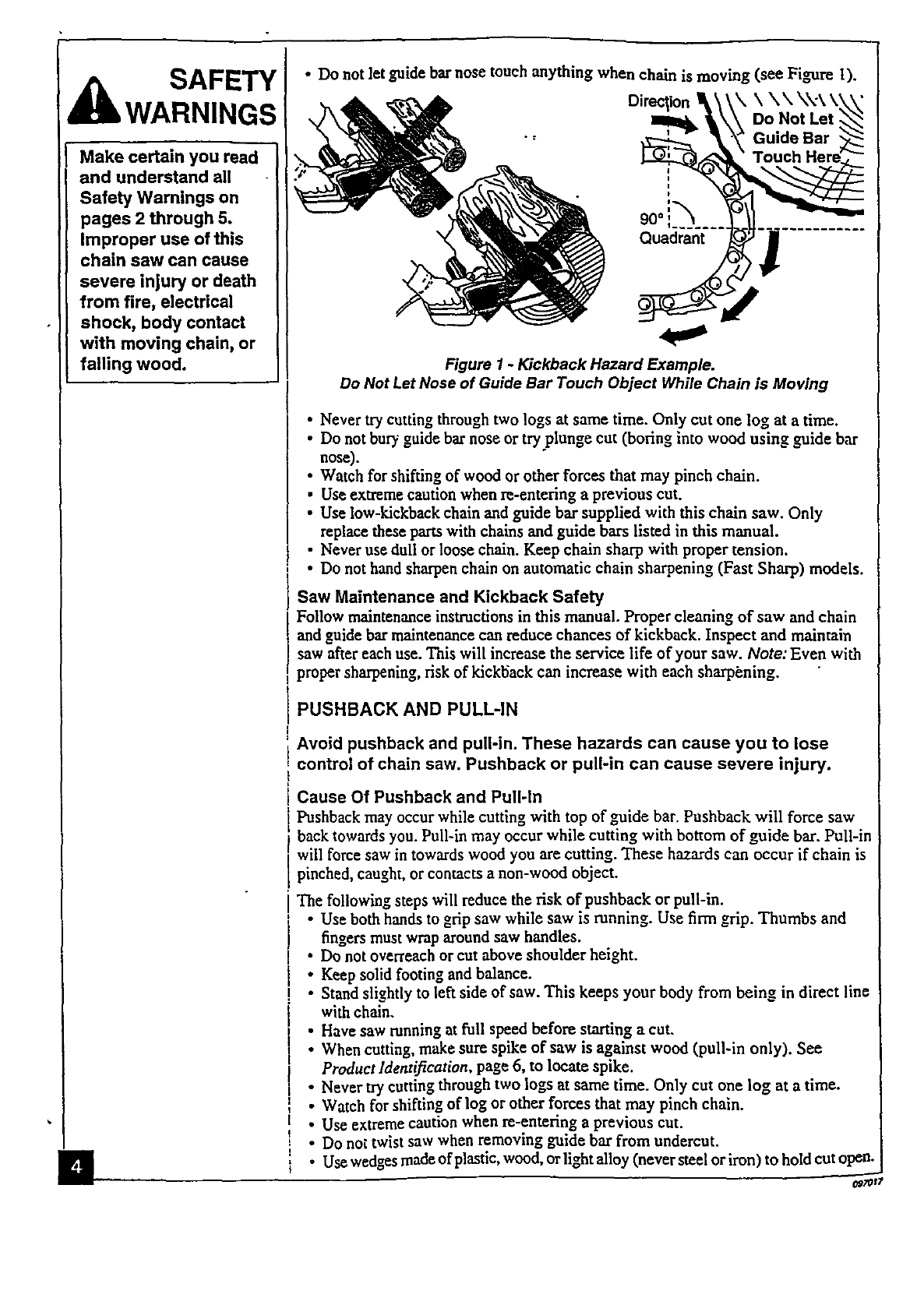

•Do not let guide bar nose touch anything when chain is moving (see Figure I).

Direction \ \ \\ \\\ \\

Do Not Let

Guide Bar

90 =

Quadrant

Figure 1 ~Kickback Hazard Example.

Do Not Let Nose of Guide Bar Touch Object While Chain is Moving

•Never try cutting through two logs at same time. Only cut one log at a time.

• Do not bury"guide bar nose or try.plunge cut (boring into wood using guide bar

nose).

•Watch for shifting of wood or other forces that may pinch chain.

• Use extreme caution when re-entering a previous cut.

• Use low-kickback chain and guide bar supplied with this chain saw. Only

replace these parts with chains and guide bars listed in this manual.

• Never use dull or loose chain. Keep chain sharp with proper tension.

• Do not hand sharpen chain on automatic chain sharpening (Fast Sharp) models.

Saw Maintenance and Kickback Safety

Follow maintenance instructions in this manual. Proper cleaning of saw and chain

and guide bar maintenance can reduce chances of kickback. Inspect and maintain

saw after each use. This will increase the service life of your saw. Note: Even with

proper sharpening, risk of kicklSack can increase with each sharpening.

PUSHBACK AND PULL-IN

Avoid pushback and pull-in. These hazards can cause you to lose

control of chain saw. Pushback or pull-in can cause severe injury.

Cause Of Pushback and Pull-In

Pushback may occur while cutting with top of guide bar. Pushback will force saw

back towards you. Pull-in may occur while cutting with bottom of guide bar. Pull-in

will force saw in towards wood you are cutting. These hazards can occur if chain is

pinched, caught, or contacts a non-wood object.

The following steps will reduce the risk of pushback or pull-in.

•Use both hands to grip saw while saw is running. Use firm gTip. Thumbs and

fingers must wrap around saw handles.

• Do not overreach or cut above shoulder height.

•Keep solid footing and balance.

• Stand slightly to left side of saw. This keeps your body from being in direct line

with chain.

•Have saw running at full speed before starting a cut.

• When cutting, make sure spike of saw is against wood (pull-in only). See

Product Identification, page 6, to locate spike.

• Never try cutting through two logs at same time. Only cut one log at a time.

• Watch for shifting of log or other forces that may pinch chain.

• Use extreme caution when re-entering a previous cut.

•Do not twist saw when removing guide bar from undercut.

•Use wedges made of plastic, wood, or light alloy (never steel or iron) to hold cut open.

_70f7

SAFETY

JLLWARNINGS

_ake certain you read

and understand all

Safety Warnings on

pages 2 through 5.

Improper use of this

chain saw can cause

severe injury or death

from fire, electrical

shock, body contact

with moving chain, or

falling wood.

O97017

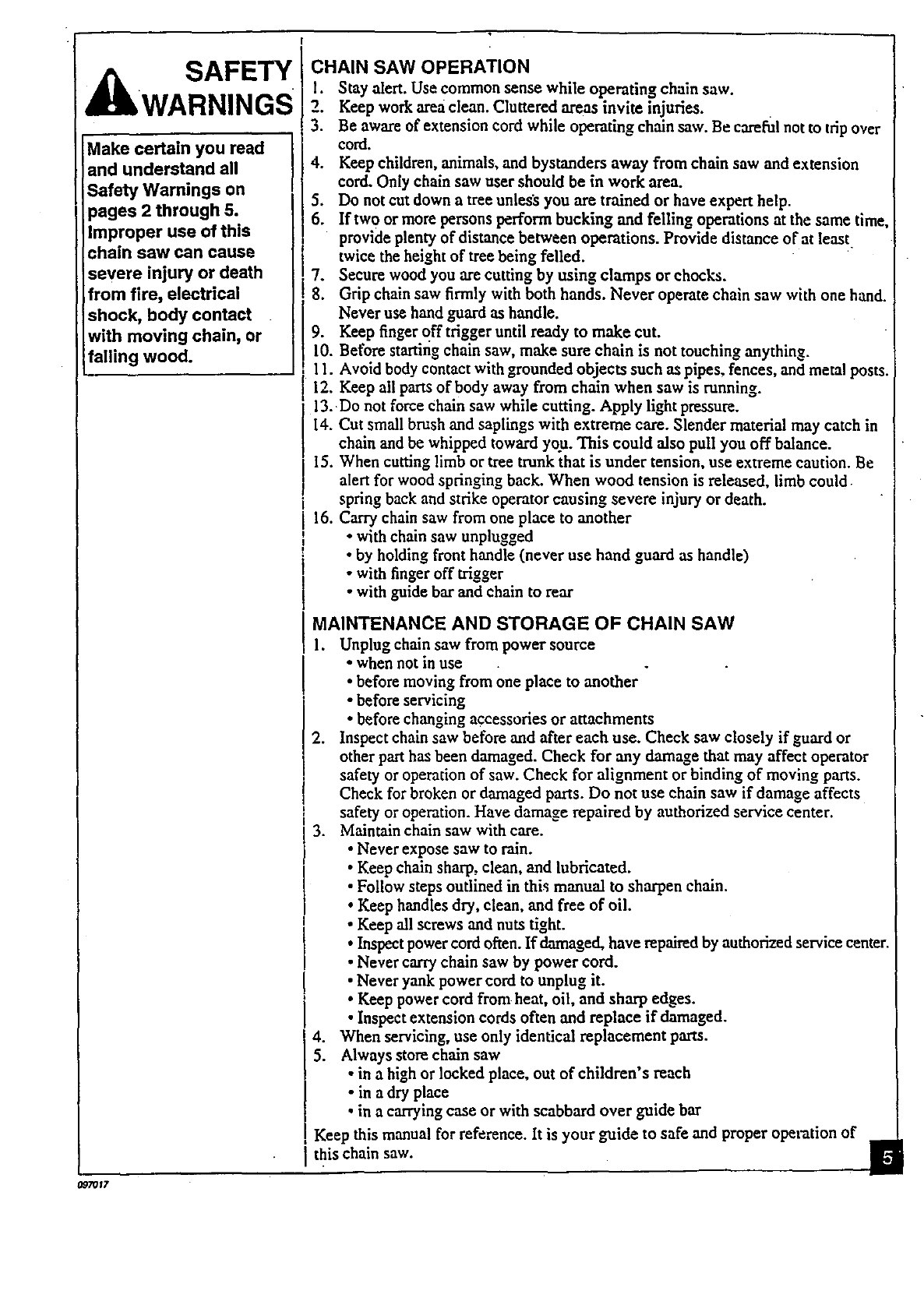

CHAIN SAW OPERATION

LStay alert. Use common sense while operating chain saw.

-. Keep work area clean. Cluttered areas invite injuries.

3. Be aware of extension cord while operating chain saw. Be careful not to trip over

cord.

4. Keep children,animais,and bystandersaway from chainsaw and extension

cord.Only chainsaw usershouldbe in work area.

5. Do notcutdown atreeunlessyou aretrainedor have experthelp.

6. Iftwo ormore personsperformbucking and fellingoperationsatthesame time,

provideplentyof distancebetween operations.Providedistanceof atleast

twicetheheightoftreebeingfelled.

7. Securewood you arecuttingby usingdamps or chocks.

8. Grip chainsaw firmlywithbothhands.Never operatechainsaw with one hand.

Never usehand guard ashandle.

9. Keep fingerofftriggeruntilreadyto make cut.

I0.Beforestartingchainsaw,make surechainisnottouchinganything.

II.Avoid body contactwithgrounded objectssuch aspipes,fences,and metalposts.

12.Keep allpartsofbody away from chainwhen saw isrunning.

13..DonotforceChainsaw whilecutting.Apply lightpressure.

14.Cut smallbrushand saplingswith extreme care.Slendermaterialmay catchin

chainand be whipped towardyou.This couldalsopullyou offbalance.

15.When cuttinglimbortreetrunkthatisunder tension,useextremecaution.Be

alertforwood springingback.When wood tensionisreleased,limbcould

spring back and strike operator causing severe injury or death.

16. Carry chain saw from one place to another

•with chain saw unplugged

• by holding front handle (never use hand guard as handle)

• with finger off trigger

• with guide bar and chain to rear

MAINTENANCE AND STORAGE OF CHAIN SAW

I. Unplug chain saw from power source

• when not in use

• before moving from one place to another

• before servicing

• before changing accessories or attachments

2. Inspect chain saw before and after each use. Check saw closely if guard or

other part has been damaged. Check for any damage that may affect operator

safety or operation of saw. Check for alignment or binding of moving parts.

Check for broken or damaged parts. Do not use chain saw if damage affects

) safety or operation. Have damage repaired by authorized service center.

I 3. Maintain chain saw with care.

I•Never expose saw to rain.

• Keep chain sharp, clean, and lubricated.

• Follow steps outlined in this manual to sharpen chain.

•Keep handles dry, clean, and free of oil.

•Keep all screws and nuts tight.

• Inspect power cord often. If damaged, have repaired by authorized service center.

• Never carry chain saw by power cord.

• Never yank power cord to unplug it.

• Keep power cord from heat, oil, and sharp edges.

4 • Inspect extension cords often and replace if damaged.

When servicing, use only identical replacement parts.

i Always store chain saw

• in a high or locked place, out of children's reach /

•in adry place |

•in a carrying case or with scabbard over guide bar

Keep this manual for reference. It is your guide to safe and proper operation of

this chain saw.

PRODUCT

IDENTIFICATION

Rear

Handle

Power Cord

Guard Guide Bar

Nose

Saw

Chain

Rear Hand

Guard

Scabbard

Oil Level Sight Hole

(located on saw body,

hidden by front handle)

Front Handle'

Motor

Housing

Switch Trigger

Lockout

Figure 2 -Electric Chain Saw

J0970

_7Of7

CHAIN SAW

NAMES and

TERMS

Bucking Process of cutting afelled tree or log into lengths.

Felling Processof cutting down a tree.

Feliin_g:CutFinal cutwhen fellingatree.Make this cut onoppositeside of tree

from notching cut.

Front Handle Located at front of saw body.

Front'Hand Guard Shield between front handle and guide bar. Protects left hand

while using saw.

Guide Bar Metal bar that extends from saw body. The guide bar supports and

guides chain.

Guide Bar Nose Tip oread of guide bar.

Kickback Quick backward and upward motion of guide bar. Kickback may occur

when tip of guide bar touches an object while chain is moving. The guide bar will

kick up and back towards operator. 2

Limbing p_ocess of cutting limb(s) from afelled tree.

Low-Kickback Chain Chain that reduces chance of kickback as required by ANSI

B175.1.

Normal Cutting Position Stance used while making bucking and felling cuts.

Notching Cut Notch cut in tree that directs fall of tree.

Oiler Control System for oiling guide bar ai_dchain.

Power Head Chain saw without chain and guide bar. Also known as saw body.

Pushback (Kickback, Pinch) Rapid pushback of chain saw. Pushback may occur

if chain along top of guide bar is pinched, caught, or contacts aforeign object.

Rear Handle" Handlelocated at rear of saw body.

Reduced Kickback Guide Bar Guide bar that reduceschance of kickback.

Replacement Chain Chain that complies with ANSI B175.1 when used with a

specific saw. It may not meet ANSI requirements when used with other saws.

Saw Chain (Chain) Loop of chain having cutting teeth for cutting wood. The motor

/ drives chain. The guide bar supports chain.

Spiked Bumper (Spike) Pointed teeth at front of saw body beside guide bar. Keep

spiked bumper in contact with wood when felling or bucking. It helps maintain

)osition of saw while cutting.

Sprocket Toothed wheel that drives chain.

Switch Device that completes or interrupts electrical circuit to motor of saw.

Switch Linkage This device connects switch to trgger. It moves switch when you

squeeze trigger.

Switch Lockout Device that reduces accidental starting of saw.

Trigger Device that turns saw on and off. Squeezing trigger turns saw on.

Releasing trigger turns saw off. : '

Trimming (Pruning) Process of cutting limb(s) from a living tree.

Undercut An upward cut from underside of log or limb. This is done while in

normal cutting position and cutting with top of guide bar. I_

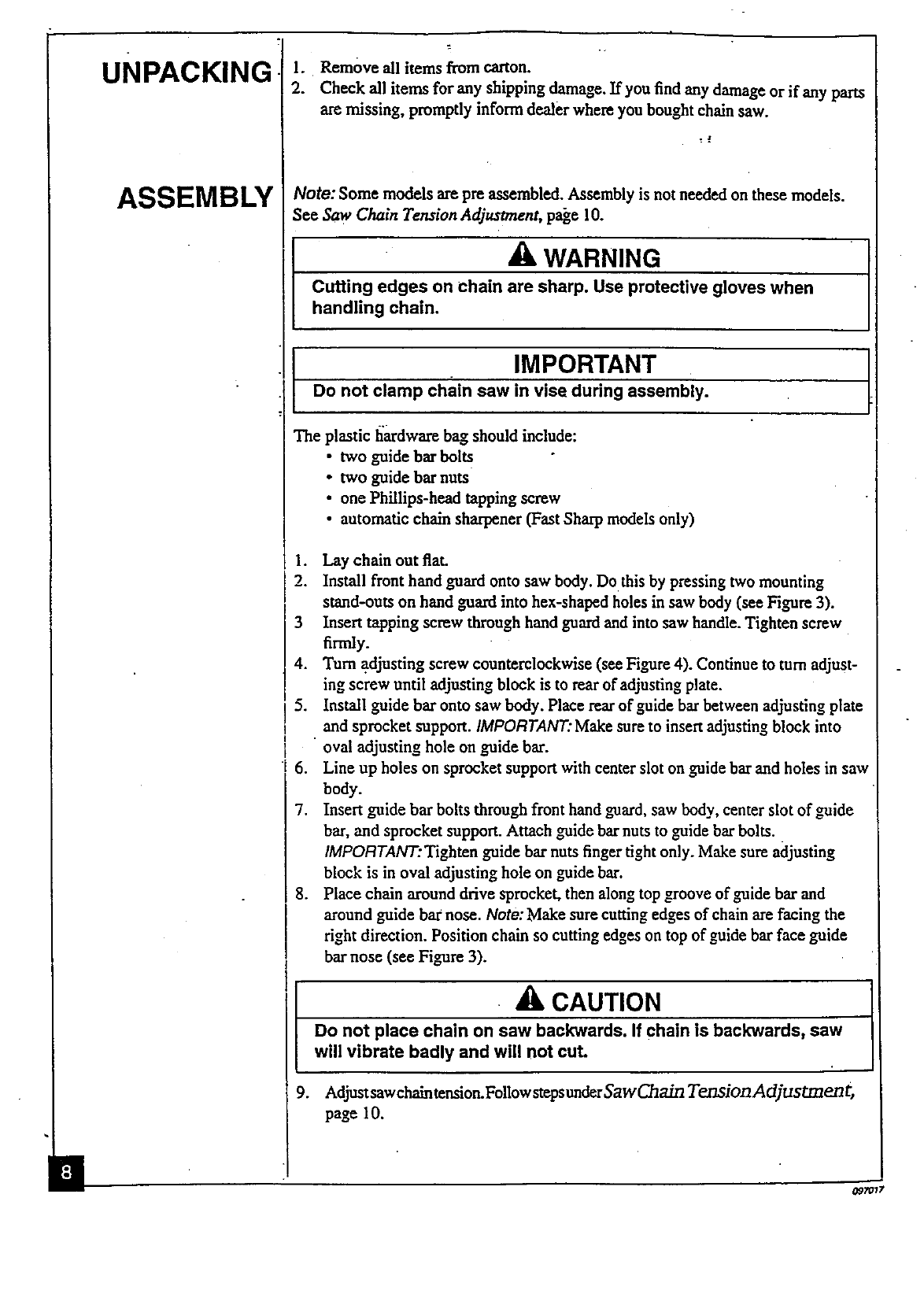

UNPACKING

ASSEMBLY

1. Remove all items from carton.

2. Check all items for any shipping damage. If you find any damage or if any parts

are missing, promptly inform dealer where you bought chain saw.

Note: Some models a_mpm assembled. Assembly is not needed on these models.

See Saw Ct_in Tension Adjusunent, page 10.

WARNING I

Cutting edges on chain are sharp. Use protective gloves when

handling chain.

IMPORTANT

Do not clamp chain saw in vise during assembly.

The plastic I_ardware bag should include:

•two guide bar bolts

•two guide bar nuts

•one Phillips-head tapping screw

•automatic chain sharpener (Fast Sharp models only)

1. Lay chain out fiat.

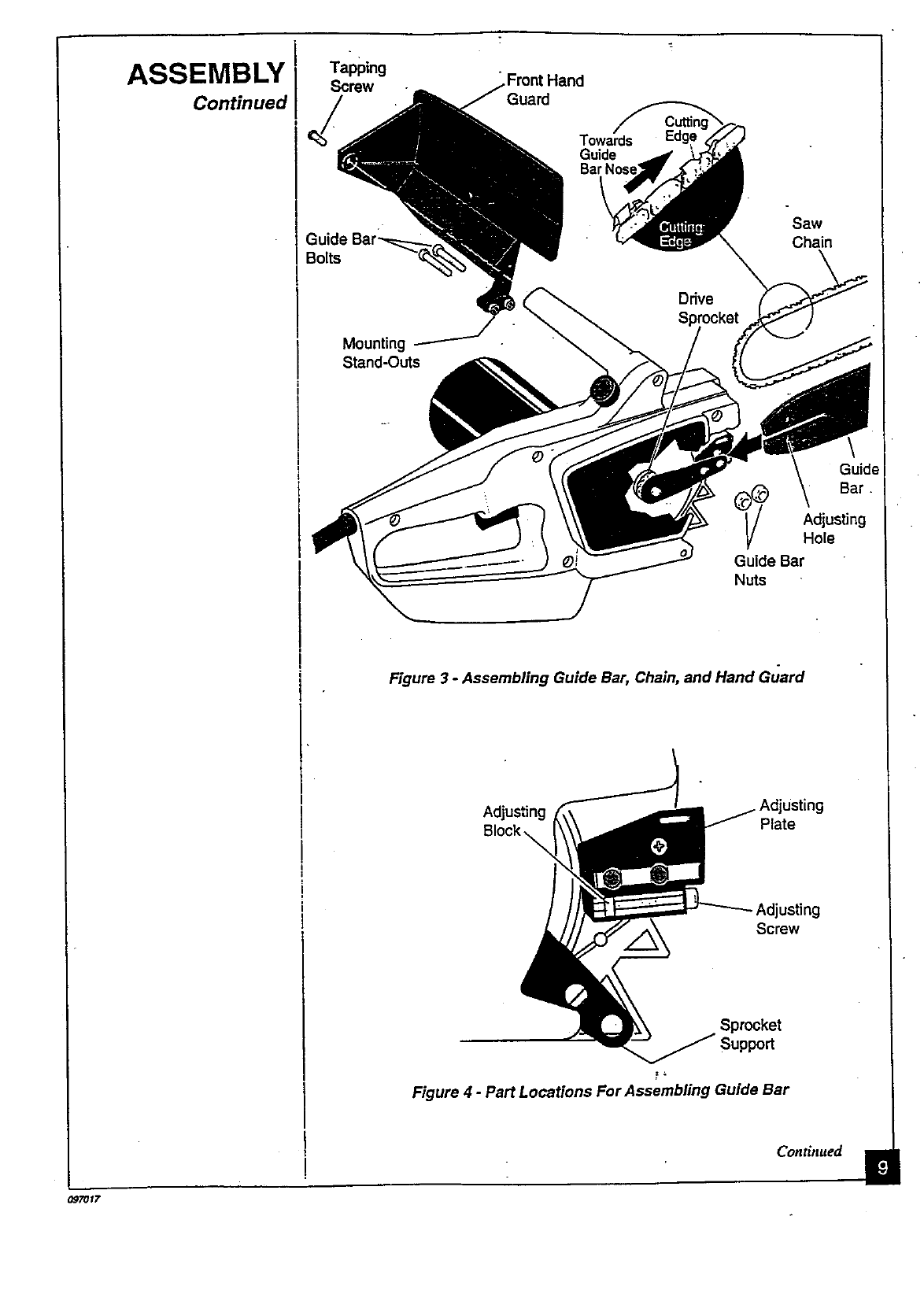

2. Install front hand guard onto saw body. Dothis by pressing two mounting

stand-outs on hand guard into hex-shaped holes in saw body (see Figure 3).

3Insert tapping screw through hand guard and into saw handle. Tighten screw

firmly.

4. Turn adjusting screw counterclockwise (see Figure 4). Continue to turn adjust-

ing screw until adjusting block is to rear of adjusting plate.

5. Install guide bar onto saw body. Place rear of guide bar between adjusting plate

and sprocket support. IMPORTANT: Make sure to insert adjusting block into

oval adjusting hole on guide bar.

6. Line up holes on sprocket support with center slot on geide bar and holes in saw

body.

7. Insert guide bar bolts through front hand guard, saw body, center slot of guide

bar, and sprocket support. Attach guide bar nuts to guide bar bolts.

IMPOFITANT: Tighten guide bar nuts finger tight only. Make sure adjusting

block is in ova! adjusting hole on guide bar.

8. Place chain around drive sprocket, then along top groove of guide bar and

around guide bar nose. Note: Make sure cutting edges of chain are facing the

right direction. Position chain so cutting edges on top of guide bar face guide

bar nose (see Figure 3).

.CAUTION

Do not place chain on saw backwards. If chain is backwards, saw

will vibrate badly and will not cut.

9. Affjustsawchffmtandon.FollowstepsunderSawCJlainTensionAd]usLme-nf,

page 10.

ASSEMBLY

Continued

Tapping

Screw

•Front Hand

Towards

Guide

Bolts

Saw

Chain

Mounting _--_ -

Stand-Outs

Nuts

Figure 3 - Assembling Guide Bar, Chain, and Hand Guard

Adjusting Plate

Adjusting

Screw

Sprocket

Support

°,

t°

Figure 4 - Part Locations For Assembling Guide Bar

Contblued

Guide

Bar.

Adjusting

Hole

097017

ASSEMBLY

Continued

SAW CHAIN

TENSION

ADJUSTMENT

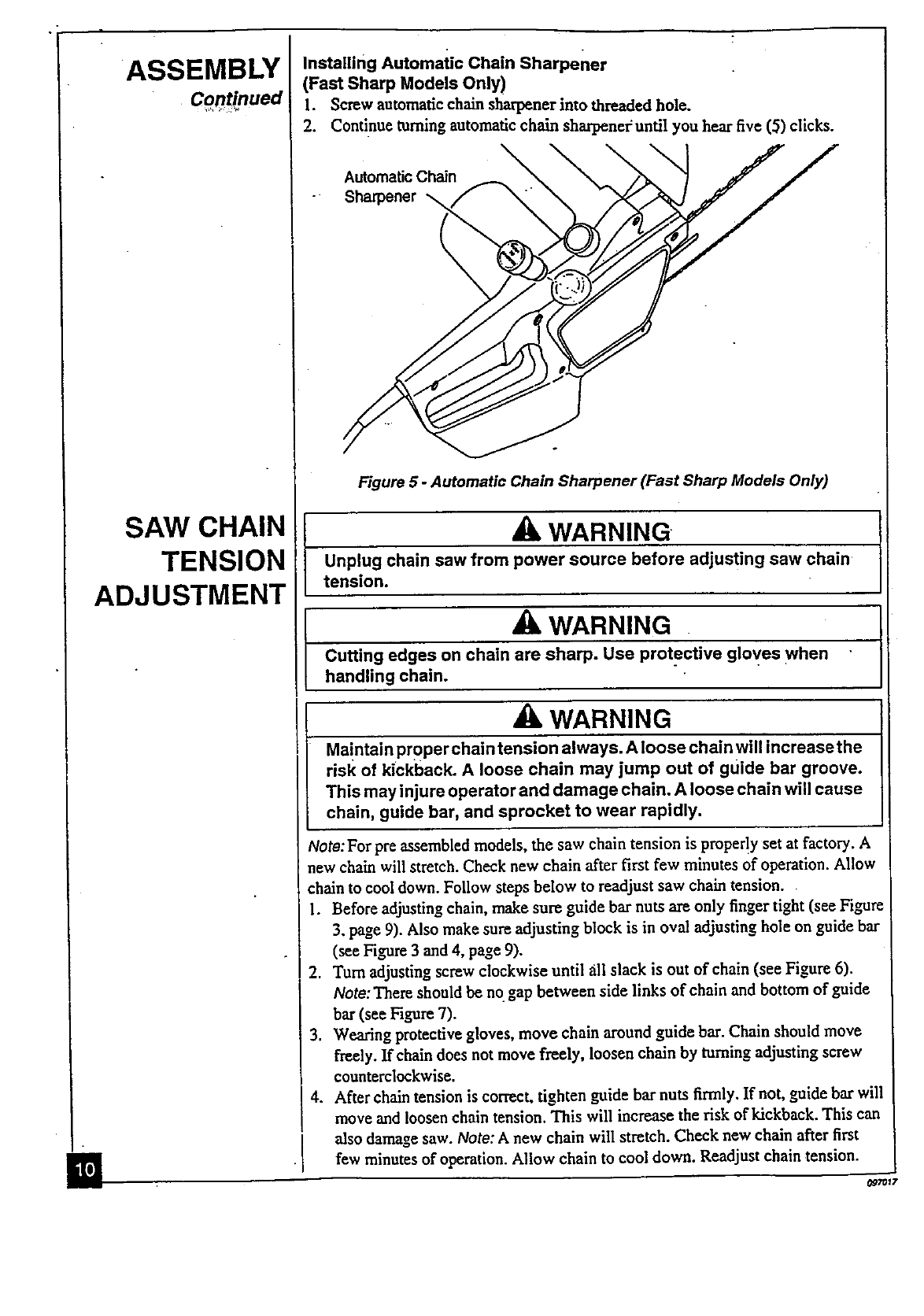

Installing Automatic Chain Sharpener

(Fast Sharp Models Only)

1. Screw automatic chain sharpener into threaded hole.

2. Continue turning automatic chain sharpener until you hear five (:_) clicks.

Automatic Chain

- Sharpener

Figure 5 - Automatic Chain Sharpener (Fast Sharp Models Only)

WARNING

Unplug chain saw from power source before adjusting saw chain

tension.

•1=WARNING

Cutting edges on chain are sharp. Use protective gloves when

handling chain.

WARNING

Ma!ntai n proper chain tension always. A loose chain _Nill increase the

risk of kickback. A loose chain may jump out of guide bar groove.

This may injure operator and damage chain. A loose chain will cause

chain, guide bar, and sprocket to wear rapidly.

Note: For pre assembled models, the saw chain tension is properly set at factory. A

new chain will stretch. Check new chain after first few minutes of operation. Allow

chain to cool down. Follow steps below to readjust saw chain tension.

I. Before adjusting chain, make sure guide bar nuts are only finger tight (see Figure

3, page 9). Also make sure adjusting block is in oval adjusting hole on guide bar

(see Figure 3 and 4, page 9).

2. "rum adjusting screw clockwise until ,'ill slack is out of chain (see Figure 6).

Note: There should be n ogap between side links of chain and bottom of guide

bar (see Figure 7).

3. Wearing protective gloves, move chain around guide bar. Chain should move

freely. If chain does not move freely, loosen chain by turning adjusting screw

counterclockwise.

4. After chain tension is correct, tighten guide bar nuts firmly. If not, guide bar will

move and loosen chain tension. This will increase the risk of kickback. This can

also damage saw. Note: A new chain will stretch. Check new chain after first

few minutes of operation. Allow chain to cool down. Readjust chain tension.

m"t71_f7

SAW CHAIN

TENSION

ADJUSTMENT

Continued

FILLING

OIL TANK

O97O17

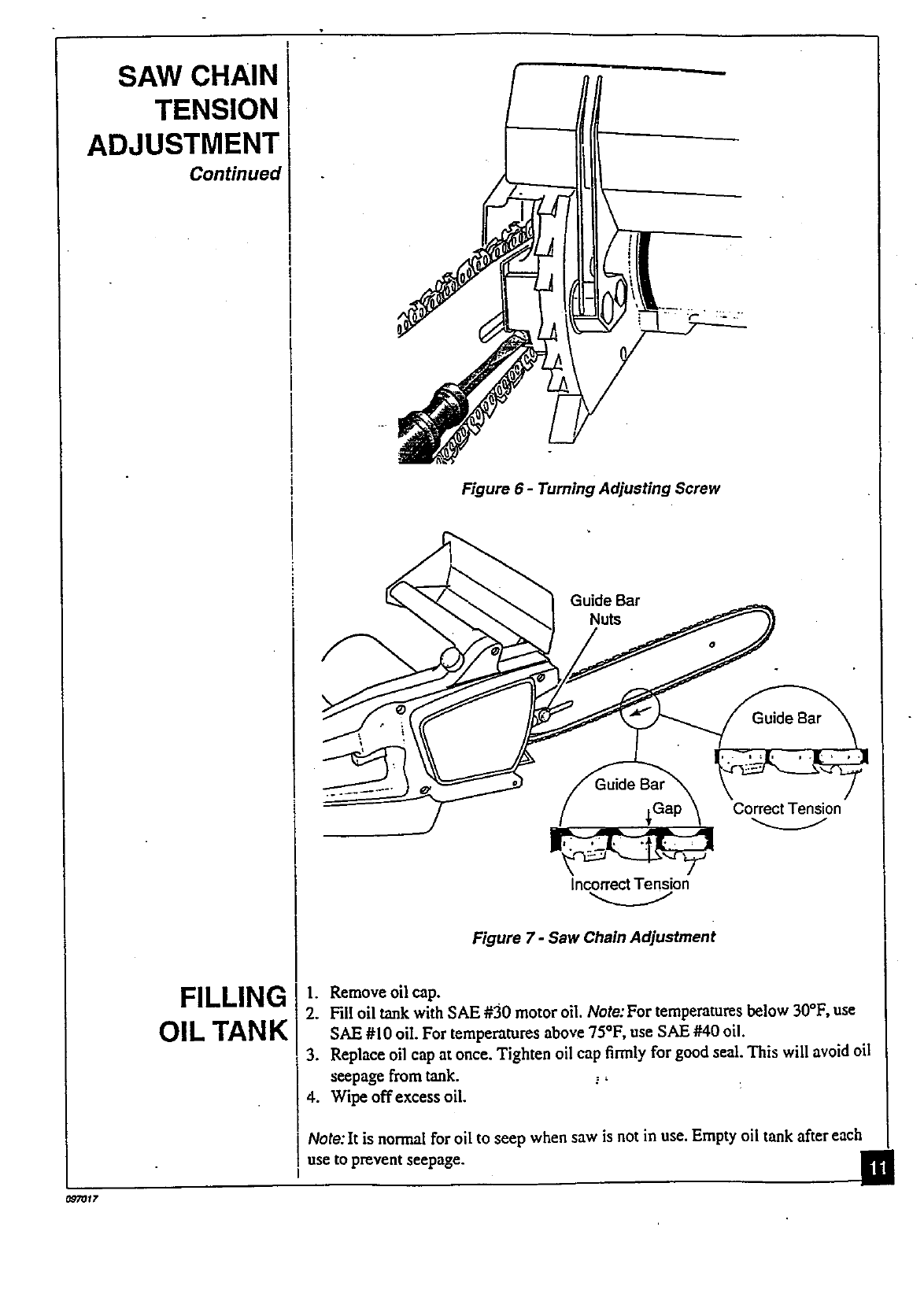

Figure 6- Turning Adjusting Screw

Correct Tension

Incorrect Tension

Figure 7 - Saw Chain Adjustment

1. Remove oil cap.

2. Fill oil tank with SAE #30 motor oil. Note:For temperaturesbelow 30°F, use

SAE #10 oil. For temperatures above 75°1, use SAE #40 oil.

3. Replace oil cap at once. Tighten oil cap firmly for good seal. This will avoid oil

seepagefrom tank. _,

4. Wipe off excess oil.

Note:It is normal for oil to seep when saw is not in use. Empty oil tank aftereach

use to prevent seepage. _q

OPERATING

CHAIN SAW WARNING

Read and understand this owner's manual before operating this

saw. Make certain you read and understand all Safety Warnings.

• Improper use of this chain saw can cause severe injury or death

from fire, electrical shock, or body contact with moving chain, or

falling wood.

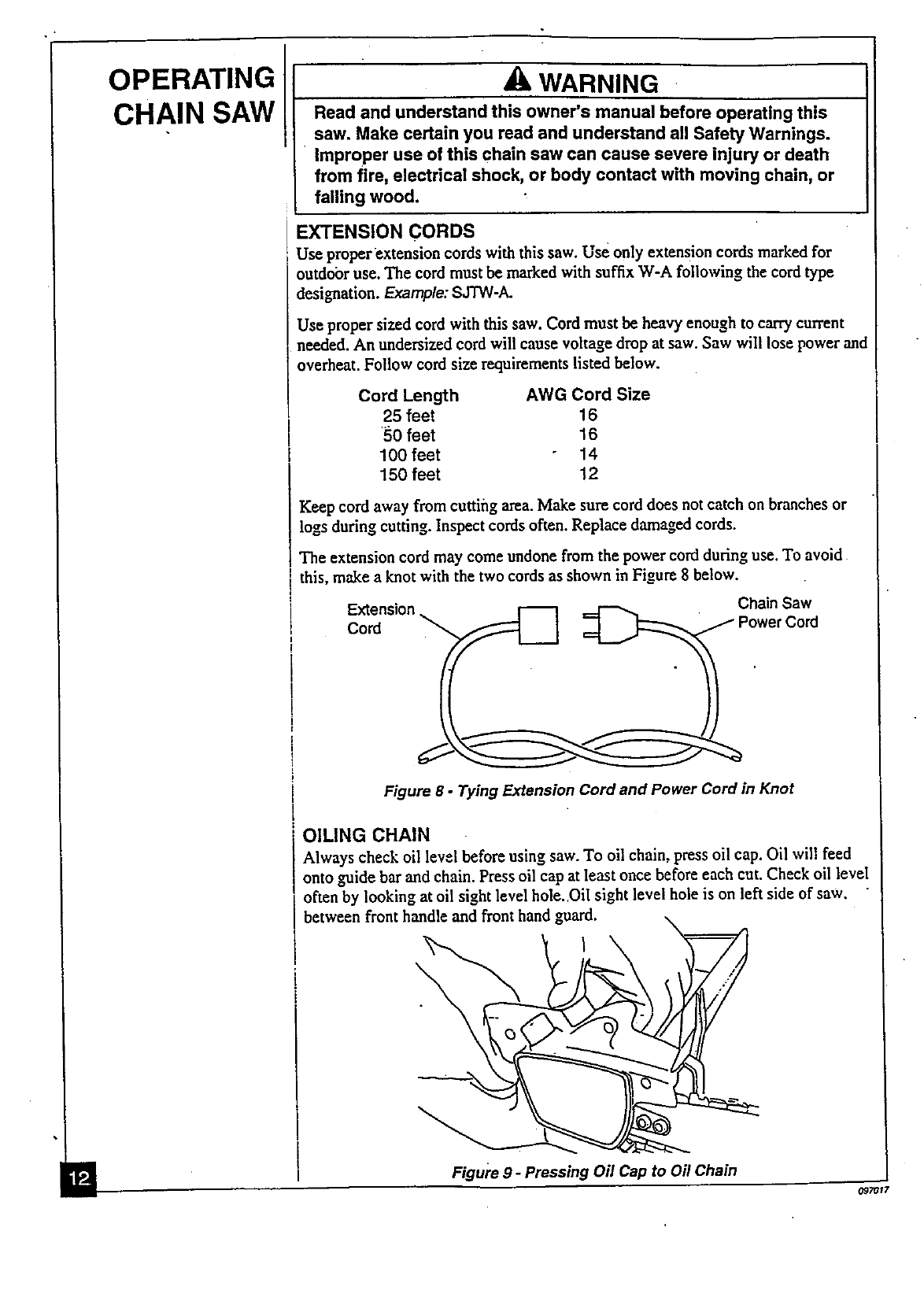

EXTENSION CORDS

Use properextension cords with this saw. Use only extension cords marked for

outdoor use. The cord must be marked with suffix W-A following the cordtype

designation. Example: SJTW-A.

Use proper sized cord with this saw. Cord must be heavy enough to carry current

needed. An undersized cord will cause voltage drop at saw. Saw will lose power and

overheat. Follow cord size requirements listed below.

Cord Length AWG Cord Size

25 feet 16

_50feet 16

100 feet 14

150 feet 12

Keep cord away from cuttiiag area. Make sure cord does not catch on branches or

logs during cutting. Inspect cords often. Replace damaged cords.

The extension cord may come undone from the power cord during use. To avoid

this, make a knot with the two cords as shown in Figure 8 below.

Extension _ _ Chain Saw

cor,

Figure 8 - Tying Extension Cord and Power Cord in Knot

OILING CHAIN

Always check oil level before using saw. To oil chain, press oil cap. Oil will feed

onto gnide bar and chain. Press oil cap at least once before each cut. Check oil level

often by looking at oil sight level hole. Oil sight level hole is on left side of saw.

between front handle and front hand guard.

Figure 9 - Pressing Oil Cap to Oil Chain 097017

OPERATING

CHAIN SAW

Continued

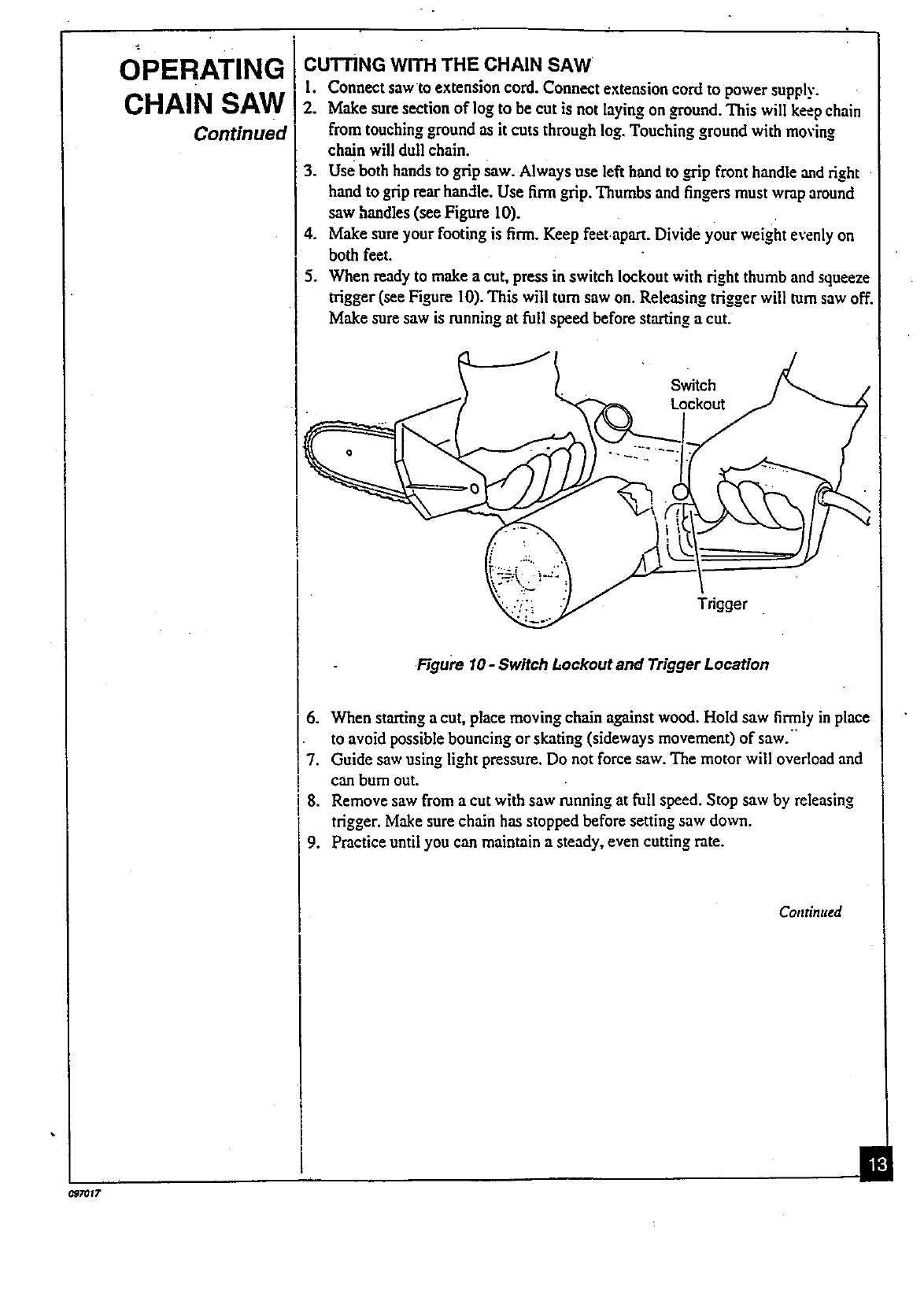

CUTTING WITH THE CHAIN SAW

1. Connect saw to extension cord. Connect extension cord to power supply.

2. Make suresectionoflogtobe cutisnotlayingon _ound. Thiswillkeepchain

from touchinggroundas itcutsthroughlog.Touching groundwithmoving

chainwilldullchain.

3. Use bothhandstogripsaw. Always use lefthand to==,ripfronthandleandright

hand togriprearhanclle.Use firmgrip.Thumbs and fingersmust wrap around

saw handles(seeFigure10).

4. Make sureyour footingisfirm.Keep feetapart.Divideyour weightevenlyon

bothfeet.

5. When readytomake acut,pressinswitchlockoutwithrightthumb and squeeze

trigger(seeFigure10).This willtam saw on.Releasingtriggerwillturnsaw off.

Make suresaw isrunningatfullspeedbeforestartinga cut.

Trigger

•Figure 10 -Switch Lockout and Trigger Location

6. When startingacut,placemoving chainagainstwood. Hold saw firmlyinplace

toavoidpossiblebouncingor skating(sidewaysmovement) of saw."

Guide saw usinglightpressure.Do notforcesaw.The motor willoverloadand

can bum out.

8. Remove saw from acut with saw running at full speed. Stop saw by releasing

trigger. Make sure chain has stopped before setting saw down.

9. Practice until you can maintain a steady, even cutting rate.

Continued

097017

OPERATING

CHAIN SAW

Continued

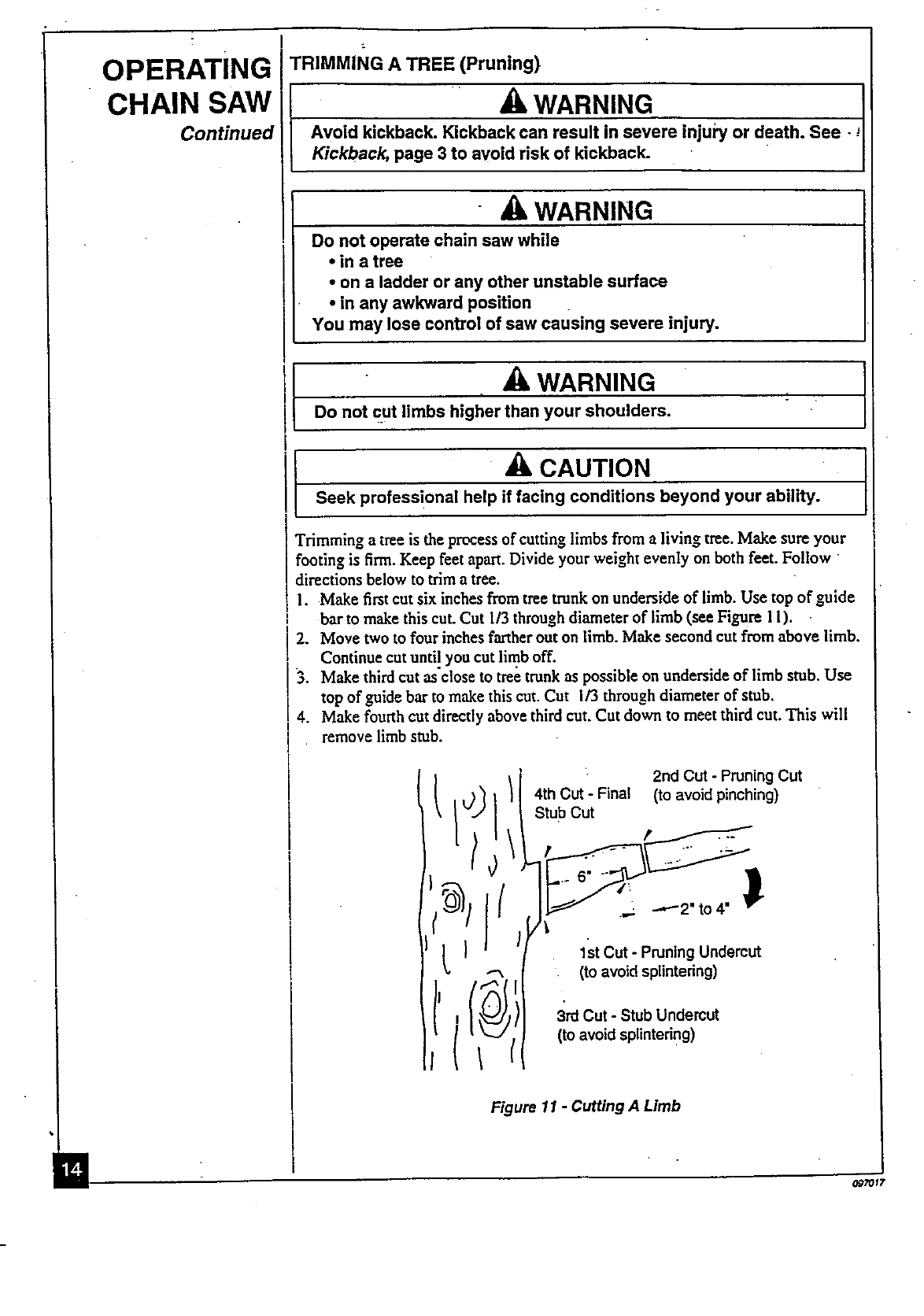

TRIMMING A TREE (Pruning)

WARNING

Avoid kickback. Kickback can result in severe injui'y or death. See.

Kickback, page 3 to avoid risk of kickback.

WARNING

Do not operate chain saw while

°in a tree

•on a ladder or any other unstable surface

•in any awkward position

You may lose control of saw causing severe injury.

WARNING

Do not cut limbs higher than your shoulders.

)

CAUTION

Seek professional help if facing conditions beyond your ability.

Trimming a tree is the process of cutting limbs from a living tree. Make sure your

footing is firm. Keep feet apart. Divide your weight evenly on both feet. Follow

directions below to trim a tree.

I. Make first cut six inches from tree trunk on underside of limb. Use top of guide

bar to make this cut. Cut 1/3 through diameter of limb (see Figure 11).

2. Move two to four inches farther out on limb. Make second cut from above limb.

Continue cut unti! you cut limb off.

'3. Make third cut as close to tree trunk as possible on underside of limb stub. Use

top of guide bar to make this cut. Cut I/3 through diameter of stub.

4. Make fourth cut directly above third cut. Cut down to meet third cut. This will

remove limb stub.

2nd Cut - Pruning Cut

. L_jJI / 4th Cut- Final (to avoid pinching)

_ ------2" to 4 )

/1st Cut -Pruning Undercut

(to avoid splintering)

3rd Cut -Stub Undercut

(to avoid splintering)

Figure 11 - Cutting A Limb

€_,'ui7

09;'017

OPERATING

CHAIN SAW

Continued

FELLING A TREE (Cutting Down a Tree)

•WARNING

•Avoid kickback. Kickback can result in severe injury or death.

See Kickback, page 3 to avoid risk of kickback.

•Do not fell a tree without ample skill or expert help.

• Keep children, animals, and bystanders away from area when

felling a tree•

•If two or more persons perform bucking and felling operations

at the same time, provide ample distance between operations.

Provide distance of at least twice the height of tree being felled.

WARNING

When felling a tree, be aware of your surroundings. Do not

endanger any person, strike utility lines, or cause property dam-

age. If tree strikes utility lines, contact utility company at once.

Felling is the process of cutting down a tree. Make sure your footing is firm. Keep

feet apart. Divide your weight evenly on both feet. Follow directions below to fell a

tree.

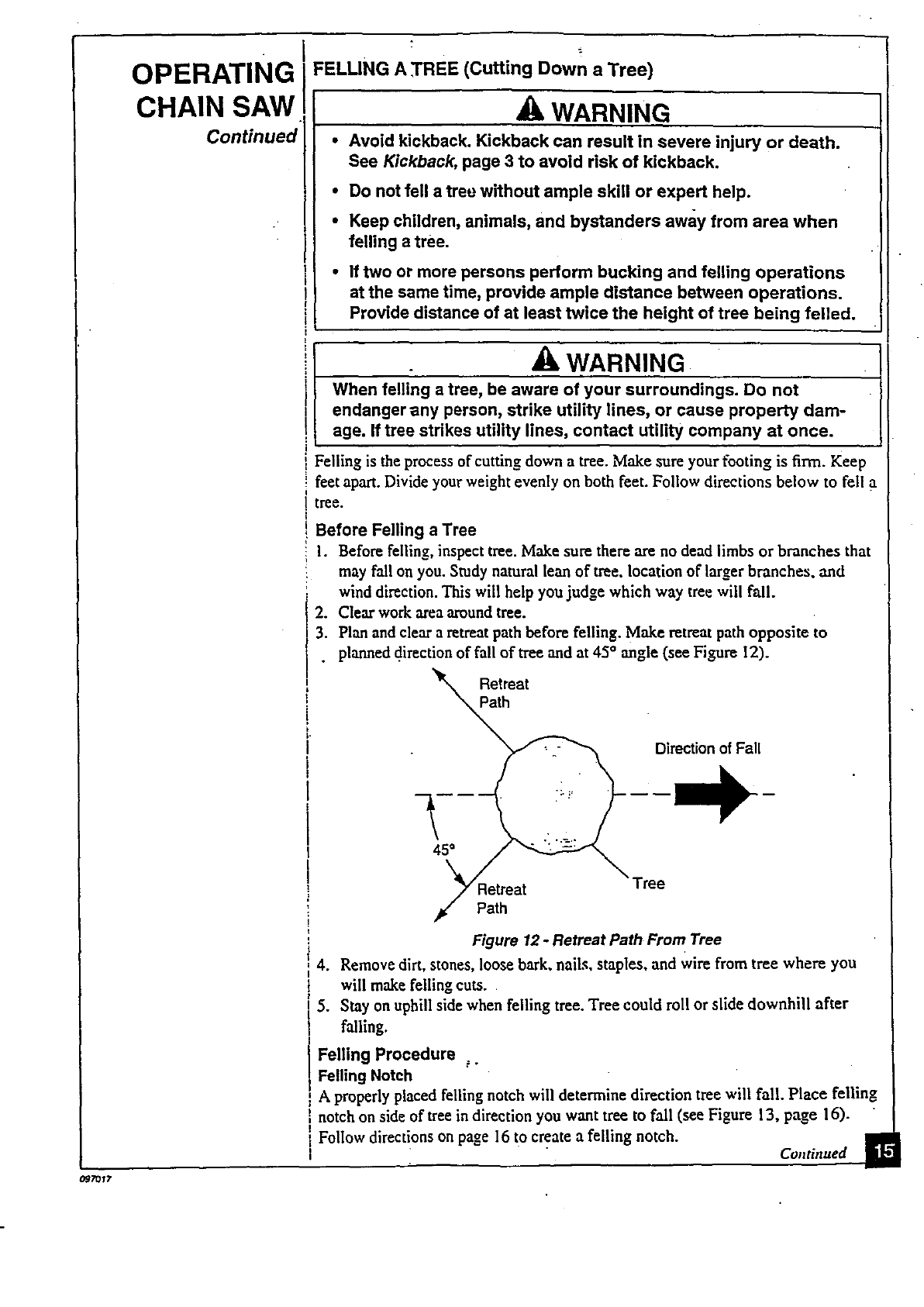

,Before Felling aTree

I. Before felling, inspect tree. Make sure there are no dead limbs or branches that

may fall on you. Study natural lean of tree. location of larger branches, and

wind direction. This will help you judge which way tree will fall.

2. Clear work area around tree.

3. Plan and clear a retreat path before felling. Make retreat path opposite to

• planned d.irection of fall of tree and at 45 °angle (see Figure 12).

Retreat

Path

Direction of Fall

Retreat

Path

Figure 12 -Retreat Path From Tree

4. Remove dirt, stones, loose bark, nails, staples, and wire from tree where you

will make felling cuts.

5. Stay on uphill side when felling tree. Tree could roll or slide downhill after

falling.

Felling Procedure

Felling Notch

A properly placed felling notch will determine direction tree will fall. Place felling

notch on side of tree in direction you want tree to fall (see Figure 13, page 16).

Follow directions on page 16 to create a felling notch roll

OPERATING 1

CHAIN SAW I

Continued !2.

•3.

i, i,

Make lower notch cut as close to ground as possible. Hold saw so gui_de bar is

horizontal. Cut 1i3 the diameter of tree trunk'(see Figure 13). Note: Always

make this horizontal lower notch cut first. If you make this cut second, tree can

pinch chain or guide bar.

Start upper notch cut the same distance above first cut as first cut is deep.

Example: If lower notch cut is eight inches deep, start upper notch cut eight

inches above it. Cut downward at 45 ° angle. The upper notch cut should meet

end of lower notch cut (see Figure 13).

Remove tr_ trunk wedge created by notching cuts.

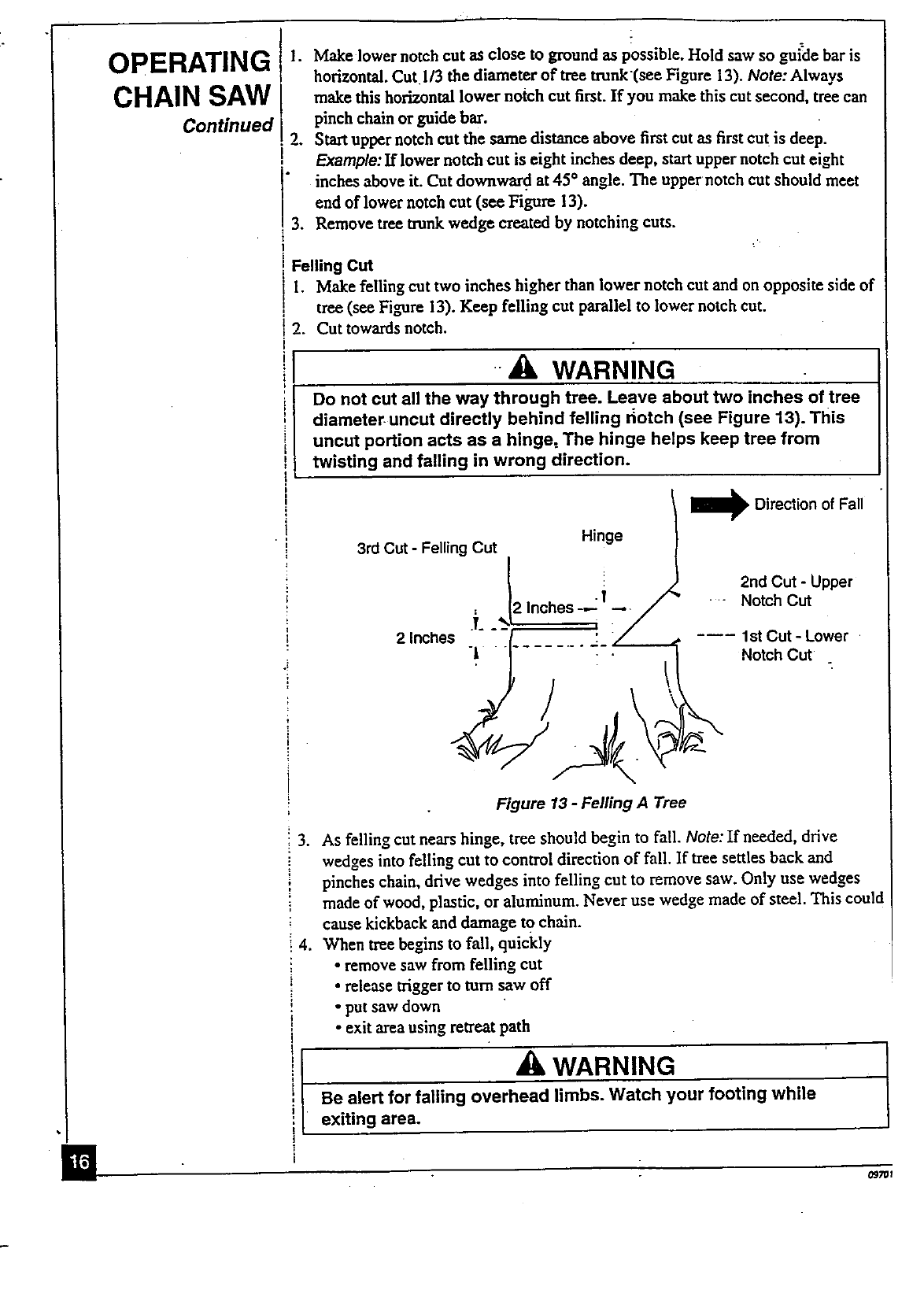

Felling Cut

I. Make felling cut two inches higher than lower notch cut and on opposite side of

tree (see Figure 13). Keep felling cut parallel to lower notch cut.

2. Cut towards notch.

WARNING

Do not cut all the way through tree. Leave about two inches of tree

diameter uncut directly behind felling riotch (see Figure 13). This

uncut portion acts as a hinge. The hinge helps keep tree from

twisting and falling in wrong direction.

.Direction of Fall

3rd Cut -Felling Cut Hinge I!1_ dtc_

12 inches _,_ i _. //_ UcutUpper

2inches J" "__:___.. ----1NSttcChUtc-LOwer

Figure 13 -Felling A Tree

3. As felling cut nears hinge, tree should begin to fa!l. Note: If needed, drive

wedges into felling cut to control direction of fall. If tree settles back and

pinches chain, drive wedges into felling cut to remove saw. Only use wedges

made of wood, plastic, or aluminum. Never use wedge made of steel• This couk

cause kickback and damage tochain.

4. When tree begins to fall, quickly

• remove saw from felling cut

•release trigger to rare saw off

•put saw down

• exit area using retreat path

WARNING

Be alert for failing overhead limbs. Watch your footing while

exiting area.

¢.q#/u t

OPERATING

CHAIN SAW

Continued

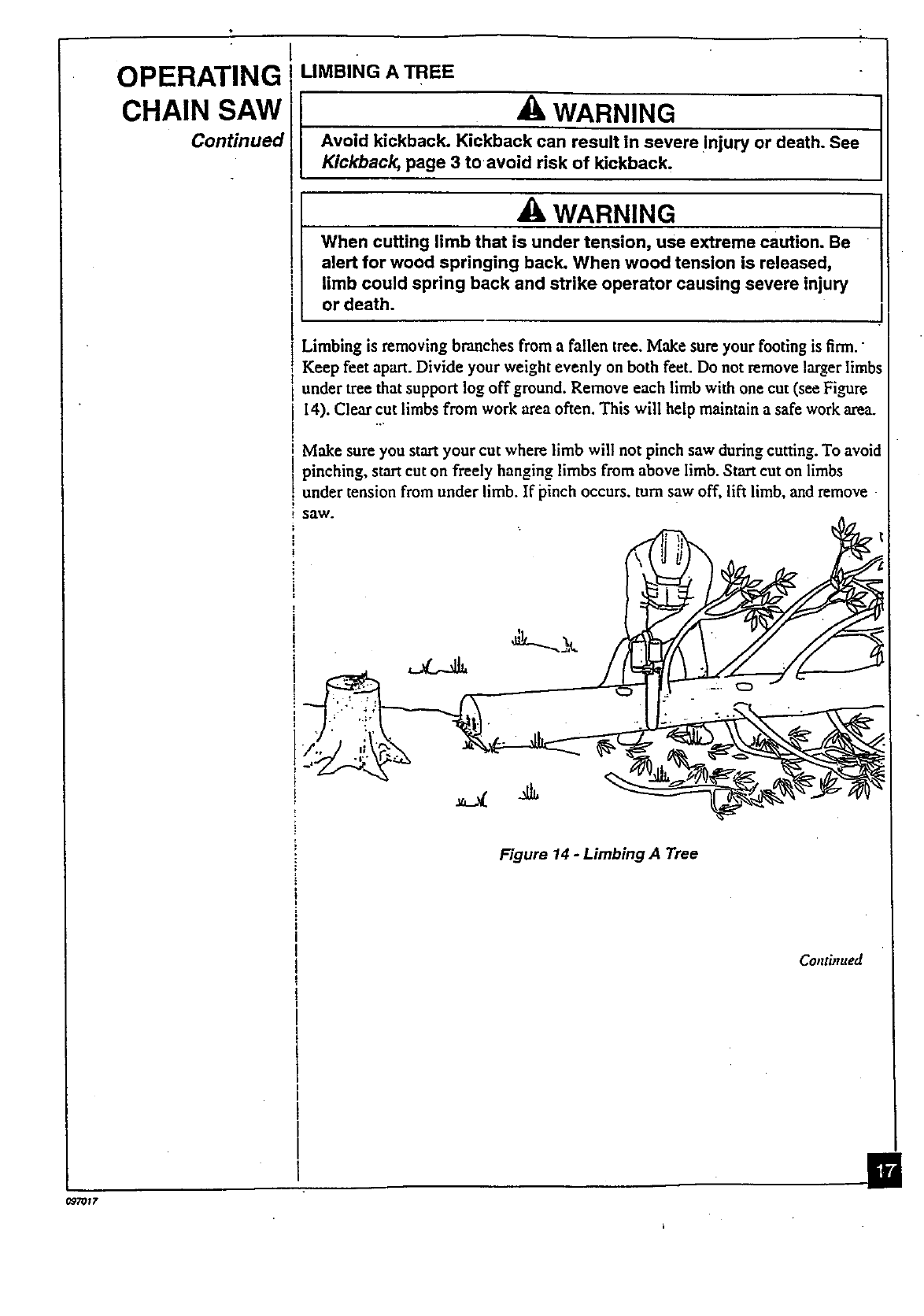

LIMBING A TREE

WARNING

Avoid kickback. Kickback can result in severe Injury or death. See

Kickback, page 3 to avoid risk of kickback.

WARNING

When cutting limb that is under tension, use extreme caution. Be

alert for wood springing back. When wood tenston is released,

limb could spring back and strike operator causing severe injury

or death.

Limbing is removing branches from a fallen tree. Make sure your footing is firm.

Keep feet apart. Divide your weight evenly on both feet. Do not remove larger limb

under tree that support log offground. Remove each limb with one cut (see Figure

14). Clear cut limbs from work area often. This will help maintain a safe work area.

Make sure you start your cut where limb will not pinch saw during cutting. To avoid

pinching, start cut on freely hanging limbs from above limb. Start cut on limbs

under tension from under limb. If pinch occurs, turn saw off, lift limb, and remove

saw.

Figure 14 -Limbing A Tree

Continued

097077

OPERATING

CHAIN SAW

,+Continued

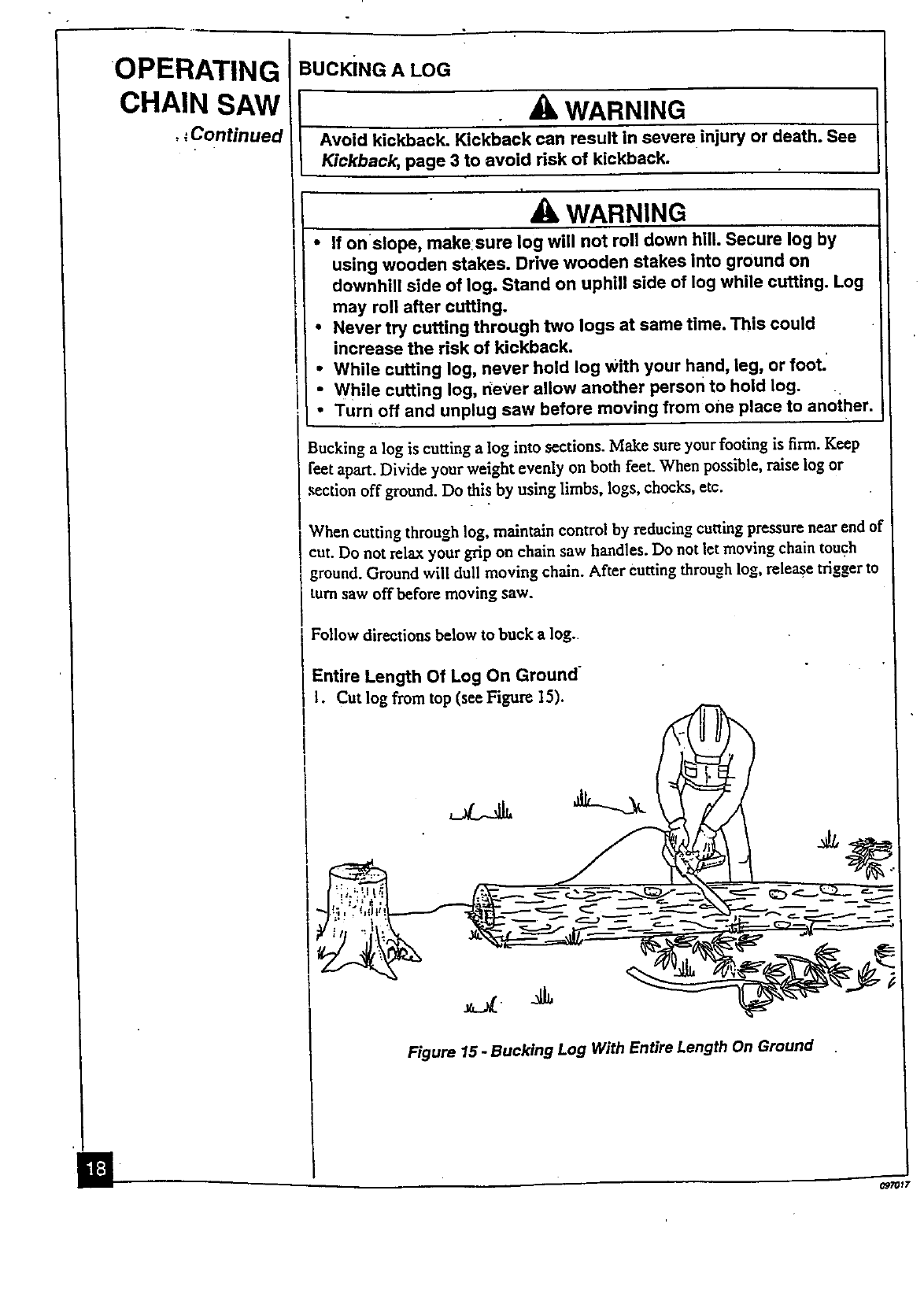

BUCKING A LOG

• WARNING

Avoid kickback. Kickback can result in severe+injury or death. See

Kickback, page 3 to avoid risk of kickback.

WARNING

•If onslope, make:sure log will not roll down hill. Secure log by

using wooden stakes. Drive wooden stakes into ground on

downhill side of log. Stand on uphill side of log while cutting. Log

may roll after cutting.

•Never try cutting through two logs at same time. This could

increase the risk of kickback.

•While cutting log, never hold log With your hand , leg, or foot.

While cutting log, neVer allow another person to hold log.

Turn off and unplug saw before moving from one place to another.

Bucking alog is cutting a log into sections. Make sure your footing is firm. Keep

feet apart. Divide your weight evenly on both feet. When possible, raise log or

section off ground. Do this by using limbs, logs, chocks, etc.

When cutting through log, maintain control by reducing cutting pressure near end of

: cut. Do not relax your grip on chain saw handles. Do not let moving chain touch

ground. Ground will dull moving chain. After Cutting through log, release trigger to

turn saw off before moving saw.

Follow directions below to buck a log.

Entire Length Of Log On Ground"

I. Cut log from top (see Figure 15).

Figure 15 -Bucking Log With Entire Length On Ground

097017

OPERATING

CHAIN SAW

Continued

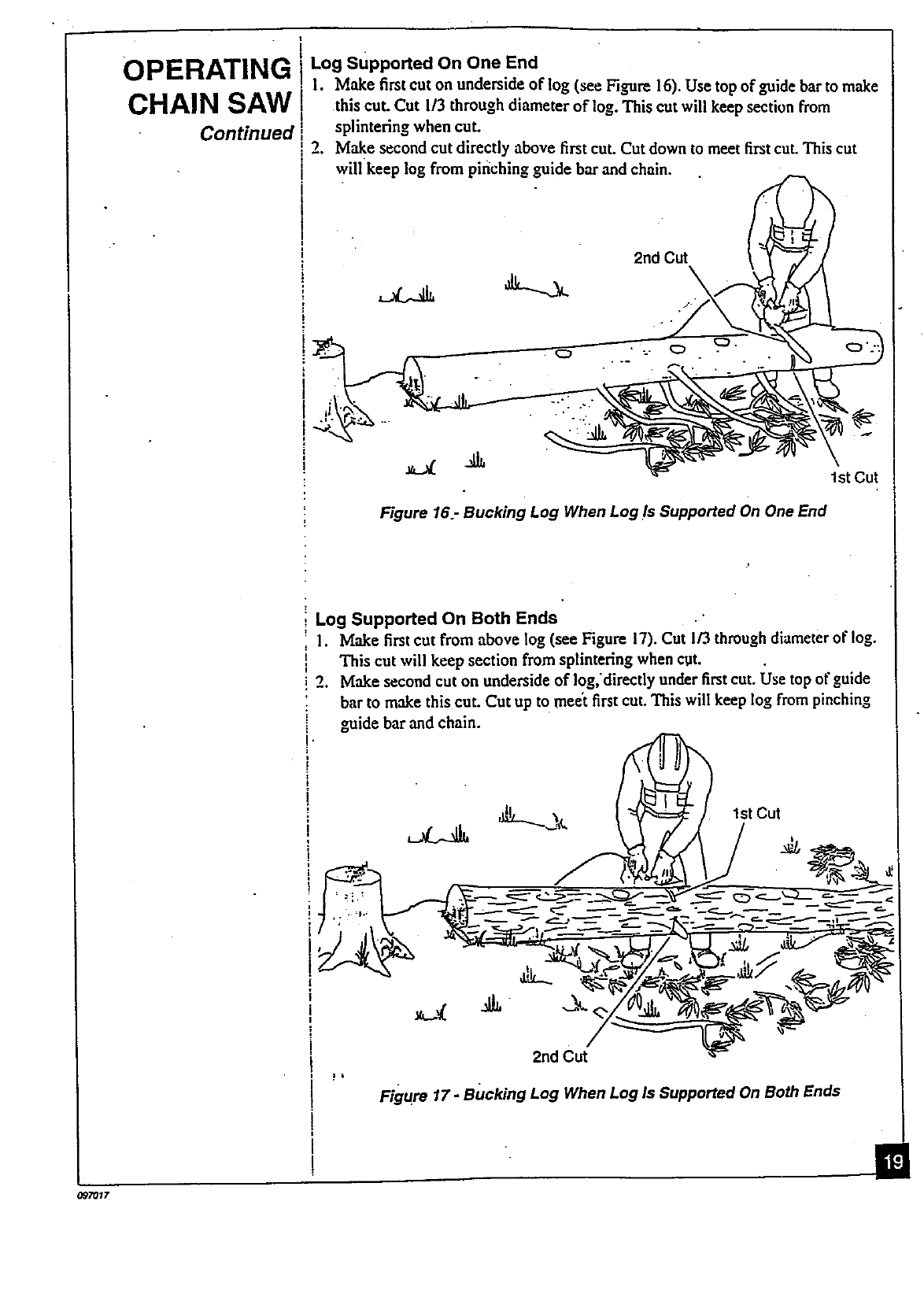

Log Supported On One End

1. Make first cut on underside of log (see Figure 16). Use top of guide bar to make

this cut. Cut I/3 through diameter of log. This cut will keep section from

splintering when cut.

2. Make second cut directly above first cut. Cut down to meet first cut. This cut

will keep log from pinching guide bar and chain.

2nd Cut\

1st Cut

Figure 16.- Bucking Log When Log Is Supported On One End

Log Supported On Both Ends

1. Make first cut from above log (see Figure 17). Cut 1/3 through diameter of log.

This cut will keep section from splintering when cut.

2. Make second cut on underside of Iog,directly under first cut. Use top of guide

bar to make this cut. Cut up mmeet first cut. This will keep log from pinching

guide bar and chain.

+stcut

2nd Cut

Figure 17- Bucking Log When Log Is Supported On Both Ends

097017

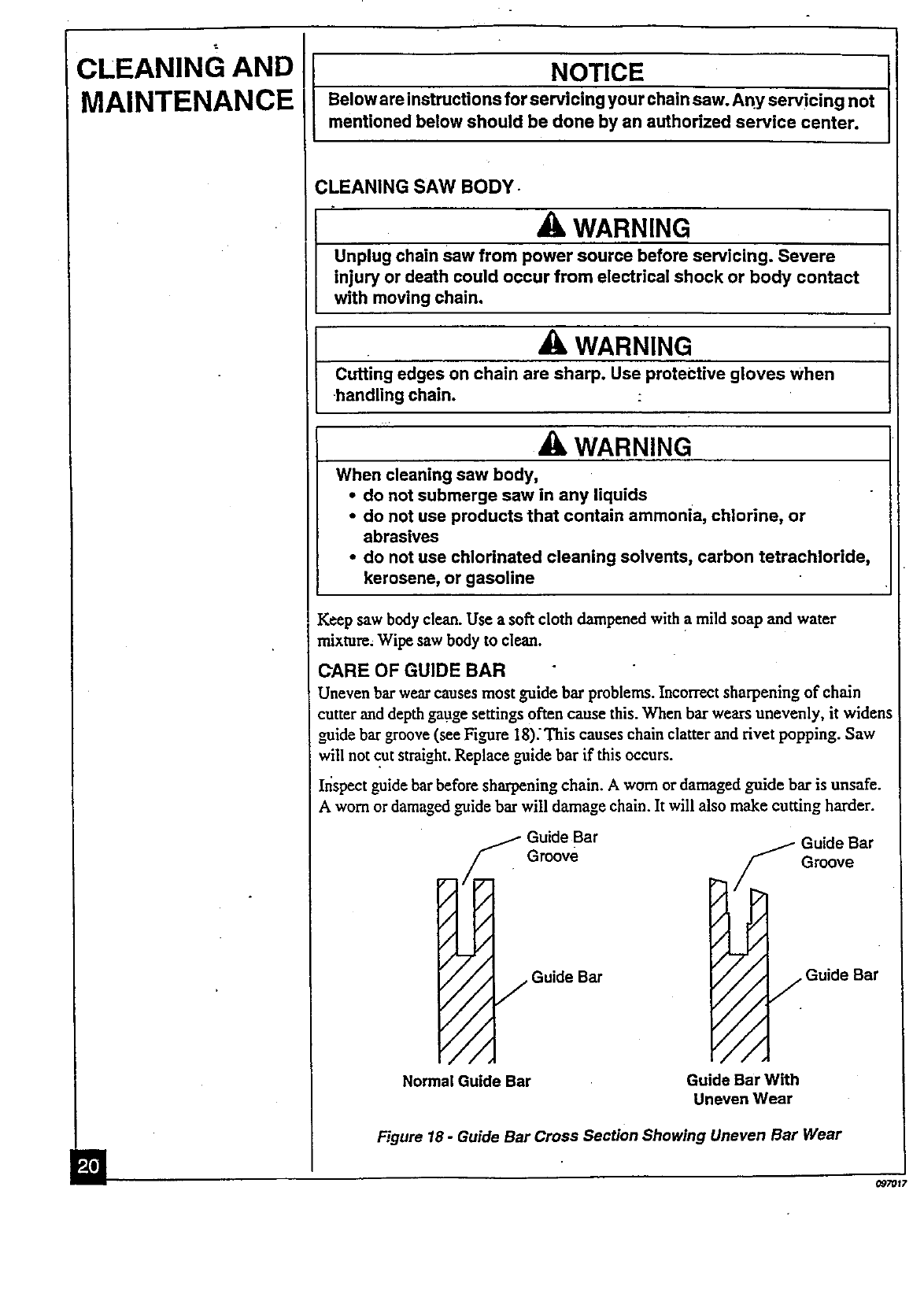

CLEANINGI AND

MAINTENANCE NOTICE t

Below are instructions for servicing your chain saw. Any servicing not

mentioned below should be done by an authorized service center.

CLEANING SAW BODY.

AWARNING

Unplug chain saw from power source before servicing. Severe

injury or death could occur from electrical shock or body contact

with moving chain.

•ILWARNING

Cutting edges on chain are sharp. Use protective gloves when

-handling chain.

WARNING

When cleaning saw body,

•do not submerge saw in any liquids

•do not use products that contain ammonia, chlorine, or

abrasives

•do not use chlorinated cleaning solvents, carbon tetrachloride,

kerosene, or gasoline

Keepsaw body clean. Use a soft cloth dampened with a mild soap and water

mixture. Wipe saw body to clean.

CARE OF GUIDE BAR

Uneven bar wear causes most guide bar problems. Incorrect sharpening of chain

cutter and depth gauge settings often cause this. When bar wears unevenly, it widens

guide bar groove (see Figure 18):This causes chain clatter and rivet popping. Saw

will not cut st_ight. Replace guide bar if this occurs.

Inspect guide bar before sharpening chain. A worn or damaged guide bar is unsafe.

A worn or damaged guide bar will damage chain. It will also make cutting harder.

_//_ Guide Bar

Groove

Normal Guide Bar

Guide Bar

Groove

•Guide Bar

Guide Bar With

Uneven Wear

Figure 18 - Guide Bar Cross Section Showing Uneven Bar Wear

097017

CLEANING AND

MA' a T E acAnNnCu E

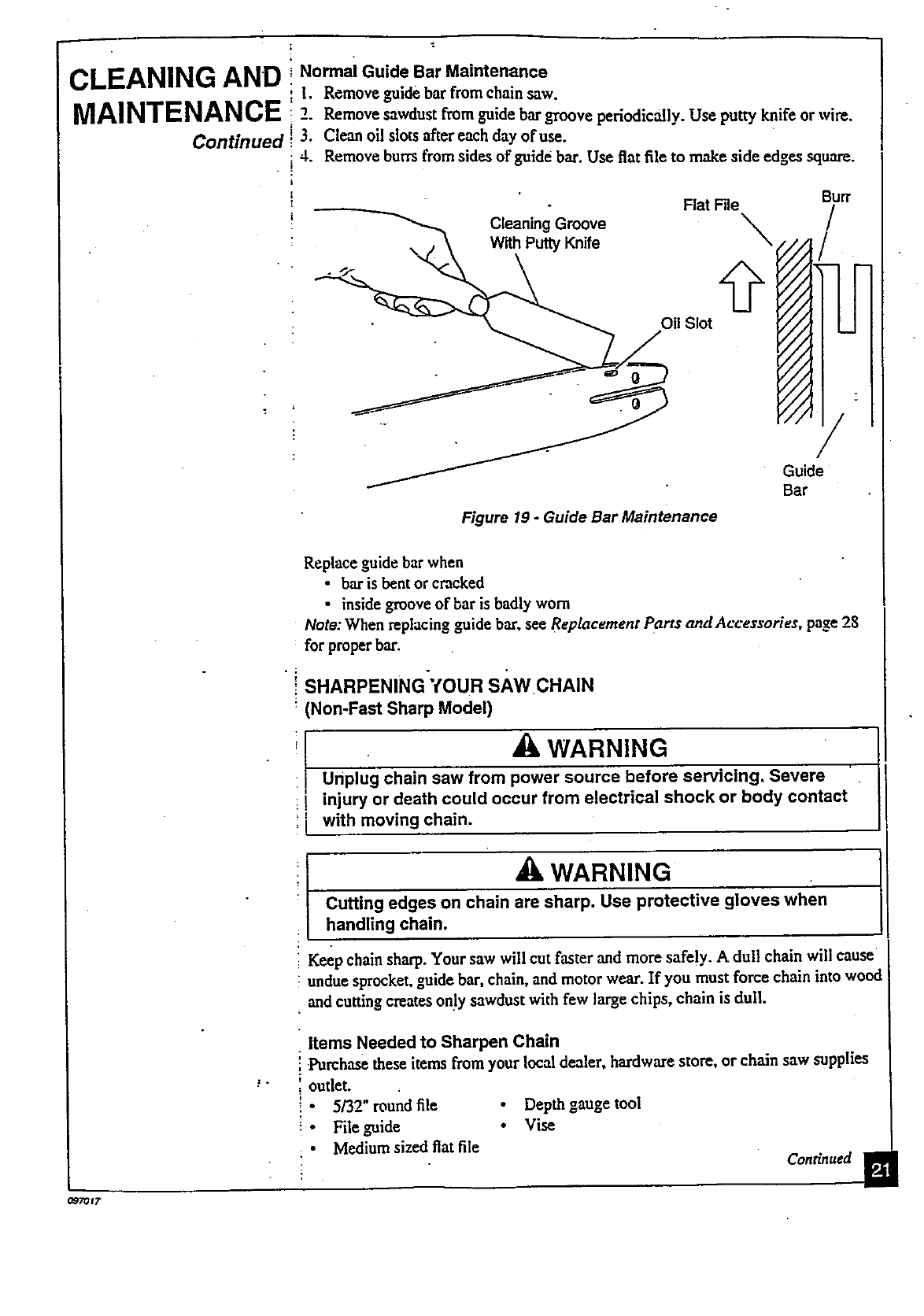

Normal Guide Bar Maintenance

1. Remove guide bar from chain saw.

2. Remove sawdust from guide bar groove periodically. Use putty knife or wire.

3. Clean oil slots after each day of use.

4. Remove burrs from sides of guide bar. Use flat file to make side edges square.

Burr

Flat File

Cleaning Groove _ __ /

WRh Putty Knife

Oil Slot

Figure 19 -Guide Bar Maintenance

Guide

Bar

Replace guide bar when

• bar is bent or cracked

• inside groove of bar is badly worn

Note: When replacing guide bar, see Replacement Parts and Accessories, page 28

for pmper bar.

SHARPENING'YOUR SAWCHAIN

(Non-Fast Sharp Model)

WARNING

Unplug chain saw from power source before servicing. Severe

injury or death could occur from electrical shock or body contact

with moving chain.

WARNING

Cutting edges on chain are sharp. Use protective gloves when

handling chain.

O97O17

Keep chain sharp. Your saw will cut faster and more safely. A dull chain will cause

undue sprocket, guide bar, chain, and motor wear. If you must force chain into wood

and cutting creates onJy sawdust with few large chips, chain is dull.

Items Needed to Sharpen Chain

Purchase these items from your local dealer, hardware store, or chain saw supplies

outlet.

5/32" round file • Depth gauge tool

File guide • Vise

•Medium sized fiat file Continued

CLEANING AND

VlAINTENANCE

Contmued

Sharpening Cutters.

Use file guide for 30 ° filing.

1. Adjust chain for propertension (see Saw Chain Tension Adjustment, page 10).

12. Clamp guide bar in vise to hold saw steady. Note: Do not clamp chain.

3. Press 5/32" round file (attached to file guide) into Voove between top plate and

depth gauge on chain_ File guide should rest on both top plate and depth gauge

(see Figures 20 and 21). Note: File at midpoint of guide bar.

4. Hold file guide level. Make sure 30* mark on file guide is parallel to center of

guide bar (see Figure 20). This will insure that you file cutters at 30* angle.

5. File from inside towards outside of cutter until sharp.Only file in this one direction

(see Figure 20). Note: Two or three strokes with file should sharpen cutter.

6. After each cutter if sharpened, move chain forward to sharpen next cutter.File

all cutters on one side of chain.

7. Move to'other side of chain and repeat process.

_. _ Filing

Direction

30° Guide

\•5/32"

Round File

Note: This

illustrationshows

file guide pEace-

ment and filing

directionfor

sharpening cutters

on left side of

chain.

Figure 20 - File and File Guide Placement On Chain

Depth Gauge

(left side of chain)

of Chain

Gauge

(rightside of chain

Top Plate

(left side of

Right Side

of Chain

Top Plate

(rightside of chain)

m - Figure 21 - Chain Part Locations

CLEANING AND

MAINTENANCE

Continued

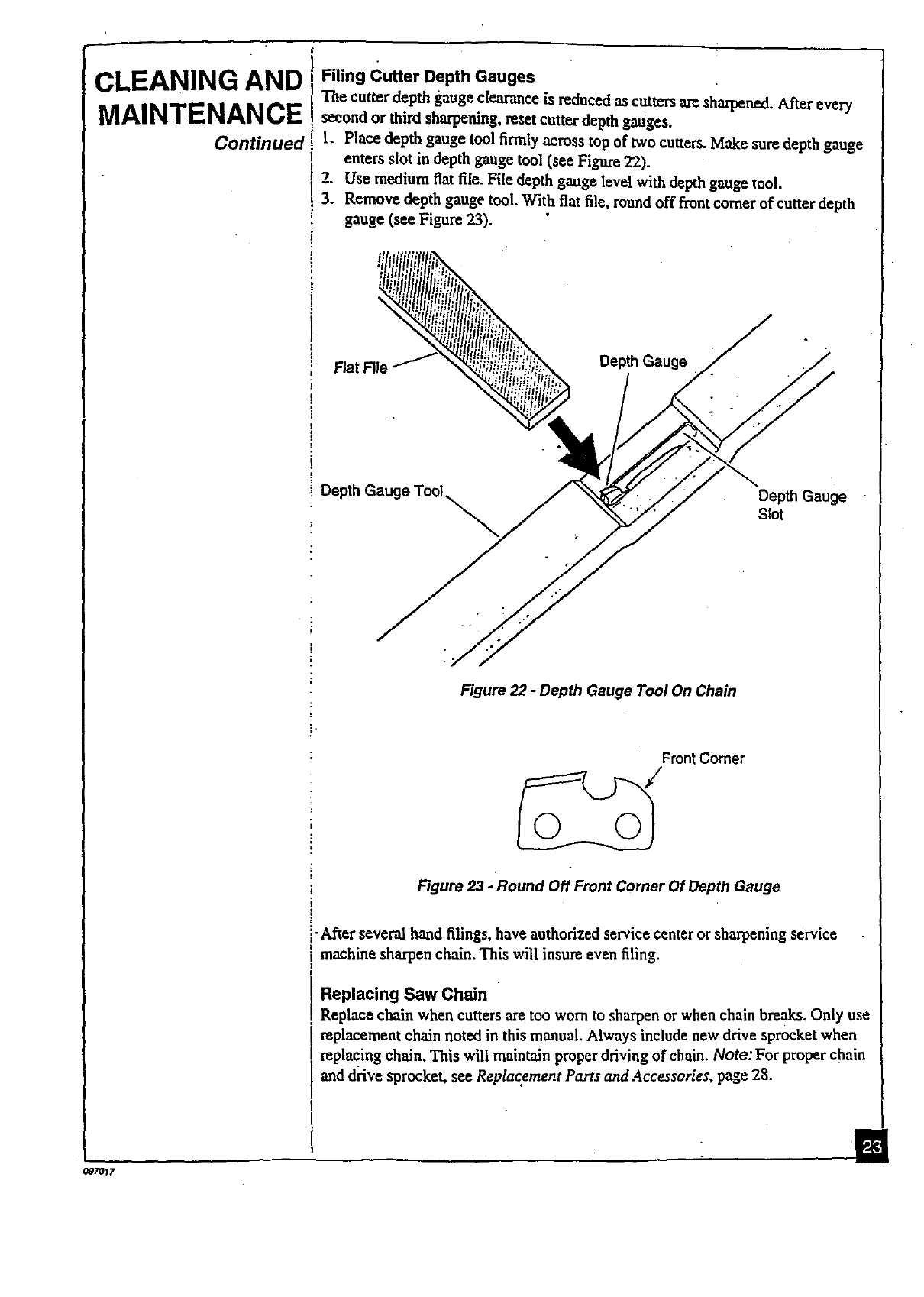

Filing Cutter Depth Gauges

The cutter depth gauge clearance is reduced as cutters are sharpened. After every

second or third sharpening, reset cutter depth gauges.

1. Place depth gauge tool firmly across top of two cutters. Make sure depth gauge

enters slot in depth gauge tool (see Figure 22).

2. Use medium flat file. File depth gauge level with depth gauge tool.

3. Remove depth gauge tool. With fiat file, round off front comer of cutter depth

gauge (see Figure 23).

Flat File Depth Gauge

Depth Gauge Tool

Depth Gauge

Slot

Figure 22 - Depth Gauge Tool On Chain

Front Comer

Figure 23 -Round Off Front Comer Of Depth Gauge

_-After several hand filings, have authodzed service center or sharpening service

i machine sharpen chain. This will insure even filing.

Replacing Saw Chain

Replace chain when cuttersare too worn to sharpen or when chain breaks. Only use

replacement chain noted in this manual. Always include new drive sprocket when

replacing chain. "this will maintain proper ddving of chain. Note: For proper chain

and drive sprocket, see Replacement Parrs and Accessories, page 28.

Ittl

097017

CLEANING AND

MAINTENANCE

Continued

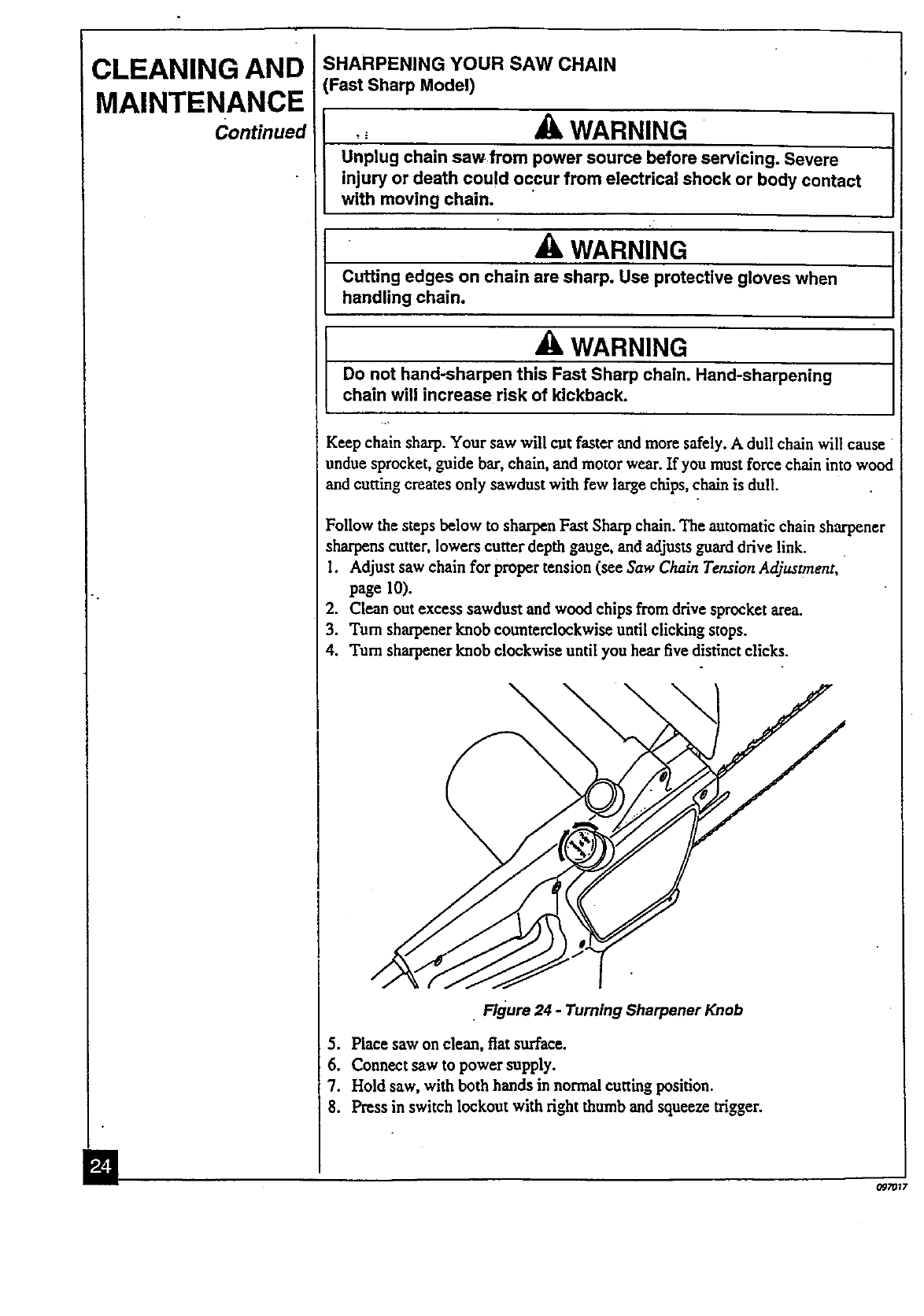

SHARPENING YOUR SAW CHAIN

(Fast Sharp Model)

,0 WARNING

Unplug chain saw from power source before servicing. Severe

injury or death could occur from electrical shock or body contact

with moving chain.

AWARNING

Cutting edges on chain are sharp. Use protective gloves when

handling chain.

WARNING

Do not hand-sharpen this Fast Sharp chain. Hand-sharpening

chain will increase risk of kickback.

Keep chain sharp. Your saw will cut faster and more safely. A dull chain will cause

undue sprocket, guide bar, chain, and motor wear. If you must force chain into wood

and cutting creates only sawdust with few large chips, chain is dull.

FoUow the steps below to sharpen Fast Sharp chain. The automatic chain sharpener

sharpens cutter, lowers cutter depth gauge, and adjusts guard drive link.

I. Adjust saw chain for propor tension (see Saw Chain Tension Adjustment,

page I0).

2. Clean out excess sawdust and wood chips from drive sprocket area.

3. "rum sharpener knob counterclockwise until clicking stops.

4. "rum sharpener knob clockwise until you hear five distinct clicks.

. Figure 24 - Turning Sharpener Knob

5. Place saw on clean, fiat smface.

6. Connect saw to power supply.

7. Hold saw, with both hands in normal cutting position.

8. Press in switch lockout with right thumb and squeeze trigger.

CLEANING AND

MAINTENANCE

Continued

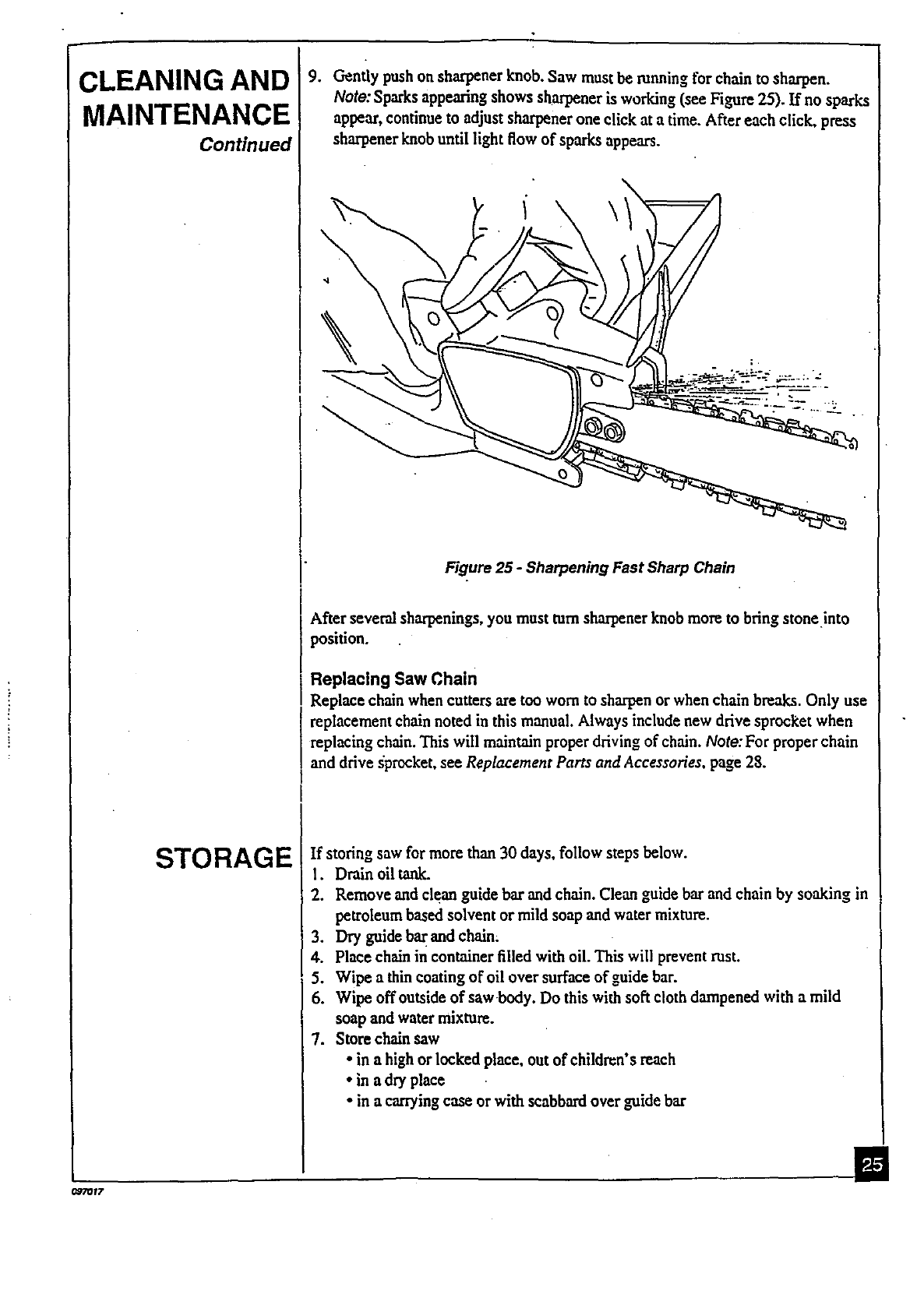

9. Gently push on sharpener knob. Saw must be running for chain msharpen.

Note: Sparks appearing shows sharpener is working (see Figure 25). If no sparks

appear, continue to adjust sharpener one click at a time. After each click, press

sharpener knob until light flow of sparks appears.

STORAGE

Figure 25 -Sharpening Fast Sharp Chain

After several sharpenings, you must turn sharpener knob more to bring stone into

position•

Replacing Saw Chain

Replace chain whencutters are too worn to sharpen or when chain breaks. Only use

replacement chain noted in this manual. Always include new drive sprocket when

replacing chain. This will maintain proper driving of chain. Note: For proper chain

and drive sprocket, see Replacement Parts and Accessories, page 28.

If storing saw for more than 30 days, follow steps below.

1. Drain oil tank.

2. Remove and clean guide bar and chain. Clean guide bar and chain by soaking in

petroleum based solvent or mild soup and water mixture.

3. Dry guide ba[ and chain:

4. Place chain in container filled with oil. This will prevent rust.

5. Wipe a thin coating of oil over surface of guide bar.

6. Wipe off outside of saw body. Do this with soft cloth dampened with a mild

soap and water mixture.

7. Store chain saw

• in a high or locked place, out of children's reach

•in a dry place

•in a ca'Tying case or with scabbard over guide bar

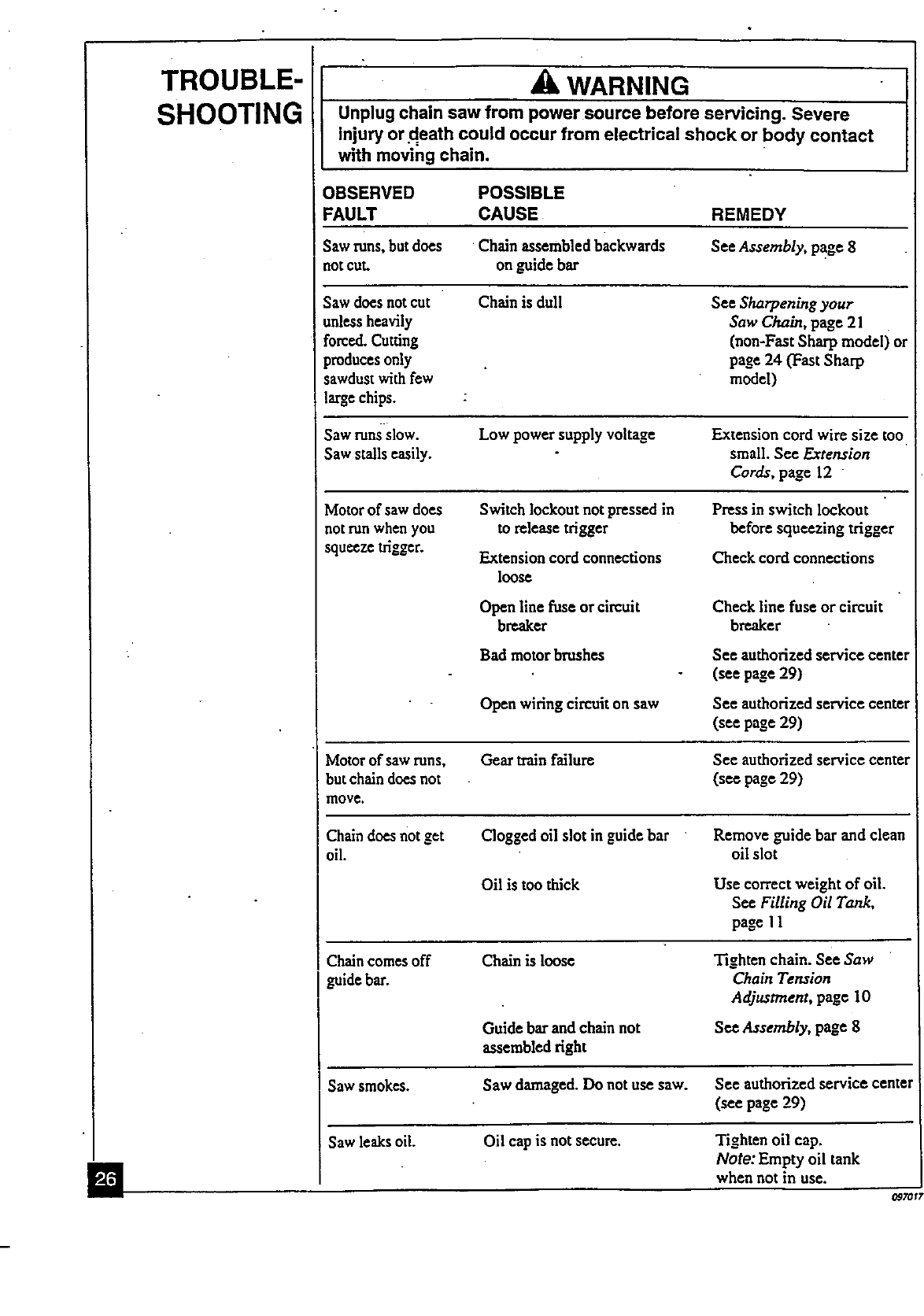

TROUBLE-

SHOOTING ,/k WARNING

Unplug chain saw from power source before servicing. Severe

injury or death could occur from electrical shock or body contact

with moving chain.

OBSERVED POSSIBLE

FAULT CAUSE REMEDY

Saw runs, but does Chain asserabled backwards See Assembly, page 8

_ot cut. on guide bar

Saw does not cut Chain is dull See Sharpening your

unless heavily Saw Chain, page 2 I

forced. Cutting (non-Fast Sharp model) or

produces only page 24 (Fast Sharp

sawdust with few model)

large chips. 2

Saw runs Slow. Low power supply voltage Extension cord wire size too

Saw stalls easily, small. See ExterLfion

Cords, page 12

Motor of saw does Switch lockout not pressed in Press in switch lockout

not run whenyou m releasetrigger before squeezing trigger

squeeze_gger. Extension cord connections

loose

Open line fuse or circuit

breaker

Bad motor brushes

Open wiring circuit on saw

Check cord connections

Check line fuse or circuit

breaker

See authorized service center

(see page 29)

See authorized service center

(see page29)

Motor of sawruns,

butchaindoesnot

move.

Gear train failure See authorized service center

(see page 29)

Chain does not get

oil. Clogged oil slot in guide bar

Oil is too thick

Remove guide bar and clean

oil slot

Use correct weight of oil.

See Filling Oil Tank,

page 11

Chain comes off Chain is loose Tighten chain. See Saw

guide bar. Chain Ter_ion

Adju_tmem, page 10

Guide bar and chain not Se_ Assembly, page g

assembled right

Saw smokes. Saw damaged. Do not use saw. See authorized service center

(see page 29)

Saw leaks oil. Oil cap is not secure. Tighten oil cap.

Note: Empty oil tank

when not in use.

TECHNICAL

SERVICE

PUBLICATIONS

REPAIR

SERVICE

You may have furtherquestions about assembling, operating, or maintaining this

saw. If so, contact DESA International's Technical Service Depa_mnentat 1-800-

323-5190.

You can b.uya servicemanual from addresslistedon back page ofthismanual.

Send a checkfor$5.00payabletoDESA International.

You can receive an illustrated parts list free of charge.'Send a self-addressed

stamped envelope to address on back page of this manual.

When writing, include model number and serial number of saw. You will find these

numberson sawmotorhousingdecal.

Note:Onlyuse original replacement parts. This will protect your warranty coverage

for parts replaced under warranty.

Eachauthorizedservice center is independently owned and operated.For additional

service centerorwarranty information, call 1-800-323-5190.

Warranty Service

If saw requires warrantyservice, mmrn it to nearest authorized service center. You

must show proof of purchase. If faulty materials or workmanship caused damage,

we will repairor replace saw without charge.

iNon-Warranty Service

If sawrequires.service,returnit to nearestauthorized servicecenter.Repairswill be

billed to you at regularrepair list prices. Note: Normal wear, misuse, abuse, neglect,

or accidental daTa.age is not covered under warranty.

09"/017

REPLACEMENT

PARTS AND

ACCESSORIES

WARNING

Use only replacement parts and accessories described in this

manual. Use of oth .er parts or accessories could damage saw or

injure operator.

Purchase these parts and accessories from your local dealer. If they can not supply

these parts and accessories, either contact your nearest Pacts Central (se_ page 29)

or call DESA International's Parts Department at 1-800-972-7879. You can also

write to the address listed on the back page of this manual.

.NT-2

_art Number Description

097566-01S Guide bar, 8"

091369S Chain, 8Y

097567-02S Guide bar, 10"

:091371S Chain, 10"

097568-02S Guide bar, 12"

091373S Chain, 12"

075752 Drive sprocket

099178H, 100089-06 & EL-1 "

Part Number Descriptio_t

097570-03S Guide bar, 14"

091374S Chain, 14"

075752 Drive sprocket

EL-1 Fast Sharp

Part Number Description

097570-03S Guide bar, 14"

091367S* "Chain, 14"

076695 Drive sprocket

EL'7, 098031J, 099039J,

100089-01, 100089-04

=art Number Description

097572-03S Guide bar, 16"

091375S Chain,16"

075752 Drive sprocket

EL-7 - 100015

Part Number Description

101623-01 Guide bar, 15"

101619-01 Chain, 15"

075752 Drive sprocket

EL-7 Fast Sharp

Part Number Description

097572-03S Guide bar, 16"

091377S* Chain, 16"

076695 Drive sprocket

General

Part Number

079963-02

079963-04

059397

Description

Plastic scabbard,

8" & 10"

Plastic scabbard,

12", 14", & 16"

Extension cord,

two conductor

(16 AWG, 50 ft.)

*Includes automatic chain sharpener.

(_;'01Z

WARRANTY INFORMATION

KEEP THIS WARRANTY

Model

Serial No.

Date Purchased

Always specify model and serial numbers when writing the factory.

We reserve the fight to amend these specifications at any time without notice. The only warranty applicable is our

standard written warranty. We make no other warranty, expressed or-implied.

•LIMITED WARRAI_ITY

ELECTRIC CHAIN S.AW

DESA International warrants this electric chain saw and any parts thereof, to be free from defects in material

and workmanship for one year from the date of first purchase from an authorized dealer, provided that the

product has been properly maintained and operated in accordance with all applicable instructions. The bill of

sales or proof of purchase must be presented at the time a claim is made under this warranty.

•This warranty is extended only to the original retail purchaser.This warranty covers only the parts and labor

required to restore this chain saw to its proper operating condition. Warranty parts must be obtained through

factory authorized dealers and service centers for this product. These dealers and service centers will provid e

original factory replacement parts. Failure to use original factory replacement parts voids this warranty.

This warranty does not cover commercial, industrial, or rental u._age, nor does it apply to parts that are not in"

original condition because of normal wear and tear, or parts that fail or become damaged as a result of

misuse, accident, lack of proper maintenance, tampering, or alteration. Travel, handling, transportation, and

incidental costs associated with warranty repairs are not reimbursable under this warranty and are the

responsibility of the owner.

To the full extent allowed by the law of the jurisdiction that governs the sale of the product, this express

warranty excludes any and all other expressed warranties and limits the duration of any and all implied

warranties, including warranties of merchantability and fitness for a particular purpose to one year form the

date of first purchase, and DESA International's liability is hereby limited to the purchase price of the

product and DESA International shall not be liable for any other damages whatsoever including indirect,

incidental, or consequential damages.

Some states do not allow limitation of how long an implied warrantylasts oran exclusion or limitation of

incidental or consequential damages, so the abov_limitation of damages may not apply to you.

This warranty provides the original purchaser with specific rights. For information regarding those fights,

please consult the applicable state laws.

DESA

INTERNATIONAL

2701 Industrial Drive

P.O.Box90004

BowlingGreen, KY42102-9004

097017-01

REV. S //_

Remington 10431601 User Manual CHAIN SAW Manuals And Guides 99010383

REMINGTON Chainsaw, Electric Manual 99010383 REMINGTON Chainsaw, Electric Owner's Manual, REMINGTON Chainsaw, Electric installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
