El+EC1 RIC BLOWER/VA¢
OWNER'S MANUAL
MODELS: BV12200A, BV12200AT
iMPORTANT: Read and understand this manual before assembling or
operating this appliance, improper use of this appliance can cause severe
injury or death. Keep this manuaJ for future reference.
_DoubJe JnsuJated
REMINGTON ELECTRIC BLOWER/VAC I ill

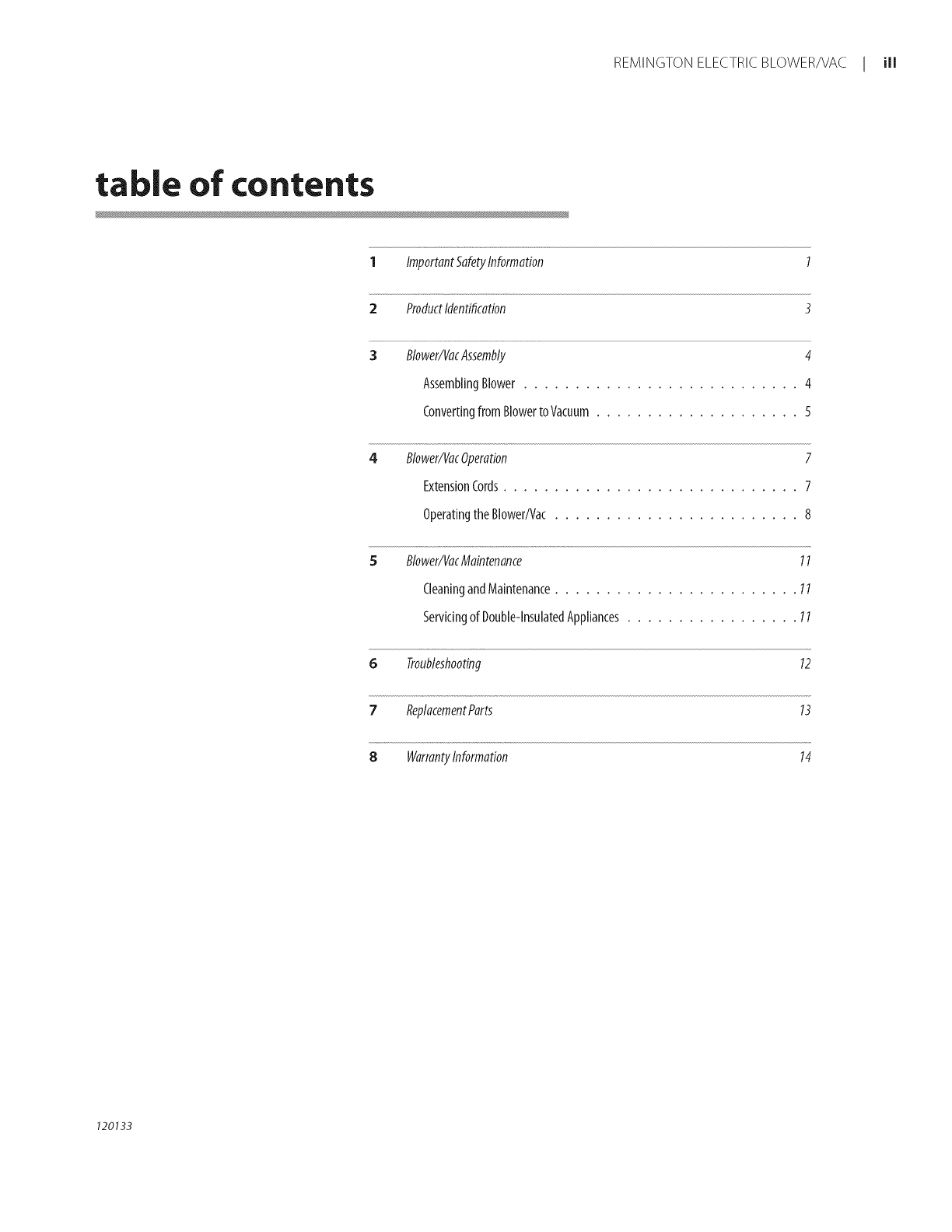

table of contents
1ImportantSafetyInformation 1
2Productldentification 3
3Blower/VatAssembly 4
AssemblingBlower ........................... 4
ConvertingfromBlowertoVacuum.................... 5
4Blower/VatOperation 7
ExtensionCords............................. 7

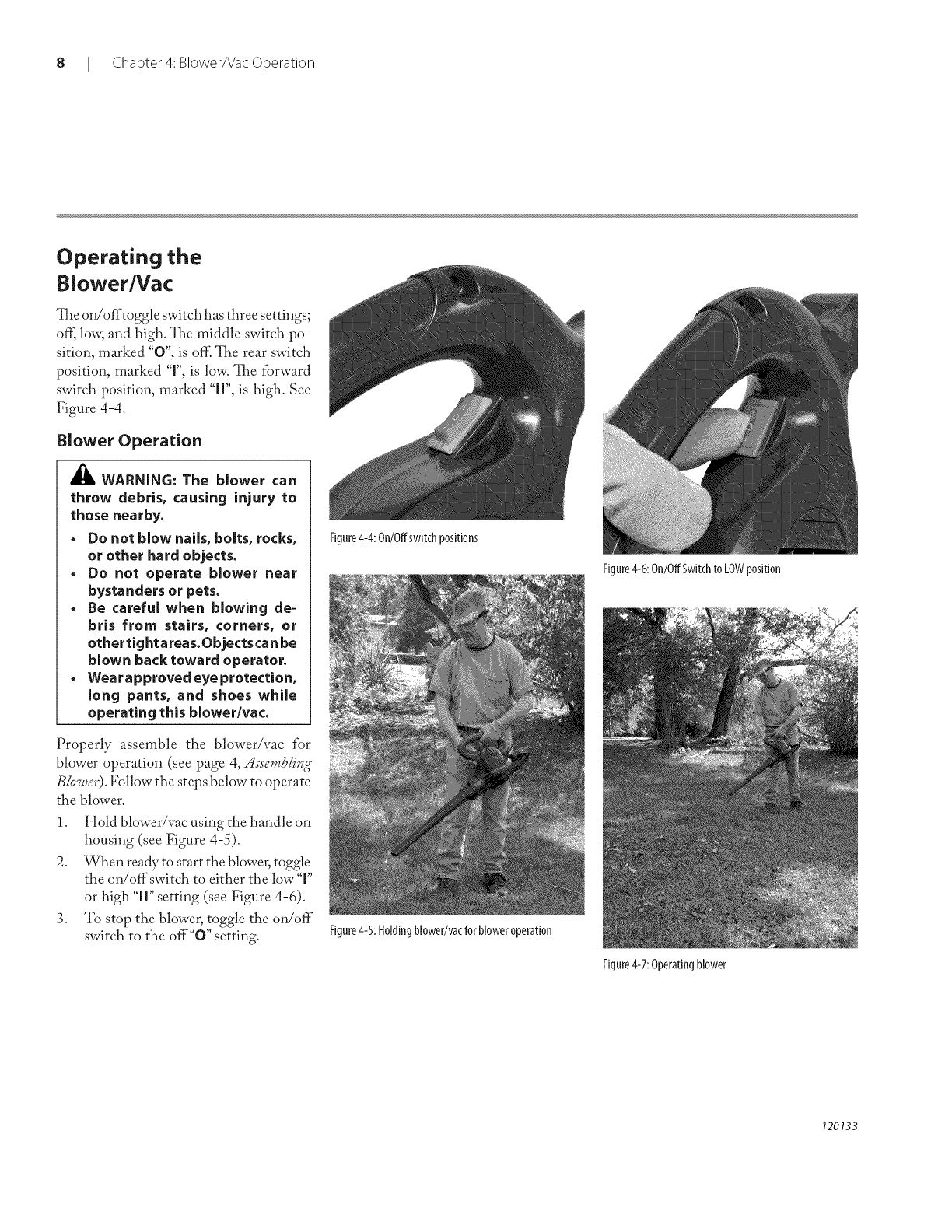

OperatingtheBlower/Vat........................ 8

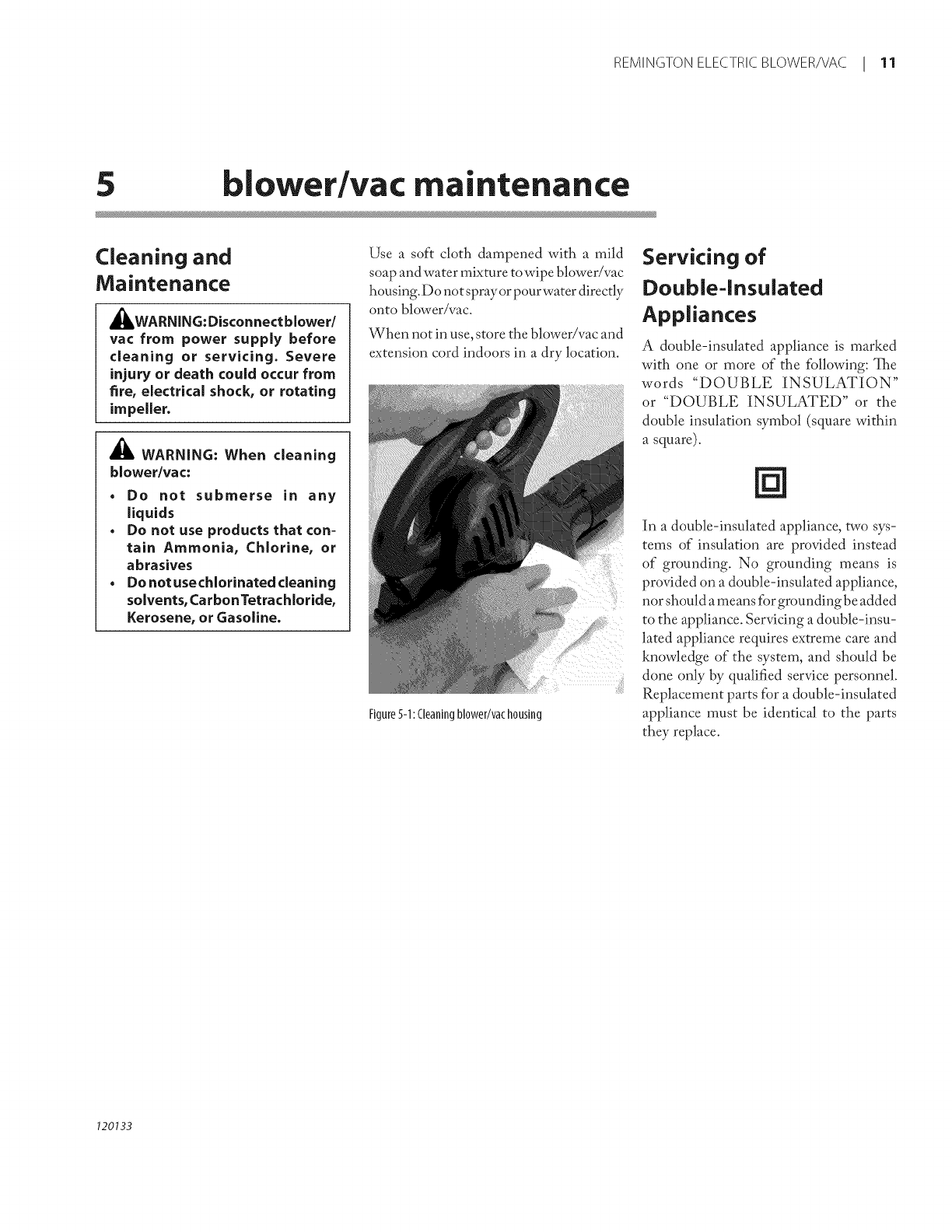

Blower/VatMaintenance 11
CleaningandMaintenance........................ 11
Servicingof Double-InsulatedAppliances................. 11

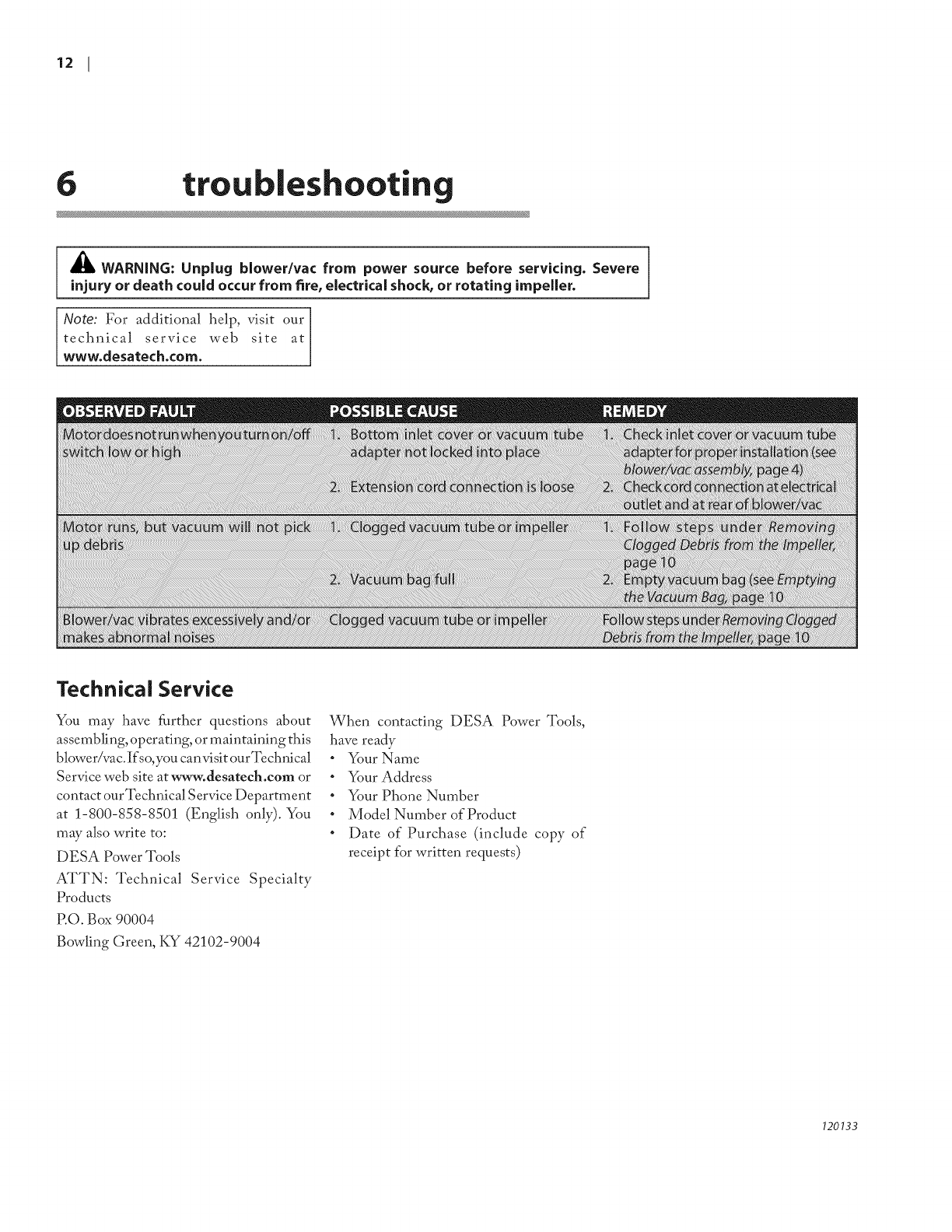

6Troubleshooting 12

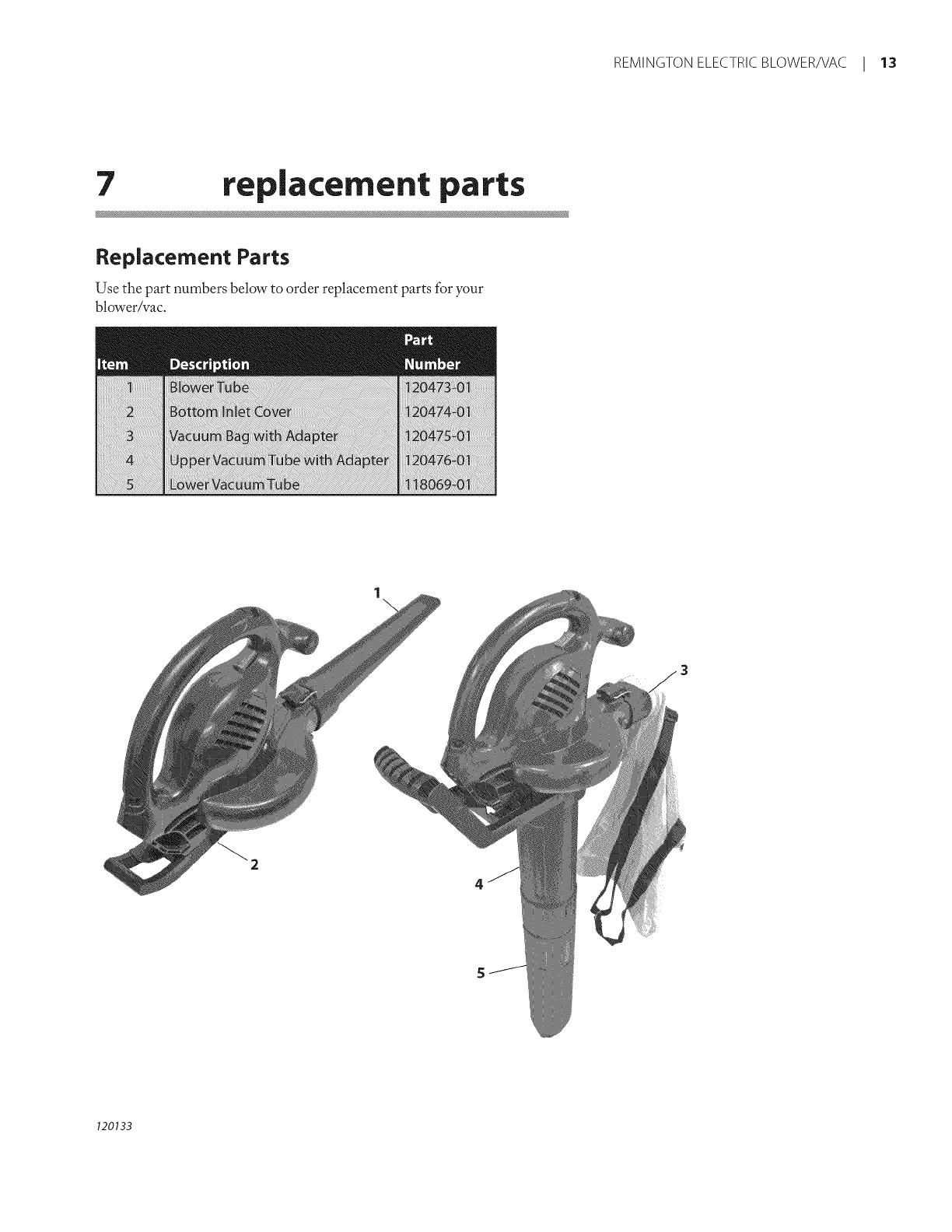

7ReplacementParts 13
8WarrantyInformation 14
120133
iv I

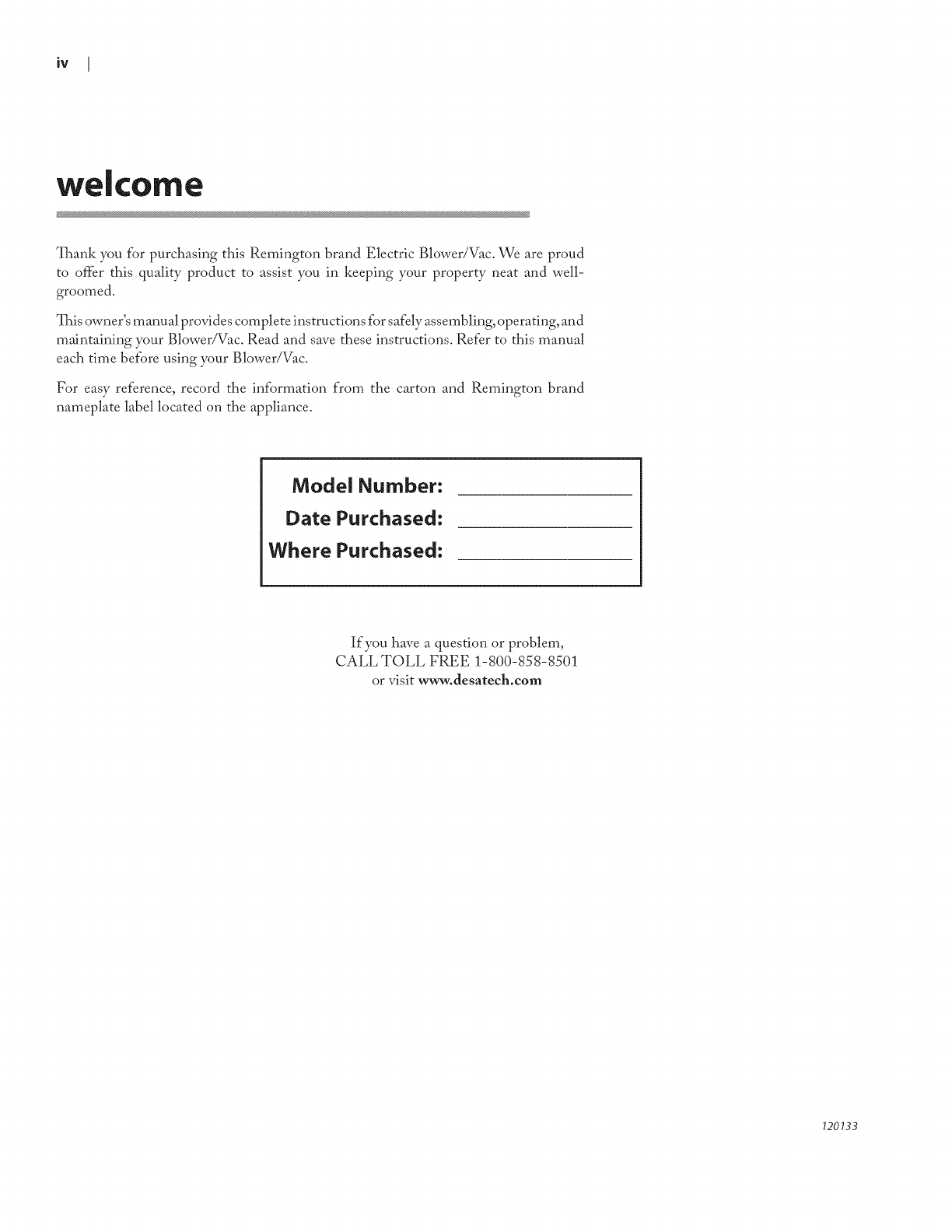

welcome
Thank you for purchasing this Remington brand Electric Blower/Vac. We are proud
to offer this quality product to assist you in keeping your property neat and well-
groomed.
This owner's manual provi des compl ere instructi ons for safely assembling, operating, and
maintaining your Blower/Vac. Read and save these instructions. Refer to this manual
each time before using your Blower/Vac.
For easy reference, record the information from the carton and Remington brand
nameplate label located on the appliance.
Model Number:
Date Purchased:
Where Purchased:
If you have a question or problem,
CALL TOLL FREE 1-800-858-8501
or visit www, desatech.com
120133
REMINGTON ELECTRIC BLOWER/VAC I 1

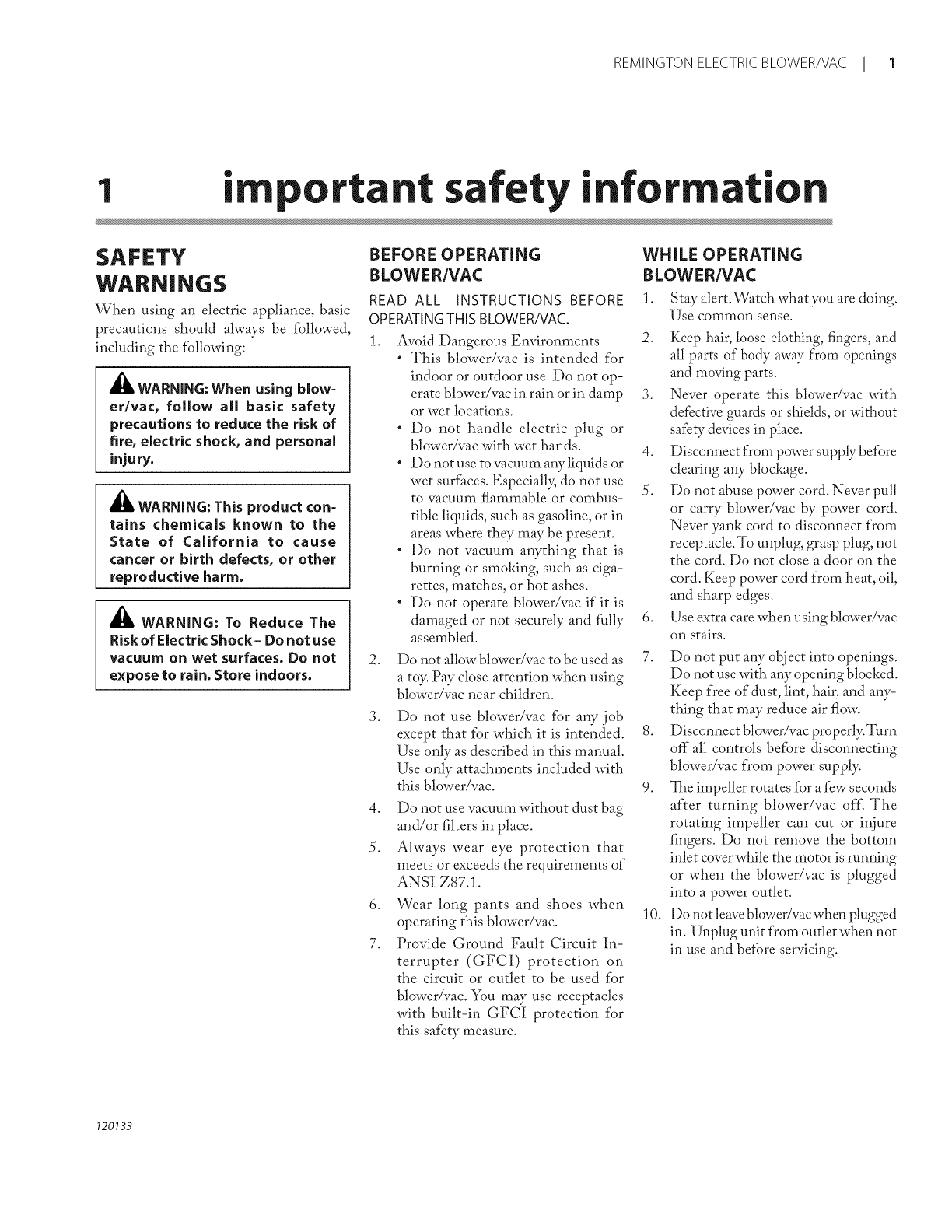

1importa safety inform " n
SAFETY
WARNINGS
When using an electric appliance, basic
precautions should always be followed,
including the following:
,_ WARNING:When using blow-
er/vac, follow all basic safety
precautions to reduce the risk of
fire, electric shock, and personal
injury,
,_ WARNING: This product con-
tains chemicals known to the
State of California to cause
cancer or birth defects, or other
reproductive harm,
,_ WARNING: To Reduce The
Riskof Electric Shock- Do not use
vacuum on wet surfaces, Do not
expose to rain, Store indoors,
BEFORE OPERATING
BLOWER/VAC
READ ALL INSTRUCTIONS BEFORE
OPERATING THIS BLOWERA/AC.
.
3.
Avoid Dangerous Environments
" This blower/vac is intended for
indoor or outdoor use. Do not op-
erate blower/vac in rain or in damp
or wet locations.
" Do not handle electric plug or
blower/vac with wet hands.
" Do notuse to vacuum anyliquids or
wet surfaces. Especially, do not use
to vacuum flammable or combus-
tible liquids, such as gasoline, or in
areas where they may be present.
" Do not vacuum anything that is
burning or smoking, such as ciga-
rettes, matches, or hot ashes.
" Do not operate blower/vac if it is
damaged or not securely and fully
assembled.
Do not allow blower/vac to be used as
a toy. Pay close attention when using
blower/vac near children.
Do not use blower/vac %r any .job
except that for which it is intended.
Use only as described in this manual.
Use only attachments included with
thi s blower/vac.
4. Do not use vacuum without dust bag
and/or filters in place.
5. Always wear eye protection that
meets or exceeds the requirements of
ANSI Z87.1.
6.
7.
Wear long pants and shoes when
operating this blower/vac.
Provide Ground Fault Circuit In-
terrupter (GFCI) protection on
the circuit or outlet to be used for
blower/vac. You may use receptacles
with built-in GFCI protection for
this safety measure.
WHILE OPERATING
BLOWER/VAC
1. Stay alert.Watch what you are doing.
Use common sense.
2. Keep hair, loose clothing, fingers, and
all parts of body away from openings
and moving parts.
3. Never operate this blower/vac with
defective guards or shields, or without
safe_y devices in place.
4. Disconnect from power supply before
clearing any blockage.
5. Do not abuse power cord. Never pull
or carry blower/vac by power cord.
Never yank cord to disconnect from
receptacle. To unplug, grasp plug, not
the cord. Do not close a door on the
cord. Keep power cord from heat, oil,
and sharp edges.
6. Use extra care when using blower/vac
on stairs.
7. Do not put any object into openings.
Do not use with any opening blocked.
Keep free of dust, lint, hair, and any-
thing that may reduce air flow:
8. Disconnectblower/vacproperly.Turn
off all controls before disconnecting
blower/vac from power supply:
9. The impeller rotates for a few seconds
after turning blower/vac off. The
rotating impeller can cut or injure
fingers. Do not remove the bottom
inlet cover while the motor is running
or when the blower/vac is plugged
into a power outlet.
10. Do not leave blower/vac when plugged
in. Unplug unit from outlet when not
in use and before servicing.
120133
2IChapter 1: Important Safety Information

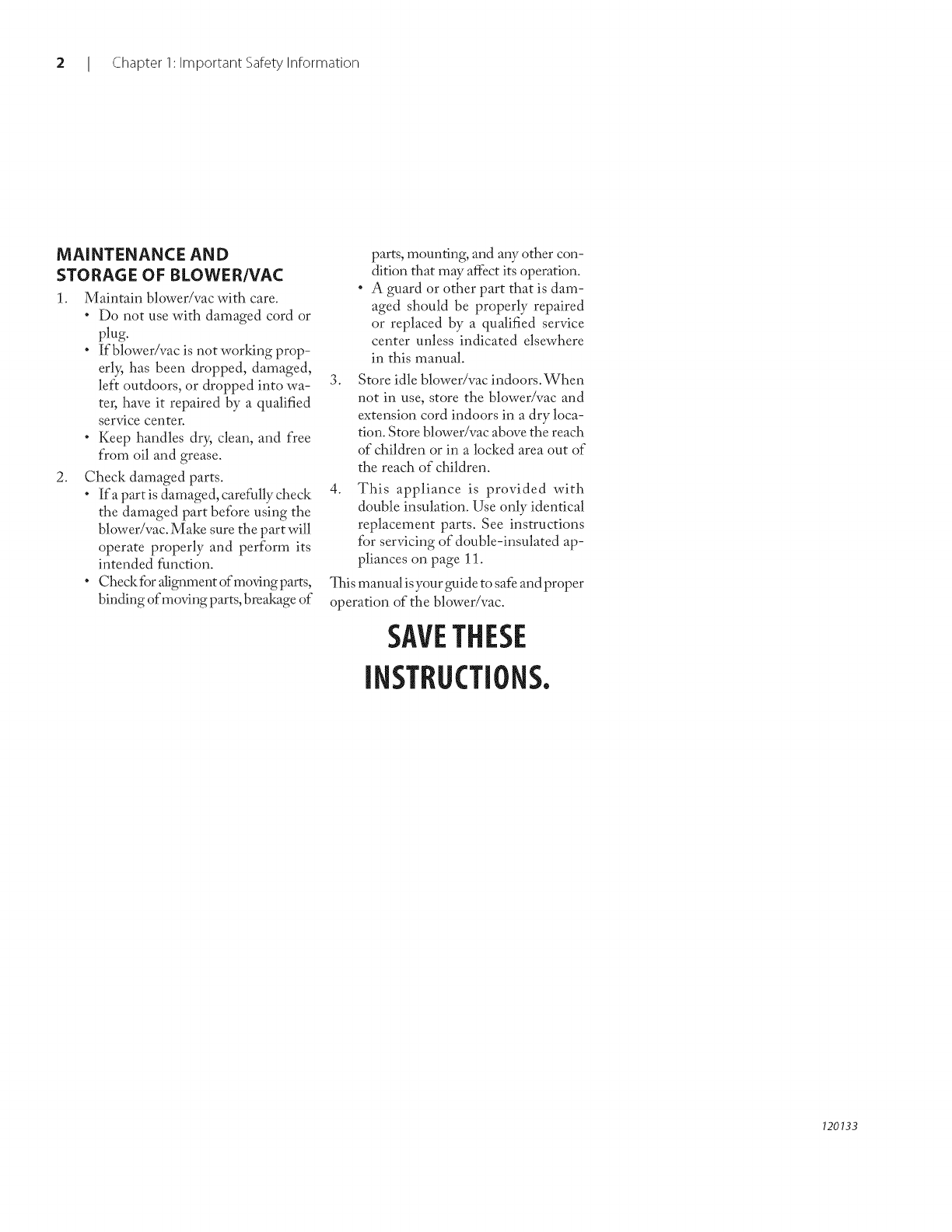

MAINTENANCE AND
STORAGE OF BLOWER/VAC
1. Maintain blower/vacwith care.
"Do not use with damaged cord or
plug.
" lfblower/vac is not working prop-
erly, has been dropped, damaged,
left outdoors, or dropped into wa-
ter, have it repaired by a qualified
service center.
" Keep handles dry, clean, and free
from oil and grease.
2. Check damaged parts.
" lfa part is damaged, carefully check
the damaged part before using the
bl ower/vac. Make sure the part will
operate properly and perform its
intended function.
- Check for alignment of moving parts,
binding of moving parts, breakage of
3.
4.
parts, mounting, and any other con-
dition that may affect its operation.
" A guard or other part that is dam-
aged should be properly repaired
or replaced by a qualified service
center unless indicated elsewhere
in this manual.
Store idle blower/vac indoors.When
not in use, store the blower/vac and
extension cord indoors in a dry loca-
tion. Store blower/vac above the reach
of children or in a locked area out of
the reach of children.
This appliance is provided with
double insulation. Use only identical
replacement parts. See instructions
for servicing of double-insulated ap-
pliances on page 11.
This manual isyour gui de to safe and proper
operation of the blower/vac.
SAVETHESE
INSTRUCTIONS.
120133
REMINGTON ELECTRIC BLOWER/VAC I 3

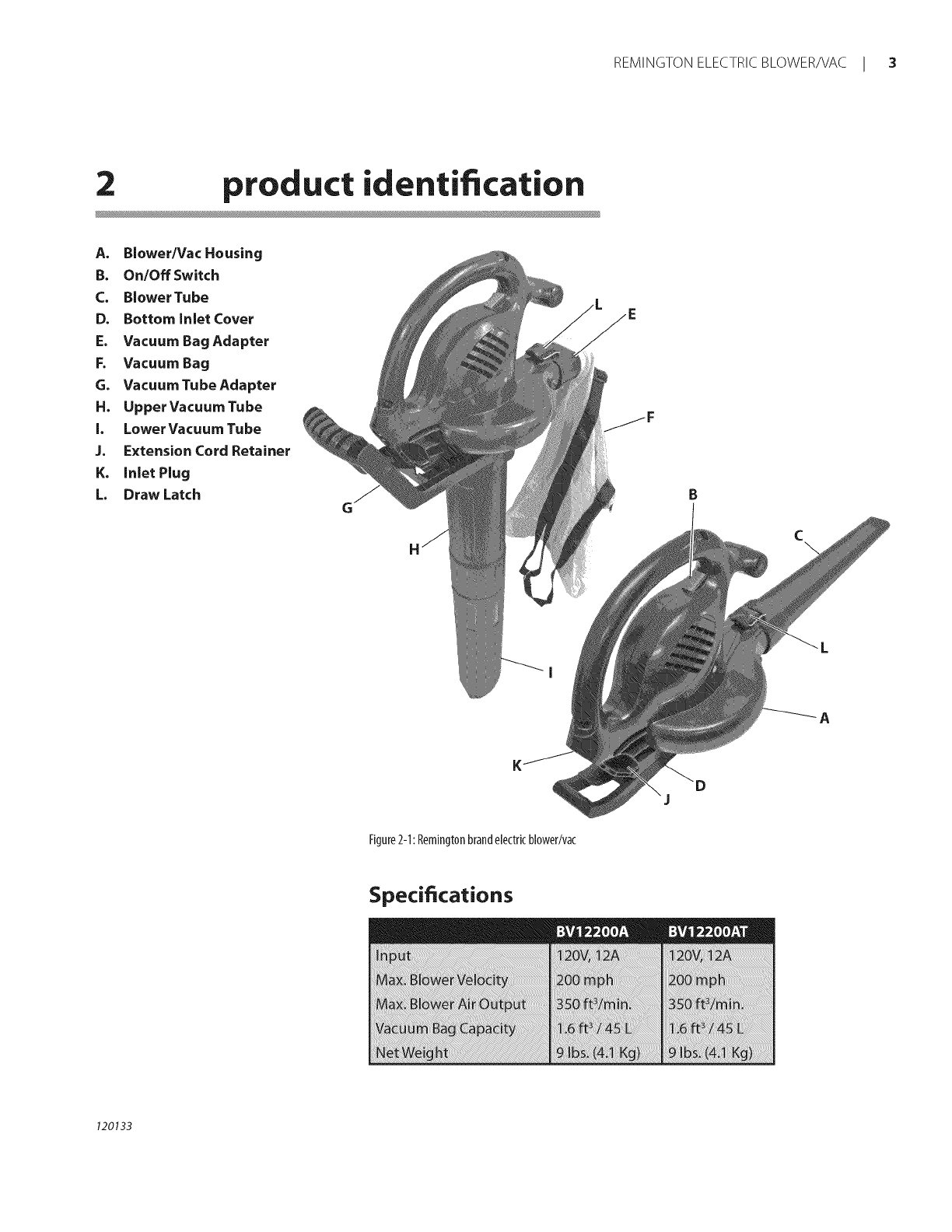

2 product identification
@
A. Biower/Vac Housing
B. On/Off Switch
C. Blower Tube
D. Bottom inletCover
E. Vacuum BagAdapter
F. Vacuum Bag
G. Vacuum Tube Adapter
H. Upper Vacuum Tube
I. LowerVacuumTube
J. Extension Cord Retainer
K. inlet Plug
LDraw Latch
K
C
A
Figure2-1:Remingtonbrandelectricblower/vac
Specifications
120133
4 I

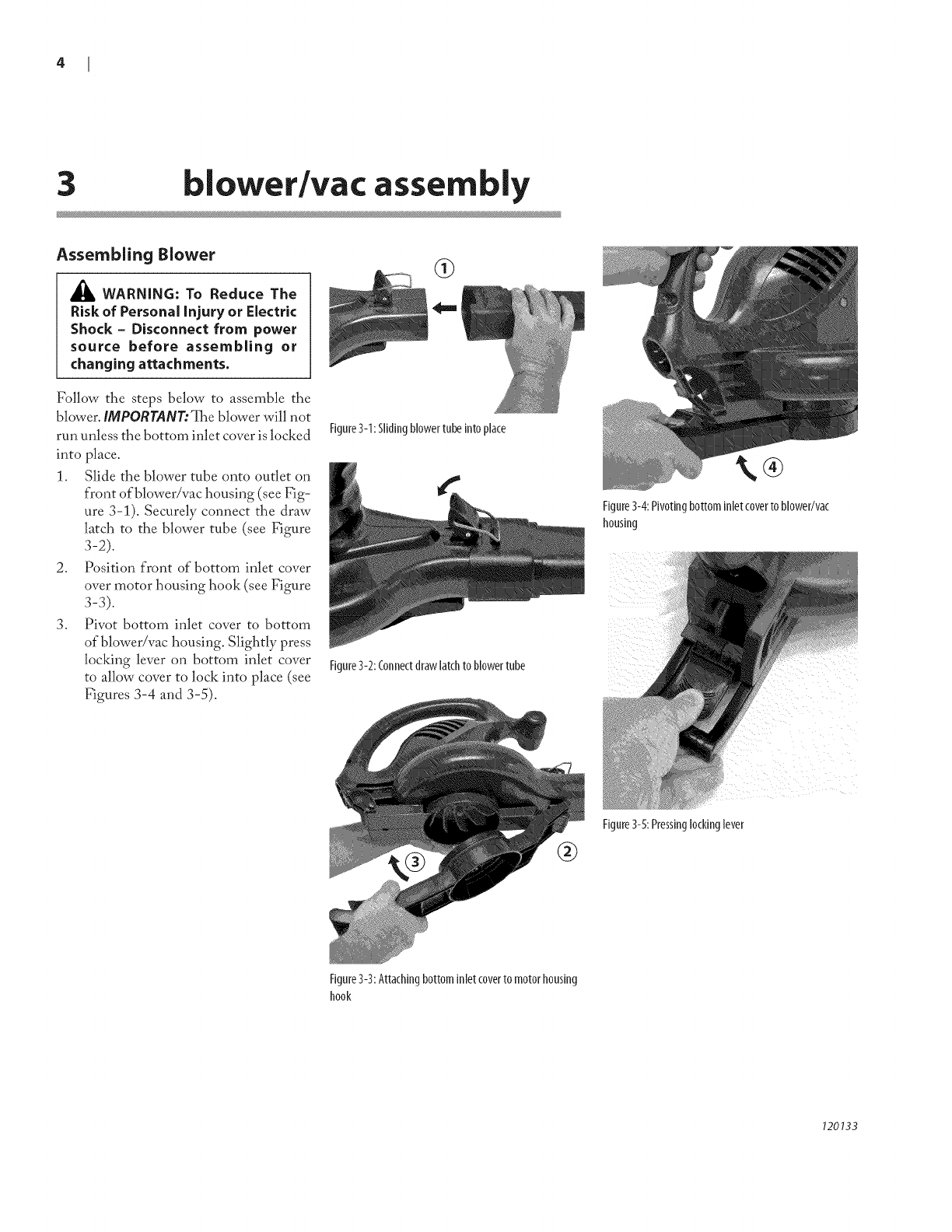

3 lower/vat assembly
Assembling Blower
,_1. WARNING: To Reduce The
Risk of Personal injury or Electric
Shock- Disconnect from power
source before assembling or
changing attachments.
Follow the steps below to assemble the
blower. IMPORTANT;The blower will not
run unless the bottom inlet cover is locked
into place.
1. Slide the blower tube onto outlet on
front ofblower/vac housing (see Fig-
ure 3-1). Securely connect the draw
latch to the blower tube (see Figure
3-2).
2. Position front of bottom inlet cover
over motor housing hook (see Figure
3-3).
3. Pivot bottom inlet cover to bottom
of blower/vac housing. Slightly press
locking lever on bottom inlet cover
to allow cover to lock into place (see
Figures 3-4 and 3-5).
Figure3-1:Slidingblowertubeintoplace
Figure3-2:Connectdraw latchto blowertube
Figure3-4:Pivotingbottominletcoverto blower/vac
housing
Figure3-5:Pressinglockinglever
®
Figure3-3:Attachingbottominletcoverto motorhousing
hook
120133
REMINGTON ELECTRIC BLOWER/VAC I S

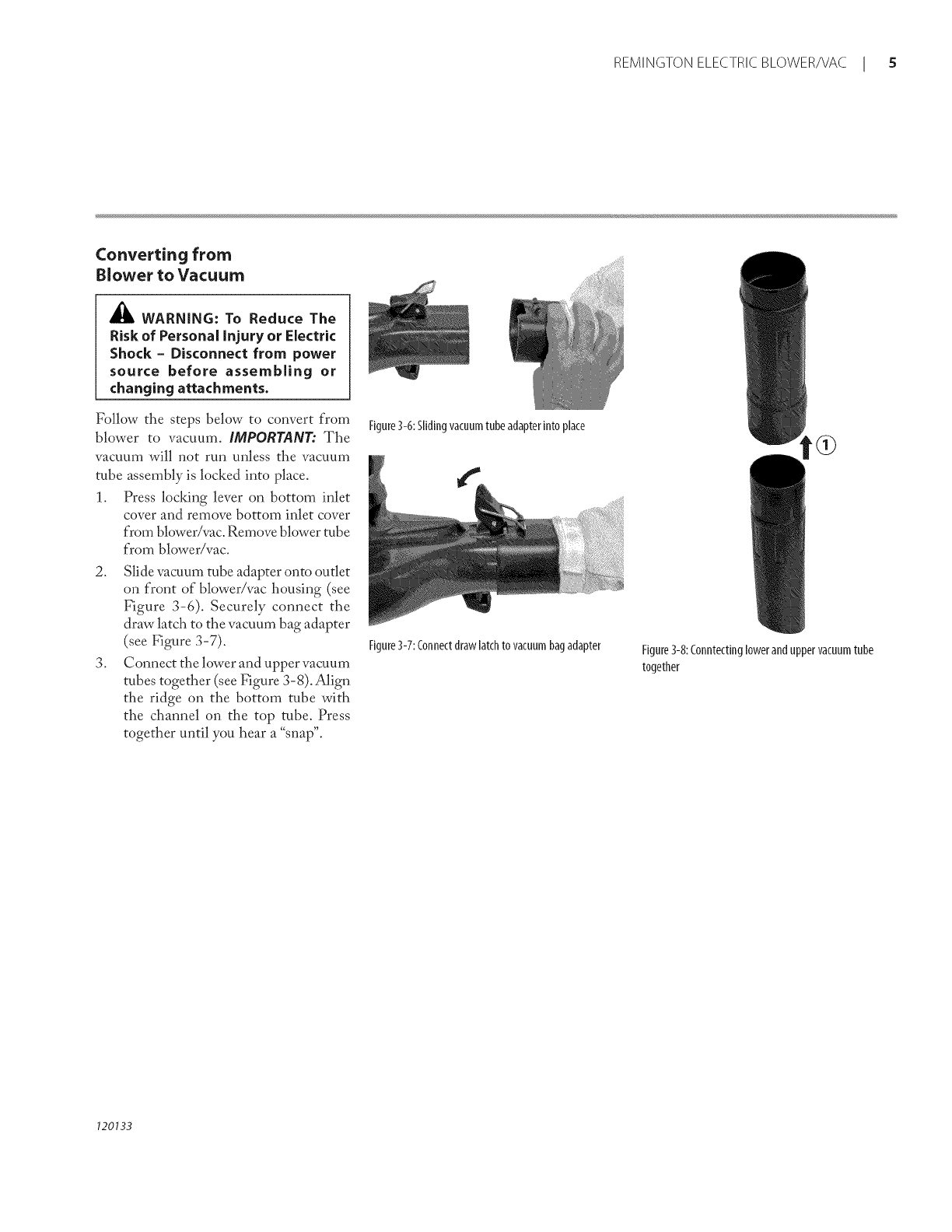

Converting from
Blower to Vacuum
_k, WARNING: To Reduce The
Riskof Personal injury or Electric
Shock- Disconnect from power
source before assembling or
changing attachments.
Follow the steps below to convert from
blower to vacuum. IMPORTANT: The
vacuum will not run unless the vacuum
tube assembly is locked into place.
1. Press locking lever on bottom inlet
cover and remove bottom inlet cover
from blower/vac. Remove blower tube
from blower/vac.
2. Slide vacuum tube adapter onto outlet
on front of blower/vac housing (see
Figure 3-6). Securely connect the
draw latch to the vacuum bag adapter
(see Figure 3-7).
3. Connect the lower and upper vacuum
tubes together (see Figure 3-8). Align
the ridge on the bottom tube with
the channel on the top tube. Press
together until you hear a "snap".
Figure3-6:Slidingvacuumtubeadapterintoplace
Figure3-7:Connectdrawlatchto vacuumbagadapter
(9
Figure3-8:Conntectingloweranduppervacuumtube
together
120133
6 I Chapter 3: Blower/Vac Assembly

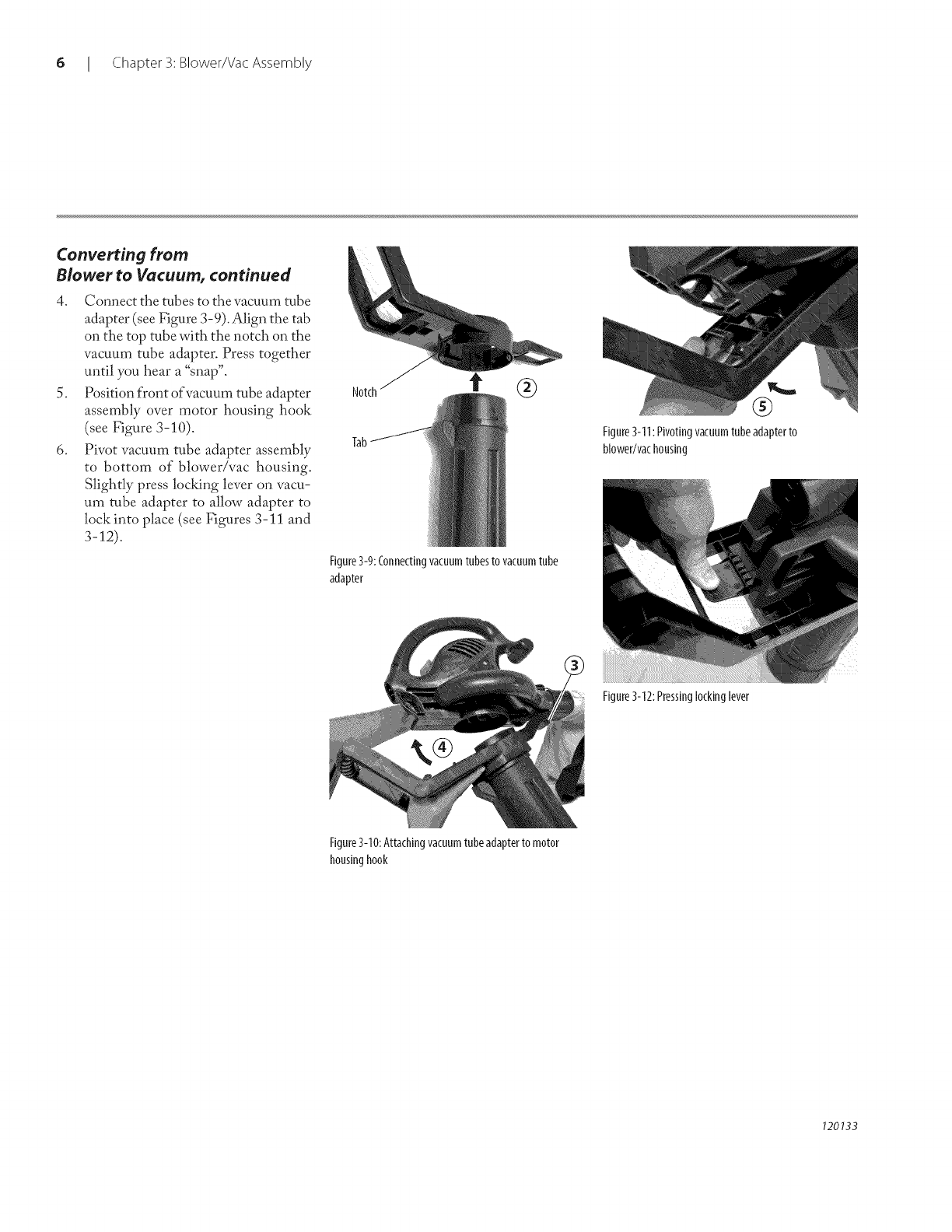

Converting from
Blower to Vacuum, continued
4. Connect the tubes to the vacuum tube
adapter (see Figure 3-9). Align the tab
on the top tube with the notch on the
vacuum tube adapter. Press together
until you hear a "snap".
5. Position front of vacuum tube adapter
assembly over motor housing hook
(see Figure 3-10).
6. Pivot vacuum tube adapter assembly
to bottom of blower/vac housing.
Slightly press locking lever on vacu-
um tube adapter to allow adapter to
lock into place (see Figures 3-11 and
3-12).
Notch @
Tab
Figure3-9:Connectingvacuumtubestovacuumtube
adapter
®
Figure3-II: Pivotingvacuumtubeadapterto
blower/vachousing
Figure3-12:Pressinglockinglever
Figure3-10:Attachingvacuumtubeadaptertomotor
housinghook
120133
REMINGTON ELECTRIC BLOWER/VAC I 7

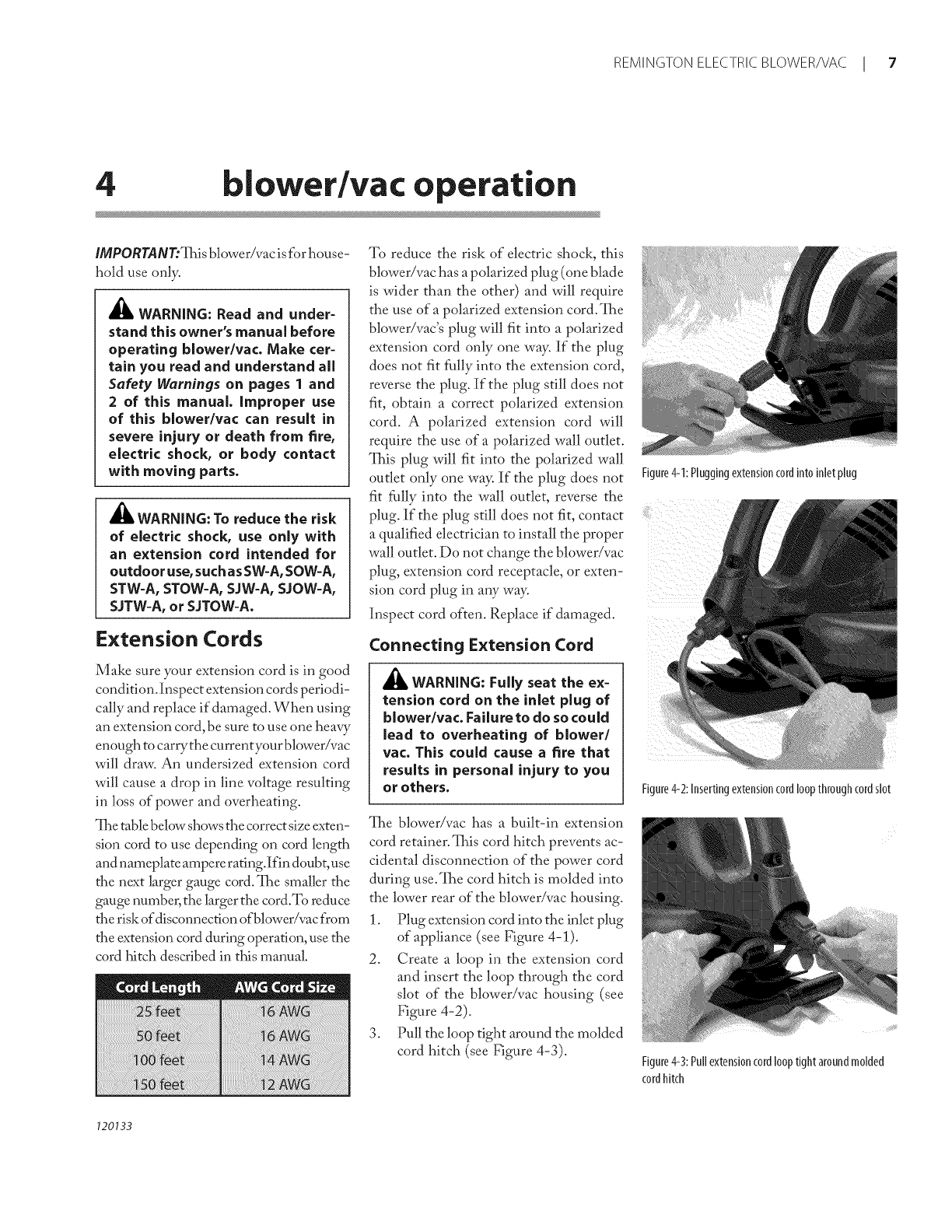

4 blower/vac operation
IMPORTANT:This b]ower/vac is %r house-
hold use only.
_k WARNING: Read and under-
stand this owner's manual before
operating blower/vac, Make cer-
tain you read and understand all
Safety Warnings on pages 1 and
2 of this manual, improper use
of this blower/vac can result in
severe injury or death from fire,
electric shock, or body contact
with moving parts,
_Ib WARNING: To reduce the risk
of electric shock, use only with
an extension cord intended for
outdoor use, such asSW-A, SOW-A,
STW-A, STOW-A, SJW-A, SJOW-A,
SJTW-A, or SJTOW-A.
Extension Cords
Make sure your extension cord is in good
conditi on. In spect extensi on cords peri odi-
cally and replace if damaged.When using
an extension cord,be sure to use one heavy
enough to carrythe currentyour blower/vac
will draw: An undersized extension cord
will cause a drop in line voltage resulting
in loss of power and overheating.
The tab] e be] ow shows the correct size exten-
sion cord to use depending on cord length
and nameplate ampererating.lfin doubt, use
the next larger gauge cord. The smaller the
gauge number, the larger the cord.To reduce
the riskofdisconnection ofblower/vac from
the extension cord during operati on, use the
cord hitch described in this manual.
To reduce the risk of electric shock, this
b]ower/vac has a polarized plug (one blade
is wider than the other) and will require
the use of a polarized extension cord.The
b]ower/vac's plug will fit into a polarized
extension cord only one way. If the plug
does not fit fully into the extension cord,
reverse the plug. If the plug still does not
f_t, obtain a correct polarized extension
cord. A polarized extension cord will
require the use of a polarized wall outlet.
This plug will fit into the polarized wall
outlet only one way. If the plug does not
fit fully into the wall outlet, reverse the
plug. If the plug still does not fit, contact
a qualified electrician to install the proper
wall outlet. Do not change the blower/vac
plug, extension cord receptacle, or exten-
sion cord plug in any way.
Inspect cord often. Replace if damaged ...........................................
Connecting Extension Cord
_k WARNING: Fully seat the ex-
tension cord on the inlet plug of
blower/vac. Failure to do so could
lead to overheating of blower/
vac, This could cause afire that
results in personal injury to you
or others,
Figure4-1:Pluggingextensioncordintoinletplug
!;
Figure4-2:Insertingextensioncordloopthroughcordslot
The blower/vac has a built-in extension
cord retainer.This cord hitch prevents ac-
cidental disconnection of the power cord
during use.The cord hitch is molded into
the lower rear of the blower/vac housing.
1. Plug extension cord into the inlet plug
of appliance (see Figure 4-1).
2. Create a loop in the extension cord
and insert the loop through the cord
slot of the blower/vac housing (see
Figure 4-2).
3. Pull the loop tight around the molded
cord hitch (see Figure 4-3). Figure4-3:Pullextensioncordlooptightaroundmolded
cordhitch
120133
8I Chapter 4: Blower/Vac Operation
Operating the
Blower/Vac
The on/off:toggle switch has three settings;
off, low, and high. The middle switch po-
sition, marked "O", is off. The rear switch
position, marked 'T', is low: The forward
switch position, marked "11",is high. See
Figure 4-4.
Blower Operation
_IL WARNING: The blower can
throw debris, causing injury to
those nearby.
• Do not blow nails, bolts, rocks,
or other hard objects.
• Do not operate blower near
bystanders or pets.
• Be careful when blowing de-
bris from stairs, corners, or
ot her rig ht a rea s,Objects can be
blown back toward operator.
• Wearapprovedeyeprotection,
long pants, and shoes while
operating this blower/vac.
Properly assemble the blower/vac %r
blower operation (see page 4, Asse_'nb!ing
B/o_ver).Follow the steps below to operate
the blower.
1. Hold blower/vac using the handle on
housing (see Figure 4-5).
2. When ready to start the blower, toggle
the on/off:switch to either the low 'T'
or high "lr' setting (see Figure 4-6).
3. To stop the blower, toggle the on/off
switch to the off"O" setting.
Figure4-4:On/Offswitchpositions
Figure4-5:Holdingblower/vacforbloweroperation
Figure4-6:On/OffSwitchto LOWposition
Figure4-7:Operatingblower
120133
REMINGTON ELECTRIC BLOWER/VAC I 9

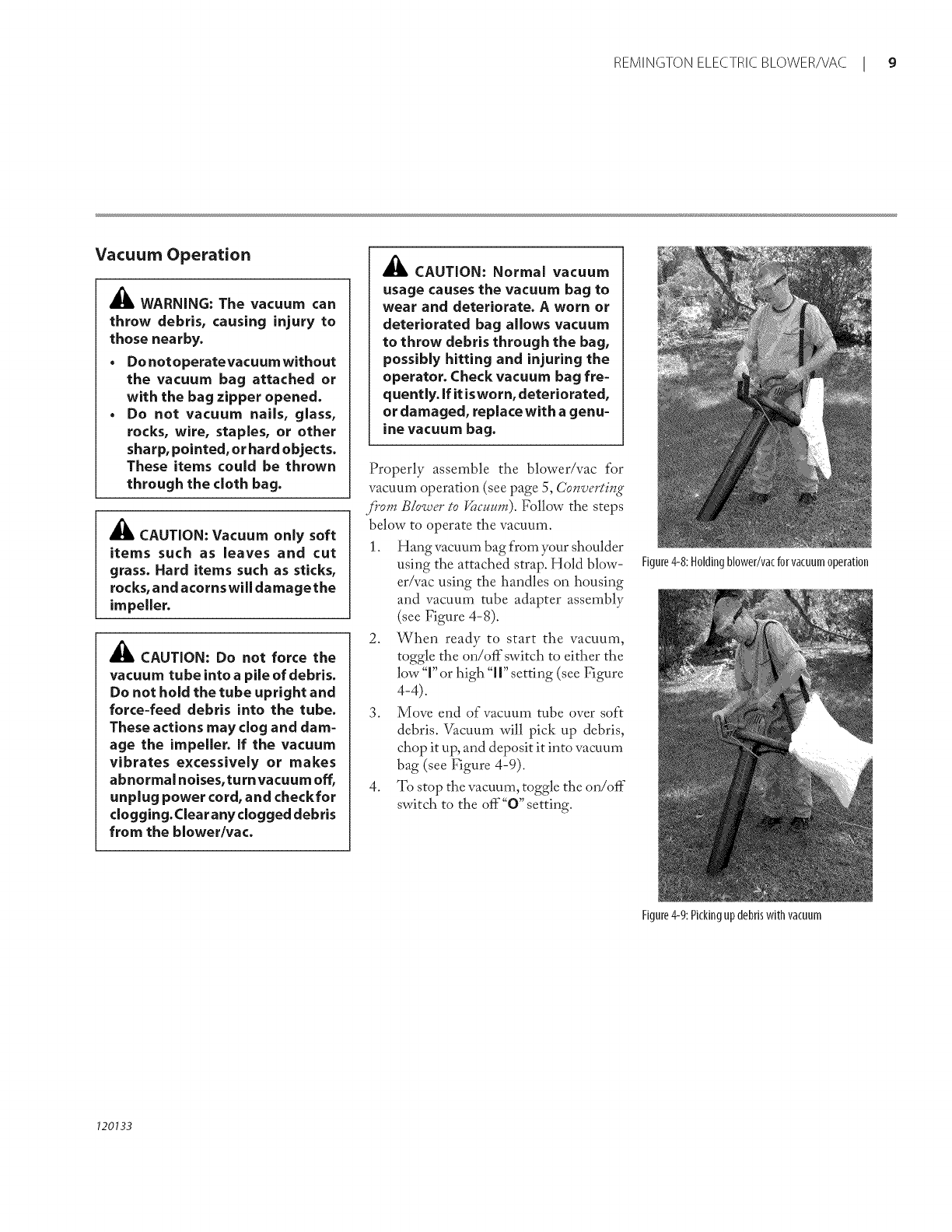

Vacuum Operation
_Ib WARNING: The vacuum can
throw debris, causing injury to
those nearby.
• Donotoperatevacuumwithout
the vacuum bag attached or
with the bag zipper opened.
• Do not vacuum nails, glass,
rocks, wire, stapJes, or other
sharp, pointed, or hard objects,
These items could be thrown
through the cloth bag.
_lb CAUTION: Vacuum only soft
items such as leaves and cut
grass, Hard items such as sticks,
rocks, and acornswill damagethe
impeller,
_CAUTION: Do not force the
vacuum tube into apile of debris.
Do not hold the tube upright and
force-feed debris into the tube.
These actions may clog and dam-
age the impeller, if the vacuum
vibrates e×cessively or makes
abnormal noises,turn vacuum off,
unplug power cord, and checkfor
dogging.Clear any clogged debris
from the bJower/vac.
_CAUTION: Normal vacuum
usage causes the vacuum bag to
wear and deteriorate. A worn or
deteriorated bag allows vacuum
to throw debris through the bag,
possibly hitting and injuring the
operator. Check vacuum bag fre-
quent ly.if it isworn, deteriorated,
or damaged, replace with agenu-
ine vacuum bag.
Properly assemble the blower/vac %r
vacuum operation (see page 5, ConveJ¢ing_
f}'o_ B/o_oe_" to Vacuu_). Follow the steps
below to operate the vacuum.
1. Hang vacuum bag from your shoulder
using the attached strap. Hold blow-
er/vac using the handles on housing
and vacuum tube adapter assembly
(see Figure 4-8).
2. When ready to start the vacuum,
toggle the on/off switch to either the
low "l" or high 'lr' setting (see Figure
4-4).
3. Move end of vacuum tube over soft
debris. Vacuum will pick up debris,
chop it up, and deposit it into vacuum
bag (see Figure 4-9).
4. To stop the vacuum, toggle the on/off
switch to the off"O" setting.
Figure4-8:Holdingblower/vacforvacuumoperation
Figure4-9:Pickingupdebriswith vacuum
120133
10 I Chapter 4: Blower/Vac Operation

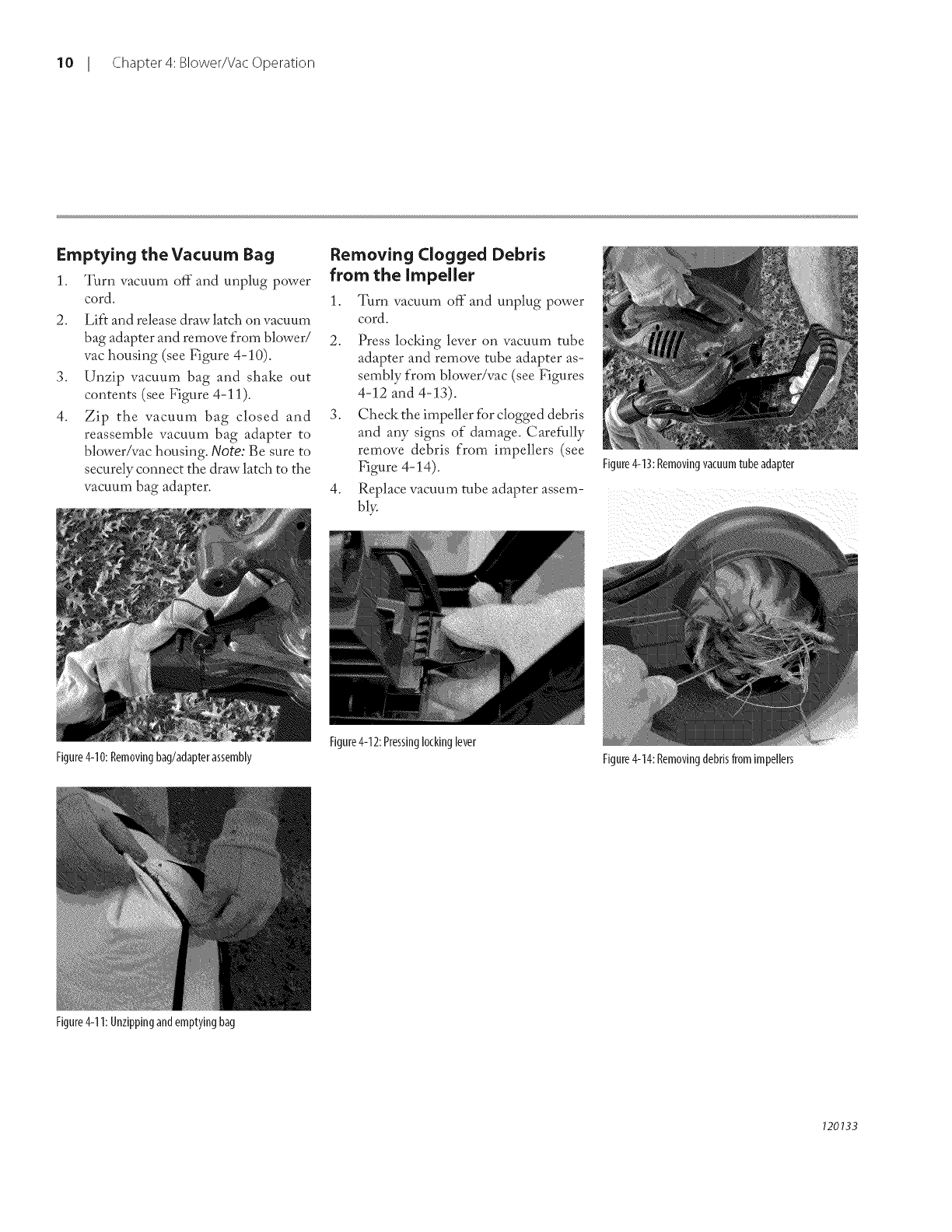

Emptying the Vacuum Bag
1. Turn vacuum off and unplug power
cord.
2. Lift and release draw latch on vacuum
bag adapter and remove from blower/
vac housing (see Figure 4-10).
3. Unzip vacuum bag and shake out
contents (see Figure 4-11).
4. Zip the vacuum bag closed and
reassemble vacuum bag adapter to
blower/vac housing. Note: Be sure to
securely connect the draw latch to the
vacuum bag adapter.
Figure4-10:Removingbag/adapterassembly
Figure4-11:Unzippingandemptyingbag
Removing Clogged Debris
from the Impeller
1. Turn vacuum off and unplug power
cord.
2. Press locking lever on vacuum tube
adapter and remove tube adapter as-
sembly from blower/vac (see Figures
4-12 and 4-13).
3. Checktheimpeller for clogged debris
and any signs of damage. Carefully
remove debris from impellers (see
Figure 4-14).
4. Replace vacuum tube adapter assem-
bly.
Figure4-12:Pressinglockinglever
Figure4-13:Removingvacuumtubeadapter
Figure4-14:Removingdebrisfrom impellers
120133
REMINGTON ELECTRIC BLOWER/VAC I 11
5 blower/vac maintenance
Cleaning and
Maintenance
_kWARNING: Disconnectblower/
vac from power supply before
cleaning or servicing. Severe
injury or death could occur from
fire, electrical shock, or rotating
impeller,
_k WARNING: When cleaning
blower/vat:
• Do not submerse in any
liquids
•Do not use products that con-
tain Ammonia, Chlorine, or
abrasives
,, Donotusechlorinateddeaning
solvents, Ca rbonTetrachloride,
Kerosene, or Gasoline,
Use a soft cloth dampened with a mild
soap and water mixture to wipe blower/vac
housing.Do not spray or pour water directly
onto blower/vac.
When not in use, store the blower/vac and
extension cord indoors in a dry location.
Figure5-I: Cleaningblower/vachousing
Servicing of
Double=Insulated
Appliances
A double-insulated appliance is marked
with one or more of the following: The
words "DOUBLE INSULATION"
or "DOUBLE INSULATED" or the
double insulation symbol (square within
a square).
@
In a double-insulated appliance, two sys-
tems of insulation are provided instead
of grounding. No grounding means is
provided on a double-insulated appliance,
nor should a means for groun ding be added
to the appliance. Servicing a doub]e-insu-
lated appliance requires extreme care and
knowledge of the system, and should be
done only by qualified service personnel.
Replacement parts for a double-insulated
appliance must be identical to the parts
they replace.
120133
121
6trou eshooting
_llb WARNING: Unplug blower/vac from power source before servicing. Severe
injury or death could occur from fire, electrical shock, or rotating impeller, J
Note: For additional help, visit our
technical service web site at
www.desatech.com.
Technical Service
You may have further questions about
assembling, operating, or maintaining this
blower/vac. 1fso,you can visit ourTechni cal
Service web site at www.desateeh.eom or
contact ourTechnical Service Department
at 1-800-858-8501 (English only). You
may also write to:
DESA Power Tools
ATTN: Technical Service Specialty
Products
P.O. Box 90004
Bowling Green, KY 42102-9004
When contacting DESA Power Tools,
have ready
" Your Name
" Your Address
" Your Phone Number
" Model Number of Product
" Date of Purchase (include copy of
receipt for written requests)
120133
REMINGTON ELECTRIC BLOWER/VAC I 13
7replacement parts
Replacement Parts
Use the part numbers below to order replacement parts for your
blower!vac.
4
120133
141
8 warranty information
REMINGTON BRAND ELECTRIC BLOWER/VAC
LiMiTED WARRANTIES
NEW PRODUCTS
Standard Warranty
DESA Power Tools warrants this new product and any parts thereof to be free from defects in material and workmanship tbr a period of two (2) years from
the date of first purchase from an authorized dealer provided the product has been maintained and operated in accordance with DESA Power Tools'warnings
and instructions.
FACTORY RECONDiTiONED PRODUCTS
LimNed Warrant_
DESA Power Tools warrants f_ctory reconditioned products and any parts thereof'to be free f'rom defects in material and workmanship fbr 90 days f'rom the
date of first purchase f'rom an authorized dealer provided the product has been installed, maintained and operated in accordance with DESA Power Tools'
warnings and instructions.
TERMS CONINIONTO ALL WARRANTIES
The following terms apply to all of the above warranties:
" Always speci_r model number when contacting the manuI_cturer. To make a claim under this warranty the bill o_"sale or other proof of purchase must be
presented.
. This warranty is extended only to the original retail purchaser when purchased from an authorized dealer.
. This warranty covers the cost of part(s) required to restore this product to proper operating condition and an allowance tbr labor when provided by a DESA
Power Tools Authorized Service Center.\M_rranty parts must be obtained through authorized dealers of this product and/or DESA Power Tools who will
provide original Iactory replacement parts. Failure to use original Ii_ctory replacement parts w)ids this warrant>
" Travel, handling, transportation, diagnostic, material, labor and incidental costs associated with warranty repairs, unless expressly covered by this warranty,
are not reimbursable under this warranty and are the responsibility of the owner.
" Excluded from this warranty are products or parts that t_il or become damaged due to misuse, accidents, lack of proper maintenance, tampering, or
alterations.
" Excluded from this warranty are products purchased for commercial, industrial or rental usage.
. This is DESA Power Tools' exclusive warrant> and to the fi_ll extent allowed by law; this express warranty excludes any and all other warranties, express
or implied, written or verbal and limits the duration of any and all implied warranties, including warranties of merchantability and fitness Ibr a particular
purpose to two (2) years on new products and 90 days on £_ctory reconditioned products from the date of first purchase. DESA Power Tools makes no
other warranties regarding this product.
" DESA Power Tools' liability is limited to the purchase price of the product, and DESA Power Tools shall not be liable Ibr aW other damages whatsoever
under any circumstances including indirect, incidental, or consequential damages.
" Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
For information about this warranty contact:
ESA
POWER TOOLS
P.O. Box 90004
Bowling Green, KY 42102-9004
www.desatech.com
Model
Date Purchased
120133
