APM6998WiFiModuleManual



HostRevisionInformation



HostHardwareRevision T3xRevD1

Host‐ModuleDriverVersion v8.1.4.4

ModuleHardwareRevision 001E



HostPCBDesignGuidelines



ThefollowingguidelinesmustbefollowedwhendesigningahostboardthatincorporatestheAPM6998

WiFiModule(“module”).



HostPCBGuidelines

1. The+3.3VDCpowerrailmustbesuppliedbyaDC/DCregulator.

2. The+1.8VDCpowerrailmustbesuppliedbyaDC/DCregulator.

3. A0.050”x0.050”groundviastitchingaroundthefrontend,includingantennatrace,antennacutout

andPCBedgetowhichtheantennaisnear.

4. Notracesunderneaththemoduleonthesamelayerthatthemoduleisinstalledon.

5. Asolidgroundpourunderneaththemoduleandsurroundingthefront‐endonthesamelayerthat

themoduleisinstalledon.

6. HighTempFR494V‐0IPC4101APCBmaterialwithadielectricconstantof4.8andalosstangentof

0.016shallbeused.



AntennaGuidelines

1. TheantennausedmustbeofequalorlessergainthanthePulseW3008Cusedintheoriginal

modulecertification,whichis+2.2dBi.

2. InthecaseofusingthePulseW3008C:

a. TheantennamustbeplacedonaPCBedge.

b. Theantennamustbeplacedaminimumdistanceof10mmfromthecornerofthePCB.

c. IftheantennaisnotplacedonaPCBedgeequidistantfromeitherend,theantennafeed

shallbefromthe“inside”ofthePCB,i.e.thelongerside.

d. ThePCBguidelinesforantennalayoutreferencedinthedocument“PulseW3008C

Guidelines.pdf”mustbefollowed.



InstallationInstructions



WhenthemoduleisinstalledinanRTIproductitispermanentlyaffixedtothehostproductandcannot

beremovedwithouttheuseofadditionalequipment.Thismoduleisalsonotvisible,noraccessibleby

theend‐user.AnyattemptedaccessorremovalofthemodulebyanyoneotherthanRTIorits

authorizedContractManufacturersisstrictlyprohibited.



AnyRTIhostcontainingthemodulemustadheretoRTI’sstricthostPCBguidelinesasoutlinedabovein

ordertoremaincompliant.



PurposeoftheAPM6998WiFiModule



TheAPM6998WiFiModule(“module”)isamodulethatcanbeinstalledinapplicableRemote

TechnologiesInc.(“RTI”)productsonly.ThismoduleisnotsoldretailbyRTI,norisitprovidedbyRTIas

anOEMproducttoothermanufacturersorcompaniesforinstallationintotheirproducts.RTIandits

authorizedContractManufacturersaretheonlyauthorizedinstallersofthismoduleanditisnot

providedasafieldorend‐userupgrade.WhenproperlyandpermanentlyinstalledinanapplicableRTI

product,themodulewillprovide2.4GHz802.11b/g/ncommunicationwithotherWiFienableddevices.



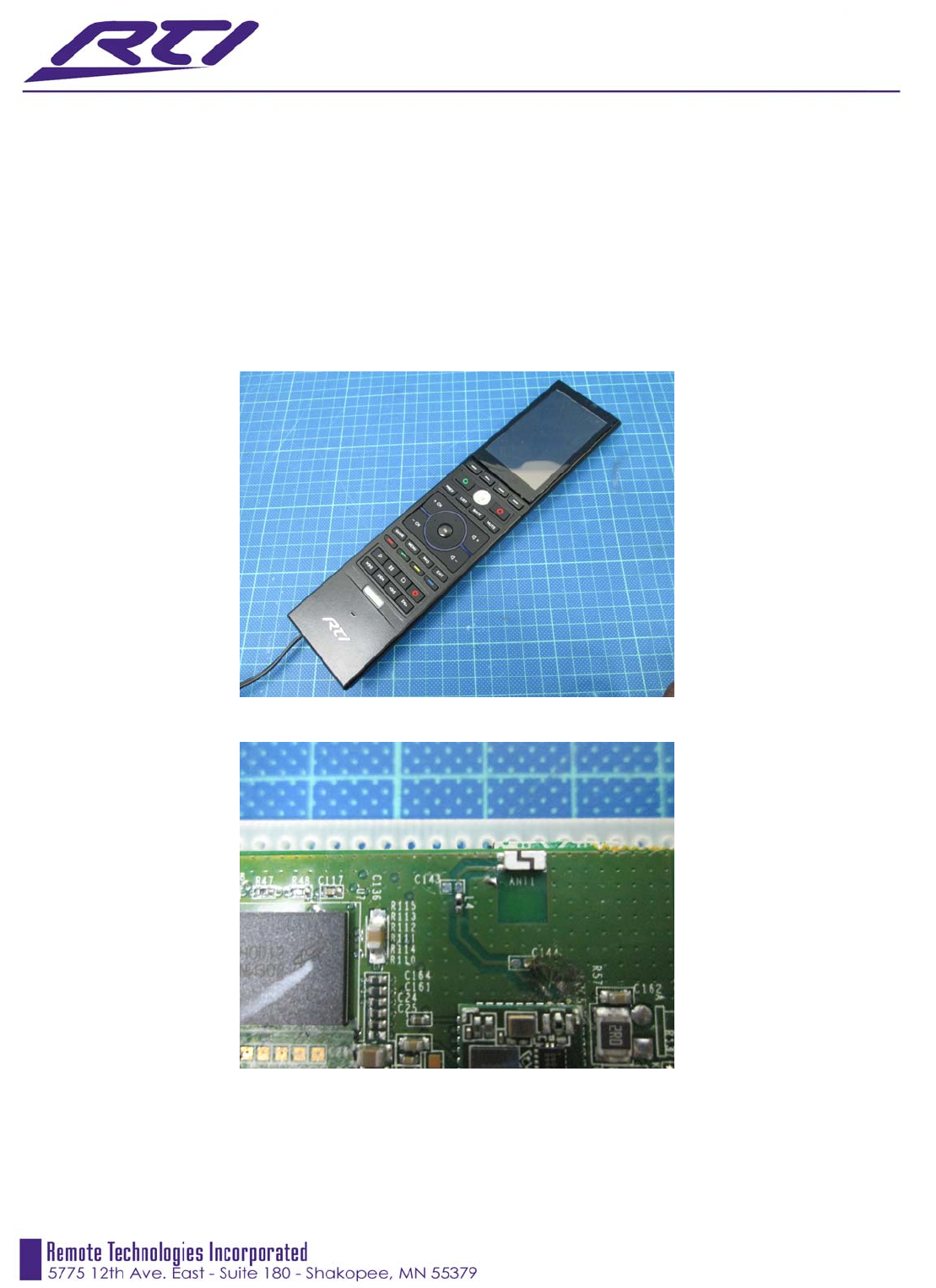

ThisphotoincludestheModuleandHost.

Antenna trace



FederalCommunicationCommissionInterferenceStatement



TheOperationManualofthehostRTIproductwilldisplaythefollowinginformationinaccordancewith

FCCguidelines:



ContainsFCCID:MMURTI2100



Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoid

theuser’sauthoritytooperatethedevice.



ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:

1. Thisdevicemaynotcauseharmfulinterference.

2. Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause

undesiredoperation.



ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst

harmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcanradiateradio

frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful

interferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccur

inaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevision

reception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotry

tocorrecttheinterferencebyoneormoreofthefollowingmeasures:

—Reorientorrelocatethereceivingantenna.

—Increasetheseparationbetweentheequipmentandreceiver.

—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



FCCRadiationExposureNotice

‐TocomplywithFCCRFexposurecompliancerequirements,aseparationdistanceofatleast20cmmust

bemaintainedbetweentheantennaofthisdeviceandallpersons.

‐ThisTransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaor

transmitter



Labelingoftheendproduct

Whenthemoduleisinstalledinthehostdevice,theFCCID/IClabelmustbevisiblethrougha

windowonthefinaldeviceoritmustbevisiblewhenanaccesspanel,doororcoveriseasilyre‐

moved.Ifnot,asecondlabelmustbeplacedontheoutsideofthefinaldevicethatcontainsthe

followingtext:“ContainsFCCID:MMURTI2100”



IndustryCanadaStatement



TheOperationManualofthehostRTIproductwilldisplaythefollowinginformationinaccordancewith

IndustryCanadaRSSstandard(s):



ContainsIC:3166A‐RTI2100



ThisdevicecomplieswithIndustryCanadaLicense‐exemptRSSstandard(s).Operationissubjecttothe

followingtwoconditions:

1. Thisdevicemaynotcauseharmfulinterference.

2. Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause

undesiredoperation.



LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradioexemptsde

licence.L'exploitationestautoriséeauxdeuxconditionssuivantes:

1. l'appareilnedoitpasproduiredebrouillage

2. l'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageest

susceptibled'encompromettrelefonctionnement.



ICRadiationExposureNotice

ICRFRadiationExposureStatement

Caution:TomaintaincompliancewiththeIC’sRFexposureguidelines,placetheequipmentatleast

20cmfromnearbypersons.



DéclarationD’expositionAuxRadiationsRFDeLaIC

Attention:AfindemaintenirlaconformitéauxlignesdirectricesdelaICenmatièred’expositionauxRF,

leéquipementnedoitpasêtreplacéàmoinsde20cmd’unepersonne.



Labelingoftheendproduct

Thefinalendproductmustbelabeledinavisibleareawiththefollowing“ContainsIC:3166A‐

RTI2100”.



Thisdeviceisintendedunderthefollowingconditions:



Duetothereisnoantennaonthemodule,thisLMAsubmissionisrestrictedtoaspecifichostwhich

includestheentireboardandchipantennaasitisshownonpage1~2ofthisusermanual.Thismodule

willbeintegratedbyRemoteTechnologiesIncorporatedonly,andwillbenotsoldorusedtotheother

OEMintegrators.



1.Theantennamustbeinstalledsuchthat20cmismaintainedtheantennaandusers.

2.ThisTransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaor

transmitter.

3.TheW3008cWLANantennawith2.2dBigainwasverifiedintheconformitytesting.Theantennatype

isChipantenna.ThemodelnumberisW3008cWLANAntenna.ThemanufacturerisPulseElectronics.



RadiatedtransmitpowermustbeequaltoorlowerthanthatspecifiedintheFCC/ICGrantof

EquipmentAuthorizationforFCCID:MMURTI2100andIC:3166A‐RTI2100.Aseparateapprovalis

requiredforallotherantennatype,orhighergainantenna



Thismoduledoesnotownitsantennaonitself,andtheantennaisplacedonthespecifichostasthe

restrictedconditionofthisLMA.Thatantennacouldcomplywiththeantennarequirementbecauseitis

apermanentlyattachedsurfacemountantenna.

ThisisaLMAsubmissionwhichisrestrictedforthespecifichost.Themoduleisinstalledonthatspecific

hostfortheStand‐Aloneconfiguration.TheHostHardwareRevisionofHostPCBisT3xRevD1.The

Host‐ModuleDriverVersionisv8.1.4.4.Themoduleandantennacanonlybeinstalledandrepairedby

RTI.



Attention:ThisRFModuleownsitsRFshieldingcase,buttheholesoftheshieldisnotsmallerthanthe

wavelengthoftheradiationthatisbeingblocked,soaLimitedModularApproval(LMA)wasgranted:

ThisRFmoduleisstrictlylimitedtotheintegrationbytheGranteehimself.

PropermeasurementsofthehostdeviceincludingthisRFmodule(radiatedspuriousemissionsand

bandedge)arerequiredtoassurecompliancewiththeFCCregulations.ThisRFModulemustnotbesold

tothegeneralpublic.
