Remotesolution RH55A RF Base Station User Manual 08905083X1
Remote Solution Co., Ltd. RF Base Station 08905083X1
User Manual
- 1 -

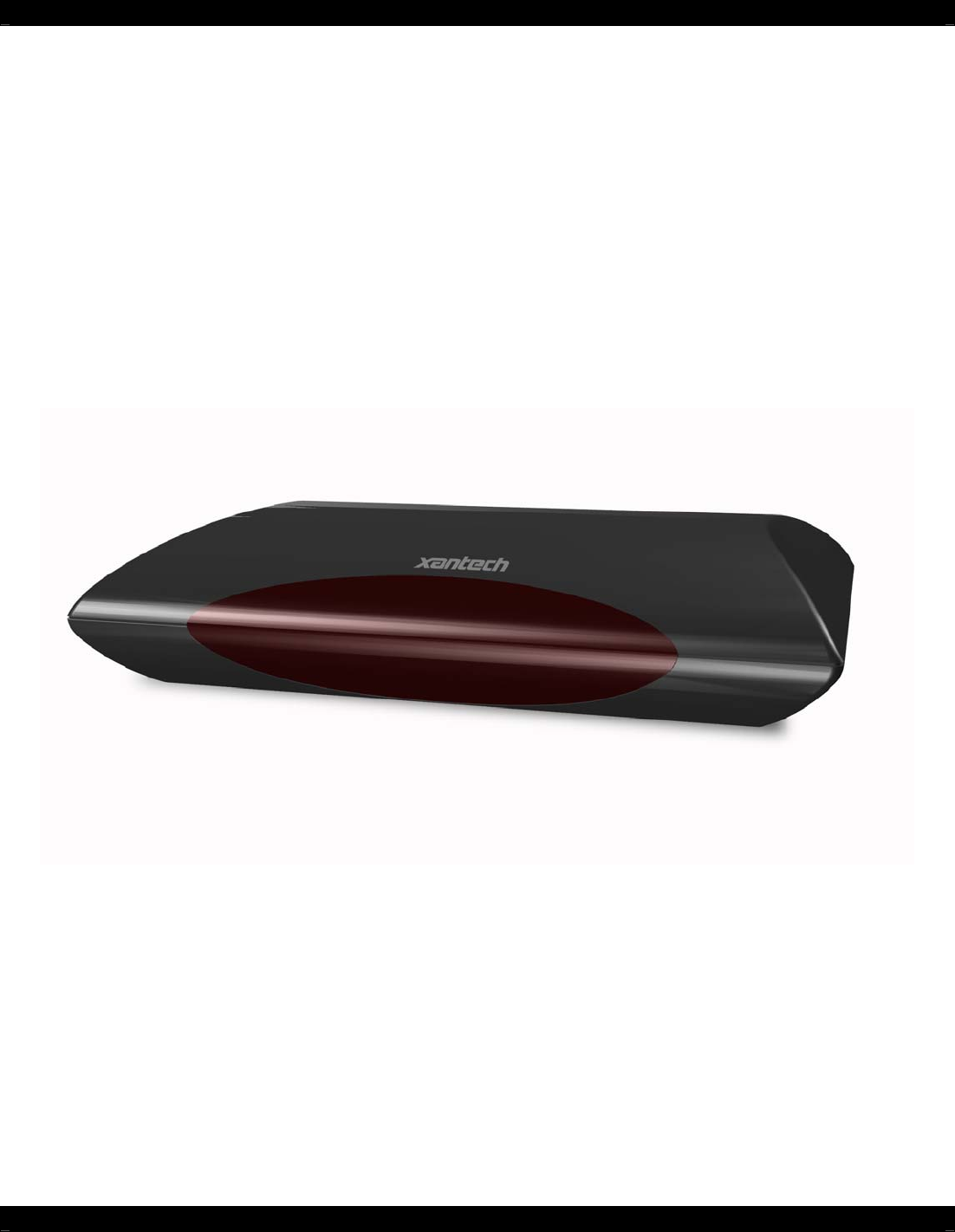

RH55A,C
RF Base Station
Quick Start
Installation Instructions
ATTENTION: Requires the XTR39 to operate.
- 2 -
Welcome!
The RH55A,C base station is the ultimate accessory to the Xantech XTR39 Color LCD remote color. It’s
a receiver that accepts the Radio Frequency output of the XTR39 remote and translate it into IR and
RS232 command signals that can control virtually any home electronic device. The RH55A,C makes it
simple to set up a reliable and sophisticated multi-room control system that is easily controlled by the
intuitive LCD touch screen control of the XTR39 remote.
Specifications
RF Receive Frequency: 2.4GHz RS232 Port Interface: Tx, Rx, and Gnd
Addressable Units: 256 RS232 Cable Adapter: DB9 Male to Stereo Plug
IR Blaster Range: 30’ Unit Size: 5.0” x 4.75” x 1.0”
IR Format Support: XIR1 and XIR2/Library Unit Weight: 4.0 oz
Addressable Emitter Output Ports: 4 Unit Color: Black with silver logo
Power Requirements: 12Volts DC @ 300mA RoHS Compliant

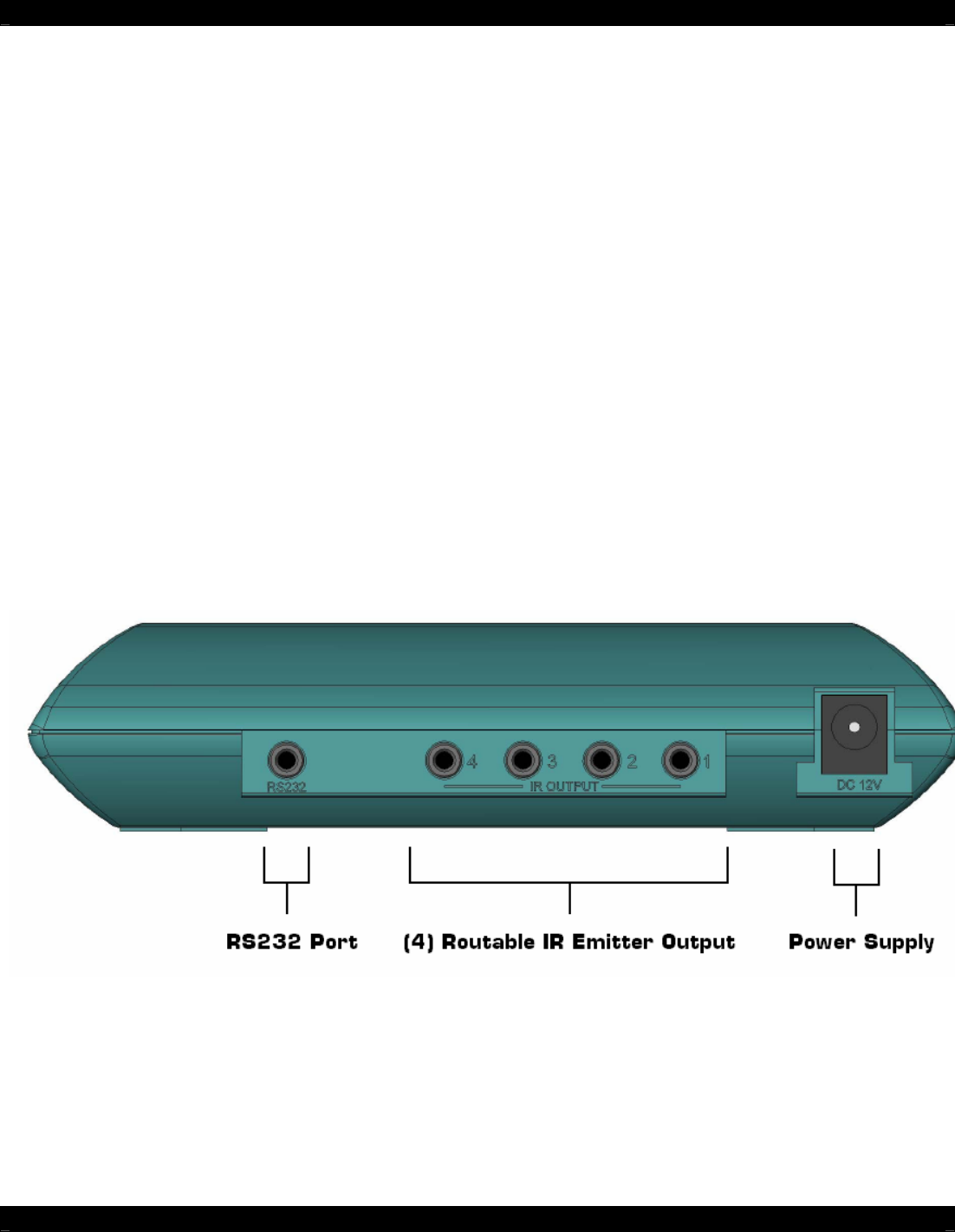

RH55A,C Diagram
- 3 -
Quick Start Instructions

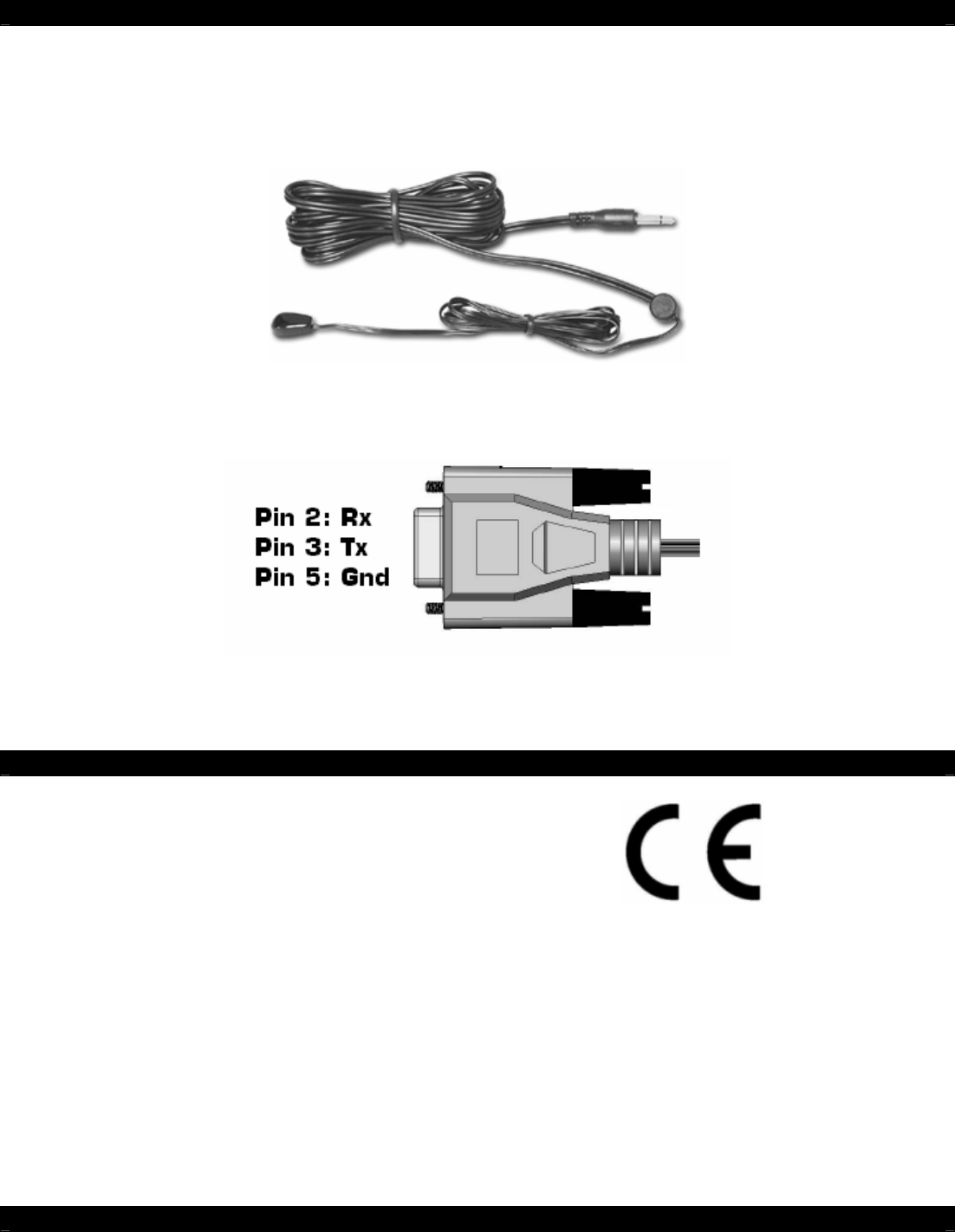

Step 1. Plug the (4) 283M emitters (included) into the RH55A,C. Next, place the 283M emitter head next to the IR
eye on the source component to be controlled.
Step 2. Plug the RS232 Adapter Cable (if required) into the RH55A,C. Next, connect the DB9 plug to the source
component to be controlled. In some instances, a null modem converter may be required. Below is a pin-out of
the RS232 Adapter Cable.
Step 3. Plug in the power supply to the RH55A,C device.
Step 4. Follow the XTR39 Instructions, RH55A,C Addendum and follow the steps to setup the XTR39.
Information
FCC NOTICE
* Section 15.19 Labeling requirements
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received,
including interference that may cause
undesired operation.
* Section 15.21 Information to user
The changes or modifications not expressly approved by
the party responsible for compliance
could void the user’s authority to operate the
equipment.
* IMPORTANT NOTE: To comply with the FCC RF
exposure compliance requirements, no change to the
antenna or the device is permitted. Any change to the
antenna or the device could result in the device
exceeding the RF exposure requirements and void
user’s authority to operate the device.
0197
RH55A,C RF Base Station Quick Start Installation Instructions
© 2006 Xantech Corporation
This document is copyright protected. No part of this manual may be
copied or reproduced in any form without prior written consent from
Xantech Corporation.
Xantech Corporation shall not be liable for operational, technical, or
editorial errors/omissions made in this document.
Document Number 08905083X1
Xantech Limited Warranty
(Effective for products sold after July 1, 2006)
Xantech Corporation (“Xantech”) warrants to the holder of a valid proof of purchase as the first end-user purchaser
(“You”), its products to be free from defects in materials and workmanship for the periods specified below from the date of
purchase. This limited warranty extends only to You for product purchased and used in the United States of America. For
product purchased outside of the United States of America, the terms of this warranty apply EXCEPT that You must
contact the Xantech authorized distributor in your region for warranty services. Product is not intended for end user
installation. If within the applicable warranty period above You discover such item was not as warranted above and You
promptly notify Xantech in writing, Xantech shall repair or replace the items at its option. Xantech may elect which remedy
or combination of remedies to provide in its sole discretion. Xantech may use functionally equivalent
reconditioned/refurbished/pre-owned or new products or parts under this limited warranty. This warranty shall not apply
(a) to product which shall have been installed by other than an authorized Xantech installer, (b) to installed product which
is not installed to Xantech’s specifications, (c) to product which shall have been repaired or altered by others than
Xantech, (d) to charges for installation or set up or adjustment of customer controls, (e) to product that has suffered
normal cosmetic deterioration (f) to product which shall have been subjected to negligence, misuse, abuse, accident, or
damage by circumstances beyond Xantech’s control, including, but not limited to, lightning, flood, electrical surge,
tornado, earthquake, or any other catastrophic events beyond Xantech’s control, or (g) to product which shall have been
subjected to improper operation, connected equipment failure or malfunction, inadequate packing or shipping damage,
maintenance or storage, or to other than normal use of service. The foregoing warranties do not cover reimbursement for
labor, transportation, shipping, removal, installation, or other expenses which may be incurred in connection with repair or
replacement. All claims for product shipping damage must be processes within 3 days of receipt by You.
A Xantech Return Authorization (RA) must be obtained from Xantech by You, your installer or your distributor for Product
covered under this warranty. Covered product must be sent to Xantech together with proof of purchase, RA number,
prepaid and insured to Xantech. Freight collect shipments will be refused. Risk of loss or damage in transit is borne by the
sender. Xantech's warranty does not cover Products which have been received improperly packaged, altered, or
physically damaged. Products will be inspected upon receipt.
Except as may be expressly provided and authorized in writing by Xantech, Xantech shall not be subject to any
other obligations or liabilities whatsoever with respect to equipment manufactured or sold by Xantech or services
rendered by Xantech.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESSED AND IMPLIED
WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE.
ATTENTION: TO OUR VALUED CONSUMERS
To insure that consumers obtain quality pre-sale and after-sale support and service, Xantech products are sold
exclusively through authorized dealers and authorized distributors. Xantech products are not sold online. The
warranties on Xantech products are NOT VALID if the products have been purchased from an unauthorized
distributor or an online E-tailer. In order to determine if your Xantech re-seller is authorized, please call Xantech
(800) 843 - 5465.
XANTECH PRODUCT (go to Xantech.com/warranty for model numbers) WARRANTY DURATION
IR Receivers and IR Emitters Limited Lifetime
A/V distribution and Control Limited Lifetime
Remote Control Switchers Limited Lifetime
Modules and Connecting Blocks Limited Lifetime
Accessories Limited Lifetime
Speakers Limited Lifetime
Volume Controls and Speaker Selectors 5 year Limited
MRC, BX, ZPR and Commercial Products 2 year Limited
Amplifiers 2 year Limited
Control Interfaces 2 year Limited
Hand Held Remote Controls 1 year Limited
SPLCD Product 1 year Limited
Source Components 1 year Limited
