Workshop Repair Manual

Manual gearbox

Type Range

JH1 Twingo

Clio

JH3 Clio

Laguna II

JR5 Laguna II

77 11 299 962

"The repair methods given by the manufacturer in this document are based on the

technical specifications current when it was prepared.

The methods may be modified as a result of changes introduced by the manufacturer

in the production of the various component units and accessories from which his

vehicles are constructed."

MARCH 2001

All copyrights reserved by Renault.

EDITION ANGLAISE

Copying or translating, in part or in full, of this document or use of the service part

reference numbering system is forbidden without the prior written authority of Renault.

© RENAULT 2001

Contents

Page

21 MANUAL GEARBOX

Section and tightening torques (in daNm) 21-1

Tightening torques (in daNm) 21-3

Gears 21-4

Consumables 21-5

Capacity - Lubricants 21-5

Parts to be systematically replaced 21-5

Special tooling 21-6

Repairing the gearbox 21-7

MANUAL GEARBOX

Section and tightening torques (in daNm) 21

21-1

121

MANUAL GEARBOX

Section and tightening torques (in daNm)

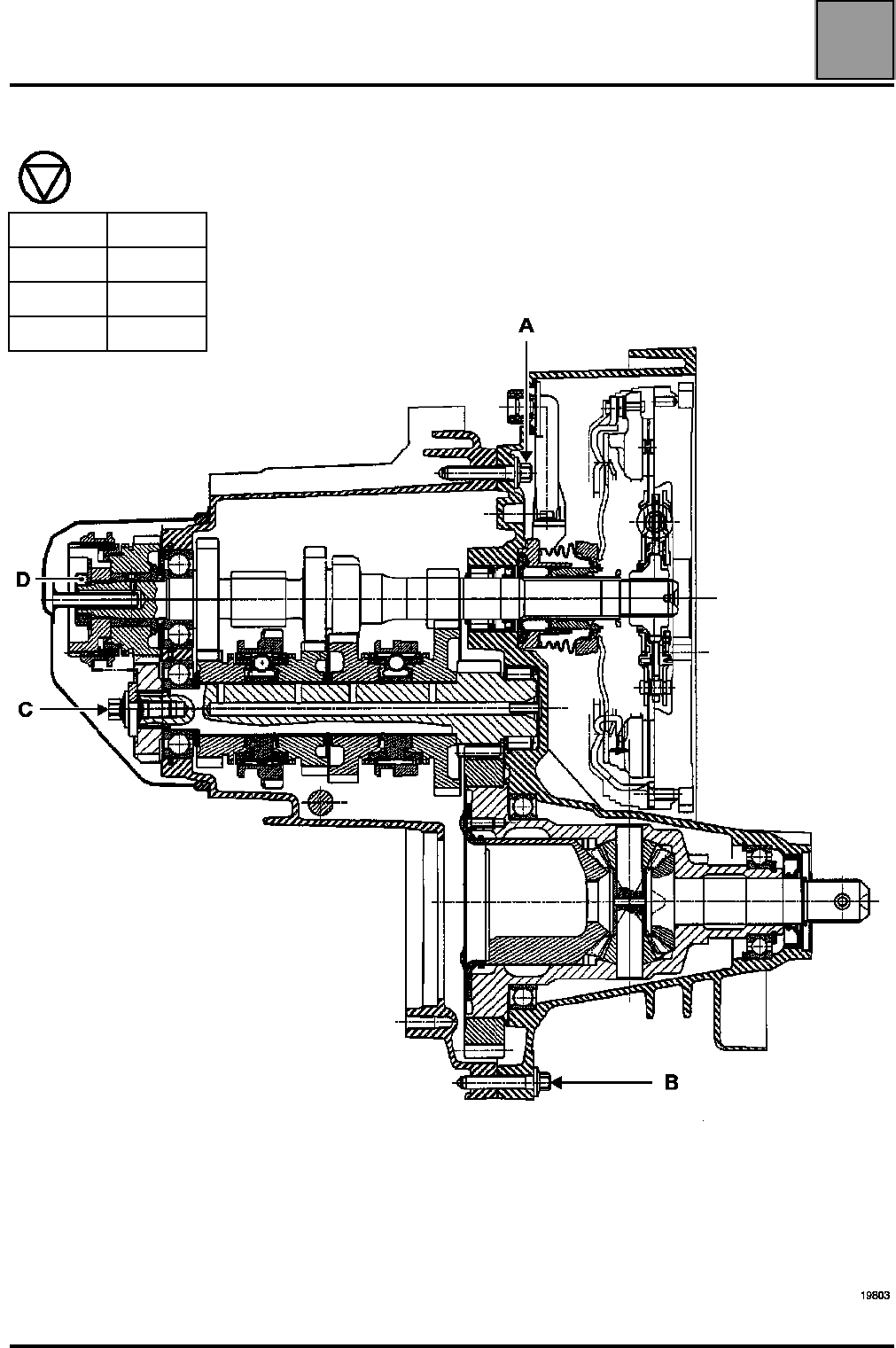

JH GEARBOX

A2.5

B2.5

C7

D19

MANUAL GEARBOX

Section and tightening torques (in daNm) 21

21-2

JR GEARBOX

A2.5

B13

C2.5

D7

E19

MANUAL GEARBOX

Tightening torques in daNm 21

21-3

Tightening torques in daNm

Description Torque in daNm

Gearbox edge bolt 2.5

Secondary shaft bolt 7

Primary shaft nut 19

Rear cover bolt 2.5

Reverse gear switch 2.5

Clutch slave cylinder bolt 2.1

Control shaft bolt 2

Catch bolt 0.5

Speed sensor bolt for sequential gearbox 1

MANUAL GEARBOX

Ratios 21

21-4

Ratios

JH GEARBOX

JR GEARBOX

Index Type 1st 2nd 3rd 4th 5th Reverse

gear

Final

drive Speedometer

JH1-002 Twingo 11/37 22/41 28/37 30/29 41/31 11/39 15/56 21/20

JH1-003 Twingo 11/37 22/41 28/37 30/29 39/32 11/39 15/58 21/20

JH1-007 Twingo 11/37 22/41 28/37 34/35 39/32 11/39 15/61 21/19

JH3-005 Laguna 2 11/37 22/41 28/37 34/35 39/32 11/39 14/59 None

Index Type 1st 2nd 3rd 4th 5th Reverse

gear

Final

drive Speedometer

JR5-003 Laguna 2 11/37 22/41 28/37 34/35 39/32 11/39 15/61 None

JR5-008 Laguna 2 11/41 21/43 28/39 31/34 37/33 11/39 15/58 None

JR5-009 Laguna 2 11/37 22/41 28/37 34/35 39/32 11/39 15/61 None

JR5-012 Laguna 2 11/41 21/43 28/37 35/34 41/31 11/39 16/55 None

MANUAL GEARBOX

Consumables 21

21-5

Consumables

Capacities - Lubricants

Parts to be systematically replaced

After they have been replaced:

– lip seals,

– O-rings,

– stop rings,

– roll pins,

– secondary shaft and differential nuts,

– gear supporting rings,

– primary and secondary shaft bearing circlips.

Type Packaging Parts Stores No. Unit

Molykote BR2 1 kg tin 77 00 421 145 Sunwheel splines

Loctite 518 24 ml syringe 77 01 421 162 Housing assembling faces

Switch threading

Loctite FRENBLOC 24 cc bottle 77 01 394 071

Fixed gear and 5th gear hub

Primary shaft nut

Secondary shaft bolt

Capacity in litres Grade

JH 2.8 TRJ 75W80W

JR 2.5 TRJ 75W80W

MANUAL GEARBOX

Special tooling 21

21-6

Special tooling

B. Vi. 22-01 Bearing extractor tool

B. Vi. 31-01 Set of punches for roll pins

B. Vi. 945 Sunwheel oil seal gasket inserting tool (JH)

B. Vi. 946 Sunwheel circlip replacer

B. Vi. 949 Selector fork roll pin rem/ref tool

B. Vi. 1000 5th speed gear extractor shell

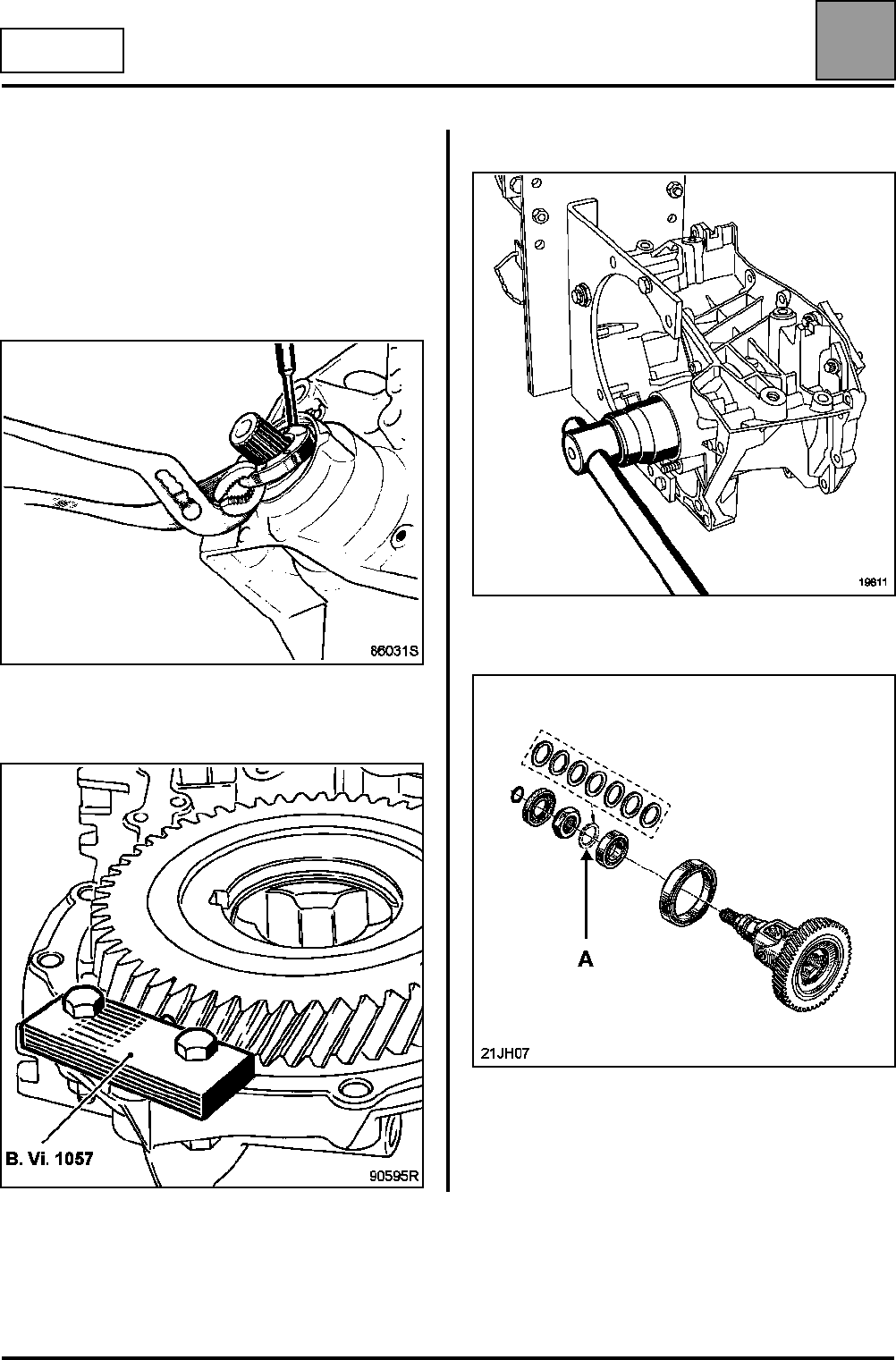

B. Vi. 1057 Differential locking tool

B. Vi. 1058 Sunwheel oil seal gasket inserting tool (JR)

B. Vi. 1059 Differential bearing bushes fitting kit

B. Vi. 1161 Steel plate to attach DTI gauge + pre-load adjust shims

B. Vi. 1165 Secondary shaft bearing on clutch housing extractor tool

B. Vi. 1170 Extractor for 5th speed hub gear

B. Vi. 1527 Primary and secondary shaft adjustment plate

B. Vi. 1570 Tool for fitting ball indentation

B. Vi. 1576 Mandrel for fitting bearings in the mechanism housing (JH)

B. Vi. 1581 Gearbox mounting on Desvil post

B. Vi. 1601 Mandrel for fitting primary shaft guide bearing

MANUAL GEARBOX

Repairing the gearbox 21

21-7

Repairing the gearbox

REMOVAL

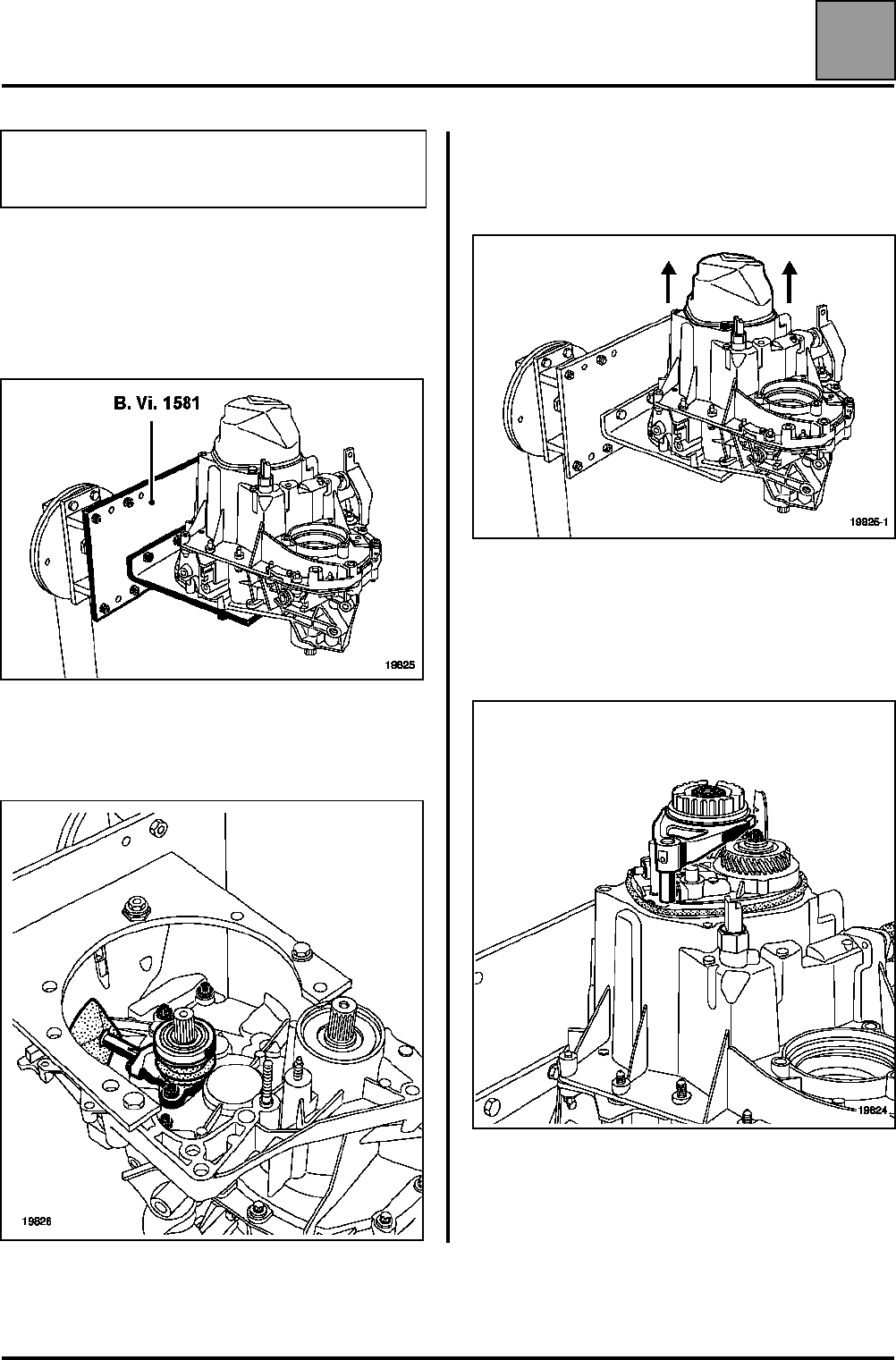

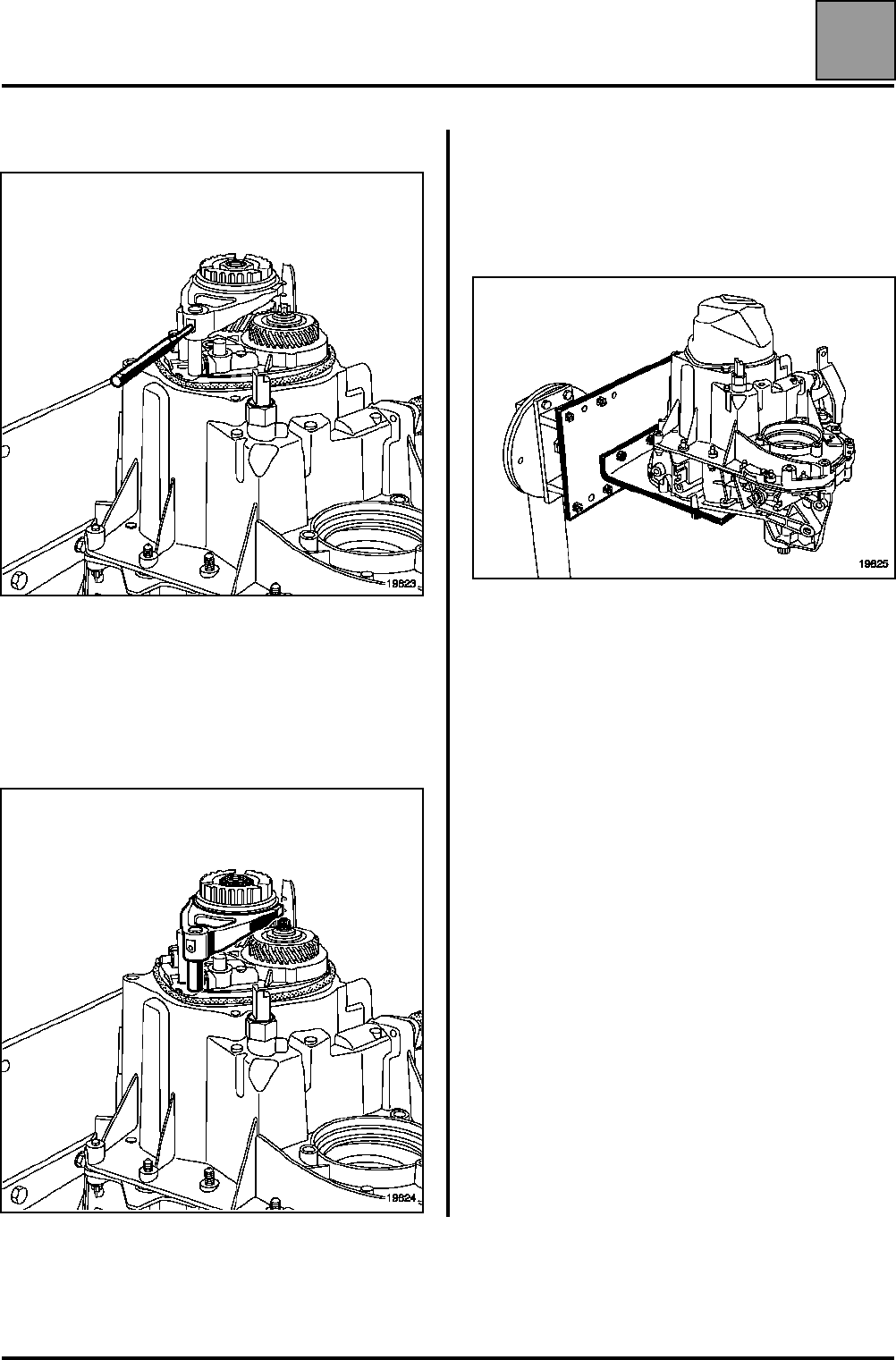

Fit support plate B. Vi. 1581 on a Desvil shoe.

Fit the gearbox on the B. Vi. 1581 support.

Remove:

– the clutch slave cylinder,

– the bolts located inside the housing,

– the rear housing. This must be removed along the

horizontal axis of the gearbox because it has a

lubrication spline which is located in the primary shaft

bore.

Select 1st gear using the gear lever and 5th gear by

sliding the 5th gear fork along its shaft.

Remove the secondary shaft bolt and the primary shaft

nut.

Removing and handling the parts must be carried

out on a workbench with a knockproof cover

(thick rubber or plastic).

19825

19826

19825-1

19824

MANUAL GEARBOX

Repairing the gearbox 21

21-8

Drive in the 5th gear fork pin using B. Vi. 31-01.

Remove the 5th gear fork and the sliding gear.

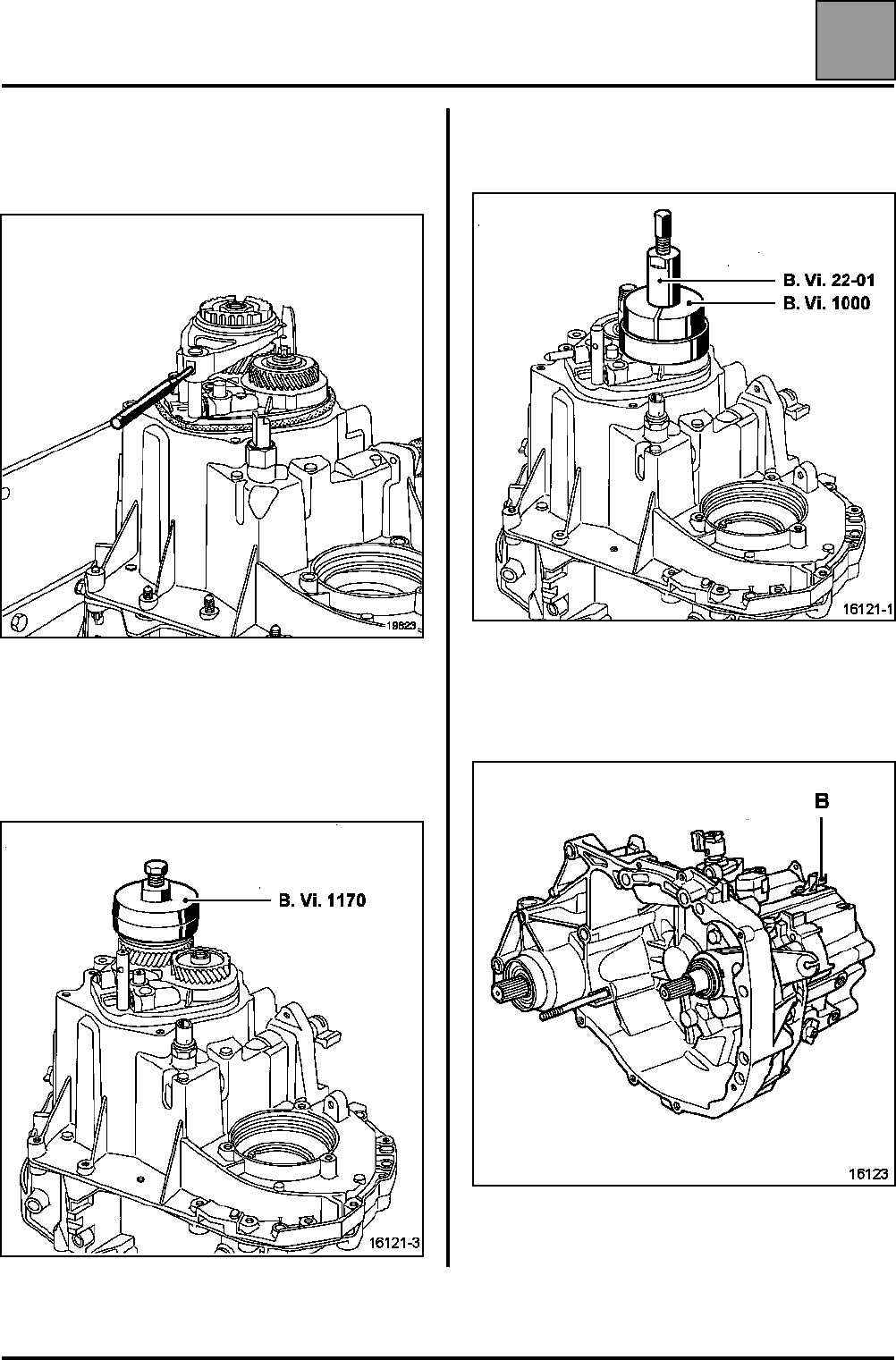

Extract the 5th gear hub using tool B. Vi. 1170.

Position the sliding gear of tool B. Vi. 1170 as if to

select 5th gear and rotate it so as to position the splines

of the sliding gear opposite those of the hub and

withdraw the assembly.

Remove the 5th fixed gear using tools B. Vi. 22-01 and

B. Vi. 1000.

Remove the outer bolts from the mechanism housing.

(Remove the speed sensor (B) for sequential gearbox

JH1).

19823

MANUAL GEARBOX

Repairing the gearbox 21

21-9

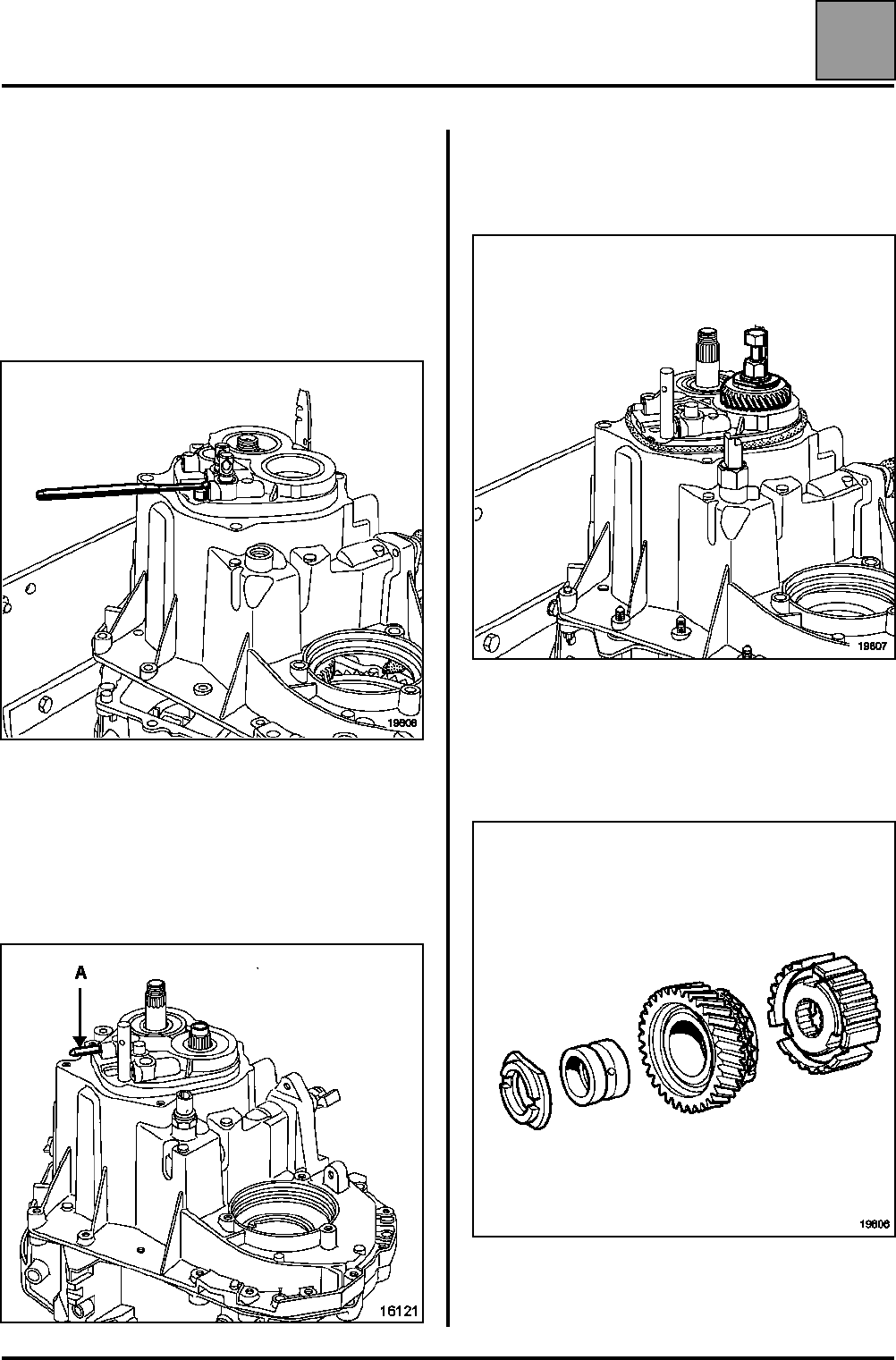

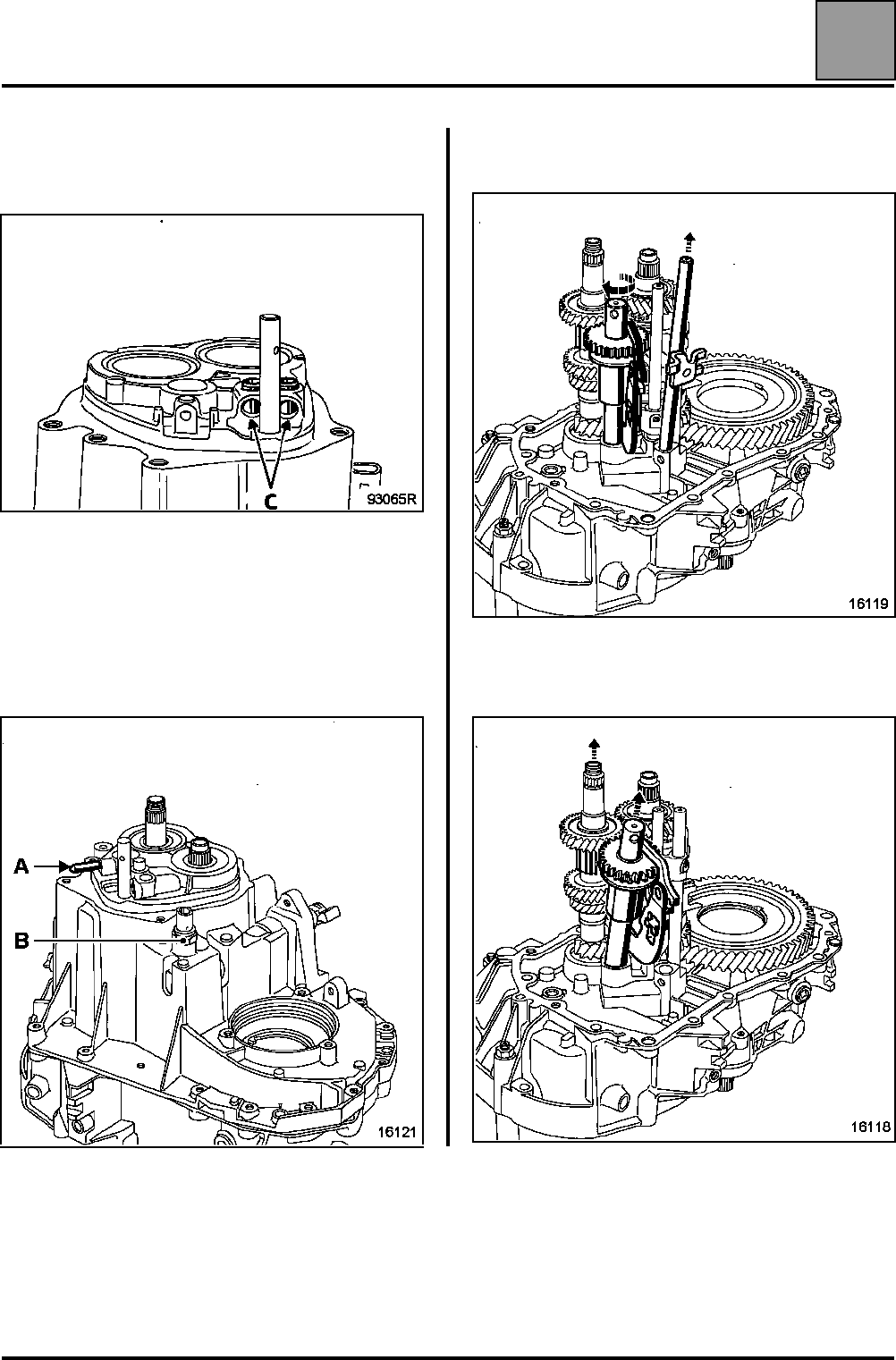

It is advisable to place two magnets or to close off the

openings (C) to retrieve the locking balls and springs

for shafts 1/2 and 3/4.

Remove the reverse gear shaft (A).

Remove the reverse gear switch (B).

Carry out an outwards stress test on the control shaft.

Lift and remove the mechanism housing.

Rotate the reverse gear shaft assembly to the left and

remove the reverse/5th gear fork shaft.

Gently lift the primary shaft and remove the reverse

gear shaft assembly.

MANUAL GEARBOX

Repairing the gearbox 21

21-10

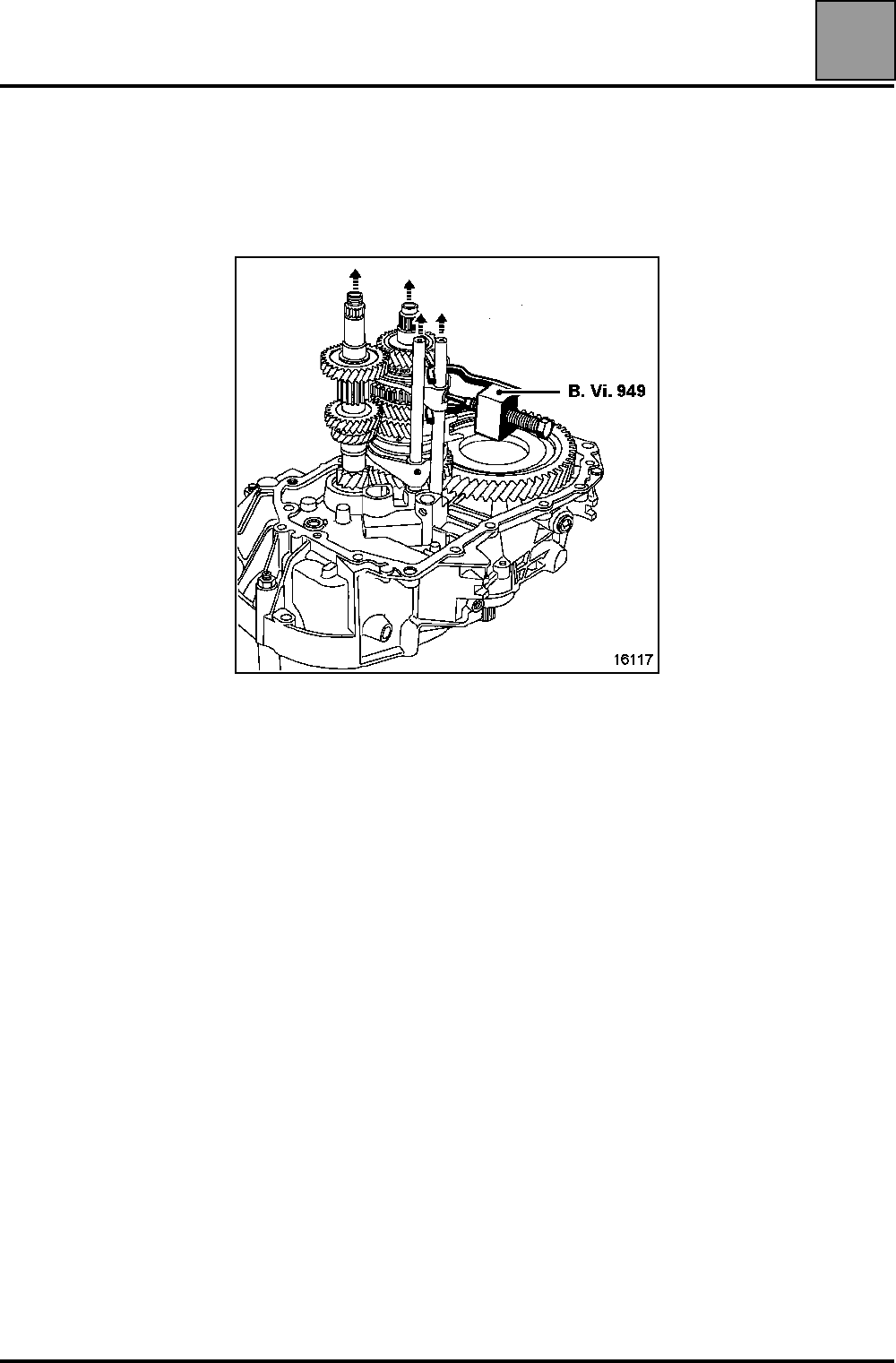

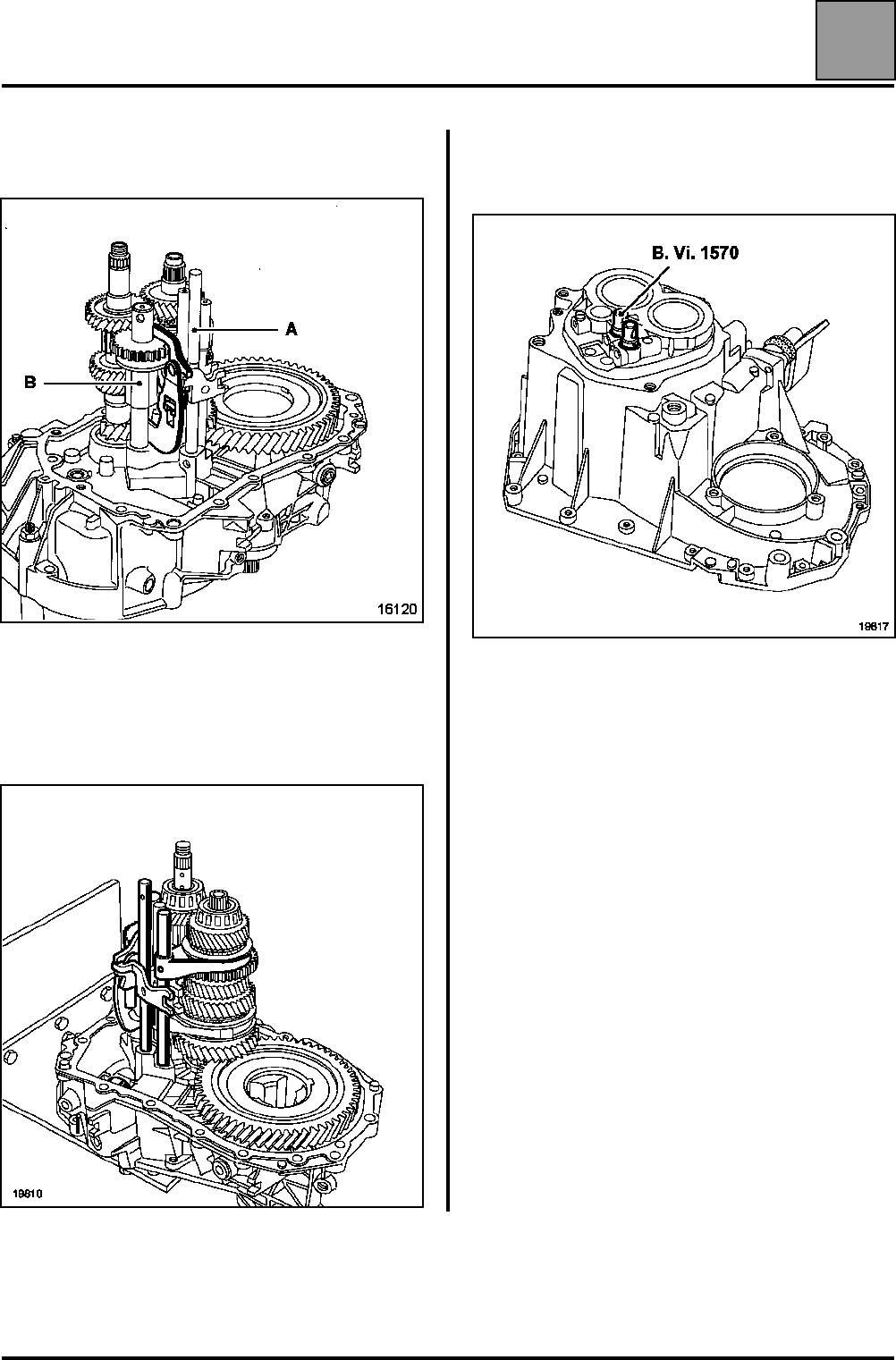

Take the pin out of the 3/4 gear fork using B. Vi. 949

and remove the shaft and 3/4 gear fork assembly.

At the same time, remove the primary and secondary

shaft assembly with the shaft and the 1/2 gear fork.

MANUAL GEARBOX

Repairing the gearbox 21

21-11

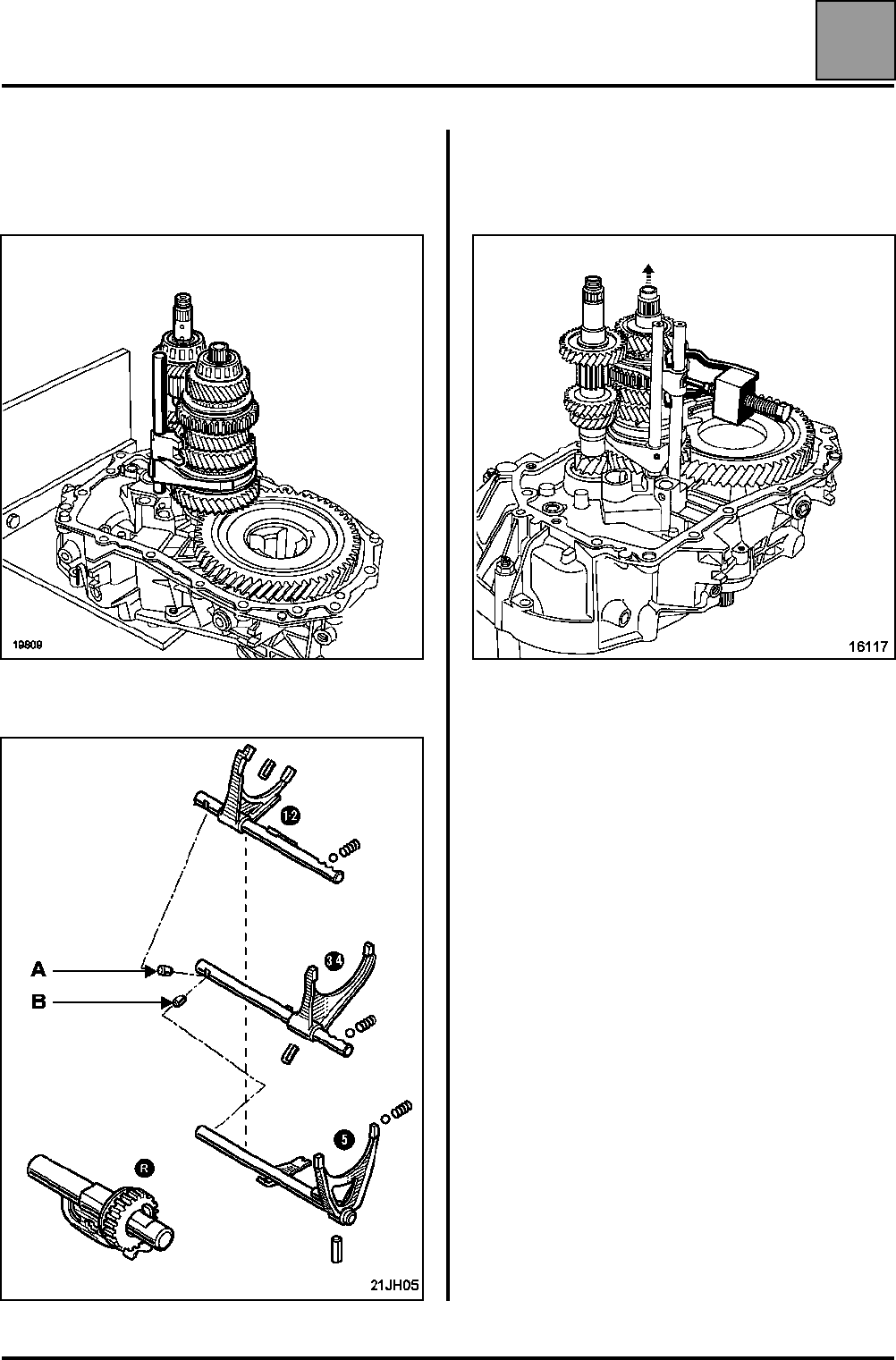

Remember to retrieve the inhibiting pegs (A) and (B).

MANUAL GEARBOX

Repairing the gearbox 21

21-12

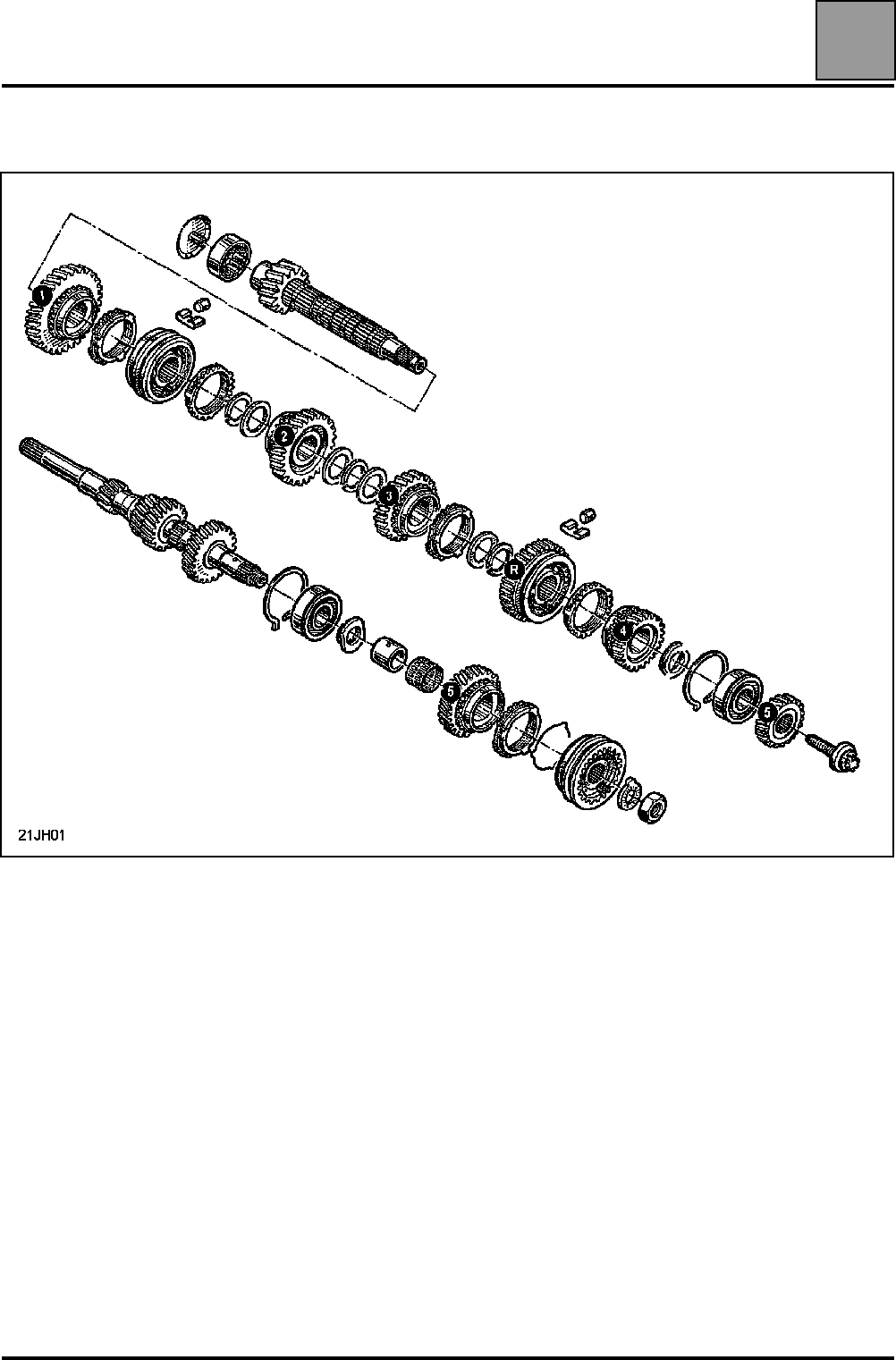

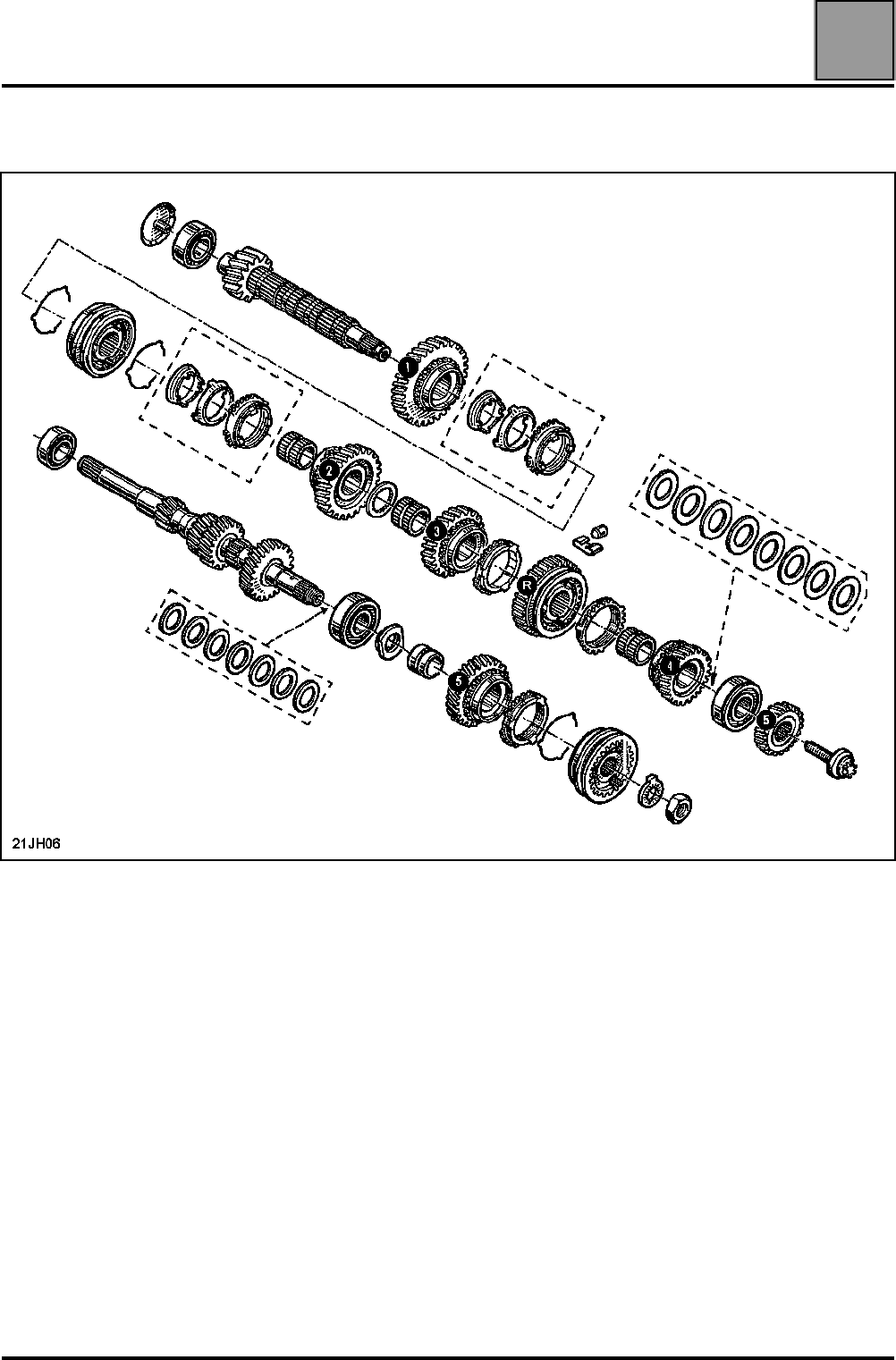

JH SECONDARY SHAFT

MANUAL GEARBOX

Repairing the gearbox 21

21-13

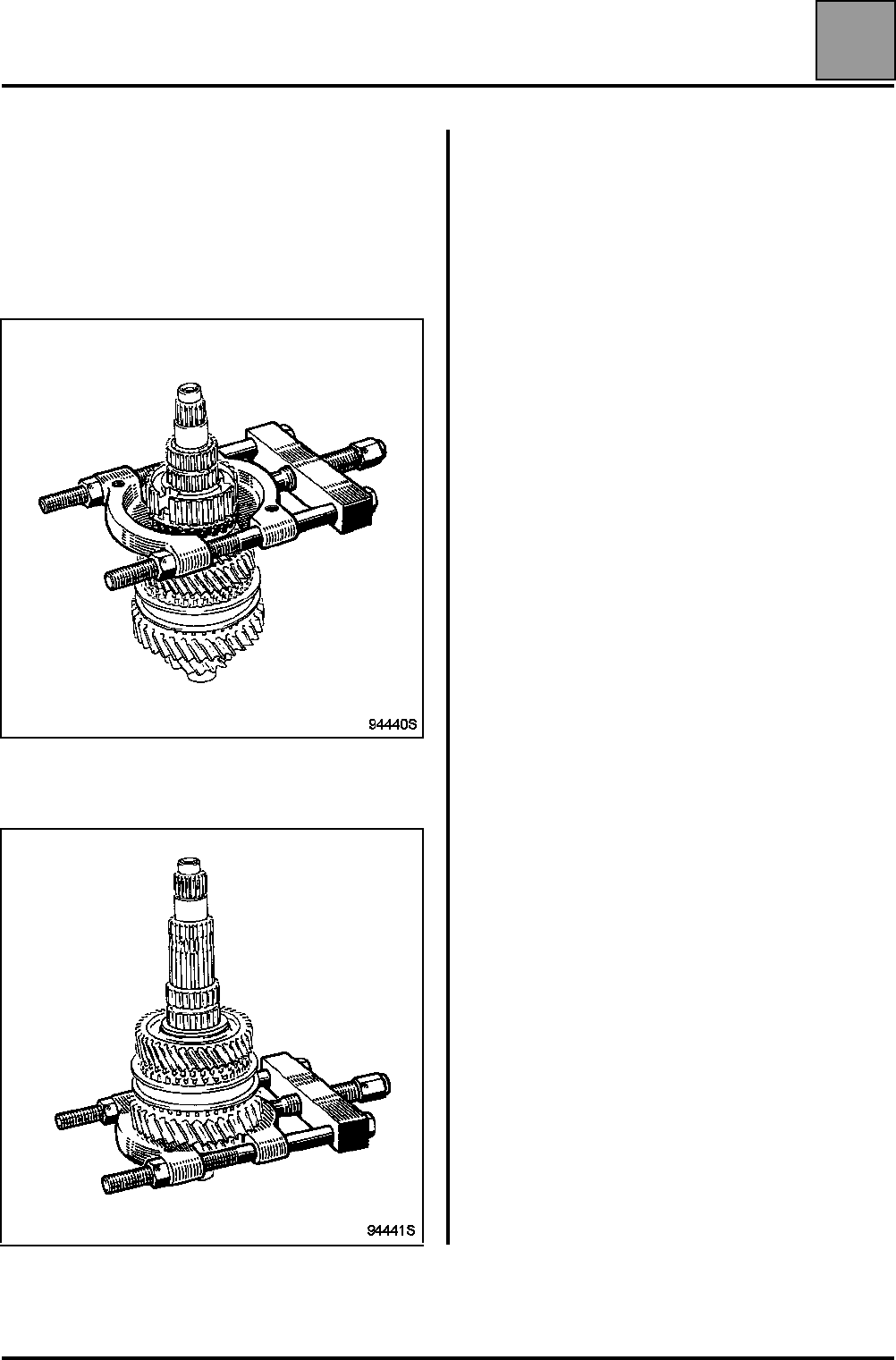

Removing the sprocket

Put the secondary shaft in a vice fitted with a clamping

jaw and remove the sprocket assembly.

Use circlip pliers on one side and flat-nosed pliers on

the other when removing and refitting stop rings.

Checking parts

The sprocket teeth and the claws should not be

chipped or excessively worn.

Also ensure that there are no signs of grating or

abnormal wear on the surfaces of the shafts or the

inner walls of the sprockets.

It is advisable to mark the position of the sliding shaft

in relation to the hub.

Refitting the sprocket.

Proceed in the reverse order to removal.

The stop rings must be systematically replaced.

MANUAL GEARBOX

Repairing the gearbox 21

21-14

JH

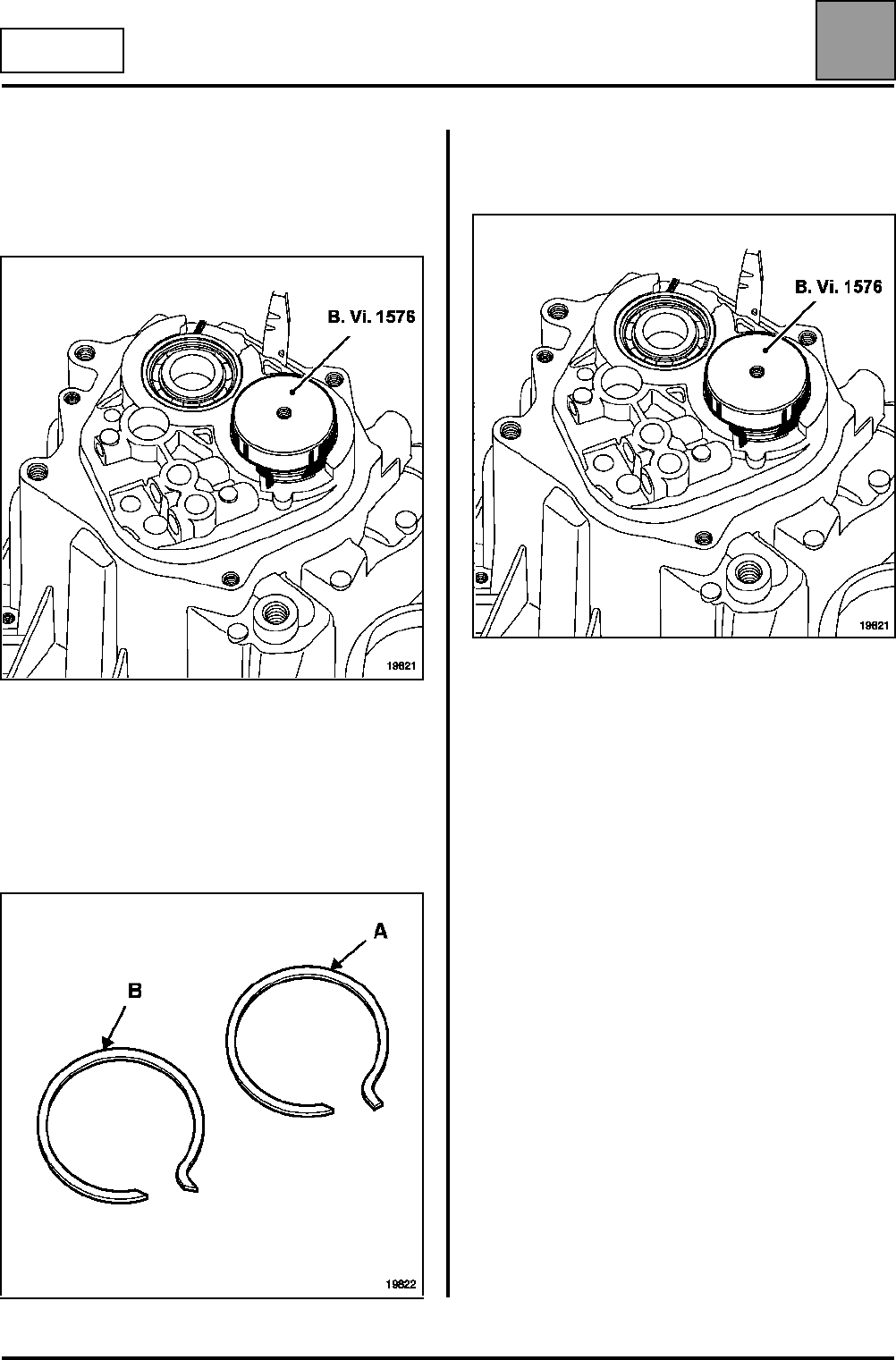

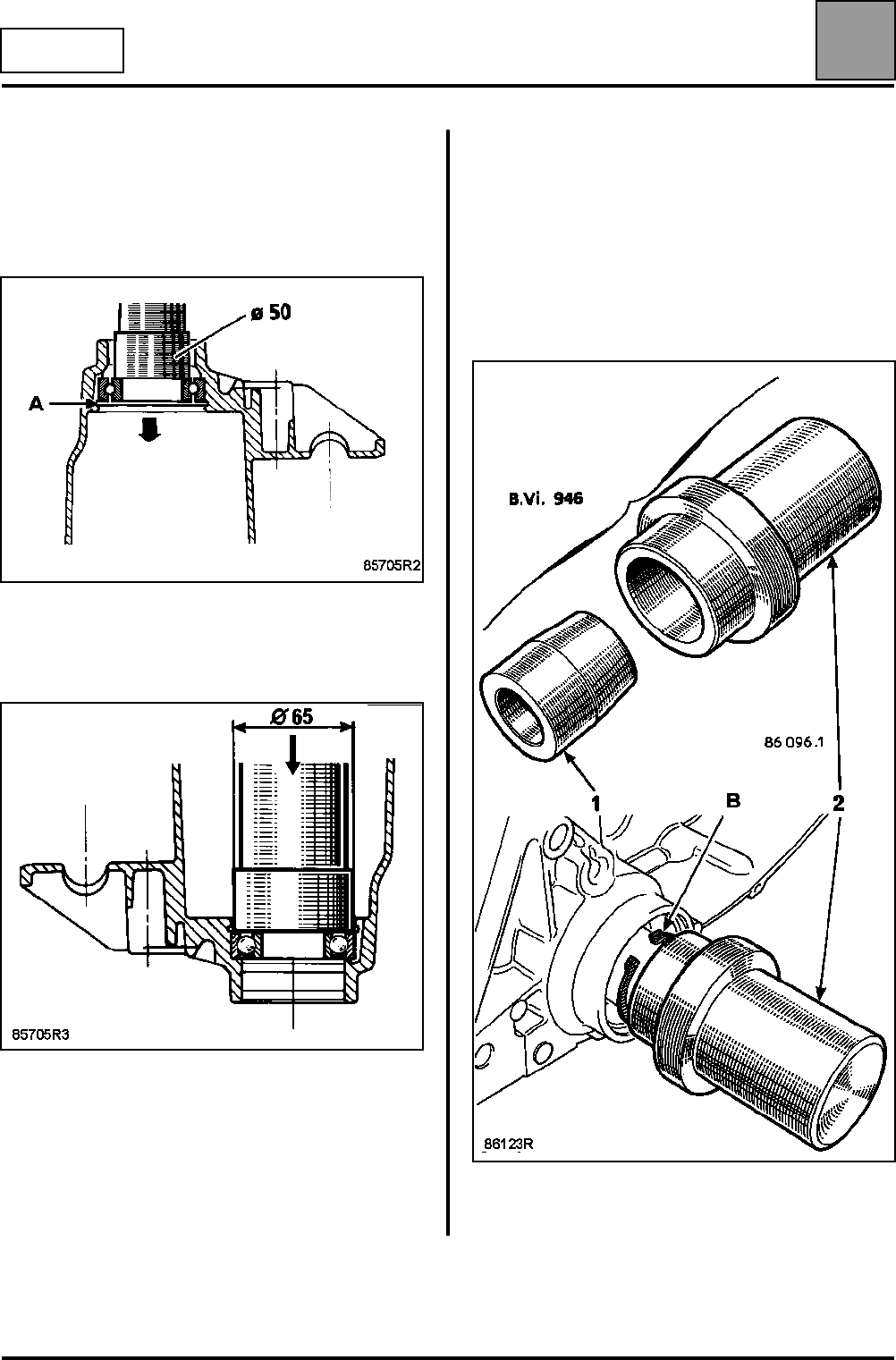

REPLACING THE BEARINGS IN THE MECHANISM

HOUSING

Separate the circlips with circlip pliers and drive the

bearing inside the housing using tool B. Vi. 1576.

REFITTING

Place the new circlips in their respective housings.

NOTE: the circlips have different shapes:

– primary shaft circlip (A),

– secondary shaft circlip (B).

Fit the bearings using tool B. Vi. 1576.

Knock the tool with the bearing using a small hammer.

19821

19822

19821

MANUAL GEARBOX

Repairing the gearbox 21

JH

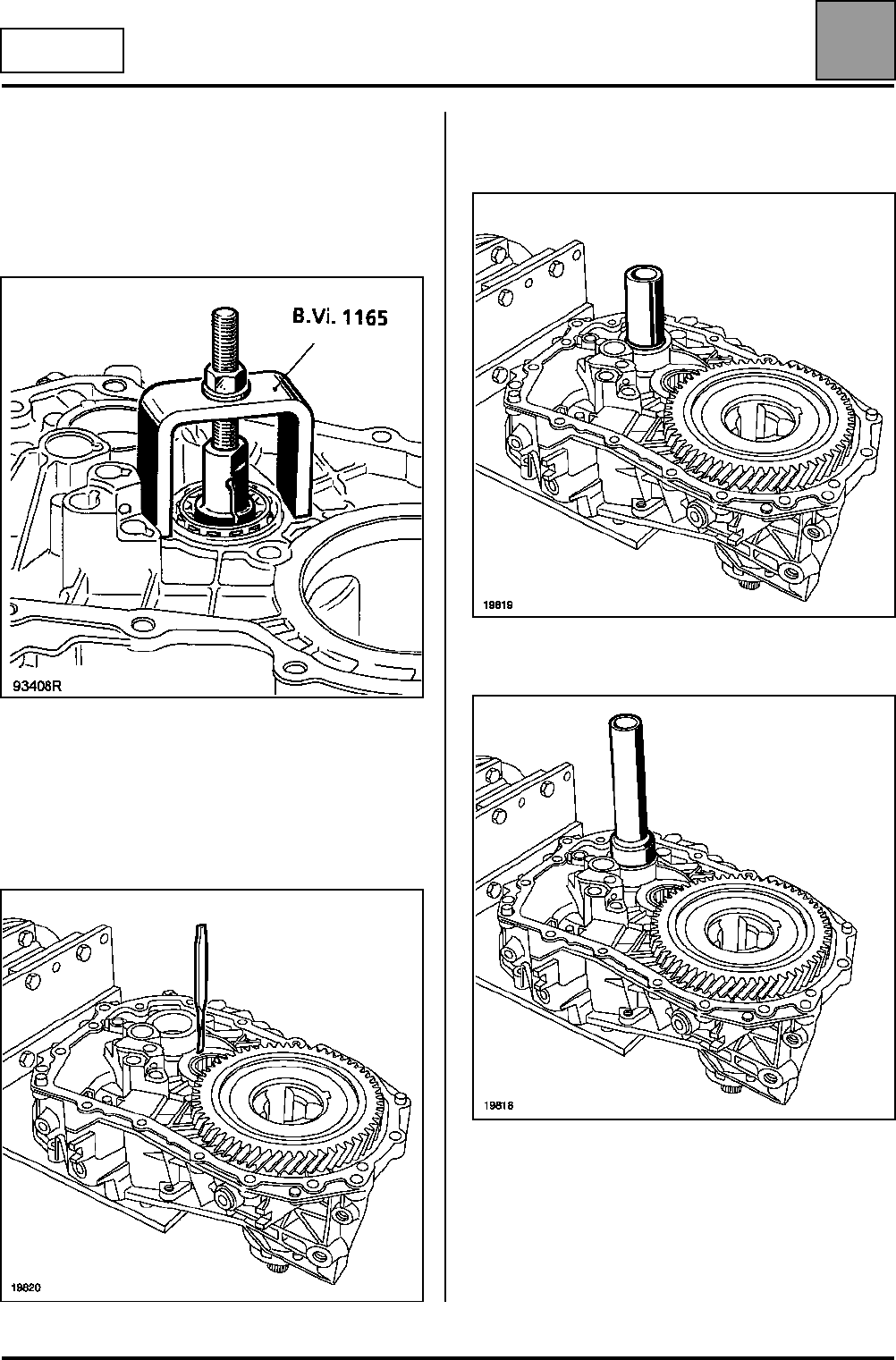

Replacing the bearings on the clutch housing

Cut the base of the plastic hollow needle located at the

centre of the bearing.

Fit tool B. Vi. 1165 and extract the bearing.

REFITTING

Fit the deflector and the bearing on the press flush with

the inner side of the housing.

Set the bearing with a mortise chisel.

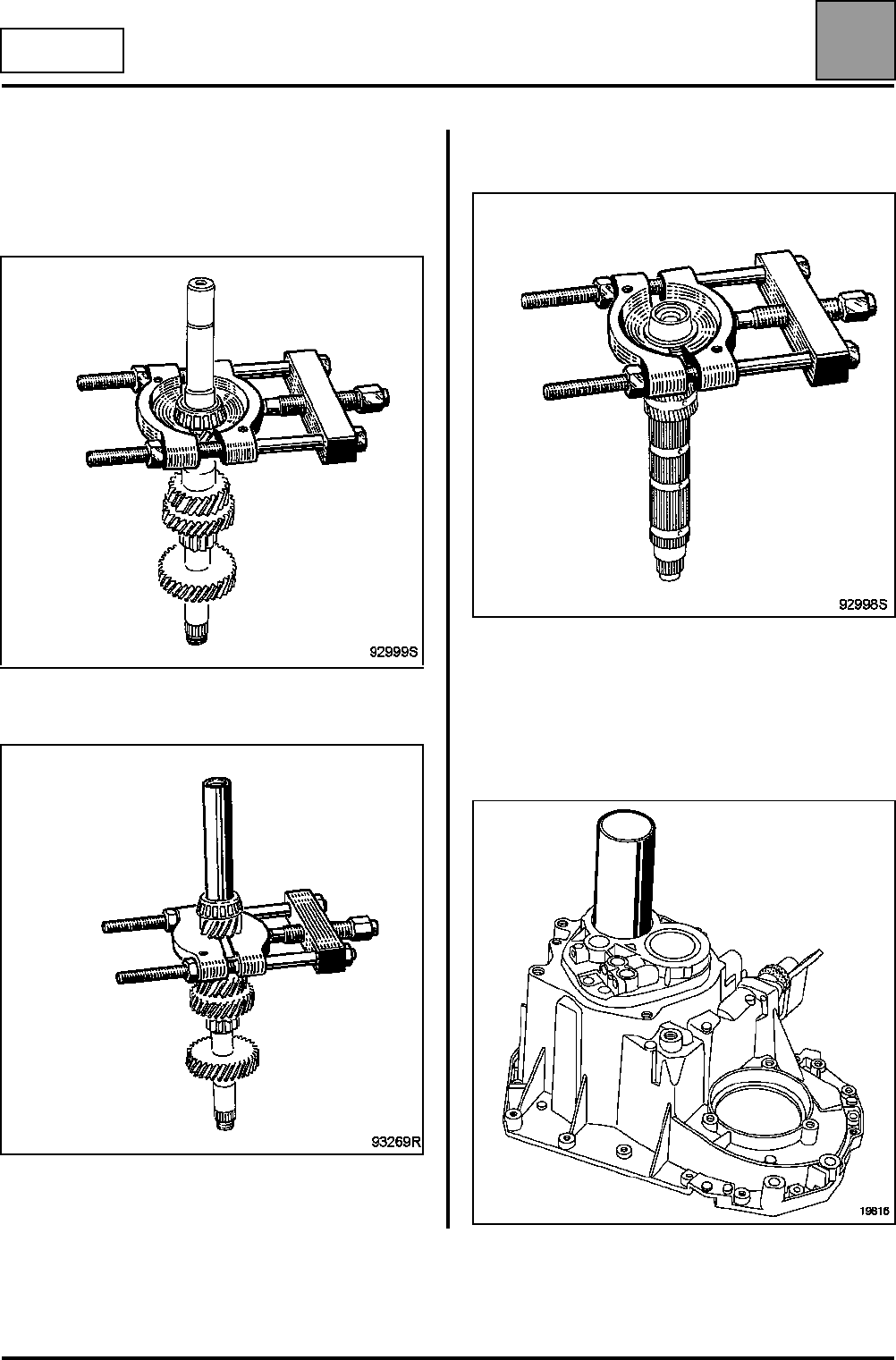

Remove the primary shaft bearing guide using a 38 ∅

tube.

Refit the bearing guide using tool B. Vi. 1601.

19820

19819

19818

21-15

MANUAL GEARBOX

Repairing the gearbox 21

21-16

JR SECONDARY SHAFT

MANUAL GEARBOX

Repairing the gearbox 21

21-17

Removing the sprocket

The 2nd, 3rd, and 4th gear supporting rings are fitted

tightened. They will be systematically replaced during

refitting.

With the press, remove the ring, hub, 3rd gear unit

resting under the 3rd gear claw teeth.

With the press, remove the rings, 1st and 2nd gears,

hub, sliding shaft unit resting under the 1st gear.

Checking parts

The sprocket teeth and the claws should not be

chipped or excessively worn.

Also ensure that there are no signs of grating or

abnormal wear on the surfaces of the shafts or the

inner walls of the sprockets.

It is advisable to mark the position of the sliding shafts

in relation to the hub.

MANUAL GEARBOX

Repairing the gearbox 21

21-18

JR

Refitting the sprocket

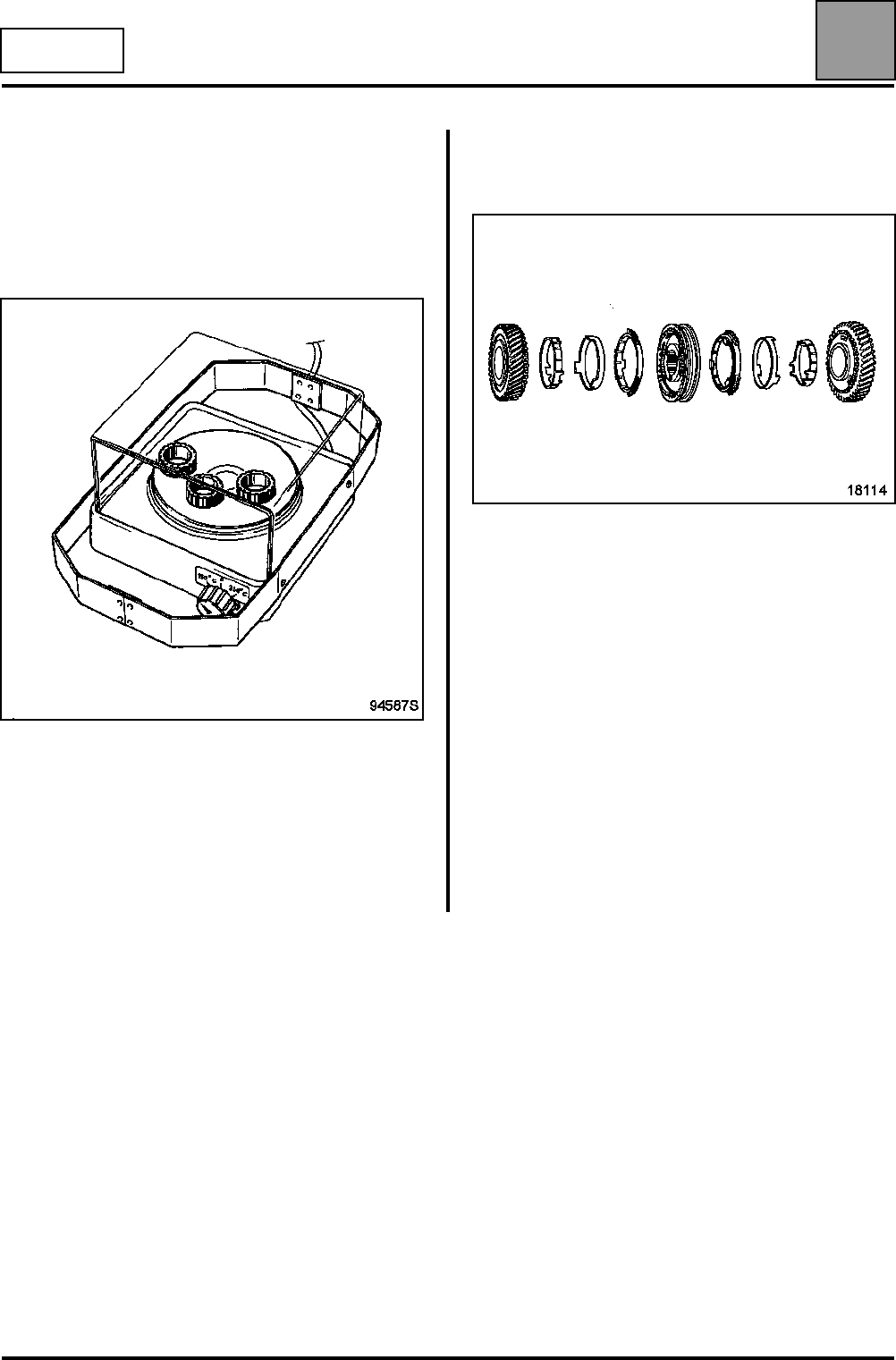

A heating plate with a setting of 150°C should be used

for refitting.

Place the new rings on the cold heating plate. Heat

them for 15 minutes with the thermostat at 150°C.

Proceed in the reverse order to removal.

Refit the rings:

Remove a ring from the heating plate, using pliers, and

use a tube with an internal diameter of 33 mm to fit it

on the shaft until it is resting on the hub.

NOTE: the 1/2 gear has dual-cone synchronisation,

bring the notches of the synchro rings together with

those on the hubs and gears.

MANUAL GEARBOX

Repairing the gearbox 21

21-19

JR

REPLACING THE BEARINGS ON THE PRIMARY

SHAFT

Remove the bearings on the press using the anti-

sticking pin.

Refit the bearings on the press using a 25 ∅ tube.

Extract the secondary shaft bearing cone using an

anti-sticking pin.

Refit the cone on the press.

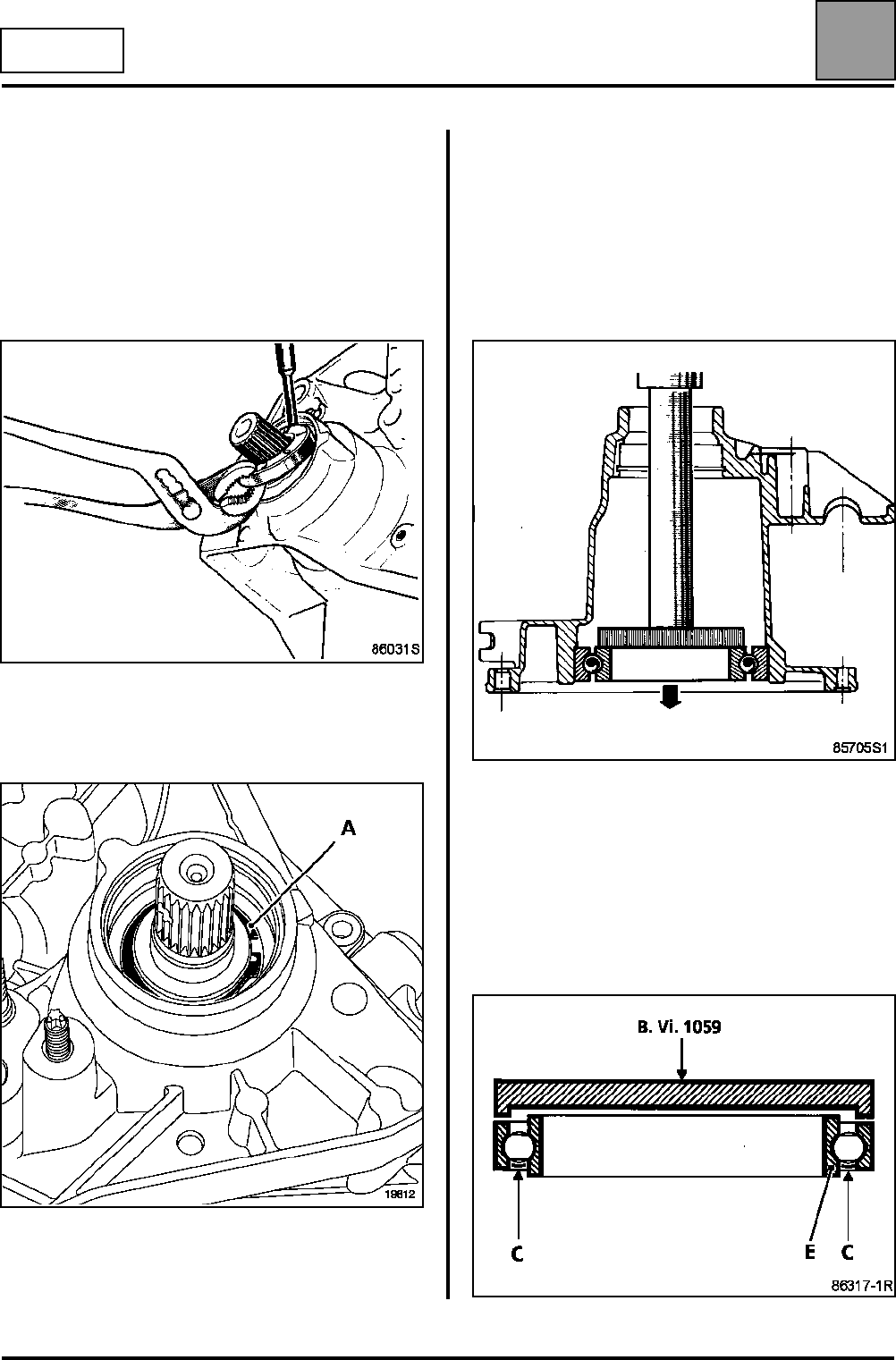

Drive out the bearings cups on the housing side of the

mechanism using a 55 mm diameter tube.

19816

MANUAL GEARBOX

Repairing the gearbox 21

21-20

JR

Refit the bearings cups on the housing side of the

mechanism using a 60 mm diameter tube.

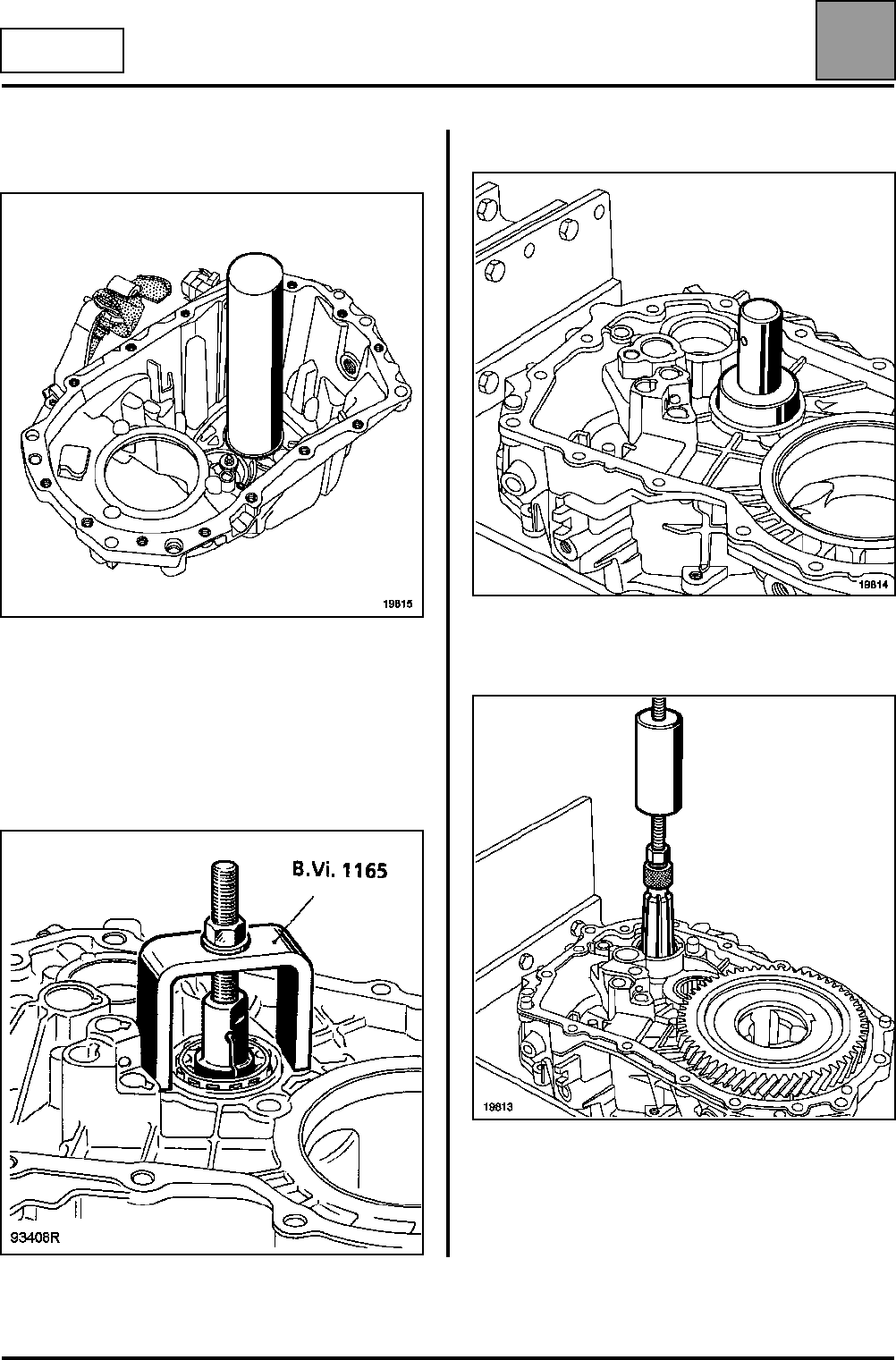

REPLACING THE BEARING ON THE JR CLUTCH

HOUSING

Cut the base of the plastic hollow needle located at the

centre of the bearing.

Fit tool B. Vi. 1165 and extract the bearing.

Refit the bearing using tool B. Vi. 1167.

Drive out the primary shaft bearing cup using a 38 ∅

extractor.

Refit this on the press using a 46 ∅ tube.

19815

19814

19813

MANUAL GEARBOX

Repairing the gearbox 21

21-21

JR

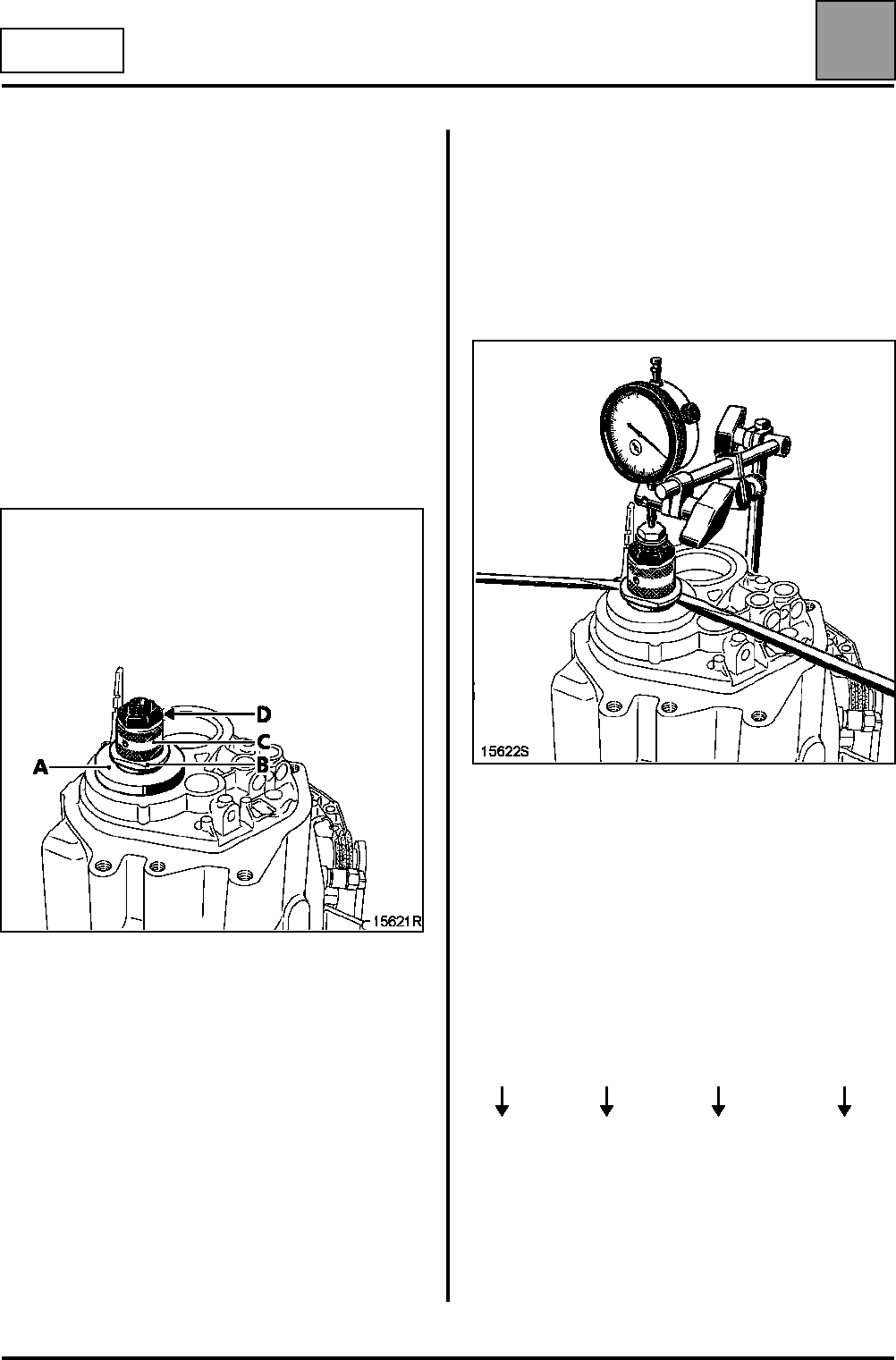

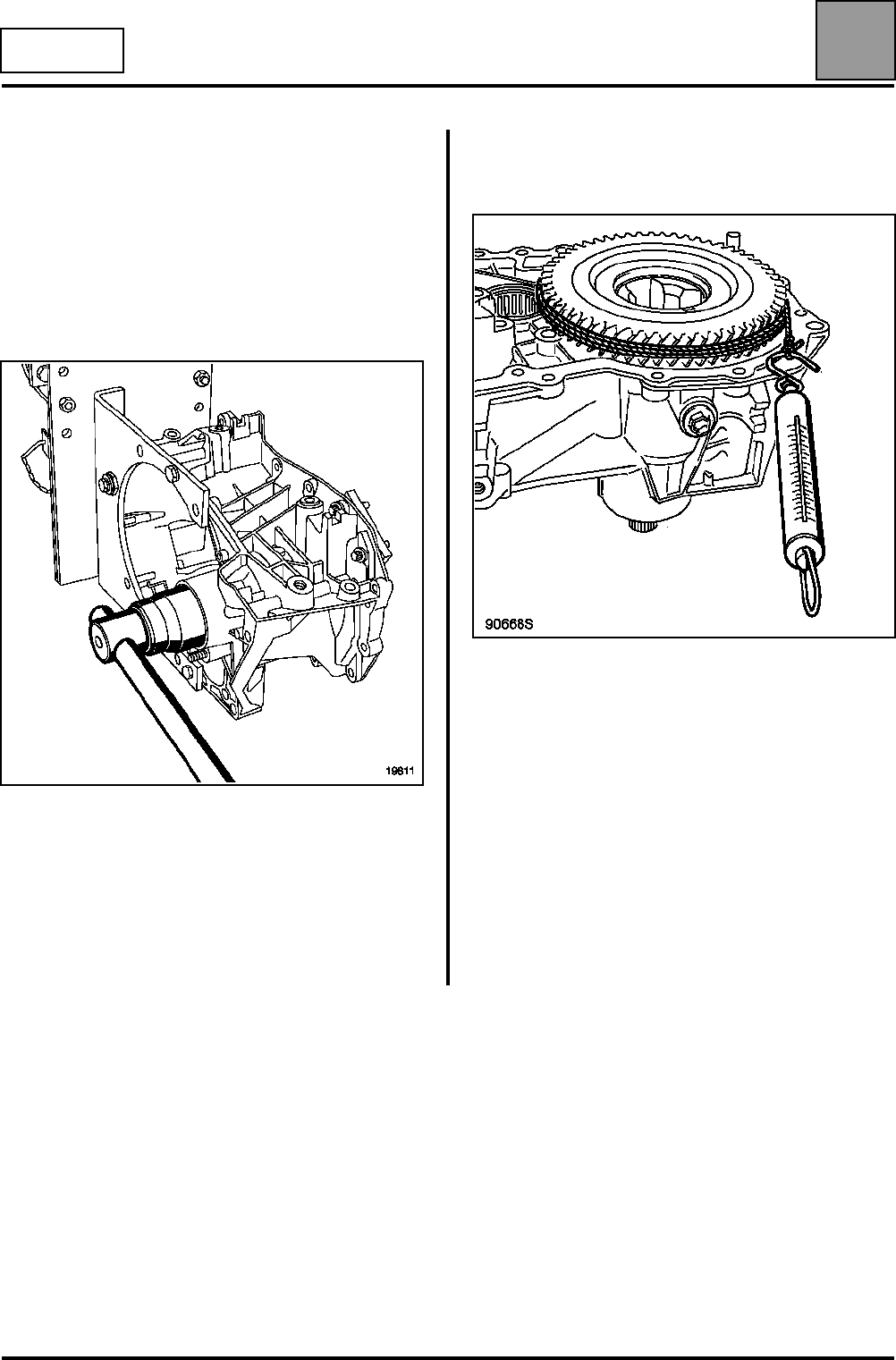

SETTING THE PRE-TENSIONING OF THE

SECONDARY SHAFT BEARINGS

NOTE: this operation is only carried out when

replacing the bearings.

Clutch housing without differential and without primary

shaft.

Fit the secondary shaft in the clutch housing with the

bearings and the pre-setting washer B. Vi. 1161, or

equivalent, of 1.60 mm (large outer ∅).

Fit the mechanism housing.

Fit and tighten to torque the box belt bolts.

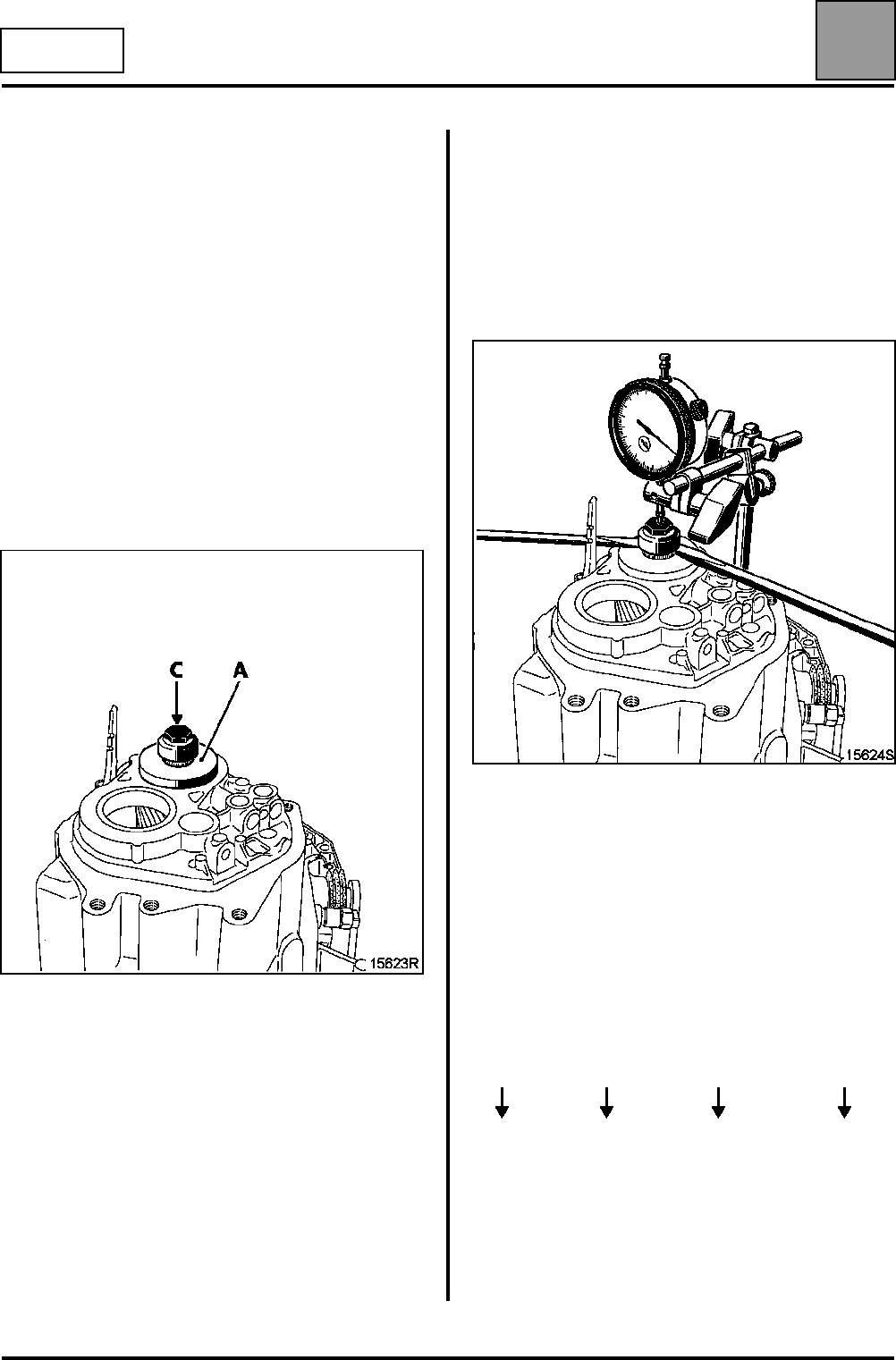

Fit the dial gauge support plate B. Vi. 1161, or

equivalent, on the tripod basin mountings.

Fit:

●the B. Vi. 1527 special spacer (A),

●the bolt (C),

●the dial gauge with its magnetic holder.

AA Rotate the secondary shaft several times to fit the

bearings.

BB Set the dial gauge to zero.

CC Pull the secondary shaft upwards by making a

lever out of two screwdrivers.

DD Take a reading from the dial gauge.

Repeat the actions (A to D) several times.

Calculate the average of the readings.

Calculation of the value of the pre-tensioning

timing washer.

Prescribed value + value of the pre-setting washer +

average of the readings on the dial gauge = value of

the pre-tensioning dial gauge washer.

Example: (Values in mm).

NOTE: a set of timing washers of 2.15 mm to 2.43 mm

from 0.04 mm to 0.04 mm thickness is supplied as

replacement parts.

0.26 + 0.49 + 1.60 = 2.35

Pre-

scribed

value

Average

reading

Pre-setting

washer

value

Pre-

tensioning

timing

washer value

MANUAL GEARBOX

Repairing the gearbox 21

21-22

JR

SETTING THE CLEARANCE OF THE PRIMARY

SHAFT BEARINGS

NOTE: this operation is only carried out when

replacing the bearings.

Clutch housing without differential and without

secondary shaft.

Fit the primary shaft with the bearings and the pre-

setting washer B. Vi. 1161 of 0.62 mm (small outer ∅).

Fit:

●the mechanism housing, fit and tighten to torque

the box belt bolts,

●the dial gauge support plate B. Vi. 1161 on the tripod

basin mountings.

Fit:

●the spacer B. Vi. 1527 (A),

●the support washer (B),

●the gear ring (C),

●the nut screwed right down (D),

●the dial gauge with its magnetic holder.

AA Rotate the primary shaft several times to fit the

bearings.

BB Set the dial gauge to zero.

CC Pull the primary shaft upwards by making a lever

out of two screwdrivers.

DD Take a reading from the dial gauge.

Repeat the actions (A to D) several times.

Calculate the average of the readings.

Calculation of the value of the timing washer

Value of the pre-setting washer + average of the

readings on the dial gauge - 0.02 (value to subtract to

guarantee a minimum clearance) = value of the timing

washer.

Example: (Values in mm).

NOTE: a set of timing washers of 0.86 mm to 1.30 mm

from 0.04 mm to 0.04 mm thickness is supplied as

replacement parts.

0.62 + 0.50 - 0.02 = 1.10

Pre-

setting

value

Average

reading

Value of rec-

ommended

minimum

clearance

Value of

timing

washer

MANUAL GEARBOX

Repairing the gearbox 21

21-23

JH

REMOVING THE DIFFERENTIAL

Remove the O-ring.

Tap the lip seal using a drift and a small hammer to

pivot it.

Remove the seal, taking care not to damage the

splines of the sunwheel.

Use the press to fit a small board under the

crownwheel to act as a support. Press on the clutch

housing to release the circlip (A) and remove it.

The differential comes out when the sunwheel is

pushed on the press.

REPLACING THE BEARINGS

Crownwheel side

Insert a small bar into the casing and place it flat on

the bearing.

Press on the press with a tube and extract the bearing.

REFITTING

The bearing race (C) must be facing the opposite side

to the crownwheel.

Drive the bearing home on the press, using tool

B. Vi. 1059 and resting on the outer ring of the

bearing.

19812

MANUAL GEARBOX

Repairing the gearbox 21

21-24

JH

Sunwheel side

Remove the bearing retaining circlip (A).

On the press, move the bearing towards the inside of

the housing using a 50 mm diameter tube.

Refit the bearing using a 65 mm diameter tube. The

bearing race must be facing the opposite side to the

crownwheel.

Refit the bearing retaining circlip.

Refit the differential in the housing.

Fit a wooden shim under the crownwheel.

Fit the circlip (B) on the head (1) of tool B. Vi. 946 and

the head on the sunwheel.

Fit the tool (2) B. Vi. 946 on the head and push with

the press until the circlip falls into place in its channel.

Remove tool B. Vi. 946.

Rotate the assembly and check the rotation of the

speedometer drive gear if fitted.

MANUAL GEARBOX

Repairing the gearbox 21

21-25

JR

REMOVING THE DIFFERENTIAL

Remove the O-ring.

Tap the lip seal using a drift and a small hammer to

pivot it.

Remove the seal, taking care not to damage the

splines of the sunwheel.

Immobilise the differential unit/crownwheel assembly

using tool B. Vi. 1057 mounted on the housing.

Remove the unit mounting nut.

Retrieve the bearing pre-tensioning setting shim (A).

Remove the assembly by pressing on the sunwheel.

19811

MANUAL GEARBOX

Repairing the gearbox 21

21-26

JR

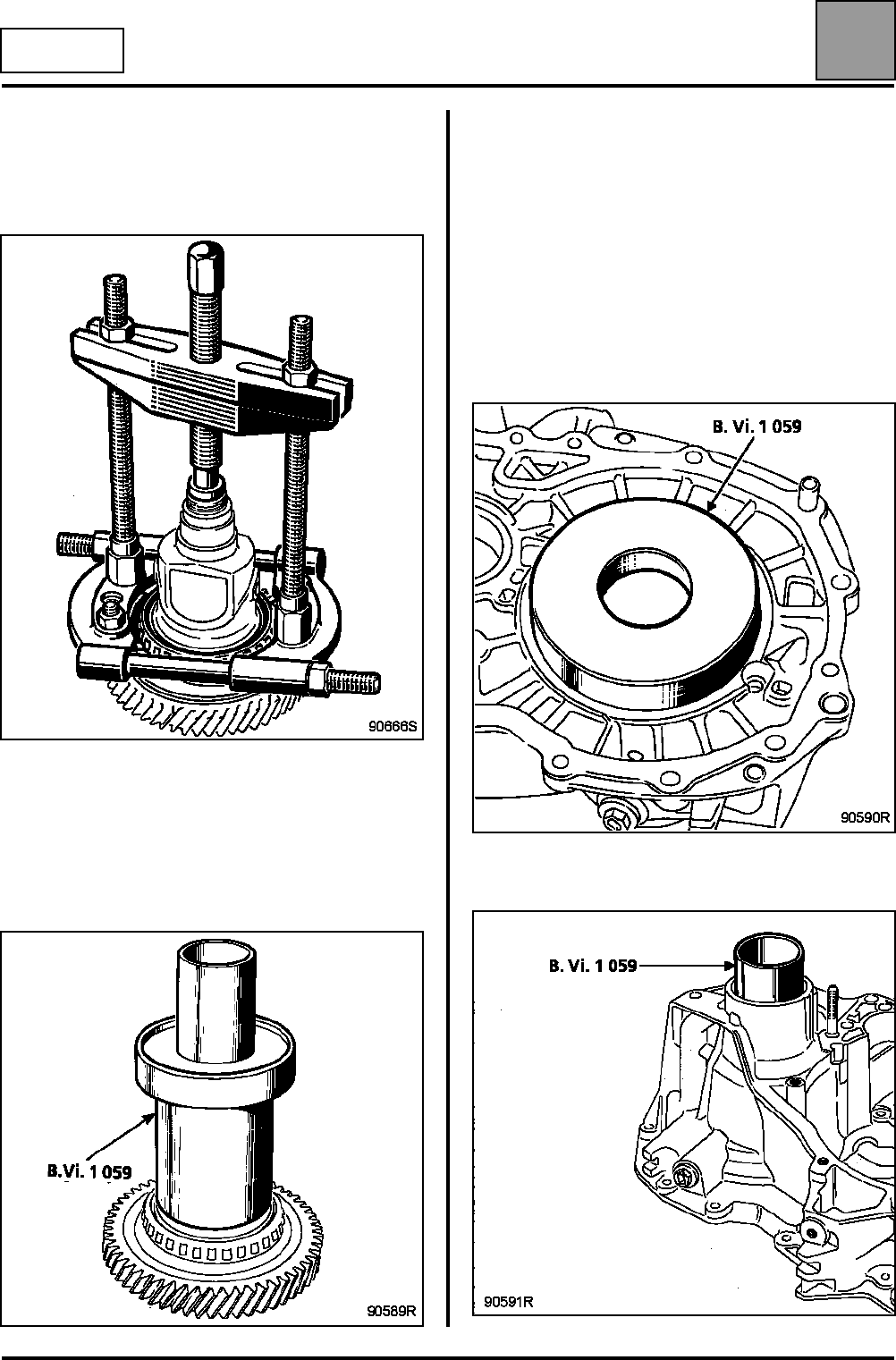

REPLACING THE BEARINGS

REMOVAL

Lift and remove the bearings using an anti-sticking pin.

REFITTING

Place a small board under the crownwheel to act as a

support.

Fit the bearings as far as they will go in the housing

using tool B. Vi. 1059 and a press.

REPLACING THE RACES

REMOVAL

Drive out the bearing races using a tube inserted in the

housing.

REFITTING

Fit the bearing races until they touch the housing

shoulder using tool B. Vi. 1059 and a press.

Large ∅

Small ∅

MANUAL GEARBOX

Repairing the gearbox 21

21-27

JR

Refit the differential in the housing, with the bearing

lightly oiled.

Fit the sunwheel side bearing, the pre-tensioning

setting washer and the nut.

As for disassembly, immobilise the unit/crownwheel

assembly using tool B. Vi. 1057.

Pre-tighten to a torque of 1 to 2 daNm.

Remove tool B. Vi. 1057 and rotate the differential to fit

the bearings.

Refit tool B. Vi. 1057 and tighten the nut to a torque of

13 daNm.

Remove tool B. Vi. 1057 and rotate the differential and

check the pre-tension.

The differential must rotate under a load of between:

– 0.5 and 2 daNm for reused bearings,

– 1.6 and 3.2 daNm for new bearings.

If the setting is not correct:

Determine the thickness of the timing washer bearing

in mind that:

The pre-tension increases by approximately 0.7 to

0.8 daNm when the timing washer thickness is

reduced by 0.05 mm and vice-versa.

19811

MANUAL GEARBOX

Repairing the gearbox 21

21-28

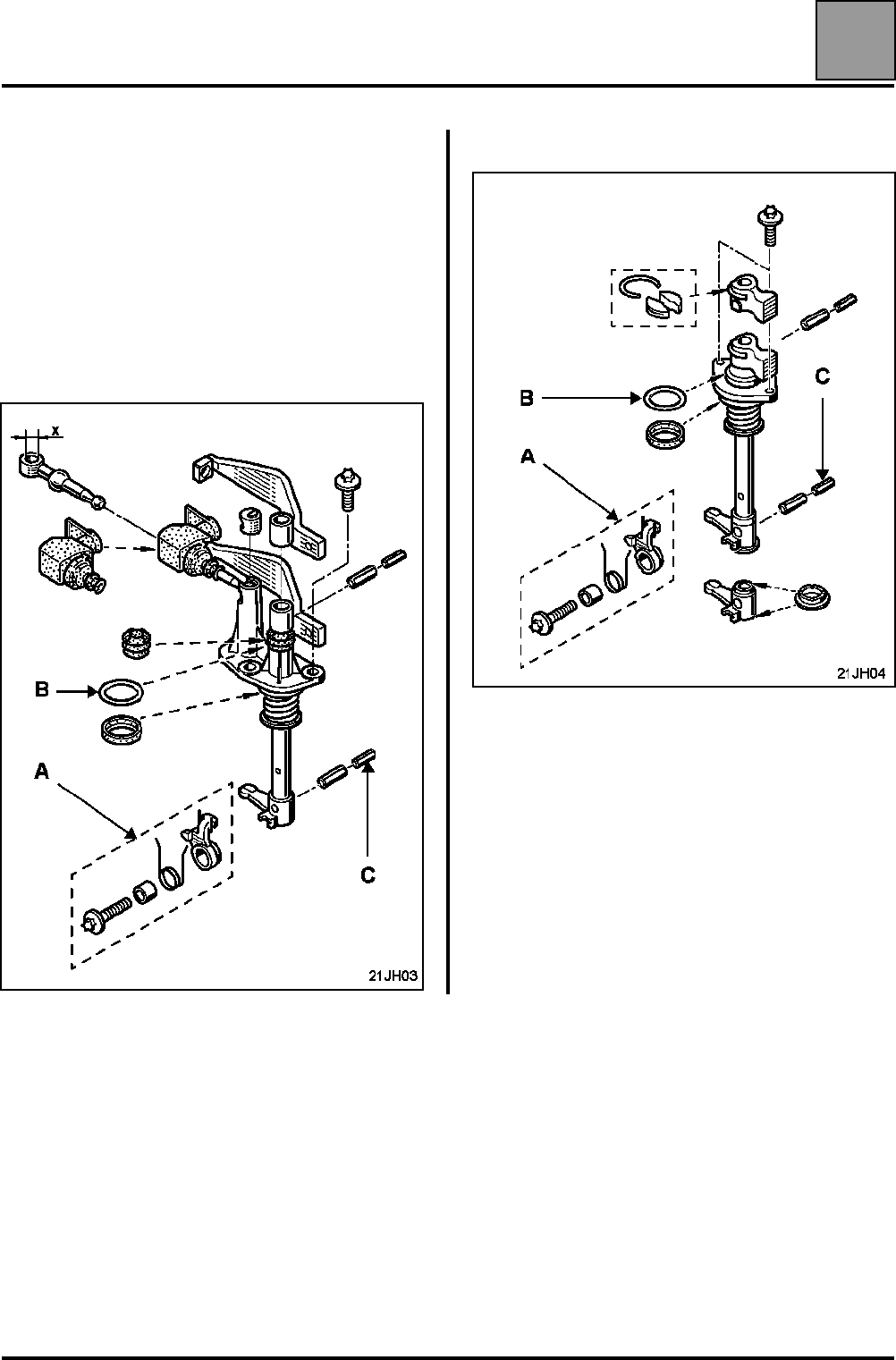

CONTROL SHAFT

A prevention valve is fitted on the housing (A) of the

control shaft.

An O-ring (B) ensures that it is sealed tightly.

After removing the pin from the selector finger (C),

remove the mounting bolts and remove the control

unit.

JH3 and JR5 control shaft

JH1 control shaft

MANUAL GEARBOX

Repairing the gearbox 21

21-29

REFIT THE SHAFTS

Fit the primary and secondary shafts with the 1/2 gear

fork at the same time.

Fit the 1/2 gear shaft locking peg (A).

Gently lift the 3/4 hub and fit the 3/4 gear fork and

shaft.

Pin the fork using tool B. Vi. 949.

Fit the 5th gear shaft locking peg (B).

19809

MANUAL GEARBOX

Repairing the gearbox 21

21-30

Fit the 5th gear shaft (A) and the reverse gear shaft (B)

by gently lifting the primary shaft.

Check the positioning of:

– the centring dowels,

– the magnet,

– the pre-tension timing washers of the bearings on

JR5.

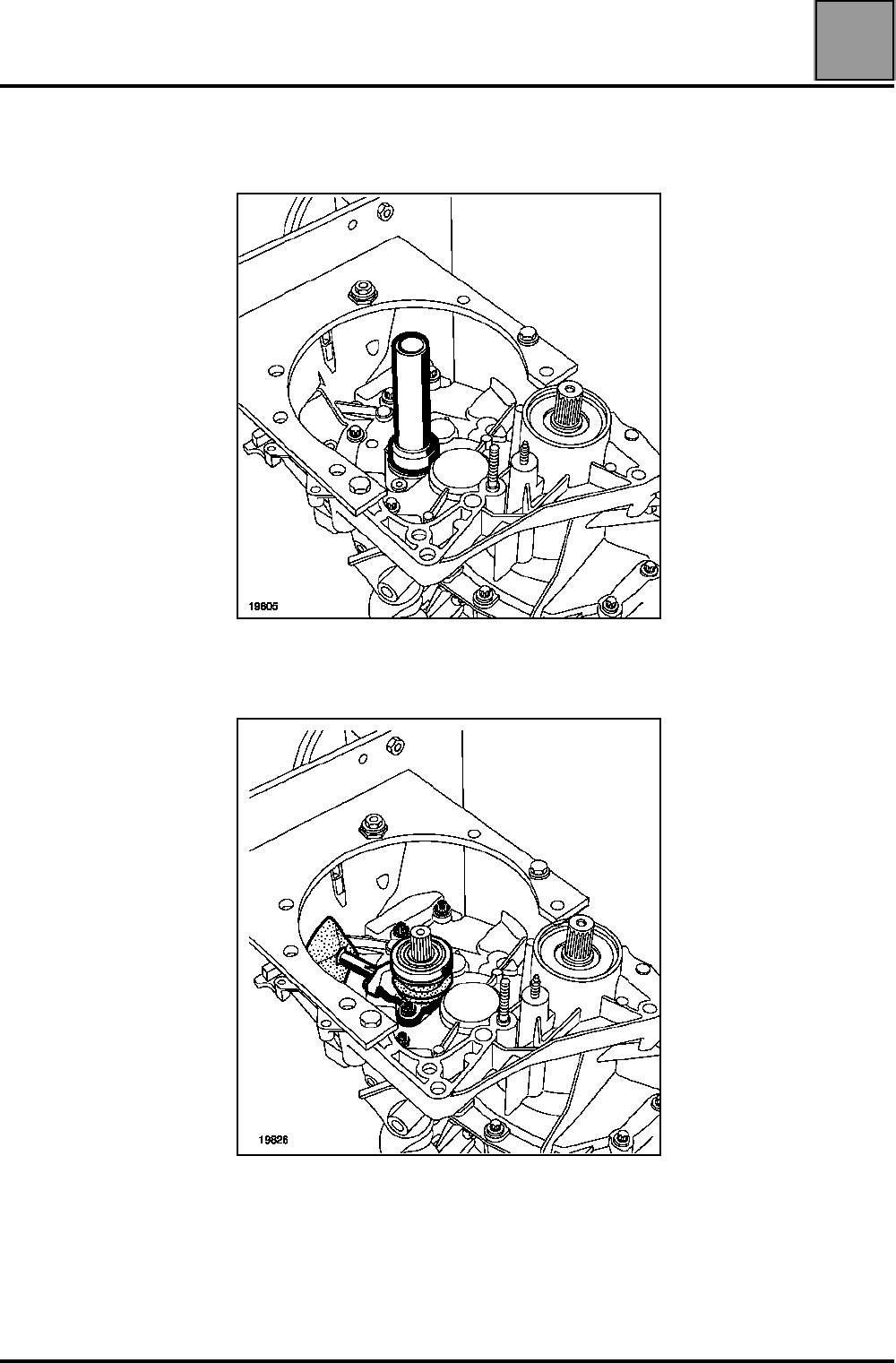

Fit the 1/2 and 3/4 locking springs and balls in the

mechanism housing and press them down using tool

B. Vi. 1570.

19810

19817

MANUAL GEARBOX

Repairing the gearbox 21

21-31

Apply a line of Loctite 518 to the gasket face.

Engage 3rd gear.

Introduce the housing while guiding the control shaft

into 3rd gear, fit the locking spring and ball as the 5th

gear shaft appears.

Press down the locking ball and finish fitting the

housing.

Remove tool B. Vi. 1570.

Tighten the peripheral bolt to a torque of 2.5 daNm

after rotating the primary shaft to ensure correct

alignment of the bearings.

Fit the reverse gear shaft (A).

On the secondary shaft:

Put three drops of Loctite Frenbloc on the splines of

the fixed gear and fit it using tool B. Vi. 1175.

On the primary shaft, fit:

– the support washer (top side gear side),

– the sprocket bush,

– the 5th idle gear fitted with its synchro ring,

– the 5th gear hub fitted with its spring.

19808

19807

19806

MANUAL GEARBOX

Repairing the gearbox 21

21-32

Refit and pin the 5th gear fork.

Select 1st gear using the gear lever and 5th gear by

sliding the 5th gear fork along its shaft.

Tighten the gear bolt and nut to torque:

Primary shaft nut 2.5 daNm.

Secondary shaft bolt 16 daNm.

Put the gearbox back in neutral.

Fit a new O-ring.

Fit the rear cover and tighten the bolts to torque

(2.5 daNm).

Fit the reverse gear switch.

Fit the speed sensor for the JH1 sequential gearbox.

19823

19824

19825

MANUAL GEARBOX

Repairing the gearbox 21

21-33

Fit the clutch shaft seal gasket using tool B. Vi. 1601

for JR gearbox.

Refit the clutch slave cylinder and tighten the bolts to a

torque of 2.1 daNm.

19805

19826

MANUAL GEARBOX

Repairing the gearbox 21 A

21-34

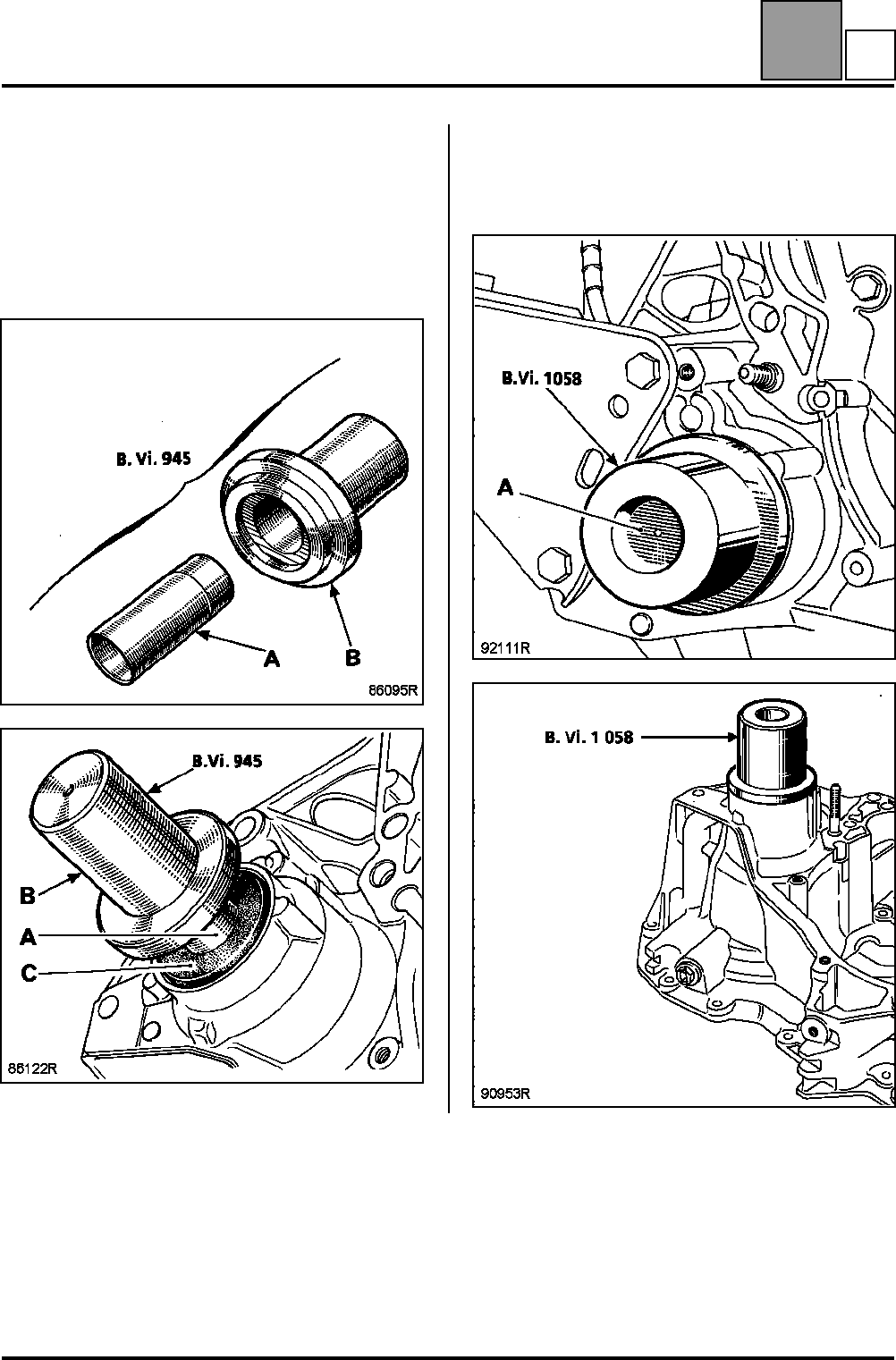

Refit the differential outlet seal gasket using tool

B. Vi. 945 for the JH gearbox and B. Vi. 1058 for the

JR gearbox.

JH GEARBOX

Fit the oiled shield (A) on the sunwheel and position

the oiled seal gasket (C) with the tool (B).

JR GEARBOX

Fit the B. Vi. 945 shield (A) on the sunwheel and

position the oiled seal gasket with tool B. Vi. 1058.
