Renesas RX700 EPSON STYLUS PHOTO Series User Manual To The 5c36ce64 0b31 47c6 854c E5a6a569768b

User Manual: Renesas RX700 to the manual

Open the PDF directly: View PDF .
Page Count: 52

English

1

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . 3

Warnings, Cautions, and Notes . . . . . . . . . . . . . . . . . . . . . . . . 3

Using the Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . .4

Control Panel Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Basic Copying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Overview of the Basic Procedure. . . . . . . . . . . . . . . . . . . . . . . 5

Loading Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Placing a Photo or Document on the Document Table. . . . . 7

Changing the Copy Layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Changing Copy Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Useful Information for Copying. . . . . . . . . . . . . . . . . . . . . . . 11

Copying on CD/DVD . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Loading a CD/DVD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Copying a CD/DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Adjusting the Print Position . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Ejecting the CD/DVD Tray. . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Printing Directly from a Memory Card -

Basic Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Inserting Memory Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Printing Basics to 10 x 15 cm Paper . . . . . . . . . . . . . . . . . . . . 16

Printing Using an Index Sheet . . . . . . . . . . . . . . . . . . . . . . . . 16

Changing the View of Photos on the LCD Panel and

Selecting Photos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Printing Directly from a Memory Card –

Printing Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Printing a Single Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Printing Multiple Photos onto One Sheet . . . . . . . . . . . . . . . 20

Printing Enlarged Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Printing Photo Stickers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Printing on CD/DVD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Printing a CD Jacket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Printing on EPSON Iron-On Cool Peel Transfer Paper . . . 24

Printing Using a Combo Printing Sheet . . . . . . . . . . . . . . . . 24

Printing with DPOF Functions . . . . . . . . . . . . . . . . . . . . . . . . 26

Printing with Photo Frames . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Changing Print Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Printing from Film . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Loading and Setting Film on the Document Table . . . . . . . 31

Printing Basics to10 x 15 cm Paper. . . . . . . . . . . . . . . . . . . . . 32

Printing a Single Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Printing Enlarged Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Selecting the Film Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Changing Print Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Storing the Film Holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Scanning to a Memory Card . . . . . . . . . . . . . . . . . . . . .35

Scanning and Saving a document to a Memory Card . . . . 35

Scanning and Saving a film to a Memory Card. . . . . . . . . . 35

Printing Directly from a Digital Camera . . . . . . . . . . . .37

Printing Directly from a Digital Camera. . . . . . . . . . . . . . . . 37

Printing Directly from an External Device . . . . . . . . . . .38

Printing Directly from an External Device . . . . . . . . . . . . . . 38

Replacing Ink Cartridges . . . . . . . . . . . . . . . . . . . . . . . .39

Choosing Ink Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Checking the Ink Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Precautions on Ink Cartridge Replacement . . . . . . . . . . . . . 39

Replacing Ink Cartridges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Maintenance and Transporting . . . . . . . . . . . . . . . . . . .41

Checking the Print Head Nozzles . . . . . . . . . . . . . . . . . . . . . 41

Cleaning the Print Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Aligning the Print Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Restoring Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Transporting This Product . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Changing the language displayed on the LCD panel. . . . . 43

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Clearing the Jammed Paper . . . . . . . . . . . . . . . . . . . . . . . . . . 44

The Copied Image Is Improperly Sized . . . . . . . . . . . . . . . . 45

The Printout Is Blurry or Smeared. . . . . . . . . . . . . . . . . . . . . 45

A Message Prompting You to Format the Memory Card

Appears . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

The Terms on the LCD Panel Are Is Not Displayed in

Your Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Contacting Customer Support . . . . . . . . . . . . . . . . . . . . . . . . 46

Technical Support Web Site . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . .46

Summary of Panel Settings . . . . . . . . . . . . . . . . . . . . . . .48

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

All in One Product

Basic Operation Guide

2

All in One Product

Basic Operation Guide

No part of this publication may be reproduced, stored in a

retrieval system, or transmitted in any form or by any means,

electronic, mechanical, photocopying, recording, or otherwise,

without the prior written permission of Seiko Epson Corporation.

The information contained herein is designed only for use with

this product. Epson is not responsible for any use of this

information as applied to other printers.

Neither Seiko Epson Corporation nor its affiliates shall be liable

to the purchaser of this product or third parties for damages,

losses, costs, or expenses incurred by the purchaser or third

parties as a result of accident, misuse, or abuse of this product or

unauthorized modifications, repairs, or alterations to this

product, or (excluding the U.S.) failure to strictly comply with

Seiko Epson Corporation's operating and maintenance

instructions.

Seiko Epson Corporation shall not be liable for any damages or

problems arising from the use of any options or any consumable

products other than those designated as Original Epson Products

or Epson Approved Products by Seiko Epson Corporation.

Seiko Epson Corporation shall not be held liable for any damage

resulting from electromagnetic interference that occurs from the

use of any interface cables other than those designated as Epson

Approved Products by Seiko Epson Corporation.

EPSON® is a registered trademark and EPSON Stylus™ is a

trademark of Seiko Epson Corporation.

PRINT Image Matching™ and the PRINT Image Matching logo

are trademarks of Seiko Epson Corporation. Copyright © 2001

Seiko Epson Corporation. All rights reserved.

USB DIRECT-PRINT™ and the USB DIRECT-PRINT logo are

trademarks of Seiko Epson Corporation. Copyright © 2002 Seiko

Epson Corporation. All rights reserved.

The Bluetooth word mark and logos are owned by the Bluetooth

SIG, Inc. and any use of such marks by Seiko Epson Corporation

is under license.

Microsoft® and Windows® are registered trademarks of Microsoft

Corporation.

DPOF™ is a trademark of CANON INC., Eastman Kodak

Company, Fuji Photo Film Co., Ltd. and Matsushita Electric

Industrial Co., Ltd.

SD™ is a trademark.

Memory Stick, Memory Stick Duo, Memory Stick PRO, and

Memory Stick PRO Duo are trademarks of Sony Corporation.

xD-Picture Card™ is a trademarks of Fuji Photo Film Co.,Ltd.

General Notice: Other product names used herein are for

identification purposes only and may be trademarks of their

respective owners. Epson disclaims any and all rights in those

marks.

Copyright © 2005 Seiko Epson Corporation. All rights reserved.

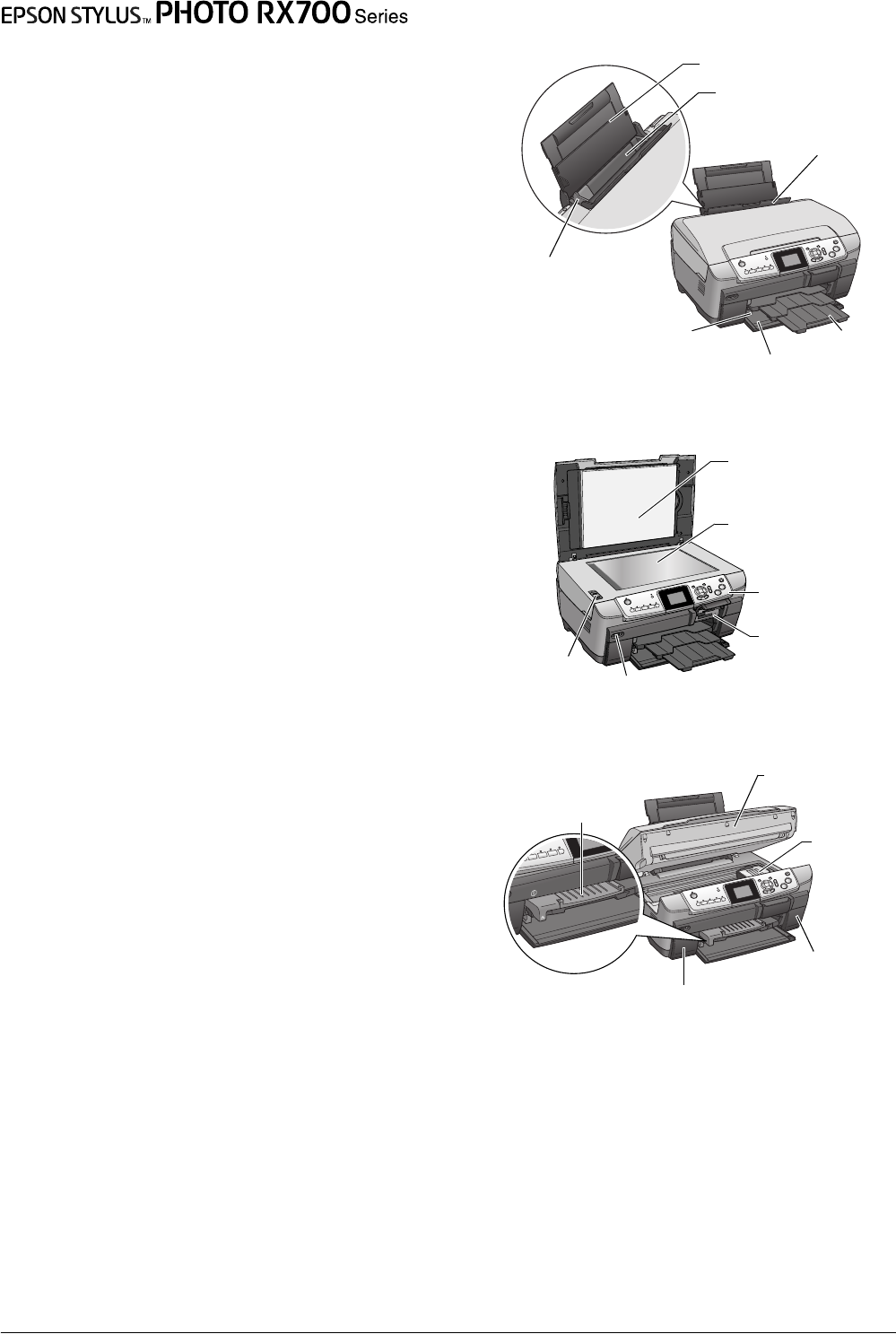

Parts

edge guide

back tray

paper support

feeder guard

output tray

edge guide

front cover/front tray

document table

reflective

document mat

transportation

clamp

control panel

external device USB connector

memory card slot

scanner unit

print head

cartridge cover

(right)

cartridge cover (left)

CD/DVD guide

Safety Instructions 3

English

Safety Instructions

Important Safety Instructions

Read all of the instructions in this section when

setting up and using this product.

When placing this product

❏Avoid places subject to rapid changes in

temperature and humidity. Also, keep this

product away from direct sunlight, strong light,

and heat sources.

❏Avoid places subject to dust, shocks, or

vibrations.

❏Leave enough room around this product for

sufficient ventilation.

❏Place this product near a wall outlet where you

can easily plug in and unplug this product.

❏Place this product on a flat, stable surface that

extends beyond the base of this product in all

directions. If you place this product by the wall,

leave more than 10 cm between the back of this

product and the wall. This product will not

operate properly if it is tilted at an angle.

❏When storing or transporting this product, do

not tilt it, stand it on its side, or turn it upside

down. Otherwise ink may leak from the

cartridge.

When choosing a power source

❏Use only the type of power source indicated on

the label on the back of this product.

❏Use only the power cord that comes with this

product. Use of another cord may result in fire

or electric shock.

❏This product’s power cord is for use with this

product only. Use with other equipment may

cause fire or electric shock.

❏Be sure your AC power cord meets the relevant

local safety standards.

❏Do not use a damaged or frayed power cord.

❏If you use an extension cord with this product,

make sure that the total ampere rating of the

devices plugged into the extension cord does not

exceed the cord’s ampere rating. Also, make sure

that the total ampere rating of all devices

plugged into the wall outlet does not exceed the

wall outlet’s ampere rating.

When using this product

❏Do not put your hand inside this product.

❏Do not block or cover the vents and openings in

this product.

❏Do not open the ink cartridge cover when this

product is performing an action such as printing.

You may print incorrectly.

❏Do not attempt to service this product by

yourself.

❏Do not insert objects into the slots on this

product.

❏Take care not to spill liquid on this product.

❏Unplug this product and refer servicing to

qualified service personnel under the following

conditions:

The power cord or plug is damaged; liquid has

entered into this product; this product has been

dropped or the cover damaged; this product

does not operate normally or exhibits a distinct

change in performance.

When handling ink cartridges

❏Do not shake the ink cartridges; this can cause

leakage.

❏Keep the ink cartridge out of the reach of

children. Do not allow children to handle it, or

drink ink.

❏Be careful when you handle used ink cartridges,

as there may be some ink remaining around the

ink supply port. If ink gets on your skin, wash

the area thoroughly with soap and water. If ink

gets into your eyes, flush them immediately with

water. If discomfort or vision problems remain

after a thorough flushing, see a doctor

immediately.

❏Do not remove or tear the label on the cartridge;

otherwise, ink will leak.

Warnings, Cautions, and Notes

wWarnings

must be followed carefully to avoid bodily injury.

cCautions

must be observed to avoid damage to your

equipment.

Notes

Contain important information and useful tips on the

operation of your product.

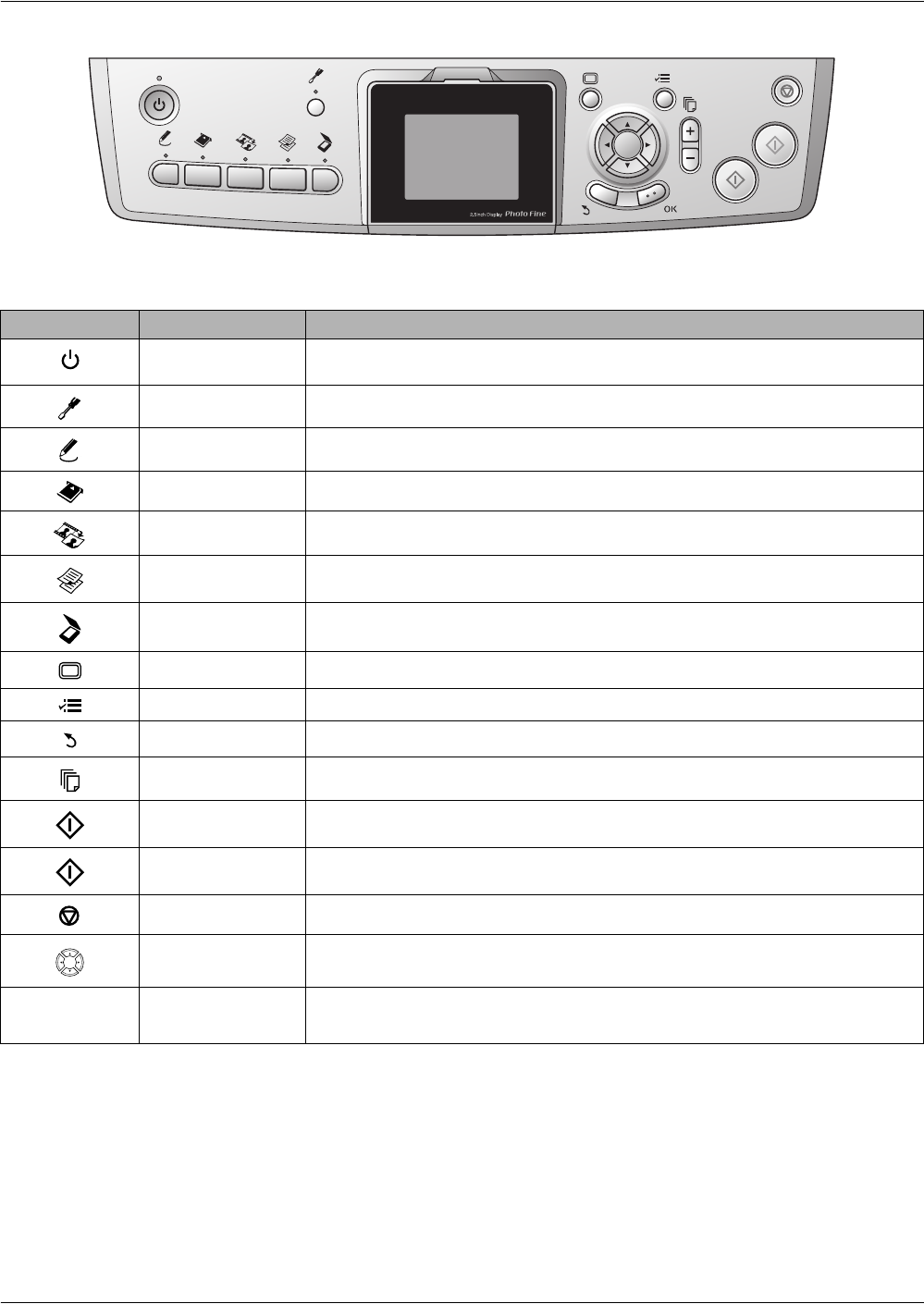

4Using the Control Panel

Using the Control Panel

Control Panel Functions

Buttons

LCD panel

Displays a preview of the selected images, items or settings which can be changed with the buttons.

If you leave this product on without performing an operation for 13 minutes, the LCD display panel turns to black.

(Saving energy mode)

Press any other button than the P On button to revert the LCD display panel to the display which appeared before

it turned to black.

Icon Button Function

On Turns this product on and off. When this product turns on, the On light remains lit,

indicating that this product has completed its initialization.

Setup Enters Setup Mode.

Creative Projects Copies in Copy Photo or print a photos using a Combo Printing Sheet.

Memory Card Enters Memory Card Print Mode.

Film Enters Film Print Mode.

Copy Enters Copy Mode.

Scan Enters Scan Mode.

Screen View Changes the view of the photos in the memory card.

Options Displays detailed settings for each mode.

Back Cancels the operation on the LCD panel and returns to the previous menu.

Copies Sets the number of copies or prints.

B&W Copies or prints in grayscale.

Color Copies, prints, or scans in color.

Stop Stops copying, printing, or scanning. The sheet being copied or printed is ejected.

4-way Scroll Selects the menu items.

OK Enters the settings you have selected.

Basic Copying 5

English

Basic Copying

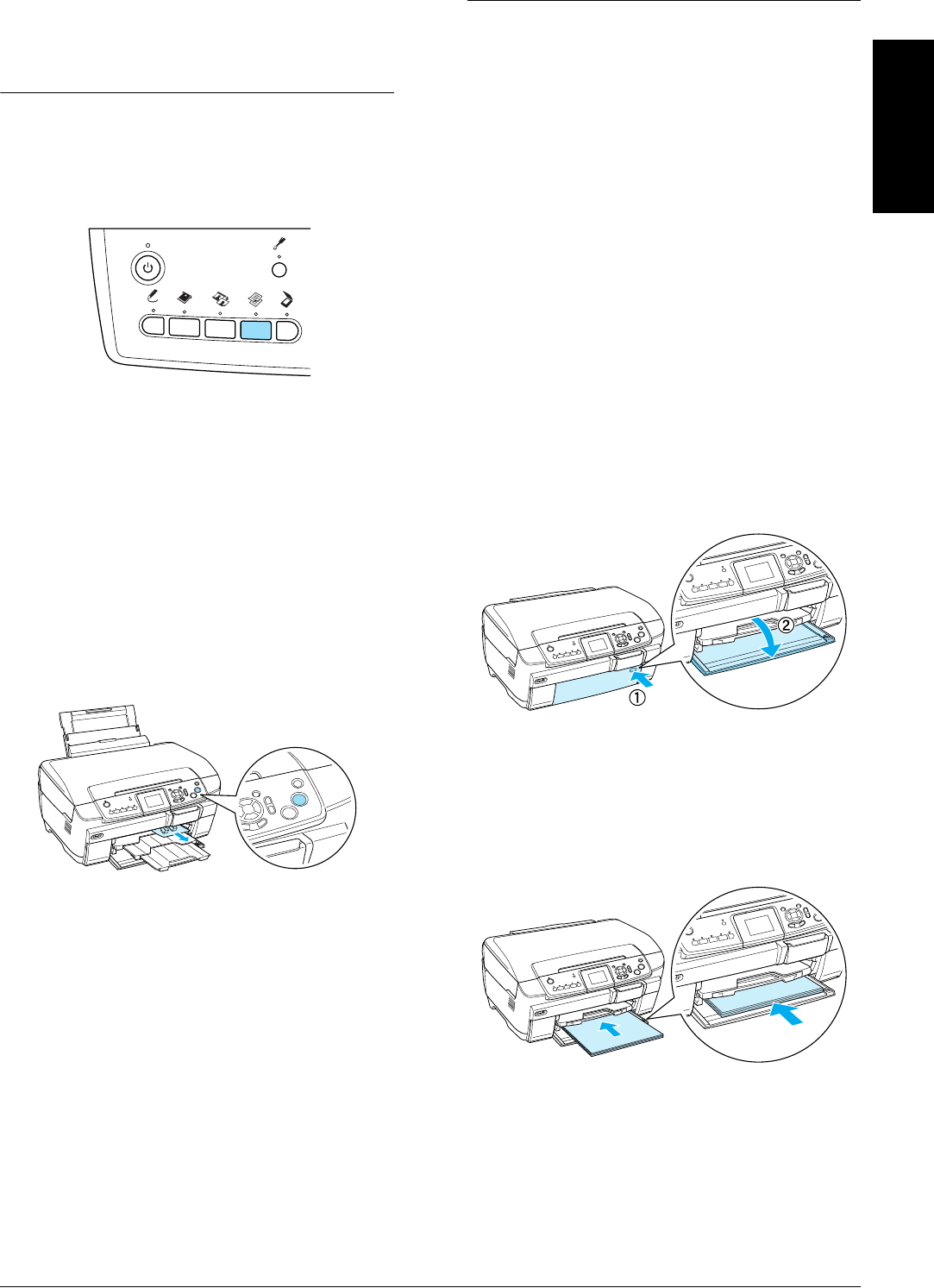

Overview of the Basic

Procedure

1. Press the Copy button.

2. Load appropriate paper.

& See “Loading Paper” of the next section

3. Place the original document.

& See “Placing a Photo or Document on the

Document Table” on page 7

4. Change the copy layout if necessary.

& See “Changing the Copy Layout” on page 8

5. You can change the copy settings if necessary.

& See “Changing Copy Settings” on page 9

6. Press the x Color button to copy in color, or

xB&W button to copy in grayscale.

Note:

❏If you need to stop copying, press the y Stop

button.

❏Do not pull the paper out of this product.

❏If the edge of the document is not copied correctly,

place the document slightly away from the edge

of the document table.

cCaution:

Never open the scanner unit while scanning or

copying; otherwise, you may damage this product.

Loading Paper

Note:

❏Always load paper before you start printing.

❏The print result is affected by the kind of paper you

use. For the best quality, use the appropriate paper.

❏Keep enough space in front of this product for paper

to be fully ejected.

❏Make sure the CD/DVD tray is not inserted in this

product and the CD/DVD guide is closed.

Loading A4 plain paper into the

front tray

Note:

Only A4 plain paper can be loaded into the front tray.

When loading paper other than A4 plain paper, load into

the back tray.

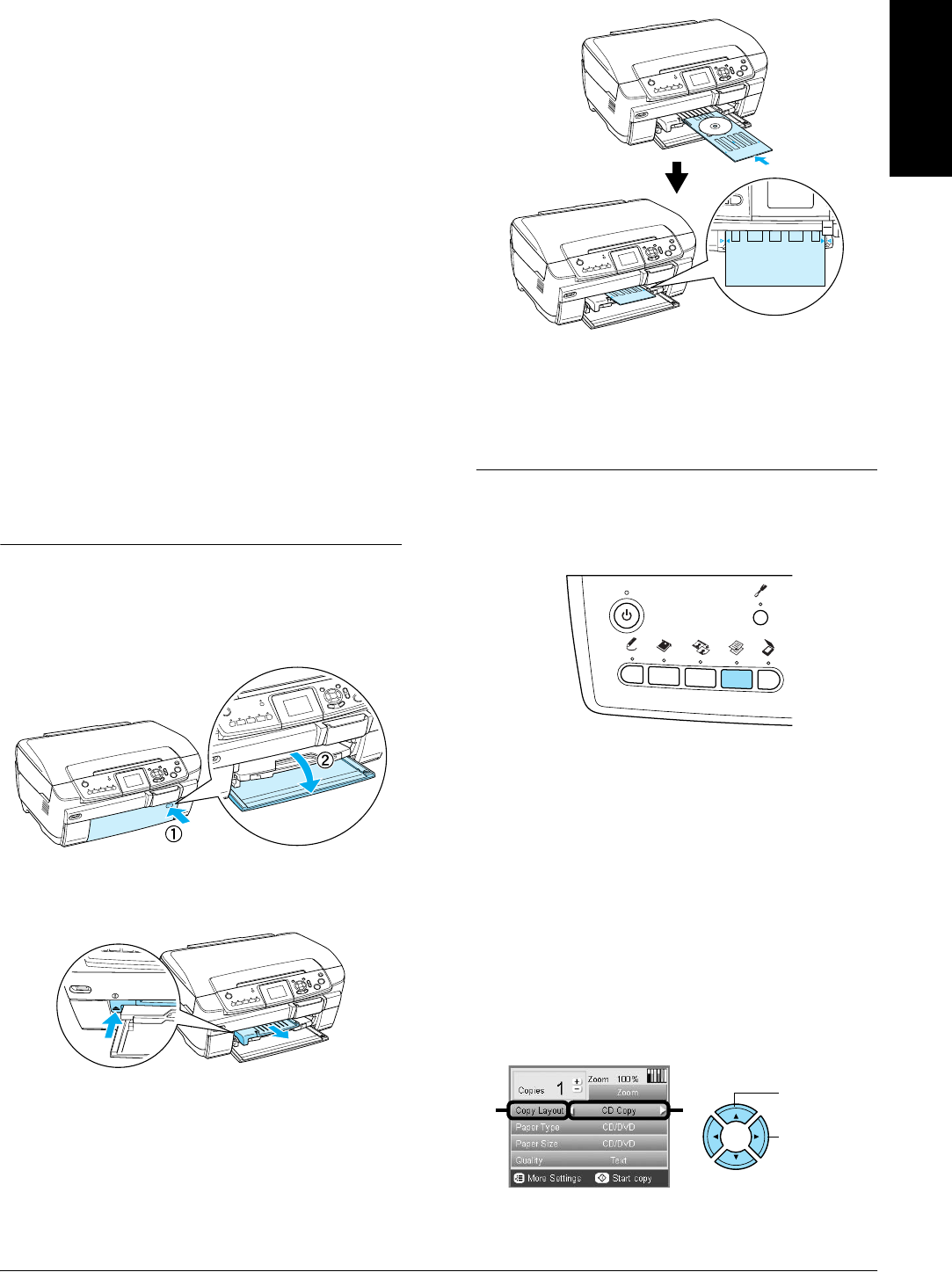

1. Open the front cover by pressing the hollow

portion as illustrated.

2. Fan a stack of paper, then tap it on a flat surface

to even the edges.

3. Load the paper with the printable side facing

down flash with the right edge guide. Then, slide

the paper into the front tray so that the edge of the

paper is level with the guideline on the front tray.

6Basic Copying

cCaution:

Do not push the paper too far. If you do so, the

paper is not loaded correctly.

4. Slide the left edge guide so that it meets the left

edge of the paper.

5. Pull the output tray and slide out the extension.

Note:

❏You can load up to 150 sheets at a time.

❏You cannot use plain paper when Borderless has been

selected in the Copy Layout.

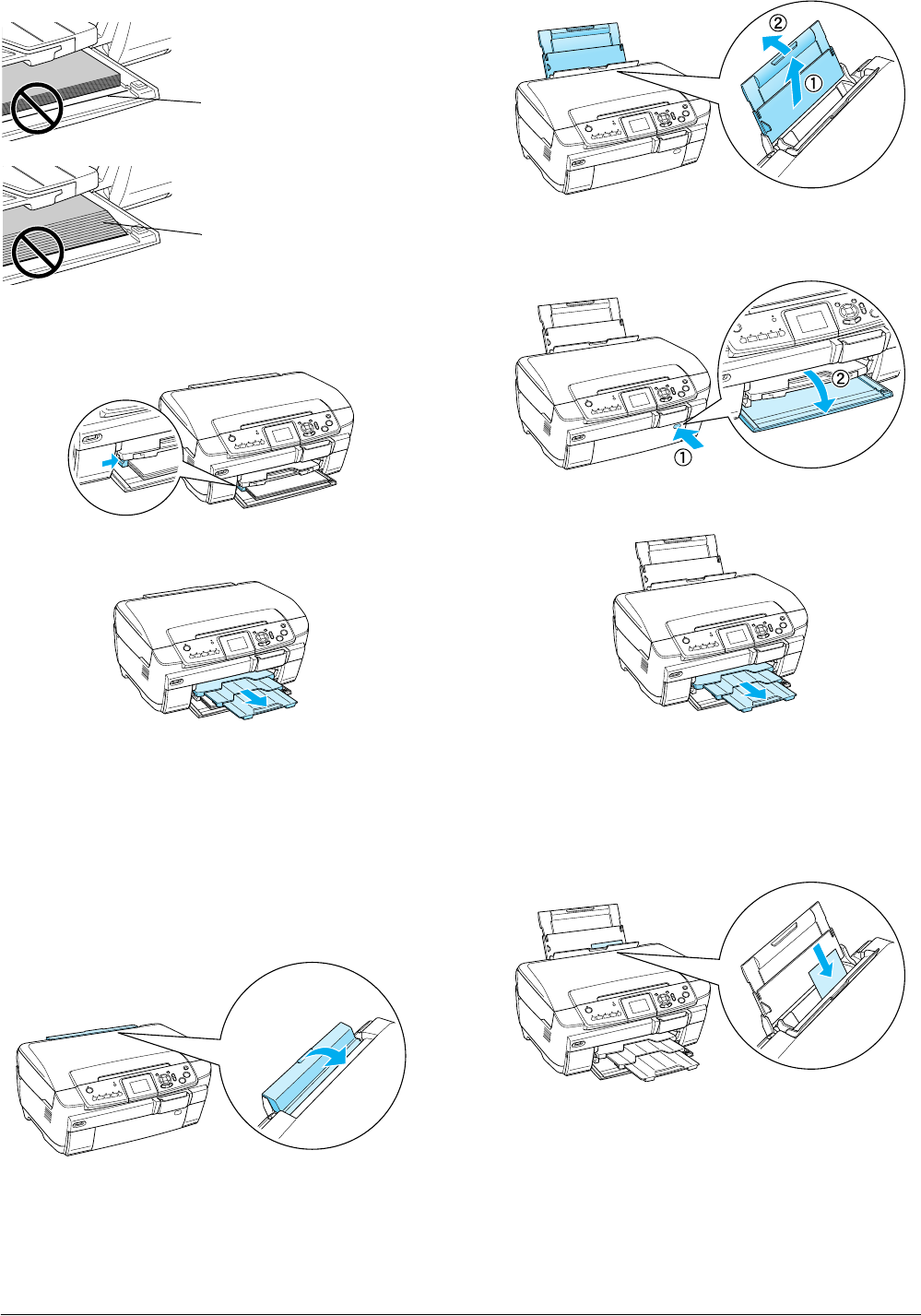

Loading paper into the back tray

1. Open the feeder guard.

2. Pull the paper support and slide out the

extension.

3. Open the front cover by pressing the hollow

portion as illustrated.

4. Pull the output tray and slide out the extension.

5. Fan a stack of paper, then tap it on a flat surface

to even the edges.

6. Load the paper with the printable side facing up

and so it is against the right edge guide, then

slide it into the back tray.

Note:

Always load paper into the trays by the short edge

first.

The paper is pushed past the

guideline for A4 paper.

Some sheets of paper are

pushed past the guideline

for A4 paper.

Basic Copying 7

English

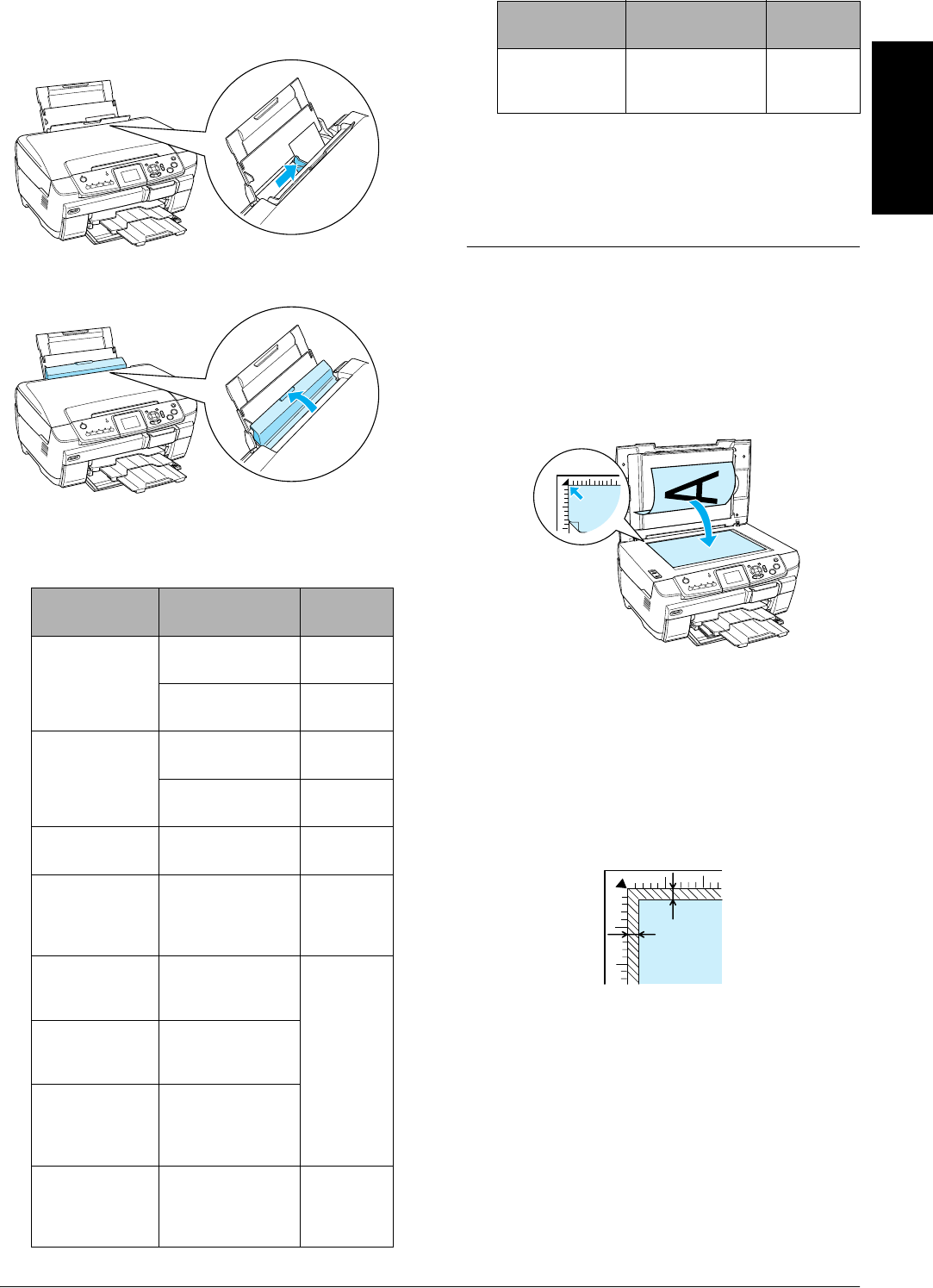

7. Slide the left edge guide so that it meets the left

edge of the paper.

8. Close the feeder guard.

Note:

❏The loading capacity differs depending on the

following types of paper.

* The appropriate paper type is automatically selected

when selecting Custom Print and Iron in the Memory

Card mode.

❏You cannot use Plain Paper when Borderless has been

selected in the Copy Layout.

Placing a Photo or Document on

the Document Table

1. Open the document cover. Place the original

document facing down on the document table.

Make sure that the document is properly

aligned.

cCaution:

Never open the document cover beyond its

limit by intention.

Note:

When copying photos or copying on CD/DVD, place

the document 5 mm away from the edge of the

document table.

2. Make sure the reflective document mat is

attached to the document cover.

3. Close the document cover gently so that the

document does not move.

Note:

To copy the document properly, close the document

cover to prevent interference from the external light.

Paper Type Paper Type

Settings

Loading

Capacity

Plain Paper Plain (Front) Up to 150

sheets

Plain (Back) Up to 120

sheets

EPSON Bright

White Ink Jet

Paper

Bright White

(Front)

Up to 100

sheets

Bright White

(Back)

Up to 80

sheets

Epson Photo

Paper

Photo Paper Up to 20

sheets

EPSON Photo

Quality Ink Jet

Paper

PQIJ/Matte (PQIJ

when copying

and Matte when

printing)

Up to 100

sheets

EPSON Matte

Paper-

Heavyweight

Matte Up to 20

sheets

EPSON

Premium Glossy

Photo Paper

Prem.Glossy

EPSON

Premium

Semigloss

Photo Paper

SemiGloss

EPSON Photo

Stickers

Photo Stickers

(for copying and

printing from a

memory card)

One sheet

at a time

Iron-on Cool

Peel Transfer

Paper

None*

(for printing from

a memory card)

One sheet

at a time

Paper Type Paper Type

Settings

Loading

Capacity

5 mm (max)

5 mm (max)

8Basic Copying

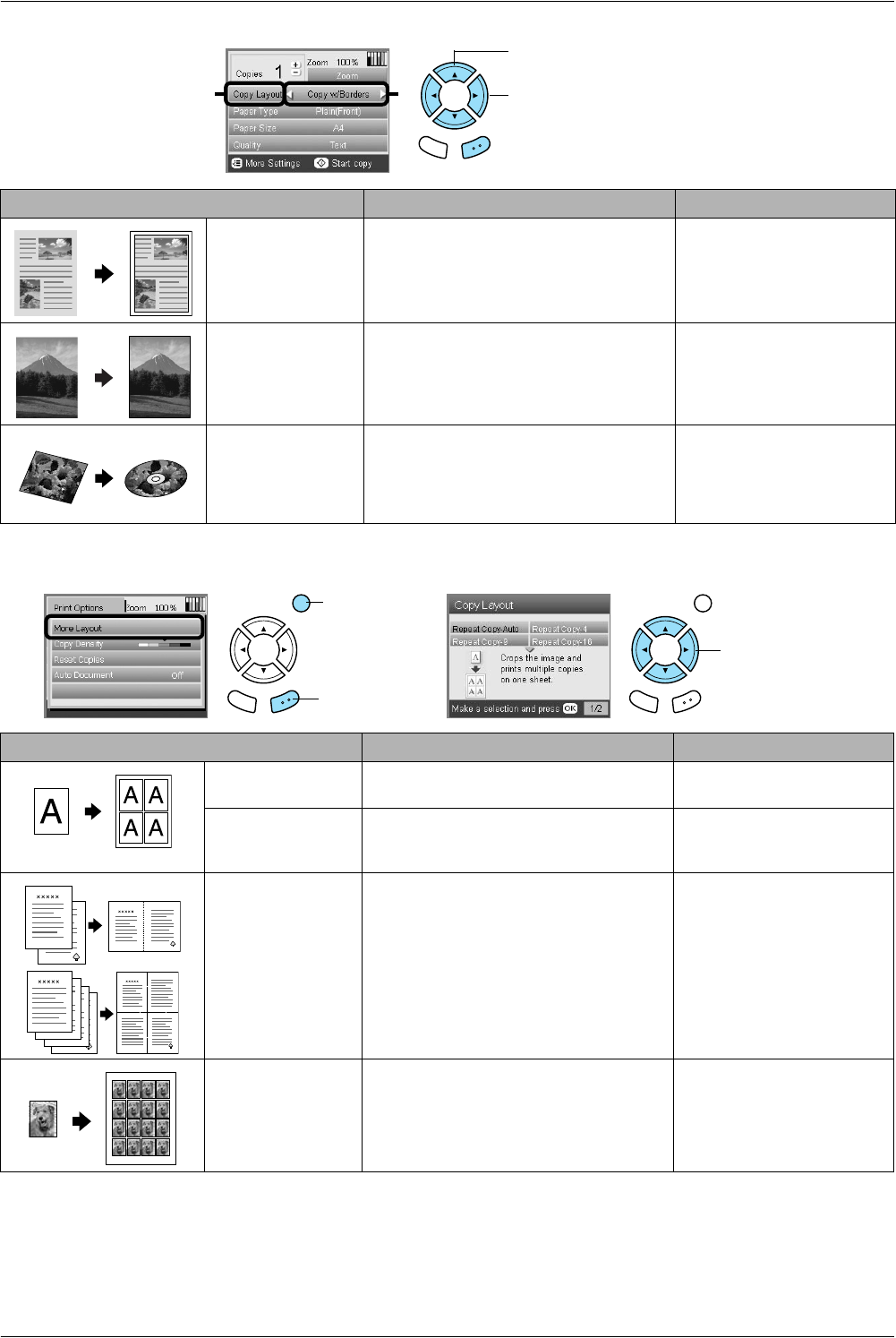

Changing the Copy Layout

Other copy layouts

Note:

The layout that you selected last in More Layout is added to Copy Layout. But this is replaced with the one you select next

time in More Layout.

Copy Layout Feature Useful Information

Copy w/Borders

(Default setting)

Copies with 3 mm margins.

Borderless Copies without margins. See “When copying in

Borderless layout” on page

11

CD Copy Copies an image onto a CD or DVD label. See “Copying on CD/DVD”

on page 13

Back OK

1. Select Copy Layout.

2. Select the Copy Layout.

21

Copy Layout Feature Useful Information

Repeat Copy-Auto Copies an image to its actual size as many

time as it will fit on an A4 page.

Repeat Copy-4

Repeat Copy-9

Repeat Copy-16

Copies an image multiple times onto an

A4 page.

2-up Copy

4-up Copy

Copies several documents onto one A4

page.

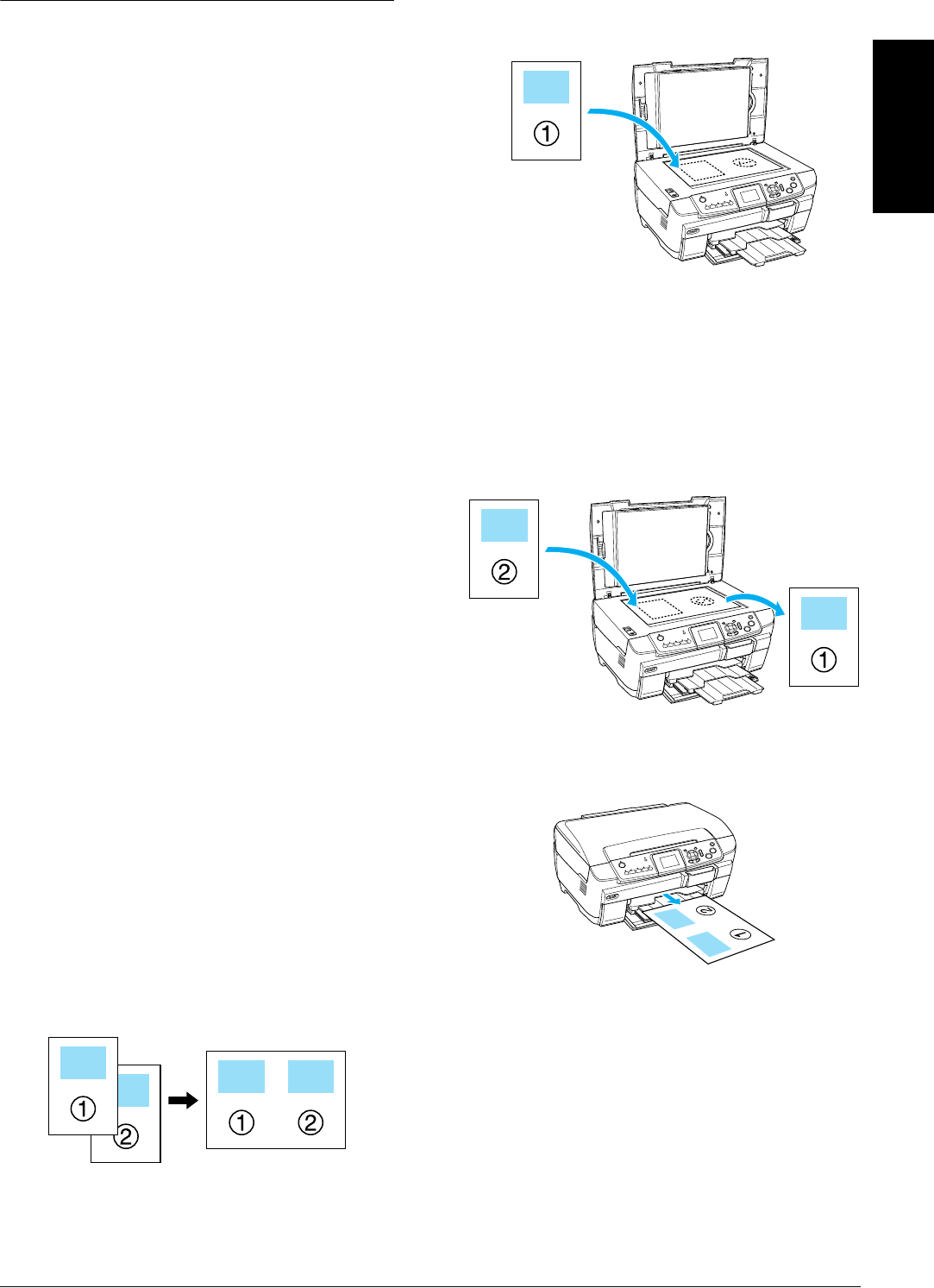

See “To copy in 2-up Copy

layout” on page 11

Photo Stickers Copies an image 16 times onto a Photo

Stickers sheet.

For details on adjusting the

Photo Stickers position, see

“Adjusting the print position

on Photo Stickers sheet” on

page 22.

1. Press the

Options button.

3. Select the Copy

Layout.

2. Press the

OK button.

Basic Copying 9

English

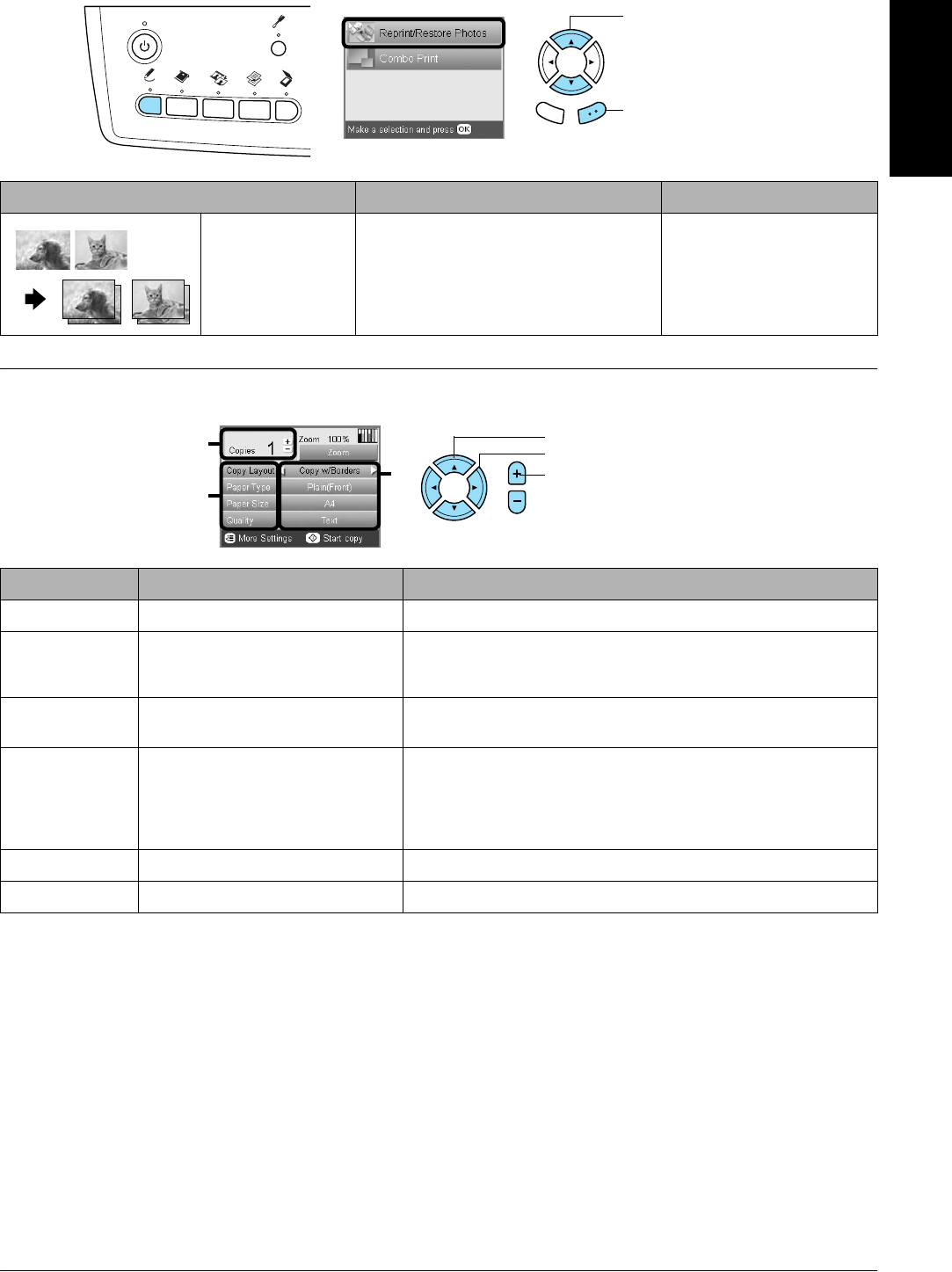

Copy photo layout

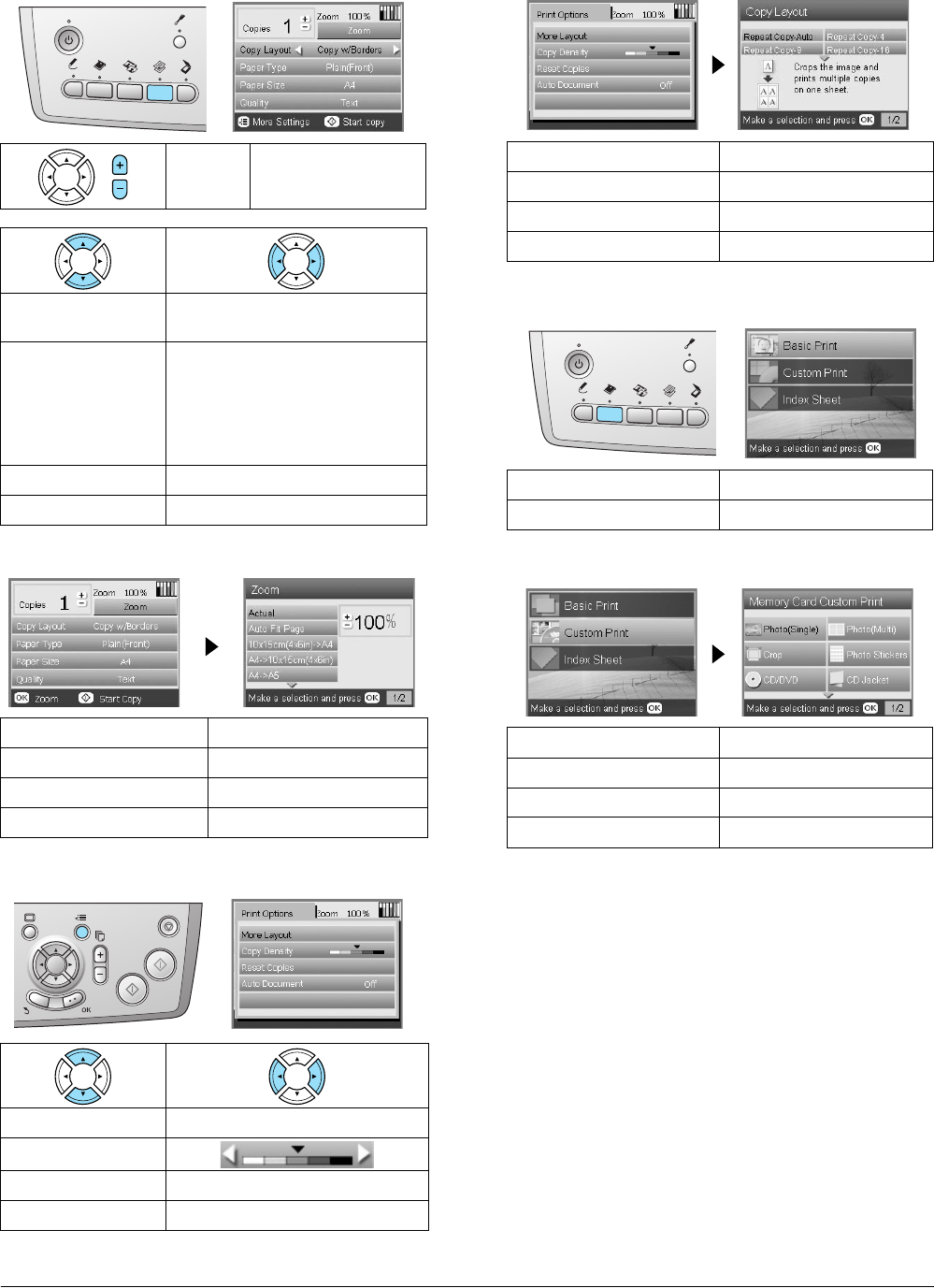

Changing Copy Settings

.

Note:

The available menu items and settings will vary according to the copy layout selected.

Copy Layout Feature Useful Information

Copy Photo Copies multiple photos placed together

as separate copy.

The copied images are reduced or

enlarged automatically to fit the selected

paper size.

See “When copying in Copy

Photo” on page 12

Menu Item Setting Item Description

Copies 1 to 99 Sets the amount of copies to make.

Zoom Press the OK button to display the Zoom Menu.

For detailed information, see “Changing Zoom settings” in the next

section.

Copy Layout Copies in the selected layout.

See “Changing the Copy Layout” on page 8.

Paper Type Plain (Front), Plain (Back),

Prem.Glossy, GlossyPhoto,

SemiGloss, Matte, PQIJ, Photo

Paper, Bright White (Front), Bright

White (Back), Sticker, CD/DVD

Sets the type of paper on which to print.

See page 7 for detailed settings.

Paper Size A4, A5, A6, 10 ×15 cm (4 × 6 in) Sets the paper size to copy to.

Quality Draft, Text, Photo, Best Photo Sets the quality of the copy to be made.

1. Select Reprint/Restore

Photos.

2. Press the OK button.

Back OK

1. Select the Menu Item.

2. Select the Setting Item.

2

1

3. Set the number of copies.

3

10 Basic Copying

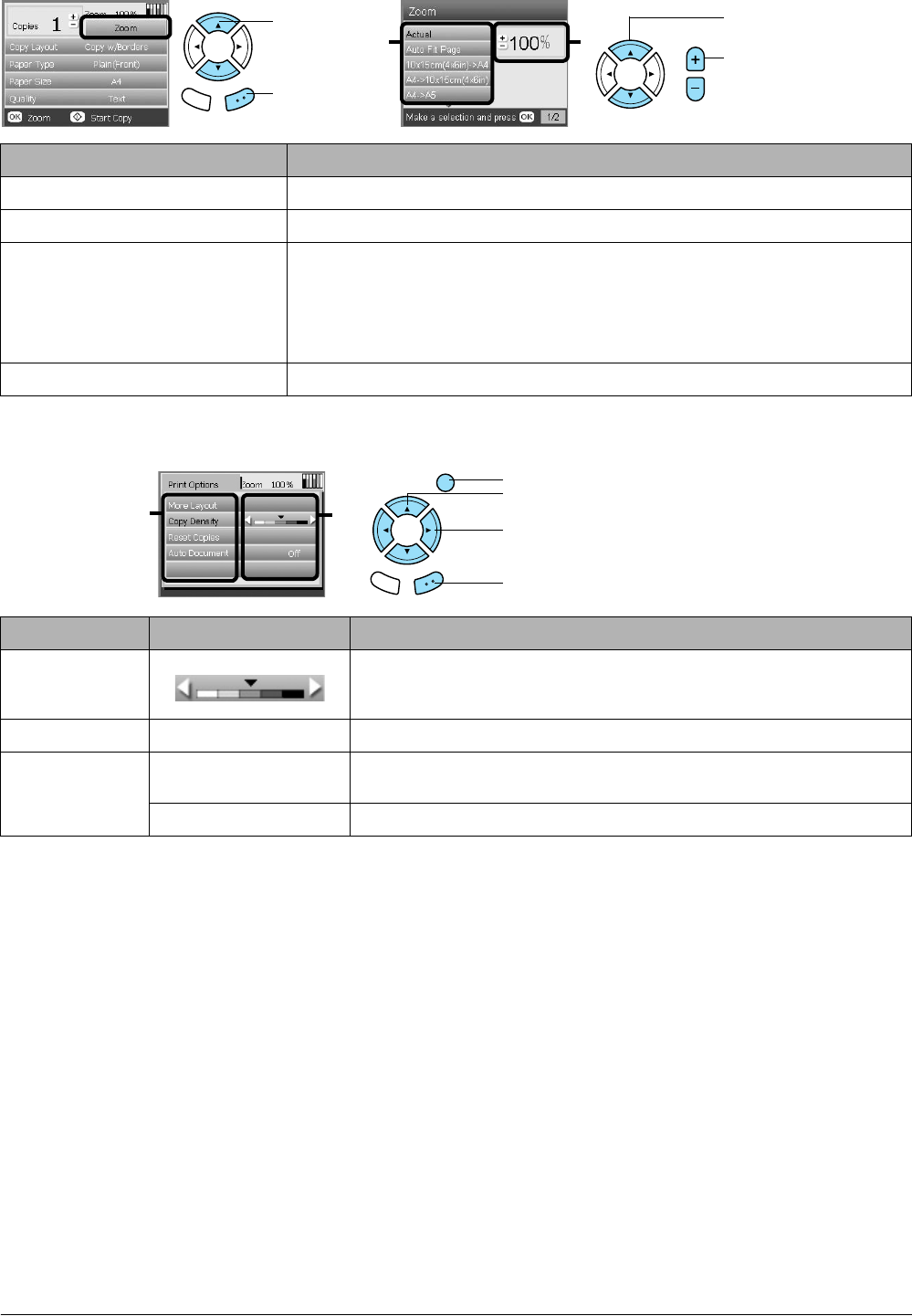

Changing the Zoom settings

.

Changing Detailed settings

.

Setting Item Description

Actual Copies to the actual size.

Auto Fit Page Copies to the reduced or enlarged size that fits the size of the paper.

10 ×15 cm (4 ×6 in) -> A4

A4 -> 10 ×15 cm (4 ×6 in)

A4 -> A5

A5 -> A4

Copies to the reduced or enlarged size by selecting the appropriate selection (original

document size -> copy result size).

25% to 400% Sets the percentage by which the image will be reduced or enlarged and copied.

Menu Item Setting Item Description

Copy Density Adjusts the density of copied documents.

Reset Copies Resets the number of copies to one.

Auto Document ON Makes clear copies when copying text documents. This feature is available

only when copying on plain paper with a border.

OFF Makes no adjustment.

21

1. Select the Setting Item.

2. Set the percentage by

which the image will be

reduced or enlarged.

Back OK

1. Select the

Zoom.

2. Press the

OK button.

1. Press the Options button.

23

2. Select the Menu Item.

3. Select the Setting Item.

4. Press the OK button.

Basic Copying 11

English

Useful Information for Copying

Note for copying

❏When you make a copy using a control panel

function, a moiré (cross-hatch) pattern may

appear on your printout. To eliminate the moiré,

change the reduce/enlarge ratio or shift the

position of the original document.

❏The copied image may not have exactly the same

size as the original.

❏Depending on the type of paper used, print

quality may decline in the top and bottom areas

of the printout, or these areas may be smeared.

❏If this product runs out of paper while making

copies, be sure to load additional paper as soon

as possible. If left without paper for a long period

of time, the colors of the first copy made after

reloading may not accurately reflect those of the

original.

❏If the LCD panel indicates low ink while you are

copying, you can either continue making copies

until the ink runs out, or stop making copies and

then replace the ink cartridge.

When placing a document on the

document table

❏Keep the document table clean.

❏Make sure the document is flat against the glass

surface; otherwise the image becomes out of

focus.

❏Do not leave photographs on the document table

for an extended period of time. They may stick

to the glass of the document table.

❏Do not place heavy objects on top of this product.

When copying in Borderless layout

Because this layout enlarges the image to a size

slightly larger than the paper size, the portion of the

image that extends beyond the edge of the paper will

not be copied.

To copy in 2-up Copy layout

1. Place the first page of the original document on

the document table.

2. Select 2-up Copy as the copy layout.

3. Change the copy settings if necessary.

4. Press the x Color button or x B&W button. The

first page of the original document is copied.

5. Place the following page of the original

document on the document table when Change

pages to 2 page(s) appears in the LCD panel.

6. Press the x Color button or the x B&W button

again. The following page of the original

document is copied and copying is completed.

Note:

If you need to stop copying, press the y Stop button.

If you want to make copies in the 4-up layout, select

4-up Copy in step 2 and repeat steps 5 and 6 twice to

complete copying.

12 Basic Copying

When copying in Copy Photo

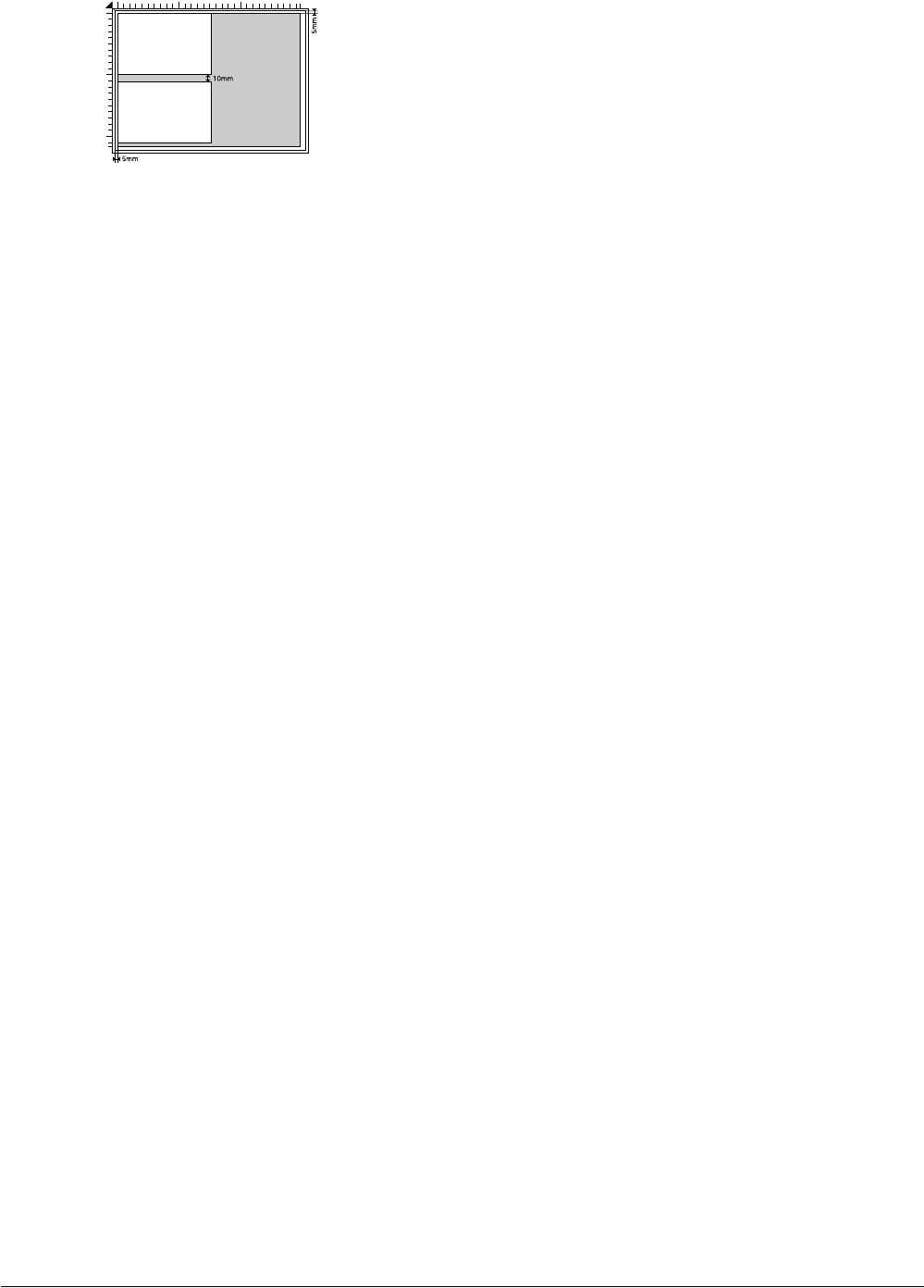

Place each photo horizontally as shown in the

illustration below.

❏You can copy photos bigger than 64 × 89 mm,

and smaller than 127 × 178 mm inclusively.

❏Position each photo at least 10 mm apart from its

adjacent photo.

❏You can copy two 10 × 15 cm (4 × 6 in) size photos

at a time.

❏You can place any sizes of photos at a time.

You can use the Restoration feature. When

Restoration is set to On in Print Settings, faded photos

or ones that have been changed by sunlight are

copied with nearly their original color.

Copying on CD/DVD 13

English

Copying on CD/DVD

Note:

❏Use only CD/DVD media labelled as suitable for

printing, for example “Printable on the label surface”

or “Printable with ink jet printers”.

❏The printed surface is easily smeared immediately

after printing.

❏Be sure to let CD/DVD dry completely for more than

24 hours before using them or touching the printed

surface.

❏Do not allow the printed CD/DVD to dry in direct

sunlight.

❏Moisture on the printable surface may cause

smearing.

❏If the CD/DVD tray or the inner transparent section

of the CD/DVD are accidentally printed on,

immediately wipe off the ink.

❏Reprinting on the same CD/DVD may not improve

the print quality.

Loading a CD/DVD

1. Open the front cover by pressing the hollow

portion as illustrated.

2. Press 5 on the CD/DVD guide. The CD/DVD

guide slides out.

3. Place the CD/DVD on the CD/DVD tray with

the label surface up.

4. Insert the CD/DVD tray into the CD/DVD

guide.

Note:

Align the arrow mark on the CD/DVD tray with the

arrow mark on the CD/DVD guide.

Copying a CD/DVD

1. Press the Copy button.

2. Load the CD/DVD.

& See “Loading a CD/DVD” on page 13

3. Place the original document on the document

table.

& See “Placing a Photo or Document on the

Document Table” on page 7

Note:

The maximum square area in the center on the

document is scanned. When printing, the square area

is enlarged or reduced to CD/DVD size and trimmed

to doughnut shape.

4. Select Copy Layout and CD Copy.

5. Select Quality and the desired quality setting.

21

1. Select

Copy Layout.

2. Select CD

Copy.

14 Copying on CD/DVD

6. Press the xColor button to copy in color, or the

xB&W button to copy in grayscale.

Note:

❏If you need to stop copying, press the y Stop

button.

❏We recommend that you print a test of the layout

on a test CD/DVD, before printing on a real

CD/DVD.

❏If necessary, you can adjust the print position.

See “Adjusting the Print Position” on page 14

for details.

❏If an error message appears on the LCD panel,

follow the instructions on the LCD panel to clear

the error.

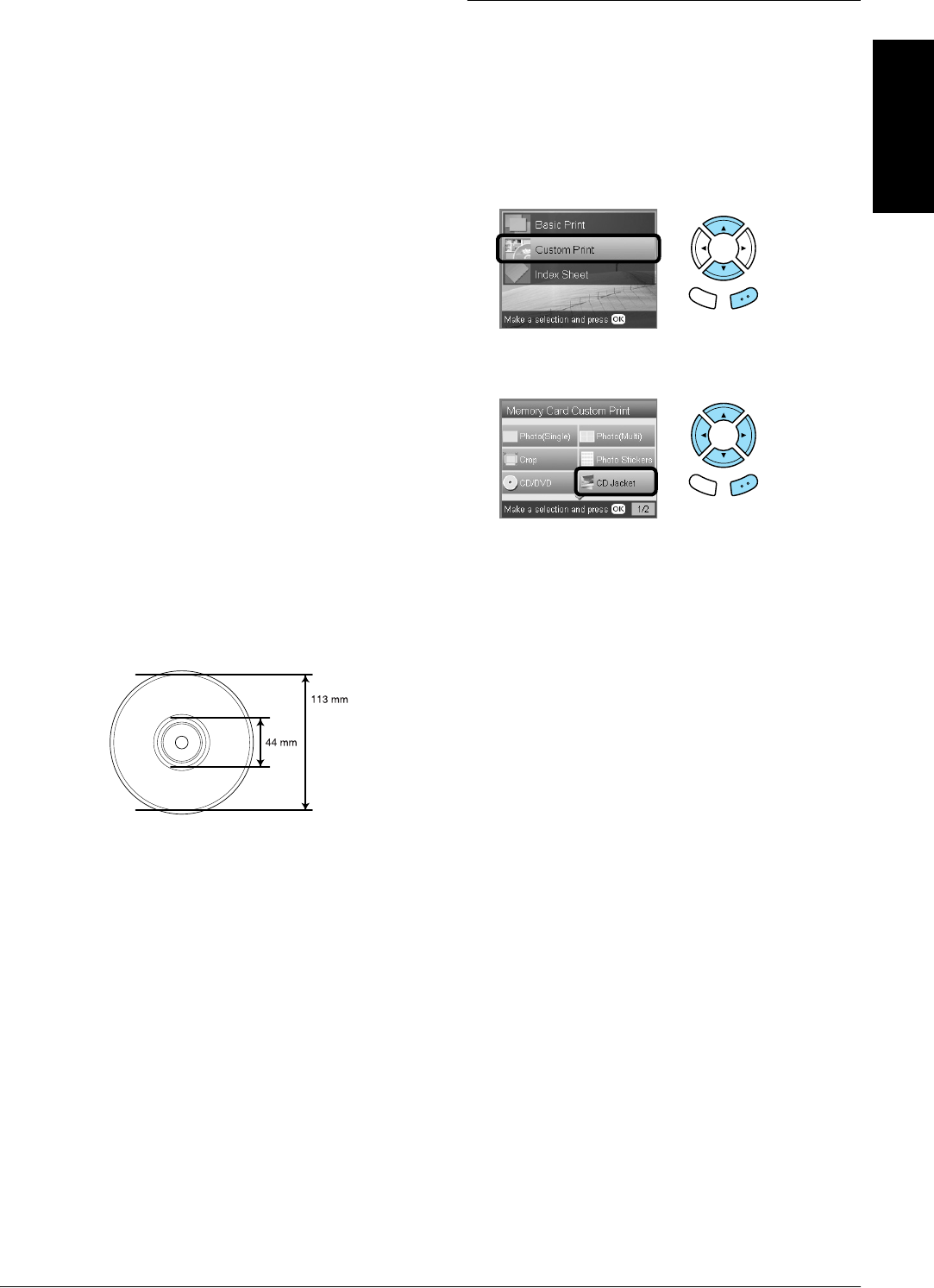

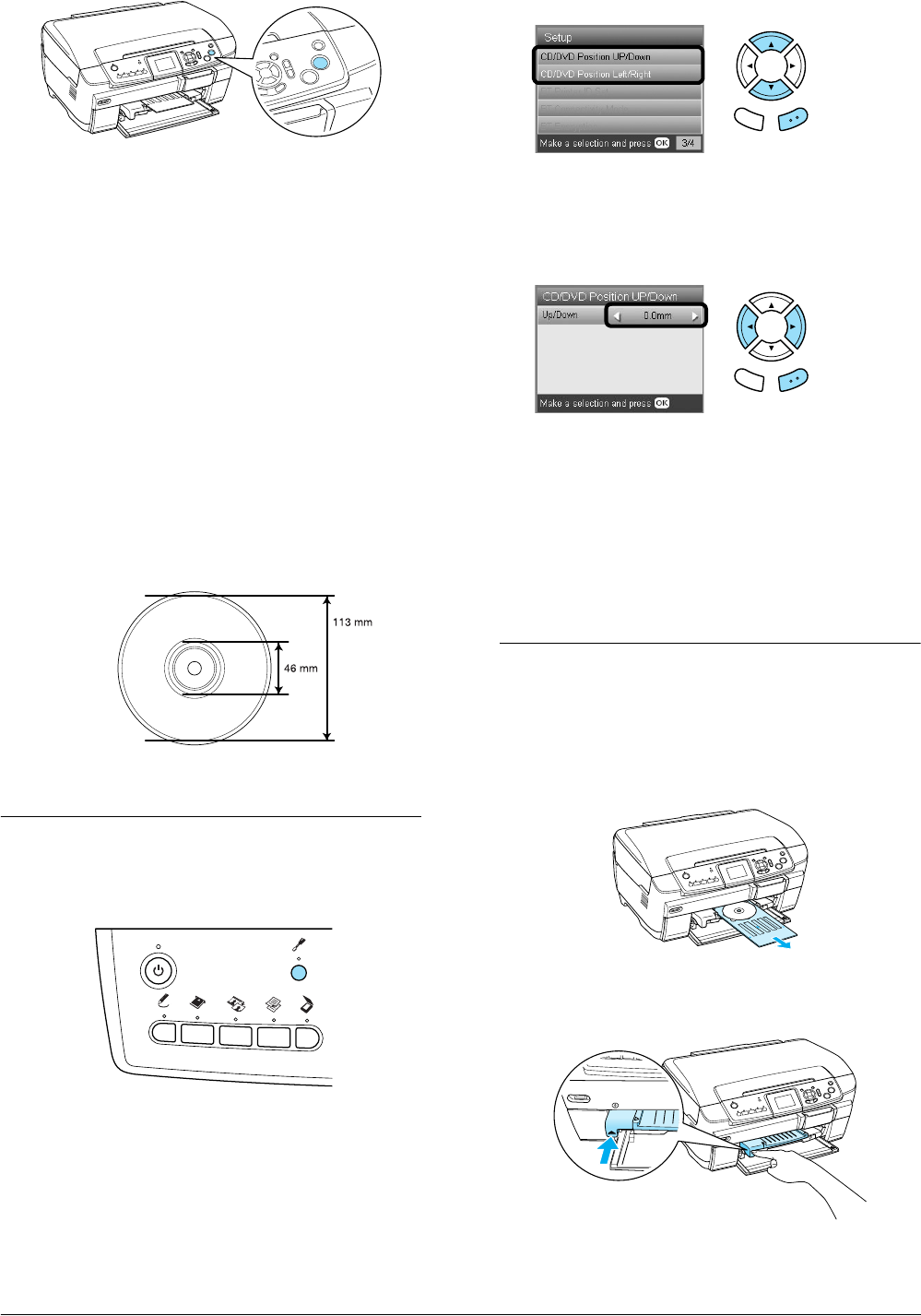

❏The printable area of a CD/DVD is illustrated as

follows.

Adjusting the Print Position

1. Press the Setup button.

2. To move the image up or down, select CD/DVD

Position Up/Down. To move the image left or

right, select CD/DVD Position Left/Right.

3. Select the amount to move the image. Select the

minus quantity when moving the image down

or left, and the plus quantity when moving up

or right.

Note:

❏You can select from –5.0mm to 5.0mm.

❏This product remembers the print adjustment

settings even after it has been turned off, so you

do not need to adjust the position each time you

use the CD/DVD function.

Ejecting the CD/DVD Tray

1. Make sure that copying is finished.

2. Eject the CD/DVD tray by pulling it out straight

from the CD/DVD guide.

3. Press 5 on the CD/DVD guide. The CD/DVD

guide retracts.

12-cm CD/DVD

Back OK

Back OK

Printing Directly from a Memory Card - Basic Printing 15

English

Printing Directly from a

Memory Card - Basic Printing

Note:

We recommend that you disconnect the USB cable when

printing directly from a memory card, otherwise the print

operation may take longer.

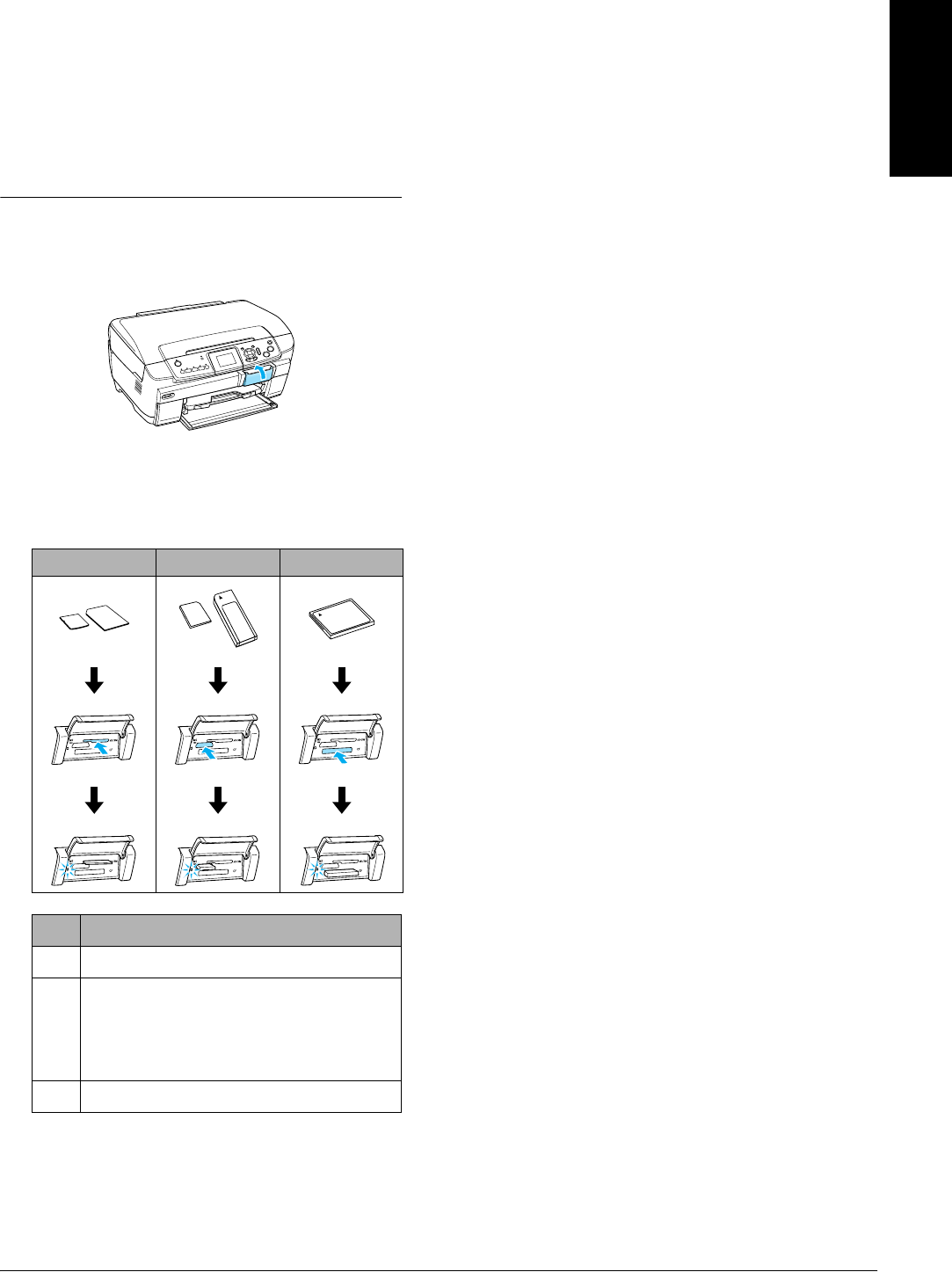

Inserting Memory Cards

1. Open the memory card slot cover.

2. Make sure the memory card light beside the

memory card slot is off, and then insert a

memory card as far as it can go into the

appropriate slot.

*An adapter is required.

Note:

You can load only one memory card at a time.

3. Close the memory card slot cover.

cCaution:

❏Do not try to squeeze the memory card into the

slot. Memory cards cannot be fully inserted

into the card slots.

❏Incorrect loading of a memory card may

damage this product, memory card, or both.

❏Keep the memory card slot cover closed while

the memory card is loaded, which protects the

memory card and the slot from dust and static;

otherwise data on the memory card may be

lost, or this product may be damaged.

❏Depending on the memory card loaded in this

product, the static charge on the memory card

may cause this product to malfunction.

Note:

If the memory card is inserted incorrectly, the memory

card light does not go on.

When ejecting memory cards

1. Make sure all the printing jobs are finished and

the memory card light is not flashing.

2. Open the memory card slot cover.

3. Eject the memory card by pulling it out straight

from the slot.

cCaution:

Do not remove the memory card or turn off the

product while the printing or while the

memory card light is flashing. Data on the

memory card may be lost.

Note:

If you are using this product with a computer which

has Windows 2000 or XP installed, never turn this

product off or disconnect the USB cable with a

memory card inserted in this product; this may

destroy data on the memory card. See the User’s

Guide for detail.

4. Close the memory card slot cover.

abc

Slot Card

aSmartMedia/xD-Picture Card

bMemory Stick/MagicGate Memory Stick/

Memory Stick Duo*/Memory Stick PRO/

Memory Stick PRO Duo*/

MagicGate Memory Stick Duo*/SD Card/

miniSD Card*/MultiMediaCard

cCompactFlash/Microdrive

16 Printing Directly from a Memory Card - Basic Printing

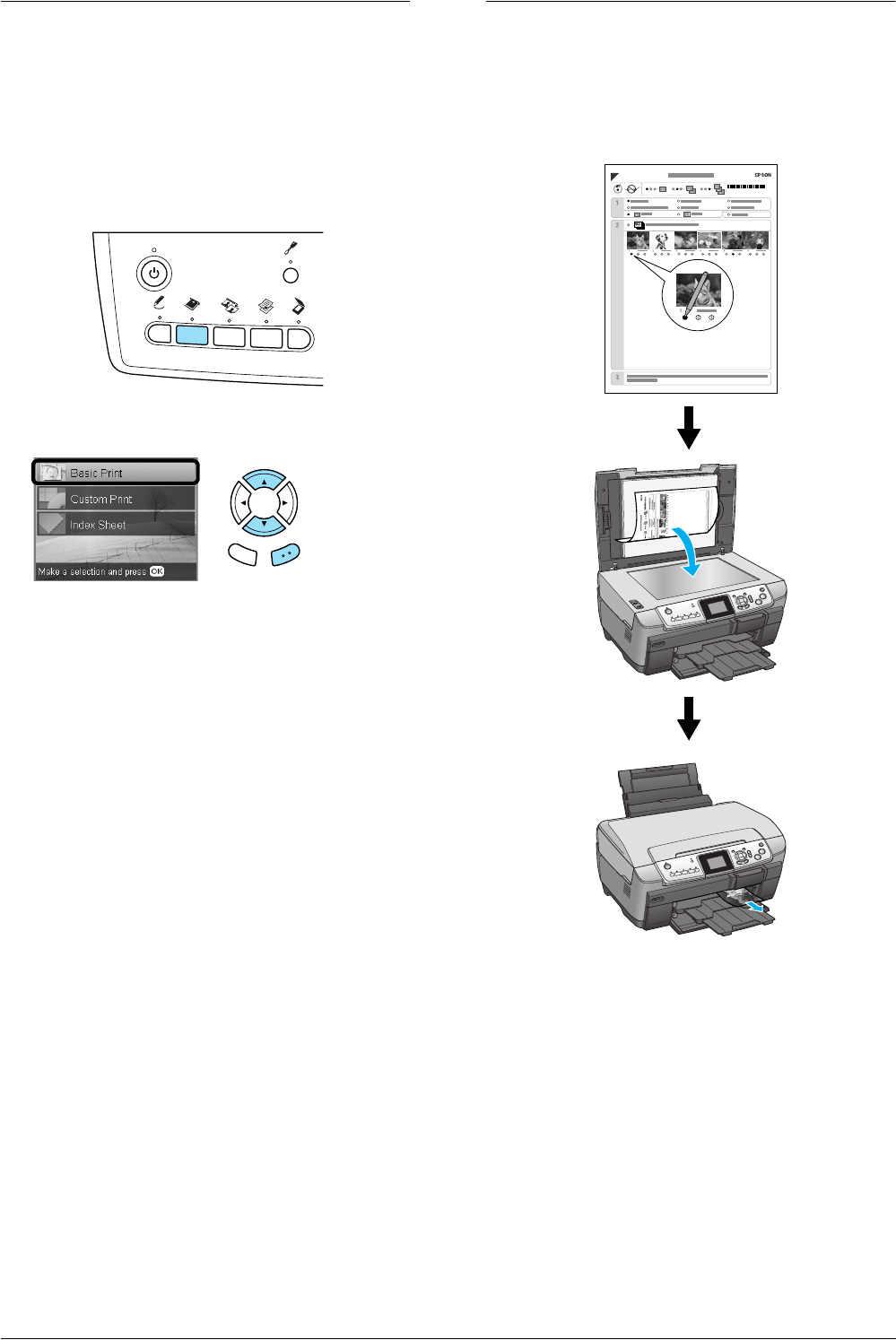

Printing Basics to 10 x 15 cm

Paper

You can print photos to 10 × 15 cm (4 × 6 in) Premium

Glossy Photo Paper without altering any settings.

1. Load a memory card.

2. Press the Memory Card button.

3. Select Basic Print.

4. Select the photos you want to print and set the

number of copies.

& See “Changing the View of Photos on the LCD

Panel and Selecting Photos” on page 18

5. Load 10 × 15 c m (4 × 6 in) Premium Glossy Photo

Paper into the back tray.

& See “Loading paper into the back tray” on

page 6

6. Press the x Color button to start printing.

Note:

If you need to stop printing, press the y Stop button.

Printing Using an Index Sheet

The Index Sheet gives you a thumbnail view of

photos stored on the memory card. You can easily

print photos by filling the circles underneath the

photo you want to print.

Back OK

Printing Directly from a Memory Card - Basic Printing 17

English

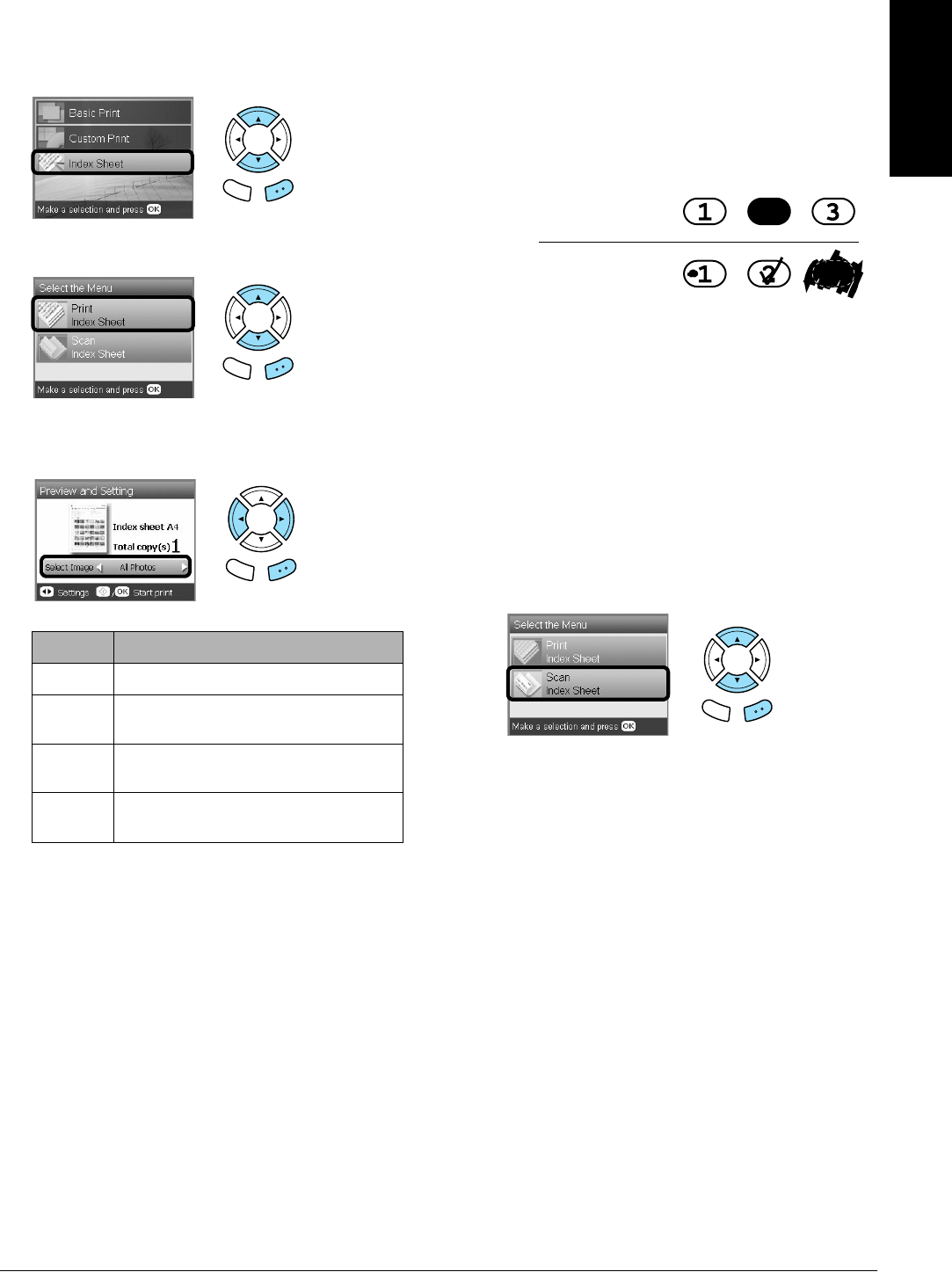

Printing an Index Sheet

1. Load a memory card.

2. Press the Memory Card button.

3. Select Index Sheet.

4. Select Print Index Sheet.

5. Select the range of the photos you want to print

on the Index Sheet.

6. Load A4 plain paper into the front tray.

& See “Loading A4 plain paper into the front

tray” on page 5

7. Press the x Color button to start printing.

Note:

If you need to stop printing, press the y Stop button.

Printing photos by filling in the

Index Sheet

1. On the Index Sheet, use a dark pen to fill in the

circle on the left side of the paper type and size,

and select printing with border or borderless

printing. Then fill in the circles underneath the

photos that you want to print, and the number

of prints to be printed for each photo.

See the examples below.

Note:

❏Complete the Index Sheet correctly. You cannot

change the settings using the control panel.

❏If you fill more than one circle, this product will

print the largest number you chose.

❏When you fill in the circle on the left of ALL, all

photos are printed at a time.

2. Load the paper type and size that you selected

on the Index Sheet.

3. Select Scan Index Sheet.

4. Place the Index Sheet with its face down, and its

top touching the left edge of the document table.

& See “Placing a Photo or Document on the

Document Table” on page 7

5. Press the OK button to start printing.

Note:

If you need to stop printing, press the y Stop button.

Range Description

All photos Prints all photos stored on a memory card.

Latest 30 Prints 30 photos from the latest one in

order of the file name.

Latest 60 Prints 60 photos from the latest one in

order of the file name.

Latest 90 Prints 90 photos from the latest one in

order of the file name.

Back OK

Back OK

Back OK

Not good

Good

Back OK

18 Printing Directly from a Memory Card - Basic Printing

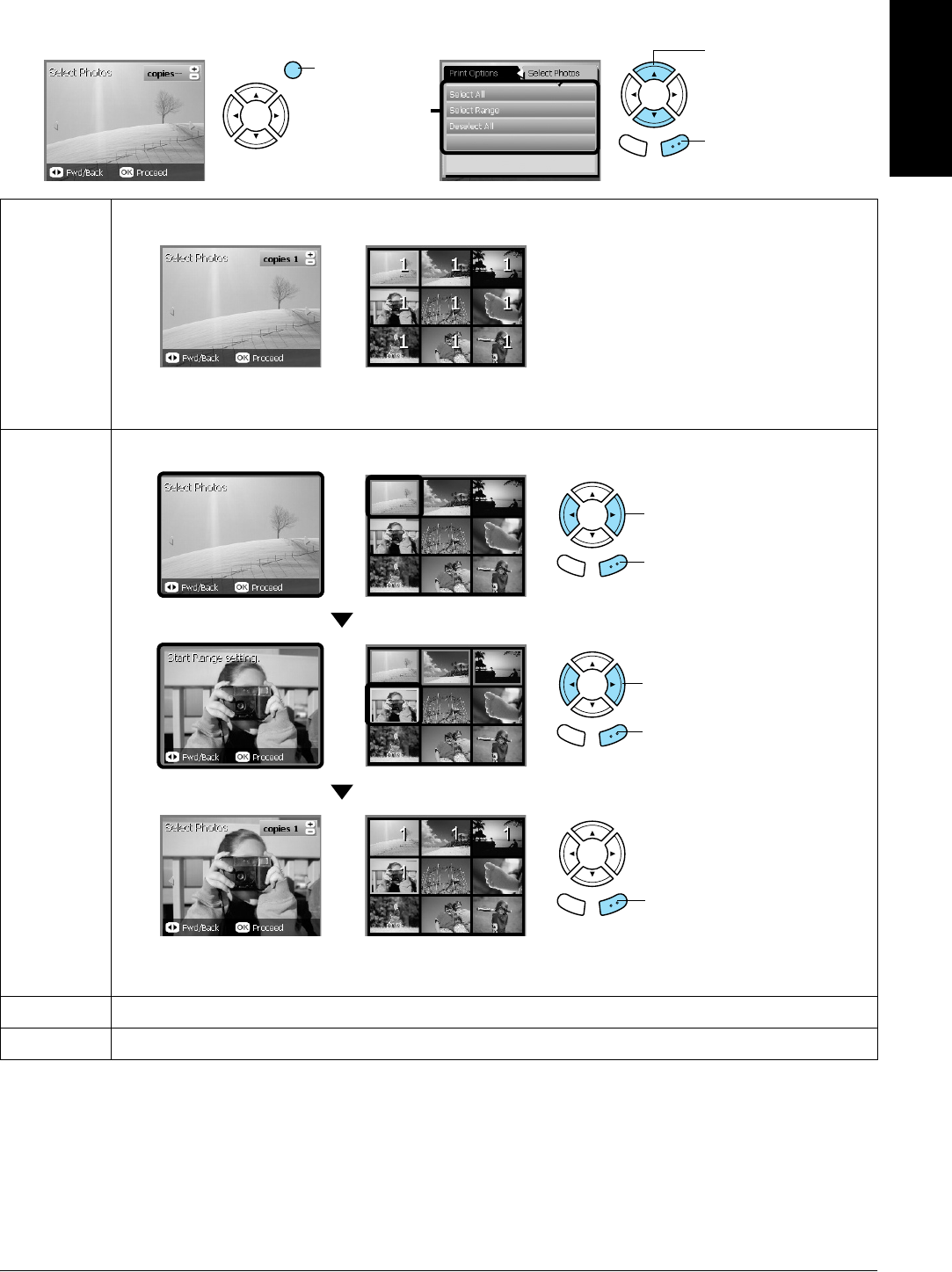

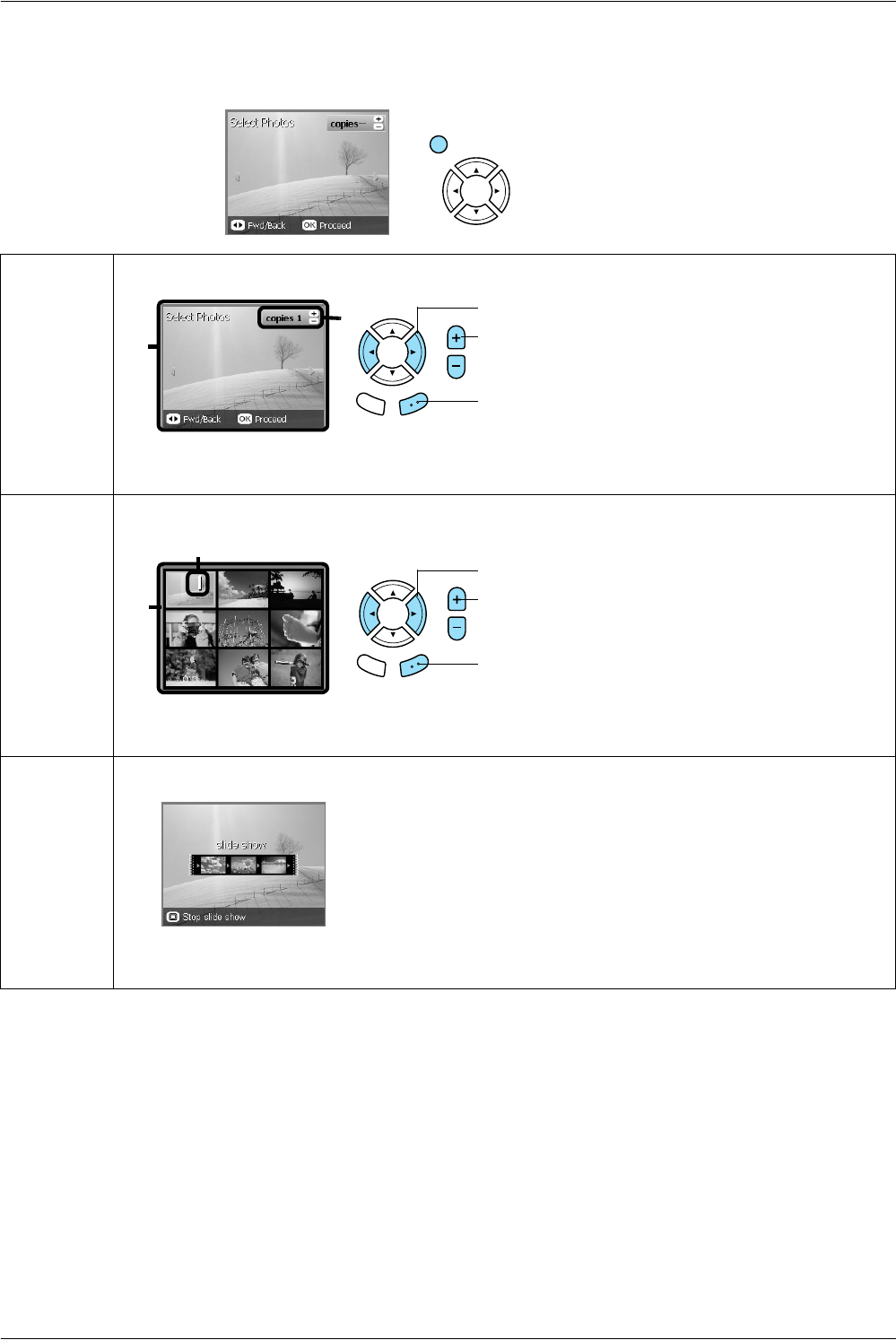

Changing the View of Photos on the LCD Panel and Selecting Photos

You can change the view of photos by pressing the Screen View button when selecting photos.

One photo Displays one photo stored on the memory card at a time.

Note:

You can set up to 99 as the number of prints.

Nine photos Displays nine photos stored on the memory card at a time.

Note:

You can set up to 99 as the number of prints.

Slide Show Displays one photo stored on the memory card at a time and advances to the next photo automatically.

Note:

You cannot set the number of prints when running Slide Show.

Screen View

1. Select the desired photo.

2. Set the number of prints.

3. Press the OK button.

2

1

2

1

1. Select the desired photo.

2. Set the number of prints.

3. Press the OK button.

Printing Directly from a Memory Card - Basic Printing 19

English

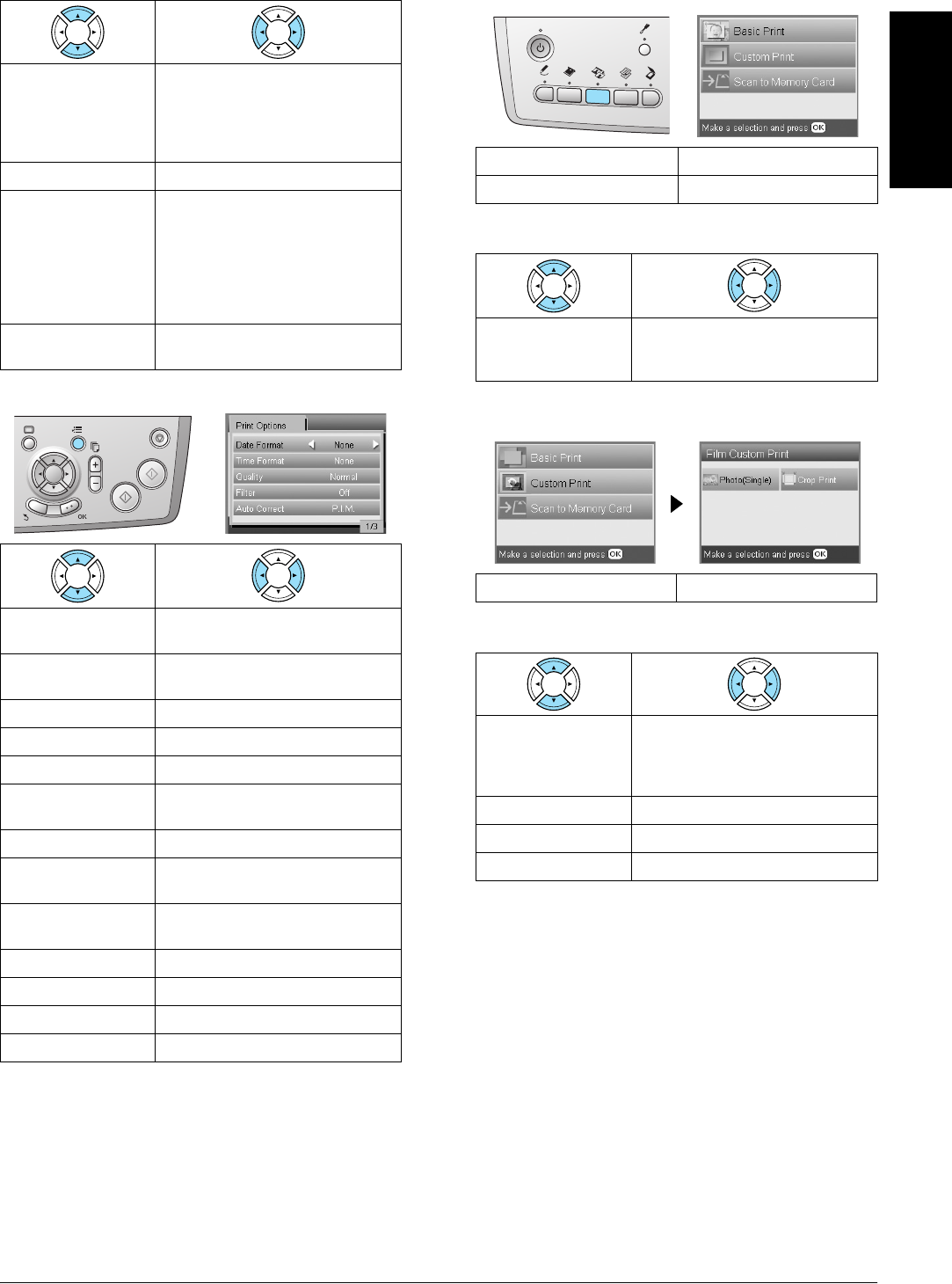

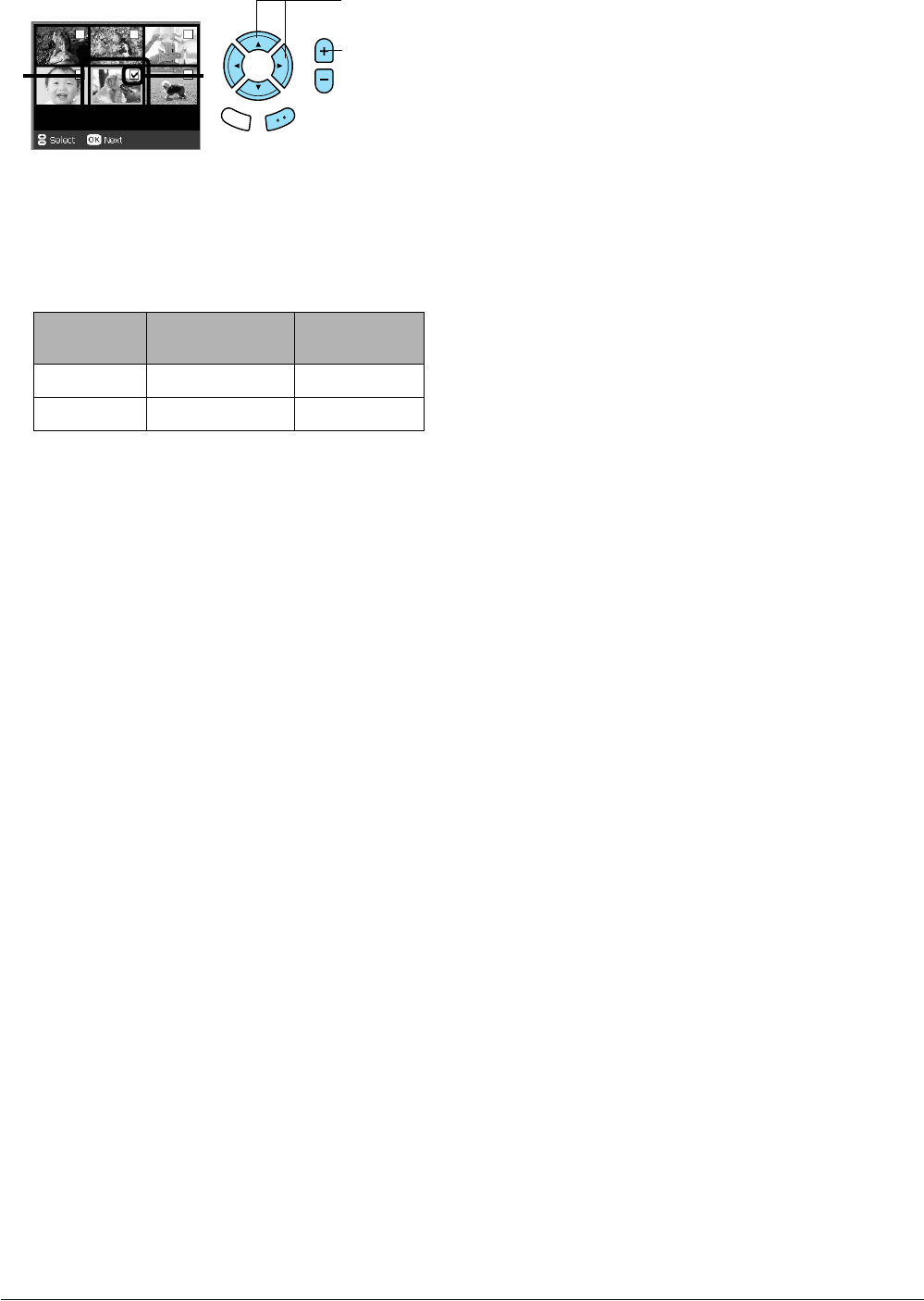

Detailed settings for selecting photos

You can set the number of prints in detail by pressing the Options button when selecting photos.

Select All Sets one print for all photos in the memory card.

Note:

Press the Copies button to change the number of prints for each photo.

Select

Range

Sets the range of photos in the memory card and the number of prints for each.

Note:

Press the Copies button to change the number of prints for each photo.

Deselect All Sets the zero as the number of prints for all photos.

DPOF Prints photos with the DPOF function. For detailed information, see “Printing with DPOF Functions” on page 26

1. Press the

Option button.

2. Select the Select

Photos option.

3. Press the OK button.

Back OK

2

1. Select the first photo.

2. Press the OK button.

Back OK

3. Select the last photo.

4. Press the OK button.

Back OK

5. Press the OK button.

Back OK

20 Printing Directly from a Memory Card – Printing Options

Printing Directly from a

Memory Card – Printing

Options

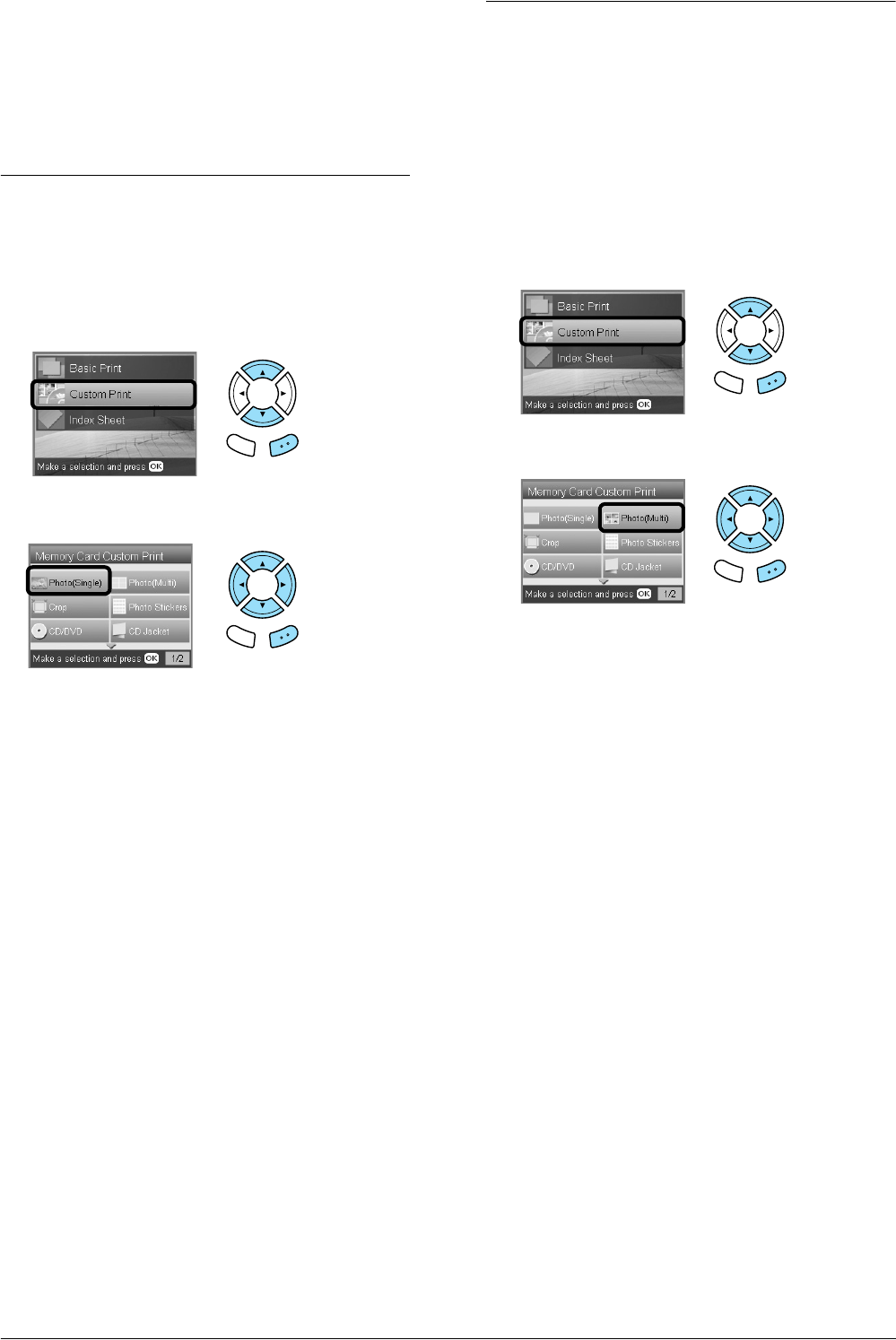

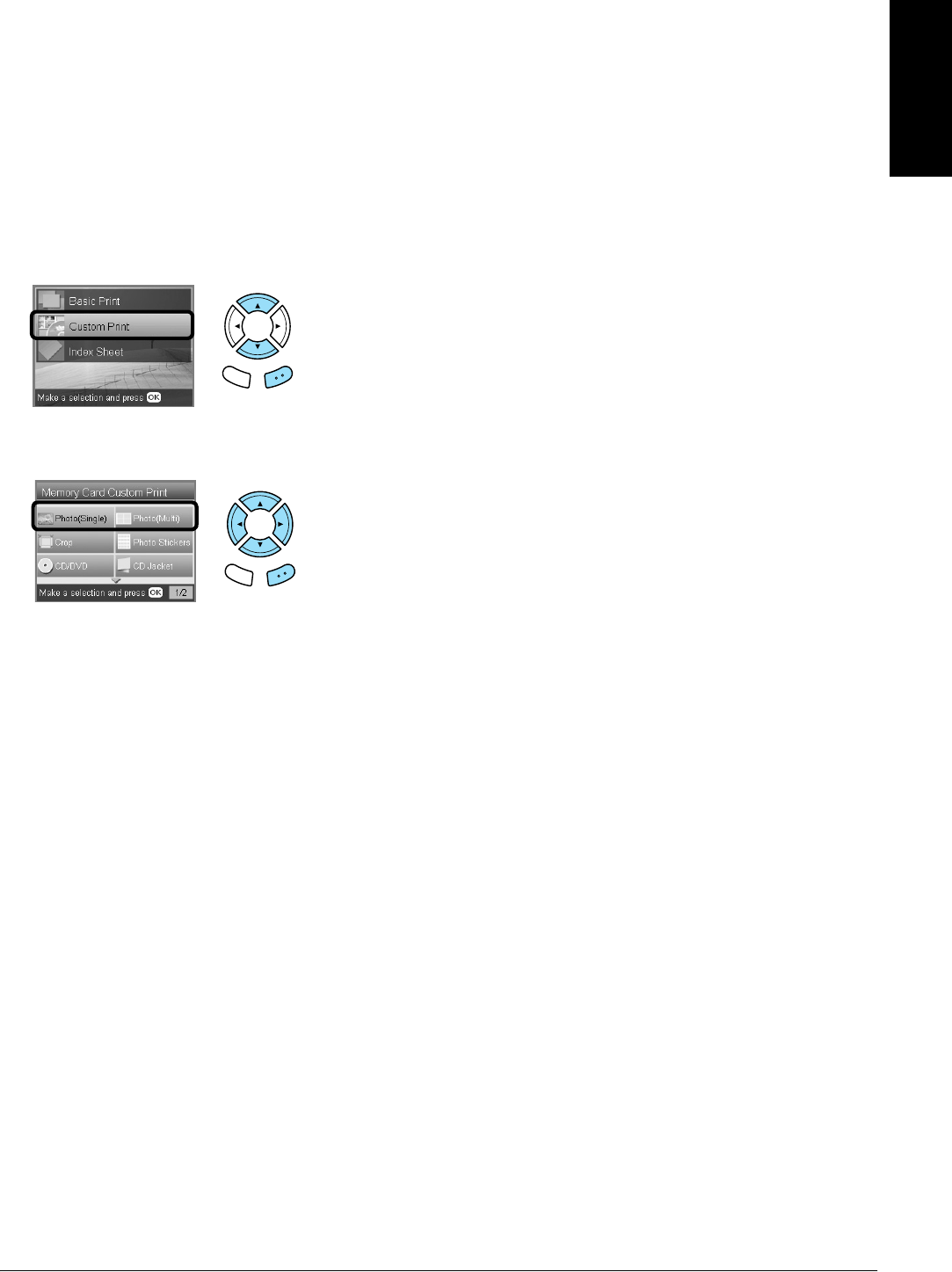

Printing a Single Photo

1. Load a memory card.

2. Press the Memory Card button.

3. Select Custom Print.

4. Select Photo (Single).

5. Change the print setting.

& See “Changing Print Settings” on page 28

6. Select the photo which you want to print and set

the number of copies.

& See “Changing the View of Photos on the LCD

Panel and Selecting Photos” on page 18

7. Load the appropriate paper.

& See “Loading Paper” on page 5

8. Press the x Color button or xB&W button to

start printing.

Note:

If you need to stop printing, press the y Stop button.

Printing Multiple Photos onto

One Sheet

You can print multiple photos in the memory card

onto one sheet. You can print in 2-up, 4-up, 8-up,

20-up and 80-up layouts.

1. Load a memory card.

2. Press the Memory Card button.

3. Select Custom Print.

4. Select Photo (Multi).

5. Change the print setting.

& See “Changing Print Settings” on page 28

6. Select the photo which you want to print and set

the number of copies.

& See “Changing the View of Photos on the LCD

Panel and Selecting Photos” on page 18

7. Load the appropriate paper.

& See “Loading Paper” on page 5

8. Press the x Color button or xB&W button to

start printing.

Note:

If you need to stop printing, press the y Stop button.

Back OK

Back OK

Back OK

Back OK

Printing Directly from a Memory Card – Printing Options 21

English

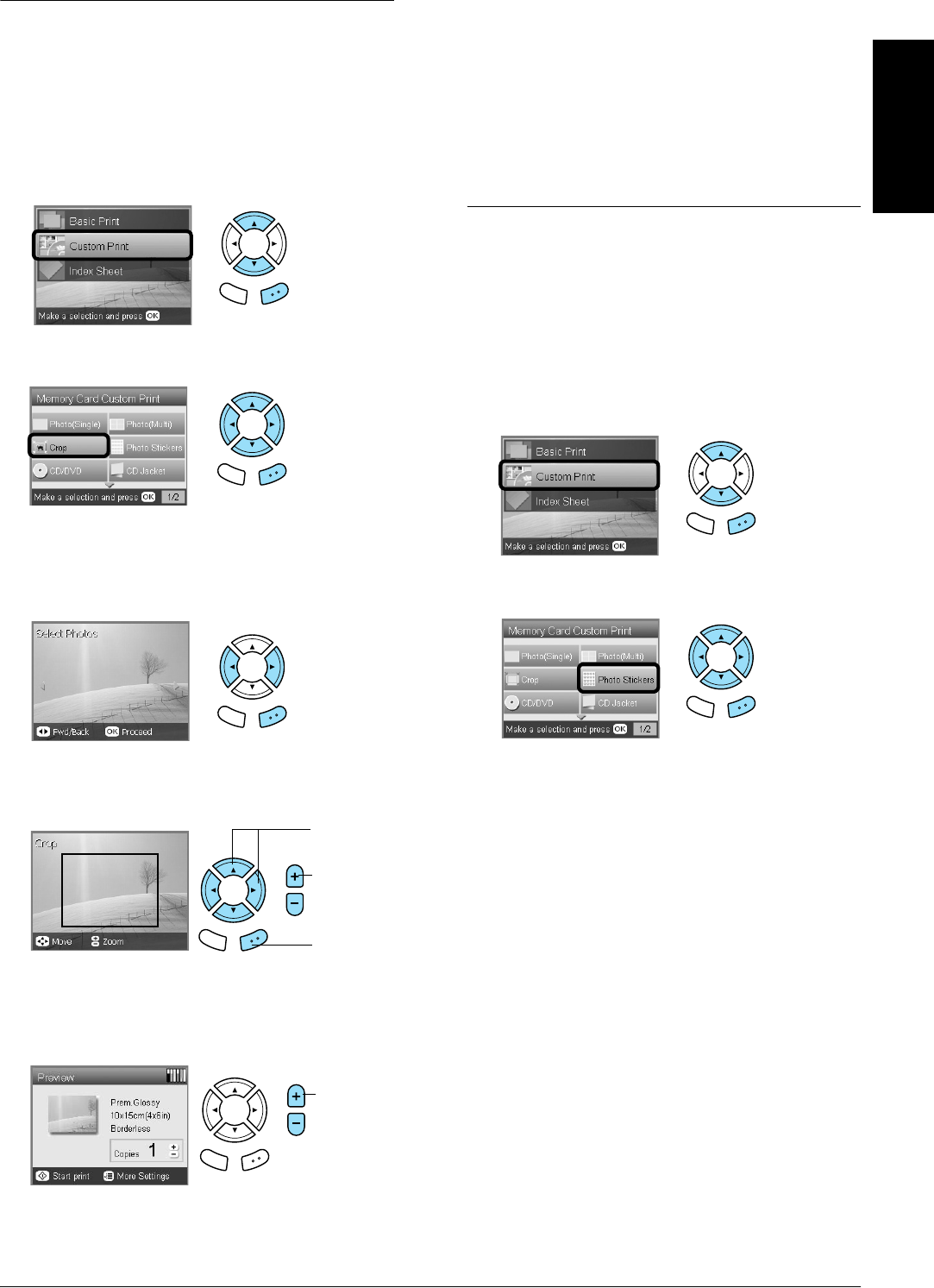

Printing Enlarged Images

You can crop and enlarge your photos.

1. Load a memory card.

2. Press the Memory Card button.

3. Select Custom Print.

4. Select Crop.

5. Change the print setting if necessary.

& See “Changing Print Settings” on page 28

6. Select the desired photo.

7. Set the area you want to crop by moving the

frame and changing the frame size.

8. Confirm the preview image and set the number

of copies.

Press the Back button when readjusting the

zoom area.

9. Load appropriate paper.

& See “Loading Paper” on page 5

10. Press the xColor or xB&W button to start

printing.

Note:

If you need to stop printing, press the y Stop button.

Printing Photo Stickers

You can print up to 16 stickers on one Photo Stickers

sheet.

1. Load a memory card.

2. Press the Memory Card button.

3. Select Custom Print.

4. Select Photo Stickers.

5. Select the photo which you want to print and set

the number of copies.

& See “Changing the View of Photos on the LCD

Panel and Selecting Photos” on page 18

Note:

When only a single photo is selected, 16 copies of the

same photo are printed in the 16-up layout on a single

sheet of paper. When two or more photos are selected,

copies of each photo selected in this step are printed

in the 16-up layout.

6. Load Photo Stickers in the back tray.

& See “Loading paper into the back tray” on

page 6

7. Press the x Color button or x B&W button to

start printing.

Note:

If you need to stop printing, press the y Stop button.

Back OK

Back OK

Back OK

1. Move the

frame.

Change

the size of

the frame.

Back OK

2. Press the

OK button.

Set the

number of

copies.

Back OK

Back OK

22 Printing Directly from a Memory Card – Printing Options

Adjusting the print position on

Photo Stickers sheet

1. Press the Setup button.

2. To move the image up or down, select Photo

Stickers Position Up/Down. To move the

image left or right, select Photo Stickers

Position Left/Right.

3. Select the amount to move the image. Select the

minus quantity when moving the image down

or left, and the plus quantity when moving up

or right.

Note:

❏You can select from –2.5mm to 2.5mm.

❏This product remembers the print adjustment

settings even after it has been turned off, so you

do not need to adjust the position each time you

use the Photo Stickers function.

Printing on CD/DVD

This section provides information on how to use the

LCD panel to print directly onto a CD/DVD, without

the use of a computer.

Refer to the User’s Guide on the desktop if you are

printing from a computer connected to the printer.

Note:

❏Use only CD/DVD media labelled as suitable for

printing, for example “Printable on the label surface”

or “Printable with ink jet printers”.

❏The printed surface is easily smeared immediately

after printing.

❏Be sure to let CD/DVD dry completely more than 24

hours before using them or touching the printed

surface.

❏Do not allow the printed CD/DVD to dry in direct

sunlight.

❏Moisture on the printable surface may cause

smearing.

❏If the CD/DVD tray or the inner transparent section

are accidentally printed on, immediately wipe off the

ink.

❏Reprinting on the same CD/DVD may not improve

the print quality.

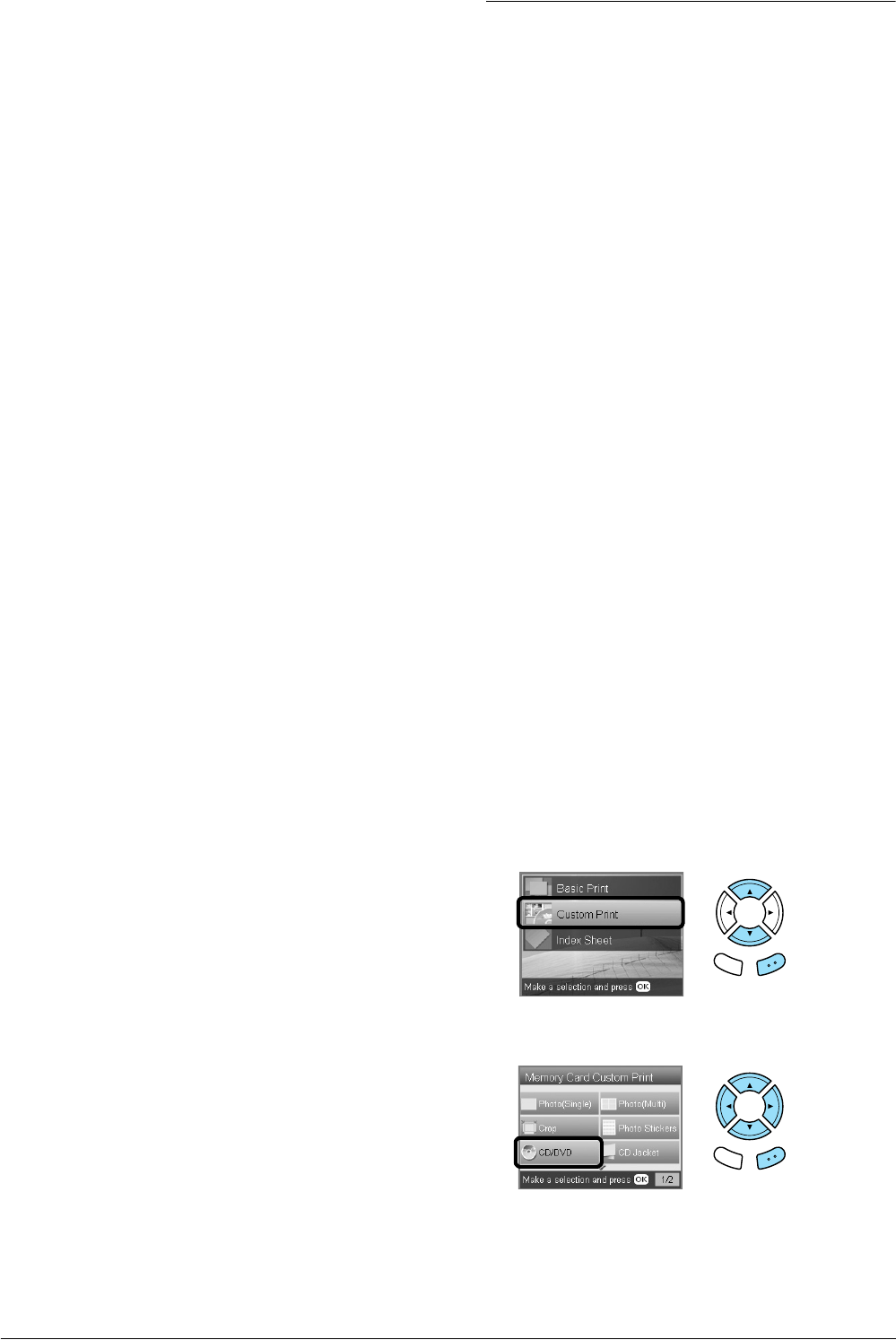

1. Load a memory card.

2. Load a CD or DVD.

& See “Loading a CD/DVD” on page 13

3. Press the Memory Card button.

4. Select Custom Print.

5. Select CD/DVD.

6. Change the print setting.

& See “Changing Print Settings” on page 28

Back OK

Back OK

Printing Directly from a Memory Card – Printing Options 23

English

7. Select the photo which you want to print and set

the number of copies.

& See “Changing the View of Photos on the LCD

Panel and Selecting Photos” on page 18

Note:

You cannot set the number of images to more than

will fit on one CD/DVD. For example, you cannot

select more than five photos when printing in 4-up

layout.

8. Press the x Color button or x B&W button to

start printing.

Note:

❏If you need to stop printing, press the y Stop

button.

❏We recommend that you print a test of the layout

on a test CD/DVD, before printing on a real

CD/DVD.

❏If necessary, you can adjust the print position.

See “Adjusting the Print Position” on page 14

for details.

❏If an error message appears on the LCD panel,

follow the instructions on the LCD panel to clear

the error.

❏The printable area of a CD/DVD is illustrated as

follows.

Printing a CD Jacket

You can print a CD jacket on A4 paper.

1. Load a memory card.

2. Press the Memory Card button.

3. Select Custom Print.

4. Select CD Jacket.

5. Change the print setting.

& See “Changing Print Settings” on page 28

6. Select the photo which you want to print and set

the number of copies.

& See “Changing the View of Photos on the LCD

Panel and Selecting Photos” on page 18

7. Load the appropriate paper.

& See “Loading Paper” on page 5

8. Press the x Color button or x B&W button to

start printing.

Note:

If you need to stop printing, press the y Stop button.

12-cm CD/DVD

Back OK

Back OK

24 Printing Directly from a Memory Card – Printing Options

Printing on EPSON Iron-On Cool

Peel Transfer Paper

You can print an image on EPSON Iron-On Cool Peel

Transfer Paper and copy the printed image onto

fabric using an iron.

1. Load a memory card.

2. Press the Memory Card button.

3. Select Custom Print.

4. Select Iron.

5. Change the layout.

& See “Changing Print Settings” on page 28

6. Select the photo which you want to print and set

the number of copies.

& See “Changing the View of Photos on the LCD

Panel and Selecting Photos” on page 18

7. Load EPSON Iron-On Cool Peel Transfer Paper

into the back tray.

& See “Loading paper into the back tray” on

page 6

8. Press the x Color button or x B&W button to

start printing.

Note:

If you need to stop printing, press the y Stop button.

Printing Using a Combo Printing

Sheet

You can add handwritten letters or drawings to your

favorite photographs using the Combo Printing

Sheet.

Back OK

Back OK

ABCABCABC

ABC

ABC

1 2 3 4 5 6 7 8 9 10

Printing Directly from a Memory Card – Printing Options 25

English

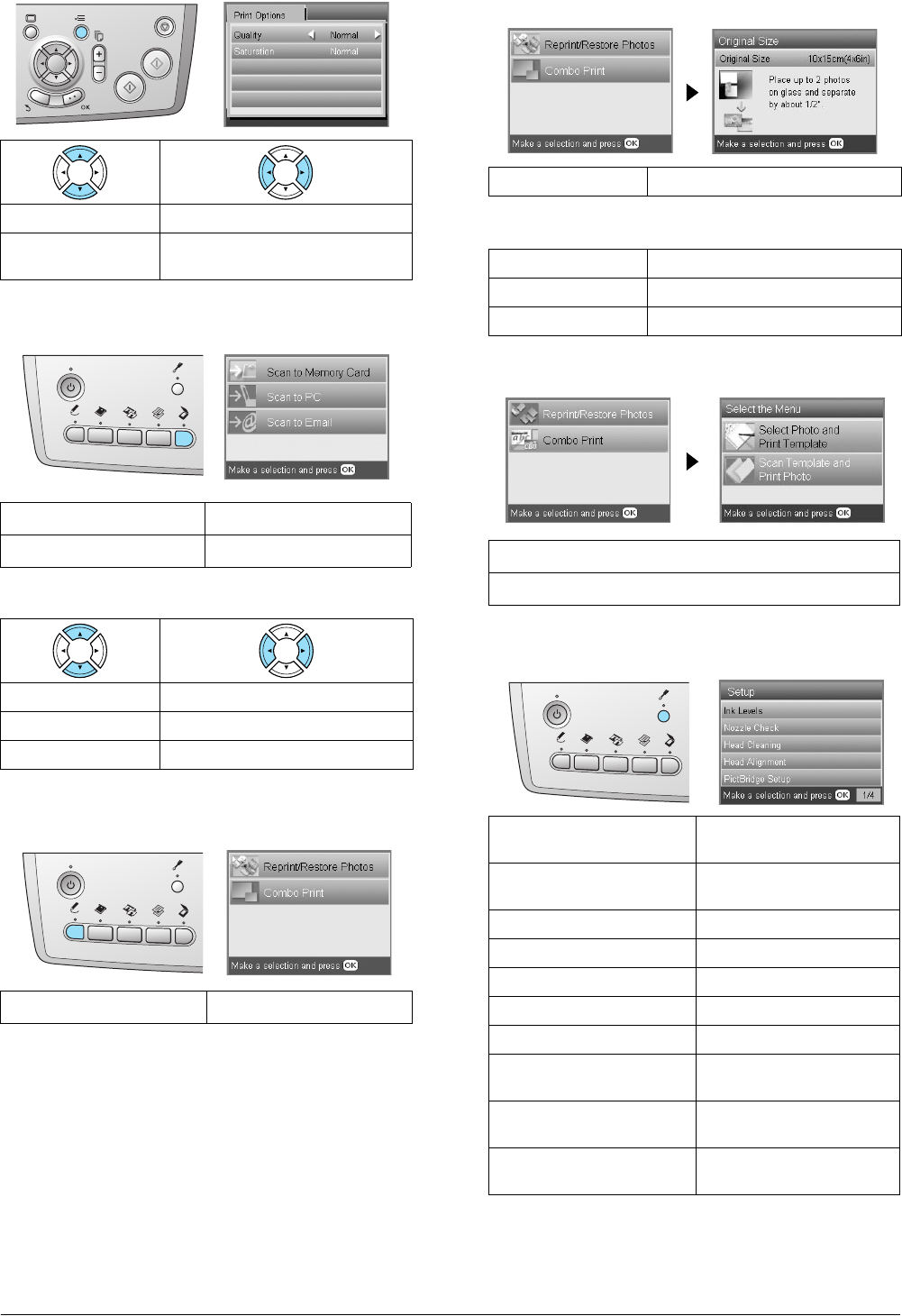

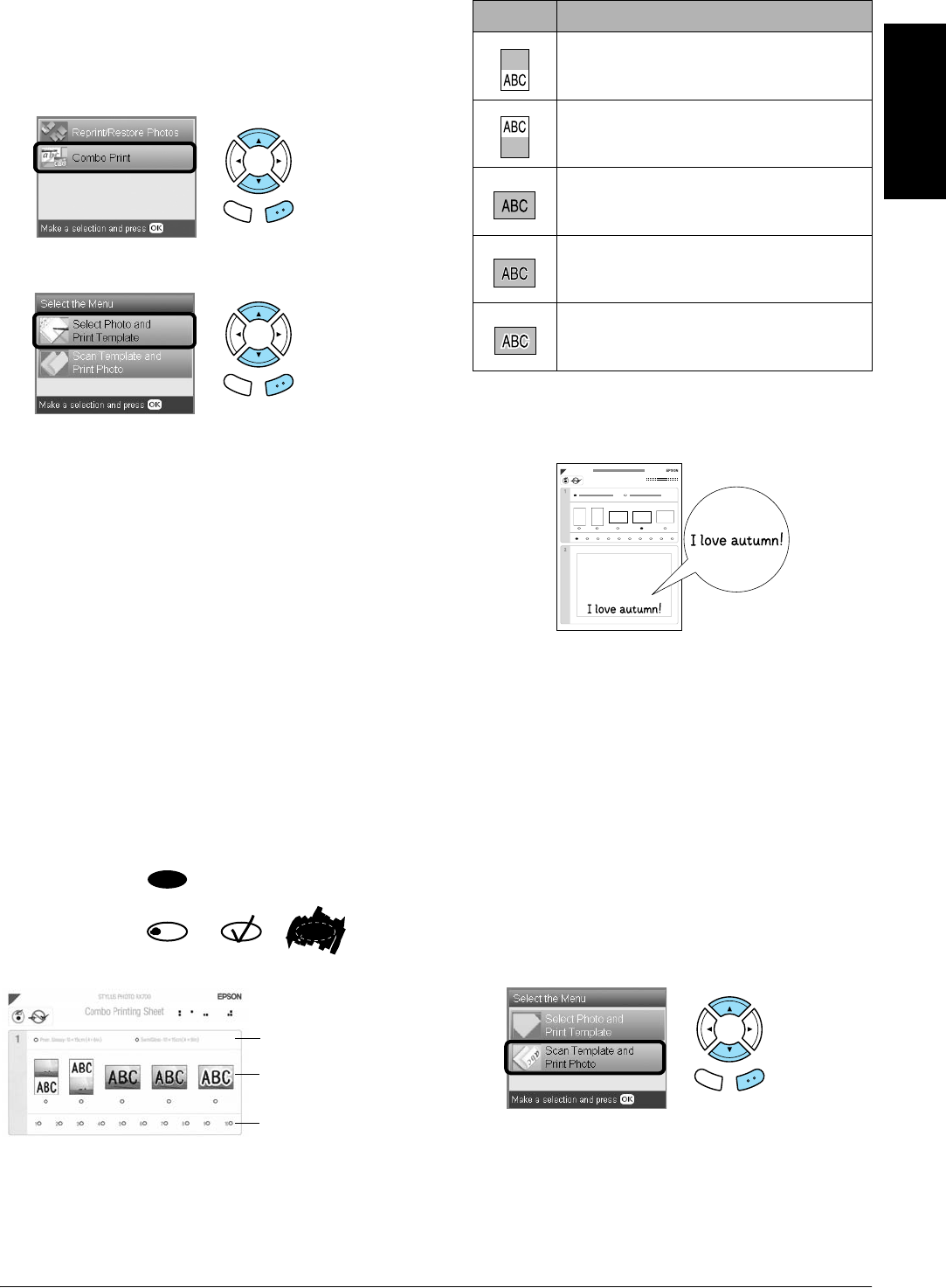

Printing a Combo Printing Sheet

1. Load a memory card.

2. Press the Creative Projects button.

3. Select Combo Print.

4. Select Select Photo and Print Template.

5. Select the photo which you want to print.

& See “Changing the View of Photos on the LCD

Panel and Selecting Photos” on page 18

6. Load A4 plain paper into the front tray.

& See “Loading A4 plain paper into the front

tray” on page 5

7. Press the x Color button to start printing.

Note:

If you need to stop printing, press the y Stop button.

Printing with handwritten drawings

by written in the Combo Printing

Sheet

1. On the Combo Printing Sheet, use a dark pen to

fill in the circle to select the paper type and size,

layout and number of prints.

See the examples below:

2. In the handwriting area on the Combo Printing

Sheet, use a dark pen to write letters or make

drawings that you want to add to the photo.

Note:

When you select the third layout from the left in step

1, your text or drawings may be difficult to read if you

use a color similar to the color of the photo.

3. Load the paper you have selected on the Combo

Printing Sheet.

4. Place the Combo Printing Sheet with its face

down, and its top touching the left edge of the

document table.

& See “Placing a Photo or Document on the

Document Table” on page 7

5. Select Scan Template and Print Greeting Card

to start printing.

Note:

If you need to stop printing, press the y Stop button.

Back OK

Back OK

Not good

Good

1. Select the paper

type and size.

2. Select the layout.

See the follwing table

for detail.

3 . S e l e c t t h e n u m b e r o f

prints.

Layout Description

Prints a photo on the upper half and

handwritten drawings on the lower half of

the paper.

Prints handwritten drawings on the upper

half and a photo on the lower half of the

paper.

Prints handwritten drawings on the photo.

Prints handwritten drawings edged with a

thin border on a photo.

Prints handwritten drawings edged with a

thick border on a photo.

ABCABCABC

ABC

ABC

1 2 3 4 5 6 7 8 9 10

Back OK

26 Printing Directly from a Memory Card – Printing Options

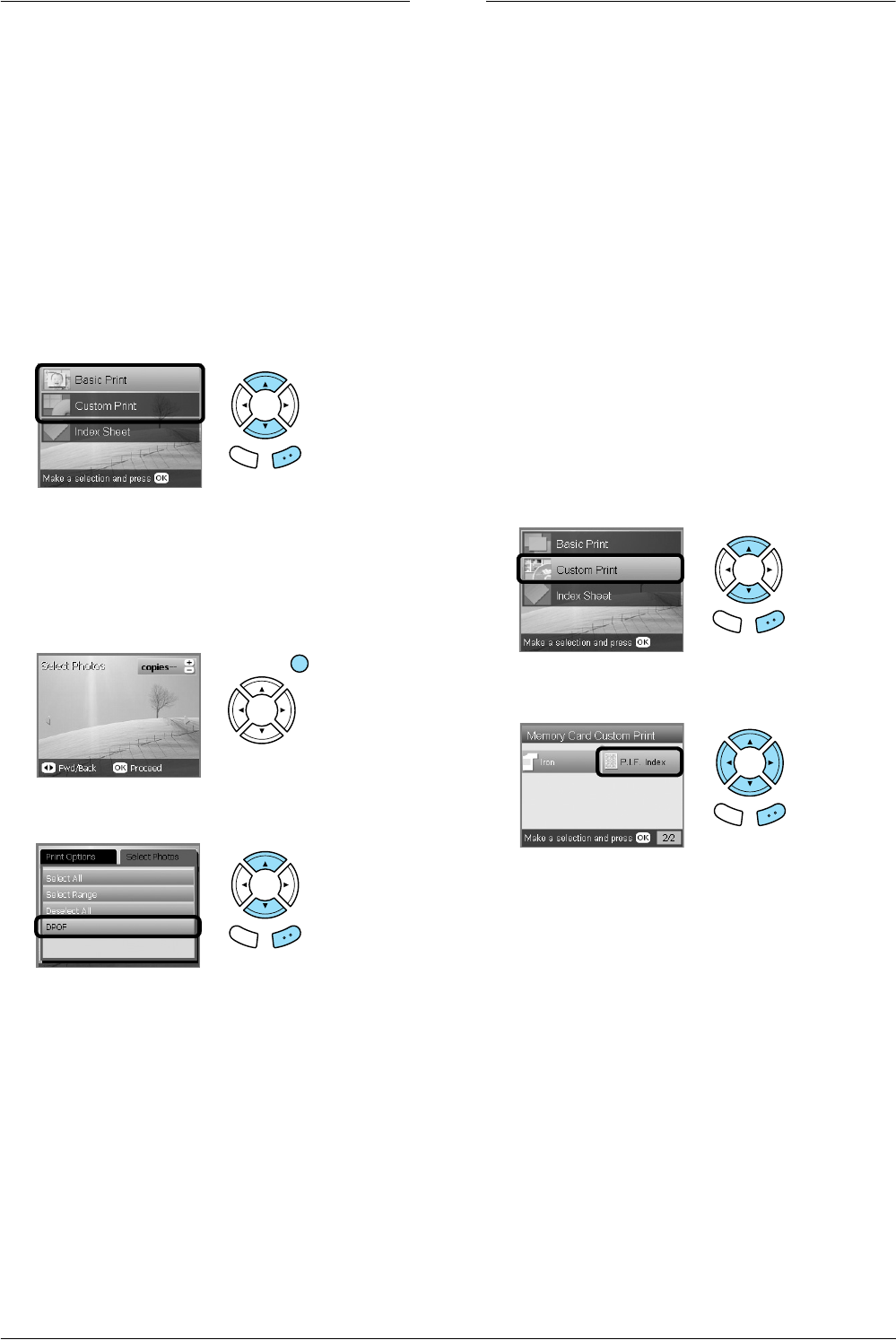

Printing with DPOF Functions

DPOF (Digital Print Order Format) is an

industry-standard print file request format. This

product conforms to DPOF version 1.10. DPOF lets

you select photos and the number of copies for

photos stored on a digital camera, before you start

printing. To create DPOF date, you must use a digital

camera that supports DPOF. For details on DPOF,

refer to the documentation of your digital camera.

1. Load a memory card which contains DPOF data.

2. Press the Memory Card button.

3. Select Basic Print or Custom Print.

4. When you select Custom Print, change the print

setting.

& See “Changing Print Settings” on page 28

5. Press the Options button once the Select photos

screen is displayed.

6. Select DPOF.

7. Load appropriate paper.

& See “Loading Paper” on page 5

8. Press the x Color or x B&W button (for Custom

Print only) to start printing.

Note:

If you need to stop printing, press the y Stop button.

Printing with Photo Frames

You can add colorful and creative frames to your

favorite photographs by editing frames using the PIF

DESIGNER software and saving them with the

EPSON PRINT Image Framer Tool software. Choose

from a variety of ready made frames in the software

CD-ROM and save the frames to a memory card in

advance. For details, see the documentation of each

application.

Printing a list of all frame data

You can print the thumbnails and filenames of your

PRINT Image Framer data for checking before

printing photos with frames.

1. Load a memory card containing PRINT Image

Framer data.

2. Press the Memory Card button.

3. Select Custom Print.

4. Select P.I.F. Index.

5. Load A4 plain paper into the front tray.

& See “Loading A4 plain paper into the front

tray” on page 5

6. Press the x Color button.

Note:

If you need to stop printing, press the y Stop button.

Back OK

Back OK

Back OK

Back OK

Printing Directly from a Memory Card – Printing Options 27

English

Printing photos with PRINT Image

Framer

1. Load a memory card containing photo data and

PRINT Image Framer data.

Note:

Be sure to save the PRINT Image Framer data to the

memory card using the EPSON PRINT Image

Framer Tool; otherwise the P.I.F. file name will not

appear on the LCD panel.

2. Press the Memory Card button.

3. Select Custom Print.

4. Select Photo (Single)or Photo (Multi).

5. Select the P.I.F. file name that you want to add

as the Layout setting in the Print Settings menu.

& See “Changing Print Settings” on page 28

Note:

When you select a P.I.F. file name as the layout, the

paper size is set automatically to fit to the frame size.

6. Select the photo which you want to print and set

the number of copies.

& See “Changing the View of Photos on the LCD

Panel and Selecting Photos” on page 18

7. Confirm the layout and number of prints on the

LCD panel.

8. Load appropriate paper.

& See “Loading Paper” on page 5

9. Press the x Color button or x B&W button to

start printing.

Note:

If you need to stop printing, press the y Stop button.

Back OK

Back OK

28 Printing Directly from a Memory Card – Printing Options

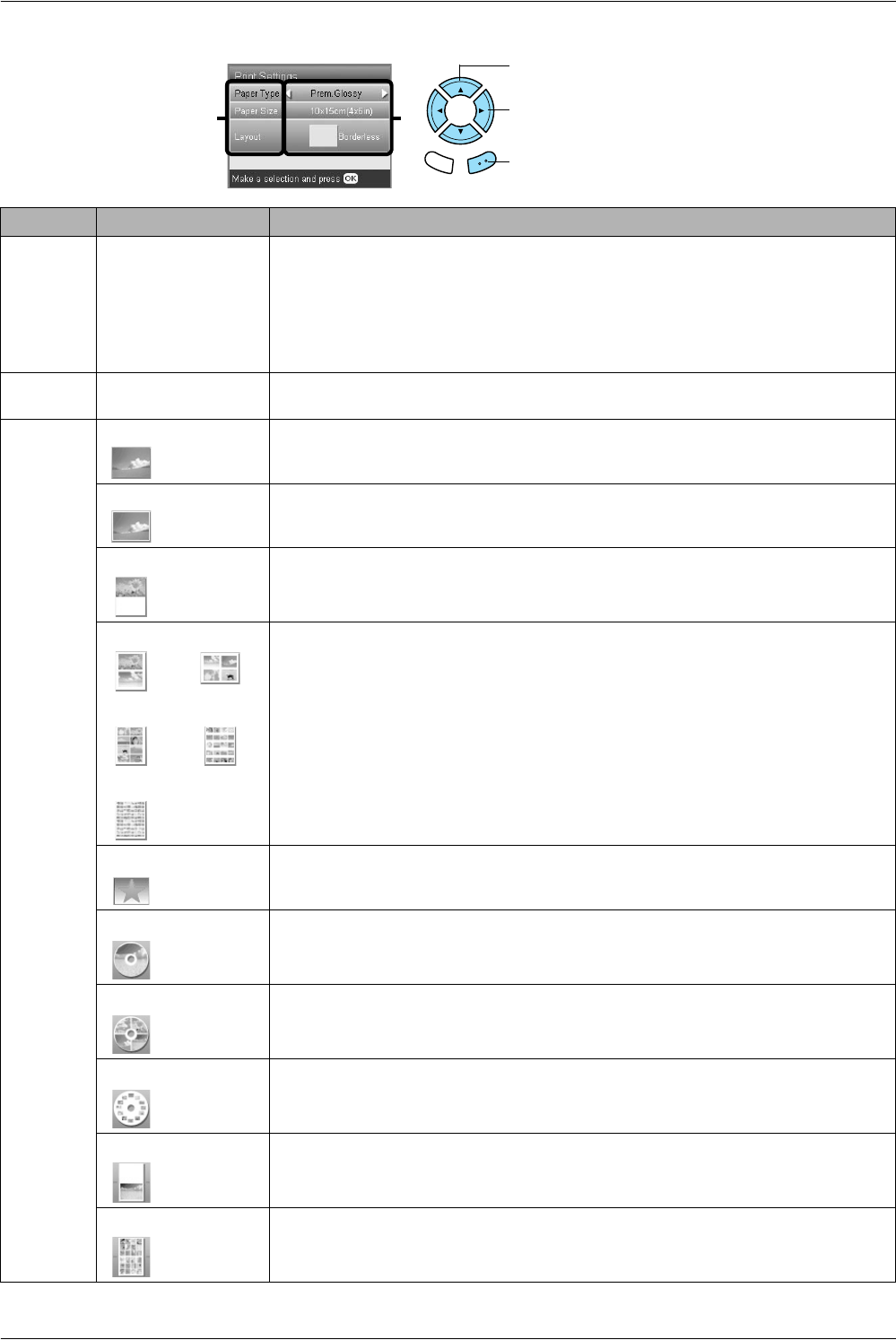

Changing Print Settings

Menu Item Setting Item Description

Paper Type Plain (Front), Plain

(Back), Prem.Glossy,

GlossyPhoto,

SemiGloss, Photo

Paper, Matte, Bright

White (Front), Bright

White (Back), CD/DVD

Prints in the paper type you select.

See page 7 for detailed settings.

Paper Size A4, A6, 10 ×15 cm

(4 ×6 in), CD

Sets the paper size for printing.

Layout Borderless* Prints without margin.

with Border Prints with a 3 mm margin along the top, bottom, and on both sides.

Upper1/2 Prints on upper half part of paper.

2-up

8-up

80-up

4-up

20-up

Prints multiple photos on one sheet. In 20-up and 80-up layout, the numbers and shooting

dates are printed.

The size of each photo is adjusted automatically according to the number of photos to

print and the size of paper.

You cannot print in black and white in 80-up layout.

Note:

When Crop is selected, copies of the same photo are printed to the selected layout on

a single sheet of paper. A single copy of the photo is printed when anything other than

the Crop is selected.

P.I.F. file name Prints photos with a PRINT Image Framer Tool frame.

1-up Prints one photo on the CD/DVD, centered on the hole in the middle of the disc.

You can select this option only when CD/DVD is selected in the Memory Card Custom

Print screen.

4-up Prints four photos on the CD/DVD, with one image in each of the four quarters.

You can select this option only when CD/DVD is selected in the Memory Card Custom

Print screen.

12-up Prints 12 photos on the CD/DVD, arranged in a circle around the outer edge of the disc.

You can select this option only when CD/DVD is selected in the Memory Card Custom

Print screen.

Jewel Case Upper 1/2 Prints a photo into one side of the CD case.

You can select this option only when CD Jacket is selected in the Memory Card Custom

Print screen.

Jewel Case Index Prints multiple photos into the CD case.

You can select this option only when CD Jacket is selected in the Memory Card Custom

Print screen.

1. Select the Menu Item.

3. Press the OK button.

2. Select the Setting Item.

Back OK

12

Printing Directly from a Memory Card – Printing Options 29

English

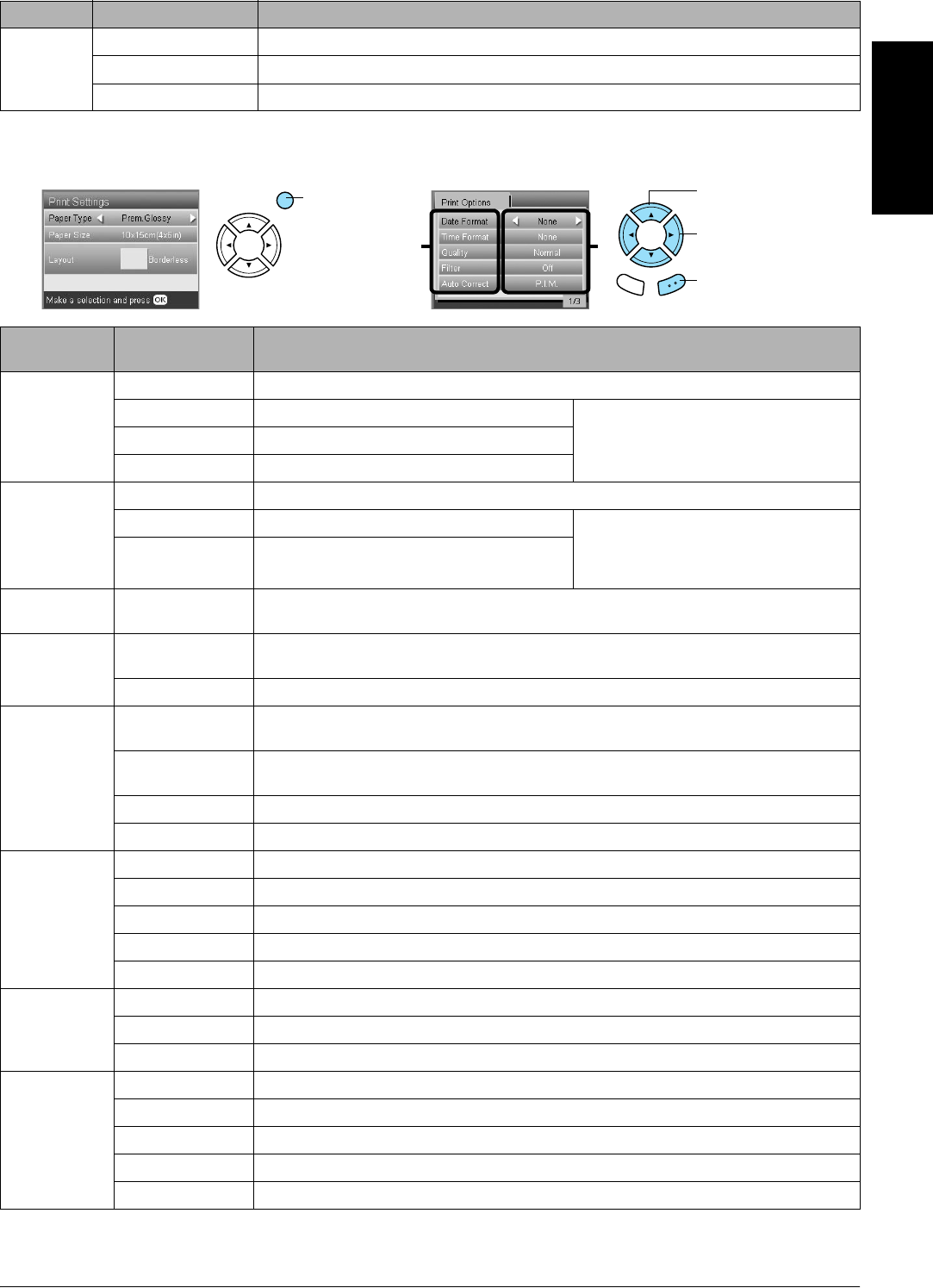

Print detail settings

Density

(only for

CD/DVD)

Normal Makes no adjustment.

Darker Makes printouts slightly darker.

Darkest Makes printouts very dark.

Print Options

Item

Setting Item Description

Date Format

Prints the

shooting date.

None* Prints with no date information.

yyyy.mm.dd e.g. 2005. 05. 15 The date is not printed when printing

images that have already been scanned

and saved to the memory card using this

product.

mmm.dd.yyyy e.g. May. 15. 2005

dd.mmm.yyyy e.g. 15. May. 2005

Time Format

Prints the

shooting time.

None* Prints with no time information.

12-hour system e.g. 10:00 The time is not printed when printing

images that have already been scanned

and saved to the memory card using this

product.

24-hour system e.g. 22:00

Quality Normal, Photo*,

Best Photo

Sets the print quality.

Filter Off* Does not print in sepia tone, but in color or gray scale. If you select Off, P.I.M. is

automatically set as Auto Correct.

Sepia Prints in sepia tone. If you select Sepia, PhotoEnhance is automatically set as Auto Correct.

Auto Correct P.I.M.* Prints using the PRINT Image Matching function. If the photo data does not include P.I.M.,

try printing with PhotoEnhance.

PhotoEnhance Prints enhanced images automatically.

It requires longer time, but gives better quality.

Exif Prints using the Exif Print function. It provides you with high-quality printouts.

None Prints with no automatic correction.

Brightness Darkest Makes printouts very dark.

Darker Makes printouts slightly darker.

Standard* Makes no adjustment.

Brighter Makes printouts slightly brighter.

Brightest Makes printouts very bright.

Contrast Highest Makes contrast of printouts very strong.

Higher Makes contrast of printouts slightly stronger.

Default* Makes no adjustment.

Sharpness Sharpest Makes the outline of subjects very sharp.

Sharper Makes the outline of subjects slightly sharper.

Default* Makes no adjustment.

Softer Makes the outline of subjects slightly softer.

Softest Makes the outline of subjects very soft.

Menu Item Setting Item Description

23

1. Press the

Options button.

2. Select the Print

Options Item.

3. Select the

Setting Item.

4. Press the

OK button.

Back OK

30 Printing Directly from a Memory Card – Printing Options

* Indicates the default setting.

Print Options

Item

Setting Item Description

Saturation Lowest Makes printouts very dull.

Lower Makes printouts slightly duller.

Default Makes no adjustment.

Higher Makes printouts slightly more vivid.

Highest Makes printouts very vivid.

Small Image On Interpolates image resolution (and removes)

noise. (Printing speed is slow.)

This feature is not available when None is

selected as the Auto Correct setting.

Off* Interpolates image resolution (but does not

remove) noise.

Print Info. Off* Prints with no information.

On Also prints information about the photo taken.

Fit to Frame On Automatically trims the areas of an image that extend beyond the margins of the selected

print size. Either the top and bottom, or the left and right areas of photo is trimmed,

depending on the aspect ratio of the original photo and the selected print size.

Off* Does not trim the image.

Bidirectional On* Faster (Printing quality is normal.)

By turning this function on, you can perform bidirectional printing (printing from right to left

and from left to right).

Off Slower (Printing quality is fine.)

Printing from Film 31

English

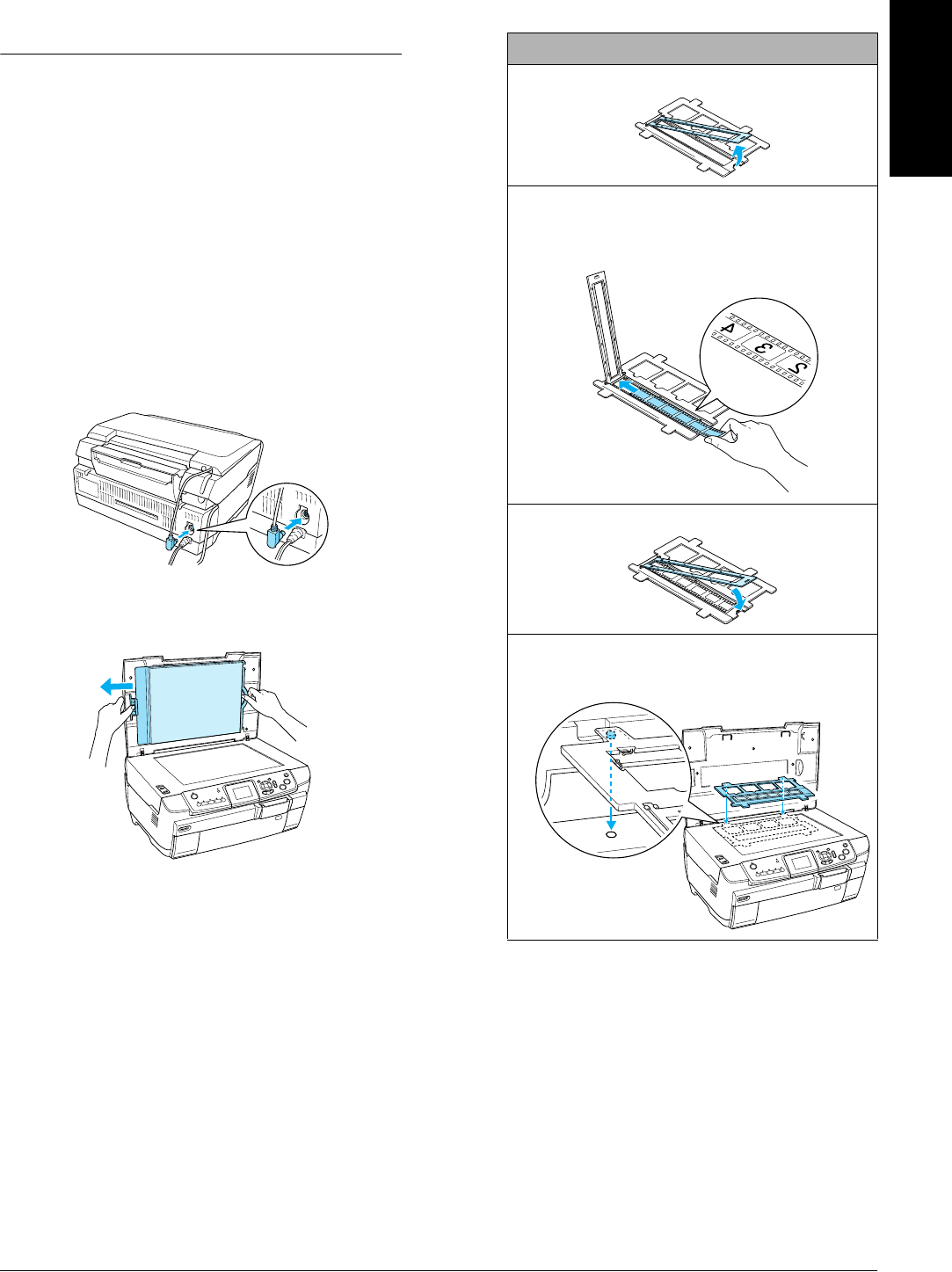

Printing from Film

Loading and Setting Film on the

Document Table

cCaution:

Hold the film at its edges, or else use gloves.

Touching the film surface with bare hands can

leave fingerprints or other traces on the film.

Note:

Wipe the inside of the document cover and the document

table before scanning transparencies.

1. Make sure the document cover’s cable is

connected to the TPU interface connector and

open the document cover.

2. Remove the reflective document mat gently

along the document cover.

3. Load the transparency into the film holder and

position it on the document table. Follow the

instructions below as appropriate to your film.

35 mm film strips

1 Open the film cover.

2 Set the film into the film holder, flush with the edge

and with the front side down. the front side of the

film is the side where the film maker's name and

film ID numbers can be read correctly.

3 Close the film cover.

4 Place the film holder on the document table with

the side where the film is placed facing toward

you.

Top

Bottom

32 Printing from Film

Note:

❏There is a possibility that a film may not be

readable due to the difference of the pitch width

within 6 frames.

❏Do not press the glass of the document table with

too much force.

4. Close the document cover completely.

Note:

❏A newton ring (ring-shaped stripes pattern) may

appear in the scanned image. To remove the newton

ring, set the film with the base side facing up. See the

User’s Guide for detail.

❏When you are not using the film holder, you can store

it inside the document cover. See “Storing the Film

Holder” on page 34 for details.

Printing Basics to10 x 15 cm

Paper

You can print photos to 10 × 15 cm (4 × 6 in) paper

without altering any settings.

1. Load and set film on the document table.

& See “Loading and Setting Film on the

Document Table” on page 31

2. Press the Film button.

3. Select Basic Print.

4. Select the film type.

& See “Selecting the Film Type” on page 34

5. Select the desired photo and set the number of

prints.

6. Load appropriate paper.

& See “Loading Paper” on page 5

7. Press the x Color or x B&W button to start

printing.

Note:

If you need to stop printing, press the y Stop button.

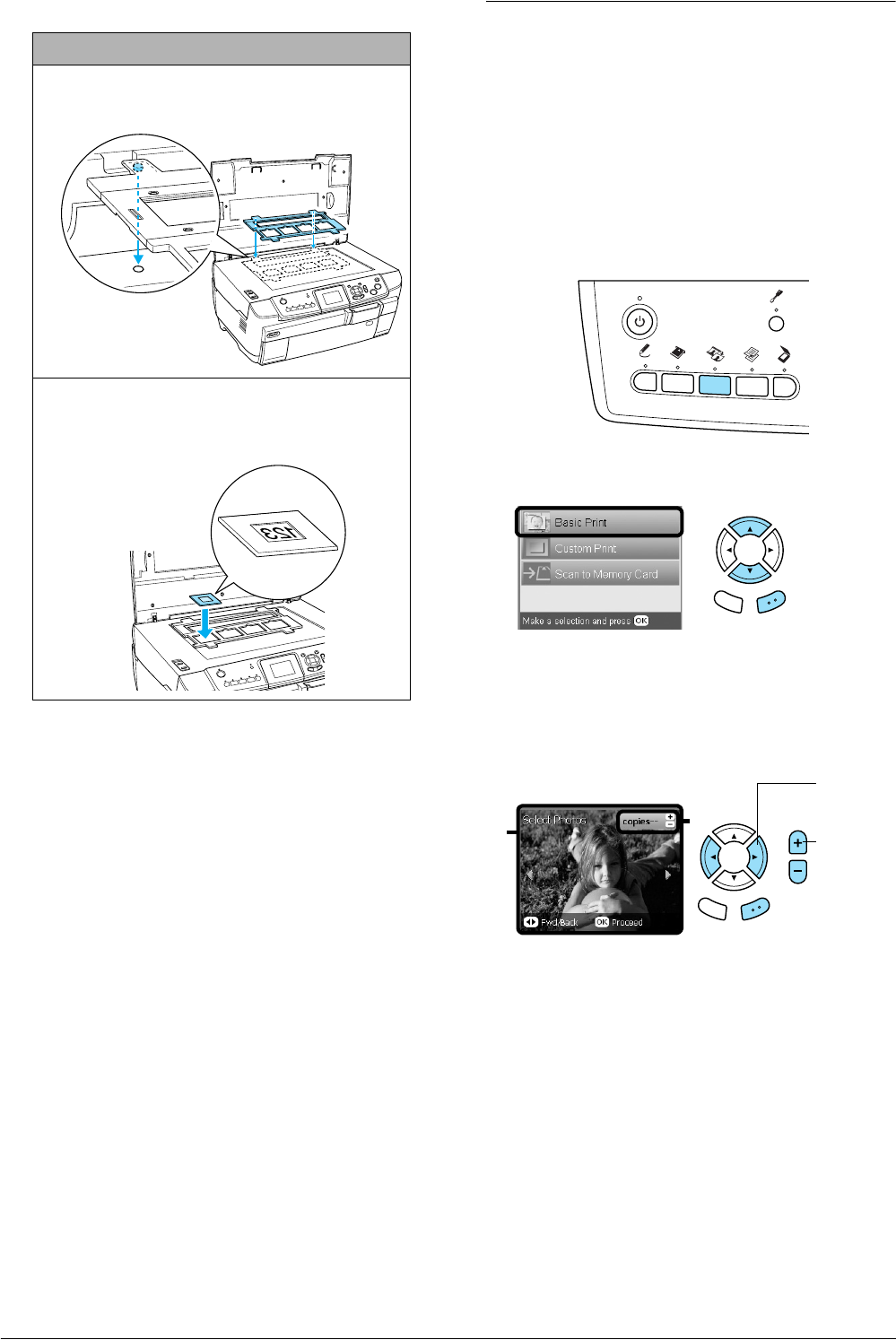

35 mm slides

1 Place the film holder on the document table with

the side where the slides will be placed facing

toward you.

2 Set the slides into the film holder with the base side

facing down. The base side of the film is the side

where the film maker's name and film ID numbers

can be read correctly.

Top

Bottom

Back OK

Back OK

12

2. Set the

number

of prints.

1. Select

the desired

photo.

Printing from Film 33

English

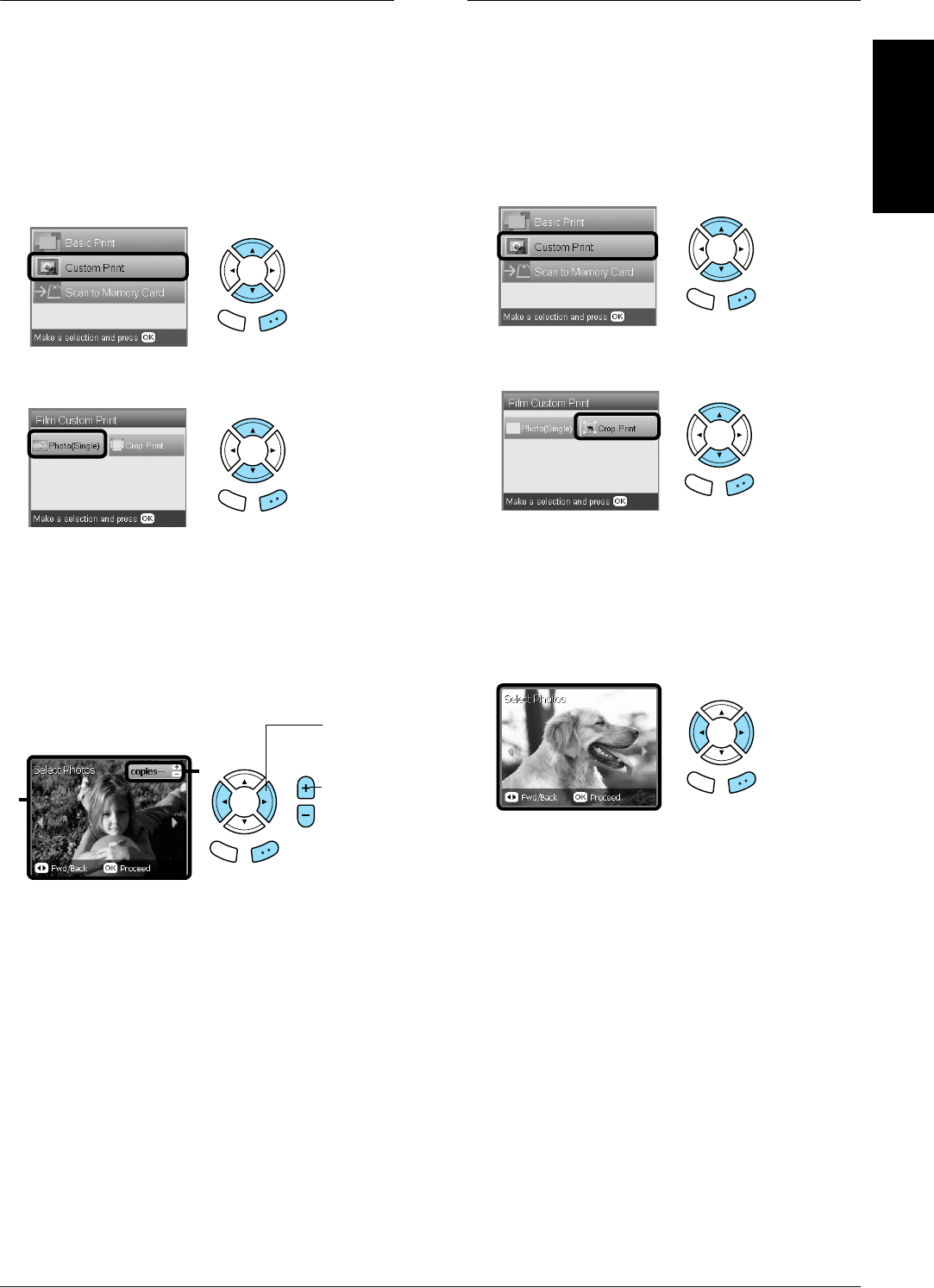

Printing a Single Photo

You can print photos to various size and types of

paper with the appropriate settings.

1. Load and set film on the document table.

2. Press the Film button.

3. Select Custom Print.

4. Select Photo (Single).

5. Change the print setting.

& See “Changing Print Settings” on page 34

6. Select the film type.

& See “Selecting the Film Type” on page 34

7. Select the desired photo and set the number of

prints.

8. Load appropriate paper.

& See “Loading Paper” on page 5

9. Press the x Color or x B&W button to start

printing.

Note:

If you need to stop printing, press the y Stop button.

Printing Enlarged Images

You can crop and enlarge photos from your film.

1. Load and set film on the document table.

2. Press the Film button.

3. Select Custom Print.

4. Select Crop Print.

5. Change the print setting if necessary.

& See “Changing Print Settings” on page 34

6. Select the film type.

& See “Selecting the Film Type” on page 34

7. Select the desired photo.

8. Set the area you want to crop by moving the

frame and changing the frame size.

& See step 7 in “Printing Enlarged Images” on

page 21

9. Confirm the preview image and set the number

of copies.

& See step 8 in “Printing Enlarged Images” on

page 21

Press the Back button when readjusting the

zoom area.

10. Load appropriate paper.

& See “Loading Paper” on page 5

11. Press the x Color or x B&W button to start

printing.

Note:

If you need to stop printing, press the y Stop button.

Back OK

Back OK

Back OK

1

2

2. Set the

number

of prints.

1. Select

the desired

photo.

Back OK

Back OK

Back OK

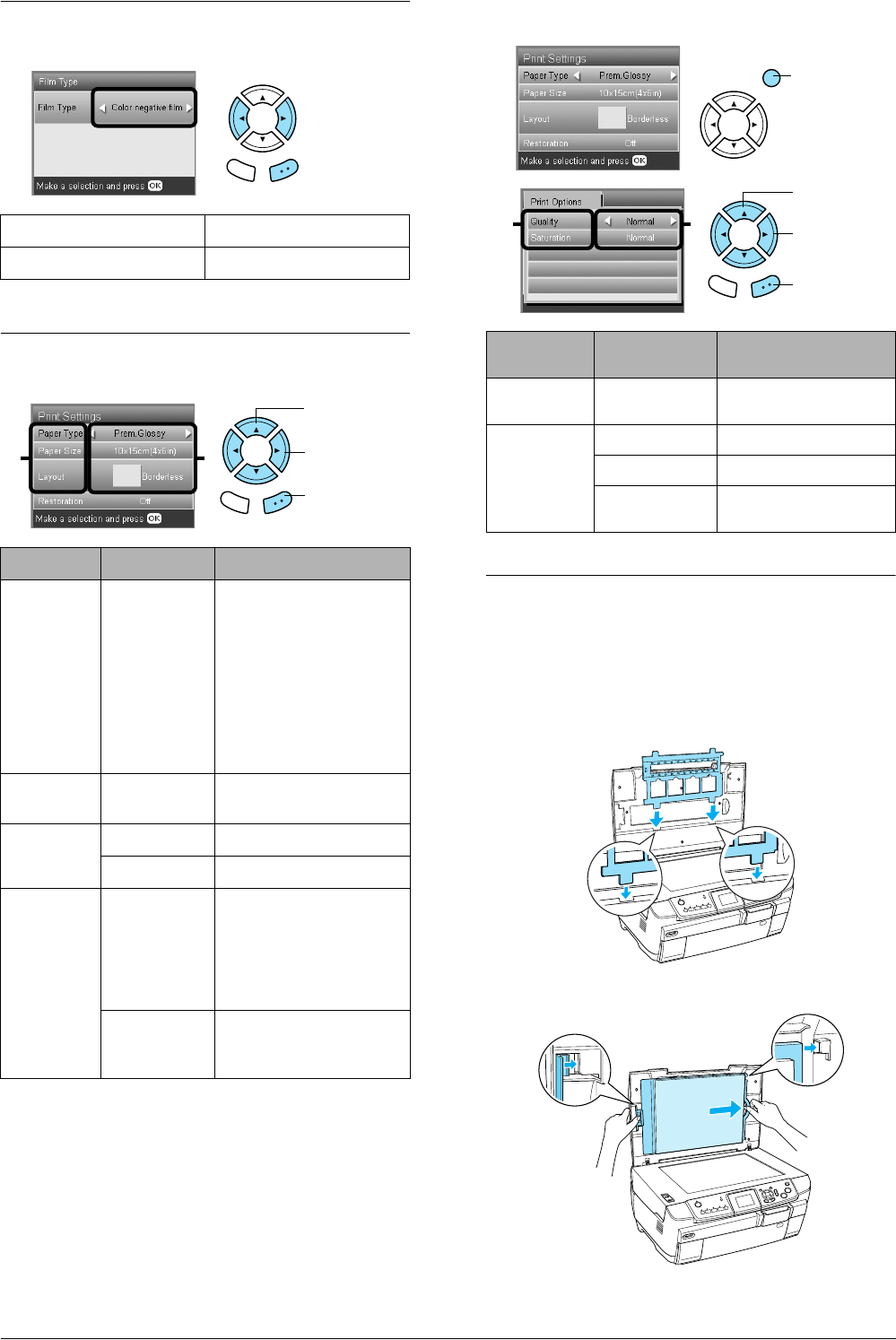

34 Printing from Film

Selecting the Film Type

Changing Print Settings

Print detail settings

Storing the Film Holder

When not using the film holder, you can store it

inside the document cover.

1. Open the document cover.

2. Slide the film holder into the document cover.

3. Insert the reflective document mat.

4. Close the document cover.

Color negative film Positive color film (strip)

Color slide B&W negative

Menu Item Setting Item Description

Paper Type Plain (Front),

Plain (Back),

Bright White

(Front), Bright

White (Back),

Photo Paper,

Prem.Glossy,

GlossyPhoto,

SemiGloss,

Matte

Prints in the paper type

you select.

See page 4 for detailed

settings.

Paper Size A4, 10 × 15

cm (4 × 6 in)

Prints in the paper size you

select.

Layout Borderless Prints without margin.

with Border Prints with margin.

Restoration ON Restores faded colors on

film and in photos.

Note:

This setting has no effect

when B&W negative is

selected as the Film Type.

OFF Leaves faded colors on

film and in photos as they

are.

Back OK

Back OK

1. Select the

Menu Item.

2. Select the

Setting Item.

3. Press the

OK button.

12

Print Options

Item

Setting Item Description

Quality Normal, Photo,

Best Photo

Prints in the quality

setting you select.

Saturation Less Saturation Makes printouts duller.

Normal Makes no adjustment.

More

Saturation

Makes printouts more

vivid.

1. Press the

Options button.

3. Select the

setting Item.

4. Press the

OK button.

3

Back OK

2

2. Select the

Menu Item.

Scanning to a Memory Card 35

English

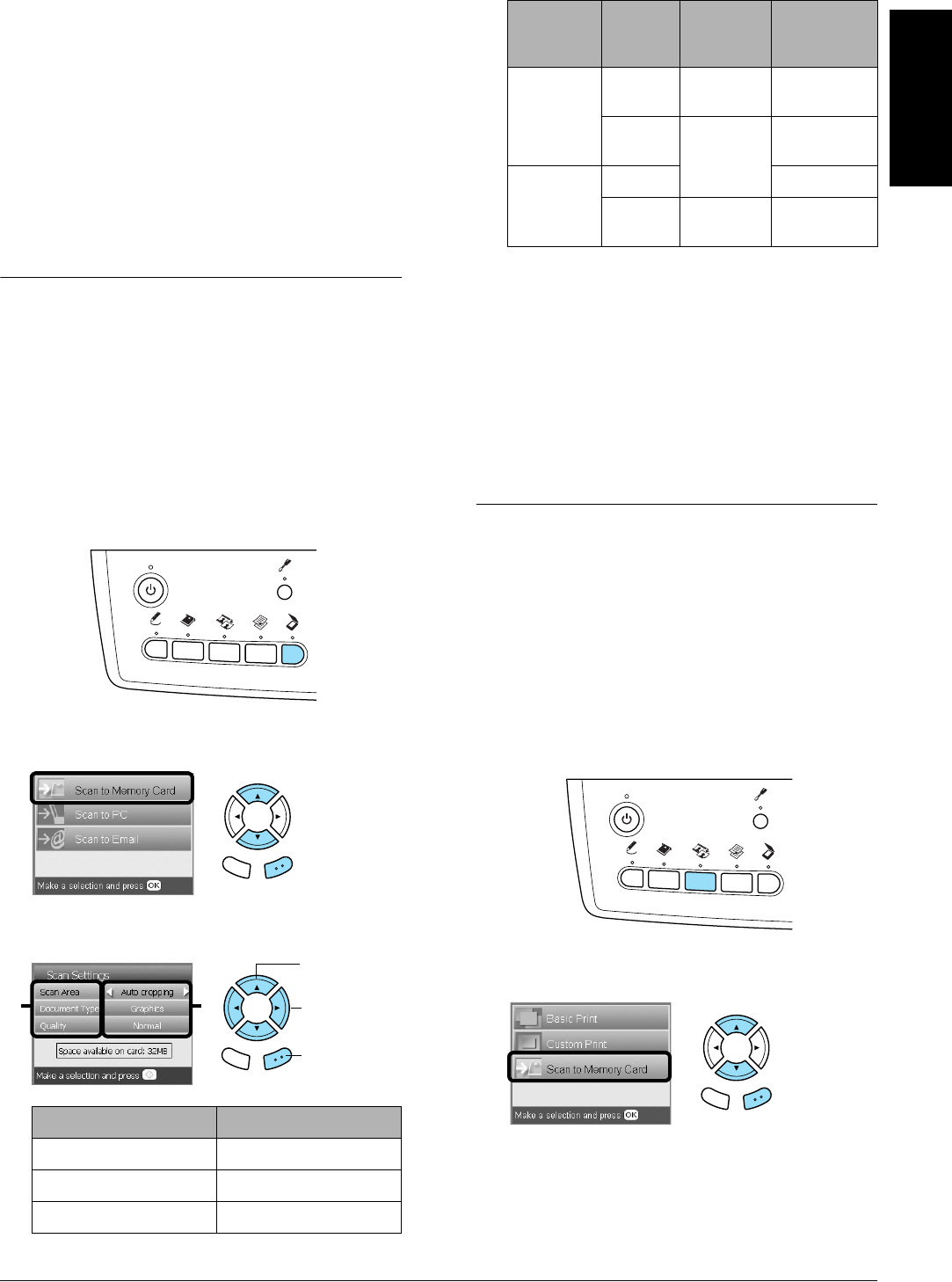

Scanning to a Memory

Card

Note:

❏For information on scanning images to a computer or

e-mail, see the User’s Guide.

❏The scanned images are saved in JPEG format to the

“epscan” folder which is automatically created when

you scan to a memory card.

Scanning and Saving a

document to a Memory Card

1. Place an original document on the document table.

& See “Placing a Photo or Document on the

Document Table” on page 7

2. Load a memory card.

& See “Inserting Memory Cards” on page 15

3. Press the Scan button to enter the Scan Mode.

4. Select Scan to Memory Card.

5. Select the appropriate scan settings.

Quality affects the file size of images as follows:

*A4, color document.

6. Press the x Color button to start scanning.

Note:

If you need to stop scanning, press the y Stop button.

cCaution:

Never open the scanner unit while scanning

as you may damage this product.

Scanning and Saving a film to a

Memory Card

1. Set a film on the document table.

& See “Loading and Setting Film on the

Document Table” on page 31

2. Load a memory card.

& See “Inserting Memory Cards” on page 15

3. Press the Film button to enter the Film Mode.

4. Select Scan to Memory Card.

5. Select the film type.

& See “Selecting the Film Type” on page 34

Setting Selection

Scan area Auto cropping, Max area

Document Type Text, Graphics

Quality Normal, Text and Image

Back OK

Back OK

1. Select the

Menu Item.

2. Select the

Setting Item.

21

3. Press the

OK button.

Docu-

ment

type

Quality Scanning

resolution

Approxi-

mate file

size*

Text Normal 200 × 200

dpi

300 KB

Text and


300 × 300

dpi

500 KB

Graphics Normal 500 KB

Text and


300 × 300

dpi

3.0 MB

Back OK

36 Scanning to a Memory Card

6. Select the desired photo and enter the check

mark of the photo you want to save.

7. Select the Quality option by pressing the l/r

buttons.

Scan quality affects the file size of the images. Be

sure to leave enough space according to the

following table:

8. Press the x Color button to start scanning.

Note:

If you need to stop scanning, press the y Stop button.

Quality Scanning

resolution

Approximate

file size

Text 1200 ×1200 dpi 500 KB

Photo 2400 ×2400 dpi 4.5 MB

1. Select

the desired

photo.

2. Enter

the check

mark.

Back OK

12

Printing Directly from a Digital Camera 37

English

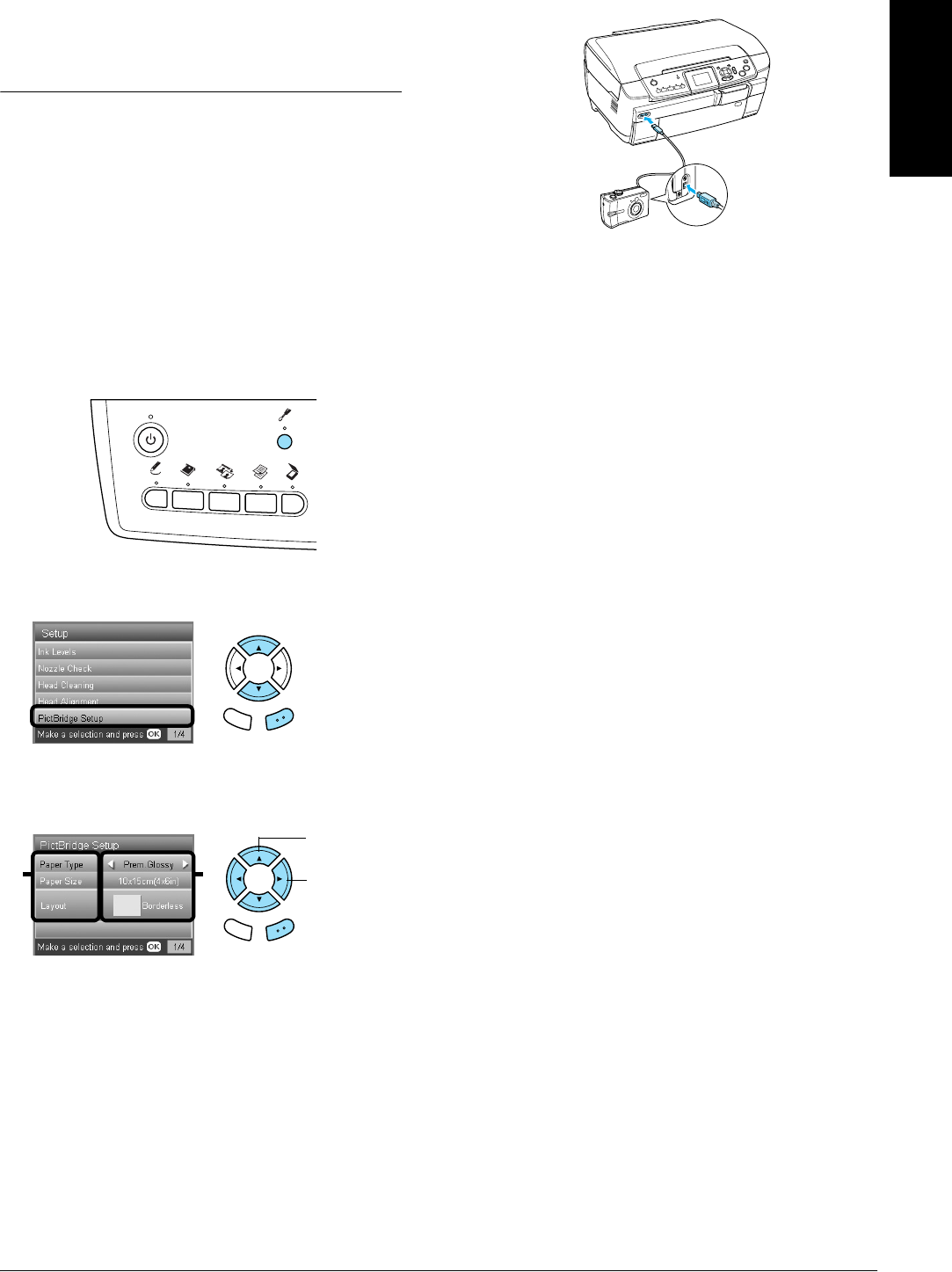

Printing Directly from a

Digital Camera

Printing Directly from a Digital

Camera

You can use this feature with digital cameras which

support the USB DIRECT-PRINT or PictBridge

functions. For more details on the operation of the

digital camera, refer to its manual.

1. Turn on this product.

2. Make sure that no memory card is loaded.

3. Press the Setup button.

4. Select PictBridge Setup.

5. Change the print setting if necessary.

& See “Changing Print Settings” on page 28

6. Turn on the digital camera, then connect this

product and the digital camera with a USB cable.

7. Use the digital camera to select the photo you

want to print. Be sure to make the desired print

settings on the digital camera because the digital

camera settings generally take precedence over

the print settings of this product. See your digital

camera's documentation for information on

more detailed settings.

8. Load appropriate paper.

& See “Loading Paper” on page 5

9. Print from the digital camera.

Note:

❏Some of the settings on your digital camera may

not be reflected in the output because of the

printer’s specifications.

❏You cannot print TIFF format image files. If you

wish to print TIFF files, print directly from a

memory card.

Back OK

Back OK

1. Select the

Menu Item.

2. Select the

Setting Item.

12

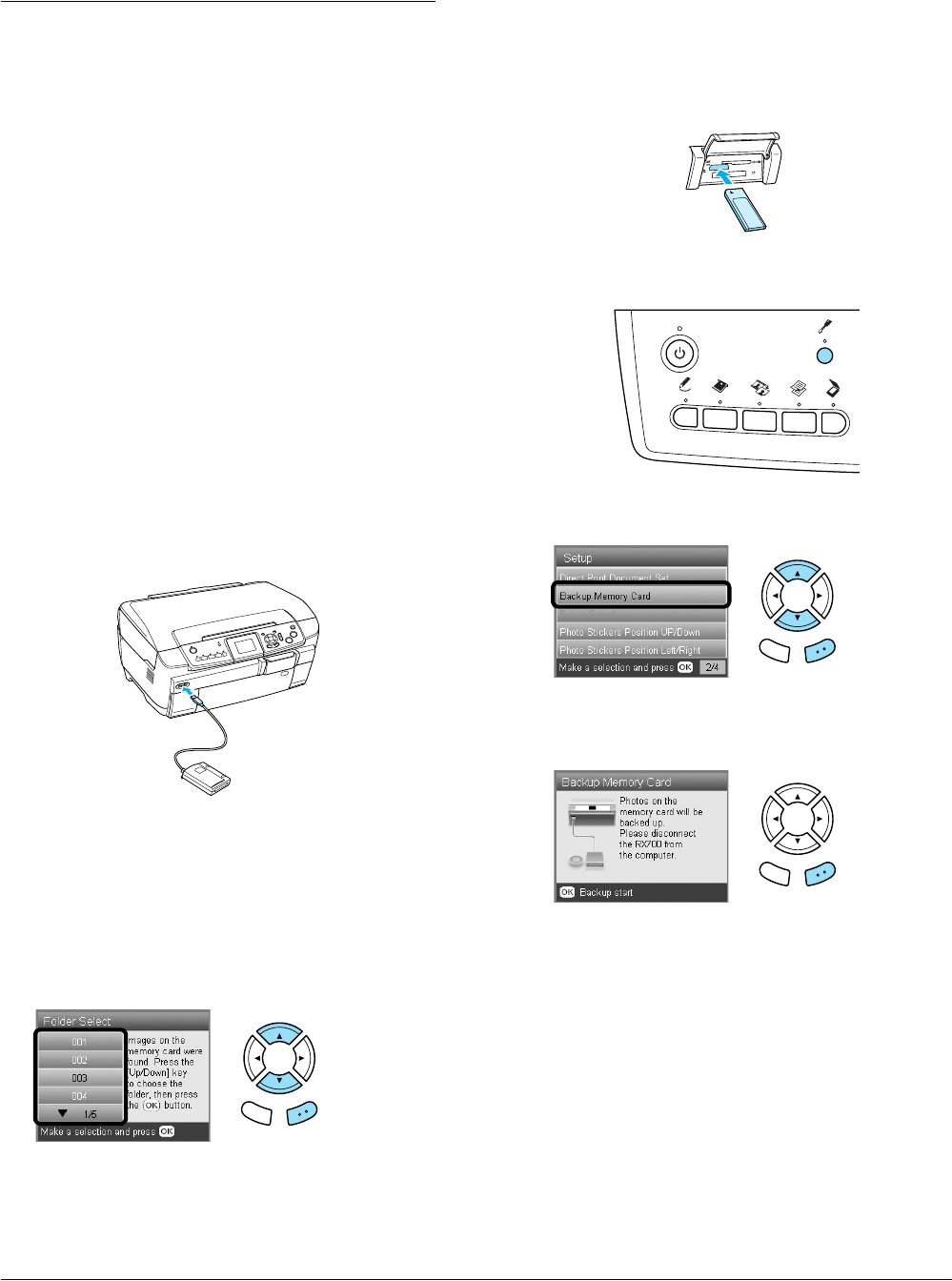

38 Printing Directly from an External Device

Printing Directly from an

External Device

Printing Directly from an External

Device

You can print images directly from an external

device such as an MO drive, CD-R drive or USB flash

drive, when connected to this product with a USB

cable.

Note:

❏This feature is only available with images that have

been backed up using this product. See “Copying

images from the memory card to an external device

(backup)” of the next section.

❏Not all of the devices that can be connected using a

USB cable are supported. Contact your regional

Customer Support for details.

1. Make sure that this product and the external

device are switched off and that no memory card

is loaded.

2. Use a USB cable to connect the external device to

this product then switch them both on.

When using a USB flash drive, insert the drive

directly into the USB port, and proceed to step 4.

3. Insert a medium that contains photo data into

the external storage device.

4. When the following screen is displayed, select

which folder to print from.

5. Follow the same procedure as when printing

from a memory card to perform printing.

Copying images from the memory

card to an external device

(Backup)

1. Follow steps 1 and 2 in “Printing Directly from

an External Device” in the previous section.

2. Insert a medium into the external device.

3. Load a memory card.

& See “Inserting Memory Cards” on page 15

4. Press the Setup button.

5. Select Backup Memory Card.

6. Confirm the following message, then press the

OK button.

7. Press the OK button again to start the backup.

Back OK

Back OK

Back OK

Replacing Ink Cartridges 39

English

Replacing Ink Cartridges

Choosing Ink Cartridges

You can use the following cartridges with this

product.

cCaution:

Epson recommends the use of genuine Epson ink

cartridges. Epson warranties do not cover damage

to your product caused by the use of ink cartridges

not manufactured by Epson.

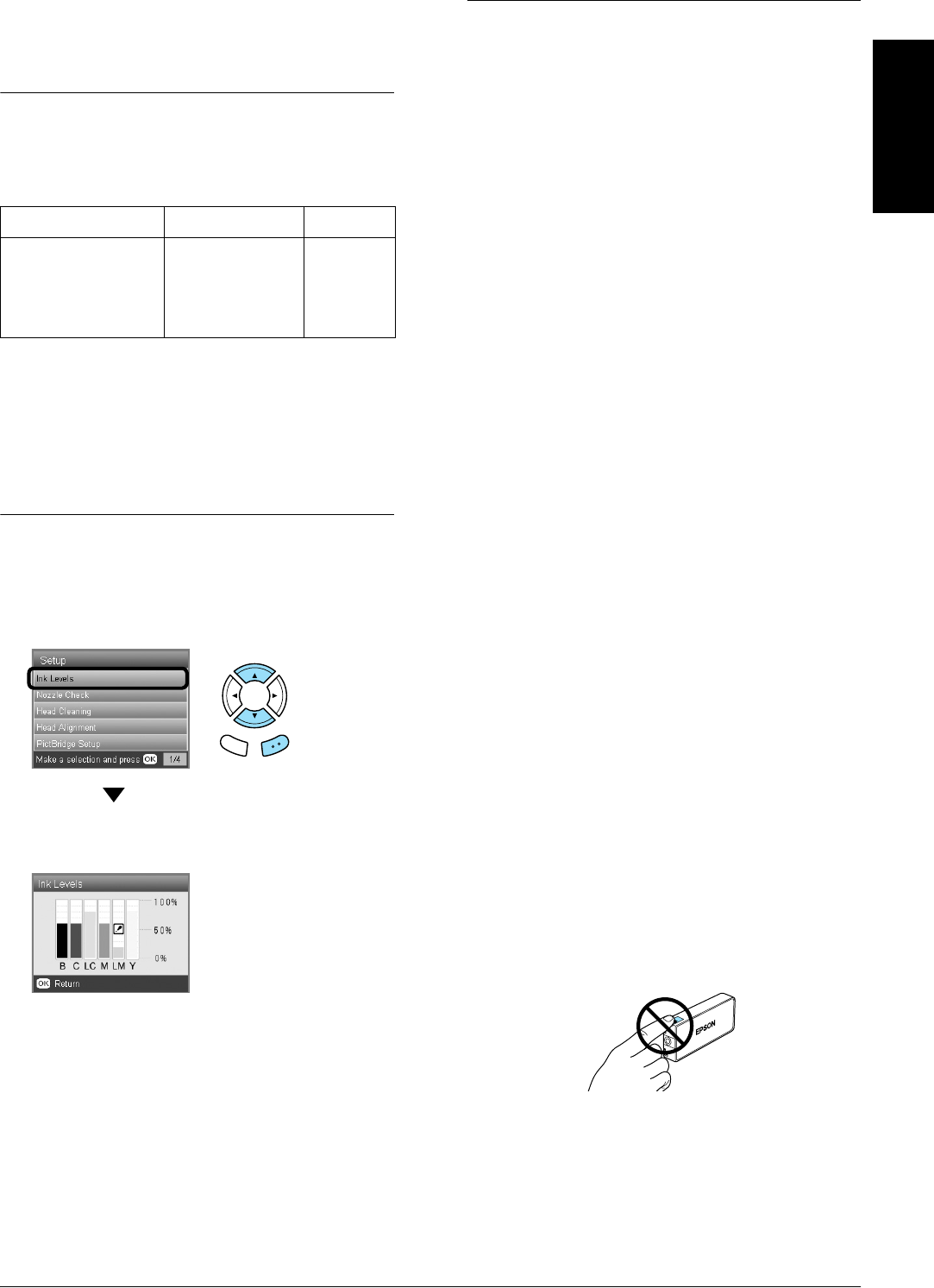

Checking the Ink Level

1. Press the Setup button.

2. Select Ink Levels.

The amount of ink appears.

3. Press the OK button to return to the previous

display once you have checked the ink level.

Precautions on Ink Cartridge

Replacement

❏If you need to remove an ink cartridge

temporarily from this product, be sure to protect

the ink supply area of the ink cartridge from dirt

and dust. Store the ink cartridge in the same

environment as this product.

❏The valve in the ink supply port is designed to

contain any excess ink that may be released.

However, careful handling is recommended. Do

not touch the supply port of the ink cartridge or

its surrounding area.

❏This product uses ink cartridges equipped with

an IC chip. The IC chip accurately monitors the

amount of ink used by each cartridge, so even if

a cartridge is removed and then later inserted

again, all of its ink can be used.

❏When an ink cartridge becomes empty, you

cannot continue copying or printing even if the

other cartridges still contain ink. Before copying

or printing, replace the empty cartridge.

❏In addition to being used in document copying

or printing, ink is also consumed in the following

operations: print head cleaning, self-cleaning

cycle performed when this product is turned on,

and ink charging when an ink cartridge is

installed in this product.

❏Do not refill the ink cartridges. This product

calculates the amount of ink remaining using an

IC chip built into an ink cartridge. Even if the

cartridge is refilled, the amount of ink remaining

is not recalculated by the IC chip and therefore

the amount of ink available for use does not

change.

❏After an ink cartridge is replaced, if the ink is low

it may become empty. When a message appears

to indicate the ink is low, prepare a new ink

cartridge.

❏Do not touch the green IC chip on the top of the

cartridge. This can damage the ink cartridge.

Black ink cartridge Black T5591

Color ink cartridge Cyan

Magenta

Yellow

Light cyan

Light magenta

T5592

T5593

T5594

T5595

T5596

Back OK

40 Replacing Ink Cartridges

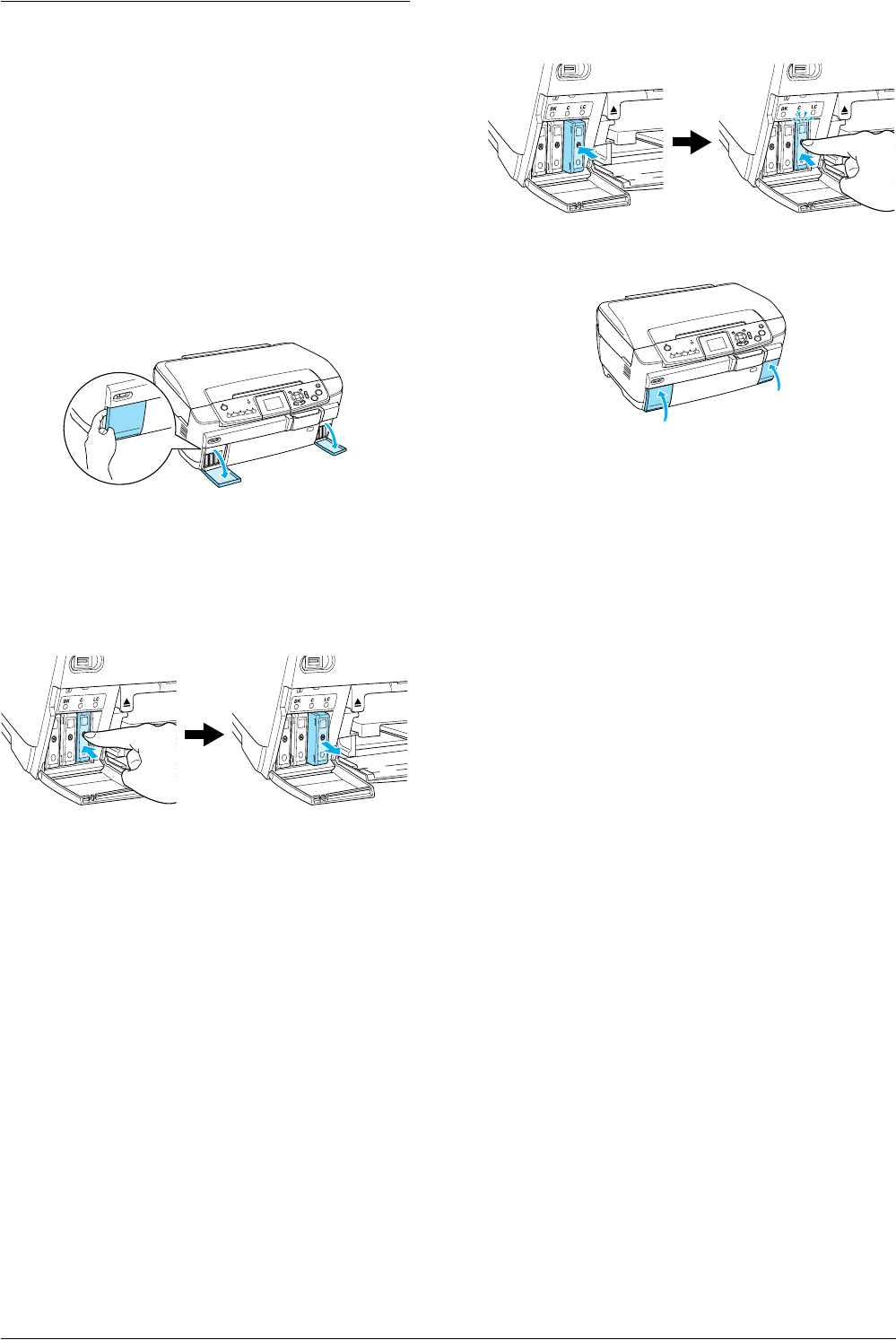

Replacing Ink Cartridges

Note:

Before replacing an ink cartridge, read “Precautions on

Ink Cartridge Replacement” on page 39 and “When

handling ink cartridges” on page 3.

1. When the ink is empty:

Refer to the LCD panel message to see which ink

cartridge is empty.

When the ink is low:

Proceed to the next step.

2. Open the cartridge covers.

3. Remove an ink cartridge from its package.

4. Gently push in on the ink cartridge that you

want to replace. Pull the cartridge out of this

product and dispose of it properly. Do not take

the used cartridge apart or try to refill it.

wWarning:

If ink gets on your hands, wash them

thoroughly with soap and water. If ink gets

into your eyes, flush them immediately with

water. If discomfort or vision problems

continue after a thorough flushing, see a

doctor immediately.

cCaution:

Leave the used ink cartridge installed until

just before replacement; otherwise, ink

remaining in the print head nozzles may dry

out.

5. Insert the new ink cartridge slowly until it clicks

into place.

6. Close the cartridge covers.

cCaution:

Never turn off this product while ink charging

in progress; Otherwise, this will cause

incomplete charging of the ink.

Note:

❏Do not repeatedly remove and reinsert the ink

cartridge once it is installed.

❏If you install a used ink cartridge with a low ink

level, it may become empty right after the

replacement. In this case, replace the ink

cartridge with a new one.

The illustration shows replacement of the light

cyan ink cartridge.

Maintenance and Transporting 41

English

Maintenance and

Transporting

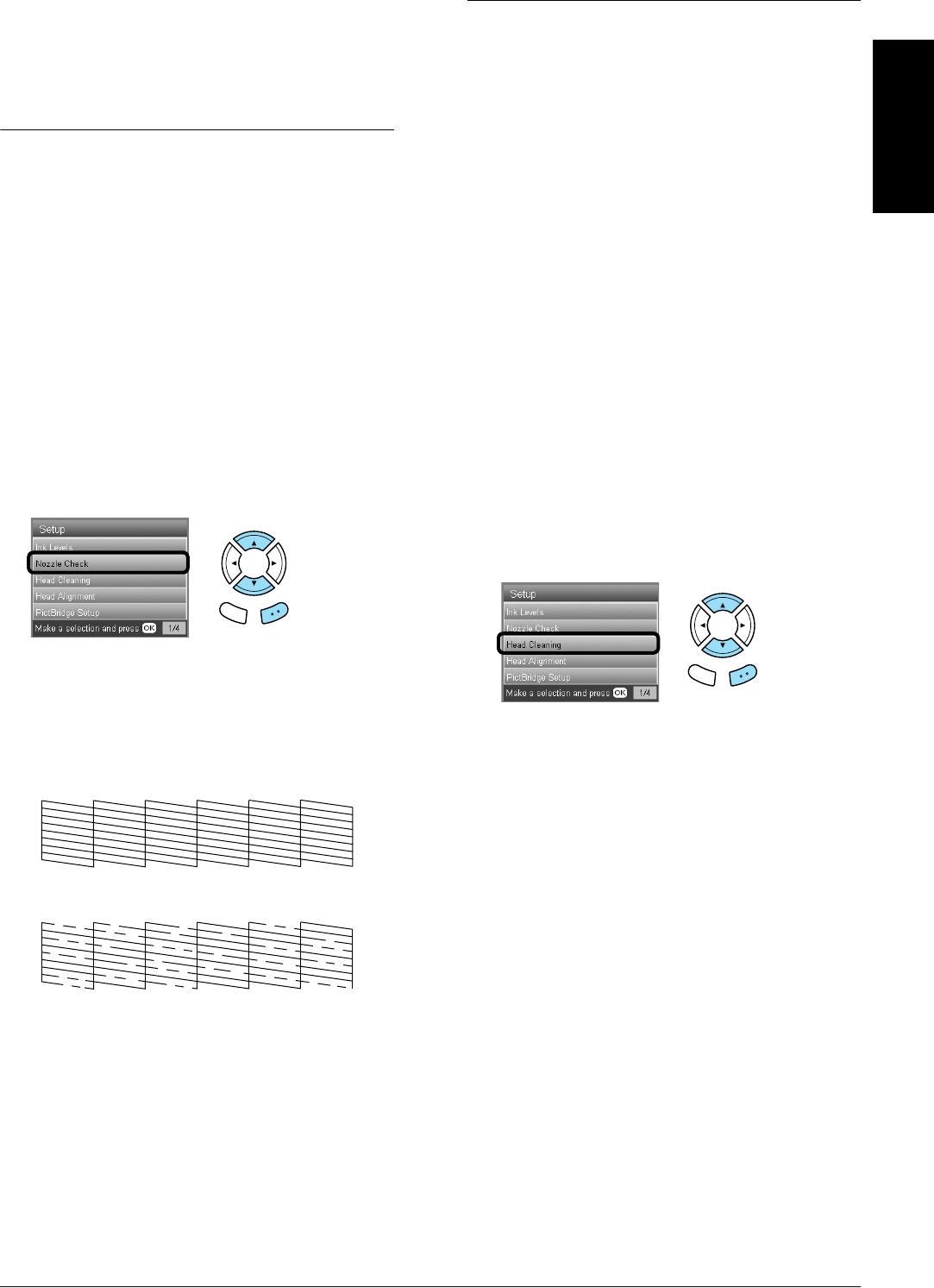

Checking the Print Head

Nozzles

If you find that the printed image is unexpectedly

faint or some dots in the printed image are missing,

checking the print head nozzles helps you to identify

the problem.

Note:

Make sure the CD/DVD tray is not inserted in this

product and the CD/DVD guide is closed before using the

Nozzle check utility.

1. Make sure that A4 paper is loaded in the front

tray and press the Setup button.

2. Select Nozzle Check.

3. Confirm the messages on the LCD panel, then

press the OK button to start the nozzle check.

4. Check the printout.

Good: print head does not need to be cleaned

yet.

Not Good: print head needs to be cleaned.

The actual printouts are printed in color (CMYK).

If the nozzle check result is not good, there may be a

clogged ink nozzle or a misaligned print head. To

solve these problems, press the OK button and

follow step 3 and 4 in “Cleaning the Print Head” of

the next section.

If the nozzle check result is good, press the Back

button to return to the Setup menu.

Cleaning the Print Head

If you find that the nozzle check result is

unexpectedly faint or some dots in the printed image

are missing, you may be able to solve these problems

by cleaning the print head, which ensures that the

nozzles are delivering ink properly.

Note:

❏Print head cleaning uses both color and black ink. To

avoid wasting ink, clean the print head only if the copy

or print quality drops (for example, blurred printout,

incorrect or missing color).

❏Before cleaning the print head, perform the nozzle

check first to see if it really needs to be cleaned. This

saves ink.

❏When a message appears on the LCD panel to prompt

you to replace the ink cartridge or to indicate the ink

is low, you cannot clean the print head. In this case,

replace the appropriate ink cartridge first.

❏Make sure the CD/DVD tray is not inserted in this

product before using the Head Cleaning utility.

1. Press the Setup button.

2. Select Head Cleaning.

3. Confirm the messages on the LCD panel, then

press the OK button to start head cleaning.

4. When Print head cleaning in progress.

disappears from the LCD panel, press the OK

button to perform the nozzle check to confirm

that the head is clean and to reset the cleaning

cycle. See “Checking the Print Head Nozzles” of

the previous section.

cCaution:

Never turn off this product while Head

cleaning is in progress. Doing so may damage

this product.

Back OK

Back OK

42 Maintenance and Transporting

Note:

❏If the print quality has not improved after

repeating this procedure four or five times, turn

this product off and leave it alone overnight.

Then, perform the nozzle check again and repeat

head cleaning if necessary.

❏If the print quality still has not improved, one or

more of your ink cartridges may be old or

damaged and may need to be replaced. To replace

an ink cartridge, see “Replacing Ink Cartridges”

on page 40.

❏To maintain good print quality, we recommend

printing a few pages at least once every month.

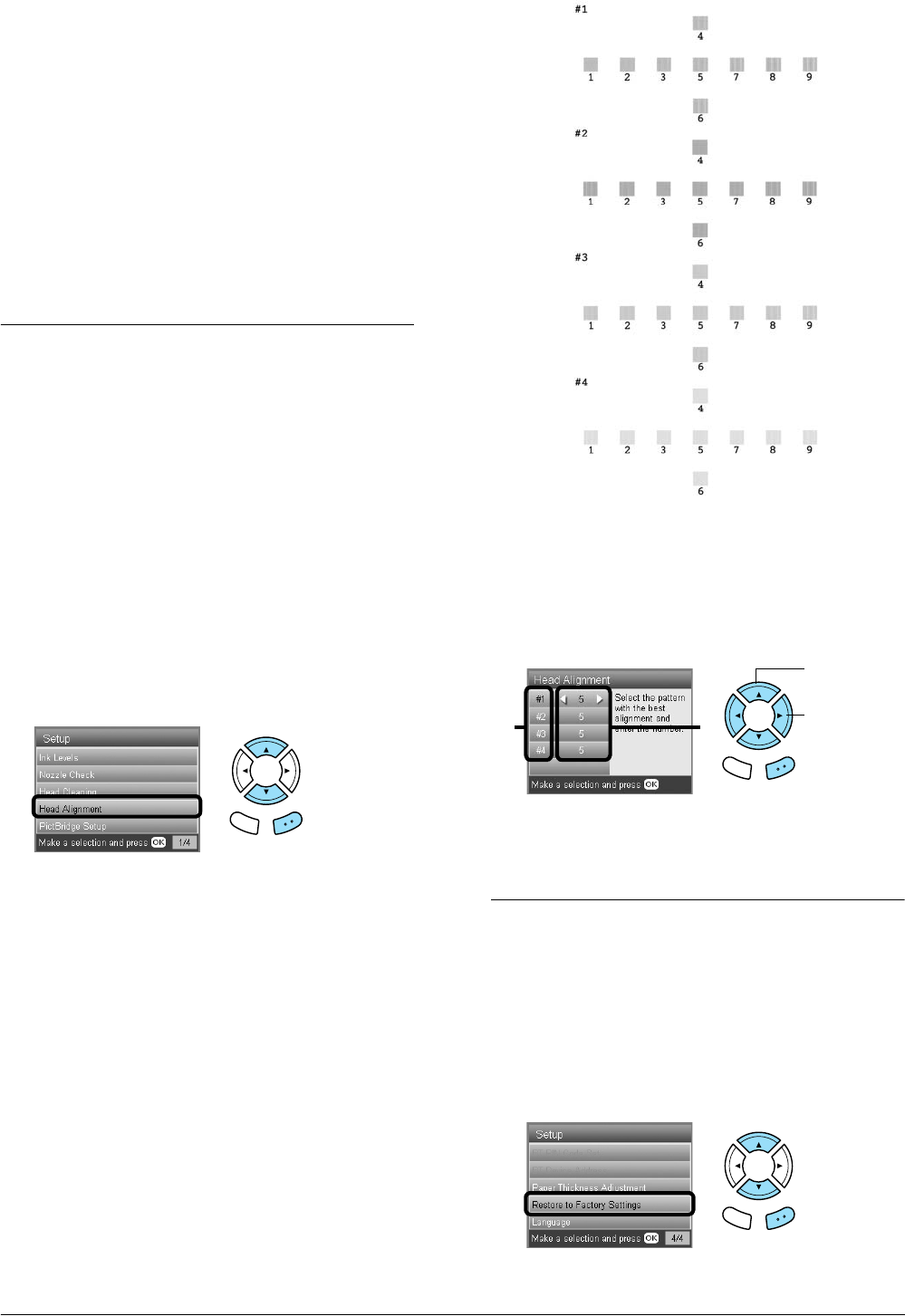

Aligning the Print Head

If you notice vertical lines are not aligned properly

on the nozzle check result, you may be able to solve

this problem by aligning the print head.

Note:

❏Do not press the y Stop button to cancel printing

while printing an alignment pattern.

❏Make sure the CD/DVD tray is not inserted in this

product and the CD/DVD guide is closed before using

the print head alignment utility.

1. Make sure that A4 paper is loaded in the front

tray and press the Setup button.

2. Select Head Alignment.

3. Confirm the messages on the LCD panel, then

press the OK button to start head alignment.

4. The following alignment sheet is printed.

5. Look at the alignment pattern in each set and

find the patch which is most evenly printed, with

no noticeable streaks or lines.

6. Select the set and the corresponding line number

and press the OK button.

7. Press the OK button to finish.

Restoring Factory Settings

This resets all the settings to default. If you use this

function, the setting values for each mode will be

reset to the values which were preset at the factory.

1. Press the Setup button.

2. Select Restore to Factory Settings.

Back OK

1. Select the

set.

2. Select the

corresponding

line number.

21

Back OK

Back OK

Maintenance and Transporting 43

English

3. After confirming the message on the LCD panel,

press the OK button to restore the settings.

All the settings are restored to their defaults.

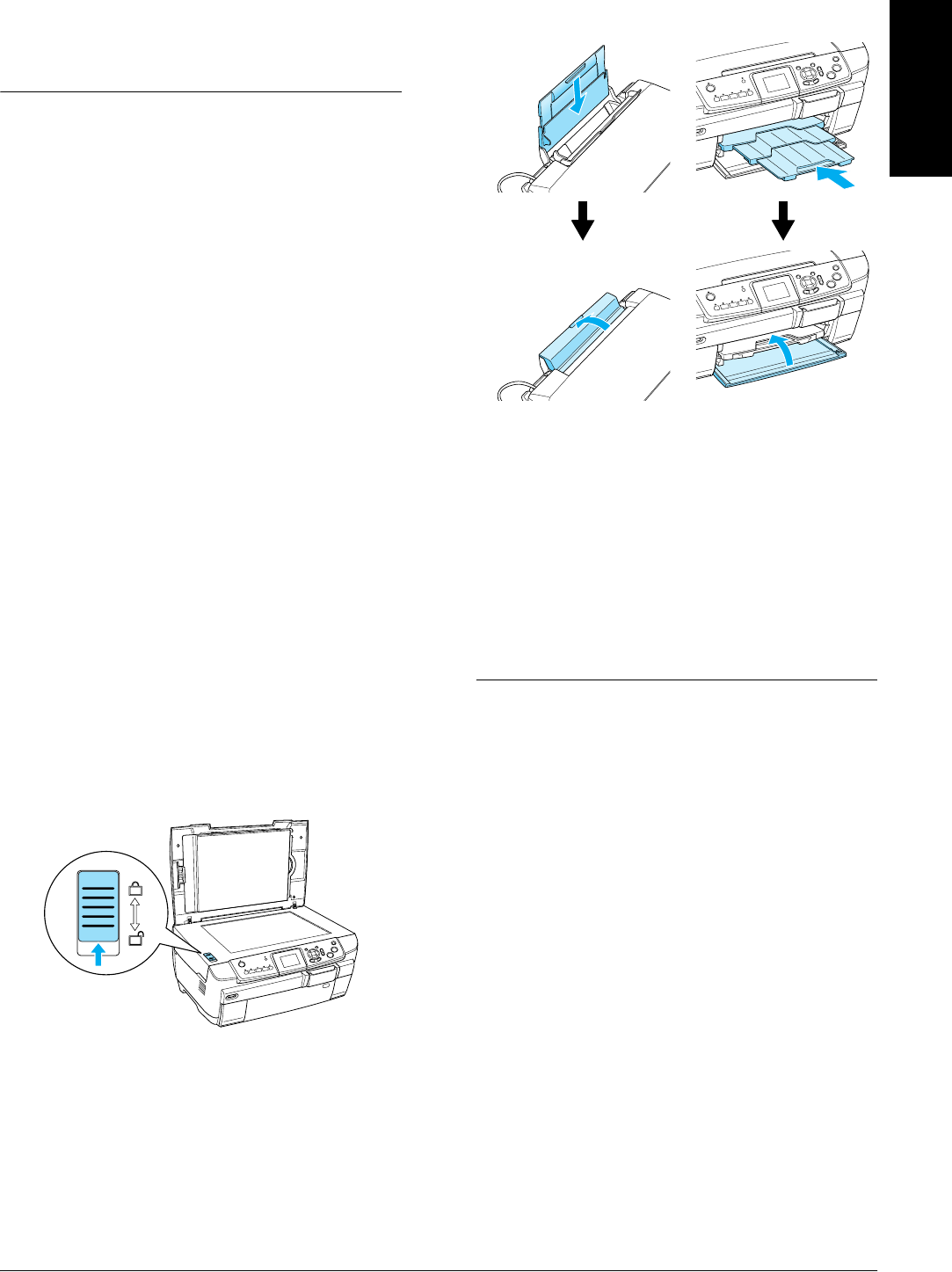

Transporting This Product

If you need to transport this product, carefully

repack it using the original box (or a similar box that

this product fits snugly into) and packing materials

as follows:

cCaution:

❏When storing or transporting this product, do

not tilt it, stand it on its side, or turn it upside

down. Otherwise ink may leak from the

cartridge.

❏Leave the ink cartridges in their installed

positions when transporting this product;

removing the cartridges for transportation

may damage this product.

Note:

Do not forget to remove the protective materials from this

product before using it again.

1. Remove all paper from the trays and make sure

that this product is off.

2. Open the scanner unit.

3. Make sure that the print head is in the home

position on the right.

4. Close the scanner unit.

5. Open the document cover and slide the

transportation clamp to lock the scanner

carriage.

6. Unplug the power cord from the electrical outlet.

7. Close the CD/DVD guide if it is open. And then

close the paper support, feeder guard, output

tray, and front tray.

8. Attach the protective materials to both sides of

this product, and then repack this product and

attachments in the box.

Note:

Be careful not to catch the document cover's cable on

anything.

9. Keep this product on a flat surface to protect it

from shocks during transportation.

Changing the language

displayed on the LCD panel

You can change the language displayed on the LCD

panel.

1. Press the Setup button.

2. Press the u or d button to select Language.

3. Press the u or d button to select the language

that you want to display, then press the OK

button.

44 Troubleshooting

Troubleshooting

Error Messages

You can diagnose and solve most problems by checking the error messages on the LCD panel. If you cannot solve

the problems by checking the messages, use the following table and try the recommended solution.

Note:

The solutions provided are for problems which may arise when using this product as a stand alone device. Refer to the Online

User’s Guide for detailed solutions regarding printing, scanning, print quality, or computer-related problems.

Clearing the Jammed Paper

If paper is jammed inside this product, an error message appears on the LCD panel. You may be able to clear the

jammed paper using the Control Panel. Follow the instructions below.

1. Press the xColor button to eject the jammed paper. If the jammed paper is not ejected, go on to the next step.

2. Locate where the paper is jammed.

If the paper is jammed at the paper feeding position, remove all of the paper by hand.

If the paper is jammed at the ejecting position, remove the output tray. Remove all of the paper by hand, and

then attach the output tray.

If the paper is jammed inside this product, press the P On button to turn off this product. Open the scanner

unit and the CD/DVD guide. Remove all of the paper inside by hand, including any torn pieces.

3. After clearing the jammed paper, close the scanner unit and the CD/DVD guide, and then press the P On

button.

4. Load a stack of paper in the front or back tray.

Error Messages Problem Solution

Printer error occurred. Please see

documentation.

An error has occurred in the

printer parts.

Turn this product off, and then back on. If the error

message still appears, contact your dealer.

Scanner error occurred. Please see

documentation.

An error has occurred in the

scanner parts.

Turn this product off, and then back on. Then make

sure the transportation lock is released. If the error

message still appears, contact your dealer.

Service required.

Parts inside your printer are at the

end of their service life. See your

printer's documentation for details.

Contact your dealer.

Service required.

Parts inside your printer are at near

end of their service life. See your

printer’s documentation for details.

Contact your dealer.

Format error. An error has occurred during

formatting.

Retry the procedure. If the error reoccurs, there may

be a problem with your memory card or storage

media. Check the media and try again.

Troubleshooting 45

English

The Copied Image Is Improperly

Sized

When Auto Fit Page is selected as the Zoom setting

on the LCD panel and the border of the original

document is white or very light, the size of the

original might not be recognized correctly. This may

cause the copied image to be improperly sized. To

correct this, select Actual as the Zoom setting and

then use the Optional zoom setting to adjust the size

of the copied image.

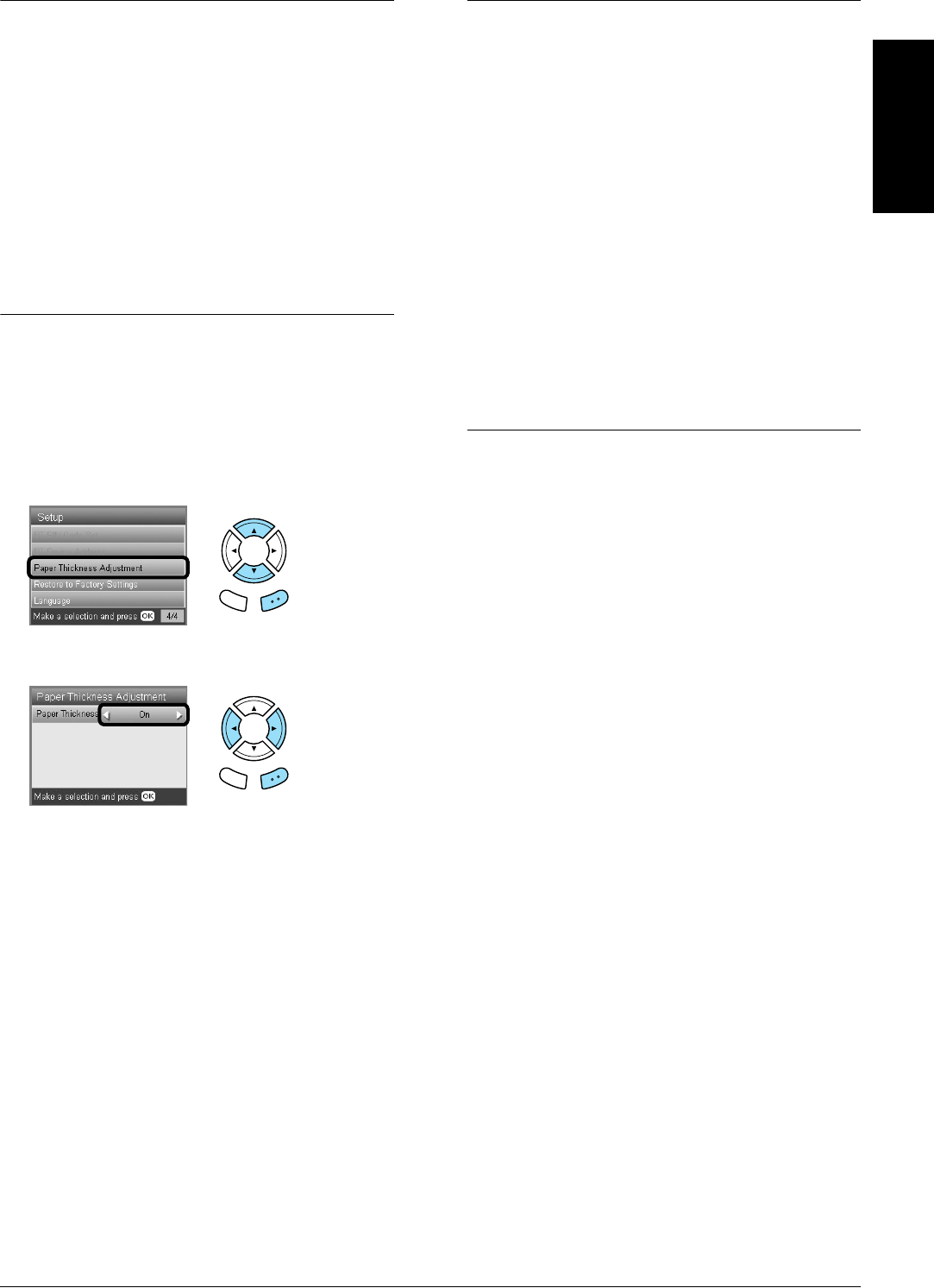

The Printout Is Blurry or Smeared

If the printout is blurry or smeared, adjust the paper

thickness.

1. Press the Setup button.

2. Select Paper Thickness Adjustment.

3. Select On.

Note:

The Paper Thickness Adjustment setting is set to On until

this product is turned off. The setting returns to Off the

next time this product is turned on.

A Message Prompting You to

Format the Memory Card

Appears

If the message prompts you to format the memory

card appears on the LCD panel, press the OK button

to format the memory card.

cCaution:

All data on a memory card is deleted when you

format the memory card.

Cancelling the format

Press the Cancel button to cancel format, and then

exchange it with a formatted one.

The Terms on the LCD Panel Are

Is Not Displayed in Your

Language

If the language displayed on the LCD panel is not the

one you want to display, select the language you

want from the Setup menu. See “Changing the

language displayed on the LCD panel” on page 43

for details.

Back OK

Back OK

46 Customer Support

Customer Support

Contacting Customer Support

If your Epson product is not operating properly and

you cannot solve the problem using the

troubleshooting information in your product

documentation, contact customer support services

for assistance. Check your Pan-European Warranty

Document for information on how to contact EPSON

Customer support. They will be able to help you

much more quickly if you give them the following

information:

❏Product serial number

(The serial number label is usually on the back

of the product.)

❏Product model

❏Product software version

(Click About, Version Info, or similar button in

the product software.)

❏Brand and model of your computer

❏Your computer operating system name and

version

❏Names and versions of the software applications

you normally use with your product

Technical Support Web Site

Go to http://www.epson.com and select the

Support section of your local EPSON web site for the

latest drivers, FAQs, manuals and other

downloadables.

Epson's Technical Support Web Site provides help

with problems that cannot be solved using the

troubleshooting information in your printer

documentation.

Product Specifications

Electrical

Note:

Check the label on the back of this product for the voltage

information.

Environmental

Mechanical

Printing

120V Model

Input voltage

range

100 to 120V

Rated frequency

range

50 to 60 Hz

Power

consumption

Approx. 25 W (Standalone copying

ISO10561 Letter pattern)

Approx. 2.5 W in sleep mode

Approx. 12.5 W in low power mode

Approx. 0.2 W in powered off mode

220-240V Model

Input voltage

range

220 to 240V

Rated frequency

range

50 to 60 Hz

Power

consumption

Approx. 25 W (Standalone copying

ISO10561 Letter pattern)

Approx. 2.5 W in sleep mode

Approx. 12.5 W in low power mode

Approx. 0.4 W in powered off mode

Temperature Operation:10 to 35°C (50 to 95°F)

Paper path Sheet feeder, front and back entry

Sheet feeder

capacity

Front:

About 150 sheets at 64 g/m² (17 lb)

paper

back:

About 120 sheets at 64 g/m² (17 lb)

paper

Dimensions 450 mm × 418 mm × 236 mm

(W × D × H, not including rubber feet

and loading tray)

Weight Approx. 12.9 kg (28.4 lb)

Printing method On-demand ink jet

Nozzle

configuration

Monochrome (black) 180 nozzles

Color (cyan, magenta, yellow, light

cyan, light magenta) 900 nozzles (180

nozzles per color × 5)

Product Specifications 47

English

Scanning

Paper

Note:

❏Since the quality of any particular brand or type of

paper may be changed by the manufacturer at any

time, Epson cannot guarantee the quality of any

non-Epson brand or type of paper. Always test a

sample of paper stock before purchasing large

quantities or printing large jobs.

❏Poor quality paper may reduce the print quality and

cause paper jams or other problems. If you have print

quality problems, switch to a higher grade paper.

❏Do not load curled or folded paper.

❏Use paper under normal conditions:

Temperature 15 to 25°C (59 to 77°F)

Humidity 40 to 60% RH

Memory card

Loadable memory card

* An adapter is required.

Note:

The method of using each memory card varies between

memory card types. Be sure to refer to the documentation

packaged with your memory card for details.

Available image files

* DCF stands for the “Design rule for Camera File system”

standard, which is set by the Japan Electronics and

Information Technology Industries Association (JEITA).

** Supports Exif Version 2.21.

Note:

You cannot print images with file names containing

double-byte characters.

Scanner type Flatbed color image scanner

Document size 8.5 × 11.7"(216 × 297 mm) A4 or US letter

size (The reading area can be

specified from your software.)

Scanning resolution 3200 dpi (main), 6400 dpi (sub)

Single sheets

Size A4 (210 ×297 mm), A5

(148 ×210 mm)

Paper types Plain bond paper, special paper

distributed by Epson

Thickness (for plain

bond paper)

0.08 to 0.11 mm (0.003 to 0.004 inch)

Weight (for plain

bond paper)

64 g/m² (17 lb) to 90 g/m² (24 lb)

Photo Quality Ink Jet Paper

Size A4 (210 ×297 mm)

Paper Types Special paper distributed by Epson

Bright White Ink Jet Paper

Size A4 (210 ×297 mm), A5 (148 ×210 mm)

Paper types Special paper distributed by Epson

Matte Paper - Heavyweight

Size A4 (210 ×297 mm)

Paper types Special paper distributed by Epson

Photo Paper

Size A4 (210 ×297 mm),

10 ×15 cm/4 ×6"(101.6 ×152.4 mm)

Paper types Special paper distributed by Epson

Premium Glossy Photo Paper

Size A4 (210 ×297 mm),

10 ×15 cm/4 ×6"(101.6 ×152.4 mm)

Paper types Special paper distributed by Epson

Premium Semigloss Photo Paper

Size A4 (210 ×297 mm),

10 ×15 cm/4 ×6"(101.6 ×152.4 mm)

Paper types Special paper distributed by Epson

Photo Stickers

Size A6 (105 ×148 mm)

Paper types Special paper distributed by Epson

Iron-on Cool Peel Transfer Paper

Size A4

Paper Types Special paper distributed by Epson

CD/DVD

Size 12-cm CD/DVD, 8-cm CD/DVD

Paper Types Printable CD/DVD

Memory Stick Memory Stick

Duo*

Memory Stick PRO

Memory Stick

PRO Duo*

MagicGate

Memory Stick

MagicGate

Memory Stick Duo*

SD Card miniSD Card* MultiMediaCard

CompactFlash Microdrive

SmartMedia xD-Picture Card

Media DCF compliant*

File format JPEG or TIFF format image files** taken with

a DCF compliant digital camera.

Image size Vertical 80 to 4600 pixels, horizontal 80 to

4600 pixels

Number of

files

Up to 999

48 Summary of Panel Settings

Summary of Panel Settings

Copy Mode

Zoom Setting

Detailed Settings for Copy Mode

Copy Layout Settings

Memory Card Mode

Custom Print Settings

Copies 1 to 99

Copy Layout Copy w/Borders, Borderless, CD

Copy

Paper Type Plain (Front), Plain (Back),

Prem.Glossy, GlossyPhoto,

SemiGloss, Matte, PQIJ,

Photo Paper, Bright White (Front),

Bright White (Back), Sticker,

CD/DVD

Paper Size A4, A5, A6, 10 ×15 cm (4 × 6 in)

Quality Draft, Text, Photo, Best Photo

Actual A4 -> A5

Auto Fit Page A5 -> A4

10 ×15 cm (4 × 6 in) -> A4 25% to 400%

A4 -> 10 ×15 cm (4 × 6 in)

More Layout

Copy Density

Reset Copies

Auto Document OFF, ON

Repeat Copy-Auto 2-up Copy

Repeat Copy-4 4-up Copy

Repeat Copy-9 Photo Stickers

Repeat Copy-16

Basic Print Index Sheet

Custom Print

Photo (Single) CD Jacket

Photo (Multi) Iron

Crop Photo Stickers

CD/DVD

Summary of Panel Settings 49

English

Print Setting for Memory Card Mode

Print Options for Memory Card Mode

Film Mode

Film Type Setting

Custom Print Settings

Print Settings for Film Mode

Paper Type Plain (Front), Plain (Back),

Prem.Glossy, GlossyPhoto,

SemiGloss, Photo Paper, Matte,

Bright White (Front), Bright White

(Back), CD/DVD

Paper Size A4, A6, 10 ×15 cm (4 × 6 in), CD

Layout Borderless, with Border,

Upper 1/2, 2-up, 4-up, 8-up,

20-up, 80-up, P.I.F. file name, 1-up

(CD/DVD), 4-up (CD/DVD),

12-up (CD/DVD)

Jewel Case Upper 1/2,

Jewel Case Index

Density

(only for CD/DVD)

Normal, Darker, Darkest

Date Format None, yyyy.mm.dd,

mmm.dd.yyyy, dd.mmm.yyyy

Time Format None, 12-hour system, 24-hour

system

Quality Normal, Photo, Best Photo

Filter Off, Sepia

Auto Correct P.I.M., PhotoEnhance, Exif, Off

Brightness Darkest, Darker, Standard,

Brighter, Brightest

Contrast Highest, Higher, Default

Sharpness Sharpest, Sharper, Default,

Softer, Softest

Saturation Lowest, Lower, Default, Higher,

Highest

Small Image On, Off

Print Info. Off, On

Fit to Frame On, Off

Bidirectional On, Off

Basic Print Scan to Memory Card

Custom Print

Scan Film Color negative film, Positive color

film (strip), Color slide, B&W

negative

Photo (Single) Crop

Paper Type Plain (Front), Plain (Back), Bright

White (Front), Bright White (Back),

Photo Paper, Prem.Glossy,

GlossyPhoto, SemiGloss, Matte

Paper Size A4, 10 ×15 cm (4 × 6 in)

Layout Borderless, with Border

Restoration OFF, ON

50 Summary of Panel Settings

Print Options for Film Mode

Scan Mode

Scan Settings

Creative Projects Mode

Scan Original Photo Setting for

Reprint/Restore Photos

Print Settings for Reprint/Restore Photos

Menus for Combo Print

Setup Mode

Quality Normal, Photo, Best Photo

Saturation Less Saturation, Normal, More

Saturation

Scan to Memory Card Scan to Email

Scan to PC

Scan area Auto cropping, Max area

Document Type Text, Graphics

Quality Normal, Text and Image

Reprint/Restore Photos Combo Print

Original Size 10 ×15 cm (4 × 6 in)

Paper Type Prem.Glossy

Paper Size 10 ×15 cm (4 × 6 in), A4

Restoration On, Off

Select Photo and Print Template

Scan Template and Print Photo

Ink Levels CD/DVD Position

Up/Down

Nozzle check CD/DVD Position

Left/Right

Head Cleaning BT Printer ID Set

Head Alignment BT Connectivity Mode

PictBridge Setup BT Encryption

Direct Print Document Set BT PIN Code Set

Backup Memory Card BT Device Address

Folder select Paper Thickness

Adjustment

Photo Stickers Position

UP/Down

Restore to Factory

Settings

Photo Stickers Position

Left/Right

Language

Index 51

English

Index

A

Aligning print head, 42

B

Borderless

copies, 8, 11

printing, 28, 34

Buttons, 4

C

Cleaning print head, 41 to 42

Control panel, 4

Copying

basic copying, 5

borderless photos, 8, 11

layout settings, 8, 11, 12

multiple photos, 9, 12

non-readable area, 7

number of copies, 9

paper type, 7

Zoom, 9

D

Digital camera, 26, 37

DPOF (Digital Print Order Format), 26

E

Error messages, 44

F

Film

35 mm film strips, 31

35 mm slides, 32

Basic Print, 32

Crop print, 33

Custom print, 33

loading, 31 to 32

print settings, 34

Quality setting, 34

selecting photos, 32, 33

storing holder, 34

type, 34

I

Index sheet for printing, 16

Ink cartridge

checking the ink level, 39

replacing, 39 to 40

J

Jammed paper, 44

L

Loading paper, 5 to 7

M

Memory card

compatible, 15, 47

ejecting, 15

formatting, 45

inserting, 15

Memory card print

adding date to prints, 29

adding time to prints, 29

Auto correct setting, 29

Bidirectional setting, 30

Brightness setting, 29

Contrast setting, 29

Crop print, 21

Filter setting, 29

Fit to Frame setting, 30

layout settings, 28

P.I.F., 26

paper type, 7, 28

print information, adding, 30

printing basics, 16

print settings, 28 to 30

Saturation setting, 30

Sharpness setting, 29

N

Nozzle check, 41

P

Paper specifications, 47

Photos

copying, 9, 12

placing on the document table, 7, 12

scanning to memory card, 35

PictBridge, 37

Protective materials, 43

R

Reflective document mat, 7, 31, 34

Restore to factory settings, 42

S

Scanning

quality, 35, 36

to memory card, 35 to 45

T

Transporting, 43

Troubleshooting, 44

U

USB DIRECT-PRINT, 37
