User Manual
Welcome to Reolink
Easy Setup Within Minutes!
Camera Connection Diagram
Power adapter
Router
Your smart
device
For initial setup, please connect the camera to your router LAN port with an Ethernet
cable, and then follow the steps below to set up your camera. Make sure that your camera
and your smart devices are connected to the same router.
Access the
Camera by
Smartphones

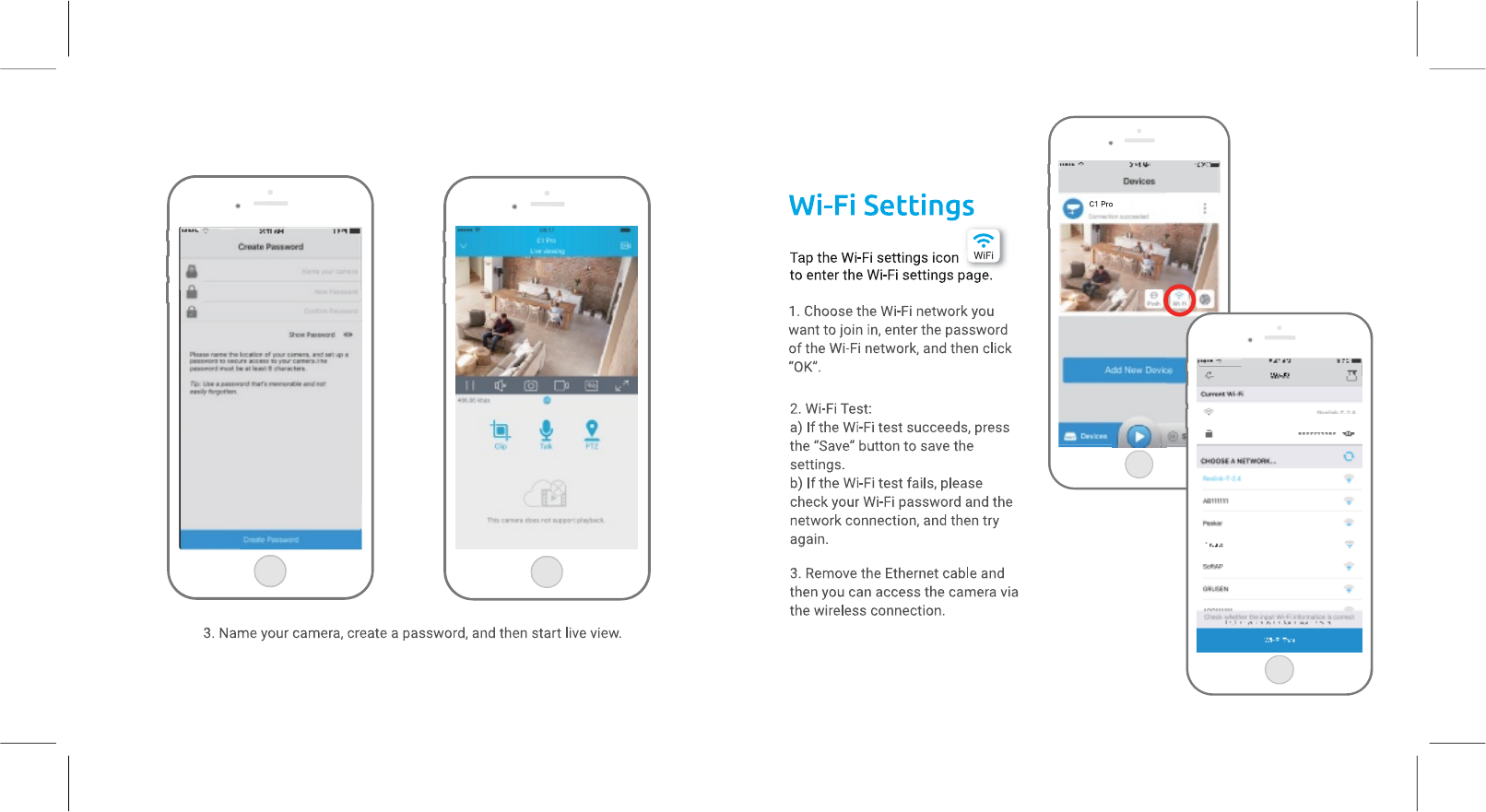

1. Scan the SSID.
2. Double click the SSID which you choose. Enter the password.
3. Click “Wi-Fi Test” to test the password.
4. Press “Wi-Fi test”:
a) If Wi-Fi test succeeds, please go to step 5.
b) If Wi-Fi test fails, please check your Wi-Fi password and network connection, and then
try again.
5. Click “OK”.
Device Settings
Scan succeed!
Device Settings Wifi Settings
Wifi Settings
SSID ASUS 5G
******
SSID
Password Show Password
Wi-Fi Test
Wi-Fi Signal
Wi-Fi Test
OK
Scan
ASUS 5G
TP-LINK_5G_F8F4
ASUS 2.4G
1
5
2
4
3
Remove the Ethernet cable and you can access the camera via Wi-Fi on computer now.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator
& your body.
