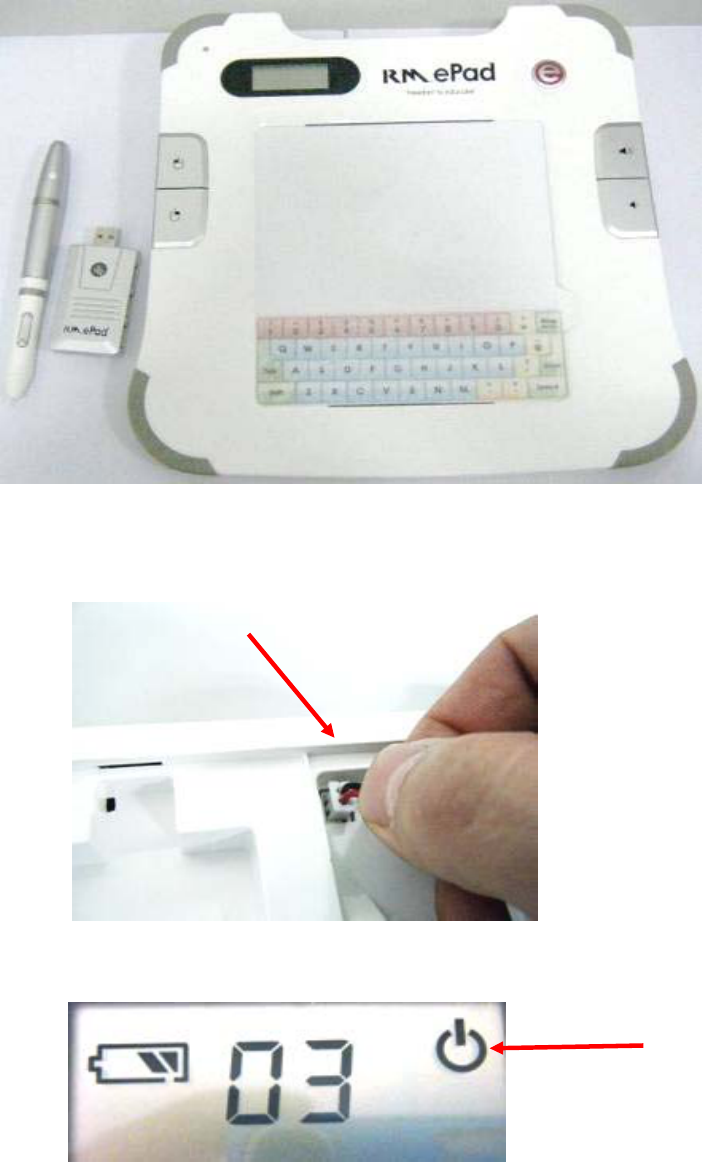

1.RM epad consists of 3 parts
a. writing pad
b. wireless pen
c. dongle (receiver)
2. To connect the battery, open the battey cover on the back of the RM epad and
plug in the battery wire to the battery connection in the RM epad
Red LED on power button will light up. Icons will be shown on LCD display
(a)
(b)
(c)
3. RM epad can be used wirelessly or via USB cable (wired mode)
(A) Wireless Mode
- plug the dongle into the available USB port in your PC and wait for 2 seconds.
- blue LED on dongle will light up , indicating that dongle is detected by PC
- press the pairing button on dongle, blue LED on dongle will flash (pairing starts)
(Keep dongle and epad distance within 3M)

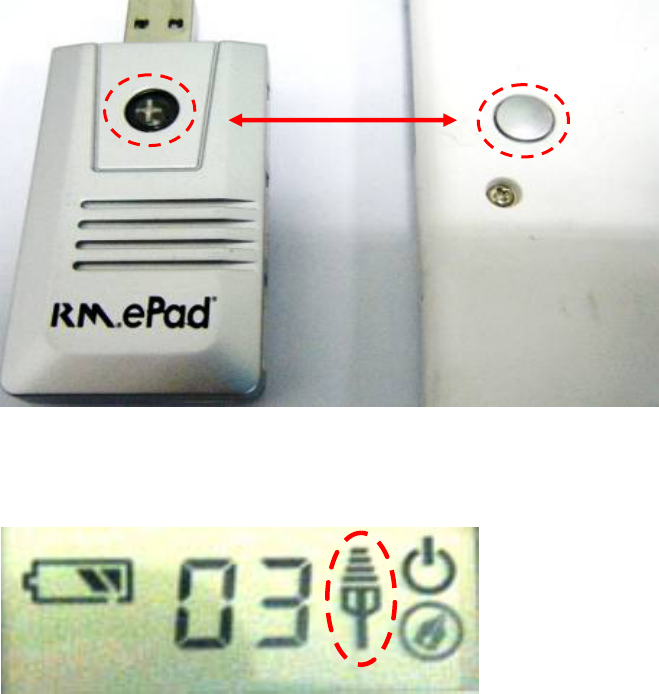

- Once you press pairing button on dongle, you need to press the pairing button on
back of epad within 10 second (see drawing)
- Red LED on power button will flash (2-3 times) and then light up continuousely.
At the same time, "antenna" icon will be shown on LCD display
This means pairing is successful and completed. You can start to use epad wirelessly
(B) Wired Mode
- connect the USB cable with the USB port on your desktop PC
- you can start to use epad
4. Function keys ..
- lower button on pen = Right mouse button operation
- upper button on pen = Centre (scroll) mouse operation
- Volume Up/Down buttons on ePad (RHS) drive volume
- Mouse Left/Right buttons on ePad (LHS) = left/right click of your mouse
5. Using the pen ..
- Tap pen on digitizer and pen drives cursor on screen (i.e. cursor will follow movement of
- pen can be used as a wireless mouse ...
lower button on pen = right mouse button
upper button on pen = centre (scroll) mouse button
pen tip (when it's pressed and touch digitizer) = left mouse button
* keep epad/pen tip distance within 10 mm..
