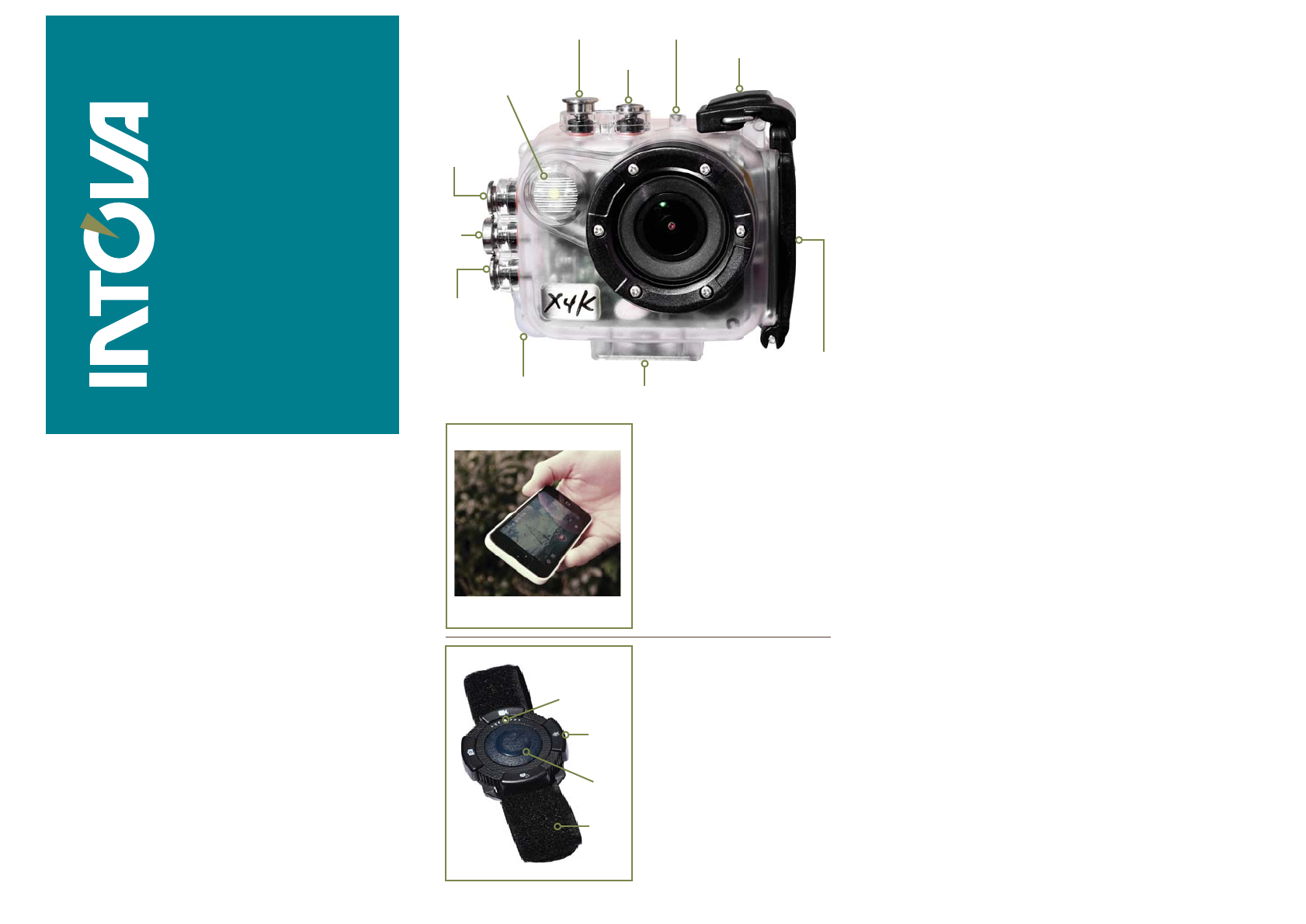

A. LED Video Light/Flash
B. Shutter Button
» Video mode: start/stop
recording.
» Photo mode: shutter button.
»
View mode: view thumbnails,
return to thumbnail view, exit
view mode/go to video mode.
»
C. Power/Mode Button
» Power the camera on/o
(press & hold 2 seconds).
» Select Video/Photo/View mode
(quick press).
» Playback menu: exit menu and
return to view mode.
D. Indicator Light
» Red LED is ON while charging
and OFF when charge is complete.
L. Selected mode indicator
» Align mode icon to select.
M. Mode selector ring
»
O. Adjustable Velcro strap
» Attach remote to wrist or arm.
E. Door Lock
F. Removable Housing Door
G. Tripod Mount
H. Float Strap Attachment
K. Up Button
»Scroll to select: menu/menu
function/function choice/thumbnail.
»Video/photo mode: Digital zoom out.
»Video playback: speed up video
playback.
»One touch LCD o/on.
J. Menu/OK Button
» Access Menu.
»Select.
» Playback mode: start/stop video.
BUTTONS AND INTERFACE
X4
48,&.67$57*8,'(
The 2.4G remote is not waterproof.
Damage due to use underwater or
exposure to water is not covered
under warranty.
For complete instructions on WiFi
or 2.4G remote go to www.intova.com
SPECIFICATIONS AND PRECAUTIONS
»
Use supplied mini USB cable plugged into a computer’s USB port to
recharging camera’s li-ion battery. If using a USB wall plug adapter, the
USB output must be 5V DC and 1A. Using a dierent output voltage can
cause damage to the camera and is not covered under warranty.
»
Do not leave or store the camera in direct sunlight. Prolonged exposure to
direct sunlight can damage the camera and is not covered under warranty.
Do not aim camera directly into the sun for a prolonged period since this
can damage the image sensor and is not covered under warranty.
»
Store in a cool, dry environment.
»
If camera is not used for a prolonged period of time, the li-ion battery
must be recharged periodically to maintain operating ability. Allowing
total discharge of the battery may cause it to become non-functional
and is not covered under warranty.
»
Clean with a soft dry cloth and take special care around lens.
»
»
If using a microSD card that was previously used in a dierent digital
device, FORMAT memory card in a computer prior to use since previously
existing les on a memory card may cause camera to malfunction.
K
&
'
(
*
0
1
+
,
.
-
)
%
$
Video Light/Flash on/o
(press & hold 2 seconds).
View mode: enter Playback menu
1) set Video Play mode
2) select single/all le delete
»
I. Down Button
» Scroll to select: menu/menu
function/function choice/thumbnail.
» Video/photo mode: Digital zoom in.
» Video playback: slow down video
playback.
» Video/Photo Menus: exit menus/
menu functions/function choices.
Flashes red when video recording
is in progress.
»
Flashes blue when remote control
function is activated.
»
/
Turn ring to select video/photo/
time lapse/slow motion modes .
(For use above water/on land only)
(For use above water/on land only)
WIFI REMOTE FUNCTION
2.4G REMOTE
1. Download & install INTOVA WiFi app
onto an iOS or Android wireless device
such as a smart phone or tablet.
3. Connect to X4K camera
WiFi signal: INTOVA X4K
Password: 1234567890
4. Open INTOVA WiFi app to
control camera.
2. Turn on camera’s WiFi by pressing
and holding MENU button for 2 sec
until “X” disappears from WiFi icon
on lower left corner of LCD screen.
A microSD card up to 128GB in size and minimum 95MB/s speed must be
properly inserted into the X4K camera’s card port before use.
»
O-ring on waterproof door must be properly maintained by inspecting
and removing any dirt, sand, hair, debris, etc. before and after use.
Apply minimal amount of silicone grease to O-ring only when necessary.
Too much silicone grease applied at one time or a build up of excess
silicone grease can lead to leakage and is not covered under warranty.
»
N. Remote “shutter” button
» Press to start/stop video, take photo.
2
» One touch WiFi on/o.
(press & hold 2 seconds)
Need help using your camera?
:(5(+(5()25<28
Visit our website:
ZZZLQWRYDFRP
Call customer support:
Email customer support:
WHFK#LQWRYDQHW
X4K
QUICK START GUIDE For complete instructions go to www.intova.com

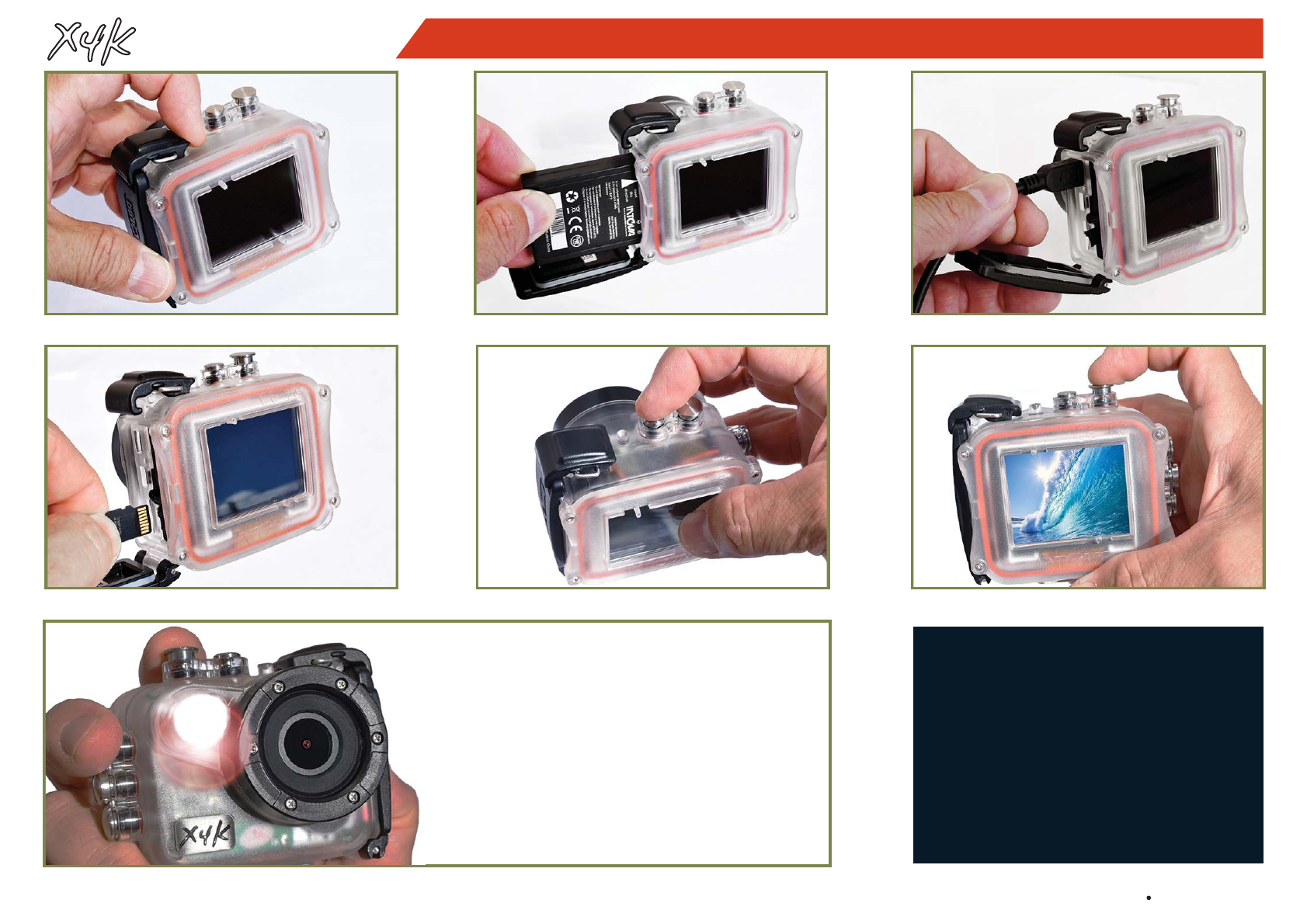

1. OPEN THE HOUSING DOOR 2. INSERT LI-ION BATTERY 3. CHARGE BATTERY
4. INSERT MICRO SD CARD 5. POWER ON (press and hold 2 seconds) 6. PRESS SHUTTER TO SHOOT/RECORD
7. VIDEO LIGHT OR FLASH
* To activate LED video light: in video mode press
and hold shutter button for 2 seconds until light
bulb icon appears.
»Video light will turn on when starting to record
and turns o when recording is stopped.
Photo ash will go o when taking a photo.
Note: Flash will only sync in extremely low light
to no light conditions.
»
* To activate LED photo ash: in photo mode press
and hold shutter button for 2 seconds until light
bulb icon appears.
