Rheem Classic®Series
Air Conditioners
FORM NO. A11-216
RANL- Series
Efficiencies up to 14.50 SEER/12.50 EER
Nominal Sizes 1.5-5 Ton [5.27 to 17.6 kW]
Cooling Capacities 18.3 to 62 kBTU
[5.36 to 18.17 kW]
• Attractive, louvered wrap-around jacket protects the coil
from yard hazards and weather extremes. Top grille is steel
reinforced for extra strength. Cabinet is powder painted for
all-weather protection.
• Air is discharged upward away from bushes and shrubs. The
discharge pattern of the top grille provides minimum air
restriction.
• Combination Grille/Motor Mount secures the motor to the
underside of the discharge grille. The grille protects the
motor windings and bearings from rain and snow.
• All controls are accessible by removing one service panel.
Removable top grille provides access to the condenser fan
motor and condenser coil.
• Single speed 8-pole fan motor designed for low speed, quiet,
energy-saving operation.
• All models meet or exceed a 1000-hour salt spray test per
ASTM B117 Standard Practice for Operating Salt Spray
Testing Apparatus.
Air Air Conditioners
RANL Series
Air Table of Contents
RANL Series
2
TABLE OF CONTENTS
Model Features ..............................................................................................3
Model Number Identification ............................................................................4
Accessories....................................................................................................4
Scroll Compressor ..........................................................................................4
Performance Data ......................................................................................5-21
Electrical & Physical Data ..............................................................................22
Unit Dimensions............................................................................................23
Refrigerant Line Size Information ....................................................................24
Limited Warranty ..........................................................................................25
Air Model Features
RANL Series
3
Model Features
RANL- Series Condensing Units
1. This unit contains a special scroll compressor that is
designed specifically to operate with R-410A refrigerants
and polyolester (POE) oils. The compressor is hermetically
sealed and incorporates internal high temperature motor
overload protection and durable insulation on the motor
windings. It is externally mounted on rubber grommets to
reduce vibration and noise.
2. Compressors have an internal pressure relief assembly to
protect against excessive pressure differential.
3. All refrigerant connections are on the exterior of the unit,
located close to the ground for neat appearing installations.
4. Cabinet is constructed of powder painted galvanized
steel. The full wraparound louvered grille protects the coil
from damage.
5. Copper tube—aluminum fin coils are used on all models.
6. The control box is located in the top corner of the cabinet
providing for easy access through a service panel.
7. Service valves are standard on all models.
8. Power and control wiring are kept separate.
9. Every unit is factory charged and tested.
10. Separate compressor compartment for easy service
access.
11. Drawn, painted base pan for extra corrosion resistance and
sound reduction.
12. Automatic reset high and low pressure controls are stan-
dard on all models.
13. A liquid line filter drier is standard on all models (shipped –
not installed).

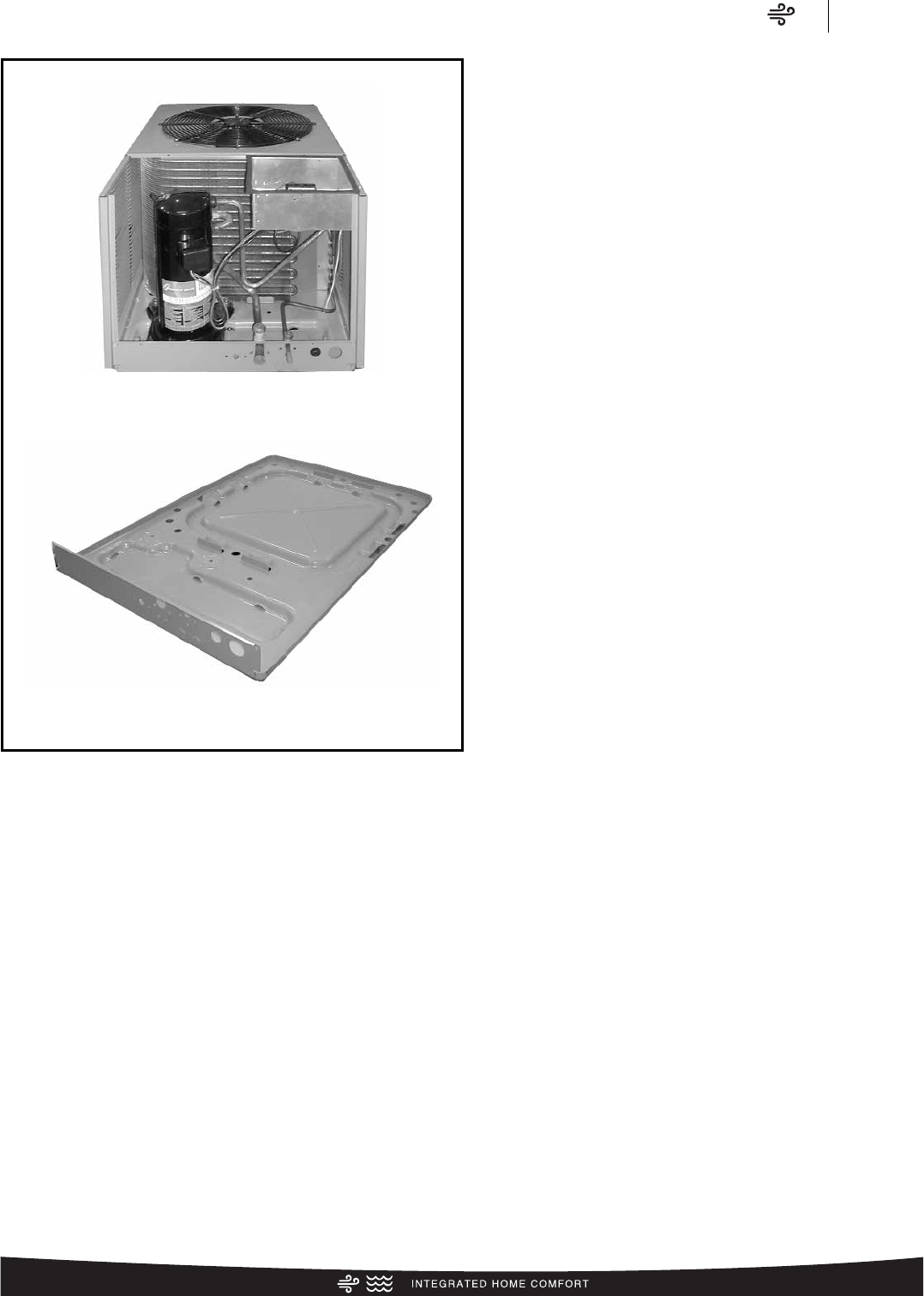

All controls and compressor are accessible
for servicing by removal of the service panel.
Drawn Painted Base Pan.
Air Model I.D./Accessories/Compressor
RANL Series
4
Model Number Identification
R A N L — 018
COOLING
CAPACITY
018 = 18,000 BTU/HR [5.28 kW]
024 = 24,000 BTU/HR [7.03 kW]
031 = 30,000 BTU/HR [8.79 kW]
037 = 36,000 BTU/HR [10.55 kW]
043 = 42,000 BTU/HR [12.31 kW]
049 = 48,000 BTU/HR [14.07 kW]
060 = 60,000 BTU/HR [17.58 kW]
J A Z
RHEEM REMOTE
CONDENSING
UNIT
N = 13 SEER DESIGN
SERIES
L = R-410A
ELECTRICAL
DESIGNATION
J = 208/230V-1-60
C = 208/230V-3-60
D = 460V-3-60
(RANL MODELS
ONLY)
Y = 575V-3-60
VARIATIONS
A-SERIES =
FULL-FEATURED
COOLING CONNECTION
FITTING
Z = SWEAT W/SCROLL
Accessories
•Low Ambient Control (RXAD-A08)
•Hard Start Components
•Compressor Time Delay Control (RXMD-B01)
•Crankcase Heater
* Photos are representative. Actual models may vary.
For detailed thermostat match-up information,
see specification sheet form number T11-001.

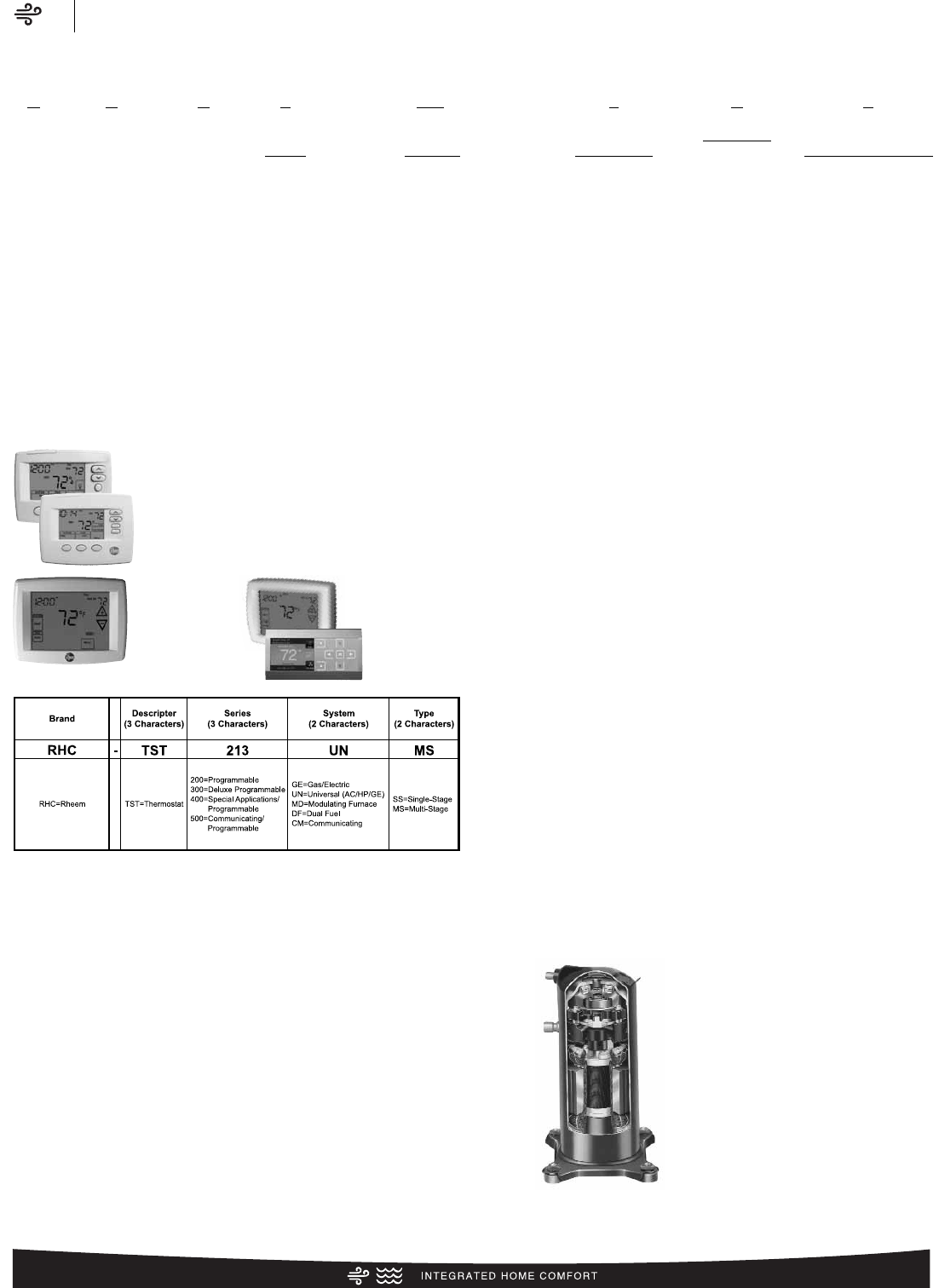

300-Series *
Deluxe
Programmable
400-Series *
Special Applications/
Programmable
500-Series *
Communicating/
Programmable
200-Series *
Programmable
Scroll®Compressor
The reliable scroll compressor is the key to efficiency for this
Rheem model. It’s the latest in high-efficiency compressor tech-
nology. The advanced scroll compressor offers low noise and
vibration characteristics and features tolerance to liquid refrigerant
and system contamination. The scroll compressor also has low
start torque, reducing start problems in the field. And its unique
design enables air conditioners to perform efficiently and quietly.
[ ] Designates Metric Conversions
Thermostats
Air Performance Data
RANL Series
5
Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air Sound
Rating
dB
Indoor
CFM [L/s]
Outdoor
Unit
RANL-
Indoor
Coil and/or
Air Handler
Total
Capacity
BTU/H [kW]
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
EER SEER
018JAZ
RCFL-H*2417 ➀18,400 [5.4] 13,200 [3.9] 5,200 [1.5] 11.00 13.00 74 600 [283]
RHAL-FR24P 19,600 [5.7] 15,150 [4.4] 4,450 [1.3] 11.00 13.00 74 600 [283]
RHBL-FR24T 19,600 [5.7] 15,150 [4.4] 4,450 [1.3] 12.00 14.50 74 600 [283]
RCFL-A*2414 18,400 [5.4] 13,200 [3.9] 5,200 [1.5] 11.00 13.25 74 600 [283]
RCFL-A*2417 18,400 [5.4] 13,200 [3.9] 5,200 [1.5] 11.00 13.25 74 600 [283]
RCFL-A*2417(RGFE-06?MCK?) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 12.50 14.50 74 575 [271]
RCFL-A*2417(RGFE-07?MCK?) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 12.50 14.50 74 600 [283]
RCFL-A*2417(RGFG-06?MCK?) 18,900 [5.5] 13,500 [4.0] 5,400 [1.6] 12.00 14.50 74 575 [271]
RCFL-A*2417(RGFG-07?MCK?) 18,600 [5.4] 13,200 [3.9] 5,400 [1.6] 12.00 14.50 74 550 [260]
RCFL-A*2417(RGGE-06?MCK?) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 12.00 14.50 74 625 [295]
RCFL-A*2417(RGGE-07?MCK?) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 12.00 14.50 74 575 [271]
RCFL-A*2417(RGLE-07?AMK?) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 12.00 14.50 74 600 [283]
RCFL-A*2417(RGLT-07?AMK?) 19,300 [5.7] 14,100 [4.1] 5,200 [1.5] 12.00 14.50 74 675 [319]
RCFL-A*2417(RGPE-05?BMK?) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 12.00 14.50 74 575 [271]
RCFL-A*2417(RGPT-05?BMK?) 19,100 [5.6] 13,850 [4.1] 5,250 [1.5] 12.00 14.50 74 650 [307]
RCFL-A*2417(RGPT-07?AMK?) 18,900 [5.5] 13,550 [4.0] 5,350 [1.6] 12.00 14.50 74 625 [295]
RCFL-A*2417(RGRM-04?MAE?) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 12.00 14.50 74 575 [271]
RCFL-A*2417(RGRM-06?MAE?) 18,900 [5.5] 13,550 [4.0] 5,350 [1.6] 12.00 14.50 74 600 [283]
RCFL-A*2417(RGRM-07?MAE?) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 11.50 14.00 74 625 [295]
RCFL-A*2417(RGTM-06?MAE?) 18,700 [5.5] 13,400 [3.9] 5,300 [1.6] 12.00 14.50 74 625 [295]
RCFL-A*2417(ROCA-070E03) 18,900 [5.5] 13,550 [4.0] 5,350 [1.6] 12.00 14.50 74 600 [283]
RCFL-A*2417(ROLA-070E03) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 12.00 14.50 74 600 [283]
RCFL-H*2414 18,400 [5.4] 13,200 [3.9] 5,200 [1.5] 11.00 13.25 74 600 [283]
RCFL-H*2417(RGFE-06?MCK?) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 12.50 14.50 74 575 [271]
RCFL-H*2417(RGFE-07?MCK?) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 12.50 14.50 74 600 [283]
RCFL-H*2417(RGFG-06?MCK?) 18,900 [5.5] 13,500 [4.0] 5,400 [1.6] 12.00 14.50 74 575 [271]
RCFL-H*2417(RGFG-07?MCK?) 18,600 [5.4] 13,200 [3.9] 5,400 [1.6] 12.00 14.50 74 550 [260]
RCFL-H*2417(RGGE-06?MCK?) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 12.00 14.50 74 625 [295]
RCFL-H*2417(RGGE-07?MCK?) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 12.00 14.50 74 575 [271]
RCFL-H*2417(RGJF-06?MCK?) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 12.00 14.50 74 625 [295]
RCFL-H*2417(RGJF-07?MCK?) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 12.00 14.50 74 575 [271]
RCFL-H*2417(RGLE-07?AMK?) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 12.00 14.50 74 600 [283]
RCFL-H*2417(RGLT-07?AMK?) 19,300 [5.7] 14,100 [4.1] 5,200 [1.5] 12.00 14.50 74 675 [319]
RCFL-H*2417(RGPE-05?BMK?) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 12.00 14.50 74 575 [271]
RCFL-H*2417(RGPT-05?BMK?) 19,100 [5.6] 13,850 [4.1] 5,250 [1.5] 12.00 14.50 74 650 [307]
RCFL-H*2417(RGPT-07?AMK?) 18,900 [5.5] 13,550 [4.0] 5,350 [1.6] 12.00 14.50 74 625 [295]
RCFL-H*2417(RGRM-04?MAE?) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 12.00 14.50 74 575 [271]
RCFL-H*2417(RGRM-06?MAE?) 18,900 [5.5] 13,550 [4.0] 5,350 [1.6] 12.00 14.50 74 600 [283]
RCFL-H*2417(RGRM-07?MAE?) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 11.50 14.00 74 625 [295]
RCFL-H*2417(RGTM-06?MAE?) 18,700 [5.5] 13,400 [3.9] 5,300 [1.6] 12.00 14.50 74 625 [295]
RCFL-H*2417(ROCA-070E03) 18,900 [5.5] 13,550 [4.0] 5,350 [1.6] 12.00 14.50 74 600 [283]
RCFL-H*2417(ROLA-070E03) 18,800 [5.5] 13,500 [4.0] 5,300 [1.6] 12.00 14.50 74 600 [283]
RBHP-17(RCHL-24A2) 18,200 [5.3] 12,650 [3.7] 5,550 [1.6] 11.50 14.00 74 600 [283]
RCQD-2417(RGFE-06?MCK?) 19,200 [5.6] 14,050 [4.1] 5,150 [1.5] 12.00 14.50 74 575 [271]
RCQD-2417(RGFE-07?MCK?) 19,200 [5.6] 14,050 [4.1] 5,150 [1.5] 12.00 14.50 74 600 [283]
RCQD-2417(RGFG-06?MCK?) 19,300 [5.7] 14,150 [4.1] 5,150 [1.5] 12.00 14.50 74 575 [271]
RCQD-2417(RGFG-07?MCK?) 19,000 [5.6] 13,750 [4.0] 5,250 [1.5] 12.00 14.50 74 550 [260]
RCQD-2417(RGJF-06?MCK?) 19,200 [5.6] 14,050 [4.1] 5,150 [1.5] 12.00 14.50 74 625 [295]
Rev.
5/17/12
➀Highest sales volume tested combination required by D.O.E. test procedures.
[ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RANL Series
6
➀Highest sales volume tested combination required by D.O.E. test procedures.
[ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
7
Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air Sound
Rating
dB
Indoor
CFM [L/s]
Outdoor
Unit
RANL-
Indoor
Coil and/or
Air Handler
Total
Capacity
BTU/H [kW]
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
EER SEER
024JAZ
RCFL-H*2417(RGPE-07?AMK?) 24,000 [7.0] 16,700 [4.9] 7,300 [2.1] 12.00 14.50 72 725 [342]
RCFL-H*2417(RGPT-05?BMK?) 24,800 [7.3] 17,800 [5.2] 7,000 [2.1] 12.00 14.50 72 850 [401]
RCFL-H*2417(RGPT-07?AMK?) 24,800 [7.3] 17,800 [5.2] 7,000 [2.1] 12.00 14.50 72 850 [401]
RCFL-H*2417(RGRM-04?MAE?) 24,400 [7.1] 17,300 [5.1] 7,100 [2.1] 11.50 14.00 72 800 [378]
RCFL-H*2417(RGRM-06?MAE?) 24,400 [7.1] 17,300 [5.1] 7,100 [2.1] 11.50 14.00 72 825 [389]
RCFL-H*2417(RGRM-07?MAE?) 24,600 [7.2] 17,650 [5.2] 6,950 [2.0] 11.50 14.00 72 850 [401]
RCFL-H*2417(RGTM-06?MAE?) 24,400 [7.1] 17,350 [5.1] 7,050 [2.1] 11.50 14.00 72 825 [389]
RCFL-H*2417(RHWB-04WMX36A) 24,600 [7.2] 17,700 [5.2] 6,900 [2.0] 11.50 14.00 72 825 [389]
RCFL-H*2417(ROCA-070E03) 24,600 [7.2] 17,450 [5.1] 7,150 [2.1] 12.00 14.50 72 800 [378]
RCFL-H*2417(ROCA-070E04) 24,600 [7.2] 17,450 [5.1] 7,150 [2.1] 12.00 14.50 72 800 [378]
RCFL-H*2417(ROLA-070E03) 24,600 [7.2] 17,450 [5.1] 7,150 [2.1] 12.00 14.50 72 800 [378]
RCFL-H*2417(ROLA-070E04) 24,200 [7.1] 16,850 [4.9] 7,350 [2.2] 12.00 14.50 72 725 [342]
RBHP-17(RCHL-24A2) 23,400 [6.9] 16,050 [4.7] 7,350 [2.2] 11.50 14.00 72 800 [378]
RCQD-2417(RGFE-06?MCK?) 24,800 [7.3] 17,650 [5.2] 7,150 [2.1] 12.00 14.50 72 725 [342]
RCQD-2417(RGFE-07?MCK?) 24,800 [7.3] 17,650 [5.2] 7,150 [2.1] 12.00 14.50 72 725 [342]
RCQD-2417(RGFG-06?MCK?) 25,400 [7.4] 18,500 [5.4] 6,900 [2.0] 12.00 14.50 72 800 [378]
RCQD-2417(RGFG-07?MCK?) 25,400 [7.4] 18,500 [5.4] 6,900 [2.0] 12.00 14.50 72 800 [378]
RCQD-2417(RGGE-06?MCK?) 25,200 [7.4] 18,250 [5.3] 6,950 [2.0] 12.00 14.50 72 825 [389]
RCQD-2417(RGJF-06?MCK?) 25,200 [7.4] 18,250 [5.3] 6,950 [2.0] 12.00 14.50 72 825 [389]
RCQD-2417(RGJF-07?MCK?) 25,200 [7.4] 18,300 [5.4] 6,900 [2.0] 12.00 14.50 72 800 [378]
RCQD-2417(RGPE-05?BMK?) 25,200 [7.4] 18,250 [5.3] 6,950 [2.0] 12.00 14.50 72 800 [378]
RCQD-2417(RGPT-05?BMK?) 25,600 [7.5] 19,000 [5.6] 6,600 [1.9] 12.00 14.50 72 900 [425]
RCQD-2417(RHWB-04WMX36A) 25,600 [7.5] 19,200 [5.6] 6,400 [1.9] 11.50 14.00 72 875 [413]
RCQD-2417(ROCA-070E03) 25,200 [7.4] 18,250 [5.3] 6,950 [2.0] 12.00 14.50 72 800 [378]
RCQD-2417(ROCA-070E04) 25,200 [7.4] 18,250 [5.3] 6,950 [2.0] 12.00 14.50 72 800 [378]
RCQD-2417(ROLA-070E03) 25,200 [7.4] 18,250 [5.3] 6,950 [2.0] 12.00 14.50 72 800 [378]
RCQD-2417(ROLA-070E04) 24,800 [7.3] 17,650 [5.2] 7,150 [2.1] 12.00 14.50 72 725 [342]
RHKL-HM2417(RCSL-H*2417) 24,800 [7.3] 17,650 [5.2] 7,150 [2.1] 11.50 14.00 72 850 [401]
RHLL-HM2417(RCSL-H*2417) 24,800 [7.3] 17,600 [5.2] 7,200 [2.1] 12.50 15.00 72 775 [366]
RHSL-HM2417(RCSL-H*2417) 24,200 [7.1] 17,250 [5.1] 6,950 [2.0] 11.00 13.00 72 800 [378]
031JAZ
RCFL-H*3617 ➀28,800 [8.4] 21,150 [6.2] 7,650 [2.2] 10.50 13.00 73 1,000 [472]
RHAL-FR30P 30,000 [8.8] 23,250 [6.8] 6,750 [2.0] 11.00 13.00 73 1,000 [472]
RHBL-FR36T 30,000 [8.8] 23,250 [6.8] 6,750 [2.0] 12.00 14.50 73 1,025 [484]
RCFL-A*3617 28,800 [8.4] 21,150 [6.2] 7,650 [2.2] 10.50 13.00 73 1,000 [472]
RCFL-A*3617(RGFE-06?MCK?) 29,200 [8.6] 21,450 [6.3] 7,750 [2.3] 11.00 13.50 73 1,000 [472]
RCFL-A*3617(RGFE-07?MCK?) 29,000 [8.5] 21,300 [6.2] 7,700 [2.3] 11.00 13.00 73 1,025 [484]
RCFL-A*3617(RGFG-06?MCK?) 28,600 [8.4] 20,400 [6.0] 8,200 [2.4] 11.50 13.50 73 875 [413]
RCFL-A*3617(RGFG-07?MCK?) 28,600 [8.4] 20,400 [6.0] 8,200 [2.4] 11.50 13.50 73 850 [401]
RCFL-A*3617(RGGE-06?MCK?) 30,400 [8.9] 22,350 [6.5] 8,050 [2.4] 11.50 14.00 73 1,025 [484]
RCFL-A*3617(RGGE-07?MCK?) 29,200 [8.6] 21,450 [6.3] 7,750 [2.3] 11.00 13.50 73 1,025 [484]
RCFL-A*3617(RGJF-06?MCK?) 30,400 [8.9] 22,350 [6.5] 8,050 [2.4] 11.50 14.00 73 1,025 [484]
RCFL-A*3617(RGLE-07?AMK?) 30,400 [8.9] 22,300 [6.5] 8,100 [2.4] 11.50 14.00 73 1,025 [484]
RCFL-A*3617(RGLT-07?AMK?) 28,800 [8.4] 20,550 [6.0] 8,250 [2.4] 11.50 14.00 73 875 [413]
RCFL-A*3617(RGPE-05?BMK?) 29,200 [8.6] 21,450 [6.3] 7,750 [2.3] 11.00 13.50 73 975 [460]
RCFL-A*3617(RGPE-07?AMK?) 29,200 [8.6] 21,450 [6.3] 7,750 [2.3] 11.50 13.50 73 1,000 [472]
RCFL-A*3617(RGPT-05?BMK?) 28,600 [8.4] 20,250 [5.9] 8,350 [2.4] 11.50 14.00 73 850 [401]
RCFL-A*3617(RGPT-07?AMK?) 28,800 [8.4] 20,550 [6.0] 8,250 [2.4] 11.50 14.00 73 875 [413]
RCFL-A*3617(RGRM-04?MAE?) 29,000 [8.5] 21,300 [6.2] 7,700 [2.3] 11.00 13.00 73 1,025 [484]
Rev.
5/17/12
➀Highest sales volume tested combination required by D.O.E. test procedures.
[ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RANL Series
8
➀Highest sales volume tested combination required by D.O.E. test procedures.
[ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RANL Series
9
Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air Sound
Rating
dB
Indoor
CFM [L/s]
Outdoor
Unit
RANL-
Indoor
Coil and/or
Air Handler
Total
Capacity
BTU/H [kW]
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
EER SEER
031JAZ
RCFL-A*3621(ROCA-070E04) 29,400 [8.6] 21,600 [6.3] 7,800 [2.3] 11.50 14.00 73 1,000 [472]
RCFL-A*3621(ROLA-070E03) 29,400 [8.6] 21,600 [6.3] 7,800 [2.3] 11.50 14.00 73 975 [460]
RCFL-A*3621(ROLA-070E04) 29,400 [8.6] 21,600 [6.3] 7,800 [2.3] 11.50 14.00 73 1,025 [484]
RCFL-A*3621(ROLA-115E05) 29,000 [8.5] 20,800 [6.1] 8,200 [2.4] 11.50 14.00 73 900 [425]
RCFL-H*3617(RGFE-06?MCK?) 30,200 [8.8] 22,150 [6.5] 8,050 [2.4] 11.50 13.50 73 1,000 [472]
RCFL-H*3617(RGFE-07?MCK?) 30,200 [8.8] 22,150 [6.5] 8,050 [2.4] 11.00 13.50 73 1,025 [484]
RCFL-H*3617(RGFG-06?MCK?) 28,600 [8.4] 20,400 [6.0] 8,200 [2.4] 11.50 13.50 73 875 [413]
RCFL-H*3617(RGFG-07?MCK?) 28,600 [8.4] 20,400 [6.0] 8,200 [2.4] 11.50 13.50 73 850 [401]
RCFL-H*3617(RGGE-06?MCK?) 30,400 [8.9] 22,350 [6.5] 8,050 [2.4] 11.50 14.00 73 1,025 [484]
RCFL-H*3617(RGGE-07?MCK?) 30,400 [8.9] 22,350 [6.5] 8,050 [2.4] 11.50 13.50 73 1,025 [484]
RCFL-H*3617(RGJF-06?MCK?) 30,400 [8.9] 22,350 [6.5] 8,050 [2.4] 11.50 14.00 73 1,025 [484]
RCFL-H*3617(RGJF-07?MCK?) 29,800 [8.7] 21,250 [6.2] 8,550 [2.5] 11.50 14.00 73 875 [413]
RCFL-H*3617(RGLE-07?AMK?) 30,400 [8.9] 22,300 [6.5] 8,100 [2.4] 11.50 14.00 73 1,025 [484]
RCFL-H*3617(RGLT-07?AMK?) 28,800 [8.4] 20,550 [6.0] 8,250 [2.4] 11.50 14.00 73 875 [413]
RCFL-H*3617(RGPE-05?BMK?) 30,400 [8.9] 22,300 [6.5] 8,100 [2.4] 11.50 14.00 73 975 [460]
RCFL-H*3617(RGPE-07?AMK?) 30,400 [8.9] 22,300 [6.5] 8,100 [2.4] 11.50 14.00 73 1,000 [472]
RCFL-H*3617(RGPT-05?BMK?) 28,600 [8.4] 20,250 [5.9] 8,350 [2.4] 11.50 14.00 73 850 [401]
RCFL-H*3617(RGPT-07?AMK?) 28,800 [8.4] 20,550 [6.0] 8,250 [2.4] 11.50 14.00 73 875 [413]
RCFL-H*3617(RGRM-04?MAE?) 29,000 [8.5] 21,300 [6.2] 7,700 [2.3] 11.00 13.00 73 1,025 [484]
RCFL-H*3617(RGRM-06?MAE?) 29,000 [8.5] 21,300 [6.2] 7,700 [2.3] 11.00 13.50 73 1,000 [472]
RCFL-H*3617(RGRM-07?MAE?) 28,400 [8.3] 20,100 [5.9] 8,300 [2.4] 11.00 13.50 73 850 [401]
RCFL-H*3617(RGRM-07?YBG?) 29,000 [8.5] 21,300 [6.2] 7,700 [2.3] 11.00 13.00 73 975 [460]
RCFL-H*3617(RGTM-06?MAE?) 30,000 [8.8] 21,500 [6.3] 8,500 [2.5] 11.50 14.00 73 900 [425]
RCFL-H*3617(RHWB-04WMX36A) 29,200 [8.6] 21,600 [6.3] 7,600 [2.2] 11.50 14.00 73 1,025 [484]
RCFL-H*3617(RHWB-06WMX48A) 29,200 [8.6] 21,400 [6.3] 7,800 [2.3] 11.50 14.00 73 950 [448]
RCFL-H*3617(ROCA-070E03) 29,200 [8.6] 21,400 [6.3] 7,800 [2.3] 11.50 13.50 73 1,000 [472]
RCFL-H*3617(ROCA-070E04) 29,200 [8.6] 21,400 [6.3] 7,800 [2.3] 11.50 13.50 73 1,000 [472]
RCFL-H*3617(ROLA-070E03) 29,400 [8.6] 21,600 [6.3] 7,800 [2.3] 11.50 14.00 73 975 [460]
RCFL-H*3617(ROLA-070E04) 29,400 [8.6] 21,600 [6.3] 7,800 [2.3] 11.50 14.00 73 975 [460]
RCFL-H*3621 28,800 [8.4] 21,150 [6.2] 7,650 [2.2] 10.50 13.00 73 1,000 [472]
RCFL-H*3621(RGFE-06?MCK?) 30,400 [8.9] 22,350 [6.5] 8,050 [2.4] 11.50 13.50 73 1,000 [472]
RCFL-H*3621(RGFE-07?MCK?) 30,200 [8.8] 22,150 [6.5] 8,050 [2.4] 11.50 13.50 73 1,025 [484]
RCFL-H*3621(RGFE-09?ZCM?) 30,600 [9.0] 22,500 [6.6] 8,100 [2.4] 11.50 14.00 73 975 [460]
RCFL-H*3621(RGFE-10?ZCM?) 30,600 [9.0] 22,500 [6.6] 8,100 [2.4] 11.50 14.00 73 1,000 [472]
RCFL-H*3621(RGFG-06?MCK?) 28,600 [8.4] 20,400 [6.0] 8,200 [2.4] 11.50 13.50 73 875 [413]
RCFL-H*3621(RGFG-07?MCK?) 28,600 [8.4] 20,400 [6.0] 8,200 [2.4] 11.50 14.00 73 850 [401]
RCFL-H*3621(RGFG-09?ZCM?) 29,000 [8.5] 20,600 [6.0] 8,400 [2.5] 12.00 14.00 73 875 [413]
RCFL-H*3621(RGFG-10?ZCM?) 29,000 [8.5] 20,800 [6.1] 8,200 [2.4] 11.50 14.00 73 900 [425]
RCFL-H*3621(RGGE-06?MCK?) 30,400 [8.9] 22,350 [6.5] 8,050 [2.4] 11.50 14.00 73 1,025 [484]
RCFL-H*3621(RGJF-06?MCK?) 30,400 [8.9] 22,350 [6.5] 8,050 [2.4] 11.50 14.00 73 1,025 [484]
RCFL-H*3621(RGJF-07?MCK?) 30,400 [8.9] 22,350 [6.5] 8,050 [2.4] 11.50 14.00 73 1,025 [484]
RCFL-H*3621(RGJF-09?ZCM?) 30,400 [8.9] 22,300 [6.5] 8,100 [2.4] 11.50 14.00 73 1,025 [484]
RCFL-H*3621(RGJF-10?ZCM?) 30,800 [9.0] 22,900 [6.7] 7,900 [2.3] 11.50 14.00 73 1,050 [495]
RCFL-H*3621(RGLE-07?AMK?) 30,400 [8.9] 22,300 [6.5] 8,100 [2.4] 11.50 14.00 73 1,025 [484]
RCFL-H*3621(RGLE-07?BRQ?) 30,600 [9.0] 22,450 [6.6] 8,150 [2.4] 12.00 14.50 73 1,025 [484]
RCFL-H*3621(RGLE-10?BRM?) 31,000 [9.1] 23,050 [6.8] 7,950 [2.3] 12.00 14.50 73 1,050 [495]
RCFL-H*3621(RGLT-07?AMK?) 28,800 [8.4] 20,550 [6.0] 8,250 [2.4] 11.50 14.00 73 875 [413]
RCFL-H*3621(RGLT-07?BRQ?) 29,600 [8.7] 21,750 [6.4] 7,850 [2.3] 11.50 14.00 73 975 [460]
Rev.
5/17/12
➀Highest sales volume tested combination required by D.O.E. test procedures.
[ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RANL Series
10
➀Highest sales volume tested combination required by D.O.E. test procedures.
[ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RANL Series
11
Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air Sound
Rating
dB
Indoor
CFM [L/s]
Outdoor
Unit
RANL-
Indoor
Coil and/or
Air Handler
Total
Capacity
BTU/H [kW]
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
EER SEER
031JAZ
RCQD-3621(ROCA-070E04) 30,800 [9.0] 22,950 [6.7] 7,850 [2.3] 12.00 14.50 73 1,000 [472]
RCQD-3621(ROLA-070E03) 30,800 [9.0] 22,950 [6.7] 7,850 [2.3] 12.00 14.50 73 975 [460]
RCQD-3621(ROLA-070E04) 30,800 [9.0] 22,950 [6.7] 7,850 [2.3] 12.00 14.50 73 975 [460]
RCQD-3621(ROLA-115E05) 30,400 [8.9] 22,150 [6.5] 8,250 [2.4] 12.00 14.50 73 900 [425]
RCQD-3624(RGFG-09?ZCM?) 29,000 [8.5] 21,050 [6.2] 7,950 [2.3] 12.00 14.00 73 875 [413]
RCQD-3624(RGFG-10?ZCM?) 29,200 [8.6] 21,300 [6.2] 7,900 [2.3] 12.00 14.00 73 900 [425]
RCQD-3624(RGFG-12?RCM?) 29,200 [8.6] 21,200 [6.2] 8,000 [2.3] 12.00 14.50 73 875 [413]
RCQD-3624(RGPT-07?BRQ?) 31,200 [9.1] 23,500 [6.9] 7,700 [2.3] 12.00 14.50 73 1,050 [495]
RCQD-3624(RGPT-10?BRM?) 31,400 [9.2] 23,800 [7.0] 7,600 [2.2] 12.00 14.50 73 1,075 [507]
RCQD-3624(RGPT-12?ARM?) 31,000 [9.1] 23,100 [6.8] 7,900 [2.3] 12.00 14.50 73 975 [460]
RCQD-3624(ROCA-070E03) 30,800 [9.0] 22,950 [6.7] 7,850 [2.3] 12.00 14.50 73 1,000 [472]
RCQD-3624(ROCA-070E04) 30,800 [9.0] 22,950 [6.7] 7,850 [2.3] 12.00 14.50 73 1,000 [472]
RCQD-3624(ROLA-070E03) 30,800 [9.0] 22,950 [6.7] 7,850 [2.3] 12.00 14.50 73 975 [460]
RCQD-3624(ROLA-070E04) 30,800 [9.0] 22,950 [6.7] 7,850 [2.3] 12.00 14.50 73 1,025 [484]
RCQD-3624(ROLA-115E05) 30,400 [8.9] 22,150 [6.5] 8,250 [2.4] 12.00 14.50 73 900 [425]
RHKL-HM3617(RCSL-H*3617) 29,400 [8.6] 21,600 [6.3] 7,800 [2.3] 11.50 14.00 73 1,025 [484]
RHLL-HM3617(RCSL-H*3617) 29,400 [8.6] 21,550 [6.3] 7,850 [2.3] 11.50 14.00 73 1,000 [472]
RHSL-HM3017(RCSL-H*3617) 28,800 [8.4] 20,900 [6.1] 7,900 [2.3] 11.00 13.00 73 950 [448]
037CAZ/
DAZ/JAZ
RCFL-H*3617 ➀37,600 [11.0] 25,750 [7.5] 11,850 [3.5] 11.00 13.00 76 1,050 [495]
RHAL-FR36P 38,000 [11.1] 27,900 [8.2] 10,100 [3.0] 11.00 13.00 76 1,175 [554]
RHAL-FR36T 38,000 [11.1] 27,900 [8.2] 10,100 [3.0] 11.00 13.00 76 1,175 [554]
RHBL-FR36T 38,000 [11.1] 27,900 [8.2] 10,100 [3.0] 11.50 14.00 76 1,150 [543]
RCFL-A*3617 37,600 [11.0] 25,750 [7.5] 11,850 [3.5] 11.00 13.00 76 1,050 [495]
RCFL-A*3617(RGFE-07?MCK?) 37,800 [11.1] 25,900 [7.6] 11,900 [3.5] 11.50 13.50 76 1,025 [484]
RCFL-A*3617(RGFG-07?MCK?) 37,800 [11.1] 25,800 [7.6] 12,000 [3.5] 11.00 13.00 76 1,050 [495]
RCFL-A*3617(RGGE-06?MCK?) 38,000 [11.1] 26,050 [7.6] 11,950 [3.5] 11.50 13.50 76 1,025 [484]
RCFL-A*3617(RGGE-07?MCK?) 38,000 [11.1] 26,050 [7.6] 11,950 [3.5] 11.50 13.50 76 1,025 [484]
RCFL-A*3617(RGJF-06?MCK?) 38,500 [11.3] 28,000 [8.2] 10,500 [3.1] 11.00 13.50 76 1,200 [566]
RCFL-A*3617(RGLE-07?AMK?) 38,500 [11.3] 27,950 [8.2] 10,550 [3.1] 11.50 13.50 76 1,200 [566]
RCFL-A*3617(RGLT-07?AMK?) 38,500 [11.3] 27,100 [7.9] 11,400 [3.3] 11.00 13.00 76 1,150 [543]
RCFL-A*3617(RGPE-05?BMK?) 38,500 [11.3] 27,350 [8.0] 11,150 [3.3] 11.00 13.00 76 1,200 [566]
RCFL-A*3617(RGPE-07?AMK?) 38,500 [11.3] 27,450 [8.0] 11,050 [3.2] 11.00 13.00 76 1,225 [578]
RCFL-A*3617(RGPT-05?BMK?) 38,000 [11.1] 26,700 [7.8] 11,300 [3.3] 11.00 13.00 76 1,175 [554]
RCFL-A*3617(RGPT-07?AMK?) 38,500 [11.3] 27,200 [8.0] 11,300 [3.3] 11.00 13.00 76 1,175 [554]
RCFL-A*3617(RGRM-04?MAE?) 37,800 [11.1] 25,900 [7.6] 11,900 [3.5] 11.00 13.00 76 1,025 [484]
RCFL-A*3617(RGRM-07?MAE?) 37,600 [11.0] 25,750 [7.5] 11,850 [3.5] 11.00 13.00 76 1,025 [484]
RCFL-A*3617(RGRM-09?ZAJ?) 38,500 [11.3] 27,450 [8.0] 11,050 [3.2] 11.00 13.00 76 1,225 [578]
RCFL-A*3617(RGRM-10?ZAJ?) 38,500 [11.3] 27,100 [7.9] 11,400 [3.3] 11.00 13.00 76 1,150 [543]
RCFL-A*3617(RHWB-04WMX36A) 38,500 [11.3] 27,100 [7.9] 11,400 [3.3] 11.50 13.50 76 1,150 [543]
RCFL-A*3617(RHWB-06WMX48A) 38,500 [11.3] 27,100 [7.9] 11,400 [3.3] 11.00 13.00 76 1,150 [543]
RCFL-A*3617(ROCA-070E03) 38,500 [11.3] 27,350 [8.0] 11,150 [3.3] 11.00 13.00 76 1,200 [566]
RCFL-A*3617(ROCA-070E04) 38,500 [11.3] 27,350 [8.0] 11,150 [3.3] 11.00 13.00 76 1,200 [566]
RCFL-A*3617(ROLA-070E03) 38,500 [11.3] 27,150 [8.0] 11,350 [3.3] 11.50 13.50 76 1,175 [554]
RCFL-A*3617(ROLA-070E04) 38,500 [11.3] 27,150 [8.0] 11,350 [3.3] 11.50 13.50 76 1,175 [554]
RCFL-A*3621 37,600 [11.0] 25,750 [7.5] 11,850 [3.5] 11.00 13.00 76 1,050 [495]
RCFL-A*3621(RGFE-07?MCK?) 37,800 [11.1] 25,900 [7.6] 11,900 [3.5] 11.00 13.50 76 1,025 [484]
RCFL-A*3621(RGFE-09?ZCM?) 38,500 [11.3] 27,300 [8.0] 11,200 [3.3] 11.00 13.00 76 1,200 [566]
RCFL-A*3621(RGFE-10?ZCM?) 38,500 [11.3] 27,450 [8.0] 11,050 [3.2] 11.00 13.00 76 1,225 [578]
Rev.
5/17/12
➀Highest sales volume tested combination required by D.O.E. test procedures.
[ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RANL Series
12
➀Highest sales volume tested combination required by D.O.E. test procedures.
[ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RANL Series
13
Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air Sound
Rating
dB
Indoor
CFM [L/s]
Outdoor
Unit
RANL-
Indoor
Coil and/or
Air Handler
Total
Capacity
BTU/H [kW]
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
EER SEER
037CAZ/
DAZ/JAZ
RCFL-H*3617(RGRM-09?ZAJ?) 38,500 [11.3] 27,450 [8.0] 11,050 [3.2] 11.00 13.00 76 1,225 [578]
RCFL-H*3617(RGRM-10?ZAJ?) 38,500 [11.3] 27,100 [7.9] 11,400 [3.3] 11.00 13.00 76 1,150 [543]
RCFL-H*3617(RGTM-06?MAE?) 37,800 [11.1] 25,800 [7.6] 12,000 [3.5] 11.50 13.50 76 1,075 [507]
RCFL-H*3617(RHWB-04WMX36A) 38,500 [11.3] 27,100 [7.9] 11,400 [3.3] 11.50 13.50 76 1,150 [543]
RCFL-H*3617(RHWB-06WMX48A) 38,500 [11.3] 27,100 [7.9] 11,400 [3.3] 11.00 13.00 76 1,150 [543]
RCFL-H*3617(ROCA-070E03) 38,500 [11.3] 27,350 [8.0] 11,150 [3.3] 11.00 13.00 76 1,200 [566]
RCFL-H*3617(ROCA-070E04) 38,500 [11.3] 27,350 [8.0] 11,150 [3.3] 11.00 13.00 76 1,200 [566]
RCFL-H*3617(ROLA-070E03) 38,500 [11.3] 27,150 [8.0] 11,350 [3.3] 11.50 13.50 76 1,175 [554]
RCFL-H*3617(ROLA-070E04) 38,500 [11.3] 27,150 [8.0] 11,350 [3.3] 11.50 13.50 76 1,175 [554]
RCFL-H*3621 37,600 [11.0] 25,750 [7.5] 11,850 [3.5] 11.00 13.00 76 1,050 [495]
RCFL-H*3621(RGFE-07?MCK?) 37,800 [11.1] 25,900 [7.6] 11,900 [3.5] 11.00 13.50 76 1,025 [484]
RCFL-H*3621(RGFE-09?ZCM?) 38,500 [11.3] 27,300 [8.0] 11,200 [3.3] 11.00 13.00 76 1,200 [566]
RCFL-H*3621(RGFE-10?ZCM?) 38,500 [11.3] 27,450 [8.0] 11,050 [3.2] 11.00 13.00 76 1,225 [578]
RCFL-H*3621(RGFG-07?MCK?) 37,800 [11.1] 25,800 [7.6] 12,000 [3.5] 11.00 13.00 76 1,050 [495]
RCFL-H*3621(RGFG-09?ZCM?) 38,500 [11.3] 27,400 [8.0] 11,100 [3.3] 11.00 13.00 76 1,200 [566]
RCFL-H*3621(RGFG-10?ZCM?) 38,500 [11.3] 27,400 [8.0] 11,100 [3.3] 11.00 13.00 76 1,200 [566]
RCFL-H*3621(RGGE-06?MCK?) 38,500 [11.3] 28,000 [8.2] 10,500 [3.1] 11.00 13.50 76 1,200 [566]
RCFL-H*3621(RGGE-07?MCK?) 38,000 [11.1] 26,050 [7.6] 11,950 [3.5] 11.50 13.50 76 1,025 [484]
RCFL-H*3621(RGGE-09?ZCM?) 39,000 [11.4] 27,900 [8.2] 11,100 [3.3] 11.50 13.50 76 1,225 [578]
RCFL-H*3621(RGGE-10?ZCM?) 38,500 [11.3] 27,300 [8.0] 11,200 [3.3] 11.00 13.50 76 1,200 [566]
RCFL-H*3621(RGJF-06?MCK?) 38,500 [11.3] 28,000 [8.2] 10,500 [3.1] 11.00 13.50 76 1,200 [566]
RCFL-H*3621(RGJF-07?MCK?) 38,500 [11.3] 28,000 [8.2] 10,500 [3.1] 11.00 13.50 76 1,200 [566]
RCFL-H*3621(RGJF-09?ZCM?) 39,000 [11.4] 27,900 [8.2] 11,100 [3.3] 11.50 13.50 76 1,225 [578]
RCFL-H*3621(RGJF-10?ZCM?) 38,500 [11.3] 27,950 [8.2] 10,550 [3.1] 11.50 13.50 76 1,200 [566]
RCFL-H*3621(RGLE-07?AMK?) 38,500 [11.3] 27,950 [8.2] 10,550 [3.1] 11.50 13.50 76 1,200 [566]
RCFL-H*3621(RGLE-10?BRM?) 39,000 [11.4] 28,350 [8.3] 10,650 [3.1] 12.00 14.50 76 1,200 [566]
RCFL-H*3621(RGLT-07?AMK?) 38,500 [11.3] 27,100 [7.9] 11,400 [3.3] 11.00 13.00 76 1,150 [543]
RCFL-H*3621(RGLT-07?BRQ?) 39,000 [11.4] 27,750 [8.1] 11,250 [3.3] 11.50 13.50 76 1,200 [566]
RCFL-H*3621(RGLT-10?BRM?) 38,500 [11.3] 27,100 [7.9] 11,400 [3.3] 11.50 13.50 76 1,175 [554]
RCFL-H*3621(RGPE-05?BMK?) 38,500 [11.3] 28,000 [8.2] 10,500 [3.1] 11.00 13.50 76 1,200 [566]
RCFL-H*3621(RGPE-07?AMK?) 38,500 [11.3] 27,450 [8.0] 11,050 [3.2] 11.00 13.00 76 1,225 [578]
RCFL-H*3621(RGPE-07?BRQ?) 38,000 [11.1] 25,950 [7.6] 12,050 [3.5] 11.50 14.00 76 1,025 [484]
RCFL-H*3621(RGPE-10?BRM?) 38,000 [11.1] 26,000 [7.6] 12,000 [3.5] 11.50 14.00 76 1,075 [507]
RCFL-H*3621(RGPT-05?BMK?) 37,800 [11.1] 25,900 [7.6] 11,900 [3.5] 11.50 13.50 76 1,075 [507]
RCFL-H*3621(RGPT-07?AMK?) 38,500 [11.3] 27,350 [8.0] 11,150 [3.3] 11.00 13.00 76 1,200 [566]
RCFL-H*3621(RGPT-07?BRQ?) 38,500 [11.3] 27,100 [7.9] 11,400 [3.3] 11.50 13.50 76 1,175 [554]
RCFL-H*3621(RGPT-10?BRM?) 39,000 [11.4] 27,700 [8.1] 11,300 [3.3] 11.50 13.50 76 1,175 [554]
RCFL-H*3621(RGRM-04?MAE?) 37,800 [11.1] 25,900 [7.6] 11,900 [3.5] 11.00 13.00 76 1,025 [484]
RCFL-H*3621(RGRM-07?MAE?) 37,600 [11.0] 25,750 [7.5] 11,850 [3.5] 11.00 13.00 76 1,025 [484]
RCFL-H*3621(RGRM-07?YBG?) 37,600 [11.0] 25,800 [7.6] 11,800 [3.5] 11.00 13.00 76 1,050 [495]
RCFL-H*3621(RGRM-09?ZAJ?) 37,800 [11.1] 26,000 [7.6] 11,800 [3.5] 11.50 13.50 76 1,075 [507]
RCFL-H*3621(RGRM-10?ZAJ?) 38,500 [11.3] 27,050 [7.9] 11,450 [3.4] 11.00 13.00 76 1,150 [543]
RCFL-H*3621(RGRM-12?RAJ?) 39,000 [11.4] 27,900 [8.2] 11,100 [3.3] 11.50 13.50 76 1,225 [578]
RCFL-H*3621(RGTM-06?MAE?) 37,800 [11.1] 26,000 [7.6] 11,800 [3.5] 11.50 13.50 76 1,075 [507]
RCFL-H*3621(RGTM-07?RBG?) 38,500 [11.3] 27,550 [8.1] 10,950 [3.2] 11.50 14.00 76 1,125 [531]
RCFL-H*3621(RGTM-09?ZAJ?) 38,500 [11.3] 27,400 [8.0] 11,100 [3.3] 11.50 14.00 76 1,100 [519]
RCFL-H*3621(RHWB-04WMX36A) 38,500 [11.3] 27,100 [7.9] 11,400 [3.3] 11.50 13.50 76 1,150 [543]
RCFL-H*3621(RHWB-06WMX48A) 38,500 [11.3] 27,200 [8.0] 11,300 [3.3] 11.50 13.00 76 1,175 [554]
Rev.
5/17/12
➀Highest sales volume tested combination required by D.O.E. test procedures.
[ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RANL Series
14
➀Highest sales volume tested combination required by D.O.E. test procedures.
[ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RANL Series
15
Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air Sound
Rating
dB
Indoor
CFM [L/s]
Outdoor
Unit
RANL-
Indoor
Coil and/or
Air Handler
Total
Capacity
BTU/H [kW]
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
EER SEER
037CAZ/
DAZ/JAZ
RCQD-3624(RGTM-09?ZAJ?) 39,500 [11.6] 28,450 [8.3] 11,050 [3.2] 12.00 14.50 76 1,100 [519]
RCQD-3624(RGTM-10?RBJ?) 40,000 [11.7] 29,050 [8.5] 10,950 [3.2] 12.00 14.50 76 1,125 [531]
RCQD-3624(ROCA-070E03) 40,000 [11.7] 28,550 [8.4] 11,450 [3.4] 11.50 14.00 76 1,200 [566]
RCQD-3624(ROCA-070E04) 40,000 [11.7] 28,550 [8.4] 11,450 [3.4] 11.50 14.00 76 1,200 [566]
RCQD-3624(ROLA-070E03) 40,000 [11.7] 28,500 [8.4] 11,500 [3.4] 12.00 14.50 76 1,175 [554]
RCQD-3624(ROLA-070E04) 40,000 [11.7] 28,500 [8.4] 11,500 [3.4] 12.00 14.50 76 1,175 [554]
RCQD-3624(ROLA-115E05) 40,000 [11.7] 28,500 [8.4] 11,500 [3.4] 12.00 14.50 76 1,200 [566]
RHKL-HM3617(RCSL-H*3617) 39,000 [11.4] 27,700 [8.1] 11,300 [3.3] 11.50 14.00 76 1,200 [566]
RHLL-HM3617(RCSL-H*3617) 39,000 [11.4] 27,700 [8.1] 11,300 [3.3] 11.50 14.00 76 1,200 [566]
RHSL-HM3617(RCSL-H*3617) 37,800 [11.1] 26,200 [7.7] 11,600 [3.4] 11.00 13.00 76 1,100 [519]
RHSL-HM3621(RCSL-H*3621) 37,800 [11.1] 26,200 [7.7] 11,600 [3.4] 11.00 13.00 76 1,100 [519]
043CAZ/
DAZ/JAZ
RCFL-H*4821 ➀41,500 [12.2] 29,700 [8.7] 11,800 [3.5] 10.50 13.00 76 1,400 [661]
RCFL-A*4821(RGFE-09?ZCM?) 41,500 [12.2] 29,700 [8.7] 11,800 [3.5] 11.00 13.00 76 1,400 [661]
RCFL-A*4821(RGFE-10?ZCM?) 41,000 [12.0] 28,100 [8.2] 12,900 [3.8] 11.00 13.00 76 1,225 [578]
RCFL-A*4821(RGFG-09?ZCM?) 41,000 [12.0] 28,000 [8.2] 13,000 [3.8] 11.00 13.00 76 1,200 [566]
RCFL-A*4821(RGFG-10?ZCM?) 41,000 [12.0] 28,000 [8.2] 13,000 [3.8] 11.00 13.00 76 1,200 [566]
RCFL-A*4821(RGGE-06?MCK?) 41,000 [12.0] 28,050 [8.2] 12,950 [3.8] 11.00 13.00 76 1,200 [566]
RCFL-A*4821(RGGE-07?MCK?) 40,500 [11.9] 27,550 [8.1] 12,950 [3.8] 11.00 13.00 76 1,200 [566]
RCFL-A*4821(RGGE-09?ZCM?) 41,500 [12.2] 29,650 [8.7] 11,850 [3.5] 11.00 13.00 76 1,400 [661]
RCFL-A*4821(RGGE-10?ZCM?) 41,500 [12.2] 29,650 [8.7] 11,850 [3.5] 11.00 13.00 76 1,400 [661]
RCFL-A*4821(RGLE-07?AMK?) 41,000 [12.0] 28,000 [8.2] 13,000 [3.8] 11.00 13.00 76 1,200 [566]
RCFL-A*4821(RGLE-10?BRM?) 41,500 [12.2] 28,400 [8.3] 13,100 [3.8] 11.50 14.00 76 1,200 [566]
RCFL-A*4821(RGLT-07?AMK?) 41,500 [12.2] 29,600 [8.7] 11,900 [3.5] 11.00 13.00 76 1,325 [625]
RCFL-A*4821(RGLT-07?BRQ?) 42,000 [12.3] 30,350 [8.9] 11,650 [3.4] 11.00 13.50 76 1,450 [684]
RCFL-A*4821(RGLT-10?BRM?) 42,000 [12.3] 30,100 [8.8] 11,900 [3.5] 11.00 13.50 76 1,425 [672]
RCFL-A*4821(RGPE-05?BMK?) 41,000 [12.0] 28,050 [8.2] 12,950 [3.8] 11.00 13.00 76 1,200 [566]
RCFL-A*4821(RGPE-07?AMK?) 41,000 [12.0] 28,150 [8.2] 12,850 [3.8] 11.00 13.00 76 1,225 [578]
RCFL-A*4821(RGPE-07?BRQ?) 42,000 [12.3] 30,100 [8.8] 11,900 [3.5] 11.00 13.50 76 1,400 [661]
RCFL-A*4821(RGPE-10?BRM?) 42,000 [12.3] 30,100 [8.8] 11,900 [3.5] 11.00 13.50 76 1,400 [661]
RCFL-A*4821(RGPT-05?BMK?) 41,000 [12.0] 28,200 [8.3] 12,800 [3.8] 11.00 13.00 76 1,225 [578]
RCFL-A*4821(RGPT-07?AMK?) 41,000 [12.0] 28,300 [8.3] 12,700 [3.7] 11.00 13.00 76 1,250 [590]
RCFL-A*4821(RGPT-07?BRQ?) 41,500 [12.2] 29,000 [8.5] 12,500 [3.7] 11.50 13.50 76 1,225 [578]
RCFL-A*4821(RGPT-10?BRM?) 42,000 [12.3] 30,050 [8.8] 11,950 [3.5] 11.00 13.50 76 1,425 [672]
RCFL-A*4821(RGRM-09?ZAJ?) 41,000 [12.0] 28,150 [8.2] 12,850 [3.8] 11.00 13.00 76 1,225 [578]
RCFL-A*4821(RGRM-10?ZAJ?) 40,500 [11.9] 27,250 [8.0] 13,250 [3.9] 11.00 13.00 76 1,150 [543]
RCFL-A*4821(RGRM-12?RAJ?) 41,500 [12.2] 29,650 [8.7] 11,850 [3.5] 11.00 13.00 76 1,425 [672]
RCFL-A*4821(RGTM-06?MAE?) 41,000 [12.0] 28,100 [8.2] 12,900 [3.8] 11.00 13.00 76 1,225 [578]
RCFL-A*4821(RGTM-07?RBG?) 41,500 [12.2] 29,000 [8.5] 12,500 [3.7] 11.00 13.50 76 1,325 [625]
RCFL-A*4821(RGTM-09?ZAJ?) 41,500 [12.2] 28,600 [8.4] 12,900 [3.8] 11.50 14.00 76 1,250 [590]
RCFL-A*4821(RHWB-04WMX36A) 41,000 [12.0] 28,100 [8.2] 12,900 [3.8] 11.00 13.50 76 1,200 [566]
RCFL-A*4821(RHWB-06WMX48A) 41,000 [12.0] 28,100 [8.2] 12,900 [3.8] 11.00 13.00 76 1,200 [566]
RCFL-A*4821(ROCA-070E03) 41,000 [12.0] 28,000 [8.2] 13,000 [3.8] 11.00 13.00 76 1,200 [566]
RCFL-A*4821(ROCA-070E04) 41,000 [12.0] 28,000 [8.2] 13,000 [3.8] 11.00 13.00 76 1,200 [566]
RCFL-A*4821(ROLA-070E03) 41,000 [12.0] 27,800 [8.1] 13,200 [3.9] 11.00 13.50 76 1,175 [554]
RCFL-A*4821(ROLA-070E04) 42,000 [12.3] 30,100 [8.8] 11,900 [3.5] 11.00 13.50 76 1,375 [649]
RCFL-A*4821(ROLA-115E05) 41,000 [12.0] 27,900 [8.2] 13,100 [3.8] 11.50 13.50 76 1,200 [566]
RCFL-A*4824 41,500 [12.2] 29,700 [8.7] 11,800 [3.5] 10.50 13.00 76 1,400 [661]
RCFL-A*4824(RGFE-09?ZCM?) 42,500 [12.5] 30,450 [8.9] 12,050 [3.5] 11.00 13.00 76 1,400 [661]
Rev.
5/17/12
➀Highest sales volume tested combination required by D.O.E. test procedures.
[ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RANL Series
16
➀Highest sales volume tested combination required by D.O.E. test procedures.
[ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RANL Series
17
Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air Sound
Rating
dB
Indoor
CFM [L/s]
Outdoor
Unit
RANL-
Indoor
Coil and/or
Air Handler
Total
Capacity
BTU/H [kW]
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
EER SEER
043CAZ/
DAZ/JAZ
RCFL-H*4821(RGLT-07?BRQ?) 42,000 [12.3] 30,350 [8.9] 11,650 [3.4] 11.00 13.50 76 1,450 [684]
RCFL-H*4821(RGLT-10?BRM?) 42,000 [12.3] 30,100 [8.8] 11,900 [3.5] 11.00 13.50 76 1,425 [672]
RCFL-H*4821(RGPE-05?BMK?) 41,500 [12.2] 28,250 [8.3] 13,250 [3.9] 11.00 13.00 76 1,200 [566]
RCFL-H*4821(RGPE-07?AMK?) 42,000 [12.3] 28,900 [8.5] 13,100 [3.8] 11.00 13.50 76 1,225 [578]
RCFL-H*4821(RGPE-07?BRQ?) 42,000 [12.3] 28,800 [8.4] 13,200 [3.9] 11.50 14.00 76 1,225 [578]
RCFL-H*4821(RGPE-10?BRM?) 42,000 [12.3] 28,750 [8.4] 13,250 [3.9] 11.50 14.00 76 1,225 [578]
RCFL-H*4821(RGPT-05?BMK?) 41,000 [12.0] 28,200 [8.3] 12,800 [3.8] 11.00 13.00 76 1,225 [578]
RCFL-H*4821(RGPT-07?AMK?) 41,000 [12.0] 28,300 [8.3] 12,700 [3.7] 11.00 13.00 76 1,250 [590]
RCFL-H*4821(RGPT-07?BRQ?) 41,500 [12.2] 28,650 [8.4] 12,850 [3.8] 11.50 14.00 76 1,250 [590]
RCFL-H*4821(RGPT-10?BRM?) 42,000 [12.3] 30,050 [8.8] 11,950 [3.5] 11.00 13.50 76 1,425 [672]
RCFL-H*4821(RGRM-09?ZAJ?) 41,000 [12.0] 28,150 [8.2] 12,850 [3.8] 11.00 13.00 76 1,225 [578]
RCFL-H*4821(RGRM-10?ZAJ?) 40,500 [11.9] 27,250 [8.0] 13,250 [3.9] 11.00 13.00 76 1,150 [543]
RCFL-H*4821(RGRM-12?RAJ?) 41,500 [12.2] 29,650 [8.7] 11,850 [3.5] 11.00 13.00 76 1,425 [672]
RCFL-H*4821(RGTM-06?MAE?) 41,500 [12.2] 28,450 [8.3] 13,050 [3.8] 11.00 13.00 76 1,225 [578]
RCFL-H*4821(RGTM-07?RBG?) 42,500 [12.5] 29,900 [8.8] 12,600 [3.7] 11.00 13.50 76 1,325 [625]
RCFL-H*4821(RGTM-09?ZAJ?) 42,000 [12.3] 28,950 [8.5] 13,050 [3.8] 11.00 13.50 76 1,250 [590]
RCFL-H*4821(RHWB-04WMX36A) 41,000 [12.0] 28,100 [8.2] 12,900 [3.8] 11.00 13.50 76 1,200 [566]
RCFL-H*4821(RHWB-06WMX48A) 41,000 [12.0] 28,100 [8.2] 12,900 [3.8] 11.00 13.00 76 1,200 [566]
RCFL-H*4821(ROCA-070E03) 41,000 [12.0] 28,000 [8.2] 13,000 [3.8] 11.00 13.50 76 1,200 [566]
RCFL-H*4821(ROCA-070E04) 41,000 [12.0] 28,000 [8.2] 13,000 [3.8] 11.00 13.50 76 1,200 [566]
RCFL-H*4821(ROLA-070E03) 41,000 [12.0] 27,800 [8.1] 13,200 [3.9] 11.00 13.50 76 1,175 [554]
RCFL-H*4821(ROLA-070E04) 42,000 [12.3] 30,100 [8.8] 11,900 [3.5] 11.00 13.50 76 1,375 [649]
RCFL-H*4821(ROLA-115E05) 41,000 [12.0] 27,900 [8.2] 13,100 [3.8] 11.50 13.50 76 1,200 [566]
RCFL-H*4824 41,500 [12.2] 29,700 [8.7] 11,800 [3.5] 10.50 13.00 76 1,400 [661]
RCFL-H*4824(RGFE-09?ZCM?) 42,500 [12.5] 30,450 [8.9] 12,050 [3.5] 11.00 13.00 76 1,400 [661]
RCFL-H*4824(RGFE-10?ZCM?) 42,500 [12.5] 30,500 [8.9] 12,000 [3.5] 10.50 13.00 76 1,425 [672]
RCFL-H*4824(RGFE-12?RCM?) 43,000 [12.6] 31,200 [9.1] 11,800 [3.5] 11.00 13.00 76 1,450 [684]
RCFL-H*4824(RGFG-09?ZCM?) 41,000 [12.0] 28,000 [8.2] 13,000 [3.8] 11.00 13.00 76 1,200 [566]
RCFL-H*4824(RGFG-10?ZCM?) 41,000 [12.0] 28,000 [8.2] 13,000 [3.8] 11.00 13.00 76 1,200 [566]
RCFL-H*4824(RGFG-12?RCM?) 41,500 [12.2] 28,400 [8.3] 13,100 [3.8] 11.50 13.50 76 1,225 [578]
RCFL-H*4824(RGGE-09?ZCM?) 42,500 [12.5] 30,400 [8.9] 12,100 [3.5] 11.00 13.00 76 1,400 [661]
RCFL-H*4824(RGGE-10?ZCM?) 42,500 [12.5] 30,450 [8.9] 12,050 [3.5] 11.00 13.00 76 1,400 [661]
RCFL-H*4824(RGGE-12?RCM?) 42,000 [12.3] 28,650 [8.4] 13,350 [3.9] 11.50 14.00 76 1,200 [566]
RCFL-H*4824(RGJF-09?ZCM?) 42,500 [12.5] 30,400 [8.9] 12,100 [3.5] 11.00 13.00 76 1,400 [661]
RCFL-H*4824(RGJF-10?ZCM?) 42,500 [12.5] 30,400 [8.9] 12,100 [3.5] 11.00 13.00 76 1,400 [661]
RCFL-H*4824(RGJF-12?RCM?) 42,000 [12.3] 28,650 [8.4] 13,350 [3.9] 11.50 14.00 76 1,200 [566]
RCFL-H*4824(RGLE-10?BRM?) 42,000 [12.3] 28,600 [8.4] 13,400 [3.9] 11.50 14.00 76 1,200 [566]
RCFL-H*4824(RGLE-12?ARM?) 42,000 [12.3] 28,750 [8.4] 13,250 [3.9] 11.50 14.00 76 1,225 [578]
RCFL-H*4824(RGLT-07?BRQ?) 42,000 [12.3] 30,350 [8.9] 11,650 [3.4] 11.00 13.50 76 1,450 [684]
RCFL-H*4824(RGLT-10?BRM?) 42,000 [12.3] 30,100 [8.8] 11,900 [3.5] 11.00 13.50 76 1,425 [672]
RCFL-H*4824(RGLT-12?ARM?) 42,000 [12.3] 30,000 [8.8] 12,000 [3.5] 11.00 13.50 76 1,375 [649]
RCFL-H*4824(RGPE-07?BRQ?) 42,000 [12.3] 28,800 [8.4] 13,200 [3.9] 11.50 14.00 76 1,225 [578]
RCFL-H*4824(RGPE-10?BRM?) 42,000 [12.3] 28,750 [8.4] 13,250 [3.9] 11.50 14.00 76 1,225 [578]
RCFL-H*4824(RGPE-12?ARM?) 42,000 [12.3] 28,600 [8.4] 13,400 [3.9] 11.50 14.00 76 1,200 [566]
RCFL-H*4824(RGPT-07?BRQ?) 42,000 [12.3] 30,200 [8.8] 11,800 [3.5] 11.00 13.50 76 1,425 [672]
RCFL-H*4824(RGPT-10?BRM?) 42,000 [12.3] 30,050 [8.8] 11,950 [3.5] 11.00 13.50 76 1,425 [672]
RCFL-H*4824(RGPT-12?ARM?) 42,000 [12.3] 30,000 [8.8] 12,000 [3.5] 11.50 14.00 76 1,375 [649]
RCFL-H*4824(RGRM-09?ZAJ?) 41,000 [12.0] 28,150 [8.2] 12,850 [3.8] 11.00 13.00 76 1,225 [578]
Rev.
5/17/12
➀Highest sales volume tested combination required by D.O.E. test procedures.
[ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RANL Series
18
➀Highest sales volume tested combination required by D.O.E. test procedures.
[ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RANL Series
19
Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air Sound
Rating
dB
Indoor
CFM [L/s]
Outdoor
Unit
RANL-
Indoor
Coil and/or
Air Handler
Total
Capacity
BTU/H [kW]
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
EER SEER
043CAZ/
DAZ/JAZ
RCQD-4824(RGPT-07?BRQ?) 42,000 [12.3] 29,250 [8.6] 12,750 [3.7] 11.50 14.00 76 1,250 [590]
RCQD-4824(RGPT-10?BRM?) 42,000 [12.3] 29,250 [8.6] 12,750 [3.7] 11.50 14.00 76 1,250 [590]
RCQD-4824(RGPT-12?ARM?) 43,000 [12.6] 31,100 [9.1] 11,900 [3.5] 11.50 14.00 76 1,400 [661]
RCQD-4824(RHWB-08WRX60A) 42,000 [12.3] 30,600 [9.0] 11,400 [3.3] 11.50 14.00 76 1,400 [661]
RCQD-4824(RHWB-10WRX60A) 42,500 [12.5] 31,400 [9.2] 11,100 [3.3] 11.50 14.00 76 1,450 [684]
RCQD-4824(ROCA-070E03) 41,500 [12.2] 28,550 [8.4] 12,950 [3.8] 11.00 13.50 76 1,200 [566]
RCQD-4824(ROCA-070E04) 41,500 [12.2] 28,550 [8.4] 12,950 [3.8] 11.00 13.50 76 1,200 [566]
RCQD-4824(ROLA-070E04) 42,500 [12.5] 30,700 [9.0] 11,800 [3.5] 11.00 13.50 76 1,375 [649]
RCQD-4824(ROLA-115E05) 42,000 [12.3] 29,000 [8.5] 13,000 [3.8] 11.50 14.00 76 1,200 [566]
RHKL-HM4821(RCSL-H*4821) 42,000 [12.3] 30,000 [8.8] 12,000 [3.5] 11.50 13.50 76 1,400 [661]
RHLL-HM4821(RCSL-H*4821) 42,000 [12.3] 30,000 [8.8] 12,000 [3.5] 11.50 14.00 76 1,400 [661]
RHSL-HM4221(RCSL-H*4821) 41,000 [12.0] 28,950 [8.5] 12,050 [3.5] 10.50 13.00 76 1,350 [637]
049CAZ/DAZ/
JAZ/YAZ
RCFL-H*4821 ➀46,500 [13.6] 33,250 [9.7] 13,250 [3.9] 11.00 13.00 76 1,550 [731]
RCFL-A*4821 46,500 [13.6] 33,250 [9.7] 13,250 [3.9] 11.00 13.00 76 1,550 [731]
RCFL-A*4821(RGFE-09?ZCM?) 46,500 [13.6] 32,100 [9.4] 14,400 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-A*4821(RGGE-09?ZCM?) 46,500 [13.6] 32,050 [9.4] 14,450 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-A*4821(RGGE-10?ZCM?) 46,500 [13.6] 32,100 [9.4] 14,400 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-A*4821(RGLE-10?BRM?) 47,000 [13.8] 32,450 [9.5] 14,550 [4.3] 11.00 13.50 76 1,400 [661]
RCFL-A*4821(RGLT-07?BRQ?) 46,500 [13.6] 32,350 [9.5] 14,150 [4.1] 11.00 13.50 76 1,425 [672]
RCFL-A*4821(RGLT-10?BRM?) 46,000 [13.5] 31,700 [9.3] 14,300 [4.2] 11.00 13.50 76 1,400 [661]
RCFL-A*4821(RGPE-07?BRQ?) 47,000 [13.8] 32,500 [9.5] 14,500 [4.2] 11.00 13.50 76 1,400 [661]
RCFL-A*4821(RGPE-10?BRM?) 47,500 [13.9] 34,550 [10.1] 12,950 [3.8] 11.00 13.00 76 1,625 [767]
RCFL-A*4821(RGPT-07?BRQ?) 46,500 [13.6] 32,300 [9.5] 14,200 [4.2] 11.00 13.50 76 1,425 [672]
RCFL-A*4821(RGPT-10?BRM?) 46,000 [13.5] 31,650 [9.3] 14,350 [4.2] 11.00 13.50 76 1,400 [661]
RCFL-A*4821(RGTM-07?RBG?) 46,500 [13.6] 31,500 [9.2] 15,000 [4.4] 11.00 13.50 76 1,325 [625]
RCFL-A*4821(RGTM-09?ZAJ?) 46,500 [13.6] 32,050 [9.4] 14,450 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-A*4821(RHWB-04WMX36A) 45,500 [13.3] 30,700 [9.0] 14,800 [4.3] 11.00 13.00 76 1,300 [613]
RCFL-A*4821(RHWB-06WMX48A) 45,500 [13.3] 30,700 [9.0] 14,800 [4.3] 11.00 13.00 76 1,300 [613]
RCFL-A*4821(ROLA-070E04) 46,000 [13.5] 31,550 [9.2] 14,450 [4.2] 11.00 13.00 76 1,375 [649]
RCFL-A*4821(ROLA-115E05) 46,000 [13.5] 31,700 [9.3] 14,300 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-A*4824 46,500 [13.6] 33,250 [9.7] 13,250 [3.9] 11.00 13.00 76 1,550 [731]
RCFL-A*4824(RGFE-09?ZCM?) 46,500 [13.6] 32,100 [9.4] 14,400 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-A*4824(RGFE-12?RCM?) 47,000 [13.8] 32,850 [9.6] 14,150 [4.1] 11.00 13.00 76 1,450 [684]
RCFL-A*4824(RGFG-12?RCM?) 47,000 [13.8] 32,800 [9.6] 14,200 [4.2] 11.00 13.50 76 1,450 [684]
RCFL-A*4824(RGGE-09?ZCM?) 46,500 [13.6] 32,050 [9.4] 14,450 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-A*4824(RGGE-10?ZCM?) 46,500 [13.6] 32,100 [9.4] 14,400 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-A*4824(RGGE-12?RCM?) 47,000 [13.8] 33,550 [9.8] 13,450 [3.9] 11.00 13.00 76 1,575 [743]
RCFL-A*4824(RGLE-10?BRM?) 47,500 [13.9] 34,350 [10.1] 13,150 [3.9] 11.00 13.50 76 1,600 [755]
RCFL-A*4824(RGLE-12?ARM?) 47,500 [13.9] 34,350 [10.1] 13,150 [3.9] 11.00 13.50 76 1,600 [755]
RCFL-A*4824(RGLT-07?BRQ?) 46,500 [13.6] 32,350 [9.5] 14,150 [4.1] 11.00 13.50 76 1,425 [672]
RCFL-A*4824(RGLT-10?BRM?) 46,000 [13.5] 31,700 [9.3] 14,300 [4.2] 11.00 13.50 76 1,400 [661]
RCFL-A*4824(RGLT-12?ARM?) 46,000 [13.5] 31,300 [9.2] 14,700 [4.3] 11.00 13.50 76 1,350 [637]
RCFL-A*4824(RGPE-07?BRQ?) 47,000 [13.8] 32,500 [9.5] 14,500 [4.2] 11.00 13.50 76 1,400 [661]
RCFL-A*4824(RGPE-10?BRM?) 47,500 [13.9] 34,000 [10.0] 13,500 [4.0] 11.00 13.50 76 1,550 [731]
RCFL-A*4824(RGPE-12?ARM?) 47,500 [13.9] 34,500 [10.1] 13,000 [3.8] 11.00 13.50 76 1,625 [767]
RCFL-A*4824(RGPT-07?BRQ?) 46,500 [13.6] 32,300 [9.5] 14,200 [4.2] 11.00 13.50 76 1,425 [672]
RCFL-A*4824(RGPT-10?BRM?) 46,500 [13.6] 32,300 [9.5] 14,200 [4.2] 11.00 13.50 76 1,425 [672]
RCFL-A*4824(RGPT-12?ARM?) 46,000 [13.5] 31,300 [9.2] 14,700 [4.3] 11.00 13.50 76 1,350 [637]
Rev.
5/17/12
➀Highest sales volume tested combination required by D.O.E. test procedures.
[ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RANL Series
20
Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air Sound
Rating
dB
Indoor
CFM [L/s]
Outdoor
Unit
RANL-
Indoor
Coil and/or
Air Handler
Total
Capacity
BTU/H [kW]
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
EER SEER
049CAZ/DAZ/
JAZ/YAZ
RCFL-A*4824(RGTM-07?RBG?) 46,500 [13.6] 31,500 [9.2] 15,000 [4.4] 11.00 13.50 76 1,325 [625]
RCFL-A*4824(RGTM-09?ZAJ?) 46,500 [13.6] 32,050 [9.4] 14,450 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-A*4824(RGTM-10?RBJ?) 47,000 [13.8] 32,650 [9.6] 14,350 [4.2] 11.00 13.50 76 1,425 [672]
RCFL-A*4824(RHWB-08WRX60A) 46,500 [13.6] 32,600 [9.6] 13,900 [4.1] 11.50 13.50 76 1,450 [684]
RCFL-A*4824(RHWB-10WRX60A) 46,000 [13.5] 31,500 [9.2] 14,500 [4.2] 11.50 14.00 76 1,350 [637]
RCFL-A*4824(ROLA-070E04) 46,000 [13.5] 31,550 [9.2] 14,450 [4.2] 11.00 13.00 76 1,375 [649]
RCFL-A*4824(ROLA-115E05) 46,000 [13.5] 31,700 [9.3] 14,300 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-H*4821(RGFE-09?ZCM?) 46,500 [13.6] 32,100 [9.4] 14,400 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-H*4821(RGGE-09?ZCM?) 46,500 [13.6] 32,050 [9.4] 14,450 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-H*4821(RGGE-10?ZCM?) 46,500 [13.6] 32,100 [9.4] 14,400 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-H*4821(RGJF-09?ZCM?) 46,500 [13.6] 32,050 [9.4] 14,450 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-H*4821(RGJF-10?ZCM?) 46,500 [13.6] 32,100 [9.4] 14,400 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-H*4821(RGLE-10?BRM?) 47,500 [13.9] 34,350 [10.1] 13,150 [3.9] 11.00 13.50 76 1,600 [755]
RCFL-H*4821(RGLT-07?BRQ?) 46,500 [13.6] 32,350 [9.5] 14,150 [4.1] 11.00 13.50 76 1,425 [672]
RCFL-H*4821(RGLT-10?BRM?) 46,000 [13.5] 31,700 [9.3] 14,300 [4.2] 11.00 13.50 76 1,400 [661]
RCFL-H*4821(RGPE-07?BRQ?) 47,500 [13.9] 34,400 [10.1] 13,100 [3.8] 11.00 13.00 76 1,600 [755]
RCFL-H*4821(RGPE-10?BRM?) 47,500 [13.9] 34,000 [10.0] 13,500 [4.0] 11.00 13.50 76 1,550 [731]
RCFL-H*4821(RGPT-07?BRQ?) 46,500 [13.6] 32,300 [9.5] 14,200 [4.2] 11.00 13.50 76 1,425 [672]
RCFL-H*4821(RGPT-10?BRM?) 46,500 [13.6] 32,300 [9.5] 14,200 [4.2] 11.00 13.50 76 1,425 [672]
RCFL-H*4821(RGTM-07?RBG?) 46,500 [13.6] 31,500 [9.2] 15,000 [4.4] 11.00 13.50 76 1,325 [625]
RCFL-H*4821(RGTM-09?ZAJ?) 46,500 [13.6] 32,050 [9.4] 14,450 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-H*4821(RHWB-04WMX36A) 45,500 [13.3] 30,700 [9.0] 14,800 [4.3] 11.00 13.00 76 1,300 [613]
RCFL-H*4821(RHWB-06WMX48A) 45,500 [13.3] 30,700 [9.0] 14,800 [4.3] 11.00 13.00 76 1,300 [613]
RCFL-H*4821(ROLA-070E04) 46,000 [13.5] 31,550 [9.2] 14,450 [4.2] 11.00 13.00 76 1,375 [649]
RCFL-H*4821(ROLA-115E05) 46,000 [13.5] 31,700 [9.3] 14,300 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-H*4824 46,500 [13.6] 33,250 [9.7] 13,250 [3.9] 11.00 13.00 76 1,550 [731]
RCFL-H*4824(RGFE-09?ZCM?) 46,500 [13.6] 32,100 [9.4] 14,400 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-H*4824(RGFE-12?RCM?) 47,000 [13.8] 32,850 [9.6] 14,150 [4.1] 11.00 13.00 76 1,450 [684]
RCFL-H*4824(RGFG-12?RCM?) 47,000 [13.8] 32,600 [9.6] 14,400 [4.2] 11.00 13.50 76 1,450 [684]
RCFL-H*4824(RGGE-09?ZCM?) 46,500 [13.6] 32,050 [9.4] 14,450 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-H*4824(RGGE-10?ZCM?) 46,500 [13.6] 32,100 [9.4] 14,400 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-H*4824(RGGE-12?RCM?) 47,000 [13.8] 33,550 [9.8] 13,450 [3.9] 11.00 13.00 76 1,575 [743]
RCFL-H*4824(RGJF-09?ZCM?) 46,500 [13.6] 32,050 [9.4] 14,450 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-H*4824(RGJF-10?ZCM?) 46,500 [13.6] 32,100 [9.4] 14,400 [4.2] 11.00 13.00 76 1,400 [661]
RCFL-H*4824(RGJF-12?RCM?) 47,000 [13.8] 33,550 [9.8] 13,450 [3.9] 11.00 13.00 76 1,575 [743]
RCFL-H*4824(RGLE-10?BRM?) 47,500 [13.9] 34,350 [10.1] 13,150 [3.9] 11.00 13.50 76 1,600 [755]
RCFL-H*4824(RGLE-12?ARM?) 47,500 [13.9] 34,350 [10.1] 13,150 [3.9] 11.00 13.50 76 1,600 [755]
RCFL-H*4824(RGLT-07?BRQ?) 46,500 [13.6] 32,350 [9.5] 14,150 [4.1] 11.00 13.50 76 1,425 [672]
RCFL-H*4824(RGLT-10?BRM?) 46,000 [13.5] 31,700 [9.3] 14,300 [4.2] 11.00 13.50 76 1,400 [661]
RCFL-H*4824(RGLT-12?ARM?) 46,000 [13.5] 31,300 [9.2] 14,700 [4.3] 11.00 13.50 76 1,350 [637]
RCFL-H*4824(RGPE-07?BRQ?) 47,500 [13.9] 34,400 [10.1] 13,100 [3.8] 11.00 13.00 76 1,600 [755]
RCFL-H*4824(RGPE-10?BRM?) 47,500 [13.9] 34,550 [10.1] 12,950 [3.8] 11.00 13.00 76 1,625 [767]
RCFL-H*4824(RGPE-12?ARM?) 47,500 [13.9] 34,500 [10.1] 13,000 [3.8] 11.00 13.50 76 1,625 [767]
RCFL-H*4824(RGPT-07?BRQ?) 46,500 [13.6] 32,300 [9.5] 14,200 [4.2] 11.00 13.50 76 1,425 [672]
RCFL-H*4824(RGPT-10?BRM?) 46,500 [13.6] 32,300 [9.5] 14,200 [4.2] 11.00 13.50 76 1,425 [672]
RCFL-H*4824(RGPT-12?ARM?) 46,000 [13.5] 31,300 [9.2] 14,700 [4.3] 11.00 13.50 76 1,350 [637]
RCFL-H*4824(RGTM-07?RBG?) 46,500 [13.6] 31,650 [9.3] 14,850 [4.4] 11.50 14.00 76 1,325 [625]
RCFL-H*4824(RGTM-09?ZAJ?) 46,500 [13.6] 32,200 [9.4] 14,300 [4.2] 11.00 13.50 76 1,400 [661]
RCFL-H*4824(RGTM-10?RBJ?) 47,000 [13.8] 32,850 [9.6] 14,150 [4.1] 11.00 13.50 76 1,425 [672]
Rev.
5/17/12
➀Highest sales volume tested combination required by D.O.E. test procedures.
[ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RANL Series
21
Model Numbers 80°F [26.5°C] DB/67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air Sound
Rating
dB
Indoor
CFM [L/s]
Outdoor
Unit
RANL-
Indoor
Coil and/or
Air Handler
Total
Capacity
BTU/H [kW]
Net
Sensible
BTU/H [kW]
Net
Latent
BTU/H [kW]
EER SEER
049CAZ/DAZ/
JAZ/YAZ
RCFL-H*4824(RHWB-08WRX60A) 46,500 [13.6] 32,600 [9.6] 13,900 [4.1] 11.50 13.50 76 1,450 [684]
RCFL-H*4824(RHWB-10WRX60A) 46,000 [13.5] 31,500 [9.2] 14,500 [4.2] 11.50 14.00 76 1,350 [637]
RCFL-H*4824(ROLA-070E04) 46,000 [13.5] 31,550 [9.2] 14,450 [4.2] 11.00 13.00 76 1,375 [649]
RCFL-H*4824(ROLA-115E05) 46,000 [13.5] 31,700 [9.3] 14,300 [4.2] 11.00 13.00 76 1,400 [661]
RBHP-24(RCHL-48A1) 45,500 [13.3] 31,300 [9.2] 14,200 [4.2] 11.00 13.00 76 1,600 [755]
RCQD-4821(RGFG-09?ZCM?) 46,500 [13.6] 32,700 [9.6] 13,800 [4.0] 11.00 13.50 76 1,400 [661]
RCQD-4821(RGFG-10?ZCM?) 46,500 [13.6] 32,700 [9.6] 13,800 [4.0] 11.00 13.00 76 1,400 [661]
RCQD-4821(RGPT-07?BRQ?) 47,500 [13.9] 33,250 [9.7] 14,250 [4.2] 11.50 14.00 76 1,425 [672]
RCQD-4821(RGPT-10?BRM?) 47,500 [13.9] 33,200 [9.7] 14,300 [4.2] 11.50 14.00 76 1,425 [672]
RCQD-4821(RHWB-04WMX36A) 46,500 [13.6] 32,100 [9.4] 14,400 [4.2] 11.50 13.50 76 1,300 [613]
RCQD-4821(RHWB-06WMX48A) 46,500 [13.6] 32,300 [9.5] 14,200 [4.2] 11.50 13.50 76 1,325 [625]
RCQD-4821(ROLA-070E04) 46,500 [13.6] 31,550 [9.2] 14,950 [4.4] 11.00 13.50 76 1,375 [649]
RCQD-4821A* 47,000 [13.8] 34,250 [10.0] 12,750 [3.7] 11.00 13.00 76 1,600 [755]
RCQD-4821A*(RGFD-12?RCM?) 47,500 [13.9] 35,050 [10.3] 12,450 [3.6] 11.00 13.00 76 1,650 [779]
RCQD-4824(RGFE-09?ZCM?) 47,000 [13.8] 32,650 [9.6] 14,350 [4.2] 11.00 13.50 76 1,400 [661]
RCQD-4824(RGFE-10?ZCM?) 47,000 [13.8] 32,850 [9.6] 14,150 [4.1] 11.00 13.50 76 1,425 [672]
RCQD-4824(RGFE-12?RCM?) 47,500 [13.9] 33,400 [9.8] 14,100 [4.1] 11.50 14.00 76 1,450 [684]
RCQD-4824(RGFG-09?ZCM?) 46,500 [13.6] 32,650 [9.6] 13,850 [4.1] 11.50 13.50 76 1,400 [661]
RCQD-4824(RGFG-10?ZCM?) 46,500 [13.6] 32,650 [9.6] 13,850 [4.1] 11.50 13.50 76 1,400 [661]
RCQD-4824(RGFG-12?RCM?) 47,000 [13.8] 33,400 [9.8] 13,600 [4.0] 11.50 13.50 76 1,450 [684]
RCQD-4824(RGJF-09?ZCM?) 47,000 [13.8] 32,600 [9.6] 14,400 [4.2] 11.50 13.50 76 1,400 [661]
RCQD-4824(RGJF-10?ZCM?) 47,000 [13.8] 32,650 [9.6] 14,350 [4.2] 11.00 13.50 76 1,400 [661]
RCQD-4824(RGJF-12?RCM?) 48,000 [14.1] 34,950 [10.2] 13,050 [3.8] 11.50 13.50 76 1,575 [743]
RCQD-4824(RGPE-07?BRQ?) 48,000 [14.1] 34,950 [10.2] 13,050 [3.8] 11.50 13.50 76 1,600 [755]
RCQD-4824(RGPE-10?BRM?) 48,000 [14.1] 34,950 [10.2] 13,050 [3.8] 11.50 13.50 76 1,625 [767]
RCQD-4824(RGPE-12?ARM?) 48,000 [14.1] 34,900 [10.2] 13,100 [3.8] 11.50 13.50 76 1,625 [767]
RCQD-4824(RGPT-07?BRQ?) 47,500 [13.9] 33,550 [9.8] 13,950 [4.1] 11.50 14.00 76 1,475 [696]
RCQD-4824(RGPT-10?BRM?) 47,500 [13.9] 33,350 [9.8] 14,150 [4.1] 11.50 14.00 76 1,450 [684]
RCQD-4824(RGPT-12?ARM?) 47,500 [13.9] 33,000 [9.7] 14,500 [4.2] 11.50 14.00 76 1,400 [661]
RCQD-4824(RHWB-08WRX60A) 47,000 [13.8] 33,850 [9.9] 13,150 [3.9] 11.50 14.00 76 1,475 [696]
RCQD-4824(RHWB-10WRX60A) 47,000 [13.8] 33,550 [9.8] 13,450 [3.9] 11.50 14.00 76 1,425 [672]
RCQD-4824(ROCA-070E04) 47,000 [13.8] 32,700 [9.6] 14,300 [4.2] 11.00 13.00 76 1,400 [661]
RCQD-4824(ROLA-070E04) 47,000 [13.8] 32,400 [9.5] 14,600 [4.3] 11.50 14.00 76 1,375 [649]
RCQD-4824(ROLA-115E05) 47,500 [13.9] 33,800 [9.9] 13,700 [4.0] 11.00 13.50 76 1,500 [708]
RCQD-4824A*(RGFD-12?RCM?) 47,500 [13.9] 35,050 [10.3] 12,450 [3.6] 11.00 13.00 76 1,650 [779]
RHKL-HM4821(RCSL-H*4821) 47,000 [13.8] 33,650 [9.9] 13,350 [3.9] 11.50 13.50 76 1,575 [743]
RHLL-HM4821(RCSL-H*4821) 47,000 [13.8] 33,950 [9.9] 13,050 [3.8] 11.50 13.50 76 1,600 [755]
RHSL-HM4821(RCSL-H*4821) 46,500 [13.6] 33,250 [9.7] 13,250 [3.9] 11.00 13.00 76 1,525 [720]
RHKL-HM4824(RCSL-H*4824) 48,500 [14.2] 36,500 [10.7] 12,000 [3.5] 11.50 14.00 76 1,625 [767]
RHLL-HM4824(RCSL-H*4824) 48,500 [14.2] 36,450 [10.7] 12,050 [3.5] 11.50 14.00 76 1,625 [767]
RHSL-HM4824(RCSL-H*4824) 47,500 [13.9] 35,000 [10.3] 12,500 [3.7] 11.00 13.00 76 1,525 [720]
060CAZ/DAZ/
JAZ/YAZ
RCFL-H*6024 ➀61,000 [17.9] 42,900 [12.6] 18,100 [5.3] 11.00 13.00 76 1,800 [849]
RCFL-A*6024 61,000 [17.9] 42,900 [12.6] 18,100 [5.3] 11.00 13.00 76 1,800 [849]
RCFL-H*6024(RHWB-08WRX60A) 60,000 [17.6] 40,700 [11.9] 19,300 [5.7] 11.00 13.00 76 1,650 [779]
RCFL-H*6024(RHWB-10WRX60A) 60,000 [17.6] 41,300 [12.1] 18,700 [5.5] 11.00 13.00 76 1,700 [802]
RBHP-25(RCHL-60A1) 55,500 [16.3] 36,600 [10.7] 18,900 [5.5] 10.50 13.00 76 1,800 [849]
RCQD-6024 58,500 [17.1] 40,250 [11.8] 18,250 [5.3] 10.50 13.00 76 1,800 [849]
RHKL-HM6024(RCSL-H*6024) 62,000 [18.2] 43,450 [12.7] 18,550 [5.4] 11.50 13.50 76 1,800 [849]
RHLL-HM6024(RCSL-H*6024) 62,000 [18.2] 43,500 [12.7] 18,500 [5.4] 11.50 13.50 76 1,800 [849]
Rev.
5/17/12
➀Highest sales volume tested combination required by D.O.E. test procedures.
[ ] Designates Metric Conversions
Performance Data @ AHRI Standard Conditions—Cooling
Air Performance Data
RANL Series
Air Electrical and Physical Data
RANL Series
22
Model
Number
RANL-
ELECTRICAL PHYSICAL
Phase
Frequency (Hz)
Voltage (Volts)
Compressor Fan Motor
Full Load
Amperes
(FLA)
Minimum
Circuit
Ampacity
Amperes
Fuse or HACR
Circuit Breaker Outdoor Coil Refrig.
Per
Circuit
Oz. [g]
Weight
Rated Load
Amperes
(RLA)
Locked Rotor
Amperes
(LRA)
Minimum
Amperes
Maximum
Amperes
Face Area
Sq. Ft. [m2]
No.
Rows CFM [L/s] Net
Lbs. [kg]
Shipping
Lbs. [kg]
Rev. 5/17/12
018JAZ 1-60-208/230 9/9 48 0.6 12/12 15/15 20/20 9.07 [0.84] 11775 [838] 70 [1984] 130 [59.0] 140 [59]
024JAZ 1-60-208/230 12.8/12.8 58.3 0.6 17/17 20/20 25/25 11.00 [1.02] 11920 [906] 72 [2041] 140 [63.5] 150 [63.5]
031JAZ 1-60-208/230 14.1/14.1 73 0.6 19/19 25/25 30/30 11.06 [1.03] 11920 [906] 83 [2353] 143 [64.9] 152.5 [64.9]
037CAZ 3-60-208/230 13.2/13.2 88 1.2 18/18 25/25 30/30 16.10 [1.50] 13200 [1510] 106 [3005] 193 [87.5] 211.5 [87.5]
037DAZ 3-60-460 6 44 0.6 9 15 15 16.10 [1.50] 13200 [1510] 106 [3005] 193 [87.5] 211.5 [87.5]
037JAZ 1-60-208/230 17.9/17.9 112 1.2 24/24 30/30 40/40 16.10 [1.50] 13200 [1510] 106 [3005] 193 [87.5] 211.5 [87.5]
043CAZ 3-60-208/230 13.6/13.6 83.1 1.2 19/19 25/25 30/30 16.10 [1.50] 13200 [1510] 115 [3260] 202 [91.6] 210.5 [91.6]
043DAZ 3-60-460 6.1 41 0.6 9 15 15 16.10 [1.50] 13200 [1510] 115 [3260] 202 [91.6] 210.5 [91.6]
043JAZ 1-60-208/230 19.9/19.9 109 1.2 27/27 35/35 45/45 16.10 [1.50] 13200 [1510] 115 [3260] 202 [91.6] 210.5 [91.6]
049CAZ 3-60-208/230 13.7/13.7 83.1 1.2 19/19 25/25 30/30 20.13 [1.87] 13500 [1652] 132 [3742] 214 [97.1] 233.5 [97.1]
049DAZ 3-60-460 6.2 41 0.6 9 15 15 23.13 [2.15] 13500 [1652] 132 [3742] 214 [97.1] 233.5 [97.1]
049JAZ 1-60-208/230 21.8/21.8 117 1.2 29/29 35/35 50/50 20.13 [1.87] 13500 [1652] 132 [3742] 214 [97.1] 233.5 [97.1]
049YAZ 3-60-575 4.8 33 0.5 7 15 15 20.13 [1.87] 13500 [1652] 132 [3742] 214 [97.1] 233.5 [97.1]
060CAZ 3-60-208/230 15.6/15.6 110 1.2 21/21 25/25 35/35 23.01 [2.14] 13500 [1652] 180 [5103] 250 [113.4] 260 [113.4]
060DAZ 3-60-460 7.8 52 0.6 11 15 15 23.01 [2.14] 13500 [1652] 180 [5103] 250 [113.4] 260 [113.4]
060JAZ 1-60-208/230 26.3/26.3 134 1.2 35/35 45/45 60/60 23.01 [2.14] 13500 [1652] 180 [5103] 250 [113.4] 260 [113.4]
060YAZ 3-60-575 5.8 38.9 0.5 8 15 15 23.01 [2.14] 13500 [1652] 180 [5103] 250 [113.4] 260 [113.4]
[ ] Designates Metric Conversions
Electrical and Physical Data

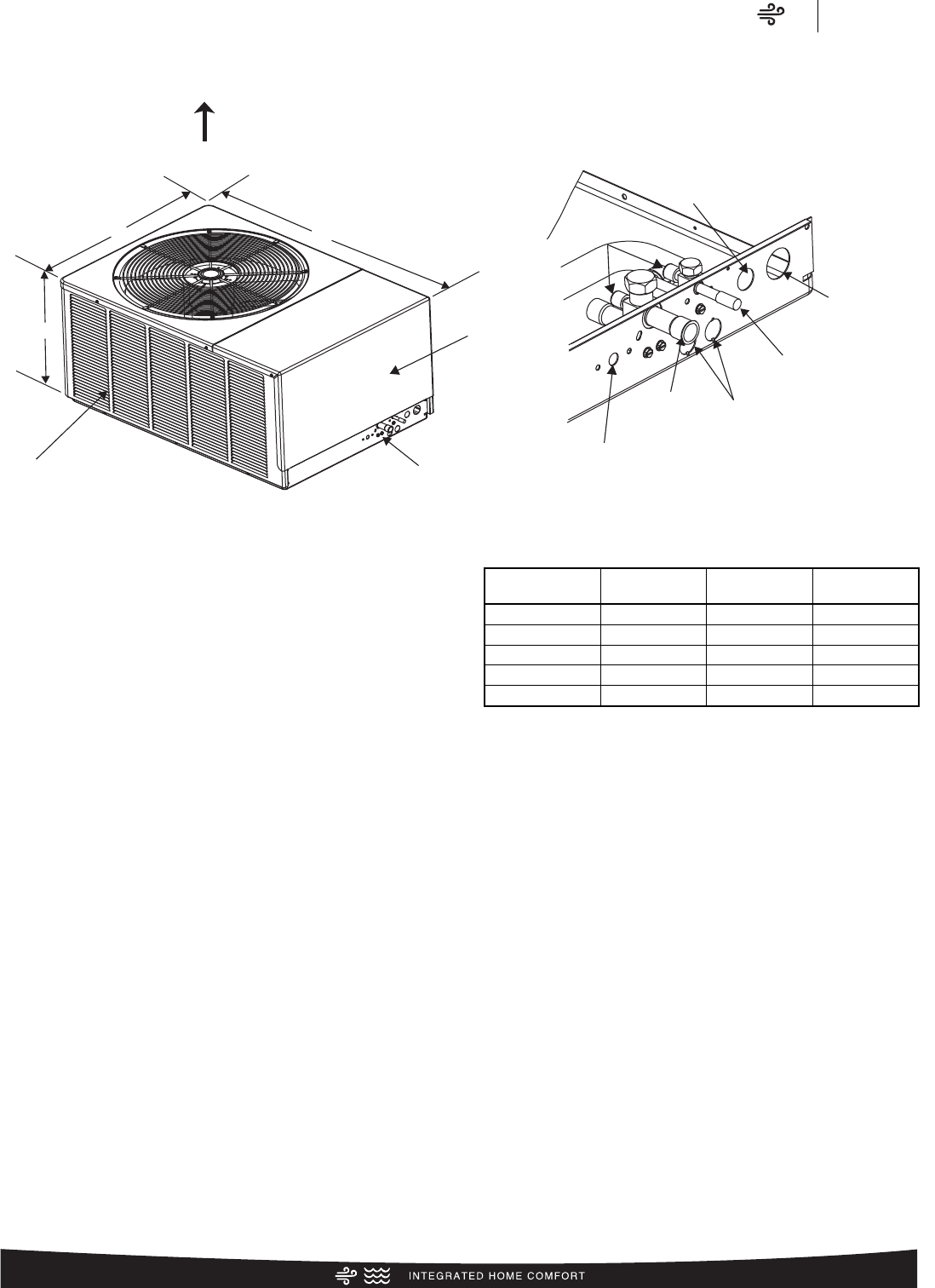

Air Unit Dimensions
RANL Series
23
AIR DISCHARGE
ALLOW 60⬙ [1524 mm] CLEARANCE
AIR INLETS
(LOUVERS)
ALLOW 6⬙ [152 mm]
MIN. CLEARANCE
3 SIDES
ALLOW 24⬙ [610 mm]
ACCESS CLEARANCE
ACCESS
PANEL
WL
H
A-00001
SERVICE
FITTINGS
LOW VOLTAGE
CONNECTION
7/80 [22 mm]
HIGH VOLTAGE
CONNECTION
111/320 [34 mm]
LIQUID LINE
CONNECTION
SERVICE ACCESS
TO ELECTRICAL &
VALVES ALLOW
240 [610 mm]
CLEARANCE
ONE SIDE
27/80 [73 mm] DIA.
ACCESSORY
KNOCKOUTS
VAPOR LINE
CONNECTION
HIGH PRESSURE
CONTROL
MANUAL RESET
(FIELD INSTALLED
ACCESSORY)
A-00003
Unit Dimensions
Model Number
RANL-
Height “H”
(Inches) [mm]
Length “L”
(Inches) [mm]
Width “W”
(Inches) [mm]
018 19 [483] 351/2[902] 233/4[603]
060 33 [838] 443/8[1127] 311/2[800]
024/031 19 [483] 401/2[1029] 275/8[702]
037/043 23 [584] 443/8[1127] 311/2[800]
049 29 [737] 443/8[1127] 311/2[800]
[ ] Designates Metric Conversions
Air Refrigerant Line Size Information
RANL Series
24
Suction Line Length/Size versus Capacity Multiplier (R-410A)
Suction Line Run—
Feet [m]
3/4" [19.05 mm] O.D. Opt.
7/8" [22.23 mm] O.D. Std.*
7/8" [22.23 mm] I.D.
Optional
Standard
Optional
Optional
Standard
Optional
Suction Line
Connection Size
Optional
Standard
Optional
3/4" [19.05 mm] I.D.
Optional
Standard
Optional
4 Ton2 TonUnit Size 11/2Ton
5/8" [15.88 mm] O.D. Opt.
3/4" [19.05 mm] O.D. Std.*
25' [7.62]
1.00
1.00
N/A
1.00
1.00
N/A
1.00
1.00
N/A
50' [15.24]
.98
.99
N/A
.98
.99
N/A
.99
.99
N/A
100' [30.48]
.95
.96
N/A
.95
.96
N/A
.96
.98
N/A
150' [45.72]
.92
.93
N/A
.92
.94
N/A
.95
.96
N/A
21/2Ton 3 Ton
1.00
1.00
1.00
.96
.98
.99
.94
.96
.97
.91
.93
.95
1.00
1.00
N/A
.98
.99
N/A
.96
.97
N/A
.94
.95
N/A
31/2Ton
1.00
1.00
N/A
.99
.99
N/A
.96
.98
N/A
.94
.96
N/A
7/8" [22.23 mm] O.D. Opt.
11/8" [28.58 mm] O.D. Std.*
5 Ton
1.00
1.00
N/A
.99
.99
N/A
.97
.98
N/A
.94
.97
N/A
5/8" [15.88 mm] O.D. Opt.
3/4" [19.05 mm] O.D. Std.*
7/8" [22.23 mm] O.D. Opt.
NOTES: *Standard line size
Using suction line larger than shown in chart will result in poor oil return and is not recommended.
[ ] Designates Metric Conversions
System
Capacity
Line Size
(Inch O.D.)
[mm]
Liquid Line Size – Outdoor Unit Above Indoor Coil
(Cooling Only – Does not apply to Heat Pumps) Liquid Line Size – Outdoor Unit Below Indoor Coil
Minimum Vertical Separation—Feet [m] Maximum Vertical Separation—Feet [m]
25
[7.62]
50
[15.24]
75
[22.86]
100
[30.48]
125
[38.10]
150
[45.72]
25
[7.62]
50
[15.24]
75
[22.86]
100
[30.48]
125
[38.10]
150
[45.72]
Total Equivalent Length—Feet [m] Total Equivalent Length—Feet [m]
5/16 [7.94] 0 0 0 0 0 0 25 [7.62] 50 [15.24] 62 [18.90] 58 [17.68] 53 [16.15] 49 [14.94]
11/2Ton
1/4*[6.35] 0 0 0 0 8 [2.44] 24 [7.32] 25 [7.62] 40 [12.19] 25 [7.62] 9 [2.74] N/A N/A
3/8* [9.53] 0 0 0 0 0 0 25 [7.62] 50 [15.24] 75 [22.86] 72 [21.95] 70 [21.34] 68 [20.73]
3 Ton 5/16*[7.94] 0 0 0 0 0 9 [2.74] 25 [7.62] 50 [15.24] 37 [11.28] 22 [6.71] 7 [2.13] N/A
3/8* [9.53] 0 0 0 0 0 0 25 [7.62] 50 [15.24] 68 [20.73] 63 [19.20] 58 [17.68] 53 [16.15]
31/2Ton 5/16*[7.94] 0 0 0 16 [4.88] 35 [10.67] 54 [16.46] 25 [7.62] 23 [7.01] 4 [1.22] N/A N/A N/A
3/8* [9.53] 0 0 0 0 0 0 25 [7.62] 50 [15.24] 43 [13.11] 36 [10.97] 30 [9.14] 24 [7.32]
4 Ton 3/8* [9.53] 0 0 0 0 0 0 25 [7.62] 46 [14.02] 38 [11.58] 30 [9.14] 22 [6.71] 15 [4.57]
1/2 [12.57] 0 0 0 0 0 0 25 [7.62] 50 [15.24] 56 [17.07] 55 [16.76] 53 [16.15] 52 [15.85]
5 Ton 3/8* [9.53] 0 0 0 0 0 0 25 [7.62] 50 [15.24] 56 [17.07] 44 [13.41] 32 [9.75] 20 [6.10]
1/2 [12.57] 0 0 0 0 0 0 25 [7.62] 50 [15.24] 75 [22.86] 81 [24.69] 79 [24.08] 76 [23.16]
5/16 [7.94] 0 0 0 0 0 0 25 [7.62] 49 [14.94] 38 [11.58] 27 [8.23] 17 [5.18] 6 [1.83]
21/2Ton
1/4*[6.35] 0 14 [4.27] 56 [17.07] 98 [29.87] N/A N/A 25 [7.62] N/A N/A N/A N/A N/A
3/8* [9.53] 0 0 0 0 0 0 25 [7.62] 50 [15.24] 68 [20.73] 65 [19.81] 62 [18.90] 58 [17.68]
5/16 [7.94] 0 0 0 0 0 0 25 [7.62] 36 [10.97] 29 [8.84] 23 [7.01] 16 [4.88] 9 [2.74]
2 Ton
1/4*[6.35] 0 3 [0.91] 29 [8.84] 55 [16.76] 81 [24.69] 108 [32.92] 23 [7.01] N/A N/A N/A N/A N/A
3/8* [9.53] 0 0 0 0 0 0 25 [7.62] 50 [15.24] 72 [21.95] 70 [21.34] 68 [20.73] 65 [19.81]
3/8"
3/8"
3/8"
3/8"
3/8"
3/8"
Line Size
Connection
(Inch I.D.)
3/8"
Liquid Line Sizing (R-410A)
Condensing Unit Refrigerant Line Size Information
NOTES: *Standard line size
N/A = Application not recommended.
Air Limited Warranty
RANL Series
25
GENERAL TERMS OF LIMITED WARRANTY*
Rheem will furnish a replacement for any part of this product
which fails in normal use and service within the applicable
period stated, in accordance with the terms of the limited
warranty.
*For complete details of the Limited and Conditional Warranties, including
applicable terms and conditions, contact your local contractor or the
Manufacturer for a copy of the product warranty certificate.
Conditional Parts
(Registration Required) ...............................Ten (10) Years
Air Notes
RANL Series
26
Air Notes
RANL Series
27
The new degree of comfort.
™
Rheem Heating, Cooling & Water Heating • P.O. Box 17010
Fort Smith, Arkansas 72917 • www.rheem.com
In keeping with its policy of continuous progress and product improvement, Rheem reserves the right to make changes without notice.
PRINTED IN U.S.A 12/12 QG FORM NO. A11-216
Rheem Canada Ltd./Ltée • 125 Edgeware Road, Unit 1
Brampton, Ontario • L6Y 0P5

Navigation menu
