INSTRUCTIONS FOR OPERATION
RH380T LCD thermal remote control manual
SETING THE OPERATING CONTROLS
1.This unit operates on AAA 1.5 volts battery*4 (not included).(We use AAA battery*4)
To prevent possible damage if the battery should leak , be sure to remove
the battery when the unit is not use .
2. Store the controller away from excess heat or humidity .
3. This remote control unit is required with 16 code combinations. To prevent
possible interference from or to other remote units such as garage door
openers, car alarm or security system . If you find that your fan and light
kit go on and off without using your control , simply change the combination
code in your transmitter and receiver .

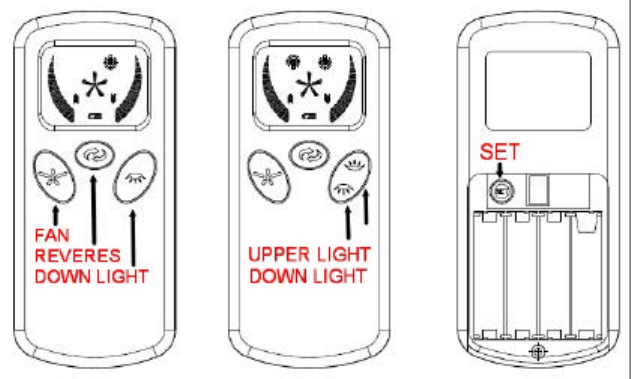

4.Operation buttons on the panel of transmitter .
FAN key – For fan speed control
甲、 6à5à4à3à2à1à2à3 Cycle Operation
乙、 ONßàOFF
FAN/REV key – Fan reverse control
LIGHT DOWN key – For down light brightness and ON/OFF control .
LIGHT UPPER key – For upper light brightness and ON/OFF control .
LEARN key (SET) – Setting for learn code
5.Start the fan and Turn off the fan:
Press the selected speed button to run the fan at the desired .
Press the FAN button over 0.7 second for adjusting the ceiling fan speed. Press within 0.7
second for ON/OFF control.
6.Light control :
Turn the light on or off by only touching the LIGHT CONTROL button .
Keep pressing the button in excess of 0.7 second it becomes a dimmer ,
the light varies cyclically in 0.8 second .
2/2
GENERAL INFORMATION :
This REMOTE controller is designed to separately control your
ceiling fan speed and light brightness .
The Light ON/OFF button will control the light brightness ON/OFF .
INSTRUCTIONS FOR INSTALLATION AND OPERATION OF FAN SPEED
CONTROLLER

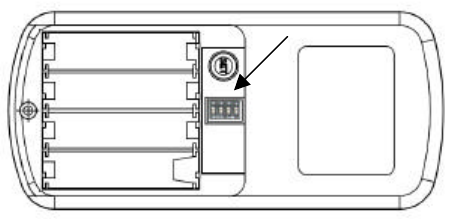

A. Setting the code on your new transmitter .
1. Remove battery cover .
Press firmly below arrow and slide battery cover off .
2. Slide code switches to your choice of UP and DOWN position .
Factory setting is all UP . Do not use this setting .
Use ball point pen or small screwdriver .
Slide firmly up or down .
B. Setting the code on your Receiver unit .
1. turn on the power
2. To press the SET button within 1 minute and for over 3 seconds.
3. The learning will complete if the receiver light flash twice.
NOTICE :
The changes or modifications not expressly approved by the
party responsible for compliance could void user’s authority
to operate the equipment .
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATIONS IS
SUBJECT INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED, INCLUDING INTERFEERENCE THAT MAY CAUSE
UNDESRIED OPERATION.
