User manual
1/2
INSTRUCTIONS FOR OPERATION
SETING THE OPERATING CONTROLS
1.This unit operates on a 12 volts battery (not included).
To prevent possible damage if the battery should leak , be sure to remove
the battery when the unit is not use .
2. Store the controller away from excess heat or humidity .
3. This remote control unit is required with 16 code combinations. To prevent
possible interference from or to other remote units such as garage door
openers, car alarm or security system . If you find that your fan and light
kit go on and off without using your control , simply change the combination
code in your transmitter and receiver .

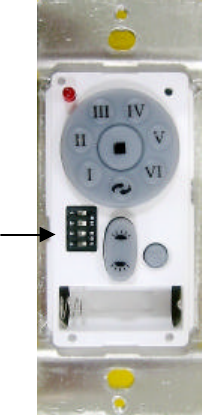

4.Operation buttons on the panel of transmitter .
VI key – For fan Maxsmum speed .
V key – For fan High speed .
IV key – For fan Medium speed .
III key – For fan Low speed .
II key – For fan Lower speed .
I key – For fan Minimum speed .
■ key – For fan speed off .
REV key – For fan speed Reverse .
UP LIGHT CONTROL key – For light brightness and ON/OFF control .
DOWN LIGHT CONTROL key – For light brightness and ON/OFF control .
5.Start the fan :
Press the selected speed button to run the fan at the desired .
6.Turn off the fan :
Press the OFF button .
7.Light control :
Turn the light on or off by only touching the LIGHT CONTROL button .
Keep pressing the button in excess of 0.7 second it becomes a dimmer ,
the light varies cyclically in 0.8 second .
One of the important feature of this control is AUTO-RESUME . After power
on , it allows the light return to where it was off .
2/2
GENERAL INFORMATION :
This REMOTE controller is designed to separately control your
ceiling fan speed and light brightness . The Light
ON/OFF button will control the light brightness ON/OFF .
The red indicator on the transmitter will light when the button is pressed .
INSTRUCTIONS FOR INSTALLATION AND OPERATION OF FAN SPEED
CONTROLLER
A. Setting the code on your new transmitter .
1. Remove battery cover .
Press firmly below arrow and slide battery cover off .
2. Slide code switches to your choice of UP and DOWN position .
Factory setting is all UP . Do not use this setting .
Use ball point pen or small screwdriver .
Slide firmly up or down .
B. Setting the code on your new Receiver unit .
1. Slide code switches to the same positions as set on your transmitter .
They must be set to same positions to work .
2. Replace battery cover on transmitter .
3. Make sure the code switches are on the left positions .
NOTICE :
The changes or modifications not expressly approved by the party responsible for
compliance could void user’s authority to operate the equipment .
This device complies with part 15 of the FCC Rules. Operations is subject to the following
two conditions: (1)this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
