Rhine Electronics Co GTXE Transmitter of Remote Control User Manual gtxe 2
Rhine Electronics Co Ltd Transmitter of Remote Control gtxe 2
User Manual
INSTRUCTIONS FOR OPERATION
SETING THE OPERATING CONTROLS
Model:GTX
Remote Control Programming For Garage door opener
1.Loosen the screw to lift the back case of transmitter.
2.Choose the different function (3 Opr / 3 Ch) by inserting
the Mini Jumper into the left or the right of Pin Header.
Proper disposal of battery is required. Refer to your local codes
for disposal requirement.
3Opr: Open/Stop/Close Operation
(The Mini Jumper on the left side of Pin Header)
The remote control can be programmed to operate one door
using all 3 buttons: the up button will only open the door, the
middle button will stop the door's movement, and the third button
will only close it.
You may set up this feature as follows:
1. Press and release the "learn" button (on the right side of
the panel).
2. When the green indicator light is illuminated, press and
hold any one of the three buttons on transmitter.
3. After the green indicator light flashes three times, release
the button.
4. This separately stores open/stop/close function for the
three buttons in memory.

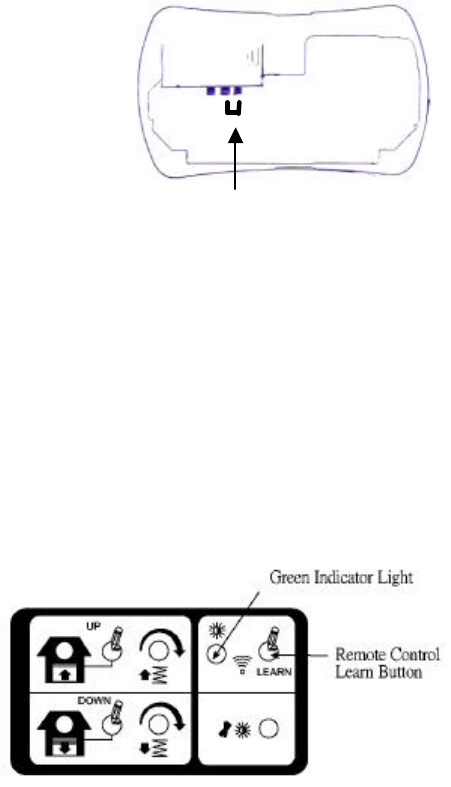

mini jumper
3Ch: Channel Remote Control
(The Mini Jumper on the right side of Pin Header) 3 Ch ← → 3 Opr
Permit to control 3 separate openers. Each button can operate
one particular door individually.
You may set up this feature as follows:
1. Press and release the "learn" button (on the right side of
the panel).
2. When the green indicator light is illuminated, press and
hold the selected remote control push button.
3. After the green indicator light flashed three times, release
the button.
5. This stores open/stop/close function for the selected
button for the first opener in memory.
6. Repeat the same steps above on the second and third
openers.
Erase All Remote Control Codes
1. Press and hold the "learn" button (on the right side of
the panel) until the green indicator light flashes (about 5
seconds).
2. All transmitter codes are now erased.
Then follow the steps above to re-program each remote control.
Notice:The changes or modifications not expressly approved by the party responsible
For compliance could void the user’s authority to operate the equipment.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT
TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION.
The term “IC:” before the radio certification number only signifies that Industry Canada
Techniical specifications were met. Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
