User Manual
1
Information
Introduction
This manual contains detailed instructions and notes on the operation and use
of this machine. For your safety and benefit, read this manual carefully before
using the machine. Keep this manual in a handy place for quick reference.
Important
Contents of this manual are subject to change without prior notice.
In no event will the company be liable for direct, indirect, special, incidental, or
consequential damages as a result of handling or operating the machine.
Notes:
Some illustrations in this manual might be slightly different from the machine.
Caution
Use of controls or adjustments or performance of procedures other than those
specified in this manual might result in hazardous radiation exposure.
For good print quality, the manufacturer recommends that you use genuine
toner from the manufacturer.
The manufacturer shall not be responsible for any damage or expense that
might result from the use of parts other than genuine parts from the manufac-
turer with your office products.
Power Source
120 V, 60 Hz, 10 A
Please be sure to connect the power cord to a power source as above.
Draft 2011/08/29
Rinmei-P1同様、モデル名を追加致します。
以下添付PDFの赤枠記載を追加致します。
添付PDF⇒
2
Laws and Regulations
Legal Prohibition
Do not copy or print any item for which reproduction is prohibited by law.
Copying or printing the following items is generally prohibited by local law:
bank notes, revenue stamps, bonds, stock certificates, bank drafts, checks, pass-
ports, driver’s licenses.
The preceding list is meant as a guide only and is not inclusive. We assume
no responsibility for its completeness or accuracy. If you have any questions
concerning the legality of copying or printing certain items, consult with your
legal advisor.
Laser Safety
CDRH Regulations
This equipment complies with requirements of 21 CFR subchapter J for class I
laser products. This equipment contains four AlGaAS laser diodes, 6.2 mil-
liwat, 770-795 nanometer wavelength for each emitter. The beam divergence
angle is 25 degrees (minimum) and 38 degrees (maximum) in the vertical direc-
tion, and 8 degrees (minimum) and 14 degrees (maximum) in the horizontal
direction, and laser beams are generated in Continuous Wave (CW) mode.
Caution:
Use of controls or adjustments or performance of procedures other than those
specified in this manual might result in hazardous radiation exposure.
Draft 2011/08/29
3
Note to users in the United States of America
FCC Rules
Declaration of Conformity ❖
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Responsible party: Ricoh Americas Corporation
Address: 5 Dedrick Place, West Caldwell, NJ 07006
Telephone number: 973-882-2000
Product Name: Laser Printer
Model Number: SP C242DN/Aficio SP C242DN
Note ❖
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and receiver.•
Connect the equipment into an outlet on a circuit different from that to which •
the receiver is connected.
Consult the dealer or an experienced radio /TV technician for help.•
Caution ❖
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Draft 2011/08/29
北米カリフォルニア州 過塩素酸塩規制の改定に伴い、以下記載を追加致します。
＜小タイトル＞
Notes to users in the state of California
＜本文＞
Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/
hazardouswaste/perchlorate
4
Note to users in Canada
Note
This Class B digital apparatus complies with Canadian ICES- 003.
Remarque concernant les utilisateurs au Canada
Avertissement
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
Draft 2011/08/29
5
Safety Information
When using this machine, the following safety precautions should always be
followed.
Safety During Operation
In this manual, the following important symbols are used:
WARNING: R
Indicates a potentially hazardous situation which, if instructions
are not followed, could result in death or serious injury.
CAUTION: R
Indicates a potentially hazardous situation which, if instructions are not
followed, may result in minor or moderate injury or damage to property.
Safety Precautions to be Followed
This section explains safety precautions that should always be followed when
using this machine.
Environments where the machine can be used
This section explains safety precautions about environments where the ma-
chine can be used.
WARNING: R
Do not use flammable sprays or solvents in the vicinity of this ma-•
chine. Doing so could result in fire or electric shock.
Do not place vases, plant pots, cups, toiletries, medicines, small metal •
objects, or containers holding water or any other liquids, on or close
to this machine. Fire or electric shock could result from spillage or if
such objects or substances fall inside this machine.
CAUTION: R
Keep the machine away from humidity and dust. Otherwise a fire or an •
electric shock might occur.
Do not place the machine on an unstable or tilted surface. If it topples over, •
an injury might occur.
Draft 2011/08/29
6
Do not place heavy objects on the machine. Doing so can cause the ma-•
chine to topple over, possibly resulting in injury.
Make sure the room where you are using the machine is well ventilated •
and spacious. Good ventilation is especially important when the machine is
used heavily.
Do not obstruct the machine’s vents. Doing so risks fire caused by over-•
heated internal components.
When new, electrical devices containing volatile materials will normally re-•
lease emissions into the air of their vicinity. For this reason, for the first few
days after installation of a new device, strong ventilation inside the room
where it is placed is necessary.
Machine sound levels exceeding [Sound Power Level (Black and White)] •
> 63 dB (A) are not suitable for desk work environments, so place the ma-
chine in another place.
Keep the machine away from salt-bearing air and corrosive gases. Also, do •
not install the machine in places where chemical reactions are likely (labo-
ratories, etc.), as doing so will cause the machine to malfunction.
Handling power cords and power plugs
This section explains safety precautions about handling power cords and
power plugs.
WARNING: R
If the power cord is damaged and its inner wires are exposed or •
broken, contact your service representative for a replacement. Use of
damaged power cords could result in fire or electric shock.
Do not use any power sources other than those that match the speci-•
fications shown in this manual. Doing so could result in fire or electric
shock.
Do not use any frequencies other than those that match the specifica-•
tions shown. Doing so could result in fire or electric shock.
Do not use multi-socket adaptors. Doing so could result in fire or •
electric shock.
Do not use extension cords. Doing so could result in fire or electric •
shock.
Draft 2011/08/29
P1同様というご回答を頂きましたので、">
65.8 dB(A)"に修正致します。
7
Do not use power cords that are damaged, broken, or modified. Also, •
do not use power cords that have been trapped under heavy objects,
pulled hard, or bent severely. Doing so could result in fire or electric
shock.
Be sure to disconnect the plug from the wall outlet at least once a •
year.
There are burn marks on the plug.•
The prongs on the plug are deformed.•
If any of the above conditions exist, do not use the plug and consult
your dealer or service representative. Use of the plug could result in
fire or electric shock.
Touching the prongs of the power cable’s plug with anything metallic •
constitutes a fire and electric shock hazard.
The supplied power cord is for use with this machine only. Do not use •
it with other appliances. Doing so could result in fire or electric shock.
It is dangerous to handle the power cord plug with wet hands. Doing •
so could result in electric shock.
CAUTION: R
Be sure to push the plug of the power cord fully into the wall outlet. Par-•
tially inserted plugs create an unstable connection that can result in unsafe
buildup of heat.
If this machine is not going to be used for several days or longer at a time, •
disconnect its power cord from the wall outlet.
When disconnecting the power cord from the wall outlet, always pull the •
plug, not the cord. Pulling the cord can damage the power cord. Use of
damaged power cords could result in fire or electric shock.
Be sure to disconnect the plug from the wall outlet and clean the prongs •
and the area around the prongs at least once a year. Allowing dust to build
up on the plug constitutes a fire hazard.
When performing maintenance on the machine, always disconnect the •
power cord from the wall outlet.
Handling the machine
This section explains safety precautions about handling the main machine.
Draft 2011/08/29
＜Ａ＞
P.11の
注釈内
容を追
加致し
ます。
8
WARNING: R
Be sure to locate the machine as close as possible to a wall outlet. •
This will allow easy disconnection of the power cord in the event of
an emergency.
If the machine emits smoke or odours, or if it behaves unusually, you •
must turn off its power immediately. After turning off the power, be
sure to disconnect the power cord plug from the wall outlet. Then con-
tact your service representative and report the problem. Do not use
the machine. Doing so could result in fire or electric shock.
If metal objects, or water or other fluids fall inside this machine, you •
must turn off its power immediately. After turning off the power, be
sure to disconnect the power cord plug from the wall outlet. Then con-
tact your service representative and report the problem. Do not use
the machine. Doing so could result in fire or electric shock.
If the machine topples, or if a cover or other part gets broken, you •
must turn off its power immediately. After turning off the power, be
sure to disconnect the power cord plug from the wall outlet. Then con-
tact your service representative and report the problem. Do not use
the machine. Doing so could result in fire or electric shock.
Do not touch this machine if a lightning strike occurs in the immedi-•
ate vicinity. Doing so could result in electric shock.

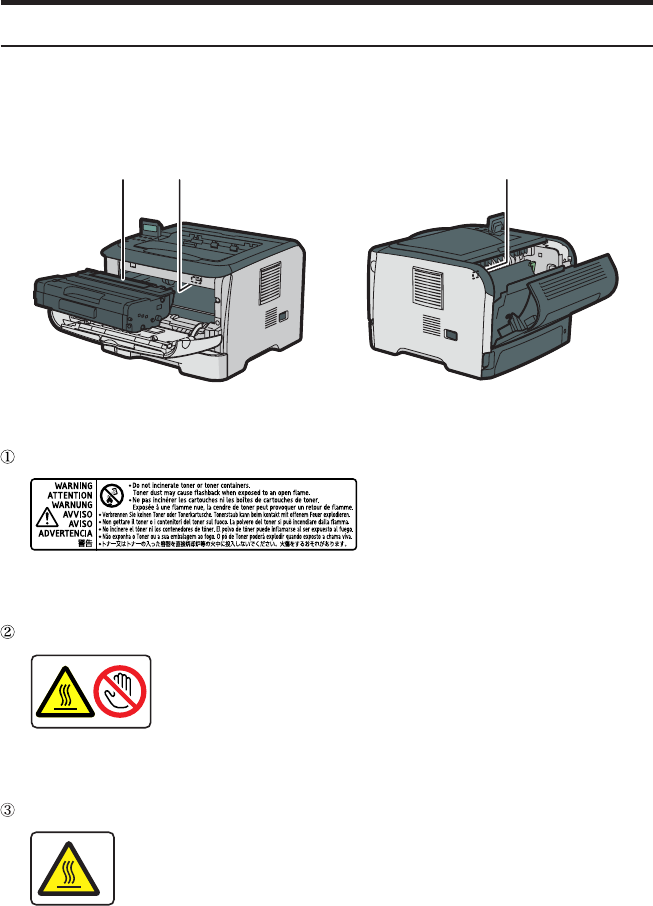

The following explains the warning messages on the plastic bag used •
in this product’s packaging.
Keep the polythene materials (bags, gloves, etc.) supplied with this •
machine away from babies and small children at all times . Suffoca-
tion can result if polythene materials are brought into contact with
the mouth or nose..
CAUTION: R
Unplug the power cord from the wall outlet before you move the machine. •
While moving the machine, take care that the power cord is not damaged
under the machine. Failing to take these precautions could result in fire or
electric shock.
Before installing or removing options, always disconnect the power cord •
plugs from the wall outlet and allow time for the main unit to fully cool. Fail-
ing to take these precautions could result in burns.
When moving the machine, hold the inset grips at both sides, and then lift •
the printer slowly. Lifting it carelessly or dropping it may cause an injury.
Draft 2011/08/29
9
Handling the machine’s interior
This section explains safety precautions about handling the machine’s interior.
WARNING: R
Do not remove any covers or screws other than those explicitly men-•
tioned in this manual. Inside this machine are high voltage compo-
nents that are an electric shock hazard and laser components that
could cause blindness. Contact your sales or service representative
if any of the machine’s internal components require maintenance,
adjustment, or repair.
Do not attempt to disassemble or modify this machine. Doing so risks •
burns and electric shock. Note again that exposure to the laser com-
ponents inside this machine risks blindness.
CAUTION: R
Some of this machine’s internal components get very hot. For this reason, •
take care when removing misfed paper. Not doing so could result in burns.
The inside of the machine could be very hot. Do not touch the parts with a •
label indicating the “hot surface”. Otherwise, an injury might occur.
When loading paper, take care not to trap or injure your fingers.•
During operation, rollers for transporting the paper and originals revolve. •
A safety device has been installed so that the machine can be operated
safely. But take care not to touch the machine during operation. Otherwise,
an injury might occur.
If the machine’s interior is not cleaned regularly, dust will accumulate. Fire •
and breakdown can result from heavy accumulation of dust inside this
machine. Contact your sales or service representative for details about and
charges for cleaning the machine’s interior.
Do not pull out the paper tray forcefully. If you do, the tray might fall and •
cause an injury.
Do not touch the inside of the controller board compartment. It may cause •
a machine malfunction or a burn.
Draft 2011/08/29
10
Handling the machine’s supplies
This section explains safety precautions about handling the machine’s supplies.
WARNING: R
Do not incinerate toner (new or used) or toner containers. Doing so •
risks burns. Toner will ignite on contact with naked flame.
Do not store toner (new or used) or toner containers anywhere near •
naked flames. Doing so risks fire and burns. Toner will ignite on con-
tact with naked flame.
Do not use the cleaner to suck spilled toner (including used toner). •
Sucked toner may cause firing or explosion due to electrical contact
flickering inside the cleaner. However, it is possible to use the cleaner
designed for dust explosion-proof purpose. If toner is spilled over the
floor, sweep up spilled powder toner slowly and clean remainder with
wet cloth.
The following explains the warning messages on the plastic bag used •
in this product’s packaging.
Keep the polythene materials (bags, gloves, etc.) supplied with this •
machine away from babies and small children at all times . Suffoca-
tion can result if polythene materials are brought into contact with
the mouth or nose.
CAUTION: R
Do not crush or squeeze toner containers. Doing so can cause toner spill-•
age, possibly resulting in dirtying of skin, clothing, and floor, and accidental
ingestion.
Store toner (new or used), toner containers, and components that have •
been in contact with toner out of reach of children.
If toner or used toner is inhaled, gargle with plenty of water and move into a •
fresh air environment. Consult a doctor if necessary.
If toner or used toner gets into your eyes, flush immediately with large •
amounts of water. Consult a doctor if necessary.
If toner or used toner is swallowed, dilute by drinking a large amount of •
water. Consult a doctor if necessary.
Draft 2011/08/29
11
When removing jammed paper or replacing toner, avoid getting toner (new •
or used) on your clothing. If toner comes into contact with your clothing,
wash the stained area with cold water. Hot water will set the toner into the
fabric and make removing the stain impossible.
When removing jammed paper or replacing toner, avoid getting toner (new •
or used) on your skin. If toner comes into contact with your skin, wash the
affected area thoroughly with soap and water.
Do not attempt to print on stapled sheets, aluminum foil, carbon paper, or •
any kind of conductive paper. Doing so risks fire.
Our products are engineered to meet high standards of quality and func-•
tionality, and we recommend that you use only the expendable supplies
available at an authorized dealer.
Draft 2011/08/29
p.7 ＜Ａ＞部分に、以下の電源コードの点検記載を追加致します。
----------------------------------
Be sure to disconnect the power cord from the wall outlet at least once a year.
•The power cord's inner wires are exposed, broken, etc.
•The power cord's coating has a crack or dent.
•When bending the power cord, the power turns off and on.
•Part of the power cord becomes hot.
•The power cord is damaged.
If any of the above conditions exist, do not use the power cord and consult your dealer or
service representative. Use of the power cord could result in fire or electric shock.
----------------------------------
12
Safety Labels of This Machine
This section explains the machine’s safety information labels.
Positions of
R
WARNING and
R
CAUTION labels
This machine has labels for RWARNING and RCAUTION at the positions
shown below. For safety, please follow the instructions and handle the machine
as indicated.
CMC004
12 3
Do not incinerate toner or toner containers.
Toner dust may cause flashback when exposed to an open flame.
Do not touch the parts a label indicates.
The inside of the machine could be very hot.
Do not touch the parts a label indicates.
The inside of the machine could be very hot.
Draft 2011/08/29
説明文の番号の形状を、イ
ラスト引き出し線と同じ番
号のみにいたします。
Hardware Guide(p.8∼9)同様、重量ラベルを追
加致します。
13
Power Switch Symbols
The meanings of the symbols for the switches on this machine are as follows:
• : POWER ON.
• : POWER OFF.
Draft 2011/08/29
以下添付PDFの記載を追加致します。
“Environmental Features (Type 1 Model)”
添付PDF⇒
14
ENERGY STAR Program
ENERGY STAR® Program Requirements for Imaging Equipment
The ENERGY STAR® Program Requirements for Imaging Equipment encourage energy con-
servation by promoting energy efficient computers and other office equipment.
The program backs the development and dissemination of products that feature energy sav-
ing functions.
It is an open program in which manufacturers participate voluntarily.
Targeted products are computers, monitors, printers, facsimiles, copiers, scanners, and multi-
function devices. Energy Star standards and logos are internationally uniform.
This machine is equipped with the following Energy Saver modes: Energy
Saver mode 1 and Energy Saver mode 2. The machine recovers from Energy
Saver mode when it receives a print job, or when any key is pressed.
Energy Saver mode 1 ❖
This machine automatically enters Energy Saver mode 1 about 30 sec-
onds after the last operation is completed.
Energy Saver mode 2 ❖
This machine automatically enters Energy Saver mode 2 10 minutes after
the last operation is completed.
Specifications ❖
Energy Saver mode 1 Power Consumption 70 W
Default Time OFF
Recovery Time 10 seconds
Energy Saver mode 2 Power Consumption 10 W
Default Time 1 minute
Recovery Time 20 seconds or less
Draft 2011/08/29
大タイトルで以下を追加致します。
Environmental Features (Type 2 Model)
値の確認がとれ次第、修正致します。
中タイト
ルに変更
致しま
す。
15
Note
❖
For more information about how to configure Energy Saver mode, see
“Making Printer Settings Using the Control Panel”, Software Guide as a
HTML file on the CD-ROM.
If the machine is in Energy Saver mode 2 for 24 hours continuously, the
machine automatically returns to normal state and performs self-mainte-
nance.
Reference
❖
“Making Printer Settings Using the Control Panel”, Software Guide as
a HTML file on the CD-ROM.
Recycled Paper
We recommend use of recycled paper which is environment friendly. Please
contact your sales representative for recommended paper.
MF2と修正報告までに記載を合わせます。
Draft 2011/08/29
16
© 2011
EN USA M096-8610
修正報告にて反映致しま
す。
Draft 2011/08/29
