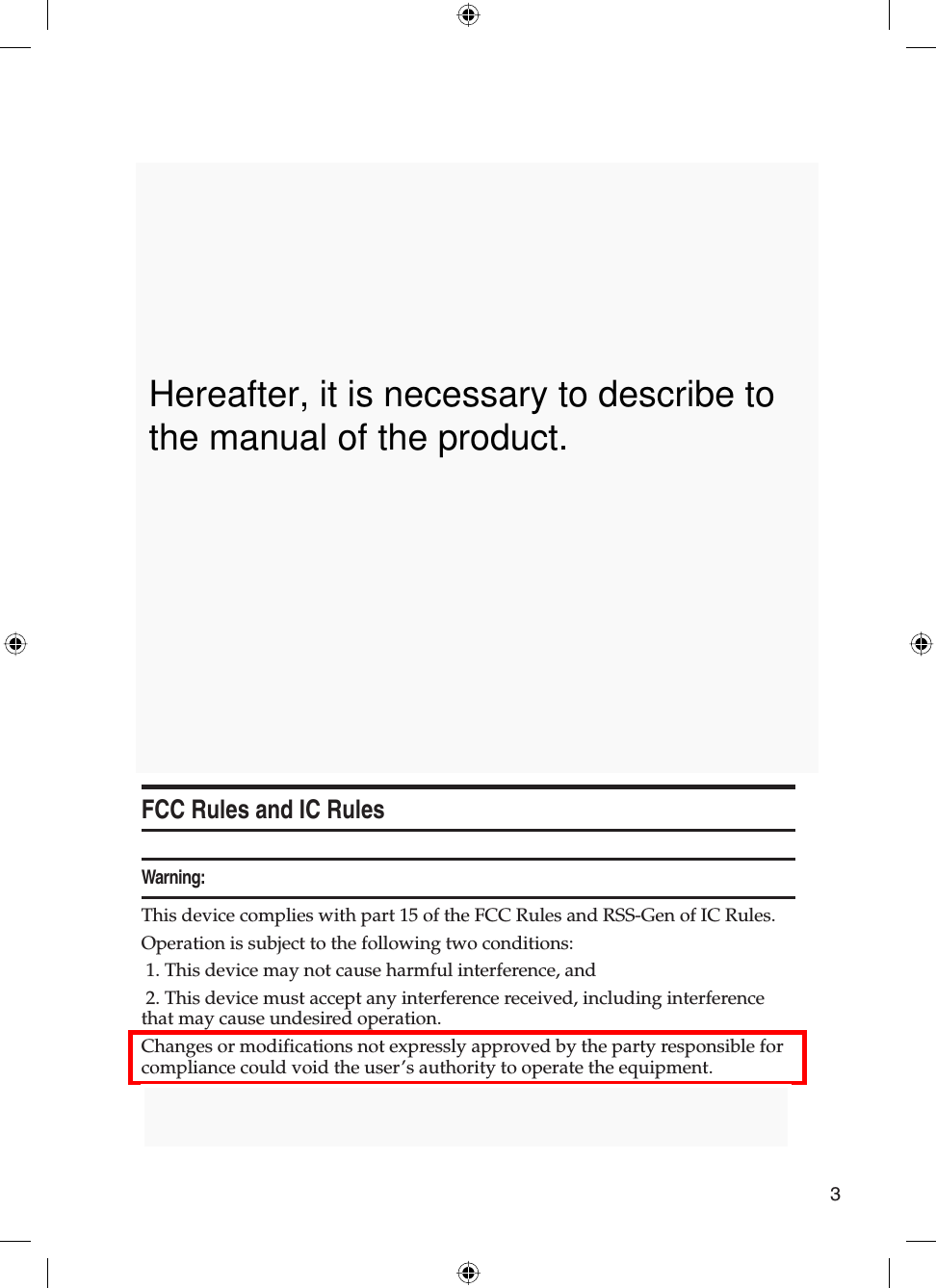

3Laws and RegulationsLegal ProhibitionDo not copy or print any item for which reproduction is prohibited by law.Copying or printing the following items is generally prohibited by local law:bank notes, revenue stamps, bonds, stock certificates, bank drafts, checks, pass-ports, driver’s licenses.The preceding list is meant as a guide only and is not inclusive. We assume no responsibility for its completeness or accuracy. If you have any questions concerning the legality of copying or printing certain items, consult with your legal advisor.Laser SafetyCDRH RegulationsThis equipment complies with requirements of 21 CFR subchapter J for class 1 laser products.This equipment contains one AlGaInP laser diode, with 15 milliwatt, 657 - 663 nanometer wavelength.This equipment does not emit hazardous light, since the beam is totally en-closed during all customer modes of operation and maintenance.Caution:Use of controls or adjustments or performance of procedures other than those specified in this manual might result in hazardous radiation exposure.FCC Rules and IC RulesWarning:This device complies with part 15 of the FCC Rules and RSS-Gen of IC Rules.Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.This device must not be co-located or operated in conjunction with any other antenna or transmitter except for Wireless LAN module R-WL54CN (FCC ID: BBP-WLRWL541) which performed co-location testing.Hereafter, it is necessary to describe to the manual of the product.

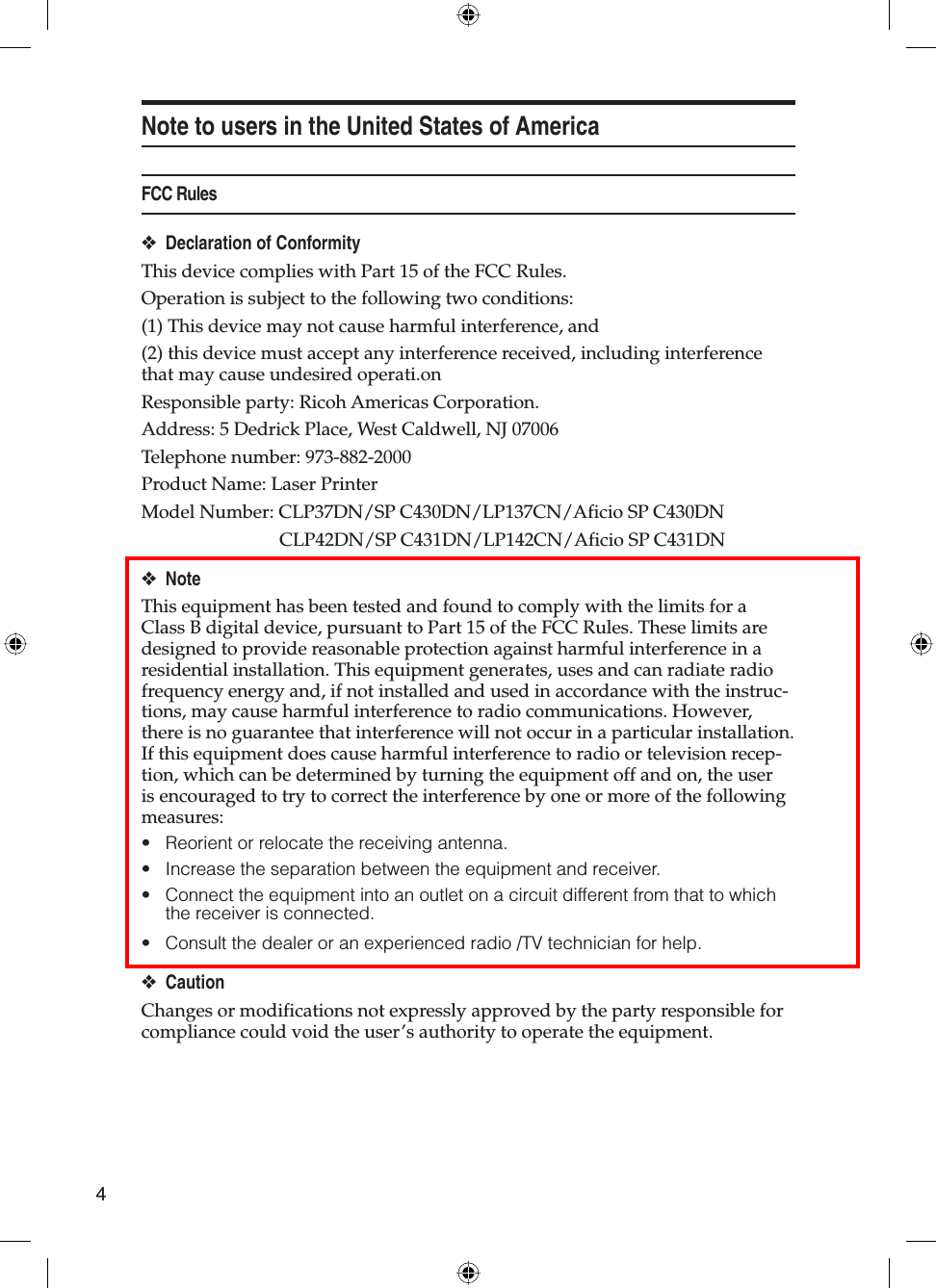

4Note to users in the United States of AmericaFCC RulesDeclaration of ConformityThis device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operati.onResponsible party: Ricoh Americas Corporation.Address: 5 Dedrick Place, West Caldwell, NJ 07006Telephone number: 973-882-2000Product Name: Laser PrinterModel Number: CLP37DN/SP C430DN/LP137CN/Aficio SP C430DN CLP42DN/SP C431DN/LP142CN/Aficio SP C431DNNoteThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc-tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television recep-tion, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio /TV technician for help.CautionChanges or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.❖❖••••❖

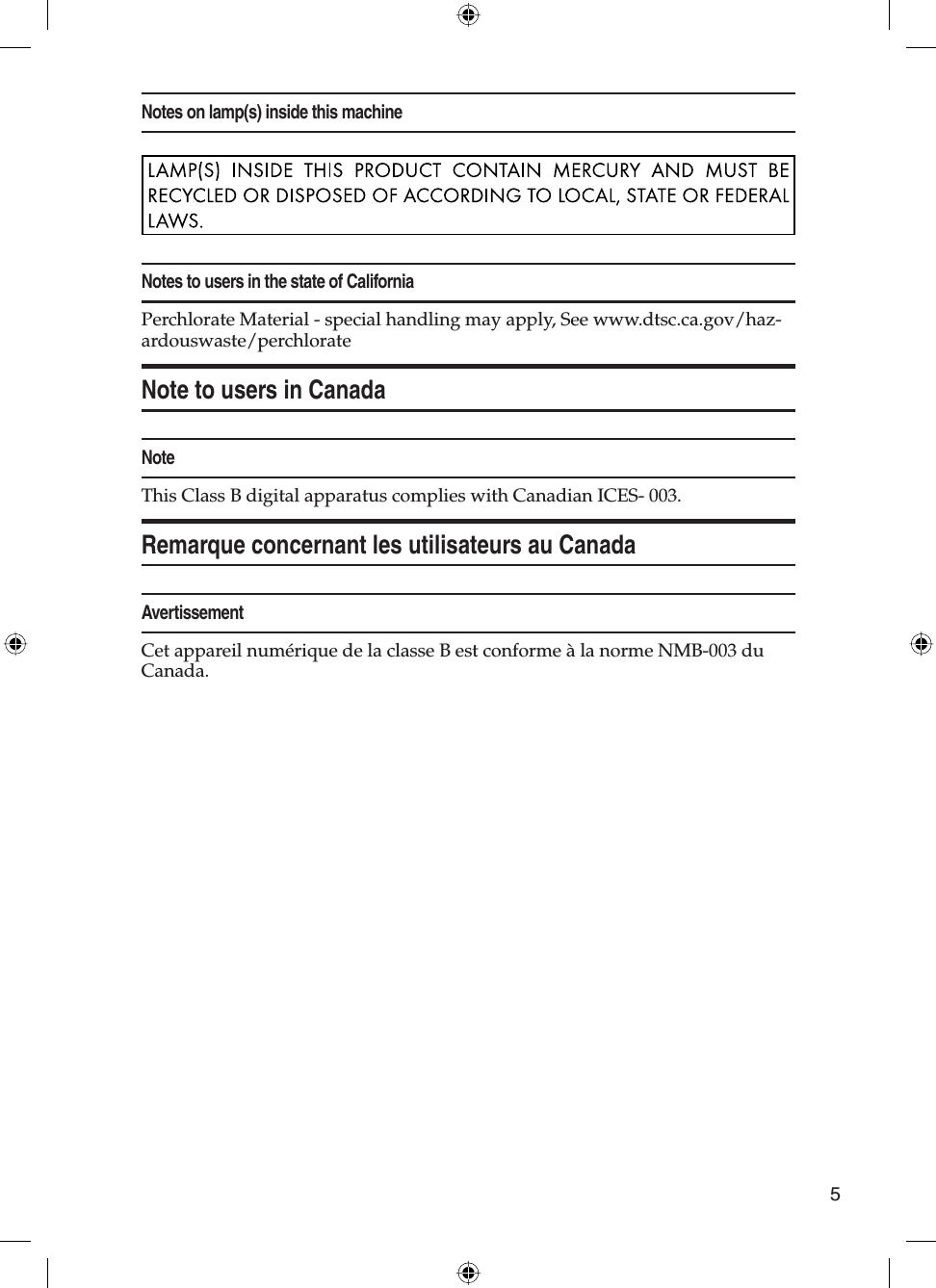

5Notes on lamp(s) inside this machineNotes to users in the state of CaliforniaPerchlorate Material - special handling may apply, See www.dtsc.ca.gov/haz-ardouswaste/perchlorateNote to users in CanadaNoteThis Class B digital apparatus complies with Canadian ICES- 003.Remarque concernant les utilisateurs au CanadaAvertissementCet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
4. Connecting the PrinterThis chapter explains how to connect network and USB cables.Ethernet Cable ConnectionPrepare a hub and other network devices, and connect the Ethernet cable to the printer.Connect 10BASE-T or 100BASE-TX cable to the printer's Ethernet port. For 1000BASE-T, the optionalGigabit Ethernet board is required.• A network interface cable with a ferrite core must be used for RF interference suppression.• For users outside the United States of America: properly shielded and grounded cables andconnectors must be used for connections to a host computer (and/or peripheral) in order to meetemission limits.• For users in the United States of America: properly shielded and grounded cables and connectorsmust be used for connections to a host computer (and/or peripheral) in order to meet FCC emissionlimits.• An Ethernet cable is not supplied with this printer. Select your cable according to the networkenvironment.• The printer's Ethernet and USB ports are not available when the Gigabit Ethernet board is attachedto the printer.854

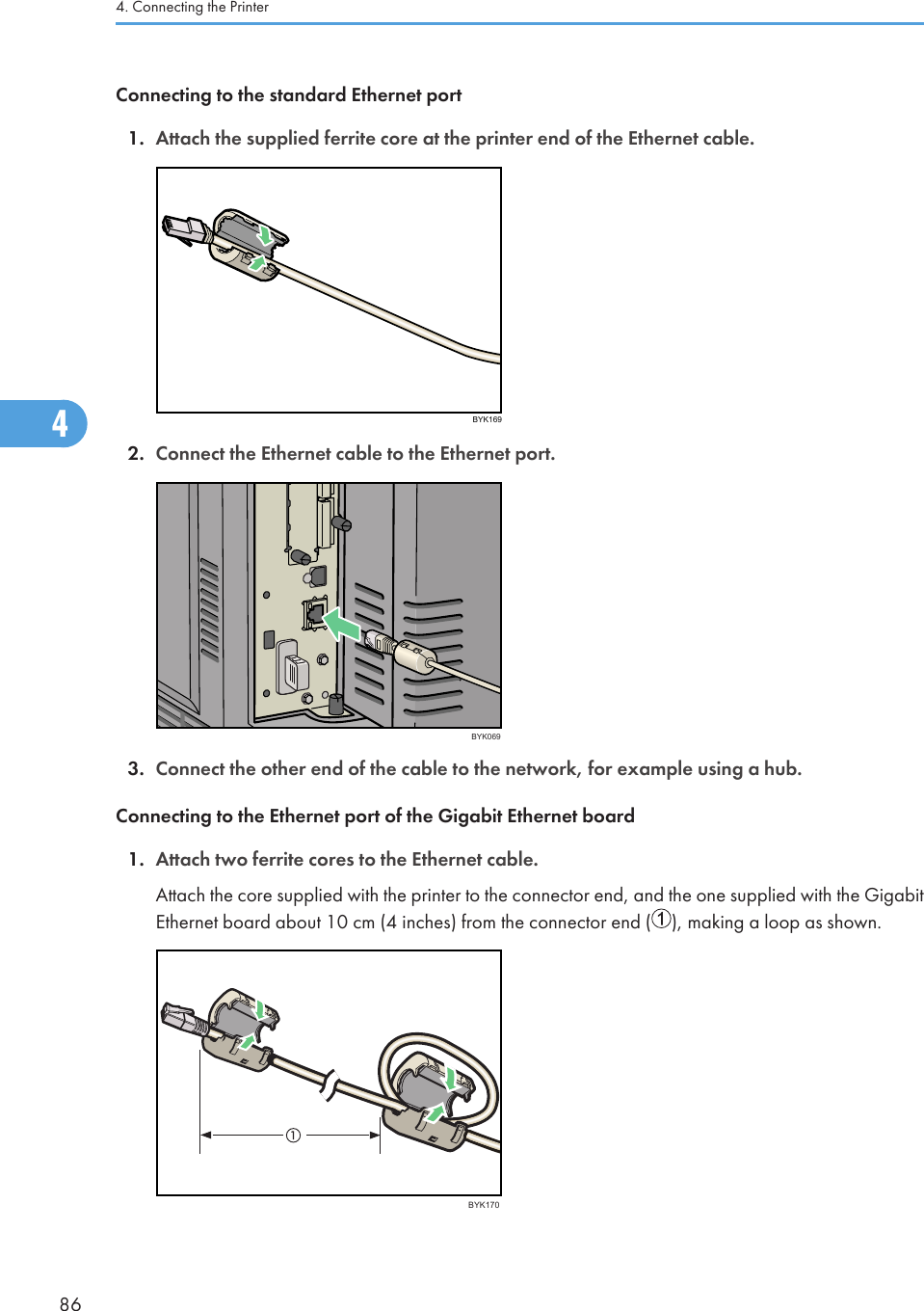

Connecting to the standard Ethernet port1. Attach the supplied ferrite core at the printer end of the Ethernet cable.BYK1692. Connect the Ethernet cable to the Ethernet port.BYK0693. Connect the other end of the cable to the network, for example using a hub.Connecting to the Ethernet port of the Gigabit Ethernet board1. Attach two ferrite cores to the Ethernet cable.Attach the core supplied with the printer to the connector end, and the one supplied with the GigabitEthernet board about 10 cm (4 inches) from the connector end ( ), making a loop as shown.BYK1704. Connecting the Printer864
USB Cable Connection• For users outside the United States of America: properly shielded and grounded cables andconnectors must be used for connections to a host computer (and/or peripheral) in order to meetemission limits.• For users in the United States of America: properly shielded and grounded cables and connectorsmust be used for connections to a host computer (and/or peripheral) in order to meet FCC emissionlimits.• USB connection is possible under Windows 2000/XP/Vista, Windows Server 2003/2003R2/2008, and Mac OS X 10.3.3 or later.• USB connection with Mac OS is only possible via the printer's USB port, not the Gigabit Ethernetboard's USB port.• A USB cable is not supplied with this printer. Select your cable according to the computer.1. Connect the USB cable to the printer.•Connecting the USB cable to the standard USB port BConnect the smaller connector of the USB cable to the standard USB port B on the left side ofthe printer.BYK071•Connecting the USB cable to the Gigabit Ethernet board USB portConnect the smaller connector of the USB cable to the USB port of the Gigabit Ethernet board.USB Cable Connection894

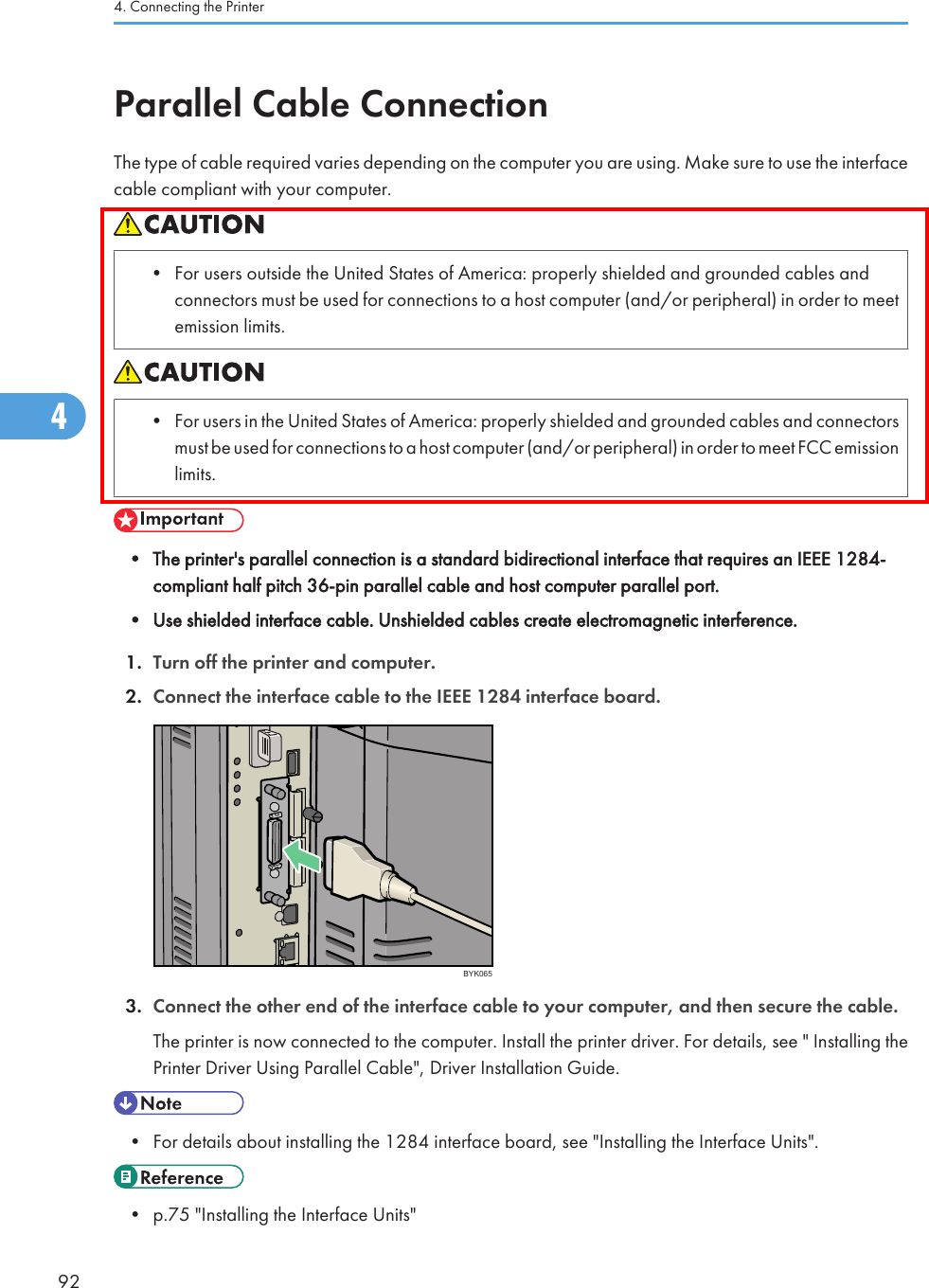

Parallel Cable ConnectionThe type of cable required varies depending on the computer you are using. Make sure to use the interfacecable compliant with your computer.• For users outside the United States of America: properly shielded and grounded cables andconnectors must be used for connections to a host computer (and/or peripheral) in order to meetemission limits.• For users in the United States of America: properly shielded and grounded cables and connectorsmust be used for connections to a host computer (and/or peripheral) in order to meet FCC emissionlimits.• The printer's parallel connection is a standard bidirectional interface that requires an IEEE 1284-compliant half pitch 36-pin parallel cable and host computer parallel port.• Use shielded interface cable. Unshielded cables create electromagnetic interference.1. Turn off the printer and computer.2. Connect the interface cable to the IEEE 1284 interface board.BYK0653. Connect the other end of the interface cable to your computer, and then secure the cable.The printer is now connected to the computer. Install the printer driver. For details, see " Installing thePrinter Driver Using Parallel Cable", Driver Installation Guide.• For details about installing the 1284 interface board, see "Installing the Interface Units".• p.75 "Installing the Interface Units"4. Connecting the Printer924
