FAX Option Type 7500
Operating Instructions
Facsimile Reference
Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the
Safety Information in "About This Machine" before using the machine.
Transmission
Other Transmission Features
Reception
Changing/Confirming Communication Information
Storing a Document
Fax via Computer
Appendix
1
2
3
4
5
6
7
Introduction
This manual contains detailed instructions and notes on the operation and use of this machine. For your
safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy
place for quick reference.
Notes
Some illustrations in this manual might be slightly different from the machine.
Certain options might not be available in some countries. For details, please contact your local dealer.
Depending on which country you are in, certain units may be optional. For details, please contact your
local dealer.
Two kinds of size notation are employed in this manual. With this machine refer to the metric version.
Important
Contents of this manual are subject to change without prior notice. In no event will the company be li-
able for direct, indirect, special, incidental, or consequential damages as a result of handling or oper-
ating the machine.
Trademarks
Microsoft®, Windows®, WindowsNT® and Outlook® are registered trademarks or trademarks of Micro-
soft Corporation in the United States and/or other countries.
PowerPC® is a trademark of International Business Machines Corporation in the United States, other
countries, or both.
Adobe® and Acrobat® are registered trademarks of Adobe Systems Incorporated.
Ethernet is a registered trademark of Xerox Corporation.
Other product names used herein are for identification purposes only and might be trademarks of their
respective companies. We disclaim any and all rights to those marks.
Note
The proper names of the Windows operating systems are as follows:
• The product name of Windows® 98 is Microsoft® Windows 98.
• The product name of Windows® Me is Microsoft® Windows Millennium Edition (Windows Me).
• The product names of Windows® 2000 are as follows:
Microsoft® Windows® 2000 Advanced Server
Microsoft® Windows® 2000 Server
Microsoft® Windows® 2000 Professional
• The product names of Windows® XP are as follows:
Microsoft® Windows® XP Professional
Microsoft® Windows® XP Home Edition
• The product names of the Windows ServerTM 2003 are as follows:
Microsoft® Windows ServerTM 2003 Standard Edition
Microsoft® Windows ServerTM 2003 Enterprise Edition
Microsoft® Windows ServerTM 2003 Web Edition
• The product names of Windows NT® 4.0 are as follows:
Microsoft® Windows NT® Server 4.0
Microsoft® Windows NT® Workstation 4.0
i
Manuals for This Machine
Refer to the manuals that are relevant to what you want to do with the machine.
❖About This Machine
Be sure to read the Safety Information in this manual before using the ma-
chine.
This manual provides an introduction to the functions of the machine. It also
explains the control panel, preparation procedures for using the machine,
how to enter text, and how to install the CD-ROMs provided.
❖General Settings Guide
Explains User Tools settings, and Address Book procedures such as register-
ing fax numbers, e-mail addresses, and user codes. Also refer to this manual
for explanations on how to connect the machine.
❖Troubleshooting
Provides a guide to solving common problems, and explains how to replace
paper, toner, staples, and other consumables.
❖Security Reference
This manual is for administrators of the machine. It explains security func-
tions that the administrators can use to protect data from being tampered, or
prevent the machine from unauthorized use.
Also refer to this manual for the procedures for registering administrators, as
well as setting user and administrator authentication.
❖Copy/ Document Server Reference
Explains Copier and Document Server functions and operations. Also refer to
this manual for explanations on how to place originals.
❖Facsimile Reference
Explains Facsimile functions and operations.
❖Printer Reference
Explains Printer functions and operations.
❖Scanner Reference
Explains Scanner functions and operations.
❖Network Guide
Explains how to configure and operate the machine in a network environ-
ment, and use the software provided.
This manual covers all models, and includes descriptions of functions and
settings that might not be available on this machine. Images, illustrations, and
information about operating systems that are supported might also differ
slightly from those of this machine.
ii
❖Other manuals
• Manuals for This Machine
•Safety Information
• Quick Reference Copy Guide
• Quick Reference Fax Guide
• Quick Reference Printer Guide
• Quick Reference Scanner Guide
• PostScript3 Supplement
•UNIX Supplement
• Manuals for DeskTopBinder Lite
• DeskTopBinder Lite Setup Guide
• DeskTopBinder Introduction Guide
•Auto Document Link Guide
Note
❒Manuals provided are specific to machine types.
❒Adobe Acrobat Reader/Adobe Reader must be installed in order to view the
manuals as PDF files.
❒The following software products are referred to using general names:
*1 Optional
Product name General name
DeskTopBinder Lite *1 and DeskTopBinder Profes-
sional
DeskTopBinder
ScanRouter EX Professional *1 and ScanRouter EX En-
terprise *1
the ScanRouter delivery software
iii
TABLE OF CONTENTS
Manuals for This Machine ......................................................................................i
How to Read This Manual .....................................................................................1
Symbols .....................................................................................................................1
Names of Major Functions .........................................................................................1
Reading the Display...............................................................................................2
Reading the Display Panel and Using Keys...............................................................3
Simplified Display.......................................................................................................5
Function List ..........................................................................................................6
1. Transmission
Transmission Modes .............................................................................................9
Selecting Type of Transmission ...............................................................................10
Memory Transmission..............................................................................................11
Sending multiple originals using the exposure glass.............................................14
Parallel Memory Transmission ..............................................................................15
Automatic Redial ...................................................................................................16
Dual Access...........................................................................................................16
Simultaneous Broadcast........................................................................................16
Immediate Transmission ..........................................................................................17
Sending multiple originals using the exposure glass.............................................19
Displaying Confirmation of Transmission.................................................................20
IP-Fax Functions ..................................................................................................21
Terminology .............................................................................................................23
Notes on Using IP-Fax .............................................................................................24
Functions Not Available for IP-Fax Transmission ....................................................24
Internet Fax Functions ........................................................................................25
Notes on Using Internet Fax ....................................................................................26
Functions Not Available by E-mail Transmission .....................................................27
Functions Not Available by E-mail Reception ..........................................................28
E-mail Subject ..........................................................................................................28
T.37 Full Mode .........................................................................................................29
Placing Originals..................................................................................................30
Setting the Original Orientation ................................................................................32
Scanning Two-Sided Originals.................................................................................33
Acceptable Original Sizes ........................................................................................36
Paper Size and Scanned Area.................................................................................37
Original Sizes Difficult to Detect...............................................................................39
Transmission with Image Rotation ...........................................................................40
Stamp.......................................................................................................................41
iv
Scan Settings .......................................................................................................43
Scan Type ................................................................................................................43
JBIG Transmission ................................................................................................45
Resolution ................................................................................................................45
Scan Size .................................................................................................................47
Auto Detect............................................................................................................48
Regular..................................................................................................................49
Area.......................................................................................................................50
Mixed Original Sizes..............................................................................................52
Density (Contrast) ....................................................................................................54
Mixing Scan Settings for a Multiple Page Original ...................................................56
Changing the Line Port .......................................................................................57
Simultaneous Broadcast Using Multiple Line Ports .................................................59
Specifying a Destination .....................................................................................60
Sending Over a Fax Line .........................................................................................60
Entering a pause ...................................................................................................61
Entering a tone ......................................................................................................62
Sending by IP-Fax....................................................................................................63
Regarding IP-Fax destinations ..............................................................................65
Sending to an E-mail Address..................................................................................66
Bypassing the SMTP server..................................................................................69
Using the Address Book to Specify Destinations .....................................................72
Switching the titles in the Address Book................................................................73
Specifying Group Destinations.................................................................................74
Selecting Destinations from Recent Destinations ....................................................75
Programming Destinations in the Address Book .............................................77
Registering Entered Destinations to the Address Book ...........................................79
Searching for a Destination in the Address Book ............................................80
Search by Destination Name ...................................................................................81
Search by Fax Number/IP-Fax Destination..............................................................83
Search by E-mail Address........................................................................................86
Search Using Advanced Search ..............................................................................88
Search by Registration Number ...............................................................................91
On Hook Dial ........................................................................................................93
Manual Dial ...........................................................................................................95
Sender Settings....................................................................................................97
Advanced Features............................................................................................100
Setting SUB Codes for Transmission.....................................................................100
Setting a password..............................................................................................103
Setting SEP Codes for Reception ..........................................................................103
Entering a password............................................................................................106
SEP Code RX Reserve Report ..............................................................................106
SEP Code RX Result Report .................................................................................107
Canceling a Transmission ................................................................................108
Before the Original Is Scanned ..............................................................................108
While the Original Is Being Scanned......................................................................108
While the Original Is Being Transmitted.................................................................109
Before the Transmission Is Started........................................................................111
Confirming a Transmission ..............................................................................114
Checking the Storage Result (Memory Storage Report)................................116
v
2. Other Transmission Features
Sending at a Specific Time (Send Later) .........................................................117
Requesting a Reception Notice........................................................................119
Setting an E-mail Destination as a BCC ..........................................................121
Confirming Transmission Results by E-mail ..................................................122
Entering the Subject ..........................................................................................124
Entering the Text................................................................................................127
Transmission Options.......................................................................................129
Standard Message Stamp......................................................................................129

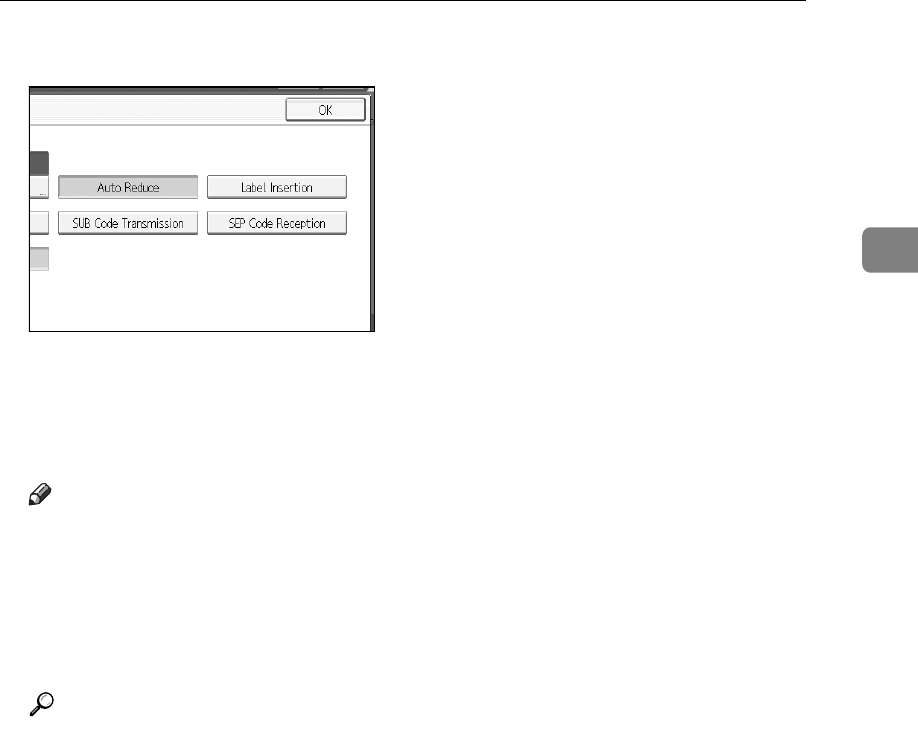

Auto Reduce ..........................................................................................................130
Label Insertion........................................................................................................132
Closed Network......................................................................................................134
SUB Code Transmission........................................................................................135
SEP Code Reception .............................................................................................136
Fax Header Print ....................................................................................................138
3. Reception
Types of Reception............................................................................................141
Immediate Reception .............................................................................................141
Memory Reception .................................................................................................142
Substitute Reception ..............................................................................................143
Receiving documents unconditionally .................................................................144
Receiving documents according to parameter-specified settings .......................144
Reception Modes ...............................................................................................146
Manual Reception ..................................................................................................146
Auto Reception.......................................................................................................146
Switching the Reception Mode...............................................................................147
Receiving Internet Fax Documents ..................................................................148
Auto E-mail Reception ...........................................................................................148
Manual E-mail Reception .......................................................................................149
Received Images ...................................................................................................149
Reception Functions .........................................................................................151
Routing Received Documents................................................................................151
Routing received documents with SUB Code......................................................151
Transferring Received Documents.........................................................................152
SEP Code Transfer Report..................................................................................152
Forwarding Received Documents ..........................................................................153
SMTP Reception Using Internet Fax......................................................................154
Routing e-mail received via SMTP ......................................................................155
JBIG Reception ......................................................................................................156
Auto Fax Reception Power-Up...............................................................................156
vi
Printing Options.................................................................................................157
Print Completion Beep ...........................................................................................157
Checkered Mark.....................................................................................................157

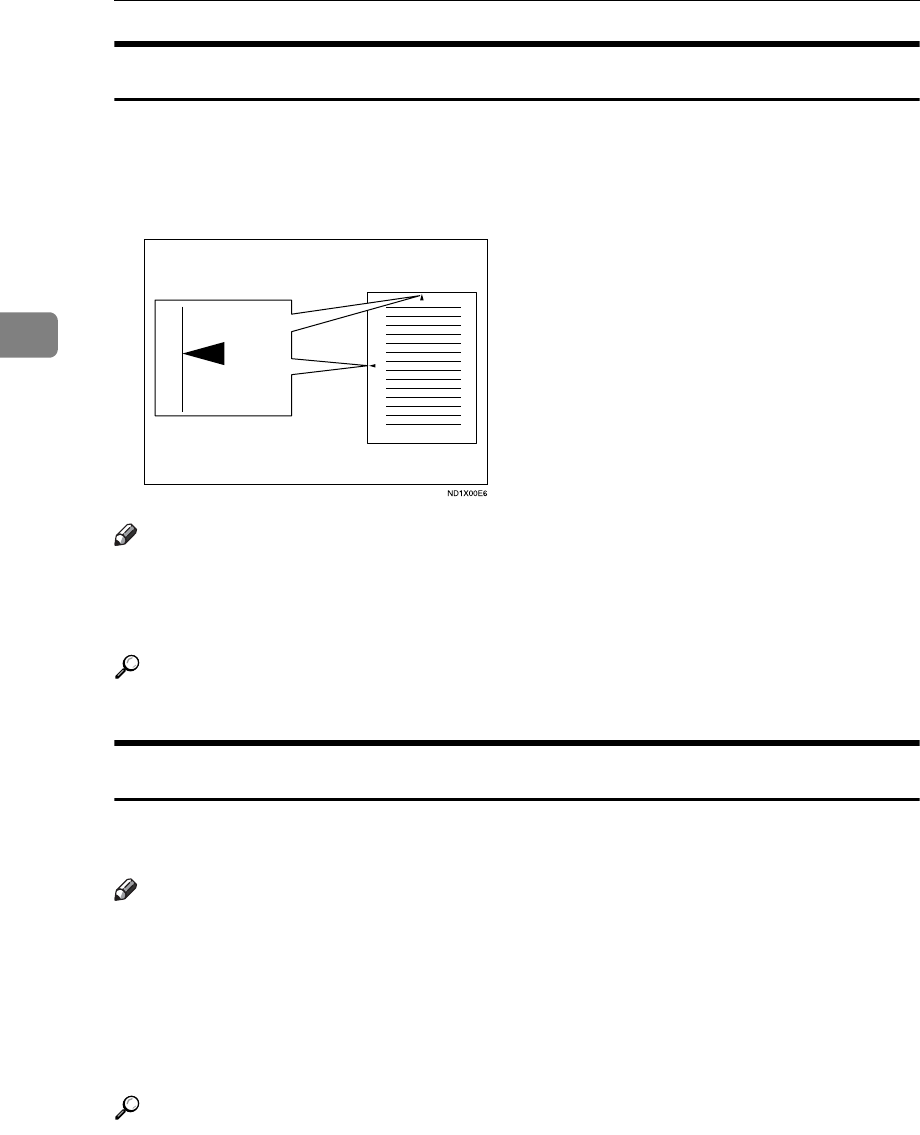

Centre Mark ...........................................................................................................158
Reception Time ......................................................................................................158
Two-Sided Printing.................................................................................................159
180-degree rotation printing ................................................................................160
Multi-Copy Reception.............................................................................................160
Image Rotation.......................................................................................................161
Page Separation and Length Reduction ................................................................162
Page Reduction......................................................................................................163
TSI Print (Transmitting Subscriber Identification Print) ..........................................163
If There Is No Paper of the Correct Size ................................................................164
Setting priority trays.............................................................................................164
Just size printing..................................................................................................165
Having incoming documents printed on paper from the bypass tray...................165
Where Incoming Documents Are Delivered - Output Tray.....................................166
Specifying tray for lines .......................................................................................166
Tray Shift .............................................................................................................167
4. Changing/Confirming Communication Information
Changing the Settings of Files in Memory ......................................................169
Deleting a Destination from a Simultaneous Broadcast.........................................170
Adding a Destination ..............................................................................................172
Changing the Transmission Time ..........................................................................174

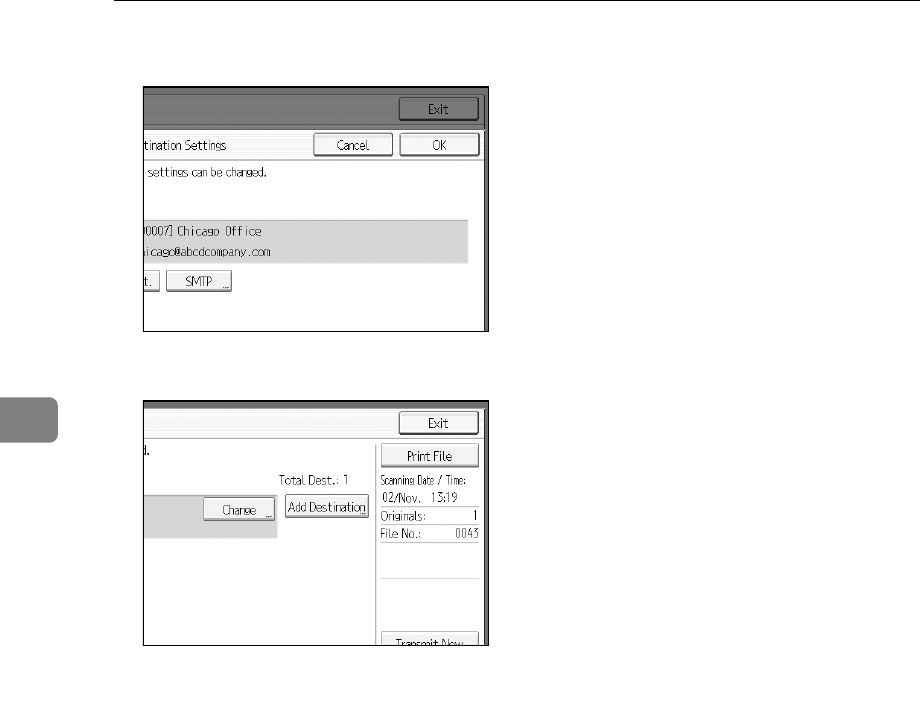

Changing the SMTP Server Setting .......................................................................176
Printing a File from Memory .............................................................................179
Printing a List of Files in Memory (Print TX File List).....................................181
Resending a File ................................................................................................183
Checking the Transmission Result (Transmission File Status) ....................185
Confirming on Display ............................................................................................185
Confirming by Report .............................................................................................186
Confirming by E-mail..............................................................................................187
Confirming by Report and E-mail ...........................................................................187
Communication Result Report (Memory Transmission) ........................................188
Immediate TX Result Report (Immediate Transmission) .......................................188
Communication Failure Report ..............................................................................189
Checking the Reception Result (Reception File Status) ................................190
Confirming on Display ............................................................................................190
Confirming by Report .............................................................................................191
Journal.................................................................................................................191

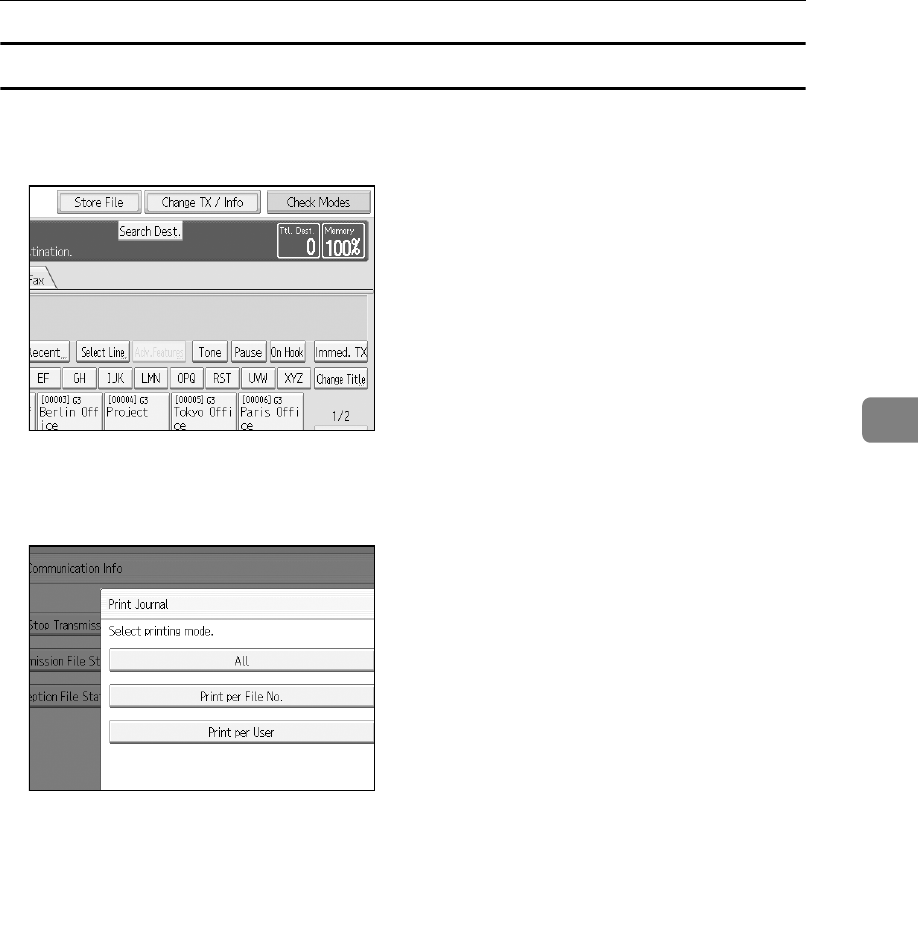

Print Journal.......................................................................................................192
Printing the Journal ................................................................................................192
All.........................................................................................................................193
Print per File No...................................................................................................194
Print per User ......................................................................................................195
Journal ...................................................................................................................197
Transmitting Journal by E-mail...............................................................................199
Journal by e-mail .................................................................................................199
vii
Printing/Deleting Received and Stored Documents
(Print/Delete Stored Reception File) ..............................................................200
Printing Received and Stored Documents .............................................................201
Deleting Received and Stored Documents ............................................................202
Printing a File Received with Memory Lock....................................................203
Personal Boxes ..................................................................................................205
Personal Boxes ......................................................................................................205
Printing Personal Box Documents .........................................................................206
Confidential File Report..........................................................................................207
Information Boxes .............................................................................................208
Information Boxes ..................................................................................................208
Storing Documents in Information Boxes...............................................................209
Printing Information Box Documents......................................................................211
Deleting Information Box Documents.....................................................................212
5. Storing a Document
Sending a Stored File ........................................................................................215
Storing a Document ...............................................................................................216
Programming a user name..................................................................................218
Setting a file name...............................................................................................219
Setting a password..............................................................................................219
Sending Stored Documents ...................................................................................220
Specifying documents from [File List]...................................................................223
Specifying documents by [User Name]..................................................................223
Specifying documents by [File Name]...................................................................224
Displaying a preview............................................................................................224
Printing Stored Documents ....................................................................................225
Changing Stored Document Information................................................................227
Changing a user name ........................................................................................229
Changing the file name........................................................................................230
Changing the password.......................................................................................230
Deleting a Stored Document ..................................................................................231
6. Fax via Computer
Sending Fax Documents from Computers ......................................................233
Before Use .............................................................................................................234
Using the Software.................................................................................................234
LAN-Fax Driver....................................................................................................234
Address Book ......................................................................................................235
LAN-Fax Cover Sheet Editor ...............................................................................235
Auto Run program ...............................................................................................236
Installing Individual Applications ............................................................................236
Setting LAN-Fax Driver Properties.........................................................................237
Setting print properties ........................................................................................238
Making settings for option configuration..............................................................239
Basic Transmission ................................................................................................240
Specifying a destination using a destination list ..................................................241
Specifying a destination using Address Book......................................................241
Specifying a destination by directly entering a fax number,
Internet Fax Destination, or IP-Fax destination .................................................242
viii
Specifying Options .................................................................................................243
To send a fax document at a specific time ..........................................................243
To print a sender stamp.......................................................................................243
To attach a cover sheet .......................................................................................244
To specify two-sided printing...............................................................................244
To display preview...............................................................................................244
Saving as files .....................................................................................................244
To store the fax document on the Document Server...........................................245
Checking Transmission Using LAN-Fax Driver......................................................246
Confirming Transmission Results by E-mail ..........................................................246
LAN-Fax Result Report ..........................................................................................247
Printing and Saving ................................................................................................248
Editing Address Book.............................................................................................248
Programming new destinations ...........................................................................249
Editing programmed destinations........................................................................250
Deleting programmed destinations......................................................................250
Using the Machine's Address Book Data in the Destination List of the LAN-Fax .....251
Editing Fax Cover Sheets ......................................................................................251
Creating a cover sheet ........................................................................................252
Attaching a created cover sheet..........................................................................253
Managing Facsimile Functions Using SmartDeviceMonitor for Admin ..................254
LAN-Fax Operation Messages...............................................................................254
Viewing Fax Information Using a Web Browser .............................................255
Viewing, Printing, and Deleting Received Fax Documents Using a Web Image Monitor..... 255
Viewing received fax documents using a Web browser ......................................255
Printing fax information using a Web browser.....................................................256
Deleting fax information using a Web browser ....................................................257
Programming Destination Information from Web Browser.....................................257
To edit machine properties already programmed................................................258
To add new receiver ............................................................................................259
Delivering Files Received by Fax .....................................................................260
7. Appendix
Checking the Memory Status............................................................................261
Programs ............................................................................................................262
Registering and Changing Keystroke Programs ....................................................262
Registering a priority function using a program...................................................264
Changing a program name..................................................................................265
Deleting a Program ................................................................................................266
Using a Program ....................................................................................................267
Optional Equipment...........................................................................................268
Expansion Memory (28MB: DIMM) ........................................................................268
Extra G3 Interface Unit...........................................................................................268
Specifications.....................................................................................................269
Specifications Required for the Internet Fax Destination Machines.......................271
Maximum Values................................................................................................272
INDEX....................................................................................................... 274
1
How to Read This Manual
Symbols
This manual uses the following symbols:
Indicates important safety notes.
Ignoring these notes could result in serious injury or death. Be sure to read these
notes. They can be found in the “Safety Information” section of About This Ma-
chine.
Indicates important safety notes.
Ignoring these notes could result in moderate or minor injury, or damage to the
machine or to property. Be sure to read these notes. They can be found in the
“Safety Information” section of About This Machine.
Indicates points to pay attention to when using the machine, and explanations
of likely causes of paper misfeeds, damage to originals, or loss of data. Be sure
to read these explanations.
Indicates supplementary explanations of the machine's functions, and instruc-
tions on resolving user errors.
This symbol is located at the end of sections. It indicates where you can find fur-
ther relevant information.
[ ]
Indicates the names of keys that appear on the machine's display panel.
{ }
Indicates the names of keys on the machine's control panel.
Names of Major Functions
This machine's major functions are referred to in this manual as follows:
• Internet Fax (by specifying an e-mail address) → Internet Fax
• Internet Fax (by specifying an IPv4 address) → IP-Fax
2
Reading the Display
This section explains how to use control panel and screen-displayed keys.
The display guides you through operations, shows messages, machine status,
and destinations registered in the destination lists.
If you press the {Facsimile} or {Clear Modes} key during operation, the standby
display appears.
Note
❒This machine automatically returns to standby mode if you do not use the
machine for a certain period of time. You can select the period using the Fac-
simile Auto Reset Timer in System Settings.
❒You can have the machine return to standby mode after each transmission us-
ing User Parameters (switch 17, bit 3) in the Facsimile Features menu.
❒To manually return to the standby display, do one of the following:
• If you have placed the original in the Auto Document Feeder (ADF) and
have not pressed the {Start} key, remove the original.
• If you have not placed an original, press the {Clear Modes} key.
• If you are in User Tools mode, press the {User Tools/Counter} key.
Reference
“System Settings”, General Settings Guide
“Facsimile Features”, General Settings Guide
“Registering Addresses and Users for Facsimile/Scanner Functions”, Gener-
al Settings Guide
3
Reading the Display Panel and Using Keys
This section explains key functions and messages that appear on the control panel.
❖Initial Display
1. Displays the date, time, and ma-
chine status. Displays the name, fac-
simile number of the destination,
and the size of the original when
transmitting.
When user authentication is set, a login
user name appears.
2. Allows you to send or print the
documents stored in the Document
Server.
3. Allows you to set scan settings
and original feed types.
4. Displays messages and the ma-
chine status.
5. Press this tab to switch the type of
transmission between fax/IP-Fax
and Internet Fax.
When “Internet Fax Settings” is set to
“On” in the Facsimile Features menu,
appears.
•When [Fax] is selected, you can specify
fax numbers or IP-Fax destinations.
•When [Internet Fax] is selected, you can
specify e-mail addresses.
6. Displays the entered number of a
destination.
7. Allows you to store documents in
the Document Server.
8. Press to display various informa-
tion about communication.
9. Allows you to confirm the trans-
mission settings.
10. Displays the percentage of free
memory space.
11. Allows you to search for a desti-
nation by destination name, fax
number, e-mail address or registra-
tion number.
12. Switches transmission mode to
Immediate Transmission.
When [Immed. TX] is not highlighted, the
machine is in the Memory Transmission
mode.
ALV008S
4
13. Allows you to set various fea-
tures for transmission.
14. Allows you to set a sender.
15. Allows you to check the number
of “Transmission Standby File(s)”,
“Memory Lock File(s)”, and “RX
Print Standby File(s)”.
16. Displays Quick Operation keys
set for frequently used functions. [TX
File Status] and [RX File Status] are pre-
set.
17. Title word keys appear. Allows
you to switch from one page (dis-
play) to another on the destination
list.
18. Switches the title word keys.
19. Appears on Destination keys
programmed as a group destination.
Note
❒The display will differ depending on installed optional units.
❒You can change “Internet Fax Settings” under “Initial Settings” in the Facsim-
ile Features menu.
❒Information about documents sent using the facsimile function cannot be
checked in [Job List]. Use [Change TX / Info].
Reference
p.9 “Transmission Modes”
p.73 “Switching the titles in the Address Book”
p.80 “Searching for a Destination in the Address Book”
p.117 “Other Transmission Features”
p.169 “Changing/Confirming Communication Information”
p.215 “Storing a Document”
p.261 “Checking the Memory Status”
“Facsimile Features”, General Settings Guide
“Registering Addresses and Users for Facsimile/Scanner Functions”, Gener-
al Settings Guide
5
Simplified Display
This section explains how to switch to the simplified display.
When you press the {Simplified Display} key, the screen changes from the initial
display to the simplified display.
Letters and keys are displayed at a larger size, making operations easier.
❖Example of a simplified display
1. [Key Colour]
Press to change the key colour and in-
crease the brightness of the display panel.
Note
❒To return to the initial display, press the {Simplified Display} key again.
❒Certain keys do not appear on the simplified display.
AMG051S
ALV009S
6
Function List
This section explains various items that can be specified in the Facsimile Fea-
tures menu.
Press the {User Tools/Counter} key to display the Facsimile Features menu. For
details about the settings, see “Facsimile Features”, General Settings Guide.
❖General Settings
❖Scan Settings
Function name Description
Quick Operation Key Frequently used functions programmed as
Quick Operation keys are shown on the
menu immediately after the power is turned
on.
Switch Title Select the title to be shown on the destination
list.
Search Destination Select a destination list to be used in “Search
Destination”.
Communication Page Count Checks the transmission and reception, and
totals on the display.
Adjust Sound Volume Adjust the sound volume during On Hook
Mode and Immediate Transmission.
Box Setting The following functions are for delivery and
transfer of documents: Personal Box, Infor-
mation Box, and Transfer Box.
Box Setting: Print List You can print a list or the Personal Boxes, In-
formation Boxes, and Transfer Boxes cur-
rently programmed.
On Hook Mode Release Time Use this function to specify a time to cancel
On Hook mode after you transmit using On
Hook dialing.
Function name Description
Program / Change / Delete Scan Size You can program, change, or cancel fre-
quently used scan sizes.
7
❖Send Settings
❖Reception Settings
Function name Description
Max. E-mail Size Specify to limit the size of e-mail messages
that are transmitted, if receivers limit e-mail
size, or you cannot send large size e-mail for
some reason.
Program / Change / Delete Standard Message
Program standard messages to be printed at
the top of the first page of the original of the
opposite party.
Backup File TX Setting You can specify whether or not to send to a
selected folder the backup of a file sent by
Memory Transmission.
Function name Description
Switch Reception Mode
Specify the method for receiving fax documents.
Program Special Sender By programming particular receivers as Spe-
cial Sender in advance, you can have Special
Senders treated differently.
Program Special Sender: Print List You can print the Special Sender List.
Forwarding Specify whether or not received fax docu-
ments are to be forwarded to a programmed
receiver.
Reception File Setting Selects whether received documents are
saved on the hard disk to be printed later or
printed immediately without being saved.
Stored Reception File User Setting The administrator can be specified for man-
aging documents stored on the machine after
fax documents are received.
SMTP RX File Delivery Settings This function is available on systems that al-
low routing of e-mail received via SMTP.
2 Sided Print Specify whether or not received fax docu-
ments are to be printed on both sides of the
paper.
Checkered Mark Specify whether or not a checkered mark is
to be saved on the hard to be printed on the
first page of received fax documents.
Centre Mark Specify whether or not a centre mark is to be
printed halfway down the left side and at the
top centre of each page received.
Print Reception Time Specify whether or not the received date,
time, and file number are printed at the bot-
tom of received fax documents.
Reception File Print Quantity Specify the number of copies to be printed
for each fax document received.
8
❖Initial Settings
Reference
“Facsimile Features”, General Settings Guide
Paper Tray Use this function to print fax documents re-
ceived from programmed senders and fax
documents from other senders, using differ-
ent paper trays.
Specify Tray for Lines Specify a paper tray for each line (telephone,
Internet Fax, IP-Fax).
Folder Transfer Result Report You can set whether the Folder Transfer Re-
sult Report is transmitted to the specified e-
mail address, when folders are programmed
as the forwarding destinations to which doc-
uments are sent from all senders or Special
Senders.
Memory Lock Reception Switches the Memory Lock on or off.
Function name Description
Parameter Setting User Parameters allow you to customize var-
ious settings to suit your needs.
Parameter Setting: Print List Prints a list to see the current User Parameter
settings.
Program Closed Network Code Register an ID required for Closed Network
communication.
Program Memory Lock ID Program a Memory Lock ID to be entered be-
fore printing documents when the Memory
Lock Reception function is activated.
Internet Fax Settings You can select to display the Internet Fax
icon or not.
Select Dial / Push Phone Use this function to select a line type when
the machine is connected to a G3 analog line.
Program Fax Information
Program information to be shown on the display
of the other machine and printed as a report.
Enable H.323 Specify whether or not H.323 is used for IP-
Fax transmission.
Enable SIP Specify whether or not SIP is used for IP-Fax
transmission.
H.323 Settings Set the IPv4 address or host name, and alias
telephone number of the gatekeeper.
SIP Settings Set the SIP server's IPv4 address or host
name, and SIP user name.
Program / Change / Delete Gateway Register, change, or delete the gateway used
for transmission to IP-Fax.
Menu Protect Using Menu Protect, you can prevent unau-
thenticated users from changing the user
tools.
Function name Description
9
1. Transmission
This section explains basic transmission operations such as specifying a trans-
mission mode or destination.
Transmission Modes
There are two types of transmission:
• Memory Transmission
• Immediate Transmission
Important
❒It is recommended that you call the receiver and confirm with them when
sending important documents.
❖Memory Transmission
Transmission starts automatically after the original is stored in memory. This
is convenient when you are in a hurry and want to take the document away
with you. You can also send the same original to several destinations.
❖Immediate Transmission
Immediately dials the destination number, and while scanning the original,
sends it. It is very convenient when you want to send an original quickly or
when you want to check the destination you are sending to. When using this
type of transmission, the original is not stored in memory. You can only spec-
ify one address.
Transmission
10
1
Normally the machine is in the Memory Transmission mode. To switch the
mode to Immediate Transmission, press [Immed. TX].
Note
❒You can set the machine to enter Memory Transmission mode or Immediate
Transmission mode right after the power is turned on or the {Clear Modes} key
is pressed. See “Registering a priority function using a program”.
Reference
p.15 “Parallel Memory Transmission”
p.16 “Simultaneous Broadcast”
p.264 “Registering a priority function using a program”
Selecting Type of Transmission
You can select the transmission type: standard fax, IP-Fax, or Internet Fax.
Press the tab in the standby display to select the transmission type.
❖When sending to a standard fax or IP-Fax destination
Make sure that [Fax] is selected.
Transmission Modes
11
1
❖When sending to an Internet Fax destination
Press [Internet Fax] to switch the type of transmission to Internet Fax.
Reference
p.21 “IP-Fax Functions”
p.25 “Internet Fax Functions”
Memory Transmission
Memory transmission mode has standard fax, Internet Fax and IP-Fax.
Important
❒If there is a power failure (the main power switch is turned off) or the machine
is unplugged for about one hour, all the documents stored in memory are de-
leted. As soon as the main power switch is turned on, the Power Failure Re-
port is printed to help you identify deleted files. Simply turning off the power
by pressing the operation switch does not delete stored documents. See
“Troubleshooting When Using the Facsimile Function”, Troubleshooting.
❒If memory is full (0% appears in “Memory” at the upper right of the screen),
Memory Transmission is disabled. Use Immediate Transmission instead.
AMake sure [Immed. TX] is not highlighted.
Normally Memory Transmission mode is selected.
BPlace the original.
Transmission
12
1
CMake the scan settings you require.
DUsing the number keys or a Destination key, specify a destination.
If you make a mistake, press the {Clear/Stop} key, and then enter the correct
number.
To select a destination from the Address Book, see “Using the Address Book
to Specify Destinations”.
EWhen sending the same original to several destinations (broadcasting),
press [Add] to specify the destinations.
You do not have to press [Add] when adding a destination using the destina-
tion list.
Transmission Modes
13
1
FSpecify the next destination.
Press [Fax] or [Internet Fax] to switch the transmission type between fax/IP-
Fax and Internet Fax.
A fax number, e-mail address and IP-Fax destination can be specified simul-
taneously.
GPress the {Start} key.
Note
❒If the combined total number of programmed destinations exceeds the
maximum value, only Immediate Transmission is possible.
❒For the maximum number of destinations you can specify per file, see
“Maximum Values”.
❒For the maximum number of destinations you can specify for all files (in-
cluding files in memory), see “Maximum Values”.
❒For the maximum number of documents you can store in memory for
Memory Transmission, see “Maximum Values”.
❒For the maximum number of pages you can store in memory (using A4
Standard <ITU-T q1 Chart>), see “Maximum Values”.
Reference
p.43 “Scan Type”
p.45 “Resolution”
p.54 “Density (Contrast)”
p.60 “Sending Over a Fax Line”
p.63 “Sending by IP-Fax”
p.66 “Sending to an E-mail Address”
p.72 “Using the Address Book to Specify Destinations”
p.74 “Specifying Group Destinations”
p.75 “Selecting Destinations from Recent Destinations”
p.272 “Maximum Values”
“Facsimile Features”, General Settings Guide
“Troubleshooting When Using the Facsimile Function”, Troubleshooting
Transmission
14
1
Sending multiple originals using the exposure glass
Follow these steps to send multiple originals using the exposure glass.
AMake sure [Immed. TX] is not highlighted.
BPlace the first page of the original face down on the exposure glass.
CSpecify a destination.
DMake the scan settings you require.
EPress the {Start} key.
The machine starts scanning.
FPlace the next original on the exposure glass within 60 seconds after the ma-
chine has finished scanning the first original.
GRepeat steps D to F for all originals.
HPlace the last original, and then press the {q} key.
The machine dials the destination and starts transmission.
Transmission Modes
15
1
Parallel Memory Transmission
This function dials while the original is being scanned.
Standard Memory Transmission stores the original in memory, then dials the
destination. However, Parallel Memory Transmission allows you to confirm the
connection status quickly. In addition, this function scans the original faster than
Immediate Transmission. This is useful when you are in a hurry and need to use
the original for another purpose.
Important
❒Standard Memory Transmission is used instead of Parallel Memory Trans-
mission in the following cases:
• When the line is busy and could not be connected to
•With Send Later
• When you store an original for Memory Transmission while another com-
munication is in progress
• When two or more destinations are specified
• When an original is placed on the exposure glass, and then sent
• When you send documents stored in the Document Server
Note
❒You can turn this function on or off with the User Parameters (switch 07, bit 2)
in the Facsimile Features menu.
❒Standard Memory Transmission may be used instead of Parallel Memory
Transmission depending on the optional equipment installed if there is not
enough free memory left.
❒If you use this function, the Memory Storage Report will not be printed.
❒If the {Clear/Stop} key is pressed, the original will jam or memory will run out
while Parallel Memory Transmission stops. The Communication Result Re-
port is printed and files are deleted.
❒When using Parallel Memory Transmission, only the page number is printed
on the header of the fax, the total number of originals is not automatically
printed.
Reference
“Facsimile Features”, General Settings Guide
Transmission
16
1
Automatic Redial
If a fax document could not be sent because the line was busy or an error oc-
curred during transmission, the line is switched to another at five-minute inter-
vals and redial is attempted up to five times.
If redialing fails after four redials, the machine cancels the transmission and
prints a Communication Result Report or Communication Failure Report.
Note
❒If there are a large number of files stored in memory, documents might not be
sent in the order they were scanned.
Dual Access
The machine can scan other documents into memory even while sending a fax
document from memory, receiving a document into memory, or automatically
printing a report. Since the machine starts sending the second document imme-
diately after the current transmission ends, the line is used efficiently.
Note
❒During Immediate Transmission or when in User Tools mode, the machine
cannot scan an original.
Simultaneous Broadcast
Use this function to send the same original to multiple destinations simultaneously.
To specify multiple destinations, specify the first destination, and then specify
the next destination by pressing [Add].
If you dial several destinations for the same document (broadcasting), the docu-
ments are sent in the order in which they were dialed. If the fax document could
not be transmitted, the machine redials that destination after the last destination
specified for broadcasting. For example, if you specify four destinations, A
through D, for broadcasting, and if the lines to destinations A and C are busy,
the machine dials the destinations in the following order: A, B, C, D, A, and C.
To check the transmission progress, print the TX file list.
If the optional extra G3 interface unit is installed, you can use the Simultaneous
Broadcast function to send faxes simultaneously on different phone lines.
If you specify a second transmission while broadcasting to several destinations,
faxes are transmitted alternately to each remaining destination in the current
and second broadcast.
For example, if you specify a broadcast to destinations A and B, and then specify
a broadcast to destinations C and D while transmission to destination A is in
progress, the machine sends the faxes in the following order: A, C, B, and then D.
If the previous file and next file are both on standby, these are also sent in the
same order.
Transmission Modes
17
1
Note
❒To avoid accidentally pressing the wrong Destination key, you can set the
machine so that each time a destination is added using a Destination key,
[Add] must be pressed. Make the setting in User Parameters (switch 17, bit 2)
in the Facsimile Features menu.
Reference
p.59 “Simultaneous Broadcast Using Multiple Line Ports”
p.181 “Printing a List of Files in Memory (Print TX File List)”
Immediate Transmission
Immediate Transmission is possible with standard fax transmission and IP-Fax
transmission.
Important
❒Internet Fax is executed in only Memory Transmission that starts transmis-
sion automatically after storing documents in memory. If you switch the type
of transmission to Internet Fax while the machine is in the Immediate Trans-
mission mode, the transmission mode is automatically switched to the Mem-
ory Transmission mode.
❒Group cannot be used for Immediate Transmission. You cannot send the
same document to multiple destinations (broadcasting). If you specify broad-
cast or transmission for a group, the machine changes automatically to Mem-
ory Transmission.
APress [Immed. TX].
BPlace the original.
Transmission
18
1
CSelect the scan settings you require.
DUsing the number keys or a Destination key, specify a destination.
If you make a mistake, press the {Clear/Stop} key, and then enter the correct
number.
To select a destination from the Address Book, see “Using the Address Book
to Specify Destinations”.
EPress the {Start} key.
The machine dials a destination.
Note
❒Documents are not stored in memory.
Reference
p.43 “Scan Type”
p.45 “Resolution”
p.54 “Density (Contrast)”
p.60 “Sending Over a Fax Line”
p.63 “Sending by IP-Fax”
p.72 “Using the Address Book to Specify Destinations”
p.74 “Specifying Group Destinations”
p.75 “Selecting Destinations from Recent Destinations”
Transmission Modes
19
1
Sending multiple originals using the exposure glass
Follow these steps to send multiple originals using the exposure glass.
APress [Immed. TX].
BPlace the first page face down on the exposure glass.
CSpecify a destination.
DMake the scan settings you require.
EPress the {Start} key.
FPlace the next original on the exposure glass within 10 seconds after the ma-
chine has finished scanning the first original.
GRepeat steps D to F for all originals.
HPlace the last original, and then press the {q} key.
Transmission
20
1
Displaying Confirmation of Transmission
On this screen you can check the destination, transmission mode, and other
transmission settings before transmitting.
APress [Check Modes], and then check the transmission settings.
The following display appears.
BAfter checking the settings on the display, press [Exit].
IP-Fax Functions
21
1
IP-Fax Functions
The IP-Fax function sends or receives documents between two facsimiles direct-
ly via a TCP/IP network.
This function has the following advantages and is suitable for communication
within the same LAN:
• Reducing communication costs
• Communicating between IP-Faxes at higher speed than by standard fax
IP-Fax uses SIP and H.323 as the network protocol.
Specify an IPv4 address or host name instead of a fax number for sending. When
using a gatekeeper, specify its alias telephone number. Specify addresses of the
gatekeeper or SIP server (proxy server, register server, redirect server) as appro-
priate in Initial Settings in the Facsimile Features menu.
When using a SIP server, you can send by specifying SIP user name.
You can also transmit to a G3 facsimile connected to the public switched tele-
phone network (PSTN) via a gateway (T.38-compliant).
You can receive IP-Faxes in the same manner as standard faxes.
Transmission
22
1
Important
❒To use IP-Fax functions, this machine must be connected to a LAN and set up
correctly under Initial Settings in the Facsimile Features menu.
❒The facsimile function of this machine cannot be used with IPv6.
❒Before using this function, configure the network in the System Settings menu.
Note
❒IP-Fax supported by this machine is ITU-T Recommendation T.38 compliant.
ALT001S
IP-Fax Functions
23
1
Reference
p.141 “Types of Reception”
“Connecting the Machine”, General Settings Guide
“System Settings”, General Settings Guide
“Facsimile Features”, General Settings Guide
Terminology
The following are words you should know when using IP-Fax:
❖H.323
A multimedia communication protocol that sends or receives files via one-to-
one communication over a LAN or the Internet.
❖SIP
A communication control protocol for Internet telephone that utilizes VoIP
(which converts voice information to IP packets) and is equipped with func-
tions such as creating, modifying, and terminating sessions with one or more
participants.
❖Gatekeeper (VoIP gatekeeper)
A gatekeeper manages devices connected to an IP network and converts alias
telephone numbers to IPv4 addresses and performs authentication functions.
In addition, a gatekeeper governs band (transmission rate assignment) and
access control.
❖SIP server
A SIP server mediates connection requests between devices connected to an
IP network and is composed mainly of servers that have the following three
functions:
• Proxy server: Receives SIP requests and forwards them on behalf of the requestor.
• Register server: Receives information about a device's address within an IP
network and registers them in the database.
• Redirect server: Used to inquire the destination address.
❖Gateway (VoIP gateway)
A gateway connecting a telephone network and IP network, it has functions
such as protocol conversion for connecting these different networks, and also
connects communication devices (telephones, facsimiles, etc.) to a LAN or
other network.
Transmission
24
1
Notes on Using IP-Fax
The following are notes about using IP-Fax:
• You may not be able to send to a firewall-protected network.
• You cannot use telephones on a LAN.
• If a power outage lasts about an hour, or the machine is disconnected from
the power outlet for about an hour, documents stored in the fax machine's
memory are deleted. If any document is deleted, the Power Failure Report is
automatically printed out when the main power switch is turned on. Use this
report to check which documents were deleted. Simply turning off the power
by pressing the operation switch does not delete stored documents. See
“Troubleshooting When Using the Facsimile Function”, Troubleshooting.
Reference
“Troubleshooting When Using the Facsimile Function”, Troubleshooting
Functions Not Available for IP-Fax Transmission
You can use the following functions with standard fax transmission, but not IP-
Fax transmission:
•On hook dial
• Manual dial
Internet Fax Functions
25
1
Internet Fax Functions
This machine converts scanned document images to e-mail format and transmits
the data over the Internet.
The e-mail sent by this machine can be received by another Internet Fax ma-
chine. Instead of dialing the telephone number of the destination you want to
send to, you enter the relevant e-mail address.
You can also print or forward received e-mail messages.
Important
❒To use Internet Fax functions, this machine must be connected to a LAN and
set up correctly in “System Settings”.
❒The facsimile function of this machine cannot be used with IPv6.
❒To send Internet Fax documents, in the Facsimile Features menu, under Ini-
tial Settings, set [Internet Fax Settings] to [On]. However, documents can still be
forwarded or delivered to Internet Fax destinations even if [Off] is selected.
❒To receive Internet Fax documents, in the System Settings menu, in File
Transfer, under [Fax E-mail Account], set [Account] to [Receive].
ALT002S
Transmission
26
1
Note
❒The Internet Fax function supported by this machine is compliant with ITU-
T Recommendation T.37.
❒You can receive e-mail messages with an attached TIFF-F image from computers.
❒Though Internet Fax documents are normally sent via an SMTP server, you
can also send Internet Fax documents directly to their destinations without
going through an SMTP server. To do this, set whether or not to bypass the
SMTP server on the standby display.
❒When sending Internet Fax documents, “Subject”, “Text”, “Reception No-
tice”, and “BCC Transmission” can be selected in [TX Mode].
❒You can limit the size of transmitted e-mail messages in “Send Settings” of
“Facsimile Features”.
❒See “Received Images” for how e-mail is actually received by the computer.
❒For details about how to confirm the transmission result, see “Checking the
Transmission Result (TX File Status)”.
Reference
p.69 “Bypassing the SMTP server”
p.119 “Requesting a Reception Notice”
p.121 “Setting an E-mail Destination as a BCC”
p.124 “Entering the Subject”
p.127 “Entering the Text”
p.149 “Received Images”
p.185 “Checking the Transmission Result (Transmission File Status)”
“Connecting the Machine”, General Settings Guide
“System Settings”, General Settings Guide
“Facsimile Features”, General Settings Guide
Notes on Using Internet Fax
The following are notes about using Internet Fax:
• When using the Internet Fax function, originals are sent at A4 size. Originals
larger than A4 are reduced to A4 size. If the receiver is in compliance with the
T.37 full mode, originals are sent at the size specified in the Address Book.
• When using Internet Fax transmission, documents are sent at “Detail” resolu-
tion, even if you specify “Super Fine”. To send documents at “Super Fine”,
specify this resolution when registering the destination in the Address Book.
• If a transmission is not successful, this machine usually receives an e-mail er-
ror notification. However, e-mail error notifications may not be transmitted
for various reasons. It is recommended that you confirm receipt of important
document by calling the other party.
Internet Fax Functions
27
1
• The level of security for Internet communications is low. It is recommended
that you use the telephone network for confidential communications.
• Voice communication is not supported over a LAN.
• Internet Fax delivery might be delayed due to network congestion. Use Inter-
net Fax transmission that bypasses the SMTP server, a public telephone line
fax, or IP-Fax whenever communication time is a concern.
• If a power outage lasts about an hour, or the machine is disconnected from
the power outlet for about an hour, documents stored in the fax machine's
memory are deleted. If any document is deleted, the Power Failure Report is
automatically printed out when the main power switch is turned on. Use this
report to check which documents were deleted. Simply turning off the power
by pressing the operation switch does not delete stored documents. See
“Troubleshooting When Using the Facsimile Function”, Troubleshooting.
• You may not be able to send large files as e-mail, depending on e-mail envi-
ronment conditions.
• When available memory is low, you may not be able to send Internet Fax documents.
• Because the machine sends documents as e-mail messages with an attached
TIFF-F image, viewer applications are required in order to view documents
when they are received on a computer.
• With a large volume of document, it may take some time before transmission
starts. This is due to the time the machine requires to convert the data in memory.
Reference
p.29 “T.37 Full Mode”
p.37 “Paper Size and Scanned Area”
p.69 “Bypassing the SMTP server”
“Troubleshooting When Using the Facsimile Function”, Troubleshooting
Functions Not Available by E-mail Transmission
The following functions are supported with standard fax transmission, but not
with Internet Faxing.
• Immediate Transmission
• ID Transmission
• Transmission by SUB Code
•On Hook Dial
• Manual Dial
•JBIG Transmission
• ECM (Error Correction Mode)
Transmission
28
1
Functions Not Available by E-mail Reception
The following functions are supported with standard fax reception, but not with
Internet Faxing.
• Memory Lock Reception
• SEP Code Reception
• Authorized Reception per Sender
• Reception File Print Quantity per Sender
E-mail Subject
If you send e-mail without specifying a subject, a subject is automatically insert-
ed. Subjects differ depending on Stamp Sender Name settings.
❖When Stamp Sender Name is set to on:
From Sender Name(Fax Message NO.xxxx)
❖When Stamp Sender Name is set to off:
•If Own Fax Number and Own Name are programmed:
From “Own Fax Number”(“Own Name”)(Fax Message NO.xxxx)
• If only Own Fax Number is programmed:
From “Own Fax Number”(Fax Message NO.xxxx)
• If only Own Name is programmed:
From “Own Name”(Fax Message NO.xxxx)
• If neither Own Fax Number nor Own Name are programmed:
Fax Message NO.xxxx
Note
❒“xxxx” is the document number that appears in the Journal.
Reference
p.117 “Other Transmission Features”
Internet Fax Functions
29
1
T.37 Full Mode
This machine is T.37 full mode compatible. T.37 full mode is an international
standard for Internet Fax transmission. (ITU-T Recommendation, RFC2532)
When an Internet Fax communication is made between T.37 full mode compat-
ible machines, the receiver side sends the return receipt (dispatched) in response
to the reception notice request attached to the sent e-mail. This return receipt in-
cludes the receiver's reception capability information (compression type, paper
size, and resolution). When the receiver is programmed in the Address Book as
the full mode destination, the sender side automatically registers the received in-
formation in the Address Book. This allows you to send a subsequent Internet
Fax document to that receiver based on this information.
❖Returning a Return Receipt
When e-mail is received, if the sender requests reception notice, the receiver
sends a return receipt that includes the receiving machine's capability (com-
pression type, paper size, and resolution).
❖Registering the Received Reception Confirmation Contents
When the sender receives the return receipt that includes the receiver's recep-
tion capability, the sender checks that the final recipient address sent is pro-
grammed in the Address Book. If it is programmed as a full mode destination,
the sender automatically registers the receiver's reception capability. The reg-
istered reception capability is updated each time the sender receives new re-
ception capability information. The sender can send documents to the
receiver based on this information.
If the receiver is programmed as the simple mode machine or not pro-
grammed in the Address Book, the receiver's reception capability cannot be
registered.
If you know the receiver's reception capability, you can set it manually.
❖Requesting a Reception Notice
When the receiver's machine supports T.37 full mode and is programmed as
a full mode machine in the Address Book, the machine requests the reception
notice from the receiver. Then, the machine will receive the return receipt
(sent) that includes the receiver's reception capability.
Note
❒Use Web Image Monitor to manually program a receiver's reception capabil-
ity information.
❒If you use Internet Fax transmission, you can send documents to multiple
destinations at once. However, if you specify full mode destinations, since
each destination may have a different reception capability, transmission is
done one by one in the specified transmission order.
Reference
p.119 “Requesting a Reception Notice”
p.257 “Programming Destination Information from Web Browser”
Transmission
30
1
Placing Originals
Place the original on the exposure glass or the ADF. For details about how to
place originals, see the following:
• Placing originals on the exposure glass
“Placing Originals on the Exposure Glass”, Copy/Document Server Reference
• Placing originals into the ADF
“Placing Originals in the Auto Document Feeder”, Copy/Document Server
Reference
“Non-compatible originals for the Auto Document Feeder”, Copy/Docu-
ment Server Reference
Note that [Special Original] of the copy function cannot be used with the facsimile
function.
Place the originals according to their paper size.
Important
❒If you place A5 size originals on the exposure glass, they are not detected.
Place A5 size originals into the ADF.
❒Do not lift the ADF while using it to scan originals.
Original size Placing on the exposure glass Placing into the ADF
A4, B4 JIS, A3, 8 1/2"×11",
8 1/2"×14", 11"×17"
A4, B4 JIS, A3, 8 1/2"×11",
8 1/2"×14", 11"×17"
A5, B5
A5, B5
Placing Originals
31
1
Note
❒To scan multiple originals using the Auto Document Feeder (ADF), set origi-
nals in a stack.
❒When sending a fax, the image output at the other end depends on the size
and orientation of paper used in the receiver's machine. If the receiver does
not use paper of the same size and orientation as that of the original, the fax
image may be reduced in size, trimmed at both edges, or divided across two
or more sheets. When sending an important original, ask the receiver about
the size and orientation of the paper in their machine.
❒When sending an original of irregular (i.e. custom) size or part of a large orig-
inal, you can specify the scan area precisely.
❒Custom size originals are scanned as regular size originals, so the receiver
may find extra blank margins or edges of images missing. If you specify a
scan area, only that area is scanned regardless of the actual size of the original.
❒Documents longer than 800 mm (32") must be sent by Memory Transmission
(Immediate Transmission may not be possible).
❒If an original jams, press the {Clear/Stop} key, and then carefully remove the
original.
❒Make sure that all ink, correcting fluid etc., has completely dried before plac-
ing your original. If it is still wet, the exposure glass will become marked and
those marks will appear on the received image.
❒Generally, place A4, 8 1/2"×11" originals in the landscape orientation (L). If
you place an A4, 8 1/2"×11" original in the portrait orientation (K), the image
is sent rotated by 90°.
❒You can send the first page from the exposure glass then the remaining pages
from the ADF. You cannot change from the ADF to the exposure glass.
❒When using the Internet Fax function, originals are sent at A4 size. Originals
larger than A4 are reduced to A4 size. If the receiver's machine is compliant
with the T.37 full mode, originals are sent at the size specified in the Address
Book.
❒Information about this machine is printed at the destination. This information
is printed on the side of the paper that is to your left when placing the docu-
ments on the exposure glass or the ADF. However, the information is also
printed rotated by 90 degrees if an A4, 8 1/2"×11" original is placed in the por-
trait orientation (K).
❒For acceptable types of originals, see “Acceptable Original Sizes”, “Paper Size
and Scanned Area” and “Original Sizes Difficult to Detect”.
❒You can set the original feed types that are selected right after the power is
turned on or the {Clear Modes} key is pressed. See “Registering a priority func-
tion using a program”.
Transmission
32
1
Reference
p.14 “Sending multiple originals using the exposure glass”
p.19 “Sending multiple originals using the exposure glass”
p.29 “T.37 Full Mode”
p.36 “Acceptable Original Sizes”
p.37 “Paper Size and Scanned Area”
p.39 “Original Sizes Difficult to Detect”
p.40 “Transmission with Image Rotation”
p.47 “Scan Size”
p.264 “Registering a priority function using a program”
“Facsimile Features”, General Settings Guide
“Placing Originals”, Copy/Document Server Reference
Setting the Original Orientation
When you store documents in the Document Server, set “Original Orientation”.
APlace the original, and then select the scan settings you require.
BPress [Original Feed Type].
CSpecify the original orientation.
Check the orientation of the placed document, and then press [] or [].
Placing Originals
33
1
DPress [OK].
The selected original orientation appears in “Original Feed Type”.
ESpecify a destination, and then press the {Start} key.
Reference
p.215 “Storing a Document”
Scanning Two-Sided Originals
Use this function to send two-sided originals.
The front and back of the scanned original will be printed in order on separate
sheets at the other end. The orientation of alternate sheets may be reversed at the
other end. If you want to print the original with the same orientation at the other
end, specify the “Original position” and “Page opening orientation”.
Important
❒The ADF is required to use this function. Two-sided originals cannot be sent
by using just the exposure glass.
❒Two-sided originals are only sent with Memory Transmission. Immediate
Transmission is not possible.
Transmission
34
1
APlace the original, and then select the scan settings you require.
BPress [Original Feed Type].
CSpecify the original orientation.
Check the orientation of the placed document, and then press [] or [].
Make sure that the specified original orientation matches the orientation of
originals loaded in the ADF.
DPress [2 Sided Original].
Placing Originals
35
1
ESelect [Top to Top] or [Top to Bottom].
FSelect [1st Sheet] or [2nd Sheet].
To cancel two-sided transmission, press [1 Sided Original]. The display returns
to that of step D.
Select [2nd Sheet] if you want to send a cover sheet as the first page.
GPress [OK].
“2 Sided Original” appears above [Original Feed Type].
HSpecify a destination, and then press the {Start} key.
Note
❒You can confirm whether both sides were properly scanned using the Stamp
function.
❒You can set the original feed types that are selected right after the power is
turned on or the {Clear Modes} key is pressed. See “Registering a priority
function using a program”.
Reference
p.41 “Stamp”
p.264 “Registering a priority function using a program”
Transmission
36
1
Acceptable Original Sizes
Note
❒The weight range for originals in the Mixed Original Sizes mode is 52–81 g/m2,
13.8–21.5 lb.
Where original is set Acceptable original size Maximum
number of
sheets
Paper thickness
Exposure glass Up to A3 (297 × 420 mm),
11" × 17" (279 × 432 mm)
1 ----
ADF, one-sided docu-
ment
A5 L to A3 L (up to 1200 mm
long)
51/2" × 81/2" K to 11" × 17"L
50 sheets
(80 g/m2, 20 lb)
40-128 g/m2
(11-34 lb)
ADF, two-sided docu-
ment
A5 L to A3 L (up to 432 mm
long)
51/2" × 81/2" K to 11" × 17"L
50 sheets
(80 g/m2, 20 lb)
52-105 g/m2
(14-28 lb)
Placing Originals
37
1
Paper Size and Scanned Area
Important
❒If you place an original larger than A3, 11"×17" on the exposure glass, only an
A3, 11"×17" area is scanned.
❖Exposure Glass
❖ADF
❖Maximum scan area
The following shows the maximum scan area:
• Memory Transmission: 297 × 1200 mm/11" × 47" (W × L) from the ADF
• Immediate Transmission: 297 × 1200 mm/11" × 47" (W × L) from the ADF
• 297 × 432 mm/11" × 17" (W × L) (from the exposure glass)
AAG019S
Transmission
38
1
Note
❒There may be a difference in the size of the image when it is printed at the destination.
❒Even if an original is correctly placed on the exposure glass or in the ADF, a
margin of 3 mm (0.1") around each edge of the original may not be sent.
❒If the receiver uses paper of a smaller width than the original, the image is re-
duced to fit that paper.
❒During Immediate Transmission, the length of the scanning range can be-
come narrower than 1200 mm (47"), depending on the resolution as well as
the settings on the destination machine.
❒The machine detects paper sizes in the following ways:
• When you place an original in the ADF, an original wider than about 263
mm (10.4") is scanned as A3, 11"×17" size.
An original narrower than about 230 mm (9.1") is sent as 81/2"×11" or
81/2"×14" size, and an original narrower than about 263 mm (10.4") is
scanned as B4 JIS (Japanese Industrial Standard).
Originals up to 1200 mm (47.2") in length can be scanned.
• See the following table for sizes the machine can detect when you place an
original on the exposure glass. Because the machine scans custom size doc-
uments in a standard size, part of the image may be truncated depending
on the length of the document. For details about how to set custom size
documents, see “Setting a Scan Size”.
❖Metric Version
❖Inch Version
× - Unable to auto detect
*1 Normally a length of about 420 mm (16.5") can be scanned; however, it is only
possible to specify a scanning size up to 432 mm (17").
Placing Originals
39
1
Reference
p.47 “Scan Size”
Original Sizes Difficult to Detect
The machine has difficulty detecting the size of the following kinds of originals.
(When this happens, the receiving machine may not select print paper of the cor-
rect size.)
• documents placed on the exposure glass of sizes other than those listed in the
following table
• originals with index tabs, tags, or protruding parts
• transparent originals, such as OHP transparencies or translucent paper
• dark originals with dense text or drawings
• originals that contain areas of solid print
• originals that have solid print around their edges
• originals with glossy surfaces
• bound originals of more than 10 mm (0.3") in thickness, such as books.
The following paper sizes are automatically detected in facsimile mode.
❖Metric Version
- Auto detect
× - Unable to auto detect
❖Inch Version
- Auto detect
× - Unable to auto detect
Note
❒You can select from 81/2" × 13", 81/4" × 13", 8" × 13" with User Tools (System
Settings). See “System Settings”, General Settings Guide.
Paper size
where
original is
placed
A3L8 1/2"×13"
(F4)
B4 JIS LA4KL B5 JISKL A5KL
Exposure
glass ×
ADF
Paper size where
original is placed
11"×17"L8 1/2"×14" L8 1/2"×11" KL 5 1/2"×8 1/2" K
Exposure glass ×
ADF
Transmission
40
1
Reference
“System Settings”, General Settings Guide
Transmission with Image Rotation
Generally, place A4, 81/2"×11" originals in the landscape orientation (L). If you
place an A4, 81/2"×11" original in the portrait orientation (K), the image is sent
rotated by 90°. Providing the receiver has A4, 81/2"×11" landscape paper (L),
the document is printed the same size as the original.
Note
❒This function is unavailable with Immediate Transmission.
❒When Image Rotation is used, all documents are sent by normal Memory
Transmission.
❒This function is unavailable when using Mixed Original Sizes.
Placing Originals
41
1
Stamp
When sending a fax document using the ADF, the machine can stamp a circle
mark at the bottom of the original. When sending a two-sided document, the
document is marked at the bottom of the front page and top of the rear page.
Important
❒Stamp only works when scanning from the ADF.
APlace the original, and then select the scan settings you require.
BPress [Original Feed Type].
CPress [Stamp].
To cancel the stamp, press [Stamp] again before pressing [OK].
DPress [OK].
Transmission
42
1
ESpecify the destination, and then press the {Start} key.
Note
❒This stamp indicates that the original has been successfully stored in memory
for Memory Transmission, or successfully sent by Immediate Transmission.
❒When the stamp starts getting lighter, replace the cartridge.
❒If a multi-page feed or paper jam occurs, the originals are not sent properly
and not stamped. If you find a page that is not stamped, send only that
page again.
❒You can have the machine select the Stamp function right after the power
is turned on or the {Clear Modes} key is pressed. See “Registering a priority
function using a program”.
❒You can program one of the Quick Operation keys with operations for this
function. Using the Quick Operation key allows you to omit step B.
❒A paper jam during Parallel Memory Transmission may cause the trans-
mission to fail even if stamping is performed.
❒You cannot turn the Stamp function on or off while an original is being
scanned.
Reference
p.264 “Registering a priority function using a program”
“Facsimile Features”, General Settings Guide
“Adding paper, Toner and Staples”, Troubleshooting
Scan Settings
43
1
Scan Settings
You may want to send many different types of fax documents. Some of these
may be difficult to reproduce at the receiver's end. However, the machine has
three settings that you can adjust to help you transmit the document with the
best possible image quality.
❖Scan Type:
Text, Text / Line Art, Text / Photo, Photo
❖Resolution:
Standard, Detail, Super Fine (optional)
❖Scan Size:
Auto Detect, Regular, Area, Mixed Original Sizes
❖Density (Contrast):
Auto Density, Manual Density (seven levels), Combined Auto and Manual
Density
Scan Type
If the original contains photographs, illustrations, or diagrams with complex
shading patterns or grays, select the appropriate scan type to optimize image
clarity.
❖Text
Select [Text] to send high-contrast black-and-white image originals. Use this
setting when you only want to send clearer text, even if the original contains
text and photographs.
❖Text / Line Art
Select [Text / Line Art] to send high-contrast black-and-white graphic originals
at improved resolution. The [Text] mode gives priority to scanning speed;
[Text / Line Art] mode gives priority to scanning quality.
❖Text / Photo
Select [Text / Photo] to send an original containing both a high-contrast black-
and-white image, such as text, and a halftone image, such as a photograph.
❖Photo
Select [Photo] to send an original containing a halftone image, such as a pho-
tograph or a colour original.
Transmission
44
1
APress [Scan Settings].
BMake sure that [Scan Type] is selected.
CSelect the scan type you require, and then press [OK].
Note
❒If you select [Text / Line Art], [Text / Photo], or [Photo], the transmission will
take longer than when [Text] is selected.
❒If you send a fax document with [Text / Line Art], [Text / Photo], or [Photo] and
the background of the received image is dirty, reduce the density setting
and resend the fax.
❒You can set the scan type that is selected right after the machine is turned
on or the {Clear Modes} key is pressed. See “Registering a priority function
using a program”.
Reference
p.54 “Density (Contrast)”
p.264 “Registering a priority function using a program”
Scan Settings
45
1
JBIG Transmission
If you use JBIG (Joint Bi-level Image experts Group) compression, you can send
originals scanned using [Photo] faster than with other compression methods.
Important
❒This function is not available with Internet Fax function.
❒This function requires that the other party's fax machine has both the JBIG
function and ECM function (G3 communication only).
Resolution
This section explains how to set the resolution of the original.
Images and text are scanned into the machine by converting them to a sequence
of dots. The density of the dots determines the quality of the image and how long
it takes to transmit. Therefore, images scanned at high resolution (Super Fine)
have high quality but transmission takes longer. Conversely, low resolution
(Standard) scanning results in lower quality but the original is sent more quick-
ly. Select the setting that matches your needs based upon this trade off between
speed and image clarity.
❖Standard (8 x 3.85 lines/mm, 200 x 100 dpi)
Select for originals containing normal size characters.
❖Detail (8 x 7.7 lines/mm, 200 x 200 dpi)
Select for originals containing small characters or when you require greater
clarity. This resolution is twice as fine as Standard.
❖Super Fine (optional expansion memory required: 16 x 15.4 lines/mm, 400 x 400 dpi)
Select for originals with very fine details or when you require the best possi-
ble image clarity. This resolution is eight times finer than Standard.
Transmission
46
1
APress [Scan Settings].
BPress [Resolution].
CSelect the resolution you require, and then press [OK].
Scan Settings
47
1
Note
❒If you install the optional expansion memory, “Super Fine” appears in the
Resolution box.
❒If the other party's machine does not support the resolution at which you
are sending, this machine automatically switches to a resolution that is
supported. You can check the resolution at which you actually sent by
printing the Journal.
❒Sending with Super Fine resolution requires that the machine has the op-
tional expansion memory, and the other party's machine has the capability
to receive fax documents at Super Fine resolution.
❒The machine supports Standard, Detail (with the optional expansion mem-
ory), and Super Fine (with the optional expansion memory) resolutions.
❒You can set the resolution type that is selected right after the machine is
turned on or the {Clear Modes} key is pressed. See “Registering a priority
function using a program”.
❒When using Internet Fax transmission, documents are sent at “Detail” res-
olution, even if you have specified “Super Fine”. To send a document at
“Super Fine”, configure the Full Mode when registering the destinations in
the Address Book.
Reference
p.29 “T.37 Full Mode”
p.192 “Print Journal”
p.264 “Registering a priority function using a program”
Scan Size
Normally, a placed original is scanned according to the automatically detected
size. If a scan area is specified, the original is scanned accordingly. Thus, origi-
nals can be sent without extra space or blank margins.
Note
❒When placing different size originals into the ADF, adjust the document
guide to the largest original.
❒Small-size originals may be sent at a slight slant since they do not match the
document guide.
Reference
p.39 “Original Sizes Difficult to Detect”
Transmission
48
1
Auto Detect
Detects the size of the first page and scans all pages using that size.
If the machine cannot detect the original size, a confirmation message appears.
Place the original again.
APlace the originals.
BPress [Scan Settings].
CPress [Scan Size].
DMake sure that [Auto Detect] is selected.
If it is not, press [Auto Detect].
Scan Settings
49
1
EPress [OK].
“Auto Detect: Same Size” appears above [Scan Settings].
FSpecify a destination and press the {Start} key.
Regular
The placed original is scanned according to specified size regardless of actual
size.
The sizes that can be specified are A4KL, B4 JISL, A3L, 81/2"×11"KL,
81/2"×14"L, and 11"×17"L.
APlace the originals.
BPress [Scan Settings].
CPress [Scan Size].
Transmission
50
1
DPress the size of the originals to be sent.
81/2"×11" indicates LT. 81/2"×14" indicates LG. 11"×17" indicates DLT.
EPress [OK].
The selected size appears above [Scan Settings].
FSpecify a destination and press the {Start} key.
Note
❒To cancel the selected scan size, select [Auto Detect].
Area
Program the sizes of the originals to be scanned in advance. Only the area in the
specified size is scanned regardless of the actual size of a placed original.
APlace the originals.
BPress [Scan Settings].
Scan Settings
51
1
CPress [Scan Size].
DPress [Area 1] or [Area 2].
EPress [OK].
The specified size appears above [Scan Settings].
FSpecify a destination and press the {Start} key.
Note
❒To cancel the selected scan size, select [Auto Detect].
Transmission
52
1
Mixed Original Sizes
Select this to individually scan the size of originals loaded into the ADF. For ex-
ample, when A3L and A4K size originals are sent together, usually all are sent
using the size of the first original. By selecting Mixed Original Sizes, the machine
scans and sends each original according to its size.
APlace the originals.
BPress [Scan Settings].
CPress [Scan Size].
DPress [Mixed Original Sizes].
Scan Settings
53
1
EPress [OK].
“Auto Detect: Mixed Sizes” appears above [Scan Settings].
FSpecify a destination and press the {Start} key.
Note
❒To cancel Mixed Original Sizes, press [Mixed Original Sizes] again.
❒You can combine the original sizes as follows: A3L and A4K, B4L and
B5K, A4L and A5K.
❒When using Mixed Original Sizes, the machine sends the originals by
Memory Transmission.
❒When using Mixed Original Sizes, rotation transmission is disabled.
❒You can have the machine select Mixed Original Sizes right after the power
is turned on or the {Clear Modes} key is pressed. See “Registering a priority
function using a program”.
Reference
p.40 “Transmission with Image Rotation”
p.264 “Registering a priority function using a program”
Transmission
54
1
Density (Contrast)
The text and diagrams on originals should stand out clearly from the paper they
are on. If the original has a darker background than normal (for example, a
newspaper clipping), or if the writing is faint, adjust the density.
❖Auto Density
The appropriate density setting for the original is automatically selected.
AMake sure that [Auto Density] is selected.
❖Manual Density
Use manual density to set density manually.
You can select one of seven density levels.
AIf [Auto Density] is selected, press [Auto Density] to turn it off.
BPress [W] or [V] to adjust the density.
The cursor moves.
Scan Settings
55
1
❖Combined Auto and Manual Density
You can only adjust density for photographs, illustrations, or diagrams if the
original has a dark background.
You can select one of seven density levels.
AMake sure that [Auto Density] is selected.
BPress [W] or [V] to adjust the density.
The cursor moves.
Note
❒Selecting [Text], [Text / Line Art], or [Text / Photo] for the scan type causes [Auto
Density] to be selected.
❒You can set the density that is selected right after the machine is turned on or
the {Clear Modes} key is pressed. See “Registering a priority function using a
program”.
Reference
p.264 “Registering a priority function using a program”
Transmission
56
1
Mixing Scan Settings for a Multiple Page Original
When sending an original of several pages, you can select a different density,
resolution, and scan type setting for each page.
It is recommended that originals be placed on the exposure glass when mixing
scan settings for a multiple page original.
❖When placing originals on the exposure glass
ACheck which pages you want to scan with different settings.
BRemove the previous page and place the next page that you checked on the
exposure glass.
CSelect the density, resolution, and scan type.
You have about 60 seconds (10 seconds for Immediate Transmission) to se-
lect density, resolution, and scan type. The time remaining is shown on the
display.
Adjust the settings for each page before you press the {Start} key.
❖When placing originals in the Auto Document Feeder (ADF)
ACheck which pages you want to scan with different settings.
BSelect the density, resolution, and scan type before the page you want to
change the settings for starts being scanned.
Depending on what time the scan settings are adjusted, the settings may
not be reflected in the resulting operation.
Changing the Line Port
57
1
Changing the Line Port
Select a line port or protocol to be used for standard fax or IP-Fax transmission.
When the extra G3 interface unit is installed, you can connect to a maximum of
three ports.
Important
❒To add more fax lines, the optional extra G3 interface unit is required.
❖G3
G3 is selected after power up or when the machine is reset. If you install the
extra G3 interface unit, you can select “G3-1”, “G3-2”, “G3-3”, or “G3 Au-
to”depending on the number of the installed unit.
❖Multi-port
When the extra G3 interface unit is installed, communications can take place
simultaneously through three lines at once.
The following list shows protocol combinations available for each line type.
❖IP-Fax
When sending an IP-Fax, select either “SIP” or “H.323” as the protocol.
To display “SIP” and “H.323” on the screen, make the settings in “Initial Set-
tings” in the Facsimile Features menu.
Ask your administrator whether you should select “SIP” or “H.323” as the
protocol.
Option Available line types Available protocol combinations
Without option PSTN G3
Extra G3 interface unit PSTN n PSTN G3 n G3
Extra G3 interface unit n
Extra G3 interface unit
PSTN n PSTN n PSTN G3 n G3 n G3
Transmission
58
1
APress [Select Line].
BSelect the line you want to use.
If you select “G3 Auto”, the machine will use any available line. This increas-
es efficiency.
When one optional extra G3 unit is installed
When two optional extra G3 units are installed
When H.323/SIP are set to “On”
Changing the Line Port
59
1
CPress [OK].
The standby display appears.
Note
❒When you install the extra G3 interface unit, you can specify the line port
home position. See “Registering a priority function using a program”.
❒When sending a fax, you can select the line port if dialing with the number
keys.
❒A maximum of three simultaneous communications are possible. You can-
not perform three Immediate Transmissions simultaneously.
❒If three communications are in progress, the display shows the first com-
munication that was initiated.
Reference
p.264 “Registering a priority function using a program”
“Facsimile Features”, General Settings Guide
Simultaneous Broadcast Using Multiple Line Ports
The Standard Broadcast function sends faxes one at a time to multiple destina-
tions in the order of specified destinations.
However, the Simultaneous Broadcast function can simultaneously send faxes
to multiple destinations using different lines.
This results in a shorter overall transmission time.
Important
❒The optional extra G3 interface unit is required.
Note
❒A maximum of three simultaneous transmissions (including LAN) are possible.
❒When using the optional extra G3 interface unit, if you set the line selection
as “G3 Auto” beforehand, the machine will use whichever G3 line is not busy.
This increases efficiency.
Transmission
60
1
Specifying a Destination
This section explains how to specify a destination.
Fax numbers, IP-Fax destinations, and e-mail addresses can be specified.
Note
❒The display shows the percentage of free memory space for storing originals.
Since fax numbers, IP-Fax destinations and e-mail addresses are programmed
in separate memory, dialing fax numbers using the number keys does not
change the percentage on the display.
Sending Over a Fax Line
Enter numbers directly using the number keys on the right side of the control
panel.
AMake sure that [Fax] is selected.
BEnter the fax number using the number keys.
If you make a mistake, press the {Clear/Stop} key, and then enter again.
If the optional extra G3 interface unit is installed, select G3 before pressing the
{Start} key.
To select a destination from the Address Book, see “Using the Address Book
to Specify Destinations”.
CPress the {Start} key.
The machine starts to scan the original and stores it in memory. When scan-
ning ends, the Communicating indicator lights and transmission starts.
Note
❒You can insert pauses and tones in a fax number.
❒Press [Prg. Dest.] after entering the fax number to store the fax number in
the destination list.
❒For the maximum number of digits for a destination, see “Maximum Values”.
Specifying a Destination
61
1
Reference
p.57 “Changing the Line Port”
p.61 “Entering a pause”
p.62 “Entering a tone”
p.72 “Using the Address Book to Specify Destinations”
p.79 “Registering Entered Destinations to the Address Book”
p.272 “Maximum Values”
Entering a pause
Press [Pause] when dialing or storing a number to insert a pause of about two
seconds.
Note
❒A pause is shown as a “-” on the display.
❒You can also program numbers including pauses in the destination list.
Transmission
62
1
Entering a tone
This function allows a machine connected to a pulse dialing line to send tonal
signals (for example if you want to use a special service on a tone dialing line).
When you press [Tone], the machine dials the number using tonal signals.
This section explains how to use the tone function with On Hook Dial as an example.
APress [On Hook].
BEnter the fax number using the number keys.
CPress [Tone].
DEnter the number you want to tone dial using the number keys.
EPress the {Start} key.
The machine starts to scan the original and stores it in memory. When scan-
ning ends, the Communicating indicator lights and transmission starts.
Note
❒Certain services may be unavailable even when using Tone function.
❒A tone is shown as a “T” on the display and the next numbers are dialed
using tonal signals.
Specifying a Destination
63
1
Sending by IP-Fax
This section explains how to specify a destination using IP-Fax transmission.
When using IP-Fax transmission, specify the IP-Fax destination (IPv4 address,
host name, or alias telephone number) in place of the fax number.
Important
❒Specify the protocol to be used in [Select Line] in advance.
AMake sure that [Fax] is selected.
BPress [Manual Entry].
CEnter the IP-Fax destination, and then press [OK].
If you enter an incorrect character, press [Backspace] or [Delete All]. Then, re-
enter the characters correctly.
To change the IP-Fax destination after pressing [OK], press [Edit Dest.], re-enter
an IP-Fax destination, and then press [OK].
To select a destination from the Address Book, see “Using the Address Book
to Specify Destinations”.
Transmission
64
1
DTo add a destination, press [Add].
When you press [Prg. Dest.], you can register an entered destination in the des-
tination list.
ESpecify the next destination.
To add another destination, repeat steps D and E.
FPress the {Start} key.
The machine starts to scan the original and stores it in memory. When scan-
ning ends, the Communicating indicator lights and transmission starts.
Note
❒Depending on security settings, [Manual Entry] may not appear, and you
may be unable to enter the IP-Fax destination.
❒For a list of gateways (T.38-compliant), gatekeepers, or SIP servers that are
certified as operable with this machine, contact your local reseller or serv-
ice representative.
❒Methods of entering a destination vary depending on the network settings
made by the administrator. Ask the machine administrator for details. For
details about entering the IP-Fax destination, see “Regarding IP-Fax destinations”.
❒To avoid accidentally pressing the wrong Destination key, you can set the
machine so that each time a destination is added using a Destination key,
[Add] must be pressed. Make the setting in User Parameters (switch 17, bit 2)
in the Facsimile Features menu.
❒For the maximum number of digits for a destination, see “Maximum Values”.
Specifying a Destination
65
1
Reference
p.21 “IP-Fax Functions”
p.57 “Changing the Line Port”
p.65 “Regarding IP-Fax destinations”
p.72 “Using the Address Book to Specify Destinations”
p.79 “Registering Entered Destinations to the Address Book”
p.272 “Maximum Values”
“Entering Text”, About This Machine
“Facsimile Features”, General Settings Guide
Regarding IP-Fax destinations
Depending on the network to which this machine is connected or this machine's
configuration, enter the IP-Fax destination as follows:
❖When not using a gatekeeper/SIP server
• From IP-Fax to IP-Fax
Specify the IPv4 address or host name of the receiving machine.
Example: 192.168.1.10 (IPv4 address)
Example: IPFAX1 (host name)
• From IP-Fax to G3 fax
Specify the G3 fax telephone number of the receiving machine.
Example: 0312345678
❖When using a gatekeeper server
• From IP-Fax to IP-Fax
Specify the alias telephone number of the receiving machine.
Example: 0311119999 (alias telephone number)
• From IP-Fax to G3 fax
Specify the G3 fax telephone number of the receiving machine.
Example: 0312345678
❖When using a SIP server
• From IP-Fax to IP-Fax
Specify the SIP user name of the receiving machine.
Example: ABC (SIP user name)
• From IP-Fax to G3 fax
Specify the G3 fax telephone number of the receiving machine.
Example: 0312345678
Transmission
66
1
Note
❒To send to a G3 fax via a gateway connected to a public telephone line, you
must specify it’s the receiver’s machine telephone number. For example, if the
receiver’s fax number is “0312345678”, specify “5678”. To send from an IP-
Fax to G3 fax without using gatekeeper or SIP server, you must register the
gateway also.
❒When you specify a destination with IP-Fax, depending on the receiver's net-
work configuration, you may need to specify the IPv4 address and port
number of the receiving machine. For example, if the receiver's IPv4 address
is “192.168.1.10” and the port number is “2100”, specify “192.168.1.10:2100”.
Ask the network administrator for details.
❒When you specify a host name, depending on the receiver's network config-
uration, you may need to specify the host name and port number of the re-
ceiving machine. For example, if the receiver's host name is “IPFAX1”and the
port number is “2100”, specify “IPFAX1:2100”. Ask the network administra-
tor for details.
❒An alias telephone number is a number that is registered in the gatekeeper,
and is available only in the network to which the gatekeeper is connected.
❒Pay attention to the number of telephone number digits set in the gate-
way/IPv4 address conversion table to avoid transmission error.
Sending to an E-mail Address
This section explains how to specify an e-mail address as a destination.
When using Internet Fax transmission, specify the e-mail address in place of the
fax number.
Important
❒In the destination list, register senders, specify their e-mail addresses, and set
the User Name as [Sender] in advance.
❒Internet Fax is executed in only Memory Transmission that starts transmis-
sion automatically after storing documents in memory. If you switch the type
of transmission to Internet Fax while the machine is in the Immediate Trans-
mission mode, the transmission mode is automatically switched to the Mem-
ory Transmission mode.
Specifying a Destination
67
1
APress [Internet Fax] to switch the type of transmission to Internet Fax.
BSpecify the sender.
For details about specifying senders, see “Sender Settings”.
CPress [Manual Entry].
DEnter the e-mail address destination, and then press [OK].
If you enter an incorrect character, press [Backspace] or [Delete All]. Then, re-
enter the characters correctly.
To change the e-mail address after pressing [OK], press [Edit Dest.], re-enter an
e-mail address, and then press [OK].
To select a destination from the Address Book, see “Using the Address Book
to Specify Destinations”.
Transmission
68
1
ETo add a destination, press [Add].
When you press [Prg. Dest.], you can register an entered destination in the des-
tination list.
FSpecify the next destination.
To add another destination, repeat steps E and F.
GPress the {Start} key.
The machine starts to scan the original and stores it in memory. When scan-
ning ends, the Communicating indicator lights and transmission starts.
Note
❒Depending on security settings, [Manual Entry] may not appear, and you
may be unable to enter the e-mail address.
❒For details about canceling a transmission, see “Canceling a Transmission”.
❒To avoid accidentally pressing the wrong Destination key, you can set the
machine so that each time a destination is added using a Destination key,
[Add] must be pressed. Make the setting in User Parameters (switch 17, bit 2)
in the Facsimile Features menu.
❒For the maximum number of digits for a destination, see “Maximum Values”.
❒If “Auto Specify Sender Name” is set to “On” in “System Settings”, the
sender is automatically specified and you can omit the procedure for spec-
ifying a sender. If “On” is selected, the specified e-mail address is printed
at “From:”. If no e-mail address is specified for the sender, or if the speci-
fied e-mail address is not programmed in the destination list, Internet Fax
documents cannot be sent.
Specifying a Destination
69
1
Reference
p.25 “Internet Fax Functions”
p.72 “Using the Address Book to Specify Destinations”
p.97 “Sender Settings”
p.108 “Canceling a Transmission”
p.272 “Maximum Values”
“Entering Text”, About This Machine
“System Settings”, General Settings Guide
“Facsimile Features”, General Settings Guide
“Registering Addresses and Users for Facsimile/Scanner Functions”, Gen-
eral Settings Guide
Bypassing the SMTP server
You can send Internet Fax documents directly to their destinations without go-
ing through the SMTP server.
Important
❒To use this function, the following settings must be made. For details about
these settings, “System Settings”, General Settings Guide and “Special Oper-
ations under Windows”, Network Guide.
• In “System Settings”, “SMTP” in “E-mail Communication Port”, set the
port number to “25”.
• To specify the host name of the other party as the domain part of the e-mail
address, program the host name of the other party on the DNS server.
❒If the other party's IPv4 address is not registered on the DNS server, specify
the IPv4 address at the domain part of the e-mail address.
❒To use this function, the other party's fax machine must be:
• compatible with Internet Fax
• connected to the same LAN as this machine
• have its reception protocol set to SMTP
❒SMTP authentication set on the other party's fax machine is disabled when In-
ternet Fax is transmitted using this function.
❒If an Internet Fax is transmitted from the other party using this function, even
if reception is not successful, an Error Mail Notification is not sent to the sender.
❒When an Internet Fax is transmitted using this function, even if transmission
is not successful, the error e-mail is not sent from the server.
❒When using this function, you cannot send Internet Fax documents to the ad-
ministrator's e-mail address programmed on this machine.
Transmission
70
1
You can send Internet Fax documents directly to their destinations without go-
ing through the SMTP server. Internet Faxes are normally transmitted via the
SMTP server. However, with this feature the domain part of the destination's e-
mail address is read as the SMTP server's address and transmissions bypass the
SMTP server. Since this reduces load on the server, you can send faxes without
having to take server to destination transfer time into account.
There are two ways of specifying a destination, as follows:
❖Specify the other party's host name
Specify a destination's e-mail address by adding the other party's host name
to the domain part of the e-mail address. Specify the address to the right of @
as follows: “host name”, “. (dot)”, and “domain name”.
xxxx@host name of the other party.domain name
Example: The other party's e-mail address is “abc@defcompany.com” and the
host name is “HOST”; abc@HOST.defcompany.com
❖Specify the other party's IPv4 address
Specify a destination's e-mail address by changing the domain part of the e-
mail address to the other party's IPv4 address.
xxxx@[the other party's IPv4 address]
Example: The other party's e-mail address is “abc@defcompany.com” and the
IPv4 address is “192.168.1.10”; abc@[192.168.1.10]
Follow these steps to bypass the SMTP server.
APress [SMTP].
BPress [No].
Specifying a Destination
71
1
CPress [OK].
Note
❒When you specify destinations directly using the number keys, you can
specify whether or not to use the SMTP server for each destination.
❒When you select destinations in the destination list, the SMTP server set-
ting specified in the Address Book is enabled.
❒To send Internet Fax documents from a computer, use the LAN-Fax Driver
to specify whether or not to bypass the SMTP server. When sending with
the [Use device address] check box selected, the SMTP server setting speci-
fied on this machine is enabled.
Reference
p.233 “Sending Fax Documents from Computers”
“System Settings”, General Settings Guide
“Registering Addresses and Users for Facsimile/Scanner Functions”, Gen-
eral Settings Guide
“Special Operations under Windows”, Network Guide
Transmission
72
1
Using the Address Book to Specify Destinations
When destinations are programmed in a destination list, you can specify a des-
tination by selecting a Destination key from the destination list.
The programmed name appears on Destination key.
Press [Fax] or [Internet Fax] to switch the transmission type between fax/IP-Fax
and Internet Fax.
Important
❒In the destination list, program an individual fax number, IP-Fax destination,
e-mail address and/or groups of destinations.
APress [Fax] or [Internet Fax] to switch the transmission type to fax/IP-Fax or
Internet Fax.
BPress the title word key where the desired destination is programmed.
For example, if you want to specify “NEW YORK OFFICE” programmed in
“LMN”, press [LMN].
CPress the Destination key programmed with the desired destination.
If the desired Destination key is not shown, press [U] and [T] to look through
the list.
To cancel the selection, press the selected Destination key again. You can also
press the {Clear / Stop} key to cancel the selection.
To select more destinations, repeat steps B and C.
The destination is set and the Destination key is highlighted.
Specifying a Destination
73
1
DPress the {Start} key.
Note
❒To check the contents of Destination keys, print the destination list.
Reference
“System Settings”, General Settings Guide
“Registering Addresses and Users for Facsimile/Scanner Functions”, Gen-
eral Settings Guide
Switching the titles in the Address Book
There are three types of titles for destination lists; “Title 1”, “Title 2”, and “Title 3”.
The above display shows “Title 1”.
APress [Change Title].
BSelect the type of the title, and then press [OK].
Transmission
74
1
Specifying Group Destinations
If you program multiple destinations into a Group, you can send documents to
all destinations in that Group using just a few keystrokes. Destinations pro-
grammed in a group are indicated by .
Important
❒In the destination list, program an individual fax number, IP-Fax destination,
e-mail address and/or groups of destinations.
❒Group destination can be used only for Memory Transmission; it cannot be
used for Immediate Transmission. The machine automatically changes to
Memory Transmission when you use group destination.
❒The total number of destinations programmed in multiple groups should not
exceed the maximum number of destinations you can specify for one file. For
details, see “Maximum Values”.
APress [Fax] or [Internet Fax] to switch the transmission type to fax/IP-Fax or
Internet Fax.
BPress the Destination key programmed with the desired group.
The destination is set and the Destination key is highlighted.
To select more groups, repeat step B.
CPress the {Start} key.
Specifying a Destination
75
1
Note
❒Destinations programmed in groups can be checked using “Print Group
Dial List” in “System Settings”.
❒If a destination where a fax number, e-mail address, or IP-Fax destination
is not programmed is included in the specified group, the confirmation
message appears. Press [Select] to specify destinations where the fax
number, the e-mail address, or IP-Fax destination is programmed. Press
[Cancel] to change the destination. You can select the priority order used to
specify an alternative destination if there is no destination of the specified
type. Make this setting with User Parameters (switch 32, bit 0) in the Fac-
simile Features menu.
❒To cancel any destination(s) among the group, press [Expand Group Dest.] in
[Check Modes]. Then, on the standby display, press [U] and [T] to display
the desired destination, and then press the {Clear/Stop} key. You can also
cancel a transmission by pressing the highlighted Destination key to dese-
lect it.
Reference
p.272 “Maximum Values”
“System Settings”, General Settings Guide
“Facsimile Features”, General Settings Guide
“Registering Addresses and Users for Facsimile/Scanner Functions”, Gen-
eral Settings Guide
Selecting Destinations from Recent Destinations
The machine stores the latest destinations specified for each transmission meth-
od. This function saves time when you are sending to the same destination re-
peatedly, as you do not have to enter the destination again.
Important
❒The following kinds of destinations are not stored:
• Destinations specified using the destination list
• Destinations specified as a group destination
• Destinations dialed using the external telephone
• Destinations selected from Recent Destinations (regarded as already stored
in memory)
• Second and later destinations broadcasted to
• Destinations specified in the LAN-Fax Driver on the computer
Transmission
76
1
APlace the original, and then select the scan settings you require.
BPress [Recent].
CSelect the destination you want to redial to, and then press [OK].
DPress the {Start} key.
Note
❒You can select Internet Fax and IP-Fax destinations from Recent Destina-
tions as well.
❒When you press [Program Dest.], you can register a selected recipient in the
destination list.
❒For the maximum number of recent destinations the machine can store, see
“Maximum Values”.
Reference
p.79 “Registering Entered Destinations to the Address Book”
p.272 “Maximum Values”
Programming Destinations in the Address Book
77
1
Programming Destinations in the Address
Book
You can program fax numbers, e-mail addresses, IP-Fax destinations, and folder
destinations using Address Book Management in Administrator Tools in the
System Settings menu.
APress the {User Tools/Counter} key.
BPress [System Settings].
CPress [Administrator Tools].
DPress [Address Book Management].
EPress [New Program].
For a description of the subsequent procedure, see “System Settings”, General
Settings Guide.
ALV007S
Transmission
78
1
Note
❒You can also register programmed fax numbers, e-mail addresses, IP-Fax
destinations, and folder destinations in a Group.
❒When you press the {Facsimile} key to show the facsimile initial display af-
ter changing the contents of the Address Book, the “Destination list /
machine settings are updated.” message appears. Press [Exit] to bring
up the facsimile's initial display.
❒You can register in the Address Book using Web Image Monitor or Smart-
DeviceMonitor for Admin. For details about installation, see “Monitoring
and Configuring the Printer”, Network Guide, or, for information about
the Address Book, see the relevant Help.
Reference
“System Settings”, General Settings Guide
“Registering Addresses and Users for Facsimile/Scanner Functions”, Gen-
eral Settings Guide
“Monitoring and Configuring the Printer”, Network Guide
Programming Destinations in the Address Book
79
1
Registering Entered Destinations to the Address Book
This section explains how to register a directly entered fax number, e-mail ad-
dress, or IP-Fax destination to the Address Book.
When registering a destination directly entered or displayed on the Recent Des-
tination screen in the Address Book, [Prg. Dest.] appears in the destination field.
APress [Prg. Dest.].
BPress [Names] and enter any necessary information.
For details about registering destinations, see “Registering Addresses and
Users for Facsimile/Scanner Functions”, General Settings Guide.
CPress [OK].
Note
❒Depending on security settings, [Prg. Dest.] may not appear, and you may
be unable to register the destination.
❒When you press the {Facsimile} key after changing the contents of the Ad-
dress Book, the “Destination list / machine settings are updat-
ed.” message appears. Press [Exit]. The standby display appears.
Reference
p.75 “Selecting Destinations from Recent Destinations”
“Registering Addresses and Users for Facsimile/Scanner Functions”, Gen-
eral Settings Guide
Transmission
80
1
Searching for a Destination in the Address
Book
Use this function to search for a destination registered in the destination list or
on the LDAP server.
Important
❒To search for a destination from an LDAP server, the LDAP server must be
registered in advance. For details about registering LDAP servers, see “Sys-
tem Settings”, General Settings Guide.
Note
❒Press [Fax] or [Internet Fax] on the Search Destination screen to switch the
transmission type between fax/IP-Fax and Internet Fax.
❒The search returns only destinations that partially match the entered name.
❒A warning message appears if the search returns more than the maximum
number of destinations you can search for at a time. Press [Exit] and change
the destination name to view fewer destinations.
❒Although one user can program multiple e-mail addresses, only one address
can be retrieved by the search. The address retrieved by the search depends
on the searching method supported by the LDAP server. However, the ad-
dress programmed first is normally retrieved.
Reference
p.272 “Maximum Values”
“System Settings”, General Settings Guide
Searching for a Destination in the Address Book
81
1
Search by Destination Name
Follow these steps to search for a destination registered in the Address Book by
name.
APress [Search Dest.].
BSelect a search destination.
To search through the Address Book, select [Address Book].
To search through an LDAP server, select the relevant LDAP server.
CPress [Fax] or [Internet Fax] to switch the transmission type to fax/IP-Fax or
Internet Fax.
Transmission
82
1
DPress [Name].
EEnter the destination name you want to search for, and then press [OK].
If you enter a wrong destination name, press [←], [→], [Backspace], and [Delete
All], and then enter the destination name again.
FConfirm the characters you entered, and then press [Start Search].
A search-in-progress message appears.
When the search is finished, a result appears.
Searching for a Destination in the Address Book
83
1
GSelect a destination.
If the desired destination does not appear, use [U] or [T] to scroll through the
list.
Press [Details] to display the detailed information of the selected destination.
Reference
“Entering Text”, About This Machine
Search by Fax Number/IP-Fax Destination
Follow these steps to search for a destination registered in the Address Book by
fax number or IP-Fax destination.
APress [Search Dest.].
Transmission
84
1
BSelect a search destination.
To search through the Address Book, select [Address Book].
To search through an LDAP server, select the relevant LDAP server.
CPress [Fax Destination].
DEnter the number you want to search for, and then press [OK].
To search for an IP-Fax destination, enter the IP-Fax destination that you want
to find.
If you enter a wrong number, press [←], [→], [Backspace], or [Delete All], and
then enter the number again.
Searching for a Destination in the Address Book
85
1
EConfirm the entered fax numbers, and then press [Start Search].
A search-in-progress message appears.
When the search is finished, a result appears.
FSelect a destination.
If the desired destination does not appear, use [U] or [T] to scroll through the
list.
Press [Details] to display the detailed information of the selected destination.
Transmission
86
1
Search by E-mail Address
Follow these steps to use an e-mail address to search for a destination registered
in the destination list.
APress [Search Dest.].
BSelect a search destination.
To search through the Address Book, select [Address Book].
To search through an LDAP server, select the relevant LDAP server.
CPress [Internet Fax] to switch the type of transmission to Internet Fax.
Searching for a Destination in the Address Book
87
1
DPress [E-mail Address].
EEnter the e-mail address you want to search for, and then press [OK].
If you enter a wrong e-mail address, press [←], [→], [Backspace], or [Delete All],
and then enter the e-mail address again.
FConfirm the entered characters, and then press [Start Search].
A search-in-progress message appears.
When the search is finished, a result appears.
Transmission
88
1
GSelect a destination.
If the desired destination does not appear, use [U] or [T] to scroll through the
list.
Press [Details] to display the detailed information of the selected destination.
Search Using Advanced Search
Follow these steps to search for a destination registered in the Address Book by
specifying search criteria.
APress [Search Dest.].
BSelect a search destination.
To search through the Address Book, select [Address Book].
To search through an LDAP server, select the relevant LDAP server.
Searching for a Destination in the Address Book
89
1
CPress [Advanced Search].
DPress the key for each condition, and then enter a partial string.
The following conditions can be specified for Address Book searches: Name,
User Code, Fax Destination, E-mail Address, and Folder Name.
The following conditions can be specified for LDAP server searches: Name,
Fax Destination, E-mail Address, Company Name, and Department Name.
Transmission
90
1
ESelect search criteria for each condition.
The meanings of the search criteria are as follows:
•[Beginning Word]: Search for strings that start with the specified character.
Example: When searching for “ABC”, enter “A”.
•[End Word]: Search for strings that end with the specified character.
Example: When searching for “ABC”, enter “C”.
•[Exact Match]: Search for strings that fully match the specified character.
Example: When searching for “ABC”, enter “ABC”.
•[Include one Word]: Search for strings that include the specified character.
Example: When searching for “ABC”, enter “A”, “B”, or “C”.
•[Exclude Words]: Search for strings that do not include the specified charac-
ter.
Example: When searching for “ABC”, enter “D”.
•[Fuzzy Search]: Perform a fuzzy search.
This item appears when selecting an LDAP server in step B. The perform-
ance of fuzzy search depends on the search method supported by the
LDAP server.
FPress [OK].
GPress [Start Search].
When the search is finished, the search result appears.
Searching for a Destination in the Address Book
91
1
HSelect a destination.
If the required destination does not appear, press [U] or [T] to display it.
Press [Details] to display the detailed information of the selected destination.
Note
❒You can add one additional search condition for LDAP servers by specify-
ing the Search Options under Program / Change / Delete LDAP Server
under System Settings. For details about setting Search Options, see “Sys-
tem Settings”, General Settings Guide.
❒The string you enter in the [Name] condition field is read as the first or last
name, depending on the administrator's setting. For example, to search for
the name “John Smith”, ask the system administrator whether you should
enter “John” or “Smith”.
Reference
“Entering Text”, About This Machine
“System Settings”, General Settings Guide
Search by Registration Number
Follow these steps to search for a destination by specifying a registration
number stored in the destination list.
APress [Fax] or [Internet Fax] to switch the transmission type to fax/IP-Fax or
Internet Fax.
BPress [Reg. No.].
The registration number entry display appears.
Transmission
92
1
CEnter a registration number using the number keys, and then press [#].
You do not need to enter the first zeros of a registration number when the dis-
play prompts you to enter five digits.
If you make a mistake, press [Clear], and then try again.
DPress [OK].
The corresponding destination appears.
Note
❒If the “Cannot find the specified Registration No.” message ap-
pears, the specified registration number or selected type of transmission is
wrong or does not exist. Press [Exit], check the registration number again,
and then follow the procedure from step B.
On Hook Dial
93
1
On Hook Dial
The On Hook Dial function allows you to dial while listening to the tone from
the internal speaker. You can send a fax checking the connection.
Important
❒This function is not available for the optional extra G3 interface unit, Internet
Fax and IP-Fax.
APlace the original, and then select the scan settings you require.
BPress [On Hook].
You will hear a low tone from the internal speaker.
If you want to cancel this operation, press [On Hook] again.
CDial.
The machine immediately dials the destination.
If you make a mistake, press [On Hook] or the {Clear Modes} key, and then try
again.
To select a destination from the Address Book, see “Using the Address Book
to Specify Destinations”.
Transmission
94
1
DWhen the line is connected and you hear a high-pitched tone, press the
{Start} key.
The transmission starts.
If you want to cancel a transmission, press the {Clear/Stop} key, and then re-
move the originals.
After transmission, the standby display appears.
Note
❒This function is unavailable in some countries.
❒Press [Vol...] to display the Adjust Sound Volume screen, and then press
[Louder] or [Lower] to adjust the volume of the on-hook sound. The volume
can also be preprogrammed in the Facsimile Features menu.
❒If you have an external telephone on the fax machine, you can speak with
the other party when you hear a voice. If you hear a voice before pressing
the {Start} key, pick up the external telephone and tell the receiver you
want to send a fax document (ask them to switch to facsimile mode).
❒For details about On Hook Mode Release Time, see “Facsimile Features”,
General Settings Guide.
Reference
p.72 “Using the Address Book to Specify Destinations”
“Facsimile Features”, General Settings Guide
Manual Dial
95
1
Manual Dial
Pick up the handset of the external telephone and dial. When the line is connect-
ed and you hear a high-pitched tone, press the {Start} key to send your fax doc-
ument. If, on the other hand, you hear a voice at the other end, continue
conversation as normal.
Important
❒The external telephone is required.
❒This function is not available for the optional extra G3 interface unit, Internet
Fax and IP-Fax.
❒If Immediate TX Result Report (Immediate Transmission) is printed, the re-
sult of a transmission with Manual Dial is not mentioned in the report.
APlace the original, and then select the scan settings you require.
BPick up the handset.
You will hear a dial tone.
CDial.
The machine immediately dials the destination.
If you make a mistake, replace the handset, and then try again from step B.
To select a destination from the Address Book, see “Using the Address Book
to Specify Destinations”.
DWhen the line is connected and you hear a high-pitched tone, press the
{Start} key to send your fax document.
If you hear a voice, tell the receiver that you want to send them a fax docu-
ment (ask them to switch to facsimile mode).
The transmission starts.
Transmission
96
1
EReplace the handset.
If you want to cancel a transmission, press the {Clear/Stop} key, and then re-
move the originals.
After transmission, the standby display appears.
Note
❒When the operation switch is off, even if the main power switch is on, you
cannot operate this machine using only the handset of the external tele-
phone. You must first press the operation switch to turn on the machine.
Reference
p.72 “Using the Address Book to Specify Destinations”
Sender Settings
97
1
Sender Settings
Use this function to set sender information.
If the sender's e-mail address is registered in the destination list, the sender can
receive transmission results by e-mail.
Also, if you enable the Stamp Sender Name, the registered sender's name (user
name) appears on the receiver's sheet, lists, and report.
Important
❒In the destination list, register senders, specify their e-mail addresses, and set
the User Name as [Sender] in advance.
❒If user authentication is set, the user logged in is set as sender. The transmis-
sion result is sent to the logged-in user's e-mail address.
APlace the original, and then select the scan settings you require.
BPress [Sender Name].
CSelect a sender.
To select a sender by specifying the registration number registered in the Ad-
dress Book, press [Registration No.].
To search for a sender from the Address Book, press [Search].
If a destination protection code is set, the entry screen appears. Enter the pro-
tection code for destination using the number keys, and then press [OK].
Transmission
98
1
DConfirm the selected sender, and then press [OK].
ETo print the sender's name on the receiver's sheet, press [Stamp Sender Name]
to highlight it.
If you enable this function, the sender's name (user name) appears on the re-
ceiver's sheet, lists, and report.
FTo confirm the transmission results by e-mail notification, press [E-mail TX
Results] to highlight it.
If the sender's e-mail address is registered, you can send the transmission re-
sult to the registered e-mail address.
GPress [OK].
The standby display appears.
To check the settings, press [Sender Name].
Sender Settings
99
1
HSpecify the destination, and then press the {Start} key.
Note
❒You can confirm transmission results by using both the E-mail TX Results
function, which sends the results by e-mail, and the Communication Re-
sult Report printed by the machine. You can set whether to use both of
these together in User Parameters (switch 10, bit 6) in the Facsimile Fea-
tures menu.
❒You can use Communication Result Report, etc. to check usage status by
specified users. If user authentication is set, you can check usage by
logged-in users. If User Code is set to sender, you can count the number of
uses by each user.
❒To cancel the Sender Name, cancel the transmission. See “Canceling a
Transmission”.
Reference
p.108 “Canceling a Transmission”
“Facsimile Features”, General Settings Guide
“Registering Addresses and Users for Facsimile/Scanner Functions”, Gen-
eral Settings Guide
Transmission
100
1
Advanced Features
This section describes how to specify a destination using advanced features.
Setting SUB Codes for Transmission
Follow these steps to send a document with a SUB Code as a confidential transmission.
A SUB Code is an ID consisting of numbers, q, p, and spaces. Document trans-
mitted with a SUB Code is stored in the other party's memory, and not printed
automatically. The other party inputs the SUB Code to print the received docu-
ment. Privacy can be mutually protected when transmitting a confidential doc-
ument intended for a particular receiver, since only a person who knows the
SUB Code can print the document.
Documents can also be sent via facsimiles that have the Transfer Station function.
This function helps you save costs when you send the same document to more
than one place in a distant area, and saves time since many documents can be
sent in a single operation.
Important
❒Documents can be sent to facsimiles that have the Personal Box function.
❒A SUB Code cannot be used with Internet Fax.
❒To use this function, set [SUB Code Transmission] to on.
❒Obtain the SUB Code of the other party in advance.
❒When sending a confidential document, inform the other party of the SUB
Code in advance.
APlace the original, and then select the scan settings you require.
BPress [TX Mode].
Advanced Features
101
1
CPress [Option Setting].
DPress [SUB Code Transmission].
EPress [OK] twice.
The standby display appears.
FEnter the fax number of a destination or an IP-Fax destination.
GPress [Adv.Features].
HMake sure that [SUB Code] is selected.
IPress [Transmission SUB Code].
Transmission
102
1
JEnter a SUB Code, and then press [OK].
If you make a mistake, press [Clear] or the {Clear/Stop} key before pressing
[OK], and then try again.
KWhen a password is required, press [Password (SID)], enter the password
with the number keys, and then press [OK].
LPress [OK].
MPress the {Start} key.
If you use Immediate Transmission and the fax machine at the destination
does not support the SUB Code function, a message will appear on the display
to inform you of this. When this happens, press [Exit] to cancel the transmission.
Note
❒Make sure the number of digits in the SUB Code matches the specification
of the machine to which you are sending. For the maximum number of dig-
its for the SUB Code of this machine, see “Maximum Values”.
❒You can store SUB Codes as well as names and fax numbers in the destina-
tion list and Keystroke Programs.
❒When a SUB Code is stored in the destination list, the SUB Code can be
modified or deleted after selecting a destination using the Destination
keys.
❒The SUB Code is printed on lists and reports.
Reference
p.135 “SUB Code Transmission”
p.152 “Transferring Received Documents”
p.262 “Registering and Changing Keystroke Programs”
p.272 “Maximum Values”
“Registering Addresses and Users for Facsimile/Scanner Functions”, Gen-
eral Settings Guide
Advanced Features
103
1
Setting a password
There are times when you may want to use an “SID” (Sender ID) when sending
confidential faxes with the SUB Code function. When you use a Personal Box
that has a password, enter the SID Code as the password.
Note
❒For the maximum number of digits for the SID Code, see “Maximum Values”.
❒You can enter numbers, p, q, and spaces.
❒You can store SID Codes as well as names and fax numbers in the destination
list and Keystroke Programs.
❒The SID Code is printed on lists and reports.
Reference
p.262 “Registering and Changing Keystroke Programs”
p.272 “Maximum Values”
“Registering Addresses and Users for Facsimile/Scanner Functions”, Gener-
al Settings Guide
Setting SEP Codes for Reception
Follow these steps to enter a SEP Code to request the destination to transmit a
document.
You can receive a document stored in the destination's memory if the document
has the same SEP Code as the SEP Code you entered.
This function enables the machine to utilize services that use the polling function
or receive documents from multiple destinations.
Important
❒Documents can be received from facsimiles that have Information Boxes and
the SUB Code Transmission function.
❒A SEP Code cannot be used with Internet Fax.
❒To use this function, set [SEP Code Reception] to on.
APress [TX Mode].
Transmission
104
1
BPress [Option Setting].
CPress [SEP Code Reception].
DPress [OK] twice.
The standby display appears.
EEnter the fax number of a destination or an IP-Fax destination.
FPress [Adv.Features].
GMake sure that [SEP Code] is selected.
HPress [Reception SEP Code].
Advanced Features
105
1
IEnter a SEP Code, and then press [OK].
If you make a mistake, press [Clear] or the {Clear/Stop} key before pressing
[OK], and then try again.
JWhen a password is required, press [Password (PWD)], enter the password
using the number keys, and then press [OK].
KPress [OK].
LPress the {Start} key.
Note
❒Make sure the number of digits in the SEP Code matches the specification
of the machine from which you are receiving. For the maximum number
of digits for the SEP Code of this machine, see “Maximum Values”.
❒You can enter numbers, p, q, and spaces.
❒You can store SEP Codes as well as names and fax numbers in the destina-
tion list and Keystroke Programs.
❒When a SEP Code is stored in the destination list, the SEP Code can be
modified or deleted after selecting a destination using the Destination
keys.
❒The SEP Code is printed on lists and reports.
Reference
p.136 “SEP Code Reception”
p.262 “Registering and Changing Keystroke Programs”
p.272 “Maximum Values”
“Registering Addresses and Users for Facsimile/Scanner Functions”, Gen-
eral Settings Guide
Transmission
106
1
Entering a password
There are times you may want to use a password when receiving faxes by SEP
Code Reception.
Note
❒For the maximum number of digits for the PWD Code, see “Maximum Values”.
❒You can enter numbers, p, q, and spaces.
❒You can store PWD Codes as well as names and fax numbers in the destina-
tion list and Keystroke Programs.
❒The PWD Code is printed on lists and reports.
Reference
p.262 “Registering and Changing Keystroke Programs”
p.272 “Maximum Values”
“Registering Addresses and Users for Facsimile/Scanner Functions”, Gener-
al Settings Guide
SEP Code RX Reserve Report
This report is printed after SEP Code Reception is set up. You can use this report
to check the reservations for SEP Code Reception.
Note
❒You can turn this function on or off with the User Parameters (switch 03, bit 3)
in the Facsimile Features menu.
❒You can have a destination displayed with the User Parameters (switch 04, bit 4)
in the Facsimile Features menu.
❒You can display a sender name with the User Parameters (switch 04, bit 5) in
the Facsimile Features menu.
Reference
“Facsimile Features”, General Settings Guide
Advanced Features
107
1
SEP Code RX Result Report
This report is printed after each SEP Code Reception is completed and shows its
result.
If E-mail TX Results is programmed in a Quick Operation key, you can select
whether a report e-mail is sent after reception.
Note
❒You can also check the result of a SEP Code Reception with the Journal.
❒You can turn this function on or off with the User Parameters (switch 03, bit 4)
in the Facsimile Features menu.
❒To view the report without text disruption, select a font of even character
width in your e-mail application's settings.
❒You can display a destination with the User Parameters (switch 04, bit 4) in
the Facsimile Features menu.
❒You can display a sender name with the User Parameters (switch 04, bit 5) in
the Facsimile Features menu.
Reference
p.197 “Journal”
“Facsimile Features”, General Settings Guide
Transmission
108
1
Canceling a Transmission
This section explains how to cancel a fax transmission.
Important
❒Remember that the Communicating indicator turns off almost immediately
when an Internet fax is being sent.
Before the Original Is Scanned
Use this procedure to cancel a transmission before pressing the {Start} key.
APress the {Clear Modes} key.
Note
❒When originals are placed into the ADF, you can cancel transmission sim-
ply by removing them.
While the Original Is Being Scanned
Use this procedure to cancel a transmission while the originals are being
scanned after the {Start} key has been pressed.
APress the {Clear/Stop} key.
The machine stops scanning.
ALV001S
ALV002S
Canceling a Transmission
109
1
Note
❒Scanning may be completed while you are performing the cancel operation.
While the Original Is Being Transmitted
Follow these steps to cancel a transmission while the Communicating indicator
is lit.
APress the {Clear/Stop} key.
You can also cancel a Memory Transmission by pressing [Change TX / Info].
BSelect the file you want to cancel.
If the desired file is not shown, press [U] or [T] to find it.
There are cases when a destination may not be selected as the destination ap-
pears as “p”, depending on the security settings.
CPress [Stop Transmission].
ALV002S
Transmission
110
1
DPress [OK].
To cancel another file, repeat steps B and D.
To cancel stopping transmission, press [Cancel].
EPress [Exit].
The standby display appears.
Note
❒If you cancel a document while it is being sent, the transmission is halted
as soon as you finish the cancellation procedure. However, some pages of
the document may already have been sent and received at the other end.
❒If the transmission finishes while you are carrying out this procedure, it
will not be canceled.
❒If multiple destinations were specified, only one destination number appears.
Canceling a Transmission
111
1
Before the Transmission Is Started
Use this procedure to cancel a transmission after the original is scanned.
This function is useful to cancel a transmission when you notice a mistake in des-
tination or with the originals after storing. To cancel Memory Transmission,
search for the file to be canceled among the files stored in memory, and then de-
lete it.
You can cancel transmission of a file while the file is being sent, stored in mem-
ory, or fails to transmit. All the scanned data is deleted from memory.
Important
❒This function is unavailable with Immediate Transmission.
APress [Change TX / Info].
BPress [Check / Stop Transmission File].
The list of stored files being transmitted or waiting for transmission appears.
To display only the files being sent, press [Files under TX].
Transmission
112
1
CSelect the file you want to cancel.
If the desired file is not shown, press [U] or [T] to find it.
There are cases when a destination may not be selected as the destination ap-
pears as “p”, depending on the security settings.
DPress [Stop Transmission].
EPress [OK].
To cancel another file, repeat steps C and E.
To cancel stopping transmission, press [Cancel].
Canceling a Transmission
113
1
FPress [Exit] twice.
The standby display appears.
Note
❒To cancel transmission to some destinations that a fax is sent to, see “De-
leting a Destination from a Simultaneous Broadcast”.
❒If you cancel a transmission while the file is being sent, some pages of your
file may have already been sent and is received at the other end.
❒If the transmission finishes while you are carrying out this procedure,
transmission cannot be canceled.
❒If multiple destinations were specified, only the number of destinations for
unsent documents appears.
❒If multiple destinations were specified, only one destination number ap-
pears. To display all destinations, press [Check / Change Settings].
Reference
p.170 “Deleting a Destination from a Simultaneous Broadcast”
Transmission
114
1
Confirming a Transmission
APress [Change TX / Info].
BPress [Check / Stop Transmission File].
CSelect a file to check.
If multiple destinations were specified, only the destination selected first appears.
If multiple destinations were specified, only the number of destinations for
unsent documents appears.
Confirming a Transmission
115
1
DPress [Check / Change Settings].
EConfirm a transmission, and then press [Exit].
FPress [Exit] twice.
The standby display appears.
Transmission
116
1
Checking the Storage Result (Memory
Storage Report)
This report is printed after an original is stored in memory. It helps you review
the contents and the destinations of stored originals.
Important
❒If you use Parallel Memory Transmission, the Memory Storage Report is not
printed.
Note
❒You can turn this report on and off with the User Parameters (switch 03, bit 2)
in the Facsimile Features menu.
❒Even if the machine is set up not to print this report, it is still printed if an orig-
inal could not be stored.
❒You can select whether to include part of the original image on the report with
the User Parameters (switch 04, bit 7) in the Facsimile Features menu.
❒You can select whether to display a destination with the User Parameters
(switch 04, bit 4) in the Facsimile Features menu.
❒You can display a sender name with the User Parameters (switch 04, bit 5) in
the Facsimile Features menu.
Reference
“Facsimile Features”, General Settings Guide
117
2. Other Transmission Features
This section explains the features of [TX Mode], which you can use to apply trans-
mission functions.
Sending at a Specific Time (Send Later)
Using this function, you can instruct the machine to delay transmission of your
fax document until a specified later time. This allows you to take advantage of
off-peak telephone charges without having to be by the machine at the time.
Important
❒If the machine is switched off for about one hour, all fax documents stored in
memory are lost. If documents are lost for this reason, a Power Failure Report
is automatically printed when the operation switch is turned on. Use this re-
port to identify lost documents. For details, see “Troubleshooting When Us-
ing the Facsimile Function”, Troubleshooting.
❒This function is unavailable with Immediate Transmission. Use Memory
Transmission.
APlace the original, and then select the scan settings you require.
BPress [TX Mode].
CPress [Send Later].
Other Transmission Features
118
2
DEnter the time (24 hour format) using the number keys, and then press [OK].
When entering numbers smaller than 10, add a zero at the beginning.
If you make a mistake, press [Clear] or the {Clear/Stop} key before pressing
[OK], and then try again.
To cancel Send Later, press [Cancel]. The display returns to that of step C.
The specified time is shown above the highlighted [Send Later].
EPress [OK].
The standby display appears.
To check the settings, press [TX Mode].
FSpecify a destination, and then press the {Start} key.
Note
❒You can specify a time within 24 hours of the current time.
❒If the current time shown is not correct, change it.
❒You can program one of the Quick Operation keys with operations for this
function. Using the Quick Operation key allows you to omit step B.
❒You can cancel the transmission setup for Send Later. See “Canceling a
Transmission”.
Reference
p.108 “Canceling a Transmission”
“System Settings”, General Settings Guide
“Facsimile Features”, General Settings Guide
“Troubleshooting When Using the Facsimile Function”, Troubleshooting
Requesting a Reception Notice
119
2
Requesting a Reception Notice
You can confirm sent documents were properly received using e-mail or the
Journal.
The receiver sends back a reception notice message. Once the reception notice
message is received, “OK” appears in the Result column of the Journal, allowing
the originator to verify the transmission was received.
Important
❒The Reception Notice feature is only available if the receiver supports MDN
(Message Disposition Notification).
APlace the original, and then select the scan settings you require.
BPress [TX Mode].
CPress [Reception Notice] to highlight it.
DPress [OK].
The standby display appears.
To check the settings, press [TX Mode].
ESpecify a destination, and then press the {Start} key.
Other Transmission Features
120
2
Note
❒If the fax is not received normally, “Error” appears in the Result column.
❒Only the last 50 communications appear in the Journal. If you do not re-
ceive a reception notice message before the last 50 communications are fin-
ished, “OK” might not be printed in the Journal's Result column. This may
happen even if the mail is received normally at the other end.
❒If you specify mailing list addresses, do not set for Reception Notice. Oth-
erwise, you will receive multiple reception notice messages from e-mail re-
cipients, and the Result column will be overwritten each time a new notice
message is received. However, if you receive a reception notice message
indicating an error, “Error” appears in the Result column and will not be
overwritten, even if you subsequently receive a reception notice message
as “OK” following the error message.
❒Reception notice results are only shown in the Journal. The Result column
in all other files, lists, and transmission reports show “- -”.
❒Reception notice messages themselves are not recorded in the Journal.
❒You can select whether or not to print the Reception Notice. This can be set
with User Parameters (switch 21, bit 0) in the Facsimile Features menu.
❒You can program one of the Quick Operation keys with operations for this
function. Using the Quick Operation key allows you to omit step B.
❒You cannot broadcast e-mail using Reception Notice. The documents are
sent to the destinations in the order in which they were specified.
Reference
“Facsimile Features”, General Settings Guide
Setting an E-mail Destination as a BCC
121
2
Setting an E-mail Destination as a BCC
E-mail is sent to all specified destinations as bcc.
APlace the original, and then select the scan settings you require.
BPress [TX Mode].
CPress [BCC Transmission] to highlight it.
DPress [OK].
The standby display appears.
To check the settings, press [TX Mode].
ESpecify a destination, and then press the {Start} key.
Note
❒You can program one of the Quick Operation keys with operations for this
function. Using the Quick Operation key allows you to omit step B.
Reference
“Facsimile Features”, General Settings Guide
Other Transmission Features
122
2
Confirming Transmission Results by E-mail
Use this function to confirm the transmission results by sending an e-mail noti-
fication to the specified destination.
Important
❒Register the e-mail address of the destination for e-mail notification in the
destination list in advance.
APlace the original, and then select the scan settings you require.
BPress [TX Mode].
CPress [E-mail TX Results] to highlight it.
Confirming Transmission Results by E-mail
123
2
DSelect the destination of notification, and then press [OK].
If you make a mistake, before pressing [OK], press [Clear] or press the selected
Destination key again to turn the highlight off.
[E-mail TX Results] gets highlighted and the destination of notification selected
appears.
EPress [OK].
To check the settings, press [TX Mode].
The standby display appears.
FSpecify a destination, and then press the {Start} key.
Note
❒You can program one of the Quick Operation keys with operations for this
function. Using the Quick Operation key allows you to omit step B.
Reference
“Facsimile Features”, General Settings Guide
Other Transmission Features
124
2
Entering the Subject
Allows you to enter a subject for the document you want to send.
APlace the original, and then select the scan settings you require.
BPress [TX Mode].
CPress [Subject].
DEnter the subject.
Entering the Subject
125
2
ETo enter the character strings programmed in the machine, press [User Text],
and then select the character strings you want to enter.
FPress [OK].
The entered subject appears in the Subject field.
GPress [OK].
The standby display appears.
HSpecify a destination, and then press the {Start} key.
Note
❒For convenience, program frequently-used subjects in advance in “Pro-
gram / Change / Delete User Text” in “System Settings”.
❒If you send e-mail without setting a subject, a subject is automatically in-
serted. For details about how the subject is automatically inserted, see “E-
mail Subject” and “Received Images”.
❒You cannot send a subject only as e-mail without an original.
❒You can program one of the Quick Operation keys with operations for this
function. Using the Quick Operation key allows you to omit step B.
❒For the maximum number of characters for an e-mail subject, see “Maxi-
mum Values”.
Other Transmission Features
126
2
Reference
p.28 “E-mail Subject”
p.149 “Received Images”
p.272 “Maximum Values”
“Entering Text”, About This Machine
“System Settings”, General Settings Guide
“Facsimile Features”, General Settings Guide
Entering the Text
127
2
Entering the Text
Allows you to enter the text to be transmitted.
Important
❒Program text strings in advance in “Program / Change / Delete E-mail Mes-
sage” in “System Settings”.
APlace the original, and then select the scan settings you require.
BPress [TX Mode].
CPress [Text].
DSelect a text, and then press [OK].
EPress [OK].
The standby display appears.
Other Transmission Features
128
2
FSpecify a destination, and then press the {Start} key.
Note
❒You cannot send text only without an original.
❒You can program one of the Quick Operation keys with operations for this
function. Using the Quick Operation key allows you to omit step B.
Reference
“System Settings”, General Settings Guide
“Facsimile Features”, General Settings Guide
Transmission Options
129
2
Transmission Options
This section describes various functions that you can switch on and off for any
particular transmission, following the procedures given here.
Standard Message Stamp
Use this function to stamp a standard message at the top of the first original sent.
There are four types of standard messages: “Confidential”, “Urgent”, “Please
phone”, and “Copy to corres. section”
You can also program other messages.
Important
❒While this function is in use, the third line of the Label Insertion is not printed.
❒When there is an image around the area where the standard message is to be
stamped, that image is deleted.
❒Program a standard message in “Program / Change / Delete Standard Mes-
sage” in the Facsimile Features menu. See “Facsimile Features”, General Set-
tings Guide.
APlace the originals, and then select the scan settings you require.
BPress [TX Mode].
CPress [Option Setting].
DPress [Standard Message].
Other Transmission Features
130
2
ESelect the standard message to be stamped, and then press [OK].
The selected standard message is shown above the highlighted [Standard Message].
FPress [OK] twice.
GSpecify the destination, and then press the {Start} key.
The machine cannot stamp multiple standard messages.
Note
❒You can program one of the Quick Operation keys with operations for this
function. Using the Quick Operation key allows you to omit step B and
step C.
Reference
p.132 “Label Insertion”
“Facsimile Features”, General Settings Guide
Auto Reduce
When this function is turned on, if the receiver's paper is smaller than the size of
the original you are sending, the document is automatically reduced to fit onto
the paper available at the other end.
Transmission Options
131
2
Important
❒If you turn this function off, the scale of the original is maintained and some
parts of the image may be deleted when printed at the other end.
APlace the original, and then select the scan settings you require.
BPress [TX Mode].
CSelect [Option Setting].
DMake sure that [Auto Reduce] is highlighted.
To cancel an Auto Reduce, press [Auto Reduce] to turn the highlight off.
EPress [OK] twice.
FSpecify the destination, and then press the {Start} key.
Other Transmission Features
132
2
Label Insertion
With this function you can have the receiver's name printed on the document
that is received at the other end.
Important
❒To use this function, set Label Insertion to [On] when registering fax destina-
tions in the Address Book, and also set “Label Insertion” to on when sending
fax documents.
❒When there is an image around the area where the Label is to be printed, that
image is deleted.
The receiver's name is printed as follows:
• Receiver's name: printed at the top of the page and preceded by “To:”.
• Standard message: the programmed message is printed within the next two
lines.
Set this function as follows:
• Set Label Insertion to [On] when programming fax destinations.
• Set Label Insertion to on when sending fax documents.
• On the Standard Message screen, select the standard message you want to
print.
APlace the original, and then select the scan settings you require.
BPress [TX Mode].
CSelect [Option Setting].
Transmission Options
133
2
DPress [Label Insertion] to highlight it.
To cancel Label Insertion, press [Label Insertion] again.
EPress [OK] twice.
FSpecify the destination, and then press the {Start} key.
Note
❒You can program one of the Quick Operation keys with operations for this
function. Using the Quick Operation key allows you to omit step B and
step C.
❒To print a standard message that is not programmed as a default, program
it in advance in “Program / Change / Delete Standard Message” in the
Facsimile Features menu.
Reference
p.129 “Standard Message Stamp”
“Facsimile Features”, General Settings Guide
Other Transmission Features
134
2
Closed Network
If you turn this function on, transmission will only take place if the destination's
Closed Network Code is the same as yours. This function can stop you acciden-
tally sending information to the wrong place.
Important
❒You need to register a Closed Network Code beforehand.
❒This function is not available with Internet Fax.
APlace the original, and then select the scan settings you require.
BPress [TX Mode].
CSelect [Option Setting].
DPress [Closed Network] to highlight it.
To cancel a Closed Network transmission, press [Closed Network] again.
EPress [OK] twice.
FSpecify the destination, and then press the {Start} key.
Note
❒You can program one of the Quick Operation keys with operations for this function.
Using the Quick Operation key allows you to omit step B and step C.
Reference
“Facsimile Features”, General Settings Guide
Transmission Options
135
2
SUB Code Transmission
Enable this function to perform SUB Code Transmission.
Important
❒This function is not available with Internet Fax.
❒To perform SUB Code Transmission, a SUB Code must be set in [Adv.Features],
the Address Book, or Keystroke Programs in advance. Even though “SUB
Code Transmission” is set to on, if the SUB Code is not appended to the spec-
ified destination, transmission is in standard fax mode.
❒When you select a destination that has a registered SUB Code from the Ad-
dress Book, if “SUB Code Transmission” is set to off, the SUB Code is not ap-
pended and transmission is in standard fax mode.
APlace the original, and then select the scan settings you require.
BPress [TX Mode].
CSelect [Option Setting].
DPress [SUB Code Transmission] to highlight it.
To cancel a SUB Code Transmission, press [SUB Code Transmission] again.
EPress [OK] twice.
FSpecify the destination, and then press the {Start} key.
Other Transmission Features
136
2
Note
❒You can program one of the Quick Operation keys with operations for this
function. Using the Quick Operation key allows you to omit step B and
step C.
Reference
p.100 “Setting SUB Codes for Transmission”
p.262 “Programs”
“Facsimile Features”, General Settings Guide
“Registering Addresses and Users for Facsimile/Scanner Functions”, Gen-
eral Settings Guide
SEP Code Reception
Enable this function to perform SEP Code Reception.
Important
❒This function is not available with Internet Fax.
❒To perform SEP Code Reception, a SEP Code must be set in [Adv.Features], the
Address Book, or Keystroke Programs in advance. Otherwise, even if “SEP
Code Reception” is set to on, reception is not performed. If the other party's
fax machine has a polling transmission function, the machine performs poll-
ing reception.
❒When you select a destination that has a registered SEP Code from the Ad-
dress Book, if “SEP Code Reception” is set to off, the SEP Code is not append-
ed and transmission is in standard fax mode.
APlace the original, and then select the scan settings you require.
BPress [TX Mode].
CSelect [Option Setting].
Transmission Options
137
2
DPress [SEP Code Reception] to highlight it.
To cancel SEP Code Reception, press [SEP Code Reception] again.
EPress [OK] twice.
FSpecify the destination, and then press the {Start} key.
Note
❒You can program one of the Quick Operation keys with operations for this
function. Using the Quick Operation key allows you to omit step B and
step C.
Reference
p.103 “Setting SEP Codes for Reception”
p.262 “Programs”
“Facsimile Features”, General Settings Guide
“Registering Addresses and Users for Facsimile/Scanner Functions”, Gen-
eral Settings Guide
Other Transmission Features
138
2
Fax Header Print
When the Fax Header is set to on, the stored name is printed on the receiver's
paper.
In some cases, you may want the other party to receive an unmarked copy of
your original. To do this, switch Fax Header off.
You can store two Fax Headers; “First Name” and “Second Name”.
For example, if you store your department name in one and your organization
name in the other, you could use the first when sending internal faxes and the
second for external faxes.
APlace the original, and then select the scan settings you require.
BPress [TX Mode].
CSelect [Option Setting].
DMake sure that [Fax Header Print] is highlighted.
To cancel Fax Header Print, press [Fax Header Print] to turn the highlight off.
EPress [OK] twice.
FSpecify the destination, and then press the {Start} key.
Transmission Options
139
2
Note
❒You can program fax header names using the Program Fax Information
function in the Facsimile Features menu.
❒You can select whether or not dates, fax header names, file numbers, or
page numbers are printed by changing their respective User Parameters
(switch 18, bit 3, 2, 1, 0) in the Facsimile Features menu.
❒If you used the number keys to specify the receiver, the first header name
is printed on the receiver's paper. To print the second header name, contact
your service representative.
❒You can program one of the Quick Operation keys with operations for this
function. Using the Quick Operation key allows you to omit step B and
step C.
Reference
“Facsimile Features”, General Settings Guide
Other Transmission Features
140
2
141
3. Reception
This section explains reception and reception functions such as printing received
documents or routing received documents to other fax machines.
Types of Reception
This section explains different ways of receiving fax documents.
Immediate Reception
Each page of a fax document is printed as soon as it is received. This method is
used for standard fax documents.
Important
❒When receiving important fax documents, it is recommended that you con-
firm the contents of the received documents with the senders.
❒The machine may not be able to receive fax documents when free memory
space is low.
❒If free memory reaches 0% during Immediate Reception, any further recep-
tion becomes impossible and the current communication is terminated.
Note
❒Normally this machine receives documents by Immediate Reception. But
Memory Reception is used when “Multi-copy Reception” or “2 Sided Print”
is set to on.
❒If the Substitute Reception is used, a fax document is not printed: it is stored
in memory.
❒This machine supports Standard, Detail, Fine, and Super Fine resolutions for
reception. If you do not have the optional expansion memory, faxes sent at
Super Fine resolution is printed on your machine at Detail resolution. This
may differ from the sender's intended resolution.
Reception
142
3
Reference
p.45 “Resolution”
p.142 “Memory Reception”
p.143 “Substitute Reception”
p.157 “Printing Options”
Memory Reception
The machine waits until all pages of the document have been received into mem-
ory before printing it.
Important
❒About one hour after the machine is turned off, all fax documents stored in
memory are lost. If any documents are lost in this way, a Power Failure Re-
port is automatically printed when the operation switch is turned on. Use this
report to identify lost documents. See “Troubleshooting When Using the Fac-
simile Function”, Troubleshooting.
❒The machine may not be able to receive large numbers of documents or doc-
uments with high data content. In such cases, it is recommended that you
switch off multi-copy and 2 sided printing, or install the optional expansion
memory.
❒The machine may not be able to receive fax documents when free memory
space is low.
❒If free memory reaches 0% during Memory Reception, any further reception
becomes impossible and the current communication is terminated.
Note
❒Normally this machine receives documents by Immediate Reception. But
Memory Reception is used when “Multi-copy Reception” or “2 Sided Print”
is set to on.
❒If you have selected Store for Reception File Setting, received document is
saved on the hard disk and will not be printed. You can print those docu-
ments by operating the machine or a connected computer, as necessary.
Types of Reception
143
3
Reference
“Facsimile Features”, General Settings Guide
“Troubleshooting When Using the Facsimile Function”, Troubleshooting
Substitute Reception
Substitute Reception is used when the machine cannot print any fax documents.
In Substitute Reception, a received fax document is stored in memory instead of
being printed. Fax documents received using Substitute Reception are automat-
ically printed when the condition which caused the machine to use Substitute
Reception is rectified.
Depending on why the machine cannot print, Substitute Reception might be
used for all fax documents received, or for only those documents that match a
condition specified in the User Parameters in the Facsimile Features menu.
The Receive File indicator lights to let you know when fax documents have been
received using Substitute Reception.
Important
❒Reception may not take place if there is not enough free memory.
❒If free memory reaches 0% during Substitute Reception, any further reception
becomes impossible and the current communication is terminated.
Note
❒When a fax document is received after Store is selected for Reception File Set-
ting in the Facsimile Features menu, the Receive File indicator lights.
❒The Receive File indicator may light even when receiving documents using
Immediate Reception.
Reference
“Facsimile Features”, General Settings Guide
ALV005S
Reception
144
3
Receiving documents unconditionally
If one of the conditions in the following list occurs, the machine receives all fax
documents using Substitute Reception.
Receiving documents according to parameter-specified settings
If one of the conditions in the following list occurs, the machine receives only
those documents that match the conditions specified in the User Parameters in
the Facsimile Features menu.
Problems Causes Solutions
The machine is printing
with a different function.
The machine is busy print-
ing with a different func-
tion.
The document is automatically
printed after the current job finishes.
The message “Output
Tray is full. Re-
move paper.” appears.
The output tray is full. Remove paper from the output tray.
h is lit. The cover is open. Close the cover shown in the display.
Problems Causes Solutions
h is lit. Paper is jammed. Remove the jammed paper.
For details about removing the pa-
per, see “Clearing Misfeeds”, Trou-
bleshooting.
h is lit. All trays are out of paper. Add paper.
For details about adding paper, see
“Adding paper, Toner and Staples”,
Troubleshooting.
h is lit. Toner is empty. Replace the toner cartridge.
For details about replacing the toner
cartridge, see “Adding paper, Toner
and Staples”, Troubleshooting.
The message “This
tray is out of or-
der.” appears.
All trays are out of action. Call your service representative.
Types of Reception
145
3
You can specify the following conditions with the User Parameters (switch 05,
bit 2, 1) in the Facsimile Features menu.
• When Own Name or Own Fax Number is received
The machine switches to Substitute Reception only when the sender has pro-
grammed their Own Name or Own Fax Number. If the power is switched off
for more than an hour, all the documents stored in memory are deleted. In
this case, the Journal can be used to identify the senders of the deleted docu-
ments, so you can ask them to resend.
If a sender has not programmed their Own Name or Own Fax Number, the
machine may fail to receive an important fax document. It is recommended
that you ask important senders to program an Own Name or Own Fax
Number in advance.
•Free
The machine switches to Substitute Reception regardless of whether or not
the sender has programmed their Own Name or Own Fax Number.
• Closed Network Code match
The machine switches to Substitute Reception only when the programmed
Closed Network Code of the other end matches the Closed Network Code of
this machine.
•Disable
The machine does not receive any documents.
Reference
“Facsimile Features”, General Settings Guide
“Adding paper, Toner and Staples”, Troubleshooting
“Clearing Misfeeds”, Troubleshooting
Reception
146
3
Reception Modes
There are two ways you can set up the machine to handle incoming calls:
• Manual Reception (an external telephone required)
• Auto Reception
You can change the reception mode only if a standard G3 line is used.
You cannot change the reception mode when a line other than the standard G3
line (G3-2 or G3-3) is used.
Note
❒An external telephone is required to use this machine as a telephone.
Manual Reception
When a telephone call comes in, the machine rings. If the call is a fax document,
you must switch manually to facsimile mode.
AWhen the machine rings, pick up the handset of the external telephone.
BIf you hear beeps, press the {Start} key, or hold the {Facsimile} key down for
a few seconds. (The {Start} key is only available in facsimile mode when an
original is not placed.)
CReplace the handset of the external telephone. The machine will start receiving.
Note
❒When the operation switch is off, even if the main power switch is on, you
cannot operate this machine using only the handset of the external tele-
phone. You must first press the operation switch to turn on the machine.
Auto Reception
When a telephone call comes in, the machine automatically receives it as a fax
document. Use this setting on a dedicated fax line.
Reception Modes
147
3
Switching the Reception Mode
You can switch reception modes using Reception Settings in the Facsimile Fea-
tures menu.
If you program a Quick Operation key with Switch Reception Mode, you can
switch the reception mode quickly.
APress [Switch RX Mode].
BSelect the reception mode, and then press [OK].
To cancel the selection, press [Cancel].
The standby display appears.
Reference
“Facsimile Features”, General Settings Guide
Reception
148
3
Receiving Internet Fax Documents
You can receive e-mail documents by Internet Fax.
There are two methods of receiving e-mail: Auto E-mail Reception and Manual
E-mail Reception.
Important
❒E-mail with attachments other than TIFF-F format files cannot be received.
Senders receive an Error Mail Notification if their e-mail contains attach-
ments. You can select whether or not the machine sends this message with
User Parameters (switch 21, bit 7) in the Facsimile Features menu. However,
TIFF-F documents created by the Saving function of DeskTopBinder can be
received.
❒If [Require Secure Password Authentication (SPA) for all client connections] is select-
ed in Windows Server 2003, reception is not possible.
Note
❒When Reception Protocol is set to POP3 or IMAP4, you can set the machine
to retain incoming e-mail or delete it from the server in “System Settings”.
❒With User Parameters (switch 21, bit 1) in the Facsimile Features menu, you
can have the machine send the return receipt in response to the reception no-
tice request attached to the sent e-mail.
Reference
“System Settings”, General Settings Guide
“Facsimile Features”, General Settings Guide
Auto E-mail Reception
When this function is turned on, the machine periodically checks the e-mail
server for incoming e-mail and downloads it as necessary.
Note
❒If memory runs out, e-mail will not be received at the specified intervals. Re-
ception will resume when sufficient memory becomes available.
❒E-mail auto-reception should be set in “System Settings”. When you select
auto-reception, set the reception interval in minutes.
❒E-mail can be received manually.
Reference
p.149 “Manual E-mail Reception”
“System Settings”, General Settings Guide
Receiving Internet Fax Documents
149
3
Manual E-mail Reception
Follow these steps to receive a fax by accessing the e-mail server manually.
Important
❒Program the Manual E-mail RX function to a Quick Operation key beforehand.
APress [Manual E-mail RX].
BCheck the message, and then press [Exit].
The machine accesses the server to check for e-mail and receives any new e-mail.
The standby display appears.
Reference
“Facsimile Features”, General Settings Guide
Received Images
Here is an example of an Internet Fax document sent from this machine and re-
ceived on a computer using the Outlook Express e-mail application.
The received image varies according to the e-mail application.
Important
❒When Internet Fax e-mail is sent to computer, the following information is al-
ways inserted in the e-mail text: “This E-mail was sent from “Host
Name” (product name) Queries to: “Administrator's e-mail ad-
dress”” To check the host name and e-mail address, see “System Settings”,
General Settings Guide.
Reception
150
3
1. E-mail transmitted without speci-
fying a subject in “TX Mode”.
2. E-mail transmitted with a subject
specified in “TX Mode”.
3. From
The name (e-mail address) of the sender
4. Date
The date and time of e-mail transmission
5. To
The e-mail address of the recipient
6. Subject
Shows the subject specified in “TX
Mode” at the time of transmission. If no
subject is specified, one is automatically
assigned in the format shown in 1 above.
7. The message is inserted in all e-
mail. “xxxx” is the machine name.
8. Attachment File
Any document included by the sender is
displayed as an attached document.
Note
❒The display format of the sender name differs according to that of the Stamp
Sender Name setting and other functions.
❒The display format of the subject varies according to Stamp Sender Name and
other settings.
Reference
p.28 “E-mail Subject”
ALV011S
Reception Functions
151
3
Reception Functions
This section explains useful functions for receiving fax documents.
Routing Received Documents
This section describes how to route received documents using SUB Codes.
Important
❒Documents cannot be routed to folders using this function.
Routing received documents with SUB Code
This machine can route received documents using SUB Codes.
When a document is received, its SUB Code is compared to SUB Codes pro-
grammed in Personal Boxes, and if a match is found, the document is routed to
the destination whose SUB Code is specified.
Important
❒You must set the Personal Box and register a delivery destination beforehand.
Personal Boxes can be programmed in “Box Setting” in the Facsimile Features
menu.
❒This function is not available when you set received documents to be deliv-
ered to the network delivery server. Delivery of received documents can be
set in “System Settings”.
Note
❒If the destination specified is an e-mail address, the received document is
routed to that destination as e-mail.
❒You can route documents received from any fax machine, regardless of manufacturer.
Reference
“System Settings”, General Settings Guide
“Facsimile Features”, General Settings Guide
ALT003S
Reception
152
3
Transferring Received Documents
The machine can transfer received documents by using SUB Codes.
Originals sent with a SUB Code that matches the SUB Code programmed as a
Transfer Box are received then relayed to the programmed receiver.
Important
❒Transfer Boxes and Receiving Stations must be set up in order to transfer re-
ceived documents. Transfer Boxes can be programmed in “Box Setting” in the
Facsimile Features menu.
Note
❒When e-mail addresses are programmed as receivers, received documents
are sent in an e-mail format to the receivers.
❒Transfer results are not sent back to the requesting party.
❒You can transfer data received from any fax machine, regardless of manufacturer.
Reference
“Facsimile Features”, General Settings Guide
SEP Code Transfer Report
You can check the results of transmission to Receiving Stations. The machine
prints this report when it has finished transmitting to Receiving Stations.
Note
❒You can select whether the SEP Code Transfer Report be automatically print-
ed using the User Parameters (switch 04, bit 1) in the Facsimile Features
menu.
❒You can set whether a portion of the original image is printed on the report
with the User Parameters (switch 04, bit 7) in the Facsimile Features menu.
❒“Unprogrammed” indicates the document could not be sent because the end
receiver is not programmed.
❒“--” indicates that the Internet Fax document was sent to the mail server pro-
grammed in this machine.
❒For the maximum number of destinations you can program in a group, see
“Maximum Values”.
Reference
p.272 “Maximum Values”
“Facsimile Features”, General Settings Guide
Reception Functions
153
3
Forwarding Received Documents
This machine can forward received documents to other destinations pro-
grammed in this machine.
Note
❒A fax number, Internet Fax address, IP-Fax destination, or folder address can
be set as a forwarding destination.
❒If an e-mail address is programmed as the destination, documents received
are forwarded as e-mail.
❒You need to specify the forwarding destination in advance. Forwarding can
be set under Reception Settings, in the Facsimile Features menu.
❒If you would like the machine to forward received documents to a particular
destination according to the sender, specify the Forwarding destination for
each sender under Facsimile Features, Reception Settings, Program Special
Sender. Documents from other senders are forwarded to the default Forward-
ing destination specified for this function.
❒You can select whether the machine prints out the documents it forwards
with User Parameters (switch 11, bit 6) in the Facsimile Features menu.
❒You can set whether or not the Folder Transfer Result Report is transmitted
to the specified e-mail address if folders are programmed as the forwarding
destinations to which documents are sent from all senders or Special Senders.
For details, see “Facsimile Features”, General Settings Guide.
❒For the maximum number of destinations you can program in a group, see
“Maximum Values”.
ALT004S
Reception
154
3
Reference
p.272 “Maximum Values”
“Facsimile Features”, General Settings Guide
SMTP Reception Using Internet Fax
You can receive a document sent Internet Fax using SMTP reception.
With SMTP reception, e-mail is received as soon as it is sent to the e-mail address
set by the machine.
Important
❒Set this machine beforehand using the MX record of the DNS server to enable
SMTP reception.
❒Set the reception protocol to SMTP under “System Settings”.
Note
❒You can route received e-mail to other Internet Fax machines as well.
❒Even if SMTP reception is enabled on the DNS server, e-mail sent from the
SMTP server will not be received and the machine reports an error if SMTP
reception is not set. Also, the SMTP server sends an error notification to the
originator.
❒If an error occurs while receiving e-mail, reception is aborted, the e-mail is de-
leted, and Error Report is printed. Also, the SMTP server will send an error
notification to the originator.
❒When the SMTP server attempts to route received documents to this machine
while the machine is transmitting e-mail, the machine will respond to the
SMTP server with a “busy” signal. Then, the SMTP server usually tries re-
sending the documents until the set timeout.
Reference
p.148 “Auto E-mail Reception”
“System Settings”, General Settings Guide
ALT005S
Reception Functions
155
3
Routing e-mail received via SMTP
E-mail received via SMTP can be routed to other fax machines.
Important
❒Before routing e-mail received via SMTP, you first must set “SMTP RX File
Delivery Settings” to “On” in the Facsimile Features menu.
❒Depending on security settings, this function may not be available.
The originator can request transfer of e-mail sent to another fax machine by spec-
ifying the e-mail address as follows:
❖Fax Number
fax=destination fax number@host name of this machine.domain name
Example: to transfer to fax number 212-123-4567:
fax=2121234567@abc.company.com
❖Single destination programmed in the destination list
fax=qregistration number of 5 digits or less@host name of this machine.do-
main name
Example: to transfer to the destination number 00001:
fax=q00001@abc.company.com
❖Group destination programmed in the destination list
fax=qppregistration number of 5 digits or less@host name of this ma-
chine.domain name
Example: to transfer to the destination programmed under Group number
00004:
fax=qpp00004@abc.company.com
ALT006S
Reception
156
3
Note
❒If an e-mail transfer request is received when the “SMTP RX File Delivery Set-
tings” is “Off”, this machine responds with an error message to the SMTP
server.
❒You can make settings that limit transfer to specified originators.
❒Using this function, you can also send documents from your e-mail applica-
tion to e-mail addresses and G3 fax machines' destinations through this ma-
chine simultaneously.
❒For the maximum number of destinations you can program in a group, see
“Maximum Values”.
Reference
p.272 “Maximum Values”
“Facsimile Features”, General Settings Guide
JBIG Reception
If you use JBIG (Joint Bi-level Image Experts Group) compression, you can send
photographic originals faster than with other methods of compression. It allows
you to receive documents sent in the JBIG format through JBIG Transmission.
Important
❒You can only use this function with telephone line.
Auto Fax Reception Power-Up
This machine can be set to shut down automatically if no one has used it for a
while. In these situations, even though the operation switch is off, the machine
can still receive incoming documents as long as the main power switch is on.
Important
❒Reception is not possible if both the operation switch and main power switch
are turned off.
Note
❒You can set whether documents are printed as soon as they are received (Im-
mediate Reception) with the User Parameters (switch 14, bit 0) in the Facsim-
ile Features menu.
❒You can also have fax documents received by Memory Reception (Substitute
Reception) printed after the machine is turned on.
Reference
“Facsimile Features”, General Settings Guide
Printing Options
157
3
Printing Options
This section explains useful functions for printing received documents.
Print Completion Beep
When this function is turned on, the machine beeps to let you know when a re-
ceived document is printed.
Note
❒You can alter the volume of the beep or turn it off completely using “Adjust
Sound Volume” in the Facsimile Features menu (set the volume to the mini-
mum level).
Reference
“Facsimile Features”, General Settings Guide
Checkered Mark
When this function is turned on, a Checkered Mark is printed on the first page
of fax documents to help you separate them.
Note
❒You can turn this function on or off using Checkered Mark in the Facsimile
Features menu.
Reference
“Facsimile Features”, General Settings Guide
Reception
158
3
Centre Mark
When this function is enabled, marks are printed halfway down the left side and
at the top centre of each page received.
This makes it easy for you to position a hole puncher correctly when you file re-
ceived documents.
Note
❒The Centre Mark may deviate a little from the exact centre of the edge.
❒You can enable or disable this function using Centre Mark in the Facsimile
Features menu.
Reference
“Facsimile Features”, General Settings Guide
Reception Time
You can have the date, time, and file number printed at the bottom of the docu-
ment when it is received.
Note
❒You can turn this function on or off using Print Reception Time in the Facsim-
ile Features menu.
❒When a received document is printed on two or more sheets, the reception
time is printed on the last page.
❒The time when the document was printed can also be recorded on the docu-
ment. If you need this function, contact your service representative.
Reference
“Facsimile Features”, General Settings Guide
Printing Options
159
3
Two-Sided Printing
You can have a received document printed on both sides of a sheet.
Important
❒To use this function, all pages of the received document must be of the same
size-inform the sending party of this beforehand if necessary. You must also
have paper set in the machine of the same size as that sent by the sending par-
ty. In Two-Sided Printing, this machine will correctly receive in A3L, B4 JIS
(Japanese Industrial Standard)L, A4KL, B5 JISKL, A5KL(11"×17"L,
81/2"×14"L, 81/2"×11"KL, 81/2"×51/2"L). The following table shows the re-
sults that can be achieved when receiving with this machine.
❒This function works only when all pages are of the same width and received
into memory.
Reception
160
3
Note
❒You can turn this function on or off using 2 Sided Print in the Facsimile Fea-
tures menu.
❒Printouts may vary depending on how the sender sets the originals.
❒You can select to have documents only from selected senders printed in this
way.
❒Stored documents of the same size are printed on the same paper. Some
stored documents may be unavailable for this printing option.
Reference
“Facsimile Features”, General Settings Guide
180-degree rotation printing
When printing on both sides of the paper, this machine rotates images as shown
in the diagram.
Multi-Copy Reception
If you switch this function on, multiple copies of each incoming fax document is
printed.
You can also select to have multiple copies made of documents from particular
senders.
CP2B02E0
Printing Options
161
3
Note
❒The maximum number of copies that can be made for each document is 10.
❒When using the Multi-copy function with specified senders, the maximum
number of copies is 10.
❒You can turn this function on or off using Reception File Print Quantity in the
Facsimile Features menu.
❒The machine will use Memory Reception for Multi-copy Reception.
Reference
“Facsimile Features”, General Settings Guide
Image Rotation
If you have set paper in the standard tray K, incoming fax documents are auto-
matically rotated to fit onto the paper.
Note
❒If you specified a tray for “Paper Tray” in the Facsimile Features menu, the
paper loaded in the specified tray is selected.
Reception
162
3
Page Separation and Length Reduction
If the size of a received document is longer than the paper loaded in the machine,
each page of the document can be split and printed on several sheets, or reduced
and printed on a single sheet.
For example, this function splits the document if the document length is 20 mm
(0.79") or longer than the paper used. The document is reduced if it is less than
20 mm (0.79"). When a document is split, an asterisk (p) is inserted at the split
position and about 10 mm (0.39") of the split area is duplicated on the top of the
second sheet.
Note
❒Your service representative can customize this function with the following
settings:
•Reduction
• Print split mark
•Overprinting
• Overprinting length
• Guideline for split
❒You can adjust the overprinting and reduction lengths within the following
ranges:
• Overprinting length: 4 mm (0.16"), 10 mm (0.39"), 15 mm (0.59")
• Guideline for split: 5-155 mm (5 mm steps)/0.2-6.1" (0.2" steps)
Printing Options
163
3
Page Reduction
If you receive a document that is longer than the paper in the tray, the machine
usually prints it on two pages.
If you turn this function on, the machine reduces the width and length of the re-
ceived image so that it will fit on one page. If A4L paper is loaded and a docu-
ment of B4 JISL size is received, the machine will reduce the document to a
single A4L sheet.
Note
❒You can turn this function on or off with the User Parameters (switch 10, bit 3)
in the Facsimile Features menu.
❒When this function is used, the printing quality may not be as good as usual.
Reference
p.162 “Page Separation and Length Reduction”
“Facsimile Features”, General Settings Guide
TSI Print (Transmitting Subscriber Identification Print)
Usually the sender's Fax Header is printed on received documents. When you
receive an Internet Fax document, the e-mail address of the sender is printed. If
the sender has not programmed their Fax Header, you will not be able to iden-
tify them. However, if you turn this function on, the sender's Own Name or Own
Fax Number is printed instead so you can find out where the document came
from.
Note
❒You can turn this function on or off in the User Parameters (switch 02, bit 3)
in the Facsimile Features menu.
Reference
“Facsimile Features”, General Settings Guide
Reception
164
3
If There Is No Paper of the Correct Size
If there is no paper in the machine that matches the size of a received document,
the machine will choose a paper size based on the paper available.
Note
❒The document is split over two sheets of paper depending on the paper size.
❒Paper placed in the bypass tray is not usually selected for printing a received
document. However, you can use this tray if you select the bypass tray as the
main paper tray using Reception with Specified Senders.
❒Widths that this machine can receive are A4, B4 JIS, LT (81/2"×11") and A3.
Any documents narrower than A4 or LT (81/2"×11") are received at A4 or LT
(81/2"×11") width. The length of documents depends on the document.
❒The paper size used to print a received document may be different from the
size of the sent original.
Reference
p.161 “Image Rotation”
p.162 “Page Separation and Length Reduction”
p.163 “Page Reduction”
“Facsimile Features”, General Settings Guide
Setting priority trays
With the same size of paper loaded into multiple trays, you can make the ma-
chine use one tray for one function and another tray for another function.
For example, you may load white A4 paper into tray 1 to use when making cop-
ies, and yellow A4 paper into tray 2 to use when printing received faxes. You can
then easily identify for which purpose paper has been output. You can perform
this setting in “Paper Tray Priority: Facsimile” in “System Settings”.
Note
❒When a different size of document from the priority tray is received, the tray
containing the same size of paper as the received document is used.
Reference
“System Settings”, General Settings Guide
Page reduction Disabled
Reduction in Sub-scan Direction Enabled
Page Separation Threshold 20 mm (0.79")
Width or Length Priority Width
Printing Options
165
3
Just size printing
If you enable this function, received documents are printed on the sheet that has
the highest priority.
This function is enabled with User Parameters (switch 05, bit 5) in the Facsimile
Features menu.
If the paper tray is not stocked with paper of a suitable size to print a received
document, a message appears on the display prompting you to load paper of the
required size. When you have loaded new paper, press [Exit] to print the document.
Note
❒After pressing [Exit], procedure varies depending on machine status when the
message occurred.
• If any received documents or reports were being printed automatically, the
printer automatically continues printing from where it left off.
• If any documents or reports were being printed manually, the printer does
not resume printing. Perform the operation from the beginning again.
Reference
“Facsimile Features”, General Settings Guide
Having incoming documents printed on paper from the bypass tray
You can print documents sent from Specified Senders on paper from the bypass
tray.
Set as follows:
• Program a special sender and select the Bypass Tray for the paper tray type.
• In “Program Special Sender” in the Facsimile Features menu, turn on the
“Special Reception Function” in “Initial Set Up”.
Important
❒When using this function, printed sheets cannot be delivered to the finisher
output tray. Even if you specify the finisher output tray, sheets are delivered
to the Internal Tray 1.
Reception
166
3
Note
❒You can load a maximum of 100 sheets of standard paper in the bypass tray.
❒You can use a size of paper not loaded in the paper tray(s) in the bypass tray.
❒The machine can detect A6L, A5L, A4L, A3L (51/2"×81/2"L, 81/2"×11"L,
11"×17"L) paper sizes. When you load any other size, specify the paper size.
However, if the specified paper size and size of paper set in the bypass tray
do not match, paper jams may occur, or the image may be shortened.
❒When using tray 1 of the optional 1000-sheet finisher, paper is output to the
tray even with custom sizes selected.
❒Documents printed on paper smaller than A4 may be shortened, or split
across sheets.
❒Paper longer than 600 mm may be creased, not sent, or jam.
❒Print area depends on optional expansion memory, resolution, and vertical
length of originals.
❒If you use this function, Image Rotation and 180-degree rotating printing are
not possible.
Reference
“Facsimile Features”, General Settings Guide
Where Incoming Documents Are Delivered - Output Tray
You can specify the output tray or output position to facilitate separation of re-
ceived documents.
Specifying tray for lines
Use this function to specify the output tray for each line port.
You can specify the document feeding tray for each port (telephone, Internet
Fax, IP-Fax). For example, you can specify documents received through the G3-
1 port to be fed to the “Internal Tray 1” and documents received through the G3-
2 port to be fed to the “Internal Tray 2”, facilitating separation of files. You can
also set the machine to output Internet Fax documents and ordinary faxes onto
different trays.
Important
❒The optional extra G3 interface unit is required.
Note
❒To use this function, specify the port and destination using [Specify Tray for
Lines] in the Facsimile Features menu.
❒Available output tray depends on the type of finisher.
Reference
“Facsimile Features”, General Settings Guide
Printing Options
167
3
Tray Shift
Use this function to shift the output position for each document, so you can sep-
arate received documents easily.
Important
❒The optional finisher or shift sort tray unit is required.
When the optional finisher unit is selected for fax output, you can use the Tray
Shift function whenever a fax or report is printed.
This is useful for separating faxes stacked in the finisher output tray. For exam-
ple, if the previous incoming fax was output to the left, the next incoming fax
will be output to the right and vice-versa.
Note
❒You can turn this function on or off with the User Parameters (switch 19, bit 0)
in the Facsimile Features menu.
Reference
“Facsimile Features”, General Settings Guide
Reception
168
3
169
4. Changing/Confirming
Communication Information
This section explains the features of [Change TX / Info], which you can use to con-
firm communication results on the screen or printed reports.
Changing the Settings of Files in Memory
After you have pressed the {Start} key (after scanning originals), you can check
and edit the destination or settings of Memory Transmission. You can also can-
cel a transmission, change the settings of a transmission, print a stored file, print
a list of stored files, and resend a file which the machine failed to transmit.
Note
❒If the “No transmission files found.” message appears on the screen af-
ter you press [Check / Stop Transmission File], no files are being stored or sent
by Memory Transmission.
❒You cannot check or edit a file being sent. Also a SUB Code Transmission file
or stored file to be printed as a report cannot be checked or edited.
❒There are cases when a destination may not be selected as the destination ap-
pears as “p”, depending on the security settings.
Changing/Confirming Communication Information
170
4
Deleting a Destination from a Simultaneous Broadcast
You can delete selected broadcasting destinations.
Important
❒If you delete a destination that is the only destination for a transmission, the
transmission is canceled.
APress [Change TX / Info].
BPress [Check / Stop Transmission File].
CSelect the file from which you want to delete a destination.
Changing the Settings of Files in Memory
171
4
DPress [Check / Change Settings].
EPress [Change] for the destination you want to delete.
FPress the {Clear/Stop} key to delete the destination, and then press [OK].
Pressing the {Clear/Stop} key deletes by single digits the fax number or IP-Fax
address. The Internet Fax address can be entirely deleted at once by pressing
the {Clear/Stop} key.
GPress [Exit].
To delete another destination, repeat from step C.
HPress [Exit] twice.
The standby display appears.
ALV002S
Changing/Confirming Communication Information
172
4
Adding a Destination
You can add a destination for broadcasting.
APress [Change TX / Info].
BPress [Check / Stop Transmission File].
CSelect the file to which you want to add a destination.
Changing the Settings of Files in Memory
173
4
DPress [Check / Change Settings].
EPress [Add Destination].
FSpecify the destination using the number keys or Destination keys, and
then press [OK].
When the file has some Internet Fax destinations, you can switch the transmission
type between fax/IP-Fax and Internet Fax by pressing [Fax] or [Internet Fax].
To add an e-mail address, switch the type of transmission to Internet Fax by
pressing [Internet Fax]. Then, press [Manual Entry] and enter the e-mail address.
You can also program a SUB Code or SEP Code by pressing [Adv.Features].
GPress [Exit].
Repeat from step C, if you want to add another destination.
HPress [Exit] twice.
The standby display appears.
Changing/Confirming Communication Information
174
4
Changing the Transmission Time
You can change the transmission time specified with Send Later.
You can also delete the transmission time. If the transmission time is deleted, the
file is transmitted immediately.
APress [Change TX / Info].
BPress [Check / Stop Transmission File].
CSelect the file for which you want to change or cancel the transmission
time.
Changing the Settings of Files in Memory
175
4
DPress [Check / Change Settings].
EPress [Change TX Time].
FPress [Clear], re-enter the transmission time using the number keys, and
then press [OK].
If you press [Transmit Now], the file is transmitted immediately. However, if
there is a file on standby, that file is sent first.
GPress [Exit].
Repeat from step C, if you want to change another transmission time.
HPress [Exit] twice.
The standby display appears.
Changing/Confirming Communication Information
176
4
Changing the SMTP Server Setting
You can change the settings for whether or not to bypass the SMTP server.
APress [Change TX / Info].
BPress [Check / Stop Transmission File].
CSelect a file whose SMTP server setting you want to change.
Changing the Settings of Files in Memory
177
4
DPress [Check / Change Settings].
EPress [Change].
FPress [SMTP].
GSelect [Yes] or [No], and then press [OK].
Changing/Confirming Communication Information
178
4
HPress [OK].
IPress [Exit].
Repeat from step C to change the SMTP server settings of other recipients.
JPress [Exit] twice.
The standby display appears.
Printing a File from Memory
179
4
Printing a File from Memory
If you want to check the contents of a file that is stored in memory and not yet
sent, use this procedure to print it out.
APress [Change TX / Info].
BPress [Check / Stop Transmission File].
CSelect the file you want to print.
If multiple destinations were specified, only the number of destinations for
unsent documents appears.
Changing/Confirming Communication Information
180
4
DPress [Print].
If you want two-sided printing, press [Print on 2 Sides].
To cancel printing, press [Cancel]. The display returns to that of step C.
EPress the {Start} key.
To cancel printing after pressing the {Start} key, press [Stop Printing]. The dis-
play returns to that of step C.
Repeat from step C, if you want to print another file.
FPress [Exit] twice.
The standby display appears.
Note
❒You can also print files that have not been successfully transmitted.
Printing a List of Files in Memory (Print TX File List)
181
4
Printing a List of Files in Memory (Print TX
File List)
Print this list if you want to find out which files are stored in memory and what
their file numbers are. Knowing the file number can be useful (for example when
erasing files).
APress [Change TX / Info].
BPress [Check / Stop Transmission File].
CPress [Print List].
To cancel printing before pressing the {Start} key, press [Cancel]. The screen
returns to that displayed before pressing [Print List].
Changing/Confirming Communication Information
182
4
DPress the {Start} key.
To cancel printing after pressing the {Start} key, press [Stop Printing]. The dis-
play returns to that of step C.
EPress [Exit] twice.
The standby display appears.
Note
❒The contents of a file stored in memory can also be printed.
❒You can set whether or not to display a sender name with the User Param-
eters (switch 04, bit 5) in the Facsimile Features menu.
Reference
“Facsimile Features”, General Settings Guide
Resending a File
183
4
Resending a File
Machine memory stores documents that could not be successfully transmitted
using Memory Transmission. Use this procedure to resend these documents.
Important
❒Set “Store documents in memory that could not be transmitted” to “On” in
User Parameters (switch 24, bit 0) in the Facsimile Features menu.
APress [Change TX / Info].
BPress [Check / Stop Transmission File].
CSelect the file you want to resend.
“TX failed” is displayed for files that could not be sent.
If multiple destinations were specified, only the destination you specify first
appears.
If multiple destinations were specified, only the number of destinations for
unsent documents appears.
Changing/Confirming Communication Information
184
4
DPress [Transmit Failed File].
To add a destination, press [Add Destination], and then specify the destination.
EPress [OK].
Repeat from step C to resend another file.
To cancel transmissions, press [Cancel]. The display returns to that of step D.
FPress [Exit] twice.
The standby display appears.
Transmission starts.
Note
❒Files that could not be transmitted are kept for either 24 or 72 hours, de-
pending on the setting you make in User Parameters (switch 24, bit 1) in
the Facsimile Features menu.
Reference
“Facsimile Features”, General Settings Guide
Checking the Transmission Result (Transmission File Status)
185
4
Checking the Transmission Result
(Transmission File Status)
You can confirm transmission by the display, report, or e-mail.
Confirming on Display
Follow these steps to display the transmission results.
APress [Change TX / Info].
BSelect [Transmission File Status].
CCheck the transmission results.
Transmission results are displayed, from the latest result down, in groups of
nine.
When a fax is sent, “Destination” shows the Own Fax Number or Fax Header
information of the receiver. When an Internet Fax is sent, the e-mail address
and name programmed in the destination list appears. For a transmission
from a computer, “-- LAN-Fax -->” is shown.
Depending on security settings, the destination may appear as p.
Changing/Confirming Communication Information
186
4
DPress [Exit] twice.
The standby display appears.
Note
❒Only the transmission results of the latest communications are displayed.
For the maximum number of communication results you can check on this
machine, see “Maximum Values”.
❒You can view sent fax documents and their lists, using a Web Image Monitor
on a network computer. For details, see the Web Image Monitor's Help.
❒If a transmission is completed while you are using this function, the result will not
appear. To view the latest result, exit Transmission File Status, and then try again.
❒You can program one of the Quick Operation keys with operations for this
function. Using the key allows you to omit step A.
❒When documents are transmitted from the computer to the machine, --LAN-Fax -->
appears. To check if the documents are sent to the receiver, confirm the same File No.
Reference
p.272 “Maximum Values”
“Facsimile Features”, General Settings Guide
Confirming by Report
Print reports for confirmation.
❖Memory Transmission
If a document cannot be sent, a Communication Failure Report is automatically printed. Or, you
can use the Communication Result Report to check each transmission result regardless of status.
This report is printed each time a Memory Transmission is completed if
turned on with User Parameters (switch 03, bit 0) in the Facsimile Features menu.
You can also print the report by programming the TX Status Report to a Quick
Operation key and pressing this when specifying a destination.
If you turn the Communication Result Report on, the Communication Failure
Report is not printed.
❖Immediate Transmission
You can confirm the result with an Immediate TX Result Report.
Select to print this report in User Parameters (switch 03, bit 5) in the Facsimile
Features menu. A report is printed after every Immediate Transmission is completed.
You can also print the report by programming the TX Status Report to a Quick
Operation key and pressing this when specifying a destination.
Reference
p.188 “Communication Result Report (Memory Transmission)”
p.188 “Immediate TX Result Report (Immediate Transmission)”
p.189 “Communication Failure Report”
“Facsimile Features”, General Settings Guide
Checking the Transmission Result (Transmission File Status)
187
4
Confirming by E-mail
Use the E-mail TX Results function to send reports by e-mail to a computer, and
then confirm them on the computer.
The available reports are:
• Communication Result Report.
• Immediate TX Result Report.
• Polling with SEP Rx Result.
Important
❒You must first register the e-mail addresses of the destinations the report is to
be sent to on the destination list.
Note
❒By programming the E-mail TX Results to a Quick Operation key in advance,
you can send transmission results by e-mail after each transmission is com-
pleted. Select the destination for notification from the Internet Fax destina-
tions in the destination list.
❒When using the Sender Name function to select the sender, the transmission
results are sent to senders' e-mail addresses that have been registered. Select
the sender from the Internet Fax destinations in the destination list.
❒If you send fax documents from a computer, use LAN-Fax Driver to specify
whether or not the LAN-Fax Result Report is sent to the computer.
Reference
p.97 “Sender Settings”
p.103 “Setting SEP Codes for Reception”
p.188 “Immediate TX Result Report (Immediate Transmission)”
p.192 “Print Journal”
“Facsimile Features”, General Settings Guide
“Registering Addresses and Users for Facsimile/Scanner”, General Settings
Guide
Confirming by Report and E-mail
You can confirm transmission results using both the E-mail TX Results function,
which sends the results by e-mail, and the Communication Result Report print-
ed by the machine.
You can set whether to use both of these together in User Parameters (switch 10,
bit 6) in the Facsimile Features menu.
Reference
“Facsimile Features”, General Settings Guide
Changing/Confirming Communication Information
188
4
Communication Result Report (Memory Transmission)
This report is printed when a Memory Transmission is completed, so you can
check the result of the transmission.
Note
❒If E-mail TX Results is programmed in a Quick Operation key, you can select
whether a report e-mail is sent after transmission.
❒If two or more destinations are specified, this report is printed after the fax
document is sent to all the destinations.
❒If the machine is set up not to print this report and the fax document could
not be successfully transmitted, a Communication Failure Report is printed.
❒You can turn this function on or off with the User Parameters (switch 03, bit 0)
in the Facsimile Features menu.
❒You can display a sender name with the User Parameters (switch 04, bit 5) in
the Facsimile Features menu.
❒You can select whether to include part of the original image on the report with
the User Parameters (switch 04, bit 7) in the Facsimile Features menu.
❒To view the report without text disruption, select a font of even character
width in your e-mail application's settings.
❒You can set whether or not to display a destination with the User Parameters
(switch 04, bit 4) in the Facsimile Features menu.
❒The Pg(s) column gives the total number of pages. The Page Not Sent column
gives the number of pages that could not be sent successfully.
❒“--” indicates that the Internet Fax document was sent to the mail server pro-
grammed in this machine. (However, this does not mean the e-mail was delivered.)
Reference
p.189 “Communication Failure Report”
“Facsimile Features”, General Settings Guide
Immediate TX Result Report (Immediate Transmission)
If you turn this report on, a report is printed after every Immediate Transmission
so you have a record of whether the transmission was successful or not.
If the machine is set up not to print this report and the fax document could not
be successfully transmitted, the Error Report is printed instead.
Checking the Transmission Result (Transmission File Status)
189
4
Note
❒If E-mail TX Results is programmed in a Quick Operation key, you can select
whether a report e-mail is sent after transmission.
❒You can switch this report on or off in the User Parameters (switch 03, bit 5)
in the Facsimile Features menu.
❒To view the report without text disruption, select a font of even character
width in your e-mail application's settings.
❒You can set whether or not to display a destination with the User Parameters
(switch 04, bit 4) in the Facsimile Features menu.
❒If the page was sent successfully, the Page column gives the total number of
pages sent successfully.
Reference
“Facsimile Features”, General Settings Guide
Communication Failure Report
This report is printed when a document could not be successfully transmitted
with Memory Transmission.
If the machine is set up to print a Communication Result Report, this report is
not printed. Use it to keep a record of failed transmissions so you can send them
again.
Note
❒You can select whether the Communication Failure Report is automatically
printed using the User Parameters (switch 04, bit 1) in the Facsimile Features
menu.
❒This report is only printed if the Communication Result Report is turned off
and a document could not be successfully transmitted with Memory Transmission.
❒You can select whether to include part of the original image on the report with
the User Parameters (switch 04, bit 7) in the Facsimile Features menu.
❒You can display a destination with the User Parameters (switch 04, bit 4) in
the Facsimile Features menu.
❒You can set whether or not to display a sender name with the User Parame-
ters (switch 04, bit 5) in the Facsimile Features menu.
❒The Pg(s) column gives the total number of pages. The Page Not Sent column
gives the number of pages that could not be sent successfully.
❒“Unprogrammed” indicates that the document could not be sent because the
forwarding destination is not programmed.
❒“--” indicates that the Internet Fax document was sent to the mail server pro-
grammed in this machine. (However, this does not mean the e-mail was delivered.)
Reference
“Facsimile Features”, General Settings Guide
Changing/Confirming Communication Information
190
4
Checking the Reception Result
(Reception File Status)
Confirm the reception result on the screen or in a report.
Confirming on Display
Follow these steps to display the reception result.
APress [Change TX / Info].
BPress [Reception File Status].
CCheck the reception results.
Reception results are displayed, from the latest result, in groups of nine.
When a fax or IP-Fax is received, “Sender” shows the Own Fax Number or
Fax Header information. When an Internet Fax is received, the sender's e-mail
address appears.
Checking the Reception Result (Reception File Status)
191
4
DPress [Exit] twice.
The standby display appears.
Note
❒Only the reception results of the latest communications are displayed. For
the maximum number of communication results you can check on this ma-
chine, see “Maximum Values”.
❒You can view received fax documents and their lists, using a Web Image
Monitor on a network computer. For details, see the Web Image Monitor's
Help.
❒If a document is received while you are using this function, the result will
not appear. To view the latest result, exit Reception File Status, and then
try again.
❒You can program one of the Quick Operation keys with operations for this
function. Using the key allows you to omit step A.
Reference
p.272 “Maximum Values”
“Facsimile Features”, General Settings Guide
Confirming by Report
Print a report to confirm reception results.
Journal
Print the Journal to confirm the latest reception results. For details, see “Journal”.
Reference
p.197 “Journal”
Changing/Confirming Communication Information
192
4
Print Journal
You can print the Journal manually.
Important
❒The contents of a Journal printed automatically are deleted after printing.
Keep the journal if you require a record of transmissions and receptions.
Printing the Journal
To print the Journal manually, select the printing method: “All”, “Print per File
No.”, or “Print per User”.
Note
❒You can set whether the Journal is automatically printed after every 50 com-
munications in User Parameters (switch 03, bit 7) in the Facsimile Features
menu.
❒You can display a sender name with the User Parameters (switch 04, bit 5) in
the Facsimile Features menu.
❒Depending on security settings, the Journal is not automatically printed.
❒You can set whether the Journal is printed by line type with the User Param-
eters (switch 19, bit 1) in the Facsimile Features menu.
❒You can program one of the Quick Operation keys with operations for this
function. Using the key allows you to omit the step where you press [Change
TX / Info].
❒Depending on security settings, the destination may not appear.
❒For the maximum number of communication results printed in the Journal,
see “Maximum Values”.
Reference
p.272 “Maximum Values”
“Facsimile Features”, General Settings Guide
Print Journal
193
4
All
Prints the results of communications in the order made.
APress [Change TX / Info].
BPress [Print Journal].
CSelect [All].
DPress the {Start} key.
To cancel a file printing, press [Stop Printing]. The display returns to that of
step C.
EPress [Exit] twice.
The standby display appears.
Changing/Confirming Communication Information
194
4
Print per File No.
Prints only the results of communications specified by file number.
APress [Change TX / Info].
BPress [Print Journal].
CSelect [Print per File No.].
DEnter a 4-digit file number.
If you make a mistake, press [Clear] or the {Clear/Stop} key, and then try again.
EPress the {Start} key.
To cancel a file printing, press [Stop Printing]. The display returns to that of step C.
FPress [Exit] twice.
The standby display appears.
Print Journal
195
4
Print per User
Prints the results of communications by individual senders.
APress [Change TX / Info].
BPress [Print Journal].
CSelect [Print per User].
DSelect a user.
Press [Cancel] if the user is not registered. The display returns to that of step C.
EPress [OK] after checking the user name shown on the display.
Press [Cancel] if a wrong user name is selected. The display returns to that of
step C.
Changing/Confirming Communication Information
196
4
FPress the {Start} key.
To cancel a file printing, press [Stop Printing]. The display returns to that of
step C.
GPress [Exit] twice.
The standby display appears.
Print Journal
197
4
Journal
This section explains the items printed in the Journal.
1. Printing date
Shows the date and time the report was
printed.
2. Programmed Fax Header
Shows the sender name programmed for
printing.
3. Date
Shows the transmission or reception
date.
4. Time
Shows the transmission or reception start
time.
5. Other end
• For fax destinations
Shows the name (for display) pro-
grammed by the other end.
Shows the programmed fax number if
the name (for display) was not pro-
grammed.
If neither name nor fax number was
programmed by the other end, an entered
fax number or a name programmed in a
destination list is shown for transmissions.
ALV010S
Changing/Confirming Communication Information
198
4
• For Internet Fax destinations
At time of transmission, it shows the
e-mail address or name programmed
in the destination list. At time of re-
ception, it shows the e-mail address of
the sender.
At time of broadcasting transmission,
it shows the number of destinations
after the e-mail addresses or names of
destination.
When documents are transmitted
from the computer to the machine, --
LAN-Fax --> appears. To check if the
documents are sent to the receiver,
confirm the same File No.
• For IP-Fax destinations
Shows the IP-Fax destination or name
programmed in the destination list.
The fax destination details appear on
the reception report.
• For Folder destinations
Shows the name programmed in the
destination list.
6. Communication mode
• For fax transmissions and receptions
After the line type, and “T” for outgo-
ing faxes or “R” for incoming faxes,
the communication mode appears in
alphabetical letters or symbols. If the
optional extra G3 interface unit is in-
stalled, “G3-1”, “G3-2”, or “G3-3” ap-
pears.
• For Internet Fax transmissions and re-
ceptions
After , and “T” for outgoing e-
mail or “R” for incoming e-mail, the
communication mode appears in al-
phabetical letters or symbols. A “Q”
indicates outgoing e-mail for which a
Reception Notice is set in “TX Mode”,
whereas an “A” indicates reception
notice e-mail.
• For IP-Fax transmissions and recep-
tions
After , and “T” for outgoing faxes
or “R” for incoming faxes, the com-
munication mode appears in alpha-
betical letters or symbols.
• For forwarding to the folder destina-
tions
After (folder mark) and “T” for
outgoing faxes, the communication
mode appears in alphabetical letters
or symbols.
7. Communication time
Shows time taken for transmissions or re-
ceptions.
8. Number of pages
Shows the number of pages transmitted
or received.
9. Communication result
Shows the result of transmissions or re-
ceptions.
OK: All pages were properly transmitted
or received. When Reception Notice is ac-
tivated using “TX Mode”, receipt of Re-
ception Notice is shown. The results of
received documents that were routed are
preceded by “n”.
--: The Internet Fax document was sent to
the mail server programmed in this ma-
chine. (However, this does not mean the
e-mail was delivered.) When using LAN-
Fax, the results of communication from a
computer to this machine are shown.
Error: A communication error occurred.
D: Power was disconnected during com-
munication. Not all fax documents were
transmitted.
10. User name
Shows the sender's name.
11. File number
Shows file management numbers.
Note
❒To prioritize a fax number or name programmed in the destination list, con-
tact your service representative.
Print Journal
199
4
Transmitting Journal by E-mail
Use this function to send the Journal to the administrator's e-mail address.
The Journal is sent automatically after every 50 communications. A CSV format
Journal is attached to the e-mail.
Important
❒To transmit the Journal by e-mail, it is necessary to make settings with User
Parameters (switch 21, bit 4) in the Facsimile Features menu.
❒This machine does not store sent CSV files. It is recommended that you dou-
ble-check the e-mail address of an administrator before the Journal is trans-
mitted. If the e-mail address of the administrator is not correct, your
important Journal may be lost. Sent CSV files are not left on the fax machine.
Note
❒If the administrator's address is wrong, you may not be able to acquire the
Journal.
❒If the Journal fails to be transmitted in e-mail format, the Journal is printed
out.
❒The name of an attached CSV file is “JOURNALnyear, month, date, hours,
minutes”. For example, the file name transmitted in 14:40 on 20th, December,
2005 is “JOURNAL200512201440.csv”.
❒The subject of a Journal sent by e-mail begins with “Journal”.
Reference
“Facsimile Features”, General Settings Guide
Journal by e-mail
If the setting is made so that the Journal is transmitted as e-mail, it is transmitted
to the e-mail address of an administrator.
Note
❒To transmit the Journal, it is necessary to make settings with the User Param-
eters (switch 21, bit 4) in the Facsimile Features menu.
❒You can set whether or not to display a sender name with the User Parame-
ters (switch 04, bit 5) in the Facsimile Features menu.
❒To set the administrator e-mail address, see “System Settings”, General Set-
tings Guide
❒Depending on security settings, the Destination/Sender name may not appear.
Reference
p.119 “Requesting a Reception Notice”
“System Settings”, General Settings Guide
“Facsimile Features”, General Settings Guide
Changing/Confirming Communication Information
200
4
Printing/Deleting Received and Stored
Documents (Print/Delete Stored
Reception File)
You can print documents that are received and stored on the hard disk. You can
also delete unwanted documents.
Important
❒Make the settings for received and stored documents in “Reception File Set-
ting” in the Facsimile Features menu before using this function.
Note
❒If you have selected to store received documents and specified an e-mail ad-
dress for notification of receipt, fax reception notification can be sent to that
e-mail address.
❒For the maximum number of received documents you can store on the ma-
chine's hard disk, see “Maximum Values”.
❒You can view and print received and stored documents using a Web Image
Monitor or DeskTopBinder.
Reference
p.255 “Viewing Fax Information Using a Web Browser”
p.272 “Maximum Values”
“Facsimile Features”, General Settings Guide
DeskTopBinder's manuals and Help
Printing/Deleting Received and Stored Documents (Print/Delete Stored Reception File)
201
4
Printing Received and Stored Documents
Use the following procedure to print documents saved on the hard disk.
APress [Change TX / Info].
BPress [Print / Delete Stored Reception File].
CSelect a file to be printed, and then press [Print].
To cancel printing, press [Cancel].
To delete the document after printing, press [Delete File after Printing].
To perform two-sided printing, press [Print on 2 Sides] before pressing the
{Start} key.
DPress the {Start} key.
EPress [Exit] twice.
The standby display appears.
Note
❒This function allows you to print only received and stored documents.
❒You cannot print and delete received documents using the Document
Server function.
❒You can program one of the Quick Operation keys with operations for this
function. Using the Quick Operation key allows you to omit step A.
❒You can specify and print multiple documents. For the maximum number
of documents you can specify at a time, see “Maximum Values”.
Changing/Confirming Communication Information
202
4
Reference
p.272 “Maximum Values”
“Facsimile Features”, General Settings Guide
Deleting Received and Stored Documents
Use the following procedure to delete documents stored on the hard disk.
APress [Change TX / Info].
BPress [Print / Delete Stored Reception File].
CSelect a file to be deleted, and then press [Delete].
DPress [Yes].
To cancel a deletion, press [No]. The display returns to that of step C.
EPress [Exit] twice.
The standby display appears.
Note
❒You cannot delete a document while another person is previewing or
printing it using a Web Image Monitor or DeskTopBinder.
❒You can specify and delete multiple documents. For the maximum number
of documents you can specify at one time, see “Maximum Values”.
Reference
p.272 “Maximum Values”
Printing a File Received with Memory Lock
203
4
Printing a File Received with Memory Lock
This is a security function designed to prevent unauthorized users from reading
your documents. If Memory Lock Reception is switched on, all received docu-
ments are stored in memory and are not automatically printed. To print the doc-
uments, you have to enter the Memory Lock ID. When your machine has
received a document with Memory Lock Reception, the Confidential File (i)
indicator blinks.
Before using this function, the following preparations are required.
• Program your Memory Lock ID.
• Set Memory Lock Reception to On.
Important
❒If the main power switch is turned off for about an hour, all documents pro-
tected by Memory Lock Reception are deleted. When this happens, the Power
Failure Report is printed so you can confirm which documents have been de-
leted. For details, see “Troubleshooting When Using the Facsimile Function”,
Troubleshooting.
AConfirm that the Confidential File indicator is blinking.
BPress [Change TX / Info].
CPress [Print Memory Lock].
If no documents were received while Memory Lock Reception was switched
on, the message “No reception file.” is shown. Press [Exit] .
ALV004S
Changing/Confirming Communication Information
204
4
DEnter a 4-digit Memory Lock ID with the number keys, and then press the
{Start} key.
If the Memory Lock ID does not match, the “Specified code does not
correspond to programmed Memory Lock ID.” message appears. Press
[Exit] and retry after checking the Memory Lock ID.
EPress [Exit].
The standby display appears.
Note
❒If Memory Lock Reception and received document storage are both set to
on, Memory Lock Reception is unavailable and received documents be-
come stored documents.
❒Even when Memory Lock Reception is available, if free memory is insuffi-
cient, reception is not possible.
❒You can also apply a Memory Lock Reception to documents that come
only from certain senders.
❒Documents received by SEP Code Reception are automatically printed
even if this function is switched on.
❒You can program one of the Quick Operation keys with operations for this
function. Using the key allows you to omit step B.
Reference
p.200 “Printing/Deleting Received and Stored Documents (Print/Delete
Stored Reception File)”
“Facsimile Features”, General Settings Guide
“Troubleshooting When Using the Facsimile Function”, Troubleshooting
Personal Boxes
205
4
Personal Boxes
You can receive confidential documents to Personal Boxes.
Important
❒Before using this function, set the Personal Box in advance.
Personal Boxes
Storing your documents in a Personal Box prevents unauthorized users reading
them.
When you specify a receiver for the Personal Box, incoming documents are for-
warded directly to the destination you specify. You can specify a fax number, e-
mail address, or IP-Fax destination as the receiver.
To be able to receive documents into a Personal Box, you must inform the sender
of the SUB Code programmed for that Personal Box and ask them to send the
document using SUB Code Transmission with that SUB Code. When your ma-
chine has received a confidential document, the Confidential File (i) indicator
lights.
Important
❒If the main power switch is turned off for about an hour, all documents received
into Personal Boxes are deleted. When this happens, the Power Failure Report
is printed so you can confirm which documents have been deleted. For details,
see “Troubleshooting When Using the Facsimile Function”, Troubleshooting.
❒Documents delivered to registered destinations are deleted from Personal
Boxes.
Note
❒If a receiver is not assigned, you can print the received documents on this ma-
chine. See “Printing Personal Box Documents”.
Reference
p.206 “Printing Personal Box Documents”
p.207 “Confidential File Report”
“Troubleshooting When Using the Facsimile Function”, Troubleshooting
Changing/Confirming Communication Information
206
4
Printing Personal Box Documents
Follow these steps to print a document received into a Personal Box.
AMake sure that the Confidential File indicator is lit.
BPress [Change TX / Info].
CPress [Print Personal Box File].
DSelect the box with the document you want to print.
ALV004S
Personal Boxes
207
4
EIf a password has been set for the box, enter the password, and then press [OK].
If you make a mistake, press [Clear] or the {Clear/Stop} key before pressing
[OK], and then try again.
To cancel entering a password, press [Cancel]. The display returns to that of
step D.
FPress the {Start} key.
To stop printing, press [Stop Printing]. The display returns to that of step D.
To print a document in another Personal Box, repeat from step D.
GPress [Exit] twice.
The standby display appears.
Note
❒If you print a Personal Box document, it is deleted.
❒The passwords for Personal Boxes can be programmed under “General
Settings” in the Facsimile Features menu.
Reference
“Facsimile Features”, General Settings Guide
Confidential File Report
You can check whether a document was received to a Personal Box.
Note
❒You can turn this function on or off with the User Parameters (switch 04, bit 0)
in the Facsimile Features menu.
Reference
“Facsimile Features”, General Settings Guide
Changing/Confirming Communication Information
208
4
Information Boxes
This section describes how to use Information Boxes.
Important
❒Before using this function, set the Information Box in advance.
Information Boxes
Use the Information Box function to set up the machine as a document server.
Program a document into an Information Box for others to pick up. When a request
is made by another party, the SEP Code they specify is matched against the SEP
Codes programmed in that Information Box. If a code matches the document
stored in the Information Box the document is sent to the other party automatically.
Other parties can receive these documents whenever they request them.
Important
❒If the main power switch is turned off for about an hour, all documents stored
in Information Boxes are deleted. When this happens, the Power Failure Report
is printed so you can confirm which documents have been deleted. For details,
see “Troubleshooting When Using the Facsimile Function”, Troubleshooting.
❒For other parties to be able to retrieve a document programmed in an Information
Box, you need to inform the of the SEP Code assigned to that Information Box.
Note
❒For details about storing documents in the Information Boxes, see “Storing
Documents in Information Boxes”.
❒You can set a password for Information Boxes in advance. A password can be
set in “General Settings” in the Facsimile Features menu.
Reference
p.211 “Printing Information Box Documents”
“Facsimile Features”, General Settings Guide
“Troubleshooting When Using the Facsimile Function”, Troubleshooting
Information Boxes
209
4
Storing Documents in Information Boxes
Follow these steps to store a document in an Information Box.
APress [Change TX / Info].
BPress [Store / Delete / Print Information Box File].
CSelect the box in which you want to store the file.
When there are pre-programmed files, a file mark appears to the left of the box name.
A message is displayed if you select a box with a file stored in it. Press [Yes]
when changing the file. The stored original file is overwritten.
DIf a password has been set for the box, enter the password, and then press [OK].
If you make a mistake, press [Clear] or the {Clear/Stop} key before pressing
[OK], and then try again.
To cancel entering a password, press [Cancel]. The display returns to that of step C.
Changing/Confirming Communication Information
210
4
EPlace the original, and then select the scan settings you require.
You can also select the following settings:
• Original Orientation
• Original Settings
•Stamp
FPress the {Start} key.
The machine starts to scan the original.
To stop scanning, press [Stop]. The display returns to that of step C.
To store a document in another Information Box, repeat from step C.
GPress [Exit] twice.
The standby display appears.
Note
❒One Information Box stores one file.
❒The stored file is not deleted automatically. If you want to delete a stored
file, see “Deleting Information Box Documents”.
Reference
p.212 “Deleting Information Box Documents”
Information Boxes
211
4
Printing Information Box Documents
Follow these steps to print a document stored in an Information Box.
APress [Change TX / Info].
BPress [Store / Delete / Print Information Box File].
CPress [Print].
DSelect the box that contains the stored file you want to print.
You cannot select a box that has no stored file.
EIf a password has been set for the box, enter the password, and then press [OK].
If you make a mistake, press [Clear] or the {Clear/Stop} key before pressing
[OK], and then try again.
To cancel entering a password, press [Cancel]. The display returns to that of
step D.
Changing/Confirming Communication Information
212
4
FPress the {Start} key.
If you want two-sided printing, press [Print on 2 Sides] before pressing the
{Start} key.
To stop printing before pressing the {Start} key, press [Cancel]. The display re-
turns to that of step D.
To stop printing after pressing the {Start} key, press [Stop Printing]. The dis-
play returns to that of step D.
Repeat from step D to print another stored file in the box.
GPress [Exit] twice.
The standby display appears.
Deleting Information Box Documents
Follow these steps to delete a file stored in an Information Box.
APress [Change TX / Info].
BPress [Store / Delete / Print Information Box File].
CPress [Delete].
DSelect the box that contains the stored file you want to delete.
Information Boxes
213
4
EIf a password has been set for the box, enter the password, and then press [OK].
If you make a mistake, press [Clear] or the {Clear/Stop} key before pressing
[OK], and then try again.
To cancel entering a password, press [Cancel]. The display returns to that of
step D.
FPress [Yes].
To stop deleting, press [No]. The display returns to that of step D.
Repeat from step D to delete another stored file in another box.
GPress [Exit] twice.
The standby display appears.
Changing/Confirming Communication Information
214
4
215
5. Storing a Document
This section explains storing and managing documents in the Document Server.
Sending a Stored File
This section describes how to store and manage fax documents in the Document
Server.
The Document Server can store documents from various applications.
The documents that are stored using the facsimile function are available to trans-
mit by facsimile.
Storing in the Document Server enables the following:
• Once stored, a document can be sent out as many times as you want, just by
selecting it.
• Storing a document does not use facsimile memory.
You can send and print multiple stored documents as a single document, and
also send them with scanned originals at the same time. Follow the instructions
under [Select Stored File] when sending or printing stored documents.
Important
❒Data stored in the machine can be lost if there is an error on the machine's
hard disk. The manufacturer is not responsible for any damage that might re-
sult from the loss of data.
Storing a Document
216
5
Note
❒Stored documents are not deleted even if there is a power failure, or the main
power switch is turned off.
❒You can specify whether or not the machine automatically deletes documents
from the Document Server after a certain number of days. The delete function
is preconfigured with the software and automatically deletes any stored doc-
ument that is more than three days (72 hours) old. You can change this setting
using “Auto Delete File in Document Server” under “System Settings” . See
“System Settings”, General Settings Guide.
❒You cannot check received and stored documents through the Document
Server.
❒Documents in the Document Server can be sent, printed, or deleted, and their
information can be changed using the Web Image Monitor.
❒Using the DeskTopBinder or Web Image Monitor, documents you stored in
the Document Server can be downloaded and managed on the computer. See
“Document Server”, Copy/Document Server Reference.
❒For the maximum values of the following items, see “Maximum Values”.
• Number of documents you can store in the Document Server using the fac-
simile function
• Number of pages per document you can store in the Document Server
• Number of pages you can store in the Document Server (in total – copy
function, facsimile function, printer function, and scanner function)
Reference
p.272 “Maximum Values”
“Utilizing Stored Documents”, About This Machine
“System Settings”, General Settings Guide
“Document Server”, Copy/Document Server Reference
Storing a Document
You can store and send a document at the same time. You can also just store a
document.
❖File names
Scanned documents are automatically assigned names like “FAX0001” or
“FAX0002”.
❖User Names
You can set this function if necessary to know who and what departments
stored documents in the machine.
❖Password
You can set this function so as not to send to unspecified people.
Sending a Stored File
217
5
APlace the original, and then select the scan settings you require.
Set “Original Orientation” correctly. If you do not, the top/bottom orienta-
tion of the original will not be displayed correctly in the preview.
BPress [Store File].
CSelect [Send & Store] or [Store Only].
Select [Send & Store] to send documents after they are stored.
Select [Store Only] to store documents.
DSet the user name, file name, and password as necessary.
If you are not setting a user name, file name, or password, proceed to step E.
You cannot change multiple documents at once.
EPress [OK].
The file name appears to the left of [Store File].
Storing a Document
218
5
FIf you have selected [Send & Store], specify the receiver.
If you have selected [Store Only], proceed to step G.
GPress the {Start} key.
Note
❒You can change file names and user names.
Reference
p.32 “Setting the Original Orientation”
“System Settings”, General Settings Guide
Programming a user name
APress [User Name].
BPress the user name to be programmed.
Press the title key to switch between titles.
To set a non-programmed user name, press [Manual Entry], and then enter the
name. User names entered by pressing [Manual Entry] are not programmed
into the user code.
CPress [OK].
Note
❒Depending on the security settings, [Access Privileges] might be displayed
instead of [User Name]. For details about setting [Access Privileges], ask the
administrator.
Sending a Stored File
219
5
Reference
“Entering Text”, About This Machine
Setting a file name
APress [File Name].
BEnter the file name.
CPress [OK].
Reference
“Entering Text”, About This Machine
Setting a password
APress [Password].
Storing a Document
220
5
BEnter a password using the number keys, and then press [OK].
If you make a mistake, press [Clear] or the {Clear/Stop} key before pressing
[OK], and then reenter your password.
You can enter up to four to eight digits.
CEnter the password again, and then press [OK].
Sending Stored Documents
The machine sends documents stored in the Document Server.
The documents stored in the Document Server can be sent again and again until
they are deleted. Once sent, documents are stored in the Document Server.
Therefore, you can send them in just one operation without having to set your
originals again.
Important
❒Store the documents to be sent in advance. You can program a password for
this function. You can change the user names, file names, and passwords of
stored documents.
❒You cannot use the following transmission methods:
• Immediate Transmission
• Parallel Memory Transmission
•On Hook Dial
• Manual Dial
APress [Select Stored File].
Sending a Stored File
221
5
BSelect the documents to be sent.
When multiple documents are selected, they are sent in the order of selection.
•Press [Queue] to arrange the order of the documents to be sent.
•Press [File Name] to place the documents in alphabetical order.
•Press [User Name] to place the documents in order by programmed user
name.
•Press [Date] to place the documents in order of programmed date.
To view details about stored documents, press [Details].
Press the Thumbnails key to switch the screen to thumbnail display.
CIf you select a document with a password, enter the password, and then
press [OK].
If the document does not have a password, proceed to step D.
Storing a Document
222
5
DWhen you want to add your originals to stored documents and send them
all at once, press [Original + Stored File] or [Stored file + Original].
When sending only stored documents, proceed to step E.
When [Original + Stored File] is pressed, the machine sends the originals, and
then stored files. When [Stored file + Original] is pressed, the machine sends the
stored files, and then originals.
EPress [OK].
FSpecify the destination, and then press the {Start} key.
To add an original to stored documents, place the original, and then select
any scan settings you require.
The added originals are not stored.
Note
❒You can send only documents saved with the facsimile function in the Doc-
ument Server. You cannot send documents stored in the Document Server
using the copy, printer, or scanner functions.
❒The specified documents are sent with the scan settings made when they
were stored.
❒To see details of the selected document, press [Details]. To return to the dis-
play in step B, press [Exit].
❒For the maximum number of stored documents you can specify at a time,
see “Maximum Values”.
❒For the maximum number of stored pages you can send in one operation,
see “Maximum Values”.
Reference
p.272 “Maximum Values”
Sending a Stored File
223
5
Specifying documents from [File List]
APress [U] or [T] to display the documents to be sent.
BSelect the file.
Specifying documents by [User Name]
ASelect [User Name].
BSelect the user name of the programmed document, and then press [OK].
To search by directly entering a user name, press [Manual Entry], and then enter
the user name. Partial matching is used when searching for a user name.
CSelect the file to be sent.
Storing a Document
224
5
Specifying documents by [File Name]
ASelect [File Name].
BEnter the name of the document to be sent, and then press [OK].
Partial matching is used when searching for a file name.
CSelect the file to be sent.
Displaying a preview
ASelect the document you want to send.
Press the Thumbnail key to switch the screen to thumbnail display.
BPress [Preview].
Sending a Stored File
225
5
CCheck the preview.
•Press [Zoom Out] or [Zoom In] to reduce or enlarge the preview image.
•Press [←][→][↑][↓] to scroll the preview image.
•Press [Switch] for “Display File” to display another selected file.
•Press [Switch] for “Display Page” to change the displayed page.
DPress [Exit].
EPress [OK].
Note
❒If image files are corrupt or are larger than A3, they are not displayed on
the preview window.
❒If the image file is corrupt, store it again.
❒If you stored originals that had multiple mixed-size pages without using
the Mixed Original Sizes function, the displayed size might differ from the
actual size for pages after the first page.
Printing Stored Documents
Use this function to print documents stored in the Document Server.
Important
❒When [Print 1st Page] is selected, originals larger than A4 size are printed after
they are reduced to A4 size.
APress [Select Stored File].
Storing a Document
226
5
BSelect the document to be printed.
Press the Thumbnail key to switch the screen to thumbnail display.
CIf you select a document with a password, enter the password, and then
press [OK].
If the document does not have a password, proceed to step D.
DPress [Print File] or [Print 1st Page].
When [Print File] is pressed, the machine prints all the pages. When [Print 1st
Page] is pressed, the machine prints only the first page.
To print both sides, press [Print 2 Sides]. When multiple files are specified they
are printed per file.
To cancel printing, press [Cancel].
EPress the {Start} key.
When only the first page is printed, the file name is printed at the top of the
paper.
To cancel printing after pressing the {Start} key, press [Stop Printing].
FPress [Cancel].
The standby display appears.
Sending a Stored File
227
5
Note
❒Only documents stored using the facsimile function can be printed.
❒When printing originals that were not stored using the Mixed Original Siz-
es function, paper sizes might differ according to whether printing is
through the facsimile function or the Document Server.
❒You can also print the first page only to check the content of the original.
❒You can specify and print multiple documents at one time.
❒For the maximum number of stored documents you can print at a time us-
ing [Print 1st Page], see “Maximum Values”.
❒For the maximum number of stored pages you can print at a time, see
“Maximum Values”.
Reference
p.272 “Maximum Values”
Changing Stored Document Information
You can change the file name, user name, and password of stored documents.
To change a stored document, delete the document you no longer need, and then
reprogram the new document.
ASelect [Select Stored File].
BSelect [Manage / Delete File], and then press the document to be changed.
Storing a Document
228
5
CIf you select a document for which a password is set, enter the password,
and then press [OK].
When a selected file does not have a password, proceed to step D.
DChange the desired information of the stored document.
Press the keys for the items you want to change.
EPress [Exit].
The standby display appears.
Sending a Stored File
229
5
Changing a user name
APress [Change User Name].
BPress [Clear].
The user name is deleted.
CEnter the new user name, and then press [OK].
Press the title word keys to switch between titles.
To set a non-programmed user name, press [Manual Entry], and then enter the
name.
User names entered by pressing [Manual Entry] are not programmed into the
user code.
Note
❒Depending on the security settings, [Change Access Priv.] might be dis-
played instead of [Change User Name]. For details about setting [Change Ac-
cess Priv.], ask the administrator.
Reference
“Entering Text”, About This Machine
Storing a Document
230
5
Changing the file name
APress [Change File Name].
BPress [Backspace] or [Delete All], and then re-enter the file name.
CPress [OK].
Reference
“Entering Text” About This Machine
Changing the password
APress [Change Password].
Sending a Stored File
231
5
BEnter a new password using the number keys, and then press [OK].
CEnter the password again, and then press [OK].
Deleting a Stored Document
Use this function to delete stored documents.
APress [Select Stored File].
Storing a Document
232
5
BPress [Manage / Delete File].
CSelect the document you want to delete.
You can also delete multiple documents at once.
DEnter a password using the number keys, and then press [OK].
EPress [Delete File].
FPress [Yes].
If you do not want to delete the document, press [No].
GPress [Exit].
The standby display appears.
233
6. Fax via Computer
This section explains how to use this machine's facsimile function from a com-
puter via a network.
Sending Fax Documents from Computers
You can send a document created with a Windows application from a computer
connected to the machine to another fax machine.
Connect computers to the machine via parallel port, LAN, IEEE 802.11b (wire-
less LAN), IEEE 1394 (IPv4 over 1394), or USB 2.0.
• To send a fax, simply select [Print] from the Windows application, then select
LAN-Fax as the printer, and then specify a destination. LAN-Fax enables pa-
perless faxing from your computer to the other destinations.
• In addition to sending faxes, the LAN-Fax Driver allows this machine to be
used for printing out documents prepared on a computer for proof checking.
• To use the LAN-Fax Driver, connect this machine to a LAN and make the nec-
essary network settings, and then install the LAN-Fax Driver and the related
utilities on your computer.
Important
❒Errors occurring when the machine is used as a LAN-Fax will not be dis-
played on the computer. Check for errors by using a Web Image Monitor. See
Web Image Monitor help.
❒USB connection is not available when using the LAN-Fax function on Win-
dows 98.
❒The facsimile function of this machine cannot be used with IPv6.
ALT007S
Fax via Computer
234
6
Note
❒It is recommended that you use a Web Image Monitor running under the
same network environment as this machine. Otherwise, the Web browser
may not open and an error may occur.
Before Use
To use these features, a LAN-Fax Driver must be installed on your computer.
Use the LAN-Fax Driver included on the scanner CD-ROM. You must also make
the required computer to fax network settings on the machine, according to the
type of connection.
Note
❒When a personal computer and the machine are connected in parallel: See
“Preparing the Machine”, Printer Reference.
❒When using Ethernet, IEEE 1394 (IPv4 over 1394), or IEEE 802.11b (wireless
LAN): See “Connecting the Machine”, General Settings Guide.
Reference
“Connecting the Machine”, General Settings Guide
“System Settings”, General Settings Guide
“Preparing the Machine”, Printer Reference
Using the Software
This section provides information about LAN-Fax Driver, Address Book, and
LAN-Fax Cover Sheet Editor.
LAN-Fax Driver
This driver allows you to use LAN-Fax functions.
Important
❒All operations cannot be guaranteed depending on the system environment.
❒When you use Windows NT, LAN-Fax Driver will not work in an RISC base
processor (MIPS R series, Alpha AXP, PowerPC) environment.
❖Location of the file
The following folders are on the CD-ROM:
• LAN-Fax Driver for Windows 98/Me
\DRIVERS\LAN-FAX\WIN9X_ME
• LAN-Fax Driver for Windows NT 4.0
\DRIVERS\LAN-FAX\NT4
• LAN-Fax Driver for Windows 2000/XP and Windows Server 2003
\DRIVERS\LAN-FAX\WIN2K_XP
Sending Fax Documents from Computers
235
6
❖Operating environment
•Computer
PC/AT compatible
• Operating systems
Microsoft Windows 98/Me
Microsoft Windows 2000/XP
Microsoft Windows Server 2003
Microsoft Windows NT 4.0
•Display
VGA 640×480 pixels or more
Note
❒Before beginning installation, exit all other applications.
Address Book
Address Book helps you edit LAN-Fax transmission destinations.
❖Operating systems
Microsoft Windows 98/Me
Microsoft Windows 2000/XP
Microsoft Windows Server 2003
Microsoft Windows NT 4.0
LAN-Fax Cover Sheet Editor
LAN-Fax Cover Sheet Editor helps you edit LAN-Fax cover sheets.
❖Operating systems
Microsoft Windows 98/Me
Microsoft Windows 2000/XP
Microsoft Windows Server 2003
Microsoft Windows NT 4.0
Fax via Computer
236
6
Auto Run program
The installers for various drivers and utilities launch automatically as Auto Run
programs when you insert the CD-ROM.
LAN-Fax Driver, Address Book, and LAN-Fax Cover Sheet Editor can be in-
stalled by Auto Run.
Important
❒If the plug and play function starts, click [Cancel] in the [New Hardware Found],
[Device Driver Wizard], or [Found New Hardware Wizard] dialog box, and then in-
sert the CD-ROM. The [New Hardware Found], [Device Driver Wizard], or [Found
New Hardware Wizard] dialog box appears depending on the system version of
Windows 98/Me, Windows 2000/XP, Windows Server 2003, or Windows NT
4.0.
❒Auto Run might not work automatically with certain OS settings. If this is the
case, double-click “Setup.exe”, located on the CD-ROM root directory.
❒If you want to cancel Auto Run, hold down the {SHIFT} key (when your sys-
tem is Windows 2000/Windows XP or Windows Server 2003, hold down the
left {SHIFT} key) while inserting the CD-ROM. Keep the {SHIFT} key held
down until the computer stops reading the CD-ROM.
❒Clicking [Cancel] during installation aborts the installation. If you cancel the
installation, restart your computer and install the rest of the software or print-
er driver.
Note
❒If your operating system is Windows 2000/XP, Windows Server 2003 or Win-
dows NT 4.0, installing a printer driver using Auto Run requires Administra-
tor permissions. When you install LAN-Fax Driver using Auto Run, log on
using an account that has Administrator permissions.
Installing Individual Applications
You need to install a LAN-Fax Driver on your computer before using the LAN-Fax
functions. The LAN-Fax Driver is on the CD-ROM included with this machine.
Address Book and LAN-Fax Cover Sheet Editor are installed with the LAN-Fax
Driver. Address Book helps you edit LAN-Fax transmission destinations. LAN-
Fax Cover Sheet Editor helps you edit LAN-Fax cover sheets.
Use the following procedure to install LAN-Fax Driver, Address Book, and
LAN-Fax Cover Sheet Editor at one time.
Important
❒Before installing the above applications, install SmartDeviceMonitor for Client.
Sending Fax Documents from Computers
237
6
AQuit all applications currently running.
BInsert the CD-ROM included with this machine into the CD-ROM drive of
your computer.
The installer launches automatically, and the language selection window appears.
Depending on your operating system settings, the installer may not launch
automatically. If it does not, double-click “Setup.exe” in the CD-ROM root di-
rectory to launch the installer.
CSelect the interface language of the software, and then click [OK].
DClick [LAN-Fax Driver].
The software license agreement window appears.
ERead all of the terms and, if you agree, select [I accept the agreement.], and
then click [Next].
If you select [I don't accept the agreement.], you cannot complete the installation.
FSelect the [LAN-Fax Driver] check box, and then click [Next].
GConfirm that the [Printer Name:<LAN-Fax M8>] check box is selected, and then
click [Continue].
Select the desired port.
HClick [Finish].
The installation completion dialog box appears.
IClick [Finish].
JClick [Exit].
Setting LAN-Fax Driver Properties
This section explains how to set properties required for using the LAN-Fax Driver.
Note
❒If your operating system is Windows NT 4.0, Windows 2000/XP, or Windows
Server 2003, log on using an account that has Administrator rights.
Fax via Computer
238
6
Setting print properties
This section explains how to make settings such as paper size or resolution.
AOn the [Start] menu, point to [Settings], and then click [Printers].
With Windows XP Professional or Windows Server 2003, select [Printers and
Faxes] on the [Start] menu.
With Windows XP Home Edition, select [Control Panel] on the [Start] menu.
Next select [Printers and Other Hardware], and then [Printers and Faxes].
BSelect to highlight [LAN-Fax M8], then click [Properties] on the [File] menu.
With Windows NT, click [Document Defaults...] on the [File] menu.
CWhen using Windows 98/Me, click the [Paper] tab to set the following properties.
• Paper Size
• Orientation
•Tray
•Resolution
•Gray Scale
• Print as Graphics
DWhen using Windows NT 4.0, set the following properties.
• Paper Size
• Orientation
•Tray
•Resolution
EWhen using Windows 2000/XP or Windows Server 2003, click the [Printing
Preferences...] button to set the following properties.
• Paper Size
• Orientation
•Tray
•Resolution
FClick [OK].
Sending Fax Documents from Computers
239
6
Making settings for option configuration
Make settings for optional units installed in this machine.
AOn the [Start] menu, point to [Settings], and then click [Printers].
With Windows XP Professional or Windows Server 2003, select [Printers and
Faxes] on the [Start] menu.
With Windows XP Home Edition, select [Control Panel] on the [Start] menu.
Next select [Printers and Other Hardware], and then [Printers and Faxes].
BSelect to highlight [LAN-Fax M8], then click [Properties] on the [File] menu.
CClick the [Accessories] tab, and then make the settings for the option configuration.
DWhen the machine is connected to a network, option configuration is auto-
matically performed. If the settings do not match the installed optional
units, click [Load from Device].
EWhen this machine is connected locally to your computer, select the check
boxes for the installed optional units.
FClick [Apply].
Option configuration settings are complete.
GClick [OK].
[Accessories] tab
The [Accessories] tab contains the following items besides option configura-
tion items.
• Prohibit manual destination entry
Check this option to inhibit direct destination specification.
•Enable E-mail
Check this when using Internet Fax with the LAN-Fax function.
•IP-Fax
Check this option when using IP-Fax.
After checking this option, select a protocol by clicking an appropriate ra-
dio button.
Note
❒If the options on this machine are not configured as instructed, LAN-Fax
functions may fail.
❒When this machine is connected to a network and the port is set via the
“SmartDeviceMonitor for Client” port, option configuration is automati-
cally performed. For details about automatic option configuration, see
LAN-Fax Deriver's Help.
Fax via Computer
240
6
Basic Transmission
This section explains how to send fax documents created using Windows applications.
To send a fax, simply select [Print...] from the Windows application, then select
[LAN-Fax M8] as the printer, and then specify a destination in the [LAN-Fax] dialog box.
Open the application document you want to send or create a new document, and
then perform the following procedure.
For details, see LAN-Fax Driver's Help.
Important
❒When using SmartDeviceMonitor for Client, you cannot send documents to
this machine using more than one LAN-Fax at the same time.
AOn the [File] menu, click [Print...].
BSelect [LAN-Fax M8] in the [Name:] list.
CClick [OK].
The LAN-Fax dialog box appears.
The setting method may differ depending on the application you are using.
In all cases, select [LAN-Fax M8] for the printer.
DSpecify the destination.
For details about specifying a destination, see the LAN-Fax Driver's Help.
When user authentication is used with this machine, click [User Settings...].
ESpecify necessary options.
FClick [Send].
When you click [Send & Print], the fax is sent to the destination and your ma-
chine prints a copy of the document you sent.
Note
❒
The machine can retain documents sent from a LAN-Fax Driver as files to be sent. For
the maximum number of documents the machine can retain, see “Maximum Values”.
❒
For the maximum number of destinations you can specify per file, see “Maximum Values”.
Reference
p.241 “Specifying a destination using a destination list”
p.241 “Specifying a destination using Address Book”
p.242 “Specifying a destination by directly entering a fax number, Internet
Fax Destination, or IP-Fax destination”
p.243 “Specifying Options”
p.246 “Confirming Transmission Results by E-mail”
p.248 “Editing Address Book”
p.272 “Maximum Values”
Sending Fax Documents from Computers
241
6
Specifying a destination using a destination list
AClick the [Address Book] or [Specify Destination] tab.
The [Address Book] or [Specify Destination] tab appears.
BSelect the [Device Address] (or [Use device address]) check box.
CThe machine's address is displayed in the [Device Address] field on the [Ad-
dress Book] tab. On the [Specify Destination] tab, enter the registration number
of the Destination key in the [Device Address] box.
DClick [Set as Destination].
The entered destination is added and appears in the [List of Destination:] box.
If you add a destination by mistake, click the wrong destination, and then
click [Delete from List].
ETo specify more destinations, repeat steps C and D.
Specifying a destination using Address Book
Important
❒In order to use this method, you need to register destinations in the address
list using Address Book.
AClick the [Address Book] tab.
The [Address Book] tab appears.
BSelect a CSV file containing the desired destination list, from the [Address
Book:] drop-down menu.
Up to the three most recently used files appear in the dropdown menu. To use
a destination list that did not appear, click [Browse...], and then select the file.
CSelect [Contact] or [Group] in the [Name:] dropdown menu as the display format.
Destination list contents change as follows, depending on the option selected:
• Contact: Individual name, company name, department name, fax number
•Group: Group name
If you selected [Group], proceed to step E.
DIf you selected [Contact] in step C, select the type of fax from the [Type:]
dropdown menu.
To send by standard fax or IP-Fax, select [Fax]. To send by Internet Fax, select
[E-mail].
Fax via Computer
242
6
EClick the destination in the destination list to highlight it, and then click
[Set as Destination].
The selected destination is added and appears in the [List of Destination:] box.
If you add a destination by mistake, click the wrong destination, and then
click [Delete from List].
In the Address Book list box, directly enter the name you want to search for.
You can then jump to the name you entered.
FTo specify more destinations, repeat steps B through E.
Note
❒Destination list contents can be narrowed down by selecting the first letter
of a contact name, company name or group name in the [Search] dropdown
menu.
Specifying a destination by directly entering a fax number, Internet Fax Destination, or
IP-Fax destination
AClick the [Specify Destination] tab.
The [Specify Destination] tab appears.
BSelect the type of fax from the [Type:] dropdown menu.
To send by standard fax or IP-Fax, select [Fax]. To send by Internet Fax, select
[E-mail].
After you select the fax type, the items corresponding to the selected type appear.
CSpecify the destination.
Specify the destination depending on the selected fax type as follows:
•If you selected [Fax]: enter the fax number. To send by IP-Fax, enter the IP-
Fax destination.
•If you selected [E-mail]: enter the e-mail address.
To enter a pause in the fax number, click [Pause]. If you selected [E-mail] in step
B, [Pause] is not available.
DSpecify settings according to the type of fax transmission.
Specify settings according to the type of fax transmission selected in step B,
as follows:
•If you selected [Fax], select a line or a protocol in the [Line:] list.
•If you selected [E-mail], select the [Do not use SMTP server] check box if you
want to bypass the SMTP server.
EClick [Set as Destination].
The entered destination is added and appears in the [List of Destination:] box.
If you add a destination by mistake, click the wrong destination, and then
click [Delete from List].
Sending Fax Documents from Computers
243
6
FTo specify more destinations, repeat steps B through E.
Note
❒For the maximum number of digits for a destination, see “Maximum Values”.
Reference
p.60 “Sending Over a Fax Line”
p.63 “Sending by IP-Fax”
p.66 “Sending to an E-mail Address”
p.272 “Maximum Values”
Specifying Options
You can specify the following transmission options when sending a fax.
For details about transmission options, see the LAN-Fax Driver's Help.
• Sending at specific time
•Print Fax Header
• Attach a Cover Sheet
• 2 sided printing
•Preview
• Save as file
• Document Server
To send a fax document at a specific time
AClick [Send Options].
The [Send Options] tab appears.
BSelect the [Sending at specific time] check box, and then specify a transmission
time.
To print a sender stamp
AClick [Send Options].
The [Send Options] tab appears.
BSelect the [Print Fax Header] check box.
Fax via Computer
244
6
To attach a cover sheet
AClick [Send Options].
The [Send Options] tab appears.
BSelect the [Attach a Cover Sheet] check box.
A cover sheet is added to the first page of a transmission file.
Click [Edit Cover Sheet...] to edit the cover sheet.
Reference
p.251 “Editing Fax Cover Sheets”
To specify two-sided printing
AClick [Send Options].
The [Send Options] tab appears.
BSelect the [2 sided printing] check box.
To display preview
Selecting the [Preview] check box allows you to check how the fax document will
be output at the destination.
AClick [Send Options].
The [Send Options] tab appears.
BSelect the [Preview] check box.
CClick [Send] or [Send & Print].
The [Preview] window appears.
DClick [Next] or [Previous] to check the image.
To close the [Preview] window, click [Cancel].
Saving as files
You can save the fax document in TIFF format (TIFF-F).
AClick [Send Options].
The [Send Options] tab appears.
BSelect the [Save as file] check box.
CClick [Save to...].
DSelect a folder on the folder tree.
Sending Fax Documents from Computers
245
6
ESelect a method of file naming.
To enter a file name manually, select the [Specify file name when saving] check
box. To have the file assigned a name and saved automatically, select the [Au-
tomatically create a new file] check box.
FClick [OK].
GClick [Save] or [Save & Send].
If you select [Automatically create a new file], the image file is assigned a name
and saved under the specified folder.
The file name will be RicHHMMSS.tif (HH: hours, MM: minutes, SS: seconds).
HEnter a file name.
You can also change the folder in this step.
IClick [Save].
The image file is saved in the specified folder.
Note
❒Single-page documents are saved as single TIFF files, and multiple-page
documents are saved as multiple TIFF files.
To store the fax document on the Document Server
Important
❒If [Hard Disk Unit] is not selected in [Accessories] on the printer properties dia-
log box, you cannot select [Document Server].
AClick [Send Options].
The [Send Options] tab appears.
BSelect the [Send to Document Server] check box, and then enter a user name,
file name, and password.
Fax via Computer
246
6
Checking Transmission Using LAN-Fax Driver
From “SmartDeviceMonitor for Admin”, “SmartDeviceMonitor for Client”, or
Web Image Monitor, you can check information about files sent using LAN-Fax
Driver. For the maximum number of transmission results you can check, see
“Maximum Values”.
Also, you can save the contents of the Journal in a personal computer as a CSV
file using [Load Fax Journal] in “SmartDeviceMonitor for Admin”.
Note
❒When data is transmitted from the LAN-Fax Driver via the “SmartDeviceMonitor
for Client” port, the “Data-transmission complete.” message appears on the
computer's display, so you can easily ascertain the communication progress.
However, if the volume of communication data from the LAN-Fax to this machine
increases, the message may appear during the operation, due to the differences
in memory capacity between this machine and “SmartDeviceMonitor for Cli-
ent”. For more accurate fax transmission results, use “E-mail TX results”.
❒The job history may differ from the machine's transmission results. In that
case, refer to the machine's transmission results.
❒See the relevant Help for details.
Reference
p.188 “Communication Result Report (Memory Transmission)”
p.272 “Maximum Values”
Confirming Transmission Results by E-mail
After communicating in the LAN-Fax mode, this function transmits the commu-
nication results with the computer by e-mail.
When you have done [Send] or [Send & Print] using the LAN-Fax, and when the
communication was successful, it transmits e-mail of the transmission result.
Result notification e-mail is sent when printing is complete, or if an error occurs
during communication between this machine and a computer.
AClick the [E-mail Settings] tab.
BSelect the [Notify] check box under [E-mail TX results].
CEnter the destination.
When entering the e-mail address directly, click the [Specify destinations] radio
button, and then enter the e-mail address in the [Specify destinations] field.
When entering the machine's programmed address, click the [Device Address]
radio button, and then enter the registration number of the Destination key in
the [Device Address] box.
The [Device Address] box is unavailable when the [Specify destinations] is select-
ed, and you cannot enter anything in the text box.
Sending Fax Documents from Computers
247
6
DClick [Send] or [Send & Print].
Note
❒You can confirm transmission results using the E-mail TX Results function
and the Communication Result Report. You can set whether to use both of
these together in User Parameters (switch 10, bit 6) in the Facsimile Fea-
tures menu.
❒If there be any insufficient configurations in the e-mail menu on this ma-
chine, or if “Auto Specify Sender Name” is set to “Off”, the LAN-Fax result
notification e-mail is not transmitted, and the LAN-Fax Result Report is
printed. See “System Settings”, General Settings Guide for the e-mail set-
tings, and see “LAN-Fax Result Report” for the LAN-Fax Result Report.
Reference
p.188 “Communication Result Report (Memory Transmission)”
p.247 “LAN-Fax Result Report”
p.272 “Maximum Values”
“Facsimile Features”, General Settings Guide
LAN-Fax Result Report
This section explains the LAN-Fax Result Report.
If “E-mail TX results” is set to “Notify”, if there be any insufficient configura-
tions in the e-mail menu on this machine, or if “Auto Specify Sender Name” is
set to “Off”, the LAN-Fax result notification e-mail is not transmitted, and the
LAN-Fax Result Report is printed. If the “E-mail TX Results” of “Sender Name”
has not been set to on, the LAN-Fax Result Report is printed.
Note
❒Whether or not the LAN-Fax Result Report is printed, can be configured with
User Parameters (Switch 20, bit 0) in the Facsimile Features menu.
❒When executing [Send] or [Send & Print] with the LAN-Fax Driver, and when
the E-mail TX Result Report has not arrived, the Communication Result Re-
port is printed.
Reference
p.188 “Communication Result Report (Memory Transmission)”
“Facsimile Features”, General Settings Guide
Fax via Computer
248
6
Printing and Saving
You can print documents created using Windows applications.
Open the application document you want to print or create a new document,
and then perform the following procedure.
For details about printing the fax image, see the LAN-Fax Driver's Help.
AOn the [File] menu, click [Print...].
BSelect [LAN-Fax M8] in the [Name:] list, and then click [OK].
The [LAN-Fax] dialog box appears.
The setting method may differ depending on the application you are using.
In all cases, select [LAN-Fax M8] for the printer.
CClick [Print] or [Send & Print].
You can save the fax image in a file. See “Specifying Options”.
Note
❒You can also save documents in TIFF format. For details about saving in
TIFF format, see “Saving as files”.
❒You can select the length of time the machine keeps document data in
memory if print fails due to problems such as a paper shortage or paper
jams. Make this setting with User Parameters (switch 20, bit 2, 3, 4, 5) in the
Facsimile Features menu. Date is deleted when the specified length of time
elapses.
Reference
p.243 “Specifying Options”
p.244 “Saving as files”
“Facsimile Features”, General Settings Guide
Editing Address Book
You can program and edit destinations in the address list using the Address
Book.
For details about the Address Book, see the LAN-Fax Driver's Help.
Note
❒You can use files created in CSV format as Address Book data. For this pur-
pose, create CSV files that conform to a certain format. For more information,
see Help.
Sending Fax Documents from Computers
249
6
Programming new destinations
AOn the [Start] menu, point to [Programs], [LAN-Fax Utilities], and then click [Ad-
dress Book].
The [Address Book] dialog box appears.
If LAN-Fax Driver has already started up, click [Edit Address Book...].
BClick [New/Browse...], and then select the CSV file containing the address list
to be edited.
CEnter the destination and name.
You can enter a contact name, company name, department name, fax
number, e-mail address, and IP-Fax address. The name and destination (Fax
Number, E-mail address or IP-Fax address) cannot be omitted.
DClick [Add].
The destination is added to the destination list.
EClick [Close].
FIf you made changes to a destination, a confirmation message appears. To
save the changes, click [Yes].
If you do not want to save the changes and want to quit editing, click [No].
To return to the editing display, click [Cancel].
The confirmation dialog box does not appear when you have not made any
changes after starting Address Book.
Note
❒To program the contents of the destination list of this machine to the Ad-
dress Book, select the [Use device address] check box, then enter the Desti-
nation key's registration number in the [Device Address] field.
❒For [Line:] under [Fax Number:], the following line types are selectable; G3,
G3-2, G3-3, G4, G3 Dir. Auto, G3 PABX Auto, or I-G3. However, this ma-
chine does not support G4 and G3 PABX Auto.
❒For [Protocol:] under [IP-Fax address:], select [H.323] or [SIP].
❒To bypass the SMTP server, under the [E-mail address:] box, select the [Do
not use SMTP server] check box.
Fax via Computer
250
6
Editing programmed destinations
AOn the [Start] menu, point to [Programs], [LAN-Fax Utilities], and then click [Ad-
dress Book].
The [Address Book] dialog box appears.
If LAN-Fax Driver has already started up, click [Edit Address Book...].
BClick [New/Browse...], and then select the CSV file containing the address list
to be edited.
CSelect the destination you want to edit so it is highlighted in the list.
DEdit the data.
EClick [Update].
FClick [Close].
GIf you made changes to a destination, a confirmation message appears. To
save the changes, click [Yes].
If you do not want to save the changes and want to quit editing, click [No].
To return to the editing display, click [Cancel].
The confirmation dialog box does not appear when you have not made any
changes after starting Address Book.
Deleting programmed destinations
AOn the [Start] menu, point to [Programs], [LAN-Fax Utilities], and then click [Ad-
dress Book].
The [Address Book] dialog box appears.
If LAN-Fax Driver has already started up, click [Edit Address Book...].
BClick [New/Browse...], and then select the CSV file containing the address list
to be edited.
CSelect the destination you want to delete so it is highlighted in the list.
DClick [Delete].
EClick [Yes].
FClick [Close].
Sending Fax Documents from Computers
251
6
GIf you made changes to a destination, a confirmation message appears. To
save the changes, click [Yes].
If you do not want to save the changes and want to quit editing, click [No].
To return to the editing display, click [Cancel].
The confirmation dialog box does not appear when you have not made any
changes after starting Address Book.
Using the Machine's Address Book Data in the Destination List of
the LAN-Fax
You can save information about fax destinations registered to this machine in a
personal computer as a CSV file using “Address Management Tool” in “Smart-
DeviceMonitor for Admin”. Saved CSV files can be inserted into the destination
table of the LAN-Fax Driver by selecting [New/Browse...] in Address Book. Save
the file again for the LAN-Fax Driver.
Note
❒When destinations registered in groups by this machine are inserted into Ad-
dress Book, each person's destination is determined according to the follow-
ing order of priority (check before inserting and changing the order of
priority, if necessary): IP-Fax destination → Fax number → Mail address
❒Depending on the machine type, you may not be able to use the machine
when it is updating the Address Book using CSV files (retrieved using Smart-
DeviceMonitor for Admin) that contain user codes.
❒For details, see “SmartDeviceMonitor for Admin” Help.
Editing Fax Cover Sheets
LAN-Fax Cover Sheet Editor allows you to edit the format for fax cover sheets.
Important
❒It is necessary to create a cover sheet file before attaching a cover sheet to fax
document using LAN-Fax Driver.
Fax via Computer
252
6
Creating a cover sheet
Use the following procedure to create a fax cover sheet.
You can edit the following items using LAN-Fax Cover Sheet Editor.
• Company name as destination information
• Department name as destination information
• Person name as destination information
• Company name as sender information
• Department name as sender information
• Person name as sender information
• Telephone number as sender information
• Fax number as sender information
•Date
• Message
AOn the [Start] menu, point to [Programs], [LAN-Fax Utilities], and then click
[LAN-Fax Cover Sheet Editor].
The [LAN-Fax Cover Sheet Editor] dialog box appears.
BEdit the cover sheet.
For details about operations, see Help.
CClick [Save as...] on the [File] menu.
DSelect a folder, and then enter a file name.
EClick [Save].
Note
❒Cover sheet data is stored in its own format (using “fcp” as its extension).
Sending Fax Documents from Computers
253
6
Attaching a created cover sheet
Use the following procedure to attach a created cover sheet file to a fax document.
AOn the [File] menu, click [Print...].
BSelect [LAN-Fax M8] in the [Name:] list, and then click [OK].
The [LAN-Fax] dialog box appears.
CClick [Edit Cover Sheet...].
The [Cover Sheet] dialog box appears.
DSelect a cover sheet file from the drop-down list or after clicking [Browse...]
in [Select Cover Sheet].
The selection made in [Select Cover Sheet] is not canceled unless you select an-
other file. If you want to change only destination information, omit this step
and proceed to step E.
ESelect the type of information from [To:].
You can select [Use Address Book], [To Whom It May Concern], [Edit Names], or
[(None)]. Selecting [Edit Names] allows you to enter company, department, and
person names.
FTo print the date, select the [With a Date] check box.
GEnter the sender information.
You can enter company, department, and contact names, and telephone and
fax numbers.
To add a message, select the [With a Message] check box, and then enter a message.
HClick [OK].
ISpecify a destination.
JClick the [Send Options] tab, and then select the [Attach a Cover Sheet] check
box.
KClick [Send] or [Send & Print].
Fax via Computer
254
6
Managing Facsimile Functions Using SmartDeviceMonitor for
Admin
You can check information about this machine's fax functions using a computer
and save files on a computer using SmartDeviceMonitor for Admin.
Note
❒For details about SmartDeviceMonitor for Admin and its installation, see
“Monitoring and Configuring the Printer”, Network Guide.
❒For details, see Network Guide and SmartDeviceMonitor for Admin Help.
Reference
“Monitoring and Configuring the Printer”, Network Guide
LAN-Fax Operation Messages
This section explains typical operation error messages displayed on the compu-
ter when using the LAN-Fax Driver, and solutions to those messages.
Message Causes and Solutions
Cannot connect to the de-
vice.
Check the network connection.
Check that the power is turned on.
The number of entries in
Destinations exceed the
limits. Up to 500 entries
can be entered.
The number of destinations specified exceeds the
maximum possible. The maximum number of desti-
nations that can be specified at one time is 500.
"LAN-Fax" has already been
launched. Cannot launch it
again.
The [LAN-Fax] dialog box is already open. Quit LAN-
Fax once, and then start it up again.
Failed to allocate memory. Available memory on the computer is insufficient.
Quit applications currently not in use.
Viewing Fax Information Using a Web Browser
255
6
Viewing Fax Information Using a Web
Browser
You can view received fax documents and their lists or print these documents
using a Web Image Monitor on a network computer.
Note
❒It is recommended that you use a Web Image Monitor running under the
same network environment as this machine. Otherwise, the Web browser
may not open and an error may occur.
❒You need to select “Store” as the “Reception File Setting” in the Facsimile Fea-
tures menu.
❒You can also check and manage the documents using DeskTopBinder.
Reference
“Monitoring and Configuring the Printer”, Network Guide
“Facsimile Features”, General Settings Guide
DeskTopBinder's manual and Help
Viewing, Printing, and Deleting Received Fax Documents Using a
Web Image Monitor
Use the following procedure to view and/or print received fax documents using
a Web Image Monitor.
Viewing received fax documents using a Web browser
AStart a Web browser.
BEnter the machine's IPv4 address in the [Address] field.
CClick [Fax Received File] in the left pane.
DIf you have programmed a user code for the stored reception file, enter the
code, and then press [OK].
A list of the received fax documents appears.
If the programmed user code was deleted using the Address Book Manage-
ment function under System Settings, a message indicating incorrect user
code entry appears. If this is the case, reprogram a user code.
EClick of the desired fax document.
To view a list of the fax documents, select the thumbnail display, icon display,
or detail display. Click , , or .
Fax via Computer
256
6
FView the content of the fax document.
To enlarge the preview image, click [Enlarge Image]. Enlargement cannot be
performed without Acrobat Reader installed. For more information, see Help
on the Web Image Monitor.
GTo download the received fax document, click [PDF] or [Multi-page TIFF], and
then click [Download].
A downloading confirmation dialog box appears.
When you select [PDF], make the necessary “PDF File Security Settings” be-
fore clicking [Download]. Acrobat Reader starts and the selected document is
displayed.
Note
❒If your computer cannot be connected to Web Image Monitor, see Network
Guide.
❒To download the document data on the list of received fax documents,
click [TIFF] or [PDF]. For details about downloading, see the Web Image
Monitor Help.
❒The method for downloading differs depending on the selected format.
For more information, see Help on the Web Image Monitor.
Reference
Network Guide
Printing fax information using a Web browser
AStart a Web browser.
BEnter the machine's IPv4 address in the [Address] field.
CClick [Fax Received File] in the left pane.
The list of received fax documents appears.
DSelect the check box of the fax document to be printed.
To view a list of the fax documents, select the thumbnail display, icon display,
or detail display. Click , , or .
EClick [Print].
FClick [Print].
To cancel printing, press [Cancel] before clicking [Print].
You can change the printing order of selected multiple documents. You can
also have documents printed on both sides of the paper. For more informa-
tion, see Help on the Web Image Monitor.
GClick [OK].
The display returns to that of step E.
Viewing Fax Information Using a Web Browser
257
6
Deleting fax information using a Web browser
AStart a Web browser.
BEnter the machine's IPv4 address in the [Address] field.
CClick [Fax Received File] in the left pane.
The list of received fax documents appears.
DSelect the check box of the fax document to be deleted.
To view a list of the fax documents, select the thumbnail display, icon display,
or detail display. Click , , or .
EClick [Delete].
FClick [Delete File(s)].
To cancel deletion, press [Cancel] before clicking [Delete File(s)].
After selecting multiple documents, you can also cancel deletion of some of
the selected documents. For more information, see Help on the Web Image
Monitor.
GClick [OK].
The display returns to that of step E.
Programming Destination Information from Web Browser
If the receiving machine is compliant with T.37 full mode Internet Fax, you can
program the receiver's properties from Web Image Monitor. You can program
the following properties:
• Compression Type
• Paper size
•Resolution
Note
❒For a detailed description, see Help for Web Image Monitor.
❒When a receiver that is programmed as full mode in the Address Book re-
turns a Reception Notice e-mail, the contents of the newly received e-mail
overwrite the existing information.
Reference
p.29 “T.37 Full Mode”
Fax via Computer
258
6
To edit machine properties already programmed
Follow these steps to use Web Image Monitor to edit information about the des-
tination machine registered in the Address Book.
AStart the Web browser.
BEnter the IPv4 address of the machine you want to monitor after “http://” in
the address field.
The top screen is displayed.
CClick [Login], and then enter the Administrator's name and password.
DClick [Address Book] in the left pane.
The Address Book is displayed.
EClick the radio button to the left of the machine you want to modify, and
then click [Change].
The [Change User] page appears.
FSet the properties for Internet Fax data format other than the mode selection.
If you change the mode to “Simple Mode”, you cannot set machine properties.
GClick [OK] at the upper-left of the screen.
To cancel the setting, click [Cancel] in the upper-left of the screen.
The Address Book is displayed.
HClose the Web browser.
Viewing Fax Information Using a Web Browser
259
6
To add new receiver
Follow these steps to use Web Image Monitor to add a new destination to the
Address Book.
AStart the Web browser.
BEnter the IPv4 address of the machine you want to monitor after “http://” in
the address field.
The top screen is displayed.
CClick [Login], and then enter the Administrator's name and password.
DClick [Address Book] in the left pane.
The Address Book is displayed.
EClick [Add User].
The [Add User] page appears.
FEnter the registration number, name, and e-mail address, then set the nec-
essary properties.
You can set the Internet Fax data format after entering the e-mail address.
GClick [Full Mode] under [Internet Fax Data Format], and set the properties ac-
cording to the receiver's properties.
If you change the mode to “Simple Mode”, you cannot set machine properties.
HClick [OK] in the upper-left of the screen.
To cancel the setting, click [Cancel] in the upper-left of the screen.
The Address Book is displayed.
IClose the Web browser.
Fax via Computer
260
6
Delivering Files Received by Fax
Documents received by the machine can be viewed on or downloaded to a com-
puter using the network delivery server ScanRouter delivery software. This is a
useful function, enabling you to view and store documents on your computer
without printing them.
Important
❒The ScanRouter delivery software is required as a delivery server. DeskTop-
Binder must be installed on your computer.
Using the delivery server, you can eliminate the task of retrieving and delivering
documents.
❖Functions
Delivery server provides the following functions:
• Use the delivery server to associate incoming documents (SUB Code, Own
Name, and Own Fax Number) with receivers, so documents are delivered
to the intended receivers.
• You can select the delivery method for incoming documents: “Save in the
delivery server inbox”, “Send as an e-mail attachment”, or “Save in the
designated folder on the computer”. Incoming documents with no SUB
Code, Own Name, or Own Fax Number are saved in the delivery server
inbox. You can also set it so that the received documents are stored in the
specified delivery server inbox according to the line used for reception.
• You can check or download received documents stored in the delivery
server inbox using DeskTopBinder.
Note
❒Documents received in Personal Boxes are also forwarded to the delivery
server.
❒To view or download documents stored in the delivery server inbox, you
need to install DeskTopBinder on your computer.
❒To send received documents to your computer as e-mail attachments, your
computer must have an e-mail application that is compatible with the Scan-
Router delivery software.
❒To create a network using the delivery server, settings must be specified in
the User Tools of the machine. Settings must also be specified on the delivery
server.
❒For details about the delivery server (ScanRouter delivery software), see the
ScanRouter delivery software's Help or instructions.
❒For information about DeskTopBinder, see DeskTopBinder's manual and
Help.
Reference
“System Settings”, General Settings Guide
DeskTopBinder's manual and Help
261
7. Appendix
This section explains features and specifications of the facsimile function.
Checking the Memory Status
Use this function to display a summary of current memory usage.
On the standby display you can check the percentage of free memory space. In
addition, in [System Status] you can check the number of “Transmission Standby
File(s)”, “Memory Lock File(s)”, and “RX Print Standby File(s)”. “Others” shows the
total number of documents registered in Information Boxes and received in Person-
al Boxes. See “When the Machine Dose Not Operate As Wanted”, Troubleshooting.
Note
❒If you set the “Reception File Setting” in the Facsimile Features menu to
“Store”, you can check the number of received documents using “RX Print
Standby File(s)”.
Reference
p.3 “Reading the Display Panel and Using Keys”
p.205 “Personal Boxes”
p.208 “Information Boxes”
“Facsimile Features”, General Settings Guide
“When the Machine Dose Not Operate As Wanted”, Troubleshooting
Appendix
262
7
Programs
If you regularly send documents to a particular destination or transmit using the
same functions, you can save repetitive number keys operations by registering
this information in a Keystroke Program. Programs can be recalled by just press-
ing a programmed key.
Registering and Changing Keystroke Programs
The following procedure can be used to program a new Keystroke Program or
overwrite an old one.
You can register the following items in Keystroke Programs:
• Memory Transmission, Immediate Transmission, type of transmission, desti-
nations, Scan Type, Resolution, Scan Size, Mixed Original Sizes, Auto Densi-
ty, Manual Density, Original Orientation, Original Settings, Stamp, Select
Line, SUB/SID/SEP/PWD Code entry, Send Later, Reception Notice, BCC
Transmission, E-mail TX Results, Text, Standard Message, Auto Reduce, La-
bel Insertion, Closed Network, SUB Code Transmission, SEP Code Reception,
Fax Header Print, TX Status Report, Store File
•Program name
AMake the settings you want to register in the program.
The procedure for programming differs depending on the items you want to
register.
Press the {Clear Modes} key to cancel programming.
To register a program using Send Later with the fax number “0123456789”,
press {0}, {1}, {2}, {3}, {4}, {5}, {6}, {7}, {8}, {9} using the number keys, and
then continue doing the Send Later setting until the standby display appears
when you press [OK].
BMake sure that the machine is in facsimile mode and the standby display
is shown.
If the standby display is not shown, press the {Facsimile} key.
CPress the {Program} key.
ALV006S
Programs
263
7
DPress [Program].
When no programs are registered, proceed to step E.
ESelect a program number in which “Not Programmed” is shown.
If you make a mistake, press [Cancel] and select a program number again.
When you change a Keystroke Program, press [Yes] after pressing the program
number you want to change. If you make a mistake, press [No] and return to step E.
FEnter the program name, and then press [OK].
If you make a mistake, press [Backspace] or [Delete All], and then try again.
You should register the program name.
To cancel a program, press [Cancel]. The display returns to that of step E.
GPress [Exit].
The standby display appears.
Note
❒Use the same procedure to register and change programs. In step E, select
the program number you want to change.
❒For the maximum number of Keystroke Programs you can register, see
“Maximum Values”.
❒For the maximum number of characters you can enter for a program name,
see “Maximum Values”.
❒For the maximum number of destinations you can register to a Keystroke
Program, see “Maximum Values”.
❒The method of registering or changing programs for the copy function is
different from that of the fax function.
Appendix
264
7
Reference
p.117 “Sending at a Specific Time (Send Later)”
p.272 “Maximum Values”
“Entering Text”, About This Machine
Registering a priority function using a program
Set the functions registered in a program as priority functions, so you can have
the machine select these functions right after the power is turned on or the {Clear
Modes} key is pressed.
To set the priority functions, register the desired settings to a program. Then, re-
call the registered program, and then press [Program as Defaults] on the Program
screen. The recalled settings are registered as priority functions.
Important
❒Destinations and SUB/SID/SEP/PWD Code entries cannot be registered as
priority functions.
Reference
“Facsimile Features”, General Settings Guide
Programs
265
7
Changing a program name
Follow these steps to change a program name.
AMake sure that the machine is in facsimile mode and the standby display
is shown.
If the standby display is not shown, press the {Facsimile} key.
BPress the {Program} key.
CPress [Change Name].
DSelect the program number of the name you want to change.
EEnter a new program name, and then press [OK].
Press [Cancel] to cancel the change, and proceed to step F.
FPress [Exit].
The standby display appears.
ALV006S
Appendix
266
7
Deleting a Program
Follow these steps to delete an unnecessary program:
AMake sure that the machine is in facsimile mode and the standby display
is shown.
If the standby display is not shown, press the {Facsimile} key.
BPress the {Program} key.
CPress [Delete].
DSelect the program number you want to delete.
EPress [Yes].
Press [No] not to delete the program. The display returns to that of step D.
FPress [Exit].
The standby display appears.
ALV006S
Programs
267
7
Using a Program
Follow these steps to recall and use a registered program:
AMake sure that the machine is in facsimile mode and the standby display
is shown.
If the standby display is not shown, press the {Facsimile} key.
BPlace the original.
CPress the {Program} key.
DConfirm that [Recall] is selected, and press the registered program number.
The standby display appears.
The programmed fax number appears and the registered settings are recalled.
EPress the {Start} key.
The machine starts to scan the original.
Then, transmission starts with the recalled transmission settings.
Note
❒Using the program causes the previous settings to be cleared.
❒If you have no programmed destinations or scan settings as programs, se-
lect the program number, and then enter the fax number of the destination
and select the scan settings you require.
ALV006S
Appendix
268
7
Optional Equipment
This section explains the functions of options.
Expansion Memory (28MB: DIMM)
This allows you to send fax documents at high resolution (Super Fine). This also
allows you to receive fax documents at high resolution (Fine or Super Fine). If
you require this option, consult your service representative.
Reference
p.272 “Maximum Values”
Extra G3 Interface Unit
This option provides one extra G3 line connection.
A maximum of two G3 interface units can be installed.
Specifications
269
7
Specifications
❖Fax Transmission and Reception
❖Power Consumption
❖IP-Fax Transmission and Reception
Standard G3
Resolution G3:
8 × 3.85/mm·200 × 100 dpi (Standard character),
8 × 7.7/mm·200 × 200 dpi (Detail character),
8 × 15.4/mm (Fine character: optional),
16 × 15.4/mm·400 × 400 dpi (Super Fine character: optional)
Transmission time G3: 3 seconds at 28,800 bps, Standard resolution
(JBIG transmission: 2 seconds)
Data compression method MH, MR, MMR, JBIG
Maximum original size Standard size: A3L, 11" × 17"
Custom size: 297 × 1200 mm/11" × 47"
Maximum scanning size 297 × 1200 mm/11" × 47"
Print process Printing on standard paper using a laser
Transmission speed G3:
33,600/31,200/28,800/26,400/24,000/21,600/19,200/16,800/
14,400/12,000/9,600/7,200/4,800/2,400bps (auto shift down
system)
Immediate Transmission approx. 260 W
Memory Transmission approx. 230 W
Memory Reception approx. 225 W
Reception approx. 520 W
Network LAN: Local Area Network
Ethernet/10base-T, 100base-TX, IEEE1394 (IPv4 over 1394),
IEEE802.11b (wireless LAN)
Scan line density 8 × 3.85 mm·200 × 100 dpi (Standard character),
8 × 7.7 mm, 200 × 200 dpi (Detail character),
8 × 15.4 mm (Fine character: optional),
16 × 15.4 mm, 400 × 400 dpi (Super Fine character: optional)
Maximum original size Standard size: A3L, 11" × 17"
Custom size: 297 × 1200 mm/11" × 47"
Maximum scanning size 297 mm × 1200 mm
Transmission protocol Recommendation: T.38, TCP, UDP/IP communication, SIP
(RFC 3261 compliant), H.323 v2
Appendix
270
7
❖Internet Fax Transmission and Reception
*1 Full mode
Compatible machines IP-Fax compatible machines
IP-Fax transmission function Specify an IPv4 address and send faxes to an IP-Fax compati-
ble fax through a network.
Also capable of sending faxes to a G3 fax connected to a tele-
phone line via a VoIP gateway.
IP-Fax reception function Receive faxes sent from an IP-Fax compatible fax through a network.
Also capable of receiving faxes from a G3 fax connected to a
telephone line via a VoIP gateway.
Network LAN : Local Area Network
Ethernet/10Base-T, 100Base-TX, IEEE1394 (IPv4 over 1394),
IEEE802.11b (wireless LAN)
Transmit function E-mail
Scan line density 200 × 100 dpi (Standard character), 200 × 200 dpi (Detail char-
acter), 200 × 400 dpi (Fine character: optional) *1 , 400 × 400 dpi
(Super Fine character: optional) *1
Original size : Scanning width A3 *1 , B4 *1 , A4
Communication Protocols • Transmission
SMTP, TCP/IP
• Reception
POP3, SMTP, IMAP4, TCP/IP
E-mail format Single/Multi-part, MIME Conversion
Attached file forms: TIFF-F (MH, MR *1 , MMR *1 compression)
Authentication method SMTP-AUTH, POP before SMTP, A-POP
Internet communication Send and receive e-mail with a computer that has an e-mail address
E-mail send functions Automatic conversion of sent documents to e-mail format and
e-mail transmission. Memory transmission only.
E-mail receive functions Automatic detection and printing of appended TIFF-F (MH)
files and ASCII text. Memory reception only.
Specifications
271
7
Specifications Required for the Internet Fax Destination
Machines
This machine can communicate with Internet Fax machines that satisfy the fol-
lowing specification requirements.
When communicating with full mode compatible machines, you can take ad-
vantage of higher specifications for coding, original size, and resolution. For de-
tails about the specifications available in full mode, see “Intenet Fax
Transmission and Reception” in “Specifications”.
Reference
p.269 “Specifications”
Communication protocols • Transmission
SMTP
• Reception
POP3, SMTP, IMAP4
E-mail format • Format
MIME, Base64
•Content-Type
Image/tiff
Multipart/mixed (text/plain, Image/tiff (attached file
forms))
Data format • Profile
TIFF Profile S
•Coding
MH
• Original size
A4
• Resolution (dpi)
200×100/200×200, 204×98/204×196
Appendix
272
7
Maximum Values
The following list contains the maximum value for each item.
Item Standard Expansion memory
(Optional)
Memory 4 MB 28 MB
Number of documents you can store in memory
for Memory Transmission
400 400
Number of pages you can store in memory (using
A4 Standard <ITU-T q1 Chart>)
Approx. 320 Approx. 2,240
Number of destinations you can register in the
destination list
2000 2000
Number of groups you can register 100 100
Number of destinations you can register in a
group
500 500
Number of destinations you can specify per file 500 500
Number of destinations you can specify for all
files (including files in memory)
500 500
Number of destinations you can search at a time
using [Search Dest.]
100 100
Number of recent destinations the machine can
store
10 10
Number of digits for a destination 128 128
Number of digits for a SEP/SUB/PWD/SID
Code
20 20
Number of characters you can enter in the e-mail
subject line
128 128
Number of communication results you can check
on this machine
200 200
Number of communication results printed in the
Journal
50 50
Number of special senders you can register 30 30
Number of LAN-Fax Driver transmission results
you can check from a network computer “Smart-
DeviceMonitor for Admin”, “DeskTopBinder”,
or Web Image Monitor.
70 70
Number of documents sent from a LAN-Fax
Driver that the machine can retain as files to be
sent
400 400
Number of destinations you can register into a
Keystroke Program
500 500
Number of Keystroke Programs you can register 100 100
Maximum Values
273
7
Note
❒The maximum number of pages that can be stored or transmitted may de-
crease depending on the contents of documents.
Number of characters you can enter for a pro-
gram name
20 20
Number of received documents you can store on
the machine's hard disk
400 400
Number of documents you can print at a time in
[Print / Delete Stored Reception File]
30 30
Number of documents you can delete at a time in
[Print / Delete Stored Reception File]
30 30
Number of stored documents you can specify at
a time in [Select Stored File]
30 30
Number of stored pages you can send in one op-
eration in [Select Stored File]
1,000 1,000
Number of stored documents you can print at a
time using [Print 1st Page]
30 30
Number of stored documents you can print at a
time using [Print File]
30 30
Number of documents you can store in the Doc-
ument Server using the facsimile function
2,000 2,000
Number of pages per document you can store in
the Document Server
1,000 1,000
Number of pages you can store in the Document
Server (in total – copy function, facsimile func-
tion, printer function, and scanner function) (Us-
ing ITU-T q4 Chart)
Approx. 9,000 Approx. 9,000
Item Standard Expansion memory
(Optional)
274
INDEX
180-degree rotation printing, 160
1st Sheet, 33
2nd Sheet, 33
2 Sided Original, 33
2 Sided Print, 6
2 sided printing, 244
A
Acceptable original sizes, 36
Add, 16
Add Destination, 172
Adding a destination, 172
Address Book, 235, 248
Add User, 259
Adjust Sound Volume, 6
Advanced Features, 100
Advanced Search, 88
All, 193
Area, 50
Area 1, 50
Area 2, 50
Attach a Cover Sheet, 244
Attaching a created cover sheet, 253
Authorized Reception per Sender, 6
Auto Density, 54
Auto Detect, 48
Auto e-mail reception, 148
Auto fax reception power-up, 156
Automatic Redial, 16
Auto Reception, 146
Auto Reduce, 130
Auto Run program, 236
B
Backup File TX Setting, 6
Basic Transmission, 240
BCC Transmission, 121
Before use, 234
Box Setting, 6
Box Setting: Print List, 6
Broadcasting sequence, 16
Bypassing the SMTP server, 69
C
Canceling a Memory Transmission, 108
Canceling an Immediate Transmission, 108
Canceling a transmission, 108
Canceling a transmission before the
original is scanned, 108
Canceling a transmission before the
transmission is started, 111
Canceling a transmission of an
Internet Fax, 108
Canceling a transmission while the
original is being scanned, 108
Canceling a transmission while the
original is being transmitted, 109
Centre Mark, 6, 158
Change File Name, 230
Change Name, 265
Change Password, 230
Change / Stop Transmission File, 114
Change Title, 73
Change TX / Info, 169, 179, 181
Change User Name, 229
Changing a program name, 265
Changing Keystroke Programs, 262
Changing Stored Document Information, 227
Changing the line port, 57
Changing the settings of files in memory, 169
Changing the SMTP server setting, 176
Changing the transmission time, 174
Check / Change Settings, 114, 170, 172,
174, 176
Checkered Mark, 6, 157
Checking a transmission file, 169
Checking files stored in memory, 181
Checking the memory status, 261
Checking the reception result, 190
Checking the result of the
communication, 188
Checking the result of the
Immediate Transmission, 188
Checking the storage result, 116
Checking the transmission result, 185
Checking transmission using
LAN-Fax Driver, 246
Check Modes, 20
Check / Stop Transmission File, 111, 169
Clear Modes key, 2, 108
Clear/Stop key, 108, 109
Closed Network, 134
Closed Network Code, 134, 144
Combined Auto and Manual Density, 54
275
Communicating indicator, 109
Communication Failure Report, 189
Communication Page Count, 6
Communication Result Report, 188
Compatible machines, 271
Confidential File indicator, 203
Confidential File Report, 207
Confirming a transmission, 114
Confirming by e-mail, 187
Confirming by report, 186, 191
Confirming by report and e-mail, 187
Confirming on display, 185, 190
Confirming the reservations for
SEP Code Reception, 106
Confirming the result of a
SEP Code Reception, 107
Confirming the results of transfer, 152
Confirming transmission results by
e-mail, 122, 246
Creating a cover sheet, 252
CSI→Own Fax Number, 144
D
Delete, 202, 212, 266
Delete File, 231
Deleting a destination from a
Simultaneous Broadcast, 170
Deleting a program, 266
Deleting a stored document, 231
Deleting fax information using a
Web browser, 257
Deleting Information Box documents, 212
Deleting programmed destinations, 250
Deleting received and
stored documents, 200, 202
Delivering files received by fax, 260
Density (contrast), 54
Destination key, 72, 74
Detail, 45
Displaying a preview, 224
Displaying confirmation of transmission, 20
Document Server, 245
Dual Access, 16
E
Edit Cover Sheet..., 253
Edit Dest., 63, 66
Editing Address Book, 248
Editing fax cover sheets, 251
Editing programmed destinations, 250
E-mail Address, 86
E-mail subject, 28
E-mail text, 149
E-mail TX Results, 97, 122, 187
E-mail TX results, 246
Enable H.323, 6
Enable SIP, 6
Entering an e-mail address, 66
Entering an IP-Fax destination, 63
Entering a pause, 61
Entering a tone, 62
Entering numbers using the number keys, 60
Expansion memory, 268
External telephone, 95
Extra G3 interface unit, 268
F
Facsimile Features, 6
Facsimile key, 2, 146
Fax, 10
Fax Destination, 83
Fax Header Print, 138
Fax via computer, 233
File List, 223
File Name, 219
First Name, 138
Folder Transfer Result Report, 6
Forwarding, 6
Forwarding destination, 153
Forwarding received documents, 153
Full mode, 29, 257
Function list, 6
Functions not available by
e-mail reception, 28
Functions not available by
e-mail transmission, 27
Functions not available for
IP-Fax transmission, 24
276
G
G3, 57
G3 Auto, 57
G4, 57
Gatekeeper (VoIP gatekeeper), 23
Gateway (VoIP gateway), 23
General Settings, 6
H
H.323, 23
H.323 Settings, 6
Having incoming documents printed on
paper from the bypass tray, 165
How to Read This Manual, 1
I
If there is no paper of the correct size, 164
Image Rotation, 161
Immediate Reception, 141
Immediate Transmission, 9, 17
Immediate TX Result Report, 188
Information Box, 208
Initial display, 3
Initial Settings, 6
Installing individual applications, 236
Internet Fax, 10
Internet Fax functions, 25
Internet Fax Settings, 6
IP-Fax functions, 21
J
JBIG reception, 156
JBIG transmission, 45
Journal, 191, 197
Journal by e-mail, 199
Just size printing, 165
K
Key Colour, 5
Keystroke Programs, 262
L
Label Insertion, 132
LAN-Fax Cover Sheet Editor, 235, 251
LAN-Fax Driver, 233, 234
LAN-Fax operation messages, 254
LAN-Fax Result Report, 247
LDAP server, 80
Louder, 93
Lower, 93
M
Making settings for option configuration, 239
Manage / Delete File, 227, 231
Managing facsimile functions using
SmartDeviceMonitor for Admin, 254
Manual Density, 54
Manual Dial, 95
Manual e-mail reception, 149
Manual E-mail RX, 149
Manual Entry, 63, 66, 218, 223
Manual Reception, 146
Manuals for This Machine, i
Max. E-mail Size, 6
Maximum values, 272
MDN, 119
Memory, 261
Memory Lock Reception, 6
Memory Reception, 142
Memory Storage Report, 116
Memory Transmission, 9, 11
Memory Transmission sequence, 16
Menu Protect, 6
Mixed Original Sizes, 52
Mixing scan settings for a
multiple page original, 56
Multi-copy reception, 160
Multi-port, 57
N
Name, 81
Names, 79
Names of major functions, 1
Notes on using Internet Fax, 26
Notes on using IP-Fax, 24
O
On Hook, 93
On Hook Dial, 93
On Hook Mode Release Time, 6
Operation switch, 156
Optional equipment, 268
Option Setting, 129
Original Feed Type, 32, 33
Original size, 30, 36
Original sizes detected automatically, 39
Original sizes difficult to detect, 39
Original + Stored File, 220
277
P
Page reduction, 163
Page separation and length reduction, 162
Paper size and scanned area, 37
Paper Tray, 6
Parallel Memory Transmission, 9, 15
Parameter Setting, 6
Parameter Setting: Print List, 6
Password, 219
Password (PWD), 106
Password (SID), 103
Pause, 61
Personal Box, 151, 205
Photo, 43
Placing into the ADF, 30
Placing on the exposure glass, 30
Placing originals, 30
Preview, 224, 244
Prg. Dest., 79
Print, 179, 201
Print 1st Page, 225
Print completion beep, 157
Print / Delete Stored Reception File, 201, 202
Print Fax Header, 243
Print File, 225
Printing a file from memory, 179
Printing a file received with
Memory Lock, 203
Printing a list of files in memory, 181
Printing and saving, 248
Printing fax information using a
Web browser, 256
Printing Information Box documents, 211
Printing on both sides, 159
Printing options, 157
Printing Personal Box documents, 206
Printing received and
stored documents, 200, 201
Printing stored documents, 225
Printing the Journal, 192
Print Journal, 192
Print List, 181
Print Memory Lock, 203
Print per File No., 194
Print Personal Box File, 206
Print per User, 195
Print Reception Time, 6
Program, 262
Program as Defaults, 264
Program / Change / Delete Gateway, 6
Program / Change / Delete Scan Size, 6
Program / Change / Delete
Standard Message, 6
Program Closed Network Code, 6
Program Dest., 75
Program Fax Information, 6
Program key, 262
Program Memory Lock ID, 6
Programming a user name, 218
Programming destination information
from Web browser, 257
Programming destinations in the
Address Book, 77
Programming new destinations, 249
Programs, 262
Program Special Sender, 6
Program Special Sender: Print List, 6
Properties, 237
PWD Code, 106
Q
Quick Operation Key, 6
R
Reading the display, 2
Reading the display panel and using keys, 3
Recall, 267
Received images, 149
Receive File indicator, 143
Receiving documents according to
parameter-specified settings, 144
Receiving documents unconditionally, 144
Receiving Internet Fax documents, 148
Recent, 75
Reception File Print Quantity, 6
Reception File Setting, 6
Reception File Status, 190
Reception functions, 151
Reception modes, 146
Reception Notice, 119
Reception notice message, 119
Reception SEP Code, 103
Reception Settings, 6
Reception time, 158
Regarding IP-Fax destinations, 65
Registering a priority function using a
program, 264
Registering entered destinations to the
Address Book, 79
Registering Keystroke Programs, 262
Reg. No., 91
Regular, 49
Report, 106, 107, 116, 152, 181, 188, 189,
197, 207, 247
Resending a file, 183
Resolution, 45
278
Returning the machine to the
standby mode, 2
Routing e-mail received via SMTP, 155
Routing received documents, 151
Routing received documents with
SUB Code, 151
RTI→Own Name, 144
S
Saving as files, 244
Scanning Two-Sided Originals, 33
Scan Settings, 6, 43
Scan Size, 47
Scan Type, 43
Search by destination name, 81
Search by e-mail address, 86
Search by fax number, 83
Search by IP-Fax destination, 83
Search by registration number, 91
Search criteria, 88
Search Dest., 80
Search Destination, 6
Searching for a destination in the
Address Book, 80
Searching through an LDAP server, 80
Search using Advanced Search, 88
Second Name, 138
Select Dial / Push Phone, 6
Selecting a protocol, 57
Selecting destinations from
Recent Destinations, 75
Selecting type of transmission, 10
Select Line, 57
Select Stored File, 220, 225, 227
Sender Name, 97
Sender settings, 97
Sending a stored file, 215
Sending at a specific time, 117
Sending at specific time, 243
Sending by Internet Fax, 66
Sending by IP-Fax, 63
Sending fax documents from computers, 233
Sending multiple originals using the
exposure glass, 14, 19
Sending over a fax line, 60
Sending stored documents, 220
Sending to an e-mail address, 66
Send Later, 117
Send Settings, 6
Send & Store, 216
SEP Code, 103, 136
SEP Code Reception, 103, 136
SEP Code RX Reserve Report, 106
SEP Code RX Result Report, 107
SEP Code Transfer Report, 152
Setting an e-mail destination as a BCC, 121
Setting LAN-Fax Driver properties, 237
Setting print properties, 238
Setting priority trays, 164
Setting the Original Orientation, 32
SID Code, 103
Simplified display, 5
Simplified Display key, 5
Simultaneous Broadcast, 16
Simultaneous Broadcast using
multiple line ports, 59
SIP, 23
SIP server, 23
SIP Settings, 6
SMTP, 69, 176
SMTP reception using Internet Fax, 154
SMTP RX File Delivery Settings, 6
Specifications, 269
Specifying a destination, 60
Specifying a destination by
directly entering, 242
Specifying a destination using
Address Book, 241
Specifying a destination using a
destination list, 241
Specifying a host name, 65
Specifying an alias telephone number, 65
Specifying an IPv4 address, 63
Specifying a SIP user name, 65
Specifying documents by File Name, 224
Specifying documents by User Name, 223
Specifying documents from File List, 223
Specifying group destinations, 74
Specifying options, 243
Specifying tray for lines, 166
Specify Tray for Lines, 6
Stamp Sender Name, 97
Standard, 45
Standard Message Stamp, 129
Stop Transmission, 109, 111
Store / Delete / Print
Information Box File, 209, 211, 212
Stored file + Original, 220
Stored Reception File User Setting, 6
Store File, 216
Store Only, 216
Storing a document, 215, 216
Storing documents in Information Boxes, 209
SUB Code, 100, 135, 151, 152, 205
SUB Code Transmission, 100, 135
Subject, 124
Substitute Reception, 143
279
Super Fine, 45
Switching between Memory and
Immediate Transmission, 9
Switching the reception mode, 147
Switching the titles in the Address Book, 73
Switch Reception Mode, 6
Switch RX Mode, 146, 147
Switch Title, 6
Symbols, 1
System Status, 261
T
T.37 full mode, 29, 257
Terminology, 23
Text, 43, 127
Text / Line Art, 43
Text / Photo, 43
TIFF-F format, 25
Title 1, 73
Title 2, 73
Title 3, 73
Title word key, 3
To add new receiver, 259
To edit machine properties
already programmed, 258
Tone, 62
Top to Bottom, 33
Top to Top, 33
Transfer Box, 152
Transferring received documents, 152
Transmission, 11, 17
Transmission File Status, 185
Transmission modes, 9
Transmission SUB Code, 100
Transmission with Image Rotation, 40
Transmit Failed File, 183
Transmit Stored File only, 220
Transmitting Journal by e-mail, 199
Tray Shift, 167
TSI→Transmitting
Subscriber Identification, 163
TSI Print (Transmitting Subscriber
Identification Print), 163
Two-Sided Printing, 159
TX File List, 181
TX Mode, 117, 119, 121, 122, 124, 127
Types of reception, 141
U
User Name, 218
User Text, 124
User Tools/Counter key, 6
Using a program, 267
Using the Address Book to
specify destinations, 72
Using the Document Server, 215
Using the machine's Address Book
data in the destination
list of the LAN-Fax, 251
Using the software, 234
V
Viewing fax information using a
Web browser, 255
Viewing received fax documents using a
Web browser, 255
Vol..., 93
W
Web Image Monitor, 255
Where incoming documents are
delivered - output tray, 166
