Introduction
This manual contains detailed instructions on the operation and maintenance of this machine. To get
maximum versatility from this machine all operators should carefully read and follow the instructions in
this manual. Please keep this manual in a handy place near the machine.
Please read the Safety Information before using this machine. It contains important information related
to USER SAFETY and PREVENTING EQUIPMENT PROBLEMS.
Notes
Some illustrations may be slightly different from your machine.
Certain options may not be available in some countries. For details, please contact your local dealer.
Operator Safety
This machine is considered a class 1 laser device, safe for office/EDP use. The machine contains two
GaAIAs laser diodes, 5-milliwatt, 760-800 nanometer wavelength for each emitter. Direct (or indirect
reflected) eye contact with the laser beam might cause serious eye damage. Safety precautions and
interlock mechanisms have been designed to prevent any possible laser beam exposure to the opera-
tor.
The following label is attached on the right side of the machine.
Laser Safety:
The optical housing unit can only be repaired in a factory or at a location with the requisite equipment.
The laser subsystem is replaceable in the field by a qualified Customer Engineer. The laser chassis is
not repairable in the field. Customer engineers are therefore directed to return all chassis and laser sub-
systems to the factory or service depot when replacement of the optical subsystem is required.
Warning:
Use of controls or adjustment or performance of procedures other than those specified in this manual
might result in hazardous radiation exposure.
Notes:
The model names of the machines do not appear in the following pages. Check the type of your ma-
chine before reading this manual. (For details, ⇒ P.1 “Machine Types”.)
•Type1: Aficio 1035
•Type2: Aficio 1045
Certain types might not be available in some countries. For details, please contact your local dealer.
Two kinds of size notation are employed in this manual. With this machine refer to the metric version.
For good copy quality, Ricoh recommends that you use genuine Ricoh toner.
Ricoh shall not be responsible for any damage or expense that might result from the use of parts other
than genuine Ricoh parts in your Ricoh office product.
Power Source
220 - 240V, 50/60Hz, 8A or more
Please be sure to connect the power cord to a power source as above. For details about power source,
⇒ P.231 “Power Connection”.
AdonisC2_AEcopy110F_FM.book Page 1 Wednesday, October 3, 2001 1:43 PM
In accordance with IEC 60417, this machine uses the following symbols for the main power switch:
a
aa
a means POWER ON.
c
cc
c means STAND BY.
Copyright © 2001 Ricoh Co., Ltd.
AdonisC2_AEcopy110F_FM.book Page 1 Wednesday, October 3, 2001 1:43 PM
i
Safety Information
When using your equipment, the following safety precautions should always be
followed.
Safety During Operation
In this manual, the following important symbols are used:
R WARNING:
R
WARNING:
Indicates a potentially hazardous situation which, if instructions
are not followed, could result in death or serious injury.
R
CAUTION:
Indicates a potentially hazardous situation which, if instructions are not
followed, may result in minor or moderate injury or damage to property.
•Connect the power cord directly into a wall outlet and never use an ex-
tension cord.
•Disconnect the power plug (by pulling the plug, not the cable) if the
power cable or plug becomes frayed or otherwise damaged.
•To avoid hazardous electric shock or laser radiation exposure, do not
remove any covers or screws other than those specified in this man-
ual.
•Turn off the power and disconnect the power plug (by pulling the plug,
not the cable) if any of the following conditions exists:
•You spill something into the equipment.
•You suspect that your equipment needs service or repair.
•Your equipment's cover has been damaged.
•Do not incinerate spilled toner or used toner. Toner dust might ignite
when exposed to an open flame.
•Disposal can take place at our authorized dealer or at appropriate col-
lection sites.
•Dispose of the used toner bottle in accordance with the local regula-
tion.
AdonisC2_AEcopy110F_FM.book Page i Wednesday, October 3, 2001 1:43 PM
ii
R CAUTION:
•Protect the equipment from dampness or wet weather, such as rain, snow,
and so on.
•Unplug the power cord from the wall outlet before you move the equipment.
While moving the equipment, you should take care that the power cord will
not be damaged under the equipment.
•When you disconnect the power plug from the wall outlet, always pull the
plug (not the cable).
•Do not allow paper clips, staples, or other small metallic objects to fall inside
the equipment.
•Keep toner (used or unused) and toner bottle out of the reach of children.
•For environmental reasons, do not dispose of the equipment or expended
supply waste at household waste collection points. Disposal can take place
at an authorized dealer or at appropriate collection sites.
•The inside of the machine could be very hot. Do not touch the parts with a
label indicating the “hot surface”. Otherwise it could cause a personal burn.
•Our products are engineered to meet high standards of quality and function-
ality, and we recommend that you only use the expendable supplies avail-
able at an authorized dealer.
AdonisC2_AEcopy110F_FM.book Page ii Wednesday, October 3, 2001 1:43 PM
iii
How to Read this Manual
Symbols
In this manual, the following symbols are used:
R
WARNING:
This symbol indicates a potentially hazardous situation that might result in
death or serious injury when you misuse the machine without following the in-
structions under this symbol. Be sure to read the instructions, all of which are in-
cluded in the Safety Information section.
R
CAUTION:
This symbol indicates a potentially hazardous situation that might result in mi-
nor or moderate injury or property damage that does not involve personal injury
when you misuse the machine without following the instructions under this
symbol. Be sure to read the instructions, all of which are included in the Safety
Information section.
• WARNINGS and CAUTIONS are notes for your safety.
Important
If this instruction is not followed, paper might be misfeed, originals might be
damaged, or data might be lost. Be sure to read this.
Preparation
This symbol indicates the prior knowledge or preparations required before op-
erating.
Note
This symbol indicates precautions for operation or actions to take after misoper-
ation.
Limitation
This symbol indicates numerical limits, functions that cannot be used together,
or conditions in which a particular function cannot be used.
Reference
This symbol indicates a reference.
[]
Keys that appear on the machine's display panel.
{}
Keys built into the machine's control panel.
AdonisC2_AEcopy110F_FM.book Page iii Wednesday, October 3, 2001 1:43 PM
iv
TABLE OF CONTENTS
Machine Types........................................................................................... 1
What You Can Do with This Machine (Copy Mode)................................ 2
Guide To Components .............................................................................. 5
Output Tray Guide......................................................................................... 7
Options....................................................................................................... 8
Control Panel ............................................................................................. 9
Display Panel ........................................................................................... 11
Displays and Key Operations...................................................................... 11
Function List Based on Options ............................................................ 13
1.Basics
Turning On the Power ............................................................................. 15
Turning On the Main Power ........................................................................ 15
Turning On the Power................................................................................. 16
Turning Off the Power................................................................................. 16
Changing Modes...................................................................................... 17
Originals................................................................................................... 18
Sizes and Weights of Recommended Originals.......................................... 18
Sizes Detectable by the Auto Paper Select ................................................ 19
Missing Image Area .................................................................................... 20
Copy Paper............................................................................................... 21
Recommended Paper Sizes and Types...................................................... 21
Direction-fixed paper or 2-sided paper........................................................ 24
Non-recommended Paper........................................................................... 25
Paper Storage ............................................................................................. 25
Toner......................................................................................................... 26
Handling Toner............................................................................................ 26
Toner Storage ............................................................................................. 26
Used Toner ................................................................................................. 26
AdonisC2_AEcopy110F_FM.book Page iv Wednesday, October 3, 2001 1:43 PM
v
2.Copying
Basic Procedure ...................................................................................... 27
Setting Originals...................................................................................... 29
Setting Originals on the Exposure Glass .................................................... 29
Setting Originals in the Document Feeder .................................................. 30
Original Orientation ..................................................................................... 30
Setting Special Originals............................................................................. 31
Mixed Size mode......................................................................................... 32
Setting Custom Size Originals .................................................................... 33
Basic Functions....................................................................................... 35
Adjusting Copy Image Density .................................................................... 35
Selecting Original Type Setting................................................................... 36
Selecting Copy Paper ................................................................................. 38
Auto Reduce/Enlarge.................................................................................. 41
Sort/Stack/Staple ..................................................................................... 42
Sort.............................................................................................................. 43
Stack ........................................................................................................... 45
Staple.......................................................................................................... 47
To Stop Scanning Temporarily.................................................................... 52
When Memory Reaches 0% ....................................................................... 52
To Remove the Paper from the Staple Unit ................................................ 53
Punch........................................................................................................ 54
Copying from the Bypass Tray .............................................................. 58
When Copying onto OHP Transparencies or Thick Paper.......................... 60
Programs.................................................................................................. 62
Storing a Program....................................................................................... 62
Deleting a Program ..................................................................................... 63
Recalling a Program.................................................................................... 64
Job Preset ................................................................................................ 65
Other Functions....................................................................................... 66
Energy Saver Mode .................................................................................... 66
Interrupt Copy ............................................................................................. 66
Original Beeper ........................................................................................... 67
Sample Copy............................................................................................... 67
Changing the Number of Sets..................................................................... 67
Preset Reduce/Enlarge ........................................................................... 69
Create Margin mode ................................................................................... 70
Zoom......................................................................................................... 71
Size Magnification ................................................................................... 73
Directional Magnification (%) ................................................................. 75
Directional Size Magnification (mm)...................................................... 77
Duplex/Combine/Series .......................................................................... 79
Original Direction and Completed Copies ................................................... 80
Originals and Copy Direction ...................................................................... 80
Specifying Orientation of Bound Originals .................................................. 80
AdonisC2_AEcopy110F_FM.book Page v Wednesday, October 3, 2001 1:43 PM
vi
Duplex....................................................................................................... 82
1 Sided → 2 Sided ...................................................................................... 82
2 Sided → 2 Sided ...................................................................................... 83
Combine ................................................................................................... 85
1 Sided 2 Pages → Combine 1 Side........................................................... 86
1 Sided 4 Pages → Combine 1 Side........................................................... 87
1 Sided 8 Pages → Combine 1 Side........................................................... 88
1 Sided 4 Pages → Combine 2 Side........................................................... 89
1 Sided 8 Pages → Combine 2 Side........................................................... 90
1 Sided 16 Pages → Combine 2 Side......................................................... 91
2 Sided 2 Pages → Combine 1 Side........................................................... 92
2 Sided 4 Pages → Combine 1 Side........................................................... 93
2 Sided 8 Pages → Combine 1 Side........................................................... 94
2 Sided 4 Pages → Combine 2 Side........................................................... 95
2 Sided 8 Pages → Combine 2 Side........................................................... 96
2 Sided 16 Pages → Combine 2 Side......................................................... 97
Series/Book.............................................................................................. 98
Series Copies.............................................................................................. 98
Copying Book Originals............................................................................. 102
Edit Image .............................................................................................. 109
Image Repeat............................................................................................ 109
Double Copies........................................................................................... 110
Centering................................................................................................... 111
Positive/Negative ...................................................................................... 112
Erase....................................................................................................... 113
Border Erase............................................................................................. 114
Center Erase............................................................................................. 115
Center/Border Erase ................................................................................. 116
Margin Adjustment ................................................................................ 118
Stamp...................................................................................................... 120
Background Numbering ............................................................................ 120
Preset Stamp ............................................................................................ 121
User Stamp ............................................................................................... 123
Program/Delete User Stamp..................................................................... 125
Date Stamp ............................................................................................... 127
Page Numbering ....................................................................................... 130
Cover/Slip Sheet.................................................................................... 135
Front Cover ............................................................................................... 135
Front/Back Covers .................................................................................... 136
Designate .................................................................................................. 138
Chapter ..................................................................................................... 139
Slip Sheets ............................................................................................. 141
Combination Chart ................................................................................ 143
AdonisC2_AEcopy110F_FM.book Page vi Wednesday, October 3, 2001 1:43 PM
vii
3.Document Server
Overview................................................................................................. 145
Process ..................................................................................................... 146
Features and Benefits ........................................................................... 147
On Demand Printing.................................................................................. 147
File Merge Printing.................................................................................... 149
Facsimile Resend...................................................................................... 151
Operation from a Computer ...................................................................... 152
Scanning Originals................................................................................ 153
Scanning in Document Server mode ........................................................ 153
Scanning in Copy mode ............................................................................ 156
Printing Saved Documents................................................................... 157
Sample Printing......................................................................................... 159
Print First Page ......................................................................................... 159
Searching Saved Documents ............................................................... 160
To Search by File Name ........................................................................... 160
To Search by User Name.......................................................................... 160
To Check the Details of Stored Documents .............................................. 161
Deleting Saved Documents .................................................................. 162
4.Troubleshooting
If Your Machine Does Not Operate as You Want................................ 165
General ..................................................................................................... 165
Document Server ...................................................................................... 167
Display ...................................................................................................... 168
If You Cannot Make Clear Copies ........................................................ 169
If You Cannot Make Copies As You Want ........................................... 170
General ..................................................................................................... 170
Adjust Image ............................................................................................. 171
Stamp........................................................................................................ 171
Combine.................................................................................................... 172
Duplex....................................................................................................... 173
When Memory Is Full ................................................................................ 174
B Loading Paper................................................................................... 175
Loading Paper in Tray 1or 2...................................................................... 175
Loading Paper in Tray 3 or 4..................................................................... 176
Loading Paper in the Large Capacity Tray................................................ 177
D Adding Toner .................................................................................... 178
x Clearing Misfeeds............................................................................. 181
Changing the Paper Size ...................................................................... 188
Changing the Paper Size in Tray 1 or 2.................................................... 188
Changing the Paper Size in Tray 3 or 4.................................................... 190
AdonisC2_AEcopy110F_FM.book Page vii Wednesday, October 3, 2001 1:43 PM
viii
d Adding Staples ................................................................................. 192
1000-Sheet Finisher.................................................................................. 192
2 Tray Finisher .......................................................................................... 194
e Removing Jammed Staples............................................................. 196
1000-Sheet Finisher.................................................................................. 196
2 Tray Finisher .......................................................................................... 198
y Removing Punch Waste................................................................... 200
5.User Tools (Copy/Document Server Features)
Accessing the User Tools (Copy/Document Server Features) ......... 201
Exiting From the User Tools...................................................................... 202
User Tools Menu (Copier/Document Server Features) ...................... 204
General Features 1/4.............................................................................. 206
General Features 2/4.............................................................................. 209
General Features 3/4.............................................................................. 211
General Features 4/4.............................................................................. 212
Reproduction Ratio 1/2.......................................................................... 213
Reproduction Ratio 2/2.......................................................................... 214
Edit 1/2..................................................................................................... 216
Edit 2/2..................................................................................................... 218
Stamp...................................................................................................... 221
Background Numbering ............................................................................ 221
Preset Stamp 1/4-4/4.................................................................................. 221
User Stamp 1/2-2/2..................................................................................... 222
Date Stamp ............................................................................................... 223
Page Numbering 1/2-2/2............................................................................. 224
Input/Output ........................................................................................... 226
AdonisC2_AEcopy110F_FM.book Page viii Wednesday, October 3, 2001 1:43 PM
ix
6.REMARKS
Do's And Don'ts..................................................................................... 229
Where to Put Your Machine.................................................................. 230
Machine Environment ............................................................................... 230
Moving....................................................................................................... 230
Power Connection..................................................................................... 231
Access to the Machine.............................................................................. 231
Maintaining Your Machine .................................................................... 232
Cleaning the Exposure Glass.................................................................... 232
Cleaning the Platen Cover ........................................................................ 232
Cleaning the Document Feeder ................................................................ 232
7.Specification
Mainframe............................................................................................... 233
Document Feeder (Option) ................................................................... 237
1000-Sheet Finisher (Option)................................................................ 238
2 Tray Finisher (Option) ........................................................................ 239
Punch Kit (Option)................................................................................. 241
Internal tray 2 (1 bin tray) (Option)....................................................... 242
Extarnal Tray (Option)........................................................................... 243
Large Capacity Tray (LCT) (Option)..................................................... 244
Paper tray unit (Option) ........................................................................ 245
INDEX...................................................................................................... 246
AdonisC2_AEcopy110F_FM.book Page ix Wednesday, October 3, 2001 1:43 PM
x
AdonisC2_AEcopy110F_FM.book Page x Wednesday, October 3, 2001 1:43 PM
1
Machine Types
This machine comes in two models which vary by copy speed. To make sure
which model you have, see the inside front cover.
Type 1 Type 2
Copy speed 35 copies/minute (A4K, 81/2"
× 11"K)
45 copies/minute (A4K, 81/2"
× 11"K)
AdonisC2_AEcopy110F_FM.book Page 1 Wednesday, October 3, 2001 1:43 PM
2
What You Can Do with This Machine (Copy
Mode)
Positive/Negative
AdonisC2_AEcopy110F_FM.book Page 2 Wednesday, October 3, 2001 1:43 PM
3
Series/Book
Document Server
Front & Back
1 Sided & Booklet
2 Sided & Booklet
1 Sided & Magazine
2 Sided & Magazine
*1 Optional 2 Tray finisher is reguired.
*2 Optional Bridge unit and optional finisher are reguired.
AdonisC2_AEcopy110F_FM.book Page 3 Wednesday, October 3, 2001 1:43 PM
4
1. “Selecting Original Type Setting”
⇒
⇒⇒
⇒
P.36
2. “Adjusting Copy Image Density”
⇒
⇒⇒
⇒
P.35
3. “Setting Special Originals”
⇒
⇒⇒
⇒
P.31
4. “Image Repeat”
⇒
⇒⇒
⇒
P.109
5. “Double Copies”
⇒
⇒⇒
⇒
P.110
6. “Centering”
⇒
⇒⇒
⇒
P.111
7. “Erase”
⇒
⇒⇒
⇒
P.113
8. “Margin Adjustment”
⇒
⇒⇒
⇒
P.118
9. “Positive/Negative”
⇒
⇒⇒
⇒
P.112
10. “Stamp”
⇒
⇒⇒
⇒
P.120
11. “1 Sided
→
→→
→
2 Sided”
⇒
⇒⇒
⇒
P.82
12. “2 Sided
→
→→
→
2 Sided”
⇒
⇒⇒
⇒
P.83
13. “1 Sided 2 Pages
→
→→
→
Combine 1
Side”
⇒
⇒⇒
⇒
P.86
14. “1 Sided 4 Pages
→
→→
→
Combine 1
Side”
⇒
⇒⇒
⇒
P.87
15. “1 Sided 8 Pages
→
→→
→
Combine 1
Side”
⇒
⇒⇒
⇒
P.88
16. “2 Sided 2 Pages
→
→→
→
Combine 1
Side”
⇒
⇒⇒
⇒
P.92
17. “2 Sided 4 Pages
→
→→
→
Combine 1
Side”
⇒
⇒⇒
⇒
P.93
18. “2 Sided 8 Pages
→
→→
→
Combine 1
Side”
⇒
⇒⇒
⇒
P.94
19. “1 Sided 4 Pages
→
→→
→
Combine 2
Side”
⇒
⇒⇒
⇒
P.89
20. “1 Sided 8 Pages
→
→→
→
Combine 2
Side”
⇒
⇒⇒
⇒
P.90
21. “1 Sided 16 Pages
→
→→
→
Combine 2
Side”
⇒
⇒⇒
⇒
P.91
22. “2 Sided 4 Pages
→
→→
→
Combine 2
Side”
⇒
⇒⇒
⇒
P.95
23. “2 Sided 8 Pages
→
→→
→
Combine 2
Side”
⇒
⇒⇒
⇒
P.96
24. “2 Sided 16 Pages
→
→→
→
Combine 2
Side”
⇒
⇒⇒
⇒
P.97
25. “Book
→
→→
→
1 Sided”
⇒
⇒⇒
⇒
P.98
26. “Book
→
→→
→
2 Sided”
⇒
⇒⇒
⇒
P.99
27. “Front & Back
→
→→
→
2 Sided”
⇒
⇒⇒
⇒
P.100
28. “1 Sided
→
→→
→
Booklet”
⇒
⇒⇒
⇒
P.102
29. “2 Sided
→
→→
→
Booklet”
⇒
⇒⇒
⇒
P.104
30. “1 Sided
→
→→
→
Magazine”
⇒
⇒⇒
⇒
P.105
31. “2 Sided
→
→→
→
Magazine”
⇒
⇒⇒
⇒
P.107
32. “Preset Reduce/Enlarge”
⇒
⇒⇒
⇒
P.69
33. “Zoom”
⇒
⇒⇒
⇒
P.71
34. “Size Magnification”
⇒
⇒⇒
⇒
P.73
35. “Directional Magnification (%)”
⇒
⇒⇒
⇒
P.75
36. “Directional Size Magnification
(mm)”
⇒
⇒⇒
⇒
P.77
37. “Document Server”
⇒
⇒⇒
⇒
P.145
38. “Punch”
⇒
⇒⇒
⇒
P.54
39. “Sort”
⇒
⇒⇒
⇒
P.43
40. “Rotate Sort”
⇒
⇒⇒
⇒
P.43
41. “Stack”
⇒
⇒⇒
⇒
P.45
42. “Staple”
⇒
⇒⇒
⇒
P.47
43. “Front Cover”
⇒
⇒⇒
⇒
P.135
44. “Front/Back Covers”
⇒
⇒⇒
⇒
P.136
45. “Designate”
⇒
⇒⇒
⇒
P.138
46. “Chapter”
⇒
⇒⇒
⇒
P.139
47. “Slip Sheets”
⇒
⇒⇒
⇒
P.141
48. “Auto Reduce/Enlarge”
⇒
⇒⇒
⇒
P.41
AdonisC2_AEcopy110F_FM.book Page 4 Wednesday, October 3, 2001 1:43 PM
5
Guide To Components
1. Document Feeder (ADF)
The document feeder automatically feeds
a stack of originals one by one.
2. Exposure glass
Place originals here face down for copy-
ing. ⇒ P.18 “Originals”
3. Internal tray
Copied paper is delivered here face down.
4. Main power switch
If the machine does not operate after turning
on the operation switch, check if the main
power switch is turned on. If it is off, turn it on.
5. Main power indicator
This indicator light up when the main
power switch is turned on, and goes off
when the switch is turned off.
6. On indicator
This indicator lights up when the opera-
tion switch is turned on, and goes off
when the switch is turned off.
7. Operation switch
Press this switch to turn the power on (the On
indicator light up). To turn the power off, press
this switch again (the On indicator goes off).
8. Control panel
⇒ P.9 “Control Panel”
9. Remove Paper Indicator
The indicator is lit when paper is output
to the internal tray 2 (1 bin tray). When
paper is removed from the internal tray 2,
the indicator goes off.
Note
❒Internal tray 2 (1 bin tray) is optional.
10. Duplex unit (Unit for two-sided
copies)
Makes two-sided copies.
11. Front cover
Open to access the inside of the machine.
12. Paper tray
Set paper here.
13. Paper tray unit (Option)
14. Holding stand
AdonisC2_AEcopy110F_FM.book Page 5 Wednesday, October 3, 2001 1:43 PM
6
1. Bypass tray
Use when copying onto OHP transparen-
cies, adhesive labels, translucent paper,
postcards, and custom size paper.
2. Right side cover
Open this when a paper jam occurs.
1. Ventilation hole
Prevents overheating. Do not obstruct
the ventilation hole by placing an object
near it or leaning an object against it. If
the machine overheats, a fault might oc-
cur.
AdonisC2_AEcopy110F_FM.book Page 6 Wednesday, October 3, 2001 1:43 PM
7
Output Tray Guide
When copying onto OHP transparencies and translucent paper, raise the guide.
This prevents copies from being curled when delivered.
❖
❖❖
❖To copy onto normal paper and thick paper
Slide the guide in the direction of the arrow.
❖
❖❖
❖To copy onto OHP transparencies and translucent paper
Insert your forefinger into the indent on the guide and slide the guide to the
right.
❖
❖❖
❖To copy onto A3, 11” ×
××
× 17” paper
Raise the end fence.
AdonisC2_AEcopy110F_FM.book Page 7 Wednesday, October 3, 2001 1:43 PM
8
Options
1. 1000-Sheet Finisher
Sorts, stacks, and staples copies.
2. External tray
If you selected this as the output tray,
copied paper is delivered here face
down.
3. Platen cover
Lower this cover over originals for copy-
ing.
4. Document feeder (ADF) ⇒
⇒⇒
⇒ P.30
Insert a stack of originals here.
They will be fed automatically.
5. Internal tray 2 (1 bin tray)
If you selected this as the output tray,
copied paper is delivered here face
down.
6. Large Capacity Tray (LCT)
Holds 1,500 sheets of paper.
7. Paper tray unit
Consists of two paper trays.
8. Bridge unit
Relays copies to the external tray or fin-
isher.
9. 2 Tray Finisher
Sorts, stacks, and staples copies. You can
also punch copies. (The Punch function is
optional.)
•1: Finisher shift tray 1
•2: Finisher shift tray 2
AdonisC2_AEcopy110F_FM.book Page 8 Wednesday, October 3, 2001 1:43 PM
9

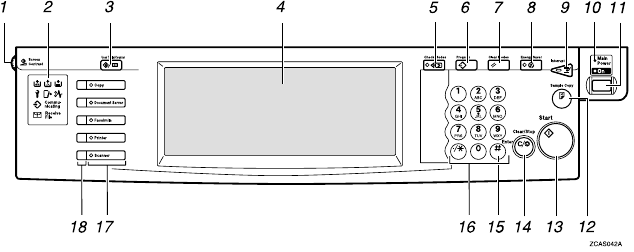

Control Panel
1. Screen Contrast knob
Adjusts the brightness of the display pan-
el.
2. Indicators
These indicators show errors or the status
of the machine. ⇒ P.165 “Troubleshoot-
ing”.
3. {
{{
{User Tools/Counter}
}}
} key
•User Tools
Press to change the default settings
and conditions to meet your require-
ments.
•Counter
Press to check or print the total
number of copies made.
4. Display panel
Shows operation status, error messages,
and function menus. ⇒ P.11 “Display
Panel”.
5. {
{{
{Check Modes}
}}
} key
Press to check the entered copy job set-
tings.
6. {
{{
{Program}
}}
} key
Press to select the program mode. ⇒ P.62
“Programs”.
7. {
{{
{Clear Modes}
}}
} key
Press to clear the previously entered copy
job settings.
8. {
{{
{Energy Saver}
}}
} key
Press to switch to and from Energy Saver
mode. ⇒ P.66 “Energy Saver Mode”.
9. {
{{
{Interrupt}
}}
} key
Press to make interrupt a long copy job to
make copies. ⇒ P.66 “Interrupt Copy”.
10. Main power indicator
This indicator goes on when the main
power switch is turned on, and goes off
when the switch is turned off.
11. Operation switch
Press this switch to turn the power on
(the On indicator goes on). To turn the
power off, press this switch again (the On
indicator goes off).
12. {
{{
{Sample Copy}
}}
} key
Use this key to make a single sample
copy before starting a long copy run. By
checking the sample copy and making
any necessary changes to the image qual-
ity settings before you make multiple
copies, you can save time and paper. ⇒
P.67 “Sample Copy”.
13. {
{{
{Start}
}}
} key
Press to start copying. Press to start scan-
ning and printing in Document Server
mode.
AdonisC2_AEcopy110F_FM.book Page 9 Wednesday, October 3, 2001 1:43 PM
10
14. {
{{
{Clear/Stop}
}}
} key
•Clear
Press to delete a number entered.
•Stop
Press to stop a copy job in progress.
15. {
{{
{#}
}}
} key
Press to enter a value.
16. Number keys
Use to enter the desired number of copies
and data for selected modes.
17. Function keys
Press the appropriate key to choose any
of the following functions:
•Copy
•Document Server
•Facsimile
•Printer
•Scanner
18. Function Status indicator
These show the status of the above func-
tions:
•Yellow: the function is selected.
•Green: the function is active.
•Red: the function has been interrupt-
ed.
AdonisC2_AEcopy110F_FM.book Page 10 Wednesday, October 3, 2001 1:43 PM
11
Display Panel
The display panel shows the status of the machine, error messages and function
menus.
Important
❒Do not apply a strong shock or force of about 30 N (about 3 kgf) or more to
the display panel. If you do, the display might be damaged.
Note
❒The function items displayed serve as selector keys. You can select or specify
an item by lightly pressing it.
❒When you select or specify an item on the display panel, it is highlighted like
.
❒Keys appearing as cannot be used.
Displays and Key Operations
Note
❒The following illustrations are examples for the machine with the optional 2
Tray finisher and large capacity tray (LCT) installed.
❖
❖❖
❖Initial copy display
1. Original mode, Image Density
and Special Original mode.
2. Operational status or messages.
3. You can register up to three fre-
quently used reduce/enlarge ratios
other than the fixed reduce/enlarge
ratios. ⇒
⇒⇒
⇒ “Shortcut R/E” in P.213
“Reproduction Ratio 1/2”.
4. The number of originals scanned
into memory, number of copies set,
and number of copies made.
5. Sort, Stack, Staple or Punch
mode.
6. Displays the contents of the
Shortcut keys. You can register fre-
quently used functions in these
keys. ⇒
⇒⇒
⇒ “Copy Function Key F1-F5”
in P.211 “General Features 3/4”.
OK
AdonisC2_AEcopy110F_FM.book Page 11 Wednesday, October 3, 2001 1:43 PM
12
7. Shows the available functions.
Press a function name to display its
menu. For example, press the [Re-
duce/Enlarge] key to bring up the Re-
duce/Enlarge menu.
8. A clip mark appears for a current-
ly selected function.
❖
❖❖
❖Function menu
1. Items you can select. 2. The key highlighted with the
lower line underlined indicates the
tray feeding the paper.
❖
❖❖
❖Document Server initial display
1. Operational status and messages.
2. Display titles.
3. Operational keys.
4. Documents sent by fax.
AdonisC2_AEcopy110F_FM.book Page 12 Wednesday, October 3, 2001 1:43 PM
13
Function List Based on Options
The functions that are available to you depend on your machine configuration
and which options you have. See the table below.
❍…Available
×…Not available
Type 1 Type 2 Place originals
on the expo-
sure glass
in the docu-
ment feeder
Mixed Sizes Mode ❍ *5 ❍ *5 ❍❍
Custom Size Originals ❍❍❍❍
Original Orientation (Standard
Orientation)
❍❍❍❍
Auto Image Density ❍❍❍❍
Manual Image Density ❍❍❍❍
Auto Paper Select ❍❍❍❍
Manual Paper Select ❍❍❍❍
Copying from the Bypass Tray ❍❍❍❍
Sample Copy/Job Preset ❍❍❍❍
Auto Reduce/Enlarge ❍❍❍❍
Reduce/Enlarge ❍❍❍❍
Create Margin Mode ❍❍❍❍
Book ❍❍❍❍
Duplex ❍❍❍❍
Combine 1 Sided 2 pages, 4
pages, 8 pages, → 1
Side
❍❍❍❍
1 Sided 4 pages, 8
pages, 16 pages, →
2 Side
❍❍❍❍
2 Sided 2 pages, 4
pages, 8 pages, → 1
Side
❍❍❍❍
2 Sided 4 pages, 8
pages, 16 pages, →
2 Side
❍❍❍❍
Series Book → 1 Sided ❍❍❍×
Book → 2 Sided ❍❍❍×
Front & Back → 2
Sided
❍❍❍×
AdonisC2_AEcopy110F_FM.book Page 13 Wednesday, October 3, 2001 1:43 PM
14
*1 Set the paper of the same size KL in the paper trays.
*2 You can use this function when “Rotate Sort” is selected in “Select Stack Function”.
*3 1000-sheet Finisher or 2 Tray Finisher and Bridge unit required.
*4 2 Tray Finisher and Bridge unit required.
*5 Document feeder required.
*6 32 MB Memory required. (If the machine is equipped with the Printer unit, 32 MB
memory is not required.)
Copying Book Originals ❍❍❍❍
Image Repeat ❍❍❍❍
Double Copies ❍❍❍❍
Centering ❍❍❍❍
Positive/Negative ❍❍❍❍
Border Erase/Center Erase ❍❍❍❍
Margin Adjustment ❍❍❍❍
Background Numbering *6 *6 ❍❍
Preset Stamp *6 *6 ❍❍
User Stamp *6 *6 ❍❍
Date Stamp/Page Numbering ❍❍❍❍
Cover/Front/Back Cover/Slip
Sheet
❍❍❍❍
Sort ❍❍❍❍
Shift Sort *3 *3 ❍❍
Rotate Sort *1 *2 *1 *2 ❍❍
Shift Stack *3 *3 ❍❍
Staple *3 *3 ❍❍
Punch *4 *4 ❍❍
Store File ❍❍❍❍
Type 1 Type 2 Place originals
on the expo-
sure glass
in the docu-
ment feeder
AdonisC2_AEcopy110F_FM.book Page 14 Wednesday, October 3, 2001 1:43 PM
15
1. Basics
Turning On the Power
To turn the machine on, press the op-
eration switch.
Note
❒This machine automatically enters
Energy Saver mode or turns itself
off if you do not use the machine
for a while. P.28 “Auto Off” and
“Timer Setting” in the System Set-
tings manual.
-
--
-Power switches
This machine has two power switch-
es. ⇒ P.5 “Guide To Components”
❖
❖❖
❖Operation switch (right side of the
control panel)
Press this switch to activate the
machine. When the machine has
warmed up, you can make copies.
Turning On the Main Power
AMake sure that the power cord is
firmly plugged into the wall out-
let.
BOpen the switch cover and turn
on the main power switch (make
sure that the Main Power indica-
tor goes on).
Important
❒Do not switch off the main pow-
er immediately after it has been
switched on. Failure to observe
this may result in damage to the
hard disk or memory, leading to
malfunctions.
AdonisC2_AEcopy110F_FM.book Page 15 Wednesday, October 3, 2001 1:43 PM
Basics
16
1
Turning On the Power
APress the operation switch to
make the On indicator goes on.
The display panel will come on.
Note
❒If the power is not turned on
when the operation switch is
pressed, check if the main pow-
er switch is on. If off, turn it on.
❒
During the warm-up period (less
than 10 seconds for Type 1, less
than 15 seconds for Type 2), you
can use the Auto Start function.
Turning Off the Power
AMake sure that the platen cover or
the document feeder is in the
right position.
BPress the operation switch to
make the On indicator goes off.
Note
❒Even if you press the operation
switch, the indicator do not
goes off and blink in the follow-
ing cases:
•When the platen cover or the
document feeder is open.
•When communication is in
progress with external
equipment.
•When the hard disk is oper-
ating.
Turning Off the Main Power
AMake sure that the On indicator
goes off.
BTurn off the main power switch to
make sure the indicator goes off.
Important
❒Do not turn off the main power
switch when the indicator goes
on or blink Hard Disk or Mem-
ory might be broken.
❒Pull out the power plug after
you turn off the main power
switch. Hard Disk or Memory
might be broken.
❒If the main power switch is
turned off, or the power plug is
disconnected, any documents
stored in fax memory will be
lost after approximately one
hour elapses.
AdonisC2_AEcopy110F_FM.book Page 16 Wednesday, October 3, 2001 1:43 PM
Changing Modes
17
1
Changing Modes
You can use this machine not only as a copier, but also as a fax, printer, docu-
ment server and scanner as well. Press the {Copy}, {Facsimile}, {Printer}, {Scan-
ner} or {Document Server} key to use that function.
Limitation
❒You cannot switch modes in the following cases:
•During interrupt copying
•When scanning in a fax message for transmission
•During immediate transmission
•During on hook dialing for fax transmission
•While scanning an original
•When accessing the user tools
AdonisC2_AEcopy110F_FM.book Page 17 Wednesday, October 3, 2001 1:43 PM
Basics
18
1
Originals
Sizes and Weights of Recommended Originals
❖
❖❖
❖Metric version
❖
❖❖
❖Inch version
Note
❒The number of originals that can be set in the document feeder is about 80.
❒Original weight in Mixed Size mode is 52-81g/m2, 13.8-21.5 lb.
Non-recommended originals for the document feeder
Setting the following types of originals in the document feeder can cause paper
misfeeds or damage to the originals. Set these originals on the exposure glass in-
stead.
•Originals other than those specified in ⇒ P.18 “Sizes and Weights of Recom-
mended Originals”
•Stapled or clipped originals
•Perforated or torn originals
•Curled, folded, or creased originals
•Pasted originals
•Originals with any kind of coating, such as thermal fax paper, art paper, alu-
minum foil, carbon paper, or conductive paper
•Originals with perforated lines
Where Original Is Set Original Size Original Weight
Exposure glass Up to A3 --
Document feeder 1-sided originals:
A3L – B6KL
40 – 128g/m2
2-sided originals:
A3L – A5KL
52 – 105g/m2
Where Original Is Set Original Size Original Weight
Exposure glass Up to 11" × 17" --
Document feeder 1-sided originals:
11" × 17"L – 51/2" × 81/2"KL
11 – 34 lb.
2-sided originals:
11" × 17"L – 51/2" × 81/2"KL
14 – 28 lb.
AdonisC2_AEcopy110F_FM.book Page 18 Wednesday, October 3, 2001 1:43 PM
Originals
19
1
•Originals with indexes, tags, or other projecting parts
•Sticky originals such as translucent paper
•Thin originals that have low stiffness
•Thick originals such as postcards
•Originals of inappropriate weight
•Bound originals such as books
•Transparent originals such as OHP transparencies or translucent paper
•Originals that have correction fluid or ink on them that has not completely
dried
Sizes Detectable by the Auto Paper Select
❖
❖❖
❖Metric version
❖
❖❖
❖Inch version
Sizes difficult to detect
It is difficult for the machine to detect the sizes of the following originals, so se-
lect the paper size manually.
•Originals with indexes, tags, or other projecting parts
•Transparent originals such as OHP transparencies or translucent paper
•Dark originals with many letters and drawings
•Originals which partially contain a solid image
•Originals which have solid images at their edges
Size A3
L
B4
L
A4K
L
B5K
L
A5K
L
11" ×
17"L81/2" ×
14"L
81/2" ×
11"KL
51/2" ×
81/2"KL
81/2" ×
13"L
Place of
original
Exposure
glass
❍❍ ❍ ❍ ×× × × × ❍
Document
feeder
❍❍ ❍ ❍ ❍ ❍ ×× × ❍
Size A3
L
B4
L
A4
K
B5
KL
A5
KL
11"
×
17"
L81/2"
×
14"L
8
1
/
2
"
×
11"
KL
51/2" ×
81/2"
KL
81/2" ×
13"L
71/4"
×
101/2"
L
Place of
original
Expo-
sure glass
×× × × × ❍❍ ❍ ×××
Document
feeder
×× ❍××❍❍ ❍ ❍ ❍ ❍
AdonisC2_AEcopy110F_FM.book Page 19 Wednesday, October 3, 2001 1:43 PM
Basics
20
1

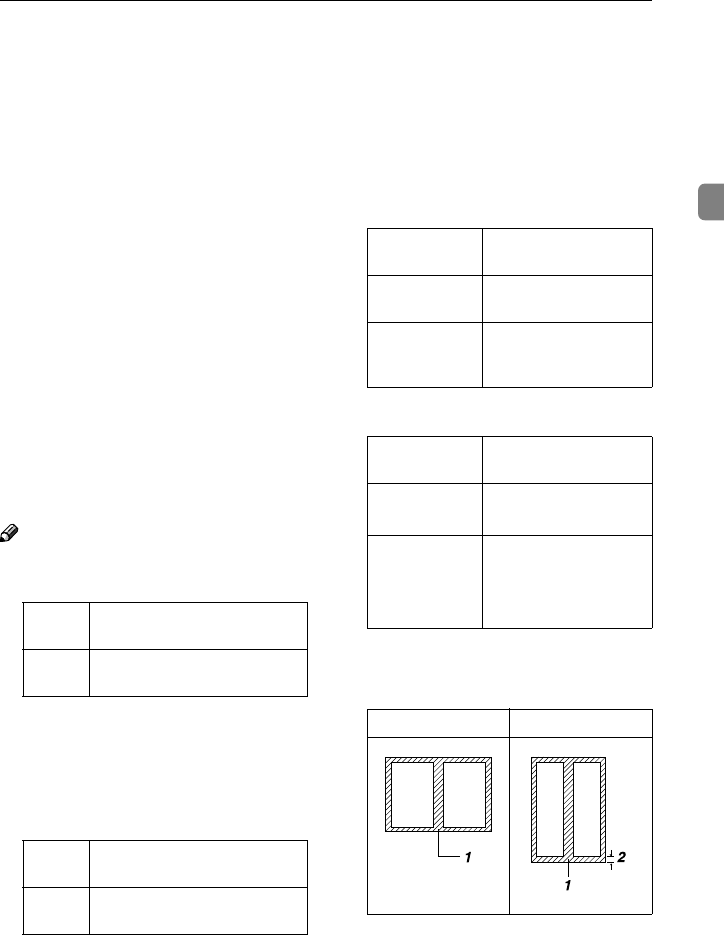

Missing Image Area
❖
❖❖
❖Exposure glass
❖
❖❖
❖Document feeder
Limitation
❒Even if you correctly set originals in the document feeder or on the exposure
glass, 3mm (0.1") margins on all four sides of the original might not be copied.
❒There are cases where the paper will be fed diagonally when a paper size of
433mm or larger is used. Ensure that the paper is set in place it is fed straight.
❒The system length setting is at its maximum value when set at 1260mm (49").
A3
A3A4
Horizontal size
Vertical size
Reference
position
Maximum Scanning area
A3 (297x420mm)
11"x17" (279x432mm)
CP01AEE
AdonisC2_AEcopy110F_FM.book Page 20 Wednesday, October 3, 2001 1:43 PM
Copy Paper
21
1
Copy Paper
Recommended Paper Sizes and Types
The following limitations apply to each tray:
Metric Version Inch Version Paper
Weight
Paper Ca-
pacity
Tray 1 *4
Tray 2 *4
A3L, B4L,
A4KL,
B5KL, <A5L>,
<11" × 17"L>,
<81/2" × 14"L>,
<81/2" × 11"KL>,
<8" × 13"L>,
<81/2" × 13"L>,
<81/4" × 13"L>,
<81/4" × 14"L>,
<11" × 14"L>,
<71/4" × 101/2"L>,
<8" × 101/2"KL>,
<51/2" × 81/2"L>
Note
❒When selecting
paper sizes in
parentheses,
set the paper
size selector
knob to the p
mark. ⇒ P.188
“Changing the
Paper Size”
❒You have to
specify the pa-
per size with
the User Tools
(System Set-
tings). See “Pa-
per Size
Setting” in the
System Settings
manual.
<A3L, B4L>,
A4KL,
<B5KL, A5L>,
11" × 17"L,
81/2" × 14"L,
81/2" × 11"KL,
<8" × 13"L>,
81/2" × 13"L,
<81/4" × 13"L>,
<81/4" × 14"L>,
<11" × 14"L>,
<71/4" × 101/2"L>,
<8" × 101/2"KL>,
<51/2" × 81/2"L>
Note
❒When selecting
paper sizes in
parentheses,
set the paper
size selector
knob to the p
mark. ⇒ P.188
“Changing the
Paper Size”
❒You have to
specify the pa-
per size with
the User Tools
(System Set-
tings). See “Pa-
per Size
Setting” in the
System Settings
manual.
64-105g/m
2
(17-28lb.)
500 sheet
AdonisC2_AEcopy110F_FM.book Page 21 Wednesday, October 3, 2001 1:43 PM
Basics
22
1
*1 The paper tray fence is fixed. If you wish to change the size of paper set in this tray,
contact your service representative.
*2 If you wish to copy onto custom size paper, set the paper in the bypass tray and spec-
ify the size. ⇒ P.58 “Copying from the Bypass Tray”.
*3 If you wish to copy onto OHP transparencies or thick paper, select OHP or Thick Pa-
per mode. ⇒ P.60 “When Copying onto OHP Transparencies or Thick Paper”.
*4 When setting copy paper, make sure that the stack height does not exceed the limit
mark. The maximum number of sheets you can set at a time depends on the paper
thickness and condition.
*5 If you wish to copy onto thick (128g/m2, 34 lb or heavier) paper, select Thick Paper
mode. ⇒ “Special Paper Indication” in the System Settings manual.
Tray 3 *4
Tray 4 *4
OPTION
A3L, B4L,
A4KL, B5KL,
A5L, 11" × 17"L,
81/2" × 14"L,
81/2" × 11"KL,
8" × 13"L,
81/4" × 13"L,
81/4" × 14"L,
11" × 14"L,
71/4" × 101/2"L,
8" × 101/2"KL,
51/2" × 81/2"L
A3L, B4L,
A4KL, B5KL,
A5L, 11" × 17"L,
81/2" × 14"L,
81/2" × 11"KL,
8" × 13"L,
81/4" × 13"L,
81/4" × 14"L,
11" × 14"L,
71/4" × 101/2"L,
8" × 101/2"KL,
51/2" × 81/2"L
60-105g/m
2
(16-28lb.)
500 sheet
Bypass
Tray *2 *3 *4
Standard
Size
A3L, B4L, A4L,
B5L, A5L,
PostcardL,
11" × 17"L,
81/2" × 14"L,
81/2" × 11"KL,
51/2" × 81/2"L,
71/4" × 101/2"KL,
8" × 13"L,
81/2" × 13"L,
81/4" × 13"L,
11" × 14"L,
11" × 15"L,
10" × 14"L,
10" × 15"L,
81/4" × 14"L,
8" × 101/2"KL,
8" × 10"KL
A3L, B4L, A4L,
B5L, A5L,
PostcardL,
11" × 17"L,
81/2" × 14"L,
81/2" × 11"KL,
51/2" × 81/2"L,
71/4" × 101/2"KL,
8" × 13"L,
81/2" × 13"L,
81/4" × 13"L,
11" × 14"L,
11" × 15"L,
10" × 14"L,
10" × 15"L,
81/4" × 14"L,
8" × 101/2"KL,
8" × 10"KL
52-90.2g/m
2
(14-24lb.)
50 sheet
91-163g/m
2
(24-43lb.)
*5
25 sheet
Custom
size
Vertical:
100∼297mm
Horizontal:
148∼600mm
Vertical: 4.0"∼11.7"
Horizontal:
5.9"∼23.6"
52-90.2g/
m
2
(14-
24lb.)
50 sheet
91-163g/m
2
(24-43lb.)
*5
25 sheet
Postcard, adhesive labels, translucent
paper, OHP transparencies
Large Capacity Tray
(LCT) *1 *4
(OPTION)
A4K, 81/2" × 11"KA4K, 81/2" × 11"K
60-105g/m
2
(16-28lb.)
1500 sheet
AdonisC2_AEcopy110F_FM.book Page 22 Wednesday, October 3, 2001 1:43 PM
Copy Paper
23
1
Important
❒If you use damp or curled paper, a misfeed might occur. In this case, try turn-
ing over the paper stack in the paper tray. If there is no improvement, change
to paper with less curl.
Note
❒When you use the bypass tray, it is recommended to set the copy paper direc-
tion to L.
❒Postcards should be fed from the bypass tray.
❒If you load paper of the same size and in the same direction in two or more
trays, the machine automatically shifts to another tray when the tray in use
runs out of paper. This function is called Auto Tray Switching. (However, this
only true if the Paper Type is recycled or special paper, and the setting for the
other trays are the same.) This saves interrupting a copy run to replenish pa-
per when making a large number of copies. ⇒ P.38 “Selecting Copy Paper”, ⇒
P.206 “Auto Tray Switching”
❒If you select Thick Paper mode, copying speed might be reduced.
AdonisC2_AEcopy110F_FM.book Page 23 Wednesday, October 3, 2001 1:43 PM
Basics
24
1
Direction-fixed paper or 2-sided paper
The direction-fixed (top to bottom) or 2-sided paper (letterhead paper, punched
paper, or copied paper, e.g.) might not be printed correctly depending on how
the originals and paper are set in place. Set "Letterhead setting" of system set-
tings and then set the original and paper as shown below. ⇒ “Letterhead Setting”
in ⇒ P.226 “Input/Output”
AdonisC2_AEcopy110F_FM.book Page 24 Wednesday, October 3, 2001 1:43 PM
Copy Paper
25
1
Non-recommended Paper
R
CAUTION:
Important
❒Do not use any of the following kinds of paper or a fault might occur.
•Thermal fax paper
•Art paper
•Aluminum foil
•Carbon paper
•Conductive paper
•Colored OHP transparencies
•Paper with perforated lines
•Hemmed paper
Note
❒Do not use the following kinds of paper or a misfeed might occur.
•Bent, folded, or creased paper
•Torn paper
•Slippery paper
•Perforated paper
•Rough paper
•Thin paper that has low stiffness
•Paper with much paper dust on its surface
❒If you make a copy on rough grain paper, the copy image might be blurred.
Paper Storage
Note
❒When storing paper, the following precautions should always be followed:
•Do not store paper where it will be exposed to direct sunlight.
•Avoid storing paper in humid areas (humidity: 70% or less).
•Store on a flat surface.
❒Keep open reams of papers in the package, and store as you would unopened
paper.
❒Under high temperature and high humidity, or low temperature and low hu-
midity conditions, store paper in a vinyl bag.
•Do not use aluminum foil, carbon paper, or similar conductive paper to avoid
a fire or equipment failure.
AdonisC2_AEcopy110F_FM.book Page 25 Wednesday, October 3, 2001 1:43 PM
Basics
26
1
Toner
Handling Toner
R
WARNING:
R
CAUTION:
R
CAUTION:
Important
❒If you use toner other than the recommended type, a fault might occur.
Reference
If you want to add toner. ⇒ P.178 “
D
Adding Toner”
Toner Storage
When storing toner, the following precautions should always be followed:
•Store toner containers in a cool, dry place free from direct sunlight.
•Store on a flat surface.
Used Toner
Note
❒Used toner cannot be re-used.
•Do not incinerate used toner or toner containers. Toner dust might ig-
nite when exposed to an open flame. Dispose of used toner containers
in accordance with local regulations for plastics.
•Keep toner (used or unused) and toner containers out of reach of children.
•Our products are engineered to meet high standards of quality and function-
ality, and we recommend that you only use the expendable supplies availa-
ble at an authorized dealer.
AdonisC2_AEcopy110F_FM.book Page 26 Wednesday, October 3, 2001 1:43 PM
27
2. Copying
Basic Procedure
AMake sure that the machine is in
Copy mode.
If the machine is not in Copy
mode, press the {Copy} key.
BWhen the machine is set for the
user code, enter the user code
with the number keys and then
press the {
{{
{#}
}}
} key.
Reference
⇒ P.66 “Other Functions”.
CMake sure that there are no previ-
ous settings remaining.
Note
❒To clear settings, press the
{Clear Modes} key.
DSet your originals.
Reference
⇒ P.29 “Setting Originals”.
ESet your desired settings.
FEnter the number of copies re-
quired with the number keys.
Note
❒The maximum copy quantity
can be set between 1 and 999
(default: 999).
❒To change the number entered,
press the {Clear/Stop} key and
enter the new number.
GPress the {
{{
{Start}
}}
} key.
The machine starts copying.
Note
❒When you set originals on the
exposure glass, press the {#}
key after all originals are
scanned.
❒Copies are delivered face down.
❒To stop the machine during the
multi-copy run, press the {Clear/
Stop} key.
❒To return the machine to the in-
itial condition after copying,
press the {Clear Modes} key.
AdonisC2_AEcopy110F_FM.book Page 27 Wednesday, October 3, 2001 1:43 PM
Copying
28
2
-
--
-System Reset
The machine returns to its initial con-
dition automatically when your job is
finished, after a certain period of
time. This function is called “System
Reset”.
Note
❒You can change the System Reset
time. ⇒ “System Reset Timer” in
“System Settings manual”.
-
--
-Auto Off
The machine turns itself off automat-
ically after your job is finished, after a
certain period of time. This function is
called “Auto Off”.
Note
❒You can change the Auto Off time.
⇒ “Auto Off Timer” in the System
Settings manual.
❒Auto Off time function will not op-
erate in the following:
•When the warning massage is
displayed.
•When the service call massage is
displayed.
•When the paper is jammed.
•When the cover is open.
•When "Adding Toner" message
is displayed.
•When the toner is being replen-
ished.
•When the User Tools/Counter
screen is displayed.
•When fixed warm-up is in
progress.
•When the facsimile, printer or
other functions are operating.
•When operations have been
suspended during printing.
•When the handset is in use.
•When the On-hook dialing
function is in use.
•When a recipient is being regis-
tered in the address list or
group dial list.
•When the Data In indicator goes
on or blinking.
•When the sample print/confi-
dential print screens are dis-
played.
AdonisC2_AEcopy110F_FM.book Page 28 Wednesday, October 3, 2001 1:43 PM
Setting Originals
29
2
Setting Originals
Limitation
❒Set originals after correction fluid
and ink has completely dried. Not
taking this precaution could mark
the exposure glass and cause
marks to be copied.
Note
❒Basically originals should be
aligned to the rear left corner.
However, some copy functions
may produce different results de-
pending on the direction of the
originals. For details, see the expla-
nations of each function.
Reference
⇒ P.18 “Originals”.
Setting Originals on the
Exposure Glass
ALift the platen cover or the docu-
ment feeder.
Important
❒Do not open the document feed-
er with a force. Otherwise, the
cover of the document feeder
might open or be damaged.
Note
❒Be sure to open the document
feeder by more than 30°. Other-
wise the original size might not
be detected correctly.
BSet the original face down on the
exposure glass. The original
should be aligned to the rear left
corner.
1: Reference mark
2: Scale
Note
❒Start with the first page to be
copied.
CLower the platen cover or docu-
ment feeder.
AdonisC2_AEcopy110F_FM.book Page 29 Wednesday, October 3, 2001 1:43 PM
Copying
30
2
Setting Originals in the
Document Feeder
Note
❒The last page should be on the bot-
tom.
❒Do not stack originals beyond the
limit mark on the side fence of the
document feeder.
❒The original might become dirty if
it is written with a pencil or similar
tools.
Reference
Regarding originals that the docu-
ment feeder can handle. ⇒ P.18
“Originals”.
ASet the aligned originals face up
into the document feeder.
1: Limit mark
2: Document guide
Note
❒Straighten curls in the originals
before setting them in the docu-
ment feeder.
❒To avoid a multi-sheet feed,
shuffle the originals before set-
ting them in the document feed-
er.
Original Orientation
You can set the original orientation
separately in the following ways.
This function is useful for copying
torn originals or large originals.
❖
❖❖
❖Standard Orientation
Select this function when the origi-
nal direction is the same as the
copy paper direction.
❖
❖❖
❖90°
°°
° Turn
This function rotates the copy im-
age by 90°.
Use this function when you want
to copy onto A3, B4, 11" × 17" pa-
per.
APress the [Special Original] key.
BSelect the original orientation.
Standard Orientation
AMake sure that the key is
selected.
AdonisC2_AEcopy110F_FM.book Page 30 Wednesday, October 3, 2001 1:43 PM
Setting Originals
31
2
90° Turn
When you want to copy A3K,
B4K or 11" × 17"K size originals,
set your original in the landscape
orientation and then press the
key. The machine rotates the
original image and you can make
copies as you wish. This is useful
for copying large originals with
the Staple, Punch, Duplex, Com-
bine or Stamp functions.
For example, if you want to copy
A3K or 11" × 17"K originals with
for the Staple function configured
as shown below:
Note
❒It is recommended to use this
function together with the Auto
Paper Selector Preset Reduce/
Enlarge function.
APress the key.
CPress the [OK] key.
Setting Special Originals
Use this function when you want to
use Batch, Mixed Sizes, or when you
select the original orientation.
Batch mode
Up to 80 standard originals can be set
in the document feeder at a time.
Important
❒When setting special originals
such as translucent paper, set them
one by one.
Note
❒The [Batch] key can be change to
the [SADF] key. ⇒ P.226 “Switch to
Batch (SADF)”.
❒In Batch mode, even when one
original is set in the document
feeder, the original is automatical-
ly fed each time it is set.
APress the [Special Original] key.
BPress the [Batch] key.
AdonisC2_AEcopy110F_FM.book Page 31 Wednesday, October 3, 2001 1:43 PM
Copying
32
2
CPress the [OK] key.
DSet your originals, then press the
{
{{
{Start}
}}
} key.
EAfter all the previously set origi-
nals are fed, set the next originals.
The second and subsequent origi-
nals can be fed automatically with-
out pressing the {Start} key.
1: Limit mark
2: Document guide
Note
❒When the Sort, Combine or Du-
plex function has been set, press
the {#} key after all originals are
scanned.
FPress the {
{{
{Start}
}}
} key.
Mixed Size mode
When originals of different sizes are
set on the document feeder at a time,
the machine automatically checks the
size of the originals and makes cop-
ies.
Limitation
❒When setting originals of different
sizes on the document feeder and
making copies without using
Mixed Sizes mode, parts of the
original image might not be cop-
ied, or paper might be jammed.
❒The weight of originals that can be
set with this function is 52 – 81g/
m2, 14 – 20 lb.
❒The original sizes that can be set
with this function are as follows:
❒For smaller originals, the copy im-
age might be slanted since the orig-
inals might not be correctly
aligned with the original guide.
❒Copying speed and scanning
speed will be reduced.
Note
❒This key is not used when sending
a fax message in Mixed size origi-
nals. Switch to Facsimile mode and
set Mixed size originals. Refer to
the Facsimile Reference manual.
Metric
version
A3L, B4L, A4KL, B5KL
Inch
version
11"
×
17"
L
, 8
1
/
2
"
×
14"
L
, 8
1
/
2
"
×
11"
KL
, 5
1
/
2
"
×
8
1
/
2
"
KL
AdonisC2_AEcopy110F_FM.book Page 32 Wednesday, October 3, 2001 1:43 PM
Setting Originals
33
2
APress the [Special Original] key.
BPress the [Mixed size] key.
CPress the [OK] key.
DAlign the rear and left edges of
the originals as shown in the il-
lustration.
1: Set into the document feeder.
2: Vertical size
EAdjust the guide to the widest
original size.
FSet the aligned originals face up
into the document feeder.
GPress the {
{{
{Start}
}}
} key.
Setting Custom Size Originals
When setting custom size originals in
the document feeder, specify the size
of the originals.
Limitation
❒
The paper size that can be set with this
function is vertical 128-297mm (5" –
11"), horizontal 128-1,260mm (5" – 49").
APress the [Special Original] key.
BPress the [Custm Size Origi.] key.
CEnter the horizontal size of the
original with the Number keys,
then press the [#] key.
Note
❒If you make a mistake, press the
[Clear] or {Clear/Stop} key, and
then enter the value again.
B4 A3
1
2
CP19AE
AdonisC2_AEcopy110F_FM.book Page 33 Wednesday, October 3, 2001 1:43 PM
Copying
34
2
DEnter the vertical size of the origi-
nal with the Number keys, then
press the [#] key.
EPress the [OK] key.
FSet your originals, then press the
{
{{
{Start}
}}
} key.
AdonisC2_AEcopy110F_FM.book Page 34 Wednesday, October 3, 2001 1:43 PM
Basic Functions
35
2
Basic Functions
The following basic functions are ex-
plained in this section.
❖
❖❖
❖Adjusting Copy Image Density
Auto and Manual Image Density
❖
❖❖
❖Selecting Original Type Setting
Text, Text·Photo, Photo, Pale, Gen-
eration Copy
❖
❖❖
❖Selecting Copy Paper
Auto Paper Select and Manual Pa-
per Select
❖
❖❖
❖Auto Reduce/Enlarge
The machine can choose an appro-
priate reproduction ratio based on
the paper and original sizes you se-
lect.
❖
❖❖
❖Sort
Copies can be assembled as sets in
sequential order.
❖
❖❖
❖Rotate Sort
Every other copy set is rotated by
90° K L and delivered to the copy
tray.
❖
❖❖
❖Stack (The optional Bridge unit and
the optional finisher are required for
this function)
Copies can be assembled with each
page set.
❖
❖❖
❖Staple (The optional Bridge unit and
the optional finisher are required for
this function)
Each copy set can be stapled to-
gether.
❖
❖❖
❖Punch (The optional Bridge unit and
the optional 2 Tray finisher are re-
quired for this function)
This function is used to make
punch holes in copies.
Note
❒You can select functions to be acti-
vated when System Reset is turned
on, when Energy Saver is turned
off, or after the machine is pow-
ered on.
❒You can change default settings for
basic functions. ⇒ “Settings You
Can Change with the User Tools”
in System Settings manual.
Adjusting Copy Image Density
You can adjust the copy image densi-
ty to match your originals.
There are three types in this function:
❖
❖❖
❖Auto Image Density
The machine automatically adjusts
the image density.
❖
❖❖
❖Manual Image Density
If you require darker or lighter
copies, adjust the image density
yourself.
❖
❖❖
❖Combined Auto and Manual Image
Density
Use when copying originals with a
dirty background (such as news-
papers). You can adjust the fore-
ground density while leaving the
background unchanged.
AdonisC2_AEcopy110F_FM.book Page 35 Wednesday, October 3, 2001 1:43 PM
Copying
36
2
Auto Image Density
AMake sure that the [Auto Image Den-
sity] key is selected.
Note
❒If the [Auto Image Density] key is
not selected, press the [Auto Im-
age Density] key.
❒If you do not wish to set any
other functions, press the {Start}
key to start copying.
Manual Image Density
APress the [Auto Image Density] key
to cancel it.
BPress the [Lighter] or [Darker] key to
adjust the image density.
Note
❒If you do not wish to set any
other functions, press the {Start}
key to start copying.
Combined Auto and Manual Image
Density
AMake sure that the [Auto Image Den-
sity] key is selected.
BPress the [Lighter] or [Darker] key to
adjust the density.
Note
❒If you do not wish to set any
other functions, press the {Start}
key to start copying.
Selecting Original Type
Setting
Select one of the following types to
match your originals:
❖
❖❖
❖Text
Select this mode when your origi-
nals contain only letters (no pic-
tures).
❖
❖❖
❖Text·Photo
Select Text·Photo when your origi-
nals contain photographs or pic-
tures with letters.
❖
❖❖
❖Photo
Delicate tones of photographs and
pictures can be reproduced with
this mode.
AdonisC2_AEcopy110F_FM.book Page 36 Wednesday, October 3, 2001 1:43 PM
Basic Functions
37
2
❖
❖❖
❖Pale
Select this mode for originals that
have lighter lines written in pencil,
or for faint copied slips. The faint
lines will be clearly copied.
❖
❖❖
❖Generation Copy
If your originals are copies (gener-
ation copies), the copy image can
be reproduced sharply and clearly.
Note
❒You can directly display the [Origi-
nal Mode] key on the copy original
display.
❒You can adjust the quality level for
each original type.
APress the appropriate key to select
the original type.
Note
❒If “Yes” has been selected in
“Original Mode Display” of the
User Tools, press the [Original
Mode] key to select the original
type, then press the [OK] key. ⇒
“Original Mode Display” in
P.206 “General Features 1/4”.
❒If you do not wish to set any
other functions, press the {Start}
key to start copying.
AdonisC2_AEcopy110F_FM.book Page 37 Wednesday, October 3, 2001 1:43 PM
Copying
38
2
Selecting Copy Paper
There are two ways to select copy paper:
❖
❖❖
❖Auto Paper Select
The machine selects a suitable size of copy paper automatically based on the
original size and the reproduction ratio. ⇒ P.40 “Rotated copy”.
❖
❖❖
❖Manual Paper Select
Choose the tray containing the paper you wish to copy onto: Paper Tray, By-
pass Tray or large capacity tray (LCT).
Reference
⇒ P.58 “Copying from the Bypass Tray”.
Limitation
❒Auto Paper Select mode is intended for normal and recycled paper.
❒If you set all the paper trays other than “No Display” or “Recycled Paper”,
you cannot use Auto Paper Select.
Note
❒See the following table for possible copy paper sizes and directions with Auto
Paper Select (when copying at a ratio of 100%):
❖
❖❖
❖Metric version
❖
❖❖
❖Inch version
❒For some originals, the original size might not be detected correctly. ⇒ P.19
“Sizes difficult to detect”.
❒When you set special paper, such as recycled paper, in the paper tray, you can
have the paper type shown on the display. ⇒ “Special Paper Indication” in
the System Settings manual.
Where Original Is Set Paper Size and Direction
Exposure glass A3L, B4L, A4KL, B5KL
Document feeder A3L, B4L, A4KL, B5KL, A5KL,
11" × 17"L, 81/2" × 11"KL
Where Original Is Set Paper Size and Direction
Exposure glass 11" × 17"L, 81/2" × 14"L, 81/2" × 11"KL
Document feeder A4KL, 11" × 17"L, 81/2" × 14"L,
81/2" × 11"KL, 51/2" × 81/2"KL
AdonisC2_AEcopy110F_FM.book Page 38 Wednesday, October 3, 2001 1:43 PM
Basic Functions
39
2
Auto Paper Select
AMake sure that the [Auto Paper Select] key is selected.
Note
❒If the [Auto Paper Select] key is not selected, press the [Auto Paper Select] key.
❒If you do not wish to set any other functions, press the {Start} key to start
copying.
❒If “Yes” has been selected in “Original Mode Display” of the User Tools,
press the [Auto Paper Select] key.
❒The tray with the key mark will not be automatically selected.
Manual Paper Select
ASelect the paper tray, bypass tray or large capacity tray (LCT).
Note
❒If you do not wish to set any other functions, press the {Start} key to start
copying.
AdonisC2_AEcopy110F_FM.book Page 39 Wednesday, October 3, 2001 1:43 PM
Copying
40
2
-
--
-Rotated copy
If the direction in which your original is set (landscape or portrait) is different
from that of the paper you are copying onto, this function rotates the original im-
age by 90° and fits it on the copy paper. This function works when Auto Paper
Select or Auto Reduce/Enlarge is selected. ⇒ “Auto Paper Select” in P.38 “Se-
lecting Copy Paper” and ⇒ P.41 “Auto Reduce/Enlarge”.
Limitation
❒The default setting for “Auto Tray Switching” is “With Image Rotation” You
cannot use the Rotated Copy function because this setting is changed to
“Without Image Rotation” or “Off”.
❒You cannot use the Rotated Copy function when enlarging onto B4 or A3 size
paper. In this case, set your original in the landscape direction.
❒You cannot use the Rotated Copy function when “Top Slant”, “Left 2” or
“Saddle Stitch” is selected for stapling or if the Punch function is selected
when using the 2 Tray finisher. ⇒ P.47 “Staple” and ⇒ P.54 “Punch”.
❒You cannot use the Rotate Copy function if the Staple function is selected
when using the 1000-sheet finisher.
Original
Orientation
Paper
Orientation
Copy
Orientation
Original Size and Direction Copy Paper Size and
Direction
You cannot
rotate:
A4,
B5, or
A5
por-
trait
When enlarg-
ing to →
B4, A3
However, you
can rotate:
A4,
B5, or
A5
land-
scape
When enlarg-
ing to →
B4, A3
GCROTA0E
R
R
GCROTA1E
R
GCROTA2E
R
GCROTA3E
R
GCROTA4E
R
AdonisC2_AEcopy110F_FM.book Page 40 Wednesday, October 3, 2001 1:43 PM
Basic Functions
41
2
Auto Reduce/Enlarge
The machine can choose an appropri-
ate reproduction ratio based on the
paper and original sizes you select.
Limitation
❒You cannot use the bypass tray
with this function.
Note
❒When you use Auto Reduce/En-
large, see the following table for
possible original sizes and direc-
tions:
❖
❖❖
❖Metric version
*1 You cannot scan 2-sided B6 origi-
nals.
❖
❖❖
❖Inch version
*1 You cannot scan two sided B6 orig-
inals.
❒The reproduction ratios the ma-
chine will select are 25 – 400%.
❒For some originals, the original
size might not be detected correct-
ly. ⇒ P.19 “Sizes difficult to detect”.
❒You can set originals of different
sizes in the document feeder at a
time. ⇒ P.32 “Mixed Size mode”.
❒You cannot use the Rotate function
when enlarging B4 or A3 originals.
When enlarging on to B4 or A3 size
copy paper, set the original in the
L direction.
APress the [Auto Reduce/Enlarge] key.
BSelect the paper tray.
Note
❒If you do not wish to set any
other functions, press the {Start}
key to start copying.
Where Original Is
Set
Original Size and
Direction
Exposure glass A3L, B4L,
A4KL, B5KL
Document feeder *1 A3L, B4L,
A4KL, B5KL,
A5KL, B6KL,
11" × 17"L,
81/2" × 11"KL
Where Original Is
Set
Original Size and
Direction
Exposure glass 11" × 17"L,
81/2" × 14"L,
81/2" × 11"KL
Document feeder *1 A4KL,
11" × 17"L,
81/2" × 14"L,
81/2" × 11"KL,
51/2" × 81/2"KL
AdonisC2_AEcopy110F_FM.book Page 41 Wednesday, October 3, 2001 1:43 PM
Copying
42
2
Sort/Stack/Staple
The machine can scan your originals
into memory and automatically sort
the copies.
❖
❖❖
❖Sort
•Sort
•Rotate Sort
•Shift sort (the optional finisher
and the optional Bridge unit are
equired)
❖
❖❖
❖Stack
•Stack
(the optional finisher and the
optional Bridge unit are re-
quired)
❖
❖❖
❖Staple (the optional finisher and the
optional Bridge unit are required)
With 1000-Sheet Finisher
•Top Slant
With 2 Tray Finisher
•Top
•Top Slant
•Bottom
•Top 2
Limitation
❒You cannot use the bypass tray
with this function.
❒The maximum capacity for Sort,
Rotate Sort, and Stack with A5 L
is 100 sheets.
Note
❒When the number of copies ex-
ceeds the tray capacity, remove
copies from the tray.
❒The maximum tray capacity is as
follows.
❖
❖❖
❖Metric version
Inter-
nal tray
•B4L or larger: 250 sheets
(80g/m2)
•A4K or smaller: 500 sheets
(80g/m2)
Inter-
nal tray
2 (1 bin
tray)
125 sheets (80g/m2)
Extar-
nal tray
125 sheets (80g/m2)
1000-
Sheet
Finish-
er
•B4L or larger: 500 sheets
(80g/m2)
•A4K or smaller: 1,000
sheets (80g/m2)
2 Tray
Finish-
er
Finisher shift tray 1
•A3L, B4L: 250 sheets
(80g/m2)
•A4KL, B5KL, A5K:
500 sheets (80g/m2)
•A5L: 100 sheets (80g/m2)
Finisher shift tray 2
•A3L, B4L, A4L, B5KL:
750 sheets (80g/m2)
•A4K: 2,000 sheets (80g/m
2
)
•A5K: 500 sheets (80g/m2)
•A5L: 100 sheets (80g/m2)
AdonisC2_AEcopy110F_FM.book Page 42 Wednesday, October 3, 2001 1:43 PM
Sort/Stack/Staple
43
2
❖
❖❖
❖Inch version
Sort
Copies can be assembled as sets in se-
quential order.
❖
❖❖
❖Sort
Copies can be assembled as sets in
sequential order.
Note
❒The paper sizes that can be used
in the Sort function are as fol-
lows:
❖
❖❖
❖Rotate Sort
Every other copy set is rotated by
90°KL and delivered to the copy
tray.
Note
❒When the optional finisher is in-
stalled, you can switch to or
from the Rotate Sort function
with the User Tools. ⇒ “Select
Stack or Rotate sort” in P.226
“Input/Output”.
Inter-
nal tray
•81/2" × 14"L or larger: 250
sheets (20 lb.)
•81/2" × 11K or smaller: 500
sheets (20 lb.)
Inter-
nal tray
2 (1 bin
tray)
125 sheets (20 lb.)
Extar-
nal tray
125 sheets (20 lb.)
1000-
Sheet
Finish-
er
•81/2" × 14"L or larger: 500
sheets (20 lb.)
•81/2" × 11"K or smaller:
1,000 sheets (20 lb.)
2 Tray
Finish-
er
Finisher Shift Tray 1
•11" × 17"L, 81/2" × 14"L:
250 sheets (20 lb.)
•81/2" × 11"KL : 500sheets
(20 lb.)
•51/2" × 81/2"KL :
100sheets (20 lb.)
Finisher Shift Tray 2
•11" × 17"L, 81/2" × 14"L,
81/2" × 11"L: 750 sheets
(20 lb.)
•81/2" × 11"K : 2,000sheets
(20 lb.)
•51/2" × 81/2"KL :
100sheets (20 lb.)
Metric version A3L, B4L,
A4KL, B5KL,
A5L
Inch version 11" × 17"L, 81/2"
× 14"L, 81/2" ×
11"KL, 51/2" ×
81/2"KL
2
1
32
1
32
1
32
1
3
2
1
32
1
32
1
3
2
1
3
AdonisC2_AEcopy110F_FM.book Page 43 Wednesday, October 3, 2001 1:43 PM
Copying
44
2
❒The paper sizes that can be used
in the Rotate Sort function are as
follows:
❒To use the Rotate Sort function,
two paper trays identical in size
and different in direction (KL)
are required.
Reference
For the paper capacity of the op-
tional finishers, ⇒ P.238 “1000-
Sheet Finisher (Option)”, ⇒ P.239
“2 Tray Finisher (Option)”.
When using the Rotate Sort,
Punch or Staple functions, the
capacity may be reduced.
❖
❖❖
❖Shift Sort
•1000-Sheet/2 Tray Finisher
The shift tray moves backward
or forward each time the copies
of one set or those of each job
are delivered, causing the next
copy to shift when delivered so
that you can differentiate each
set or job.
Note
❒The paper sizes that can be used
in the Sort function are as fol-
lows:
APress the [Sort] or [Rotate Sort] key.
❖
❖❖
❖When the finisher is not installed
❖
❖❖
❖When the 1000-Sheet Finisher is
installed
Metric version A4KL, B5KL
Inch version 81/2" × 11"KL
2
1
3
3
2
13
2
1
3
2
1
1000-Sheet
Finisher
2 Tray
Finisher
Metric
version
A3L, B4L,
A4KL,
B5KL,
A5KL,
B6L, A6L
A3L, B4L,
A4KL,
B5KL,
A5KL
Inch
version
11" × 17"L,
81/2" × 14"
L, 81/2" ×
11"KL,
51/2" × 81/2"
KL
11" × 17"L,
81/2" × 14"
L, 81/2" ×
11"KL,
51/2" × 81/2"
KL
AdonisC2_AEcopy110F_FM.book Page 44 Wednesday, October 3, 2001 1:43 PM
Sort/Stack/Staple
45
2
❖
❖❖
❖When the 2 Tray Finisher is
installed
Note
❒When the optional finisher is in-
stalled, use the User Tools to
display [Rotate Sort]. ⇒ “Select
Stack Function” in P.226 “Input/
Output”.
BEnter the number of copy sets
with the number keys.
Limitation
❒The maximum number of sets is
999.
Note
❒To change the entered number,
press the {Clear/Stop} key.
CSet your originals, then press the
{
{{
{Start}
}}
} key.
When setting a stack of originals
in the document feeder
ASet a stack of originals in the
document feeder, then press
the {
{{
{Start}
}}
} key.
Note
❒The last page should be on
the bottom.
❒If an original is misfed dur-
ing sorted copying, reset
your originals in the docu-
ment feeder according to the
instructions on the display.
The display will indicate the
number of scanned originals.
When setting an original on the
exposure glass or in the
document feeder using Batch
mode
Reference
⇒ P.31 “Batch mode”.
ASet the original, then press the
{
{{
{Start}
}}
} key.
Note
❒Start with the first page to be
copied.
BSet the next original. When it is
placed on the exposure glass,
press the {
{{
{Start}
}}
} key.
Note
❒Set the original in the same
direction as the first one.
CAfter all originals are scanned,
press the {
{{
{#}
}}
} key.
Stack
Copies can be assembled with each page
set.
❖
❖❖
❖Shift Stack
•1000-Sheet/2 Tray-Sheet Finish-
er
This function groups copies of
each page in a multi-page origi-
nal together. Every other page
stack is shifted for ease of sepa-
ration. The finisher shift tray of
the finisher provides this func-
tion by sliding from side to side.
2
1
3
3
3
32
2
2
1
1
1
AdonisC2_AEcopy110F_FM.book Page 45 Wednesday, October 3, 2001 1:43 PM
Copying
46
2
Note
❒The paper sizes that can be used in
the Stack function are as follows:
Reference
For the maximum tray capacity of
the optional finisher, ⇒ P.238
“1000-Sheet Finisher (Option)”, ⇒
P.239 “2 Tray Finisher (Option)”.
APress the [Stack] key.
BEnter the number of copies with
the number keys.
Note
❒To change the entered number,
press the {Clear/Stop} key.
CSet your originals, then press the
{
{{
{Start}
}}
} key.
When setting a stack of originals
in the document feeder
ASet a stack of originals in the
document feeder, then press
the {
{{
{Start}
}}
} key.
Note
❒The last page should be on
the bottom.
When setting an original on the
exposure glass or in the
document feeder using Batch
mode
Reference
⇒ P.31 “Batch mode”.
ASet the original, then press the
{
{{
{Start}
}}
} key.
Note
❒Start with the first page to be
copied.
BSet the next original. When it is
placed on the exposure glass,
press the {
{{
{Start}
}}
} key.
Note
❒Set the original in the same
direction as the first one.
1000-Sheet
Finisher
2 Tray
Finisher
Metric
version
A3L, B4L,
A4KL,
B5KL,
A5KL
A3L, B4L,
A4KL,
B5KL,
A5KL
Inch
version
11" × 17"L,
81/2" × 14"L,
81/2" × 11"K
L, 51/2" ×
81/2"KL
11" × 17"L,
81/2" × 14"L,
81/2" × 11"K
L, 51/2" ×
81/2"KL
AdonisC2_AEcopy110F_FM.book Page 46 Wednesday, October 3, 2001 1:43 PM
Sort/Stack/Staple
47
2
Staple
The optional finisher and the bridge unit are required to use this function.
Each copy set can be stapled together.
Limitation
❒You cannot use the following paper in this function:
•Postcards
•Translucent paper
•OHP transparencies
•Adhesive labels
•Curled paper
•Low stiffness paper
•Paper of different vertical sizes
Note
❒For this mode, the following limitation applies. When the number of copies
exceeds the tray capacity, copying stops. In this case, remove the copies from
the shift tray and then resume copying.
❖
❖❖
❖Metric version
*1 Depending on the number of sheets to be stapled and whether sheets have
punched holes or not, the maximum tray capacity might be reduced.
With 1000-Sheet Finisher With 2 Tray Finisher
Paper size A3L, B4L, A4KL, B5KA3L, B4L, A4KL, B5KL
Stapler
capacity
•A4 or smaller: 30 sheets (80g/m2)
•B4 or larger: 20 sheets (80g/m2)
•A4 or smaller: 50 sheets (80g/m2)
•B4 or larger: 30 sheets (80g/m2)
•Mixed Size: 30 sheets (80g/m2)
Shift tray
capacity
(A4K) *1
1,000 sheets (80g/m2)•Finisher shift tray 1: 500 sheets
(80g/m2)
•Finisher shift tray 2: 1,500 sheets
(80g/m2)
AdonisC2_AEcopy110F_FM.book Page 47 Wednesday, October 3, 2001 1:43 PM
Copying
48
2
❖
❖❖
❖Inch version
*1 Depending on the number of sheets to be stapled and whether sheets have
punched holes or not, the maximum tray capacity might be reduced.
*2 If you copy when the paper remains on the tray, the capacity might be reduced.
*3 Available staple positions are “Top” and “Bottom”.
❒
In the following cases, the copies will be delivered to the shift tray without stapling.
•When the number of sheets for one set is over the stapler capacity.
•When memory reaches 0% during copying.
❒When you select Staple, Sort mode is automatically selected.
❒When the machine is equipped with the optional 2 Tray Finisher, originals of
mixed paper sizes can be stapled, using Auto papaer select and Mixed sizes
function together. Make sure the appropriate paper sizes are loaded in paper
trays. The mixed paper sizes that can be stapled are as follows.
•A3L and A4K, B4L and B5K, 11" × 17"L and Letter (81/2" × 11")K
Reference
If you want to add staples, ⇒ P.192 “
d
Adding Staples”.
When staple is jammed, ⇒ P.196 “
e
Removing Jammed Staples”.
When using 1 Sided → 1 Sided, 1 Sided → 2 Sided, 2 Sided → 1 Sided, 2 Sided
→ 1 Sided for double copies in Combine mode, select K original for L copy,
L original for K copy.
Stapling position and original setting
Set all the originals in a direction in which they can be read. They will automat-
ically be rotate copied. When there is copy paper that is identical in size and di-
rection as your original, the staple positions are as follows:
When using “1 Sided 2 Pages
→
Combine 1 Side”, “1 Sided 4 Pages
→
Combine 2 Sided”
for double copies in Combine mode, select
K
original for
L
copy,
L
original for
K
copy.
When using “Top Slant”, “Left 2” or “Top 2” with “1 Sided → 1 Sided”, “1 Sided
→ 2 Sided”, “2 Sided → 1 Sided”, or “2 Sided → 2 Sided” of combine function
for double copies, select K original for L copies and L originals for K copies.
With 1000-Sheet Finisher With 2 Tray Finisher
Paper size 11" × 17"L, 81/2" × 14"L,
81/2" × 11"KL
11" × 17"L, 81/2" × 14"L,
81/2" × 11"KL
Stapler
capacity
•81/2" × 11" or smaller: 30 sheets
(20 lb.)
•81/2" × 14" or larger: 20 sheets
(20 lb.)
•81/2" × 11" or smaller: 50 sheets
(20 lb.)
•81/2" × 14" or larger: 30 sheets
(20 lb.)
•Mixed Size: 30 sheets (20lb.)
Shift tray
capacity
(81/2" ×
11"K) *1
1,000 sheets (20 lb.) •Finisher shift tray 1: 500 sheets
(20lb.)
•Finisher shift tray 2: 1,500 sheets
(20lb.)
AdonisC2_AEcopy110F_FM.book Page 48 Wednesday, October 3, 2001 1:43 PM
Sort/Stack/Staple
49
2
❖
❖❖
❖1000-sheet Finisher
When your machine is equipped with the 1000-sheet finisher, the stapling po-
sition will be fixed to “Top Slant”.
Note
❒Original images are not rotated.
❖
❖❖
❖2 Tray Finisher
Original setting Stapling
position
Exposure
glass
Document
Feeder
Top Slant
K
L
Original setting Stapling
position
Exposure
glass
Document
Feeder
Top
K
L
Top Slant
K
L
Bottom
K
L
STAPLEBE
STAPLEAE
STAPLEBE
STAPLECE STAPLE25 STAPLE26 STAPLE27
STAPLE28 STAPLE29 STAPLE30
AdonisC2_AEcopy110F_FM.book Page 49 Wednesday, October 3, 2001 1:43 PM
Copying
50
2
*1 Available staple positions except A3, B4, size of paper.
Note
❒You cannot change stapling positions during copying.
❒When the original image is rotated, the stapling direction turns by 90°.
❒By setting orientation of papers and originals, “Blank part will appear. Check
orientation.” message is displayed. In this case, change the paper orientation.
❒The maximum original image size that can be rotated is as follows:
Left 2
K *1
L
Top 2
K *1
L
Metric
version
A4
Inch
version
81/2" × 11"
Original setting Stapling
position
Exposure
glass
Document
Feeder
STAPLEDE
STAPLEEE
AdonisC2_AEcopy110F_FM.book Page 50 Wednesday, October 3, 2001 1:43 PM
Sort/Stack/Staple
51
2
ASelect one of the stapling positions.
❖
❖❖
❖1000-Sheet Finisher
❖
❖❖
❖2 Tray Finisher
Note
❒When you select the stapling position, Sort mode is automatically selected.
Reference
⇒ P.48 “Stapling position and original setting”
BEnter the number of copy sets with the number keys.
Note
❒To change the entered number, press the {Clear/Stop} key.
CSet your originals, then press the {
{{
{Start}
}}
} key.
When setting a stack of originals in the document feeder
ASet a stack of originals in the document feeder, then press the {
{{
{Start}
}}
} key.
Note
❒The last page should be on the bottom.
AdonisC2_AEcopy110F_FM.book Page 51 Wednesday, October 3, 2001 1:43 PM
Copying
52
2
When setting an original on the exposure glass or in the document feeder
using Batch mode
Reference
⇒ P.31 “Batch mode”.
ASet the original, then press the {
{{
{Start}
}}
} key.
Note
❒Start with the first page to be copied.
BSet the next original. When it is placed on the exposure glass, press the
{
{{
{Start}
}}
} key.
Note
❒Set the original in the same direction as the first one.
CAfter all originals are scanned, press the {
{{
{#}
}}
} key.
To Stop Scanning Temporarily
When you are using the Sort, Stack, or
Staple function, the originals are
scanned into memory.
APress the {
{{
{Clear/Stop}
}}
} key to stop
originals from being scanned into
memory.
To resume scanning
APress the [No] key to resume
scanning.
Note
❒Scanned images in memory
are not cleared.
To clear scanned images of the
originals
APress the [Yes] key.
Scanning is stopped with the
images cleared.
When Memory Reaches 0%
Scanning will be stopped if the size of
scanned image data exceeds memory
capacity.
Note
❒There is enough memory to store
approximate 1,000 originals of A4,
81/2" × 11" size. The number of
originals that can be stored in
memory varies depending on the
memory setting and original type.
In addition, the number of origi-
nals that can be stored in memory
will be reduced when you use oth-
er functions.
Reference
Scanning will stop when memory
reaches 0% during sorted copying.
However, you can change this set-
ting so that all the scanned pages
are copied and delivered to the
tray first, then the machine auto-
matically continues scanning the
remaining originals. ⇒ “Memory
Full Auto Scan Restart” in P.226
“Input/Output”.
AdonisC2_AEcopy110F_FM.book Page 52 Wednesday, October 3, 2001 1:43 PM
Sort/Stack/Staple
53
2
APress the {
{{
{Start}
}}
} key.
The scanned pages are delivered to
the tray. Then, the image data in
memory is cleared.
BRemove the copies and continue
copying by following the instruc-
tions on the display.
To Remove the Paper from the
Staple Unit
If you cancel the stapling copy job in
the middle of the job, the paper might
be left in the staple unit. In this case,
remove the paper from the staple
unit.
APress the {
{{
{Clear Modes}
}}
} key to can-
cel the copy settings.
BSet the next original, then press
the {
{{
{Start}
}}
} key.
The paper left in the staple unit is
automatically delivered, then the
next job starts.
Note
❒When the paper is not delivered
and the message is displayed,
follow the instructions on the
display to remove the paper.
AdonisC2_AEcopy110F_FM.book Page 53 Wednesday, October 3, 2001 1:43 PM
Copying
54
2
Punch
The optional 2 tray finisher and the bridge unit are required to use this function.
This function is used to make punch holes in copies.
❖
❖❖
❖2 holes
❖
❖❖
❖3 holes
❖
❖❖
❖4 holes
AdonisC2_AEcopy110F_FM.book Page 54 Wednesday, October 3, 2001 1:43 PM
Punch
55
2
Note
❒When using Punch and Combine, Double Copies, or Auto Reduce/Enlarge,
the message "Blank part will appear. Check orientation." may appear because
of the orientation of the original and the copy paper. If this occurs, change the
orientation of the copy paper.
❒The relationship between the direction in which you set the original and the
punch hole positions is as follows:
❖
❖❖
❖Punch hole positions
Direction in which Original is Set Punch Hole Positions
Exposure glass Document feeder
Standard
2 holes K
L
3 holes K
L
4 holes K
L
AdonisC2_AEcopy110F_FM.book Page 55 Wednesday, October 3, 2001 1:43 PM
Copying
56
2
❒Punchable paper sizes are as follows:
❒Since punch holes are made in each copy, the punch hole positions vary
slightly.
❒The punch hole positions change according to the direction of the paper se-
lected.
90º Turn
2 holes K
L
3 holes K
L
4 holes K
L
With 2 Tray Finisher
Punch kit type
2 & 4 holes type 2 holes LA3-A5, 11" × 17"-51/2" × 81/2"
KA4-A5, 81/2" × 11"-51/2" × 81/2"
4 holes LA3, B4, 11" × 17"
KA4, B5, 81/2" × 11"
4 holes type 4 holes LA3-A5, 11" × 17"-51/2" × 81/2"
KA4-A5, 81/2" × 11"-51/2" × 81/2"
2 & 3 holes type 2 holes LA3-A5, 11" × 17"-51/2" × 81/2"
KA4-A5, 81/2" × 11"-51/2" × 81/2"
3 holes LA3, B4, 11" × 17"
KA4, B5, 81/2" × 11"
Direction in which Original is Set Punch Hole Positions
Exposure glass Document feeder
AdonisC2_AEcopy110F_FM.book Page 56 Wednesday, October 3, 2001 1:43 PM
Punch
57
2
Reference
If the punch waste box fills up, ⇒ P.200 “
y
Removing Punch Waste”.
ASelect the Punch position.
Note
❒When stapling copies, also select a stapling position. ⇒ P.47 “Staple”.
BEnter the number of copy sets with the number keys.
Note
❒To change the entered number, press the {Clear/Stop} key.
❒If you wish to use the Sort function, press the [Sort] key.
CSet your originals, then press the {
{{
{Start}
}}
} key.
AdonisC2_AEcopy110F_FM.book Page 57 Wednesday, October 3, 2001 1:43 PM
Copying
58
2
Copying from the Bypass Tray
Use the bypass tray to copy onto OHP
transparencies, adhesive labels, trans-
lucent paper, postcards, and copy pa-
per that cannot be set in the paper tray.
Note
❒The machine can automatically de-
tect the following sizes as standard
size copy paper:
❒If you do not use the standard size
copy paper, you should input ver-
tical and horizontal dimensions.
The sizes that you can input are as
follows:
❒When using paper larger than 433
mm in size, set it so that it is fed
straight into the machine.
❒When using paper larger than 433
mm in size, the paper may become
wrinkled, and may not be fed into the
machine, or may cause paper jams.
❒To make copies onto OHP trans-
parencies or thick paper exceeding
128g/m2, 35 lb., specify the paper
type in ⇒ P.60 “When Copying onto
OHP Transparencies or Thick Paper”.
❒The maximum number of sheets
you can set at a time depends on
the paper type. For details about
paper capacity of the bypass tray,
⇒ P.21 “Copy Paper”.
AOpen the bypass tray.
BAdjust the guides to copy paper
size.
Important
❒If the guides are not flush with
the copy paper, a skew image or
paper misfeeds might occur.
CLightly insert the copy paper face
up until the beeper sounds.
The k indicator on the display au-
tomatically goes on.
1. Extender
Metric
version
A3L, A4L, A5L,
81/2" × 13"L
Inch
version
A3L, 11"
×
17"L, 8
1
/
2
"
×
14"L,
8
1
/
2
"
×
11"L, 5
1
/
2
"
×
8
1
/
2
"L
Metric
version
•Vertical: 100 – 297mm
•Horizontal: 148 – 600mm
Inch
version
•Vertical: 3.9" – 11.6"
•Horizontal: 5.8" – 23.4"
AdonisC2_AEcopy110F_FM.book Page 58 Wednesday, October 3, 2001 1:43 PM
Copying from the Bypass Tray
59
2
Note
❒The face side of the paper set is
copied on.
❒Do not stack paper over the lim-
it mark, otherwise a skew image
or paper misfeeds might occur.
❒If the beeper is turned off, light-
ly insert the copy paper until it
stops. Refer to the System Set-
tings manual.
❒When the document feeder is
open, set the direction of the
copy paper to L.
❒Swing out the extender to sup-
port paper sizes larger than
A4L, 81/2" × 11"L.
❒Fan paper to get air between the
sheets and avoid a multi-sheet
feed.
❒Before setting, adjust the paper
if curled or warped.
When copying onto standard size
paper (Thick Paper, Thin paper,
Transparent Paper, or OHP
transparecies)
APress the {
{{
{#}
}}
} key.
BPress the [Select Size] key.
CSelect the paper size.
Note
❒The copy paper sizes that can
be selected are as follows:
•A3L, A4KL, A5KL,
A6L, B4L, B5KL,
B6L, 11×17L, 81/2×14L,
81/2×11KL, 51/2×81/2L,
71/4×101/2L, 8×13L,
81/2×13L, 81/4×13K,
11×14L, 11×15K,
10×14L, 10×15L,
81/4×14L, 8×101/2KL,
8×10KL
When copying onto custom size
paper
Important
❒You should specify the size of
copy paper to avoid paper mis-
feeds.
APress the {
{{
{#}
}}
} key.
AdonisC2_AEcopy110F_FM.book Page 59 Wednesday, October 3, 2001 1:43 PM
Copying
60
2
BPress the [Custom Size] key.
CPress the [Vertical mm] key and
enter the vertical size of the pa-
per with the number keys, then
press the [#] key.
Note
❒To change the number en-
tered, press the [Clear] or
{Clear/Stop} key and enter the
new number.
DEnter the horizontal size of the
paper with the number keys,
then press the [#] key.
Note
❒If the [Horiz mm] key is not
highlighted, press the [Horiz
mm] key.
❒To change the number en-
tered, press the [Clear] or
{Clear/Stop} key and enter the
new number.
ETo register the custom size en-
tered, press the [Store] key and
then press the [Cancel] key.
Note
❒If you do not register the cus-
tom size, go to step F.
❒Only one custom size can be
stored.
❒To recall the custom size
stored, press the [Recall] key.
❒If you do not register the cus-
tom size, the size you set is
deleted when modes are
cleared.
FPress the [OK] key.
DSet your originals, then press the
{
{{
{Start}
}}
} key.
EWhen your copy job is finished,
press the {
{{
{Clear Modes}
}}
} key to
clear the settings.
When Copying onto OHP
Transparencies or Thick Paper
To make copies onto OHP transpar-
encies or thick paper, you need to
specify the paper type.
Note
❒Select [Thick Paper] if the paper
weight is more than 128g/m2, 34
lb.
AOpen the bypass tray, and adjust
the guides to the paper size.
Important
❒If the guides are not flush with
the copy paper, a skew image or
paper misfeeds might occur.
AdonisC2_AEcopy110F_FM.book Page 60 Wednesday, October 3, 2001 1:43 PM
Copying from the Bypass Tray
61
2
BLightly insert the OHP transpar-
encies or thick paper face down
until the beeper sounds.
The k indicator on the display au-
tomatically goes on.
Important
❒When you set an OHP transpar-
ency, make sure that its front
and back faces are properly po-
sitioned.
❒To avoid paper misfeeds, fan
the paper before setting it in the
tray.
CPress the {
{{
{#}
}}
} key.
DSelect [OHP Sheet] or [Thick Paper].
EPress the [OK] key.
FSet your originals and press the
{
{{
{Start}
}}
} key.
Important
❒When copying onto OHP trans-
parencies, remove copied sheets
one by one.
GWhen your copy job is finished,
press the {
{{
{Clear Modes}
}}
} key to
clear the settings.
AdonisC2_AEcopy110F_FM.book Page 61 Wednesday, October 3, 2001 1:43 PM
Copying
62
2
Programs
You can store frequently used copy
job settings in machine memory, and
recall them for future use.
❖
❖❖
❖Storing Your Settings
You can store your settings you
frequently use.
❖
❖❖
❖Deleting A Program
You can delete a stored program.
❖
❖❖
❖Recalling A Program
You can recall a stored program.
Note
❒You can store up to 10 programs.
❒You can select the standard mode
or program No. 10 as the mode to
be set when modes are cleared or
reset is made, or immediately after
the operation switch is turned on.
❒Paper settings are stored based on
paper size. So if you place more
than one paper tray of the same
size, the paper tray prioritized
with the User Tools (System Set-
tings) will be selected first.Refer to
the System Settings manual.
❒Programs are not cleared by turn-
ing the power off or by pressing
the {Clear Modes} key. They are
canceled only when you delete or
overwrite them with another pro-
gram.
Storing a Program
AEdit the copy settings so that all
functions you want to store in this
program are selected.
BPress the {
{{
{Program}
}}
} key.
CPress the [Register] key.
DPress the program number you
want to store.
Note
❒Program numbers with m al-
ready have settings in them.
Reference
⇒ P.63 “Changing a Stored Pro-
gram”.
EEnter the program name with the letter keys on the display panel.
AdonisC2_AEcopy110F_FM.book Page 62 Wednesday, October 3, 2001 1:43 PM
Programs
63
2
Note
❒If you do not wish to enter the
program name, go to step F.
❒You can register up to 40 char-
acters.
❒To change the name entered,
press the [Backspace], [Delete] or
{Clear/Stop} key and enter new
letters.
Reference
For details on entering charac-
ters, ⇒ "Entering Text Charac-
ters" in the System Settings
manual.
FPress the [OK] key.
When the settings are successfully
stored, the m indicator goes on.
Changing a Stored Program
AMake sure the program settings.
Note
❒When you want to check the
contents of the program, recall
the program. ⇒ P.64 “Recalling a
Program”.
BRepeat steps A
AA
A to D
DD
D in Storing a
Program.
To overwrite the program
Important
❒If you select [Register], the previ-
ous program is lost.
ARepeat steps E
EE
E and F
FF
F in Storing
a Program.
Not to overwrite the program
APress the [Do not Register] key.
Deleting a Program
APress the {
{{
{Program}
}}
} key.
BPress the [Delete] key.
CPress the program number you
want to delete.
DPress the [Yes] key.
AdonisC2_AEcopy110F_FM.book Page 63 Wednesday, October 3, 2001 1:43 PM
Copying
64
2
Note
❒To cancel the deletion, press the
[No] key.
Recalling a Program
APress the {
{{
{Program}
}}
} key.
BPress the [Recall] key.
CPress the program number you
want to recall.
The stored settings are displayed.
Note
❒Only programs with m contain
a program.
DSet your originals, then press the
{
{{
{Start}
}}
} key.
AdonisC2_AEcopy110F_FM.book Page 64 Wednesday, October 3, 2001 1:43 PM
Job Preset
65
2
Job Preset
If a long copy job is in progress and
you do not wish to wait for it to finish,
you can use this function to set up the
next one copy job in advance. When
the current copy job is finished, your
copy job will be started automatically.
APress the {
{{
{Copy}
}}
} key.
BSet up the next copy job.
Note
❒To cancel this job, press the
[Cancel] key.
CSet the originals in the document
feeder and press the {
{{
{Start}
}}
} key.
All originals are scanned.
DPress the [To "Printing"] key.
After the current copy job, the next
job starts automatically.
Note
❒You can switch the display to
the current copy job by pressing
the [To "Printing"] key. You can
switch the display to the preset
job by pressing the [To "Reserv-
ing"] key.
AdonisC2_AEcopy110F_FM.book Page 65 Wednesday, October 3, 2001 1:43 PM
Copying
66
2
Other Functions
Energy Saver Mode
If you do not operate the machine for
a certain period after copying, or
when you press the {Energy Saver}
key, the display disappears and the
machine enters Energy Saver mode.
When you press the {Energy Saver}
key again, the machine returns to the
ready condition. In Energy Saver
mode, the machine uses less electrici-
ty.
Note
❒If you press the {Energy Saver} key
during the operation, the current
settings will be cleared.
❒It takes about 3 seconds to return
to the ready condition from Energy
Saver mode.
Reference
⇒“Low Power Timer” in the Sys-
tem Settings manual.
Interrupt Copy
Use this function if you wish to inter-
rupt a long copy job to make urgently
needed copies.
Limitation
❒You cannot use the Interrupt Copy
function when scanning fax origi-
nals.
Note
❒The procedure for making inter-
rupt copies depends on which
kind of operation the machine is
currently carrying out.
To interrupt an original being fed
APress the {
{{
{Interrupt}
}}
} key.
The Interrupt indicator goes on
and scanning stops.
BRemove the originals that were
being copied and set the originals
you wish to copy.
CPress the {
{{
{Start}
}}
} key.
The machine starts making your
copies.
DWhen your copy job is finished,
remove your originals and copies.
EPress the {
{{
{Interrupt}
}}
} key again.
The Interrupt indicator goes off.
FWhen the display prompts you to,
replace the originals that were be-
ing copied before.
GPress the {
{{
{Start}
}}
} key.
The previous copy job settings will
be restored and the machine will
continue copying from where it
left off.
To interrupt copying after all originals
have been fed
APress the {
{{
{Interrupt}
}}
} key.
The Interrupt indicator goes on.
Note
❒Copying will not stop yet.
BSet your original.
CPress the {
{{
{Start}
}}
} key.
The machine stops the original job
and starts copying your original.
AdonisC2_AEcopy110F_FM.book Page 66 Wednesday, October 3, 2001 1:43 PM
Other Functions
67
2
DWhen copying is complete, re-
move your originals and copies.
EPress the {
{{
{Interrupt}
}}
} key again.
The Interrupt indicator goes off.
The previous copy job settings will
be restored and the machine will
continue copying from where it
left off.
Original Beeper
The beeper sounds and an error mes-
sage is displayed when you leave
your originals on the exposure glass
after copying.
Note
❒To cancel this function, ⇒ “Tone:
Original remains” in P.209 “Gener-
al Features 2/4”.
Sample Copy
Use this function to check a copy set
before making a long copy run.
Limitation
❒This function can be used only
when the Sort function has been
turned on.
ASelect Sort and any other func-
tions, then enter the number of
copy sets to be made.
BSet the originals.
CPress the {
{{
{Sample Copy}
}}
} key.
One copy set is delivered for proof
copying.
DAfter checking the finish, press
the [Print] key if the sample is ac-
ceptable.
The number of copies made is the
number you specified minus one
for the proof copy.
Note
❒If you press the [Suspend] key
after checking the finish, return
to step A to adjust the copy set-
tings as necessary. You can
change the settings for Staple,
Punch, Duplex, Copy Orienta-
tion, Stamp, Margin Adjust, and
Cover/Slip Sheet. However, de-
pending on the combinations of
functions, some settings might
not be changed.
❒You cannot use the Sample
Copy function after changing
the settings.
Changing the Number of Sets
You can change the number of copy
sets during copying.
Limitation
❒This function can be used only
when the Sort function has been
turned on.
APress the {
{{
{Clear/Stop}
}}
} key when
“Copying” is displayed.
AdonisC2_AEcopy110F_FM.book Page 67 Wednesday, October 3, 2001 1:43 PM
Copying
68
2
BPress the [Change Quantity] key.
CEnter the number of copy sets
with the number keys, then press
the {
{{
{#}
}}
} key.
Note
❒The number of sets you can en-
ter differs depending on the
timing of pressing the {Clear/
Stop} key.
❒To change the entered number,
press the {Clear/Stop} key.
DPress the [Continue] key.
AdonisC2_AEcopy110F_FM.book Page 68 Wednesday, October 3, 2001 1:43 PM
Preset Reduce/Enlarge
69
2
Preset Reduce/Enlarge
You can select a preset ratio for copy-
ing.
Note
❒You can select one of 12 preset ra-
tios (5 enlargement ratios, 7 reduc-
tion ratios).
❒Use “Create Margin” to reduce the
image to 93% of its original size
with the centre as reference. You
can register this function in a
shortcut key on the initial display.
❒You can change the preset ratios to
other ratios you frequently use. ⇒
“Enlarge” in P.213 “Reproduction
Ratio 1/2” and “Reduce” in P.214
“Reproduction Ratio 2/2”.
❒You can set and display three
kinds of ratio on the initial display.
⇒ “Shortcut R/E” in P.213 “Repro-
duction Ratio 1/2”.
❒You can specify which of [Reduce],
[Enlarge] or [Mag. Ratio] is to be giv-
en priority and displayed when
the [Reduce/Enlarge] key is pressed.
❒You can select a ratio regardless of
the size of an original or copy pa-
per. With some ratios, parts of the
image might not be copied or mar-
gins will appear on copies.
❒Copies can be reduced or enlarged
as follows:
❖
❖❖
❖Metric version
❖
❖❖
❖Inch version
Ratio (%)
Original →
→→
→ Copy
paper size
400 (enlarge area
by 16)
--
200 (enlarge area
by 4)
A5→A3
141 (enlarge area
by 2)
A4→A3, A5→A4
122 F→A3, A4→B4
115 B4→A3
93 --
82 F→A4, B4→A4
75 B4→F4, B4→F
71 (reduce area by
1/2)
A3→A4, A4→A5
65 A3→F
50 (reduce area by
1/4)
A3→A5, F→A5
25 --
Ratio (%) Original →
→→
→ Copy
paper size
400 (enlarge area
by 16)
--
200 (enlarge area
by 4)
51/2" × 81/2"→11" ×
17"
155 (enlarge area
by 2)
51/2" × 81/2"→81/
2" × 14"
129 81/2" × 11"→11" ×
17"
121 81/2" × 14"→11" ×
17"
93 --
85 F→81/2" × 11"
AdonisC2_AEcopy110F_FM.book Page 69 Wednesday, October 3, 2001 1:43 PM
Copying
70
2
APress the [Reduce/Enlarge] key.
Note
❒To select a preset ratio on the in-
itial display, directly press the
shortcut reduce/enlarge key
and go to step D.
BPress the [Enlarge] or [Reduce] key.
CSelect a ratio.
DPress the [OK] key.
ESet your originals, then press the
{
{{
{Start}
}}
} key.
Create Margin mode
Use “Create Margin” to reduce the
image by 93% of its original size with
the centre position as reference. You
can register this function in a shortcut
key on the initial display. By combin-
ing it with the Reduce/Enlarge func-
tion, you can also provide the
Reduce/Enlarge copy with a margin.
Note
❒You can register “Create Margin”
in a shortcut key.
❒You can change the Reduce/En-
large ratio for “Create Margin”.
APress the [Create Margin] key dis-
played on the initial display.
BIf you do not wish to combine it
with the Reduce/Enlarge func-
tion, set your originals, then press
the {
{{
{Start}
}}
} key.
78 81/2" × 14"→81/2" ×
11"
73 11" × 15"→81/2" ×
11"
65 11" × 17"→81/2" ×
11"
50 (reduce area by
1/4)
11" × 17"→51/2" ×
81/2"
25 --
Ratio (%) Original →
→→
→ Copy
paper size
AdonisC2_AEcopy110F_FM.book Page 70 Wednesday, October 3, 2001 1:43 PM
Zoom
71
2
Zoom
You can change the reproduction ra-
tio in 1% steps.
Note
❒The following ratios can be select-
ed:
•Metric version: 25 – 400%
•Inch version: 25 – 400%
❒You can select a ratio regardless of
the size of an original or copy pa-
per. With some ratios, parts of the
image might not be copied or mar-
gins will appear on copies.
❒You can select a preset ratio which
is near the desired ratio, then ad-
just the ratio with the [n] or [o]
key.
APress the [Reduce/Enlarge] key.
BEnter the ratio.
To select the ratio with the [n]
and [o] keys
ASelect a preset ratio which is
close to the desired ratio by us-
ing [Reduce] or [Enlarge].
BAdjust the ratios with the [n
nn
n]
or [o
oo
o] key.
Note
❒To change the ratio in 1%
steps, just press the [n] or
[o] key. To change the ratio
in 10% steps, press and hold
down the [n] or [o] key.
To enter the ratio with the number
keys
APress the [Mag. Ratio] key.
AdonisC2_AEcopy110F_FM.book Page 71 Wednesday, October 3, 2001 1:43 PM
Copying
72
2
BEnter the desired ratio with the
number keys.
Note
❒To change the ratio entered,
press the [Clear] or {Clear/
Stop} key and enter the new
ratio.
CPress the [#] key.
DPress the [OK] key.
CSet your originals, then press the
{
{{
{Start}
}}
} key.
AdonisC2_AEcopy110F_FM.book Page 72 Wednesday, October 3, 2001 1:43 PM
Size Magnification
73
2
Size Magnification
This function calculates an enlarge-
ment or reduction ratio based upon
the lengths of the original and copy.
Preparation
Measure and specify the lengths of
the original and copy by compar-
ing “A” with “a.”
Limitation
❒If the calculated ratio is over the
maximum or under the minimum
ratio, it is corrected within the
range of the ratio automatically.
However, with some ratios, parts
of the image might not be copied
or blank margins will appear on
copies.
Note
❒A ratio is selected in the range of 25
to 400%.
APress the [Reduce/Enlarge] key.
BPress the [Specifid Ratio] key.
CMake sure that the [Specifid Ratio]
key is highlighted.
DEnter the length of the original
with the number keys and press
the [#] key.
Note
❒You can enter sizes within the
following ranges:
❒To change the length entered,
press the [Clear] or {Clear/Stop}
key and enter the new length.
Amm amm
Metric
version
1 – 999mm (in 1mm steps)
Inch
version
0.1" – 99.9" (in 0.1" steps)
AdonisC2_AEcopy110F_FM.book Page 73 Wednesday, October 3, 2001 1:43 PM
Copying
74
2
EEnter the length of the copy with
the number keys and press the [#]
key.
Note
❒To change the length entered,
press the [Clear] or {Clear/Stop}
key and enter the new length.
❒To change the length after
pressing the [#] key, select [Orig-
inal] or [Copy] and enter the de-
sired length.
FPress the [OK] key.
GPress the [OK] key.
HSet your original, then press the
{
{{
{Start}
}}
} key.
AdonisC2_AEcopy110F_FM.book Page 74 Wednesday, October 3, 2001 1:43 PM
Directional Magnification (%)
75
2
Directional Magnification (%)
Copies can be reduced or enlarged at
different reproduction ratios horizon-
tally and vertically.
Note
❒The following ratios can be select-
ed:
•Metric version: 25 – 400%
•Inch version: 25 – 400%
❒You can select a ratio regardless of
the size of an original or copy pa-
per. With some ratios, parts of the
image might not be copied or
blank margins will appear on cop-
ies.
❒You can also select a preset ratio
which is close to the desired ratio
by using Reduce or Enlarge, then
adjust the ratio with the [n] or
[o] key.
APress the [Reduce/Enlarge] key.
BPress the [Specifid Ratio] key.
CPress the [Direct. Mag.%] key.
To enter the ratio with the number
keys
APress the [Horizontal] key.
BEnter the desired ratio with the
number keys, followed by the
[#] key.
Note
❒To change the ratio entered,
press the [Clear] or {Clear/
Stop} key and enter the new
ratio.
a%
b%
CP2P01EE
AdonisC2_AEcopy110F_FM.book Page 75 Wednesday, October 3, 2001 1:43 PM
Copying
76
2
CPress the [Vertical] key.
DEnter the desired ratio with the
number keys, followed by the
[#] key.
EPress the [OK] key.
To specify a ratio with the [n]
and [o] keys
APress the [With n
nn
no
oo
o] key.
BPress the [Horizontal] key.
CAdjust the ratio using the [n
nn
n]
or [o
oo
o] key.
Note
❒Pressing the [n] or [o] key
changes the ratio in 1% steps.
Pressing and holding down
the [n] or [o] key changes it
in 10% steps.
❒If you have incorrectly en-
tered the ratio, readjust the
ratio with the [n] or [o]
key.
DPress the [Vertical] key.
EAdjust the ratio with the [n
nn
n] or
[o
oo
o] key.
FPress the [OK] key.
DPress the [OK] key.
ESet your originals, then press the
{
{{
{Start}
}}
} key.
AdonisC2_AEcopy110F_FM.book Page 76 Wednesday, October 3, 2001 1:43 PM
Directional Size Magnification (mm)
77
2
Directional Size Magnification (mm)
The suitable reproduction ratios will
be automatically selected when you
enter the horizontal and vertical
lengths of the original and copy im-
age you require.
1: Horizontal original size
2: Vertical original size
3: Horizontal copy size
4: Vertical copy size
Preparation
Specify the vertical and horizontal
sizes of the original and those of
the copy, as shown in the illustra-
tion.
Limitation
❒If the calculated ratio is over the
maximum or under the minimum
ratio, it is corrected within the
range of the ratio automatically.
However, with some ratios, parts
of the image might not be copied
or blank margins will appear on
copies.
Note
❒You can enter sizes within the fol-
lowing ranges:
❒The following ratios can be select-
ed:
•Metric version: 25 – 400%
•Inch version: 25 – 400%
APress the [Reduce/Enlarge] key.
BPress the [Specifid Ratio] key.
13
24
CP2M01EE
Metric
version
1 – 999mm (in 1mm steps)
Inch
version
0.1" – 99.9" (in 0.1" steps)
AdonisC2_AEcopy110F_FM.book Page 77 Wednesday, October 3, 2001 1:43 PM
Copying
78
2
CPress the [Dir.Size Mag mm] key.
DEnter the horizontal size of the
original with the number keys,
then press the [#] key.
Note
❒To change the value entered,
press the [Clear] or {Clear/Stop}
key and enter the new value.
EEnter the horizontal size of the
copy with the number keys, then
press the [#] key.
FEnter the vertical size of the origi-
nal with the number keys, then
press the [#] key.
GEnter the vertical size of the copy
with the number keys, then press
the [#] key.
Note
❒To change the length, press the
place you wish to change and
enter the new value.
HPress the [OK] key.
IPress the [OK] key.
JSet your originals, then press the
{
{{
{Start}
}}
} key.
AdonisC2_AEcopy110F_FM.book Page 78 Wednesday, October 3, 2001 1:43 PM
Duplex/Combine/Series
79
2
Duplex/Combine/Series
You can make copies in a variety of
formats by combining the following
modes:
•1 Sided/2 Sided originals
•1 Sided/2 Sided copies
•Duplex
•Combine
•Book
•Series
APress [Dup./Combine/Series] and
check your originals. And select
[1 Sided] or [2 Sided] for the origi-
nals.
1: 1-sided
2: 2-sided
3: Series/Book
BSelect [1 Sided] or [2 Sided] for cop-
ying.
1: 1-sided
2: 2-sided
A: Front
B: Back
CPress the [OK] key.
12
1 2
12 1234
5678
34
3
21
4
5 6
78
1 2
34
1234
5678
910 11 12
13 14 15 16
AdonisC2_AEcopy110F_FM.book Page 79 Wednesday, October 3, 2001 1:43 PM
Copying
80
2
Original Direction and
Completed Copies
The resulting copy image will differ
according to the direction in which
you set your original (lengthwise K
or widthwise L).
Note
❒The illustrations show the direc-
tions of copied images on the front
and back, not the directions of de-
livery.
Originals and Copy Direction
You can select the orientation ([Top to
Top], [Top to Bottom]). ⇒ P.80 “Specify-
ing Orientation of Bound Originals”.
•Top to Top
•Top to Bottom
Specifying Orientation of
Bound Originals
You can specify the orientation of
bound originals (how you turn the
pages). The default setting is [Top to
Top].
Note
❒You can change the orientation de-
fault with the User Tools. ⇒ “Copy
Orientation in Duplex Mode” and
“Original Orientation in Duplex
Mode” in P.209 “General Features 2/
4”.
APress the [Dup./Combine/Series] key.
GCRYOU1E
Duplex1
Duplex2
AdonisC2_AEcopy110F_FM.book Page 80 Wednesday, October 3, 2001 1:43 PM
Duplex/Combine/Series
81
2
BPress the [Orientation] key.
CSelect an original orientation and
a copy orientation.
DPress the [OK] key.
AdonisC2_AEcopy110F_FM.book Page 81 Wednesday, October 3, 2001 1:43 PM
Copying
82
2
Duplex
This function can be used in two
ways:
❖
❖❖
❖1 Sided →
→→
→ 2 Sided
This mode makes two-sided copies
from one-sided originals.
❖
❖❖
❖2 Sided →
→→
→ 2 Sided
This mode makes two-sided copies
from two-sided originals.
Limitation
❒You cannot use the following copy
paper in this function:
•Paper smaller than A5K, 51/2"
× 81/2"K (possible on A5L, 51/
2" × 81/2"L)
•Paper thicker than 105g/m2, 28
lb.
•Paper thinner than 64g/m2, 17
lb.
•Translucent paper
•Adhesive labels
•OHP transparencies
•Postcards
❒You cannot use the bypass tray
with this function.
1 Sided →
→→
→ 2 Sided
Note
❒If you set an odd number of 1-sid-
ed originals in the document feed-
er, the reverse side of the last page
is left blank.
❒When original images are copied,
the images are shifted by a width
of the binding margin. You can ad-
just the binding margin or binding
position. You can also change their
default values. ⇒ “Front Margin:
Left/Right”, “Back Margin: Left/
Right”, “Front Margin: Top/Bot-
tom” and “Back Margin: Top/Bot-
tom” in P.216 “Edit 1/2”.
❒A binding margin can be automat-
ically made on the back side. ⇒ “1
sided → 2 sided Auto Margin: T to
T” in P.216 “Edit 1/2”.
APress the [Dup./Combine/Series] key.
12
2
1
AdonisC2_AEcopy110F_FM.book Page 82 Wednesday, October 3, 2001 1:43 PM
Duplex
83
2
BPress the [1 Sided] key for original,
then press the [2 Sided] key for
copy.
Note
❒To change the copy orientation
to “Top to Bottom”, press the
[Orientation] key and select [Top
to Bottom]. ⇒ P.80 “Specifying
Orientation of Bound Originals”.
CPress the [OK] key.
DSet your originals, then press the
{
{{
{Start}
}}
} key.
When setting an original on the
exposure glass or in the
document feeder using Batch
mode
Reference
⇒ P.31 “Batch mode”.
ASet the original, then press the
{
{{
{Start}
}}
} key.
Note
❒Start with the first page to be
copied.
BSet the next original. When it is
placed on the exposure glass,
press the {
{{
{Start}
}}
} key.
CPress the {
{{
{#}
}}
} key after the last
original has been scanned.
2 Sided →
→→
→ 2 Sided
APress the [Dup./Combine/Series] key.
BPress the [2 Sided] key for original,
then press the [2 Sided] key for
copy.
Note
❒To change the copy orientation
to “Top to Bottom”, press the
[Orientation] key and select [Top
to Bottom]. ⇒ P.80 “Specifying
Orientation of Bound Originals”.
CPress the [OK] key.
DSet your originals, then press the {
{{
{Start}
}}
} key.
1
2
1
2
AdonisC2_AEcopy110F_FM.book Page 83 Wednesday, October 3, 2001 1:43 PM
Copying
84
2
When setting an original on the
exposure glass or in the
document feeder using Batch
mode
Reference
⇒ P.31 “Batch mode”.
ASet the original, then press the
{
{{
{Start}
}}
} key.
Note
❒Start with the first page to be
copied.
BSet the next original. When it is
placed on the exposure glass,
press the {
{{
{Start}
}}
} key.
CPress the {
{{
{#}
}}
} key after the last
original has been scanned.
AdonisC2_AEcopy110F_FM.book Page 84 Wednesday, October 3, 2001 1:43 PM
Combine
85
2
Combine
You can combine two or more origi-
nals into one copy. 1 Sided Combine
mode is for 1-sided copies, and 2 Sid-
ed Combine mode for 2-sided copies.
This function can be used in twelve
ways:
❖
❖❖
❖1 Sided 2 Pages →
→→
→ Combine 1 Side
Copies two 1-sided originals to
one side of a sheet.
❖
❖❖
❖1 Sided 4 Pages →
→→
→ Combine 1 Side
Copies four 1-sided originals to-
gether to one side of a sheet.
❖
❖❖
❖1 Sided 8 Pages →
→→
→ Combine 1 Side
Copies eight 1-sided originals to-
gether to one side of a sheet.
❖
❖❖
❖1 Sided 4 Pages →
→→
→ Combine 2 Side
Copies four 1-sided originals to the
two-page spread on both sides of a
sheet.
❖
❖❖
❖1 Sided 8 Pages →
→→
→ Combine 2 Side
Copies eight 1-sided originals to-
gether to both sides of a sheet.
❖
❖❖
❖1 Sided 16 Pages →
→→
→ Combine 2 Side
Copies 16 1-sided originals togeth-
er to both sides of a sheet.
❖
❖❖
❖2 Sided 2 Pages →
→→
→ Combine 1 Side
Copies one 2-sided original to one
side of a sheet.
❖
❖❖
❖2 Sided 4 Pages →
→→
→ Combine 1 Side
Copies two 2-sided originals to
one side of a sheet.
❖
❖❖
❖2 Sided 8 Pages →
→→
→ Combine 1 Side
Copies four 2-sided originals to
one side of a sheet.
❖
❖❖
❖2 Sided 4 Pages →
→→
→ Combine 2 Side
Copies two 2-sided originals to-
gether to both sides of a sheet.
❖
❖❖
❖2 Sided 8 Pages →
→→
→ Combine 2 Side
Copies four 2-sided originals to-
gether to both sides of a sheet.
❖
❖❖
❖2 Sided 16 Pages →
→→
→ Combine 2 Side
Copies eight 2-sided originals to-
gether to both sides of a sheet.
Limitation
❒You cannot use the bypass tray
with this function.
❒If the calculated ratio is under the
minimum ratio, it is corrected
within the range of the ratio auto-
matically. However, with some ra-
tios, parts of the image might not
be copied.
Note
❒In this mode, the machine selects
the reproduction ratio automati-
cally. This reproduction ratio de-
pends on the copy paper sizes and
the number of originals.
❒The machine uses ratios in the fol-
lowing range:
•Metric version: 25 – 400%
•Inch version: 25 – 400%
❒A separation line between origi-
nals can be printed with the User
Tools. ⇒ “Separation Line in Com-
bine” in P.218 “Edit 2/2”.
❒Even if the direction of originals is
different from that of the copy pa-
per, the machine will automatical-
ly rotate the image by 90° to make
copies properly.
AdonisC2_AEcopy110F_FM.book Page 85 Wednesday, October 3, 2001 1:43 PM
Copying
86
2
❒When making copies in Combine
mode, the border of each original
can be automatically erased by
3mm, 0.1". ⇒ “Erase Original
Shadow in Combine” in P.216 “Ed-
it 1/2”.
❒If the number of originals placed is
less than the number specified for
combining, the last page is copied
blank as shown in the illustration.
❒You can change the copy order in
Combination mode. ⇒ “Copy Or-
der In Combine” in P.218 “Edit 2/2”.
❒Direction of the originals and ar-
rangement of combined images.
❖
❖❖
❖Open to Left (K
KK
K) originals
❖
❖❖
❖Open to Right (L
LL
L) originals
1 Sided 2 Pages →
→→
→ Combine 1
Side
Copies two 1-sided originals to one
side of a sheet.
❖
❖❖
❖Setting originals (Originals set in the
document feeder)
•Originals read from left to right
•Originals read from top to bot-
tom
3
2
1
3
21
12
8
5678
1234
12
4
2
3
1
GCSHUY1E
1
3
5
7
2
4
6
8
1
12
8
2
21
43
GCSHUY2E
1 2 12
Combine5
34
12
4
3
2
1
Combine6
3
4
1
2
4
321
AdonisC2_AEcopy110F_FM.book Page 86 Wednesday, October 3, 2001 1:43 PM
Combine
87
2
APress the [Dup./Combine/Series] key.
BPress the [1 Sided] key for the orig-
inal, then press the [Combine 1
Side] key for the copy.
CPress the [2 Originals] key, then
press the [OK] key.
DSelect the paper.
ESet your originals, then press the
{
{{
{Start}
}}
} key.
1 Sided 4 Pages →
→→
→ Combine 1
Side
Copies four 1-sided originals together
to one side of a sheet.
APress the [Dup./Combine/Series] key.
BPress the [1 Sided] key for the orig-
inal, then press the [Combine 1
Side] key for the copy.
1 2
34
4
3
2
1
AdonisC2_AEcopy110F_FM.book Page 87 Wednesday, October 3, 2001 1:43 PM
Copying
88
2
CPress the [4 Originals] key, then
press the [OK] key.
DSelect the paper.
ESet your originals, then press the
{
{{
{Start}
}}
} key.
1 Sided 8 Pages →
→→
→ Combine 1
Side
Copies eight 1-sided originals togeth-
er to one side of a sheet.
APress the [Dup./Combine/Series] key.
BPress the [1 Sided] key for the orig-
inal, then press the [Combine 1
Side] key for the copy.
CPress the [8 Originals] key, then
press the [OK] key.
DSelect the paper.
ESet your originals, then press the
{
{{
{Start}
}}
} key.
1234
5678
2
1
8
7
AdonisC2_AEcopy110F_FM.book Page 88 Wednesday, October 3, 2001 1:43 PM
Combine
89
2
1 Sided 4 Pages →
→→
→ Combine 2
Side
Copies four 1-sided originals to the
two-page spread on both sides of a
sheet.
APress the [Dup./Combine/Series] key.
BPress the [1 Sided] key for the orig-
inal, then press the [Combine 2
Side] key for the copy.
CPress the [4 Originals] key, then
press the [OK] key.
DCheck the orientation.
Note
❒To change the copy orientation
to “Top to Bottom”, press the
[Orientation] key and select [Top
to Bottom]. ⇒ P.80 “Specifying
Orientation of Bound Originals”.
EPress the [OK] key.
FSelect the paper.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
4
3
2
1
3
21
4
AdonisC2_AEcopy110F_FM.book Page 89 Wednesday, October 3, 2001 1:43 PM
Copying
90
2
1 Sided 8 Pages →
→→
→ Combine 2
Side
Copies eight 1-sided originals togeth-
er to both sides of a sheet.
1. Front
2. Back
APress the [Dup./Combine/Series] key.
BPress the [1 Sided] key for the orig-
inal, then press the [Combine 2
Side] key for the copy.
CPress the [8 Originals] key, then
press the [OK] key.
DCheck the orientation.
Note
❒To change the copy orientation
to “Top to Bottom”, press the
[Orientation] key and select [Top
to Bottom]. ⇒ P.80 “Specifying
Orientation of Bound Originals”.
EPress the [OK] key.
FSelect the paper.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
1 2
34
GCSHVYAE
12
8
7
2
1
5 6
78
AdonisC2_AEcopy110F_FM.book Page 90 Wednesday, October 3, 2001 1:43 PM
Combine
91
2
1 Sided 16 Pages →
→→
→ Combine
2 Side
Copies sixteen 1-sided originals to-
gether to both sides of a sheet.
1. Front
2. Back
APress the [Dup./Combine/Series] key.
BPress the [1 Sided] key for the orig-
inal, then press the [Combine 2
Side] key for the copy.
CPress the [16 Originals] key, then
press the [OK] key.
DCheck the orientation.
Note
❒To change the copy orientation
to “Top to Bottom”, press the
[Orientation] key and select [Top
to Bottom]. See ⇒ P.80 “Specify-
ing Orientation of Bound Origi-
nals”.
EPress the [OK] key.
FSelect the paper.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
GCSHVY5E
1234
5678
2
1
2
1
16
15
910 11 12
13 14 15 16
AdonisC2_AEcopy110F_FM.book Page 91 Wednesday, October 3, 2001 1:43 PM
Copying
92
2
2 Sided 2 Pages →
→→
→ Combine 1
Side
Copies one 2-sided original to one
side of a sheet.
APress the [Dup./Combine/Series] key.
BPress the [2 Sided] key for the orig-
inal, then press the [Combine 1
Side] key for the copy.
CPress the [2 Pages] key, then press
the [OK] key.
DCheck the orientation.
Note
❒To change the copy orientation
to “Top to Bottom”, press the
[Orientation] key and select [Top
to Bottom]. ⇒ P.80 “Specifying
Orientation of Bound Originals”.
EPress the [OK] key.
FSelect the paper.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
1 2
2
1
AdonisC2_AEcopy110F_FM.book Page 92 Wednesday, October 3, 2001 1:43 PM
Combine
93
2
2 Sided 4 Pages →
→→
→ Combine 1
Side
Copies two 2-sided originals to one
side of a sheet.
APress the [Dup./Combine/Series] key.
BPress the [2 Sided] key for the orig-
inal, then press the [Combine 1
Side] key for the copy.
CPress the [4 Pages] key, then press
the [OK] key.
DCheck the orientation.
Note
❒To change the copy orientation
to “Top to Bottom”, press the
[Orientation] key and select [Top
to Bottom]. ⇒ P.80 “Specifying
Orientation of Bound Originals”.
EPress the [OK] key.
FSelect the paper.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
1 2
34
4
3
2
1
AdonisC2_AEcopy110F_FM.book Page 93 Wednesday, October 3, 2001 1:43 PM
Copying
94
2
2 Sided 8 Pages →
→→
→ Combine 1
Side
Copies four 2-sided originals to one
side of a sheet.
APress the [Dup./Combine/Series] key.
BPress the [2 Pages] key for the orig-
inal, then press the [Combine 1
Side] key for the copy.
CPress the [8 Pages] key, then press
the [OK] key.
DCheck the orientation.
Note
❒To change the copy orientation
to “Top to Bottom”, press the
[Orientation] key and select [Top
to Bottom]. ⇒ P.80 “Specifying
Orientation of Bound Originals”.
EPress the [OK] key.
FSelect the paper.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
8
7
6
5
4
3
2
1
1234
5678
AdonisC2_AEcopy110F_FM.book Page 94 Wednesday, October 3, 2001 1:43 PM
Combine
95
2
2 Sided 4 Pages →
→→
→ Combine 2
Side
Copies two 2-sided originals together
to both sides of a sheet.
APress the [Dup./Combine/Series] key.
BPress the [2 Sided] key for the orig-
inal, then press the [Combine 2
Side] key for the copy.
CPress the [4 Pages] key, then press
the [OK] key.
DCheck the orientation.
Note
❒To change the copy orientation
to “Top to Bottom”, press the
[Orientation] key and select [Top
to Bottom]. ⇒ P.80 “Specifying
Orientation of Bound Originals”.
EPress the [OK] key
FSelect the paper.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
4
3
2
1
3
21
4
AdonisC2_AEcopy110F_FM.book Page 95 Wednesday, October 3, 2001 1:43 PM
Copying
96
2
2 Sided 8 Pages →
→→
→ Combine 2
Side
Copies four 2-sided originals together
to both sides of a sheet.
1. Front
2. Back
APress the [Dup./Combine/Series] key.
BPress the [2 Sided] key for the orig-
inal, then press the [Combine 2
Side] key for the copy.
CPress the [8 Pages] key, then press
the [OK] key.
DCheck the orientation.
Note
❒To change the copy orientation
to “Top to Bottom”, press the
[Orientation] key and select [Top
to Bottom]. ⇒ P.80 “Specifying
Orientation of Bound Originals”.
EPress the [OK] key
FSelect the paper.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
GCSHVY2E
12
8
7
6
5
4
3
2
1
5 6
78
1 2
34
AdonisC2_AEcopy110F_FM.book Page 96 Wednesday, October 3, 2001 1:43 PM
Combine
97
2
2 Sided 16 Pages →
→→
→ Combine
2 Side
Copies eight 2-sided originals togeth-
er to both sides of a sheet.
1. Front
2. Back
APress the [Dup./Combine/Series] key.
BPress the [2 Sided] key for the orig-
inal, then press the [Combine 2
Side] key for the copy.
CPress the [16 Pages] key, then press
the [OK] key.
DCheck the orientation.
Note
❒To change the copy orientation
to “Top to Bottom”, press the
[Orientation] key and select [Top
to Bottom]. ⇒ P.80 “Specifying
Orientation of Bound Originals”.
EPress the [OK] key.
FSelect the paper.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
GCSHVY6E
1234
5678
2
1
910 11 12
13 14 15 16
4
3
2
1
16
15
14
13
AdonisC2_AEcopy110F_FM.book Page 97 Wednesday, October 3, 2001 1:43 PM
Copying
98
2
Series/Book
Series copies are made by separately
copying the front and back of a 2-sid-
ed original or the two facing pages of
a spread original onto two sheets of
paper. A book is made by copying
two or more originals in page order.
The following types of Series and
Book modes can be used:
❖
❖❖
❖Series Copies
•Book → 1 Sided
Copies the two facing pages of a
spread original to make two 1-
sided copies.
•Book → 2 Sided
Copies a spread two-page origi-
nal onto both sides of a sheet.
•Front & Back→ 2 Sided
Copies each two-page spread
original as it is onto both sides
of a sheet.
❖
❖❖
❖Booklet
•1 Sided → Booklet
Make copies in page order for a
folded booklet.
•2 Sided → Booklet
Copies a 2-sided original in
page order for a folded booklet.
•1 Sided → Magazine
Copies two or more originals to
make copies in page order (as
when they are folded and
stacked).
•2 Sided → Magazine
Copies 2-sided originals to
make copies in page order (as
when they are folded and
stacked).
Series Copies
Book →
→→
→ 1 Sided
You can make one-sided copies from
two facing pages of a bound original
(book).
Limitation
❒You cannot use the Book → 1 Sided
function from the document feed-
er.
Note
❒See the following table when you
select original and copy paper siz-
es with 100% ratio:
❖
❖❖
❖Metric version
❖
❖❖
❖Inch version
Original Copy paper
A3LA4K × 2 sheets
B4LB5K × 2 sheets
A4LA5K × 2 sheets
Original Copy paper
11" × 17"L81/2" × 11"K × 2
sheets
81/2" × 11"L51/2" × 81/2"K × 2
sheets
12
12
AdonisC2_AEcopy110F_FM.book Page 98 Wednesday, October 3, 2001 1:43 PM
Series/Book
99
2
APress the [Dup./Combine/Series] key.
BPress the [Series/Book] key.
CMake sure that the [Series] key is
selected.
DPress the [Book→
→→
→1 Sided] key, then
press the [OK] key.
EPress the [OK] key.
FMake sure that the [Auto Paper Se-
lect] key is selected.
Note
❒If the [Auto Paper Select] key is
not selected, press the [Auto Pa-
per Select] key.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
Book →
→→
→ 2 Sided
Copies a two-page spread original
onto both sides of a sheet.
Limitation
❒You cannot use the Book
→
2 Sided
function from the document feeder.
Note
❒See the following table when you
select original and copy paper siz-
es with 100% ratio:
❖
❖❖
❖Metric version
❖
❖❖
❖Inch version
Original Copy paper
A3LA4 (2-sided)
B4LB5 (2-sided)
A4LA5 (2-sided)
Original Copy paper
11" × 17"L
8
1
/
2
"
×
11" (2-sided)
81/2" × 11"L51/2" × 81/2" (2-sid-
ed)
12
1
2
AdonisC2_AEcopy110F_FM.book Page 99 Wednesday, October 3, 2001 1:43 PM
Copying
100
2
APress the [Dup./Combine/Series] key.
BPress the [Series/Book] key.
CMake sure that the [Series] key is
selected.
DPress the [Book→
→→
→2 Sided] key, then
press the [OK] key.
EPress the [OK] key
FSelect the paper.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
Front & Back →
→→
→ 2 Sided
Copies each two-page spread original
as it is onto both sides of a sheet.
Limitation
❒You cannot use the Front & Back →
2 Sided function from the docu-
ment feeder.
Note
❒See the following table when you
select original and copy paper siz-
es with 100% ratio:
❖
❖❖
❖Metric version
❖
❖❖
❖Inch version
Original Copy paper
A3LA4 (2-sided)
B4LB5 (2-sided)
A4LA5 (2-sided)
Original Copy paper
11" × 17"L81/2" × 11" (2-sid-
ed)
81/2" × 11"L51/2" × 81/2" (2-sid-
ed)
12
3
12
3
AdonisC2_AEcopy110F_FM.book Page 100 Wednesday, October 3, 2001 1:43 PM
Series/Book
101
2
APress the [Dup./Combine/Series] key.
BPress the [Series/Book] key.
CMake sure that the [Series] key is
selected.
DPress the [Front & Back →
→→
→ 2 Sided]
key, then press the [OK] key.
EPress the [OK] key.
FSelect the paper.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
Note
❒Press the {#} key after all origi-
nals are scanned.
AdonisC2_AEcopy110F_FM.book Page 101 Wednesday, October 3, 2001 1:43 PM
Copying
102
2
Copying Book Originals
Limitation
❒You cannot use the bypass tray
with this function.
Note
❒The machine sets the reproduction
ratio automatically to meet the pa-
per size and copies the originals to-
gether onto the paper.
❒The machine uses ratios in the
range of 25 to 400%.
❒If the calculated ratio is under the
available minimum ratio, it will be
adjusted to the minimum ratio.
However, with some ratios, parts
of the image might not be copied.
❒Even if the direction of originals is
different from that of the copy pa-
per, the machine will automatical-
ly rotate the image by 90° to make
copies properly.
1 Sided →
→→
→ Booklet
Make copies in page order for a fold-
ed booklet as shown in the following
illustrations:
❖
❖❖
❖Open to Left
❖
❖❖
❖Open to Right
Important
❒Before selecting this function, se-
lect “Open to left” or “Open to
right.” with the User Tools. ⇒
“Orientation: Booklet, Margine” in
P.218 “Edit 2/2”.
Note
❒Four originals are copied onto each
sheet of copy paper.
❒In this mode, the machine sets the
reproduction ratio automatically
to meet the paper size and copies
the originals together onto the pa-
per.
❒A ratio is selected in the range of 25
to 400%.
❒If the calculated ratio is under the
available minimum ratio, it will be
adjusted to the minimum ratio.
However, with some ratios, parts
of the image might not be copied.
❒If the number of originals scanned
is less than a multiple of 4, the last
page is copied blank.
❒You can have a 3mm, 0.1" bound-
ing margin around all four edges
of the original left blank (erased).
⇒ “Erase Original Shadow in
Combine” in P.216 “Edit 1/2”.
GCBOOK0E
4
3
2
1
4
32
1
GCBOOK1E
4
3
2
1
1
23
4
AdonisC2_AEcopy110F_FM.book Page 102 Wednesday, October 3, 2001 1:43 PM
Series/Book
103
2
How to fold copies to make a
booklet
1. Open to Left
2. Open to Right
APress the [Dup./Combine/Series] key.
BPress the [Series/Book] key.
CPress the [Book] key.
DPress the [1 Sided →
→→
→ Booklet] key,
then press the [OK] key.
EPress the [OK] key.
FSelect the paper.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
Note
❒When placing one original on
the exposure glass or in the doc-
ument feeder in Batch mode,
press the {#} key after all origi-
nals are scanned.
GCBOOK2E
3
1
3
1
12
AdonisC2_AEcopy110F_FM.book Page 103 Wednesday, October 3, 2001 1:43 PM
Copying
104
2
2 Sided →
→→
→ Booklet
Make 2 sided originals to copies in
page order for a folded booklet as
shown in the following illustrations:
❖
❖❖
❖Open to Left
❖
❖❖
❖Open to Right
Important
❒Before selecting this function, se-
lect “Open to left” or “Open to
right.” with the User Tools.
❒Two originals of 2 sided are copied
onto each sheet of copy paper.
❒In this mode, the machine sets the
reproduction ratio automatically
to meet the paper size and copies
the originals together onto the pa-
per.
❒A ratio is selected in the range of 25
to 400%.
❒If the calculated ratio is under the
available minimum ratio, it will be
adjusted to the minimum ratio.
However, with some ratios, parts
of the image might not be copied.
❒If the number of originals scanned
is less than a multiple of 4, the last
page is copied blank.
❒You can have a 3mm, 0.1" bound-
ing margin around all four edges
of the original left blank (erased).
⇒ “Erase Original Shadow in
Combine” in P.216 “Edit 1/2”.
How to fold copies to make a
booklet
1. Open to Left
2. Open to Right
APress the [Dup./Combine/Series] key.
GCBOOK2E
3
1
3
1
12
AdonisC2_AEcopy110F_FM.book Page 104 Wednesday, October 3, 2001 1:43 PM
Series/Book
105
2
BPress the [Series/Book] key.
CPress the [Book] key.
DPress the [2 Sided →
→→
→ Booklet] key,
then press the [OK] key.
EPress the [OK] key.
FSelect the paper.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
Note
❒When placing one original on
the exposure glass or in the doc-
ument feeder in Batch mode,
press the {#} key after all origi-
nals are scanned.
1 Sided →
→→
→ Magazine
Copies two or more originals to make
copies in page order when they are
folded and stacked.
❖
❖❖
❖Open to Left
❖
❖❖
❖Open to Right
Important
❒Before selecting this function, se-
lect “Open to left” or “Open to
right.” with the User Tools. ⇒
“Orientation: Booklet, Magazine”
in P.218 “Edit 2/2”.
Note
❒Four originals are copied onto each
sheet of copy paper.
❒In this mode, the machine sets the
reproduction ratio automatically
to meet the paper size and copies
the originals together onto the pa-
per.
❒A ratio is selected in the range of 25
to 400%.
GCBOOK3E
2
1
8
7
8
72
16
54
3
GCBOOK4E
2
1
8
7
1
27
83
45
6
AdonisC2_AEcopy110F_FM.book Page 105 Wednesday, October 3, 2001 1:43 PM
Copying
106
2
❒If the calculated ratio is under the
available minimum ratio, it will be
adjusted to the minimum ratio.
However, with some ratios, parts
of the image might not be copied.
❒If the number of originals scanned
is less than a multiple of 4, the last
page is copied blank.
❒You can have a 3mm bounding
margin around all four edges of
the original left blank (erased). ⇒
“Erase Original Shadow in Com-
bine” in P.216 “Edit 1/2”.
❒The copying may take some time
after scanning originals.
How to fold and unfold copies to
make a magazine
❖
❖❖
❖Open to Left
❖
❖❖
❖Open to Right
APress the [Dup./Combine/Series] key.
BPress the [Series/Book] key.
CPress the [Book] key.
DPress the [1 Sided →
→→
→ Magazine] key,
then press the [OK] key.
EPress the [OK] key.
FSelect the paper.
GCBOOK5E
7 5
1
3
13
5
GCBOOK6E
31
55
3
7
1
AdonisC2_AEcopy110F_FM.book Page 106 Wednesday, October 3, 2001 1:43 PM
Series/Book
107
2
GSet your originals, then press the
{
{{
{Start}
}}
} key.
Note
❒When placing one original on
the exposure glass or in the doc-
ument feeder in Batch mode,
press the {#} key after all origi-
nals are scanned.
2 Sided →
→→
→ Magazine
Copies two or more originals of 2 sid-
ed to make copies in page order when
they are folded and stacked.
❖
❖❖
❖Open to Left
❖
❖❖
❖Open to Right
Important
❒Before selecting this function, se-
lect “Open to left” or “Open to
right.” with the User Tools. ⇒
“Orientation: Booklet, Magazine”
in P.218 “Edit 2/2”.
Note
❒Two originals of 2 sided are copied
onto each sheet of copy paper.
❒Four originals are copied onto each
sheet of copy paper.
❒In this mode, the machine sets the
reproduction ratio automatically
to meet the paper size and copies
the originals together onto the pa-
per.
❒A ratio is selected in the range of 25
to 400%.
❒If the calculated ratio is under the
available minimum ratio, it will be
adjusted to the minimum ratio.
However, with some ratios, parts
of the image might not be copied.
❒If the number of originals scanned
is less than a multiple of 4, the last
page is copied blank.
❒You can have a 3mm bounding
margin around all four edges of
the original left blank (erased). ⇒
“Erase Original Shadow in Com-
bine” in P.216 “Edit 1/2”.
❒The copying may take some time
after scanning originals.
AdonisC2_AEcopy110F_FM.book Page 107 Wednesday, October 3, 2001 1:43 PM
Copying
108
2
How to fold and unfold copies to
make a magazine
❖
❖❖
❖Open to Left
❖
❖❖
❖Open to Right
APress the [Dup./Combine/Series] key.
BPress the [Series/Book] key.
CPress the [Book] key.
DPress the [2 Sided →
→→
→ Magazine] key,
then press the [OK] key.
EPress the [OK] key.
FSelect the paper.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
Note
❒When placing one original on
the exposure glass or in the doc-
ument feeder in Batch mode,
press the {#} key after all origi-
nals are scanned.
GCBOOK5E
7 5
1
3
13
5
GCBOOK6E
31
55
3
7
1
AdonisC2_AEcopy110F_FM.book Page 108 Wednesday, October 3, 2001 1:43 PM
Edit Image
109
2
Edit Image
Image Repeat
The original image is copied repeat-
edly.
Note
❒The number of repeated images
depends on the original size, copy
paper size, and reproduction ratio.
See the following table:
❖
❖❖
❖Original: A5K
KK
K/Copy paper: A4K
KK
K
or Original: A5L
LL
L/Copy paper
A4L
LL
L
❖
❖❖
❖Original: A5K
KK
K/Copy paper: A4L
LL
L
or Original: A5L
LL
L/Copy paper
A4K
KK
K
❒Part of a repeated image might not
be copied depending on copy pa-
per size, copy paper direction or
reproduction ratio.
❒You can insert separation lines be-
tween repeated images.
⇒
“Repeat
Separation Line” in
P.218 “Edit 2/2”
.
ASelect the size of the copy paper
and the reproduction ratio.
BPress the [Edit/Stamp] key.
CPress the [Edit Image] key.
DPress the [Image Repeat] key.
EPress the [OK] key.
4 repeats (71%) 16 repeats (35%)
2 repeats
(100%)
8 repeats
(50%)
32 repeats
(25%)
Repeat1 Repeat2
Repeat3 Repeat4 Repeat5
AdonisC2_AEcopy110F_FM.book Page 109 Wednesday, October 3, 2001 1:43 PM
Copying
110
2
FPress the [OK] key.
GSet your original, then press the
{
{{
{Start}
}}
} key.
Double Copies
One original image is copied twice on
one copy as shown in the illustration.
Limitation
❒The following originals cannot be
detected properly on the exposure
glass. Be sure to select the copy pa-
per manually or set the originals in
the document feeder.
❒You cannot use the bypass tray
with this function.
Note
❒You can insert separation lines be-
tween repeated images. ⇒ “Dou-
ble Copies Separation Line” in
P.218 “Edit 2/2”.
❒See the following table when you
select original and copy paper siz-
es with 100% ratio:
❖
❖❖
❖Metric version
❖
❖❖
❖Inch version
APress the [Edit/Stamp] key.
BPress the [Edit Image] key.
Metric
version
A5L, B6KL
Inch
version
51/2" × 81/2"L
Original Size and
Direction
Copy Paper Size
and Direction
A5LA4K
B6LB5K
A4KA3L
A5KA4L
B6KB5L
Original Size and
Direction
Copy Paper Size
and Direction
51/2" × 81/2"L81/2" × 11"K
51/2" × 81/2"K81/2" × 11"L
81/2" × 11"K11" × 17"L
AdonisC2_AEcopy110F_FM.book Page 110 Wednesday, October 3, 2001 1:43 PM
Edit Image
111
2
CPress the [Double Copies] key.
DPress the [OK] key.
EPress the [OK] key.
FSelect the paper.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
Centering
You can make copies by moving the
image to the centre of the copy paper.
Limitation
❒You cannot use the bypass tray
with this function.
❒If the direction of originals is dif-
ferent from that of the copy paper,
the machine will not rotate the im-
age by 90°(rotated copy).
❒If the original size cannot be meas-
ured, the centring function will not
work.
Note
❒The original sizes and directions
for centring are listed below.
❖
❖❖
❖Metric version
❖
❖❖
❖Inch version
ASelect the paper.
BPress the [Edit/Stamp] key.
CPress the [Edit Image] key.
Original
placed on:
Original size and direction
Exposure
glass
A3L, B4L, A4KL,
B5KL
Document
feeder
A3L, B4L, A4KL,
B5KL, A5KL, B6KL,
11" × 17"L
Original
placed on:
Original size and direction
Exposure
glass
11" × 17"L, 81/2" × 14"L,
81/2" × 11"KL
Document
feeder
A4KL, 11" × 17"L, 11" ×
15"L, 81/2" × 14"L, 81/2" ×
11"K, 51/2" × 81/2"KL
AdonisC2_AEcopy110F_FM.book Page 111 Wednesday, October 3, 2001 1:43 PM
Copying
112
2
DPress the [Centering] key.
EPress the [OK] key.
FPress the [OK] key.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
Positive/Negative
If your original is black and white,
copy images are inverted.
APress the [Edit/Stamp] key.
BPress the [Edit Image] key.
CPress the [Positive/Negative] key.
DPress the [OK] key.
EPress the [OK] key.
FSelect the paper.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
AdonisC2_AEcopy110F_FM.book Page 112 Wednesday, October 3, 2001 1:43 PM
Erase
113
2
Erase
This function erases the centre and/
or all four sides of the original image.
This is useful for avoiding shadows
on the copy image caused by the
bound originals, such as books.
This function can be used in three
ways:
❖
❖❖
❖Border
This mode erases the edge margin
of the original image.
❖
❖❖
❖Center
This mode erases the centre mar-
gin of the original image.
❖
❖❖
❖Center/Border
This mode erases both the centre
and edge margins of the original
image.
Note
❒You can change the width of the
erased margin as follows:
❒The default setting of the erased
margin is as follows. You can
change this settings with the User
Tools. ⇒ “Erase Border Width”
and “Erase Center Width” in P.216
“Edit 1/2”.
❒The width of the erased margin
varies depending on the reproduc-
tion ratio.
❒If the size of the original is differ-
ent from sizes listed in the follow-
ing chart, the erased margin might
be shifted.
❖
❖❖
❖Metric version
❖
❖❖
❖Inch version
❒The relationship between the orig-
inal orientation and the erased part
is as follows:
❒1: Erased part
❒2: 2–99mm
Metric
version
2 – 99mm (in 1mm steps)
Inch
version
0.2" – 3.9" (in 0.1" steps)
Metric
version
10mm
Inch
version
0.4"
Where Origi-
nal Is Set
Paper Size and Orien-
tation
Exposure glass A3L, B4L, A4KL,
B5KL
Document
feeder
A3L, B4L, A4KL,
B5KL, A5KL,
B6KL, 11" × 17"L
Where Origi-
nal Is Set
Paper Size and Orien-
tation
Exposure glass 11" × 17"L, 81/2" ×
14"L, 81/2" × 11"KL
Document
feeder
A4KL, 11" × 17"L,
81/2" × 14"L,
81/2" × 11"KL,
51/2" × 81/2"KL
L original K original
AdonisC2_AEcopy110F_FM.book Page 113 Wednesday, October 3, 2001 1:43 PM
Copying
114
2
Border Erase
This function erases the edge mar-
gins. You can set the same margin
width for all four sides, or you can set
different margin widths for each side.
Note
❒If you want to erase the centre mar-
gin too, use the Centre/Border
function. ⇒ P.116 “Center/Border
Erase”.
APress the [Edit/Stamp] key.
BPress the [Erase] key.
CPress the [Border] key.
DSet the erase border width.
Selecting [Same Width]
APress the [Same Width] key.
BSet an erase border width with
the [n
nn
n] and [o
oo
o] keys, fol-
lowed by the [OK] key.
Note
❒To change the value entered,
press the [n] and [o] keys
and enter the new value.
Selecting [Diff. Width]
APress the [Diff. Width] key.
AdonisC2_AEcopy110F_FM.book Page 114 Wednesday, October 3, 2001 1:43 PM
Erase
115
2
BPress the key for the border
you wish to change and set an
erase border width with the
[n
nn
n] and [o
oo
o] keys.
Note
❒To change the value entered,
press the [n] and [o] keys
and enter the new value.
CPress the [OK] key.
EPress the [OK] key.
FSet your originals, then press the
{
{{
{Start}
}}
} key.
Center Erase
This function erases the centre mar-
gin.
Note
❒If you want to erase the border
margin too, use the Center/Border
function. ⇒ P.116 “Center/Border
Erase”.
APress the [Edit/Stamp] key.
BPress the [Erase] key.
CPress the [Center] key.
DSet the erase centre width with
the [n
nn
n] and [o
oo
o] keys. Then press
the [OK] key.
Note
❒To change the value entered,
press the [n] and [o] keys and
enter the new value.
ESet your originals, then press the
{
{{
{Start}
}}
} key.
AdonisC2_AEcopy110F_FM.book Page 115 Wednesday, October 3, 2001 1:43 PM
Copying
116
2
Center/Border Erase
This mode erases both the centre and
edge margins. You can set the same
margin width for all four sides and
centre, or you can set different margin
widths for each.
APress the [Edit/Stamp] key.
BPress the [Erase] key.
CPress the [Center/Border] key.
DSet the erase margin width.
Selecting [Same Width]
APress the [Center] key, then set
the erase centre width with the
[n
nn
n] and [o
oo
o] keys.
Note
❒To change the value entered,
press the [n] and [o] keys
and enter the new value.
BPress the [Same Width] key.
CPress the [Border] key, then set
the erase border width with the
[n
nn
n] and [o
oo
o] keys.
Note
❒To change the value entered,
press the [n] and [o] keys
and enter the new value.
DPress the [OK] key.
AdonisC2_AEcopy110F_FM.book Page 116 Wednesday, October 3, 2001 1:43 PM
Erase
117
2
Selecting [Diff. Width]
APress the [Diff. Width] key.
BPress the key for the part you
wish to change and set an erase
margin width with the [n
nn
n] and
[o
oo
o] keys.
Note
❒To change the value entered,
press the [n] and [o] keys
and enter the new value.
CPress the [OK] key.
EPress the [OK] key.
FSet your originals, then press the
{
{{
{Start}
}}
} key.
AdonisC2_AEcopy110F_FM.book Page 117 Wednesday, October 3, 2001 1:43 PM
Copying
118
2
Margin Adjustment
You can shift the image left, right, top
or bottom to make a binding margin.
Limitation
❒If you set the margin too wide, ar-
eas you do not want to delete
might be erased.
Note
❒You can change the width of the
binding margin as follows:
❒The margin width default is as fol-
lows. You can change this default
setting with the User Tools. ⇒
“Front Margin: Left/Right”, “Back
Margin: Left/Right”, “Front Mar-
gin: Top/Bottom”, “Back Margin:
Top/Bottom” in P.216 “Edit 1/2”.
❒When making two-sided copies
from one-sided originals, you can
set a binding margin for back pag-
es. ⇒ “1 sided → 2 sided Auto
Margin: T to T”, “1 sided → 2 sided
Auto Margin: T to B” in P.216 “Edit
1/2”.
❒When making copies in Combine
mode, the binding margins are
made on the copies after the com-
bining is finished.
❒When “2 Sided → 1 Sided” is se-
lected, set the binding margins for
front and back pages of the origi-
nal.
APress the [Edit/Stamp] key.
BPress the [Margin Adjustment] key.
Metric
version
0 – 30mm (in 1mm steps)
Inch
version
0" – 1.2" (in 0.1" steps)
Metric
version
•Front: 5mm Left
•Back: 5mm Right
Inch
version
•Front: 0.2" Left
•Back: 0.2" Right
AA
AdonisC2_AEcopy110F_FM.book Page 118 Wednesday, October 3, 2001 1:43 PM
Margin Adjustment
119
2
CSet a binding margin for a front
page. Press the [←
←←
←] and [→
→→
→] keys
when setting the left and right
margins, and the [↓
↓↓
↓] and [↑
↑↑
↑] keys
when setting the top and bottom
margins.
Note
❒To change the value entered,
press the [←
←←
←], [→
→→
→], [↓
↓↓
↓], [↑
↑↑
↑] keys
and enter the new value.
DSet a binding margin for back
pages. Press the [←
←←
←] and [→
→→
→] keys
when setting the left and right
margins, and the [↓
↓↓
↓] and [↑
↑↑
↑] keys
when setting the top and bottom
margins.
Note
❒You can specify the back margin
only when the Duplex or the
Two Sided copy with Combine
is selected.
❒If you do not need to specify the
back margin, press the [OK] key
and go to step E.
EPress the [OK] key.
FSet your originals, then press the
{
{{
{Start}
}}
} key.
AdonisC2_AEcopy110F_FM.book Page 119 Wednesday, October 3, 2001 1:43 PM
Copying
120
2
Stamp
This function prints stamp on the
copies. Stamp modes are as follows:
❖
❖❖
❖Background Numbering
This function prints numbers on
the background of copies.
❖
❖❖
❖Preset Stamp
This function prints preset messag-
es on copies.
❖
❖❖
❖User Stamp
This function prints custom mes-
sages on copies.
❖
❖❖
❖Date Stamp
This function prints the date on
copies.
❖
❖❖
❖Page Numbering
This function prints page numbers
on copies.
Background Numbering
32 MB of memory is required to use
this function (If the machine is
equipped with the Printer unit, 32MB
memory is not required.).
Use this function to have numbers
printed on the background of copies.
This function can help you to keep
track of confidential documents.
Note
❒You can change the size of the
numbers with the User Tools. ⇒
“Size” in P.221 “Background Num-
bering”.
❒You can change the density of the
numbers with the User Tools. ⇒
“Density” in P.221 “Background
Numbering”.
❒The numbers appear to overlap the
copied image in some cases.
APress the [Edit/Stamp] key.
BPress the [Stamp] key.
GCSTMP2E
AdonisC2_AEcopy110F_FM.book Page 120 Wednesday, October 3, 2001 1:43 PM
Stamp
121
2
CPress the [Background Numbering]
key.
DEnter the number to start count-
ing from with the number keys.
Then press the [OK] key.
Note
❒The number can be set from 1 to
999.
❒To change the entered number,
press the [Clear] or {Clear/Stop}
key and enter the new number.
EPress the [OK] key.
FPress the [OK] key.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
Preset Stamp
32 MB of memory is required to use
this function (If the machine is
equipped with the Printer unit, 32 MB
memory is not required.).
Limitation
❒You cannot use the bypass tray
with this function.
❒One message can be stamped at a
time.
Note
❒One of the following eight messag-
es can be stamped on copies with a
frame around it: “COPY”, “UR-
GENT”, “PRIORITY”, “For Your
Info.”, “Preliminaray”, “For inter-
nal use”, “CONFIDENTIAL”,
“DRAFT”.
❒You can change the print page
with the User Tools.
❒You can change the size and densi-
ty of the stamp with the User
Tools.
❒Depending on the paper size, if
you change the stamp size, parts of
the stamp might not be printed.
AdonisC2_AEcopy110F_FM.book Page 121 Wednesday, October 3, 2001 1:43 PM
Copying
122
2
❒You can choose the default settings
for the position, size and density of
the stamp with the User Tools. ⇒
“Stamp Position”, “Stamp For-
mat” in P.221 “Preset Stamp 1/4-4/4”.
❒You can choose the default settings
for the print page with the User
Tools. ⇒ “Stamp Format” in P.221
“Preset Stamp 1/4-4/4”.
❒You can change the stamp lan-
guage with the User Tools. ⇒
“Stamp Language” in P.221 “Preset
Stamp 1/4-4/4”.
❒The relationship between the di-
rection in which you set the origi-
nal and stamp orientation/
position is as follows:
❒You can change the stamp position
to top, bottom, left and right each
way in 1mm, 0.1" steps. ⇒ “Stamp
position” in P.221 “Preset Stamp 1/4-
4/4”.
APress the [Edit/Stamp] key.
BPress the [Stamp] key.
CPress the [Preset Stamp] key.
DSelect the desired message.
EPress the [All Pages] or [1st Page on-
ly] key to select the print page.
GCSTMP5E
AdonisC2_AEcopy110F_FM.book Page 122 Wednesday, October 3, 2001 1:43 PM
Stamp
123
2
FChange the stamp position, size
or density.
If you do not wish to change, go to
step G.
To change the stamp position,
size or density
APress the [Change] key.
BSelect the desired position,
size and density.
CPress the [OK] key.
GAfter you specified all the desired
settings, press the [OK] key.
HPress the [Cancel] key.
Note
❒To cancel the settings, press the
[Cancel] key.
ISet your originals, then press the
{
{{
{Start}
}}
} key.
User Stamp
32 MB of memory is required to use
this function (If the machine is
equipped with the Printer unit, 32 MB
memory is not required.).
Up to four messages which you use
frequently can be stored in the ma-
chine's memory and stamped on cop-
ies.
Preparation
Before using this function, you
have to store your messages with
the User Tools. ⇒ P.125 “Program/
Delete User Stamp”.
Limitation
❒You cannot use the bypass tray
with this function.
❒One message can be stamped at a
time.
Note
❒You can change the print page
with the User Tools.
AdonisC2_AEcopy110F_FM.book Page 123 Wednesday, October 3, 2001 1:43 PM
Copying
124
2
❒The relationship between the di-
rection in which you set the origi-
nal and stamp Orientation/
Position is as follows:
❒You can change the stamp position
to top, bottom, left and right each
way in 1mm, 0.1" steps. ⇒ “Stamp
position” in P.222 “User Stamp 1/2-
2/2”.
❒You can choose the default settings
for the print page and the stamp
position with the User Tools. ⇒
“Stamp condition” and “Stamp
position”in P.222 “User Stamp 1/2-2/
2”.
❒You can combine this function
with only one Preset Stamp.
APress the [Edit/Stamp] key.
BPress the [Stamp] key.
CPress the [User Stamp] key.
DSelect the stamp you require.
EPress the [All Pages] or [1st Page on-
ly] key to select the print page.
To change the stamp position
APress the [Change] key.
GCSTMP6E
AdonisC2_AEcopy110F_FM.book Page 124 Wednesday, October 3, 2001 1:43 PM
Stamp
125
2
BSelect the desired position.
CPress the [OK] key.
FAfter you specified all the desired
settings, press the [OK] key.
Note
❒To cancel the settings, press the
[Cancel] key.
GPress the [OK] key.
HSet your originals, then press the
{
{{
{Start}
}}
} key.
Program/Delete User Stamp
AMake sure that the machine is in
Copy mode.
BPress the {
{{
{User Tools/Counter}
}}
} key.
CPress the [Copier/Document Server]
key.
DPress the [Stamp] key.
EPress the [User Stamp] key.
AdonisC2_AEcopy110F_FM.book Page 125 Wednesday, October 3, 2001 1:43 PM
Copying
126
2
FPress the [Program/Delete Stamp]
key.
To program the User Stamp
APress the [Program] key.
BPress the stamp number (1 – 4)
you want to program.
Note
❒Stamp numbers with m al-
ready have settings in them.
❒If the stamp number is al-
ready being used, the ma-
chine will ask you if you
wish to overwrite it — Press
the [Yes] or [No] key.
CEnter the user stamp name
with the letter keys on the dis-
play panel.
Note
❒You can register up to 10
characters.
❒For details on entering char-
acters, refer to "Entering Text
Characters" in the System
Settings manual.
DPress the [OK] key.
EEnter the horizontal size of the
stamp with the number keys,
then press the [#] key.
Note
❒You can enter sizes within 10
– 432mm, 1.0" – 17.0" hori-
zontal, and 10 – 297mm, 1.0"
– 11.7" vertical. However, if
the value exceeds the maxi-
mum value of the area
(5,000mm2, 7.75 inch2), it is
corrected within the range of
the area automatically.
❒To change the value entered,
press the [Clear] or {Clear/
Stop} key and enter the new
value.
AdonisC2_AEcopy110F_FM.book Page 126 Wednesday, October 3, 2001 1:43 PM
Stamp
127
2
FPress the [Vertical] key, and en-
ter the vertical size in the same
way as step E
EE
E.
GSet the user stamp on the expo-
sure glass, and then press the
[Start Scanning] key.
Note
❒The machine scans the origi-
nal three times. Do not lift the
document feeder until the
main menu of the Copy/
Document Server features
appears.
❒If you press the [Exit] key, the
main menu of the Copy/
Document Server features
appears with nothing pro-
grammed.
HPress the [Exit] key.
To delete the User Stamp
Important
❒You cannot restore a deleted
stamp.
APress the [Delete] key.
BPress the stamp number (1 – 4)
you want to delete.
Note
❒Only programs with m con-
tain a user stamp.
CPress the [Delete] key.
Note
❒To cancel the deletion, press
the [Stop] key.
DPress the [Exit] key.
EPress the [Exit] key.
GPress the [Exit] key.
The initial display appears.
Date Stamp
Limitation
❒You cannot use the bypass tray
with this function.
Note
❒You can select the following styles:
•MM/DD/YYYY
•MM.DD.YYYY
•DD/MM/YYYY
•DD.MM.YYYY
•YYYY.MM.DD
•DD.JUN.YYYY
AdonisC2_AEcopy110F_FM.book Page 127 Wednesday, October 3, 2001 1:43 PM
Copying
128
2
❒You can change the Date Stamp
settings with the User Tools. ⇒
P.223 “Date Stamp”.
❒The font and size of the Date
Stamp can be changed with the
User Tools. ⇒ “Font” and “Size” in
P.223 “Date Stamp”.
❒You can select whether the Date
Stamp is printed negative if it
overlaps black parts of an image.
⇒ “Superimpose” in P.223 “Date
Stamp”.
❒For how to set the date, see “Set
Date” in the System Settings man-
ual.
❒You can choose the default settings
for the stamp position with the
User Tools. ⇒ “Stamp Position” in
P.223 “Date Stamp”.
❒The relationship between the di-
rection in which you set the origi-
nal and the stamp position is as
follows:
❒You can change the stamp position
to top, bottom, left and right each
way in 1mm, 0.1" steps. ⇒ “Stamp
Position” in P.223 “Date Stamp”.
❒If you combine this function with
the Combine, Magazine or Booklet
function, the page is stamped as
follows.
•Combined with the Combine
function
•Combined with the Magazine
or Booklet function
APress the [Edit/Stamp] key.
BPress the [Stamp] key.
AdonisC2_AEcopy110F_FM.book Page 128 Wednesday, October 3, 2001 1:43 PM
Stamp
129
2
CPress the [Date Stamp] key.
DPress the [All Pages] or [1st Page on-
ly] to select the print page.
To change the style of date
APress the [Change Format] key.
BSelect the format of date.
CPress the [OK] key.
To change the stamp position
APress the [Change] key.
BSelect the desired position of
the Date Stamp.
CPress the [OK] key.
EAfter you specified all the desired
settings, press the [OK] key.
Note
❒To cancel the settings, press the
[Cancel] key.
FPress the [OK] key.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
AdonisC2_AEcopy110F_FM.book Page 129 Wednesday, October 3, 2001 1:43 PM
Copying
130
2
Page Numbering
Use this function to print page num-
bers on your copies. There are six
types of Page Numbering (n is the to-
tal number of pages in your original):
•P1,P2,…Pn
•1/n,2/n,...n/n
•-1-,-2-,...-n-
•P.1,P.2,...P.n
•1, 2…n
•1-1,1-2,..1-n
Limitation
❒You cannot use the bypass tray
with this function.
Note
❒You can change the Page Number-
ing settings with the User Tools. ⇒
P.224 “Page Numbering 1/2-2/2”.
❒The font and size of Page Number-
ing can be changed with the User
Tools. ⇒ “Font” and “Size” in
P.224 “Page Numbering 1/2-2/2”.
❒You can select whether the Page
Numbering is printed negative if it
overlaps black parts of image. ⇒
“Superimpose” in P.224 “Page
Numbering 1/2-2/2”.
❒You can choose the default settings
for the stamp position with the
User Tools. ⇒ “Stamp Position” in
P.224 “Page Numbering 1/2-2/2”.
❒You can choose the default settings
for the stamp format with the User
Tools. ⇒ “Stamp Format” in P.224
“Page Numbering 1/2-2/2”.
❒The relationship between the di-
rection in which you set the origi-
nal and the Page Numbering
orientation/position is as follows:
❒You can change the stamp position
to top, bottom, left and right each
way in 1mm, 0.1" steps. ⇒ “Stamp
Position” in P.224 “Page Numbering
1/2-2/2”.
❒If you combine this function with
the Duplex (Top to Top) function
and select the “P1, P2” or “1/n, 2/
n” style, the page numbers on the
back of the copy paper are printed
as follows.
1. Front
2. Back
GCSTMP8E
GCSTMPBE
12
AdonisC2_AEcopy110F_FM.book Page 130 Wednesday, October 3, 2001 1:43 PM
Stamp
131
2
❒If you combine this function with
the Duplex (Top to Top) function,
you can change the setting to
stamp on the back side in the same
position as the front side. ⇒ “Du-
plex Back Page Stamping Position”
in P.224 “Page Numbering 1/2-2/2”.
❒If you use this function with the
Combine, Magazine, or Booklet
function, the page is stamped as
follows.
❖
❖❖
❖Page Numbering per original
•Combined with 1 Sided/2
Sided in the Combine func-
tion
•Combined with the Maga-
zine or Booklet function
❖
❖❖
❖Page Numbering per copy
•Combined with 1 Sided/2
Sided in the Combine func-
tion
❒⇒ “Page Numbering In Combine”
in P.224 “Page Numbering 1/2-2/2”.
❒If you use the “1-1, 1-2” style, you
can print page numbers on the slip
sheets in Designate or Chapters
mode. ⇒ “Stamp on Designated
Slip Sheet” in P.224 “Page Number-
ing 1/2-2/2”.
APress the [Edit/Stamp] key.
BPress the [Stamp] key.
CPress the [Page Numbering] key.
AdonisC2_AEcopy110F_FM.book Page 131 Wednesday, October 3, 2001 1:43 PM
Copying
132
2
DSelect the format.
ETo change the stamp position,
press the [Change] key.
If you do not wish to change the
stamp position, go to step G.
FSelect the stamp position, then
press the [OK] key.
GTo change the first printing page
and start number, press the
[Change] key.
Note
❒The display differs depending
on the selected style.
❒If you do not wish to change,
press the [OK] key and set your
originals, then press the {Start}
key.
HSpecify the page and number.
If you selected (P1,P2…, -1-,-2-
…, P.1, P.2…, 1, 2…, )
APress the [First Printing Page]
key, then enter the original
sheet number from which to
start numbering with the
number keys.
Note
❒To change the number en-
tered, press the [Clear] or
{Clear/Stop} key and enter a
new number.
BPress the {
{{
{#}
}}
} key.
CPress the [Numbering from/to]
key, then enter the number
from which to start numbering
with the number keys.
DPress the {
{{
{#}
}}
} key.
AdonisC2_AEcopy110F_FM.book Page 132 Wednesday, October 3, 2001 1:43 PM
Stamp
133
2
EPress the [Last Number] key,
then enter the page number at
which to stop numbering with
the number keys.
Note
❒If you wish to print onto the
last page, press the [to the
end] key and go to step J.
FPress the {
{{
{#}
}}
} key.
If you selected (1/5,2/5…)
APress the [First Printing Page]
key, then enter the original
sheet number from which to
start numbering with the
number keys.
Note
❒To change the number en-
tered, press the [Clear] or
{Clear/Stop} key and enter a
new number.
BPress the {
{{
{#}
}}
} key.
CPress the [Numbering from/to]
key, then enter the page
number from which to start
numbering with the number
keys.
DPress the {
{{
{#}
}}
} key.
EPress the [Last Number] key,
then enter the page number at
which to stop numbering with
the number keys.
Note
❒If you wish to print onto the
last page, press [to the end]
key and go to step J.
FPress the {
{{
{#}
}}
} key.
GPress the [Total Pages] key, then
enter the total number of origi-
nal pages with the number
keys.
AdonisC2_AEcopy110F_FM.book Page 133 Wednesday, October 3, 2001 1:43 PM
Copying
134
2
HPress the {
{{
{#}
}}
} key.
IPress the [OK] key.
If you selected (1-1, 1-2,…)
APress the [First Printing Page]
key, then enter the original
sheet number from which to
start numbering with the
number keys.
Note
❒To change the number en-
tered, press the [Clear] or
{Clear/Stop} key and enter a
new number.
BPress the {
{{
{#}
}}
} key.
CPress the [First Chapter No.] key,
then enter the chapter number
from which to start numbering
with the number keys.
DPress the {
{{
{#}
}}
} key.
EPress the [Numbering from/to]
key, then enter the page
number from which to start
numbering with the number
keys.
FPress the {
{{
{#}
}}
} key.
GPress the [OK] key.
IPress the [OK] key.
Note
❒To change the settings after
pressing the [OK] key, press the
[Change] key and enter the new
value.
JPress the [OK] key.
Note
❒To cancel the settings, press the
[Cancel] key.
KSet your originals, then press the
{
{{
{Start}
}}
} key.
AdonisC2_AEcopy110F_FM.book Page 134 Wednesday, October 3, 2001 1:43 PM
Cover/Slip Sheet
135
2
Cover/Slip Sheet
Using this function, you can add or
insert cover or paper designate.
There are four types in this function:
❖
❖❖
❖Front Cover
The first page of your originals is
copied on a specific paper sheet for
covers.
❖
❖❖
❖Front/Back Cover
The first and last pages of your
originals are copied on specific pa-
per sheets for covers.
❖
❖❖
❖Paper Designate
Use this function to have certain
pages of your original copied onto
slip sheets.
❖
❖❖
❖Chapter
If you specify the first page of each
chapter with this function, those
pages will always appear on the
front of copies when using 1 sided
→ 2 sided mode.
Preparation
Before selecting this function, set
the tray for front cover paper and
slip sheet paper. ⇒ “Cover”, “Slip
Sheet 1” and “Slip Sheet 2” in the
System Settings manual.
The cover or slip sheets should be
identical in size and direction with
the copy paper.
Limitation
❒You cannot set the copy paper in
the bypass tray. Only set the cover
or slip sheets in the bypass tray.
Note
❒If Blank mode is selected, the cover
will not be counted as a copy.
Front Cover
The first page of your originals is cop-
ied on specific paper sheet for covers,
or a cover sheet is inserted before the
first copy.
❖
❖❖
❖Copy
❖
❖❖
❖Blank
Note
❒You can specify whether to make a
copy on a sheet for covers. If you
select [Copy], the first page will be
copied on the cover sheet. If you
select [Blank], a cover sheet will just
be inserted before the first copy.
❒When choosing [Copy], select
whether the front and back covers
are copied single-sided (“1 Sided
Only”) or double-sided (“Duplex
Copy”). ⇒ “Cover” in the System
Settings manual.
3
2
1
3
2
1
3
2
1
3
2
1
AdonisC2_AEcopy110F_FM.book Page 135 Wednesday, October 3, 2001 1:43 PM
Copying
136
2
❒In “Cover” of the User Tools (Sys-
tem Settings), if you selected
“Mode Selected” for “Tray Dis-
play” setting, the machine refers to
the settings in “Cover” about
whether the front and back covers
are copied single-sided (“1 Sided
Only”) or double-sided (“Duplex
Copy”). If you selected “Display
Always” for “Tray Display”, the
machine refers to the settings in
“Special Paper Indication” about
whether the front and back covers
are copied single-sided (“1 Sided
Copy”) or double-sided (“Duplex
Copy”). ⇒ “Special Paper Indica-
tion” and “Cover” in the System
Settings manual.
❒When you use this function with
Combine mode, you can specify
whether to combine the front cover
or not. ⇒ “Front Cover Copy in
Combine” in P.218 “Edit 2/2”.
APress the [Cover/Slip Sheet] key.
BPress the [Front Cover] key.
CSelect [Copy] or [Blank] for a cover
sheet, and then press the [OK] key.
DSelect the paper tray containing
the non-cover sheet paper.
E
Set your originals in the document
feeder, then press the
{
{{
{
Start
}
}}
}
key.
Front/Back Covers
The first and last pages of your origi-
nals are copied on specific paper
sheets for covers.
❖
❖❖
❖Copy
❖
❖❖
❖Blank
3
2
1
4
3
2
1
4
GCCOVE0E
3
2
1
3
2
1
AdonisC2_AEcopy110F_FM.book Page 136 Wednesday, October 3, 2001 1:43 PM
Cover/Slip Sheet
137
2
Note
❒You can specify whether to make a
copy on a cover sheet. If you select
[Copy], the first and last pages will
be copied on the cover sheets. If
you select [Blank], a cover sheet
will just be inserted before the first
copy and another sheet after the
last copy.
❒When choosing [Copy], select
whether the front and back covers
are copied single-sided (“1 Sided
Only”) or double-sided (“Duplex
Copy”). ⇒ “Cover” in the System
Settings manual.
❒In “Cover” of the User Tools (Sys-
tem Settings), if you selected
“Mode Selected” for “Tray Dis-
play” setting, the machine refers to
the settings in “Cover” about
whether the front and back covers
are copied single-sided (“1 Sided
Only”) or double-sided (“Duplex
Copy”). If you selected “Display
Always” for “Tray Display”, the
machine refers to the settings in
“Special Paper Indication” about
whether the front and back covers
are copied single-sided (“1 Sided
Copy”) or double-sided (“Duplex
Copy”). ⇒ “Special Paper Indica-
tion” and “Cover” in the System
Settings manual.
APress the [Cover/Slip Sheet] key.
BPress the [Front/Back Cover] key.
CSelect [Copy] or [Blank] for the cov-
er sheets, and then press the [OK]
key.
DSelect the paper tray containing
the non-cover sheet paper.
ESet your originals in the docu-
ment feeder, then press the {
{{
{Start}
}}
}
key.
AdonisC2_AEcopy110F_FM.book Page 137 Wednesday, October 3, 2001 1:43 PM
Copying
138
2
Designate
Use this function to have certain pag-
es of your original copied onto slip
sheets.
Preparation
Before using this function, set the
special paper tray for slip sheets.
⇒ “Slip Sheet 1”, “Slip Sheet 2” in
the System Settings manual.
Limitation
❒You cannot use this function with
Slip Sheet mode.
Note
❒You can specify the pages up to 20.
❒When Combine mode (“1 Sided →
2 Sided”) has been selected, the
page numbers you designate will
always be copied onto the front of
copies in the same way as Chapters
mode.
APress the [Cover/Slip Sheet] key.
BPress the [Desig./Chapter] key.
CPress the key to select the chapter
number.
D
Enter the page number of the orig-
inal's location you want to copy
onto a slip sheet with the number
keys. Then, press the
{
{{
{
#
}
}}
}
key.
Note
❒To change the value entered,
press the [Clear] or {Clear/Stop}
key and enter the new value.
E
Select the paper tray for slip sheets.
FTo specify another page location,
repeat steps C
CC
C to E
EE
E.
Note
❒To select chapters 11 to 20, press
the [T
TT
T11∼
∼∼
∼20] key.
10
5
1
10
5
1
AdonisC2_AEcopy110F_FM.book Page 138 Wednesday, October 3, 2001 1:43 PM
Cover/Slip Sheet
139
2
GWhen you wish to finish specify-
ing page location, press the [OK]
key.
This display shows example set-
tings.
Note
❒To change the number entered,
enter the new number in the
same way as steps C to G.
HSelect the paper tray containing
the non-slip sheet paper.
ISet your originals, then press the
{
{{
{Start}
}}
} key.
Chapter
The page locations you specify with
this function will appear on the front
of copy sheets.
Preparation
Before selecting this function,
press the [Dup./Combine/Series] key
and select Duplex (1 Sided → 2
Sided) mode or Combine mode.
Limitation
❒You cannot use this function with
Slip Sheet mode.
Note
❒You can specify the pages up to 20.
❒This function can be used only
when you use the Duplex (1
Sided→2 Sided) or Combine func-
tion.
❒This function can be combined
with the Designate function.
APress the [Cover/Slip Sheet] key.
6
5
4
GC SHOW OJ
4
1
2
13
AdonisC2_AEcopy110F_FM.book Page 139 Wednesday, October 3, 2001 1:43 PM
Copying
140
2
BPress the [Desig./Chapter] key.
CPress the [Chapter] key.
DEnter the page location of the first
page of the first chapter with the
number keys. Then, press the {
{{
{#}
}}
}
key.
Note
❒To change the value entered,
press the [Clear] or {Clear/Stop}
key and enter the new value.
ETo specify another page location,
repeat steps C
CC
C to E
EE
E.
Note
❒To select chapters 11 to 20, press
the [T
TT
T11-20] key.
FWhen you finish specifying the
page location, press the [OK] key.
This display shows example set-
tings.
Note
❒To change the number entered,
enter the new number in the
same way as in steps C to E.
GSet your originals, then press the
{
{{
{Start}
}}
} key.
AdonisC2_AEcopy110F_FM.book Page 140 Wednesday, October 3, 2001 1:43 PM
Slip Sheets
141
2
Slip Sheets
Every time the original's page chang-
es, a slip sheet is inserted. This func-
tion can be used to insert a slip sheet
automatically between each OHP
transparency copied or used as a
stack function. You can also copy
onto the inserted slip sheets.
Preparation
Before selecting this function,
specify the paper tray for slip
sheets. ⇒ “Slip Sheet 1”, “Slip
Sheet 2” in the System Settings
manual.
Limitation
❒You cannot use this function with
Chapters and Paper Designate
modes.
Note
❒Set the slip sheets in the same ori-
entation as originals.
❒You can specify whether to make
copies onto the inserted slip sheets
or not.
❒If you do not copy onto slip sheets,
they are excluded from the
number of copies counted.
When using OHP transparencies
set on the bypass tray
❖
❖❖
❖Blank
Note
❒Press the {#} key and set the “Spe-
cial Paper” setting to [OHP Sheet].
⇒ P.60 “When Copying onto OHP
Transparencies or Thick Paper”.
APress the [Cover/Slip Sheet] key.
BPress the [Slip sheet] key.
1
2
3
1
2
3
1
2
2
1
AdonisC2_AEcopy110F_FM.book Page 141 Wednesday, October 3, 2001 1:43 PM
Copying
142
2
CSelect [Copy] or [Blank], followed
by the [OK] key.
DSelect the paper tray containing
the non-slip sheet paper.
When using OHP transparencies,
open the bypass tray.
ESet your originals, then press the
{
{{
{Start}
}}
} key.
AdonisC2_AEcopy110F_FM.book Page 142 Wednesday, October 3, 2001 1:43 PM
Combination Chart
143
2
Combination Chart
The combination chart given below shows which modes can be used together.
When you read the chart, see the following table:
The following shows the combinations of functions.
❍means that these modes can be used together.
$means that these modes cannot be used together. The mode after
you select will be the mode you're working in.
×means that these modes cannot be used together. The mode before
you select will be the mode you're working in.
AdonisC2_AEcopy110F_FM.book Page 143 Wednesday, October 3, 2001 1:43 PM
Copying
144
2
AdonisC2_AEcopy110F_FM.book Page 144 Wednesday, October 3, 2001 1:43 PM
145
3. Document Server
Overview
The Document Server enables you to save documents in the machine memory
and then edit and print them as you want.
There are three ways to save documents.
•Scanning from the document feeder
•Scanning from the exposure glass
•Data sent from a computer.
Printer
Scanner
Facsimile
Transmission
Copy Printing
(Except Scanner)
Storing
facsimile
document
sending
Document data for PC
AdonisC2_AEcopy110F_FM.book Page 145 Wednesday, October 3, 2001 1:43 PM
Document Server
146
3
Process
APrepare the documents you want to save by copying, fax transmitting, scan-
ning, and PC data.
BSave the documents.
•The documents are saved in the machine memory.
CPrint the documents, send fax, and transfer the documents and the data to
PC.
•You can print saved documents with any settings you desire at any time.
•Scanned documents data can be transfered to PC.
•You can resend saved documents you desire at any time.
Important
❒Do not turn off the main power switch when the Operation Switch is on or
lit. If you turn it off during an operation, memory or hard disk might be
damaged.
❒Avoid any strong shocking to the machine, the hard disk might be
dameged, and stored files will be deleted. For precautionaly reasons, files
should be copied to another local computer.
❒If trouble occurs in the internal hard disk unit of the machine, data saved
on the hard disk may be lost. Therefore, the user should avoid using the
internal hard disk as a recording and storage medium for important data.
We assume no responsibility for any damage suffered by the user due to
loss of data.
Limitation
❒Data for documents in the Document Server function list that were
scanned in using the Scan function are not displayed.
❒The stored documents by scanning are not available to print.
❒You can facsimile sending but the documents must be stored in facsimile
feauture. This function must be operated by facsimile feauture.
❒Optional Desk Top Binder V2 Professional or Desk Top Binder V2 Lite are
required for transfering data to your computer.
AdonisC2_AEcopy110F_FM.book Page 146 Wednesday, October 3, 2001 1:43 PM
Features and Benefits
147
3
Features and Benefits
On Demand Printing
Use to print any saved document as required.
❖
❖❖
❖Your current situation might be…
•When you need to print multiple sets of documents 2-sided and stapled to-
gether, you normally print the originals, make duplex copies and then sta-
ple them together manually.
AdonisC2_AEcopy110F_FM.book Page 147 Wednesday, October 3, 2001 1:43 PM
Document Server
148
3
❖
❖❖
❖With the Document Server
If you save your document in the Document Server, you can print it out at any
time with the necessary print settings, such as duplex and stapling. Your doc-
uments will not be confused with those of others in the exit tray.
You can store fax documents, document data so that you can print them
whenever necessary.
Note
❒Stapling and punching require the installation of the optional finisher.
❒You can use a password to prevent others from printing saved documents.
AdonisC2_AEcopy110F_FM.book Page 148 Wednesday, October 3, 2001 1:43 PM
Features and Benefits
149
3
File Merge Printing
You can combine multiple scanned documents to print them in one set.
❖
❖❖
❖Your current situation might be…
You want to combine several originals that are different in density, size, and
paper weight, e.g.
You can merge documents that were created with different applications or
that were created separately on different computers.
You can merge documents that were sent from a computer with paper origi-
nals that have been scanned.
•Scrapped and pasted originals
•Photo originals
•One sided originals
•Two sided originals
AdonisC2_AEcopy110F_FM.book Page 149 Wednesday, October 3, 2001 1:43 PM
Document Server
150
3
❖
❖❖
❖With the Document Server
Set the print order to print documents together.
Merge and print fax documents, document data sent, and originals that have
been scanned.
Merge documents created with different applications or created on different
computers.
Store electronic originals created by a computer on the network, and originals
that have been scanned using the document feeder.
Note
❒You can check the print result by printing a sample set before making a
large print run by pressing the {Sample Copy} key. If you are not satisfied
with the print result of some pages of the set, you have only to scan that
part again.
AdonisC2_AEcopy110F_FM.book Page 150 Wednesday, October 3, 2001 1:43 PM
Features and Benefits
151
3
Facsimile Resend
You can print or resend a sent document received by fax. This is useful when
you want to send a large document that needs to be sent several times, since you
do not have to scan the document each time.
❖
❖❖
❖You current situation might be...
•When you need to retransmit multiples sets of the same documents.
❖
❖❖
❖With the Document Server
You can send the original data stored in memory whenever necessary. You
can merge and send data stored from a previous fax with additional scanned
originals.
AdonisC2_AEcopy110F_FM.book Page 151 Wednesday, October 3, 2001 1:43 PM
Document Server
152
3
Operation from a Computer
If you install Desk Top Binder V2 Professional or Desk Top Binder V2 Lite on
your computer you can check the display of electronic data, select the finish set-
tings and print it. You can also delete data stored in the Document Server. In ad-
dition, you can also export documents stored in the Document Server as a file on
your computer.
You can also perform tasks on data stored in the Document Server from your
computer, rather than from near the machine.
Note
❒You can operate from your computer as follows:
•Search by File Name and User Name.
•Indicate easily 1 st Page of your documents.
•Indicate the documents infomation, change the file name and the pass-
word.
•Delete the documents.
•Copy the documents to your computer.
•Print the documents.
•Send the stored facsimile documents.
❒Optional Net work Interface board and 32 MB memory or Printer Scanner
unit are required for operating from your computer. Desk Top Binder V2 Pro-
fessional or Desk Top Binder V2 Lite must be installed on your computer.
Reference
More detail information, refer to Desk Top Binder V2 Professional/Lite man-
uals.
AdonisC2_AEcopy110F_FM.book Page 152 Wednesday, October 3, 2001 1:43 PM
Scanning Originals
153
3
Scanning Originals
You can scan the originals you want to
save in the Document Server using the
control panel of the machine. The orig-
inals can be set either on the exposure
glass or into the document feeder.
The saved documents will automati-
cally be named in the order of scan-
ning as “COPY0001”, “COPY0002”….
Note
❒Based on the factory settings, the
machine automatically deletes doc-
uments from the Document Server
one day (24 hours) after each docu-
ment was saved. The user can disa-
ble the automatic de-letion of
documents or change the automat-
ic deletion period, for ex-ample, to
several days.
⇒
“Auto File Delete”
in P.226 “Input/Output”
❒You can change the file names that
are assigned automatically.
❒You can use a password to prevent
others from printing saved docu-
ments.
Scanning in Document Server
mode
APress the {
{{
{Document Server}
}}
} key.
The “Select Files to Print” display
appears.
BPress the [Scan Original] key.
The “Scan Original” display ap-
pears.
CEnter a file name, user name, or
password if necessary.
Note
❒If you do not wish to register a
file name, go to step D.
❒If you do not register a file
name, it is stored automatically.
To set the file name
APress the [File Name] key.
AdonisC2_AEcopy110F_FM.book Page 153 Wednesday, October 3, 2001 1:43 PM
Document Server
154
3
BEnter the new file name using
the letter keys on the display
panel.
Reference
For details on entering char-
acters, refer to "Entering Text
Characters" in the System
Settings manual.
CPress the [OK] key.
To set the user name
APress the [User Name] key.
BEnter the new user name using
the letter keys on the display
panel.
Note
❒If you want to enter non-reg-
istered name, press the [Non-
registered Name] key, then en-
ter the new user name.
To set the password
APress the [Password] key.
BEnter the password using the
number keys (4 digits).
Note
❒To change the number en-
tered, press the [Clear] or
{Clear/Stop} key and enter a
new number.
CPress the [OK] or {
{{
{#}
}}
} key.
DSet your originals either on the
exposure glass or into the docu-
ment feeder.
Reference
For more information on the
types of originals that can be set
and how to set them, ⇒ P.29
“Setting Originals”.
EMake any desired settings.
Note
❒Press the [Scanning Finished] key
to cancel the file name, pass-
word, or print settings and re-
turn to the “Select Files to Print”
display.
AdonisC2_AEcopy110F_FM.book Page 154 Wednesday, October 3, 2001 1:43 PM
Scanning Originals
155
3
Reference
For details, see the explanations
of each function in this manual.
FPress the {
{{
{Start}
}}
} key.
The document is saved in the Doc-
ument Server. The saved docu-
ments are displayed on the “Select
Files to Print” display.
Note
❒If you have set your originals in
the document feeder, the “Se-
lect Files to Print” display ap-
pears automatically after all
originals have been scanned.
❒If you have set your originals on
the exposure glass, press the
[Scanning Finished] key after all
originals have been scanned.
The “Select Files to Print” dis-
play appears.
❒To stop scanning, press the
{Clear/Stop} key.
❒To resume the paused scanning
job, press the [Resume] key in
the confirmation dialog box. To
delete the saved images and
cancel the job, press the [Cancel]
key.
❒When storing a password,
appears on the left side of the
file name.
GPress the [Scanning Finished] key.
To change the file name, user
name, or password
APress the line of the document
whose file name, user name, or
password you want to change.
BIf you select a document which
requires a password, the “In-
put the Password” window ap-
pears. Input the password
using the number keys, then
press the [OK] key.
CPress the [File Management] key.
DPress the [Change File Name],
[Change User Name], or [Change
Password] key.
EEnter the new file name, user
name, or password using the
letter keys or number keys.
FPress the [OK] key.
AdonisC2_AEcopy110F_FM.book Page 155 Wednesday, October 3, 2001 1:43 PM
Document Server
156
3
Scanning in Copy mode
APress the {
{{
{Copy}
}}
} key.
Copy display appears.
BPress the [Stored File] key.
CEnter a file name, user name, or
password if neccessary.
Reference
For details about settings, ⇒
“Scanning in Document Server
mode” step C.
DSet your originals.
Reference
For more information on the
types of originals that can be set
and how to set them, ⇒ P.29
“Setting Originals”.
EMake the scanning settings for
the original.
Reference
For details, see the explanations
of each function in this manual.
FPress the {
{{
{Start}
}}
} key.
Note
❒To stop scanning, press the
{Clear/Stop} key.
❒To resume the paused scanning
job, press the [Resume] key in
the confirmation dialog box. To
delete the saved images and
cancel the job, press the [Cancel]
key.
❒To check if the document has
been stored, press the {Docu-
ment Server} key to display the
document selection screen.
AdonisC2_AEcopy110F_FM.book Page 156 Wednesday, October 3, 2001 1:43 PM
Printing Saved Documents
157
3
Printing Saved Documents
You can print any of the documents
saved in the Document Server.
Follow these steps to select a docu-
ment and print it out.
APress the {
{{
{Document Server}
}}
} key.
The “Select Files to Print” display
appears.
BPress the line for the document
you want to print.
The selected line is highlighted.
Note
❒You can search the document
you desire by the file name or
the user name. ⇒ P.160 “To
Search by File Name”.
❒You can sort the files in order of
[User Name], [File Name], or
[Date]. Press the key you want to
sort by.
❒If the desired file name is not
shown, see the next or previous
screen using the [T
TT
T Next] and [U
UU
U
Prev.] keys.
❒If you cannot choose the desired
document by its name, you can
print the first page to check the
contents. Press the line for the
desired document, and press
the [Print 1st Page] key followed
by the {Start} key.
❒Press the selected line again to
cancel the print job.
❒If you select a document which
requires a password, the “Input
the Password” window ap-
pears. Enter your password us-
ing the number keys, then press
the [OK] key. To delete the value
entered, press the [Clear] or
{Clear/Stop} key. To cancel a se-
lected document, press the [Can-
cel] key.
CTo print more than one docu-
ment, repeat step B
BB
B to select the
desired documents in the order
you want to print them out.
The selected order is shown in the
priority column next to the select-
ed document(s).
Note
❒To change the print order, press
the highlighted lines to return
to the normal conditions, then
select them again in the order
you want to print.
❒Press the {Clear Modes} key to
cancel all the settings.
❒If you press the [Printg Odr] key,
the selected order is displayed
in order.
AdonisC2_AEcopy110F_FM.book Page 157 Wednesday, October 3, 2001 1:43 PM
Document Server
158
3
DIf you need to change any of the
print settings, press the [Print Set-
tings] key.
The “Print Settings” display ap-
pears.
Note
❒The print settings remain in the
machine after printing.
❒The print settings of the docu-
ment you select first are applied
to the merged documents.
❒If you select multiple files, you
can confirm the file names or
print order of the files you se-
lected in step C by scrolling
through the list with the [T
TT
T] and
[U
UU
U] keys.
❒Press the [Select File] key to re-
turn to the “Select Files to Print”
display.
Reference
For details, see the explanations
of each function in this manual.
EEnter the required number of
prints using the number keys.
Note
❒Up to 999 can be entered.
❒To change the value entered,
press the {Clear/Stop} key and
enter new value.
❒If you print more than one set
using the Sort function, you can
check the print result by print-
ing out only the first set. ⇒
P.159 “Sample Printing”.
FPress the {
{{
{Start}
}}
} key.
The machine starts printing.
Note
❒To pause the print job, press the
{Clear/Stop} key. In the confir-
mation dialog box, press the
[Resume] key to resume it, or
press the [Cancel] key to cancel
it.
AdonisC2_AEcopy110F_FM.book Page 158 Wednesday, October 3, 2001 1:43 PM
Printing Saved Documents
159
3
Sample Printing
If you print multiple sets using the
Sort function, you can check if the
print order or the print settings are
correct by printing out only the first
set using the {Sample Copy} key.
Limitation
❒This function can be used only
when the Sort function has been
turned on.
AFollow steps A
AA
A to E
EE
E of the preced-
ing procedure.
BPress the {
{{
{Sample Copy}
}}
} key.
CAfter the first set is printed out,
press the [Print] key to print the
rest of the print job. Press the
[Suspend] key to cancel it and re-
turn back to the “Print Settings”
menu for changing the setting.
Print First Page
You can print the first page of the doc-
ument selected in the “Select Files to
Print” display to check the contents.
If more than one document is select-
ed, the first page of each document is
printed.
APress the line for the desired doc-
ument(s) in the “Select Files to
Print” display, and press the [Print
1st Page] key.
BPress the {
{{
{Start}
}}
} key.
The first page is printed out.
AdonisC2_AEcopy110F_FM.book Page 159 Wednesday, October 3, 2001 1:43 PM
Document Server
160
3
Searching Saved Documents
You can use either the [Search by File
Name] or [Search by User Name] keys to
search for documents stored on the
document server. You can also list the
stored documents in the order you
prefer. If you install Desk Top Binder
V2 Professional or Desk Top Binder
V2 Lite on your computer, you can
search and rearrange the documents
from your computer.
❖
❖❖
❖Search by File Name
You can search the documents
stored in the Document Server by
the file name.
❖
❖❖
❖Search by User Name
You can search the documents
stored in the Document Server by
the user name.
To Search by File Name
This searches for documents on the
document server that match a file
name.
APress the {
{{
{Document Server}
}}
} key.
BPress the search by [File Name] key.
CEnter the file name using the let-
ter keys.
Reference
For details on entering charac-
ters, refer to "Entering Text
Characters" in the System Set-
tings manual.
DPress the [OK] key.
Only the files beginning with the
letters appear in the “Select Files to
Print” display.
Note
❒To display all the files saved in
the Document Server, press the
[All the files] key.
To Search by User Name
This searches for documents on the
document server that match a user
name.
APress the {
{{
{Document Server}
}}
} key.
BPress the search by [User Name]
key.
CEnter the user name using the let-
ter keys.
Reference
For details on entering charac-
ters, refer to "Entering Text
Characters" in the System Set-
tings manual.
DPress the [OK] key.
Only the files beginning with the
letters appear in the “Select Files to
Print” display.
Note
❒To display all the files saved in
the Document Server, press the
[All the files] key.
AdonisC2_AEcopy110F_FM.book Page 160 Wednesday, October 3, 2001 1:43 PM
Searching Saved Documents
161
3
To Check the Details of Stored
Documents
ASelect the document for which
you want detailed information.
BPress the [Detail] key.
The detailed information about the
document is displayed.
Note
❒If you have selected several doc-
uments, use the [U
UU
U] [T
TT
T] keys to
view the details of each docu-
ment.
AdonisC2_AEcopy110F_FM.book Page 161 Wednesday, October 3, 2001 1:43 PM
Document Server
162
3
Deleting Saved Documents
You should delete any of the saved
documents using the control panel of
the machine.
This section describes how to delete
saved documents.
Important
❒You can save up to 3,000 docu-
ments in the Document Server. No
more documents can be saved,
when there are 3,000 documents in
the Document Server. You should
delete unnecessary documents.
❒You can set the timer to delete the
documents stored in the Docu-
ment Server with the User Tools.
⇒ “Delete All Files” in the System
Settings manual.
Note
❒You can delete all the saved docu-
ments at a time with the User
Tools. ⇒ “Delete All Files” in the
System Settings manual.
Follow these steps to delete saved
documents.
APress the {
{{
{Document Server}
}}
} key.
The “Select Files to Print” display
appears.
BSelect a document you want to de-
lete by pressing the name of it.
The selected name is highlighted.
Note
❒You can search the document
you desire by the file name or
the user name. ⇒ P.160 “To
Search by File Name”.
❒You can sort the files in order of
[User Name], [File Name], or
[Date]. Press the key you want to
sort by.
❒If the desired file name is not
shown, see the next or previous
screen using the [T
TT
T Next] and [U
UU
U
Prev.] keys.
❒If you cannot choose the desired
document by its name, you can
print the first page to check the
contents. Press the line for the
desired document, and press
the [Print 1st Page] key followed
by the {Start} key.
❒Press the selected line again to
cancel the print job.
❒If you select a document which
requires a password, the “Input
the Password” window ap-
pears. Enter your password us-
ing the number keys, and press
the [OK] key. To delete the value
entered, press the [Clear] or
{Clear/Stop} key. To cancel a se-
lected document, press the [Can-
cel] key.
CRepeat step B
BB
B if you want to select
more than one document.
AdonisC2_AEcopy110F_FM.book Page 162 Wednesday, October 3, 2001 1:43 PM
Deleting Saved Documents
163
3
DPress the [Delete File] key.
A confirmation dialog box ap-
pears.
EPress the [Delete] key to delete it.
Note
❒To cancel the delete operation,
press the [Do not Delete] key.
AdonisC2_AEcopy110F_FM.book Page 163 Wednesday, October 3, 2001 1:43 PM
Document Server
164
3
AdonisC2_AEcopy110F_FM.book Page 164 Wednesday, October 3, 2001 1:43 PM
165
4. Troubleshooting
If Your Machine Does Not Operate as You
Want
General
Machine Status Problem/Cause Action
Please wait. A message appears when you
turn on the operation switch,
or change the toner bottle.
Wait for the machine.
Cannot detect original size. Improper original is set. ⇒
P.19 “Sizes difficult to detect”.
Set custom size original on the
exposure glass. ⇒ P.29 “Set-
ting Originals on the Exposure
Glass”.
Input the horizontal and verti-
cal size of the custom original.
⇒ P.29 “Setting Originals on
the Exposure Glass”.
Select paper manually, not in
Auto Paper Select mode.
Do not use Auto Reduce/En-
large mode.
Original is not set. Set your originals.
Check original orientation. There is no copy paper that is
in the same direction as the
originals.
Set the original in the same di-
rection as the copy paper.
Check paper size.
Improper paper size is set. If you press the {Start} key,
copy job starts.
Rotate Sort is not available
with this image size.
The size of paper for which no
rotate-sorting is available is
selected.
Select the proper paper size.
⇒ P.43 “Sort”.
Cannot punch paper of this
size.
The Punch function cannot be
used the paper size selected.
The following paper sizes are
available for Punch mode:
A3L,B4L, A4KL, B5KL,
A5KL, 11×17L, Legal(81/
2"×14")L. Select one of these
sizes. ⇒ P.54 “Punch”.
It is over stapling capacity. The number of sheets per set
is over the staple capacity.
Check the stapler capacity. ⇒
P.47 “Staple”.
AdonisC2_AEcopy110F_FM.book Page 165 Wednesday, October 3, 2001 1:43 PM
Troubleshooting
166
4
Document Server
Hole punch receptacle is full.
Open the door as shown and
empty receptacle.
Punch hole receptacle is full. Check the punch waste box
and remove punch wase. ⇒
P.200 “
y
Removing Punch
Waste”.
Cannot staple paper of this
size.
The Staple function cannot be
used the paper size selected.
Select the proper paper size
that can be used in Staple
mode. ⇒ P.47 “Staple”.
Duplex is not avilable with
this paper size.
A paper size not available in
Duplex mode has been select-
ed.
Select a paper size that can be
used in Duplex mode. ⇒ P.82
“Duplex”.
Maximum number of sets is *. The number of copies exceeds
the maximum copy quantity.
The following paper sizes are
available for Duplex mode:
A3L, B4L, A4KL, B5KL,
A5L. Select one of these sizes.
⇒ “Max. Copy Quantity” in
P.209 “General Features 2/4”
Machine Status Problem/Cause Action
Scanned pages exceeded max.
number. Do you want to store
the scanned pages as a file?
The number of scanned pages
exceeds the capacity per file of
the Document Server.
If you want to store the
scanned originals as a file,
press the [Store File] key. The
originals are stored as a file in
the Document Server. If you
don't want any scanned origi-
nals to be stored, press the [Not
to Store] key. The scanning
data will be cleared.
Machine Status Problem/Cause Action
AdonisC2_AEcopy110F_FM.book Page 166 Wednesday, October 3, 2001 1:43 PM
If Your Machine Does Not Operate as You Want
167
4
Document Server
Problem Action
You forgot your password. You can confirm your password.
Press [Yes] key onto “Display Password with
Stored file” temporarily, you can check the
password when you selected the file. ⇒ “Dis-
play Password with Stored file” in system set-
tings.
Without the password, you cannot edit or
print the document. Scan the document again.
You can delete all the saved documents at
once with the User Tools. ⇒ “Delete All The
Saved Files” in P.226 “Input/Output”.
Make sure that no important document is
saved in the Document Server before deleting
all of the saved documents.
You cannot find out what is saved in a file. Check the date or time column in the “Docu-
ment Server: Files” display.
Check the contents of the document by print-
ing the first page of it. Press the line for the de-
sired document in the “Document Server:
Files” display, and press the [Print 1st Page] key
followed by the {Start} key.
Memory becomes full frequently. Select the document that you want to delete,
and then press the [Delete File] key. ⇒ P.162
“Deleting Saved Documents”.
You want to check the print result before mak-
ing a large print run.
Check the print result by printing out only the
first set. ⇒ P.159 “Sample Printing”.
You want to save a document which cannot be
deleted automatically.
Turn “Auto File Delete” off, then save the doc-
ument in the Document Server.
If you turn “Auto File Delete” on after saving
the document, this function is applied to the
next saved documents.
AdonisC2_AEcopy110F_FM.book Page 167 Wednesday, October 3, 2001 1:43 PM
Troubleshooting
168
4
Display
Problem Problem/Cause Action
The display panel is off. The screen contrast knob is
turned to the dark position.
Set the screen contrast knob to
the light position for proper
viewing of the display panel.
The machine is in Energy Sav-
er mode.
Press the {Energy Saver} key to
cancel Energy Saver mode.
The operation switch is
turned off.
Turn on the operation switch.
Nothing happens when the
operation switch is turned on.
The main power switch is
turned off.
Turn on the main power
switch.
AdonisC2_AEcopy110F_FM.book Page 168 Wednesday, October 3, 2001 1:43 PM
If You Cannot Make Clear Copies
169
4
If You Cannot Make Clear Copies
Problem Cause Action
Copies appear dirty. The image density is too dark. Adjust the image density. ⇒
P.35 “Adjusting Copy Image
Density”.
Auto Image Density is not se-
lected.
Select Auto Image Density.
The reverse side of an original
image is copied.
The image density is too dark. Adjust the image density. ⇒
P.35 “Adjusting Copy Image
Density”.
Auto Image Density is not se-
lected.
Select Auto Image Density.
A shadow appears on copies if
you use pasted originals.
The image density is too dark. Adjust the image density. ⇒
P.35 “Adjusting Copy Image
Density”.
Change the direction of the
original.
Put mending tape on the past-
ed part.
The same copy area is dirty
whenever making copies.
The exposure glass or docu-
ment feeder is dirty.
Clean them. ⇒ P.232 “Main-
taining Your Machine”.
Copies are too light. The image density is too light. Adjust the image density. ⇒
P.35 “Adjusting Copy Image
Density”.
The paper size is not appro-
priate.
Use the recommended paper.
Note
❒Light copy may occur
when you use damp or
rough grain paper.
Toner cartridge is almost
empty.
Add toner. ⇒ P.178 “
D
Add-
ing Toner”.
Parts of the image are not cop-
ied.
The original is not set correct-
ly.
Set originals correctly. ⇒ P.29
“Setting Originals”.
An improper paper size is se-
lected.
Select the proper paper size.
Copies are blank. The original is not set correct-
ly.
When using the exposure
glass, face the originals down.
When using the document
feeder, face them up. ⇒ P.29
“Setting Originals”.
A moiré pattern is produced
on copies.
Your original has a dot pat-
tern image or many lines.
Place the original on the expo-
sure glass at a slight angle.
R
AdonisC2_AEcopy110F_FM.book Page 169 Wednesday, October 3, 2001 1:43 PM
Troubleshooting
170
4
If You Cannot Make Copies As You Want
General
Problem Cause Action
Copies are not stapled. There are jammed staples in
the stapler.
Remove jammed staples. ⇒
P.196 “
e
Removing Jammed
Staples”.
Note
❒After removing jammed
staples, staples might not
be ejected the first few
times you try to use the
stapler.
The number of copies exceeds
the capacity of the stapler.
Check the stapler capacity. ⇒
P.47 “Staple”.
Copy paper is curled. Turn the copy paper over in
the tray.
Staples are wrongly posi-
tioned.
Originals are not set correctly. Place the original on the upper
left corner of the exposure
glass. ⇒ P.47 “Staple”.
Misfeeds occur frequently. Copy paper size setting is not
correct.
Set the proper paper size. ⇒
P.188 “Changing the Paper
Size”.
You cannot combine several
functions.
Selected functions cannot be
used together.
⇒ P.143 “Combination Chart”.
When sorting, the pages are
divided into two blocks.
The memory became full in
the middle of sorting and the
pages were ejected in two
blocks.
You can interrupt the copying
when the memory becomes
full. ⇒ “Memory Full Auto
Scan Restart” in P.226 “Input/
Output”.
AdonisC2_AEcopy110F_FM.book Page 170 Wednesday, October 3, 2001 1:43 PM
If You Cannot Make Copies As You Want
171
4
Adjust Image
Stamp
Problem Cause Action
In Double Copies mode, parts
of the original image are not
copied.
Combination of original and
copy paper is not correct.
Select A3L for A4 originals
K, A4 for A5 originals, and B5
for B6 originals. ⇒ P.110
“Double Copies”.
In Border, Center, or Center/
Border mode, parts of the
original image are not copied.
You set the wide erased mar-
gin.
Change the margin width nar-
rower. You can change it be-
tween 2-99mm. ⇒ “Erase
Border Width” and “Erase
Center Width” in P.216 “Edit
1/2”.
Set the originals correctly.
Originals are not scanned cor-
rectly.
In Margin Adjustment mode,
parts of the original image are
not copied.
You set the wide erased mar-
gin.
Set the narrow margin with
the User Tools. ⇒ “Front Mar-
gin: Left/Right” and “Back
Margin: Left/Right” in P.216
“Edit 1/2”.
There is a lock of margin space
on the opposite side of the
binding position.
In Image Repeat mode, the
original image is not copied
repeatedly.
You selected the same size
copy paper as originals, and
did not select the proper re-
production ratio.
Select copy paper larger than
the originals.
Select the proper reproduc-
tion ratio.
Problem Cause Action
The stamp position is wrong. The paper orientation is
wrong.
Check the paper orientation
and stamp position.
AdonisC2_AEcopy110F_FM.book Page 171 Wednesday, October 3, 2001 1:43 PM
Troubleshooting
172
4
Combine
Problem Cause Action
You cannot make a book from
a booklet or magazine by fold-
ing copies.
Combine Original Booklet
Format or Combine Original
Magazine Format is not cor-
rect.
Change the setting. ⇒ P.85
“Combine”.
Parts of the image are not cop-
ied.
You specified an improper re-
production ratio that does not
meet the sizes of your origi-
nals and copy paper.
When you specify a reproduc-
tion ratio using Manual Paper
Select mode, make sure that
the ratio matches your origi-
nals and the copy paper.
Note
❒Select the correct repro-
duction ratio before using
Combine mode.
When you use staple and
punch together, extra margin
may appear.
Sometimes stapling and the
punch hole may not work well
together. In this case, change
the direction of the originals.
Order of copies is not correct. You set originals in the incor-
rect order.
When setting a stack of origi-
nals in the document feeder,
the last page should be on the
bottom.
If you set an original on the ex-
posure glass, start with the
first page to be copied.
AdonisC2_AEcopy110F_FM.book Page 172 Wednesday, October 3, 2001 1:43 PM
If You Cannot Make Copies As You Want
173
4
Duplex
Problem Cause Action
Order of copies is not correct. You set originals in the incor-
rect order.
When setting a stack of origi-
nals in the document feeder,
the last page should be on the
bottom.
If you set an original on the ex-
posure glass, start with the
first page to be copied.
Orientation of copies (Top to
Top, or Top to Bottom) is not
correct.
You set originals in an incor-
rect direction or the orienta-
tion setting is incorrect.
Select the correct orientation,
or set originals correctly. ⇒
P.82 “Duplex”.
Note
❒If you set A3, 11" × 17" or
B4, 81/2" × 14" originals as
shown below, select [Top to
Bottom] to make copies in
“Top to Top” orientation.
Or select [Top to Top] to
make copies in “Top to
Bottom” orientation.
CP270-A
AdonisC2_AEcopy110F_FM.book Page 173 Wednesday, October 3, 2001 1:43 PM
Troubleshooting
174
4
When Memory Is Full
Limitation
❒If memory is full on either the master unit or sub-unit, Interrupt Copy will not
be available.
Note
❒If you set “Memory Full Auto Scan Restart”of the User Tools to “Yes”, the
memory overflow message will not be displayed, but make Connect Copy for
the scanned original automatically. Connect Copy continues scanning and
copying until finishing the job. Note that copy sets will be printed out sepa-
rately by scanning at this time.
Document Server
Machine Status Action
Memory is full. Press the [Output] key to copy scanned origi-
nals and clear the scanning data. Press the
[Clear] key to clear the scanning data and not
copy.
Press [Resume] to scan and copy remaining
originals.
To continue copying, remove all copies then
press the [Resume] key. To stop copying, press
the [Stop] key.
Machine Status Action
Memory is full. Delete any unnecessary files and then scan the
document again. ⇒ P.162 “Deleting Saved Doc-
uments”.
AdonisC2_AEcopy110F_FM.book Page 174 Wednesday, October 3, 2001 1:43 PM
B Loading Paper
175
4
B Loading Paper
Note
❒If you want to change the paper
size of tray 1-2 ⇒ P.188 “Changing
the Paper Size”.
Reference
Regarding paper types and sizes,
⇒ P.21 “Copy Paper”.
Loading Paper in Tray 1or 2
APull out the paper tray until it
stops.
BRemove the back fence.
CSquare the paper and set it in the
tray.
Important
❒Do not stack paper over the lim-
it mark.
❒Make sure that the paper stack
is flush with the right side fence.
Note
❒Shuffle the paper before setting
it in the tray.
❒Straighten the paper, if curled
or warped, before placing it in
the tray.
DSet the back fence.
AdonisC2_AEcopy110F_FM.book Page 175 Wednesday, October 3, 2001 1:43 PM
Troubleshooting
176
4
EPush the paper tray in until it
stops.
Loading Paper in Tray 3 or 4
APull out the paper tray until it
stops.
BRemove the back fence.
Important
❒Do not stack paper over the lim-
it mark.
❒Make sure that the paper stack
is flush with the right side fence.
Note
❒Shuffle the paper before setting
it in the tray.
❒Straighten the paper, if curled
or warped, before placing it in
the tray.
CSquare the paper and set it in the
tray.
DSet the back fence.
AdonisC2_AEcopy110F_FM.book Page 176 Wednesday, October 3, 2001 1:43 PM
B Loading Paper
177
4
Loading Paper in the Large
Capacity Tray
APress the key if it is not lit.
The key blinks while the bottom
plate is moving down.
BWhen the key stops blinking and
lights up, open the top cover.
Note
❒Make sure no paper sheet is in-
volved in the feeding paper of
the Large Capacity Tray, Re-
move the sheet, if any.
CPlace the paper in the tray along
the edge on the left.
Note
❒The Tray contains up to 1,500
sheets.
Important
❒Do not stack paper over the lim-
it mark.
❒Make sure that the paper stack
is flush with the right side fence.
DClose the top cover.
AdonisC2_AEcopy110F_FM.book Page 177 Wednesday, October 3, 2001 1:43 PM
Troubleshooting
178
4
D Adding Toner
When D is displayed, it is time to supply toner.
R
WARNING:
R
CAUTION:
R
CAUTION:
Important
❒If you use toner other than that recommended, an error might occur.
❒When adding toner, do not turn off the operation switch. If you do, your set-
tings are cleared and D will appear again because the machine will not rec-
ognize that toner has been added.
❒Always add toner after the machine instructs you to add toner.
❒Do not use used toner. This will damage the machine.
Note
❒You can still make about 90 copies after D appears, but replace the toner ear-
ly to prevent poor copy quality.
Reference
Regarding toner storage, ⇒ P.26 “Toner Storage”.
•Do not incinerate used toner or toner containers. Toner dust might ig-
nite when exposed to an open flame. Dispose of used toner containers
in accordance with local regulations for plastics.
•Keep toner (used or unused) and toner containers out of reach of children.
•Our products are engineered to meet high standards of quality and function-
ality, and we recommend that you only use the expendable supplies availa-
ble at an authorized dealer.
•1: Open the front cover of the machine.
•2: Lift the green lever.
Toner1
AdonisC2_AEcopy110F_FM.book Page 178 Wednesday, October 3, 2001 1:43 PM
D Adding Toner
179
4
•3: Push the green lever, and then gently
pull out the holder.
•4: Press the toner bottle backward to raise
its head, and then gently pull out the bot-
tle.
•5: Hold a new bottle horizontally and
shake it 5 or 6 times.
Note
❒Do not remove the black cap when
shaking.
•6: Remove the black cap.
Note
❒Do not remove the inner cap.
•7: Put the toner bottle on the holder, and
then press its head forward.
Toner2
1
2
Toner3
2
1
Toner4
56
1
2
Toner5
1
2
AdonisC2_AEcopy110F_FM.book Page 179 Wednesday, October 3, 2001 1:43 PM
Troubleshooting
180
4
•8: Push the holder until it clicks.
•9: Push down the green lever.
•10: Close the front cover of the machine.
Toner6
AdonisC2_AEcopy110F_FM.book Page 180 Wednesday, October 3, 2001 1:43 PM
x Clearing Misfeeds
181
4
x Clearing Misfeeds
R
CAUTION:
Important
❒When clearing misfeeds, do not turn off the operation switch. If you do, your
copy settings are cleared.
❒To prevent misfeeds, do not leave any torn scraps of paper within the ma-
chine.
❒If paper misfeeds occur repeatedly, contact your service representative.
Note
❒More than one misfed area may be indicated. In this case, check every appli-
cable area. See the following charts: A, B, C, D, E, P, U, R, Y, Z
❒You can find a sticker explaining how to remove misfed paper inside of the
front cover or inside of the finisher.
•The fusing section of this equipment might be very hot. You should be very
careful that you don't touch this section when removing the misfed paper.
AdonisC2_AEcopy110F_FM.book Page 181 Wednesday, October 3, 2001 1:43 PM
Troubleshooting
182
4
AdonisC2_AEcopy110F_FM.book Page 182 Wednesday, October 3, 2001 1:43 PM
x Clearing Misfeeds
183
4
AdonisC2_AEcopy110F_FM.book Page 183 Wednesday, October 3, 2001 1:43 PM
Troubleshooting
184
4
AdonisC2_AEcopy110F_FM.book Page 184 Wednesday, October 3, 2001 1:43 PM
x Clearing Misfeeds
185
4
AdonisC2_AEcopy110F_FM.book Page 185 Wednesday, October 3, 2001 1:43 PM
Troubleshooting
186
4
AdonisC2_AEcopy110F_FM.book Page 186 Wednesday, October 3, 2001 1:43 PM
x Clearing Misfeeds
187
4
AdonisC2_AEcopy110F_FM.book Page 187 Wednesday, October 3, 2001 1:43 PM
Troubleshooting
188
4
Changing the Paper Size
Important
❒If you wish to change the paper
size set in the optional large capac-
ity tray (LCT), contact your service
representative.
❒Be sure to select paper size with
the user tools. Otherwise, misfeeds
might occur.
Reference
For paper sizes, weight, and capac-
ity that can be set in each tray, ⇒
P.21 “Copy Paper”.
Changing the Paper Size in
Tray 1 or 2
AMake sure that the paper tray
(tray 1 or 2) is not being used.
Then fully pull out the tray.
BRemove the back fence.
CRemove any remaining copy pa-
per.
DRelease the side lever.
AdonisC2_AEcopy110F_FM.book Page 188 Wednesday, October 3, 2001 1:43 PM
Changing the Paper Size
189
4
EWhile pressing the release lever,
adjust the side fences.
FSquare the paper and load it into
the tray.
Important
❒Do not stack paper over the lim-
it mark.
❒Make sure that the paper stack
is flused with the right side
fence.
Note
❒Shuffle the paper before setting
it in the tray.
❒Make sure the leading corners
of the paper are under the cor-
ners.
❒Straighten the paper, if curled
or warped, before placing it in
the tray.
GLock the side lever.
HAdjust the back fence to the new
paper size.
Note
❒For 11” × 17” paper, put the
back fence inside 1.
IAdjust the tray size with the pa-
per size selector to the new paper
size.
AdonisC2_AEcopy110F_FM.book Page 189 Wednesday, October 3, 2001 1:43 PM
Troubleshooting
190
4
To adjust the paper size to one
not available with the paper size
selector
ASet the paper size selector to
the p
pp
p mark on the left.
BPress the {
{{
{User Tools/Counter}
}}
}
key.
CPress the [System Settings] key.
DPress the [Paper Size Setting] key.
EPress the [Tray Paper Size: Tray 1]
or the [Tray Paper Size: Tray 2]
key.
FSelect your desired size. Then,
press the [OK] key.
GPress the [Exit] key or press the
{
{{
{User Tools/Counter}
}}
} key to exit
the User Tools.
Important
❒Be sure to select the paper
size with the User Tools (Sys-
tem Settings). Otherwise,
misfeeds might occur.
Reference
For details, ⇒ “User Tools
(System Settings)” in the Sys-
tem Settings manual.
JGently push the paper tray in un-
til it stops.
KCheck the paper size displayed
on the display panel.
Changing the Paper Size in
Tray 3 or 4
AMake sure that the paper tray is
not being used.
BPull the paper tray out, and then
lift and remove it.
Note
❒Remove any remaining copy
paper.
CRemove the screws fastening the
side fences using the screwdriver.
Note
❒A screwdriver is contained in
the front area of the top tray.
AdonisC2_AEcopy110F_FM.book Page 190 Wednesday, October 3, 2001 1:43 PM
Changing the Paper Size
191
4
DRe-position the side fences to the
paper size you want to use.
EFasten the fences with screws.
FSquare the paper and load it into
the tray.
Important
❒Do not stack paper over the lim-
it mark.
Note
❒Shuffle the paper before setting
it in the tray.
❒Make sure the leading corners
of the paper are under the cor-
ners.
GAdjust the back fence to the new
paper size.
Note
❒For 11” × 17” paper, put the
back fence inside 1.
HPush the paper tray in until it
stops.
ISelect the paper size with the user
tools.
AdonisC2_AEcopy110F_FM.book Page 191 Wednesday, October 3, 2001 1:43 PM
Troubleshooting
192
4
d Adding Staples
R
CAUTION:
Important
❒If you use a staple cartridge other than that recommended, staple failure or
staple jams might occur.
1000-Sheet Finisher
•Our products are engineered to meet high standards of quality and function-
ality, and we recommend that you only use the expendable supplies availa-
ble at an authorized dealer.
•1: Open the front cover.
•2: Remove the cartridge.
•3: Take out the empty refill in the arrow di-
rection.
fin101EE
fin102EE
fin103EE
AdonisC2_AEcopy110F_FM.book Page 192 Wednesday, October 3, 2001 1:43 PM
d Adding Staples
193
4
•4: Push in the new refill until it clicks.
•5: Pull out the ribbon.
•6: Reinstall the cartridge.
•7: Close the front cover.
fin104EE
fin105EE
fin106EE
fin107EE
AdonisC2_AEcopy110F_FM.book Page 193 Wednesday, October 3, 2001 1:43 PM
Troubleshooting
194
4
2 Tray Finisher
•1: Open the front cover of the finisher.
•2: Hold the green lever and pull out the
cartridge gently.
•3: Hold the both sides of the cartridge.
•4: Pull up the upper unit of the cartridge.
•5: Take out the empty refill in the arrow di-
rection.
•6: Align the arrows on the new refill and
the cartridge, and then push in the refill
until it clicks.
AdonisC2_AEcopy110F_FM.book Page 194 Wednesday, October 3, 2001 1:43 PM
d Adding Staples
195
4
•7: Hold down the upper unit to the car-
tridge gently.
•8: Pull out the ribbon.
•9: Hold the green lever and reinstall the
cartridge until it clicks.
•10: Close the front cover of the finisher.
AdonisC2_AEcopy110F_FM.book Page 195 Wednesday, October 3, 2001 1:43 PM
Troubleshooting
196
4
e Removing Jammed Staples
Note
❒Staples might be jammed because of curled copies. In this case, try turning the
copy paper over in the tray. If there is no improvement, change the copy pa-
per with less curls.
❒After removing jammed staples, staples might not be ejected the first few
times you try to use the stapler.
1000-Sheet Finisher
•1: Open the front cover.
•2: Remove the cartridge.
•3: Open the face plate.
fin108EE
fin109EE
fin110EE
AdonisC2_AEcopy110F_FM.book Page 196 Wednesday, October 3, 2001 1:43 PM
e Removing Jammed Staples
197
4
•4: Remove the jammed staples.
•5: Reinstall the cartridge.
•6: Close the front cover.
fin111EE
fin112EE
fin113EE
AdonisC2_AEcopy110F_FM.book Page 197 Wednesday, October 3, 2001 1:43 PM
Troubleshooting
198
4
2 Tray Finisher
•1: Open the front cover of the finisher.
•2: Hold the green lever and pull out the
cartridge gently.
•3: Pull up the knob of the cartridge.
•4: Take out all staples slid from the car-
tridge.
•5: Pull down the knob of the cartridge until
it clicks.
AdonisC2_AEcopy110F_FM.book Page 198 Wednesday, October 3, 2001 1:43 PM
e Removing Jammed Staples
199
4
•6: Hold the green lever and reinstall the
cartridge until it clicks.
•7: Close the front cover of the finisher.
AdonisC2_AEcopy110F_FM.book Page 199 Wednesday, October 3, 2001 1:43 PM
Troubleshooting
200
4
y Removing Punch Waste
Note
❒While “Hole punch receptacle is
full.” is displayed, you cannot use
the Punch function.
AOpen the front cover of the 2 Tray
finisher.
BPull out the punch waste box and
remove punch waste.
CReinstall the punch waste box.
Note
❒If you do not, “Hole punch re-
ceptacle is full.” is still dis-
played.
DClose the front cover of the 2 Tray
finisher.
“Hole Punch Receptacle Full.” dis-
appears.
Note
❒If the message is still displayed,
reinstall the punch waste box.
AdonisC2_AEcopy110F_FM.book Page 200 Wednesday, October 3, 2001 1:43 PM
201
5. User Tools (Copy/
Document Server Features)
Accessing the User Tools (Copy/
Document Server Features)
This section is for the key operators in
charge of this machine. You can
change or set the machine's default
settings.
Preparation
After using the User Tools, be sure
to exit from the User Tools.
The selected key is highlighted.
Any changes you make with the
User Tools remain in effect even if
the main power switch or opera-
tion switch is turned off, or the
{Clear Modes} key is pressed.
Reference
For details, ⇒ “Accessing the User
Tools (System Settings)” in the
System Settings manual.
APress the {
{{
{User Tools/Counter}
}}
} key.
The User Tools Main Menu ap-
pears.
BPress the [Copier/Document Server
Features] key.
The Copier/Document Server Fea-
tures menu appears.
CSelect the desired menu and press
the key.
Note
❒[T
TT
TNext]: Press to go to the next
page.
❒[U
UU
UPrevious]: Press to go back to
the previous page.
Reference
⇒ P.204 “User Tools Menu (Cop-
ier/Document Server Features)”.
DChange the settings by following
the instructions on the display
panel. Then press the [OK] key.
Reference
⇒ P.212 “General Features 4/4”.
Note
❒[OK]: Press to set the new set-
tings and return to the previous
menu.
❒[Cancel]: Press to return to the
previous menu without chang-
ing any data.
AdonisC2_AEcopy110F_FM.book Page 201 Wednesday, October 3, 2001 1:43 PM
User Tools (Copy/Document Server Features)
202
5
Exiting From the User Tools
AAfter changing the User Tools set-
tings, press the [Exit] key on the
User Tools Main Menu.
Changing the User Tools is com-
pleted, and the machine is ready
for copying.
Note
❒To exit from the change of the
machine's default settings and
return to Copy mode, press the
{User Tools/Counter} key.
❒You can also exit from the User
Tools by pressing the {User
Tools/Counter} key.
AdonisC2_AEcopy110F_FM.book Page 202 Wednesday, October 3, 2001 1:43 PM
Accessing the User Tools (Copy/Document Server Features)
203
5
AdonisC2_AEcopy110F_FM.book Page 203 Wednesday, October 3, 2001 1:43 PM
User Tools (Copy/Document Server Features)
204
5
User Tools Menu (Copier/Document
Server Features)
AdonisC2_AEcopy110F_FM.book Page 204 Wednesday, October 3, 2001 1:43 PM
User Tools Menu (Copier/Document Server Features)
205
5
AdonisC2_AEcopy110F_FM.book Page 205 Wednesday, October 3, 2001 1:43 PM
User Tools (Copy/Document Server Features)
206
5
General Features 1/4
❖
❖❖
❖Auto Paper Select Priority
As a default setting, Auto Paper Select is selected. You can cancel this setting.
Note
❒Default: Yes
❖
❖❖
❖Auto Tray Switching
If you load paper of the same size in two or more trays, the machine automat-
ically shifts to another tray when the tray in use runs out of paper (when Auto
Paper Select is selected.) This function is called “Auto Tray Switching”. This
setting specifies whether to use “Auto Tray Switching” or not.
Default: With image rotation
Note
❒[With image rotation] Use this when copying with Auto Tray Switching.
❒[Without image rotation] Only copies with Auto Tray Switching if you load
paper of the same size and in the same direction in two or more trays. If the
paper is not the same size or in the same direction, the message “Load pa-
per.” is displayed.
❒[OFF] When a paper tray runs out of paper, copying is interrupted and the
message “Load paper.” is displayed.
❖
❖❖
❖Paper Display
You can choose whether the available paper trays/sizes are shown on the in-
itial display at Auto Paper Select mode.
Note
❒Default: Display
❒If you choose “Hide”, the display is shown as below. When the [Auto Paper
Select] key is pressed, paper sizes appear on the display.
❖
❖❖
❖Original Mode Priority
As a default setting, Text is selected as the Originals Type. You can change it
to Text/Photo, Photo, Pale, or Generation Copy.
Note
❒Default: Text
AdonisC2_AEcopy110F_FM.book Page 206 Wednesday, October 3, 2001 1:43 PM
General Features 1/4
207
5
❖
❖❖
❖Original Mode Display
You can choose whether the original modes are shown on the initial display.
Note
❒Default: Display
❒If you choose “Hide”, the display is shown as below.
❖
❖❖
❖Auto Image Density Priority
You can turn the Auto Image Density on or off for each of the original types
(Text, Text/Photo, Photo, Pale, and Generation Copy).
Note
❒Default: Text: On, Text/Photo: On, Photo: Off, Pale: On, Generation Copy: On
❖
❖❖
❖Copy Quality
You can adjust the quality level of copies for each of the original types (Text,
Text/Photo, Photo, Pale, Generation Copy).
•Text
Adjust the sharpness of text.
Note
❒Default: Normal
❒[Custom Setting] is the value set during service setup.
❒Choosing [Sharp] or [Sort] affects the outline sharpness of text.
AdonisC2_AEcopy110F_FM.book Page 207 Wednesday, October 3, 2001 1:43 PM
User Tools (Copy/Document Server Features)
208
5
•Text/Photo
When there are photo(s) and text on the original, determine whether the
photo or text takes priority.
Note
❒Default: Normal
❒[Custom Setting] is the value set during service setup.
❒[Normal] achieves a good balance between text and photos.
•Photo
For a photo original, adjust the finish quality level to match the type of
photo original.
Note
❒Default: Print Photo
❒[Custom Setting] is the value set during service setup.
❒Select [Print Photo] for printed photo originals, and [Glossy Photo] for
printed photo originals with fine dots.
❒Select [Normal] for printed photo and text originals.
•Pale
Adjust the quality level for the finish of a pale original with normal densi-
ty.
Note
❒Default: Normal
❒[Custom Setting] is the value set during service setup.
•Generation Copy
Adjust the quality level so as not to thicken the lines of the finish image.
Note
❒Default: Normal
❒[Custom Setting] is the value set during service setup.
❖
❖❖
❖Image Density
You can select one of seven original image density levels for each of the orig-
inal types (Text, Text/Photo, Photo, Pale, Generation Copy).
Note
❒Default: Text: Normal, Text/Photo: Normal, Photo: Normal, Pale: Normal, Gen-
eration Copy: Normal
AdonisC2_AEcopy110F_FM.book Page 208 Wednesday, October 3, 2001 1:43 PM
General Features 2/4
209
5
General Features 2/4
❖
❖❖
❖Duplex Mode Priority
You can select the type of the Duplex function effective when the machine is
turned on, Energy Saver mode is off, or Auto Reset is on.
Note
❒Default:
•Metric version: 1 Sided
→
1 Sided
•Inch version: 1 Sided
→
2 Sided
❖
❖❖
❖Copy Orientation in Duplex Mode
You can set the copy orientation when making two-sided copies.
Note
❒Default: Top to Top
❖
❖❖
❖Original Orientation in Duplex Mode
You can set the original orientation when making two-sided copies.
Note
❒Default: Top to Top
❖
❖❖
❖Change Initial Mode
You can select the initial mode or Program No. 10 as the mode effective when
the machine is turned on, or modes are cleared.
Note
❒Default: Standard
❖
❖❖
❖Max. Copy Quantity
The maximum copy quantity can be set between 1 and 999.
Note
❒Default: 999Sheets.
❖
❖❖
❖Tone: Original remains
The beeper (key tone) sounds when you forgot to remove originals after cop-
ying.
Note
❒Default: On
❒If the “Panel Tone” of the User Tools (System Settings) setting is “Off”, the
beeper does not sound irrespective of the “Tone: Original on Platen” set-
ting. “Panel Tone” in the System Settings manual.
AdonisC2_AEcopy110F_FM.book Page 209 Wednesday, October 3, 2001 1:43 PM
User Tools (Copy/Document Server Features)
210
5
❖
❖❖
❖Job End Call
You can choose whether or not the beeper sounds when copying is complete.
If the "Panel Tone" of the User Tools (System Settings) settings is "Off", the
machine beeps to notify you that the machine did not complete a job for rea-
sons such as copying was interrupted, the paper tray ran out of paper or a pa-
per jam occurred.
Note
❒Default: On
AdonisC2_AEcopy110F_FM.book Page 210 Wednesday, October 3, 2001 1:43 PM
General Features 3/4
211
5
General Features 3/4
❖
❖❖
❖Copy Function Key: F1-F5
You can register frequently used functions in Function Keys F1 to F5.
Note
❒Default:
•Copy Function Key: F1: 1 Sided
→
2 Sided:T to T
•Copy Function Key: F2: 2 Sided:T to T
→
2 Sided:T to T
•Copy Function Key: F3: 1 Sided
→
1 Sided Combine:2 Originals
•Copy Function Key: F4: 1 Sided
→
1 Sided Combine:4 Originals
•Copy Function Key: F5: Create Margin
AdonisC2_AEcopy110F_FM.book Page 211 Wednesday, October 3, 2001 1:43 PM
User Tools (Copy/Document Server Features)
212
5
General Features 4/4
❖
❖❖
❖Document Server Storage Key: F1–F5
You can reqister frequently used functions in Function keys F1 to F5. You can
also change the registered functions.
Note
❒Default
•Document Server Storage Key: F1: 2 Sided Original Top to Top
•Document Server Storage Key: F2: 1 Sided
→
1 Sided Combine
•Document Server Storage Key: F3: 1 Sided
→
1 Sided Combine: 4 originals
•Document Server Storage Key: F4: 1 Sided
→
1 Sided Combine: 8 originals
•Document Server Storage Key: F5: Create Margin
AdonisC2_AEcopy110F_FM.book Page 212 Wednesday, October 3, 2001 1:43 PM
Reproduction Ratio 1/2
213
5
Reproduction Ratio 1/2
❖
❖❖
❖Shortcut R/E
You can register up to three frequently used Reduce/Enlarge ratios other
than the fixed Reduce/Enlarge ratio and have them shown on the initial dis-
play. You can also change the registered Reduce/Enlarge ratios.
If no Reduce/Enlarge ratio has been set when selecting [Shortcut R/E 1], [Short-
cut R/E 2], or [Shortcut R/E 3], enter the desired Reduce/Enlarge ratio using the
number keys.
❖
❖❖
❖Enlarge 1-5
You can customize the enlargement ratios available when you press the [Re-
duce/Enlarge] key followed by the [Enlarge] key.
Note
❒Default:
•Metric version:
•Enlarge 1: 115%
•Enlarge 2: 122%
•Enlarge 3: 141%
•Enlarge 4: 200%
•Enlarge 5: 400%
•Inch version:
•Enlarge 1: 121%
•Enlarge 2: 129%
•Enlarge 3: 155%
•Enlarge 4: 200%
•Enlarge 5: 400%
❒When selecting [User Enlrg. Ratio], enter a ratio using the number keys (in
the range of 101 to 400%).
❖
❖❖
❖Priority Setting: Enlarge
You can set the ratio with priority when the [Reduce/Enlarge] key is pressed,
followed by the [Enlarge] key.
Note
❒Default:
•Metric version: 141%
•Inch version: 155%
AdonisC2_AEcopy110F_FM.book Page 213 Wednesday, October 3, 2001 1:43 PM
User Tools (Copy/Document Server Features)
214
5
Reproduction Ratio 2/2
❖
❖❖
❖Reduce 1-6
You can customize the reduction ratios available when you press the [Reduce/
Enlarge] key followed by the [Reduce] key.
Note
❒Default:
•Metric version:
•Reduce 1: 25%
•Reduce 2: 50%
•Reduce 3: 65%
•Reduce 4: 71%
•Reduce 5: 75%
•Reduce 6: 82%
•Inch version:
•Reduce 1: 25%
•Reduce 2: 50%
•Reduce 3: 65%
•Reduce 4: 73%
•Reduce 5: 78%
•Reduce 6: 85%
❒When selecting [User Redc.Ratio], enter a ratio using the number keys (in the
range of 25 to 99%).
❖
❖❖
❖Priority Setting: Reduce
You can set the ratio with priority when the [Reduce/Enlarge] key is pressed,
followed by the [Reduce] key.
Note
❒Default:
•Metric version: 71%
•Inch version: 73%
❖
❖❖
❖Ratio for Create Margin
You can set a Reduce/Enlarge ratio when registering “Create Margin” in a
Shortcut Key.
Note
❒Default: 93%
AdonisC2_AEcopy110F_FM.book Page 214 Wednesday, October 3, 2001 1:43 PM
Reproduction Ratio 2/2
215
5
❖
❖❖
❖R/E Priority
Specify which Reduce, Enlarge or Input Ratio is shown on the display panel
with priority when the [Reduce/Enlarge] key is pressed.
Note
❒Default: Reduce
AdonisC2_AEcopy110F_FM.book Page 215 Wednesday, October 3, 2001 1:43 PM
User Tools (Copy/Document Server Features)
216
5
Edit 1/2
❖
❖❖
❖Front Margin: Left/Right
You can specify left and right margins on the front side of copies in Margin
Adjust mode.
Note
❒Default:
•Metric version: Left 5mm
•Inch version: Left 0.2"
❖
❖❖
❖Back Margin: Left/Right
You can specify left and right margins on the back side of copies in Margin
Adjust mode.
Note
❒Default:
•Metric version: Right 5mm
•Inch version: Right 0.2"
❖
❖❖
❖Front Margin: Top/Bottom
You can specify front top and bottom margins on the front side of copies in
Margin Adjust mode.
Note
❒Default:
•Metric version: Bottom 0mm
•Inch version: Bottom 0.0"
❖
❖❖
❖Back Margin: Top/Bottom
You can specify back top and bottom margins on the front side of copies in
Margin Adjust mode.
Note
❒Default:
•Metric version: Bottom 0mm
•Inch version: Bottom 0.0"
AdonisC2_AEcopy110F_FM.book Page 216 Wednesday, October 3, 2001 1:43 PM
Edit 1/2
217
5
❖
❖❖
❖1 sided→
→→
→2 sided Auto Margin:T to T
In 1 sided → 2 sided Duplex mode, you can specify whether to automatically
set the margins on the back side.
The margin is set to the same value of “Back Margin: Left/Right”.
Note
❒Default:
•Metric version: Right 5mm
•Inch version: Right 0.2"
❖
❖❖
❖1 sided→
→→
→2 sided Auto Margin:T to B
In 1 sided → 2 sided Duplex mode, you can specify whether to automatically
set the margins on the back side. The value set for "Back Margin: Top/Bot-
tom" is used.
❖
❖❖
❖Erase Border Width
The default setting of the width of the erased margins in Erase Border mode
can be changed as follows:
•Metric version: 3 – 50mm in 1mm steps
•Inch version: 0.1" – 2.0" in 0.1" steps
Note
❒Default:
•Metric version: 10mm
•Inch version: 0.4"
❖
❖❖
❖Erase Original Shadow in Combine
In Combine Copy or Booklet/Magazine Copy mode, you can specify whether
to erase a 3mm, 0.1" bounding margin around all four edges of each original.
Note
❒Default: Yes
❖
❖❖
❖Erase Center Width
The default setting of the width of the erased margins in Erase Centre mode
can be changed as follows:
•Metric version: 2 – 99mm in 1mm steps
•Inch version: 0.1" – 3.9" in 0.1" steps
Note
❒Default:
•Metric version: 10mm
•Inch version: 0.4"
AdonisC2_AEcopy110F_FM.book Page 217 Wednesday, October 3, 2001 1:43 PM
User Tools (Copy/Document Server Features)
218
5
Edit 2/2
❖
❖❖
❖Image Repeat Separation Line
You can select a separation line in Image Repeat mode from None, Solid, Bro-
ken A, Broken B, or Crop Marks.
•None
•Solid
•Broken A
•Broken B
•Crop Marks
Note
❒Default: None
❖
❖❖
❖Double Copies Separation Line
You can select a separation line in Double Copy mode from None, Solid, Bro-
ken A, Broken B,or Crop Marks.
•None
•Solid
AdonisC2_AEcopy110F_FM.book Page 218 Wednesday, October 3, 2001 1:43 PM
Edit 2/2
219
5
•Broken A
•Broken B
•Crop Marks
Note
❒Default: None
❖
❖❖
❖Separation Line in Combine
You can select a separation line in Combine mode from None, Solid, Broken
A, Broken B, or Crop Marks.
•None
•Solid
•Broken A
•Broken B
•Crop Marks
Note
❒Default: None
AdonisC2_AEcopy110F_FM.book Page 219 Wednesday, October 3, 2001 1:43 PM
User Tools (Copy/Document Server Features)
220
5
❖
❖❖
❖Front Cover Copy in Combine
You can specify whether to make a combined copy on the front cover sheet
when you select Front Cover copy mode.
Note
❒Default: Combine
❖
❖❖
❖Designated Slip Sheet Copy in Combine
You can specify whether to make a combined copy on the inserted slip sheets
in Desig./Chapter Copy mode.
Note
❒Default: Combine
❖
❖❖
❖Copy on Designated Paper
You can specify whether to copy on the designate.
Note
❒Default: Yes
❖
❖❖
❖Orientation: Booklet, Magazine
You can select the type of originals for Booklet or Magazine mode.
Note
❒Default: Open to Left
❖
❖❖
❖Copy Order in Combine
You can set the copy order in Combine mode to “Left to Right” or “Top to Bot-
tom”.
Note
❒Default: From left to right
AdonisC2_AEcopy110F_FM.book Page 220 Wednesday, October 3, 2001 1:43 PM
Stamp
221
5
Stamp
Background Numbering
❖
❖❖
❖Size
You can set the size of the numbers.
Note
❒Default: Normal
•Small
•Normal
•Large
❖
❖❖
❖Density
You can set the density of the numbers.
Note
❒Default: Normal
Preset Stamp 1/4-4/4
❖
❖❖
❖Stamp Priority
You can select the stamp type priority detected in Stamp mode.
Note
❒Default: Copy
❖
❖❖
❖Stamp Language
You can select the language of the message that is printed in Stamp mode.
Note
❒Default: English
❖
❖❖
❖Stamp Position
You can set the position at which the stamp is printed.
Press the arrow keys to adjust the position.
Note
❒Default:
•Metric Version:
•Position: Top right
•Top Margin: 24mm
•Right Margin: 24mm
AdonisC2_AEcopy110F_FM.book Page 221 Wednesday, October 3, 2001 1:43 PM
User Tools (Copy/Document Server Features)
222
5
•Inch Version:
•Position: Top right
•Top Margin: 1.0"
•Right Margin: 1.0"
❖
❖❖
❖Stamp Format
You can adjust the size, density and print page for the stamp.
•Size
You can set the size of the stamp.
Note
❒Default: 1X
•Density
You can set the pattern used to print the stamp.
Note
❒Default: Normal
❒Normal: The stamp is printed on the image. You cannot confirm which
parts overlap the image.
❒Lighter: The image can be seen through the stamp.
❒Light: You can see the image even clearer than in the “Lighter” setting.
•Print Page
You can select whether the stamp is printed on the first page or all pages.
Note
❒Default: All Pages
User Stamp 1/2-2/2
❖
❖❖
❖Program/Delete Stamp
You can register up to 4 custom stamps with your favorite design. You can
register/change/delete your favorite design as a user stamp.
How to Program/Delete Stamp, ⇒ P.125 “Program/Delete User Stamp”.
❖
❖❖
❖Stamp Position
You can set the position at which the stamp is printed.
Press the arrow keys to adjust the position.
Note
❒Default:
•Metric version:
•Position: Top right
•Top Margin: 24mm
•Right Margin: 24mm
AdonisC2_AEcopy110F_FM.book Page 222 Wednesday, October 3, 2001 1:43 PM
Stamp
223
5
•Inch version:
•Position: Top right
•Top Margin: 1.0"
•Right Margin: 1.0"
❖
❖❖
❖Stamp Format
You can adjust the print page for User Stamp 1 to 4 you registered.
Note
❒Default: All Pages
Date Stamp
❖
❖❖
❖Format
You can select the date format for Date Stamp mode.
Note
❒Default:
•Metric version: DD/MM/YYYY
•Inch version: MM/DD/YYYY
❖
❖❖
❖Font
You can select the Date Stamp font.
Note
❒Default: Font 1
❒This setting is linked with Page Numbering.
❖
❖❖
❖Stamp Position
You can set the position at which the stamp is printed.
Press the arrow keys to adjust the position.
Note
❒Default:
•Metric version:
•Position: Top left
•Top Margin: 8mm
•Left Margin: 32mm
•Inch version:
•Position: Top left
•Top Margin: 0.3"
•Left Margin: 0.8"
AdonisC2_AEcopy110F_FM.book Page 223 Wednesday, October 3, 2001 1:43 PM
User Tools (Copy/Document Server Features)
224
5
❖
❖❖
❖Stamp Setting
You can select whether the date is printed on the first page or all pages.
Note
❒Default: All Pages
❖
❖❖
❖Size
You can set the Date Stamp size.
Note
❒Default: Auto
❒This setting is linked with Page Numbering.
❖
❖❖
❖Superimpose
You can select whether the Date Stamp is printed negative when it overlaps
black parts of the image.
Note
❒Default: No
❒This setting is linked with Page Numbering.
Page Numbering 1/2-2/2
❖
❖❖
❖Stamp Format
You can select the page number format priority detected in Page Numbering
mode.
Note
❒Default: P1, P2
❖
❖❖
❖Font
You can select the font of the page number that is printed in Page Numbering
mode.
Note
❒Default: Font 1
❒This setting is linked with Date Stamp.
❖
❖❖
❖Size
You can set the size of the stamp that is printed in Page Numbering mode.
Note
❒Default: Auto
❒This setting is linked with Date Stamp.
AdonisC2_AEcopy110F_FM.book Page 224 Wednesday, October 3, 2001 1:43 PM
Stamp
225
5
❖
❖❖
❖Duplex Back Page Stamping Position
You can set the position of the duplex back page number that is printed in Du-
plex mode.
Note
❒Default: Opposite Position
❖
❖❖
❖Page Numbering in Combine
You can set how the pages are numbered when you use the Combine function
and Page Numbering function together.
Note
❒Default: Per original
❖
❖❖
❖Stamp on Designated Slip Sheet
You can select whether to print the page number onto slip sheets when you
use the Designate function set to “Copy” and Page Numbering function to-
gether.
Note
❒Default: No
❖
❖❖
❖Stamp Position: P1, P2...Stamp Position: 1/5, 2/5...Stamp Position: —1–, —2–
...Stamp Position: P.1, P.2...Stamp Position: 1, 2...Stamp Position: 1–1, 1–2...
You can set the position at which the stamp is printed.
Press the arrow keys to adjust the position.
Note
❒Default:
•Metric version:
•Position: P1, 1/5, P.1, 1:Top right, -1-, 1-1: Bottom center
•Top/Bottom Margin: P1, 1/5, P.1, 1:12mm, -1-, 1-1: 8mm
•Left/Right Margin: P1, 1/5, P.1, 1:12mm, -1-, 1-1: 0mm
•Inch version:
•Position: P1, 1/5, P.1, 1:Top right, -1-, 1-1: Bottom center
•Top/Bottom Margin: P1, 1/5, P.1, 1:0.5", -1-, 1-1: 0.3"
•Left/Right Margin: P1, 1/5, P.1, 1:0.5", -1-, 1-1: 0.0"
❖
❖❖
❖Superimpose
You can select whether page numbers are printed negative when they over-
lap black parts of the image.
Note
❒Default: No
❒This setting is linked with Date Stamp.
AdonisC2_AEcopy110F_FM.book Page 225 Wednesday, October 3, 2001 1:43 PM
User Tools (Copy/Document Server Features)
226
5
Input/Output
❖
❖❖
❖Switch to Batch (SADF)
You can select Batch mode or SADF mode when you press the Special Origi-
nal key.
❖
❖❖
❖SADF Auto Reset
When you set one original at a time in the document feeder, the Auto Feed
indicator lights for a selected time after an original is fed to show that the doc-
ument feeder is ready for another original. You can adjust this time from 3
seconds to 99.
Note
❒Default: 5sec.
❖
❖❖
❖Rotate Sort: Auto Paper Continue
You can specify whether to continue copying when the paper of the required
orientation has run out during rotate-sorting.
⇒
“Rotate Sort” in
⇒
P.43 “Sort”.
•If you select [No]:
When paper of the required orientation runs out, the machine stops copy-
ing and prompts you to supply copy paper. When you load paper, the ma-
chine will continue copying.
•If you select [Yes]:
Copying continues using copy paper of a different direction. The copy job
will finish even if you have left the machine.
Note
❒Default: No
❖
❖❖
❖Auto Sort
You can specify whether Sort mode is selected when the machine is turned on
or the mode is cleared.
Note
❒Default: No
❖
❖❖
❖Memory Full Auto Scan Restart
When the memory becomes full while scanning originals, the machine can
make copies of the scanned originals first, then automatically proceed scan-
ning the remaining originals.
You can enable or disable this function.
•If you select [No]:
When the memory becomes full, the machine stops operation allowing you
to remove the copy pages delivered on the output tray.
•If you select [Yes]:
You can leave the machine unattended to make all the copies, but the re-
sulting sorted pages will not be sequential.
Note
❒Default: No
AdonisC2_AEcopy110F_FM.book Page 226 Wednesday, October 3, 2001 1:43 PM
Input/Output
227
5
❖
❖❖
❖Select Stack Function
Specify which Stack or Rotate Sort is shown on the initial display with prior-
ity.
Note
❒Default: Stack
❒The optional finisher or booklet finisher is required to use this function.
❖
❖❖
❖Select Stapling Position
Specify which Top 2 staples or Bottom is shown on the initial display with pri-
ority.
Note
❒Default: Top 2 staples
❒The optional 2 Tray Finisher is required to use this function.
❖
❖❖
❖Letterhead Setting
If you want to copy on the direction-fixed (top to bottom) or 2-sided paper,
the machine rotates the image correctly. To use this function, select “Yes”.
Note
❒Default: No
AdonisC2_AEcopy110F_FM.book Page 227 Wednesday, October 3, 2001 1:43 PM
User Tools (Copy/Document Server Features)
228
5
AdonisC2_AEcopy110F_FM.book Page 228 Wednesday, October 3, 2001 1:43 PM
229
6. REMARKS
Do's And Don'ts
R
CAUTION:
Important
❒If you want to unplug the power
cord or turn off the main power
switch, make sure that the remain-
ing memory space indicates 100%
on the display for facsimile mode.
❒While the machine is unplugged,
you can neither send nor receive a
fax.
Reference
For details, see the Facsimile Refer-
ence.
•When you use this machine for a
long time in a confined space with-
out good ventilation, you may no-
tice an odd smell. To keep the
workplace comfortable, we recom-
mend that you keep it well venti-
lated.
•Do not press areas on or around
the fusing unit. These areas get hot.
•After making copies continuously,
the exposure glass may feel
warm—this is not a malfunction.
•You might feel warm around the
ventilation hole. This is caused by
exhaust air, and is not a malfunc-
tion.
•Do not turn off the operation
switch while copying or printing.
Make sure that all copying or
printing has finished.
•The machine might fail to produce
good copy images if condensation
forms inside the machine due to
rapid temperature change.
•Do not open the covers of machine
while copying or printing. If you
do, misfeeds might occur.
•Do not move the machine while
copying or printing.
•If you operate the machine im-
properly or a failure occurs on the
machine, your machine settings
might be lost. Be sure to take a note
of your machine settings.
•Supplier shall not be liable for any
loss or damages resulting from a
failure on the machine, loss of ma-
chine settings, and use of the ma-
chine.
•Unplug the power cord from the
wall outlet before you move the
equipment. While moving the
equipment, you should take care
that the power cord will not be
damaged under the equipment.
AdonisC2_AEcopy110F_FM.book Page 229 Wednesday, October 3, 2001 1:43 PM
REMARKS
230
6
Where to Put Your Machine
Machine Environment
Your machine's location should be
carefully chosen because environ-
mental conditions greatly affect its
performance.
Optimum environmental conditions
R
CAUTION:
R
CAUTION:
•Temperature: 10 – 32°C (50 –
89.6°F)(humidity to be 54% at
32°C, 89.6°F)
•Humidity: 15 – 80% (temperature
to be 27°C, 80.6°F at 80%)
•A strong and level base.
•The machine must be level within
5mm, 0.2" both front to rear and
left to right.
•To avoid possible buildup of
ozone, be sure to locate this ma-
chine in a large well ventilated
room that has an air turnover of
more than 30 m3/hr/person.
Environments to avoid
•Locations exposed to direct sun-
light or strong light (more than
1,500 lux).
•Locations directly exposed to cool
air from an air conditioner or heat-
ed air from a heater. (Sudden tem-
perature changes might cause
condensation within the machine.)
•Locations close to such machines
generating ammonia as diazo copy
machine.
•Places where the machine might be
subjected to frequent strong vibra-
tion.
•Dusty areas.
•Areas with corrosive gases.
Moving
R
CAUTION:
Important
❒If you move the machine, you
must be careful as follows:
•Turn off the main power ⇒ P.16
“Turning Off the Main Power”
•Unplug the power cord from the
wall. When you pull out the plug
from the socket, grip the plug to
avoid damaging the code and
causing fire or electric shock.
•Close the front cover, the by-
pass tray, or others.
•Keep the equipment away from
humidity and dust. Otherwise a
fire or an electric shock might oc-
cur.
•Do not place the equipment on
an unstable or tilted surface. If it
topples over, it could cause inju-
ry.
•If you use the equipment in a
confined space, make sure there
is a continuous air turnover.
•Unplug the power cord from the
wall outlet before you move the
equipment. While moving the
equipment, you should take care
that the power cord will not be
damaged under the equipment.
AdonisC2_AEcopy110F_FM.book Page 230 Wednesday, October 3, 2001 1:43 PM
Where to Put Your Machine
231
6
Limitation
❒Carefully move the machine, If
not, the machine might be dam-
aged or stored file might be delet-
ed.
❒Do not take off the holding stand.
❒Avoid any strong shocking to the
machine, the hard disk might be
damaged, and stored files will be
deleted. For precautionaly reasons
files should be copied to another
local computer.
Power Connection
R
WARNING:
R
CAUTION:
R
CAUTION:
•When the main switch is in the
Stand-by positions, the optional
anti-condensation heaters are on.
In case of emergency, unplug the
machine's power cord.
•When you unplug the power cord,
the anti-condensation heaters turn
off.
•Make sure that the plug is firmly
inserted in the outlet.
•Voltage must not fluctuate more
than 10%.
•The socket-outlet shall be installed
near the equipment and shall be
easily accessible.
Access to the Machine
Place the machine near the power
source, providing clearance as
shown.
1. Rear: more than 10 cm (4.0")
2. Right: more than 10 cm (4.0")
3. Front: more than 75 cm (29.6")
4. Left: more than 10 cm (4.0")
Note
❒For the required space when op-
tions are installed, contact your
service representative.
•Only connect the machine to
the power source described on
the inside front cover of this
manual. Connect the power
cord directly into a wall outlet
and do not use an extension
cord.
•Do not damage, break or make
any modifications to the power
cord. Do not place heavy ob-
jects on it. Do not pull it hard
nor bend it more than neces-
sary. These actions could
cause an electric shock or fire.
•Unplug the power cord from the
wall outlet before you move the
equipment. While moving the
equipment, you should take care
that the power cord will not be
damaged under the equipment.
•When you disconnect the power
plug from the wall outlet, always
pull the plug (not the cable).
TSPS060E
AdonisC2_AEcopy110F_FM.book Page 231 Wednesday, October 3, 2001 1:43 PM
REMARKS
232
6
Maintaining Your Machine
If the exposure glass, platen cover, or
document feeder belt is dirty, you might
not be able to make copies as you want.
Clean them if you find them dirty.
❖
❖❖
❖Cleaning the machine
Wipe the machine with a soft,
damp cloth. Then, wipe it with a
dry cloth to remove the water.
Important
❒
Do not use chemical cleaner or organ-
ic solvent, such as thinner or benzene.
If they get into the machine or melt
plastic parts, a failure might occur.
❒Do not clean parts other than those
specified in this manual. Such
parts should be cleaned by your
service representative.
Cleaning the Exposure Glass
Clean 1 and 2
Cleaning the Platen Cover
Cleaning the Document Feeder
Clean 1 and 2
Changing the Photoconductor
Unit (PCU)
Only use the photoconductor unit
made for this machine. Follow the
procedure below to change unit.
Important
❒Be sure to unplug the power cord
from the outlet before changing
the photoconductor unit.
AOpen front door, duplex unit, and
then transfer unit right cover.
BPush the development unit to the
left, and then pull the photocon-
ductor unit out.
CRemove the harness clamps on the
charge unit and cleaning unit of
the new photoconductor unit.
DPush the development unit to the
left, and then install the new pho-
toconductor unit.
Note
❒If the copy result is still not satis-
factory after replacing the photo-
conductor unit, contact your
service representative.
AdonisC2_AEcopy110F_FM.book Page 232 Wednesday, October 3, 2001 1:43 PM
233
7. Specification
Mainframe
❖
❖❖
❖Configuration:
Desktop
❖
❖❖
❖Photosensitivity type:
OPC drum (Φ100)
❖
❖❖
❖Original scanning:
One-dimensional solid scanning system through CCD
❖
❖❖
❖Copy process:
Dry electrostatic transfer system
❖
❖❖
❖Development:
Dry two-component magnetic brush development system
❖
❖❖
❖Fusing:
Heating roll pressure system
❖
❖❖
❖Resolution:
600 dpi
❖
❖❖
❖Exposure glass:
Stationary original exposure type
❖
❖❖
❖Original reference position:
Rear left corner
❖
❖❖
❖Warm-up time:
From the main power switch
•Type 1: Less than 15 seconds (20°C) (When Facsimile or Printer is installed:
Less than 18 seconds (20°C))
•Type 2: Less than 20 seconds (20°C)
From the operation switch
•Type 1: Less than 10 seconds (20°C)
•Type 2: Less than 15 seconds (20°C)
❖
❖❖
❖Originals:
Sheet/book/objects
❖
❖❖
❖Maximum original size:
A3L, 11" × 17"L
AdonisC2_AEcopy110F_FM.book Page 233 Wednesday, October 3, 2001 1:43 PM
Specification
234
7
❖
❖❖
❖Copy paper size:
•Trays: A3L – A5L, 11" × 17"L – 51/2" × 81/2"L
•Bypass: A3L – A6L, 11" × 17"L – 51/2" × 81/2"L
•Bypass (custom size):
Vertical: 100 – 297mm, 4.0" – 11.7"
Horizontal: 148 – 600mm, 5.9" – 23.6"
•Duplex: A3L – A5L, 11" × 17"L – 51/2" × 81/2"L (impossible on A5K,
51/2" × 81/2" K)
•LCT: A4K, 81/2" × 11"K
❖
❖❖
❖Copy paper weight:
•Paper tray: 64 – 105g/m2, 17 – 28 lb.
•Bypass tray: 52 – 163g/m2, 14 lb. – 43 lb.
❖
❖❖
❖Non-reproduction area:
•Leading edge: Less than 3 ± 2mm
•Trailing edge: Less than 2 ± 2mm
•Left edge: Less than 2 ± 1.5mm
•Right edge: Less than 2 + 2.5/-1.5mm
❖
❖❖
❖First copy time:
•Type 1: 4.5 seconds or less
(face up feed, A4K, 100%, feeding from tray 1, on the exposure glass,
Text·Photo mode, Auto Image Density)
•Type 2: 3.6 seconds or less
(face down feed, A4K, 100%, feeding from tray 1, on the exposure glass,
Text·Photo mode, Auto Image Density)
❖
❖❖
❖Copying speed: (Type 1)
•19 copies/minute (A3L, 11" × 17"L)
•35 copies/minute (A4K, 81/2" × 11"K)
❖
❖❖
❖Copying speed: (Type 2)
•22 copies/minute (A3L, 11" × 17"L)
•45 copies/minute (A4K, 81/2" × 11"K)
AdonisC2_AEcopy110F_FM.book Page 234 Wednesday, October 3, 2001 1:43 PM
Mainframe
235
7
❖
❖❖
❖Reproduction ratio:
Preset reproduction ratios:
Zoom: From 25 to 400% in 1% steps.
❖
❖❖
❖Maximum continuous copy run:
999 sheets
❖
❖❖
❖Copy paper capacity:
•Tray 1, 2: 500 sheets (80g/m2, 20 lb.)
•Bypass tray: 50 sheets (80g/m2, 20 lb.)
❖
❖❖
❖Power consumption:
•Mainframe only
•Complete system *1
*1
The Complete System consists of the mainframe, finisher and large capacity tray (LCT).
Metric version Inch version
Enlargement 400% 400%
200% 200%
141% 155%
122% 129%
115% 121%
Full Size 100% 100%
Reduction 93% 93%
82% 85%
75% 78%
71% 73%
65% 65%
50% 50%
25% 25%
Type 1 Type 2
Warm-up about 1.3 kw about 1.3 kw
Stand-by about 0.155 kw about 0.175 kw
During printing about 1.3 kw about 1.3 kw
Maximum less than 1.5 kw less than 1.5 kw
Type 1 Type 2
Warm-up about 1.32 kw about 1.32 kw
Stand-by about 0.175 kw about 0.195 kw
During printing about 1.35 kw about 1.35 kw
Maximum less than 1.5 kw less than 1.5 kw
AdonisC2_AEcopy110F_FM.book Page 235 Wednesday, October 3, 2001 1:43 PM
Specification
236
7
❖
❖❖
❖Dimensions (W ×
××
× D ×
××
× H up to exposure glass):
Type 1, 2: 670 × 650 × 720mm, 26.4" × 25.6" × 28.3"
❖
❖❖
❖Space for mainframe (W ×
××
× D):
•Type 1, 2: 980 × 650mm, 38.6" × 25.6" (Bypass tray extender is used for large
size paper)
❖
❖❖
❖Noise Emission *1 :
Sound Power Level:
•Mainframe only
•Complete system *3
Sound Pressure Level *2 :
•Mainframe only
•Complete system *3
*1 The above measurements made in accordance with ISO 7779 are actual value.
*2 It is measured at the position of the bystander.
*3 The Complete System consists of the mainframe, finisher and large capacity
tray (LCT).
❖
❖❖
❖Weight:
Type 1, 2: Approx. 78 kg, 172 lb
❖
❖❖
❖HDD:
10 GB or more
•Capacity for Document Server
4.2 GB
•Capacity for Memory sorting
1.5 GB
•Capacity for others
4.3 GB or more
Type 1 Type 2
Stand-by Less than 51 dB (A) Less than 51 dB (A)
Copying Less than 67 dB (A) Less than 67 dB (A)
Type 1 Type 2
Stand-by Less than 52 dB (A) Less than 52 dB (A)
Copying Less than 70 dB (A) Less than 70 dB (A)
Type 1 Type 2
Stand-by Less than 37 dB (A) Less than 37 dB (A)
Copying Less than 54 dB (A) Less than 54 dB (A)
Type 1 Type 2
Stand-by Less than 37 dB (A) Less than 37 dB (A)
Copying Less than 55 dB (A) Less than 55 dB (A)
AdonisC2_AEcopy110F_FM.book Page 236 Wednesday, October 3, 2001 1:43 PM
Document Feeder (Option)
237
7
Document Feeder (Option)
❖
❖❖
❖Mode:
ADF mode, Batch mode, Mixed Size mode, Custom Size originals mode
❖
❖❖
❖Original size:
•A3L – B6KL (2 sided original are impossible for B6KL)
•11" × 17"L – 51/2" × 81/2"KL
❖
❖❖
❖Original weight:
•1-sided originals: 40 – 128g/m2 (11 – 34 lb.)
•2-sided originals: 52 – 105g/m2 (14 – 28 lb.) (Duplex)
❖
❖❖
❖Number of originals to be set:
80 sheets (80g/m2, 20 lb.) or less than 11mm, 0.43"
❖
❖❖
❖Maximum power consumption:
Less than 60W (power is supplied from the main frame)
❖
❖❖
❖Dimensions (W×
××
×D×
××
×H):
570 × 518 × 150mm, 22.4" × 20.3" × 5.9"
❖
❖❖
❖Weight:
Approx. 12 kg, 26.5lb
Note
❒Specifications are subject to change without notice.
AdonisC2_AEcopy110F_FM.book Page 237 Wednesday, October 3, 2001 1:43 PM
Specification
238
7
1000-Sheet Finisher (Option)
❖
❖❖
❖Paper size:
A3L, B4L, A4KL, B5KL, A5KL, B6L, A6L, 11" × 17"L, 81/2" × 14"L,
81/2" × 11"KL, 51/2" × 81/2"L
❖
❖❖
❖Paper weight:
52 – 157g/m2, 14 – 42 lb.
❖
❖❖
❖Stack capacity:
•1,000 sheets (A4K, 81/2" × 11"K or smaller) (80g/m2, 20 lb.)
•500 sheets (B4L, 81/2" × 14"L or larger) (80g/m2, 20 lb.)
❖
❖❖
❖Staple capacity:
•30 sheets (A4K, 81/2" × 11"K or smaller) (80g/m2, 20 lb.)
•20 sheets (B4L, 81/2" × 14"L or larger) (80g/m2, 20 lb.)
❖
❖❖
❖Staple paper size:
A3L, B4L, A4KL, B5K, 11" × 17"L, 81/2" × 14"L, 81/2" × 11"KL
❖
❖❖
❖Staple paper weight:
64 – 80g/m2, 17 – 20 lb.
❖
❖❖
❖Staple position:
1 position (upper left)
❖
❖❖
❖Power consumption:
48W (power is supplied from the main frame.)
❖
❖❖
❖Dimensions (W ×
××
× D ×
××
× H):
568 × 520 × 625mm, 22.4" × 20.5" × 24.6"
❖
❖❖
❖Weight:
Approx. 21kg, 46.3 lb
AdonisC2_AEcopy110F_FM.book Page 238 Wednesday, October 3, 2001 1:43 PM
2 Tray Finisher (Option)
239
7
2 Tray Finisher (Option)
Finisher Shift Tray 1:
❖
❖❖
❖Paper size:
A3L, B4L, A4KL, B5KL, A5KL, B6L, A6L, 11" × 17"L, 81/2" × 14"L,
81/2" × 11"KL, 51/2" × 81/2"KL
❖
❖❖
❖Paper weight:
52 – 157g/m2, 14 – 42 lb.
❖
❖❖
❖Stack capacity:
•500 sheets (A4KL, B5KL, A5K, 81/2" × 11"KL) (80g/m2, 20 lb.)
•250 sheets (A3L, B4L, 81/2" × 14"L, 11" × 17"Ls) (80g/m2, 20 lb.)
•100 sheets (A5L, 51/2" × 81/2"KL) (80g/m2, 20 lb.)
Finisher Shift Tray 2:
❖
❖❖
❖Paper size:
A3L, B4L, A4KL, B5KL, A5KL, B6L, A6L, 11" × 17"L, 81/2" × 14"L,
81/2" × 11"KL, 51/2" × 81/2" KL
❖
❖❖
❖Paper weight:
52 – 157g/m2, 14 – 42 lb.
❖
❖❖
❖Stack capacity:
No Staple:
•2,000 sheets (A4K, 81/2" × 11"K) (80g/m2, 20 lb.)
•750 sheets (A3L, B4L, A4L, B5KL, 11" × 17"L, 81/2" × 14"L,
81/2" × 11"L) (80g/m2, 20 lb.)
Staple:
•1,500 sheets (A4K, 81/2" × 11"K) (80g/m2, 20 lb.)
•750 sheets (A3L, B4L, A4L, B5KL, 11" × 17"L, 81/2" × 14"L,
81/2" × 11"L) (80g/m2, 20 lb.)
•500 sheets (A5K) (80g/m2, 20 lb.)
•100 sheets (A5L, 51/2" × 81/2" KL) (80g/m2, 20 lb.)
❖
❖❖
❖Staple capacity:
•50 sheets (A4KL, B5KL, 81/2" × 11"KL) (80g/m2, 20 lb.)
•30 sheets (A3L, B4L, 11" × 17"L, 81/2" × 14"L) (80g/m2, 20 lb.)
❖
❖❖
❖Staple paper size:
A3L, B4L, A4KL, B5KL, 11" × 17"L, 81/2" × 14"L, 81/2" × 11"KL
❖
❖❖
❖Staple paper weight:
64 – 90g/m2, 17 – 24 lb
AdonisC2_AEcopy110F_FM.book Page 239 Wednesday, October 3, 2001 1:43 PM
Specification
240
7
❖
❖❖
❖Staple position:
•1 staple – 3 positions
•2 staples – 1 position
❖
❖❖
❖Power consumption:
Less than 60W (power is supplied from the main frame.)
❖
❖❖
❖Dimensions (W ×
××
× D ×
××
× H):
680 × 620 × 1.030mm, 26.7" × 24.4" × 40.5"
❖
❖❖
❖Weight:
Approx. 55kg, 121.2 lb.
AdonisC2_AEcopy110F_FM.book Page 240 Wednesday, October 3, 2001 1:43 PM
Punch Kit (Option)
241
7
Punch Kit (Option)
❖
❖❖
❖Paper size
•2 holes: A3L – A5KL, 11" × 17"L, 81/2" × 14"L – 51/2" × 81/2"KL
•3 holes: A3L, B4L, A4K, B5K, 11" × 17"L, 81/2" × 11"K
•4 holes:
•Metric version: A3L, B4L, A4K, B5K, 11" × 17"L, 81/2" × 11"K
•Scandinavian version: A3L – A5K, 11" × 17"L, 81/2" × 14"L – 51/2" ×
81/2"K
❖
❖❖
❖Paper weight:
•4 holes: 52 – 163g/m2, 14 lb. – 43 lb.
•2 or 3 holes: 52 – 163g/m2, 14 lb. – 43 lb.
❖
❖❖
❖Power consumption:
26.4 W (power is supplied from the mainframe.)
❖
❖❖
❖Dimensions (W ×
××
× D ×
××
× H):
142 × 456 × 92mm, 55.9" × 179.5" × 36.2"
❖
❖❖
❖Weight:
Approx. 2.9 kg, 6.4 lb
Note
❒Specifications are subject to change without notice.
AdonisC2_AEcopy110F_FM.book Page 241 Wednesday, October 3, 2001 1:43 PM
Specification
242
7
Internal tray 2 (1 bin tray) (Option)
❖
❖❖
❖Number of bins:
1
❖
❖❖
❖Available paper size:
A3L, B4L, B5KL, A5L, 11" × 17"L, 81/2" × 14"L, 81/2" × 11"KL,
51/2" × 81/2" L
❖
❖❖
❖Paper capacity:
125 sheets (80g/m2, 20 lb.)
❖
❖❖
❖Copy paper weight:
60 – 105g/m2 (16 – 28lb.)
❖
❖❖
❖Maximum power consumption:
Less than 15 W (power is supplied from the main frame.)
❖
❖❖
❖Dimensions (W ×
××
× D ×
××
× H):
470 × 550 × 110mm, 18.6" × 21.7" × 4.4"
❖
❖❖
❖Weight:
Approx. 4 kg, 8.9lb
Note
❒Specifications are subject to change without notice.
AdonisC2_AEcopy110F_FM.book Page 242 Wednesday, October 3, 2001 1:43 PM
Extarnal Tray (Option)
243
7
Extarnal Tray (Option)
❖
❖❖
❖Dimensions (W ×
××
× D ×
××
× H):
265 × 395 × 65mm, 10.4" × 15.5" × 2.5"
❖
❖❖
❖Weight:
Approx. 600 g, 1.3 lb
Note
❒Specifications are subject to change without notice.
AdonisC2_AEcopy110F_FM.book Page 243 Wednesday, October 3, 2001 1:43 PM
Specification
244
7
Large Capacity Tray (LCT) (Option)
❖
❖❖
❖Paper size:
A4K, 81/2" × 11"K
❖
❖❖
❖Paper weight:
60 – 105g/m2, 16 – 24 lb.
❖
❖❖
❖Paper capacity:
1,500 sheets (80g/m2, 20 lb.)
❖
❖❖
❖Power consumption
Maximum. 40 W (power is supplied from the mainframe.)
❖
❖❖
❖Dimensions (W ×
××
× D ×
××
× H, option unit):
390 × 500 × 390mm, 15.3" × 19.6" × 15.3"
❖
❖❖
❖Weight:
Approx. 17 kg, 37.5 lb.
Note
❒Specifications are subject to change without notice.
AdonisC2_AEcopy110F_FM.book Page 244 Wednesday, October 3, 2001 1:43 PM
Paper tray unit (Option)
245
7
Paper tray unit (Option)
❖
❖❖
❖Copy paper weight:
60 – 105g/m2 (16 – 28 lb.)
❖
❖❖
❖Available paper size:
A3L, B4L, A4KL, B5KL, A5L, 11" × 17"L, 81/2" × 14"L,
81/2" × 11"KL, 51/2" × 81/2" L, 81/4" × 14"L, 11" × 14"L, 71/4" × 101/2" L,
8" × 13"L, 8" × 101/2"KL, 81/2" × 13"L, 8" × 101/2"KL, 81/4" × 13"L
❖
❖❖
❖Maximum power consumption:
Less than 50 W (power is supplied from the main frame.)
❖
❖❖
❖Paper capacity:
550 sheets (80g/m2, 20 lb.) × 2 trays
❖
❖❖
❖Dimensions (W ×
××
× D ×
××
× H):
540 × 600 × 270mm, 21.3" × 23.7" × 10.7"
❖
❖❖
❖Weight:
Approx. 25 kg, 55.2 lb.
Note
❒Specifications are subject to change without notice.
AdonisC2_AEcopy110F_FM.book Page 245 Wednesday, October 3, 2001 1:43 PM
246
INDEX
1000-Sheet Finisher, 8
1000-sheet finisher, 238
2 Tray Finisher, 8
2 Tray finisher, 239
A
Access to the Machine, 231
Adding Staples, 192
Adding Toner, 178
Auto Off, 28
Auto Reduce/Enlarge, 41
B
Back Cover, 135, 136
Background Numbering, 120
Basic functions, 35
Batch mode, 31
Book originals, copying, 98, 102
Border Erase, 113, 114
Bridge unit, 8
Bypass tray, 6, 58
C
Center/Border Erase, 116
Center Erase, 115
Centering, 111
Centre/Border Erase, 113
Centre Erase, 113
Changing Paper
Tray 1 or 2, 188
Changing the Paper Size, 188
Chapter, 139
Check Modes key, 9
Clearing Misfeeds, 181
Clear Modes key, 9
Clear/Stop key, 10
Combination Chart, 143
Combine, 79, 85
Control Panel, 9
Control panel, 5
Copy Paper, 21, 38
Cover
Back Cover, 135, 136
Front Cover, 135, 136
D
Date Stamp, 127
Designate, 138
Directional Magnification (%), 75
Directional Size Magnification (mm), 77
Display, 11
Display panel, 9, 11
Document Feeder, 237
Document feeder, 5, 30
Cleaning, 232
Document feeder (ADF), 8
Document Server, 145
Deleting, 162
Features and Benefits, 147
Printing, 157
Scanning Originals, 153
Do's And Don'ts, 229
Double Copies, 110
E
Energy Saver key, 9
Energy Saver mode, 66
Enhance, 69
Enlarging, 69
Environment, 230
Erase
Border, 113, 114
Center, 115
Center/Border, 116
Centre, 113
Centre/Border, 113
Exposure glass, 5, 18, 29
Cleaning, 232
Extarnal Tray, 243
Extender, 59
External tray, 8
F
File Merge Printing, 149
Finisher
1000-Sheet Finisher, 8
Front Cover, 135, 136
Front cover, 5
Function Status indicator, 10
AdonisC2_AEcopy110F_FM.book Page 246 Wednesday, October 3, 2001 1:43 PM
247
I
Image Density, 35, 36
Image Repeat, 109
Indicators, 9
Internal tray, 5
Internal tray 2 (1 bin tray), 8
Interrupt Copy, 66
Interrupt key, 9
J
Job Preset, 65
L
Large Capacity Tray (LCT), 8, 244
Loading Paper, 175
Large Capacity Tray (LCT), 177
Tray 1 or 2, 175
Tray 3, 176
Tray 4, 176
M
Machine Environment, 230
Mainframe, 233
Main power indicator, 5, 9
Main power switch, 5, 15
Maintenance, 232
Margin Adjustment, 118
Messages, 165
Misfeeds, 181
Mixed Size mode, 32
N
Numbering
Background Numbering, 120
Page Numbering, 130
Number keys, 10
O
On Demand Printing, 147
Operation switch, 9, 15
Options, 8
Original Beeper, 67
Originals, 18
Originals, setting, 29
Original Type selecting, 36
Output tray guide, 7
P
Page Numbering, 130
Paper
Changing, 188
Loading, 175
Paper tray, 5
Paper tray unit, 8
Platen cover, 8
Power Connection, 231
Preset Stamp, 121
Program
Changing, 63
Deleting, 63
Recalling, 64
Storing, 62
Program key, 9
Programs, 62
Punching copies, 54
Punch kit, 241
R
Reduce/Enlarge, 69
Reducing, 69
Remarks, 229
Removing Jammed Staples, 196
Removing Punch Waste, 200
Repeat
Image Repeat, 109
AdonisC2_AEcopy110F_FM.book Page 247 Wednesday, October 3, 2001 1:43 PM
248
S
Safety information, i
Sample Copy, 67
Sample Copy key, 9
Screen Contrast knob, 9
Series Copies, 98
Setting Custom Size Originals, 33
Slip Sheets, 135, 141
Sort, 42
Sorting copies into sets, 43
Specification, 233
Document Feeder, 237
Extarnal Tray, 243
Large Capacity Tray (LCT), 244
Mainframe, 233
Punch kit, 241
Stack, 42, 45
Stamp, 120
Background Numbering, 120
Date Stamp, 127
Page Numbering, 130
Preset Stamp, 121
User Stamp, 123
Staple, 42
Staples, 192
Removing Jammed Staples, 196
Stapling copies, 47
Start key, 9
System Reset, 28
T
Toner, 26
Toner Bottle
Storage, 26
Two-sided Copies, 79, 82
U
User Stamp, 123
User Tools
Copy/Document Server Features, 201
User Tools/Counter key, 9
V
Ventilation hole, 6
Z
Zoom, 71
AdonisC2_AEcopy110F_FM.book Page 248 Wednesday, October 3, 2001 1:43 PM
249
MEMO
AdonisC2_AEcopy110F_FM.book Page 249 Wednesday, October 3, 2001 1:43 PM
250 AE AE B004
MEMO
AdonisC2_AEcopy110F_FM.book Page 250 Wednesday, October 3, 2001 1:43 PM

Navigation menu
