Note to users in the United States of America
Safety Information
Energy Star Program
Manuals for Your Printer
How to Read this Manual
- Symbols
TABLE OF CONTENTS
1. Getting Acquainted

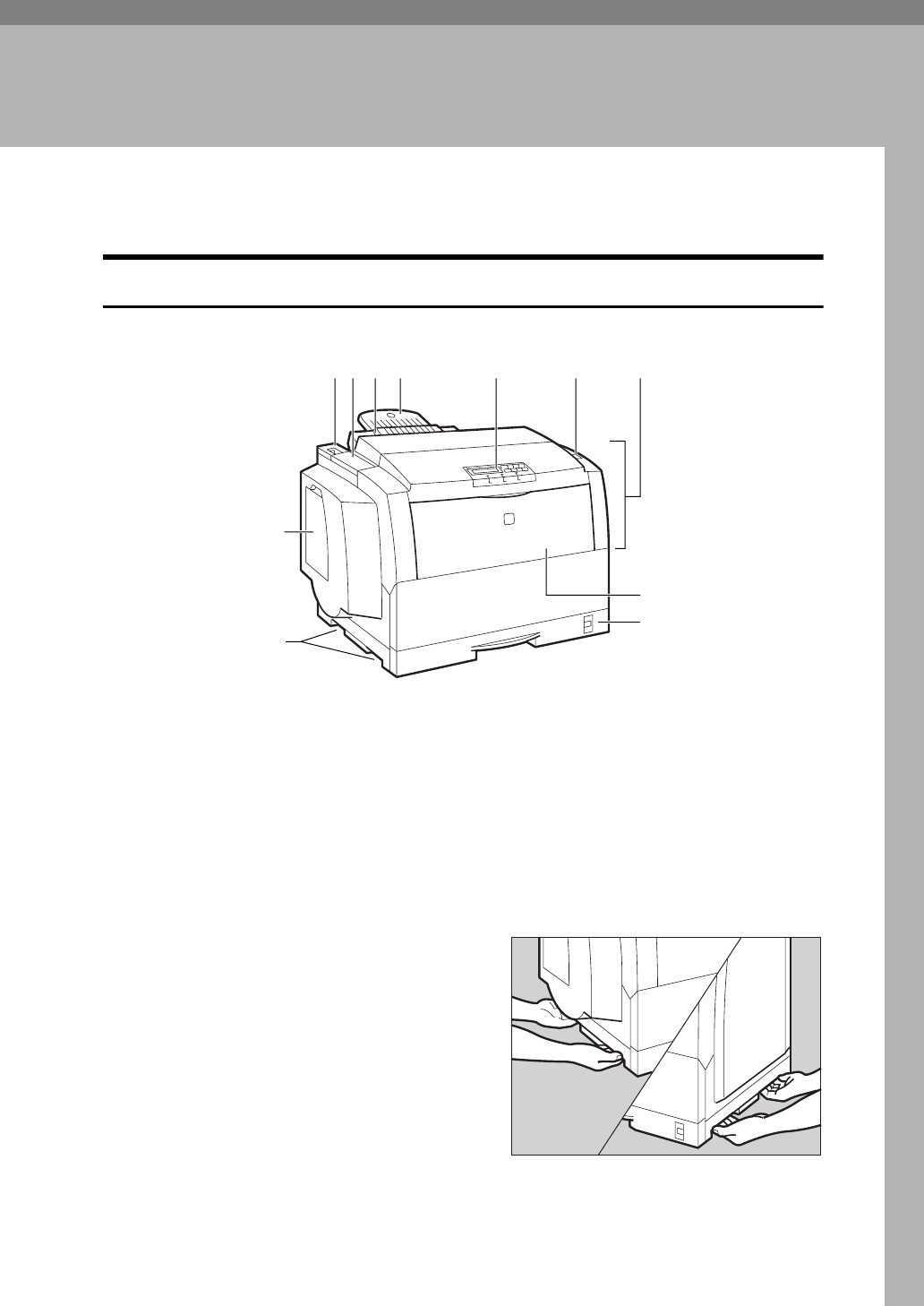

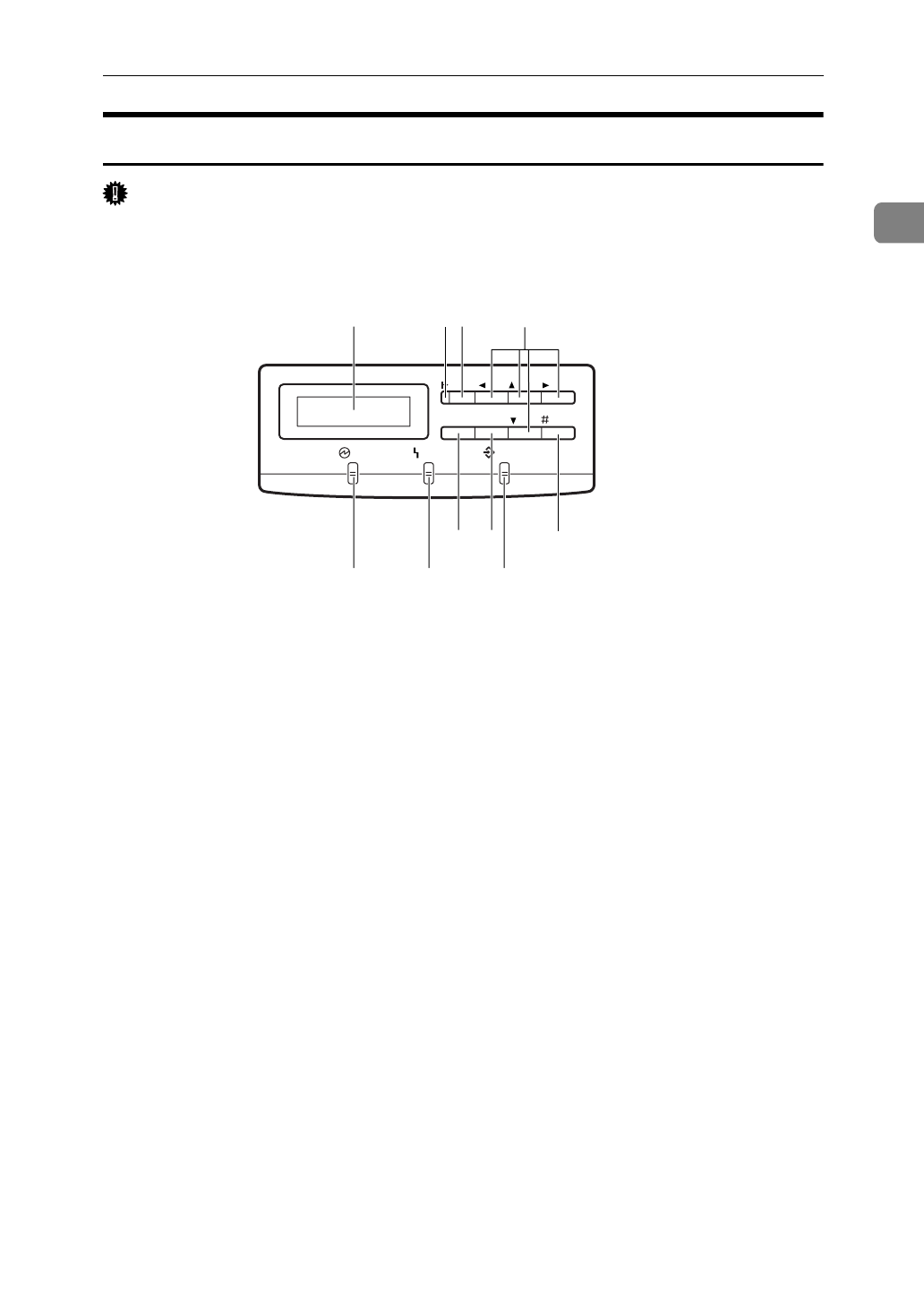

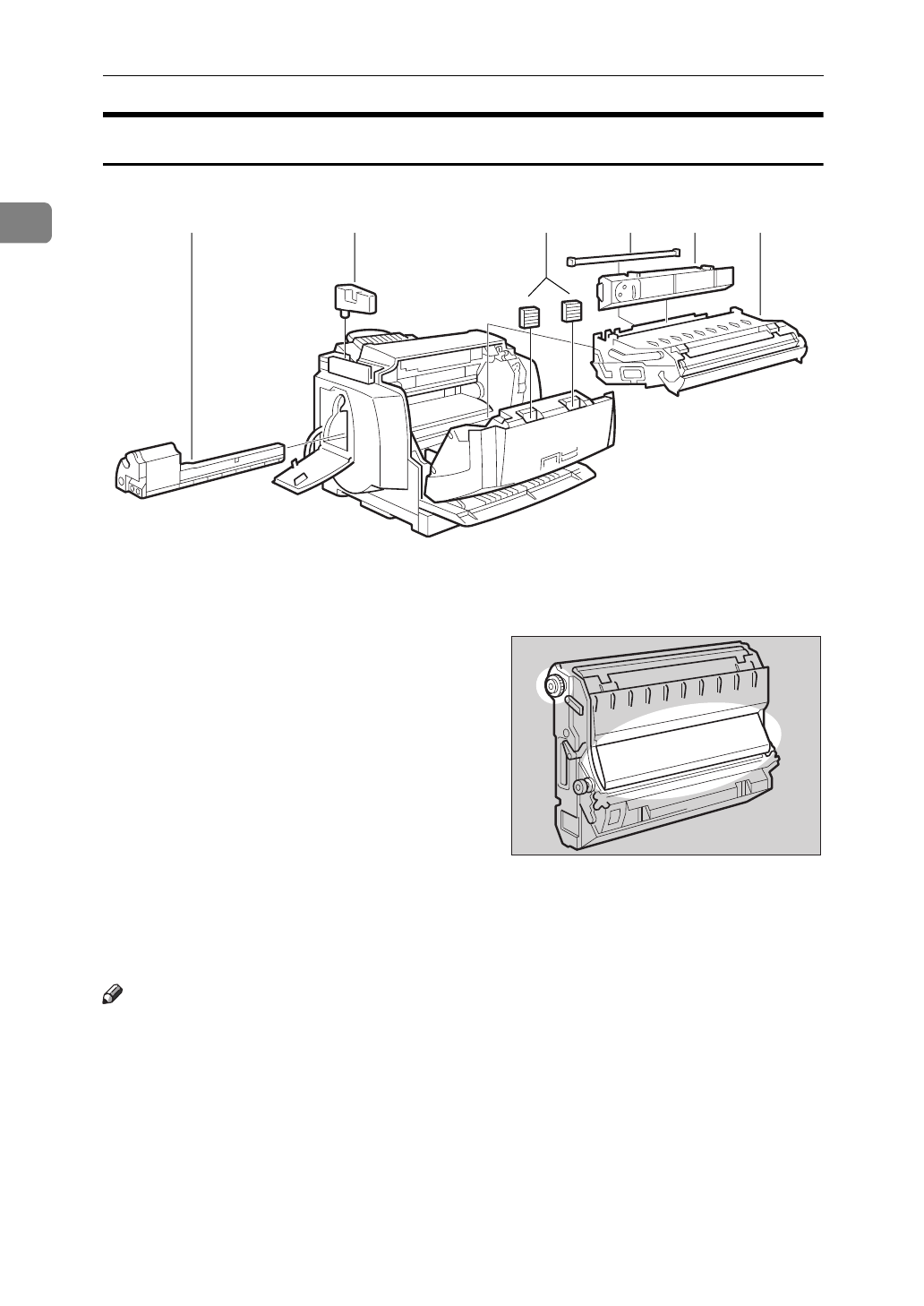

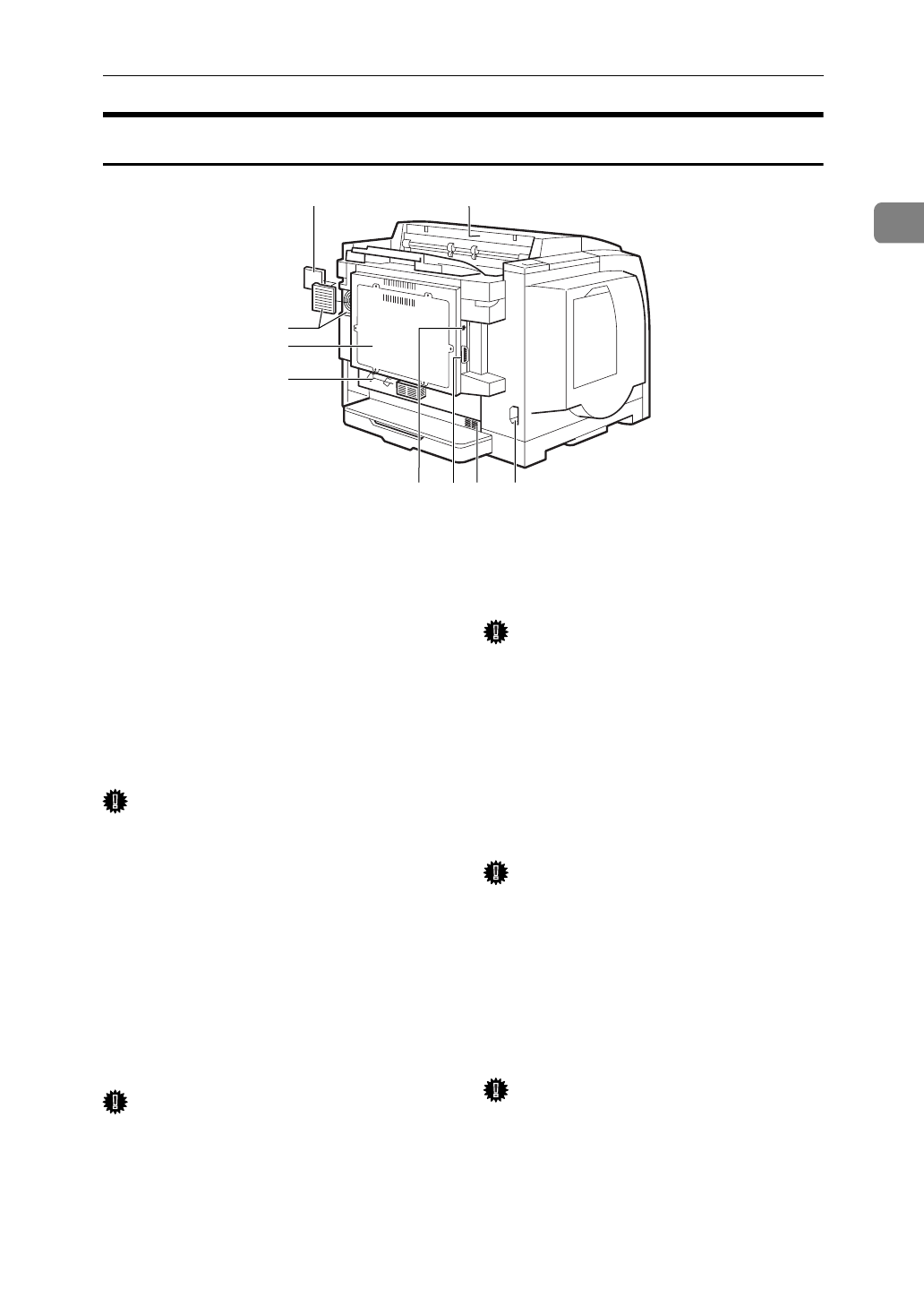

- Guide to the Printer

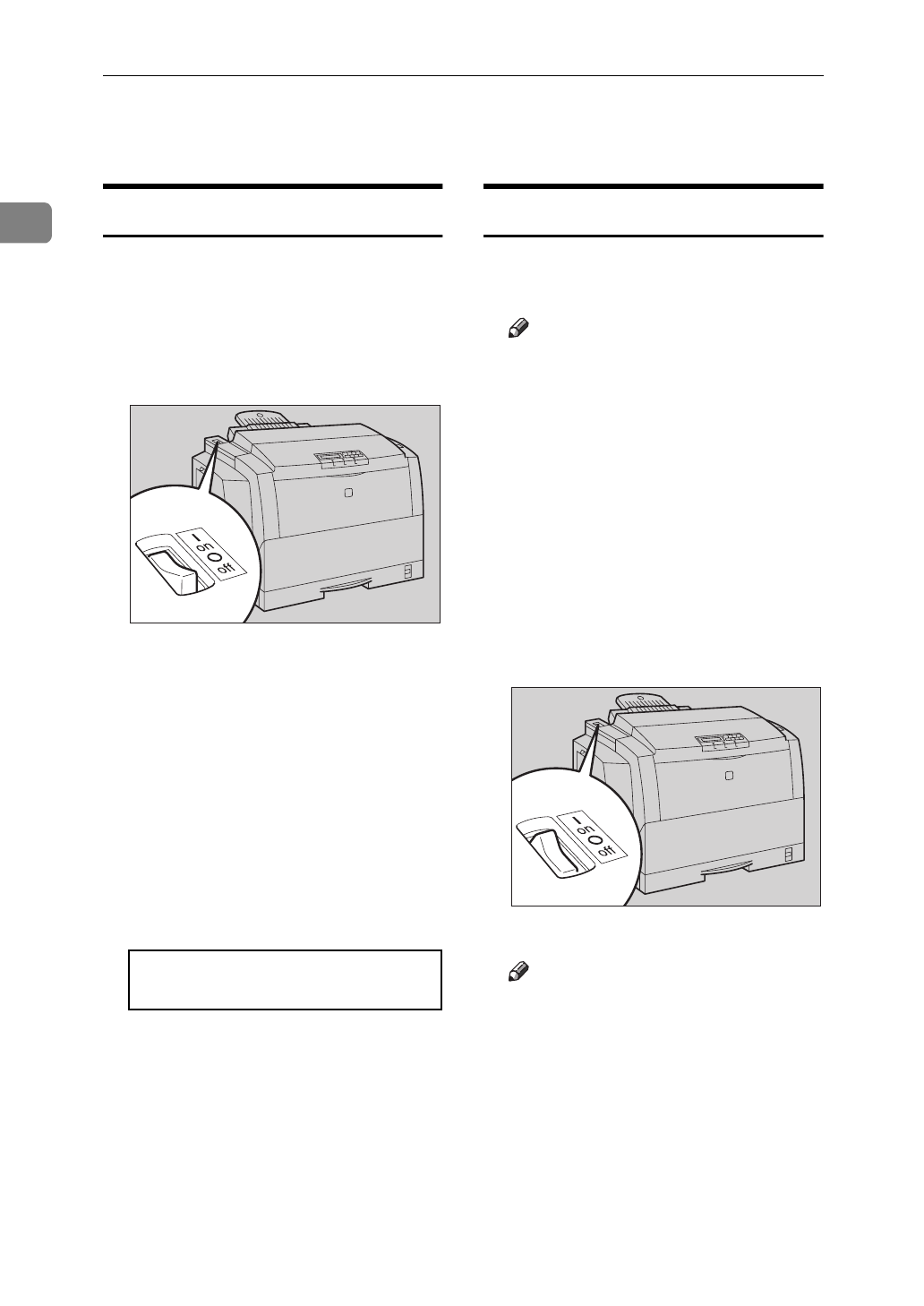

- Turning the Printer On and Off
  - Turning On the Printer
  - Turning Off the Printer

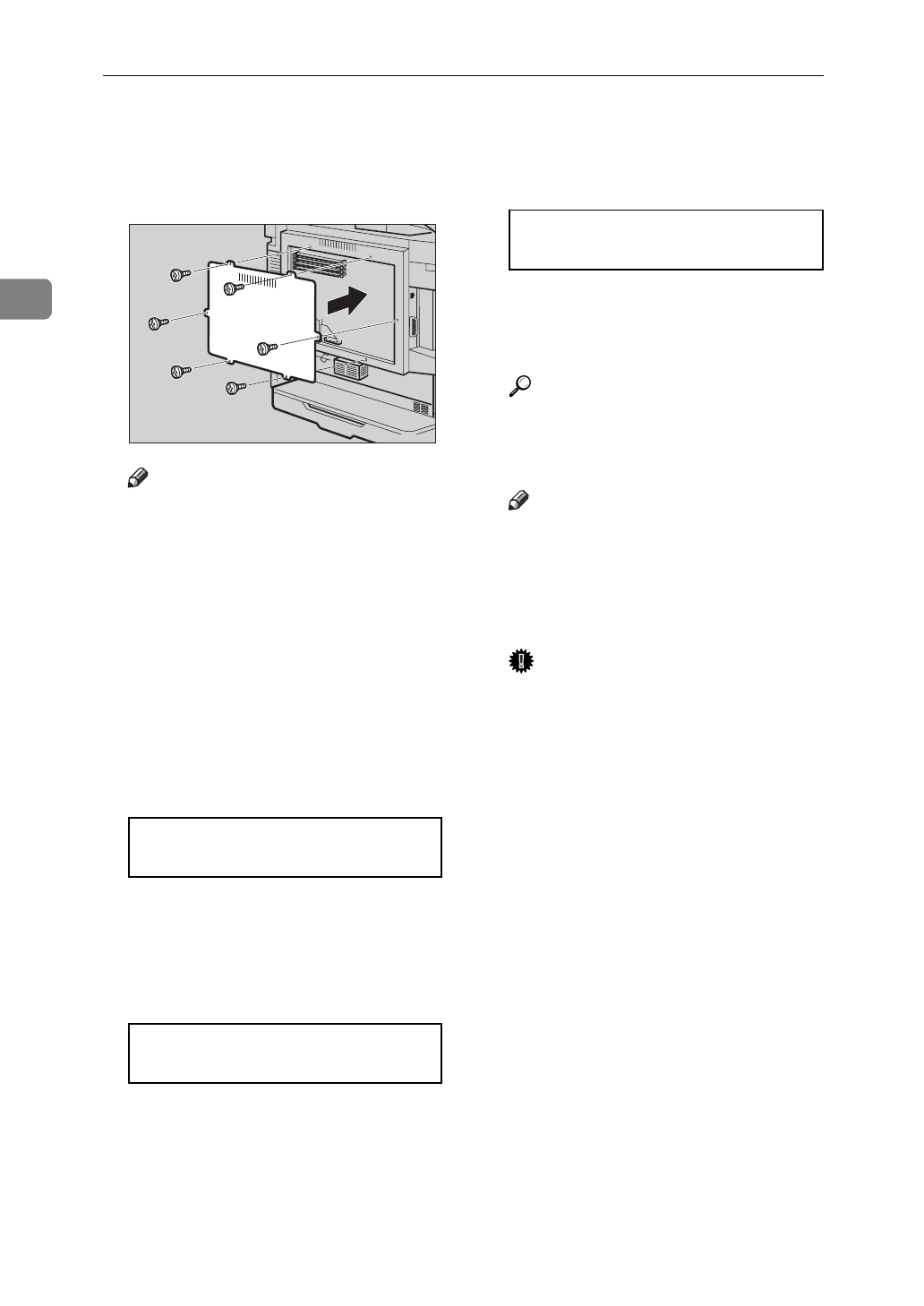

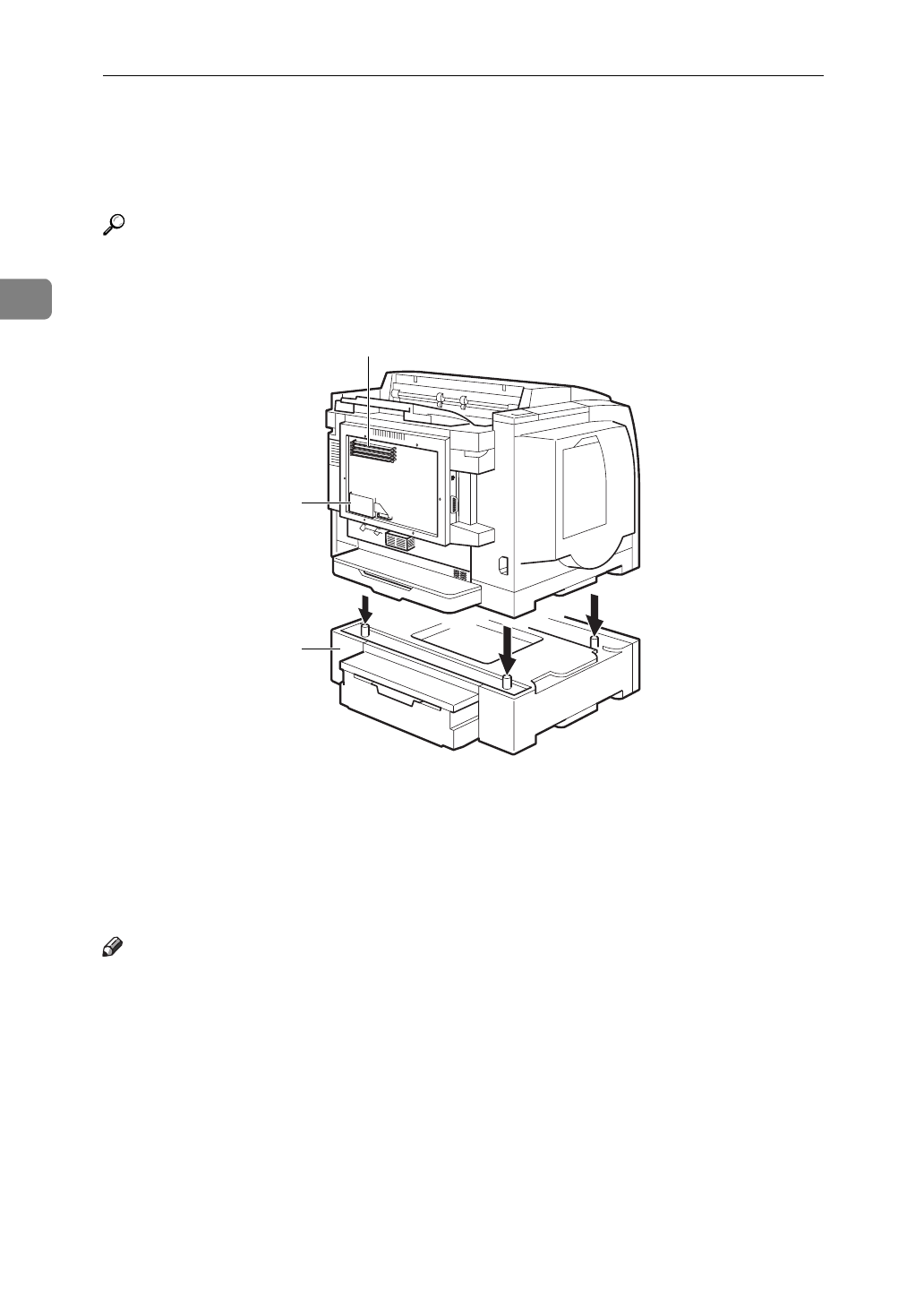

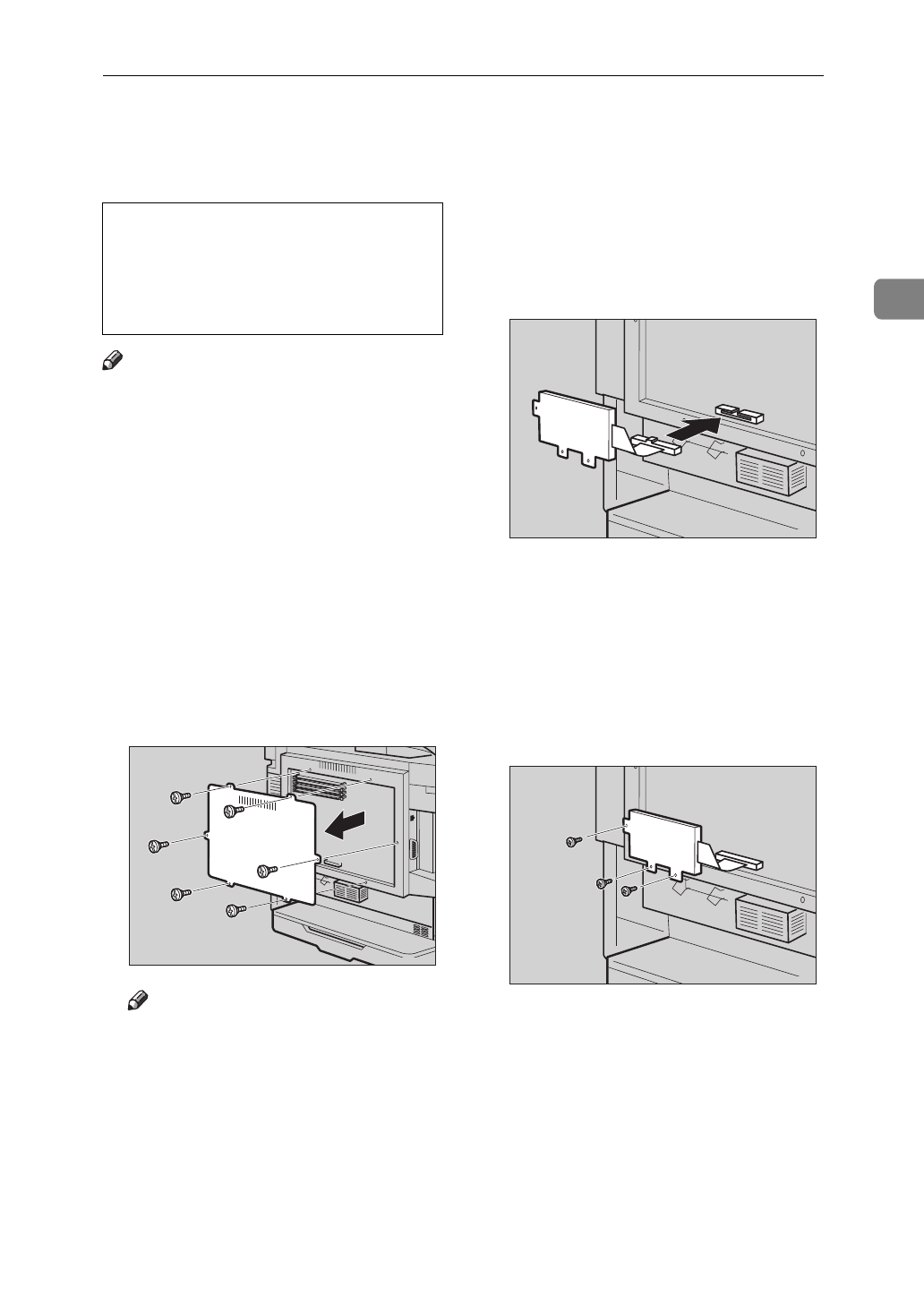

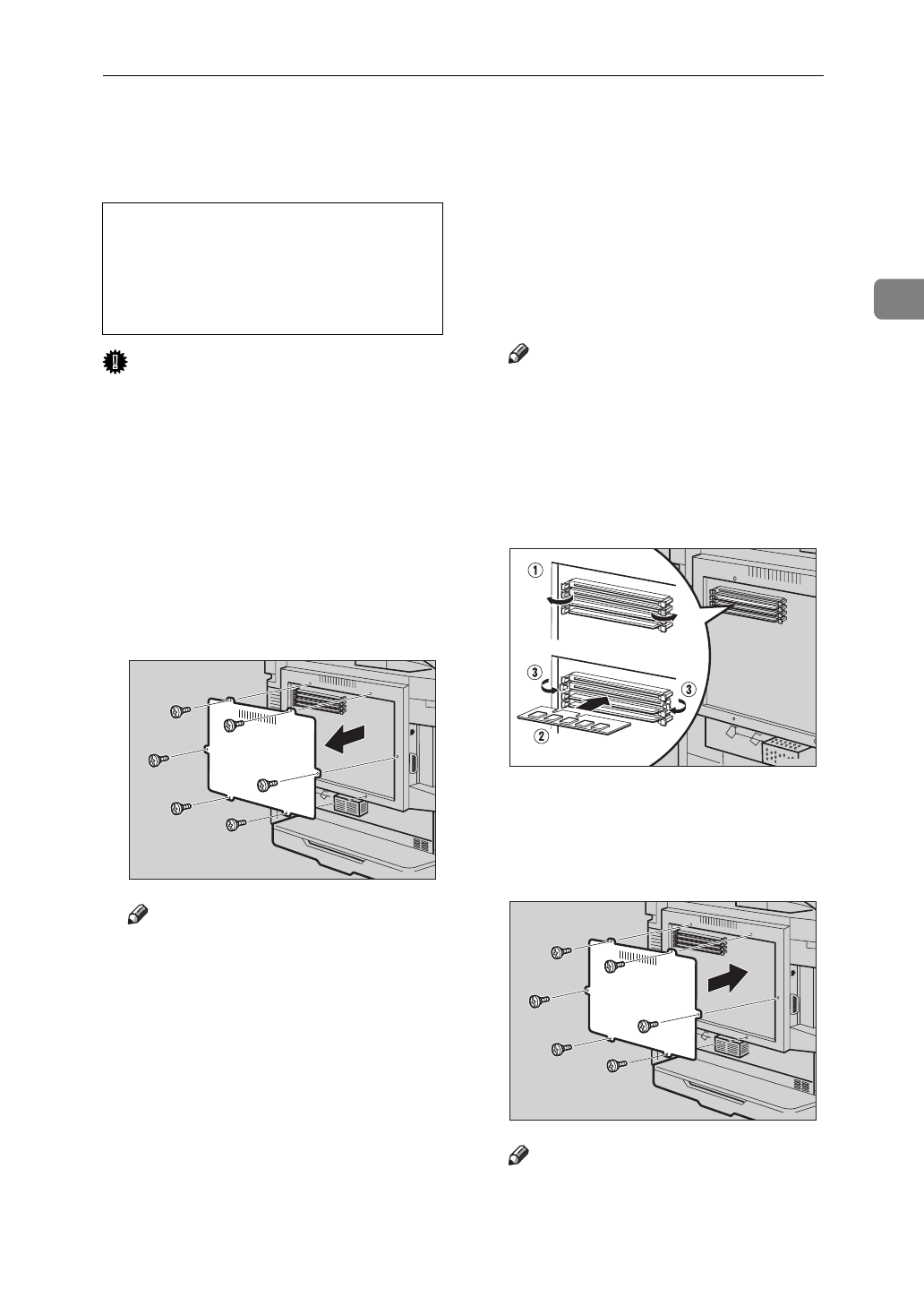

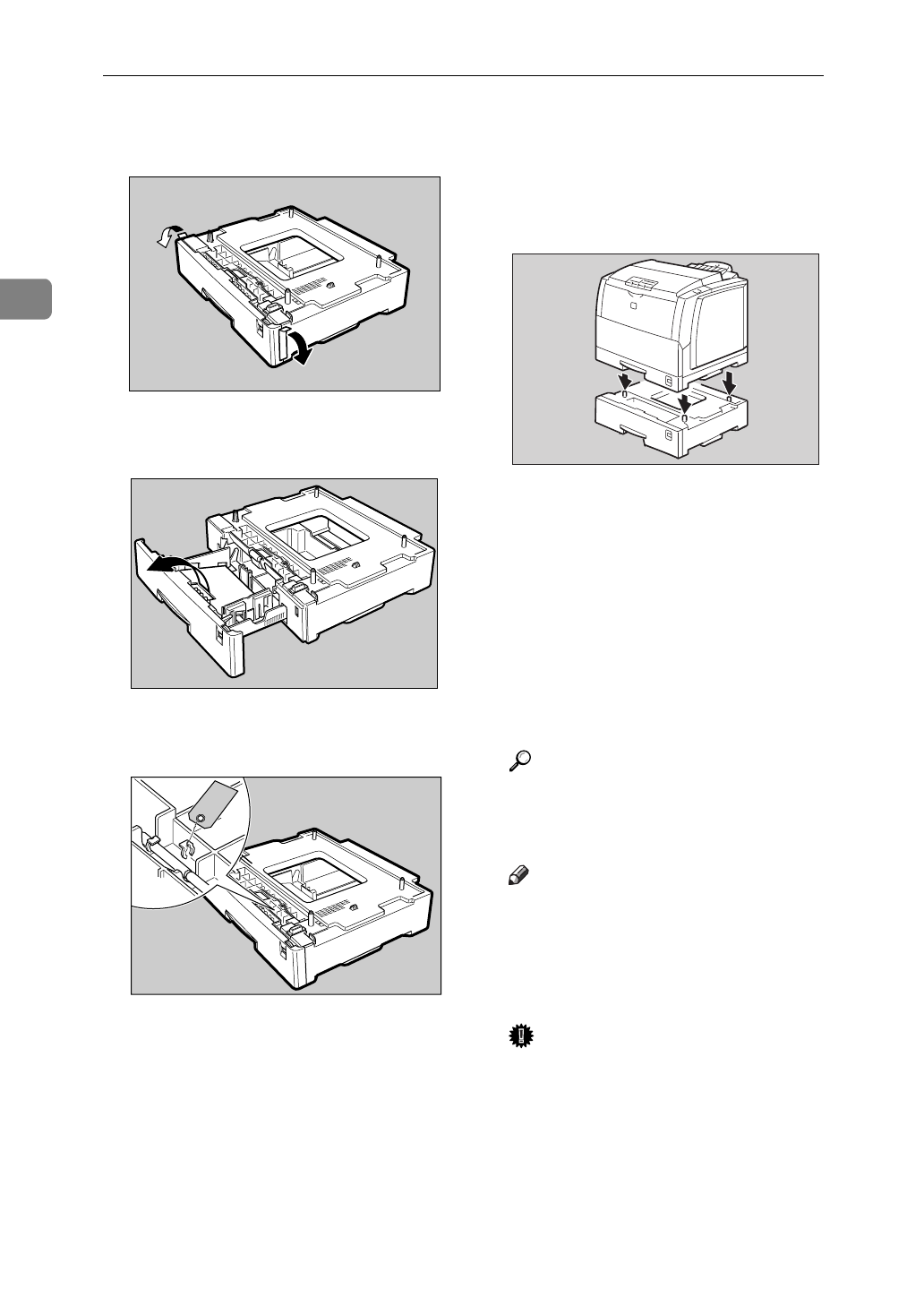

2. Installing Options
3. Paper and Other Media
- Paper and Other Media Supported by this Printer

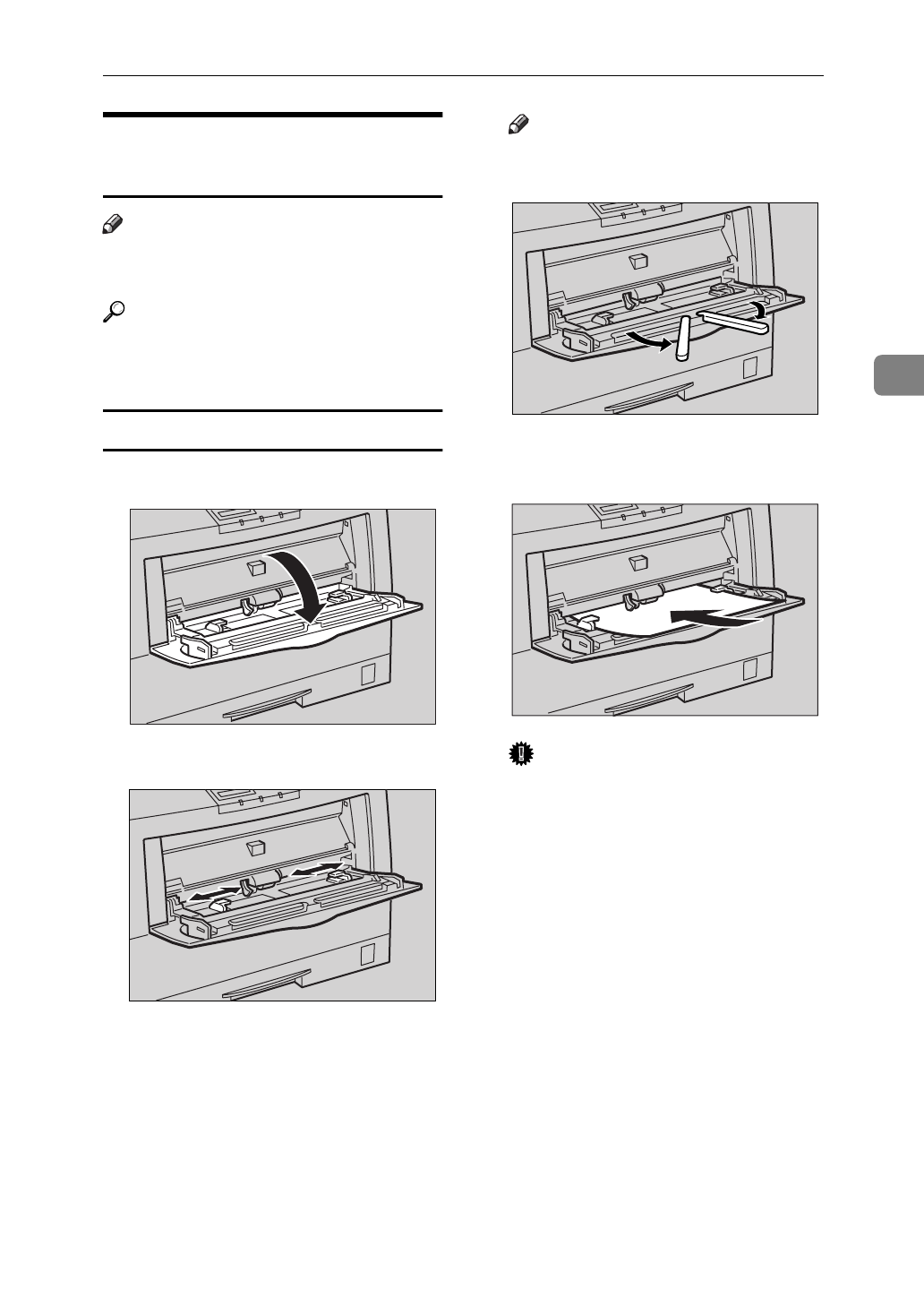

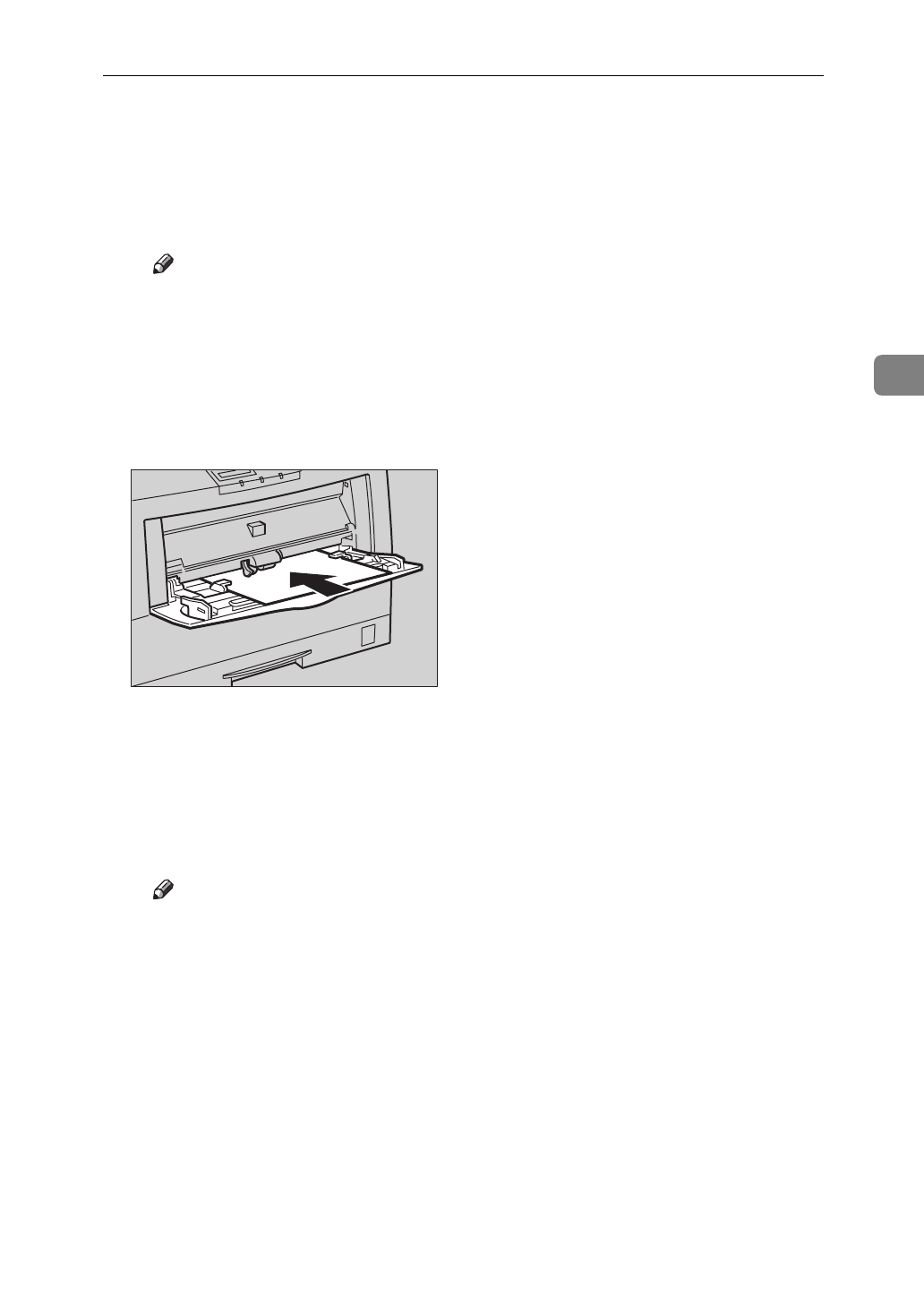

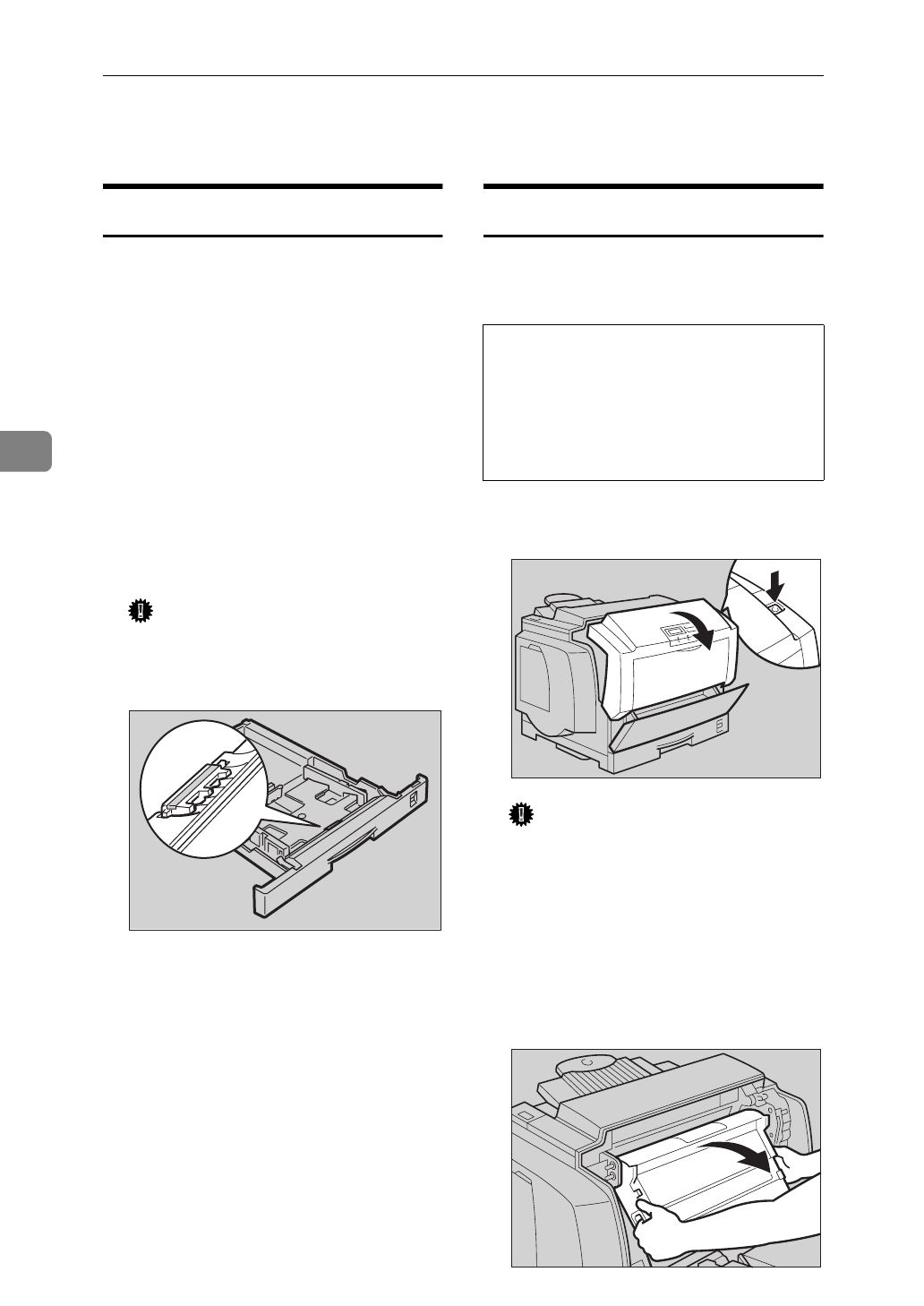

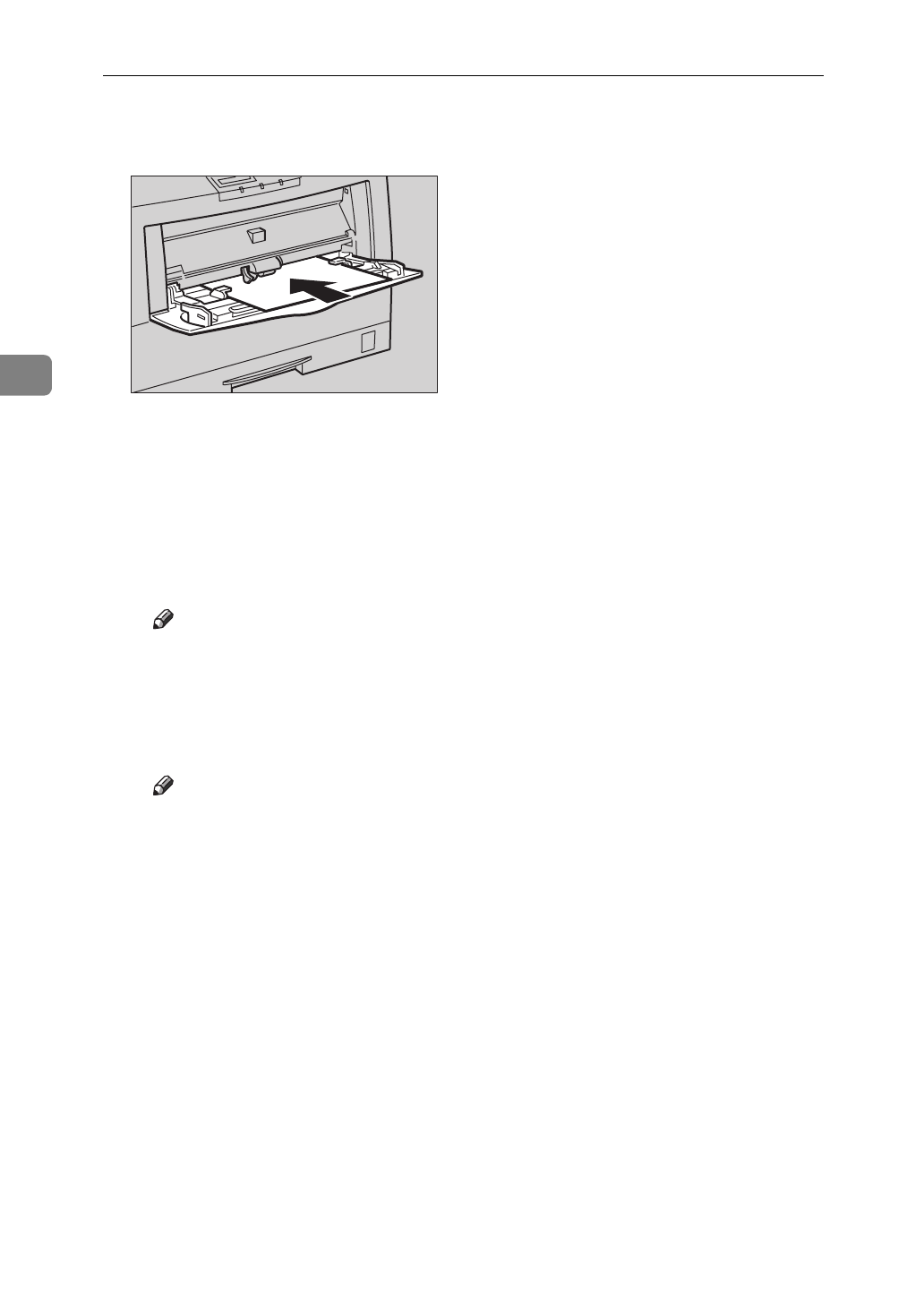

- Loading Paper

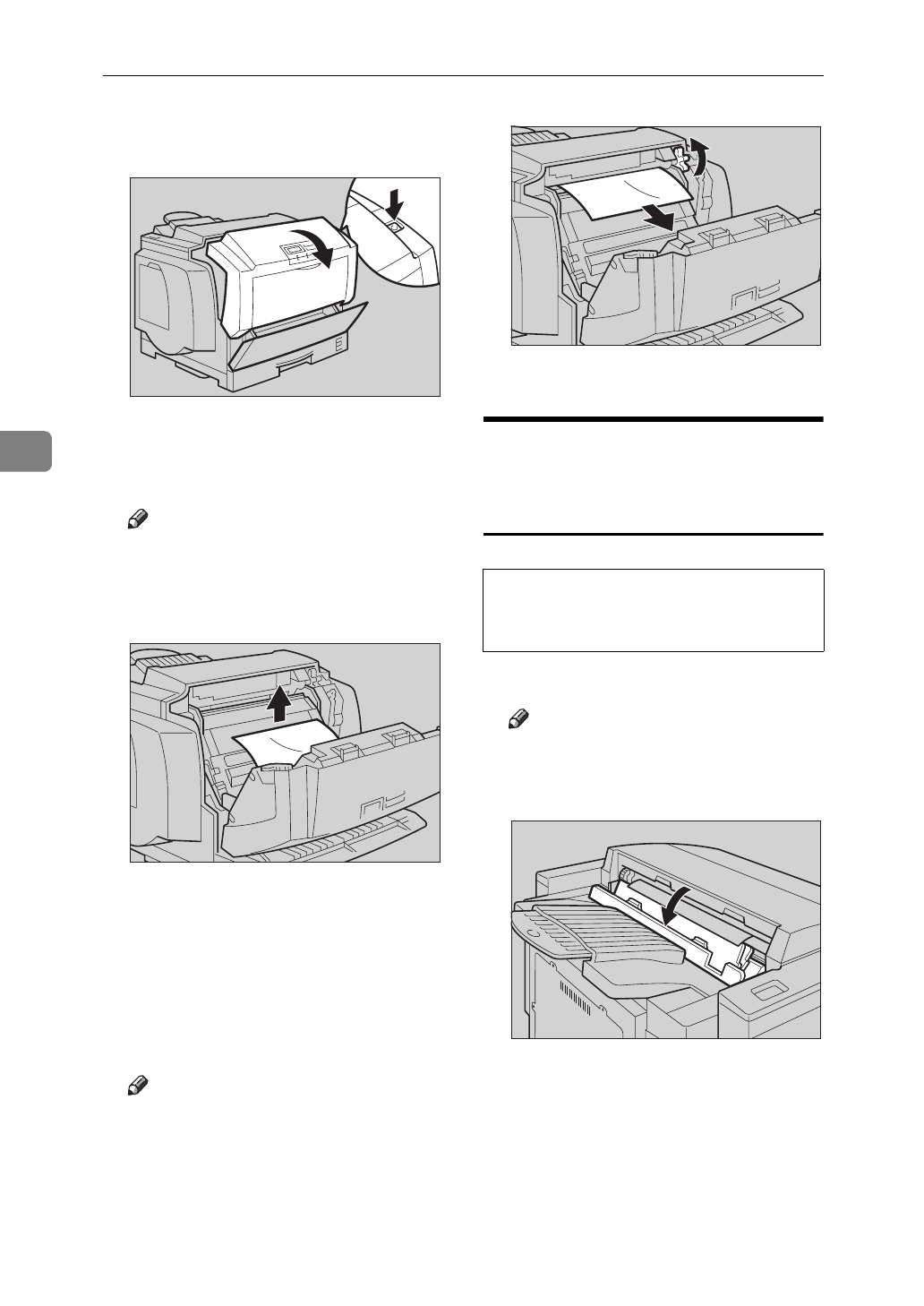

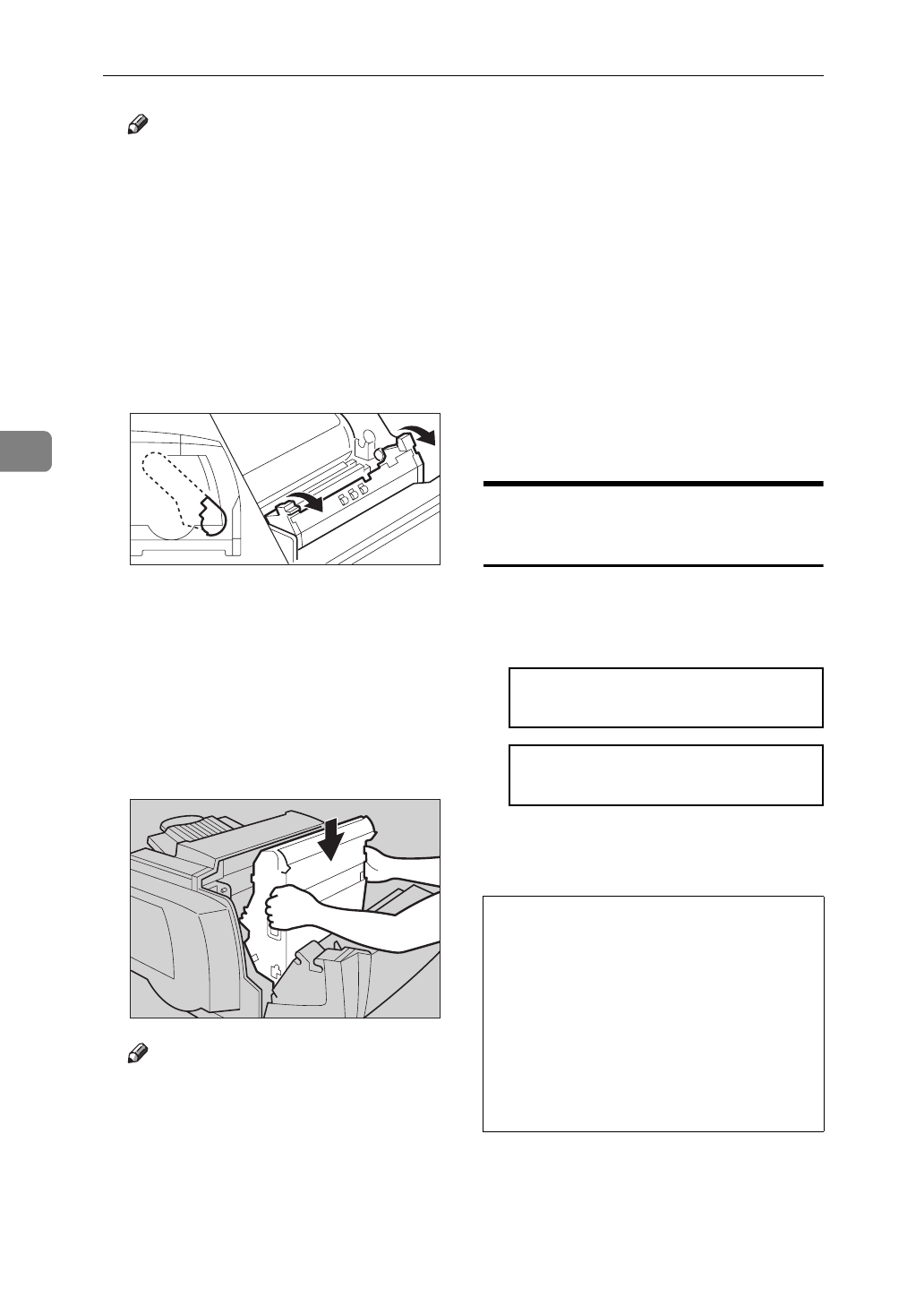

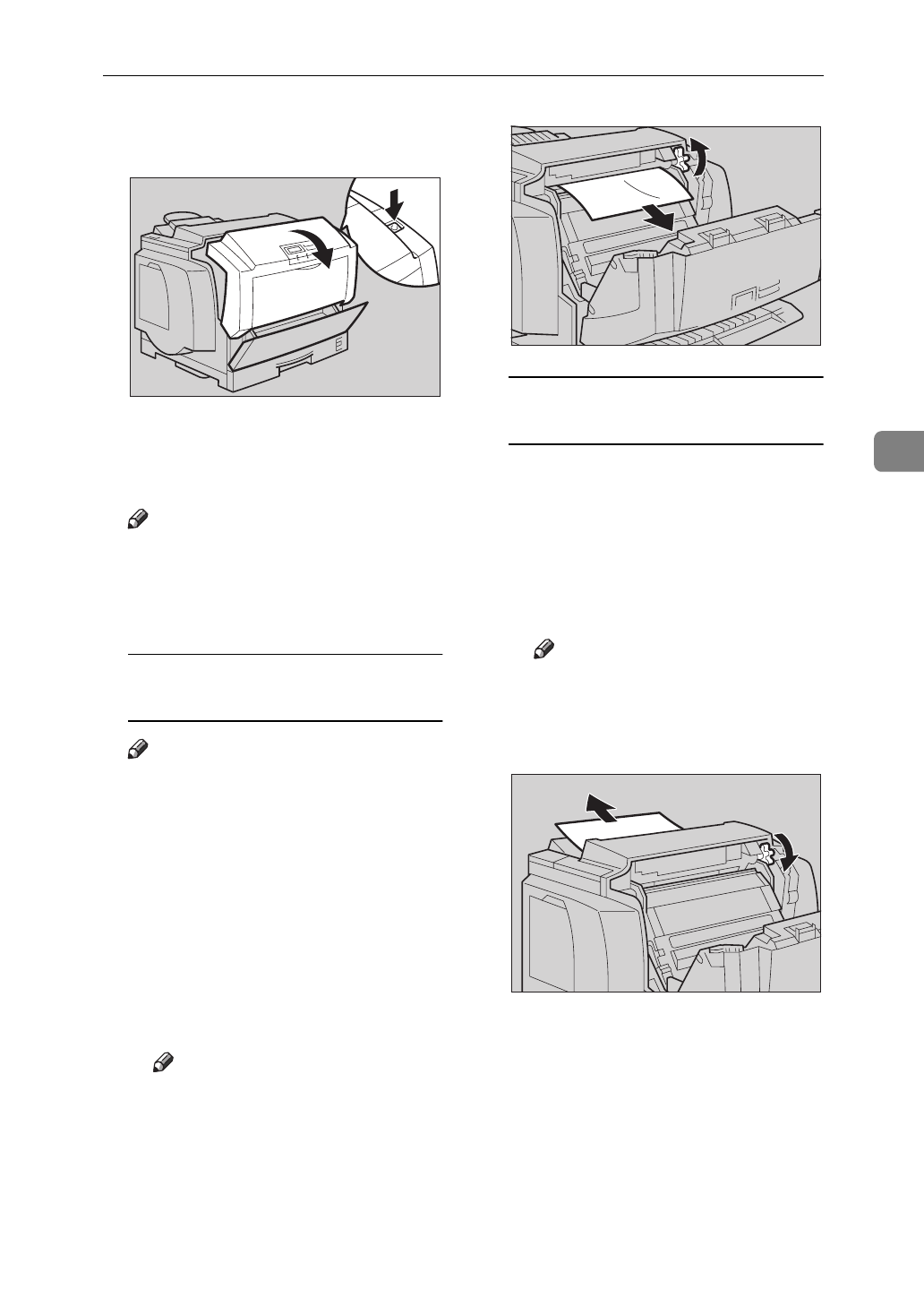

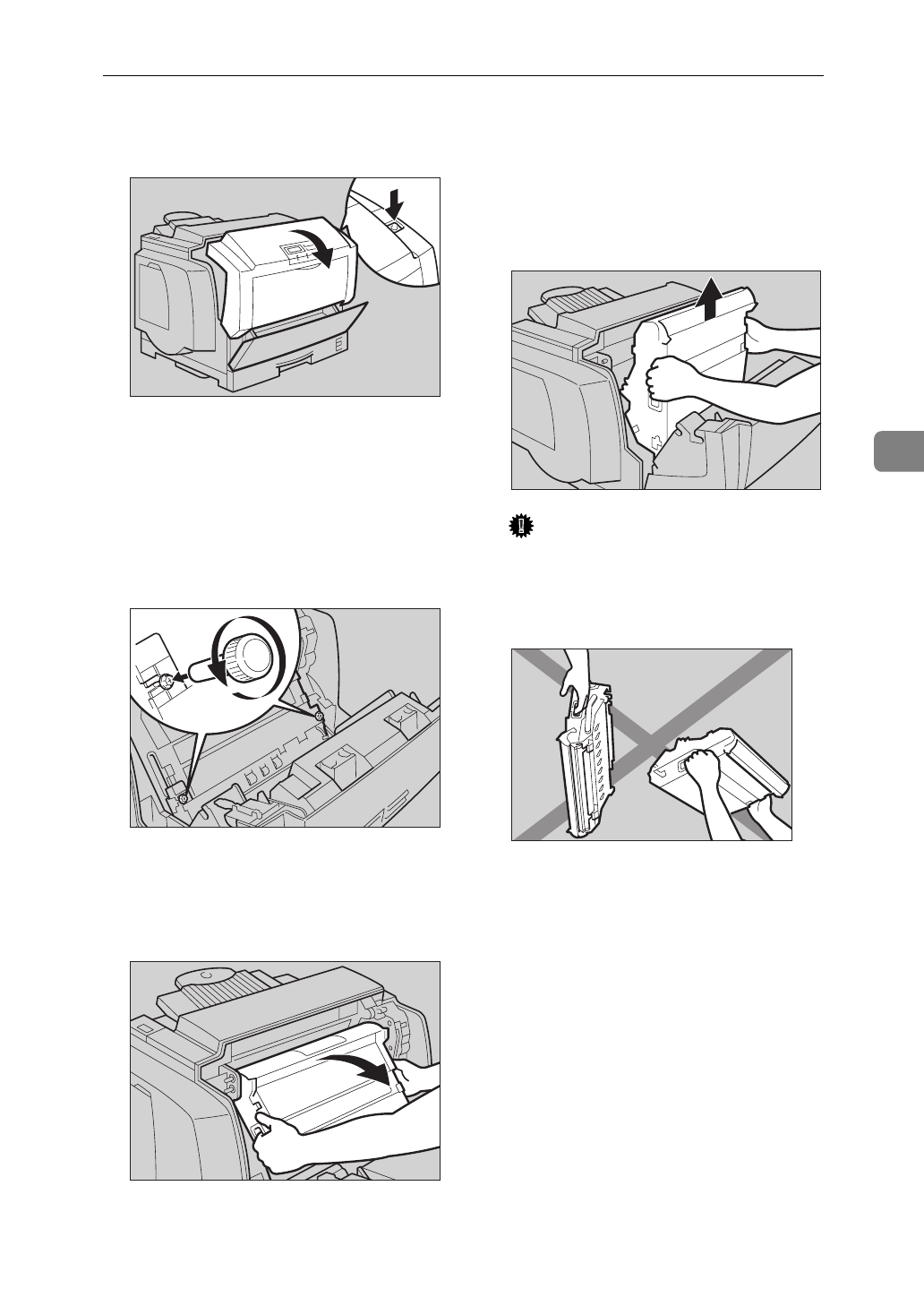

4. Troubleshooting
5. Appendix
INDEX
- A
- B
- C
- D
- E
- F
- I
- L
- M
- N
- O
- P
- T
- V
- W

OPERATING INSTRUCTIONS

Printer Reference

Read this manual carefully before you use this product and keep it handy for future

reference.

For safety, please follow the instructions in this manual.

RICOH COLOR LASER AP505 OPERATING INSTRUCTIONS

RICOH COMPANY, LTD.

15-5, 1 chome, Minami-Aoyama, Minato-ku, Tokyo

Telephone: Tokyo 3479-3111

Overseas Affiliates

U.S.A.

RICOH CORPORATION

5 Dedrick Place

West Caldwell, New Jersey 07006

Phone: +1-973-882-2000

The Netherlands

RICOH EUROPE B.V.

Groenelaan 3, 1186 AA, Amstelveen

Phone: +31-(0)20-5474111

United Kingdom

RICOH UK LTD.

Ricoh House,

1 Plane Tree Crescent, Feltham,

Middlesex, TW13 7HG

Phone: +44-(0)181-261-4000

Germany

RICOH DEUTSCHLAND GmbH

Mergenthalerallee 38-40,

65760 Eschborn

Phone: +49-(0)6196-9060

France

RICOH FRANCE S.A.

383, Avenue du Général de Gaulle

BP 307-92143 Clamart Cedex

Phone: +33-(0)1-40-94-38-38

Spain

RICOH ESPAÑA S.A.

Avda. Litoral Mar, 12-14,

08005 Barcelona

Phone: +34-(0)93-295-7600

Italy

RICOH ITALIA SpA

Via della Metallurgia 12,

37139 Verona

Phone: +39-(0)45-8181500

Hong Kong

RICOH HONG KONG LTD.

23/F., China Overseas Building,

139, Hennessy Road,

Wan Chai, Hong Kong

Phone: +852-2862-2888

Singapore

RICOH ASIA PACIFIC PTE.LTD.

260 Orchard Road,

#15-01/02 The Heeren,

Singapore 238855

Phone: +65-830-5888

Model number: G024–17

Printed in Japan

UE USA G024-8637

Introduction

This manual contains detailed instructions on the operation and maintenance of this machine. To get

maximum versatility from this machine all operators should carefully read and follow the instructions in

this manual. Please keep this manual in a handy place near the machine.

Please read the Safety Information before using this machine. It contains important information related

to USER SAFETY and PREVENTING EQUIPMENT PROBLEMS.

Power Source

120 V, 60 Hz, 10 A or more

Please be sure to connect the power cord to a power source as above.

Operator Safety:

This machine is considered a CDRH class I laser device, safe for office/ EDP use. The machine con-

tains 10-milliwatt, 760 - 800 nanometer wavelength, GaAIAs laser diode. Direct (or indirect reflected)

eye contact with the laser beam might cause serious eye damage. Safety precautions and interlock

mechanisms have been designed to prevent any possible laser beam exposure to the operator.

Laser Safety:

The Center for Devices and Radiological Health (CDRH) prohibits the repair of laser-based optical unit

in the field. The optical housing unit can only be repaired in a factory or at a location with the requisite

equipment. The laser subsystem is replaceable in the field by a qualified Customer Engineer. The laser

chassis is not repairable in the field. Customer engineers are therefore directed to return all chassis

and laser subsystems to the factory or service depot when replacement or the optical subsystem is re-

quired.

Important

Parts of this manual are subject to change without prior notice. In no event will the company be liable

for direct, indirect, special, incidental, or consequential damages as a result of handling or operating

the machine.

Caution:

Use of controls or adjustment or performance of procedures other than those specified in this manual

might result in hazardous radiation exposure.

Do not attempt any maintenance or troubleshooting other than that mentioned in this manual. This ma-

chine contains a laser beam generator and direct exposure to laser beams can cause permanent eye

damage.

Two kinds of size notation are employed in this manual. With this machine refer to the inch version.

Ricoh shall not be responsible for any damage or expense that might result from the use of parts other

than genuine Ricoh parts in your Ricoh office product.

For good copy quality, Ricoh recommends that you use genuine Ricoh toner.

Note to users in the United States of America

Notice:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter-

ference in a residential installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is con-

nected.

Consult the dealer or an experienced radio/TV technician for help.

Warning

Changes or modifications not expressly approved by the party responsible for compliance could void the us-

er's authority to operate the equipment.

Caution (in case of 100BaseTX environment):

Properly shielded and grounded cables (STP) and connectors must be used for connections to host comput-

er (and/or peripheral) in order to meet FCC emission limits.

Declaration of Conformity

Product Name: Printer

Model Number: G024–17

Responsible party: Ricoh Corporation

Address: 5 Dedrick Place, West Caldwell, NJ 07006

Telephone number: 973-882-2000

This device complies with part 15 of FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. this device must accept any interference received,

including interference that may cause undesired operation.

Properly shielded cables must be used for connections to host computer (and/or peripheral) in

order to meet FCC emission limits.

Network interface cable with ferrite core must be used for RF interference suppression.

Note to users in Canada

Note:

This Class B digital apparatus complies with Canadian ICES-003.

Remarque concernant les utilisateurs au Canada

Avertissement:

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

In accordance with IEC 60417, this machine uses the following symbols for the main power switch:

a means POWER ON.

b means POWER OFF.

Introduction

This manual contains detailed instructions on the operation and maintenance of this machine. To get

maximum versatility from this machine all operators should carefully read and follow the instructions in

this manual. Please keep this manual in a handy place near the machine.

Please read the Safety Information before using this machine. It contains important information related

to USER SAFETY and PREVENTING EQUIPMENT PROBLEMS.

Power Source

120 V, 60 Hz, 10 A or more

Please be sure to connect the power cord to a power source as above.

Operator Safety:

This machine is considered a CDRH class I laser device, safe for office/ EDP use. The machine con-

tains 10-milliwatt, 760 - 800 nanometer wavelength, GaAIAs laser diode. Direct (or indirect reflected)

eye contact with the laser beam might cause serious eye damage. Safety precautions and interlock

mechanisms have been designed to prevent any possible laser beam exposure to the operator.

Laser Safety:

The Center for Devices and Radiological Health (CDRH) prohibits the repair of laser-based optical unit

in the field. The optical housing unit can only be repaired in a factory or at a location with the requisite

equipment. The laser subsystem is replaceable in the field by a qualified Customer Engineer. The laser

chassis is not repairable in the field. Customer engineers are therefore directed to return all chassis

and laser subsystems to the factory or service depot when replacement or the optical subsystem is re-

quired.

Important

Parts of this manual are subject to change without prior notice. In no event will the company be liable

for direct, indirect, special, incidental, or consequential damages as a result of handling or operating

the machine.

Caution:

Use of controls or adjustment or performance of procedures other than those specified in this manual

might result in hazardous radiation exposure.

Do not attempt any maintenance or troubleshooting other than that mentioned in this manual. This ma-

chine contains a laser beam generator and direct exposure to laser beams can cause permanent eye

damage.

Two kinds of size notation are employed in this manual. With this machine refer to the inch version.

Savin shall not be responsible for any damage or expense that might result from the use of parts other

than genuine Savin parts in your Savin office product.

For good copy quality, Savin recommends that you use genuine Savin toner.

Note to users in the United States of America

Notice:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter-

ference in a residential installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is con-

nected.

Consult the dealer or an experienced radio/TV technician for help.

Warning

Changes or modifications not expressly approved by the party responsible for compliance could void the us-

er's authority to operate the equipment.

Caution (in case of 100BaseTX environment):

Properly shielded and grounded cables (STP) and connectors must be used for connections to host comput-

er (and/or peripheral) in order to meet FCC emission limits.

Declaration of Conformity

Product Name: Printer

Model Number: G024–17

Responsible party: Ricoh Corporation

Address: 5 Dedrick Place, West Caldwell, NJ 07006

Telephone number: 973-882-2000

This device complies with part 15 of FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. this device must accept any interference received,

including interference that may cause undesired operation.

Properly shielded cables must be used for connections to host computer (and/or peripheral) in

order to meet FCC emission limits.

Network interface cable with ferrite core must be used for RF interference suppression.

Note to users in Canada

Note:

This Class B digital apparatus complies with Canadian ICES-003.

Remarque concernant les utilisateurs au Canada

Avertissement:

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

In accordance with IEC 60417, this machine uses the following symbols for the main power switch:

a means POWER ON.

b means POWER OFF.

Introduction

This manual contains detailed instructions on the operation and maintenance of this machine. To get

maximum versatility from this machine all operators should carefully read and follow the instructions in

this manual. Please keep this manual in a handy place near the machine.

Please read the Safety Information before using this machine. It contains important information related

to USER SAFETY and PREVENTING EQUIPMENT PROBLEMS.

Power Source

120 V, 60 Hz, 10 A or more

Please be sure to connect the power cord to a power source as above.

Operator Safety:

This machine is considered a CDRH class I laser device, safe for office/ EDP use. The machine con-

tains 10-milliwatt, 760 - 800 nanometer wavelength, GaAIAs laser diode. Direct (or indirect reflected)

eye contact with the laser beam might cause serious eye damage. Safety precautions and interlock

mechanisms have been designed to prevent any possible laser beam exposure to the operator.

Laser Safety:

The Center for Devices and Radiological Health (CDRH) prohibits the repair of laser-based optical unit

in the field. The optical housing unit can only be repaired in a factory or at a location with the requisite

equipment. The laser subsystem is replaceable in the field by a qualified Customer Engineer. The laser

chassis is not repairable in the field. Customer engineers are therefore directed to return all chassis

and laser subsystems to the factory or service depot when replacement or the optical subsystem is re-

quired.

Important

Parts of this manual are subject to change without prior notice. In no event will the company be liable

for direct, indirect, special, incidental, or consequential damages as a result of handling or operating

the machine.

Caution:

Use of controls or adjustment or performance of procedures other than those specified in this manual

might result in hazardous radiation exposure.

Do not attempt any maintenance or troubleshooting other than that mentioned in this manual. This ma-

chine contains a laser beam generator and direct exposure to laser beams can cause permanent eye

damage.

Two kinds of size notation are employed in this manual. With this machine refer to the inch version.

Gestetner shall not be responsible for any damage or expense that might result from the use of parts

other than genuine Gestetner parts in your Gestetner office product.

For good copy quality, Gestetner recommends that you use genuine Gestetner toner.

Note to users in the United States of America

Notice:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter-

ference in a residential installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is con-

nected.

Consult the dealer or an experienced radio/TV technician for help.

Warning

Changes or modifications not expressly approved by the party responsible for compliance could void the us-

er's authority to operate the equipment.

Caution (in case of 100BaseTX environment):

Properly shielded and grounded cables (STP) and connectors must be used for connections to host comput-

er (and/or peripheral) in order to meet FCC emission limits.

Declaration of Conformity

Product Name: Printer

Model Number: G024–17

Responsible party: Ricoh Corporation

Address: 5 Dedrick Place, West Caldwell, NJ 07006

Telephone number: 973-882-2000

This device complies with part 15 of FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. this device must accept any interference received,

including interference that may cause undesired operation.

Properly shielded cables must be used for connections to host computer (and/or peripheral) in

order to meet FCC emission limits.

Network interface cable with ferrite core must be used for RF interference suppression.

Note to users in Canada

Note:

This Class B digital apparatus complies with Canadian ICES-003.

Remarque concernant les utilisateurs au Canada

Avertissement:

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

In accordance with IEC 60417, this machine uses the following symbols for the main power switch:

a means POWER ON.

b means POWER OFF.

Trademarks

Windows®, and Windows NT® are registered trademarks of Microsoft Corpora-

tion in the United States and/or other countries.

PostScript® is a registered trademark of Adobe Systems. Incorporated.

AppleTalk is registered trademarks of Apple Computer, Incorporated.

Other product names used herein are for identification purposes only and might

be trademarks of their respective companies. We disclaim any and all rights in

those marks.

Notes:

Some illustrations might be slightly different from your machine.

Certain options might not be available in some countries. For details, please con-

tact your local dealer.

Notes:

The proper names of the Windows operating systems are as follows:

• Microsoft® Windows® 95 operating system

• Microsoft® Windows® 98 operating system

• Microsoft® Windows NT® Server network operating system Version 4.0

• Microsoft® Windows NT® Workstation operating system Version 4.0

Safety Information

When using your equipment, the following safety precautions should always be

followed.

Safety During Operation

In this manual, the following important symbols are used:

WARNING:

Indicates a potentially hazardous situation which, if instructions are

not followed, could result in death or serious injury.

CAUTION:

Indicates a potentially hazardous situation which, if instructions are not fol-

lowed, may result in minor or moderate injury or damage to property.

iii

WARNING:

•

Connect the power cord directly into a wall outlet and never use an ex-

tension cord.

•

Disconnect the power plug (by pulling the plug, not the cable) if the

power cable or plug becomes frayed or otherwise damaged.

•

To avoid hazardous electric shock or laser radiation exposure, do not

remove any covers or screws other than those specified in this man-

ual.

•

Turn off the power and disconnect the power plug (by pulling the

plug, not the cable) if any of the following conditions exists:

•

You spill something into the equipment.

•

You suspect that your equipment needs service or repair.

•

Your equipment's cover has been damaged.

•

Do not incinerate spilled toner or used toner. Toner dust might ignite

when exposed to an open flame.

•

Disposal can take place at our authorized dealer or at appropriate col-

lection sites.

•

If you dispose of the used toner containers yourself, dispose of them

according to your local regulations.

CAUTION:

•

Protect the equipment from dampness or wet weather, such as rain, snow,

and so on.

•

Unplug the power cord from the wall socket before you move the equip-

ment. While moving the equipment, you should take care that the power

cord will not be damaged under the equipment.

•

When you disconnect the power plug from the wall socket, always pull the

plug (not the cable).

•

Do not allow paper clips, staples, or other small metallic objects to fall in-

side the equipment.

•

Do not eat or swallow toner.

•

Keep toner (used or unused) and toner cartridge out of reach of children.

•

For environmental reasons, do not dispose of the equipment or expended

supply's wastes at a household waste a collection point. Disposal can take

place at our authorized dealer or at an appropriate collection site.

•

Our products are engineered to meet the highest standards of quality and

functionality. When purchasing expendable supplies, we recommend using

only those specified by an authorized dealer.

•

The inside of the machine could be very hot. Do not touch the parts with a

label indicating the “hot surface”. Otherwise, it could cause a personal burn.

•

If you use this printer in a cold area, leave the printer on. Otherwise, severe

cold might damage sensitive components inside the printer.

Energy Star Program

❖

Low-power mode (Energy Save mode)

This printer automatically lowers its power consumption 60 minutes after the

last operation has been completed when the Energy Save mode is set to level

1. To exit Low-power (Energy Save) mode, press any key on the operation

panel. To change the setting of the Energy Save mode, see the “Getting Start-

ed”.

❖

Specifications

-Recycled Paper

Please contact your sales or service representative for recommended recycled

paper types that may be used in this machine.

As an ENERGY STAR Partner, we have deter-

mined that this machine model meets the ENER-

GY STAR Guidelines for energy efficiency.

The ENERGY STAR Guidelines intend to establish an international energy-saving sys-

tem for developing and introducing energy-efficient office equipment to deal with en-

vironmental issues, such as global warming.

When a product meets the ENERGY STAR Guidelines for energy efficiency, the Part-

ner shall place the ENERGY STAR logo onto the machine model.

This product was designed to reduce the environmental impact associated with office

equipment by means of energy-saving features, such as Low-power mode.

Lower-power mode

(Energy Save mode)

Power Consumption 45W or less

Default Time 60 minutes

Manuals for Your Printer

There are four manuals that describe the procedures separately for the installa-

tion of your printer and for the operation and maintenance of your printer and

its optional equipment.

To enhance safe and efficient operation of your printer, all users should read and

follow the instructions contained in the following manuals.

❖

Quick Installation Guide

Describes the procedures for installing your printer.

❖

Getting Started

Describes how to install software to enable users to print. Specifically, it de-

scribes installation of PostScript printer drivers, printer description files, and

other software provided on the CD-ROM that comes with the printer. It also

explains how to connect each user to the network.

❖

User's Guide

Provides an introduction to desktop color printing, how to print from various

computers and workstations, what you need to know about using the printer

in a networked environment, and how to use the software provided.

❖

Printer Reference (this manual)

Describes the procedures and necessary information on setting up and using

your printer and its optional equipment.

vii

How to Read this Manual

Symbols

In this manual, the following symbols are used:

WARNING:

This symbol indicates a potentially hazardous situation which, if instructions

are not followed, could result in death or serious injury.

CAUTION:

This symbol indicates a potentially hazardous situation which, if instructions

are not followed, may result in minor or moderate injury or damage to property.

* The statements above are notes for your safety.

Important

If this instruction is not followed, paper might be misfed, originals might be

damaged, or data might be lost. Be sure to read this.

Preparation

This symbol indicates the prior knowledge or preparations required before op-

erating.

Note

This symbol indicates precautions for operation, or actions to take after misop-

eration.

Limitation

This symbol indicates numerical limits, functions that cannot be used together,

or conditions in which a particular function cannot be used.

Reference

This symbol indicates a reference.

[]

Keys that appear on the machine's panel display.

Keys and buttons that appear on the computer's display.

{}

Keys built into the machine's operation panel.

Keys on the computer's keyboard.

viii

TABLE OF CONTENTS

1.Getting Acquainted

Guide to the Printer................................................................................... 1

Exterior-Front View ....................................................................................... 1

Exterior-Rear View ........................................................................................ 3

Interior........................................................................................................... 4

Operation Panel ............................................................................................ 5

Turning the Printer On and Off................................................................. 6

Turning On the Printer................................................................................... 6

Turning Off the Printer................................................................................... 6

2.Installing Options

Available Options...................................................................................... 8

Installing the Memory Unit Type505 (DIMM)........................................... 9

Installing the Printer Hard Disk Type505............................................... 11

Installing the Paper Feed Unit Type305................................................. 13

3.Paper and Other Media

Paper and Other Media Supported by this Printer ............................... 15

Paper Types and Sizes............................................................................... 15

Precautions for Paper ................................................................................. 20

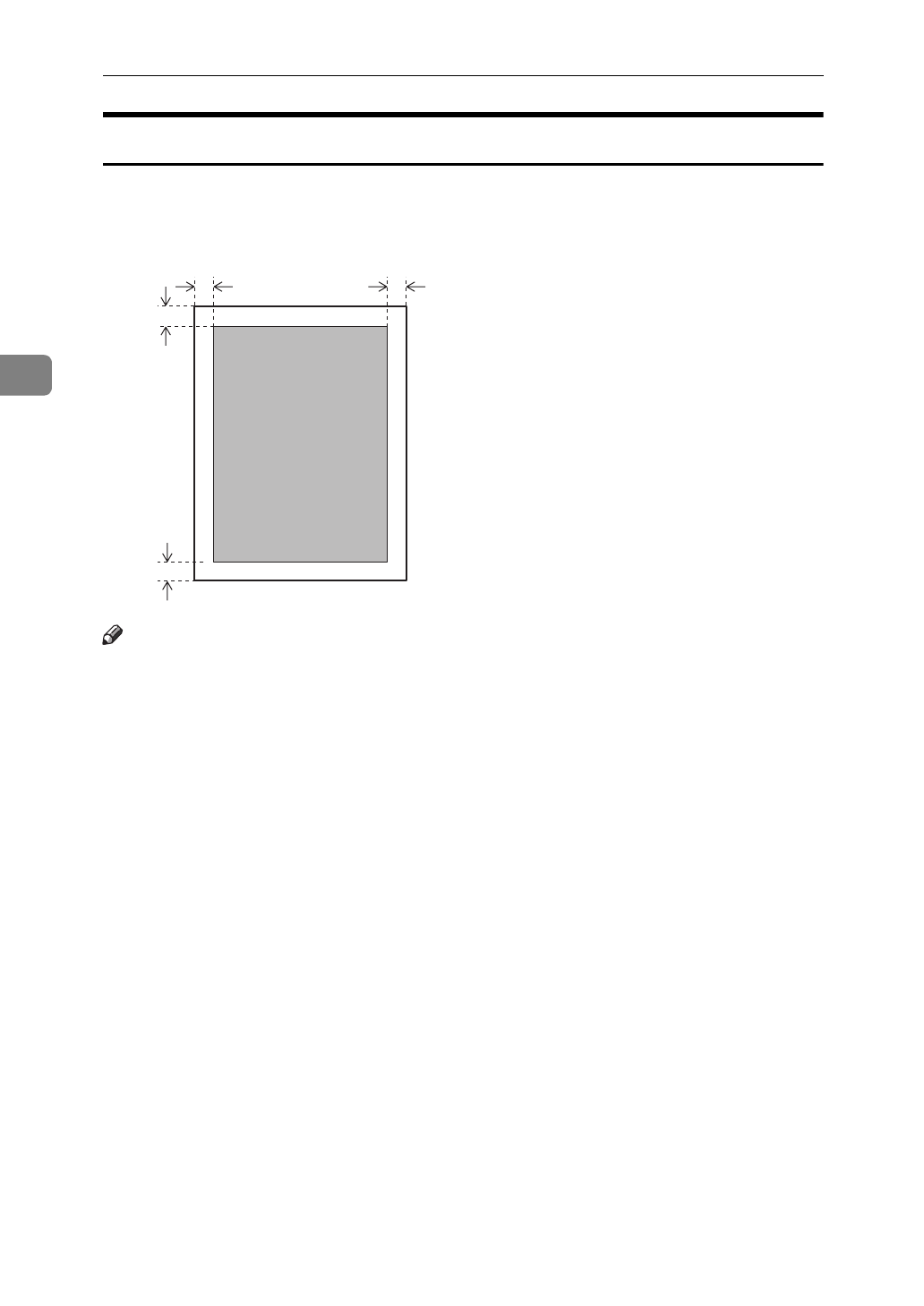

Printable Area ............................................................................................. 24

Loading Paper.......................................................................................... 25

Loading Paper in the Paper Tray ................................................................ 25

Loading Paper in the Bypass Tray.............................................................. 27

Sliding out the Output Tray Extender .......................................................... 28

4.Troubleshooting

Error & Status Messages on the Operation Panel................................ 29

Printer Doesn't Print................................................................................ 32

Other Printing Problems......................................................................... 35

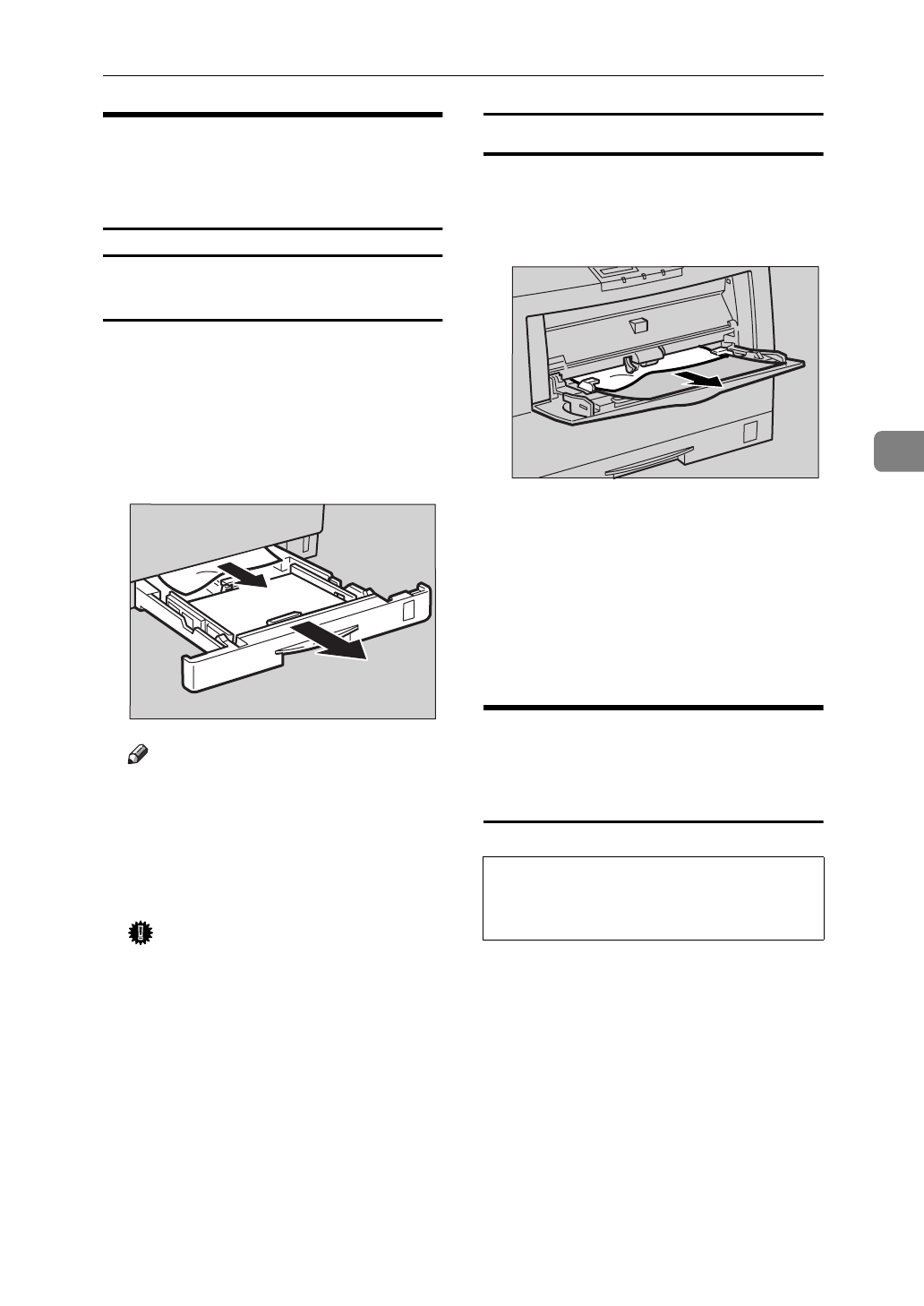

Removing Misfed Paper.......................................................................... 38

When the Message "REMOVE MISFEED FROM INPUT TRAY" Appears

.... 39

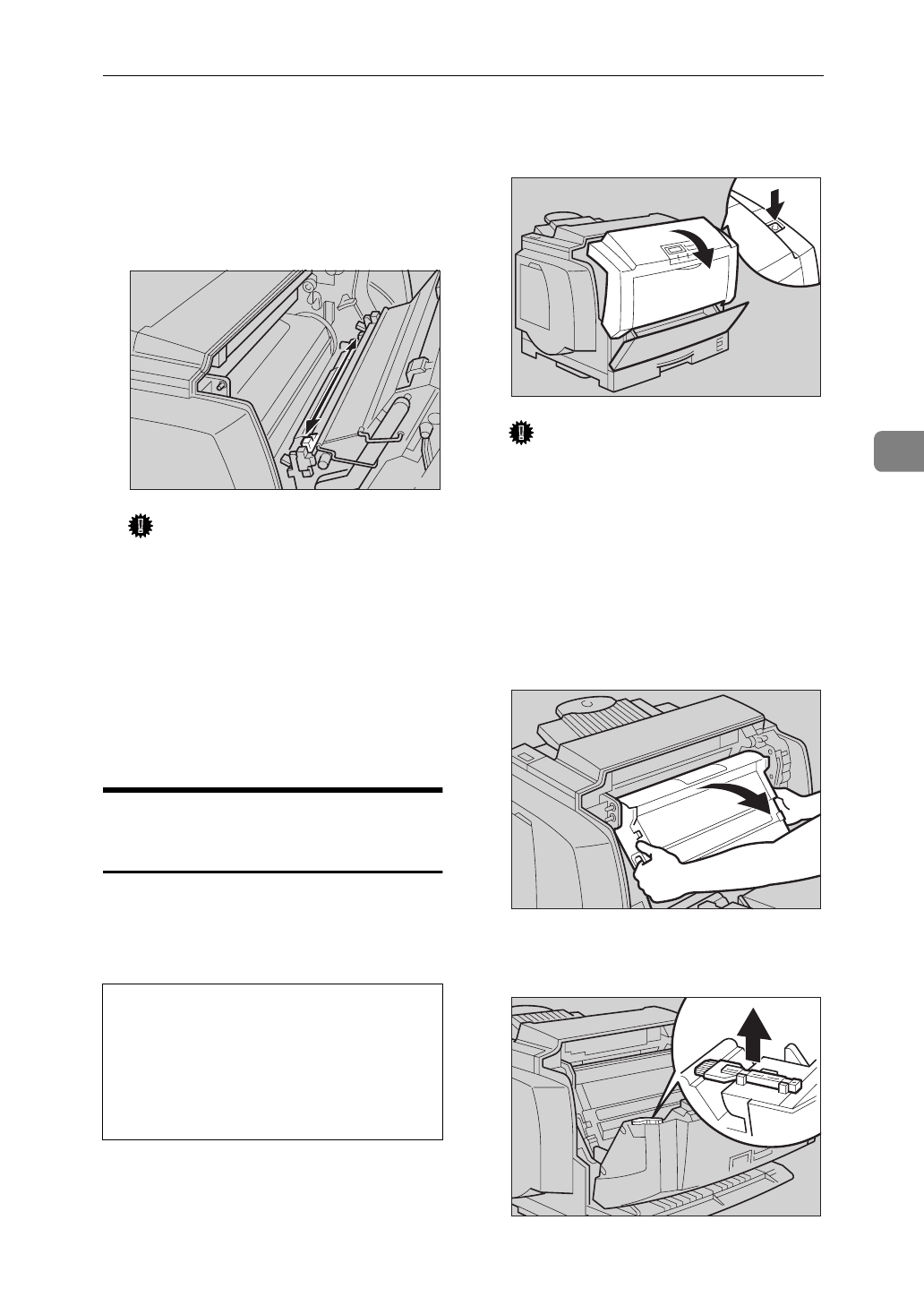

When the Message "OPEN FRONT COVER REMOVE MISFEED" Appears

.. 39

When the Message "REMOVE MISFEED FROM OUTPUT TRAY" Appears

... 40

Cleaning the Printer ................................................................................ 42

Cleaning the Friction Pad............................................................................ 42

Cleaning the Charger.................................................................................. 42

Cleaning the Dust-proofing glass................................................................ 43

Replacing Consumables......................................................................... 45

Replacing the Toner Cartridge .................................................................... 45

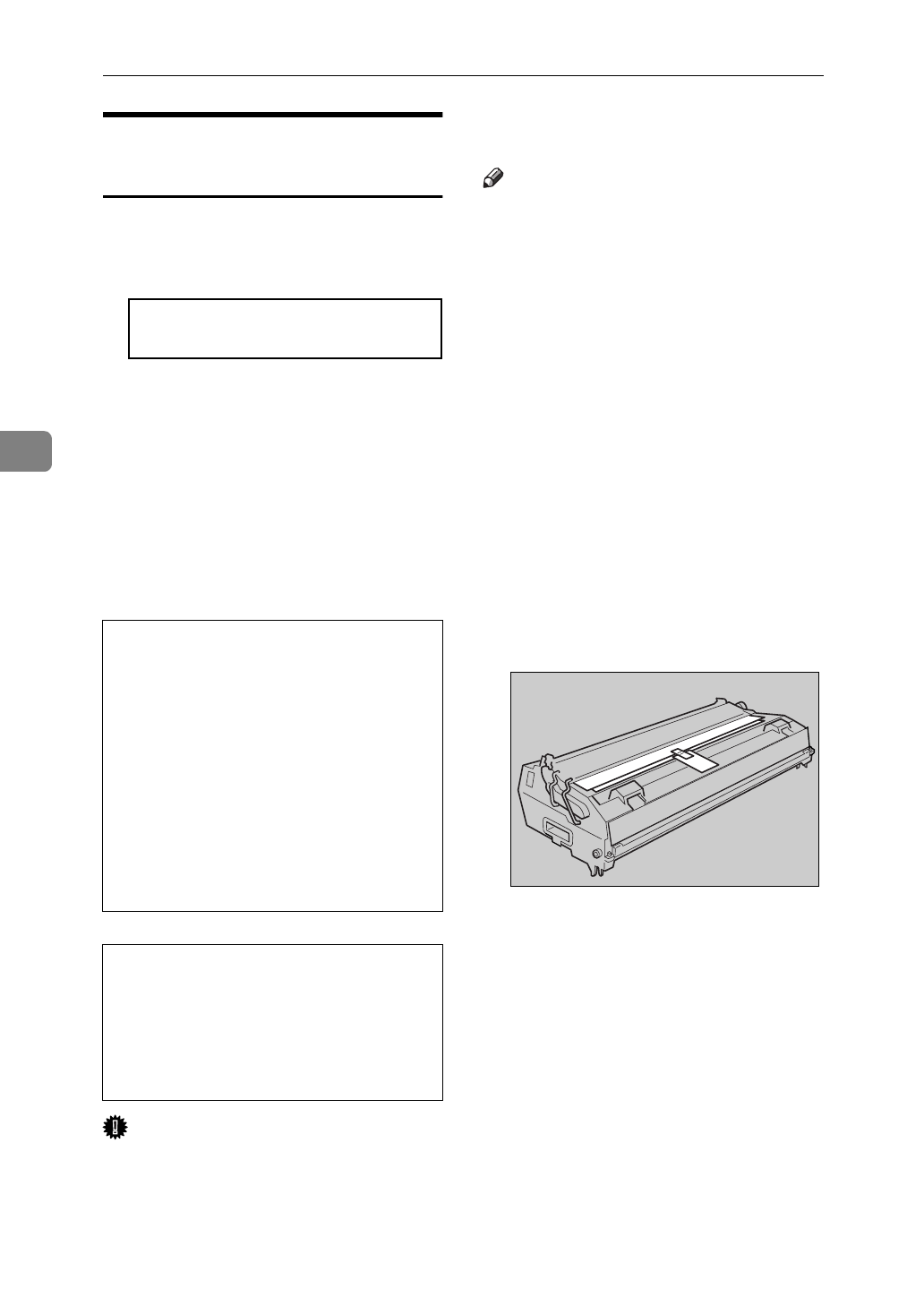

Replacing the Photoconductor Unit............................................................. 48

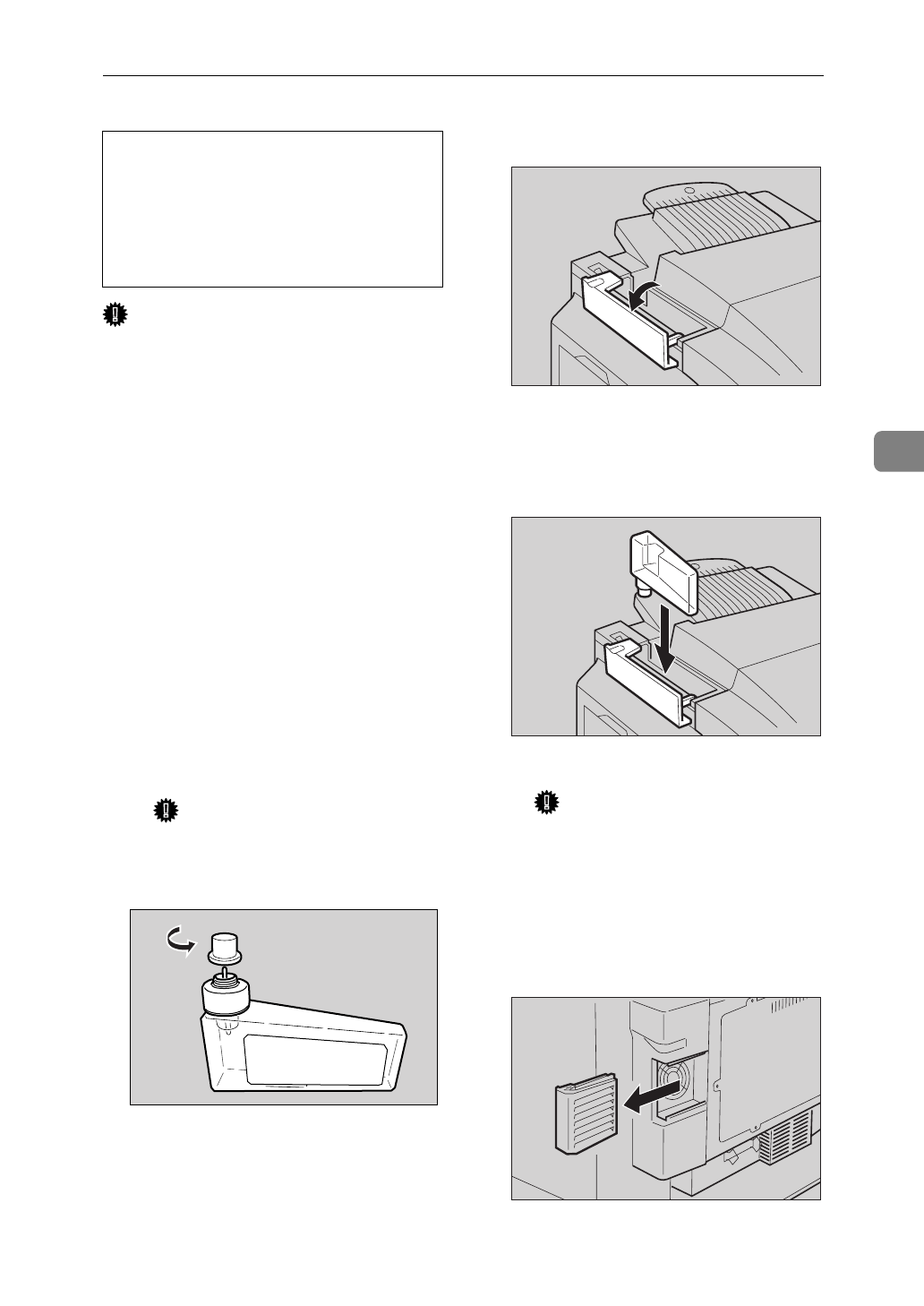

Replacing the Fuser Oil Bottle and Ozone Filter......................................... 50

Replacing the Waste Toner Bottle and Charger ......................................... 53

5.Appendix

Moving and Transporting the Printer .................................................... 55

Specifications .......................................................................................... 56

Mainframe ................................................................................................... 56

Options........................................................................................................ 59

Consumables........................................................................................... 60

INDEX........................................................................................................ 62

1. Getting Acquainted

Guide to the Printer

Exterior-Front View

1. Power Switch

Use this switch to turn printer power on

and off.

2. Fuser Oil Bottle Cover

Open this cover when replacing the fuser

oil bottle.

3. Output Tray

Printed pages are stacked here.

4. Output Tray Extender

Pull out this extender when printing on

long paper.

5. Operation Panel

Contains keys for printer operation and a

panel display that shows the printer sta-

tus.

6. Front Cover Release Button

Use this button to open the front cover.

7. Front Cover

Open this cover when accessing the in-

side of the printer.

8. Left Cover

Open this cover when replacing the toner

cartridge.

9. Inset Grips

Hold the printer at the location indicated

in the illustration when transporting it.

Note that there are four grips, two on the

left side and two on the right side of the

printer.

12 3 4 5 6 7

TFWX020E

TFWX030E

Getting Acquainted

10. Bypass tray

Use to print on to thick paper, OHP trans-

parencies and adhesive labels in addition

to plain paper.

11. Paper Tray

Load paper into this tray for printing.

Guide to the Printer

Exterior-Rear View

1. Paper Exit Cover

Open this cover when removing misfed

paper at the fusing unit.

2. Ozone Filter

This filter reduces the amount of ozone

that is discharged into the air.

3. Ventilator

This hole allow air to circulate, prevent-

ing components inside the printer from

overheating.

Important

❒Do not leave the ventilator ob-

structed or blocked. Doing so cre-

ates the danger of malfunction due

to overheating.

4. Back Plate

Remove to install some options.

5. Parallel Interface Connector

Plug the interface cable that connects the

printer to your computer into this con-

nector.

Important

❒Rating voltage of the parallel inter-

face connector for the computer;

Max. DC 5V.

6. Network Interface Connector for

10BASE-T/100BASE-TX

Plug the network interface cable for

10BASE-T/100BASE-TX that connects

the printer to the network into this con-

nector.

Important

❒Rating voltage of the network in-

terface connector for 10BASE-T/

100BASE-TX; Max. DC5V.

7. Network Interface Connector for

10BASE5

Plug the network interface cable for

10BASE5 that connects the printer to the

network into this connector.

Important

❒Rating voltage of the network in-

terface connector for 10BASE5;

Max. DC12V.

8. Ventilator

This hole allow air to circulate, prevent-

ing components inside the printer from

overheating.

Important

❒Do not leave the ventilator ob-

structed or blocked. Doing so cre-

ates the danger of malfunction due

to overheating.

9. Power Connector

Connect the power cord to this connec-

tor.

TFWX040E

Getting Acquainted

Interior

1. Toner Cartridge

2. Fuser Oil Bottle

This bottle holds oil used for fusing toner

to the paper.

3. Ozone Filters

These filters reduce the amount of ozone

that is discharged into the air.

4. Charger

5. Waste Toner Bottle

This bottle is a receptacle for waste toner

generated during the printing process.

6. Photoconductor Unit

This contains a photoconductor unit that

is used to compose the image being print-

ed.

Note

❒Screws are used to hold the photocon-

ductor unit in place. Be sure to remove

the screws before attempting to re-

move the unit.

❒The condition of the photoconductor

unit belt directly affects output ap-

pearance and quality. Always be care-

ful to prevent the green film in this

unit from becoming dirty or damaged.

And do not touch the black belt.

❒Do not rotate the gear on the right side

of the printer. Otherwise, the inside

b e l t g e t s d a m a g e d .

TFWX051E

12 3456

TFWX060E

Guide to the Printer

Operation Panel

Important

❒Never press any operation panel keys while the Data In indicator is flashing

on the operation panel.

1. Panel Display

The display shows the current status of

the printer and error messages. ⇒ P.29

“Error & Status Messages on the Operation

Panel”

2. On Line indicator

Tells you whether the printer is on-line or

off-line.

Stays on while the printer is on-line (a

state in which the printer can receive data

from the computer).

Stays off when the printer is off-line (a

state in which printer cannot receive da-

ta).

3. {

On Line

} key

Press this key to switch the printer be-

tween on-line and off-line conditions.

4. {W}{U}{V}{T} keys

Use these keys to select values on the

panel display when making settings.

5. {

} key

Press this key to make and check the

printer settings.

6. {

Cancel

} key

Pressing this key cancels the ongoing

print job.

7. {

Enter

} key

Press this key to execute menu items se-

lected on the panel display.

8. Power indicator

Stays on while the printer power is on.

Stays off when the power is turned off or

while the printer is in the Energy Save

mode.

Blinks while the printer is warming up.

9. Error indicator

Lights up whenever any printer error oc-

curs. A message describing the cause of

the error also appears on the panel dis-

play. ⇒ P.29 “Error & Status Messages on

the Operation Panel”

10. Data In indicator

Blinks while the printer is communicat-

ing via the network with the network

utility of client computers.

Power Error Data In

On Line

3 41

TFWS010E

Cancel Enter

Getting Acquainted

Turning the Printer On and Off

Turning On the Printer

AMake sure that the power cord is

securely plugged into the wall

socket and the printer.

BSet the printer's power switch to

the On position.

After turning on the printer, it

takes about eight minutes to warm

up before being able to print.

When the printer is turned on, the

Power indicator will blink repeat-

edly. Once it stops blinking and re-

mains on, you will be able to send

data from the computer to the

printer. When the following mes-

sage appears on the operation pan-

el, the printer will be able to begin

printing.

READY

Turning Off the Printer

AConfirm that the Data In and the

Error indicators are off.

Note

❒The Data In indicator blinks

while receiving and printing

data from the computer and re-

mains lit when printing. Do not

turn off the printer while it is

blinking.

❒When the Error indicator lights

up, a printer error has occurred.

Use the message that appears

on the operation panel to trou-

bleshoot the problem.

BSet the printer's power switch to

the Off position.

The Power indicator turns off.

Note

❒After printing, wait for about

two minutes before turning off

the printer. The printer uses this

time to maintain itself. Turning

off the printer immediately after

printing may, over time, reduce

the print quality.

TFWX130E

TFWX110E

2. Installing Options

CAUTION:

•

Make sure to turn off the printer and wait for about 30 minutes before in-

stalling options. Not waiting for the printer to cool down can result in a burn.

•

It is recommended that at least two persons are used to lift the machine.

Otherwise, the machine might fall and cause personal injury.

•

When lifting the machine, use the inset grips on both sides of the machine.

Otherwise, the machine might fall and cause personal injury.

•

When you move the machine, unplug the power cord from the wall socket

to avoid a fire or an electric shock.

Installing Options

Available Options

The following options can be installed to your printer.

Reference

For more information on the options, see P.59 “Options”. Do not use options

other than those specified in this manual.

1. Memory Unit Type505 ⇒ P.9

• Memory Unit Type505 (32MB) (DIMM)

• Memory Unit Type505 (64MB) (DIMM)

2. Printer Hard Disk Type505 ⇒ P.11

3. Paper Feed Unit Type305 ⇒ P.13

Note

❒It is impossible to install more than two paper feed units to your printer at a time.

TFWX180E

Installing the Memory Unit Type505 (DIMM)

CAUTION:

Important

❒The memory unit can be damaged

by small amounts of static electric-

ity. Before touching it, touch some-

thing metal to discharge static

electricity from you.

ATurn off the printer's power

switch and remove all cables and

cords from the printer.

BRemove screws and remove the

back plate.

Note

❒A coin can be used to remove

the screws.

COpen the white tabs, which hold

the memory, to their widest posi-

tion (A). Insert the memory unit

horizontally into the slot (B).

Push it in and then close the

white tabs (C).

Note

❒There are two notches on the

side with the connector of the

memory unit. They are located

on the left and in the center. Be

sure to align the notches over

the guides correctly, as shown

in the illustration.

DAttach the back plate to its origi-

nal position, and fasten it with

screws that were removed in step

Note

❒A coin can be used to fasten the

screws.

•

Make sure to turn off the printer

and wait for about 30 minutes

before installing options. Not

waiting for the printer to cool

down can result in a burn.

TFWX185E

TFWX190E

TFWX195E

Installing Options

EPlug the printer's power cord

back into the printer and the wall

socket. Turn on the printer's pow-

er switch.

FPrint a configuration page to con-

firm that the memory unit is prop-

erly installed.

Reference

For more information on the

configuration page, see the

“Getting Started”.

Note

❒If the memory unit is not prop-

erly installed, repeat steps A to F

again. If you fail again, contact

your sales or service representa-

tive.

Installing the Printer Hard Disk Type505

CAUTION:

Note

❒For this printer, use only Printer

Hard Disk Type505.

ACheck the contents of the box for

the following items.

• Printer Hard Disk Type505

• Installation Guide

• Screws (3 pcs)

BTurn off the printer's power

switch and remove all cables and

cords from the printer.

CRemove screws and remove the

back plate.

Note

❒A coin can be used to remove

the screws.

DMake sure that the projection of

the connector of the hard disk is

on the top. Attach the connector to

the slot while holding the hard

disk.

ESet the hard disk in the lower left

corner at the rear of the printer, as

shown in the illustration. Make

sure that the screw holes of the

hard disk align with the screw

holes of the printer. And fasten it

with the screws that are enclosed

in the box using the screw driver.

•

Make sure to turn off the printer

and wait for about 30 minutes

before installing options. Not

waiting for the printer to cool

down can result in a burn.

TFWX186E

TFWX600E

TFWX610E

Installing Options

FAttach the back plate to its origi-

nal position, and fasten it with

screws that were removed in step

Note

❒A coin can be used to fasten the

screws.

GPlug the printer's power cord

back into the printer and the wall

socket. Turn on the printer's pow-

er switch.

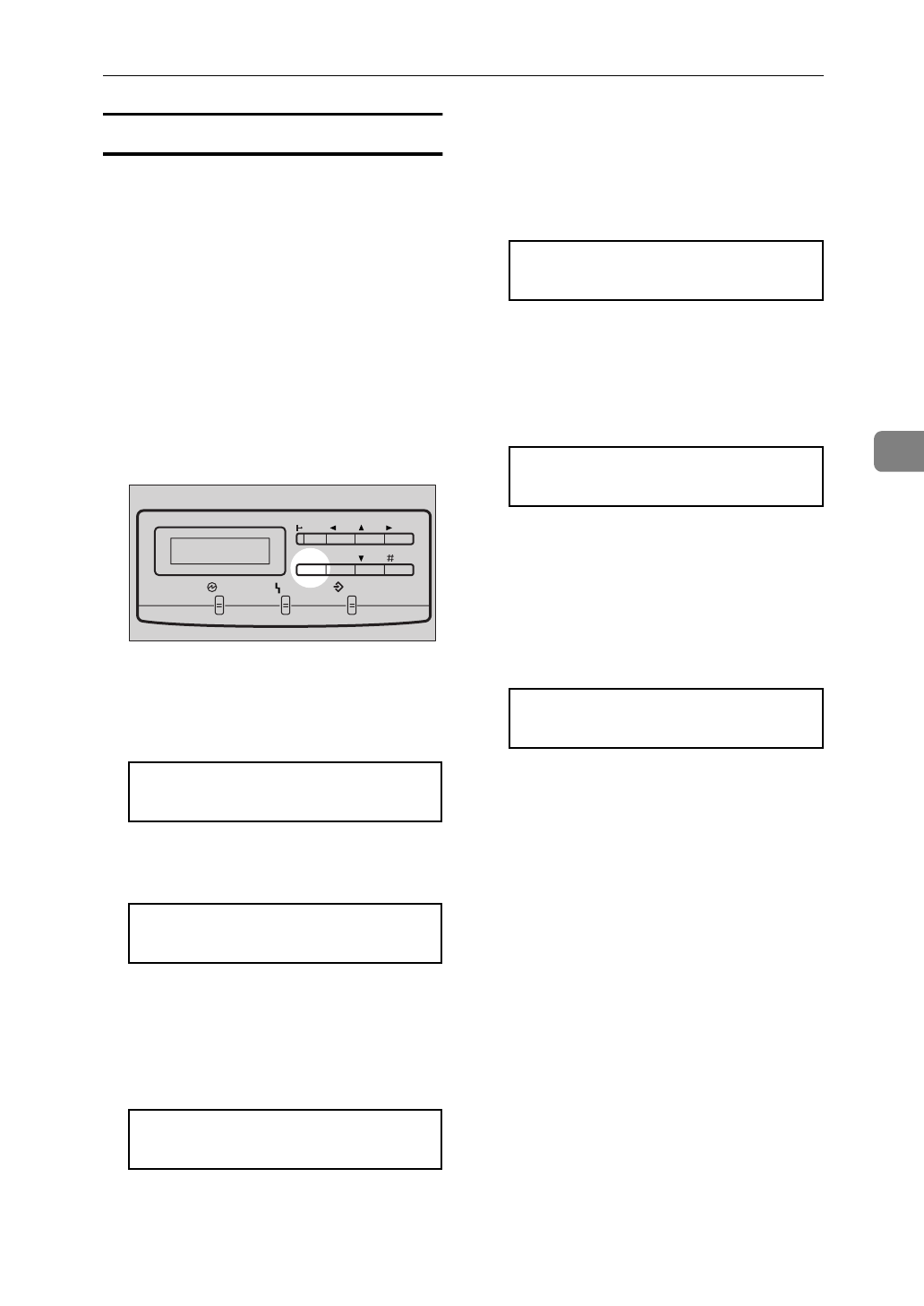

HAfter installing the hard disk, ini-

tialize it using the operation pan-

el.

The following message appears on

the panel display.

PRESS ENTER TO

INITIALIZE DISK

IPress {

Enter

The printer starts initializing the

hard disk. The following message

appears on the panel display.

INITIALIZING

JWhen initialization finishes, the

following message appears on the

panel display.

READY

KPrint a configuration page to con-

firm that the hard disk is properly

installed.

Reference

For more information on the

configuration page, see the

“Getting Started”.

Note

❒If the hard disk is not properly

installed, repeat steps B to K

again. If you fail again, contact

your sales or service representa-

tive.

Important

❒To make the printer recognize

the installed option properly,

you must set up the option with

the printer driver. See the “Us-

er's Guide” for further details.

TFWX196E

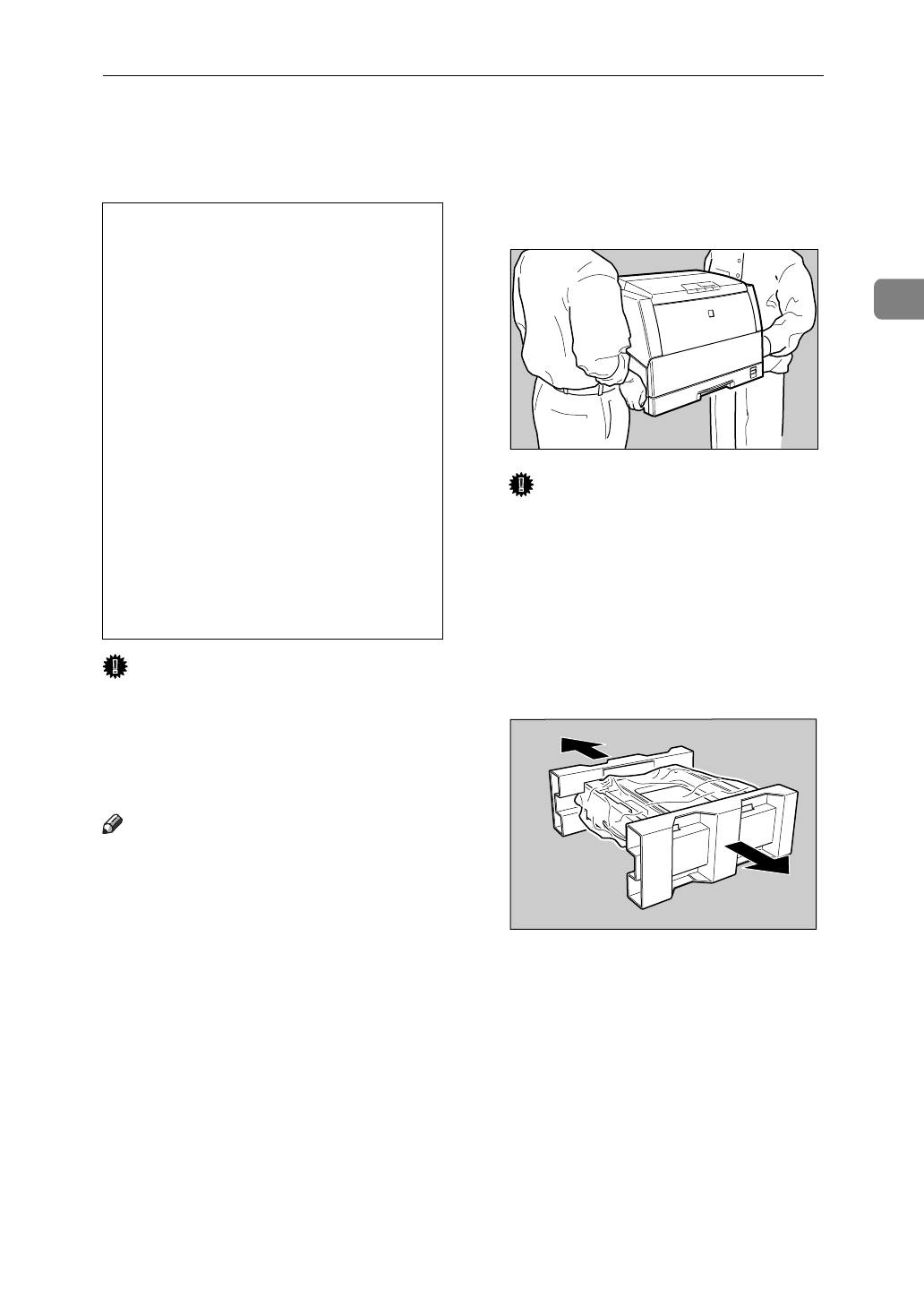

Installing the Paper Feed Unit Type305

CAUTION:

Important

❒If your printer is equipped with

the optional tray, do not pull out

more than one tray with paper at a

time. If you do, the printer might

tilt forward.

Note

❒It is impossible to install more than

two paper feed units to your print-

er at a time.

ACheck the contents of the box for

the following items.

• Paper Feed Unit Type305

• Installation Guide

BTurn off the printer's power

switch and remove all cables and

cords from the printer.

CMove the printer to make install-

ing space.

Important

❒Be careful to lift the printer as

the right front side of the printer

is significantly heavier than the

left front side.

DRemove the paper feed unit from

the box, and remove the styro-

foam packing and the bag from

the side covers.

•

It is recommended that at least

two persons are used to lift the

machine. Otherwise, the ma-

chine might fall and cause per-

sonal injury.

•

When lifting the machine, use

the inset grips on both sides of

the machine. Otherwise, the ma-

chine might fall and cause per-

sonal injury.

•

When moving the printer, be

sure to keep it level to avoid spill-

ing the fuser oil. If oil is spilt, wipe

it with alkaline cleaner. Other-

wise, the oily surfaces can cre-

ate the danger of slipping and

personal injury.

TFWH100E

TFWP050E

Installing Options

ERemove both pieces of adhesive

tape.

FPull out the paper tray, and re-

move the padding.

GRemove the ring attached to the

red tag.

HIf installing two paper feed units,

place one paper feed unit on the

other paper feed unit at first. If in-

stalling only one paper feed unit,

go to step I.

Align the paper feed unit onto the

4 upright pins on the other paper

feed unit.

IPlace the printer on the paper

feed unit.

Align the printer onto the 4 up-

right pins on the paper feed unit

and then lower it gently.

JConnect all of cables that were re-

moved in step B.

KPlug the printer's power cord

back into the printer and the wall

socket. Turn on the printer's pow-

er switch.

LPrint a configuration page to con-

firm that the paper feed unit is

properly installed.

Reference

For more information on the

configuration page, see the

“Getting Started”.

Note

❒If the paper feed unit doesn't

work, follow the above instruc-

tions to reinstall it. If it still

doesn't work, contact your sales

or service representative.

Important

❒To make the printer recognize

the installed option properly,

you must set up the option with

the printer driver. See the “Us-

er's Guide” for further details.

❒After installing the paper feed

unit properly, set up the paper

size. ⇒ P.25 “Loading Paper”

TFWP060E

TFWP070E

TFWP061E

TFWP100E

3. Paper and Other Media

Paper and Other Media Supported by this

Printer

Paper Types and Sizes

This section provides the type, size, feed direction, and maximum capacity of

paper that can be loaded into each paper tray in this printer.

Note

❒The ”K” symbol means short-edge feed direction.

❒The ”L” symbol means long-edge feed direction.

❒ The paper feed direction depends on the paper size.

❒

This printer can automatically switch to 8

”×11” (Letter) size paper if there

is no A4 size paper available, and vice-versa. For example, if the printer has no

A4 size paper when you want to print on A4, the printer searches for 8

”×11”

(Letter) size paper and prints on that instead.

Paper and Other Media

❖

Paper Sizes (Metric version)

*1 :Default setting for “p” on the dial.⇒ P.26 “Specifying paper size using the operation

panel”

Feed direction

Size (mm)

Bypass Tray

Standard Tray (Tray 1)

Paper Feed Unit

Type305 (Tray 2/3)

13" × 18" K330 × 457 ✩❍ ×

12" × 18" K305 × 457 ✩★ ×

A3 K297 × 420 ✩❍❍

B4 JIS K257 × 364 ✩★ *1 ★

A4 K210 × 297 ×××

L297 × 210 ✩ *1 ❍❍

B5 JIS K182 × 257 ×××

L257 × 182 ✩★★

A5 K148 × 210 ×××

L210 × 148 ✩❍ ×

B6 JIS K128 × 182 ❍××

A6 K105 × 148 ✩××

Double Letter

(DLT, 11" × 17")

K279 × 432 ✩★❍

Legal (LG, 81/2" × 14") K216 × 356 ✩★❍

Letter (LT, 81/2" × 11") K216 × 279 ×××

L279 × 216 ✩❍❍

Half Letter

(HLT, 51/2" × 81/2")

K216 × 140 ×××

L140 × 216 ✩★ ×

Executive

(Exec., 71/4" × 101/2")

K184 × 276 ×××

L276 × 184 ✩★❍

Folio (81/4" × 13") K210 × 330 ✩★★

Foolscap (F4, 81/2" × 13") K216 × 330 ✩❍

★ *1

F/GL (8" × 13") K203 × 330 ✩★★

Paper and Other Media Supported by this Printer

•✩ means that the size is supported and needs to specify the paper size using

the operation panel. (Regarding the bypass tray, there is no dial on the tray.)

⇒ P.27 “Loading Paper in the Bypass Tray”

•❍ means that the size is supported and indicated on the tray dial. Be sure to

set the paper size dial to match the actual paper size loaded in the tray.

•★ means that the size is supported but not indicated on the paper size dial.

You should set the paper size dial to “p”, and specify the paper size using

the operation panel. The default setting is Foolscap (8.5“×13”). ⇒ P.26 “Spec-

ifying paper size using the operation panel”

•× means that the size is not supported.

The paper tray can support paper 64 – 105 g/m2 (17 – 28 lb).

The bypass tray can support paper 64 – 157 g/m2 (17 – 42 lb).

The optional paper tray can support paper 64 – 105 g/m2 (17 – 28 lb).

Paper and Other Media

❖

Paper Sizes (Inch version)

*1 : Default setting for “p” on the dial.⇒ P.26 “Specifying paper size using the operation

panel”

Feed direction

Size (inch)

Bypass Tray

Standard Tray (Tray 1)

Paper Feed Unit

Type305 (Tray 2/3)

13" × 18" K13" × 18" ✩★ ×

12" × 18" K12" × 18" ✩❍ ×

Double Letter

(DLT)

K11" × 17" ✩❍❍

Legal (LG) K81/2" × 14" ✩❍❍

Letter (LT) K81/2" × 11" ×××

L11" × 81/2" ✩ *1 ❍❍

Half Letter

(HLT)

K51/2" × 81/2"×××

L81/2" × 51/2" ✩★ ×

Executive

(Exec.)

K71/4" × 101/2"×××

L101/2" × 71/4" ✩❍❍

A3 K11.26” × 16.54” ✩★❍

B4 JIS K10.12” × 14.33” ✩×★

A4 K8.26” × 5.83” ×××

L5.83” × 8.26” ✩❍❍

B5 JIS K7.17” × 10.12” ×××

L10.12” × 7.17” ✩×★

A5 K5.83” × 8.26” ×××

L8.26” × 5.83” ✩××

B6 JIS K5.04” × 7.17” ×××

A6 K4.13" × 5.83" ✩××

Folio K81/4" × 13" ✩★★

Foolscap (F4) K81/2" × 13" ✩★ *1 ★ *1

F/GL K8" × 13" ✩★★

Paper and Other Media Supported by this Printer

•✩ means that the size is supported and needs to specify the paper size using

the operation panel. (Regarding the bypass tray, there is no dial on the tray.)

⇒ P.27 “Loading Paper in the Bypass Tray”

•❍ means that the size is supported and indicated on the tray dial. Be sure to

set the paper size dial to match the actual paper size loaded in the tray.

•★ means that the size is supported but not indicated on the paper size dial.

You should set the paper size dial to “p”, and specify the paper size using

the operation panel. The default setting is Foolscap (8.5“×13”). ⇒ P.26 “Spec-

ifying paper size using the operation panel”

•× means that the size is not supported.

The paper tray can support paper 64 – 105 g/m2 (17 – 28 lb).

The bypass tray can support paper 64 – 157 g/m2 (17 – 42 lb).

The optional paper tray can support paper 64 – 105 g/m2 (17 – 28 lb).

Paper and Other Media

Precautions for Paper

Note the following precautions when handling or selecting paper to be used

with this printer.

Cautions in loading paper

Important

❒Do not use paper that is meant for an inkjet printer. Otherwise, it may stick to

the fusing unit and cause a paper misfeed.

❒When printing on an OHP transparency that has a print side, load it with the

print side down onto the bypass tray. Otherwise, it may stick to the fusing

unit and cause a misfeed.

• Use only the recommended paper types. Print quality cannot be guaranteed

if other paper types are used. ⇒ P.23 “Paper not supported by this printer”

• Do not use paper that is already printed on.

Cautions in storing paper

Paper should always be stored properly. Improperly stored paper might result

in poor print quality, paper misfeeds, or printer damage.

Follow the precautions below.

• Avoid storing paper in humid areas.

• Avoid exposing paper to direct sunlight.

• Store on a flat surface.

• Keep open reams of paper in the package in which the paper came.

Paper types and cautions

❖

Plain paper

• The standard tray can hold up to 250 sheets. *1

• The bypass tray can hold up to 50 sheets. *1

• The Paper Feed Unit Type305 (option) can hold up to 500 sheets. *1

*1 : Based on paper that is 80 g/m2 (metric version), 20 lb (inch version) in weight.

• If paper is curled or bent, correct it before loading.

Note

❒To get the best print quality, we recommend you use paper exclusively de-

signed for color copier.

Paper and Other Media Supported by this Printer

❖

Thick Paper

• If you print on paper heavier than 105 g/m2 (28 lb), use the bypass tray.

The bypass tray can hold paper up to 157 g/m2 (42 lb) in weight. The print

quality on paper that is thicker cannot be guaranteed.

• The bypass tray can hold up to 25 sheets.

Note

❒The number of sheets to be set may vary depending on the paper thick-

ness and paper type.

• When printing on thick paper, you should select the thick paper mode

with the printer driver.

❖

Adhesive labels

• When printing on adhesive labels, use the bypass tray.

• Load adhesive labels into the tray with the print side down.

• Remove any unused adhesive labels from the tray after you are finished

printing. Leaving them in the tray can cause them to curl.

• When printing on adhesive labels, you should select the plain paper mode

with the printer driver.

• The bypass tray can hold up to 40 adhesive labels.

Note

❒The number of sheets to be set may vary depending on the paper thick-

ness and paper type.

TFWY060E

Paper and Other Media

❖

OHP transparencies

• When printing on OHP transparency, use the bypass tray.

• Load OHP transparencies into the tray with the print side down. Other-

wise, it may stick to the fusing unit and cause a misfeed.

• Remove any unused OHP transparencies from the tray after you are fin-

ished printing. Leaving them in the tray can cause them to curl.

• When printing on OHP transparencies, you should select the OHP trans-

parency mode with the printer driver.

• The bypass tray can hold up to 50 OHP transparency sheets.

Note

❒The number of sheets to be set may vary depending on the paper thick-

ness and paper type.

• When the “OHP SLIP SHEET” setting is set to “NO”, be sure to remove

each OHP transparency immediately after it is printed. For more informa-

tion, see the “Getting Started”.

Note

❒This printer uses paper in tray 1 for OHP slip sheet even if the direction

and size of paper loaded in tray 1 is different from the direction and size

of the OHP transparency. Check the direction and size of paper loaded

in tray 1 before using “OHP SLIP SHEET” setting.

❒When there is no paper in tray 1, “OHP SLIP SHEET” will not work

even if “OHP SLIP SHEET” setting is set to “YES”. Be sure to remove

each OHP transparency immediately after it is printed.

TFWY060E

Paper and Other Media Supported by this Printer

Paper not supported by this printer

Avoid using the following types of paper that are not supported by this printer:

• Paper whose weight is heavier or lighter than the limitation.

• Bent, folded, or creased paper

• Curled or twisted paper

•Torn paper

• Wrinkled paper

• Damp paper

• Paper stuck together

• Paper that is dry enough to emit static electricity

• Paper that has already been printed on (with the exception of preprinted let-

terhead)

Note

❒The ink for the format printing by a copier, or an inkjet printer and so on

might do harm to the fusing unit of this printer due to a difference in fusing

temperatures.

• Coated paper (except the recommended one)

• Special paper like thermal paper, aluminum foil, carbon paper and conduc-

tive paper

• Heavily textured paper

•Glued paper

• Label paper on which glue or base paper is exposed

• Paper with clips or stapled

• Paper with tape or ribbons attached

• Paper is meant for an inkjet printer.

• Envelopes

Paper and Other Media

Printable Area

The following shows the printable area for this printer. Be sure to set the print

margins correctly.

Note

❒The printable area may vary depending on paper size, printer language and

printer driver settings.

4.3mm(1/6") 4.3mm(1/6")

4.3mm(1/6")

printable area

Loading Paper

Loading Paper in the Paper

Tray

Use the following procedure to load

paper in the paper tray and optional

tray. See P.27 “Loading Paper in the By-

pass Tray” for details on the bypass

tray.

Important

❒After you load paper, you must set

the paper size dial to match the ac-

tual paper size loaded in the tray.

Otherwise, the printer might be

damaged.

Reference

See P.15 “Paper and Other Media

Supported by this Printer” for details

on supported paper types and siz-

es.

ACarefully pull the paper tray out

of the printer and place it on a flat

surface.

BSlide the paper guides to posi-

tions that match the size of paper

you want to load.

Adjust the paper guides until they

click into position.

Important

❒Do not touch the friction pad

(A). Otherwise, paper misfeeds

or paper multi-feeds might oc-

cur .

CLoad paper into the tray with the

print side up.

Important

❒Make sure that the stack of pa-

per is no higher than the limit

mark (TT) inside the tray.

❒Make sure the paper fits under

the back paper guide.

TFWY090E

TFWY100E

TFWY110E

Paper and Other Media

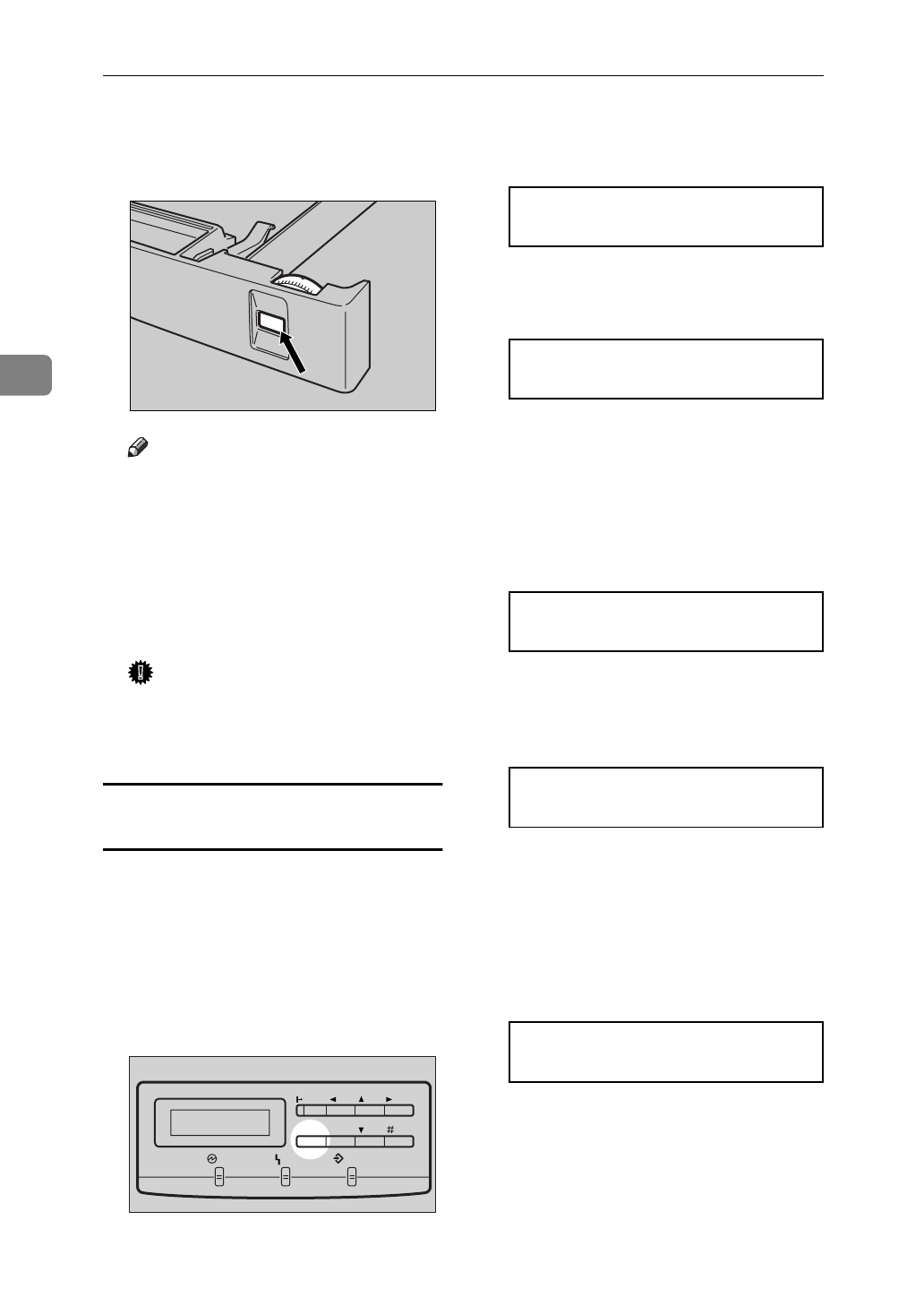

DAdjust the paper size dial to

match the size of the paper in the

paper tray.

Note

❒For more information about the

position of the paper size dial,

see P.16 “Paper Sizes (Metric ver-

sion)” or P.18 “Paper Sizes (Inch

version)”.

ESlide the paper tray completely

into the printer.

Important

❒Be sure to insert the paper tray

completely. Otherwise, paper

misfeeds might occur.

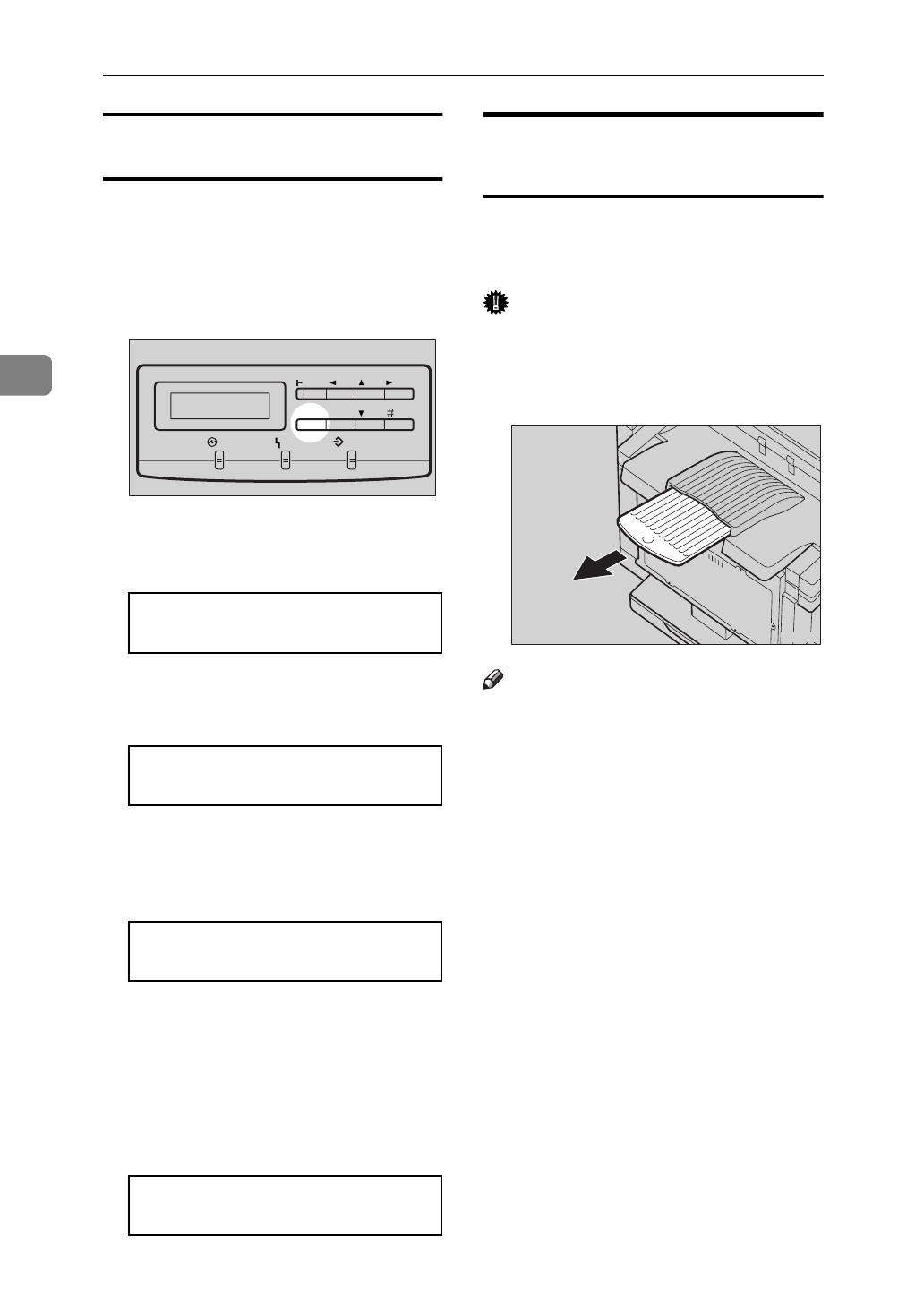

Specifying paper size using the

operation panel

Use the following procedure to speci-

fy the paper size from the printer's

operation panel after loading paper

with mark “p” in the table men-

tioned above into tray 1, tray 2 and

tray 3.

APress {

BUse {U}{T} to display “PRINT-

ER SETUP”.

PRINTER SETUP

CPress {

Enter

} until “SET [*] SIZE”

appears.

SET [*] SIZE

DUse {U}{T} to select “YES”, and

then press {

Enter

} to display

“TRAY1 [*] SIZE”.

The currently selected paper size

in paper tray appears on the panel

display.

TRAY1 [*] SIZE

8.5x13 *

EUse {U} {T} to select the paper

size you have specified for the pa-

per tray, and then press {

Enter

TRAY1 [*] SIZE

8x13

FPress {

The setting becomes effective.

GPress {

The normal display screen ap-

pears.

READY

TFWY120E

Power Error Data In

On Line

TFWS020E

Cancel

Enter

Loading Paper

Loading Paper in the Bypass

Tray

Note

❒Do not open the front cover when

loading paper into the bypass tray.

Reference

⇒ P.15 “Paper Types and Sizes”

⇒ P.20 “Precautions for Paper”

Loading paper

AOpen the bypass tray.

BSlide the side guides.

Note

❒Slide out the bypass tray ex-

tender.

CLoad paper until it stops with the

print side down.

Important

❒Make sure the paper fits under

the side guides.

❒The side guides should be set to

the correct paper size to avoid

paper feed problems.

❒Do not load paper when print-

ing.

TFWY130E

TFWY140E

TFWY150E

TFWY160E

Paper and Other Media

Specifying paper size using the

operation panel

Use the following procedure to speci-

fy the paper size from the printer's

operation panel after loading paper

into the bypass tray.

APress {

BUse {U}{T} to display “PRINT-

ER SETUP”.

PRINTER SETUP

CPress {

Enter

} until “BYPASS

TRAY SIZE” appears.

BYPASS TRAY SIZE

8.5x11 *

DUse {U} {T} to select the paper

size you have specified for the pa-

per tray, and then press {

Enter

BYPASS TRAY SIZE

8x13

EPress {

The setting becomes effective.

FPress {

The normal display screen ap-

pears.

READY

Sliding out the Output Tray

Extender

If you load paper of A4L or 81/2" ×

11"L or larger, slide out the output

tray extender.

Important

❒Do not place the rear end of the

printer near a wall or touch it with

barehands. This area can become

extremely hot.

Note

❒After printing, return the output

tray extender to its original posi-

tion.

Power Error Data In

On Line

TFWS020E

Cancel

Enter

TFWX440E

4. Troubleshooting

Error & Status Messages on the Operation Panel

Message Description Comments

ADD FUSER OIL The fuser oil bottle is empty. Replace the fuser oil bottle.

⇒ P.50 “Replacing the Fuser

Oil Bottle and Ozone Filter”

CALL SERVICE

SC:nn

There is a malfunction in the

printer. Turn the printer off and on.

If this doesn't clear the prob-

lem, contact your sales or

service representative.

CHECK CHARGER The charger is not set cor-

rectly or the charger cleaner

is not in the correct position.

Set the charger correctly.

⇒ P.53 “Replacing the Waste

Toner Bottle and Charger”

CHECK FUSING

UNIT

The fusing unit is not in-

stalled in the printer. Contact your sales or service

representative.

CHECK PCU The photoconductor unit is

not installed in the printer. Install the photoconductor

unit. ⇒ P.48 “Replacing the

Photoconductor Unit”

CHECK TONER

CARTRIDGE

The toner cartridge is not in-

stalled correctly. Install the cartridge correct-

ly. ⇒ P.45 “Replacing the

Toner Cartridge”

CHECK WASTE

TONER BOTTLE

The waste toner bottle is not

installed. Install the waste toner bot-

tle. ⇒ P.53 “Replacing the

Waste Toner Bottle and Charg-

er”

CHECK (tray name) The paper tray is not in-

stalled correctly. Install the paper tray cor-

rectly.

The tray on the paper feed-

ing path was not set correct-

ly when the printer received

the print job.

Install the paper tray cor-

rectly. The printer will re-

start printing automatically.

FRONT COVER

The front cover is open. Close the front cover.

(⇒ P.1)

LEFT COVER

The left cover is open. Close the left cover. (⇒ P.1)

CLOSE PAPER EXIT

COVER

The paper exit cover is open. Close the paper exit cover.

(⇒ P.3)

Troubleshooting

ERROR

POWER OFF AND ON

There is a malfunction in the

printer. Turn the printer off and on.

If this doesn't clear the prob-

lem, contact your sales or

service representative.

FUSER OIL LOW Fuser oil is low. You can

print about 200 or /more

pages after this message ap-

pears.

Replace the fuser oil bottle.

⇒ P.50 “Replacing the Fuser

Oil Bottle and Ozone Filter”

LOAD PAPER

IN (tray name)

There is no paper in the indi-

cated tray. Load paper into the indicat-

ed tray.

LOAD BYPASS

(media type) (paper size)

There is no indicated media

type and paper size in the

bypass tray.

Load the indicated media or

paper into the bypass tray.

LOAD (tray name)

(paper size)

There is no indicated paper

size in the paper tray. Load the indicated paper

into the paper tray.

OPEN FRONT COVER

REMOVE MISFEED

There is a paper misfeed in

the printer. Remove the misfed paper.

⇒ P.38 “Removing Misfed Pa-

per”

PAPER SIZE ERROR

CHECK GUIDES

↓↑

OPEN AND CLOSE

COVER TO CLEAR

There is a difference be-

tween the position of the pa-

per guides in the bypass

tray and the specified paper

size set with the operation

panel.

After confirming that the

paper guides are set to the

correct positions, open and

close the front cover. ⇒ P.27

“Loading Paper in the Bypass

Tray”

PAPER SIZE ERROR

(paper size)

↓↑

OPEN AND CLOSE

COVER TO CLEAR

There is a difference be-

tween the paper size in the

paper tray and the specified

paper size set with the oper-

ation panel or the paper size

dial.

After confirming that the

size and feed derection of

paper in the paper tray is set

correctly, open and close the

front cover. ⇒ P.25 “Loading

Paper in the Paper Tray”

REMOVE MISFEED

FROM OUTPUT TRAY

There is a paper misfeed in

the printer. Remove the misfed paper.

⇒ P.38 “Removing Misfed Pa-

per”

REMOVE MISFEED

FROM INPUT TRAY

There is a paper misfeed in

the printer. Remove the misfed paper.

⇒ P.38 “Removing Misfed Pa-

per”

REPLACE

FUSING UNIT

The fusing unit is nearly at

the end of its service life. Contact your sales or service

representative.

Message Description Comments

Error & Status Messages on the Operation Panel

Note

❒If you cannot solve the problem by taking above actions, turn the printer

power off and then back on again. If this doesn't clear the error message, write

down the error number and the message, and contact your sales or service

representative.

REPLACE PCU The photoconductor unit is

nearly at the end of its life. If printed side gets dirty, re-

place the photoconductor

unit. ⇒ P.48 “Replacing the

Photoconductor Unit”

TONER LOW

xxx

Indicated toner is low or

runs out. Replace the indicated toner

cartridge. ⇒ P.45 “Replacing

the Toner Cartridge”

WARMING UP The printer is preparing for

printing. Wait until the printer is

warmed up.

The printer adjusts itself

regularly to maintain print

quality. (This message

might appear while print-

ing.)

It is not an error message.

The printer is working prop-

erly. Just wait a while.

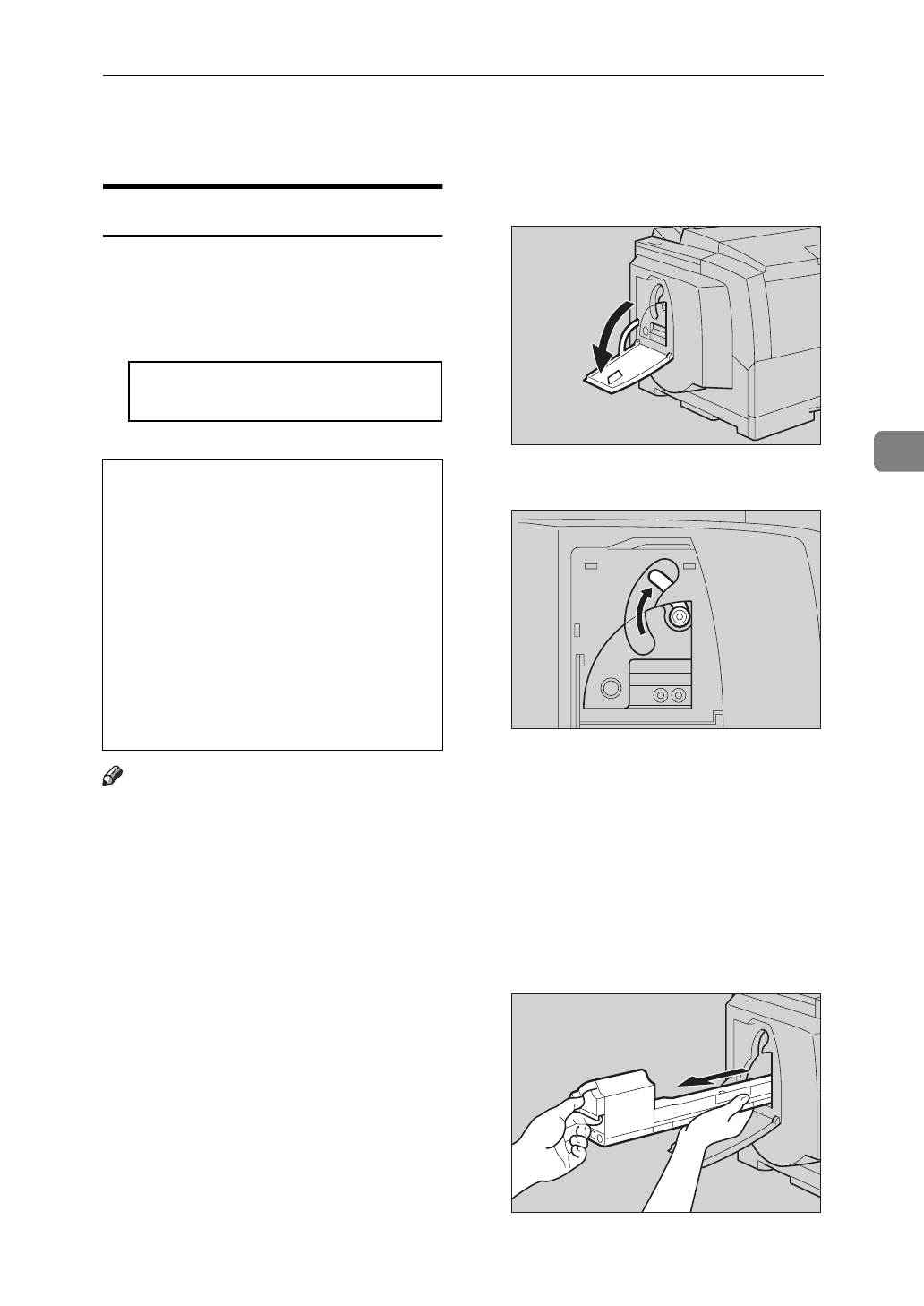

WASTE TONER

ALMOST FULL

The waste toner bottle is

nearly full. Replace the waste toner bot-

tle. ⇒ P.53 “Replacing the

Waste Toner Bottle and Charg-

er”

WASTE TONER

FULL

The waste toner bottle is

full. Replace the waste toner bot-

tle. ⇒ P.53 “Replacing the

Waste Toner Bottle and Charg-

er”

Message Description Comments

Troubleshooting

Printer Doesn't Print

Possible Cause Solutions

Is the power on? Make sure that the power cord is securely plugged into the

wall socket and the printer's power socket.

Turn on the printer's power switch. ⇒ P.6 “Turning the

Printer On and Off”

Is the interface cable

properly connecting the

printer to your comput-

er connected securely?

Connect the interface cable properly. If there are any con-

nectors or screws, make sure they are fastened securely.

See the "Quick Installation Guide" for details about the set-

tings.

Are you using a correct

interface cable? The type of interface cable you should use depends on your

computer. Be sure to use the correct one.

If the cable is damaged or worn, replace it with a new one.

See the “Quick Installation Guide” for details about the set-

tings.

Does the On Line indi-

cator stay on? Press {

On Line

} to light it up.

Is the paper set? Load paper into the paper tray or on the bypass tray. ⇒ P.25

“Loading Paper”

Does the Error indicator

stay red? Check the error message on the panel display and do the re-

quired action. ⇒ P.29 “Error & Status Messages on the Opera-

tion Panel”

Printer Doesn't Print

If you cannot solve the problem by taking the above actions, contact your sales

or service representative.

Is the Data In indicator

blinking after starting

the print job?

If not, the data is not being sent to the printer. Or the printer

may be resetting the print job because there was a long de-

lay in receiving the data from the computer.

❖

If your printer is connected to the computer using the in-

terface cable

Confirm that the parallel port setting is set to on.

For more information on the printer port settings, see the

“Getting Started”.

❖

If the printer is using the I/O timeout setting

Increase the value of the I/O timeout setting.

For more information on the the I/O timeout setting, see

the “Getting Started”.

❖

Network Connection

Contact your network administrator.

If the Data In indicator is blinking.

Take the following steps to correct the situation.

• Wait until the printer finishes receiving data from the

computer.

• Cancel the job if the data sent from the computer is too

large or complex.

Can you print a test

page (configuration

page)?

If you cannot print a test page, it probably indicates a print-

er malfunction. You should contact your sales or service

representative.

If you can print a test page but cannot get the printer to print

when you issue a print command from your computer, it

probably means there is a problem with your computer.

Also keep in mind that large, complex data might take long

time for the printer process. For more information, see the

“Getting Started”.

Possible Cause Solutions

Troubleshooting

Note

•Windows 95/98

AClick [

Start

], point to [

Settings

], and then click [

Printers

BSelect the icon of the printer by clicking it. Next, on the [

File

] menu, click

[

Properties

CClick [

Details

] tab.

DCheck the [

Print to the following port

] box to make sure the correct port is

selected.

•Windows NT4.0

AClick [

Start

], point to [

Settings

], and then click [

Printers

BSelect the icon of the printer by clicking it. Next, on the [

File

] menu, click

[

Properties

CClick [

Port

] tab.

DCheck the [

Print to the following port

] box to make sure the correct port is

selected.

Other Printing Problems

Note

❒If you cannot solve the problem by taking above actions, contact your sales or

service representative.

Black or white lines appear

on the print side. The charger and dust-proofing glass are dirty. Clean

the charger and dust-proofing glass. ⇒ P.42 “Cleaning

the Charger” and P.43 “Cleaning the Dust-proofing glass”

Smeared toner appears on

the printed side. The charger is dirty. Clean the charger. ⇒ P.42 “Clean-

ing the Charger”

Part of the printout is blurred

or light. If the message “TONER LOW XXX” is on the panel dis-

play, replace the toner cartridge for the indicated color.

⇒ P.45 “Replacing the Toner Cartridge”

Toner is not fused well when

printing on thick paper or

OHP transparencies.

The printer is not in thick paper or OHP transparency

mode. Select thick paper or OHP transparency mode

using the printer driver. For more information, see the

"User's Guide”.

The color of the printout

doesn't match the color on

the computer's display.

The toner based color system used by the printer is dif-

ferent from the light based color system of the comput-

er screen. For more information, see the "User's

Guide”.

Recalibrate the printer using the operation panel. For

more information, see the "Getting Started”.

Change the printer driver settings. For more informa-

tion, see the "User's Guide”.

Color documents are printed

in black and white. The printer driver is not set up for color printing.

Change the setting to color printing. For more informa-

tion, see the "User's Guide".

Thin lines are blurred or

light. Change the halftone settings of the printer driver. For

more information, see the "User's Guide”.

When printing on OHP

transparencies, a sheet of pa-

per is not placed between

printed OHP transparencies.

There is no paper in tray 1. Load the same size and di-

rection paper as the OHP transparency into tray 1.

The "OHP SLIP SHEET” setting is set to "NO”. Change

the setting with operation panel. For more information,

see the "Getting Started”.

Status Possible Causes, Descriptions, and Solutions

Troubleshooting

Removing Misfed Paper

When a paper misfeed occurs, an er-

ror message appears on the panel dis-

play. The procedure you should

follow to remove the misfed paper

depends on its location which is indi-

cated on the panel display.

CAUTION:

Important

❒If your printer is equipped with

the optional tray, do not pull out

more than one tray with paper at a

time. If you do, the printer might

tilt forward.

❒Check the following points if pa-

per continues to misfeed.

• Make sure paper is properly

loaded in the paper tray.

• Make sure the number of sheets

do not exceed the maximum ca-

pacity of the tray.

• Make sure you are using only

the appropriate type of paper.

• Make sure misfed paper is still

not inside the printer when you

resume printing.

• Check the paper type settings.

The type of paper set with the

printer driver might be different

from the actual paper or media

type. Make the correct paper or

media type setting.

❒Make sure the size of the paper

loaded in tray 1 is same as the size

of the OHP transparency.

❒If misfeeds persist, contact your

sales or service representative.

❒Do not touch the photoconductor

unit when removing misfed paper.

If you do, the photoconductor unit

might be damaged.

❒Exposing the photoconductor unit

to light for too long can reduce its

performance. Close the cover as

quickly as possible.

❒After removing the misfed paper,

the back sides of the next printout

might get dirty. Print a few pages

to absorb the toner.

•

When removing misfed pa-

per, do not touch the fusing

section because it could be

very hot.

•

When accessing the inside of

the machine, do not touch any

sections other than those

specified in this manual. If you

do, it might result in receiving

a burn or injury.

Removing Misfed Paper

When the Message "REMOVE

MISFEED FROM INPUT TRAY"

Appears

Standard Tray (Tray 1) or Paper Feed Unit

(Tray 2/3)

APull out the paper tray gently, be-

ing careful not to tear the misfed

paper, and remove the misfed pa-

per.

Make sure that you do not leave

any misfed paper in the printer.

Note

❒If your printer has an optional

paper feed unit installed, check

all paper trays for misfeeds.

BSlide the paper tray completely

into the printer.

Important

❒Be sure to insert the paper tray

completely. Otherwise, mis-

feeds might occur, or the front

cover might touch the paper

tray.

COpen the front cover, and then

close it to reset the misfeed condi-

tion.

Bypass tray

ACarefully pull the misfed paper.

Make sure that you do not leave

any misfed paper in the printer.

BWhen paper is left in the bypass

tray, remove the paper.

CClose the bypass tray, open the

front cover, and then close it to re-

set the misfeed condition.

DReload paper into the bypass tray.

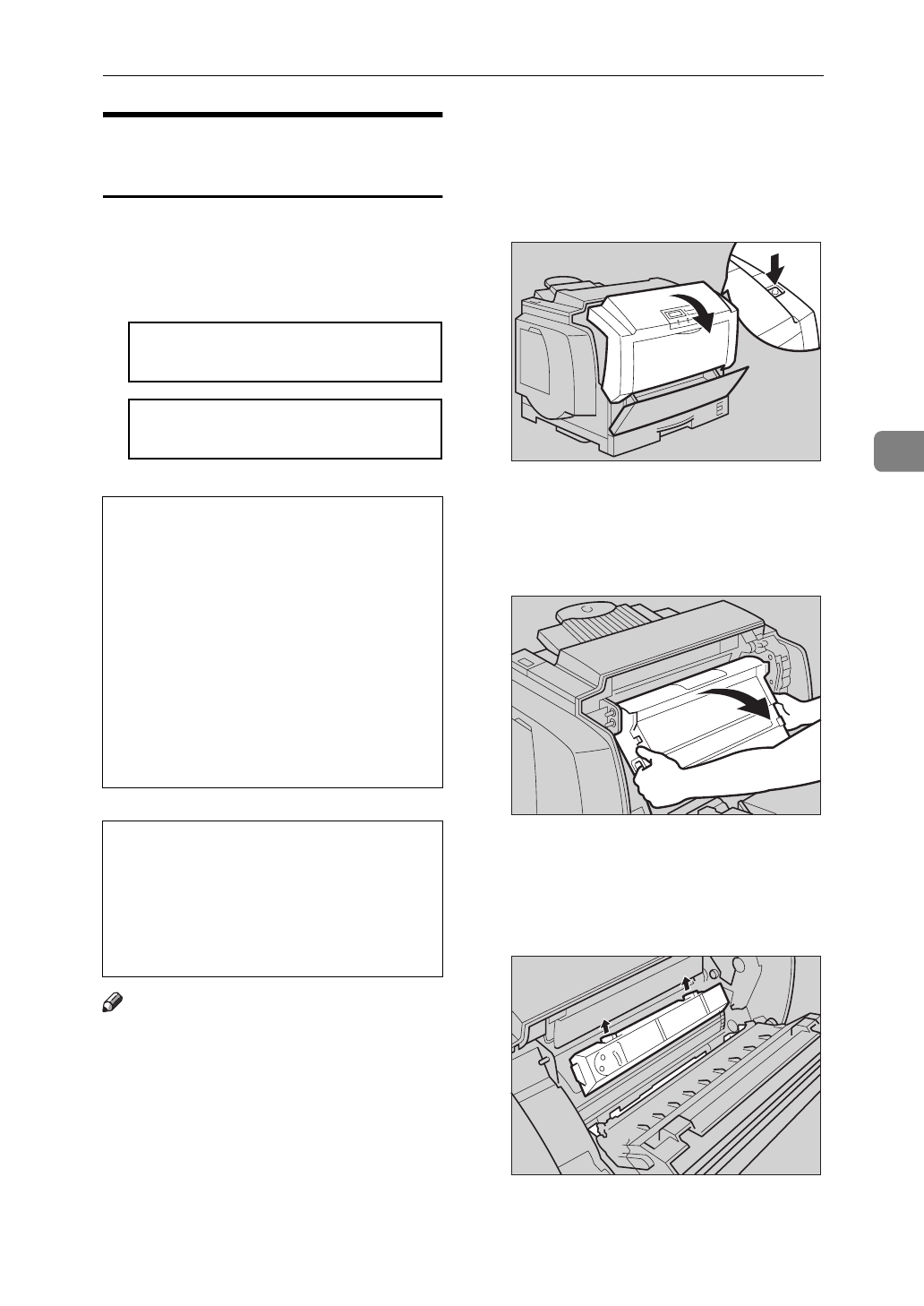

When the Message "OPEN

FRONT COVER REMOVE

MISFEED" Appears

CAUTION:

TFWY170E

•

When removing misfed paper,

do not touch the fusing section

because it could be very hot.

TFWY180E

Troubleshooting

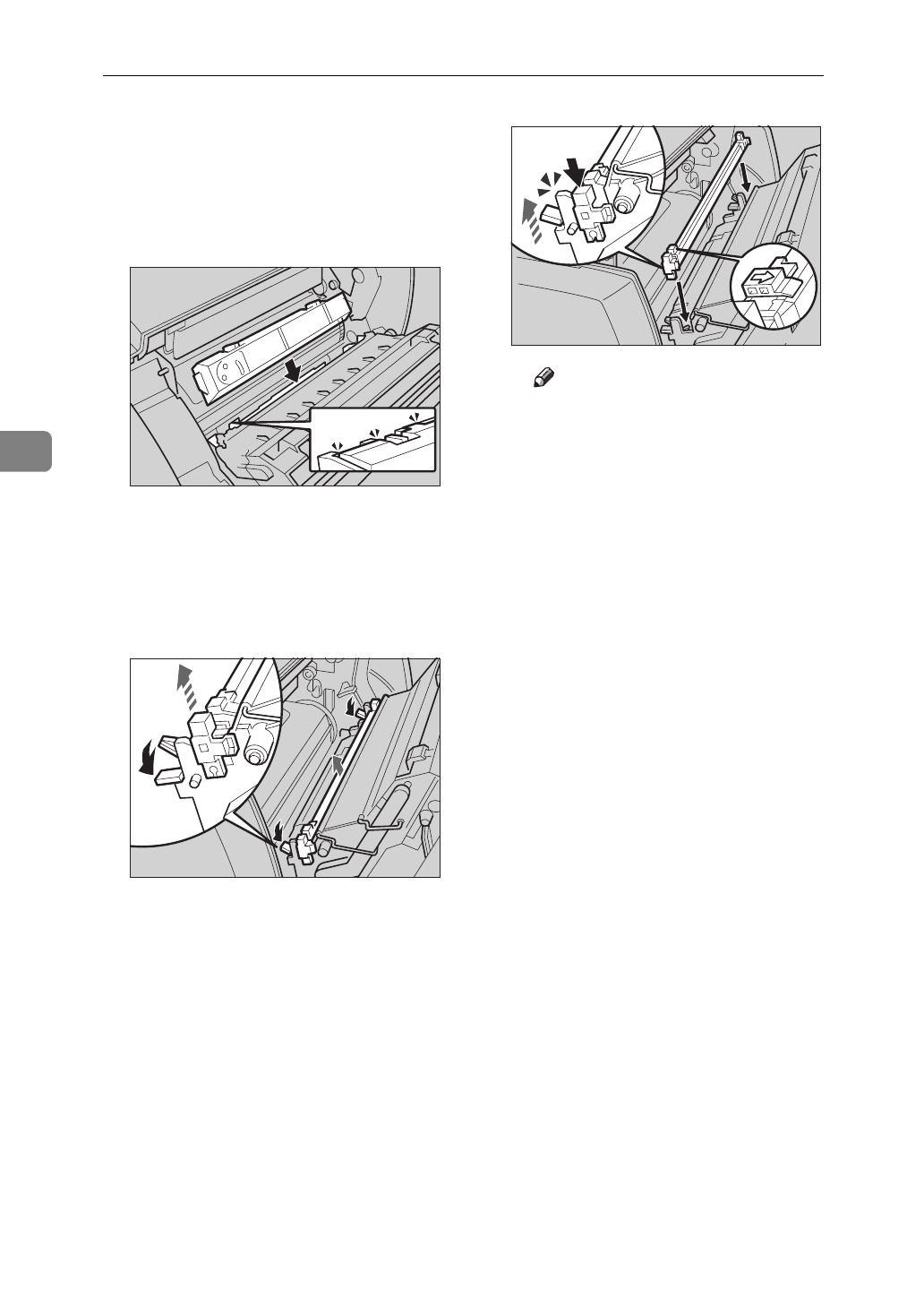

AOpen the front cover by pushing

the front cover release button.

BIf the paper is in the front side of

the photoconductor unit, careful-

ly pull it out.

Note

❒When removing misfed paper,

be careful not to touch the fus-

ing section because it could be

very hot.

CWhen the misfed paper is in the

main section of the photoconduc-

tor unit, turn the dial downward

then remove the misfed paper in

the printer.

Make sure that you do not leave

any misfed paper in the printer.

Note

❒If it is difficult to turn the dial,

turn it slightly upward in the

opposite direction, and then try

again.

DClose the front cover.

When the Message "REMOVE

MISFEED FROM OUTPUT

TRAY" Appears

CAUTION:

AOpen the paper exit cover.

Note

❒When opening the paper exit

cover, be careful as it may be

hot.

TFWX080E

TFWX210E

•

When removing misfed paper,

do not touch the fusing section

because it could be very hot.

TFWX220E

TFWX230E

Removing Misfed Paper

BOpen the front cover by pushing

the front cover release button.

CTurn the dial downward, then re-

move the misfed paper in the

printer.

Note

❒When removing misfed paper,

be careful not to touch the fus-

ing section because it could be

very hot.

When you can see the misfed

paper inside the printer.

Note

❒If it is difficult to turn the dial,

turn it slightly upward in the

opposite direction, and then try

again.

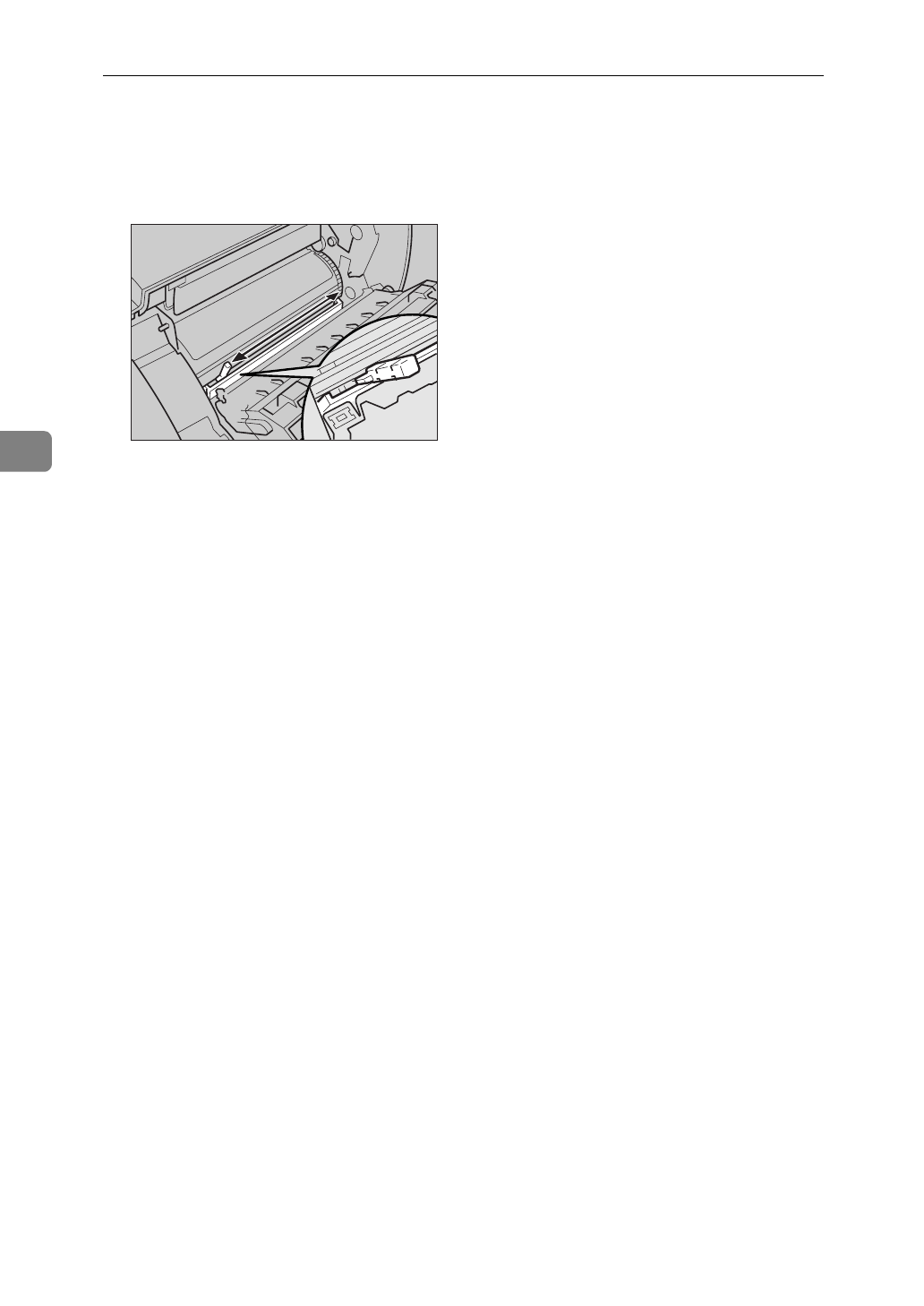

ARemove the misfed paper from

inside of the printer.

While turning the dial, remove

the misfed paper as shown in

the illustration. Be careful not to

leave any misfed paper in the

printer.

Note

❒When removing misfed pa-

per, be careful not to touch

the fusing section because it

could be very hot.

When you cannot see the misfed

paper inside the printer.

ARemove the misfed paper from

the output tray.

While turning the dial, remove

the misfed paper as shown in

the illustration. Be careful not to

leave any misfed paper in the

printer.

Note

❒When removing misfed pa-

per, be careful not to touch

the fusing section because it

could be very hot.

DClose the paper exit cover.

EClose the front cover.

TFWX080E

TFWX220E

TEWX240E

Troubleshooting

Cleaning the Printer

Cleaning the Friction Pad

If the friction pad becomes dirty, mis-

feeds or multi-feeds of paper might

occur. In this case, clean the pad as

follows:

ASlide the paper tray out until it

stops. After that, lift it slightly,

then pull it out of the printer.

Then remove the paper from the

paper tray.

BClean the friction pad with a soft

damp cloth. After wiping it with a

damp cloth, wipe it with a dry

cloth to remove the water.

Important

❒Do not use chemical cleaners or

organic solvents such as thinner

or benzene.

CLoad paper with the print side up

into the paper tray. While lifting

the front side of the tray, insert

the paper tray into the printer.

Then push in until it stops.

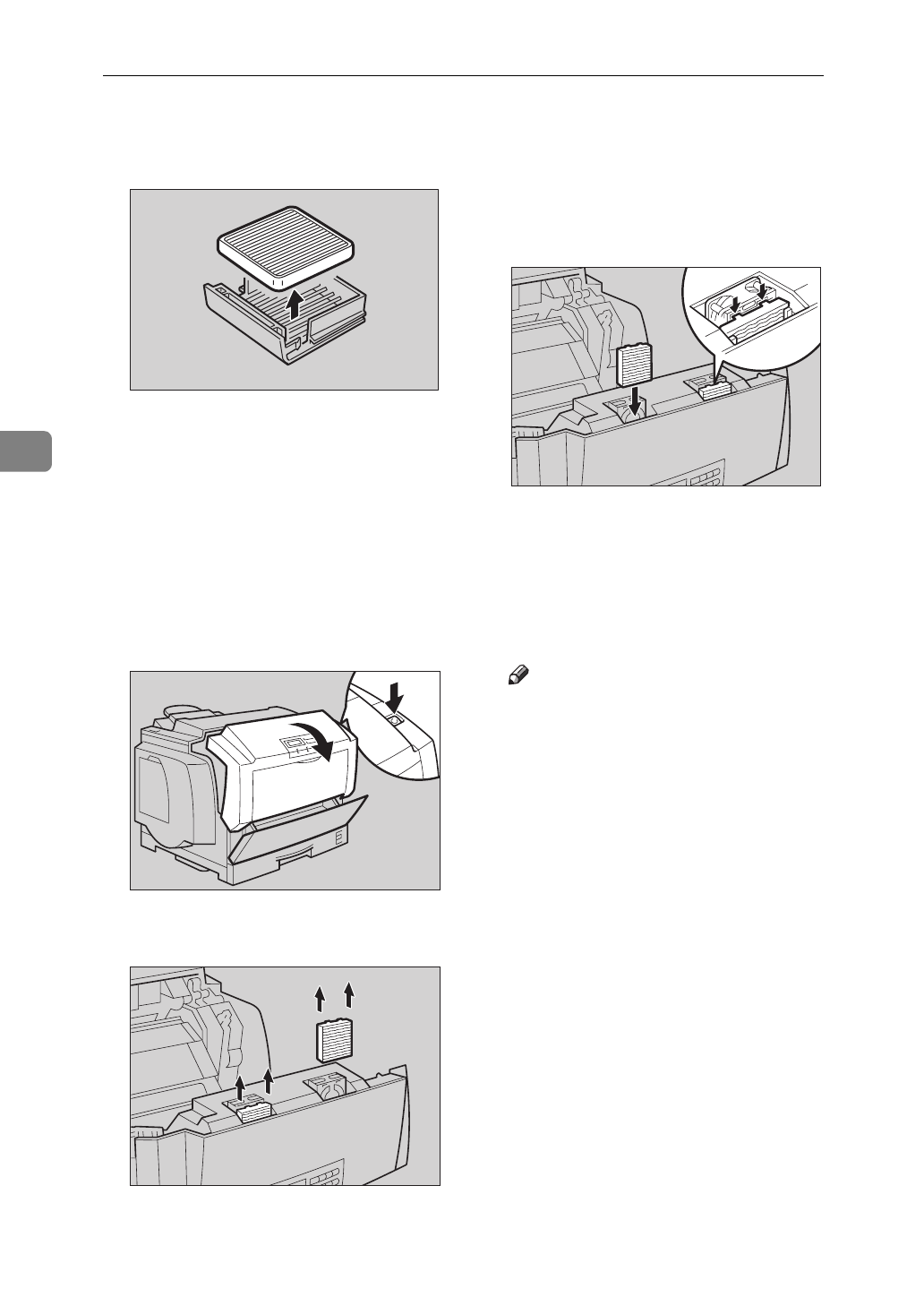

Cleaning the Charger

The charger requires cleaning when

your printouts appear dirty.

CAUTION:

AOpen the front cover by pushing

the front cover release button.

Important

❒Exposing the photoconductor

unit to light for too long can re-

duce its performance. Clean the

charger as quickly as possible.

BHold the inset grips (green part)

of the photoconductor unit, and

pull the top side of the photocon-

ductor unit forward.

TFWY230E

•

When accessing the inside of the

machine, do not touch any sec-

tions other than those specified

in this manual. If you do, it might

result in receiving a burn or inju-

ry.

TFWX080E

TFWX250E

Cleaning the Printer

CMove the charger cleaner (light

blue part) left and right 2 or 3

times, and return it to the left

side. Set the arrow of the charger

cleaner to the arrow of the photo-

conductor unit.

Important

❒If the charger cleaner is not on

the left side, an error message or

print problem might occur.

DHold the inset grips (green part)

of the photoconductor unit, and

push the photoconductor unit to

its original position.

EClose the front cover.

Cleaning the Dust-proofing

glass

The dust-proofing glass may require

cleaning if black or white lines appear

on the print side of the document.

CAUTION:

AOpen the front cover by pushing

the front cover release button.

Important

❒Exposing the photoconductor

unit to light for too long can re-

duce its performance. Clean the

dust-proofing glass as quickly

as possible.

BHold the inset grips (green part)

of the photoconductor unit, and

pull the top side of the photocon-

ductor unit forward.

CRemove the cleaning brush from

back of the front cover.

•

When accessing the inside of the

machine, do not touch any sec-

tions other than those specified

in this manual. If you do, it might

result in receiving a burn or inju-

ry.

TFWX260E

TFWX080E

TFWX250E

TFWX270E

Troubleshooting

DInsert the cleaning brush into the

back of the guide (light blue) un-

til it stops, and then move it left

and right 4 or 5 times.

EReturn the cleaning brush to its

original position.

FHold the inset grips (green part)

of the photoconductor unit, and

push the photoconductor unit to

its original position.

GClose the front cover.

TFWX280E

Replacing Consumables

Replacing the Toner Cartridge

You should replace toner cartridges

whenever the message “TONER

LOW XXX” appears on the panel dis-

play.

TONER LOW

xxx

WARNING:

Note

❒Before removing a toner cartridge

from the printer, spread paper or

some other material around the

area you are working to keep toner

from making floor dirty.

❒When several toner colors run out

at the same time, a message ap-

pears on the operation panel. Re-

place them in the following order:

ABlack

BYellow

CCyan

DMagenta

❒When there is no all color toner

cartridges that you want to re-

place, you can specify the replac-

ing toner cartridges. ⇒ P.47

“Specifying the replacing toner car-

tridge”

AOpen the left cover.

BSlide the lock lever up.

CCarefully pull out the toner car-

tridge.

AHold the grip of the toner car-

tridge, and slide it out until

you can see the green tape.

BWith your hand under the

green tape, remove the toner

cartridge carefully as shown in

the illustration.

•

Do not incinerate spilled toner

or used toner. Toner dust

might ignite when exposed to

an open flame.

•

Disposal can take place at our

authorized dealer or at appro-

priate collection sites.

•

If you dispose of the used ton-

er containers yourself, dis-

pose of them according to

your local regulations.

TFWX140E

TFWX150E

TFWX480E

Troubleshooting

DRemove the protective sheet from

the new toner cartridge.

EHold the new toner cartridge and

shake it with a horizontal motion,

about 10 times, as shown in the il-

lustration.

Important

❒If the toner cartridge is not

shaken enough, toner might not

be evenly distributed in the car-

tridge. In this case, the print

quality might be reduced.

FSlide the new toner cartridge into

the printer.

GReturn the lock lever to its origi-

nal position.

HPull the tape out as shown in the

illustration.

Important

❒Be sure to pull the tape horizon-

tally. Pulling it upward or

downward causes toner scatter-

ing.

❒After pulling the tape out of the

cartridge, toner scatters easily.

Do not shake or give a shock to

the cartridge.

IClose the left cover.

The “TONER LOW XXX” message

clears from the panel display and

the printer starts warming up. It

takes a few minutes.

TFWX490E

TFWX500E

TFWX160E

TFWX170E

TFWX510E

Replacing Consumables

Specifying the replacing toner cartridge

When several toner colors run out at

the same time, you can replace only

the specific toner cartridges. If you do

not have all indicated toners, you

should do this before following P.45

“Replacing the Toner Cartridge”.

The following procedure describes

how to replace the magenta toner car-

tridge. You can use the same proce-

dure to replace the toner cartridges

for the other toner colors as well.

APress {

BUse {U}{T} to display "MAIN-

TENANCE", and then press {

En-

ter

MAINTENANCE

The following message appears on

the panel display.

SELECT TONER

NO *

CUse {U}{T} to select “YES”, and

then press {

Enter

The following message appears on

the panel display.

CYAN TONER

NO *

DPress {

Enter

} to display "MA-

GENTA TONER”.

The following message appears on

the panel display.

MAGENTA TONER

NO *

EUse {U}{T} to select “YES”, and

then press {

Enter

The following message appears on

the panel display.

MAGENTA TONER

PLEASE WAIT

The machine prepares itself for a

new toner cartridge. Prepare the

new toner cartridge for installa-

tion.

When the machine is ready, the

following message is displayed.

REPLACE TONER

MAGENTA

FReplace the toner cartridge. ⇒

P.45 “Replacing the Toner Car-

tridge”

Power Error Data In

On Line

TFWS020E

Cancel

Enter

Troubleshooting

Replacing the Photoconductor

Unit

The message shown below indicates

that the photoconductor unit is ap-

proaching the end of its life.

REPLACE PCU

You can still continue to use the cur-

rent photoconductor unit if you are

satisfied with the quality of the out-

put being produced by the printer.

When the printed image starts look-

ing soiled (horizontal lines along the

edges of the page, for example), re-

place the photoconductor unit as

soon as possible.

WARNING:

CAUTION:

Important

❒Exposing the photoconductor unit

to light for too long can reduce its

performance. Replace the unit as

quickly as possible.

Note

❒Before removing the photoconduc-

tor unit from the printer, spread

paper or some other material

around the area you are working

to keep toner from making floor

dirty.

❒The “REPLACE PCU” message is

based on a printed page counter

kept internally by the printer. It is

meant as a general guide to photo-

conductor unit life only. Actual

photoconductor unit life depends

on the printing conditions.

ARemove the new photoconductor

unit from the box.

BRemove the protective sheet by

pulling the red tab from the new

photoconductor unit.

CTurn off the printer's power

switch.

•

Do not incinerate the photo-

conductor unit. Toner dust

might ignite when exposed to

an open flame.

•

Disposal can take place at our

authorized dealer or at appro-

priate collection sites.

•

If you dispose the used photo-

conductor unit yourself, dis-

pose of it according to your

local regulations.

•

When accessing the inside of the

machine, do not touch any sec-

tions other than those specified

in this manual. If you do, it might

result in receiving a burn or inju-

ry.

TFWX471E

Replacing Consumables

DOpen the front cover by pushing

the front cover release button.

ELoosen the screws that hold the

photoconductor unit in the print-

er with the screw driver in the

new photoconductor unit's box.

The screws cannot be completely

removed from the photoconductor

unit.

FHold the inset grips (green part)

of the photoconductor unit, and

pull the top side of the photocon-

ductor unit forward.

GHold the inset grips (green part)

of the photoconductor unit, re-

move the photoconductor unit

from the printer, and place it care-

fully inside the new photocon-

ductor unit's box.

Important

❒To prevent accidental spilling of

toner, do not shake, rotate, drop

or hold the toner cartridge up-

side down.

TFWX080E

TFWX400E

TFWX250E

TYWX290E

TFWX520E

Troubleshooting

Note

❒Do not close the front cover re-

moving the photoconductor

unit. Otherwise, you cannot re-

place the photoconductor unit

because the photoconductor

unit holder will be closed. If you

do this by mistake, return the

photoconductor unit holder to

its original position before re-

placing the photoconductor

unit.

HHold the inset grips (green part)

of the new photoconductor unit,

and insert the photoconductor

unit into the photoconductor unit

holder.

When inserting the photoconduc-

tor unit, be careful not to damage

the surface of it.

Note

❒The white powder on the photo-

conductor unit is to protect it af-

ter installation into the printer.

This white powder doesn't have

any adverse effect on the interi-

or of the printer.

IHold the inset grips (green part)

of the new photoconductor unit,

and push the photoconductor

unit to its original position.

JFix the photoconductor unit with

fastening the screws using the

screw driver.

KClose the front cover.

Make sure that the front cover

close properly.

LTurn on the printer’s power

switch.

Replacing the Fuser Oil Bottle

and Ozone Filter

Replace the oil bottle and ozone filter

whenever the message shown below

appears on the panel display.

FUSER OIL LOW

ADD FUSER OIL

There is the fuser oil bottle and the

ozone filter in the Fuser Oil Type305.

WARNING:

TFWX300E

TFWX305E

•

Do not incinerate the oil bottle.

This action could cause a fire

or getting burned.

•

Spilt oil is very slippery. If oil

is spilt, wipe it with alkaline

cleaner. Otherwise, the oily

surfaces can create the dan-

ger of slipping and personal

injury.

Replacing Consumables

CAUTION:

Important

❒There are three ozone filters in this

printer. Two of them are set inside

in the front, one of them is set in

the rear. Be careful when replacing

the ozone filters as the front side

filter is a different shape from the

rear side filter.

❒Disposal can take place at our au-

thorized dealer or at appropriate

collection sites.

❒Dispose of used ozone filters as

general burnable refuse.

ATurn off the printer's power

switch.

BReplace the oil bottle.

ARemove the green cap from the

new oil bottle.

Important

❒Hold the clear cap while

turning the green cap. Do not

remove the clear cap.

BOpen the fuser oil bottle cover

of the printer.

CRemove the used oil bottle

from the printer carefully.

DInsert the new oil bottle into

the oil bottle case.

EClose the fuser oil bottle cover.

Important

❒The fuser oil bottle cover

should be kept closed.

CReplace the ozone filter on the

back side of the printer.

ARemove the ventilator hole

cover.

•

When accessing the inside of the

machine, do not touch any sec-

tions other than those specified

in this manual. If you do, it might

result in receiving a burn or inju-

ry.

TFWX031E

TFWX090E

TFWX100E

TFWX960E

Troubleshooting

BRemove the ozone filter from

inside the ventilator hole cov-

er.

CInstall a new ozone filter on

the ventilator hole cover.

DReplace the ventilator hole

cover onto the printer.

DReplace the ozone filters inside

the printer. (There are two filters.)

AOpen the front cover by push-

ing the front cover release but-

ton.

BGrasping the ozone filter by its

tab, remove it from the printer.

CInsert a new ozone filter into

the printer.

Slide the filter into the stopper.

Two small thin plastic tabs of

the top of the filter should pop

into place.

DClose the front cover.

Make sure that the front cover

close properly.

ETurn on the printer’s power

switch.

Note

❒After replace the fuser oil bottle,

it takes a few minutes until the

message clears.

TFWX070E

TFWX080E

TFWX310E

TFWX320E

Replacing Consumables

Replacing the Waste Toner

Bottle and Charger

You should replace waste toner bottle

and charger whenever the following

messages appear on the panel dis-

play.

WASTE TONER

ALMOST FULL

WASTE TONER

FULL

WARNING:

CAUTION:

Note

❒Before removing the waste toner

bottle from the printer, spread pa-

per or some other material around

the area you are working to keep

toner from making floor dirty.

ATurn on the printer’s power

switch.

BOpen the front cover by pushing

the front cover release button.

CHold the inset grips (green part)

of the photoconductor unit, and

pull the top side of the photocon-

ductor unit forward.

DReplace the waste toner bottle .

AGrasping the waste toner bot-

tle by its green tabs, remove it

from the printer.

•

Do not incinerate spilled toner

or used toner. Toner dust

might ignite when exposed to

an open flame.

•

Disposal can take place at our

authorized dealer or at appro-

priate collection sites.

•

If you dispose of the used ton-

er containers yourself, dis-

pose of them according to

your local regulations.

•

When accessing the inside of the

machine, do not touch any sec-

tions other than those specified

in this manual. If you do, it might

result in receiving a burn or inju-

ry.

TFWX080E

TFWX250E

TFWX330E

Troubleshooting

BInsert a new waste toner bottle

at the rear of the photoconduc-

tor unit.

Insert a new waste toner bottle

completely. Otherwise, print

problem may occur.

EReplace the charger.

APush the right and left lock le-

vers of the charger.

The locks release, and the charg-

er is lifted slightly.

BRemove the charger.

CInstall a new charger into the

printer.

Insert the new charger into the

printer with the arrow of the

charger cleaner's lever facing to-

ward you. The charger locks au-

tomatically.

Note

❒Return the charger cleaner to

the left side. Otherwise, print

problem may occur.

FHold the inset grips (green part)

of the new photoconductor unit,

and push the photoconductor

unit to its original position.

GClose the front cover.

Make sure that the front cover

close properly.

HTurn on the printer’s power

switch.

TFWX340E

TFWX450E

TFWX460E

5. Appendix

Moving and Transporting the Printer

CAUTION:

Important

❒Be sure to disconnect all cables from the printer before transporting it.

❒The printer is a precision piece of machinery. Take care to avoid damage dur-

ing shipment.

•

It is recommended that at least two persons are used to lift the machine.

Otherwise, the machine might fall and cause personal injury.

•

When lifting the machine, use the inset grips on both sides of the machine.

Otherwise, the machine might fall and cause personal injury.

•

When you move the machine, unplug the power cord from the wall socket

to avoid a fire or an electric shock.

•

When you pull out the plug from the socket, grip the plug to avoid damaging

the cord and causing a fire or an electric shock.

•

When moving the printer, be sure to keep it level to avoid spilling the fuser

oil. If oil is spilt, wipe it with alkaline cleaner. Otherwise, the oily surfaces

can create the danger of slipping and personal injury.

Appendix

Specifications

Mainframe

❖

Configuration:

Desktop

❖

Print Process:

Laser beam and dry toner electrical photographic system

❖

Printing Speed:

Monochrome: 17 pages per minute (A4, 81/2"×11")

Color: 5 pages per minute (A4, 81/2"×11")

❖

Resolution:

600 dpi

❖

Parallel Interface:

Conforms to the standard centronics

Interface

A standard 36-pin printer cable and a parallel port on the host computer

Mode

Compatible, Nibble, ECP

Connector

IEEE P1284-B

• Do not use a cable more than 2.5 meters (8.2 feet) long.

❖

Printer Language:

Adobe PostScript Level3, PCL5c/5e

❖

Paper Size:

⇒ P.15 “Paper and Other Media Supported by this Printer”

❖

Paper Weight:

⇒ P.15 “Paper and Other Media Supported by this Printer”

❖

Power Source:

⇒ Inside of the front cover of this manual

❖

Power Consumption:

Standby (Maximum) 150 W or less

Printing (Maximum) 1,200 W or less

Printing (Average) 750 W or less

Energy Save (Maximum) 45 W or less

Specifications

❖

Noise Emission (Sound Power Level):

Note

❒The above measurements are made in accordance with ISO7779.

❖

Dimensions:

Measurement conditions: With paper tray, bypass tray and output tray ex-

tender closed.

❖

Weight:

Approximately 62 kg (136.7 lb) (including consumables)

❖

Warm-up Time:

Less than 450 seconds (23°C)

❖

Paper Capacity:

*1 Paper weight: 80 g/m2, 20 lb

❖

Paper Output Capacity:

A4: 250 sheets (80 g/m2, 20 lb)

A3: 100 sheets (80 g/m2, 20 lb)

❖

CPU:

R4700-133MHz

❖

Memory:

Standard 32MB, Up to 160MB (with optional memory unit)

❖

Network:

Topology: Ethernet (10BASE-T/100BASE-TX, 10BASE5), TokenRing (Op-

tion)

Protocol: TCP/IP, IPX/SPX, AppleTalk, SMB

Printing Less than 64 db(A)

Stand-by Less than 43 db(A)

Width Depth Height

Printer only 660 mm (26") 625 mm (24.7") 475 mm (18.8")

With one optional

paper feed unit 660 mm (26") 625 mm (24.7") 601 mm (23.7")

With two optional

paper feed units 660 mm (26") 625 mm (24.7") 727 mm (28.7")

Standard paper tray 250 sheets *1

Bypass tray 50 sheets *1

Optional paper feed unit 500 or 1,000 sheets *1

Appendix

❖

Optional Equipment:

• Paper Feed Unit Type305

• Memory Unit Type505 (32MB/64MB) (DIMM)

• Printer Hard Disk Type505

Specifications

Options

Paper Feed Unit Type305

❖

Paper Size:

⇒ P.15 “Paper Types and Sizes”

❖

Paper Weight:

⇒ P.15 “Paper Types and Sizes”

Memory Unit Type505 (32MB) and Memory Unit Type505 (64MB)

❖

Model Type:

DIMM (Dual In-Line Memory Module)

❖

Memory Type:

PC100 SDRAM (precisely described as PC100 Rev1.0 compatible)

❖

Number of Pins:

168 pins

❖

Access Time (Frequency):

100MHz

❖

CAS Latency:

Printer Hard Disk Type505

❖

Type:

2.5 inch slim type (8.45mm height)

❖

Storage Capacity (Formatted):

1.62GB

❖

DIsk Rotational Speed:

4,200rpm

❖

Seek Time (Average):

13ms

❖

Host Interface:

EIDE (UDMA mode supported)

Appendix

Consumables

CAUTION:

❖

Toner Cartridge

*1 A4 5% test chart

Note

❒The actual number of printed pages you get from a particular toner car-

tridge depends on the type and size of paper you are using, the contents of

your print images, and printing environment conditions. The life of a toner

cartridge also shortens as the cartridge becomes older. All this means that

a toner cartridge might require replacement sooner than the normal life de-

scribed above.

❒Toner cartridges that come with the printer are for setup purposes, and

will not provide the number of pages described above. The average num-

ber of printable pages that can be expected from the toner cartridges in-

cluded in the printer are as follows:

• Black toner cartridge : about 6,000 pages

• Cyan, magenta and yellow toner cartridges : about 3,000 pages for each

•

Our products are engineered to meet the highest standards of quality and

functionality. When purchasing expendable supplies, we recommend using

only those specified by an authorized dealer.

Average printable number of pages per cartridge

COLOR TONER Type305 Cyan 15,000 pages

COLOR TONER Type305 Ma-

genta 15,000 pages

COLOR TONER Type305 Yellow 15,000 pages

TONER Type305 Black 15,000 pages

Consumables

❖

Other Consumables

Note

❒Actual life of consumables depends on the type and size of paper you are

using, the contents of your print images, and printing environment condi-

tions. The life of consumables also shortens as the consumables become

older. All that means that consumables might require replacement sooner

than the life indicated.

*1 A4 5% test chart

*2 For monochrome printing

*3 For full color printing

*4 Waste Toner Bottle Type305 includes a charger.

Service Life *1

Waste Toner Bottle Type305 *4 20,000 pages *2

5,000 pages *3

Photo Conductor Unit Type305 60,000 pages *2

15,000 pages *3

Fuser Oil Type305 20,000 pages

62 UE USA G024

INDEX

Adhesive labels, 21

Back Plate, 3

Bypass Tray, 2, 27

{

Cancel

} key, 5

Charger, 4, 42, 53

Data In indicator, 5

Dust-proofing glass, 43

{

Enter

} key, 5

Error indicator, 5

Error & Status Messages on the Operation

Panel, 29

Friction Pad, 42

Front Cover, 1

Front Cover Release Button, 1

Fuser Oil Bottle, 4, 50

Fuser Oil Bottle Cover, 1

Inset Grips, 1

Left Cover, 1

Memory Unit Type505, 8, 9

{

} key, 5

Misfed Paper, 38

Network Interface Connector for 10BASE5

, 3

Network Interface Connector for

10BASE-T/100BASE-TX, 3

OHP transparency, 22

On Line indicator, 5

{

On Line

} key, 5

Operation Panel, 1

Options, 7

Output Tray, 1

Output Tray Extender, 1, 28

Ozone Filter, 3, 4, 50

Panel Display, 5

Paper, 15, 25

Paper Exit Cover, 3

Paper Feed Unit Type305, 8, 13

Paper Tray, 2, 25

Parallel Interface Connector, 3

Photoconductor Unit, 4, 48

Plain paper, 20

Power Connector, 3

Power indicator, 5

Power Switch, 1

Printable Area, 24

Printer Hard Disk Type505, 8, 11

Thick Paper, 21

Toner Cartridge, 4, 45

Ventilator, 3

Waste Toner Bottle, 4, 53
