Ver.1.5 Page 1 of 41 12/12/2008
Subject to change without notice
RICOH Americas Corporation Content ID# rfg032073
Product Support Guide
D052 / D053 / D054
Introduction
Model Type B/W MFP
Launch Date 4/2008
S/N Configuration M92 / M93 / M94
Product Code D052 / D053 / D054
Brand/Model Name
Product Code Gestetner Lanier Ricoh Savin
D052
D053
D054
MP 6000 / 6000SP
MP 7000 / 7000SP
MP 8000 / 8000SP
LD260 / 260SP
LD270 / 270SP
LD280 / 280SP
Aficio MP 6000 / 6000SP
Aficio MP 7000 / 7000SP
Aficio MP 8000 / 8000SP
8060 / 8060sp
8070 / 8070sp
8080 / 8080sp
Product Concept
Provide higher productivity with established superior features for business excellence in an office
environment.
The model MT series has successively established the top position with its excellent features to improve
office efficiency. The B246 series provided the following advanced features:
Productivity, Usability, Security, Energy-saving
The D052 Series will increase productivity by its cpm speed-up, in addition to the superior features
above.
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 2 of 41 12/12/2008
Subject to change without notice
Order Numbers
Main Frame
Name Model EDP Code Lanier ID Notes
Gestetner
MP 6000 / 6000SP
MP 7000 / 7000SP
MP 8000 / 8000SP
414338 / 414340
414341 / 414342
414343 / 414344 N/A -
Lanier LD260 / 260SP
LD270 / 270SP
LD280 / 280SP N/A 479-1946 / 479-1947
479-1948 / 479-1949
479-1950 / 479-1951 -
Ricoh Aficio MP 6000 / 6000SP
Aficio MP 7000 / 7000SP
Aficio MP 8000 / 8000SP
414338 / 414340
414341 / 414342
414343 / 414344 N/A -
Savin 8060 / 8060sp
8070 / 8070sp
8080 / 8080sp
414338 / 414340
414341 / 414342
414343 / 414344 N/A -
Options
Item Description EDP Code Lanier ID Product
Code Common /
Unique
SR970 3000-sheet Finisher
w/50-sheet Stapler 413321 216-1227 B701 Common with
B246 Series
SR4000 2,000-sheet Booklet
Finisher 413319 479-1679 B700 Common with
B246 Series
SR842 3000-sheet Finisher
w/100-sheet Stapler 413310 479-1759 B706 Common with
B246 Series
RT43* Large Capacity Tray 414517 481-7624 B473 Unique to D052
Series
Punch Unit Type 3260
NA 2/3 2/3 Hole Punch for
SR970/SR980/SR4000 412209 216-7116 B702 Common with
B246 Series
Punch Unit Type 1075
NA 2/3 2/3 Hole Punch for
SR842 411198 481-0529 B531 Common with
B246 Series
Cover Interposer Tray
Type 3260 Cover Interposer 412213 216-7118 B704 Common with
B246 Series
Copy Tray Type 2075 Copy Tray 412190 216-7113 B756 Common with
B246 Series
8 1/2" x 14" Paper
Size Tray Type 1075 LG/B4 Option 411187 481-0534 B474 Common with
B246 Series
Key Counter Bracket
Type 1027 Key Counter Bracket 412537 481-0478 B452 Common with
B246 Series
Tab Sheet Holder
Type 3260 Tab Sheet Holder 412203 216-7112 B499 Common with
B246 Series
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 3 of 41 12/12/2008
Subject to change without notice
Options
Item Description EDP Code Lanier ID Product
Code Common /
Unique
A3/11"x17" Tray Unit
Type 1075 A3/11"x17" Tray for
Tandem Tray 1 411185 481-0533 B475 Common with
B246 Series
Card Reader Bracket Card Reader Bracket 411203 481-0539 B498 Common with
B246 Series
Output Jogger Unit
Type 3260 Output Jogger for
SR970/SR4000 412212 216-7117 B703 Common with
B246 Series
Output Jogger Unit
Type 1075 Output Jogger for
SR842 411206 481-0538 B513 Common with
B246 Series
File Format Converter
Type C File Format Converter 412823 481-7053 B609 Common with
B246 Series
Copy Connector Kit
Type 7500 Copy Connector Kit 412809 481-7023 B842 Common with
B246 Series
Z-folding Unit ZF4000 Z-Folding Unit 412805 479-1714 B660 Common with
B246 Series
USB Host Interface
Unit Type A USB Host Interface 412867 481-7057 B825 Common with
B246 Series
DataOverwriteSecurity
Unit Type C HDD Data Overwrite
Unit 411989 481-0868 B735 Common with
B246 Series
Type 7500
Removable Hard
Drive Removable Hard Drive 002849MIU 481-7303 - Common with
B246 Series
Type 7500 Additional
Removable Hard
Drive
Additional Removable
Hard Drive 002850MIU 481-7304 - Common with
B246 Series
VM Card Type C Java VM Card 413210 481-7072 B861 Common with
B246 Series
Fax Option Type 7500 Fax Option 413491 481-7190 B819 Common with
B246 Series
G3 Interface Unit
Type 7500 Additional G3 line 413494 481-7191 B820 Common with
B246 Series
32MB Memory
400dpi/SAF Fax SAF Memory 001342MIU 481-0174 - Common with
B246 Series
Printer / Scanner Unit
Type 8000 Printer / Scanner Unit 414367 481-7593 D406 Unique to D052
Series
Printer / Scanner Ricoh Printer/Scanner
Bundle 003445miu - - U
Printer / Scanner Savin Printer/Scanner
Bundle 003446miu - - U
Printer / Scanner Lanier Printer/Scanner
Bundle 003458miu - - U
PostScript 3 Unit Type
7500 PostScript 3 Unit 412916 481-7021 B525 Common with
B246 Series
Copy Data Security
Unit Type C Unauthorized Copy
Control Unit 412808 481-7022 B829 Common with
B246 Series
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 4 of 41 12/12/2008
Subject to change without notice
Options
Item Description EDP Code Lanier ID Product
Code Common /
Unique
Browser Unit Type B Web Browser 413083 481-7059 B828 Common with
B246 Series
CS391 9-bin Mailbox 9-bin Mailbox 412191 216-1229 B762 Common with
B246 Series
IEEE 1284 Interface
Board Type A IEEE 1284 Interface
Board 411699 481-0786 B679 Common with
B246 Series
IEEE 1394 Interface
Board Type B IEEE 1394 Interface
Board 412995 481-0683 B581 Common with
B246 Series
IEEE 802.11b
Interface Unit Type N Wireless LAN Interface 414525 481-0907 B736 Unique to D052
Series
Bluetooth Interface
Unit Type 3245 Bluetooth 412866 216-7092 B826
Common with
B246 Series
Gigabit Ethernet Type
7300 1000Base-T Ethernet 402302 481-0893 G381 Common with
B246 Series
BK5010 Plockmatic
Booklet Maker Plockmatic
Bookletmaker 413101 479-1720 - -
CF5010 Cover Feeder Plockmatic Cover
Feeder 413102 481-7078 - -
TR5010 Trimmer Plockmatic Trimmer 413103 481-7076 - -
BF5010 Book Folder
(requires Trimmer) Plockmatic Book
Folder 413104 481-7077 - -
BK5010 Rail Unit Plockmatic Rail Unit 413105 481-7079 - -
GBC StreamPunch III GBC StreamPunch III 414387 479-1745 - -
GBC Die Set 3 Hole
(Ring Binder) Die Set 001450MIU 481-0736 - -
GBC Die Set 11 Hole
(Velobind) Die Set 001451MIU 481-0737 - -
GBC Die Set 19 Hole
(Cerlox) Die Set 001452MIU 481-0738 - -
GBC Die Set 21 Hole
(Twin Loop Wire 2:1) Die Set 001453MIU 481-0739 - -
GBC Die Set 32 Hole
(Twin Loop Wire 3:1) Die Set 001454MIU 481-0740 - -
GBC Die Set 44 Hole
(Color Coil) Die Set 001455MIU 481-0741 - -
GBC Die Set 32 Hole
(Pro Click) Die Set 002493MIU 481-7066 - -
* RT43 LCT has been modified slightly to accommodate 80ppm model.
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 5 of 41 12/12/2008
Subject to change without notice
Supplies/Yields
Name/Description Ricoh
Product
Code
Savin
Product
Code
Lanier
Product
Code
Gestetner
Product
Code
Packaging
Yield
(CTN)
Toner Type 6110D (Black) 885400 4 x 1,100 g./Btl. 172,000*
Toner Type 6075 (Black) 9883 4 x 1,100 g./Btl. 172,000*
Toner 6002/7502 (Black) 89883 4 x 1,100 g./Btl. 172,000*
Toner (Black) 480-0089 4 x 1,100 g./Btl. 172,000*
Developer Type 24 (Black) **B0649645 480-0090 1-Each 350,000
Developer Type 6075 (Black) **B0649645 1-Each 350,000
Developer Type DD9 (Black) **B0649645 1-Each 350,000
Staple Type H for SR842 410508 9849 1 x 5,000/Ctn. 5,000
Staple Refill Type H for SR842 410509 9850 5 x 5,000/ Ctn. 25,000
Staple CSC810A for SR842 89849 1 x 5,000/ Ctn. 5,000
Staple Refill CSC810B for SR842 89850 5 x 5,000/ Ctn. 25,000
Staple Type H SC585 for SR842 117-0334 1 x 5,000/ Ctn. 5,000
Staple Refill Type H SC585 for SR842 117-0332 5 x 5,000/ Ctn. 25,000
Staple Type K for SR970/SR4000 410801 9858 1 x 5,000/ Ctn. 5,000
Staple Refill Type K for SR970/SR4000 410802 9859 3 x 5,000/ Ctn. 15,000
Staple CSC760A for SR970/SR4000 89858 1 x 5,000/ Ctn. 5,000
Staple Refill CSC760B for SR970/SR4000 89859 3 x 5,000/ Ctn. 15,000
Staple Type K SC645 480-0063 1 x 5,000/ Ctn. 5,000
Staple Refill Type K SC645 480-0062 3 x 5,000/ Ctn. 15,000
Staple Type L for SR4000 (Saddle Stitch) 411240 9885 1 x 2,000/ Ctn. 2,000
Staple Refill Type L for SR4000
(Saddle Stitch) 411241 9886 4 x 2,000/ Ctn. 8,000
Staple CSC860A for SR4000
(Saddle Stitch) 89885 1 x 2,000/ Ctn. 2,000
Staple Refill CSC860B for SR4000
(Saddle Stitch) 89886 4 x 2,000/ Ctn. 8,000
Staple Type L for SR4000 (Saddle Stitch) 480-0091 1 x 2,000/ Ctn. 2,000
Staple Refill Type L for SR4000
(Saddle Stitch) 480-0092 4 x 2,000/ Ctn. 8,000
NOTE: *A4, 6% chart is used to measure the above yield. Storage period for toner is max. 1 year.
NOTE: ** Part Number
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 6 of 41 12/12/2008
Subject to change without notice

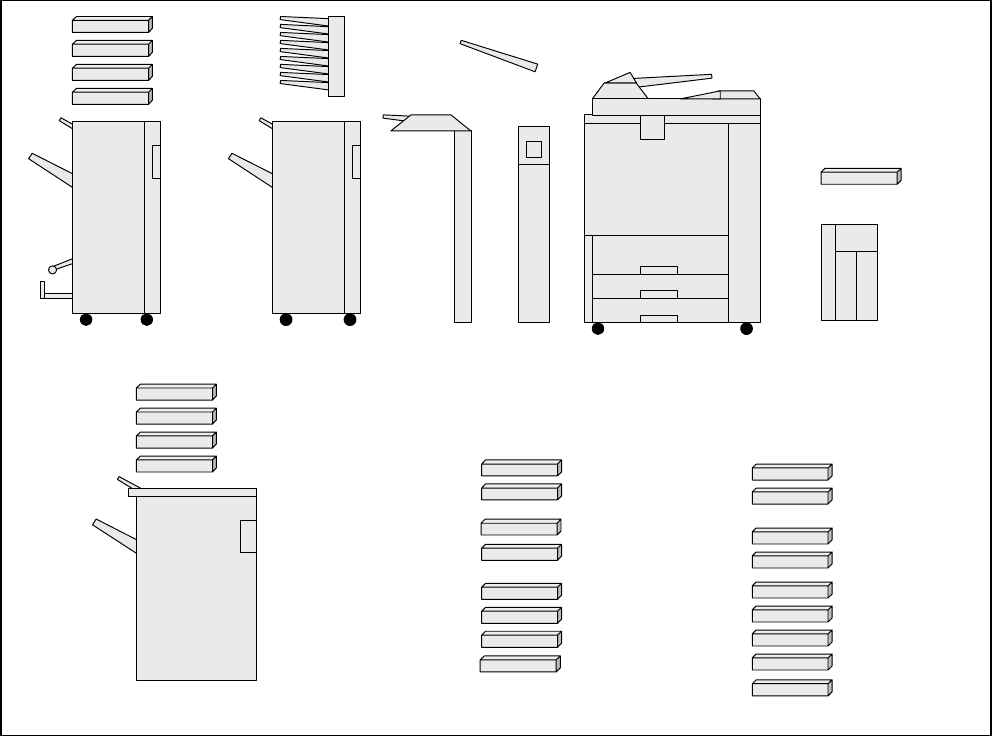

Option Compatibility
1.DTL/A3 Tray
2.Tab Sheet Holder
3.LCT
4.LCT LG Unit
5.Copy Tray
6.50sheet staple Finisher-A
7.Saddle Stitch Finisher-B
8.100sheet Staple Finisher-C
9.Punch Units for Fin-A & B
10.Punch Unit for Fin-C
11.9-bin Mailbox
12.Cover Interposer
13.Jogger Unit for Fin-A & B
14.Jogger Unit for Fin-C
15.Z-folding unit
16.Printer / Scanner Unit
17. PS3
18. IEEE1394
19. IEEE1284 Centro
20. Wireless LAN
21.Bluetooth
22.1000Base T Ethernet
23. USB Host I/F
24. Unauthorized Copy Control Unit
25 .DOS Unit
26. VM Card
27. Copy Connector
28. File Format Converter
29. Fax Option
30.G3 Interface Unit
1.DTL/A3 Tray
2.Tab Sheet Holder
3.LCT
4.LCT LG Unit M
5.Copy Tray X X XXXXXXX
6.50sheet staple Finisher-A X X X X X
7.Saddle Stitch Finisher-B X X X X X
8.100sheet Staple Finisher-C X X X X X X
9.Punch Units for Fin-A & B X 1 1 X X X
10.Punch Unit for Fin-C X X X M X X X
11.9-bin Mailbox X 1 1 X X X X
12.Cover Interposer X X
13.Jogger Unit for Fin-A & B X 1 1 X X X
14.Jogger Unit for Fin-C X X X M X X X
15.Z-folding unit 1 1
16.Printer / Scanner Unit
17. PS3
18. IEEE1394 X X X
19. IEEE1284 Centro X X X
20. Wireless LAN XX X
21. Bluetooth XXX
22. 1000Base T Ethernet
23. USB Host I/F
24. Unauthorized Copy Control
Unit
25. DOS Unit
26. VM Card
27. Copy Connector
28. File Format Converter
29. Fax Option M
30. G3 Interface Unit M
X: Cannot be installed together
M: Must be installed together in RAC Market
1: Must be select one of these two options & installed together
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 7 of 41 12/12/2008
Subject to change without notice
Branding Information
Branding is required as the machines are shipped as a generic version.
Ricoh version machines: You must attach the model label (provided) to the front cover.
Savin/Lanier: You must attach the model label (provided) to the front cover and set the Plug and Play name with
SP 5-907.
Configuration
Main Frame Configuration
Punch Unit NA 3/2
Punch Unit EU 2/4
Punch Unit Scandinavian 4
Punch Unit NA 3/2
Punch Unit EU 2/4
Punch Unit Scandinavian 4
2,000sheet
Saddle Stitch Finisher 3,000sheet_50sheet Staple
Finisher
3,000sheet_100sheet
Staple Finisher
Cover
Interposer Model MT-C3.5 Base-unit
ARDF
1,550sheet Tandem Tray x 1
550sheet Tray x 2
100sheet Bypass Tray
LCT
9-bin
Mailbox
LCT LG Unit
Jogger Unit
Jogger Unit
DLT/A3 Tray Unit
Tab Sheet Holder
Printer/Scanner Unit
Copy Connector
File Format Converter
IEEE1394 Unit
Wireless LAN Unit
Bluetooth Unit
IEEE1284 Centro Unit
PS3 Program
DataOverwriteSecurity Unit
Copy Tray
Key Counter Bracket
Key Card Bracket
VM Card
Z-folding
unit
Unauthorized Copy Control Unit
USB Hosts
Gigabite Ethernet
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 8 of 41 12/12/2008
Subject to change without notice

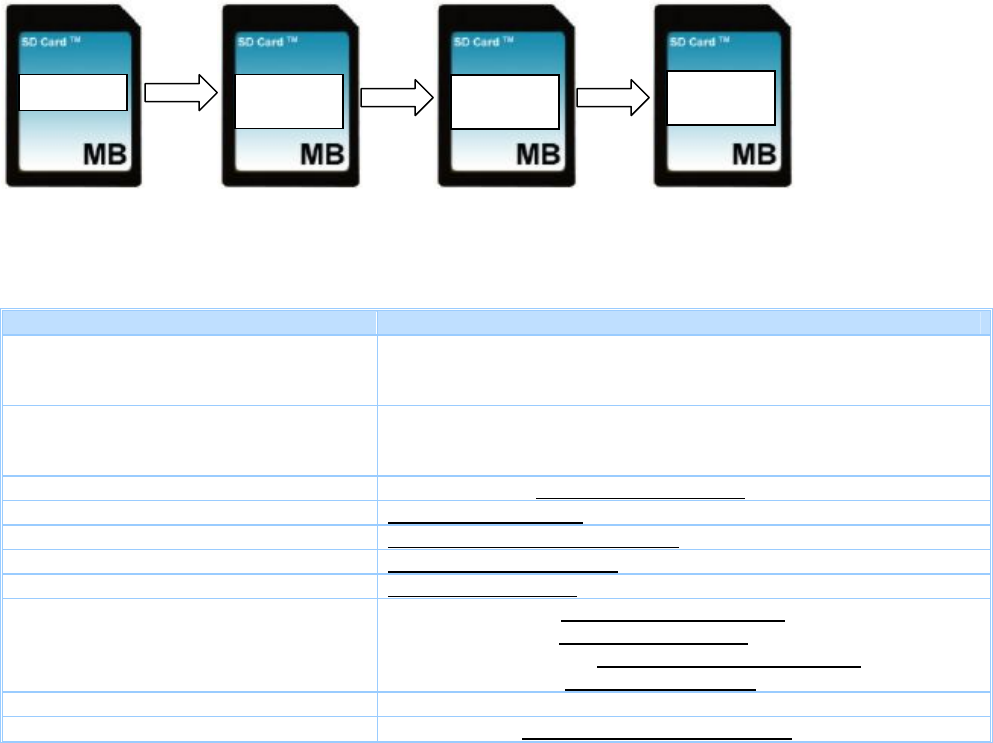

MFP Option Board Slot / SD Card Assignments
This machine has built in standard 10/100BaseT Network Interface Board (NIB) and USB2.0.
In addition to them, the customer can select 1000 Base-T Ethernet, Wireless LAN Interface (IEEE802.11b, WPA
support), IEEE1394, Bluetooth or IEEE 1284 (Parallel port).
For 3rd vender IC CARD Authentication, USB Host interface is available.
PCI I/F 1
Printer/Scanne
r
SD card
IEEE1284
or
IEEE1394
or
Wireless
LAN
or
Bluetooth
USB Host
PCI I/F3
SD Card Slot
PCI I/F 2
or
1000 Base T
& USB2.0 *2
(Option)
10/100BaseT
& USB2.0
(Standard)
Main (GW) Controller
SD card
Service Use
only
Post Script 3
SD card
*1. Only one out of IEEE1394, IEEE1394, Wireless LAN or Bluetooth can be installed.
*2. PCI I/F for 1000 Base T& USB2.0 and 10/100BaseT & USB2.0 cannot be selected together.
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 9 of 41 12/12/2008
Feature Comparison To Previous Version
Items D052 Series
(New Model) Improvement B246 Series
(Previous Model)
CPM 60/70/80cpm X 55/65/75cpm
Resolution 1,200dpi 1,200dpi
HDD 80GB 80GB
Operational Panel Large WVGA Large WVGA
Preview/Thumbnail Display Yes Yes
Duty 300K 300K
Life 9,000K 9,000K
MCBC 100K X 75K
Drum Yield 1,200K 1,200K
Warm up Time (sec.) 30/30/60 30 sec.
Recovery time from Off mode (sec.) 30/30/60 30 sec.
Recovery time from Low power mode 10 sec. 10 sec.
Dual sided scanning Yes Yes
Paper capacity (Standard) 4,300 sheets 4,300 sheets
Paper capacity (Maximum) 8,300 sheets 8,300 sheets
Z-folding Yes Yes
Booklet Yes Yes
Cover Interposer Yes Yes
9 bin Mailbox Yes Yes
First Copy Time (seconds) 4.2/3.5/3.5 4.2/3.5/3.5
Scan to E-mail Yes Yes
Scan to Folder Yes Yes
LDAP Yes Yes
IP v6 Printing Yes Yes
PDF Direct Print Yes Yes
Web Image Monitor Yes Yes
NRS Yes Yes
Windows Authentication Yes Yes
DOS Unit Yes Yes
Unauthorized Copy Control Yes Yes
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 10 of 41 12/12/2008
Feature Comparison To Previous version (GW Controller)
Item Printer Controller for D052 Series
(New Model) Printer Controller for B246 Series
(Previous Model)
Print speed 60 / 70 / 80 ppm 55 / 65 / 75 ppm
Type Embedded Embedded
CPU Intel Celeron LV 866MHz Intel Celeron LV 866MHz
Interface
<Standard>
USB2.0
Ethernet 100/10 base TX
<Option>
1. IEEE 1394
2. Wireless LAN (IEEE802.11b)
3. Bluetooth
4. IEEE 1284 Type C
5. USB Host
6. 1000Base T Ethernet
<Standard>
USB2.0
Ethernet 100/10 base TX
<Option>
1. IEEE 1394
2. Wireless LAN (IEEE802.11b)
3. Bluetooth
4. IEEE 1284 Type C
5. USB Host
6. 1000Base T Ethernet
Network
protocol TCP/IP, IPX/SPX, EtherTalk, SMB TCP/IP, IPX/SPX, EtherTalk, SMB
Print
language
<Standard>
RPCS, PCL5e / 6
<Option>
Adobe PostScript 3
<Standard>
RPCS, PCL5e / 6
<Option>
Adobe PostScript 3
Resolution
RPCS: 300/600/1200dpi
PCL5e: 300/600dpi
PCL6: 600/1200dpi
PS3: 300/600/1200dpi
RPCS: 300/600/1200dpi
PCL5e: 300/600dpi
PCL6: 600/1200dpi
PS3: 300/600/1200dpi
Memory MAX: 512MB
(Standard 256MB Memory) MAX: 512MB
(Standard 256MB Memory)
HDD <Standard>
80.0GB <Standard>
80.0GB
Utility
software
SmartDeviceMonitor for Admin
Printer Utility for Mac,
DeskTopBinder Lite
SmartDeviceMonitor for Admin
Printer Utility for Mac,
DeskTopBinder Lite
Localization
for
Printer Driver
RPCS/PCL: 18 Languages
PS3: 12 Languages RPCS/PCL: 18 Languages
PS3: 12 Languages
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 11 of 41 12/12/2008
Installation
Installation Requirements
Temperature Range: 10° C to 32° C (50° F to 89.6° F)
Humidity Range: 15% to 80% RH
Ambient Illumination: Less than 1,500 lux (do not expose to direct sunlight)
Ventilation: 3 times/hr/person
Ambient Dust: Less than 0.075 mg/m3 (2.0 x 10-6oz/yd3)
Avoid areas exposed to sudden temperature changes:
Areas directly exposed to cool air from an air conditioner.
Areas directly exposed to heat from a heater.
Do not place machine where it will be exposed to corrosive gas or vapor.
Do not install the machine at any location over 2,000m (6,500 ft.) above sea level.
Place the machine on a strong and level base. Inclination on any side should be no more than 5mm (0.2”)
Do not place the machine where it may be subject to strong vibrations.
Machine level • Front to back: within 5mm (0.2”) of level
• Right to left: within 5mm (0.2”) of level

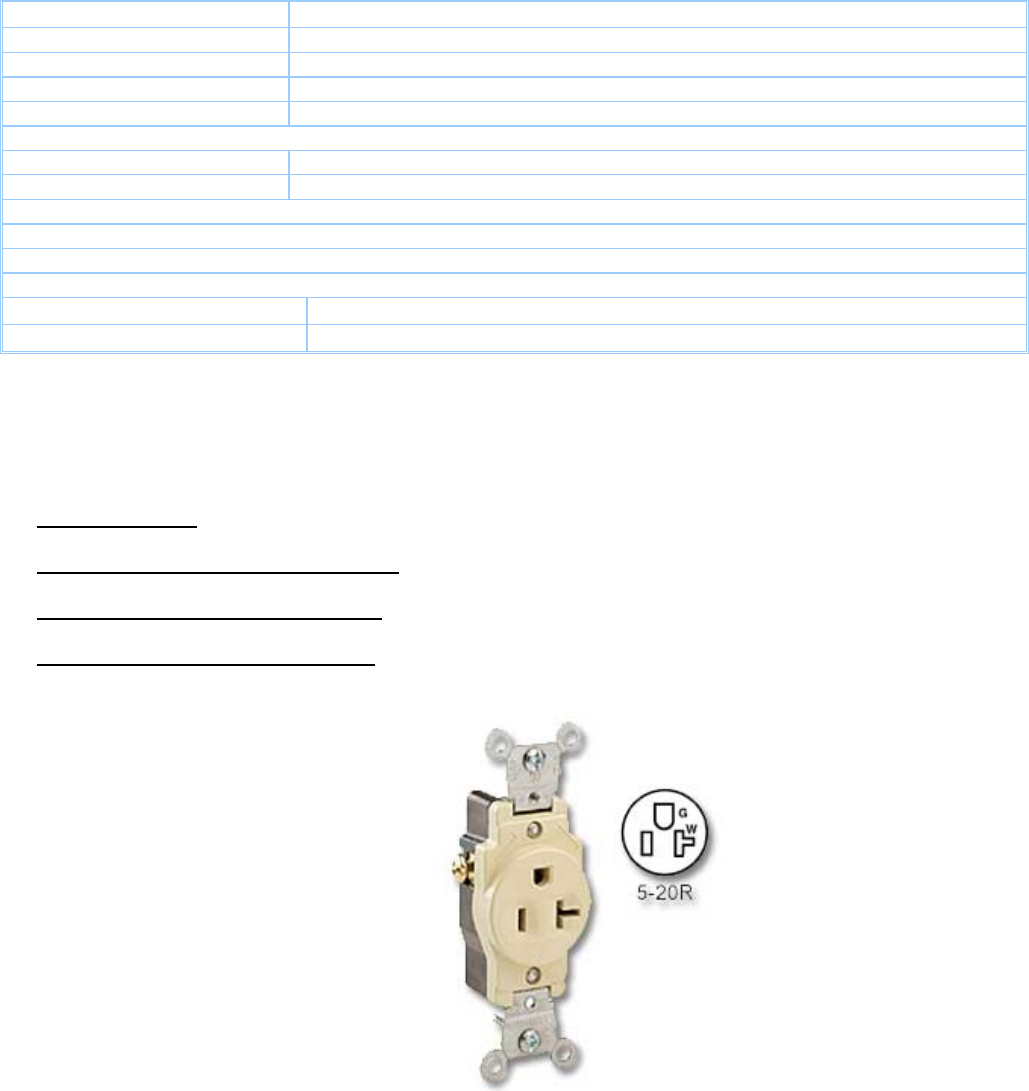

Power Requirements
Line voltage level:
D052/D053/D054: 120V 60 Hz 20A
Permissible voltage fluctuation: +/-10%
Never set anything on the power cord.
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 12 of 41 12/12/2008

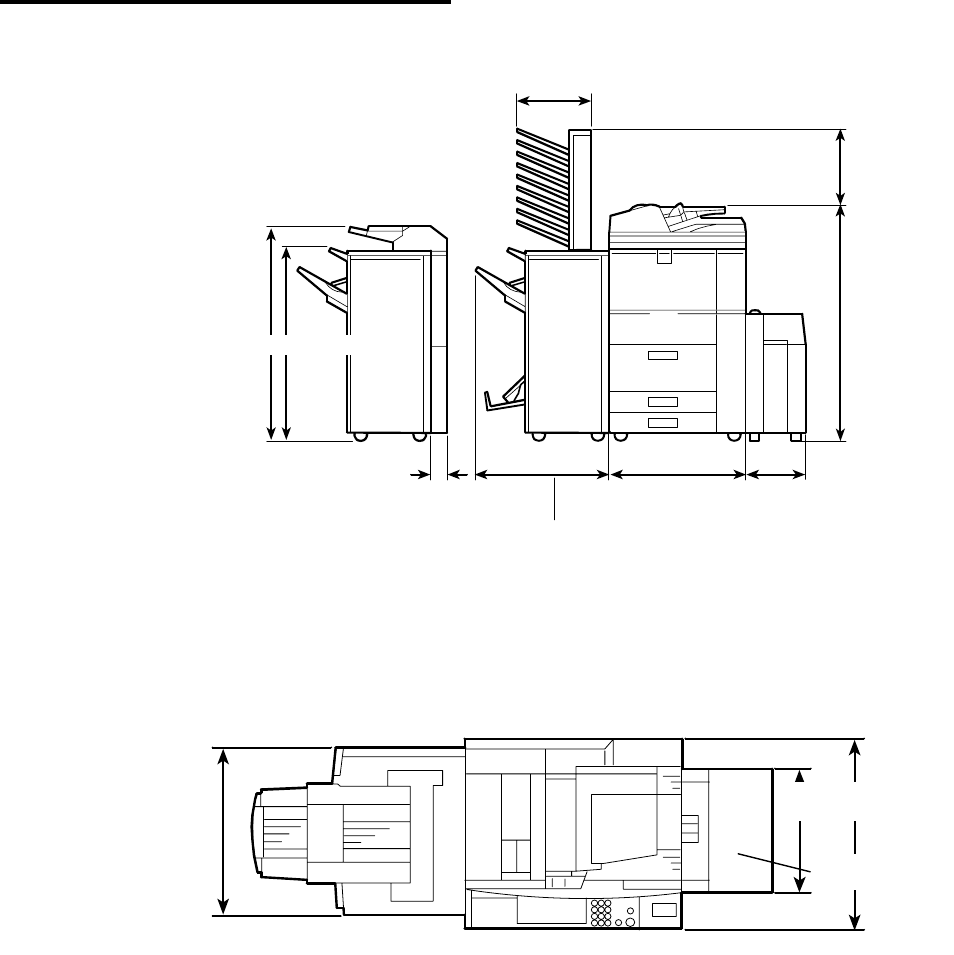

Machine Space Requirements
480 mm (18.9")
425 mm (16.7")
1103 mm (43.4")
1165 mm (45.9")
978 mm (38.5")
90 mm (3.5")
657mm (25.9") 690 mm (27.2") 314 mm (12.4")
177 mm (6.9")
613 mm (24.1") 790 mm (31.1")
458 mm (18")
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 13 of 41 12/12/2008
Power Consumption / Noise Emission
Power Consumption Recovery Time BTU’s
Auto off mode (Off mode: Stand-alone) Basic 3.3W/3.3W/3.3W* 30 sec 11
Auto off mode (Sleep mode: MFP) SP 28.1W/28.1W/28.1W* 30 sec 96
Auto off mode (Off mode: Stand alone) Basic Same as Auto off mode Same as Auto off mode 11
Energy save mode (Low power mode) SP Same as Auto off mode Same as Auto off mode 11
Basic 196W/196W/196W* 10 sec 669
10 sec recovery mode SP 207W/207W/207W* 10 sec 706
Basic 296W/296W/296W* 0 sec 1009
Stand-by mode SP 335W/335W/35W* 0 sec 1143
Note: *D052/D053/D054
Noise Emission
Model Operation Mainframe Full System
Standby 51dB -
D052 Operating 70dB 75dB
Standby 51dB -
D053 Operating 71dB 75dB
Standby 51dB -
D054 Operating 72dB 75dB
NOTE: The above measurements were made in accordance with ISO 7779.
NOTE: The measurements were taken from the normal position of the operator.
Installation Times
Unit Installation Time
(Minutes) Unit Installation Time
(Minutes)
LCT: 10 minutes 9 Bin Mail Box: 10 minutes
LCT/LG Kit: 10 minutes Printer/Scanner: 5 minutes
A3/DLT Kit: 5 minutes Wireless LAN: 5 minutes
Finisher (B700 / B701): 10 minutes IEEE 1394: 5 minutes
Finisher (B706): 15 minutes Connection Kit: 5 minutes
Punch Unit for Finishers: 5 minutes Cover Interposer: 10 minutes
Jogger Unit for Finishers: 3 minutes Z-folding unit: 15 minutes
Exit Tray: 3 minutes Tab Sheet Kit: 1 minute
Data Overwrite Security Unit: 5 minutes File Format Converter: 5 minutes
Fax Option: 20 minutes
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 14 of 41 12/12/2008
Storage/Transportation
Storage Transportation
Mainframe
-30 ~ 40°C
Less than 80% RH
Storage Period: Max: 18 months / Max Stack: 3
cartons
-30 ~ 50°C
15% ~ 95% RH
Max Stack: 1 carton
Toner (*1) Less than 400C
Less than 80% RH
Storage Period: Max 12 month
Less than 400C
Less than 80% RH
Developer (*1) Less than 400C
Storage Period: Max 12 month Less than 400C
NOTE: (*1) Do not store more than 12 hours under the temperature between 40 and 500C. Do not store more than a
month under the temperature between 35 and 400C. Store in a dry, dark place where temperature does not
exceed 40℃ on continuance storage/transportation conditions.
Special Tools & Lubricants
Item Part Number Description Q’ty Unique or Common
1 A0069104 Scanner Positioning Pin (4pcs/set) 1 C (Model B246)
2 A2929500 Test Chart - OS-A3 (10 pcs/set) 1 C (Model B246)
3 B6455010 SD-CARD: ASS’Y 1 C (Model B246)
4 B6456700 PCMCIA Card Adapter 1 C (Model B246)
5 B6456800 USB Reader/Writer 1 C (Model B246)
6 A2579300 Grease - Barrierta S552R 1 C (Model B246)
7 52039502 Silicon Grease G-501 1 C (Model B246)
8 G0219350 Loop Back Connector 1 C (Model B246)
9 B0649500 Test Chart for CIS 1 C (Model B246)
10 54429101 Setting Powder 1 C (Model B246)
11 -
Ricoh System Information Tool (Support Tool Version 2)
- Basic version
- Mail version
- Rlogtool
(For use with GW controller)
1 C (General)
Target Reliability
Items Model D052 Model D053 Model D054
ACV 25k prints/month 30k prints/month 50k prints/month
Max CV 150k prints/month 150k prints/month 150k prints/month
PM Interval 300k prints/month 300k prints/month 300k prints/month
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 15 of 41 12/12/2008
Parts / Special Tools / Maintenance
The yield figures are based on (LT) long-edge feed, 5% image coverage ratio, 5 copies/original (D052/D053),
10 copies/original (D054)
Unique/Common
U: Unique for this model
Copier/MFP: D052/D053/D054 C: Common with B246
Part
Number Description Q'ty/
Unit PM
Interval Unique or
Common
Around the drum
A0962060 Charge Corona Grid 1 300k C
B0702364 Charge Corona Wire 1 300k C
A0962063 Charge Wire Cleaning Pad 1 300k C
AD041140 Cleaning Blade 1 300k C
B2472330 Cleaning Brush 1 300k C
B2461233 Ozone Filter (TOP) 1 300k C
B2473340 Development Filter 2 300k C
B2473161 Used Toner Separation Unit 1 600k C
Paper Feed
AF031082 Feed Roller 3 1000k C
AF030081 Pick-up Roller 3 1000k C
AF032080 Separation Roller 4 1000k C
AF031083 By-pass Feed Roller 1 1000k C
AF030080 By-pass Pick-up Roller 1 1000k C
Transfer Belt Unit
A2933899 Transfer Belt 1 450k C
Transfer Roller Cleaning
AD041126 Blade 1 450k C
B0653947 Discharge Plate 1 300k C
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 16 of 41 12/12/2008
Part
Number Description Q'ty/
Unit PM
Interval Unique or
Common
Fusing Unit
B1404181 Cleaning WEB 1 300k C
AE044068 Cleaning WEB Pressure
Roller 1 600k C
B1404191 Cleaning WEB Pressure
Roller Bearing Front 1 600k C
B1404192 Cleaning WEB Pressure
Roller Bearing Rear 1 600k C
AE011117 Hot Roller 1 300k C
AE030054 Hot Roller Bearing 2 300k C
AE044060 Hot Roller Stripper 5 300k C
AE042066 Pressure Cleaning Roller 1 300k C
AE031026 Pressure Cleaning Roller
Bearing 2 300k C
AE020162 Pressure Roller 1 300k C
Pressure Roller Bearing 2 300K C
AE030053
AW100108 Thermistor Center 1 300k C
Inner Back Fusing Thermistor 1 300k C
AW100109
ADF
B4772225 Pick-up Roller 1 80k
originals C
A8592241 Separation Roller 1 80k
originals C
A8061295 Paper Feed Belt 1 80k
originals C
LCT: B473
AF030080 Pick-up Roller 1 1000k C
AF031083 Feed Roller 1 1000k C
AF032080 Separation Roller 1 1000k C
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 17 of 41 12/12/2008
Specifications / Documentation
Machine
Configuration Console
Printing Process Four laser beams &
Electro-photographic printing
Reading Element Simultaneous Double Sided Scanner
Flatbed with moving CCD array image-sensing and Sheet through with
fixed CIS array image-sensing
Original Type Book/Sheet/Object
Original Size A3 – B6 (11”x 17” – 5 1/2” x 8 1/2”(ADF)
Copy / print paper size Trays:
A3/DLT– A5/HLT (11”x 17” – 5 1/2” x 8 1/2”)
Bypass (standard):
A6 SEF: Bypass
A3 – A6 SEF (11”x 17” – 5 1/2” x 8 1/2”
Bypass (non-standard):
Vertical: 100-297mm /4”-12”
Horizontal: 140-432mm/5.5”-17”
Paper weight Tray (1-3):
52.3 - 127.9g/m2
(14-34lb bond)
Bypass (Standard):
52.3 - 157g/m2
(14-43lb bond)
Bypass (Thick Paper Mode):
52.3 ~216g/m2
(14-58lb Bond)
Duplex:
64-127.9g/m2
(17-34lb bond)
Reduction NA: 93,85,78,73,65,50,25%(7R)
Enlargement NA: 121,129,155,200,400%(5E)
Engine Speed D052: 60ppm. D053: 70ppm. D054: 80ppm. A4/LT LEF
Resolution Marking: 1,200dpi Scanning: 600dpi
Zoom 25-400% 1% step
Gradation Scanning: 256 scales
Marking: 2 levels (5 levels at max)
Warm-up time D052/D053: Less than 30 seconds. D054: < than 60 seconds
1st Copy Speed D052: 4.2 seconds -A4/LT LEF,
D053: 3.5 seconds
D054: 3.5 seconds
-Contact glass mode,
-APS Off,
-From 1st Tray
-Face up
Multiple copy Up to 999
Standard paper capacity 4,300 sheets
1st Tray: 1,550 x 2 (Tandem) sheets
2ndTray: 550 sheets
3rdTray: 550 sheets
Bypass: 100 sheets
Maximum paper capacity 8,300 sheets
LCT: 4,000 sheets
Output capacity 500 sheets/A4, LT 250 sheets/A3, 11” x 17” With Copy Tray
Memory Capacity RAM: 256MB(Standard) 512MB(Max) HDD: 80GB
Rating power spec. NA: 120V, 60Hz, 20A
Power consumption Max: 1.85kw
Dimensions
(W x D x H): Approx. 690 x 790 x 1,165 (mm)
Weight Less than 206kg
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 18 of 41 12/12/2008
Machine continued
Auto Paper Select Standard
Manual Paper Select Standard
Auto Tray Switch Standard
Special Paper Display Standard
Directional Magnification Standard 1% step
Directional Size Magnification Standard (Inch/mm)
Auto Magnification Select Standard
Stamp mode Standard
-Background Numbering
-Preset stamp (8 patterns)
-User stamp (4 patterns)
-Date stamp (5 patterns)
-Page numbering (6 patterns)
-Stamp Text
Multi language
Repeat Copy Standard
Double Copy Standard
Border/Center Erase Standard
Delete Inside/Outside Standard
Margin Adjustment Standard
Image Shift Standard Centering
Combine copy Standard
-Combine 2,4,8 in 1 simplex sheet
-Combine 4,8,16 in 1 duplex sheet
-Magazine mode
Duplex Standard
-Simplex to Duplex
-Duplex to Duplex
-Book 2 pages to Duplex
Series copy Standard
-Book to Simplex
-Duplex to Simplex
Clear mode Standard
-Clear
-Mode Clear
-Application clear
-Clear / Stop
Job Interrupt Standard
Original Counter
(Operation Panel) Standard Scanned original to be counted
Copy Counter
(Operation panel) Standard Finished sets to be counted
Estimated Finish Time counter Standard
Weekly Timer Standard
Sample Copy Standard
Job Preset Standard Up to 8 jobs
Copy Connector Optional
Auto start Standard
User Code Up to 500 8 digits
Document Server Standard
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 19 of 41 12/12/2008
Machine continued
Auto start Standard
Copy Connector Optional
User Program Standard
Job recall Not available
Original Mode Text mode
Photo/Text mode
Photo mode
Pale mode
Generation Copy mode
Default: Text
Image Density Adjustment Automatic or Manual
-Manual: 7 notch
-Automatic: Error Diffusion
2 Languages Panel Switch Standard (Can change by UP mode)
Electronic Sort
Shift Sort
Rotate Sort
Standard Sort: Copy Tray
Shift sort: with optional Finisher
Electronic Stack Standard With optional Finisher
Staple Option With optional Finisher
Punch Option
(NA) 2 or 3 holes switch able
(EU) 2 or 4 holes switch able
Scandinavian 4 holes
With optional Finisher
2 or 3/2 or 4 is selectable in UP
mode.
Cover sheet Standard
Chaptering Standard
Paper designate Standard
Slip sheet Standard
ADF Standard
-100 sheets capacity or 12mm height of
originals stack
- Mixed size original
- SADF mode
Anti-humidity Heater Service option
Condensation Prevention Heater Service option
Electronic counter Standard
Key Counter Bracket Option
Key Card Recommended system only
Coin Lock Not support
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 20 of 41 12/12/2008
Options
ARDF
Dimensions (W x D x H) 680x560x180mm
Weight Less than 18kg
Power consumption Less than 110W
Noise (Power level) Less than 71dB
Stack Capacity 100 sheets (*1)
Original Size -Simplex
B6 – A3 (SEF)
5 1/2” x 8 1/2”- 11” x 17”(SEF)
-Duplex
A5 – A3 (SEF)
5 1/2” x 8 1/2”- 11” x 17”(SEF)
Original Weight -Simplex:
40- 128 g/m2 11- 34 lb Bond
-Duplex:
52- 128 g/m2
14- 34 lb Bond
Original set position Left-rear corner
Original Set Face Up, First sheet on top
Original Feed ADF, SADF mode
Special Original Setting Batch, Mixed Size
Original Feeding Speed 75 opm (A4 LEF)
Power Source From Mainframe
Large Capacity Tray
Dimensions (W x D x H) 314 x 458 x 659mm
462 x 458 x 659mm (*1)
Weight Less than 20 kg
Less than 27 kg (*2)
Power consumption Less than 50W
Noise (power level) Less than 74dB
Paper Size A4 LEF, B5 LEF,
11” x 8 1/2”LEF
Paper weight 52-128g/m2, 14-34lb Bond
Paper capacity (*4) 4,000 sheets
2,500 sheets (*3)
LG/B4 option for LCT
52-128g/m2, 14-34lb Bond Paper weight
Paper Size 8 1/2”x 14”(LG), B4, A4 SEF, 8 1/2” x 11” SEF
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 21 of 41 12/12/2008
9-Bin Mailbox
Dimension (W x D x H) 540 x 600 x 660 (mm)
Weight Less than 15 kg
Power consumption Less than 48W
Noise (Power level) Less than 74dB
Number of Bins
9 bins
Stack capacity of each bin 100 sheets (*)
Paper weight 52-128 g/m2, 14-34 lb Bond
Paper size A5-A3
5 1/2” x 8 1/2”-11”x17”
3,000-sheet Finisher with 100-sheet Stapler
Dimension W x D x H 800 x 730 x 980mm
Weight
Less than 65kg
Power Consumption Less than 100W
Noise
Less than 75dB
Configuration y Console type attached base-unit with Finisher Adapter
Power Source From base-unit
Stack
Capacity* 500 sheets A4, 8 1/2”x11” or smaller
250 sheets B4, 8 1/2”x14 or larger
Paper Size
A6 SEF-A3 SEF
5 1/2”x8 1/2”- 11”x17”, 12”x18”
Z-folding
A3, B4, A4 SEF, 11x17, 8 1/2 x 14, 8 1/2 x 11 SEF
Proof Tray
52 g/m²-216 g/m²
Paper Weight 14 lb Bond- 58 lb Bond / 110 lb Index / 80 lb Cover
Z folding: 64-80gms
3000 sheets A4 LEF, B5 LEF, 8 1/2”x11” LEF
Stack
Capacity*
1500 sheets A3 SEF, , B4 SEF, B5 SEF
11”x17” SEF, 8 1/2”x14” SEF, 8/1/2” x 11” SEF 12”x18”
500 sheets A5 LEF, 5 1/2”x8 1/2”LEF
100 sheets A5 SEF, 5 1/2”x8 1/2”SEF
Paper Size
A5 - A3 SEF
5 1/2”x8 1/2”- 11”x17”
Z-folding
A3, B4, A4 SEF, 11x17 ,8 1/2 x 14 , 8 1/2 x 11SEF
Shift Tray
52 g/m²-216 g/m²
Paper Weight 14 lb Bond- 58 lb Bond / 110 lb Index / 80 lb Cover
Z folding: 64-80gms
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 22 of 41 12/12/2008
Cover Interposer Tray
Dimension (W x D x H) 500 x 600 x 600 (mm)
Weight Less than 12kg
Power consumption Less than 43W
Noise (Power level) Less than 65dB
Paper Size A5-A3
5 1/2”x 8 1/2”-11”x17”
Paper weight 64 – 216g/m2
17lb Bond -110 lb index, 80lb Cover
Paper capacity 200 sheets
Original set position Center
Face-up (Normal Feed)
Original Set Face-down (Saddle Stitch)
3,000-sheet Finisher with 50-sheet Stapler
Dimension W x D x H 657 x 613 x 960mm
Weight Less than 54kg
Less than 56kg with Punch Unit
Power Consumption 96W or less
Noise 71db or less
Configuration Console type attached base-unit
Power Source From base-unit
Proof Tray Stack
Capacity* 250 sheets A4, 8 1/2”x11” or smaller
50 sheets B4, 8 1/2”x14 or larger
Paper Size
A5-A3 SEF, A6 SEF, B6 SEF
5 1/2”x8 1/2”-11”x17”SEF, 12”x18” SEF
Paper Weight
52 g/m²-163 g/m²
14 lb Bond- 43 lb Bond / 90 lb Index / 60 lb Cover
Stack
Capacity*
3,000 sheets A4 LEF, 8 1/2”x11” LEF
1,500 sheets A3 SEF, A4 SEF, B4 SEF, B5
11”x17” SEF, 8 1/2”x14” SEF,
8/1/2” x 11” SEF,12”x18” SEF
500 sheets A5 LEF
Shift Tray
100 sheets A5 SEF, B6 SEF, A6 SEF, 5 1/2”x8 1/2”SEF
Paper Size
A5 - A3 SEF, A6 SEF, B6 SEF
5 1/2”x8 1/2”- 11”x17”SEF, 12”x18”SEF
Paper Weight
52 g/m²-256 g/m²
14 lb Bond- 68 lb Bond / 140 lb Index / 90 lb Cover
Copy Tray
Dimension (W x D x H) 400 x 335 x 70 mm
16”x 13.4”x2.8”
Weight 640g
Paper Capacity 500 sheets A4/LT
250 sheets A3, 11”x17”
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 23 of 41 12/12/2008
Printer
Controller
CPU Intel Celeron LV 866MH
RAM DDR-SDRAM
512MB (Resident 256MB)
Hard Disk Drive 80 GB
Standard RPCS, PCL6, PCL5e PDL Option Adobe PostScript 3
Continuous
Print
Speed
A4 / LT LEF
(Plain paper) 60ppm / 70 ppm / 80 ppm
(D052 / D053 / D054)
Print
Resolution Max. 1200 x 1200 (dpi)
Standard PCL: 46 fonts (Truetype: 10 fonts, Intelli: 35
fonts, Bitmapped: 1 font) + International fonts:
13 Intellifonts
Fonts
Option PS3: 136 Adobe Type 1 fonts
Standard Ethernet (RJ-45: 100BASE-TX/10BASE-T)
USB 2.0
Host
Interface Option
Wireless LAN Interface (IEEE802.11b)
IEEE1394 (6 pin)
Parallel Port IEEE1284 Type C
Bluetooth
USB Host
1000Base T Ethernet
Connectivity
TCP/IP, IPX/SPX, SMB, AppleTalk
Network Protocol (Auto Switching)
Standard
MIB MIB-II(RFC1213),
HostResource (RFC1514), PrinterMib (RFC1759)
MIB support Private
MIB Ricoh Original
Network/Operating
Systems
Windows 2000 / XP / Vista Server 2003
Mac OS 8.6-9.2x, OS X 10.1 or later
Netware 3.12, 3.2, 4.1, 4.11, 5.0, 5.1, 6, 6.5
Sun Solaris 2.6 / 7 / 8 / 9 /10
HP-UX 10.X / 11.x / 11i v2
SCO OpenServer 5.0.6 / 5.0.7 / 6.0
RedHat Linux6.x / 7.x / 8.x / 9 / Enterprise
IBM AIX V4.3/5L V5.1, V5.2, V5.3
[REMARKS]
*Cyrillic (Russian), Greek, Hebrew and Arabic are included in International Fonts.
*Windows 9x (Windows 95/98/ME) and NT4.0 drivers are not supported.
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 24 of 41 12/12/2008
Controller Details
Engine 1200 (dpi)
PCL5e 300 / 600 (dpi)
PCL6 600 / 1200 (dpi)
RPCS 600/ 1200 (dpi)
Controller
PS3 (Option) 300 / 600 /1200 (dpi)
PCL5e 300 / 600 (dpi)
PCL6 600 / 1200 (dpi)
RPCS 300 / 600 /1200 (dpi)
Print
Resolution
Drivers
PS3 (Option) 600 /1200 (dpi)
Operation Panel 1.English, 2.German, 3.French, 4.Italian,
5.Spanish, 6.Dutch, 7.Swedish, 8.Norwegian,
9.Danish, 10.Czech, 11.Hungarian,
12.Finnish, 13.Polish, 14.Portuguese, 15.
Russian, 16. Korean,
17. Simplified Chinese, 18. Traditional
Chinese, 19. Catalan, 20. Turkish
Language
Support
PCL5e/PCL6 1.English, 2.German, 3.French, 4.Italian,
5.Spanish, 6.Dutch, 7.Swedish, 8.Norwegian,
9.Danish, 10.Czech, 11.Hungarian,
12.Finnish, 13.Polish, 14.Portuguese, 15.
Russian, 16. Korean,
17. Simplified Chinese, 18. Traditional
Chinese
RPCS
Drivers
1.English, 2.German, 3.French, 4.Italian,
5.Spanish, 6.Dutch, 7.Swedish, 8.Norwegian,
9.Danish, 10.Czech, 11.Hungarian,
12.Finnish, 13.Polish, 14.Portuguese, 15.
Russian, 16. Korean,
17. Simplified Chinese, 18. Traditional
Chinese
PS3 (Option) 1.English, 2.German, 3.French, 4.Italian,
5.Spanish, 6.Dutch, 7. Swedish, 8.
Norwegian, 9. Danish, 10. Korean, 11.
Simplified Chinese, 12. Traditional Chinese
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 25 of 41 12/12/2008
Supported Environments
Mac OS Environment
PostScript3 Printer Utility for MAC
Mac OS 8.6 or later, Mac OS X classic Yes Yes
Mac OS X Native: v. 10.1 or later *1 Yes Yes*2
*1: Mac OS X v.10.0.X is not supported.
*2: Mac OS X v.10.2.0 is not supported.
UNIX Environment
Supported platforms for Unix filter
Unix Platforms Version
Sun Solaris 2.6 / 7 / 8 / 9 /10
HP-UX 10.x / 11.x /11iv2
Red Hat Linux 6.x / 7.x / 8.x / 9.x / Enterprise
SCO OpenServer 5.0.6 /5.0.7/6.0
IBM AIX V4.3 & 5L Version 5.1/5.2 /5.3
Above specification and schedule are subject to change. Please refer to release announcement of Unix Filter for details.
Novell Netware
Supported Version Netware 3.12 / 3.2 / 4.1 / 4.11 / 5.0 / 5.1 / 6.0/6.5 Netware Server
Client OS Windows 95 / 98 / Me / NT4.0 / 2000 / XP (Professional)
SAP R/3 Environment (Device Type / Barcode & OCR Package)
R/3 version 3.x or later, mySAP ERP2004 or later
Platform Independent
PDL PCL5e/PCL 5c
Character Set Latin 1(Western Europe), Latin 2 (Eastern Europe),
Unicode 3.0
Supported environments
Localization English only
Supported features i.e.: Input/Output Bin, Duplex, Stapling, Punching, Resolution, Collation,
EconoMode/TonerSaving, Smoothing, Page Protect, Auto Tray
Change/Opt Tray select
Barcode Fonts
(Support Latin 1 only) Code 128, Code 39, Code 93, Codabar,
2 of 5 interleaved/Industrial/Matrix, MSI, USPS,
UPC/EAN
Supported Barcode & OCR
Fonts*
(* BOP is procured locally.) OCR Fonts OCR A, OCR B
Above specification and schedule are subject to change. Please refer to release announcement of SAP device type for
details.
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 26 of 41 12/12/2008
Scanner
Items Specifications
Resolution: 100 / 200 / 300 / 400 / 600 dpi (Default =200dpi)
100 – 1200 dpi (Twain: B/W)
Scan Speed: ) 75ipm (A4, 200dpi)
Max. Scan area 297mm x 432mm
sRGB Support No
Network Interface: Ethernet 10 Base-T/100BaseTX, Giga Ethernet
IEEE 1394, Wireless LAN (802.11b)
Protocol: Network: TCP/IP
Sending E-mail: SMTP, POP3
Scan to Folder: SMB, FTP, NCP
File Format TIFF (Multi/Single), JPEG, PDF (Multi/Single)
Scan Type Default: BW TEXT
Support: BW OCR, BW Text/Photo, BW Photo, BW Grayscale,
Image Density Auto Density Selection
Manual: 7 levels
SADF / Batch Mode: Yes
Mixed Size Mode: No
Scan to E-mail
Requirement: SMTP Gateway and TCP/IP
Authorization SMTP
POP before SMTP
Resolution: 100dpi, 200dpi (Default), 300dpi, 400dpi, 600dpi
MAX E-mail address# in HDD: 2,000 addresses
Register Group address in HDD: Max. 500 addresses Minimum 100 Addresses in One Group Address
Maintain E-mail address in HDD: Direct input on operation panel,
Web Image Monitor, Smart Net Monitor
Input of destination E-mail
address via soft key: Possible, Max. 65 destinations per job
Search E-mail address in HDD: By name and E-mail address
LDAP Search: Yes
Max. address numbers per send: Max. 500 addresses per send *1
Address from HDD address book *1 Max. 500
Address directly input via soft key *1 *2 Max. 100
Address numbers per send:
Address looked up via LDAP *1 *2 Max. 100
Attention: To, cc, bcc
Manual Input Max. 128 Characters via soft key Subject: Pre-register by
user 24 subjects.
Max. 20 Characters per a subject
Manual Input Max. 80 Characters via soft key
Pre-register by
user 5 body messages. 80 characters x 5 lines per a body message
Title name of the body message: Max. 20 characters per a name
Body
Message:
Preset Message: “This e-mail included attached file sent from xxxx(machine
model name).”
E-mail Size (with restriction): 128 - 102,400KB, Default = 2,048KB
E-mail Size (w/o restriction): 725MB
File type: Single Page TIFF/JPEG, Single Page PDF, Multi Page TIFF, Multi
Page PDF,
Program User Setting: Yes (up to 10 programs)
Divide and send e-mail: Yes (By page or size) / No, Default = Yes(By size)
Resend: Yes / No, Default = Yes
*1: Address from HDD address book + Address input via soft key + Address looked up via LDAP = Max.500.
*2: Address directly input via soft key + Address looked up via LDAP = Max. 100.
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 27 of 41 12/12/2008
Scan to Folder
Protocol Support: SMB (Server Message Block), FTP (File Transfer Protocol)
Security: Client folder log-in (log-in name and password)
Encryption of log-in name and password during transmission
Resolution: 100dpi, 200dpi (Default), 300dpi, 400dpi, 600dpi
Register client folder address in
HDD: Max. 2,000 folders
Maintain client folder address in
HDD: Direct input on operation panel,
WebImageMonitor, SmartNetMonitor
Destination client folder address
input via soft key: Yes
SMB: Network path -> User account -> Password
FTP: Server -> Network path -> User account -> Password
NCP: Network path -> User account -> Password -> Bindery or NDS
Search client folder: SMB: Browsing directly to the designated folders
FTP: By client folder name
NCP: Browsing directly to the designated folders
Max. client folder numbers per
send: Max. 50 client folders / PCs per send
Destination Combination: Please refer to 4.6.4.
Group address: Max. 100 destinations (To Folder: 50, To E-mail: 100) (*1)
e.g. 100 destinations 50 folders included >>>OK
100 destinations 51 folders included>>>Failure
Input Subject: No
Scan File Size: No limitation (Depends on PC HDD and memory.)
File Size when combined Scan to
Folder & Scan to E-mail: 128 – 102,400kB, Default = 2,048KB (With restriction)
725MB (Without restriction)
(Scan to E-mail file size applied).
File type: Single Page TIFF/JPEG, Single Page PDF, Multi Page TIFF, Multi
Page PDF, High-compression PDF
Program User Setting: Yes (up to 10 programs)
Dividing file in Scan to E-mail: Yes (By page or size) / No, Default = Yes(By size)
(When Scan to PC combine with Scan to E-mail)
Resend: Yes / No, Default = Yes
(*1) User can send to Max. 100 destinations in the same group. But the number of folders has to be less than 50, since
Max. folder destinations are 50. If there are more than 50 folder destinations registered in the Group address, a message
pops up.
Maximum Addresses per Send (combination of E-mail and Folder)
Input via: Condition 1:
Max. addresses can
select or input
Condition 2:
Max. address allowed
in a single operation
Condition 3:
Combination of
addresses: Max.
Address book 500
Scan to E-
mail Manual input 100 500 550
Address book 50
Scan to
Folder Manual input 50 50
The number of destinations which users can input must satisfy all of the above 3 conditions.
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 28 of 41 12/12/2008
Fax
Circuit: PSTN, PBX
Compatibility: ITU-T (CCITT) G3, Additional G3 (option),
Resolution: 8 x 3.85 line/mm, 200 x 100dpi (std.),
8 x 7.7 line/mm, 200 x 200dpi (std.),
8 x 15.4 line/mm, 16 x 15.4 line/mm, 400 x 400dpi (with optional SAF
memory)
Compression method: MH, MR, MMR, JBIG
Scanning speed (DF Used): 0.5sec.(A4/LT SEF, Standard/Detail mode),
0.5sec.(A4/LT SEF, Super Fine mode)
*ITU-T No1 chart, 200 x 100 dpi (Standard mode),
200dpi(Detail mode), 400dpi(Super Fine mode)
A4/LT SEF
Standard mode: 40 cpm
Detail mode: 40 cpm
Super Fine mode: 35 cpm
Number of Pages Scanned Per Minutes:
(DF Used)
A4/LT LEF/image rotation
Standard mode: 65 cpm
Detail mode: 60 cpm
Super Fine mode: 35 cpm
Modem speed: 33.6K – 2,400bps (G3, Standard with Automatic Shift Down)
(33600, 31200, 28800, 26400, 24000, 21600, 19200, 16800, 14400, 12000,
9600, 7200, 4800, 2400 bps)
Transmission speed: G3: Approx.2 seconds (200x100 dpi, JBIG, ITUT #1 chart TTI off, memory
transmission)
G3: Approx.3 seconds (200x100dpi, MMR, ITUT #1 chart, TTI off, memory
transmission)
Standard 8MB Page Memory Size: With Optional Memory 16MB
Standard 4MB (Approx.320 pages) SAF Memory Size: With Optional Memory 28MB (Approx. 2,240 pages)
Option: 32MB SD-RAM (24MB SAF Memory + 8MB Page Memory)
Memory backup: One hour
Smoothing: Standard
TTI/RTI: Standard
CSI: Standard
Quick dial/ Speed dial: Standard: 2,000 numbers
Group dial: Standard: 100 groups (500 numbers per 1 group)
Program: Standard: 100 numbers
Redial: Standard
Direct fax number entry: Standard
Dual access: Standard
User Code: Std. 100 Codes (Max. 500 codes with optional “User Account Enhance
Unit”)
Page counter: Standard
Auto reduction: Standard
Wild cards: Standard
Summer time (day light saving time): No
ID code programming: Standard (4 digits)
Programming by OMR: No
User function key: Standard (3 keys)
Night timer: No
Energy saver: Standard
LCD prompt: Standard
Remaining memory indication: Standard
Clock adjustment: Standard
User parameter setting: Standard
User data transfer: Standard
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 29 of 41 12/12/2008
Transmission Specification
Immediate transmission: Standard
Memory transmission: Standard
Serial broadcasting Standard (Max. 500 numbers)
Send later: Standard
Error correction mode: Standard
Page retransmission: Standard
Forwarding: Standard
Image rotation: Standard
Book fax: Standard
Closed network (transmission): Standard
Double sided transmission: Yes
Transmission reserve: No
Reception Specification
Automatic reception: Standard
Manual reception: Standard
Substitute reception: Standard
Authorized reception: Standard
Multi-copy: Standard
Closed network: Standard
Reception time printing: Standard
Center mark: Standard
Checkered mark: Standard
Economy printing mode: No
Duplex reception: Yes with option
Telephone Specification
Handset / telephone: Option
Telephone connection: Standard
Monitor speaker: Standard
Automatic voice message: No
On hook dial: Standard
Tone transmission: Standard
Pause: Standard
Pulse/tone selection: Standard
Chain dialing: Standard
Reception mode selection: Standard
Automatic fax/phone change: No
Reception mode switch over (remote): No
Answering machine interface: No
Reception mode switching timer: Standard
Auto answer delay time: Standard (SP mode)
Busy tone detection: Standard
Silent ringing detection: No
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 30 of 41 12/12/2008
Internet Fax Basic Specification
Requirement of Mainframe: G3 fax option is required.
Printer Scanner option is required.
Number of Address: 2,000 HDD storage
E-mail Address Input: From LCD operation panel, Web Image Monitor, Smart Device
Monitor for Admin
Attention: “to” or “bcc” (select only one), max 500 attentions
Destination Combination: Internet Fax + G3 Fax, Internet Fax to PC + G3 Fax
Network: LAN: Local Area Network
Ethernet/10Base-T, 100Base-TX, IEEE 1394 (IP over 1394),
IEEE802.11b (wireless LAN)
Transmit function: E-mail
Scan line density: 200 x 100 dpi (Standard character), 200 x 200 dpi(Detail
character),
200 x 400 dpi (Fine character: optional) *1 , 400 x 400 dpi(Super
Fine character: optional) *1
Original size: Scanning width: A3 *1, B4 *1, A4
Communication Protocols: Transmission
SMTP, TCP/IP
Reception
POP3, SMTP, IMAP4, TCP/IP
E-mail format: Single/Multi-part, MIME Conversion
Attached file forms: TIFF-F (MH, MR *1, MMR*1 compression)
Authentication method: SMTP-AUTH, POP before SMTP, A-POP
Internet communication: Send and receive e-mail with a computer that has an e-mail
address
E-mail send functions: Automatic conversion of sent documents to e-mail format and e-m
transmission. Memory transmission only.
E-mail receive functions: Automatic detection and printing of appended TIFF-F(MH) files
and ASCII text. Memory reception only.
*1 Full mode
LAN Fax Basic Specification
Paper Size: A3, DLT, B4, A4 (default for EU/Asia model), Letter (default for NA
model), Legal, B5, A5
Resolution: -Super Fine (400 x 400 dpi)
-Detail (200 x 200 dpi) *default
-Standard (200 x 100 dpi)
Gray Scale: TBD
Number of Address: 500
OS: TBD
LAN-Fax Editor support language: 1.English, 2.German, 3.French, 4.Italian, 5.Spanish, 6.Dutch,
7.Swedish, 8.Norwegian, 9.Danish, 10.Finnish, 11.Hungarian,
12.Czech, 13.Polish, 14.Portuguese, 15.Russian, 16.Korean,
17.Traditional Chinese, 18.Simplified Chinese
Condition: OS need to have the same language.
Memory Minimum required for each OS
CPU Minimum required for each OS
HDD Minimum required for each OS
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 31 of 41 12/12/2008
IP-Fax Specification
Network: LAN: Local Area Network
Ethernet/10base-T, 100base-TX, IEEE 1394 (IP over
1394),
IEEE 802.11b (wireless LAN)
Scan line density: 8 x 3.85 lines/mm, 200 x 100 dpi (Standard character),
8 x 7.7 lines/mm, 200 x 200 dpi (Details character),
8 x 15.4 lines/mm (Fine character: optional expansion
memory required),
16 x 15.4 lines/mm, 400 x 400 dpi (Super Fine character:
optional expansion memory required)
Original size: Maximum A3 or 11” x 17” (DLT)
Maximum scanning size: Standard: A3, 297mm x 432mm, Irregular: 297mm x
1200mm
Transmission protocol: Recommended: T.38Annex, TCP, UDP/IP
communication, SIP(RFC 3261 compliant), H.323 v2
Compatible machines: IP-Fax compatible machines
IP-Fax transmission function: Specify an IP address and send faxes to an IP-Fax
compatible fax through a network.
Also capable of sending faxes from a G3 fax connected
to a telephone line via a VoIP gateway.
IP-Fax reception function: Receive faxes sent from an IP-Fax compatible fax
through a network.
Also capable of receiving faxes from a G3 fax connected
to a telephone line via a VoIP gateway
Document Server
Items Capability
HDD Capacity 80GB
HDD capacity for Document 37.32 GB
Maximum stored documents 3,000 documents
Maximum pages per documents 2,000 page
Maximum pages of all stored documents 10,000 sheets
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 32 of 41 12/12/2008
MFP Supported Environments
OS Type PCL5
e PCL
6 RPC
S PostScript3
Professional Y Y Y Y *1
Server Y Y Y Y *1
Advanced Server Y *2 Y *2 Y *2 Y *1
Windows 2000
Datacenter Server N N N N
Professional Y Y Y *3 Y *1
Windows XP Home Edition Y Y Y *3 Y *1
Standard Edition Y Y Y *2 Y *1
Enterprise Edition Y *2 Y *2 Y *2 Y *1
Datacenter Edition N N N N
Windows Server 2003
Web Edition N N N N
Home Basic Y Y Y Y *1
Home Premium Y Y Y Y *1
Business Y Y Y Y *1
Ultimate Y Y Y Y *1
Windows Vista
Enterprise Y Y Y Y *1
Point & Print
Window OS Drivers
Server Client (push
to) PCL5e/6 RPCS PS
Vista Y Y Y
XP Y Y Y
Windows Server 2003
W2K Pro Y Y Y
Vista Y Y Y
XP Y Y Y
Windows XP Professional
W2K Pro Y Y Y
Vista Y Y Y
XP Y Y Y
Windows 2000 Professional, Server &
Advanced Server W2K Pro Y Y Y
Vista No No No
XP No No No
NT4.0 Workstation & Server (Intel)
W2K Pro Y No No
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 33 of 41 12/12/2008
Terminal Service & Citrix MetaFrame
Driver
Server PCL5e/6 RPCS PS
Windows Server 2003 Y Y Y
Windows 2000 Server Y Y Y
Win 2003 Servers + MetaFrame Y Y Y
Win 2000 Servers + MetaFrame Y*1 Y Y
Win 2003 Servers + Y No Y
Citrix PresentationServer4.0
Win 2000 Servers + Y No Y
Citrix PresentationServer4.0
Win 2003 Servers + Y No Y
Citrix PresentationServer4.5
Win 2000 Servers + No No No
Citrix PresentationServer4.5
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 34 of 41 12/12/2008
Utility Software
Software Description
For GW Controller Font Manager This software enables you to use screen fonts.
This software enables you to manage and monitor printers and other
devices over the network.
Smart Device Monitor for Admin
This software enables you to access networked printers to print, monitor or
to receive notifications. With DeskTopBinder Lite you can connect client
computers to I/O devices enabling you to efficiently manage data.
DeskTopBinder – SmartDeviceMonitor for
Client
Device Graphic Update Module provides bitmap images used to represent
the various statuses of devices graphically within Smart Device Monitor or
Web Smart Device Monitor. Available on website.
Device Graphic Update Module
This is a utility for Macintosh that provides access to several network
printing administrative features.
Printer Utility for Mac
PPD for Mac By interacting with the Adobe PostScript 3 controller in the
device, this PPD is able to produce an accurate representation of the screen
image.
PS Descriptions
This PPD installer is used to install a PPD (Postscript Printer Description)
file on Mac OSX. PPD files contain descriptions of printer capabilities such
as paper sizes, number of input trays and duplexing. Once the PPD file is
installed on the system using the PPD installer, the PS driver that comes
bundled with Mac OS X can use the information in the PPD to control the
print device and enable full functionality. It supports the Mac OS X 10.1 or
later. Please see the Readme file for information about compatibility with
versions of Mac OS X.
Mac OS X PPD Installer
This software enables you to fax documents directly from your computer.
The Address Book Editor and Cover Sheet Editor are installed as well. This
software requires the optional fax unit to be installed on the machine. M10
Driver
LAN FAX Driver M10
RPCS Driver
Printer driver for Windows: It is optimized for the Windows GDI. High
performance printing can be expected. Regularly used settings can be
saved as a "one-click icon" in the driver interface. These settings can be
reused easily by clicking the icon.
PCL 6 Driver Printer driver for B/W printing in Windows. It supports HP PCL XL
commands and is optimized for the Windows GDI. High performance
printing can be expected.
PCL 5e Driver Printer driver for printing in Windows. It supports HP PCL 5e commands.
Post Script Driver By interacting with the Adobe PostScript 3 controller in the device, this
driver is able to produce an accurate representation of the screen image.
GW Controller Network TWAIN Driver TWAIN scanner driver for network connections with new features
Combine/Series, compatible with SNMP V3and Network Connection Tool.
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 35 of 41 12/12/2008
Print Driver Information
PostScript3
Features PCL 5e/
6 RPCS Windows
2000/XP/Vist
a
Mac OS
8.6-9.2 Mac OSX
Send to Job Binding Y Y N N N
Send to Document Server Y Y Y Y Y*1
Sample Print Y Y Y Y Y*1
Locked Print Y Y Y Y Y*1
Hold Print Y Y Y Y Y*1
Stored Print Y Y Y Y Y*1
Stored Print (Shared) Y Y N N N
Store and Print Y Y Y Y Y*1
Store and Print (Shared) Y Y N N N
Reduce/Enlarge (Zoom/Scaling) Y*2 Y Y Y Y
Fit to Paper size Y Y Y Y Y
Unauthorized Copy Control N Y N N N
Layout (N-up) Y Y Y Y Y
Poster N Y N Y N
Duplex Y Y Y Y Y
Booklet1 N Y N N N
Booklet2 (Magazine) Y Y Y N N
Non-Reduction Booklet Y Y N N N
Watermark Y Y Y Y Y
Overlay N Y N N N
Header/Footer N Y N N N
Adjust image position N Y N N N
Binding Margins N Y N N N
Shift Image to Edge/Corner N Y N N N
Creep for Booklet 2 N Y N N N
Imposition Setting (Speed, double) N Y N N N
Crop Mark N Y N N N
Collate Y Y Y Y Y
Punch Y Y Y Y Y
Staple Y Y Y Y Y
Z-Folding Y Y Y Y Y
Cover sheet (Front Cover) Y Y N N N
Back Cover Y Y N N N
Front and Back Cover Y Y N N N
Slip Sheet Y Y N N N
Chaptering Y Y N N N
Designated Sheet Print N Y N N N
Tab Shift Printing Y Y N N N
Rotate by 180 degrees Y Y Y N N
Reverse Order Print N Y Y Y Y
Do not print Blank pages Y*3 Y N N N
Dithering Y Y Y Y Y
Edge Smoothing Y Y Y Y Y
Toner Saving Y Y Y Y Y
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 36 of 41 12/12/2008
PostScript3
Features PCL 5e/
6 RPCS Windows
2000/XP/Vist
a
Mac OS
8.6-9.2 Mac OSX
Quality N Y N N N
Speed N Y N N N
User ID Y Y Y Y Y*1
User Code Y Y Y Y Y*1
User Authentication Y Y N N N
Encryption/Encoding Y Y N N N
User Defined Pages Y N N N N
Mirror Image Print N N Y Y N
Negative Image Print N N Y Y N
Edge to Edge Print Y Y Y Y Y
Limitation setting Y Y N N N
Y: supported
N: not supported
*1: Available with MAC OS X 10.2 or later
*2: “Centering” feature cannot be selected from PCL driver. However PCL has this feature as the original function.
When printing with Reduce/Enlarge (Zoom) feature of PCL driver, output is automatically centered by PCL original
centering function.
*3: This feature cannot be selected from printer driver. This is enabled by PCL Menu in the User Tool, which is access
from MFP main unit.
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 37 of 41 12/12/2008
Counters
Total Counter Access
• User Tools / Counter Total Counter
• User Tools / Counter System Settings Administrator Tools Display / Print Counter
Total Counter Information
Physical Meter
• Name: Total
• Description: Total Prints/Copies
• Number of digits: 7
• Location: Inside front cover, lower right hand corner, covered.
User Tools / Counter Counter
• Name: Total Counter
• Description: Total Prints/Copies
• Number of digits: 8
User Tools / Counter System Settings Administrator Tools Display / Print Counter
Name: Total
Description: Total Prints/Copies
Number of digits: 8
Name: Copier
Description: Total Copies
Number of digits: 8
Name: A3/DLT
Description: Total DLT Copies/Prints
Number of digits: 8
Name: Printer
Description: Total Prints
Number of digits: 8
Name: Duplex
Description: Total Duplex Copies/Prints
Number of digits: 8
Name: Scanner Send
Description: Total Scanned Copies/Prints
Number of digits: 8
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 38 of 41 12/12/2008
Paper
Recommended Throughput Material and Special Paper
Not Applicable
Non Recommended Throughput Material
Refer to pages in the Operators Instructions Hardware Guide.
Do not use any of the following kinds of paper or a fault might occur:
• Aluminum Foil, Carbon paper,
• Conductive paper
• Paper meant for an inkjet printer
• Bent, folded, or creased paper
• Torn paper
• Thermal fax paper
• Art paper
• Paper with perforated lines
• Hemmed-edge paper
• Tab stock
• Slippery paper
• Perforated paper
• Rough paper
• Thin paper with little stiffness
• Paper with a dusty surface
Firmware Information
Firmware SD Card Firmware Type Firmware File Name as Posted
ADF Document Feeder ADF B246_D052 ADF vxxx SDcard.zip
D052 Engine vxxx SDcard.zip *
Engine Engine
Fax Fax B246_D052 Fax vxxx SDcard.zip
Font EXP Font EXP B246_D052 Font EXP vxxx SDcard.zip
GWFCU3-f (WW) FCU B246_D052 Fcu vxxx SDcard.zip
Language Install Language Install B246_D052 Language vxxx SDcard.zip
Network DocBox Net File B246_D052 NetFile Netdocbox vxxx SDcard.zip
Network Support Network Support B246_D052 Network Support vxxx SDcard.zip
OpePanel.EXP LCDC B246_D052 Opepanel Lcdc vxxx SDcard.zip
Option PCL Option PCL B246_D052 Option PCL vxxx SDcard.zip
Option PCL Font Option PCL Font B246_D052 Option PCL font vxxx SDcard.zip
Printer Printer
D052 Printer vxxx SDcard.zip *
PS3 Font PS3 Font B246_D052 PS3 font vxxx SDcard.zip
PS3/PDF PS3/PDF B246_D052 PS3 PDF vxxx SDcard.zip
Remote Fax Rfax B246_D052 Rfax vxxx SDcard.zip
Scanner Scanner
D052 Scanner vxxx SDcard.zip *
System/Copy System/Copy B246_D052 System vxxx SDcard.zip
Web Support Web Support B246_D052 Web Support vxxx SDcard.zip
Web Uapl Web Uapl B246_D052 Web Uapl vxxx SDcard.zip
*Important Note: All the firmware for the D052 and B246 Series (except Engine and Printer/Scanner) are the same.
The SD card folder structure, whether it’s named D052 or B246, and their files, will be selectively recognized by either
series.
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 39 of 41 12/12/2008
SD Card Arrangement
Contact Information
Name Contact
Technical Services Call Center (Hotline) Ricoh: (800) 537-4264
Savin/Gestetner: (800) 291-6044
Lanier: (800) 333-3147
Application Help Desk (Software
Issues) Ricoh Phone Card: 2 Call - 000781MIU, 5 Call - 000900MIU
Savin Phone Card: 2 Call - 12992, 5 Call - 12993
Gestetner Phone Card: 2 Call - 12994, 5 Call - 12995
National Reclamation Center (800) 557-4264 http://www.nrc-usa.com
Technology Solutions Center Web Site http://www.tscweb.net
Configurator http://www.connectivity-cafe.com
Ricoh Web Site http://www.ricoh-usa.com/
Savin iLINC Web Site http://www.savin.com
Headquarter Web Sites Ricoh Corporation: http://www.ricoh-usa.com
Savin Corporation: http://www.savin.com
Gestetner Corporation: http://www.gestetnerusa.com/
Lanier Corporation: http://www.lanier.com
Material Safety Data Sheets (800) 336-MSDS (6737)
Ricoh University 973.882.2200 http://www.ricohuniversity.com
Training Information
Instructor-Led Training (ILT) / Blended Learning Part ll – The current instructor-led training program
(B246 Series) will be updated to include the (D052 Series) information. This five-day course will be revised
so that the (D052 Series) models are the lead products to be emphasized during the course. All significant
differences between the two models will also be covered during the course. The official name of the course
will be D052 Series Blended Learning Part ll.
SD CARD Romdata
Folder D052
Folder
Firmware
File (fwu)
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 40 of 41 12/12/2008
Documentation
Description EDP Code RFG E-Source Number
Service Manual - rfg005543
Point to Point - rfg023648
Parts Catalog - rfg031130
D052 Blended Learning Part l* (CBT) 002710miu -
*Completion of this course is a mandatory requirement for enrollment in the D052 Blended learning part ll / Instructor-led
course.
Please refer to the http://www.ricohuniversity.com/ web site for the most up to date training information.
Please be aware to once a model or series is out of production, the Field Service Manual, Technical Service Bulletins and
Ricoh University should be referenced for the most current information. Check the TSC website and e-source.
Subject to change without notice
Product Support Guide
D052 / D053 / D054
Ver. 1.5 Page 41 of 41 12/12/2008
Revisions
1.0 Original
1.1 Minor font updates to training pages 39 & 40.
1.2 Note added to firmware information page 38.
1.3 Corrected firmware information page 38, removed SR4010 and SR5000.
1.4 Changed important note and file names on page 38. Added Printer Scanner bundles to page 3.
1.5 Removed DDST Driver information on page 34.
Subject to change without notice

Navigation menu
