Printer/Scanner Unit Type 8000

Operating Instructions

Scanner Reference

Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the

Safety Information in "About This Machine" before using the machine.

Sending Scan Files by E-mail

Sending Scan Files to Folders

Storing Files Using the Scanner Function

Delivering Scan Files

Scanning Originals with the Network TWAIN Scanner

Various Scan Settings

Appendix

Introduction

This manual contains detailed instructions and notes on the operation and use of this machine. For your

safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy

place for quick reference.

Important

Contents of this manual are subject to change without prior notice. In no event will the company be li-

able for direct, indirect, special, incidental, or consequential damages as a result of handling or oper-

ating the machine.

Notes:

Some illustrations in this manual might be slightly different from the machine.

Certain options might not be available in some countries. For details, please contact your local dealer.

Caution:

Use of controls or adjustments or performance of procedures other than those specified in this manual

might result in hazardous radiation exposure.

Two kinds of size notation are employed in this manual. With this machine refer to the inch version.

Trademarks

Adobe, Acrobat, Adobe Type Manager, Flash, Macromedia, PageMaker, PostScript are either registered

trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Pentium® is a registered trademark of Intel Corporation.

NetWare, IPX, IPX/SPX are either registered trademarks or trademarks of Novell, Inc.

Microsoft®, Windows®, Windows Server®, and Windows Vista® are either registered trademarks or

trademarks of Microsoft Corporation in the United States and/or other countries.

Other product names used herein are for identification purposes only and might be trademarks of their

respective companies. We disclaim any and all rights to those marks.

The proper names of the Windows operating systems are as follows:

The product name of Windows 2000 are as follows:

Microsoft® Windows® 2000 Professional

Microsoft® Windows® 2000 Server

Microsoft® Windows® 2000 Advanced Server

The product name of Windows XP are as follows:

Microsoft® Windows® XP Professional

Microsoft® Windows® XP Home Edition

Microsoft® Windows® XP Media Center Edition

Microsoft® Windows® XP Tablet PC Edition

The product name of Windows Vista are as follows:

Microsoft® Windows Vista® Ultimate

Microsoft® Windows Vista® Business

Microsoft® Windows Vista® Home Premium

Microsoft® Windows Vista® Home Basic

Microsoft® Windows Vista® Enterprise

The product names of Windows Server 2003 are as follows:

Microsoft® Windows Server® 2003 Standard Edition

Microsoft® Windows Server® 2003 Enterprise Edition

Microsoft® Windows Server® 2003 Web Edition

Microsoft® Windows Server® 2003 Datacenter Edition

The product names of Windows Server 2003 R2 are as follows:

Microsoft® Windows Server® 2003 R2 Standard Edition

Microsoft® Windows Server® 2003 R2 Enterprise Edition

Microsoft® Windows Server® 2003 R2 Datacenter Edition

Manuals for This Machine

Refer to the manuals that are relevant to what you want to do with the machine.

Important

❒Media differ according to manual.

❒The printed and electronic versions of a manual have the same contents .

❒Adobe Acrobat Reader/Adobe Reader must be installed in order to view the

manuals as PDF files.

❒Depending on which country you are in, there may also be html manuals. To

view these manuals, a Web browser must be installed.

❖About This Machine

Be sure to read the Safety Information in this manual before using the machine.

This manual provides an introduction to the functions of the machine. It also

explains the control panel, preparation procedures for using the machine,

how to enter text, and how to install the CD-ROMs provided.

❖Troubleshooting

Provides a guide to solving common problems, and explains how to replace

paper, toner, and other consumables.

❖Copy/ Document Server Reference

Explains Copier and Document Server functions and operations. Also refer to

this manual for explanations on how to place originals.

❖Facsimile Reference

Explains Facsimile functions and operations.

❖Printer Reference

Explains Printer functions and operations.

❖Scanner Reference

Explains Scanner functions and operations.

❖Network Guide

Explains how to configure and operate the machine in a network environ-

ment, and use the software provided.

This manual covers all models, and includes descriptions of functions and

settings that might not be available on this machine. Images, illustrations, and

information about operating systems that are supported might also differ

slightly from those of this machine.

❖General Settings Guide

Explains User Tools settings, and Address Book procedures such as register-

ing fax numbers, e-mail addresses, and user codes. Also refer to this manual

for explanations on how to connect the machine.

❖Security Reference

This manual is for administrators of the machine. It explains security func-

tions that you can use to prevent unauthorized use of the machine, data tam-

pering, or information leakage. For enhanced security, we recommend that

you first make the following settings:

• Install the Device Certificate.

• Enable SSL (Secure Sockets Layer) Encryption.

• Change the user name and password of the administrator using Web Image

Monitor.

For details, see “Setting Up the Machine”, Security Reference.

Be sure to read this manual when setting the enhanced security functions, or

user and administrator authentication.

❖PostScript 3 Supplement

Explains how to set up and use PostScript 3.

❖UNIX Supplement

For “UNIX Supplement”, please visit our Web site or consult an authorized

dealer.

❖Other manuals

• Manuals for DeskTopBinder Lite

• DeskTopBinder Lite Setup Guide

• DeskTopBinder Introduction Guide

•Auto Document Link Guide

Note

❒Manuals provided are specific to machine types.

❒“PostScript 3 Supplement” and “UNIX Supplement” include descriptions of

functions and settings that might not be available on this machine.

❒The following software products are referred to using general names:

*1 Optional

Product name General name

DeskTopBinder Lite and

DeskTopBinder Professional *1

DeskTopBinder

ScanRouter EX Professional *1 and

ScanRouter EX Enterprise *1

the ScanRouter delivery software

iii

TABLE OF CONTENTS

Manuals for This Machine ......................................................................................i

How to Read This Manual .....................................................................................1

Symbols .....................................................................................................................1

About the Scanner Functions...............................................................................2

Display Panel..........................................................................................................3

Simplified Display.......................................................................................................3

Confirmation Displays ................................................................................................4

Scanner Features...................................................................................................8

1. Sending Scan Files by E-mail

Before Sending Scan Files by E-mail.................................................................11

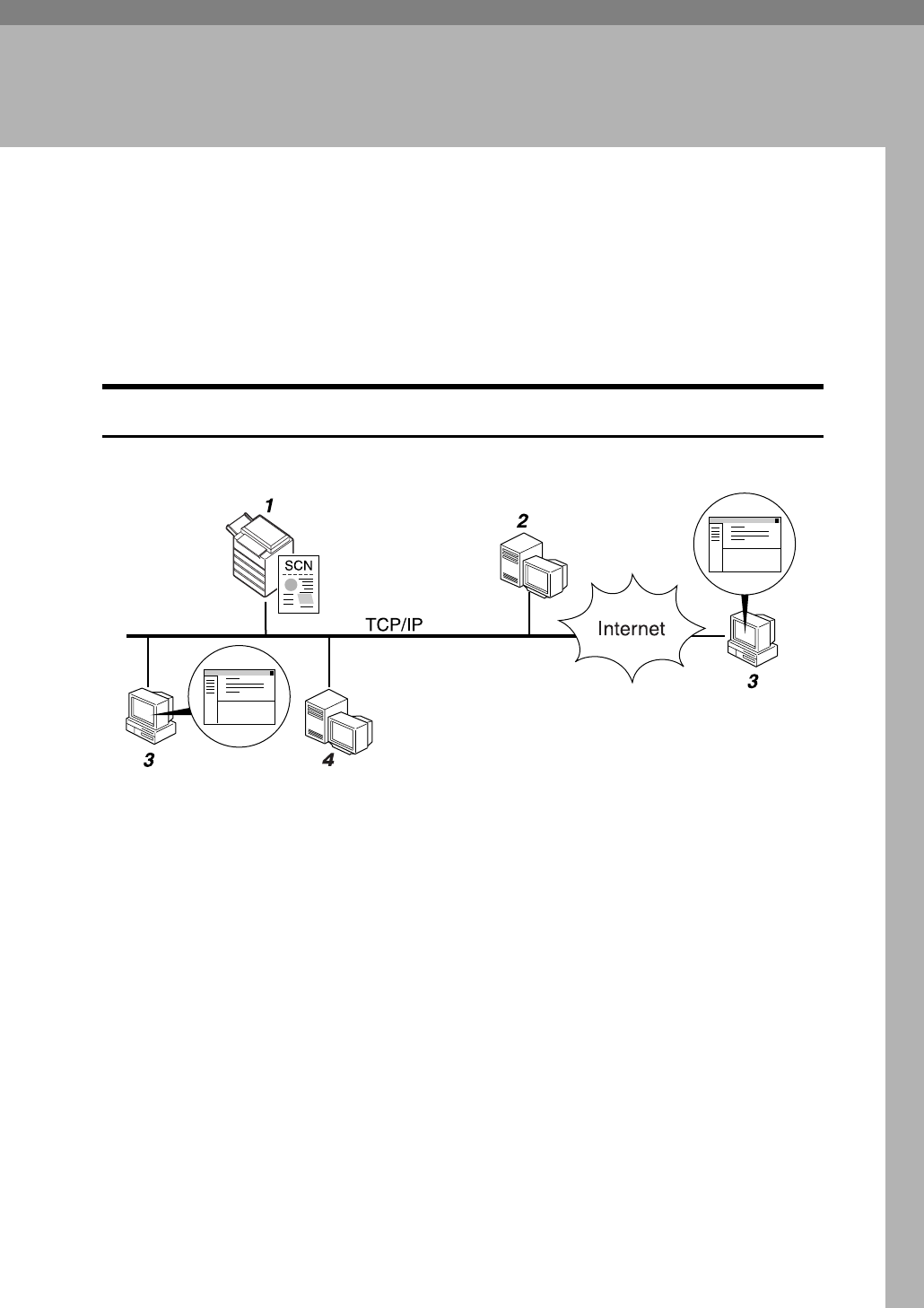

Outline of Sending Scan Files by E-mail..................................................................11

Preparation for Sending by E-mail ...........................................................................12

Registering E-mail Addresses in the Address Book.................................................12

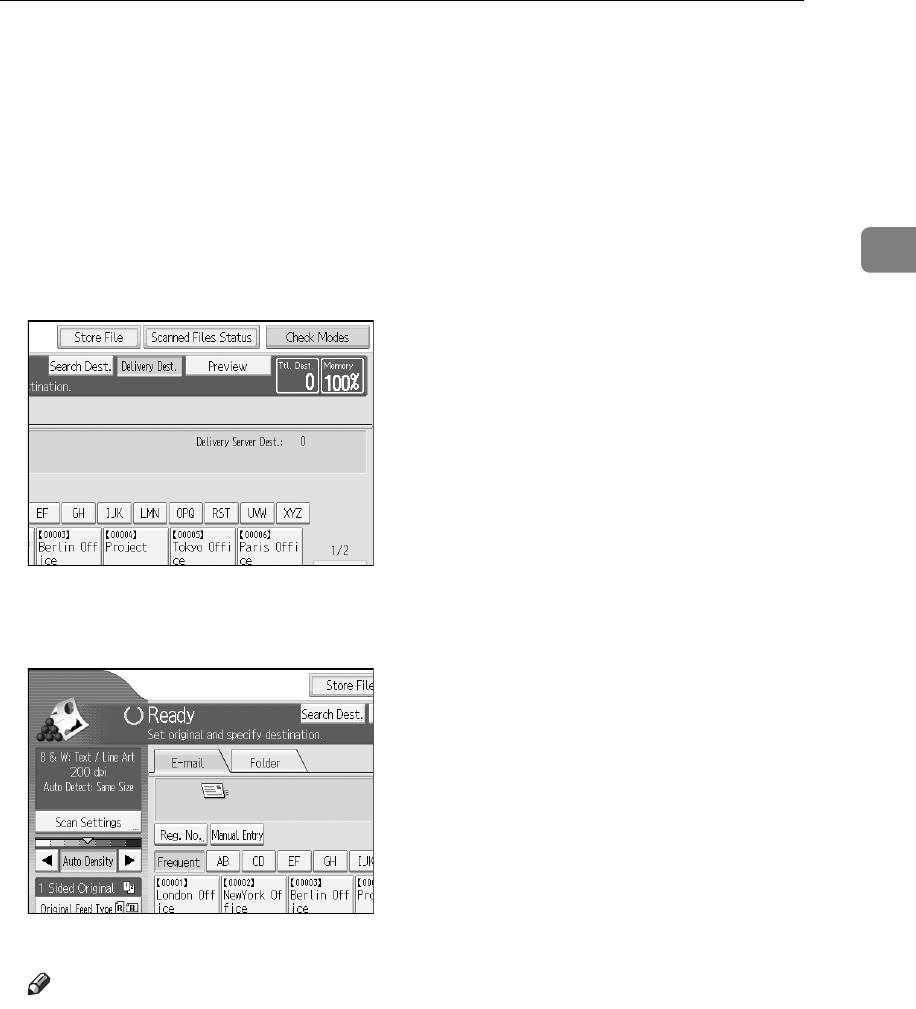

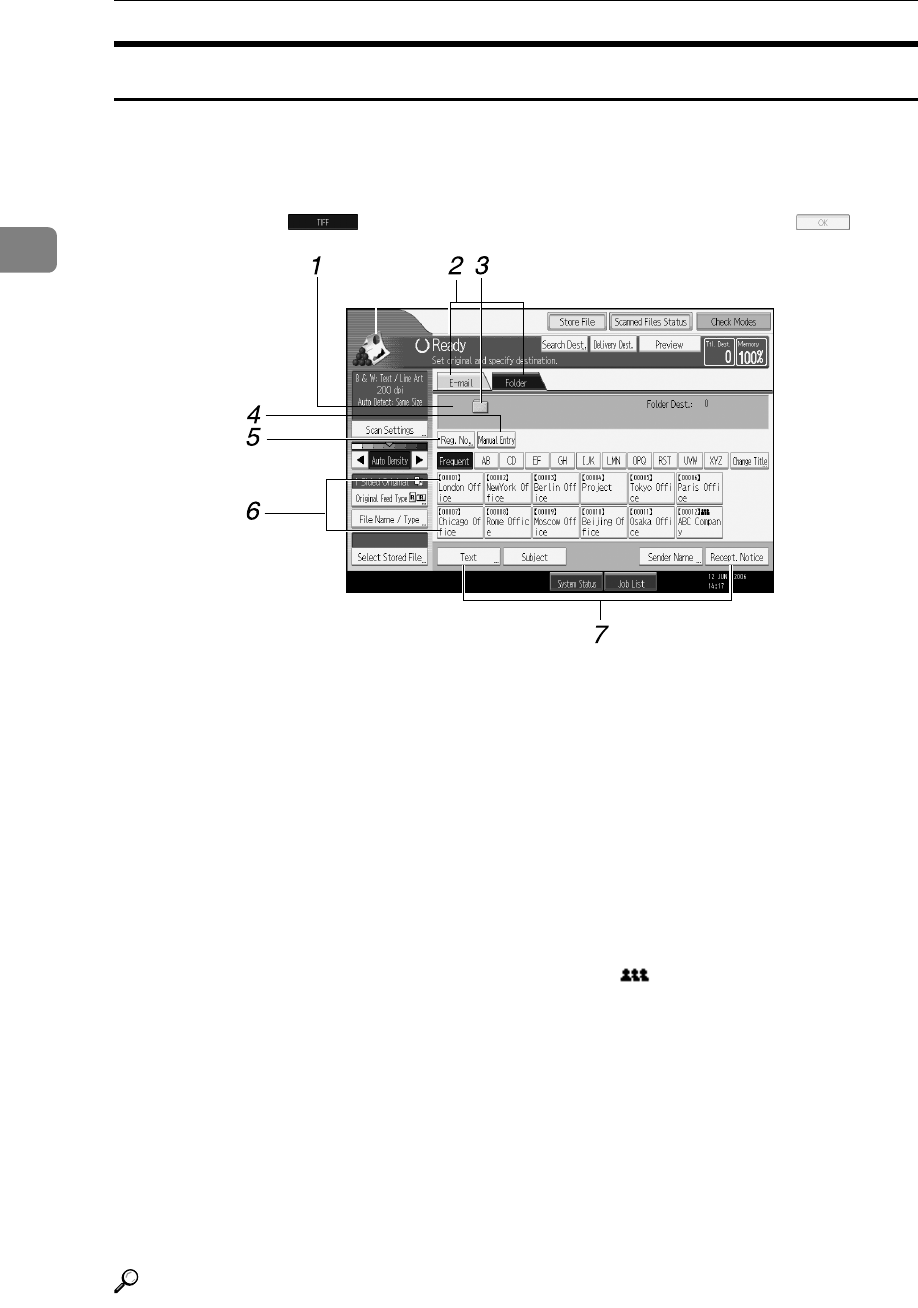

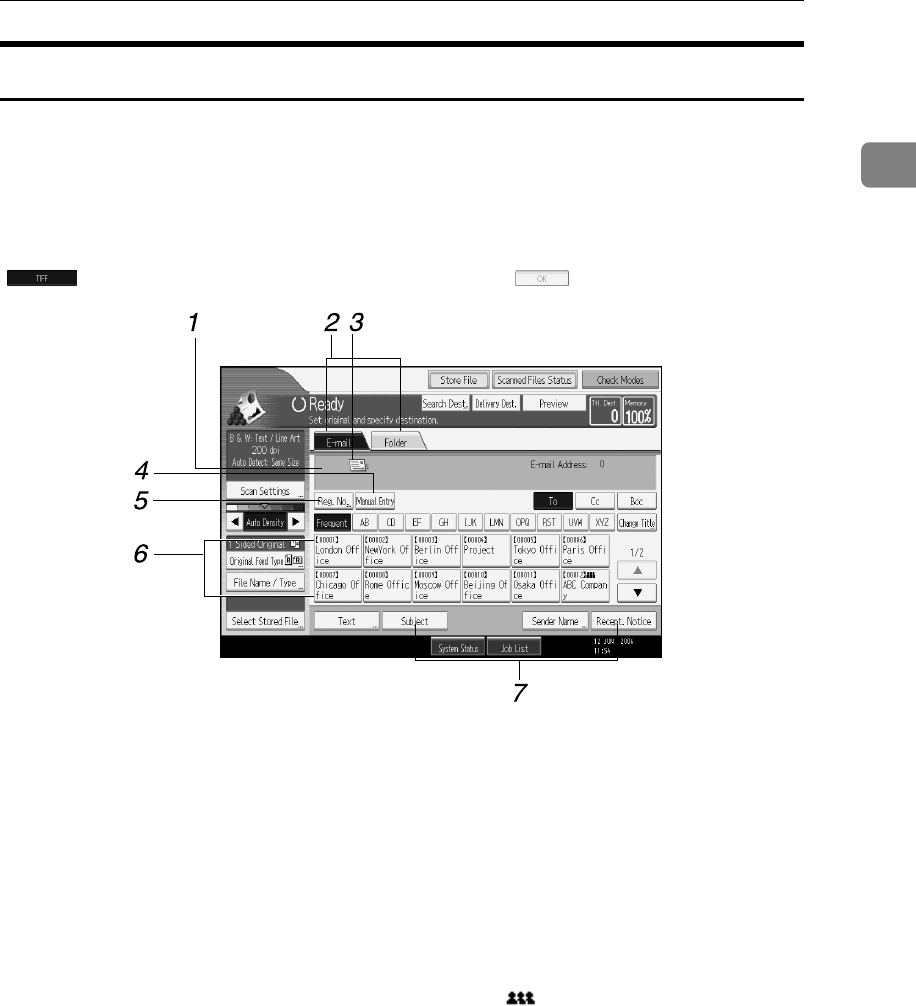

E-mail Screen...........................................................................................................13

Basic Operation for Sending Scan Files by E-mail...........................................14

Switching to the E-mail Screen ..........................................................................17

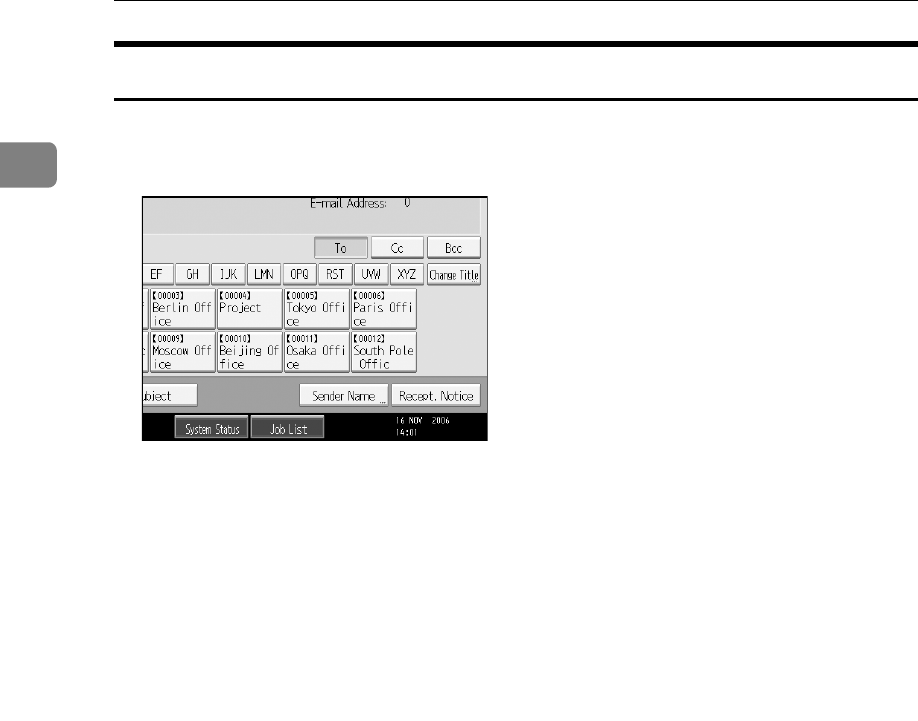

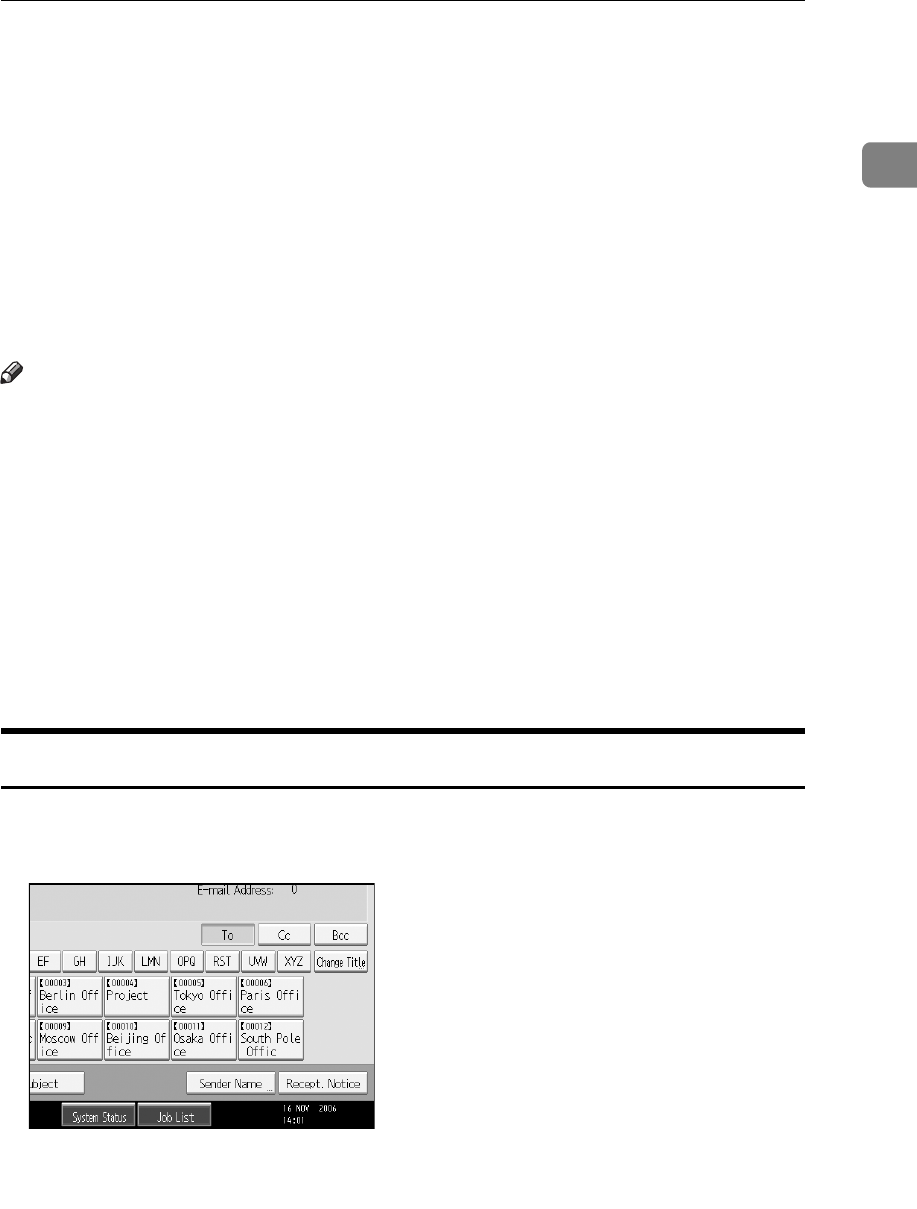

Specifying E-mail Destinations ..........................................................................18

Selecting the Destination from the Machine’s Address Book...................................18

Entering an E-mail Address Manually ......................................................................22

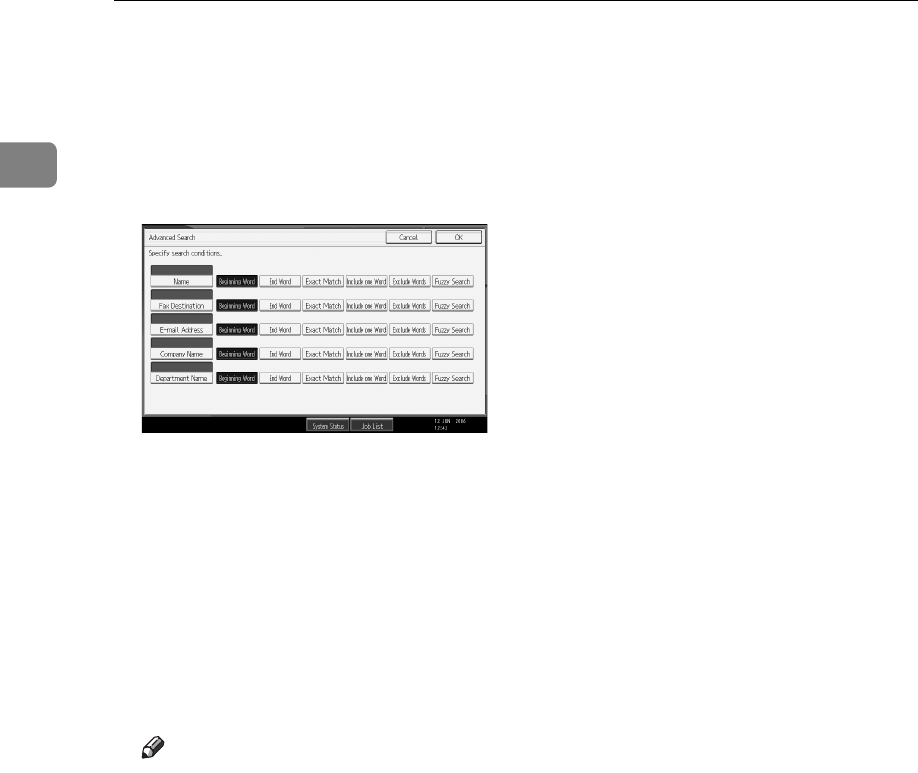

Selecting Destinations by Searching an LDAP Server.............................................23

Registering a Directly-Entered Destination in the Address Book .............................26

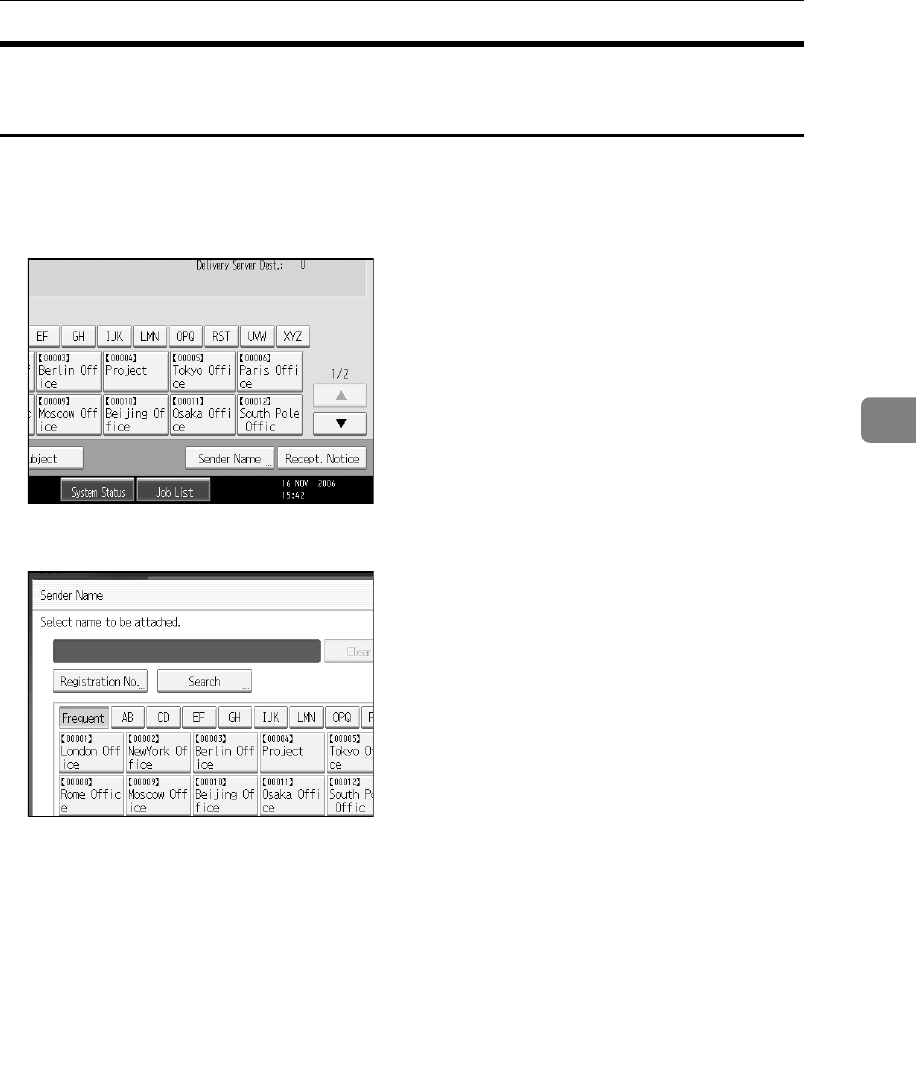

Specifying the E-mail Sender .............................................................................27

Selecting a Sender from the List ..............................................................................27

Using a Registration Number to Specify a Sender Name ........................................28

Selecting the Sender by Searching the Machine’s Address Book ...........................29

Specifying the E-mail Subject.............................................................................31

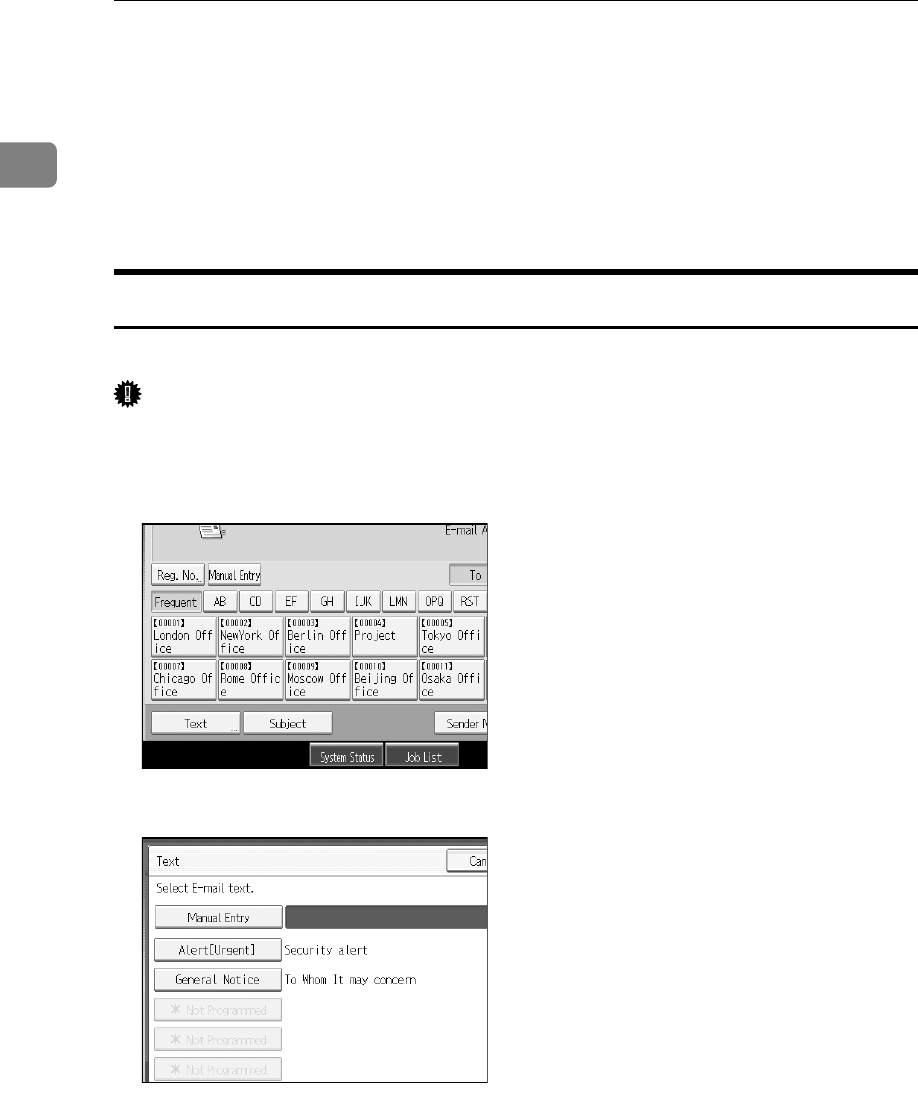

Specifying the E-mail Message ..........................................................................32

Selecting a Message from the List ...........................................................................32

Manual Entry of a Message .....................................................................................33

Simultaneous Storage and Sending by E-mail .................................................34

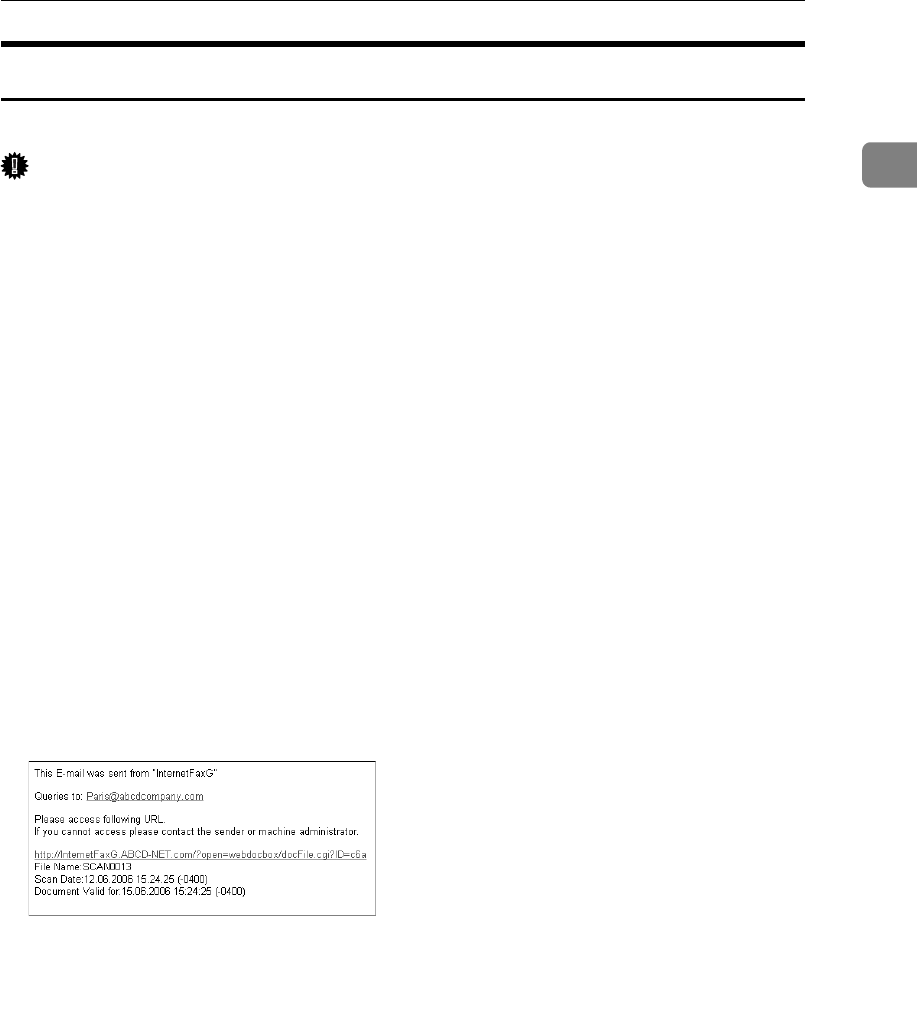

Sending the URL by E-mail......................................................................................35

2. Sending Scan Files to Folders

Before Sending Files by Scan to Folder ............................................................37

Outline of Sending Scan Files by Scan to Folder.....................................................37

Preparation for Sending by Scan to Folder ..............................................................40

Registering Destination Folders in the Address Book..............................................41

Scan to Folder Screen .............................................................................................42

Basic Operations When Using Scan to Folder..................................................43

Switching to the Scan to Folder Screen ............................................................45

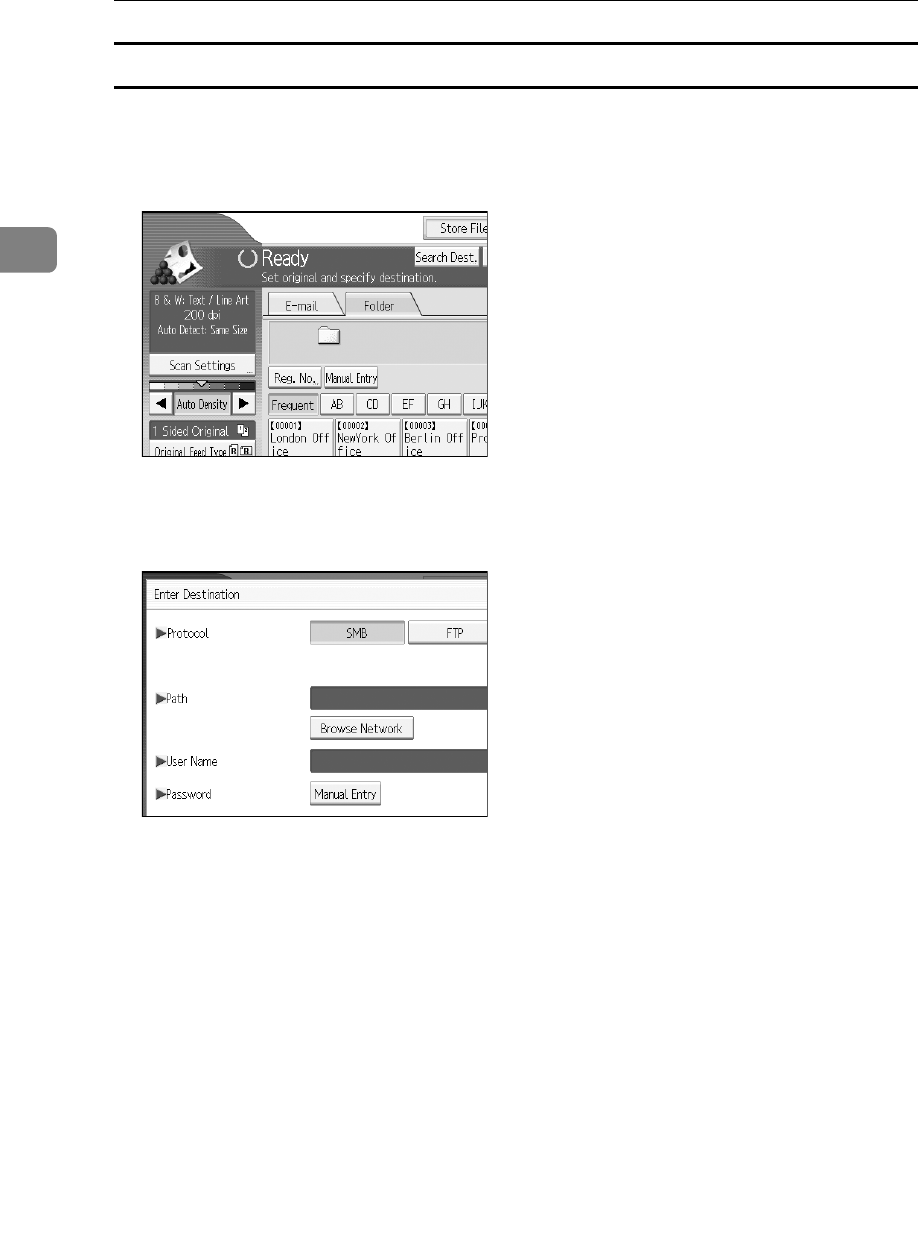

Specifying Scan to Folder Destinations ............................................................46

Selecting the Destination from the Machine’s Address Book...................................46

Sending Files to a Shared Network Folder ..............................................................50

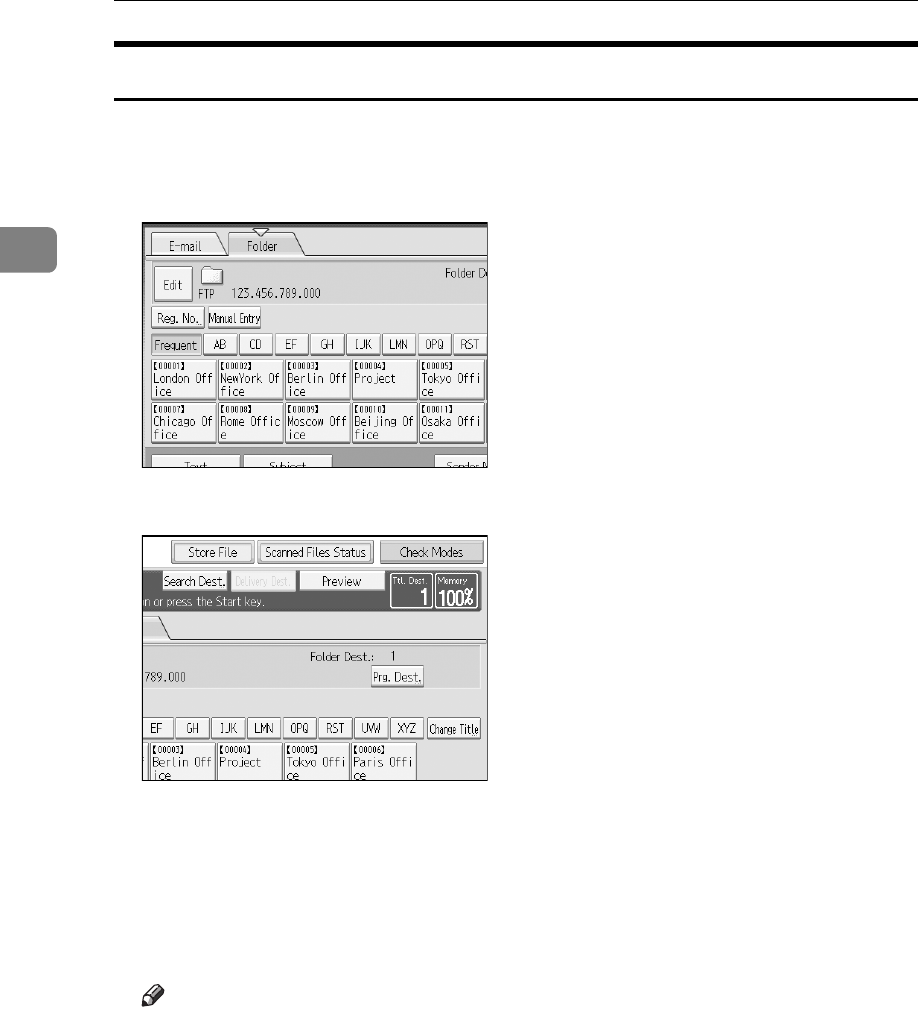

Sending Files to an FTP Server ...............................................................................54

Sending Files to an NDS Tree or NetWare Server ..................................................56

Registering the Path to the Selected Destination in the Address Book ...................60

Simultaneous Storage and Sending by Scan to Folder ...................................61

3. Storing Files Using the Scanner Function

Before Storing Files.............................................................................................63

Outline of File Storage under the Scanner Function ................................................63

Basic Operation for Storing Scan Files .............................................................65

Specifying File Information for a Stored File ....................................................67

Specifying a User Name ..........................................................................................67

Specifying a File Name ............................................................................................68

Specifying a Password.............................................................................................69

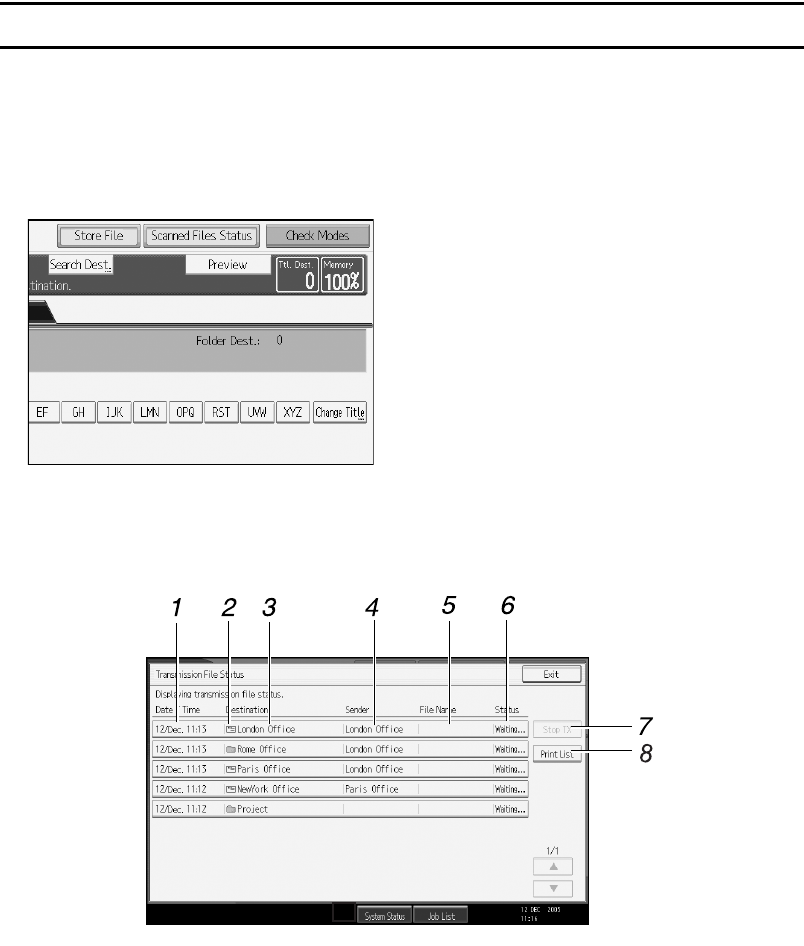

Displaying the List of Stored Files .....................................................................70

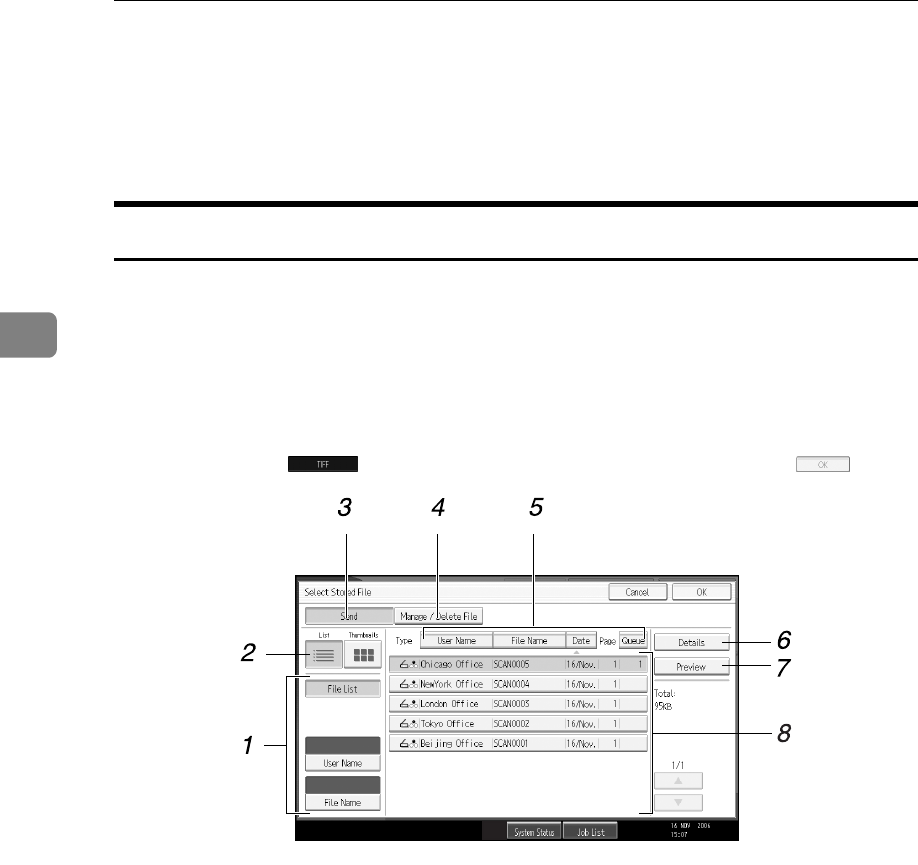

List of Stored Files ...................................................................................................70

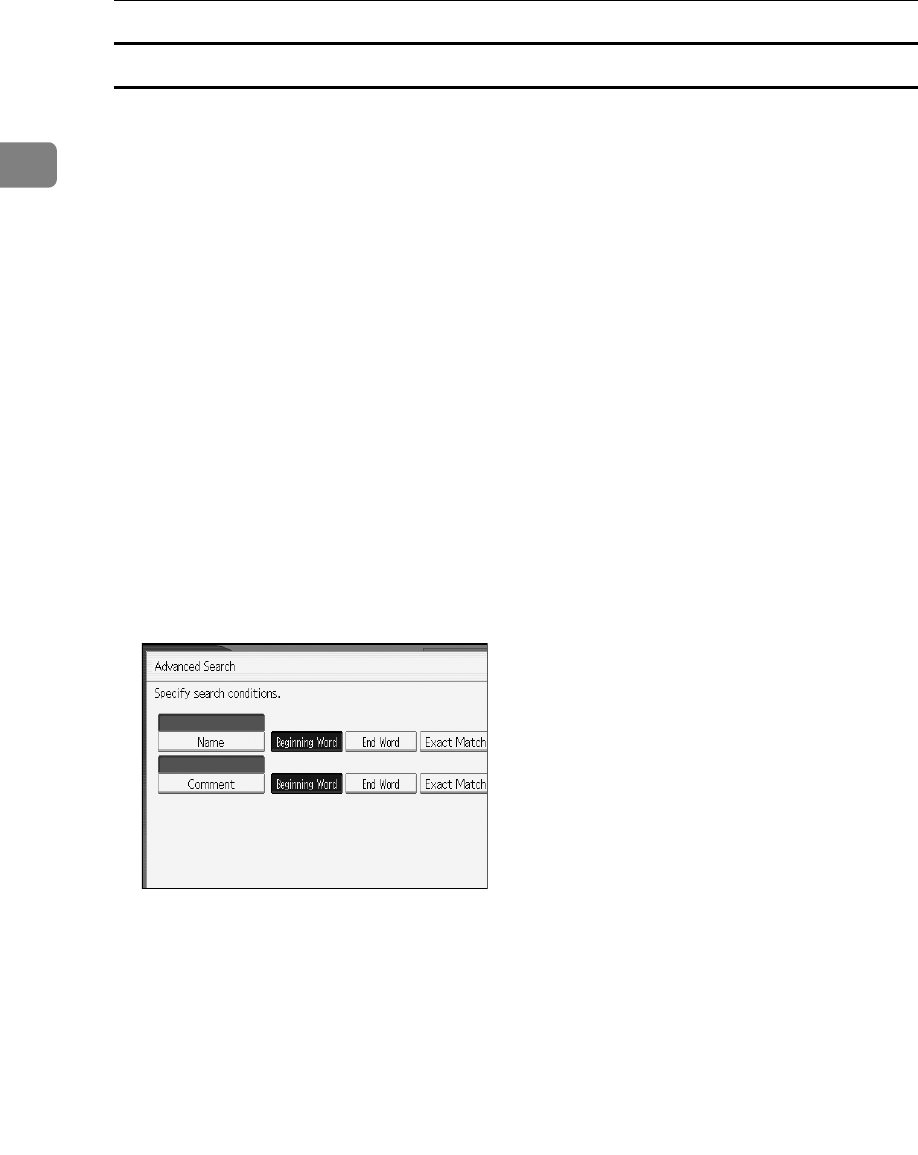

Searching the List of Stored Files ............................................................................72

Checking Stored Files .........................................................................................74

Checking a Stored File Selected from the List .........................................................74

Checking Stored Files from a Client Computer........................................................76

Sending a Stored File ..........................................................................................77

Sending Stored Files................................................................................................77

Managing Stored Files.........................................................................................79

Deleting a Stored File...............................................................................................79

Changing Data for a Stored File...............................................................................80

4. Delivering Scan Files

Before Delivering Files ........................................................................................85

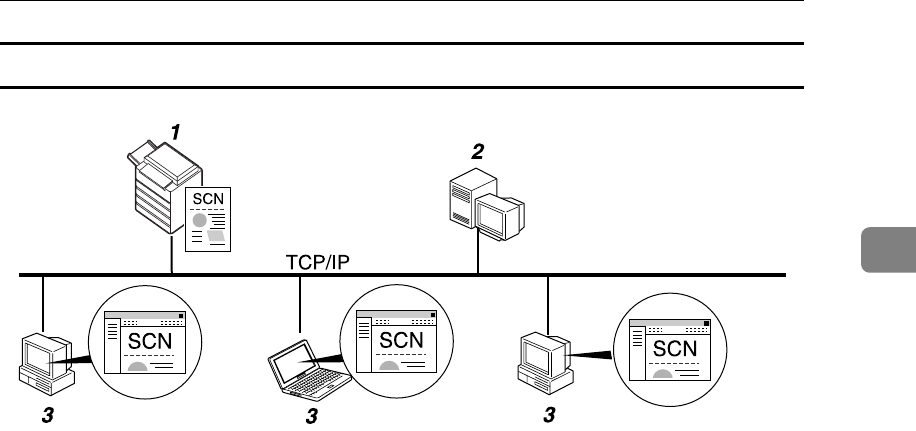

Outline of Scan File Delivery....................................................................................85

Preparing to Deliver a File........................................................................................86

Installing DeskTopBinder Lite from the Supplied CD-ROM .....................................87

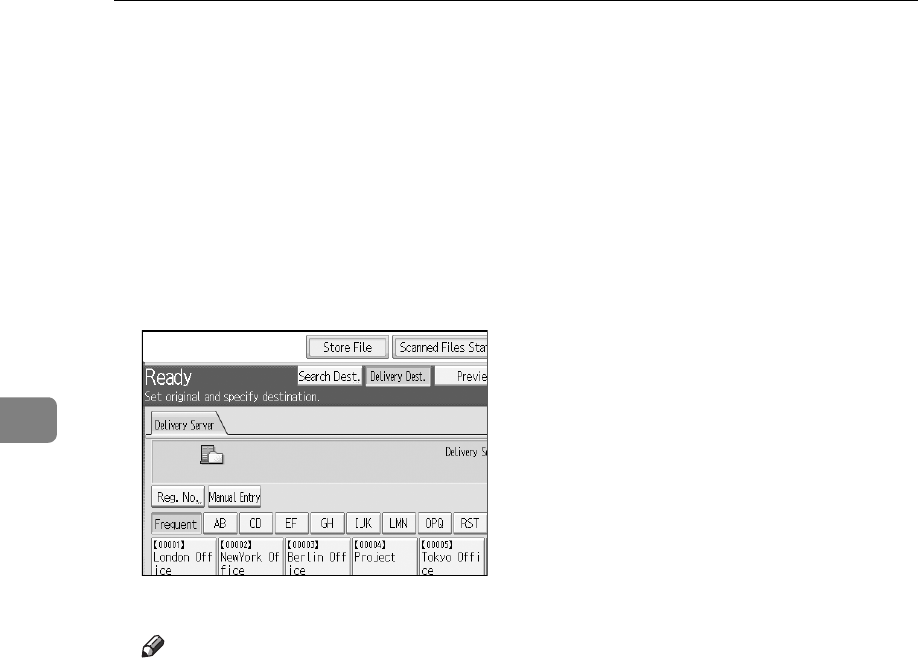

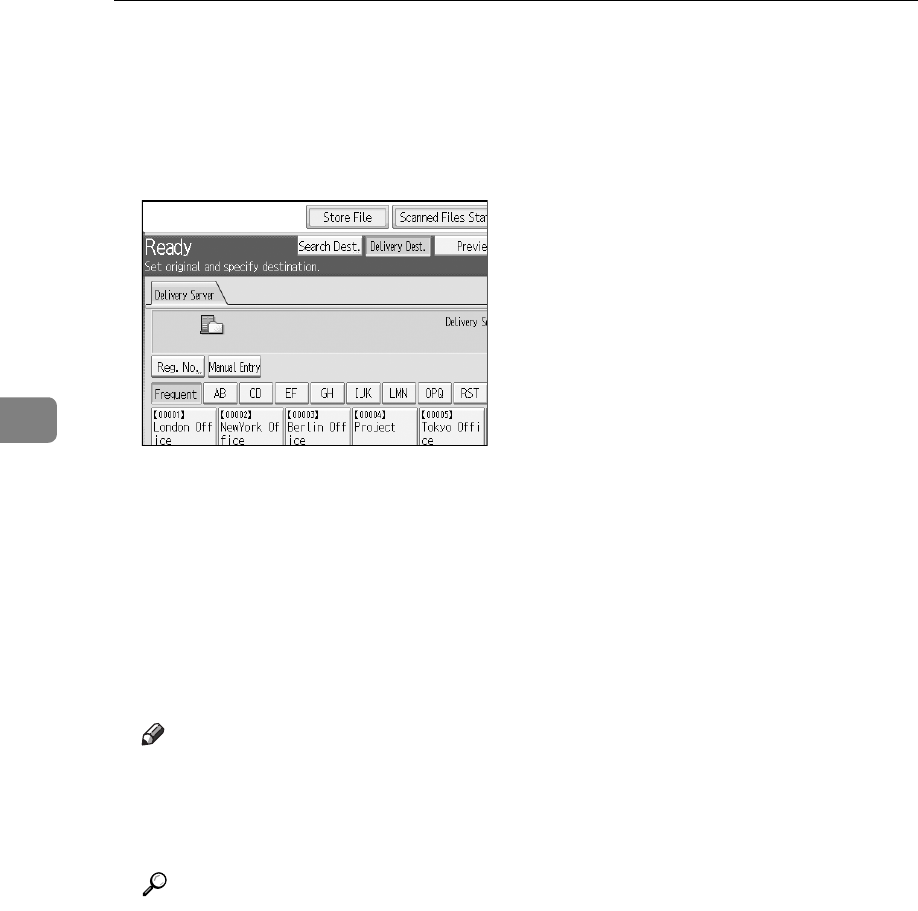

Network Delivery Scanner Screen ...........................................................................88

Basic Operation for Delivering Files ..................................................................89

Switching to the Network Delivery Scanner Screen.........................................92

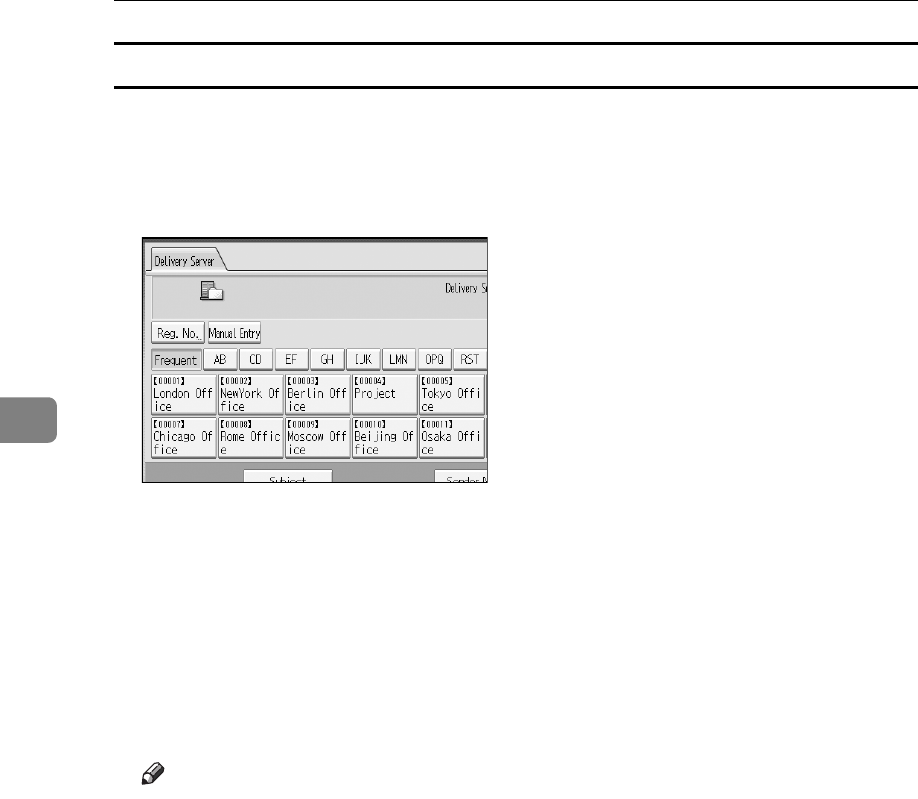

Specifying Delivery Destinations .......................................................................93

Selecting Destinations Registered in the Delivery Server’s Address Book..............93

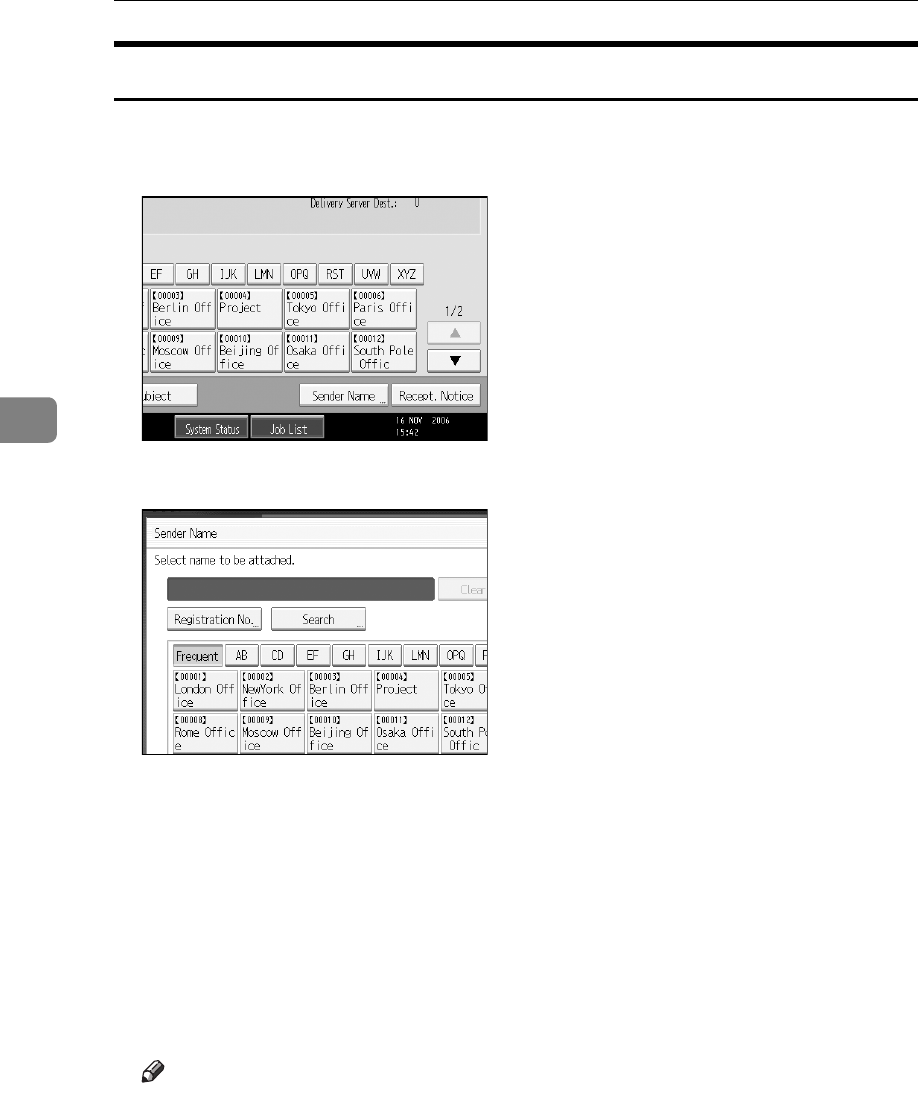

Specifying the Sender .........................................................................................97

Selecting a Sender from the Sender List in the Delivery Server’s Destination List

....97

Selecting the Sender by Entering the Registration Number.....................................98

Selecting a Sender by Searching the Delivery Server’s Destination List .................99

Specifying the Subject of the E-mail to Be Transmitted via the Delivery Server

...101

Simultaneous Storage and Delivery.................................................................102

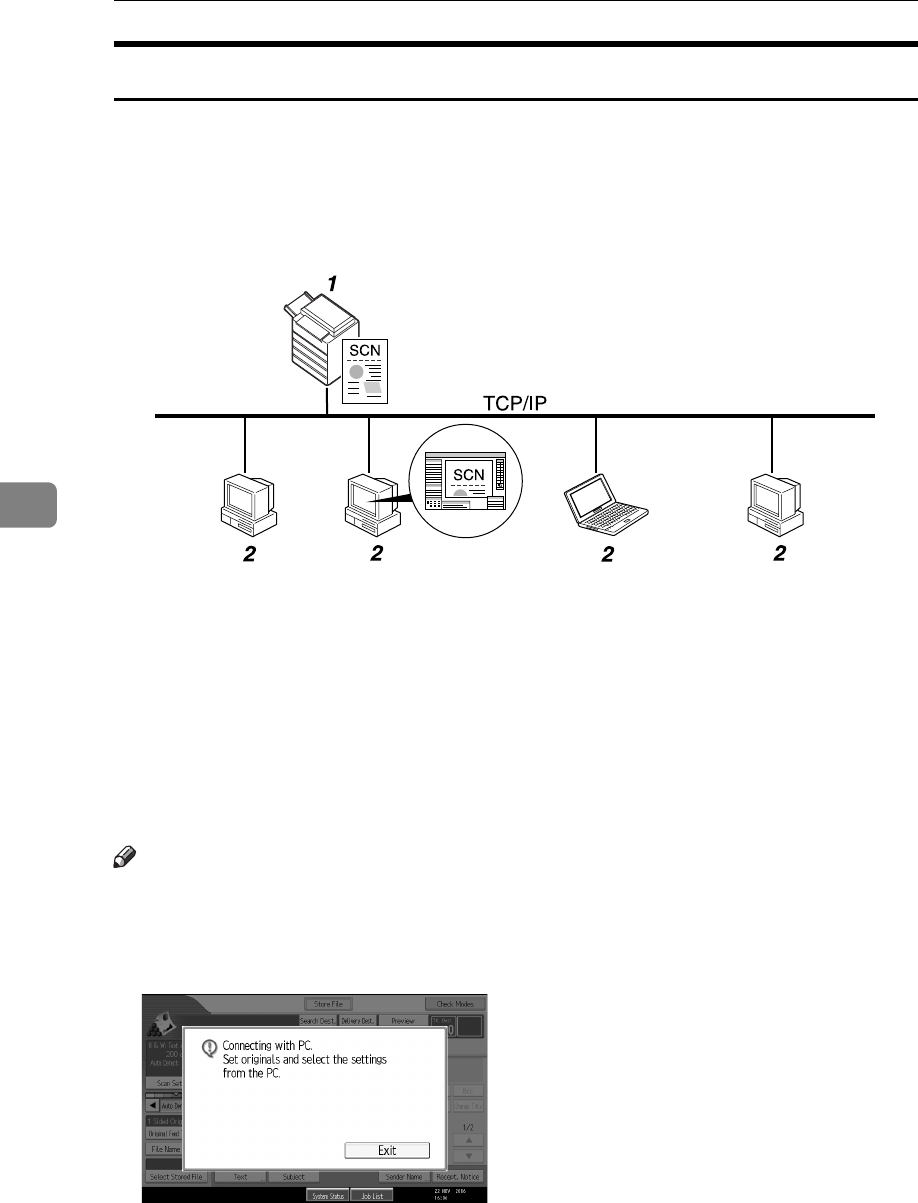

5. Scanning Originals with the Network TWAIN Scanner

Before Using the Network TWAIN Scanner .....................................................103

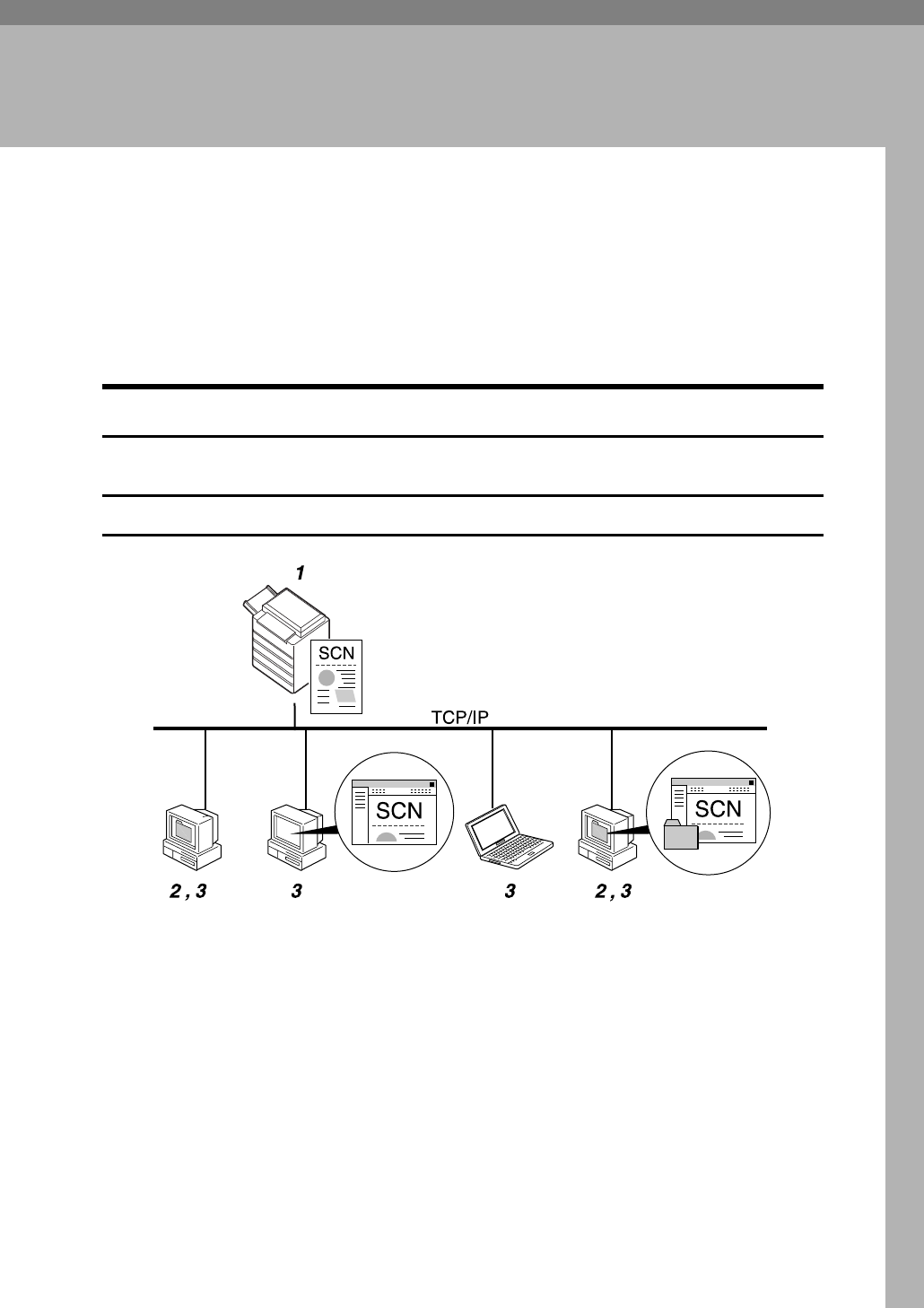

Outline of the Network TWAIN Scanner.................................................................104

Preparing to Use the Network TWAIN Scanner .....................................................105

Installing the TWAIN Driver from the Supplied CD-ROM.......................................106

Basic Network TWAIN Scanner Operation ......................................................107

6. Various Scan Settings

Scan Settings .....................................................................................................109

Items for Specifying Scan Settings..................................................................110

Scan Type ..............................................................................................................110

Resolution ..............................................................................................................110

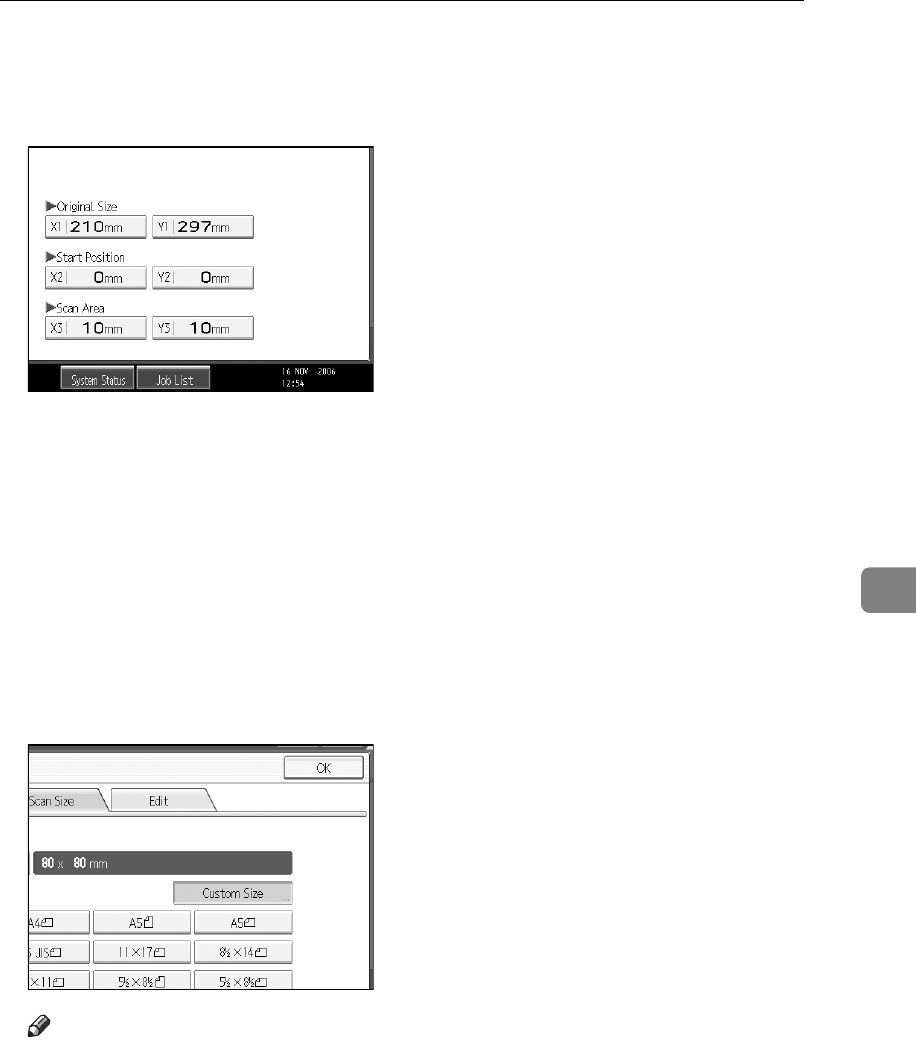

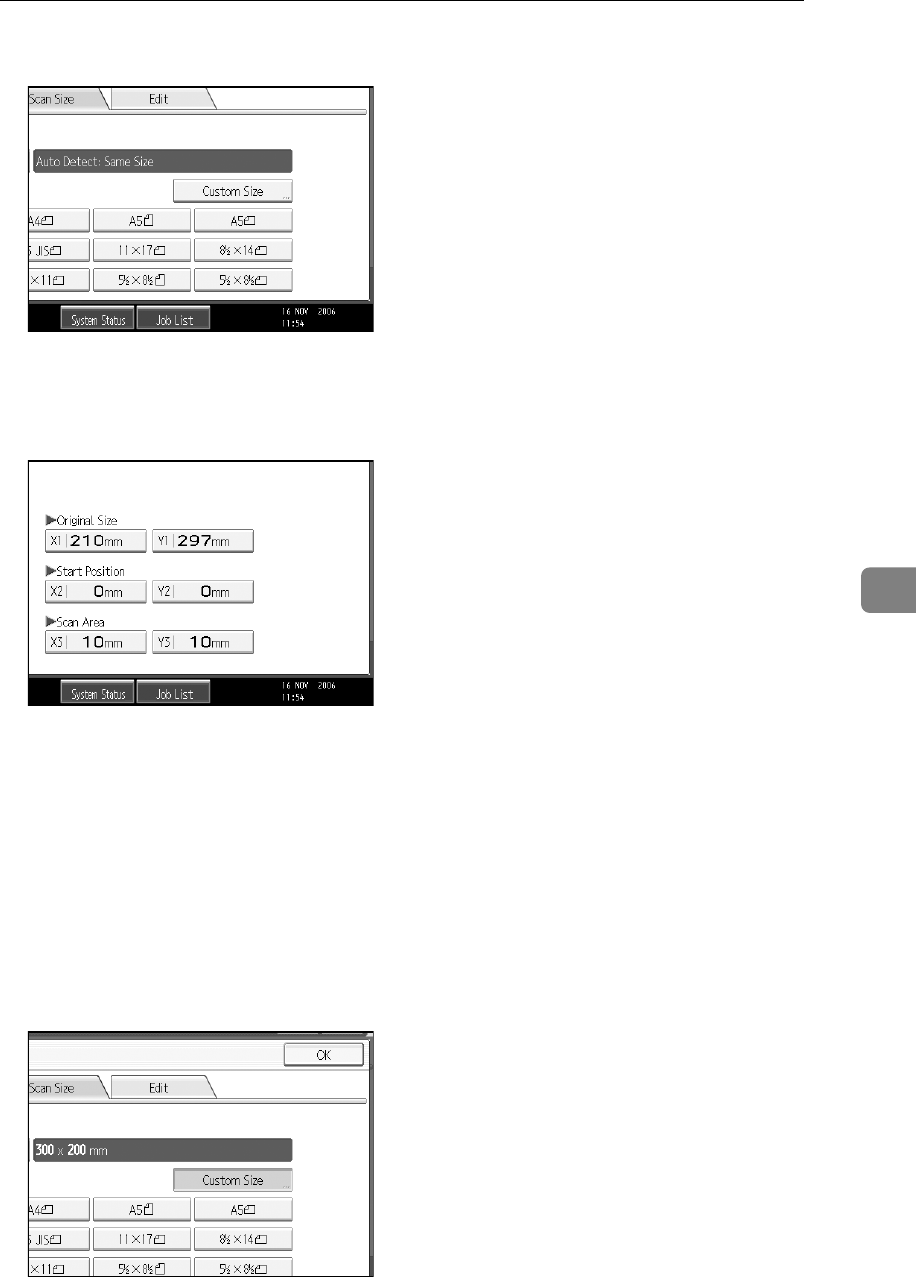

Scan Size ...............................................................................................................111

Edit .........................................................................................................................119

Adjusting Image Density...................................................................................120

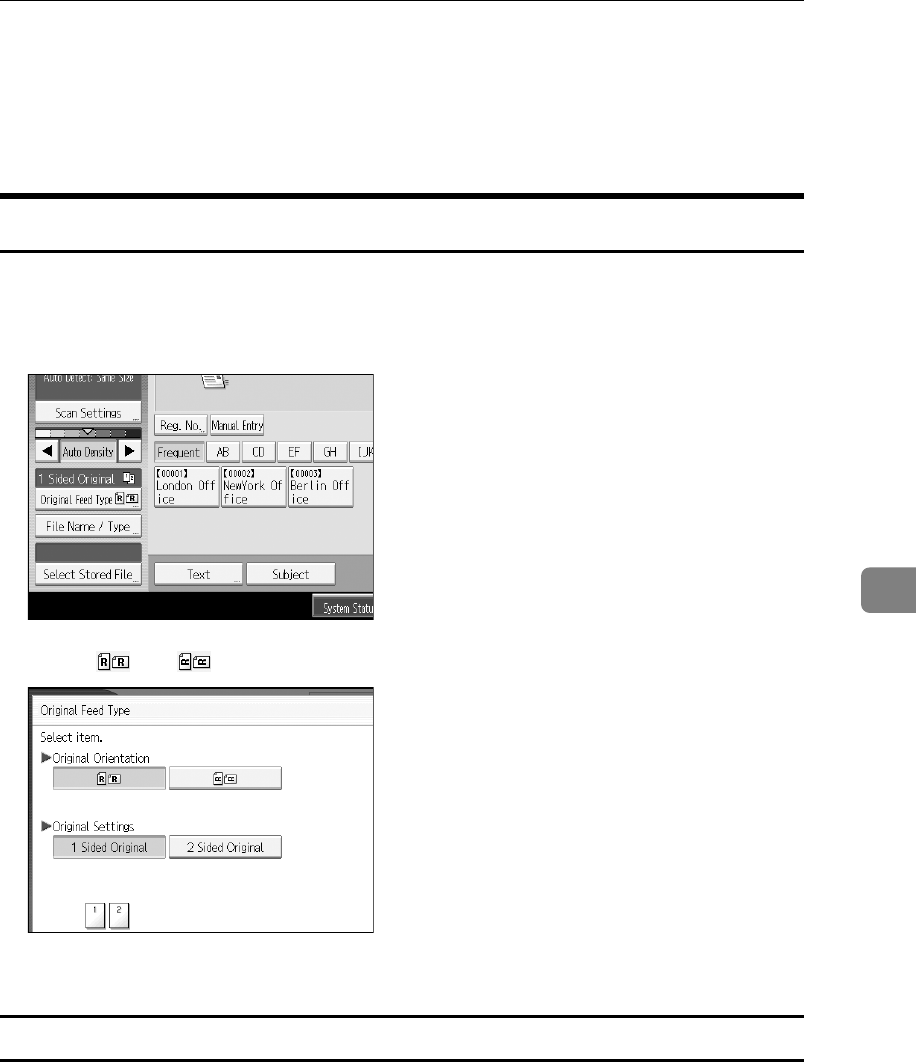

Setting of Original Feed Type...........................................................................121

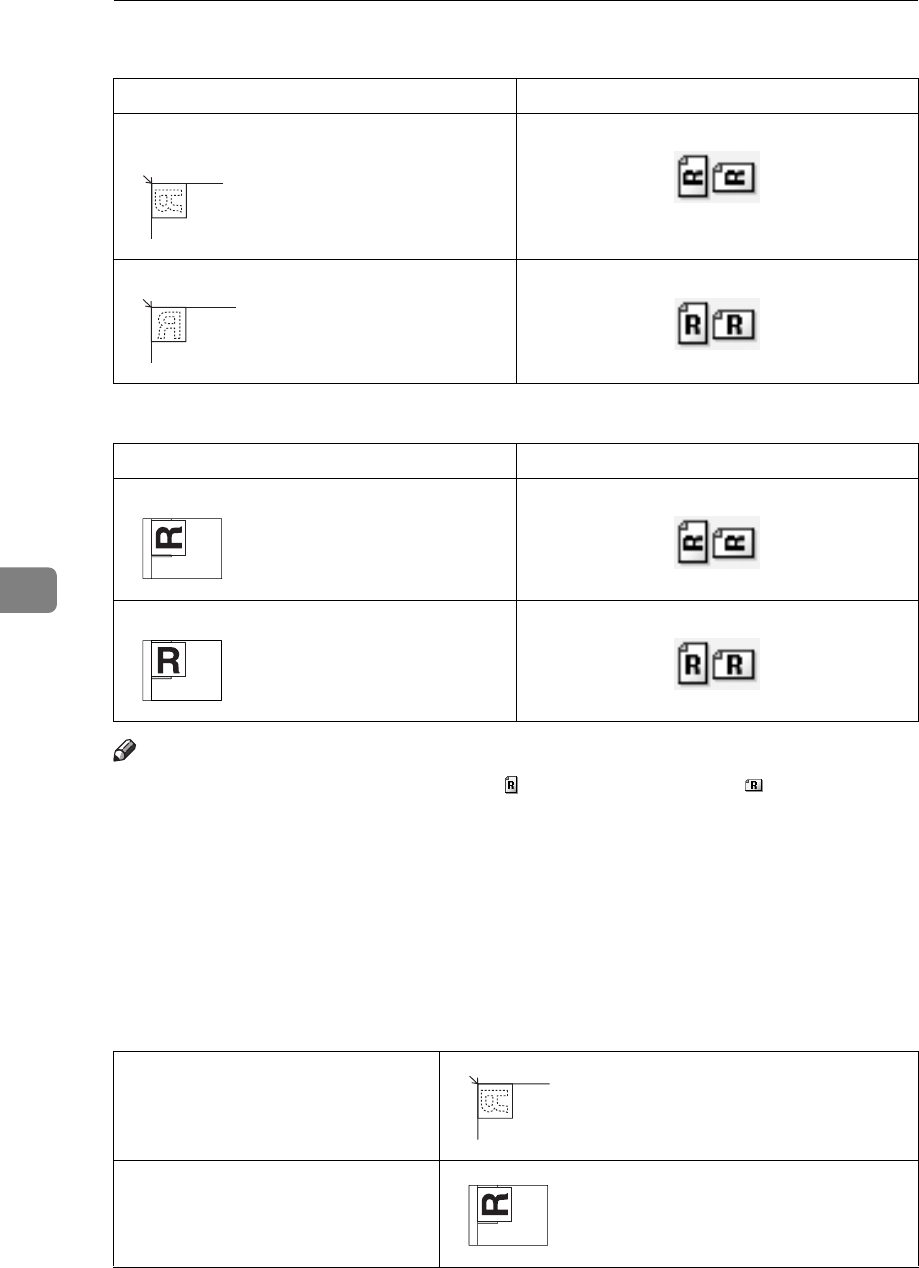

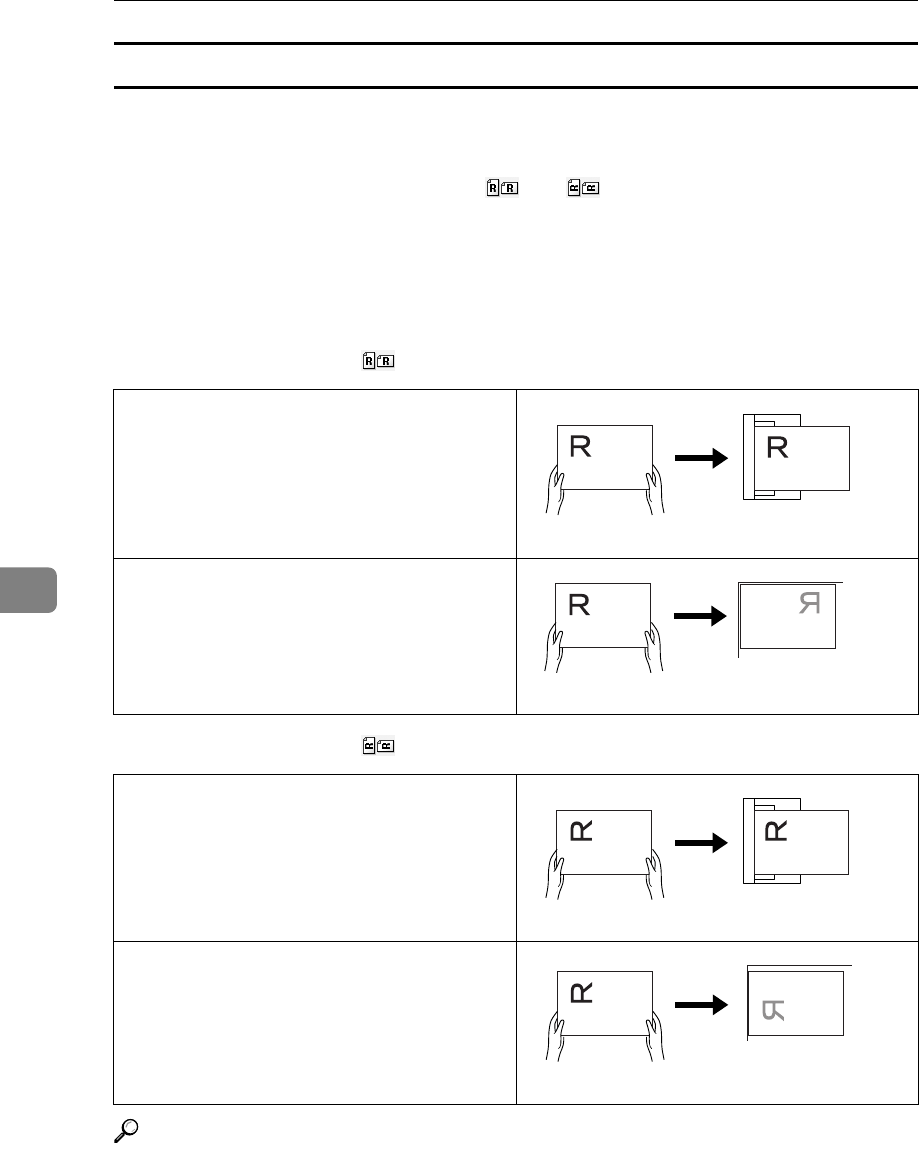

Original Orientation ................................................................................................121

Original Settings.....................................................................................................123

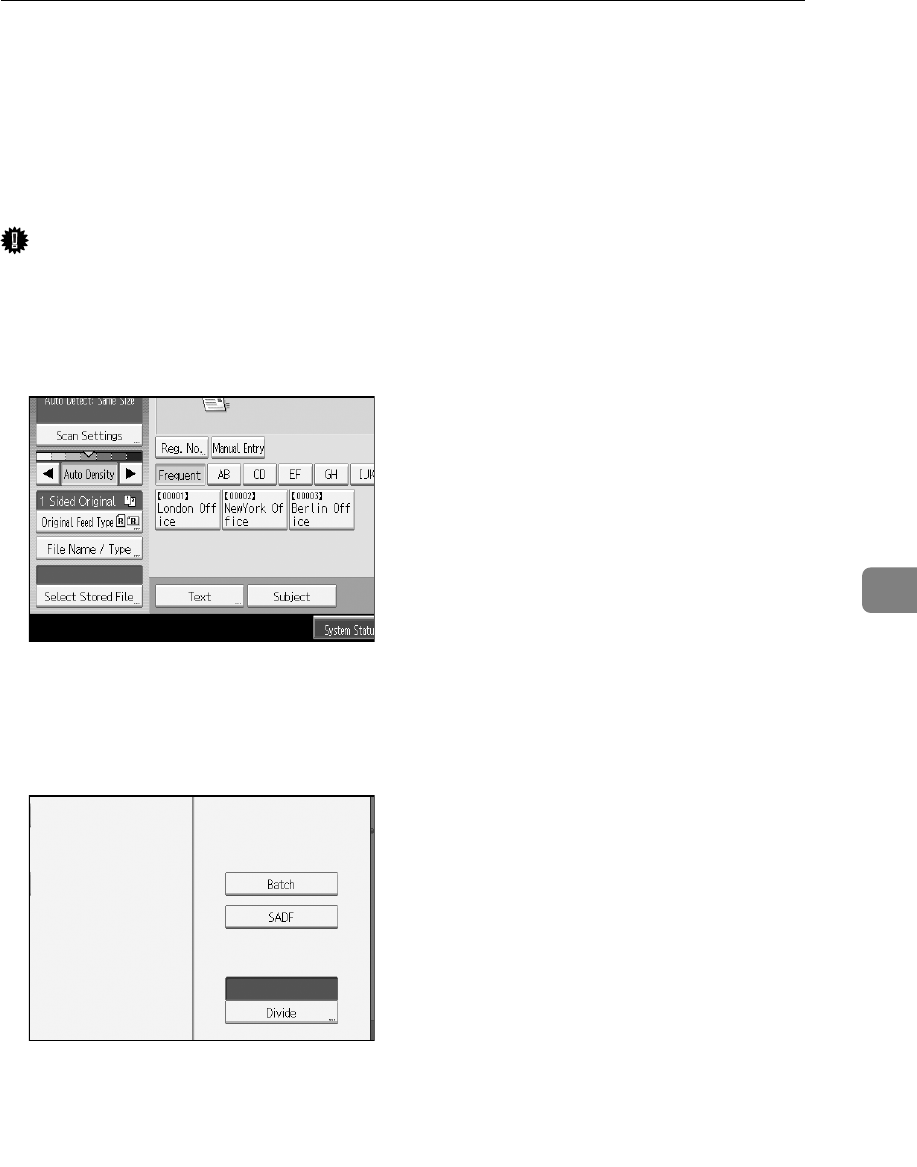

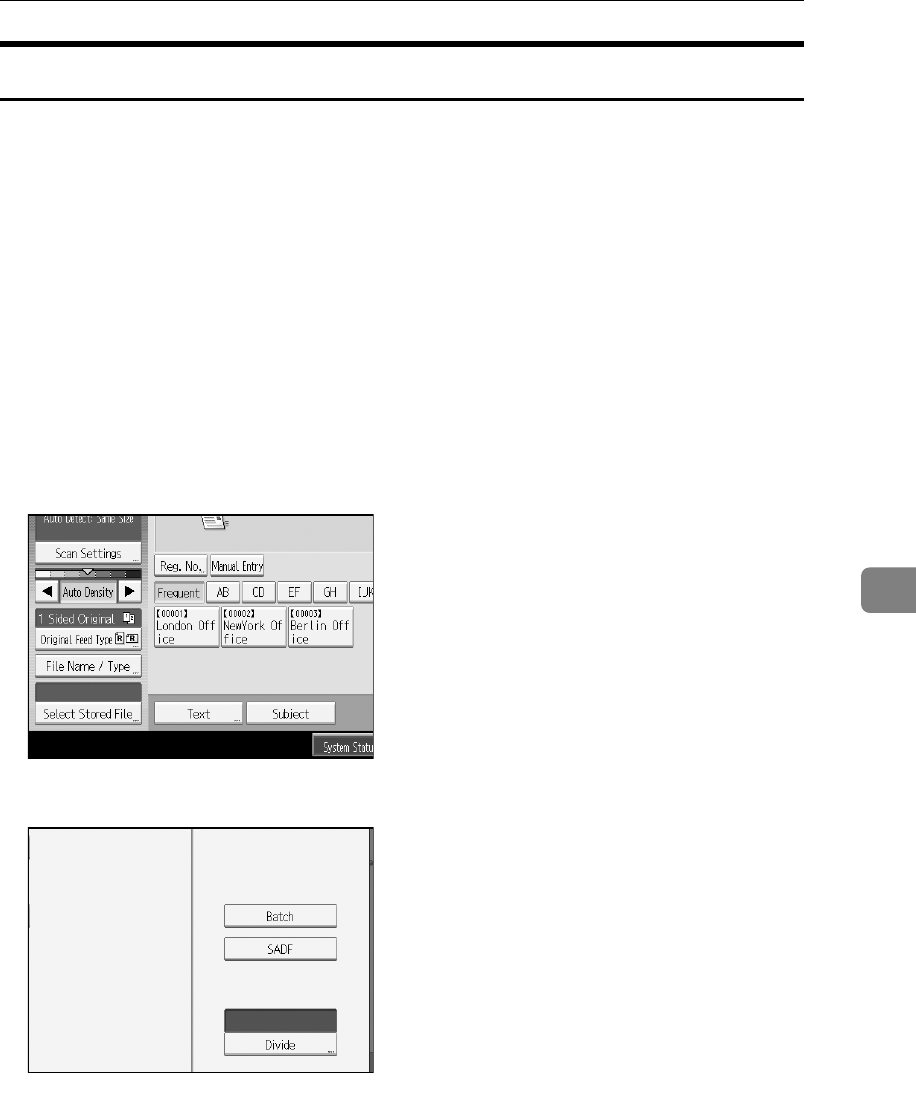

Batch, SADF ..........................................................................................................125

Divide .....................................................................................................................127

Scanning Multiple Pages of Originals as One File .........................................129

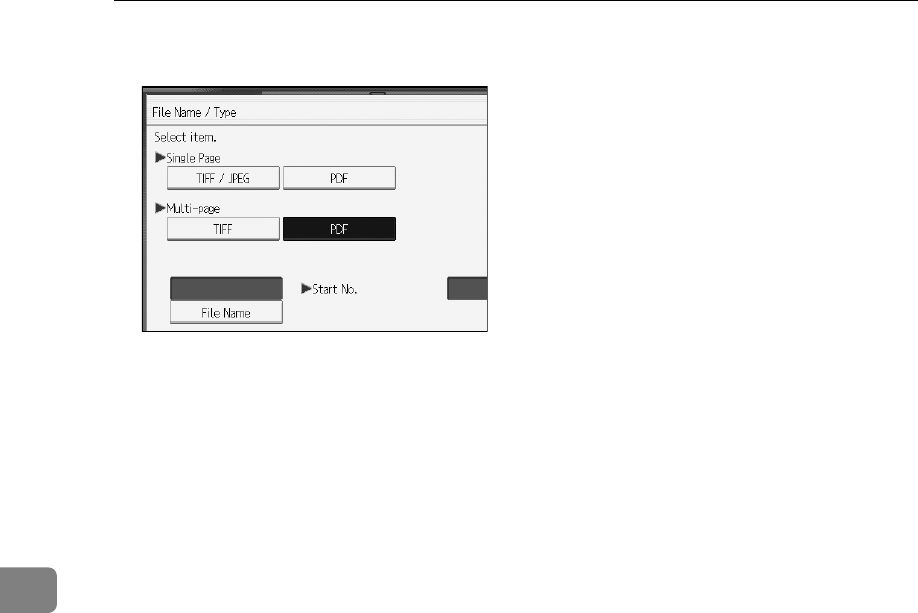

Setting File Type and File Name.......................................................................131

Setting File Type ....................................................................................................131

Setting File Name...................................................................................................133

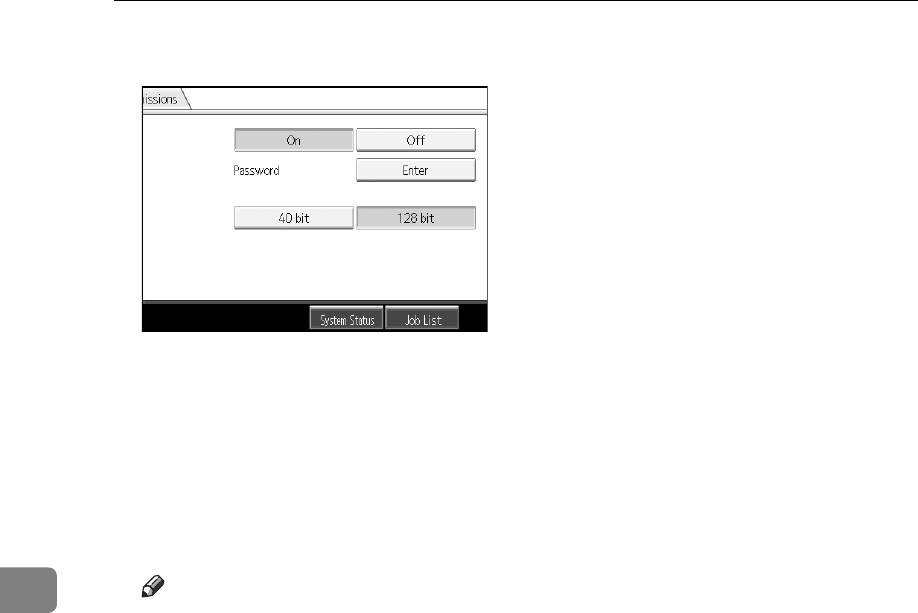

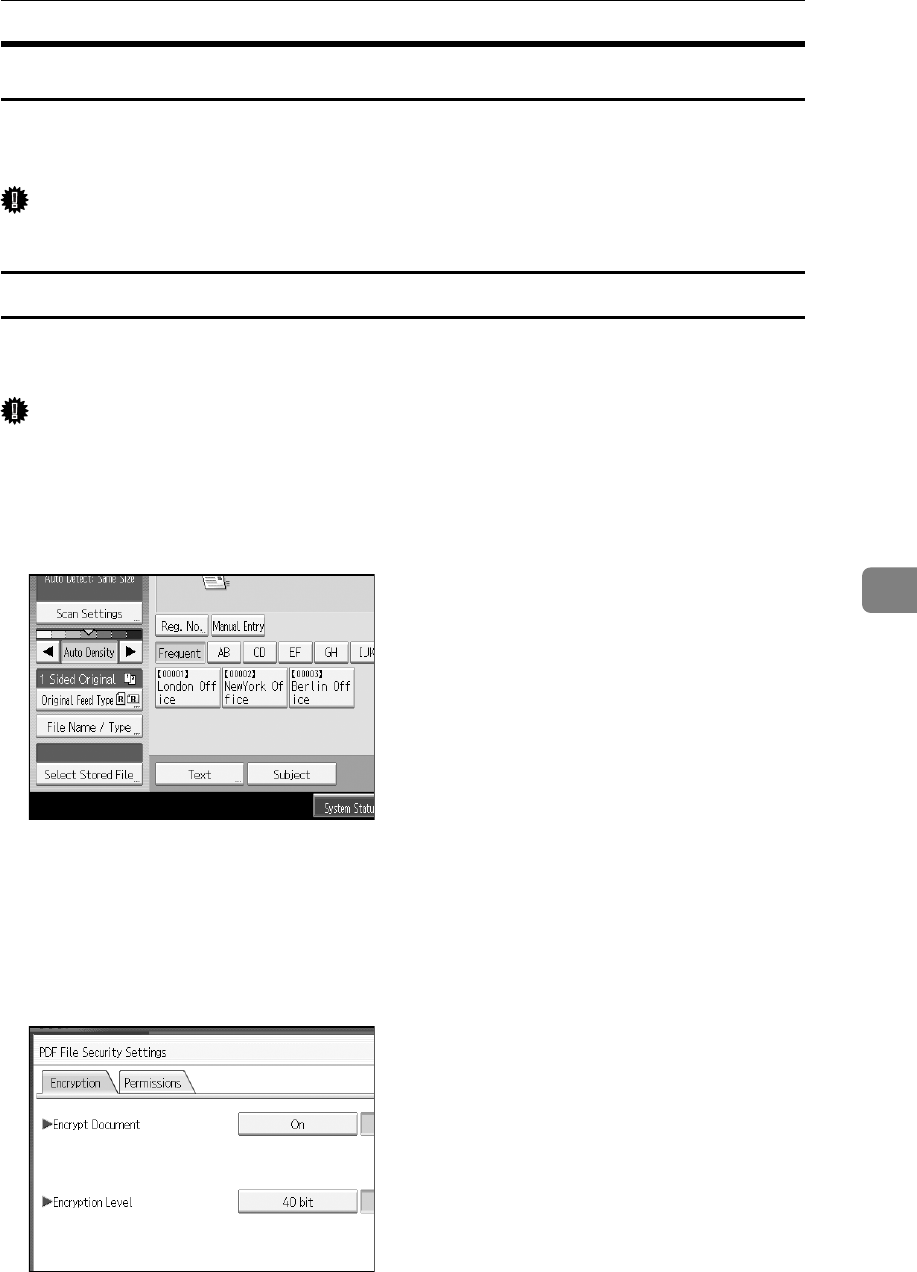

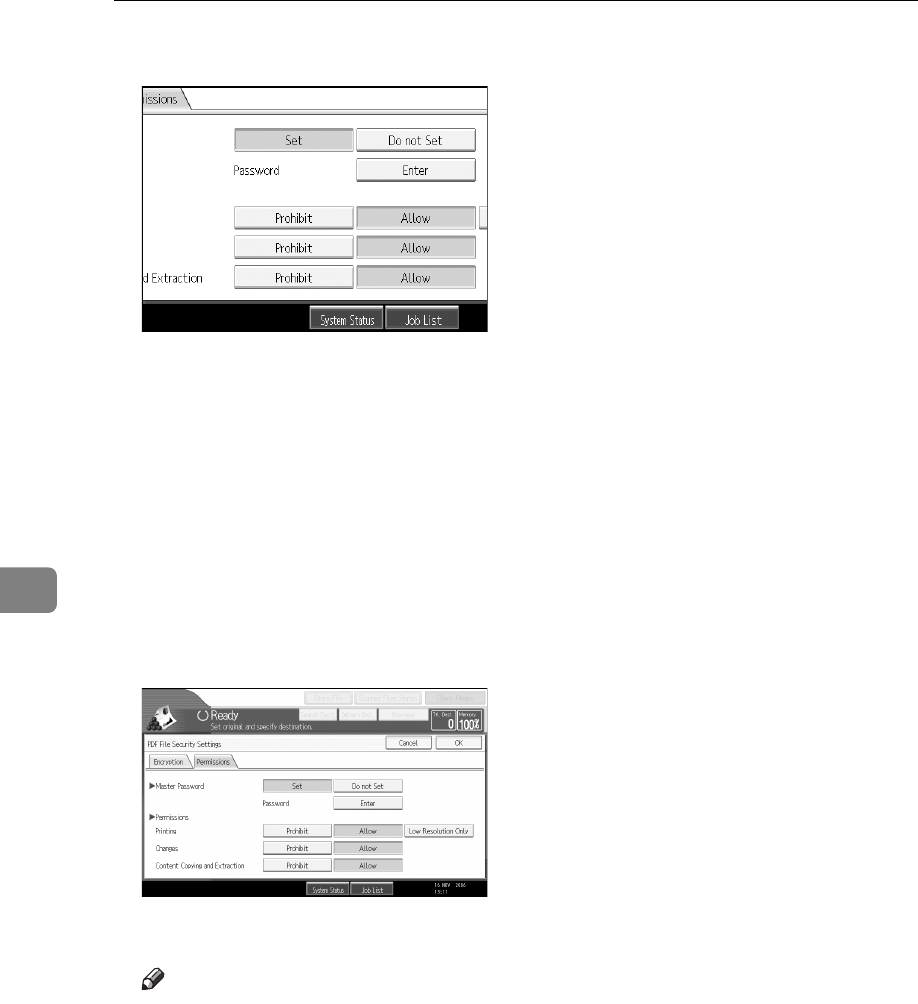

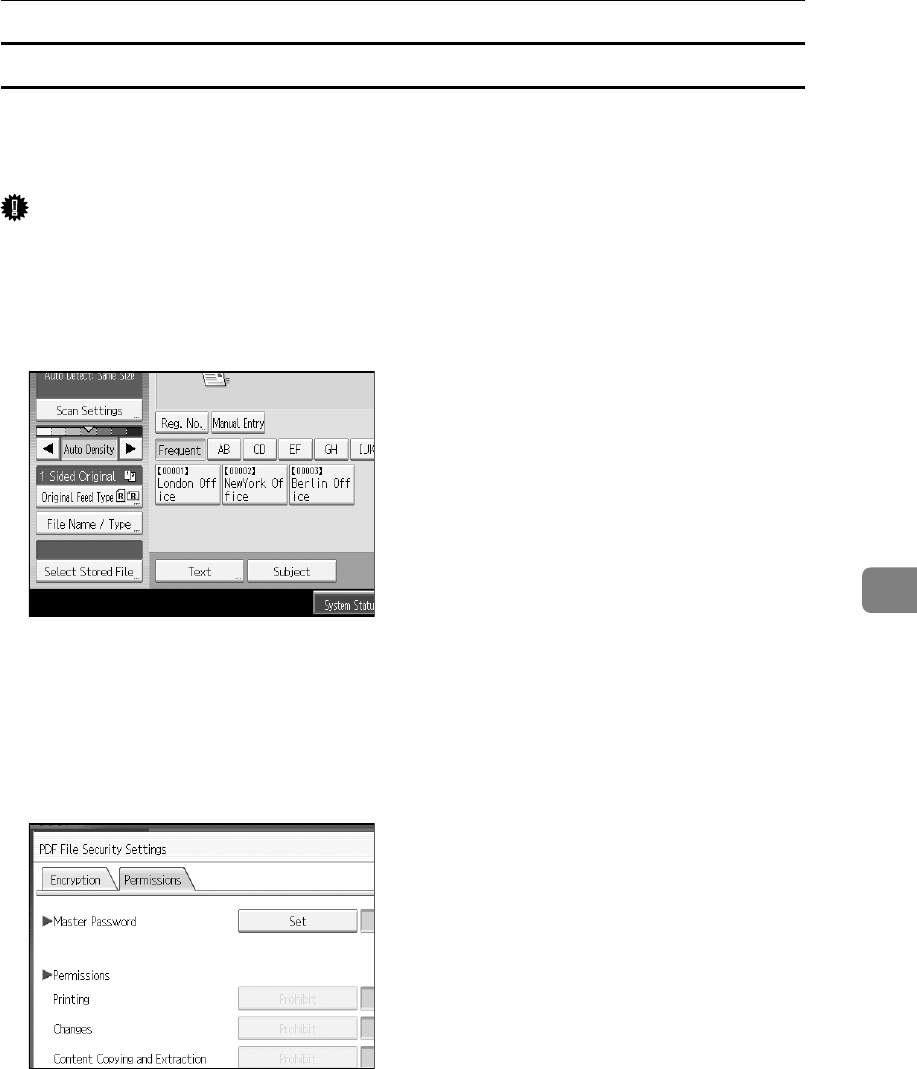

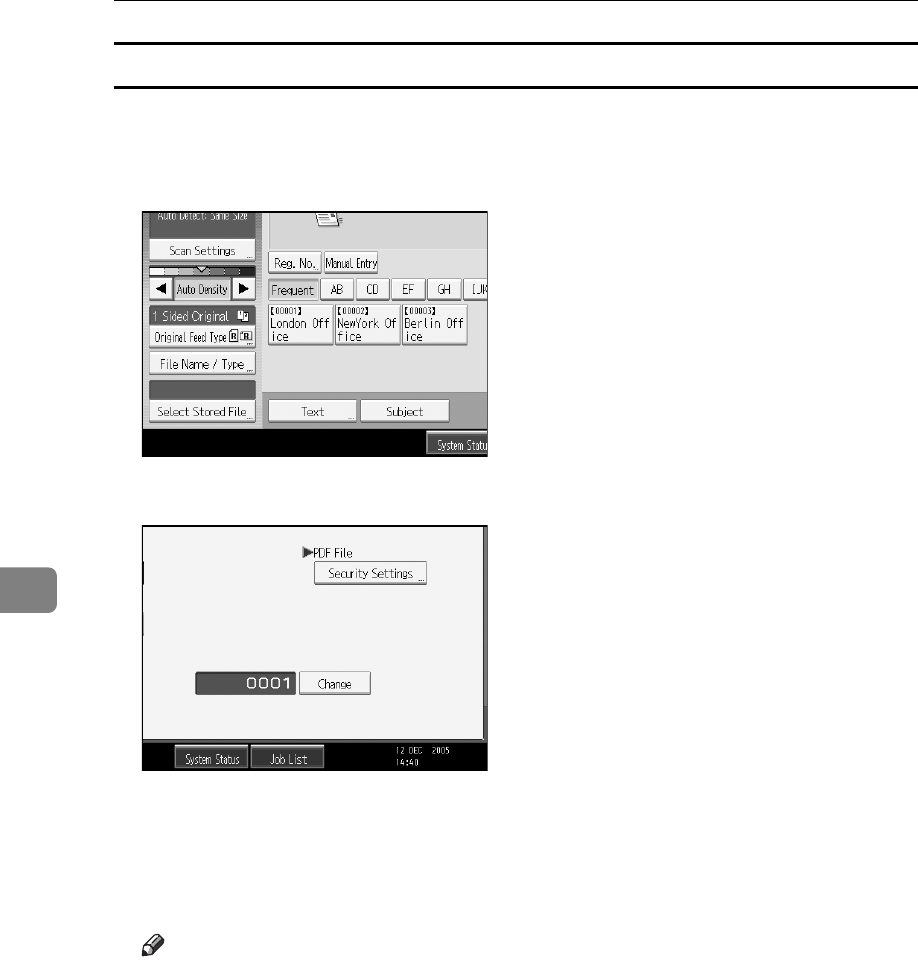

Security Settings to PDF Files ...............................................................................135

Programs ............................................................................................................139

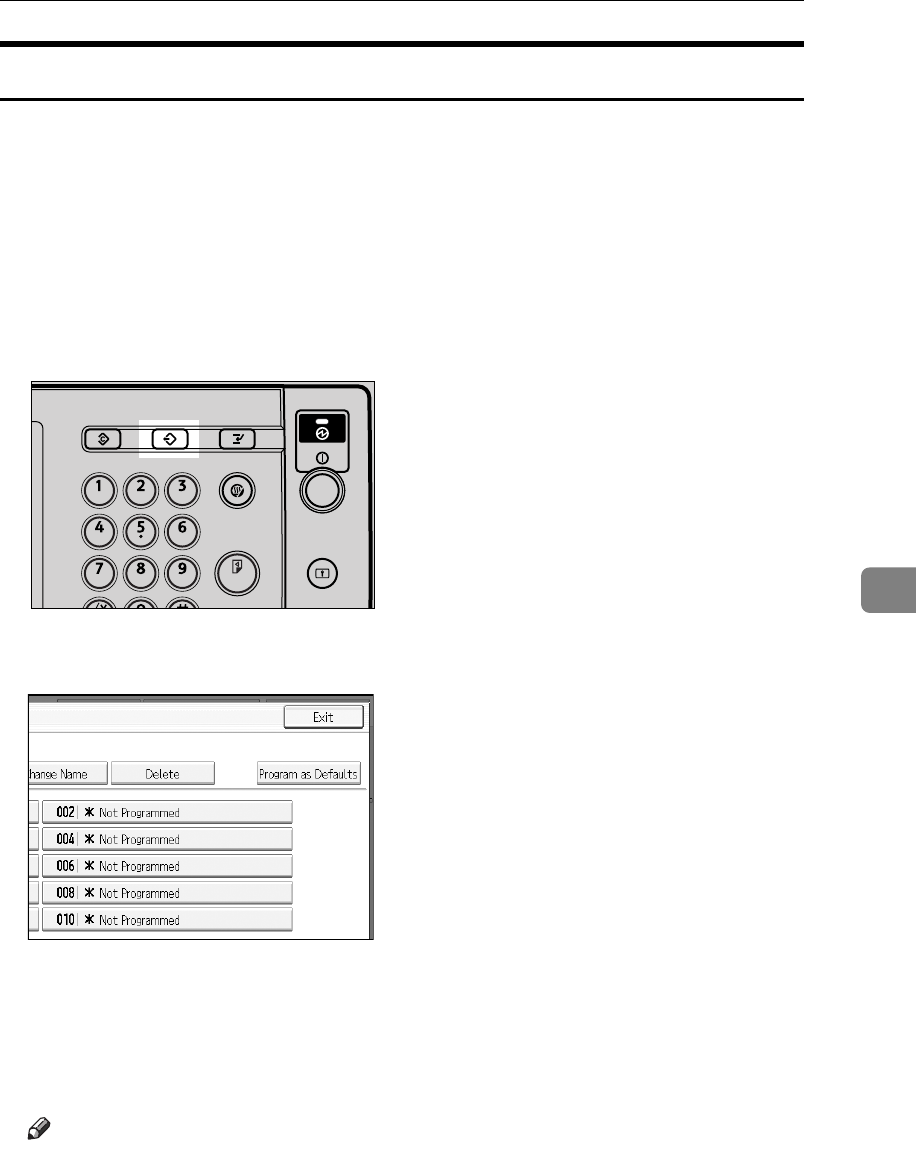

Registering Frequently Used Setting .....................................................................139

Recalling a Registered Content .............................................................................140

Changing a Registered Program............................................................................141

Deleting a Program ................................................................................................142

Changing the Registered Program Name ..............................................................142

Registering Initial Values for Initial Display ............................................................143

Scan Settings When Using Twain Scanner.....................................................144

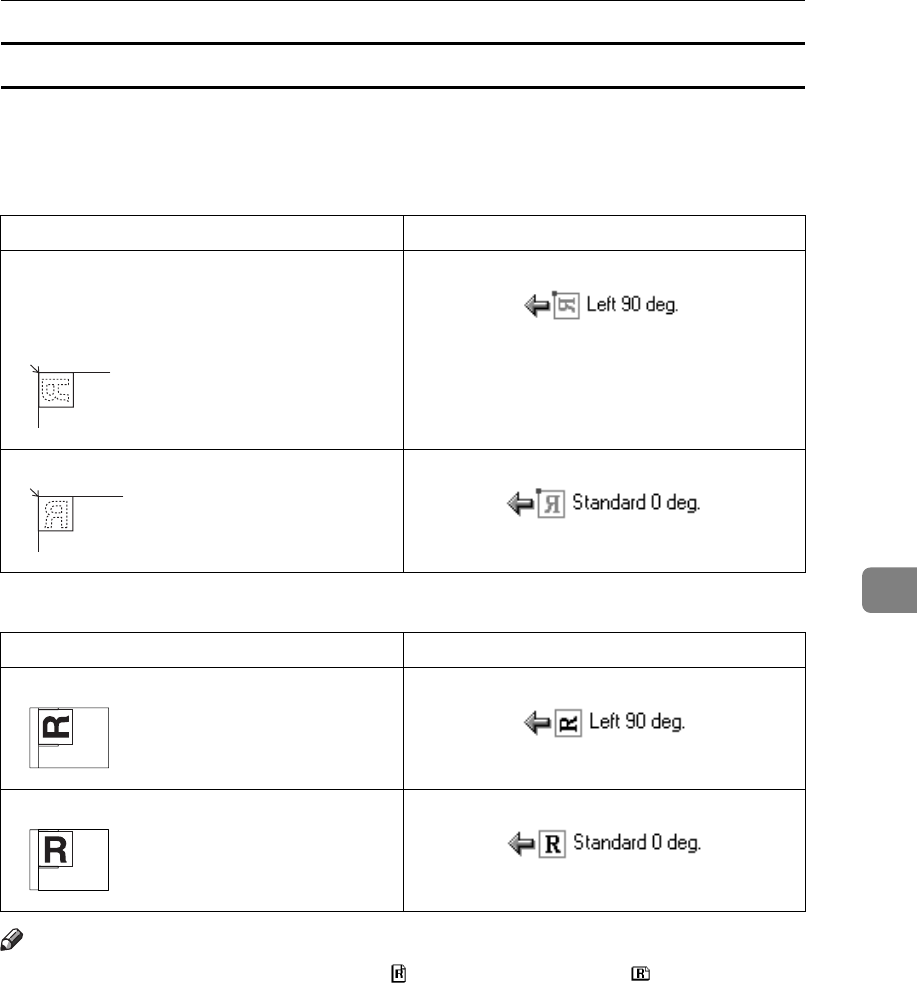

Setting Original Orientation on the TWAIN Scanner ..............................................144

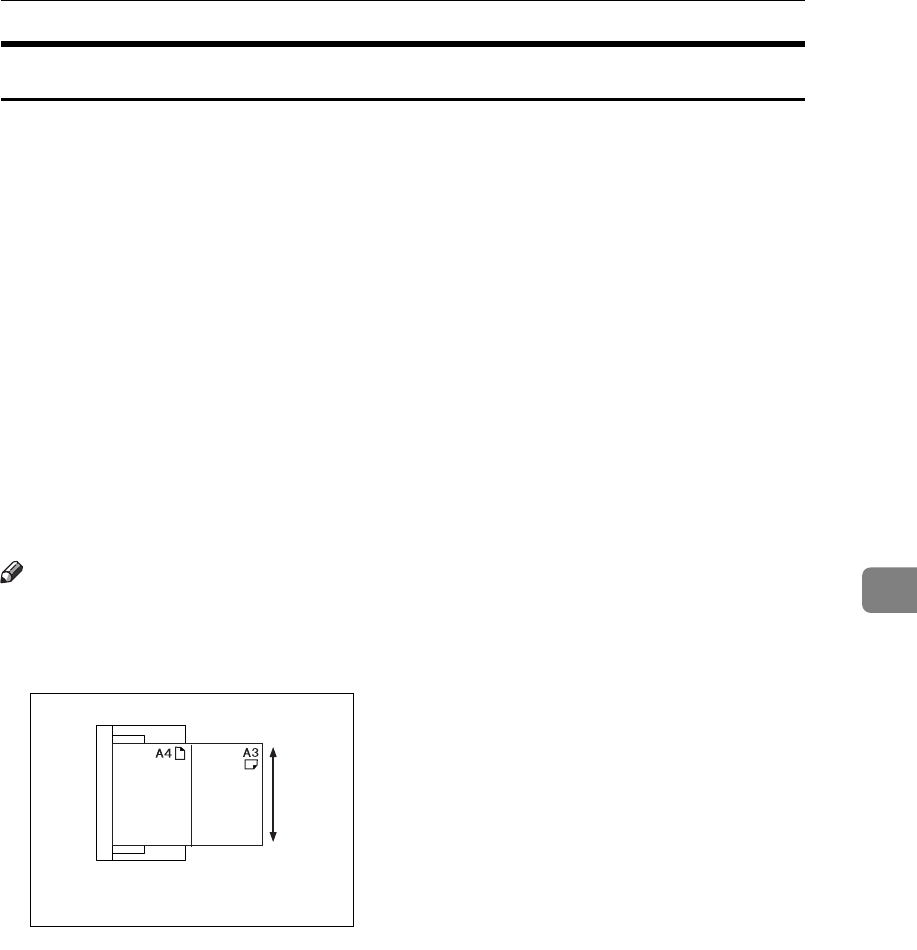

When Scanning Originals of Mixed Sizes Using TWAIN Scanner .........................146

7. Appendix

Relationship between Resolution and File Size..............................................147

When Using E-mail, Folder Sending, Storing or Network Delivery Function .........148

When Using as a TWAIN Scanner.........................................................................149

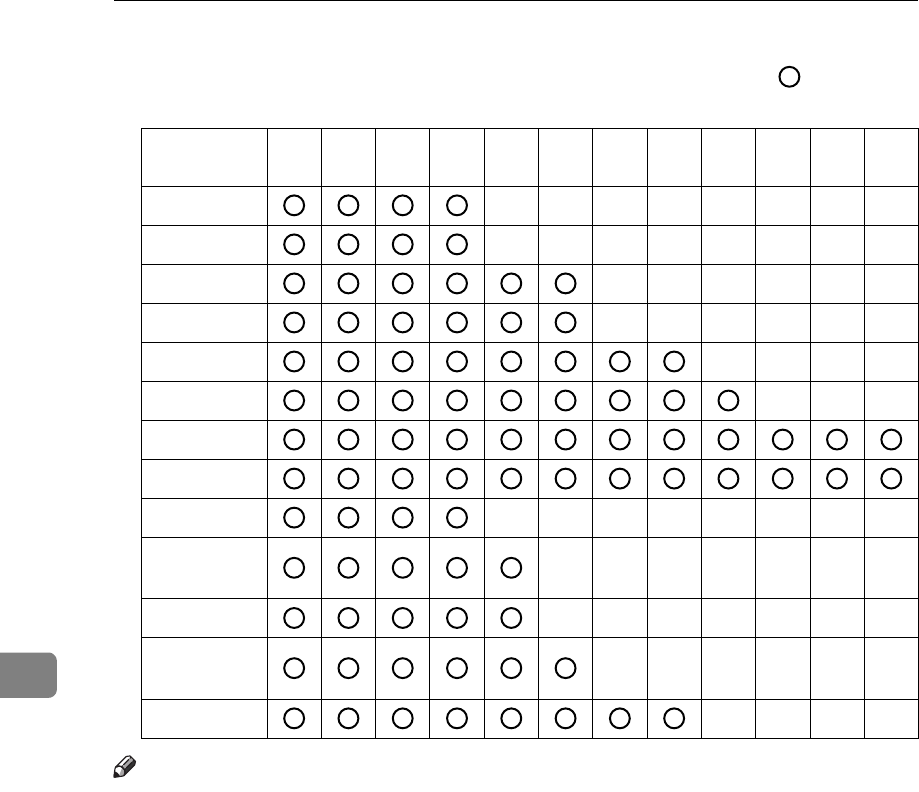

Relationship between File Type Specified for Scanning

and File Types for Sending E-mail and Folder..............................................151

Software Supplied on CD-ROM ........................................................................153

Quick Install............................................................................................................153

TWAIN Driver .........................................................................................................153

DeskTopBinder Lite................................................................................................154

Values of Various Set Items for Transmission/Storage/Delivery Function

.....156

Transmission Function ...........................................................................................156

Storage Function....................................................................................................158

Network Delivery Function .....................................................................................159

Specifications.....................................................................................................160

INDEX....................................................................................................... 161

How to Read This Manual

Symbols

This manual uses the following symbols:

Indicates important safety notes.

Ignoring these notes could result in serious injury or death. Be sure to read these

notes. They can be found in the “Safety Information” section of About This Ma-

chine.

Indicates important safety notes.

Ignoring these notes could result in moderate or minor injury, or damage to the

machine or to property. Be sure to read these notes. They can be found in the

“Safety Information” section of About This Machine.

Indicates points to pay attention to when using the machine, and explanations

of likely causes of paper misfeeds, damage to originals, or loss of data. Be sure

to read these explanations.

Indicates supplementary explanations of the machine’s functions, and instruc-

tions on resolving user errors.

This symbol is located at the end of sections. It indicates where you can find fur-

ther relevant information.

[ ]

Indicates the names of keys that appear on the machine’s display panel.

{ }

Indicates the names of keys on the machine’s control panel.

About the Scanner Functions

This section describes functions you can use in the scanner mode.

For details about each function, see respective chapters.

❖Sending scanned files

There are several methods you can use to send captured data as files to com-

puters.

• Sending scan files by e-mail

For details, see chapter 1 “Sending Scan Files by E-mail”.

• Sending scan files to a shared folder

For details, see chapter 2 “Sending Scan Files to Folders”.

• Sending scan files to an FTP server

For details, see chapter 2 “Sending Scan Files to Folders”.

• Sending scan files to a NetWare server

For details, see chapter 2 “Sending Scan Files to Folders”.

• Delivering scan files using the delivery server

For details, see chapter 4 “Delivering Scan Files”.

❖Scanning originals using the TWAIN driver

Use the TWAIN driver to specify the machine where originals will be scanned

from a client computer. For details, see chapter 5 “Scanning Originals with

the Network TWAIN Scanner”.

❖Storing files

You can store scan files on the machine's hard disc. Stored files can be sent lat-

er. For details, see chapter 3 “Storing Files Using the Scanner Function”.

Note

❒When the Copy Data Security Unit is installed, if you scan an original that

was printed using the data security for copying function, the machine beeps

and an entirely gray page is sent or stored. You can use the log file to check

who scanned the confidential original. For details about the data security for

copying function, see Security Reference.

Reference

p.11 “Sending Scan Files by E-mail”

p.37 “Sending Scan Files to Folders”

p.85 “Delivering Scan Files”

p.103 “Scanning Originals with the Network TWAIN Scanner”

p.63 “Storing Files Using the Scanner Function”

Display Panel

This section explains the simplified display and three confirmation screens:

Check Modes, Preview, and Transmission File Status.

You can find explanations about the E-mail screen, Scan to Folder screen, List of

Stored Files screen, or Network Delivery Scanner screen in this manual. For de-

tails, see “E-mail Screen”, “Scan to Folder Screen”, “List of Stored Files”, and

“Network Delivery Scanner Screen”.

Reference

p.13 “E-mail Screen”

p.42 “Scan to Folder Screen”

p.70 “List of Stored Files”

p.88 “Network Delivery Scanner Screen”

Simplified Display

This section explains how to switch to the simplified display.

When you press the {Simplified Display} key, the screen changes from the initial

display to the simplified display.

Letters and keys are displayed at a larger size, making operations easier.

❖Example of Simplified Display

1. [Key Color]

Press to increase screen contrast by changing the color of the keys.

This is available only for the simplified display.

Note

❒To return to the initial screen, press the {Simplified Display} key again.

❒Certain keys do not appear on the simplified display.

BFN041S

AMW001S

Confirmation Displays

This section explains three confirmation displays: Check Modes, Preview and

Transmission File Status.

Check Modes

This section explains items that are displayed and how to display the Check

Modes screen.

Use the Check Modes screen to check scanning and transmission settings.

Pressing [Check Modes] switches the screen from the initial scanner screen to the

Check Modes screen.

❖Check Modes

1. Original

Displays Scan Settings, Original Feed

Type, and other scanning settings.

2. Transmission function icon

Displays the icon of the transmission

function in use.

3. Sender and Destination

Displays the sender and transmission or

delivery destinations.

4. Send

Displays transmission settings such as

Sender and Subject.

AMW002S

Preview

This section explains items that are displayed and how to display the Preview screen.

Use the Preview screen to check that of originals have been scanned correctly.

You can display the Preview screen when sending files by e-mail or Scan to Fold-

er, delivering files, or simultaneously sending and delivering files.

To display the Preview screen, press [Preview], and then start scanning while

[Preview] is still selected.

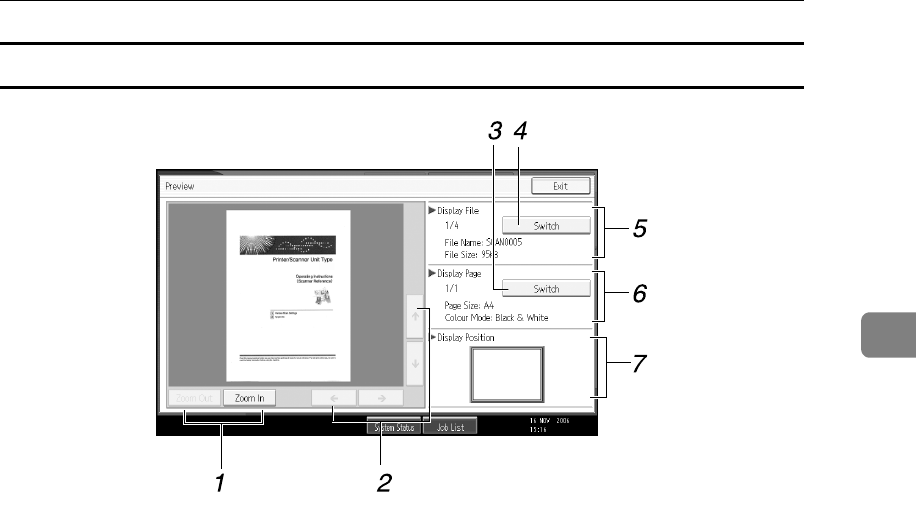

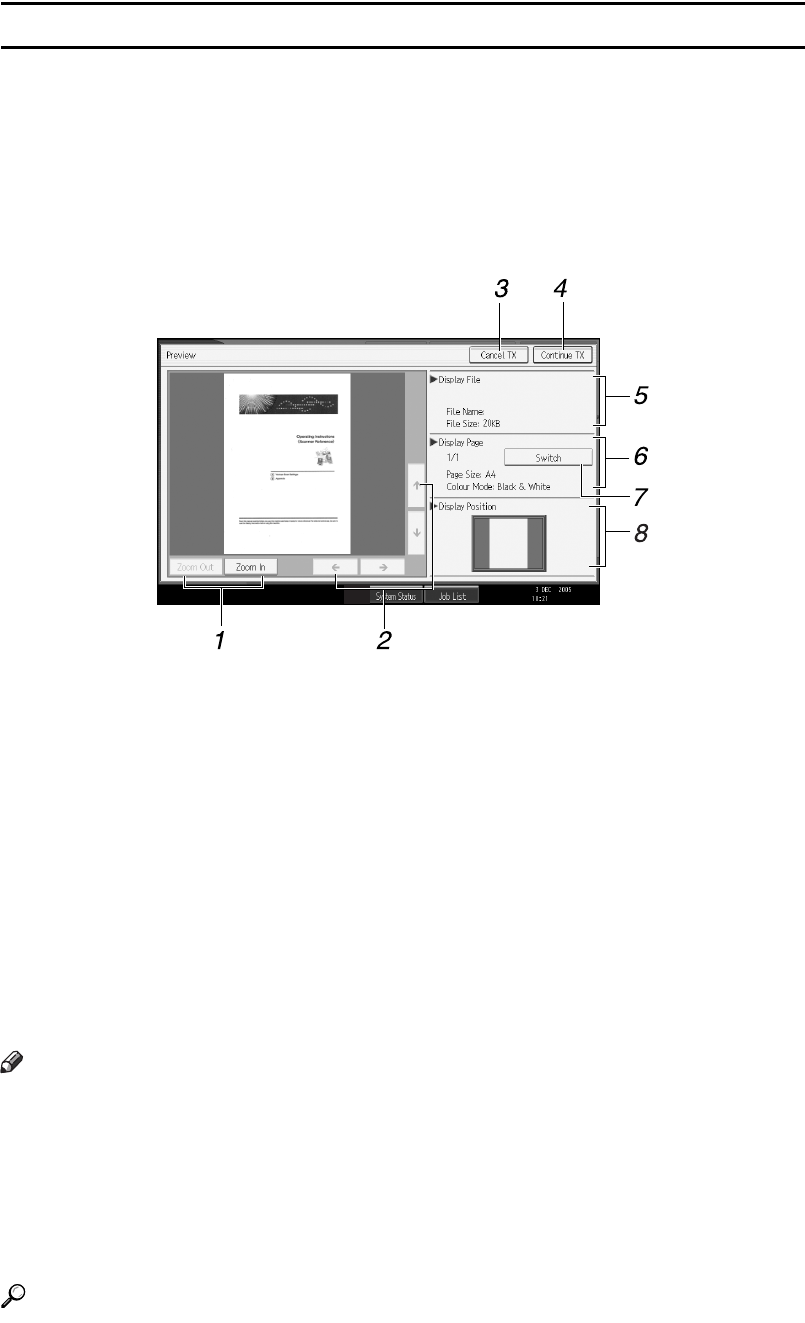

❖Preview

1. [Zoom Out] and [Zoom In]

Press to reduce or enlarge the displayed

preview.

2. [←][→][↑][↓]

Press to shift the displayed area.

3. [Cancel TX]

Press to close a preview and interrupt a

transmission.

4. [Continue TX]

Press to close a preview and continue a

transmission.

5. Display File

Displays a file's name and size.

6. Display Page

Displays the number of the currently dis-

played page, total number of pages, page

size, and color mode.

7. [Switch]

Press to change the page of the selected

file that is displayed.

8. Display Position

Displays the position of an image when

enlarged.

Note

❒Preview is not available if a file is stored using [Store Only].

❒Preview is not available when sending a stored file.

❒You can view a stored file using the Preview screen displayed from the list of

stored files. For details about viewing a stored file, see “Checking a Stored

File Selected from the List”.

❒Preview might not be displayed if scanning failed or the image file is corrupted.

If this is the case, scan the original again.

Reference

p.74 “Checking a Stored File Selected from the List”

AMW003S

Transmission File Status

This section explains items that are displayed and how to display the Transmis-

sion File Status screen.

Use the Transmission File Status screen to check e-mail transmission, Scan to

Folder, and delivery results.

Press [Scanned Files Status] to display the Transmission File Status screen.

Up to 9 transmission or delivery results are displayed at the same time. Press [U]

or [T] to switch between results.

❖Transmission File Status

1. Date/Time

Displays the time and date transmission

was specified by this machine or the time

and date when Completed, Error, or Can-

celled was confirmed.

2. Transmission function icon

Displays the icon of the transmission

function used.

3. Destination

Displays the transmission destination.

If you have selected multiple destina-

tions, the first selected destination is dis-

played.

Other destinations appear as “+ 2”. (X in-

dicates the number of destinations.)

4. Sender

Displays the sender name.

AMW004S

5. File Name

Displays the stored file name of files that

are simultaneously sent and stored, or of

stored files that are sent.

6. Status

Displays one of the following transmis-

sion statuses: Completed, Sending...,

Waiting..., Error, or Cancelled.

7. [Stop TX]

To cancel transmission, select a file

whose status is [Waiting...], and then press

[Stop TX].

8. [Print List]

Press to print transmission results.

Note

❒You cannot check scanner function transmission results by pressing [Job List]

at the bottom of the screen. To check transmission results, press [Scanned Files

Status], and then display the Transmission File Status screen.

❒Depending on security settings, some transmission results might not be dis-

played.

Scanner Features

This section explains Scanner Features settings.

To display the Scanner Features screen, press the {User Tools / Counter} key. For

detailed setting method, see General Settings Guide.

❖General Settings

❖Scan Settings

Items Description

Switch Title Sets index to use when the list of destinations of this

machine is displayed.

Update Delivery Server Destina-

tion List

Allows you to update the delivery server's destination

list by pressing [Update Delivery Server Destination List].

To use this function, under [System Settings], set [Deliv-

ery Option] to [On].

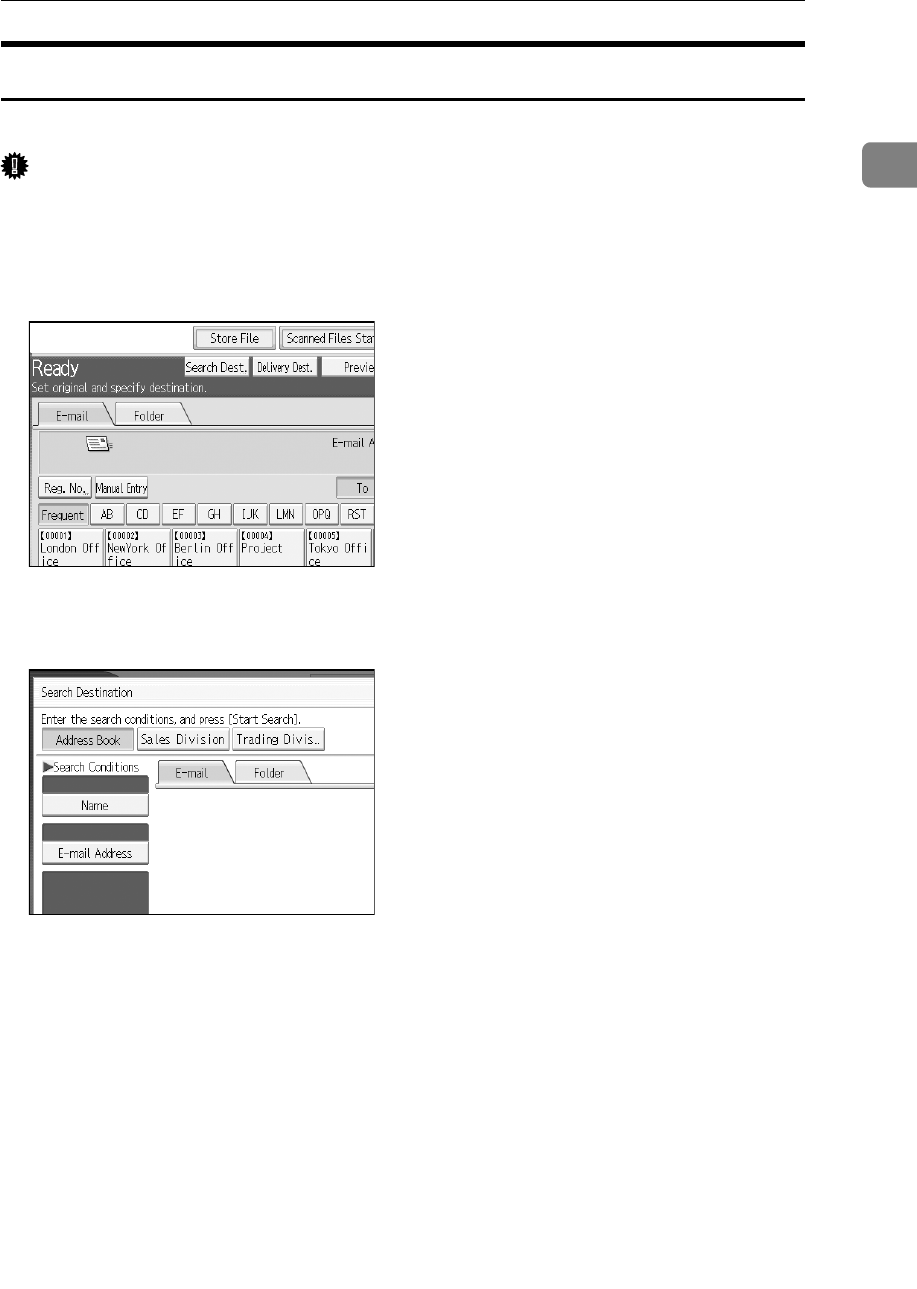

Search Destination Specify the default search destination list from the ma-

chine's address book or the LDAP server. To search

through an LDAP server, under [System Settings], reg-

ister the LDAP server, and then set [LDAP Search] to

[On].

TWAIN Standby Time Select the machine's response if a client computer tries

to use the TWAIN scanner while scanning is in

progress.

Destination List Display Priority 1 Select the default destination list from the machine's

destination list or from the Destination List managed

by the delivery server.

Destination List Display Priority 2 Select whether to prioritize the e-mail destination list

or the folder destination list.

Print & Delete Scanner Journal Specify the machine's response of the maximum num-

ber of scanner journals is exceeded.

Print Scanner Journal Allows you to print the scanner journal. The scanner

journal is then deleted.

Delete Scanner Journal Allows you to delete the scanner journal without

printing it.

Items Description

Wait Time for Next Orig.: Exposure

Glass

Set which operation the machine performs while wait-

ing for additional originals after scanning from the ex-

posure glass.

Wait Time for Next Original(s):

SADF

Sets the operation of this machine on the queue for ad-

ditional originals after scanning the originals with Au-

tomatic Document Feeder (ADF). This function is not

available unless ADF is installed.

❖Send Settings

❖Initial Settings

Items Description

Compression (Black & White) Specify a compression method for files scanned in

black and white.

Compression (Gray Scale) specify a compression method for files scanned in

gray scale.

Max. E-mail Size Select whether or not to limit the size of e-mail that has

attachments.

Divide & Send E-mail Select whether or not to divide files that exceed the

size specified in [Max. E-mail Size] and send them as

multiple e-mails.

E-mail Information Language Select the language in which document information

such as the title, date, and administrator's name is

sent.

No. of Digits for Single Page Files Set the number of digits in serial numbers used for sin-

gle-page file names.

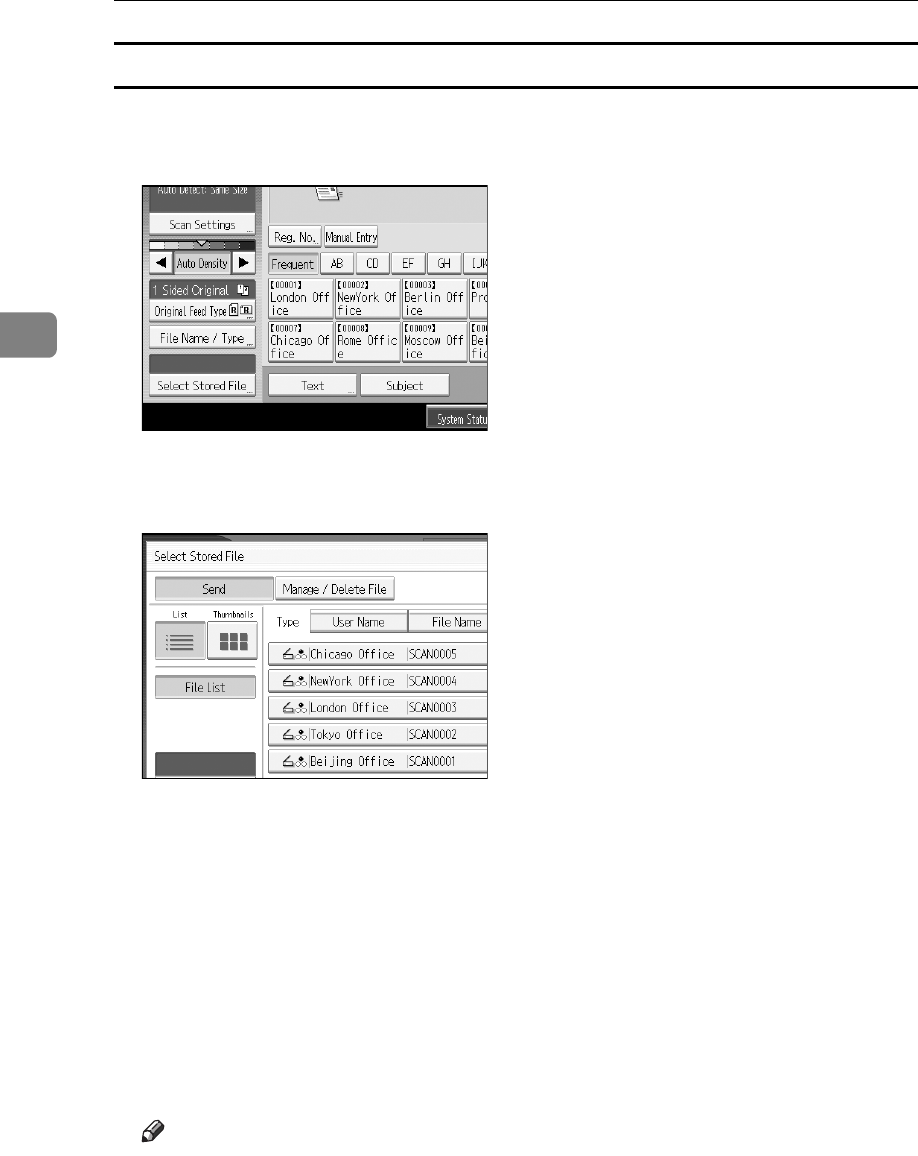

Stored File E-mail Method Sets the default for whether to attach a file or send

URL Link when sending stored files by e-mail.

Items Description

Menu Protect Set the default access level for functions whose set-

tings can be changed by users other than the adminis-

trator.

1. Sending Scan Files by

E-mail

You can attach scan files to e-mails and send them via connections such as LAN

and the Internet.

Before Sending Scan Files by E-mail

This section explains the necessary preparations and the procedure for sending

scan files by e-mail.

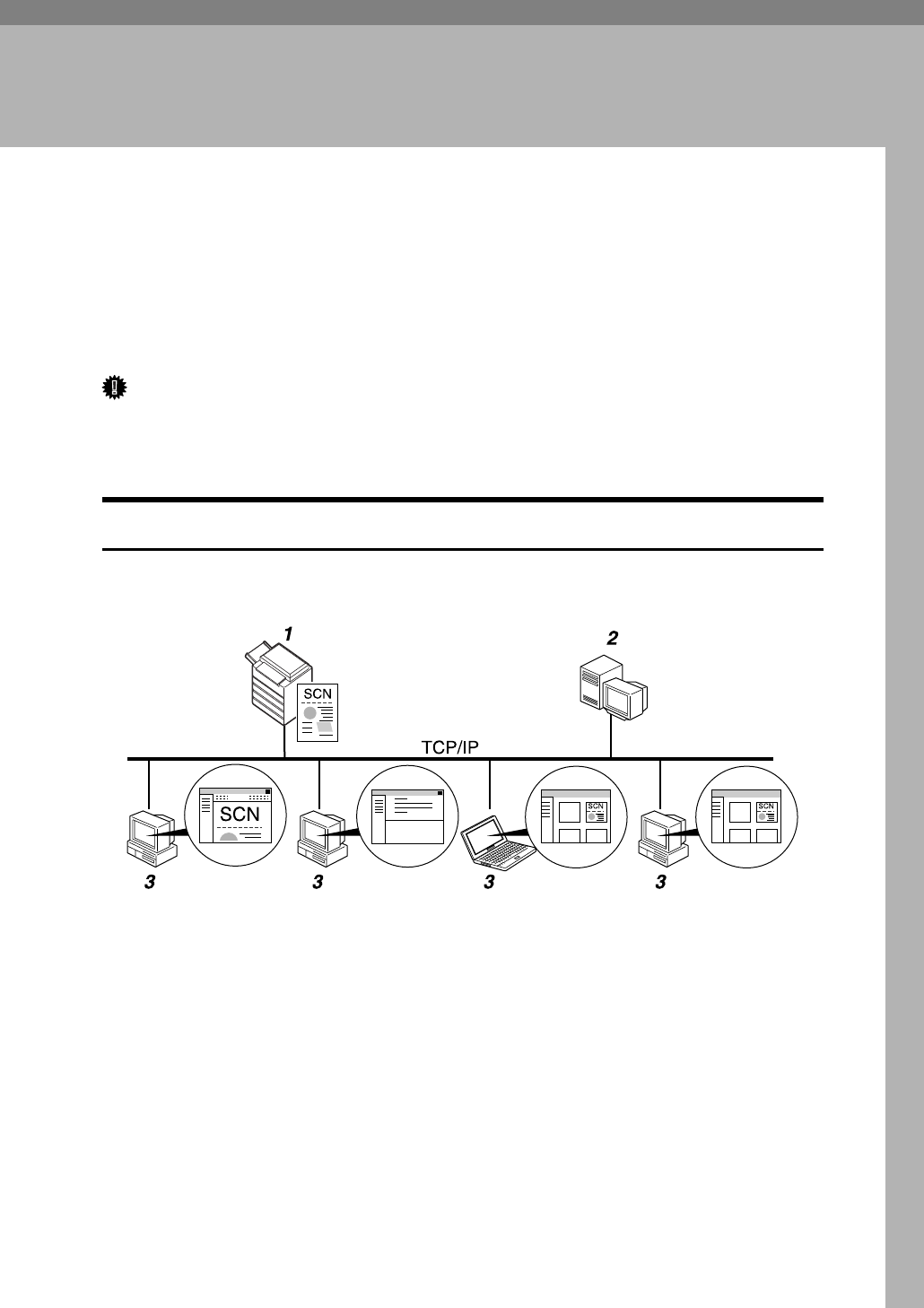

Outline of Sending Scan Files by E-mail

This section outlines the function for sending scan files by e-mail.

1. This machine

A scan file can be attached to an e-mail

and sent to a mail server.

2. SMTP server

You need to have an access to an e-mail

server that supports SMTP (Simple Mail

Transfer Protocol), to send scan files by e-

mail. However, it is not essential to have

an e-mail server inside the LAN where

this machine belongs. It transfers a re-

ceived e-mail to a specified destination

through a LAN or the Internet.

3. Client computer

Use e-mail client software to receive e-

mail messages and scan file attachments

that are generated by this machine.

4. LDAP Server

Use this server for administering e-mail

accounts, searching the network, and au-

thenticating the computers that access

the machine. Using the LDAP server, you

can search for destinations from the ma-

chine.

ZZZ508S

Sending Scan Files by E-mail

Preparation for Sending by E-mail

This section explains the preparation and settings for sending scan files by e-mail.

AConnect the machine to the network.

Connect the machine to the network using an Ethernet cable or wireless LAN

(IEEE 802.11b).

BMake the necessary network setting in [System Settings].

If you have connected the machine to the network using an Ethernet cable,

make the following settings. For details, see General Settings Guide.

• Specify the machine’s IPv4 address and subnet mask.

• Specify the IPv4 gateway address.

•In [Effective Protocol], enable [IPv4].

• Specify the SMTP server.

CIf necessary, change settings in [Send Settings] under [Scanner Features].

Note

❒To connect the machine to the network using a wireless LAN (IEEE 802.11b),

an extended wireless LAN board is required respectively. For details, see

Network Guide.

❒Items to set up in [System Settings] vary depending on the network environ-

ment. For more information about network settings, see General Settings

Guide.

❒For more information about [Scanner Features], see General Settings Guide.

Registering E-mail Addresses in the Address Book

You can register frequently used e-mail addresses in the address book.

Tools] from [System Settings]. Addresses can also be registered as groups.

Note

❒For details about registering e-mail addresses in the address book, see General

Settings Guide.

❒You can also register e-mail addresses in the address book using Web Image

Monitor or SmartDeviceMonitor for Admin. For details about how to install

these applications, see Network Guide. For details about registering address-

es in the address book, see Help of respective applications.

❒Depending on the machine type, you may not be able to use the machine

when it is updating the address book using CSV files (retrieved using Smart-

DeviceMonitor for Admin) that contain user codes.

Before Sending Scan Files by E-mail

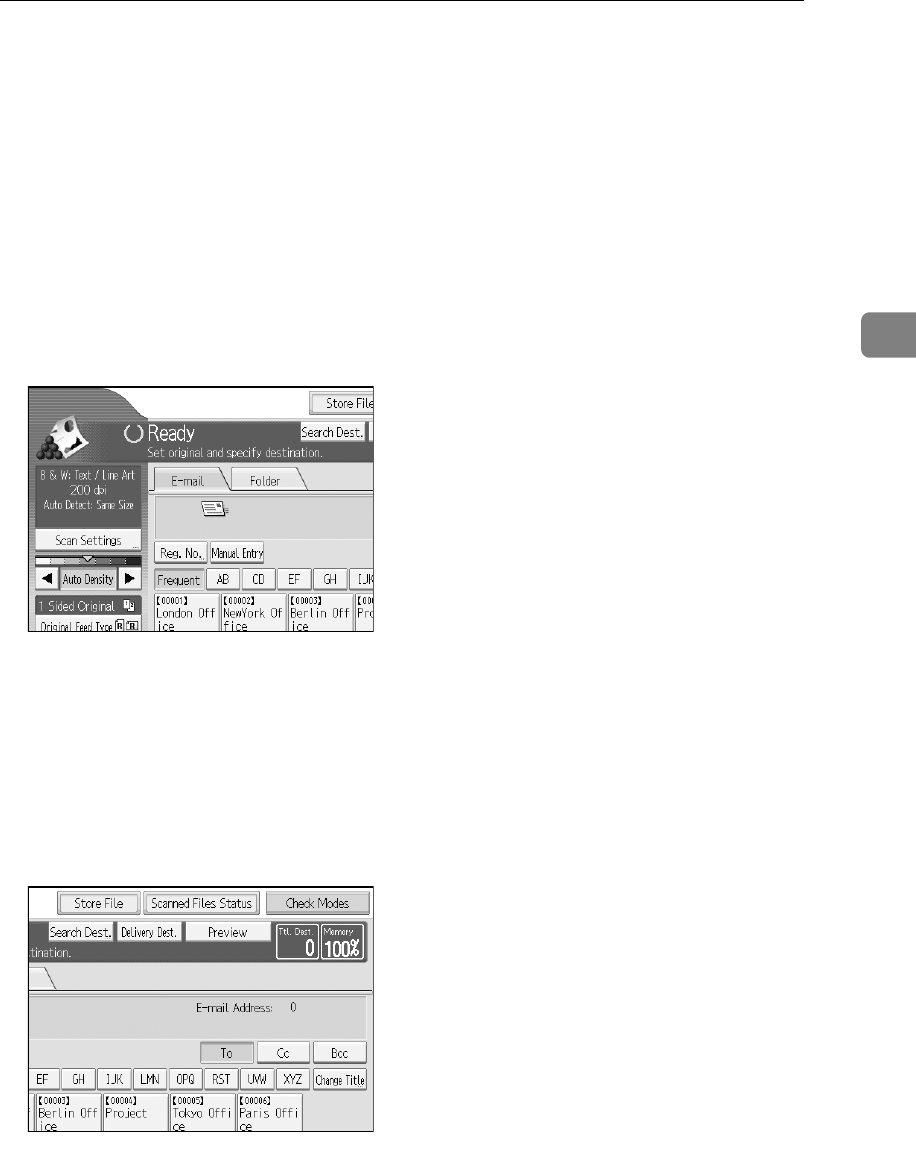

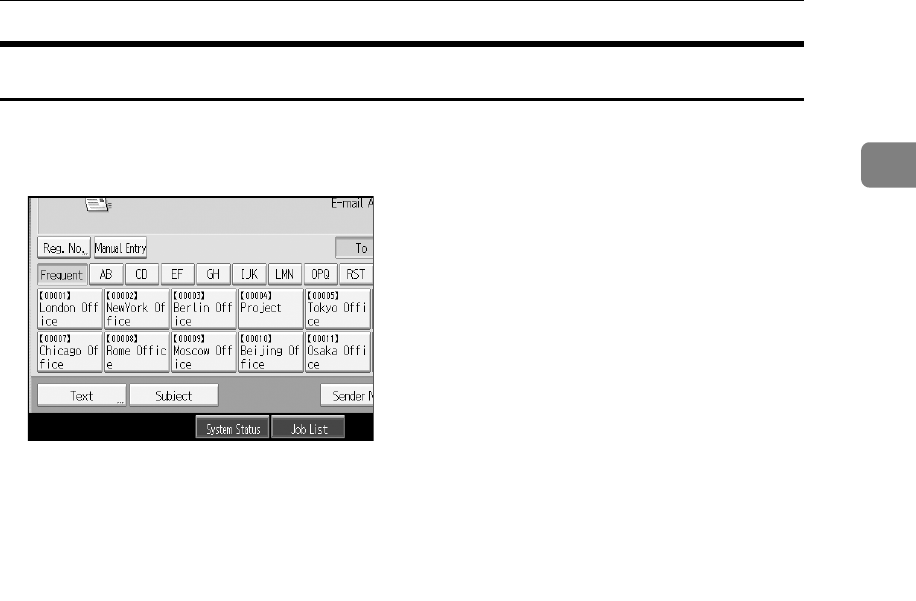

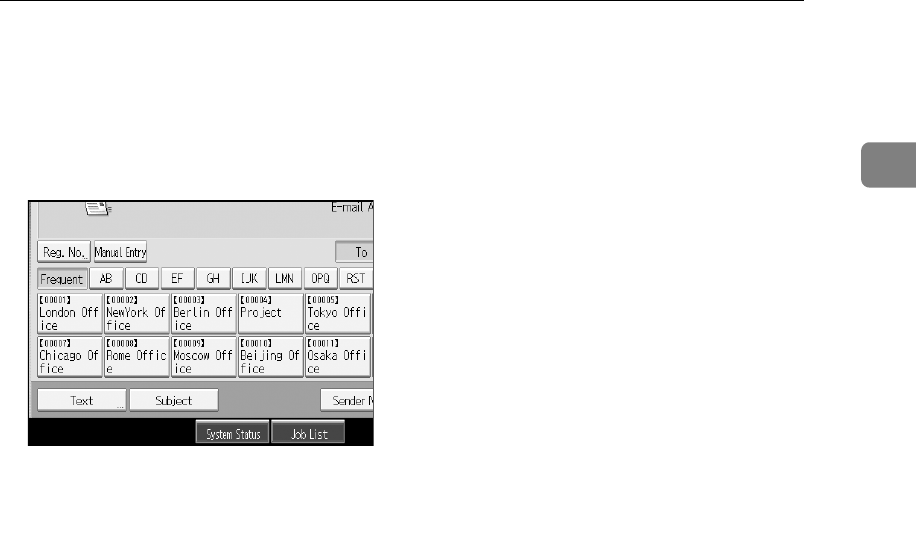

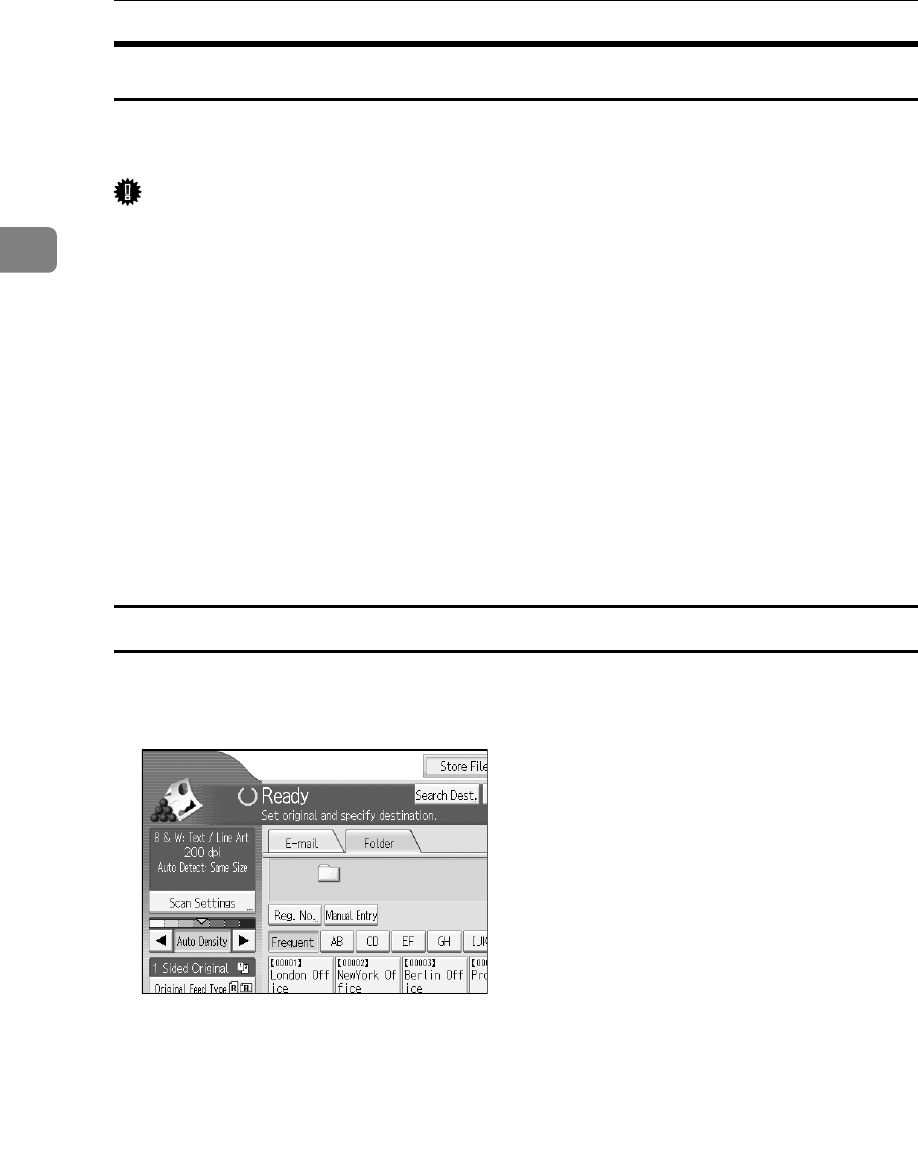

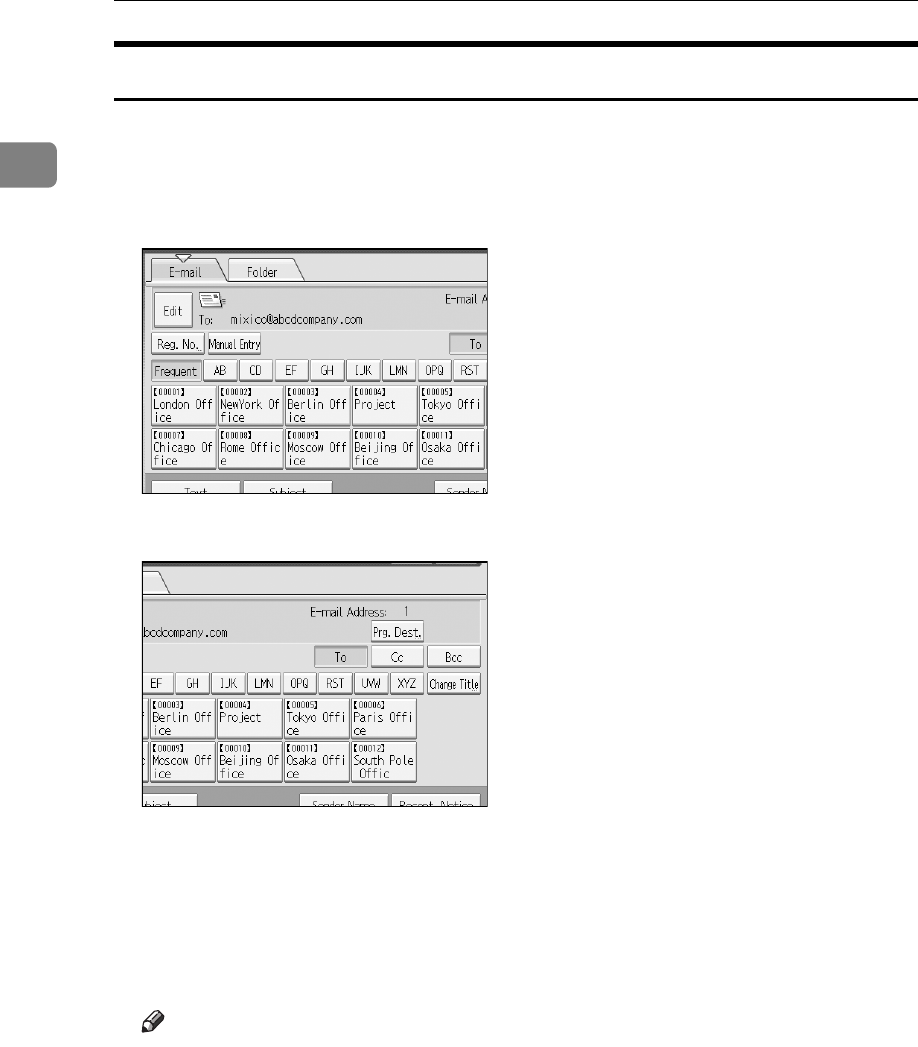

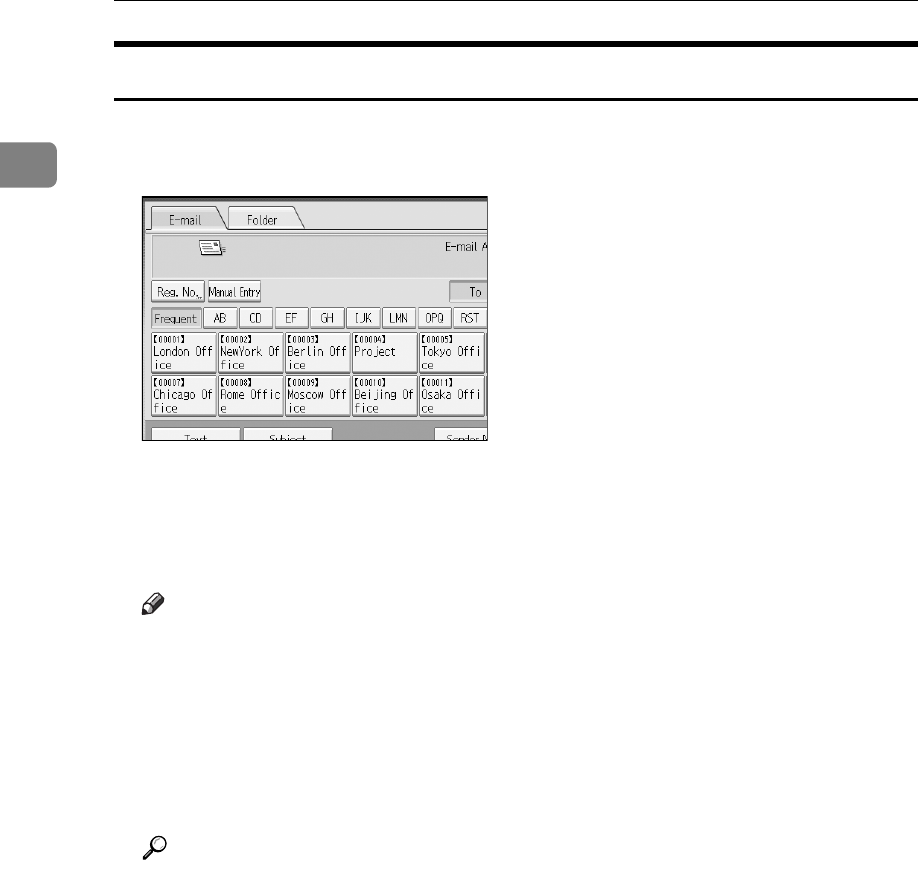

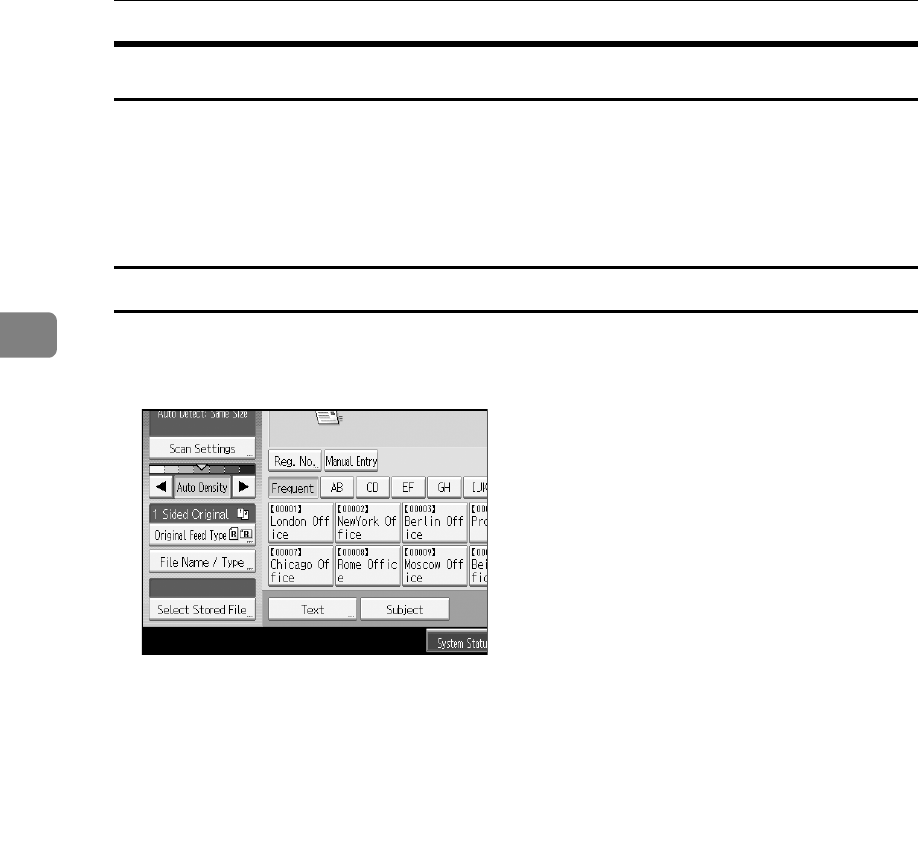

E-mail Screen

This section explains the screen layout when sending scan files by e-mail.

The function items displayed serve as selector keys. You can select or specify an

item by pressing it.

When you select or specify an item on the display panel, it is highlighted like

[]. Keys that cannot be selected appear like [].

1. Destination field

The specified destination appears. If

more than one destination has been spec-

ified, press [U] or [T] to scroll through the

destinations.

2. E-mail / Folder

Press these tabs to switch between the E-

mail screen and Scan to Folder screen.

Switch the screen also when sending the

same files by both e-mail and Scan to

Folder.

3. E-mail icon

Indicates that the E-mail screen is dis-

played.

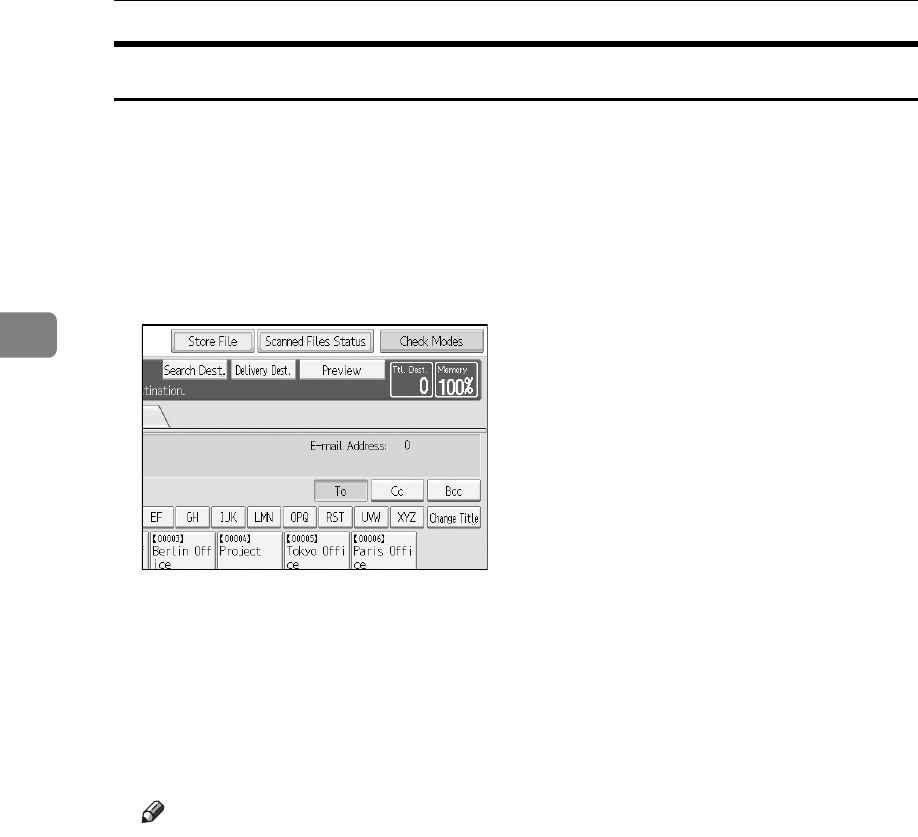

4. [Manual Entry]

To specify destinations not registered in

the address book, press this key, and then

enter the e-mail addresses using the soft

keyboard that appears.

5. [Reg. No.]

Press this key to specify the destination

using a 5-digit registration number.

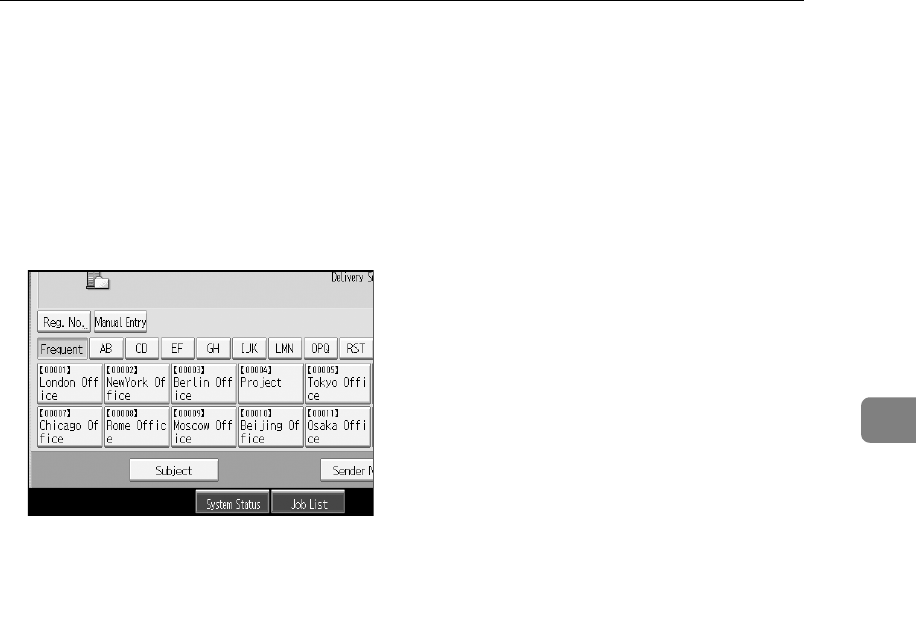

6. Destination List

The list of destinations registered in the

machine appears. If all of the destinations

cannot be displayed, press [U]or [T] to

switch the screen.

Group destinations are denoted by this

symbol ( ).

7. [Text][Subject][Sender Name][Recept.

Notice]

Enter the message and specify the sub-

ject, sender, and whether or not to use

Message Disposition Notification.

ALQ006S

Sending Scan Files by E-mail

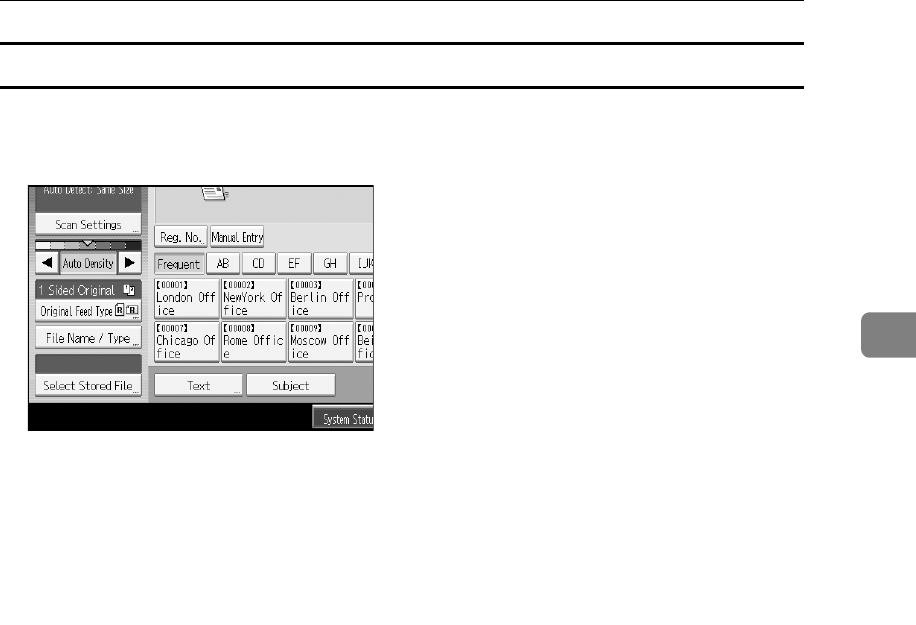

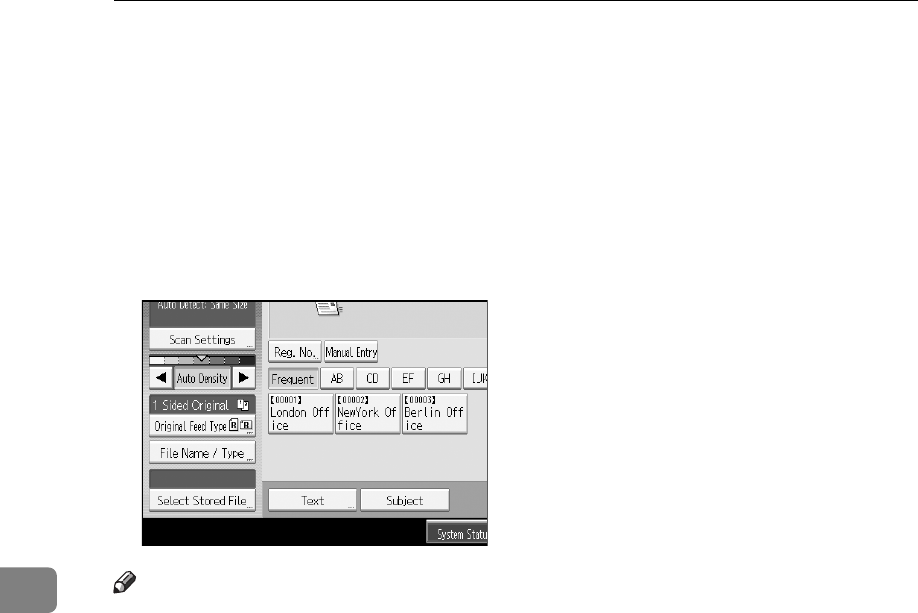

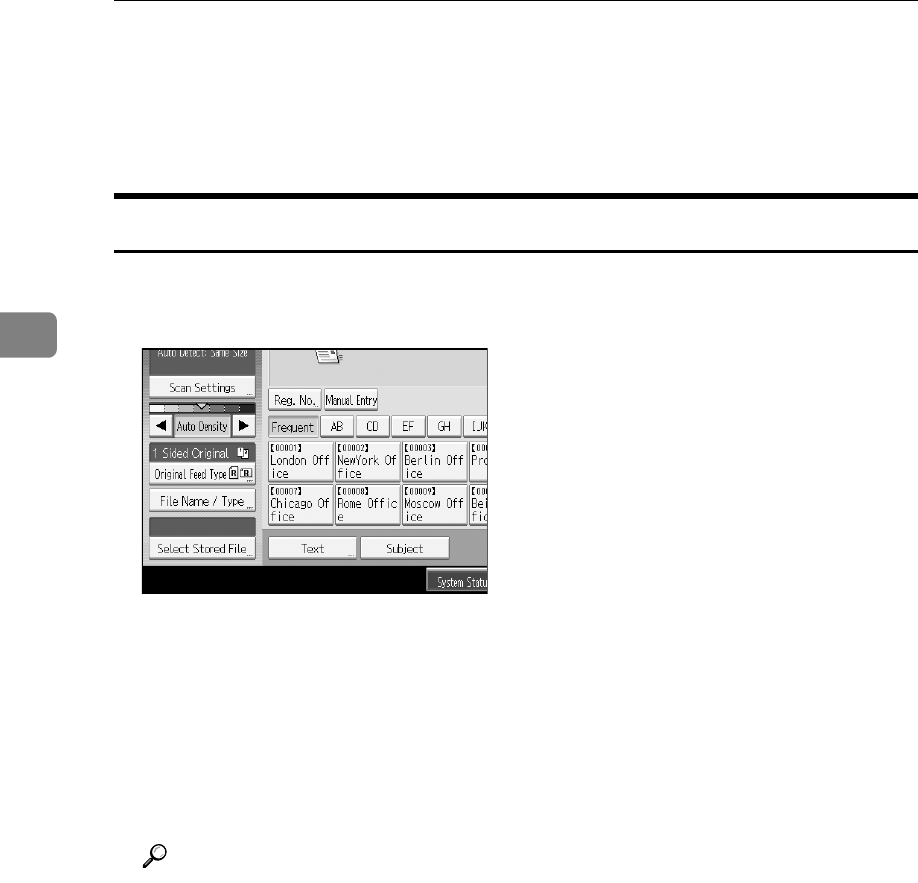

Basic Operation for Sending Scan Files by

E-mail

This section describes the basic operation for sending scan files by e-mail.

AMake sure that no previous settings remain.

If a previous setting remains, press the {Clear Modes} key.

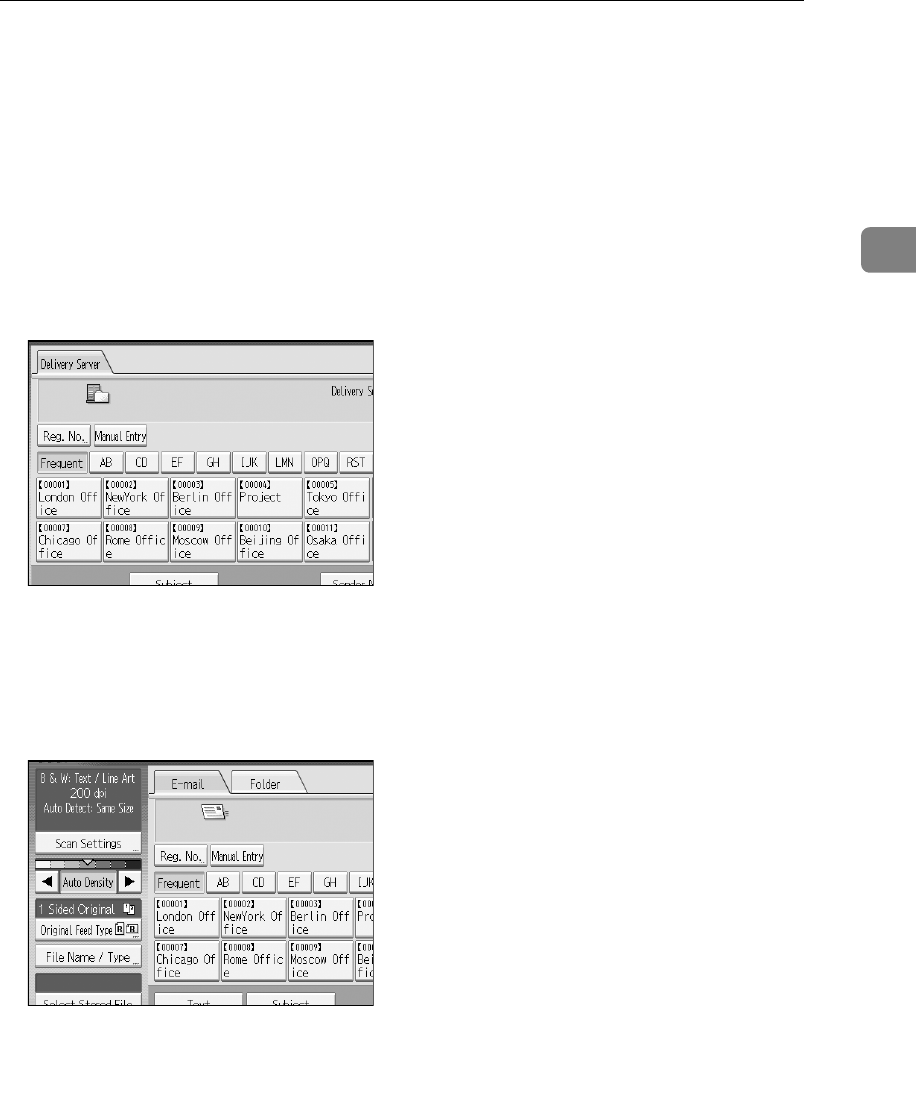

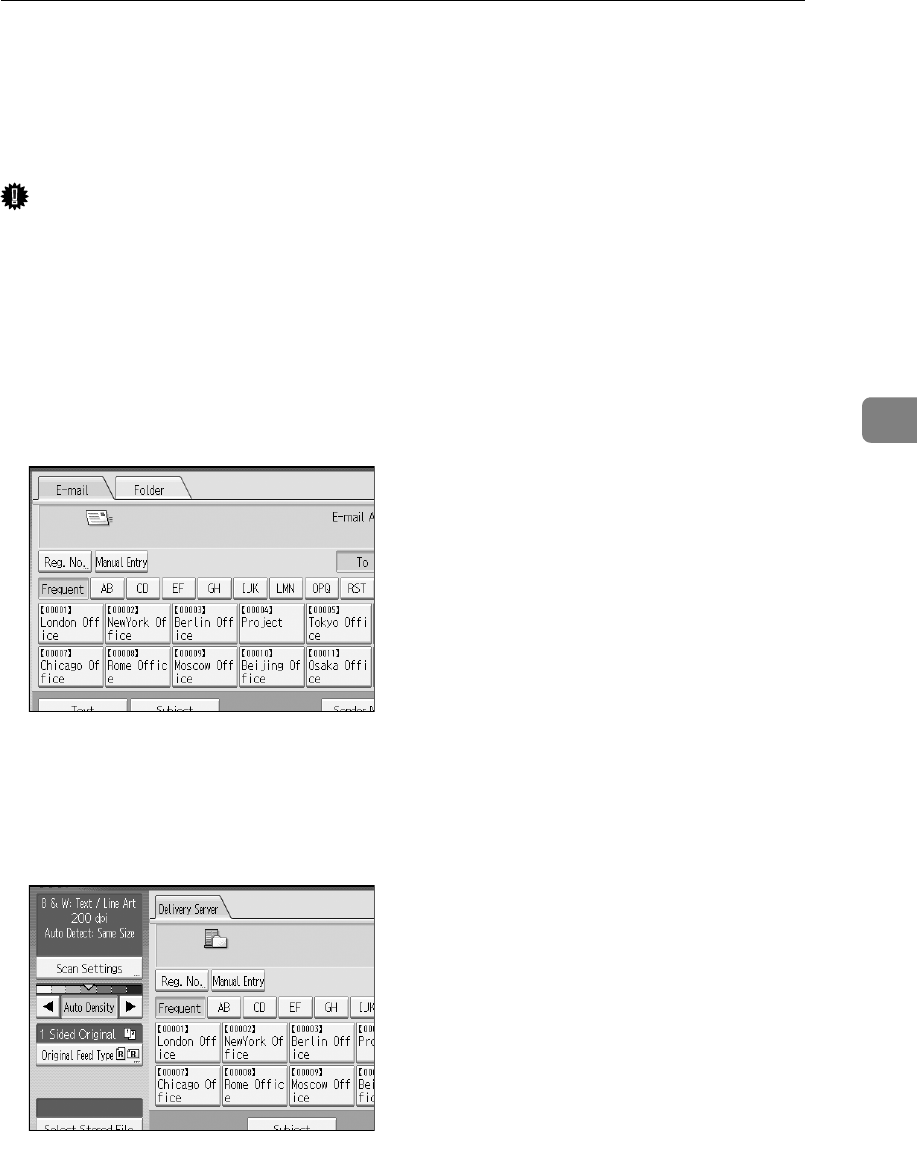

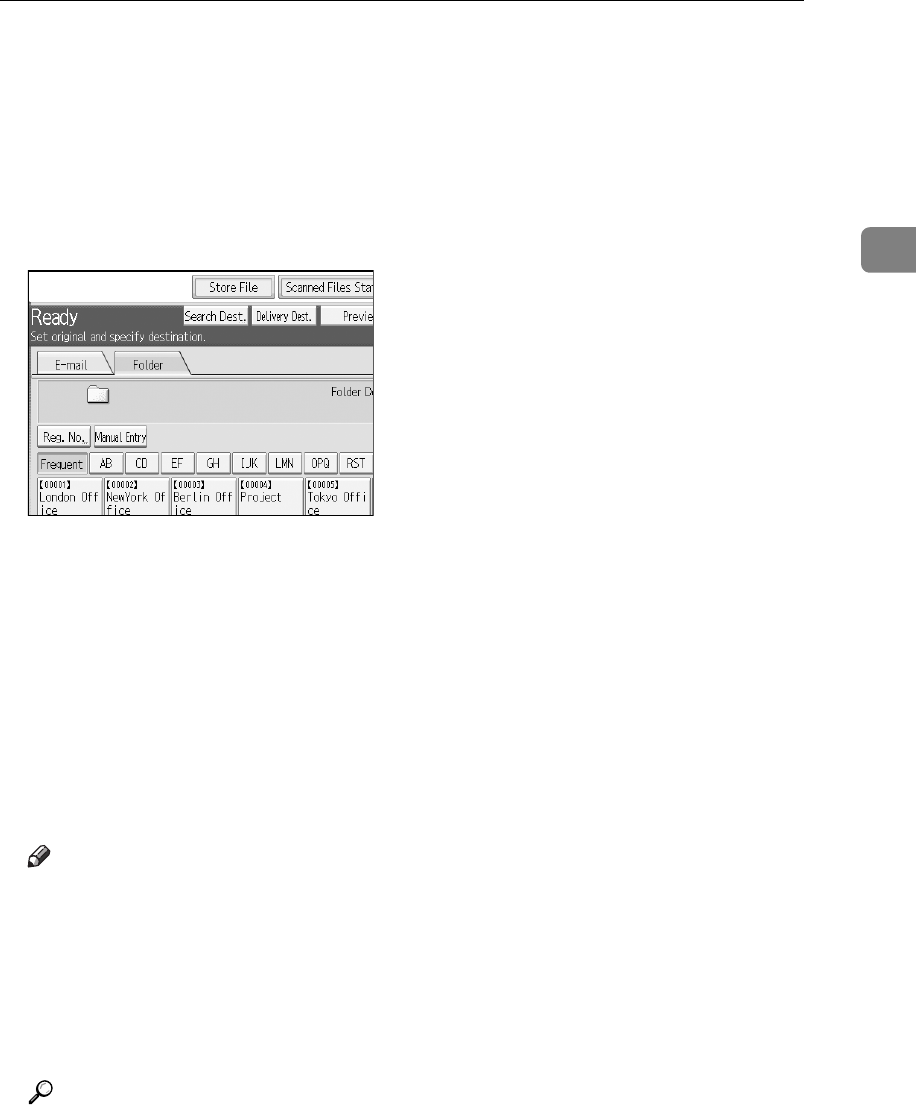

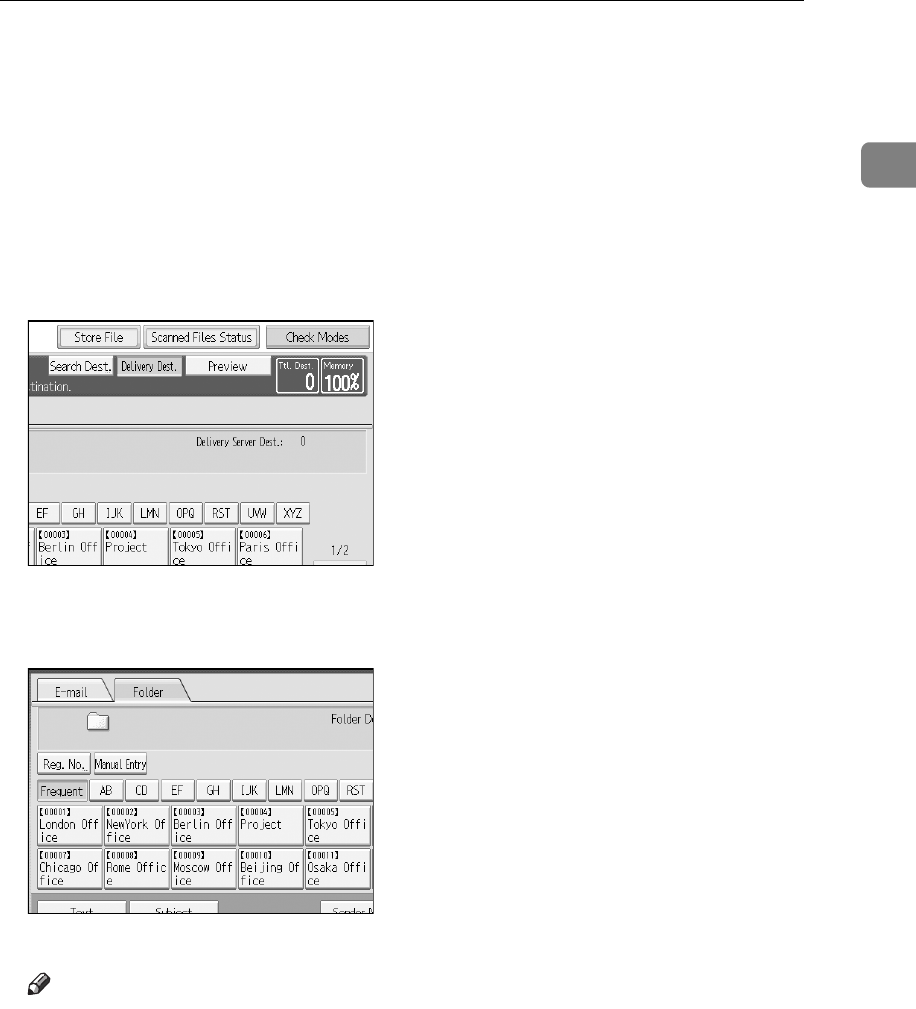

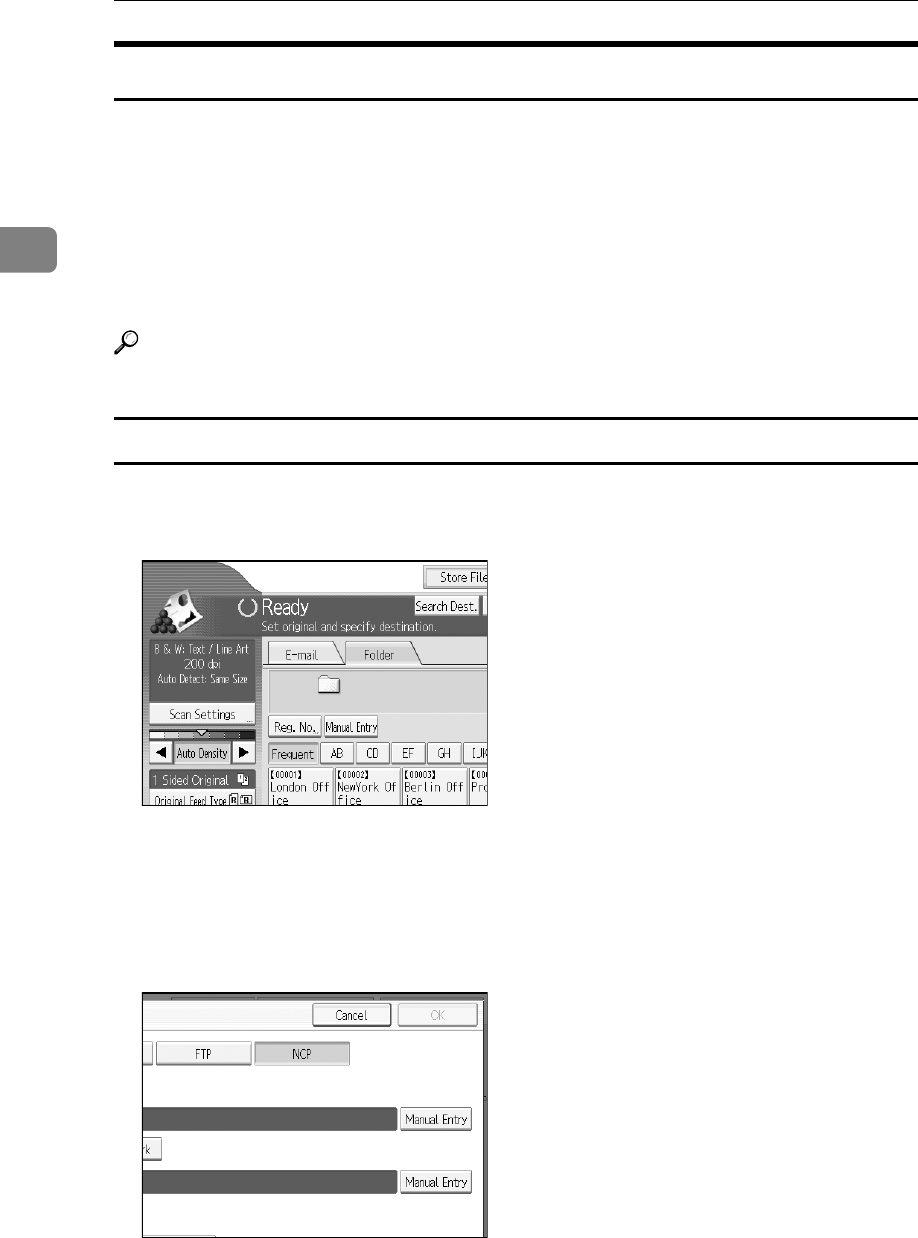

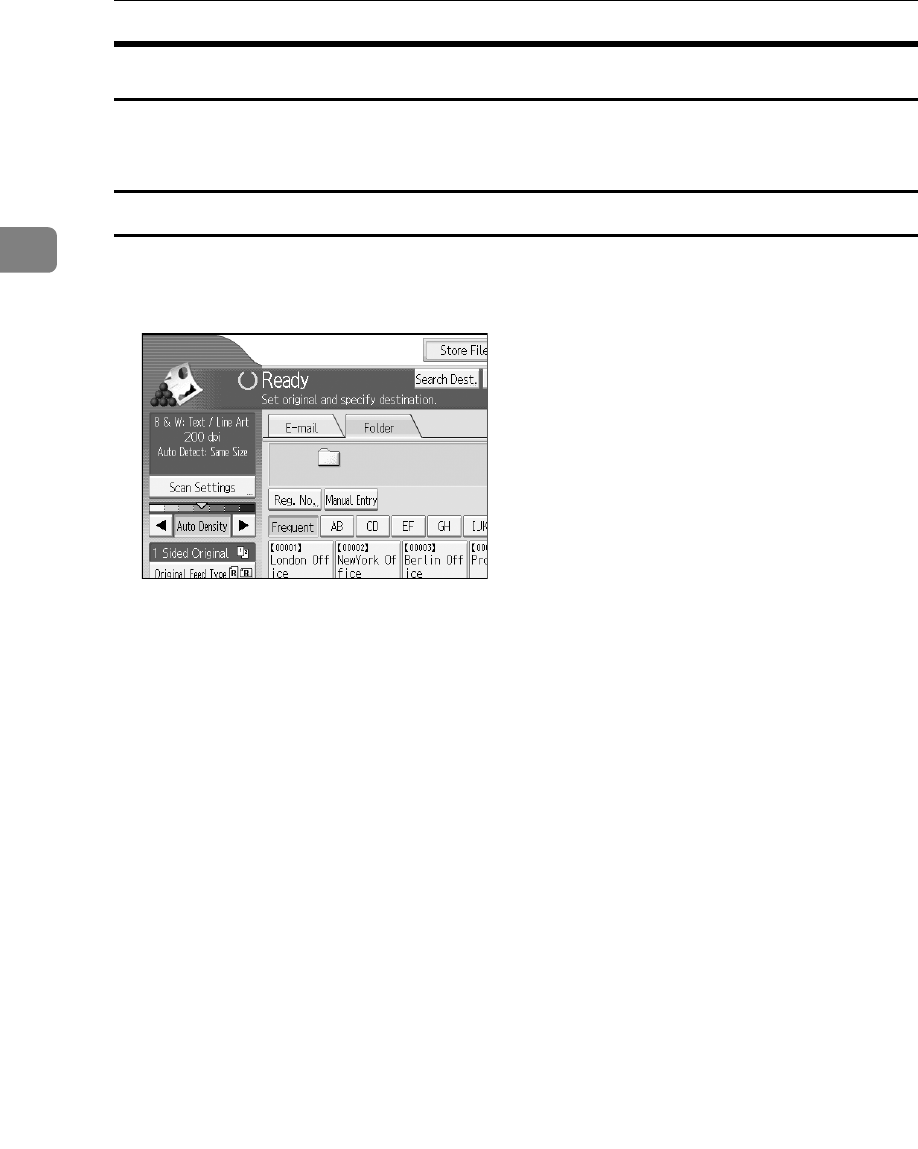

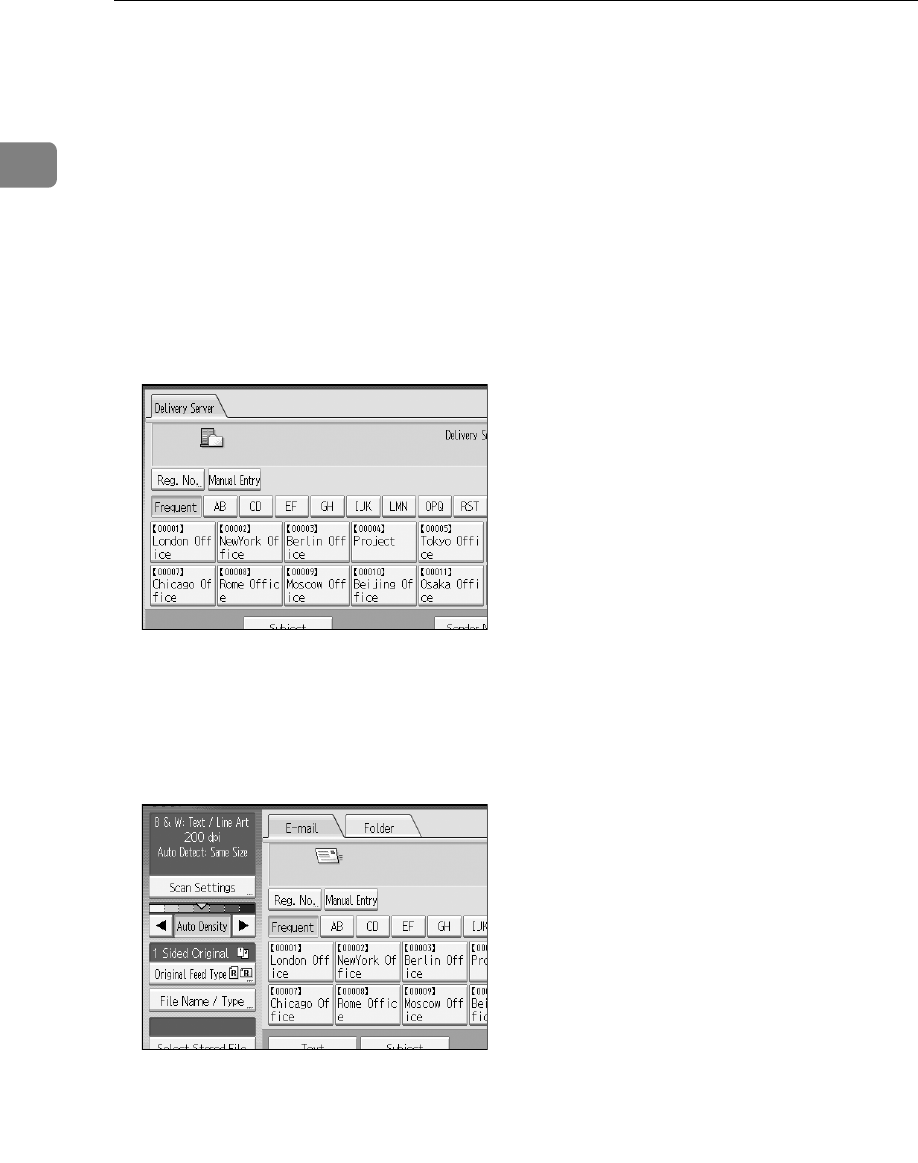

BIf the network delivery scanner screen or Scan to Folder screen appears,

switch to the E-mail screen.

For details, see “Switching to the E-mail Screen”.

CPlace originals.

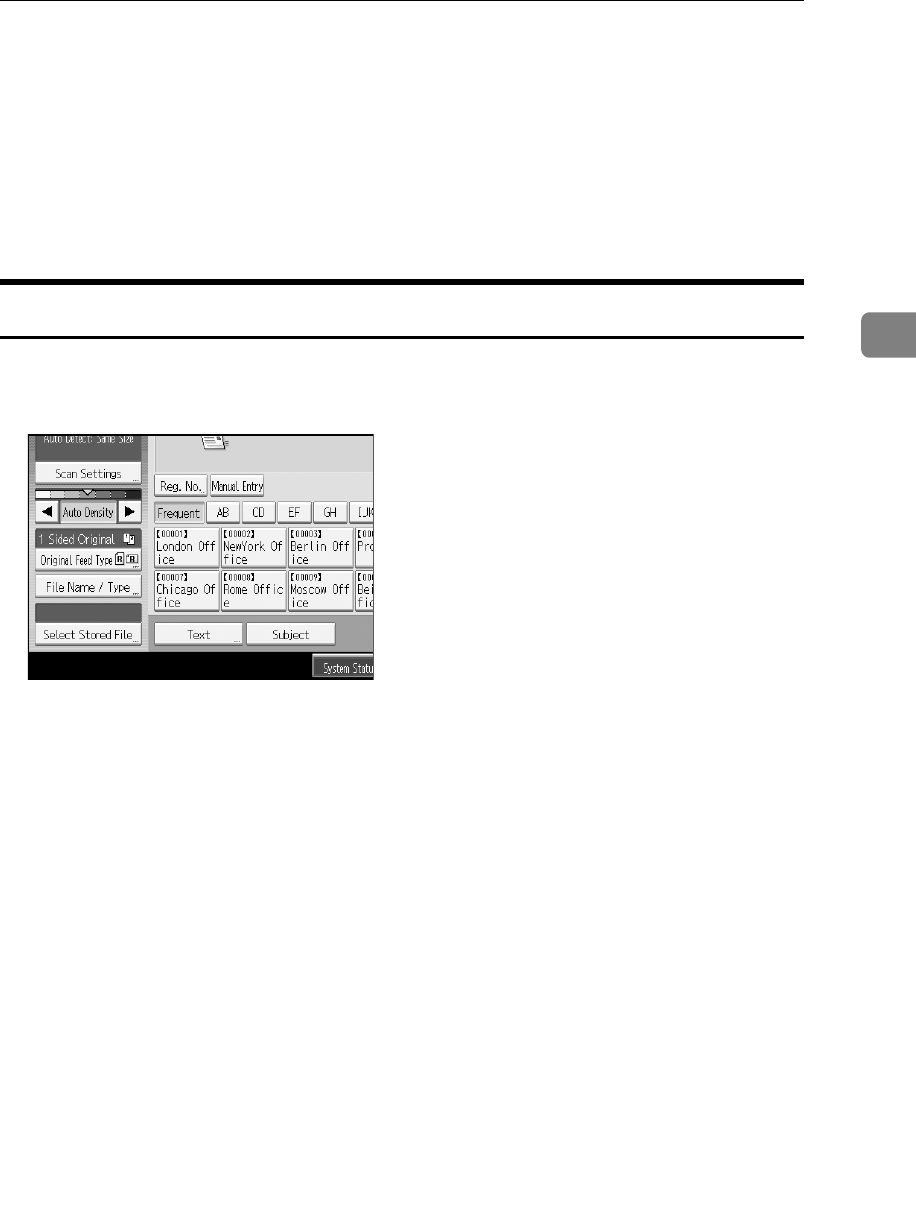

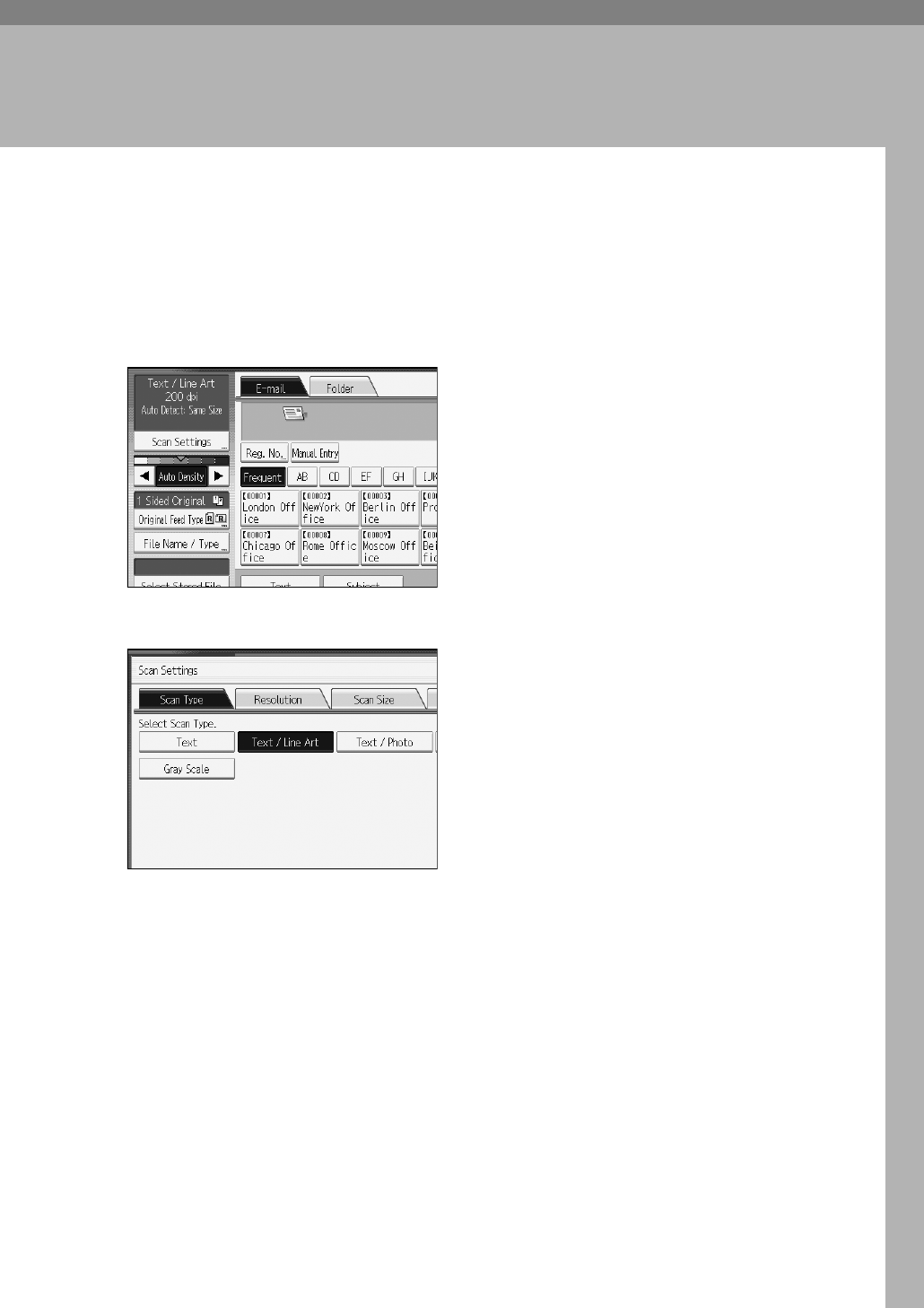

DIf necessary, press [Scan Settings] to specify scanner settings such as resolu-

tion and scan size.

For details, see “Various Scan Settings”.

EIf necessary, specify the scanning density.

For details, see “Adjusting Image Density”.

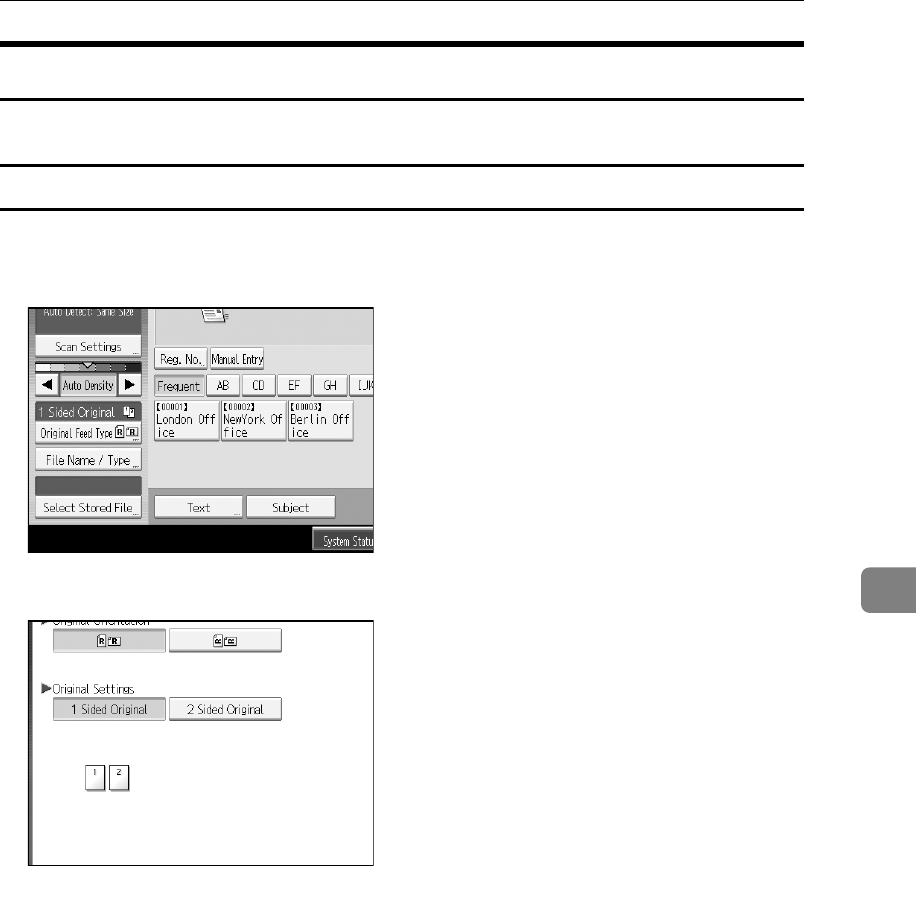

FIf necessary, press [Original Feed Type] to specify settings such as original

orientation.

For details, see “Setting of Original Feed Type”.

Basic Operation for Sending Scan Files by E-mail

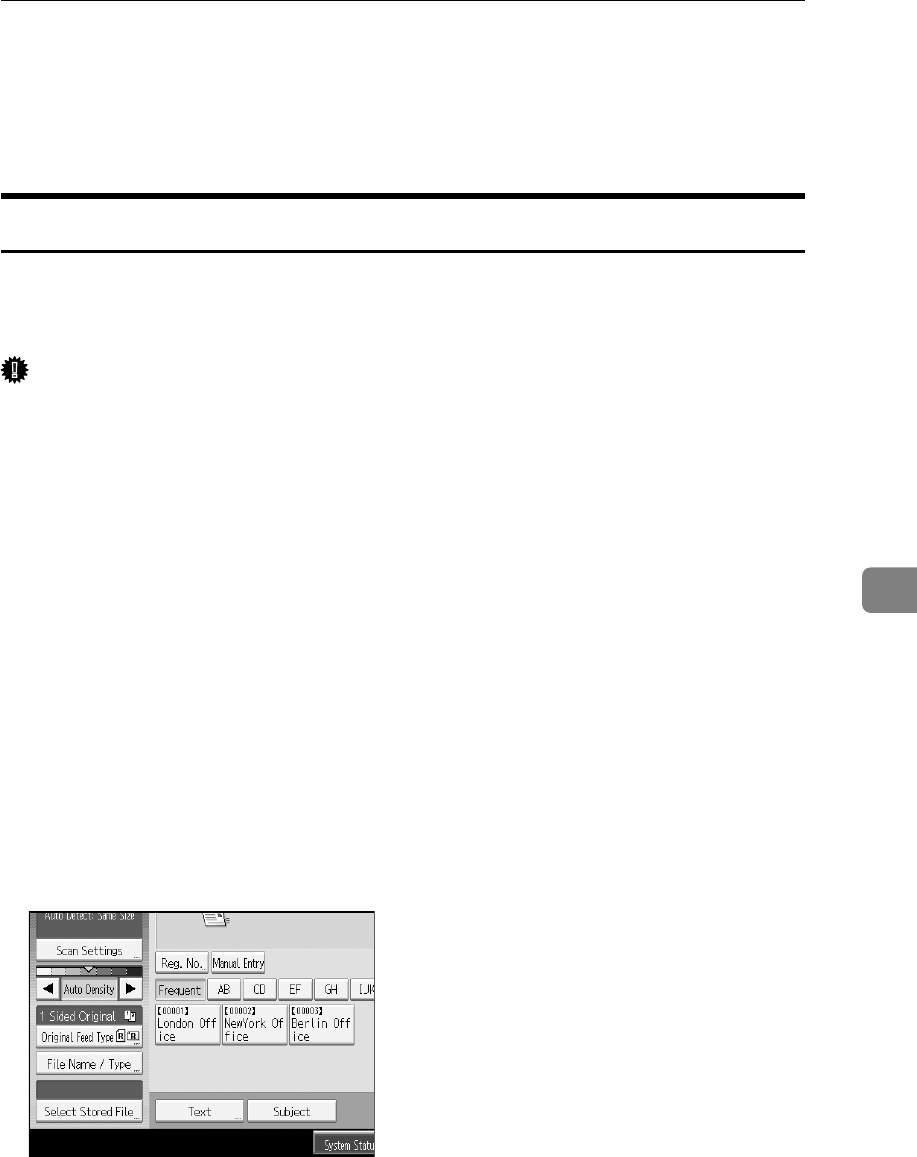

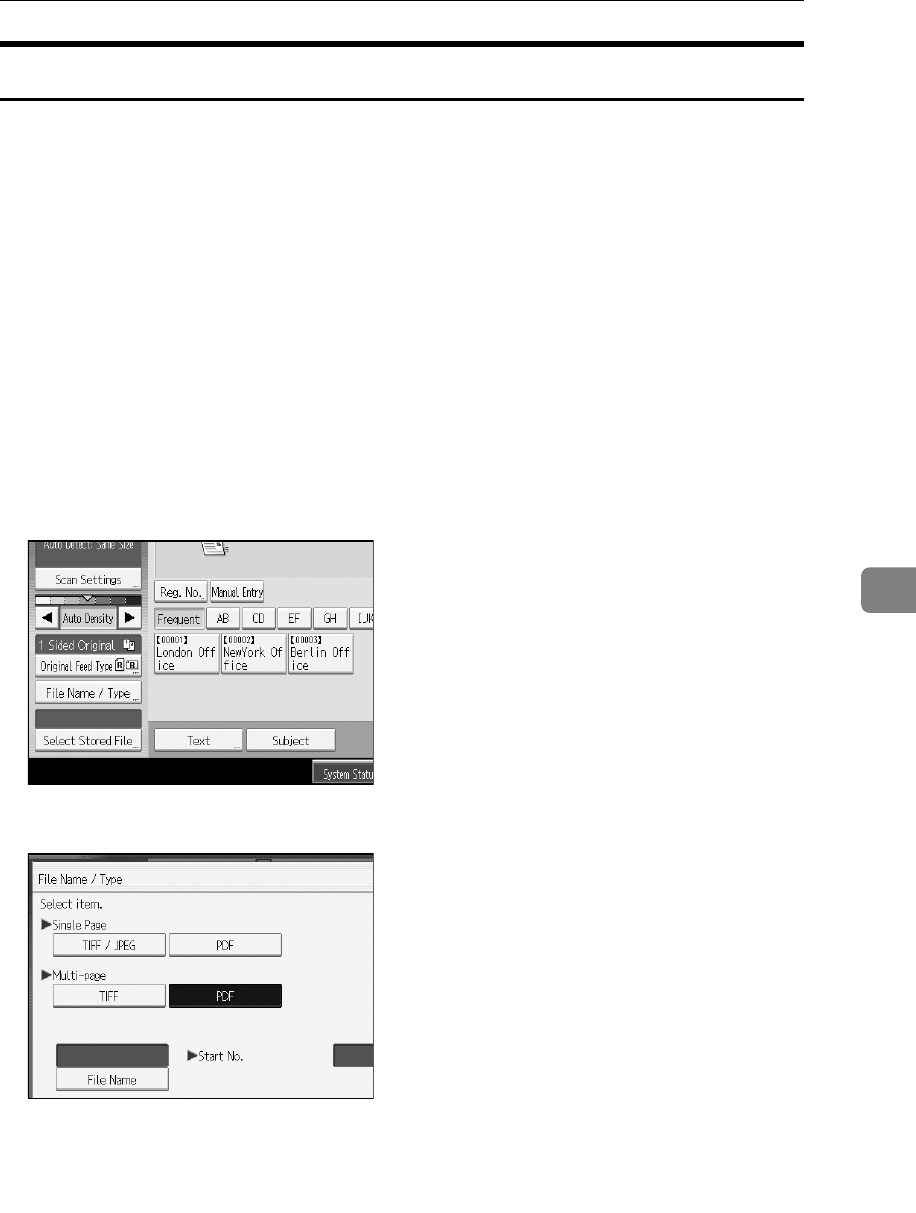

GIf necessary, press [File Name / Type] to specify settings such as file name and

file format.

For details, see “Setting File Type and File Name”.

HSpecify the destination.

You can specify multiple destinations.

For details, see “Specifying E-mail Destinations”.

IIf necessary, press [Text] to enter the e-mail message.

For details, see “Specifying the E-mail Message”

JIf necessary, press [Subject] to specify the e-mail subject.

For details, see “Specifying the E-mail Subject”.

KTo specify the e-mail sender, press [Sender Name].

For details, see “Specifying the E-mail Sender”.

LTo use Message Disposition Notification, press [Recept. Notice].

If you select [Recept. Notice], the selected e-mail sender will receive e-mail no-

tification when the e-mail recipient has opened the e-mail.

MPress the {Start} key.

If you are scanning batches, place the next originals.

Note

❒If you have selected two or more destinations, the destinations can be made

to appear one by one by pressing [U] or [T] next to the destination field.

❒To cancel a selected destination, display the destination in the destination

field, and then press the {Clear / Stop} key. You can cancel a destination se-

lected from the address book by pressing the selected destination again.

❒In [System Settings], you can specify the administrator’s e-mail address as

the default sender name. This lets you send e-mail without entering any-

thing for [Sender Name]. For details, see General Settings Guide.

❒Depending on the security setting, the logged-on user may be specified as

[Sender Name].

❒To use Message Disposition Notification, log on to the machine as a user

and specify the sender. Note, however, that the [Recept. Notice] notification

e-mail may not be transmitted if the e-mail software of the recipient does

not support Message Disposition Notification.

❒By pressing the {Check Modes} key, you can switch from the initial scanner

screen to the Check Modes screen so you can check the settings. For details,

see “Check Modes”.

❒If you press [Preview], and then scan a document, the Preview screen ap-

pears. For details, see “Preview”.

❒To cancel scanning, press the {Clear / Stop} key.

❒You can also store a scan file and simultaneously send it by e-mail. For de-

tails, see “Simultaneous Storage and Sending by E-mail”.

Sending Scan Files by E-mail

Reference

p.17 “Switching to the E-mail Screen”

p.109 “Various Scan Settings”

p.120 “Adjusting Image Density”

p.121 “Setting of Original Feed Type”

p.131 “Setting File Type and File Name”

p.18 “Specifying E-mail Destinations”

p.32 “Specifying the E-mail Message”

p.31 “Specifying the E-mail Subject”

p.27 “Specifying the E-mail Sender”

p.4 “Check Modes”

p.5 “Preview”

p.34 “Simultaneous Storage and Sending by E-mail”

Switching to the E-mail Screen

This section explains how to switch the screen to the E-mail screen.

If the Scan to Folder screen is being displayed, press [E-mail] to switch to the E-

mail screen.

If the network delivery scanner screen is being displayed, switch to the E-mail

screen as follows:

APress [Delivery Dest.].

The E-mail screen or Scan to Folder screen appears.

BIf the Scan to Folder screen appears, press [E-mail].

The E-mail screen appears.

Note

❒You cannot switch from the network delivery scanner screen while deliv-

ery destinations are being specified. To clear the specified destination, dis-

play the destination in the destination field of the network delivery

scanner screen, and then press the {Clear / Stop} key.

Sending Scan Files by E-mail

Specifying E-mail Destinations

This section explains how to specify e-mail destinations.

You can specify e-mail destinations by any of the following methods:

• Select the destination from the machine’s address book

• Enter the e-mail address directly

• Search the LDAP server for the destination and select it

Before you select destinations, make sure you have selected [To]. If necessary,

press [Cc] or [Bcc], and then select destinations.

Selecting the Destination from the Machine’s Address Book

This section explains how to select the destination from the machine’s address

book.

Important

❒To use this function, you must register the destinations in [System Settings] in

advance. For details, see General Settings Guide.

You can use the following methods to select destinations registered in the ma-

chine's address book:

• Select a destination from the list

• Select a destination by entering the registration number

• Select a destination by searching the machine's address book

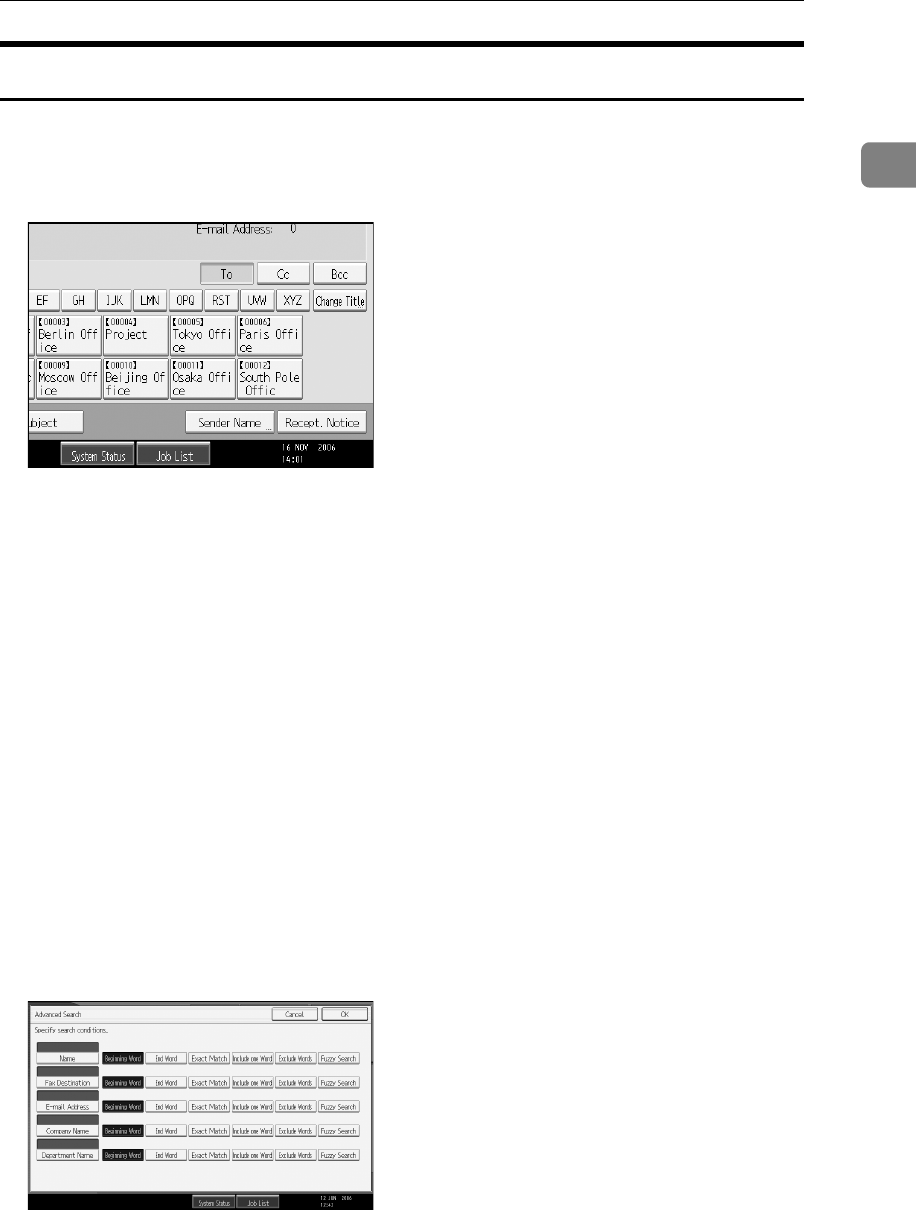

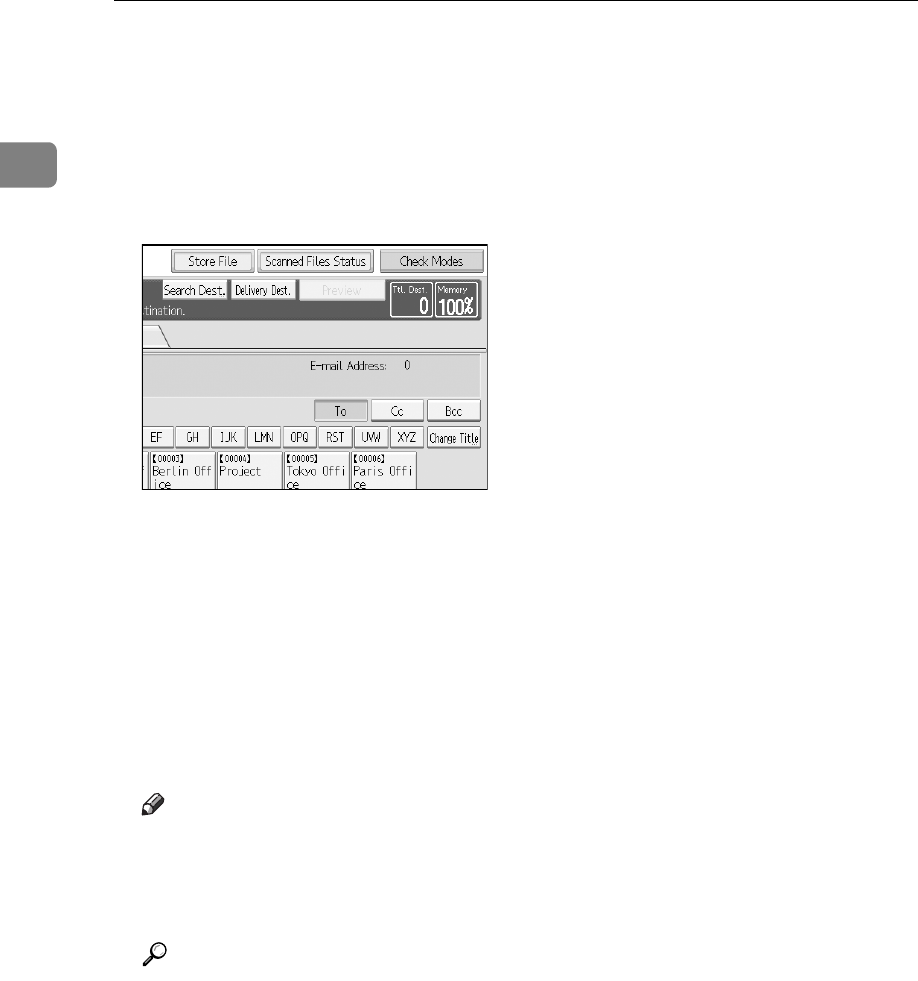

Selecting a destination from the list

Select the destination from the destination list.

AIn the destination list, press the key including the destination name.

The key of the selected destination is highlighted, and the destination appears

in the destination field at the top of the screen.

Specifying E-mail Destinations

If the target destination does not appear, take one of the following steps:

• Display the destination by selecting its initial letter from the title

• Display the destination by pressing [U] or [T]

Note

❒Depending on the security setting, some destinations may not appear in

the destination list.

Selecting destinations by entering the registration numbers

Select the destination from the machine’s address book using its registration

number.

APress [Reg. No.].

BUsing the number keys, enter the five-digit registration number assigned

to the required destination folder.

If the entered number is less than five digits, press the {q} key after the last

number. Example: To enter 00003 Press the {3} key, and then press the {q}

key.

CPress [OK].

By pressing [Change], you can change the selected destination.

Sending Scan Files by E-mail

Searching the machine’s address book for the destination and selecting it

This section explains how to search the machine’s address book for the destina-

tion and select it.

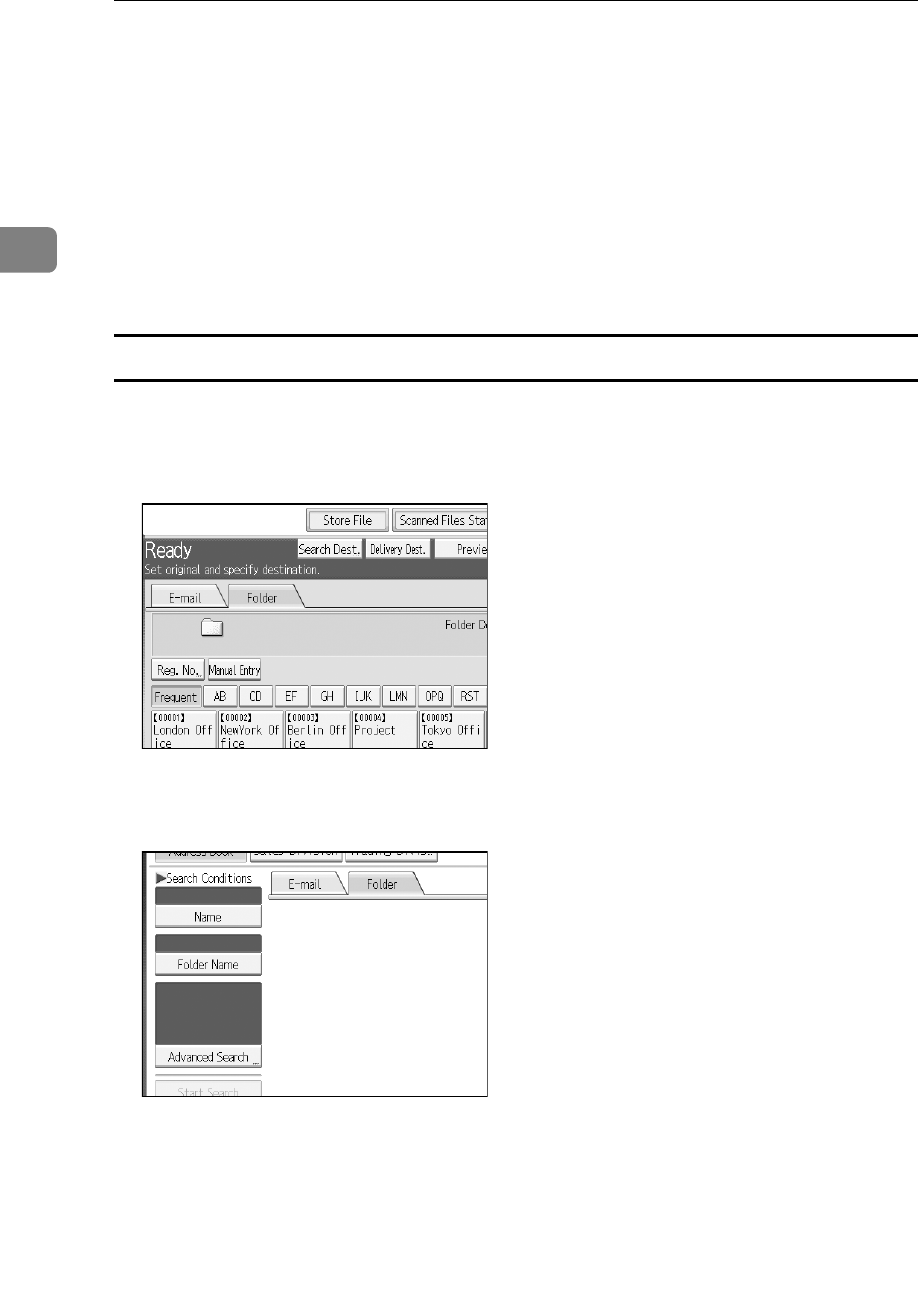

APress [Search Dest.].

BTo search by destination name, press [Name].

To search by e-mail address, press [E-mail Address].

The soft keyboard appears.

You can also search by combining [Name] and [E-mail Address].

CEnter the beginning of the destination name.

To search by e-mail address, enter the beginning of the address.

DPress [OK].

EIf necessary, press [Advanced Search], and then specify the detailed search

criteria.

By pressing [Advanced Search], you can search using criteria such as [Name], [E-

mail Address], and [Folder Name]. You can also search by combining the [Begin-

ning Word] or [End Word] criteria with the other criteria.

The illustrated screen is an example. The items that actually appear on the

screen may differ.

FPress [Start Search].

Destinations that match the search criteria are displayed.

GSelect a destination.

HSelect [To], [Cc], or [Bcc].

IPress [OK].

Specifying E-mail Destinations

Note

❒If [LDAP Search] is set to [On] in [System Settings], check that [Address Book]

in the upper part on the screen has been selected before executing the

search.

❒Search criteria that appear in [Advanced Search], such as [Name], [E-mail Ad-

dress], and [Folder Name], are registered in the machine’s address book. For

details, see General Setting Guide.

❒By pressing [Details], you can view details about the selected destinations.

❒Up to 100 destinations can be displayed as search results.

❒By pressing [Advanced Search], the following criteria appear:

•[Beginning Word]: The names which start with the entered character or char-

acters are targeted.

For example, to search for “ABC”, enter “A”.

•[End Word]: The names which end with the entered character or characters

are targeted.

For example, to search for “ABC”, enter “C”.

•[Exact Match]: The names which correspond to an entered character or char-

acters are targeted.

For example, to search for “ABC”, enter “ABC”.

•[Include one Word]: The names which contain an entered character or char-

acters are targeted.

For example, to search for “ABC”, enter “A”, “B”, or “C”.

•[Exclude Words]: The names which do not contain an entered character or

characters are targeted.

For example, to search for “ABC”, enter “D”.

Sending Scan Files by E-mail

Entering an E-mail Address Manually

This section explains how to enter an e-mail address manually.

APress [Manual Entry].

The soft keyboard appears so you can enter the e-mail address.

BEnter the e-mail address.

CPress [OK].

Note

❒Depending on the security settings, [Manual Entry] may not be displayed.

❒To change a registered destination e-mail address, press [Edit] to the left of

the destination field to display the soft keyboard, use the soft keyboard to

enter the new address, and then click [OK].

❒The e-mail address that is entered directly can be registered in the ma-

chine’s address book. For details, see “Registering a Directly-Entered Des-

tination in the Address Book”.

Reference

p.26 “Registering a Directly-Entered Destination in the Address Book”

Specifying E-mail Destinations

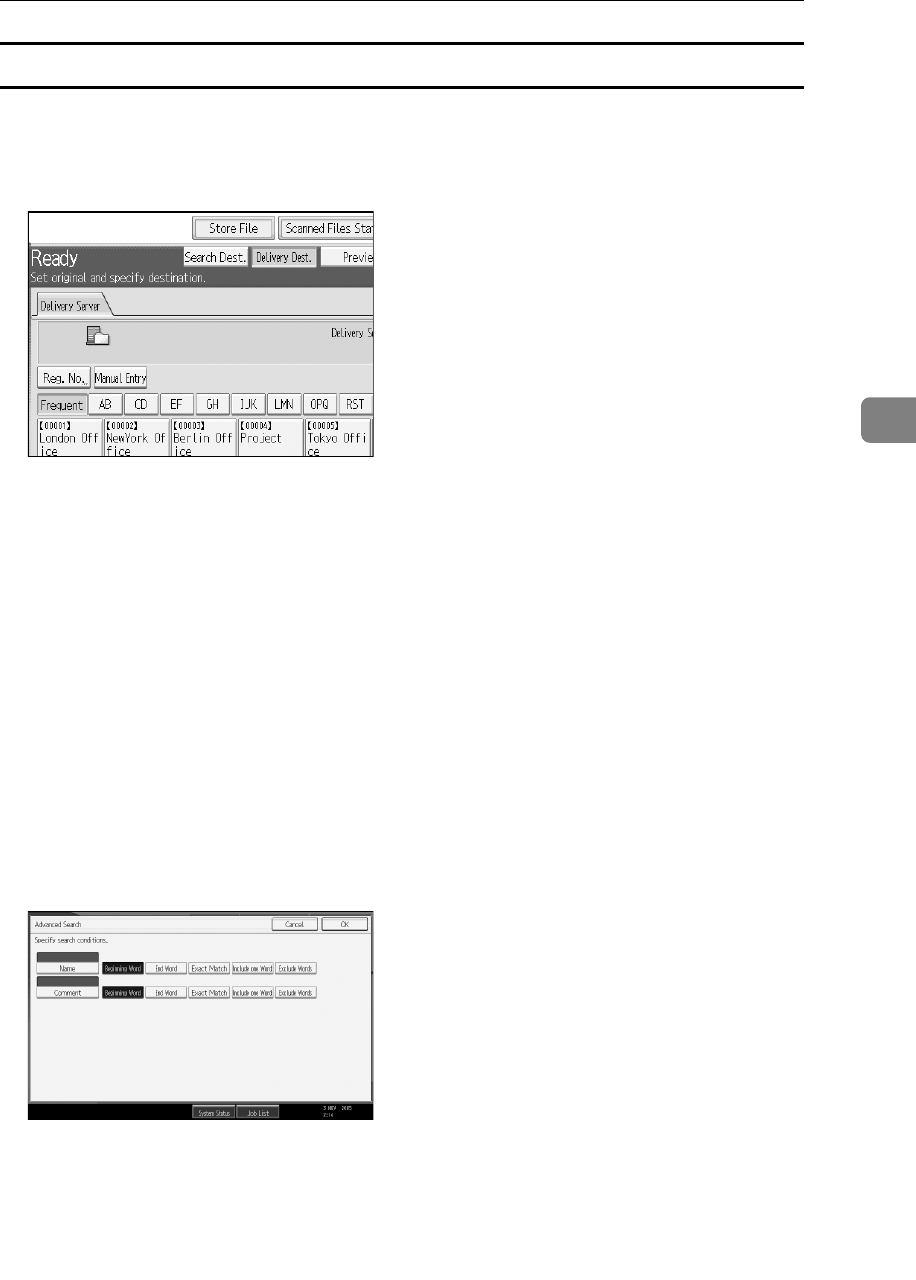

Selecting Destinations by Searching an LDAP Server

By accessing an LDAP server, you can search for destinations and select them.

Important

❒To use this function, an LDAP server must be connected to the network. In

addition, under [System Settings], the server must be registered and [LDAP

Search] must be set to [On]. For details, see General Settings Guide.

APress [Search Dest.].

BSelect the LDAP server that appears next to [Address Book].

If authentication is required to access the selected server, the authentication

screen appears. To authenticate, enter the user name and password.

CTo search by name, press [Name].

To search by e-mail address, press [E-mail Address].

The soft keyboard appears so you can enter the name or e-mail address.

You can also search by combining [Name] and [E-mail Address]. If you search

by [Name], whether the search is based on surname or first name depends on

how the administrator has configured searching.

DEnter part of the destination name.

To search by e-mail address, enter part of the destination address.

EPress [OK].

Sending Scan Files by E-mail

FIf necessary, press [Advanced Search], and then specify the detailed search

criteria.

By pressing [Advanced Search], you can search using criteria such as [Name], [E-

mail Address], [Company Name], [Department Name], and [Search Options]. You can

also search by combining the [Beginning Word] or [End Word] criteria with the

other criteria.

The illustrated screen is an example. The items that actually appear on the

screen may differ.

GPress [Start Search].

Destinations that match the search criteria are displayed.

HSelect the destination.

ISelect [To], [Cc], or [Bcc].

JPress [OK].

Note

❒The [Fax Destination], [Company Name], [Department Name], and [Search Op-

tions] search criteria that appear in [Advanced Search] are registered in the

LDAP server. [Search Options] can be registered in [System Settings]. For de-

tails, see General Settings Guide.

❒By pressing [Details], you can view details about the selected destinations.

❒Up to 100 destinations can be displayed as search results.

❒If an e-mail address returned by the LDAP server is too long, it will be im-

possible to specify it as the destination. For details about the number of

characters that can be specified, see “Sending E-mail”.

❒It is possible for more than one e-mail address to be registered for a desti-

nation. However, only one e-mail address per destination will appear in

the search results. It depends on the LDAP server which e-mail address

will be displayed. Usually, it is the e-mail address registered first.

Specifying E-mail Destinations

❒By pressing [Advanced Search], the following criteria appear:

•[Beginning Word]: The names which start with the entered character or char-

acters are targeted.

For example, to search for “ABC”, enter “A”.

•[End Word]: The names which end with the entered character or characters

are targeted.

For example, to search for “ABC”, enter “C”.

•[Exact Match]: The names which correspond to an entered character or char-

acters are targeted.

For example, to search for “ABC”, enter “ABC”.

•[Include one Word]: The names which contain an entered character or char-

acters are targeted.

For example, to search for “ABC”, enter “A”, “B”, or “C”.

•[Exclude Words]: The names which do not contain an entered character or

characters are targeted.

For example, to search for “ABC”, enter “D”.

•[Fuzzy Search]: a vague search (The function of this vague search depends

on the system supported by the LDAP server.)

Reference

p.156 “Sending E-mail”

Sending Scan Files by E-mail

Registering a Directly-Entered Destination in the Address Book

This section explains how to register a directly-entered destination in the ma-

chine’s address book. You can also register a destination selected from the LDAP

server.

AIn the destination field, display the destination you want to register.

BPress [Prg. Dest.].

CPress [Names], and then specify the name and other information to be regis-

tered.

For details about specifying the information to be registered, see General Set-

tings Guide.

DPress [OK].

Note

❒Depending on the security setting, [Prg. Dest.] may not appear. In such case,

you cannot complete the registration.

❒To register in the machine’s address book a destination searched for and

selected from the LDAP server, display the destination, and then press

[Prg. Dest.].

Specifying the E-mail Sender

This section explains how to specify the e-mail sender.

To send e-mail, you must specify the name of the sender.

You can specify the e-mail sender by any of the following methods:

• Select the sender from the machine’s sender list

• Select the sender by entering the registration number

• Select the sender by searching the machine’s address book

Note

❒Senders must be registered in advance under [System Settings]. For details, see

General Settings Guide.

❒In [System Settings], you can specify the administrator’s e-mail address as the

default sender name. This lets you send e-mail without entering anything for

[Sender Name]. For detail, see General Settings Guide.

❒Depending on the security setting, the logged-on user may be specified as

[Sender Name].

❒When a protection code has been set, a screen for entering the protection code

appears after selecting the sender. Enter the protection code, and then press

[OK]. If the protection code you entered is correct, the sender name is dis-

played.

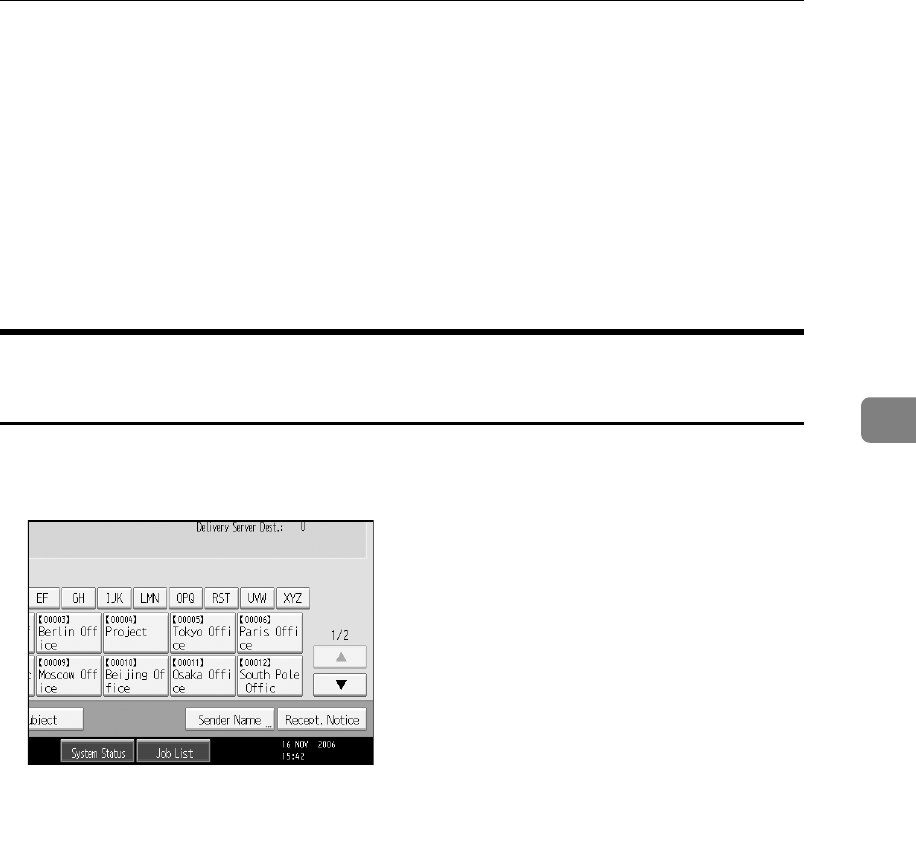

Selecting a Sender from the List

This section explains how to select the sender from the machine’s sender list.

APress [Sender Name].

BSelect the sender.

CPress [OK].

Sending Scan Files by E-mail

Using a Registration Number to Specify a Sender Name

Select the sender from the destination list according to the registration number.

APress [Sender Name].

BPress [Registration No.].

CUsing the number keys, enter the five-digit registration number assigned

to the required destination folder.

If the entered number is less than five digits, press the {q} key after the last

number.

Example: To enter 00006

Press the {6} key, and then press the {q} key.

DPress [OK] twice.

By pressing [Change], you can change the selected destination.

Specifying the E-mail Sender

Selecting the Sender by Searching the Machine’s Address Book

This section explains how to select the sender by searching the machine’s ad-

dress book.

APress [Sender Name].

BPress [Search].

CTo search by user name, press [Name].

To search by e-mail address, press [E-mail Address].

The soft keyboard appears.

You can also search by combining [Name] and [E-mail Address].

DEnter the beginning of the sender’s name you want to search for.

To search by e-mail address, enter the beginning of the address.

EPress [OK].

FIf necessary, press [Advanced Search], and then specify the detailed search

criteria.

By pressing [Advanced Search], you can search using criteria such as [Name], [E-

mail Address], and [Folder Name].

You can also search by combining the [Beginning Word] or [End Word] criteria

with the other criteria.

The illustrated screen is an example. The items that actually appear on the

screen may differ.

Sending Scan Files by E-mail

GPress [Start Search].

Destinations that match the search criteria are displayed.

HSelect the sender.

IPress [OK].

Note

❒If [LDAP Search] is set to [On] in [System Settings], check that [Address Book]

in the upper part on the screen has been selected before executing the

search.

❒Search criteria that appear in [Advanced Search], such as [Name], [E-mail Ad-

dress], and [Folder Name], are registered in the machine’s address book. For

details, see General Setting Guide.

❒By pressing [Details], you can view details about the selected sender.

❒By pressing [Advanced Search], the following criteria appear:

•[Beginning Word]: The names which start with the entered character or char-

acters are targeted.

For example, to search for “ABC”, enter “A”.

•[End Word]: The names which end with the entered character or characters

are targeted.

For example, to search for “ABC”, enter “C”.

•[Exact Match]: The names which correspond to an entered character or char-

acters are targeted.

For example, to search for “ABC”, enter “ABC”.

•[Include one Word]: The names which contain an entered character or char-

acters are targeted.

For example, to search for “ABC”, enter “A”, “B”, or “C”.

•[Exclude Words]: The names which do not contain an entered character or

characters are targeted.

For example, to search for “ABC”, enter “D”.

Specifying the E-mail Subject

This section explains how to specify the e-mail subject.

APress [Subject].

The soft keyboard appears.

BEnter the subject.

CPress [OK].

Sending Scan Files by E-mail

Specifying the E-mail Message

This section explains how to specify the e-mail message.

The message can be created in the following ways:

• Select the e-mail message from the list

• Enter the message directly

Selecting a Message from the List

You can select a message from the list.

Important

❒The messages that can be selected from the list must be registered in [System

Settings] in advance.

APress [Text].

BSelect a message.

CPress [OK].

Specifying the E-mail Message

Manual Entry of a Message

You can enter the message manually.

APress [Text].

BPress [Manual Entry].

The soft keyboard appears so you can enter the message.

CEnter the message.

DPress [OK] twice.

Sending Scan Files by E-mail

Simultaneous Storage and Sending by E-

mail

This section explains how to store a file and simultaneously send it by e-mail.

APress [Store File].

BMake sure [Send & Store] is selected.

CIf necessary, specify file data, such as [User Name], [File Name], and [Password].

For details, see “Specifying File Information for a Store File”.

DPress [OK].

ESpecify the setting for sending the file by e-mail, and then send the file.

For details about sending a file by e-mail, see “Basic Operation for Sending

Scan Files by E-mail”.

Note

❒If you simultaneously store scan files and send them by e-mail, the files

cannot be retransmitted from the E-mail screen. To retransmit the files, se-

lect the file on the screen for selecting stored files, and then send them. For

details, see “Sending a Stored File”.

Reference

p.67 “Specifying File Information for a Stored File”

p.14 “Basic Operation for Sending Scan Files by E-mail”

p.77 “Sending a Stored File”

Simultaneous Storage and Sending by E-mail

Sending the URL by E-mail

This section explains how to send the URL of the stored file by e-mail.

Important

❒To send the URL of the stored file by e-mail without sending the file itself, you

must specify the setting in [Scanner Features]. For details, see General Settings

Guide.

You can send the URL when you send a stored file by e-mail, and when you store

a file and simultaneously send it by e-mail.

With the transmitted URL, the recipient can view, download, or delete the file

indicated by the URL over the network using Web Image Monitor. Even if you

cannot send a file by e-mail because of network limitations, you can still send the

URL of the file.

AIn [Scanner Features], select [Send URL Link] under [Stored File E-mail Method].

For details about specifying the setting, see General Settings Guide.

BSend a stored file by e-mail. Alternatively, store a file and simultaneously

send it by e-mail.

For details about sending a stored file by e-mail, see “Sending a Stored File”.

For details about storing a file and simultaneously sending it by e-mail, see

“Simultaneous Storage and Sending by E-mail”.

An e-mail such as the one shown below will be sent to the destination.

CIn the e-mail destination, click the URL.

Web Image Monitor starts.

DView, delete, or download the file over the network using Web Image

Monitor.

Sending Scan Files by E-mail

Note

❒It is recommended that you use Web Image Monitor on the same network

environment. For details about settings for using Web Image Monitor, see

Network Guide.

❒Depending on the environment, even if you click the URL in the file sent

by e-mail, the browser may not start and you may not be able to view the

file. If this happens, click the same URL again, or manually enter the URL

in the browser's address bar.

❒For details about the functions for displaying and downloading stored files

using Web Image Monitor, see Copy/ Document Server Reference.

❒To display details about the functions for managing stored files using Web

Image Monitor, click [Help] on the upper right of each Web browser's win-

dow.

❒You can send the URL by e-mail and simultaneously send it by Scan to

Folder. In this case, the file is sent to the Scan to Folder destination, not the

URL.

2. Sending Scan Files to

Folders

Using the Scan to Folder function, you can send scan files over the network to

shared folders, FTP server folders, or NetWare folders.

Before Sending Files by Scan to Folder

This section describes the preparations and procedure for sending files by Scan

to Folder.

Outline of Sending Scan Files by Scan to Folder

This section outlines the function for sending scan files by Scan to Folder.

Sending files to shared folders

1. This machine

You can send scan files to shared net-

work folders. To send scan files to shared

network folders, use the SMB protocol.

2. Computer with a shared folder

To use this function, it is necessary to cre-

ate a shared folder in advance. You can

specify a shared folder to save scan files.

3. Client computer

You can also browse scanned files saved

to a shared folder from a client computer.

ZZZ509S

Sending Scan Files to Folders

Sending files to an FTP server

1. This machine

You can send scan files to FTP server

folders. To send scan files to FTP server

folders, use the FTP protocol.

2. FTP server

The FTP server is a server that provides

file transfer services among computers on

the same network. Transferred files are

stored on this server. It is essential to have

the FTP server inside the LAN/WAN

where this machine belongs. It is not pos-

sible to access an FTP server via a proxy

server.

3. Client computer

You can browse scanned files saved to an

FTP server from a client computer. You

need to have an FTP client program on

the computer to connect to an FTP server.

ZZZ510S

Before Sending Files by Scan to Folder

Sending files to a NetWare server

1. This machine

You can send scan files to NetWare fold-

ers. To send scan files to NetWare fold-

ers, use the NCP protocol.

2. NetWare Server

You can use this server to share files over

the network via NetWare. By sending im-

age data to the server, files can be stored

on the server.

3. Client computer

To download files, a computer must be

running the NetWare client and be

logged onto the server.

ZZZ511S

Sending Scan Files to Folders

Preparation for Sending by Scan to Folder

This section describes the preparations and settings for sending scan files by

Scan to Folder.

Important

❒Files can be sent to shared folders on client computers.

❒Files can also be sent to FTP servers if any exist on the network.

❒Files can also be sent to NetWare servers if any exist on the network.

AConnect the machine to the network.

Connect the machine to the network using an Ethernet or wireless LAN (IEEE

802.11b).

BMake the necessary network settings in [System Settings].

If you have connected the machine to the network using an Ethernet cable,

make the following settings. For details, see General Settings Guide.

• Specify the machine’s IPv4 address and subnet mask.

• Specify the IPv4 gateway address.

•In [Effective Protocol], enable [IPv4].

• To send files to shared folders, enable [SMB] in [Effective Protocol]. To send

files to NetWare folders, enable [NetWare] in [Effective Protocol].

CIf necessary, change settings in [Send Settings] under [Scanner Features].

Note

❒To connect the machine to the network using a wireless LAN (IEEE

802.11b), an extended wireless LAN board is required respectively. For de-

tails, see Network Guide.

❒Items to set up in [System Settings] vary depending on the network environ-

ment. For more information about network settings, see General Settings

Guide.

❒For details about [Scanner Features], see General Settings Guide.

❒Sending files using SMB is available only under a NetBIOS over TCP/IP

environment. Sending files using SMB is not available under a NetBEUI

environment.

❒Even when settings made with the control panel, Web Image Monitor, Tel-

net, or other methods do not permit the use of SMB and FTP, sending files

is still possible.

Before Sending Files by Scan to Folder

Registering Destination Folders in the Address Book

You can register the addresses of frequently-used destination folders in the ad-

dress book. Register the folder addresses in [Address Book Management] under

[Administrator Tools] from [System Settings]. These addresses can also be registered

as groups.

Note

❒For details about registering the address of a destination folder in the address

book, see General Settings Guide.

❒You can register entries in the address book using Web Image Monitor or

SmartDeviceMonitor for Admin. For details about installing SmartDevice-

Monitor for Admin, see “Monitoring and Configuring the Printer”, Network

Guide. For details about registering addresses, see each application’s Help.

❒Depending on the machine type, you may not be able to use the machine

when it is updating the address book using CSV files (retrieved using Smart-

DeviceMonitor for Admin) that contain user codes.

Sending Scan Files to Folders

Scan to Folder Screen

This section describes the screen layout when sending scan files by Scan to Folder.

The function items displayed serve as selector keys. You can select or specify an

item by pressing it. When you select or specify an item on the display panel, it is

highlighted like []. Keys that cannot be selected appear like [].

1. Destination field

The specified destination appears. If

more than one destination has been spec-

ified, press [U] or [T] to scroll through the

destinations.

2. E-mail/ Folder

Press to switch between the Scan to Fold-

er screen and E-mail screen

Also switch the screen when sending a

file simultaneously by both Scan to Fold-

er and e-mail.

3. Scan to Folder icon

Shows that the Scan to Folder screen is

displayed.

4. [Manual Entry]

To specify destinations not registered in

the address book, press this button to dis-

play the soft keyboard, and then enter the

address of the destination folder.

5. [Reg. No.]

Press to specify a destination using a five-

digit registration number.

6. Destination List

The list of destinations registered in the

machine appears.

If all of the destinations cannot be dis-

played, press [U] or [T] to switch the

screen.

Group destinations are denoted by this

symbol ( ).

7. [Text][Subject][Sender Name][Recept.

Notice]

You can enter the message and specify

the subject, sender, and whether or not to

use Message Disposition Notification.

The entries will be used for e-mail trans-

mission when sending files simulta-

neously by Scan to Folder and e-mail. For

details, see “Sending Scan Files by E-

mail”.

Reference

p.11 “Sending Scan Files by E-mail”

ALQ007S

Basic Operations When Using Scan to Folder

This section describes the basic operations involved in using Scan to Folder.

AMake sure that no previous settings remain.

If a previous setting remains, press the {Clear Modes} key.

BIf the network delivery scanner screen or E-mail screen appears, switch to

the Scan to Folder screen.

For details, see “Switching to the Scan to Folder Screen”.

CPlace originals.

DIf necessary, press [Scan Settings] to specify scanner settings such as resolu-

tion and scan size.

For details, see “Various Scan Settings”.

EIf necessary, specify the scanning density.

For details, see “Adjusting Image Density”.

FIf necessary, press [Original Feed Type] to specify settings such as original ori-

entation.

For details, see “Setting of Original Feed Type”.

Sending Scan Files to Folders

GIf necessary, press [File Name / Type] to specify settings such as file name and

file format.

For details, see “Setting File Type and File Name”.

HSpecify the destination.

You can specify multiple destinations.

For details, see “Specifying Scan to Folder Destinations”.

IPress the {Start} key.

If you are scanning batches, place the next originals.

Note

❒If you have selected more than one destination, you can press [U] or [T]

next to the destination field to scroll through the destinations.

❒To cancel a selected destination, display the destination in the destination

field, and then press the {Clear / Stop} key. You can cancel a destination se-

lected from the address book by pressing the selected destination again.

❒By pressing the {Check Modes} key, you can switch from the initial scanner

screen to the Check Modes screen so you can check the settings. For details,

see “Check Modes”.

❒If you press [Preview], and then scan a document, the Preview screen ap-

pears. For details, see “Preview”.

❒To cancel scanning, press the {Clear / Stop} key.

❒You can also store a file and simultaneously send it by Scan to Folder. For

details, see “Simultaneous Storage and Sending by Scan to Folder”.

Reference

p.45 “Switching to the Scan to Folder Screen”

p.109 “Various Scan Settings”

p.120 “Adjusting Image Density”

p.121 “Setting of Original Feed Type”

p.131 “Setting File Type and File Name”

p.46 “Specifying Scan to Folder Destinations”

p.4 “Check Modes”

p.5 “Preview”

p.61 “Simultaneous Storage and Sending by Scan to Folder”

Switching to the Scan to Folder Screen

This section explains how to switch to the Scan to Folder screen.

If the E-mail screen is being displayed, press [Folder] to switch to the Scan to

Folder screen.

If the network delivery scanner screen is being displayed, switch to the Scan to

Folder screen as follows:

APress [Delivery Dest.].

The E-mail screen or Scan to Folder screen appears.

BIf the E-mail screen appears, press [Folder].

The Scan to Folder screen appears.

Note

❒You cannot switch from the network delivery scanner screen while deliv-

ery destinations are being specified. To clear the specified destination, dis-

play the destination in the destination field of the network delivery

scanner screen, and then press the {Clear / Stop} key.

Sending Scan Files to Folders

Specifying Scan to Folder Destinations

This section explains how to specify Scan to Folder destinations.

You can send a file by Scan to Folder by any of the following methods:

• Select a destination registered in the machine’s address book

• Send a file to a shared network folder

• Send a file to an FTP server

• Send a file to an NDS tree or a NetWare server

Selecting the Destination from the Machine’s Address Book

This section explains how to select the destination from the machine’s address

book.

Important

❒To use this function, you must register the destinations in [System Settings] in

advance.

You can select a destination registered in the machine’s address book by any of

the following methods:

• Select the destination from the destination list

• Select the destination by entering its registration number

• Select the destination by searching the machine’s address book

Note

❒If you have specified the address protection code for accessing the address

book, the screen for entering the address protection code appears.

❒Depending on the security setting, some destinations may not appear in the

destination list.

Specifying Scan to Folder Destinations

Selecting a destination registered in the destination list

Select the destination from the destination list.

AIn the destination list, press the key including the destination name.

The key of the selected destination is highlighted, and the destination appears

in the destination field at the top of the screen.

If the target destination does not appear, take one of the following steps:

• Display the destination by selecting its initial letter from the title

• Display the destination by pressing [U] or [T]

Note

❒Depending on the security setting, some destinations may not appear in

the destination list.

Selecting destinations by entering the registration numbers

Select the destination from the machine’s address book using its registration

number.

APress [Reg. No.].

Sending Scan Files to Folders

BEnter the five-digit registration number that has been assigned to a desti-

nation folder using the number keys.

If the entered number is less than five digits, press the {q} key after the last

number.

Example: To enter 00004

Press the {4} key, and then press the {q} key.

CPress [OK].

By pressing [Change], you can change the selected destination.

Searching the machine’s address book for the destination and selecting it

This section explains how to search the machine’s address book for the destina-

tion and select it.

APress [Search Dest.].

BTo search by destination name, press [Name].

To search by path, press [Folder Name].

The soft keyboard appears.

You can also search by combining [Name] and [Folder Name].

CEnter the beginning of the destination name.

To search by path, enter the beginning of the folder path. If the folder path is

“\\volume\folder”, then enter “\\volume\folder”.

DPress [OK].

Specifying Scan to Folder Destinations

EIf necessary, press [Advanced Search], and then specify the detailed search

criteria.

By pressing [Advanced Search], you can search using criteria such as [Name], [E-

mail Address], and [Folder Name].

You can also search by combining the [Beginning Word] or [End Word] criteria

with the other criteria.

The illustrated screen is an example. The items that actually appear on the

screen may differ.

FPress [Start Search].

Destinations that match the search criterion are displayed.

GSelect the destination folder.

HPress [OK].

Note

❒Search criteria that appear in [Advanced Search], such as [Name], [E-mail Ad-

dress], and [Folder], are registered in the machine’s address book. For de-

tails, see General Setting Guide.

❒By pressing [Details], you can view details about the selected destinations.

❒Up to 100 destinations can be displayed as search results.

❒By pressing [Advanced Search], the following criteria appear:

•[Beginning Word]: The names which start with the entered character or char-

acters are targeted.

For example, to search for “ABC”, enter “A”.

•[End Word]: The names which end with the entered character or characters

are targeted.

For example, to search for “ABC”, enter “C”.

•[Exact Match]: The names which correspond to an entered character or char-

acters are targeted.

For example, to search for “ABC”, enter “ABC”.

•[Include one Word]: The names which contain an entered character or char-

acters are targeted.

For example, to search for “ABC”, enter “A”, “B”, or “C”.

•[Exclude Words]: The names which do not contain an entered character or

characters are targeted.

For example, to search for “ABC”, enter “D”.

Sending Scan Files to Folders

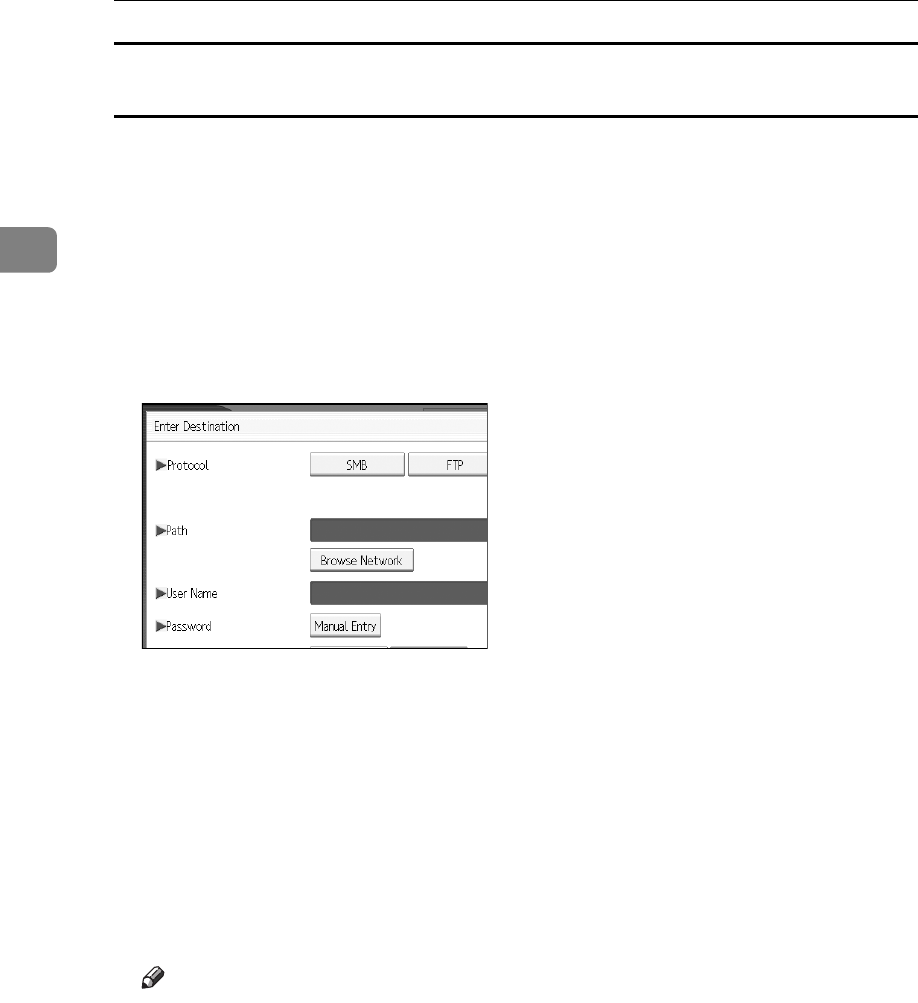

Sending Files to a Shared Network Folder

This section explains how to specify the destination when sending files to a

shared network folder.

Important

❒The shared folder must have been created on the client computer in advance,

see Windows Help.

❒You can create the shared folder under Windows 2000/XP/Vista, Windows

Server 2003/2003 R2, and Mac OS X.

❒Depending on the operating system of the client computer, access to the

shared folder may require authentication.

❒This machine does not support DFS (Distributed File System).

You can send a file to a shared folder over the network by any of the following

methods:

• Enter the path to the destination directly

• Specify the path by browsing the network for the destination

Entering the path to the destination manually

You can enter the path to the destination folder manually.

APress [Manual Entry].

BPress [SMB].

CPress [Manual Entry] on the right side of the path field.

The soft keyboard appears.

DEnter the path for the folder.

The following is an example of a path where the folder name is “user” and the

computer name is “desk01”: \\desk01\user.

Instead of specifying the destination using its path, you can also use its IPv4

address.

Specifying Scan to Folder Destinations

EPress [OK].

FDepending on the destination setting, enter the user name for logging on

to the client computer.

Press [Manual Entry] to the right of the user name field to display the soft key-

board.

GDepending on the destination setting, enter the password for logging on to

the client computer.

Press [Manual Entry] for the password to display the soft keyboard.

HPress [Connection Test].

A connection test is performed to check whether the specified shared folder

exists.

ICheck the connection test result, and then press [Exit].

JPress [OK].

Note

❒If authentication is required to access the folder, the login screen appears.

Enter the user name and password.

❒If you change the protocol after entering the path name, user name, or

password, a confirmation message appears.

❒IPv4 address entry is supported by Windows 2000/XP/Vista and Windows

Server 2003/2003 R2.

❒Computer and shared folder names containing more than 12 characters

cannot be displayed.

❒To change the path for the folder that has been entered, press [Change] on

the left side of the destination field. Enter the correct path for the folder,

and then press [OK].

❒The connection test may take time.

❒You may not be able to press [Connection Test] right after pressing [Cancel]

during a connection test.

❒Even if the connection test was successful, the machine may fail to transfer

the file if you do not have write privileges for the file or there is not enough

free hard disk space.

❒You can register the path to the destination in the machine’s address book.

For details, see “Registering the Path to the Selected Destination in the Ad-

dress Book”.

Reference

p.60 “Registering the Path to the Selected Destination in the Address

Book”

Sending Scan Files to Folders

Specifying the path by browsing the network for destinations

You can browse computers on the network for the destination folder, and then

specify the path.

APress [Manual Entry].

BPress [SMB].

CPress [Browse Network] under the path name field.

Domains or workgroups on the network appear.

DSelect the domain or workgroup in which the destination folder is located.

ESelect the client computer that has the destination folder.

If you cannot find the computer you are looking for, press [Up One Level] and

browse that level.

If authentication is required to access the selected computer, the authentica-

tion screen appears. To authenticate, enter the user name and password.

FSelect the destination folder.

When the selected folder has sub-folders, the sub-folders list appears.

If you cannot find the destination folder, press [Up One Level], and then search

for the folder at that level.

GPress [OK] twice.

Specifying Scan to Folder Destinations

Note

❒If authentication is required to access the folder, the login screen appears.

Enter the user name and password.

❒If you change the protocol after entering the path name, user name, or

password, a confirmation message appears.

❒Computer and shared folder names containing more than 12 characters

cannot be displayed.

❒Up to 100 computers or shared folders can be displayed.

❒The machine may fail to transfer the file if you do not have the write priv-

ileges for the shared folder or there is not enough free hard disk space.

❒You can register the path to the destination in the machine’s address book.

For details, see “Registering the Path to the Selected Destination in the Ad-

dress Book”.

Reference

p.60 “Registering the Path to the Selected Destination in the Address

Book”

Sending Scan Files to Folders

Sending Files to an FTP Server

This section explains how to specify destinations when sending files to an FTP

server.

Entering the path to an FTP server manually

You can enter the path to an FTP server manually.

APress [Manual Entry].

BPress [FTP].

CPress [Manual Entry] on the right side of the server name field.

The soft keyboard appears.

DEnter a server name.

Instead of specifying the destination using its path, you can also use its IPv4

address.

EPress [Manual Entry] on the right side of the path field.

FEnter the path for the folder.

The following is an example of a path where the folder name is “user” and the

subfolder name is “lib”: user\lib.

GPress [OK].

HEnter the user name according to the setting at the destination.

Press [Manual Entry] to the right of the user name field to display the soft key-

board.

IEnter the password according to the setting at the destination.

Press [Manual Entry] next to the password field to make the soft keyboard ap-

pear.

Specifying Scan to Folder Destinations

JTo change the port number which is set in [System Settings], press [Change]

on the right side of the port number field. Enter a port number using the

number keys, and then press the {q} key.

KPress [Connection Test].

A connection test is performed to check whether the specified folder exists.

LCheck the connection test result, and then press [Exit].

MPress [OK].

Note

❒If you change the protocol after entering the path name, user name, or

password, a confirmation message appears.

❒The connection test may take time.

❒You may not be able to press [Connection Test] right after pressing [Cancel]

during a connection test.

❒To change the registered path to a destination folder, press [Edit] to the left

of the destination field to display the soft keyboard, enter the new path,

and then click [OK].

❒You can register the path to the destination in the machine’s address book.

For details, see “Registering the Path to the Selected Destination in the Ad-

dress Book”.

❒The machine may fail to transfer the file if you do not have write privileges

for the folder or there is not enough free hard disk space.

Reference

p.60 “Registering the Path to the Selected Destination in the Address

Book”

Sending Scan Files to Folders

Sending Files to an NDS Tree or NetWare Server

This section explains how to specify destinations when sending files to an NDS

tree or NetWare server.

You can send a file to an NDS tree or NetWare server by any of the following

methods:

• Enter the path to the NDS tree or NetWare server directly

• Specify the path by browsing the NDS tree or NetWare server for the destina-

tion

Reference

p.46 “Selecting the Destination from the Machine’s Address Book”

Entering the path to an NDS tree or NetWare server manually

You can enter the path to an NDS tree or NetWare server manually.

APress [Manual Entry].

BPress [NCP].

CSelect the connection type. Press [NDS] to specify the folder in the NDS tree.

Press [Bindery] to specify the folder on the NetWare server.

DPress [Manual Entry] on the right side of the path field.

The soft keyboard appears.

Specifying Scan to Folder Destinations

EEnter the path for the folder.

If you set the connection type to [NDS], the NDS tree name is “tree”, the name of

the context including the volume is “context”, the volume name is “volume”, and

the folder name is “folder”, the path will be “\\tree\volume.context\folder”.

If you set the connection type to [Bindery], the NetWare server name is “server”,

the volume name is “volume”, and the folder name is “folder”, the path will be

“\\server\volume\folder”.

FPress [OK].

GEnter the user name for logging on to the NDS tree or NetWare server.

Press [Manual Entry] to the right of the user name field. The soft keyboard appears.

If you press [NDS] for [Connection Type], enter the user name, and then enter the

name of the context containing the user object. If the user name is “user” and

the name of the Context is “context”, the user name will be “user.context”.

HIf a password is specified for the log on user, enter it.

Press [Manual Entry] to the right of the password field. The soft keyboard appears.

IPress [Connection Test].

A connection test is performed to check whether the specified share folder exists.

JCheck the connection test result, and then press [Exit].

KPress [OK].

Note

❒If you change the protocol after entering the path name, user name, or

password, a confirmation message appears.

❒To change a registered path to a destination folder, press [Edit] to the left to

the destination field to display the soft keyboard, enter the correct path to

the folder, and then press [OK].

❒You can connect only to folders that you have the read privileges for.

❒The connection test may take time.

❒You may not be able to press [Connection Test] right after pressing [Cancel]

during a connection test.

❒Even if the connection test was successful, the machine may fail to transfer

the file if you do not have write privileges for the file or there is not enough

free hard disk space.

❒You can register the path to the destination in the machine’s address book.

For details, see “Registering the Path to the Selected Destination in the Ad-

dress Book”.

Reference

p.60 “Registering the Path to the Selected Destination in the Address

Book”

Sending Scan Files to Folders

Specifying the path to a destination folder in an NDS tree or on a NetWare server by

browsing the network

You can browse the network and specify the path to a destination folder in an

NDS tree or on a NetWare server.

APress [Manual Entry].

BPress [NCP].

CSelect the connection type. Press [NDS] to browse the NDS tree. Press [Bind-

ery] to browse the NetWare server.

DPress [Browse Network] under the path name field.

If you selected [NDS] under [Connection Type], the NDS tree list appears.

If you selected [Bindery] under [Connection Type], the NetWare server list ap-

pears.

ESearch for the destination folder in the NDS tree or NetWare server.

If you cannot find the destination folder, press [Up One Level], and then search

for the folder at that level.

FSelect the destination folder.

GPress [OK] twice.

Note

❒If you change the protocol after entering the path name, user name, or

password, a confirmation message appears.

❒Only folders that you have the read privileges for are displayed.

❒If the language used for the NDS tree or by the NetWare server differs from

that used by the machine, file names in the NDS tree or on the NetWare

server might appear garbled.

❒Up to 100 items can be displayed.

Specifying Scan to Folder Destinations

❒If the selected NDS tree or NetWare server requires authentication, a login

screen appears. Enter a user name and password for logging on to the NDS

tree or NetWare server. If you log on to the NDS tree, enter a user name, and

then enter the name of the context containing the user object. If the user

name is “user” and the name of the Context is “context”, the user name will

be “user.context”.

❒The machine may fail to transfer the file if you do not have write privileges

for the folder or there is not enough free hard disk space.

❒You can register the path to the destination in the machine’s address book.

For details, see “Registering the Path to the Selected Destination in the Ad-

dress Book”.

Reference

p.60 “Registering the Path to the Selected Destination in the Address

Book”

Sending Scan Files to Folders

Registering the Path to the Selected Destination in the Address Book

This section explains how to register folder paths you have entered manually or

specified by browsing the network to the machine's address book.

AIn the destination field, display the destination you want to register.

BPress [Prg. Dest.].

CPress [Names], and then specify the name and other information to be regis-

tered.

For details about specifying the information to be registered, see General Set-

tings Guide.

DPress [OK].

Note

❒Depending on the security setting, [Prg. Dest.] may not appear.

Simultaneous Storage and Sending by Scan to Folder

Simultaneous Storage and Sending by

Scan to Folder

This section explains how to store a file and simultaneously send it by Scan to

Folder.

APress [Store File].

BMake sure that [Send & Store] is selected.

CIf necessary, specify file data, such as [User Name], [File Name], and [Password].

For details, see “Specifying File Information for a Stored File”.

DPress [OK].

ESpecify the setting for sending the file by Scan to Folder, and then send the

file.

For details about sending a file by Scan to Folder, see “Basic Operations When

Using Scan to Folder”.

Note

❒Depending on the security setting, [Access Privileges] may appear instead

of [User Name]. For details about specifying [Access Privileges], consult the

administrator.

❒If you simultaneously store scan files and send them by Scan to Folder, the

files cannot be retransmitted from the Scan to Folder screen. To retransmit

the files, select the files on the Select Stored File screen, and then send

them. For details, see “Sending a Stored File”.

Reference

p.67 “Specifying File Information for a Stored File”

p.43 “Basic Operations When Using Scan to Folder”

p.77 “Sending a Stored File”

Sending Scan Files to Folders

3. Storing Files Using the

Scanner Function

Using the scanner function, you can store scan files in the machine and then send

the stored files by e-mail or Scan to Folder.

Before Storing Files

This section outlines file storage under the scanner function and provides relat-

ed cautions.

Outline of File Storage under the Scanner Function

This section outlines storing files under the scanner function.

Important

❒You can specify a password for each stored file. Files that are not password-

protected can be accessed by other users on the same local area network using

DeskTopBinder. It is recommended that you protect stored files from unau-

thorized access by specifying passwords.

❒Scan file stored in the machine may be lost if some kind of failure occurs. We

advise against using the hard disk to store important files. The supplier shall

not be responsible for any damage that may result from the loss of files. For

long-term storage of files, we recommend the use of DeskTopBinder. For de-

tails, contact your local dealer.

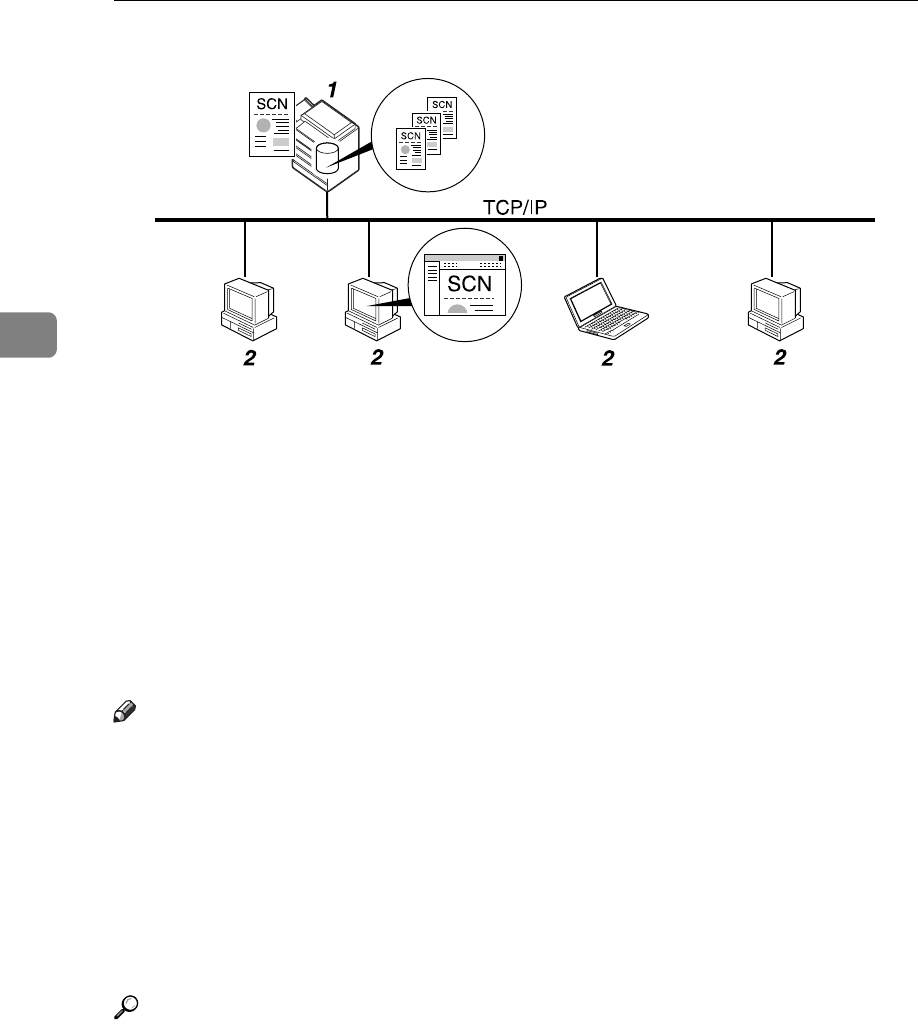

Storing Files Using the Scanner Function

1. This Machine

You can store scan files on the machine’s

hard disk. The stored files can be sent by

e-mail, Scan to Folder, or the network de-

livery scanner.

2. Client Computer

Using DeskTopBinder, you can, over the

network, view, copy, or delete files

stored in the machine. Using Web Image

Monitor, you can, over the network,

view, download, send, or delete files

stored in the machine. For details about

DeskTopBinder Lite, see DeskTopBinder

Lite–related manuals. For details about

Web Image Monitor, see Web Image

Monitor Help.

Note

❒Stored files will be deleted after a set period. For details about specifying the

period, see General Settings Guide.

❒Files stored under the scanner function cannot be printed from the machine’s

control panel. Print the files from a client computer after receiving them on

the computer.

❒You can also store a file and simultaneously send it by e-mail or Scan to Fold-

er, or store it and simultaneously deliver it. For details, see “Simultaneous

Storage and Sending by E-mail”, “Simultaneous Storage and Sending by Scan

to Folder”, and “Simultaneous Storage and Delivery”.

Reference

p.34 “Simultaneous Storage and Sending by E-mail”

p.61 “Simultaneous Storage and Sending by Scan to Folder”

p.102 “Simultaneous Storage and Delivery”

ZZZ512S

Basic Operation for Storing Scan Files

This section describes the basic operation for storing scan files.

AMake sure that no previous settings remain.

If a previous setting remains, press the {Clear Modes} key.

BPlace originals.

CIf necessary, press [Scan Settings] to specify scanner settings such as resolu-

tion and scan size.

For details, see “Various Scan Settings”.

DIf necessary, specify the scanning density.

For details, see “Adjusting Image Density”.

EIf necessary, press [Original Feed Type] to specify settings such as original ori-

entation.

For details, see “Setting of Original Feed Type”.

FPress [Store File].

GPress [Store Only].

Storing Files Using the Scanner Function

HIf necessary, specify file information, such as [User Name], [File Name], and

[Password].

For details, see “Specifying File Information for a Stored File”.

IPress [OK].

JPress the {Start} key.

If you are scanning batches, place the next originals.

Note

❒Depending on the security setting, [Access Privileges] may appear instead

of [User Name]. For details about specifying [Access Privileges], consult the

administrator.

❒By pressing [Send & Store], you can simultaneously store scan files and send

them. For details, see “Simultaneous Storage and Sending by E-mail”, “Si-

multaneous Storage and Sending by Scan to Folder”, and “Simultaneous

Storage and Delivery”.

❒If a destination or sender has been selected, you cannot press [Store Only].

❒To cancel scanning, press the {Clear / Stop} key.

Reference

p.109 “Various Scan Settings”

p.120 “Adjusting Image Density”

p.121 “Setting of Original Feed Type”

p.67 “Specifying File Information for a Stored File”

p.34 “Simultaneous Storage and Sending by E-mail”

p.61 “Simultaneous Storage and Sending by Scan to Folder”

p.102 “Simultaneous Storage and Delivery”

Specifying File Information for a Stored File

You can specify data for a stored file, such as user name, file name, and pass-

word.

By specifying data for a stored file, you can search for the file by user name or

file name, or protect the file with a password to prevent other people from ac-

cessing the file.

Specifying a User Name

You can specify a user name for the stored file.

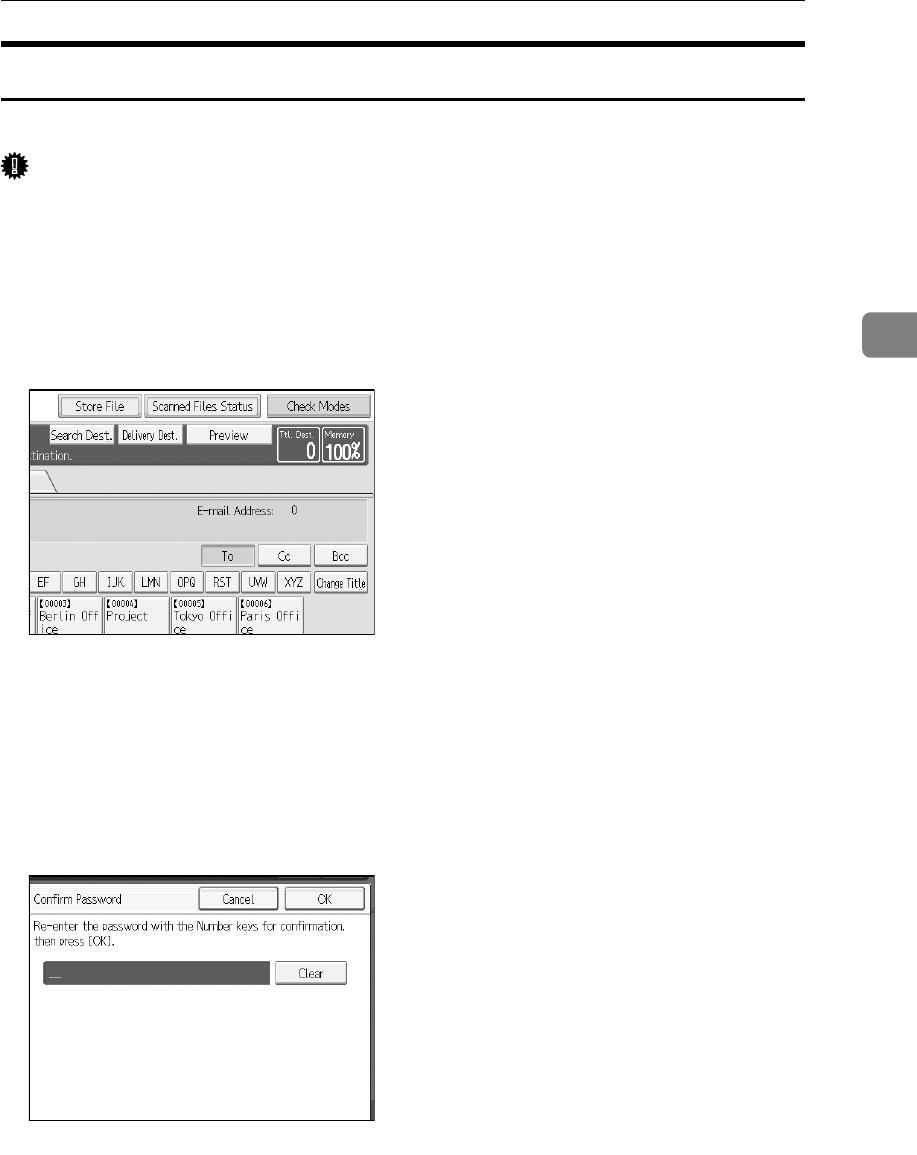

APress [Store File].

The Store File screen appears.

BPress [User Name].

A list of user names appears.

CPress the user name you want to specify.

The user names shown here are names that were registered on the [Adminis-

trator Tools] tab in [System Settings]. To specify a name not shown here, press

[Manual Entry], and then enter the user name.

DPress [OK] twice.

Note

❒Depending on the security setting, [Access Privileges] may appear instead

of [User Name]. For details about specifying [Access Privileges], consult the

administrator.

Storing Files Using the Scanner Function

Specifying a File Name

This section explains how to change the name of a stored file.

A stored file is allocated a name starting with “SCAN” followed by a 4-digit

number.

• Example: SCAN0001

You can change this file name.

APress [Store File].

The Store File screen appears.

BPress [File Name].

The soft keyboard appears.

CChange the file name.

DPress [OK] twice.

Note

❒For details about entering the text, see About This Machine.

Specifying File Information for a Stored File

Specifying a Password

You can specify a password for the stored file.

Important

❒Do not forget the password. If you forget it, consult the system administrator

of the machine.

By specifying a password, you can ensure that only the people who know the

password can view the file.

APress [Store File].

The Store File screen appears.

BPress [Password].

CUsing the number keys, enter a four to eight-digit number.

DPress [OK].

EEnter the same number again using the number keys.

FPress [OK] twice.

Storing Files Using the Scanner Function

Displaying the List of Stored Files

This section describes the list of stored files.

Using the list of stored files, you can delete stored files or change the file data.

List of Stored Files

This section describes how the list of stored files is displayed.

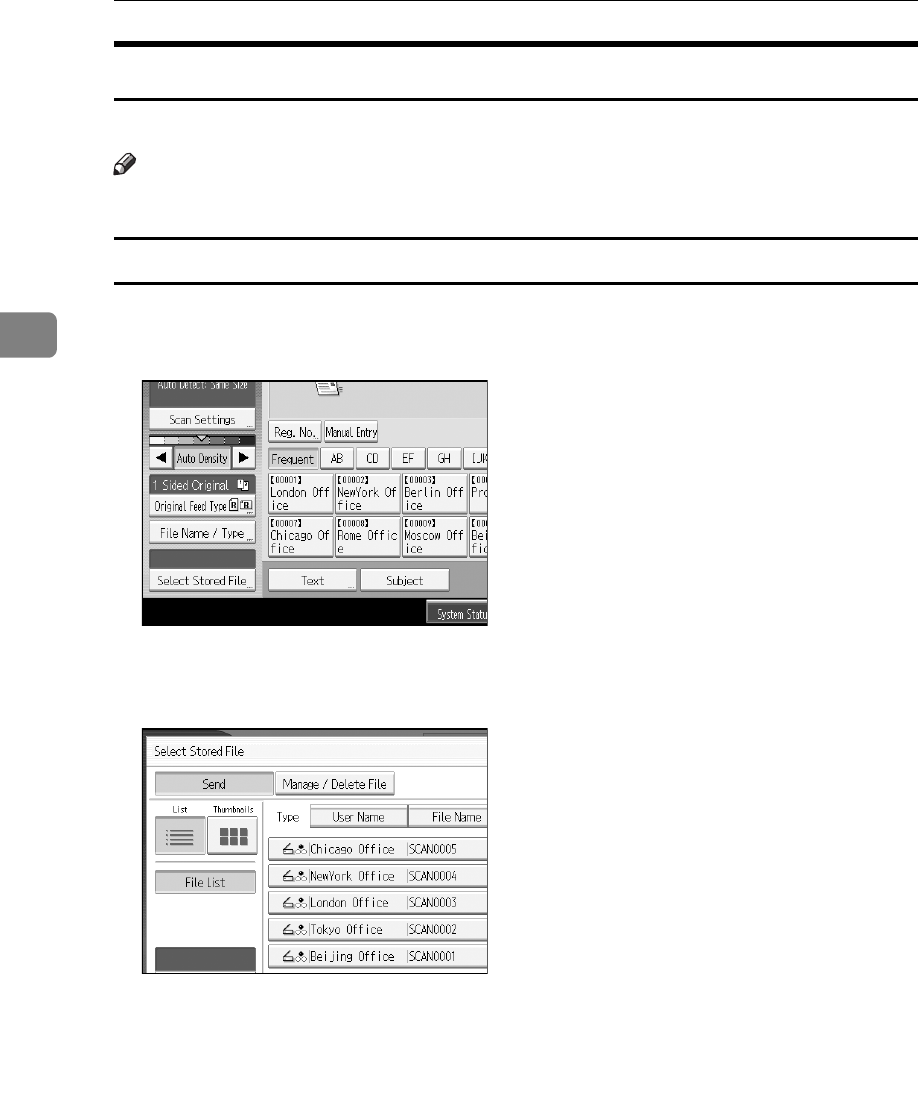

To display the list of stored files, press [Select Stored File] on the initial scanner

screen.

The list of stored files appears as follows:

The function items displayed serve as selector keys. You can select or specify an

item by pressing it. When you select or specify an item on the display panel, it is

highlighted like []. Keys that cannot be selected appear like [].

1. Keys for searching for files

Press to switch to the screens for search-

ing for a file by user name or file name, or

to the screen for displaying all files.

2. List/ Thumbnails

You can select whether to display stored

files as a list or as thumbnails.

3. [Send]

Press this to deliver or send a stored file

by e-mail or Scan to Folder.

4. [Manage / Delete File]

Press this to delete stored files or change

the file data.

5. Keys for sorting files

Press to sort the files using the selected

item. Select the same item once more for

a reverse sort. However, the files cannot

be sorted in reverse delivery.

6. [Details]

Press this to display details about the se-

lected file.

7. [Preview]

Press this to display a preview of the se-

lected file. For Detail, see “Checking a

Stored File Selected from the List”.

ALQ008S

Displaying the List of Stored Files

8. List of stored files

Displays the list of stored files.

If the selected file does not appear, press

[U] or [T] to scroll the screen. If a pass-

word has been specified for a file, a key

icon appears to the left of the user name

for the file.

Note

❒Depending on the security setting, some files may not appear in the list.

❒Files stored under functions other than the scanner function do not appear on

this screen.

Reference

p.74 “Checking a Stored File Selected from the List”

Storing Files Using the Scanner Function

Searching the List of Stored Files

You can search for files from the stored files using the user name or file name.

You can search the list of stored files by either of the following methods:

• Search by user name

• Search by file name

Searching by user name

You can search for a stored file by its user name.

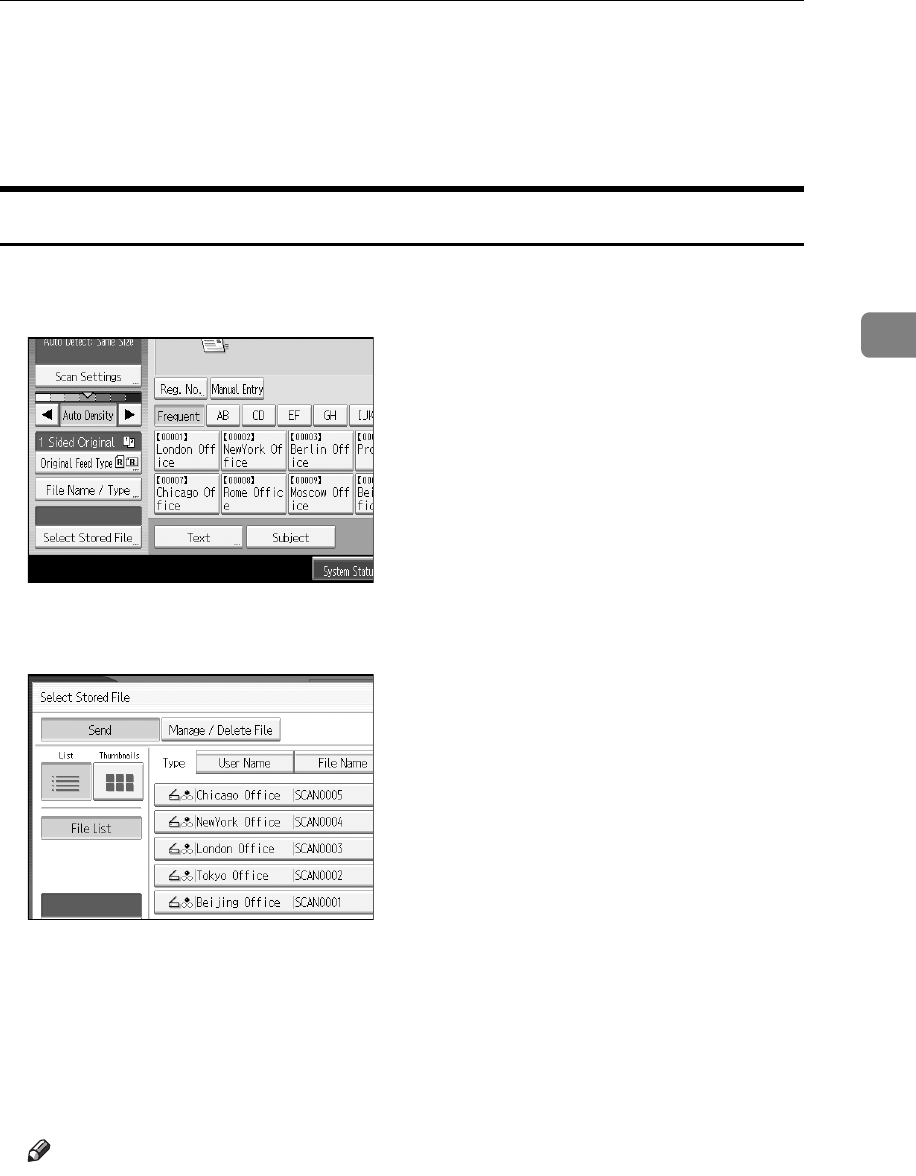

A Press [Select Stored File].

B Press [User Name].

CSelect the user name to be used for the search.

The user names shown here are names that were registered on the [Adminis-

trator Tools] tab in [System Settings]. To change a user name not shown here,

press [Manual Entry], and then enter the user name.

DPress [OK].

The search begins, and then files belonging to the specified user appear.

Displaying the List of Stored Files

Searching by file name

You can search for a stored file by its file name.

A Press [Select Stored File].

B Press [File Name].

The soft keyboard appears.

CEnter the file name.

For information about how to enter characters, see About This Machine.

DPress [OK].

The search starts, and files whose name starts with the entered string appear.

Storing Files Using the Scanner Function

Checking Stored Files

You can display the Preview screen and check a stored file on the machine or

from the client computer.

Checking a Stored File Selected from the List

This section explains how to preview a file selected from the list of stored files.

A Press [Select Stored File].

The list of stored files appears.

For details about the list of stored files, see “List of Stored Files”.

BFrom the list of stored files, select the file you want to check.

You can select more than one file.

CPress [Preview].

A preview of the selected stored file appears.

Reference

p.70 “List of Stored Files”

Checking Stored Files

Stored File Preview Screen

1. [Zoom Out], [Zoom In]

In previewing, you can reduce or enlarge

the file image.

2. [←][→][↑][↓]

You can scroll the preview screen.

3. [Switch]

You can switch to a preview of another

page.

4. [Switch]

You can switch to a preview of another

file.

5. Display File

The name and size of the selected file ap-

pear.

6. Display Page

The page number of the previewed page,

total number of pages, page size, and col-

or mode appear.

7. Display Position

When the preview is enlarged, the loca-

tion of the part of the page displayed on

the preview screen is indicated.

ALQ022S

Storing Files Using the Scanner Function

Checking Stored Files from a Client Computer

Using DeskTopBinder Lite or Web Image Monitor, you can also display the list

of files stored in the machine on a client computer.

Important

❒To view stored files from a client computer, you must first make the required

IP address settings using DeskTopBinder or Web Image Monitor.

You can also check files stored under the copier, Document Server, and printer

functions.

Using DeskTopBinder Lite to display stored files

The stored files are displayed and can be checked on a client computer using

DeskTopBinder Lite.

Note

❒You can also transfer the stored files to the client computer.

❒For details about DeskTopBinder, see the DeskTopBinder-related manuals.

❒For details about installing DeskTopBinder Lite, see “Installing DeskTop-

Binder Lite from the Supplied CD-ROM”.

Reference

p.87 “Installing DeskTopBinder Lite from the Supplied CD-ROM”

Using Web Image Monitor to Display Stored Files

The stored files are displayed and can be checked also on a client computer using

Web Image Monitor.

When you enter http:// (machine IPv4 address)/ in the address bar of the Web

browser on a client computer, the top page of Web Image Monitor appears.

Note

❒You can also download the stored files.

❒It is recommended that you use Web Image Monitor only within your local

area network.

❒For details about displaying or downloading stored files using Web Image

Monitor, see Copy/ Document Server Reference.

❒For details about making settings for using Web Image Monitor, see Network

Guide.

❒For details about functions for managing stored files using Web Image Mon-

itor, click [Help] on the upper-right corner of the displayed screen.

Sending a Stored File

You can either send the selected file or the URL of the file location.

This section mainly explains how to select the files you want to send by e-mail

or Scan to Folder, or deliver using the network delivery scanner. For details

about operating procedures for individual functions, see the appropriate chap-

ters.

Sending Stored Files

This section explains how to send a stored file.

APress [Select Stored File].

The list of stored files appears.

BSelect the file you want to send.

To select more than one file, repeat this step.

If you select more than one file, the files are sent or delivered in the selected

order.

By pressing [Queue], you can send the selected files one by one.

CPress [OK].

The E-mail screen, Scan to Folder screen, or network delivery scanner screen

appears.

DIf necessary, switch the screen.

ESpecify the settings for sending files by e-mail or Scan to Folder, or using

the network delivery scanner.

For details about how to send a file by e-mail or Scan to Folder, or how to de-

liver a file, see “Basic Operation for Sending Files by E-mail”, “Basic Opera-

tions When Using Scan to Folder”, or “Basic Operation for Delivering Files”.

FPress the {Start} key.

The selected files are sent by e-mail or Scan to Folder, or using the network

delivery scanner.

Storing Files Using the Scanner Function

Note

❒If you choose a file protected by a password, a screen to enter the password

appears. To select the file, enter the correct password, and then press [OK].

❒When you send a stored file by e-mail, either the file can be attached to the

e-mail or the URL of the file location can be sent. This setting must be made

in advance in [Scanner Features]. For details, see General Settings Guide.

Reference

p.14 “Basic Operation for Sending Scan Files by E-mail”

p.43 “Basic Operations When Using Scan to Folder”

p.89 “Basic Operation for Delivering Files”

Managing Stored Files

This section explains how to delete stored files and how to change the data for

stored files.

Deleting a Stored File

This section explains how to delete a stored file.

APress [Select Stored File].

The list of stored files appears.

BPress [Manage / Delete File].

The [Manage / Delete File] screen appears.

CSelect the file you want to delete.

DPress [Delete File].

A confirmation message about deleting the file appears.

EPress [Yes].

Note

❒Files waiting for delivery cannot be deleted.

❒You can also delete files stored in the machine by accessing the machine

from a client computer using Web Image Monitor or DeskTopBinder. For

detail about Web Image Monitor, see Web Image Monitor Help. For details

about DeskTopBinder, see the manuals supplied with DeskTopBinder.

Storing Files Using the Scanner Function

Changing Data for a Stored File

You can change data for a stored file, such as [User Name], [File Name], and [Password].

Note

❒Information for files waiting for delivery cannot be changed.

Changing a user name

You can change the user name for a stored file.

APress [Select Stored File].

The list of stored files appears.

BPress [Manage / Delete File].

CSelect the file containing the file information you want to change.

If you select a password-protected file, a screen for entering the password ap-

pears. Enter the password, and then press [OK].

DPress [Change User Name].

Managing Stored Files

EEnter a new user name.

The user names shown here are names that were registered on the [Adminis-

trator Tools] tab in [System Settings]. To change a user name not shown here,

press [Manual Entry], and then enter the user name.

FPress [OK].

GMake sure that the user name was changed as necessary, and press [Exit].

Note

❒Using Web Image Monitor or DeskTopBinder, you can also change the

user name of a file stored in the machine from the client computer. For de-

tails about Web Image Monitor, see Web Image Monitor Help. For details

about DeskTopBinder, see the manuals supplied with DeskTopBinder.

❒Depending on the security setting, [Change Access Priv.] may appear in-

stead of [Change User Name]. For details about specifying [Change Access

Priv.], consult the administrator.

Storing Files Using the Scanner Function

Changing a file name

You can change the file name of a stored file.

APress [Select Stored File].

The list of stored files appears.

BPress [Manage / Delete File].

CSelect the file containing the file information you want to change.

If you select a password-protected file, a screen for entering the password ap-

pears. Enter the password, and then press [OK].

DPress [Change File Name].

EChange the file name.

FPress [OK].

GMake sure that the file information was changed as necessary, and press

[Exit].

Note

❒For information about how to enter characters, see About This Machine.

❒Using Web Image Monitor or DeskTopBinder, you can also change the

name of a file stored in the machine from the client computer. For details

about Web Image Monitor, see Web Image Monitor Help. For details about

DeskTopBinder, see the manuals supplied with DeskTopBinder.

Managing Stored Files

Changing a password

Enter the password for accessing the stored file.

Important

❒Be sure not to forget the password. If you forget it, consult the system admin-

istrator of the machine.

APress [Select Stored File].

The list of stored files appears.

BPress [Manage / Delete File].

CSelect the file containing the file information you want to change.

If you select a password-protected file, a screen for entering the password ap-

pears. Enter the password, and then press [OK].

DPress [Change Password].

EUsing the number keys, enter a new four to eight-digit password.

FPress [OK].

GEnter the same number again using the number keys.

HPress [OK].

Note

❒Using Web Image Monitor or DeskTopBinder, you can also change the

password of a file stored in the machine from the client computer. For de-

tails about Web Image Monitor, see Web Image Monitor Help. For details

about DeskTopBinder, see the manuals supplied with DeskTopBinder.

Storing Files Using the Scanner Function

4. Delivering Scan Files

Using the ScanRouter delivery software, you can deliver by various methods

scan files produced by the machine.

Before Delivering Files

This section describes the necessary preparations and the procedure for using

the network delivery scanner.

Important

❒To use the network delivery scanner function, you need a delivery server on

which the optional the ScanRouter delivery software is installed. You also

need to register data about destinations and senders in the delivery server.

Outline of Scan File Delivery

This section outlines the function for delivering files using the network delivery

scanner.

1. This machine

You can send scan files to the delivery

server.

2. Delivery server

Install the ScanRouter delivery software

on this computer to use it as the delivery

server.

After receiving a scan file, the delivery

server delivers the file according to the

setting specified for the destination. The

delivery settings are as follows:

• Storing the file in an in-tray

• Delivering the file by e-mail

• Storing the file in a selected folder

For details about the ScanRouter delivery

software, see the manuals supplied with

the ScanRouter delivery software.

3. Client Computer

How to check a file from the client com-

puter depends on the delivery method.

For example, you can check a file by one

of the following methods:

• Use DeskTopBinder to view a file de-

livered to the in-tray

• Use e-mail software to receive e-mail

with an attached file

• Browse a folder for a stored file

ZZZ513S

Delivering Scan Files

Preparing to Deliver a File

This section describes the preparations and settings for delivering scan files.

Important

❒To use the network delivery scanner, you need a delivery server on which an

application such as the optional the ScanRouter delivery software is installed.

For details about the ScanRouter delivery software, see the manuals supplied

with the ScanRouter delivery software.

❒To view files delivered to an in-tray, DeskTopBinder must be installed on the

client computer.

AConnect the machine to the network.

Connect the machine to the network using an Ethernet cable or wireless LAN

(IEEE 802.11b).

BMake the necessary network settings in [System Settings].

If you have connected the machine to the network using an Ethernet cable,

make the following settings. For details, see General Settings Guide.

• Specify the machine’s IPv4 address and subnet mask

•In [Effective Protocol], enable [IPv4]

•Set [Delivery Option] to [On]

CIf necessary, change settings in [Send Settings] under [Scanner Features].

DUsing the ScanRouter delivery software, register this machine as an I/O de-

vice. In addition, specify register destinations and specify such settings as

the delivery type and sender.

For details, see the manuals supplied with the ScanRouter delivery software.

Note

❒To connect the machine to the network using a wireless LAN (IEEE

802.11b), an extended wireless LAN board is required respectively. For de-

tails, see Network Guide.

❒Items to set up in [System Settings] vary depending on the network environ-

ment. For details about the network settings, see General Settings Guide.

❒For details about installing DeskTopBinder Lite, see “Installing DeskTop-

Binder Lite from the Supplied CD-ROM”.

Reference

p.87 “Installing DeskTopBinder Lite from the Supplied CD-ROM”

Before Delivering Files

Installing DeskTopBinder Lite from the Supplied CD-ROM

This section explains how to install DeskTopBinder Lite on a client computer

from the supplied “Scanner/PostScript® Drivers and Utilities” CD-ROM.

To view or receive files delivered to the in-trays, you must install DeskTopBind-

er Lite on the client computer.

AMake sure Windows is running on the client computer, and then insert the

“Scanner/PostScript® Drivers and Utilities” CD-ROM into the CD-ROM

drive.

The installer is automatically started and the [Scanner/PostScript® Drivers and

Utilities] dialog box appears.

BClick [DeskTopBinder Lite].

The [DeskTopBinder Lite Setup] dialog box appears.

For the subsequent installation steps, see the Setup Guide displayed from the

[DeskTopBinder Lite Setup] dialog box.

Note

❒Before you start the installation, check the system requirements for Desk-

TopBinder Lite. For details, see “Software Supplied on CD-ROM”.

❒You can install the software using the auto-run program. For details about

the auto-run program, see “Quick Install”.

Reference

p.153 “Software Supplied on CD-ROM”

p.153 “Quick Install”

Delivering Scan Files

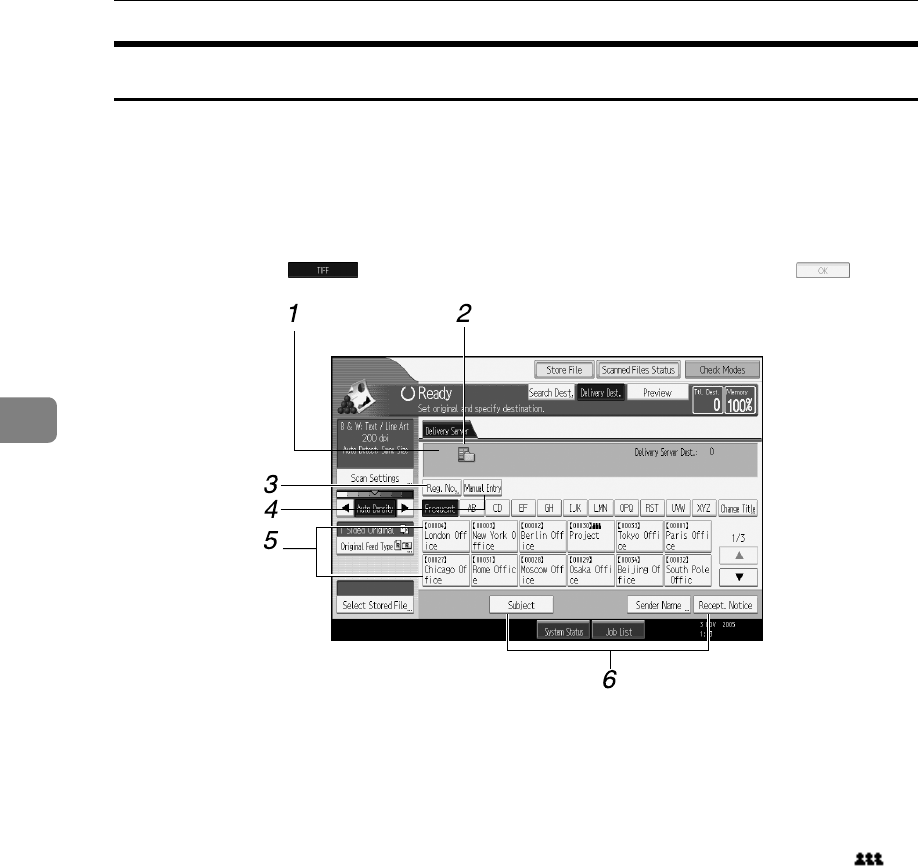

Network Delivery Scanner Screen

This section describes the screen layout when using the network delivery scan-

ner.

The function items displayed serve as selector keys. You can select or specify an

item by pressing it. When you select or specify an item on the display panel, it is

highlighted like []. Keys that cannot be selected appear like [].

1. Destination Field

The specified destination appears. If

more than one destination has been spec-

ified, press [U] or [T] to scroll through the

destinations.

2. Network delivery scanner icon

Indicates that the network delivery scan-

ner screen is displayed.

3. [Reg. No.]

Press this key to specify the destination

using a 3-digit registration number.

4. [Manual Entry]

To send a file by e-mail via the delivery

server to a destination not registered in

the delivery server’s Destination List,

press this key to display the soft key-

board. Then use the soft keyboard to en-

ter the e-mail address. For details about

how to send a file by e-mail via the deliv-

ery server, see the ScanRouter delivery

software manual.

5. Destination List

The list of destinations registered in the

delivery server appears. If all of the desti-

nations cannot be displayed, press [U] or

[U] to switch the screen. Group destina-

tions are denoted by this symbol ( ).

6. [Subject][Sender Name][Recept. Notice]

Specify the subject, sender, and whether

or not to enable Message Disposition No-

tification for the file to be transmitted.

ALQ009S

Basic Operation for Delivering Files

This section describes the basic operation for delivering scan files using the net-

work delivery scanner.

Important

❒You must register destinations and senders in advance using the ScanRouter

delivery software installed on the delivery server.

AMake sure that no previous settings remain.

If a previous setting remains, press the {Clear Modes} key.

BIf the E-mail screen or Scan to Folder screen appears, switch to the network

delivery scanner screen.

For details, see “Switching to the Network Delivery Scanner Screen”.

CPlace originals.

DIf necessary, press [Scan Settings] to specify scanner settings such as resolu-

tion and scan size.

For details, see “Various Scan Settings”.

EIf necessary, specify the scanning density.

For details, see “Adjusting Image Density”.

Delivering Scan Files

FIf necessary, press [Original Feed Type] to specify settings such as original ori-

entation.

For details, see “Setting of Original Feed Type”.

GSpecify the destination.

You can specify multiple destinations.

For details, see “Specifying Delivery Destinations”.

HIf necessary, press [Subject] to specify the e-mail subject.

For details, see “Specifying the Subject of the E-mail to Be Transmitted via the

Delivery Server”.

IIf necessary, press [Sender Name] to specify the sender.

If you specify the sender, data about the sender will be attached to the deliv-

ered file. Select the sender from those registered in the delivery server. For de-

tails, see “Specifying the Sender”.

JPress the {Start} key.

If you are scanning batches, place the next originals.

Note

❒By pressing [Manual Entry] on the network delivery scanner screen, you can

send a file by e-mail via the delivery server’s network. For details about en-

tering the e-mail address directly, see “Entering an E-mail Address Manu-

ally”.

❒If you have selected more than one destination, press [U] or [T] next to the

destination field to scroll through the destinations.

❒To cancel a selected destination, display the destination in the destination

field, and then press the {Clear / Stop} key. You can cancel a destination se-

lected from the address book by pressing the selected destination again.

❒You can use the Message Disposition Notification function when sending

e-mail via delivery server. An e-mail is sent to the sender selected in step

9, notifying him/her that the recipient has read his/her e-mail. To specify

this setting, press [Recept. Notice].

❒To enable Message Disposition Notification, you must specify the Scan-

Router delivery software setting for sending e-mail by SMTP. For details

about specifying this setting, see the ScanRouter delivery software manu-

al. Note, however, that if the e-mail software used at the destination does

not support Message Disposition Notification, e-mail notification that the

e-mail has been opened may not be sent.

Basic Operation for Delivering Files

❒Register the sender’s e-mail address using the ScanRouter delivery soft-

ware in advance.

❒By pressing the {Check Modes} key, you can switch from the initial scanner

screen to the Check Modes screen so you can check the settings. For details,

see “Check Modes”.

❒If you press [Preview], and then scan a document, the Preview screen ap-

pears. For details, see “Preview”

❒To cancel scanning, press the {Clear / Stop} key.

❒You can also store a scan file and simultaneously deliver it. For details, see

“Simultaneous Storage and Delivery”.

Reference

p.92 “Switching to the Network Delivery Scanner Screen”

p.109 “Various Scan Settings”

p.120 “Adjusting Image Density”

p.121 “Setting of Original Feed Type”

p.93 “Specifying Delivery Destinations”

p.101 “Specifying the Subject of the E-mail to Be Transmitted via the Deliv-

ery Server”

p.97 “Specifying the Sender”

p.22 “Entering an E-mail Address Manually”

p.5 “Preview”

p.4 “Check Modes”

p.102 “Simultaneous Storage and Delivery”

Delivering Scan Files

Switching to the Network Delivery Scanner

Screen

This section explains how to switch the screen to the network delivery scanner

screen.

If the E-mail screen or Scan to Folder screen is being displayed, switch to the net-

work delivery scanner screen.

APress [Delivery Dest.].

The network delivery scanner screen appears.

Note

❒You cannot switch from the E-mail screen or Scan to Folder screen while

destinations or senders are being specified. To clear a specified destination,

display the destination in the destination field of the E-mail screen or Scan

to Folder screen, and then press the {Clear / Stop} key.

Specifying Delivery Destinations

This section explains how to specify delivery destinations.

Selecting Destinations Registered in the Delivery Server’s

Address Book

This section explains how to select destinations registered in the delivery serv-

er’s address book

You can select a delivery destination registered in Destination List of the deliv-

ery server by any of the following methods:

• Select the destination from the delivery destination list

• Select the destination by entering the registration number

• Select the destination by searching in the delivery server

Selecting a destination from the Destination List

From the destination list, select a destination.

AIn the destination list, press the key including the destination name.

The selected destination is highlighted and also is displayed in the destina-

tion field at the top of the screen.

Destinations are registered in the delivery server under captions. The desti-

nation list is updated automatically.

Note

❒If the target destination does not appear, press [U] or [T] to scroll through

the destinations until it does.

❒Depending on the security setting, some destinations may not appear in

the destination list.

Delivering Scan Files

Selecting destinations by entering their registration numbers

Select a destination by entering its Short ID number (registered using the Scan-

Router delivery software). For details about how to set Short IDs, see the manu-

als supplied with the ScanRouter delivery software.

APress [Reg. No.].

BUsing the number keys, enter the three-digit registration number, and then

press the {q} key.

You can also enter a registration number of fewer than three digits.

Example: To enter 009

Press the {9} key, and then press the {q} key.

CPress [OK].

By pressing [Change], you can change the selected destination.

Note

❒To cancel a selected destination, press [U] or [T] next to the destination

field to scroll through the destinations until the one you want to cancel ap-

pears, and then press the {Clear / Stop} key.

Specifying Delivery Destinations

Selecting destinations by searching the delivery server’s Destination List

In the delivery server’s Destination List, you can search for destinations and se-

lect them.

APress [Search Dest.].

BTo search by destination name, press [Name].

To search by comment, press [Comment].

The soft keyboard appears.

You can also search by combining [Name] and [Comment].

CEnter the beginning of the destination name.

To search by comment, enter the beginning of the comment.

DPress [OK].

EIf necessary, press [Advanced Search], and then specify the detailed search

criteria.

By pressing [Advanced Search], you can search by [Name] and [Comment]. You

can also search by combining the [Beginning Word] or [End Word] criteria with

the other criteria.

FPress [Start Search].

Destinations that match the search criteria are displayed.

GSelect the destination.

HPress [OK].

Delivering Scan Files

Note

❒The Comment search function searches for destinations by comment infor-

mation, which is a registration item required by the ScanRouter delivery

software.

❒By pressing [Details], you can view details about the selected destinations.

❒Up to 100 destinations can be displayed as search results.

❒By pressing [Advanced Search], the following criteria appear:

•[Beginning Word]: The names which start with the entered character or char-

acters are targeted.

For example, to search for “ABC”, enter “A”.

•[End Word]: The names which end with the entered character or characters

are targeted.

For example, to search for “ABC”, enter “C”.

•[Exact Match]: The names which correspond to an entered character or char-

acters are targeted.

For example, to search for “ABC”, enter “ABC”.

•[Include one Word]: The names which contain an entered character or char-

acters are targeted.

For example, to search for “ABC”, enter “A”, “B”, or “C”.

•[Exclude Words]: The names which do not contain an entered character or

characters are targeted.

For example, to search for “ABC”, enter “D”.

Specifying the Sender

This section explains how to specify the e-mail sender when sending a file by e-

mail via the delivery server.

You can specify the sender by any of the following methods:

• Select the sender from the sender list in the delivery server’s Destination List

• Select the sender by entering the registration number

• Select the sender by searching the delivery server’s Destination List

Selecting a Sender from the Sender List in the Delivery Server’s

Destination List

This section explains how to select a sender from the destination list.

APress [Sender Name].

BSelect the sender.

CPress [OK].

Delivering Scan Files

Selecting the Sender by Entering the Registration Number

You can select the sender by entering the registration number.

APress [Sender Name].

BPress [Registration No.].

CUsing the number keys, enter the three-digit registration number assigned

to the required destination folder.

If the entered number is less than five digits, press the {q} key after the last

number.

Example: To enter 006

Press the {6} key, and then press the {q} key.

DPress [OK].

By pressing [Change], you can change the selected destination.

Note

❒For details about specifying [Short ID], see the manuals supplied with the

ScanRouter delivery software.

Specifying the Sender

Selecting a Sender by Searching the Delivery Server’s

Destination List

This section explains how to select a sender by searching the delivery server’s

Destination List.

APress [Sender Name].

BPress [Search].

CTo search by destination name, press [Name].

To search by comment, press [Comment].

The soft keyboard appear.

You can also search by combining [Name] and [Comment].

DEnter the beginning of the sender's name.

To search by comment, enter the beginning of the comment.

EPress [OK].

Delivering Scan Files

100

FIf necessary, press [Advanced Search], and then specify the detailed search

criteria.

By pressing [Advanced Search], you can search by [Name] and [Comment]. You

can also search by combining the [Beginning Word] or [End Word] criteria with

the other criteria.

GPress [Start Search].

Destinations that match the search criteria are displayed.

HSelect the sender.

IPress [OK].

Note

❒The Comment search function searches for destinations by comment infor-

mation, which is a registration item required by the ScanRouter delivery

software.

❒By pressing [Details], you can view details about the selected destinations.

❒Up to 100 items can be displayed as the search results.

❒By pressing [Advanced Search], the following criteria appear:

•[Beginning Word]: The names which start with the entered character or char-

acters are targeted.

For example, to search for “ABC”, enter “A”.

•[End Word]: The names which end with the entered character or characters

are targeted.

For example, to search for “ABC”, enter “C”.

•[Exact Match]: The names which correspond to an entered character or char-

acters are targeted.

For example, to search for “ABC”, enter “ABC”.

•[Include one Word]: The names which contain an entered character or char-

acters are targeted.

For example, to search for “ABC”, enter “A”, “B”, or “C”.

•[Exclude Words]: The names which do not contain an entered character or

characters are targeted.

For example, to search for “ABC”, enter “D”.

Specifying the Subject of the E-mail to Be Transmitted via the Delivery Server

101

Specifying the Subject of the E-mail to Be

Transmitted via the Delivery Server

This section explains how to specify the e-mail subject when sending a file by e-

mail via the delivery server.

APress [Subject].

The soft keyboard appears.

BEnter the subject.

CPress [OK].

Delivering Scan Files

102

Simultaneous Storage and Delivery

This section explains how to store a file and simultaneously deliver it.

APress [Store File].

BMake sure that [Send & Store] is selected.

CIf necessary, specify file data, such as [User Name], [File Name], and [Password].

For details, see “Specifying File Information for a Stored File”.

DPress [OK].

ESpecify the setting for delivering the file, and then send the file.

For details about delivering a file, see “Basic Operation for Delivering Files”.

Note

❒A file which is simultaneously stored and delivered cannot be resent from

the network delivery scanner screen. To resend the file, select it on the Se-

lect Stored File screen, and then send it. For details, see “Sending a Stored

File”.

Reference

p.67 “Specifying File Information for a Stored File”

p.89 “Basic Operation for Delivering Files”

p.77 “Sending a Stored File”

103

5. Scanning Originals with the

Network TWAIN Scanner

Using the machine, you can scan originals into a client computer over the net-

work.

Before Using the Network TWAIN Scanner

This section describes the preparations and procedure for using the network

TWAIN scanner.

Important

❒To use the network TWAIN scanner, you must install the TWAIN driver,

which is on the supplied CD-ROM. For details about installing the TWAIN

driver, see “Installing the TWAIN Driver from the Supplied CD-ROM”.

❒To use the network TWAIN scanner, a TWAIN-compliant application, such

as DeskTopBinder, must be installed on the client computer. DeskTopBinder

Lite is on the supplied CD-ROM. For details about installing DeskTopBinder

Lite, see “Installing DeskTopBinder Lite from the Supplied CD-ROM”.

Reference

p.106 “Installing the TWAIN Driver from the Supplied CD-ROM”

p.87 “Installing DeskTopBinder Lite from the Supplied CD-ROM”

Scanning Originals with the Network TWAIN Scanner

104

Outline of the Network TWAIN Scanner

This section outlines the network TWAIN scanner function.

In the TWAIN scanner mode, you can share this machine among multiple com-

puters. Therefore, you don't have to prepare a special computer for scanner or

reconnect the scanner and each computer every time you need to use it.

1. This Machine

Scans an original after receiving a scan

instruction from a client computer, and

then sends the scan file over the network

to the client computer.

2. Client Computer

Specifies the scanner settings and con-

trols the scanner using an application,

such as DeskTopBinder Lite, that sup-

ports the network TWAIN scanner. Re-

ceives the files scanned by the machine

and displays them using an application

that supports the network TWAIN scan-

ner.

Note

❒When using the machine as a network TWAIN scanner, you do not need to

press the {Scanner} key on the machine’s control panel. The screen switches

automatically when you scan an original from a client computer using the

TWAIN driver.

To use functions other than the network TWAIN scanner, press [Exit].

ZZZ514S

Before Using the Network TWAIN Scanner

105

Preparing to Use the Network TWAIN Scanner

This section describes the preparations and settings for using the machine as a

network TWAIN scanner.

Important

❒To use the network TWAIN scanner, an application that supports the scan-

ner, such as DeskTopBinder Lite, must be installed on the computer. Desk-

TopBinder Lite is on the supplied CD-ROM. For details about installing

DeskTopBinder Lite, see “Installing DeskTopBinder Lite from the Supplied

CD-ROM”.

AConnect the machine to the network.

Connect the machine to the network using an Ethernet cable or Wireless LAN

(IEEE 802.11b).

BMake the necessary network settings in [System Settings].

If you have connected the machine to the network using an Ethernet cable,

make the following settings. For details, see General Settings Guide.

• Specify the machine’s IPv4 address and subnet mask

•In [Effective Protocol], enable [IPv4]

CInstall the TWAIN driver on a client computer.

For details about installing the TWAIN driver, see “Installing the TWAIN

Driver from the Supplied CD-ROM”.

Note

❒To connect the machine to network using a wireless LAN (IEEE 802.11b),

an extended wireless LAN board is required respectively. For details, see

Network Guide.

❒For details about [System Settings], see General Settings Guide.

❒Items to set up in [System Settings] vary depending on the network environ-

ment. For details about the network settings, see General Settings Guide.

Reference

p.106 “Installing the TWAIN Driver from the Supplied CD-ROM”

p.87 “Installing DeskTopBinder Lite from the Supplied CD-ROM”

Scanning Originals with the Network TWAIN Scanner

106

Installing the TWAIN Driver from the Supplied CD-ROM

This section explains how to install the TWAIN driver on a client computer from

the supplied “Scanner/PostScript® Drivers and Utilities” CD-ROM.

To use the network TWAIN scanner, you must install the TWAIN driver on a cli-

ent computer.

AStart Windows, and then insert the CD-ROM labeled “Scanner/PostScript®

Drivers and Utilities” into the CD-ROM drive of the client computer.

The installer is automatically started and the [Scanner/PostScript® Drivers and

Utilities] dialog box appears.

BClick [TWAIN Driver].

CThe installer of the TWAIN Driver starts. Follow the instructions.

Note

❒Before you start the installation, check the system requirements for the

TWAIN driver. For details about the system requirements, see “Software

Supplied on CD-ROM”.

❒You can install the software using the auto-run program. For details about

the auto-run program, see “Quick Install”.

❒If the installer does not start automatically, see “Quick Install”.

❒When the installation is complete, a message about restarting the client

computer may appear. In this case, restart the client computer.

❒After the installation is complete, a folder with the name of the machine in

use is added in [Program] on the [Start] menu. Help can be displayed from

here.

❒Notes on using the network TWAIN scanner are provided in “Readme.txt”.

Be sure to read them before use.

Reference

p.153 “Software Supplied on CD-ROM”

p.153 “Quick Install”

Basic Network TWAIN Scanner Operation

107

Basic Network TWAIN Scanner Operation

This section describes the basic operation for scanning with the network TWAIN

scanner.

Important

❒To use the network TWAIN scanner, a TWAIN-compliant application, such

as DeskTopBinder and the TWAIN driver must be installed on the client com-

puter.

The following procedure uses Windows XP and DeskTopBinder Lite by way of

example.

AOn the [Start] menu, point to [Program], point to [DeskTopBinder], and then

click [DeskTopBinder].

BOn the [Tools] menu, click [Scanner Settings...].

CClick [Select Scanner Driver...].

DSelect the name of the machine you want to use in the list, and then click

[Select...].

EClick [OK].

FPlace originals.

GOn the [File] menu, point to [Add Document], and then click [Scan...] to display

the Scanner Control dialog box.

The Scanner Control dialog box and DeskTopBinder viewer will appear.

HMake settings according to such factors as the type of original, type of scan-

ning, and orientation of the original.

For details, see the TWAIN driver Help.

IIn the Scanner Control dialog box, click [Scan...].

Depending on the security setting, if you press [Scan...], a dialog box for en-

tering the user name and password may appear.

If there are more originals to be scanned, place the next original, and then

click [Scan...].

If there are no more originals to be scanned, click [Complete].

JOn the [File] menu of the DeskTopBinder viewer, click [Exit].

KEnter the file name, and then click [OK].

The DeskTopBinder viewer closes and the image is stored in DeskTopBinder

Lite.

Scanning Originals with the Network TWAIN Scanner

108

Note

❒If you have already selected a scanner, you do not need to select the scan-

ner unless you want to change it.

❒Using DeskTopBinder, you can edit and print scan files. For more informa-

tion about DeskTopBinder, see DeskTopBinder manuals.

❒The model name of the connected scanner appears in the title bar of the

Scanner Control dialog box. If there is more than one scanner of the same

model on the network, make sure you have selected the correct scanner. If

you have not, click [Select Scanner Driver...], and then select the scanner

again. If the correct scanner does not appear in the list, check that the scan-

ner is correctly connected to the network and that its IPv4 address has been

specified. If the correct scanner still does not appear, consult the network

administrator.

109

6. Various Scan Settings

This section describes various scan settings.

Scan Settings

This section explains how to make Scan settings.

APress [Scan Settings].

BSpecify resolution, scan size, and other settings, as required.

CPress [OK].

Various Scan Settings

110

Items for Specifying Scan Settings

This section describes the items for Scan Settings.

Scan Type

Select a scan type that is appropriate for your original.

❖[Text]

Appropriate to increase OCR readability using an OCR-compliant applica-

tion.

❖[Text / Line Art]

Standard black and white originals containing mainly characters. Creates

scanned images suitable for printing.

❖[Text / Photo]

Originals containing a mixture of photographs, pictures and characters (two-

value). Creates scanned images suitable for printing.

❖[Photo]

Originals containing photographs and other pictures (two-value). Creates

scanned images suitable for printing.

❖[Gray Scale]

Originals containing photographs and other pictures (multi-value). Creates

scanned images suitable for displaying on a computer screen.

Resolution

Select resolution for scanning originals.

Select [100 dpi], [200 dpi], [300 dpi], [400 dpi], or [600 dpi] as the scanning resolution.

Items for Specifying Scan Settings

111

Scan Size

Select the size of the original to be scanned.

The following items and sizes can be selected:

❖[Auto Detect]

Scans original sizes using the automatic size detect function.

❖[Mixed Sizes]

Scans a batch of originals of the same width by different length by detecting

the length of each.

❖ Template size

A3L, A4K, A4L, A5K, A5L, 11 × 17L, 81/2 × 14L, 81/2 × 13L, 81/2 ×

11K, 81/2 × 11L, 51/2 × 81/2K, 51/2 × 81/2L, B4 JISL, B5 JISK, B5 JISL

❖[Custom Size]

Scans in a specified size.

You can specify the dimensions (width and height) of the scan area in mm.

Note

❒You can specify original sizes of 140 mm (X1 and Y1) or larger in [Custom Size].

❒When scanning originals of the same width but different length at the same

time, place them correctly by referring to the chart below.

ALQ021S

Various Scan Settings

112

Relationship of original of mixed sizes and scan size

This section explains differences you need to be aware of when scanning origi-

nals of the same width but different length (such as A3 & A4 or B4 & B5) using

the original position setting and size.

•If you select [Mixed Sizes], the machine detects the length of same width orig-

inals and scans them.

You can place combinations of the following original sizes: A3L&A4K,

B4L&B5K, A4L&A5K.

• If a template size is selected, the machine scans originals at the selected size

regardless of the actual size of originals. If an original is smaller than the se-

lected size, the machine applies margins to the scan area.

•If [Auto Detect] is selected for scanning originals from the exposure glass, the

machine detects the size of individual originals and scans accordingly.

•If only [Auto Detect] is selected for scanning originals from the ADF, the ma-

chine detects the size of the largest original and scans all the other originals

based on that size.

Setting procedure of custom size when scanning an entire original

This section explains how to set a custom size for scanning an entire original.

To scan the entire area of an original, measure its dimensions and enter them un-

der Original Size (X1 and Y1) and Scan Area (X3 and Y3).

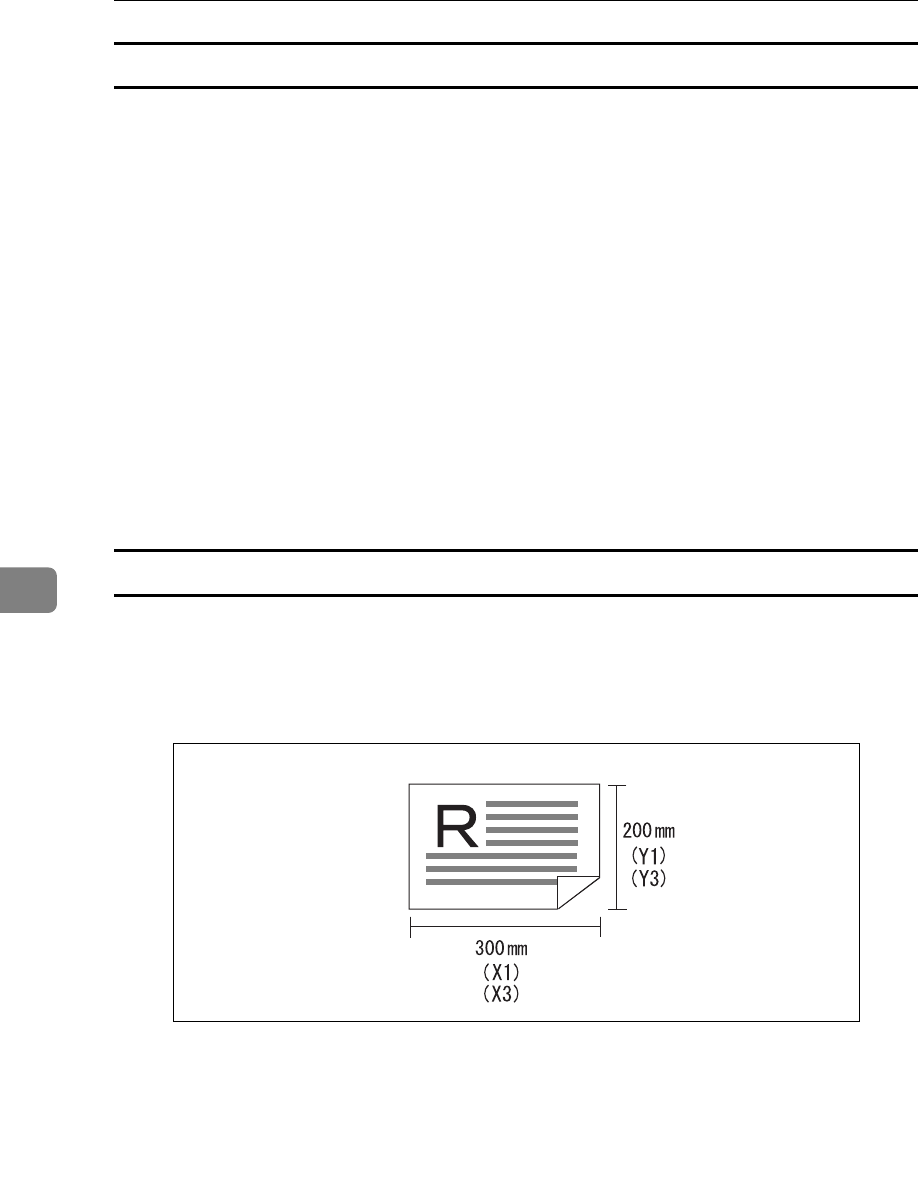

The following example explains how to scan the entire area of an original.

You do not need to specify a Start Position (X2 and Y2). Specify it as 0 mm.

For Scan Size, enter the same value as Original Size.

APress [Scan Settings].

BPress [Scan Size].

ARE001S

Items for Specifying Scan Settings

113

CPress [Custom Size].

DSpecify Original Size (X1 and Y1) using the number keys, and then press

the {q} key.

For example, set X1 to 300 mm and Y1 to 200 mm.

ESet Start Position (X2 and Y2) to 0 mm, and then press the {q} key.

For example, set X2 and Y2 to 0 mm, and press the {q} key.

FSpecify Scan Area (X3 and Y3) using the number keys, and then press the

{q} key.

For example, set X3 to 300 mm and Y3 to 200 mm.

GPress [OK].

HCheck Scan Area (X3 and Y3) displayed above [Custom Size], and then press

[OK].

Various Scan Settings

114

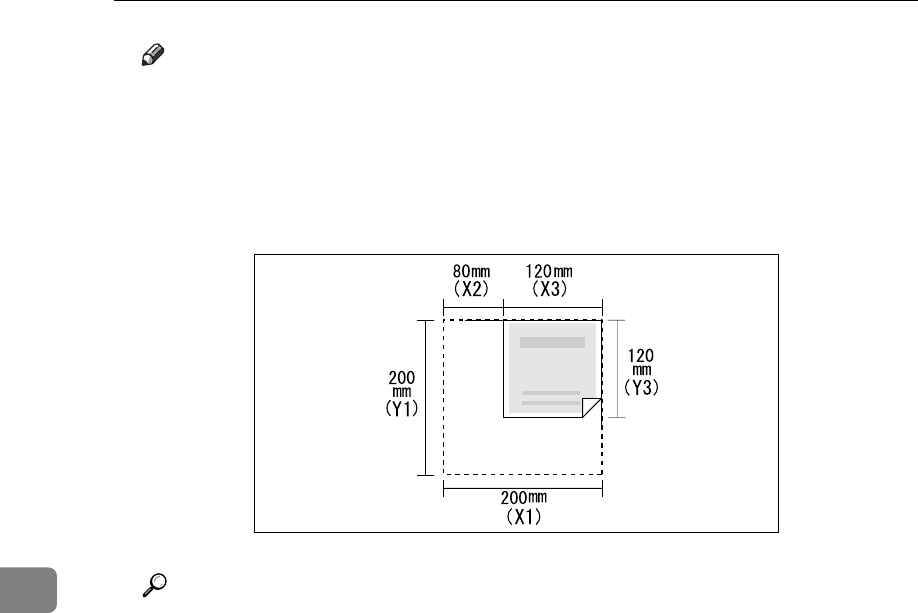

Note

❒You can specify original sizes (X1 and Y1) of 140 mm or larger.

❒To scan an original that is smaller than 140 mm, make settings as though

you were scanning a section of an original that is larger than 140 mm. For

example, to scan a CD label on the exposure glass, specify a size according

to the chart below. For details about scanning procedures, see “Setting pro-

cedure of custom size when scanning part of an original”.

Reference

p.115 “Setting procedure of custom size when scanning part of an original”

ARE005S

Items for Specifying Scan Settings

115

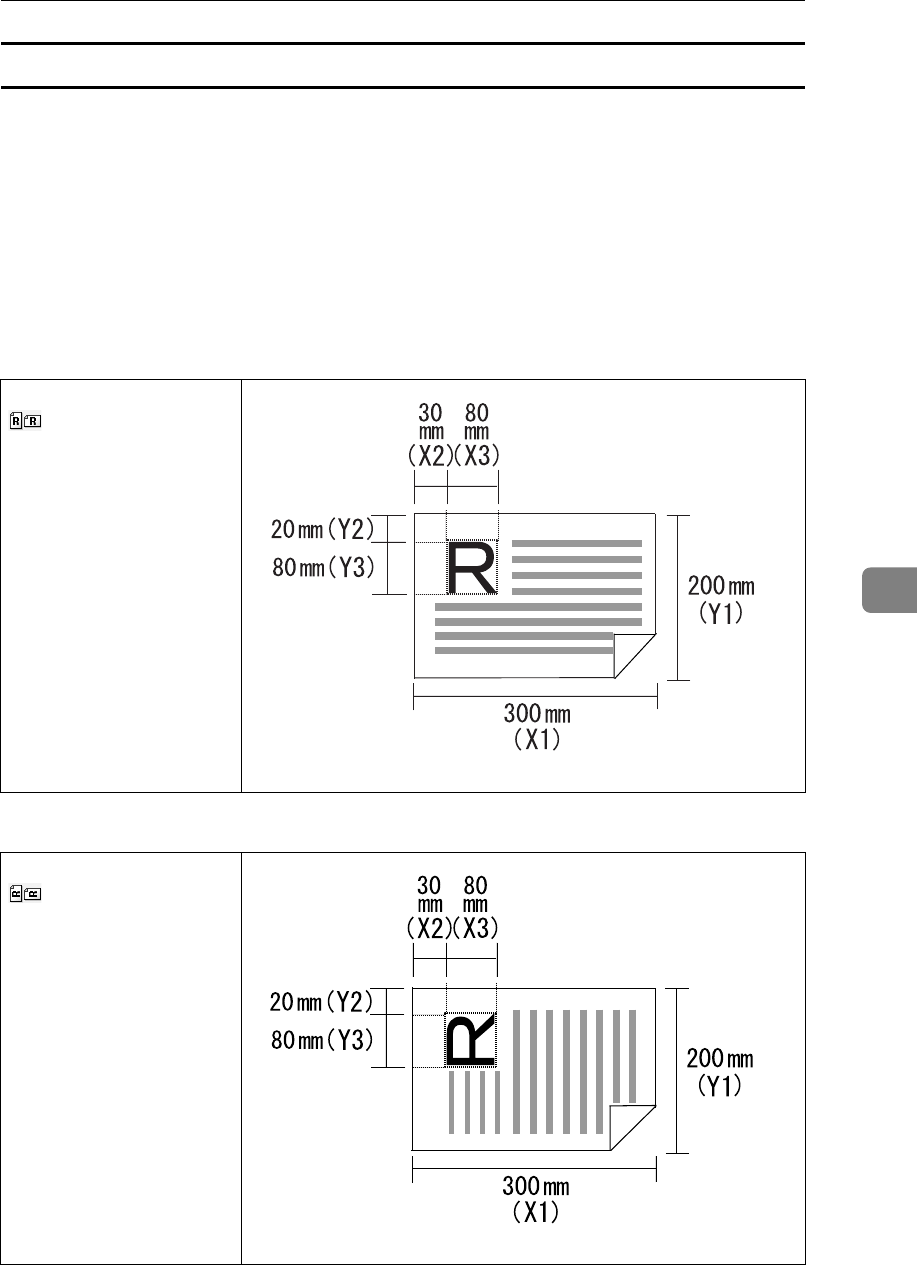

Setting procedure of custom size when scanning part of an original

This section explains how to set a custom size for scanning an area within an

original.

To scan a section of an original, measure Original Size (X1 and Y1), Start Position

(X2 and Y2), and Scan Area (X3 and Y3) on the surface of the original, and then

enter those values in the same order. Measuring methods differ depending on

the original’s orientation and the position it is set in. Examples 1 to 3 below show

how to measure the size in order to scan the section marked “R”. Refer to the fol-

lowing examples to measure each size correctly.

❖Example 1

❖Example 2

Original is placed in the

orientation on the ex-

posure glass or in the ADF.

Original is placed in the

orientation on the ex-

posure glass.

ARE002S

ARE003S

Various Scan Settings

116

❖Example 3

Examples 1 and 2 (above) explain the procedure for scanning the “R” area of the

original.

APress [Scan Settings].

BPress [Scan Size].

CPress [Custom Size].

Original is placed in the

orientation in the

ADF.

ARE004S

Items for Specifying Scan Settings

117

DSpecify Original Size (X1 and Y1) using the number keys, and then press

the {q} key.

For example, set X1 to 300 mm and Y1 to 200 mm.

ESpecify Start Position (X2 and Y2) using the number keys, and then press

the {q} key.

For example, set X2 to 30 mm and Y2 to 20 mm.

FSpecify Scan Area (X3 and Y3) using the number keys, and then press the

{q} key.

For example, set X3 and Y3 to 80 mm.

GPress [OK].

HCheck Scan Area (X3 and Y3) displayed above [Custom Size], and then press

[OK].

Note

❒To scan an original that is smaller than 140 mm, make settings as though

you were scanning a section of an original that is larger than 140 mm.

Various Scan Settings

118

How to set originals to scan them by custom size

This section explains how to place originals you want to scan at Custom size.

❖Original orientation setting

Under [Original Orientation], select [] or [] according to the orientation of

your original. To display [Original Orientation], on the initial scanner screen,

press [Original Feed Type]. For details, see “Setting of Original Feed Type”.

❖Placing an original

Place originals face up in the ADF; face down on the exposure glass.

❖Original Orientation is []

Reference

p.121 “Setting of Original Feed Type”

Placing an original in the ADF

Placing an original on the exposure glass

Align the original, turn it rightward or left-

ward, and then place it face down on the expo-

sure glass.

Placing an original in the ADF

Placing an original on the exposure glass

Turn the original over, place it face down on

the exposure glass, and then align it with the

top left corner of the exposure glass.

ALQ017S

ALQ018S

ALQ019S

ALQ020S

Items for Specifying Scan Settings

119

Edit

Make editing settings.

❖[Erase Border]

Deletes the borders of the scanned original according to the specified width.

If you select [Same Width], you can specify, in mm, a uniform width for dele-

tion all around the original (top, bottom, left, and right sides). If you select

[Different Width], you can specify in mm a different width for deletion for each

side.

Various Scan Settings

120

Adjusting Image Density

This section explains how to adjust image density.

To adjust image density, press [W] or [V], at the left and right of [Auto Density].

These buttons increase or decrease the image density in single increments up to 7.

Selecting [Auto Density] corrects scanning density to improve resolution of paper

types such as non-white paper like newspaper or transparent originals. For de-

tails, see General Settings Guide.

Note

❒If you select [Text], [Text / Line Art], or [Text / Photo] for [Scan Type] under [Scan

Settings], [Auto Density] is automatically selected.

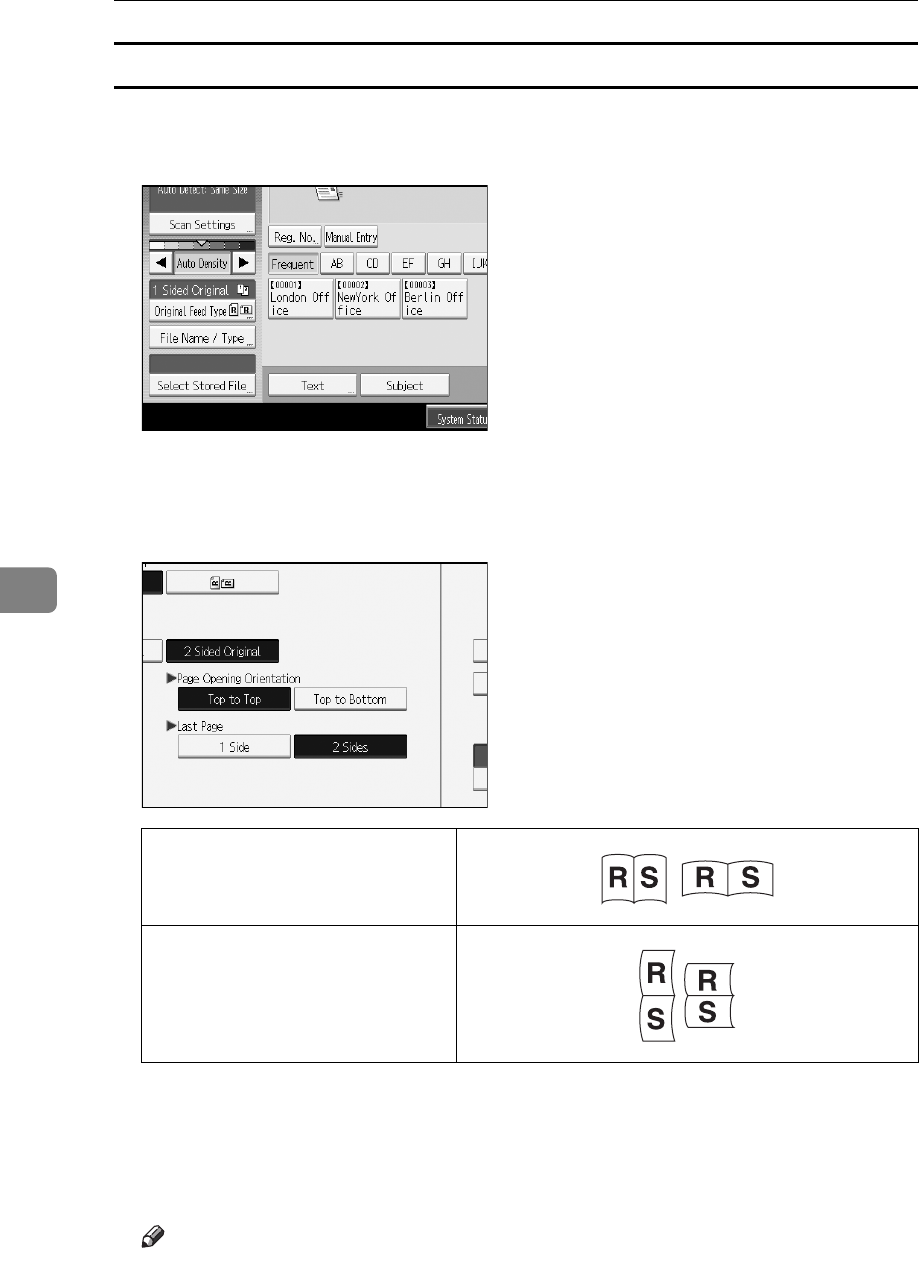

Setting of Original Feed Type

121

Setting of Original Feed Type

This section explains Original Feed Type settings such as orientation and scan

sides of originals.

Original Orientation

This section explains how to correctly display the top/bottom orientation of

scanned originals on a client computer screen.

APress [Original Feed Type].

BPress [] or [] to select the same orientation as that of original.

CPress [OK].

Placing Originals

To correctly display the top/bottom orientation of the scanned original on a cli-

ent computer, the placement of the original and the settings made on the control

panel must match.

Place originals correctly by referring to the following table:

Various Scan Settings

122

❖Exposure Glass

❖ADF

Note

❒Originals are normally rectangular ( ) or horizontally long ( ). However, the

table above uses squares to make original orientation easier to understand.

Even if the actual shape of the original is different, the combination of original

orientation and the orientation specified on the scanner driver does not

change.

❒When you specify Gray Scale for Scan Type, and single page TIFF/JPEG or

multi-page TIFF is selected as the file type, refer to the table below for how to

place originals. Originals placed in orientations that are not recommended in

the table might appear incorrectly top/bottom oriented on client computer

displays.

Original orientation Control Panel Key

top edge touches top left corner of exposure

glass

top edge touches rear of exposure glass

Original orientation Control Panel Key

top edge placed first

top edge touches rear of ADF

Placing an Original on the Exposure

Glass

Placing an Original in the ADF

Setting of Original Feed Type

123

Original Settings

This section explains the settings for the scanning the sides of originals.

One-sided original

This section explains the settings for scanning only one side of originals.

APress [Original Feed Type].

BIn [Original Settings], select [1 Sided Original].

CPress [OK].

Various Scan Settings

124

Two-sided original

This section explains the settings for scanning both sides of originals.

APress [Original Feed Type].

BIn [Original Settings], select [2 Sided Original].

CIn [Page Opening Orientation], select [Top to Top] or [Top to Bottom] according to

the binding orientation of the originals.

DIf the last page of the last original is blank, in [Last Page], select [1 Side] or [2 Sides].

To skip the last page, select [1 Side].

To scan the last page as blank page, select [2 Sides].

EPress [OK].

Note

❒If you selected [Divide], the setting made here is applied to the last page of

each batch of divided originals.

Top to Top

Top to Bottom

Setting of Original Feed Type

125

Batch, SADF

This section explains settings for scanning multiple originals in several batches.

To scan the originals as a single file, select [Batch].

To scan the originals individually in the ADF, select [SADF].

•If you select [Batch], scanning starts as soon as you place the additional origi-

nals and press the {Start} key. When all the originals have been scanned, press

the {q} key. If you select [Batch], regardless of the default settings, the ma-

chine waits until additional originals are placed.

•If [SADF] is selected, scanning starts as soon as you place additional originals

in the ADF. Select which operation the machine performs while waiting for

additional originals in [Wait Time for Next Original(s): SADF] under [Scanner Fea-

tures]. For details about [Wait Time for Next Original(s): SADF], see General Set-

tings Guide “Scan Settings”.

APress [Original Feed Type].

BSelect [Batch] or [SADF].

CPress [OK].

Various Scan Settings

126

Note

❒If [SADF] is selected, scanning starts as soon as you place additional origi-

nals in the ADF. However, in the following cases you must press the

{Start} key to start scanning additional originals.

• After scanning additional originals using the exposure glass

• After changing settings while waiting for additional originals

• After opening/closing the ADF

Reference

p.129 “Scanning Multiple Pages of Originals as One File”

Setting of Original Feed Type

127

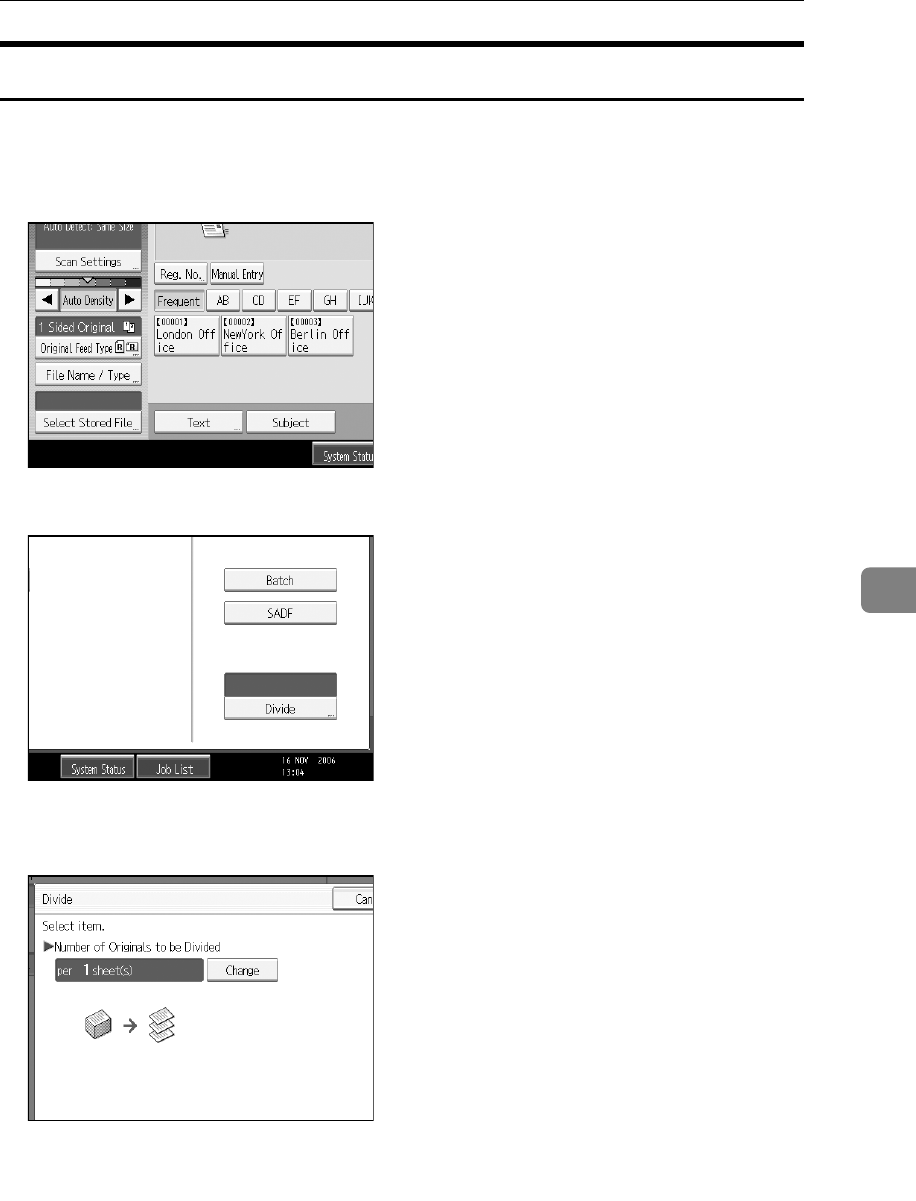

Divide

This section explains settings for dividing multiple originals by a specified num-

ber of pages and then sending them.

APress [Original Feed Type].

BPress [Divide].

CPress [Change], and then use the number keys to enter the number of pages

you want to divide the job into sets of.

DPress the {q} key.

EIf necessary, press [Division Check].

When you select [Division Check], if the originals were not scanned in order

due to a paper jam or multi-sheet feed, a screen for stopping or continuing

scanning appears at the end of the scan.

Various Scan Settings

128

FPress [OK] twice.

The current settings are displayed.

Note

❒If the last page of a batch of divided originals is blank, you can skip that

page. To skip scanning, in [Last Page] under [2 Sided Original], select [1 Side].

To scan the last page as a blank page, select [2 Sides]. For details, see “Two-

sided original”.

Reference

p.124 “Two-sided original”

Scanning Multiple Pages of Originals as One File

129

Scanning Multiple Pages of Originals as

One File

This section explains the procedure for sending multiple originals as a multi-

page file or storing them as a single stored file.

Important

❒To send multiple originals as a multi-page file, in [File Name / Type], select a

multi-page file type. For details about file types, see “Setting File Type and

File Name”.

APress [Original Feed Type].

BSelect [Batch] or [SADF].

To scan originals using the exposure glass, select [Batch]. To scan originals us-

ing the ADF, select [SADF]. For detail about [Batch] and [SADF], see “Batch,

SADF”.

CPress [OK].

DPlace originals.

EMake settings for sending by e-mail or Scan to Folder, delivering, or storing.

Various Scan Settings

130

FPress the {Start} key to scan originals.

If [Batch] is selected, place additional originals, and then press the {Start} key.

If [SADF] is selected, scanning starts automatically when you place additional

originals.

Repeat this step until all originals are scanned.

GAfter all originals are scanned, press the {q} key.

Storing or transmission starts.

Note

❒If [Batch] is selected, originals can be scanned using the ADF.

❒When scanning originals using the exposure glass, depending on the set-

tings for [Wait Time for Next Orig.: Exposure Glass] under [Scanner Features], the

machine can wait for additional originals even if [Batch] is not selected in

[Original Feed Type]. For details about [Wait Time for Next Orig.: Exposure Glass],

see General Settings Guide.

❒If, under [Scanner Features], [Set Wait Time] is set for [Wait Time for Next Orig.:

Exposure Glass] or [Wait Time for Next Original(s): SADF], place additional orig-

inals within the specified time. When the countdown ends, transmission or

storage starts automatically. To start transmission or storage before the

countdown is completed, press the {q} key. Countdown is canceled if

Scan Settings or other settings are changed in the meantime. Place addi-

tional originals, and then press the {Start} key. The machine scans the orig-

inals and the countdown is resumed. For details about [Wait Time for Next

Orig.: Exposure Glass] and [Wait Time for Next Original(s): SADF], see General

Settings Guide.

❒If [SADF] is selected, scanning from the exposure glass is enabled after

scanning from the ADF. If this happens, you must press the {Start} key to

start scanning.

Reference

p.131 “Setting File Type and File Name”

p.125 “Batch, SADF”

Setting File Type and File Name

131

Setting File Type and File Name

This section explains the procedure for setting file type, file name, and security

for PDF files.

Setting File Type

This section explains the procedure for setting the file type of a file you want to

send. File types can be specified when sending files by e-mail or Scan to Folder,

and sending stored files by e-mail or Scan to Folder

Important

❒To deliver files, set the file type using the delivery server computer. For de-

tails, see the manuals supplied with the ScanRouter delivery software.

❒Files are stored in TIFF or JPEG format. If [Store Only] is selected for [Store File],

file type cannot be specified. If [Send & Store] is selected for [Store File], files can

be sent by e-mail or Scan to Folder in a specified format. However, files are

not stored in the specified file type. Specify the file type for stored files when

sending them.

Selectable file types differ depending on scan and other settings. For details, see

“Relationship between File Type Specified for Scanning and File Types for Send-

ing E-mail and Folder”.

You can select one of the following file types:

•For Single Page

[TIFF / JPEG] or [PDF]

• For Multi-page

[TIFF] or [PDF]

APress [File Name / Type].

Various Scan Settings

132

BSelect a file type.

CPress [OK].

Setting File Type and File Name

133

Setting File Name

This section explains the procedure for setting a file name.

Scanned file will be given a file name consisting of the time and date of scanning,

4-digit page number, etc.

• Single-page and divided multi-page files are assigned file names that contain

the date and time of scanning and a four-digit page number. An underscore

is inserted between the date and time and the four-digit page number.

(Example: For a file scanned in single-page TIFF at 10 ms, 15 sec., 15:30 hours

on Dec. 31, 2020, the file name will be 20201231153015010_0001.tif)

• Multi-page files are given file names that contain the time and date of scan-

ning.

(Example: For a file scanned in multi-page TIFF at 10 ms, 15 sec., 15:30 hours

on Dec. 31, 2020, the file name will be 20201231153015010.tif)

If necessary, you can change the file name.

APress [File Name / Type].

BPress [File Name].

The soft keyboard appears.

CEnter a file name.

DPress [OK] twice.

Various Scan Settings

134

Changing the starting digit of file name serial numbers

A single-page file is assigned a serial number after the file name. The starting

number of this serial number can be changed as follows:

APress [File Name / Type].

BPress [Change] to the right of the entry box.

CUsing the number keys, enter the starting digit of the serial number.

DPress the {q} key.

EPress [OK].

Note

❒You can change the starting digit only if other than [Single Page] is selected

as the file type.

❒You can change the number of digits in the serial number. Change the

number under [Scanner Features], [No. of Digits for Single Page Files]. You can

select 4 or 8. For details, see “Send Settings”, General Settings Guide.

Setting File Type and File Name

135

Security Settings to PDF Files

This section explains security settings for PDF files.

Use security settings to prevent unauthorized access to PDF files.

Important

❒Security settings can be made for PDF files only.

Encrypting PDF files

Set a password to protect and encrypt a PDF file . Only users who have the pass-

word can open and decrypt the PDF file.

Important

❒Encryption is possible only for scan files sent by e-mail or Scan to Folder.

❒You cannot open an encrypted file without a password. Make sure you do not

forget a file's password.

APress [File Name / Type].

BCheck that [PDF] is selected.

CPress [Security Settings].

DSelect [Encryption].

EIn [Encrypt Document], select [On].

Various Scan Settings

136

FIn [Password], press [Enter].

GEnter a password, and then press [OK].

The password entered here will be required to open the PDF file.

HEnter the password again, and then press [OK].

IIn [Encryption Level], select [40 bit] or [128 bit].

JPress [OK] twice.

Note

❒A document password cannot be the same as the Master password.

❒You can enter up to 32 alphanumeric characters for a document password.

❒PDF files created under the [128 bit] Encryption Level cannot be viewed us-

ing Adobe Acrobat Reader 3.0 and 4.0.

Setting File Type and File Name

137

Changing security permissions for PDF files

Set a Master Password to restrict unauthorized printing, changing, copying, or

extracting of a PDF file's content. Only users who have the Master Password can

reset or change these restrictions.

Important

❒Encryption is possible only for scan files sent by e-mail or Scan to Folder.

❒You cannot reset or change a file's restriction setting without the Master Pass-

word. Make a note of the Master Password in a secure place.

APress [File Name / Type].

BCheck that [PDF] is selected.

CPress [Security Settings].

DSelect [Permissions].

EIn [Master Password], select [Set].

Various Scan Settings

138

FIn [Password], press [Enter].

GEnter a password, and then press [OK].

The password entered here will be required to change the security settings of

the PDF file.

HEnter then password again, and then press [OK].

ISelect the security permission setting.

You can specify the following security settings:

• Print permission: [Prohibit], [Allow], or [Low Resolution Only]

• Editing permission: [Prohibit] or [Allow]

• Copying or extracting content permission: [Prohibit] or [Allow]

JPress [OK] twice.

Note

❒The [Password] and [Master Password] cannot be the same.

❒You can enter up to 32 alphanumeric characters for a Master Password.

❒If [40 bit] is selected as the PDF encryption level, you cannot select [Low Res-

olution Only] as the print permission.

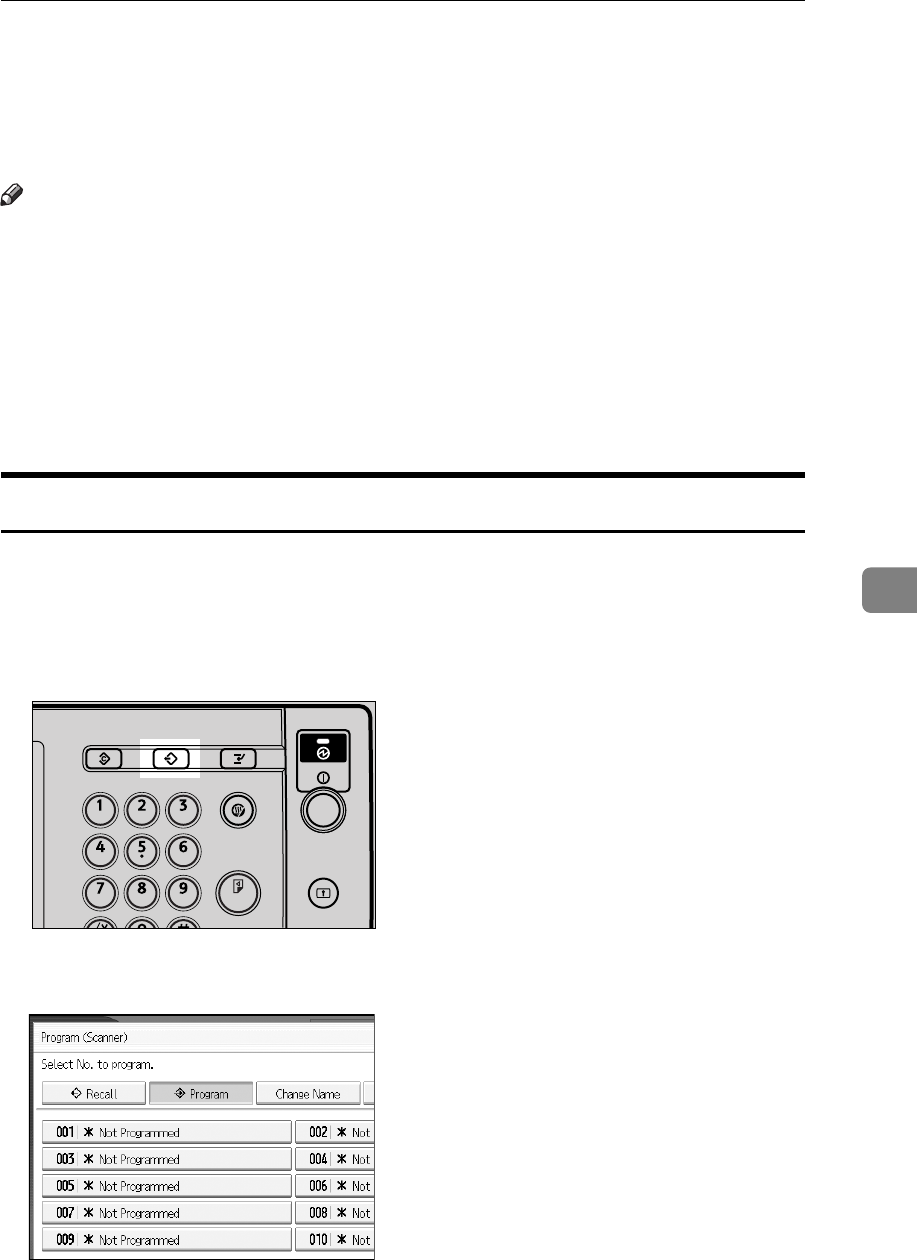

Programs

139

Programs

You can register frequently used settings in the machine memory and recall

them for future use.

Note

❒You can register up to 10 programs for the scanner mode.

❒Programs are not deleted by turning the power off or by pressing the {Clear

Modes} key unless the content is deleted or newly registered.

❒The following settings can be registered to programs: Scan Settings, 1 Sided/2

Sided Original, Top to Top/Top to Bottom, skip scanning back side of the last

page, Divide, Original Orientation, File Type, Batch/SADF, Store File, Pre-

view, and Reception Notice.

❒Setting made on the simplified display cannot be registered to a program.

Registering Frequently Used Setting

To register frequently used settings in a program:

AOn the initial scanner screen, make the settings you want to register in a

program.

BPress the {Program} key.

CPress [Program].

AMG004S

Various Scan Settings

140

DSelect the number of the program in which you want to register the set-

tings.

Program numbers with malready have settings in them.

EEnter the program name.

FPress [OK].

The Program screen reappears. When the settings are successfully registered,

m appears on the left side of the registered program number and the pro-

gram name appears on the right side. The initial screen reappears after a mo-

ment.

Recalling a Registered Content

To recall settings registered in a program and use them for scanning:

APress the {Program} key.

BPress [Recall].

CPress the number of the program you want to recall.

Settings registered in the program are recalled and the initial scanner screen

reappears.

Settings are not registered in numbers that appear without m.

DPlace originals, and then press the {Start} key.

Programs

141

Changing a Registered Program

To change the settings registered to a program:

APress the {Program} key.

BPress [Recall].

CPress the number of the program you want to recall.

DChange settings of the program.

EPress the number of the program you want to recall.

FPress the {Program} key.

GPress the number of the program whose settings you changed or the num-

ber of a different program in which you want to register the changed set-

tings.

HIf you select a program that is already registered, a confirmation message

appears. To overwrite the program, press [Yes].

If you select a new program number, you can omit this step. Proceed to the

next step.

IEnter a program name.

JPress [OK].

If overwritten, the registered program is deleted.

The new program name appears briefly, and then the initial screen reappears

after a moment.

Various Scan Settings

142

Deleting a Program

To delete a registered program:

APress the {Program} key.

BPress [Delete].

CPress the number of the program you want to delete.

DPress [Yes].

The program is deleted, and the initial screen reappears after a moment.

Changing the Registered Program Name

To change the name of a registered program:

APress the {Program} key.

BPress [Change Name].

CPress the number of the program whose name you want to change.

DEnter a new program name.

EPress [OK].

The new program name appears briefly, and then the initial screen reappears.

Programs

143

Registering Initial Values for Initial Display

This section explains how to set defaults for the initial screen, which appears

when the machine is turned on or when settings are cleared or reset.

The following settings can be registered as defaults: Scan Settings, 1 Sided/2 Sid-

ed Original, Top to Top/Top to Bottom, skip scanning back side of the last page,

Divide, Original Orientation, File Type, Batch/SADF, Store File, Preview, and

Reception Notice.

AMake the necessary scan settings on the initial screen.

BPress the {Program} key.

CPress [Program as Defaults].

DPress the {Program} key.

EA confirmation screen appears. Press [Yes].

The current settings are registered as defaults, and then the initial screen re-

appears.

Note

❒To restore the initial screen's original default settings, press [Restore Factory

Defaults].

❒Default settings for the initial screen can be registered for normal screens

and simplified displays respectively.

AMG004S

Various Scan Settings

144

Scan Settings When Using Twain Scanner

This section explains how to specify original orientation and scan setting for a

bundle of mixed size originals when using the TWAIN scanner.

Setting Original Orientation on the TWAIN Scanner

To correctly display the top/bottom orientation of the scanned original on a cli-

ent computer, the placement of the original and the settings made in the Scanner

Control dialog box must match.

AOpen the Scanner Control dialog box.

For details about how to open the Scanner Control dialog box, see “Basic Net-

work TWAIN Scanner Operation”.

BIn the [Original Scan Method:] list, select the place where the original is placed.

CIn the [Orig.Orientn.:] list, select [] or [].

DIn the [Orientation:] list, select [/], [/],

[/], or [/].

EIf an original is placed in the ADF, from the drop down menu of [Scan Set-

tings], select [1 Sided], [2 Sided(Top to Top)], or [2 Sided(Top to Bottom)].

Reference

p.107 “Basic Network TWAIN Scanner Operation”

Scan Settings When Using Twain Scanner

145

Placing Originals

The following table shows the relationship between the original orientation and

the Scanner Properties dialog box settings:

❖Exposure Glass

❖ADF

Note

❒Originals are normally rectangular ( ) or horizontally long ( ). However, the

table above uses squares to make original orientation easier to understand.

Even if the actual shape of the original is different, the combination of original

orientation and the orientation specified on the scanner driver does not

change.

❒For details about the Scanner Control dialog box, see the TWAIN driver Help.

❒Depending on the settings, originals of different sizes are scanned differently.

Original Orientation TWAIN Scanner Control Dialog Box Key

top edge touches top left of exposure glass

This orientation is the TWAIN driver's stan-

dard setting. Place originals in this orientation

normally.

top edge touches rear of exposure glass

Original Orientation TWAIN Scanner Control Dialog Box Key

top edge of original placed first

top edge touches rear of ADF

Various Scan Settings

146

When Scanning Originals of Mixed Sizes Using TWAIN Scanner

This section explains the differences between scanning mixed-size originals us-

ing the TWAIN scanner and normal scanning.

•If [Auto detect(Mixed-size)] is selected in the [Original Size:] list, the machine de-

tects the length of each same-width original and then scans them.

•If [Auto detect(Uni-size)] is selected in the [Original Size:] list, the machine detects

the size of the first original of the batch and scans all subsequent originals at

that size.

147

7. Appendix

The appendix details specifications of the scanner function and explains supple-

mentary settings.

Relationship between Resolution and File Size

This section explains the relationship between resolution and original size.

Resolution and original size are inversely related. The higher the resolution (dpi)

is set, the smaller the area that can be scanned. Conversely, the larger the scan ar-

ea, the lower the resolution that can be set.

The relationship between the scanning resolution and the file size is shown below.

If the combination is unreadable, “Exceeded max. data capacity. Check the

scanning resolution, then press the Start key again.” appears on the

machine's control panel display. Change the condition until scanning is enabled.

Note

❒Image compression level can limit Maximum image size.

Appendix

148

When Using E-mail, Folder Sending, Storing or Network Delivery

Function

This section explains the relationship between resolution and scan size when us-

ing the e-mail, Scan to Folder, storing, or network delivery scanner function.

❖If [Text], [Text / Line Art], [Text / Photo], or [Photo] is selected for Scan Type

All combinations up to A3 and 600 dpi can be scanned.

❖If [Gray Scale] is selected for Scan Type

The originals can be scanned using combinations marked with in the table.

Note

❒Enter B6, A6, and A7 sizes directly.

•B6 → (128 mm × 182 mm)

•A6 → (105 mm × 148 mm)

•A7 → (74 mm × 105 mm)

100 dpi 200 dpi 300 dpi 400 dpi 600 dpi

11×17

Legal (81/2×14)

81/2×13

Letter (81/2×11)

51/2×81/2

Relationship between Resolution and File Size

149

When Using as a TWAIN Scanner

This section explains the relationship between resolution and scan size when us-

ing the machine as a TWAIN scanner.

To specify the scan area or resolution on the machine you are using as a network

TWAIN scanner directly, see the TWAIN driver Help.

❖If [Binary(Text)] or [Binary(Photo)] is selected in [Col./ Grad.:]

The originals can be scanned using combinations marked with in the table

if Original Orientation is L.

100

dpi

200

dpi

300

dpi

400

dpi

500

dpi

600

dpi

700

dpi

800

dpi

900

dpi

1000

dpi

1100

dpi

1200

dpi

11×17

Legal

(81/2×14)

81/2×13

Letter

(81/2×11)

51/2×81/2

Appendix

150

❖If [Gray Scale] is selected in [Col./ Grad.:]

The originals can be scanned using combinations marked with in the table

if Original Orientation is L.

Note

❒Enter A7 sizes directly.

100

dpi

200

dpi

300

dpi

400

dpi

500

dpi

600

dpi

700

dpi

800

dpi

900

dpi

1000

dpi

1100

dpi

1200

dpi

11×17

Legal

(81/2×14)

81/2×13

Letter

(81/2×11)

51/2×81/2

Relationship between File Type Specified for Scanning and File Types for Sending E-mail and Folder

151

Relationship between File Type Specified

for Scanning and File Types for Sending E-

mail and Folder

This section explains the relationship between the file type specified for scan-

ning originals and the file type to which files are converted when sent by e-mail

or Scan to Folder.

❖Single page file type

❖Multi-page file type

Note

❒When you select to convert a scanned original to a single-page TIFF/JPEG

file, if gray scale is selected in [Scan Type] under [Scan Settings], depending on

the [Compression (Gray Scale)] setting under [Scanner Features], the file type

changes as follows:


•[Off]...TIFF

❒When you set [Compression (Gray Scale)] to [On] under [Scanner Features], if you

specify gray scale in [Scan Type] under [Scan Settings], you cannot select multi-

page TIFF as the file type.

❒Files are stored in single-page format. When sending files by e-mail or Scan

to Folder, you can select single-page or multi-page format.

❒JPEG format files cannot be sent as a multi-page TIFF file even if you specify

to send it as a multi-page TIFF. The file is sent in a default format other than

multi-page TIFF.

❒When you specify Gray Scale for Scan Type, and single page TIFF/JPEG or

multi-page TIFF is selected as the file type, refer to the table below for how to

place originals. Originals placed in orientations that are not recommended in

the table might appear incorrectly top/bottom oriented on client computer

displays.

Scan Setting TIFF/JPEG specified PDF specified

Black and white TIFF PDF

Gray scale TIFF (uncompressed) / JPEG (com-

pressed)

PDF

Scan Setting TIFF specified PDF specified

Black and white TIFF PDF

Gray scale TIFF (uncompressed) PDF

Appendix

152

Placing an Original on the Exposure

Glass

Placing an Original in the ADF

Software Supplied on CD-ROM

153

Software Supplied on CD-ROM

This section explains the applications on the supplied CD-ROM.

Quick Install

This section explains the auto-run program.

When the CD-ROM is inserted into a client computer running Windows

2000/XP/Vista or Windows Server 2003/2003 R2, the installer starts up auto-

matically (auto run) to install various software.

Note

❒When installation under Windows 2000/XP/Vista or Windows Server

2003/2003 R2, log on as an Administrators group member.

❒Quick Install may not automatically work with certain operating system set-

tings. If this happens, start “Setup.exe” on the CD-ROM root directory.

❒To disable auto-run, set CD-ROM while pressing Shift key. Keep the Shift

key pressed until the computer finishes reading from the CD-ROM.

❒If [Cancel] is pressed during installation, the installation of all the software

thereafter will be stopped. If cancelled, reinstall the remaining software after

restarting the client computer.

TWAIN Driver

This section tells you the file path to the TWAIN driver and the TWAIN driver's

system requirements.

You must install this driver if you want to scan originals or use the machine as a

network TWAIN scanner.

❖File path

The TWAIN driver is stored in the following folder on the CD-ROM:

\DRIVERS\TWAIN

❖System requirements

• Computer hardware

PC/AT-compatible machines that support the operating system properly

This driver cannot be used in RISC-based processor (MIPS R series, Alpha

AXP, or PowerPC) Windows NT environments.

• Operating system

Microsoft Windows 2000/XP/Vista

Microsoft Windows Server 2003

Microsoft Windows Server 2003 R2

• Display resolution

800×600 pixels, 256 colors or higher

Appendix

154

DeskTopBinder Lite

This section tells you the file path to DeskTopBinder Lite, the DeskTopBinder

Lite system requirements, and the applications that are installed with DeskTop-

Binder Lite.

DeskTopBinder is installed on the client computers to integrate and manage var-

ious kinds of files such as scan files, files created with applications, and existing

scan files. This software allows you to use various functions for stored scan files

such as viewing stored files. Also, with the ScanRouter delivery software, you

can view the files stored in in-trays of the delivery server or use other functions

for stored files. For details about DeskTopBinder Lite, see DeskTopBinder Lite

manuals or DeskTopBinder Lite Help.

❖File path

DeskTopBinder Lite is stored in the following folder on the CD-ROM provid-

ed with this machine:

\UTILITY\DESKV2

❖System requirements

• Computer hardware

PC/AT-compatible machines that support the following operating system

properly

• Operating system

When installing all functions of DeskTopBinder

• Microsoft Windows 2000 Professional SP1 or later

• Microsoft Windows 2000 Server SP1 or later

• Microsoft Windows 2000 Advanced Server SP1 or later

• Microsoft Windows XP Professional/Home Edition

• Microsoft Windows Vista Ultimate/Enterprise/Business/Home Pre-

mium/Home Basic

• Microsoft Windows Server 2003 Standard Edition/Enterprise Edition

• Microsoft Windows Server 2003 R2 Standard Edition/Enterprise Edition

When installing only SmartDeviceMonitor for Client

• Microsoft Windows 2000 Professional SP1 or later

• Microsoft Windows 2000 Server SP1 or later

• Microsoft Windows XP Professional/Home Edition

• Microsoft Windows Vista Ultimate/Enterprise/Business/Home Pre-

mium/Home Basic

• Microsoft Windows Server 2003 Standard Edition/Enterprise Edition

• Microsoft Windows Server 2003 R2 Standard Edition/Enterprise Edition

• Display resolution

800×600 pixels, 64K colors or higher

Software Supplied on CD-ROM

155

❖Software installed with DeskTopBinder Lite

•Auto Document Link

Auto Document Link on the client computer monitors in-trays of the deliv-

ery server periodically, retrieves files delivered to in-trays, and notifies the

user of delivery.

•RFWriter

Instead of printing files created with an application, the RFWriter converts

those files into TIFF or BMP image files and registers them in a work folder

of the DeskTopBinder. For details, see DeskTopBinder Help.

• Function Palette

Function Palette allows you to use DeskTopBinder functions such as Scan

using TWAIN scanner or Print without starting DeskTopBinder. To use

these functions from Function Palette, you must first configure them using

DeskTopBinder Extended Features. For details about Function Palette, see

DeskTopBinder manuals.

• SmartDeviceMonitor for Client

SmartDeviceMonitor for Client provides functions for continuous device

status monitoring on the network via TCP/IP or IPX/SPX.

Appendix

156

Values of Various Set Items for

Transmission/Storage/Delivery Function

This section explains the values of various transmission/storage/delivery func-

tion settings.

Note

❒Depending on the type or settings of the file or original, you may not be able

to specify the destination or enter the maximum number of characters stated

below.

Transmission Function

This section explains the values of transmission function settings.

Sending E-mail

The following table tells you the maximum values of the e-mail sending function

settings.

Item Maximum value Comments

Number of subject line charac-

ters

128 alphanumeric charac-

ters

Number of e-mail message

characters

80 alphanumeric charac-

ters

This is the total number of char-

acters selected from the list and

the number of characters en-

tered directly from text.

Number of e-mail address char-

acters

128 alphanumeric charac-

ters

E-mail addresses found via

LDAP server search cannot be

selected if they contain more

than 128 characters.

Number of addresses you can

specify at the same time

500 addresses You can specify 100 destina-

tions by direct entry, including

LDAP search. Select the remain-

ing 400 destinations from regis-

tered addresses.

Sendable file size 725.3 MB per file -

Sendable number of pages 2,000 pages per file -

Values of Various Set Items for Transmission/Storage/Delivery Function

157

Folder transmission

The following table tells you the maximum values of the Scan to Folder function

settings.

Simultaneous Transmission

The following table tells you the maximum values of settings for using the E-

mail and Scan to Folder functions simultaneously.

Item Maximum value Comments

Number of path name charac-

ters on SMB

128 alphanumeric charac-

ters

Number of user name charac-

ters on SMB

64 alphanumeric charac-

ters

Number of password charac-

ters on SMB

64 alphanumeric charac-

ters

Number of server name charac-

ters on FTP

64 alphanumeric charac-

ters

Number of path name charac-

ters on FTP

128 alphanumeric charac-

ters

Number of user name charac-

ters on FTP

64 alphanumeric charac-

ters

Number of password charac-

ters on FTP

64 alphanumeric charac-

ters

Number of path name charac-

ters on NCP

128 alphanumeric charac-

ters

Number of user name charac-

ters on NCP

64 alphanumeric charac-

ters

Number of password charac-

ters on NCP

64 alphanumeric charac-

ters

Number of addresses you can

specify at the same time

50 addresses You can specify a maximum of

50 directly entered destinations.

Sendable file size 2,000 MB per file -

Item Maximum value Comments

Number of destinations you can

select for E-mail and Scan to

Folder

550 addresses -

Number of destinations you can

select for sending by e-mail

500 addresses You can specify a maximum of

100 directly entered destina-

tions, including LDAP search-

retrieved destinations.

Number of destinations you can

set for sending by Scan to Fold-

50 addresses -

Appendix

158

Storage Function

The following table tells you the maximum values of the storage function set-

tings.

Item Maximum value Comments

Number of file name characters 64 alphanumeric charac-

ters

On the control panel, the first 16

characters are displayed. When

viewing the stored files from a

client computer using Desk-

TopBinder, all the entered char-

acters can be viewed.

Number of user name charac-

ters

20 alphanumeric charac-

ters

On the control panel, the first 16

characters are displayed. When

viewing the stored files from a

client computer using Desk-

TopBinder, all the entered char-

acters can be viewed.

Number of password charac-

ters

4-8 digit number -

Number of stored files you can

select at the same time

30 files -

Storable number of files 3,000 files This is the total number of files

stored under the scanner, copi-

er, document server, and print-

er functions.

Storable number of pages 10,000 pages This is the total number of files

stored under the scanner, copi-

er, document server, and print-

er functions.

Storable number of pages per

file

2,000 pages -

Storable size 2,000 MB per file -

Values of Various Set Items for Transmission/Storage/Delivery Function

159

Network Delivery Function

The following table tells you the values of setting items for the network delivery

scanner function.

Item Maximum value Comments

Number of subject line charac-

ters

128 alphanumeric charac-

ters

This is the total number of char-

acters selected from the list and

the number of characters en-

tered directly from text.

Number of e-mail address char-

acters

128 alphanumeric charac-

ters

Number of addresses you can

specify at the same time

500 addresses You can specify 65 destinations

by direct entry, including

LDAP search. Select the remain-

ing 435 destinations from regis-

tered addresses

The maximum number of desti-

nations you can specify differs

depending on which ScanRout-

er delivery software you are us-

ing. For details, see the manuals

supplied with the ScanRouter

delivery software.

Sendable file size 2,000 MB per file -

Appendix

160

Specifications

The following table tells you the specifications of the scanner.

Scan method Flatbed scanning

Scan speed When using the E-mail/Scan to Folder/Net-

work Delivery Scanner function:

Black and white: 75 page/min

(Original size: A4K, Scan Type: Text , Resolu-

tion: 200 dpi, Compression (Black & White):

On, ITU-T No1 Chart, 1-side scanning)

Scanning speed differs depending on the fol-

lowing; operating environment of the machine

and computer, scan settings, and the content

of originals (denser images require more

time).

Image sensor type CCD Image Sensor, CIS Image Sensor

Scan type Sheet, book

Interface Ethernet interface (10BASE-T, 100BASE-TX or

1000BASE-T (optional)), IEEE 802.11b (wire-

less LAN) (optional)

Maximum scan size DLT (11" × 17")

Scan sizes automatically detectable from the

exposure glass

11" × 17"L, 81/2" × 14"L, 81/2" × 11"K, 81/2" ×

11"L, 81/2" × 51/2"K

Scan sizes automatically detectable from the

ADF

A3L, A4K, A4L, 11" × 17"L, 81/2" × 14"L,

81/2" × 11"K, 81/2" × 11"L, 51/2" × 81/2"K,

51/2" × 81/2"L, 10" × 14"L, 71/4" × 101/2"L

Basic scanning resolution 600 dpi (8-bit gray scale)

Selectable scanning resolutions when using

the E-mail/Scan to Folder/ Network delivery

scanner function

100 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi

Selectable scanning resolution when using

TWAIN scanner

100 dpi to 1200 dpi

Sendable file formats TIFF, JPEG, PDF

Image compression type for black and white

(two-value)

TIFF (MH, MR, MMR)

Image compression type for gray scale JPEG

Network protocol IPv4, IPX

Protocol for sending e-mail SMTP, POP3

Protocol for Scan to Folder SMB, FTP, NCP

161

INDEX

Address Book, 12, 41, 48

ADF, 118, 121, 144

Adjusting image density, 120

Advanced search, 20, 23, 29, 48

Auto density, 120

Auto Detect, 111

Auto-run program, 153

Batch, 125

Bindery, 56, 58

Black & White, 110

CD-ROM, 153

Change, 79, 80

Changing a password, 83

Changing a user name, 80

Checking

a stored file selected from the list, 70

Check modes, 13

Confirmation displays, 4

check modes, 4

Preview, 5

transmission file status, 6

CSV file, 12, 41

Custom size, 111, 112, 115, 118

Delete, 79

Deleting a stored file, 79

Delivery server, 85, 93

DeskTopBinder Lite, 76, 85, 87, 154

Destination list, 18, 47

Display, 3

confirmation displays, 4

Simplified Display, 3

Divide, 127

Edit, 119

Effective Protocol, 40

E-mail, 148

E-mail address, 12

E-mail destination, 18

Address Book, 18

Destination list, 18

registration numbers, 19

E-mail message, 32

E-mail screen, 13, 17

Entering an e-mail address, 22

Entering registration numbers, 94

Entering the path, 50

Erase border, 119

Ethernet, 12, 40, 105

Exposure glass, 118, 121, 144

File information, 67, 68, 69

File name, 67, 68, 82, 131

File type, 131

Folder sending, 148

FTP, 38

FTP server, 54

Functions, 2

General settings, 8

Gray Scale, 110

Initial settings, 8

Install, 87, 106

I/O device, 85

JPEG, 151

162

LDAP, 11

LDAP server, 23

Line Art, 110

List of stored files, 77

Managing stored files, 79, 80, 82, 83

Manual entry, 22, 33, 50

Manuals for This Machine, i

Mixed sizes, 111, 112, 146

Multi-pages, 151

NCP, 56, 58

NDS, 56, 58

NetWare, 39, 56, 58

Network Delivery, 148

One sided original, 123

Operation for delivering files, 89

Original feed type, 121, 123

Original settings, 123

Password, 67, 69, 83

PDF, 131, 151

changing security permissions, 137

encrypting, 135

Photo, 110

Placing an original, 118

Preparation, 86

sending by e-mail, 12

Program as Defaults, 143

Programs, 139, 143

changing registered program, 141

changing the name, 142

deleting, 142

recalling, 140

registering, 139

Quick install, 153

Registering a destination, 26

Registering in the address book, 26

Registering the path, 60

Registration numbers, 19, 28, 47, 94, 98

Resolution, 110

Resolution and file size, 147, 149

Restore Factory Defaults, 143

Result of sending, 6

Return receipt, 89

SADF, 125

Scanner Features, 8

Scanning multiple pages, 129

ScanRouter delivery software, 85

Scan settings, 8, 109

Scan Size, 111

Scan to Folder, 37, 43

Scan Type, 110, 148

Screen, 70, 88

Scan to Folder, 42

Search by comment, 95

Searching by file name, 73, 82

Searching by user name, 72, 99

Searching

the delivery server’s destination list, 95

Searching the list of stored files, 72

Searching the machine’s address book, 20

Security settings, 135

Selecting a destination, 23, 93, 95

machine’s address book, 46

Selecting a sender, 27

Sender, 27, 28, 29, 97

Sender name, 27, 28, 29, 97, 98, 99

Sending by Scan to Folder, 40

Sending files

FTP, 54

shared network folder, 50

Sending scan files, 37

Sending scan files by e-mail, 11, 14

Sending the URL by e-mail, 35

Send settings, 8

Serial number, 134

Setting file name, 133

Setting file type, 131

163

Simultaneous storage and delivery, 102

Simultaneous storage

and sending by e-mail, 34

Simultaneous storage

and sending by Scan to Folder, 61

Single page, 151

SmartDeviceMonitor for Admin, 12, 41

SMB, 37, 52

SMTP, 11

Specifications, 160

Specifying destinations, 46

Specifying the message, 32

Specifying the path, 52

Specifying the sender, 27, 97

Specifying the subject, 31

Storage, 34, 61, 102

Store only, 65

Storing, 63, 148

Storing scan files, 34, 61, 65, 102

Subject, 101

Subject/Text, 31, 32, 33

Switching screen, 17

network delivery scanner screen, 92

Scan to Folder, 45

Symbol, 1

Template size, 111

Text, 110

TIFF, 151

TIFF/JPEG, 131

Transmission function

folder transmission, 157

sending e-mail, 156

simultaneous transmission, 157

TWAIN Driver, 106, 107, 153

TWAIN scanner, 103, 104, 107, 144, 146,

149

setting original orientation, 144

Two sided original, 124

User name, 67, 80

User Tools / Counter, 8

Values of various set items, 156

network delivery function, 159

storage function, 158

transmission function, 156

Web Image Monitor, 12, 41, 63, 76

Wireless LAN, 12, 40, 105

164 EN USA D406-7553

Note to users in Canada

Note:

This Class B digital apparatus complies with Canadian ICES-003.

Remarque concernant les utilisateurs au Canada

Avertissement:

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Note to users in the United States of America

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursu-

ant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to radio or television re-

ception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio /TV technician for help.

Caution:

Changes or modifications not expressly approved by the party responsible for compliance could void

the user's authority to operate the equipment.

Declaration of Conformity

Product Name: Printer/Scanner Controller

Model Number: Printer/Scanner Unit Type 8000

Responsible party: Ricoh Americas Corporation

Address: 5 Dedrick Place, West Caldwell, NJ 07006

Telephone number: 973-882-2000

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. this device must accept any interference received, including interference that may cause undesired

operation.

Printer/Scanner Unit Type 8000 Operating Instructions Scanner Reference

EN USA D406-7553
