Riitek Technology RT-K13 RT-MWK13 2.4GHz AIR MOUSE User Manual
Shenzhen Riitek Technology Co., Ltd RT-MWK13 2.4GHz AIR MOUSE
User Manual
Air Mouse Keyboard RT-MWK13
Installation & User Manual
Ver:K13KS
Shenzhen Riitek Technology Co.,LTD
A1-4,A Zone,Baoyunda Logistic Center, Avenue Xixiang, BaoAn District, Shenzhen, China
Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this device not expressly approved by Shenzhen
Riitek Technology Co., Ltd may void the FCC authorization to operate this device.
Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s authority to operate the
equipment.
Safety percautions
Safety Matters
To
avoid
injury,death
of
personnel
or
damage
to
the
equipment the operator must refer to the explanations in this User’s
Manual.Battery: There is a lithium-ion rechargeable battery in this
device.Don’t water this device,or put it in a humid environment for
a long time or the device will be damaged.
Attention to traffic safety
(CAR
PC):
Do
not
use
the
device
while
driving.When
you
want to use it,please park your car.
Turn off this device on planes
This
Electronic
wireless
product
can
disturb
the
communications systems of planes.Please turn if off before
boarding.
In vicinity of dangerous goods to be shut down
In
gas
station
and
close
to
fuel
and
chemical
agents
and
other
hazardous materials areas,please turn the device off.
Turn off this device in hospital
Please
turn
the
device
off
in
areas
with
“
no
wireless
device”indication.Wireless devices may interfere with implanted
cardiac pacemakers,hearing aids and other. Medical implant
devices.
Interference
All
wireless
devices
may
be
subject
to
interference,
thus
affecting the performance of this product.
Accissories
Only
use
factory
specified
parts.Please
use
the
supplied
travel
charging cable.the use of other charging devices may be
dangerous.
Do
not
point
the
laser
beam
on
human
or
animal
eyes
directly
to
avoid
damage
to
the
eye.
Introduction
Thank you for purchasing the Mini Air Mouse Keyboard! , Wireless
Mini QWERTY Keyboard d& Air Mouse Combo, with USB
interface receiver. You can use it for emails, chat, listen to music, or
to enjoy your favorite games. It is compatible with HTPC,TV BOX
running Android systems.It also supports the Sony Playstation3. Use
it with your HTPC on your Sofa or browse the internet in the most
comfortable fashion.
This is also a universal infrared remote controller with learning
function.The remote control has a powerful ability to identify
unknown format with a wide and reliable range of learning formats
which means about 99.9% TV infrared remote control on the market
can be learnt .After learning the signals can be transmitted with high
precision with a wide learning range(20kHz~60kHz) and a small
frequency error(±1kHz).
Features
·8-channel infrared remote control learning function
·Source code quickly learn other remote control via infrared remote
control of the device
·Windows multimedia control keys the (GOOGLE TV hotkey)
·Wireless audio and online voice dialogue
Specifications
·Operating Voltage: 3.7V
·Operating Current: 53mA
·Charge voltage : 5V
·Charge current: 300mA
·Battery capac：350mAH
·Sleep Current：50μA
·Dimension：156*49.5*10mm

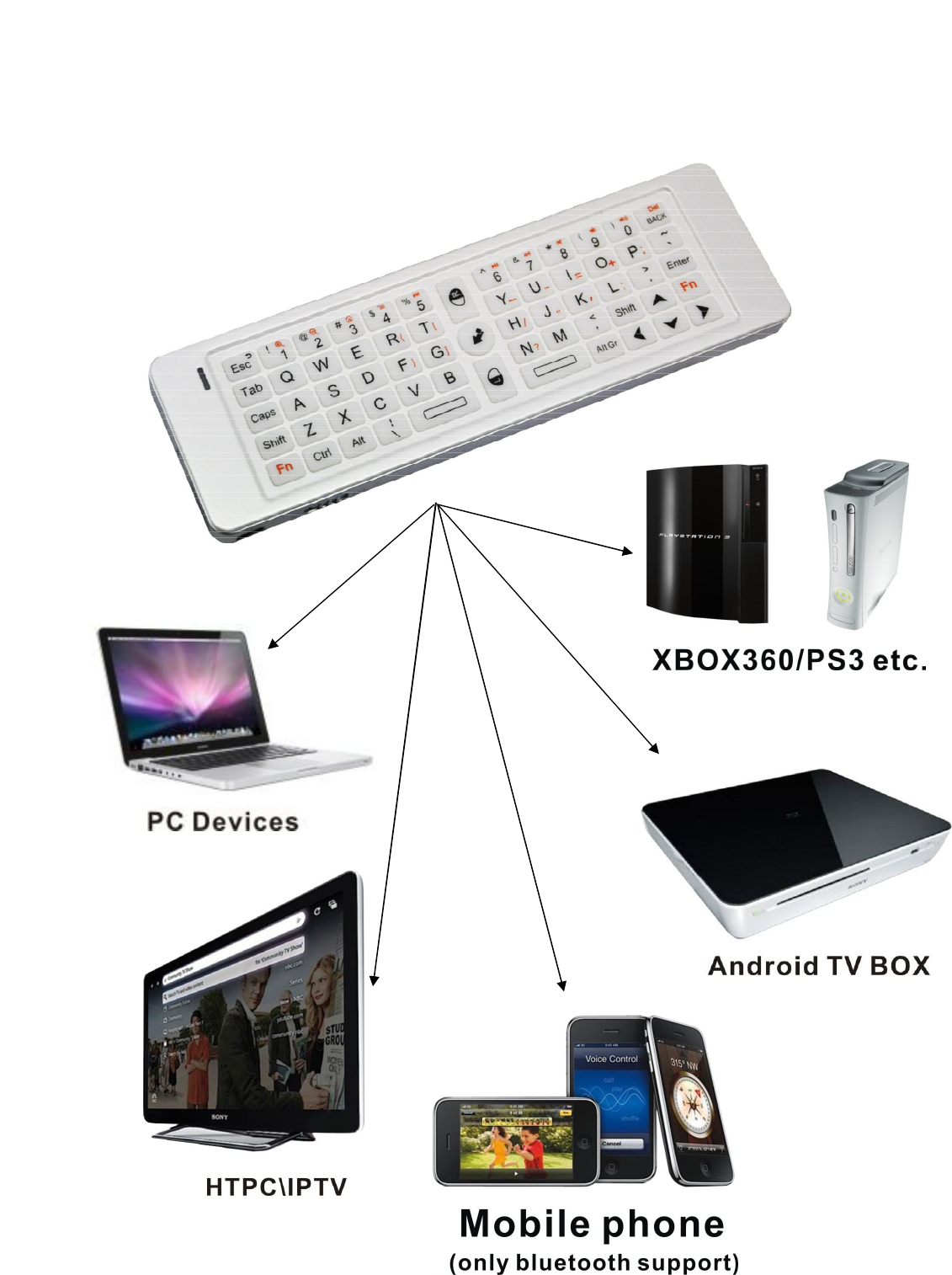

Applicable equipment list
·Computer system requirements
Windows 2000
Windows XP
Windows Vista ,Windows CE, Windows 7
·Linux(Debian-3.1,Redhat-9.0 Ubuntu-8.10
·Fedora-7.0 tested)
·HD Player,TV set
·Set-Top BOX ,DVD/VCD/CD equipment.
·Air Conditioning Remote Control.
Overview
The multifunctional combo with wireless keyboard

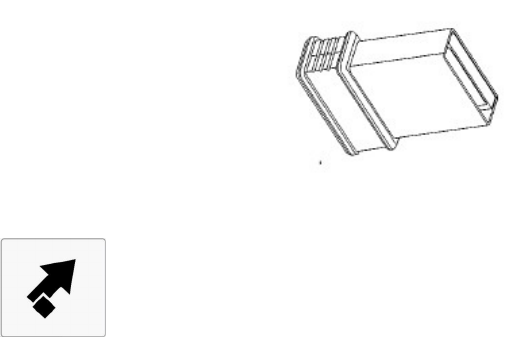

Connecting the receiver
Take out the 2.4G dongle from the giftbox, and insert to the devices
with a standard USB interface. Once connected, slide the power
switch to the "ON" position located on the left side of the unit to
establish the connection.
Using Air mouse
Air mouse function to open and close, relying on the
specific keys to control, as shown below. In the open state,
the mouse will follow your gestures, in any direction to move, to
help you perform the move, click, drag, and other functions
operating. In any state can rely on to trigger this button to turn off
the mouse function.
To remind that, when air mouse enabled, the arrow keys function
will follow the direction of your use adjusted accordingly. For your
convenience and better on-screen menu control.
Auto sleep and wake feature
Within three minutes, if no action keyboard and mouse,
automatically goes into sleep mode. In sleep mode, all lights
extinguished state, the user can press any key to wake up.
Switching off the keyboard after use
After finishing using the keyboard,push the switch to the off
position.This turns off the power,of the keyboard.The USB receiver
should be plugged out from the PC and then inserted back in the
keyboard so it is being kept safely.
Charging the battery
The device with built-in lithium-ion battery, please use only
approved data lines and chargers.
Note: Fully charge the unit before operating for the first time. This
device can be used when charging, but will extend the charging time;
When the battery is low, the low-voltage light will flash to warn the
user. The unit will automatically turn off if the battery has been
depleted.
Warning
·While finished charging, pull out the charge cable.
·Never try to open or to repair this product yourself.
·Keep this appliance away from fluids, such as water.
Maintenance
·Do not attempt to disassemble the device or replace rechargeable
battery. Doing so will void the warranty.
·The battery will discharge if stored for a long period of time
without usage.
·Use the specified charger. Disconnect the device after the battery
has been fully charged. Overcharging the battery will shorten the
life span of the battery.
·Do not expose the device in extreme heat or cold. Extreme
temperatures will cause the life span of the battery to shorten.
·Use only a damp cloth with mild soap to clean the device. Solvents
and other cleaning agents may cause damage to the device.
Fully open type set-top box remote control

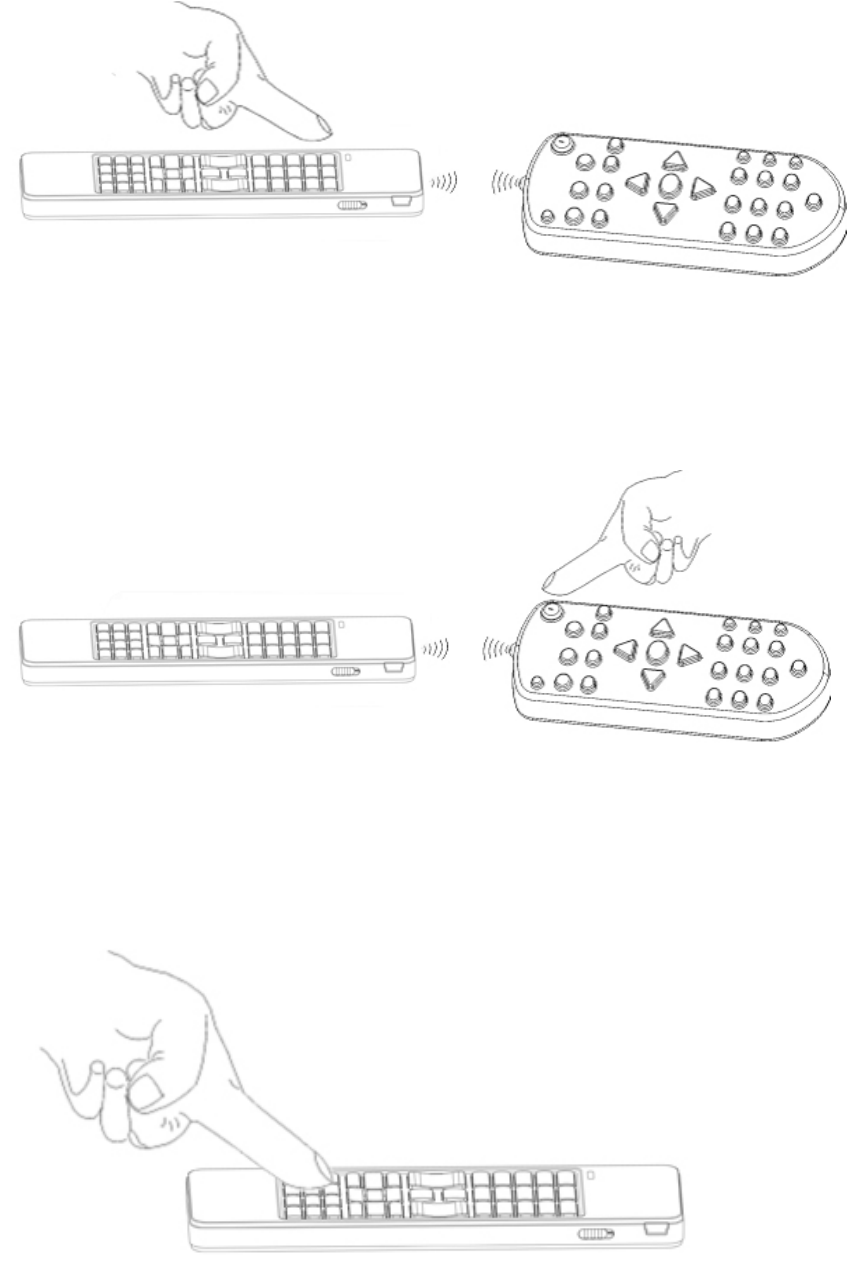

HOW TO OPERATE
1. Press the TV/VCR/DVD/CBL/SAT/CD/AUDIO/GAME of “RII
MOTE”more than 4 seconds,the RII MOTE 's light will be flash one
time then long-time on;
2. Aim the RII MOTE's infrared LED at your original remote
control's infrared LED in parallel alignment (PS: the relative
distance not more than 7 cm), then press any button on RII MOTE,
the RII MOTE's light will flash two times then long-time on, it is in
learning status.
3. Press any button on original remote control, RII MOTE 's light
will be flash three times then long-time on,it is success in learning.
4. Repeat the step 2-4, until finish learning all keys.
5. Press the set key or 10 seconds without any operation, the device
will retire from the learning state.
Troubleshooting
Below are some basic troubleshooting scenarios of the
device. Please contact support from the place of purchase
if you are unable to resolve any issues with the device.
Notes:
Since devices using 2.4G technology communicate using
radio waves,your device and the other devices do not need to
be in direct line-of-sight. The connection can be subject to
interference from obstructions, such as walls,or other
electronic devices
In line with the policy of continued development.The
manufacturer reserves the right to amend The specifications
without prior notification,The pictures and date in the
stylebook are consult only.If there is fluctuation.According to
the real object please.
USB Dongle Information:
Manufacturer: Shenzhen Riitek Technology Co., Ltd
Product Name: Wireless 2.4G Receiver
Model: RT-MWK01R
Brand Name: N/A
FCC ID: YIZRT-MWK01R
