Ring BHAFM001 Floodlight Wired User Manual 5W21S8 REV1

Ring LLC Floodlight Wired 5W21S8 REV1

Contents

5W21S8_User manual_REV1

Beams Wired
Floodlight
2
1. Install your Floodlight. Center the mounting
plate over the bracket
and secure it with a
screw.
Be sure to pull the wires through
the hole in the mounting plate
before screwing it in.
With power turned
o at the breaker,
screw the mounting
bracket into your
electrical box.
WARNING: Risk of
electrical shock.
Disconnect power
at the fuse or
circuit breaker
before installing.
Verify that the supply voltage
is correct. Connect fixture to
a 100 VAC~240 VAC 50/60 Hz
power source.
Properly ground fixture.
Always follow code standards.
If you are outside of North
America, installation and
wiring must be performed by a
licensed electrician.
CAUTION: Risk of fire. Do not
install near combustible or
flammable surfaces.
NOTICE: Floodlight must
be installed on a UL listed
weatherproof electrical box.
32

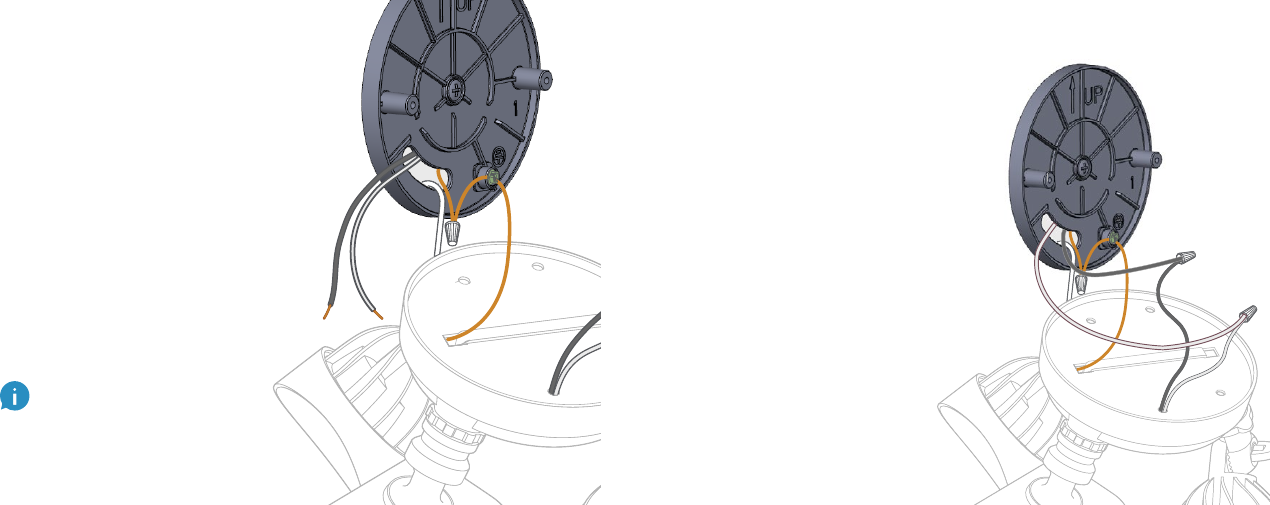

Connect the ground wire. Connect the power
wires.
Connect the copper wire
from your Floodlight to the
green ground screw on
the plate and the existing
ground wire from your
junction box.
Use one of the supplied
wire nuts if necessary.
Use a wire nut to connect
the white wire from your
Floodlight to the white
(neutral) wire coming
from your electrical box.
Connect the black wire
from your Floodlight to
the black (hot) wire from
your electrical box using
another wire nut.
For easier wiring, you can hang
your Floodlight from the plate
with the included hook.
4

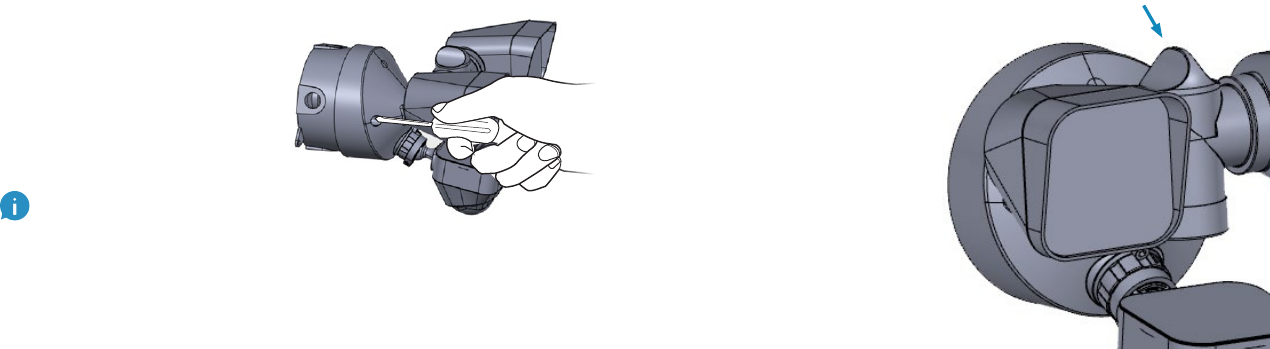

Slide your Floodlight over the posts on the
mounting plate.
Then, secure it with two
of the long screws.
Once your Floodlight
is mounted, feel free to
switch power back on at
the breaker.
The motion sensor is adjustable.
Try various angles to find the best
setting for your home.
Your Floodlight
is versatile.
Loosen the large knob
at the top to adjust the
angle of the lights.
Tighten it again when
you find just the right
position.
6

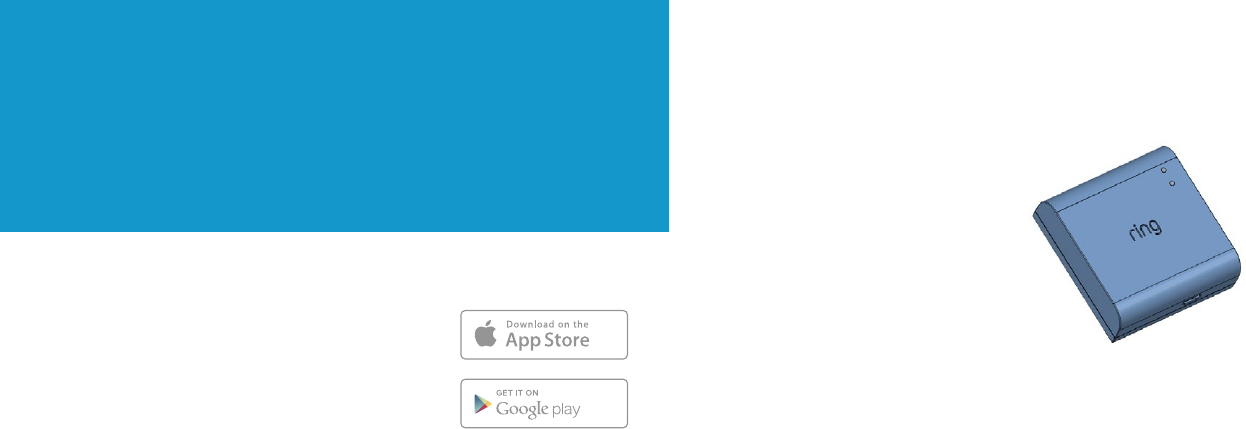

2. Connect your
Wired Floodight.
Download the Ring app.
The app walks you through setting
up and managing your Floodlight.
Search for “Ring” in one of these
app stores, or visit: ring.com/app
Set up your Ring
Beams Bridge.
The Bridge connects
your Ring Beams
lights to the rest of
your Ring system. Your
Bridge must be up and
running before you set
up your Floodlight.
To set up your Bridge,
follow the instructions
in the Ring app or
Bridge user manual.
Download from
Windows Store
Download from
Windows Store
98
Beams
Alarm
Doorbells
Security Cams
Chimes
Set up your
Floodlight in the
Ring app.
In the app, tap
Set Up a Device.
When prompted, select
Beams and follow the in-
app instructions.

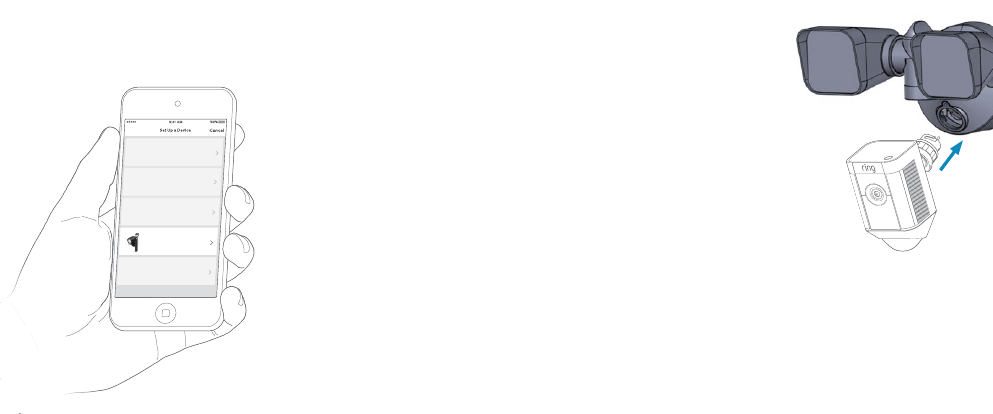

Got a Spotlight Cam Wired?
Upgrade it!
First, turn power off at the breaker.
Twist the sensor on your Floodlight
to the left, then remove it. Do the
same to separate Spotlight Cam
from its base.
Next, insert the camera into your Floodlight and
twist it right to lock it in. Add the security screw,
if desired. Finally, turn power on.
Now your Spotlight Cam Wired has Floodlight
powers, and vice versa.
1110
For additional help, visit: ring.com/help
Or give us a call…
US 1 800 656 1918
Canada 1 855 300 7289
Worldwide +1 310 929 7085
For a list of all our customer support numbers,
visit:
ring.com/callus
To review your warranty coverage, please visit www.ring.com/warranty.
Patents: www.ring.com/patents
© 2018 Ring LLC or its affiliates.
RING, ALWAYS HOME, and all related logos are trademarks of Ring LLC or its affiliates.
Last updated: 09/13/18
