COMMERCIAL WATER HEATING

COMMERCIAL WATER HEATING SOLUTIONS

Nearly 100 years ago, we at Rinnai established a tradition of never settling for

less than the absolute best—a tradition that has grown even stronger today.

Leveraging decades of global commercial water heating experience, Rinnai

Tankless Water Heaters deliver performance and reliability. Precision

engineering allows Rinnai Tankless Water Heaters to produce an endless

supply of hot water to suit even the most demanding applications—from

restaurants to hotels to multifamily residences to schools and more—

conserving energy that can save thousands of dollars in capital, operational

and life cycle costs, while providing redundancy and saving space.

But it’s not just performance that sets us apart. Our commitment to safety,

quality and support has made us the #1 selling tankless brand in the U.S.

and Canada.

From products to service and everything in-between, our dedication to

delivering our absolute best never wavers. We’re stronger than ever, so that

your condence in choosing Rinnai can be too.

WHERE THE DEMANDS ARE GREATEST,

 

COMMERCIAL SOLUTIONS –

Unlike traditional commercial tank-style water

heaters or boilers, Rinnai Tankless Water

Heaters operate only when needed so they’re

inherently more ecient right from the start.

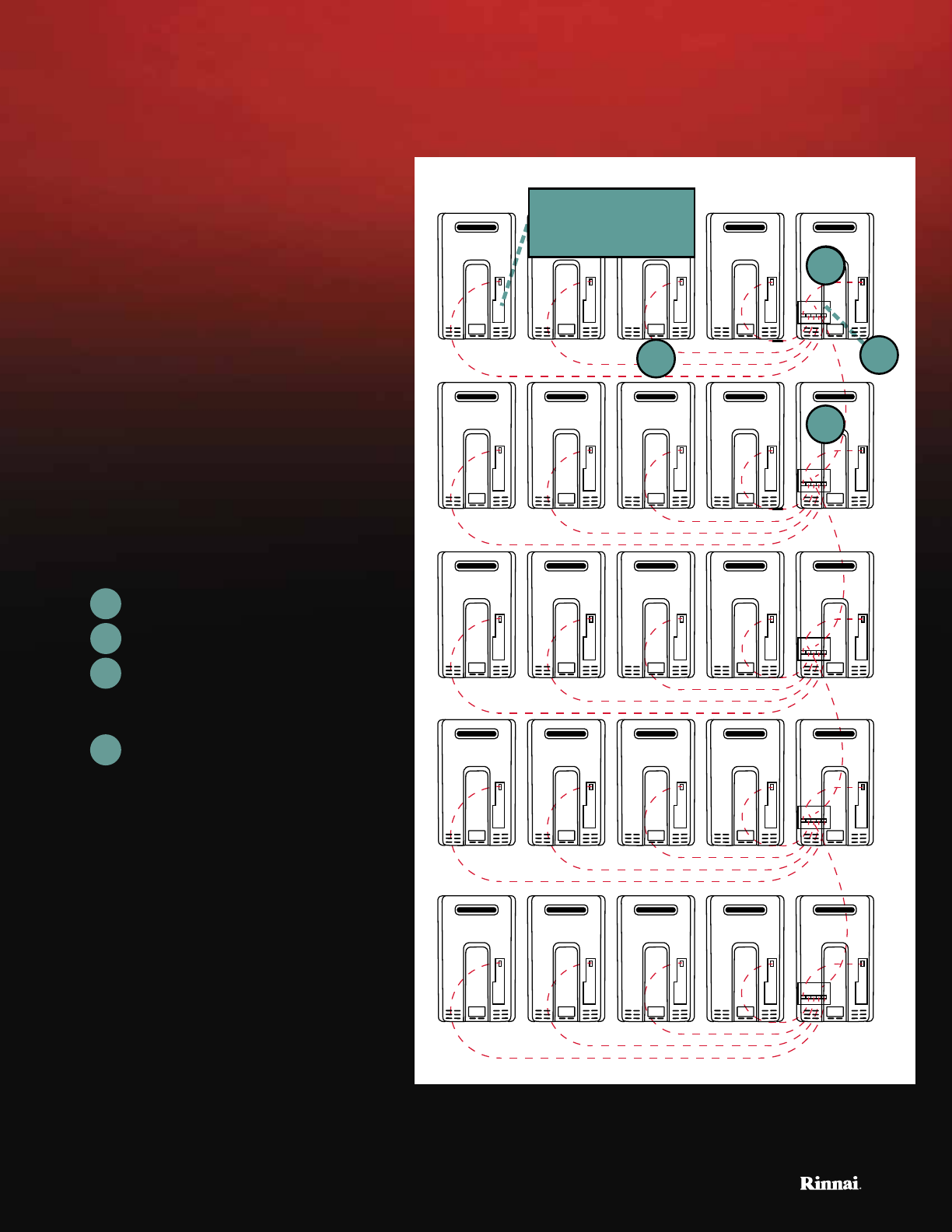

Plus, as a part of our Tankless Rack System,

modulating units sync up as needed, rotating

and working together to get the job done.

So they’re working less—using minimal

energy—to save you more.

Condensing technology conserves even more

energy, providing an Energy Factor of up to 0.96.

Exact temperature control and other eciency

features all add up to top energy performance

that reduces CO2 emissions and contributes

to LEED® certication for both new construction

and retrot projects.



IS ABOUT WORKING LESS—

NOT MORE.

40 80 120 160 200 240

100

INLET WATER TEMPERATURE °F

EFFICIENCY %

condensing

mode

dew point

noncondensing

mode

Boiler Rinnai Energy

Savings

2 4 6 8 10 12 14 16 18 20 22 24

Condensing appliances use the latent heat of exhaust

to preheat incoming cold water. The colder the

inlet water, the higher the efficiency and the more

condensate is generated.

The chart below demonstrates the eciency that a fully

modulating tankless system can provide. The chart generally

shows the gas usage of a traditional boiler compared to

that of a Rinnai Tankless Water Heater.* Peaks represent the

tankless unit meeting user demands, and valleys represent

saved energy in between.

EFFICIENCY %GAS USAGE

INLET WATER TEMPERATURE °F

HOURS

* The comparison is not based on data from a specific installation.

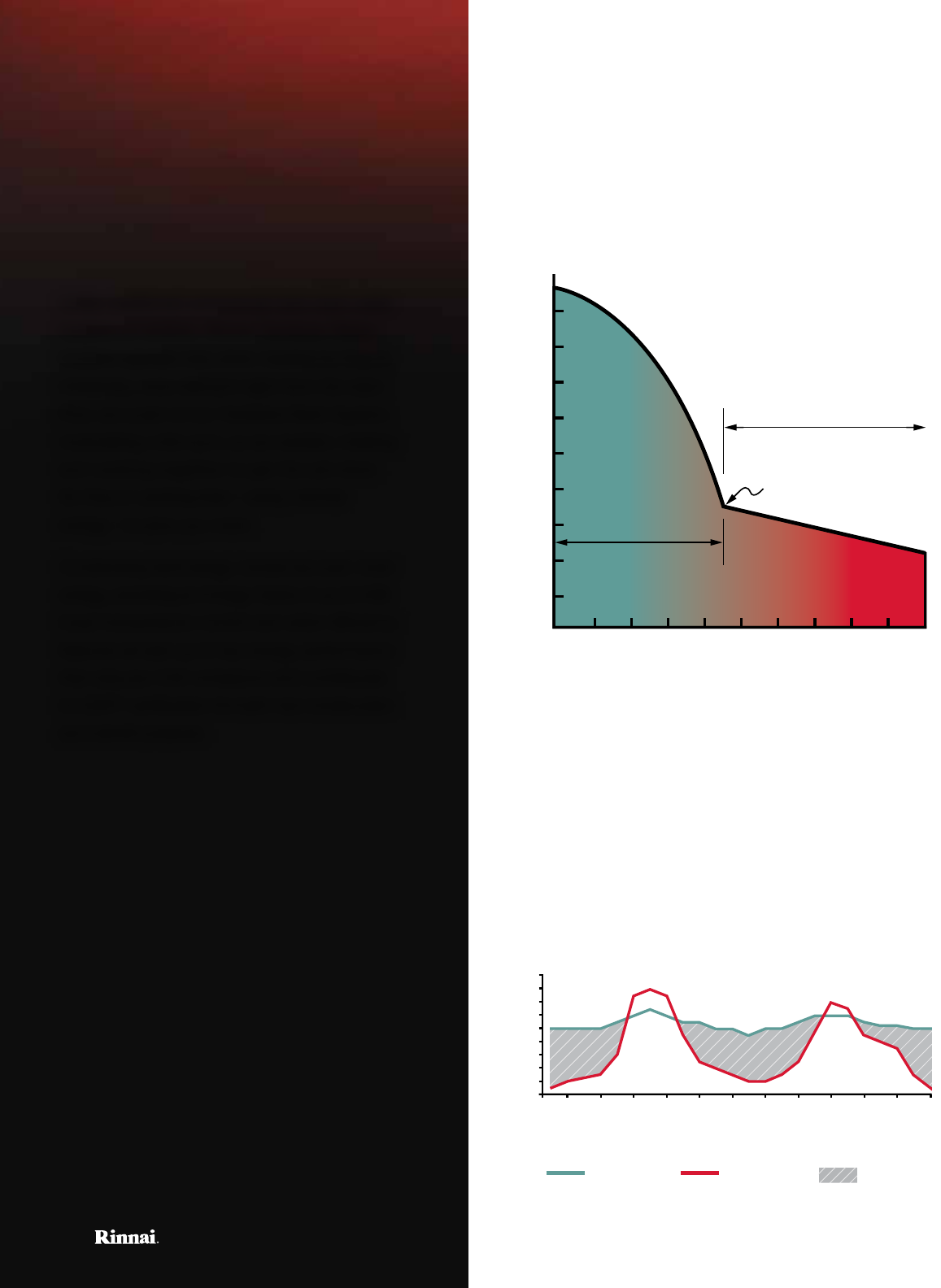

HOW CONDENSING TECHNOLOGY WORKS

HOW MODULATION WORKS



AS THE DAY IS LONG.

Precision-engineered Rinnai Tankless Water

Heaters provide an endless supply of hot water,

without interruption, day in and day out. Rinnai

quality is manufactured rock-solid reliable—you

can safely stake your reputation on it.

Use Rinnai Tankless Water Heaters with or

without a storage tank, or bank multiple units

together in the Rinnai Tankless Rack System

for the added benet of modulating technology

and redundancy.

When one unit is down, another takes over so

that your hot water supply never runs dry, and

your operation doesn’t miss a beat.

Reliable Rinnai Tankless Water Heaters deliver solutions for a full spectrum of

commercial applications—from retrot to new construction and light to heavy.

Because the system congures to your needs, every kind of space, every usage

demand is the perfect Rinnai t—and that makes it easy to do business.

Thanks to our exible venting options and Tankless Rack System, as well

as solutions that are custom designed (with and without storage), you can

use multiple units together to provide anywhere from 15,200 to 4.9 million

BTU—enough to replace even large boilers.

APPLICATIONS:

• Restaurants

• Hotels & Hospitality

• Healthcare Facilities

• Schools/Universities

• Oce Buildings

• Apartment Buildings



PERFECTLY DESIGNED.

County Courthouse: TRS06i with Common Vent (1.2M BTU) 63-Unit Multi-Family Residence: TRS06e (1.2M BTU)

THE PROOF IS IN THE

 

Rinnai Tankless Water Heater Case Studies

COURTHOUSE DEMANDS

Situation:

• Multiple showers, sinks, washing machines

and kitchen appliances used at once

• Peak usage hours with high demand; other

periods of time with low use

• Existing system was 2M BTU condensing

boiler and 725-gallon storage tank

Results:

• Installed an interior Rinnai Tankless Rack

System rated 1.2M BTU with Rinnai’s

Common Vent system

• Fully modulating system with a 78:1 turn-down

ratio capable of meeting uctuating demand

• Operated only when needed, saving energy

during low demand

• Experienced less than two hours of downtime

in the transition

MULTI-FAMILY RESIDENCE

Situation:

• High-demand multi-family project with 63 units

• Existing system included two large boilers at

500K BTU each and a 270-gallon storage tank

Results:

• Installed an exterior Rinnai Tankless Rack System

(six tankless water heaters) rated at 1.2M BTU

• Installation on rooftop took only a half day

and was less expensive than what was

originally specified

NATIONAL FULL-SERVICE RESTAURANT CHAIN

Situation:

• Conducted a one-year study to compare tank-

style water heaters to tankless water heaters

in six restaurants across America

• One restaurant from each region installed a

Rinnai Tankless Rack System with four tankless

units, while another from each region installed a

tank-style water heater

Results:

• On average, gas usage was approximately

21% less with tankless

• Each of the three restaurants who used

tankless saw an average energy savings

of $5,820 for the year

• With 1,100 locations nationwide, using Rinnai

Tankless Water Heaters could save this chain

as much as $6.4 million a year

MIDDLE SCHOOL COMPARISON

Situation:

• Two schools with similar hot water

system designs

• One outtted with tank-style water heaters

and one with Rinnai Tankless Water Heaters

Results:

• Rinnai Tankless Water Heaters saved 5.2 to

6.4 cents* per gallon of water used compared

to tank-style units

• Potential annual savings of $1,400

• Energy consumption reduced by more than

70% compared to tank-style units

*Based on a price of $1.60 per therm.

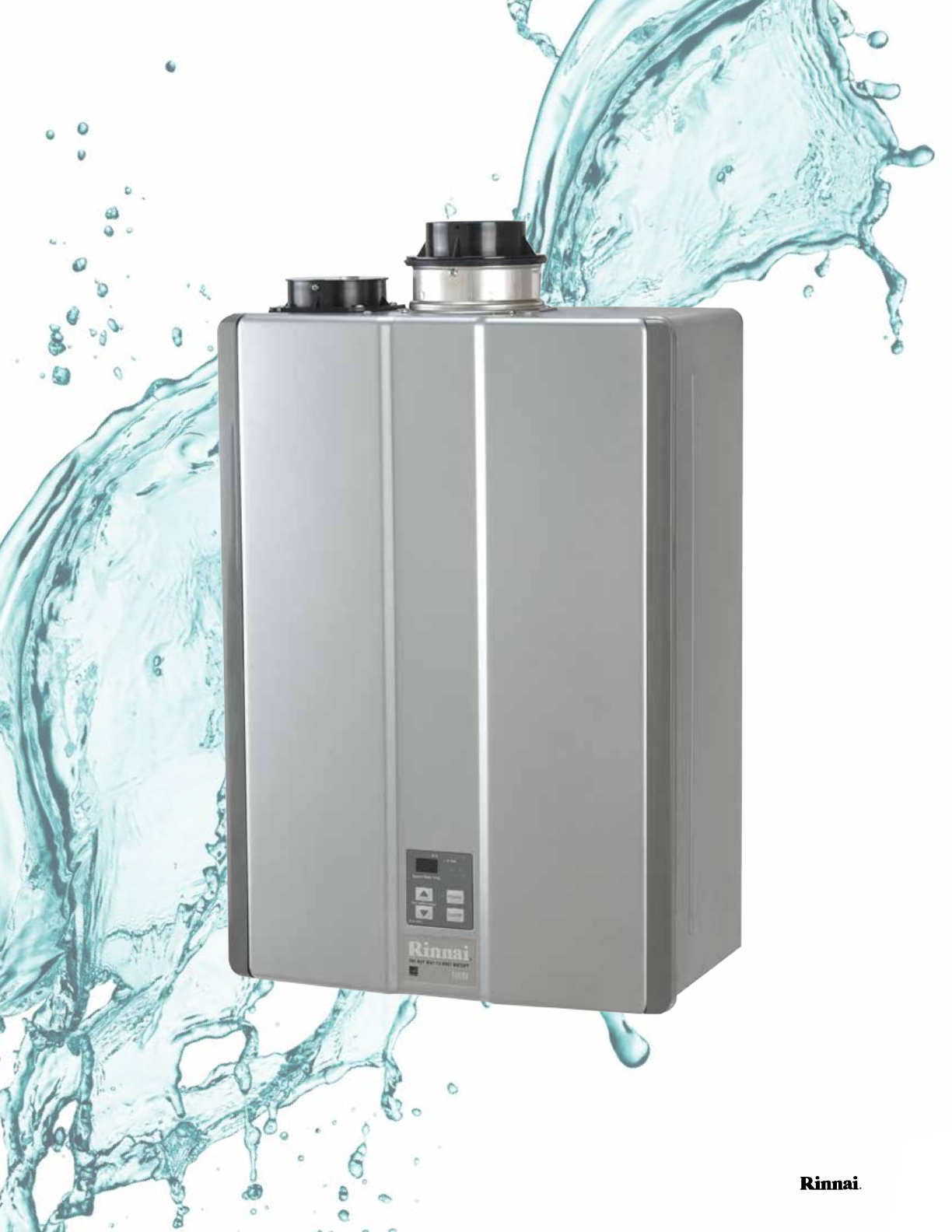

The Rinnai Ultra Series

THE ULTIMATE IN EFFICIENCY.

Delivering our most energy-ecient performance,

the Ultra Series features a unique condensing

design with two heat exchangers to maximize

heating value, as well as a top-down burner to

enhance reliability and durability and reduce

maintenance. The Ultra Series also oers the

most hot water capacity per BTU, with the

ability to support multiple, simultaneous hot

water demands.

BENEFITS AT A GLANCE

•Condensingtechnologyformaximumefciency

•Upto.96Energyfactor(ENERGYSTAR®qualied)

•Availableintwosizes:152,000and199,000BTU



 

The Rinnai Luxury Series

AWARD-WINNING PERFORMANCE.

The Luxury Series oers the highest output of our

non-condensing line of tankless units with sleek,

modern design and a range of standard features

and benets to fully satisfy the demands of light

commercial applications.

BENEFITS AT A GLANCE

•.82Energyfactor(ENERGYSTAR®qualied)

•Availableintwosizes:180,000and199,000BTU

•Isolationvalvesincludedforeasymaintenance

•Pre-mixceramicburnerwithdual-heatexchanger

CONDENSING

NON-CONDENSING

Condensing - Ultra Series Non-Condensing - Luxury Series

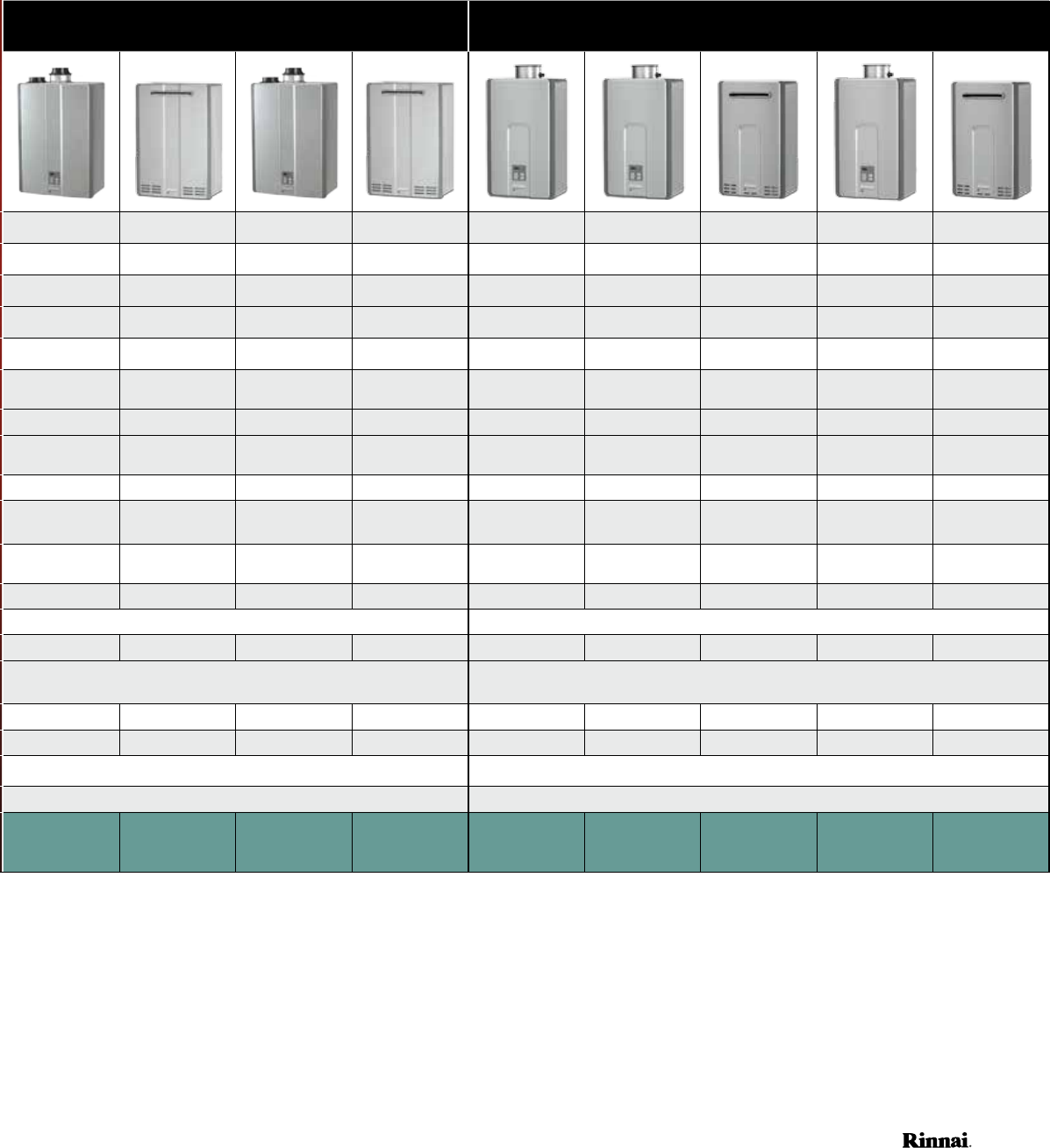

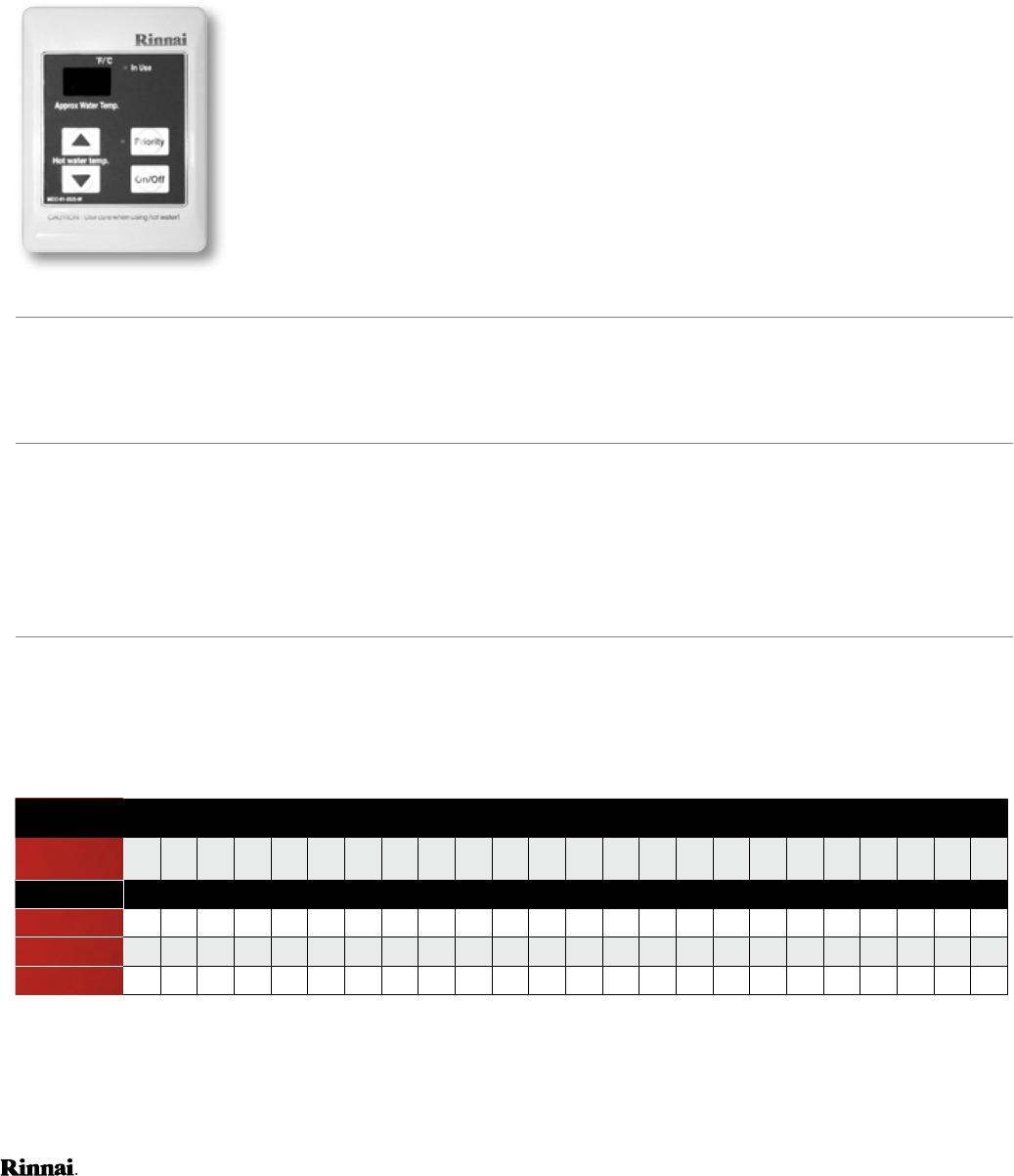

Model RUC98i RU98e RUC80i RU80e RL94i RLX94i RL94e RL75i RL75e

Dimensions in Inches

(w, h, d) 18.5x26x10 18.5x26x10 18.5x26x10 18.5x26x10 14x23x9 14x23x9 14x23x9 14x23x9 14x23x9

Weight (lbs / kg) 61.7/28.0 61.7/28.0 61.7/28.0 61.7/28.0 46.3/21.0 46.3/21.0 43.7/19.8 45.6/20.7 44.3/20.1

Available on TRS yes yes no no no no no no no

Installation Type Indoor Outdoor Indoor Outdoor Indoor Indoor Outdoor Indoor Outdoor

Min./Max. BTU

(natural gas) 15,200/199,000 15,200/199,000 15,200/152,000 15,200/152,000 10,300/199,000 10,300/192,000 10,300/199,000 10,300/180,000 10,300/180,000

Energy Factor 0.95 0.95 0.96 0.96 0.82 0.82 0.82 0.82 0.82

Temp. Range

Commercial†98º–185ºF 98º–185ºF 98º–185ºF 98º–185ºF 98º–185ºF 98º–185ºF 98º–185ºF 98º–160ºF 98º–160ºF

Min. Activation Rate 0.4gpm 0.4gpm 0.4gpm 0.4gpm 0.4gpm 0.4gpm 0.4gpm 0.4gpm 0.4gpm

Flow Rate

(70° / 50° Temp. Rise) 5.5/7.7 5.5/7.7 4.2/5.9 4.2/5.9 4.8/6.7 4.8/6.4 4.8/6.7 4.3/6.0 4.3/6.0

Hot Water Flow

Rate Range 0.26–9.8gpm 0.26–9.8gpm 0.26–8.0gpm 0.26–8.0gpm 0.26–9.8gpm 0.26–9.8gpm 0.26–9.8gpm 0.26–7.5gpm 0.26–7.5gpm

Controller (standard)§MC-91-2US MC-91-2US MC-91-2US MC-91-2US MC-91-2US MC-91-2US MC-91-2US MC-91-2US MC-91-2US

Controllers (optional)§MC-100-1,BC-100V-1,MCC-91-2(fortemperatures>140°F) MC-100-1,BC-100V-1,MCC-91-2(fortem peratures>140°F)

Ultra Low NOx yes yes yes yes no yes yes yes yes

Warranty

(Commercial)

Limited5-yearonheatexchanger,5-yearonparts,

1-yearonlabor(2-yearoptionalonlabor)

Limited5-yearonheatexchanger,5-yearonparts,

1-yearonlabor(2-yearoptionalonlabor)

Mobile Home Certiﬁed yes yes yes yes yes yes yes yes yes

Valves Shipped in Box yes yes yes yes yes yes yes yes yes

High Altitude

Approved Upto10,200ft. Upto10,200ft.

Certiﬁcations AHRI,CSA,NSF,ENERGYSTAR®AHRI,UPC,CSA,NSF,ENERGYSTAR®

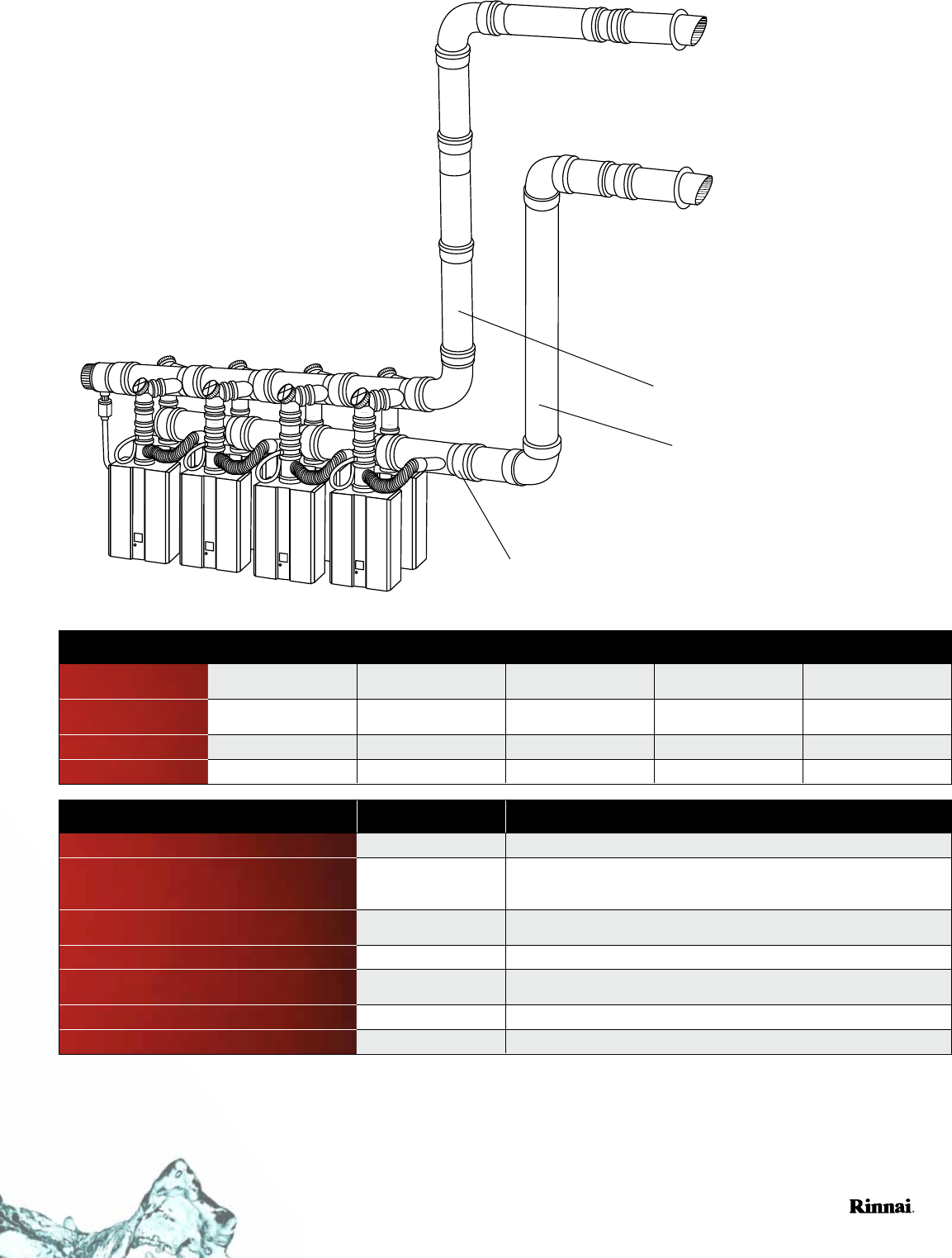

Venting Options

Concentric or

PVC / CPVC

N/A

Concentric or

PVC / CPVC

N/A

Concentric Concentric

N/A

Concentric

N/A

† To achieve temperatures over 140° F, an MCC-91-2

commercial controller must be purchased separately.

§MC-91-2 controllers are backwards compatible with

previous water heaters.

Isolation Valve Kit is available for purchase directly

from Rinnai or your local distributor. For complete

warranty details, visit www.rinnai.us/warranty or call

1-800-621-9419.

Luxury/Ultra Series Limited Warranty: Standard Limited Warranty (some restrictions apply)—

Commercial: 5-year heat exchanger, 5-year parts, 1-year labor, extended to 2-year labor when

unit is registered with Rinnai within 30 days of purchase*.

Luxury Series heat exchanger warranty drops to 3 years if recirculation pump is used without an

on-demand control system. Ultra Series maintains the full, applicable heat exchanger warranty if

the recirculation system is controlled, but drops to 3 years if the system is uncontrolled.

* Oering of an extended 5-year labor warranty when the unit is installed in a residential application

and 2-year labor warranty when the unit is installed in a commercial application if the product

is registered with Rinnai within 30 days of purchase. Product registration is not required for the

extended term in California, Quebec, or other jurisdictions that prohibit warranty benets conditioned

on registration. For complete warranty details, visit www.rinnai.us/warranty or call 1-800-621-9419.

Condensing - Ultra Series Non-Condensing - Luxury Series

Model RUC98i RU98e RUC80i RU80e RL94i RLX94i RL94e RL75i RL75e

Dimensions in Inches

Weight (lbs / kg) 61.7/28.0 61.7/28.0 61.7/28.0 61.7/28.0 46.3/21.0 46.3/21.0 43.7/19.8 45.6/20.7 44.3/20.1

Available on TRS yes yes no no no no no no no

Installation Type Indoor Outdoor Indoor Outdoor Indoor Indoor Outdoor Indoor Outdoor

Min./Max. BTU

(natural gas) 15,200/199,000 15,200/199,000 15,200/152,000 15,200/152,000 10,300/199,000 10,300/192,000 10,300/199,000 10,300/180,000 10,300/180,000

Energy Factor 0.95 0.95 0.96 0.96 0.82 0.82 0.82 0.82 0.82

Temp. Range

Commercial†98º–185ºF 98º–185ºF 98º–185ºF 98º–185ºF 98º–185ºF 98º–185ºF 98º–185ºF 98º–160ºF 98º–160ºF

Min. Activation Rate 0.4gpm 0.4gpm 0.4gpm 0.4gpm 0.4gpm 0.4gpm 0.4gpm 0.4gpm 0.4gpm

Flow Rate

(70° / 50° Temp. Rise) 5.5/7.7 5.5/7.7 4.2/5.9 4.2/5.9 4.8/6.7 4.8/6.4 4.8/6.7 4.3/6.0 4.3/6.0

Hot Water Flow

Rate Range 0.26–9.8gpm 0.26–9.8gpm 0.26–8.0gpm 0.26–8.0gpm 0.26–9.8gpm 0.26–9.8gpm 0.26–9.8gpm 0.26–7.5gpm 0.26–7.5gpm

Controller (standard)§MC-91-2US MC-91-2US MC-91-2US MC-91-2US MC-91-2US MC-91-2US MC-91-2US MC-91-2US MC-91-2US

Controllers (optional)§MC-100-1,BC-100V-1,MCC-91-2(fortemperatures>140°F) MC-100-1,BC-100V-1,MCC-91-2(fortem peratures>140°F)

Ultra Low NOx yes yes yes yes no yes yes yes yes

Warranty

(Commercial)

Limited5-yearonheatexchanger,5-yearonparts,

1-yearonlabor(2-yearoptionalonlabor)

Limited5-yearonheatexchanger,5-yearonparts,

1-yearonlabor(2-yearoptionalonlabor)

Mobile Home Certiﬁed yes yes yes yes yes yes yes yes yes

Valves Shipped in Box yes yes yes yes yes yes yes yes yes

High Altitude

Approved Upto10,200ft. Upto10,200ft.

Certiﬁcations AHRI,CSA,NSF,ENERGYSTAR®AHRI,UPC,CSA,NSF,ENERGYSTAR®

Venting Options

Concentric or

PVC / CPVC

N/A

Concentric or

PVC / CPVC

N/A

Concentric Concentric

N/A

Concentric

N/A

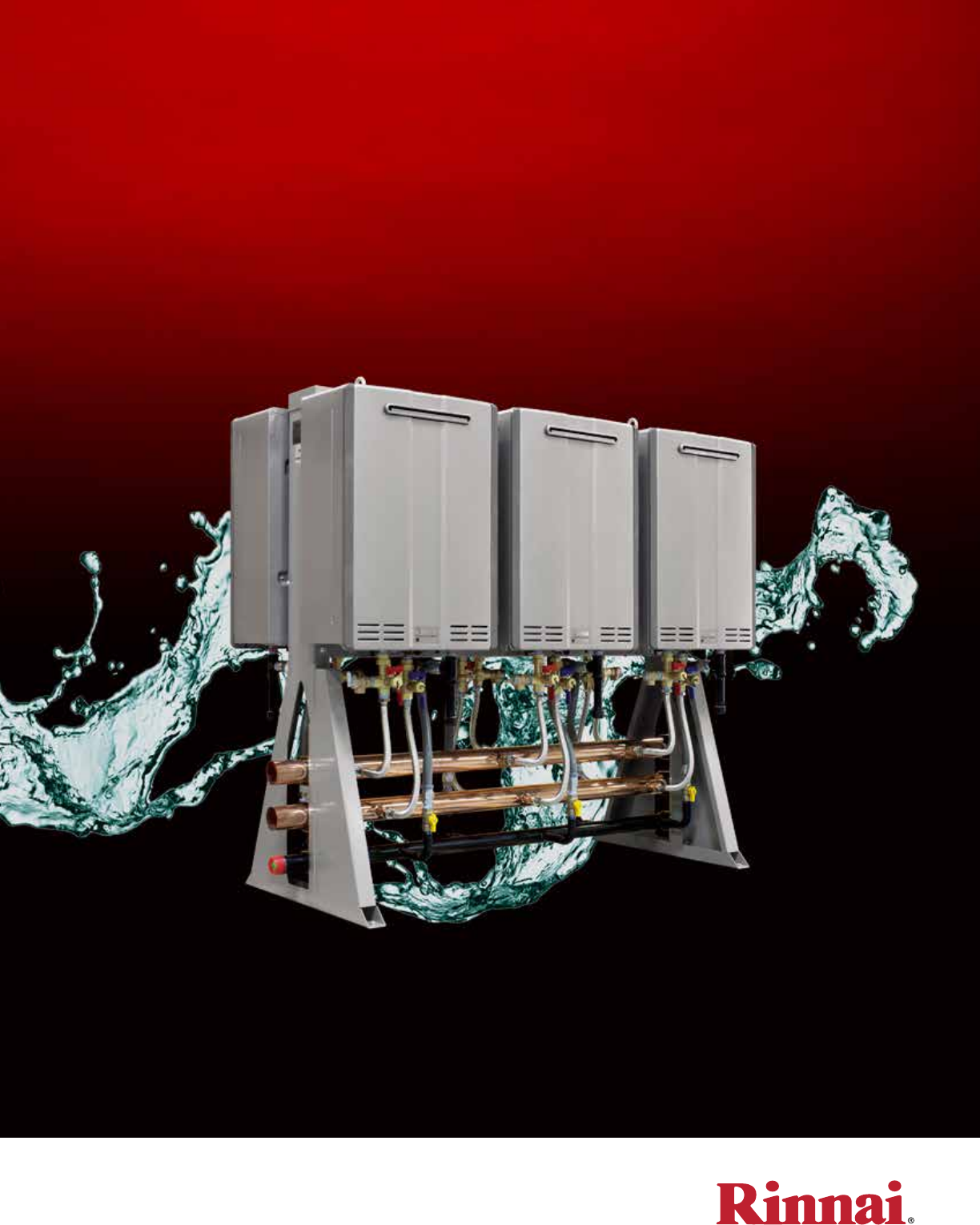

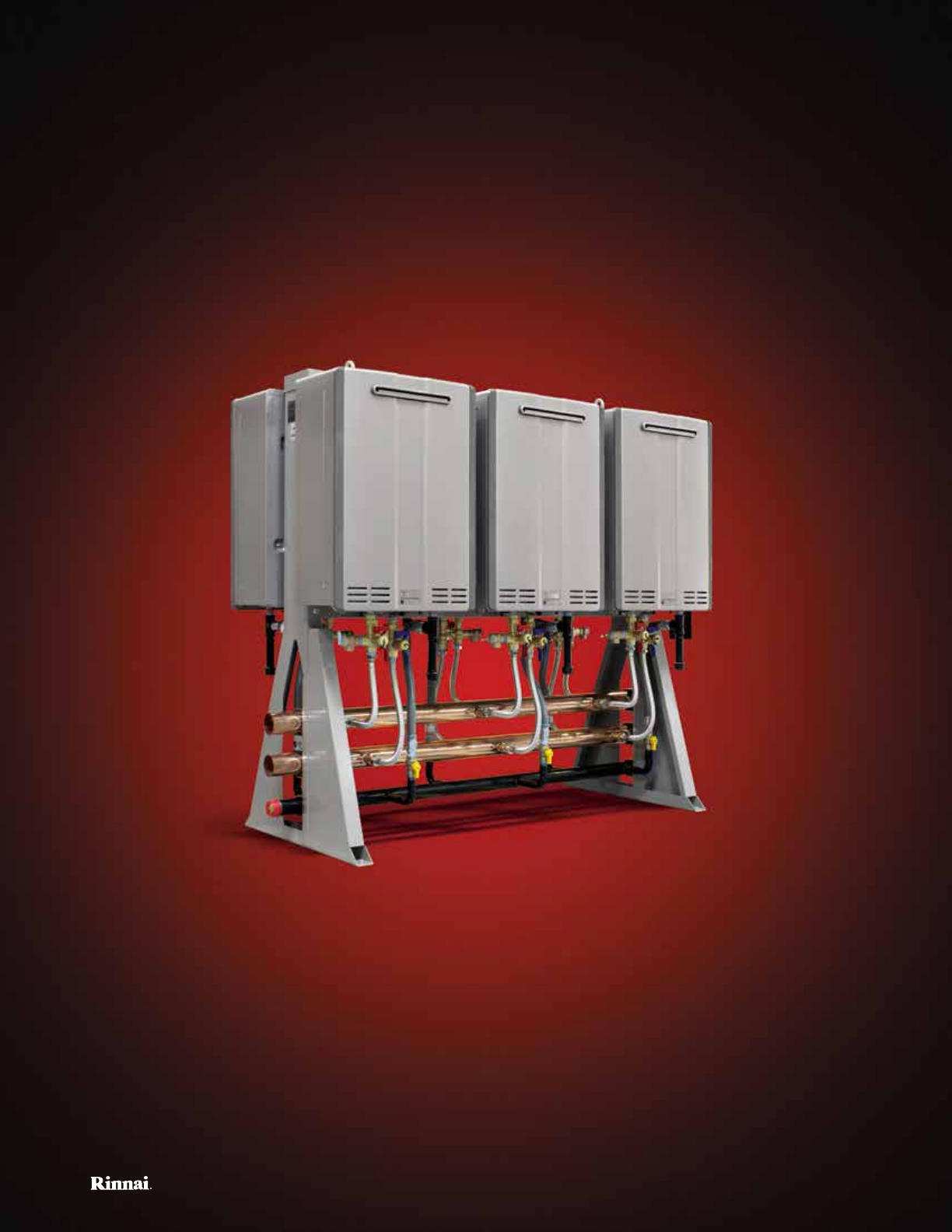

THE RINNAI

 

Shipped fully assembled in a variety of congurations, the new Rinnai

Tankless Rack System (TRS) arrives ready to install, and ready to impress.

A complete and fully modular solution, TRS features a sturdy, pre-assembled

aluminum rack with multiple Rinnai Tankless Water Heaters already mounted

and connected to each other. Together, the units have enough capacity to suit

a range of light to heavy commercial water heating requirements, replacing

even the largest boilers and tank-style water heaters with one simple, energy-

ecient solution.

Built to your advantage:

Capacity in a whole new form.

• Maneuverability: Fits, fully assembled, through standard 32-inch doorways

and on elevators

• TRS racks come with two to six tankless units per rack, which can be combined

for up to 25 tankless water heaters and provide up to 4.9 million BTU

• Wall-mount or freestanding; outdoors or indoors

• Corrosion-resistant, marine-grade aluminum is strong, but lightweight

• Value engineered from the start—from installation to energy savings

• Modulation technology with turn-down ratios of up to 327:1 to ensure hot

water delivery and eciency

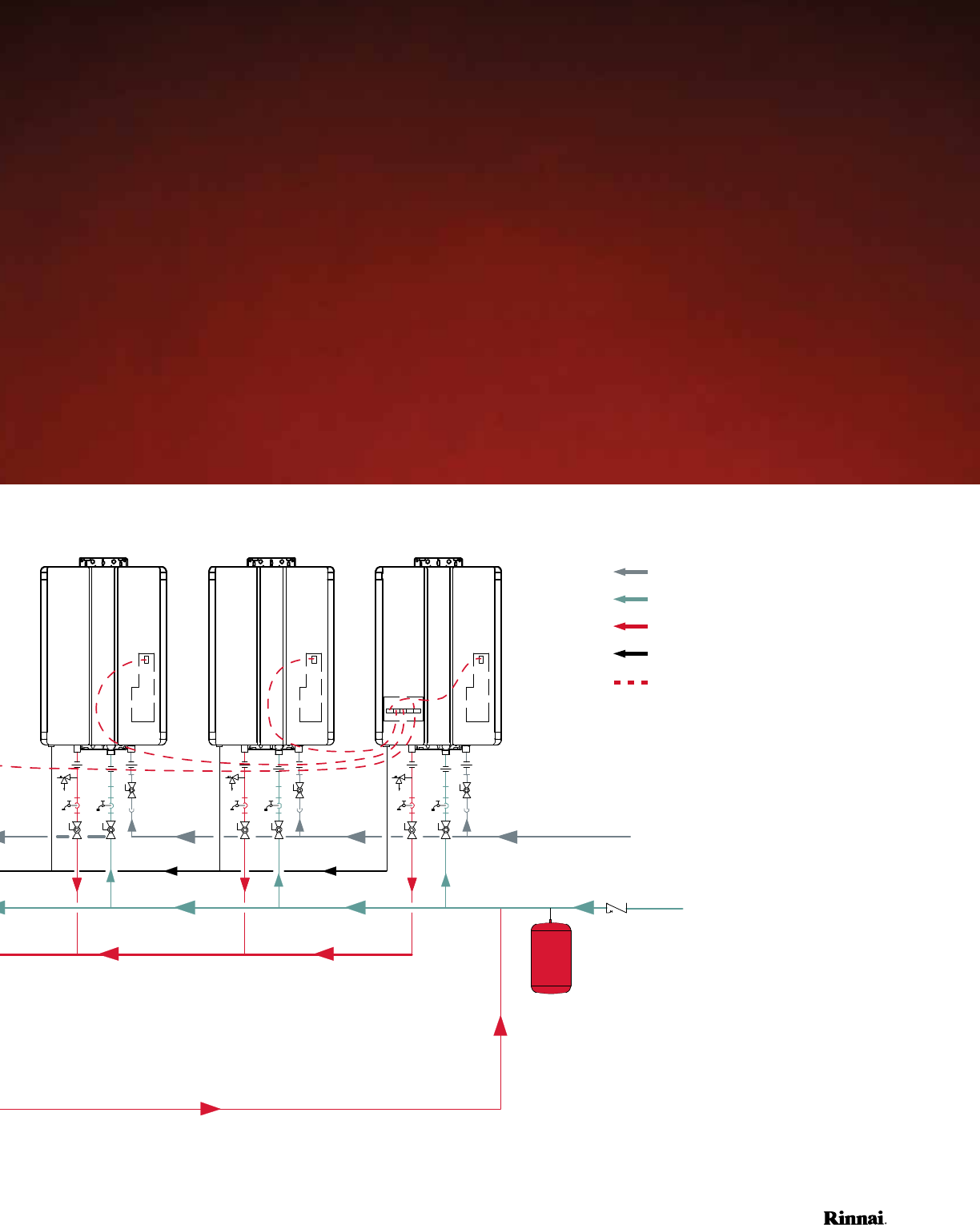

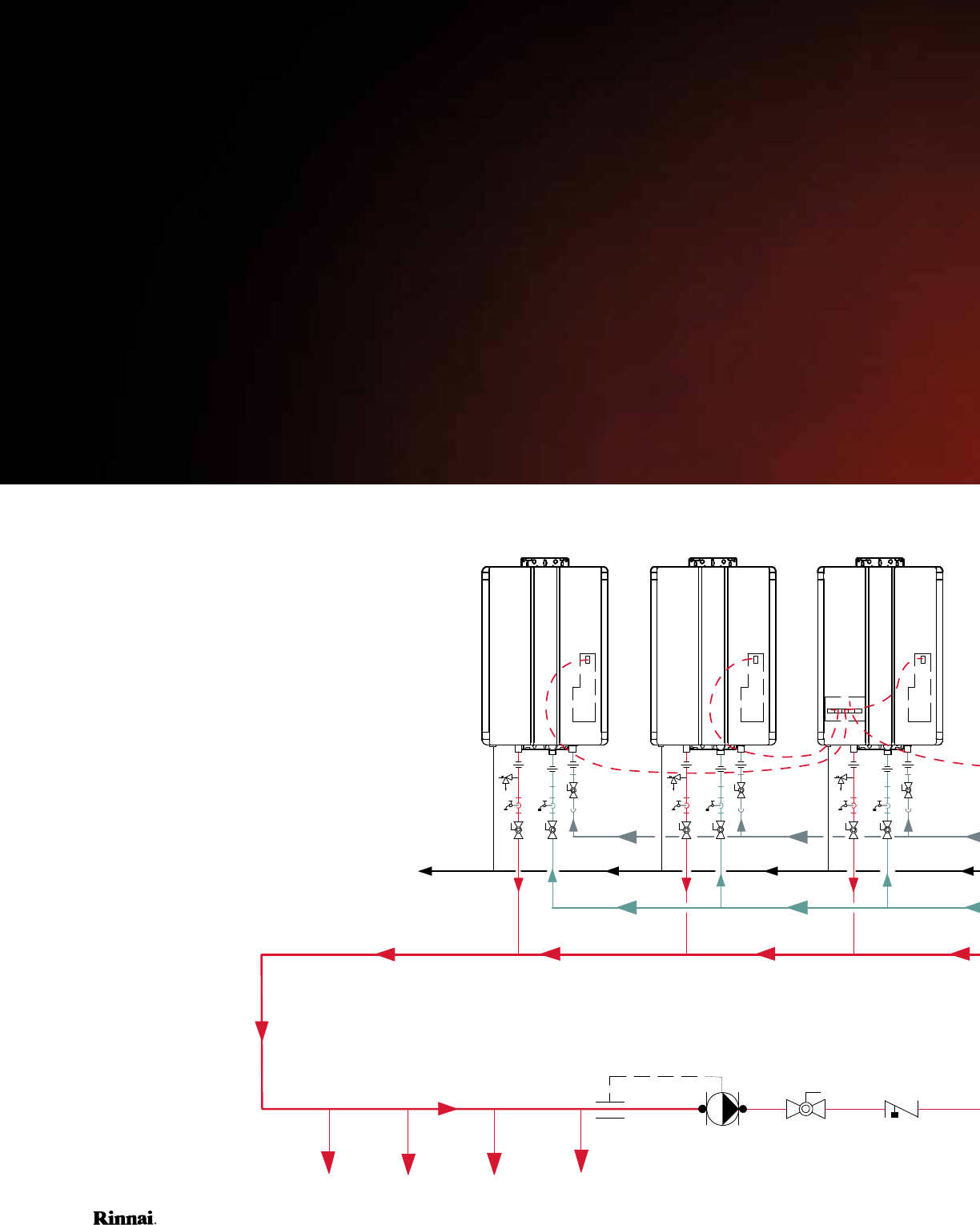

• Use with or without storage tank and/or recirculation loop

Model TRW02 TRW03 TRS02 TRS02iL TRS03 TRS03iL TRS04 TRS05 TRS06

Type WallMount WallMount Freestand.,Back-to-Back Freestand.,In-Line Freestanding Fr e e st an d., I n - L i n e * Freestanding Freestanding Freestanding

Number of Tankless Units 2units 3units 2units 2units 3units 3units 4units 5units 6units

Height x Width x Length (in.) 57.69x18x44 57.69x18.01x44 55.56x41.5x28.5 55.56x41.5x28.5 55.56x41.5x28.5 55.56x41.5x28.5 55.56x41.5x28.5 55.56x62x28.5 55.56x62x28.5

Shipping Weight—lbs. 296.5 402.5 340.5 340.5 414.2 414.2 4 87. 9 593.1 666.8

Fully Assembled Weight—lbs. 175.5 260.5 211.5 211. 5 285.2 285.2 358.9 4 45.1 518.8

Gas Manifold (dia.) 1" 1-1/4" 1-1/4" 1-1/4" 1-1/4" 1-1/2" 1-1/4" 1-1/2" 1-1/2"

Water Manifold (dia.) 2" 2" 2" 2" 2" 2-1/2" 2" 2-1/2" 2-1/2"

Flow Rate @ 60 ΔT (GPM/GPH) 12.6/756 18.9/1,134 12.6/756 12.6/756 18.9/1,134 18.9/1,134 25.2/1,512 31.5/1,891 37.8/2,269

Flow Rate @ 70 ΔT (GPM/GPH) 10.8/648 16.2/972 10.8/648 10.8/648 16.2/972 16.2/972 21.6/1,296 27.0/1,620 32.4/1,945

Flow Rate @ 80 ΔT (GPM/GPH) 9.5/567 14.2/851 9.5/567 9.5/567 14.2/851 14.2/851 18.9/1,134 23.6/1,418 28.4/1,701

Flow Rate @ 90 ΔT (GPM/GPH) 8.4/504 12.6/756 8.4/504 8.4/504 12.6/756 12.6/756 16.8/1,008 21.0/1,260 25.2/1,512

Flow Rate @ 100 ΔT (GPM/GPH) 7.6/454 11.3/681 7.6/454 7.6/454 11.3/681 11.3/681 15.1/907 18.9/1,134 22.7/1,361

Max Input (BTU/h) 398,000 597,000 398,000 398,000 597,000 597,000 796,000 995,000 1,194,000

Max. Current (Amperes) 812 8 8 12 12 16 20 24

Electrical Requirements

Frame Material Aluminum.0905052-H32

Water Trunk Line Material RigidCopper

Water Branch Line Diameter 3/4"CSST

Gas Trunk Line Material Schedule40Steel

Gas Branch Line Material PVCOverCSST

Note: Explanation of Part Numbers—For specic model numbers, add i or

e (for external / internal) water heaters and N or P (for Natural Gas or LP).

Example: TRW02iN, 2-unit wall-mount rack with interior Natural Gas RU98

tankless units.

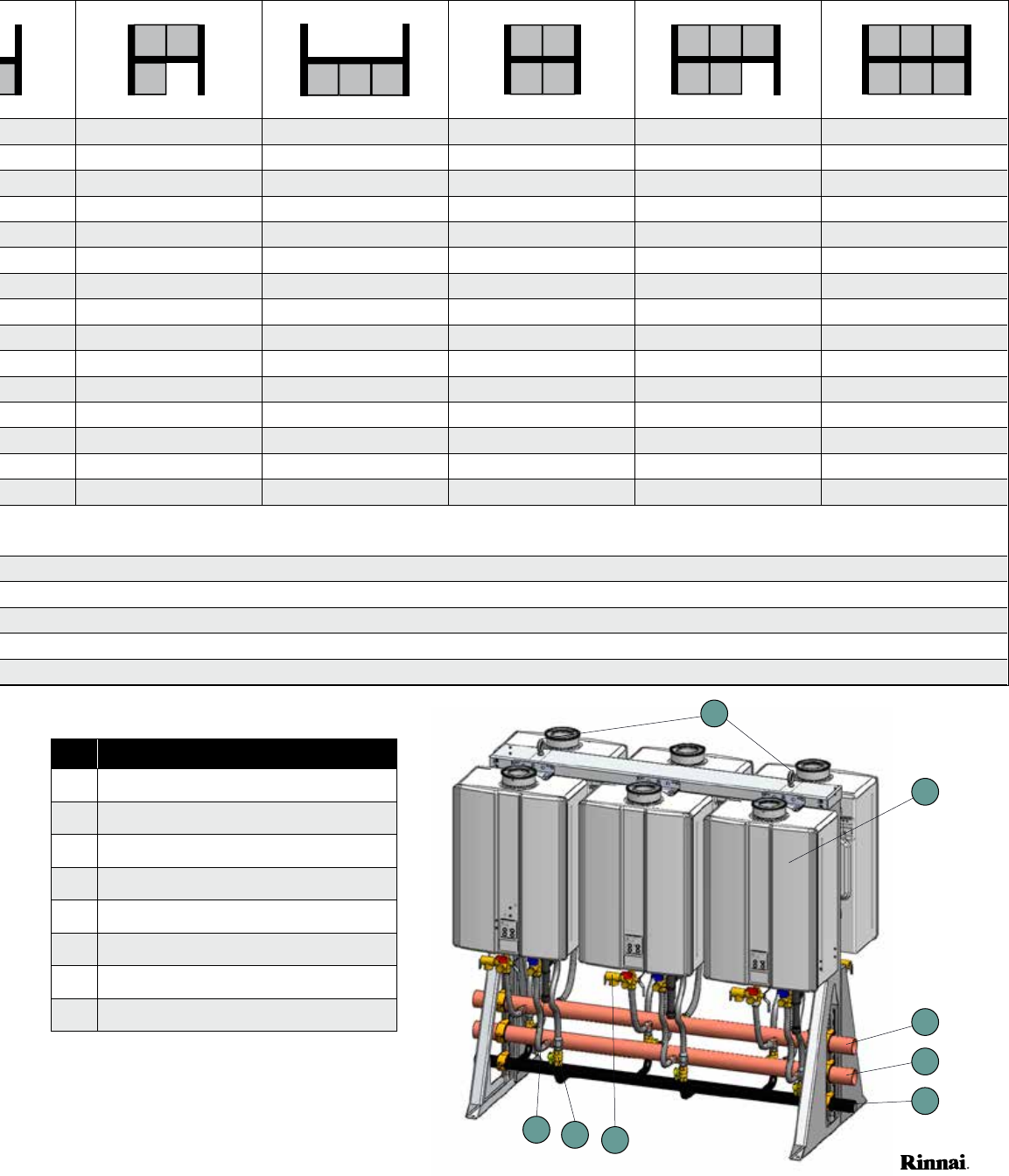

WALL-MOUNTED RACK

NO DESCRIPTION

1Lifting Eyebolt

2Rinnai Tankless Indoor or Outdoor Unit

3Manifold, Hot Water

4Manifold, Cold Water

5 Manifold, Gas

6¾” Dirt Leg

7¾ FNPT Brass Ball Valve – Gas

8Pressure Relief Valve (PRV)

TANKLESS RACK SYSTEM 

UP TO 4.9 MILLION BTU AND 14,700 GALLONS PER HOUR.

†

†GPH represents ow rate delivered as GPH, not storage GPH.

*Facing same direction.











•Installershallprovideelectricaloutletconnections

•Eachwaterheaterrequires120VAC,60Hzpowersourceinaproperlygroundedcircuit

For Demonstration Purposes Only.
