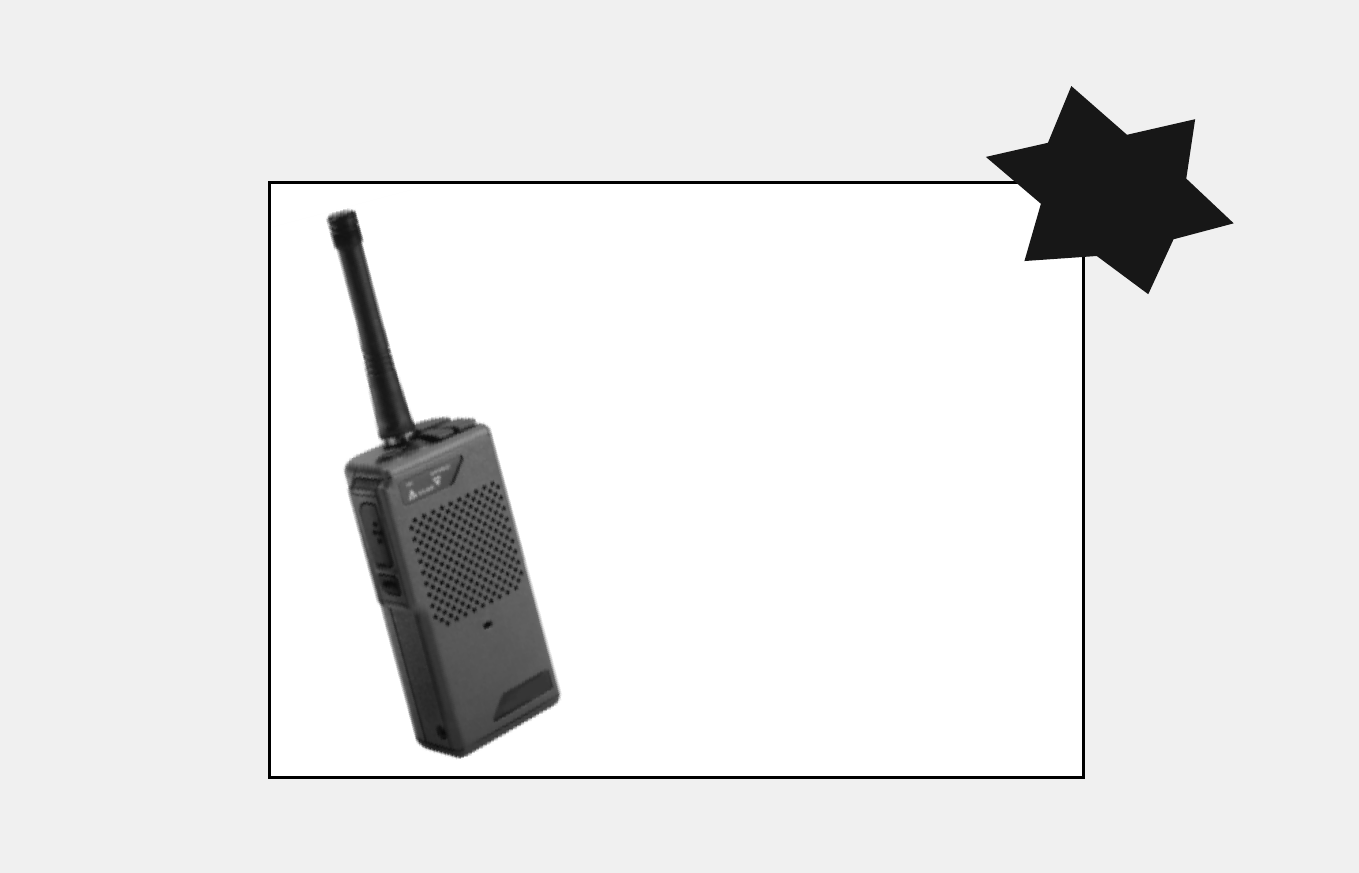

RITRON JMX "FOUR SERIES"
OWNER'S MANUAL
•
Four-channel capability
•
Easier, enhanced programming method
•
1, 2 and 3 Watt models
•
Quick-change battery
•
Drop-in charge capable
•
Weather scan feature (VHF only)
•
Easy-to-hear, high audio output
•
Built-in Quiet Call
®
tone feature
•
Customer-selectable frequency settings
NENE
NENE
NEWW
WW
W
!!!!
!!!!
!!
"FOUR SERIES" HANDHELDS"FOUR SERIES" HANDHELDS
"FOUR SERIES" HANDHELDS"FOUR SERIES" HANDHELDS
"FOUR SERIES" HANDHELDS
COMP COMP
COMP COMP
COMPAA
AA
ACTCT
CTCT
CT
UL UL
UL UL
ULTRATRA
TRATRA
TRA-SMALL-SMALL
-SMALL-SMALL
-SMALL
PR PR
PR PR
PROFESSIONAL TWOFESSIONAL TW
OFESSIONAL TWOFESSIONAL TW
OFESSIONAL TWO-O-
O-O-
O-WW
WW
WAA
AA
AY RADIOSY RADIOS
Y RADIOSY RADIOS
Y RADIOS
ACCESSORIES
ii

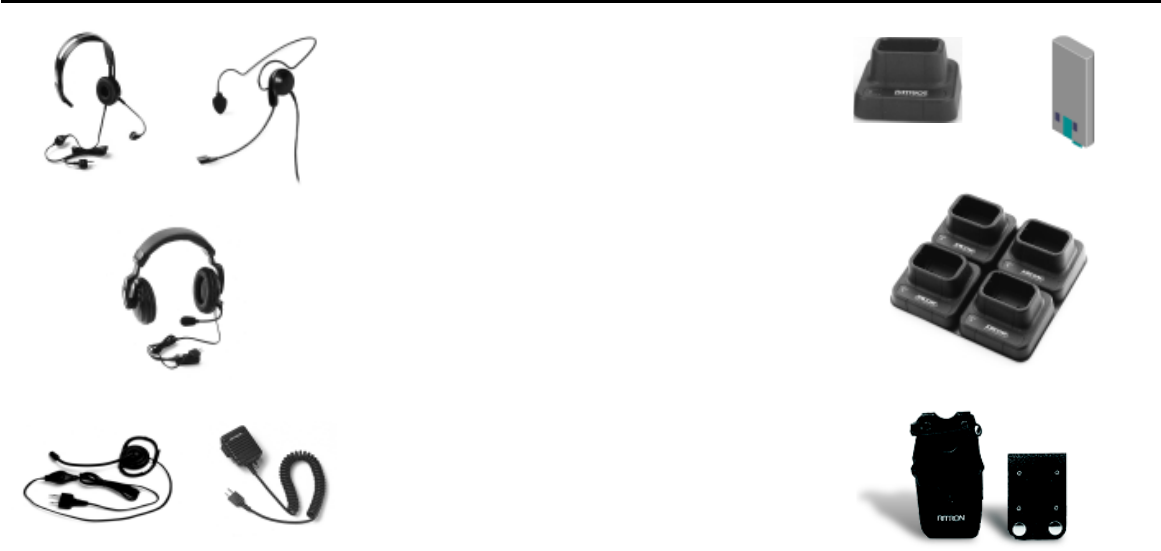

OPTIONAL ACCESSORIES:
TO ORDER, CALL 1-800-USA-1-USA.
BPJS-6N .......... Spare/ Replacement JMX Battery
BPS-6N-SC ...... Spare/ Replacement SST Battery
BPS-6N-MH ..... Replacement High Capacity Battery
AFS-150 ........... VHF Molded Flex Antenna
AFS-450 ........... UHF Molded Flex Antenna
RHD-1X ............ Single Ear Headset
RHD-4X ............ Dual Ear Headset
RHD-5X ............ Lightweight Over-the-ear Earset /w In-line PTT
RHD-6X ............ Lightweight Behind-the-head Earset w/ In-line PTT
RSM-3X ........... Remote Speaker Microphone
REP-2 ............... Low Profile Earphone
CCL-B ............. Cigarette Lighter Charger
MHS-A............. Cordura Holster w/quick release
BCJS-4AD ...... 4-Well Drop-in Charger: JMX
BCPS-4AD ...... 4-Well Drop-in Charger: SST
BCJS-AD ......... Single-Well Drop-in Charger: JMX (Overnight)
BCC-PS ........... Drop-in High-rate Charger/
Conditioner; for SST Models only
Call RITRON for complete listings.
RHD-1X
Single Ear Headset
RHD-4X
Dual Ear Headset
RSM-3X
Remote Speaker Mic
The NEW "Four Series" models contain updated programming features, and program differently than other JMX
portables. These radios provide more channels, allow you to change channel programming contents individually,
and also allow you to delete one or more channels, and add it back in, if needed.
RHD-5X
Over-the-ear Earset
RHD-6X
Behind-the-ear Earset
BCJS-4AD
4-Well Drop-in Charger
BCPS-AD
Single-Well Drop-in Charger
MHS-A
Swivel Holster
BPJS-6N
Spare Battery
Have questions? Call
800-USA-1-USA
(800-872-1872) or visit our website at www.ritron.com
14500026 rev 10-3-01.p65 10/15/01, 10:50 AM1
page 3 RITRON, INC. 1-800-USA-1-USA
(1-800-872-1872)
Have questions? Call
800-USA-1-USA
(800-872-1872) or visit our website at www.ritron.com
DESCRIPTION PAGE
BATTERIES
FIG-5: Battery Access and Installation .............................................. 8
Optional Charging Accessories ........................................................... 8
Batteries ................................................................................................ 9
General ................................................................................................. 9
Charging ............................................................................................... 9
Battery Maintenance and Conditioning ............................................ 9
TROUBLESHOOTING
Notes .................................................................................................... 10
Chart .................................................................................................... 10
FCC LICENSE REQUIRED
FCC Regulations ................................................................................. 11
Service ................................................................................................. 11
How to Obtain an FCC Radio License .............................................. 11
LIMITED WARRANTY................................................ INSIDE BACK COVER
TABLES:
1. Programmable Frequencies and Codes ........................................ 5
2. Quiet Call Codes and Frequencies ................................................ 5
FIGURES:
1. Belt Clip Installation........................................................................ 1
2. Radio Controls and Connectors ...................................................... 2
3. To Scan Weather Frequencies ....................................................... 3
4. To Place the Radio in Program/ Readout Mode .......................... 4
5. Battery Access and Installation ...................................................... 8
DESCRIPTION PAGE
ACCESSORIES
Optional Accessories ............................................................................ i i
INTRODUCTION
General ................................................................................................. 1
Inspection.............................................................................................. 1
"Four Series" Model Numbers ............................................................. 1
Model Identification............................................................................. 1
New Programming Method ................................................................. 1
FIG-1: Belt Clip Installation ............................................................... 1
CONTROL & OPERATION ........................................................................... 2
FIG-2: Radio Controls and Connectors ............................................. 2
OPERATION
Weather Scan (VHF Radios Only) ....................................................... 3
FIG-3: To Scan Weather Frequencies ............................................... 3
What The Radio Tones Mean ............................................................. 3
Interference Eliminator Codes ............................................................ 3
TO DETERMINE FREQUENCIES & CODES IN "FOUR SERIES" JMX
Select Each Channel to Beep Out (Read Out) Channel Contents.. 4
FIG-4: To Place the Radio in Program/ Readout Mode ................. 4
TABLE 1: FREQUENCY CODES ................................................................ 5
TABLE 2:
INTERFERENCE ELIMINATOR (QUIET CALL®) TONE CODES
................... 5
HOW TO PROGRAM "FOUR SERIES" JMX PORTABLES ...................... 6
!! CAUTIONS — ALL RADIOS !! ................................................................. 7
TABLE OF CONTENTS
NOTE: Refer to pages ii and 8 for Accessory information.
Call RITRON at
800-USA-1-USA
(800-872-1872) for a complete Accessory listing or visit our website at www.ritron.com
iii
14500026 rev 10-3-01.p65 10/15/01, 10:50 AM2
Have questions? Call
800-USA-1-USA
(800-872-1872) or visit our website at www.ritron.com
CH
INTRODUCTION
page 1
PHILLIPS
HEAD
SCREW
BELT
CLIP

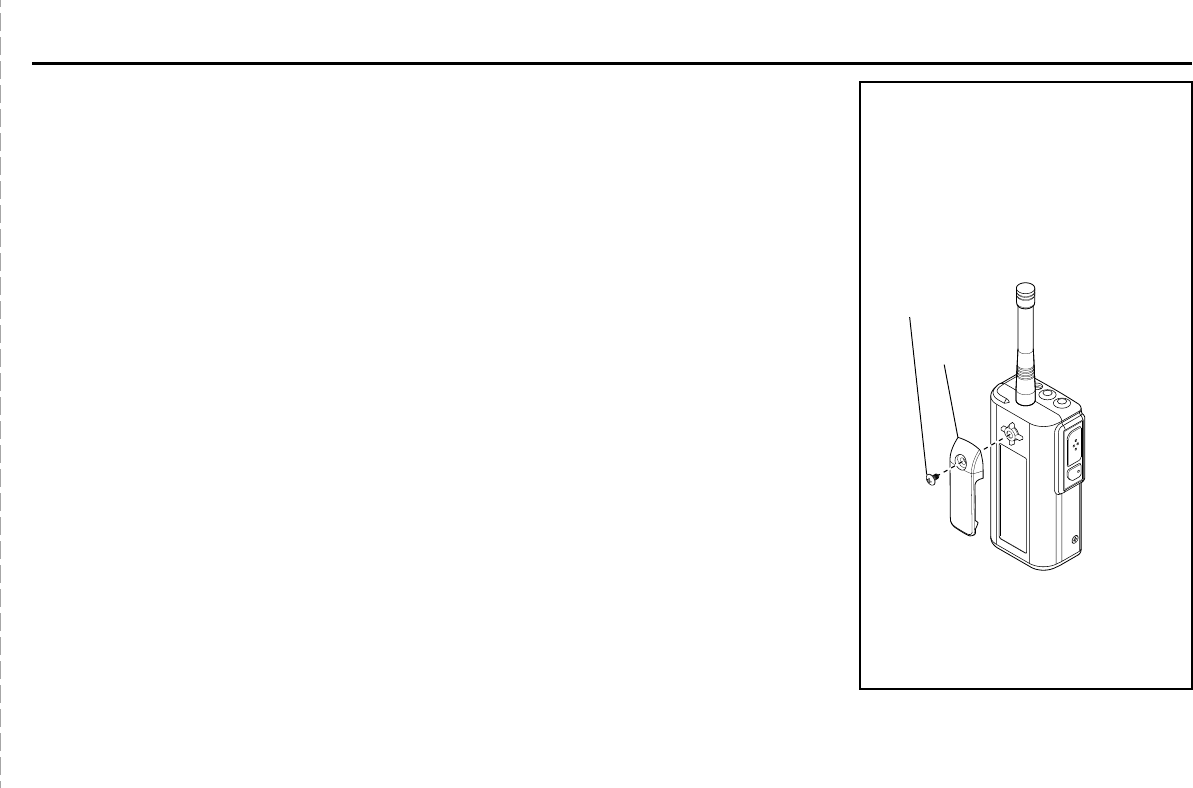

FIG-1: BELT CLIP INSTALLATIONFIG-1: BELT CLIP INSTALLATION
FIG-1: BELT CLIP INSTALLATIONFIG-1: BELT CLIP INSTALLATION
FIG-1: BELT CLIP INSTALLATION
Place the clip on the back of the
radio case, aligning the screw
hole in the clip with the hole in
the case. Tighten the screw.
See FIG-1 below.
"FOUR SERIES" MODEL NUMBERS
VHF
MODEL
JMX-141 .........
(Jobcom) ..... (1.5-Watt, 4 Channel)
JMX-146XP ....
(Jobcom) ..... (2-Watt, 4 Channel)
JMX-144 .........
(Jobcom) ..... (4-Watt, 4 Channel)
JMX-146 .........
(Jobcom) ..... (2-Watt, 4 Channel *)
UHF
MODEL
JMX-441 .........
(Jobcom) ..... (1-Watt, 4 Channel)
JMX-446XP ....
(Jobcom) ..... (2-Watt, 4 Channel)
JMX-444 .........
(Jobcom) ..... (3-Watt, 4 Channel)
JMX-446 .........
(Jobcom) ..... (2-Watt, 4 Channel *)
* JMX-146/-446 are limited to four-channel capability
using table frequencies only, PC programming is not
possible with these models.
NEW PROGRAMMING METHOD
These new "Four Series" portable radios are the re-
sult of continuous product improvement, with special
attention to our customers' feedback. Each is
equipped with these improved features:
• Four-channel capability,
• Allows you to select and program each
channel individually with channel table
frequencies and interference eliminator codes;
• Allows you to delete a selected channel.
To attach the belt clip to the radio:
CAUTION:
Use only the included Phillips head
screw
, because a longer screw could
damage radio electronics.
GENERAL
This manual covers Ritron JMX "Four Series" radios.
These radios are compact, programmable two-way
handhelds designed to operate in a professional FM
communications band (VHF or UHF business available).
These handhelds feature push-button operating con-
trols, with the Push-To-Talk (PTT) and Channel buttons
on one side of the radio, and the On/ Volume Up, Volume
Down/ Off and monitor controls on the top. Each radio
can be programmed to contain a unique set of operating
frequencies and options.
All JMX "Four Series" radios feature quick-change bat-
tery pack and drop-in charger capabilities. See Acces-
sories on the previous page.
INSPECTION
Make sure the package includes a radio, antenna,
rechargeable battery pack and belt clip. Examine the
equipment immediately after delivery and report any
damage to your shipping company.
MODEL IDENTIFICATION
The model number on the back of the radio case indi-
cates its operating band. A color "dot" label on the bot-
tom of JMX radio cases also indicates the frequency.
Refer to the Frequency Table on page 5.
VHF
radios are designed to operate on up to four
channels within the 5 MHz band between factory
standard 150 and 155 MHz.
UHF
radios are designed to operate on up to four
channels within the 10 MHz band between factory
standard 460 and 470 MHz.
14500026 rev 10-3-01.p65 10/15/01, 10:50 AM3
page 3 RITRON, INC. 1-800-USA-1-USA
(1-800-872-1872)
Have questions? Call
800-USA-1-USA
(800-872-1872) or visit our website at www.ritron.com
CH
ON OFF/HOLD
VOLUME

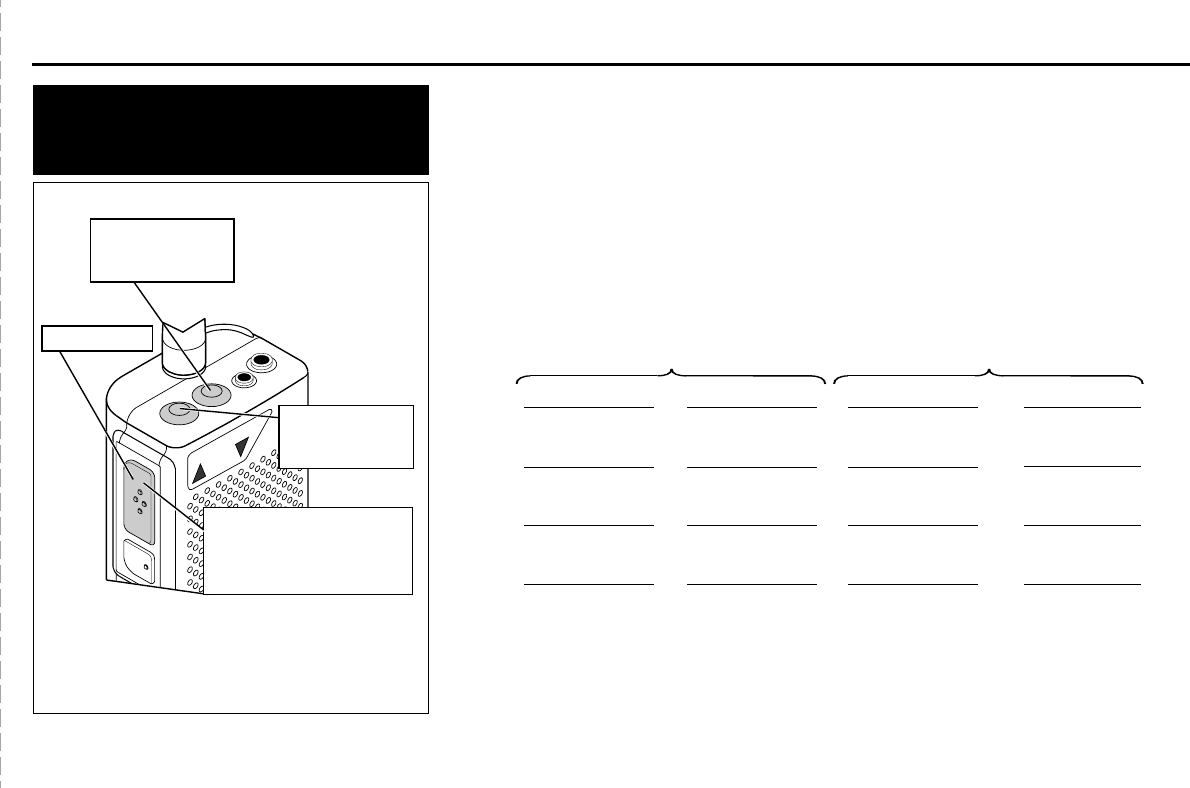

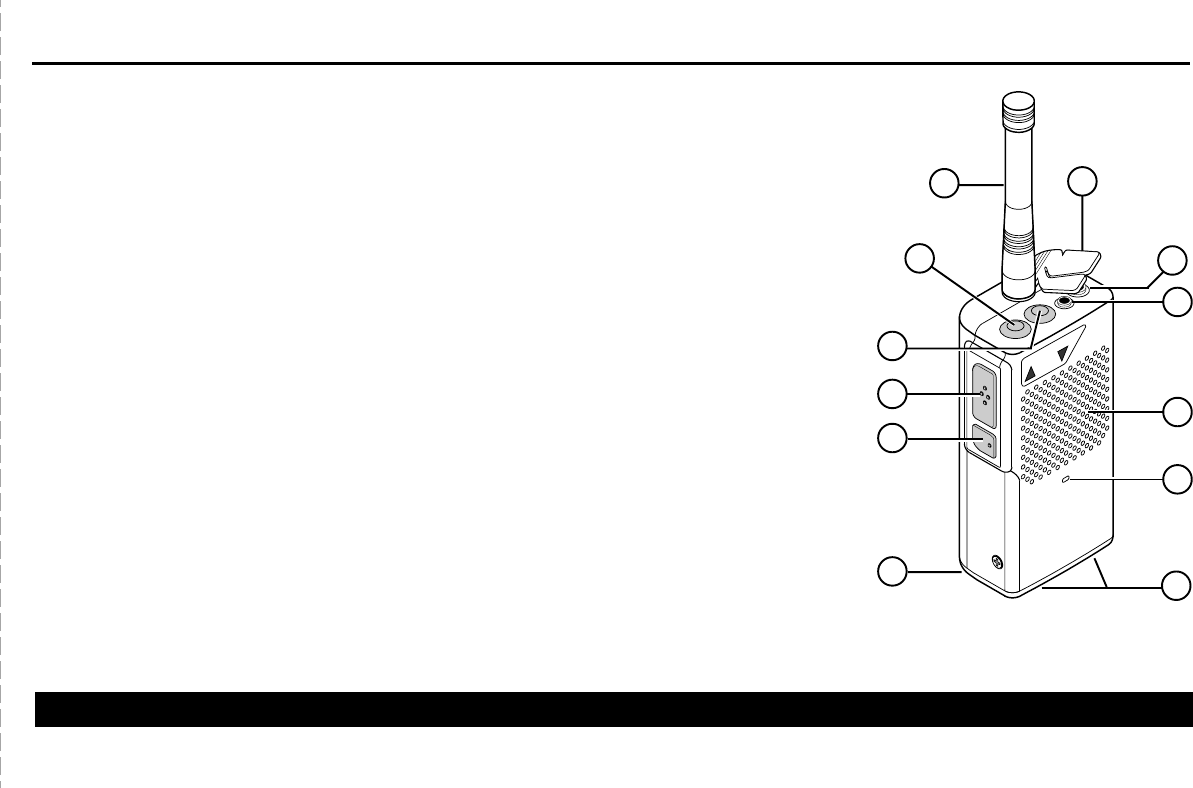

CONTROL & OPERATION
IMPORTANT: CHARGE THE BATTERY PACK BEFORE using the radio for the first time. Refer to Batteries, pages 8 and 9.
page 2
1
ANTENNA
The flexible antenna radiates and receives radio signals.
Screw the antenna base all the way into the threaded
bushing on top of the radio.
NOTE:
Use only the type of antenna furnished with the
radio. VHF and UHF antennas are not
interchangeable.
2
ON/ VOLUME UP
To switch the unit On, press the On/ Volume Up button; the
speaker will beep a number of times equal to the channel.
Once the radio is On, press this button to increase volume.
3
VOLUME DOWN/ OFF
Press the Volume Down/ Off button to decrease volume. To
switch Off the unit, press and hold this button until the
speaker emits a double beep.
4
PUSH-TO-TALK SWITCH (PTT)
Press and hold the PTT when transmitting; release it to
receive.
5
CHANNEL SELECT
Press the button once and the radio will beep a number of
times equal to the current channel number. Pressing the
button again will increment the channel and the radio will
beep the new channel.
6BATTERY ACCESS DOOR (CASE BOTTOM)
The battery access door may be removed to access the
battery pack. Refer to Battery Access & Installation, FIG-5,
page 8.
7
JACK COVER
This rubber cover seals out dust and moisture, etc. Snap
the cover into the audio accessory jack and charge jack
openings when the jacks are not in use.
8
AUDIO ACCESSORY JACK
The audio accessory jack is used to plug in earphone
options, and, in conjunction with the charge jack, to connect
an optional remote speaker/ microphone or a single- or dual-
ear headset.
9
CHARGE JACK
The battery pack may be charged through this jack using
the supplied RITRON charger cube. Refer to Accessories,
page 1, for additional charging options.
10
SPEAKER
The speaker, located behind the front grille, allows you to
hear calls on your channel.
11
MICROPHONE
The microphone allows your voice to be heard in
transmissions to other radios. Speak in a normal tone;
shouting does not improve your listener's reception.
12
DROP-IN CHARGING CAPABILITY
Two contacts, in the bottom of the radio, permit charging
the battery pack with an optional drop-in charger. Refer to
Optional Charging Accessories, page 8.
FIG-2: RADIO CONTROLS & CONNECTORSFIG-2: RADIO CONTROLS & CONNECTORS
FIG-2: RADIO CONTROLS & CONNECTORSFIG-2: RADIO CONTROLS & CONNECTORS
FIG-2: RADIO CONTROLS & CONNECTORS
1
2
3
4
5
6
7
8
9
10
11
12
14500026 rev 10-3-01.p65 10/15/01, 10:50 AM4
Have questions? Call
800-USA-1-USA
(800-872-1872) or visit our website at www.ritron.com
OPERATION
Channel Select Tone
When you press the channel select button,
the radio "beeps" the number of times equal
to the channel number selected.
Program/ Readout Mode Tone
Placing the radio in Program/ Readout Mode
causes it to beep rapidly for about three
seconds, then to "triple beep." This series of
beeps indicates the radio is ready for you
either to program, or to read out the pro-
grammed contents. See pages 4 and 6.
Transmitter Time-Out
A low tone will sound and the transmitter
automatically shuts off if you hold down the
PTT button continuously for more than 60
seconds. The radio switches to "receive."
Quiet Call Squelch Tones
If you press both volume buttons simulta-
neously, a single beep indicates Quiet Call
squelch is on; a "double beep" means it is off.
page 3
WEATHER SCAN (VHF RADIOS ONLY)
TO SCAN STANDARD U.S. WEATHER FREQUENCIES
and hear
weather forecasts, follow the steps in FIG-3 below. To resume normal
two-way operation, turn the radio off, then on again.
FIG-3: TO SCAN WEATHER FREQUENCIESFIG-3: TO SCAN WEATHER FREQUENCIES
FIG-3: TO SCAN WEATHER FREQUENCIESFIG-3: TO SCAN WEATHER FREQUENCIES
FIG-3: TO SCAN WEATHER FREQUENCIES
WHAT THE RADIO TONES MEAN
Power On/ Self Test"OK"
When it is first turned on, the radio runs a quick
"self test" to confirm basic functions. The radio
then "beeps" the number of times equal to the
channel number selected.
Error Tones
In the Program/ Readout Mode, the radio will emit
an Error Tone if a programming error is made.
If the self test detects a diagnostic error, an
alternating error tone sounds. Turn the radio off,
then on again. Consult a Ritron Dealer, or Ritron,
Inc. with any problem you cannot correct.
Low Battery Tone
When the battery voltage has dropped below a
certain level, the radio will sound a short "beep"
every 20 seconds to inform you to charge the
battery. JMX-146/ -446 does not have this
feature.
A longer low tone will sound when the battery
is completely discharged, then automatically
shut off the radio. (All models).
QUIET CALL TONE CODES (Interference Eliminator Codes)
Tone codes filter out static, noise and reduce unwanted "chatter" on radio
channels. When you operate on a frequency with a tone code, you screen out
most interference. This allows you to communicate with less interference and
to hear only those users in your radio group.
IMPORTANT: All radios in the talk group must operate on the same frequency
and tone code.
ONOFF/HOLD
VOLUME
3. PRESS & RELEASE.
The radio will start
beeping.
CH
2. PRESS & HOLD.
4. CONTINUE HOLDING THE CHAN-
NEL BUTTON UNTIL THE BEEPING
STOPS. THEN RELEASE IT &
LISTEN.
5. TO FIND THE NEXT ACTIVE
WEATHER CHANNEL, PRESS &
RELEASE THE CHANNEL BUTTON.
1. PRESS & HOLD UNTIL
THE "RADIO OFF"
TONES ARE HEARD,
THEN RELEASE.
14500026 rev 10-3-01.p65 10/15/01, 10:50 AM5
page 3 RITRON, INC. 1-800-USA-1-USA
(1-800-872-1872)
Have questions? Call
800-USA-1-USA
(800-872-1872) or visit our website at www.ritron.com
TO DETERMINE FREQUENCIES & CODES IN "FOUR SERIES" JMX
page 4
a.
Ten (10) beeps = 0 (zero).
b. The radio will beep out "44" as an interference eliminator code if it was programmed for "No Tone."
c. If a radio is PC-programmed with
any frequency or tone not listed
in Table 1or 2 on page 5, the
radio will sound the error tone on contents "beepout."
*
The radio pauses to sound a low tone at the end of each set of beeps.
SELECT EACH CHANNEL TO BEEP OUT (READ OUT) CHANNEL CONTENTS:
1. To enter the Programming/ Readout Mode, refer to FIG-4 at left.
2. YOU MUST Press the Channel Selector button to select the channel to be read out.
3. Press and release the On/ Volume Up button.
The radio will begin to sound a series of beeps; each set in the series equals one digit of each two-digit
(frequency code/ interference eliminator code) code in the radio;
see Tables 1 and 2, opposite.
4. Count the beeps in each set. Write down the number of beeps for each digit in the spaces provided below.
EXAMPLES
: 2 beeps = 2; 10 beeps = 0 (zero).
5. To read out another channel, follow steps 2 through 4. When you are finished, complete step 6.
6. Turn the radio off.
NOTES:
*
The radio pauses to sound a low tone at the end of each set of beeps, separating one digit from the next.
The radio sounds a triple beep when the readout (beep out) process is complete.
FIG-4:FIG-4:
FIG-4:FIG-4:
FIG-4: TO PLACE THE RADIO INTO PLACE THE RADIO IN
TO PLACE THE RADIO INTO PLACE THE RADIO IN
TO PLACE THE RADIO IN
PROGRAM/ READOUT MODEPROGRAM/ READOUT MODE
PROGRAM/ READOUT MODEPROGRAM/ READOUT MODE
PROGRAM/ READOUT MODE
IMPORTANT:
To talk to other users in your group, all radios
must be set to the same frequency and
Interference Eliminator codes.
ON OFF/HOLD
VOLUME
3. PRESS & RELEASE.
The radio will start
beeping rapidly.
CH
2. PRESS & HOLD.
4. CONTINUE HOLDING THE PTT
UNTIL THE BEEPING STOPS,
THEN RELEASE IT.
The radio will emit a triple tone:
it is now in Program/ Readout Mode.
1. PRESS & HOLD UNTIL
THE "RADIO OFF"
TONES ARE HEARD,
THEN RELEASE.
FREQUENCY CODE: INTERFERENCE ELIMINATOR CODE:
CH. 1
CH. 2
CH. 3
CH. 4
1st digit 2nd digit
# of beeps
*
# of beeps 3rd digit 4th digit
# of beeps
*
# of beeps
1st digit 2nd digit
# of beeps
*
# of beeps 3rd digit 4th digit
# of beeps
*
# of beeps
1st digit 2nd digit
# of beeps
*
# of beeps 3rd digit 4th digit
# of beeps
*
# of beeps
1st digit 2nd digit
# of beeps
*
# of beeps 3rd digit 4th digit
# of beeps
*
# of beeps
CHANNEL:
*
*
*
*
SELECT THE CHANNEL NUMBER YOU WISH TO READ OUT:
NOTES:
14500026 rev 10-3-01.p65 10/15/01, 10:51 AM6
Have questions? Call
800-USA-1-USA
(800-872-1872) or visit our website at www.ritron.com
FREQUENCY CODES
TABLE 2: PROGRAMMABLE TONE CODES
INTERFERENCE ELIMINATOR
(QUIET CALL
®
) TONE CODES
JMX
BEEP OUT/
PTT CLICK
CODE
page 5
67.0
71.9
74.4
77.0
79.7
82.5
85.4
88.5
91.5
94.8
97.4
100.0
103.5
107.2
110.9
114.8
118.8
123.0
127.3
131.8
136.5
141.3
146.2
151.4
156.7
162.2
XZ
XA
WA
XB
SP
YZ
YA
YB
ZZ
ZA
ZB
1Z
1A
1B
2Z
2A
2B
3Z
3A
3B
4Z
4A
4B
5Z
5A
5B
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44**
45
46
47
48
49
50
51
00
167.9
173.8
179.9
186.2
192.8
203.5
210.7
218.1
225.7
233.6
241.8
250.3
69.4
159.8
165.5
171.3
177.3
No Tone
183.5
189.9
196.6
199.5
206.5
229.1
254.1
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
67.0
71.9
74.4
77.0
79.7
82.5
85.4
88.5
91.5
94.8
97.4
100.0
103.5
107.2
110.9
114.8
118.8
123.0
127.3
131.8
136.5
141.3
146.2
151.4
156.7
162.2
6Z
6A
6B
7Z
7A
M1
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
167.9
173.8
179.9
186.2
192.8
203.5
210.7
218.1
225.7
233.6
241.8
250.3
69.4
159.8
165.5
171.3
177.3
No Tone
183.5
189.9
196.6
199.5
206.5
229.1
254.1
JMX
BEEP OUT/
PTT CLICK
CODE
Freq.
( Hz )
Freq.
( Hz )
Other
Radio Brands
Tone
Code
Other
Radio Brands
Tone
Code
**
Refer to Note 2 on both pages 4 & 6.
❖❖ 2-digit Interference Eliminator placeholder code
Freq.
(Hz)
Freq.
(Hz)
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
00
154.600 Green Dot
154.570 Blue Dot
151.625 Red Dot *
151.955 Purple Dot
151.925
154.540
154.515
154.655
151.685
151.715
151.775
151.805
151.835
151.895
154.490
151.655
151.745
151.865
151.820 MURS
†
151.880 MURS
†
151.940 MURS
†
DELETE Code
❖
467.7625 J
467.8125 K
464.5500 Yellow Dot *
464.5000 Brown Dot *
467.8500 Silver Star
467.8750 Gold Star
467.9000 Red Star
467.9250 Blue Star
469.2625
462.5750 White Dot
462.6250 Black Dot
462.6750 Orange Dot
464.3250
464.8250
469.5000
469.5500
463.2625
464.9125
464.6000
464.7000
462.7250
††
DELETE Code
❖
VHF Business Band UHF Business Band
MHz Frequency Color MHz Frequency Color
JMX
BEEP OUT/
PTT CLICK
FREQ. CODE
JMX
BEEP OUT/
PTT CLICK
FREQ. CODE
DELETE Code ❖❖
TABLE 1: PROGRAMMABLE FREQUENCY CODES
†
Not available on JMX-146 model
††
Not available on JMX-446 model
❖2-digit Frequency placeholder code
*
Itinerant frequency
NOTES:
1. Programming ten (10) PTT clicks = the digit 0 (zero); hearing (10) ten beeps on readout = the digit 0 (zero).
2. To delete a channel, all four placeholders must be programmed with "0" (zero)
3. When a channel is deleted, the remaining channels stay in the same channel order. When you press the
Channel Button, the radio will skip over any deleted channel(s).
14500026 rev 10-3-01.p65 10/15/01, 10:51 AM7
page 3 RITRON, INC. 1-800-USA-1-USA
(1-800-872-1872)
Have questions? Call
800-USA-1-USA
(800-872-1872) or visit our website at www.ritron.com
HOW TO PROGRAM "FOUR SERIES" JMX PORTABLES
To match other radios, the owner can select FREQUENCY and INTERFERENCE ELIMINATOR TONE CODES from
Tables 1 and 2 on page 5.
1. Choose your frequency codes (Table 1), and interference eliminator codes (Table 2).
Note that each code consists of two digits.
Write down the number of PTT clicks
to program each channel frequency in the spaces provided below.
page 6
FREQUENCY CODE: INTERFERENCE ELIMINATOR CODE:
CH. 1
CH. 2
CH. 3
CH. 4
1st digit 2nd digit
# of PTT clicks
*
# of PTT clicks 3rd digit 4th digit
# of PTT clicks
*
# of PTT clicks
1st digit 2nd digit
# of PTT clicks
*
# of PTT clicks 3rd digit 4th digit
# of PTT clicks
*
# of PTT clicks
1st digit 2nd digit
# of PTT clicks
*
# of PTT clicks 3rd digit 4th digit
# of PTT clicks
*
# of PTT clicks
1st digit 2nd digit
# of PTT clicks
*
# of PTT clicks 3rd digit 4th digit
# of PTT clicks
*
# of PTT clicks
CHANNEL:
*
*
*
*
SELECT THE CHANNEL NUMBER YOU WISH TO PROGRAM:
2. Follow the instructions in FIG-4 on page 4 to place the radio in the Program/ Readout
Mode.
3.
YOU MUST
press the Channel Selector button to select the channel to be programmed.
4. Enter codes in the sequence shown in Step 1 by clicking the PTT the number of times
equal to each digit of the code.
EXAMPLE: Code "04":
Click the PTT ten times to program "0", pause—the
radio sounds a low tone. Click the PTT four times to program "4", pause—the
radio sounds a low tone.
5.
When all digits are programmed, press and release On/ Volume Up to save your
programming. The radio sounds a triple beep.
NOTE:
An error tone will sound if you attempt to save an incorrect digit. Turn the radio
OFF
, check the digits you are attempting to enter, then start over at Step 2.
6.
To program another channel, repeat steps 3 through 5. When you are finished
programming, complete step 7.
7. Turn the radio
OFF
and then
ON
again—the radio is now ready to use.
NOTES:
a.
Ten (10) PTT clicks = 0 (zero).
b.
YOU MUST
enter "44" to enter "No Code" interference
eliminator to match radios not having tone codes. Refer to
Table 2 on page 5.
c. IF YOU MAKE A PTT CLICK ERROR, turn the radio
OFF
then
ON
,
and start over.
d. If the radio does not sound a confirming triple tone when you
attempt to enter Program/ Readout Mode, the radio was factory
or dealer customized to disable programming. Consult the radio
owner or your dealer.
e. Refer to Frequency and Interference Eliminator Tone Code
tables on page 5.
f. To delete a channel, follow steps 2 and 3 above, then enter "0"
(zero = 10 PTT clicks) for each of the four digit locations.
Remaining channels are in the same sequence, and the
Channel Selector will skip over the deleted channel number.
*
The radio pauses to sound a low tone
at the end of each set of beeps,
separating one digit from the next.
14500026 rev 10-3-01.p65 10/15/01, 10:51 AM8
Have questions? Call
800-USA-1-USA
(800-872-1872) or visit our website at www.ritron.com
!! CAUTIONS — ALL RADIOS !!
page 7
OBSERVE CAUTION IN THE FOLLOWING
ENVIRONMENTS TO MAXIMIZE THE LIFE OF
YOUR RADIO EQUIPMENT:
MOISTURE:
JMX Series radios are not waterproof.
DO NOT directly expose them to rain or excessive
moisture.
CHEMICALS:
Detergents, alcohol, aerosol sprays or
petroleum products can damage the radio case. DO
NOT use petroleum solvents of any kind; use a soft
cloth moistened with water to clean the case.
EXTREME HEAT:
High temperatures can damage the
battery and other components. DO NOT expose the
units to extreme heat or leave them in direct
sunlight.
LOW TEMPERATURES:
The capacity of the NiCd
battery is greatly reduced in extreme cold. When
using the unit in very cold environments, periodically
warm the radio under your coat.
EXCESSIVE TRANSMISSIONS:
Maximum drain on
battery power occurs when you are transmitting.
DO NOT hold the Push-To-Talk switch down longer
than necessary during transmission intervals. DO
NOT reduce battery service life by attempting to
power a radio with a depleted battery; always
charge batteries overnight after each day of use.
VIBRATION/ SHOCK:
Although your JMX Series
radio is designed to be rugged, it will not survive
excessive abuse. Avoid dropping the radio.
NOTE:
The optional MH-A holster provides added
protection from weather and shock.
EXPOSURE TO RADIO FREQUENCY ENERGY:
The JMX/SST Series handheld radios generate RF
electromagnetic energy during transmit mode. The
transmit mode is active when the PTT switch is
depressed. This radio is designed for, and classified
as, “Occupational Use Only”, meaning that it must be
used only during the course of employment by
individuals who are aware of the hazards and the
ways to minimize such hazards. This series of radios
is NOT intended for use by the “General Population” in
an uncontrolled environment.
When used as directed, this series of radios is
designed to comply with the FCC’s RF exposure limits
for “Occupational Use Only”. In addition, they are
designed to comply with the following Standards and
Guidelines:
• FCC OET Bulletin 65, Edition 97-01, Supplement C,
Evaluating Compliance with FCC Guidelines for
Human Exposure to Radio Frequency Electromag-
netic Fields.
• American National Standards Institute (C95.1-
1992), IEEE Standard for Safety Levels with
Respect to Human Exposure to Radio Frequency
Electromagnetic Fields, 3 kHz to 300 GHz.
• American National Standards Institute (C95.3-
1992), IEEE Recommended Practice for the
Measurement of Potentially Hazardous Electromag-
netic Fields-RF and Microwave.
To ensure that exposure to RF electromagnetic energy
is within the FCC allowable limits for occupational use,
always adhere to the following guidelines:
• Use only the antenna(s) available from RITRON for
these models.
DO NOT
attempt to substitute any
other antenna.
DO NOT
operate the radio without
an antenna.
• Keep talk times as short and infrequent as
possible.
DO NOT
depress the PTT button when
not actually wishing to transmit. These radios are
equipped with an internal timer to limit continuous
transmit times.
DO NOT
exceed a 50% transmit
duty cycle.
• When transmitting, hold the radio in front of the
mouth at a distance of at least 4 inches.
DO NOT
hold the radio in such a manner that the antenna is
next to, or touching, exposed parts of the body,
especially the face or eyes while transmitting.
• In belt mounted applications, when transmitting,
remove the radio from the belt and hold away from
the body at least 4 inches.
• When using external headset accessories, hold
the unit away from the body at least 4 inches
while transmitting.
•
DO NOT
allow children to operate the radio.
14500026 rev 10-3-01.p65 10/15/01, 10:51 AM9
page 3 RITRON, INC. 1-800-USA-1-USA
(1-800-872-1872)
Have questions? Call
800-USA-1-USA
(800-872-1872) or visit our website at www.ritron.com
page 8
JOBCOM JMX Accessories:
BPJS-6N ....................... 700 mAH Spare Battery Pack
BPJS-AD ....................... Drop-in Charger Adapter
Quad Charger .............. 4-Unit Gang Charger
PATRIOT SST Accessories:
BPS-6N-SC ................... 800 mAH Spare Battery Pack
BPS-6N-MH ................... 1500 mAH Spare Battery Pack
BCPS-AD ...................... Drop-in Charger Adapter
BCC-PS ........................ Drop-in Charger/ Conditioner
See Accessories on page ii.
1
. Hold the radio as shown above (A).
2
. Use your thumbnail to open the
Door Latch, as shown below (B).
3
. Lift and rotate the Battery Access
Door to release it (C).
FIG–5: BATTERY ACCESS & INSTALLATION:
(A)
(C)
(D)
(B)
BOTTOM VIEW OF THE RADIO
OPTIONAL CHARGING ACCESSORIES:
Spare/ Replacement
Battery Pack
Drop-in Battery Charger
with spacer
Battery
Access
Door
Drop-in Charger
Contacts
LATCH
CLOSED
LATCH
OPEN
4
. Use the Pull-tab to pull the battery
pack out of the case (D).
5
. Insert the replacement battery
pack, being certain to POSITION IT
RELATIVE TO THE CASE AS
SHOWN IN (D). Push the Battery
Pack in as far as as possible.
6
. Replace the Battery Access Door.
Secure it by closing the Door Latch
as shown in (B).
7
. Be certain to firmly lock the Door
Latch, as shown in (B).
BATTERY ACCESS
DOOR
DOOR LATCH
PULL
-
TAB
BATTERIES
14500026 rev 10-3-01.p65 10/15/01, 10:51 AM10
Have questions? Call
800-USA-1-USA
(800-872-1872) or visit our website at www.ritron.com
BATTERY MAINTENANCE & CONDITIONING
Due to the extended run time of the JMX Series radios, some users
may never fully discharge the NiCad battery pack during normal use.
Achieve maximum battery life by fully discharging the battery
periodically to condition it.
After exposing the battery pack to many cycles of not fully
discharging it before recharging, the radio may exhibit reduced
battery capacity. This reduced capacity is evident when, after
several hours of use, battery voltage drops while the radio is
transmitting, causing the radio to emit a dead battery warning tone
and shut itself off.
Condition battery packs by the following procedure as either a
preventive measure, or if you suspect reduced capacity:
TO CONDITION THE BATTERY PACK:
1. Use your radio throughout a normal work day without charging.
2. • Press and hold the On/ Volume Up and Volume Down/ Off
buttons simultaneously for 8 seconds to place the radio in
"open squelch" mode.
• Release both buttons when you hear the radio beep rapidly; it
will then emit a loud "rushing" noise. Press On/ Volume Up to
maximize this noise.
3. • Put the radio away in a secure place (possibly a desk drawer),
where nothing can press against the buttons to accidentally
turn it off or cause it to transmit. Allow the radio to run until it
shuts off when the battery is completely discharged. A typical
battery pack may require about 8 hours to completely
discharge.
4. • When the radio has shut off, charge it overnight for 12-14
hours. The battery will be ready for use with renewed
capacity.
NOTE: A new battery must be charged and discharged several
times before it can reach its maximum charge capacity.
CAUTION: Use only RITRON-supplied chargers; using other chargers may cause fire
or explosion, or otherwise damage the radio.
GENERAL
The JMX Series radio is powered by a rechargeable battery pack.
CHARGING
Because the battery pack loses its charge during storage and shipment, fully charge it before first
use. To ensure peak radio performance for the next day, charge the battery overnight after each
day of use. It completely charges in about ten hours.
To charge the battery with a RITRON cube charger
Plug the charger cord into the charge jack (marked "CHG") on top of the radio. Then plug the
cube into an 110 VAC outlet. The green lamp lights while the battery is charging, and should go
out only when the cube or cord is unplugged.
To charge the battery with a RITRON drop-in charger
Two charger contacts, visible through the radio case bottom, permit charging the battery with an
optional Ritron drop-in charger. The battery pack may be either removed from the radio case for
charging, or charged inside the radio case.
Each drop-in charger comes with a spacer to permit charging a "spare" battery while the radio is
being used.
To use the drop-in charger, plug it into a 110 VAC outlet. Set either the radio with the battery
installed, or only the battery with the battery spacer, into the charger. Refer to the illustration in
Optional Accessories, opposite. Each battery contact must rest on a charger contact pin.
NOTE:
Battery pack life averages one year. Follow these guidelines to maximize service life:
• CONDITION battery packs once a month as directed in Battery Maintenance & Conditioning, at
right.
• CONDITION batteries that are run down.
• CHARGE batteries for 16 hours before storage, and for 16 hours once a month thereafter.
• DO NOT overcharge batteries. Unplug the cube charger after 16 hours to avoid overcharging.
• DO NOT charge batteries in temperatures colder than about 45°F. Charging batteries in
temperatures above 95°C. does not harm them, but can reduce charge capacity.
BATTERIES
page 9
14500026 rev 10-3-01.p65 10/15/01, 10:51 AM11
page 3 RITRON, INC. 1-800-USA-1-USA
(1-800-872-1872)
Have questions? Call
800-USA-1-USA
(800-872-1872) or visit our website at www.ritron.com
If you have trouble operating the handheld, review the Control & Operation, pages 2 and 3.
If you think the radio is malfunctioning, check the list below.
Problem Possible Solutions
GENERAL
The radio does not work at all. Make sure that the battery is installed correctly, as shown in FIG-5. page 8.
Recharge or replace the battery. (See pages 8 & 9.)
Operating features do not work exactly The radio has been dealer programmed for customized operation.
as expected. (Consult dealer.)
Reception is poor. Move to a different location. (See Note 2.)
Confirm the proper antenna is connected to the radio. (See page 2, "Antenna.")
You cannot hear calls from other radios. Turn off Quiet Call (coded) squelch. (See Note 3.)
Ensure radio receives on the same frequency as the caller transmits. (See Note 4.)
Recharge the battery. (See Note 1.)
Your calls cannot be heard in other radios. Make sure that your radio transmits on the receive frequency of the radio(s) you
want to call. (See Note 4.)
Recharge the battery.
BATTERY
Battery loses charge sooner than expected. Review battery charging instructions, page 9.
Conserve the battery. (See Note 5.)
If the radio is used in extreme cold, warm the radio under your coat. (See Note 6.)
Replace the battery; see FIG-5, page 8. (See Note 1.)
ERROR TONES
An error tone sounds when the radio is See "Error Tones" on page 3.
first switched on.
An error tone occurs while transmitting. Refer to "Transmitter Time-Out," page 3.
QUIET CALL
You cannot screen out calls from users Make sure that the channel is programmed with Quiet Call.
outside of your Quiet Call group. Activate coded squelch. (See Note 7.)
You cannot hear Quiet Call messages Confirm that the channel is programmed to detect the same code as the calling
while in Quiet Call (coded) squelch. radio(s) transmits. (See Note 7.)
Others in your Quiet Call group cannot hear Verify that you transmit the same code as the radio(s) you call are programmed
your Quiet Call messages. to detect. (See Note 7.)
TROUBLESHOOTING
1. • Try a battery pack from a working radio. If the radio in
question works with that pack, the original battery is suspect.
• Charge the suspect battery as recommended in this manual. If
this original battery cannot power the radio, try charging it again
with another charger. If the battery still doesn't hold a charge, the
pack should probably be replaced.
• If the battery appears to be "good" after using the second
charger, the first charger may be faulty. Contact a dealer or Ritron
about an accessory that is not operating properly.
2. • Reception can often be improved if you relocate by a short
distance. This effect is more noticeable inside buildings.
• The range for JMX/ SST radios is about two miles, line-of-sight.
3. If your radio does not detect calls from other radios on the
channel, turn off Quiet Call by pressing and holding both volume
buttons at the same time—a double beep indicates Quiet Call is
off.
4. • Without use of a repeater: To hear a call, select a channel
programmed to receive the caller's transmit frequency. To
call another unit, select a channel programmed to transmit
the other radio's receive frequency.
• Using a repeater: A radio channel can hold two separate
operating frequencies, one for receive and one for transmit.
Your channel must work with the repeater's transmit and
receive frequencies.
5. • Maximum power drain occurs when the radio transmits, so
don't hold down the PTT more than needed to transmit.
• Battery power is used while the handheld is left on to
receive calls. If practical, switch off the unit.
6. Battery capacity is greatly reduced in extreme cold.
• To use the radio in very cold weather, periodically warm it
under your coat if possible.
• An optional remote speaker/ microphone allows keeping the
radio under your coat while transmitting and receiving.
7. • To "talk" with each other, radios must be programmed
identically for Quiet Call code, as well as frequency. Each
code is unique; radios respond only to the code programmed.
• Press and hold both volume buttons at the same time.
A single beep indicates Quiet Call squelch is on.
A double beep indicates Quiet Call squelch is off.
page 10
CHART
NOTES
14500026 rev 10-3-01.p65 10/15/01, 10:51 AM12
Have questions? Call
800-USA-1-USA
(800-872-1872) or visit our website at www.ritron.com
FCC REGULATIONS
LICENSING —
The FCC requires the owners of the radios to obtain a station license before using them.
The station licensee is responsible for ensuring that transmitter power, frequency and deviation are within
the limits specified by the station license. The station licensee is also responsible for proper operation and
maintenance of the radio equipment. This includes checking the transmitter frequency and deviation
periodically, using appropriate methods.
To get a FCC license for VHF or UHF frequencies, submit FCC application Form 600 as indicated in the
block at right. Your Ritron dealer can help you with this process.
SAFETY STANDARDS —
The FCC (with its action in General Docket 79-144, March 13, 1985) has adopted a safety standard for
human exposure to radio frequency electromagnetic energy emitted by FCC regulated equipment. Ritron
observes these guidelines and recommends that you do also:
• DO NOT hold the radio so that the antenna is very close to or touching exposed parts of the body,
especially the face or eyes, while transmitting. Keep the radio vertical, four inches away while
talking into the front panel.
• DO NOT press the Push-To-Talk except when you intend to transmit.
• DO NOT operate radio equipment near electrical blasting caps or in an explosive atmosphere.
• DO NOT allow children to play with any radio equipment that contains a transmitting device.
• Repair of Ritron products should be performed only by Ritron authorized personnel.
SERVICE
Federal law prohibits you from making any internal adjustments to the transmitter, and/ or from changing
transmit frequencies unless you are specifically designated by the licensee.
If your radio equipment fails to operate properly, or you wish to have the radio programmed, contact your
authorized dealer or Ritron.
RITRON, INC., Repair Department
505 West Carmel Drive
Carmel, IN 46032 USA
Phone: 1-317-846-1201
FAX: 1-317-846-4978
FCC LICENSE REQUIRED
HOW TO OBTAIN AN FCC RADIO LICENSE
Federal Communications Commission
(FCC) Licensing Information
Because your Ritron radio operates on Private Land
Mobile frequencies, it is subject to the Rules and
Regulations of the FCC, which requires all operators
of these frequencies to obtain a station license before
operating their equipment. Make application for your
FCC license on FCC Forms 600 and 159.
To have forms and instructions faxed to you by
the FCC, call the FCC Fax-On-Demand system at
1-202-418-0177 from your fax machine;
request Document 000600 & Form 159.
To have Document 000600 & Form 159 mailed to you,
call the FCC Forms Hotline at
1-800-418-FORM (1-800-418-3676).
For help with questions concerning the
license application, contact the FCC at
1-888-CALL-FCC (1-888-225-5322).
You must decide which radio frequency(ies) you
can operate on before filling out your application;
refer to Table 1 on page 5 of this manual.
For help determining your frequencies, call Ritron at
1-800-USA-1-USA (1-800-872-1872).
page 11
14500026 rev 10-3-01.p65 10/15/01, 10:51 AM13
page 3 RITRON, INC. 1-800-USA-1-USA
(1-800-872-1872)
Have questions? Call
800-USA-1-USA
(800-872-1872) or visit our website at www.ritron.com
WHAT THIS WARRANTY COVERS
RITRON, INC. ("RITRON") provides the following warranty against defects in materials and/or
workmanship in RITRON Radios, Rechargeable Batteries and Accessories under normal use and
service during the applicable warranty period (as stated below). "Accessories" means antennas, holsters,
chargers, earphones, speaker/microphones and items contained in the programming and programming/
service kits. Rechargeable batteries will be replaced during the applicable warranty period only if leakage
occurs or the batteries drop below 75% of rated capacity.
WHAT IS COVERED FOR HOW LONG WHAT RITRON WILL DO
Portable JMX/ SST 1 year
*
During the first year after date of purchase,Series
Radios RITRON will repair or replace the defective
product, at RITRON's option, parts and
labor included at no charge.
RITRON Rechargeable 1 year
*
RITRON will replace the defective battery
Batteries
Accessories 90 days
**
After date of purchase
WHAT THIS WARRANTY DOES NOT COVER:
•
Any technical information provided with the covered product or any other RITRON products;
•
Installation, maintenance or service of the product, unless this is covered by a separate written
agreement with RITRON;
•
Any products not furnished by RITRON which are attached or used with the covered product, or
defects or damage from the use of the covered product with equipment that is not covered (such as
defects or damage from the charging or use of batteries other than with covered product);
•
Defects or damage, including broken antennas, resulting from:
- misuse, abuse, improper maintenance, alteration, modification, neglect, accident or act of God,
- the use of covered products other than in normal and customary manner or,
- improper testing or installation;
•
Defects or damages from unauthorized disassembly, repair or modification, or where unauthorized
disassembly, repair or modification prevents inspection and testing necessary to validate warranty
claims;
•
Defects or damages in which the serial number has been removed, altered or defaced.
•
Batteries if any of the seals are not intact.
IMPORTANT:
This warranty sets forth the full extent of RITRON’s express responsibilities regarding the
covered products, and is given in lieu of all other express warranties. What RITRON has agreed to do
above is your sole and exclusive remedy. No person is authorized to make any other warranty to you on
behalf of RITRON. Warranties implied by state law, such as implied warranties of merchantability and
fitness for a particular purpose, are limited to the duration of this limited warranty as it applies to the covered
product. Incidental and consequential damages are not recoverable under this warranty (this includes loss of
use or time, inconvenience, business interruption, commercial loss, lost profits or savings). Some states
do not allow the exclusion or limitation of incidental or consequential damages, or limitation on
how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.
Because each covered product system is unique, RITRON disclaims liability for range, coverage, or
operation of the system as a whole under this warranty.
WHO IS COVERED BY THIS WARRANTY
This warranty is given only to the purchaser or lessee of covered products when acquired for use, not resale.
This warranty is not assignable or transferable.
HOW TO GET WARRANTY SERVICE
To receive warranty service, you MUST deliver or send the defective product, delivery costs and insurance
prepaid, within the applicable warranty period, to RITRON, INC., 505 West Carmel Drive, Carmel, Indiana
46032, Attention: Warranty Department.
Please point out the nature of the defect in as much detail as you can. You MUST retain your sales or lease
receipt (or other written evidence of the date of purchase) and deliver it along with the product. If
RITRON chooses to repair or replace a defective product, RITRON may replace the product or any part or
component with reconditioned product, parts or components. Replacements are covered for the balance of the
original applicable warranty period. All replaced covered products, parts or components become RITRON’s
property.
RIGHTS TO SOFTWARE RETAINED
Title and all rights or licenses to patents, copyrights, trademarks and trade secrets in any RITRON software
contained in covered products are and shall remain in RITRON. RITRON nevertheless grants you a limited
non-exclusive, transferable right to use the RITRON software only in conjunction with covered products. No
other license or right to the RITRON software is granted or permitted.
YOUR RIGHTS UNDER STATE LAW
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
WHERE THIS WARRANTY IS VALID
This warranty is valid only within the United States, the District of Columbia and Puerto Rico.
RITRON, INC. LIMITED WARRANTY
Pub. 14500026 REV. A 01-09
COPYRIGHT© 2001 RITRON, INC. • ALL RIGHTS RESERVED
RITRON®, JOBCOM® and QUIET CALL® ARE REGISTERED TRADEMARKS OF RITRON, INC.
14500026 rev 10-3-01.p65 10/15/01, 10:51 AM14
505 West Carmel Drive
•
Carmel, IN 46032
P. O. Box 1998
• Carmel, IN 46032
Ph: 317-846-1201
•
Fax: 317-846-4978
•
Email: ritron@ritron.com
Website: www.ritron.com
