RITRON®
DR-145/445
PROGRAMMABLE
FM RECEIVER MODULE
MAINTENANCE & OPERATING MANUAL
FOR USE ONLY BY AUTHORIZED SERVICE/MAINTENANCE PERSONNEL
1
TABLE OF CONTENTS
SECTION TOPIC PAGE
1. INTRODUCTION
GENERAL 2
Model Identification 2
FCC REGULATIONS
Licensing 4
Exposure to Radio Frequency Energy 4
FCC Label 6
MAINTENANCE INFORMATION 7
Surface Mount Repairs 7
Precautions for handling CMOS 7
Synthesizer shield 7
2. DR-145/445 SPECIFICATIONS
GENERAL 8
RECEIVER 9
3. SETUP 10
OPERATION 10
INSTALATION 10
4. SUB-D 15 PIN CONNECTOR 10
5. PROGRAMMING THE RADIO
PROGRAMMING THE RADIO USING A PC COMPUTER 12
Using the Programming Software 12
Computer Software Copyrights 12
6. DR-145/445 THEORY OF OPERATION
OVERVIEW 13
POWER SUPPLY AND VOLTAGE DISTRIBUTION 13
REFERENCE OSCILLATOR 13
SYNTHESIZER 13
RECEIVER 14
Receiver Front End 14
FM Receiver Subsystem 14
Voice and Tone Conditioning 14
MICROCONTROLLER 17
7. DR-145/445 ALIGNMENT PROCEDURE
RECOMMENDED TEST EQUIPMENT 18
RADIO PREPARATION 18
RADIO ADJUSTMENTS 18
2
INTRODUCTION
General
RITRON's DR-145 and DR-445 resceiver module operates in one of a number of VHF or UHF
frequency bands. Typical radio parameters such as frequency, squelch level and audio input and output
gain are PC adjustable. The receiver is a single board unit with components on one side and pin for pin
compatible with the DR-142/442.
The unit supports voice through a microphone input and a nominal one watt speaker output or data through
the auxiliary in and auxiliary out ports. Each radio can be programmed to contain a unique set of eight
operating frequencies and sub-audible tones. When all three channel select inputs are tied to ground the radio
operates on channel 1. The channel selection is done in a binary manner on the CS2, CS1 and CS0 inputs.
Separate RX and TX Quiet Call (CTCSS) or Digital Quiet call (DCS) tones can be programmed per channel.
The standby current drain at 12.5 VDC is typically about 22 mA.
Model Identification

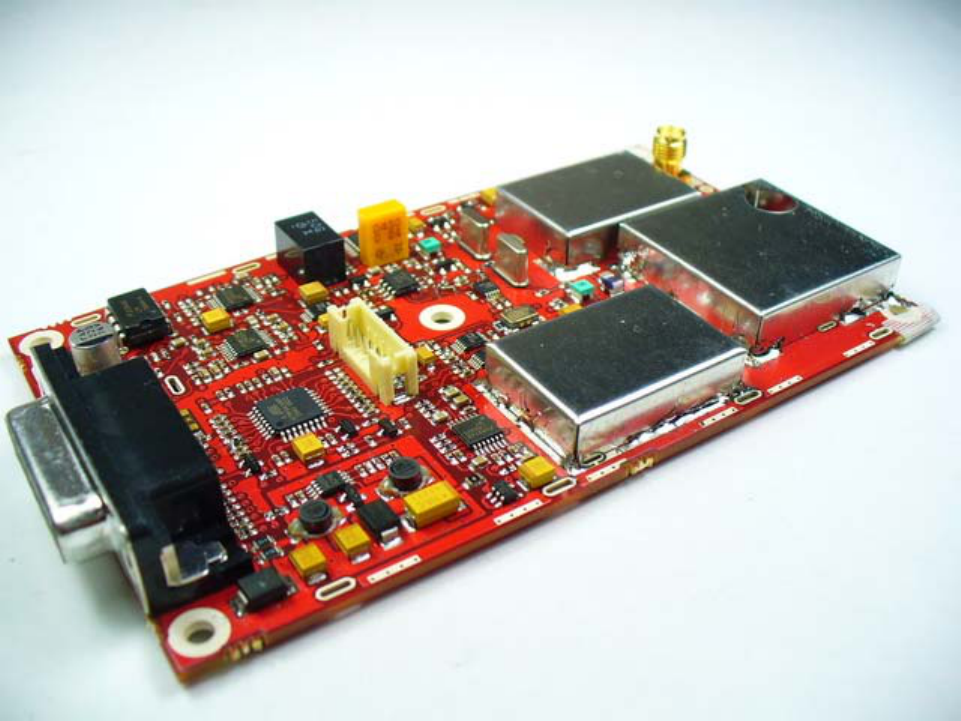

The DR-145 or DR-445 is available in an aluminum encased version with a BNC connector or a
board-only version. The board only version can have one of a variety of RF connectors.
The model number form is: “ DR-145-ABCDE ” or “ DR-445-ABCDE ” Where:
A is frequency sub-band:
For the DR-145:
G = 136 to 162 MHz
O = 136 to 174 MHz (reduced image rejection of 60 dB from 136 to 148 MHz)
For the DR-445:
G = 400.5 to 416.5 MHz
H = 411 to 429 MHz
0 = 450 to 470 MHz
B is the connector type:
B = BNC
C = BNC on flying coaxial cable
M = SMB
X = MCX
S = SMA
C designates the receiver IF bandwidth:
N = Narrow
W = Wide
D designates the maximum RF power output:
5 = 5 watt
8 = 8 watt (only available in UHF)
E designates the case:
D = deletion of case
E = enclosure
S = shield
Examples:
DR-445-GBW5E 411 to 429 MHz wideband receiver in case with BNC connector
DR-445-OSN8S 450 to 470 MHz narrowband receiver with SMA connector and shield
Units without cases can be delivered with a vertical or right angle female DB-15 connector.
Contact the RITRON sales department for further details.
3

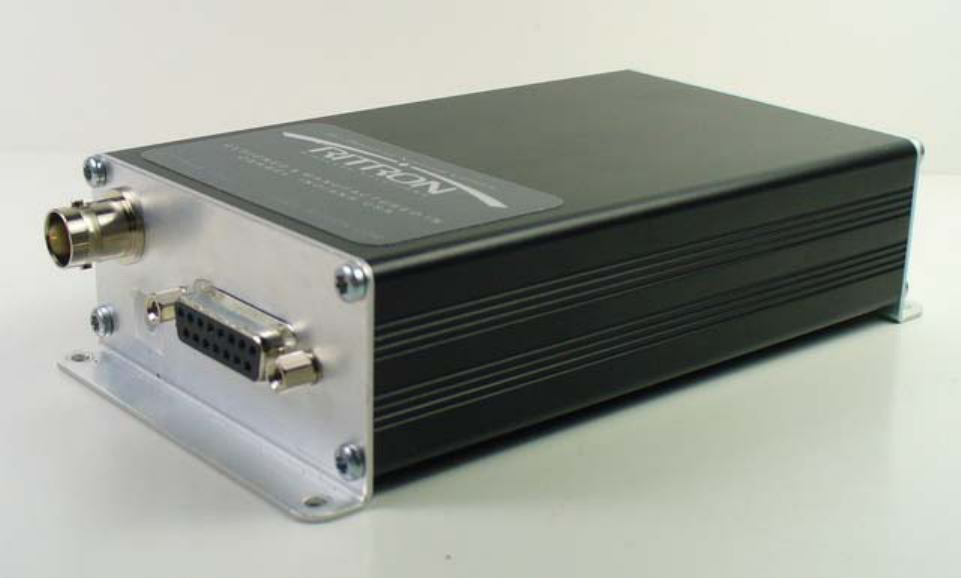

Enclosed version
4
MAINTENANCE INFORMATION
Surface Mount Repair
RITRON surface mount products require special equipment and servicing techniques. Improper servicing
techniques can cause permanent damage to the printed circuit board and/or components, which is not covered by
RITRON’s warranty. If you are not completely familiar with surface mounted component repair techniques, RITRON
recommends that you defer repair to qualified service personnel.
Precautions for Handling CMOS Devices
This radio contains complementary metal-oxide semiconductor (CMOS) devices, which require special handling
techniques. CMOS circuits are susceptible to damage by electrostatic or high voltage charges. Damage can be latent,
with no failure appearing until weeks or months later. For this reason, take special precautions any time you
disassemble the radio. Follow the precautions below, which are even more critical in low humidity environments.
1) Storage/transport - CMOS devices that will be stored or transported must be placed in conductive material so that
all exposed leads are shorted together. CMOS devices must not be inserted into conventional plastic “snow” or
plastic trays of the type that are used for other semiconductors.
2) Grounding - All CMOS devices must be placed on a grounded bench surface. The technician that will work on the
radio/CMOS circuit must be grounded before handling the radio. Normally, the technician wears a conductive wrist
strap in series with a 100K Ohm resistor to ground.
3) Clothing - Do not wear nylon clothing while handling CMOS circuits.
4) Power off - Remove power before connecting, removing or soldering a PC board that contains CMOS devices.
5) Power/voltage transients - Do not insert or remove CMOS devices with power applied. Check all power supplies to
be used for testing CMOS devices, making sure that no voltage transients are present.
6) Soldering - Use a grounded soldering iron for soldering CMOS circuitry.
7) Lead-straightening tools - When straightening CMOS leads, provide ground straps for the tool used.
Synthesizer and RF Power Amplifier Shield
The synthesizer shield should not be removed unless a component must be replaced. This shield is soldered to
the main PC board. Sucking or wicking the solder up around the perimeter can remove the shield. If this should prove
difficult a side cutter can cut the top off after which the walls can be removed. A replacement shield will then be needed
and is available from RITRON.
0
DR-145 SPECIFICATIONS
GENERAL
Frequency Range: O-band: 136 to 174 MHz
RF Channels: 8 Independent RX frequencies
Unusable 2.5 kHz RX steps in 136 to 174 MHz band: +/- 10 kHz around the 14.4 MHz harmonics at
144 MHz, 158.4 MHz and 172.8 MHz.
Additional RX unusable 2.5 kHz steps RX
in 136 - 174 MHz band 143.542
5
143.557
5
157.942
5
157.957
5
172.342
5
172.357
5
Frequency Stability: +/-2.5 PPM (-30° to +60° C)
Tone/Code Signaling: CTCSS (Quiet Call) and DCS
Power Supply: 9 to 17 VDC
Current Drain:
RX Standby: 25 mA at 12.5 VDC
Dimensions & weight: Board only version: 4.75” x 2.8” x .625” 2.1 oz
Encased version: 5.7” x 3” x 1.375” 7.3 oz.
Antenna Fitting: BNC female with encased version. Other options available on board only version.
0
DR-145 SPECIFICATIONS
RECEIVER
25 kHz Wide band 12.5 kHz Narrow band
Sensitivity (12 dB SINAD): 0.25 µV 0.25 µV
Adjacent channel: -70 dB -60 dB
Spurious rejection: -65 dB -65 dB
Image rejection: -70 dB -70 dB (-60 dB over 136 to 148 for O band)
Intermodulation: -67 dB -67 dB
FM hum and noise: -45 dB -40 dB
Conducted spurious: -57 dBm -57 dBm
Receiver attack time (TX to RX): < 10 ms < 10 ms
Noise squelch attack time: < 15 ms < 15 ms
(for 20 dB quieting)
RSSI squelch attack time: < 5 ms < 5 ms
RSSI squelch sensitivity: PC adjustable; factory set for –106 dBm
Noise squelch sensitivity: PC adjustable; factory set for –121 dBm
AUX OUT frequency response: 12 - 2500 Hz @ +1 / -3 dB
AUX OUT level range: 0 to 3 Volts peak-to-peak
Audio Speaker Output >700 mW into 8 Ω, with less than 5 % THD ( 0 to 2.5 Vrms)
Audio Speaker freq response: de-emphasized 6 dB/octave from 400 to 2500 Hz
1
DR-445 SPECIFICATIONS
GENERAL
Frequency Range: 400.6 – 416.5, 411 – 429, or 450 - 470 MHz
RF Channels: 8 Independent TX/RX frequencies
Frequencies unusable in 406.6 – 416.5 MHz band: None- all 6.25 kHz steps available
Frequencies unusable RX
in 411 - 429 MHz band 417.60000
418.03750
Unusable 6.25 kHz steps: 418.04375
418.05625
418.06250
Frequencies unusable RX
in 450 – 470 MHz band 460.80000
461.23750
Unusable 6.25 kHz steps: 461.24375
461.25625
461.26250
Frequency Stability: +/-1.5 PPM (-30° to +60° C)
Tone/Code Signaling: CTCSS (Quiet Call) and DCS
Power Supply: 9 to 17 VDC
Current Drain:
RX Standby: 25 mA at 12.5 VDC
Dimensions & weight: Board only version: 4.75” x 2.8”x .625” 2.1 oz
Shielded version: 4.75” x 2.8”x .625” 3.4 oz.
Encased version: 5.7” x 3” x 1.375” 7.3 oz.
Antenna Fitting: BNC female with encased version. Other options available on board only version.
25 kHz Wide band 12.5 kHz Narrow band
Sensitivity (12 dB SINAD): 0.25 µV 0.25 µV
Adjacent channel: -67 dB -60 dB
Spurious rejection: -70 dB -70 dB
Image rejection: -75 dB -75 dB
Intermodulation: -67 dB -67 dB
FM hum and noise: -43 dB -37 dB
Conducted spurious: -57 dBm -57 dBm
Receiver attack time (TX to RX): < 10 ms < 10 ms
Noise squelch attack time: < 15 ms < 15 ms
(for 20 dB quieting)
RSSI squelch attack time: < 5 ms < 5 ms
2
RSSI squelch sensitivity: PC adjustable; factory set for –106 dBm
Noise squelch sensitivity: PC adjustable; factory set for –121 dBm
AUX OUT frequency response: 12 - 2500 Hz @ +1 / -3 dB
AUX OUT level range: 0 to 3 Volts peak-to-peak
Audio Speaker Output >700 mW into 8 Ω, with less than 5 % THD ( 0 to 2.5 Vrms)
Audio Speaker freq response: de-emphasized 6 dB/octave from 400 to 2500 Hz
3
SETUP
OPERATION
The DR-145/445 uses two connectors for operation and one for factory use. The sub D-15 contains signal, control and
power lines and the RF connector receives low level signals and transmits power. The third connector on the unit is
used for initial factory flash programming of the unit. The radio’s eight transmit and receive frequencies are programmed
via a PC. Pins 1, 2 and 3 of the DB-15 connector select the channel. The receiver bandwidth is fixed in either a wide or
narrow bandwidth and should be ordered as such from the factory. A monitor input activates both speaker and auxiliary
outputs, allowing a modem to continually search for a signal. Separate speaker and auxiliary outputs allow either de-
emphasized voice or flat data output. A carrier detect output is pulled high when the channel is busy. Alternately, the
MON ITOR input can be used as a carrier and tone detector output. See detailed pin operation section. Adjacent to the
DB-15 connector, a dual colored LED appears on the sub D-15 edge of the board. It has the following functions:
Bright GREEN when carrier is present on channel
Dull blinking red when receiver PLL is unlocked
4
SUB D 15 PIN CONNECTOR
The DR-145/445 is equiped with a 15 pin female sub D connector with the following functions:
Pin# Function
1 Least significant channel select bit (CS0)
2 Channel select 1 (CS1)
3 Most significant channel select (CS2)
4 N/A
5 N/A
6 + 9 to 17 VDC input
7 N/A
8 Auxilary ouput
9 PC programing port
10 Volume control (RSSI option)
11 Auxilary monitor input (pull to ground to open squelch). Can be used for tone detect, see below.
12 Speaker output
13 Carrier detect output (pulls to 3.3 VDC through internal 390 ohms)
14 N/A
15 Ground
Channel Select (pins 2,1,0)
Three lines control the channel selection; CS2, CS1, CS0. The inputs have binary weighting of 4, 2 and 1 respectively.
They are internally pulled up in the microcontroller. Tying an input to ground gives it a zero weighting. Thus, if no inputs
are tied low, channel eight is selected (7 binary).
Power Input (pin 6)
A power source of 9 to 17 VDC with 2 Amp capability should be connected here. Once power is applied to pin 6 of the
radio, the microcontroller will start and load the receive frequency of the channel designated by CS2, CS1 and CS0
(pins 3, 2 and 1).
Auxiliary Output (pin 8)
An output loading of 600 ohms or greater should be applied to this output. With a 600 ohm load the output exhibits a
frequency response of 12 Hz to 2500 Hz. Higher load impedances will lower the low end frequency response. The
output is adjustable via the programmer. It is preset at the factory to give 1 volt peak to peak output when receiving a +/-
3 kHz (1.5 kHz for narrowband channel) deviated signal. Output range is 0 to 3 V peak-to-peak. It is suggested keeping
it below 2 V pp since the IF output is DC coupled and a frequency error of 1 kHz will cause a 0.2 V shift on narrowband.
Programming Port (pin 9)
This line is a bi-directional programming port to be connected to a RITRON programming cable. The other end of the
programming cable connects to the PC’s serial port 25 pin D-sub connector. The appropriate DR-145/445 programming
software must be run for configuring the transceiver (See programming the radio on page 10).
External Volume Potentiometer (pin 10)
Connecting a 10K pot to ground at this point will allow the speaker volume to be adjusted. For maximum range the
internal AUX_OUT gain should be set to a value that allows maximum volume with acceptable distortion when the pot is
set at 10K. Optionally, this pin can be used as an RSSI output. If desired, contact the factory.
Monitor Input (pin 11)
Normally the AUX_OUT and SPEAKER_ OUT are switched on only when a carrier with required tone, if
programmed, is detected. Bringing this input to ground will force the auxiliary and speaker outputs on. Alternately,
the monitor input can be used as an output. It gets pulled low when a carrier with correct tone is detected. The
following circuitry can be used as a carrier and tone detect output. Pin 11 can still be pulled low to monitor the
channel. Notice the high impedance 470 k ohm buffer resistor. Too low of resistance will turn the audio on.
Pin 11
470 k
15 k Tone detect = 0
Vdc
15
k
Tone detect = Vdc

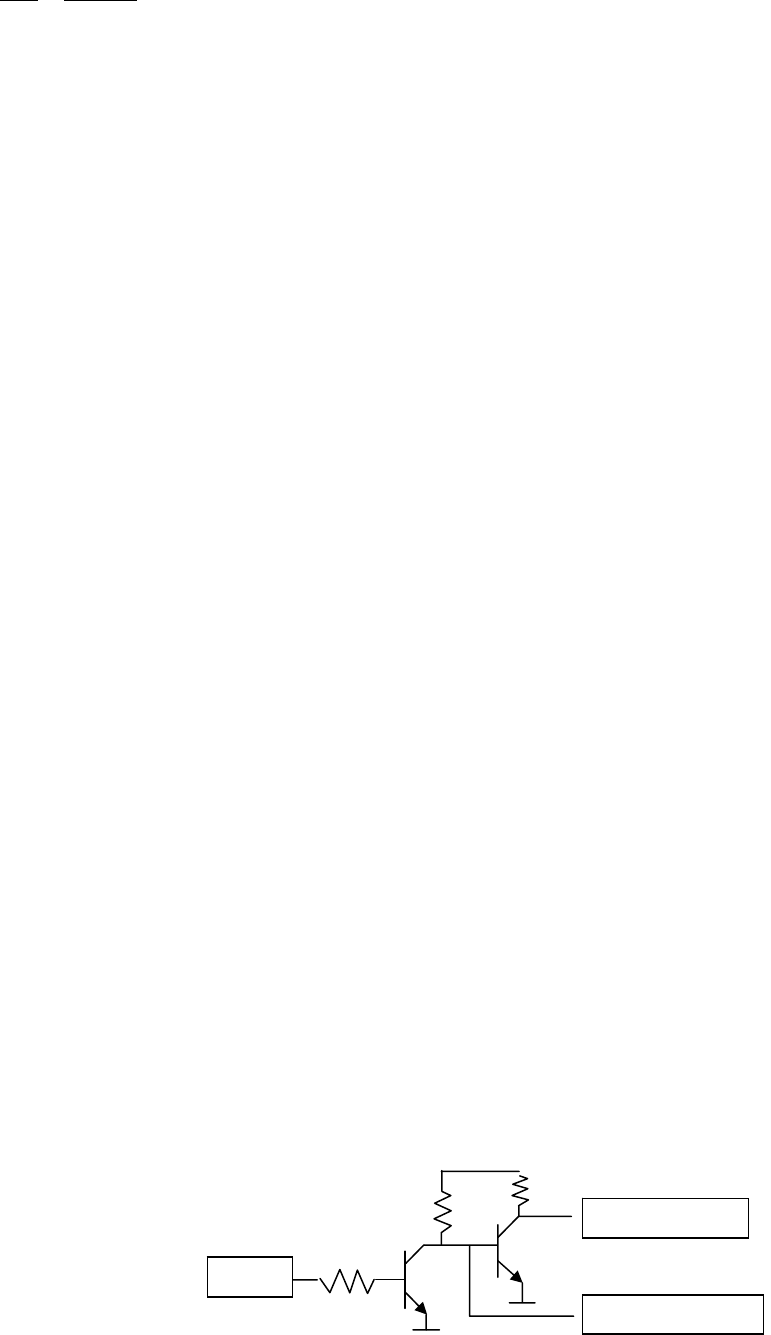

External circuit to use AUX_MON input as Tone Detect output
5
Speaker (pin 12)
An 8 ohm or higher speaker should be connected to pin 12. One watt of audio power is possible. The speaker volume is
set via the programmer AUX_OUT gain. The output signal can be further attenuated by a fixed or variable resistor from
pin 10 to ground to attenuate the audio.
Carrier Detect Output (pin 13)
This line will be pulled to 3.3 volts through an internal 390 ohm resistor when a carrier is present. This output is carrier
detect only. It gets pulled high at the same time the green LED lights.
6
PROGRAMMING THE RADIO
PROGRAMMING THE RADIO USING A PC COMPUTER
RITRON’s programming kit, DRL-PCPK-2.2, allows programming of the DR-445 model radios using a PC
compatible computer.
The PC Programming Kit Includes:
1) Ritron Transceiver programming software, DRL-PCPS-2.2, which is contained on a CD-ROM.
2) Ritron PC to radio adapter cable, 9/RTC-PAS, which is terminated at one end with a DB-25F connector, at the other
end with a 6 pin modular plug.
3) Another cable, DRP-PAC, with a modular jack (which mates to the previous cable) on one end with a DB-15M on
the other end to mate to the radio. Power leads are also provided. Red is positive.
The PC Programming Kit Requires: A PC compatible computer with Windows 95 or later. The computer must have an
RS-232 serial port available. A hard disk drive is recommended.
Programming the DR-445: To program the DR-445 do the following:
1) Connect the PC’s RS-232 port to 9/RTC-PAS and DRP-PAC programming cable. Connect DRP-PAC to DR-445
2) Apply 9 to 17 VDC power to pin 6 of the DB-15 (Red wire)
3) Insert disk. View the disk contents and double click on setup.exe. Follow the instructions on screen. When finished
the software will be resident on the PC’s hard disk.
Using the Programming Software
Upon starting the software with a radio connected to the programming cable and powered up, the PC will read the
radio data. A form then appears identifying the radio and displaying all channel information. If no radio is connected
when the software is started a form appears asking the operator to select a model. When a model is selected default
parameters for that model are displayed. These parameters can be programmed into a radio or a previously defined file
can be recalled and loaded. To program a radio click radio on the menu bar and then click program radio. To read the
radio contents click radio on the menu bar and then read radio. Allow several seconds for the reading to take place. To
change a parameter click a white field or double click the channel field to access it. Files can be saved and opened
using the File menu option.
Channel features can be programmed differently on each channel. The receiver IF bandwidth remains fixed.
However, if programmed for narrowband operation the recovered audio level will be doubled from that of the wideband.
A unit can be ordered with wide or narrowband filters. Receive frequencies and also QC or DQC tones on a channel can
be different. A channel can also be moved or deleted. An ID string of up to 72 characters can be entered to allow PC
programmers to identify radios.
Computer Software Copyrights
The RITRON, Inc. products described in this manual include copyrighted RITRON, inc. computer programs. Laws
in the United States and other countries grant to RITRON, inc. certain exclusive rights in its copyrighted computer
programs, including the exclusive right to distribute copies of the programs, make reproductions of the programs, and
prepare derivative works based on the programs. Accordingly, any computer programs contained in RITRON, inc.
products may not be copied or reproduced in any manner without the express written permission of RITRON. The
purchase of RITRON, inc. products does not grant any license or rights under the copyrights or other intellectual
property of RITRON, inc., except for the non-exclusive, royalty fee license to use that arises in the sale of a product, or
as addressed in a written agreement between RITRON, inc. and the purchaser of RITRON, inc. products.
7
DR-145/445 THEORY OF OPERATION
POWER SUPPLY AND VOLTAGE DISTRIBUTION
The DR-145/445 is powered by a 9 to 17 VDC external power supply. F601 is a 3A reset able fuse in series with
J301 for short circuit or reverse connection protection. If reverse voltage is applied, F601 will temporarily “blow” open
when excess current flows through D601. Disconnect the supply to reset the fuse. Reconnect power correctly and
proceed. An input voltage below 17 VDC must be maintained.
The DR-145/445 is designed to consume low current by using a switching DC/DC converter called a buck
converter. Receiver standby current is less than 25 mA at 12.5 volts. In the receive mode current drain goes up as the
voltage goes down. The buck converter outputs about 40 mA at 6.2 volts. The conversion efficiency of the buck
converter is about 85%. Lowering the supply voltage will cause more current to be drawn from the supply. The buck
converter’s output of 6.2 volts feeds a 3.3 volt low drop out regulator U602. The 3.3 volt regulator supplies the logic and
audio processing ICs.
REFERENCE OSCILLATOR
Reference oscillator Y301 is a temperature compensated, voltage controlled crystal oscillator (TCVCXO) operating
at 14.4 MHz. The output of the TCVCXO provides a reference for the frequency synthesizer U401 at Pin 8. The
reference oscillator also feeds pin 7 of the U301 microcontroller through a buffer amplifier Q303. The Y301 output is
also multiplied (tripled) up to 43.2 MHz by Q104 and its associated circuitry to provide the receiver second local
oscillator signal.
SYNTHESIZER
The DR-145/445 radio is built around a single PLL synthesized voltage-controlled oscillator (VCO). When the
receiver channel is switched, a new synthesizer operating frequency along with signaling option is selected.
Microcontroller U301 clocks new data into the U401 internal buffer in synchronization with clock pulses. The channel
information is stored in the EE memory of U301 and is loaded into RAM when the channel is selected. The single VCO
operates over the entire RX range. In receive mode, the DR-145 synthesizer operates 43.65 MHz higher than the
programmed receive frequency. In the DR-445, the synthesizer operates 43.65 MHz lower than the receive frequency.
The loop filter C407, C408, C413, R402 and R405 transform the pin 2 output signal to a DC voltage for application to
the VCO tuning varactor CR402 (UHF) or CR404 through CR409 (VHF). The synthesizer system is “locked” when the
phase and frequency of both the reference and the divided VCO signal are the same. The VCO control voltage can be
measured with a DVM at test point 1 (TP1) on the bottom of the board below the synthesizer shield.
RECEIVER
Receiver Front End
In the DR-445, the signal from the antenna passes through the SAW bandpass filter FL101. Q101 amplifies the
signal about 11 dB before going through another SAW bandpass filter FL102 and the mixer matching stage. In the DR-
145, the signal from the antenna passes through a lumped element band bass filter using L103 and L106. Q101
amplifies the signal about 8 dB before going through another lumped element band pass filter built around L102, L105
and L106. The receiver is turned on by Q212 supplying RX_3.3v when RXEN of U301 goes low.
The amplified received input signal is applied to the input of mixer U103. The 1st local oscillator signal from the
synthesizer is applied to the local oscillator input of the mixer. Y101 and Y103, a 43.65 MHz four-pole crystal filter forms
the first IF filtering. Q103 and associated components amplify the 43.65 MHz IF signal and apply it to the input of the
2nd mixer at Pin 16 of U101.
FM Receiver Subsystem
A multi-function integrated circuit, U101 and associated components form the FM-receiver subsystem. The
subsystem performs the functions of a 2nd mixer, IF amplifier and FM detector. The second local oscillator at 43.2 MHz
is applied to the 2nd local oscillator input at Pin 1 of U101. The 43.65 MHz signal at Pin 16 and the 2nd local oscillator
are mixed, with the resulting 450 kHz output signal appearing at Pin 3. This signal is filtered by a 450 kHz 6-pole
ceramic filter YF101 and applied to the input of the limiting IF amplifier at Pin 5. IC101 pin 6 de-couples the IF amplifier.
An internal quadrature detector, whose center frequency is determined by the 450 kHz quadrature resonator Y102
detects the FM IF signal. One input of the quadrature detector is connected internally to the IF signal from pin 11 while
the other input is the phase-shifted signal from Y102 at Pin 10. Demodulated audio appears at Pin 9, where a lowpass
filter formed around U303-C removes the spurious second IF output prior to application to the voice, tone and squelch
conditioning audio circuitry.
8
Two types of squelch circuits exist, an RSSI squelch and a NOISE squelch. Both types can be used
simultaneously or either one or the other can be used. The RSSI (receive signal strength indicator) squelch, which is
typically set around –108 dBm, must be set to open at a higher level than the noise squelch. This is necessary since the
RSSI measures total power in the receiver IF bandpass. All background noise, which at VHF can be high, is seen as
signal. The advantage of the RSSI squelch is that it opens and closes the audio paths very quickly. The noise squelch
has the advantage that it can be set at a much lower level, typically –121 dBm for 12 dB SINAD. It takes longer to open
and close noise squelch. If both are used simultaneously, since they are ORed together at U301 pin 32, the squelch will
open quickly and close slowly for strong signals. The RITRON programmer can be used to adjust levels or turn one or
the other off. A dual colored LED will shine green when carrier is detected.
Voice and Tone Conditioning in Receiver
Three post demodulation paths are provided. U303c provides DC level translation to bias succeeding op amp
stages at about 1.6 volts. The audio then gets de-emphasized by R366 and C364. The audio path then goes through a
fourth order 300 Hz highpass filter U308b and U308c. The 1 watt audio amp is turned on by Q304 and Q301.
The audio and data signals go through a programmable adjustable gain inverting buffer stage U303d, used to set
the output voltage.
Sub-audible signals go through a third order 250 Hz lowpass filter U303b. Pin 27 of U301 decodes the CTCSS or
DCS signal. In the case of CTCSS the processor, using an internal discrete Fourier transform, looks for the wanted
tone. Decode bandwidth is about +/-2 Hz.
Receiver Current Consumption
The radio will monitor the channel until a carrier becomes present. When an on channel carrier appears, the carrier
detect line (pin 13) will be pulled high through a 390 ohm resistor R309. If the correct CTCSS or DCS tone is present
the radio will unsquelch the speaker and auxiliary output lines. In standby mode the radio consumes 25 mA or less.
When unsquelched the audio PA is turned on. If only the auxiliary output and no voice is needed current consumption
can be reduced by disabling the audio PA. This is done by removing R383 and will bring current consumption down to
about 35 mA during receive. If a modem is used that is able to monitor the auxiliary output continually then AUX_MON
can be tied low. By disabling both RSSI and noise squelch, (both levels set high) the current can be reduced to 25 mA.
9
MICROCONTROLLER
The DR-145/445 transceiver is electronically controlled by U301, an 8-bit flash programmable microcontroller.
U301 has A/D inputs and PWM outputs for processing analog signals. Radio characteristics are stored in internal EE
memory. Its RS232 port is used in programming the radio’s personal characteristics such as frequencies and tones.
PIN DESCRIPTION
1 Input is pulled LOW when the PTT input is grounded to initiate transmitter operation.
2 Input is pulled low when high/low power input is grounded. This produces a low RF output power.
3 GROUND
4 +3.3 VDC VCC supply voltage.
5 GROUND
6 +3.3 VDC VCC supply voltage
7 OSC1 is 14.4 MHz reference input from Y301.
8 Output goes high when audio PA is enabled.
9 Output SCL4 data line for controlling frequency and power e-pot.
10 Output drops low momentarily to produce synthesizer latch enable (LE) pulses.
11 Output goes low to enable receiver (/RXEN).
12 Output SCL3 data line for controlling AUX_IN and AUX_OUT gain e-pot.
13 TONE OUT generates the QC (CTCSS) or DQC (DCS) waveforms via an 8 bit PWM in transmit mode.
14 Output SCL2 data line for controlling DEVIATION and BALANCE e-pot.
15 DATA output sends serial data to frequency synthesizer U401 to program frequency information. Also used for
flash programming (MOSI)
16 CLK output sends serial data clock pulses to frequency synthesizer. Also used in flash programming (MISO).
17 Connects to pin 6 of J401. Grounding this defeats synthesizer unlock reloading for diagnosis.
Also outputs SCL1 data line for controlling NOISE and RSSI squelch e-pot.
18 AVCC gets +3.3 VDC for A/D convertors.
19 Input used to measure receiver RSSI.
20 AREF supplies the reference level for the A/D and is connected to the regulated +3.3 VDC.
21 AGND supplies A/D ground.
22 Input is normally low when PLL is locked.
23 Input is pulled low when the CS2 frequency bit input is tied to ground.
24 Input is pulled low when CS0 channel select bit is pulled low.
25 Output goes low to enable transmitter (/TXEN).
26 Input is pulled low when CS1 channel select bit is pulled low.
27 CTCSS IN is an A/D input decoding the CTCSS or DCS waveform.
28 Input is pulled low when radio is commanded to MONITOR channel.
29 RESET is held low to start the radio in a known state on power up.
30, 31 SERIAL DATA PORT links the microcontroller to communications from an external data terminal via
programming port pin 9 of J301. This allows programming of the DR-445 EE memory used to store channel
frequency and configuration information.
32 CARDET gets pulled low when a RF carrier is detected.
10
DR-145/445 ALIGNMENT PROCEDURE
Only an authorized RF service technician should perform test and alignment of the DR-145/445. The unit is PC
adjusted.
RECOMMENDED TEST EQUIPMENT
1) 9 to 17 VDC 2 Amp current-limited power supply 3) Oscilloscope
2) RF Communications Test with: 4) Sine wave generator around 500 Hz
- FM Deviation Meter
- RF Wattmeter 5) RITRON PC Programming Kit
- Frequency Counter
- SINAD Measuring Device
RADIO PREPARATION
2) Connect the FM communications test set to the antenna connector.
3) Connect RITRON programming cable to radio and PC.
4) Apply 9 to 17 VDC to the red wire with the black to ground.
5) Run RITRON DR software and read the radio.
RADIO ADJUSTMENT
The DR-145/445 is preset at the factory for 5 Watts (or 8 watts) in high power and around 2 watts in low power at
12.5 VDC. The programming software includes help comments. If DR needs to be changed or readjusted do the
following:
2) Run RITRON DR LS programming software.
3) On the menu bar select Edit then Tune radio.
4) If starting from scratch, set up the radio in the order the buttons appear from top to bottom on the left: Frequency,
Mod Balance (not needed), Deviation (not needed), Power (not needed) then User Set Up. Otherwise, adjust what
is needed.
5) Hold frequency counter probe on C455 and U103 junction. Click Frequency then Tune.
6) The frequency used in adjustment is displayed in the upper right corner. The frequency displayed is in the normal
TX frequency band and will be used to adjust the reference oscillator.
7) Adjust frequency by clicking arrows or by click in space to right of sliding button (for up) or space left (for down).
Button can also be dragged to position.
8) Adjusted frequency reading should be less than +/-100 Hz. Click Save when done.
9) Adjust positive and negative corrections in the same way. This calibrates the reference oscillator.
10) If the reference oscillator ages and drifts in the future, only the center frequency should need trimming.
11) Click User Set Up. Here, you can adjust NOISE and RSSI squelch levels and AUX_IN and AUX_OUT gain. If both
RSSI and NOISE squelch are used simultaneously, the RSSI level must be set first with the NOISE squelch
disabled. Disable it by adjusting the level so high (bar to the right) that the RF level never reaches it. The NOISE
and RSSI squelch levels work as an OR function. With either level exceeded, the audio will turn on. Set the RSSI
level around -106 dBm and then the NOISE level around -120 dBm** .
12) Remember to save all settings when tuning is finished.
NOTES:
**The DR-145/445 is capable of two squelch operating modes. Both can operate simultaneously. See the FM
Receiver Subsystem section for theory. The units can be configured as the user requires. When a low level signal
appears, the noise squelch opens when the carrier is –119 dBm or greater. When the signal appearing is –106 dBm or
greater the RSSI squelch opens the audio with an even faster attack time. The above levels are factory set levels.
Ambient noise will affect the level at which the RSSI should be set. The squelch level ideally should be set on the
desired frequency, in the actual location the radio will be used and connected to the desired antenna. The level should
be set high enough to reject most false signals. The squelch levels are the same for all channels.
If a very fast receiver decay time (or squelching after signal disappears) is needed the noise squelch should be
defeated by setting it to a high level.
