RQA-1B/4B
Owner’s Manual
Wireless Call Button System
For use with the Ritron Quick Talk TM
Wireless Voice Monitor & Alarm transmitter
For use with the following Ritron Quick Talk™ models:
RQT-151-PS RQT-151M-PS RQT-152-PS
RQT-152M-PS RQT-451-PS RQT-452-PS
RQT-151-RCVR RQT-151M-RCVR RQT-152-RCVR
RQT-152M-RCVR RQT-451-RCVR RQT-452-RCVR
PRELIMINARY!
Call 800-USA-1-USA for the right Wireless Solutions to your communication needs.
________________________________________________________________________________________________________________________________
Ritron, Inc.
Ritron Publication 14500086 Rev. A 10-13
P.O. Box 1998 • Carmel, Indiana 46082-1998 • USA © 2013 Ritron, Inc. All rights reserved. Ritron, Patriot, Jobcom,
Phone: 317-846-1201; 800-USA-1-USA (800-872-1872) OutPost, GateGuard, Quiet Call and Quick Assist are registered
Fax: 317-846-4978 trademarks of Ritron, Inc. Quick Talk, Liberty and RadioNexus are
Email: ritron@ritron.com trademarks of Ritron, Inc.

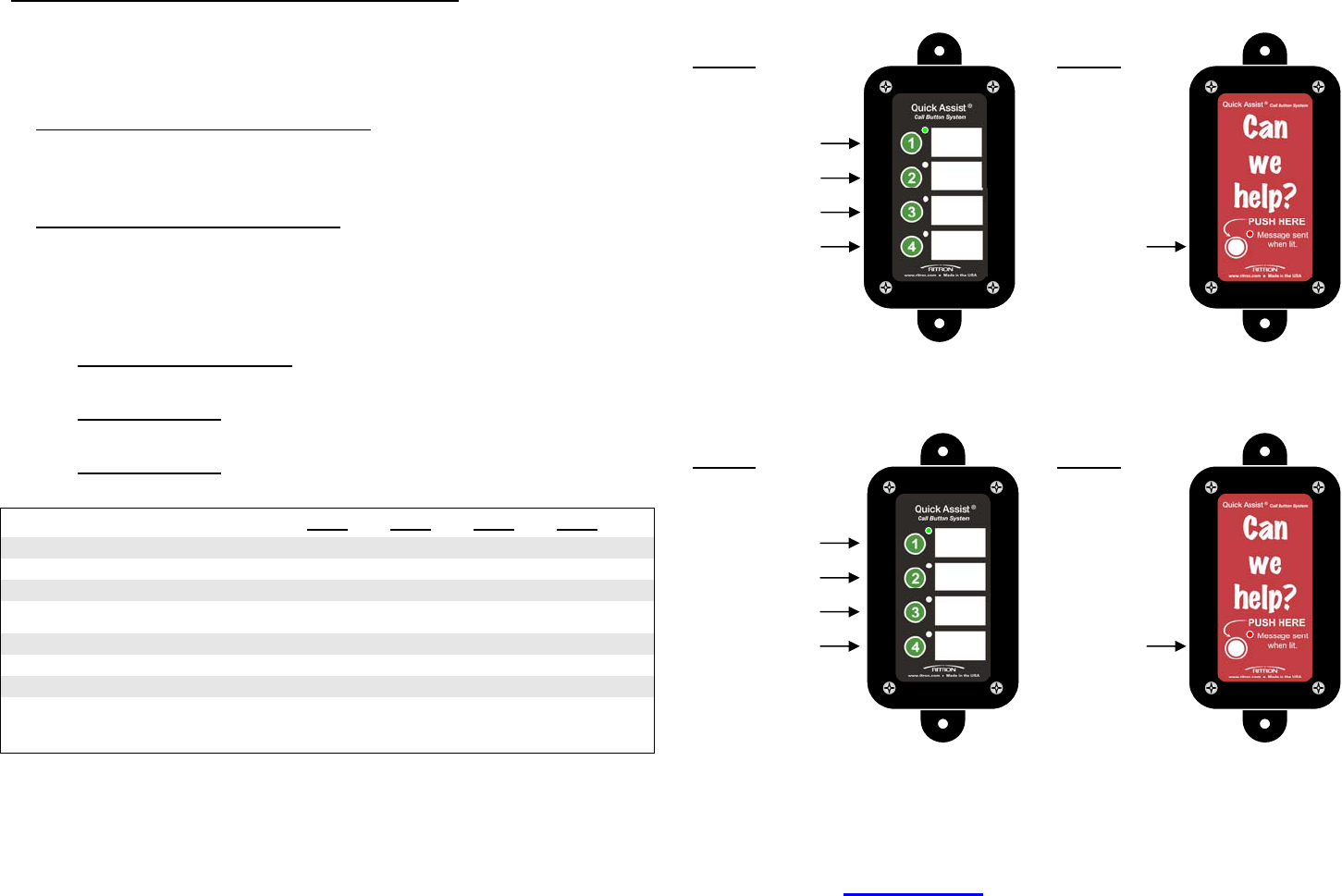

CARRY
OUT
PRICE
CHECK
OFFICE
SECURITY
RQA-1B RQA-4B
________________________________________________________________________________________________________________________________
For assistance, call RITRON at 800-872-1872, or go to www.ritron.com 2
Table of Content ........................................................................
Compatible RQT Quick Talk™ Models ........................................................... 2
RQA-1B/4B FCC Part 15 Statement............................................................... 2
RQA-1B/4B FCC Part 15 Instructions............................................................. 2
General Information ........................................................................................ 3
Operating the RQA-1B/4B............................................................................... 4
RQA-1B/4B Battery Replacement................................................................... 4
Setting the RQA-1B/4B .................................................................................. 5
Setting the CONFIG Switches for Standard Operation ............................ 5
Setting the CONFIG Switches for Keyfob Operation................................ 6
Setting the LOCATION switches for Standard Operation Only................ 7
Setting the Address .................................................................................. 7
Compatible RQT Quick Talk™ Models ....................................
The RQA-1B/4B Wireless Call Button is designed to operate with the
following Ritron RQT Quick Talk™ models. These Quick Talk™ transmitters
have an RQT-433-RCVR receiver installed.
Standard Operation:
RQT-151-PS RQT-151M-PS RQT-152-PS
RQT-152M-PS RQT-451-PS RQT-452-PS
Keyfob Operation:
RQT-151-RCVR RQT-151M-RCVR RQT-152-RCVR
RQT-152M-RCVR RQT-451-RCVR RQT-452-RCVR
Note: The RQT Quick Talk™ must have firmware revision 32.11 or greater.
RQA-1B/4B FCC Part 15 Statement ..........................................
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. You can test to see if this
equipment does cause harmful interference to radio or television reception by turning the
equipment off and on.
Caution: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
RQA-1B/4B FCC Part 15 Instructions ......................................
This device complies with Part 15 of the FCC Rules.
Operation of this device is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment has been certified to comply with the limits for a Class B computing device,
pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables
must be used with this equipment. Operation with non-approved equipment or unshielded cables
is likely to result in interference to radio and TV reception. The user is cautioned that changes
and modifications made to the equipment without the approval of manufacturer could void the
user’s authority to operate this equipment.
________________________________________________________________________________________________________________________________
For assistance, call RITRON at 800-872-1872, or go to www.ritron.com 3
General Information ..................................................................
The RQA-1B/4B is a 433.92 MHz low power, short range Wireless Call
Button designed to be used with a Ritron RQT Quick Talk™ Voice Alert
transmitter with an RQT-433-RCVR receiver installed. See the section
Compatible RQT Quick Talk™ Models for a list of Ritron model radios
capable of operation with the RQA-1B/4B.
When a button on the RQA-1B/4B is pressed the associated LED lights up
and a unique code is transmitted. The Quick Talk™ receives the code and
transmits an associated pre-recorded message. The RQA-1B/4B can
activate 1 of 8 Quick Talk™ “Assistance” messages. Simply record your
desired messages into the Quick Talk™ transmitter using the RQT PC
Programmer and you are ready to go.
When you press and hold an RQA-1B/4B button for more than 5 seconds a
“Call Cleared” code is transmitted to the Quick Talk™, which in turn transmits
a pre-recorded “Call Cleared” message. The LED will blink when the button
is held for more than 5 seconds, indicating that the “Call Cleared” code will
be transmitted.
Each RQA-1B/4B can also be set to send 1 of 15 different “Location” codes
to further identify the unit. Location messages are recorded into the Quick
Talk™ the same as voice messages. The “Location” message will be played
immediately before the “Assistance” message.

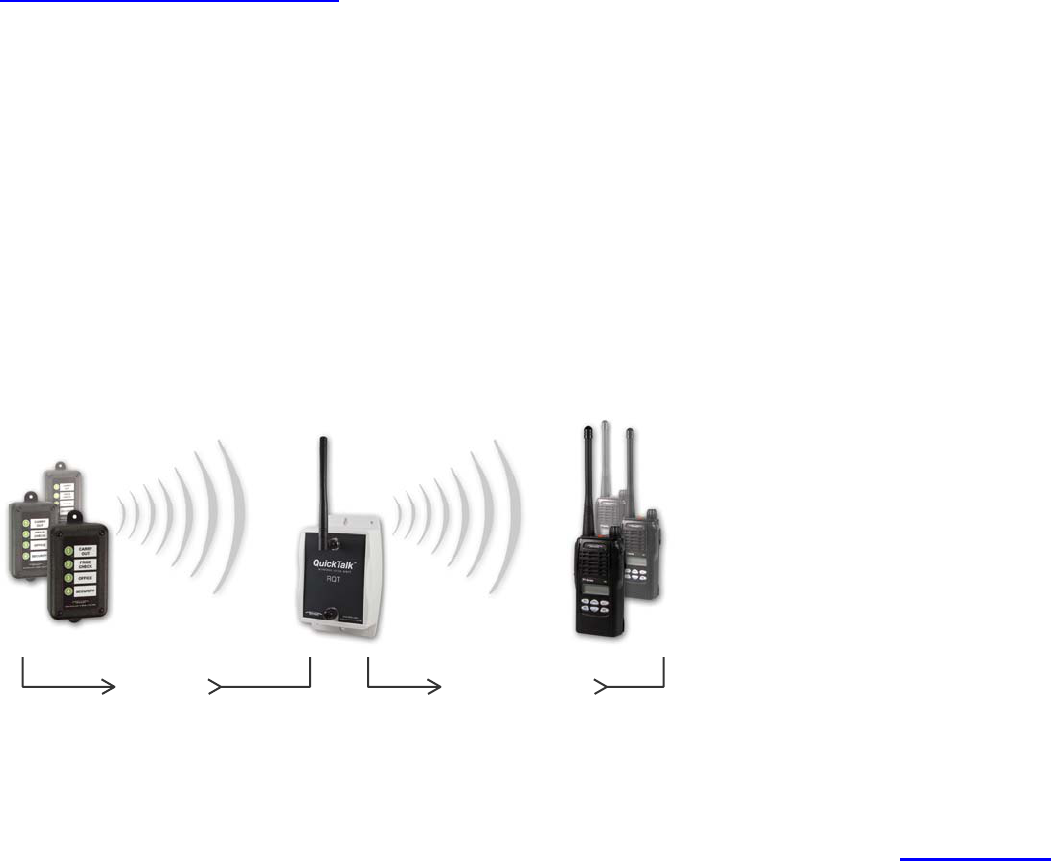

RQA-1B RQT Quick Talk™ Portables
RQA-4B JBS Base radios
RQX Callboxes
Loudmouth™
The RQA-1B/4B is powered by a single CR123A, 3 VDC, non-rechargeable
battery. Depending on usage, the battery can operate the RQA-1B/4B for up
to 3 years. The RQA-1B/4B is in a low power “sleep” mode when not in use
and draws very little current.
There are two basic types of Quick Talk™ transmitters that can be used with
the RQA-1B/4B.
RQT-xxx-PS Quick Talk™ models for Standard Operation
• Are used exclusively with the RQA-1B/4B Wireless Call Button with up
to 8 different “Assistance” messages and 15 unique “Location”
messages for maximum capability.
• Send a “Call Cleared” message whenever a call is terminated by the
RQA-1B/4B.
• Have no provisions for Quick Talk™ input operation.
RQT-xxx-RCVR Quick Talk™ models for Keyfob Operation
• Can be set for operation with the RQA-1B/4B on any one of the 4
inputs, allowing input operation and Wireless Call Button operation on
the same Quick Talk™ for maximum flexibility.
• There is only a single “Location” message available, but the codes are
compatible with Ritron RQT-KEYFOB models to allow simultaneous
operation.
• If an input is set for “KEYFOB” operation it will no longer respond to
switch closures or analog signals, the two input messages can only be
activated by the RQA-1B/4B or the two Ritron RQT-KEYFOB models
associated with that input.
• After the radio has been programmed and installed, Ritron model
keyfobs and the RQA-1B/4B can be used to activate the Quick Talk™
transmitter and broadcast unique, user recorded voice messages.
• Each of the 4 Quick Talk™ inputs can operate on 2 pre-assigned Ritron
keyfobs, a single RQA-1B Wireless Call Button, or on a single button on
the RQA-4B Wireless Call Button.
150 feet 200,000 sq. ft.
________________________________________________________________________________________________________________________________
For assistance, call RITRON at 800-872-1872, or go to www.ritron.com 4
Operating the RQA-1B/4B ........................................................
When any of the buttons are
pressed the RQA-1B/4B will
send a code to the Quick
Talk™, which in turn
decodes the code and
begins broadcasting an
associated pre-recorded
voice message.
The RQA-1B/4B will light
the LED associated with the
button pressed, and will
remain lit while the RQA-
1B/4B is transmitting. If a
button is pressed and held
for more than 5 seconds the
LED will blink and a “Call
Cleared” code will be
transmitted.
1. Press a button to initiate a message.
2. The LED for that button lights while the button is pressed, and remains lit
while the RQA-1B/4B is transmitting.
3. A code is sent to the Quick Talk™ when the button is released.
4. The Quick Talk™ receives the code and broadcasts the associated pre-
recorded message on a schedule programmed into the RQT Quick
Talk™.
5. Press and hold a button for 5 seconds.
6. The LED begins to blink.
7. A “Call Cleared” code is sent to the Quick Talk™ when the button is
released.
8. RQT Quick Talk™ broadcasts a “Call Cleared” message and stops the
broadcast schedule.
RQA-1B/4B Battery Replacement .............................................
The RQA-1B/4B utilizes a standard CR123A lithium cylindrical cell.
Depending on usage, it can provide up to 3 years of operation.

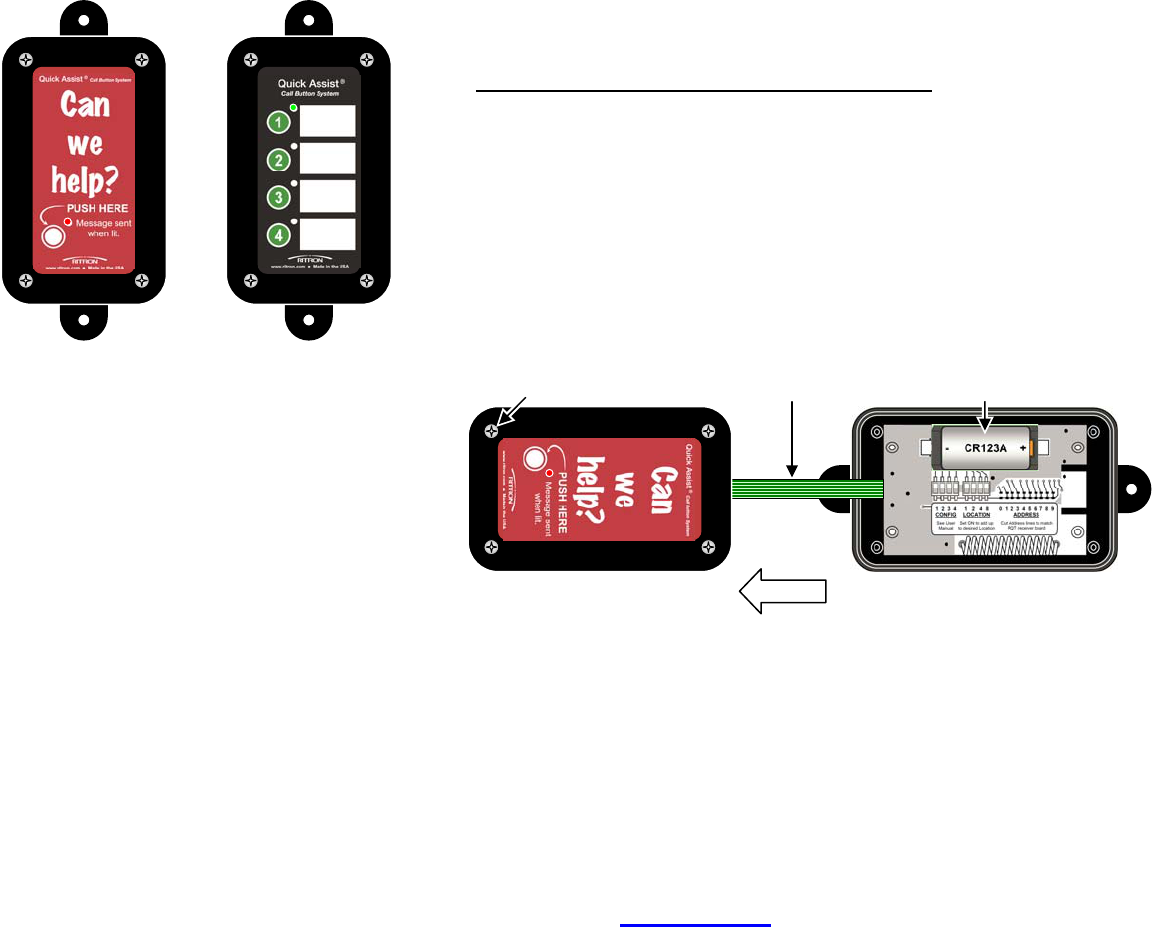

Access for battery replacement is accomplished by:
1. Removing the 4 corner screws on the front of the RQA-1B/4B
2. Carefully separating the case halves.
3. Move the case front toward the bottom of the RQA-1B/4B as shown.
The case front and case back are connected with a flex cable. Do not
place strain on the flex cable connecting the case front to the case back.
4. Replace the battery. Be careful to observe battery polarity.
5. Reposition the case halves and secure with the four corner screws.
There may be the risk of explosion if the battery is replaced by the wrong
type. Replace it with the same type CR123A lithium cell battery by installing
as shown. Although the battery holder is constructed to discourage incorrect
installation, be careful to observe polarity.
CARRY
OUT
PRICE
CHECK
OFFICE
SECURITY
RQ
A
-1B RQ
A
-4B
with Button pressed with Button 1 pressed
RQA-1B/4B case front
CR123A battery
RQA-1B
/
4B case back
Flex cable
Corner screws (x4)
________________________________________________________________________________________________________________________________
For assistance, call RITRON at 800-872-1872, or go to www.ritron.com 5
Setting the RQA-1B/4B .............................................................

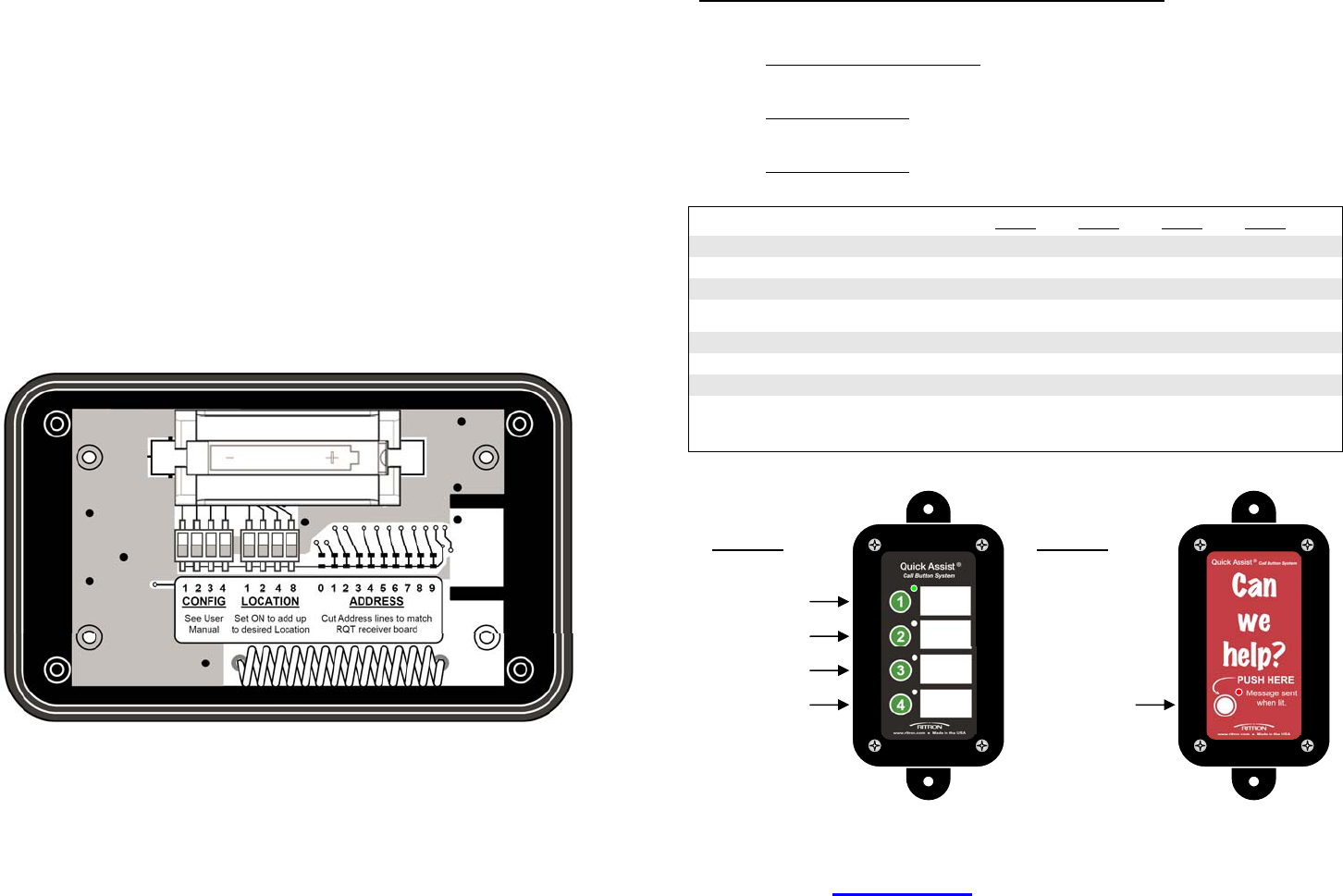

1. Separate the case front and back by removing the four corner screws
and gently lift the case front. The case front and case back are
connected with a flex cable. Do not place strain on the flex cable when
separating the case.
2. Remove the battery.
3. Note the 3 programming options available, a 4-position CONFIG dip
switch, a 4-position LOCATION dip switch, and a 10-position ADDRESS
programming array.
4. Set the RQA-1B/4B per the following instructions.
5. Re-install the battery and verify operation with the RQT Quick Talk™.
Be sure to observe battery polarity when re-installing.
6. Carefully re-install the case front.
RQA-1B/4B SETTINGS
Setting the CONFIG Switches for Standard Operation
1. The single button RQA-1B can be set to send any 1 of 8 Message codes.
Set CONFIG switches 1 and 2 per the following chart to set the RQA-1B
Message code. These switches can be ignored on the RQA-4B.
2. Set CONFIG switch 3 for Group A messages (OFF) or Group B
messages (ON).
3. Set CONFIG switch 4 to the OFF position for Standard operation.
SW1 SW2 SW3 SW4
Message 1, Group A OFF OFF OFF OFF
Message 2, Group A ON OFF OFF OFF
Message 3, Group A OFF ON OFF OFF
Message 4, Group A ON ON OFF OFF
Message 1, Group B OFF OFF ON OFF
Message 2, Group B ON OFF ON OFF
Message 3, Group B OFF ON ON OFF
Message 4, Group B ON ON ON OFF
CONFIG Switch Settings for Standard operation
CARRY
OUT
PRICE
CHECK
OFFICE
SECURITY
RQA-4B
(Group A or B)
Message 1
Message 2
Message 3
Message 4
RQA-1B
(Group A or B)
Message
1, 2, 3, or 4
________________________________________________________________________________________________________________________________
For assistance, call RITRON at 800-872-1872, or go to www.ritron.com 6
Setting the CONFIG Switches for Keyfob Operation
With Keyfob operation a Call Cleared message is independent of the normal
Assist message, whereas Standard operation appends the normal Assist
message with a brief Call Cleared message. This creates limitations in the
use of the RQT Quick Talk™ that Standard operation does not have.
• If a Call Cleared message is not required, each RQA-1B/4B can be set to
send RQT-KEYFOB codes 1 through 4, therefore requiring only 2 RQT
Quick Talk™ inputs (Input1 for RQT-KEYFOB-1 and RQT-KEYFOB-2,
Input 2 for RQT-KEYFOB-3 and RQT-KEYFOB-4).
• If a Call Cleared message is required, an RQT Quick Talk™ input is
required for each RQA-4B button, with one message used as an Assist
message and the other as a Call Cleared message.
1. The single button RQA-1B can be set to send any Message code per the
following chart.
Set CONFIG switches 1 and 2 per the following chart to set the RQA-1B
Message code. These switches can be ignored on the RQA-4B.
2. Set CONFIG switch 3 to the ON position if a Call Cleared message is
required, otherwise set it to the OFF position.
3. Set CONFIG switch 4 to the ON position for Keyfob operation.
SW1 SW2 SW3 SW4
RQT-KEYFOB-1 OFF OFF OFF ON
RQT-KEYFOB-2 ON OFF OFF ON
RQT-KEYFOB-3 OFF ON OFF ON
RQT-KEYFOB-4 ON ON OFF ON
RQT-KEYFOB-1 with Call Clear OFF OFF ON ON
RQT-KEYFOB-3 with Call Clear ON OFF ON ON
RQT-KEYFOB-5 with Call Clear OFF ON ON ON
RQT-KEYFOB-7 with Call Clear ON ON ON ON
CONFIG Switch Settings for Keyfob operation
CARRY
OUT
PRICE
CHECK
OFFICE
SECURITY
RQ
A
-4B
(no Call Clear)
RQT-KEYFOB-1
RQT-KEYFOB-2
RQT-KEYFOB-3
RQT-KEYFOB-4
RQ
A
-1B
(no Call Clear)
RQT-KEYFOB-
1, 2, 3, or 4
CARRY
OUT
PRICE
CHECK
OFFICE
SECURITY
RQ
A
-4B
(with Call Clear)
RQT-KEYFOB-1
RQT-KEYFOB-3
RQT-KEYFOB-5
RQT-KEYFOB-7
RQ
A
-1B
(with Call Clear)
RQT-KEYFOB-
1, 3, 5, or 7
________________________________________________________________________________________________________________________________
For assistance, call RITRON at 800-872-1872, or go to www.ritron.com 7
Setting the LOCATION switches for Standard Operation Only
When set for Standard Operation with the RQT-xxx-PS model Quick Talk™,
the RQA-1B/4B can also be set to send 1 of 15 different “Location” codes to
further identify the unit. Location messages are recorded into the Quick
Talk™ the same as voice messages.
Set the LOCATION switch code for the RQA-1B/4B per the following chart:
SW1 SW2 SW3 SW4
No Location OFF OFF OFF OFF
Location 1 ON OFF OFF OFF
Location 2 OFF ON OFF OFF
Location 3 ON ON OFF OFF
Location 4 OFF OFF ON OFF
Location 5 ON OFF ON OFF
Location 6 OFF ON ON OFF
Location 7 ON ON ON OFF
Location 8 OFF OFF OFF ON
Location 9 ON OFF OFF ON
Location 10 OFF ON OFF ON
Location 11 ON ON OFF ON
Location 12 OFF OFF ON ON
Location 13 ON OFF ON ON
Location 14 OFF ON ON ON
Location 15 ON ON ON ON
Setting the ADDRESS
For convenience, the RQT-433-RCVR receiver installed in the Quick Talk™
and all RQA-1B/4B Wireless Call Buttons come from the factory set to the
same address. This establishes a relationship between a single RQT-433-
RCVR receiver and multiple RQA-1B/4B with different codes. For the vast
majority of users the address does not need to be changed. Occasionally
the user may want to change the address to:
• Install two or more RQT Quick Talk™ with RQT-433-RCVR receivers in
the same location.
• Avoid interference with another transmitter using the same address.
• Create a more secure “non-standard” address.
The RQT-433-RCVR receiver and RQA-1B/4B transmitters allow the
selection of one of 1,024 unique addresses. To avoid contention with other
units or to create unique relationships, the address can be changed. This is
accomplished by cutting PCB traces with a sharp object, such as an X-Acto
knife.
On the RQA-1B/4B Wireless Call Button the traces are accessed by
removing the front cover. If the trace is intact, the address line is connected
to ground, otherwise it is floating. The RQT-433-RCVR receiver address
must match exactly in order for the units to communicate.
IMPORTANT!
The RQA-1B/4B and the RQT-433-RCVR receiver installed in the RQT Quick
Talk™ housing must be set to the same address.

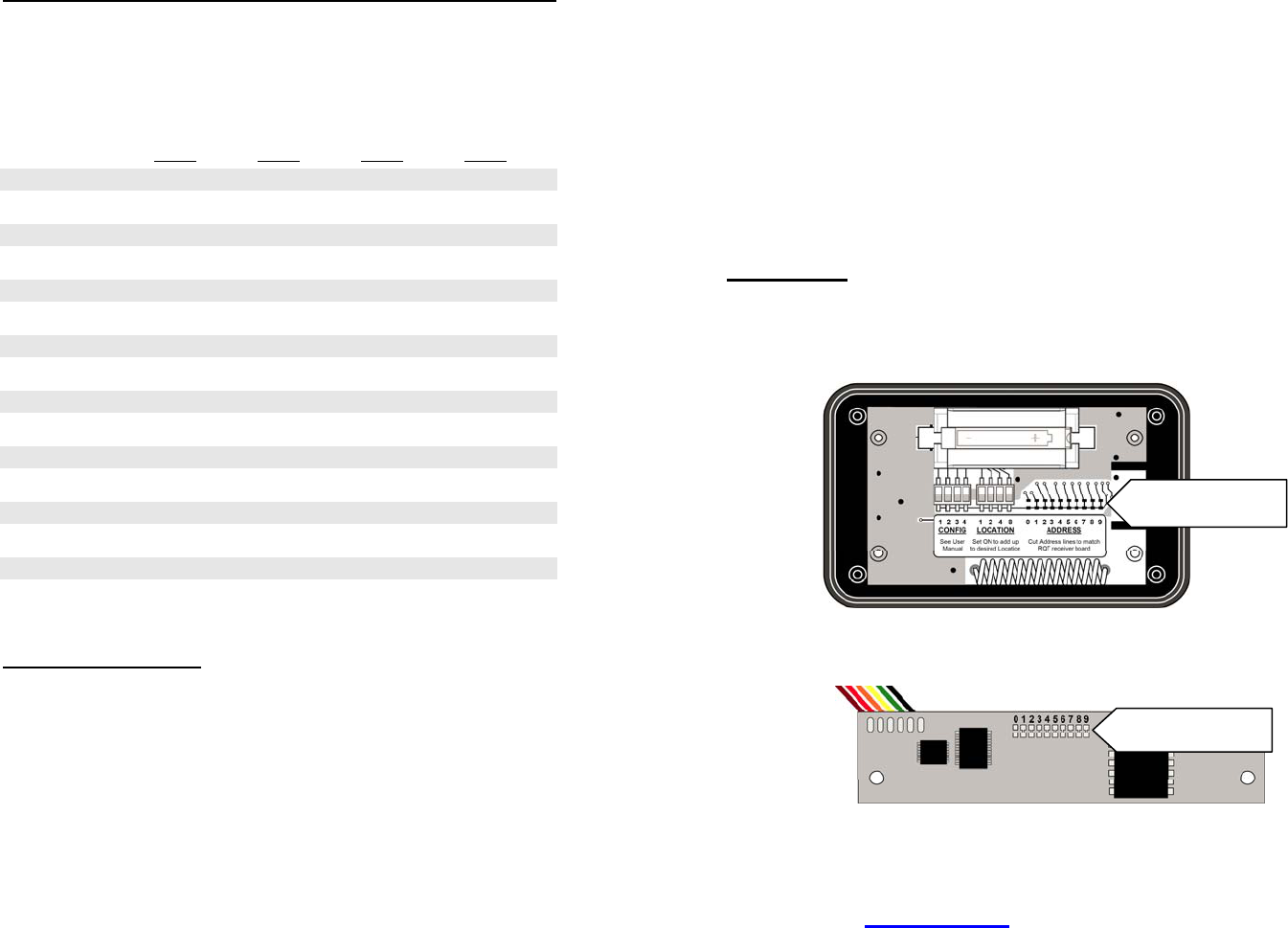

RQA-1B/4B Address Programming
RQT-433-RCVR Address Programming
RQT-433-RCVR
A
ddress traces
RQ
A
-1B/4B
Address traces
