Checkmate® Stops
& Holders
Absolute Door Control and
Entire Opening Protection
CHECKMATE® STOPS & HOLDERS
TABLE OF CONTENTS
2Copyright © 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
General Information ............................................................................................................................................................3
How to Select Product .........................................................................................................................................................4
Options ............................................................................................................................................................................5
Certifications .....................................................................................................................................................................5
Limited Warranty ................................................................................................................................................................ 5
Specifications ....................................................................................................................................................................5
#1 Heavy-Duty Concealed ...................................................................................................................................................6
#1ADJ Heavy-Duty Concealed Adjustable ............................................................................................................................. 7
#2 Standard-Duty Concealed Adjustable .............................................................................................................................. 8
#5 Standard-Duty Concealed ...............................................................................................................................................9
#6 Low Profile Concealed .................................................................................................................................................10
#6ADJ Low Profile Concealed Adjustable .............................................................................................................................11
#7 Surface Cantilever Holder ........................................................................................................................................... 12
#8HD Extra Heavy-Duty Double Lever ................................................................................................................................. 13
#9 Heavy-Duty Surface ......................................................................................................................................................14
#9ADJ Adjustable Heavy-Duty Surface ..................................................................................................................................15
#10 Standard-Duty Surface Adjustable ................................................................................................................................ 16
#55 Standard-Duty Surface ............................................................................................................................................... 17
Parts Drawings ............................................................................................................................................................... 18
How to Order ................................................................................................................................................................. 19
3
Copyright © 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
CHECKMATE® STOPS & HOLDERS
GENERAL INFORMATION
Checkmate® overhead stops and holders are used to extend the life of the door, frame and any door closing devices. They may be
necessary if there are strong winds, high traffic or abuse.
• When used in conjunction with a floor closer, you have absolute door control, top and bottom
• Provides positive deadstop at selected degree
• There are three functions, four ways to order
• Friction Stay – used on doors without closers to keep doors open
• Hold Open – door remains held open near deadstop location
• Stops – door deadstops at a particular degree of opening
• Multi Function – adaptable as hold open and/or stops
• Available as surface mounted or concealed
• Standard mount on push side of door (see model descriptions for pull side installations)
• Thru bolts are furnished with all surface models and must be used for installation.

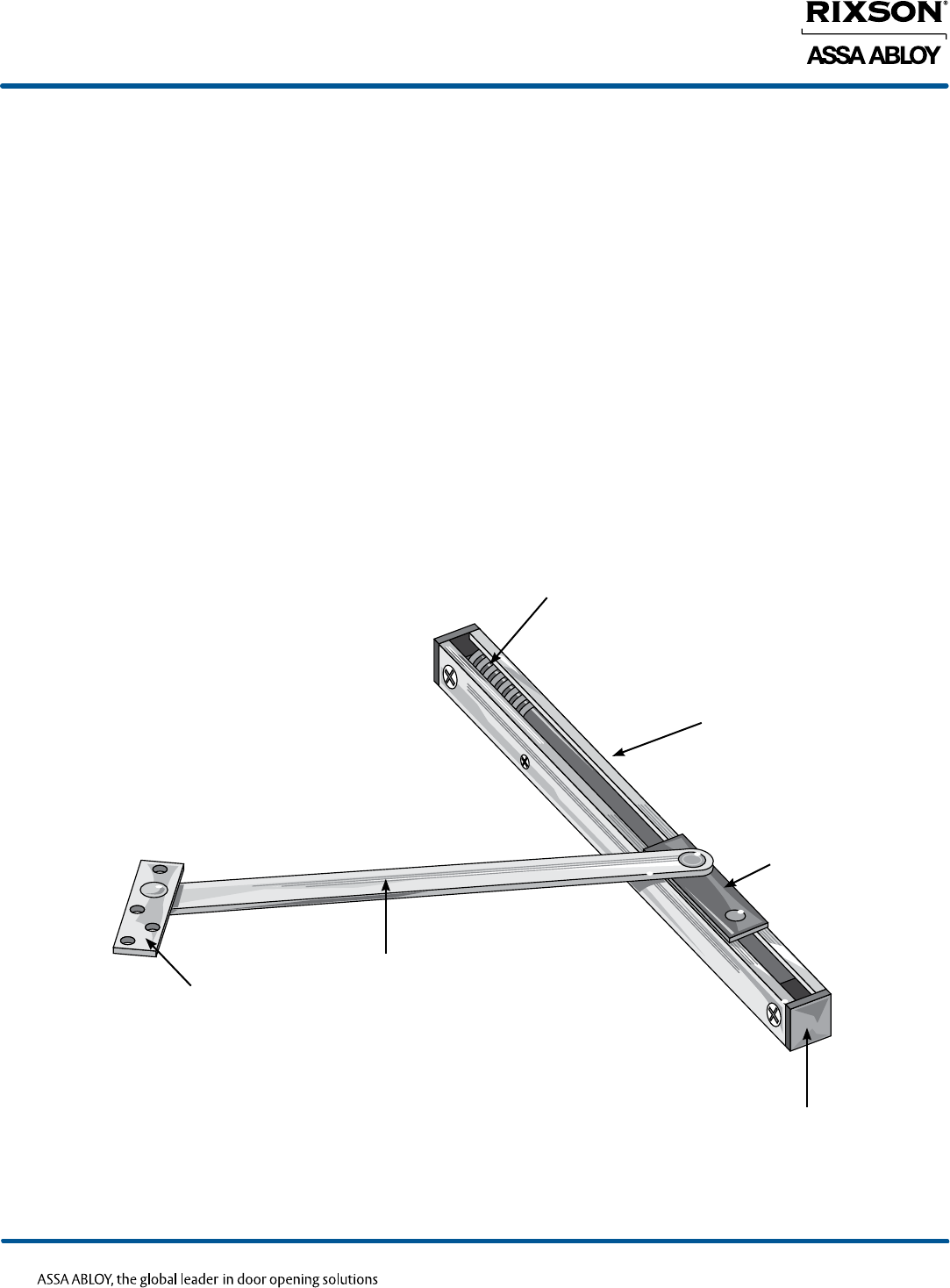

Shock End Block
Channel
Slider Cam
End Cap
Arm
Jamb Bracket
CHECKMATE® STOPS & HOLDERS
HOW TO SELECT PRODUCT
4

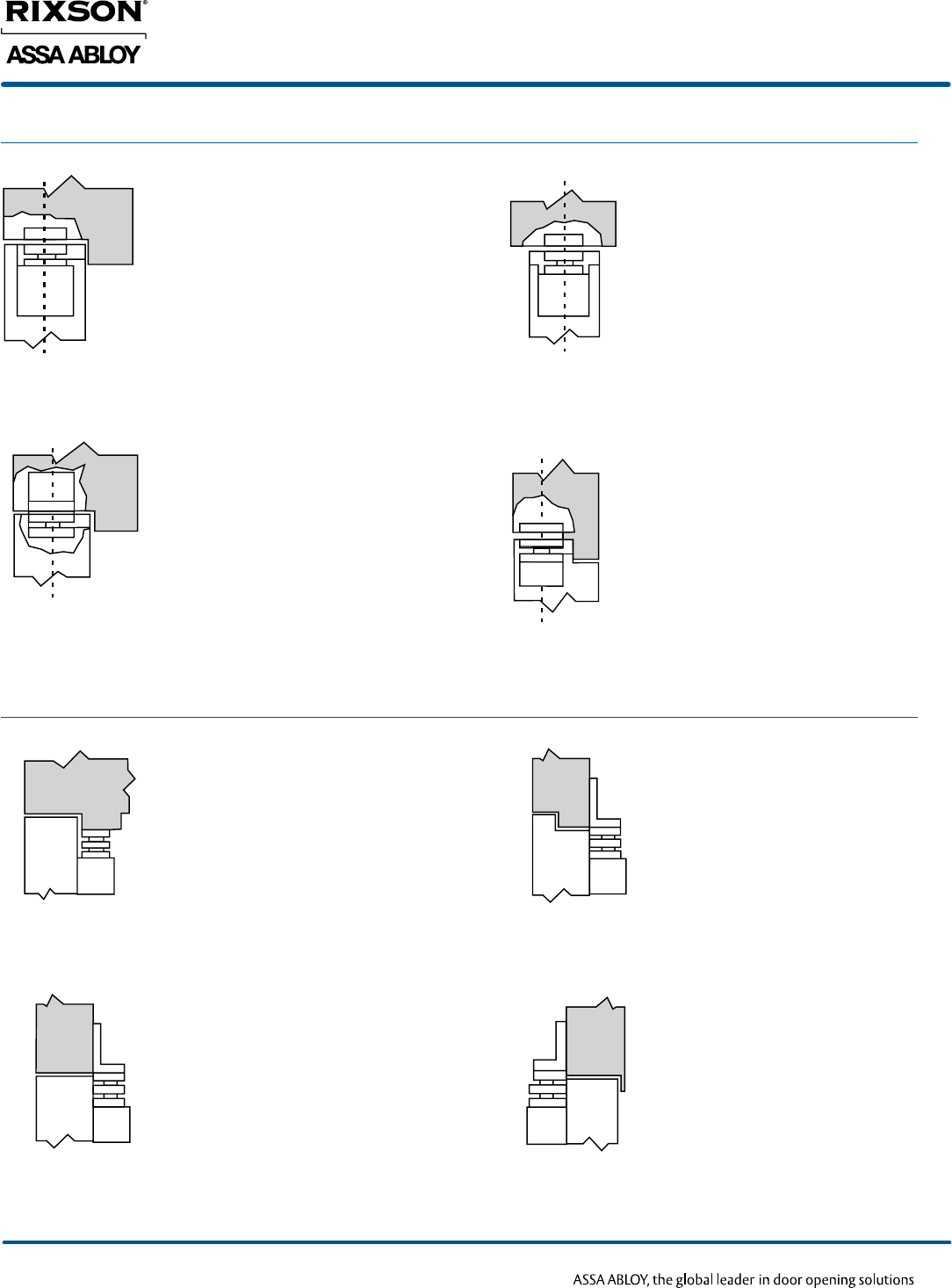

CONCEALED MOUNTING
Copyright © 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
Method A – Standard Installation,
Single Acting Nos. 1, 1ADJ, 2, 5, 6,
6ADJ Series
For single acting doors, the jamb bracket
is mortised into the frame and the channel
mortised into the top of the door. Both the
bracket and channel are secured with wood
or machine screws.
A cutout for the arm is required on the stop
side of the door only. A hole must be drilled
for the control knob of the No. 1 Series
holder only.
Method No. 1 – Standard
Installation (Push side of door)
Nos. 8HD, 9, 9ADJ, 10, 55 Series
The jamb bracket mounts on the soffit
with wood or machine screws. The
channel mounts to the door with sex
bolts.
Method No. 2 – Rabbeted Door
Installation (Push side of door)
Nos. 8HD, 9, 9ADJ, 10, 55 Series
A special angle jamb bracket adapter
mounts on the header with wood or
machine screws. The jamb bracket
attaches to the adapter with machine
screws. The channel fastens to the
door with sex bolts. (Same bracket
as used with Method 3 and 5. See
catalog for bracket number for
each model.)
Method No. 3 - Flush Door
Installation (Push side of door)
Nos. 8HD, 9, 9ADJ, 10, 55 Series
This method of installation is identical
to Method No. 2 for Rabbeted Doors.
(Same bracket as used with Method
2 and 5. See catalog for bracket
number for each model.)
Method No. 5 - Reverse Installation
(Pull side of door) Nos. 9, 9ADJ, 10
and 55 Series
The jamb bracket adapter is secured
to the header with wood or machine
screws. The jamb bracket fastens to the
adapter with machine screws and the
channel mounts on the door with sex
bolts. (Same bracket as used with
Method 2 and 3. See catalog for
bracket number.)
Method B – Standard Installation,
Double Acting Nos. 1, 1ADJ, 2, 5,
6, 6ADJ Series
For double acting center hung floor
closer or pivot applications.
Mounting is similar to Method A, with
the exception that the cutout for the
arm is required on both sides of the
door.
Method C - Inverted Installation,
Single Acting Nos. 2, 5 Series
Recommended for doors with
minimum top rail depth. The arm and
jamb bracket are mortised into the
door, and the channel is installed in
the header with wood or machine
screws. The cutout for the arm is
required on the stop side of the door
only.
Method D - Rabbeted Door
Installation, Single Acting
No. 2, 5 Series
This method is designed for 1-3/4"
doors with 1/2" maximum rabbet.
The jamb bracket is mortised into the
header and the arm and channel
are mortised into the door. Wood
or machine screws are used for
fastening. The cutout for the arm is
required on the stop side of the door
only.
SURFACE MOUNTING
5
Copyright © 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
CHECKMATE® STOPS & HOLDERS
OPTIONS
Less Spring – Suffix LS
Heavy-duty slide track type stops have a spring in the end of the channel that keeps the slider from
deadstopping. If these units are being used with electromechanical closer, where the door, must
deadstop, the LS option is needed. Available only with models 1 and 9.

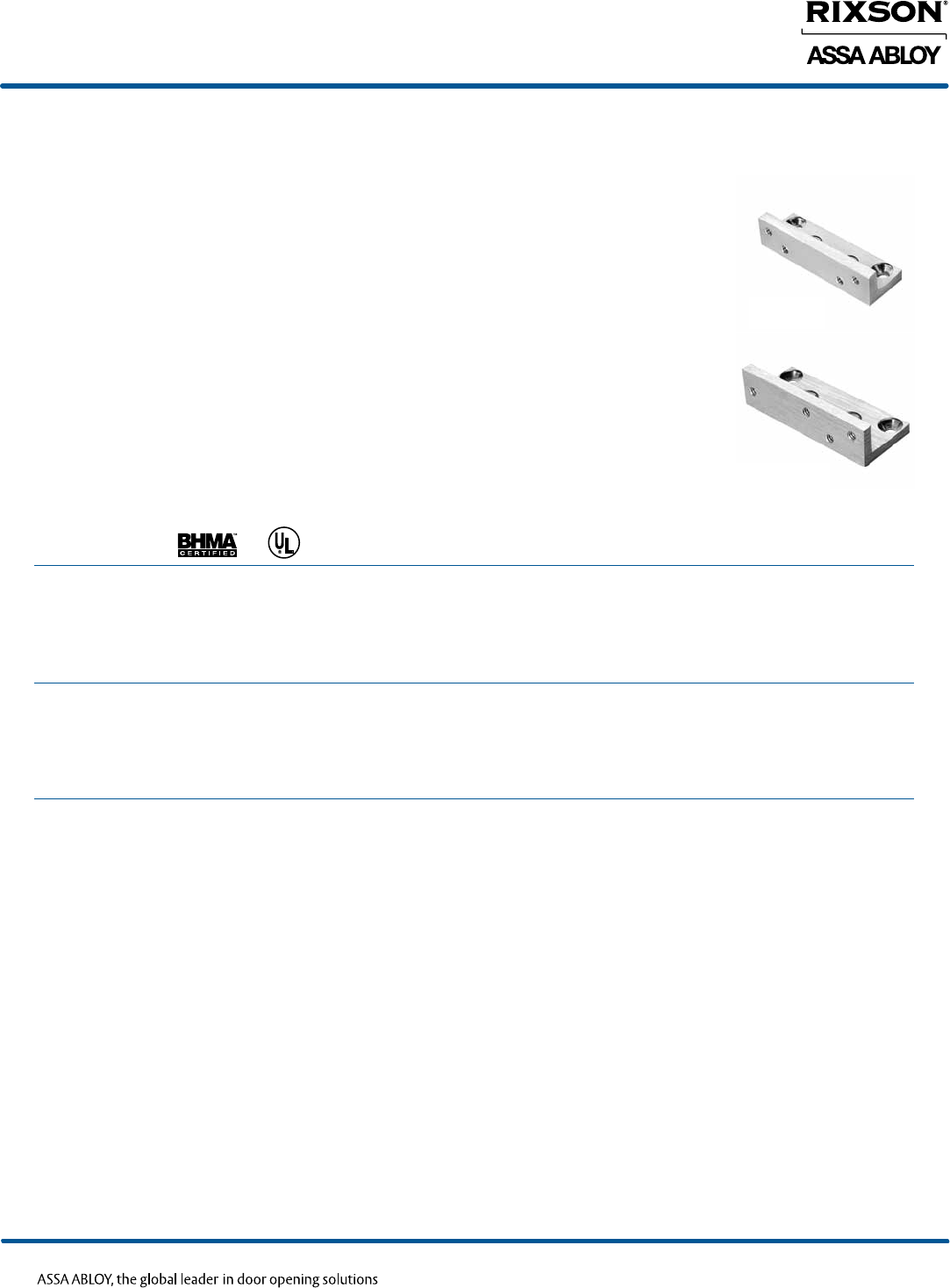

Angle Jamb Bracket Adapter
Standard-duty models suffix 5258 (non-handed)
Heavy-duty models suffix 5458 (LH) or 5459 (RH)
When surface mounted units are mounted on a rabbeted door on the push side, flush door and transom
on the push side, or in a reverse installation on the pull side of the door, a special bracket is needed.
Note: not all models can be mounted on the pull side of the door (see specific model numbers in
catalog.)
Security Screws – Suffix Torx®
Security screws can be supplied for exposed fasteners.
CERTIFICATIONS
All Rixson Checkmate® overhead stops and holders are in compliance with ANSI/BHMA A156.8, Grade 1 and 2 Standards. See
individual products for sub sections. See individual models for UL Listing.
LIMITED WARRANTY
Rixson Checkmate® stops and holders are warranted for 2 years for defect. See Rixson price book for specific details of the limited
warranty.
SPECIFICATIONS
All overhead stops and holders shall be from a single manufacturer.
Standard-duty models used for interior or low to moderate traffic doors.
Heavy-duty models used for exterior or high traffic doors or doors subject to abuse.
For extremely abusive areas or high winds use double lever arm type.
Coordinate deadstop and/or hold open location with concealed floor closers.
Checkmate products provide hold open and/or deadstop.
5258
5458/5459
CHECKMATE® STOPS & HOLDERS
CONCEALED MOUNT
6

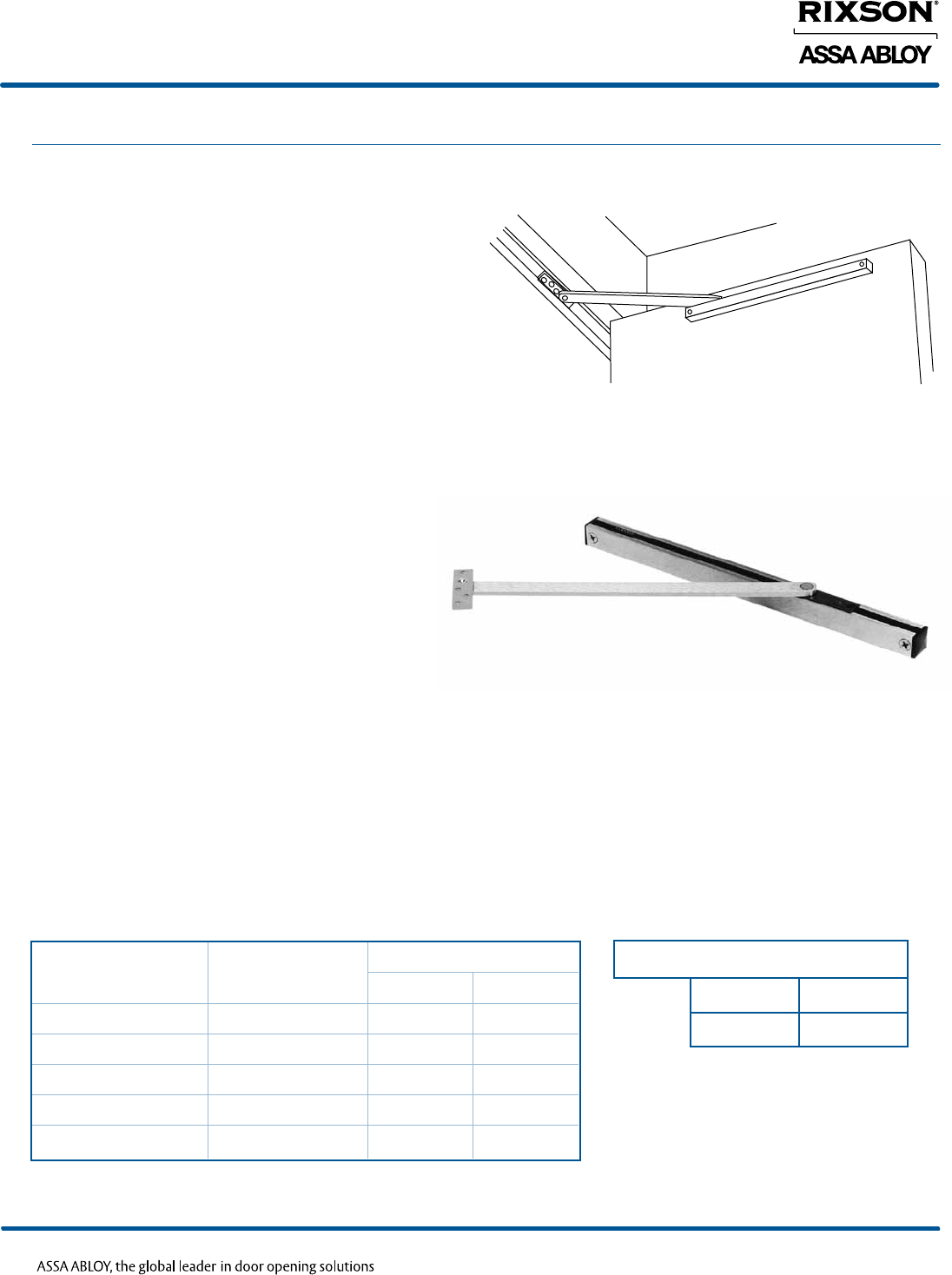

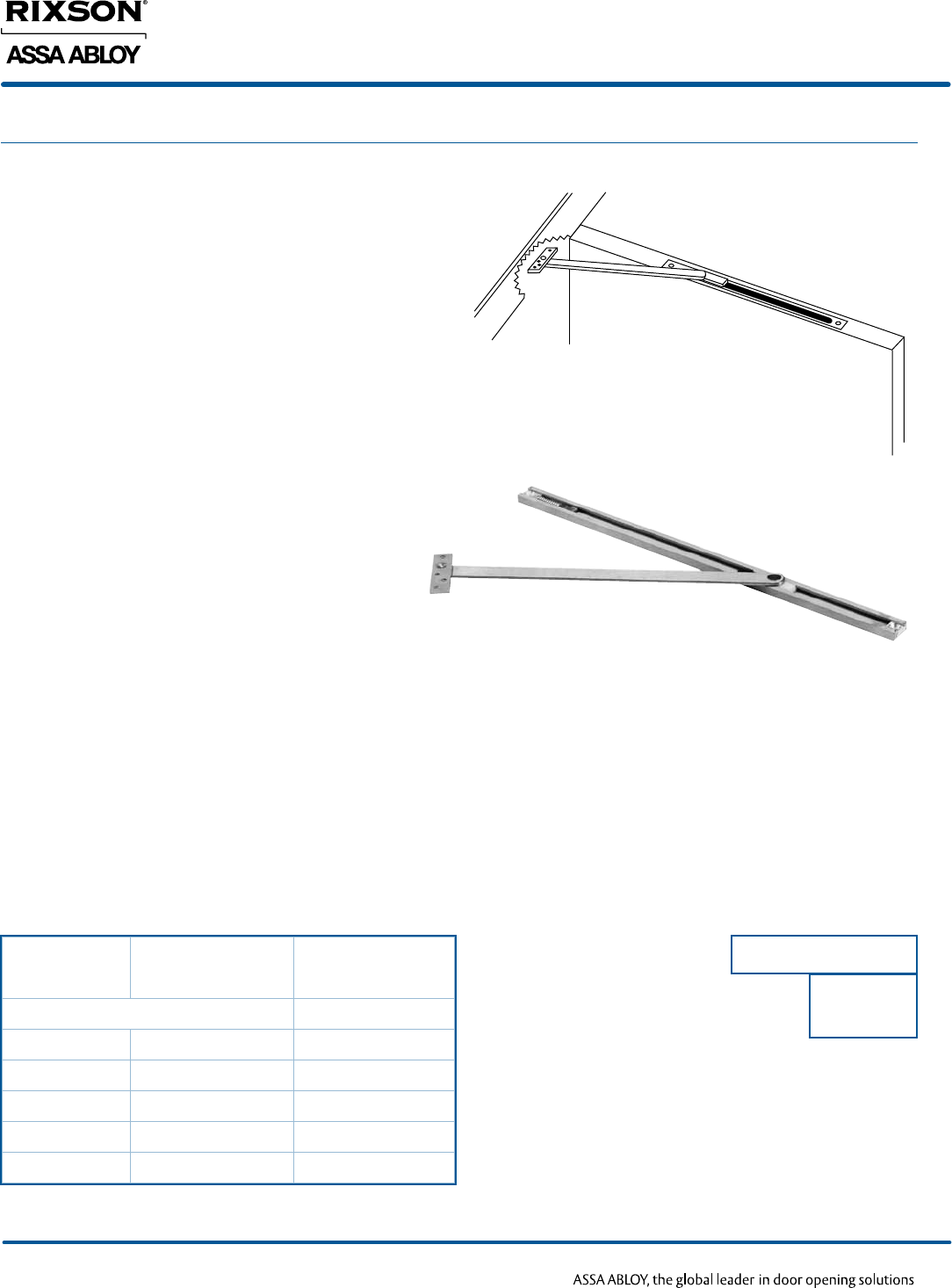

1 SERIES
Copyright © 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
C01541
C01511
H.O. Stop
Product Description & Features
• Heavy-duty
• Interior or exterior doors
• Doors may be single or double acting
• Non-handed
• Slide track design
• Recommended for high traffic, heavy
abuse installations
• Heavy shock absorber spring provides
5 -7° compression before dead stop
• LS option omits spring for special
applications
• Surface on/off knob on hold open
models
• Stop, friction stay or hold open functions
• Complete screw packet for installation in
wood and machine screws for door and
frame.
• For security areas, Torx® screws available
for exposed fasteners
• Standard architectural finishes
• Durable slider cam and shock block
• 110° maximum opening
• 1-3/4" minimum door thickness, for thicker
doors, note thickness when ordering
• 1-3/16" square channel
• Stop function UL listed for fire door
assemblies
• Hanging means other than standard butts or
offset pivots require special templating and
pricing. Consult factory
Door Opening Chart (in inches)
*Butt hung only on this size door. No swing clear hinges.
ANSI No.
C01531
Shipping
Weight
4.5 lbs.
Friction
Butts
Offset
Pivots
Center
Hung
Pivots
Model Number
Friction H.O. Stop
*24 - 28 — 1-116 1-126 1-136
28-1/16 - 33 30 - 36 1-216 1-226 1-236
33-1/16 - 38 36-1/16 - 41 1-316 1-326 1-336
38-1/16 - 43 41-1/16 - 46 1-416 1-426 1-436
43-1/16 - 48 46-1/16 - 50 1-516 1-526 1-536
7
Copyright © 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
CHECKMATE® STOPS & HOLDERS
CONCEALED MOUNT

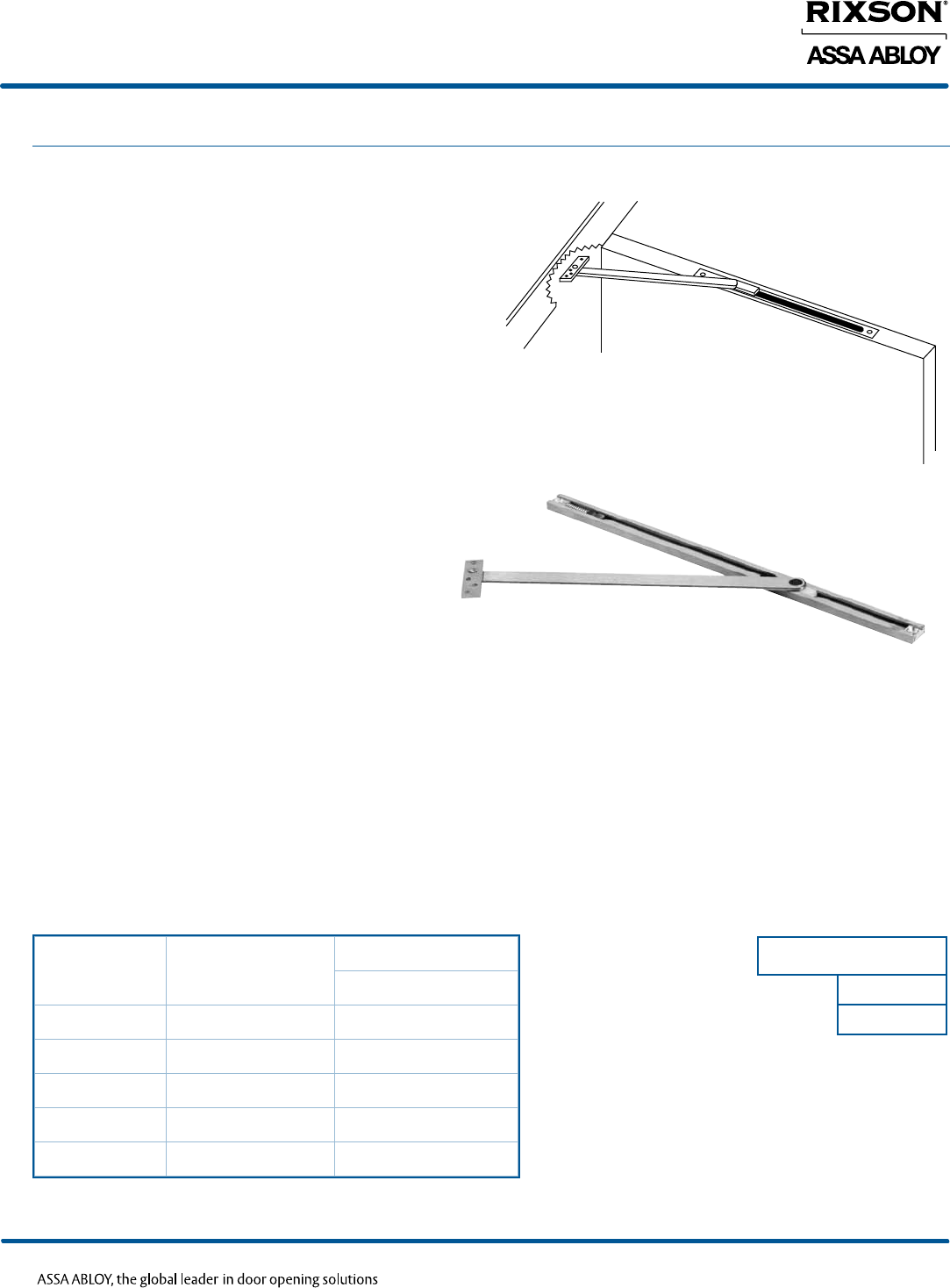

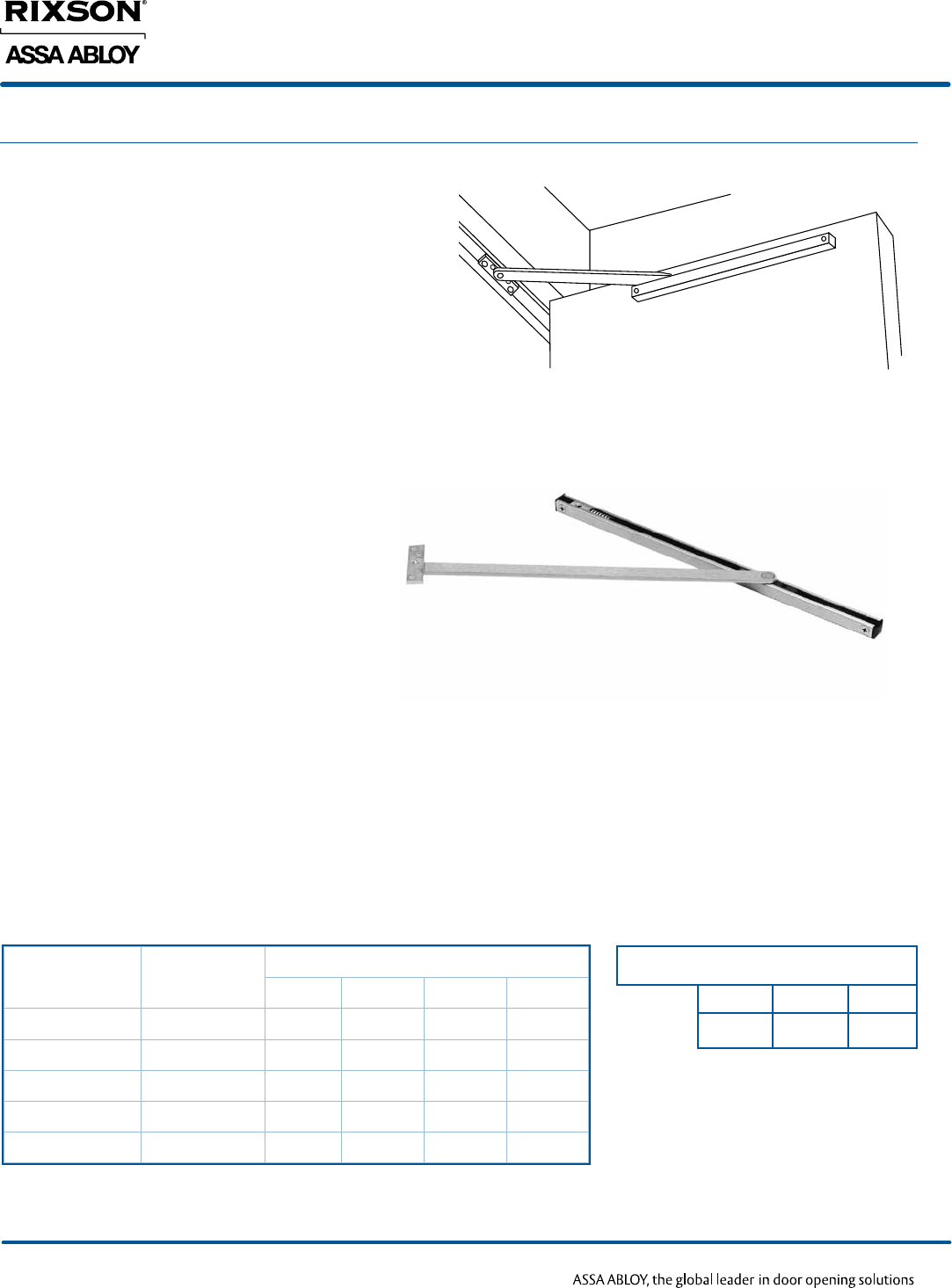

1ADJ SERIES
C01541
Stop
Product Description & Features
• Adjustable, heavy-duty
• Interior or exterior doors
• Doors may be single or double acting
• Non-handed
• Slide track design
• Recommended for high traffic, heavy abuse
situations
• Heavy shock absorber spring provides 5-7°
compression before dead stop
• Order specifically as a stop or hold open
• Degree of opening is fully adjustable and
can be adapted to changing needs
• Complete screw packet kit for installation in
wood or metal door and frame
• For security areas, Torx® screws available
for exposed fasteners
• Standard architectural finishes
• Durable slider cam and shock block
• 110° maximum opening (except 1ADJ for
center hung 30-36" door which is 105°)
• 1-3/4" minimum door thickness, for thicker
doors consult factory
• 1-3/16" square channel
• Stop function UL listed for fire door assemblies
• Hanging means other than standard butts or
offset pivots require special templating and
pricing. Consult factory
Door Opening Chart (in inches)
*Butt hung only on this size door. No swing clear hinges.
ANSI No.
C01511
Shipping
Weight
4.5 lbs.
H.O.
Butts
Offset
Pivots
Center
Hung
Pivots
Model Number
H.O. Stop
*24 - 28 — 1ADJ-126 1ADJ-136
28-1/16 - 33 30 - 36 1ADJ-226 1ADJ-236
33-1/16 - 38 36-1/16 - 41 1ADJ-326 1ADJ-336
38-1/16 - 43 41-1/16 - 46 1ADJ-426 1ADJ-436
43-1/16 - 48 46-1/16 - 50 1ADJ-526 1ADJ-536
CHECKMATE® STOPS & HOLDERS
CONCEALED MOUNT
8

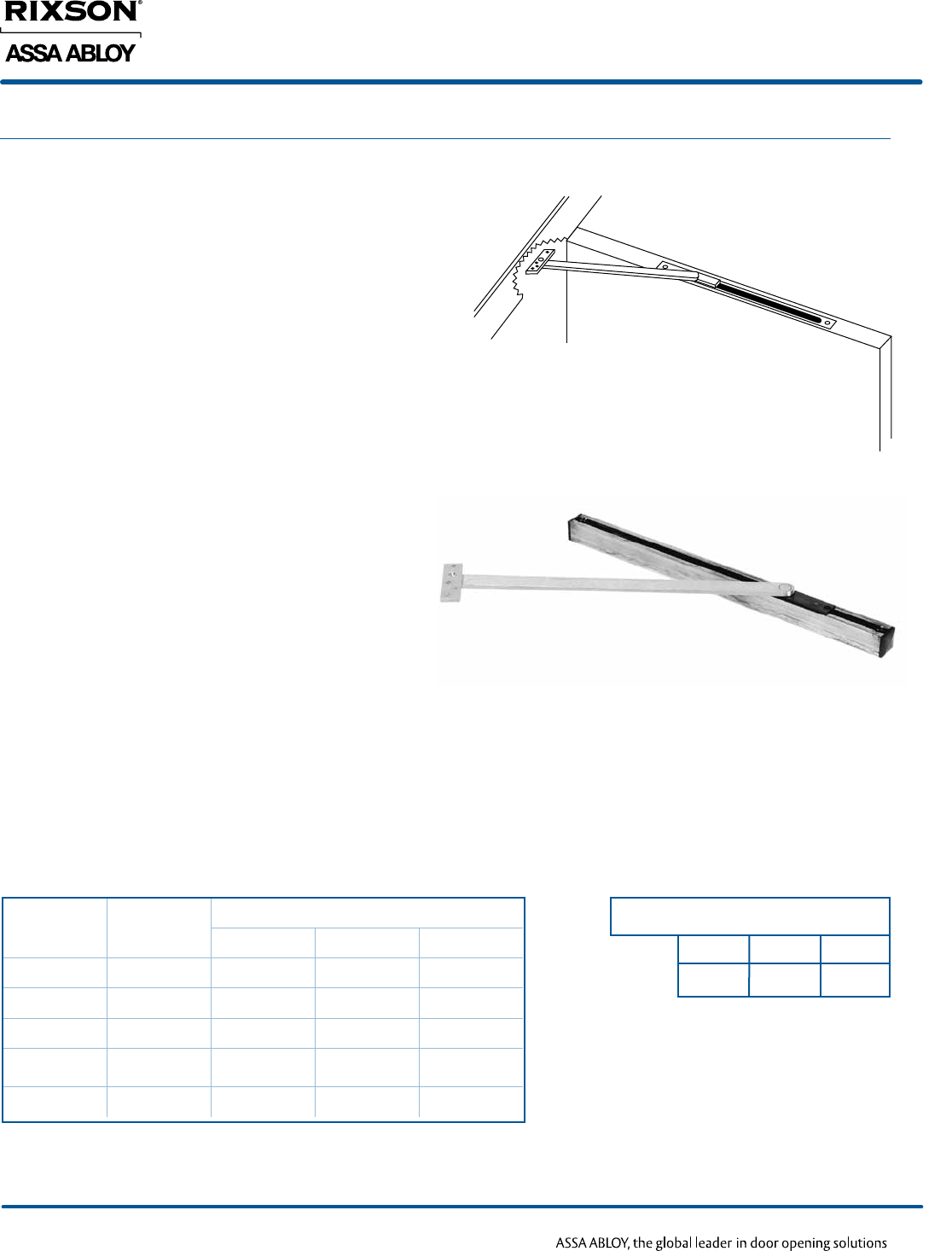

2 SERIES
Copyright © 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
Product Description & Features
• Adjustable, standard duty
• Interior doors
• Doors may be single or double acting
• Non-handed
• Slide track design
• Recommended for moderate traffic, medium
weight doors
• Degree of opening is fully adjustable
and can be adapted to changing needs
• Heavy shock absorber spring provides
5 -7° compression before dead stop
• Can be ordered specifically as a stop,
friction stay, or hold open
• Multi-function unit is shipped as a stop. Can
be converted to a hold open or friction in
the field. 5012-PKG (Adapter kit) included
• Complete screw packet kit for installation in
wood or metal door and frame
• For security areas, Torx® screws available
for exposed fasteners, but heavy-duty units
should be considered for high security
applications
• Standard architectural finishes
• Durable slider cam and shock block
• 110° maximum opening
• 3/4" square channel
• Stop function UL listed for fire door
assemblies
• Hanging means other than standard butts or
offset pivots require special templating and
pricing. Consult factory
Door Opening Chart (in inches)
ANSI No.
C04542
C04512C04532
Shipping
Weight
3.5 lbs.
Friction H.O. Stop
*Butt hung only on this size door. No swing clear hinges.
Butts
Offset
Pivots
Center
Hung
Pivots
Model Number
Friction H.O. Stop Multi
*18 - 24 — 2-116 2-126 2-136 2-146
24-1/16 - 30 27 - 32 2-216 2-226 2-236 2-246
30-1/16 - 36 32-1/16 - 38-1/2 2-316 2-326 2-336 2-346
36-1/16 - 42 38-9/16 - 45 2-416 2-426 2-436 2-446
42-1/16 - 48 45-1/16 - 48 2-516 2-526 2-536 2-546
9

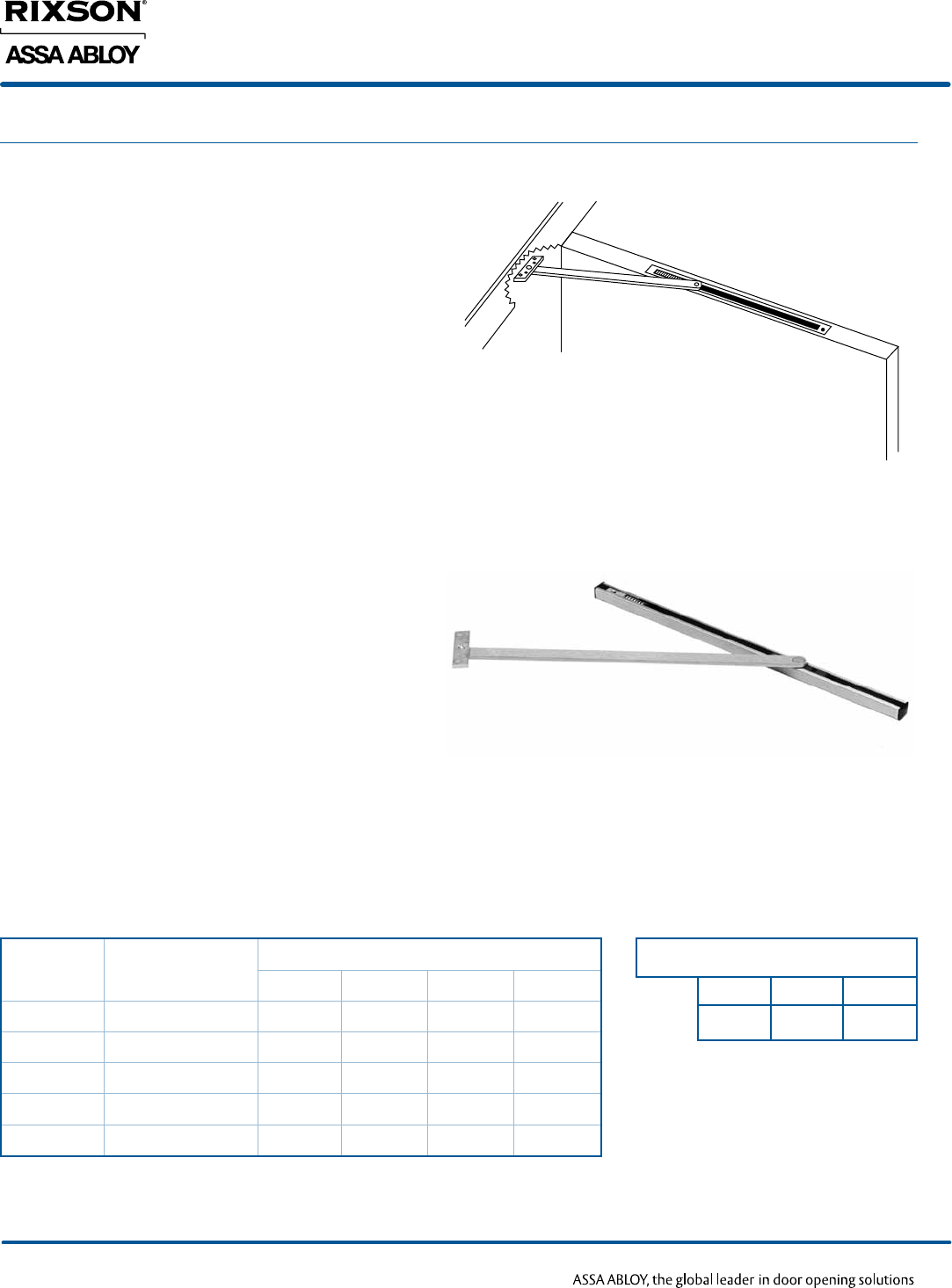

5 SERIES
Copyright © 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
CHECKMATE® STOPS & HOLDERS
CONCEALED MOUNT
*Butt hung only on this size door. No swing clear hinges.
Butts
Offset
Pivots
Center
Hung
Pivots
Model Number
H.O. Stop
*18 - 24 — 5-126 5-136
24-1/16 - 30 27 - 32 5-226 5-236
30-1/16 - 36 32-1/16 - 38-1/2 5-326 5-336
36-1/16 - 42 38-9/16 - 45 5-426 5-436
42-1/16 - 48 45-1/16 - 48 5-526 5-536
Product Description & Features
• Standard duty
• Interior doors
• Doors may be single or double acting
• Non-handed
• Slide track design
• Recommended for moderate traffic, medium
weight interior doors
• Degree of opening determined by templating
– not field adjustable.
• Heavy shock absorber spring provides 5-7°
compression before dead stop
• Complete screw packet allows for installation
in wood or metal door and frame
• For security areas, Torx® screws available for
exposed fasteners, but heavy-duty units should
be considered for high security applications
• Available in 652 and sprayed finishes only
• Durable slider cam and shock block
• 110° maximum opening
• 3/4" square channel
• Hanging means other than standard butts or
offset pivots require special templating and
pricing. Consult factory
Door Opening Chart (in inches)
ANSI No.
C04542
C04512
Shipping
Weight
3.5 lbs.
H.O. Stop
CHECKMATE® STOPS & HOLDERS
CONCEALED MOUNT
10

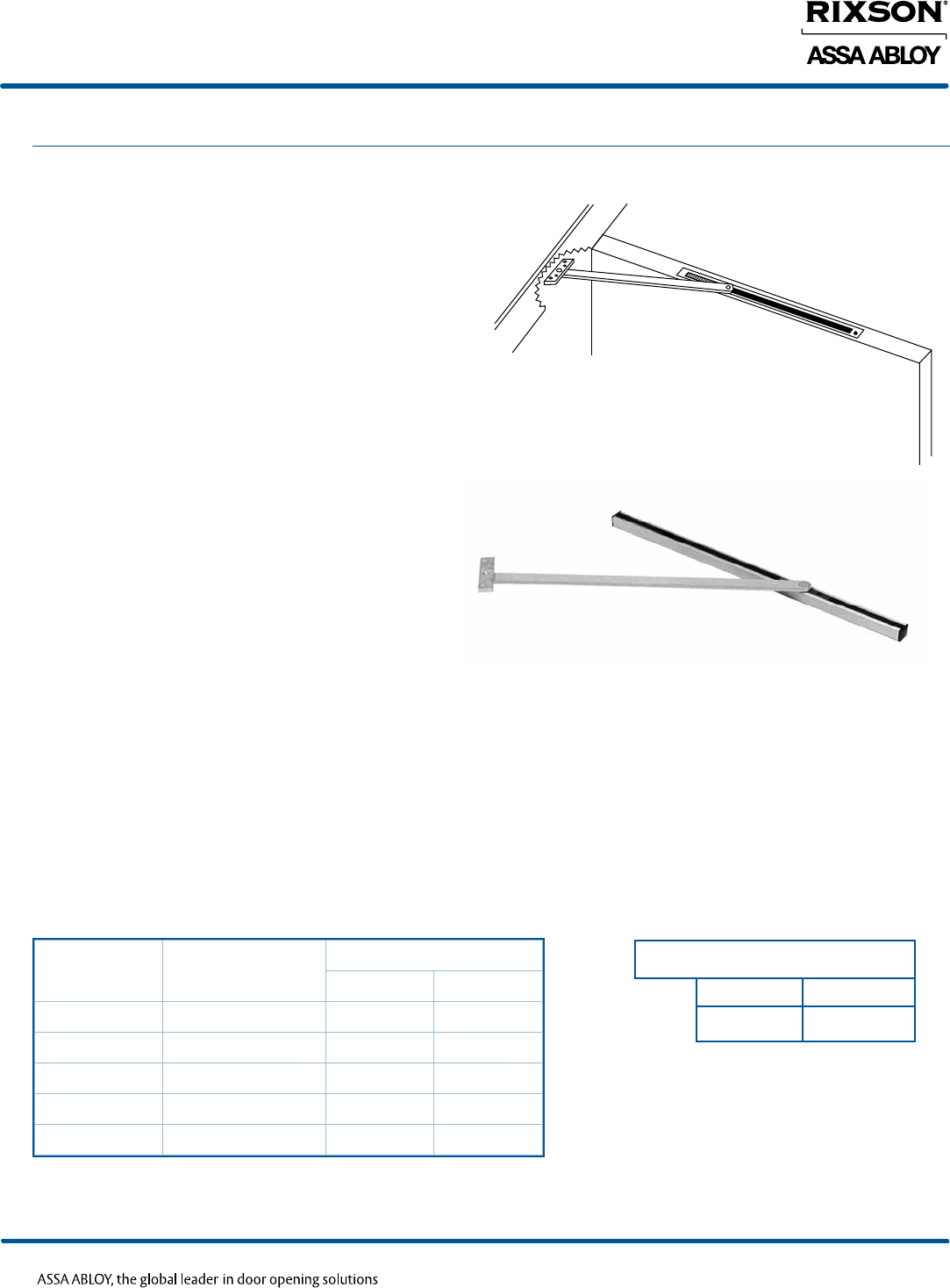

6 SERIES
Copyright © 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
Product Description & Features
• Low profile
• Interior or exterior doors
• Doors may be single or double acting
• Non-handed
• Recommended for moderate traffic, medium
weight doors
• Low profile concealed channel designed for
installation in aluminum storefront doors
• Heavy shock absorber spring provides 5-7°
compression before dead stop
• Complete screw kit allows for installation in
wood or metal door and frame
• For security areas, Torx® screws optional
• Standard architectural finishes
• Durable slider cam
• 110° maximum opening
• 1-3/4" minimum door thickness
• Channel is 1-1/4" wide by 1/2" deep
• UL listed for fire door assemblies
• Hanging means other than standard butts or
offset pivots require special templating and
pricing. Consult factory
• Available in stop function only
Chart (in inches)
ANSI No.
Shipping
Weight
4.5 lbs.
Butts
Offset
Pivots
Center
Hung
Pivots
Model Number
Door Opening Stop
*24 - 28 — 6-136
28-1/16 - 33 30 - 36 6-236
33-1/16 - 38 36-1/16 - 41 6-336
38-1/16 - 43 41-1/16 - 46 6-436
43-1/16 - 48 46-1/16 - 50 6-536
*Butt hung only on this size door. No swing clear hinges.
C01541
Stop
11

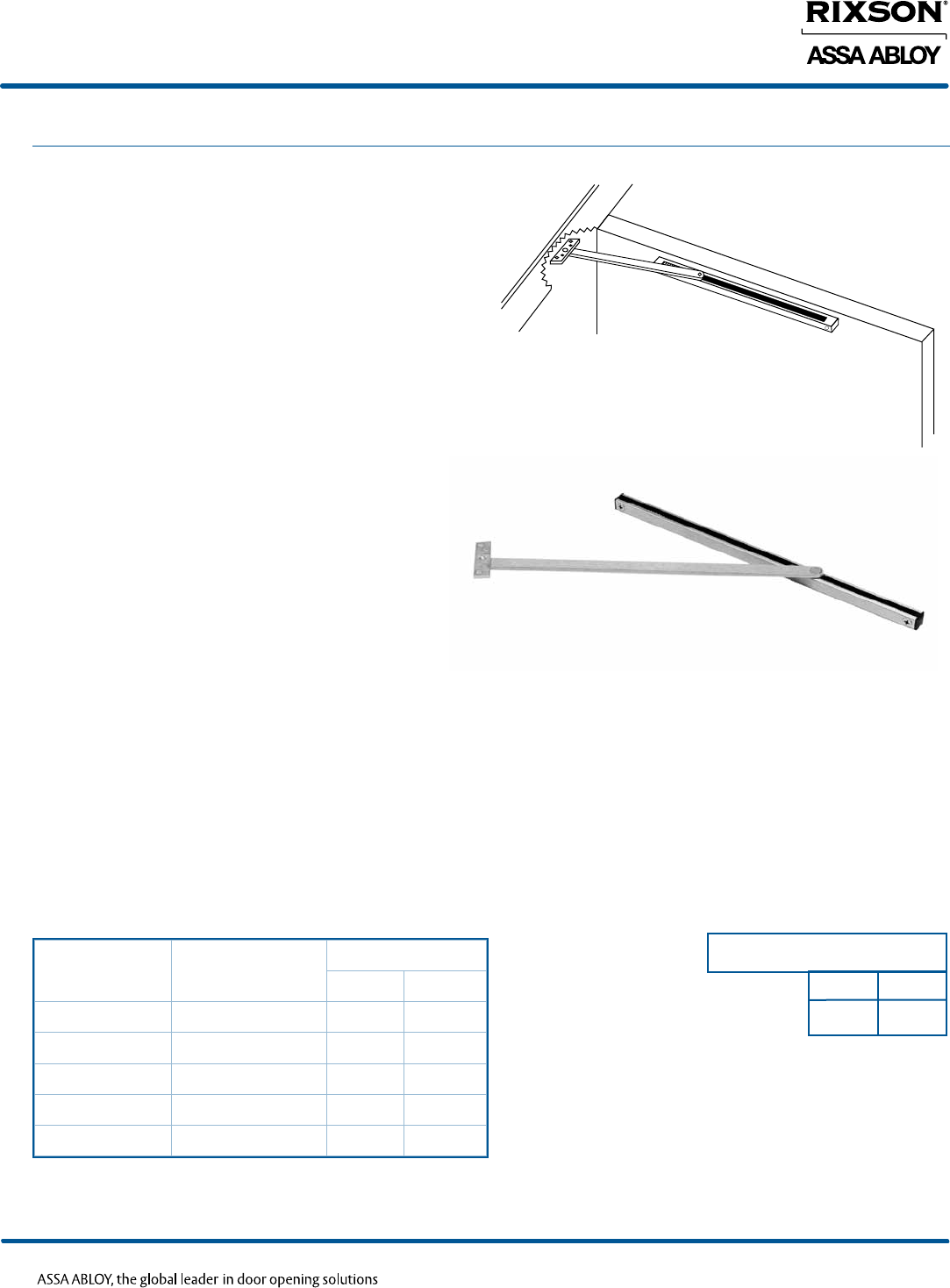

6ADJ SERIES
Copyright © 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
CHECKMATE® STOPS & HOLDERS
CONCEALED MOUNT
Product Description & Features
• Adjustable low profile
• Interior or exterior doors
• Doors may be single or double acting
• Non-handed
• Recommended for moderate traffic, medium
weight doors
• Low profile concealed channel design for
installation in aluminum doors
• Heavy shock absorber spring provides 5-7°
compression before dead stop
• Degree of opening is fully adjustable and
can be adapted to changing needs
• Complete screw packet for installation in
wood or metal door and frame
• For security areas, Torx® screws available for
exposed fasteners
• Standard architectural finishes
• Durable slider cam and shock block
• 110° maximum opening (except 6ADJ for
center hung 30-36" door which is 105°)
• 1-3/4" minimum door thickness, for thicker
doors consult factory
• Channel is 1-1/4" wide x 1/2" deep
• UL listed for fire door assemblies
• Hanging means other than standard butts or
offset pivots require special templating and
pricing. Consult factory.
• Available in stop function only
Chart (in inches)
ANSI No.
Shipping
Weight
4.5 lbs.
*Butt hung only on this size door. No swing clear hinges.
Stop
C01541
Butts
Offset
Pivots
Center
Hung
Pivots
Model Number
Stop
*24 - 28 — 6ADJ-136
28-1/16 - 33 30 - 36 6ADJ-236
33-1/16 - 38 36-1/16 - 41 6ADJ-336
38-1/16 - 43 41-1/16 - 46 6ADJ-436
43-1/16 - 48 46-1/16 - 50 6ADJ-536

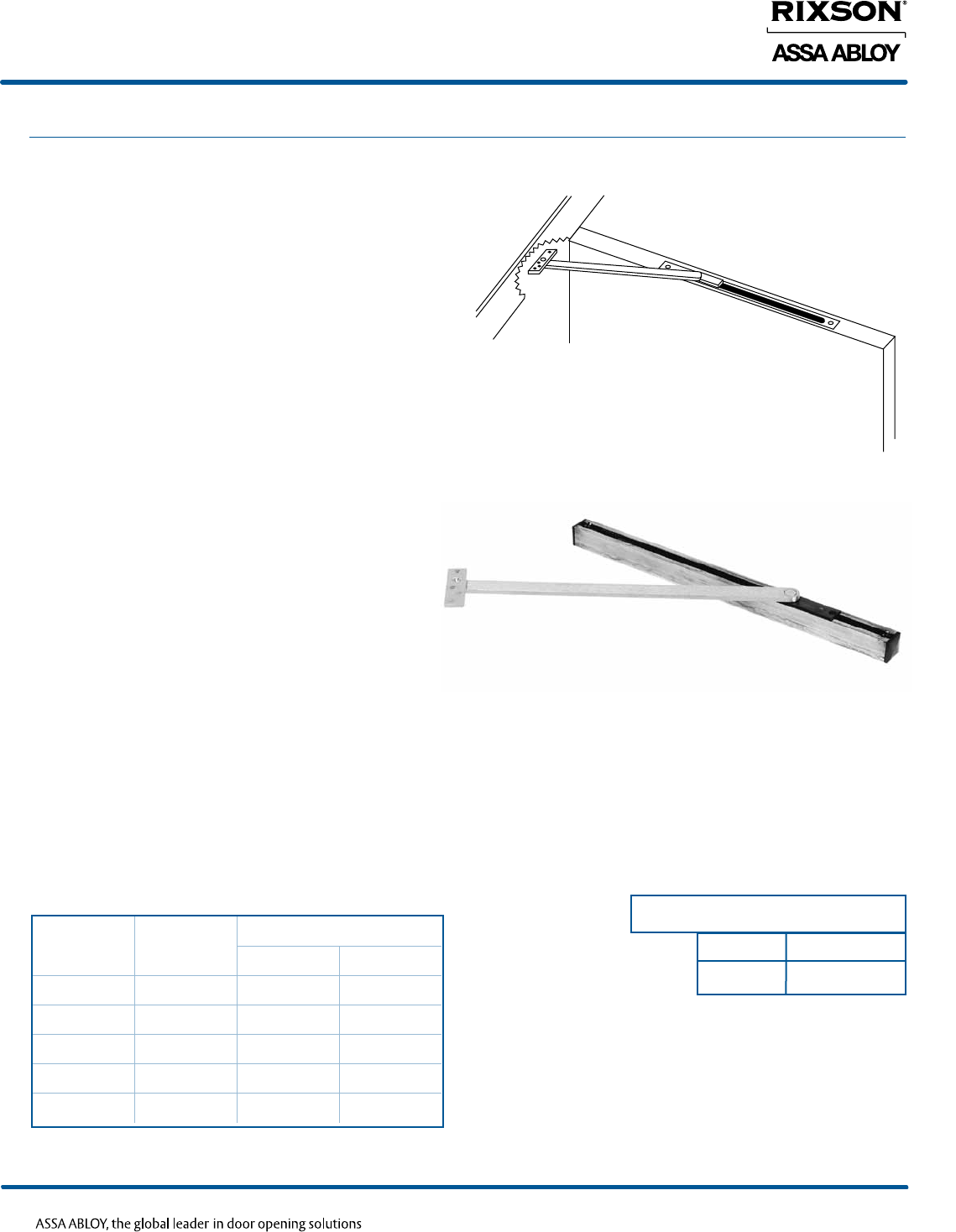

CHECKMATE® STOPS & HOLDERS
SURFACE MOUNT
12

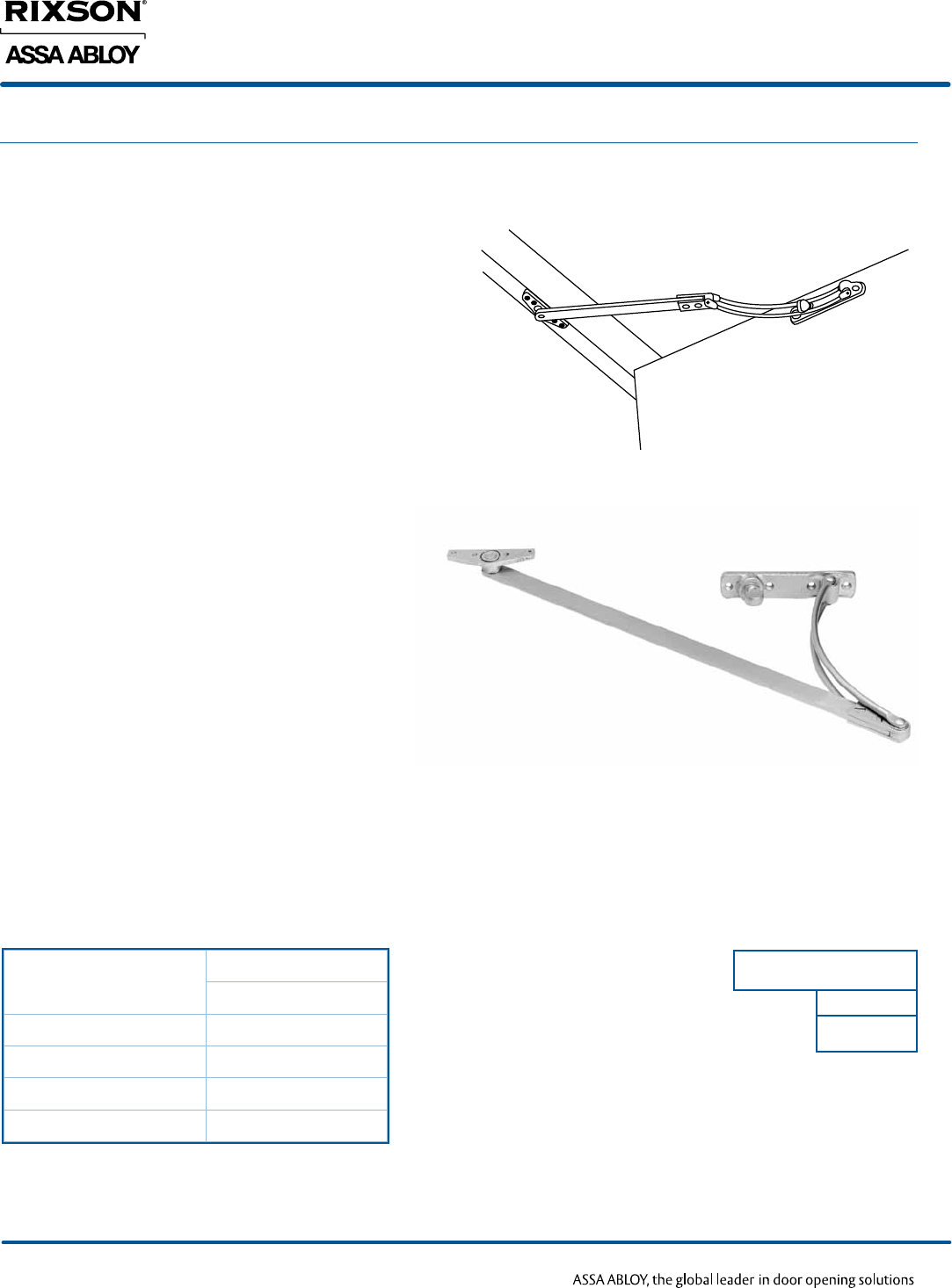

7 SERIES
Copyright © 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
Product Description & Features
• Industrial duty
• Interior or exterior doors
• Single acting
• Non-handed
• Cantilever design
• Hold open only
• Double spring arm absorbs shock
• Complete screw packet with thru-bolts
for door, wood and machine screws for
frame
• For security areas, Torx® screws
available for exposed fasteners
• Self-lubricating bronze bearings
• Sprayed finishes only
• 110° maximum opening
• Hanging means other than standard
butts or offset pivots require special
templating and pricing. Consult factory
Door Opening Chart (in inches)
ANSI No.
Shipping
Weight
7 lbs. C09551
H.O.
Butts
Offset
Pivots
Model Number
Hold Open
24 - 30 7-126
30-1/16 - 34 7-226
34-1/16 - 39 7-326
39-1/16 - 48 7-426
13
8HD SERIES
Copyright © 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
CHECKMATE® STOPS & HOLDERS
SURFACE MOUNT
Product Description & Features
• Extra heavy-duty
• Interior or exterior doors
• Single acting doors, push side mounting
(only)
• Non-handed
• Double lever design
• Recommended for high traffic, heavy abuse
installations
• Extra heavy shock absorber spring provides
6° compression before deadstop
• Available with stop function or thumbturn
hold open
• Complete screw packet with thru-bolts for
door, wood and machine screws for frame.
• Torx® screws optional for security
applications
• Standard architectural finishes
• 110° maximum opening
• 1-3/4" minimum door thickness
• For flush mounting on the push side of the
door use angle jamb bracket adapter 5458-
LH or 5459-RH
• Cannot be mounted on pull side of door
• Stop function UL listed for fire door
assemblies
• Hanging means other than standard butts or
offset pivots require special templating and
pricing. Consult factory
• Stainless steel base metal only
Door Opening Chart (in inches)
ANSI No.
C03541
C03511
Shipping
Weight
4.5 lbs.
H.O. Stop
Butts
Offset
Pivots
Center
Hung
Pivots
Model Number
H.O. Stop
27-1/16 - 32-1/2 27-9/16 - 35 8-226 8-236
32-9/16 - 38-3/4 35-1/16 - 42-1/2 8-326 8-336
38-13/16 - 42-1/2 41-9/16 - 45 8-426 8-436
42-9/16 - 48 45-1/16 - 48 8-526 8-536
CHECKMATE® STOPS & HOLDERS
SURFACE MOUNT
14

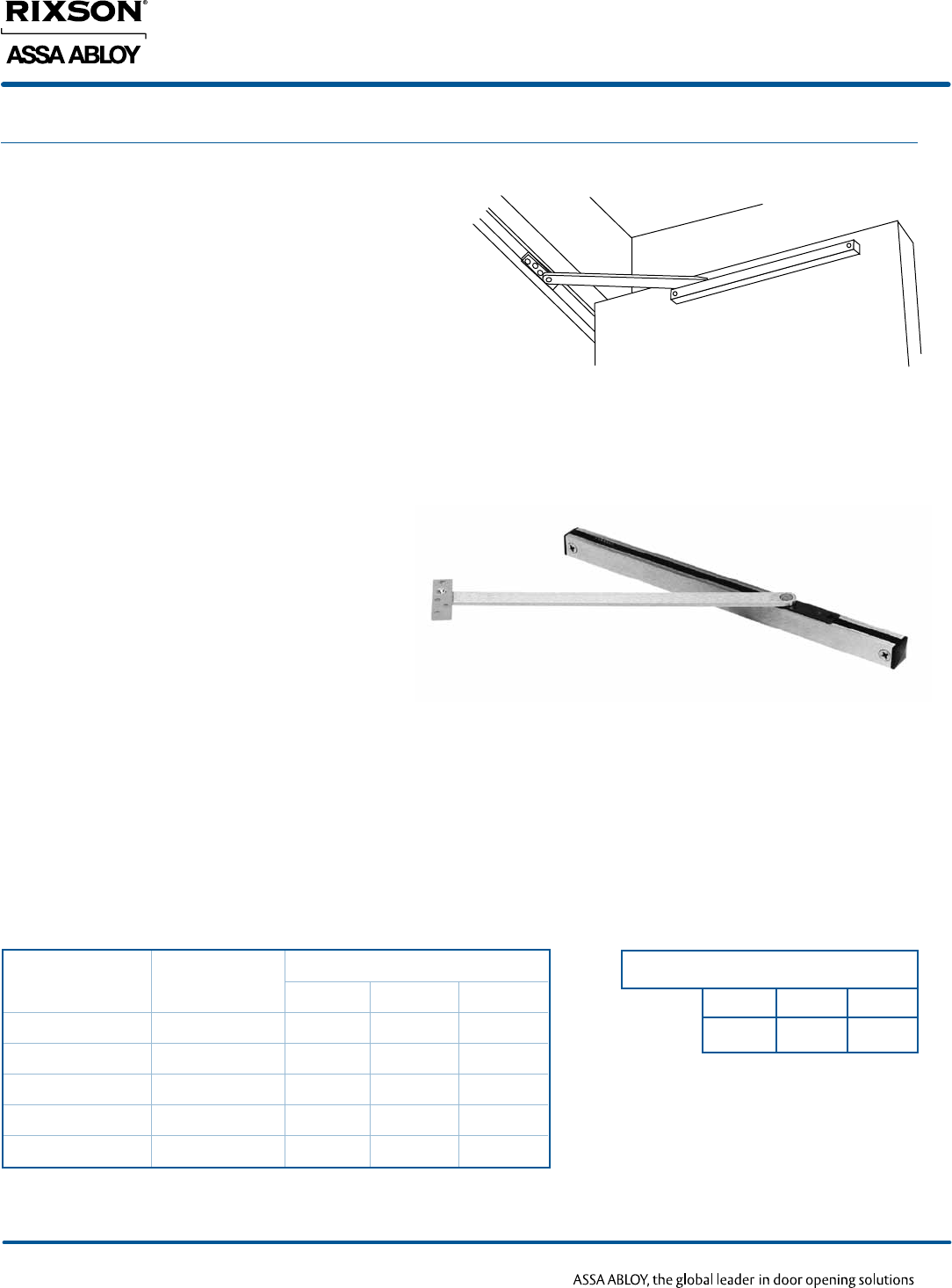

9 SERIES
Copyright © 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
Product Description & Features
• Heavy-duty
• Interior or exterior doors
• Doors are single acting
• Non-handed
• Slide track design
• Recommended for high traffic, heavy abuse
installations
• Heavy shock absorber spring provides
5-7° compression before deadstop
• LS option omits spring for special
application
• On/off knob on hold open models
• Stop, friction stay or hold open function
• Complete screw packet with thru-bolts for
door, wood and machine screws for frame
• Torx® screws optional for security
applications
• Standard architectural finishes
• Durable slider cam and shock block
• 110° maximum opening
• 1-3/4" minimum door thickness
• 1-3/16" square channel
• Stop function UL listed for fire door
assemblies
• For pull side mounting or flush mounting on
push side or for rabbeted push side use
angle jamb bracket adapter 5458-LH or
5459-RH
• Hanging means other than standard butts
or offset pivots require special templating
and pricing. Consult factory
Door Opening Chart (in inches)
ANSI No.
C02511C02531
Shipping
Weight
4.5 lbs.
Friction H.O.
*Butt hung only on this size door. No swing clear hinges.
Stop
C02541
Butts
Offset
Pivots
Center
Hung
Pivots
Model Number
Friction H.O. Stop
*24 - 28 25-1/2 - 30 9-116 9-126 9-136
28-1/16 - 33 30-1/16 - 36 9-216 9-226 9-236
33-1/16 - 38 36-1/16 - 41 9-316 9-326 9-336
38-1/16 - 43 41-1/16 - 46 9-416 9-426 9-436
43-1/16 - 48 46-1/16 - 50 9-516 9-526 9-536
15
9ADJ SERIES
Copyright © 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
CHECKMATE® STOPS & HOLDERS
SURFACE MOUNT
Product Description & Features
• Adjustable, heavy-duty
• Interior or exterior doors
• Doors are single acting
• Non-handed
• Slide track design
• Recommended for high traffic, heavy abuse
installations
• Heavy shock absorber spring provides 5-7°
compression before dead stop
• Degree of opening is fully adjustable and
can be adapted to changing needs
• Complete screw packet with thru-bolts for
door, wood and machine screws for the
frame
• For security areas, Torx® screws available
for exposed fasteners
• Standard architectural finishes
• Durable slider cam and shock block
• 110° maximum opening (except 9ADJ for
center hung 30-36" door which is 105°)
• 1-3/4" minimum door thickness, for thicker
doors consult factory
• 1-3/16 square channel
• Stop function UL listed for fire doors
• For pull side mounting or flush and rabbeted
mounting on push side use angle jamb
bracket adapter 5458-LH or 5459-RH
• Hanging means other than standard butts or
offset pivots require special templating and
pricing. Consult factory
Door Opening Chart (in inches)
ANSI No.
Shipping
Weight
4.5 lbs.
*Butt hung only on this size door. No swing clear hinges.
Butts
Offset
Pivots
Center
Hung
Pivots
Model Number
H.O. Stop
*24 - 28 25-1/2 - 30 9ADJ-126 9ADJ-136
28-1/16 - 33 30-1/16 - 36 9ADJ-226 9ADJ-236
33-1/16 - 38 36-1/16 - 41 9ADJ-326 9ADJ-336
38-1/16 - 43 41-1/16 - 46 9ADJ-426 9ADJ-436
43-1/16 - 48 46-1/16 - 50 9ADJ-526 9ADJ-536
H.O. Stop
C02511 C02541
CHECKMATE® STOPS & HOLDERS
SURFACE MOUNT
16
10 SERIES
Copyright © 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
Product Description & Features
• Adjustable
• Interior doors
• Single acting doors
• Non-handed
• Slide track design
• Recommended for moderate traffic,
medium weight doors
• Degree of opening fully adjustable and
can be adapted to changing needs
• Heavy shock absorber spring provides
compression before deadstop
• Can be ordered specifically as a stop,
friction stay, or hold open.
• Multi-function unit is shipped as a stop.
Can be converted to a hold open or
friction in field. 5012-PKG (Adapter kit)
included
• Complete screw packet with thru-bolts for
door, wood and machine screws for frame
• Torx® screws optional for security
applications, but heavy-duty units should
be considered for high-security applications
• Standard architectural finishes
• Durable slider cam and shock block
• 110° maximum opening
• 3/4" square channel
• Stop function UL listed for fire door
assemblies
• For pull side mounting or flush and
rabbeted mounting on push side use angle
jamb bracket adapter 5258
• Hanging means other than standard butts
or offset pivots require special templating
and pricing. Consult factory
Door Opening Chart (in inches)
ANSI No.
C05542C05512
Shipping
Weight
3.5 lbs.
H.O. Stop
C05532
Friction
10&55 Series
Butts
Offset
Pivots
Center
Hung
Pivots
Model Number
Friction H.O. Stop Multi
*18 - 24 21 - 26-1/2 10-116 10-126 10-136 10-146
24-1/16 - 30 26-9/16 - 32 10-216 10-226 10-236 10-246
30-1/16 - 36 32-1/16 - 38 10-316 10-326 10-336 10-346
36-1/16 - 42 38-1/16 - 45 10-416 10-426 10-436 10-446
42-1/16 - 48 45-1/16 - 48 10-516 10-526 10-536 10-546
*Butt hung only on this size door. No swing clear hinges.
17

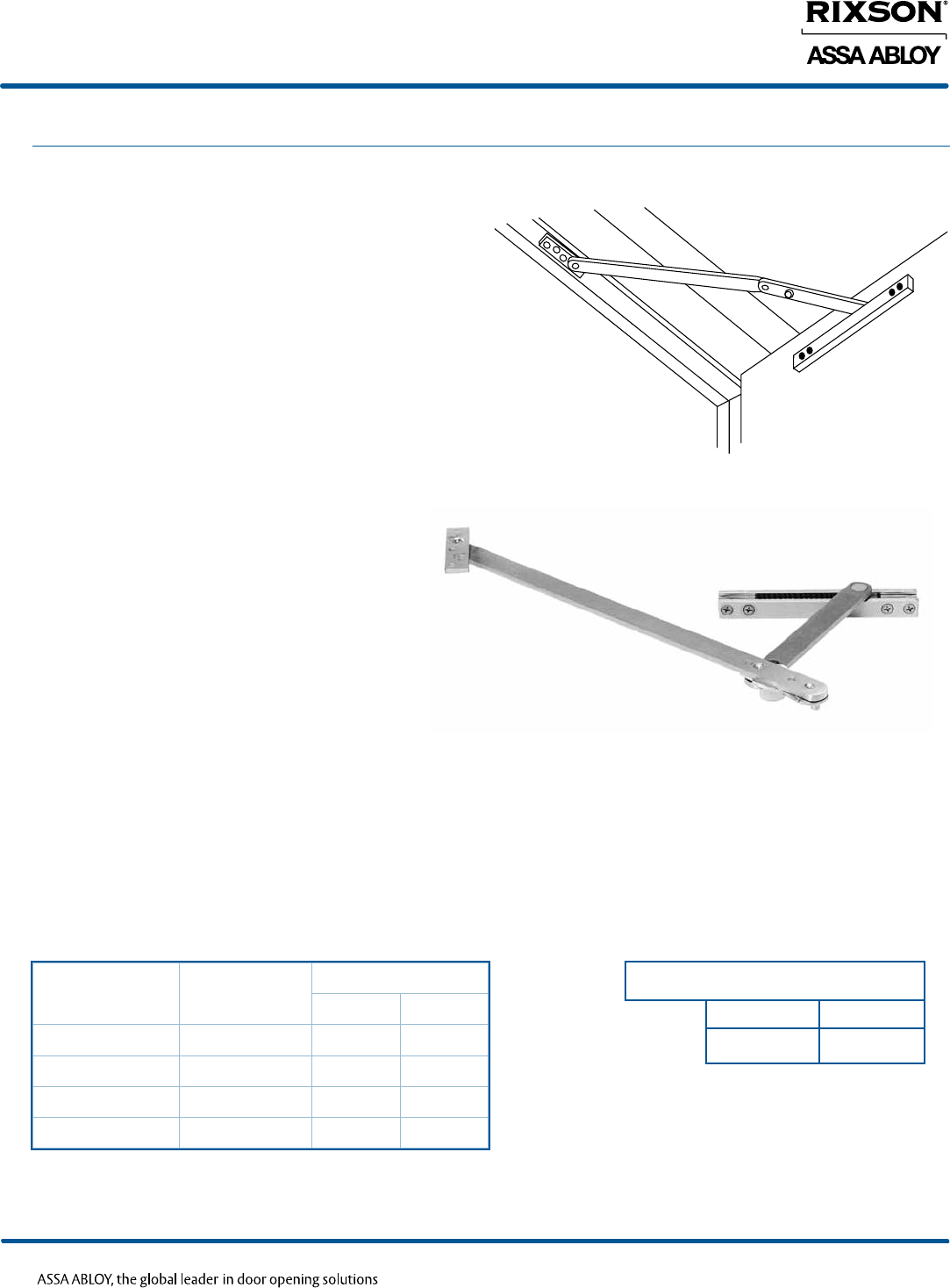

55 SERIES
Copyright © 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
CHECKMATE® STOPS & HOLDERS
SURFACE MOUNT
Product Description & Features
• Standard duty
• Interior doors
• Single acting
• Non-handed
• Slide track design
• Recommended for moderate traffic, medium
weight doors
• Degree of opening determined by
template. Not field adjustable
• Heavy shock absorber spring provides 5-7°
compression before deadstop
• Stop and hold open functions
• Complete screw packet with thru-bolts for
door, wood and machine screws for the
frame
• Tor x® screws optional for security
applications, but heavy-duty units should be
considered for high-security applications
• Available in 652 and sprayed finishes only
• Durable slide block and shock block
• 110° maximum opening
• 3/4" square channel
• For pull side mounting or flush and
rabbeted mounting on push side use angle
jamb bracket adapter 5258
• Hanging means other than standard butts
or offset pivots require special templating
and pricing. Consult factory
Door Opening Chart (in inches)
ANSI No.
C05542
C05512
Shipping
Weight
3.5 lbs.
H.O. Stop
Butts Offset
Pivots
Center Hung
Pivots
Model Number
H.O. Stop
*18 - 24 — 55-126 55-136
24-1/16 - 30 27 - 32 55-226 55-236
30-1/16 - 36 32-1/16 - 38-1/2 55-326 55-336
36-1/16 - 42 38-9/16 - 45 55-426 55-436
42-1/16 - 48 45-1/16 - 48 55-526 55-536
*Butt hung only on this size door. No swing clear hinges.
CHECKMATE® STOPS & HOLDERS

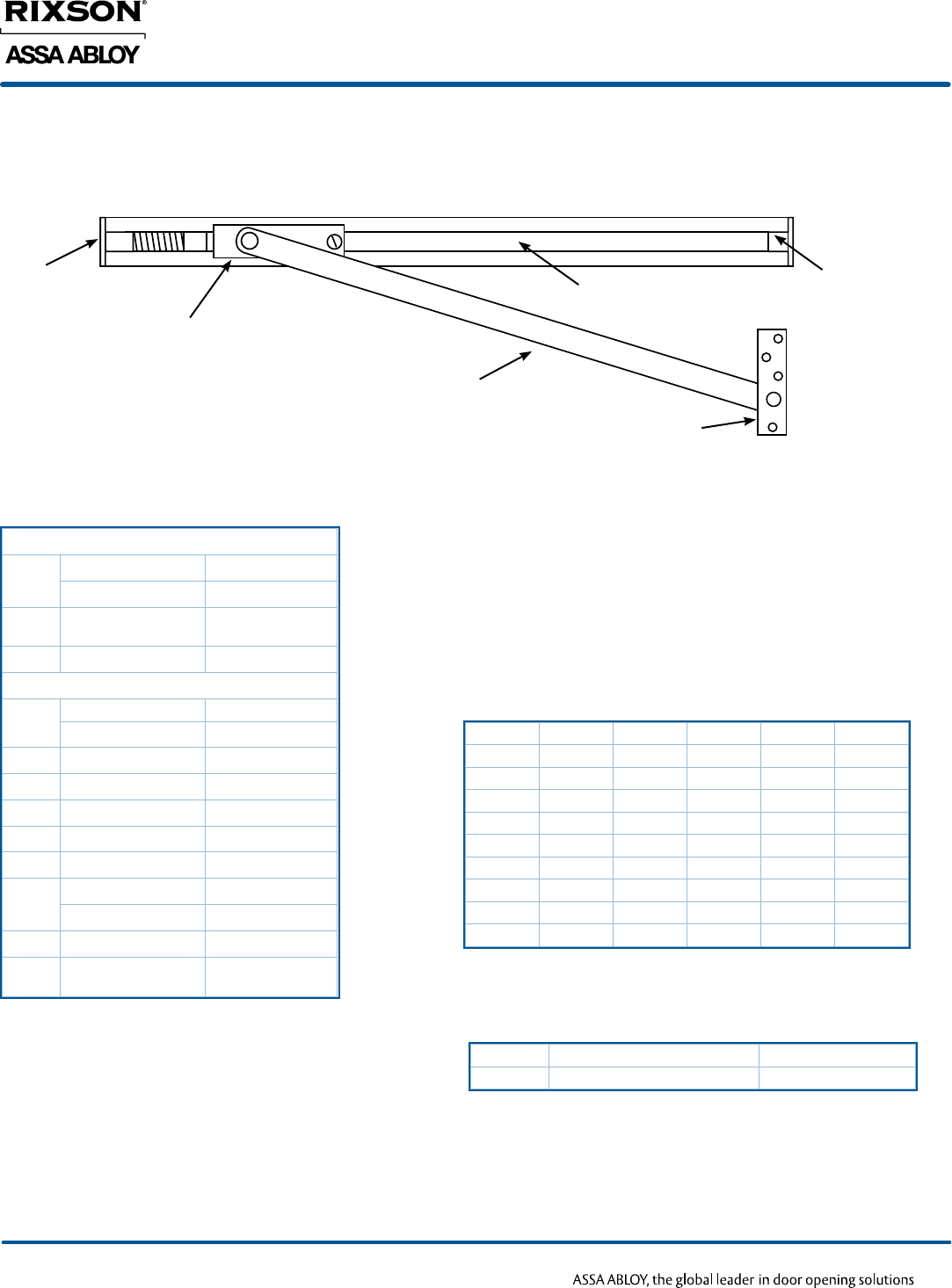

PARTS DRAWINGS
18 Copyright © 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
End Caps #1, 2, 9 & 10 only
#1 &
#9
Shock End Block 6003
Far End Block 6004
#2 &
#5 Far End Block 5059 (2 req.)
#10 Far End Block 5011 (2 req.)
Screw Kits
#1 Stop 6487-*
Hold Open 6998N*
#1ADJ Stop and Holder 6487-*
#2 Friction or Stop 5999-*
#6 Stop 6487-*
#7 Friction or Stop 3880-*XXXA
#8 Friction or Stop 5897-*
#9 Friction or Stop 6468-*
Hold Open 6997N*
#9ADJ Stop and Holder 6468-*
#10 &
#55 Friction or Stop 5998-*
*specify finish
End Cap
(Shock)
Slider Cam
Channel
Arm
End Cap
(Far End)
Shoe
Arm Assemblies (includes arm, shoe and slider cam)
List as noted in charts below.
eg. 1-236 in 630 would be 1-236R in 630
55-426 in 652 would be 55-426R in 652
Components for arm assemblies may not be ordered
separately
1 Dash Size Function R Finish
1ADJ Dash Size Function R Finish
2 Dash Size Function R Finish
5 Dash Size Function R Finish
6 Dash Size Function R Finish
6ADJ Dash Size Function R Finish
9 Dash Size Function R Finish
9ADJ Dash Size Function R Finish
10 Dash Size Function R Finish
55 Dash Size Function R Finish
Adapter Kits
2 Hold Open, Friction Adapter 5012-PKG
10 Hold Open, Friction Adapter 5012-PKG
19
Copyright © 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
CHECKMATE® STOPS & HOLDERS
HOW TO ORDER
1 — 3
Series Door
Size
Symbol
3
Function
Symbol
6
Base Metal
Symbol
x
Options
630
Finish
McK12HD
Hanging
Means
689 Sprayed Alum
690 Sprayed Dk Brz
691 Sprayed Lt Brz
696 Sprayed Brass
605 Bright Brass
606 Satin Brass
611 Bright Bronze
612 Satin Bronze
613 Dark Bronze
613E Dark Oxidized
Satin Bronze -
equivalent
618 Bright Nickel
619 Satin Nickel
622 Flat Black
629 Bright Stainless
630 Stainless Steel
652 Satin Chrome
1 Friction
2 Holder
3 Stop
4 Mult-func
1
2
3
4
5
#1 Hvy Dty Conc
#1ADJ Hvy Dty Conc Adj
#2 Std Dty Conc Adj
#5 Std Dty Conc Non-Adj
#6 Low Profile Conc
#6ADJ Low Profile Conc Adj
#7 Surf Cantilever Hldr
#8HD Extra Hvy Dty Dbl Lever
#9 Hvy Dty Surf
#9ADJ Hvy Dty Surf Adj
#10 Std Dty Surf Adj
#55 Std Dty Surf
LS Less Spring (models 1
& 9 only)
5258 Standard Duty Bracket
5458 LH Heavy Duty Bracket
5459 RH Heavy Duty Bracket
Torx Security Screws
R Arm Only
CHECKMATE® STOPS & HOLDERS
contact us at:
Rixson®
3000 Highway 74 East
Monroe, NC 28112
Tel: 800-457-5670
Fax: 800-338-0965
ASSA ABLOY Door Security Solutions Canada
160 Four Valley Drive
Vaughan, Ontario, L4K 4T9 Canada
Tel: 800-461-3007
Fax: 800-221-0489
For a complete listing of products and
applications please visit our web site.
www.rixson.com
www.assaabloy.ca
Rixson®, Rixson and Design® and Checkmate® are registered trademarks of Yale Security Inc., an ASSA ABLOY Group company. Other products' brand names may be trademarks or registered trade-
marks of their respective owners and are mentioned for reference purposes only. These materials are protected under U.S. copyright laws. All contents current at time of publication. Copyright © 2001,
2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
44042-9/13R
