user manual
Instruction Book of
ROADEFEND RDT-300B
Driver Fatigue Surveillance System
Roadefend Vision Technology(Shanghai) Co.,Ltd.
Instruction Book of RDT-300B Fatigue Early Warning System 2014-T300-GE001
1
I. Product Synopsis
RDT-300B is a bran-new driver fatigue surveillance system that gives a
warning of fatigue drive by means of image recognition and driving behavior
analysis to decrease accidents caused by fatigue drive. Furthermore,
RDT-300B is also capable of setting abnormal data and images via 3G
network to an end-user device to avoid occurrence of accidents by
immediately taking effective measures.
1. Value of fatigue warning
Fatigue has long been an inevitable problem that is controlled to an extent
for drivers, for example, when driving two hours at a speed of 100km/h, the
driver has to struggle to stay awake on account of his lower levels
physiological functions followed by inattention. In general, accident rates
are extremely high when the driver drives more than 6 hours a day or is lack
of proper rest, for example, only having a rest of less than four or five hours
last night.
A set of terrible statistics has already been reported, indicating that 72% of
all accidents occur due to drivers themselves and 25~30% thereof are
caused by fatigue drive; that 40% of all serious and fatal accidents are
fatigue related; that 70% of all drivers will fall asleep at the wheel on the
highway.
Therefore, it is a great value to eliminate fatigue at driving for sake of the
drivers, families, companies, as well as the society.
Instruction Book of RDT-300B Fatigue Early Warning System 2014-T300-GE001
2
2. Host introduction
z Power supply and signal line interface
It works when power connectors are
connected to corresponding power
interfaces on the RDT-300B device; the
signal line includes video cable, test
mode button, etc.
z SD card slot
z SIM card slot
z Fatigue detection camera
z Holder
z Reflective mirror

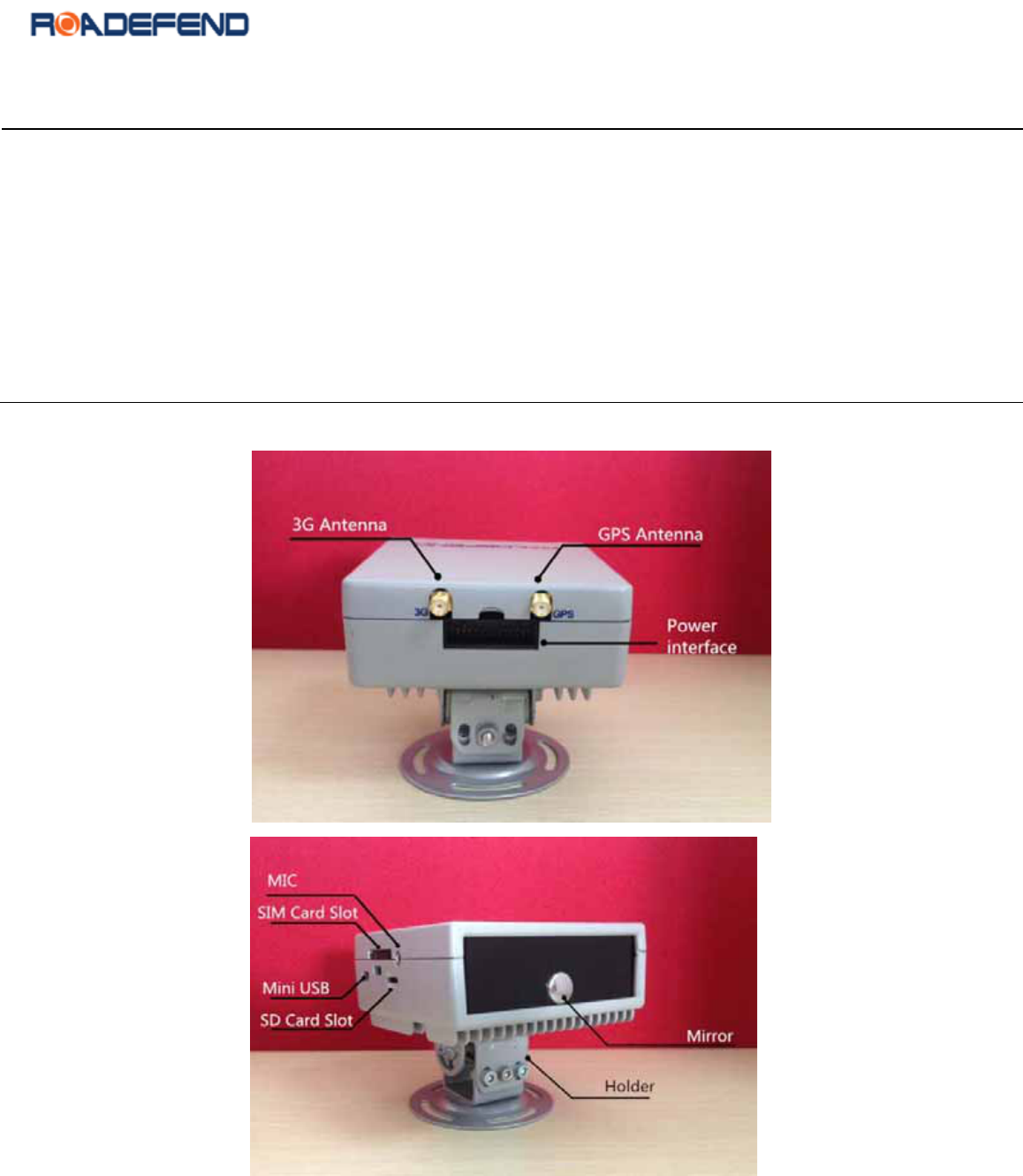

Figure 1. Appearance of RDT-300B fatigue surveillance system
Instruction Book of RDT-300B Fatigue Early Warning System 2014-T300-GE001
3
3. Product specifications
RDT-300B product specifications
Basic
information
Type RDT-300B
Functional
information
Fatigue
warning
Function
Working-
hours
Daylight Night
Ɣ<HV Ɣ<HV
Size
(mm)
95x90x35
Glasses
support
Near-
sighted
eyeglass
Sun-
glass
Ɣ\HV Ɣ\HV
Weight
(g)
400 Sensitivity
settings
Automatic adaptability
Camera
High-sensitive
night vision
camera (capture)
Volume
adjustment
SD card configuration
adjustment
Analog
output
Yes
Other
function
3G
Communication
Image upload*
Power
supply
DC 9V~36V
Fatigue state video
upload
Power 7W GPS Vehicle localization
4. Function instruction
1) Fatigue warning
As driver begin to fall asleep, the warning system will trigger a “wake-up call”
in time and store the image that the driver fall asleep, then controlling other
sleepy reminder accessories (such as vibration cushions, refreshing smell
generator) via configurable output interfaces, and finally can sent fatigue
information and images to managers through the 3G network. Factors
Instruction Book of RDT-300B Fatigue Early Warning System 2014-T300-GE001
4
such as weather, light, complexion, clothing, have no impact on fatigue
warning function of this product even glasses the driver wears.
2) Adaptable adjustment of sensitivity
RDT-300B can automatically adjust its early warning sensitivity according to
vehicle speed, the basic logic is that the faster the speed, the higher the
sensitivity: when the vehicle speed is higher than the predetermined
speed of 15Km/h, the early warning function is activated and the sensitivity
is set to "Low"; when the vehicle speed is higher than 30Km/h, the early
warning sensitivity is adjusted to "Medium"; when the vehicle speed is
higher than 50Km/h, the early warning sensitivity is up to "High".
Correspondence relationship between the vehicle speed and the sensitivity
are as follows:
speed /Km/h Sensitivity
<15 Stopping working
15~30 “Low”
30~50 “Medium”
>50 “high”
3) Driver features self-calibration
Starting RDT-300B, the early warning system enters a period of 30-second
self-calibration with the vehicle speed exceeding the predetermined vehicle
speed. During this period, the system core parameters will be calibrated
according to individual characteristics of the driver. After this process, the
system enters a normal operating state. Please keep a normal driving
state when the system is in the normal operating state, and do not simulate
sleepy state.
4) Analog image output
Instruction Book of RDT-300B Fatigue Early Warning System 2014-T300-GE001
5
RDT-300B provides real-time analog image output via PAL (Phase
Alternating Line) system or NTSC (National Television System Committee)
system. The signal can be used to calibrate the orientation of installation,
and can also be connected with almost all the popular Car DVR (Digital
Video Record) on the market to store the video the driver drove.
5) 3G communication
RDT-300B can transmit alarm information and fatigue images data via 3G
communications for easy supervision and management.
6) Input interface
RDT-300B supports two-way switch signal input.
7) Output interface
RDT-300B has three-way switch signal output to control auxiliary
equipments such as vibration cushions and refreshing smell generator
which start to work when the fatigue drive warning is issued.
8) Camera occlusion reminder
Once the camera is deliberately obscured, the system will issue a "ding –
ding–" beeping sound with the vehicle speed exceeding the predetermined
vehicle speed.
9) Warming image can be stored in local
RDT-300B will create a folder with year.month.day in SD card and store the
warming images sorted by type of fatigue warming(asleep, face exception).
The during time can be set by SD card config and default for 10 days.
10) Exchange data with DFSS management platform
RDT-300B can uploads all the status information to DFSS management
platform, supporting for managers to monitor and manage the relating cars;
at the same time,DFSScan sends config file of RDT-300B to RDT-300B in
order to set it`s operating mood.
Instruction Book of RDT-300B Fatigue Early Warning System 2014-T300-GE001
6
II. Installation Instruction
1. Installation requirements
Use screws to fix RDT-300B leaning to right side (10~30 degrees) in front of
the driver and tilting up at the angle of 5~30 degrees;
Connect the lead terminal with the power supply wiring harness; Connect
GPS antenna as well as 3G antenna.
According to the distance between the installation location and the driver,
RDT-300B can fit two kinds of lenses.
1˅ corresponding to 6.0mm lens, the distance between the installation
location and the driver is 60cm~95cm;
2˅ corresponding to 7.5mm lens, the distance between the installation
location and the driver is 75cm~115cm.

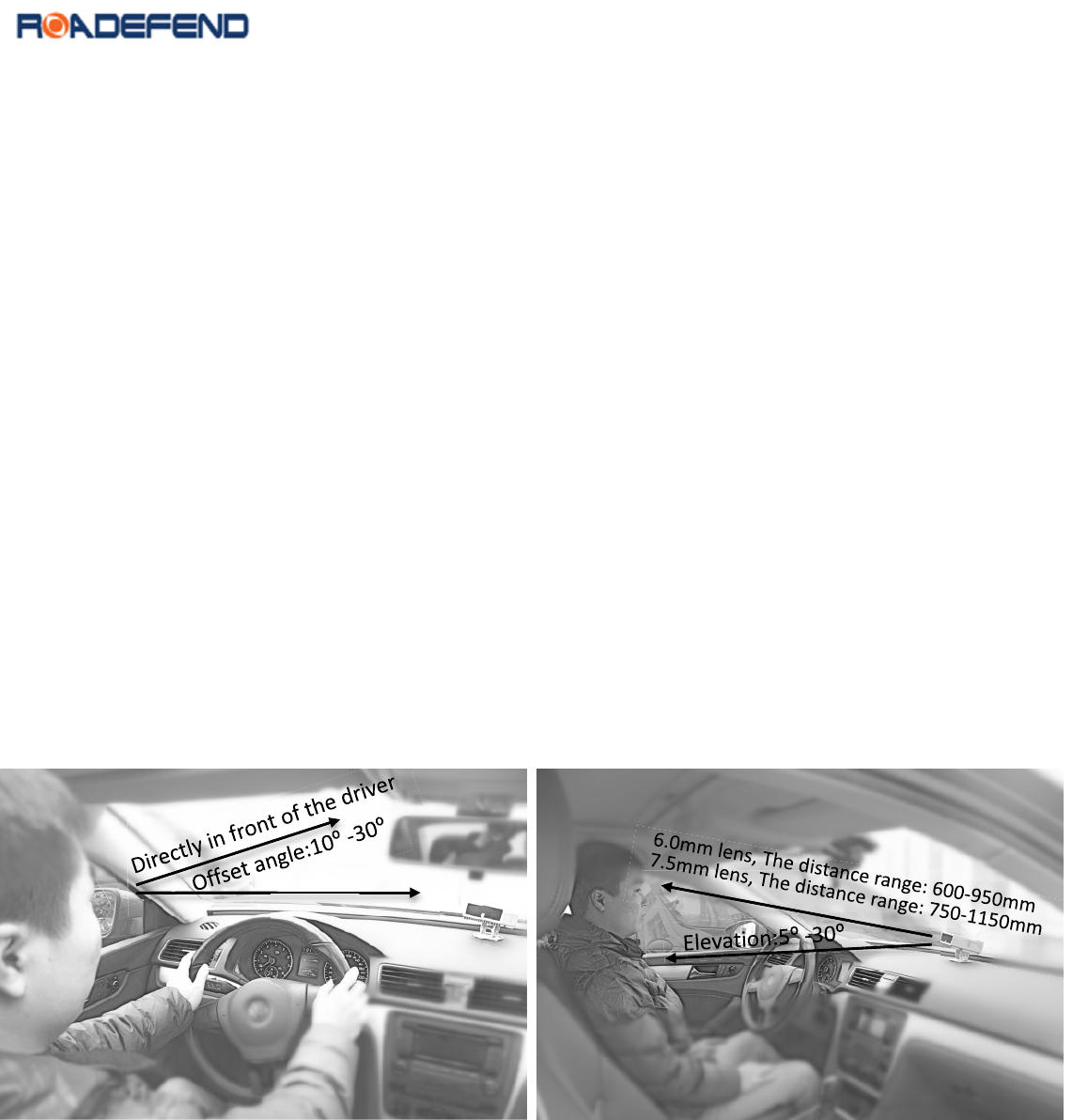

Figure 2. A top view of Installation Figure 3 A side view of Installation
On right-side in
front of the driver
Horizontal
Instruction Book of RDT-300B Fatigue Early Warning System 2014-T300-GE001
7
2. Product list
Product list
Serial No. Parts name Quantity
(1) Round-head screw 4
(2) Disc base 1
(3) Host 1
(4) Long screw 2
(5) Locking screw 4
(6) Bracket 1
(7) Wing harness 1
(8) GPS antenna 1
(9) 3G antenna 1
(10) Instruction book 1

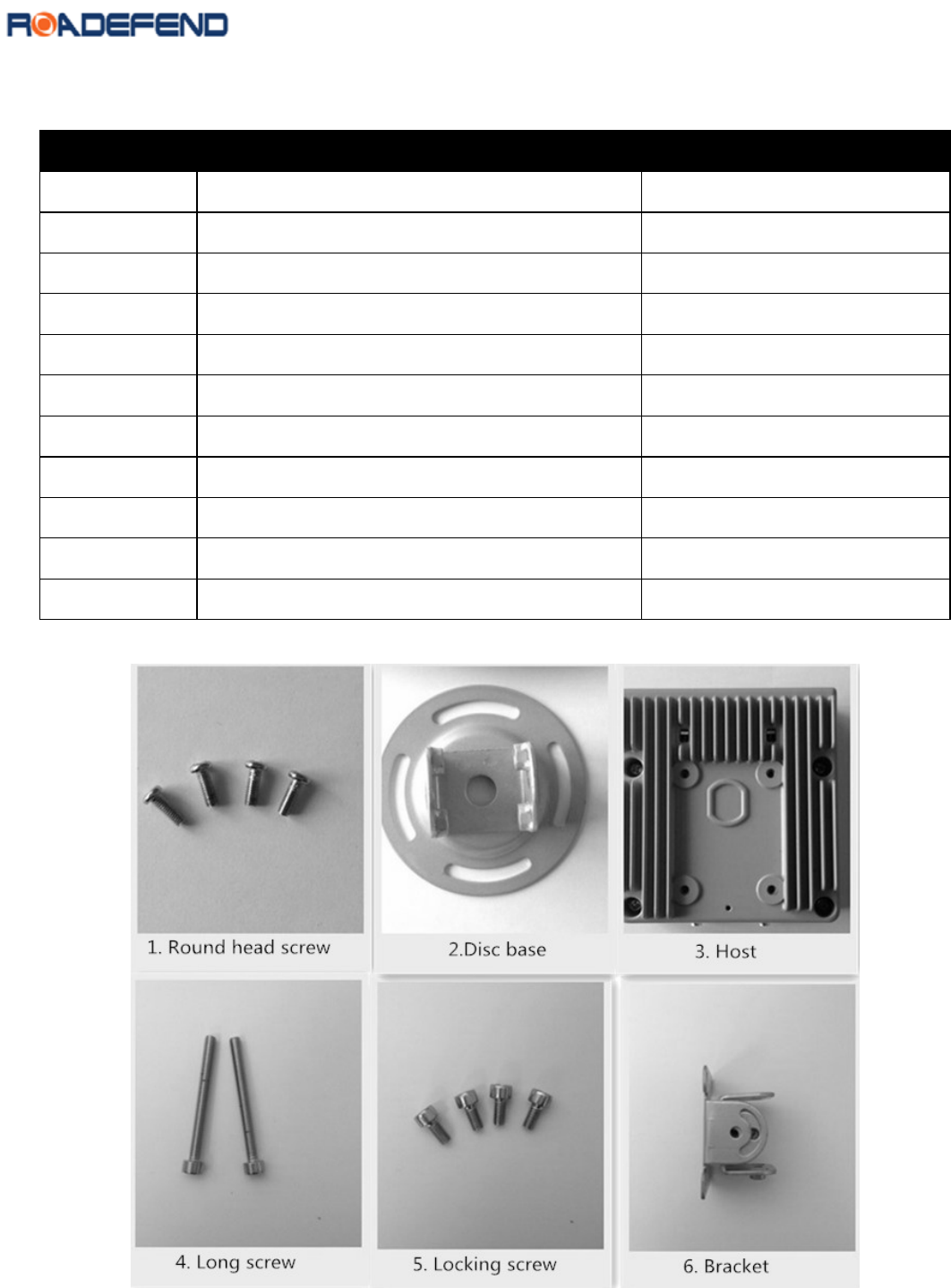

Figure 4. A schematic diagram of parts
Instruction Book of RDT-300B Fatigue Early Warning System 2014-T300-GE001
8
3. Calibration
Adjust the angle of RDT-300B up and down to ensure that the driver's face
is in the center of the reflective mirror or in the center of the external
displayer screen ( it is recommended to use an external displayer for
the calibration).
4. Work status
1˅ After the vehicle starts, RDT-300B starts immediately, after about 16
seconds, two fill lights in front of this product flash followed by a
machine startup sound, indicating that the product is ready for work;
2˅ After the vehicle speed exceeds the predetermined speed, the product
monitor the driver in real-time in the preparation for triggering fatigue
early warning system in time, and will send the fatigue state of the
driver and the corresponding images to the end user.
3˅ After the vehicle speed exceeds the predetermined speed , Once the
driver is prone to a mild fatigue, the system will send a first-level
warning: "ding-dong, please pay attention to your safety"
4˅ After the vehicle speed exceeds the predetermined speed ,Once the
driver is prone to be sleepy, the system will send a second-level
warning: "ding-dong, it is a dangerous driving, beep-beep-beep"
5˅ After the vehicle speed exceeds the predetermined speed ,Once this
product is blocked or the driver is absent for more than 10 seconds, the
system will issue a "ding-ding" sound, and the abnormal information
will be sent to the end user. The system will repeat this sound at
one-minute interval until the block is removed.
Nota: Once the vehicle predetermined speed exceeds 15Km/h,RDT-300B
fatigue warning function states.
Instruction Book of RDT-300B Fatigue Early Warning System 2014-T300-GE001
9
5. Test mode
Turning on the product, it utilizes buttons to enter into the test mode within
10 minutes, and the testing operations are as follows:
1) First, connect the test button well;
2) Press button for two seconds and release the button until you hear the
notice that "Please make sure whether you are ready to enter the test
mode or not";
3) Press the button for one second, and release the button until you hear
the notice "Please make sure you are ready to enter test mode", at this
time the front-located fill light flashes, then you can simulate sleepy
state in the test mode;
4) Press the button for one second, and release the button until you hear
the notice "Please make sure you are ready to exit test mode", at this
time the front-located fill light goes off, then you can exit test mode;
5) This product will automatically exit the test mode 10 minutes after
entering the test mode.
6. SD(TF) card configuration
Adjust volume of the abnormal events prompt/warning by dfsscfg.xml and
webclient.xml files on the SD card, including :
1) volume adjust;
2) dynamic sensitivity adjust
3) over-speed setting
4) increase phone number of terminal client to receive message
5) speed ratio setting (as you need)
6) LDW’s parameters setting
7) Online platform parameters setting
Instruction Book of RDT-300B Fatigue Early Warning System 2014-T300-GE001
10
Dfsscfg.xml and Webclient.xml file created by RoadefendTools.exe needs
to be copied to SD card, which is stick into our device. When you restart the
machine and hear “ setting completed ”, RDT-300B init was completed.

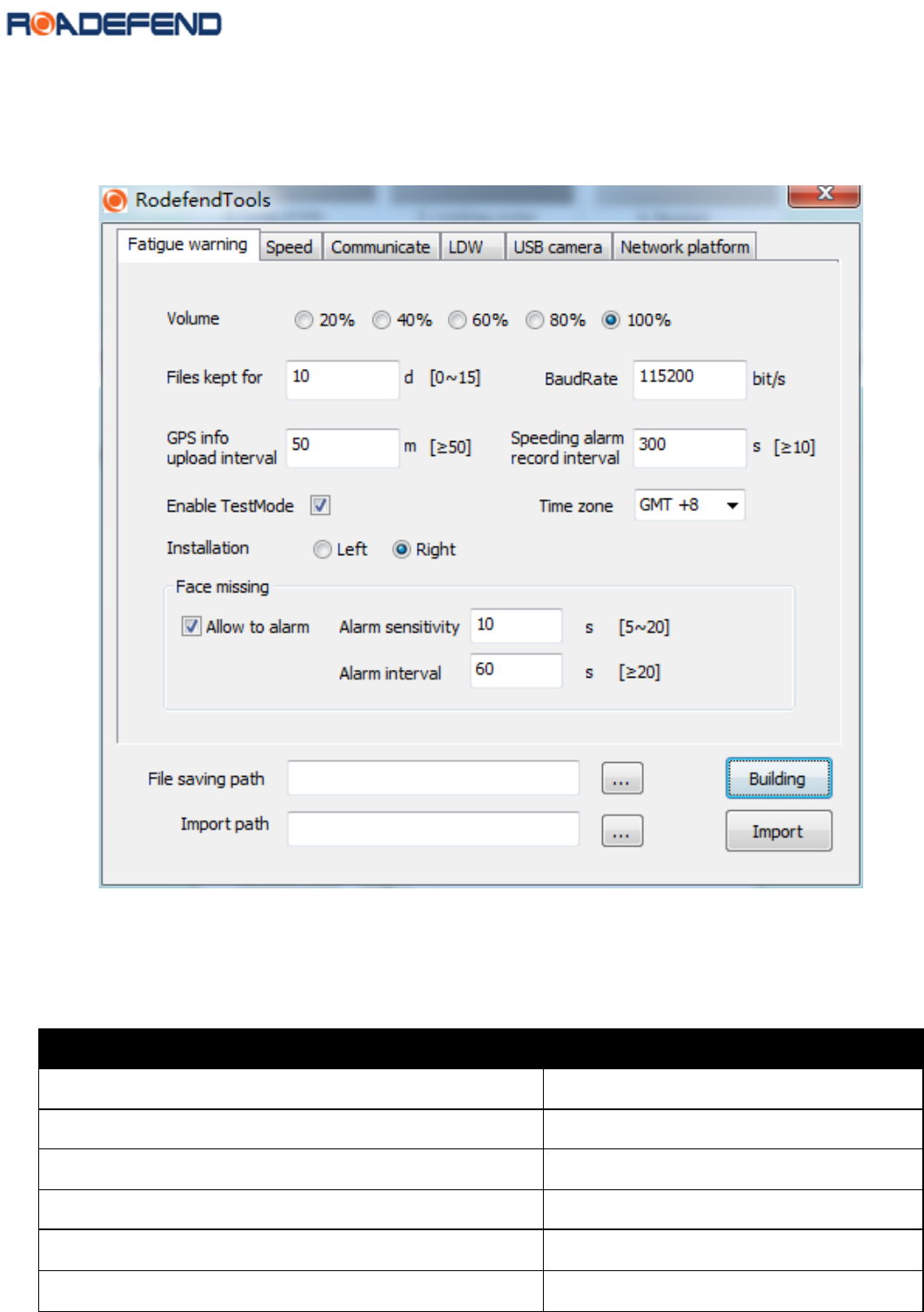

Figure 5. A screenshot of SD card configuration file
III. Electrical Properties
RDT-300B Electrical Properties
Operating Voltage +9V ~ +36V
Rated Power 7W
Antenna with RF cable Max. gain -1dBi
Operating Temperature Range -20ć~ 60ć
Storage Temperature Range -30ć~ 85ć
Humidity 0 ~ 90 RH%±5%
Instruction Book of RDT-300B Fatigue Early Warning System 2014-T300-GE001
11
IV.Failures and Solutions thereof
If you encounter the following questions at using the product, please
resolve the failures with the aid of the following countermeasures.
The general questions that may have an impact on this product are as
follows:
Failures Possible causes Solutions
No warning sounds when eyes close for
a long time
The driver's face is out of
visible scope of the camera
Adjust the product to a position where the
complete face of the driver is reflected in the
reflective mirror
The low speed of the
vehicle
The fatigue warning function is activated when
the vehicle speed exceeds the predetermined
speed value
Failure of GPS satellite
search
Connect GPS antenna well without
obstructions over the antenna or the vehicle
Cannot boot up Failure of power supply Connect the power supply wiring harness well
Insensitiveness of the fatigue warning
system with the notice that “the driver
has left”
The black Plexiglas in front
of this product is dirty
Clean this Plexiglas
Precautions:
1 ) Clean the black Plexiglas in front of this product for sake of the video
capture and the product performance;
Instruction Book of RDT-300B Fatigue Early Warning System 2014-T300-GE001
12
2 ) Make sure that the product is located at appropriate angle and is fixed
firmly for the sake of the product performance.
V. Applicable Vehicle
Passenger and cargo transport vehicles, dangerous goods transport
vehicles, mining vehicles, taxis and school buses and other vehicles.
VI. Friendly Reminder
1. Will you drive when you are fatigue?
Fatigue driving is different from drunk driving, and people always choose to
or have to drive even though they feel fatigue because they claim they are
alert to fatigue or they are in a hurry sometimes. So the inevitable questions
are as follows: The first problem: people will still choose to drive even
though they are fatigue because they have to do so; the second problem:
the driver acclaims they can control the fatigue. When having a sense of
fatigue, they argue that they can eliminate it through conventional methods
such as, having a cup of coffee and other refreshing drinks, smoking,
turning music volume up, opening windows, scratching his head, twisting
his neck.
However, we should accept the fact that fatigue cannot be eliminated by
means of relying on subjective thoughts of the driver with the aid of applying
the above-mentioned methods to avoid falling asleep. Those irritating
behaviors, such as smoking, increase the volume of the radio, drinking
coffee, opening windows cannot actually prevent “drowsiness –induced
substance" from influencing the brain, and conversely, they cause paralysis
of the driver.
Instruction Book of RDT-300B Fatigue Early Warning System 2014-T300-GE001
13
Do you know? Drinking excessive coffee can cause insomnia, headaches,
allergies and anxiety.
Do you know? It takes more than 10 minutes for caffeine to get into your
blood system to finally generate a stimulus, so a cup of coffee would not
have such a quick play as required but you have already fallen asleep.
Also, if you have become accustomed to effects of caffeine, stimulating
effects will be weaker.
Do you know? Opening the window and increasing the volume of the radio
can indeed increase your alertness in a short time, but it will not last long.
2. RDT-300B benefits
RDT-300B employs the method of combining the image recognition with the
driving behavior analysis to give a well-intentioned warning when you are
tired and inattentive. Once serious fatigue occurs, the system will give you
a wakeup call in time, which is a critical moment between life and death.
What a critical moment between life and death, seizing this moment, the
wife can give her rushing husband a reminder;
What a critical moment between life and death,
seizing this moment, the driver will not worry about his safety;
What a critical moment between life and death,
seizing this moment, the passenger will not worry about his safety.
Hindsight is not our aim, what is important is to reduce tragedy.
VII. Security Warning
Before using the product, please be sure to carefully read the following
precautions to ensure safety.
Warning 1: In order to put the fatigue warning system to good account,
Instruction Book of RDT-300B Fatigue Early Warning System 2014-T300-GE001
14
users of this product are responsible for the proper installation and the safe
utilization of the system so as to ensure this product will not interfere with
the normal operation of the vehicle and other vehicle safety devices, for
example, this product shall not obstruct the driver's driving vision, which
may causes accidents and injury.
z Do not install this product in a position where the driver's driving vision
is obstructed.
z Do not install this product on top of airbag dashboard or at the area
where the airbag deploys.
z Do not install this product in the position where passengers are prone
to bump into the product.
Warning 2: This fatigue warning system is just an ancillary product for
safety aiming to reduce probability of accidents caused by driver fatigue,
thereby reducing losses caused by driver fatigue. Drivers themselves are
still responsible for the normal operation of the vehicle, so they shall not rely
on this product to keep driving in the case of severe fatigue.
VIII. User Notice
z The product works only when in an energized state.
z The product can greatly reduce the probability of accident happenings
caused by driver fatigue, but can’t absolutely eliminate fatigue.
z The user needs to cooperate and approve that our product needs to
access the signal, such as power supply, the speed signal.
To maintain compliance with the requirements, keep the device's
antenna 20cm or more away from your body to ensure exposure
levels remai n at or below the maximum levels.
A HUMAN SAFETY A HAPPY FAMILY
