2Dear Owner, We would like to thank you for your purchase of a Porsche Sports car. Judging by the car you have chosen, you are a mo-torist of a special breed, and you are probably no novice when it comes to automobiles. Remember however, as with any vehicle, you should take time to familiarize yourself with your Porsche and its performance characteristics. Al-ways drive within your own unique capabilities as a driver and your level of experience with your Porsche. Ensure that anyone else driving your Porsche does the same. To prevent or minimize in-jury, always use your safety belts. Never consume alcohol or drugs before or during the operation of your vehicle. This Owner’s Manual contains a host of useful in-formation. Please take the time to read this manu-al before you drive your new Porsche. Become fa-miliar with the operation of your Porsche car for maximum safety and operating pleasure. The bet-ter you know your Porsche, the more pleasure you will experience driving your new car.Always keep your Owner’s Manual in the car, and give it to the new owner if you ever sell your Porsche. A separate Maintenance Booklet explains how you can keep your Porsche in top driving condition by having it serviced regularly. A separate Warranty and Customer Informa-tion Booklet contains detailed information about the warranties covering your Porsche. For U.S. only:If you believe that your vehicle has a fault which could cause a crash, injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Porsche Cars North America, Inc. (Porsche Cars N.A.). If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety prob-lem exists in a group of vehicles, it may order a re-call and remedy campaign. However, NHTSA can-not become involved in individual problems be-tween you and your dealer, or Porsche Cars N.A.. To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-(800)-424-9393 (or 366-0123 in Washington, D.C. area) or write to: NHTSA, U.S. Department of Transportation, Washington, D.C. 20590. You can also obtain oth-er information about motor vehicle safety from the Hotline. Your car has thousands of parts and components which have been designed and manufactured in accordance with Porsche’s high standards of engi-neering quality and safety. Any alteration of the vehicle may negate or interfere with those safety features built into the vehicle. Your Porsche is intended to be used in a safe man-ner obeying the local laws and in the light of driv-ing conditions faced by you, and in accordance with the instructions provided in this Owner’s Man-ual. Do not misuse your Porsche by ignoring those laws and driving conditions, or by ignoring the instructions in this manual. Any alteration or misuse of the vehicle can lead to accidents and severe or fatal personal injuries. The fitting of racing tires (e.g. slicks) for sporting events is not approved by Porsche. Very high cor-nering speeds can be achieved with racing tires. However, the resulting transverse acceleration values would jeopardize the adequate supply of oil to the engine.Porsche therefore will not accept any warranty or accept any liability for damage occurring as a re-sult of non-compliance with this provision.

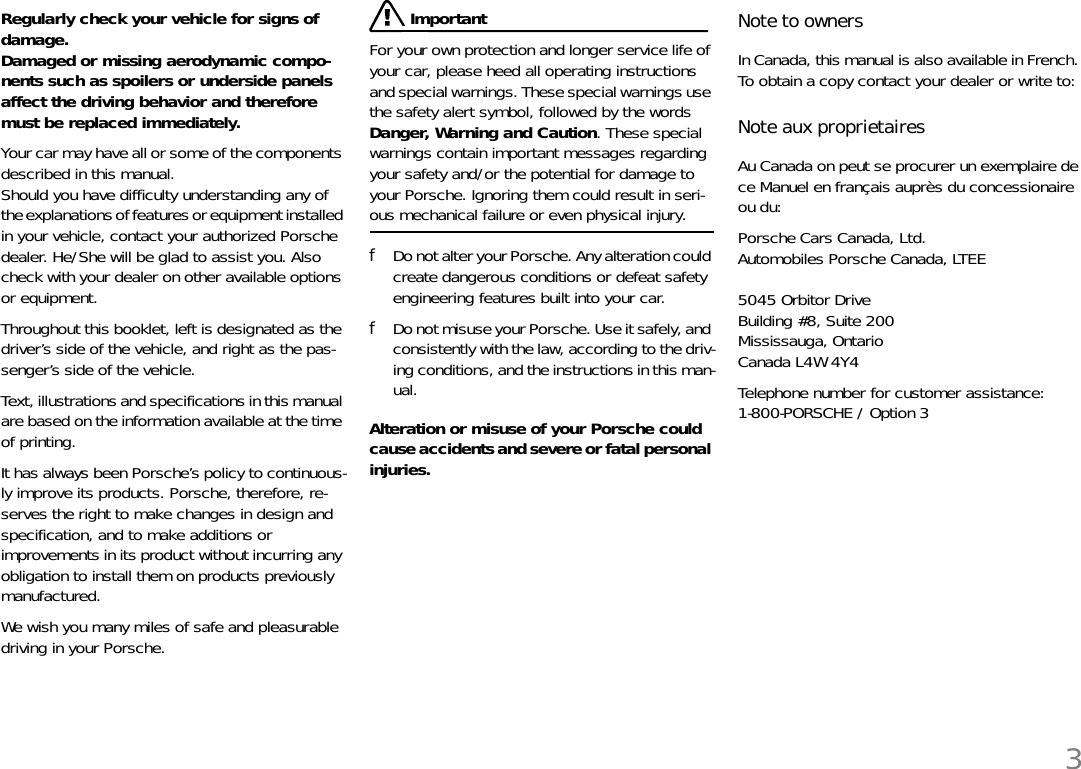

3Regularly check your vehicle for signs of damage. Damaged or missing aerodynamic compo-nents such as spoilers or underside panels affect the driving behavior and therefore must be replaced immediately. Your car may have all or some of the components described in this manual. Should you have difficulty understanding any of the explanations of features or equipment installed in your vehicle, contact your authorized Porsche dealer. He/She will be glad to assist you. Also check with your dealer on other available options or equipment. Throughout this booklet, left is designated as the driver’s side of the vehicle, and right as the pas-senger’s side of the vehicle. Text, illustrations and specifications in this manual are based on the information available at the time of printing. It has always been Porsche’s policy to continuous-ly improve its products. Porsche, therefore, re-serves the right to make changes in design and specification, and to make additions or improvements in its product without incurring any obligation to install them on products previously manufactured. We wish you many miles of safe and pleasurable driving in your Porsche. ImportantFor your own protection and longer service life of your car, please heed all operating instructions and special warnings. These special warnings use the safety alert symbol, followed by the words Danger, Warning and Caution. These special warnings contain important messages regarding your safety and/or the potential for damage to your Porsche. Ignoring them could result in seri-ous mechanical failure or even physical injury. fDo not alter your Porsche. Any alteration could create dangerous conditions or defeat safety engineering features built into your car. fDo not misuse your Porsche. Use it safely, and consistently with the law, according to the driv-ing conditions, and the instructions in this man-ual. Alteration or misuse of your Porsche could cause accidents and severe or fatal personal injuries. Note to owners In Canada, this manual is also available in French. To obtain a copy contact your dealer or write to: Note aux proprietaires Au Canada on peut se procurer un exemplaire de ce Manuel en français auprès du concessionaire ou du:Porsche Cars Canada, Ltd.Automobiles Porsche Canada, LTEE5045 Orbitor DriveBuilding #8, Suite 200Mississauga, OntarioCanada L4W 4Y4 Telephone number for customer assistance:1-800-PORSCHE / Option 3

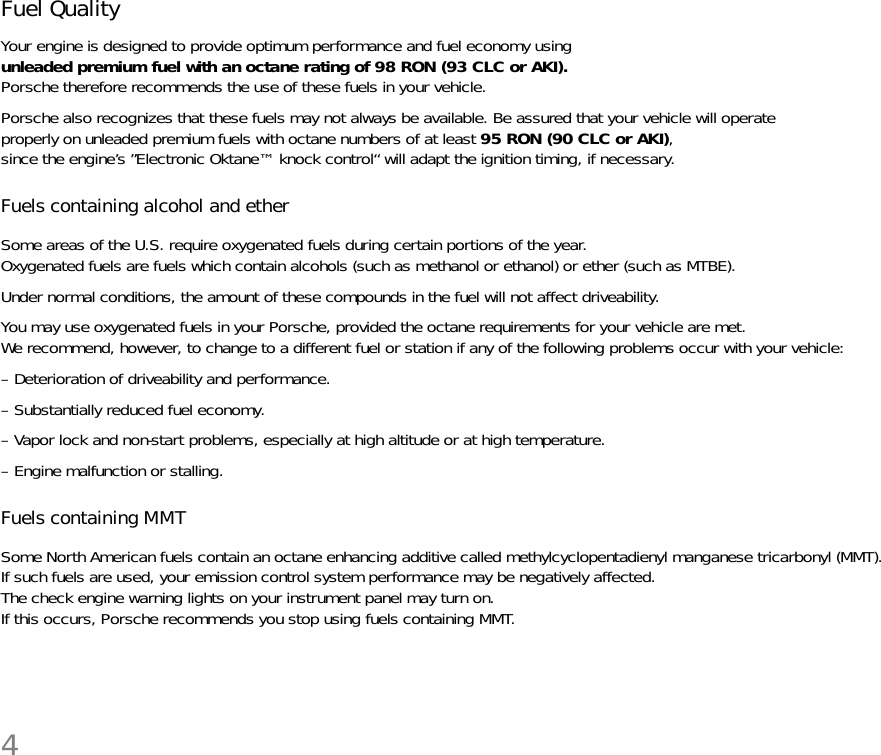

4Fuel Quality Your engine is designed to provide optimum performance and fuel economy using unleaded premium fuel with an octane rating of 98 RON (93 CLC or AKI). Porsche therefore recommends the use of these fuels in your vehicle. Porsche also recognizes that these fuels may not always be available. Be assured that your vehicle will operate properly on unleaded premium fuels with octane numbers of at least 95 RON (90 CLC or AKI), since the engine’s ”Electronic Oktane™ knock control“ will adapt the ignition timing, if necessary.Fuels containing alcohol and ether Some areas of the U.S. require oxygenated fuels during certain portions of the year. Oxygenated fuels are fuels which contain alcohols (such as methanol or ethanol) or ether (such as MTBE). Under normal conditions, the amount of these compounds in the fuel will not affect driveability. You may use oxygenated fuels in your Porsche, provided the octane requirements for your vehicle are met. We recommend, however, to change to a different fuel or station if any of the following problems occur with your vehicle:– Deterioration of driveability and performance. – Substantially reduced fuel economy. – Vapor lock and non-start problems, especially at high altitude or at high temperature. – Engine malfunction or stalling.Fuels containing MMT Some North American fuels contain an octane enhancing additive called methylcyclopentadienyl manganese tricarbonyl (MMT).If such fuels are used, your emission control system performance may be negatively affected. The check engine warning lights on your instrument panel may turn on. If this occurs, Porsche recommends you stop using fuels containing MMT.

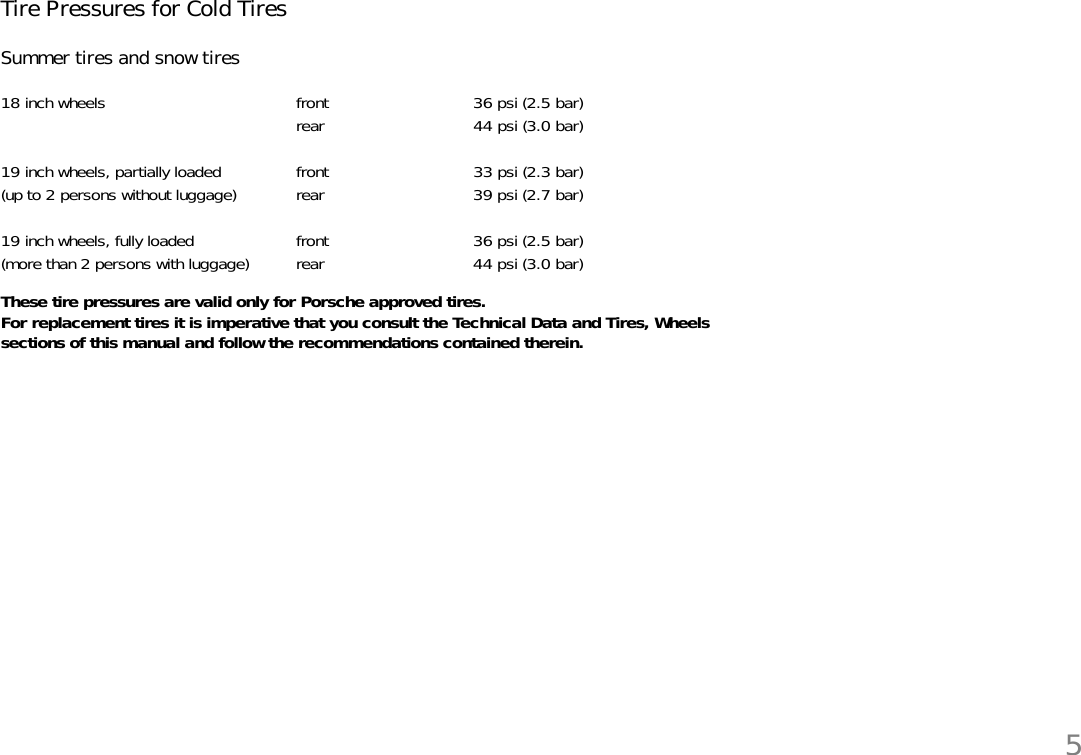

5Tire Pressures for Cold Tires Summer tires and snow tiresThese tire pressures are valid only for Porsche approved tires. For replacement tires it is imperative that you consult the Technical Data and Tires, Wheelssections of this manual and follow the recommendations contained therein. 18 inch wheels front 36 psi (2.5 bar)rear 44 psi (3.0 bar)19 inch wheels, partially loaded front 33 psi (2.3 bar)(up to 2 persons without luggage) rear 39 psi (2.7 bar)19 inch wheels, fully loaded front 36 psi (2.5 bar)(more than 2 persons with luggage) rear 44 psi (3.0 bar)

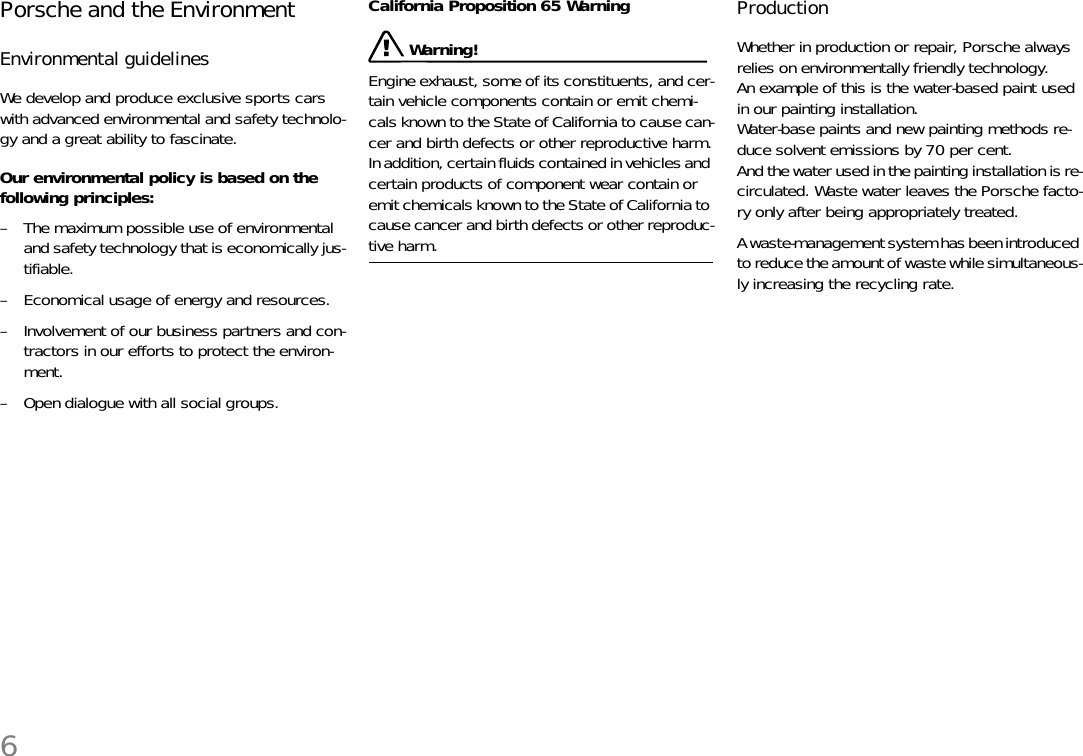

6Porsche and the Environment Environmental guidelinesWe develop and produce exclusive sports cars with advanced environmental and safety technolo-gy and a great ability to fascinate. Our environmental policy is based on the following principles:– The maximum possible use of environmentaland safety technology that is economically jus-tifiable. – Economical usage of energy and resources. – Involvement of our business partners and con-tractors in our efforts to protect the environ-ment. – Open dialogue with all social groups. California Proposition 65 Warning Warning!Engine exhaust, some of its constituents, and cer-tain vehicle components contain or emit chemi-cals known to the State of California to cause can-cer and birth defects or other reproductive harm.In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproduc-tive harm. ProductionWhether in production or repair, Porsche always relies on environmentally friendly technology.An example of this is the water-based paint used in our painting installation.Water-base paints and new painting methods re-duce solvent emissions by 70 per cent.And the water used in the painting installation is re-circulated. Waste water leaves the Porsche facto-ry only after being appropriately treated. A waste-management system has been introduced to reduce the amount of waste while simultaneous-ly increasing the recycling rate.

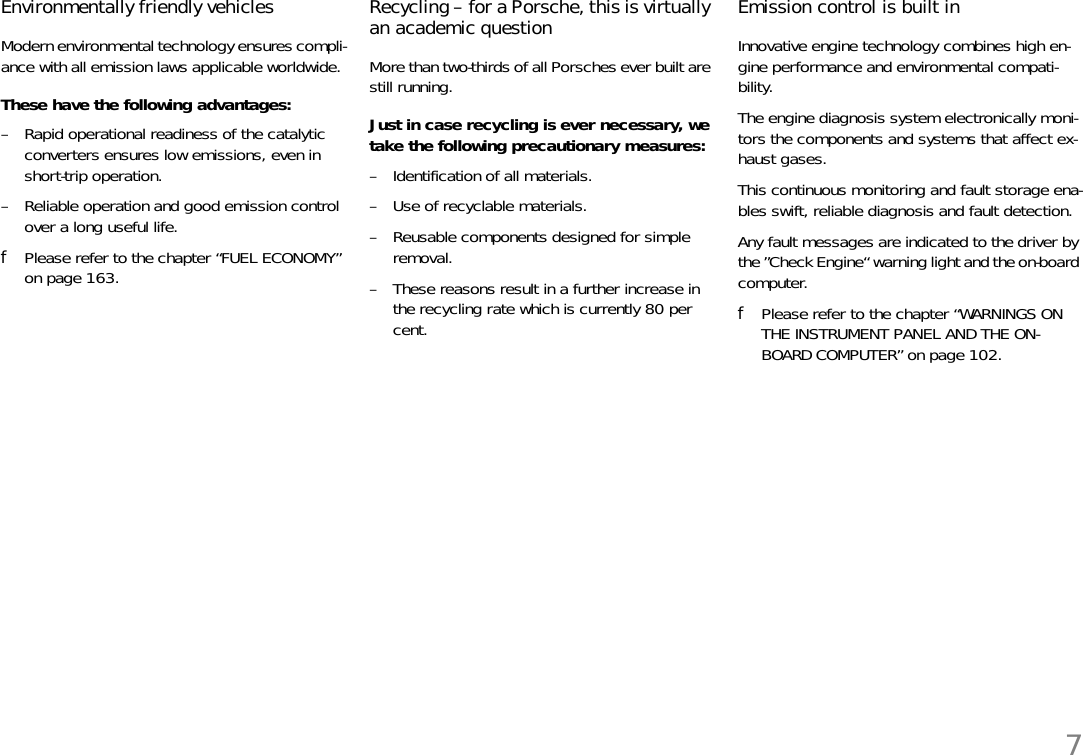

7Environmentally friendly vehiclesModern environmental technology ensures compli-ance with all emission laws applicable worldwide. These have the following advantages:– Rapid operational readiness of the catalytic converters ensures low emissions, even in short-trip operation. – Reliable operation and good emission controlover a long useful life. fPlease refer to the chapter “FUEL ECONOMY” on page 163. Recycling – for a Porsche, this is virtually an academic question More than two-thirds of all Porsches ever built are still running. Just in case recycling is ever necessary, we take the following precautionary measures: – Identification of all materials. – Use of recyclable materials. – Reusable components designed for simple removal. – These reasons result in a further increase in the recycling rate which is currently 80 per cent. Emission control is built inInnovative engine technology combines high en-gine performance and environmental compati-bility. The engine diagnosis system electronically moni-tors the components and systems that affect ex-haust gases. This continuous monitoring and fault storage ena-bles swift, reliable diagnosis and fault detection. Any fault messages are indicated to the driver by the ”Check Engine“ warning light and the on-board computer. fPlease refer to the chapter “WARNINGS ON THE INSTRUMENT PANEL AND THE ON-BOARD COMPUTER” on page 102.

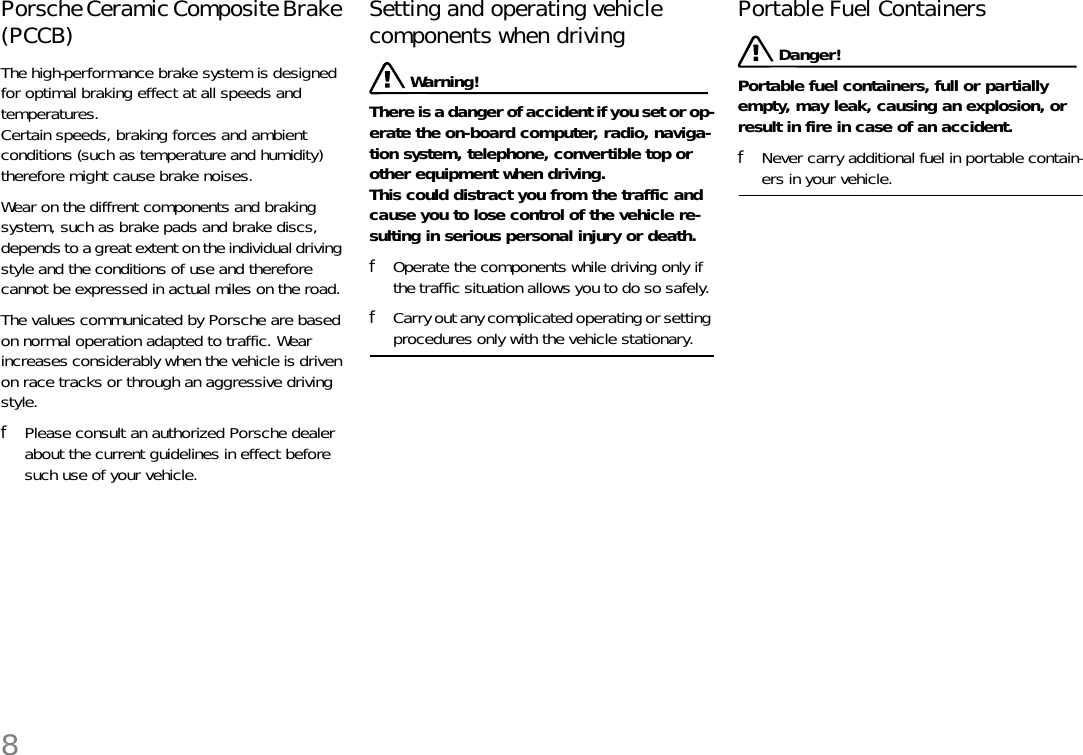

8Porsche Ceramic Composite Brake (PCCB)The high-performance brake system is designed for optimal braking effect at all speeds and temperatures. Certain speeds, braking forces and ambient conditions (such as temperature and humidity) therefore might cause brake noises. Wear on the diffrent components and braking system, such as brake pads and brake discs, depends to a great extent on the individual driving style and the conditions of use and therefore cannot be expressed in actual miles on the road. The values communicated by Porsche are based on normal operation adapted to traffic. Wear increases considerably when the vehicle is driven on race tracks or through an aggressive driving style.fPlease consult an authorized Porsche dealer about the current guidelines in effect before such use of your vehicle.Setting and operating vehicle components when driving Warning!There is a danger of accident if you set or op-erate the on-board computer, radio, naviga-tion system, telephone, convertible top or other equipment when driving.This could distract you from the traffic and cause you to lose control of the vehicle re-sulting in serious personal injury or death. fOperate the components while driving only if the traffic situation allows you to do so safely. fCarry out any complicated operating or setting procedures only with the vehicle stationary. Portable Fuel Containers Danger!Portable fuel containers, full or partially empty, may leak, causing an explosion, or result in fire in case of an accident. fNever carry additional fuel in portable contain-ers in your vehicle.

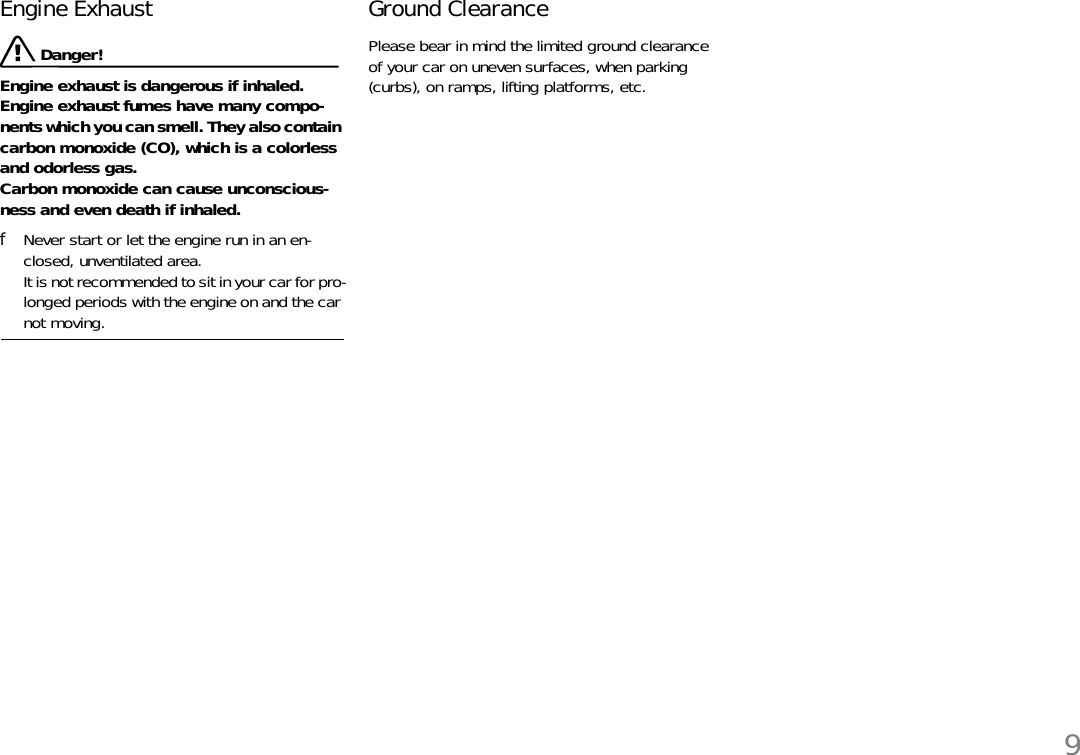

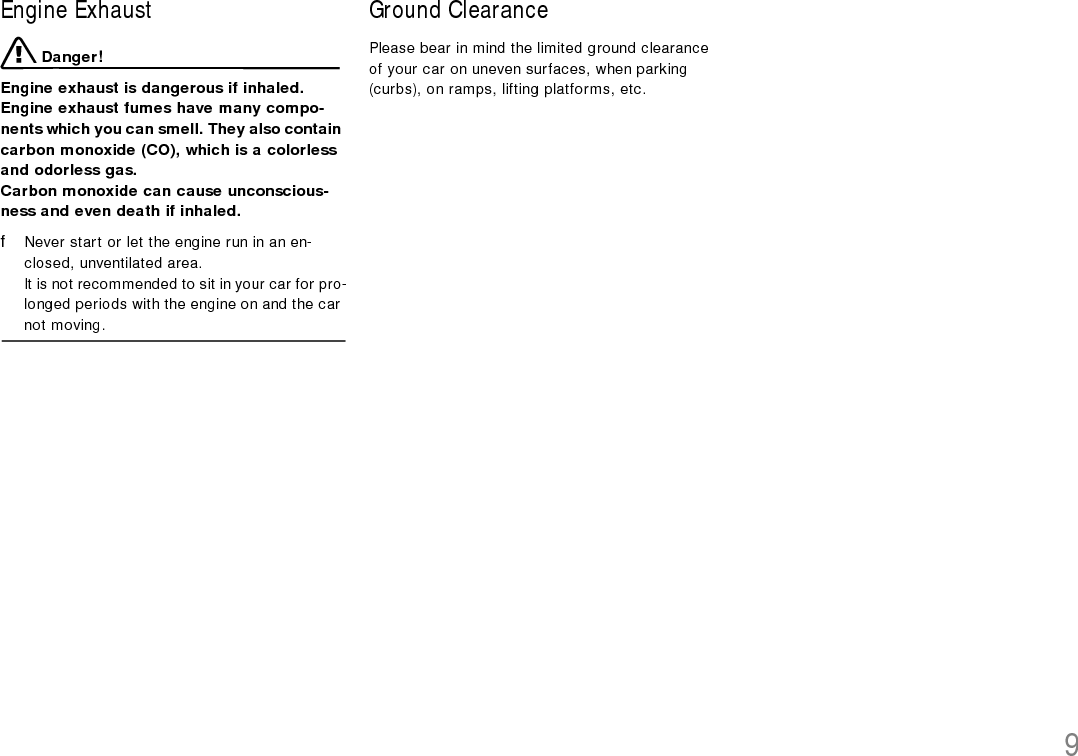

9Engine Exhaust Danger!Engine exhaust is dangerous if inhaled.Engine exhaust fumes have many compo-nents which you can smell. They also contain carbon monoxide (CO), which is a colorless and odorless gas.Carbon monoxide can cause unconscious-ness and even death if inhaled. fNever start or let the engine run in an en-closed, unventilated area.It is not recommended to sit in your car for pro-longed periods with the engine on and the car not moving.Ground ClearancePlease bear in mind the limited ground clearance of your car on uneven surfaces, when parking (curbs), on ramps, lifting platforms, etc.
10

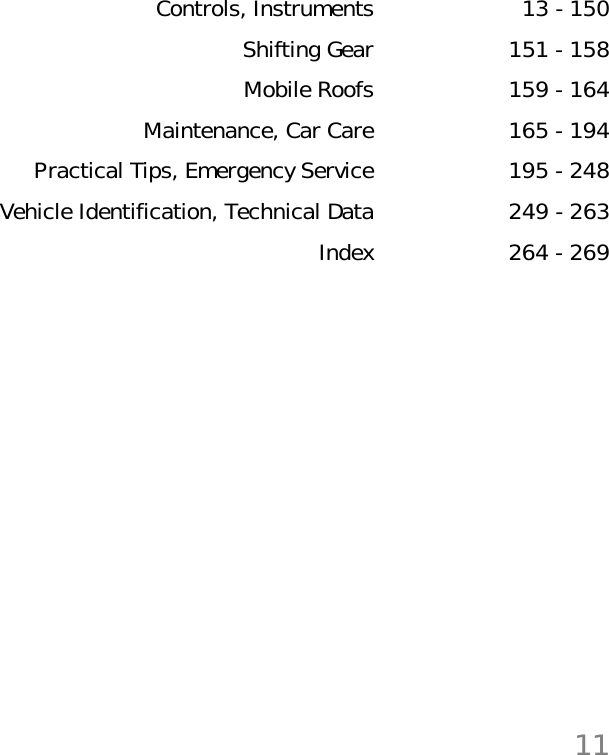

11Controls, Instruments 13 - 150Shifting Gear 151 - 158Mobile Roofs 159 - 164Maintenance, Car Care 165 - 194Practical Tips, Emergency Service 195 - 248Vehicle Identification, Technical Data 249 - 263Index 264 - 269
12
Controls, Instruments 13Controls, InstrumentsBefore driving off... ......................................14Break in hints for the first 2,000 miles/3,000 kilometers...................... 16Keys........................................................... 19Security Wheel Bolts .................................... 19Doors ......................................................... 22Central Locking ........................................... 23Alarm System, Passenger Compartment Monitoring ............. 26Power Windows........................................... 28Inside mirror................................................ 30Door Mirrors................................................ 30Rear Window Defogger, Door Mirror Heating..................................... 33Seat Adjustment.......................................... 34Seat Memory............................................... 36Heated Seats .............................................. 38Rear Seat Backrests.................................... 39Steering Wheel Adjustment........................... 39Multi-Functional Steering Wheel..................... 40Sun Visors................................................... 41Safety Belts................................................. 42Child Restraint Anchorages........................... 45Child Restraint Systems ............................... 46LATCH SystemChild seat bracket on the passenger’s seat.... 48Airbag Systems........................................... 50Parking Aids................................................ 52Retractable Rear Spoiler............................... 54Clutch Pedal................................................ 56Parking Brake.............................................. 56Brakes........................................................ 57ABS Brake System(Antilock Brake System)................................ 60Sport Mode................................................. 62Porsche Stability Management (PSM)............. 63Porsche Active Suspension Management (PASM).................................... 66Interior Lights.............................................. 67Operation, Instruments................................. 68Ignition/Starter Switch with anti-theft Steering Lock........................................................... 70Starting Procedures..................................... 72Stopping Engine .......................................... 73Instrument Panel USA Models ....................... 74Instrument Panel Canada Models................... 76Engine oil temperature................................. 78Automatic Speed Control Indicator light......... 78Instrument Illumination.................................. 78Trip Odometer............................................. 79Speedometer .............................................. 80Changing over betweenMiles / Kilometers........................................ 80Tachometer................................................. 81Turn Signal Indicator Light............................ 81High Beam .................................................. 81Cooling System ........................................... 82Tiptronic ..................................................... 83Fuel ............................................................ 84Clock.......................................................... 85Outside temperature.................................... 85Engine Oil Pressure...................................... 86Check Engine Warning Light.......................... 87On-Board Computer (BC) .............................. 88Emergency Flasher Switch.......................... 120Light Switch .............................................. 121Welcome Home Function............................ 121Automatic Headlight Beam Adjustment......... 122Turn Signal / Headlight Dimmer /Parking light / Flasher Lever............................................. 122Windshield Wiper / Washer Lever ................ 123Automatic Speed Control............................ 126Automatic Air Conditioning System.............. 128Central and Side Vents............................... 131Fresh-air Intake.......................................... 131Ashtray ..................................................... 132Cigarette Lighter........................................ 133Cupholder ................................................. 134Storage in the Passenger Compartment ...... 136Luggage Compartment Lid and Engine Compartment Lid....................................... 138Luggage Compartment............................... 140Trunk Entrapment ...................................... 141Fire Extinguisher........................................ 143HomeLink.................................................. 144Porsche Communication Management (PCM).................................... 147

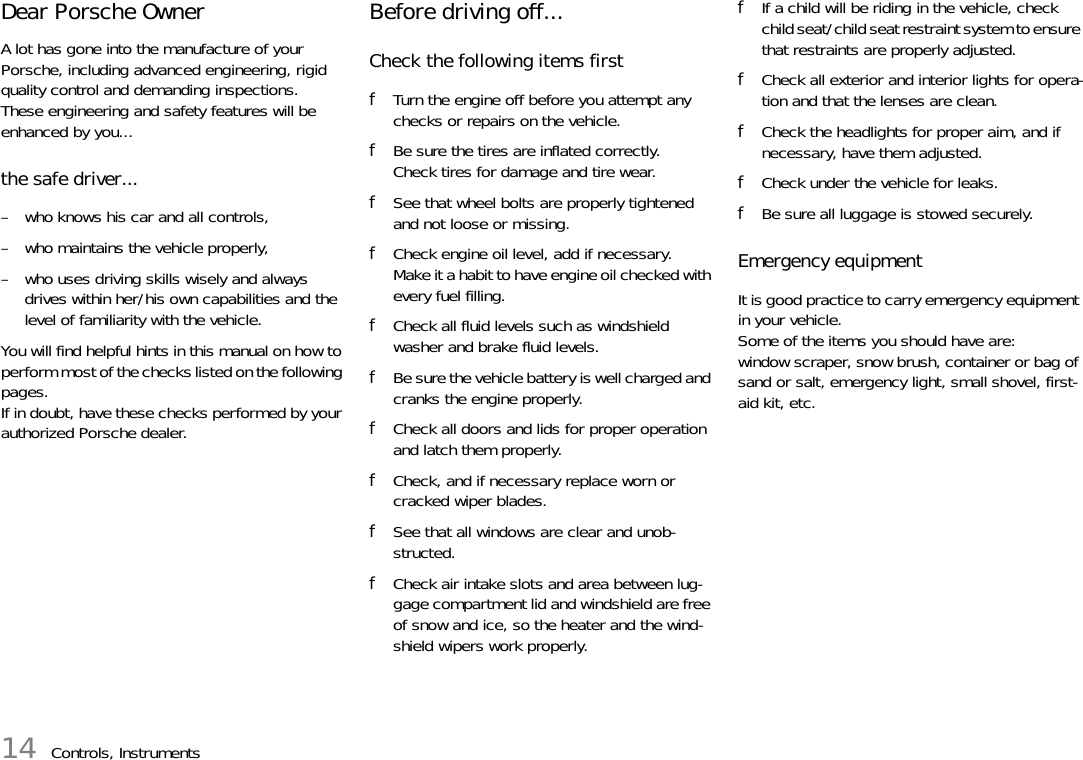

14 Controls, InstrumentsDear Porsche Owner A lot has gone into the manufacture of your Porsche, including advanced engineering, rigid quality control and demanding inspections. These engineering and safety features will be enhanced by you... the safe driver... – who knows his car and all controls, – who maintains the vehicle properly, – who uses driving skills wisely and always drives within her/his own capabilities and the level of familiarity with the vehicle. You will find helpful hints in this manual on how to perform most of the checks listed on the following pages. If in doubt, have these checks performed by your authorized Porsche dealer. Before driving off... Check the following items first fTurn the engine off before you attempt any checks or repairs on the vehicle. fBe sure the tires are inflated correctly. Check tires for damage and tire wear. fSee that wheel bolts are properly tightened and not loose or missing. fCheck engine oil level, add if necessary. Make it a habit to have engine oil checked with every fuel filling. fCheck all fluid levels such as windshield washer and brake fluid levels. fBe sure the vehicle battery is well charged and cranks the engine properly. fCheck all doors and lids for proper operation and latch them properly. fCheck, and if necessary replace worn or cracked wiper blades. fSee that all windows are clear and unob-structed. fCheck air intake slots and area between lug-gage compartment lid and windshield are free of snow and ice, so the heater and the wind-shield wipers work properly. fIf a child will be riding in the vehicle, check child seat/child seat restraint system to ensure that restraints are properly adjusted. fCheck all exterior and interior lights for opera-tion and that the lenses are clean. fCheck the headlights for proper aim, and if necessary, have them adjusted. fCheck under the vehicle for leaks. fBe sure all luggage is stowed securely. Emergency equipment It is good practice to carry emergency equipment in your vehicle. Some of the items you should have are: window scraper, snow brush, container or bag of sand or salt, emergency light, small shovel, first-aid kit, etc.

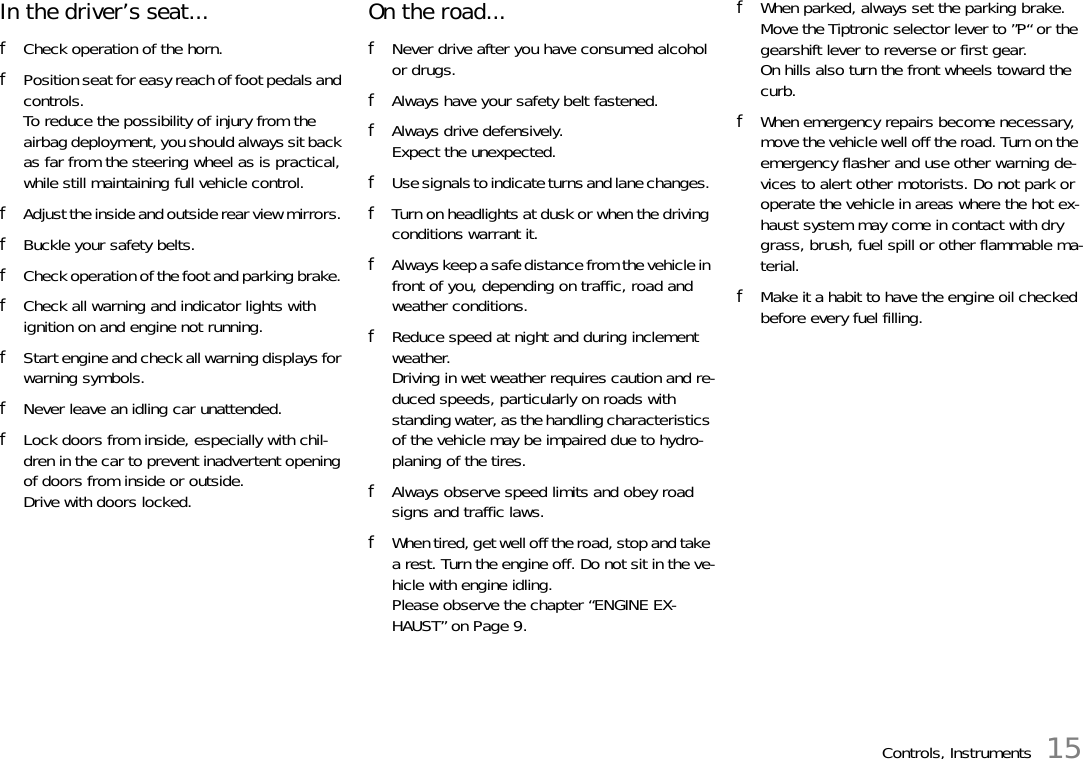

Controls, Instruments 15In the driver’s seat... fCheck operation of the horn. fPosition seat for easy reach of foot pedals and controls.To reduce the possibility of injury from the airbag deployment, you should always sit back as far from the steering wheel as is practical, while still maintaining full vehicle control. fAdjust the inside and outside rear view mirrors. fBuckle your safety belts. fCheck operation of the foot and parking brake. fCheck all warning and indicator lights with ignition on and engine not running. fStart engine and check all warning displays for warning symbols. fNever leave an idling car unattended. fLock doors from inside, especially with chil-dren in the car to prevent inadvertent opening of doors from inside or outside.Drive with doors locked. On the road... fNever drive after you have consumed alcohol or drugs. fAlways have your safety belt fastened. fAlways drive defensively. Expect the unexpected. fUse signals to indicate turns and lane changes. fTurn on headlights at dusk or when the driving conditions warrant it. fAlways keep a safe distance from the vehicle in front of you, depending on traffic, road and weather conditions. fReduce speed at night and during inclement weather.Driving in wet weather requires caution and re-duced speeds, particularly on roads with standing water, as the handling characteristics of the vehicle may be impaired due to hydro-planing of the tires. fAlways observe speed limits and obey road signs and traffic laws. fWhen tired, get well off the road, stop and take a rest. Turn the engine off. Do not sit in the ve-hicle with engine idling. Please observe the chapter “ENGINE EX-HAUST” on Page 9.fWhen parked, always set the parking brake. Move the Tiptronic selector lever to ”P“ or the gearshift lever to reverse or first gear. On hills also turn the front wheels toward the curb. fWhen emergency repairs become necessary, move the vehicle well off the road. Turn on the emergency flasher and use other warning de-vices to alert other motorists. Do not park or operate the vehicle in areas where the hot ex-haust system may come in contact with dry grass, brush, fuel spill or other flammable ma-terial. fMake it a habit to have the engine oil checked before every fuel filling.

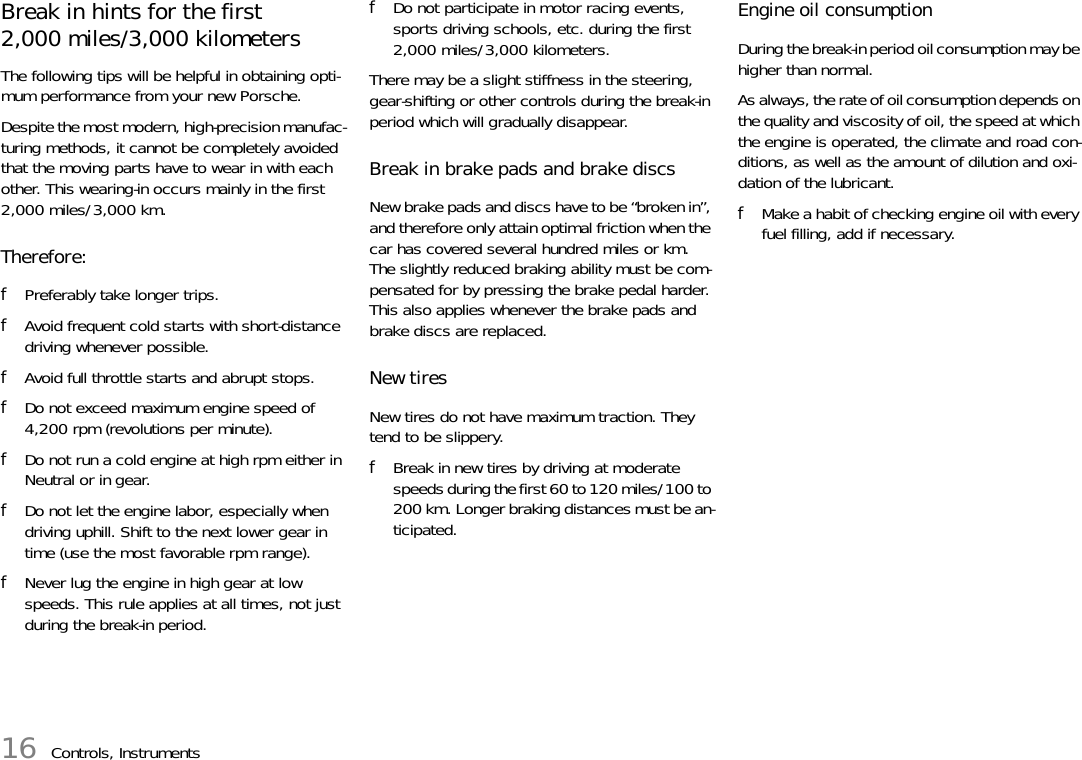

16 Controls, InstrumentsBreak in hints for the first 2,000 miles/3,000 kilometers The following tips will be helpful in obtaining opti-mum performance from your new Porsche. Despite the most modern, high-precision manufac-turing methods, it cannot be completely avoided that the moving parts have to wear in with each other. This wearing-in occurs mainly in the first 2,000 miles/3,000 km. Therefore: fPreferably take longer trips. fAvoid frequent cold starts with short-distance driving whenever possible. fAvoid full throttle starts and abrupt stops. fDo not exceed maximum engine speed of 4,200 rpm (revolutions per minute). fDo not run a cold engine at high rpm either in Neutral or in gear. fDo not let the engine labor, especially when driving uphill. Shift to the next lower gear in time (use the most favorable rpm range). fNever lug the engine in high gear at low speeds. This rule applies at all times, not just during the break-in period. fDo not participate in motor racing events, sports driving schools, etc. during the first 2,000 miles/3,000 kilometers.There may be a slight stiffness in the steering, gear-shifting or other controls during the break-in period which will gradually disappear. Break in brake pads and brake discsNew brake pads and discs have to be “broken in”, and therefore only attain optimal friction when the car has covered several hundred miles or km.The slightly reduced braking ability must be com-pensated for by pressing the brake pedal harder. This also applies whenever the brake pads and brake discs are replaced. New tires New tires do not have maximum traction. They tend to be slippery. fBreak in new tires by driving at moderate speeds during the first 60 to 120 miles/100 to 200 km. Longer braking distances must be an-ticipated. Engine oil consumption During the break-in period oil consumption may be higher than normal. As always, the rate of oil consumption depends on the quality and viscosity of oil, the speed at which the engine is operated, the climate and road con-ditions, as well as the amount of dilution and oxi-dation of the lubricant. fMake a habit of checking engine oil with every fuel filling, add if necessary.

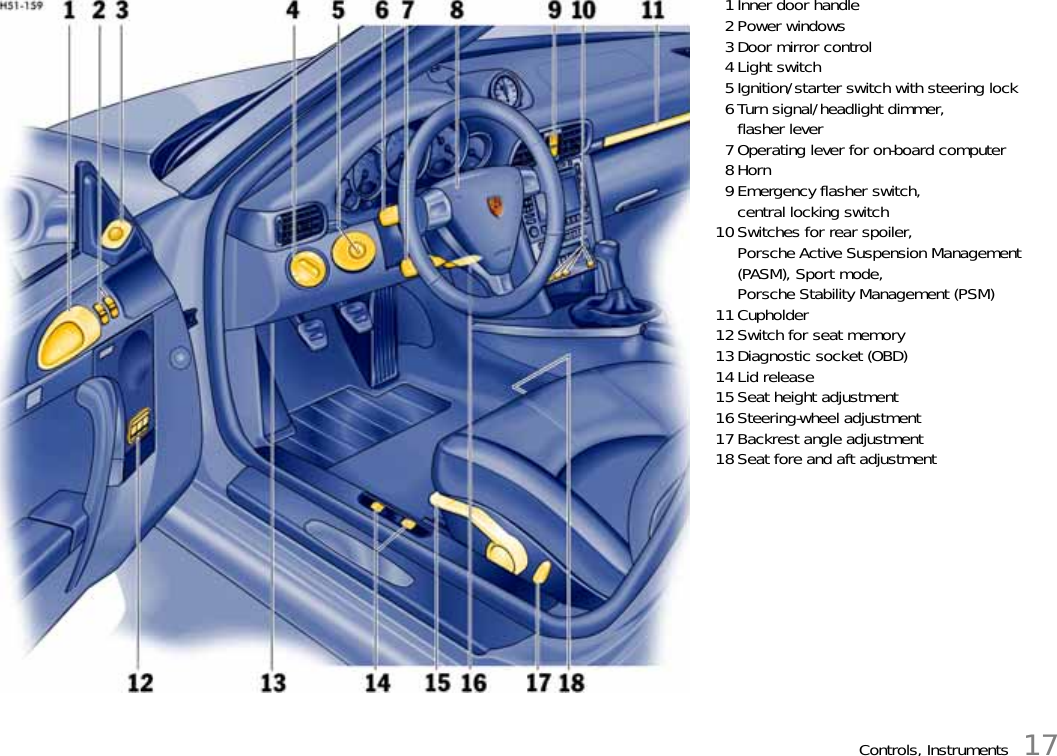

Controls, Instruments 171Inner door handle2Power windows3Door mirror control4Light switch5Ignition/starter switch with steering lock6Turn signal/headlight dimmer,flasher lever7Operating lever for on-board computer8Horn9Emergency flasher switch, central locking switch10Switches for rear spoiler,Porsche Active Suspension Management(PASM), Sport mode, Porsche Stability Management (PSM)11Cupholder12Switch for seat memory13Diagnostic socket (OBD)14Lid release15Seat height adjustment16Steering-wheel adjustment17Backrest angle adjustment18Seat fore and aft adjustment

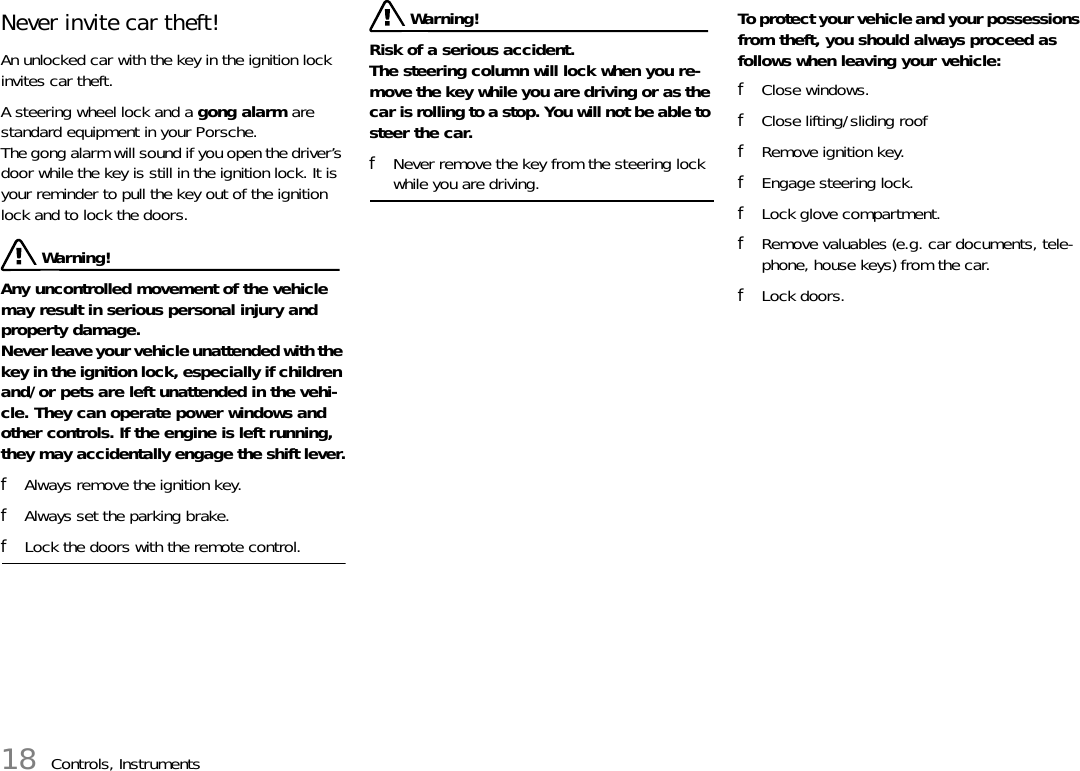

18 Controls, InstrumentsNever invite car theft! An unlocked car with the key in the ignition lock invites car theft. A steering wheel lock and a gong alarm are standard equipment in your Porsche. The gong alarm will sound if you open the driver’s door while the key is still in the ignition lock. It is your reminder to pull the key out of the ignition lock and to lock the doors. Warning!Any uncontrolled movement of the vehicle may result in serious personal injury and property damage.Never leave your vehicle unattended with the key in the ignition lock, especially if children and/or pets are left unattended in the vehi-cle. They can operate power windows and other controls. If the engine is left running, they may accidentally engage the shift lever.fAlways remove the ignition key. fAlways set the parking brake. fLock the doors with the remote control. Warning!Risk of a serious accident. The steering column will lock when you re-move the key while you are driving or as the car is rolling to a stop. You will not be able to steer the car. fNever remove the key from the steering lock while you are driving. To protect your vehicle and your possessions from theft, you should always proceed as follows when leaving your vehicle: fClose windows.fClose lifting/sliding rooffRemove ignition key. fEngage steering lock. fLock glove compartment. fRemove valuables (e.g. car documents, tele-phone, house keys) from the car. fLock doors.

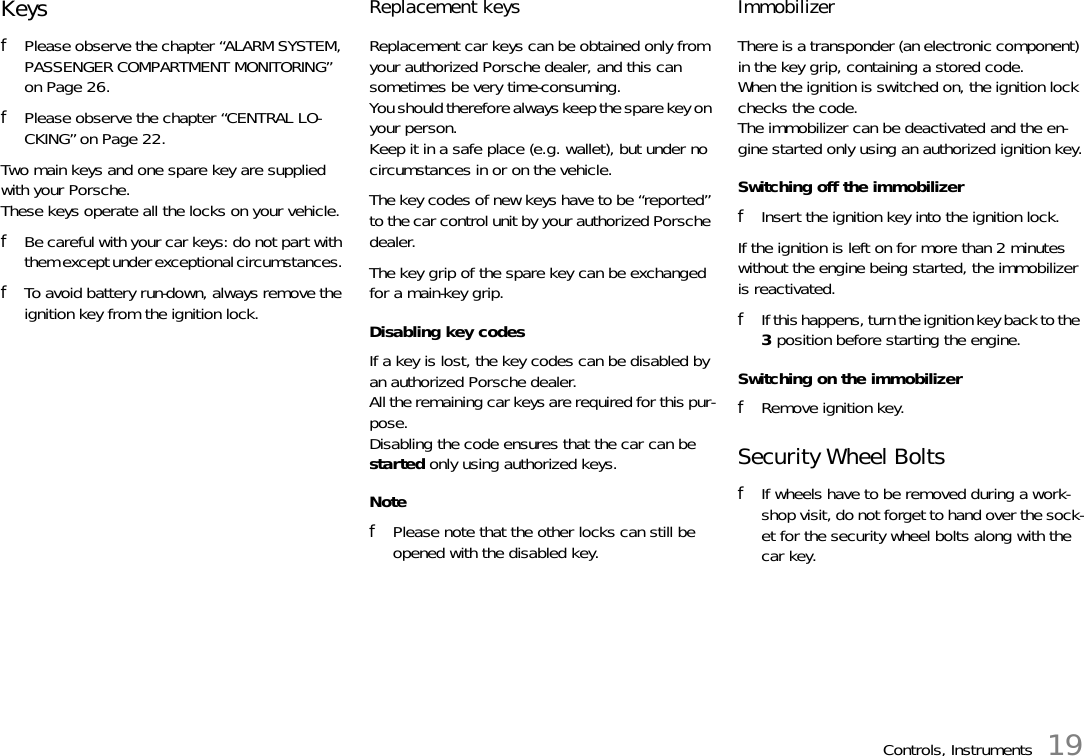

Controls, Instruments 19Keys fPlease observe the chapter “ALARM SYSTEM, PASSENGER COMPARTMENT MONITORING” on Page 26.fPlease observe the chapter “CENTRAL LO-CKING” on Page 22.Two main keys and one spare key are supplied with your Porsche. These keys operate all the locks on your vehicle. fBe careful with your car keys: do not part with them except under exceptional circumstances. fTo avoid battery run-down, always remove the ignition key from the ignition lock. Replacement keys Replacement car keys can be obtained only from your authorized Porsche dealer, and this can sometimes be very time-consuming.You should therefore always keep the spare key on your person. Keep it in a safe place (e.g. wallet), but under no circumstances in or on the vehicle. The key codes of new keys have to be “reported” to the car control unit by your authorized Porsche dealer. The key grip of the spare key can be exchanged for a main-key grip. Disabling key codes If a key is lost, the key codes can be disabled by an authorized Porsche dealer.All the remaining car keys are required for this pur-pose.Disabling the code ensures that the car can be started only using authorized keys. NotefPlease note that the other locks can still be opened with the disabled key. Immobilizer There is a transponder (an electronic component) in the key grip, containing a stored code. When the ignition is switched on, the ignition lock checks the code. The immobilizer can be deactivated and the en-gine started only using an authorized ignition key.Switching off the immobilizerfInsert the ignition key into the ignition lock.If the ignition is left on for more than 2 minutes without the engine being started, the immobilizer is reactivated.fIf this happens, turn the ignition key back to the 3 position before starting the engine.Switching on the immobilizerfRemove ignition key.Security Wheel Bolts fIf wheels have to be removed during a work-shop visit, do not forget to hand over the sock-et for the security wheel bolts along with the car key.

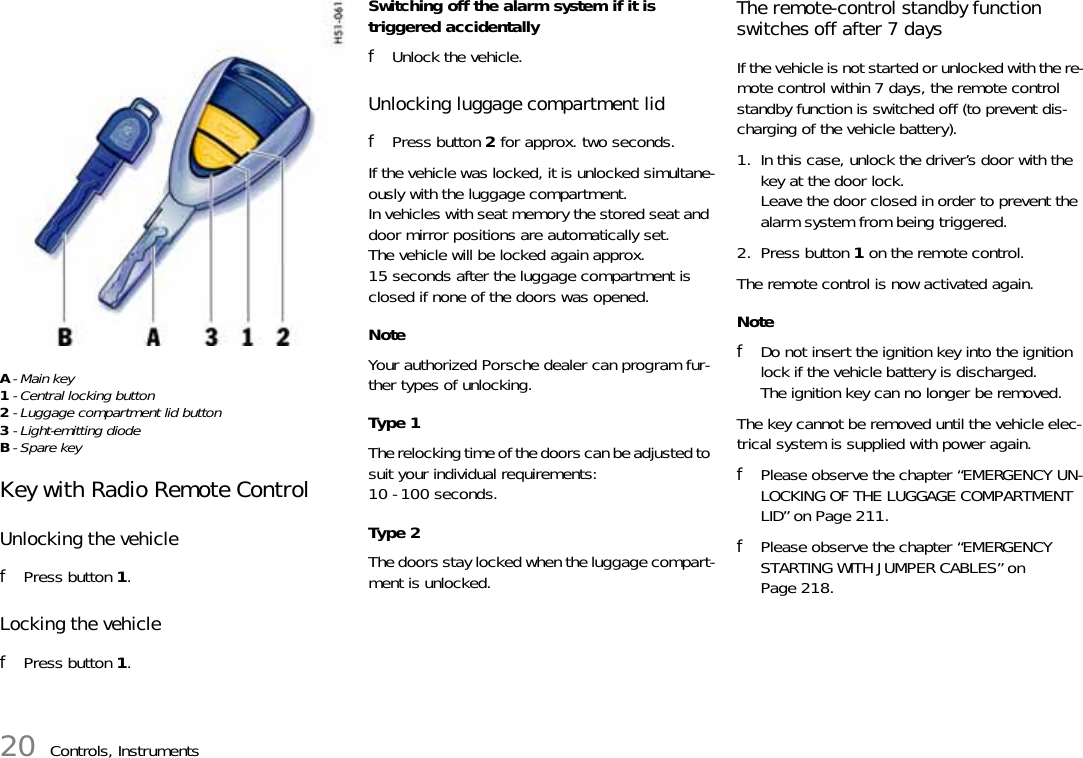

20 Controls, InstrumentsA-Main key1- Central locking button2- Luggage compartment lid button3- Light-emitting diodeB- Spare key Key with Radio Remote Control Unlocking the vehiclefPress button 1.Locking the vehiclefPress button 1.Switching off the alarm system if it is triggered accidentallyfUnlock the vehicle.Unlocking luggage compartment lid fPress button 2 for approx. two seconds. If the vehicle was locked, it is unlocked simultane-ously with the luggage compartment.In vehicles with seat memory the stored seat and door mirror positions are automatically set.The vehicle will be locked again approx. 15 seconds after the luggage compartment is closed if none of the doors was opened. Note Your authorized Porsche dealer can program fur-ther types of unlocking. Type 1 The relocking time of the doors can be adjusted to suit your individual requirements:10 - 100 seconds. Type 2 The doors stay locked when the luggage compart-ment is unlocked. The remote-control standby function switches off after 7 days If the vehicle is not started or unlocked with the re-mote control within 7 days, the remote control standby function is switched off (to prevent dis-charging of the vehicle battery). 1. In this case, unlock the driver’s door with the key at the door lock.Leave the door closed in order to prevent the alarm system from being triggered. 2. Press button 1 on the remote control. The remote control is now activated again.NotefDo not insert the ignition key into the ignition lock if the vehicle battery is discharged.The ignition key can no longer be removed.The key cannot be removed until the vehicle elec-trical system is supplied with power again.fPlease observe the chapter “EMERGENCY UN-LOCKING OF THE LUGGAGE COMPARTMENT LID” on Page 211.fPlease observe the chapter “EMERGENCY STARTING WITH JUMPER CABLES” on Page 218.

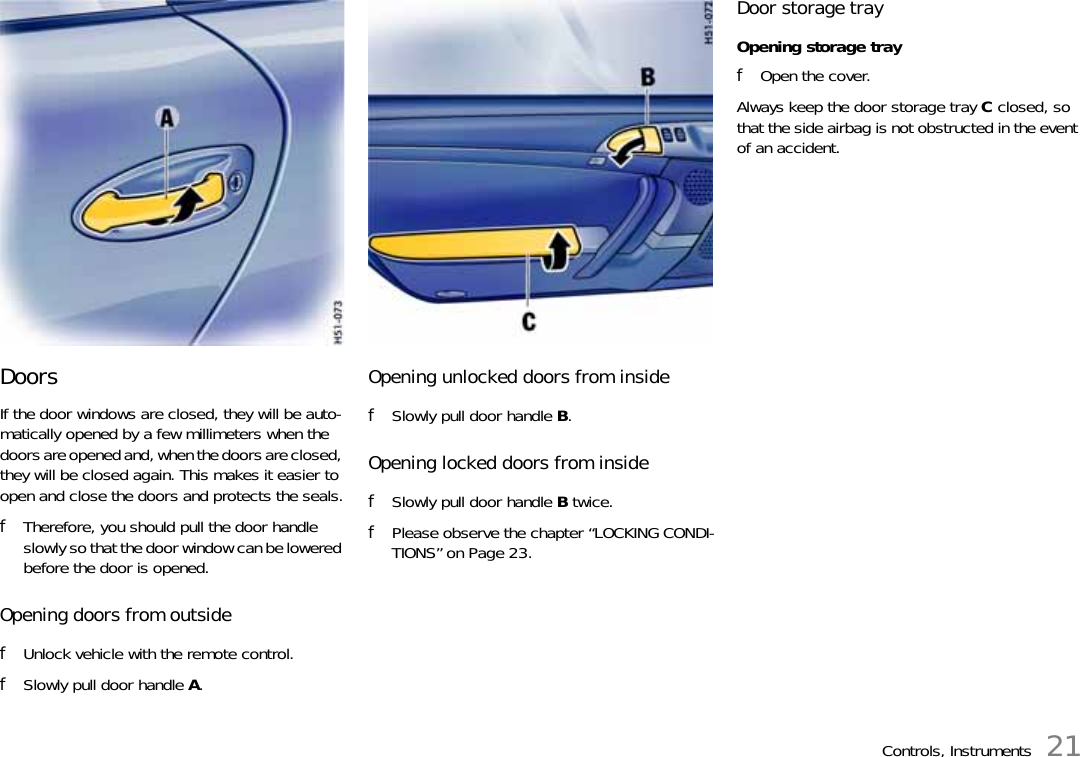

Controls, Instruments 21Doors If the door windows are closed, they will be auto-matically opened by a few millimeters when the doors are opened and, when the doors are closed, they will be closed again. This makes it easier to open and close the doors and protects the seals.fTherefore, you should pull the door handle slowly so that the door window can be lowered before the door is opened.Opening doors from outside fUnlock vehicle with the remote control.fSlowly pull door handle A. Opening unlocked doors from inside fSlowly pull door handle B. Opening locked doors from inside fSlowly pull door handle B twice.fPlease observe the chapter “LOCKING CONDI-TIONS” on Page 23.Door storage trayOpening storage trayfOpen the cover.Always keep the door storage tray C closed, so that the side airbag is not obstructed in the event of an accident.

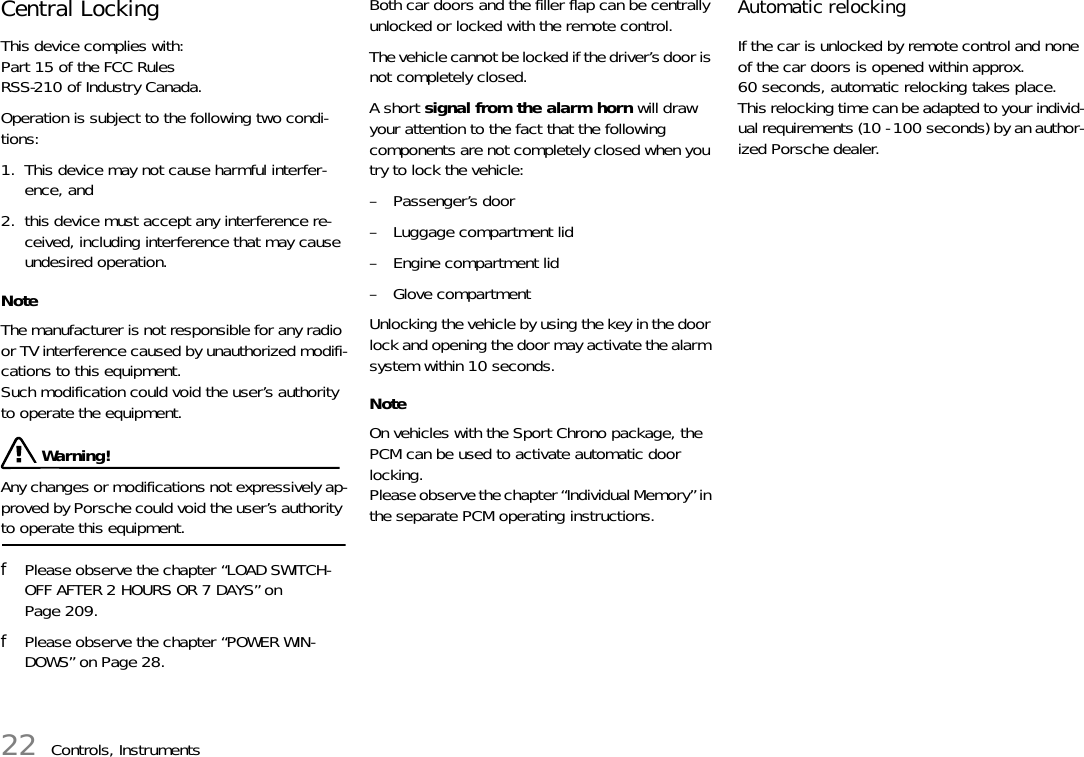

22 Controls, InstrumentsCentral Locking This device complies with:Part 15 of the FCC RulesRSS-210 of Industry Canada. Operation is subject to the following two condi-tions: 1. This device may not cause harmful interfer-ence, and2. this device must accept any interference re-ceived, including interference that may cause undesired operation.NoteThe manufacturer is not responsible for any radio or TV interference caused by unauthorized modifi-cations to this equipment. Such modification could void the user’s authority to operate the equipment. Warning!Any changes or modifications not expressively ap-proved by Porsche could void the user’s authority to operate this equipment.fPlease observe the chapter “LOAD SWITCH-OFF AFTER 2 HOURS OR 7 DAYS” on Page 209.fPlease observe the chapter “POWER WIN-DOWS” on Page 28.Both car doors and the filler flap can be centrally unlocked or locked with the remote control. The vehicle cannot be locked if the driver’s door is not completely closed. A short signal from the alarm horn will draw your attention to the fact that the following components are not completely closed when you try to lock the vehicle:– Passenger’s door – Luggage compartment lid – Engine compartment lid – Glove compartment Unlocking the vehicle by using the key in the door lock and opening the door may activate the alarm system within 10 seconds.NoteOn vehicles with the Sport Chrono package, the PCM can be used to activate automatic door locking.Please observe the chapter “Individual Memory” in the separate PCM operating instructions.Automatic relocking If the car is unlocked by remote control and none of the car doors is opened within approx. 60 seconds, automatic relocking takes place.This relocking time can be adapted to your individ-ual requirements (10 - 100 seconds) by an author-ized Porsche dealer.

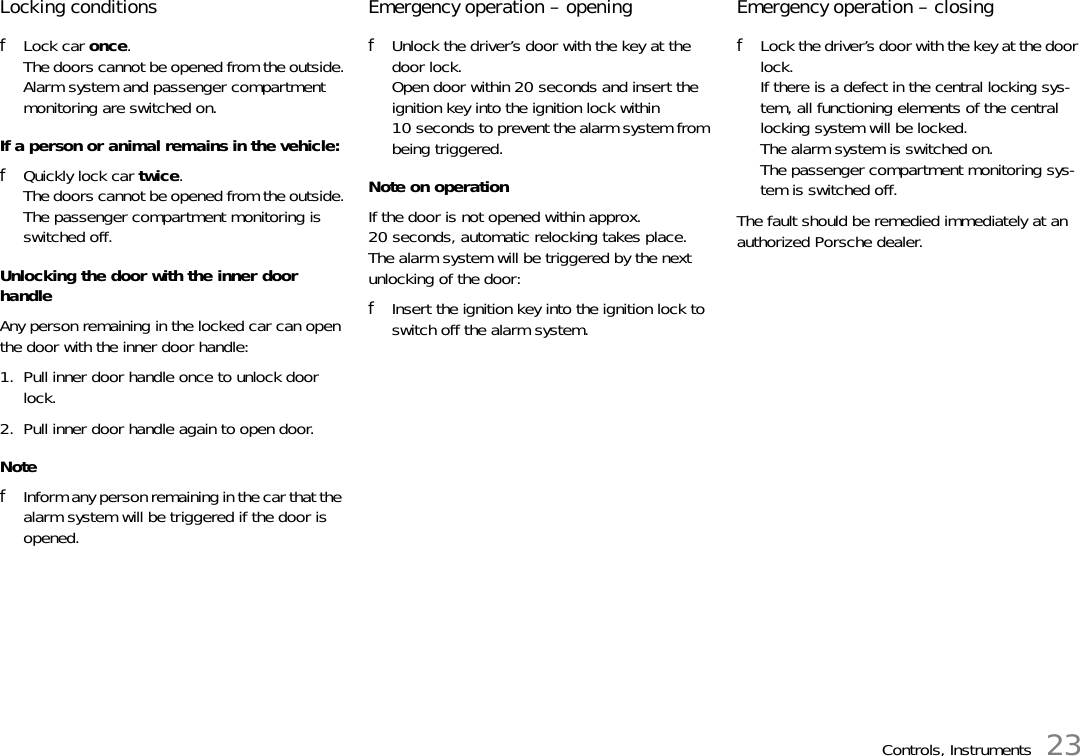

Controls, Instruments 23Locking conditions fLock car once.The doors cannot be opened from the outside.Alarm system and passenger compartment monitoring are switched on. If a person or animal remains in the vehicle: fQuickly lock car twice.The doors cannot be opened from the outside.The passenger compartment monitoring is switched off. Unlocking the door with the inner door handle Any person remaining in the locked car can open the door with the inner door handle: 1. Pull inner door handle once to unlock door lock. 2. Pull inner door handle again to open door. NotefInform any person remaining in the car that the alarm system will be triggered if the door is opened.Emergency operation – openingfUnlock the driver’s door with the key at the door lock.Open door within 20 seconds and insert the ignition key into the ignition lock within 10 seconds to prevent the alarm system from being triggered.Note on operationIf the door is not opened within approx. 20 seconds, automatic relocking takes place. The alarm system will be triggered by the next unlocking of the door:fInsert the ignition key into the ignition lock to switch off the alarm system.Emergency operation – closing fLock the driver’s door with the key at the door lock.If there is a defect in the central locking sys-tem, all functioning elements of the central locking system will be locked.The alarm system is switched on.The passenger compartment monitoring sys-tem is switched off.The fault should be remedied immediately at an authorized Porsche dealer.

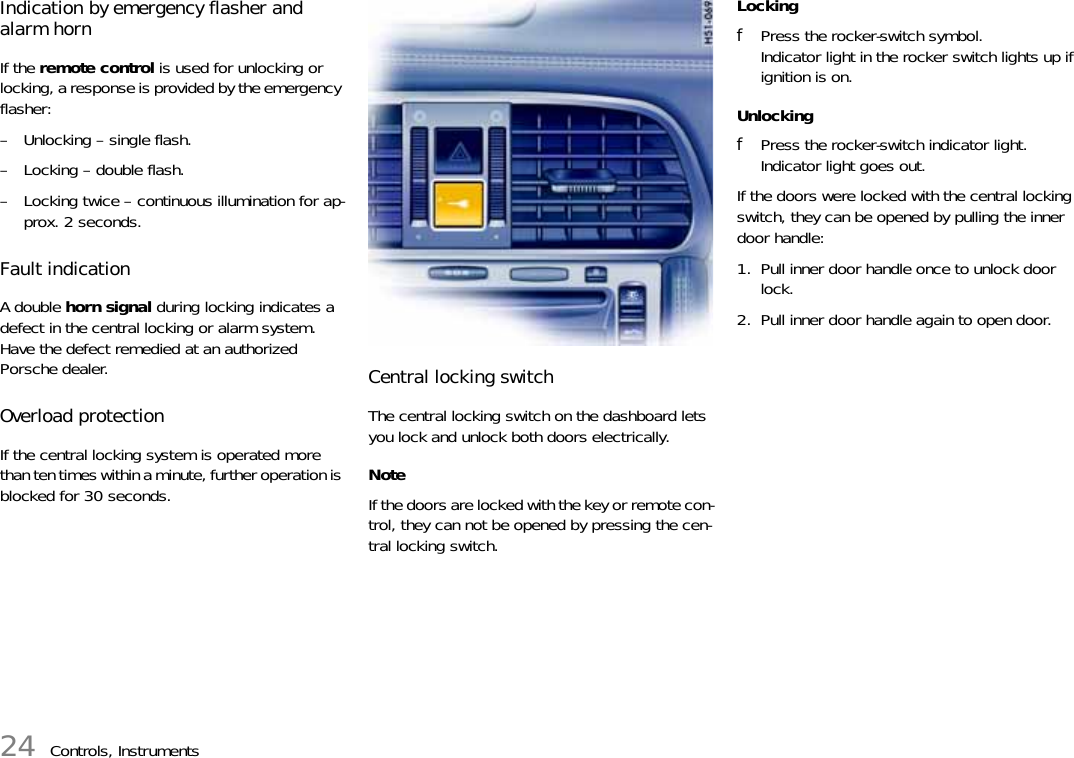

24 Controls, InstrumentsIndication by emergency flasher and alarm horn If the remote control is used for unlocking or locking, a response is provided by the emergency flasher: – Unlocking – single flash. – Locking – double flash. – Locking twice – continuous illumination for ap-prox. 2 seconds. Fault indication A double horn signal during locking indicates a defect in the central locking or alarm system. Have the defect remedied at an authorized Porsche dealer. Overload protectionIf the central locking system is operated more than ten times within a minute, further operation is blocked for 30 seconds.Central locking switchThe central locking switch on the dashboard lets you lock and unlock both doors electrically. NoteIf the doors are locked with the key or remote con-trol, they can not be opened by pressing the cen-tral locking switch.Locking fPress the rocker-switch symbol.Indicator light in the rocker switch lights up if ignition is on. Unlocking fPress the rocker-switch indicator light.Indicator light goes out.If the doors were locked with the central locking switch, they can be opened by pulling the inner door handle: 1. Pull inner door handle once to unlock door lock. 2. Pull inner door handle again to open door.

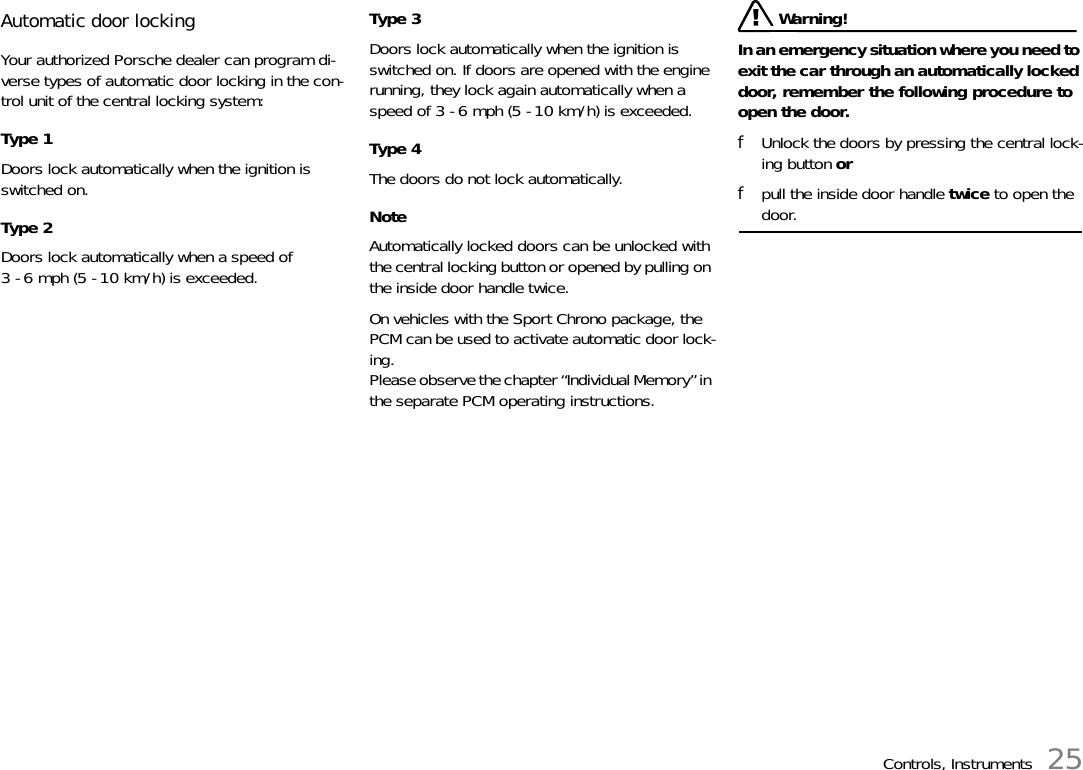

Controls, Instruments 25Automatic door locking Your authorized Porsche dealer can program di-verse types of automatic door locking in the con-trol unit of the central locking system: Type 1 Doors lock automatically when the ignition is switched on. Type 2 Doors lock automatically when a speed of 3 - 6 mph (5 - 10 km/h) is exceeded. Type 3 Doors lock automatically when the ignition is switched on. If doors are opened with the engine running, they lock again automatically when a speed of 3 - 6 mph (5 - 10 km/h) is exceeded. Type 4 The doors do not lock automatically. NoteAutomatically locked doors can be unlocked with the central locking button or opened by pulling on the inside door handle twice. On vehicles with the Sport Chrono package, the PCM can be used to activate automatic door lock-ing.Please observe the chapter “Individual Memory” in the separate PCM operating instructions. Warning!In an emergency situation where you need to exit the car through an automatically locked door, remember the following procedure to open the door. fUnlock the doors by pressing the central lock-ing button or fpull the inside door handle twice to open the door.

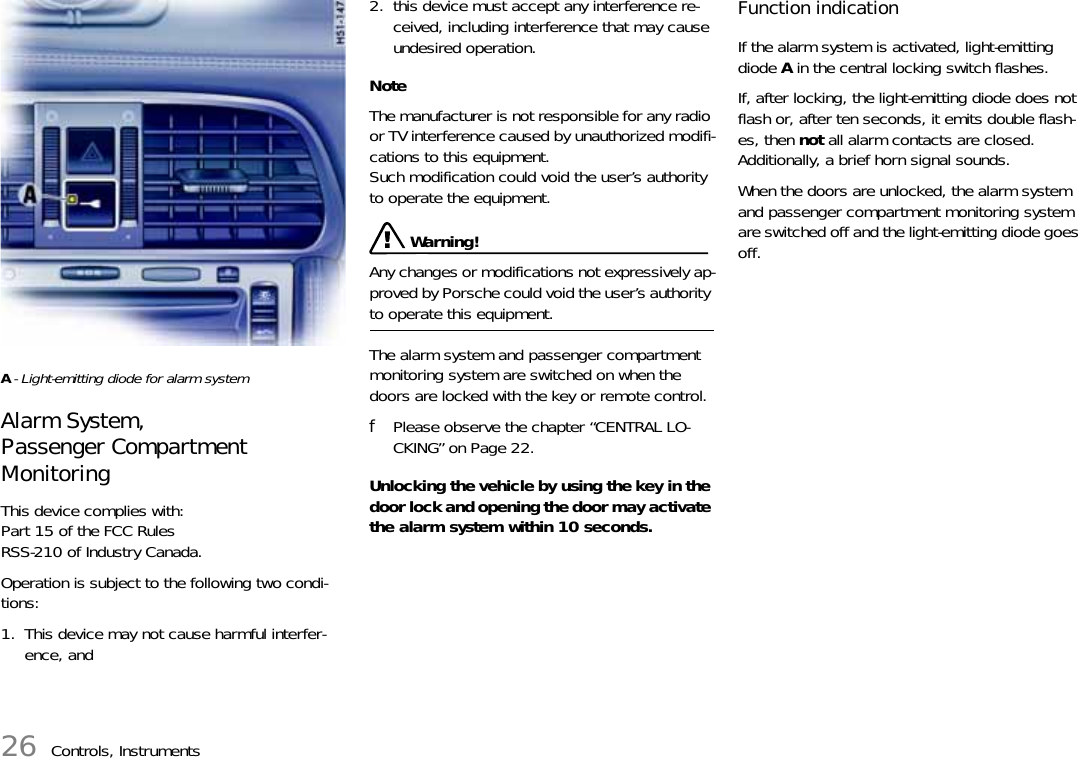

26 Controls, InstrumentsA- Light-emitting diode for alarm systemAlarm System, Passenger Compartment MonitoringThis device complies with:Part 15 of the FCC RulesRSS-210 of Industry Canada. Operation is subject to the following two condi-tions: 1. This device may not cause harmful interfer-ence, and2. this device must accept any interference re-ceived, including interference that may cause undesired operation. NoteThe manufacturer is not responsible for any radio or TV interference caused by unauthorized modifi-cations to this equipment. Such modification could void the user’s authority to operate the equipment. Warning!Any changes or modifications not expressively ap-proved by Porsche could void the user’s authority to operate this equipment.The alarm system and passenger compartment monitoring system are switched on when the doors are locked with the key or remote control. fPlease observe the chapter “CENTRAL LO-CKING” on Page 22.Unlocking the vehicle by using the key in the door lock and opening the door may activate the alarm system within 10 seconds. Function indication If the alarm system is activated, light-emitting diode A in the central locking switch flashes. If, after locking, the light-emitting diode does not flash or, after ten seconds, it emits double flash-es, then not all alarm contacts are closed. Additionally, a brief horn signal sounds. When the doors are unlocked, the alarm system and passenger compartment monitoring system are switched off and the light-emitting diode goes off.

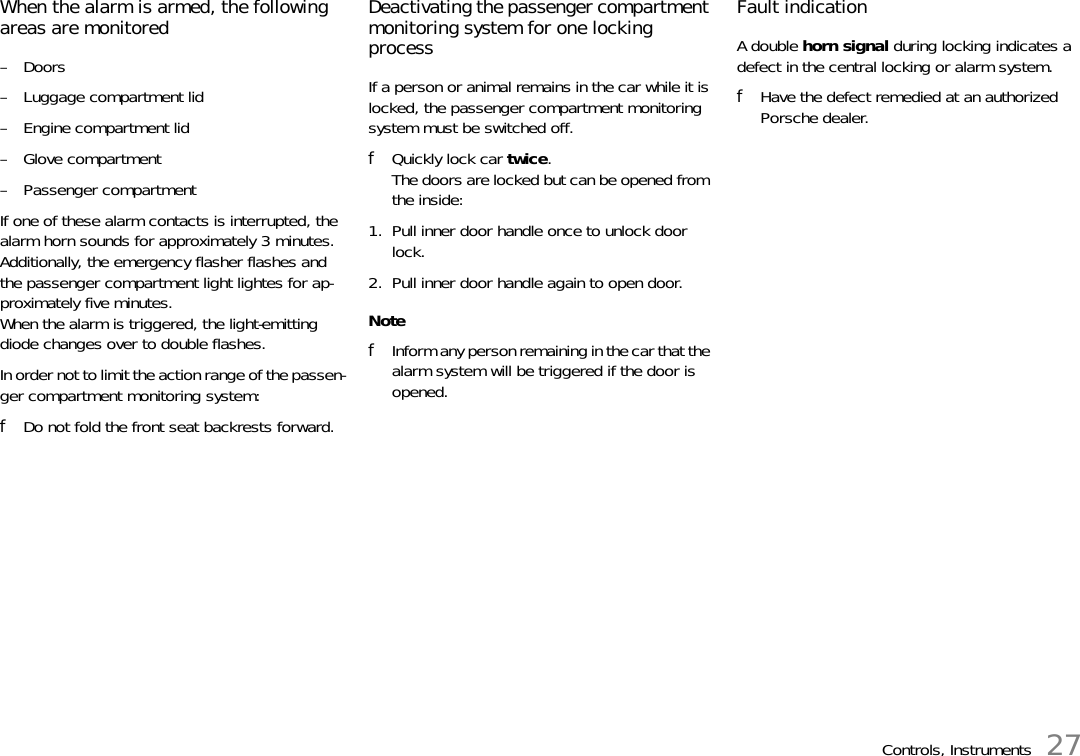

Controls, Instruments 27When the alarm is armed, the following areas are monitored –Doors – Luggage compartment lid – Engine compartment lid – Glove compartment – Passenger compartmentIf one of these alarm contacts is interrupted, the alarm horn sounds for approximately 3 minutes.Additionally, the emergency flasher flashes and the passenger compartment light lightes for ap-proximately five minutes. When the alarm is triggered, the light-emitting diode changes over to double flashes. In order not to limit the action range of the passen-ger compartment monitoring system: fDo not fold the front seat backrests forward. Deactivating the passenger compartment monitoring system for one locking processIf a person or animal remains in the car while it is locked, the passenger compartment monitoring system must be switched off. fQuickly lock car twice.The doors are locked but can be opened from the inside:1. Pull inner door handle once to unlock door lock. 2. Pull inner door handle again to open door. NotefInform any person remaining in the car that the alarm system will be triggered if the door is opened. Fault indication A double horn signal during locking indicates a defect in the central locking or alarm system. fHave the defect remedied at an authorized Porsche dealer.

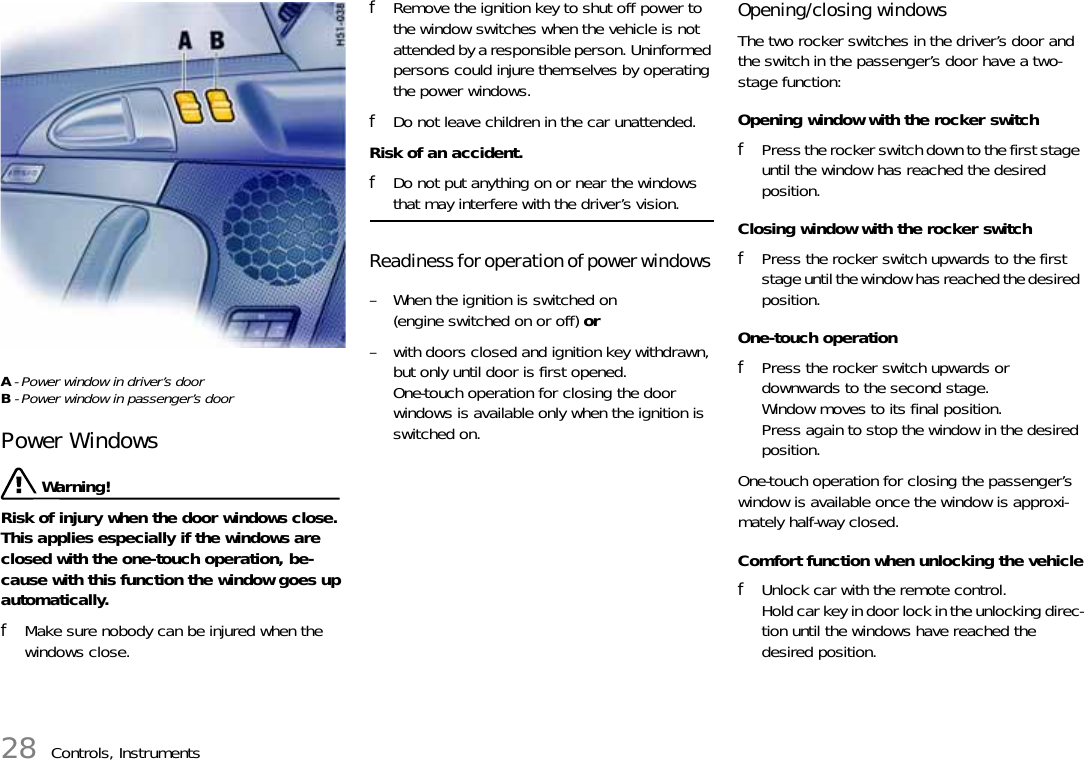

28 Controls, InstrumentsA - Power window in driver’s doorB - Power window in passenger’s doorPower Windows Warning!Risk of injury when the door windows close. This applies especially if the windows are closed with the one-touch operation, be-cause with this function the window goes up automatically. fMake sure nobody can be injured when the windows close. fRemove the ignition key to shut off power to the window switches when the vehicle is not attended by a responsible person. Uninformed persons could injure themselves by operating the power windows.fDo not leave children in the car unattended.Risk of an accident. fDo not put anything on or near the windows that may interfere with the driver’s vision. Readiness for operation of power windows – When the ignition is switched on (engine switched on or off) or– with doors closed and ignition key withdrawn, but only until door is first opened.One-touch operation for closing the door windows is available only when the ignition is switched on.Opening/closing windowsThe two rocker switches in the driver’s door and the switch in the passenger’s door have a two-stage function:Opening window with the rocker switchfPress the rocker switch down to the first stage until the window has reached the desired position.Closing window with the rocker switchfPress the rocker switch upwards to the first stage until the window has reached the desired position.One-touch operationfPress the rocker switch upwards or downwards to the second stage.Window moves to its final position.Press again to stop the window in the desired position.One-touch operation for closing the passenger’s window is available once the window is approxi-mately half-way closed.Comfort function when unlocking the vehiclefUnlock car with the remote control.Hold car key in door lock in the unlocking direc-tion until the windows have reached the desired position.

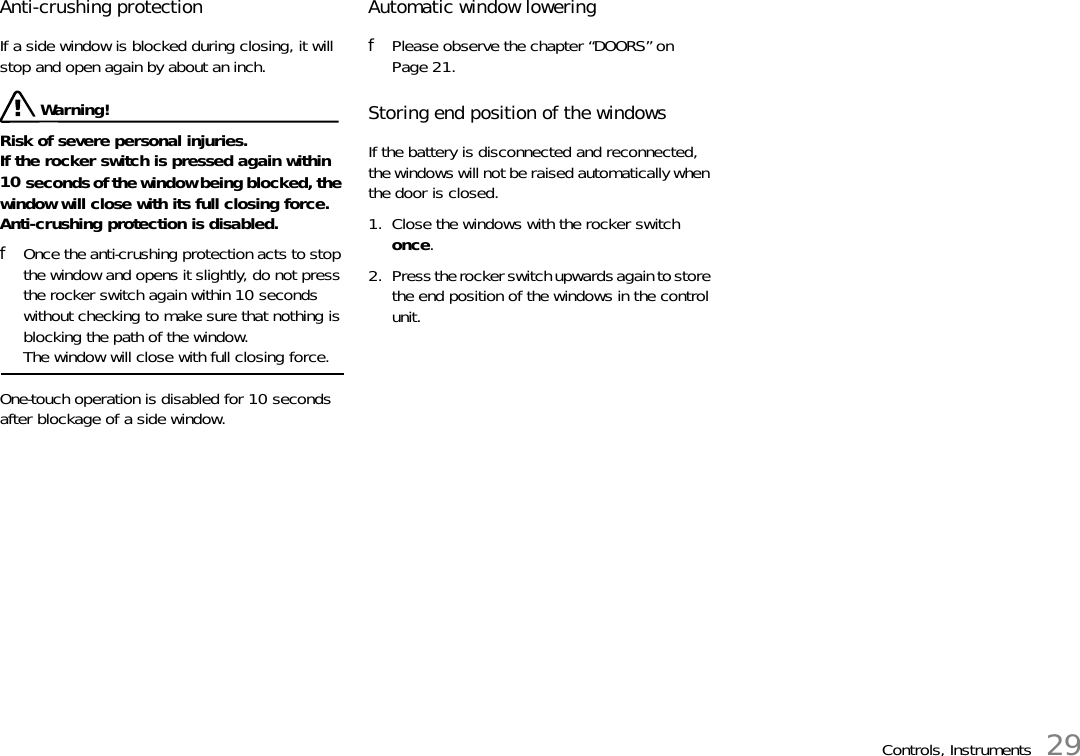

Controls, Instruments 29Anti-crushing protection If a side window is blocked during closing, it will stop and open again by about an inch. Warning!Risk of severe personal injuries.If the rocker switch is pressed again within 10 seconds of the window being blocked, the window will close with its full closing force. Anti-crushing protection is disabled. fOnce the anti-crushing protection acts to stop the window and opens it slightly, do not press the rocker switch again within 10 seconds without checking to make sure that nothing is blocking the path of the window.The window will close with full closing force. One-touch operation is disabled for 10 seconds after blockage of a side window. Automatic window lowering fPlease observe the chapter “DOORS” on Page 21.Storing end position of the windowsIf the battery is disconnected and reconnected, the windows will not be raised automatically when the door is closed. 1. Close the windows with the rocker switch once. 2. Press the rocker switch upwards again to store the end position of the windows in the control unit.

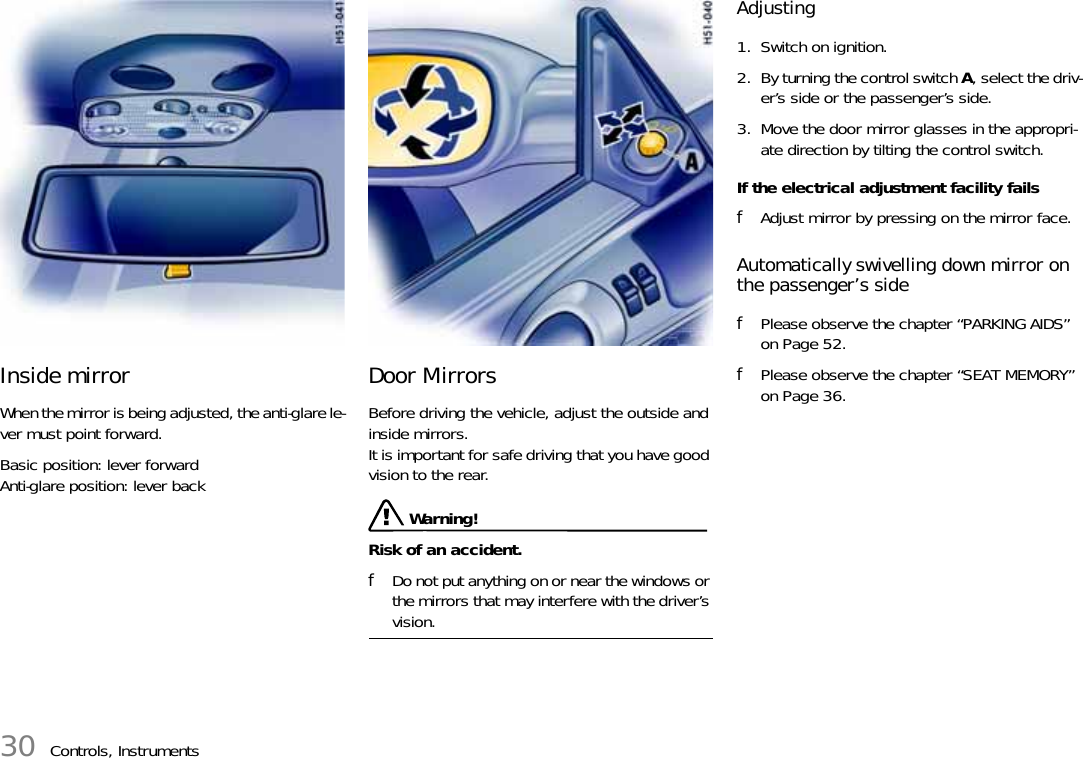

30 Controls, InstrumentsInside mirror When the mirror is being adjusted, the anti-glare le-ver must point forward. Basic position: lever forwardAnti-glare position: lever backDoor Mirrors Before driving the vehicle, adjust the outside and inside mirrors. It is important for safe driving that you have good vision to the rear. Warning!Risk of an accident. fDo not put anything on or near the windows or the mirrors that may interfere with the driver’s vision. Adjusting 1. Switch on ignition.2. By turning the control switch A, select the driv-er’s side or the passenger’s side.3. Move the door mirror glasses in the appropri-ate direction by tilting the control switch.If the electrical adjustment facility fails fAdjust mirror by pressing on the mirror face.Automatically swivelling down mirror on the passenger’s sidefPlease observe the chapter “PARKING AIDS” on Page 52.fPlease observe the chapter “SEAT MEMORY” on Page 36.

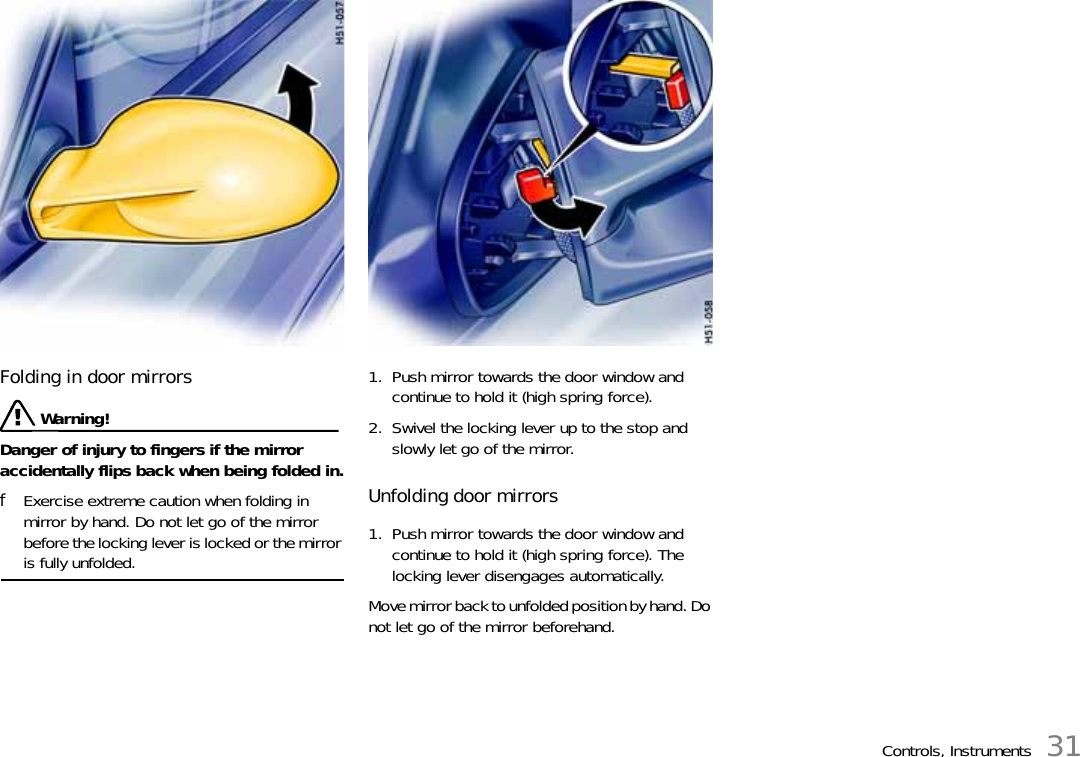

Controls, Instruments 31Folding in door mirrorsWarning!Danger of injury to fingers if the mirror accidentally flips back when being folded in.fExercise extreme caution when folding in mirror by hand. Do not let go of the mirror before the locking lever is locked or the mirror is fully unfolded.1. Push mirror towards the door window and continue to hold it (high spring force).2. Swivel the locking lever up to the stop and slowly let go of the mirror.Unfolding door mirrors1. Push mirror towards the door window and continue to hold it (high spring force). The locking lever disengages automatically.Move mirror back to unfolded position by hand. Do not let go of the mirror beforehand.

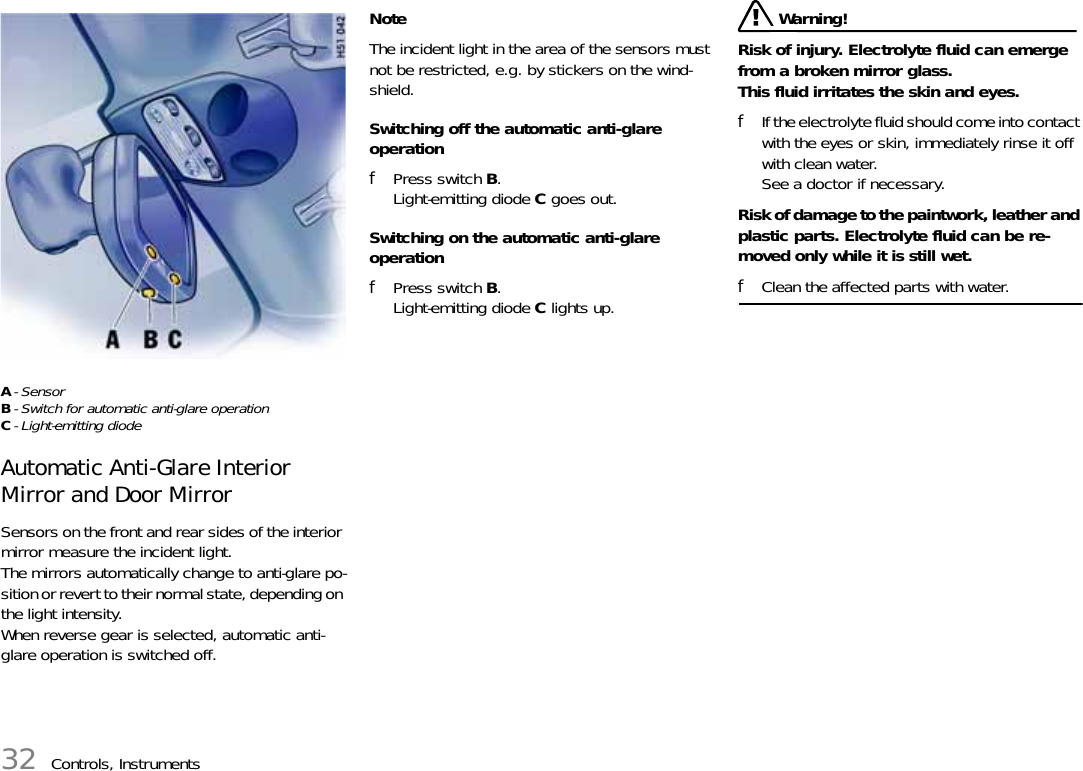

32 Controls, InstrumentsA-SensorB- Switch for automatic anti-glare operationC- Light-emitting diode Automatic Anti-Glare Interior Mirror and Door Mirror Sensors on the front and rear sides of the interior mirror measure the incident light.The mirrors automatically change to anti-glare po-sition or revert to their normal state, depending on the light intensity. When reverse gear is selected, automatic anti-glare operation is switched off. Note The incident light in the area of the sensors must not be restricted, e.g. by stickers on the wind-shield. Switching off the automatic anti-glare operation fPress switch B.Light-emitting diode C goes out. Switching on the automatic anti-glare operation fPress switch B.Light-emitting diode C lights up. Warning!Risk of injury. Electrolyte fluid can emerge from a broken mirror glass. This fluid irritates the skin and eyes. fIf the electrolyte fluid should come into contact with the eyes or skin, immediately rinse it off with clean water.See a doctor if necessary.Risk of damage to the paintwork, leather and plastic parts. Electrolyte fluid can be re-moved only while it is still wet. fClean the affected parts with water.

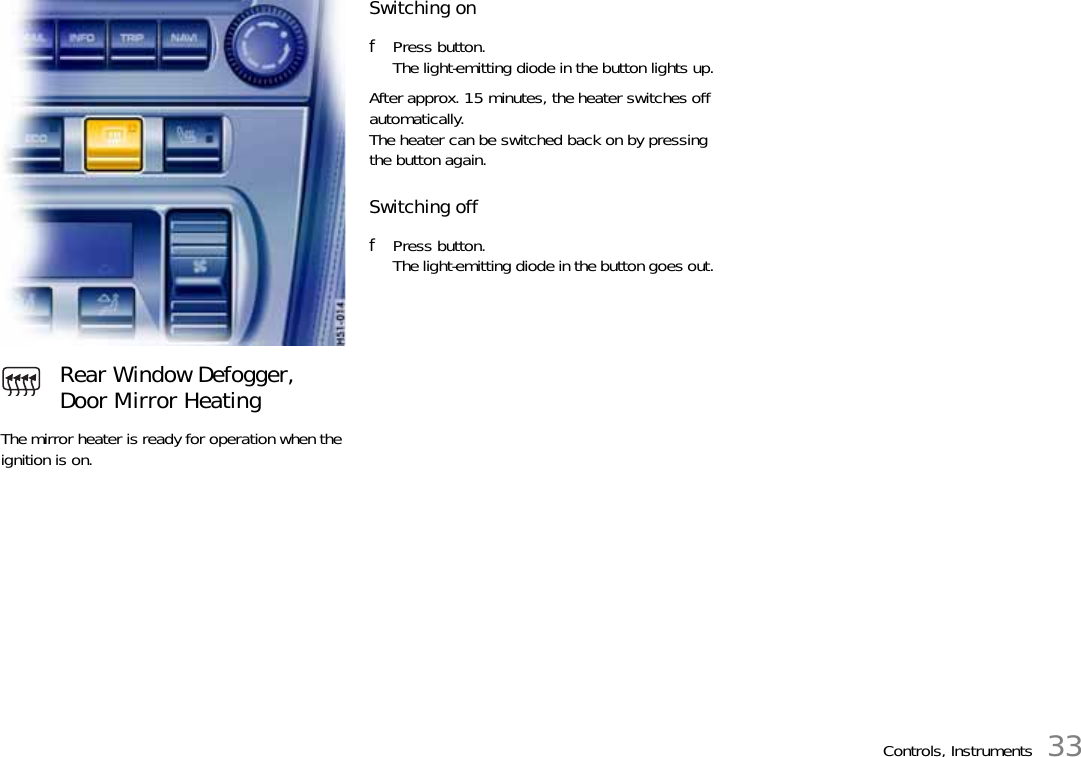

Controls, Instruments 33The mirror heater is ready for operation when the ignition is on.Switching on fPress button.The light-emitting diode in the button lights up.After approx. 15 minutes, the heater switches off automatically. The heater can be switched back on by pressing the button again.Switching off fPress button.The light-emitting diode in the button goes out.Rear Window Defogger, Door Mirror Heating

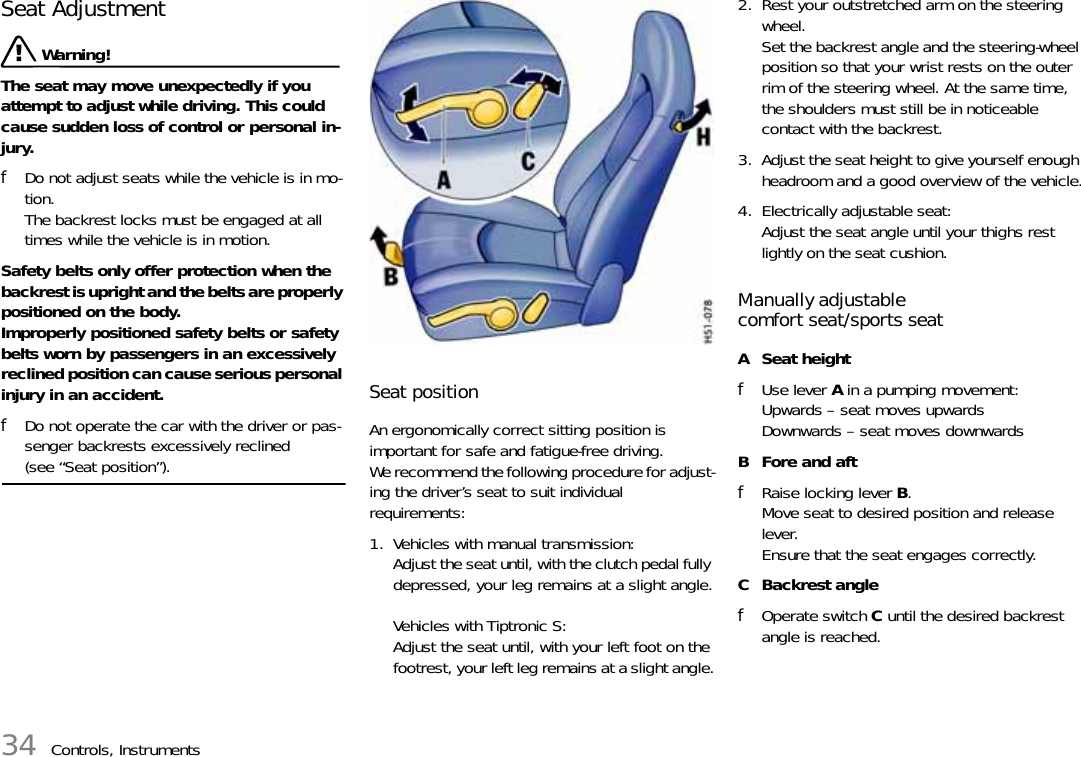

34 Controls, InstrumentsSeat Adjustment Warning!The seat may move unexpectedly if you attempt to adjust while driving. This could cause sudden loss of control or personal in-jury. fDo not adjust seats while the vehicle is in mo-tion.The backrest locks must be engaged at all times while the vehicle is in motion.Safety belts only offer protection when the backrest is upright and the belts are properly positioned on the body. Improperly positioned safety belts or safety belts worn by passengers in an excessively reclined position can cause serious personal injury in an accident. fDo not operate the car with the driver or pas-senger backrests excessively reclined (see “Seat position”).Seat position An ergonomically correct sitting position is important for safe and fatigue-free driving. We recommend the following procedure for adjust-ing the driver’s seat to suit individual requirements:1. Vehicles with manual transmission:Adjust the seat until, with the clutch pedal fully depressed, your leg remains at a slight angle.Vehicles with Tiptronic S:Adjust the seat until, with your left foot on the footrest, your left leg remains at a slight angle.2. Rest your outstretched arm on the steering wheel.Set the backrest angle and the steering-wheel position so that your wrist rests on the outer rim of the steering wheel. At the same time, the shoulders must still be in noticeable contact with the backrest.3. Adjust the seat height to give yourself enough headroom and a good overview of the vehicle.4. Electrically adjustable seat:Adjust the seat angle until your thighs rest lightly on the seat cushion.Manually adjustable comfort seat/sports seatA Seat heightfUse lever A in a pumping movement:Upwards – seat moves upwardsDownwards – seat moves downwardsB Fore and aftfRaise locking lever B.Move seat to desired position and release lever.Ensure that the seat engages correctly.CBackrest anglefOperate switch C until the desired backrest angle is reached.

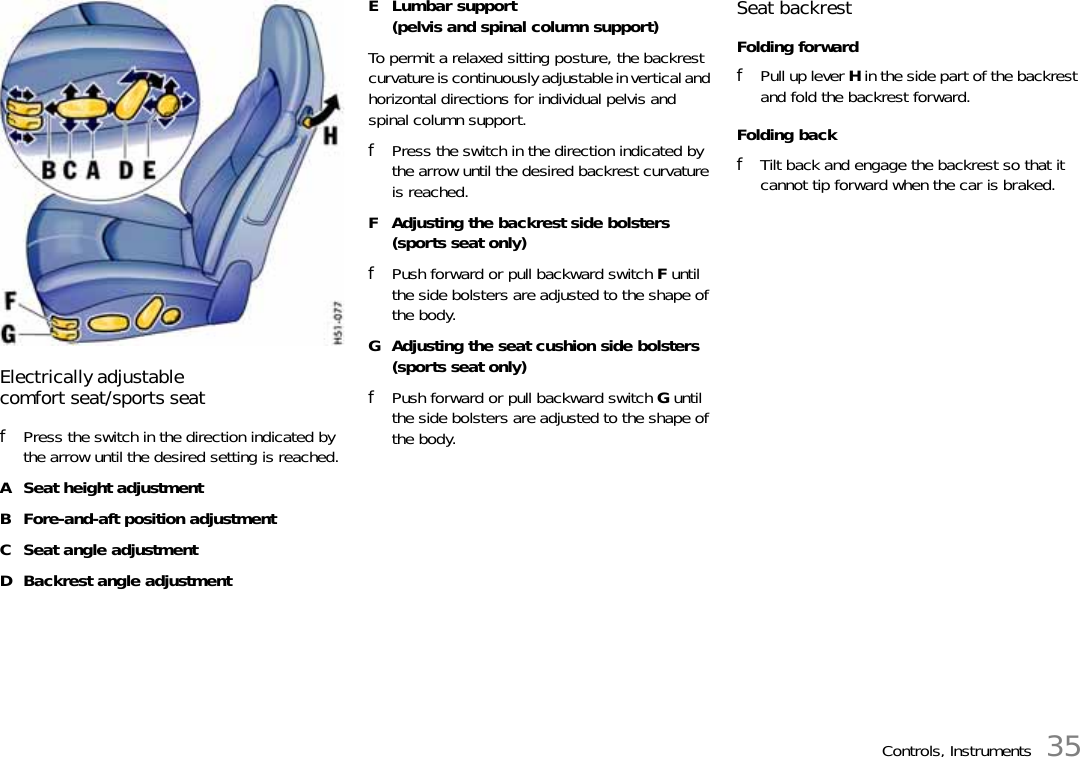

Controls, Instruments 35Electrically adjustable comfort seat/sports seatfPress the switch in the direction indicated by the arrow until the desired setting is reached.A Seat height adjustmentB Fore-and-aft position adjustmentC Seat angle adjustmentD Backrest angle adjustmentE Lumbar support(pelvis and spinal column support)To permit a relaxed sitting posture, the backrest curvature is continuously adjustable in vertical and horizontal directions for individual pelvis and spinal column support.fPress the switch in the direction indicated by the arrow until the desired backrest curvature is reached.F Adjusting the backrest side bolsters(sports seat only)fPush forward or pull backward switch F until the side bolsters are adjusted to the shape of the body.G Adjusting the seat cushion side bolsters(sports seat only)fPush forward or pull backward switch G until the side bolsters are adjusted to the shape of the body.Seat backrestFolding forwardfPull up lever H in the side part of the backrest and fold the backrest forward.Folding backfTilt back and engage the backrest so that it cannot tip forward when the car is braked.

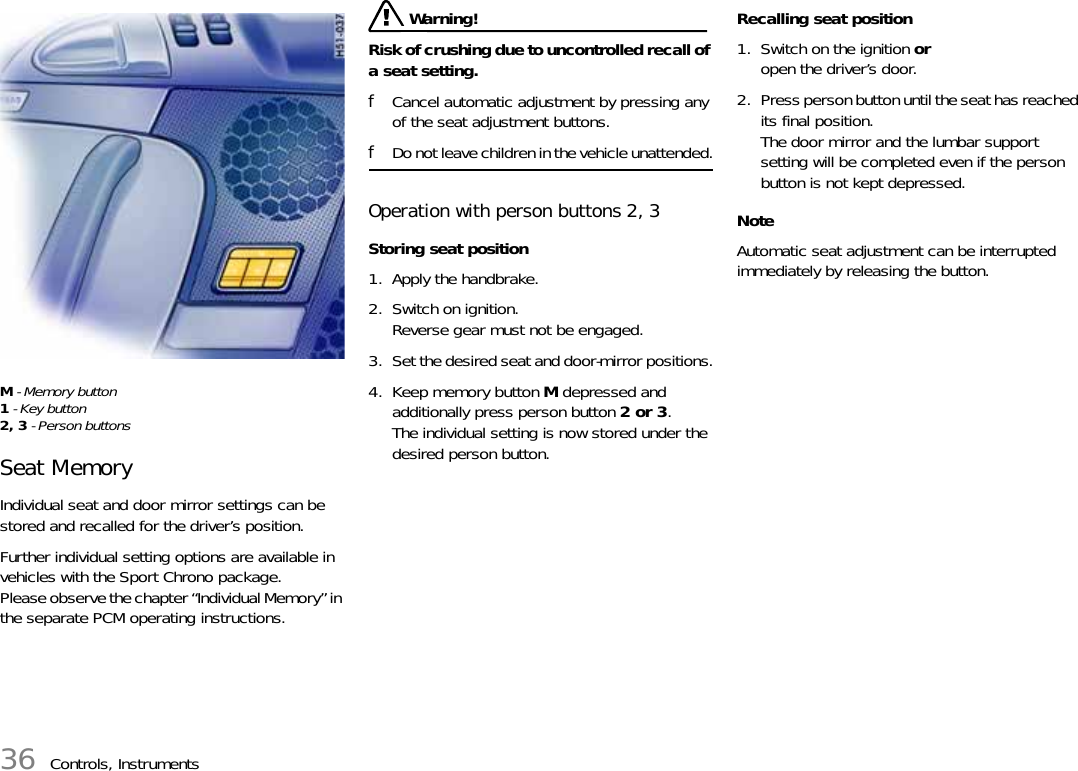

36 Controls, InstrumentsM - Memory button1 - Key button2, 3 - Person buttonsSeat MemoryIndividual seat and door mirror settings can be stored and recalled for the driver’s position.Further individual setting options are available in vehicles with the Sport Chrono package.Please observe the chapter “Individual Memory” in the separate PCM operating instructions. Warning!Risk of crushing due to uncontrolled recall of a seat setting.fCancel automatic adjustment by pressing any of the seat adjustment buttons.fDo not leave children in the vehicle unattended.Operation with person buttons 2, 3Storing seat position1. Apply the handbrake.2. Switch on ignition.Reverse gear must not be engaged.3. Set the desired seat and door-mirror positions.4. Keep memory button M depressed and additionally press person button 2 or 3.The individual setting is now stored under the desired person button.Recalling seat position1. Switch on the ignition oropen the driver’s door.2. Press person button until the seat has reached its final position.The door mirror and the lumbar support setting will be completed even if the person button is not kept depressed.NoteAutomatic seat adjustment can be interrupted immediately by releasing the button.

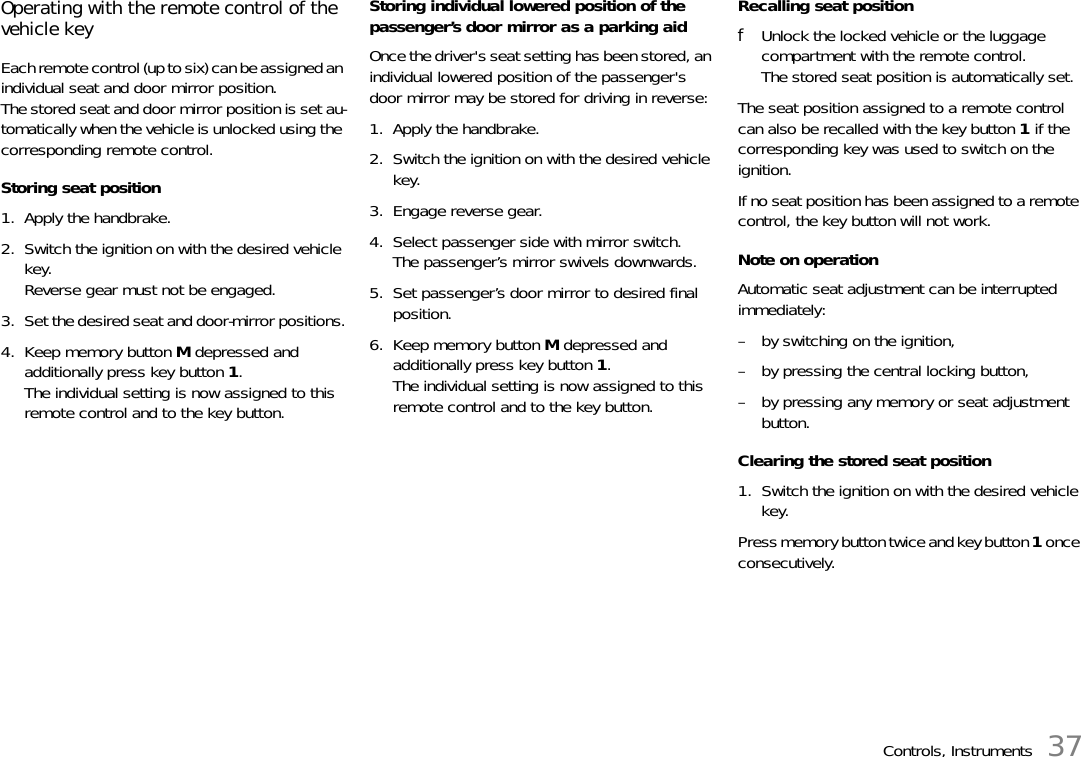

Controls, Instruments 37Operating with the remote control of the vehicle keyEach remote control (up to six) can be assigned an individual seat and door mirror position.The stored seat and door mirror position is set au-tomatically when the vehicle is unlocked using the corresponding remote control.Storing seat position1. Apply the handbrake.2. Switch the ignition on with the desired vehicle key.Reverse gear must not be engaged.3. Set the desired seat and door-mirror positions.4. Keep memory button M depressed and additionally press key button 1.The individual setting is now assigned to this remote control and to the key button.Storing individual lowered position of the passenger’s door mirror as a parking aidOnce the driver's seat setting has been stored, an individual lowered position of the passenger's door mirror may be stored for driving in reverse:1. Apply the handbrake.2. Switch the ignition on with the desired vehicle key.3. Engage reverse gear.4. Select passenger side with mirror switch.The passenger’s mirror swivels downwards.5. Set passenger’s door mirror to desired final position.6. Keep memory button M depressed and additionally press key button 1.The individual setting is now assigned to this remote control and to the key button.Recalling seat positionfUnlock the locked vehicle or the luggage compartment with the remote control.The stored seat position is automatically set.The seat position assigned to a remote control can also be recalled with the key button 1 if the corresponding key was used to switch on the ignition.If no seat position has been assigned to a remote control, the key button will not work.Note on operationAutomatic seat adjustment can be interrupted immediately:– by switching on the ignition,– by pressing the central locking button,– by pressing any memory or seat adjustment button.Clearing the stored seat position1. Switch the ignition on with the desired vehicle key.Press memory button twice and key button 1 once consecutively.

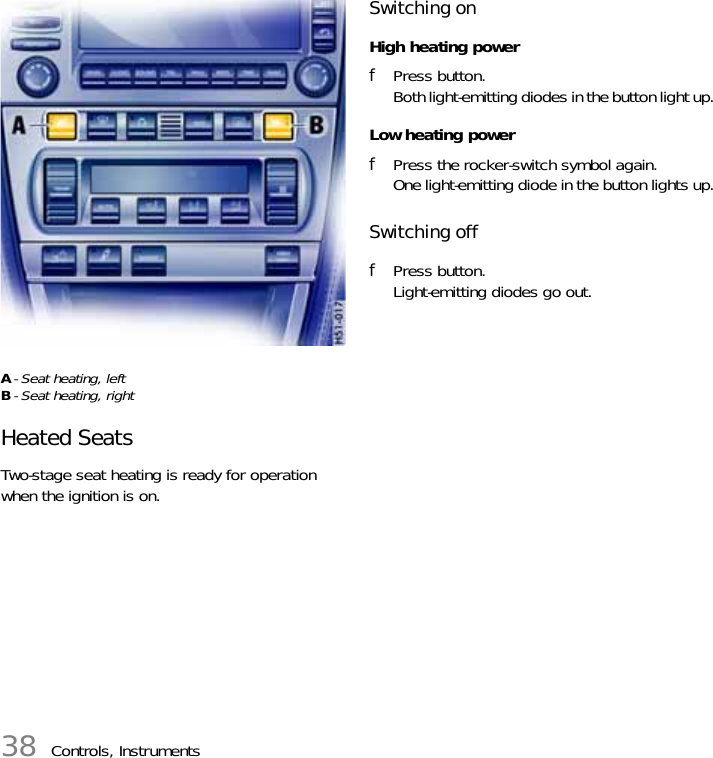

38 Controls, InstrumentsA- Seat heating, leftB- Seat heating, rightHeated SeatsTwo-stage seat heating is ready for operation when the ignition is on.Switching onHigh heating powerfPress button.Both light-emitting diodes in the button light up.Low heating powerfPress the rocker-switch symbol again.One light-emitting diode in the button lights up.Switching offfPress button.Light-emitting diodes go out.

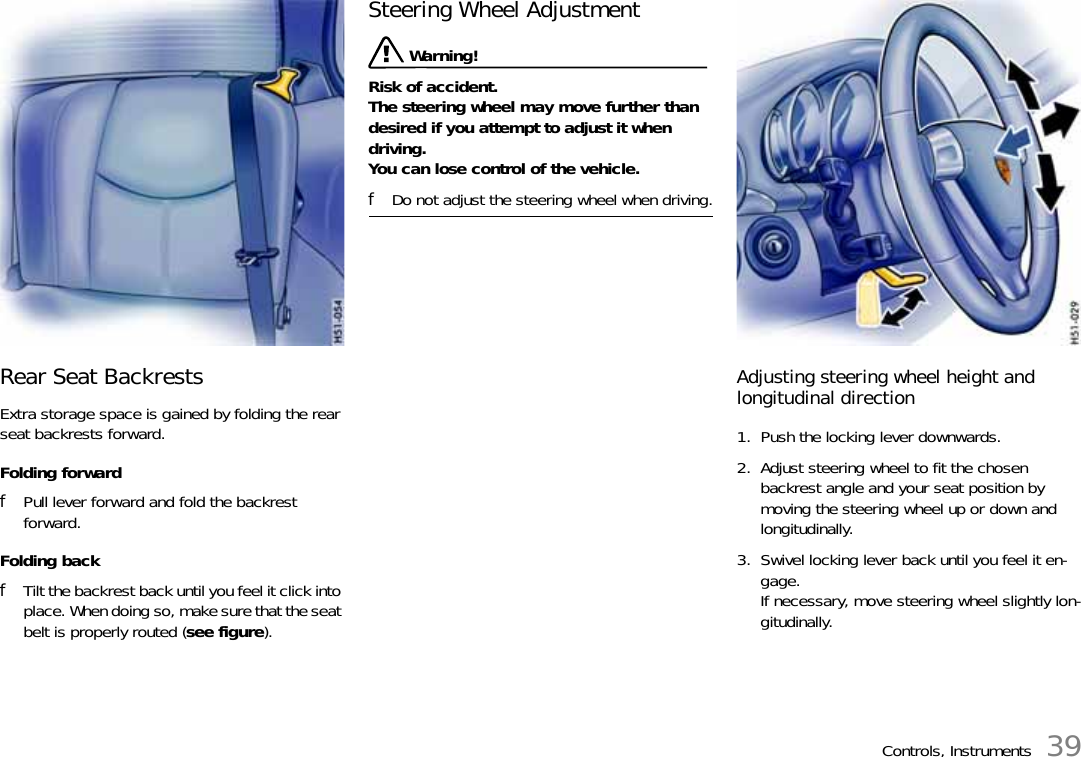

Controls, Instruments 39Rear Seat BackrestsExtra storage space is gained by folding the rear seat backrests forward.Folding forwardfPull lever forward and fold the backrest forward.Folding backfTilt the backrest back until you feel it click into place. When doing so, make sure that the seat belt is properly routed (see figure).Steering Wheel Adjustment Warning!Risk of accident.The steering wheel may move further than desired if you attempt to adjust it when driving.You can lose control of the vehicle.fDo not adjust the steering wheel when driving.Adjusting steering wheel height and longitudinal direction1. Push the locking lever downwards.2. Adjust steering wheel to fit the chosen backrest angle and your seat position by moving the steering wheel up or down and longitudinally.3. Swivel locking lever back until you feel it en-gage. If necessary, move steering wheel slightly lon-gitudinally.

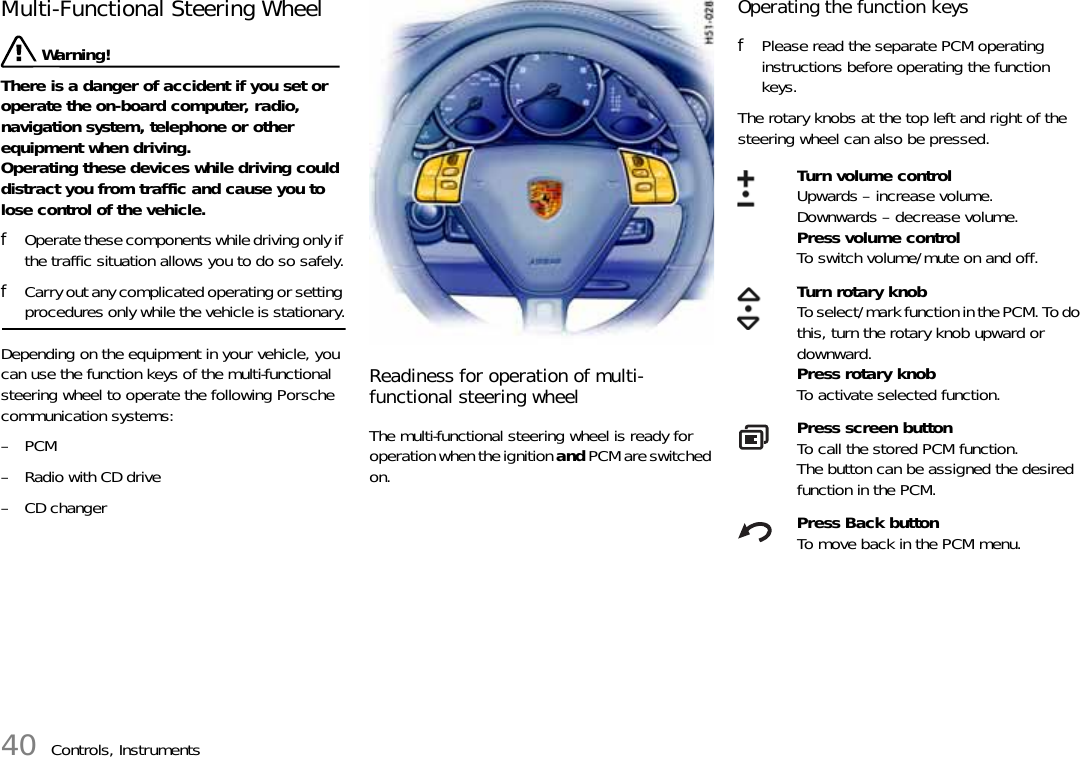

40 Controls, InstrumentsMulti-Functional Steering Wheel Warning!There is a danger of accident if you set or operate the on-board computer, radio, navigation system, telephone or other equipment when driving.Operating these devices while driving could distract you from traffic and cause you to lose control of the vehicle.fOperate these components while driving only if the traffic situation allows you to do so safely.fCarry out any complicated operating or setting procedures only while the vehicle is stationary.Depending on the equipment in your vehicle, you can use the function keys of the multi-functional steering wheel to operate the following Porsche communication systems:–PCM– Radio with CD drive– CD changerReadiness for operation of multi-functional steering wheelThe multi-functional steering wheel is ready for operation when the ignition and PCM are switched on.Operating the function keysfPlease read the separate PCM operating instructions before operating the function keys.The rotary knobs at the top left and right of the steering wheel can also be pressed.Turn volume controlUpwards – increase volume.Downwards – decrease volume.Press volume controlTo switch volume/mute on and off.Turn rotary knobTo select/mark function in the PCM. To do this, turn the rotary knob upward or downward.Press rotary knobTo activate selected function.Press screen buttonTo call the stored PCM function. The button can be assigned the desired function in the PCM.Press Back buttonTo move back in the PCM menu.

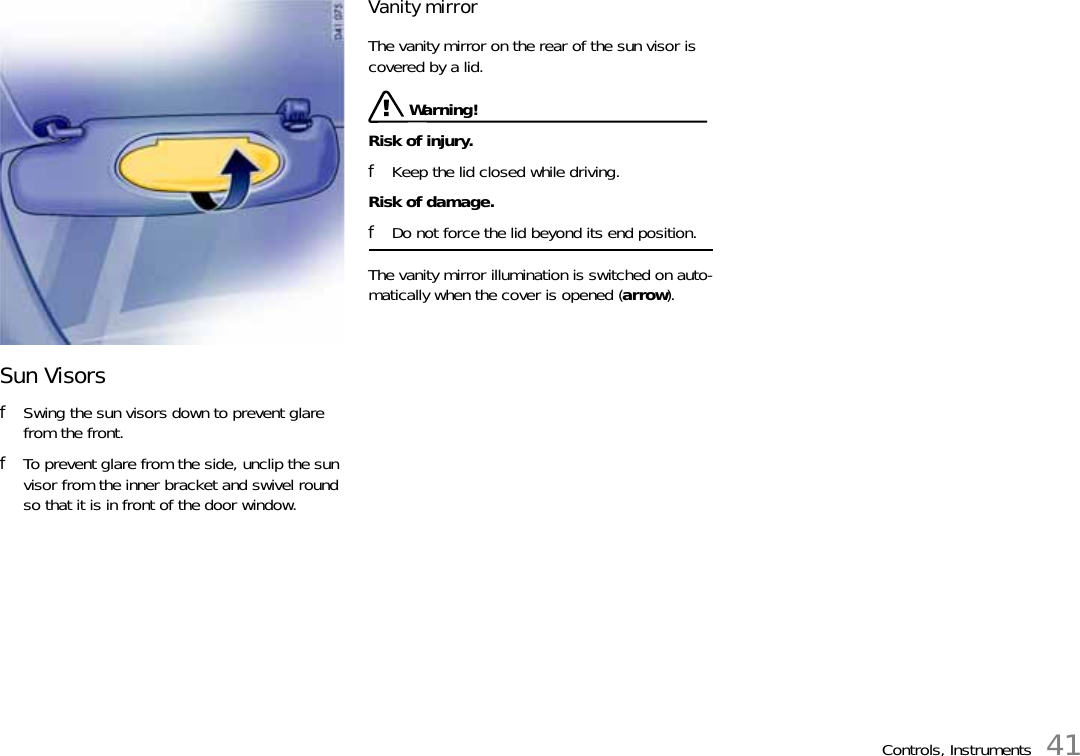

Controls, Instruments 41Sun VisorsfSwing the sun visors down to prevent glare from the front. fTo prevent glare from the side, unclip the sun visor from the inner bracket and swivel round so that it is in front of the door window. Vanity mirror The vanity mirror on the rear of the sun visor is covered by a lid. Warning!Risk of injury.fKeep the lid closed while driving.Risk of damage.fDo not force the lid beyond its end position.The vanity mirror illumination is switched on auto-matically when the cover is opened (arrow).

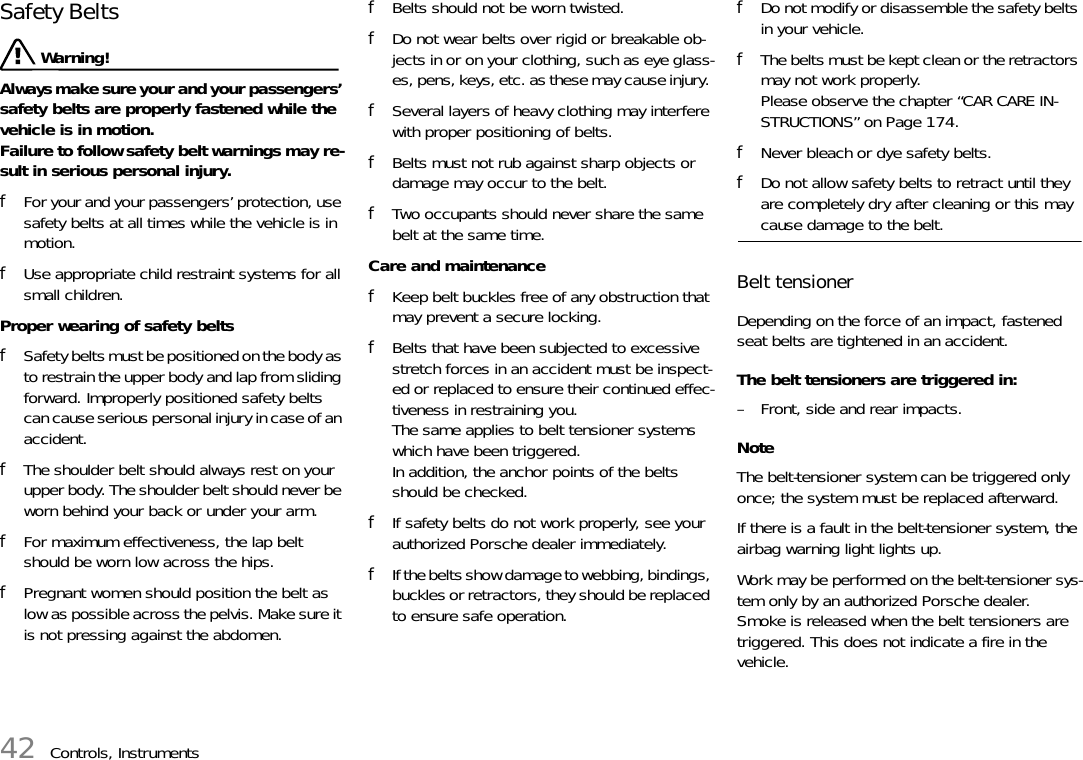

42 Controls, InstrumentsSafety Belts Warning!Always make sure your and your passengers’ safety belts are properly fastened while the vehicle is in motion.Failure to follow safety belt warnings may re-sult in serious personal injury. fFor your and your passengers’ protection, use safety belts at all times while the vehicle is in motion. fUse appropriate child restraint systems for all small children. Proper wearing of safety belts fSafety belts must be positioned on the body as to restrain the upper body and lap from sliding forward. Improperly positioned safety belts can cause serious personal injury in case of an accident. fThe shoulder belt should always rest on your upper body. The shoulder belt should never be worn behind your back or under your arm. fFor maximum effectiveness, the lap belt should be worn low across the hips. fPregnant women should position the belt as low as possible across the pelvis. Make sure it is not pressing against the abdomen. fBelts should not be worn twisted. fDo not wear belts over rigid or breakable ob-jects in or on your clothing, such as eye glass-es, pens, keys, etc. as these may cause injury. fSeveral layers of heavy clothing may interfere with proper positioning of belts. fBelts must not rub against sharp objects or damage may occur to the belt. fTwo occupants should never share the same belt at the same time. Care and maintenance fKeep belt buckles free of any obstruction that may prevent a secure locking. fBelts that have been subjected to excessive stretch forces in an accident must be inspect-ed or replaced to ensure their continued effec-tiveness in restraining you.The same applies to belt tensioner systems which have been triggered.In addition, the anchor points of the belts should be checked. fIf safety belts do not work properly, see your authorized Porsche dealer immediately. fIf the belts show damage to webbing, bindings, buckles or retractors, they should be replaced to ensure safe operation. fDo not modify or disassemble the safety belts in your vehicle. fThe belts must be kept clean or the retractors may not work properly.Please observe the chapter “CAR CARE IN-STRUCTIONS” on Page 174.fNever bleach or dye safety belts. fDo not allow safety belts to retract until they are completely dry after cleaning or this may cause damage to the belt. Belt tensioner Depending on the force of an impact, fastened seat belts are tightened in an accident. The belt tensioners are triggered in: – Front, side and rear impacts.NoteThe belt-tensioner system can be triggered only once; the system must be replaced afterward.If there is a fault in the belt-tensioner system, the airbag warning light lights up.Work may be performed on the belt-tensioner sys-tem only by an authorized Porsche dealer.Smoke is released when the belt tensioners are triggered. This does not indicate a fire in the vehicle.

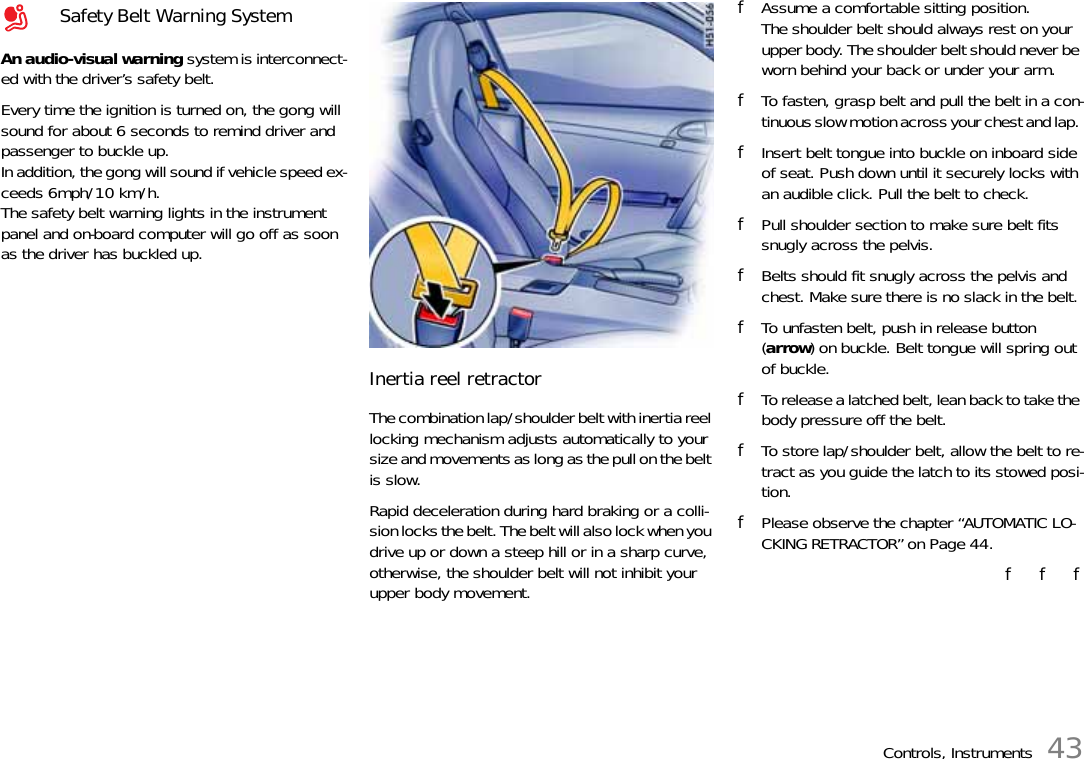

Controls, Instruments 43An audio-visual warning system is interconnect-ed with the driver’s safety belt. Every time the ignition is turned on, the gong will sound for about 6 seconds to remind driver and passenger to buckle up. In addition, the gong will sound if vehicle speed ex-ceeds 6mph/10 km/h.The safety belt warning lights in the instrument panel and on-board computer will go off as soon as the driver has buckled up. Inertia reel retractor The combination lap/shoulder belt with inertia reel locking mechanism adjusts automatically to your size and movements as long as the pull on the belt is slow. Rapid deceleration during hard braking or a colli-sion locks the belt. The belt will also lock when you drive up or down a steep hill or in a sharp curve, otherwise, the shoulder belt will not inhibit your upper body movement. fAssume a comfortable sitting position.The shoulder belt should always rest on your upper body. The shoulder belt should never be worn behind your back or under your arm. fTo fasten, grasp belt and pull the belt in a con-tinuous slow motion across your chest and lap. fInsert belt tongue into buckle on inboard side of seat. Push down until it securely locks with an audible click. Pull the belt to check. fPull shoulder section to make sure belt fits snugly across the pelvis. fBelts should fit snugly across the pelvis and chest. Make sure there is no slack in the belt. fTo unfasten belt, push in release button (arrow) on buckle. Belt tongue will spring out of buckle. fTo release a latched belt, lean back to take the body pressure off the belt. fTo store lap/shoulder belt, allow the belt to re-tract as you guide the latch to its stowed posi-tion.fPlease observe the chapter “AUTOMATIC LO-CKING RETRACTOR” on Page 44.f f fSafety Belt Warning System

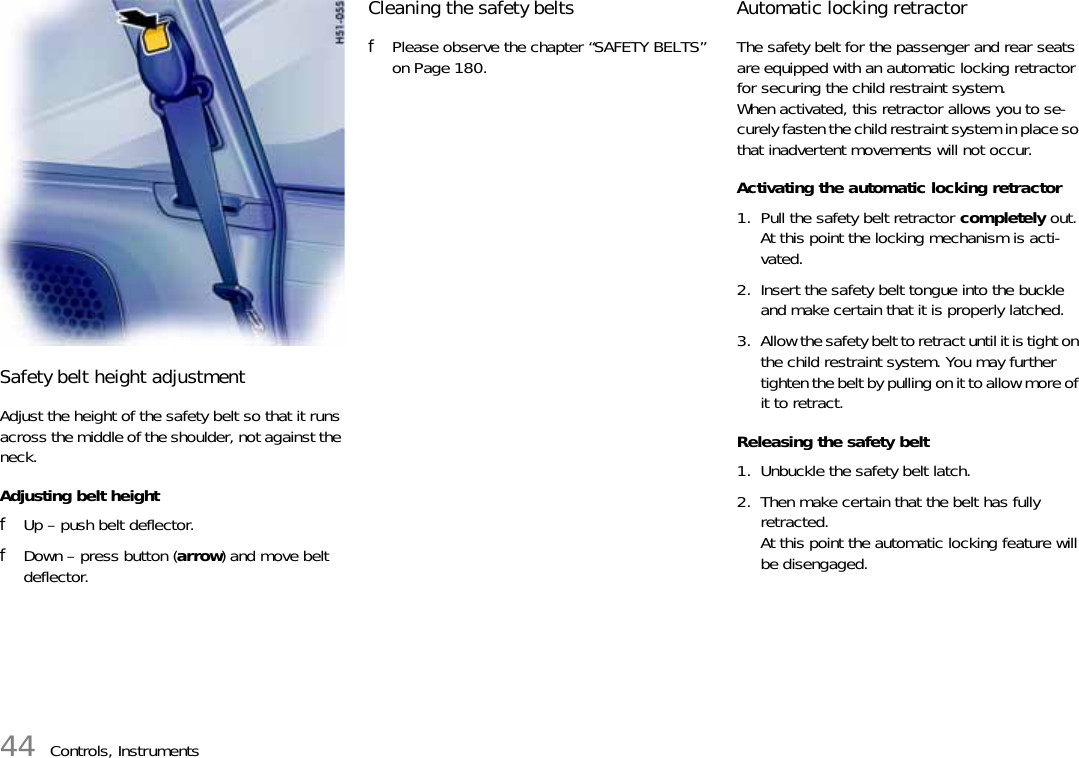

44 Controls, InstrumentsSafety belt height adjustmentAdjust the height of the safety belt so that it runs across the middle of the shoulder, not against the neck. Adjusting belt height fUp – push belt deflector. fDown – press button (arrow) and move belt deflector. Cleaning the safety beltsfPlease observe the chapter “SAFETY BELTS” on Page 180.Automatic locking retractor The safety belt for the passenger and rear seats are equipped with an automatic locking retractor for securing the child restraint system. When activated, this retractor allows you to se-curely fasten the child restraint system in place so that inadvertent movements will not occur. Activating the automatic locking retractor 1. Pull the safety belt retractor completely out. At this point the locking mechanism is acti-vated. 2. Insert the safety belt tongue into the buckle and make certain that it is properly latched. 3. Allow the safety belt to retract until it is tight on the child restraint system. You may further tighten the belt by pulling on it to allow more of it to retract.Releasing the safety belt1. Unbuckle the safety belt latch. 2. Then make certain that the belt has fully retracted. At this point the automatic locking feature will be disengaged.

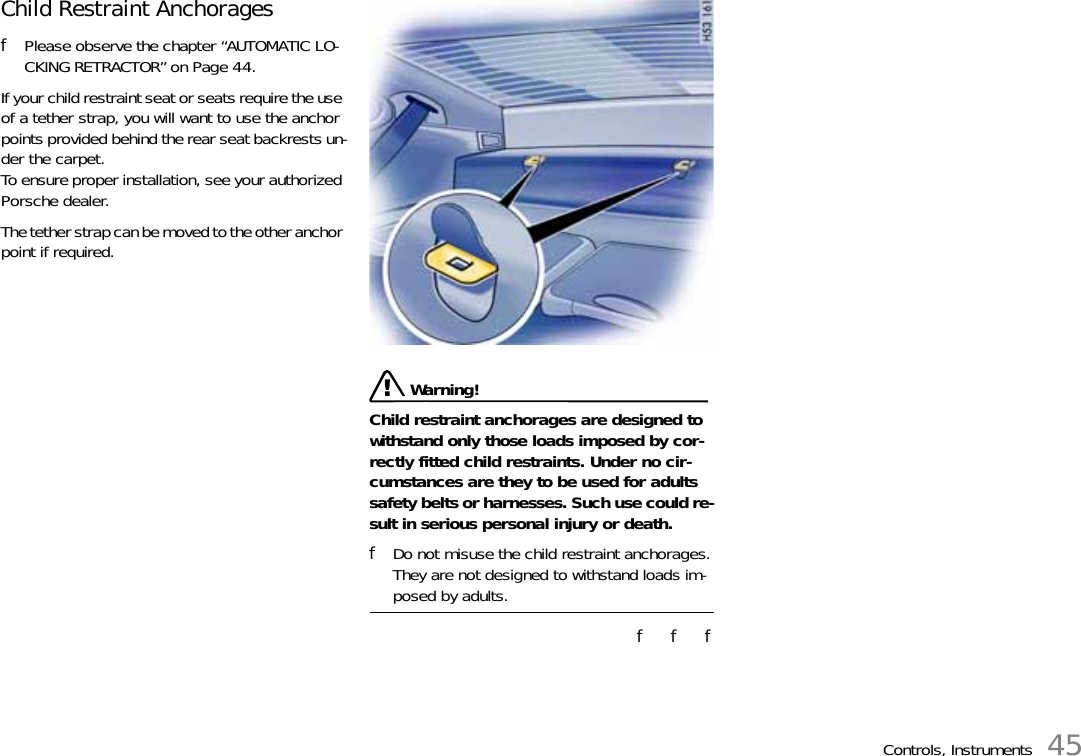

Controls, Instruments 45Child Restraint Anchorages fPlease observe the chapter “AUTOMATIC LO-CKING RETRACTOR” on Page 44.If your child restraint seat or seats require the use of a tether strap, you will want to use the anchor points provided behind the rear seat backrests un-der the carpet.To ensure proper installation, see your authorized Porsche dealer. The tether strap can be moved to the other anchor point if required. Warning!Child restraint anchorages are designed to withstand only those loads imposed by cor-rectly fitted child restraints. Under no cir-cumstances are they to be used for adults safety belts or harnesses. Such use could re-sult in serious personal injury or death. fDo not misuse the child restraint anchorages.They are not designed to withstand loads im-posed by adults. f f f

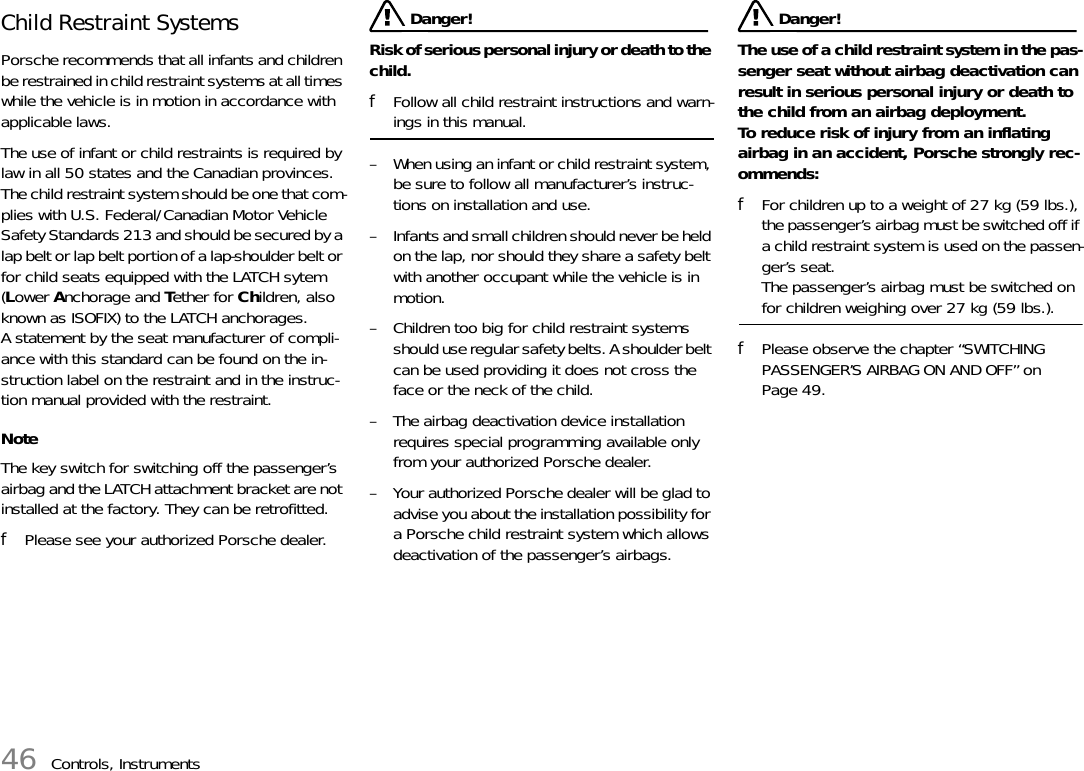

46 Controls, InstrumentsChild Restraint SystemsPorsche recommends that all infants and children be restrained in child restraint systems at all times while the vehicle is in motion in accordance with applicable laws. The use of infant or child restraints is required by law in all 50 states and the Canadian provinces. The child restraint system should be one that com-plies with U.S. Federal/Canadian Motor Vehicle Safety Standards 213 and should be secured by a lap belt or lap belt portion of a lap-shoulder belt or for child seats equipped with the LATCH sytem (Lower Anchorage and Tether for Children, also known as ISOFIX) to the LATCH anchorages. A statement by the seat manufacturer of compli-ance with this standard can be found on the in-struction label on the restraint and in the instruc-tion manual provided with the restraint.NoteThe key switch for switching off the passenger’s airbag and the LATCH attachment bracket are not installed at the factory. They can be retrofitted.fPlease see your authorized Porsche dealer. Danger!Risk of serious personal injury or death to the child. fFollow all child restraint instructions and warn-ings in this manual. – When using an infant or child restraint system, be sure to follow all manufacturer’s instruc-tions on installation and use. – Infants and small children should never be held on the lap, nor should they share a safety belt with another occupant while the vehicle is in motion. – Children too big for child restraint systems should use regular safety belts. A shoulder belt can be used providing it does not cross the face or the neck of the child.– The airbag deactivation device installation requires special programming available only from your authorized Porsche dealer. – Your authorized Porsche dealer will be glad to advise you about the installation possibility for a Porsche child restraint system which allows deactivation of the passenger’s airbags. Danger!The use of a child restraint system in the pas-senger seat without airbag deactivation can result in serious personal injury or death to the child from an airbag deployment.To reduce risk of injury from an inflating airbag in an accident, Porsche strongly rec-ommends: fFor children up to a weight of 27 kg (59 lbs.), the passenger’s airbag must be switched off if a child restraint system is used on the passen-ger’s seat.The passenger’s airbag must be switched on for children weighing over 27 kg (59 lbs.).fPlease observe the chapter “SWITCHING PASSENGER’S AIRBAG ON AND OFF” on Page 49.

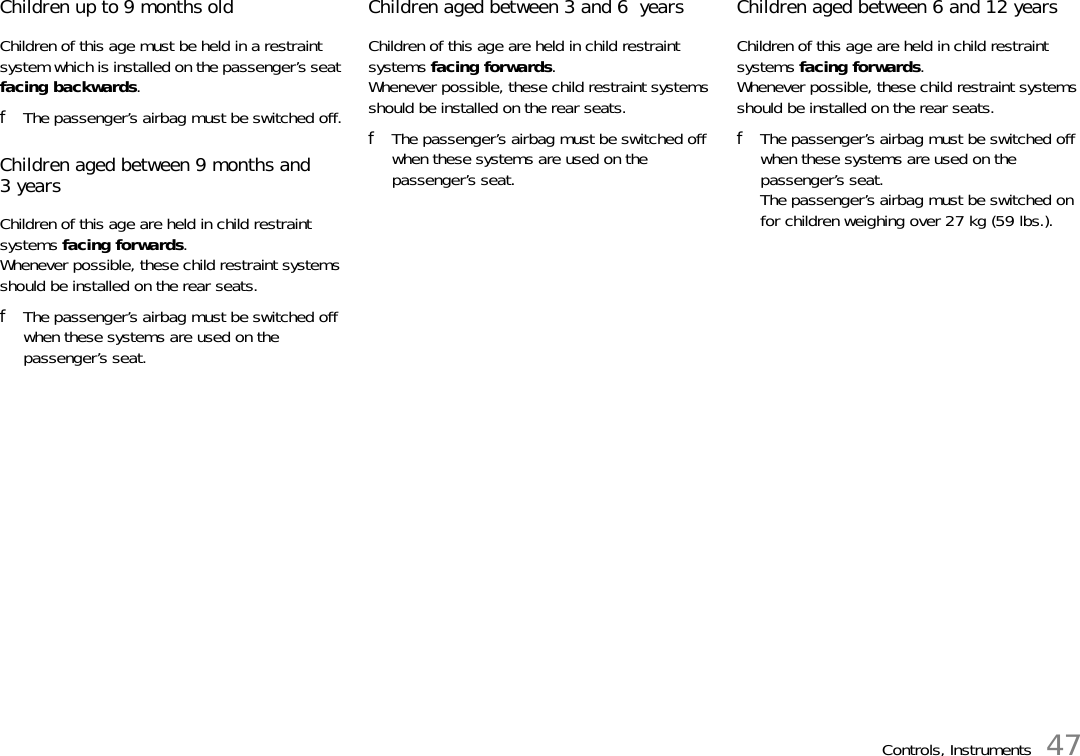

Controls, Instruments 47Children up to 9 months oldChildren of this age must be held in a restraint system which is installed on the passenger’s seat facing backwards.fThe passenger’s airbag must be switched off.Children aged between 9 months and 3yearsChildren of this age are held in child restraint systems facing forwards. Whenever possible, these child restraint systems should be installed on the rear seats.fThe passenger’s airbag must be switched off when these systems are used on the passenger’s seat.Children aged between 3 and 6 yearsChildren of this age are held in child restraint systems facing forwards. Whenever possible, these child restraint systems should be installed on the rear seats.fThe passenger’s airbag must be switched off when these systems are used on the passenger’s seat.Children aged between 6 and 12 yearsChildren of this age are held in child restraint systems facing forwards. Whenever possible, these child restraint systems should be installed on the rear seats.fThe passenger’s airbag must be switched off when these systems are used on the passenger’s seat.The passenger’s airbag must be switched on for children weighing over 27 kg (59 lbs.).

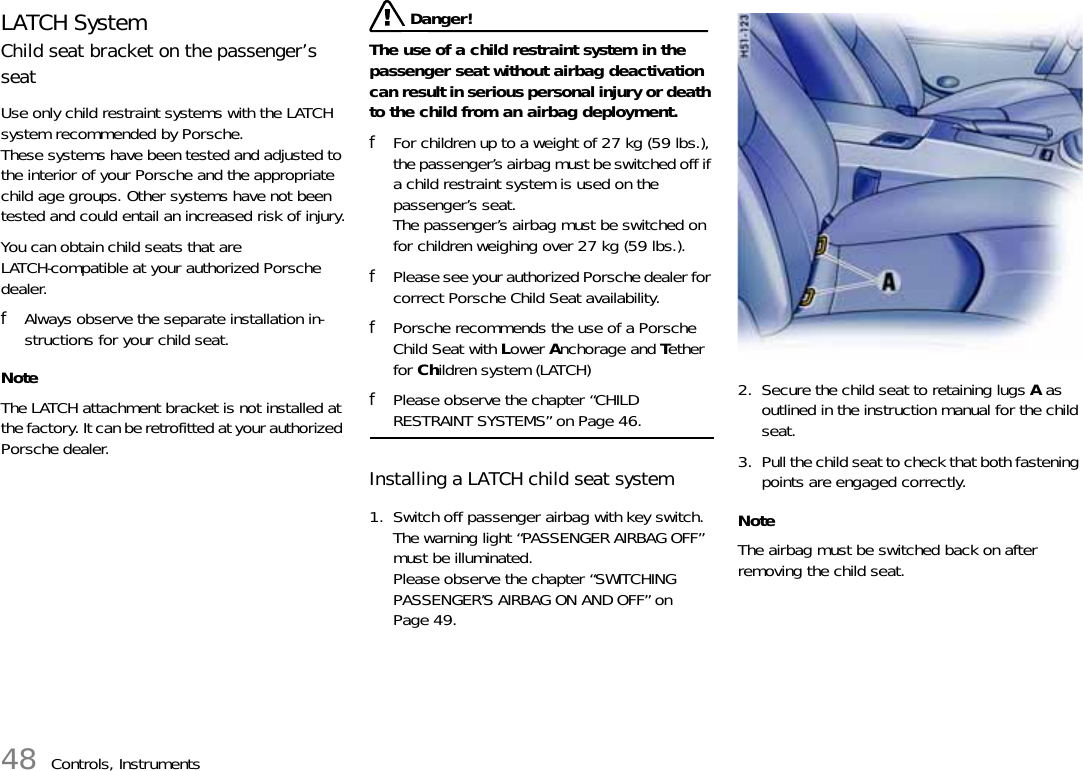

48 Controls, InstrumentsLATCH SystemChild seat bracket on the passenger’s seatUse only child restraint systems with the LATCH system recommended by Porsche. These systems have been tested and adjusted to the interior of your Porsche and the appropriate child age groups. Other systems have not been tested and could entail an increased risk of injury.You can obtain child seats that are LATCH-compatible at your authorized Porsche dealer.fAlways observe the separate installation in-structions for your child seat.NoteThe LATCH attachment bracket is not installed at the factory. It can be retrofitted at your authorized Porsche dealer. Danger!The use of a child restraint system in the passenger seat without airbag deactivation can result in serious personal injury or death to the child from an airbag deployment.fFor children up to a weight of 27 kg (59 lbs.), the passenger’s airbag must be switched off if a child restraint system is used on the passenger’s seat.The passenger’s airbag must be switched on for children weighing over 27 kg (59 lbs.).fPlease see your authorized Porsche dealer for correct Porsche Child Seat availability.fPorsche recommends the use of a Porsche Child Seat with Lower Anchorage and Tether for Children system (LATCH)fPlease observe the chapter “CHILD RESTRAINT SYSTEMS” on Page 46.Installing a LATCH child seat system1. Switch off passenger airbag with key switch.The warning light “PASSENGER AIRBAG OFF” must be illuminated.Please observe the chapter “SWITCHING PASSENGER’S AIRBAG ON AND OFF” on Page 49.2. Secure the child seat to retaining lugs A as outlined in the instruction manual for the child seat.3. Pull the child seat to check that both fastening points are engaged correctly.NoteThe airbag must be switched back on after removing the child seat.

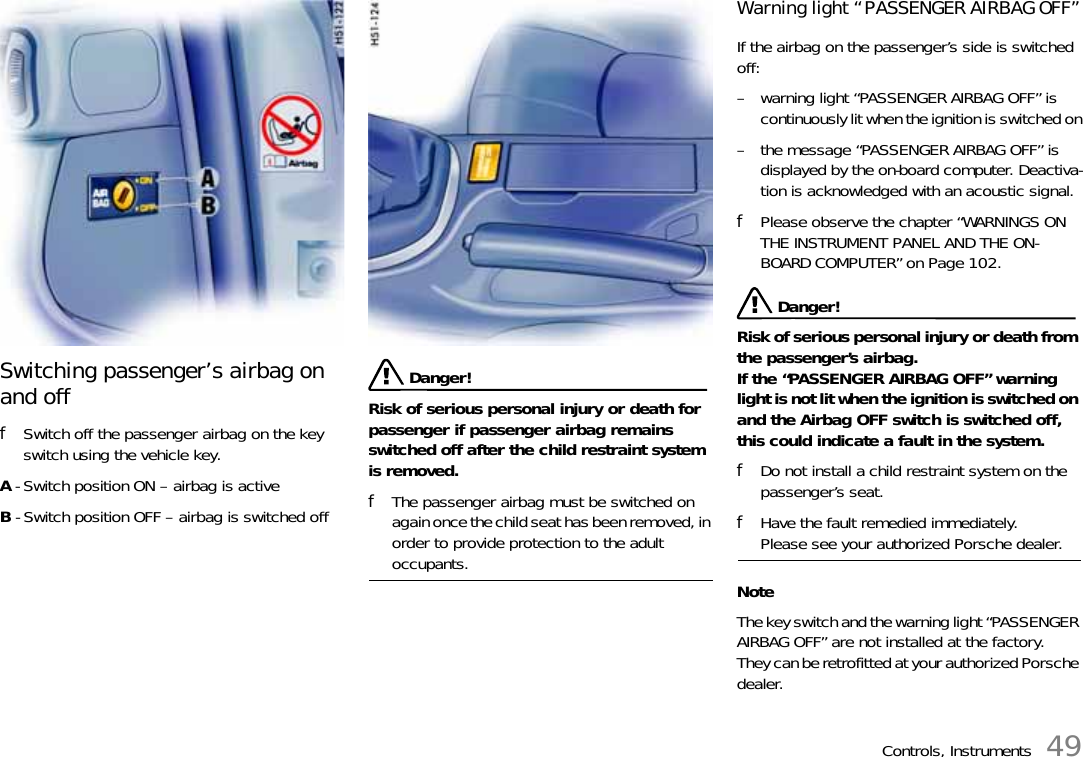

Controls, Instruments 49Switching passenger’s airbag on and offfSwitch off the passenger airbag on the key switch using the vehicle key.A - Switch position ON – airbag is activeB - Switch position OFF – airbag is switched off Danger!Risk of serious personal injury or death for passenger if passenger airbag remains switched off after the child restraint system is removed.fThe passenger airbag must be switched on again once the child seat has been removed, in order to provide protection to the adult occupants.Warning light “PASSENGER AIRBAG OFF”If the airbag on the passenger’s side is switched off:– warning light “PASSENGER AIRBAG OFF” is continuously lit when the ignition is switched on– the message “PASSENGER AIRBAG OFF” is displayed by the on-board computer. Deactiva-tion is acknowledged with an acoustic signal.fPlease observe the chapter “WARNINGS ON THE INSTRUMENT PANEL AND THE ON-BOARD COMPUTER” on Page 102.Danger!Risk of serious personal injury or death from the passenger’s airbag. If the “PASSENGER AIRBAG OFF” warning light is not lit when the ignition is switched on and the Airbag OFF switch is switched off, this could indicate a fault in the system.fDo not install a child restraint system on the passenger’s seat.fHave the fault remedied immediately. Please see your authorized Porsche dealer.NoteThe key switch and the warning light “PASSENGER AIRBAG OFF” are not installed at the factory. They can be retrofitted at your authorized Porsche dealer.

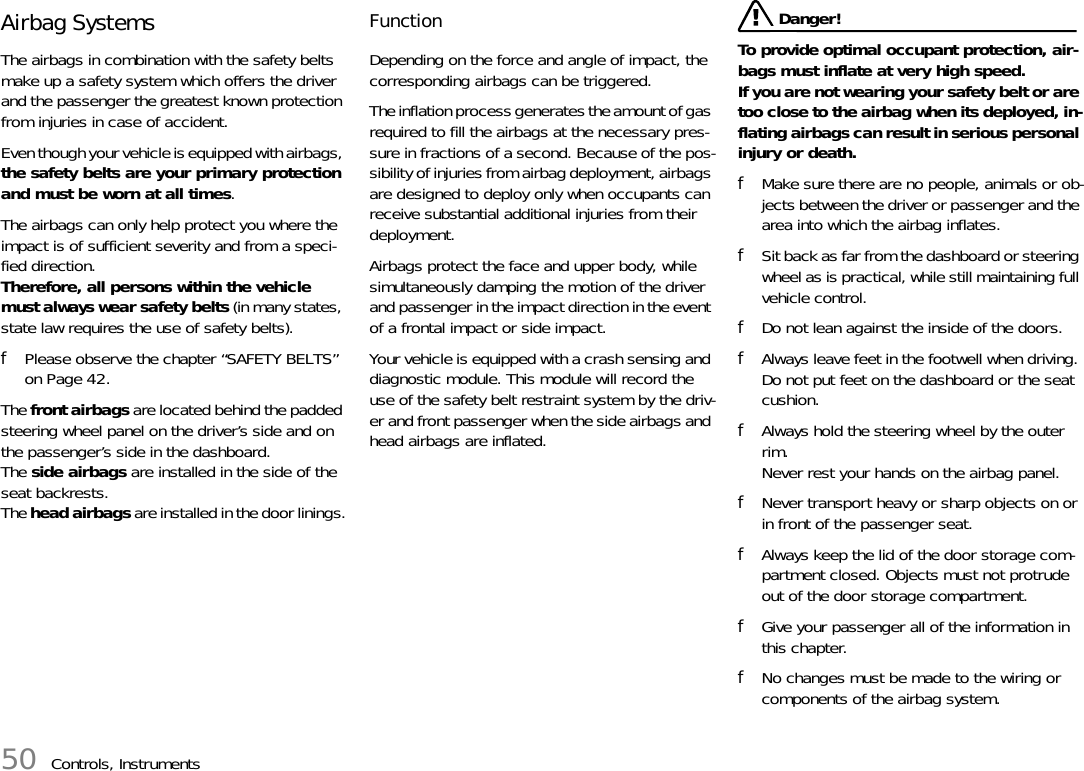

50 Controls, InstrumentsAirbag SystemsThe airbags in combination with the safety belts make up a safety system which offers the driver and the passenger the greatest known protection from injuries in case of accident. Even though your vehicle is equipped with airbags, the safety belts are your primary protection and must be worn at all times.The airbags can only help protect you where the impact is of sufficient severity and from a speci-fied direction.Therefore, all persons within the vehicle must always wear safety belts (in many states, state law requires the use of safety belts).fPlease observe the chapter “SAFETY BELTS” on Page 42.The front airbags are located behind the padded steering wheel panel on the driver’s side and on the passenger’s side in the dashboard.The side airbags are installed in the side of the seat backrests.The head airbags are installed in the door linings.Function Depending on the force and angle of impact, the corresponding airbags can be triggered.The inflation process generates the amount of gas required to fill the airbags at the necessary pres-sure in fractions of a second. Because of the pos-sibility of injuries from airbag deployment, airbags are designed to deploy only when occupants can receive substantial additional injuries from their deployment.Airbags protect the face and upper body, while simultaneously damping the motion of the driver and passenger in the impact direction in the event of a frontal impact or side impact. Your vehicle is equipped with a crash sensing and diagnostic module. This module will record the use of the safety belt restraint system by the driv-er and front passenger when the side airbags and head airbags are inflated. Danger!To provide optimal occupant protection, air-bags must inflate at very high speed. If you are not wearing your safety belt or are too close to the airbag when its deployed, in-flating airbags can result in serious personal injury or death. fMake sure there are no people, animals or ob-jects between the driver or passenger and the area into which the airbag inflates. fSit back as far from the dashboard or steering wheel as is practical, while still maintaining full vehicle control. fDo not lean against the inside of the doors. fAlways leave feet in the footwell when driving. Do not put feet on the dashboard or the seat cushion.fAlways hold the steering wheel by the outer rim.Never rest your hands on the airbag panel. fNever transport heavy or sharp objects on or in front of the passenger seat. fAlways keep the lid of the door storage com-partment closed. Objects must not protrude out of the door storage compartment. fGive your passenger all of the information in this chapter. fNo changes must be made to the wiring or components of the airbag system.

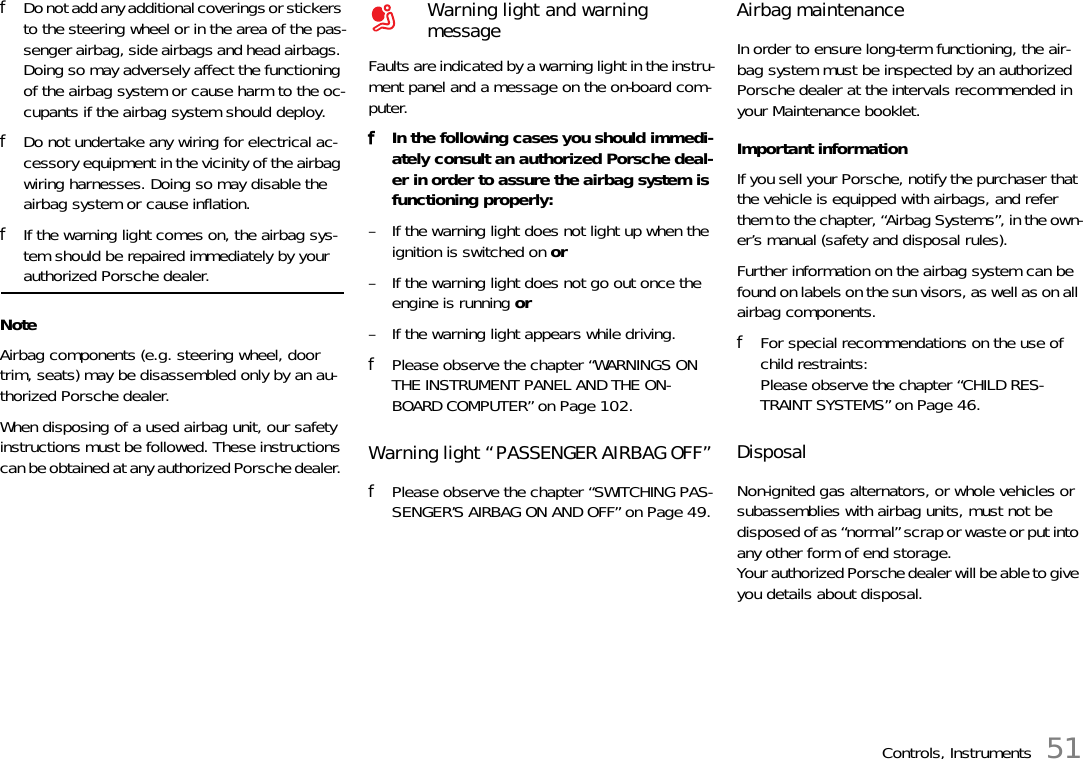

Controls, Instruments 51fDo not add any additional coverings or stickers to the steering wheel or in the area of the pas-senger airbag, side airbags and head airbags. Doing so may adversely affect the functioning of the airbag system or cause harm to the oc-cupants if the airbag system should deploy. fDo not undertake any wiring for electrical ac-cessory equipment in the vicinity of the airbag wiring harnesses. Doing so may disable the airbag system or cause inflation. fIf the warning light comes on, the airbag sys-tem should be repaired immediately by your authorized Porsche dealer. NoteAirbag components (e.g. steering wheel, door trim, seats) may be disassembled only by an au-thorized Porsche dealer. When disposing of a used airbag unit, our safety instructions must be followed. These instructions can be obtained at any authorized Porsche dealer. Faults are indicated by a warning light in the instru-ment panel and a message on the on-board com-puter. fIn the following cases you should immedi-ately consult an authorized Porsche deal-er in order to assure the airbag system is functioning properly:– If the warning light does not light up when the ignition is switched on or– If the warning light does not go out once the engine is running or – If the warning light appears while driving.fPlease observe the chapter “WARNINGS ON THE INSTRUMENT PANEL AND THE ON-BOARD COMPUTER” on Page 102.Warning light “PASSENGER AIRBAG OFF”fPlease observe the chapter “SWITCHING PAS-SENGER’S AIRBAG ON AND OFF” on Page 49.Airbag maintenanceIn order to ensure long-term functioning, the air-bag system must be inspected by an authorized Porsche dealer at the intervals recommended in your Maintenance booklet.Important information If you sell your Porsche, notify the purchaser that the vehicle is equipped with airbags, and refer them to the chapter, “Airbag Systems”, in the own-er’s manual (safety and disposal rules). Further information on the airbag system can be found on labels on the sun visors, as well as on all airbag components. fFor special recommendations on the use of child restraints: Please observe the chapter “CHILD RES-TRAINT SYSTEMS” on Page 46.DisposalNon-ignited gas alternators, or whole vehicles or subassemblies with airbag units, must not be disposed of as “normal” scrap or waste or put into any other form of end storage.Your authorized Porsche dealer will be able to give you details about disposal.Warning light and warning message

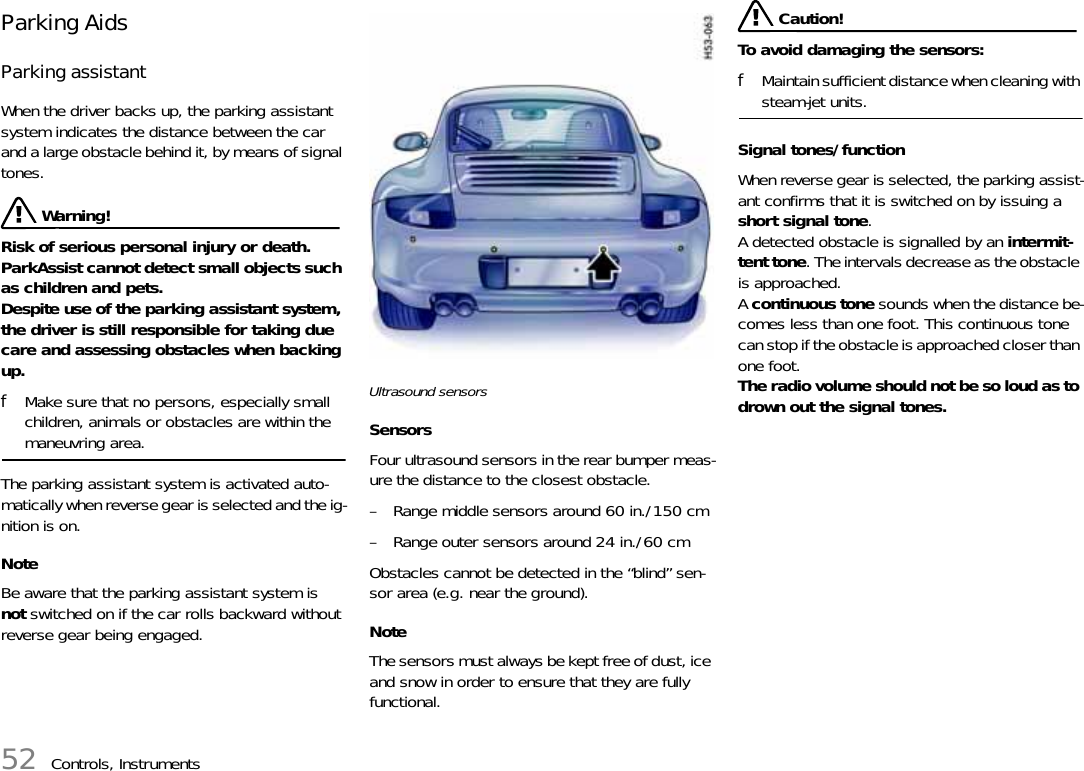

52 Controls, InstrumentsParking Aids Parking assistantWhen the driver backs up, the parking assistant system indicates the distance between the car and a large obstacle behind it, by means of signal tones. Warning!Risk of serious personal injury or death. ParkAssist cannot detect small objects such as children and pets.Despite use of the parking assistant system, the driver is still responsible for taking due care and assessing obstacles when backing up. fMake sure that no persons, especially small children, animals or obstacles are within the maneuvring area. The parking assistant system is activated auto-matically when reverse gear is selected and the ig-nition is on. Note Be aware that the parking assistant system is not switched on if the car rolls backward without reverse gear being engaged. Ultrasound sensors Sensors Four ultrasound sensors in the rear bumper meas-ure the distance to the closest obstacle.– Range middle sensors around 60 in./150 cm – Range outer sensors around 24 in./60 cmObstacles cannot be detected in the “blind” sen-sor area (e.g. near the ground). Note The sensors must always be kept free of dust, ice and snow in order to ensure that they are fully functional. Caution!To avoid damaging the sensors: fMaintain sufficient distance when cleaning with steam-jet units. Signal tones/function When reverse gear is selected, the parking assist-ant confirms that it is switched on by issuing a short signal tone.A detected obstacle is signalled by an intermit-tent tone. The intervals decrease as the obstacle is approached.A continuous tone sounds when the distance be-comes less than one foot. This continuous tone can stop if the obstacle is approached closer than one foot.The radio volume should not be so loud as to drown out the signal tones.

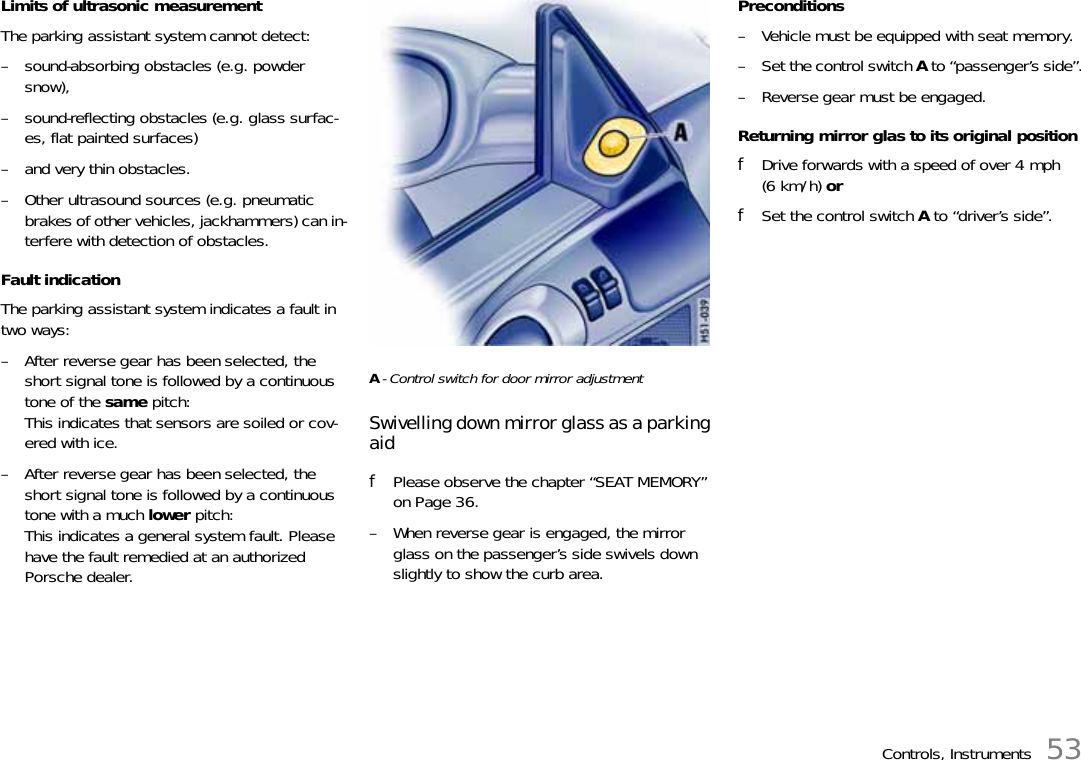

Controls, Instruments 53Limits of ultrasonic measurement The parking assistant system cannot detect:– sound-absorbing obstacles (e.g. powder snow), – sound-reflecting obstacles (e.g. glass surfac-es, flat painted surfaces) – and very thin obstacles. – Other ultrasound sources (e.g. pneumatic brakes of other vehicles, jackhammers) can in-terfere with detection of obstacles. Fault indication The parking assistant system indicates a fault in two ways:– After reverse gear has been selected, the short signal tone is followed by a continuous tone of the same pitch:This indicates that sensors are soiled or cov-ered with ice. – After reverse gear has been selected, the short signal tone is followed by a continuous tone with a much lower pitch:This indicates a general system fault. Please have the fault remedied at an authorized Porsche dealer. A- Control switch for door mirror adjustment Swivelling down mirror glass as a parking aidfPlease observe the chapter “SEAT MEMORY” on Page 36.– When reverse gear is engaged, the mirror glass on the passenger’s side swivels down slightly to show the curb area. Preconditions– Vehicle must be equipped with seat memory.– Set the control switch A to “passenger’s side”.– Reverse gear must be engaged.Returning mirror glas to its original positionfDrive forwards with a speed of over 4 mph (6 km/h) orfSet the control switch A to “driver’s side”.

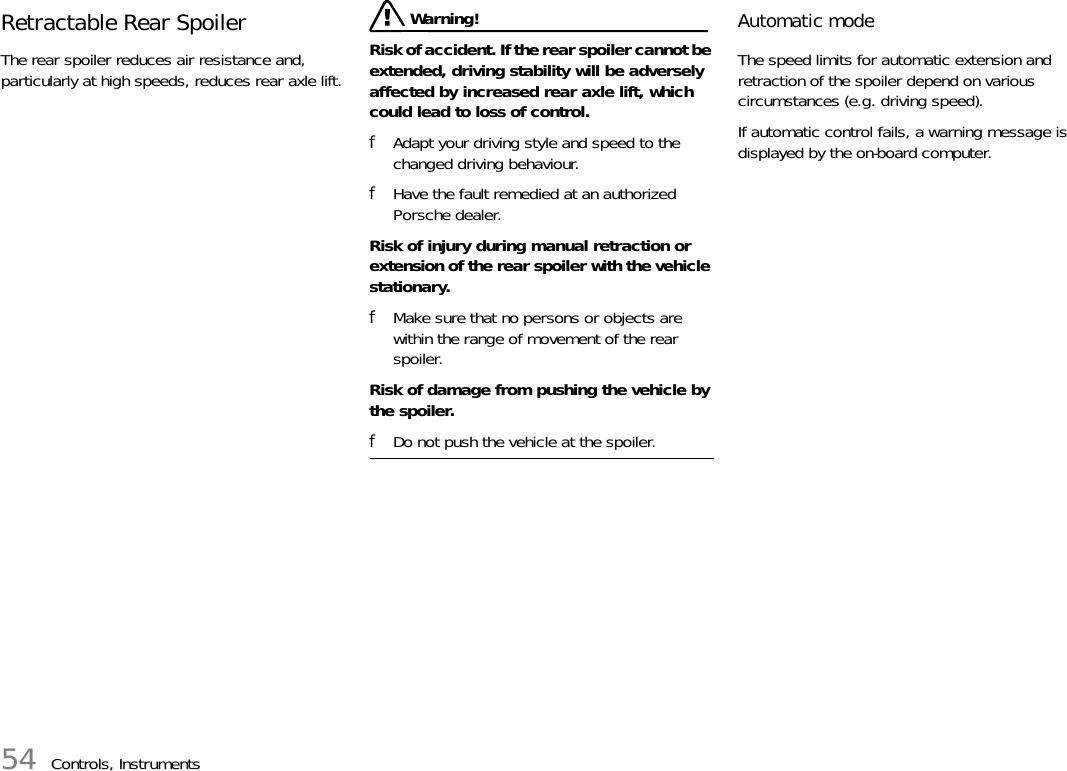

54 Controls, InstrumentsRetractable Rear SpoilerThe rear spoiler reduces air resistance and, particularly at high speeds, reduces rear axle lift. Warning!Risk of accident. If the rear spoiler cannot be extended, driving stability will be adversely affected by increased rear axle lift, which could lead to loss of control.fAdapt your driving style and speed to the changed driving behaviour.fHave the fault remedied at an authorized Porsche dealer.Risk of injury during manual retraction or extension of the rear spoiler with the vehicle stationary.fMake sure that no persons or objects are within the range of movement of the rear spoiler.Risk of damage from pushing the vehicle by the spoiler.fDo not push the vehicle at the spoiler.Automatic modeThe speed limits for automatic extension and retraction of the spoiler depend on various circumstances (e.g. driving speed).If automatic control fails, a warning message is displayed by the on-board computer.

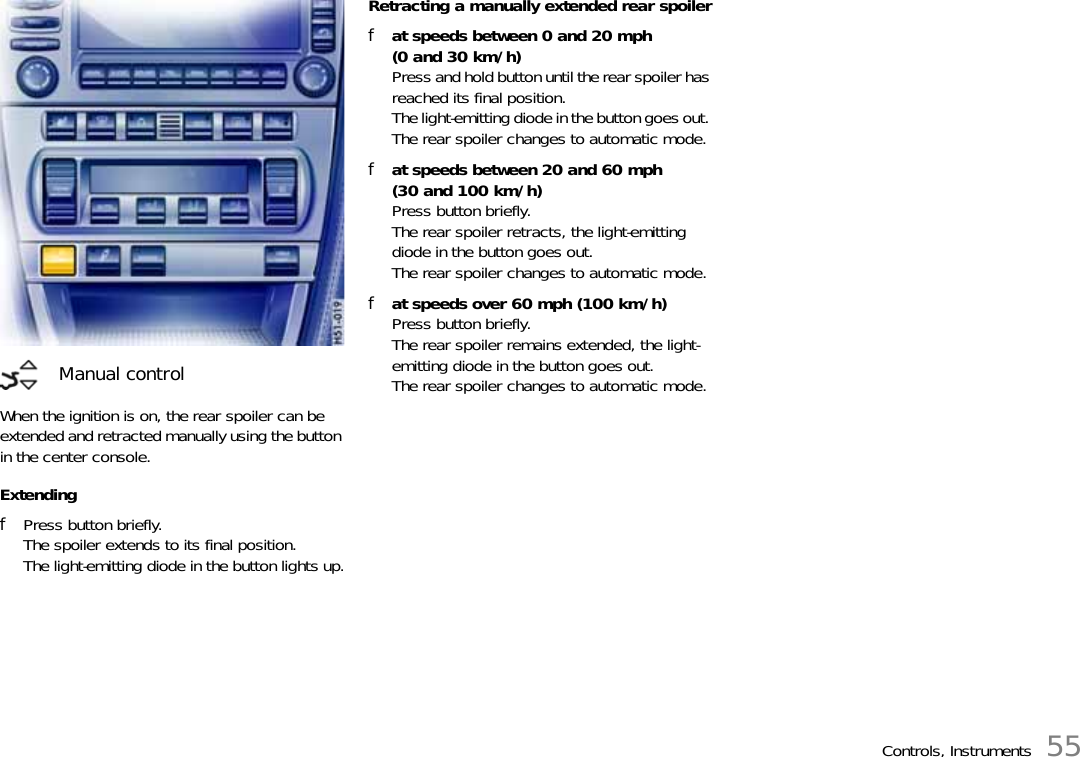

Controls, Instruments 55When the ignition is on, the rear spoiler can be extended and retracted manually using the button in the center console.ExtendingfPress button briefly.The spoiler extends to its final position.The light-emitting diode in the button lights up.Retracting a manually extended rear spoilerfat speeds between 0 and 20 mph (0 and 30 km/h)Press and hold button until the rear spoiler has reached its final position.The light-emitting diode in the button goes out. The rear spoiler changes to automatic mode.fat speeds between 20 and 60 mph (30 and 100 km/h)Press button briefly.The rear spoiler retracts, the light-emitting diode in the button goes out. The rear spoiler changes to automatic mode.fat speeds over 60 mph (100 km/h)Press button briefly.The rear spoiler remains extended, the light-emitting diode in the button goes out. The rear spoiler changes to automatic mode.Manual control

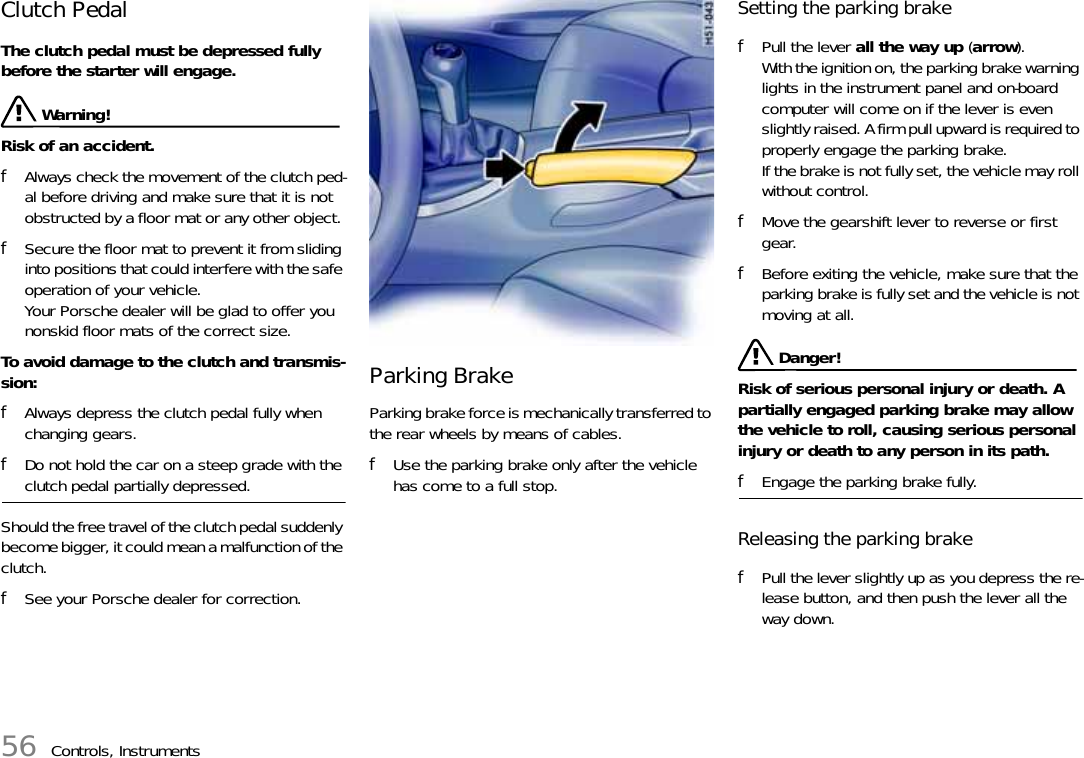

56 Controls, InstrumentsClutch Pedal The clutch pedal must be depressed fully before the starter will engage. Warning!Risk of an accident. fAlways check the movement of the clutch ped-al before driving and make sure that it is not obstructed by a floor mat or any other object. fSecure the floor mat to prevent it from sliding into positions that could interfere with the safe operation of your vehicle.Your Porsche dealer will be glad to offer you nonskid floor mats of the correct size.To avoid damage to the clutch and transmis-sion: fAlways depress the clutch pedal fully when changing gears. fDo not hold the car on a steep grade with the clutch pedal partially depressed. Should the free travel of the clutch pedal suddenly become bigger, it could mean a malfunction of the clutch. fSee your Porsche dealer for correction. Parking Brake Parking brake force is mechanically transferred to the rear wheels by means of cables. fUse the parking brake only after the vehicle has come to a full stop. Setting the parking brake fPull the lever all the way up (arrow). With the ignition on, the parking brake warning lights in the instrument panel and on-board computer will come on if the lever is even slightly raised. A firm pull upward is required to properly engage the parking brake.If the brake is not fully set, the vehicle may roll without control.fMove the gearshift lever to reverse or first gear. fBefore exiting the vehicle, make sure that the parking brake is fully set and the vehicle is not moving at all. Danger!Risk of serious personal injury or death. A partially engaged parking brake may allow the vehicle to roll, causing serious personal injury or death to any person in its path.fEngage the parking brake fully.Releasing the parking brake fPull the lever slightly up as you depress the re-lease button, and then push the lever all the way down.

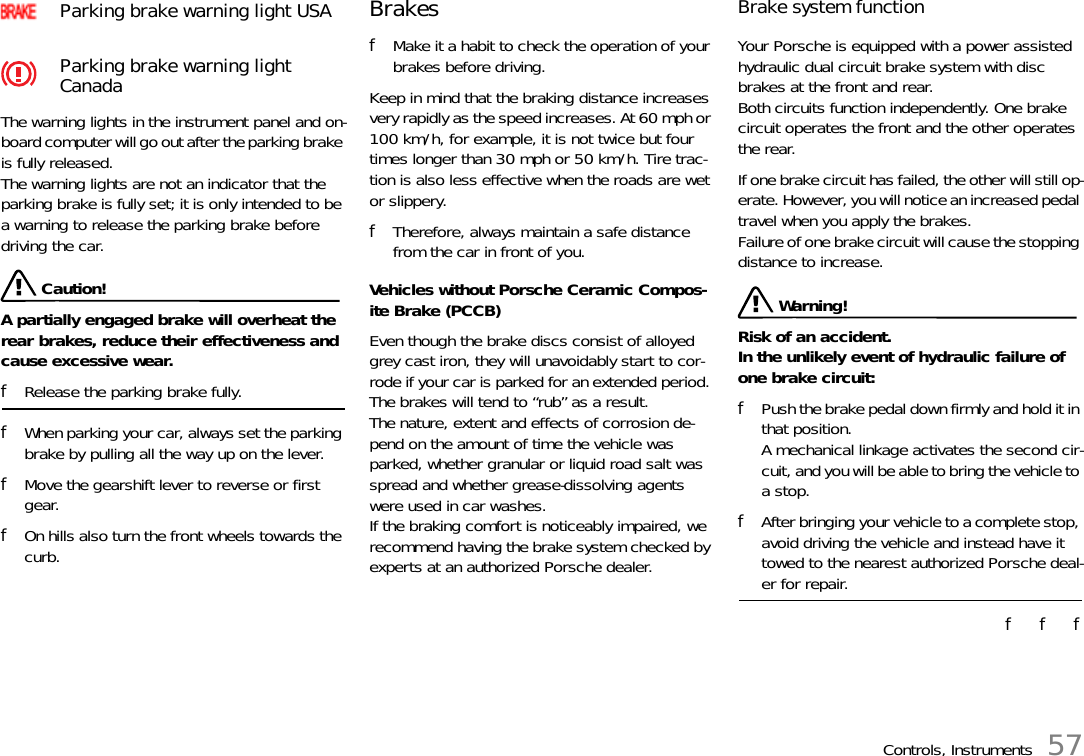

Controls, Instruments 57The warning lights in the instrument panel and on-board computer will go out after the parking brake is fully released.The warning lights are not an indicator that the parking brake is fully set; it is only intended to be a warning to release the parking brake before driving the car. Caution! A partially engaged brake will overheat the rear brakes, reduce their effectiveness and cause excessive wear. fRelease the parking brake fully. fWhen parking your car, always set the parking brake by pulling all the way up on the lever. fMove the gearshift lever to reverse or first gear. fOn hills also turn the front wheels towards the curb. Brakes fMake it a habit to check the operation of your brakes before driving.Keep in mind that the braking distance increases very rapidly as the speed increases. At 60 mph or 100 km/h, for example, it is not twice but four times longer than 30 mph or 50 km/h. Tire trac-tion is also less effective when the roads are wet or slippery. fTherefore, always maintain a safe distance from the car in front of you. Vehicles without Porsche Ceramic Compos-ite Brake (PCCB)Even though the brake discs consist of alloyed grey cast iron, they will unavoidably start to cor-rode if your car is parked for an extended period. The brakes will tend to “rub” as a result.The nature, extent and effects of corrosion de-pend on the amount of time the vehicle was parked, whether granular or liquid road salt was spread and whether grease-dissolving agents were used in car washes.If the braking comfort is noticeably impaired, we recommend having the brake system checked by experts at an authorized Porsche dealer. Brake system function Your Porsche is equipped with a power assisted hydraulic dual circuit brake system with disc brakes at the front and rear. Both circuits function independently. One brake circuit operates the front and the other operates the rear. If one brake circuit has failed, the other will still op-erate. However, you will notice an increased pedal travel when you apply the brakes.Failure of one brake circuit will cause the stopping distance to increase. Warning!Risk of an accident.In the unlikely event of hydraulic failure of one brake circuit: fPush the brake pedal down firmly and hold it in that position. A mechanical linkage activates the second cir-cuit, and you will be able to bring the vehicle to a stop. fAfter bringing your vehicle to a complete stop, avoid driving the vehicle and instead have it towed to the nearest authorized Porsche deal-er for repair. f f fParking brake warning light USAParking brake warning lightCanada

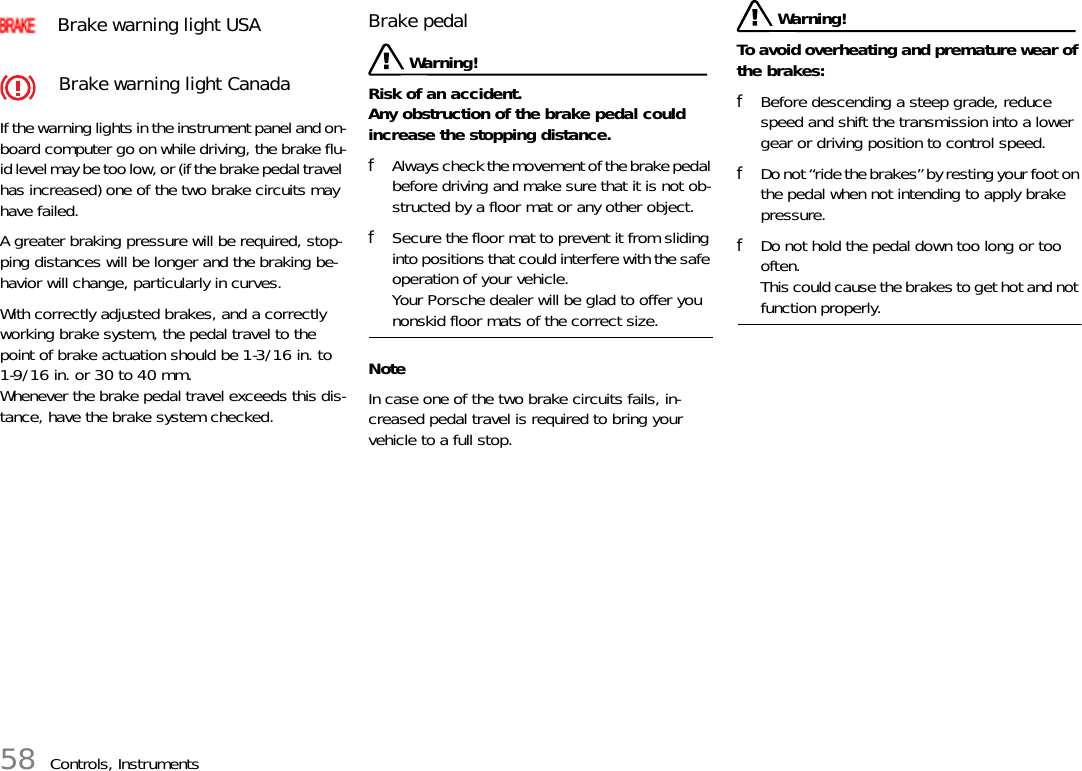

58 Controls, InstrumentsIf the warning lights in the instrument panel and on-board computer go on while driving, the brake flu-id level may be too low, or (if the brake pedal travel has increased) one of the two brake circuits may have failed. A greater braking pressure will be required, stop-ping distances will be longer and the braking be-havior will change, particularly in curves. With correctly adjusted brakes, and a correctly working brake system, the pedal travel to the point of brake actuation should be 1-3/16 in. to 1-9/16 in. or 30 to 40 mm. Whenever the brake pedal travel exceeds this dis-tance, have the brake system checked. Brake pedal Warning!Risk of an accident.Any obstruction of the brake pedal could increase the stopping distance. fAlways check the movement of the brake pedal before driving and make sure that it is not ob-structed by a floor mat or any other object. fSecure the floor mat to prevent it from sliding into positions that could interfere with the safe operation of your vehicle.Your Porsche dealer will be glad to offer you nonskid floor mats of the correct size.NoteIn case one of the two brake circuits fails, in-creased pedal travel is required to bring your vehicle to a full stop. Warning! To avoid overheating and premature wear of the brakes: fBefore descending a steep grade, reduce speed and shift the transmission into a lower gear or driving position to control speed. fDo not “ride the brakes” by resting your foot on the pedal when not intending to apply brake pressure. fDo not hold the pedal down too long or too often. This could cause the brakes to get hot and not function properly. Brake warning light USABrake warning light Canada

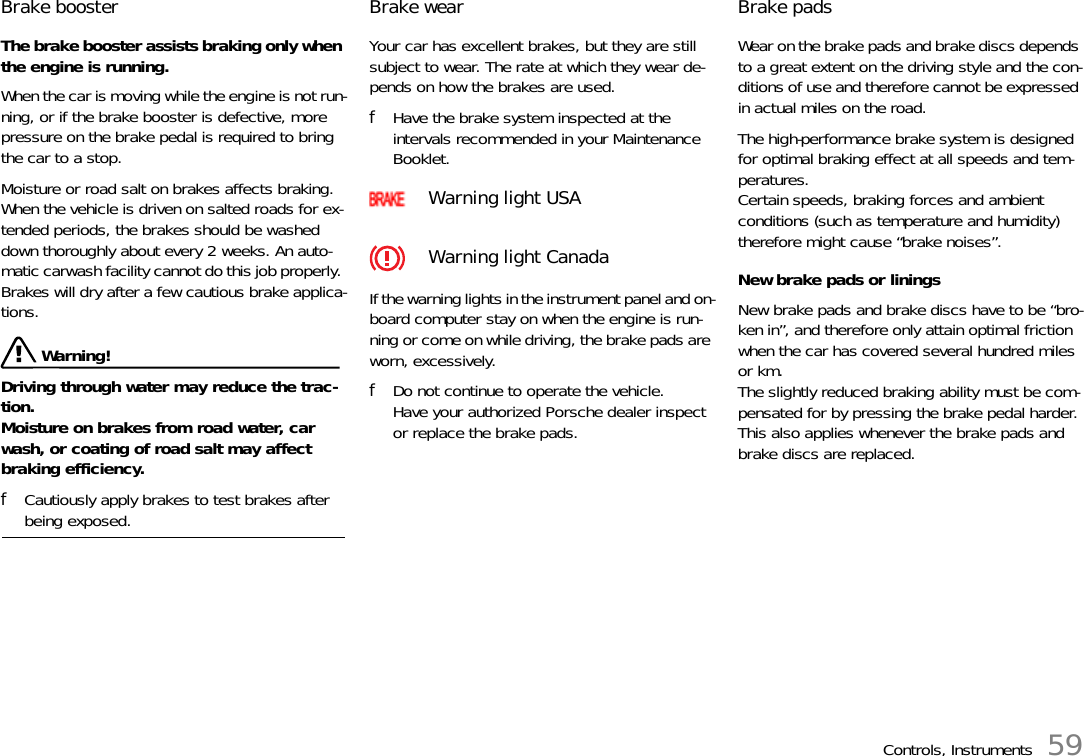

Controls, Instruments 59Brake booster The brake booster assists braking only when the engine is running. When the car is moving while the engine is not run-ning, or if the brake booster is defective, more pressure on the brake pedal is required to bring the car to a stop. Moisture or road salt on brakes affects braking.When the vehicle is driven on salted roads for ex-tended periods, the brakes should be washed down thoroughly about every 2 weeks. An auto-matic carwash facility cannot do this job properly. Brakes will dry after a few cautious brake applica-tions. Warning! Driving through water may reduce the trac-tion.Moisture on brakes from road water, car wash, or coating of road salt may affect braking efficiency. fCautiously apply brakes to test brakes after being exposed. Brake wear Your car has excellent brakes, but they are still subject to wear. The rate at which they wear de-pends on how the brakes are used. fHave the brake system inspected at the intervals recommended in your Maintenance Booklet. If the warning lights in the instrument panel and on-board computer stay on when the engine is run-ning or come on while driving, the brake pads are worn, excessively. fDo not continue to operate the vehicle.Have your authorized Porsche dealer inspect or replace the brake pads. Brake pads Wear on the brake pads and brake discs depends to a great extent on the driving style and the con-ditions of use and therefore cannot be expressed in actual miles on the road. The high-performance brake system is designed for optimal braking effect at all speeds and tem-peratures.Certain speeds, braking forces and ambient conditions (such as temperature and humidity) therefore might cause “brake noises”.New brake pads or linings New brake pads and brake discs have to be “bro-ken in”, and therefore only attain optimal friction when the car has covered several hundred miles or km.The slightly reduced braking ability must be com-pensated for by pressing the brake pedal harder. This also applies whenever the brake pads and brake discs are replaced.Warning light USAWarning light Canada

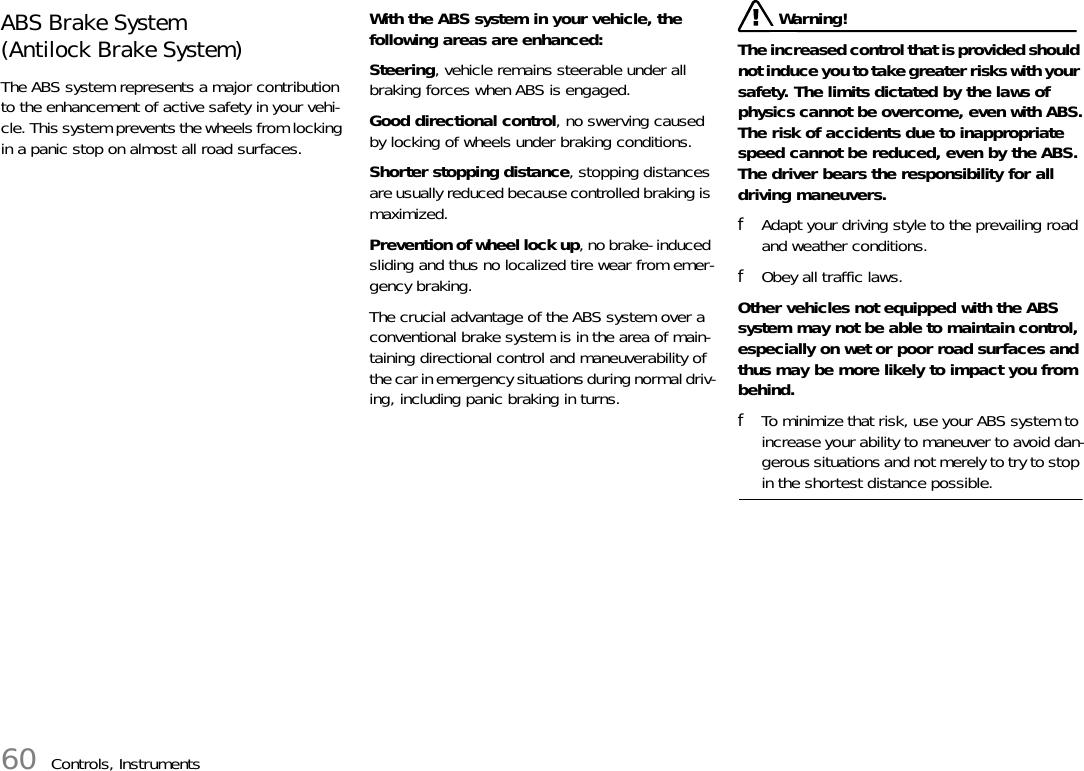

60 Controls, InstrumentsABS Brake System(Antilock Brake System)The ABS system represents a major contribution to the enhancement of active safety in your vehi-cle. This system prevents the wheels from locking in a panic stop on almost all road surfaces. With the ABS system in your vehicle, the following areas are enhanced: Steering, vehicle remains steerable under all braking forces when ABS is engaged. Good directional control, no swerving caused by locking of wheels under braking conditions. Shorter stopping distance, stopping distances are usually reduced because controlled braking is maximized. Prevention of wheel lock up, no brake- induced sliding and thus no localized tire wear from emer-gency braking. The crucial advantage of the ABS system over a conventional brake system is in the area of main-taining directional control and maneuverability of the car in emergency situations during normal driv-ing, including panic braking in turns. Warning! The increased control that is provided should not induce you to take greater risks with your safety. The limits dictated by the laws of physics cannot be overcome, even with ABS.The risk of accidents due to inappropriate speed cannot be reduced, even by the ABS.The driver bears the responsibility for all driving maneuvers. fAdapt your driving style to the prevailing road and weather conditions. fObey all traffic laws. Other vehicles not equipped with the ABS system may not be able to maintain control, especially on wet or poor road surfaces and thus may be more likely to impact you from behind. fTo minimize that risk, use your ABS system to increase your ability to maneuver to avoid dan-gerous situations and not merely to try to stop in the shortest distance possible.

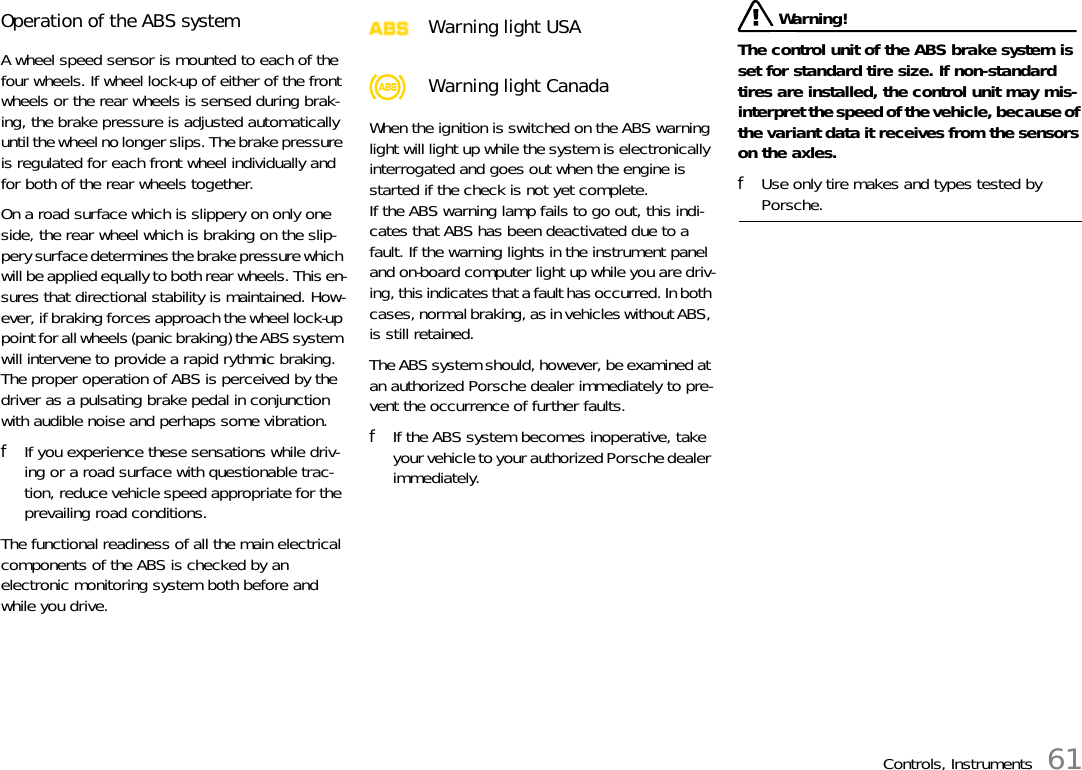

Controls, Instruments 61Operation of the ABS systemA wheel speed sensor is mounted to each of the four wheels. If wheel lock-up of either of the front wheels or the rear wheels is sensed during brak-ing, the brake pressure is adjusted automatically until the wheel no longer slips. The brake pressure is regulated for each front wheel individually and for both of the rear wheels together. On a road surface which is slippery on only one side, the rear wheel which is braking on the slip-pery surface determines the brake pressure which will be applied equally to both rear wheels. This en-sures that directional stability is maintained. How-ever, if braking forces approach the wheel lock-up point for all wheels (panic braking) the ABS system will intervene to provide a rapid rythmic braking. The proper operation of ABS is perceived by the driver as a pulsating brake pedal in conjunction with audible noise and perhaps some vibration. fIf you experience these sensations while driv-ing or a road surface with questionable trac-tion, reduce vehicle speed appropriate for the prevailing road conditions.The functional readiness of all the main electrical components of the ABS is checked by an electronic monitoring system both before and while you drive. When the ignition is switched on the ABS warning light will light up while the system is electronically interrogated and goes out when the engine is started if the check is not yet complete. If the ABS warning lamp fails to go out, this indi-cates that ABS has been deactivated due to a fault. If the warning lights in the instrument panel and on-board computer light up while you are driv-ing, this indicates that a fault has occurred. In both cases, normal braking, as in vehicles without ABS, is still retained. The ABS system should, however, be examined at an authorized Porsche dealer immediately to pre-vent the occurrence of further faults. fIf the ABS system becomes inoperative, take your vehicle to your authorized Porsche dealer immediately. Warning! The control unit of the ABS brake system is set for standard tire size. If non-standard tires are installed, the control unit may mis-interpret the speed of the vehicle, because of the variant data it receives from the sensors on the axles.fUse only tire makes and types tested by Porsche.Warning light USAWarning light Canada

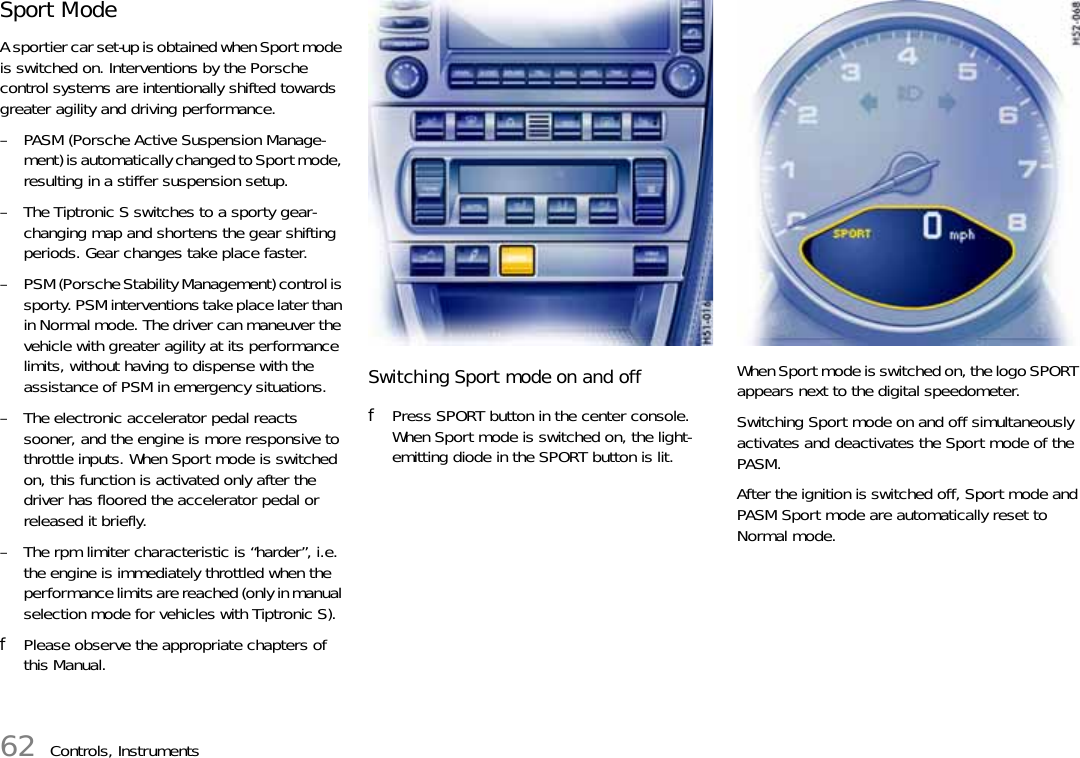

62 Controls, InstrumentsSport ModeA sportier car set-up is obtained when Sport mode is switched on. Interventions by the Porsche control systems are intentionally shifted towards greater agility and driving performance.– PASM (Porsche Active Suspension Manage-ment) is automatically changed to Sport mode, resulting in a stiffer suspension setup.– The Tiptronic S switches to a sporty gear-changing map and shortens the gear shifting periods. Gear changes take place faster.– PSM (Porsche Stability Management) control is sporty. PSM interventions take place later than in Normal mode. The driver can maneuver the vehicle with greater agility at its performance limits, without having to dispense with the assistance of PSM in emergency situations.– The electronic accelerator pedal reacts sooner, and the engine is more responsive to throttle inputs. When Sport mode is switched on, this function is activated only after the driver has floored the accelerator pedal or released it briefly.– The rpm limiter characteristic is “harder”, i.e. the engine is immediately throttled when the performance limits are reached (only in manual selection mode for vehicles with Tiptronic S).fPlease observe the appropriate chapters of this Manual.Switching Sport mode on and offfPress SPORT button in the center console.When Sport mode is switched on, the light-emitting diode in the SPORT button is lit.When Sport mode is switched on, the logo SPORT appears next to the digital speedometer.Switching Sport mode on and off simultaneously activates and deactivates the Sport mode of the PASM.After the ignition is switched off, Sport mode and PASM Sport mode are automatically reset to Normal mode.

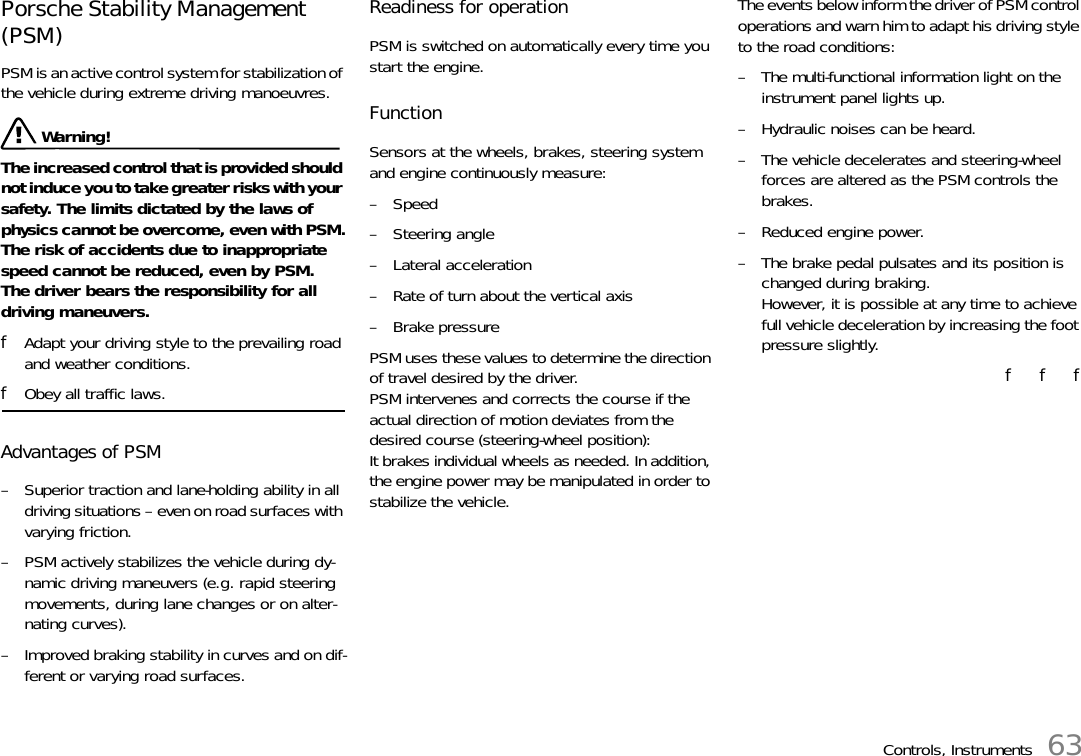

Controls, Instruments 63Porsche Stability Management (PSM)PSM is an active control system for stabilization of the vehicle during extreme driving manoeuvres. Warning!The increased control that is provided should not induce you to take greater risks with your safety. The limits dictated by the laws of physics cannot be overcome, even with PSM.The risk of accidents due to inappropriate speed cannot be reduced, even by PSM.The driver bears the responsibility for all driving maneuvers. fAdapt your driving style to the prevailing road and weather conditions. fObey all traffic laws. Advantages of PSM – Superior traction and lane-holding ability in all driving situations – even on road surfaces with varying friction. – PSM actively stabilizes the vehicle during dy-namic driving maneuvers (e.g. rapid steering movements, during lane changes or on alter-nating curves). – Improved braking stability in curves and on dif-ferent or varying road surfaces. Readiness for operationPSM is switched on automatically every time you start the engine.FunctionSensors at the wheels, brakes, steering system and engine continuously measure:–Speed–Steering angle– Lateral acceleration– Rate of turn about the vertical axis– Brake pressurePSM uses these values to determine the direction of travel desired by the driver.PSM intervenes and corrects the course if the actual direction of motion deviates from the desired course (steering-wheel position):It brakes individual wheels as needed. In addition, the engine power may be manipulated in order to stabilize the vehicle.The events below inform the driver of PSM control operations and warn him to adapt his driving style to the road conditions:– The multi-functional information light on the instrument panel lights up.– Hydraulic noises can be heard.– The vehicle decelerates and steering-wheel forces are altered as the PSM controls the brakes.– Reduced engine power.– The brake pedal pulsates and its position is changed during braking.However, it is possible at any time to achieve full vehicle deceleration by increasing the foot pressure slightly.f f f

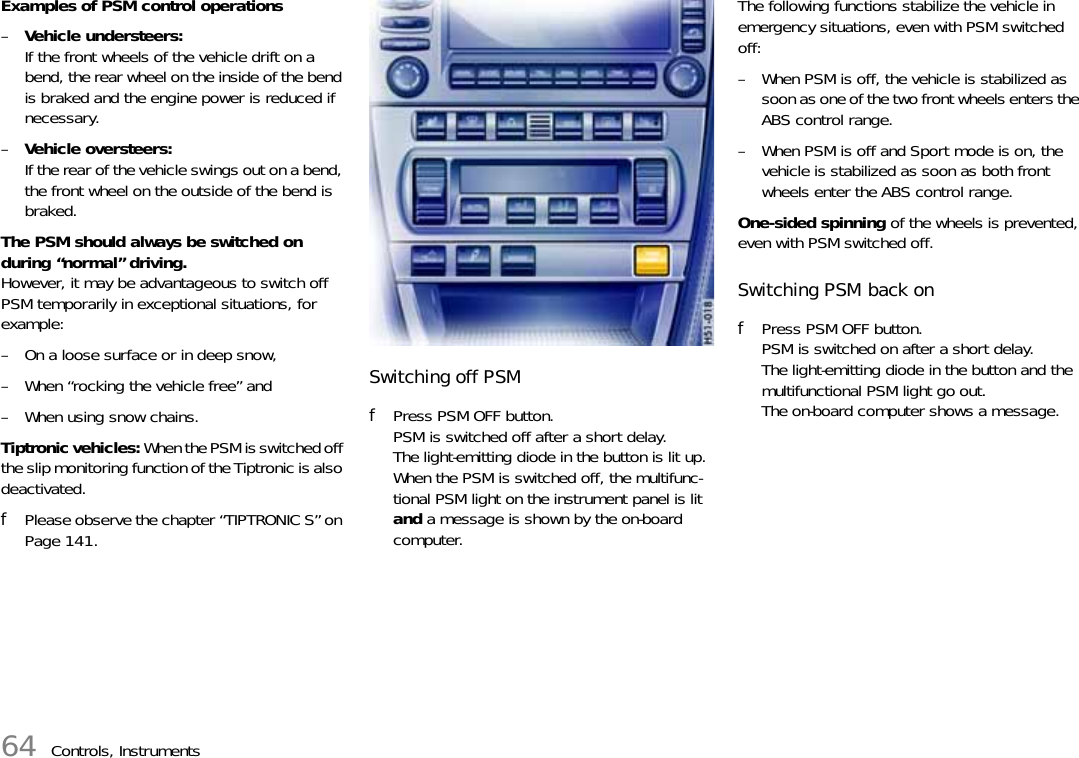

64 Controls, InstrumentsExamples of PSM control operations–Vehicle understeers:If the front wheels of the vehicle drift on a bend, the rear wheel on the inside of the bend is braked and the engine power is reduced if necessary.–Vehicle oversteers:If the rear of the vehicle swings out on a bend, the front wheel on the outside of the bend is braked.The PSM should always be switched on during “normal” driving.However, it may be advantageous to switch off PSM temporarily in exceptional situations, for example:– On a loose surface or in deep snow,– When “rocking the vehicle free” and– When using snow chains.Tiptronic vehicles: When the PSM is switched off the slip monitoring function of the Tiptronic is also deactivated.fPlease observe the chapter “TIPTRONIC S” on Page 141.Switching off PSMfPress PSM OFF button. PSM is switched off after a short delay.The light-emitting diode in the button is lit up.When the PSM is switched off, the multifunc-tional PSM light on the instrument panel is lit and a message is shown by the on-board computer.The following functions stabilize the vehicle in emergency situations, even with PSM switched off:– When PSM is off, the vehicle is stabilized as soon as one of the two front wheels enters the ABS control range.– When PSM is off and Sport mode is on, the vehicle is stabilized as soon as both front wheels enter the ABS control range.One-sided spinning of the wheels is prevented, even with PSM switched off.Switching PSM back onfPress PSM OFF button. PSM is switched on after a short delay.The light-emitting diode in the button and the multifunctional PSM light go out.The on-board computer shows a message.

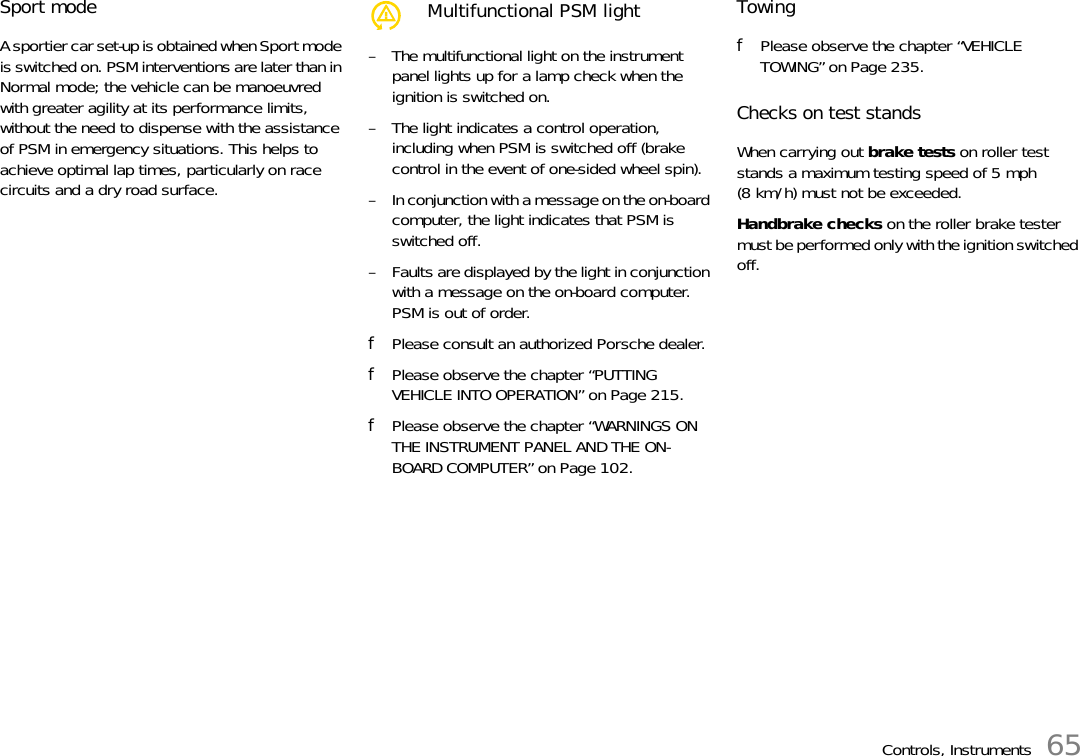

Controls, Instruments 65Sport modeA sportier car set-up is obtained when Sport mode is switched on. PSM interventions are later than in Normal mode; the vehicle can be manoeuvred with greater agility at its performance limits, without the need to dispense with the assistance of PSM in emergency situations. This helps to achieve optimal lap times, particularly on race circuits and a dry road surface. – The multifunctional light on the instrument panel lights up for a lamp check when the ignition is switched on.– The light indicates a control operation, including when PSM is switched off (brake control in the event of one-sided wheel spin).– In conjunction with a message on the on-board computer, the light indicates that PSM is switched off.– Faults are displayed by the light in conjunction with a message on the on-board computer.PSM is out of order.fPlease consult an authorized Porsche dealer. fPlease observe the chapter “PUTTING VEHICLE INTO OPERATION” on Page 215.fPlease observe the chapter “WARNINGS ON THE INSTRUMENT PANEL AND THE ON-BOARD COMPUTER” on Page 102.TowingfPlease observe the chapter “VEHICLE TOWING” on Page 235.Checks on test standsWhen carrying out brake tests on roller test stands a maximum testing speed of 5 mph (8 km/h) must not be exceeded.Handbrake checks on the roller brake tester must be performed only with the ignition switched off.Multifunctional PSM light

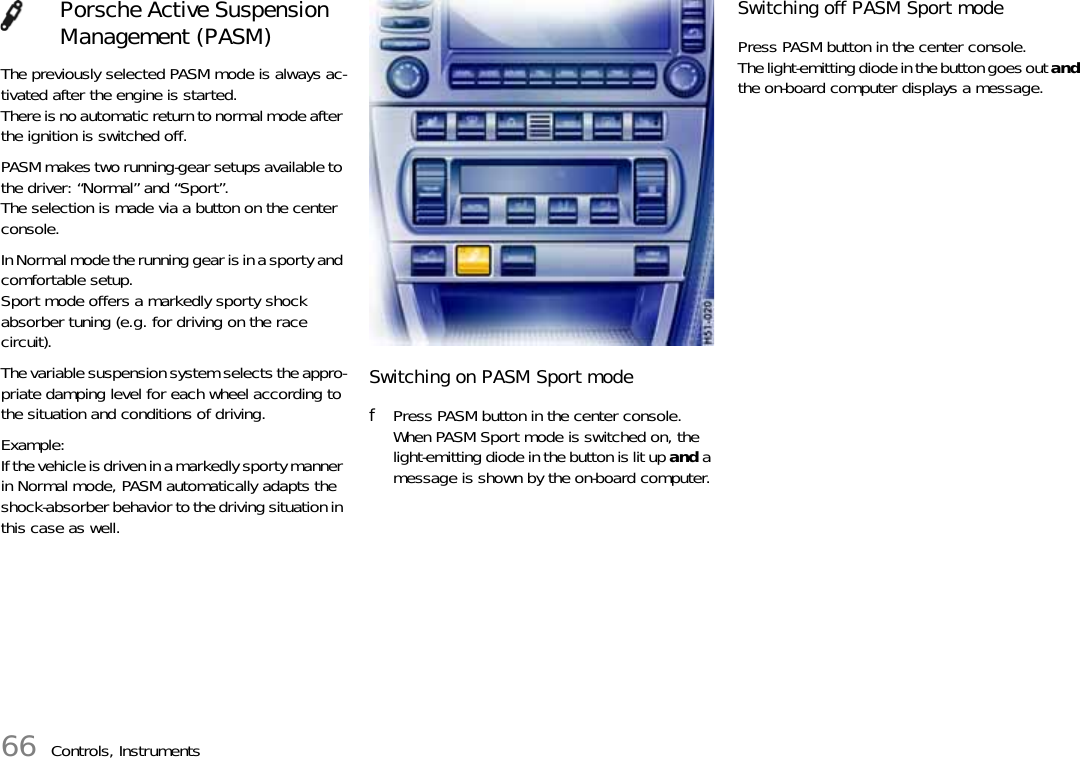

66 Controls, InstrumentsThe previously selected PASM mode is always ac-tivated after the engine is started.There is no automatic return to normal mode after the ignition is switched off.PASM makes two running-gear setups available to the driver: “Normal” and “Sport”.The selection is made via a button on the center console.In Normal mode the running gear is in a sporty and comfortable setup.Sport mode offers a markedly sporty shock absorber tuning (e.g. for driving on the race circuit).The variable suspension system selects the appro-priate damping level for each wheel according to the situation and conditions of driving.Example:If the vehicle is driven in a markedly sporty manner in Normal mode, PASM automatically adapts the shock-absorber behavior to the driving situation in this case as well.Switching on PASM Sport modefPress PASM button in the center console.When PASM Sport mode is switched on, the light-emitting diode in the button is lit up and a message is shown by the on-board computer.Switching off PASM Sport modePress PASM button in the center console.The light-emitting diode in the button goes out and the on-board computer displays a message.Porsche Active Suspension Management (PASM)

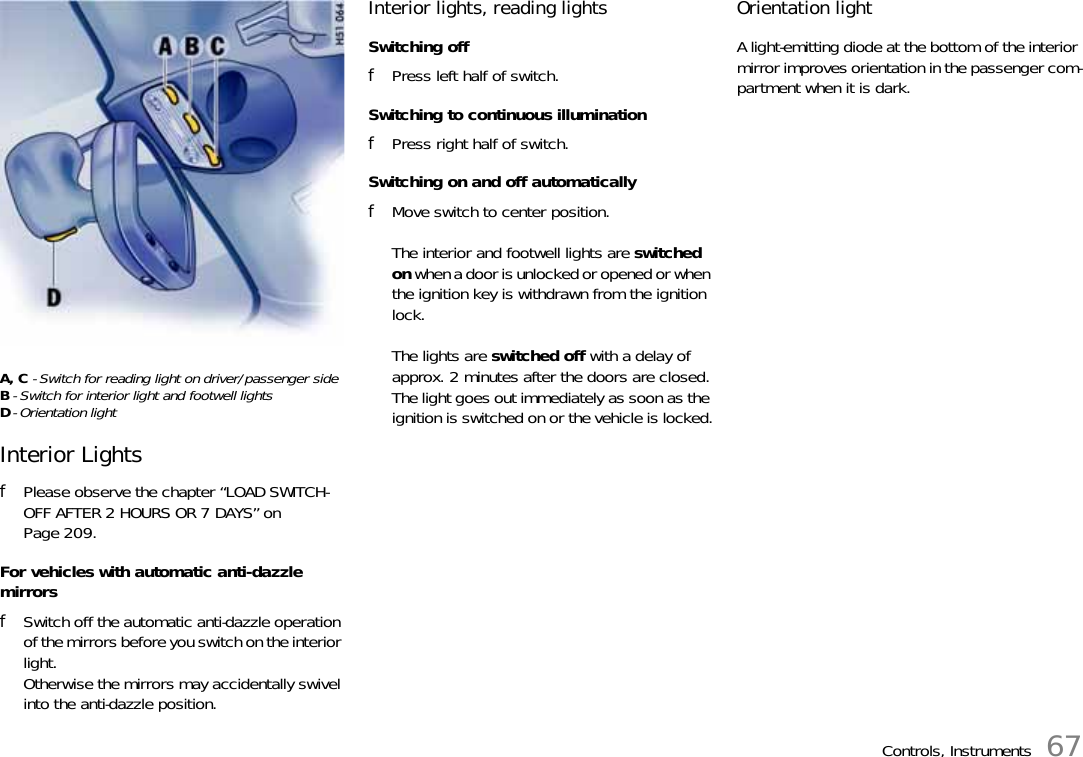

Controls, Instruments 67A, C - Switch for reading light on driver/passenger sideB- Switch for interior light and footwell lightsD- Orientation lightInterior LightsfPlease observe the chapter “LOAD SWITCH-OFF AFTER 2 HOURS OR 7 DAYS” on Page 209.For vehicles with automatic anti-dazzle mirrorsfSwitch off the automatic anti-dazzle operation of the mirrors before you switch on the interior light.Otherwise the mirrors may accidentally swivel into the anti-dazzle position.Interior lights, reading lightsSwitching offfPress left half of switch.Switching to continuous illuminationfPress right half of switch.Switching on and off automaticallyfMove switch to center position.The interior and footwell lights are switched on when a door is unlocked or opened or when the ignition key is withdrawn from the ignition lock.The lights are switched off with a delay of approx. 2 minutes after the doors are closed.The light goes out immediately as soon as the ignition is switched on or the vehicle is locked.Orientation lightA light-emitting diode at the bottom of the interior mirror improves orientation in the passenger com-partment when it is dark.

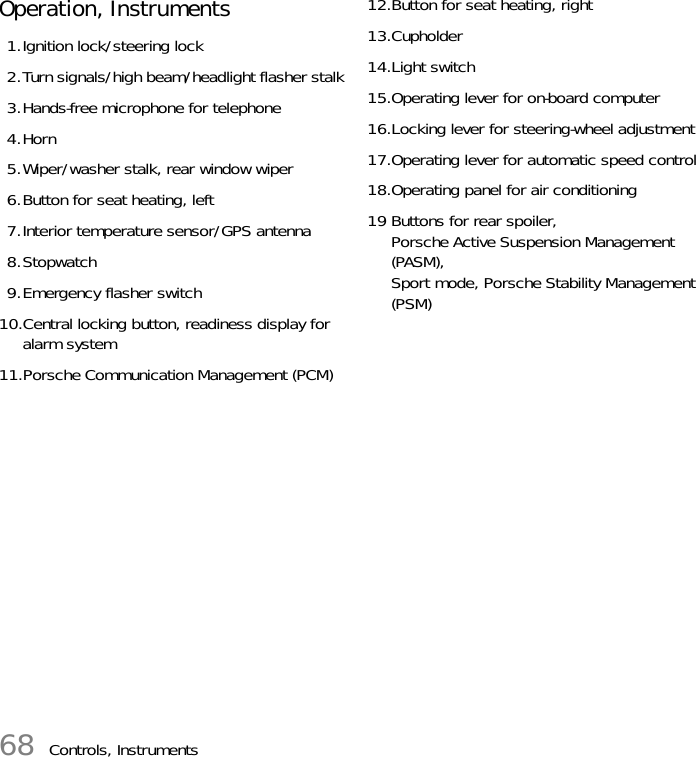

68 Controls, InstrumentsOperation, Instruments 1.Ignition lock/steering lock2.Turn signals/high beam/headlight flasher stalk3.Hands-free microphone for telephone4.Horn5.Wiper/washer stalk, rear window wiper6.Button for seat heating, left7.Interior temperature sensor/GPS antenna8.Stopwatch9.Emergency flasher switch10.Central locking button, readiness display for alarm system11.Porsche Communication Management (PCM)12.Button for seat heating, right13.Cupholder14.Light switch15.Operating lever for on-board computer16.Locking lever for steering-wheel adjustment17.Operating lever for automatic speed control18.Operating panel for air conditioning19 Buttons for rear spoiler, Porsche Active Suspension Management (PASM), Sport mode, Porsche Stability Management (PSM)

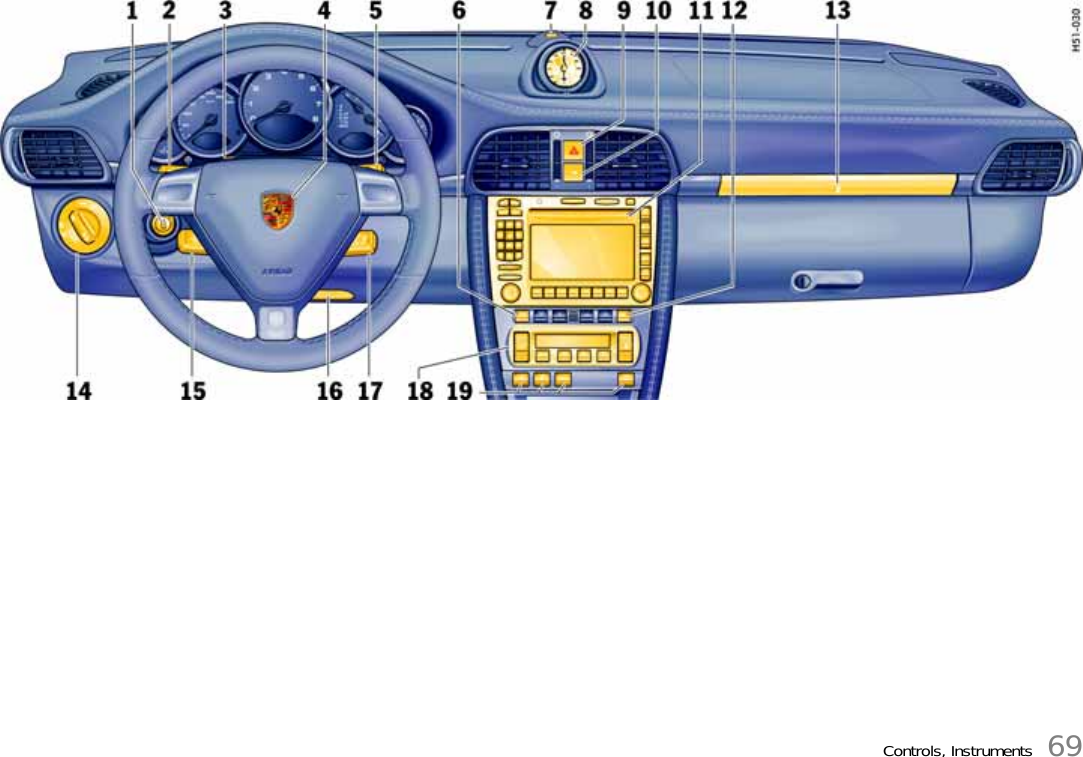

Controls, Instruments 69

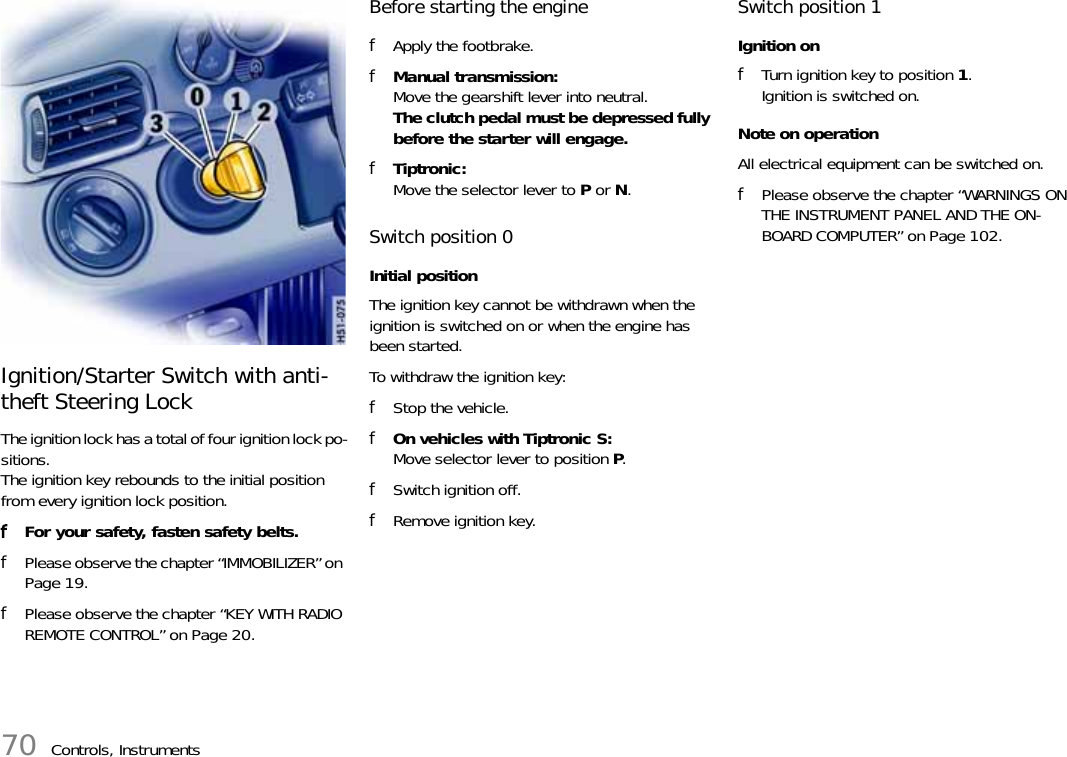

70 Controls, InstrumentsIgnition/Starter Switch with anti-theft Steering LockThe ignition lock has a total of four ignition lock po-sitions.The ignition key rebounds to the initial position from every ignition lock position.fFor your safety, fasten safety belts. fPlease observe the chapter “IMMOBILIZER” on Page 19.fPlease observe the chapter “KEY WITH RADIO REMOTE CONTROL” on Page 20.Before starting the enginefApply the footbrake.fManual transmission:Move the gearshift lever into neutral. The clutch pedal must be depressed fully before the starter will engage.fTiptronic:Move the selector lever to P or N.Switch position 0 Initial positionThe ignition key cannot be withdrawn when the ignition is switched on or when the engine has been started.To withdraw the ignition key:fStop the vehicle.fOn vehicles with Tiptronic S:Move selector lever to position P.fSwitch ignition off.fRemove ignition key. Switch position 1 Ignition onfTurn ignition key to position 1.Ignition is switched on.Note on operationAll electrical equipment can be switched on.fPlease observe the chapter “WARNINGS ON THE INSTRUMENT PANEL AND THE ON-BOARD COMPUTER” on Page 102.

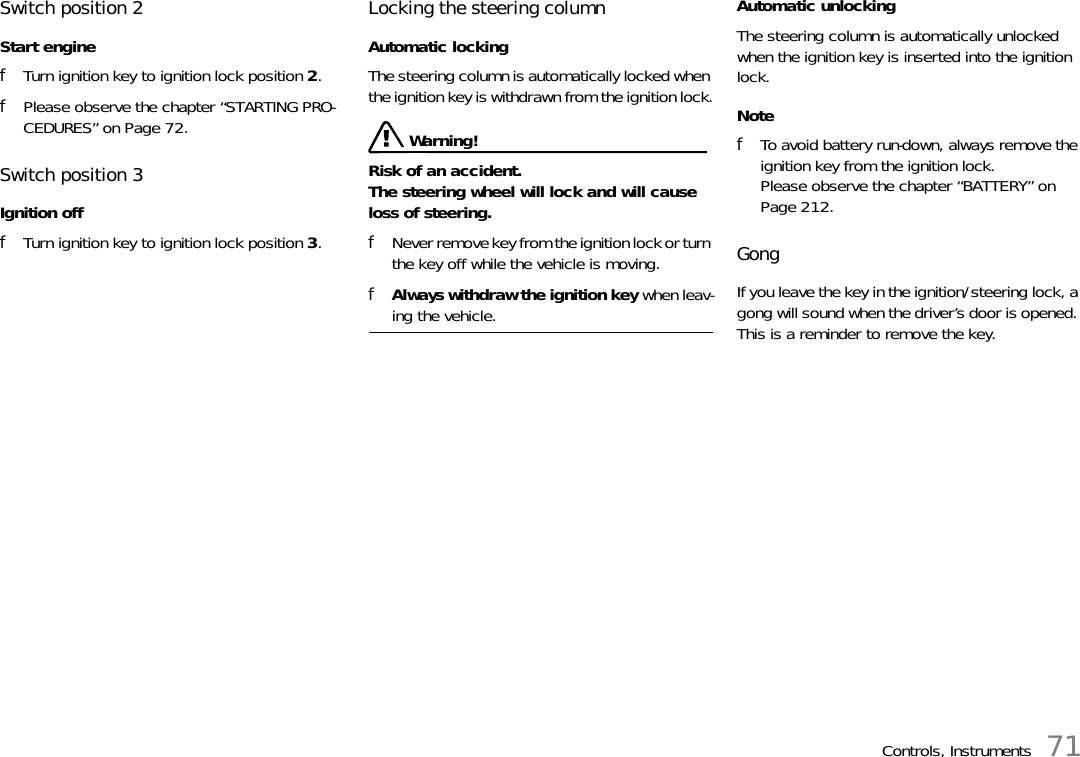

Controls, Instruments 71Switch position 2Start enginefTurn ignition key to ignition lock position 2.fPlease observe the chapter “STARTING PRO-CEDURES” on Page 72.Switch position 3Ignition offfTurn ignition key to ignition lock position 3.Locking the steering columnAutomatic lockingThe steering column is automatically locked when the ignition key is withdrawn from the ignition lock. Warning! Risk of an accident.The steering wheel will lock and will cause loss of steering. fNever remove key from the ignition lock or turn the key off while the vehicle is moving. fAlways withdraw the ignition key when leav-ing the vehicle.Automatic unlockingThe steering column is automatically unlocked when the ignition key is inserted into the ignition lock.NotefTo avoid battery run-down, always remove the ignition key from the ignition lock.Please observe the chapter “BATTERY” on Page 212.Gong If you leave the key in the ignition/steering lock, a gong will sound when the driver’s door is opened. This is a reminder to remove the key.

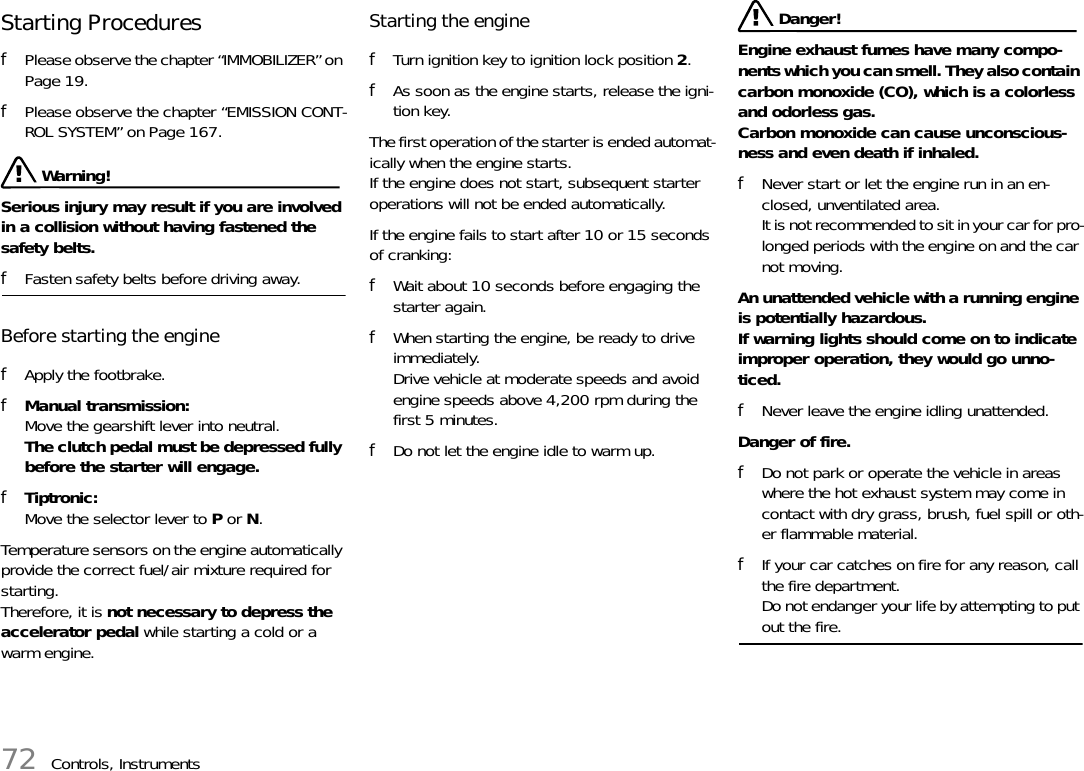

72 Controls, InstrumentsStarting Procedures fPlease observe the chapter “IMMOBILIZER” on Page 19.fPlease observe the chapter “EMISSION CONT-ROL SYSTEM” on Page 167. Warning!Serious injury may result if you are involved in a collision without having fastened the safety belts. fFasten safety belts before driving away. Before starting the engine fApply the footbrake. fManual transmission:Move the gearshift lever into neutral. The clutch pedal must be depressed fully before the starter will engage.fTiptronic:Move the selector lever to P or N.Temperature sensors on the engine automatically provide the correct fuel/air mixture required for starting.Therefore, it is not necessary to depress the accelerator pedal while starting a cold or a warm engine. Starting the enginefTurn ignition key to ignition lock position 2.fAs soon as the engine starts, release the igni-tion key. The first operation of the starter is ended automat-ically when the engine starts.If the engine does not start, subsequent starter operations will not be ended automatically. If the engine fails to start after 10 or 15 seconds of cranking: fWait about 10 seconds before engaging the starter again. fWhen starting the engine, be ready to drive immediately. Drive vehicle at moderate speeds and avoid engine speeds above 4,200 rpm during the first 5 minutes. fDo not let the engine idle to warm up. Danger!Engine exhaust fumes have many compo-nents which you can smell. They also contain carbon monoxide (CO), which is a colorless and odorless gas.Carbon monoxide can cause unconscious-ness and even death if inhaled. fNever start or let the engine run in an en-closed, unventilated area.It is not recommended to sit in your car for pro-longed periods with the engine on and the car not moving.An unattended vehicle with a running engine is potentially hazardous.If warning lights should come on to indicate improper operation, they would go unno-ticed. fNever leave the engine idling unattended.Danger of fire. fDo not park or operate the vehicle in areas where the hot exhaust system may come in contact with dry grass, brush, fuel spill or oth-er flammable material. fIf your car catches on fire for any reason, call the fire department. Do not endanger your life by attempting to put out the fire.

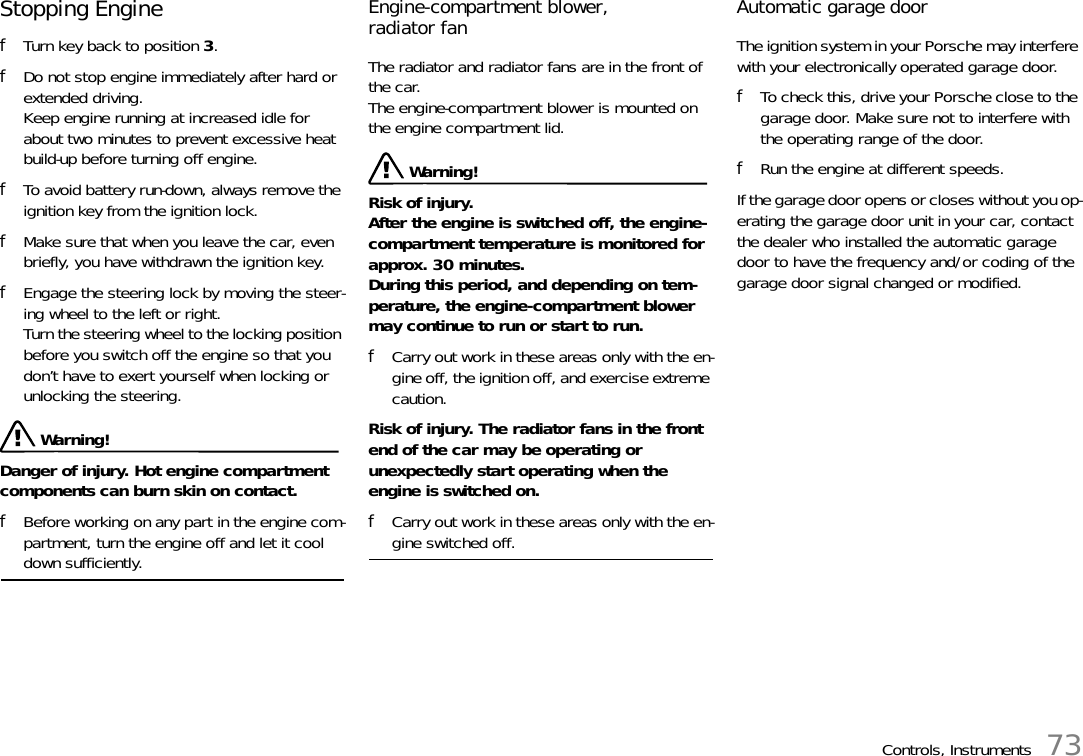

Controls, Instruments 73Stopping Engine fTurn key back to position 3. fDo not stop engine immediately after hard or extended driving. Keep engine running at increased idle for about two minutes to prevent excessive heat build-up before turning off engine. fTo avoid battery run-down, always remove the ignition key from the ignition lock. fMake sure that when you leave the car, even briefly, you have withdrawn the ignition key. fEngage the steering lock by moving the steer-ing wheel to the left or right. Turn the steering wheel to the locking position before you switch off the engine so that you don’t have to exert yourself when locking or unlocking the steering. Warning!Danger of injury. Hot engine compartment components can burn skin on contact. fBefore working on any part in the engine com-partment, turn the engine off and let it cool down sufficiently. Engine-compartment blower,radiator fan The radiator and radiator fans are in the front of the car.The engine-compartment blower is mounted on the engine compartment lid. Warning!Risk of injury.After the engine is switched off, the engine-compartment temperature is monitored for approx. 30 minutes.During this period, and depending on tem-perature, the engine-compartment blower may continue to run or start to run. fCarry out work in these areas only with the en-gine off, the ignition off, and exercise extreme caution.Risk of injury. The radiator fans in the front end of the car may be operating or unexpectedly start operating when the engine is switched on.fCarry out work in these areas only with the en-gine switched off.Automatic garage door The ignition system in your Porsche may interfere with your electronically operated garage door. fTo check this, drive your Porsche close to the garage door. Make sure not to interfere with the operating range of the door. fRun the engine at different speeds.If the garage door opens or closes without you op-erating the garage door unit in your car, contact the dealer who installed the automatic garage door to have the frequency and/or coding of the garage door signal changed or modified.

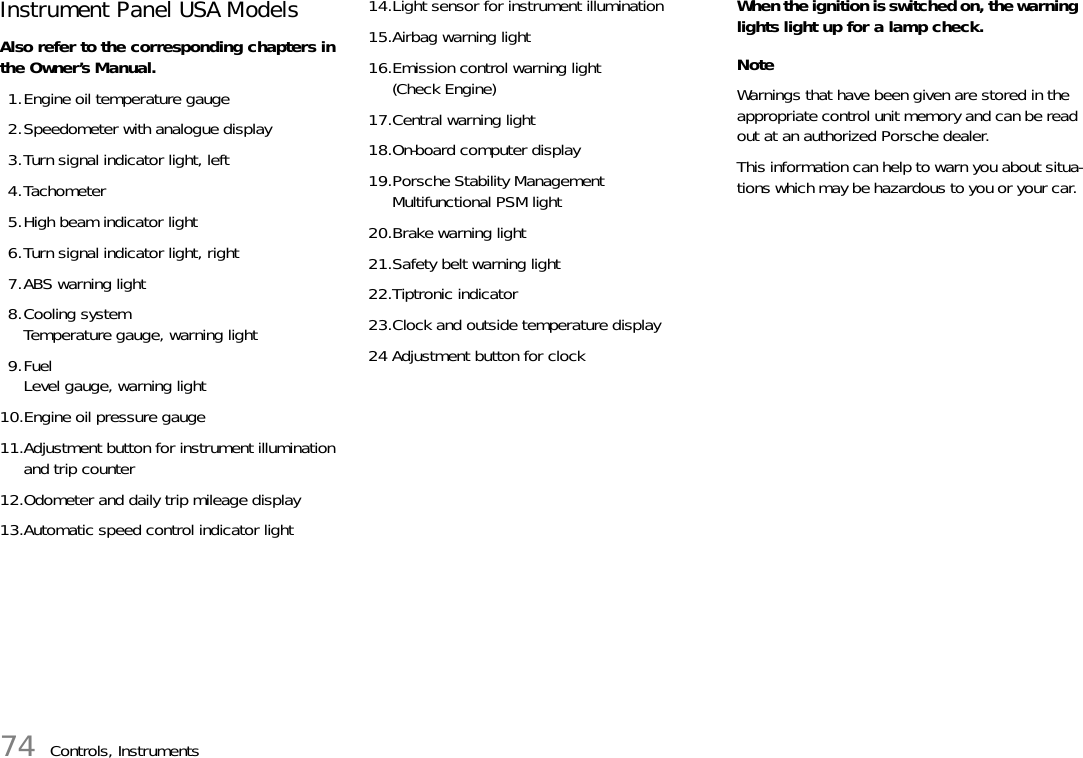

74 Controls, InstrumentsInstrument Panel USA Models Also refer to the corresponding chapters in the Owner’s Manual.1.Engine oil temperature gauge 2.Speedometer with analogue display3.Turn signal indicator light, left4.Tachometer5.High beam indicator light6.Turn signal indicator light, right7.ABS warning light8.Cooling systemTemperature gauge, warning light9.FuelLevel gauge, warning light10.Engine oil pressure gauge11.Adjustment button for instrument illumination and trip counter12.Odometer and daily trip mileage display13.Automatic speed control indicator light14.Light sensor for instrument illumination15.Airbag warning light16.Emission control warning light (Check Engine)17.Central warning light18.On-board computer display19.Porsche Stability ManagementMultifunctional PSM light20.Brake warning light21.Safety belt warning light22.Tiptronic indicator23.Clock and outside temperature display24 Adjustment button for clockWhen the ignition is switched on, the warning lights light up for a lamp check. NoteWarnings that have been given are stored in the appropriate control unit memory and can be read out at an authorized Porsche dealer. This information can help to warn you about situa-tions which may be hazardous to you or your car.

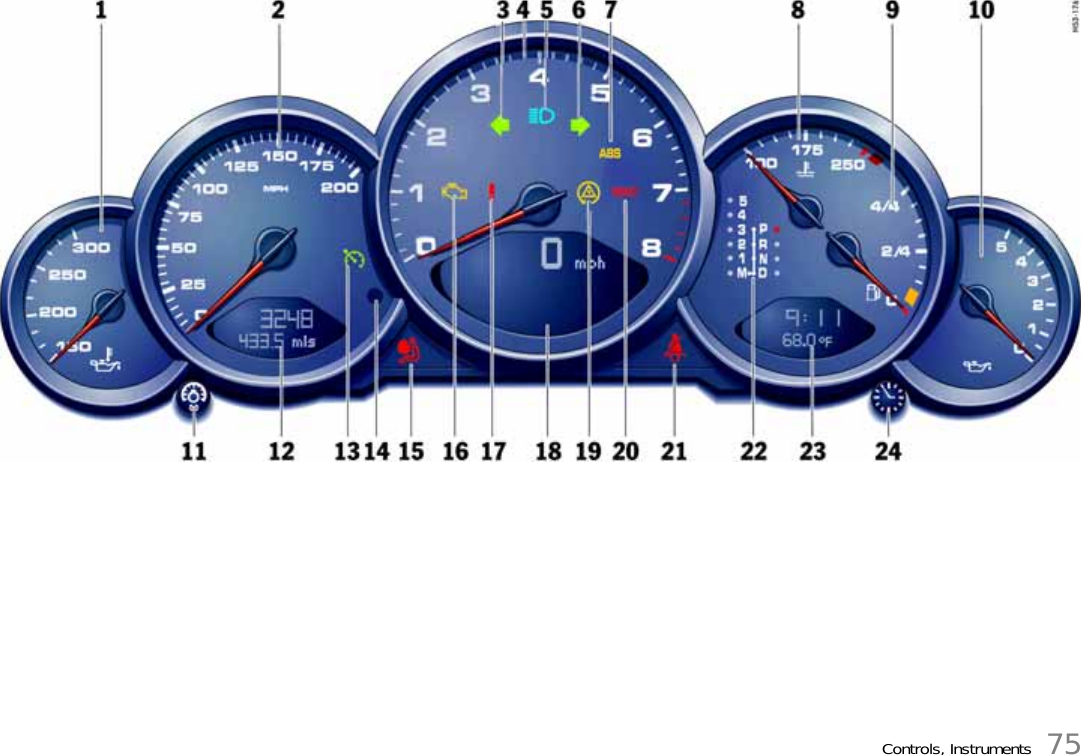

Controls, Instruments 75

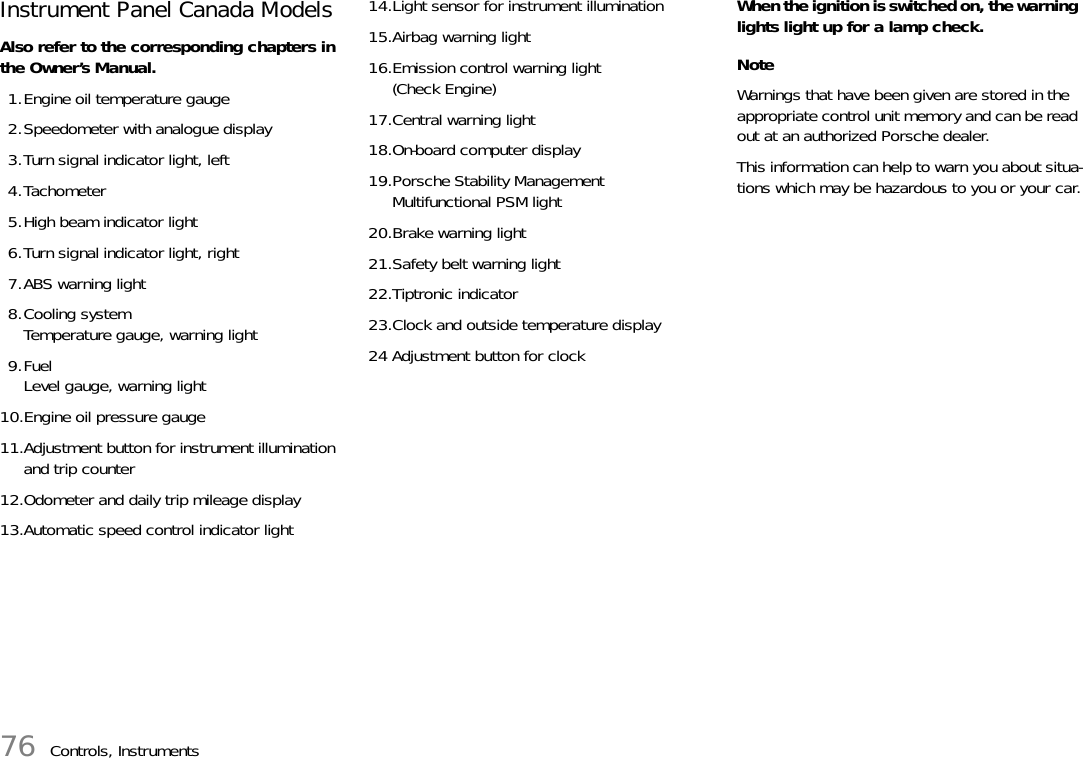

76 Controls, InstrumentsInstrument Panel Canada Models Also refer to the corresponding chapters in the Owner’s Manual.1.Engine oil temperature gauge 2.Speedometer with analogue display3.Turn signal indicator light, left4.Tachometer5.High beam indicator light6.Turn signal indicator light, right7.ABS warning light8.Cooling systemTemperature gauge, warning light9.FuelLevel gauge, warning light10.Engine oil pressure gauge11.Adjustment button for instrument illumination and trip counter12.Odometer and daily trip mileage display13.Automatic speed control indicator light14.Light sensor for instrument illumination15.Airbag warning light16.Emission control warning light (Check Engine)17.Central warning light18.On-board computer display19.Porsche Stability ManagementMultifunctional PSM light20.Brake warning light21.Safety belt warning light22.Tiptronic indicator23.Clock and outside temperature display24 Adjustment button for clockWhen the ignition is switched on, the warning lights light up for a lamp check. NoteWarnings that have been given are stored in the appropriate control unit memory and can be read out at an authorized Porsche dealer. This information can help to warn you about situa-tions which may be hazardous to you or your car.

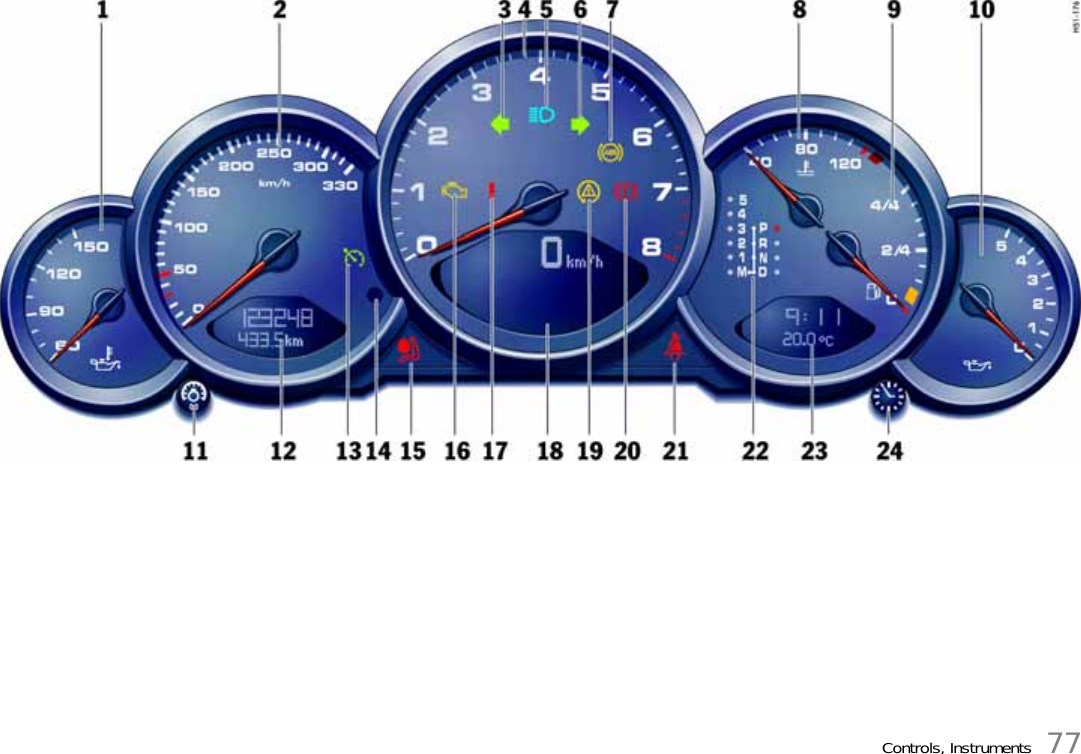

Controls, Instruments 77

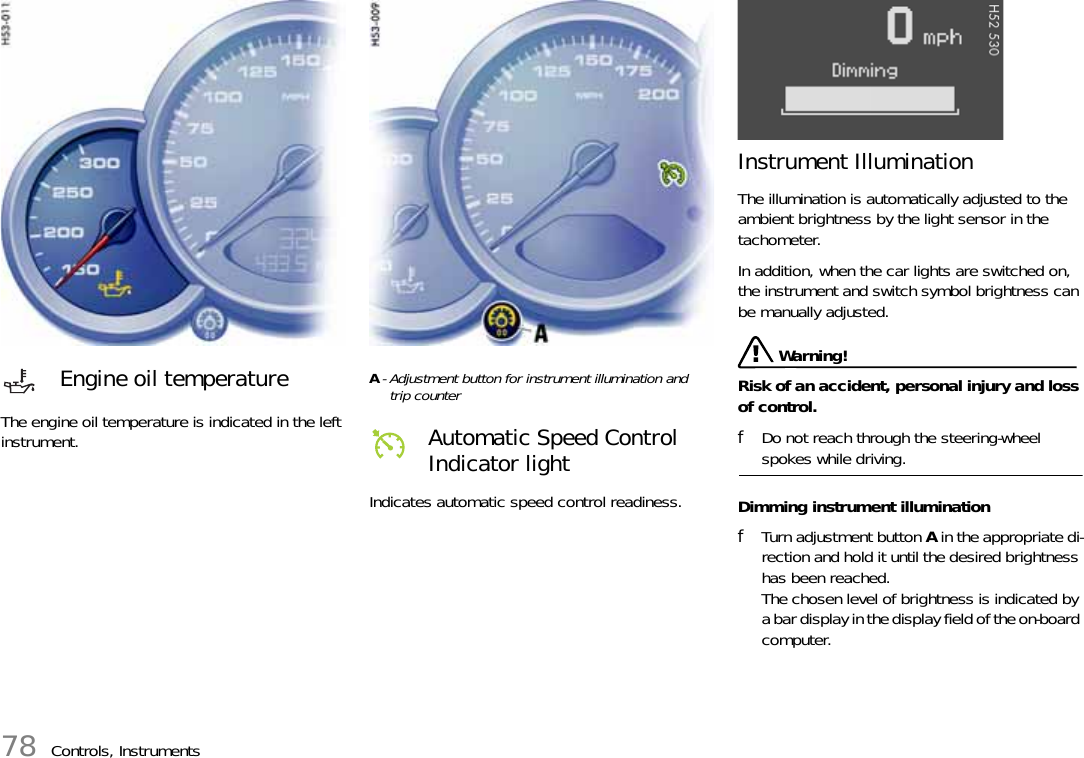

78 Controls, InstrumentsThe engine oil temperature is indicated in the left instrument.A- Adjustment button for instrument illumination andtrip counter Indicates automatic speed control readiness.Instrument Illumination The illumination is automatically adjusted to the ambient brightness by the light sensor in the tachometer. In addition, when the car lights are switched on, the instrument and switch symbol brightness can be manually adjusted. Warning!Risk of an accident, personal injury and loss of control. fDo not reach through the steering-wheel spokes while driving. Dimming instrument illumination fTurn adjustment button A in the appropriate di-rection and hold it until the desired brightness has been reached.The chosen level of brightness is indicated by a bar display in the display field of the on-board computer. Engine oil temperatureAutomatic Speed Control Indicator light

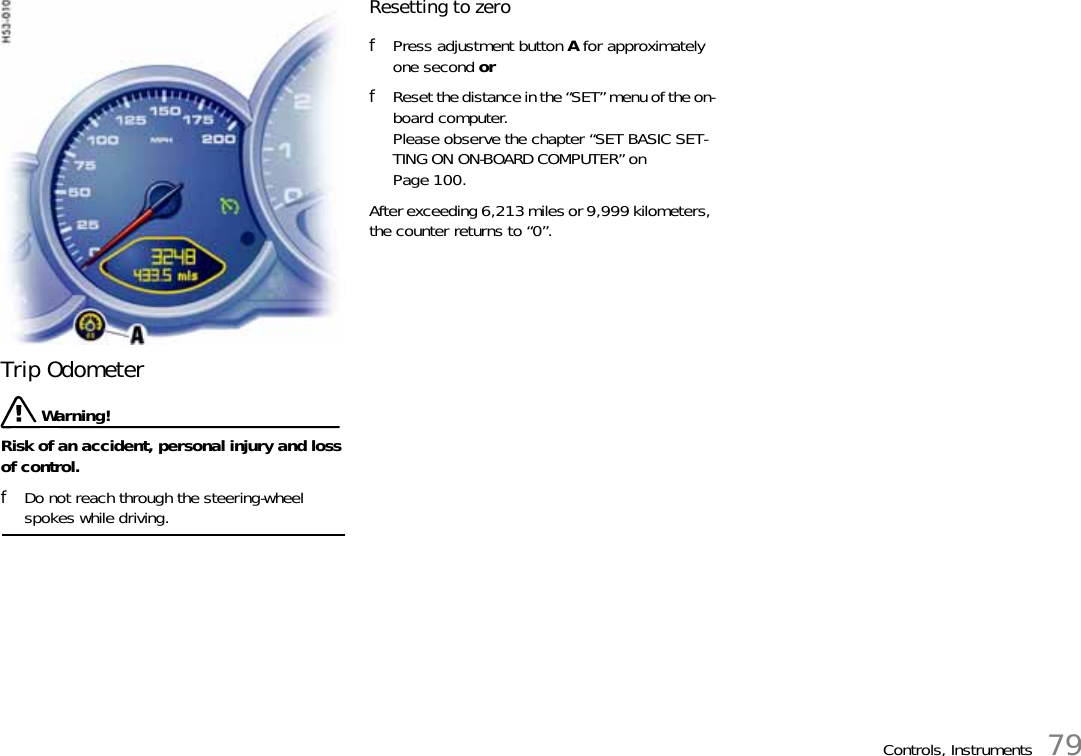

Controls, Instruments 79Trip Odometer Warning!Risk of an accident, personal injury and loss of control. fDo not reach through the steering-wheel spokes while driving. Resetting to zero fPress adjustment button A for approximately one second or fReset the distance in the “SET” menu of the on-board computer.Please observe the chapter “SET BASIC SET-TING ON ON-BOARD COMPUTER” on Page 100.After exceeding 6,213 miles or 9,999 kilometers, the counter returns to “0”.

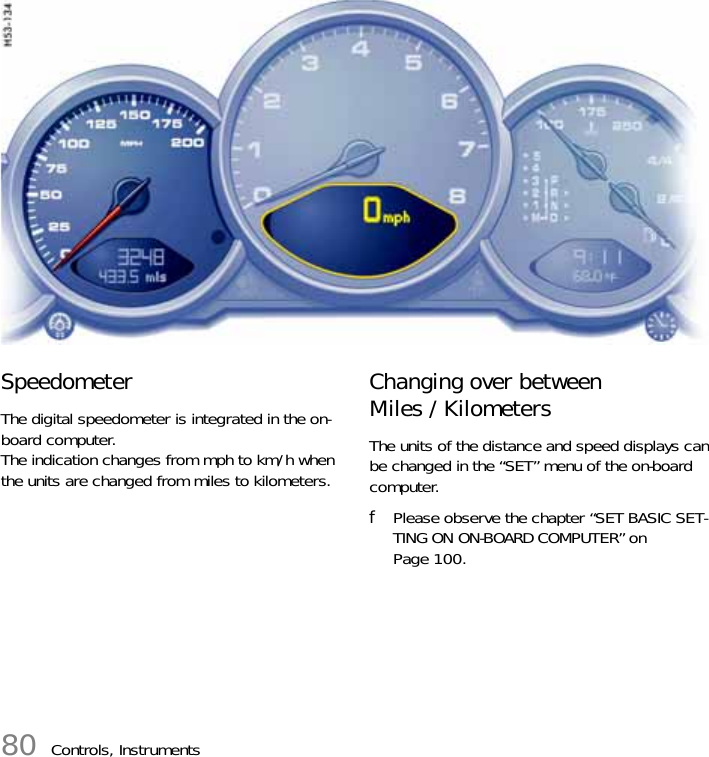

80 Controls, InstrumentsSpeedometer The digital speedometer is integrated in the on-board computer.The indication changes from mph to km/h when the units are changed from miles to kilometers. Changing over betweenMiles / Kilometers The units of the distance and speed displays can be changed in the “SET” menu of the on-board computer. fPlease observe the chapter “SET BASIC SET-TING ON ON-BOARD COMPUTER” on Page 100.

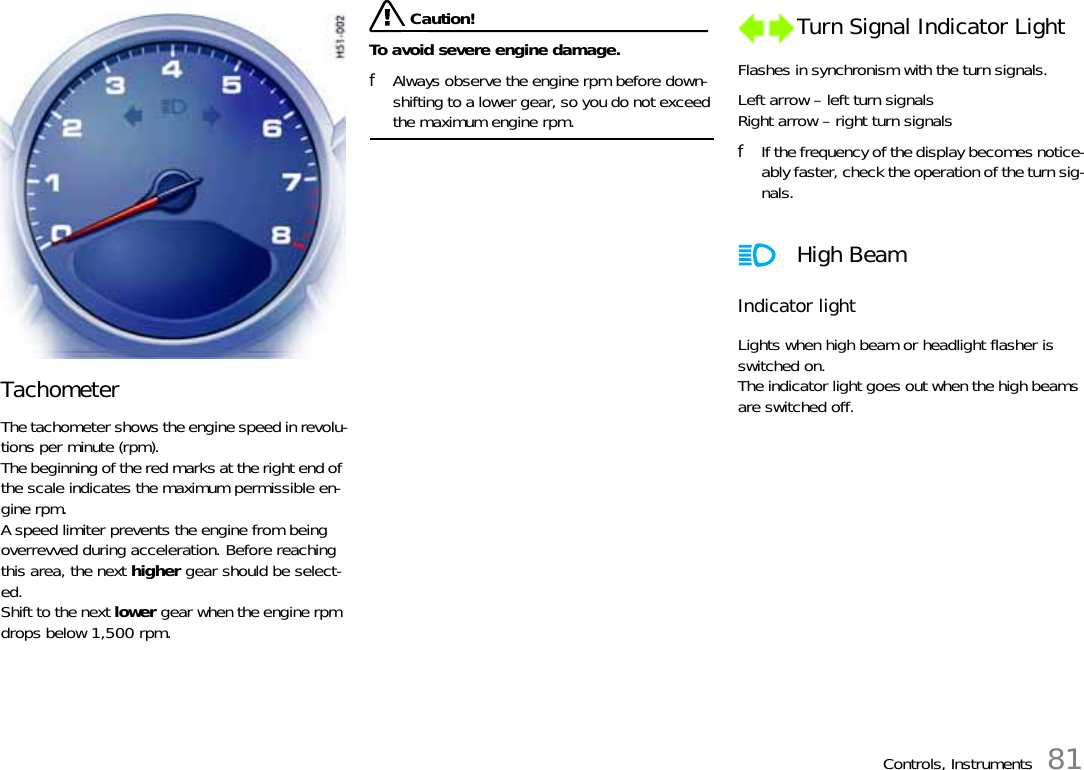

Controls, Instruments 81Tachometer The tachometer shows the engine speed in revolu-tions per minute (rpm). The beginning of the red marks at the right end of the scale indicates the maximum permissible en-gine rpm. A speed limiter prevents the engine from being overrevved during acceleration. Before reaching this area, the next higher gear should be select-ed. Shift to the next lower gear when the engine rpm drops below 1,500 rpm. Caution!To avoid severe engine damage. fAlways observe the engine rpm before down-shifting to a lower gear, so you do not exceed the maximum engine rpm. Flashes in synchronism with the turn signals. Left arrow – left turn signalsRight arrow – right turn signals fIf the frequency of the display becomes notice-ably faster, check the operation of the turn sig-nals.Indicator light Lights when high beam or headlight flasher is switched on.The indicator light goes out when the high beams are switched off. Turn Signal Indicator Light High Beam

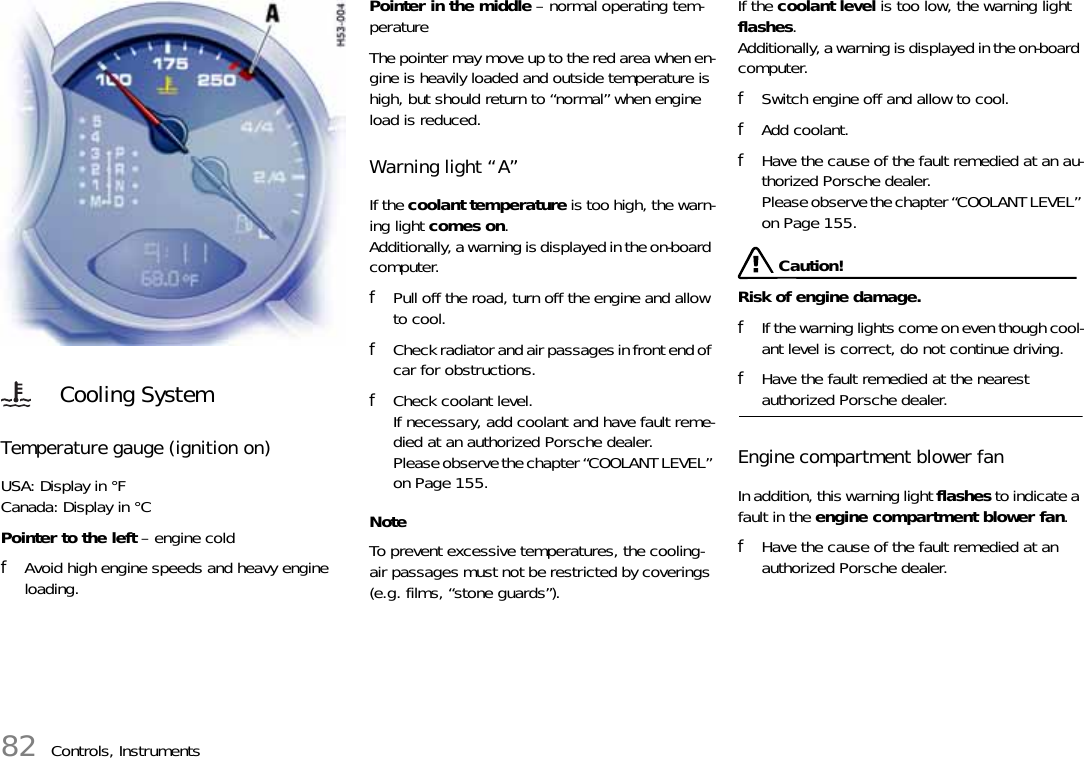

82 Controls, InstrumentsTemperature gauge (ignition on) USA: Display in °FCanada: Display in °C Pointer to the left – engine cold fAvoid high engine speeds and heavy engine loading. Pointer in the middle – normal operating tem-perature The pointer may move up to the red area when en-gine is heavily loaded and outside temperature is high, but should return to “normal” when engine load is reduced. Warning light “A” If the coolant temperature is too high, the warn-ing light comes on.Additionally, a warning is displayed in the on-board computer. fPull off the road, turn off the engine and allow to cool. fCheck radiator and air passages in front end of car for obstructions. fCheck coolant level. If necessary, add coolant and have fault reme-died at an authorized Porsche dealer.Please observe the chapter “COOLANT LEVEL” on Page 155.NoteTo prevent excessive temperatures, the cooling-air passages must not be restricted by coverings (e.g. films, “stone guards”). If the coolant level is too low, the warning light flashes.Additionally, a warning is displayed in the on-board computer. fSwitch engine off and allow to cool. fAdd coolant. fHave the cause of the fault remedied at an au-thorized Porsche dealer. Please observe the chapter “COOLANT LEVEL” on Page 155. Caution!Risk of engine damage. fIf the warning lights come on even though cool-ant level is correct, do not continue driving. fHave the fault remedied at the nearest authorized Porsche dealer. Engine compartment blower fan In addition, this warning light flashes to indicate a fault in the engine compartment blower fan. fHave the cause of the fault remedied at an authorized Porsche dealer. Cooling System

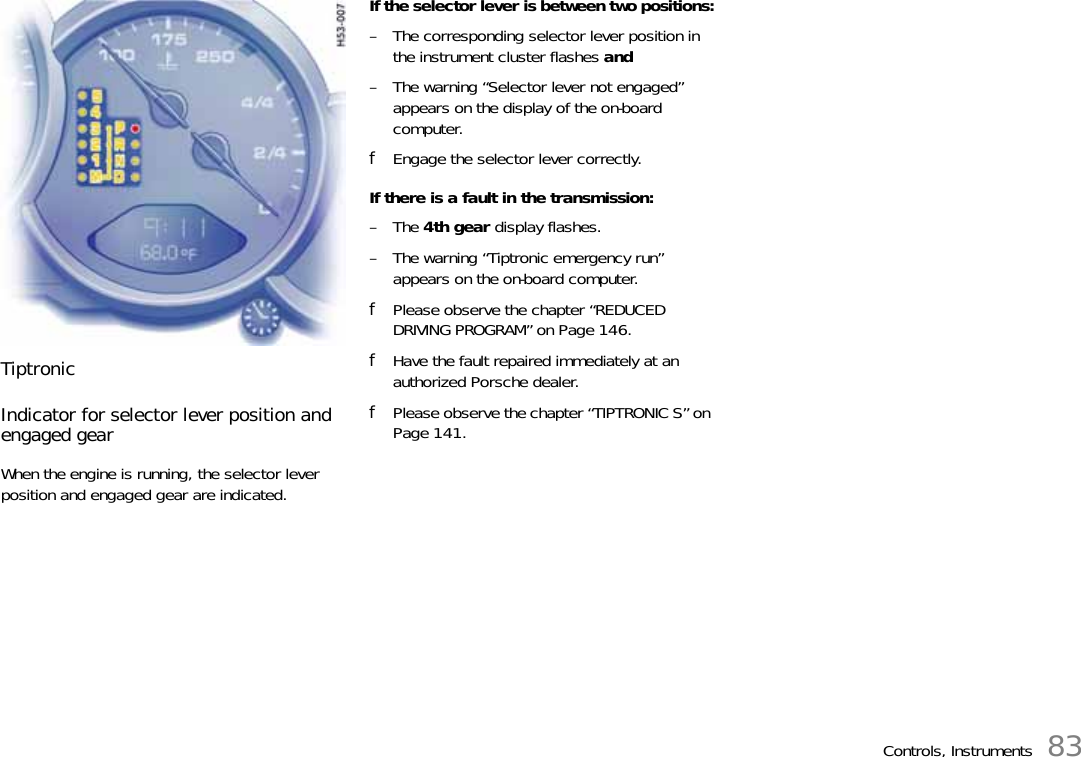

Controls, Instruments 83TiptronicIndicator for selector lever position and engaged gearWhen the engine is running, the selector lever position and engaged gear are indicated.If the selector lever is between two positions:– The corresponding selector lever position in the instrument cluster flashes and– The warning “Selector lever not engaged” appears on the display of the on-board computer.fEngage the selector lever correctly.If there is a fault in the transmission:–The 4th gear display flashes.– The warning “Tiptronic emergency run” appears on the on-board computer.fPlease observe the chapter “REDUCED DRIVING PROGRAM” on Page 146.fHave the fault repaired immediately at an authorized Porsche dealer.fPlease observe the chapter “TIPTRONIC S” on Page 141.

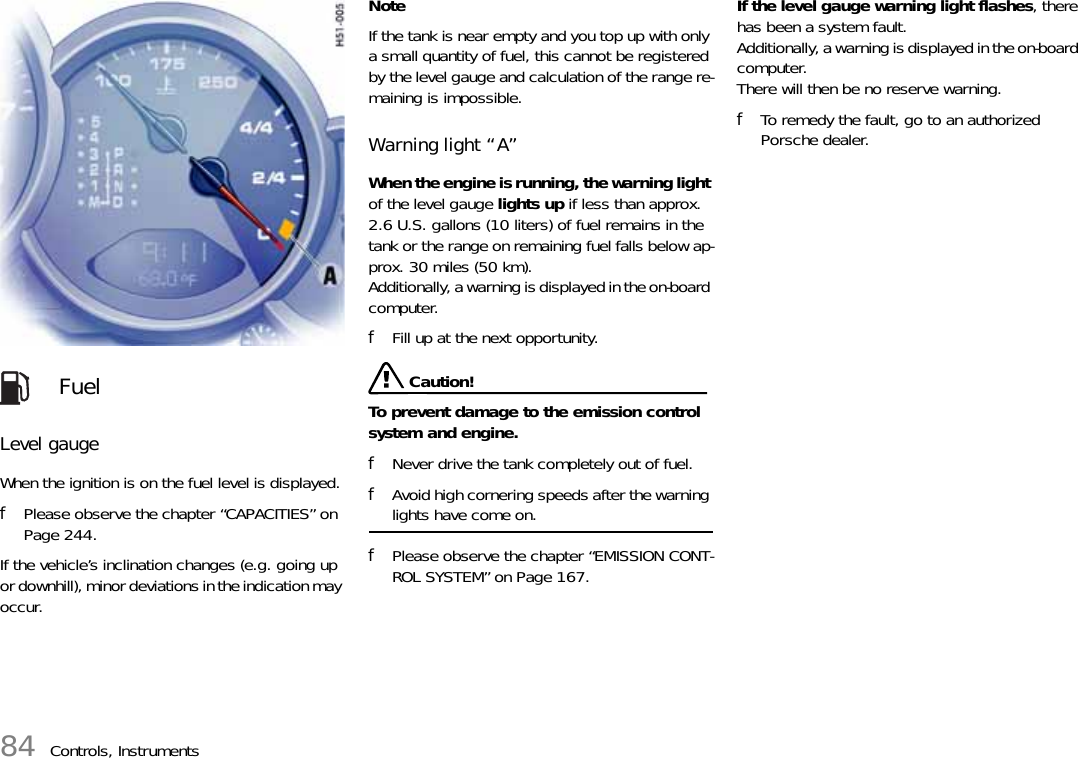

84 Controls, InstrumentsLevel gauge When the ignition is on the fuel level is displayed.fPlease observe the chapter “CAPACITIES” on Page 244.If the vehicle’s inclination changes (e.g. going up or downhill), minor deviations in the indication may occur. NoteIf the tank is near empty and you top up with only a small quantity of fuel, this cannot be registered by the level gauge and calculation of the range re-maining is impossible. Warning light “A” When the engine is running, the warning light of the level gauge lights up if less than approx. 2.6 U.S. gallons (10 liters) of fuel remains in the tank or the range on remaining fuel falls below ap-prox. 30 miles (50 km).Additionally, a warning is displayed in the on-board computer. fFill up at the next opportunity. Caution!To prevent damage to the emission control system and engine. fNever drive the tank completely out of fuel. fAvoid high cornering speeds after the warning lights have come on. fPlease observe the chapter “EMISSION CONT-ROL SYSTEM” on Page 167.If the level gauge warning light flashes, there has been a system fault.Additionally, a warning is displayed in the on-board computer.There will then be no reserve warning. fTo remedy the fault, go to an authorized Porsche dealer. Fuel

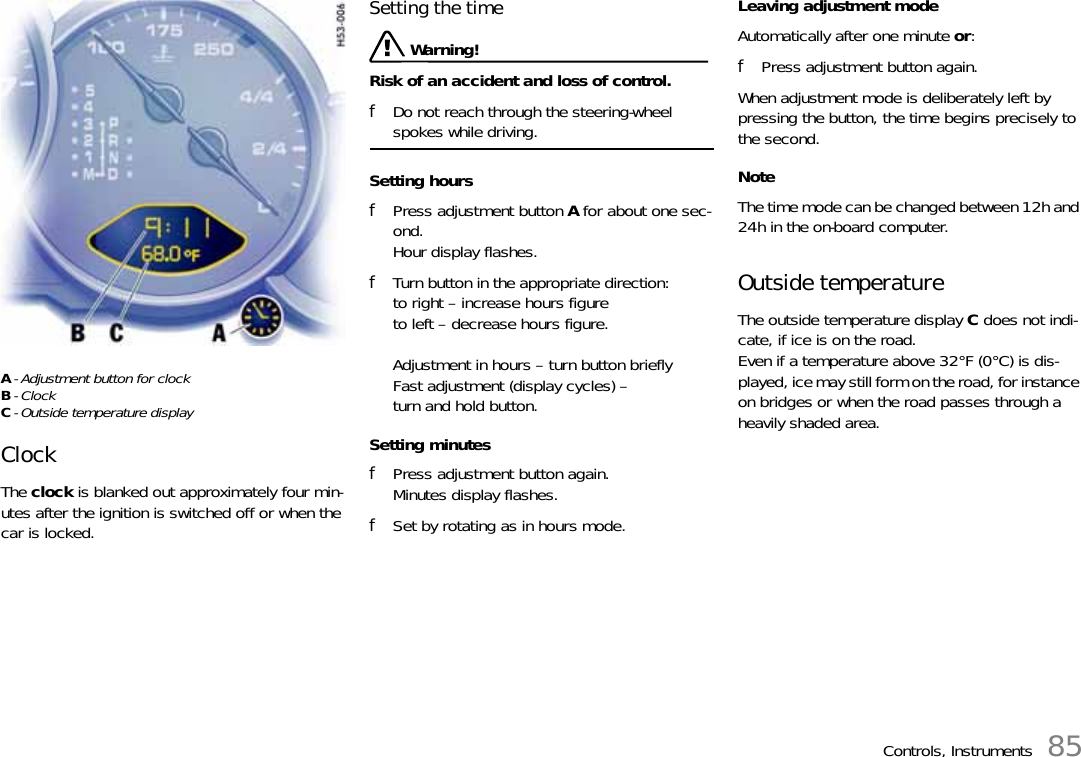

Controls, Instruments 85A- Adjustment button for clockB- Clock C- Outside temperature displayClock The clock is blanked out approximately four min-utes after the ignition is switched off or when the car is locked. Setting the time Warning!Risk of an accident and loss of control. fDo not reach through the steering-wheel spokes while driving. Setting hours fPress adjustment button A for about one sec-ond.Hour display flashes. fTurn button in the appropriate direction:to right – increase hours figureto left – decrease hours figure.Adjustment in hours – turn button briefly Fast adjustment (display cycles) – turn and hold button. Setting minutes fPress adjustment button again.Minutes display flashes. fSet by rotating as in hours mode. Leaving adjustment mode Automatically after one minute or: fPress adjustment button again.When adjustment mode is deliberately left by pressing the button, the time begins precisely to the second. NoteThe time mode can be changed between 12h and 24h in the on-board computer. Outside temperature The outside temperature display C does not indi-cate, if ice is on the road. Even if a temperature above 32°F (0°C) is dis-played, ice may still form on the road, for instance on bridges or when the road passes through a heavily shaded area.

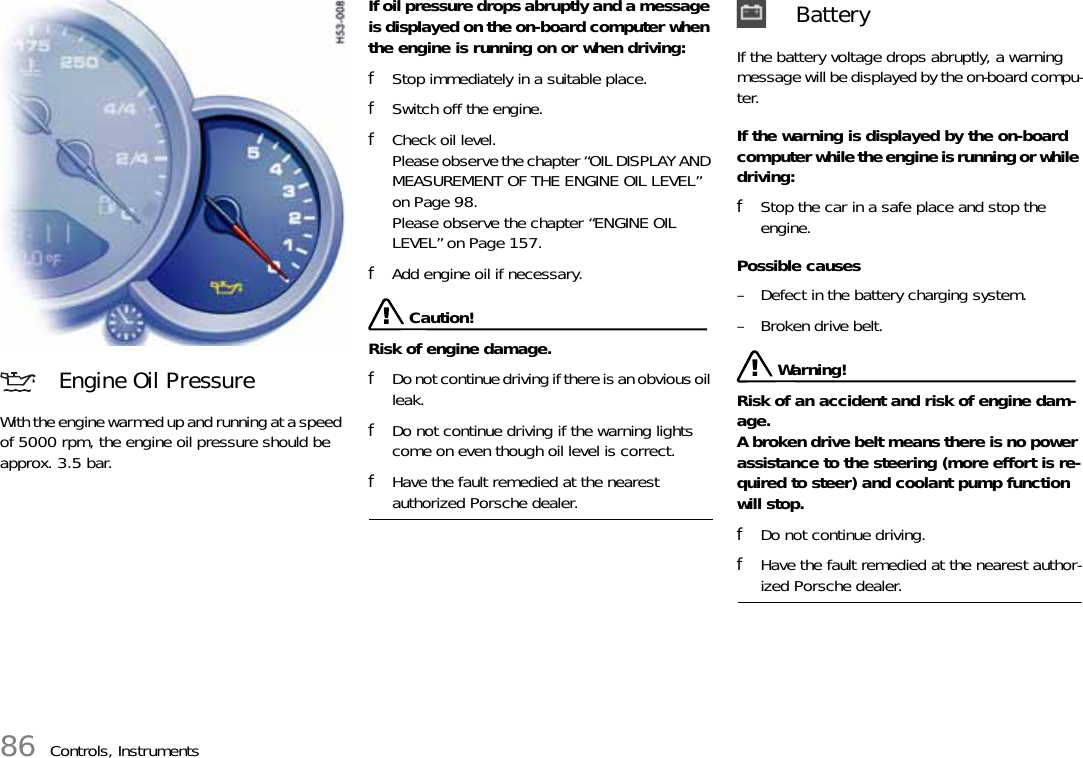

86 Controls, InstrumentsWith the engine warmed up and running at a speed of 5000 rpm, the engine oil pressure should be approx. 3.5 bar.If oil pressure drops abruptly and a message is displayed on the on-board computer when the engine is running on or when driving:fStop immediately in a suitable place.fSwitch off the engine.fCheck oil level. Please observe the chapter “OIL DISPLAY AND MEASUREMENT OF THE ENGINE OIL LEVEL” on Page 98.Please observe the chapter “ENGINE OIL LEVEL” on Page 157.fAdd engine oil if necessary. Caution!Risk of engine damage.fDo not continue driving if there is an obvious oil leak.fDo not continue driving if the warning lights come on even though oil level is correct.fHave the fault remedied at the nearest authorized Porsche dealer.If the battery voltage drops abruptly, a warning message will be displayed by the on-board compu-ter.If the warning is displayed by the on-board computer while the engine is running or while driving: fStop the car in a safe place and stop the engine. Possible causes – Defect in the battery charging system. – Broken drive belt. Warning!Risk of an accident and risk of engine dam-age.A broken drive belt means there is no power assistance to the steering (more effort is re-quired to steer) and coolant pump function will stop. fDo not continue driving. fHave the fault remedied at the nearest author-ized Porsche dealer. Engine Oil Pressure Battery

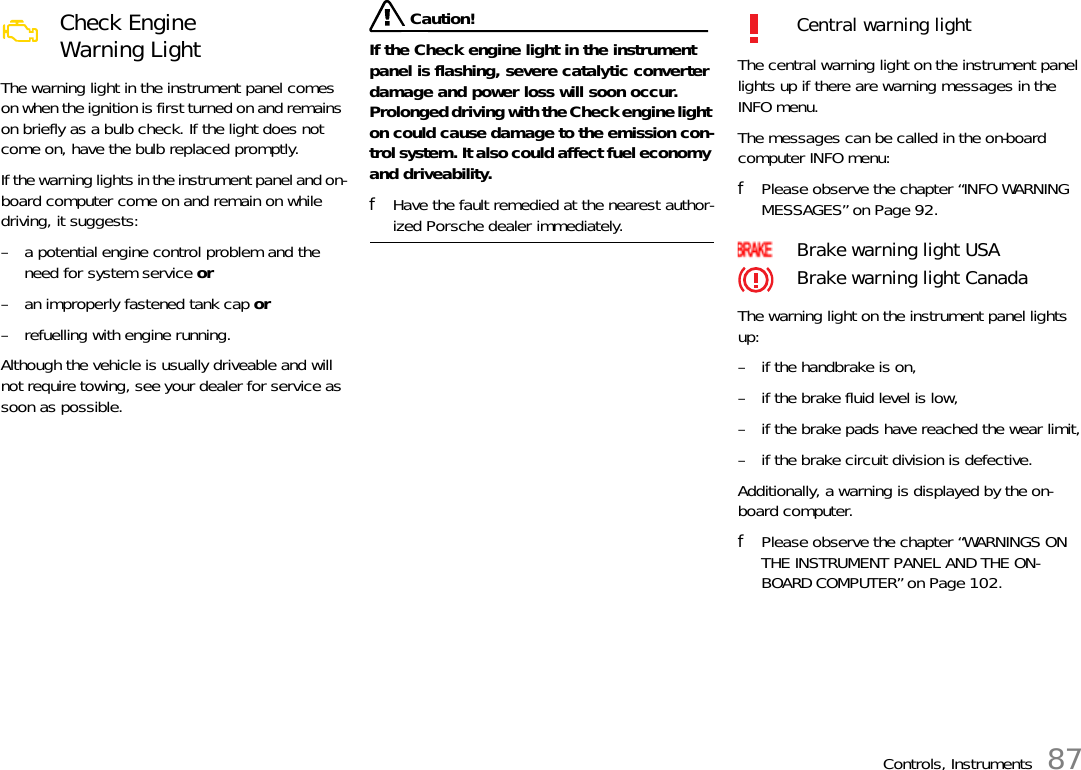

Controls, Instruments 87The warning light in the instrument panel comes on when the ignition is first turned on and remains on briefly as a bulb check. If the light does not come on, have the bulb replaced promptly. If the warning lights in the instrument panel and on-board computer come on and remain on while driving, it suggests: – a potential engine control problem and the need for system service or – an improperly fastened tank cap or – refuelling with engine running.Although the vehicle is usually driveable and will not require towing, see your dealer for service as soon as possible. Caution!If the Check engine light in the instrument panel is flashing, severe catalytic converter damage and power loss will soon occur.Prolonged driving with the Check engine light on could cause damage to the emission con-trol system. It also could affect fuel economy and driveability. fHave the fault remedied at the nearest author-ized Porsche dealer immediately. The central warning light on the instrument panel lights up if there are warning messages in the INFO menu.The messages can be called in the on-board computer INFO menu:fPlease observe the chapter “INFO WARNING MESSAGES” on Page 92.The warning light on the instrument panel lights up:– if the handbrake is on,– if the brake fluid level is low,– if the brake pads have reached the wear limit,– if the brake circuit division is defective.Additionally, a warning is displayed by the on-board computer.fPlease observe the chapter “WARNINGS ON THE INSTRUMENT PANEL AND THE ON-BOARD COMPUTER” on Page 102.Check Engine Warning Light Central warning lightBrake warning light USABrake warning light Canada

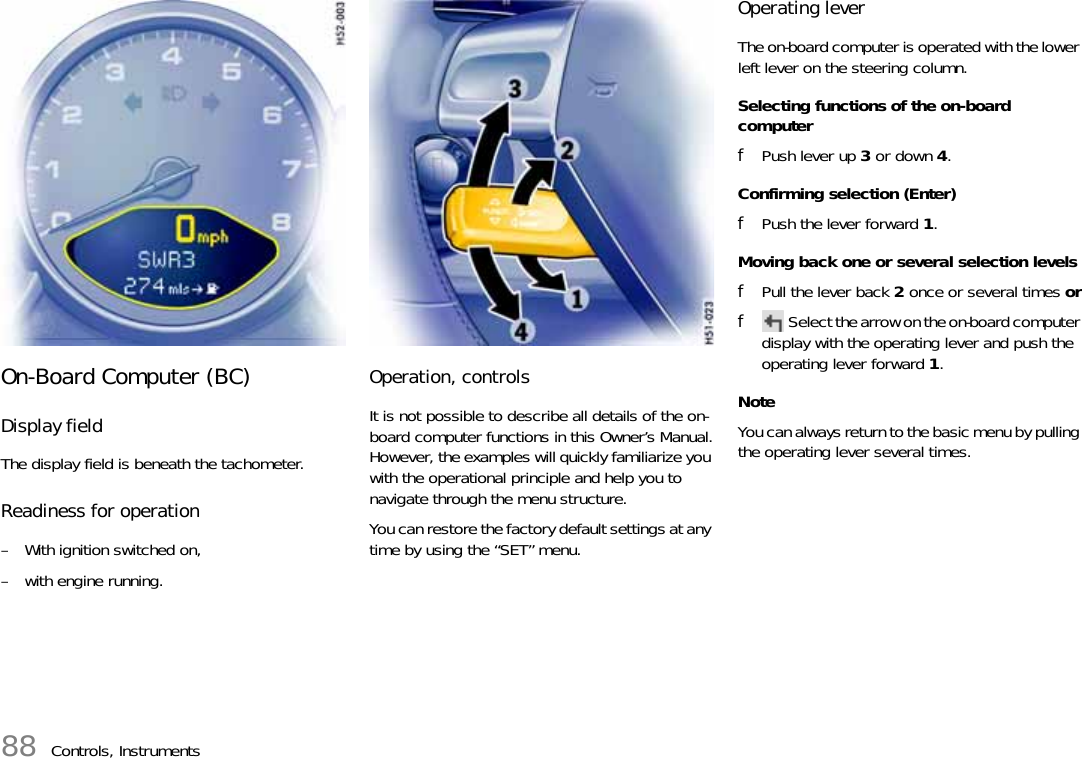

88 Controls, InstrumentsOn-Board Computer (BC)Display fieldThe display field is beneath the tachometer.Readiness for operation– With ignition switched on,– with engine running.Operation, controlsIt is not possible to describe all details of the on-board computer functions in this Owner’s Manual.However, the examples will quickly familiarize you with the operational principle and help you to navigate through the menu structure.You can restore the factory default settings at any time by using the “SET” menu.Operating leverThe on-board computer is operated with the lower left lever on the steering column.Selecting functions of the on-board computerfPush lever up 3 or down 4.Confirming selection (Enter)fPush the lever forward 1.Moving back one or several selection levelsfPull the lever back 2 once or several times orfSelect the arrow on the on-board computer display with the operating lever and push the operating lever forward 1.NoteYou can always return to the basic menu by pulling the operating lever several times.

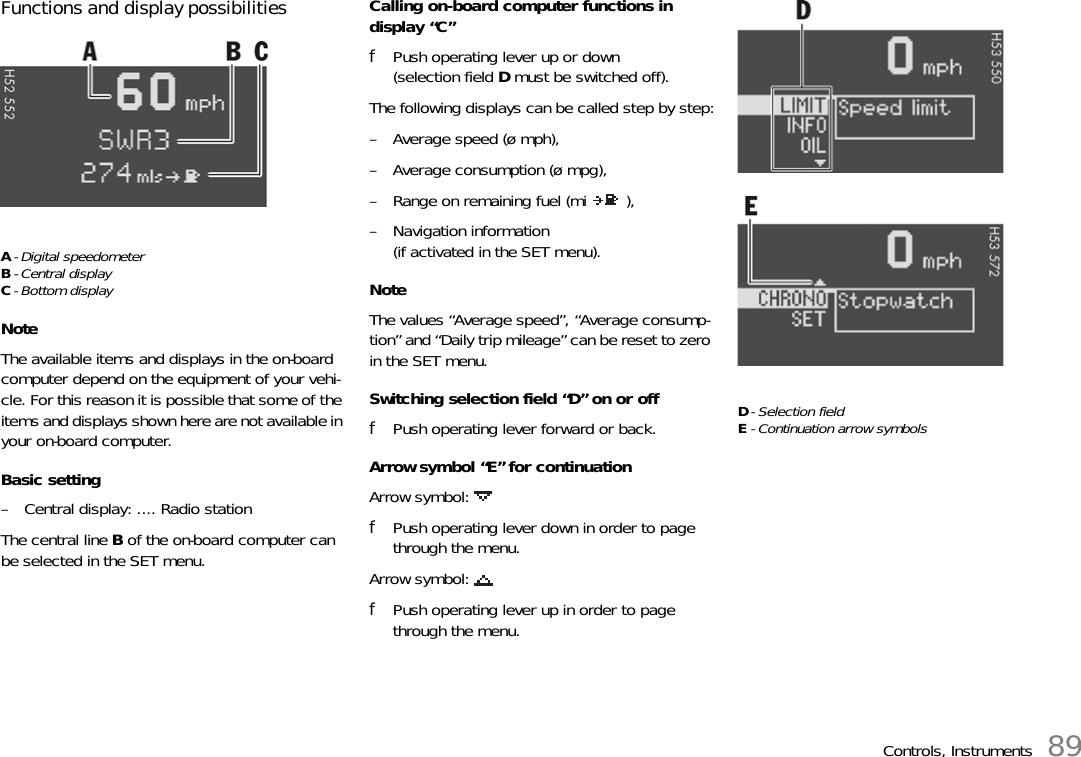

Controls, Instruments 89Functions and display possibilitiesA- Digital speedometerB-Central displayC- Bottom displayNoteThe available items and displays in the on-board computer depend on the equipment of your vehi-cle. For this reason it is possible that some of the items and displays shown here are not available in your on-board computer.Basic setting– Central display: .... Radio stationThe central line B of the on-board computer can be selected in the SET menu.Calling on-board computer functions in display “C”fPush operating lever up or down (selection field D must be switched off).The following displays can be called step by step:– Average speed (ø mph),– Average consumption (ø mpg),– Range on remaining fuel (mi ),– Navigation information(if activated in the SET menu).NoteThe values “Average speed”, “Average consump-tion” and “Daily trip mileage” can be reset to zero in the SET menu.Switching selection field “D” on or offfPush operating lever forward or back.Arrow symbol “E” for continuationArrow symbol: fPush operating lever down in order to page through the menu.Arrow symbol: fPush operating lever up in order to page through the menu.D- Selection fieldE- Continuation arrow symbols

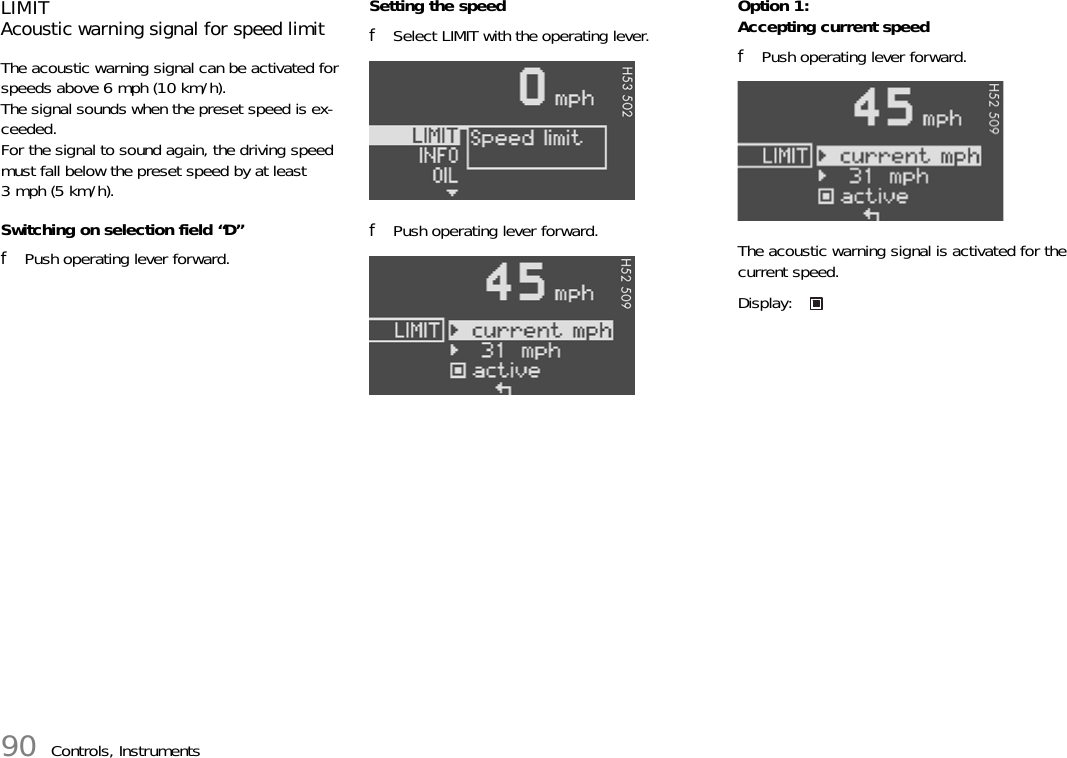

90 Controls, InstrumentsLIMITAcoustic warning signal for speed limitThe acoustic warning signal can be activated for speeds above 6 mph (10 km/h).The signal sounds when the preset speed is ex-ceeded.For the signal to sound again, the driving speed must fall below the preset speed by at least 3 mph (5 km/h).Switching on selection field “D”fPush operating lever forward.Setting the speedfSelect LIMIT with the operating lever.fPush operating lever forward.Option 1:Accepting current speedfPush operating lever forward.The acoustic warning signal is activated for the current speed.Display:

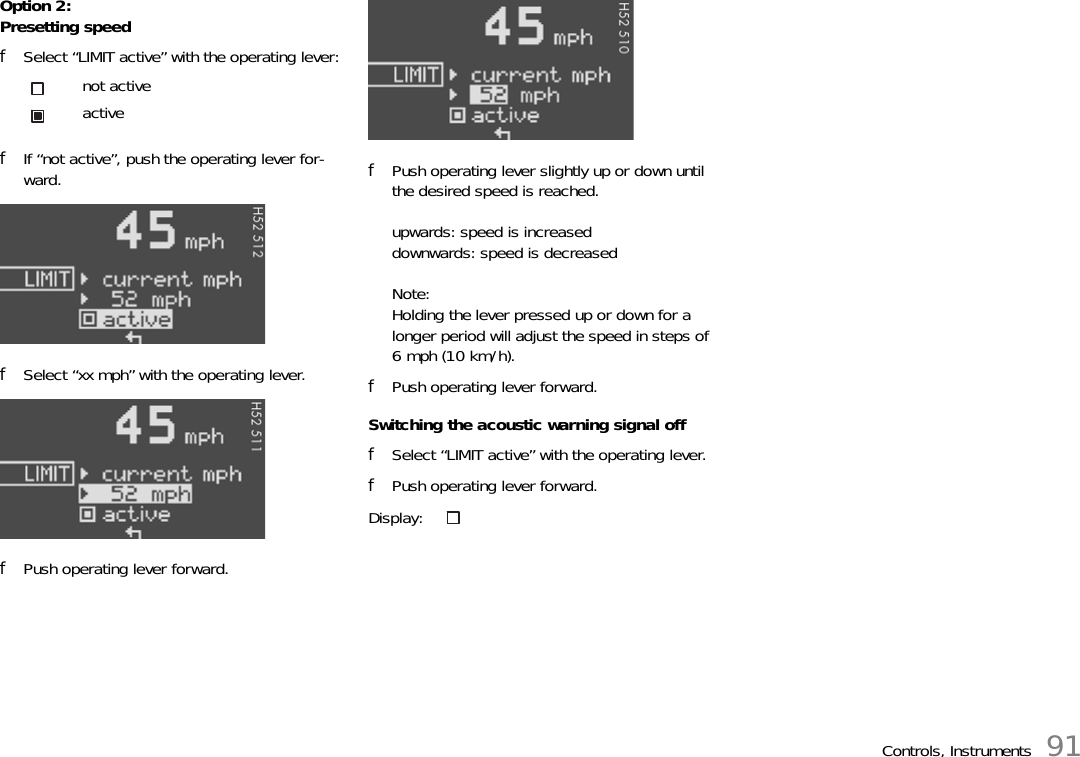

Controls, Instruments 91Option 2:Presetting speedfSelect “LIMIT active” with the operating lever:fIf “not active”, push the operating lever for-ward.fSelect “xx mph” with the operating lever.fPush operating lever forward.fPush operating lever slightly up or down until the desired speed is reached.upwards: speed is increaseddownwards: speed is decreasedNote:Holding the lever pressed up or down for a longer period will adjust the speed in steps of 6 mph (10 km/h).fPush operating lever forward.Switching the acoustic warning signal offfSelect “LIMIT active” with the operating lever.fPush operating lever forward.not activeactiveDisplay:

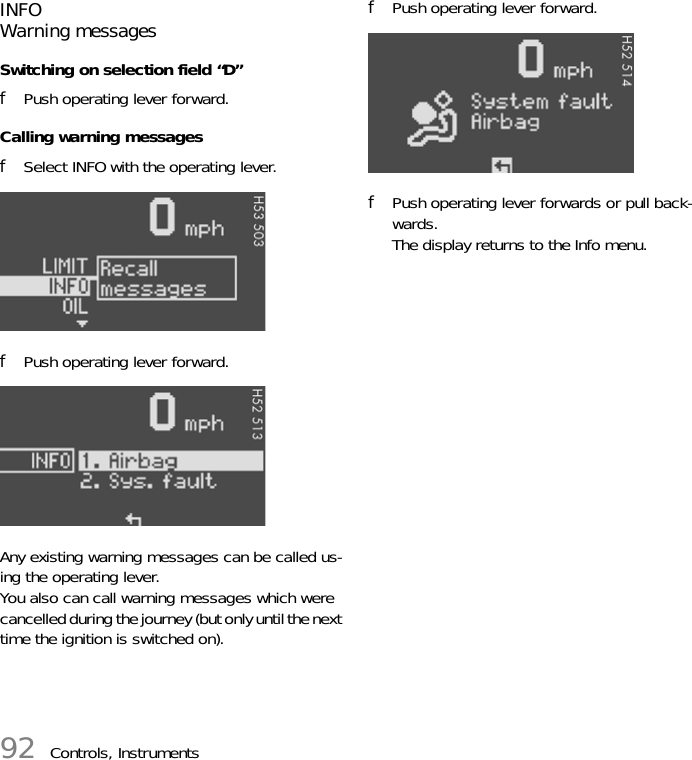

92 Controls, InstrumentsINFOWarning messagesSwitching on selection field “D”fPush operating lever forward.Calling warning messagesfSelect INFO with the operating lever.fPush operating lever forward.Any existing warning messages can be called us-ing the operating lever.You also can call warning messages which were cancelled during the journey (but only until the next time the ignition is switched on).fPush operating lever forward.fPush operating lever forwards or pull back-wards. The display returns to the Info menu.

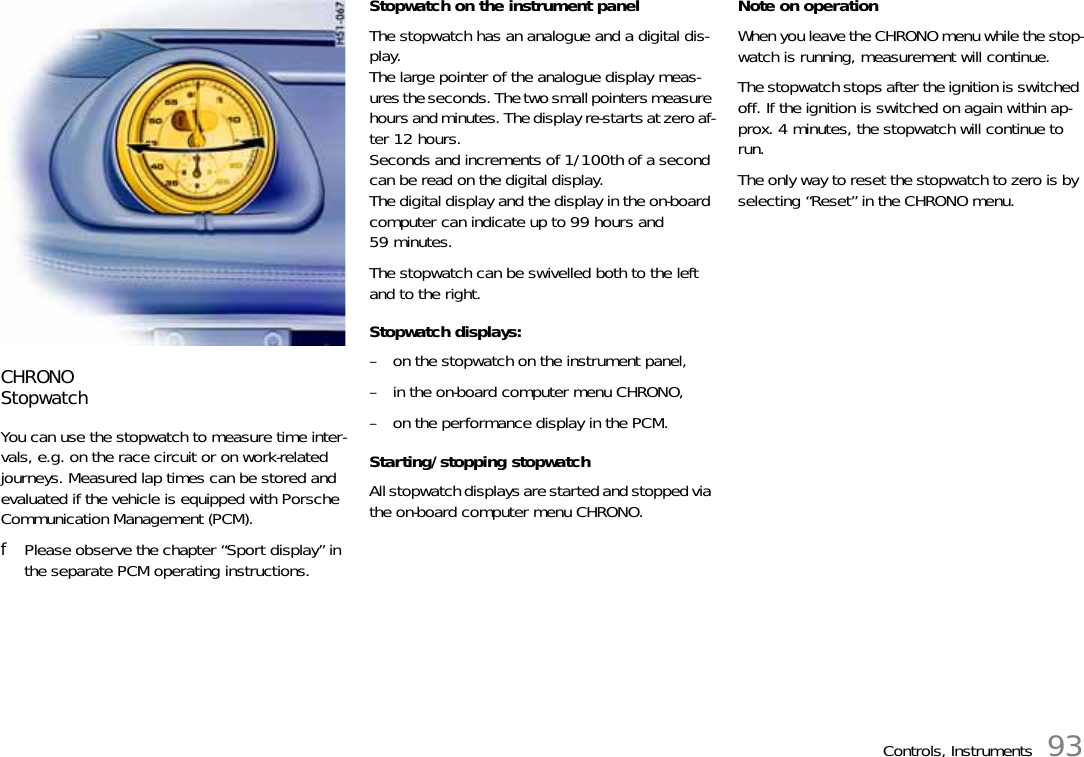

Controls, Instruments 93CHRONOStopwatchYou can use the stopwatch to measure time inter-vals, e.g. on the race circuit or on work-related journeys. Measured lap times can be stored and evaluated if the vehicle is equipped with Porsche Communication Management (PCM).fPlease observe the chapter “Sport display” in the separate PCM operating instructions.Stopwatch on the instrument panelThe stopwatch has an analogue and a digital dis-play. The large pointer of the analogue display meas-ures the seconds. The two small pointers measure hours and minutes. The display re-starts at zero af-ter 12 hours.Seconds and increments of 1/100th of a second can be read on the digital display. The digital display and the display in the on-board computer can indicate up to 99 hours and 59 minutes.The stopwatch can be swivelled both to the left and to the right.Stopwatch displays:– on the stopwatch on the instrument panel,– in the on-board computer menu CHRONO,– on the performance display in the PCM.Starting/stopping stopwatchAll stopwatch displays are started and stopped via the on-board computer menu CHRONO.Note on operationWhen you leave the CHRONO menu while the stop-watch is running, measurement will continue.The stopwatch stops after the ignition is switched off. If the ignition is switched on again within ap-prox. 4 minutes, the stopwatch will continue to run.The only way to reset the stopwatch to zero is by selecting “Reset” in the CHRONO menu.

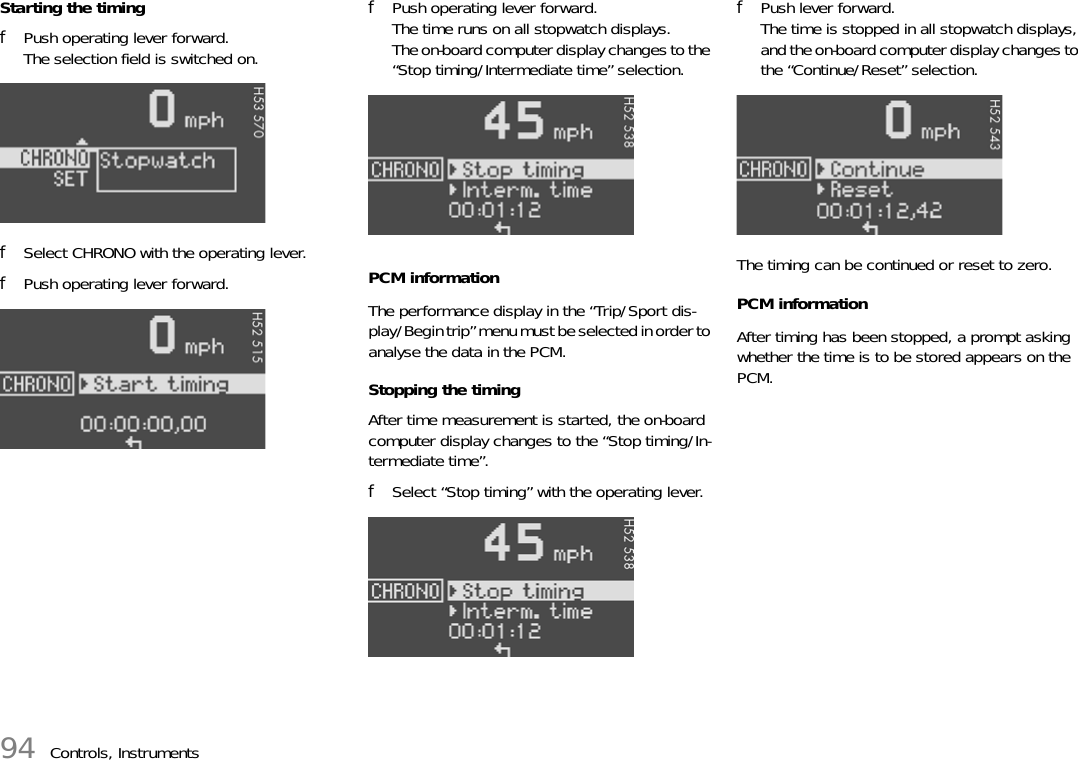

94 Controls, InstrumentsStarting the timingfPush operating lever forward. The selection field is switched on.fSelect CHRONO with the operating lever.fPush operating lever forward.fPush operating lever forward.The time runs on all stopwatch displays.The on-board computer display changes to the “Stop timing/Intermediate time” selection.PCM informationThe performance display in the “Trip/Sport dis-play/Begin trip” menu must be selected in order to analyse the data in the PCM.Stopping the timingAfter time measurement is started, the on-board computer display changes to the “Stop timing/In-termediate time”.fSelect “Stop timing” with the operating lever.fPush lever forward.The time is stopped in all stopwatch displays, and the on-board computer display changes to the “Continue/Reset” selection.The timing can be continued or reset to zero.PCM informationAfter timing has been stopped, a prompt asking whether the time is to be stored appears on the PCM.

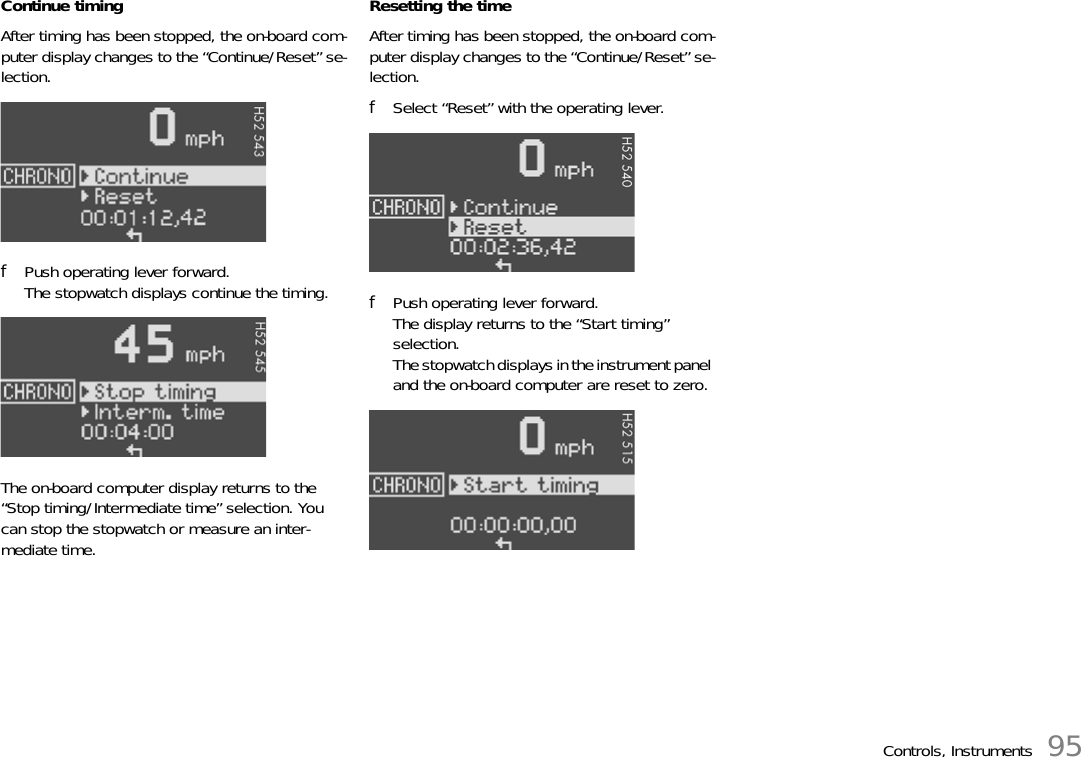

Controls, Instruments 95Continue timingAfter timing has been stopped, the on-board com-puter display changes to the “Continue/Reset” se-lection.fPush operating lever forward. The stopwatch displays continue the timing.The on-board computer display returns to the “Stop timing/Intermediate time” selection. You can stop the stopwatch or measure an inter-mediate time.Resetting the timeAfter timing has been stopped, the on-board com-puter display changes to the “Continue/Reset” se-lection.fSelect “Reset” with the operating lever.fPush operating lever forward.The display returns to the “Start timing” selection.The stopwatch displays in the instrument panel and the on-board computer are reset to zero.

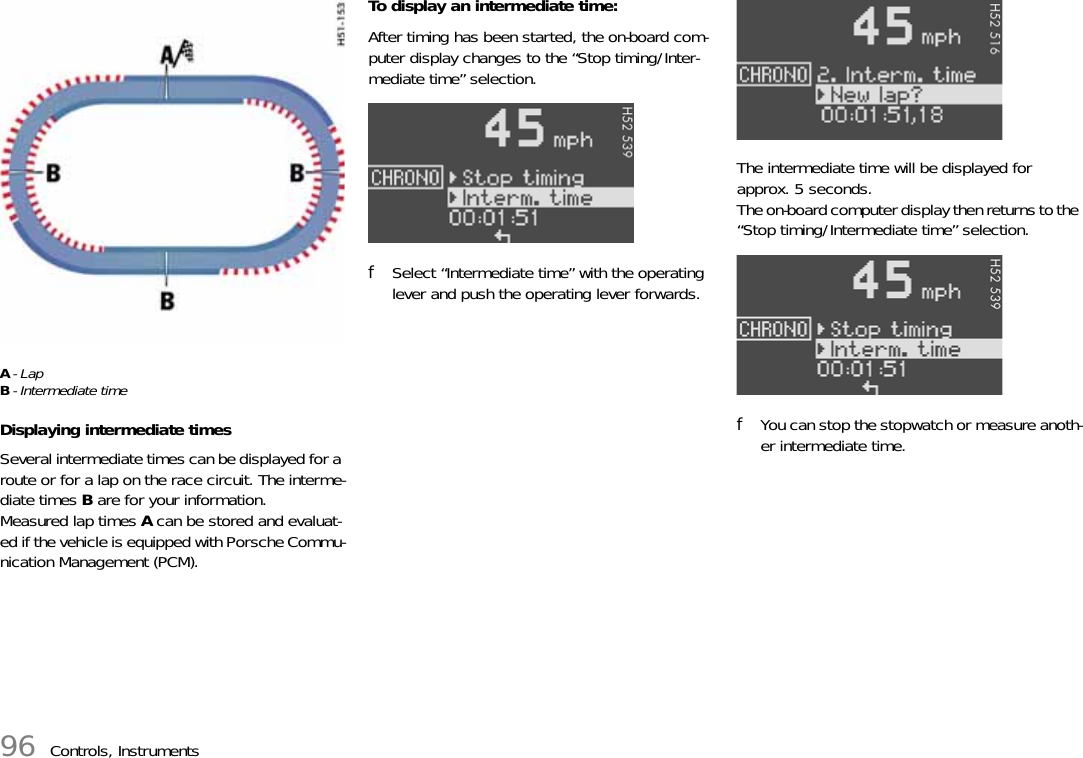

96 Controls, InstrumentsA-LapB- Intermediate timeDisplaying intermediate timesSeveral intermediate times can be displayed for a route or for a lap on the race circuit. The interme-diate times B are for your information. Measured lap times A can be stored and evaluat-ed if the vehicle is equipped with Porsche Commu-nication Management (PCM).To display an intermediate time:After timing has been started, the on-board com-puter display changes to the “Stop timing/Inter-mediate time” selection.fSelect “Intermediate time” with the operating lever and push the operating lever forwards.The intermediate time will be displayed for approx. 5 seconds.The on-board computer display then returns to the “Stop timing/Intermediate time” selection.fYou can stop the stopwatch or measure anoth-er intermediate time.

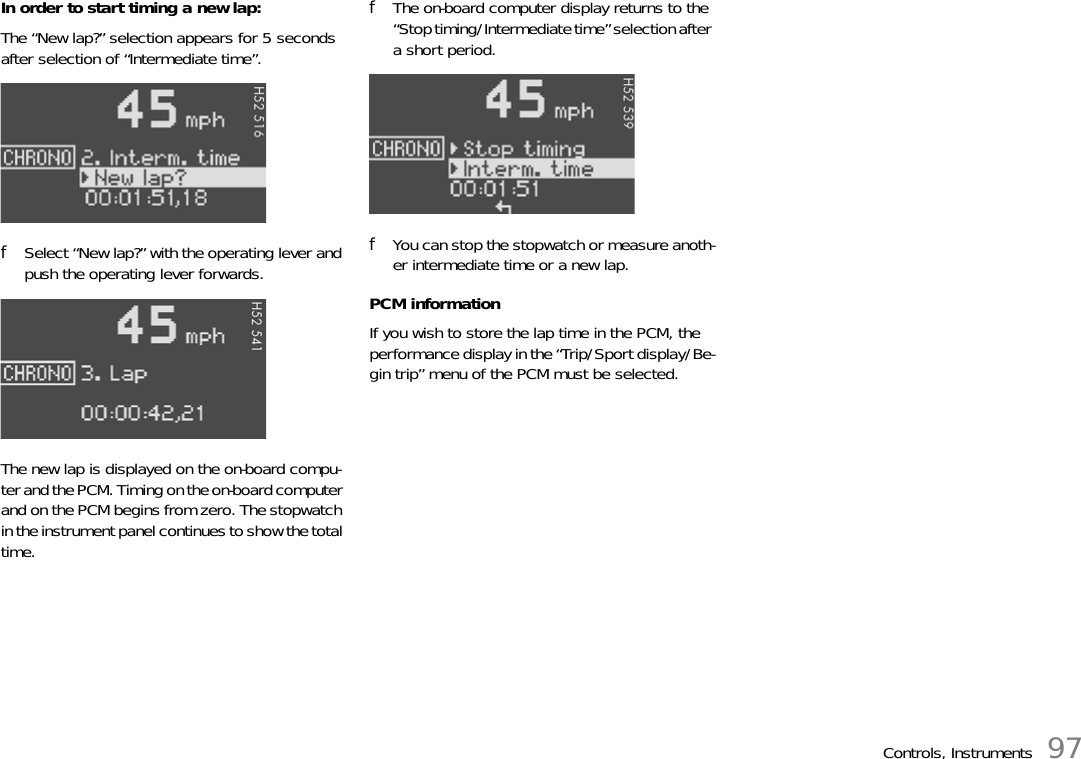

Controls, Instruments 97In order to start timing a new lap:The “New lap?” selection appears for 5 seconds after selection of “Intermediate time”.fSelect “New lap?” with the operating lever and push the operating lever forwards.The new lap is displayed on the on-board compu-ter and the PCM. Timing on the on-board computer and on the PCM begins from zero. The stopwatch in the instrument panel continues to show the total time.fThe on-board computer display returns to the “Stop timing/Intermediate time” selection after a short period.fYou can stop the stopwatch or measure anoth-er intermediate time or a new lap.PCM informationIf you wish to store the lap time in the PCM, the performance display in the “Trip/Sport display/Be-gin trip” menu of the PCM must be selected.

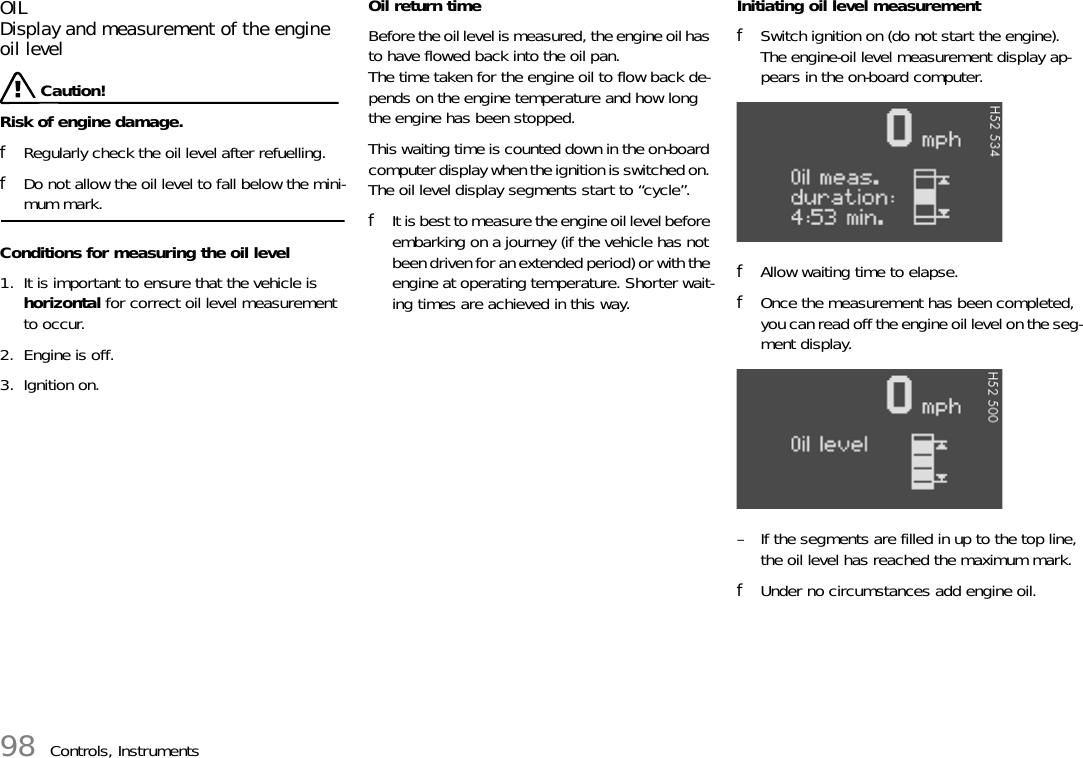

98 Controls, InstrumentsOILDisplay and measurement of the engine oil level Caution!Risk of engine damage.fRegularly check the oil level after refuelling.fDo not allow the oil level to fall below the mini-mum mark.Conditions for measuring the oil level1. It is important to ensure that the vehicle is horizontal for correct oil level measurement to occur.2. Engine is off.3. Ignition on.Oil return timeBefore the oil level is measured, the engine oil has to have flowed back into the oil pan.The time taken for the engine oil to flow back de-pends on the engine temperature and how long the engine has been stopped.This waiting time is counted down in the on-board computer display when the ignition is switched on. The oil level display segments start to “cycle”.fIt is best to measure the engine oil level before embarking on a journey (if the vehicle has not been driven for an extended period) or with the engine at operating temperature. Shorter wait-ing times are achieved in this way.Initiating oil level measurementfSwitch ignition on (do not start the engine).The engine-oil level measurement display ap-pears in the on-board computer.fAllow waiting time to elapse.fOnce the measurement has been completed, you can read off the engine oil level on the seg-ment display.– If the segments are filled in up to the top line, the oil level has reached the maximum mark. fUnder no circumstances add engine oil.

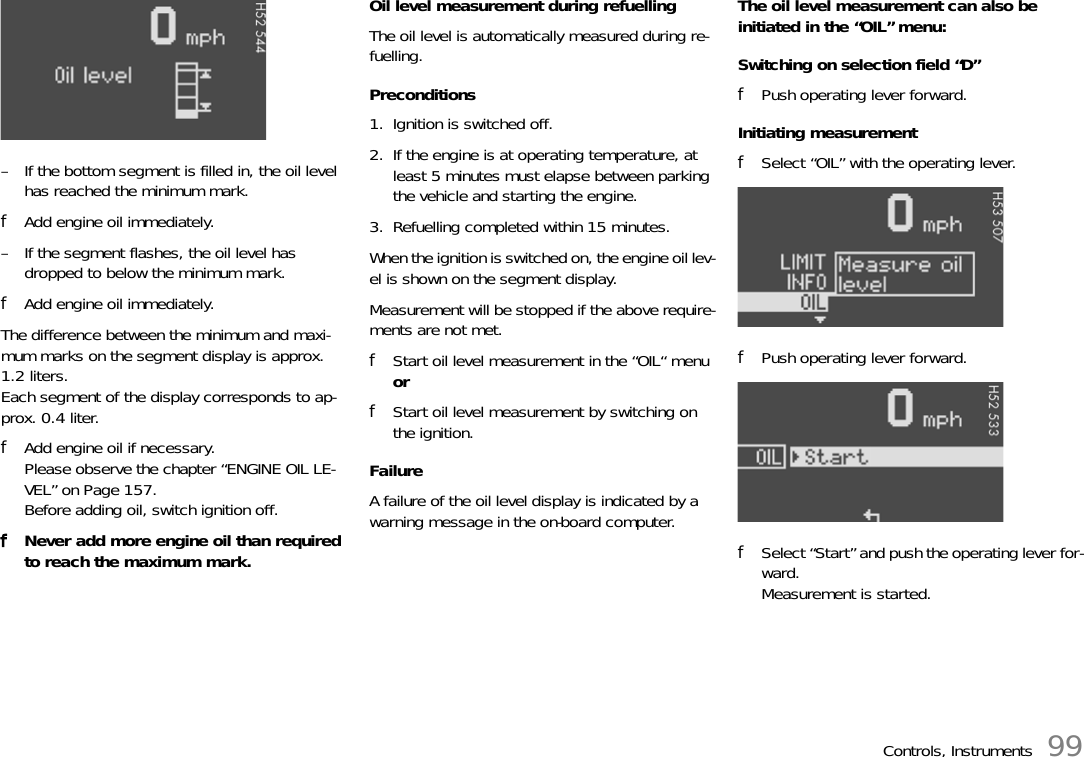

Controls, Instruments 99– If the bottom segment is filled in, the oil level has reached the minimum mark.fAdd engine oil immediately.– If the segment flashes, the oil level has dropped to below the minimum mark.fAdd engine oil immediately.The difference between the minimum and maxi-mum marks on the segment display is approx. 1.2 liters.Each segment of the display corresponds to ap-prox. 0.4 liter.fAdd engine oil if necessary.Please observe the chapter “ENGINE OIL LE-VEL” on Page 157.Before adding oil, switch ignition off.fNever add more engine oil than required to reach the maximum mark.Oil level measurement during refuellingThe oil level is automatically measured during re-fuelling. Preconditions1. Ignition is switched off.2. If the engine is at operating temperature, at least 5 minutes must elapse between parking the vehicle and starting the engine.3. Refuelling completed within 15 minutes.When the ignition is switched on, the engine oil lev-el is shown on the segment display.Measurement will be stopped if the above require-ments are not met.fStart oil level measurement in the “OIL“ menu orfStart oil level measurement by switching on the ignition.FailureA failure of the oil level display is indicated by a warning message in the on-board computer.The oil level measurement can also be initiated in the “OIL” menu:Switching on selection field “D”fPush operating lever forward.Initiating measurementfSelect “OIL” with the operating lever.fPush operating lever forward.fSelect “Start” and push the operating lever for-ward.Measurement is started.

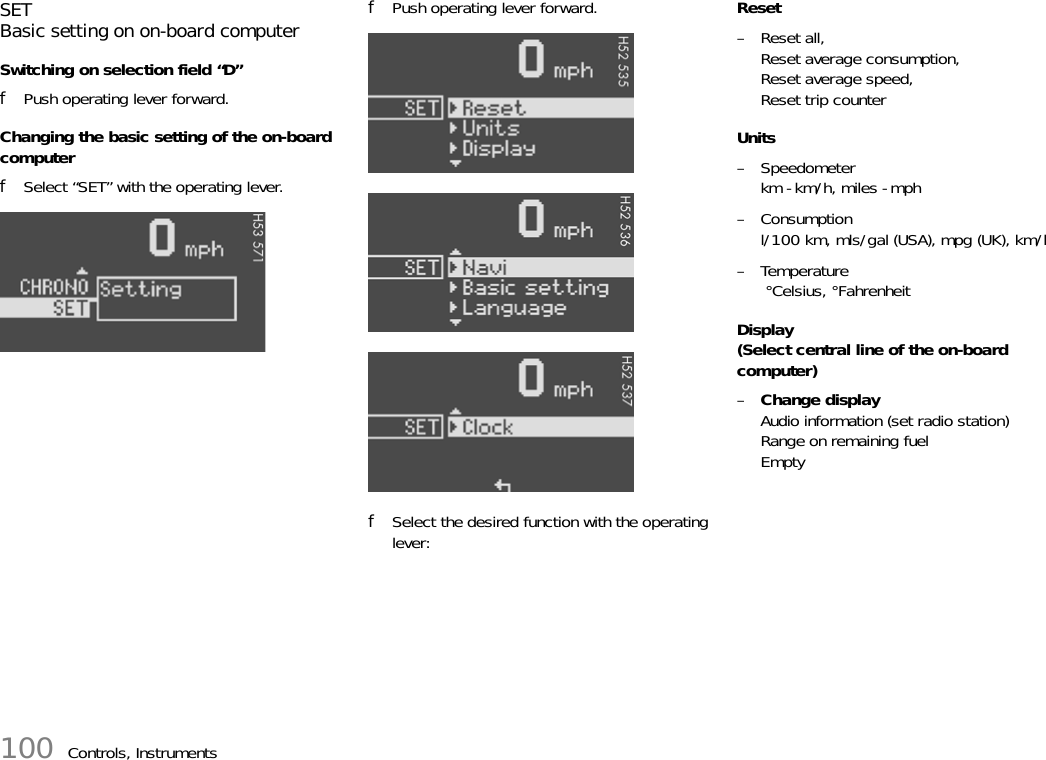

100 Controls, InstrumentsSETBasic setting on on-board computerSwitching on selection field “D”fPush operating lever forward.Changing the basic setting of the on-board computerfSelect “SET” with the operating lever.fPush operating lever forward.fSelect the desired function with the operating lever:Reset– Reset all,Reset average consumption,Reset average speed,Reset trip counterUnits– Speedometerkm - km/h, miles - mph–Consumptionl/100 km, mls/gal (USA), mpg (UK), km/l–Temperature °Celsius, °FahrenheitDisplay(Select central line of the on-board computer)–Change displayAudio information (set radio station)Range on remaining fuelEmpty

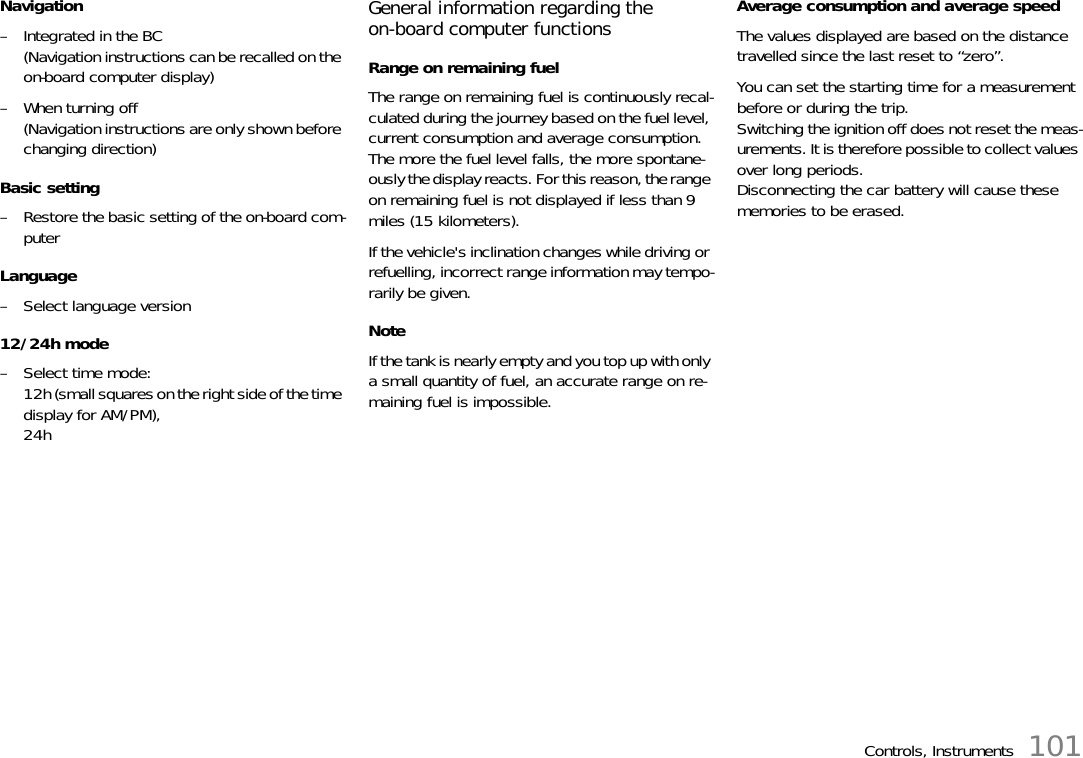

Controls, Instruments 101Navigation– Integrated in the BC(Navigation instructions can be recalled on the on-board computer display)– When turning off(Navigation instructions are only shown before changing direction)Basic setting– Restore the basic setting of the on-board com-puterLanguage– Select language version12/24h mode– Select time mode:12h (small squares on the right side of the time display for AM/PM),24hGeneral information regarding the on-board computer functionsRange on remaining fuelThe range on remaining fuel is continuously recal-culated during the journey based on the fuel level, current consumption and average consumption.The more the fuel level falls, the more spontane-ously the display reacts. For this reason, the range on remaining fuel is not displayed if less than 9 miles (15 kilometers).If the vehicle's inclination changes while driving or refuelling, incorrect range information may tempo-rarily be given.NoteIf the tank is nearly empty and you top up with only a small quantity of fuel, an accurate range on re-maining fuel is impossible.Average consumption and average speedThe values displayed are based on the distance travelled since the last reset to “zero”.You can set the starting time for a measurement before or during the trip.Switching the ignition off does not reset the meas-urements. It is therefore possible to collect values over long periods.Disconnecting the car battery will cause these memories to be erased.

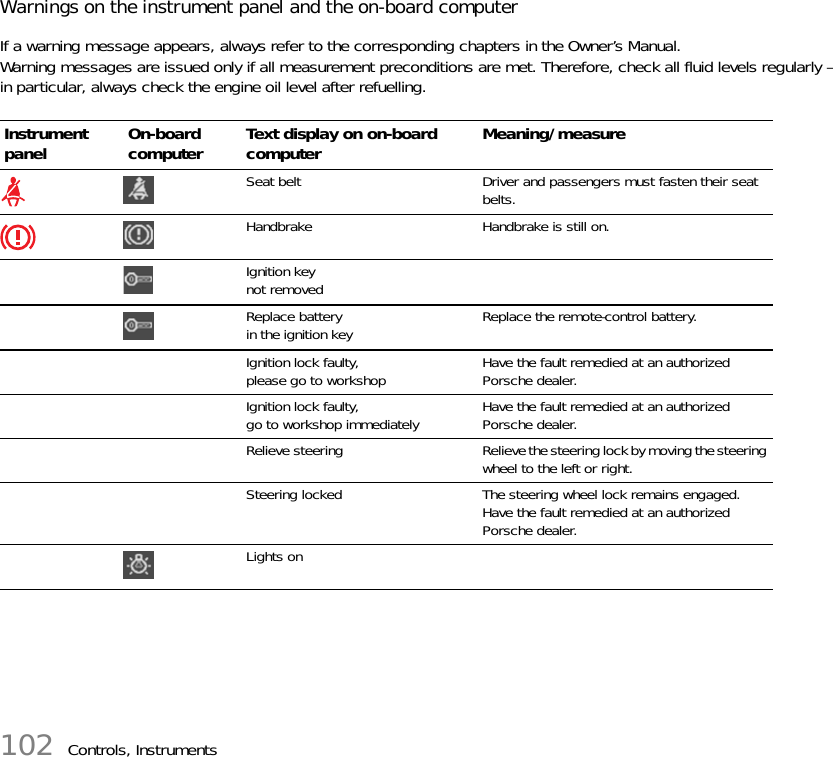

102 Controls, InstrumentsWarnings on the instrument panel and the on-board computerIf a warning message appears, always refer to the corresponding chapters in the Owner’s Manual.Warning messages are issued only if all measurement preconditions are met. Therefore, check all fluid levels regularly – in particular, always check the engine oil level after refuelling.Instrument panel On-board computer Text display on on-board computer Meaning/measureSeat belt Driver and passengers must fasten their seat belts.Handbrake Handbrake is still on.Ignition key not removedReplace battery in the ignition key Replace the remote-control battery.Ignition lock faulty, please go to workshop Have the fault remedied at an authorized Porsche dealer.Ignition lock faulty, go to workshop immediately Have the fault remedied at an authorized Porsche dealer.Relieve steering Relieve the steering lock by moving the steering wheel to the left or right.Steering locked The steering wheel lock remains engaged. Have the fault remedied at an authorized Porsche dealer.Lights on

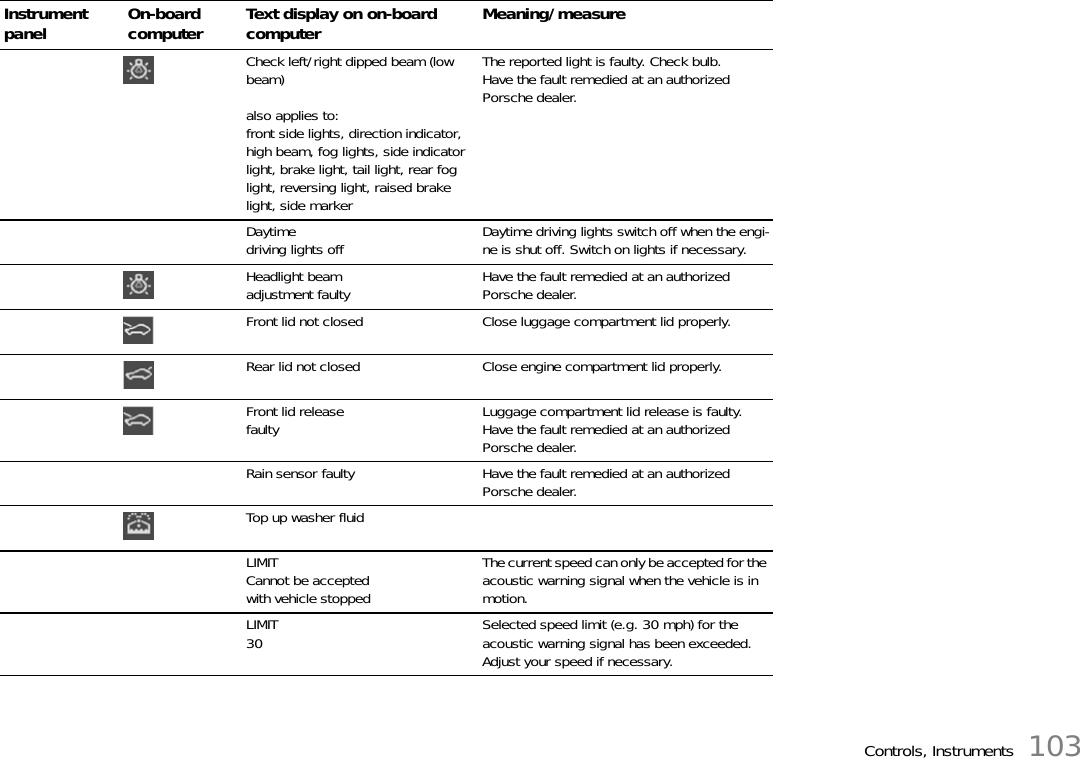

Controls, Instruments 103Check left/right dipped beam (low beam)also applies to: front side lights, direction indicator, high beam, fog lights, side indicator light, brake light, tail light, rear fog light, reversing light, raised brake light, side markerThe reported light is faulty. Check bulb.Have the fault remedied at an authorized Porsche dealer.Daytime driving lights off Daytime driving lights switch off when the engi-ne is shut off. Switch on lights if necessary.Headlight beam adjustment faulty Have the fault remedied at an authorized Porsche dealer.Front lid not closed Close luggage compartment lid properly.Rear lid not closed Close engine compartment lid properly.Front lid release faulty Luggage compartment lid release is faulty.Have the fault remedied at an authorized Porsche dealer.Rain sensor faulty Have the fault remedied at an authorized Porsche dealer.Top up washer fluidLIMITCannot be accepted with vehicle stoppedThe current speed can only be accepted for the acoustic warning signal when the vehicle is in motion.LIMIT30 Selected speed limit (e.g. 30 mph) for the acoustic warning signal has been exceeded. Adjust your speed if necessary.Instrument panel On-board computer Text display on on-board computer Meaning/measure

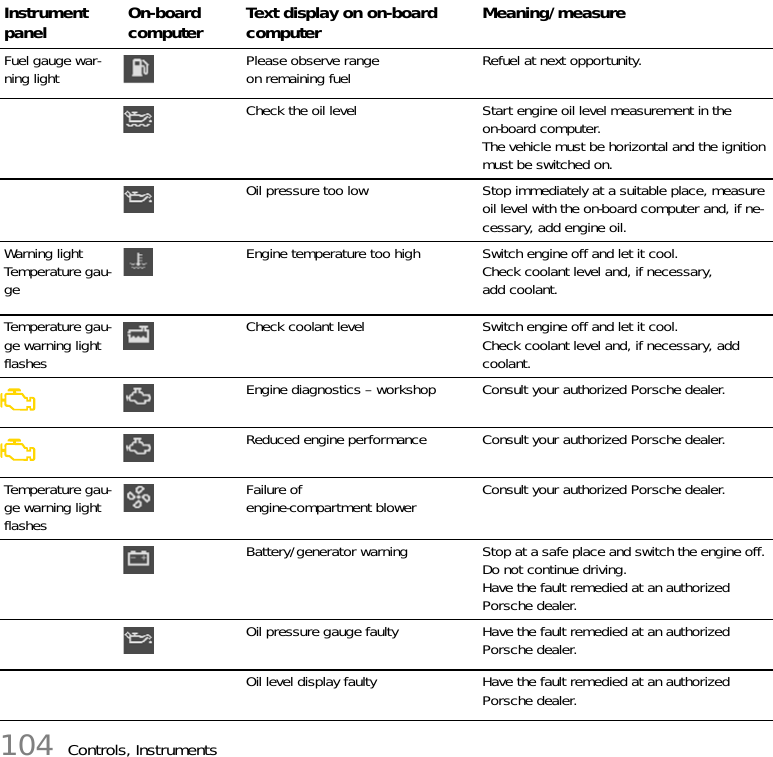

104 Controls, InstrumentsFuel gauge war-ning light Please observe range on remaining fuel Refuel at next opportunity.Check the oil level Start engine oil level measurement in the on-board computer.The vehicle must be horizontal and the ignition must be switched on.Oil pressure too low Stop immediately at a suitable place, measure oil level with the on-board computer and, if ne-cessary, add engine oil.Warning lightTemperature gau-geEngine temperature too high Switch engine off and let it cool.Check coolant level and, if necessary,add coolant.Temperature gau-ge warning light flashesCheck coolant level Switch engine off and let it cool.Check coolant level and, if necessary, add coolant.Engine diagnostics – workshop Consult your authorized Porsche dealer.Reduced engine performance Consult your authorized Porsche dealer.Temperature gau-ge warning light flashesFailure of engine-compartment blower Consult your authorized Porsche dealer.Battery/generator warning Stop at a safe place and switch the engine off. Do not continue driving.Have the fault remedied at an authorized Porsche dealer.Oil pressure gauge faulty Have the fault remedied at an authorized Porsche dealer.Oil level display faulty Have the fault remedied at an authorized Porsche dealer.Instrument panel On-board computer Text display on on-board computer Meaning/measure

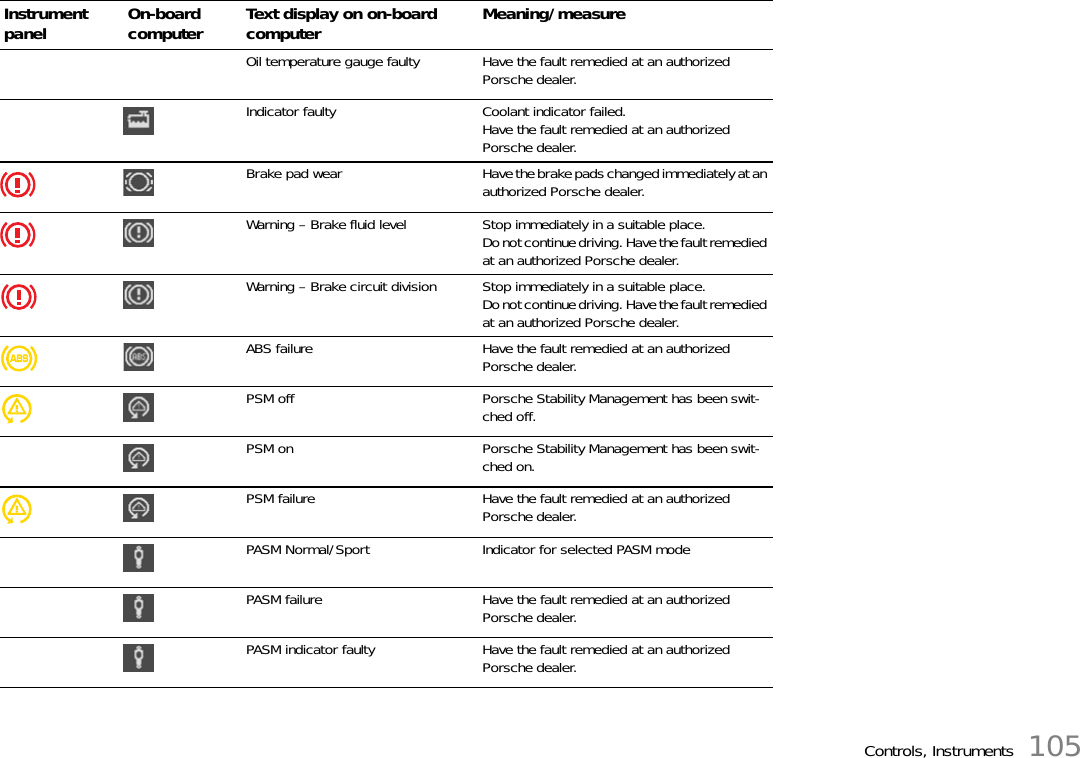

Controls, Instruments 105Oil temperature gauge faulty Have the fault remedied at an authorized Porsche dealer.Indicator faulty Coolant indicator failed.Have the fault remedied at an authorized Porsche dealer.Brake pad wear Have the brake pads changed immediately at an authorized Porsche dealer.Warning – Brake fluid level Stop immediately in a suitable place.Do not continue driving. Have the fault remedied at an authorized Porsche dealer.Warning – Brake circuit division Stop immediately in a suitable place. Do not continue driving. Have the fault remedied at an authorized Porsche dealer.ABS failure Have the fault remedied at an authorized Porsche dealer.PSM off Porsche Stability Management has been swit-ched off.PSM on Porsche Stability Management has been swit-ched on.PSM failure Have the fault remedied at an authorized Porsche dealer.PASM Normal/Sport Indicator for selected PASM modePASM failure Have the fault remedied at an authorized Porsche dealer.PASM indicator faulty Have the fault remedied at an authorized Porsche dealer.Instrument panel On-board computer Text display on on-board computer Meaning/measure

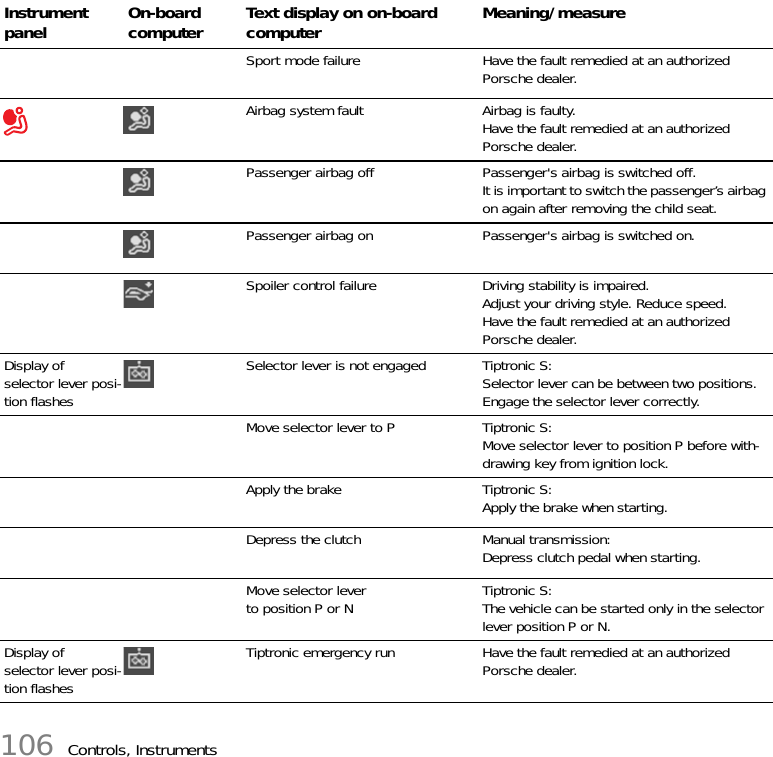

106 Controls, InstrumentsSport mode failure Have the fault remedied at an authorized Porsche dealer.Airbag system fault Airbag is faulty.Have the fault remedied at an authorized Porsche dealer.Passenger airbag off Passenger's airbag is switched off.It is important to switch the passenger’s airbag on again after removing the child seat.Passenger airbag on Passenger's airbag is switched on.Spoiler control failure Driving stability is impaired.Adjust your driving style. Reduce speed.Have the fault remedied at an authorized Porsche dealer.Display of selector lever posi-tion flashesSelector lever is not engaged Tiptronic S:Selector lever can be between two positions.Engage the selector lever correctly.Move selector lever to P Tiptronic S: Move selector lever to position P before with-drawing key from ignition lock.Apply the brake Tiptronic S:Apply the brake when starting.Depress the clutch Manual transmission:Depress clutch pedal when starting.Move selector lever to position P or N Tiptronic S:The vehicle can be started only in the selector lever position P or N.Display of selector lever posi-tion flashesTiptronic emergency run Have the fault remedied at an authorized Porsche dealer.Instrument panel On-board computer Text display on on-board computer Meaning/measure

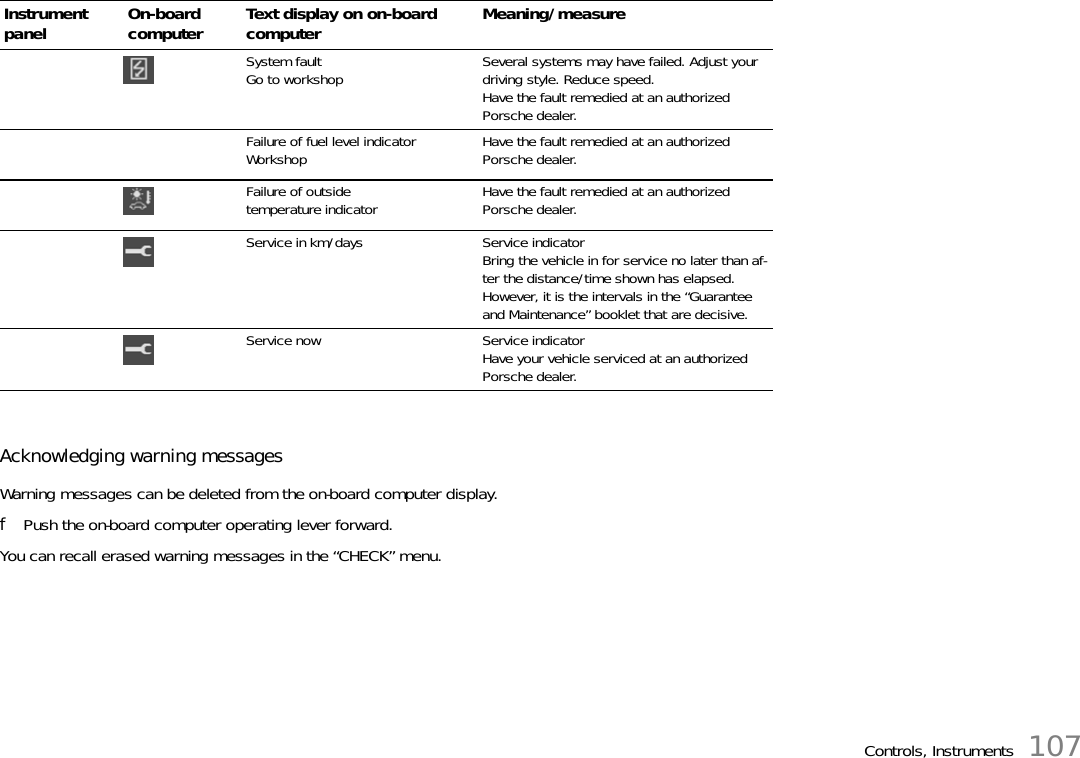

Controls, Instruments 107Acknowledging warning messagesWarning messages can be deleted from the on-board computer display.fPush the on-board computer operating lever forward.You can recall erased warning messages in the “CHECK” menu.System faultGo to workshop Several systems may have failed. Adjust your driving style. Reduce speed.Have the fault remedied at an authorized Porsche dealer.Failure of fuel level indicatorWorkshop Have the fault remedied at an authorized Porsche dealer.Failure of outside temperature indicator Have the fault remedied at an authorized Porsche dealer.Service in km/days Service indicatorBring the vehicle in for service no later than af-ter the distance/time shown has elapsed.However, it is the intervals in the “Guarantee and Maintenance” booklet that are decisive.Service now Service indicatorHave your vehicle serviced at an authorized Porsche dealer.Instrument panel On-board computer Text display on on-board computer Meaning/measure

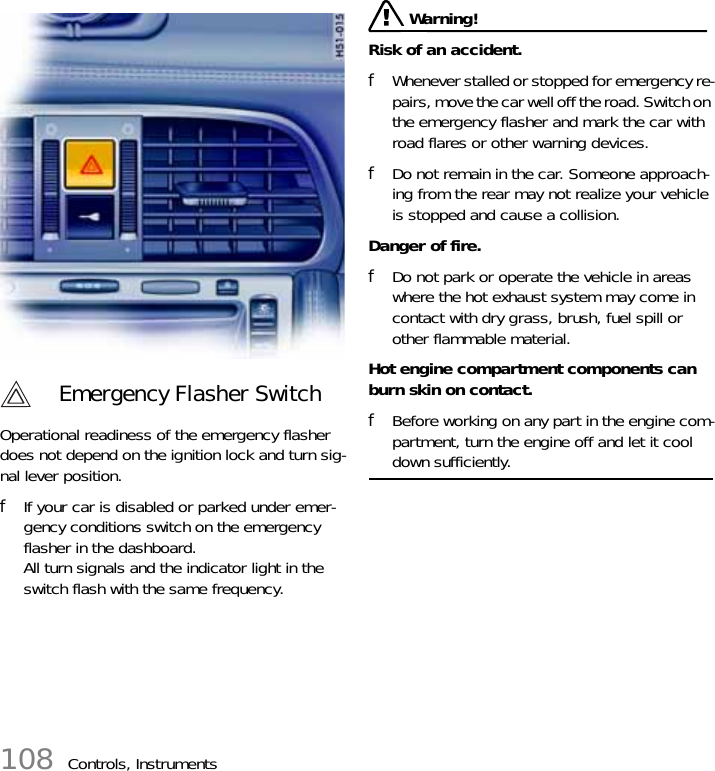

108 Controls, InstrumentsOperational readiness of the emergency flasher does not depend on the ignition lock and turn sig-nal lever position. fIf your car is disabled or parked under emer-gency conditions switch on the emergency flasher in the dashboard.All turn signals and the indicator light in the switch flash with the same frequency. Warning!Risk of an accident. fWhenever stalled or stopped for emergency re-pairs, move the car well off the road. Switch on the emergency flasher and mark the car with road flares or other warning devices. fDo not remain in the car. Someone approach-ing from the rear may not realize your vehicle is stopped and cause a collision.Danger of fire. fDo not park or operate the vehicle in areas where the hot exhaust system may come in contact with dry grass, brush, fuel spill or other flammable material.Hot engine compartment components can burn skin on contact. fBefore working on any part in the engine com-partment, turn the engine off and let it cool down sufficiently. Emergency Flasher Switch

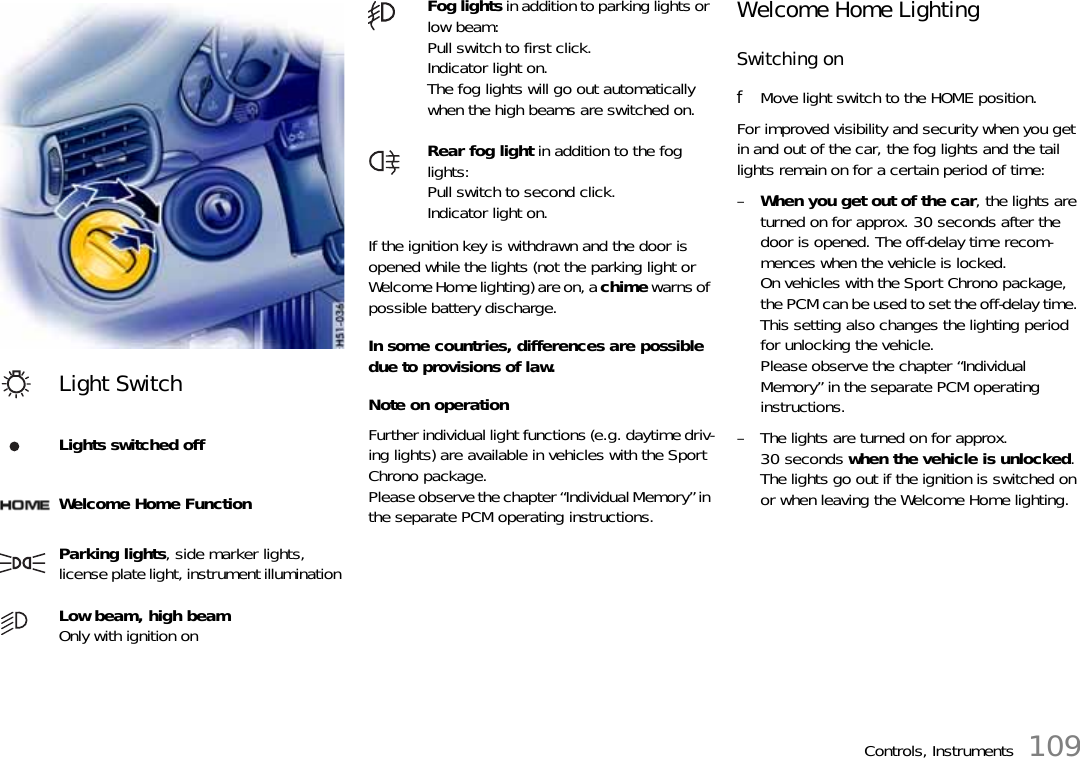

Controls, Instruments 109If the ignition key is withdrawn and the door is opened while the lights (not the parking light or Welcome Home lighting) are on, a chime warns of possible battery discharge.In some countries, differences are possible due to provisions of law. Note on operationFurther individual light functions (e.g. daytime driv-ing lights) are available in vehicles with the Sport Chrono package.Please observe the chapter “Individual Memory” in the separate PCM operating instructions.Welcome Home LightingSwitching onfMove light switch to the HOME position.For improved visibility and security when you get in and out of the car, the fog lights and the tail lights remain on for a certain period of time:–When you get out of the car, the lights are turned on for approx. 30 seconds after the door is opened. The off-delay time recom-mences when the vehicle is locked.On vehicles with the Sport Chrono package, the PCM can be used to set the off-delay time. This setting also changes the lighting period for unlocking the vehicle.Please observe the chapter “Individual Memory” in the separate PCM operating instructions.– The lights are turned on for approx. 30 seconds when the vehicle is unlocked.The lights go out if the ignition is switched on or when leaving the Welcome Home lighting.Light SwitchLights switched off Welcome Home FunctionParking lights, side marker lights,license plate light, instrument illumination Low beam, high beam Only with ignition on Fog lights in addition to parking lights or low beam:Pull switch to first click.Indicator light on.The fog lights will go out automatically when the high beams are switched on. Rear fog light in addition to the fog lights:Pull switch to second click.Indicator light on.

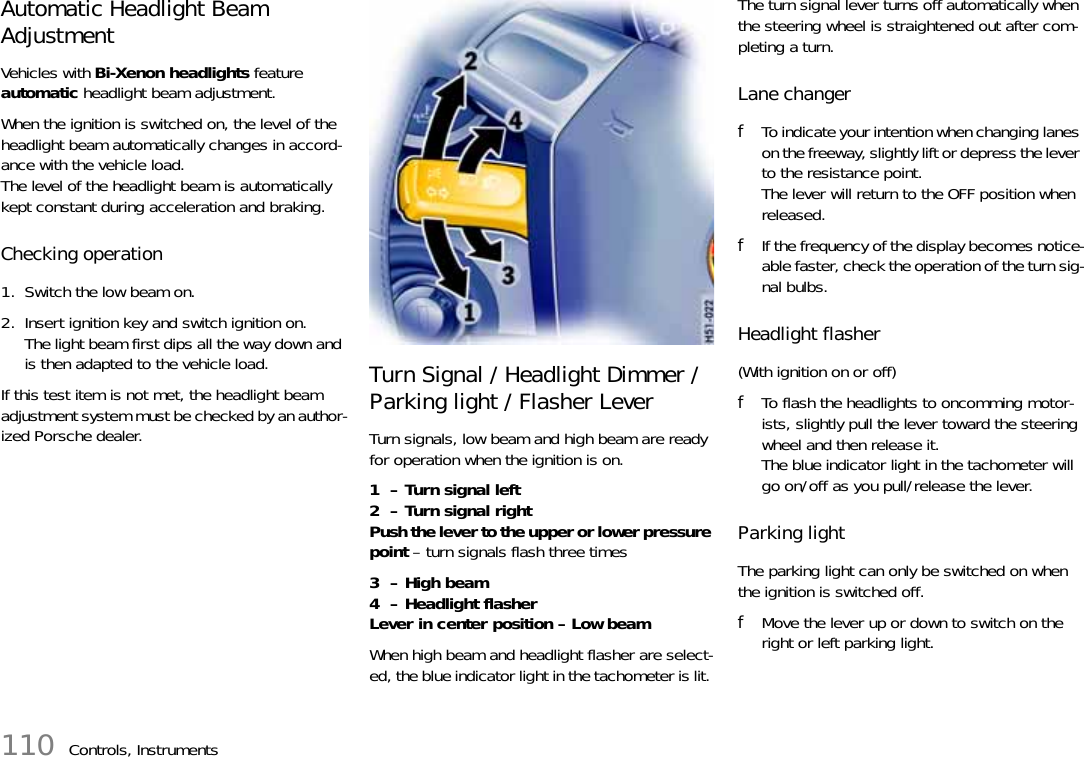

110 Controls, InstrumentsAutomatic Headlight Beam Adjustment Vehicles with Bi-Xenon headlights feature automatic headlight beam adjustment. When the ignition is switched on, the level of the headlight beam automatically changes in accord-ance with the vehicle load.The level of the headlight beam is automatically kept constant during acceleration and braking. Checking operation 1. Switch the low beam on. 2. Insert ignition key and switch ignition on.The light beam first dips all the way down and is then adapted to the vehicle load.If this test item is not met, the headlight beam adjustment system must be checked by an author-ized Porsche dealer. Turn Signal / Headlight Dimmer /Parking light / Flasher Lever Turn signals, low beam and high beam are ready for operation when the ignition is on. 1 – Turn signal left2 – Turn signal rightPush the lever to the upper or lower pressure point – turn signals flash three times3 – High beam4 – Headlight flasherLever in center position – Low beam When high beam and headlight flasher are select-ed, the blue indicator light in the tachometer is lit. The turn signal lever turns off automatically when the steering wheel is straightened out after com-pleting a turn. Lane changer fTo indicate your intention when changing lanes on the freeway, slightly lift or depress the lever to the resistance point. The lever will return to the OFF position when released. fIf the frequency of the display becomes notice-able faster, check the operation of the turn sig-nal bulbs. Headlight flasher (With ignition on or off) fTo flash the headlights to oncomming motor-ists, slightly pull the lever toward the steering wheel and then release it. The blue indicator light in the tachometer will go on/off as you pull/release the lever. Parking lightThe parking light can only be switched on when the ignition is switched off.fMove the lever up or down to switch on the right or left parking light.

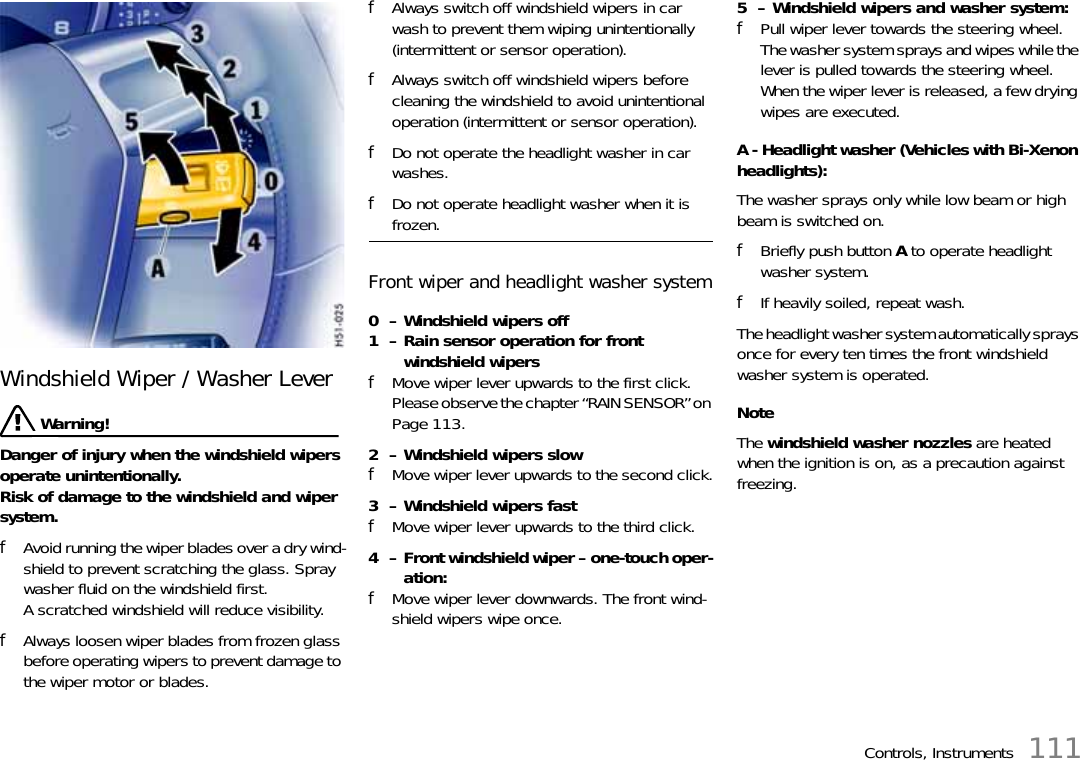

Controls, Instruments 111Windshield Wiper / Washer Lever Warning!Danger of injury when the windshield wipers operate unintentionally. Risk of damage to the windshield and wiper system. fAvoid running the wiper blades over a dry wind-shield to prevent scratching the glass. Spray washer fluid on the windshield first. A scratched windshield will reduce visibility. fAlways loosen wiper blades from frozen glass before operating wipers to prevent damage to the wiper motor or blades. fAlways switch off windshield wipers in car wash to prevent them wiping unintentionally (intermittent or sensor operation). fAlways switch off windshield wipers before cleaning the windshield to avoid unintentional operation (intermittent or sensor operation). fDo not operate the headlight washer in car washes. fDo not operate headlight washer when it is frozen. Front wiper and headlight washer system0 – Windshield wipers off1 – Rain sensor operation for front windshield wipersfMove wiper lever upwards to the first click.Please observe the chapter “RAIN SENSOR” on Page 113.2 – Windshield wipers slowfMove wiper lever upwards to the second click.3 – Windshield wipers fast fMove wiper lever upwards to the third click.4 – Front windshield wiper – one-touch oper-ation:fMove wiper lever downwards. The front wind-shield wipers wipe once.5 – Windshield wipers and washer system:fPull wiper lever towards the steering wheel. The washer system sprays and wipes while the lever is pulled towards the steering wheel. When the wiper lever is released, a few drying wipes are executed. A - Headlight washer (Vehicles with Bi-Xenon headlights):The washer sprays only while low beam or high beam is switched on.fBriefly push button A to operate headlight washer system.fIf heavily soiled, repeat wash.The headlight washer system automatically sprays once for every ten times the front windshield washer system is operated.NoteThe windshield washer nozzles are heated when the ignition is on, as a precaution against freezing.

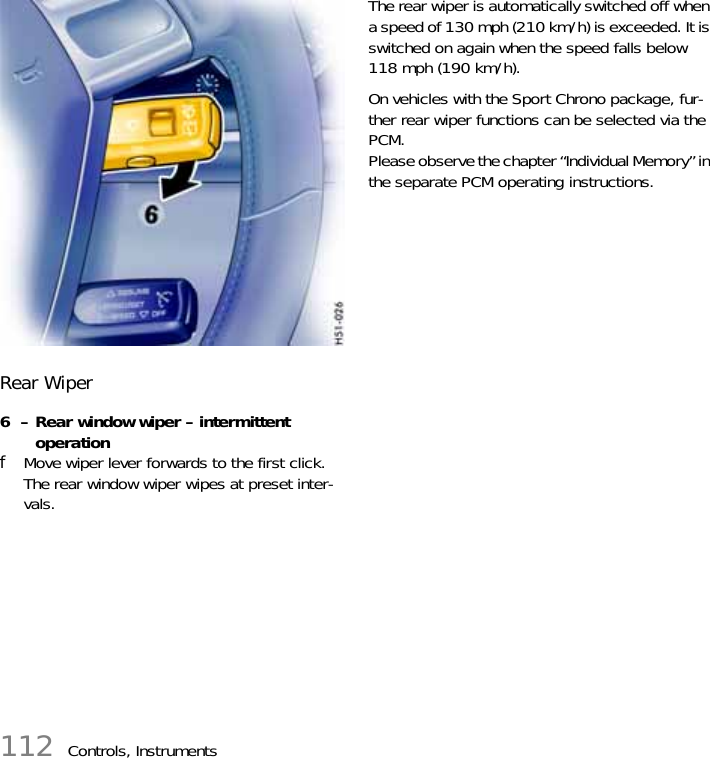

112 Controls, InstrumentsRear Wiper6 – Rear window wiper – intermittent operationfMove wiper lever forwards to the first click.The rear window wiper wipes at preset inter-vals.The rear wiper is automatically switched off when a speed of 130 mph (210 km/h) is exceeded. It is switched on again when the speed falls below 118 mph (190 km/h).On vehicles with the Sport Chrono package, fur-ther rear wiper functions can be selected via the PCM. Please observe the chapter “Individual Memory” in the separate PCM operating instructions.

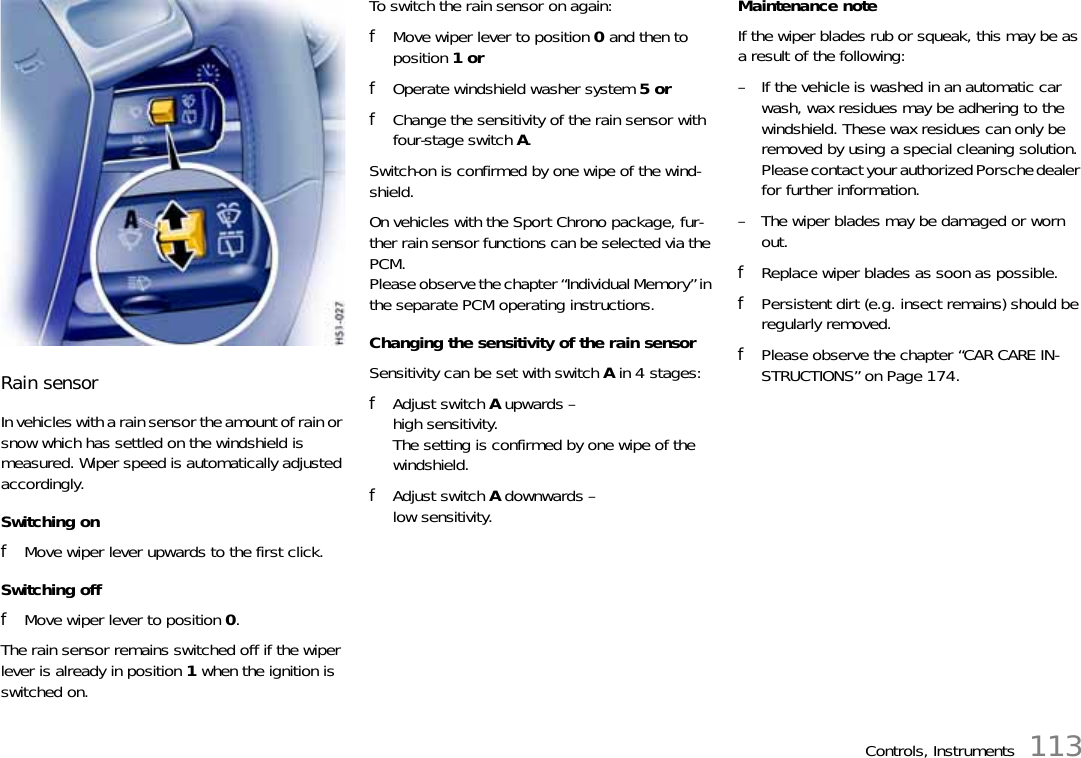

Controls, Instruments 113Rain sensorIn vehicles with a rain sensor the amount of rain or snow which has settled on the windshield is measured. Wiper speed is automatically adjusted accordingly.Switching onfMove wiper lever upwards to the first click.Switching offfMove wiper lever to position 0.The rain sensor remains switched off if the wiper lever is already in position 1 when the ignition is switched on.To switch the rain sensor on again:fMove wiper lever to position 0 and then to position 1 orfOperate windshield washer system 5 orfChange the sensitivity of the rain sensor with four-stage switch A.Switch-on is confirmed by one wipe of the wind-shield.On vehicles with the Sport Chrono package, fur-ther rain sensor functions can be selected via the PCM.Please observe the chapter “Individual Memory” in the separate PCM operating instructions.Changing the sensitivity of the rain sensorSensitivity can be set with switch A in 4 stages:fAdjust switch A upwards – high sensitivity.The setting is confirmed by one wipe of the windshield.fAdjust switch A downwards – low sensitivity.Maintenance noteIf the wiper blades rub or squeak, this may be as a result of the following:– If the vehicle is washed in an automatic car wash, wax residues may be adhering to the windshield. These wax residues can only be removed by using a special cleaning solution. Please contact your authorized Porsche dealer for further information.– The wiper blades may be damaged or worn out.fReplace wiper blades as soon as possible.fPersistent dirt (e.g. insect remains) should be regularly removed.fPlease observe the chapter “CAR CARE IN-STRUCTIONS” on Page 174.

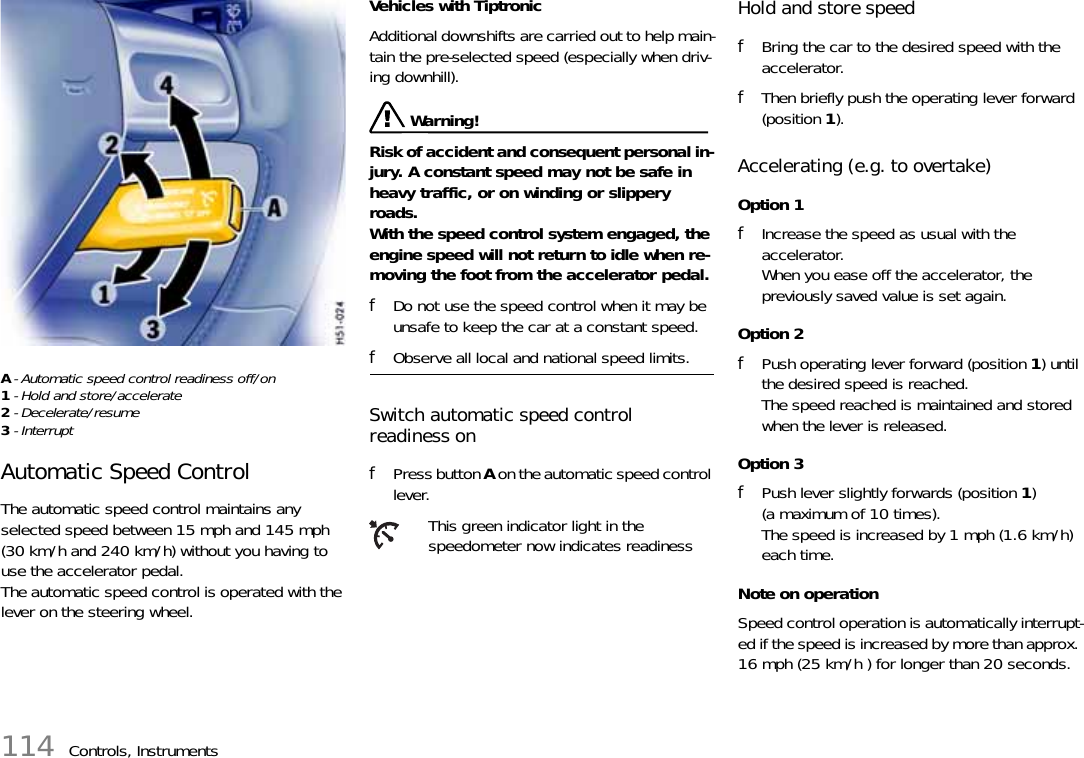

114 Controls, InstrumentsA- Automatic speed control readiness off/on1- Hold and store/accelerate2- Decelerate/resume3- Interrupt Automatic Speed Control The automatic speed control maintains any selected speed between 15 mph and 145 mph (30 km/h and 240 km/h) without you having to use the accelerator pedal.The automatic speed control is operated with the lever on the steering wheel. Vehicles with TiptronicAdditional downshifts are carried out to help main-tain the pre-selected speed (especially when driv-ing downhill). Warning!Risk of accident and consequent personal in-jury. A constant speed may not be safe in heavy traffic, or on winding or slippery roads. With the speed control system engaged, the engine speed will not return to idle when re-moving the foot from the accelerator pedal. fDo not use the speed control when it may be unsafe to keep the car at a constant speed. fObserve all local and national speed limits. Switch automatic speed control readiness onfPress button A on the automatic speed control lever.Hold and store speed fBring the car to the desired speed with the accelerator. fThen briefly push the operating lever forward (position 1).Accelerating (e.g. to overtake) Option 1fIncrease the speed as usual with the accelerator.When you ease off the accelerator, the previously saved value is set again.Option 2fPush operating lever forward (position 1) until the desired speed is reached.The speed reached is maintained and stored when the lever is released.Option 3fPush lever slightly forwards (position 1) (a maximum of 10 times).The speed is increased by 1 mph (1.6 km/h) each time.Note on operationSpeed control operation is automatically interrupt-ed if the speed is increased by more than approx. 16 mph (25 km/h ) for longer than 20 seconds.This green indicator light in the speedometer now indicates readiness

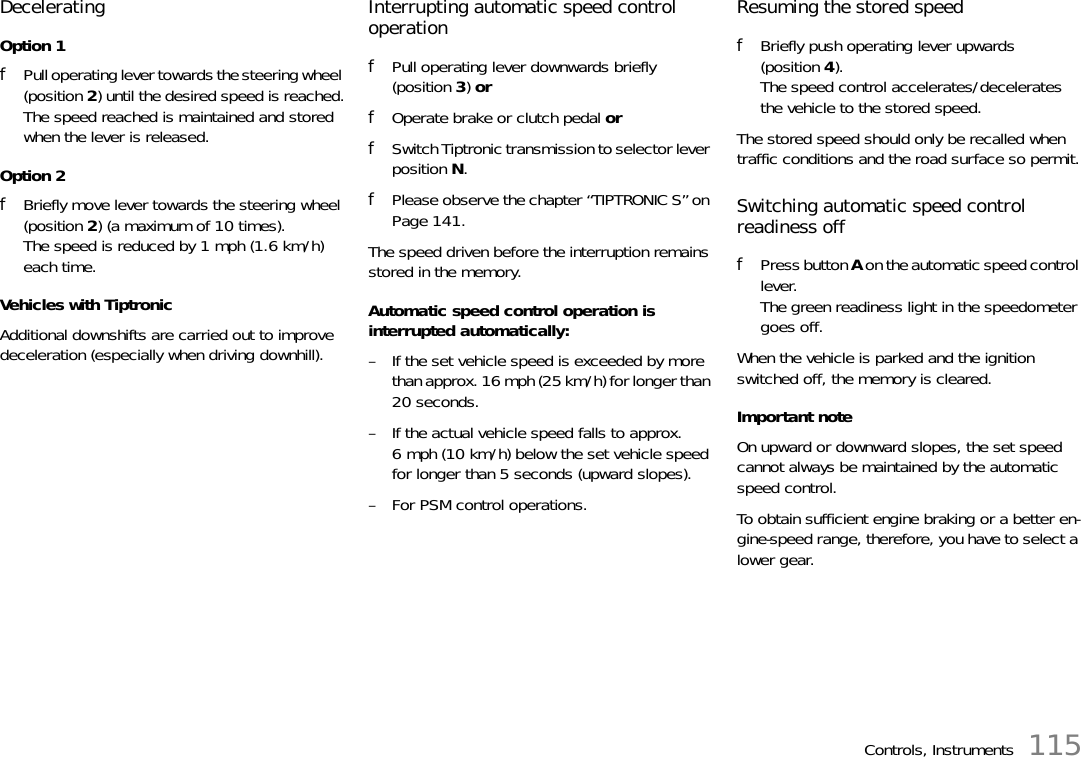

Controls, Instruments 115Decelerating Option 1fPull operating lever towards the steering wheel (position 2) until the desired speed is reached.The speed reached is maintained and stored when the lever is released.Option 2fBriefly move lever towards the steering wheel (position 2) (a maximum of 10 times).The speed is reduced by 1 mph (1.6 km/h) each time.Vehicles with TiptronicAdditional downshifts are carried out to improve deceleration (especially when driving downhill). Interrupting automatic speed control operation fPull operating lever downwards briefly (position 3) orfOperate brake or clutch pedal orfSwitch Tiptronic transmission to selector lever position N.fPlease observe the chapter “TIPTRONIC S” on Page 141.The speed driven before the interruption remains stored in the memory.Automatic speed control operation is interrupted automatically: – If the set vehicle speed is exceeded by more than approx. 16 mph (25 km/h) for longer than 20 seconds.– If the actual vehicle speed falls to approx. 6 mph (10 km/h) below the set vehicle speed for longer than 5 seconds (upward slopes).– For PSM control operations.Resuming the stored speed fBriefly push operating lever upwards (position 4).The speed control accelerates/decelerates the vehicle to the stored speed.The stored speed should only be recalled when traffic conditions and the road surface so permit.Switching automatic speed control readiness off fPress button A on the automatic speed control lever.The green readiness light in the speedometer goes off.When the vehicle is parked and the ignition switched off, the memory is cleared. Important note On upward or downward slopes, the set speed cannot always be maintained by the automatic speed control. To obtain sufficient engine braking or a better en-gine-speed range, therefore, you have to select a lower gear.

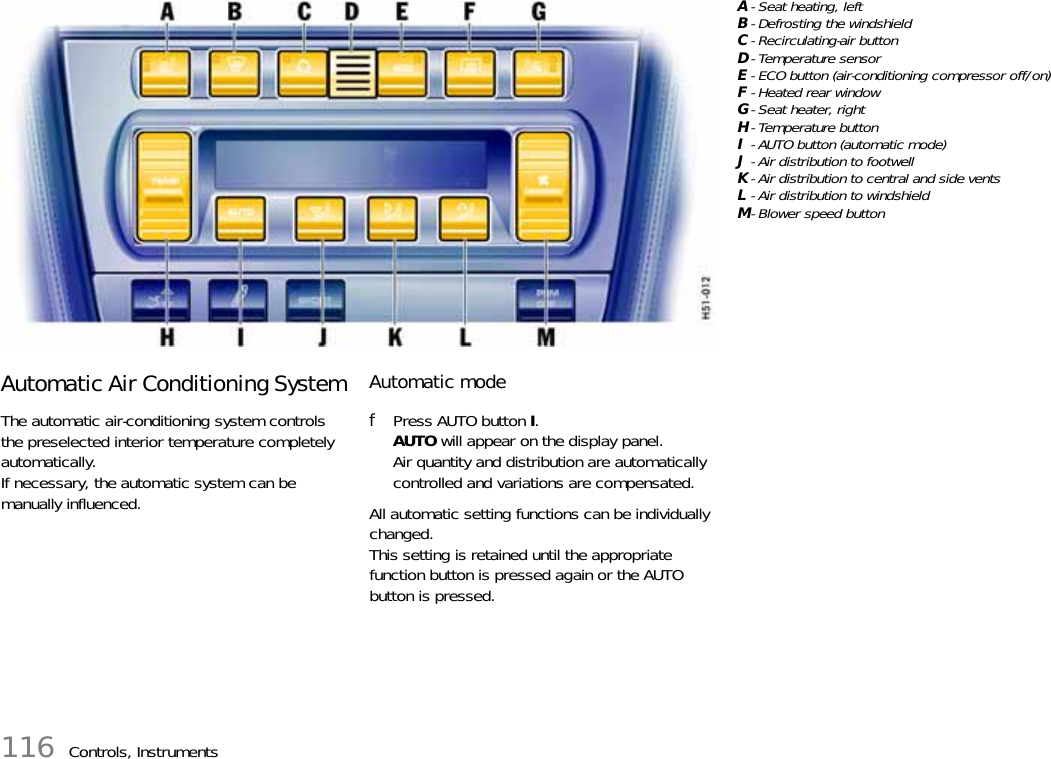

116 Controls, InstrumentsAutomatic Air Conditioning SystemThe automatic air-conditioning system controls the preselected interior temperature completely automatically. If necessary, the automatic system can be manually influenced.Automatic modefPress AUTO button I.AUTO will appear on the display panel.Air quantity and distribution are automatically controlled and variations are compensated.All automatic setting functions can be individually changed. This setting is retained until the appropriate function button is pressed again or the AUTO button is pressed.A- Seat heating, leftB- Defrosting the windshieldC- Recirculating-air buttonD-Temperature sensorE- ECO button (air-conditioning compressor off/on)F-Heated rear windowG- Seat heater, rightH- Temperature buttonI- AUTO button (automatic mode)J- Air distribution to footwellK- Air distribution to central and side ventsL- Air distribution to windshieldM-Blower speed button

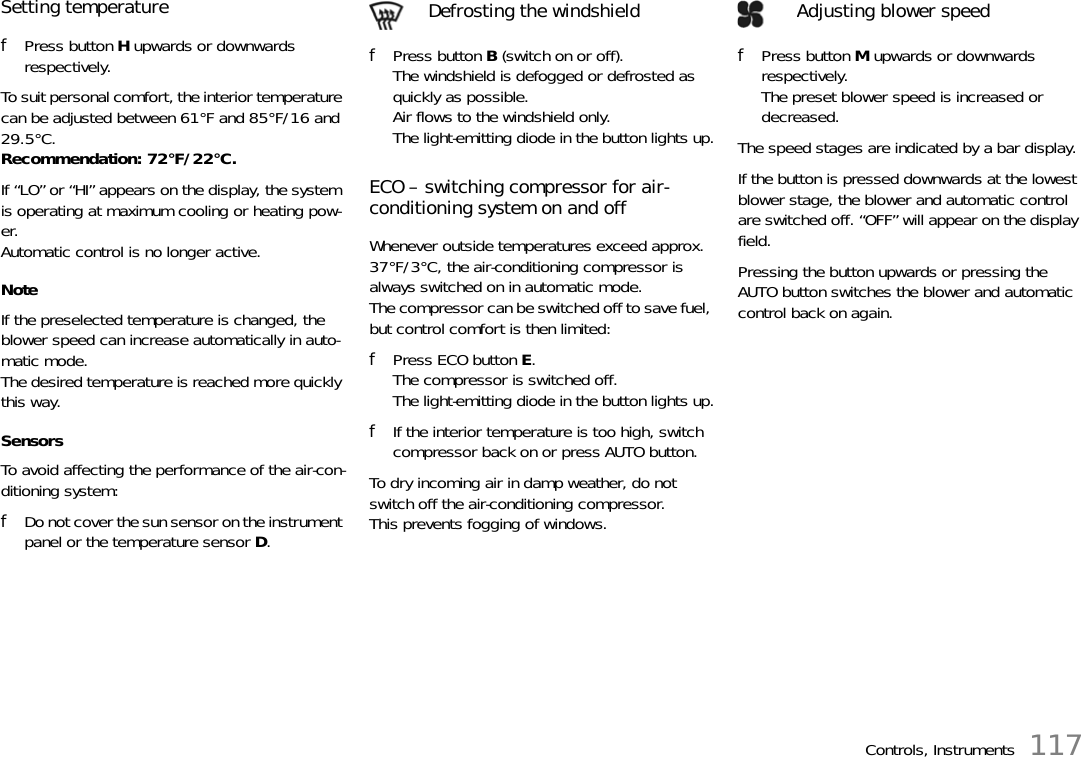

Controls, Instruments 117Setting temperaturefPress button H upwards or downwards respectively.To suit personal comfort, the interior temperature can be adjusted between 61°F and 85°F/16 and 29.5°C. Recommendation: 72°F/22°C.If “LO” or “HI” appears on the display, the system is operating at maximum cooling or heating pow-er.Automatic control is no longer active.NoteIf the preselected temperature is changed, the blower speed can increase automatically in auto-matic mode.The desired temperature is reached more quickly this way.SensorsTo avoid affecting the performance of the air-con-ditioning system:fDo not cover the sun sensor on the instrument panel or the temperature sensor D.fPress button B (switch on or off).The windshield is defogged or defrosted as quickly as possible.Air flows to the windshield only.The light-emitting diode in the button lights up.ECO – switching compressor for air-conditioning system on and offWhenever outside temperatures exceed approx. 37°F/3°C, the air-conditioning compressor is always switched on in automatic mode.The compressor can be switched off to save fuel, but control comfort is then limited:fPress ECO button E.The compressor is switched off.The light-emitting diode in the button lights up.fIf the interior temperature is too high, switch compressor back on or press AUTO button.To dry incoming air in damp weather, do not switch off the air-conditioning compressor. This prevents fogging of windows.Defrosting the windshieldfPress button M upwards or downwards respectively.The preset blower speed is increased or decreased.The speed stages are indicated by a bar display.If the button is pressed downwards at the lowest blower stage, the blower and automatic control are switched off. “OFF” will appear on the display field.Pressing the button upwards or pressing the AUTO button switches the blower and automatic control back on again.Adjusting blower speed

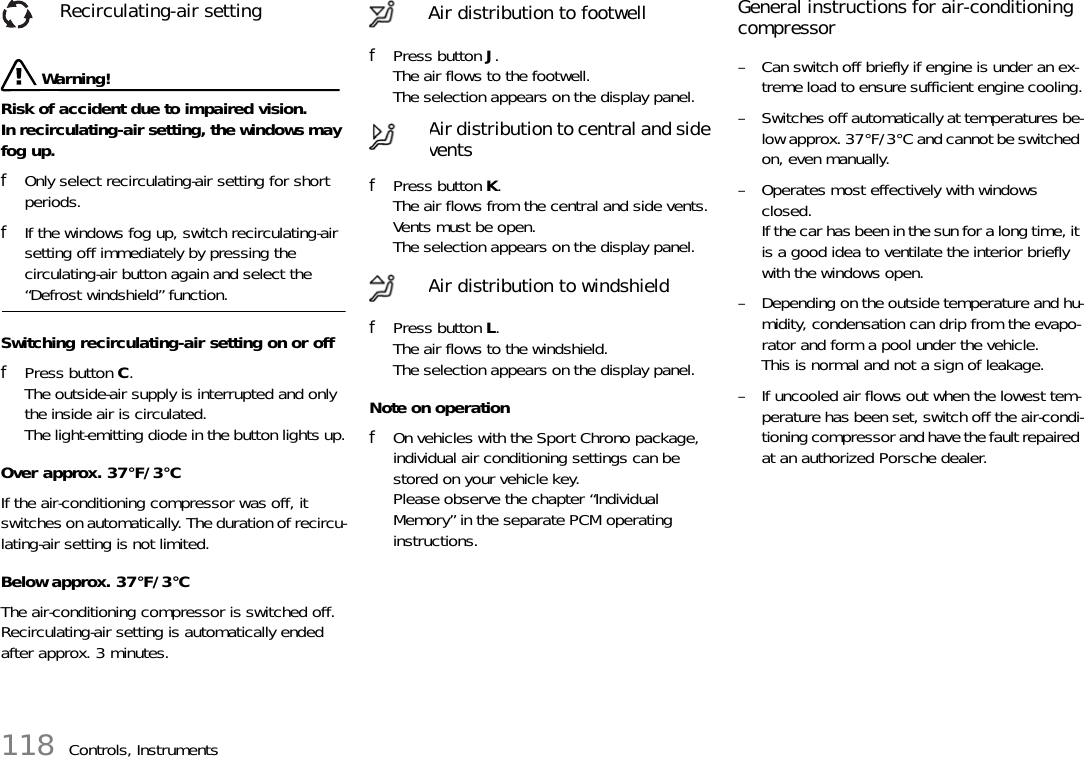

118 Controls, Instruments Warning!Risk of accident due to impaired vision. In recirculating-air setting, the windows may fog up.fOnly select recirculating-air setting for short periods.fIf the windows fog up, switch recirculating-air setting off immediately by pressing the circulating-air button again and select the “Defrost windshield” function.Switching recirculating-air setting on or offfPress button C.The outside-air supply is interrupted and only the inside air is circulated.The light-emitting diode in the button lights up.Over approx. 37°F/3°CIf the air-conditioning compressor was off, it switches on automatically. The duration of recircu-lating-air setting is not limited.Below approx. 37°F/3°CThe air-conditioning compressor is switched off. Recirculating-air setting is automatically ended after approx. 3 minutes.fPress button J.The air flows to the footwell.The selection appears on the display panel.fPress button K.The air flows from the central and side vents. Vents must be open.The selection appears on the display panel.fPress button L.The air flows to the windshield.The selection appears on the display panel.Note on operationfOn vehicles with the Sport Chrono package, individual air conditioning settings can be stored on your vehicle key.Please observe the chapter “Individual Memory” in the separate PCM operating instructions.General instructions for air-conditioning compressor– Can switch off briefly if engine is under an ex-treme load to ensure sufficient engine cooling.– Switches off automatically at temperatures be-low approx. 37°F/3°C and cannot be switched on, even manually.– Operates most effectively with windows closed.If the car has been in the sun for a long time, it is a good idea to ventilate the interior briefly with the windows open.– Depending on the outside temperature and hu-midity, condensation can drip from the evapo-rator and form a pool under the vehicle.This is normal and not a sign of leakage.– If uncooled air flows out when the lowest tem-perature has been set, switch off the air-condi-tioning compressor and have the fault repaired at an authorized Porsche dealer.Recirculating-air setting Air distribution to footwellAir distribution to central and side ventsAir distribution to windshield

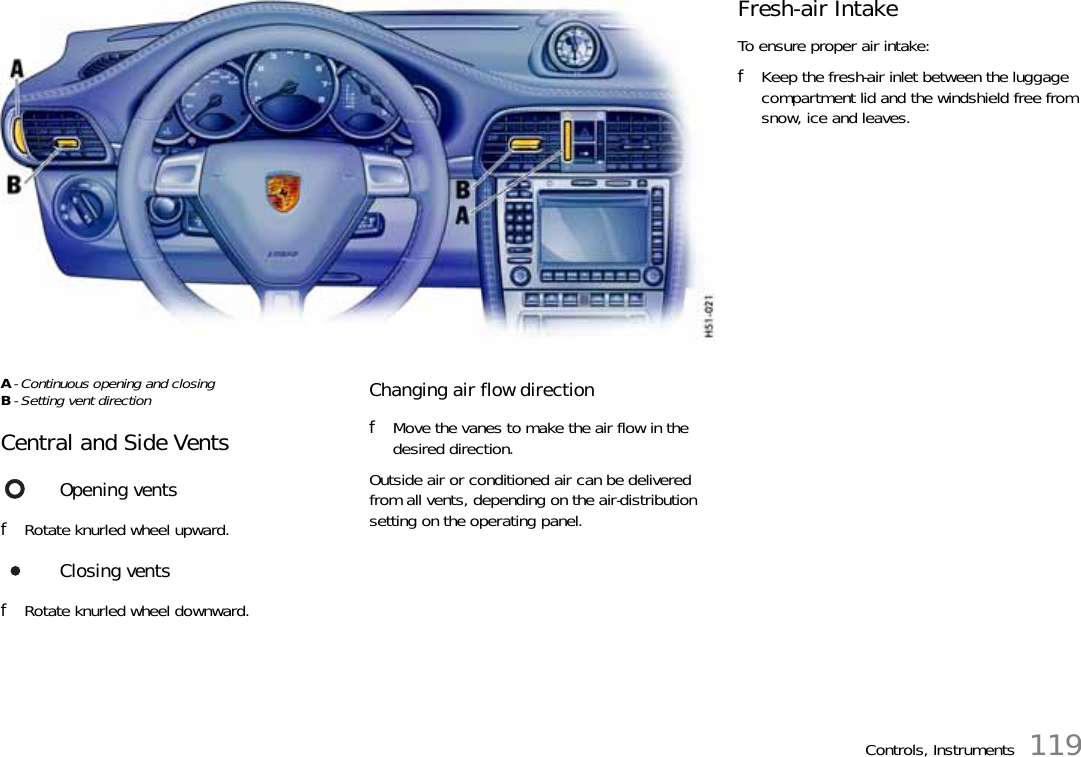

Controls, Instruments 119A- Continuous opening and closingB- Setting vent direction Central and Side Vents fRotate knurled wheel upward. fRotate knurled wheel downward. Changing air flow direction fMove the vanes to make the air flow in the desired direction.Outside air or conditioned air can be delivered from all vents, depending on the air-distribution setting on the operating panel. Opening vents Closing vents Fresh-air Intake To ensure proper air intake: fKeep the fresh-air inlet between the luggage compartment lid and the windshield free from snow, ice and leaves.

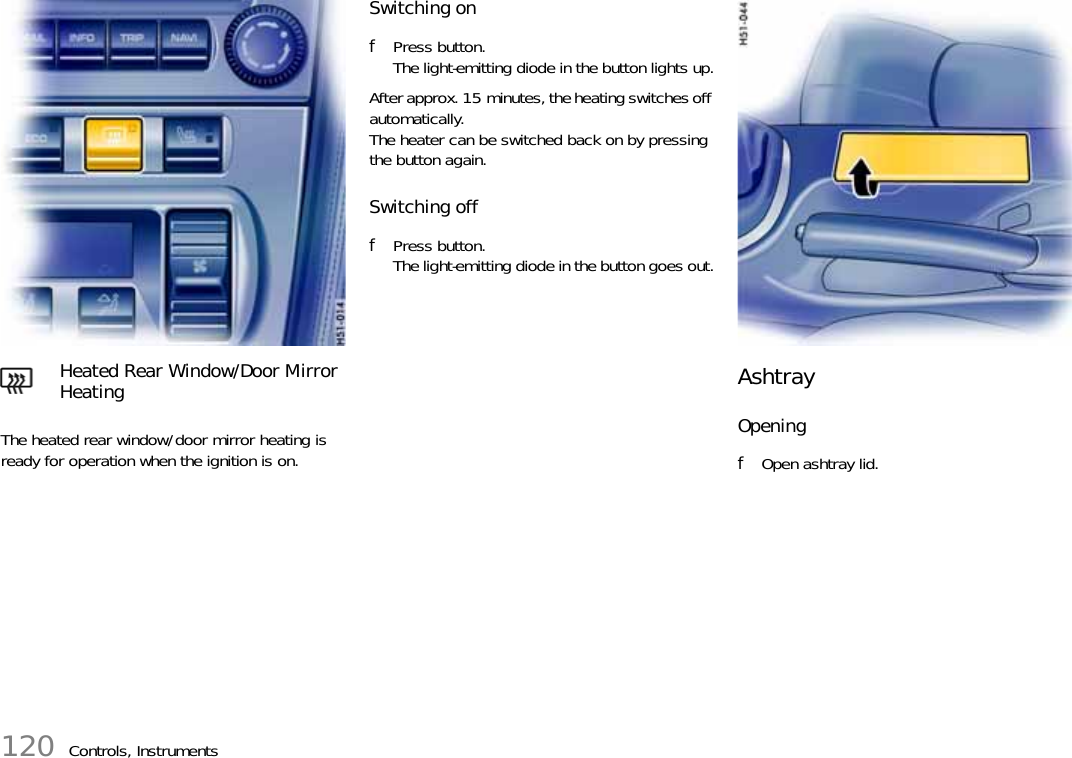

120 Controls, InstrumentsThe heated rear window/door mirror heating is ready for operation when the ignition is on.Switching onfPress button.The light-emitting diode in the button lights up.After approx. 15 minutes, the heating switches off automatically. The heater can be switched back on by pressing the button again.Switching offfPress button.The light-emitting diode in the button goes out.Ashtray Opening fOpen ashtray lid.Heated Rear Window/Door Mirror Heating

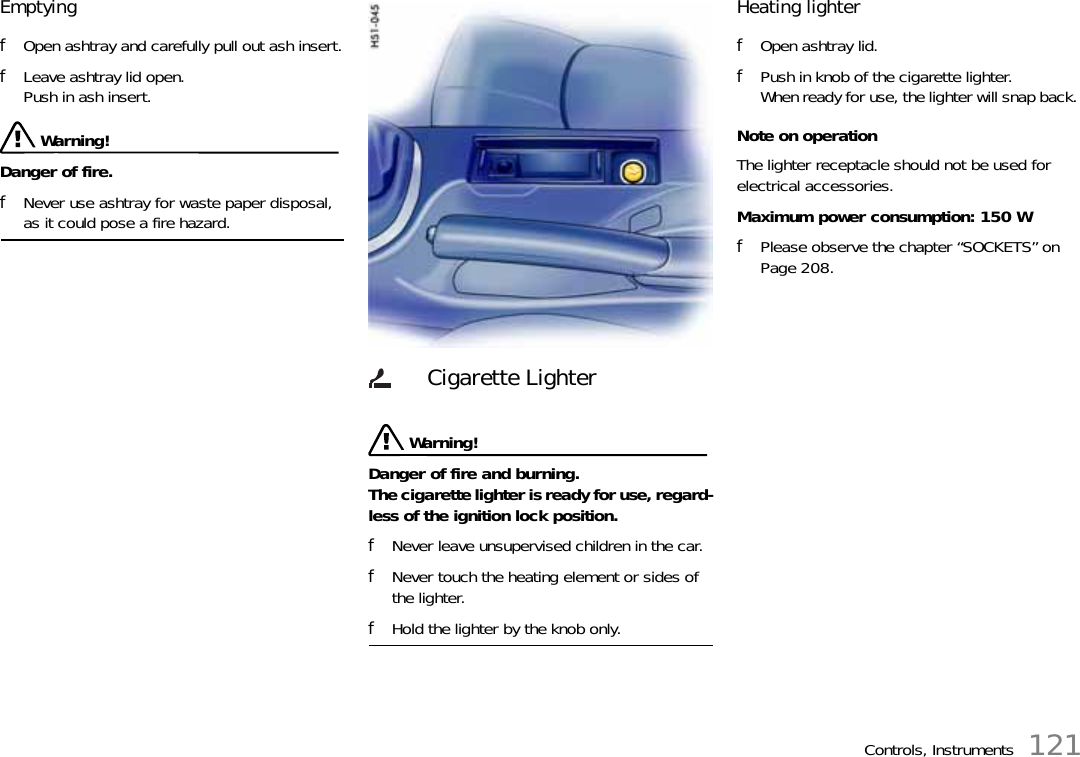

Controls, Instruments 121Emptying fOpen ashtray and carefully pull out ash insert.fLeave ashtray lid open. Push in ash insert. Warning!Danger of fire. fNever use ashtray for waste paper disposal, as it could pose a fire hazard. Warning!Danger of fire and burning.The cigarette lighter is ready for use, regard-less of the ignition lock position. fNever leave unsupervised children in the car. fNever touch the heating element or sides of the lighter. fHold the lighter by the knob only. Heating lighter fOpen ashtray lid.fPush in knob of the cigarette lighter.When ready for use, the lighter will snap back. Note on operationThe lighter receptacle should not be used for electrical accessories.Maximum power consumption: 150 WfPlease observe the chapter “SOCKETS” on Page 208.Cigarette Lighter

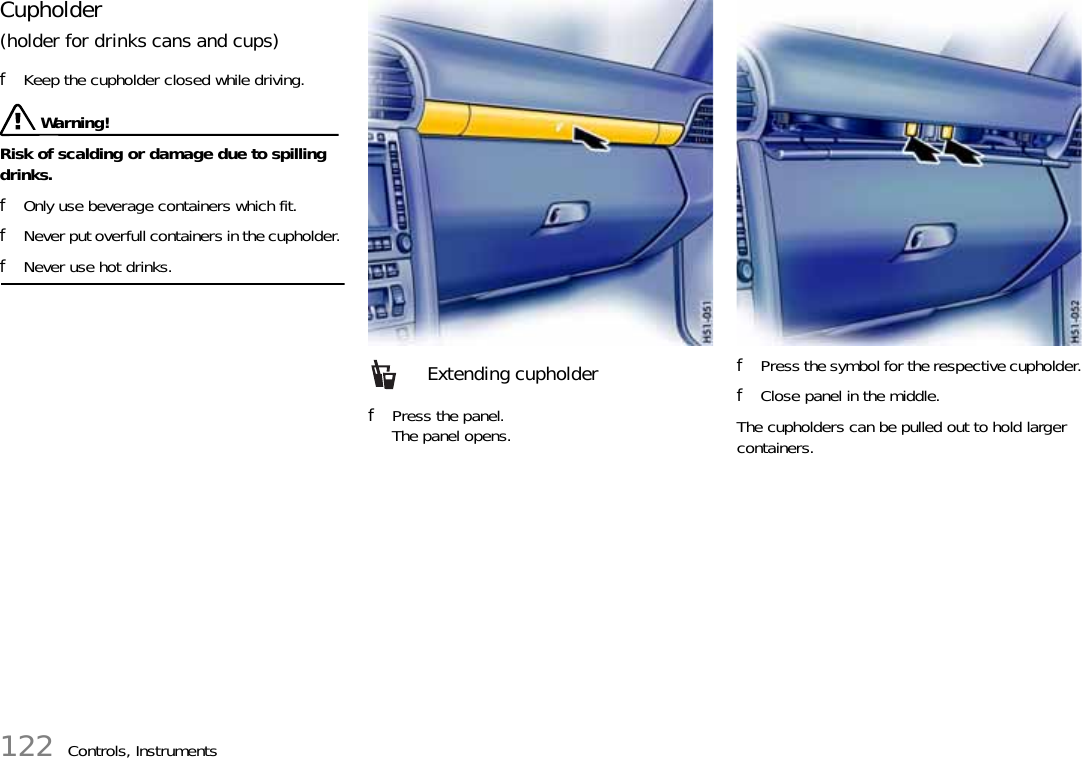

122 Controls, InstrumentsCupholder(holder for drinks cans and cups)fKeep the cupholder closed while driving. Warning!Risk of scalding or damage due to spilling drinks. fOnly use beverage containers which fit. fNever put overfull containers in the cupholder. fNever use hot drinks. fPress the panel. The panel opens.fPress the symbol for the respective cupholder.fClose panel in the middle.The cupholders can be pulled out to hold larger containers.Extending cupholder

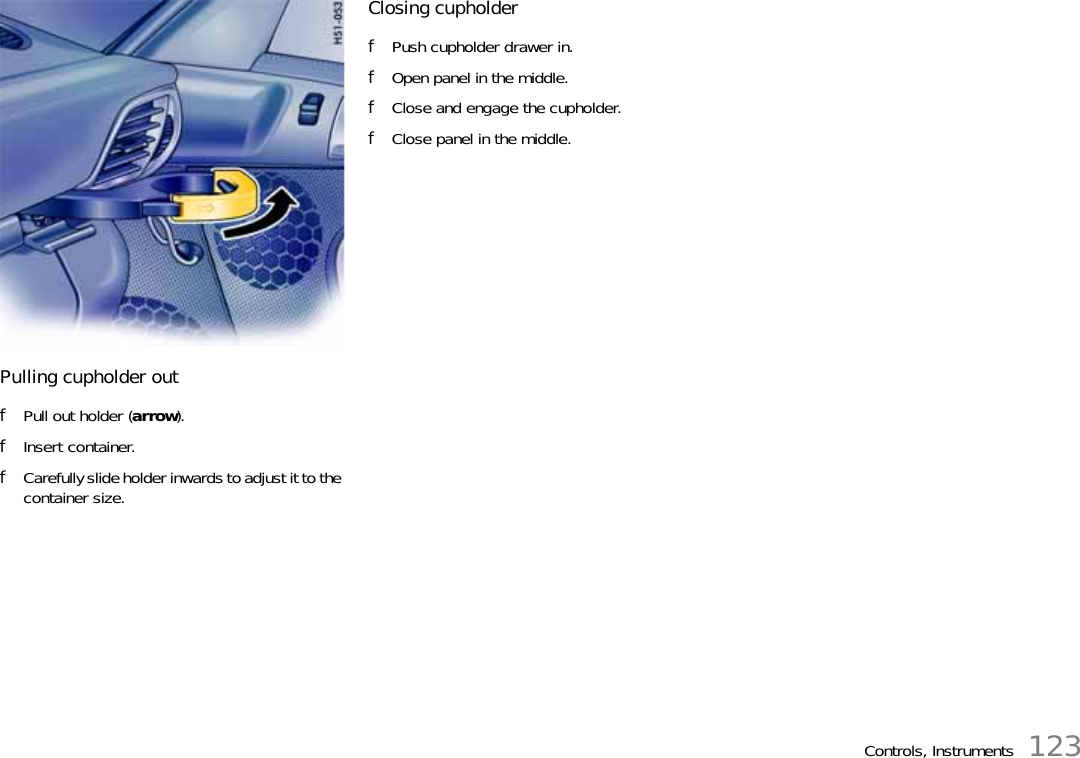

Controls, Instruments 123Pulling cupholder outfPull out holder (arrow).fInsert container.fCarefully slide holder inwards to adjust it to the container size.Closing cupholder fPush cupholder drawer in.fOpen panel in the middle.fClose and engage the cupholder.fClose panel in the middle.

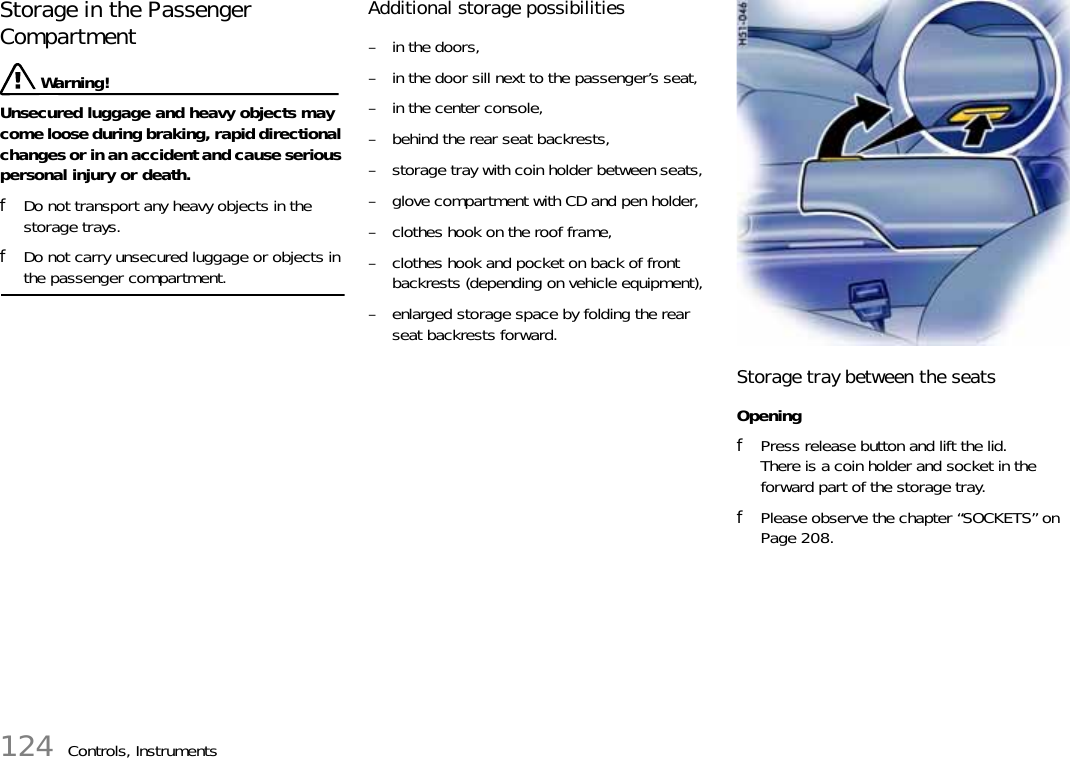

124 Controls, InstrumentsStorage in the Passenger Compartment Warning!Unsecured luggage and heavy objects may come loose during braking, rapid directional changes or in an accident and cause serious personal injury or death. fDo not transport any heavy objects in the storage trays. fDo not carry unsecured luggage or objects in the passenger compartment. Additional storage possibilities – in the doors,– in the door sill next to the passenger’s seat,– in the center console,– behind the rear seat backrests,– storage tray with coin holder between seats,– glove compartment with CD and pen holder,– clothes hook on the roof frame,– clothes hook and pocket on back of front backrests (depending on vehicle equipment),– enlarged storage space by folding the rear seat backrests forward.Storage tray between the seatsOpeningfPress release button and lift the lid.There is a coin holder and socket in the forward part of the storage tray.fPlease observe the chapter “SOCKETS” on Page 208.

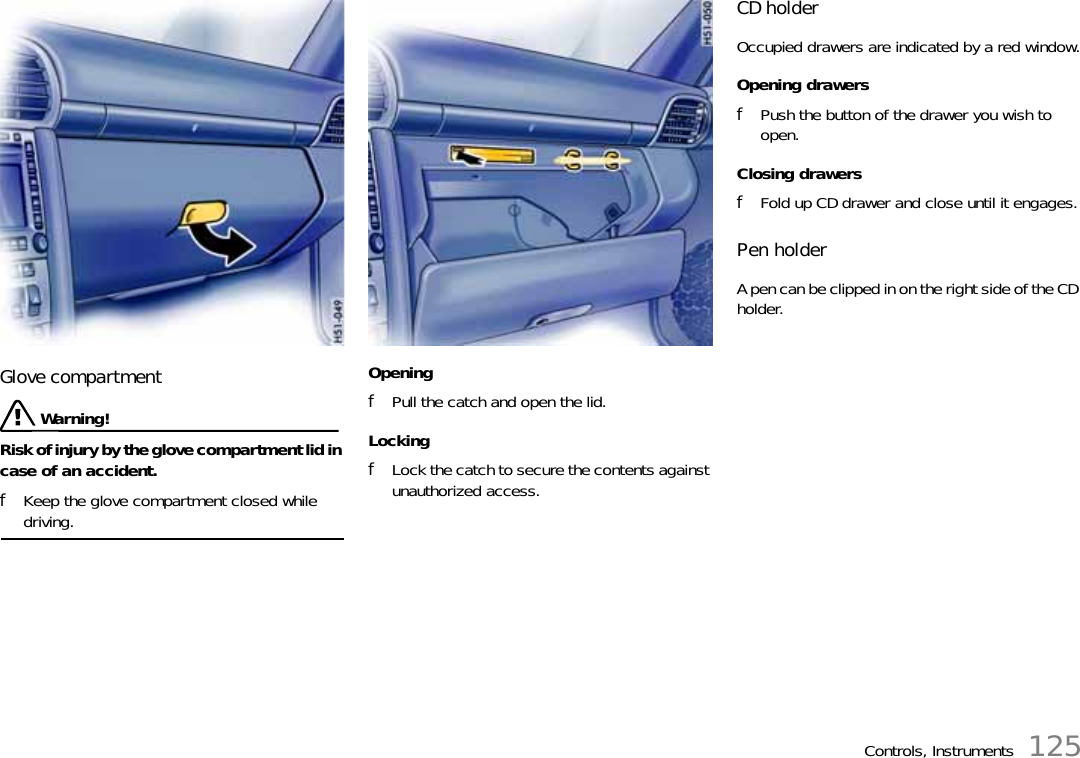

Controls, Instruments 125Glove compartment Warning!Risk of injury by the glove compartment lid in case of an accident. fKeep the glove compartment closed while driving. Opening fPull the catch and open the lid. Locking fLock the catch to secure the contents against unauthorized access.CD holderOccupied drawers are indicated by a red window.Opening drawersfPush the button of the drawer you wish to open.Closing drawersfFold up CD drawer and close until it engages.Pen holderA pen can be clipped in on the right side of the CD holder.

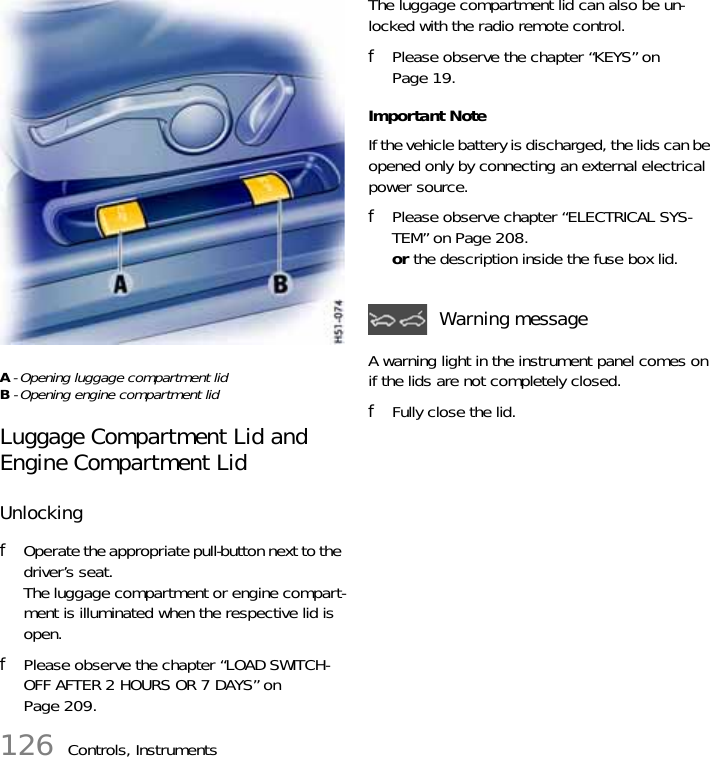

126 Controls, InstrumentsA - Opening luggage compartment lidB - Opening engine compartment lid Luggage Compartment Lid and Engine Compartment LidUnlocking fOperate the appropriate pull-button next to the driver’s seat.The luggage compartment or engine compart-ment is illuminated when the respective lid is open.fPlease observe the chapter “LOAD SWITCH-OFF AFTER 2 HOURS OR 7 DAYS” on Page 209.The luggage compartment lid can also be un-locked with the radio remote control.fPlease observe the chapter “KEYS” on Page 19.Important Note If the vehicle battery is discharged, the lids can be opened only by connecting an external electrical power source.fPlease observe chapter “ELECTRICAL SYS-TEM” on Page 208.or the description inside the fuse box lid.A warning light in the instrument panel comes on if the lids are not completely closed.fFully close the lid. Warning message

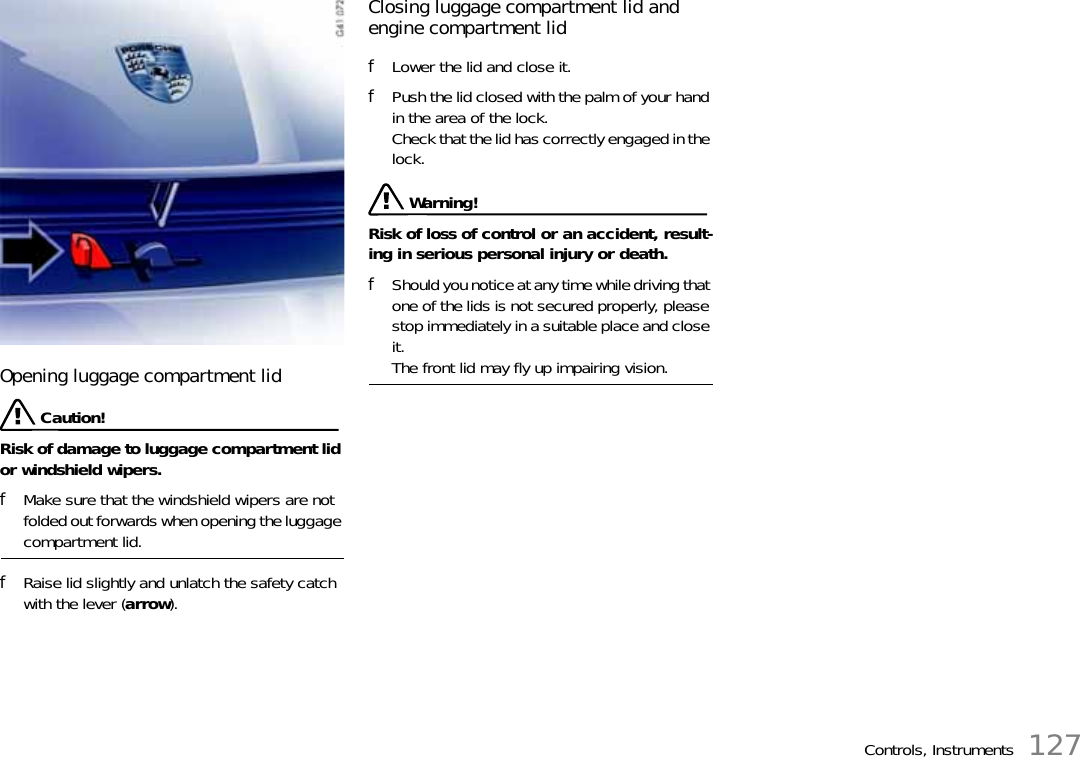

Controls, Instruments 127Opening luggage compartment lid Caution!Risk of damage to luggage compartment lid or windshield wipers. fMake sure that the windshield wipers are not folded out forwards when opening the luggage compartment lid. fRaise lid slightly and unlatch the safety catch with the lever (arrow). Closing luggage compartment lid and engine compartment lid fLower the lid and close it. fPush the lid closed with the palm of your hand in the area of the lock.Check that the lid has correctly engaged in the lock. Warning!Risk of loss of control or an accident, result-ing in serious personal injury or death. fShould you notice at any time while driving that one of the lids is not secured properly, please stop immediately in a suitable place and close it. The front lid may fly up impairing vision.

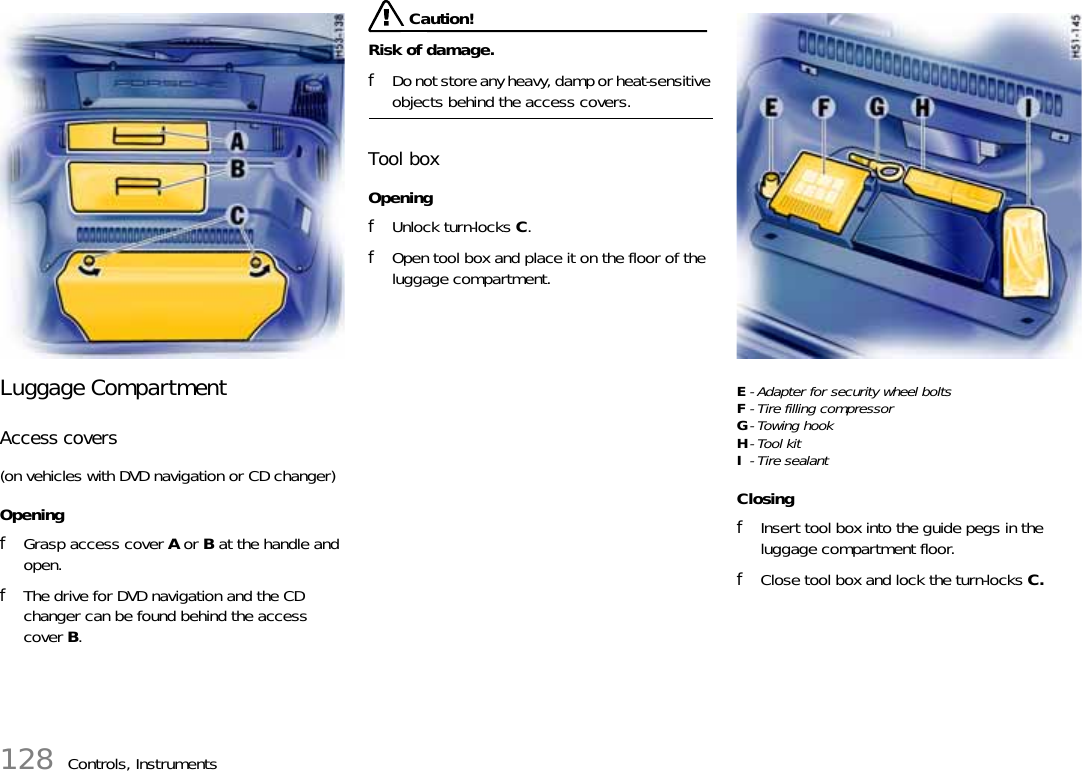

128 Controls, InstrumentsLuggage Compartment Access covers(on vehicles with DVD navigation or CD changer)OpeningfGrasp access cover A or B at the handle and open.fThe drive for DVD navigation and the CD changer can be found behind the access cover B. Caution!Risk of damage.fDo not store any heavy, damp or heat-sensitive objects behind the access covers.Tool boxOpeningfUnlock turn-locks C.fOpen tool box and place it on the floor of the luggage compartment.E- Adapter for security wheel boltsF- Tire filling compressorG-Towing hookH-Tool kitI-Tire sealantClosingfInsert tool box into the guide pegs in the luggage compartment floor.fClose tool box and lock the turn-locks C.

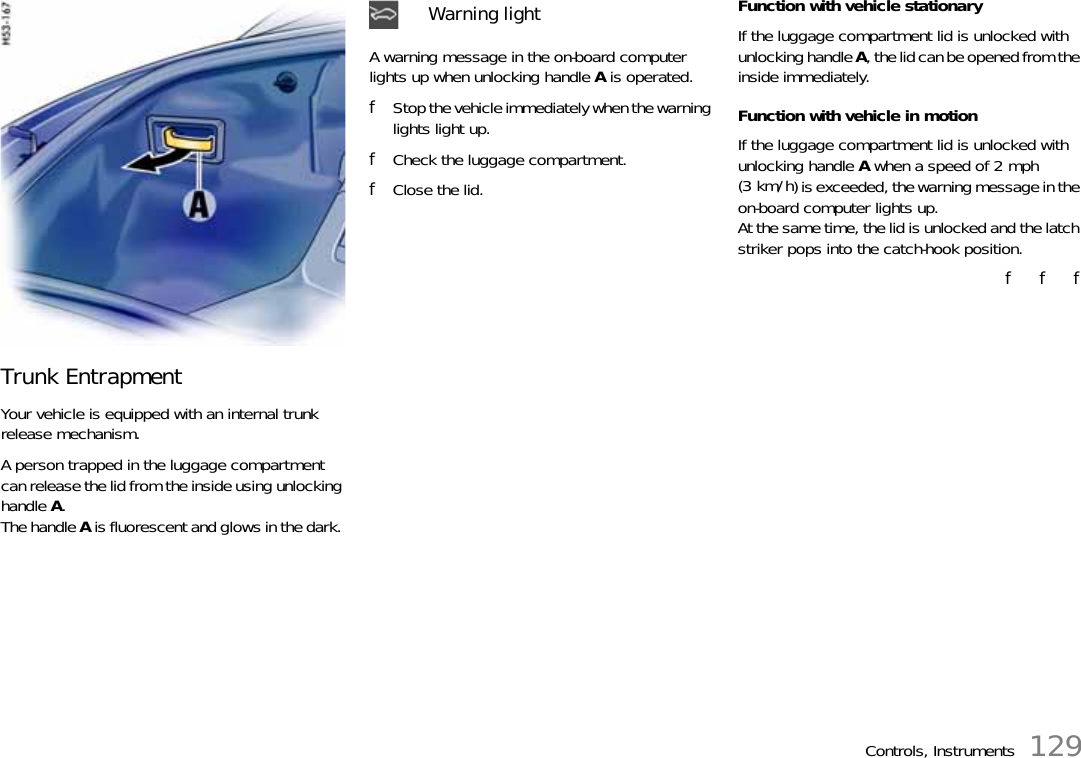

Controls, Instruments 129Trunk EntrapmentYour vehicle is equipped with an internal trunk release mechanism. A person trapped in the luggage compartment can release the lid from the inside using unlocking handle A.The handle A is fluorescent and glows in the dark. A warning message in the on-board computer lights up when unlocking handle A is operated.fStop the vehicle immediately when the warning lights light up.fCheck the luggage compartment.fClose the lid.Function with vehicle stationary If the luggage compartment lid is unlocked with unlocking handle A, the lid can be opened from the inside immediately. Function with vehicle in motion If the luggage compartment lid is unlocked with unlocking handle A when a speed of 2 mph (3 km/h) is exceeded, the warning message in the on-board computer lights up.At the same time, the lid is unlocked and the latch striker pops into the catch-hook position.f f fWarning light

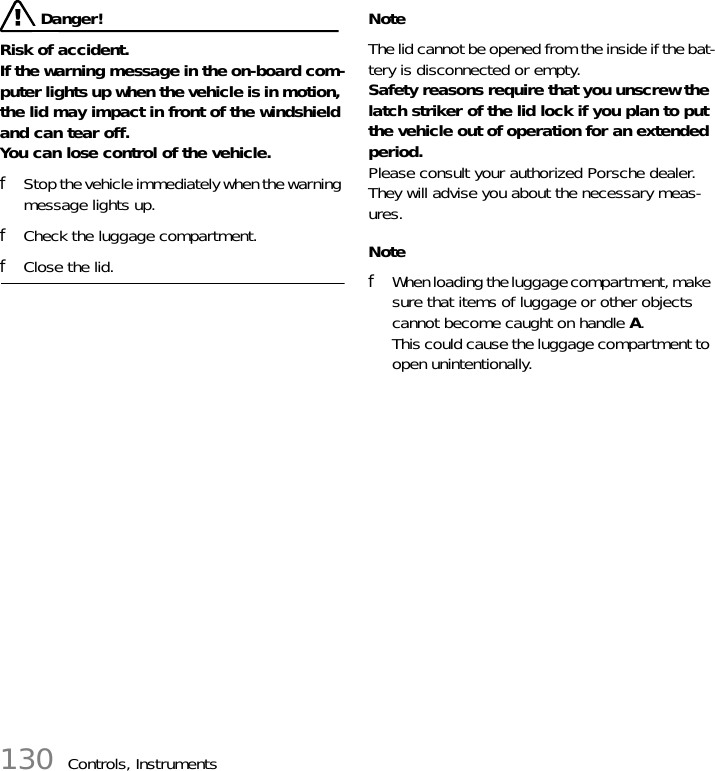

130 Controls, Instruments Danger!Risk of accident. If the warning message in the on-board com-puter lights up when the vehicle is in motion, the lid may impact in front of the windshield and can tear off. You can lose control of the vehicle. fStop the vehicle immediately when the warning message lights up. fCheck the luggage compartment. fClose the lid. NoteThe lid cannot be opened from the inside if the bat-tery is disconnected or empty. Safety reasons require that you unscrew the latch striker of the lid lock if you plan to put the vehicle out of operation for an extended period.Please consult your authorized Porsche dealer. They will advise you about the necessary meas-ures. NotefWhen loading the luggage compartment, make sure that items of luggage or other objects cannot become caught on handle A.This could cause the luggage compartment to open unintentionally.

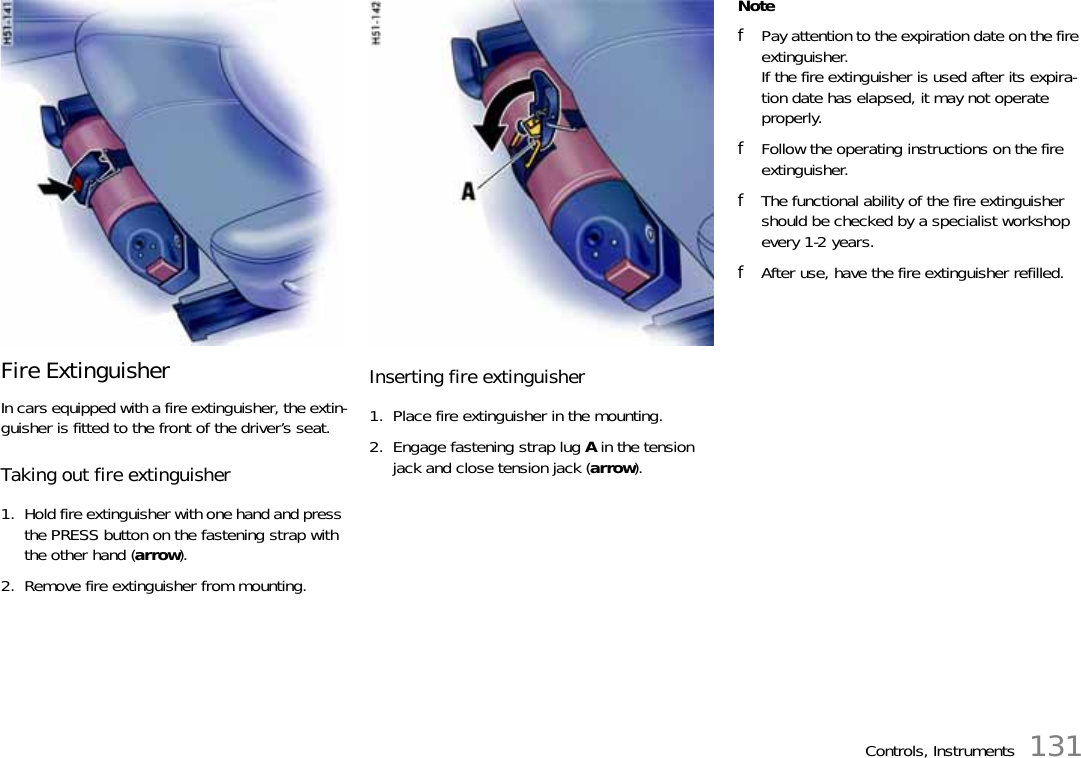

Controls, Instruments 131Fire ExtinguisherIn cars equipped with a fire extinguisher, the extin-guisher is fitted to the front of the driver’s seat.Taking out fire extinguisher1. Hold fire extinguisher with one hand and press the PRESS button on the fastening strap with the other hand (arrow).2. Remove fire extinguisher from mounting.Inserting fire extinguisher1. Place fire extinguisher in the mounting.2. Engage fastening strap lug A in the tension jack and close tension jack (arrow).NotefPay attention to the expiration date on the fire extinguisher. If the fire extinguisher is used after its expira-tion date has elapsed, it may not operate properly.fFollow the operating instructions on the fire extinguisher.fThe functional ability of the fire extinguisher should be checked by a specialist workshop every 1-2 years.fAfter use, have the fire extinguisher refilled.

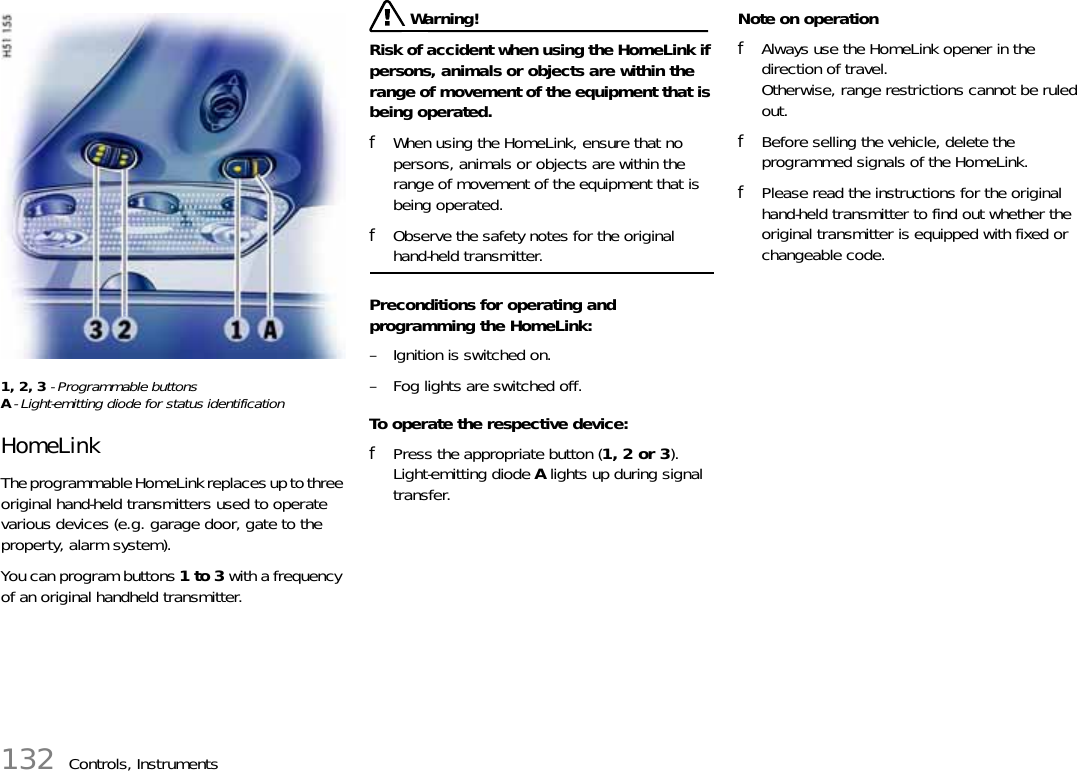

132 Controls, Instruments1, 2, 3 - Programmable buttonsA- Light-emitting diode for status identificationHomeLinkThe programmable HomeLink replaces up to three original hand-held transmitters used to operate various devices (e.g. garage door, gate to the property, alarm system).You can program buttons 1 to 3 with a frequency of an original handheld transmitter. Warning!Risk of accident when using the HomeLink if persons, animals or objects are within the range of movement of the equipment that is being operated.fWhen using the HomeLink, ensure that no persons, animals or objects are within the range of movement of the equipment that is being operated.fObserve the safety notes for the original hand-held transmitter.Preconditions for operating and programming the HomeLink:– Ignition is switched on.– Fog lights are switched off.To operate the respective device:fPress the appropriate button (1, 2 or 3).Light-emitting diode A lights up during signal transfer.Note on operationfAlways use the HomeLink opener in the direction of travel.Otherwise, range restrictions cannot be ruled out.fBefore selling the vehicle, delete the programmed signals of the HomeLink. fPlease read the instructions for the original hand-held transmitter to find out whether the original transmitter is equipped with fixed or changeable code.

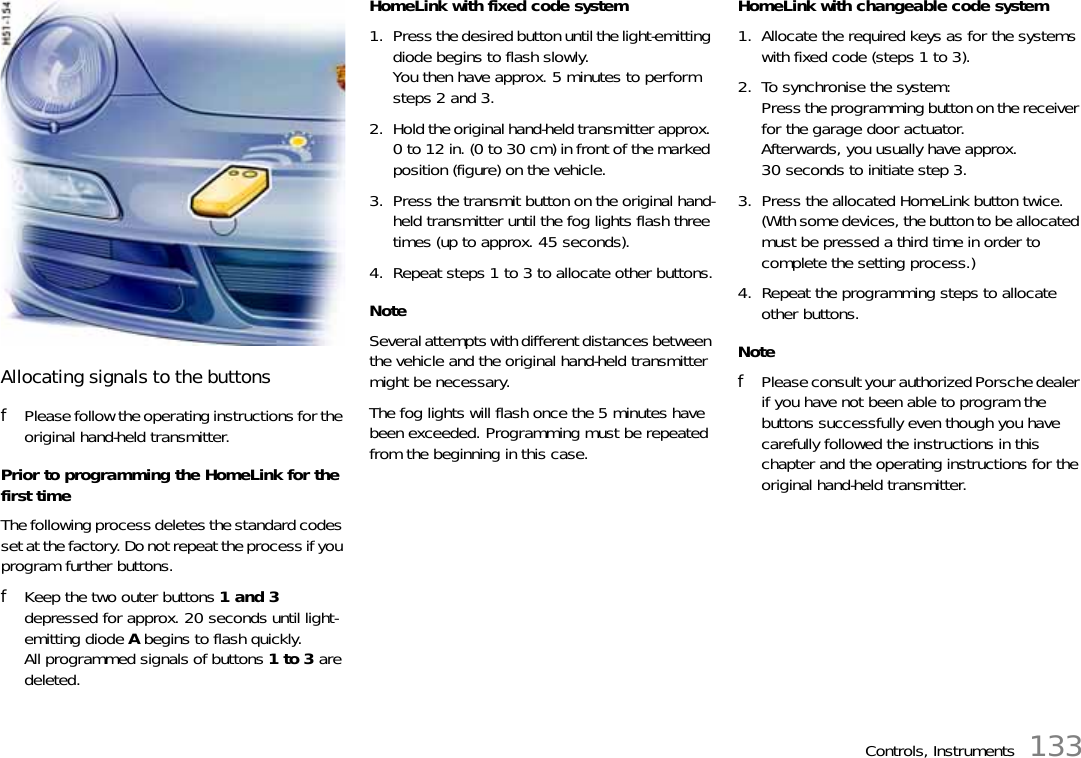

Controls, Instruments 133Allocating signals to the buttonsfPlease follow the operating instructions for the original hand-held transmitter.Prior to programming the HomeLink for the first timeThe following process deletes the standard codes set at the factory. Do not repeat the process if you program further buttons.fKeep the two outer buttons 1 and 3 depressed for approx. 20 seconds until light-emitting diode A begins to flash quickly.All programmed signals of buttons 1 to 3 are deleted.HomeLink with fixed code system1. Press the desired button until the light-emitting diode begins to flash slowly.You then have approx. 5 minutes to perform steps 2 and 3.2. Hold the original hand-held transmitter approx. 0 to 12 in. (0 to 30 cm) in front of the marked position (figure) on the vehicle.3. Press the transmit button on the original hand-held transmitter until the fog lights flash three times (up to approx. 45 seconds).4. Repeat steps 1 to 3 to allocate other buttons.NoteSeveral attempts with different distances between the vehicle and the original hand-held transmitter might be necessary.The fog lights will flash once the 5 minutes have been exceeded. Programming must be repeated from the beginning in this case.HomeLink with changeable code system1. Allocate the required keys as for the systems with fixed code (steps 1 to 3).2. To synchronise the system:Press the programming button on the receiver for the garage door actuator.Afterwards, you usually have approx. 30 seconds to initiate step 3.3. Press the allocated HomeLink button twice. (With some devices, the button to be allocated must be pressed a third time in order to complete the setting process.)4. Repeat the programming steps to allocate other buttons.NotefPlease consult your authorized Porsche dealer if you have not been able to program the buttons successfully even though you have carefully followed the instructions in this chapter and the operating instructions for the original hand-held transmitter.

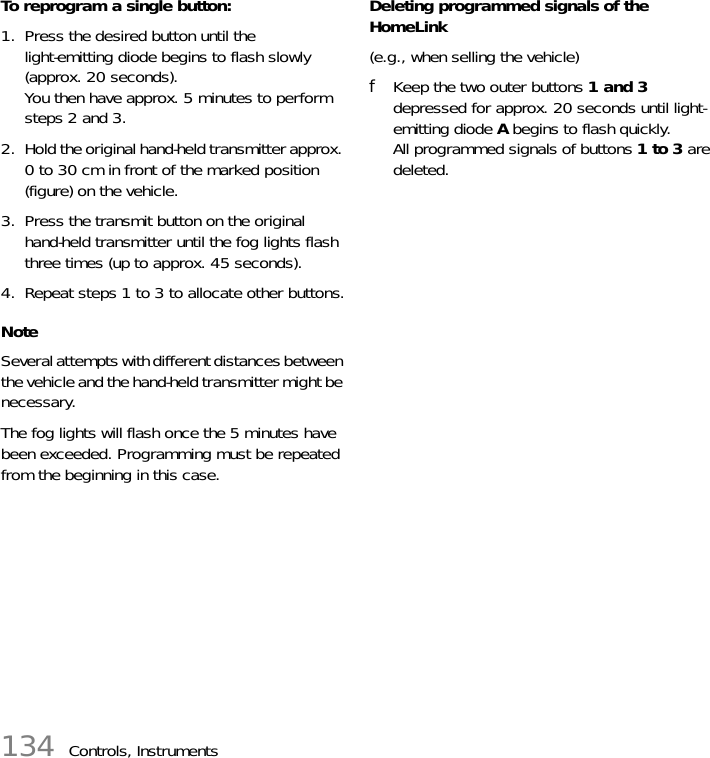

134 Controls, InstrumentsTo reprogram a single button:1. Press the desired button until the light-emitting diode begins to flash slowly (approx. 20 seconds).You then have approx. 5 minutes to perform steps 2 and 3.2. Hold the original hand-held transmitter approx. 0 to 30 cm in front of the marked position (figure) on the vehicle.3. Press the transmit button on the original hand-held transmitter until the fog lights flash three times (up to approx. 45 seconds).4. Repeat steps 1 to 3 to allocate other buttons.NoteSeveral attempts with different distances between the vehicle and the hand-held transmitter might be necessary.The fog lights will flash once the 5 minutes have been exceeded. Programming must be repeated from the beginning in this case.Deleting programmed signals of the HomeLink(e.g., when selling the vehicle)fKeep the two outer buttons 1 and 3 depressed for approx. 20 seconds until light-emitting diode A begins to flash quickly.All programmed signals of buttons 1 to 3 are deleted.

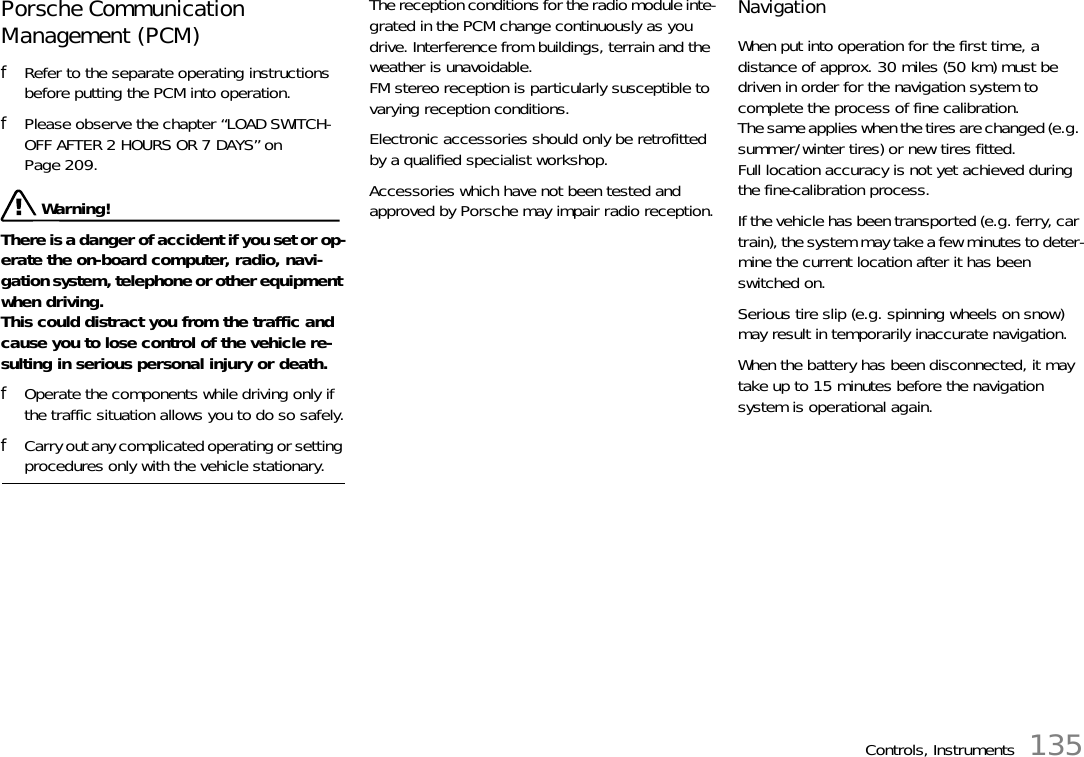

Controls, Instruments 135Porsche Communication Management (PCM) fRefer to the separate operating instructions before putting the PCM into operation.fPlease observe the chapter “LOAD SWITCH-OFF AFTER 2 HOURS OR 7 DAYS” on Page 209. Warning!There is a danger of accident if you set or op-erate the on-board computer, radio, navi-gation system, telephone or other equipment when driving.This could distract you from the traffic and cause you to lose control of the vehicle re-sulting in serious personal injury or death.fOperate the components while driving only if the traffic situation allows you to do so safely.fCarry out any complicated operating or setting procedures only with the vehicle stationary.The reception conditions for the radio module inte-grated in the PCM change continuously as you drive. Interference from buildings, terrain and the weather is unavoidable.FM stereo reception is particularly susceptible to varying reception conditions.Electronic accessories should only be retrofitted by a qualified specialist workshop.Accessories which have not been tested and approved by Porsche may impair radio reception.NavigationWhen put into operation for the first time, a distance of approx. 30 miles (50 km) must be driven in order for the navigation system to complete the process of fine calibration.The same applies when the tires are changed (e.g. summer/winter tires) or new tires fitted.Full location accuracy is not yet achieved during the fine-calibration process.If the vehicle has been transported (e.g. ferry, car train), the system may take a few minutes to deter-mine the current location after it has been switched on.Serious tire slip (e.g. spinning wheels on snow) may result in temporarily inaccurate navigation.When the battery has been disconnected, it may take up to 15 minutes before the navigation system is operational again.

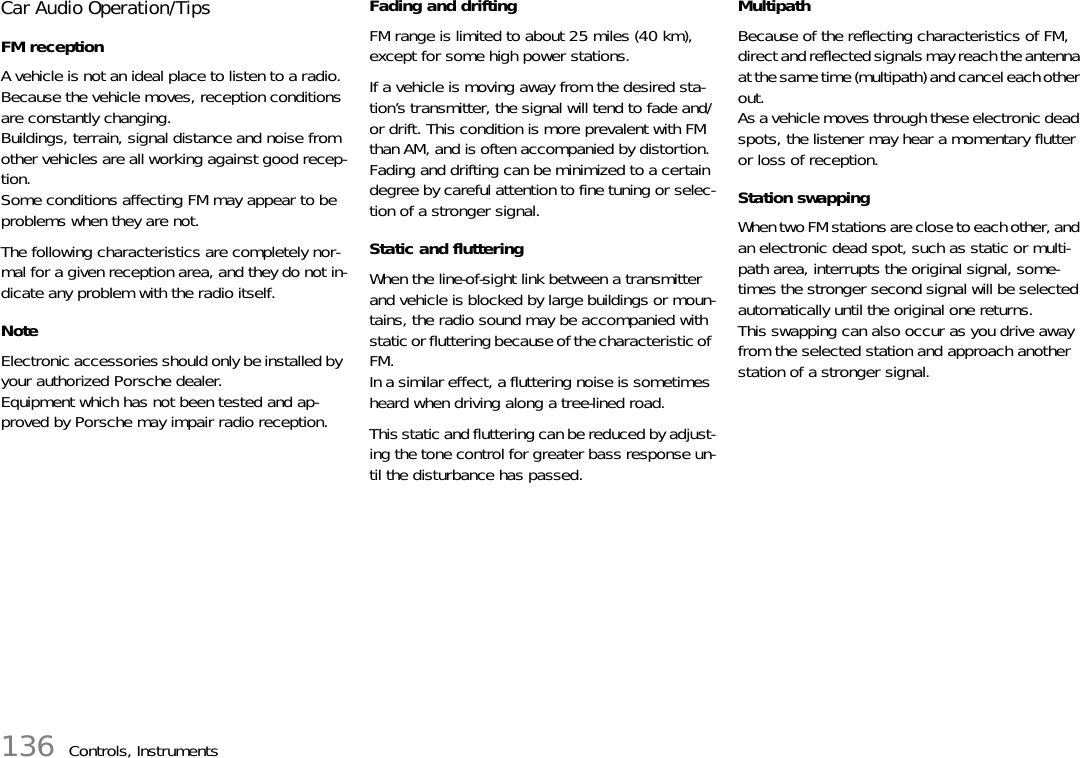

136 Controls, InstrumentsCar Audio Operation/Tips FM reception A vehicle is not an ideal place to listen to a radio. Because the vehicle moves, reception conditions are constantly changing. Buildings, terrain, signal distance and noise from other vehicles are all working against good recep-tion. Some conditions affecting FM may appear to be problems when they are not. The following characteristics are completely nor-mal for a given reception area, and they do not in-dicate any problem with the radio itself. NoteElectronic accessories should only be installed by your authorized Porsche dealer.Equipment which has not been tested and ap-proved by Porsche may impair radio reception. Fading and drifting FM range is limited to about 25 miles (40 km), except for some high power stations. If a vehicle is moving away from the desired sta-tion’s transmitter, the signal will tend to fade and/or drift. This condition is more prevalent with FM than AM, and is often accompanied by distortion. Fading and drifting can be minimized to a certain degree by careful attention to fine tuning or selec-tion of a stronger signal. Static and fluttering When the line-of-sight link between a transmitter and vehicle is blocked by large buildings or moun-tains, the radio sound may be accompanied with static or fluttering because of the characteristic of FM. In a similar effect, a fluttering noise is sometimes heard when driving along a tree-lined road. This static and fluttering can be reduced by adjust-ing the tone control for greater bass response un-til the disturbance has passed. Multipath Because of the reflecting characteristics of FM, direct and reflected signals may reach the antenna at the same time (multipath) and cancel each other out. As a vehicle moves through these electronic dead spots, the listener may hear a momentary flutter or loss of reception. Station swapping When two FM stations are close to each other, and an electronic dead spot, such as static or multi-path area, interrupts the original signal, some-times the stronger second signal will be selected automatically until the original one returns. This swapping can also occur as you drive away from the selected station and approach another station of a stronger signal.

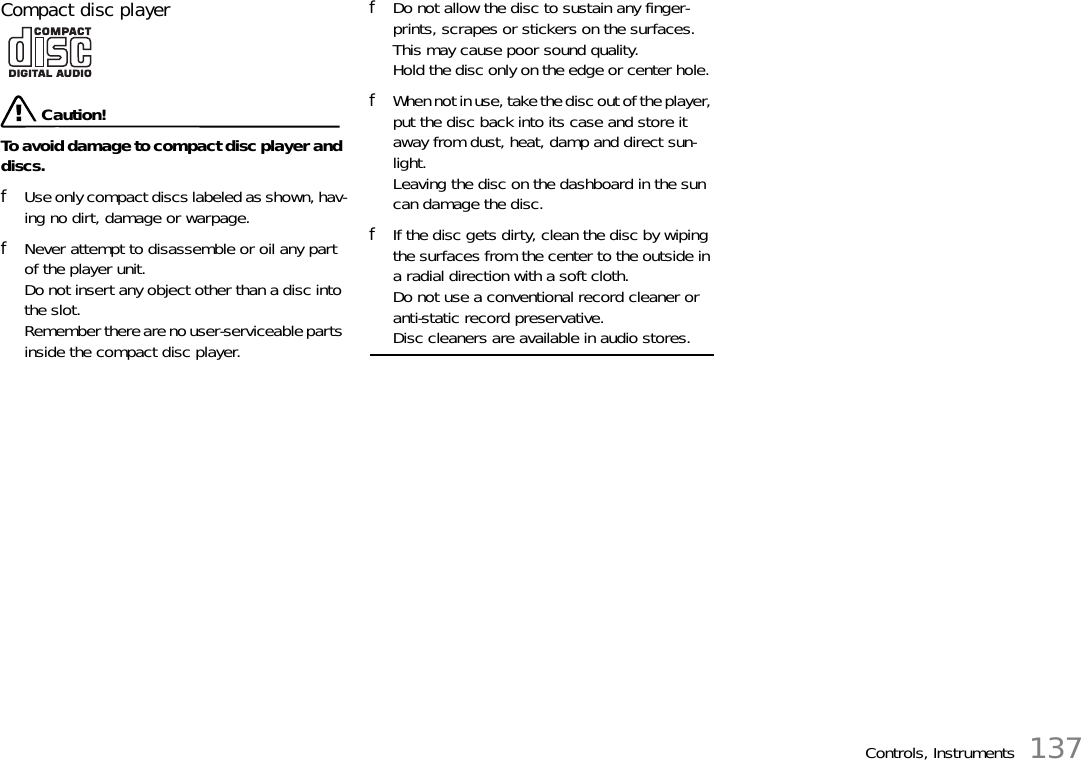

Controls, Instruments 137Compact disc player Caution!To avoid damage to compact disc player and discs. fUse only compact discs labeled as shown, hav-ing no dirt, damage or warpage. fNever attempt to disassemble or oil any part of the player unit. Do not insert any object other than a disc into the slot.Remember there are no user-serviceable parts inside the compact disc player. fDo not allow the disc to sustain any finger-prints, scrapes or stickers on the surfaces. This may cause poor sound quality.Hold the disc only on the edge or center hole. fWhen not in use, take the disc out of the player, put the disc back into its case and store it away from dust, heat, damp and direct sun-light.Leaving the disc on the dashboard in the sun can damage the disc. fIf the disc gets dirty, clean the disc by wiping the surfaces from the center to the outside in a radial direction with a soft cloth. Do not use a conventional record cleaner or anti-static record preservative. Disc cleaners are available in audio stores.

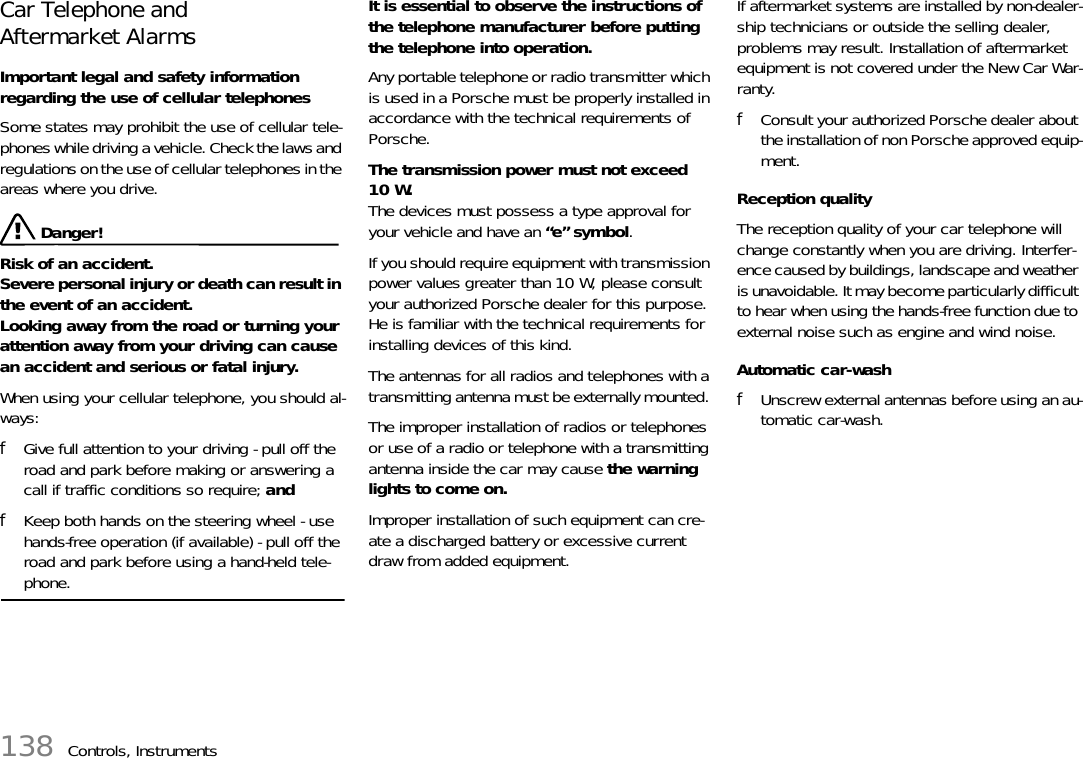

138 Controls, InstrumentsCar Telephone andAftermarket Alarms Important legal and safety information regarding the use of cellular telephones Some states may prohibit the use of cellular tele-phones while driving a vehicle. Check the laws and regulations on the use of cellular telephones in the areas where you drive. Danger!Risk of an accident.Severe personal injury or death can result in the event of an accident.Looking away from the road or turning your attention away from your driving can cause an accident and serious or fatal injury. When using your cellular telephone, you should al-ways: fGive full attention to your driving - pull off the road and park before making or answering a call if traffic conditions so require; and fKeep both hands on the steering wheel - use hands-free operation (if available) - pull off the road and park before using a hand-held tele-phone. It is essential to observe the instructions of the telephone manufacturer before putting the telephone into operation. Any portable telephone or radio transmitter which is used in a Porsche must be properly installed in accordance with the technical requirements of Porsche. The transmission power must not exceed 10 W.The devices must possess a type approval for your vehicle and have an “e” symbol. If you should require equipment with transmission power values greater than 10 W, please consult your authorized Porsche dealer for this purpose. He is familiar with the technical requirements for installing devices of this kind. The antennas for all radios and telephones with a transmitting antenna must be externally mounted. The improper installation of radios or telephones or use of a radio or telephone with a transmitting antenna inside the car may cause the warning lights to come on. Improper installation of such equipment can cre-ate a discharged battery or excessive current draw from added equipment. If aftermarket systems are installed by non-dealer-ship technicians or outside the selling dealer, problems may result. Installation of aftermarket equipment is not covered under the New Car War-ranty. fConsult your authorized Porsche dealer about the installation of non Porsche approved equip-ment. Reception quality The reception quality of your car telephone will change constantly when you are driving. Interfer-ence caused by buildings, landscape and weather is unavoidable. It may become particularly difficult to hear when using the hands-free function due to external noise such as engine and wind noise. Automatic car-wash fUnscrew external antennas before using an au-tomatic car-wash.
Shifting Gears 139Shifting GearsManual Transmission, Clutch...................... 152Tiptronic S................................................ 153

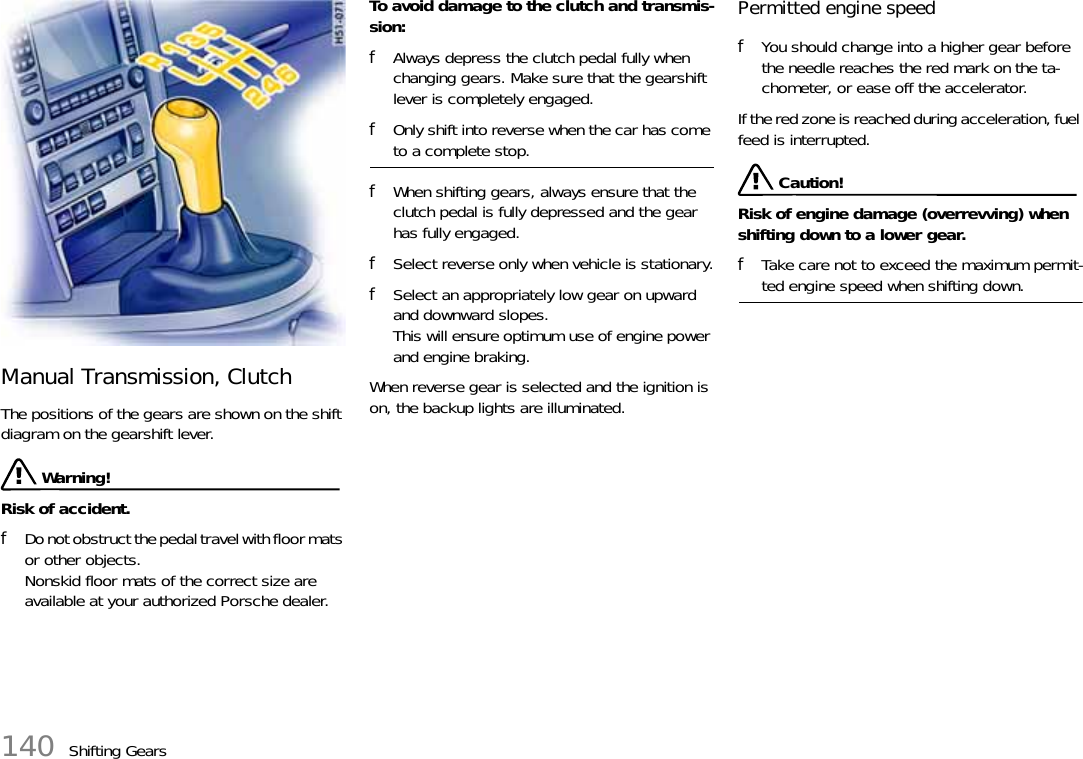

140 Shifting GearsManual Transmission, ClutchThe positions of the gears are shown on the shift diagram on the gearshift lever. Warning!Risk of accident.fDo not obstruct the pedal travel with floor mats or other objects.Nonskid floor mats of the correct size are available at your authorized Porsche dealer.To avoid damage to the clutch and transmis-sion:fAlways depress the clutch pedal fully when changing gears. Make sure that the gearshift lever is completely engaged.fOnly shift into reverse when the car has come to a complete stop.fWhen shifting gears, always ensure that the clutch pedal is fully depressed and the gear has fully engaged.fSelect reverse only when vehicle is stationary.fSelect an appropriately low gear on upward and downward slopes. This will ensure optimum use of engine power and engine braking.When reverse gear is selected and the ignition is on, the backup lights are illuminated.Permitted engine speedfYou should change into a higher gear before the needle reaches the red mark on the ta-chometer, or ease off the accelerator.If the red zone is reached during acceleration, fuel feed is interrupted. Caution!Risk of engine damage (overrevving) when shifting down to a lower gear.fTake care not to exceed the maximum permit-ted engine speed when shifting down.

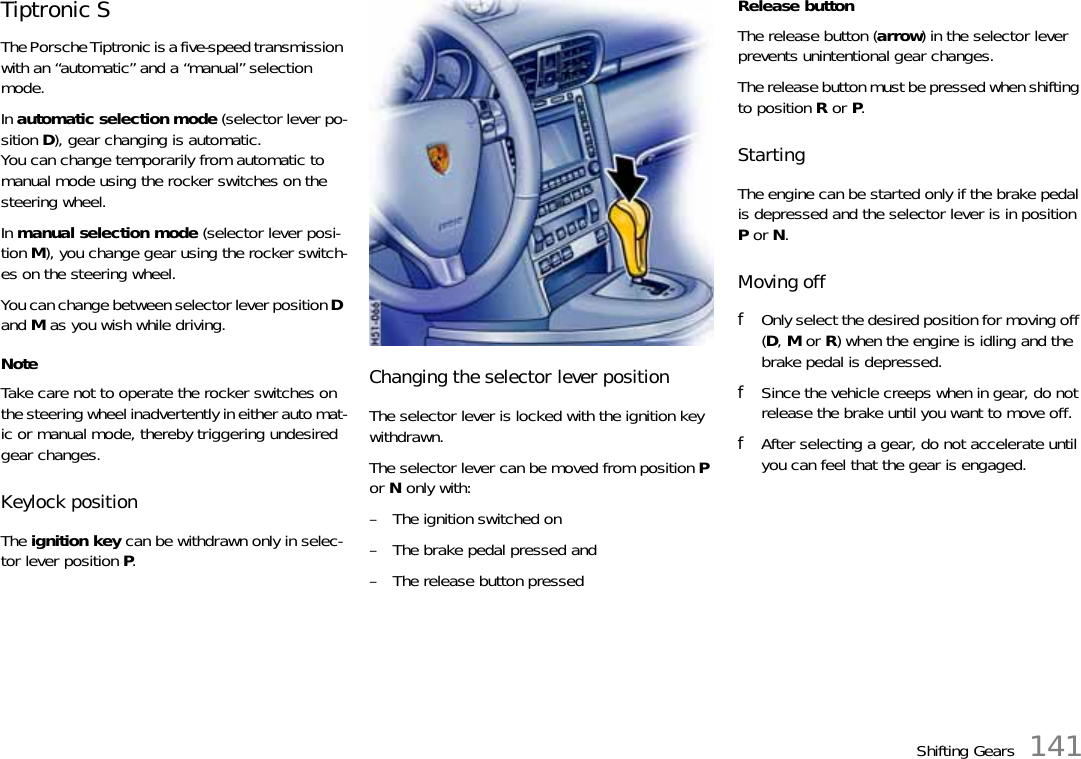

Shifting Gears 141Tiptronic SThe Porsche Tiptronic is a five-speed transmission with an “automatic” and a “manual” selection mode.In automatic selection mode (selector lever po-sition D), gear changing is automatic.You can change temporarily from automatic to manual mode using the rocker switches on the steering wheel.In manual selection mode (selector lever posi-tion M), you change gear using the rocker switch-es on the steering wheel.You can change between selector lever position D and M as you wish while driving.NoteTake care not to operate the rocker switches on the steering wheel inadvertently in either auto mat-ic or manual mode, thereby triggering undesired gear changes.Keylock positionThe ignition key can be withdrawn only in selec-tor lever position P.Changing the selector lever positionThe selector lever is locked with the ignition key withdrawn.The selector lever can be moved from position P or N only with:– The ignition switched on– The brake pedal pressed and– The release button pressedRelease buttonThe release button (arrow) in the selector lever prevents unintentional gear changes.The release button must be pressed when shifting to position R or P.StartingThe engine can be started only if the brake pedal is depressed and the selector lever is in position P or N.Moving offfOnly select the desired position for moving off (D, M or R) when the engine is idling and the brake pedal is depressed.fSince the vehicle creeps when in gear, do not release the brake until you want to move off. fAfter selecting a gear, do not accelerate until you can feel that the gear is engaged.

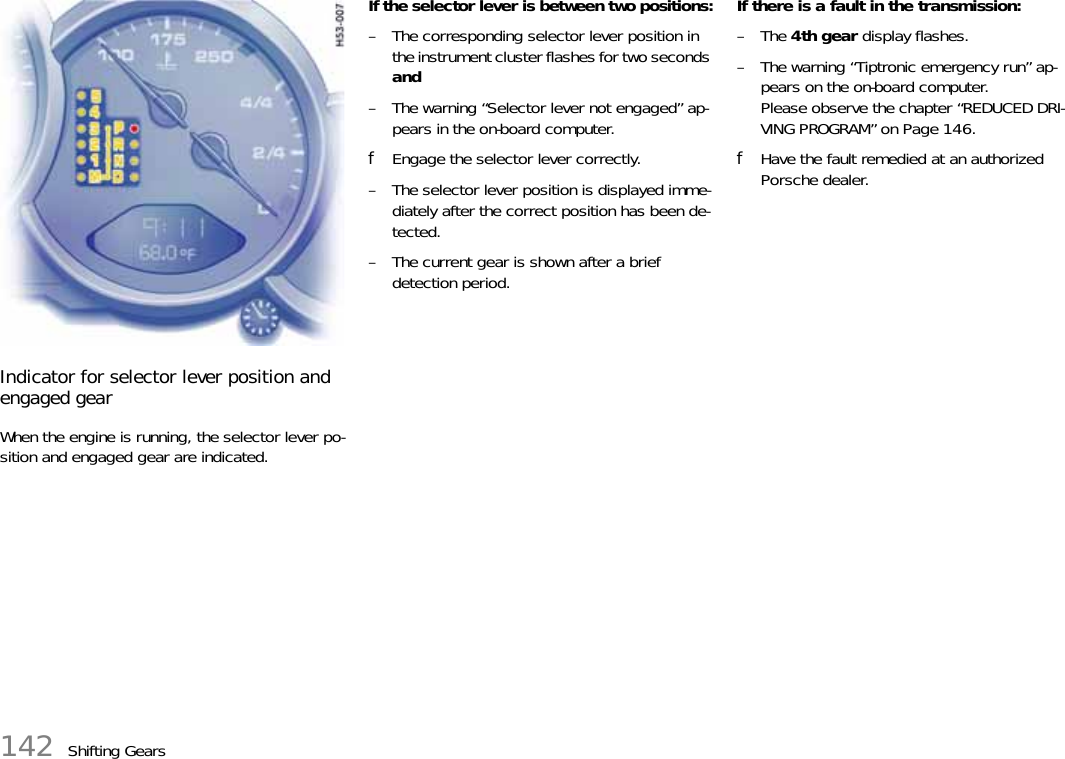

142 Shifting GearsIndicator for selector lever position and engaged gearWhen the engine is running, the selector lever po-sition and engaged gear are indicated.If the selector lever is between two positions:– The corresponding selector lever position in the instrument cluster flashes for two seconds and– The warning “Selector lever not engaged” ap-pears in the on-board computer.fEngage the selector lever correctly.– The selector lever position is displayed imme-diately after the correct position has been de-tected.– The current gear is shown after a brief detection period.If there is a fault in the transmission:–The 4th gear display flashes.– The warning “Tiptronic emergency run” ap-pears on the on-board computer.Please observe the chapter “REDUCED DRI-VING PROGRAM” on Page 146.fHave the fault remedied at an authorized Porsche dealer.

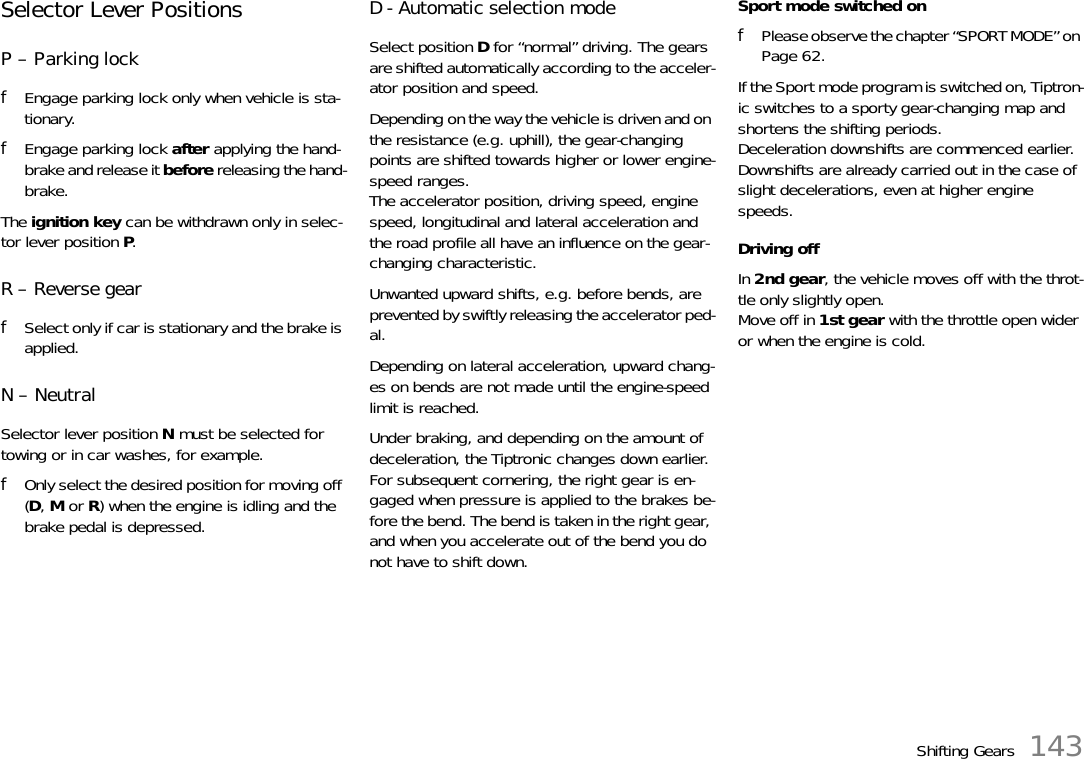

Shifting Gears 143Selector Lever PositionsP – Parking lockfEngage parking lock only when vehicle is sta-tionary.fEngage parking lock after applying the hand-brake and release it before releasing the hand-brake.The ignition key can be withdrawn only in selec-tor lever position P.R – Reverse gearfSelect only if car is stationary and the brake is applied.N – NeutralSelector lever position N must be selected for towing or in car washes, for example.fOnly select the desired position for moving off (D, M or R) when the engine is idling and the brake pedal is depressed.D - Automatic selection modeSelect position D for “normal” driving. The gears are shifted automatically according to the acceler-ator position and speed.Depending on the way the vehicle is driven and on the resistance (e.g. uphill), the gear-changing points are shifted towards higher or lower engine-speed ranges.The accelerator position, driving speed, engine speed, longitudinal and lateral acceleration and the road profile all have an influence on the gear-changing characteristic.Unwanted upward shifts, e.g. before bends, are prevented by swiftly releasing the accelerator ped-al.Depending on lateral acceleration, upward chang-es on bends are not made until the engine-speed limit is reached.Under braking, and depending on the amount of deceleration, the Tiptronic changes down earlier.For subsequent cornering, the right gear is en-gaged when pressure is applied to the brakes be-fore the bend. The bend is taken in the right gear, and when you accelerate out of the bend you do not have to shift down.Sport mode switched onfPlease observe the chapter “SPORT MODE” on Page 62.If the Sport mode program is switched on, Tiptron-ic switches to a sporty gear-changing map and shortens the shifting periods. Deceleration downshifts are commenced earlier. Downshifts are already carried out in the case of slight decelerations, even at higher engine speeds.Driving offIn 2nd gear, the vehicle moves off with the throt-tle only slightly open.Move off in 1st gear with the throttle open wider or when the engine is cold.

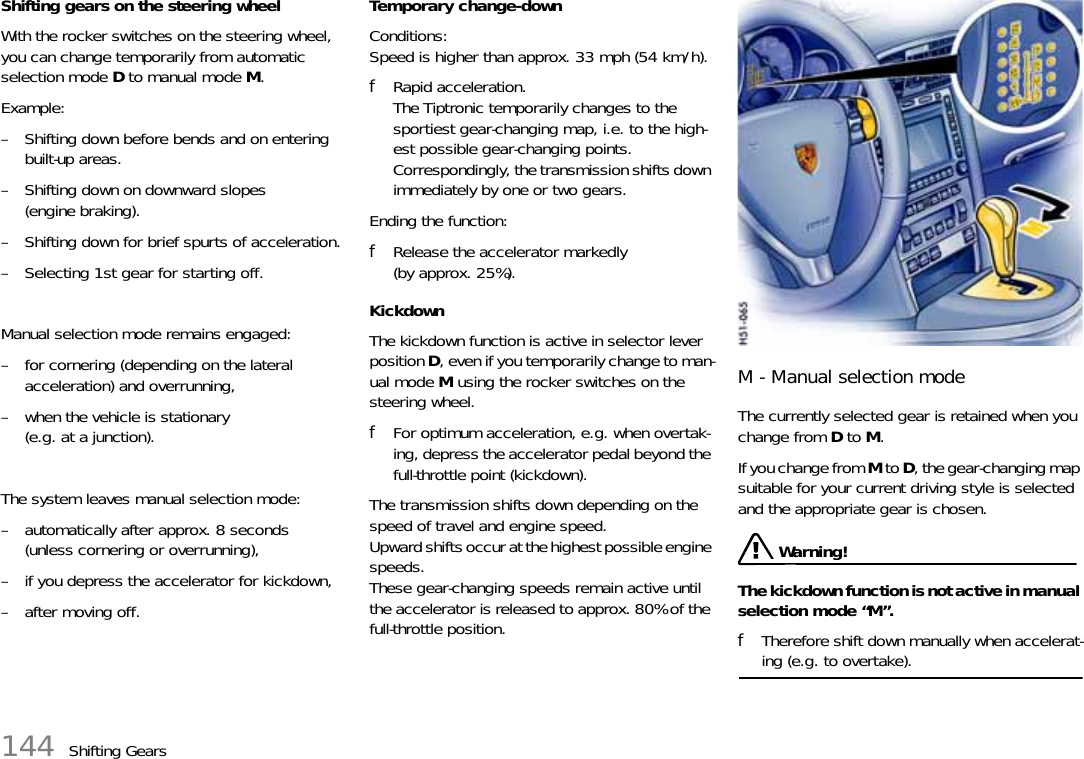

144 Shifting GearsShifting gears on the steering wheelWith the rocker switches on the steering wheel, you can change temporarily from automatic selection mode D to manual mode M.Example:– Shifting down before bends and on entering built-up areas.– Shifting down on downward slopes (engine braking).– Shifting down for brief spurts of acceleration.– Selecting 1st gear for starting off.Manual selection mode remains engaged:– for cornering (depending on the lateral acceleration) and overrunning,– when the vehicle is stationary (e.g. at a junction).The system leaves manual selection mode:– automatically after approx. 8 seconds(unless cornering or overrunning),– if you depress the accelerator for kickdown,– after moving off.Temporary change-downConditions:Speed is higher than approx. 33 mph (54 km/h).fRapid acceleration.The Tiptronic temporarily changes to the sportiest gear-changing map, i.e. to the high-est possible gear-changing points. Correspondingly, the transmission shifts down immediately by one or two gears.Ending the function:fRelease the accelerator markedly (by approx. 25%).KickdownThe kickdown function is active in selector lever position D, even if you temporarily change to man-ual mode M using the rocker switches on the steering wheel.fFor optimum acceleration, e.g. when overtak-ing, depress the accelerator pedal beyond the full-throttle point (kickdown).The transmission shifts down depending on the speed of travel and engine speed.Upward shifts occur at the highest possible engine speeds.These gear-changing speeds remain active until the accelerator is released to approx. 80% of the full-throttle position.M - Manual selection modeThe currently selected gear is retained when you change from D to M.If you change from M to D, the gear-changing map suitable for your current driving style is selected and the appropriate gear is chosen. Warning!The kickdown function is not active in manual selection mode “M”.fTherefore shift down manually when accelerat-ing (e.g. to overtake).

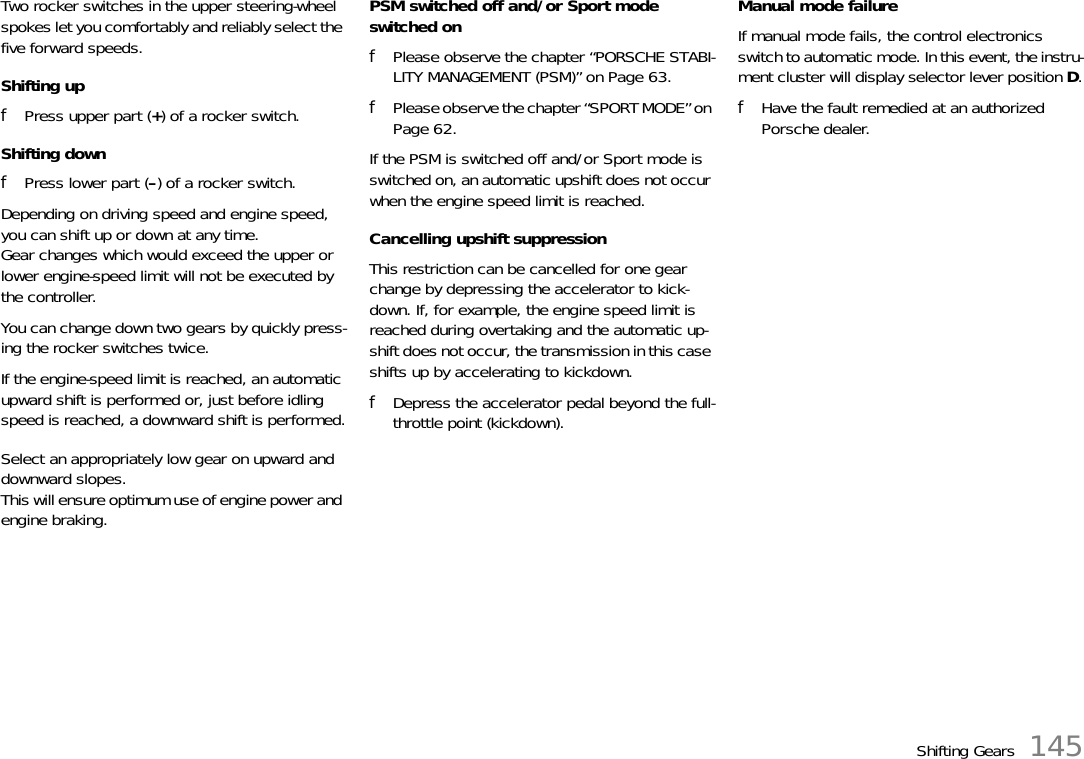

Shifting Gears 145Two rocker switches in the upper steering-wheel spokes let you comfortably and reliably select the five forward speeds.Shifting upfPress upper part (+) of a rocker switch.Shifting downfPress lower part (–) of a rocker switch.Depending on driving speed and engine speed, you can shift up or down at any time.Gear changes which would exceed the upper or lower engine-speed limit will not be executed by the controller.You can change down two gears by quickly press-ing the rocker switches twice.If the engine-speed limit is reached, an automatic upward shift is performed or, just before idling speed is reached, a downward shift is performed.Select an appropriately low gear on upward and downward slopes. This will ensure optimum use of engine power and engine braking.PSM switched off and/or Sport mode switched onfPlease observe the chapter “PORSCHE STABI-LITY MANAGEMENT (PSM)” on Page 63.fPlease observe the chapter “SPORT MODE” on Page 62.If the PSM is switched off and/or Sport mode is switched on, an automatic upshift does not occur when the engine speed limit is reached.Cancelling upshift suppressionThis restriction can be cancelled for one gear change by depressing the accelerator to kick-down. If, for example, the engine speed limit is reached during overtaking and the automatic up-shift does not occur, the transmission in this case shifts up by accelerating to kickdown.fDepress the accelerator pedal beyond the full-throttle point (kickdown).Manual mode failureIf manual mode fails, the control electronics switch to automatic mode. In this event, the instru-ment cluster will display selector lever position D.fHave the fault remedied at an authorized Porsche dealer.

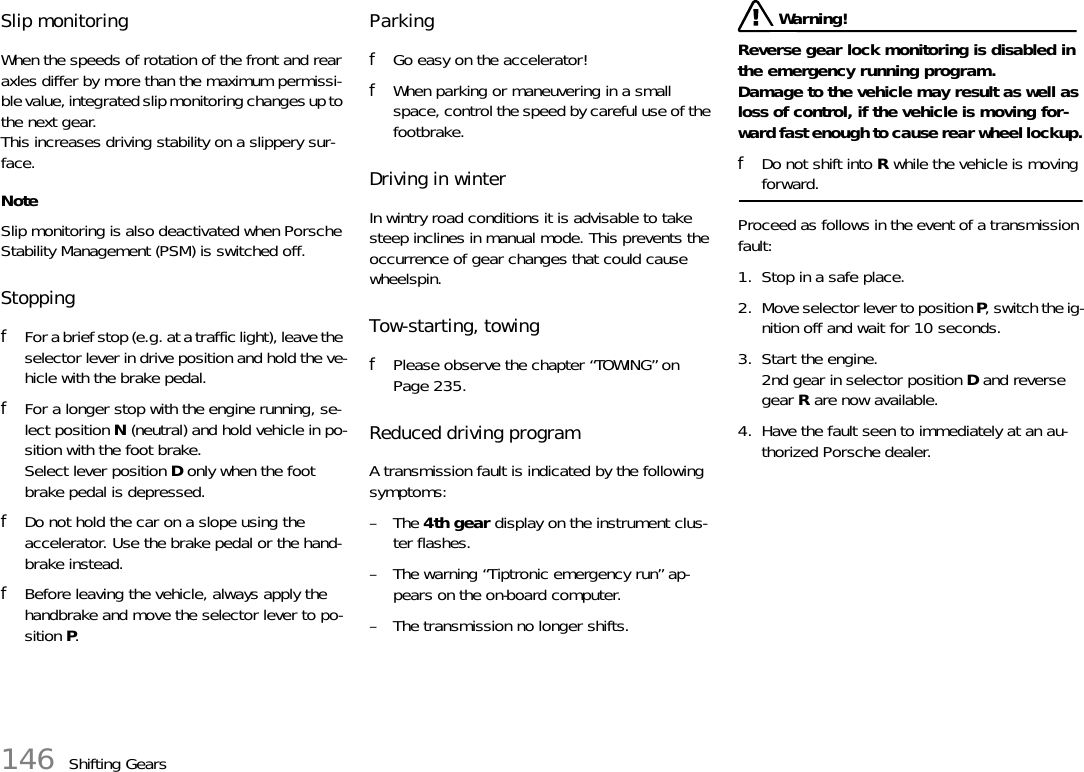

146 Shifting GearsSlip monitoringWhen the speeds of rotation of the front and rear axles differ by more than the maximum permissi-ble value, integrated slip monitoring changes up to the next gear.This increases driving stability on a slippery sur-face.NoteSlip monitoring is also deactivated when Porsche Stability Management (PSM) is switched off.StoppingfFor a brief stop (e.g. at a traffic light), leave the selector lever in drive position and hold the ve-hicle with the brake pedal.fFor a longer stop with the engine running, se-lect position N (neutral) and hold vehicle in po-sition with the foot brake.Select lever position D only when the foot brake pedal is depressed.fDo not hold the car on a slope using the accelerator. Use the brake pedal or the hand-brake instead.fBefore leaving the vehicle, always apply the handbrake and move the selector lever to po-sition P.ParkingfGo easy on the accelerator!fWhen parking or maneuvering in a small space, control the speed by careful use of the footbrake.Driving in winterIn wintry road conditions it is advisable to take steep inclines in manual mode. This prevents the occurrence of gear changes that could cause wheelspin.Tow-starting, towingfPlease observe the chapter “TOWING” on Page 235.Reduced driving programA transmission fault is indicated by the following symptoms:–The 4th gear display on the instrument clus-ter flashes.– The warning “Tiptronic emergency run” ap-pears on the on-board computer.– The transmission no longer shifts. Warning!Reverse gear lock monitoring is disabled in the emergency running program.Damage to the vehicle may result as well as loss of control, if the vehicle is moving for-ward fast enough to cause rear wheel lockup.fDo not shift into R while the vehicle is moving forward.Proceed as follows in the event of a transmission fault:1. Stop in a safe place.2. Move selector lever to position P, switch the ig-nition off and wait for 10 seconds.3. Start the engine.2nd gear in selector position D and reverse gear R are now available.4. Have the fault seen to immediately at an au-thorized Porsche dealer.

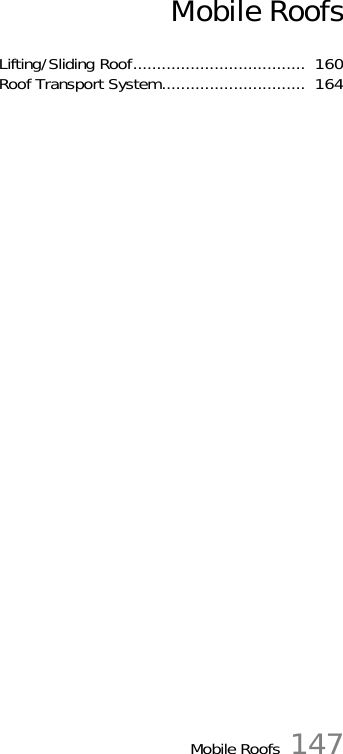

Mobile Roofs 147Mobile RoofsLifting/Sliding Roof.................................... 160Roof Transport System.............................. 164

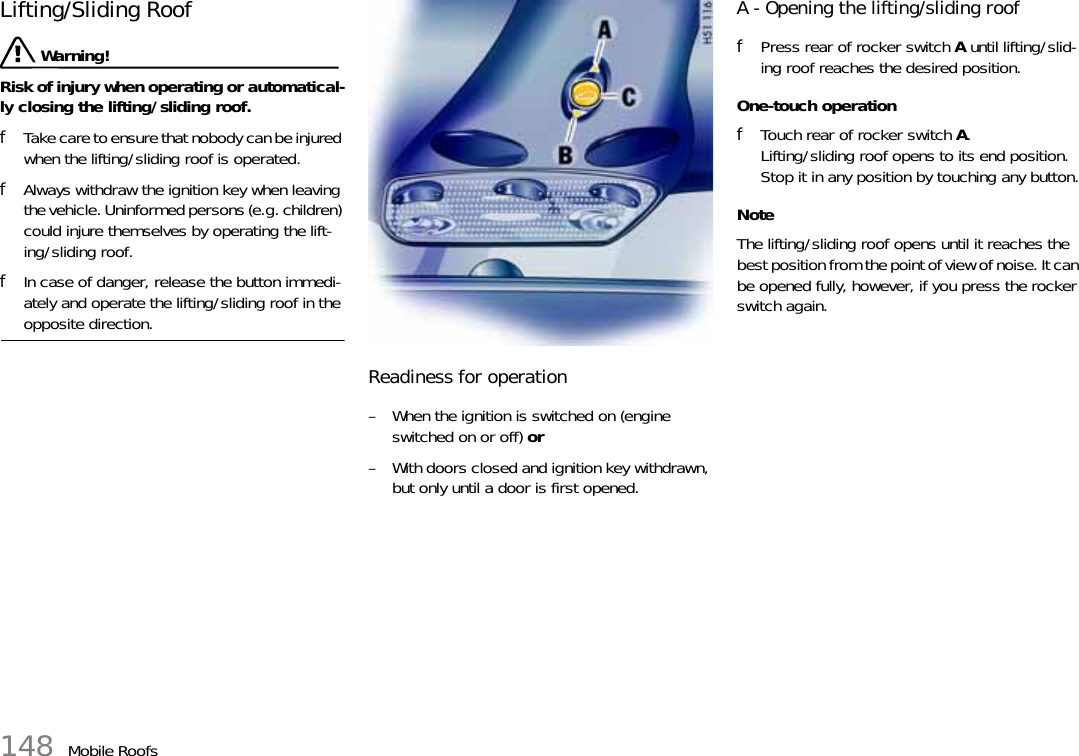

148 Mobile RoofsLifting/Sliding Roof Warning!Risk of injury when operating or automatical-ly closing the lifting/sliding roof.fTake care to ensure that nobody can be injured when the lifting/sliding roof is operated.fAlways withdraw the ignition key when leaving the vehicle. Uninformed persons (e.g. children) could injure themselves by operating the lift-ing/sliding roof.fIn case of danger, release the button immedi-ately and operate the lifting/sliding roof in the opposite direction.Readiness for operation– When the ignition is switched on (engine switched on or off) or– With doors closed and ignition key withdrawn, but only until a door is first opened.A - Opening the lifting/sliding rooffPress rear of rocker switch A until lifting/slid-ing roof reaches the desired position.One-touch operationfTouch rear of rocker switch A.Lifting/sliding roof opens to its end position.Stop it in any position by touching any button.NoteThe lifting/sliding roof opens until it reaches the best position from the point of view of noise. It can be opened fully, however, if you press the rocker switch again.

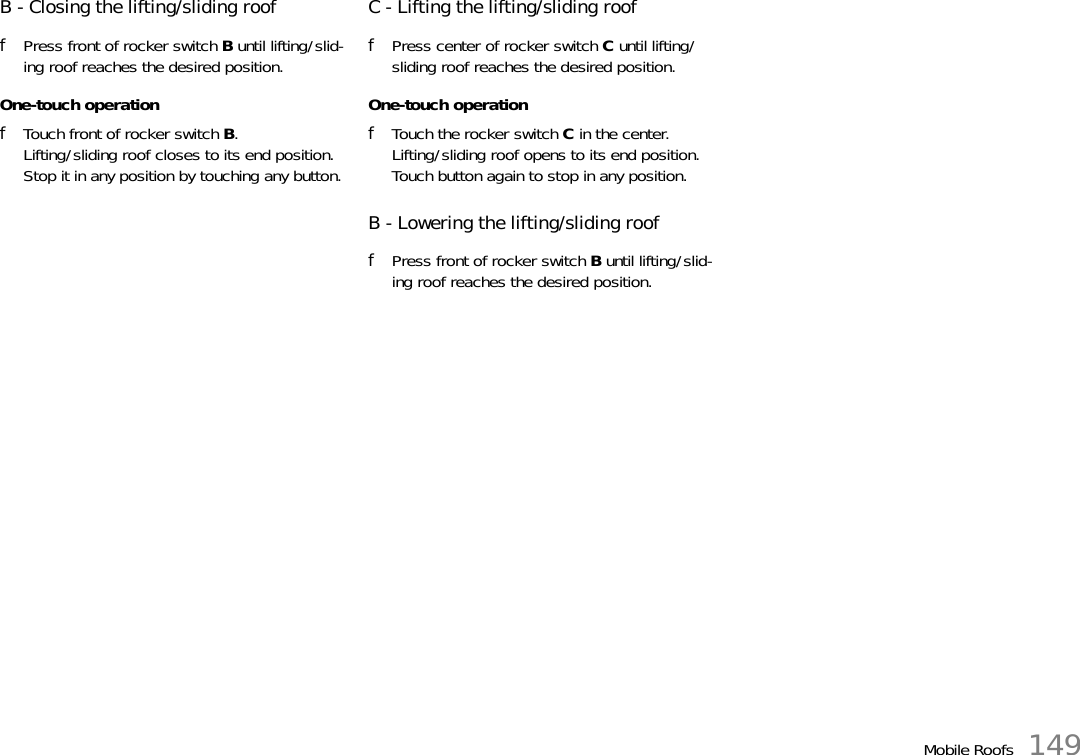

Mobile Roofs 149B - Closing the lifting/sliding rooffPress front of rocker switch B until lifting/slid-ing roof reaches the desired position.One-touch operationfTouch front of rocker switch B.Lifting/sliding roof closes to its end position.Stop it in any position by touching any button.C - Lifting the lifting/sliding rooffPress center of rocker switch C until lifting/sliding roof reaches the desired position.One-touch operationfTouch the rocker switch C in the center.Lifting/sliding roof opens to its end position. Touch button again to stop in any position.B - Lowering the lifting/sliding rooffPress front of rocker switch B until lifting/slid-ing roof reaches the desired position.

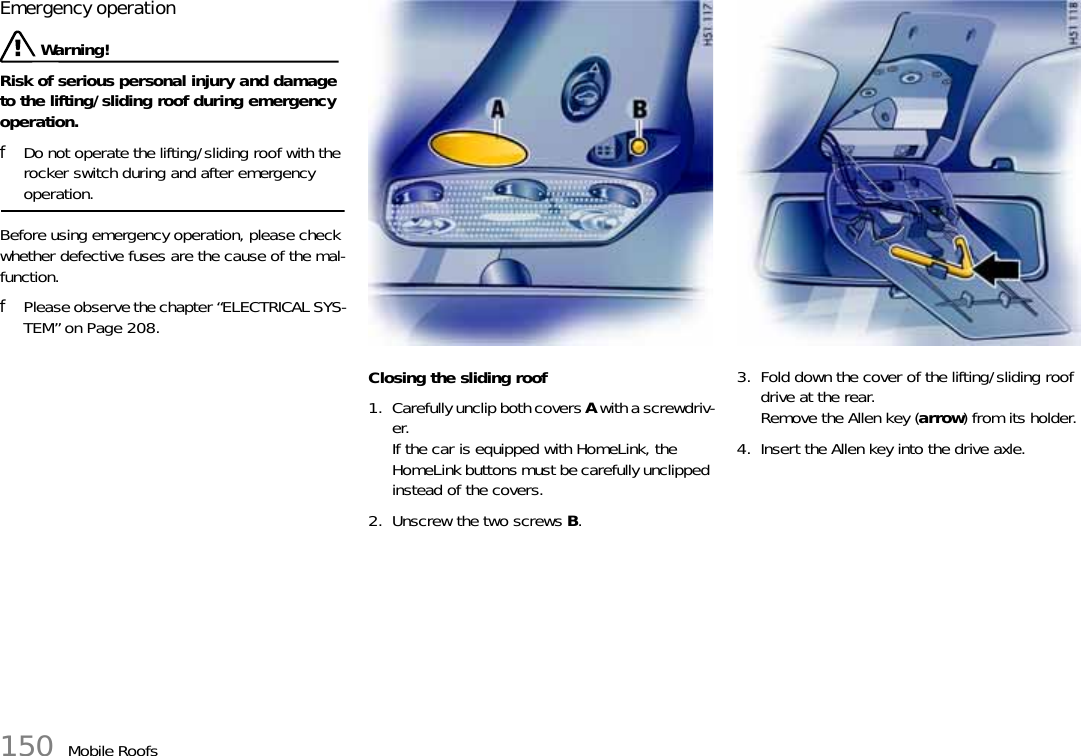

150 Mobile RoofsEmergency operation Warning!Risk of serious personal injury and damage to the lifting/sliding roof during emergency operation.fDo not operate the lifting/sliding roof with the rocker switch during and after emergency operation.Before using emergency operation, please check whether defective fuses are the cause of the mal-function.fPlease observe the chapter “ELECTRICAL SYS-TEM” on Page 208.Closing the sliding roof1. Carefully unclip both covers A with a screwdriv-er.If the car is equipped with HomeLink, the HomeLink buttons must be carefully unclipped instead of the covers.2. Unscrew the two screws B.3. Fold down the cover of the lifting/sliding roof drive at the rear.Remove the Allen key (arrow) from its holder.4. Insert the Allen key into the drive axle.

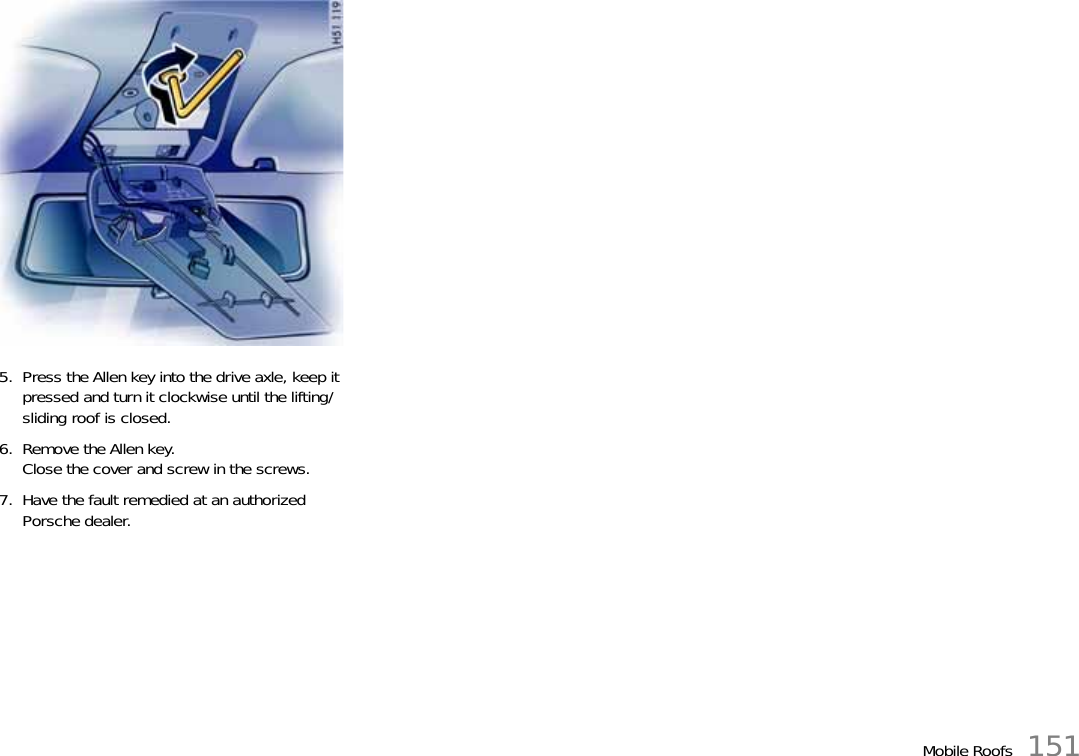

Mobile Roofs 1515. Press the Allen key into the drive axle, keep it pressed and turn it clockwise until the lifting/sliding roof is closed.6. Remove the Allen key.Close the cover and screw in the screws.7. Have the fault remedied at an authorized Porsche dealer.

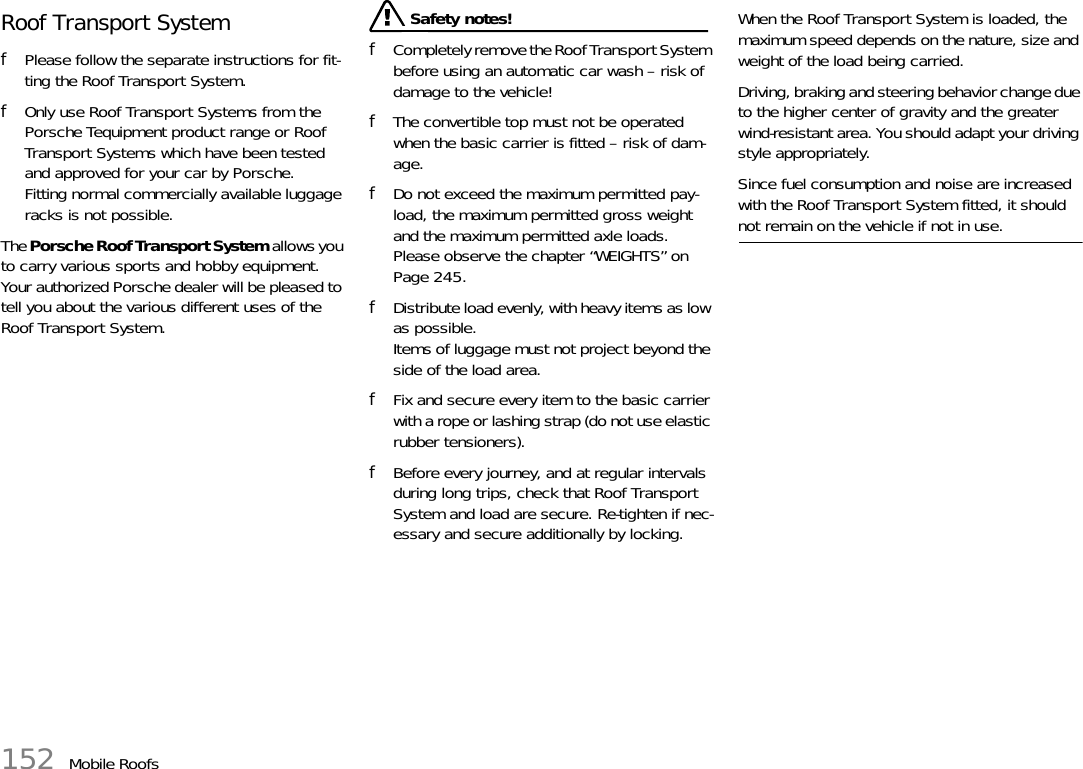

152 Mobile RoofsRoof Transport SystemfPlease follow the separate instructions for fit-ting the Roof Transport System.fOnly use Roof Transport Systems from the Porsche Tequipment product range or Roof Transport Systems which have been tested and approved for your car by Porsche.Fitting normal commercially available luggage racks is not possible. The Porsche Roof Transport System allows you to carry various sports and hobby equipment.Your authorized Porsche dealer will be pleased to tell you about the various different uses of the Roof Transport System. Safety notes!fCompletely remove the Roof Transport System before using an automatic car wash – risk of damage to the vehicle!fThe convertible top must not be operated when the basic carrier is fitted – risk of dam-age.fDo not exceed the maximum permitted pay-load, the maximum permitted gross weight and the maximum permitted axle loads.Please observe the chapter “WEIGHTS” on Page 245.fDistribute load evenly, with heavy items as low as possible.Items of luggage must not project beyond the side of the load area.fFix and secure every item to the basic carrier with a rope or lashing strap (do not use elastic rubber tensioners).fBefore every journey, and at regular intervals during long trips, check that Roof Transport System and load are secure. Re-tighten if nec-essary and secure additionally by locking.When the Roof Transport System is loaded, the maximum speed depends on the nature, size and weight of the load being carried.Driving, braking and steering behavior change due to the higher center of gravity and the greater wind-resistant area. You should adapt your driving style appropriately.Since fuel consumption and noise are increased with the Roof Transport System fitted, it should not remain on the vehicle if not in use.

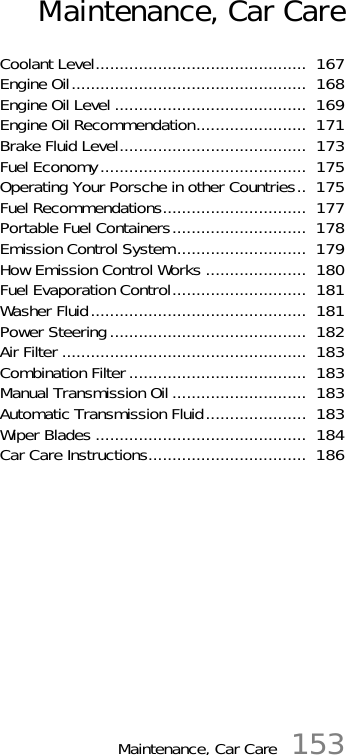

Maintenance, Car Care 153Maintenance, Car CareCoolant Level............................................ 167Engine Oil................................................. 168Engine Oil Level ........................................ 169Engine Oil Recommendation....................... 171Brake Fluid Level....................................... 173Fuel Economy........................................... 175Operating Your Porsche in other Countries.. 175Fuel Recommendations.............................. 177Portable Fuel Containers............................ 178Emission Control System........................... 179How Emission Control Works ..................... 180Fuel Evaporation Control............................ 181Washer Fluid............................................. 181Power Steering......................................... 182Air Filter ................................................... 183Combination Filter..................................... 183Manual Transmission Oil ............................ 183Automatic Transmission Fluid..................... 183Wiper Blades ............................................ 184Car Care Instructions................................. 186

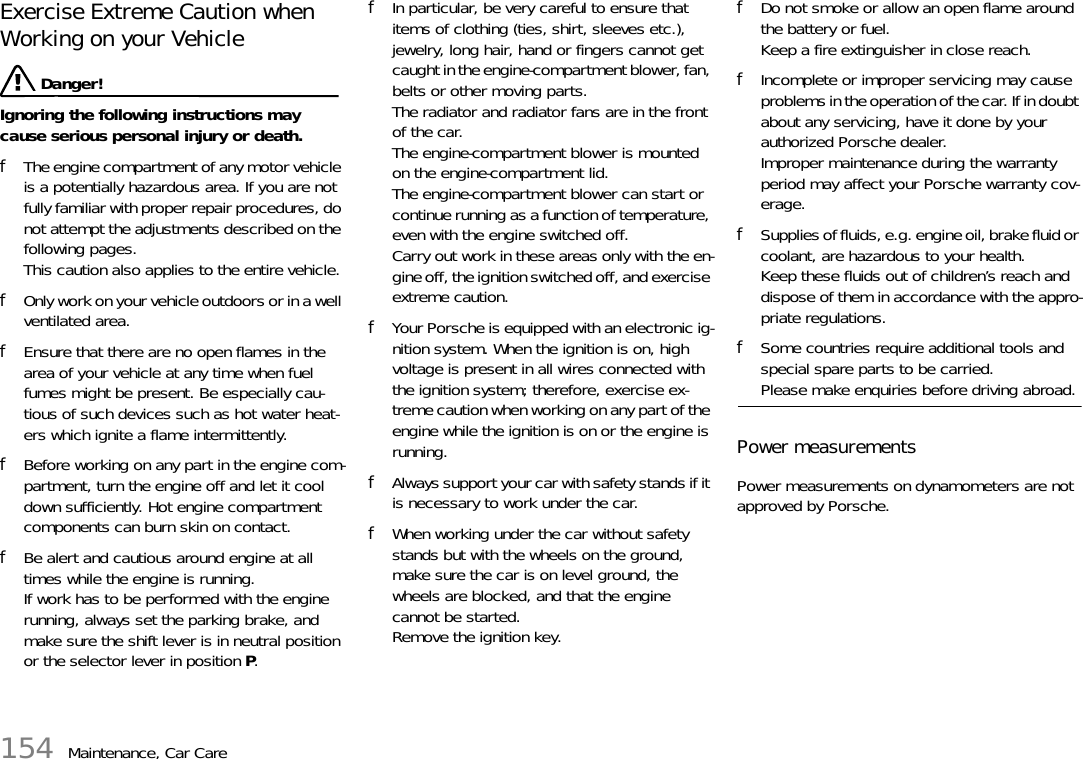

154 Maintenance, Car CareExercise Extreme Caution when Working on your Vehicle Danger!Ignoring the following instructions may cause serious personal injury or death. fThe engine compartment of any motor vehicle is a potentially hazardous area. If you are not fully familiar with proper repair procedures, do not attempt the adjustments described on the following pages. This caution also applies to the entire vehicle. fOnly work on your vehicle outdoors or in a well ventilated area. fEnsure that there are no open flames in the area of your vehicle at any time when fuel fumes might be present. Be especially cau-tious of such devices such as hot water heat-ers which ignite a flame intermittently. fBefore working on any part in the engine com-partment, turn the engine off and let it cool down sufficiently. Hot engine compartment components can burn skin on contact. fBe alert and cautious around engine at all times while the engine is running.If work has to be performed with the engine running, always set the parking brake, and make sure the shift lever is in neutral position or the selector lever in position P.fIn particular, be very careful to ensure that items of clothing (ties, shirt, sleeves etc.), jewelry, long hair, hand or fingers cannot get caught in the engine-compartment blower, fan, belts or other moving parts.The radiator and radiator fans are in the front of the car.The engine-compartment blower is mounted on the engine-compartment lid.The engine-compartment blower can start or continue running as a function of temperature, even with the engine switched off.Carry out work in these areas only with the en-gine off, the ignition switched off, and exercise extreme caution.fYour Porsche is equipped with an electronic ig-nition system. When the ignition is on, high voltage is present in all wires connected with the ignition system; therefore, exercise ex-treme caution when working on any part of the engine while the ignition is on or the engine is running. fAlways support your car with safety stands if it is necessary to work under the car. fWhen working under the car without safety stands but with the wheels on the ground, make sure the car is on level ground, the wheels are blocked, and that the engine cannot be started.Remove the ignition key. fDo not smoke or allow an open flame around the battery or fuel.Keep a fire extinguisher in close reach. fIncomplete or improper servicing may cause problems in the operation of the car. If in doubt about any servicing, have it done by your authorized Porsche dealer.Improper maintenance during the warranty period may affect your Porsche warranty cov-erage. fSupplies of fluids, e.g. engine oil, brake fluid or coolant, are hazardous to your health. Keep these fluids out of children’s reach and dispose of them in accordance with the appro-priate regulations. fSome countries require additional tools and special spare parts to be carried. Please make enquiries before driving abroad. Power measurements Power measurements on dynamometers are not approved by Porsche.

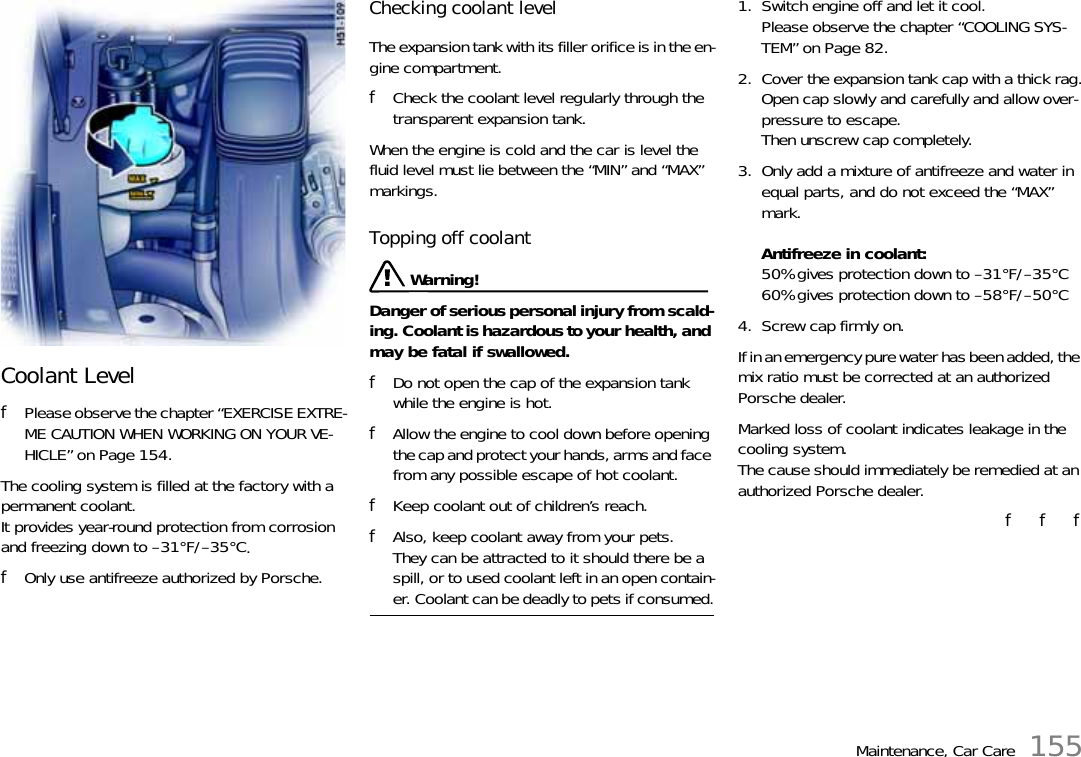

Maintenance, Car Care 155Coolant LevelfPlease observe the chapter “EXERCISE EXTRE-ME CAUTION WHEN WORKING ON YOUR VE-HICLE” on Page 154.The cooling system is filled at the factory with a permanent coolant. It provides year-round protection from corrosion and freezing down to –31°F/–35°C. fOnly use antifreeze authorized by Porsche. Checking coolant level The expansion tank with its filler orifice is in the en-gine compartment. fCheck the coolant level regularly through the transparent expansion tank.When the engine is cold and the car is level the fluid level must lie between the “MIN” and “MAX” markings. Topping off coolant Warning!Danger of serious personal injury from scald-ing. Coolant is hazardous to your health, and may be fatal if swallowed. fDo not open the cap of the expansion tank while the engine is hot. fAllow the engine to cool down before opening the cap and protect your hands, arms and face from any possible escape of hot coolant. fKeep coolant out of children’s reach. fAlso, keep coolant away from your pets.They can be attracted to it should there be a spill, or to used coolant left in an open contain-er. Coolant can be deadly to pets if consumed.1. Switch engine off and let it cool.Please observe the chapter “COOLING SYS-TEM” on Page 82.2. Cover the expansion tank cap with a thick rag.Open cap slowly and carefully and allow over-pressure to escape. Then unscrew cap completely. 3. Only add a mixture of antifreeze and water in equal parts, and do not exceed the “MAX” mark.Antifreeze in coolant:50% gives protection down to –31°F/–35°C60% gives protection down to –58°F/–50°C 4. Screw cap firmly on. If in an emergency pure water has been added, the mix ratio must be corrected at an authorized Porsche dealer. Marked loss of coolant indicates leakage in the cooling system.The cause should immediately be remedied at an authorized Porsche dealer.f f f

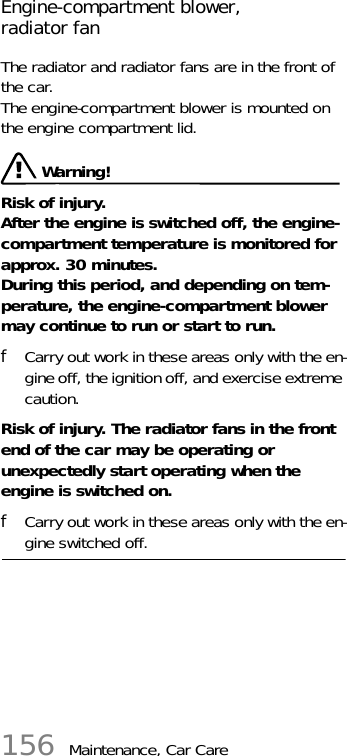

156 Maintenance, Car CareEngine-compartment blower,radiator fan The radiator and radiator fans are in the front of the car.The engine-compartment blower is mounted on the engine compartment lid. Warning!Risk of injury.After the engine is switched off, the engine-compartment temperature is monitored for approx. 30 minutes.During this period, and depending on tem-perature, the engine-compartment blower may continue to run or start to run. fCarry out work in these areas only with the en-gine off, the ignition off, and exercise extreme caution.Risk of injury. The radiator fans in the front end of the car may be operating or unexpectedly start operating when the engine is switched on.fCarry out work in these areas only with the en-gine switched off.

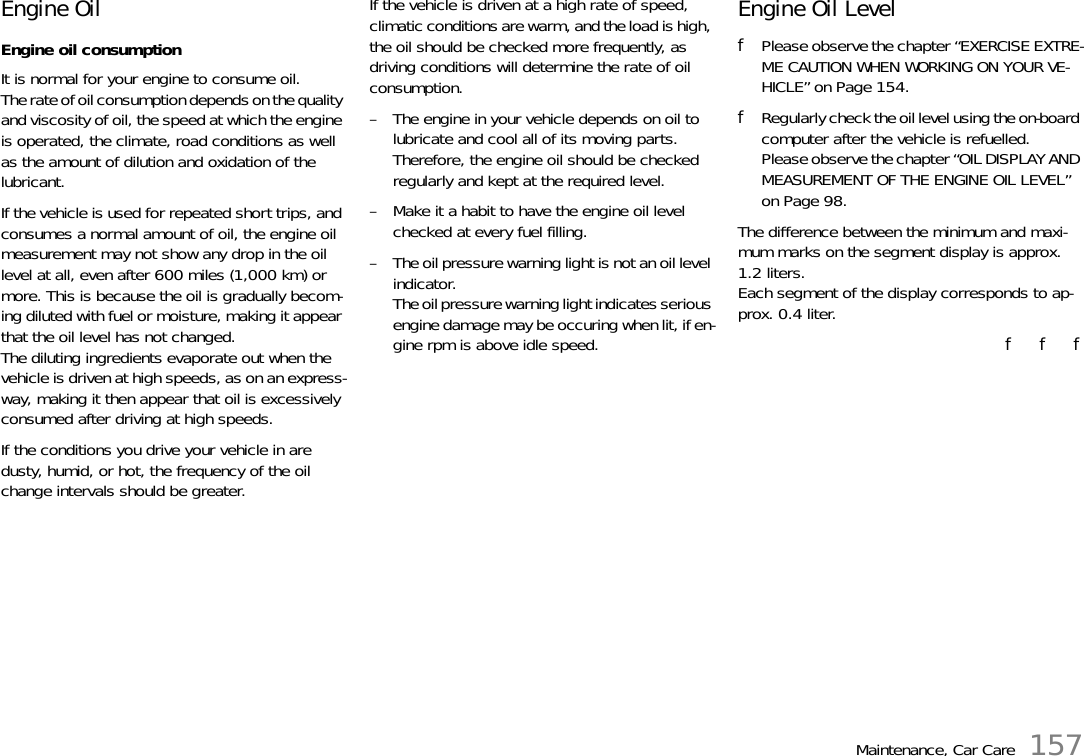

Maintenance, Car Care 157Engine Oil Engine oil consumption It is normal for your engine to consume oil. The rate of oil consumption depends on the quality and viscosity of oil, the speed at which the engine is operated, the climate, road conditions as well as the amount of dilution and oxidation of the lubricant. If the vehicle is used for repeated short trips, and consumes a normal amount of oil, the engine oil measurement may not show any drop in the oil level at all, even after 600 miles (1,000 km) or more. This is because the oil is gradually becom-ing diluted with fuel or moisture, making it appear that the oil level has not changed. The diluting ingredients evaporate out when the vehicle is driven at high speeds, as on an express-way, making it then appear that oil is excessively consumed after driving at high speeds. If the conditions you drive your vehicle in are dusty, humid, or hot, the frequency of the oil change intervals should be greater. If the vehicle is driven at a high rate of speed, climatic conditions are warm, and the load is high, the oil should be checked more frequently, as driving conditions will determine the rate of oil consumption.– The engine in your vehicle depends on oil to lubricate and cool all of its moving parts. Therefore, the engine oil should be checked regularly and kept at the required level. – Make it a habit to have the engine oil level checked at every fuel filling. – The oil pressure warning light is not an oil level indicator. The oil pressure warning light indicates serious engine damage may be occuring when lit, if en-gine rpm is above idle speed.Engine Oil Level fPlease observe the chapter “EXERCISE EXTRE-ME CAUTION WHEN WORKING ON YOUR VE-HICLE” on Page 154.fRegularly check the oil level using the on-board computer after the vehicle is refuelled.Please observe the chapter “OIL DISPLAY AND MEASUREMENT OF THE ENGINE OIL LEVEL” on Page 98.The difference between the minimum and maxi-mum marks on the segment display is approx. 1.2 liters.Each segment of the display corresponds to ap-prox. 0.4 liter.f f f

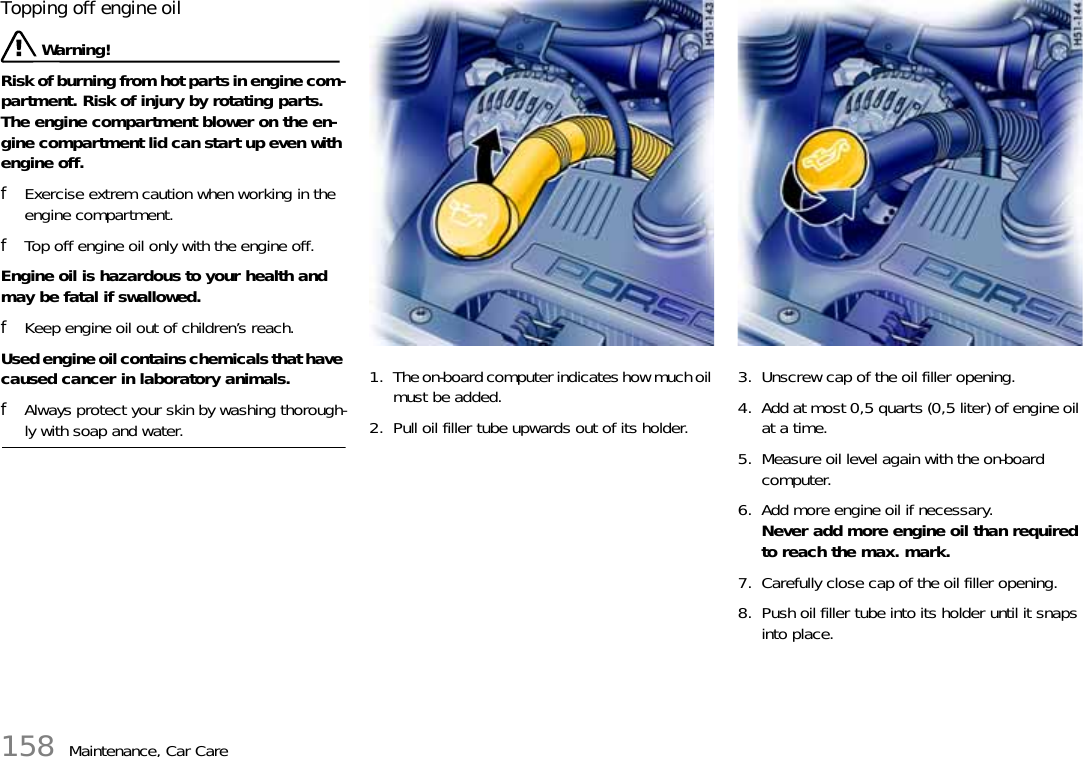

158 Maintenance, Car CareTopping off engine oil Warning! Risk of burning from hot parts in engine com-partment. Risk of injury by rotating parts. The engine compartment blower on the en-gine compartment lid can start up even with engine off.fExercise extrem caution when working in the engine compartment.fTop off engine oil only with the engine off.Engine oil is hazardous to your health and may be fatal if swallowed. fKeep engine oil out of children’s reach.Used engine oil contains chemicals that have caused cancer in laboratory animals. fAlways protect your skin by washing thorough-ly with soap and water. 1. The on-board computer indicates how much oil must be added.2. Pull oil filler tube upwards out of its holder. 3. Unscrew cap of the oil filler opening.4. Add at most 0,5 quarts (0,5 liter) of engine oil at a time.5. Measure oil level again with the on-board computer.6. Add more engine oil if necessary.Never add more engine oil than required to reach the max. mark.7. Carefully close cap of the oil filler opening.8. Push oil filler tube into its holder until it snaps into place.

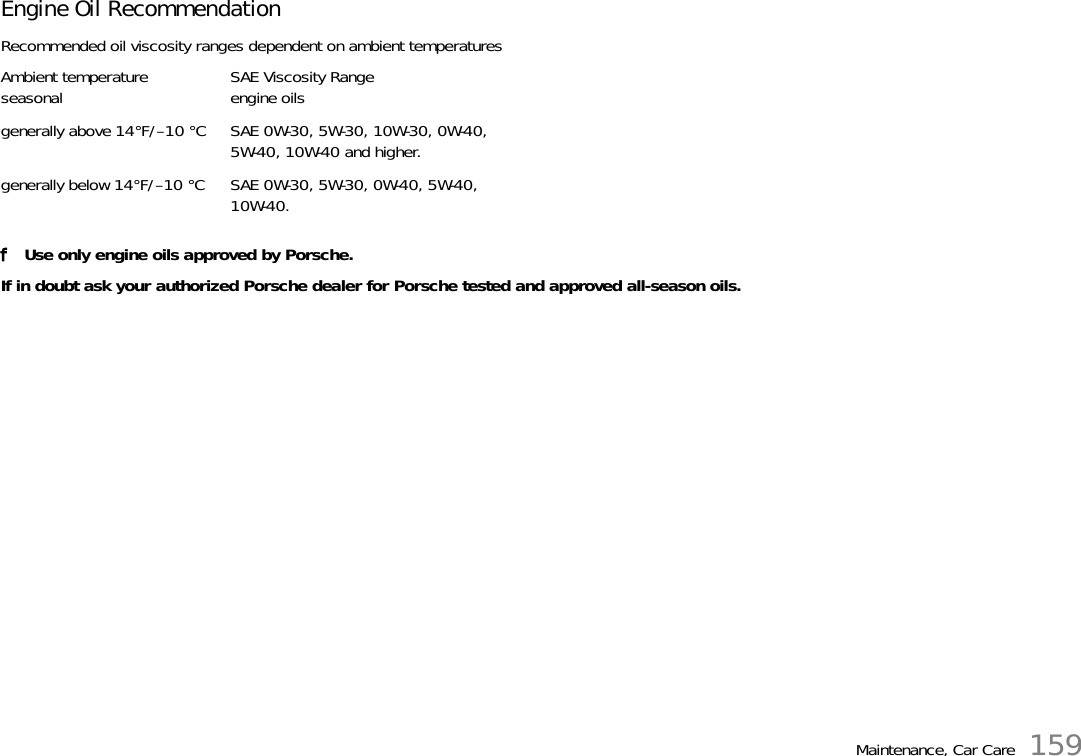

Maintenance, Car Care 159Engine Oil RecommendationRecommended oil viscosity ranges dependent on ambient temperaturesfUse only engine oils approved by Porsche.If in doubt ask your authorized Porsche dealer for Porsche tested and approved all-season oils.Ambient temperatureseasonal SAE Viscosity Rangeengine oilsgenerally above 14°F/–10 °C SAE 0W-30, 5W-30, 10W-30, 0W-40, 5W-40, 10W-40 and higher.generally below 14°F/–10 °C SAE 0W-30, 5W-30, 0W-40, 5W-40, 10W-40.

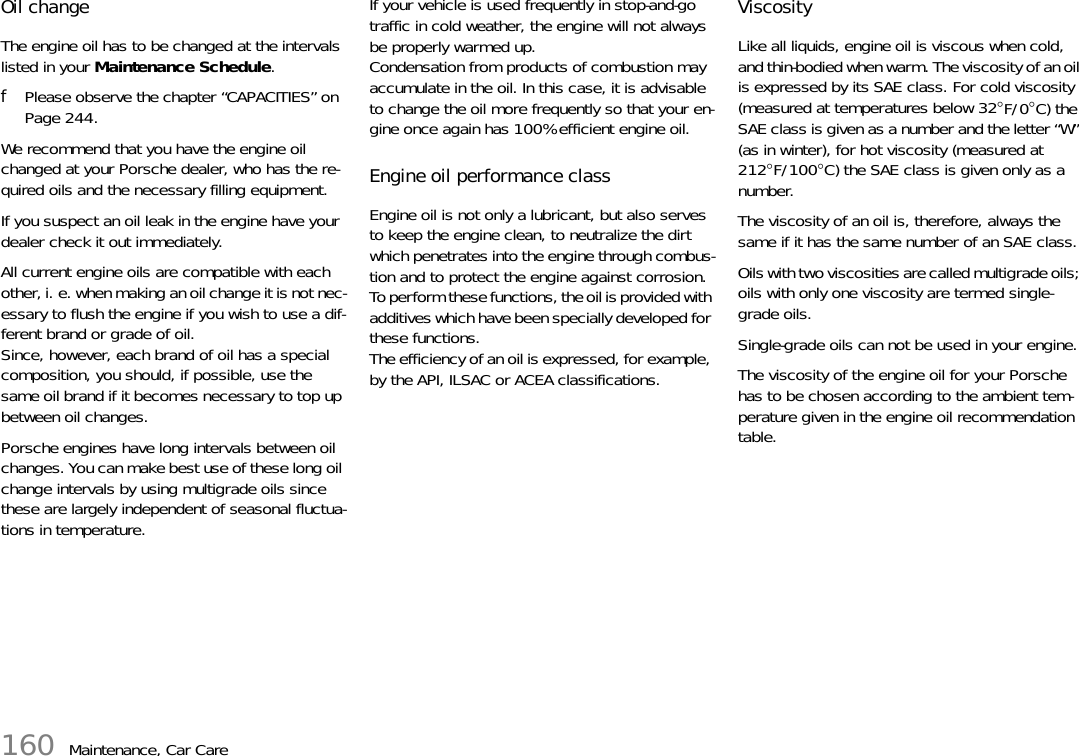

160 Maintenance, Car CareOil change The engine oil has to be changed at the intervals listed in your Maintenance Schedule. fPlease observe the chapter “CAPACITIES” on Page 244.We recommend that you have the engine oil changed at your Porsche dealer, who has the re-quired oils and the necessary filling equipment. If you suspect an oil leak in the engine have your dealer check it out immediately. All current engine oils are compatible with each other, i. e. when making an oil change it is not nec-essary to flush the engine if you wish to use a dif-ferent brand or grade of oil. Since, however, each brand of oil has a special composition, you should, if possible, use the same oil brand if it becomes necessary to top up between oil changes.Porsche engines have long intervals between oil changes. You can make best use of these long oil change intervals by using multigrade oils since these are largely independent of seasonal fluctua-tions in temperature. If your vehicle is used frequently in stop-and-go traffic in cold weather, the engine will not always be properly warmed up. Condensation from products of combustion may accumulate in the oil. In this case, it is advisable to change the oil more frequently so that your en-gine once again has 100% efficient engine oil. Engine oil performance class Engine oil is not only a lubricant, but also serves to keep the engine clean, to neutralize the dirt which penetrates into the engine through combus-tion and to protect the engine against corrosion. To perform these functions, the oil is provided with additives which have been specially developed for these functions. The efficiency of an oil is expressed, for example, by the API, ILSAC or ACEA classifications. Viscosity Like all liquids, engine oil is viscous when cold, and thin-bodied when warm. The viscosity of an oil is expressed by its SAE class. For cold viscosity (measured at temperatures below 32°F/0°C) the SAE class is given as a number and the letter “W” (as in winter), for hot viscosity (measured at 212°F/100°C) the SAE class is given only as a number. The viscosity of an oil is, therefore, always the same if it has the same number of an SAE class. Oils with two viscosities are called multigrade oils; oils with only one viscosity are termed single-grade oils. Single-grade oils can not be used in your engine. The viscosity of the engine oil for your Porsche has to be chosen according to the ambient tem-perature given in the engine oil recommendation table.

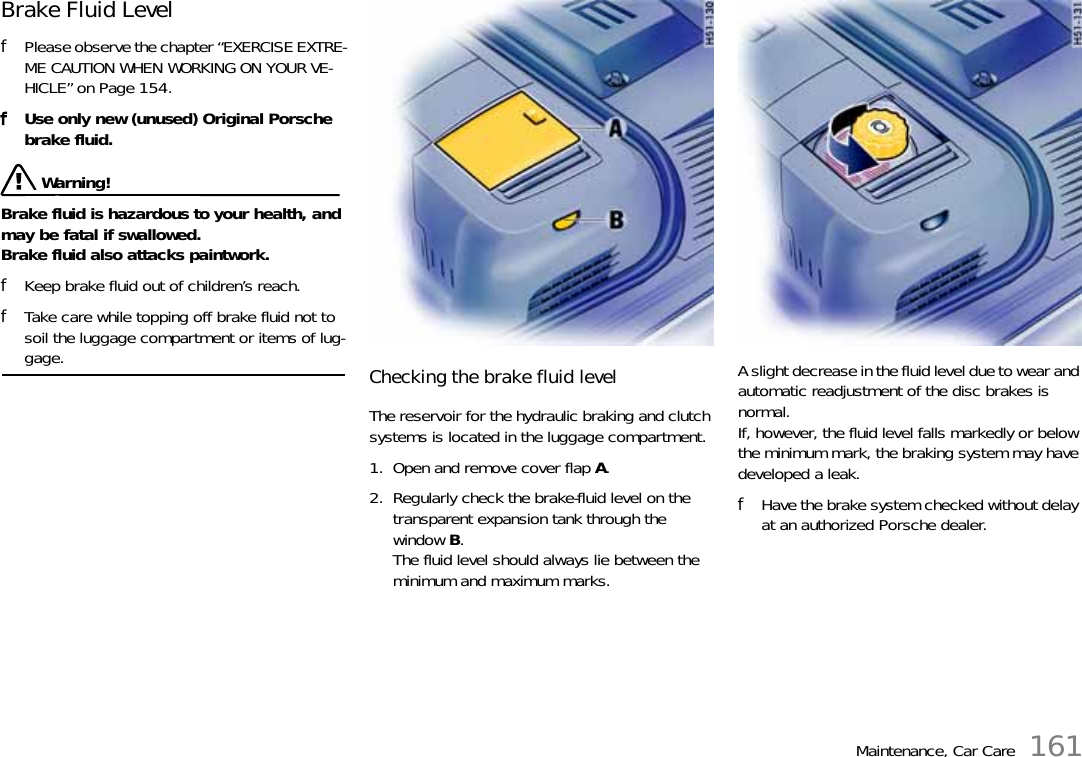

Maintenance, Car Care 161Brake Fluid Level fPlease observe the chapter “EXERCISE EXTRE-ME CAUTION WHEN WORKING ON YOUR VE-HICLE” on Page 154.fUse only new (unused) Original Porsche brake fluid. Warning!Brake fluid is hazardous to your health, and may be fatal if swallowed.Brake fluid also attacks paintwork. fKeep brake fluid out of children’s reach. fTake care while topping off brake fluid not to soil the luggage compartment or items of lug-gage. Checking the brake fluid level The reservoir for the hydraulic braking and clutch systems is located in the luggage compartment. 1. Open and remove cover flap A.2. Regularly check the brake-fluid level on the transparent expansion tank through the window B.The fluid level should always lie between the minimum and maximum marks.A slight decrease in the fluid level due to wear and automatic readjustment of the disc brakes is normal.If, however, the fluid level falls markedly or below the minimum mark, the braking system may have developed a leak.fHave the brake system checked without delay at an authorized Porsche dealer.

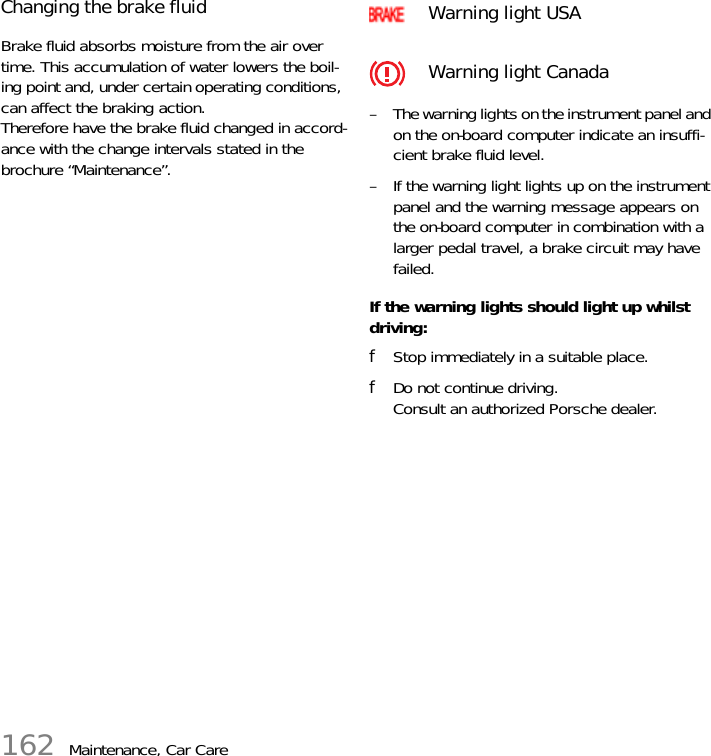

162 Maintenance, Car CareChanging the brake fluid Brake fluid absorbs moisture from the air over time. This accumulation of water lowers the boil-ing point and, under certain operating conditions, can affect the braking action.Therefore have the brake fluid changed in accord-ance with the change intervals stated in the brochure “Maintenance”. – The warning lights on the instrument panel and on the on-board computer indicate an insuffi-cient brake fluid level.– If the warning light lights up on the instrument panel and the warning message appears on the on-board computer in combination with a larger pedal travel, a brake circuit may have failed.If the warning lights should light up whilst driving:fStop immediately in a suitable place.fDo not continue driving.Consult an authorized Porsche dealer.Warning light USAWarning light Canada

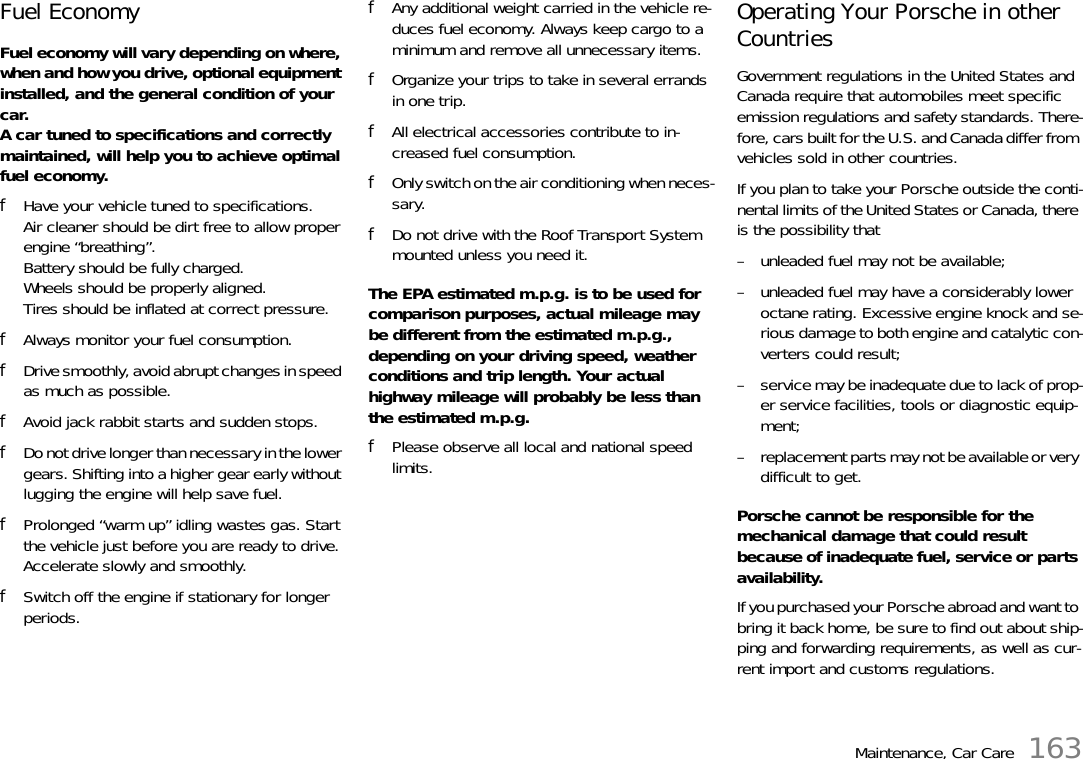

Maintenance, Car Care 163Fuel Economy Fuel economy will vary depending on where, when and how you drive, optional equipment installed, and the general condition of your car. A car tuned to specifications and correctly maintained, will help you to achieve optimal fuel economy. fHave your vehicle tuned to specifications.Air cleaner should be dirt free to allow proper engine “breathing”.Battery should be fully charged.Wheels should be properly aligned.Tires should be inflated at correct pressure. fAlways monitor your fuel consumption. fDrive smoothly, avoid abrupt changes in speed as much as possible. fAvoid jack rabbit starts and sudden stops. fDo not drive longer than necessary in the lower gears. Shifting into a higher gear early without lugging the engine will help save fuel. fProlonged “warm up” idling wastes gas. Start the vehicle just before you are ready to drive. Accelerate slowly and smoothly. fSwitch off the engine if stationary for longer periods. fAny additional weight carried in the vehicle re-duces fuel economy. Always keep cargo to a minimum and remove all unnecessary items. fOrganize your trips to take in several errands in one trip. fAll electrical accessories contribute to in-creased fuel consumption. fOnly switch on the air conditioning when neces-sary. fDo not drive with the Roof Transport System mounted unless you need it.The EPA estimated m.p.g. is to be used for comparison purposes, actual mileage may be different from the estimated m.p.g., depending on your driving speed, weather conditions and trip length. Your actual highway mileage will probably be less than the estimated m.p.g. fPlease observe all local and national speed limits. Operating Your Porsche in other Countries Government regulations in the United States and Canada require that automobiles meet specific emission regulations and safety standards. There-fore, cars built for the U.S. and Canada differ from vehicles sold in other countries. If you plan to take your Porsche outside the conti-nental limits of the United States or Canada, there is the possibility that – unleaded fuel may not be available; – unleaded fuel may have a considerably lower octane rating. Excessive engine knock and se-rious damage to both engine and catalytic con-verters could result; – service may be inadequate due to lack of prop-er service facilities, tools or diagnostic equip-ment; – replacement parts may not be available or very difficult to get.Porsche cannot be responsible for the mechanical damage that could result because of inadequate fuel, service or parts availability. If you purchased your Porsche abroad and want to bring it back home, be sure to find out about ship-ping and forwarding requirements, as well as cur-rent import and customs regulations.

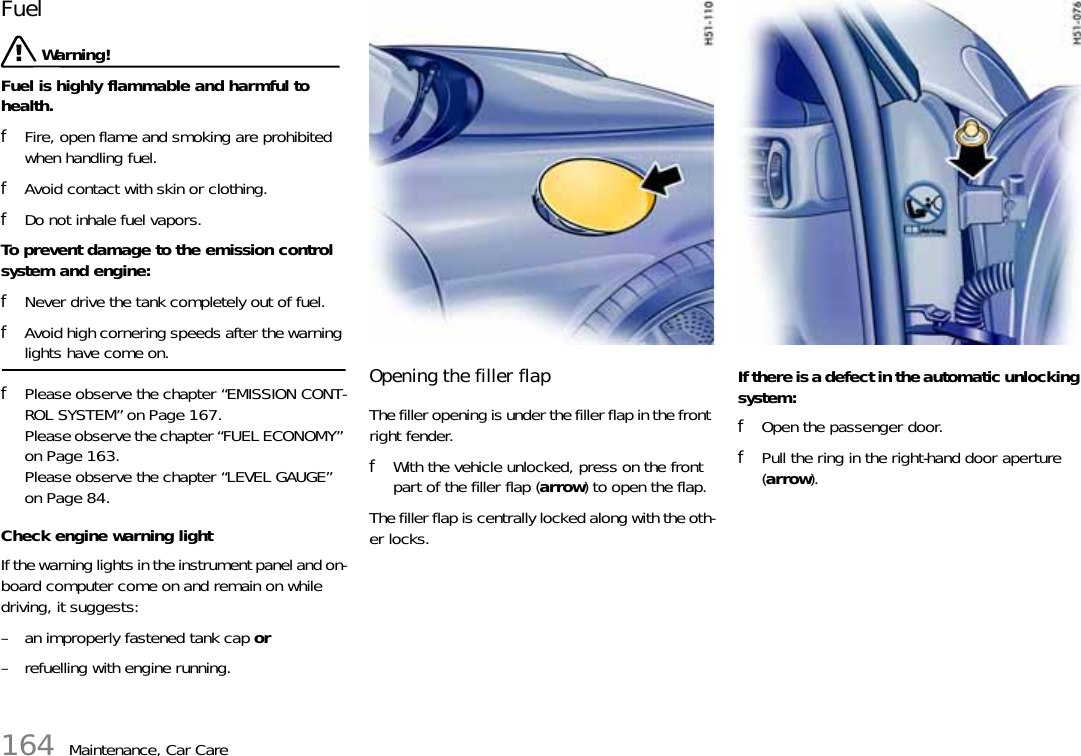

164 Maintenance, Car CareFuel Warning!Fuel is highly flammable and harmful to health. fFire, open flame and smoking are prohibited when handling fuel. fAvoid contact with skin or clothing. fDo not inhale fuel vapors.To prevent damage to the emission control system and engine: fNever drive the tank completely out of fuel. fAvoid high cornering speeds after the warning lights have come on. fPlease observe the chapter “EMISSION CONT-ROL SYSTEM” on Page 167.Please observe the chapter “FUEL ECONOMY” on Page 163.Please observe the chapter “LEVEL GAUGE” on Page 84.Check engine warning light If the warning lights in the instrument panel and on-board computer come on and remain on while driving, it suggests: – an improperly fastened tank cap or – refuelling with engine running. Opening the filler flap The filler opening is under the filler flap in the front right fender. fWith the vehicle unlocked, press on the front part of the filler flap (arrow) to open the flap. The filler flap is centrally locked along with the oth-er locks. If there is a defect in the automatic unlocking system: fOpen the passenger door. fPull the ring in the right-hand door aperture (arrow).

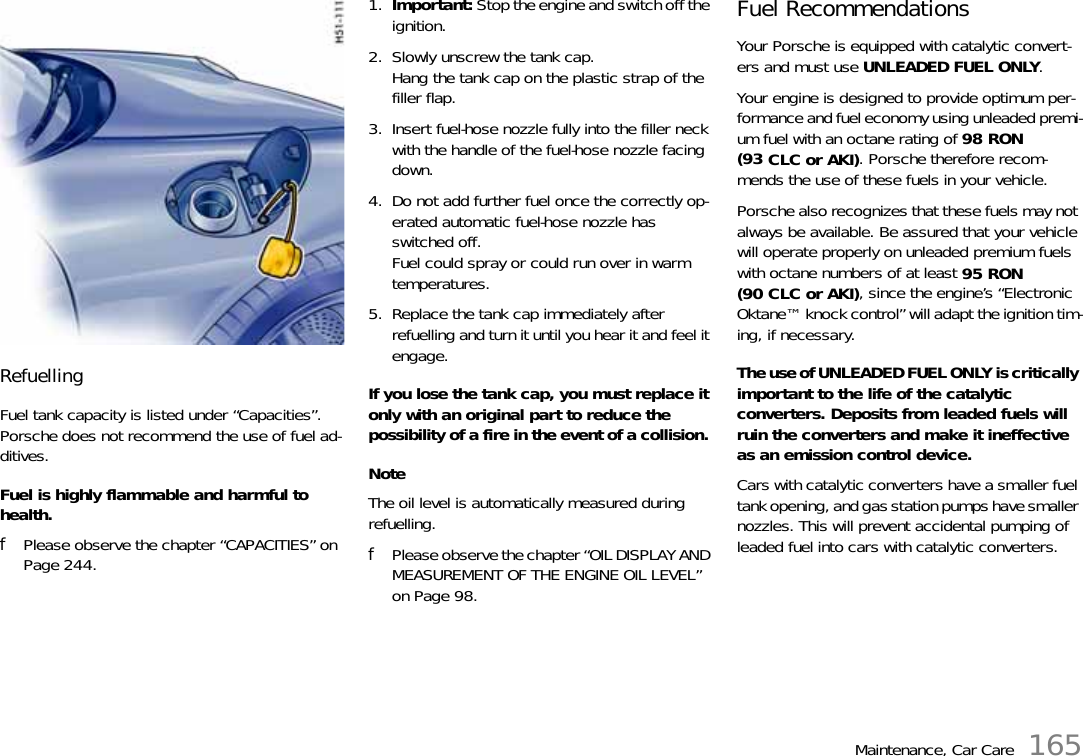

Maintenance, Car Care 165Refuelling Fuel tank capacity is listed under “Capacities”.Porsche does not recommend the use of fuel ad-ditives.Fuel is highly flammable and harmful to health.fPlease observe the chapter “CAPACITIES” on Page 244.1. Important: Stop the engine and switch off the ignition. 2. Slowly unscrew the tank cap.Hang the tank cap on the plastic strap of the filler flap. 3. Insert fuel-hose nozzle fully into the filler neck with the handle of the fuel-hose nozzle facing down. 4. Do not add further fuel once the correctly op-erated automatic fuel-hose nozzle has switched off.Fuel could spray or could run over in warm temperatures. 5. Replace the tank cap immediately after refuelling and turn it until you hear it and feel it engage. If you lose the tank cap, you must replace it only with an original part to reduce the possibility of a fire in the event of a collision. NoteThe oil level is automatically measured during refuelling.fPlease observe the chapter “OIL DISPLAY AND MEASUREMENT OF THE ENGINE OIL LEVEL” on Page 98.Fuel Recommendations Your Porsche is equipped with catalytic convert-ers and must use UNLEADED FUEL ONLY. Your engine is designed to provide optimum per-formance and fuel economy using unleaded premi-um fuel with an octane rating of 98 RON (93 CLC or AKI). Porsche therefore recom-mends the use of these fuels in your vehicle. Porsche also recognizes that these fuels may not always be available. Be assured that your vehicle will operate properly on unleaded premium fuels with octane numbers of at least 95 RON(90 CLC or AKI), since the engine’s “Electronic Oktane™ knock control” will adapt the ignition tim-ing, if necessary. The use of UNLEADED FUEL ONLY is critically important to the life of the catalytic converters. Deposits from leaded fuels will ruin the converters and make it ineffective as an emission control device. Cars with catalytic converters have a smaller fuel tank opening, and gas station pumps have smaller nozzles. This will prevent accidental pumping of leaded fuel into cars with catalytic converters.

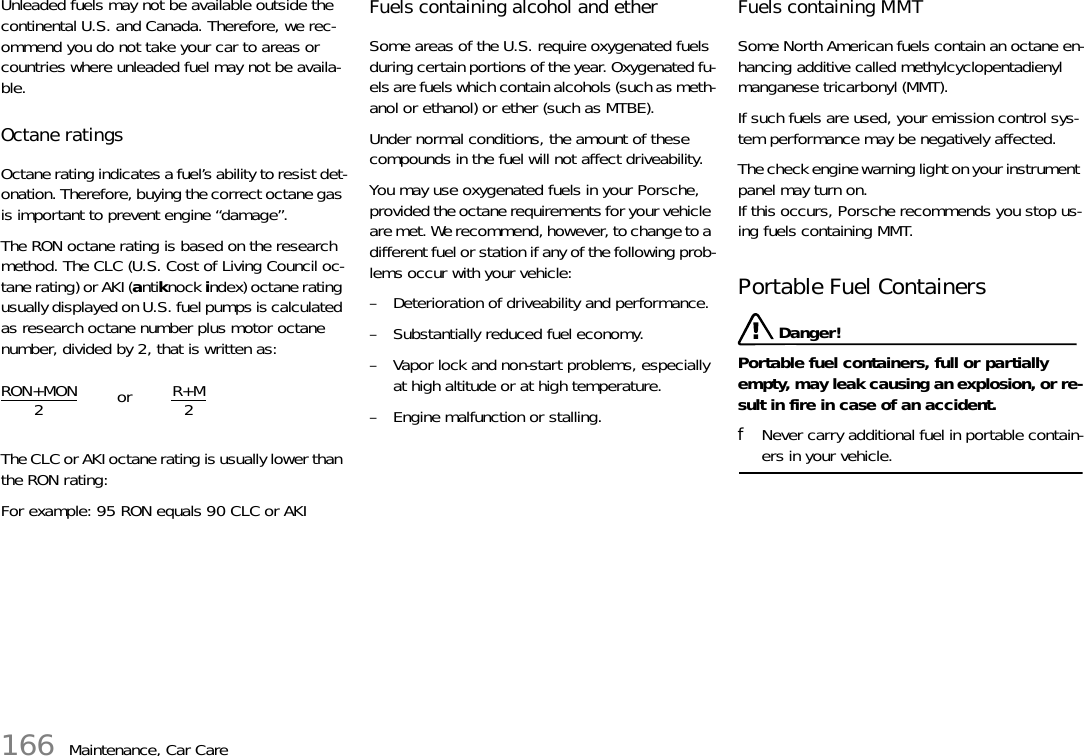

166 Maintenance, Car CareUnleaded fuels may not be available outside the continental U.S. and Canada. Therefore, we rec-ommend you do not take your car to areas or countries where unleaded fuel may not be availa-ble. Octane ratings Octane rating indicates a fuel’s ability to resist det-onation. Therefore, buying the correct octane gas is important to prevent engine “damage”. The RON octane rating is based on the research method. The CLC (U.S. Cost of Living Council oc-tane rating) or AKI (antiknock index) octane rating usually displayed on U.S. fuel pumps is calculated as research octane number plus motor octane number, divided by 2, that is written as:The CLC or AKI octane rating is usually lower than the RON rating: For example: 95 RON equals 90 CLC or AKI Fuels containing alcohol and ether Some areas of the U.S. require oxygenated fuels during certain portions of the year. Oxygenated fu-els are fuels which contain alcohols (such as meth-anol or ethanol) or ether (such as MTBE). Under normal conditions, the amount of these compounds in the fuel will not affect driveability. You may use oxygenated fuels in your Porsche, provided the octane requirements for your vehicle are met. We recommend, however, to change to a different fuel or station if any of the following prob-lems occur with your vehicle:– Deterioration of driveability and performance. – Substantially reduced fuel economy. – Vapor lock and non-start problems, especially at high altitude or at high temperature. – Engine malfunction or stalling. Fuels containing MMT Some North American fuels contain an octane en-hancing additive called methylcyclopentadienyl manganese tricarbonyl (MMT). If such fuels are used, your emission control sys-tem performance may be negatively affected. The check engine warning light on your instrument panel may turn on. If this occurs, Porsche recommends you stop us-ing fuels containing MMT.Portable Fuel Containers Danger!Portable fuel containers, full or partially empty, may leak causing an explosion, or re-sult in fire in case of an accident. fNever carry additional fuel in portable contain-ers in your vehicle. RON+MON2R+M2or

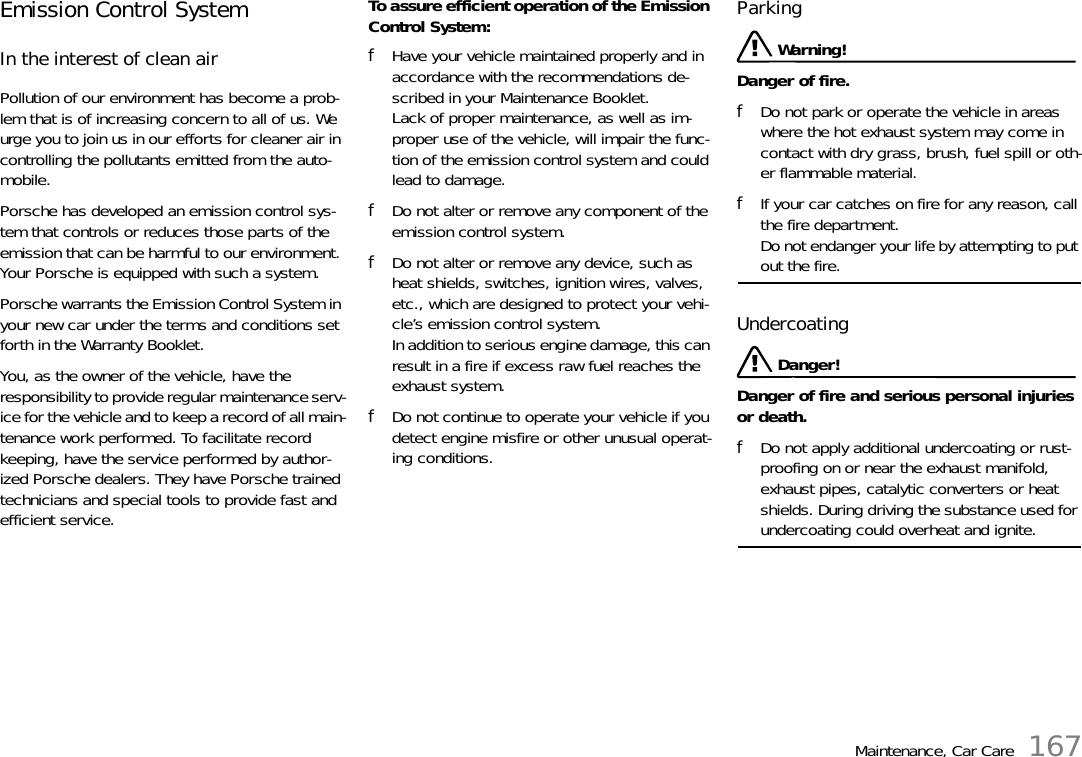

Maintenance, Car Care 167Emission Control System In the interest of clean air Pollution of our environment has become a prob-lem that is of increasing concern to all of us. We urge you to join us in our efforts for cleaner air in controlling the pollutants emitted from the auto-mobile. Porsche has developed an emission control sys-tem that controls or reduces those parts of the emission that can be harmful to our environment. Your Porsche is equipped with such a system. Porsche warrants the Emission Control System in your new car under the terms and conditions set forth in the Warranty Booklet. You, as the owner of the vehicle, have the responsibility to provide regular maintenance serv-ice for the vehicle and to keep a record of all main-tenance work performed. To facilitate record keeping, have the service performed by author-ized Porsche dealers. They have Porsche trained technicians and special tools to provide fast and efficient service. To assure efficient operation of the Emission Control System: fHave your vehicle maintained properly and in accordance with the recommendations de-scribed in your Maintenance Booklet. Lack of proper maintenance, as well as im-proper use of the vehicle, will impair the func-tion of the emission control system and could lead to damage. fDo not alter or remove any component of the emission control system. fDo not alter or remove any device, such as heat shields, switches, ignition wires, valves, etc., which are designed to protect your vehi-cle’s emission control system. In addition to serious engine damage, this can result in a fire if excess raw fuel reaches the exhaust system. fDo not continue to operate your vehicle if you detect engine misfire or other unusual operat-ing conditions. Parking Warning!Danger of fire. fDo not park or operate the vehicle in areas where the hot exhaust system may come in contact with dry grass, brush, fuel spill or oth-er flammable material. fIf your car catches on fire for any reason, call the fire department. Do not endanger your life by attempting to put out the fire. Undercoating Danger!Danger of fire and serious personal injuries or death.fDo not apply additional undercoating or rust-proofing on or near the exhaust manifold, exhaust pipes, catalytic converters or heat shields. During driving the substance used for undercoating could overheat and ignite.

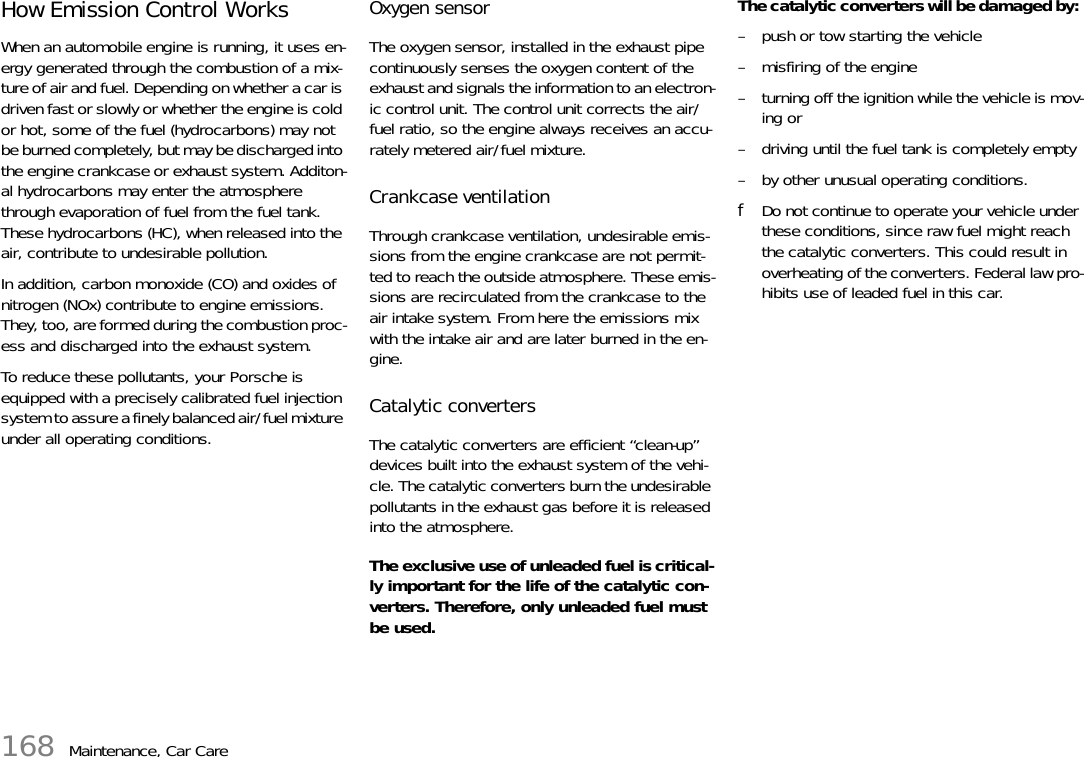

168 Maintenance, Car CareHow Emission Control Works When an automobile engine is running, it uses en-ergy generated through the combustion of a mix-ture of air and fuel. Depending on whether a car is driven fast or slowly or whether the engine is cold or hot, some of the fuel (hydrocarbons) may not be burned completely, but may be discharged into the engine crankcase or exhaust system. Additon-al hydrocarbons may enter the atmosphere through evaporation of fuel from the fuel tank. These hydrocarbons (HC), when released into the air, contribute to undesirable pollution. In addition, carbon monoxide (CO) and oxides of nitrogen (NOx) contribute to engine emissions. They, too, are formed during the combustion proc-ess and discharged into the exhaust system. To reduce these pollutants, your Porsche is equipped with a precisely calibrated fuel injection system to assure a finely balanced air/fuel mixture under all operating conditions. Oxygen sensor The oxygen sensor, installed in the exhaust pipe continuously senses the oxygen content of the exhaust and signals the information to an electron-ic control unit. The control unit corrects the air/fuel ratio, so the engine always receives an accu-rately metered air/fuel mixture. Crankcase ventilation Through crankcase ventilation, undesirable emis-sions from the engine crankcase are not permit-ted to reach the outside atmosphere. These emis-sions are recirculated from the crankcase to the air intake system. From here the emissions mix with the intake air and are later burned in the en-gine. Catalytic converters The catalytic converters are efficient “clean-up” devices built into the exhaust system of the vehi-cle. The catalytic converters burn the undesirable pollutants in the exhaust gas before it is released into the atmosphere. The exclusive use of unleaded fuel is critical-ly important for the life of the catalytic con-verters. Therefore, only unleaded fuel must be used. The catalytic converters will be damaged by: – push or tow starting the vehicle – misfiring of the engine – turning off the ignition while the vehicle is mov-ing or – driving until the fuel tank is completely empty – by other unusual operating conditions. fDo not continue to operate your vehicle under these conditions, since raw fuel might reach the catalytic converters. This could result in overheating of the converters. Federal law pro-hibits use of leaded fuel in this car.

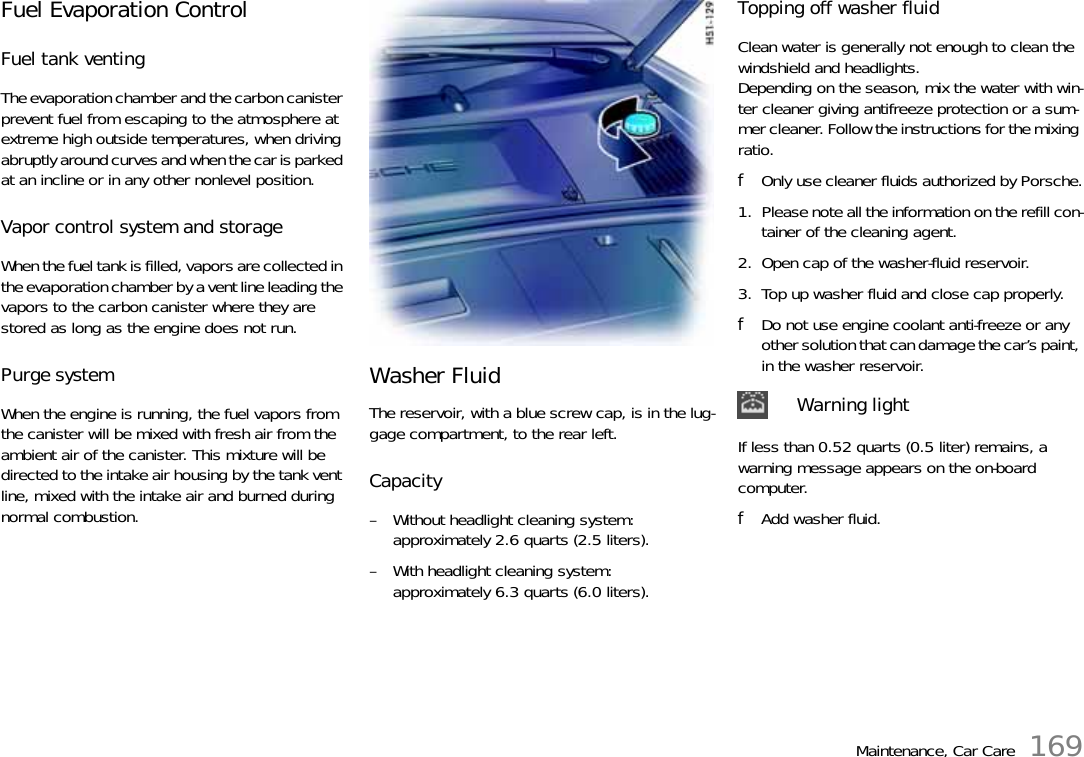

Maintenance, Car Care 169Fuel Evaporation Control Fuel tank venting The evaporation chamber and the carbon canister prevent fuel from escaping to the atmosphere at extreme high outside temperatures, when driving abruptly around curves and when the car is parked at an incline or in any other nonlevel position. Vapor control system and storage When the fuel tank is filled, vapors are collected in the evaporation chamber by a vent line leading the vapors to the carbon canister where they are stored as long as the engine does not run. Purge system When the engine is running, the fuel vapors from the canister will be mixed with fresh air from the ambient air of the canister. This mixture will be directed to the intake air housing by the tank vent line, mixed with the intake air and burned during normal combustion.Washer FluidThe reservoir, with a blue screw cap, is in the lug-gage compartment, to the rear left. Capacity – Without headlight cleaning system:approximately 2.6 quarts (2.5 liters). – With headlight cleaning system: approximately 6.3 quarts (6.0 liters). Topping off washer fluidClean water is generally not enough to clean the windshield and headlights.Depending on the season, mix the water with win-ter cleaner giving antifreeze protection or a sum-mer cleaner. Follow the instructions for the mixing ratio. fOnly use cleaner fluids authorized by Porsche.1. Please note all the information on the refill con-tainer of the cleaning agent.2. Open cap of the washer-fluid reservoir.3. Top up washer fluid and close cap properly.fDo not use engine coolant anti-freeze or any other solution that can damage the car’s paint, in the washer reservoir. If less than 0.52 quarts (0.5 liter) remains, a warning message appears on the on-board computer.fAdd washer fluid.Warning light

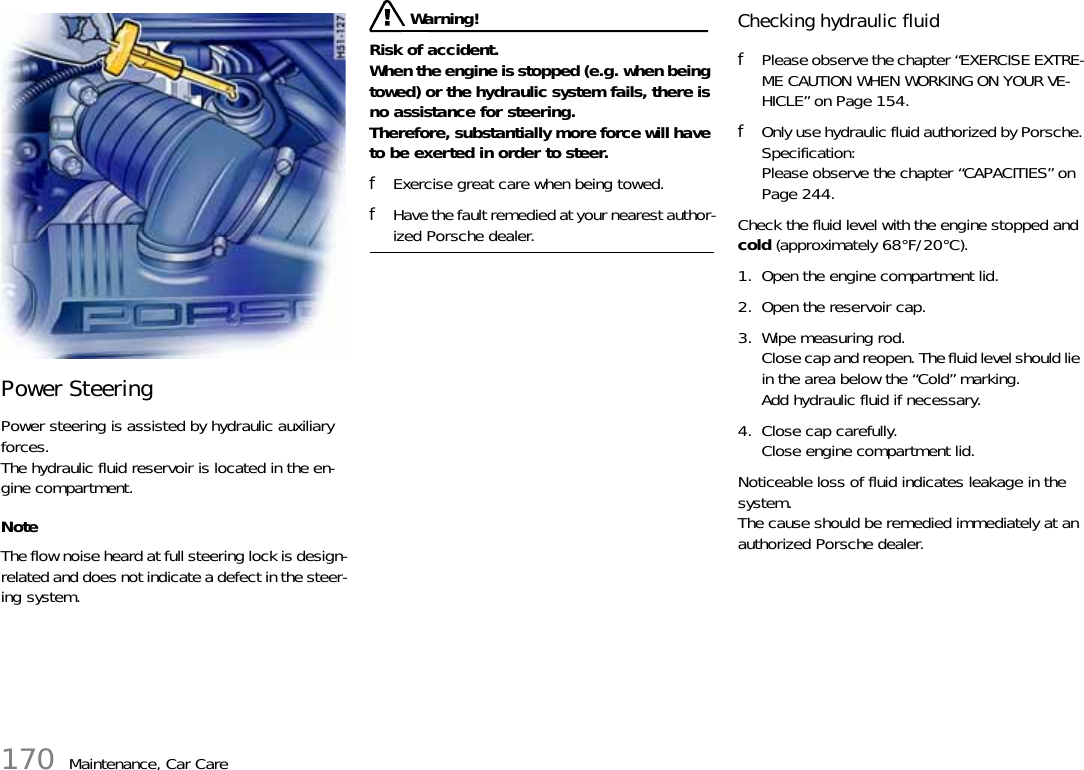

170 Maintenance, Car CarePower Steering Power steering is assisted by hydraulic auxiliary forces.The hydraulic fluid reservoir is located in the en-gine compartment. NoteThe flow noise heard at full steering lock is design-related and does not indicate a defect in the steer-ing system. Warning!Risk of accident. When the engine is stopped (e.g. when being towed) or the hydraulic system fails, there is no assistance for steering.Therefore, substantially more force will have to be exerted in order to steer. fExercise great care when being towed. fHave the fault remedied at your nearest author-ized Porsche dealer. Checking hydraulic fluid fPlease observe the chapter “EXERCISE EXTRE-ME CAUTION WHEN WORKING ON YOUR VE-HICLE” on Page 154.fOnly use hydraulic fluid authorized by Porsche.Specification:Please observe the chapter “CAPACITIES” on Page 244.Check the fluid level with the engine stopped and cold (approximately 68°F/20°C).1. Open the engine compartment lid. 2. Open the reservoir cap. 3. Wipe measuring rod.Close cap and reopen. The fluid level should lie in the area below the “Cold” marking. Add hydraulic fluid if necessary. 4. Close cap carefully.Close engine compartment lid. Noticeable loss of fluid indicates leakage in the system.The cause should be remedied immediately at an authorized Porsche dealer.

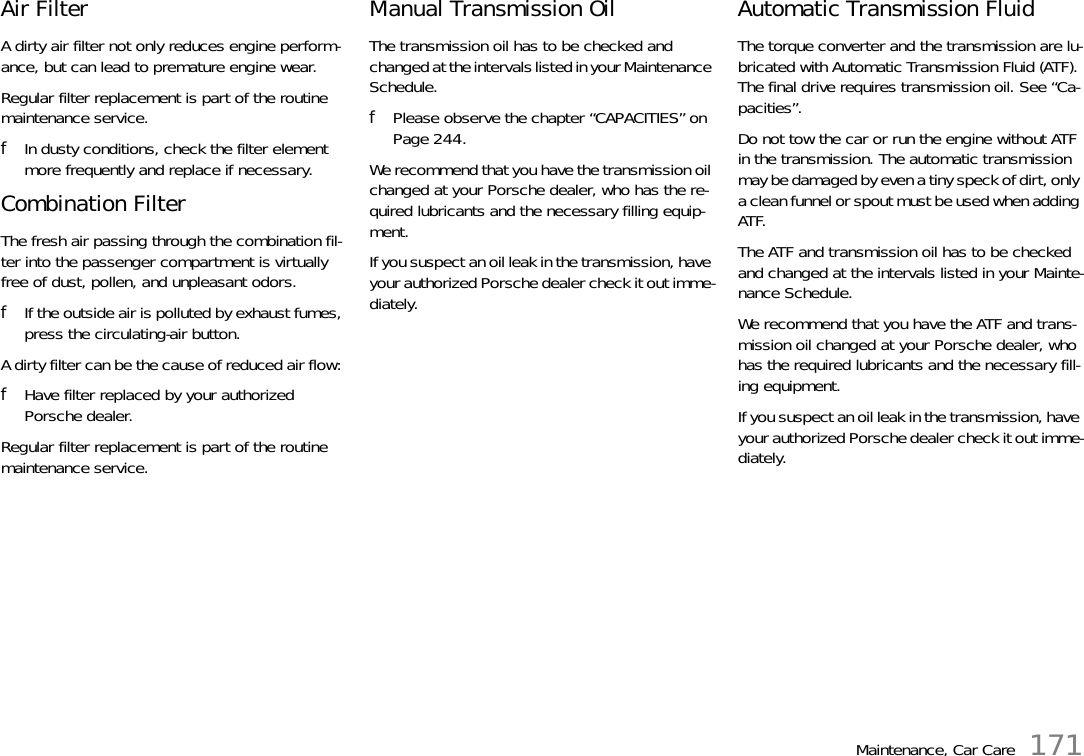

Maintenance, Car Care 171Air Filter A dirty air filter not only reduces engine perform-ance, but can lead to premature engine wear. Regular filter replacement is part of the routine maintenance service. fIn dusty conditions, check the filter element more frequently and replace if necessary.Combination Filter The fresh air passing through the combination fil-ter into the passenger compartment is virtually free of dust, pollen, and unpleasant odors. fIf the outside air is polluted by exhaust fumes, press the circulating-air button.A dirty filter can be the cause of reduced air flow: fHave filter replaced by your authorized Porsche dealer.Regular filter replacement is part of the routine maintenance service. Manual Transmission Oil The transmission oil has to be checked and changed at the intervals listed in your Maintenance Schedule. fPlease observe the chapter “CAPACITIES” on Page 244. We recommend that you have the transmission oil changed at your Porsche dealer, who has the re-quired lubricants and the necessary filling equip-ment. If you suspect an oil leak in the transmission, have your authorized Porsche dealer check it out imme-diately. Automatic Transmission Fluid The torque converter and the transmission are lu-bricated with Automatic Transmission Fluid (ATF). The final drive requires transmission oil. See “Ca-pacities”. Do not tow the car or run the engine without ATF in the transmission. The automatic transmission may be damaged by even a tiny speck of dirt, only a clean funnel or spout must be used when adding ATF. The ATF and transmission oil has to be checked and changed at the intervals listed in your Mainte-nance Schedule. We recommend that you have the ATF and trans-mission oil changed at your Porsche dealer, who has the required lubricants and the necessary fill-ing equipment. If you suspect an oil leak in the transmission, have your authorized Porsche dealer check it out imme-diately.

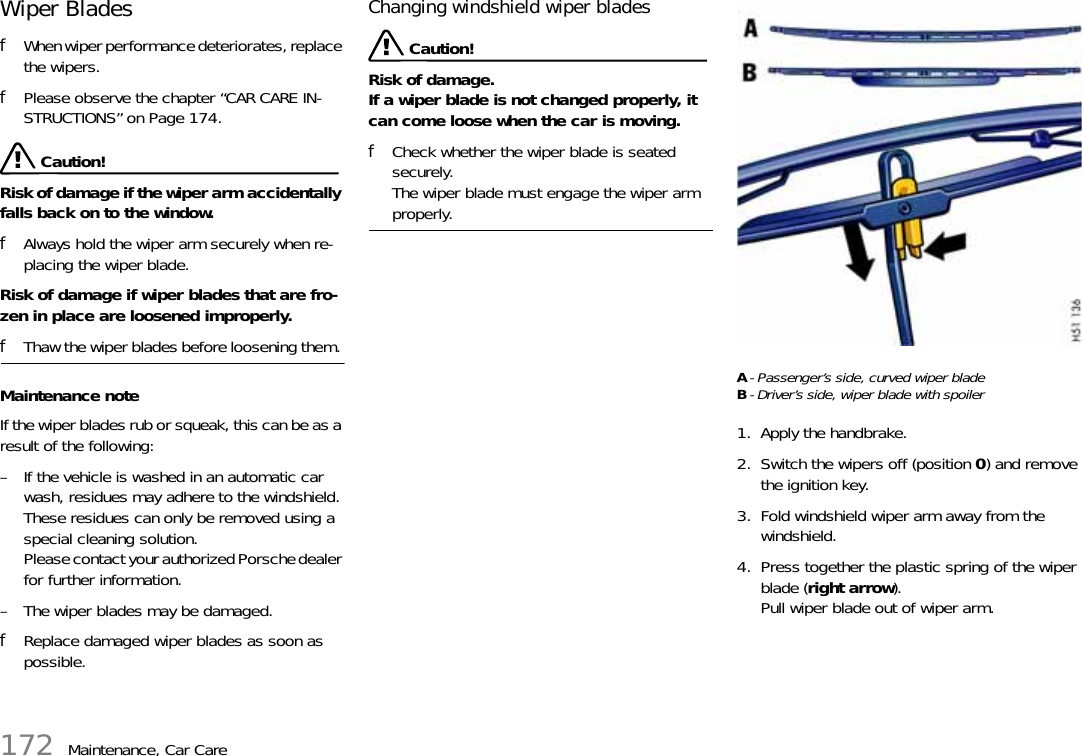

172 Maintenance, Car CareWiper Blades fWhen wiper performance deteriorates, replace the wipers. fPlease observe the chapter “CAR CARE IN-STRUCTIONS” on Page 174. Caution!Risk of damage if the wiper arm accidentally falls back on to the window. fAlways hold the wiper arm securely when re-placing the wiper blade.Risk of damage if wiper blades that are fro-zen in place are loosened improperly. fThaw the wiper blades before loosening them. Maintenance noteIf the wiper blades rub or squeak, this can be as a result of the following:– If the vehicle is washed in an automatic car wash, residues may adhere to the windshield. These residues can only be removed using a special cleaning solution. Please contact your authorized Porsche dealer for further information.– The wiper blades may be damaged.fReplace damaged wiper blades as soon as possible.Changing windshield wiper blades Caution!Risk of damage.If a wiper blade is not changed properly, it can come loose when the car is moving.fCheck whether the wiper blade is seated securely.The wiper blade must engage the wiper arm properly.A- Passenger’s side, curved wiper bladeB- Driver’s side, wiper blade with spoiler1. Apply the handbrake.2. Switch the wipers off (position 0) and remove the ignition key.3. Fold windshield wiper arm away from the windshield.4. Press together the plastic spring of the wiper blade (right arrow).Pull wiper blade out of wiper arm.

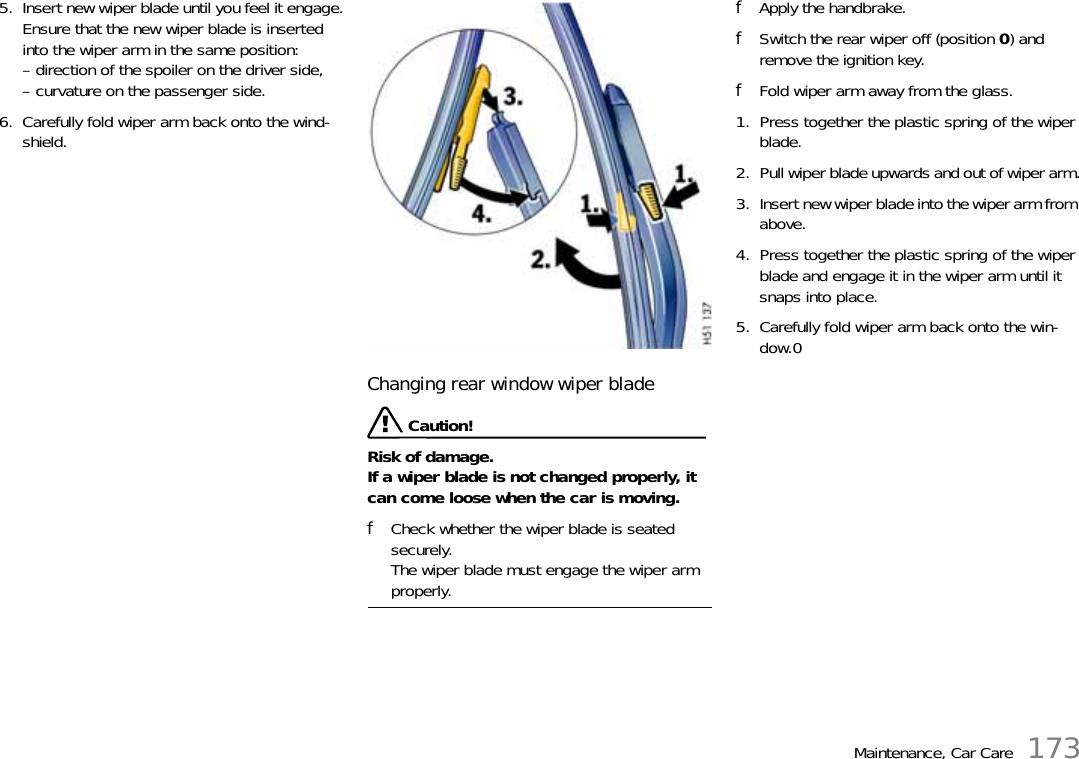

Maintenance, Car Care 1735. Insert new wiper blade until you feel it engage.Ensure that the new wiper blade is inserted into the wiper arm in the same position:– direction of the spoiler on the driver side,– curvature on the passenger side.6. Carefully fold wiper arm back onto the wind-shield.Changing rear window wiper blade Caution!Risk of damage.If a wiper blade is not changed properly, it can come loose when the car is moving.fCheck whether the wiper blade is seated securely.The wiper blade must engage the wiper arm properly.fApply the handbrake.fSwitch the rear wiper off (position 0) and remove the ignition key.fFold wiper arm away from the glass.1. Press together the plastic spring of the wiper blade.2. Pull wiper blade upwards and out of wiper arm.3. Insert new wiper blade into the wiper arm from above.4. Press together the plastic spring of the wiper blade and engage it in the wiper arm until it snaps into place.5. Carefully fold wiper arm back onto the win-dow.0

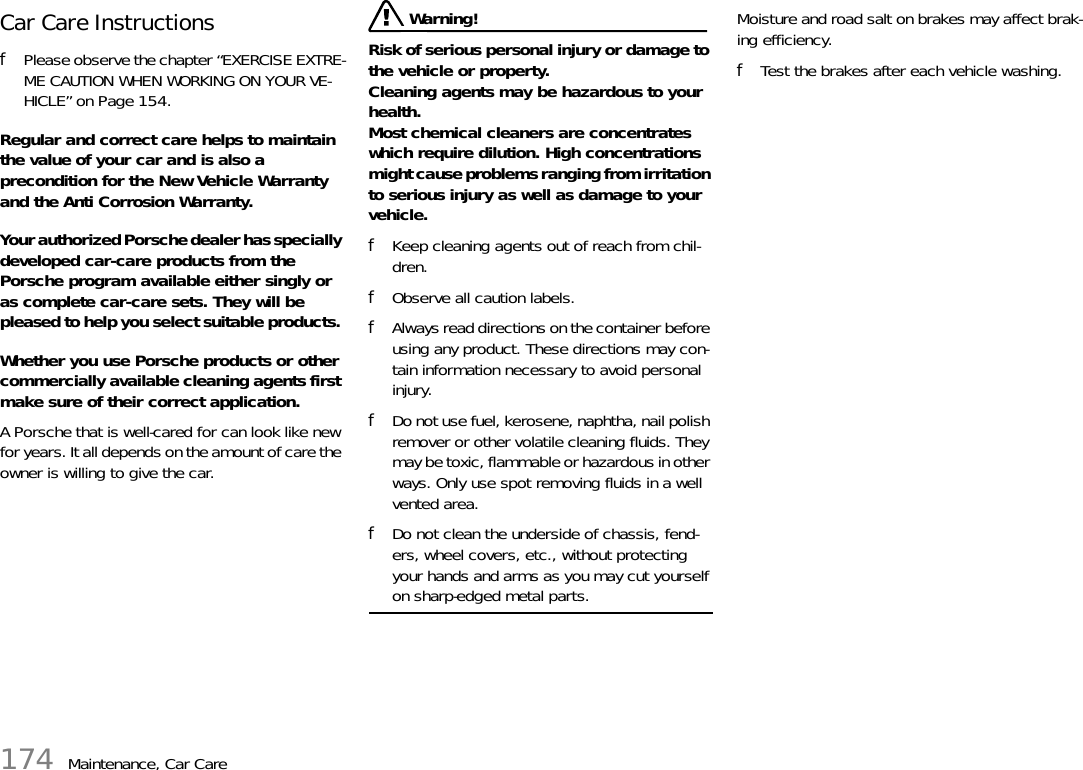

174 Maintenance, Car CareCar Care Instructions fPlease observe the chapter “EXERCISE EXTRE-ME CAUTION WHEN WORKING ON YOUR VE-HICLE” on Page 154.Regular and correct care helps to maintain the value of your car and is also a precondition for the New Vehicle Warranty and the Anti Corrosion Warranty. Your authorized Porsche dealer has specially developed car-care products from the Porsche program available either singly or as complete car-care sets. They will be pleased to help you select suitable products. Whether you use Porsche products or other commercially available cleaning agents first make sure of their correct application. A Porsche that is well-cared for can look like new for years. It all depends on the amount of care the owner is willing to give the car. Warning!Risk of serious personal injury or damage to the vehicle or property.Cleaning agents may be hazardous to your health.Most chemical cleaners are concentrates which require dilution. High concentrations might cause problems ranging from irritation to serious injury as well as damage to your vehicle. fKeep cleaning agents out of reach from chil-dren. fObserve all caution labels. fAlways read directions on the container before using any product. These directions may con-tain information necessary to avoid personal injury. fDo not use fuel, kerosene, naphtha, nail polish remover or other volatile cleaning fluids. They may be toxic, flammable or hazardous in other ways. Only use spot removing fluids in a well vented area. fDo not clean the underside of chassis, fend-ers, wheel covers, etc., without protecting your hands and arms as you may cut yourself on sharp-edged metal parts. Moisture and road salt on brakes may affect brak-ing efficiency. fTest the brakes after each vehicle washing.

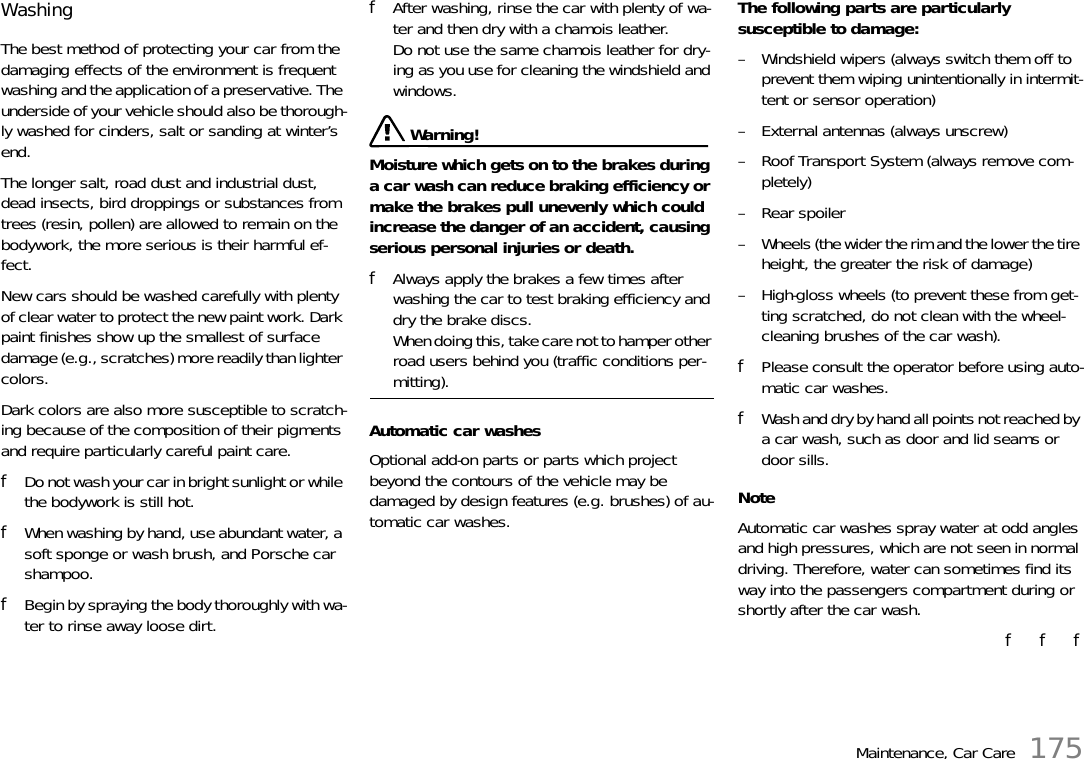

Maintenance, Car Care 175Washing The best method of protecting your car from the damaging effects of the environment is frequent washing and the application of a preservative. The underside of your vehicle should also be thorough-ly washed for cinders, salt or sanding at winter’s end. The longer salt, road dust and industrial dust, dead insects, bird droppings or substances from trees (resin, pollen) are allowed to remain on the bodywork, the more serious is their harmful ef-fect. New cars should be washed carefully with plenty of clear water to protect the new paint work. Dark paint finishes show up the smallest of surface damage (e.g., scratches) more readily than lighter colors. Dark colors are also more susceptible to scratch-ing because of the composition of their pigments and require particularly careful paint care. fDo not wash your car in bright sunlight or while the bodywork is still hot. fWhen washing by hand, use abundant water, a soft sponge or wash brush, and Porsche car shampoo. fBegin by spraying the body thoroughly with wa-ter to rinse away loose dirt. fAfter washing, rinse the car with plenty of wa-ter and then dry with a chamois leather.Do not use the same chamois leather for dry-ing as you use for cleaning the windshield and windows. Warning!Moisture which gets on to the brakes during a car wash can reduce braking efficiency or make the brakes pull unevenly which could increase the danger of an accident, causing serious personal injuries or death. fAlways apply the brakes a few times after washing the car to test braking efficiency and dry the brake discs.When doing this, take care not to hamper other road users behind you (traffic conditions per-mitting). Automatic car washes Optional add-on parts or parts which project beyond the contours of the vehicle may be damaged by design features (e.g. brushes) of au-tomatic car washes. The following parts are particularly susceptible to damage: – Windshield wipers (always switch them off to prevent them wiping unintentionally in intermit-tent or sensor operation) – External antennas (always unscrew)– Roof Transport System (always remove com-pletely) – Rear spoiler– Wheels (the wider the rim and the lower the tire height, the greater the risk of damage) – High-gloss wheels (to prevent these from get-ting scratched, do not clean with the wheel-cleaning brushes of the car wash). fPlease consult the operator before using auto-matic car washes. fWash and dry by hand all points not reached by a car wash, such as door and lid seams or door sills. NoteAutomatic car washes spray water at odd angles and high pressures, which are not seen in normal driving. Therefore, water can sometimes find its way into the passengers compartment during or shortly after the car wash.f f f

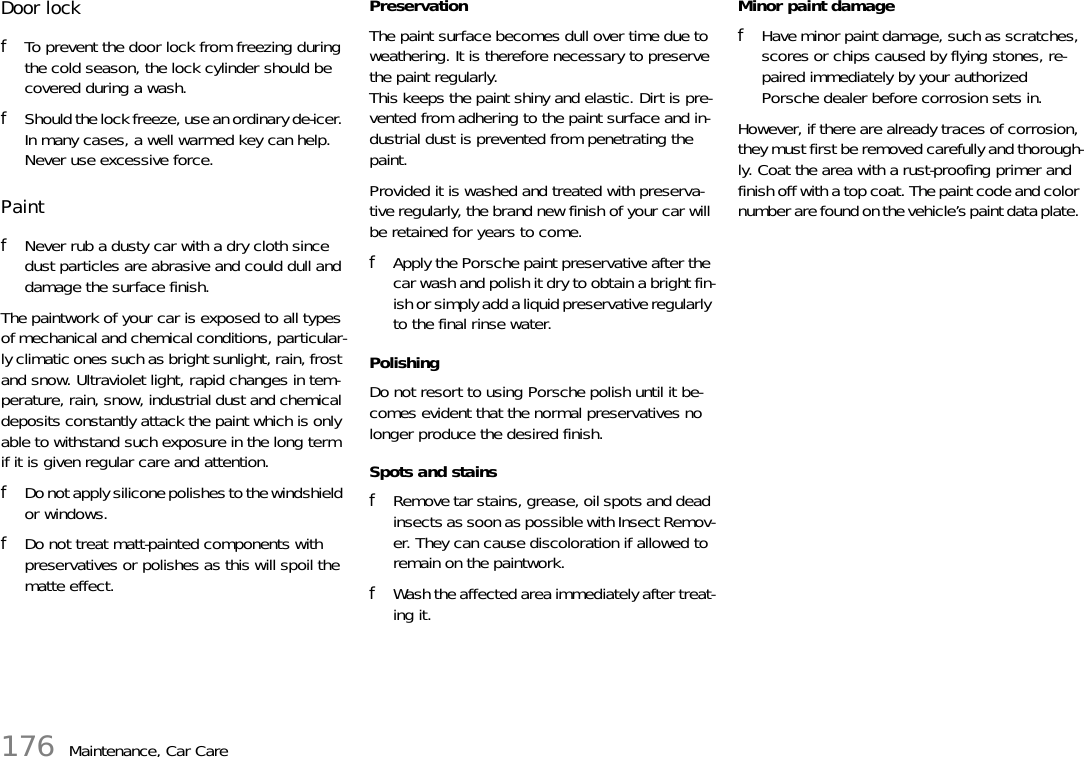

176 Maintenance, Car CareDoor lock fTo prevent the door lock from freezing during the cold season, the lock cylinder should be covered during a wash. fShould the lock freeze, use an ordinary de-icer. In many cases, a well warmed key can help. Never use excessive force.Paint fNever rub a dusty car with a dry cloth since dust particles are abrasive and could dull and damage the surface finish.The paintwork of your car is exposed to all types of mechanical and chemical conditions, particular-ly climatic ones such as bright sunlight, rain, frost and snow. Ultraviolet light, rapid changes in tem-perature, rain, snow, industrial dust and chemical deposits constantly attack the paint which is only able to withstand such exposure in the long term if it is given regular care and attention. fDo not apply silicone polishes to the windshield or windows. fDo not treat matt-painted components with preservatives or polishes as this will spoil the matte effect. Preservation The paint surface becomes dull over time due to weathering. It is therefore necessary to preserve the paint regularly.This keeps the paint shiny and elastic. Dirt is pre-vented from adhering to the paint surface and in-dustrial dust is prevented from penetrating the paint. Provided it is washed and treated with preserva-tive regularly, the brand new finish of your car will be retained for years to come. fApply the Porsche paint preservative after the car wash and polish it dry to obtain a bright fin-ish or simply add a liquid preservative regularly to the final rinse water. PolishingDo not resort to using Porsche polish until it be-comes evident that the normal preservatives no longer produce the desired finish. Spots and stains fRemove tar stains, grease, oil spots and dead insects as soon as possible with Insect Remov-er. They can cause discoloration if allowed to remain on the paintwork. fWash the affected area immediately after treat-ing it. Minor paint damage fHave minor paint damage, such as scratches, scores or chips caused by flying stones, re-paired immediately by your authorized Porsche dealer before corrosion sets in.However, if there are already traces of corrosion, they must first be removed carefully and thorough-ly. Coat the area with a rust-proofing primer and finish off with a top coat. The paint code and color number are found on the vehicle’s paint data plate.

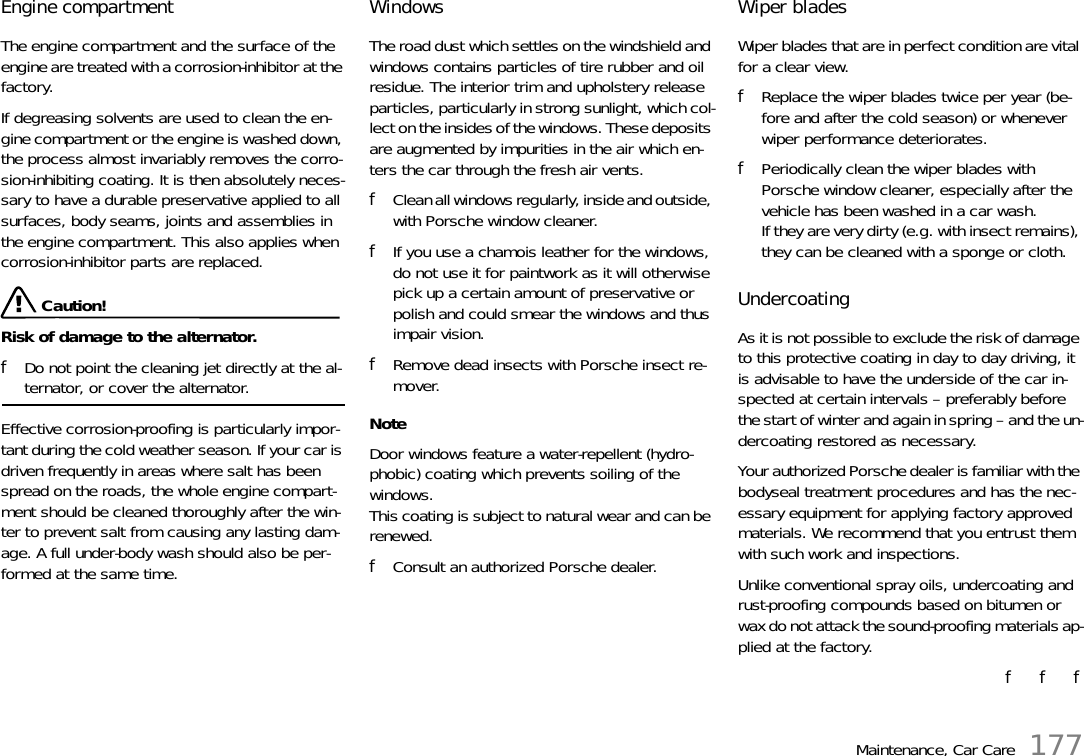

Maintenance, Car Care 177Engine compartment The engine compartment and the surface of the engine are treated with a corrosion-inhibitor at the factory. If degreasing solvents are used to clean the en-gine compartment or the engine is washed down, the process almost invariably removes the corro-sion-inhibiting coating. It is then absolutely neces-sary to have a durable preservative applied to all surfaces, body seams, joints and assemblies in the engine compartment. This also applies when corrosion-inhibitor parts are replaced. Caution!Risk of damage to the alternator. fDo not point the cleaning jet directly at the al-ternator, or cover the alternator.Effective corrosion-proofing is particularly impor-tant during the cold weather season. If your car is driven frequently in areas where salt has been spread on the roads, the whole engine compart-ment should be cleaned thoroughly after the win-ter to prevent salt from causing any lasting dam-age. A full under-body wash should also be per-formed at the same time. Windows The road dust which settles on the windshield and windows contains particles of tire rubber and oil residue. The interior trim and upholstery release particles, particularly in strong sunlight, which col-lect on the insides of the windows. These deposits are augmented by impurities in the air which en-ters the car through the fresh air vents. fClean all windows regularly, inside and outside, with Porsche window cleaner. fIf you use a chamois leather for the windows, do not use it for paintwork as it will otherwise pick up a certain amount of preservative or polish and could smear the windows and thus impair vision. fRemove dead insects with Porsche insect re-mover. NoteDoor windows feature a water-repellent (hydro-phobic) coating which prevents soiling of the windows. This coating is subject to natural wear and can be renewed.fConsult an authorized Porsche dealer.Wiper blades Wiper blades that are in perfect condition are vital for a clear view. fReplace the wiper blades twice per year (be-fore and after the cold season) or whenever wiper performance deteriorates. fPeriodically clean the wiper blades with Porsche window cleaner, especially after the vehicle has been washed in a car wash.If they are very dirty (e.g. with insect remains), they can be cleaned with a sponge or cloth. Undercoating As it is not possible to exclude the risk of damage to this protective coating in day to day driving, it is advisable to have the underside of the car in-spected at certain intervals – preferably before the start of winter and again in spring – and the un-dercoating restored as necessary. Your authorized Porsche dealer is familiar with the bodyseal treatment procedures and has the nec-essary equipment for applying factory approved materials. We recommend that you entrust them with such work and inspections. Unlike conventional spray oils, undercoating and rust-proofing compounds based on bitumen or wax do not attack the sound-proofing materials ap-plied at the factory. f f f

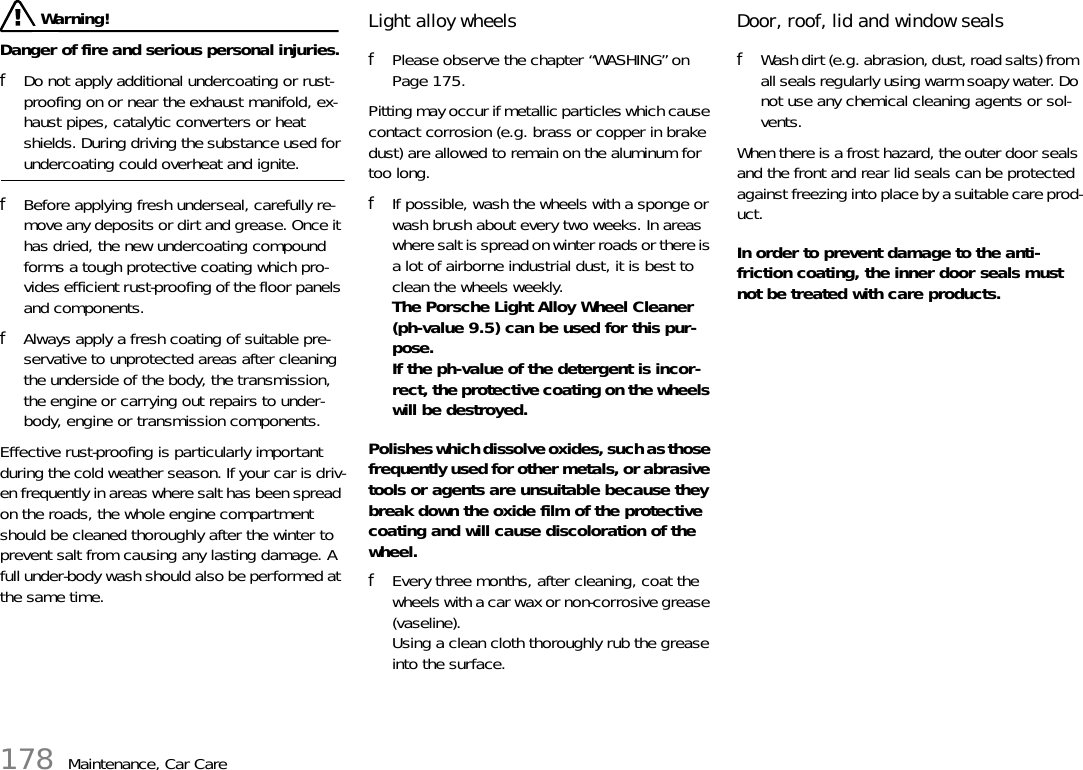

178 Maintenance, Car Care Warning!Danger of fire and serious personal injuries. fDo not apply additional undercoating or rust-proofing on or near the exhaust manifold, ex-haust pipes, catalytic converters or heat shields. During driving the substance used for undercoating could overheat and ignite. fBefore applying fresh underseal, carefully re-move any deposits or dirt and grease. Once it has dried, the new undercoating compound forms a tough protective coating which pro-vides efficient rust-proofing of the floor panels and components. fAlways apply a fresh coating of suitable pre-servative to unprotected areas after cleaning the underside of the body, the transmission, the engine or carrying out repairs to under-body, engine or transmission components.Effective rust-proofing is particularly important during the cold weather season. If your car is driv-en frequently in areas where salt has been spread on the roads, the whole engine compartment should be cleaned thoroughly after the winter to prevent salt from causing any lasting damage. A full under-body wash should also be performed at the same time. Light alloy wheels fPlease observe the chapter “WASHING” on Page 175.Pitting may occur if metallic particles which cause contact corrosion (e.g. brass or copper in brake dust) are allowed to remain on the aluminum for too long. fIf possible, wash the wheels with a sponge or wash brush about every two weeks. In areas where salt is spread on winter roads or there is a lot of airborne industrial dust, it is best to clean the wheels weekly.The Porsche Light Alloy Wheel Cleaner (ph-value 9.5) can be used for this pur-pose.If the ph-value of the detergent is incor-rect, the protective coating on the wheels will be destroyed.Polishes which dissolve oxides, such as those frequently used for other metals, or abrasive tools or agents are unsuitable because they break down the oxide film of the protective coating and will cause discoloration of the wheel. fEvery three months, after cleaning, coat the wheels with a car wax or non-corrosive grease (vaseline). Using a clean cloth thoroughly rub the grease into the surface. Door, roof, lid and window seals fWash dirt (e.g. abrasion, dust, road salts) from all seals regularly using warm soapy water. Do not use any chemical cleaning agents or sol-vents.When there is a frost hazard, the outer door seals and the front and rear lid seals can be protected against freezing into place by a suitable care prod-uct. In order to prevent damage to the anti-friction coating, the inner door seals must not be treated with care products.

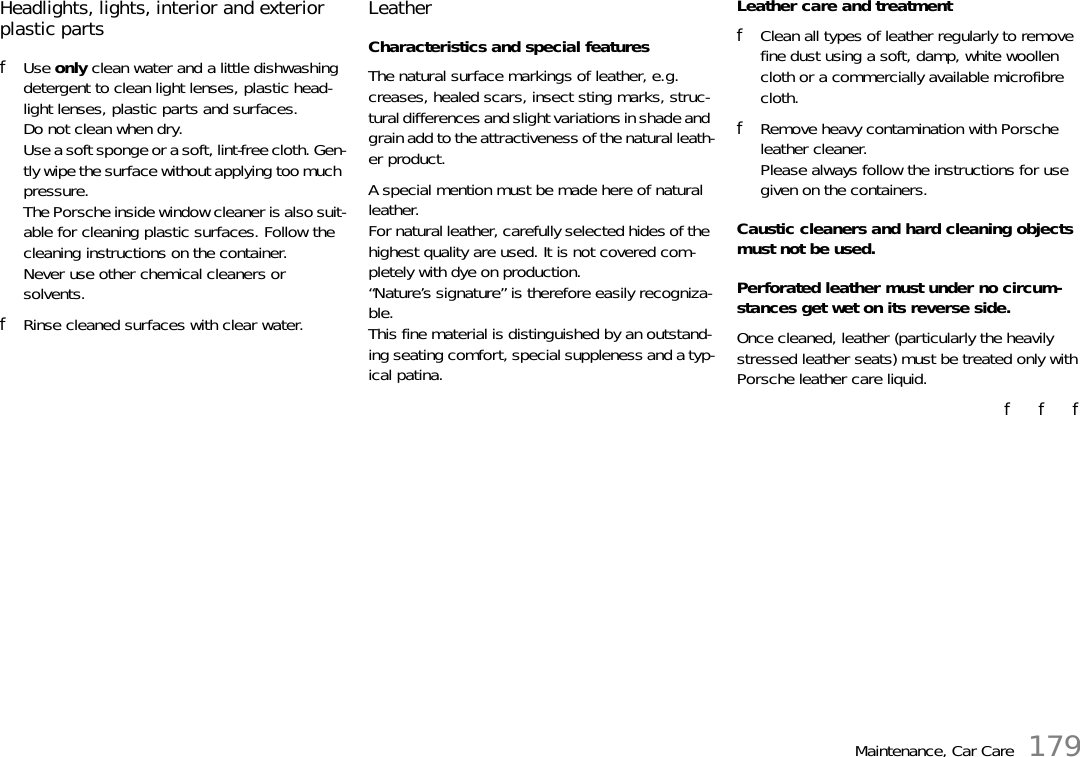

Maintenance, Car Care 179Headlights, lights, interior and exterior plastic parts fUse only clean water and a little dishwashing detergent to clean light lenses, plastic head-light lenses, plastic parts and surfaces.Do not clean when dry.Use a soft sponge or a soft, lint-free cloth. Gen-tly wipe the surface without applying too much pressure.The Porsche inside window cleaner is also suit-able for cleaning plastic surfaces. Follow the cleaning instructions on the container.Never use other chemical cleaners or solvents. fRinse cleaned surfaces with clear water. Leather Characteristics and special features The natural surface markings of leather, e.g. creases, healed scars, insect sting marks, struc-tural differences and slight variations in shade and grain add to the attractiveness of the natural leath-er product.A special mention must be made here of natural leather. For natural leather, carefully selected hides of the highest quality are used. It is not covered com-pletely with dye on production.“Nature’s signature” is therefore easily recogniza-ble.This fine material is distinguished by an outstand-ing seating comfort, special suppleness and a typ-ical patina. Leather care and treatment fClean all types of leather regularly to remove fine dust using a soft, damp, white woollen cloth or a commercially available microfibre cloth. fRemove heavy contamination with Porsche leather cleaner. Please always follow the instructions for use given on the containers.Caustic cleaners and hard cleaning objects must not be used. Perforated leather must under no circum-stances get wet on its reverse side. Once cleaned, leather (particularly the heavily stressed leather seats) must be treated only with Porsche leather care liquid. f f f

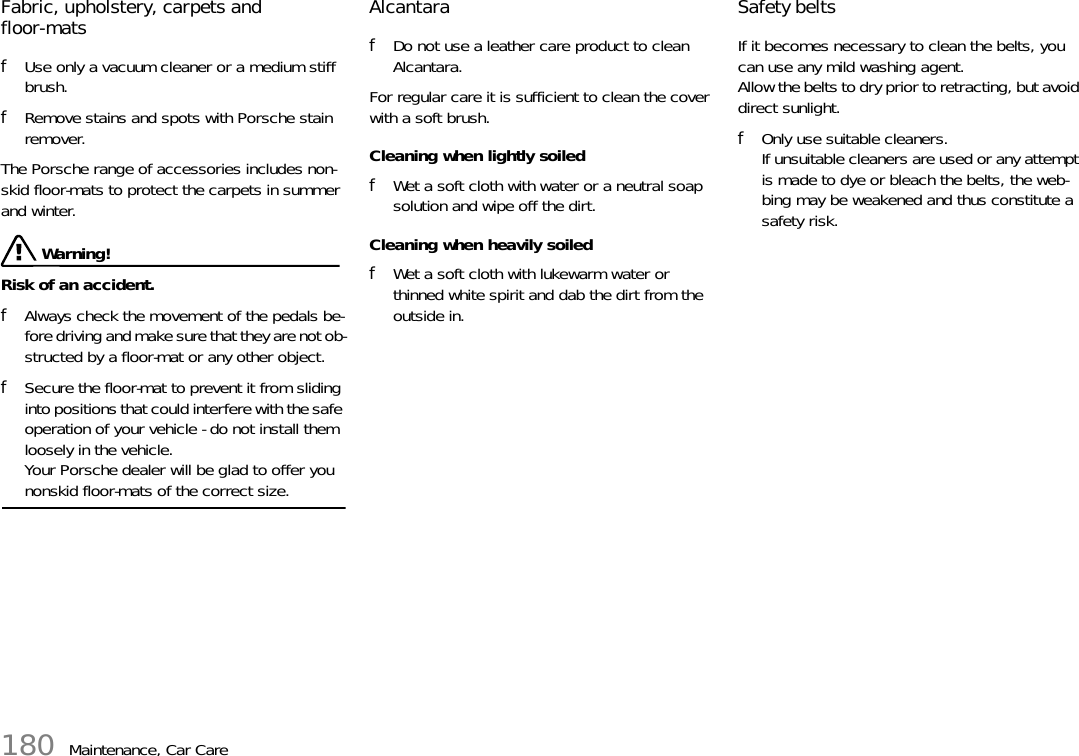

180 Maintenance, Car CareFabric, upholstery, carpets and floor-mats fUse only a vacuum cleaner or a medium stiff brush. fRemove stains and spots with Porsche stain remover.The Porsche range of accessories includes non-skid floor-mats to protect the carpets in summer and winter. Warning!Risk of an accident. fAlways check the movement of the pedals be-fore driving and make sure that they are not ob-structed by a floor-mat or any other object. fSecure the floor-mat to prevent it from sliding into positions that could interfere with the safe operation of your vehicle - do not install them loosely in the vehicle.Your Porsche dealer will be glad to offer you nonskid floor-mats of the correct size.Alcantara fDo not use a leather care product to clean Alcantara. For regular care it is sufficient to clean the cover with a soft brush. Cleaning when lightly soiled fWet a soft cloth with water or a neutral soap solution and wipe off the dirt. Cleaning when heavily soiled fWet a soft cloth with lukewarm water or thinned white spirit and dab the dirt from the outside in. Safety belts If it becomes necessary to clean the belts, you can use any mild washing agent.Allow the belts to dry prior to retracting, but avoid direct sunlight. fOnly use suitable cleaners.If unsuitable cleaners are used or any attempt is made to dye or bleach the belts, the web-bing may be weakened and thus constitute a safety risk.

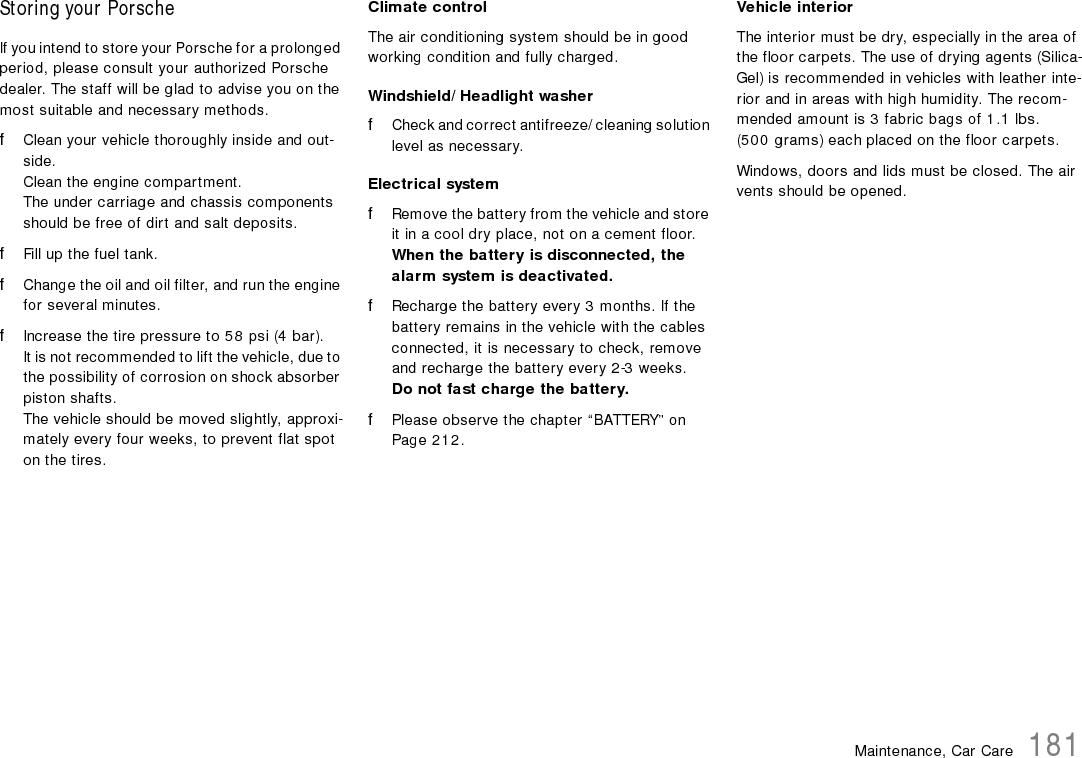

Maintenance, Car Care 181Storing your Porsche If you intend to store your Porsche for a prolonged period, please consult your authorized Porsche dealer. The staff will be glad to advise you on the most suitable and necessary methods. fClean your vehicle thoroughly inside and out-side. Clean the engine compartment. The under carriage and chassis components should be free of dirt and salt deposits. fFill up the fuel tank. fChange the oil and oil filter, and run the engine for several minutes. fIncrease the tire pressure to 58 psi (4 bar).It is not recommended to lift the vehicle, due to the possibility of corrosion on shock absorber piston shafts.The vehicle should be moved slightly, approxi-mately every four weeks, to prevent flat spot on the tires. Climate control The air conditioning system should be in good working condition and fully charged. Windshield/Headlight washer fCheck and correct antifreeze/cleaning solution level as necessary. Electrical system fRemove the battery from the vehicle and store it in a cool dry place, not on a cement floor. When the battery is disconnected, the alarm system is deactivated. fRecharge the battery every 3 months. If the battery remains in the vehicle with the cables connected, it is necessary to check, remove and recharge the battery every 2-3 weeks. Do not fast charge the battery. fPlease observe the chapter “BATTERY” on Page 212.Vehicle interior The interior must be dry, especially in the area of the floor carpets. The use of drying agents (Silica-Gel) is recommended in vehicles with leather inte-rior and in areas with high humidity. The recom-mended amount is 3 fabric bags of 1.1 lbs. (500 grams) each placed on the floor carpets. Windows, doors and lids must be closed. The air vents should be opened.
182 Maintenance, Car Care
Practical Tips, Emergency Service 183Practical Tips, Emergency ServiceTires/Wheels ............................................ 197Loading Information................................... 210Lifting the Vehicle with a Lifting Platform or Garage Lift........................................... 212Flat Tire.................................................... 213Wheel Bolts .............................................. 216Electrical System...................................... 220Battery..................................................... 224Emergency Starting with Jumper Cables..... 230Lights, Replacing Bulbs.............................. 232Headlights................................................ 234Tail Light .................................................. 242License Plate Light.................................... 243Luggage Compartment/Engine Compartment/Footwell Light ........................................... 243Door Guard/Curb Light.............................. 243Interior Light, Reading Lights...................... 244Adjusting Headlights.................................. 245Towing..................................................... 247

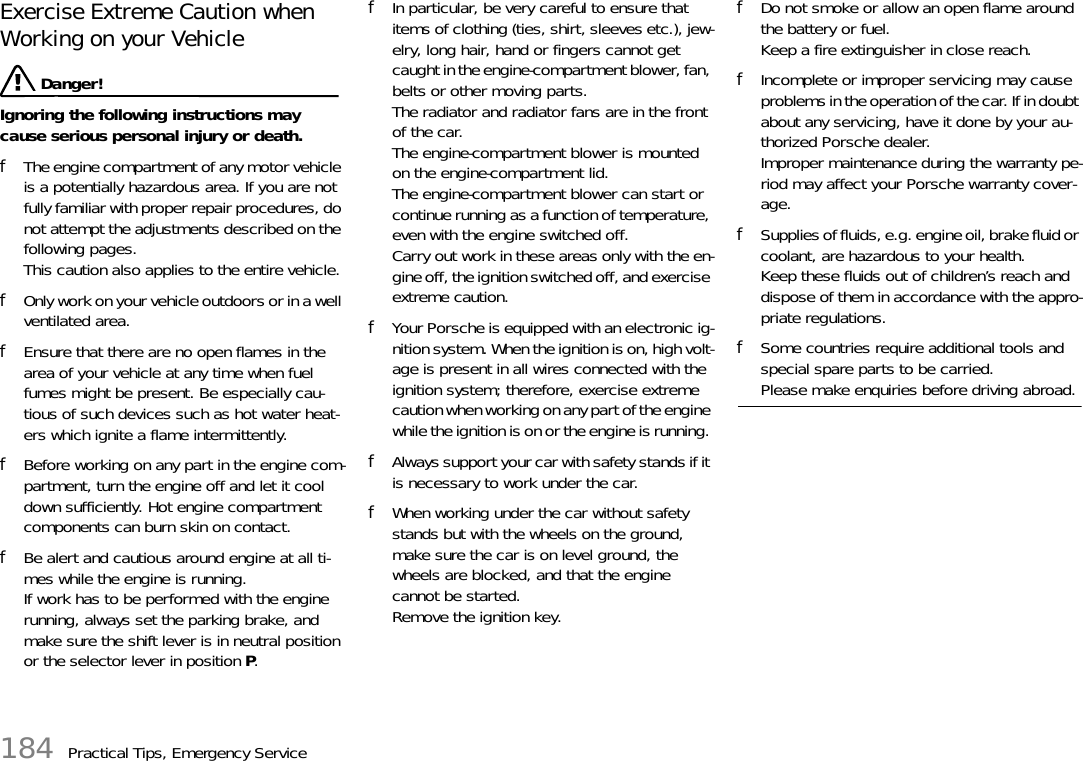

184 Practical Tips, Emergency ServiceExercise Extreme Caution when Working on your Vehicle Danger!Ignoring the following instructions may cause serious personal injury or death. fThe engine compartment of any motor vehicle is a potentially hazardous area. If you are not fully familiar with proper repair procedures, do not attempt the adjustments described on the following pages. This caution also applies to the entire vehicle. fOnly work on your vehicle outdoors or in a well ventilated area. fEnsure that there are no open flames in the area of your vehicle at any time when fuel fumes might be present. Be especially cau-tious of such devices such as hot water heat-ers which ignite a flame intermittently. fBefore working on any part in the engine com-partment, turn the engine off and let it cool down sufficiently. Hot engine compartment components can burn skin on contact. fBe alert and cautious around engine at all ti-mes while the engine is running.If work has to be performed with the engine running, always set the parking brake, and make sure the shift lever is in neutral position or the selector lever in position P.fIn particular, be very careful to ensure that items of clothing (ties, shirt, sleeves etc.), jew-elry, long hair, hand or fingers cannot get caught in the engine-compartment blower, fan, belts or other moving parts.The radiator and radiator fans are in the front of the car.The engine-compartment blower is mounted on the engine-compartment lid.The engine-compartment blower can start or continue running as a function of temperature, even with the engine switched off.Carry out work in these areas only with the en-gine off, the ignition switched off, and exercise extreme caution.fYour Porsche is equipped with an electronic ig-nition system. When the ignition is on, high volt-age is present in all wires connected with the ignition system; therefore, exercise extreme caution when working on any part of the engine while the ignition is on or the engine is running. fAlways support your car with safety stands if it is necessary to work under the car.fWhen working under the car without safety stands but with the wheels on the ground, make sure the car is on level ground, the wheels are blocked, and that the engine cannot be started.Remove the ignition key.fDo not smoke or allow an open flame around the battery or fuel.Keep a fire extinguisher in close reach. fIncomplete or improper servicing may cause problems in the operation of the car. If in doubt about any servicing, have it done by your au-thorized Porsche dealer.Improper maintenance during the warranty pe-riod may affect your Porsche warranty cover-age. fSupplies of fluids, e.g. engine oil, brake fluid or coolant, are hazardous to your health. Keep these fluids out of children’s reach and dispose of them in accordance with the appro-priate regulations. fSome countries require additional tools and special spare parts to be carried. Please make enquiries before driving abroad.

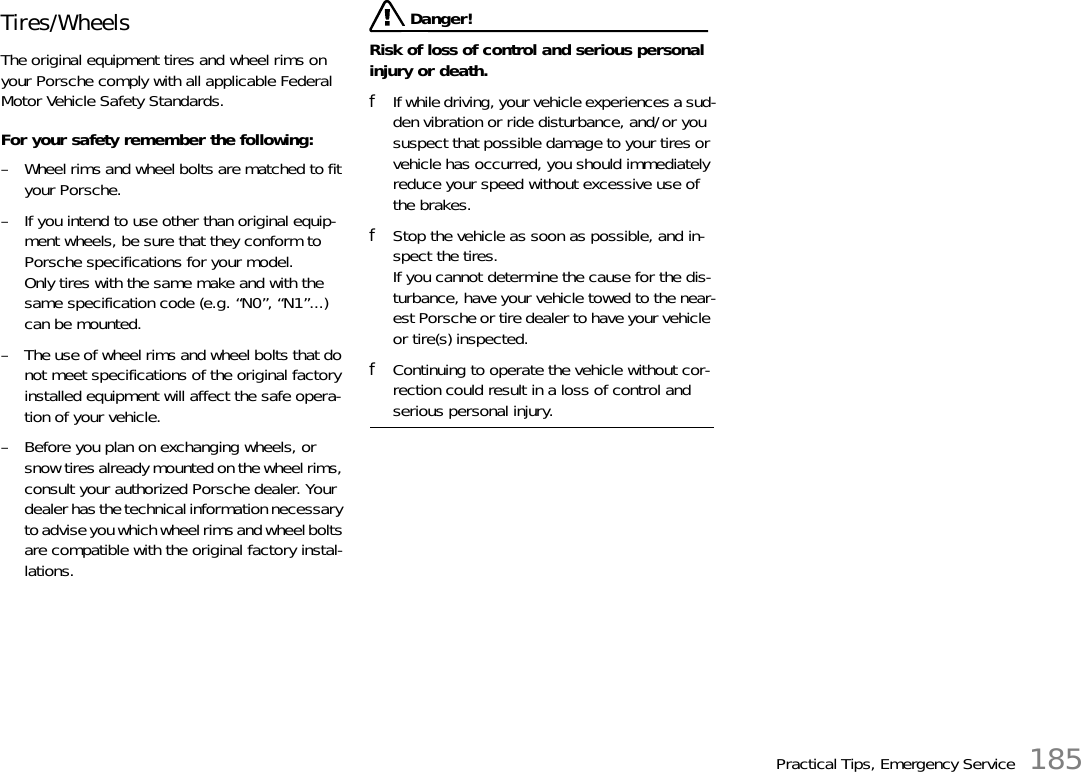

Practical Tips, Emergency Service 185Tires/Wheels The original equipment tires and wheel rims on your Porsche comply with all applicable Federal Motor Vehicle Safety Standards. For your safety remember the following: – Wheel rims and wheel bolts are matched to fit your Porsche. – If you intend to use other than original equip-ment wheels, be sure that they conform to Porsche specifications for your model.Only tires with the same make and with the same specification code (e.g. “N0”, “N1”...) can be mounted. – The use of wheel rims and wheel bolts that do not meet specifications of the original factory installed equipment will affect the safe opera-tion of your vehicle. – Before you plan on exchanging wheels, or snow tires already mounted on the wheel rims, consult your authorized Porsche dealer. Your dealer has the technical information necessary to advise you which wheel rims and wheel bolts are compatible with the original factory instal-lations. Danger!Risk of loss of control and serious personal injury or death. fIf while driving, your vehicle experiences a sud-den vibration or ride disturbance, and/or you suspect that possible damage to your tires or vehicle has occurred, you should immediately reduce your speed without excessive use of the brakes. fStop the vehicle as soon as possible, and in-spect the tires.If you cannot determine the cause for the dis-turbance, have your vehicle towed to the near-est Porsche or tire dealer to have your vehicle or tire(s) inspected. fContinuing to operate the vehicle without cor-rection could result in a loss of control and serious personal injury.

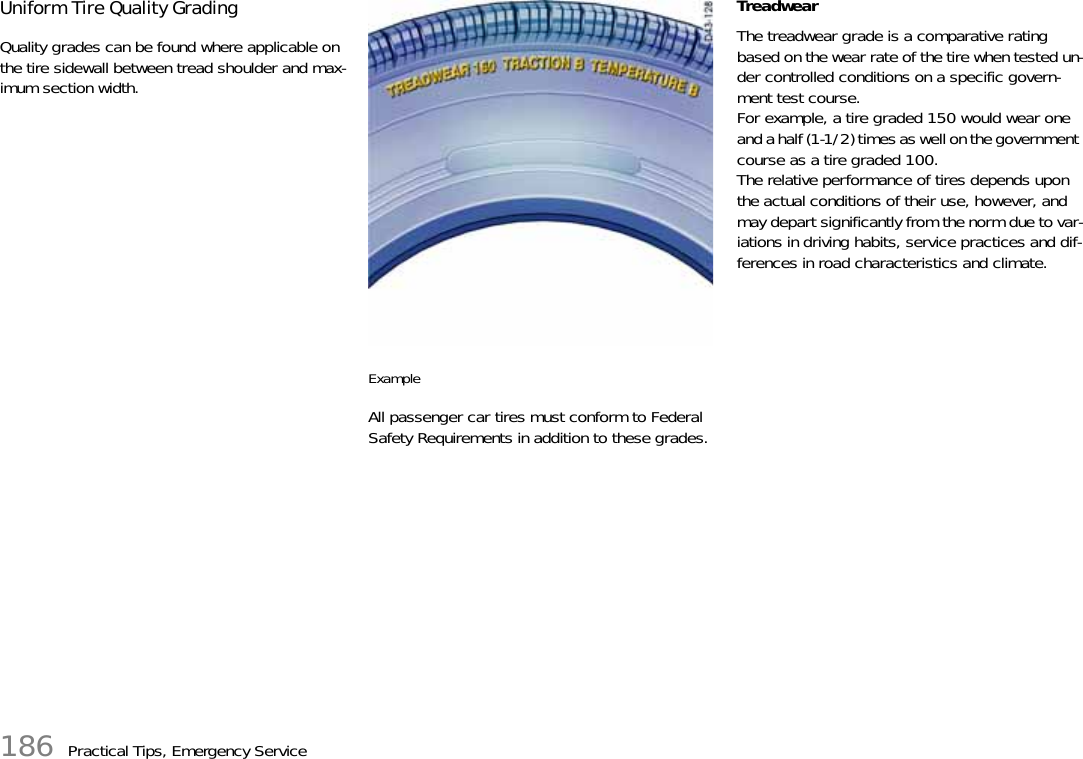

186 Practical Tips, Emergency ServiceUniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and max-imum section width. Example All passenger car tires must conform to Federal Safety Requirements in addition to these grades. Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested un-der controlled conditions on a specific govern-ment test course.For example, a tire graded 150 would wear one and a half (1-1/2) times as well on the government course as a tire graded 100.The relative performance of tires depends upon the actual conditions of their use, however, and may depart significantly from the norm due to var-iations in driving habits, service practices and dif-ferences in road characteristics and climate.

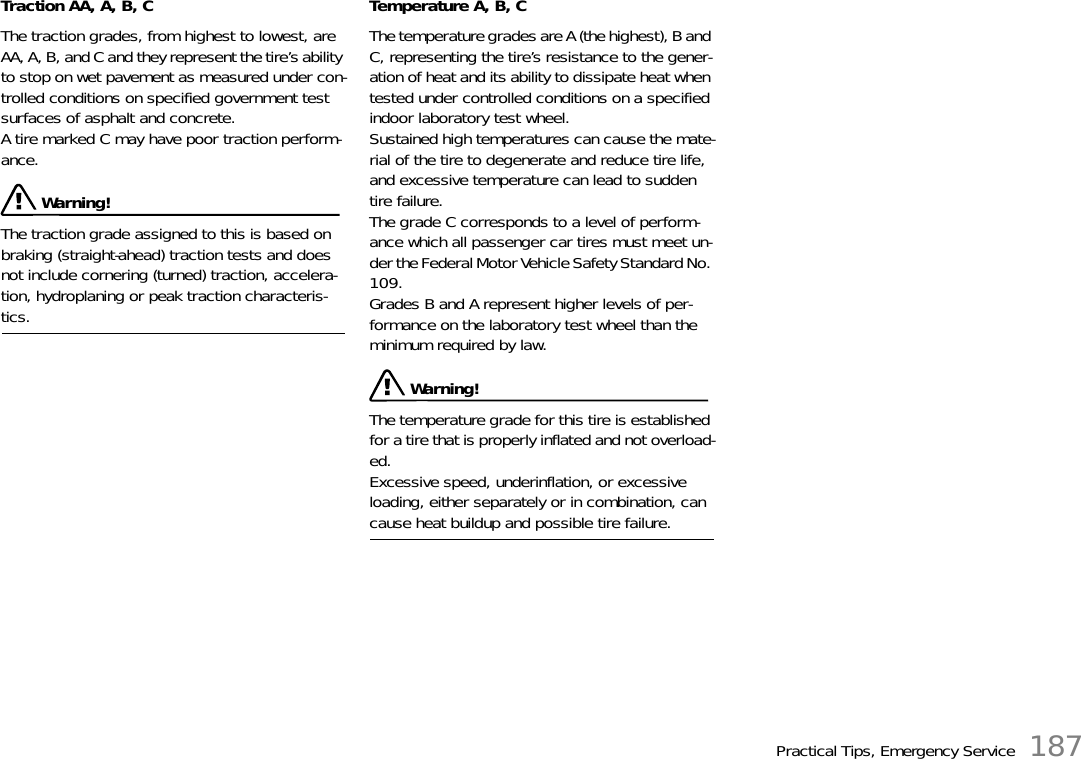

Practical Tips, Emergency Service 187Traction AA, A, B, C The traction grades, from highest to lowest, are AA, A, B, and C and they represent the tire’s ability to stop on wet pavement as measured under con-trolled conditions on specified government test surfaces of asphalt and concrete.A tire marked C may have poor traction perform-ance. Warning!The traction grade assigned to this is based on braking (straight-ahead) traction tests and does not include cornering (turned) traction, accelera-tion, hydroplaning or peak traction characteris-tics. Temperature A, B, C The temperature grades are A (the highest), B and C, representing the tire’s resistance to the gener-ation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel.Sustained high temperatures can cause the mate-rial of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.The grade C corresponds to a level of perform-ance which all passenger car tires must meet un-der the Federal Motor Vehicle Safety Standard No. 109.Grades B and A represent higher levels of per-formance on the laboratory test wheel than the minimum required by law. Warning!The temperature grade for this tire is established for a tire that is properly inflated and not overload-ed.Excessive speed, underinflation, or excessive loading, either separately or in combination, can cause heat buildup and possible tire failure.

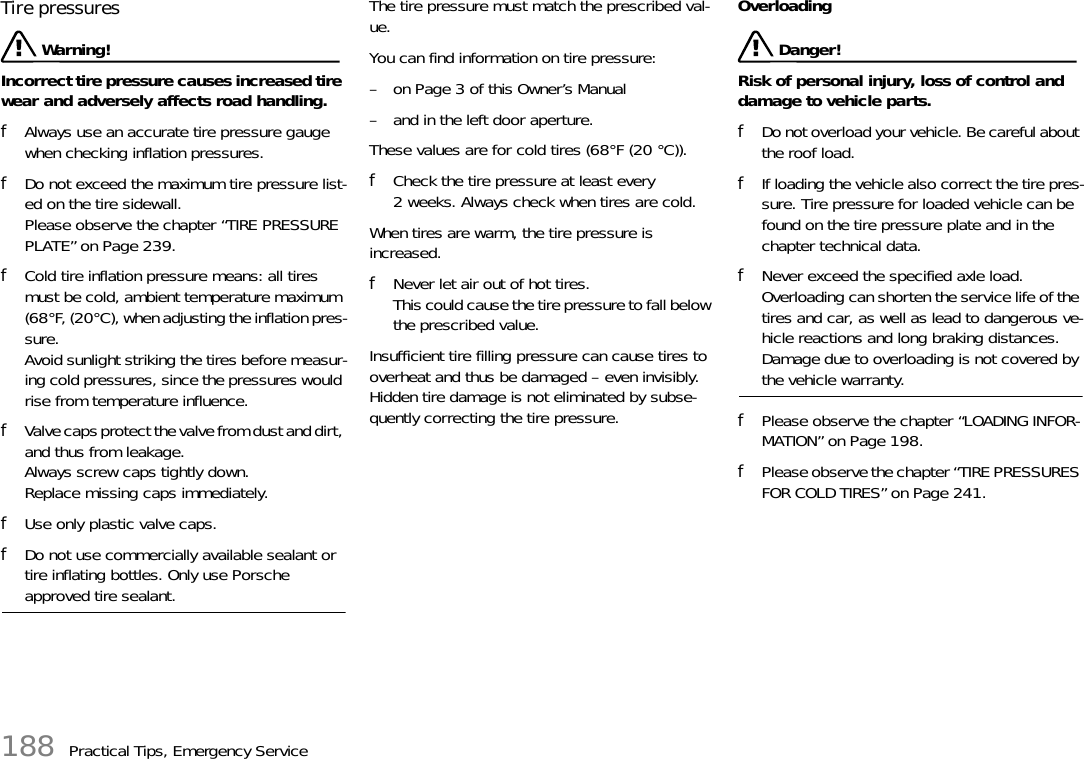

188 Practical Tips, Emergency ServiceTire pressures Warning!Incorrect tire pressure causes increased tire wear and adversely affects road handling. fAlways use an accurate tire pressure gauge when checking inflation pressures. fDo not exceed the maximum tire pressure list-ed on the tire sidewall. Please observe the chapter “TIRE PRESSURE PLATE” on Page 239.fCold tire inflation pressure means: all tires must be cold, ambient temperature maximum (68°F, (20°C), when adjusting the inflation pres-sure. Avoid sunlight striking the tires before measur-ing cold pressures, since the pressures would rise from temperature influence. fValve caps protect the valve from dust and dirt, and thus from leakage. Always screw caps tightly down. Replace missing caps immediately. fUse only plastic valve caps.fDo not use commercially available sealant or tire inflating bottles. Only use Porsche approved tire sealant.The tire pressure must match the prescribed val-ue. You can find information on tire pressure:– on Page 3 of this Owner’s Manual – and in the left door aperture.These values are for cold tires (68°F (20 °C)).fCheck the tire pressure at least every 2 weeks. Always check when tires are cold.When tires are warm, the tire pressure is increased.fNever let air out of hot tires. This could cause the tire pressure to fall below the prescribed value.Insufficient tire filling pressure can cause tires to overheat and thus be damaged – even invisibly. Hidden tire damage is not eliminated by subse-quently correcting the tire pressure.Overloading Danger!Risk of personal injury, loss of control and damage to vehicle parts.fDo not overload your vehicle. Be careful about the roof load. fIf loading the vehicle also correct the tire pres-sure. Tire pressure for loaded vehicle can be found on the tire pressure plate and in the chapter technical data.fNever exceed the specified axle load.Overloading can shorten the service life of the tires and car, as well as lead to dangerous ve-hicle reactions and long braking distances.Damage due to overloading is not covered by the vehicle warranty.fPlease observe the chapter “LOADING INFOR-MATION” on Page 198.fPlease observe the chapter “TIRE PRESSURES FOR COLD TIRES” on Page 241.

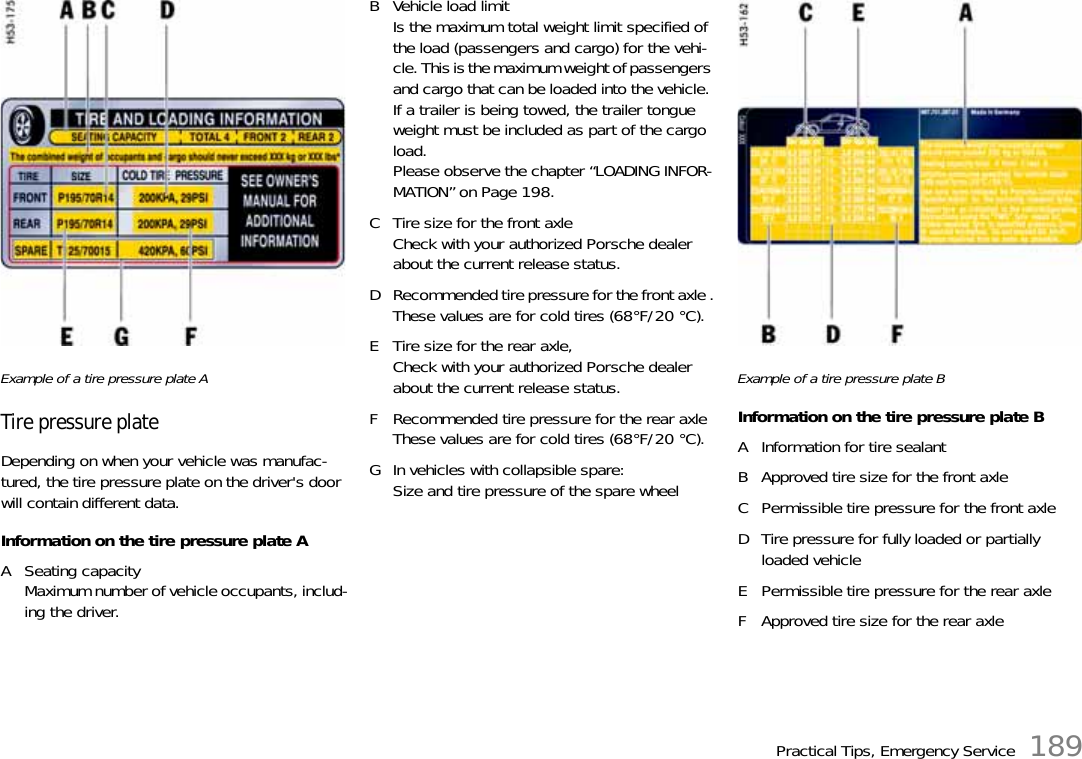

Practical Tips, Emergency Service 189Example of a tire pressure plate ATire pressure plateDepending on when your vehicle was manufac-tured, the tire pressure plate on the driver's door will contain different data.Information on the tire pressure plate AA Seating capacityMaximum number of vehicle occupants, includ-ing the driver.B Vehicle load limit Is the maximum total weight limit specified of the load (passengers and cargo) for the vehi-cle. This is the maximum weight of passengers and cargo that can be loaded into the vehicle. If a trailer is being towed, the trailer tongue weight must be included as part of the cargo load. Please observe the chapter “LOADING INFOR-MATION” on Page 198.C Tire size for the front axleCheck with your authorized Porsche dealer about the current release status.D Recommended tire pressure for the front axle .These values are for cold tires (68°F/20 °C).E Tire size for the rear axle, Check with your authorized Porsche dealer about the current release status.F Recommended tire pressure for the rear axleThese values are for cold tires (68°F/20 °C).G In vehicles with collapsible spare:Size and tire pressure of the spare wheelExample of a tire pressure plate BInformation on the tire pressure plate BA Information for tire sealantB Approved tire size for the front axleC Permissible tire pressure for the front axleD Tire pressure for fully loaded or partially loaded vehicleE Permissible tire pressure for the rear axleF Approved tire size for the rear axle

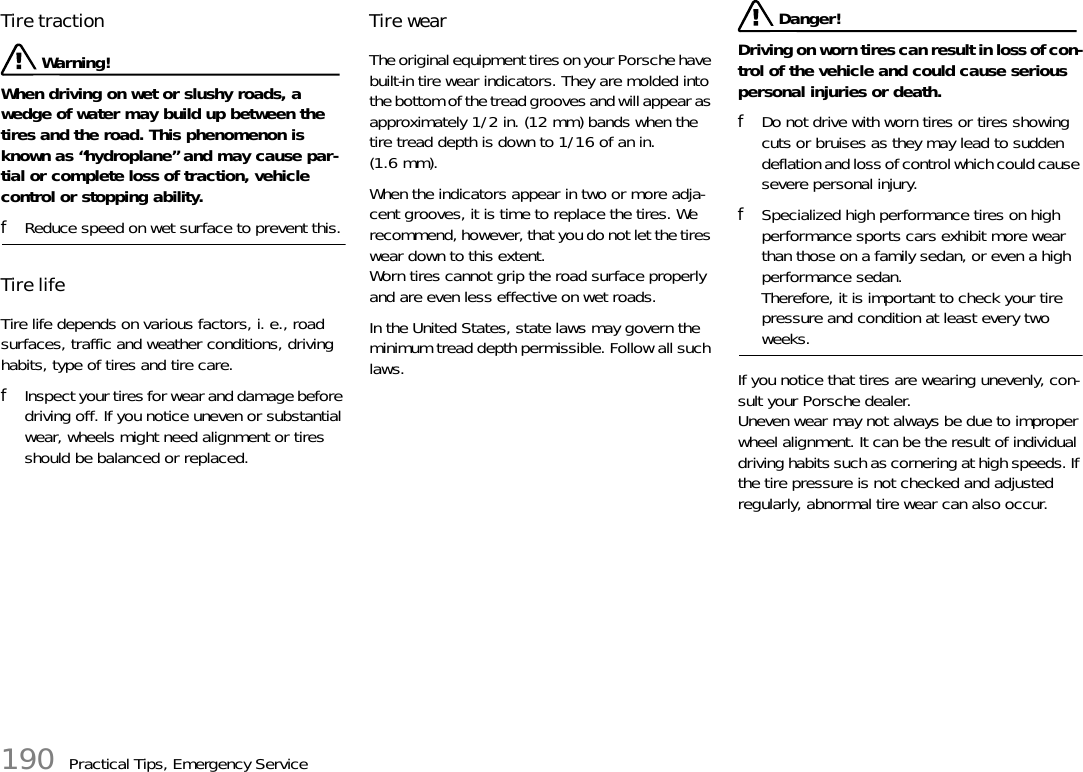

190 Practical Tips, Emergency ServiceTire traction Warning!When driving on wet or slushy roads, a wedge of water may build up between the tires and the road. This phenomenon is known as “hydroplane” and may cause par-tial or complete loss of traction, vehicle control or stopping ability. fReduce speed on wet surface to prevent this. Tire life Tire life depends on various factors, i. e., road surfaces, traffic and weather conditions, driving habits, type of tires and tire care. fInspect your tires for wear and damage before driving off. If you notice uneven or substantial wear, wheels might need alignment or tires should be balanced or replaced.Tire wear The original equipment tires on your Porsche have built-in tire wear indicators. They are molded into the bottom of the tread grooves and will appear as approximately 1/2 in. (12 mm) bands when the tire tread depth is down to 1/16 of an in. (1.6 mm). When the indicators appear in two or more adja-cent grooves, it is time to replace the tires. We recommend, however, that you do not let the tires wear down to this extent. Worn tires cannot grip the road surface properly and are even less effective on wet roads. In the United States, state laws may govern the minimum tread depth permissible. Follow all such laws. Danger!Driving on worn tires can result in loss of con-trol of the vehicle and could cause serious personal injuries or death. fDo not drive with worn tires or tires showing cuts or bruises as they may lead to sudden deflation and loss of control which could cause severe personal injury. fSpecialized high performance tires on high performance sports cars exhibit more wear than those on a family sedan, or even a high performance sedan. Therefore, it is important to check your tire pressure and condition at least every two weeks. If you notice that tires are wearing unevenly, con-sult your Porsche dealer. Uneven wear may not always be due to improper wheel alignment. It can be the result of individual driving habits such as cornering at high speeds. If the tire pressure is not checked and adjusted regularly, abnormal tire wear can also occur.

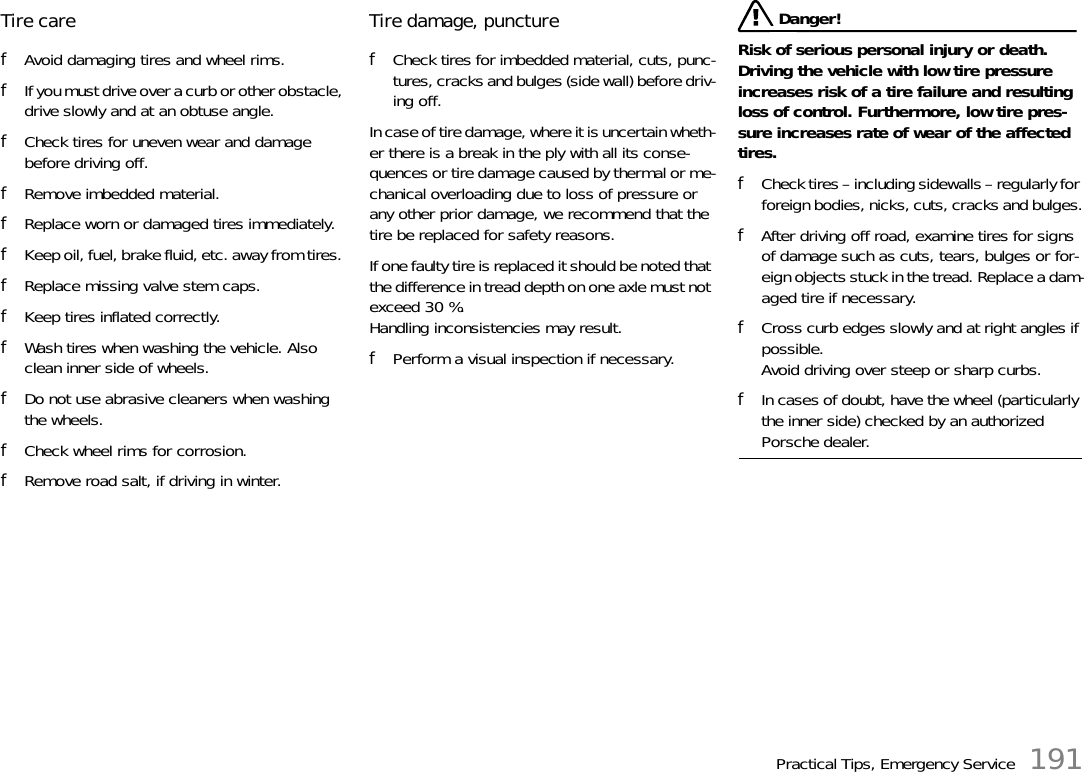

Practical Tips, Emergency Service 191Tire care fAvoid damaging tires and wheel rims. fIf you must drive over a curb or other obstacle, drive slowly and at an obtuse angle. fCheck tires for uneven wear and damage before driving off. fRemove imbedded material. fReplace worn or damaged tires immediately. fKeep oil, fuel, brake fluid, etc. away from tires. fReplace missing valve stem caps. fKeep tires inflated correctly. fWash tires when washing the vehicle. Also clean inner side of wheels.fDo not use abrasive cleaners when washing the wheels.fCheck wheel rims for corrosion.fRemove road salt, if driving in winter.Tire damage, puncture fCheck tires for imbedded material, cuts, punc-tures, cracks and bulges (side wall) before driv-ing off.In case of tire damage, where it is uncertain wheth-er there is a break in the ply with all its conse-quences or tire damage caused by thermal or me-chanical overloading due to loss of pressure or any other prior damage, we recommend that the tire be replaced for safety reasons. If one faulty tire is replaced it should be noted that the difference in tread depth on one axle must not exceed 30 %. Handling inconsistencies may result. fPerform a visual inspection if necessary. Danger!Risk of serious personal injury or death. Driving the vehicle with low tire pressure increases risk of a tire failure and resulting loss of control. Furthermore, low tire pres-sure increases rate of wear of the affected tires.fCheck tires – including sidewalls – regularly for foreign bodies, nicks, cuts, cracks and bulges.fAfter driving off road, examine tires for signs of damage such as cuts, tears, bulges or for-eign objects stuck in the tread. Replace a dam-aged tire if necessary.fCross curb edges slowly and at right angles if possible. Avoid driving over steep or sharp curbs.fIn cases of doubt, have the wheel (particularly the inner side) checked by an authorized Porsche dealer.

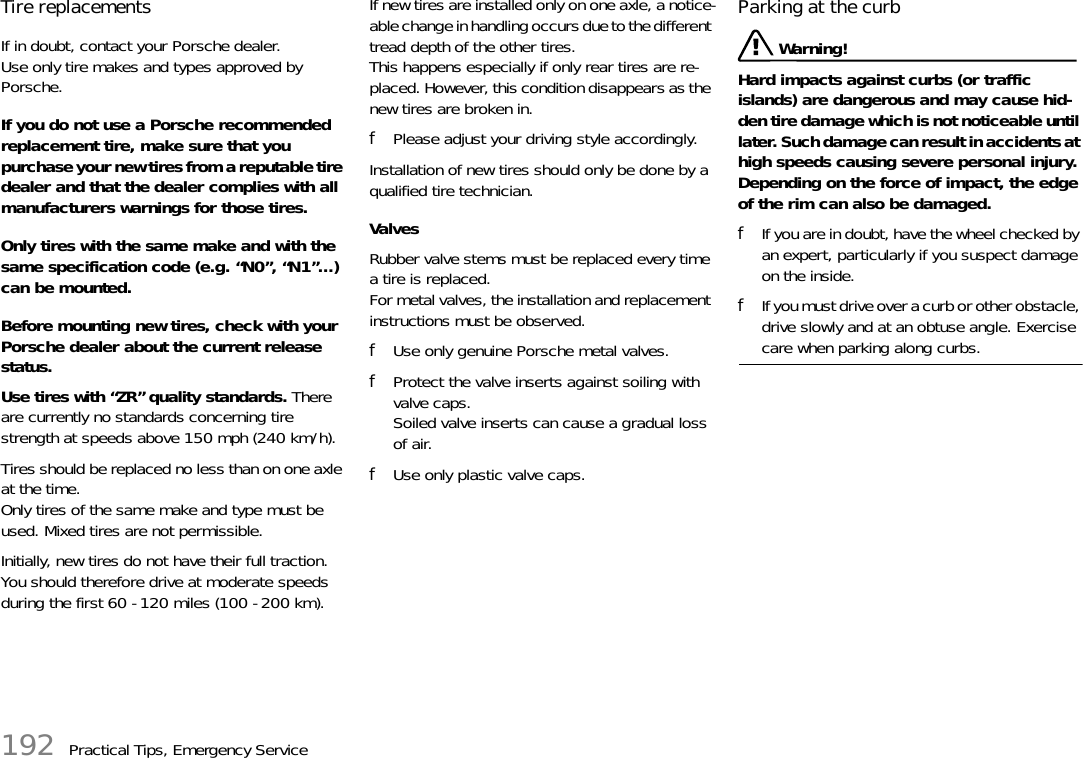

192 Practical Tips, Emergency ServiceTire replacements If in doubt, contact your Porsche dealer.Use only tire makes and types approved by Porsche. If you do not use a Porsche recommended replacement tire, make sure that you purchase your new tires from a reputable tire dealer and that the dealer complies with all manufacturers warnings for those tires. Only tires with the same make and with the same specification code (e.g. “N0”, “N1”...) can be mounted. Before mounting new tires, check with your Porsche dealer about the current release status. Use tires with “ZR” quality standards. There are currently no standards concerning tire strength at speeds above 150 mph (240 km/h). Tires should be replaced no less than on one axle at the time. Only tires of the same make and type must be used. Mixed tires are not permissible. Initially, new tires do not have their full traction. You should therefore drive at moderate speeds during the first 60 - 120 miles (100 - 200 km). If new tires are installed only on one axle, a notice-able change in handling occurs due to the different tread depth of the other tires. This happens especially if only rear tires are re-placed. However, this condition disappears as the new tires are broken in. fPlease adjust your driving style accordingly.Installation of new tires should only be done by a qualified tire technician. Valves Rubber valve stems must be replaced every time a tire is replaced.For metal valves, the installation and replacement instructions must be observed.fUse only genuine Porsche metal valves.fProtect the valve inserts against soiling with valve caps.Soiled valve inserts can cause a gradual loss of air.fUse only plastic valve caps.Parking at the curb Warning!Hard impacts against curbs (or traffic islands) are dangerous and may cause hid-den tire damage which is not noticeable until later. Such damage can result in accidents at high speeds causing severe personal injury.Depending on the force of impact, the edge of the rim can also be damaged. fIf you are in doubt, have the wheel checked by an expert, particularly if you suspect damage on the inside. fIf you must drive over a curb or other obstacle, drive slowly and at an obtuse angle. Exercise care when parking along curbs.

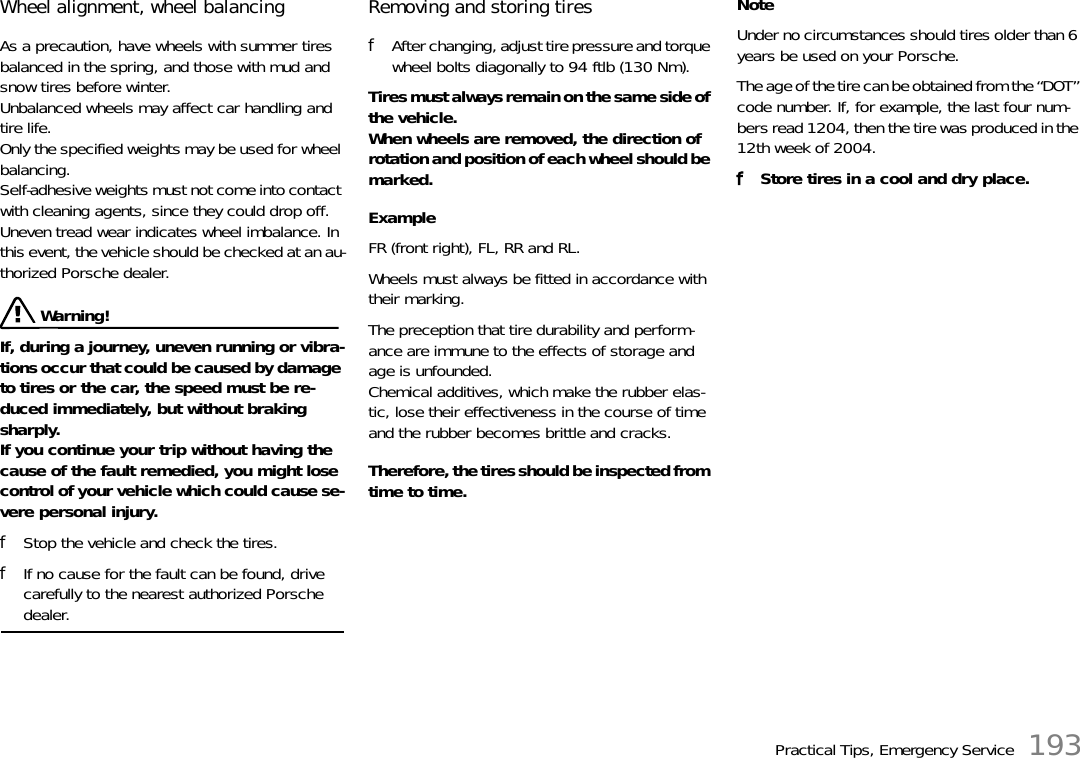

Practical Tips, Emergency Service 193Wheel alignment, wheel balancing As a precaution, have wheels with summer tires balanced in the spring, and those with mud and snow tires before winter. Unbalanced wheels may affect car handling and tire life.Only the specified weights may be used for wheel balancing. Self-adhesive weights must not come into contact with cleaning agents, since they could drop off.Uneven tread wear indicates wheel imbalance. In this event, the vehicle should be checked at an au-thorized Porsche dealer. Warning!If, during a journey, uneven running or vibra-tions occur that could be caused by damage to tires or the car, the speed must be re-duced immediately, but without braking sharply. If you continue your trip without having the cause of the fault remedied, you might lose control of your vehicle which could cause se-vere personal injury. fStop the vehicle and check the tires. fIf no cause for the fault can be found, drive carefully to the nearest authorized Porsche dealer. Removing and storing tires fAfter changing, adjust tire pressure and torque wheel bolts diagonally to 94 ftlb (130 Nm). Tires must always remain on the same side of the vehicle.When wheels are removed, the direction of rotation and position of each wheel should be marked. Example FR (front right), FL, RR and RL. Wheels must always be fitted in accordance with their marking. The preception that tire durability and perform-ance are immune to the effects of storage and age is unfounded. Chemical additives, which make the rubber elas-tic, lose their effectiveness in the course of time and the rubber becomes brittle and cracks. Therefore, the tires should be inspected from time to time. NoteUnder no circumstances should tires older than 6 years be used on your Porsche. The age of the tire can be obtained from the “DOT” code number. If, for example, the last four num-bers read 1204, then the tire was produced in the 12th week of 2004. fStore tires in a cool and dry place.

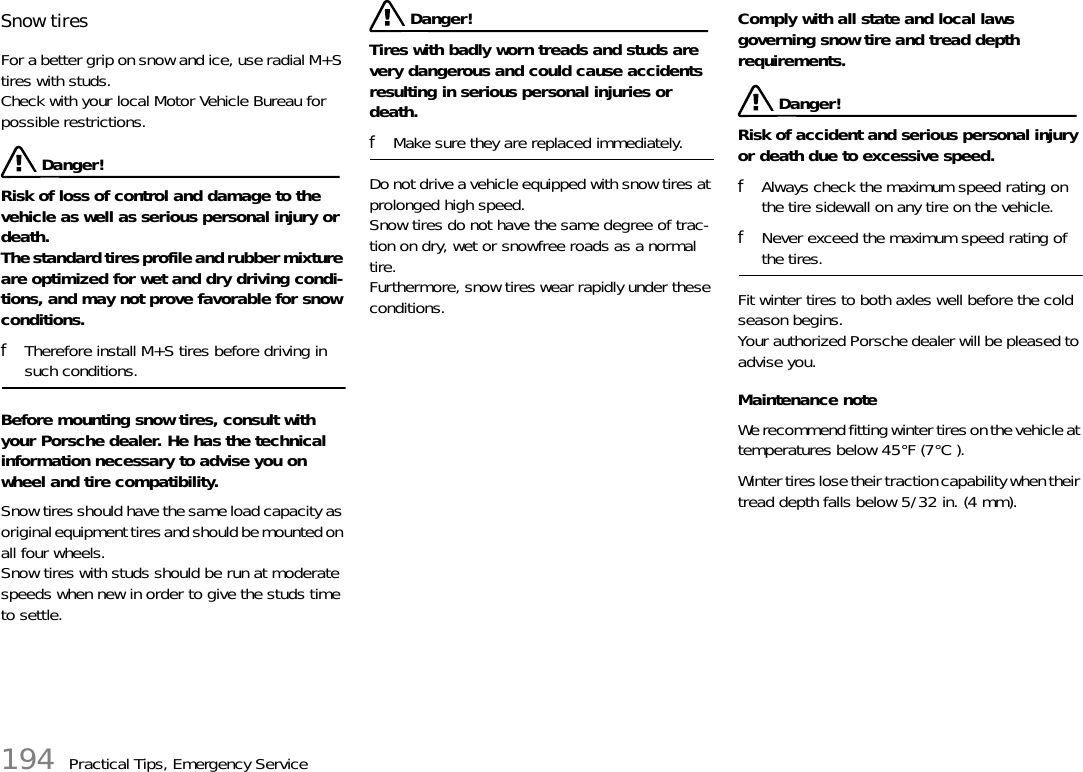

194 Practical Tips, Emergency ServiceSnow tires For a better grip on snow and ice, use radial M+S tires with studs. Check with your local Motor Vehicle Bureau for possible restrictions. Danger!Risk of loss of control and damage to the vehicle as well as serious personal injury or death.The standard tires profile and rubber mixture are optimized for wet and dry driving condi-tions, and may not prove favorable for snow conditions. fTherefore install M+S tires before driving in such conditions. Before mounting snow tires, consult with your Porsche dealer. He has the technical information necessary to advise you on wheel and tire compatibility. Snow tires should have the same load capacity as original equipment tires and should be mounted on all four wheels. Snow tires with studs should be run at moderate speeds when new in order to give the studs time to settle. Danger!Tires with badly worn treads and studs are very dangerous and could cause accidents resulting in serious personal injuries or death. fMake sure they are replaced immediately. Do not drive a vehicle equipped with snow tires at prolonged high speed. Snow tires do not have the same degree of trac-tion on dry, wet or snowfree roads as a normal tire. Furthermore, snow tires wear rapidly under these conditions. Comply with all state and local laws governing snow tire and tread depth requirements. Danger!Risk of accident and serious personal injury or death due to excessive speed.fAlways check the maximum speed rating on the tire sidewall on any tire on the vehicle.fNever exceed the maximum speed rating of the tires. Fit winter tires to both axles well before the cold season begins. Your authorized Porsche dealer will be pleased to advise you.Maintenance noteWe recommend fitting winter tires on the vehicle at temperatures below 45°F (7°C ).Winter tires lose their traction capability when their tread depth falls below 5/32 in. (4 mm).

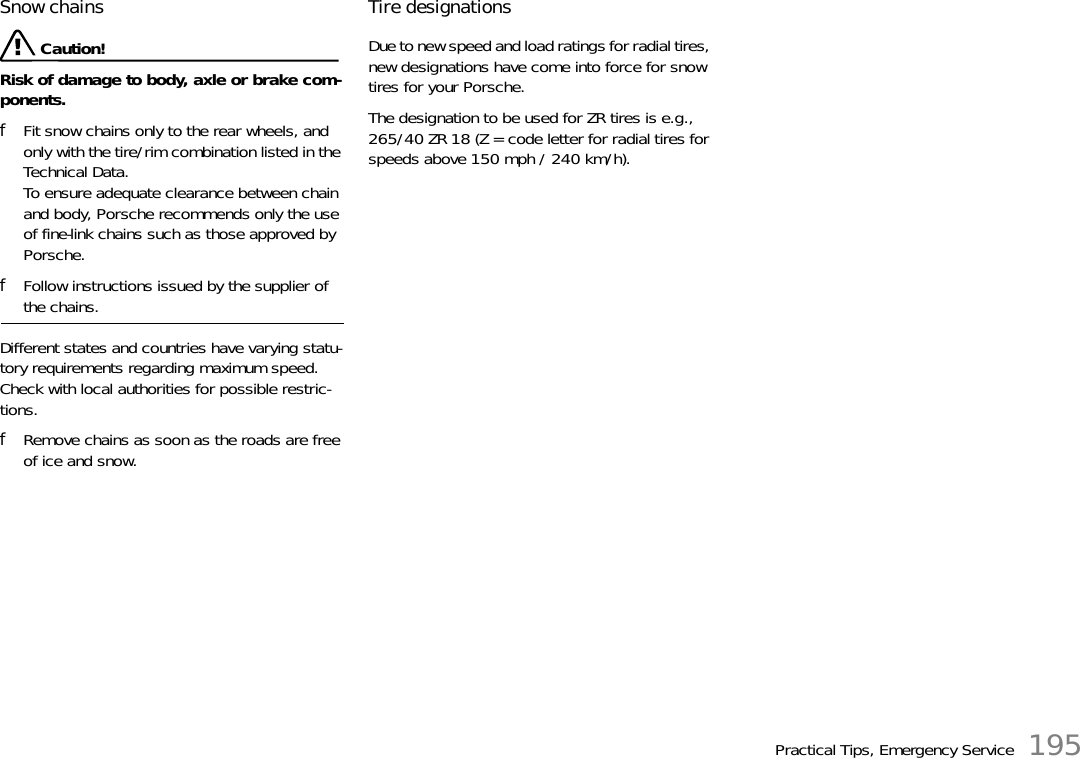

Practical Tips, Emergency Service 195Snow chains Caution!Risk of damage to body, axle or brake com-ponents. fFit snow chains only to the rear wheels, and only with the tire/rim combination listed in the Technical Data.To ensure adequate clearance between chain and body, Porsche recommends only the use of fine-link chains such as those approved by Porsche. fFollow instructions issued by the supplier of the chains. Different states and countries have varying statu-tory requirements regarding maximum speed. Check with local authorities for possible restric-tions. fRemove chains as soon as the roads are free of ice and snow. Tire designations Due to new speed and load ratings for radial tires, new designations have come into force for snow tires for your Porsche. The designation to be used for ZR tires is e.g., 265/40 ZR 18 (Z = code letter for radial tires for speeds above 150 mph / 240 km/h).

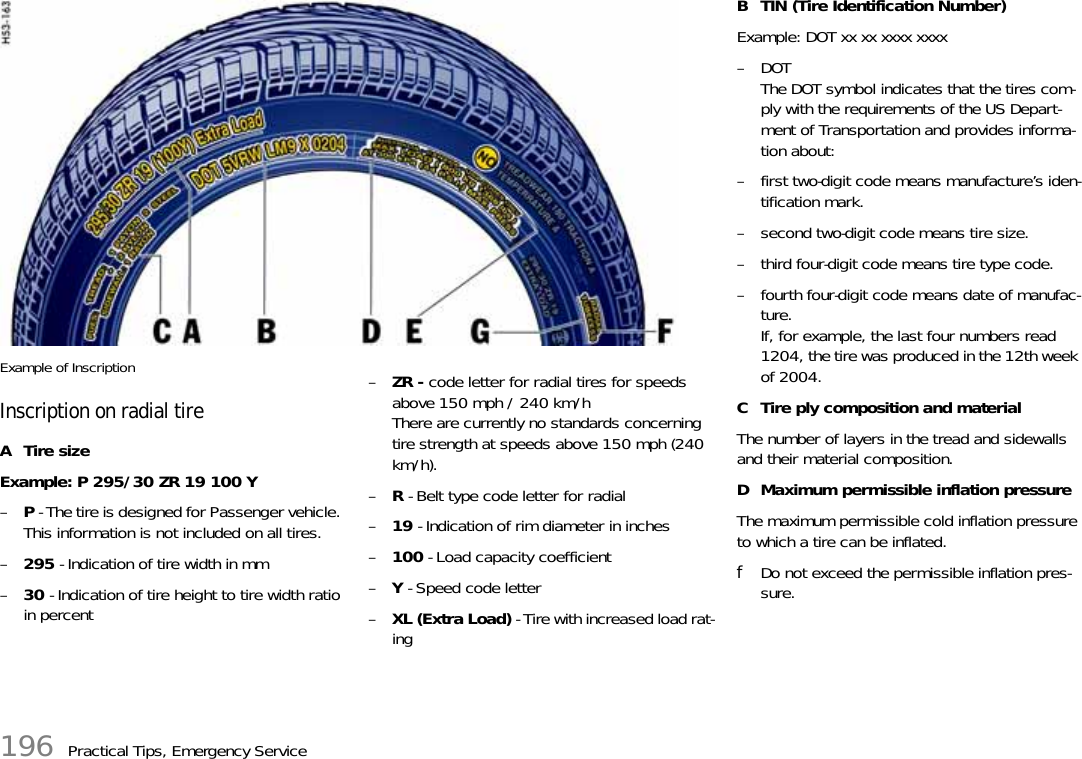

196 Practical Tips, Emergency ServiceExample of InscriptionInscription on radial tireATire sizeExample: P 295/30 ZR 19 100 Y –P - The tire is designed for Passenger vehicle. This information is not included on all tires.–295 - Indication of tire width in mm–30 - Indication of tire height to tire width ratio in percent–ZR - code letter for radial tires for speeds above 150 mph / 240 km/hThere are currently no standards concerning tire strength at speeds above 150 mph (240 km/h). –R - Belt type code letter for radial–19 - Indication of rim diameter in inches–100 - Load capacity coefficient–Y - Speed code letter–XL (Extra Load) - Tire with increased load rat-ingB TIN (Tire Identification Number)Example: DOT xx xx xxxx xxxx–DOTThe DOT symbol indicates that the tires com-ply with the requirements of the US Depart-ment of Transportation and provides informa-tion about:– first two-digit code means manufacture’s iden-tification mark.– second two-digit code means tire size.– third four-digit code means tire type code.– fourth four-digit code means date of manufac-ture.If, for example, the last four numbers read 1204, the tire was produced in the 12th week of 2004.C Tire ply composition and materialThe number of layers in the tread and sidewalls and their material composition.D Maximum permissible inflation pressureThe maximum permissible cold inflation pressure to which a tire can be inflated.fDo not exceed the permissible inflation pres-sure.

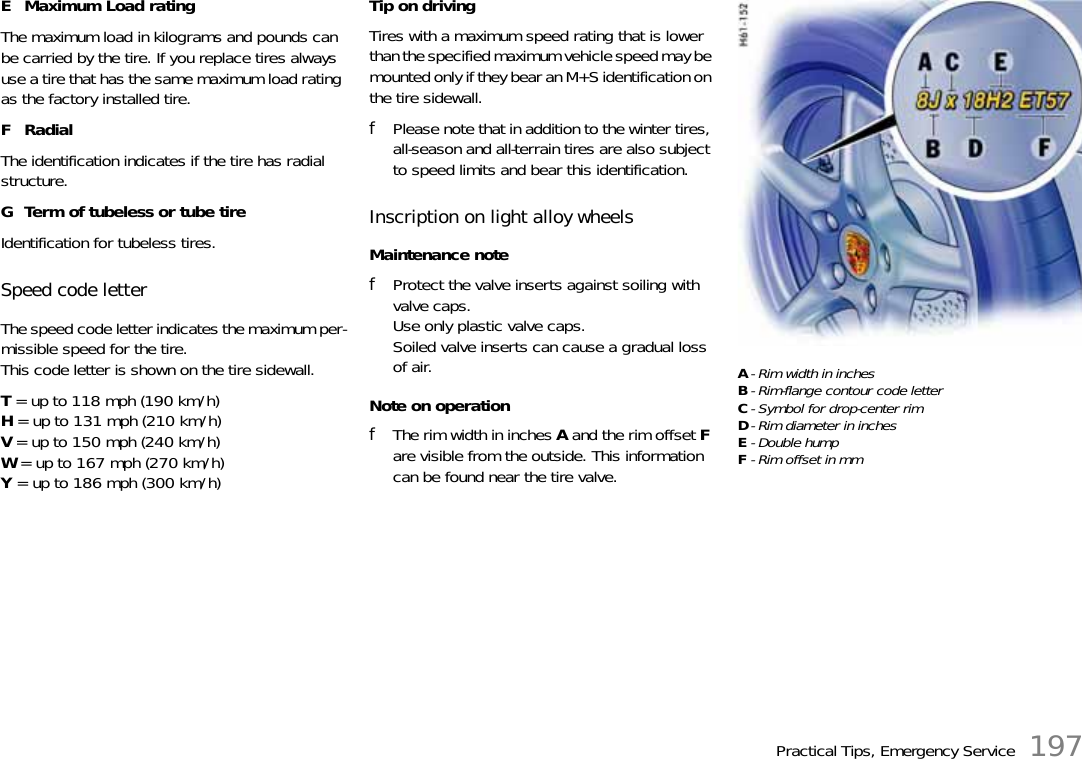

Practical Tips, Emergency Service 197E Maximum Load ratingThe maximum load in kilograms and pounds can be carried by the tire. If you replace tires always use a tire that has the same maximum load rating as the factory installed tire.FRadialThe identification indicates if the tire has radial structure.G Term of tubeless or tube tireIdentification for tubeless tires.Speed code letterThe speed code letter indicates the maximum per-missible speed for the tire.This code letter is shown on the tire sidewall.T = up to 118 mph (190 km/h)H = up to 131 mph (210 km/h)V = up to 150 mph (240 km/h)W = up to 167 mph (270 km/h)Y = up to 186 mph (300 km/h)Tip on drivingTires with a maximum speed rating that is lower than the specified maximum vehicle speed may be mounted only if they bear an M+S identification on the tire sidewall.fPlease note that in addition to the winter tires, all-season and all-terrain tires are also subject to speed limits and bear this identification.Inscription on light alloy wheelsMaintenance notefProtect the valve inserts against soiling with valve caps.Use only plastic valve caps.Soiled valve inserts can cause a gradual loss of air.Note on operationfThe rim width in inches A and the rim offset F are visible from the outside. This information can be found near the tire valve.A-Rim width in inchesB- Rim-flange contour code letterC- Symbol for drop-center rimD- Rim diameter in inchesE-Double humpF- Rim offset in mm

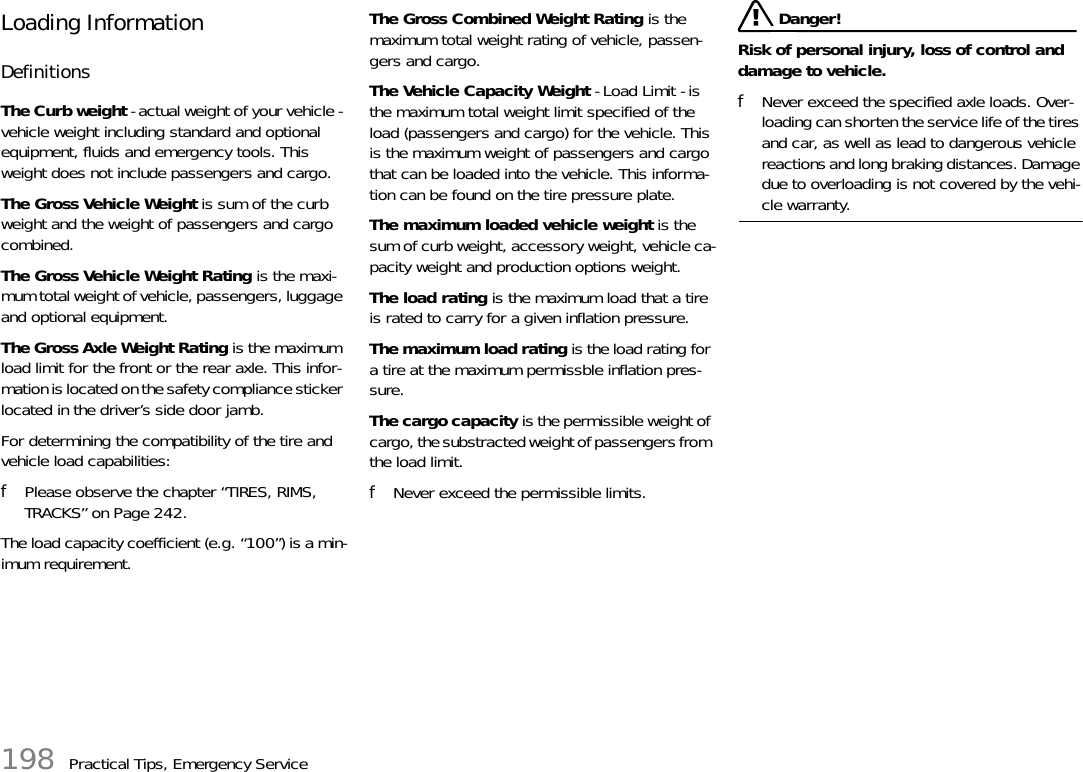

198 Practical Tips, Emergency ServiceLoading InformationDefinitionsThe Curb weight - actual weight of your vehicle - vehicle weight including standard and optional equipment, fluids and emergency tools. This weight does not include passengers and cargo.The Gross Vehicle Weight is sum of the curb weight and the weight of passengers and cargo combined.The Gross Vehicle Weight Rating is the maxi-mum total weight of vehicle, passengers, luggage and optional equipment.The Gross Axle Weight Rating is the maximum load limit for the front or the rear axle. This infor-mation is located on the safety compliance sticker located in the driver’s side door jamb. For determining the compatibility of the tire and vehicle load capabilities:fPlease observe the chapter “TIRES, RIMS, TRACKS” on Page 242.The load capacity coefficient (e.g. “100”) is a min-imum requirement.The Gross Combined Weight Rating is the maximum total weight rating of vehicle, passen-gers and cargo.The Vehicle Capacity Weight - Load Limit - is the maximum total weight limit specified of the load (passengers and cargo) for the vehicle. This is the maximum weight of passengers and cargo that can be loaded into the vehicle. This informa-tion can be found on the tire pressure plate.The maximum loaded vehicle weight is the sum of curb weight, accessory weight, vehicle ca-pacity weight and production options weight.The load rating is the maximum load that a tire is rated to carry for a given inflation pressure.The maximum load rating is the load rating for a tire at the maximum permissble inflation pres-sure.The cargo capacity is the permissible weight of cargo, the substracted weight of passengers from the load limit.fNever exceed the permissible limits. Danger!Risk of personal injury, loss of control and damage to vehicle.fNever exceed the specified axle loads. Over-loading can shorten the service life of the tires and car, as well as lead to dangerous vehicle reactions and long braking distances. Damage due to overloading is not covered by the vehi-cle warranty.

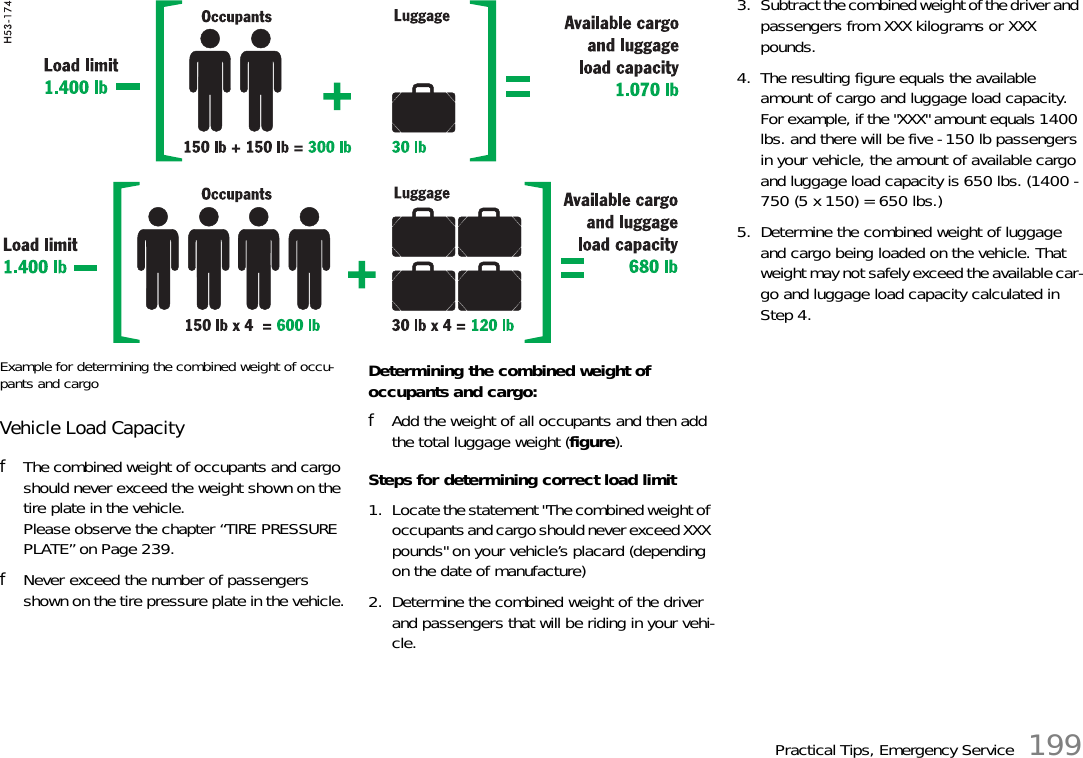

Practical Tips, Emergency Service 199Example for determining the combined weight of occu-pants and cargoVehicle Load CapacityfThe combined weight of occupants and cargo should never exceed the weight shown on the tire plate in the vehicle.Please observe the chapter “TIRE PRESSURE PLATE” on Page 239.fNever exceed the number of passengers shown on the tire pressure plate in the vehicle.Determining the combined weight of occupants and cargo:fAdd the weight of all occupants and then add the total luggage weight (figure).Steps for determining correct load limit1. Locate the statement "The combined weight of occupants and cargo should never exceed XXX pounds" on your vehicle’s placard (depending on the date of manufacture)2. Determine the combined weight of the driver and passengers that will be riding in your vehi-cle. 3. Subtract the combined weight of the driver and passengers from XXX kilograms or XXX pounds.4. The resulting figure equals the available amount of cargo and luggage load capacity. For example, if the "XXX" amount equals 1400 lbs. and there will be five - 150 lb passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs. (1400 - 750 (5 x 150) = 650 lbs.) 5. Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available car-go and luggage load capacity calculated in Step 4.

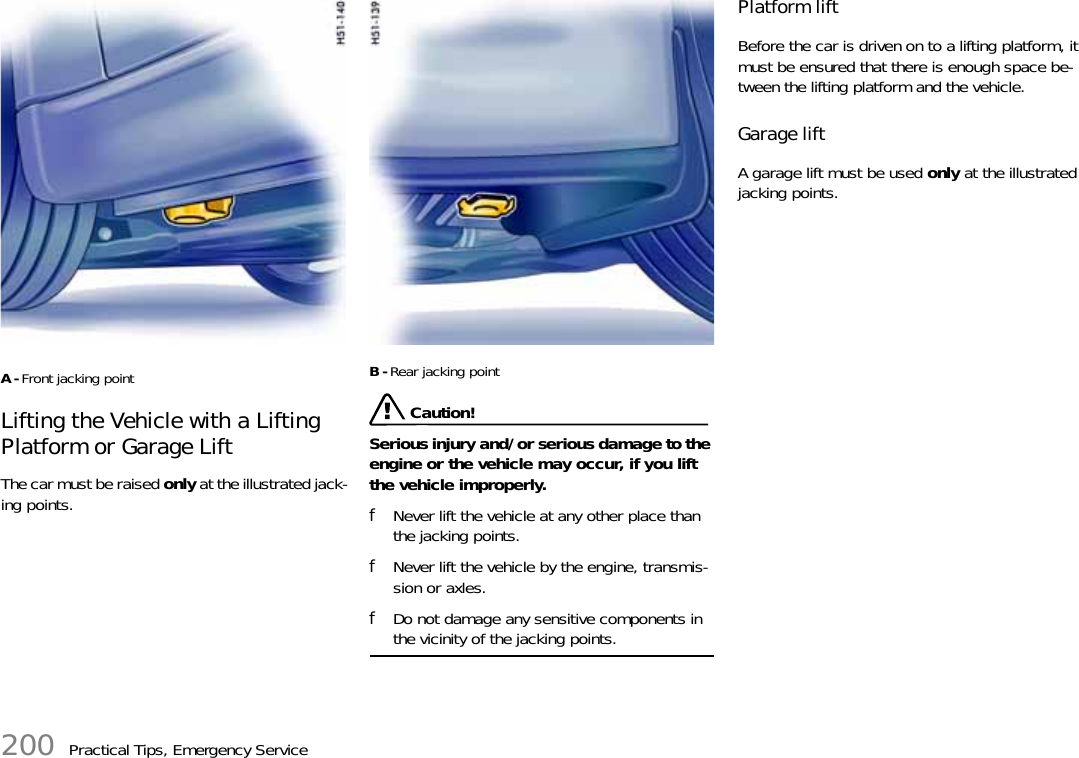

200 Practical Tips, Emergency ServiceA-Front jacking pointLifting the Vehicle with a Lifting Platform or Garage Lift The car must be raised only at the illustrated jack-ing points.B-Rear jacking point Caution!Serious injury and/or serious damage to the engine or the vehicle may occur, if you lift the vehicle improperly. fNever lift the vehicle at any other place than the jacking points.fNever lift the vehicle by the engine, transmis-sion or axles. fDo not damage any sensitive components in the vicinity of the jacking points. Platform lift Before the car is driven on to a lifting platform, it must be ensured that there is enough space be-tween the lifting platform and the vehicle. Garage lift A garage lift must be used only at the illustrated jacking points.

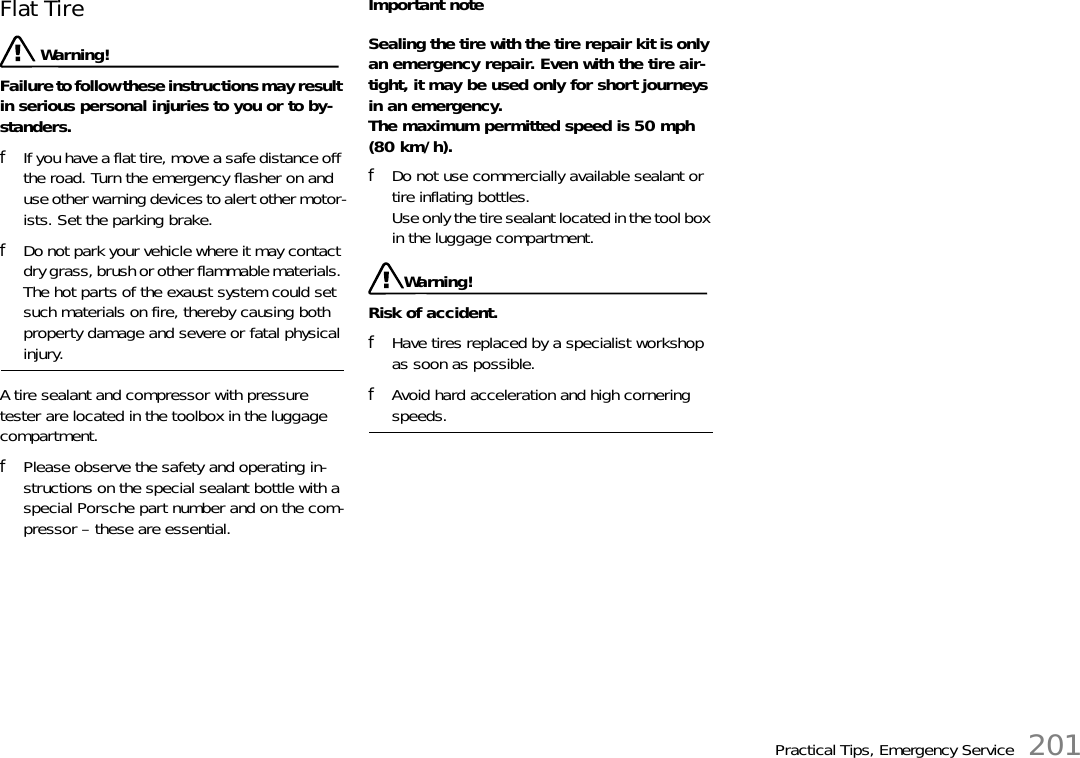

Practical Tips, Emergency Service 201Flat Tire Warning!Failure to follow these instructions may result in serious personal injuries to you or to by-standers.fIf you have a flat tire, move a safe distance off the road. Turn the emergency flasher on and use other warning devices to alert other motor-ists. Set the parking brake.fDo not park your vehicle where it may contact dry grass, brush or other flammable materials. The hot parts of the exaust system could set such materials on fire, thereby causing both property damage and severe or fatal physical injury.A tire sealant and compressor with pressure tester are located in the toolbox in the luggage compartment. fPlease observe the safety and operating in-structions on the special sealant bottle with a special Porsche part number and on the com-pressor – these are essential.Important noteSealing the tire with the tire repair kit is only an emergency repair. Even with the tire air-tight, it may be used only for short journeys in an emergency.The maximum permitted speed is 50 mph (80 km/h).fDo not use commercially available sealant or tire inflating bottles.Use only the tire sealant located in the tool box in the luggage compartment.Warning!Risk of accident.fHave tires replaced by a specialist workshop as soon as possible.fAvoid hard acceleration and high cornering speeds.

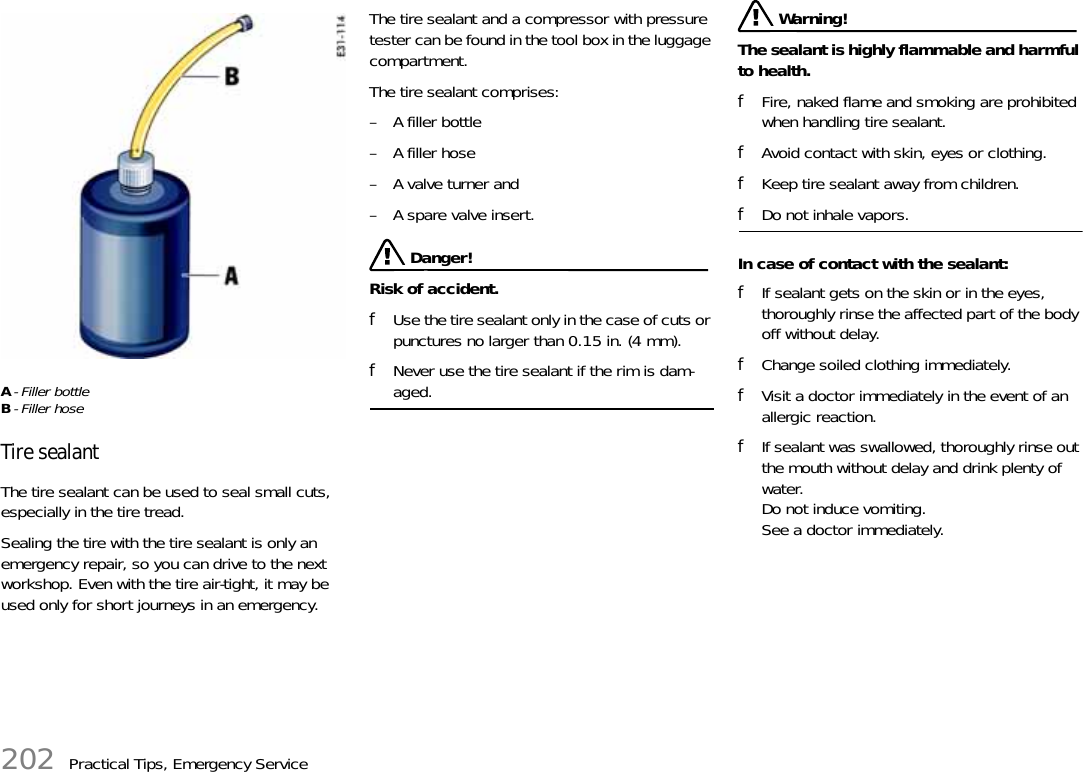

202 Practical Tips, Emergency ServiceA- Filler bottleB- Filler hoseTire sealantThe tire sealant can be used to seal small cuts, especially in the tire tread.Sealing the tire with the tire sealant is only an emergency repair, so you can drive to the next workshop. Even with the tire air-tight, it may be used only for short journeys in an emergency.The tire sealant and a compressor with pressure tester can be found in the tool box in the luggage compartment.The tire sealant comprises: – A filler bottle– A filler hose– A valve turner and– A spare valve insert. Danger!Risk of accident.fUse the tire sealant only in the case of cuts or punctures no larger than 0.15 in. (4 mm).fNever use the tire sealant if the rim is dam-aged. Warning!The sealant is highly flammable and harmful to health.fFire, naked flame and smoking are prohibited when handling tire sealant.fAvoid contact with skin, eyes or clothing.fKeep tire sealant away from children.fDo not inhale vapors.In case of contact with the sealant:fIf sealant gets on the skin or in the eyes, thoroughly rinse the affected part of the body off without delay.fChange soiled clothing immediately.fVisit a doctor immediately in the event of an allergic reaction.fIf sealant was swallowed, thoroughly rinse out the mouth without delay and drink plenty of water.Do not induce vomiting.See a doctor immediately.

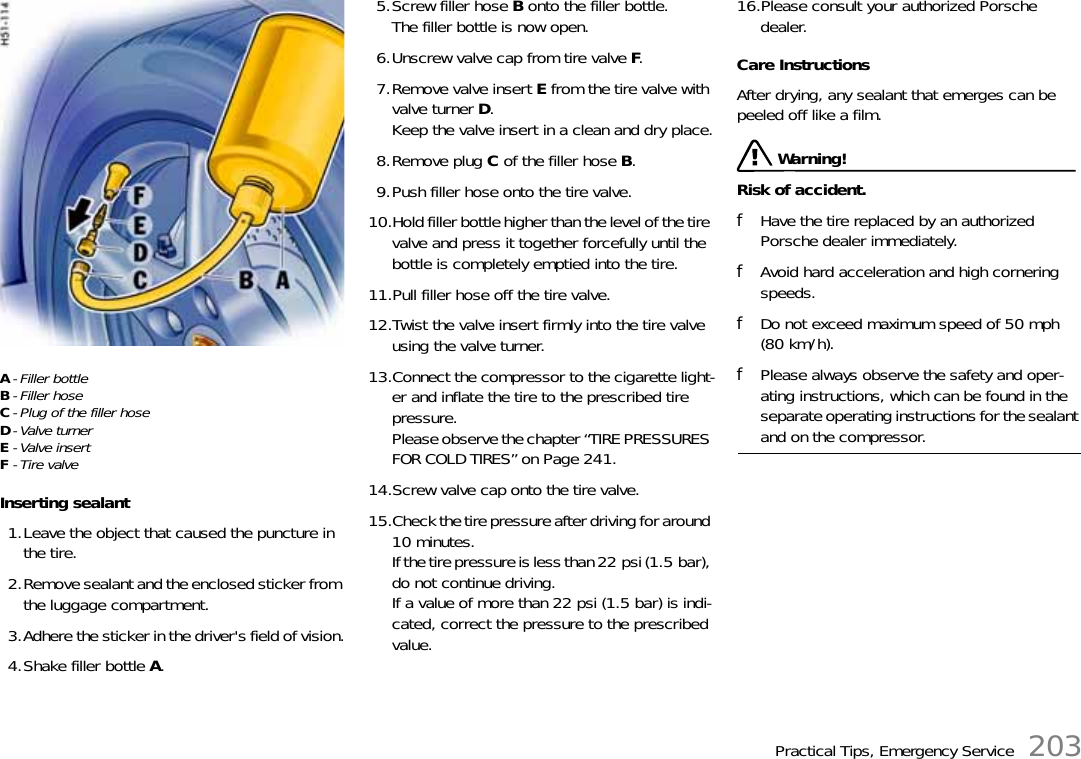

Practical Tips, Emergency Service 203A- Filler bottleB- Filler hoseC- Plug of the filler hoseD-Valve turnerE-Valve insertF- Tire valveInserting sealant1.Leave the object that caused the puncture in the tire.2.Remove sealant and the enclosed sticker from the luggage compartment.3.Adhere the sticker in the driver's field of vision.4.Shake filler bottle A.5.Screw filler hose B onto the filler bottle.The filler bottle is now open.6.Unscrew valve cap from tire valve F.7.Remove valve insert E from the tire valve with valve turner D.Keep the valve insert in a clean and dry place.8.Remove plug C of the filler hose B.9.Push filler hose onto the tire valve.10.Hold filler bottle higher than the level of the tire valve and press it together forcefully until the bottle is completely emptied into the tire.11.Pull filler hose off the tire valve.12.Twist the valve insert firmly into the tire valve using the valve turner.13.Connect the compressor to the cigarette light-er and inflate the tire to the prescribed tire pressure.Please observe the chapter “TIRE PRESSURES FOR COLD TIRES” on Page 241.14.Screw valve cap onto the tire valve.15.Check the tire pressure after driving for around 10 minutes.If the tire pressure is less than 22 psi (1.5 bar), do not continue driving.If a value of more than 22 psi (1.5 bar) is indi-cated, correct the pressure to the prescribed value.16.Please consult your authorized Porsche dealer.Care InstructionsAfter drying, any sealant that emerges can be peeled off like a film. Warning!Risk of accident.fHave the tire replaced by an authorized Porsche dealer immediately.fAvoid hard acceleration and high cornering speeds.fDo not exceed maximum speed of 50 mph (80 km/h).fPlease always observe the safety and oper-ating instructions, which can be found in the separate operating instructions for the sealant and on the compressor.

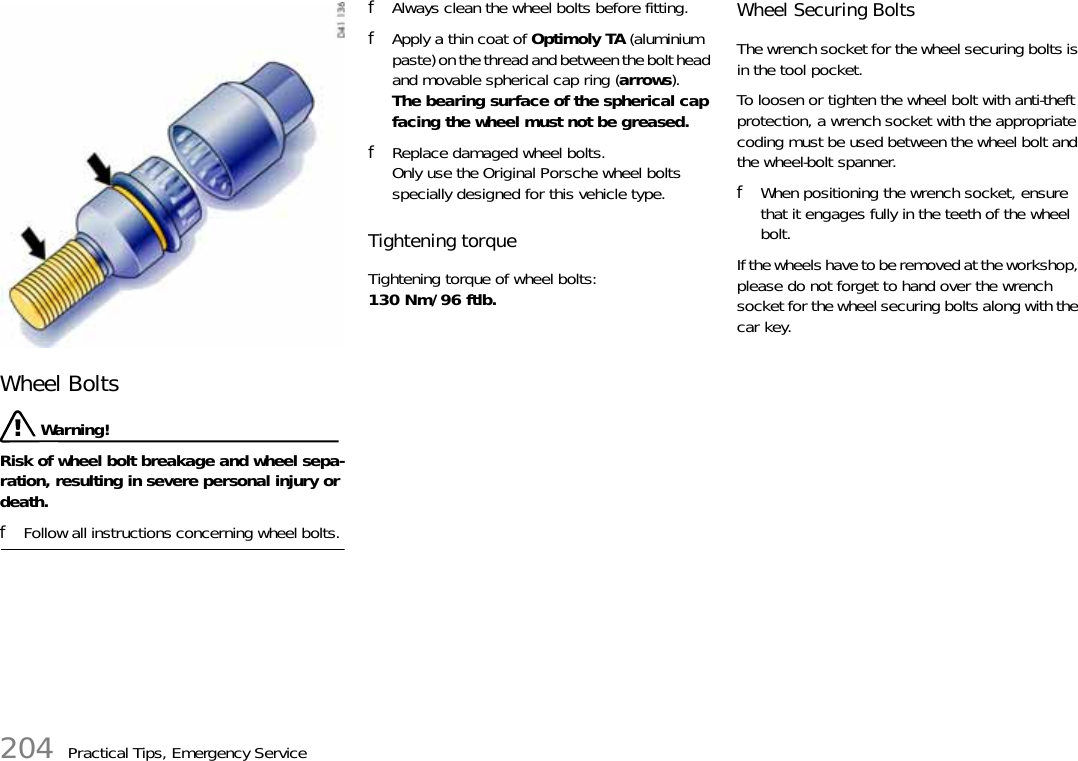

204 Practical Tips, Emergency ServiceWheel Bolts Warning!Risk of wheel bolt breakage and wheel sepa-ration, resulting in severe personal injury or death. fFollow all instructions concerning wheel bolts. fAlways clean the wheel bolts before fitting. fApply a thin coat of Optimoly TA (aluminium paste) on the thread and between the bolt head and movable spherical cap ring (arrows).The bearing surface of the spherical cap facing the wheel must not be greased. fReplace damaged wheel bolts.Only use the Original Porsche wheel bolts specially designed for this vehicle type. Tightening torque Tightening torque of wheel bolts: 130 Nm/96 ftlb. Wheel Securing Bolts The wrench socket for the wheel securing bolts is in the tool pocket. To loosen or tighten the wheel bolt with anti-theft protection, a wrench socket with the appropriate coding must be used between the wheel bolt and the wheel-bolt spanner. fWhen positioning the wrench socket, ensure that it engages fully in the teeth of the wheel bolt.If the wheels have to be removed at the workshop, please do not forget to hand over the wrench socket for the wheel securing bolts along with the car key.

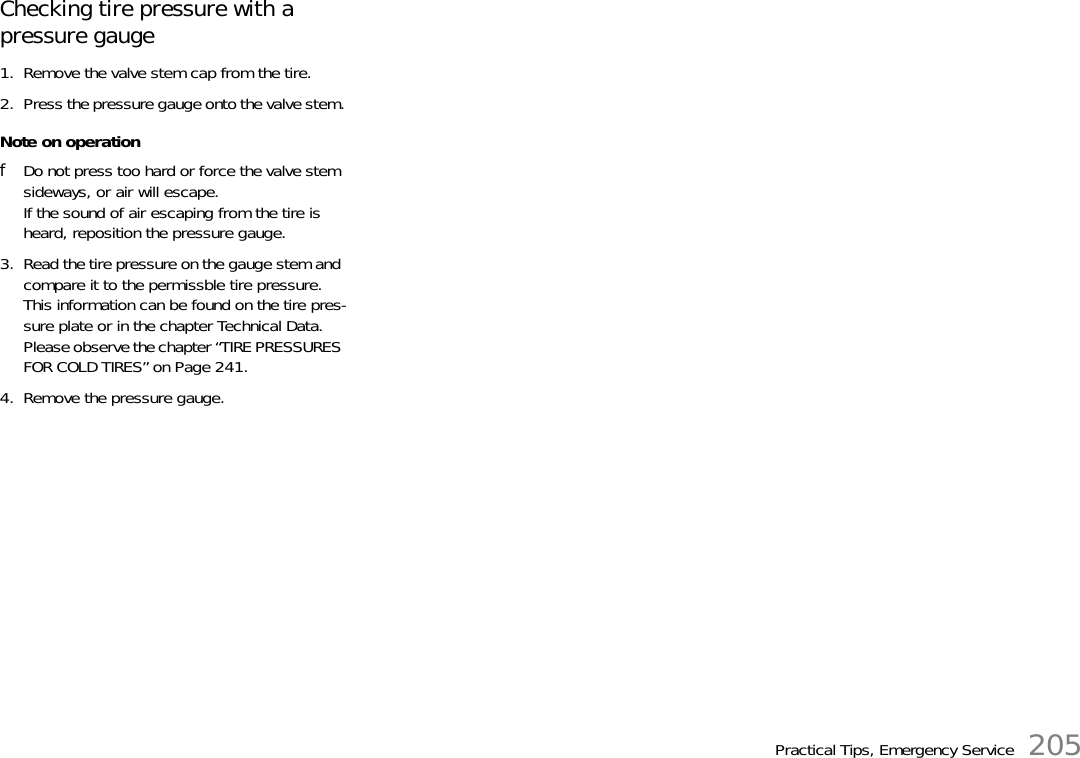

Practical Tips, Emergency Service 205Checking tire pressure with a pressure gauge1. Remove the valve stem cap from the tire.2. Press the pressure gauge onto the valve stem.Note on operationfDo not press too hard or force the valve stem sideways, or air will escape.If the sound of air escaping from the tire is heard, reposition the pressure gauge.3. Read the tire pressure on the gauge stem and compare it to the permissble tire pressure.This information can be found on the tire pres-sure plate or in the chapter Technical Data.Please observe the chapter “TIRE PRESSURES FOR COLD TIRES” on Page 241.4. Remove the pressure gauge.

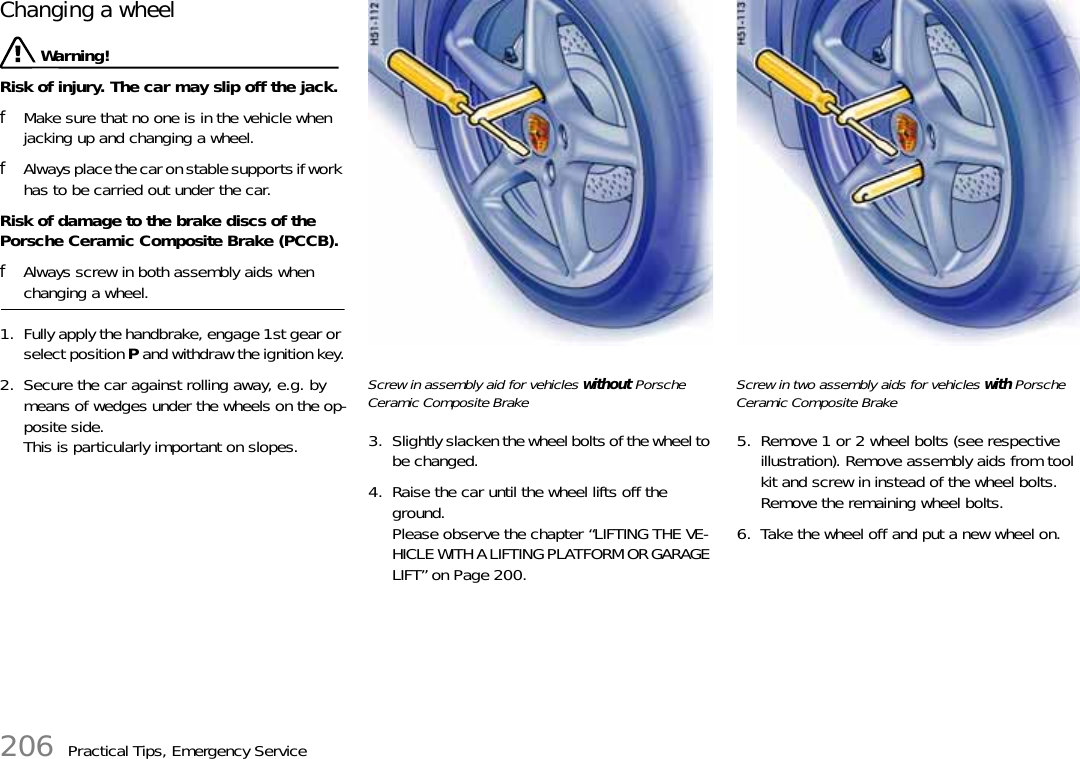

206 Practical Tips, Emergency ServiceChanging a wheel Warning!Risk of injury. The car may slip off the jack.fMake sure that no one is in the vehicle when jacking up and changing a wheel.fAlways place the car on stable supports if work has to be carried out under the car.Risk of damage to the brake discs of the Porsche Ceramic Composite Brake (PCCB).fAlways screw in both assembly aids when changing a wheel.1. Fully apply the handbrake, engage 1st gear or select position P and withdraw the ignition key.2. Secure the car against rolling away, e.g. by means of wedges under the wheels on the op-posite side.This is particularly important on slopes.Screw in assembly aid for vehicles without Porsche Ceramic Composite Brake3. Slightly slacken the wheel bolts of the wheel to be changed.4. Raise the car until the wheel lifts off the ground.Please observe the chapter “LIFTING THE VE-HICLE WITH A LIFTING PLATFORM OR GARAGE LIFT” on Page 200.Screw in two assembly aids for vehicles with Porsche Ceramic Composite Brake5. Remove 1 or 2 wheel bolts (see respective illustration). Remove assembly aids from tool kit and screw in instead of the wheel bolts.Remove the remaining wheel bolts.6. Take the wheel off and put a new wheel on.

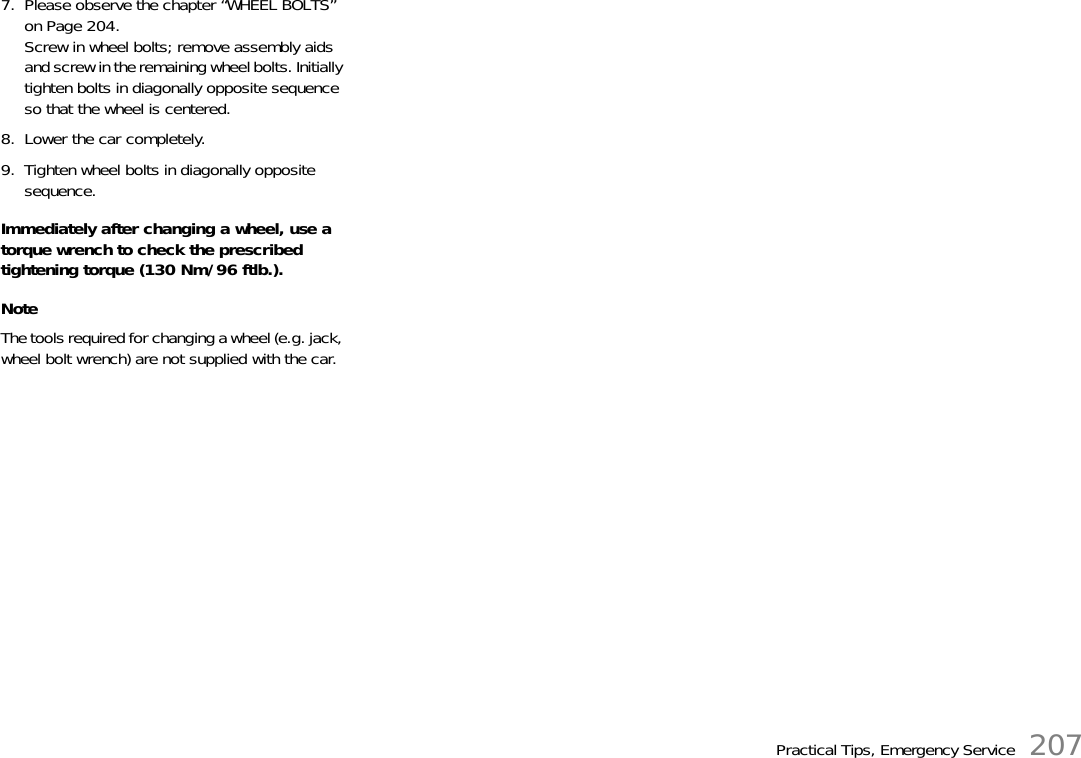

Practical Tips, Emergency Service 2077. Please observe the chapter “WHEEL BOLTS” on Page 204.Screw in wheel bolts; remove assembly aids and screw in the remaining wheel bolts. Initially tighten bolts in diagonally opposite sequence so that the wheel is centered.8. Lower the car completely.9. Tighten wheel bolts in diagonally opposite sequence.Immediately after changing a wheel, use a torque wrench to check the prescribed tightening torque (130 Nm/96 ftlb.).NoteThe tools required for changing a wheel (e.g. jack, wheel bolt wrench) are not supplied with the car.

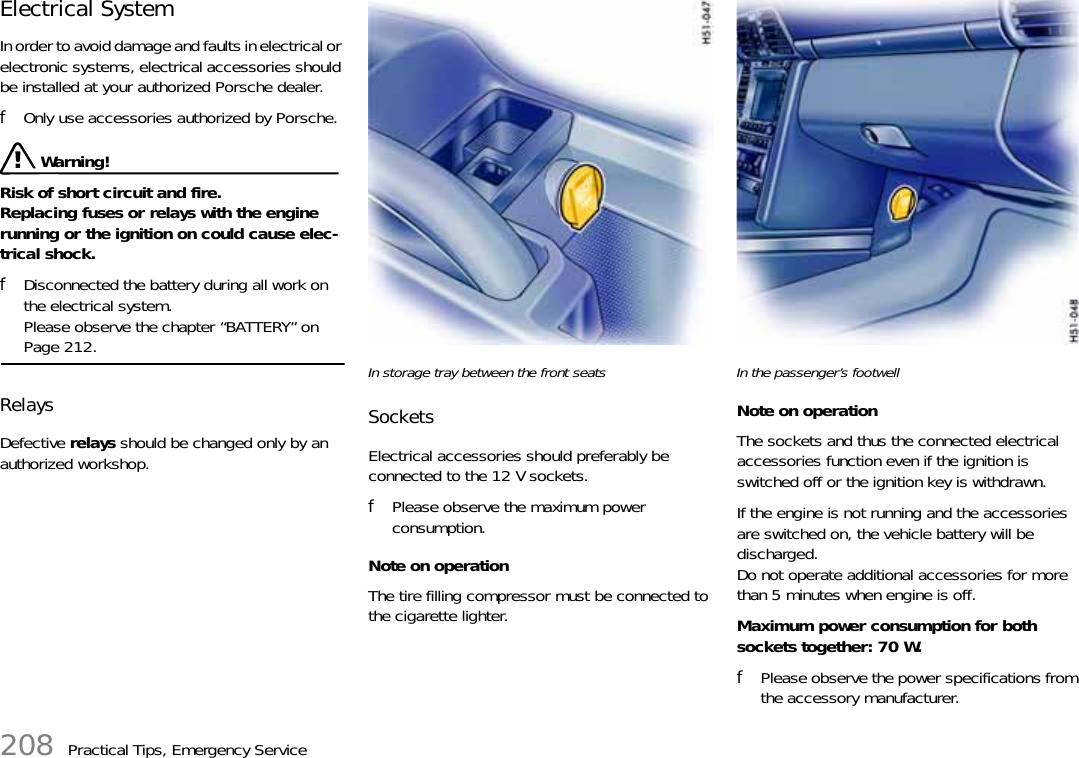

208 Practical Tips, Emergency ServiceElectrical System In order to avoid damage and faults in electrical or electronic systems, electrical accessories should be installed at your authorized Porsche dealer. fOnly use accessories authorized by Porsche. Warning!Risk of short circuit and fire.Replacing fuses or relays with the engine running or the ignition on could cause elec-trical shock. fDisconnected the battery during all work on the electrical system.Please observe the chapter “BATTERY” on Page 212.Relays Defective relays should be changed only by an authorized workshop. In storage tray between the front seatsSocketsElectrical accessories should preferably be connected to the 12 V sockets.fPlease observe the maximum power consumption.Note on operationThe tire filling compressor must be connected to the cigarette lighter.In the passenger’s footwellNote on operationThe sockets and thus the connected electrical accessories function even if the ignition is switched off or the ignition key is withdrawn.If the engine is not running and the accessories are switched on, the vehicle battery will be discharged.Do not operate additional accessories for more than 5 minutes when engine is off.Maximum power consumption for both sockets together: 70 W.fPlease observe the power specifications from the accessory manufacturer.

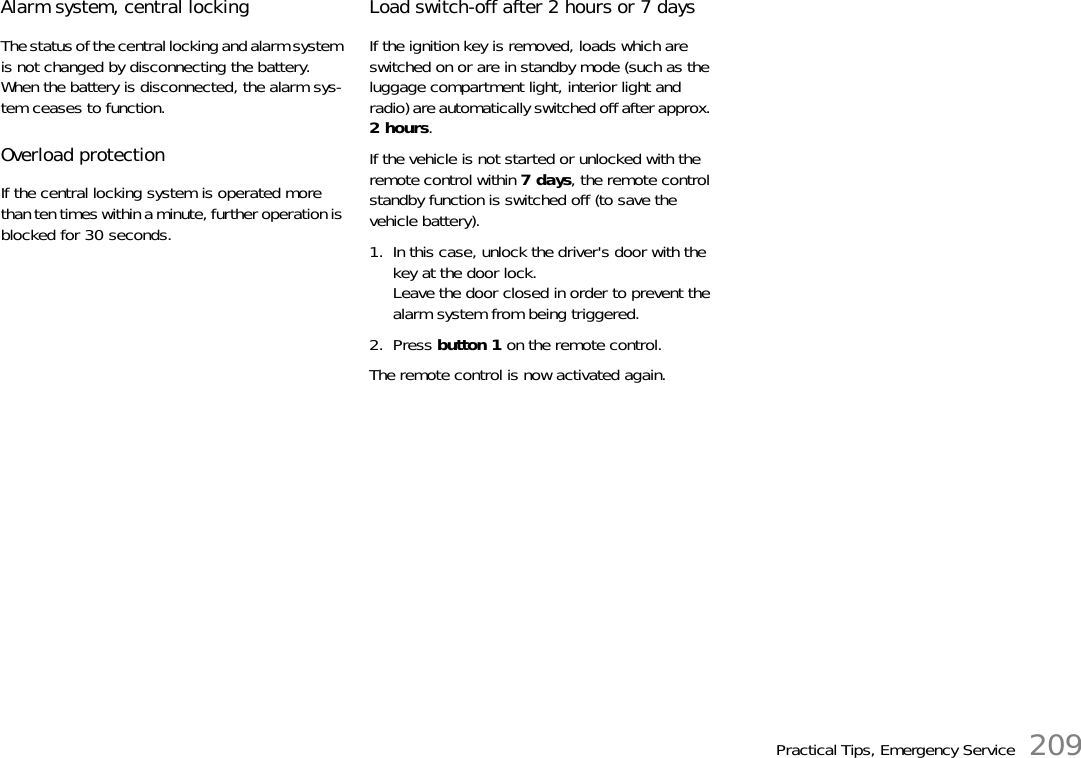

Practical Tips, Emergency Service 209Alarm system, central locking The status of the central locking and alarm system is not changed by disconnecting the battery.When the battery is disconnected, the alarm sys-tem ceases to function. Overload protection If the central locking system is operated more than ten times within a minute, further operation is blocked for 30 seconds. Load switch-off after 2 hours or 7 daysIf the ignition key is removed, loads which are switched on or are in standby mode (such as the luggage compartment light, interior light and radio) are automatically switched off after approx. 2hours.If the vehicle is not started or unlocked with the remote control within 7days, the remote control standby function is switched off (to save the vehicle battery).1. In this case, unlock the driver's door with the key at the door lock.Leave the door closed in order to prevent the alarm system from being triggered.2. Press button 1 on the remote control.The remote control is now activated again.

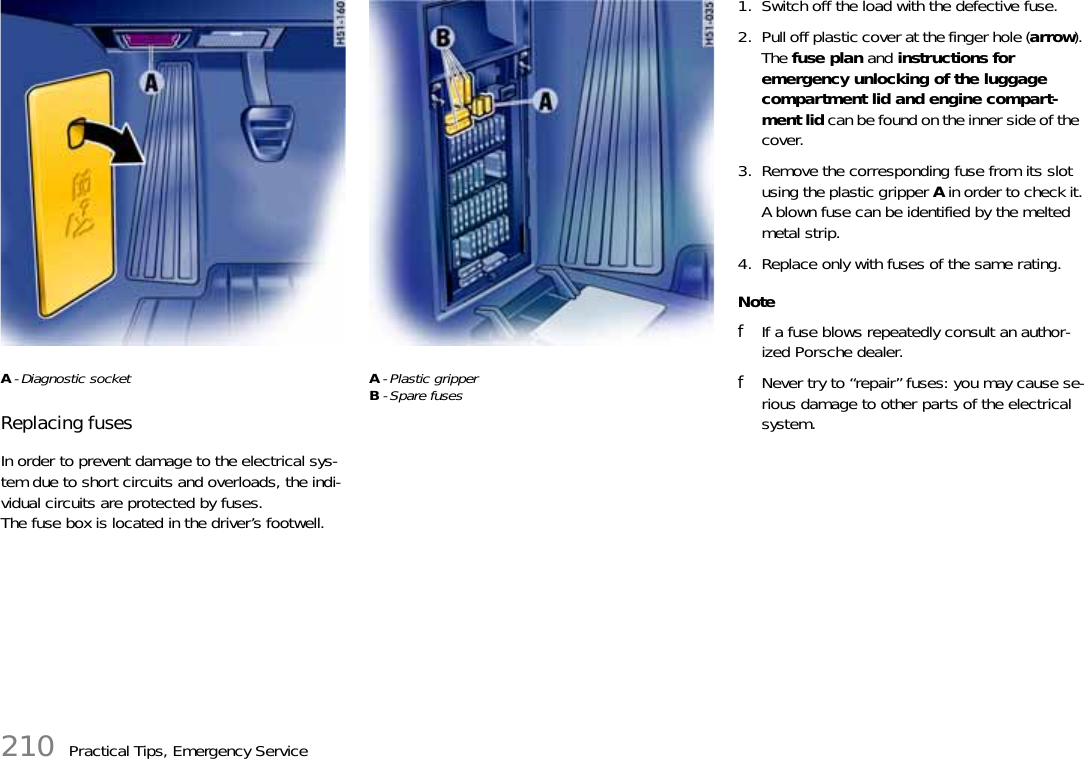

210 Practical Tips, Emergency ServiceA - Diagnostic socket Replacing fuses In order to prevent damage to the electrical sys-tem due to short circuits and overloads, the indi-vidual circuits are protected by fuses.The fuse box is located in the driver’s footwell. A - Plastic gripperB - Spare fuses 1. Switch off the load with the defective fuse.2. Pull off plastic cover at the finger hole (arrow).The fuse plan and instructions for emergency unlocking of the luggage compartment lid and engine compart-ment lid can be found on the inner side of the cover.3. Remove the corresponding fuse from its slot using the plastic gripper A in order to check it.A blown fuse can be identified by the melted metal strip.4. Replace only with fuses of the same rating.NotefIf a fuse blows repeatedly consult an author-ized Porsche dealer.fNever try to “repair” fuses: you may cause se-rious damage to other parts of the electrical system.

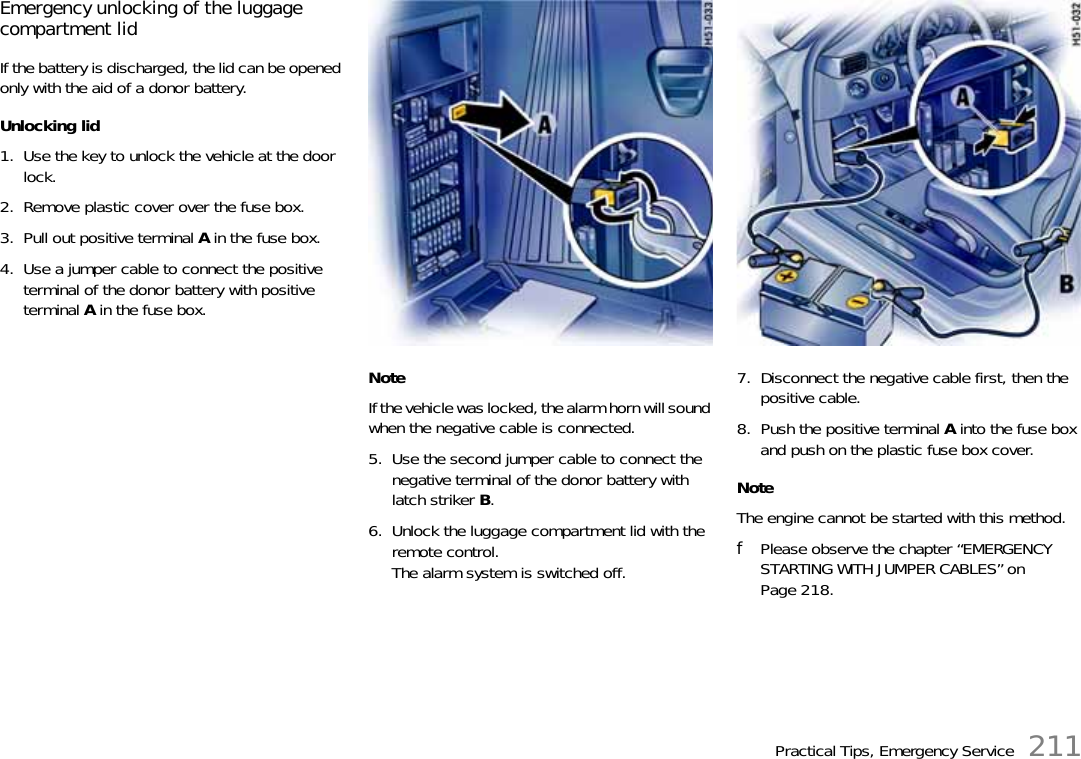

Practical Tips, Emergency Service 211Emergency unlocking of the luggage compartment lidIf the battery is discharged, the lid can be opened only with the aid of a donor battery. Unlocking lid 1. Use the key to unlock the vehicle at the door lock.2. Remove plastic cover over the fuse box. 3. Pull out positive terminal A in the fuse box. 4. Use a jumper cable to connect the positive terminal of the donor battery with positive terminal A in the fuse box. NoteIf the vehicle was locked, the alarm horn will sound when the negative cable is connected. 5. Use the second jumper cable to connect the negative terminal of the donor battery with latch striker B.6. Unlock the luggage compartment lid with the remote control.The alarm system is switched off.7. Disconnect the negative cable first, then the positive cable.8. Push the positive terminal A into the fuse box and push on the plastic fuse box cover. NoteThe engine cannot be started with this method.fPlease observe the chapter “EMERGENCY STARTING WITH JUMPER CABLES” on Page 218.

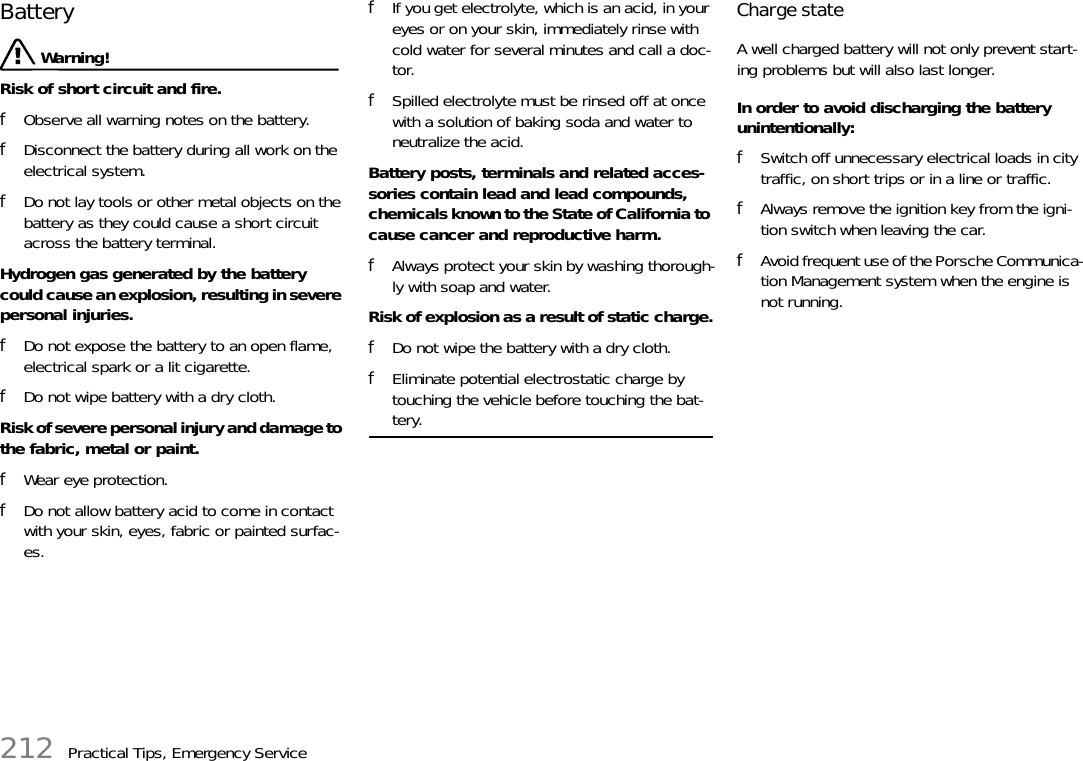

212 Practical Tips, Emergency ServiceBattery Warning!Risk of short circuit and fire. fObserve all warning notes on the battery. fDisconnect the battery during all work on the electrical system. fDo not lay tools or other metal objects on the battery as they could cause a short circuit across the battery terminal.Hydrogen gas generated by the battery could cause an explosion, resulting in severe personal injuries. fDo not expose the battery to an open flame, electrical spark or a lit cigarette.fDo not wipe battery with a dry cloth.Risk of severe personal injury and damage to the fabric, metal or paint. fWear eye protection. fDo not allow battery acid to come in contact with your skin, eyes, fabric or painted surfac-es. fIf you get electrolyte, which is an acid, in your eyes or on your skin, immediately rinse with cold water for several minutes and call a doc-tor. fSpilled electrolyte must be rinsed off at once with a solution of baking soda and water to neutralize the acid.Battery posts, terminals and related acces-sories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. fAlways protect your skin by washing thorough-ly with soap and water.Risk of explosion as a result of static charge.fDo not wipe the battery with a dry cloth.fEliminate potential electrostatic charge by touching the vehicle before touching the bat-tery.Charge state A well charged battery will not only prevent start-ing problems but will also last longer. In order to avoid discharging the battery unintentionally: fSwitch off unnecessary electrical loads in city traffic, on short trips or in a line or traffic.fAlways remove the ignition key from the igni-tion switch when leaving the car. fAvoid frequent use of the Porsche Communica-tion Management system when the engine is not running.

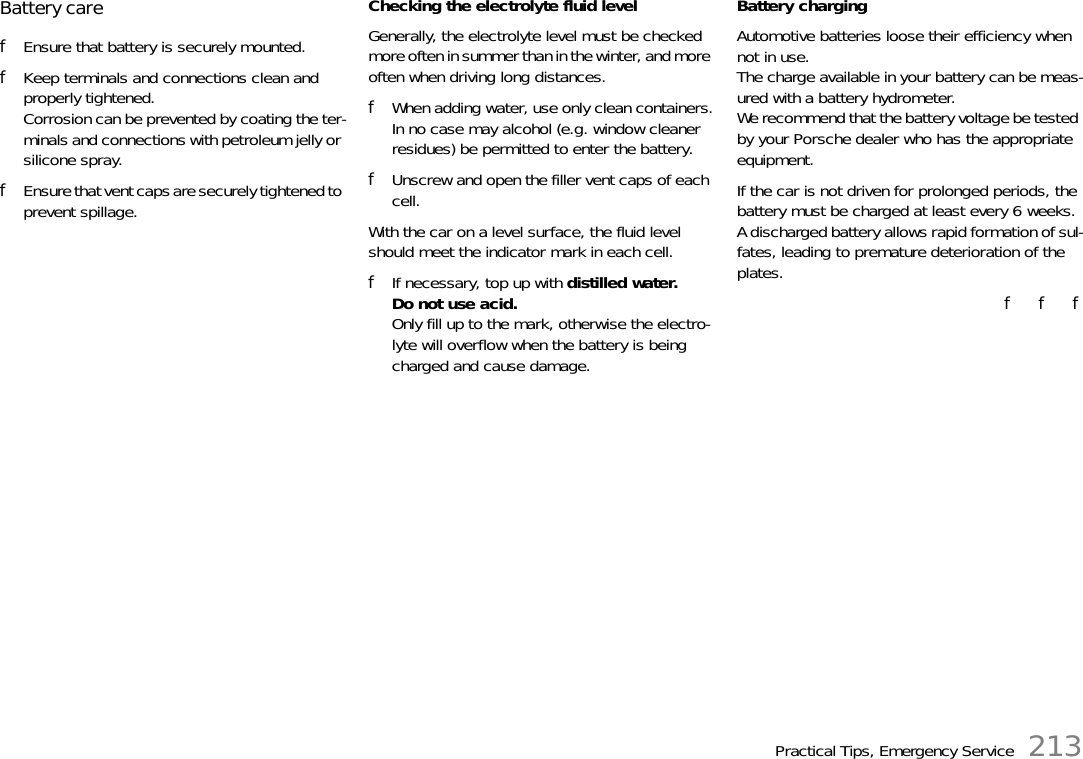

Practical Tips, Emergency Service 213Battery care fEnsure that battery is securely mounted. fKeep terminals and connections clean and properly tightened. Corrosion can be prevented by coating the ter-minals and connections with petroleum jelly or silicone spray. fEnsure that vent caps are securely tightened to prevent spillage. Checking the electrolyte fluid level Generally, the electrolyte level must be checked more often in summer than in the winter, and more often when driving long distances. fWhen adding water, use only clean containers.In no case may alcohol (e.g. window cleaner residues) be permitted to enter the battery. fUnscrew and open the filler vent caps of each cell.With the car on a level surface, the fluid level should meet the indicator mark in each cell. fIf necessary, top up with distilled water.Do not use acid.Only fill up to the mark, otherwise the electro-lyte will overflow when the battery is being charged and cause damage. Battery charging Automotive batteries loose their efficiency when not in use. The charge available in your battery can be meas-ured with a battery hydrometer. We recommend that the battery voltage be tested by your Porsche dealer who has the appropriate equipment. If the car is not driven for prolonged periods, the battery must be charged at least every 6 weeks. A discharged battery allows rapid formation of sul-fates, leading to premature deterioration of the plates. f f f

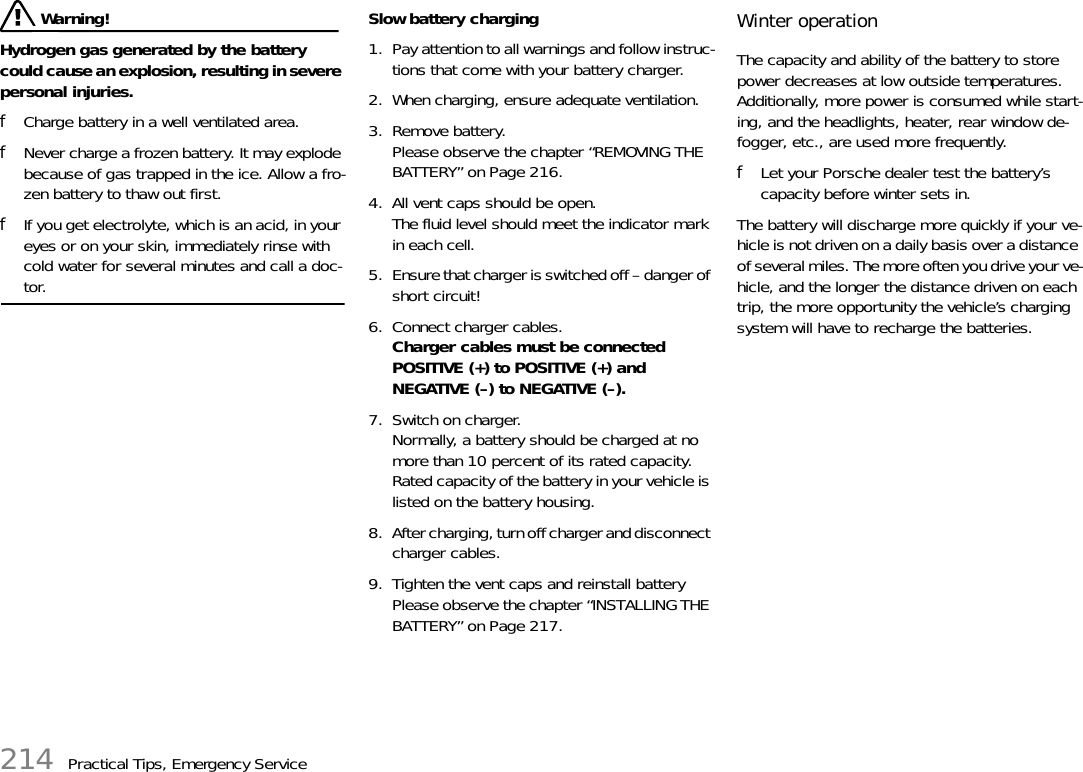

214 Practical Tips, Emergency Service Warning!Hydrogen gas generated by the battery could cause an explosion, resulting in severe personal injuries. fCharge battery in a well ventilated area. fNever charge a frozen battery. It may explode because of gas trapped in the ice. Allow a fro-zen battery to thaw out first. fIf you get electrolyte, which is an acid, in your eyes or on your skin, immediately rinse with cold water for several minutes and call a doc-tor. Slow battery charging 1. Pay attention to all warnings and follow instruc-tions that come with your battery charger. 2. When charging, ensure adequate ventilation. 3. Remove battery.Please observe the chapter “REMOVING THE BATTERY” on Page 216.4. All vent caps should be open.The fluid level should meet the indicator mark in each cell. 5. Ensure that charger is switched off – danger of short circuit! 6. Connect charger cables.Charger cables must be connected POSITIVE (+) to POSITIVE (+) and NEGATIVE (–) to NEGATIVE (–). 7. Switch on charger.Normally, a battery should be charged at no more than 10 percent of its rated capacity. Rated capacity of the battery in your vehicle is listed on the battery housing. 8. After charging, turn off charger and disconnect charger cables. 9. Tighten the vent caps and reinstall battery Please observe the chapter “INSTALLING THE BATTERY” on Page 217. Winter operation The capacity and ability of the battery to store power decreases at low outside temperatures.Additionally, more power is consumed while start-ing, and the headlights, heater, rear window de-fogger, etc., are used more frequently. fLet your Porsche dealer test the battery’s capacity before winter sets in. The battery will discharge more quickly if your ve-hicle is not driven on a daily basis over a distance of several miles. The more often you drive your ve-hicle, and the longer the distance driven on each trip, the more opportunity the vehicle’s charging system will have to recharge the batteries.

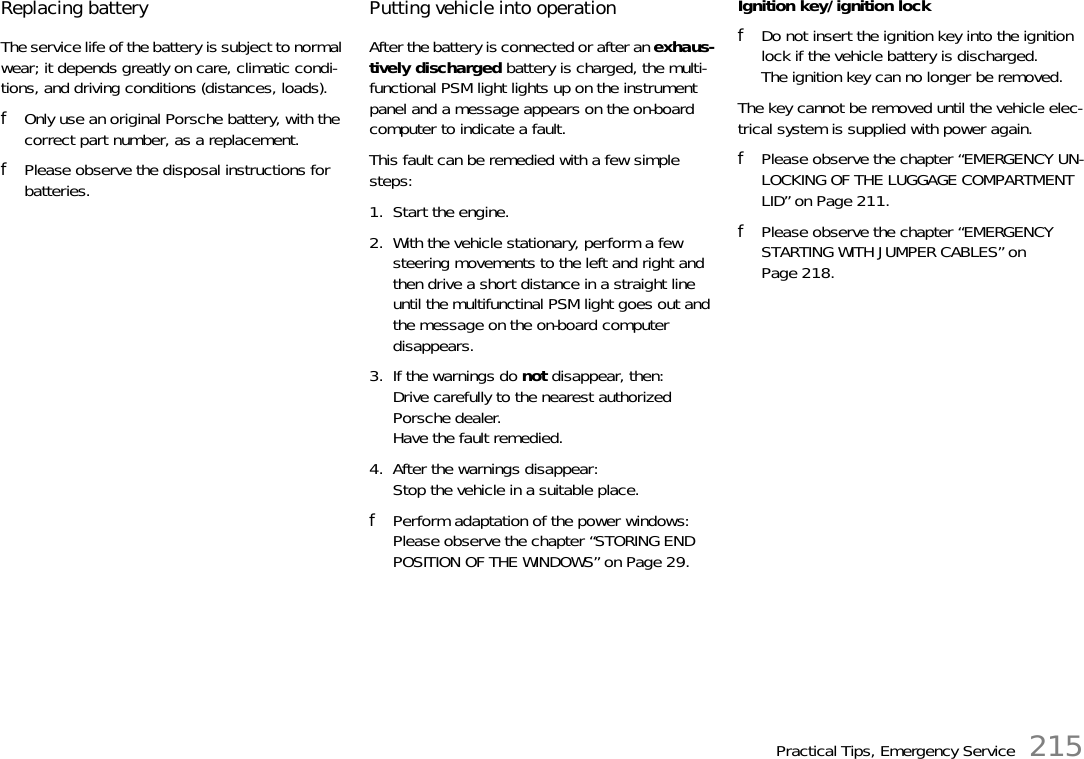

Practical Tips, Emergency Service 215Replacing battery The service life of the battery is subject to normal wear; it depends greatly on care, climatic condi-tions, and driving conditions (distances, loads). fOnly use an original Porsche battery, with the correct part number, as a replacement. fPlease observe the disposal instructions for batteries.Putting vehicle into operationAfter the battery is connected or after an exhaus-tively discharged battery is charged, the multi-functional PSM light lights up on the instrument panel and a message appears on the on-board computer to indicate a fault. This fault can be remedied with a few simple steps:1. Start the engine.2. With the vehicle stationary, perform a few steering movements to the left and right and then drive a short distance in a straight line until the multifunctinal PSM light goes out and the message on the on-board computer disappears.3. If the warnings do not disappear, then:Drive carefully to the nearest authorized Porsche dealer.Have the fault remedied.4. After the warnings disappear:Stop the vehicle in a suitable place. fPerform adaptation of the power windows:Please observe the chapter “STORING END POSITION OF THE WINDOWS” on Page 29.Ignition key/ignition lockfDo not insert the ignition key into the ignition lock if the vehicle battery is discharged.The ignition key can no longer be removed.The key cannot be removed until the vehicle elec-trical system is supplied with power again.fPlease observe the chapter “EMERGENCY UN-LOCKING OF THE LUGGAGE COMPARTMENT LID” on Page 211.fPlease observe the chapter “EMERGENCY STARTING WITH JUMPER CABLES” on Page 218.

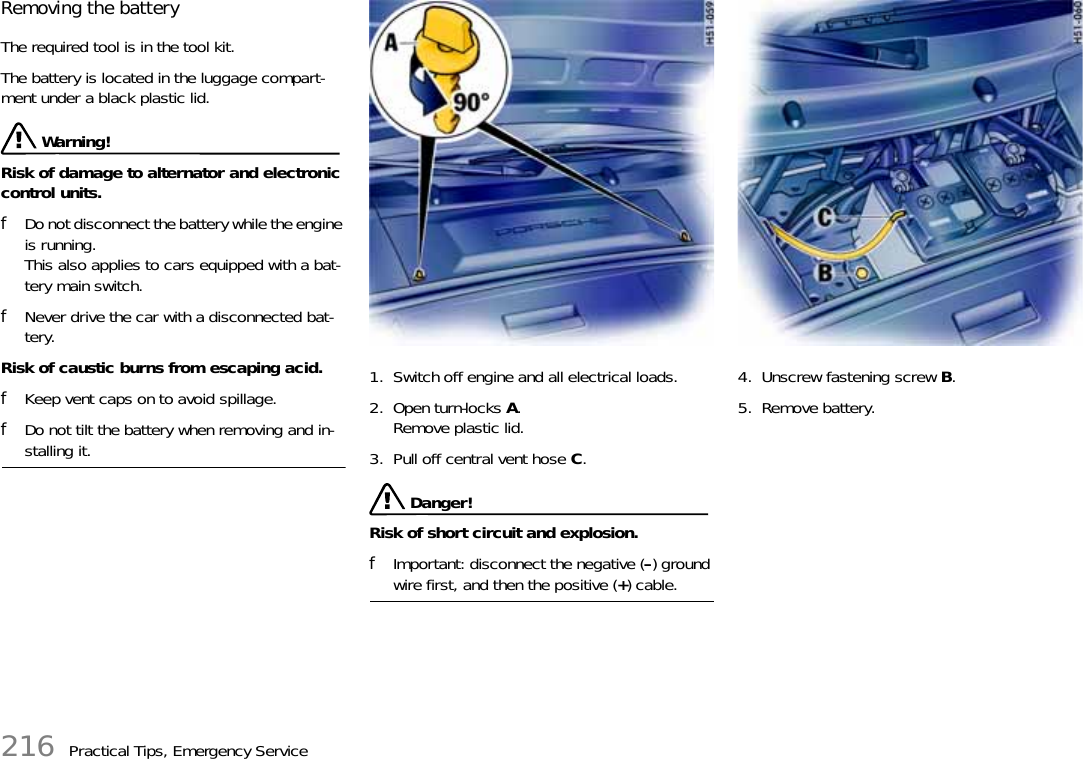

216 Practical Tips, Emergency ServiceRemoving the battery The required tool is in the tool kit. The battery is located in the luggage compart-ment under a black plastic lid. Warning!Risk of damage to alternator and electronic control units. fDo not disconnect the battery while the engine is running. This also applies to cars equipped with a bat-tery main switch. fNever drive the car with a disconnected bat-tery.Risk of caustic burns from escaping acid. fKeep vent caps on to avoid spillage. fDo not tilt the battery when removing and in-stalling it. 1. Switch off engine and all electrical loads. 2. Open turn-locks A.Remove plastic lid. 3. Pull off central vent hose C. Danger!Risk of short circuit and explosion.fImportant: disconnect the negative (–) ground wire first, and then the positive (+) cable.4. Unscrew fastening screw B. 5. Remove battery.

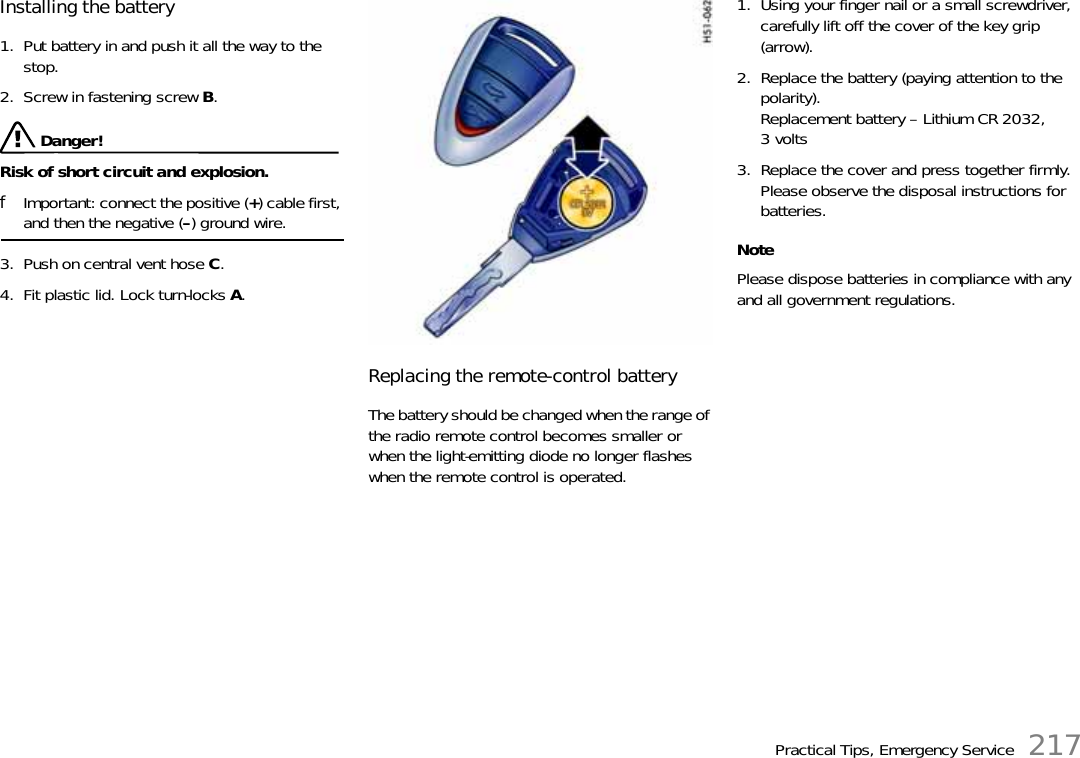

Practical Tips, Emergency Service 217Installing the battery 1. Put battery in and push it all the way to the stop. 2. Screw in fastening screw B. Danger!Risk of short circuit and explosion.fImportant: connect the positive (+) cable first, and then the negative (–) ground wire.3. Push on central vent hose C. 4. Fit plastic lid. Lock turn-locks A. Replacing the remote-control battery The battery should be changed when the range of the radio remote control becomes smaller or when the light-emitting diode no longer flashes when the remote control is operated.1. Using your finger nail or a small screwdriver, carefully lift off the cover of the key grip (arrow).2. Replace the battery (paying attention to the polarity).Replacement battery – Lithium CR 2032, 3volts3. Replace the cover and press together firmly.Please observe the disposal instructions for batteries. NotePlease dispose batteries in compliance with any and all government regulations.

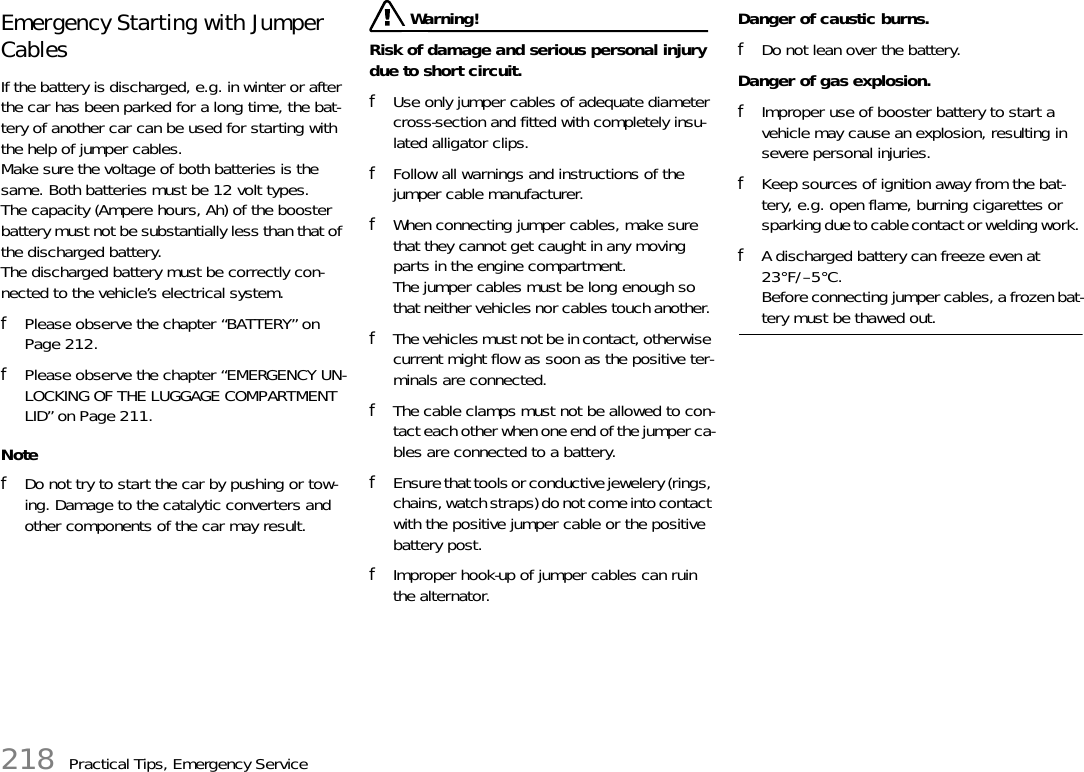

218 Practical Tips, Emergency ServiceEmergency Starting with Jumper Cables If the battery is discharged, e.g. in winter or after the car has been parked for a long time, the bat-tery of another car can be used for starting with the help of jumper cables.Make sure the voltage of both batteries is the same. Both batteries must be 12 volt types. The capacity (Ampere hours, Ah) of the booster battery must not be substantially less than that of the discharged battery.The discharged battery must be correctly con-nected to the vehicle’s electrical system. fPlease observe the chapter “BATTERY” on Page 212.fPlease observe the chapter “EMERGENCY UN-LOCKING OF THE LUGGAGE COMPARTMENT LID” on Page 211.NotefDo not try to start the car by pushing or tow-ing. Damage to the catalytic converters and other components of the car may result. Warning!Risk of damage and serious personal injury due to short circuit. fUse only jumper cables of adequate diameter cross-section and fitted with completely insu-lated alligator clips. fFollow all warnings and instructions of the jumper cable manufacturer. fWhen connecting jumper cables, make sure that they cannot get caught in any moving parts in the engine compartment.The jumper cables must be long enough so that neither vehicles nor cables touch another. fThe vehicles must not be in contact, otherwise current might flow as soon as the positive ter-minals are connected. fThe cable clamps must not be allowed to con-tact each other when one end of the jumper ca-bles are connected to a battery. fEnsure that tools or conductive jewelery (rings, chains, watch straps) do not come into contact with the positive jumper cable or the positive battery post. fImproper hook-up of jumper cables can ruin the alternator. Danger of caustic burns. fDo not lean over the battery.Danger of gas explosion. fImproper use of booster battery to start a vehicle may cause an explosion, resulting in severe personal injuries. fKeep sources of ignition away from the bat-tery, e.g. open flame, burning cigarettes or sparking due to cable contact or welding work. fA discharged battery can freeze even at 23°F/–5°C. Before connecting jumper cables, a frozen bat-tery must be thawed out.

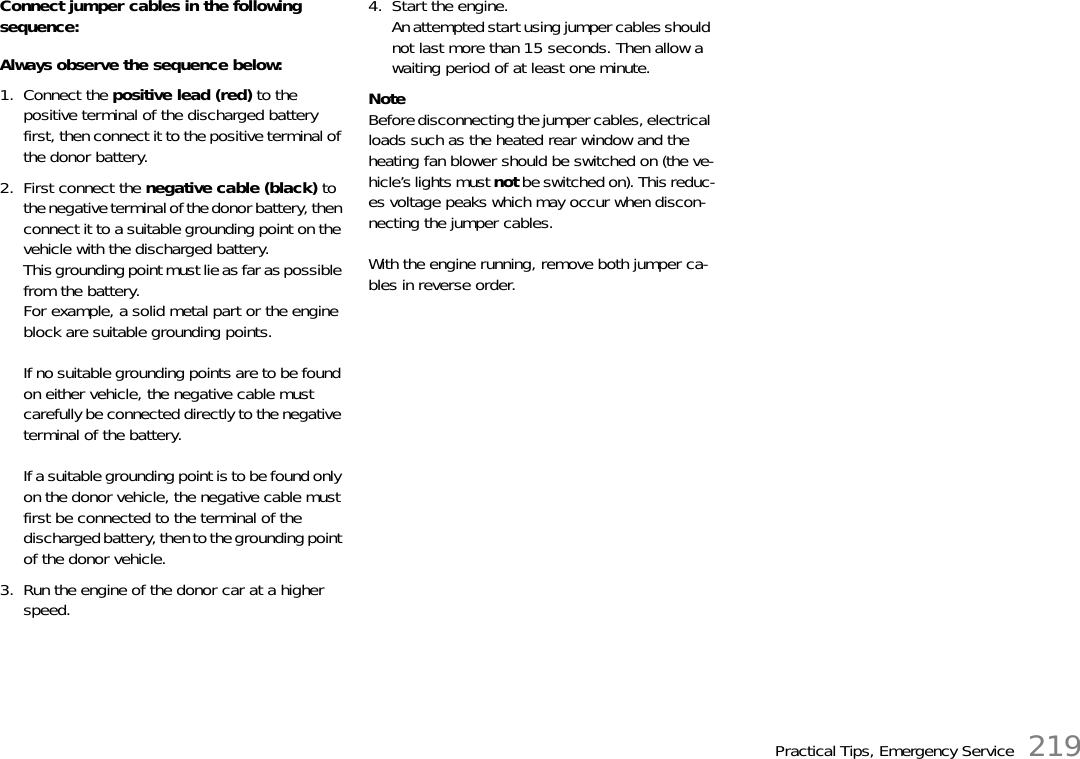

Practical Tips, Emergency Service 219Connect jumper cables in the following sequence: Always observe the sequence below: 1. Connect the positive lead (red) to the positive terminal of the discharged battery first, then connect it to the positive terminal of the donor battery.2. First connect the negative cable (black) to the negative terminal of the donor battery, then connect it to a suitable grounding point on the vehicle with the discharged battery. This grounding point must lie as far as possible from the battery.For example, a solid metal part or the engine block are suitable grounding points.If no suitable grounding points are to be found on either vehicle, the negative cable must carefully be connected directly to the negative terminal of the battery.If a suitable grounding point is to be found only on the donor vehicle, the negative cable must first be connected to the terminal of the discharged battery, then to the grounding point of the donor vehicle.3. Run the engine of the donor car at a higher speed.4. Start the engine.An attempted start using jumper cables should not last more than 15 seconds. Then allow a waiting period of at least one minute.NoteBefore disconnecting the jumper cables, electrical loads such as the heated rear window and the heating fan blower should be switched on (the ve-hicle’s lights must not be switched on). This reduc-es voltage peaks which may occur when discon-necting the jumper cables.With the engine running, remove both jumper ca-bles in reverse order.

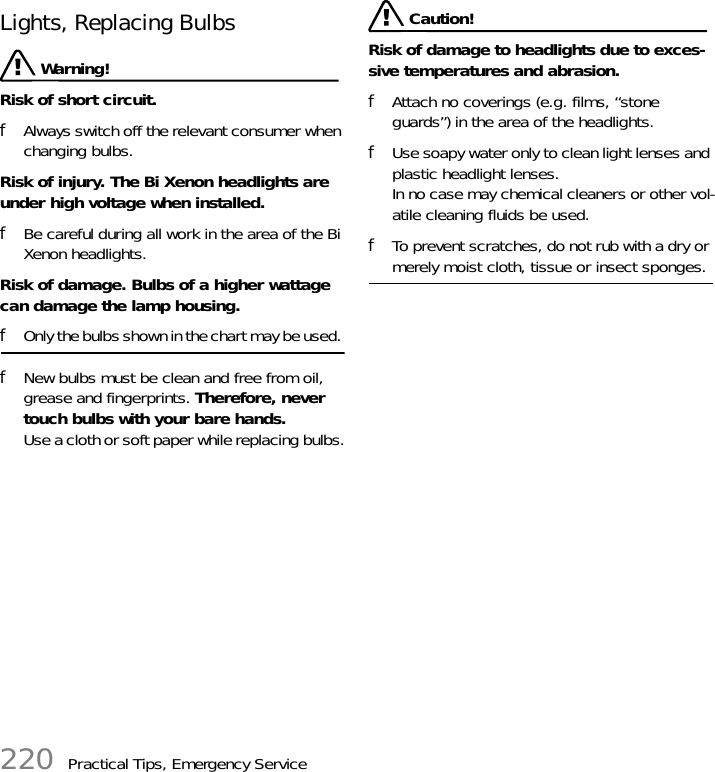

220 Practical Tips, Emergency ServiceLights, Replacing Bulbs Warning!Risk of short circuit. fAlways switch off the relevant consumer when changing bulbs.Risk of injury. The Bi Xenon headlights are under high voltage when installed. fBe careful during all work in the area of the Bi Xenon headlights. Risk of damage. Bulbs of a higher wattage can damage the lamp housing. fOnly the bulbs shown in the chart may be used. fNew bulbs must be clean and free from oil, grease and fingerprints. Therefore, never touch bulbs with your bare hands. Use a cloth or soft paper while replacing bulbs. Caution!Risk of damage to headlights due to exces-sive temperatures and abrasion. fAttach no coverings (e.g. films, “stone guards”) in the area of the headlights. fUse soapy water only to clean light lenses and plastic headlight lenses.In no case may chemical cleaners or other vol-atile cleaning fluids be used. fTo prevent scratches, do not rub with a dry or merely moist cloth, tissue or insect sponges.

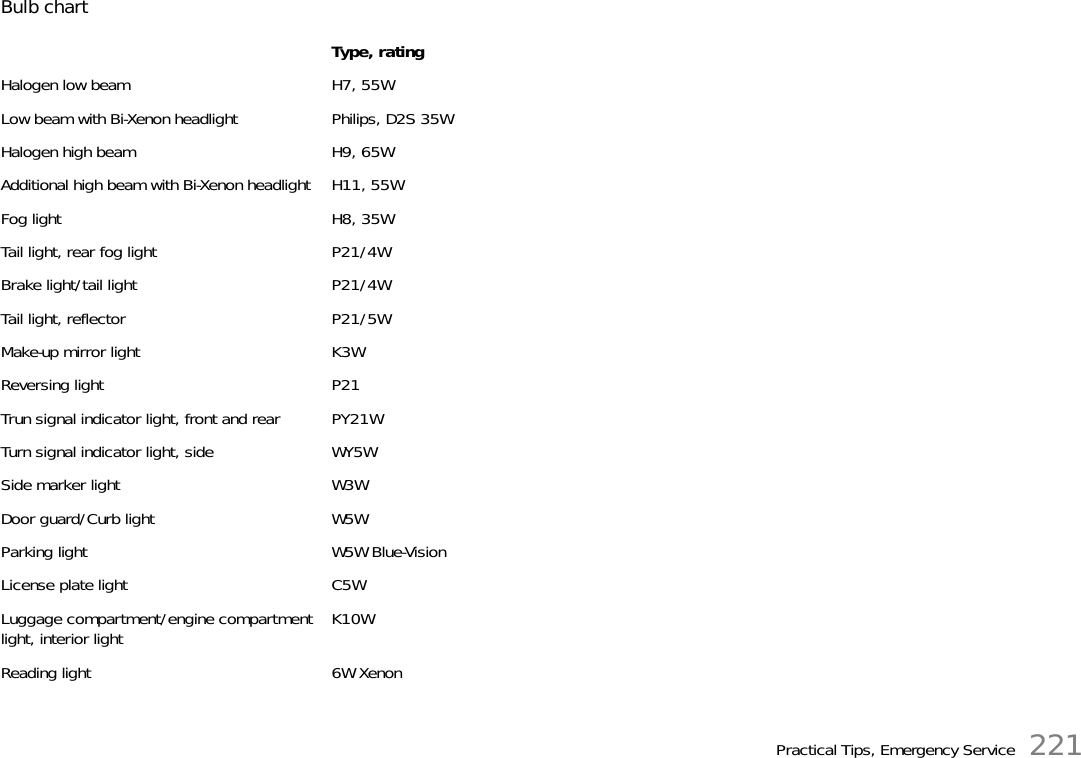

Practical Tips, Emergency Service 221Bulb chartType, ratingHalogen low beam H7, 55WLow beam with Bi-Xenon headlight Philips, D2S 35WHalogen high beam H9, 65WAdditional high beam with Bi-Xenon headlight H11, 55WFog light H8, 35WTail light, rear fog light P21/4WBrake light/tail light P21/4WTail light, reflector P21/5WMake-up mirror light K3WReversing light P21Trun signal indicator light, front and rear PY21WTurn signal indicator light, side WY5WSide marker light W3WDoor guard/Curb light W5WParking light W5W Blue-VisionLicense plate light C5WLuggage compartment/engine compartmentlight, interior light K10WReading light 6W Xenon

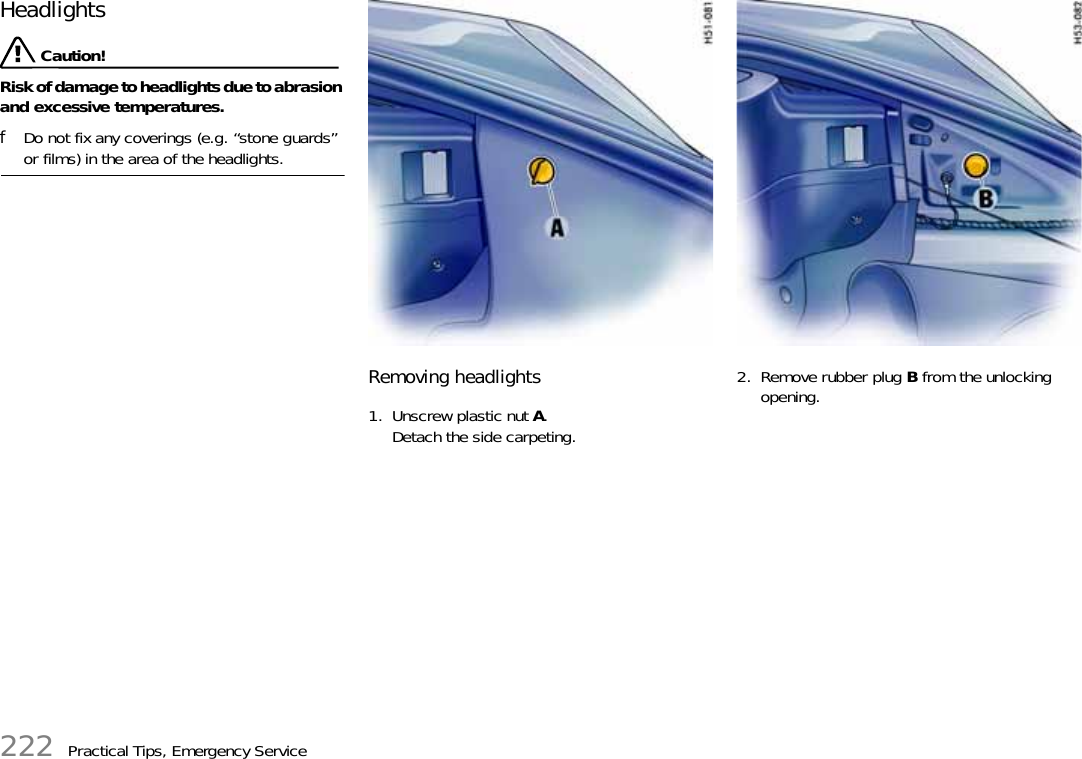

222 Practical Tips, Emergency ServiceHeadlights Caution!Risk of damage to headlights due to abrasion and excessive temperatures.fDo not fix any coverings (e.g. “stone guards” or films) in the area of the headlights.Removing headlights1. Unscrew plastic nut A.Detach the side carpeting.2. Remove rubber plug B from the unlocking opening.

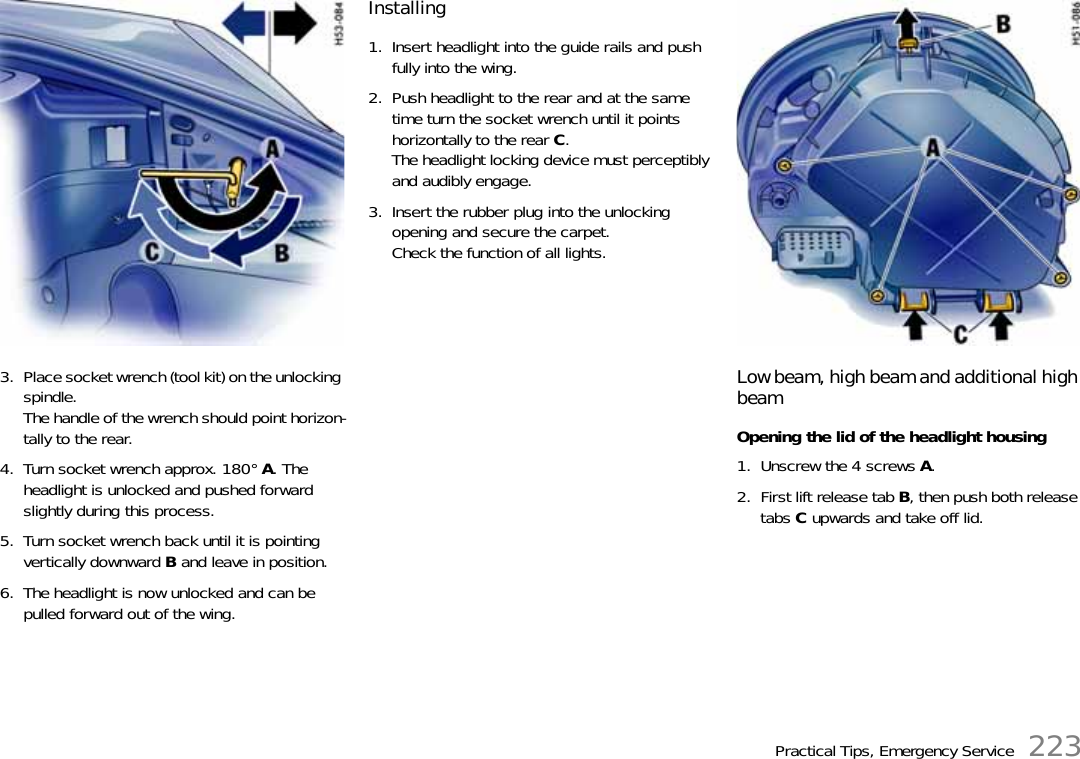

Practical Tips, Emergency Service 2233. Place socket wrench (tool kit) on the unlocking spindle.The handle of the wrench should point horizon-tally to the rear.4. Turn socket wrench approx. 180° A. The headlight is unlocked and pushed forward slightly during this process.5. Turn socket wrench back until it is pointing vertically downward B and leave in position.6. The headlight is now unlocked and can be pulled forward out of the wing.Installing1. Insert headlight into the guide rails and push fully into the wing.2. Push headlight to the rear and at the same time turn the socket wrench until it points horizontally to the rear C.The headlight locking device must perceptibly and audibly engage.3. Insert the rubber plug into the unlocking opening and secure the carpet.Check the function of all lights.Low beam, high beam and additional high beamOpening the lid of the headlight housing1. Unscrew the 4 screws A.2. First lift release tab B, then push both release tabs C upwards and take off lid.

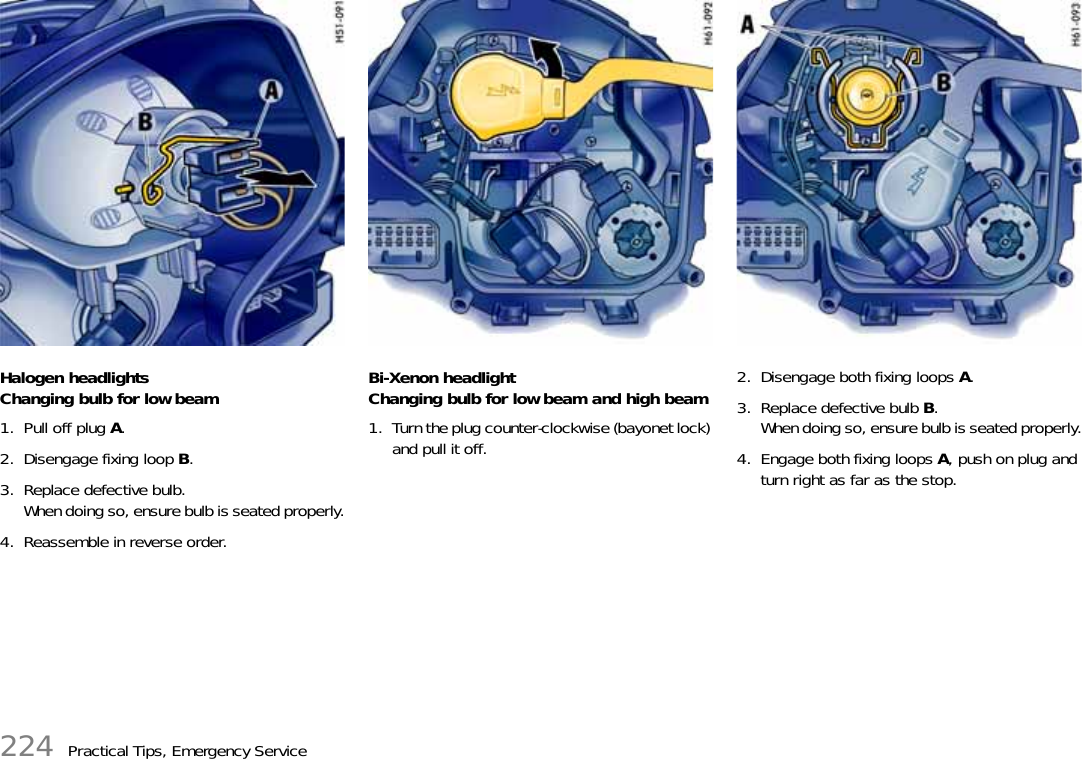

224 Practical Tips, Emergency ServiceHalogen headlightsChanging bulb for low beam1. Pull off plug A.2. Disengage fixing loop B.3. Replace defective bulb.When doing so, ensure bulb is seated properly.4. Reassemble in reverse order.Bi-Xenon headlightChanging bulb for low beam and high beam1. Turn the plug counter-clockwise (bayonet lock) and pull it off.2. Disengage both fixing loops A.3. Replace defective bulb B.When doing so, ensure bulb is seated properly.4. Engage both fixing loops A, push on plug and turn right as far as the stop.

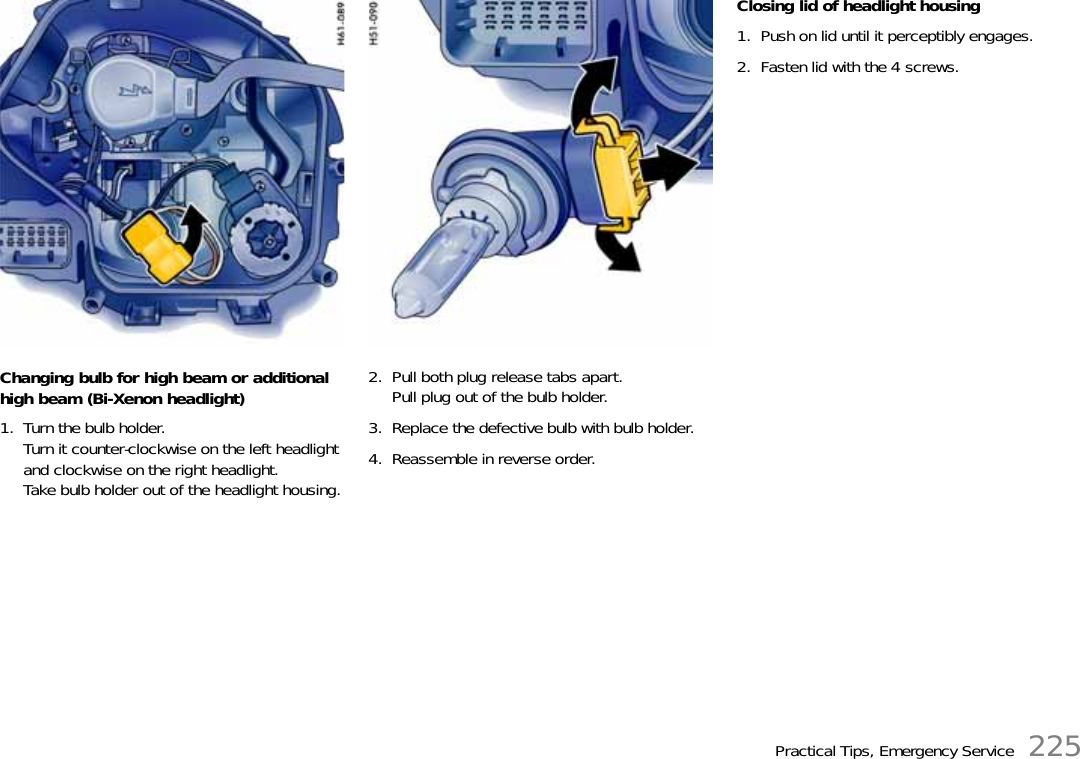

Practical Tips, Emergency Service 225Changing bulb for high beam or additional high beam (Bi-Xenon headlight)1. Turn the bulb holder.Turn it counter-clockwise on the left headlight and clockwise on the right headlight.Take bulb holder out of the headlight housing.2. Pull both plug release tabs apart.Pull plug out of the bulb holder.3. Replace the defective bulb with bulb holder.4. Reassemble in reverse order.Closing lid of headlight housing1. Push on lid until it perceptibly engages.2. Fasten lid with the 4 screws.

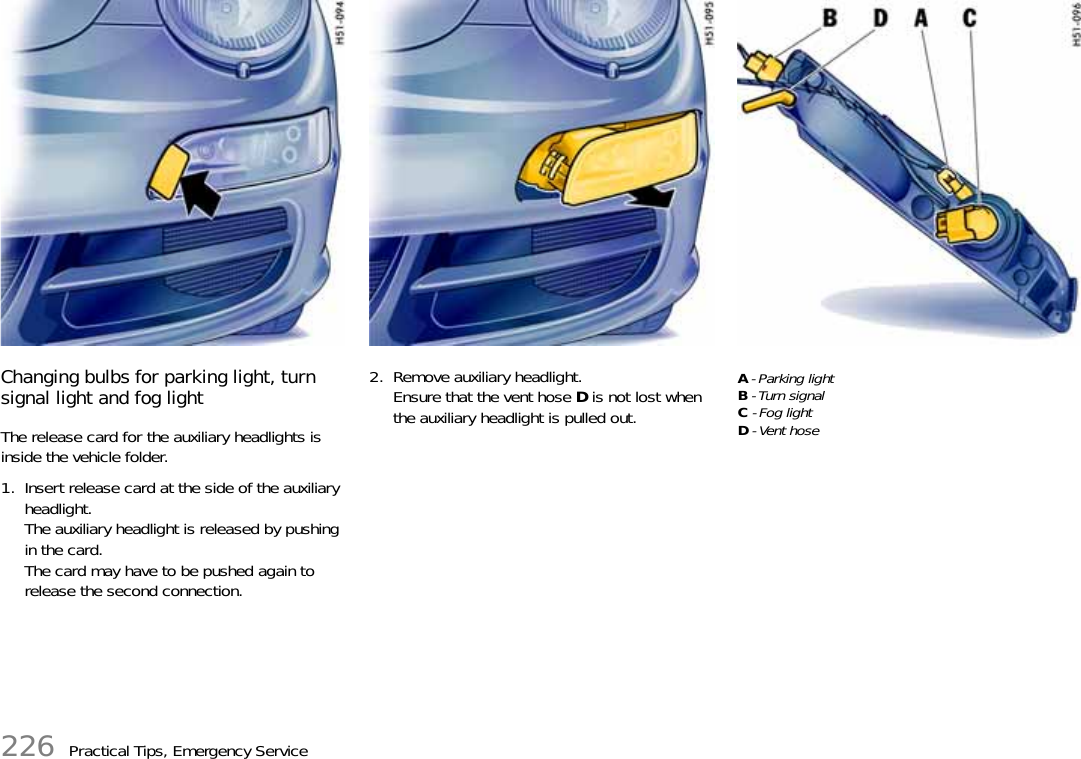

226 Practical Tips, Emergency ServiceChanging bulbs for parking light, turn signal light and fog lightThe release card for the auxiliary headlights is inside the vehicle folder.1. Insert release card at the side of the auxiliary headlight. The auxiliary headlight is released by pushing in the card. The card may have to be pushed again to release the second connection.2. Remove auxiliary headlight. Ensure that the vent hose D is not lost when the auxiliary headlight is pulled out.A - Parking lightB - Turn signalC - Fog lightD - Vent hose

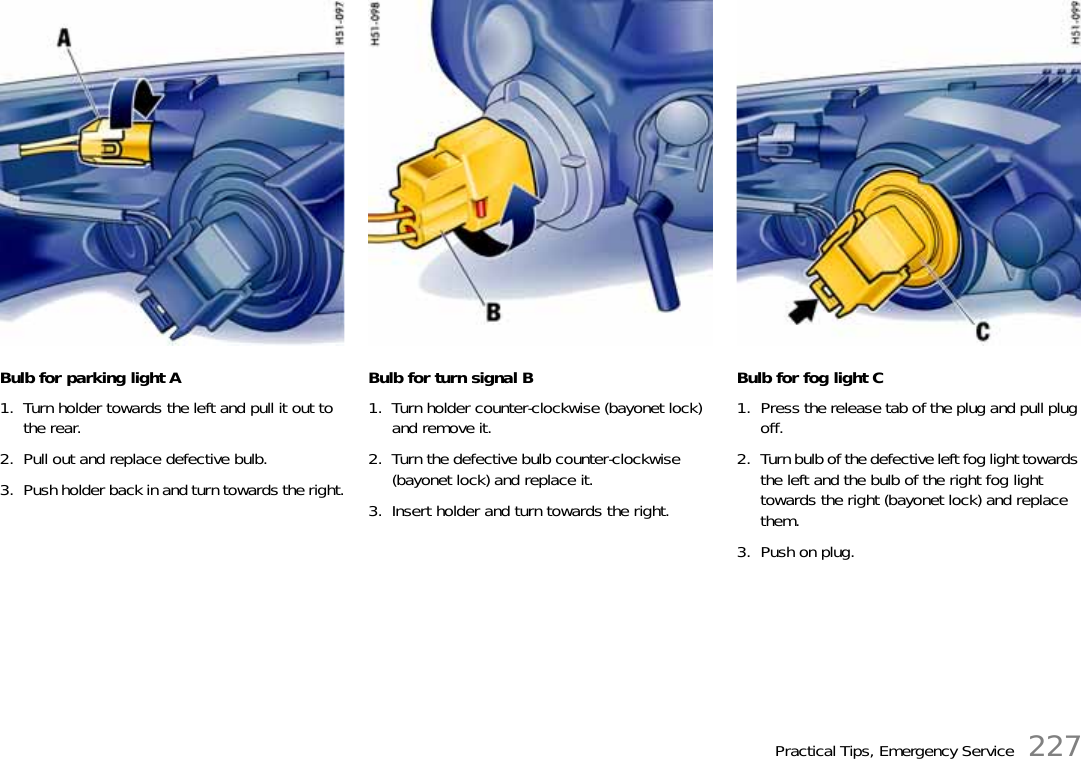

Practical Tips, Emergency Service 227Bulb for parking light A1. Turn holder towards the left and pull it out to the rear. 2. Pull out and replace defective bulb.3. Push holder back in and turn towards the right.Bulb for turn signal B1. Turn holder counter-clockwise (bayonet lock) and remove it.2. Turn the defective bulb counter-clockwise (bayonet lock) and replace it.3. Insert holder and turn towards the right.Bulb for fog light C1. Press the release tab of the plug and pull plug off.2. Turn bulb of the defective left fog light towards the left and the bulb of the right fog light towards the right (bayonet lock) and replace them.3. Push on plug.

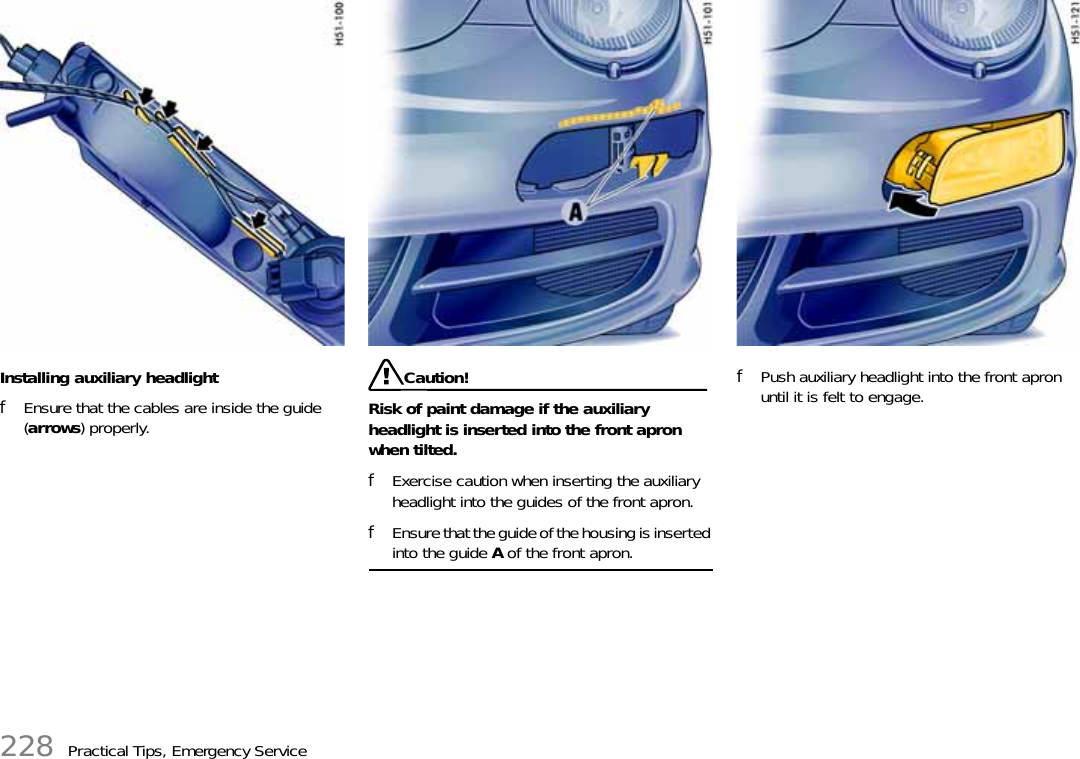

228 Practical Tips, Emergency ServiceInstalling auxiliary headlightfEnsure that the cables are inside the guide (arrows) properly.Caution!Risk of paint damage if the auxiliary headlight is inserted into the front apron when tilted.fExercise caution when inserting the auxiliary headlight into the guides of the front apron.fEnsure that the guide of the housing is inserted into the guide A of the front apron.fPush auxiliary headlight into the front apron until it is felt to engage.

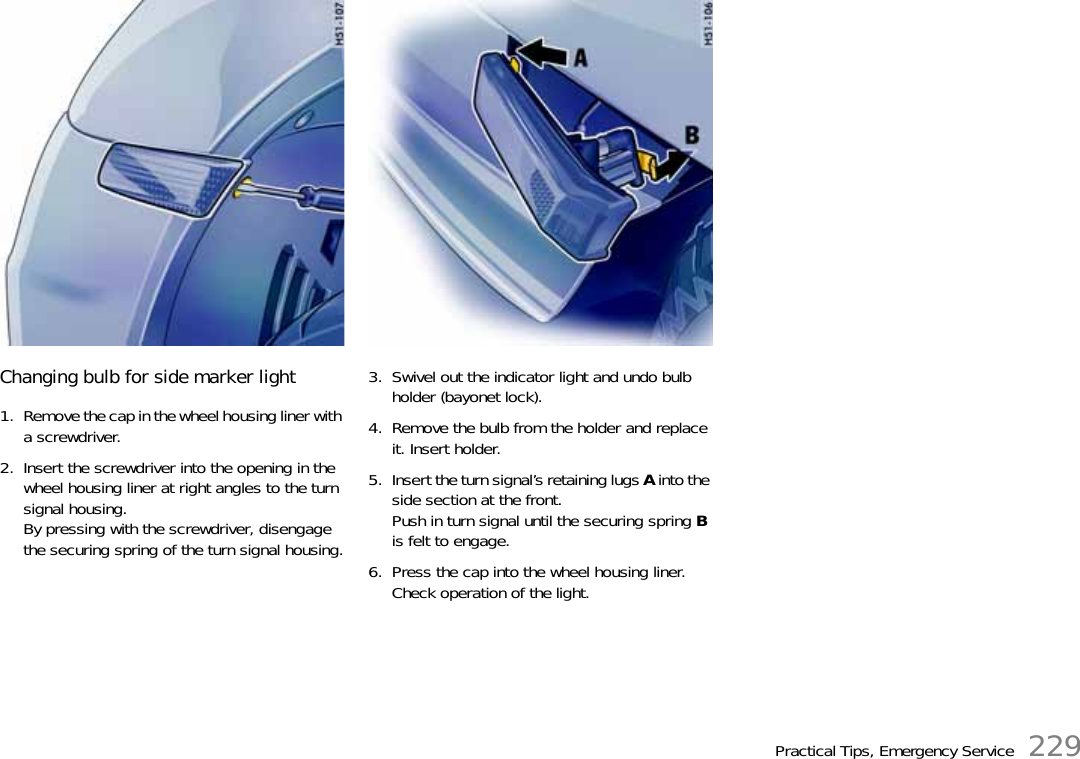

Practical Tips, Emergency Service 229Changing bulb for side marker light1. Remove the cap in the wheel housing liner with a screwdriver.2. Insert the screwdriver into the opening in the wheel housing liner at right angles to the turn signal housing.By pressing with the screwdriver, disengage the securing spring of the turn signal housing.3. Swivel out the indicator light and undo bulb holder (bayonet lock).4. Remove the bulb from the holder and replace it. Insert holder.5. Insert the turn signal’s retaining lugs A into the side section at the front.Push in turn signal until the securing spring B is felt to engage.6. Press the cap into the wheel housing liner.Check operation of the light.

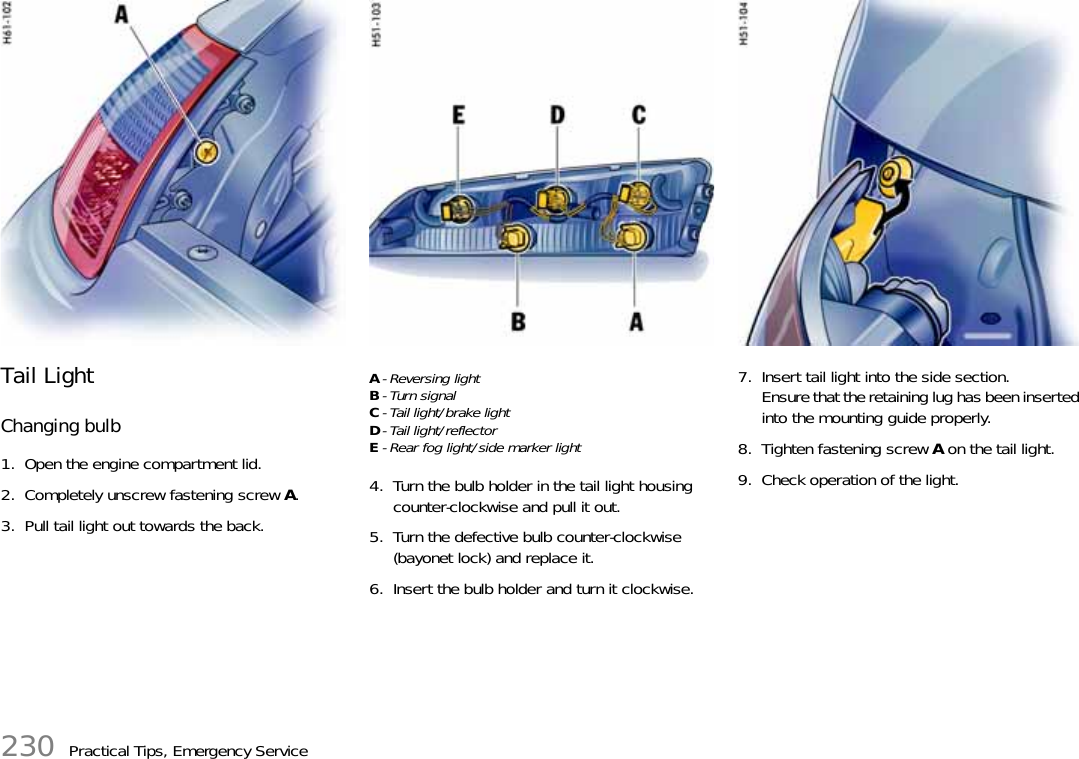

230 Practical Tips, Emergency ServiceTail LightChanging bulb1. Open the engine compartment lid.2. Completely unscrew fastening screw A.3. Pull tail light out towards the back.A- Reversing lightB-Turn signalC- Tail light/brake lightD- Tail light/reflectorE- Rear fog light/side marker light4. Turn the bulb holder in the tail light housing counter-clockwise and pull it out.5. Turn the defective bulb counter-clockwise (bayonet lock) and replace it.6. Insert the bulb holder and turn it clockwise.7. Insert tail light into the side section.Ensure that the retaining lug has been inserted into the mounting guide properly.8. Tighten fastening screw A on the tail light.9. Check operation of the light.

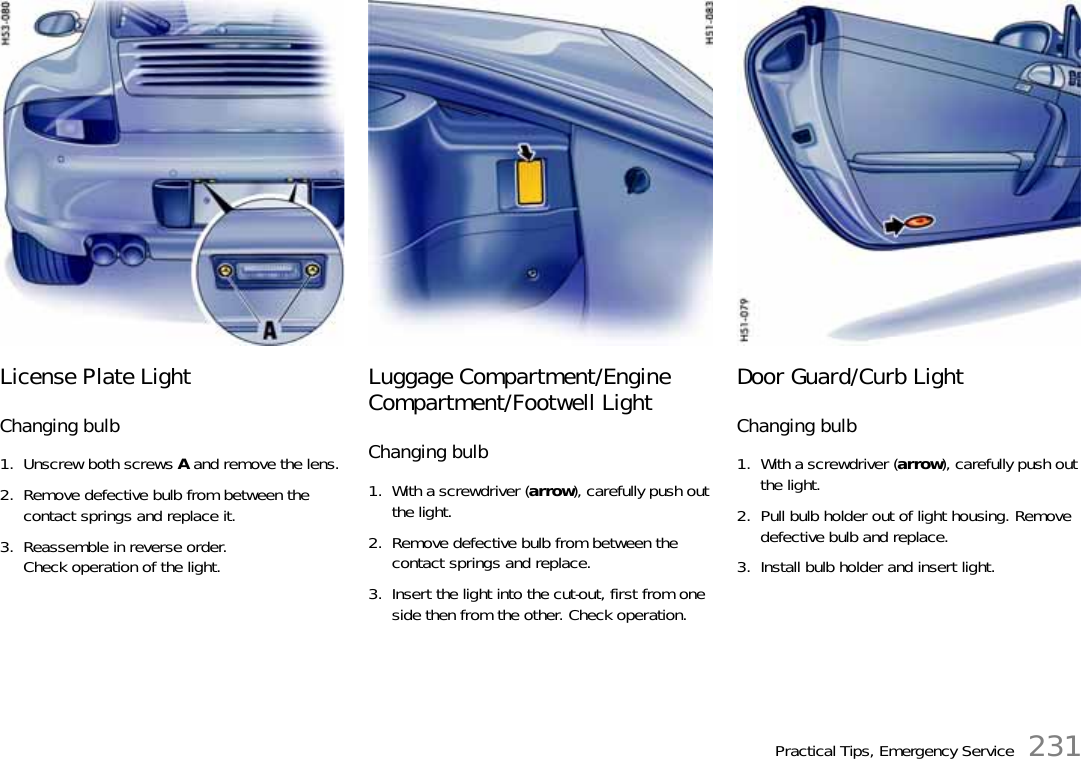

Practical Tips, Emergency Service 231License Plate LightChanging bulb1. Unscrew both screws A and remove the lens.2. Remove defective bulb from between the contact springs and replace it. 3. Reassemble in reverse order.Check operation of the light.Luggage Compartment/Engine Compartment/Footwell LightChanging bulb1. With a screwdriver (arrow), carefully push out the light.2. Remove defective bulb from between the contact springs and replace.3. Insert the light into the cut-out, first from one side then from the other. Check operation.Door Guard/Curb LightChanging bulb1. With a screwdriver (arrow), carefully push out the light.2. Pull bulb holder out of light housing. Remove defective bulb and replace.3. Install bulb holder and insert light.

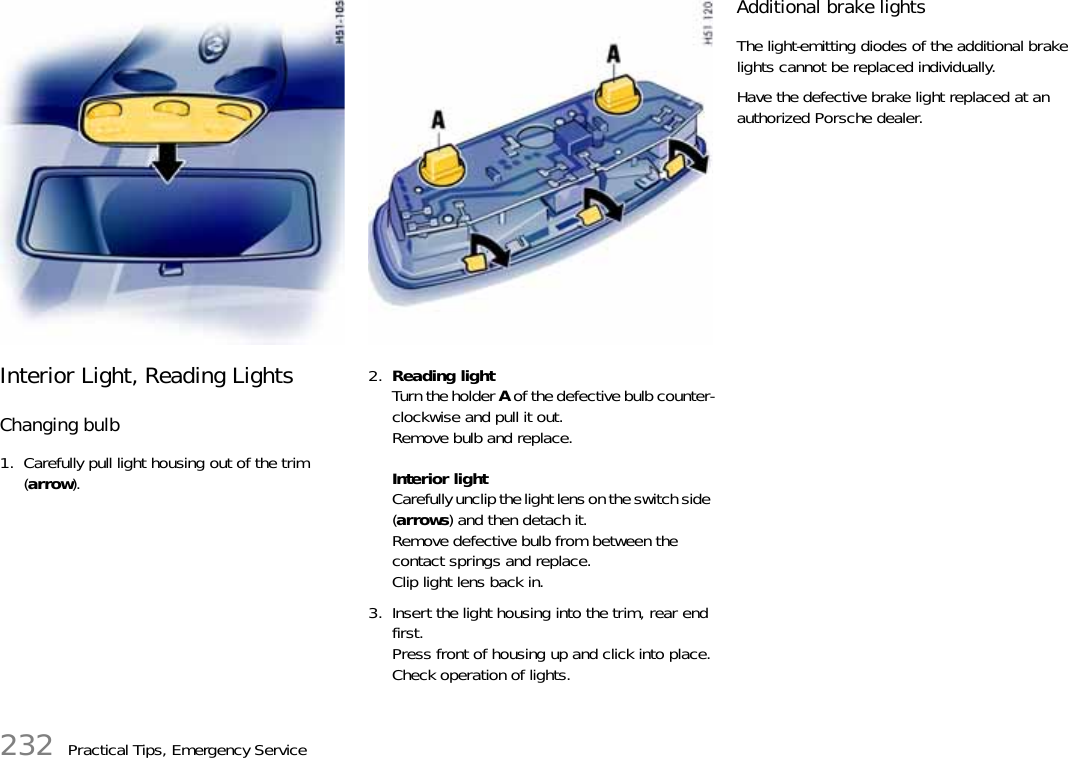

232 Practical Tips, Emergency ServiceInterior Light, Reading LightsChanging bulb1. Carefully pull light housing out of the trim (arrow).2. Reading lightTurn the holder A of the defective bulb counter-clockwise and pull it out.Remove bulb and replace.Interior lightCarefully unclip the light lens on the switch side (arrows) and then detach it.Remove defective bulb from between the contact springs and replace.Clip light lens back in.3. Insert the light housing into the trim, rear end first.Press front of housing up and click into place.Check operation of lights.Additional brake lightsThe light-emitting diodes of the additional brake lights cannot be replaced individually.Have the defective brake light replaced at an authorized Porsche dealer.

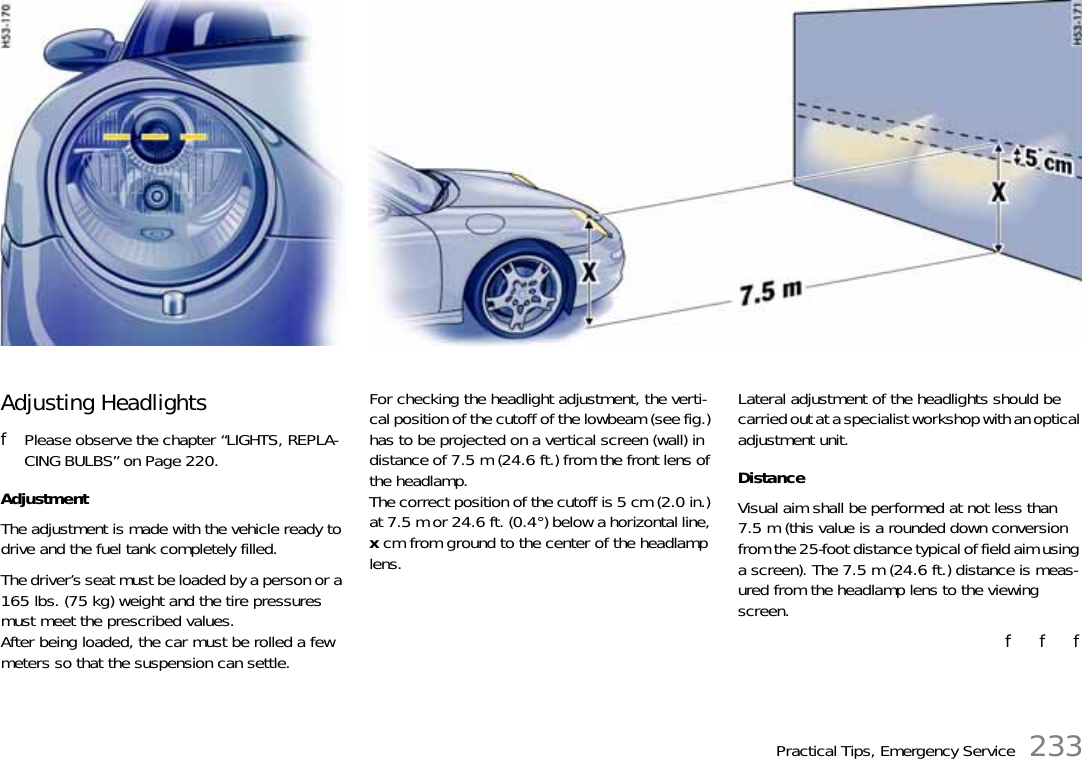

Practical Tips, Emergency Service 233Adjusting Headlights fPlease observe the chapter “LIGHTS, REPLA-CING BULBS” on Page 220.Adjustment The adjustment is made with the vehicle ready to drive and the fuel tank completely filled. The driver’s seat must be loaded by a person or a 165 lbs. (75 kg) weight and the tire pressures must meet the prescribed values. After being loaded, the car must be rolled a few meters so that the suspension can settle. For checking the headlight adjustment, the verti-cal position of the cutoff of the lowbeam (see fig.) has to be projected on a vertical screen (wall) in distance of 7.5 m (24.6 ft.) from the front lens of the headlamp.The correct position of the cutoff is 5 cm (2.0 in.) at 7.5 m or 24.6 ft. (0.4°) below a horizontal line, x cm from ground to the center of the headlamp lens. Lateral adjustment of the headlights should be carried out at a specialist workshop with an optical adjustment unit. Distance Visual aim shall be performed at not less than 7.5 m (this value is a rounded down conversion from the 25-foot distance typical of field aim using a screen). The 7.5 m (24.6 ft.) distance is meas-ured from the headlamp lens to the viewing screen. f f f

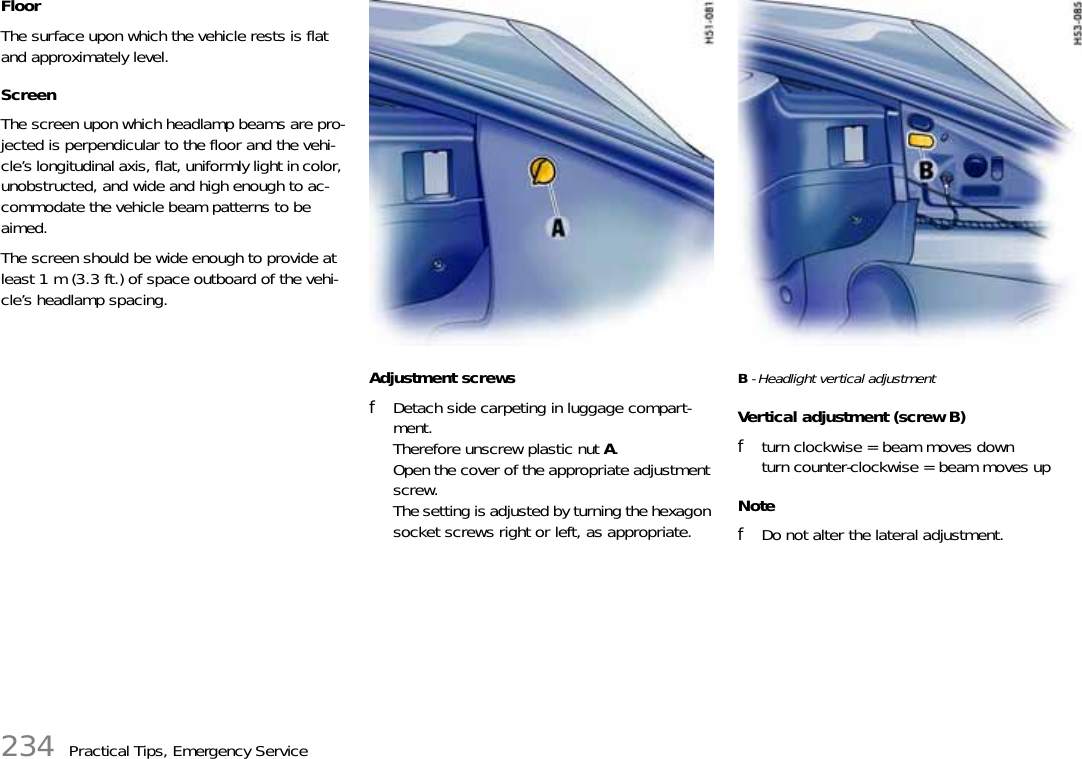

234 Practical Tips, Emergency ServiceFloor The surface upon which the vehicle rests is flat and approximately level. Screen The screen upon which headlamp beams are pro-jected is perpendicular to the floor and the vehi-cle’s longitudinal axis, flat, uniformly light in color, unobstructed, and wide and high enough to ac-commodate the vehicle beam patterns to be aimed. The screen should be wide enough to provide at least 1 m (3.3 ft.) of space outboard of the vehi-cle’s headlamp spacing. Adjustment screws fDetach side carpeting in luggage compart-ment.Therefore unscrew plastic nut A.Open the cover of the appropriate adjustment screw.The setting is adjusted by turning the hexagon socket screws right or left, as appropriate. B - Headlight vertical adjustmentVertical adjustment (screw B) fturn clockwise = beam moves downturn counter-clockwise = beam moves up NotefDo not alter the lateral adjustment.

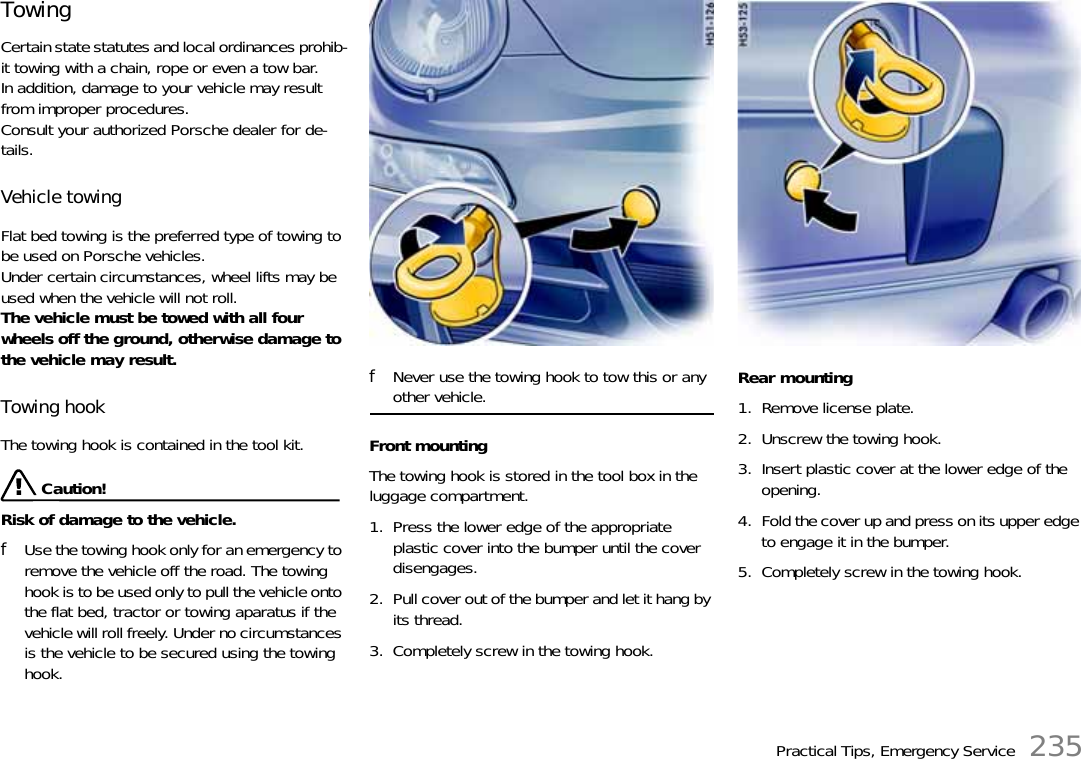

Practical Tips, Emergency Service 235Towing Certain state statutes and local ordinances prohib-it towing with a chain, rope or even a tow bar. In addition, damage to your vehicle may result from improper procedures. Consult your authorized Porsche dealer for de-tails. Vehicle towing Flat bed towing is the preferred type of towing to be used on Porsche vehicles. Under certain circumstances, wheel lifts may be used when the vehicle will not roll. The vehicle must be towed with all four wheels off the ground, otherwise damage to the vehicle may result. Towing hook The towing hook is contained in the tool kit. Caution!Risk of damage to the vehicle. fUse the towing hook only for an emergency to remove the vehicle off the road. The towing hook is to be used only to pull the vehicle onto the flat bed, tractor or towing aparatus if the vehicle will roll freely. Under no circumstances is the vehicle to be secured using the towing hook. fNever use the towing hook to tow this or any other vehicle. Front mounting The towing hook is stored in the tool box in the luggage compartment.1. Press the lower edge of the appropriate plastic cover into the bumper until the cover disengages.2. Pull cover out of the bumper and let it hang by its thread.3. Completely screw in the towing hook.Rear mounting 1. Remove license plate.2. Unscrew the towing hook.3. Insert plastic cover at the lower edge of the opening.4. Fold the cover up and press on its upper edge to engage it in the bumper.5. Completely screw in the towing hook.

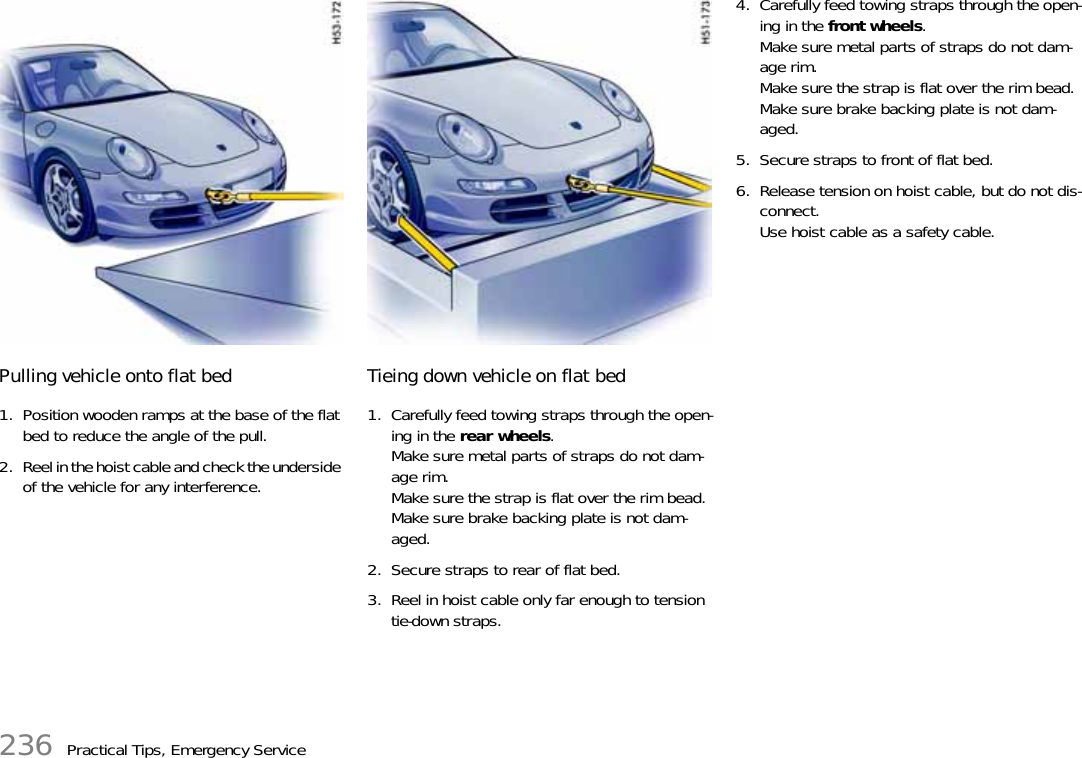

236 Practical Tips, Emergency ServicePulling vehicle onto flat bed 1. Position wooden ramps at the base of the flat bed to reduce the angle of the pull. 2. Reel in the hoist cable and check the underside of the vehicle for any interference. Tieing down vehicle on flat bed 1. Carefully feed towing straps through the open-ing in the rear wheels. Make sure metal parts of straps do not dam-age rim. Make sure the strap is flat over the rim bead.Make sure brake backing plate is not dam-aged. 2. Secure straps to rear of flat bed. 3. Reel in hoist cable only far enough to tension tie-down straps. 4. Carefully feed towing straps through the open-ing in the front wheels. Make sure metal parts of straps do not dam-age rim. Make sure the strap is flat over the rim bead. Make sure brake backing plate is not dam-aged. 5. Secure straps to front of flat bed. 6. Release tension on hoist cable, but do not dis-connect. Use hoist cable as a safety cable.
Vehicle Identification, Technical Data 237Vehicle Identification, Technical Data

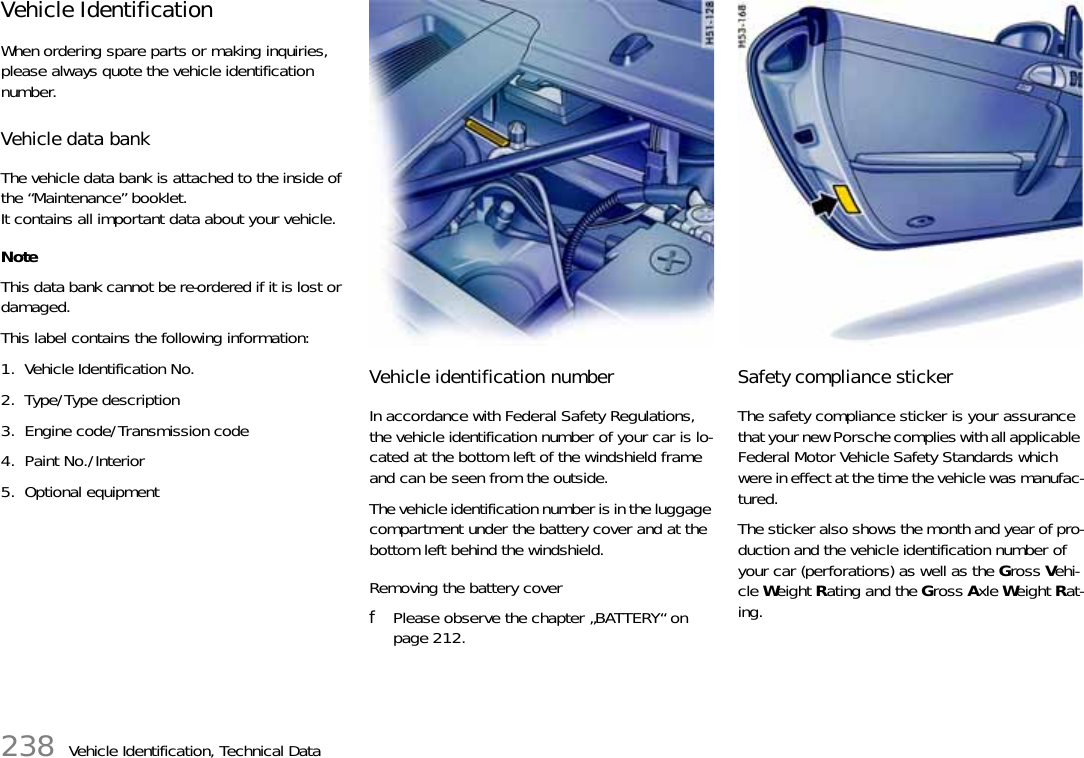

238 Vehicle Identification, Technical DataVehicle Identification When ordering spare parts or making inquiries, please always quote the vehicle identification number. Vehicle data bankThe vehicle data bank is attached to the inside of the “Maintenance” booklet.It contains all important data about your vehicle.NoteThis data bank cannot be re-ordered if it is lost or damaged.This label contains the following information: 1. Vehicle Identification No.2. Type/Type description3. Engine code/Transmission code4. Paint No./Interior5. Optional equipment Vehicle identification number In accordance with Federal Safety Regulations, the vehicle identification number of your car is lo-cated at the bottom left of the windshield frame and can be seen from the outside. The vehicle identification number is in the luggage compartment under the battery cover and at the bottom left behind the windshield.Removing the battery coverfPlease observe the chapter „BATTERY“ on page 212.Safety compliance stickerThe safety compliance sticker is your assurance that your new Porsche complies with all applicable Federal Motor Vehicle Safety Standards which were in effect at the time the vehicle was manufac-tured. The sticker also shows the month and year of pro-duction and the vehicle identification number of your car (perforations) as well as the Gross Vehi-cle Weight Rating and the Gross Axle Weight Rat-ing.

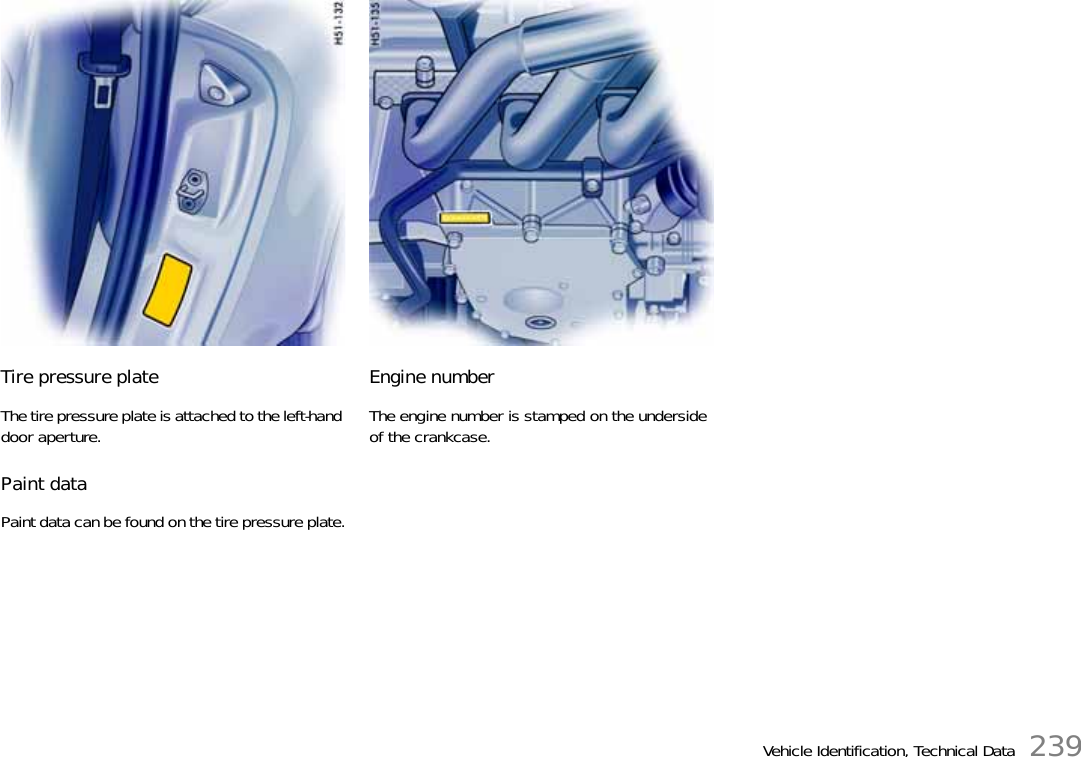

Vehicle Identification, Technical Data 239Tire pressure plateThe tire pressure plate is attached to the left-hand door aperture.Paint dataPaint data can be found on the tire pressure plate.Engine number The engine number is stamped on the underside of the crankcase.

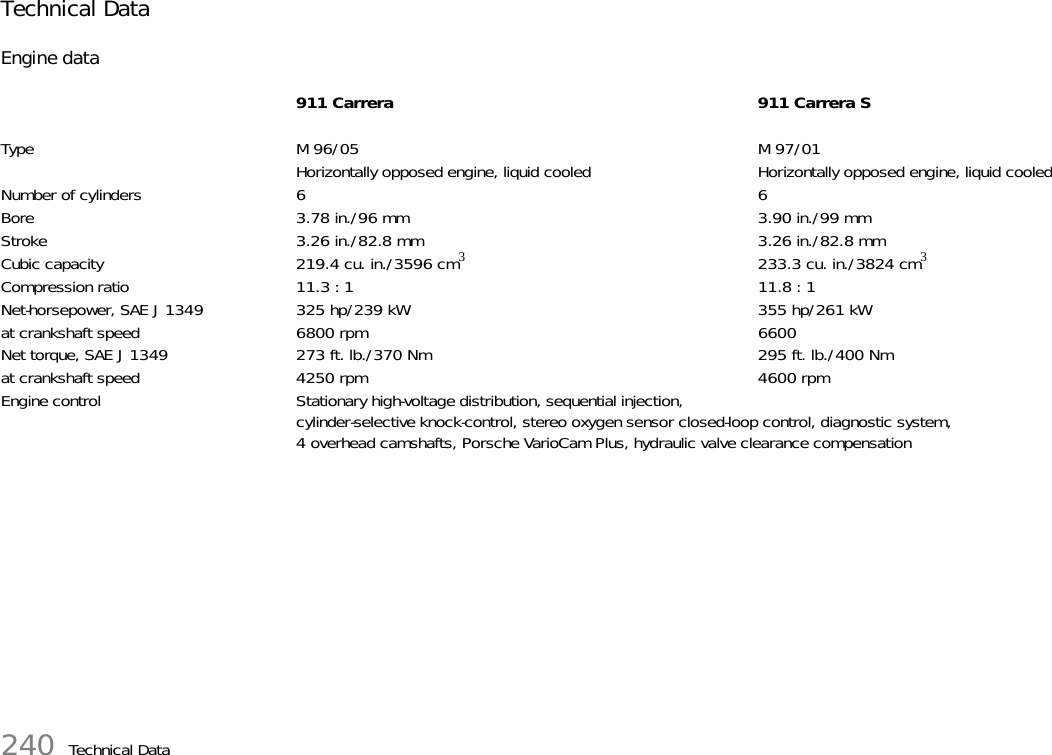

240 Technical DataTechnical DataEngine data 911 Carrera 911 Carrera SType M 96/05 M 97/01Horizontally opposed engine, liquid cooled Horizontally opposed engine, liquid cooledNumber of cylinders 6 6Bore 3.78 in./96 mm 3.90 in./99 mmStroke 3.26 in./82.8 mm 3.26 in./82.8 mmCubic capacity 219.4 cu. in./3596 cm3 233.3 cu. in./3824 cm3Compression ratio 11.3 : 1 11.8 : 1Net-horsepower, SAE J 1349 325 hp/239 kW 355 hp/261 kWat crankshaft speed 6800 rpm 6600Net torque, SAE J 1349 273 ft. lb./370 Nm 295 ft. lb./400 Nmat crankshaft speed 4250 rpm 4600 rpmEngine control Stationary high-voltage distribution, sequential injection, cylinder-selective knock-control, stereo oxygen sensor closed-loop control, diagnostic system,4 overhead camshafts, Porsche VarioCam Plus, hydraulic valve clearance compensation

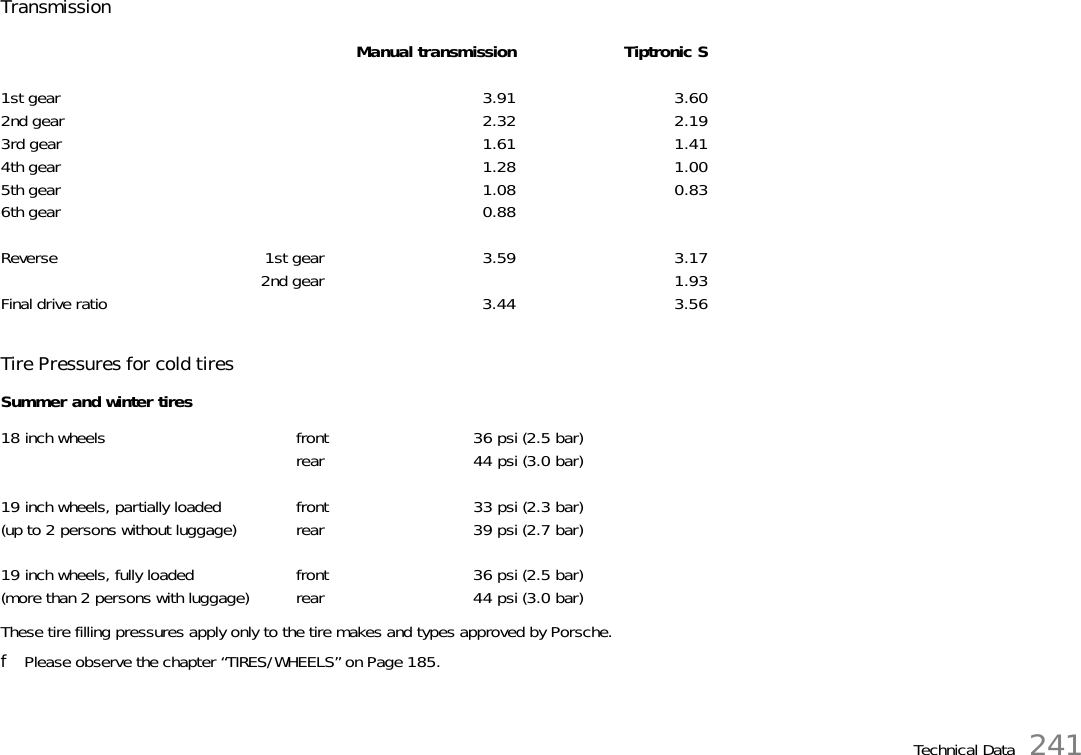

Technical Data 241Transmission Tire Pressures for cold tiresSummer and winter tiresThese tire filling pressures apply only to the tire makes and types approved by Porsche. fPlease observe the chapter “TIRES/WHEELS” on Page 185.Manual transmission Tiptronic S1st gear 3.91 3.602nd gear 2.32 2.193rd gear 1.61 1.414th gear 1.28 1.005th gear 1.08 0.836th gear 0.88Reverse 1st gear 3.59 3.172nd gear 1.93Final drive ratio 3.44 3.5618 inch wheels front 36 psi (2.5 bar)rear 44 psi (3.0 bar)19 inch wheels, partially loaded front 33 psi (2.3 bar)(up to 2 persons without luggage) rear 39 psi (2.7 bar)19 inch wheels, fully loaded front 36 psi (2.5 bar)(more than 2 persons with luggage) rear 44 psi (3.0 bar)

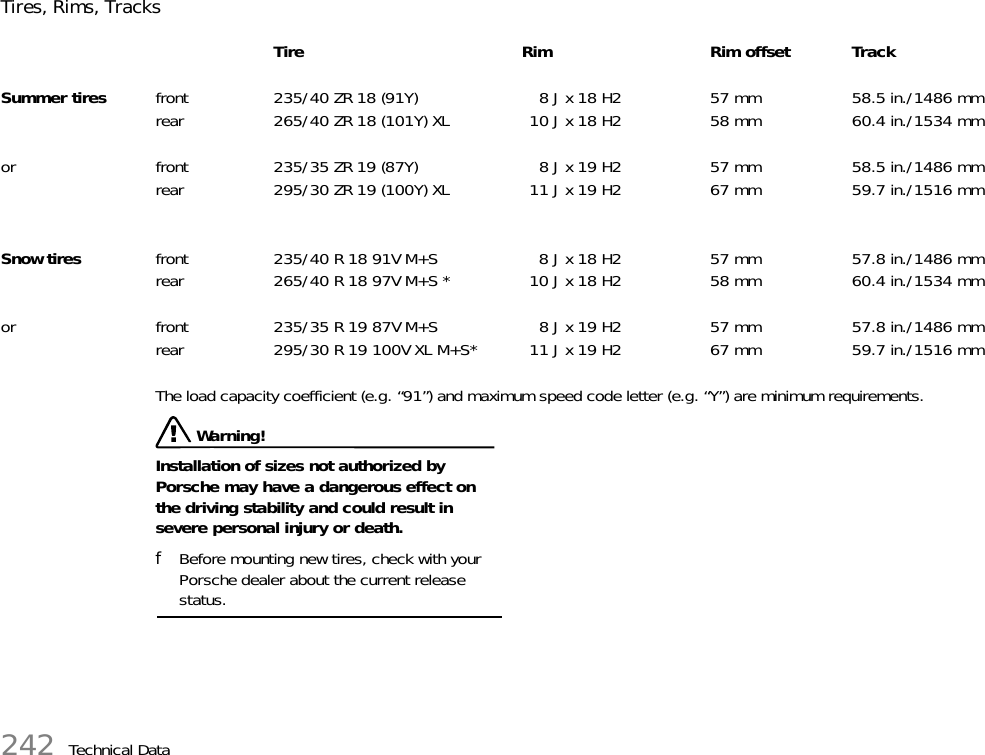

242 Technical DataTires, Rims, TracksTire Rim Rim offset TrackSummer tires front 235/40 ZR 18 (91Y) 8 J x 18 H2 57 mm 58.5 in./1486 mmrear 265/40 ZR 18 (101Y) XL 10 J x 18 H2 58 mm 60.4 in./1534 mmor front 235/35 ZR 19 (87Y) 8 J x 19 H2 57 mm 58.5 in./1486 mmrear 295/30 ZR 19 (100Y) XL 11 J x 19 H2 67 mm 59.7 in./1516 mmSnow tires front 235/40 R 18 91V M+S 8 J x 18 H2 57 mm 57.8 in./1486 mmrear 265/40 R 18 97V M+S * 10 J x 18 H2 58 mm 60.4 in./1534 mmor front 235/35 R 19 87V M+S 8 J x 19 H2 57 mm 57.8 in./1486 mmrear 295/30 R 19 100V XL M+S* 11 J x 19 H2 67 mm 59.7 in./1516 mmThe load capacity coefficient (e.g. “91”) and maximum speed code letter (e.g. “Y”) are minimum requirements. Warning!Installation of sizes not authorized by Porsche may have a dangerous effect on the driving stability and could result in severe personal injury or death.fBefore mounting new tires, check with your Porsche dealer about the current release status.

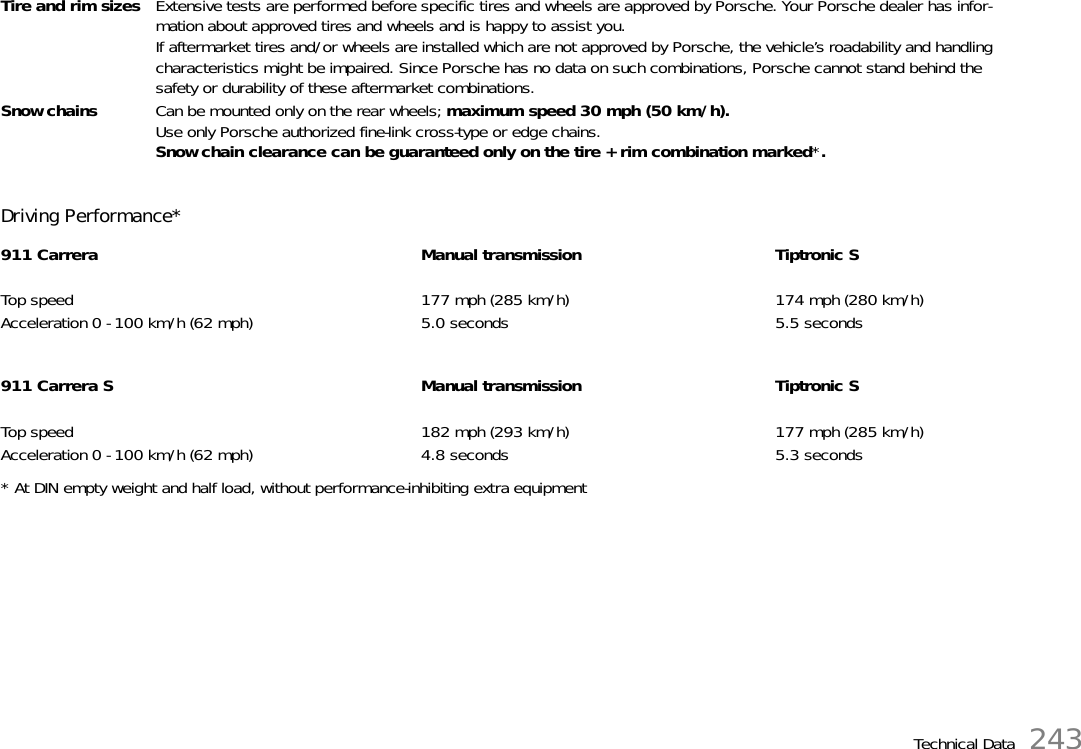

Technical Data 243Driving Performance** At DIN empty weight and half load, without performance-inhibiting extra equipment Tire and rim sizes Extensive tests are performed before specific tires and wheels are approved by Porsche. Your Porsche dealer has infor-mation about approved tires and wheels and is happy to assist you.If aftermarket tires and/or wheels are installed which are not approved by Porsche, the vehicle’s roadability and handling characteristics might be impaired. Since Porsche has no data on such combinations, Porsche cannot stand behind the safety or durability of these aftermarket combinations.Snow chains Can be mounted only on the rear wheels; maximum speed 30 mph (50 km/h). Use only Porsche authorized fine-link cross-type or edge chains. Snow chain clearance can be guaranteed only on the tire + rim combination marked*. 911 Carrera Manual transmission Tiptronic STop speed 177 mph (285 km/h) 174 mph (280 km/h)Acceleration 0 - 100 km/h (62 mph) 5.0 seconds 5.5 seconds 911 Carrera S Manual transmission Tiptronic STop speed 182 mph (293 km/h) 177 mph (285 km/h)Acceleration 0 - 100 km/h (62 mph) 4.8 seconds 5.3 seconds

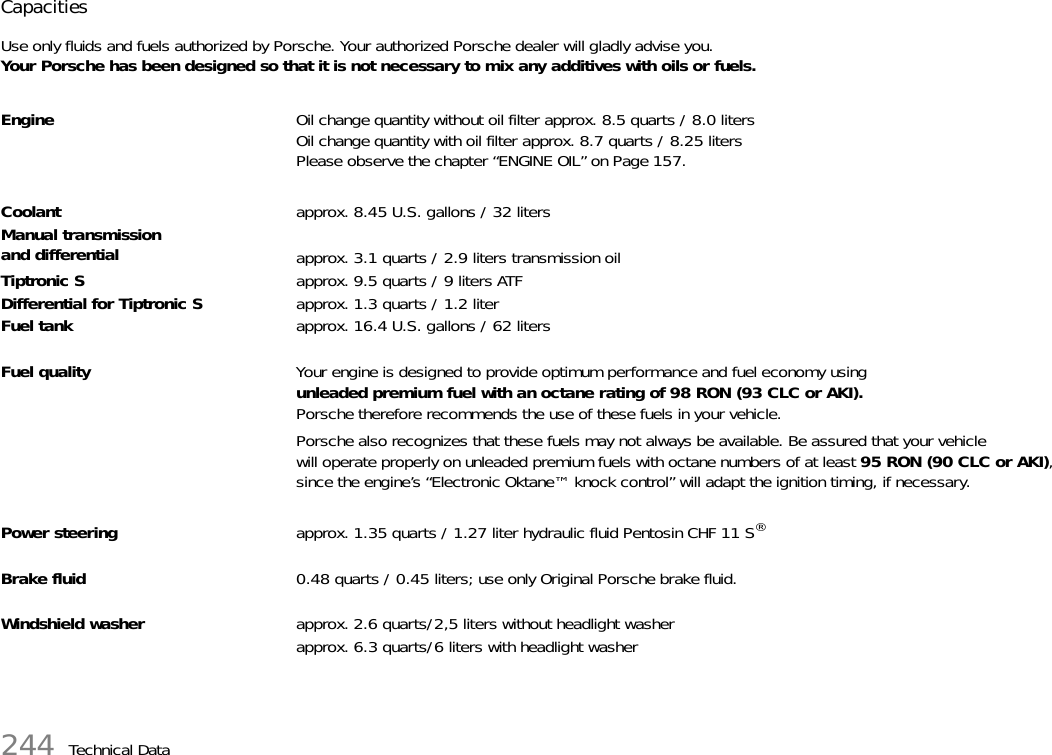

244 Technical DataCapacitiesUse only fluids and fuels authorized by Porsche. Your authorized Porsche dealer will gladly advise you.Your Porsche has been designed so that it is not necessary to mix any additives with oils or fuels. Engine Oil change quantity without oil filter approx. 8.5 quarts / 8.0 liters Oil change quantity with oil filter approx. 8.7 quarts / 8.25 liters Please observe the chapter “ENGINE OIL” on Page 157. Coolant approx. 8.45 U.S. gallons / 32 liters Manual transmission and differential approx. 3.1 quarts / 2.9 liters transmission oilTiptronic S approx. 9.5 quarts / 9 liters ATFDifferential for Tiptronic S approx. 1.3 quarts / 1.2 literFuel tank approx. 16.4 U.S. gallons / 62 litersFuel quality Your engine is designed to provide optimum performance and fuel economy using unleaded premium fuel with an octane rating of 98 RON (93 CLC or AKI). Porsche therefore recommends the use of these fuels in your vehicle. Porsche also recognizes that these fuels may not always be available. Be assured that your vehicle will operate properly on unleaded premium fuels with octane numbers of at least 95 RON (90 CLC or AKI), since the engine’s “Electronic Oktane™ knock control” will adapt the ignition timing, if necessary. Power steering approx. 1.35 quarts / 1.27 liter hydraulic fluid Pentosin CHF 11 S® Brake fluid 0.48 quarts / 0.45 liters; use only Original Porsche brake fluid. Windshield washer approx. 2.6 quarts/2,5 liters without headlight washerapprox. 6.3 quarts/6 liters with headlight washer

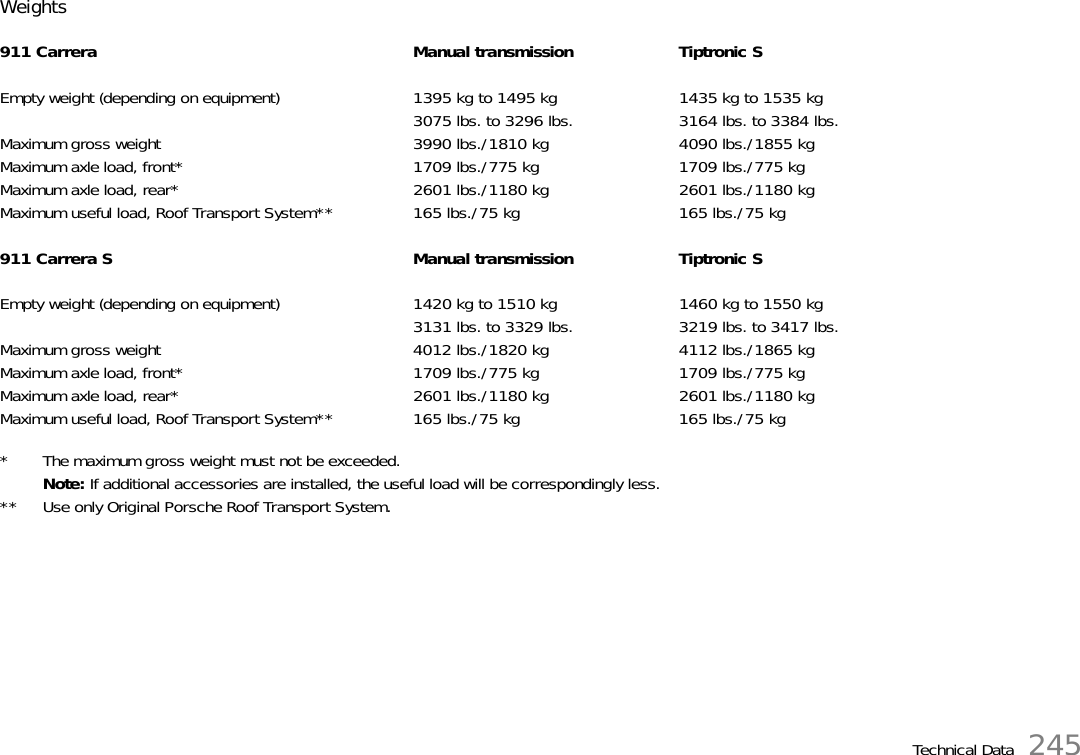

Technical Data 245Weights911 Carrera Manual transmission Tiptronic SEmpty weight (depending on equipment) 1395 kg to 1495 kg 1435 kg to 1535 kg3075 lbs. to 3296 lbs. 3164 lbs. to 3384 lbs.Maximum gross weight 3990 lbs./1810 kg 4090 lbs./1855 kgMaximum axle load, front* 1709 lbs./775 kg 1709 lbs./775 kgMaximum axle load, rear* 2601 lbs./1180 kg 2601 lbs./1180 kgMaximum useful load, Roof Transport System** 165 lbs./75 kg 165 lbs./75 kg911 Carrera S Manual transmission Tiptronic SEmpty weight (depending on equipment) 1420 kg to 1510 kg 1460 kg to 1550 kg3131 lbs. to 3329 lbs. 3219 lbs. to 3417 lbs.Maximum gross weight 4012 lbs./1820 kg 4112 lbs./1865 kgMaximum axle load, front* 1709 lbs./775 kg 1709 lbs./775 kgMaximum axle load, rear* 2601 lbs./1180 kg 2601 lbs./1180 kgMaximum useful load, Roof Transport System** 165 lbs./75 kg 165 lbs./75 kg* The maximum gross weight must not be exceeded.Note: If additional accessories are installed, the useful load will be correspondingly less.** Use only Original Porsche Roof Transport System.

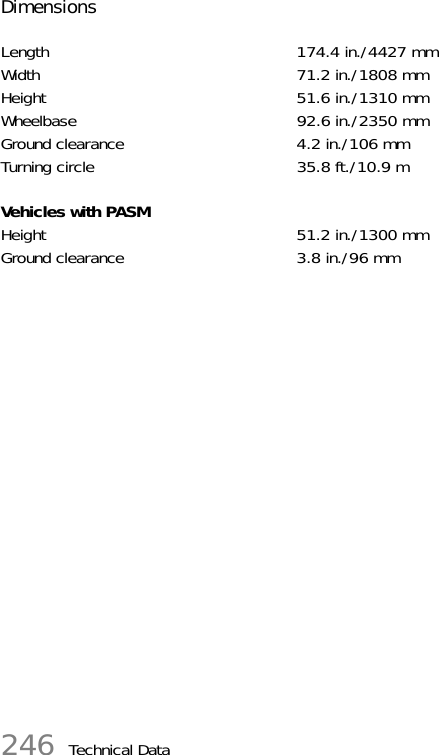

246 Technical DataDimensionsLength 174.4 in./4427 mmWidth 71.2 in./1808 mmHeight 51.6 in./1310 mmWheelbase 92.6 in./2350 mmGround clearance 4.2 in./106 mmTurning circle 35.8 ft./10.9 mVehicles with PASMHeight 51.2 in./1300 mmGround clearance 3.8 in./96 mm
Technical Data 247Diagrams Acceleration diagram Values have been determined at DIN empty weight and with a 50 % load without additional equipment. Transmission diagram The transmission diagram is based on standard values on the basis of a mean effective scrub ra-dius. Changes of the scrub radius, the tire toler-ance, wear and tear, deviating country equipment and tire slip have not been taken into account.Engine diagram at full power – 911 Carrera

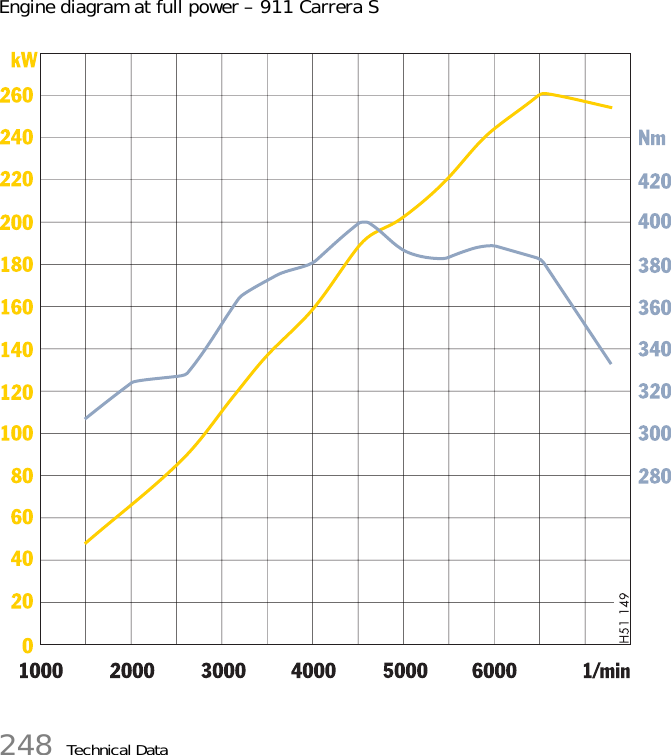

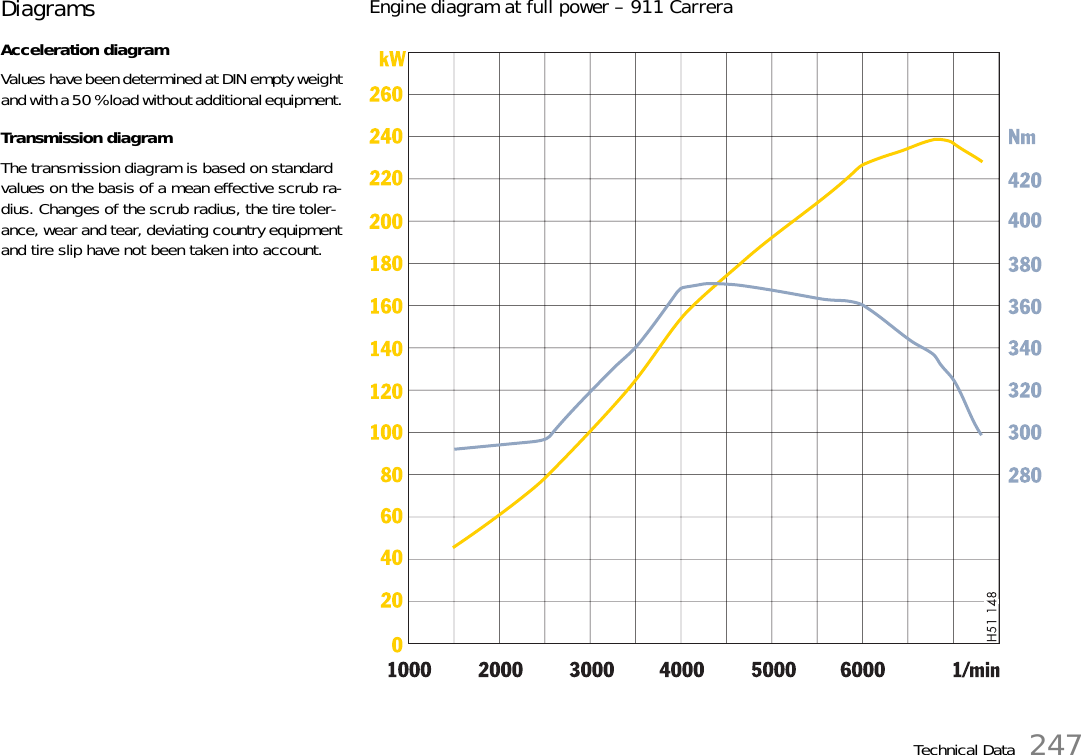

248 Technical DataEngine diagram at full power – 911 Carrera S

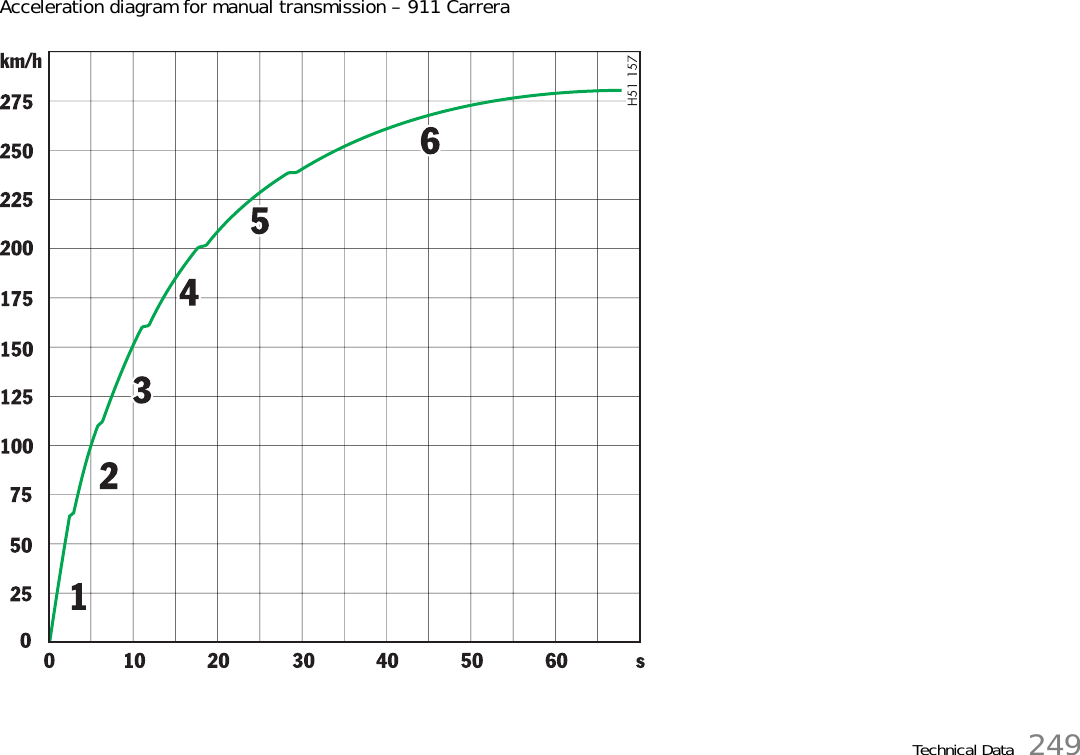

Technical Data 249Acceleration diagram for manual transmission – 911 Carrera

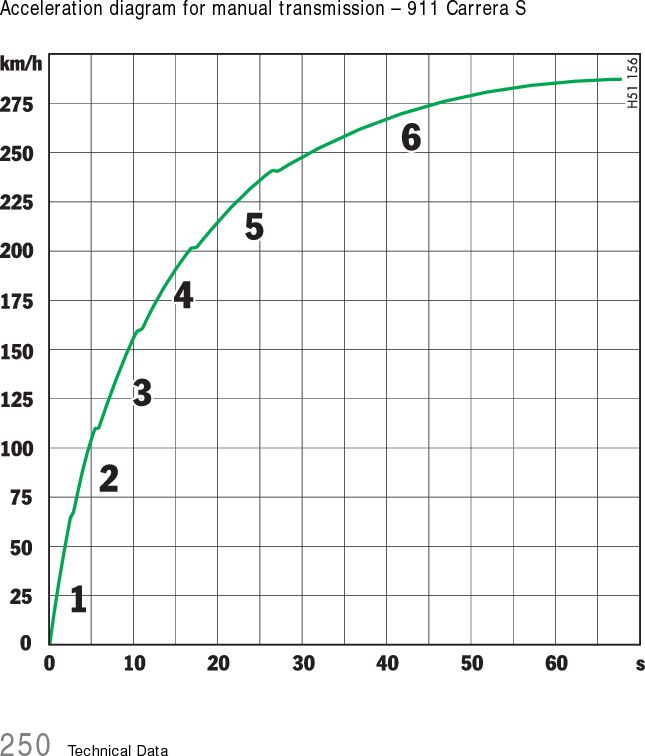

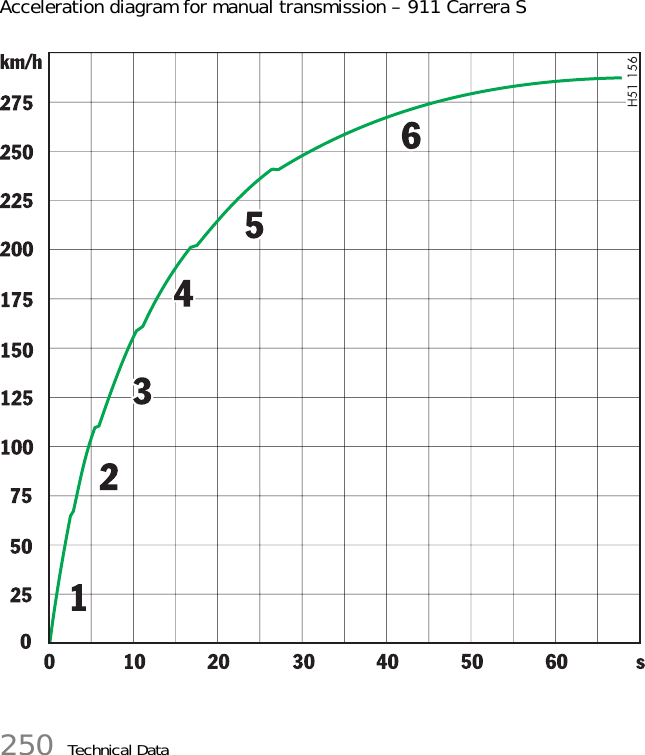

250 Technical DataAcceleration diagram for manual transmission – 911 Carrera S
Technical Data 251

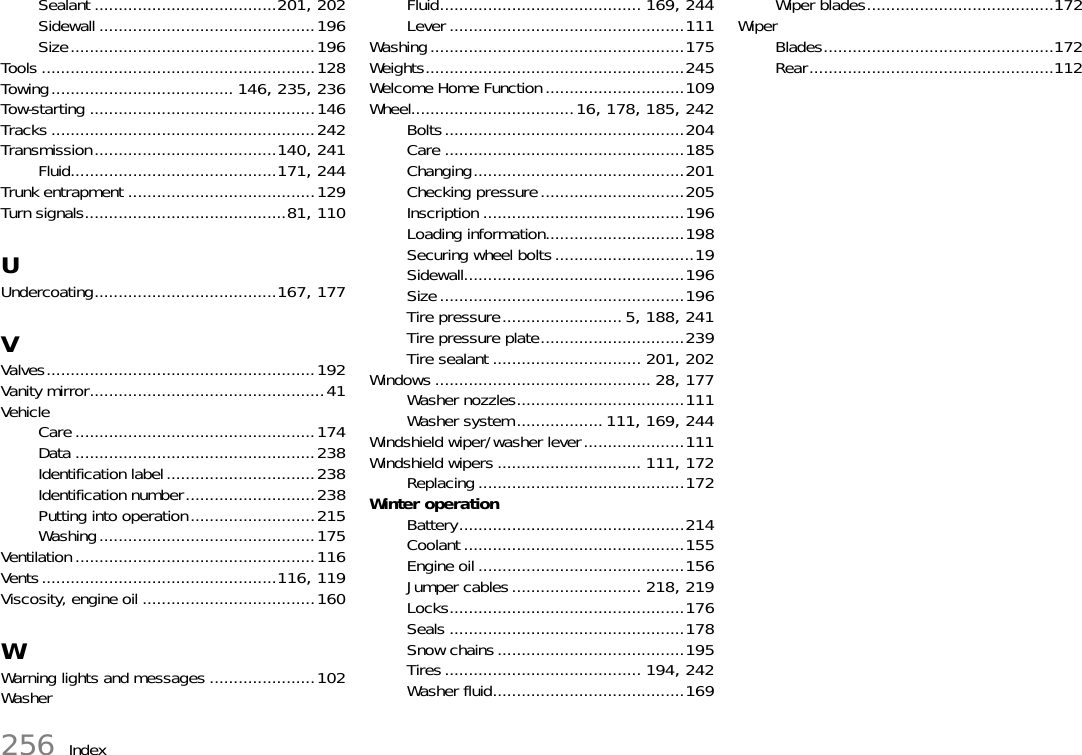

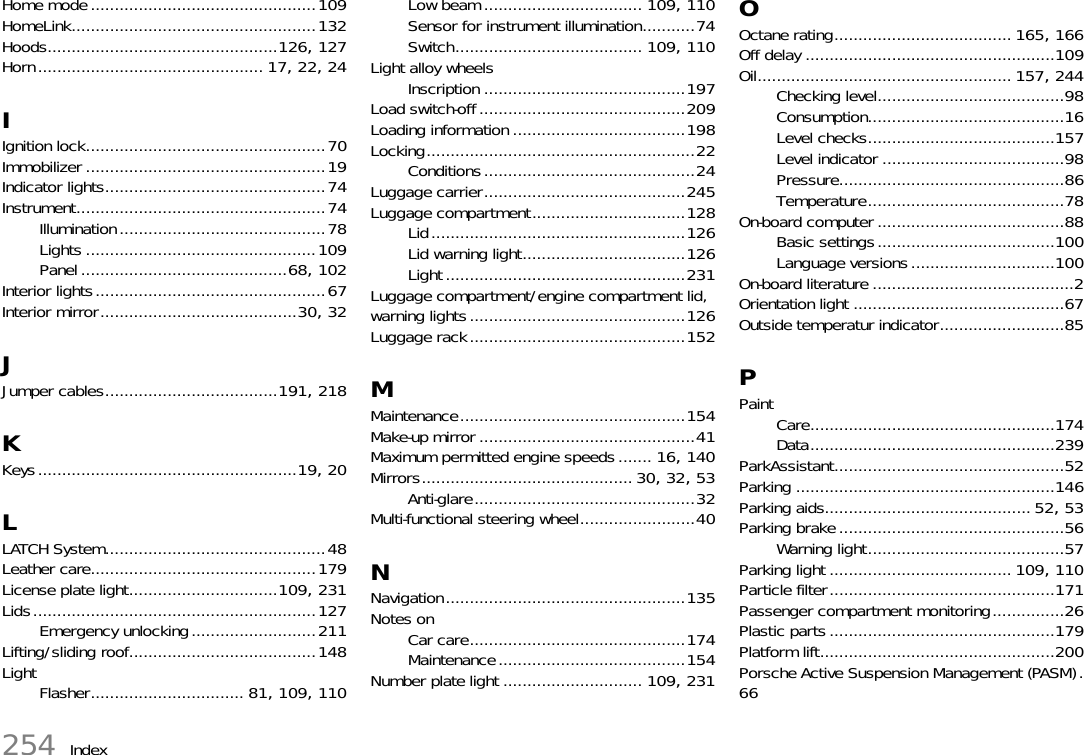

252 IndexIndexAABS (antilock brake system) ..........................60Warning light ........................................61Air distribution............................................116Air filter......................................................171Airbag....................................................50, 51Disposal...............................................51Switching off passenger airbag..............49Warning light ........................................51Air-conditioning compressor ................116, 118Alarm system .......................................26, 138Alcantara ...................................................180Antenna .............................................138, 175Antifreeze...................................................155Antilock brake system (ABS)..........................60Warning light ........................................61Ashtray......................................................120Assembly aids for wheel changes.................206Audio operation..................................136, 137Auto-button, air conditioning ........................116Automatic ..................................................171Air conditioning system .......................116Anti-glare mirrors..................................32Car washes........................................175Door locking.........................................21Headlight adjustment...........................110Locking retractor..................................44Speed control...................... 78, 114, 115Average consumption ...........................89, 101Average speed.....................................89, 101BBackrestAdjustment...........................................34Release................................................34Battery.......................................................212Care ..................................................213Charging ............................................213Putting vehicle into operation ...............215Remote control...................................217Removing...........................................216Warning light.........................................86Winter operation .................................214Before driving off................................... 14, 15Belts................................................... 42, 180Height adjustment.................................44Tensioner.............................................42Warning light.........................................43Blower adjustment ............................. 117, 119Brake light......................................... 230, 232Brakes.......................................................161Brake circuit division warning light........162Brake pad warning light.........................87Fluid.......................................... 161, 244Fluid warning light ...............................162Pads............................................. 16, 59Parking brake .......................................56Test stand............................................65Break in hints................................................16Bulbs, replacing..........................................220CCanholder...................................................122Capacities..................................................244Car care.....................................................174Car telephone.............................................138Car washes ................................................175Carpet........................................................180Catalytic converters ....................................168Cautions............................................ 154, 184Central locking..............................................22emergency operation.............................23Central vents ..............................................119Central warning light......................................87Changing wheels.........................................206Check engineWarning light.........................................87Checking pressure ......................................205Child restraintAnchorages ..........................................45Switching off passenger airbag ..............49System.................................................46CHRONO stopwatch ......................................93Cigarette lighter..........................................121Circulating-air button....................................118Clock .................................................. 85, 101Clothes hook ..............................................124Clutch ................................................. 56, 140Comfort seat................................................34Coming Home mode ...................................109Compact discPlayer and Changer.............................137
Index 253Storage..............................................125Compartment monitoring...............................26Coolant................................................82, 155Level..................................................155Temperature gauge ..............................82Warning light ........................................82Cooling system.....................................82, 155Cruise control.............................. 86, 114, 115Cupholder ..................................................122DDashboard ...................................................68Data bank ..................................................238Defrosting windows...............................33, 117Diagnostic socket.................................17, 210Diagrams...................................................247Dimensions ................................................246Door............................................................21Guard lights........................................231Handles................................................21Locks...........................................21, 176Mirror ..................................................32Mirror heating.......................................33Windows ............................... 21, 28, 177Driving hints .................................................14Driving in winter..........................................146Driving performance ...................................243Drop-center rim ..........................................197DVD Navigation...................................128, 135EElectrical system ........................................208Emergency flasher......................................108Emergency operationCentral locking......................................23Lids ...................................................211Sliding roof.........................................150Tank flap............................................164Emergency service......................................184Emergency starting with jumper cables 218, 219Emission control system...........7, 87, 167, 168EngineChecking the oil level.............................98Exhaust..................................................9Number..............................................239Oil consumption........................... 16, 157Oil level..............................................157Oil level indicator...................................98Oil pressure..........................................86Oil temperature.....................................78Oils........................................... 157, 244Speeds ....................................... 16, 243Starting................................................72Stopping ..............................................73Engine compartmentBlower .......................................... 73, 82Lid............................................ 126, 127Lid warning light..................................126Light ..................................................231Environment ...................................................6FFilling pressure, tire................................ 5, 241Fire extinguisher .........................................131Floor mats..................................................180Fluids and fuels...........................................244Fog lights...................................................109Footbrake.................................................... 57Footwell lights............................................ 231Fresh air intake.......................................... 119Front lid..................................................... 127Fuel.................................................4, 84, 164Containers..................................... 8, 166Economy........................................... 163Evaporation control ............................ 169Level gauge......................................... 84Level warning light................................ 84Recommendation ....................... 165, 166Tank.................................................. 165Function keys............................................... 40Fuses........................................................ 210GGarage door opener................................... 132Garage lift ................................................. 200Glove compartment.................................... 125Gong.......................................18, 71, 90, 109Ground clearance........................................... 9HHandbrake................................................... 56Headlights......................................... 110, 222Adjusting ...................................233, 234Cleaning system.................111, 169, 244Headlights beam adjustment....................... 110Heated rear window...................................... 33Heater....................................................... 116High beamIndicator light....................................... 81Lever................................................. 109
254 IndexHome mode...............................................109HomeLink...................................................132Hoods................................................126, 127Horn............................................... 17, 22, 24IIgnition lock..................................................70Immobilizer ..................................................19Indicator lights..............................................74Instrument....................................................74Illumination...........................................78Lights ................................................109Panel ...........................................68, 102Interior lights................................................67Interior mirror.........................................30, 32JJumper cables....................................191, 218KKeys......................................................19, 20LLATCH System..............................................48Leather care...............................................179License plate light...............................109, 231Lids...........................................................127Emergency unlocking..........................211Lifting/sliding roof.......................................148LightFlasher................................ 81, 109, 110Low beam ................................. 109, 110Sensor for instrument illumination...........74Switch....................................... 109, 110Light alloy wheelsInscription ..........................................197Load switch-off...........................................209Loading information ....................................198Locking........................................................22Conditions............................................24Luggage carrier..........................................245Luggage compartment................................128Lid.....................................................126Lid warning light..................................126Light..................................................231Luggage compartment/engine compartment lid, warning lights.............................................126Luggage rack.............................................152MMaintenance...............................................154Make-up mirror .............................................41Maximum permitted engine speeds....... 16, 140Mirrors............................................30, 32, 53Anti-glare..............................................32Multi-functional steering wheel........................40NNavigation..................................................135Notes onCar care.............................................174Maintenance.......................................154Number plate light ............................. 109, 231OOctane rating..................................... 165, 166Off delay ....................................................109Oil..................................................... 157, 244Checking level.......................................98Consumption.........................................16Level checks.......................................157Level indicator ......................................98Pressure...............................................86Temperature.........................................78On-board computer .......................................88Basic settings.....................................100Language versions..............................100On-board literature ..........................................2Orientation light ............................................67Outside temperatur indicator..........................85PPaintCare...................................................174Data...................................................239ParkAssistant................................................52Parking ......................................................146Parking aids........................................... 52, 53Parking brake ...............................................56Warning light.........................................57Parking light ...................................... 109, 110Particle filter...............................................171Passenger compartment monitoring...............26Plastic parts ...............................................179Platform lift.................................................200Porsche Active Suspension Management (PASM).66
Index 255Porsche Ceramic Composite Brake (PCCB).......8Porsche Communication Management (PCM) 135Porsche Stability Management (PSM)..............63Information light....................................65Power measurements .................................154Power steering fluid level.....................170, 244Power windows.......................................21, 28Practical tips..............................................184RRadiator fan .........................................73, 156Radio reception ..........................................136Rain sensor................................................111Range on remaining fuel........................89, 101Reading light ........................................67, 232Rear fog light .............................................109Rear lid......................................................126Rear seat backrests......................................39Rear spoiler..................................................54Rear view mirrors ...................................30, 32Rear window defogger ..................................33Rear window wiper......................................112Recycling.......................................................7Reduced driving program, Tiptronic..............146Relays........................................................208Release button ...........................................141Remote control.............................................20Replacement key..........................................19Replacing bulbs..........................................220Replacing wiper blades................................172RimsDiameter............................................197Rim width...........................................197Roof Transport System........................152, 245Running in ....................................................16SSafety belts......................................... 42, 180Height adjustment.................................44Tensioner.............................................42Warning light.........................................43Safety compliance sticker............................238Sealing set.................................................202Seals .........................................................178Seat Adjustment...........................................34Heating ................................................38Memory................................................36Selector lever.............................................141Selector lever position indicator............ 83, 142Shifting gear...............................................140Side marker light ............................... 109, 229Side vents..................................................119Sliding roof.................................................148Slip monitoring ...........................................146Snow chains...............................................195Snow tires..................................................194Socket.......................................................208Spare key.............................................. 19, 20Speed code letter.......................................196Speed control..............................78, 114, 115Speed limit.......................................... 90, 196Speedometer................................................80Spoiler.........................................................54Sport mode........................................... 62, 66Sports seat ..................................................34Sport-type running gear...............................246Stability management system.........................63Starting....................................................... 71Starting engine ............................................ 72Steering lock ............................................... 70Steering wheelAdjustment .......................................... 39Function keys....................................... 40Lock.................................................... 71Rocker switches................................. 141Stopping engine........................................... 73Stopwatch................................................... 93Storage options......................................... 124Storing your Porsche.................................. 181Sun visors ................................................... 41Switching passenger airbag off/on................ 49TTachometer ................................................. 81Tank..........................................164, 165, 244Ventilation system .............................. 169Technical data............................................ 240Telephone.................................................. 138Temperature setting ................................... 116Temperature, outside indicator...................... 85Test stand, measurements............................ 65Theft protection........................................... 18Tiptronic.................................................... 141Indicator.............................................. 83Tires ...........................................16, 185, 242Care.................................................. 185Checking pressure ............................. 205Inscription.......................................... 196Loading information............................ 198Pressure................................5, 188, 241Pressure plate.................................... 239
256 IndexSealant ......................................201, 202Sidewall .............................................196Size...................................................196Tools .........................................................128Towing...................................... 146, 235, 236Tow-starting ...............................................146Tracks .......................................................242Transmission......................................140, 241Fluid...........................................171, 244Trunk entrapment .......................................129Turn signals..........................................81, 110UUndercoating......................................167, 177VValves........................................................192Vanity mirror.................................................41VehicleCare ..................................................174Data ..................................................238Identification label...............................238Identification number...........................238Putting into operation..........................215Washing.............................................175Ventilation ..................................................116Vents.................................................116, 119Viscosity, engine oil ....................................160WWarning lights and messages ......................102WasherFluid.......................................... 169, 244Lever .................................................111Washing.....................................................175Weights......................................................245Welcome Home Function.............................109Wheel..................................16, 178, 185, 242Bolts..................................................204Care ..................................................185Changing............................................201Checking pressure..............................205Inscription ..........................................196Loading information.............................198Securing wheel bolts.............................19Sidewall..............................................196Size...................................................196Tire pressure......................... 5, 188, 241Tire pressure plate..............................239Tire sealant ............................... 201, 202Windows ............................................. 28, 177Washer nozzles...................................111Washer system.................. 111, 169, 244Windshield wiper/washer lever.....................111Windshield wipers .............................. 111, 172Replacing ...........................................172Winter operationBattery...............................................214Coolant ..............................................155Engine oil ...........................................156Jumper cables........................... 218, 219Locks.................................................176Seals .................................................178Snow chains.......................................195Tires......................................... 194, 242Washer fluid........................................169Wiper blades.......................................172WiperBlades................................................172Rear...................................................112
Index 257
Fuel Quality 4Tire Pressures for Cold Tires 5Porsche and the Environment 6Porsche Ceramic Composite Brake (PCCB) 8Setting and operating vehicle components when driving 8Portable Fuel Containers 8Engine Exhaust 9Ground Clearance 9Before driving off... 14Break in hints for the first 2,000 miles/3,000 kilometers 16Keys 19Security Wheel Bolts 19Doors 21Central Locking 22Alarm System, Passenger Compartment Monitoring 26Power Windows 28Inside mirror 30Door Mirrors 30Rear Window Defogger, Door Mirror Heating 33Seat Adjustment 34Seat Memory 36Heated Seats 38Rear Seat Backrests 39Steering Wheel Adjustment 39Multi-Functional Steering Wheel 40Sun Visors 41Safety Belts 42Child Restraint Anchorages 45Child Restraint Systems 46LATCH SystemChild seat bracket on the passenger’s seat 48Airbag Systems 50Parking Aids 52
Bedienung, Sicherheit, Instrumente 2Retractable Rear Spoiler 54Clutch Pedal 56Parking Brake 56Brakes 57ABS Brake System(Antilock Brake System) 60Sport Mode 62Porsche Stability Management (PSM) 63Porsche Active Suspension Management (PASM) 66Interior Lights 67Operation, Instruments 68Ignition/Starter Switch with anti-theft Steering Lock 70Starting Procedures 72Stopping Engine 73Instrument Panel USA Models 74Instrument Panel Canada Models 76Engine oil temperature 78Automatic Speed Control Indicator light 78Instrument Illumination 78Trip Odometer 79Speedometer 80Changing over betweenMiles / Kilometers 80Tachometer 81Turn Signal Indicator Light 81High Beam 81Cooling System 82Tiptronic 83Fuel 84Clock 85Outside temperature 85Engine Oil Pressure 86Check Engine Warning Light 87On-Board Computer (BC) 88Emergency Flasher Switch 108Light Switch 109Welcome Home Lighting 109Automatic Headlight Beam Adjustment 110Turn Signal / Headlight Dimmer /Parking light / Flasher Lever 110Windshield Wiper / Washer Lever 111Automatic Speed Control 114Automatic Air Conditioning System 116Central and Side Vents 119Fresh-air Intake 119Ashtray 120Cigarette Lighter 121Cupholder 122Storage in the Passenger Compartment 124Luggage Compartment Lid and Engine Compart-ment Lid 126Luggage Compartment 128Trunk Entrapment 129Fire Extinguisher 131HomeLink 132Porsche Communication Management (PCM) 135Car Telephone andAftermarket Alarms 138Manual Transmission, Clutch 140Tiptronic S 141Lifting/Sliding Roof 148Roof Transport System 152Exercise Extreme Caution when Working on your Vehicle 154Coolant Level 155Engine Oil 157Engine Oil Level 157Engine Oil Recommendation 159Brake Fluid Level 161Fuel Economy 163Operating Your Porsche in other Countries 163Fuel Recommendations 165Portable Fuel Containers 166Emission Control System 167How Emission Control Works 168Fuel Evaporation Control 169Washer Fluid 169Power Steering 170Air Filter 171Combination Filter 171Manual Transmission Oil 171Automatic Transmission Fluid 171Wiper Blades 172Car Care Instructions 174Exercise Extreme Caution when Working on your Vehicle 184Tires/Wheels 185Loading Information 198Lifting the Vehicle with a Lifting Platform or Garage Lift 200Flat Tire 201Wheel Bolts 204Electrical System 208Battery 212Emergency Starting with Jumper Cables 218Lights, Replacing Bulbs 220Headlights 222Tail Light 230License Plate Light 231Luggage Compartment/Engine Compartment/
Footwell Light 231Door Guard/Curb Light 231Interior Light, Reading Lights 232Adjusting Headlights 233Towing 235Technical Data 240Diagrams 247

Navigation menu
