APPENDIX H

USER MANUAL

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 1 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

By Date Signature

Drawn RBAU-EB/EBS2-JL 03/10/06

Checked RBAU-EB/EBS2-VA 03/10/06

Approved RBAU-EB/EBS2 03/10/06

1. ALTERATION LIST

Issue

No. Alteration Number, Description Valid From By Checked

1.0 New Specification for ABIC1 Solution 03/10/06 EBS2/JL

“WARNING: ANY CHANGES OR MODIFICATIONS NOT EXPRESSIVELY APPROVED BY ROBERT BOSCH

(AUSTRALIA) PTY LTD COULD VOID THE USER’S AUTHORITY TO OPERATE THIS EQUIPMENT.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION

IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY

NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST

ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT

MAY CAUSE UNDESIRED OPERATION.

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 2 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

TABLE OF CONTENTS

1. ALTERATION LIST..........................................................................................................................................................1

2. TABLE OF CONTENTS....................................................................................................................................................2

3. APPLICABLE DOCUMENTS ..........................................................................................................................................5

4. INTRODUCTION...............................................................................................................................................................5

4.1.1 Immobiliser Background..........................................................................................................................................5

4.1.1.1 Model : Proposed Smartra3................................................................................................................................................5

4.1.2 Document description...............................................................................................................................................6

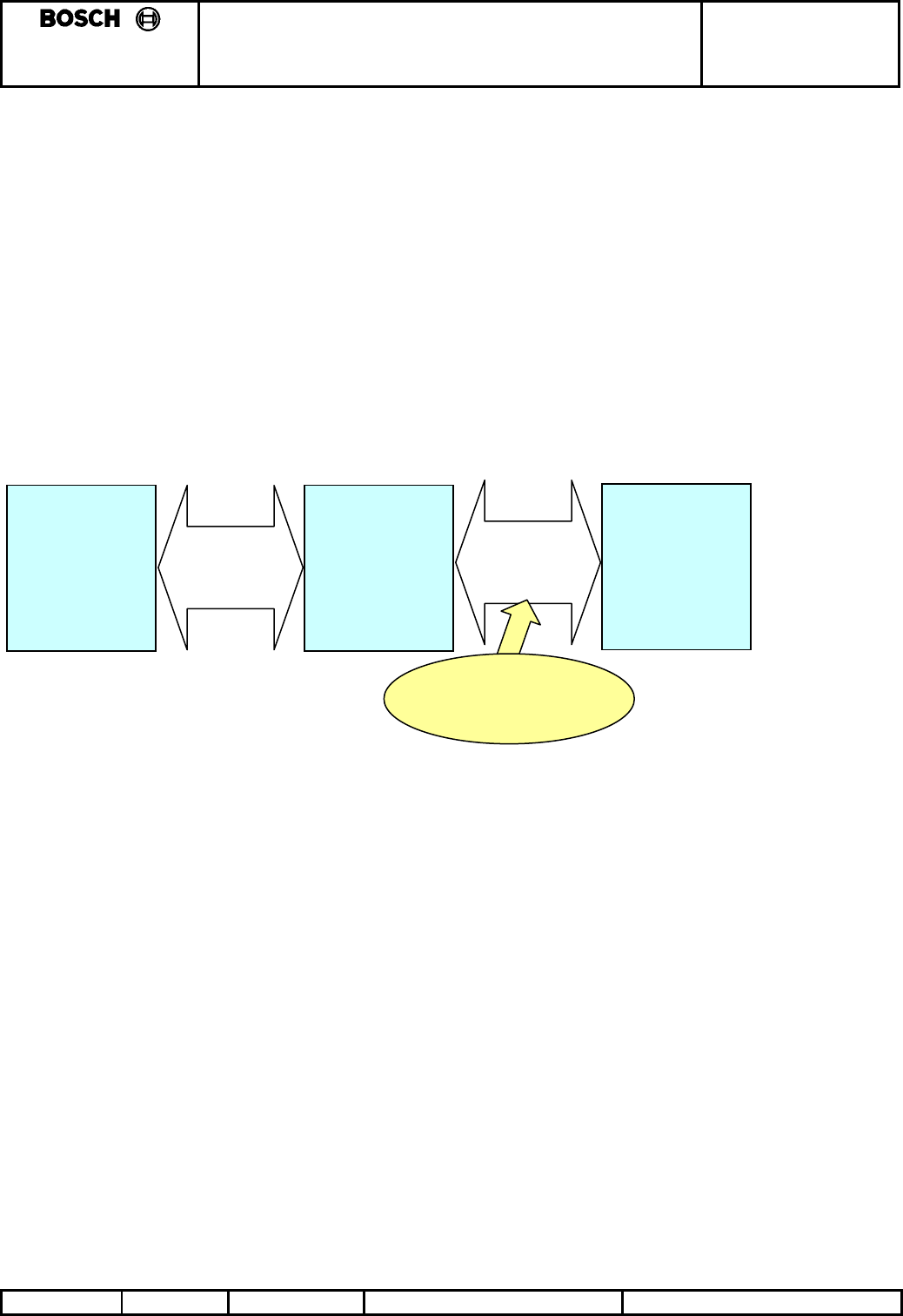

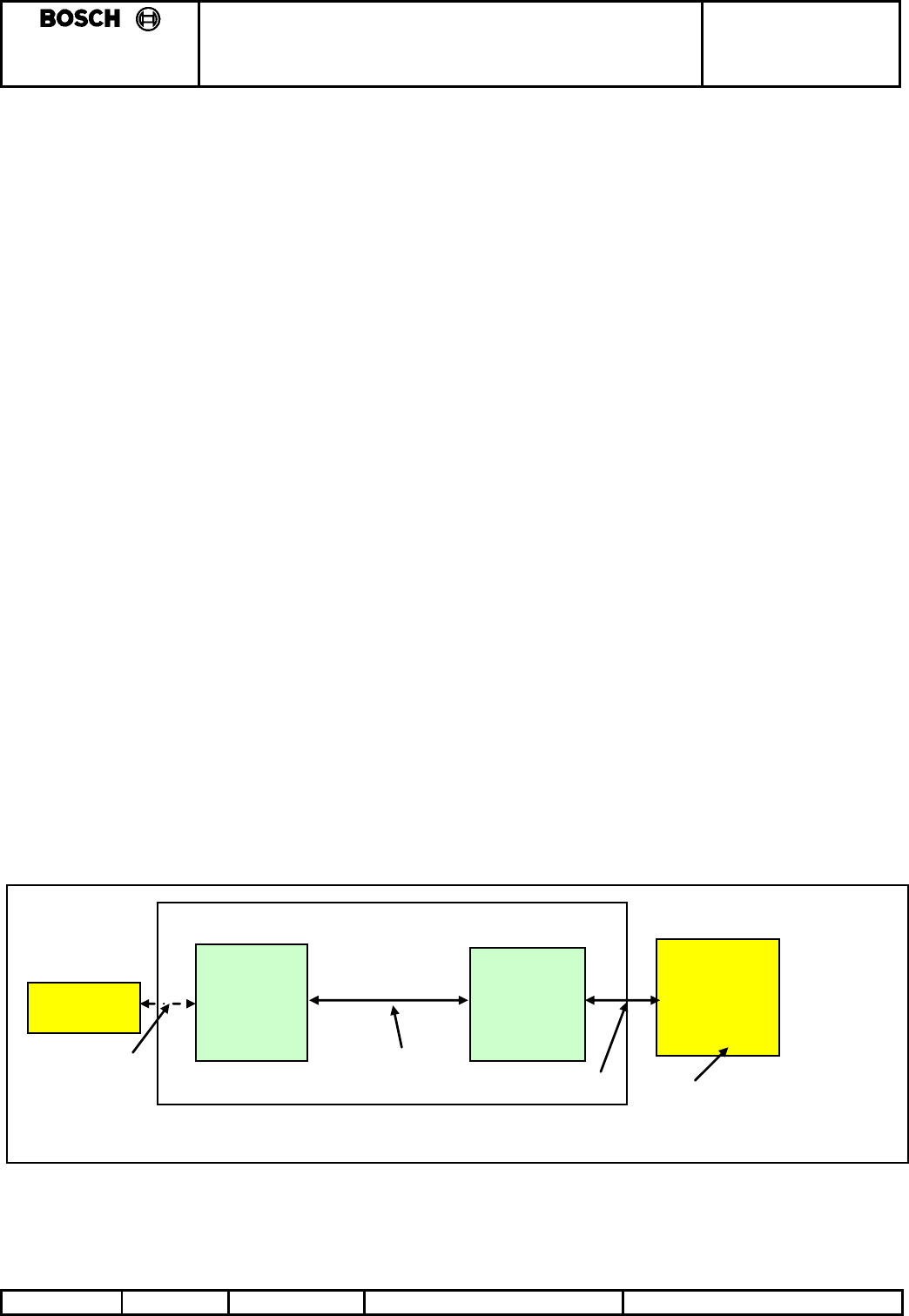

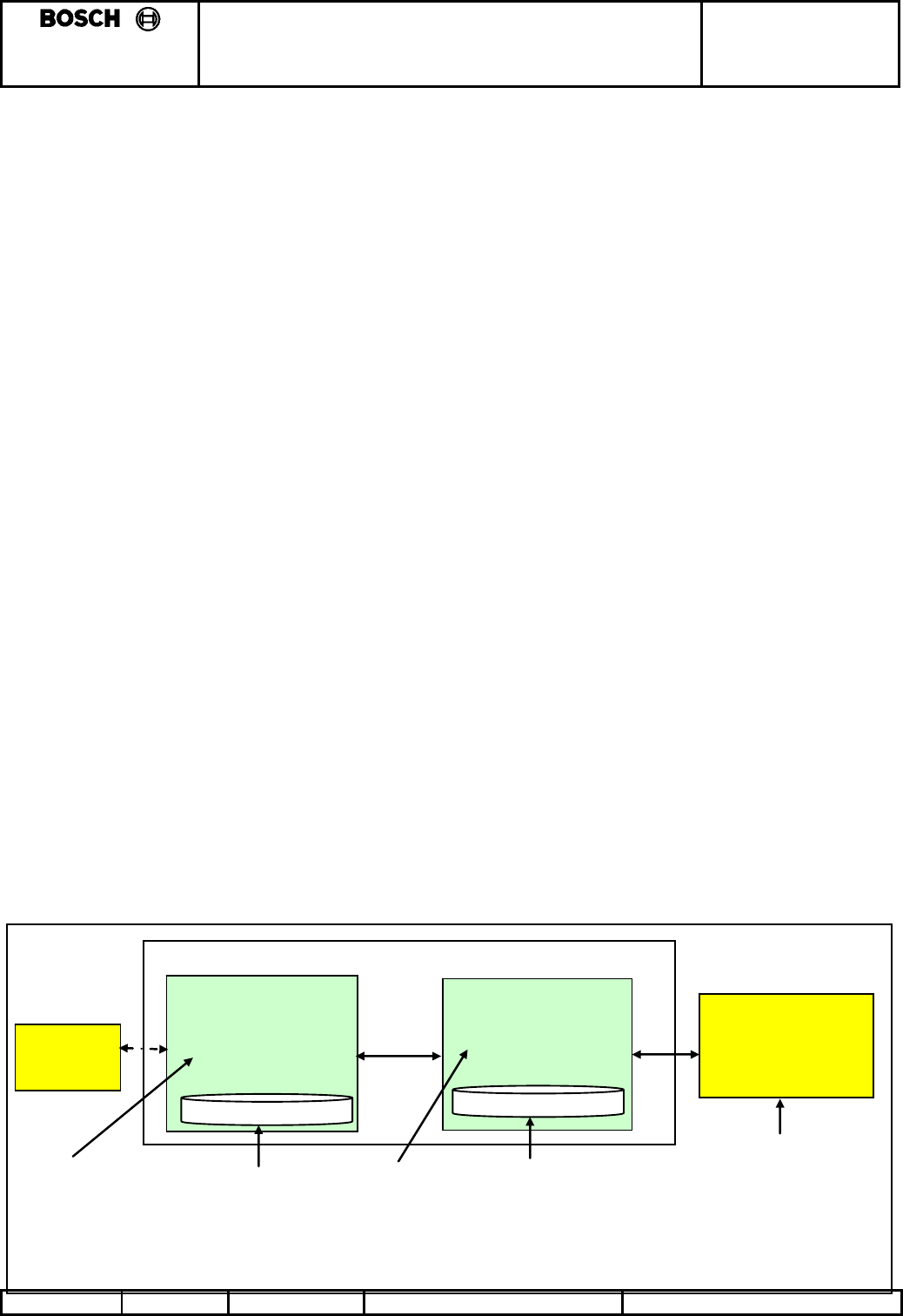

4.1.3 Diagram: Smartra communications interfaces ........................................................................................................6

4.2 EMS TO SMARTRA COMMUNICATIONS DESCRIPTION (OSI MODEL):.............................................................................7

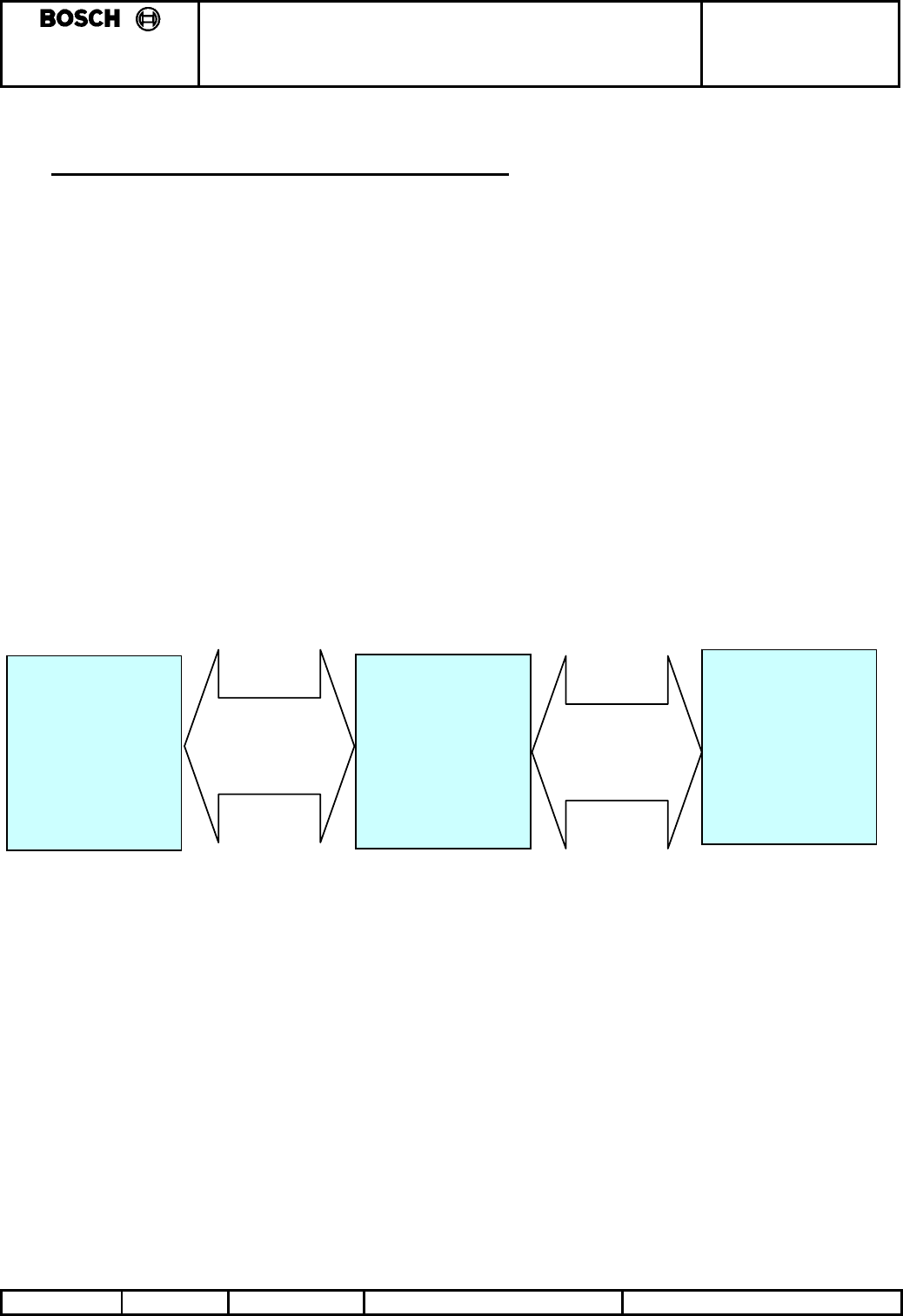

4.2.1 Diagram: OSI model................................................................................................................................................7

4.2.1.1 Requirements from customer.............................................................................................................................................8

4.2.2 Proposed Solution ....................................................................................................................................................8

4.2.3 Diagram Showing Proposed Design:.......................................................................................................................8

4.2.4 States of the smartra.................................................................................................................................................9

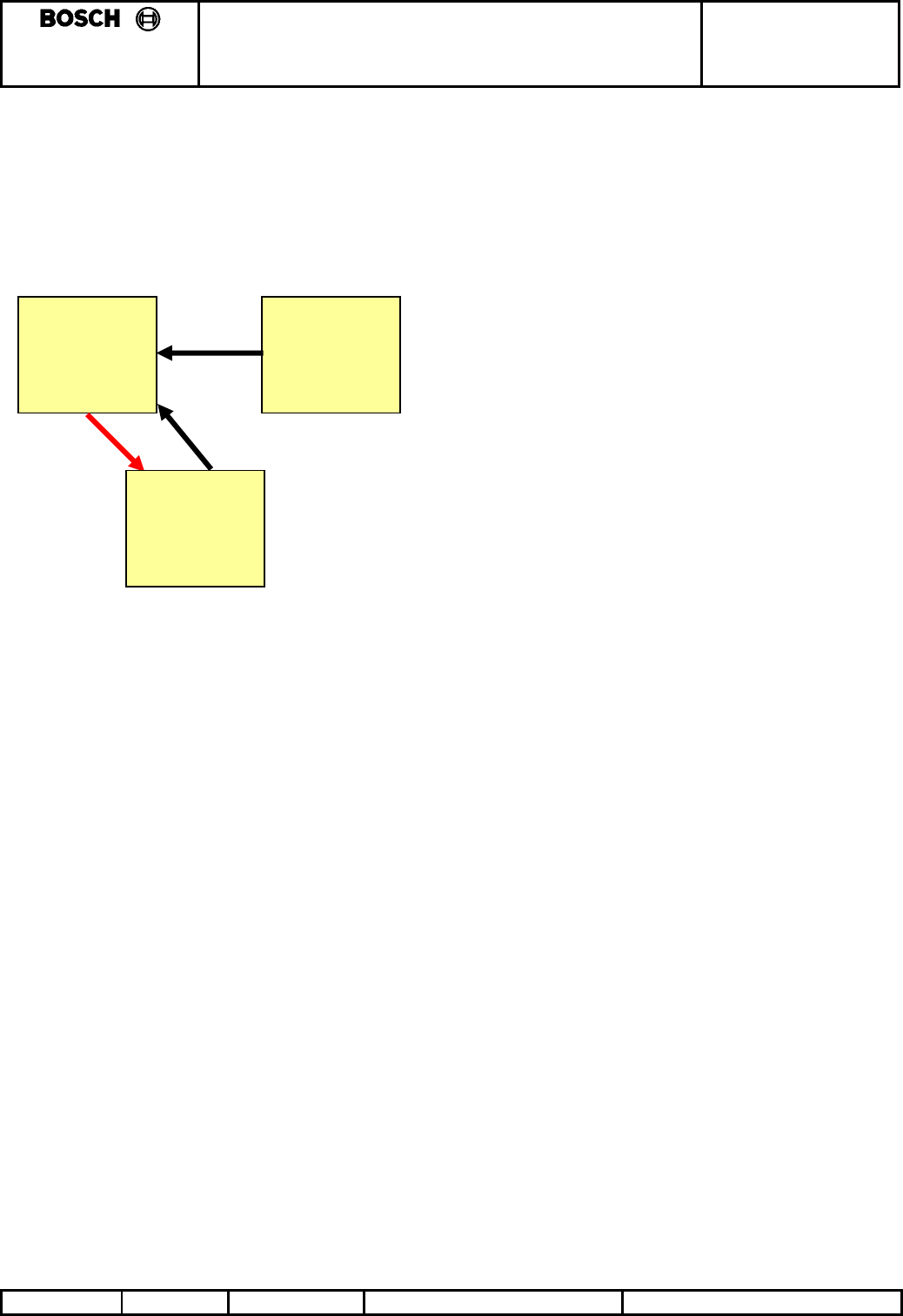

4.2.4.1 State transition Diagram: ...................................................................................................................................................9

4.2.4.1.1 States:............................................................................................................................................................................9

4.2.4.1.2 State Transitions: ..........................................................................................................................................................9

4.2.5 System security .......................................................................................................................................................10

4.2.6 Secret Encryption Key (SEK) Learning..................................................................................................................10

4.2.6.1 Diagram: Secret Key learning flow .................................................................................................................................10

4.3 ASSUMPTIONS MADE...................................................................................................................................................12

4.4 REFERENCES................................................................................................................................................................12

5. MESSAGE STRUCTURE BETWEEN EMS AND SMARTRA ..................................................................................13

5.1.1 Data Packet Breakdown.........................................................................................................................................13

5.2 06H - ACKNOWLEDGE..................................................................................................................................................14

5.3 53H - SOFTWARE VERSION. .........................................................................................................................................14

5.4 4BH - TRANSPONDER IDE (PRE ID MATCHING) .........................................................................................................15

5.4.1 0x4B – (Existing) Pre Secret Encryption Key – kept for backwards compatibility................................................15

5.4.2 0x4B – New – Secret Encryption Key – with Encryption check. ............................................................................15

5.5 41H - TRANSPONDER AUTHENTICATION......................................................................................................................16

5.6 57H - TRANSPONDER WRITE EEPROM PAGE. ............................................................................................................16

5.7 52H - TRANSPONDER READ EEPROM PAGE ...............................................................................................................16

5.8 4EH – NEUTRALISE A [LEARNT] SMARTRA..................................................................................................................17

5.9 54H – TEACH SMARTRA...............................................................................................................................................17

5.10 15H - NEGATIVE RESPONSES........................................................................................................................................18

6. MESSAGE FLOW BETWEEN EMS, SMARTRA AND TRANSPONDER...............................................................19

6.1 BACKGROUND .............................................................................................................................................................19

6.1.1 Starting Communications.......................................................................................................................................19

6.1.2 Stopping Communications......................................................................................................................................19

6.1.3 (Re)Teaching Mode................................................................................................................................................19

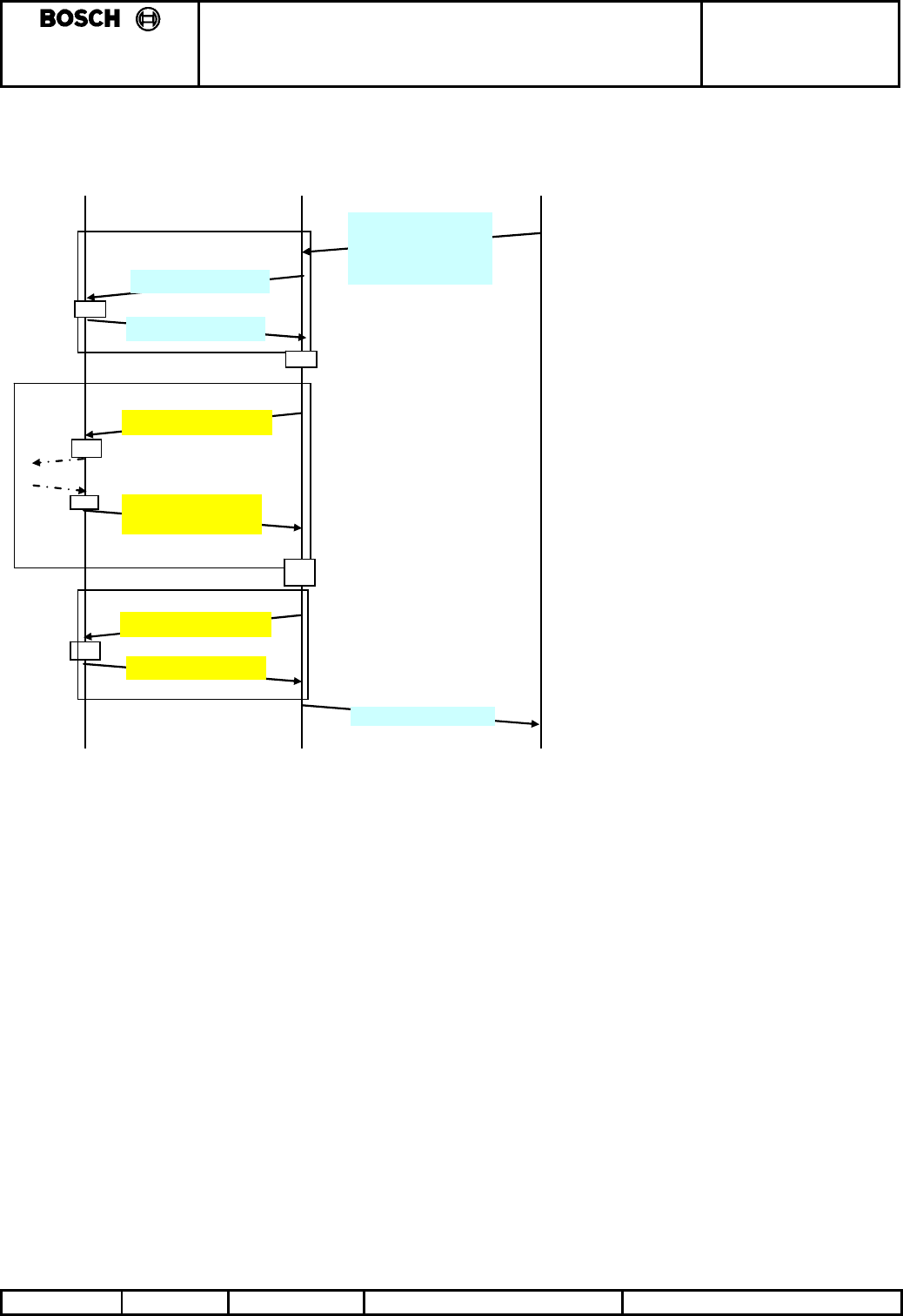

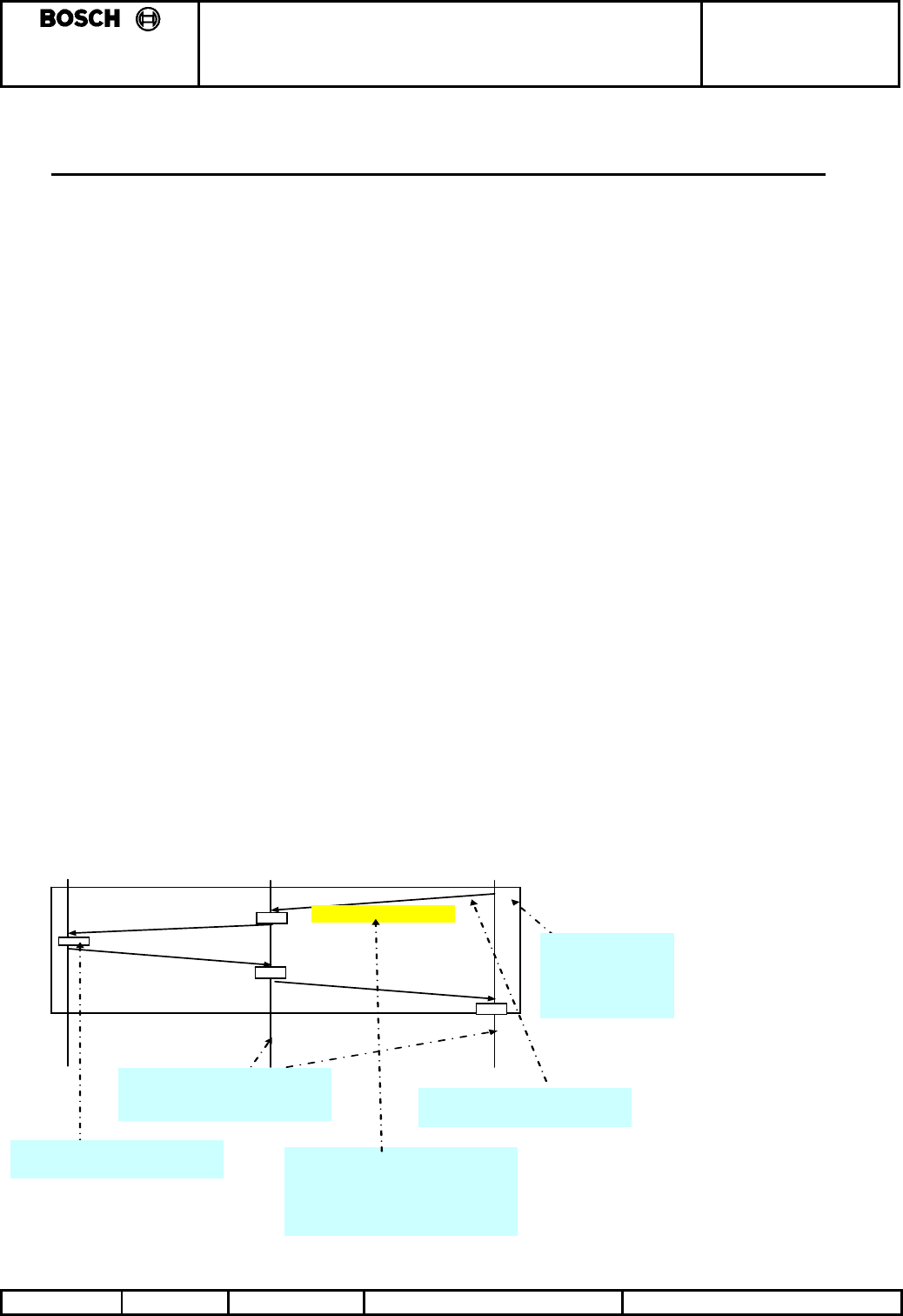

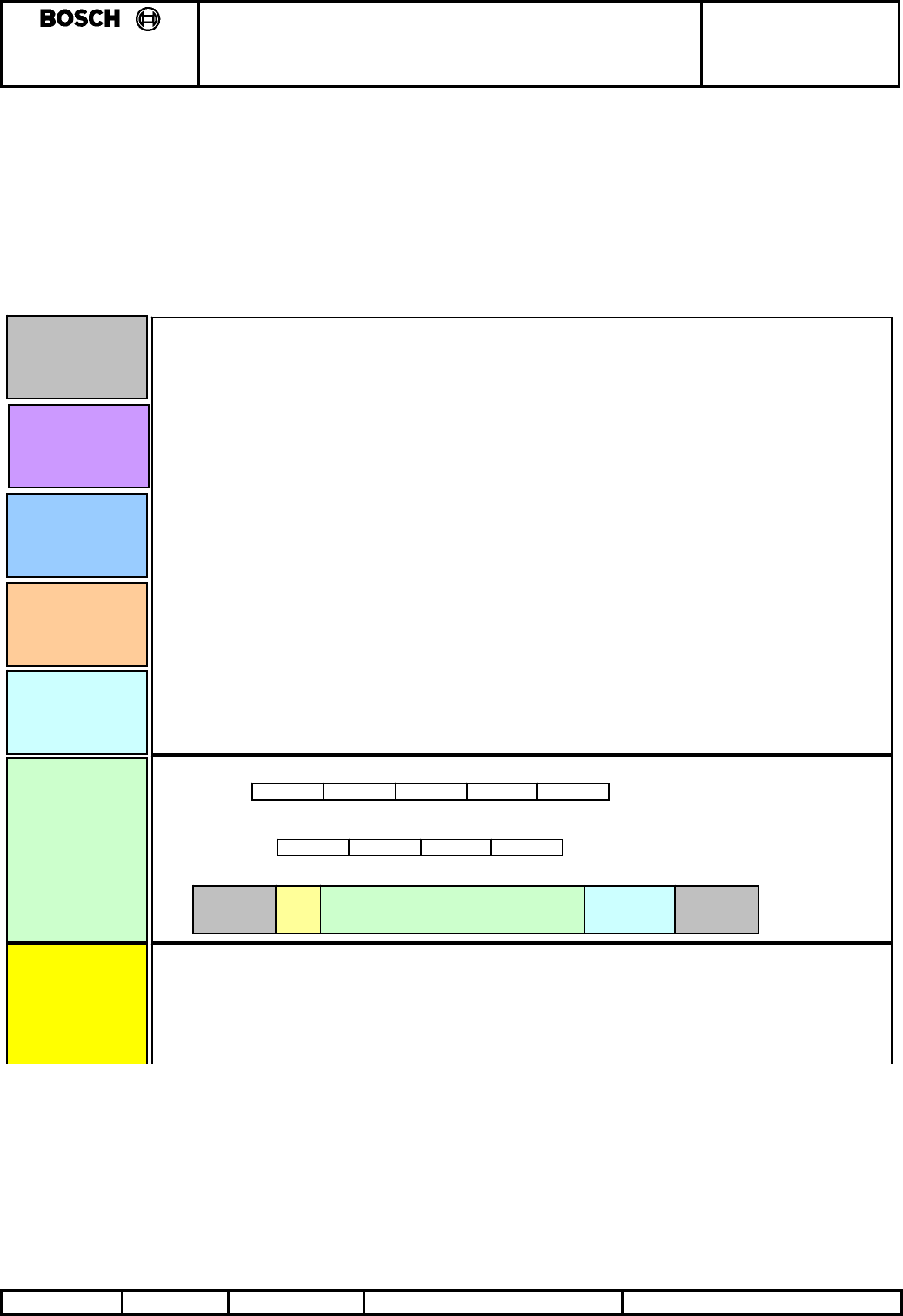

6.1.3.1 Diagram: Explaining how to read message flow diagrams..............................................................................................19

6.2 MESSAGE FLOW 1 - NORMAL OPERATION ...................................................................................................................20

6.2.1.1 Message Sequence...........................................................................................................................................................20

6.2.1.2 Message Flow Detail .......................................................................................................................................................20

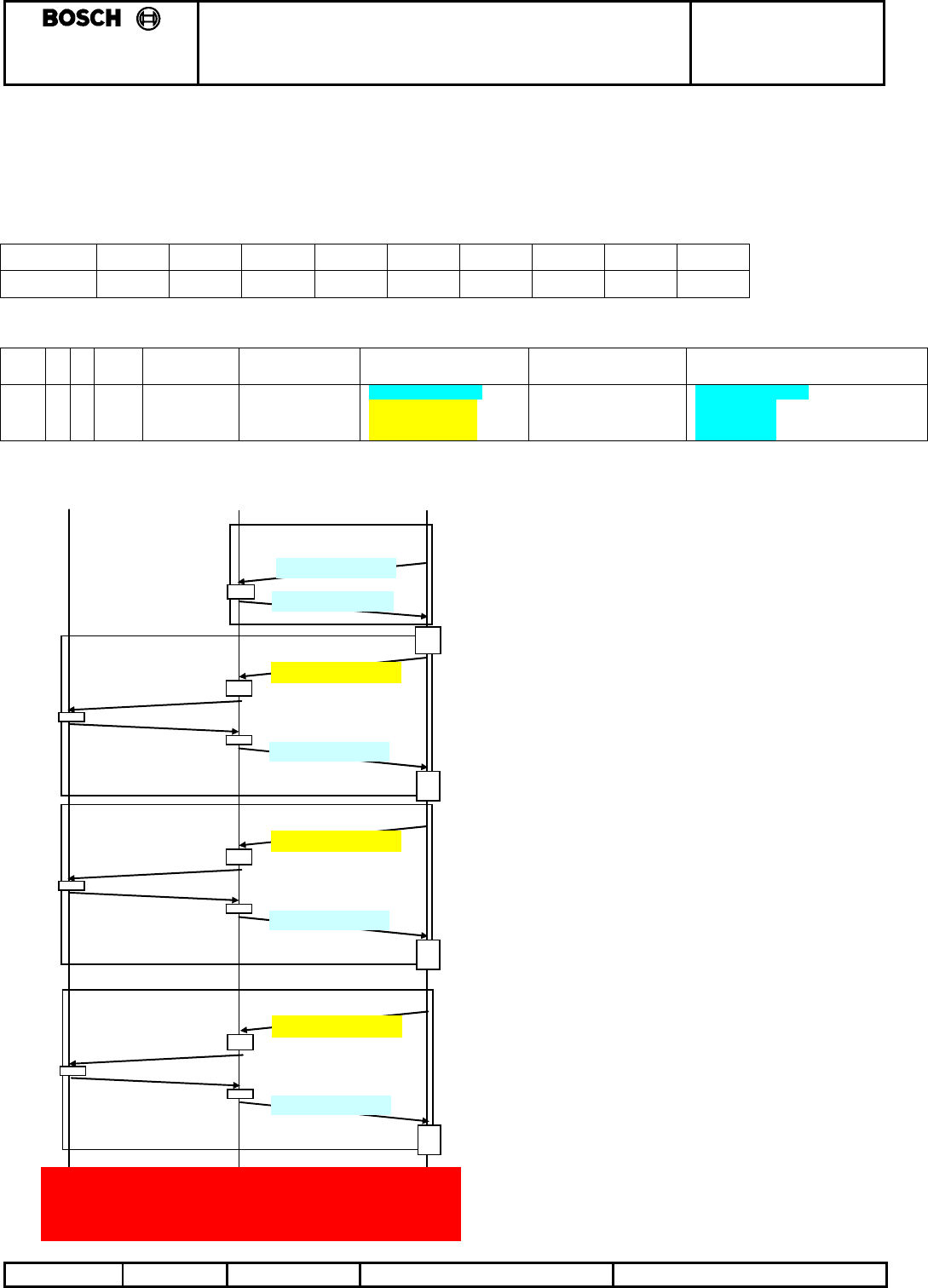

6.2.2 Message Flow Diagram:........................................................................................................................................20

6.3 MESSAGE FLOW 2 – TWICE IG ON OR AUTHENTICATION MODE..................................................................................21

6.3.1.1 Message Sequence...........................................................................................................................................................21

6.3.1.2 Message Flow Detail .......................................................................................................................................................21

6.3.2 Message Flow Diagram:........................................................................................................................................21

6.4 MESSAGE FLOW 3 – TWICE IG ON OR AUTHENTICATION MODE..................................................................................22

6.4.1.1 Message Sequence...........................................................................................................................................................22

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 3 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

6.4.1.2 Message Flow Detail .......................................................................................................................................................22

6.4.2 Message Flow Diagram:........................................................................................................................................22

6.5 MESSAGE FLOW 4 - TWICE IG ON OR AUTHENTICATION MODE ..................................................................................23

6.5.1.1 Message Sequence...........................................................................................................................................................23

6.5.1.2 Message Flow Detail .......................................................................................................................................................23

6.5.2 Message Flow Diagram:........................................................................................................................................23

6.6 MESSAGE FLOW 5 - TWICE IG ON OR AUTHENTICATION MODE ..................................................................................24

6.6.1.1 Message Sequence...........................................................................................................................................................24

6.6.1.2 Message Flow Detail .......................................................................................................................................................24

6.6.2 Message Flow Diagram:........................................................................................................................................24

6.7 MESSAGE FLOW 6 - TWICE IG ON OR AUTHENTICATION MODE ..................................................................................25

6.7.1.1 Message Sequence...........................................................................................................................................................25

6.7.1.2 Message Flow Detail .......................................................................................................................................................25

6.7.2 Message Flow Diagram:........................................................................................................................................25

6.8 MESSAGE FLOW 7 - TWICE IG ON OR AUTHENTICATION MODE ..................................................................................26

6.8.1.1 Message Sequence...........................................................................................................................................................26

6.8.1.2 Message Flow Detail .......................................................................................................................................................26

6.8.2 Message Flow Diagram:........................................................................................................................................26

6.9 MESSAGE FLOW 8 – TWICE IG ON OR AUTHENTICATION MODE..................................................................................27

6.9.1.1 Message Sequence...........................................................................................................................................................27

6.9.1.2 Message Flow Detail .......................................................................................................................................................27

6.9.2 Message Flow Diagram:........................................................................................................................................27

6.10 MESSAGE FLOW 9 – TWICE IG ON OR AUTHENTICATION MODE..................................................................................28

6.10.1.1 Message Sequence...........................................................................................................................................................28

6.10.1.2 Message Flow Detail .......................................................................................................................................................28

6.10.2 Message Flow Diagram:....................................................................................................................................28

6.11 MESSAGE FLOW 10 – MISSING TRANSPONDER ............................................................................................................29

6.11.1.1 Message Sequence...........................................................................................................................................................29

6.11.1.2 Message Flow Detail .......................................................................................................................................................29

6.11.2 Message Flow Diagram:....................................................................................................................................29

6.12 MESSAGE FLOW 11 - TRANSPONDER TEACHING OR RETEACHING MODE ....................................................................30

6.12.1.1 Message Sequence...........................................................................................................................................................30

6.12.1.2 Message Flow Detail .......................................................................................................................................................30

6.12.2 Message Flow Diagram:....................................................................................................................................30

6.13 MESSAGE FLOW 12 - TRANSPONDER TEACHING OR RE-TEACHING MODE...................................................................31

6.13.1.1 Message Sequence...........................................................................................................................................................31

6.13.1.2 Message Flow Detail .......................................................................................................................................................31

6.13.2 Message Flow Diagram:....................................................................................................................................31

6.14 MESSAGE FLOW 13 – TRANSPONDER TEACHING OR RE-TEACHING MODE ..................................................................32

6.14.1.1 Message Sequence...........................................................................................................................................................32

6.14.1.2 Message Flow Detail .......................................................................................................................................................32

6.14.2 Message Flow Diagram:....................................................................................................................................32

6.15 MESSAGE FLOW 14 – TRANSPONDER TEACHING OR RE-TEACHING MODE ..................................................................33

6.15.1.1 Message Sequence...........................................................................................................................................................33

6.15.1.2 Message Flow Detail .......................................................................................................................................................33

6.15.2 Message Flow Diagram:....................................................................................................................................33

6.16 MESSAGE FLOW 15 – TRANSPONDER TEACHING OR RE-TEACHING MODE ..................................................................34

6.16.1.1 Message Sequence...........................................................................................................................................................34

6.16.1.2 Message Flow Detail .......................................................................................................................................................34

6.16.2 Message Flow Diagram:....................................................................................................................................34

6.17 MESSAGE FLOW 16: – TRANSPONDER TEACHING OR RE-TEACHING MODE .................................................................35

6.17.1.1 Message Sequence...........................................................................................................................................................35

6.17.1.2 Message Flow Detail .......................................................................................................................................................35

6.17.2 Message Flow Diagram:....................................................................................................................................35

6.18 MESSAGE FLOW 17: –MISS-MATCHED SECRET KEY.....................................................................................................36

6.18.1.1 Message Sequence...........................................................................................................................................................36

6.18.1.2 Message Flow Detail .......................................................................................................................................................36

6.18.2 Message Flow Diagram:....................................................................................................................................36

6.19 MESSAGE FLOW 18: – OLD EMS WITH A NEW LEARNT SMARTRA ...............................................................................37

6.19.1.1 Message Sequence...........................................................................................................................................................37

6.19.1.2 Message Flow Detail .......................................................................................................................................................37

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 4 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

6.19.2 Message Flow Diagram:....................................................................................................................................37

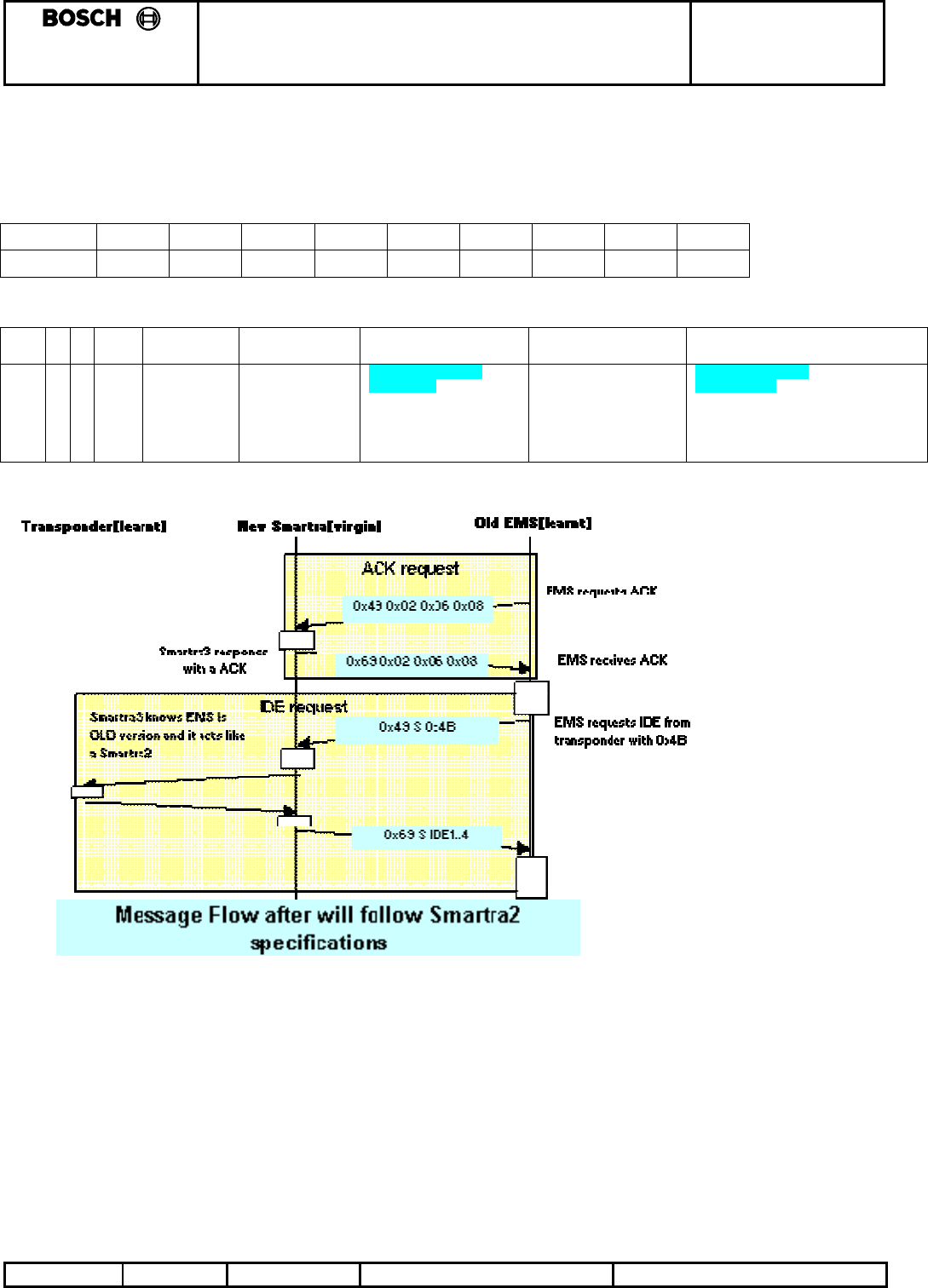

6.20 MESSAGE FLOW 19: – OLD EMS WITH A VIRGIN SMARTRA.........................................................................................38

6.20.1.1 Message Sequence...........................................................................................................................................................38

6.20.1.2 Message Flow Detail .......................................................................................................................................................38

6.20.2 Message Flow Diagram:....................................................................................................................................38

6.21 MESSAGE FLOW 20: – OLD SMARTRA WITH A NEW EMS ............................................................................................39

6.21.1.1 Message Sequence...........................................................................................................................................................39

6.21.1.2 Message Flow Detail .......................................................................................................................................................39

6.21.2 Message Flow Diagram:....................................................................................................................................39

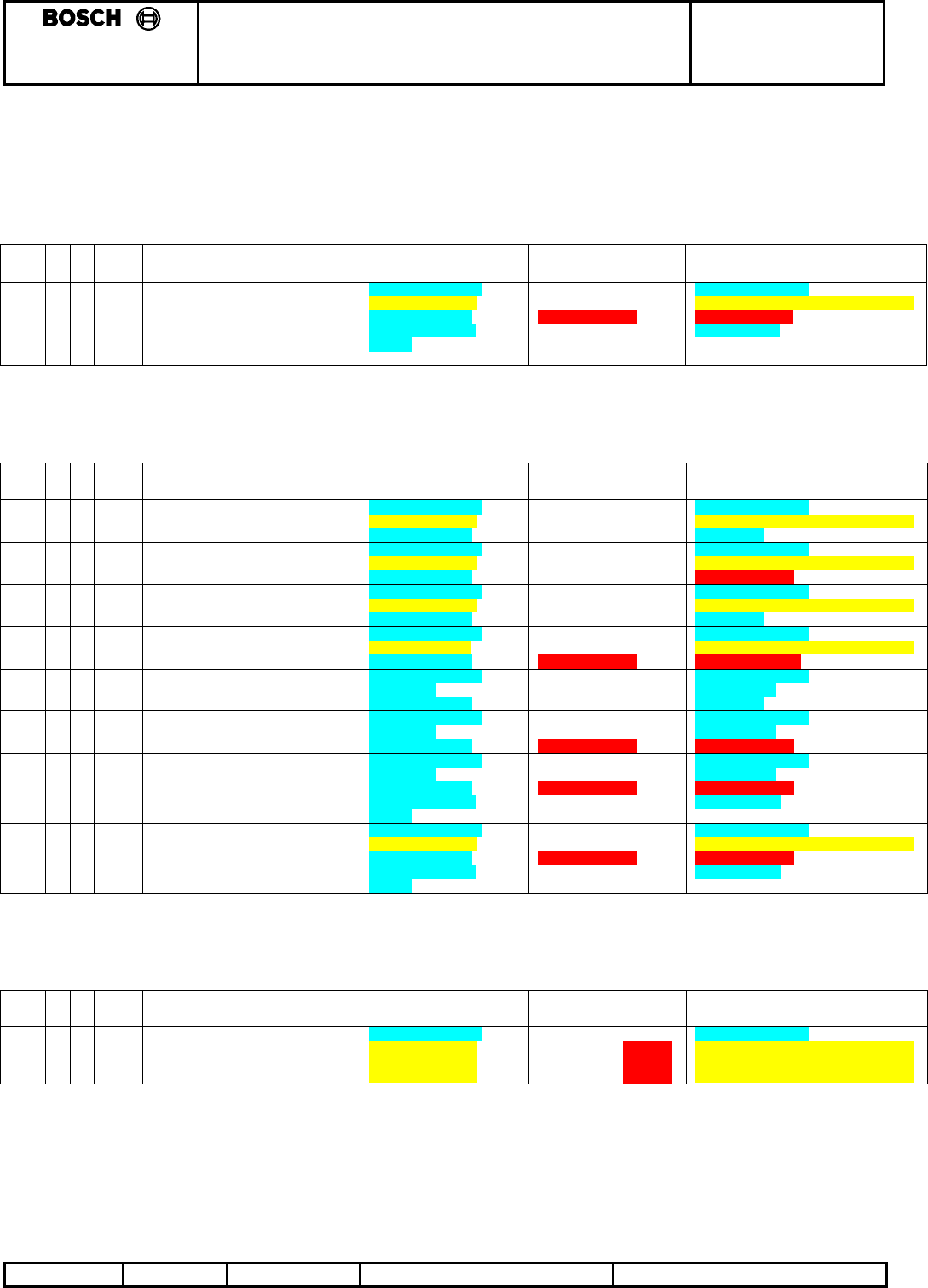

6.22 SUMMARY TABLES : MESSAGE FLOW SUMMARY ........................................................................................................40

6.22.1 Table: Normal Message Flow............................................................................................................................40

6.22.2 Table: Twice IG ON or Authentication..............................................................................................................40

6.22.3 Table: All modes missing transponder...............................................................................................................40

6.22.4 Table: Transponder (Re)teaching mode ............................................................................................................41

6.22.5 Table: Special cases...........................................................................................................................................41

7. REPLACING OF SYSTEM COMPONENTS................................................................................................................42

7.1 REPLACING THE ENGINE MANAGEMENT SYSTEM (EMS) ECU....................................................................................42

7.1.1 Equipment required to replace the EMS in immo system.......................................................................................42

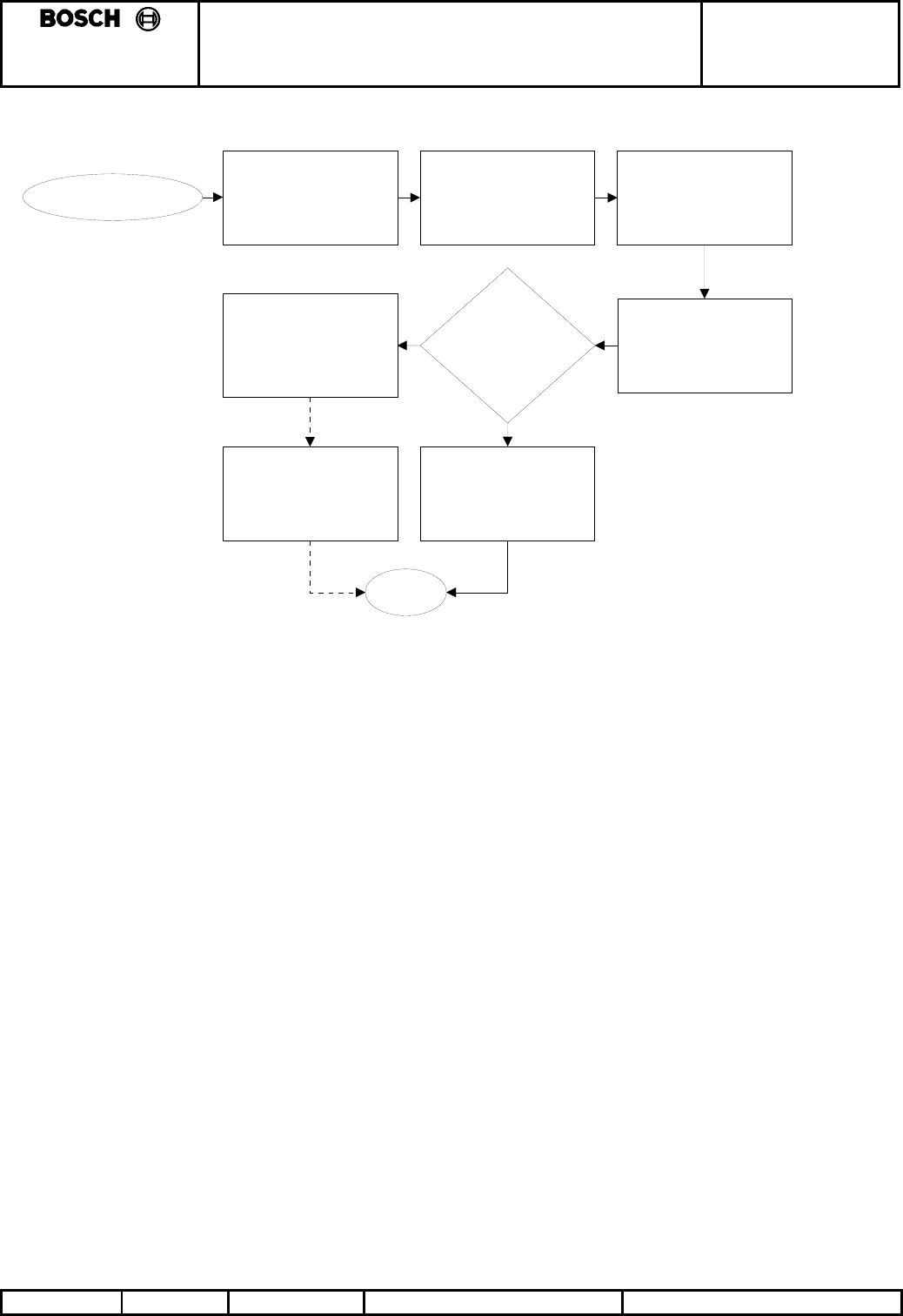

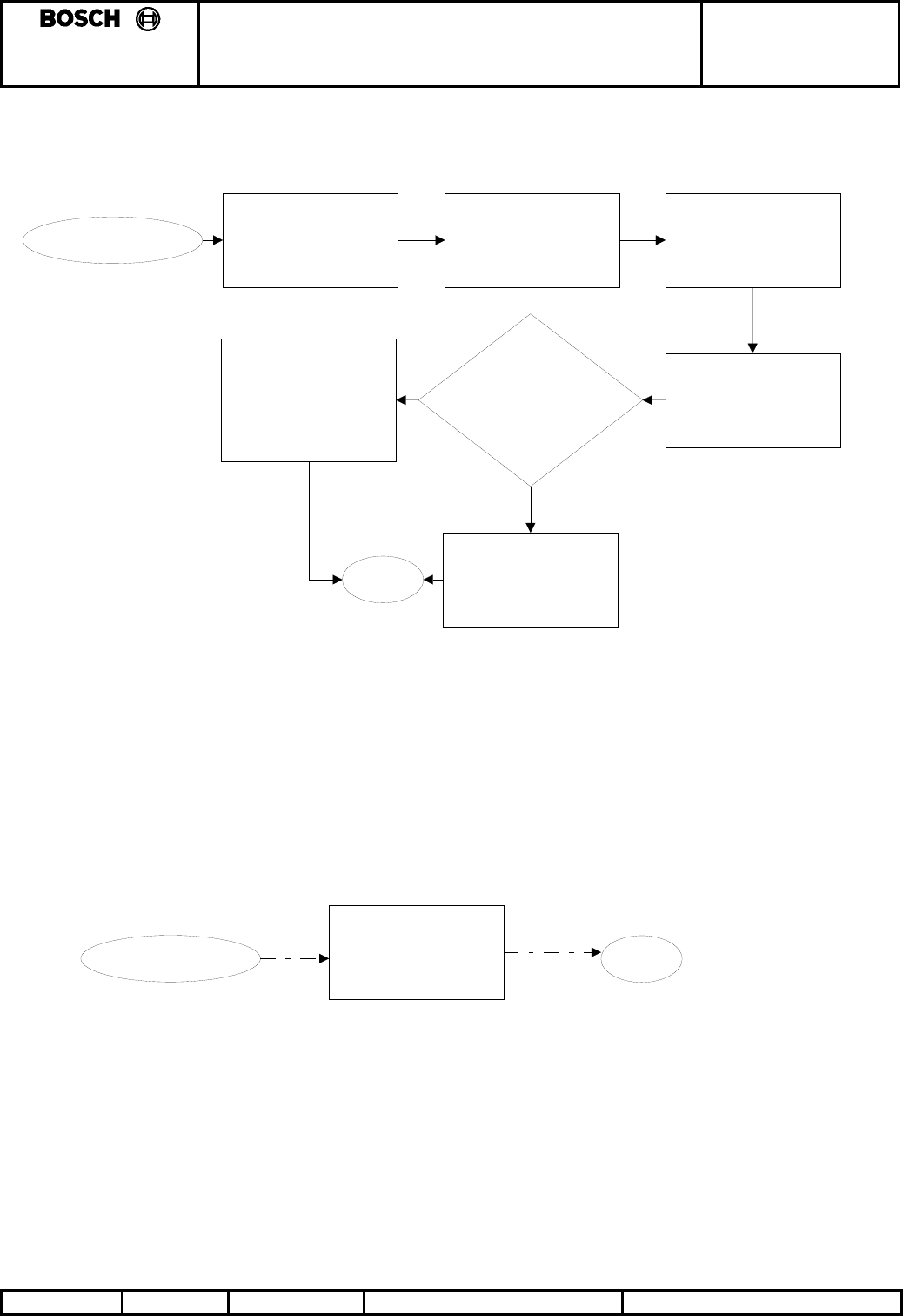

7.1.2 Process Flow Chart: Replacing Engine Management System EMS ......................................................................43

7.2 REPLACING THE SMARTRA ECU..................................................................................................................................43

7.2.1 Equipment required to replace a Smartra unit in immo system.............................................................................43

7.2.2 Process Flow Chart : Replacing Smartra ..............................................................................................................44

7.3 REPLACING KEYS (TRANSPONDERS)............................................................................................................................44

7.3.1 Process Flow Chart : Replacing/Adding Keys.......................................................................................................44

7.4 REPLACING ANTENNA .................................................................................................................................................44

8. DIAGNOSTIC TESTER REQUIREMENTS.................................................................................................................45

8.1.1 Diagnostic Tester Introduction ..............................................................................................................................45

8.1.2 The Diagnostics tester interface diagram:.............................................................................................................45

8.1.3 Programming Diagnostic PIN Number DPN (on the Smartra) .............................................................................45

8.1.3.1 Message Flow Diagram (Programming Diagnostic PIN – both Smartra and EMS) ........................................................46

8.1.3.2 Message Flow Diagram (Programming Diagnostic PIN – EMS......................................................................................46

8.1.3.3 Message Flow Diagram (Programming Diagnostic PIN – Smartra)................................................................................47

8.1.4 Aftermarket PIN number sequence: .......................................................................................................................47

8.1.5 Changing Diagnostic PIN Number (DPN) on Smartra..........................................................................................47

8.1.6 Accessing diagnostic functions...............................................................................................................................48

8.1.6.1 Message Flow Diagram (Changing State – correct PIN).................................................................................................48

8.1.6.2 Message Flow Diagram (Changing Smartra State – in-correct PIN) ...............................................................................49

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 5 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

2. APPLICABLE DOCUMENTS

Applicable Standards Title

F005VP0800 HMC SMARTRA 3 Product Spec

F005VP0702 HMC SMARTRA 3 Engineering Test Spec

F005VP0703 HMC SMARTRA 3 Production Test Spec

F005VS0115 HMC SMARTRA 3 Sales Drawing

3. INTRODUCTION

3.1.1 Immobiliser Background

The Smartra3 immobiliser unit, known as the SMARt TRansponder Antenna (SMARTRA) will need to be

updated as a result of new requirements. The SMARTRA3 will be an update of an existing product.

The existing immobiliser system consisted of a passive challenge-response (mutual authentication)

transponder inside the key head and the SMARTRA unit. The SMARTRA communicates to a Control

Unit (CU) via a dedicated communications line.

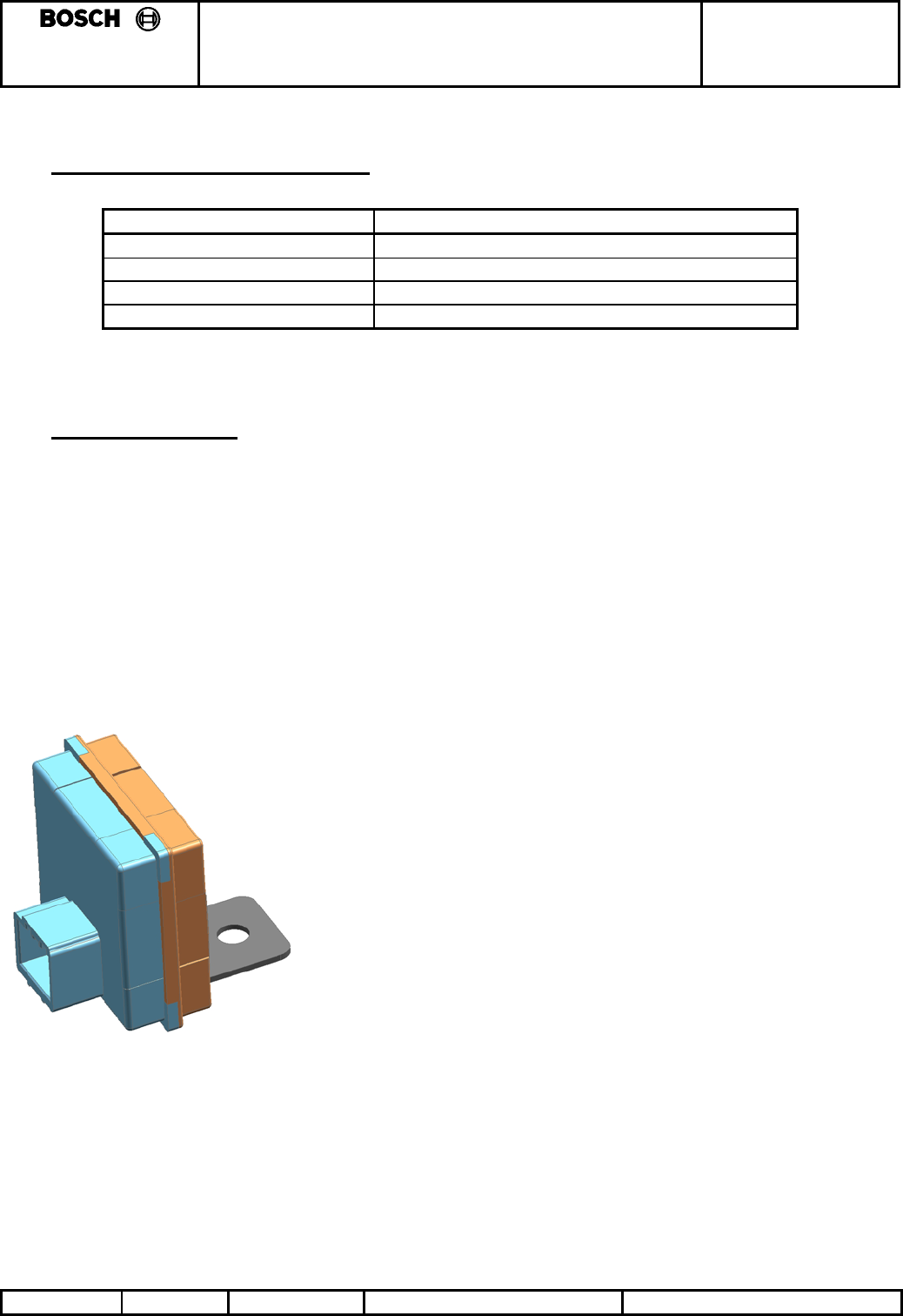

3.1.1.1 Model : Proposed Smartra3

This design will use a different microcontroller with on board non-volatile memory and combined voltage

regulator and LIN transceiver system basis chip.

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 6 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

3.1.2 Document description

This document shall focus on the communications protocol between the Smartra and the Engine

Management System (EMS). The existing protocol has been used with two new messages added and

existing messages modified. The changes are required due to additional customer requirements.

The document shall present:

• Project background, requirements and proposed design.

• Message Structure between the EMS and Smartra.

• Message Flow charts: EMS to Transponder (via Smartra) considering different device states.

• Replacing immobiliser system components

• Diagnostic tester interface.

3.1.3 Diagram: Smartra communications interfaces

Transponder Smartra EMS

(comms master)

Low Frequency

w ireless link

125kHz ASK

single wire

asynch bi-dir

comms

4800baud

This document

focusses on Smartra

to EMS interface

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 7 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

3.2 EMS to Smartra Communications Description (OSI model):

The communications between the EMS and the Smartra can be better described using the 7 layer OSI

model. The below diagram shows different levels of the interface in reference to the OSI model. It

describes the Physical layer the Data Link Layer and the Application Layer.

3.2.1 Diagram: OSI model

Physical

Layer

Dedicated single wire between Immobiliser and Control Unit.

Bi-directional Asynchronous Communications @ 4800 baud

Logic Low = 0V, Logic High = 12V, Idle State High

Data Link

Layer

The protocol betw een the Control Unit (CU) and the SMARTRA is defined as :-

The protocol betw een the SMARTRA and the CU is defined as :-

1 start bit-low , 8 data bits, no parity, 2 stop bits-high.

Address Leng t h Action Data CS

Address Leng t h Data CS

Network

Layer

EMS Action Messages:

06h (ACK) Acknow ledge

53h (ASCII 'S') Software version

4Bh (ASCII 'K') Transponder IDE *

41h (ASCII 'A') Transponder Authentication (Additional info for ID Matching)

57h (ASCII 'W') Transponder Write EEPROM page

52H (ASCII 'R') Transponder Read EEPROM page

4Eh (ASCII ‘N’) Neutralise a Taught Smartra **

54h (ASCII ‘T’) Teach Smartra **

15h (ASCII nak) Negative response *

For every message sent to the SMARTRA from the CU there w ill be a response from the

SMARTRA unit. Only one command can be sent at a time to the SMARTRA unit.

A negative response to any command is possible.

* - modif ied mess age

** - new message

Transport

Layer

Session

Layer

Presentation

Layer

Application

Layer

Idle St art

Bit 1

bit

Data

8 bits

Stop bit

2 bits

Idle

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 8 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

3.2.1.1 Requirements from customer

Requirements for the new Smartra:

• automobile to be Thatcham Compliant to withstand attack on car for >300secs.

• Product required to be backward compatible with existing system.

Current system :

• Engine Management System (EMS) ECU can be replaced easily and car can be started <300secs

with matching transponders.

• Smartra is transparent ie. passes messages to and from the EMS and transponder (no memory).

3.2.2 Proposed Solution

• To meet new customer requirements the EMS and the Smartra shall be matched together using the

same Secret Encryption Key (SEK).

• The Secret Encryption Key (SEK) is generated and taught to the Smartra and EMS at the OEM end

of line tester.

• The EMS and Smartra will generate the Secret Encryption Key (SEK) from a common 9 byte

Diagnostic PIN Number (DPN) unique for each car (ie. use 6 bytes from Diagnostic PIN Number

(DPN)). See section 3.2.6.

• The Secret Encryption Key (SEK) will be used during all communications between the EMS and the

Smartra to ensure that the EMS and Smartra are matched.

• To test if the units are matched:

o The EMS generates a Random Number and passes to the Smartra.

o Smartra encrypts the Random Number using the Secret Encryption Key(SEK) and passes

back the encrypted value to the EMS.

o EMS encrypts the random number using its Secret Encryption Key(SEK) and then evaluates

if the Smartra response is the same as the EMS encryption.

• Thieves need to replace the EMS, Smartra and Transponder to steal the car. The Smartra shall be

placed in a difficult to get to position in the car (increase time to replace).

3.2.3 Diagram Showing Proposed Design:

Automobile Assy

SMARTRA EMS

Diagnostic

Tester

Securit y Pin No. t o access t he

EM S and Smartra

transponder

Single Wire

Comms

LF interface Single Wire

Comms

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 9 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

3.2.4 States of the smartra

With the new proposed Design the Smartra shall have 3 states ([Virgin] and [Neutral] states behave the

same).

3.2.4.1 State transition Diagram:

3.2.4.1.1 States:

[Virgin] – virgin product after EOL testing.

[Neutral] – part has Diagnostic PIN Number(DPN) and Secret Encryption Key(SEK) cleared using

diagnostic tester so it can go into [Learnt] state again.

[Learnt] – part has been taught a Diagnostic PIN Number(DPN) at the OEM end of line tester or

using diagnostic tester in the field. Secret Encryption Key(SEK) is generated from the

Diagnostic PIN Number(DPN). (refer to 3.2.6)

3.2.4.1.2 State Transitions:

1) Smartra is taught the Diagnostic PIN Number(DPN) and generates the Secret Encryption Key(SEK).

2) Diagnostic Tester Places Smartra into Neutral Mode when correct DPN has been entered.

* Note : For backwards compatibility a [virgin] or [neutral] Smartra3 will function as a Smartra2 until unit

is placed into [learnt] state.

Learnt

(follows new

protocol-

Smartra3)

Virgin

(follows old

protocol-

Smartra2)

Neutral

(follows old

protocol-

Smartra2)

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 10 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

3.2.5 System security

If a thief replaces the Smartra with a virgin Smartra the car will not start as the virgin Smartra does not

match the EMS.

If a thief replaces three components with a matching set (Transponder, Smartra and EMS) then by

breaking lock barrel the car can start. The car will start however the period of time to replace the

Smartra takes time ie. longer than 5 minutes to pass the Thatcham attack test. Refer to section 3.4 –

References.

A thief could steal a car in a short time if they have access to a Diagnostic Tester and a ECU with his

corresponding Diagnostic PIN Number (DPN) then the thief can steal the car by:

a. replacing the EMS with a matching EMS and transponder set.

b. use Diagnostic Tester to neutralise the Smartra3, using the secure HMC Diagnostic PIN Number

(DPN) of EMS.

c. use Diagnostic Tester to program the new Diagnostic PIN Number (DPN) that matches the thiefs

EMS Diagnostic PIN Number (DPN).

The security of the system depends on the security of the DPN.

3.2.6 Secret Encryption Key (SEK) Learning

• The EMS and Smartra will generate the Secret Encryption Key (SEK).

• Secret Encryption Key (SEK) is generated from the first 6 bytes of the 9 byte Diagnostic PIN Number

(DPN).

• The DPN is taught to the Smartra and EMS at the OEM end of line tester or in the field.

• The encryption algorithm requires each of the 6 SEK bytes to be an uneven number between 3 and

253.

o Therefore both the EMS and Smartra will use the same function that will check value of PIN

and adjust each byte of the Secret Encryption Key (SEK) accordingly:

• If DPN byte is <3 or >253 then SEK byte = 0x55.

• Else If DPN byte is even then SEK byte = DPN byte – 1.

• Else SEK byte = DPN byte.

3.2.6.1 Diagram: Secret Key learning flow

Automobile Assy

SMARTRA EMS

Diagnostic Teste

OEM end of line tester

shall generate a

Diagnostic Security Pin

Number and pass the

number to the EMS.

Transponder

Diagnostic PIN 9

byte number

stored in eeprom

on EMS

0xXXXXXXXXXXXXXXXX

Diagnostic PIN (9

bytes) number

stored in eeprom

on Smartra

0xXXXXXXXXXXX

Secret Encrytpion

Key (SEK) (6 bytes)

generated from

Diagnostic PIN

Number (DPN)

Secret Encrytpion

Key (SEK) (6

bytes) - generated

from Diagnostic

PIN Number (DPN)

0xXXXXXXXXXXXXXXXX

0xXXXXXXXXXXX

0xXXXXXXXXXXXXXXXX

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 11 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 12 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

3.3 Assumptions Made

o PIN number database (PIN for diagnostic interface) shall be maintained and protected by the

OEM and this information is not information that a thief can access.

3.4 References

HMC Engineering Spec: No ES95400-09 TITLE: IMMOBILIZER SYSTEM FUNCTIONS,

Spec (Encypted Smartra3 Type), VERSION D3, 29/06/2006

Thatcham NVSA specification: No TQSD 014.07 TITLE: THE BRITISH INSURANCE INDUSTRIES

CRITERIA FOR VEHICLE SECURITY, NEW VEHICLE SECURITY ASSESSMENT – PASSENGER

CARS, ISSUE 4A, JULY 2006

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 13 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

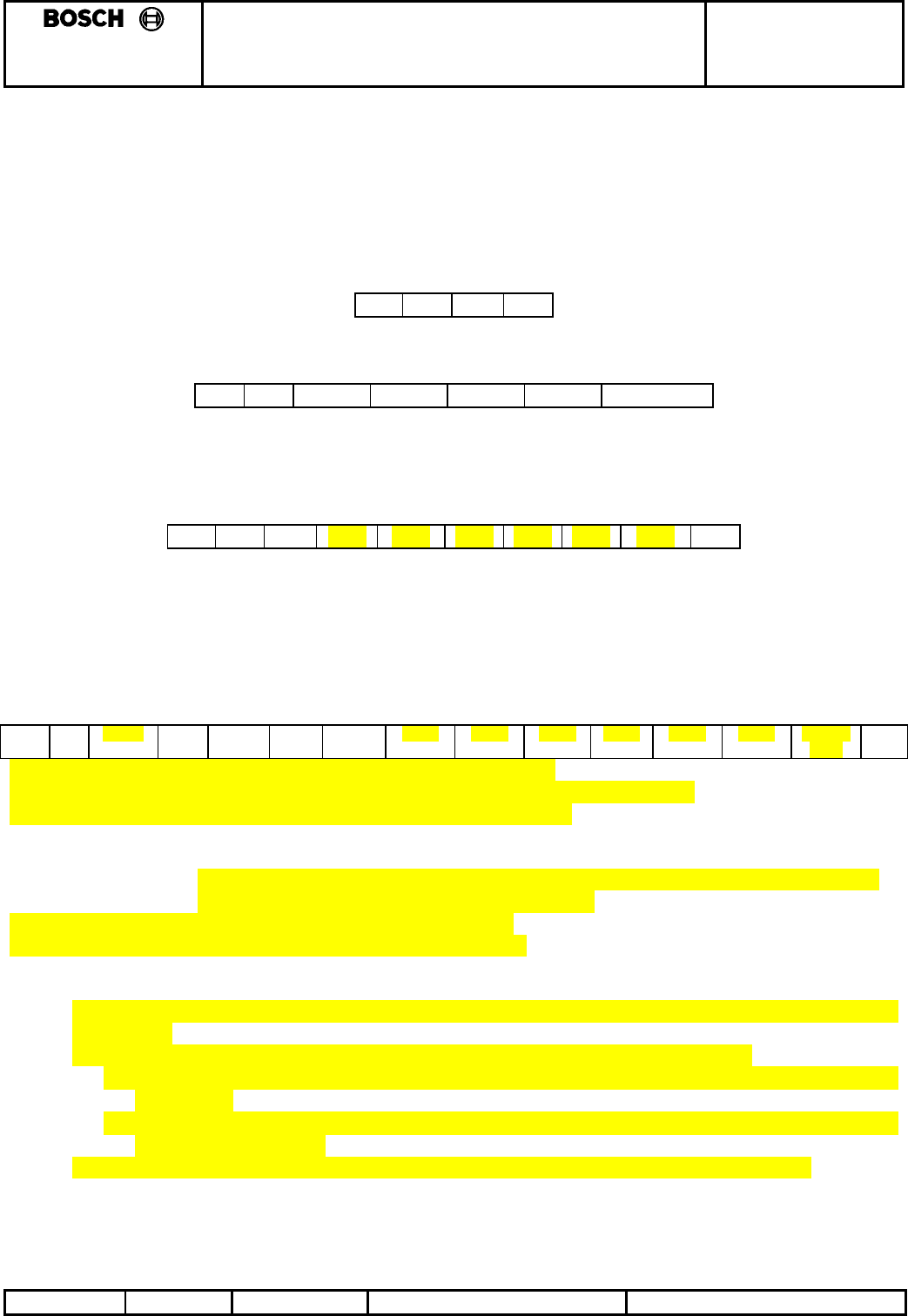

4. MESSAGE STRUCTURE BETWEEN EMS AND SMARTRA

The proposal for the message structure between the Smartra and the EMS is based on the existing

communications protocol with two additional messages and some modified existing messages. The new

messages and modifications are highlighted in yellow.

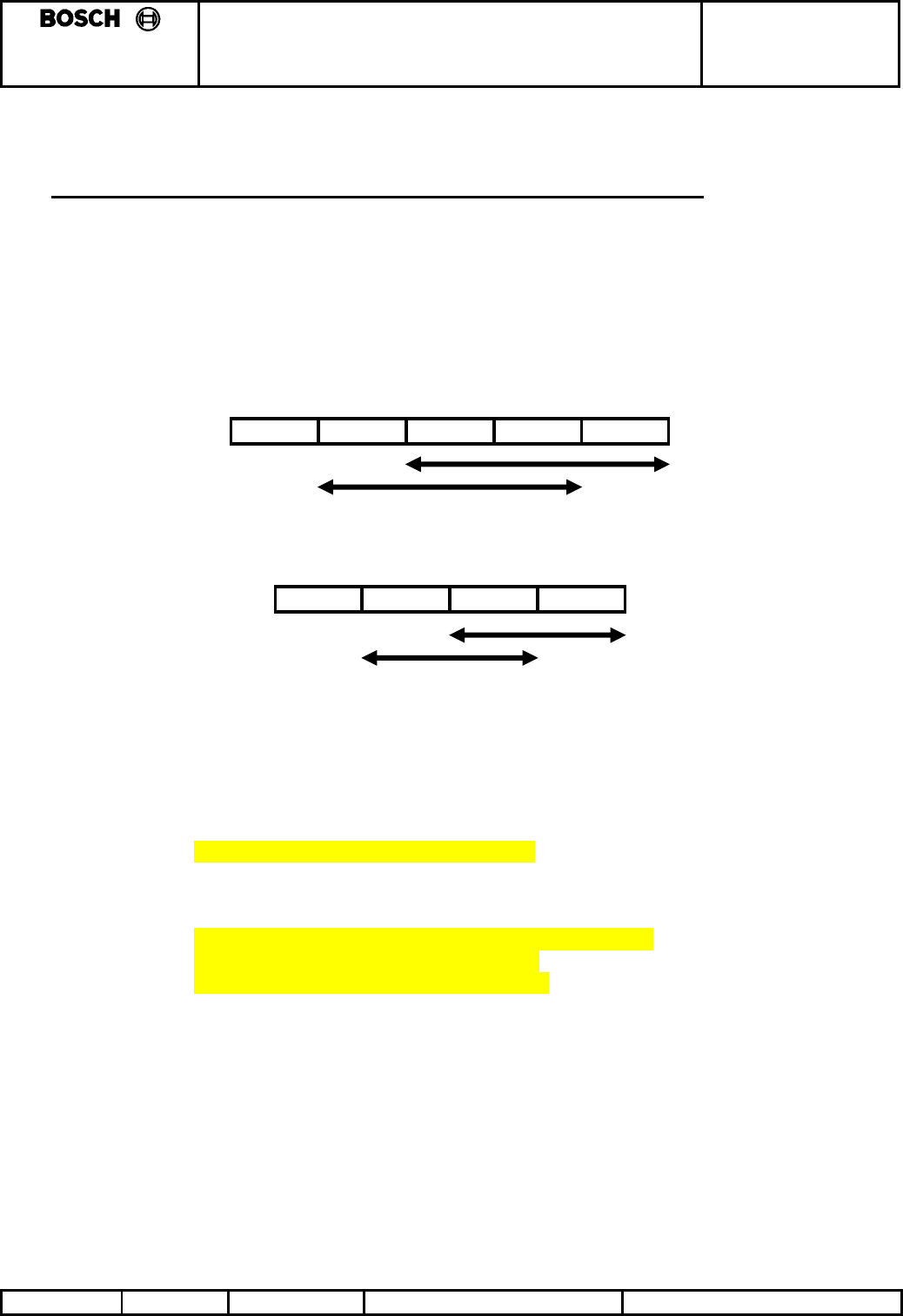

4.1.1 Data Packet Breakdown

The protocol between the Control Unit (CU) [EMS] and the SMARTRA is defined as :-

Address Length Action Data CS

length

checksum

The protocol between the SMARTRA and the CU is defined as :-

Address Length Data CS

length

checksum

where :- Address = 49h (ASCII 'I') when CU is addressing SMARTRA.

= 69h (ASCII 'i') when SMARTRA is addressing CU

Length = number of bytes following the Length byte (including checksum)

Action = valid SMARTRA actions are :-

06h (ACK) Acknowledge

53h (ASCII 'S') Software version

4Bh (ASCII 'K') Transponder IDE*

41h (ASCII 'A') Transponder Authentication (Additional info for ID Matching)

57h (ASCII 'W') Transponder Write EEPROM page

52H (ASCII 'R') Transponder Read EEPROM page

4Eh (ASCII ‘N’) [Neutralise] a [Learnt] Smartra**

54h (ASCII ‘T’) Teach a Smartra**

15h (ASCII nak) Negative response*

Note: * Modified existing message.

** New messages added.

Data = data to be exchanged between units.

CS = Checksum - one byte addition of all bytes (excluding address).

The ASCII code naming convention was carried over from existing protocol.

For every message sent to the SMARTRA from the CU there will be a response from the SMARTRA

unit. Only one command can be sent at a time to the SMARTRA unit.

A negative response to any command is possible and is defined in Section 4.10.

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 14 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

4.2 06h - Acknowledge.

CU Request :-

49 02 06 08

SMARTRA Response :-

69 02 06 08

If the SMARTRA unit does not respond to this command then it will not be ready to accept other

communications. This command could be used to determine if the SMARTRA is ready to receive data at

the start of a communications session.

SMARTRA will take up to 5ms to start sending return Acknowledge to the CU.

4.3 53h - Software Version.

CU Request :-

49 02 53 55

SMARTRA Response :-

69 06 Software version in ASCII CS

eg. For software version A01.0 :-

69 06 41 30 31 2E 30 06

Note :- SMARTRA will take up to 5ms to start sending return Software Version to the CU.

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 15 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

4.4 4Bh - Transponder IDE (Pre ID Matching)

4.4.1 0x4B – (Existing) Pre Secret Encryption Key – kept for backwards compatibility

CU Request :-

49 02 4B 4D

SMARTRA2 Response:-

69 05 IDE1 IDE2 IDE3 IDE4 Checksum

IDE1..IDE4 :- 32 bit Identifier.

4.4.2 0x4B – New – Secret Encryption Key – with Encryption check.

CU Request :-

49 08 4B RN1 RN2 RN3 RN4 RN5 RN6 CS

RN1..RN6 :- Random Number bytes (00-FF)

Note :- RN1..6 can be based on the 4 byte random number from the Transponder Authentication

command (refer to “4.5 Transponder Authentication”). This will avoid extra EMS processing to generate

a random number.

SMARTRA3 Response:-

69 0D Return IDE1 IDE2 IDE3 IDE4 ERN1 ERN2 ERN3 ERN4 ERN5 ERN6 Smartra

State CS

Return :- 0x00 = transponder communications OK

0x01 = transponder missing or incorrect communications

0x02 = Antenna coil Open/Short Detection

IDE1..IDE4 :- 32 bit Identifier.

ERN1 .. ERN6 :- Encrypted Random Number using Secret Encryption Key (SEK)

Smartra State :- 0x01 = Learnt / Taught

0x02 = Virgin

0x03 = Neutral

Note : - SMARTRA will take up to 110ms to start sending IDE response to the CU.

- When Transponder is missing the Return value will be 0x01 and IDE1 to IDE4 = (0x00 0x00

0x00 0x00).

- When Smartra3 receives the IDE request with the Random Number and it is in:

• [virgin] or [neutral] state the ERN1..6 shall be the encrypted random number using a

default key.

• [learnt] state the ERN1..6 shall be the encrypted random number using the Secret

Encryption Key (SEK).

- Default encryption key will be described in Encryption Software Integration Document.

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 16 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

4.5 41h - Transponder Authentication.

CU Request :-

49 0A 41 RN1 RN2 RN3 RN4 ELP1 ELP2 ELP3 ELP4 CS

RN1..RN4 :- Random Number bytes (00-FF)

ELP1.. ELP4 :- Encrypted Lock Password bytes (00-FF)

SMARTRA Response :-

69 05 EKP1 EKP2 EKP3 EKP4 CS

EKP1 .. EKP4 :- Encrypted Key Password bytes (00-FF)

Note :- SMARTRA will take up to 150ms to start sending the Authentication response to the CU.

4.6 57h - Transponder Write EEPROM Page.

CU Request :-

49 Length 57 PN B0 B1 B2 B3 PNn B0n B1n B2n B3n CS

PN...PNn :- Page Number byte (01-07)

B0,B1,B2,B3...B0n,B1n,B2n,B3n :- Transponder bytes to be written (00-FF)

SMARTRA Response :-

69 02 57 59

This request is only valid during the key programming procedure with the Transponder in password

mode.

Note :-

• SMARTRA will take up to 600ms to start sending the response to the CU when programming three

consecutive pages.

• Maximum number of consecutive pages to program in the same “Transponder Write EEPROM Page”

request is three.

4.7 52h - Transponder Read EEPROM Page

CU Request :-

49 03 52 PN CS

PN :- Page Number byte (00-07)

SMARTRA Response :-

69 05 B0 B1 B2 B3 CS

B0 .. B3 :- Transponder bytes read (00-FF)

This request is only valid prior to key programming procedure with the Transponder in password mode.

Note :- SMARTRA will take up to 100ms to start sending the response bytes to the CU.

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 17 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

4.8 4Eh – Neutralise a [Learnt] Smartra

Message is instigated by Diagnostic Tester and passed to the Smartra through the EMS. The Smartra

will check if the DPN is correct before changing to [neutral] state.

CU Request :-

We request to place Smartra into Neutral Mode:

49 0B 4E DPN1 DPN2 DPN3 DPN4 DPN5 DPN6 DPN7 DPN8 DPN9 C

DPN1..9 - Diagnostic PIN Number byte 1 to 9

SMARTRA Response :-

69 02 Return CS

Return = 0x01 = Correct PIN changed from [Learnt] to [Neutral]

0x02 = Correct PIN already in Virgin State

0x03 = Correct PIN already in Neutral State

0x04 = Diagnostic PIN incorrect

Note :-

-The EMS will pass this information to the Diagnostic Tester.

4.9 54h – Teach Smartra

Message is instigated by EMS when the Smartra State is [Virgin] or [Neutral] and if the Diagnostic Tester

wants to teach the Diagnostic PIN Number.

CU Request :-

49 0B 54 DPN1 DPN2 DPN3 DPN4 DPN5 DPN6 DPN7 DPN8 DPN9 CS

DPN1..9 - Diagnostic PIN Number byte 1 to 9

SMARTRA Response :-

69 02 Return CS

Return = 0x01 – Programmed Successfully

= 0x02 – Correct PIN (Smartra already in Learnt State).

= 0x03 – Incorrect PIN

**Note**:

1) For backward compatibility the Smartra3 will by default function as a Smartra2 until the Teach Smartra

command is completed correctly.

2) When Smartra3 handles this message it shall convert the diagnostic PIN number to a secret KEY and

store it on the device.

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 18 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

4.10 15h - Negative Responses

To any CU command the SMARTRA may respond negatively. The following message will be sent.

SMARTRA Negative Response (NAK) :-

69 03 15 Error code CS

Error Code Description

01h Antenna signal error

Detection Window : Before transponder communications

Detection Criteria : Antenna open/short circuit

02h Invalid Transponder Data

Detection Window :- a. During Transponder IDE

b. During Transponder Authentication requests

c. During Transponder Write EEPROM page requests.

d. During Transponder Read EEPROM page requests.

Detection Criteria :- Corrupted data from Transponder (Tp), or more than one Tp in

the field, or no Tp in the field.

03h Request from Control unit is invalid

Detection Window :- End of CU request message

Detection Criteria :- Protocol layer violation -- Invalid request,

--or invalid check sum,

04h Password mode invalid

Detection Window :- During Transponder Write or Read EEPROM Page

Detection Criteria :- Tp not in password mode, or Transponder transport data has

been changed.

05h Smartra in locked state:

Detection Window :- During access to the Diagnostic functions, teaching or

neutralising a Smartra.

Detection Criteria :- When the DPN is entered while the Smartra is locked.

Refer to section 7.1.6.

1PNh

PN = page No. failed

PN = 1..7

Transponder Programming error

Detection Window :- During Transponder Write EEPROM Page request While

Transponder is in authorised state.

Detection Criteria :- Corrupted data from Transponder (Tp), Or more than one Tp in

the field, or no Tp in the field.

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 19 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

5. MESSAGE FLOW BETWEEN EMS, SMARTRA AND TRANSPONDER

5.1 Background

The message flow between the Smartra and the EMS is described in the following section. The Smartra

is event driven ie. the EMS sends a message, the Smartra response will be sent back to the EMS.

Components missing in system:

If no EMS is present then the Smartra does nothing.

If no Smartra is present the EMS will timeout on the ACK request message.

If no transponder is present the Smartra will send a NAK to the EMS (No transponder).

5.1.1 Starting Communications

The communications start with Ignition switch ON or Key Teaching Mode(14h) and ignition switch ON.

5.1.2 Stopping Communications

The communications stop when:

• no response received from Smartra after EMS attempts to send a message to the Smartra

more than 3 times.

• communication error on Smartra when an EMC or checksum error occurs more than 3 times.

• Authentication is complete. Note in case of ignition off by key before authentication EMS

should not store error.

5.1.3 (Re)Teaching Mode

• EMS should not start communication request (06h/4Bh/…) after IGN ON by Next Key,

• and in case of sending Teaching messages(1Ch…1Eh) from Tester(HI-SCAN or GST) EMS

should start communication request (06h/4Bh/…).

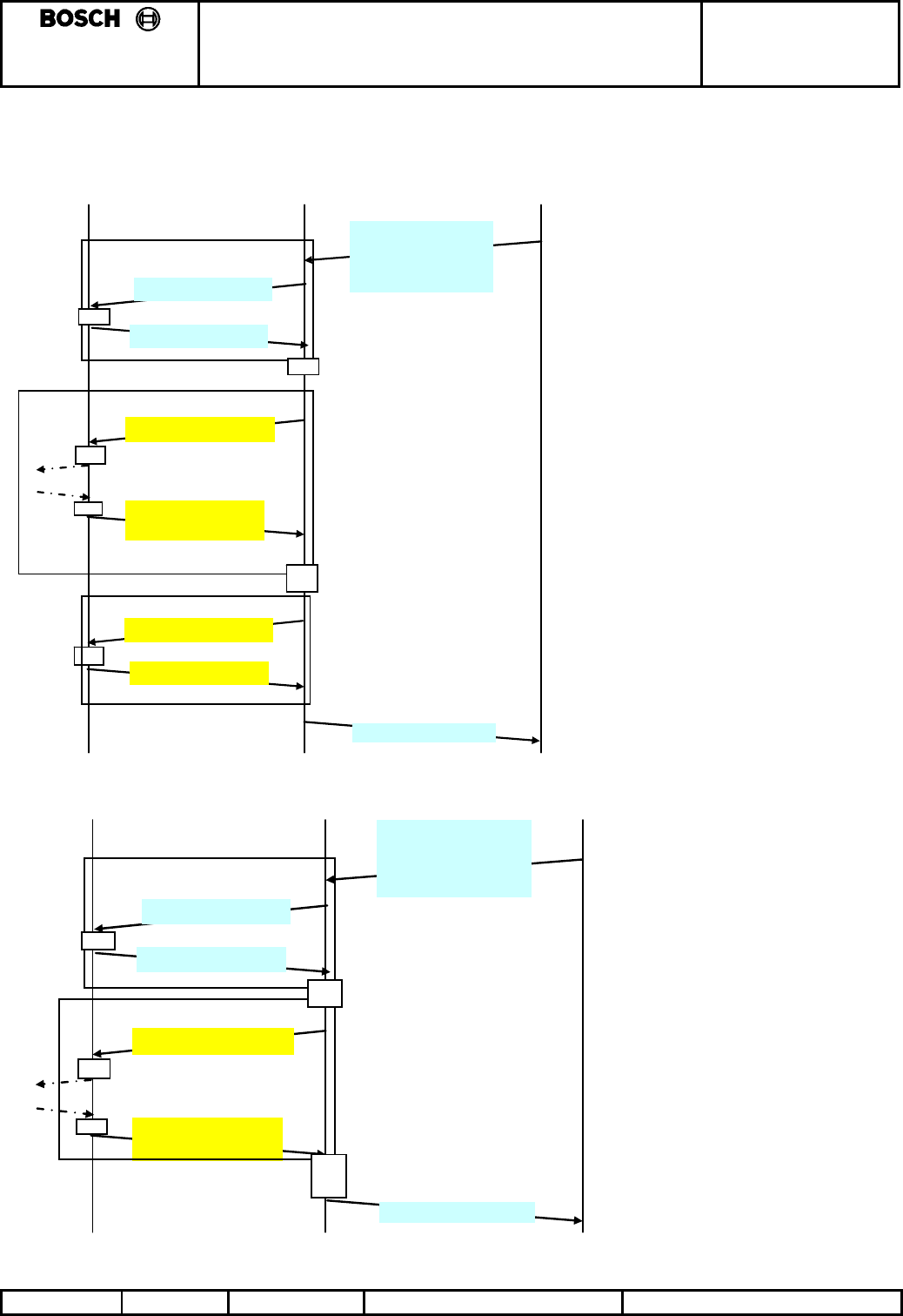

5.1.3.1 Diagram: Explaining how to read message flow diagrams

IDE Request

Smartra EMS

Arrow Shows Direction

of message

0x49 S 0x4B RN1..6

Transponder

Solid Lines show

modules that send and

receive data

Message structure, data

that makes message.

Yellow = new message

Blue = existing message

Red = error message

Block indicates some

processing at module

Request

response pair,

grouped to

make reading

easier

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 20 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

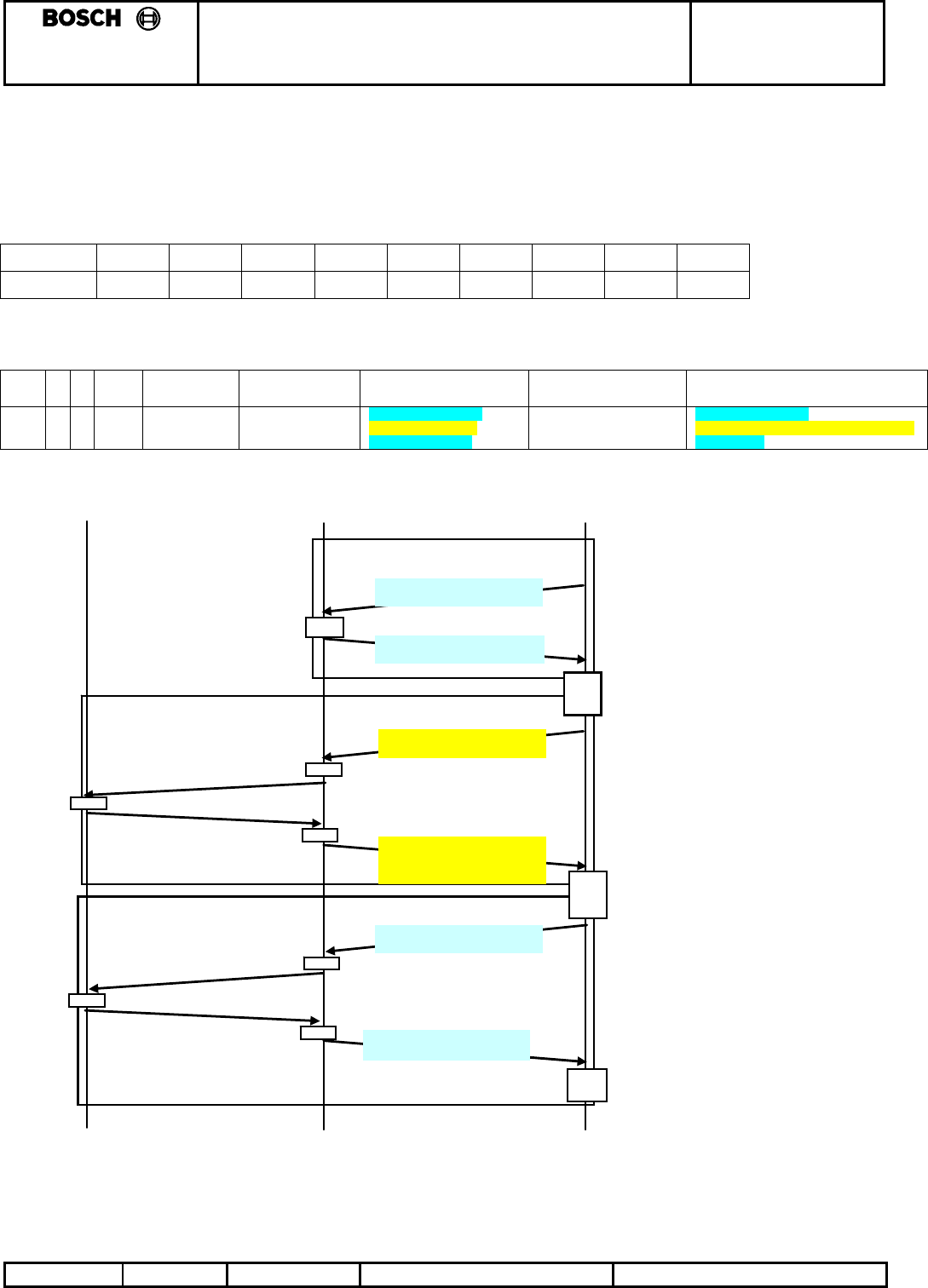

5.2 Message Flow 1 - Normal Operation

Authentication Flow : After ignition or accessories is detected by the CU (EMS) the following steps will

normally be taken to validate the key. We have not added any new messages in the flow only

increased some message sizes.

1) CU provides supply voltage to SMARTRA.

2) CU sends command 06h – ACK.

3) SMARTRA3 responds with 06h – ACK.

4) CU sends command 4Bh - Transponder IDE (+ random number(6 bytes) ).

5) SMARTRA3 responds with the transponder's Identifier (32 bits) [+ Return byte + encrypted number (6bytes) +State(1byte) ].

6) CU sends command 52h – Read EEPROM Page.

7) SMARTRA3 responds with 15h Negative Response. This indicates to EMS that Transponder is in learnt state.

8) The CU generates a random number and calculates the encrypted lock password, then sends command 41h - Transponder

Authentication.

9) SMARTRA3 responds with the encrypted key password.

10) The CU compares the encrypted key password from the transponder (via SMARTRA) with its calculated encrypted key password, if they

match then the key has been authenticated.

5.2.1.1 Message Sequence

Command 06h 53h 4Bh 41h 52h 57h 4Eh 54h 15h

Sequence 1 - 2 4 3 - - - -

5.2.1.2 Message Flow Detail

Msg

Flow

no.

P S

M EMS Mode

description Description

EMS message Data EMS message Description

Smartra Response Data Smartra Message

1 L L L

Normal

message Flow

All modules

learnt. Same

as Flow 9.

ACK request

IDE request

Read EEPROM

Authentication req

0x49 0x02 0x06 0x08

0x49 S 0x4B RN1..6

0x49 S 0x52 PAGE

0x49 S 0x41 RN1..4

ELP1..4

ACK response

IDE Response

Negative response

Authentication Response

0x49 0x02 0x06 0x08

0x69 S R IDE1..4 + ERN1..6 + State byte

0x69 S 0x15 0xXX

0x69 S EKP1..4

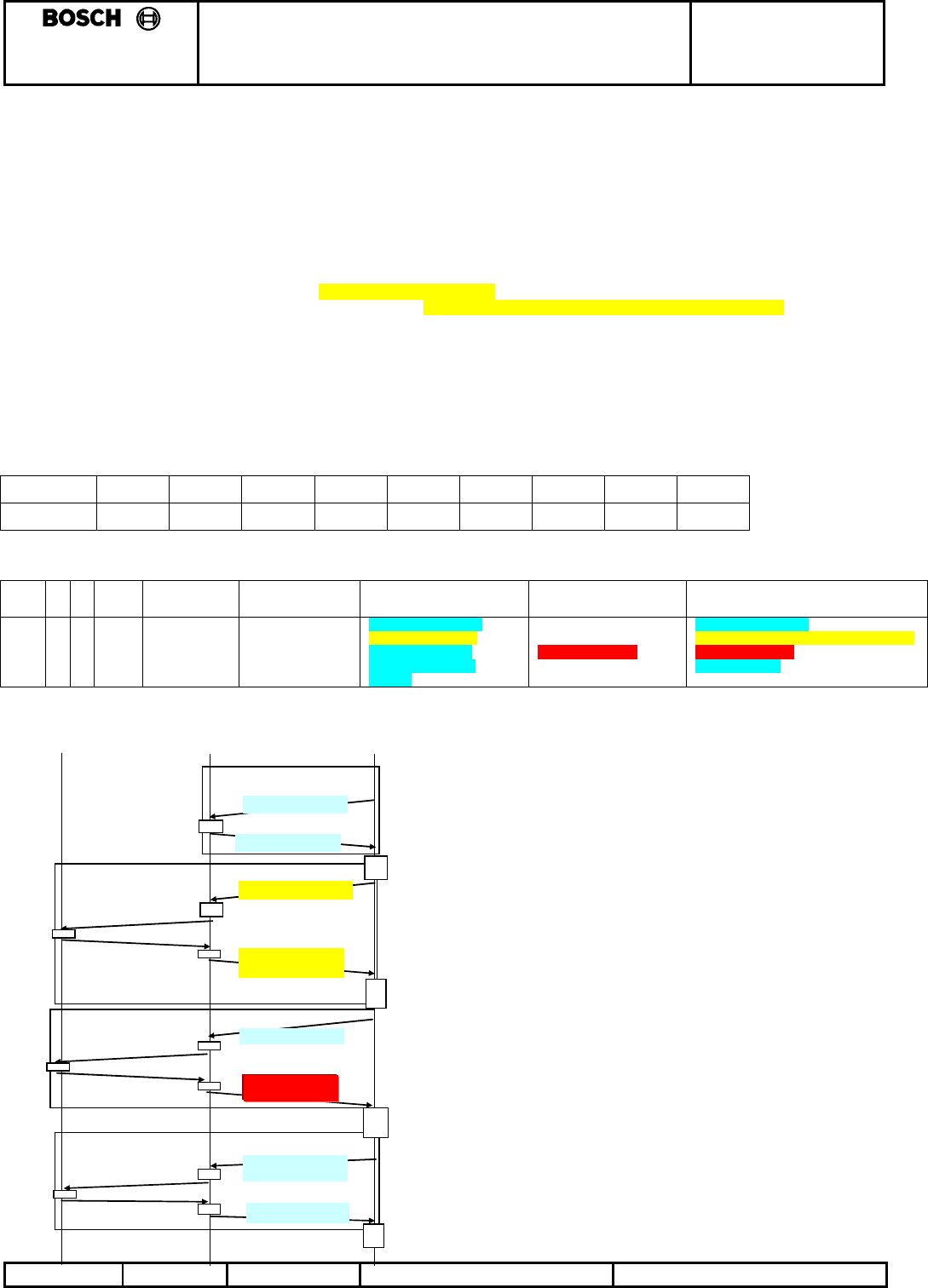

5.2.2 Message Flow Diagram:

ACK request

IDE request

Authentication

Transponder[learnt] Smartra[learnt] EM S[learnt]

EM S request s IDE f rom

transponder with 0x4B

+ ext ra byt es

Smartra does transponder

encryption

Smart ra sends

encrypted data

From IDE response EM S

knows type of Smartra, and

TP IDE.

Evaluate transponder

encrypted key password

if OK then start engine

Smartra knows the EM S sw

is new version d ue t o ext ra

bytes - encrypts RN1..4 and

passes to EMS

0x69 S Ret IDE1..4 +

ERN1..6 + State byte

0x49 S 0x4B + RN1..6

0x69 S EKP1..4

0x49 S 0x41 RN1..4

ELP1..4

EM S requests ACK

0x49 0x02 0x06 0x08

EM S receives ACK

Smart ra3 respond s

with a ACK

Read EEPROM Page

Read EEPROM error

message received.

Request the Transponder

Authentication

0x49 S 0x52 PAGE

0x69 0x15 error

message

EMS requests to read eeprom

page

0x69 0x02 0x06 0x08

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 21 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

5.3 Message Flow 2 – Twice IG ON or Authentication mode

Transponder is in [Virgin] state read EEPROM is allowed.

5.3.1.1 Message Sequence

Command 06h 53h 4Bh 41h 52h 57h 4Eh 54h 15h

Sequence 1 - 2 - 3 - - - -

5.3.1.2 Message Flow Detail

Msg

Flow

no.

P S

M EMS Mode

description Description

EMS message Data EMS message Description

Smartra Response Data Smartra Message

2 V

N V/L/N

Twice IG ON

Authentication

ACK request

IDE request

Read EEPROM

0x49 0x02 0x06 0x08

0x49 S 0x4B RN1..6

0x49 S 0x52 PAGE

ACK response

IDE Response

EEPROM data Response

0x49 0x02 0x06 0x08

0x69 S R IDE1..4 + ERN1..6 + State byte

0x69 S B0..3

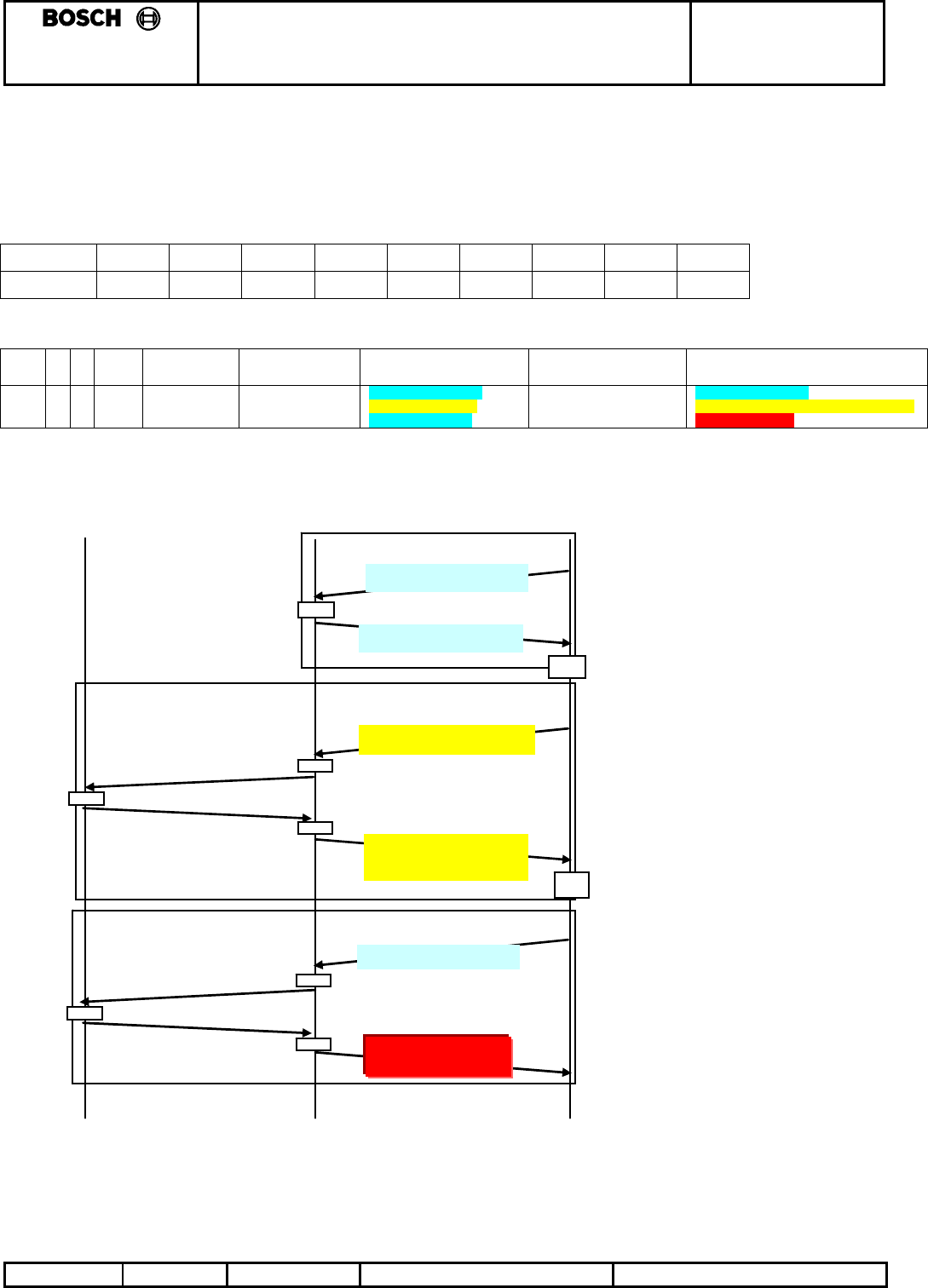

5.3.2 Message Flow Diagram:

ACK request

IDE request

Read EEPROM Page

Transponder[virgin] Smartra[virgin / neutral]

new EM S req uest s AC

0x69 0x02 0x06 0x08

0x49 0x02 0x06 0x08

0x49 S 0x4B + RN1..6

If IDE request has a Random

Number at t ached then t he

Smart ra will send t he new EM S

some more information.

0x69 S Ret IDE1..4 +

ERN1..6 + St at e byt e

0x49 S 0x52 PAGE

0x69 S B0..3

EM S request s t o read

eeprom page

EM S [virgin, neutral, learnt]

Smart ra sends

response

Smart ra3 responds

with a ACK

EM S receives ACK

EM S requests IDE f rom

t ransponder with 0x4B

+ ext ra byt es

From IDE response EM S

knows t ype of Smart ra, and

TP IDE.

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 22 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

5.4 Message Flow 3 – Twice IG ON or Authentication mode

Transponder is in [learnt] state Read EEPROM is not allowed.

5.4.1.1 Message Sequence

Command 06h 53h 4Bh 41h 52h 57h 4Eh 54h 15h

Sequence 1 - 2 - 3 - - - 3.5

5.4.1.2 Message Flow Detail

Msg

Flow

no.

P S

M EMS Mode

description Description

EMS message Data EMS message Description

Smartra Response Data Smartra Message

3 L

N V/L/N

Twice IG ON

Authentication

ACK request

IDE request

Read EEPROM

0x49 0x02 0x06 0x08

0x49 S 0x4B RN1..6

0x49 S 0x52 PAGE

ACK response

IDE Response

EEPROM data Response

0x49 0x02 0x06 0x08

0x69 S R IDE1..4 + ERN1..6 + State byte

0x69 S 0x15 0xXX

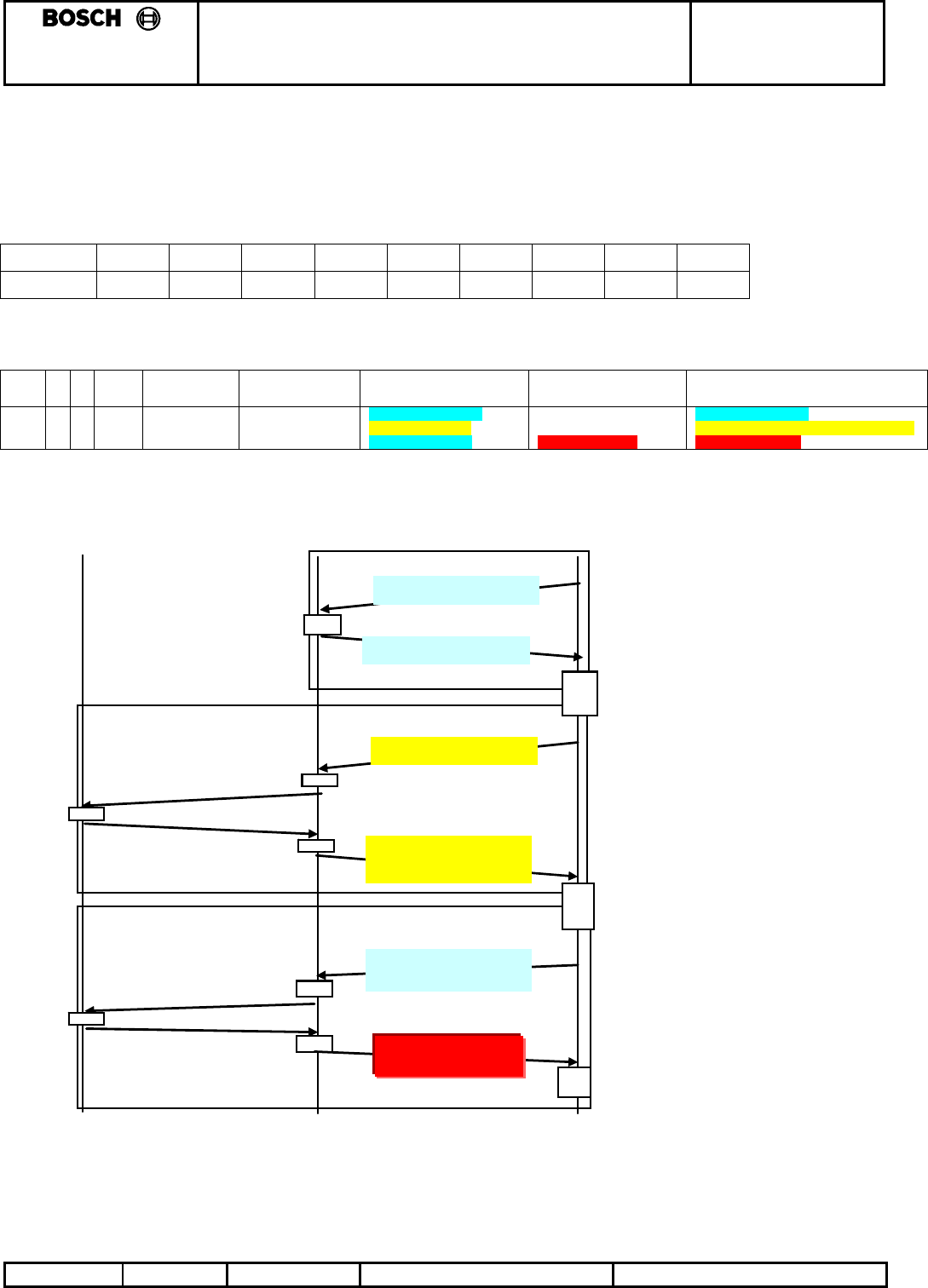

5.4.2 Message Flow Diagram:

ACK request

IDE request

Read EEPROM Page

Transponder[learnt]

new EM S requests AC

0x69 0x02 0x06 0x08

0x49 0x02 0x06 0x08

0x49 S 0x4B + RN1..6

If IDE request has a Random

Number at t ached then the

Smartra will send the new EMS

some more information.

0x69 S Ret IDE1..4 +

ERN1..6 + State byte

0x49 S 0x52 PAGE

EM S request s to read

eeprom page

EM S [virgin, neutral, learnt]

0x69 0x15 error

message

Receive negat ive response fro

Smart ra as Transponder is

already learnt

Smartra[virgin / neutral]

Smart ra3 responds

with a ACK

EM S receives ACK

EM S requests IDE from

transponder with 0x4B

+ ext ra byt es

From IDE response EM S

knows type of Smartra, and

TP IDE.

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 23 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

5.5 Message Flow 4 - Twice IG ON or Authentication mode

Transponder is in [Virgin] state read EEPROM is allowed.

5.5.1.1 Message Sequence

Command 06h 53h 4Bh 41h 52h 57h 4Eh 54h 15h

Sequence 1 - 2 - 3 - - - -

5.5.1.2 Message Flow Detail

Msg

Flow

no.

P S

M EMS Mode

description Description

EMS message Data EMS message Description

Smartra Response Data Smartra Message

4 V L

V/L/N

Twice IG ON

Authentication

ACK request

IDE request

Read EEPROM

0x49 0x02 0x06 0x08

0x49 S 0x4B RN1..6

0x49 S 0x52 PAGE

ACK response

IDE response

EEPROM data Response

0x49 0x02 0x06 0x08

0x69 S R IDE1..4 + ERN1..6 + State byte

0x69 S B0..3

5.5.2 Message Flow Diagram:

ACK request

IDE request

Read EEPROM Page

Transponder[virgin] Smartra[learnt]

EM S receives TP

EEPROM data.

EM S requests A CK

0x49 0x02 0x06 0x08

Smart ra knows t he EM S sw

is new version due t o ext ra

bytes - encrypts RN1..6 and

passes to EMS

0x49 S 0x52 PAGE

0x69 S B0..3

Smartra sends t he

EEPROM page bytes

EMS requests to read eeprom

page

EM S [ virgin, learnt , neutral]

0x49 S 0x4B RN1..6

0x69 S Ret IDE1..4 +

ERN1..6 + State byte

EM S receives ACK

Smartra3 responds

with a ACK 0x69 0x02 0x06 0x08

EM S requests IDE from

transponder with 0x4B

+ ext ra b yt es

From IDE response EM S

knows t ype of Smartra, and

TP IDE.

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 24 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007

DEV04205.9/I-1

5.6 Message Flow 5 - Twice IG ON or Authentication mode

Transponder is in [learnt] state Read EEPROM is not allowed.

5.6.1.1 Message Sequence

Command 06h 53h 4Bh 41h 52h 57h 4Eh 54h 15h

Sequence 1 - 2 - 3 - - - 3.5

5.6.1.2 Message Flow Detail

Msg

Flow

no.

P S

M EMS Mode

description Description

EMS message Data EMS message Description

Smartra Response Data Smartra Message

5 L L V/N

Twice IG ON

Authentication

ACK request

IDE request

Read EEPROM

0x49 0x02 0x06 0x08

0x49 S 0x4B DATA

0x49 S 0x52 PAGE

ACK response

IDE response

Negative response

0x49 0x02 0x06 0x08

0x69 S R IDE1..4 + ERN1..6 + State byte

00x69 S 0x15 0xXX

5.6.2 Message Flow Diagram:

ACK request

IDE request

Read EEPROM Page

Transponder[learnt] Smartra[learnt] EM S[virgin, neutral]

Smart ra knows t he EM S sw

is new version due t o ext ra

bytes - encrypts RN1..4 and

passes to EMS

Read EEPROM error

message received.

0x69 S Ret IDE1..4 +

ERN1..6 + St at e b yte

0x49 S 0x52 PAGE

0x69 0x15 error

message

0x49 S 0x4B RN1..6

EM S request s ACK

0x49 0x02 0x06 0x08

EM S request s t o read eeprom

page

EM S receives ACK

Smart ra3 responds

with a ACK 0x69 0x02 0x06 0x08

EM S request s IDE from

transponder with 0x4B

+ extra byt es

From IDE response EMS

knows type of Smartra, and

TP IDE.

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 37 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 23 March, 2007

DEV04205.9/I-1

5.19 Message Flow 18: – Old EMS with a new learnt Smartra

Smartra sends an exsting error message for EMS to handle.

5.19.1.1 Message Sequence

Command 06h 53h 4Bh 41h 52h 57h 4Eh 54h 15h

Sequence 1 - 2 - - - - - 2.5

5.19.1.2 Message Flow Detail

Msg

Flow

no.

P S

M EMS Mode

description Description

EMS message Data EMS message Description

Smartra Response Data Smartra Message

18 V

L L VLN

(Old) Old EMS new

learnt smartra ACK request

IDE Request 1

IDE Request 2

IDE Request 3

0x49 0x02 0x06 0x08

0x49 S 0x4B

ACK response

IDE Response (Negative)

0x49 0x02 0x06 0x08

0x69 S 0x15 0x03

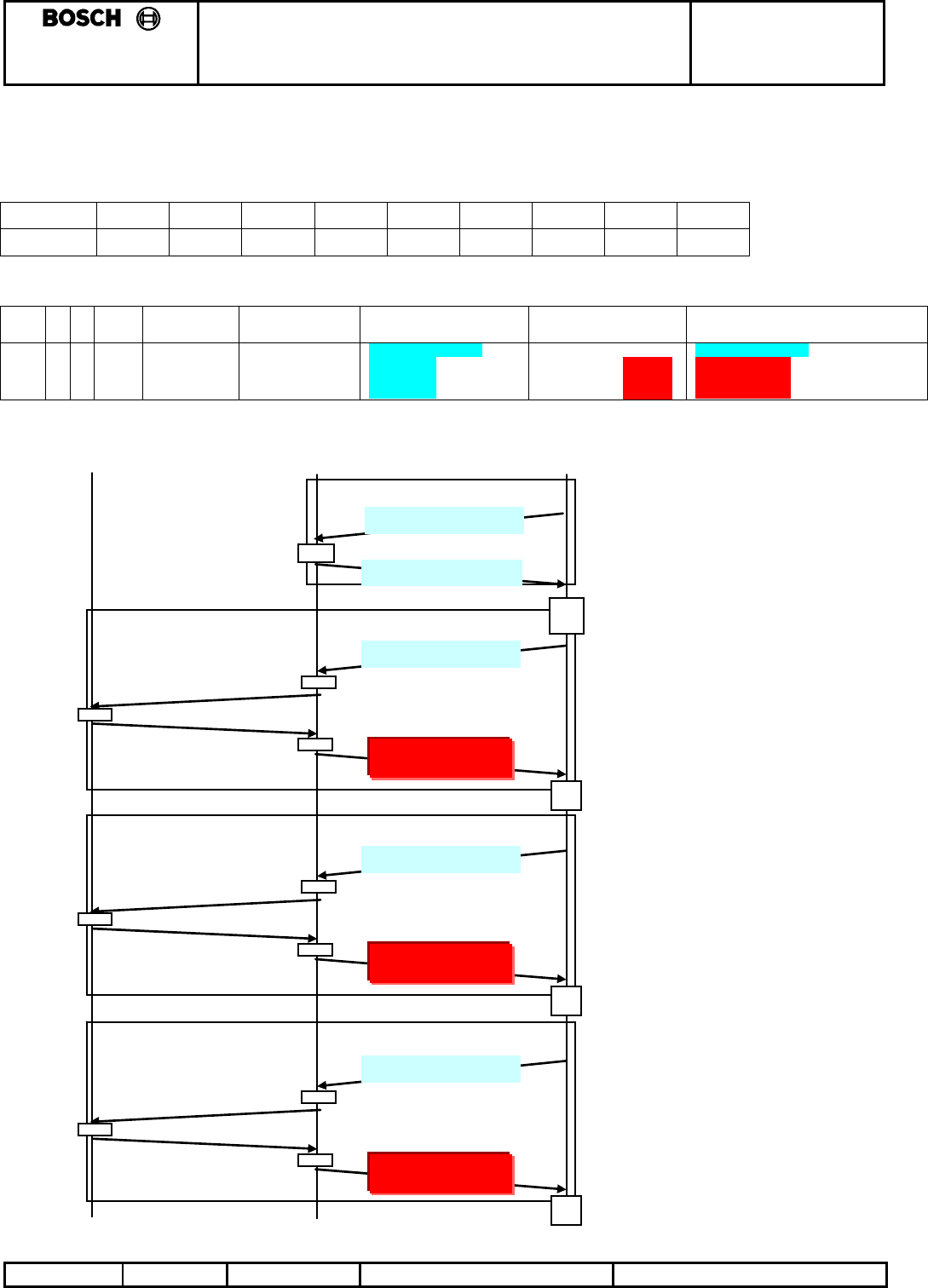

5.19.2 Message Flow Diagram:

ACK request

IDE request 1

Transponder [virgin , learnt ] Old EM S [virgin, learnt, neutral]

EM S request s IDE f rom

transponder with 0x4B

+ ext ra bytes

New Smartra responds with

an exsiting error message

as t he learnt smart ra cant

talk to a Old EMS.

EM S request s ACK

0x49 0x02 0x06 0x08

Smartra[learnt]

0x49 S 0x4B

0x69 0x15 0X03

error message

IDE request 2

EM S request s IDE f rom

transponder with 0x4B

+ ext ra bytes

New Smartra responds

wit h an exsit ing error

message as t he learnt

smart ra cant t alk t o a Old

EM S.

0x49 S 0x4B

0x69 0x15 0X03

error message

IDE request 3

EM S request s IDE f rom

transponder with 0x4B

+ ext ra bytes

New Smart ra respond s wit h an

exsit ing error message as t he learnt

smart ra cant t alk t o a Old EM S.

0x49 S 0x4B

0x69 0x15 0X03

error message

EM S receives ACK

Smart ra3 responds

with a ACK 0x69 0x02 0x06 0x08

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 38 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 23 March, 2007

DEV04205.9/I-1

5.20 Message Flow 19: – Old EMS with a virgin Smartra

This combination will function according to the Smartra2 protocol specification.

5.20.1.1 Message Sequence

Command 06h 53h 4Bh 41h 52h 57h 4Eh 54h 15h

Sequence 1 - 2 - - - - - -

5.20.1.2 Message Flow Detail

Msg

Flow

no.

P S

M EMS Mode

description Description

EMS message Data EMS message Description

Smartra Response Data Smartra Message

19 L V L

(Old) Old EMS with

a virgin

Smartra3

ACK request

IDE Request

….

Following

messages are the

same as Smartra2

…….

0x49 0x02 0x06 0x08

0x49 S 0x4B

….

Following messages are the

same as Smartra2

…….

ACK response

IDE Response

….

Following messages are

the same as Smartra2

…….

0x69 0x02 0x06 0x08

0x69 S IDE1..4

….

Following messages are the same as

Smartra2

…….

5.20.2 Message Flow Diagram:

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 39 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 23 March, 2007

DEV04205.9/I-1

5.21 Message Flow 20: – Old Smartra with a new EMS

This combination will not allow automobile to start up as the system isn’t setup correctly.

5.21.1.1 Message Sequence

Command 06h 53h 4Bh 41h 52h 57h 4Eh 54h 15h

Sequence 1 - 2 - - - - - -

5.21.1.2 Message Flow Detail

Msg

Flow

no.

P S

M EMS Mode

description Description

EMS message Data EMS message Description

Smartra Response Data Smartra Message

20 L old L Old Smartra

with a new

learnt EMS

ACK request

IDE Request 1

IDE Request 2

IDE Request 3

0x49 0x02 0x06 0x08

0x49 S 0x4B RN1..6

ACK response

IDE Response 1

IDE Response 2

IDE Response 3

0x69 0x02 0x06 0x08

0x69 S IDE1..4

5.21.2 Message Flow Diagram:

ACK request

IDE request 1

Transponder[learnt] Old Smartra New EM S[learnt]

EM S requests IDE from

transpo nder wit h 0x4 B

+ ext ra byt es

EM S knows t here is a

Smart ra2 when it is

expect ing a Smart ra3. Try

again.

EM S requests ACK

0x49 0x02 0x06 0x08

0x69 0x02 0x06 0x08

0x49 S 0x4B + RN1..6

0x69 S IDE1..4

Message Flow will stop as the EMS knows that

there is a Smartra2 in the system when it is

expecting a configured Smartra3.

IDE request 2

EM S requests IDE from

transpo nder wit h 0x4 B

+ ext ra byt es

EM S knows t here is a

Smart ra2 when it is

expect ing a Smart ra3. Try

again.

0x49 S 0x4B + RN1..6

0x69 S IDE1..4

IDE request 3

EMS requests IDE from

t ranspo nder wit h 0x4 B

+ ext ra b yt es

EM S knows t here is a

Smart ra2 when it is

expect ing a Smart ra3 . The

EM S needs t o raise an error

as t here is a miss-mat ch

0x49 S 0x4B + RN1..6

0x69 S IDE1..4

EM S receives ACK

Smart ra2 responds

with a ACK

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 40 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 23 March, 2007

DEV04205.9/I-1

5.22 Summary Tables : Message Flow Summary

Table displays the transponder (TP), Smartra (SM) and engine management system(EMS) states and

the messages that are sent when in the state between the EMS and the Smartra. The message flows

are described in more detail below.

5.22.1 Table: Normal Message Flow

Msg

Flow

no.

P S

M EMS Mode

description Description

EMS message Data EMS message Description

Smartra Response Data Smartra Message

1 L L L

Normal

message Flow

All modules

learnt.

Same as Flow

ACK request

IDE request

Read EEPROM

Authentication req

0x49 0x02 0x06 0x08

0x49 S 0x4B RN1..6

0x49 S 0x52 PAGE

0x49 S 0x41 RN1..4

ELP1..4

ACK response

IDE Response

Negative response

Authentication Response

0x49 0x02 0x06 0x08

0x69 S R IDE1..4 + ERN1..6 + State byte

0x69 S 0x15 0xXX

0x69 S EKP1..4

TP = transponder SM = Smartra EMS = engine management system.

V = virgin L = Learnt N = Neutral S = size R = return value D = data M = Missing (old) = Smartra2 compatible EMS unit

Note : ** all messages have Check sum at end but this isn’t shown to simplify matrix.

5.22.2 Table: Twice IG ON or Authentication

Msg

Flow

no.

P S

M EMS Mode

description Description

EMS message Data EMS message Description

Smartra Response Data Smartra Message

2 V

N V/L/N

Twice IG ON

Authentication

ACK request

IDE request

Read EEPROM

0x49 0x02 0x06 0x08

0x49 S 0x4B RN1..6

0x49 S 0x52 PAGE

ACK response

IDE Response

EEPROM data Response

0x49 0x02 0x06 0x08

0x69 S R IDE1..4 + ERN1..6 + State byte

0x69 S B0..3

3 L

N V/L/N

Twice IG ON

Authentication

ACK request

IDE request

Read EEPROM

0x49 0x02 0x06 0x08

0x49 S 0x4B RN1..6

0x49 S 0x52 PAGE

ACK response

IDE Response

EEPROM data Response

0x49 0x02 0x06 0x08

0x69 S R IDE1..4 + ERN1..6 + State byte

0x69 S 0x15 0xXX

4 V L

V/L/N

Twice IG ON

Authentication

ACK request

IDE request

Read EEPROM

0x49 0x02 0x06 0x08

0x49 S 0x4B RN1..6

0x49 S 0x52 PAGE

ACK response

IDE response

EEPROM data Response

0x49 0x02 0x06 0x08

0x69 S R IDE1..4 + ERN1..6 + State byte

0x69 S B0..3

5 L L V/N

Twice IG ON

Authentication

ACK request

IDE request

Read EEPROM

0x49 0x02 0x06 0x08

0x49 S 0x4B DATA

0x49 S 0x52 PAGE

ACK response

IDE response

Negative response

0x49 0x02 0x06 0x08

0x69 S R IDE1..4 + ERN1..6 + State byte

00x69 S 0x15 0xXX

6 V V

N V/L/N

(Old)

Twice IG ON

Authentication

ACK request

IDE request

Read EEPROM

0x49 0x02 0x06 0x08

0x49 S 0x4B

0x49 S 0x52 PAGE

ACK response

IDE Response

EEPROM data Response

0x69 0x02 0x06 0x08

0x69 S IDE1..4

0x69 S B0..3

7 L V

N V/L/N

(Old)

Twice IG ON

Authentication

ACK request

IDE request

Read EEPROM

0x49 0x02 0x06 0x08

0x49 S 0x4B

0x49 S 0x52 PAGE

ACK response

IDE Response

Negative response

0x69 0x02 0x06 0x08

0x69 S IDE1..4

0x69 S 0x15 0xXX

8 L V

N L

(Old) Twice IG ON

Authentication

ACK request

IDE request

Read EEPROM

Authentication Req

0x49 0x02 0x06 0x08

0x49 S 0x4B

0x49 S 0x52 PAGE

0x49 S 0x41 RN1..4

ELP1..4

ACK response

IDE response

Negative response

Authentication response

0x69 0x02 0x06 0x08

0x69 S IDE1..4

0x69 S 0x15 0xXX

0x69 S EKP1..4

9 L L L

Twice IG ON

Authentication

Same as Flow

ACK request

IDE request

Read EEPROM

Authentication req

0x49 0x02 0x06 0x08

0x49 S 0x4B RN1..6

0x49 S 0x52 PAGE

0x49 S 0x41 RN1..4

ELP1..4

ACK response

IDE Response

Negative response

Authentication Response

0x49 0x02 0x06 0x08

0x69 S R IDE1..4 + ERN1..6 + State byte

0x69 S 0x15 0xXX

0x69 S EKP1..4

TP = transponder SM = Smartra EMS = engine management system.

V = virgin L = Learnt N = Neutral S = size R = return value D = data M = Missing (old) = Smartra2 compatible EMS unit

Note : ** all messages have Check sum at end but this isn’t shown to simplify matrix.

5.22.3 Table: All modes missing transponder

Msg

Flow

no.

P S

M EMS Mode

description Description

EMS message Data EMS message Description

Smartra Response Data Smartra Message

10 M L V/N/L

(new) All modes

(missing

transponder)

ACK request

IDE request

0x49 0x02 0x06 0x08

0x49 S 0x4B RN1..6

ACK response

IDE Response (Negative)

0x49 0x02 0x06 0x08

0x69 S R IDE1..4 + ERN1..6 + State byte

TP = transponder SM = Smartra EMS = engine management system.

V = virgin L = Learnt N = Neutral S = size R = return value D = data M = Missing (old) = Smartra2 compatible EMS unit

Note : ** all messages have Check sum at end but this isn’t shown to simplify matrix.

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 41 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 23 March, 2007

DEV04205.9/I-1

5.22.4 Table: Transponder (Re)teaching mode

Msg

Flow

no.

P S

M EMS Mode

description Description

EMS message Data EMS message Description

Smartra Response Data Smartra Message

11 V V

N V/N/L

(new) Transponder

(Re) Teaching ACK request

IDE Request

Write EEPROM

Authentication Req

0x49 0x02 0x06 0x08

0x49 S 0x4B RN1..6

0x49 S 0x57 WRITE_DATA

0x49 S 0x41 RN1..4

ELP1..4

ACK response

IDE Response

EEPROM write Response

Authentication response

0x69 0x02 0x06 0x08

0x69 S R IDE1..4 + ERN1..6 + State byte

0x69 S 0x57

0x69 S EKP1..4

12 V L V/N/L

(new) Transponder

(Re) Teaching ACK request

IDE Request

Write EEPROM

Authentication Req

0x49 0x02 0x06 0x08

0x49 S 0x4B RN1..6

0x49 S 0x57 WRITE_DATA

0x49 S 0x41 RN1..4

ELP1..4

ACK response

IDE Response

EEPROM write Response

Authentication response

0x49 0x02 0x06 0x08

0x69 S R IDE1..4 + ERN1..6 + State byte

0x69 S 0x57

0x69 S EKP1..4

13 L V

N V/N/L

(new) Transponder

(Re) Teaching ACK request

IDE Request

Write EEPROM

Authentication Req

0x49 0x02 0x06 0x08

0x49 S 0x4B RN1..6

0x49 S 0x57 WRITE_DATA

0x49 S 0x41 RN1..4

ELP1..4

ACK response

IDE Response

Negative response

Authentication response

0x69 0x02 0x06 0x08

0x69 S R IDE1..4 + ERN1..6 + State byte

0x69 S 0x15 0xXX

0x69 S EKP1..4

14 L L V/N/L

(new) Transponder

(Re) Teaching ACK request

IDE Request

Write EEPROM

Authentication Req

0x49 0x02 0x06 0x08

0x49 S 0x4B RN1..6

0x49 S 0x57 WRITE_DATA

0x49 S 0x41 RN1..4

ELP1..4

ACK response

IDE Response

Negative response

Authentication response

0x49 0x02 0x06 0x08

0x69 S R IDE1..4 + ERN1..6 + State byte

0x69 S 0x15 0xXX

0x69 S EKP1..4

15 L V

N VNL

(old) Transponder

(Re) Teaching ACK request

IDE Request

Write EEPROM

Authentication Req

0x49 0x02 0x06 0x08

0x49 S 0x4B

0x49 S 0x57 WRITE_DATA

0x49 S 0x41 RN1..4

ELP1..4

ACK response

IDE Response

Negative response

Authentication response

0x69 0x02 0x06 0x08

0x69 S IDE1..4

0x69 S 0x15 0xXX

0x69 S EKP1..4

16 V V

N VNL

(old) Transponder

(Re) Teaching ACK request

IDE Request

Write EEPROM

Authentication Req

0x49 0x02 0x06 0x08

0x49 S 0x4B

0x49 S 0x57 WRITE_DATA

0x49 S 0x41 RN1..4

ELP1..4

ACK response

IDE Response

EEPROM write Response

Authentication response

0x69 0x02 0x06 0x08

0x69 S IDE1..4

0x69 S 0x57

0x69 S EKP1..4

TP = transponder SM = Smartra EMS = engine management system.

V = virgin L = Learnt N = Neutral S = size R = return value D = data M = Missing (old) = Smartra2 compatible EMS unit

Note : ** all messages have Check sum at end but this isn’t shown to simplify matrix.

5.22.5 Table: Special cases

Msg

Flow

no.

P S

M EMS Mode

description Description

EMS message Data EMS message Description

Smartra Response Data Smartra Message

17 L L L

(new) Miss-matched

secret key ACK request

IDE Request 1

IDE Request 2

IDE Request 3

0x49 0x02 0x06 0x08

0x49 S 0x4B RN1..6

ACK response

IDE Response 1

IDE Response 2

IDE Response 3

0x49 0x02 0x06 0x08

0x69 S R IDE1..4 + ERN1..6 + State byte

18 V

L L VLN

(Old) Old EMS new

learnt smartra ACK request

IDE Request 1

IDE Request 2

IDE Request 3

0x49 0x02 0x06 0x08

0x49 S 0x4B

ACK response

IDE Response (Negative)

0x49 0x02 0x06 0x08

0x69 S 0x15 0x03

19 L V L

(Old) Old EMS with

a virgin

Smartra3

ACK request

IDE Request

….

Following

messages are the

same as Smartra2

…….

0x49 0x02 0x06 0x08

0x49 S 0x4B

….

Following messages are the

same as Smartra2

…….

ACK response

IDE Response

….

Following messages are

the same as Smartra2

…….

0x69 0x02 0x06 0x08

0x69 S IDE1..4

….

Following messages are the same as

Smartra2

…….

20 L old L Old Smartra

with a new

learnt EMS

ACK request

IDE Request 1

IDE Request 2

IDE Request 3

0x49 0x02 0x06 0x08

0x49 S 0x4B RN1..6

ACK response

IDE Response 1

IDE Response 2

IDE Response 3

0x69 0x02 0x06 0x08

0x69 S IDE1..4

TP = transponder SM = Smartra EMS = engine management system.

V = virgin L = Learnt N = Neutral S = size R = return value D = data M = Missing (old) = Smartra2 compatible EMS unit

Note : ** all messages have Check sum at end but this isn’t shown to simplify matrix.

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 42 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 23 March, 2007

DEV04205.9/I-1

6. REPLACING OF SYSTEM COMPONENTS

The possibility exists that we may need to replace a component in the Immobilizer system. The

components that possibly can be replaced are:

1. EMS (when damaged).

2. Smartra (when damaged).

3. Keys [transponders] when Lost or damaged existing keys.

4. Antenna - (interface to the transponder).

6.1 Replacing the Engine Management System (EMS) ECU

The consequences of replacing the Engine Management Systems (EMS) are :

1. The new EMS needs to be taught with the same 9 byte DPN as the previous EMS had.

2. The Keys need to be re-taught.

Replacing the EMS causes non Smartra changes as well. Transponder Keys have to be re-taught to the

EMS. The EMS requests vehicle specific data from tester. The [virgin] EMS stores the vehicle specific

data and the key teaching can be started. The key teaching is done by the Ignition on with key and

additional tester command. The EMS stores the relevant data in the EEPROM and in the transponder.

Then the EMS runs authentication for confirmation of teaching process. The successful programming is

confirmed by message to tester.

6.1.1 Equipment required to replace the EMS in immo system

• EMS – virgin state

• Existing Keys

• Diagnostic Tester

• Diagnostic PIN number from OEM secure database

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 43 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 23 March, 2007

DEV04205.9/I-1

6.1.2 Process Flow Chart: Replacing Engine Management System EMS

Insert New Engine

management System.

Replacing an Engine

Management System

Connect the Diagnostic

Tester

Enter the PIN number

according to OEM

database on the Diagnostic

Tester

return

The Diagnostic Tester will

trigger a message so EMS

will check the state of the

EMS and Smartra

correct EMS is

present

Yes

Store Diagnostic PIN

number on the EMS. EMS

changes to [learnt] state.

Send positive response to

the tester.

Go through Key teach

procedure

Send negative response to

the Tester

6.2 Replacing the Smartra ECU

If the Smartra is replaced in the field due to failure then the diagnostic tester will be required.

6.2.1 Equipment required to replace a Smartra unit in immo system

• Smartra [virgin] state.

• Diagnostic Tester.

• Diagnostic PIN number from OEM secure database.

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 44 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 23 March, 2007

DEV04205.9/I-1

6.2.2 Process Flow Chart : Replacing Smartra

Insert New Smartra unit.

[virgin] state.

Replacing a Smartra Connect Diagnostic Tester

Through the EMS

return

The Diagnostic Tester will

trigger a message so EMS

will check the state of the

EMS and Smartra

correct smartra is

present and PIN

number entered is

the same as EMS

Store PIN number on the

Smartra

Smartra changes to [learnt]

state

Send positive response to

the tester.

Enter the PIN number

according to OEM

database on the Diagnostic

Tester

Yes

Send negative response to

the Tester

6.3 Replacing Keys (transponders)

The proposed protocol hasn’t changed the existing Key (transponder) teach functionality. The replacing

of keys doesn’t involve any different processing from the Smartra. The Smartra shall pass messages

between the EMS and the transponder as it currently does.

6.3.1 Process Flow Chart : Replacing/Adding Keys

Adding new keys

Adding new Keys (transponder) - Process flow Chart showing changes required on Smartra after

replacing a EMS

return

Key Teach Procedure need

Diagnostic tester interface.

6.4 Replacing Antenna

The proposed changes to the Smartra do not affect the antenna. That is, the lock barrel is passive and

has no unique code to identify it. If the antenna is replaced with an equivalent part, the system will work

as normal.

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 45 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 23 March, 2007

DEV04205.9/I-1

7. DIAGNOSTIC TESTER REQUIREMENTS

7.1.1 Diagnostic Tester Introduction

• The Smartra needs the Diagnostic interface to change state of Smartra to [neutral] state from the

[learnt] state in the field.

• The Smartra needs to use the Diagnostic PIN Number (DPN) to generate the Secret Encryption Key

(SEK).

• For Security reasons the Diagnostic PIN Number (DPN) is required to access the diagnostic function,

PIN number protection is required for security reasons. Once the Diagnostic PIN Number (DPN) is

taught to the [virgin] or [neutral] Smartra the Smartra enters [learnt] state. The OEM secure

Diagnostic PIN Number (DPN) is taught to the Smartra:

o at the OEMs end of line tester after the car is assembled.

o in the field when a Smartra is replaced with a [virgin] Smartra.

• The Diagnostic PIN Number (DPN) will be:

o a 9 byte number that will be Thatcham compliant selected by OEM.

o the OEM will be responsible to maintain a database for Diagnostic PIN numbers (DPN’s)

matching with VIN numbers.

o the diagnostic PIN number will be stored on both the EMS and the Smartra.

7.1.2 The Diagnostics tester interface diagram:

7.1.3 Programming Diagnostic PIN Number DPN (on the Smartra)

The Smartra will learn the 9 byte Diagnostic PIN Number (DPN) at the OEMs end of line tester or in the

field when a module is replaced.

The Diagnostic PIN Number (DPN) will inhibit placing the Smartra3 into [Neutral] state from [Learnt] state

for security reasons.

A new Smartra ECU will be delivered with no Diagnostic PIN Number (DPN) programmed into EEPROM.

In this “production mode” status, all diagnostic functions will be available without having to enter or

program a pin code previously.

Once the Diagnostic PIN Number (DPN) is programmed to the ECU at the car assembly plants end of

line tester, all diagnostics functions are possible until the end diagnostic command is transmitted from

the tester to the control unit or the car assembly plants end of line tester is removed from the vehicle.

This is to say, once the Diagnostic PIN Number (DPN) has been programmed, it does not have to be

entered again to access secured diagnostic functions until the current diagnostic session is completed.

Smartra EMS

single w ire

asynch bi-dir

comms

4800baud

k-line comms

using KWP2000

or CAN

Diagnostics

(Tester or Hi-

Scan)

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 46 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 23 March, 2007

DEV04205.9/I-1

7.1.3.1 Message Flow Diagram (Programming Diagnostic PIN – both Smartra and EMS)

7.1.3.2 Message Flow Diagram (Programming Diagnostic PIN – EMS

ACK request

EM S[virgin/ neutral]

0x49 0x02 0x06 0x08

Smartra[learnt] Diagnostic Tester

0x69 S IDE1..4 +

ERN1..6 + State byte

0x49 S 0x4B + RN1..6

IDE request

EM S knows the Smartra is

in learnt st at e and it is in

[virgin] or [neutral] state. It

st ores t he PIN number

Send ACK t o test er

Program Diagnost ic PIN

number request - send

request with 9 byte PIN

number

EM S receives ACK

Smartra3

responds

with a ACK

0x49 0x02 0x06 0x08

ACK request

EM S[virgin/ neutra

0x49 0x02 0x06 0x08

Smartra[virgin/ neutral] Diagnostic Tester

Pro gram Diag nost ic PIN

number request - send

request with 9 byte PIN

number

0x69 S IDE1..4 +

ERN1..6 + State byte

0x49 S 0x4B + RN1..6

IDE request

0x69 S 0x01

0x49 S 0x54 DPN1..9

Teach Smartra

Send ACK t o t ester

0x49 0x02 0x06 0x08

EM S sends t each Smart ra

command (0 x54 ) t o Smart ra t o

st o re new PIN code

EMS knows the type of Smartra

and the st at e t he Smart ra is in.

Aft er sending IDE req uest

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 47 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 23 March, 2007

DEV04205.9/I-1

7.1.3.3 Message Flow Diagram (Programming Diagnostic PIN – Smartra)

7.1.4 Aftermarket PIN number sequence:

When a Smartra is installed at the:

• OEM Car manufacturer the unique Diagnostic PIN Number (DPN) shall be programmed by the

function tester on the line. The OEM needs to maintain a database with the VIN and the Diagnostic

PIN Number (DPN).

• Aftermarket dealer, the dealer must program the unique Diagnostic PIN Number (DPN) using the

diagnostic tester. The Aftermarket dealer needs to confirm the Diagnostic PIN Number (DPN) from

the OEM database.

7.1.5 Changing Diagnostic PIN Number (DPN) on Smartra

To change the Diagnostic PIN Number (DPN):

1. the Smartra will need to be placed into [neutral] state.

2. then the diagnostic tester will need to teach the new diagnostic PIN number.

ACK request

EM S[learnt]

0x49 0x02 0x06 0x08

Smartra[virgin/neutral] Diagnostic Tester

Pro g ram Diag nost ic PIN

number request - send

request with 9 byte PIN

number

0x69 S IDE1..4 +

ERN1..6 + State byte

0x49 S 0x4B + RN1..6

IDE request

0x69 S 0x01

0x49 S 0x54 DPN1..9 EM S sends t each Smart ra

command (0x54) t o Smart ra t o

store new PIN code

Teach Smartra

Send ACK to t est er

0x49 0x02 0x06 0x08

EM S knows t he type of Smartra

and t he st ate t he Smart ra is in.

After sending IDE request

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 48 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 23 March, 2007

DEV04205.9/I-1

7.1.6 Accessing diagnostic functions

At the next diagnostic session, the pin code is required to be entered correctly to enable the ECU state

change. If pin code is entered incorrectly 3 times, the Smartra will enter a time-out loop where it will not

be possible to retry entering the DPN for 60 minutes ie. a NACK will be sent from Smartra stating that

the Smartra is in locked state. After 60 minutes of IGN ON, the counters and error flags will be cleared

and the DPN can be entered.

7.1.6.1 Message Flow Diagram (Changing State – correct PIN)

Neutralise Smartra

ACK request

EM S[learnt]

0x49 0x02 0x06 0x08

Smartra[learnt] -> [neutral] Diagnostic Tester

Change st at e of Smart ra

to [neutral] request with

PIN number

0x69 S IDE1..4 +

ERN1..6 + St ate byte

0x49 S 0x4B + RN1..6

IDE request

0x69 S Return T1..3

0x49 S 0x4E DPN1..9 EM S sends neut ralise Smart ra

command (0x4E) with existing

PIN code

Send ACK to tester

Smart ra will check if

PIN number is correct

t hen t he unit will ent er

[ neut ral] st at e.

In neut ral st ate t he

Diagnost ic PIN code

is changed to neut ral

PIN code.

EM S receives ACK

Smart ra3

responds

with a ACK 0x49 0x02 0x06 0x08

EM S knows t he t ype of Smart ra

and the stat e t he Smart ra is in.

Af t er sending IDE req uest

PROTOCOL SPECIFICATION F005VP0801

ROBERT BOSCH

(AUSTRALIA) PTY. LTD.

A.B.N. 48 004 315 628

SMARTRA III IMMOBILISER Page 49 of 49

Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 23 March, 2007

DEV04205.9/I-1

7.1.6.2 Message Flow Diagram (Changing Smartra State – in-correct PIN)

Neutralise Smartra

ACK request

EM S[learnt]

0x49 0x02 0x06 0x08

Smartra[learnt] Diagnostic Tester

Change st at e of Smart ra

to [neutral] request with

PIN number

0x69 S IDE1..4 +

ERN1..6 + St ate byte

0x49 S 0x4B + RN1..6

IDE request

EMS knows the type of Smartra

and the st at e t he Smart ra is in.

Af t er sending IDE request

0x69 S Return

0x49 S 0x4E DPN1..9

EM S sends neut ralise Smart ra

command (0x4E) with incorrect

PIN code

Send Negative response

to tester

Smart ra sees t he PIN

number is not correct

and responds with

negative response

EM S receives ACK

Smart ra3

responds

with a ACK 0x49 0x02 0x06 0x08
