Users Manual

WiNRADiO

G3 Series Radio Receiver

User’s Guide

- ii -

Published by

WiNRADiO Communications

PO Box 6118, St Kilda Road, Melbourne 3004, Australia

any means without the written permission of the publisher.

Trademarks

WiNRADiO, G3 and G303 are trademarks or registered trademarks of Rosetta Laboratories

Pty. Ltd.

All other brand and product names are trademarks or registered trademarks of their respective

owners.

Patents

WiNRADiO technology is protected by US Pat. No. 6,289,207 and other pending US and

international patent applications.

Printed in Australia

- ii -

FCC Notice

The WiNRADiO G3 SERIES receiver has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and the receiver

• Connect the computer into a different outlet so that the two devices are on different

branch circuits

• Consult an authorised dealer or an experienced radio/TV technician for help

Caution

To comply with the limits for the Class B digital device, pursuant to Part 15 of of the FCC rules,

the WiNRADiO card must be installed in computer equipment certified to comply with the Class

B limits. Only peripherals certified to comply with the Class B limits may be attached to the

computer containing the WiNRADiO receiver. All cables used to connect the computer and

peripherals must be shielded and grounded. Operation with non-certified peripherals may

result in interference to radio and TV reception.

Modifications

Any changes or modifications to the WiNRADiO receiver not expressly approved in this book

could void the user's authority to operate this equipment.

Limitation of Liability and Remedies

The information published in this book has been compiled from several sources. While every

effort has been made to ensure its accuracy, neither the authors nor the publisher can

guarantee that all information is entirely correct or up-to-date. Furthermore, neither the authors

nor the publisher can take any responsibility for the use of this information or any

consequences arising therefrom.

WiNRADiO Communications shall have no liability for any damages due to lost profits, loss of

use or anticipated benefits, or other incidental, special or punitive damages arising from the use

of, or the inability to use, the WiNRADiO receiver, whether arising out of contract, negligence,

tort or under any warranty, even if WiNRADiO Communications has been advised of the

possibility of such damages. In no event shall WiNRADiO Communications ' liability for

damages exceed the amount paid for this product. WiNRADiO Communications neither

assumes nor authorises anyone to assume for it any other liabilities.

Warning

In certain countries or states it may be illegal to monitor certain frequencies. We cannot accept

any responsibility for the consequences of your non-compliance with government regulations.

If you are in doubt about the regulations in your country or state, please contact your nearest

radio communications regulatory authority.

Introduction

One could easily conclude that, in the era of the Internet and communication

satellites, short waves are destined for obsolescence. But the reality is quite

different. On the contrary, shortwave communications seem to be

experiencing a new period of revival and vigorous growth.

This revival is partially caused by the fact that shortwave is still the only

technology able to send signals around the globe with minimum power and

without the need for expensive, and potentially failure-prone or sabotage-

prone infrastructure. In the era of increased security concerns, this is an

important reason for the continuing interest in shortwave.

The other reasons include newly found applications, for example HF email,

and emerging new types of digital modulations (such as DRM broadcasting),

offering more reliable and higher quality communications than before.

All this will ensure that shortwave will remain what it always has been; an

amazing place of action, a cacophony of sounds; a babel tower of exotic

languages and music, alive with broadcasters both official and clandestine;

a haven of spies; a playground of pirates, terrorists and freedom fighters

alike; an exciting mix of the respectable, the serious, the crazy and the

dangerous. Long before the Internet, the shortwave world was always

borderless. And quite like the Internet, impossible to tame and control.

Welcome to shortwave. And welcome to the WiNRADiO G3 SERIES

receiver. Your new receiver is a world-first in more than one respect. Most

importantly, it is the first commercially available Software Defined Receiver

(SDR), where the entire demodulator and the last intermediate frequency

stage are performed by software running on a personal computer rather

than using conventional hardware circuits, or a dedicated Digital Signal

Processor. Your PC probably has more power than even the fastest DSP

had only a few years ago. Your new WiNRADiO G3 SERIES receiver is now

ready to take advantage of that power. Enjoy!

WiNRADiO provides regular upgrades to our application software. Don’t

forget to register as a WiNRADiO user to receive news about new products,

accessories and software upgrades for your WiNRADiO G3 SERIES

receiver. Use our on-line registration form on www.winradio.com/register

to take advantage of this free service.

Installation

The WiNRADiO package contains the following items:

• WiNRADiO G3 SERIES receiver card

• WiNRADiO software on a CD ROM

• Start-up indoor antenna

• Audio cable

• This User’s Guide

• Warranty information

In order for the WiNRADiO receiver to function, your IBM PC compatible

computer must meet the minimum system requirements specified below.

System Requirements

Minimum Recommended

CPU 500 MHz,

Pentium III 1GHz or higher,

Pentium IV or Athlon

RAM 64 MB 256 MB or more

Display SVGA SVGA (16 mil. colors)

HD free space 20 MB 40 MB

Sound card SoundBlaster

compatible, 16 bit,

full duplex

Creative Sound Blaster,

16 or 32 bit

OS Windows

98/ME/NT/2000/XP Windows

98/ME/NT/2000/XP

Hardware Installation

1. Turn the off computer and disconnect the power cord.

2. Remove the computer case. Choose an empty PCI slot, as far as

possible from the power supply and from other cards.

- 5 -

3. First touch the computer metalwork with your hand to drain any static

charge, then carefully insert the card into the vacant slot and push down

until it is firmly seated. Screw the metal bracket at the end of the card to

the computer case. (This must be done to provide proper grounding for

the card).

4. Replace the computer case and reconnect the power cord.

5. Connect the supplied audio lead between the receiver output (a

standard audio jack) and the sound card Line Input. (If there is no Line

input on your PC, as is the case with some laptops, you may use

alternative inputs, such as the Microphone input.)

6. Connect the supplied start-up antenna to the SMA connector at the rear

of the card.

7. Extend the antenna so that it is as far away from the computer as

possible.

Please use only the WiNRADiO-supplied audio lead cable to connect the

receiver to the sound card. This is a stereo cable (as is the case with all

standard PC multimedia cables). Mono jacks are not compatible with stereo

ones because they short the right channel to ground. A mono cable should

not be used under any circumstances and will not work with the G3 SERIES

receiver.

Software Installation

1. After installing the card, turn the PC on. Windows will find the card and

automatically start the usual New hardware found driver installation

routine. Insert the installation CD ROM into the drive, and follow on-

screen instructions. (Note: Windows NT will not automatically detect the

card, as it does not support Plug and Play.)

2. After installing the drivers, choose the Run command from the Start

menu in Windows and type D:INSTALL (if the CD ROM is the D: drive

on your PC).

3. This will run the application installer, which will guide you in the

installation process.

4. After all the files have been installed to your hard disk, run the

WiNRADiO G3 SERIES application.

- 6 -

Note: If the card is not detected by Windows, you can simply skip the driver

installation procedure, insert the CD ROM, and run the installation program,

which will also install the drivers.

After installing the hardware and software, you will now need to set-up the

sound card parameters. This is done both in the WiNRADiO application and

in the Windows sound card control panel – this provides the actual

connection between the receiver front-end and the PC back-end of your

radio system.

Setting up the Sound Card

In computer terminology a sound card is a wave device. A computer may

have several such wave devices installed (for example a modem with voice

capabilities). That’s why you need to select the sound card as the desired

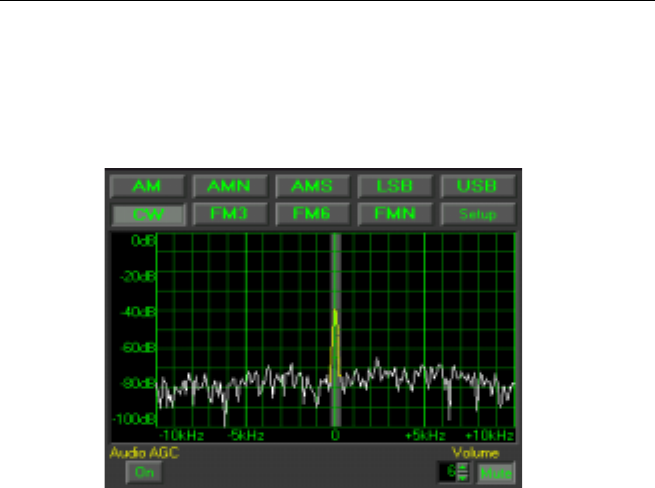

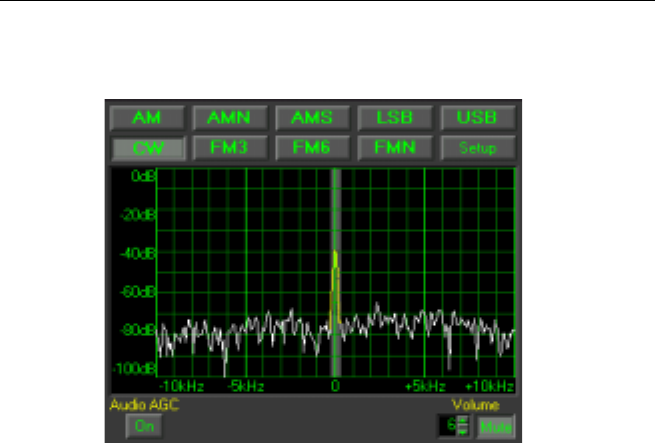

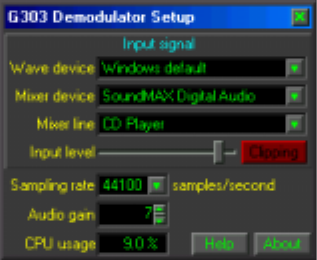

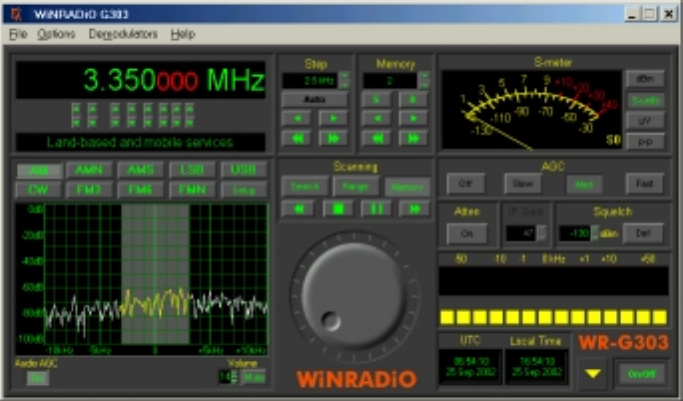

wave device first. Start the WiNRADiO G3 SERIES application and click on

the Setup button (located below the USB button) in the Demodulator panel:

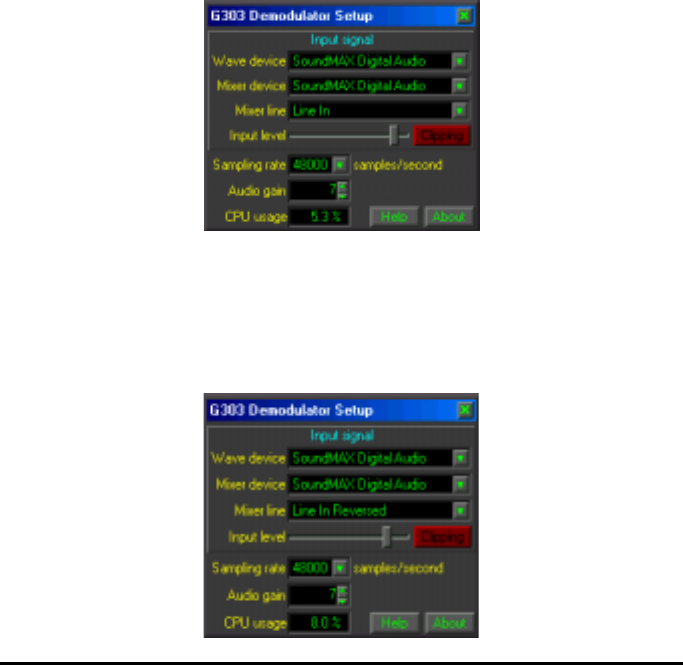

The Demodulator set-up window opens, as shown:

- 7 -

The Wave device drop-down list shows all the installed wave devices:

Windows default is the Control Panel setting specified under Start | Settings

| Control Panel | Multimedia Properties | Audio. If a sound card is specified

in this Control Panel setting for both playback and recording (this is very

likely, but not always necessarily so), then you can simply select Windows

Default as the wave device for the demodulator. Otherwise, the specific

name of the sound card should be selected. The selected sound card must

support duplex operation and the standard 44100 or 48000

samples/second sampling rates, 16 bits per sample, stereo. Most modern

sound cards do satisfy all these conditions, but some cards may have a high

level of distortion at 48000 samples per second; for such cases, the 44100

samples/second sampling rate is provided.

The next parameter to select is the mixer device associated with the already

selected sound card, using the Mixer device drop-down list, and the Mixer

line (the sound card input line). If the signal is arriving at the sound card via

an external cable, the cable should be physically connected to the Line

Input of the sound card. If the receiver is connected internally, most

probably the input would be called Aux or CD Line.

With some laptops, only the Microphone input may be available; in such

case you will need to connect the receiver to this input, and also select this

input in the software.

In the drop-down list of sound card inputs, each line is available either as

normal, or Reversed. If the reversed line is selected, this means that the

Right and Left channels (of the sound card stereo input) are to be reversed.

Normally, you should not need to select any of these reverse inputs.

However, there is a very small number of sound cards where the Left and

Right inputs are swapped. Normally, the G3 SERIES Demodulator expects

the receiver output to be connected to the Right sound card input. If it is to

- 8 -

be connected to the Left input instead, the reverse input line needs to be

selected from the drop-down list.

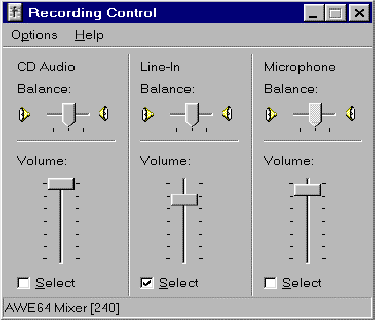

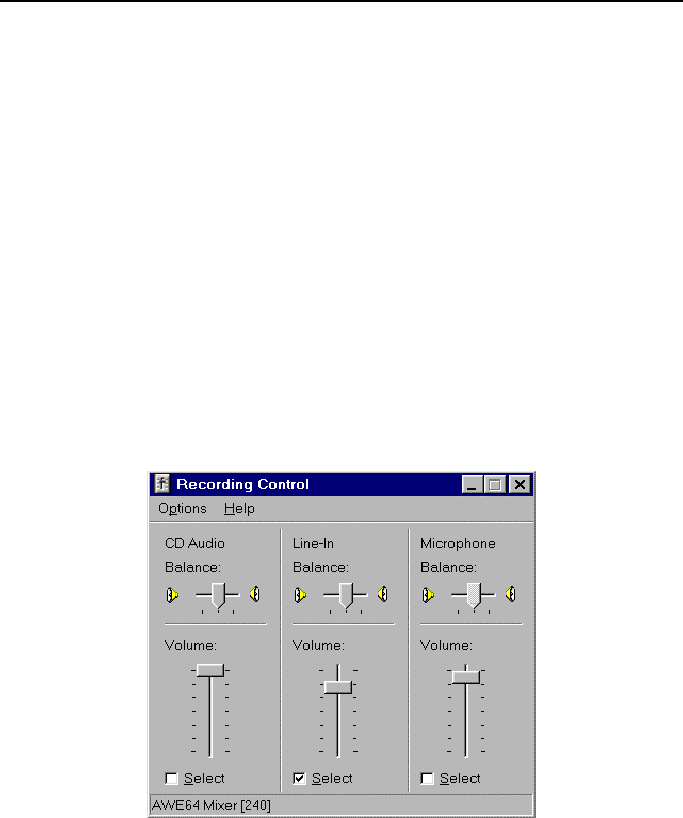

These are all the settings required on the WiNRADiO G3 SERIES

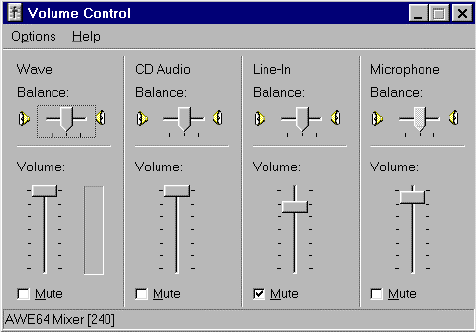

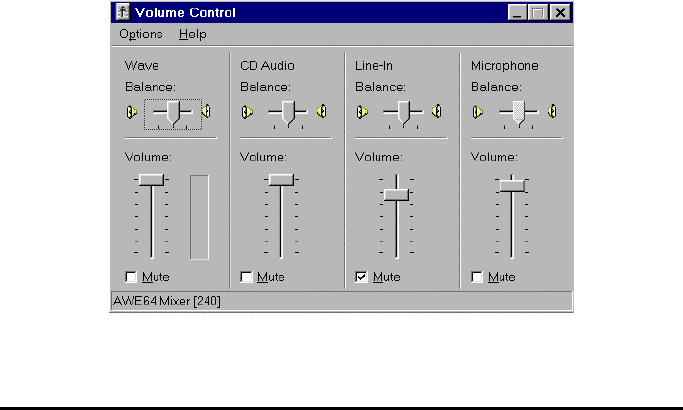

application side. Now you need to set up your Windows sound card control

panel, and the marriage between the radio and the PC will be complete.

Click on the speaker icon in the task bar in the bottom, to bring up the sound

card Volume Control panel (consult Appendix B – Sound Card Controls if

you have difficulties locating and the sound card settings).

Sound Card Volume Control Panel

Mute the input line the receiver is actually connected to. (This is the same

line as selected in the WiNRADiO G3 SERIES Demodulator Setup. Usually,

this will be the Line-In input.)

Why are we muting the input line? This is because the signal coming from

the receiver is not an audio signal, but rather the intermediate frequency

signal. It needs to be processed (demodulated) by the PC first, before it is

output back to the sound card. (That’s why the sound card needs to be full

duplex, to allow for such simultaneous input/output processing.)

Failure to mute this line will cause a high-pitched intermediate frequency

sound to be combined with the demodulated signal.

- 9 -

If you are using the Microphone input instead of Line input, please check if

there is an Advanced button under the Microphone volume control in the

sound card control panel. If so, then click on it and uncheck the +20dB gain

check box if it exists. (The extra large gain would result in overloading the

sound card and cause distortion.)

The same line must be now selected in the Recording Control of the sound

card control panel. To get to the Recording Control, you need to select

Options | Properties | Recording in the top bar menu of the Volume Control

panel.

Sound Card Recording Control

The position of Volume control slider should be set to approximately half, to

get started. The same control is duplicated in the Demodulator Setup panel

(where it is labeled Input level).

You can adjust this level either in the sound card recording window, or,

preferably, return to the Demodulator Setup panel to take advantage of the

Clipping indicator. The input level must be adjusted below the point of the

input signal clipping, i.e. just before the Clipping indicator turns red.

While adjusting the input level, you will also see the floor of the signal

spectrum shown in the main demodulator window rising proportionally.

Please pay attention to the sound card set-up, as most initial problems

associated with using this type of receiver can be attributed to an incorrect

sound card setting. Typical problems include:

- 10 -

• Not selecting the Recording input line correctly (which will manifest itself

by the absence of any signal appearing in the spectrum scope);

• Failing to mute the Volume control line (which will result in listening to

the high-pitched 12 kHz intermediate frequency sound superimposed on

the demodulated signal);

• Failing to adjust the signal input level properly, which may result either in

low (or no) audio output, or, on the other hand, distortion if the signal

level is too high.

Getting Started

There is often a degree of understandable impatience when exciting new

equipment such as a new WiNRADiO receiver is acquired. The following

fast-forward introduction makes it possible for you to start using your new

acquisition as quickly as possible. Detailed operation is described in the

subsequent chapter Using WiNRADiO G3 SERIES Receiver. We hope you

will return to that chapter, as the WiNRADiO G3 SERIES receiver has many

fine features which it would be a shame to miss.

Start the WiNRADiO G3 SERIES receiver application (double clicking on the

WiNRADiO icon). The WiNRADiO G3 SERIES receiver control panel will

appear as shown in the next page.

Did you know?

The first shortwave transmission across the Atlantic was accomplished by

six US radio-amateurs on December 11, 1921. The message was picked up

by a Scottish radio-amateur. This achievement sparked a period of intensive

research and development which led to wide-spread use of short waves.

(Before then, it was believed that frequencies over 1.5 MHz were useless.)

- 11 -

WiNRADiO G3 SERIES Receiver Control Panel

The WiNRADiO G3 SERIES receiver control panel has some elements

similar to from conventional shortwave receivers, and many additional

features as well.

The quickest way to get started with this receiver is to check its operation on

local AM stations.

Using the keyboard, type in the frequency of one your local AM stations:

For example, for 774 kHz, type in 7 7 4 , then k for kHz, then press Enter.

The typed-in frequency will appear on the digital frequency display. Then

select the AM mode by clicking on the AM button. At this point, you should

hear the station. You can adjust the volume using the two buttons next to

the small Volume display. (Note also the little slider between these two

buttons: you can drag it up and down to change the volume faster.)

Manual tuning can be done in several ways. Let’s start with the tuning knob:

Place the mouse cursor to the upper half of the tuning knob, at which point

you will see the cursor change to a curved double ended arrow. Hold down

the right or left mouse buttons to increase or decrease the frequency, and

the knob will rotate clockwise or anti-clockwise, respectively. If you place

your cursor in the bottom half of the tuning knob, the direction of the rotation

will reverse.

- 12 -

The rotation increment of the tuning knob is 0.5 kHz. This can be changed

easily using the Shift, Ctrl or Alt keys: If you press the Shift key while tuning,

the increment will increase ten times (to 5 kHz). Pressing Ctrl will increase

the increment a hundred times (50 kHz). On the other hand, if you use the

Alt key, the increment becomes ten times finer: 50 Hz.

If you are still unable to tune to any stations at this point, please refer to

Appendix A - Troubleshooting.

There are also several other ways to tune the WiNRADiO receiver other

than typing the frequency or using the tuning knob. These will be explained

in detail in the Using WiNRADiO G3 SERIES Receiver chapter.

Connecting the Antenna

Your WiNRADiO G3 SERIES receiver comes with a start-up antenna

consisting of a 3-meter length of coaxial lead-in cable, with an additional 3

meters of insulated wire. The thinner, insulated wire at the end is the actual

antenna. The lead-in cable is necessary for the antenna to be as far away

from the PC as possible, to reduce interference from the PC.

Please note that this start-up antenna is supplied for immediate gratification

only and is not intended to replace a good shortwave antenna.

The best placement of the start-up antenna depends on your actual

situation, and will often involve some experimentation. However, the basic

rule is simple: Place the antenna as close to the window as you can, and

keep the active part of the antenna as far away from the PC, and other

electronic and electrical devices, and metal objects, as possible.

Did you know?

The first commercial shortwave station was Radio Luxembourg. It was the

first station to target areas outside of its own country with programs in other

languages. For most of the 20th century, this was the most powerful

shortwave station in Europe.

- 13 -

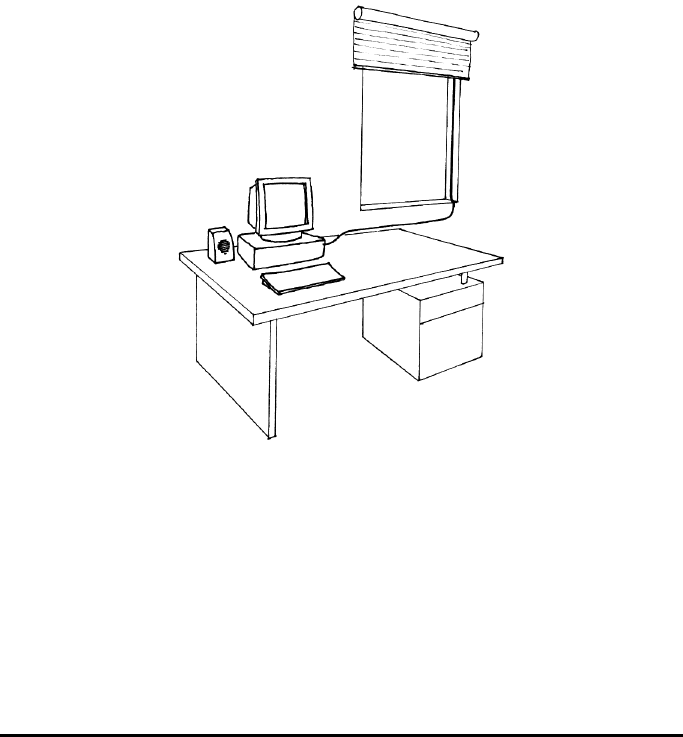

An example of WiNRADiO start-up antenna placement

No matter how good a radio receiver is, the performance of the entire

receiving system will depend on the quality of the antenna. The same

applies to a WiNRADiO receiver. To make most of your WiNRADiO receiver,

you should install a proper shortwave antenna. There are many vendors

offering shortwave antennas. WiNRADiO may also be able to assist – check

our Web page www.winradio.com.

Did you know?

During the cold war, the Soviet Union and other Communist countries used

to jam shortwave transmissions such as the BBC, Voice of America, Radio

Free Europe and Deutsche Welle to their own citizens. The Soviet Union

alone was spending about $1 billion per year on jamming, and had 200

jamming stations that were continuously pumping out 600 Megawatts of

power.

- 14 -

Using WiNRADiO G3 SERIES

Tuning to a Frequency

To change frequency, simply type the new frequency into the keyboard. As

soon as you press a number or decimal point, the frequency display will

activate, waiting for a frequency to be typed. You can also click on the

display to type in a new frequency. After typing the new frequency, press

Enter and the receiver will instantly retune. To abort, press Escape.

To enter units, such as kHz or MHz, simply press K for kHz or M for MHz

after entering the digits. Any invalid keystrokes are ignored. Frequencies

outside the receiver limit (9 kHz to 30 MHz) will not be accepted and the

display will revert to the previous frequency.

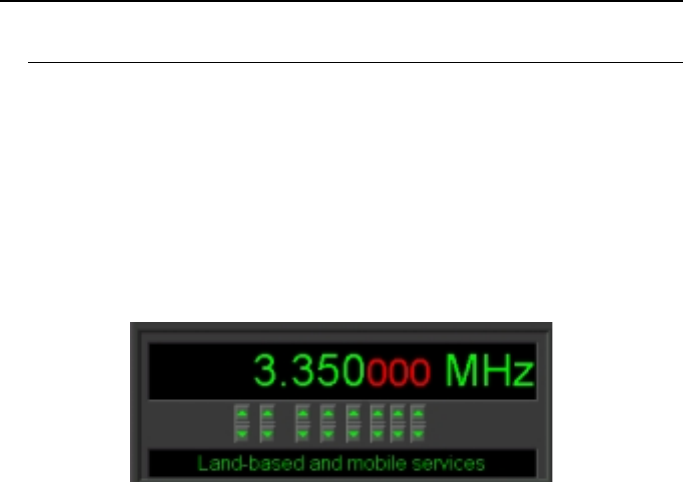

WiNRADiO G3 SERIES Receiver Frequency Display

The up/down buttons under the individual digits make it possible to quickly

step up or down the frequency in the corresponding positions. (The little

slider buttons between the up/down buttons can be used for faster

adjustment.)

Under these buttons there is a band description window. This shows the

band allocation of the currently tuned frequency. These band descriptions

are based on those applicable to North America. However, these

allocations are based on international treaties and therefore are generally

applicable worldwide.

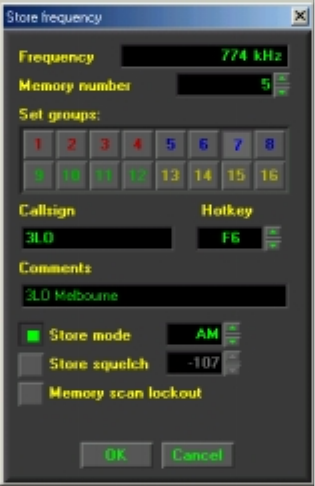

Note that the default band allocation can be overridden with a call sign or a

user-defined description of a frequency stored in memory. The default band

description is also user modifiable: it resides in the file bands.csv in the

WiNRADiO installation folder. This file can be edited using a spreadsheet

application, such as Microsoft Excel.

- 15 -

Fine Tuning

The Fine Tune knob makes it possible to finely adjust the frequency in

0.5 kHz steps.

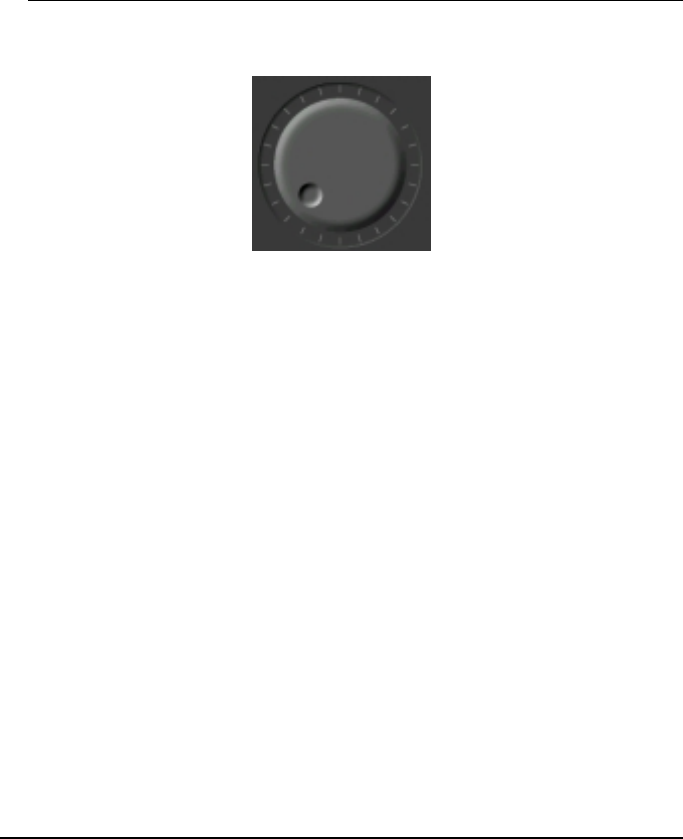

WiNRADiO G3 SERIES Receiver Tuning Knob

To use the tuning knob, position the mouse cursor over the knob (the cursor

will turn into a curved double ended arrow) and click on either the left or right

mouse button. If the cursor is on the top half of the knob, the left button will

decrease the frequency, and the right button will increase the frequency. If

the cursor is in the lower half, the opposite will occur (and the cursor will

invert its shape).

Using the keyboard only, the frequency can be similarly adjusted using the

up/down cursor keys.

To speed up tuning, the step size can be increased ten or one hundred

times by holding the Shift or Ctrl keys respectively, while clicking the tuning

knob with mouse button or using the up/down keyboard keys. This is a

very convenient feature if you wish to tune quickly across a frequency range:

hold the mouse button and accelerate the movement by pressing the Shift

or Ctrl keys. On the other hand, pressing the Alt key will reduce the tuning

step ten times (to 50 Hz).

Did you know?

Most Space Shuttle astronauts are radio amateurs and the first elements of

a permanent amateur radio station in space have already been despatched

to the International Space Station.

- 16 -

Setting the Modulation Mode

To select the modulation mode, click on the appropriate Mode button in the

Demodulator panel:

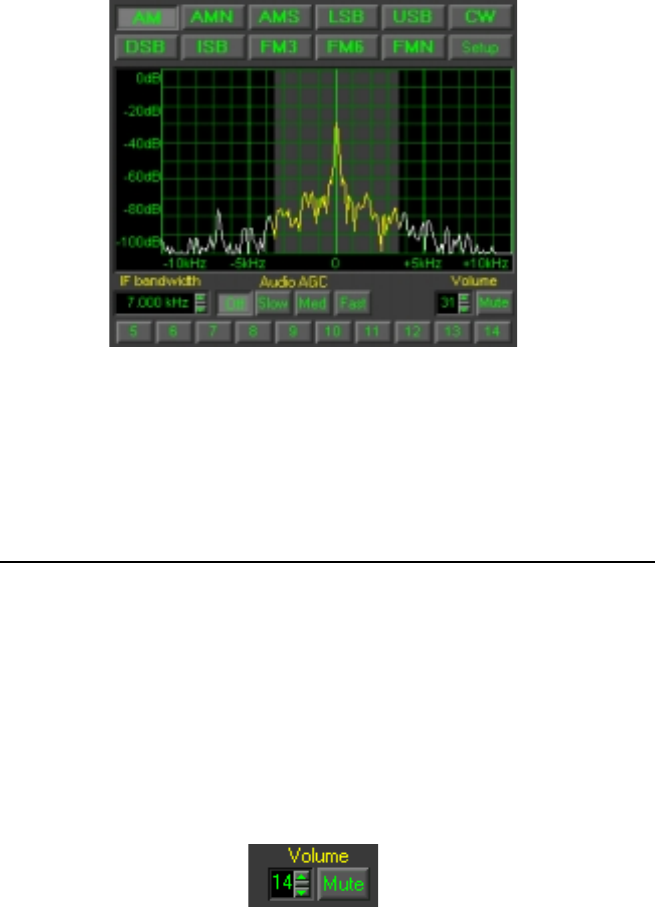

WiNRADiO G3 SERIES Standard Demodulator Panel

The real-time spectrum display shows the output of the receiver (i.e. the

intermediate frequency signal) as it is applied to the PC sound card. When

you press the mode buttons, you will note that the central highlighted region

of the spectrum changes its width. This corresponds to the IF (intermediate

frequency) filter bandwidth associated with the different modulation modes.

For example, standard AM mode has 6 kHz bandwidth, while narrow AM

(AMN) uses 4 kHz bandwidth. The CW mode uses a narrow bandwidth of

500 Hz. You will see the trace color change from white to yellow where the

spectrum falls within the filter bandwidth. This indicates that you are only

receiving the yellow part of the displayed spectrum and the surrounding

frequencies are rejected.

If you mistune the receiver somewhat, you will see the spectrum shifting.

This assists you to tune the receiver right to the center of the transmitter

frequency, and to select the correct AM mode to avoid interference from

adjacent signals.

- 17 -

If you also purchased the optional Professional Demodulator, you can select

this demodulator from the Demodulators top bar menu. The basic functions

such as volume control, audio muting and mode selection are identical to

the Standard Demodulator.

WiNRADiO G3 SERIES Professional Demodulator

For details of the additional functions such as continuous IF bandwidth

adjustment and other special features of the Professional Demodulator refer

to Appendix E - Professional Demodulator.

Volume Control

The Volume control is also located in the Demodulator panel. The volume

can range from 0 (no sound) to 31 (full volume). To enter a value directly,

click on the display and type in the new volume level. The volume can be

also increased or decreased by clicking on the up/down buttons next to the

volume display.

Another convenient way of changing the volume is by using the small slider

button between the up/down buttons. Place the mouse cursor on it and see

the cursor shape change, to indicate a ‘slider’ type of control. Hold down the

left mouse button to drag the slider up or down and the volume will change

accordingly.

- 18 -

Finally, another convenient way of changing the volume is using the left and

right cursor keys on the keyboard.

Mute Control

Next to the Volume control is the Mute button, which allows you to switch off

audio output quickly. It is faster to use than setting the volume to zero, with

the added benefit of not changing the set volume level. To use the mute

control, simply click on this button. Click again to release.

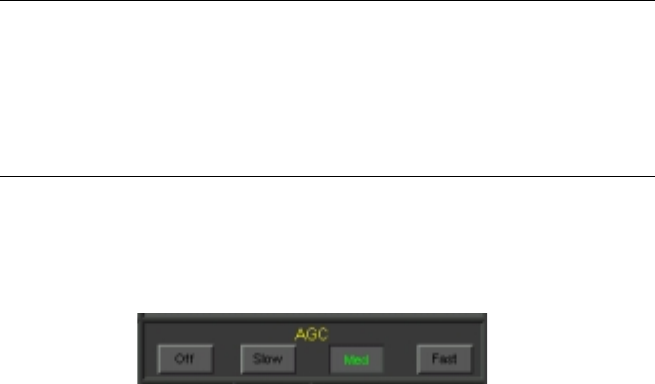

AGC

The AGC (Automatic Gain Control) has four settings: Off, Slow, Medium and

Fast. These make it possible to disable the AGC, or to select the speed with

which the AGC reacts. Typically, the AGC would be in the Medium position.

AGC Control

The receiver must process a considerable variation of signals, ranging from

very weak to very strong. This requires the sensitivity of the receiver to vary

according to the incoming signal strength.

The incoming signal can vary in intensity, with changing propagation

conditions, and also depending on the modulation type and content. For

example, with CW signals (where information is transmitted by keying the

transmitter on and off), the signal strength will vary substantially during the

transmission. The demodulated signal will then sound better with a slow

AGC (so that the receiver will not have time to increase the gain during the

“off” intervals, and so increase the background noise and causing a raspy

sound).

On the other hand, use fast AGC when listening to especially weak signals

buried in static and noise. Otherwise, each new burst of noise would

desensitize the receiver for a long time and you could miss long periods of

useful transmissions.

If unsure, use the medium speed AGC setting.

- 19 -

IF Gain

The AGC can be turned off entirely, using the AGC Off button. The receiver

gain must then be adjusted manually. This is done using the IF Gain setting.

Note that by setting an excessive gain, the receiver will overload and the

demodulated signal will be distorted. On the other hand, if the gain is too

low, it will make the receiver appear “deaf”.

Manual IF Gain setting is useful for hunting for very weak signals buried in

noise.

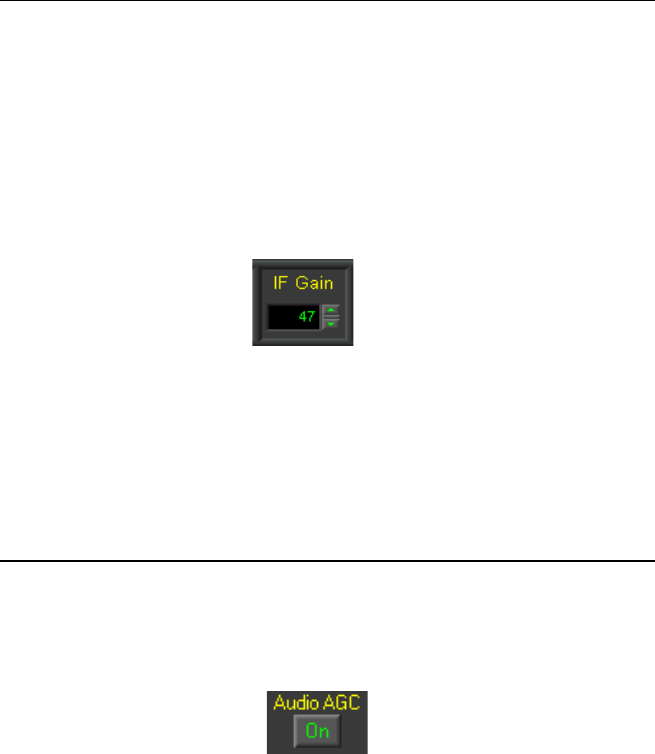

Manual IF Gain Control

The IF Gain control is only enabled when the AGC is switched off. The gain

“value” ranges from 0 to 100, where 100 corresponds to maximum gain.

Audio AGC

The Audio AGC facility is available in the Demodulator panel, and provides a

supplementary function to the main AGC. (The main AGC employs a

hardware circuit, while the Audio AGC works in software.)

Audio AGC

Audio AGC is useful to compensate for audio volume changes when the

antenna signals are so weak that the main AGC is not yet activated, or when

the main AGC is disabled and the manual IF gain is used.

- 20 -

Attenuator

The Attenuator makes it possible to reduce the receiver sensitivity by 18 dB

(i.e. 6 times).

Attenuator

Why would you ever need to reduce the sensitivity? This is because

unusually strong signals from local stations may occasionally cause

overloading. This overloading can make the reception worse, and even

cause stations to appear on frequencies, where none exist (ghost stations).

See Appendix C - Dealing with Interference for more information on this

phenomenon.

If a received signal is too strong, causing overloading, distortion or the

appearance of ghost stations, you should reduce its level by pressing the

Attenuator button.

Squelch Control

The Squelch control can be used to mute the receiver when no signal is

being received. Without a signal, all you will usually hear is noise. Squelch

is provided to cut out the noise until a station is found, making the receiver

more comfortable to use.

Squelch Control and Squelch Defeat Button

The squelch setting controls the signal level at which muting occurs. Muting

will occur when the signal level drops below the squelch level. When a

signal of a higher level returns, the sound will be restored immediately.

- 21 -

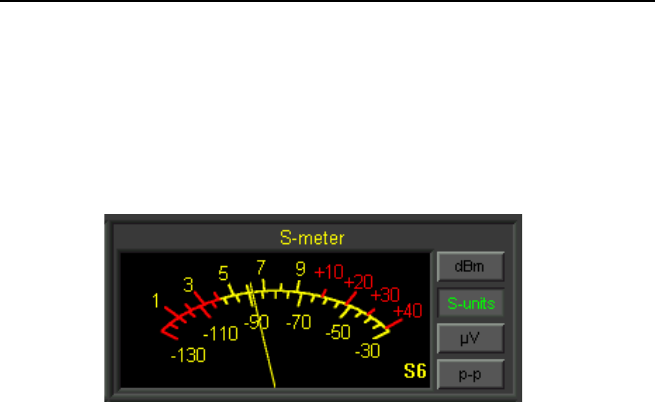

The squelch is always shown in dBm units. To adjust the squelch control,

first tune to an unoccupied frequency that produces only noise. Increase the

squelch until the receiver is muted. You will see the red-colored segment of

the S-meter growing until it gets higher than the current S-meter value. At

that moment the receiver will be muted. Add a few dB extra (to allow a

margin for background noise fluctuation on the band). Now when you tune to

an occupied frequency, if its signal strength is higher than the squelch level,

the receiver will be unmuted.

Next to the squelch setting is the Squelch Defeat (Def) button. When

activated, the squelch action will be turned off (it is the same as if the

squelch was set to its lowest level, but more convenient). The red segment

in the S-meter will turn blue to indicate this condition.

It is easy to forget that squelch is active. If the receiver doesn’t seem to be

operational (no sound from the speaker), check the squelch and mute

settings first.

Frequency Stepping

The Frequency Stepping facility makes it possible to specify an arbitrary

frequency step size. To change the step size, click on the associated display

and enter the required value (from 1 Hz to 1 MHz). You can also use the

up/down buttons on the right of the display, to select from commonly used

step sizes. For convenience, you can also use the small slider between the

two buttons.

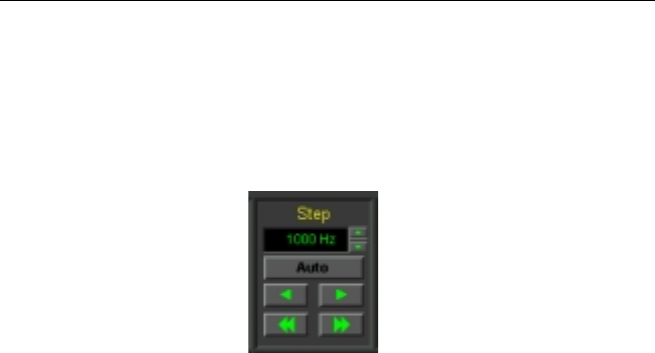

Frequency Stepping Panel

When the step size is selected, you can step up/down from the currently

displayed frequency using the left/right arrow buttons under the Step size

display. The double-arrow buttons further down will cause stepping by a

step size ten times larger. Stepping can also be done using the keyboard Pg

Up/Down keys.

- 22 -

For example, if you wish to browse the AM broadcast band (approx. 530 to

1620 kHz), set the step size to 10 kHz (for North and South America) or

9 kHz (for the rest of the world), which is the channel separation for AM

broadcast stations. Tune manually to any station first, then step up or down

to browse the band. To browse the shortwave broadcast stations (2.3 to

30 MHz), 5 kHz works well.

This type of fixed-size stepping is convenient if you wish to explore a

frequency band where the channels are equally separated. However, you

should ensure that the stepping frequencies fall on the actual channel

frequencies in the band. If you know the channel separation but are unsure

about the exact frequency of the first channel, tune to an active channel

using manual tuning first, and only then step up or down in fixed steps.

The Auto button engages Auto-stepping, which provides a significant

enhancement over fixed stepping. When properly configured, auto-stepping

will automatically set the step size according to the frequency you are tuned

to. Auto-stepping can be also used to associate particular mode and squelch

settings with specified frequency ranges.

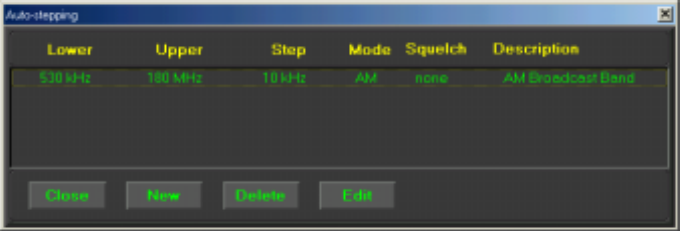

To configure the auto-stepping ranges, go to Options | Autostepping in the

top bar menu. The following window opens:

You can use the New button to add a new range. For each range, you need

to specify the start and end of the range, step size, and optionally mode,

squelch and description. You can specify as many such bands as you like.

When done, close the window.

Next time when you tune to a frequency, and the Auto button is pressed,

the step size (and optionally mode and squelch) will be set to the predefined

value if the new frequency falls within a specified auto-step range.

- 23 -

Frequency Memory

The WiNRADiO G3 SERIES receiver has the ability to store up to one

thousand frequencies in one memory file. It also allows you to load and save

different memory files for a huge amount of total storage, limited only by the

size of your hard disk.

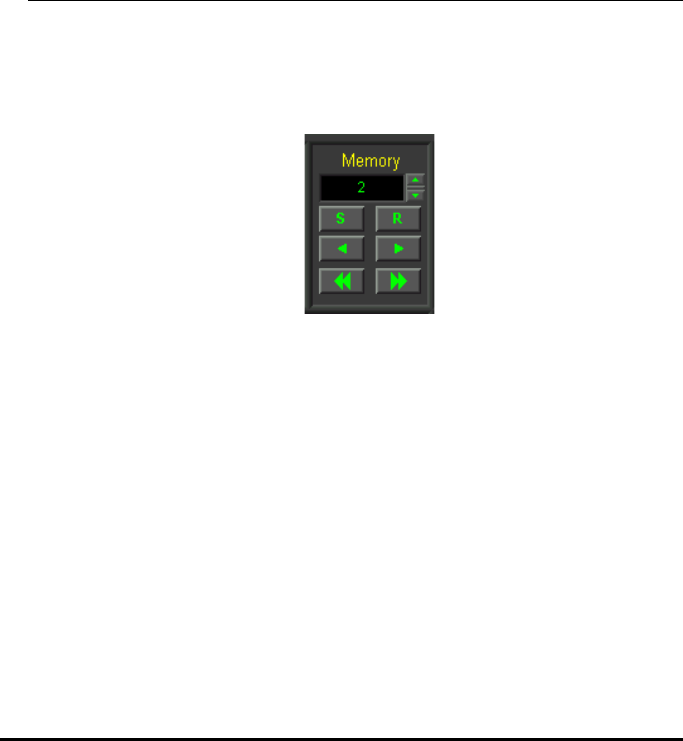

Memory Control Panel

Storing a Frequency into Memory

With each frequency, you can store several attributes: mode, callsign, user

comment, group assignment, squelch and a hotkey.

To store a frequency into memory, the receiver must first be tuned to that

frequency (and the appropriate mode must be selected if you also wish to

store the mode). Next click on the S button in the Memory Control Panel as

shown above.

A Store frequency dialog box will pop up, allowing you to assign a memory

number to the current frequency.

Did you know?

The first shortwave message from the UK to Australia was received on

March 6, 1924. On April 8, 1927, the regular Australia-Britain wireless

service started operating, and the AWA company (Amalgamated Wireless

Australasia Ltd.) built a shortwave receiving station at La Perouse, a suburb

of Sydney (named after the French explorer La Perouse, who in 1788 was

the first Frenchman to arrive in Australia).

- 24 -

Storing Frequency to Memory

At the top of the dialog box is the frequency you are storing. The next line

shows the next available memory number. You can change this to another

memory number if you wish (including one which is already allocated).

The third item contains the group assignment buttons. You can assign the

frequency to one or more of 16 different groups (whose meaning you define

yourself). When you are searching or scanning for a particular type of

frequencies (for example “Airforce”), the group assignment will allow you to

confine the searching and scanning to that particular type.

Note that a frequency may be associated with more than one group at the

same time.

There are also several additional items that can be optionally stored with

each frequency:

- 25 -

• Most stations have a name or callsign. You can store up to 11

characters in the Callsign field.

• For quick tuning to your favorite stations, you can assign

Hotkeys (function keys F2 to F12) to up to eleven different

frequencies. If you then press a hotkey, the associated

frequency will be instantly recalled. Hotkeys which are already

assigned will be shown in this dialog box as ‘used’, however

you can overwrite the previous assignment with a new one if

you wish.

• User

Comments can also be stored with a frequency. The size

of the comments is limited to 31 characters.

• The

Mode and the Squelch values can also be stored, which

will be then set automatically when the frequency is recalled.

• Finally, a

Memory Scan Lock-out can be set for each

memory, which means that the memory will not be included in a

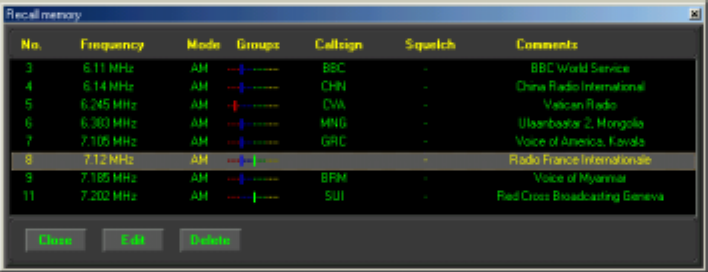

memory scan. In the memory Recall window, such memories

will be shown with a small ‘x’ preceding the memory number.

Finally, when everything has been set, click on OK or press Enter, to save

the new frequency.

Recalling a Frequency from Memory

There are several ways to recall a frequency from memory:

• Using Memory Recall

• Typing a number into the memory number display

• Using a hotkey

• Memory stepping

To recall a frequency, click on the R button. A dialog box will pop up

showing a list of all memory frequencies.

To select a frequency, click on an item in the list, and the frequency will be

tuned. Then close the window. Alternatively, use the up/down cursor keys

to choose the frequency and press Enter.

- 26 -

Recall Frequency from Memory

The assigned memory groups are shown as color bars for a quick visual

overview of which frequencies are associated with which groups (see the

corresponding colors in the Store frequency window). When you position the

mouse cursor over a highlighted memory, the actual group numbers will be

displayed in a floating ‘hint’ box.

Editing Memory

To change the settings for a particular frequency, open the Recall frequency

dialog box as described in the previous section. Select the item you want to

edit and click on Edit (alternatively, double-click on the item). A dialog box

will pop up showing the current settings. All the settings (except the

memory number) can be edited. After the entry has been edited, click on

OK.

Deleting a Frequency

To remove a frequency, open the Recall frequency dialog box. Select the

frequency you wish to delete, and click on Delete. You will be asked to

confirm that you want to delete this frequency from memory.

To delete all frequencies, select Clear from the Memory file sub-menu in

the File menu. You will be asked to confirm that you want to clear all the

frequencies in the memory.

- 27 -

Saving a Memory File

Each memory file, containing up to one thousand frequencies, is stored

separately, allowing different memory files to be loaded and saved. To save

the current memory file, simply select Save from the Memory file sub-menu

in the File menu. If you wish to save it with a different name, select Save as

instead, and a dialog box will pop up allowing you to specify the file name.

When you exit the WiNRADiO G3 SERIES application, all memory changes

are

automatically saved; there is no need to use the Save command before exit.

Opening a Memory File

When WiNRADiO starts up, the most recently used memory file will be

opened automatically.

To open a different memory file, select Open from the Memory file sub-

menu in the File menu. A dialog box will pop up allowing you to choose a

memory file to load.

Memory Stepping

Memory stepping makes it possible to step through frequencies stored in the

current memory file.

To step through memory frequencies use the left/right arrow buttons located

under the memory S and R buttons. The double-arrow buttons located

further down make it possible to advance ten frequencies up or down (or to

the start/end of the memory list if it is less than ten frequencies away).

Memory stepping will only work if there are frequencies stored in memory. If

no frequencies have been stored, nothing will happen if you try to step

through the memory.

Scanning

The WiNRADiO G3 SERIES application contains a comprehensive set of

scan functions to enable the user to search for stations which are currently

on the air. There are three basic types of scanning: Immediate Scanning

(Searching), Range Scanning and Memory Scanning. The scanning method

is selected using the appropriate button in the Scanning Control Panel:

- 28 -

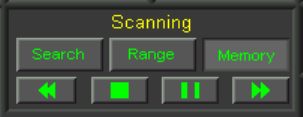

Scanning Control Panel

Immediate Scanning (Searching)

This is the simplest scanning method. Click on the Search button to select

this scanning mode, then use the [>>] or [<<] buttons to scan either forward

or backward from the currently tuned frequency. To stop scanning, press the

Stop button (marked with a green square). To pause, press the Pause

button (marked with two vertical bars).

A signal is considered ‘found’ when the signal level is higher than squelch.

Correct setting of the squelch value is therefore essential for scanning.

If you set the squelch level too low, then scanning will stop even if there is

no signal (the background noise will be higher than the squelch level). On

the other hand, if the squelch level is set too high, then a useful signal may

be missed because it will fall short of the squelch level. With a bit of trial and

error, you will need to adjust the optimum setting for the squelch level

(usually a few dB above the background noise floor).

Scanner Configuration

When a signal strength level is higher than the squelch level, this indicates

that a signal has been found. You can configure the software to specify what

action you want to be taken at this point. To access this configuration facility,

go to Options | Scanning in the top bar menu.

Did you know?

The survivors of the Titanic disaster owed their lives to shortwave. The SOS

signals transmitted by the sinking ship’s spark-gap transmitter were picked

up by the Carpathia 58 miles away, proving that radio saves lives.

- 29 -

Scan Settings

There are two basic actions the software can do when a signal is found:

Pause scanning or Stop scanning. If Pause is selected, then you need to

further specify the conditions under which the scanning will Resume. The

conditions to resume can be one of the following:

1. When the signal disappears (i.e. the scanning resumes immediately

when the signal disappears);

2. After a certain user-defined Delay time (i.e. no matter if the signal

disappears during this Delay Time or not, the software will always wait

for the Delay Time interval, then resume);

3. When the signal disappears during Delay time (i.e. the scanning will not

resume if the signal returns within an interval shorter than, or equal to,

Delay Time);

4. When there is no signal during the Delay time (i.e. the scanning will

resume if there is a no-signal gap equal to, or longer than, Delay time).

The Delay time interval can be set from 1 to 100 seconds.

The Scan rate controls the speed at which scanning occurs, and specifies

the maximum number of scanning steps per second.

- 30 -

Note that the upper scanning speed limit may be restricted by the actually

available CPU resources of your computer.

When signal is found and scanning pauses, waiting for the pre-set Delay

time to expire, the countdown timer will appear inside the [<<] or [>>]

buttons. If no Delay time was set and scanning is pausing until the signal

disappears, then the [<<] or [>>] button will flash.

Groups

The Groups setting is useful for Memory Scanning, which will be described

later: it serves to restrict Memory Scanning to particular memory groups

only.

Exclusions

Sometimes it is desirable to exclude certain frequencies from scanning. This

means that such specified frequencies should be ignored even if the signal

level on these frequencies is higher than the squelch.

The WiNRADiO G3 SERIES receiver application makes it possible for

multiple frequency ranges to be excluded. This is done using the

Exclusions button. When you press this button, you will open an

Exclusions editor window, allowing you to enter a range of frequencies to

be excluded.

For these exclusions to become active, check the Enable excluding while

scanning checkbox in this window.

Frequency Range Scanning

To be able to use Frequency Range Scanning, you need to set up the

desired scanning ranges first. This is done using the Ranges button in the

Options | Scanning top-bar menu.

Did you know?

Unlike medium wave or FM broadcast stations, shortwave stations change

their frequencies and program schedules very often. One of the best

publications providing regular frequency updates and transmitting schedules

is the Monitoring Times magazine (www.monitoringtimes.com).

- 31 -

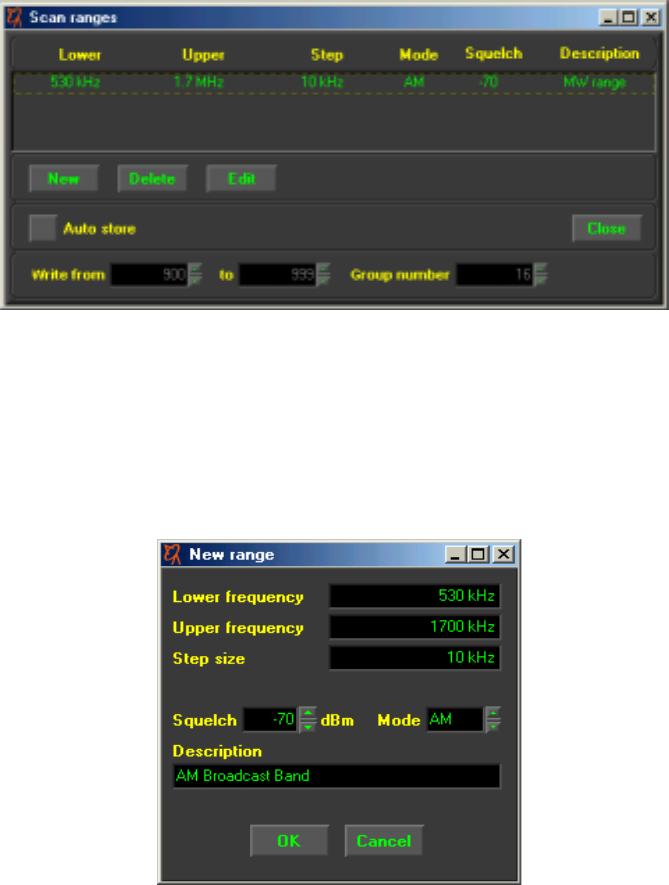

Setting up Scan Ranges

Enter a new range using the New button. This will open a dialog box, where

you will be asked to specify lower and upper limit frequencies of the range,

the modulation mode, squelch level, and, optionally, a description. You can

enter as many such ranges as you like:

Adding a New Range

- 32 -

When the range definition is done, close this window, then close the scanner

settings. Then activate the Range button in the Scanning control panel:

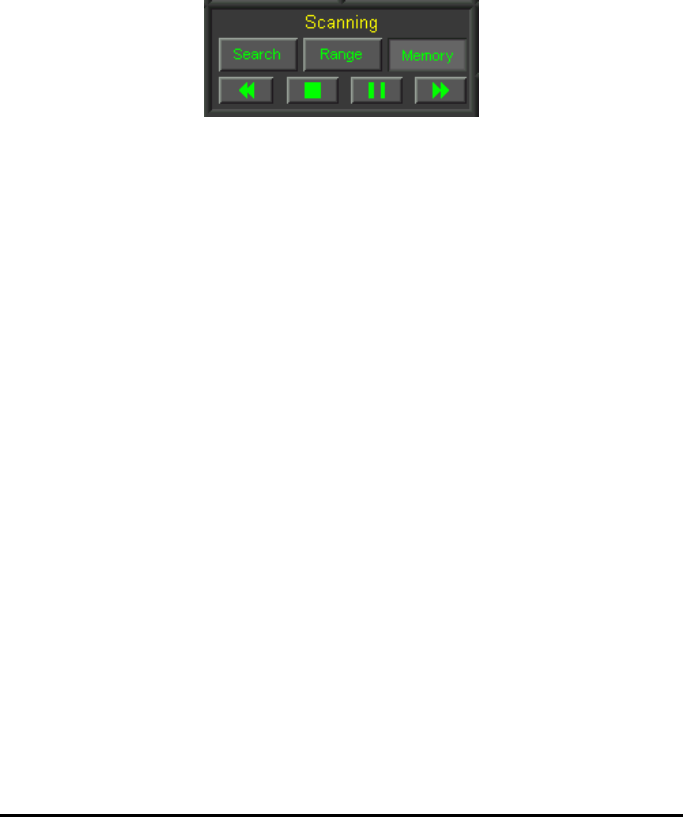

Scanning Control Panel

When you press the Scan Forward button [>>], the scanner will commence

scanning from the start frequency of the first range. When the last frequency

of the first range is reached, it will then continue onto the next range, etc.

When it reaches the end of the last range, it will go back to the start of the

first range and continue looping infinitely until a signal is found, or until

manually stopped or paused. If you use the Scan Backward [<<] button, the

process will be exactly reversed (i.e. starting from the top frequency of the

last range and working its way downwards).

You can stop or pause this activity using the Stop or Pause buttons. If you

use the Pause button, then restarting scanning using Scan Forward or Scan

Backward buttons will resume the action from the paused frequency. If you

stop scanning with the Stop button, then using the Scan Forward or Scan

Backward buttons will recommence scanning from the initial (or the last)

frequency again.

If no ranges are specified in the Ranges list, then activating scanning in the

Range mode will result in no action.

An additional useful feature of frequency range scanning is that all found

frequencies can be automatically stored in memory, even if the receiver is

left unattended. To do this, enable the Auto Store checkbox in the Scan

ranges set-up window, and specify the memory range to which the

frequencies should be written. You can also specify a special Group Number

to be assigned to such frequencies.

When using the Auto Store option, you should also set the appropriate

conditions for scanning when the signal is found (for example, Pause when

signal found, and Resume after the minimum delay time will provide the

fastest scanning and writing into memory).

- 33 -

Note that if more signals are found than there are allocated memories, the

excess frequencies will not be stored.

Memory Scanning

The last scanning method is Memory Scanning. Here the receiver will step

through memory frequencies, starting from the first one to the last one, and

repeating the loop until a signal is found or until manually stopped.

If a squelch value is stored with a memory this value will be used to

compare with the current signal level. If there is no value stored, the current

squelch value will be assumed.

It is possible to restrict scanned frequencies to particular memory groups

only. These groups can be selected from the Options | Scanning | Groups

window, accessible from the top bar menu. Groups can be enabled/disabled

using the check box Enable group restriction in the same window.

S-meter

The WiNRADiO G3 SERIES receiver Signal Strength Meter (S-meter)

makes it possible to measure signal strength in either S-units, dBm or µV

(microvolts). The units are selected by correspondingly marked buttons on

the right side of the display. In the microvolt mode, the p-p button is also

enabled, making it possible to select peak-to-peak values rather than the

default RMS (Root Mean Square) values.

S-meter

The S-meter also shows the currently selected value of the squelch (the red

section at the bottom side of the scale). When the signal strength falls under

- 34 -

the squelch level (i.e. the needle falls in the red region and turns red also),

the receiver audio will be muted.

The squelch value is always indicated in dBm units (even if the signal

strength is displayed in S-units or microvolts).

Note that when the AGC is off (and manual IF gain control is activated), the

S-meter is disabled. This is because the S-meter relies on the AGC for its

proper function.

Tuning Pad

A unique fast-tuning facility is located under the Attenuator, IF Gain and

Squelch settings.

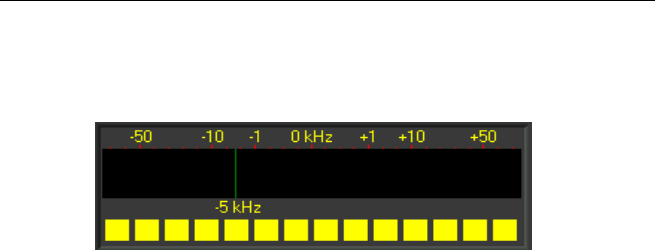

Tuning Pad

If you place the mouse cursor inside the long horizontal window of the

Tuning Pad, you will see a frequency increment displayed, which can vary

from 1 Hz to 1 MHz in convenient steps. The value of this increment can be

changed quickly by moving the cursor mouse horizontally within the Tuning

Pad. The current increment value is always shown under the pad. You can

quickly change between incrementing and decrementing by alternating the

left and right mouse buttons. The sign of the displayed increment value will

also change accordingly.

By combining horizontal movement of the mouse with alternating the

left/right mouse buttons, you can quickly tune to any frequency, and step

through the band with the appropriate step size.

- 35 -

The row of yellow squares under the Tuning Pad serves a similar purpose,

providing convenient increment sizes in a narrower band between 1 Hz and

10 kHz. These increments are selected by placing the mouse cursor over

the yellow squares, and using the left or right mouse buttons for

incrementing or decrementing.

Power Switch

The Power switch, located at the bottom-right corner of the application

window, controls the receiver power. When it is off, the receiver circuitry will

be powered down and no sound will be heard in the speaker or

headphones.

When you exit and restart WiNRADiO application, the power on/off status at

exit will be remembered.

Date and Time Displays

The clock displays, located under the Tuning Bar, indicate the current time

and date.

The UTC clock shows Universal Coordinated Time, formerly called GMT

(Greenwich Mean Time), which is the standard time used around the world.

This is provided because most shortwave stations announce their broadcast

times in UTC. Both displays derive their information from the PC clock. The

time difference is determined by Windows Time Zone setting (Start |

Settings | Control Panel | Date/Time Properties | Time Zone tab).

Spectrum Scope

Click on the yellow triangle button on the left of the On/Off switch and the

Spectrum Scope display will slide out at the bottom:

- 36 -

Unlike the spectrum display window inside the Demodulator panel, which is

real-time and narrow band, the Spectrum Scope is wide-band and the graph

is created by fast tuning the receiver across the specified frequency range.

To set up spectrum sweeping, enter the Start and End frequencies, to

specify the start and end of the sweeping range, respectively. Next specify

the frequency step.

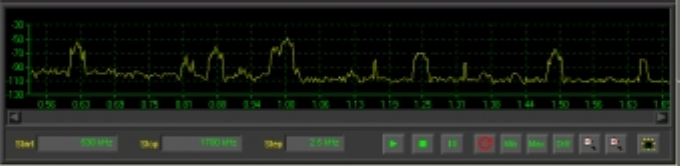

Spectrum Scope

The sweeping is controlled using a set of buttons similar to a tape recorder:

The Start button (with a triangle) starts sweeping. The Stop button (with a

square), stops sweeping, while the Pause button pauses it. The button with

a red round arrow selects continuous sweeping, which means that the

sweep will continue from the start frequency when the end frequency is

reached, and continue in this loop until manually stopped.

The Min, Man and Diff buttons enable the display of minimum, maximum

and differential values when continuous sweeping is selected. (A scale for

the differential trace will be displayed on the right-hand side whenever the

Diff button is pressed.) The differential trace is very useful when examining

long-term activity on a given band. The receiver can be left unattended in

the continuous sweeping mode, and any activity on the band will be clearly

visible on the differential trace.

There are also two Zoom in/out buttons performing their self-explanatory

functions, and a Clear button, which clears the graph and the min/max

values.

Clicking anywhere on the spectrum graph tunes the receiver to the

corresponding frequency. You can also drag the mouse horizontally across

the spectrum and continuously tune the receiver.

To hide the Spectrum Scope, use the yellow triangle button next to the

power switch again.

- 37 -

Appendix A - Troubleshooting

Problem: The WiNRADiO application installed OK, but there is no

sound coming from the speaker.

Solution: Check if you see any noise appearing in the spectrum

scope in the Demodulator panel (under the AM, AMS, etc., mode selection

buttons). If there is a flat line or only very little noise visible, check the

following:

• The receiver output is connected to the sound card Line input using the

supplied cable. (If your PC sound card does not have a Line input, you

can use alternative inputs such as Aux or Microphone, but the software

settings need to be changed accordingly.)

• The sound card has been set up correctly. Especially make sure that the

Recording Line input has been enabled (you will find this panel under

Options | Recording in your sound card volume control panel – click on

the speaker icon in the bottom bar to get to the volume control panel

first):

Note: If you have difficulties accessing the sound card control panels (for

example if there is no speaker icon), refer to Appendix B – Sound Card

Controls.

- 38 -

• The receiver demodulator has not been set up properly. Make sure that

the sound card type and the audio input are properly selected (this panel

is accessible under the Setup button in the Demodulator panel):

• The sound card has the Left and Right inputs reversed. Normally, the

G3 SERIES Demodulator expects the receiver to be connected to the

Right input. Using the reverse input makes the Demodulator use the

Left input instead. (This is a very rare problem, so use this only when all

other possible remedies have been explored.)

Problem: I can tune the receiver and see the signal peaks in the

spectrum scope, but I can’t hear any sound at all.

Solution: Check that your speaker or headphone is connected to the

speaker output of the sound card. Set the volume to medium (say 15), the

squelch to the lowest value (-130 dBm) or defeat the squelch by clicking on

the Def button. Make sure the Mute button in the Demodulator panel is

released, too, and the speaker output of the sound card is unmuted in the

sound card control panel.

- 39 -

Problem: I can hear the audio, but it is not a pleasant sound. There is

an interfering high pitch tone.

Solution: You need to mute the Line input in the sound card control

panel - see the panel on the next page. (What you are probably listening to

is the intermediate frequency signal mixed with the demodulated audio

signal.)

Sound Card Volume Control Panel

Problem: I can hear the audio and tune the receiver, but the sound is

distorted.

Solution: Check if the AGC is switched on (i.e. either the Slow, Med

or Fast buttons are down – typically the Med setting is used). Check the

Input gain in the Demodulator Setup panel: it should be set just below the

clipping level. If both settings are correct, try to reduce the sampling rate

from 48000 samples/second to 44100 (also in the Demodulator Setup).

(Some sound cards do not provide good quality sampling at 48000 sampling

rate.)

- 40 -

Problem: I can hear the audio and tune the receiver, but the volume is

too low, even if I adjust the Volume control to maximum.

Solution: Check the Input gain in the Demodulator Setup panel: it

should be set as high as possible, just below the clipping level. Also, engage

the Audio AGC in the Demodulator front panel.

Problem: I can hear the audio and tune the receiver, but the audio

drops-out occasionally, and the display is very sluggish, sometimes it even

freezes.

Solution: Close all other simultaneously running programs to reduce

the burden on the CPU. If the CPU usage shows consistently more than

80%, this may indicate insufficient CPU resources for the G3 SERIES

application. (Check the CPU usage under the Settings button in the

Demodulator window. The CPU resource meter is at bottom left.)

Problem: I can hear the audio and tune the receiver, but the audio is

very noisy. The background noise level displayed on the spectrum scope

appears very high.

Solution: Make sure the Attenuator is switched off. Check that your

antenna is properly connected, the connector is not loose and that the

antenna cable is not damaged. Does the noise floor drop significantly if you

disconnect the antenna? If so, then the antenna is picking up too much

ambient noise. Try to improve the antenna, or move it further away from the

PC. (Additional noise-defeating measures may be in order; see also

Appendix C – Dealing With Interference.)

- 41 -

Problem: Reception is obscured with a buzzing interference.

Solution: Check for the sources of interference in your surroundings:

it could be fluorescent lights, a lamp dimmer, or some other household

appliance. Your PC (especially the monitor) could be also the culprit.

Unless you can suppress the interference at the source (which is not always

possible), the only solution is to install a better antenna, preferably an

outdoor one. Computer networks are especially noisy and if your PC is

connected to one, you will almost certainly need an outdoor antenna. If the

interference level varies periodically with peaks about 40-50 kHz, apart, the

most likely culprit is the monitor or the video card. Switch the monitor off - if

the interference disappears then the cause is the monitor. Modern LCD

monitors generate much lower levels of interference than CRT ones. (See

also Appendix C – Dealing With Interference.)

Did you know?

The WiNRADiO G3 SERIES software is XRS (Extensible Radio

Specification) compatible, making it possible to add additional software

functions to your receiver. There are many XRS Plug-ins to choose from.

You can download them from http://xrs.winradio.com.

- 42 -

Appendix B – Sound Card Controls

Sound card control panels and their settings can be somewhat confusing.

They are also rather inconsistent from one version of Windows to another.

WiNRADiO G3 SERIES receivers require a full duplex sound card, meaning

that the card must be able to simultaneously process signals in two

directions (i.e. record and playback) at the same time. The majority of

modern Sound Blaster compatible cards are indeed like that. However,

some older cards may not be full duplex.

The Recording section of a sound card is used to input and digitize the IF

(Intermediate Frequency) signal arriving from the receiver (only the Right

channel is used, of the Left and Right stereo channels). The Playback

section is then used to output the demodulated audio signal to the

speaker(s).

For the WiNRADiO G3 SERIES application, there is a need to independently

control both sound card sections: The Recording section volume needs to

be adjusted to provide the correct IF signal level for the demodulation

process; the Playback section control is needed to be able to control the

speaker volume.

Typically, you would access the Playback volume control panel by clicking a

speaker icon in the Windows task bar. From this panel, you can get to the

Recording control panel by selecting Options | Properties | Recording in the

top bar menu.

However, the speaker icon may be missing. An alternative way of accessing

the Recording/Playback controls is via the Windows Control Panel. Here you

can also enable/disable the speaker icon.

The table on the following page shows how to enable/disable the speaker

icon, and how to get to the recording/playback controls from within the

Windows control panel. The methods vary depending on the version of

Windows you are using.

- 43 -

Windows Enable “speaker” icon Recording/playback volume controls

NT Control Panel |

Multimedia

Audio-tab

Checkbox: “Show

volume control on the

taskbar”

Make sure speaker icon is displayed, then double-

click on speaker icon in task bar to display the

Volume Control dialog.

Sound Playback: Select Options | Properties |

Playback

Sound Recording: Select Options | Properties |

Recording

98 Control Panel |

Multimedia

Audio-tab

Checkbox: “Show

volume control on the

taskbar”

Control Panel | Multimedia

Audio-tab

Sound Playback: Click on button

Sound Recording: Click on button

ME Control Panel |

Sounds and Multimedia

Sounds-tab

Checkbox: “Show

volume control on the

taskbar”

Control Panel | Sounds and Multimedia

Audio-tab

Sound Playback ! Volume button

Sound Recording ! Volume button

2000 Control Panel |

Sounds and Multimedia

Sounds-tab

Checkbox: “Show

volume control on the

taskbar”

Control Panel | Sounds and Multimedia

Audio-tab

Sound Playback ! Volume button

Sound Recording ! Volume button

XP Control Panel |

Sounds and Multimedia |

Sounds-tab

Checkbox: “Place

volume icon in the

taskbar”

Control Panel | Sounds and Multimedia

Audio-tab

Sound Playback ! Volume button

Sound Recording ! Volume button

- 44 -

Appendix C - Dealing with Interference

Electromagnetic Interference (EMI) is what prevents us from receiving a

clear signal, even when the receiver should be sensitive enough to receive

it. There are many types of interference you can experience with radio

receivers, emanating from both natural and man-made sources.

Natural interference is produced by atmospheric phenomena such as storms

and sun activity.

Not so surprisingly, man-made interference is often worse. Sources include

electric motors, power lines, passing cars, welders, fluorescent lights, fax

machines, computer networks, etc. Receiving antennas should always be as

far away from sources of electromagnetic interference as possible.

One significant source of man-made electromagnetic interference is the

personal computer, and the video monitor in particular. Since the

WiNRADiO G3 SERIES receiver requires a personal computer to operate,

this creates a potential paradox. The WiNRADiO receiver itself is designed

to be substantially immune to PC interference. However, any receiver needs

to be connected to an antenna, and antennas can’t discriminate between

useful signals and interference. The interference from your PC can either

radiate directly to the antenna, or it can be conducted to it along the outer

conductor of the lead-in cable. Even in professional radio receiving stations,

a lot of care and effort is always needed, if this type of self-interference is to

be avoided.

Some computers are worse than others in terms of generated

electromagnetic interference. The worst culprits are usually video monitors,

which radiate radio frequencies at multiples of horizontal deflection

frequencies. These frequencies range from about 30 to 100 kHz, and you

can sometimes hear their harmonics right across the entire shortwave band.

If you find strong signals sounding somewhat like a tractor engine, spaced

between approximately 30 and 100 kHz apart (on modern hi-resolution

monitors, the typical frequency is around 94 kHz), your monitor is most likely

the cause.

To check this, tune to one of the interfering signals, then switch off the

monitor and see if the signal disappears. You could continue using the

WiNRADiO receiver, and live with the fact that some useful frequencies will

be obscured by your monitor’s interference, or you can replace your monitor

with a ‘quieter’ one (modern LCD displays are far quieter than old CRT

- 45 -

monitors), or you can try to relocate your antenna further away from your

computer.

A good remedy to try is to wind five to ten turns of the antenna lead-in cable

through a large ferrite core (the doughnut shaped toroid type), near the PC

end of the cable. This suppresses common-mode interference, which is a

typical but curable problem with PC-controlled receivers.

Another type of interference which you may encounter is intermodulation

interference. This is usually caused by strong local stations, whose

frequencies combine to create ‘ghost’ signals on frequencies which are

arithmetic combinations of the stations’ frequencies. These ‘ghost’ signals

can sometimes coincide with useful frequencies, rendering them partially or

completely unusable. They will usually disappear when you switch on the

Attenuator in the receiver control panel. You may also try shortening the

antenna.

If you live very close to a strong local transmitter, these measures may be

insufficient. In such case, you should be able to eliminate intermodulation by

fitting a special filter to your antenna, to reduce the level of the signals

causing the interference. The design and application of such filters falls

beyond the scope of this book, since the large majority of WiNRADiO users

should not experience this problem (after all, not too many of us live next

door to a radio station). However, broadcast frequency filters and tunable

preselectors are standard items and can be obtained from good radio

equipment suppliers.

Did you know?

The first shortwave transmission from space took place on October 4, 1957,

when the first Russian satellite, the Sputnik, was launched. The Sputnik

transmitted amplitude modulated signals on 20,008 kHz. The characteristic

beeping of Sputnik’s telemetry was listened to by millions, ushered in a new

era of political, military, technological, and scientific developments, and

marked the start of the US-USSR space race.

- 47 -

Appendix D - Inside WR-G3 SERIES

Technically minded users may like to explore the WiNRADiO G3 SERIES

Receiver and experiment with some of the innovative concepts of Software

Defined Radio.

The WiNRADiO G3 SERIES Receiver is the world’s first commercially

available Software Defined Radio, where the Demodulator function is fully

performed in software running on a standard PC. It is also the world’s first

shortwave radio on a PCI card. The potential for experimentation is

therefore substantial. This receiver and its software have been indeed

designed to promote and encourage such experimentation.

The WiNRADiO G3 SERIES receiver represents only a half of the entire

radio. The other half is your PC.

The receiver hardware contains the following functional blocks:

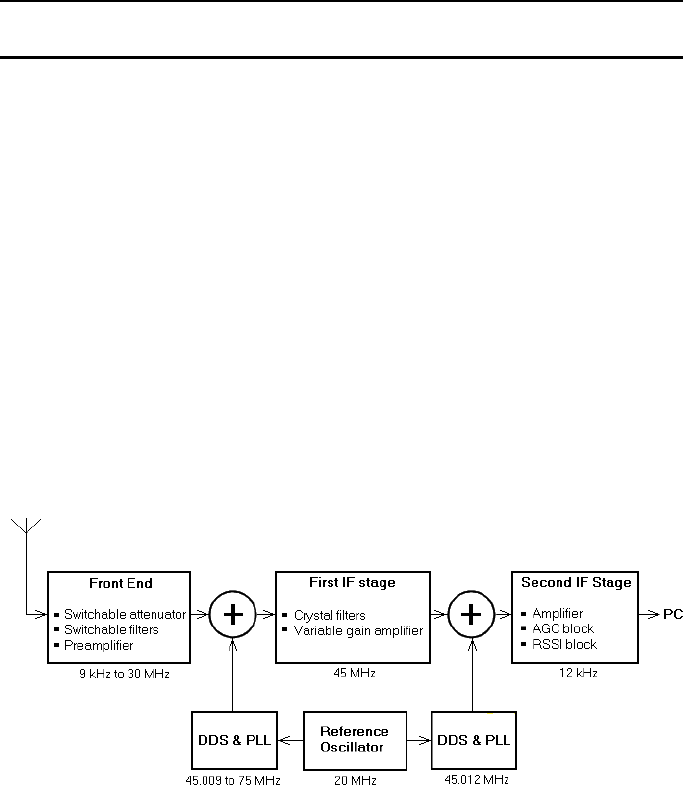

The incoming signal from the antenna (in the 9 kHz to 30 MHz range) is

filtered and amplified, then fed into a mixer. Here it is mixed with the first LO

(local oscillator), which is performed by a DDS (Direct Digital Synthesizer),

with a PLL (Phase Locked Loop). The resulting 45 MHz intermediate

frequency is filtered using a 4-pole 45 MHz crystal filter with an IF bandwidth

of 15 kHz, and then amplified.

- 48 -

The second mixer again uses a DDS with a PLL to mix the 45 MHz signal

down to the last intermediate frequency, which is 12 kHz.

Both DDS circuits derive their reference frequency from a 20 MHz reference

oscillator.

The 12 kHz IF output is then fed to the Right channel of the Line Input of the

PC sound card. You can hear what it sounds like if you use the sound card

mixer panel to listen directly to this input (rather than using the G3 SERIES

Demodulator software).

The AGC is performed in the first IF stage, based on the level of the last IF

output (at 12 kHz IF). As the IF bandwidth of the first IF stage is 15 kHz, the

AGC action is delayed until the dynamic range of the first IF stage is fully

utilized – this is in order not to cause desensitization of the receiver in the

presence of neighboring strong signals, falling within the 15 kHz IF

bandwidth. The resulting variation in audio output is then compensated for in

software, using Audio AGC in the software demodulator.

The final IF bandwidth is then adjusted entirely in software. If the

Professional Demodulator is used, this bandwidth is continuously variable

from 1 Hz to 15 kHz.

Did you know?

The largest shortwave transmitters nowadays operate with 250,000 –

500,000 Watts of power. Using the CW mode, and in suitable atmospheric

conditions, radio amateurs make regular contact around the world with only

a very tiny fraction of this power: reports exist of round-the-world

communications achieved with less than five Watts of power.

- 49 -

Appendix E – Professional Demodulator

The WiNRADiO G3 SERIES receiver has provision for additional

demodulators, in place of the supplied standard one. Installed demodulators

can be selected via the Demodulators top bar menu. Check the WiNRADiO

Web site www.winradio.com periodically, for demodulators available.

The Professional Demodulator which is available as an optional extra, takes

the concept of software-defined shortwave receiver a step further. The main

differences between the Standard and the Professional demodulator are as

follows:

• Additional demodulation modes (DSB and ISB)

• Continuously variable IF bandwidth (from 1Hz to 15 kHz)

• User-adjustable IF filter coefficients and other parameters

• User-adjustable audio AGC

• User-definable IF bandwidth presets

• Interactive demodulator structure with two spectrum scopes and a

vector voltmeter

• Additional instrumentation (SINAD and THD meter)

• AF Squelch for FM mode

WiNRADiO G3 SERIES Professional Demodulator

- 50 -

The front panel of the Professional Demodulator looks similar to the

Standard one. Note in particular the added DSB and ISB modes, the

continuous IF filter bandwidth control, enhanced Audio AGC (the time

constants are user definable in the Setup window), and a row of IF

bandwidth preset buttons at the bottom. The numbers on top of the IF

bandwidth preset buttons indicate the associated bandwidth (in kHz). These

presets, too, are entirely user-definable.

To change the IF bandwidth, you can type the desired value (in Hz) directly

in the IF bandwidth editbox, or use the associated up/down buttons.

Do not overlook the small but very significant slider button between the

bandwidth up/down buttons: It allows you to change the IF bandwidth within

a large range, by moving the slider cursor up and down, with a very

impressive effect.

In the spectrum scope, the selected IF bandwidth is shown using a different

background color around the center frequency. The portion of the signal

spectrum falling within the IF bandwidth is shown in yellow.

Adjusting Demodulator Parameters

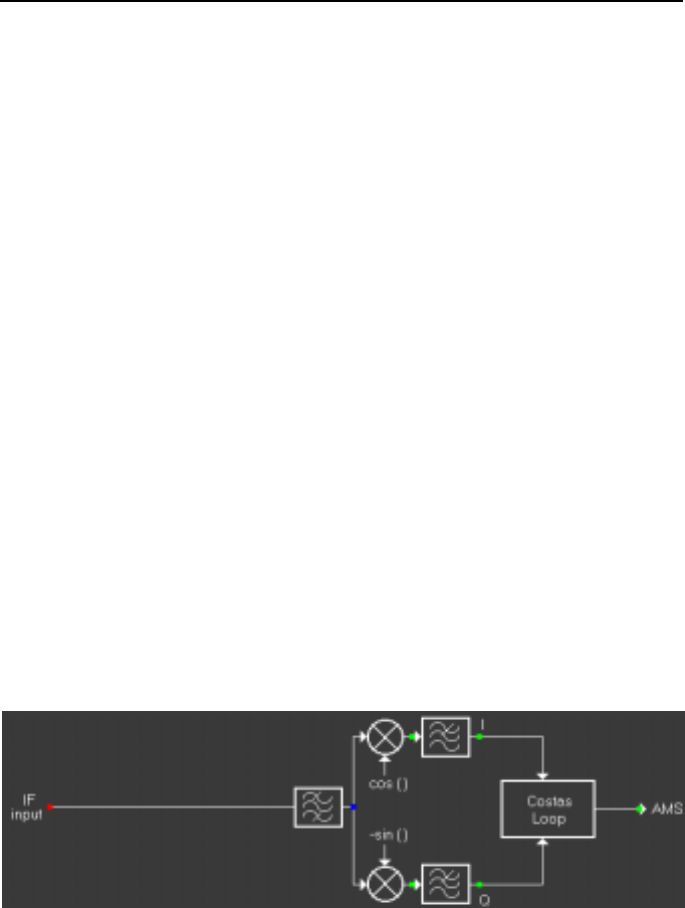

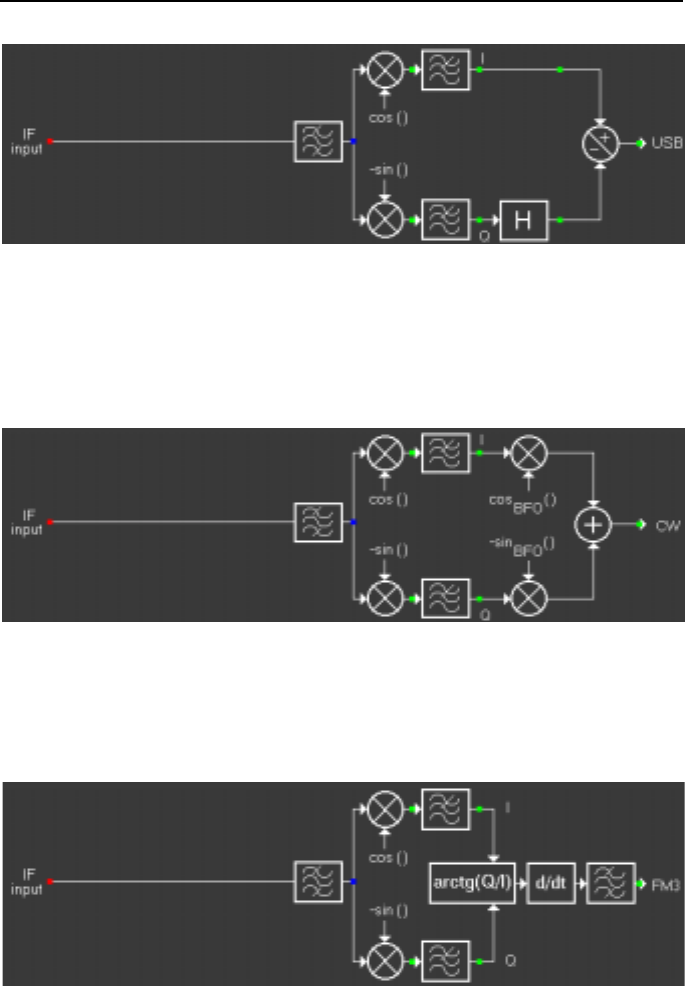

The entire demodulation process can be observed in the demodulator

structure window, accessible from within the Demodulator Settings (press

the Settings button under the CW mode button), then the large View

Demodulator Structure button). Each mode has its own associated

structure. By selecting the mode either using the front panel or the tabs at

top-right of the Demodulator Settings window, you can observe the different

structures applicable to the selected modes. Each mode also has a number

of filter settings to experiment with.

The meaning of each filter is best understood looking at the demodulator

structure. All of these filters are linear phase FIR (Finite Impulse Response),

with cut-off frequencies and lengths that can be adjusted and optimized by

the user, either by direct typing in the parameter or using the sliders,

according to the received signal characteristics.

Each filter length (i.e. the number of its taps), can be an odd number

between 3 and 255. The more taps, the better the filter characteristics, and

the better the selectivity of the receiver, but the computing task for the CPU

is harder. Therefore, while increasing the filter lengths, always watch the

CPU usage in order not to starve the operating system of CPU resources

(80% is a good upper limit). Starving the system of CPU resources

- 51 -

manifests itself by the computer becoming sluggish or possibly "freezing"

entirely.

The first parameter, the IF bandwidth filter, is the length of the first filter in

the digital path, which is responsible for much of the receiver selectivity. The

factory default length is 63. Reducing this value will decrease the receiver

selectivity and make the receiver more prone to interference from nearby

strong signals. However, for slower computers it may be necessary to

compromise on this figure if the demodulator appears too slow (to the point

of the panel "freezing" or drop-outs of audio) because of insufficient CPU

resources.

The post-mixer filters, which appear in all demodulators, are all of the low-

pass type, their bandwidths being automatically related to the IF bandwidth

filter (whose center frequency is 12kHz). For AM, AMN, AMS, CW, DSB,

ISB, FM3, FM6 and FMN, the post-mixer filters bandwidth is half of the IF

bandwidth, while for LSB and USB both bandwidths are equal.

If you have a preference for particular IF bandwidths, you can associate

them with any of the ten preset buttons (located at the bottom of the

demodulator front panel) by double clicking the Bandwidth column of the IF

bandwidth presets table, and then typing in the numerical bandwidth value in

Hz. The buttons are numbered (1 to 10) from left to right. The factory default

values can be restored at any time, by pressing the Restore default

settings button.

For the AM, AMN, FM3, FM6 and FMN demodulators, a supplementary

low-pass filter was introduced in the audio output path, to reduce harmonic

distortions generated in the demodulation process. Its cut-off frequency (the

upper limit of the pass band) and length adjustments can also improve the

overall signal-to-noise ratio under bad receiving conditions.

Finally, a noise-derived squelch is implemented for frequency modulation

modes, FM3, FM6 and FMN. The energy of the noise present above the

useful voice baseband is used as a signal presence indicator. The

user can modify the length of the high-pass filter separating that noise,

squelch filter length. The squelch control appears on the demodulator front

panel when any of the FM modes is selected. This makes it possible to

adjust the noise threshold level at which the squelch will mute the audio.

Finally, all demodulated audio output is scaled up by an Audio gain factor.

The scaled audio signal level is further adjusted with the Volume control in

the demodulator main panel. When the Audio AGC is active, the fixed Audio

gain is ignored. The attack and decay times for the three possible Audio

- 52 -

AGC speeds (slow, medium and fast) can be also configured, under AGC

Speed Constants on the left of the demodulator settings window.

Demodulator Structure

The G3 SERIES Professional Demodulator implements the general

quadrature representation of all narrow-band modulated signals. Such

signals can always be considered as the sum of two amplitude-modulated

carriers

having a 90 degree offset, usually referred to as I and Q. Users familiar with

Software Defined Radio digital signal processing concepts, will find the G3

SERIES Professional Demodulator to be a useful tool for experimentation

and study, where the effects of various filter settings can be easily observed

and optimized.

AM Demodulator Structure

The demodulator structure windows include two spectrum analyzers making

it possible to view signal spectra in real-time. Each analyzer can be

"connected" to any of the test points shown as green dots in the diagram. To

- 53 -

connect the left spectrum analyzer to a particular test point, left-click on the

green test point. Its color will change to red. Right-clicking on a dot will

connect it to the right analyzer, and the color will change to blue. If both

displays are connected to the same test point, the point color will turn

magenta.

Within the displayed spectra, a red color frequency cursor can be manually

dragged, using the left mouse button, over a particular spectral component.

The two Vector Voltmeter displays labeled Left/Right indicate the relative

amplitude and phase difference between the two spectral components at the

cursor frequency.

There are two additional tools provided in this window: THD (total harmonic

distortion) and SINAD (signal-plus-noise-plus-distortion to noise-plus-

distortion) meters. They can be used to test the overall receiver performance

as well as provide indication of the sound card quality. To use these

facilities, a pure tone-modulated signal must be applied to the receiver

antenna input, and the frequency of the modulating tone must be equal to

the Test freq setting.

When either of the THD or SINAD buttons is activated, the right-hand

spectrum display will be automatically connected to the end of the

demodulator chain (i.e. right-clicking on any other test points will not work

until both the THD and SINAD buttons are released).

For synchronous demodulation of amplitude modulated signals (the AMS

mode) without carrier or with a fluctuating one, the G3 SERIES Professional

Demodulator uses a PLL carrier recovery technique based on the Costas

loop:

Synchronous AM Demodulator Structure

- 54 -

The LSB and USB demodulators have basically the same topology. ISB can

be thought of as a combination of LSB and USB, where each of the sound

card channels is used for one of the independent side bands.

- 55 -

USB Demodulator Structure

The CW received signals are first down-converted to zero Hz, and then,

after additional channel filtering, up-converted to a convenient audio

frequency. This frequency (a digital BFO) is user-adjustable, by changing

the value of the CW tone frequency parameter in the demodulator set-up.

CW Demodulator Structure

Finally, all frequency demodulators have the same block diagram. The only

differences between these demodulators are the bandwidth values of the

input IF filter and the two post-mixer filters:

FM Demodulator Structure

- 56 -

Appendix F - Developer Support

WiNRADiO has always extensively supported third-party software

development efforts with all our receivers, and the WiNRADiO G3 SERIES

receiver is no exception. We provide technical details for developers to be

able to develop the following:

1. Third-party applications controlling the WiNRADiO G3 SERIES receiver.

We do this by providing API information making it possible to access the

receiver hardware from third party software. (See

http://www.winradio.com/home/developer.htm).

2. Plug-ins to provide enhanced functionality. For this, we have developed

a special interfacing standard called XRS (Extensible Radio

Specification). All our receivers conform to this standard, and many

plug-ins are already available for various applications (see

http://xrs.winradio.com).

3. New types of demodulators. The G3 SERIES demodulators in fact

represent a special type of XRS plug-in. Detailed information is also

available at http://xrs.winradio.com).

4. Support under alternative operating systems. See for example

http://www.linradio.com.

5. Support under

Radio Basic, an easy to use specialized programming

language for radio receivers. See http://www.rbasic.com.

Have you registered yet? WiNRADiO provides regular upgrades to our

application software. Use our on-line registration form on

www.winradio.com/register to take advantage of this free service.

- 57 -

Declaration of Conformity

This device, trade name WiNRADiO Communications Receiver, model

number WR-G3 SERIES complies with Part 15 of the FCC Rules. Operation

is subject to the following conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

I have determined and warrant that the above described device has been

shown to comply with the requirements of the FCC Part 15, by having a

device tested at an accredited testing laboratory. Each unit marked is

identical to the device as tested. Compliance assumes no unauthorized

changes will be made to the equipment and it will be maintained and

operated properly. A test report has been generated. A technical file

containing the test report will be maintained for a period of at least 2 years

after manufacturing ceases. It is also understood that characteristics of this

equipment will require retesting.

Milan Hudecek

Managing Director

for

Rosetta Laboratories Pty.Ltd.

15 Stamford Road

Oakleigh 3166

Australia

+61 3 9568 2568

Robotron WRG3P Scanning Receiver User Manual

Robotron Pty Ltd Scanning Receiver Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
