Users Manual

RS2-G3
ONE BUTTON 2-WAY REMOTE START SYSTEM
OPERATING INSTRUCTIONS
CONGRATULATIONS on your choice of a Cool Start™ Remote Engine Starter and Keyless Entry with DP
Technology by Crimestopper Security Products Inc. This booklet contains the information necessary for
operating your system. If any questions arise, contact your installation dealer or Crimestopper Security
Products Inc.
*IMPORTANT INFORMATION: Primary and Optional Features
-PRIMARY: These are features that must be connected in order for the system to operate properly i.e.
Remote Start connections, Flashing lights, and Brake Reset. For programming, the program button must be
installed.
-OPTIONAL: These features are to be connected only if desired or agreed upon by the customer and the
installing dealer i.e. Door Locks, Horn-Honk, Anti-Grind, etc. These features may also require additional parts
and/or labor fees. Consult with your installer beforehand to be sure of what is going to be installed with your
particular system.
CRIMESTOPPER SECURITY PRODUCTS, INC.
1770 S. TAPO STREET, SIMI VALLEY, CA. 93063
REV 07.25.2014
This device complies with FCC Rules part 15. Operation is
subject to the following two conditions: 1) This device may not
cause interference, and (2) this device must accept any
interference that may be received, including interference that
may cause undesired operation. The manufacturer is not
responsible for any radio or TV interference caused by
unauthorized modification to this equipment. Such modification
could void the user's authority to operate the equipment.
2
TABLE OF CONTENTS
Operation Cautions & Warnings…….……………..….…………………………………….…………….….…………2
Using the Remote Transmitter………………………………………………………………………….………....…….3
Status LED……………………………………………………………………………………………….……….……….4
Remote Engine Control…………….…..……………………………………………………………….…….……….4-6
Timed Self Start Mode (optional)………………………………………………………………………………………..7
Turbo Timer Mode……………………………….……………………………………...……………….……………..…8
Convenience and Safety Features……………………………….………………………………….…...………….9-10
Transmitter Programming….…………….…………………………………………….……………….…………....…11
No Factory Keyless Entry after Remote Start…………..…………………………………………………………….12
Panic Mode……………..………………………………………………………………………………………………...12
Remote Start Diagnostics……………………………………………………………………………………………….13
Battery Replacement.…………………………………….………………...……………………..…………….………14
2-Way Data Port…………………………………………………………………………………………………………15
OPERATION CAUTIONS & WARNINGS
CRIMESTOPPER SECURITY PRODUCTS, INC. and its VENDORS shall not be liable for any accident
resulting from the use of this equipment. This system is designed to be professionally installed into a car or
vehicle in which all items, such as parking brake and all associated components, door switches, transmission
shift linkage, throttle linkage, and all engine safety features, are in perfect working condition.
IT IS ABSOLUTELY THE OWNER’S SOLE RESPONSIBILITY TO: A) Understand the operation of this
system and its safety features. B) Check for proper operation of the system prior to accepting delivery of the
vehicle from the installation facility. C) Check and maintain the condition of the vehicle and all items relative to
the proper operation of this system and its safety features. D) Always leave the doors and windows closed
and locked to protect against accidents and theft.
DO NOT remote start the vehicle in a closed garage. Make sure that the garage door is open or there is
adequate ventilation. Failure to observe this rule could result in injury or death from poisonous Carbon
Monoxide fumes.
3
USING THE REMOTE TRANSMITTER
BASIC REMOTE OPERATION

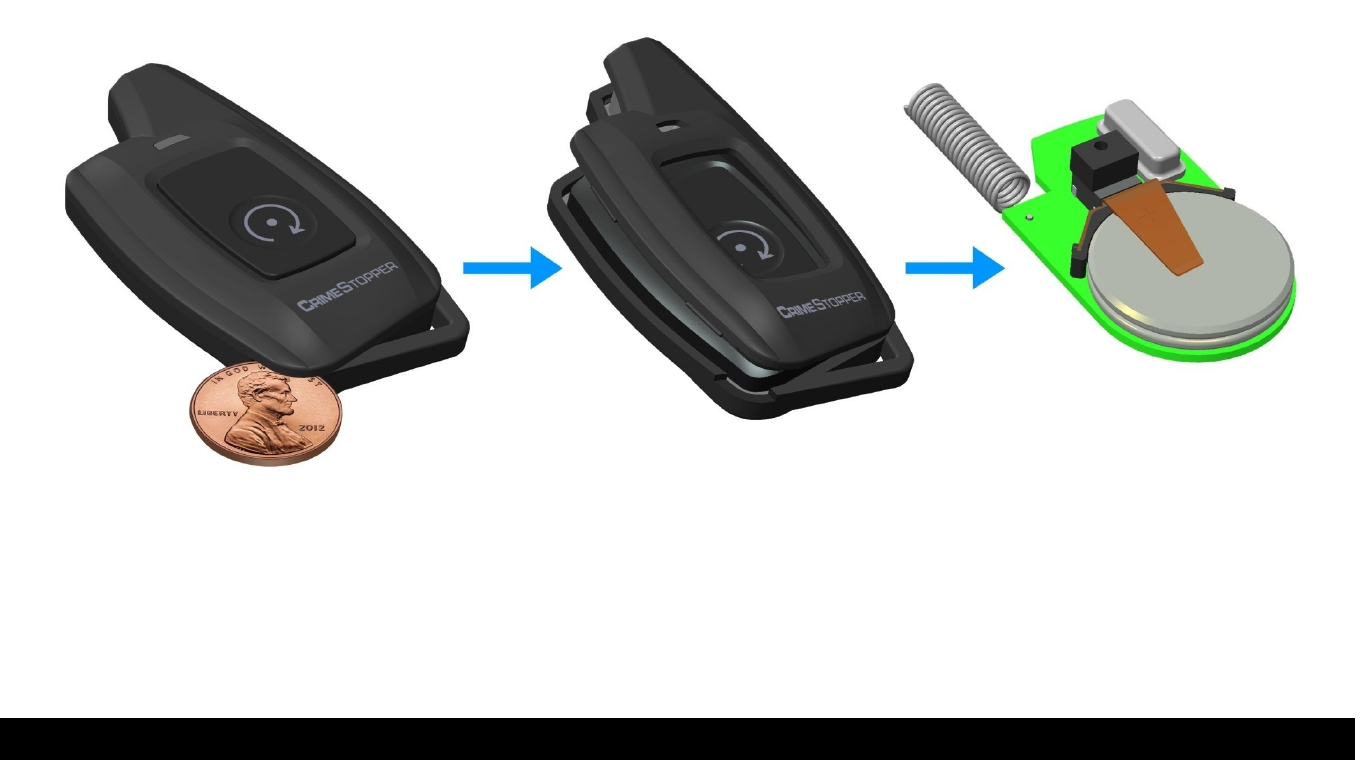

The transmitter supplied with this system is a single button 2-Way remote control. This is a multifunction
remote control. It can operate power door locks (if equipped with power locks) and Remote Start the vehicle.
The 2-Way Remote Control will confirm operation with Beeps and LED flash for lock, unlock and remote start.
1. Press Once = Lock or Unlock.
a. Lock = 1 beep & 1 green LED flash.
b. Unlock = 2 beeps & 2 green LED flashes.
2. Press 3 times within 2 seconds = Panic Mode – 30 second cycle (2 second beep and green LED).
3. Press and Hold 2 seconds = Remote Start or Remote Stop.
a. Remote Start = 1 beep, red & green LED flash once.
b. Engine Running = 4 beeps, red & green LED flash 4 times.
c. Start Fail = 2 beeps & 2 red flashes.
d. Engine Stop/Shut Down = 1 beep & 1 red LED flash.
2
-
W
ay
Red & Green LED
1
-
W
ay
Blue LED
4
STATUS LED
VEHICLE STATUS LED : Located on Window Antenna
The Status led will flash when the doors are locked. It will turn off when the doors are unlocked. The LED will
remain solid when the system is in Valet Service mode. The remote start function WILL NOT operate when in
Valet Mode.
REMOTE ENGINE CONTROL
REMOTE ENGINE STARTING - SUCCESSFUL START:
1) Press the remote start button for at least 2 seconds. Parking lights flash once, return solid, and the
Ignition/Acc circuits turn on. The remote control will beep and the LED will flash once to confirm.
2) After a few seconds the Starter Motor engages. The parking lights and Acc circuits will turn off while
cranking.
3) Engine Starts and Runs. Parking Lights and Acc turns back on, and the doors lock.
4) Engine will remain running for programmed run time until reset with Brake pedal. If needed, the engine can
be turned off with remote transmitter by pressing and releasing the Start button.
AFTER
IGN
3
STARTER
THEN
FLASH 1X
SOLID
SOLID
SEC.
PRESS START
5
REMOTE ENGINE CONTROL
REMOTE ENGINE STARTING - UNSUCCESSFUL START
In the event that the engine does not start on the first attempt, the system shuts down for a few seconds and
then attempts to restart the engine a 2nd and 3rd time. For hard starting engines, the unit will allow a starter
crank time of up to 4 seconds maximum. This should provide ample cranking time for difficult starts, but is
limited to 4 seconds to help prevent damage to the starter from over cranking. If Third attempt fails to start
engine, the system will turn off and doors will remain locked. NO FURTHER ATTEMPTS WILL BE MADE
AUTOMATICALLY

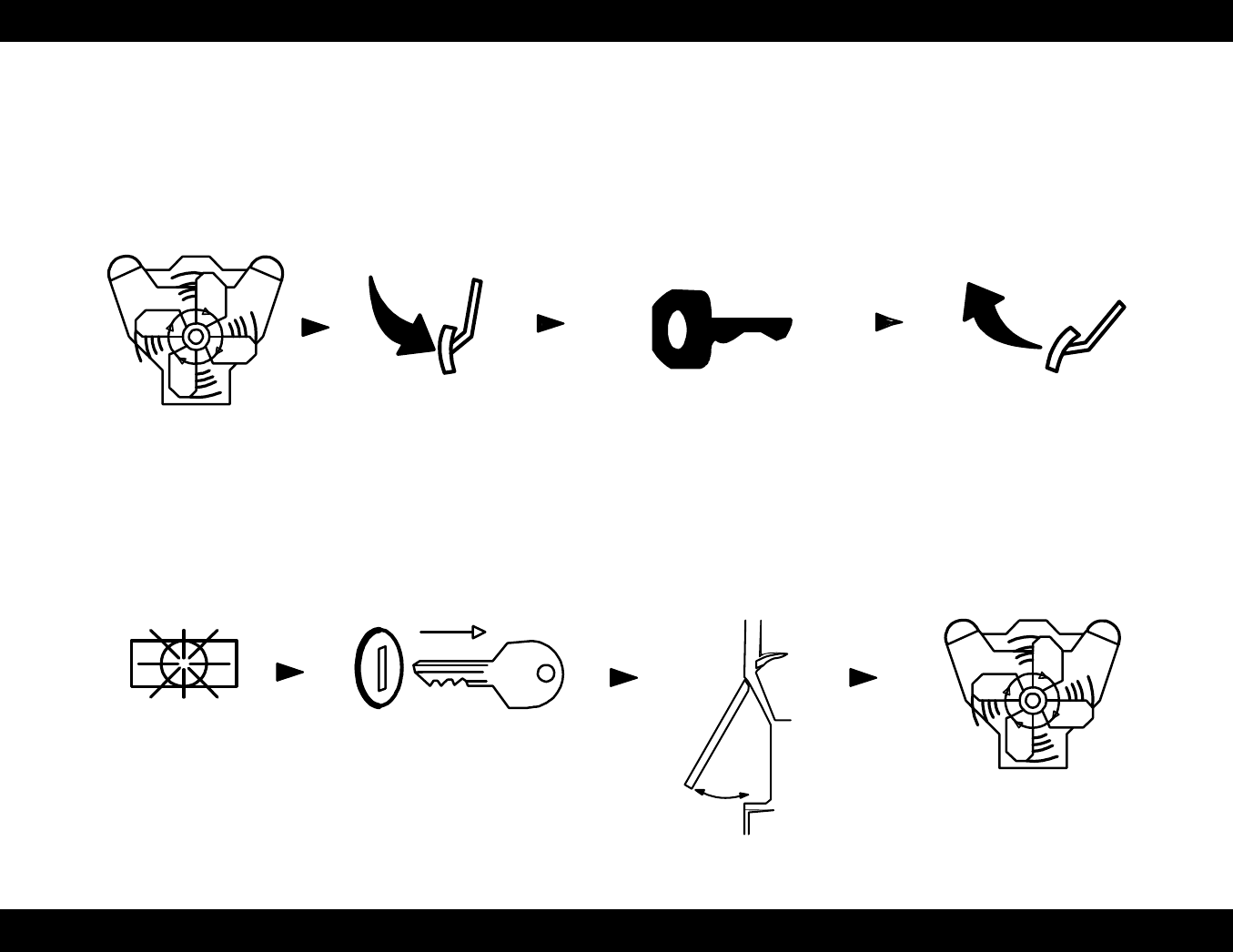

TURNING OFF A REMOTE STARTED ENGINE:
1) Engine is running in Remote Start (Parking lights ON).
2) Press and hold the remote start button for 2 seconds..
3) Engine & parking lights OFF, Doors re-lock.
ENTERING YOUR REMOTE STARTED VEHICLE:
1) With engine running, unlock system with remote (If equipped) or open door with key.
2) Enter vehicle and be careful not to step on brake pedal! (Remote Start Reset)
3) Turn Ignition to ON/RUN position, then press brake pedal to reset the Remote Starter & Shift out of park.
4) Remote starter will reset instantly when the brake is pressed. Parking lights will turn off and the ignition key
is now controlling your vehicle.
IDLE DOWN MODE:
This mode allows the unit to take over operation of the parked vehicle while the ignition key is removed and
you exit the vehicle. The vehicle will remain running for the programmed time or until canceled. The Run Time
choices are: 10, 20, 30 minutes or Infinity Run. Default = 20 minutes
Examples:
• You pull up to a convenience store for a quick stop, "Idle Down" mode keeps engine running when you exit
the vehicle, (with keys in hand). When you return, turn ignition ON, step on brake and drive away.
6
REMOTE ENGINE CONTROL

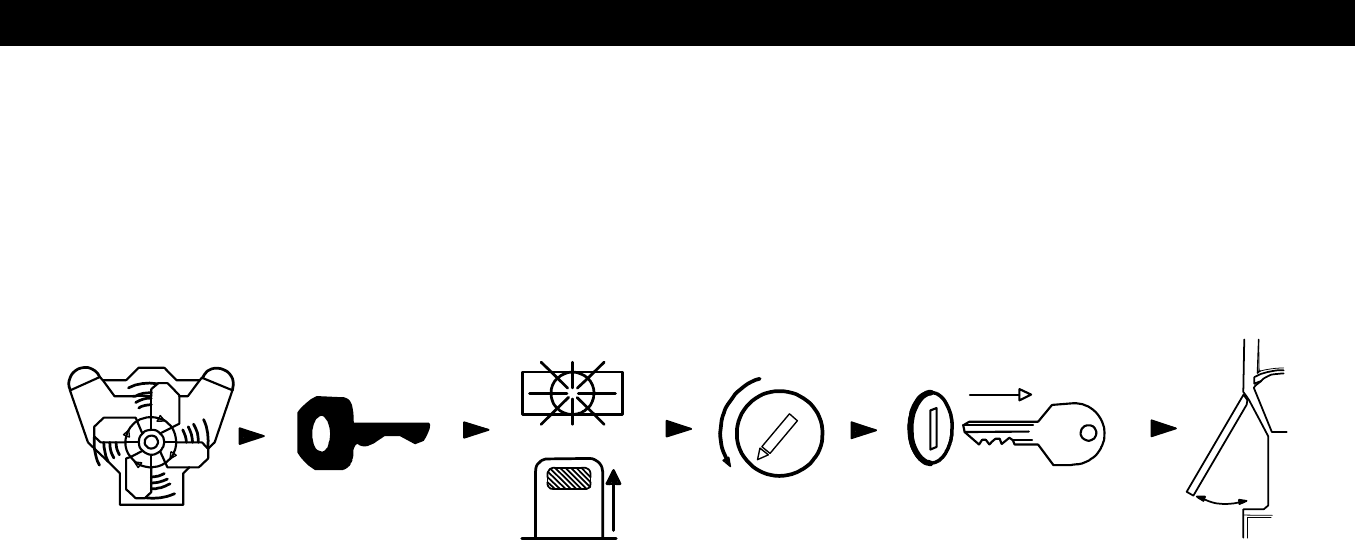

IDLE DOWN MODE - EXITING THE VEHICLE:
1) With vehicle engine running with key, press the Remote Start button for 2 seconds.
2) Parking Lights will turn ON.
3) Doors will unlock, or if brake pedal is being depressed, doors will unlock when it is released.
4) Turn OFF Ignition and remove key. Engine should remain running.
5) Engine will remain running for programmed run time or until you return (whichever comes first).
IDLE DOWN INFINITY RUN MODE:
Idle Down can be programmed for INFINITY RUN. This allows the vehicle engine to remain running
INDEFINITELY without the ignition key in the switch. The parking lights continuously flash in this mode. This
mode can be beneficial to law enforcement or commercial trucks that need to remain running unattended for
long periods of time. Talk to your installer to select option.
IGN
SOLID
OFF
UNLOCK
PRESS START
7
OPTIONAL SELF START MODE (OPTION 22)
SELECTABLE HOURLY COLD-START MODE (2, 3 or 4 HOURS) Default = OFF
This mode allows the vehicle to be programmed to self-start every 2, 3 or 4 hours and run for the programmed
run time. This can be helpful during extremely cold conditions where engine fluid freeze-up is a concern. This
option is disabled by default and must be activated.
TIMED SELF-START MODE:
1) The ignition must be off.
2) Press Start Button once, then Press and Hold Start Button for 2 seconds (within 3 seconds).
3) The 2-Way remote will beep 3 times and the Red & Green LED will flash 3 times to confirm.
4) The parking lights will flash 4 times and the horn will chirp for 4 times to confirm Self Start Mode
Activated.
RESETTING TIMED SELF-START MODE:
To reset the timed self-start mode, start vehicle using the ignition key or the remote control. The lights will
flash 3 times.
8
TURBO TIMER MODE (OPTION #21)
The optional Turbo Timer mode allows the CoolStart system to keep a Turbo or Turbo Diesel vehicle running
for 1, 3 or 5 minutes [selectively] after you remove the key and exit the vehicle. This is handy for turbo cool-
down without the need for expensive turbo timers. The Default = OFF.

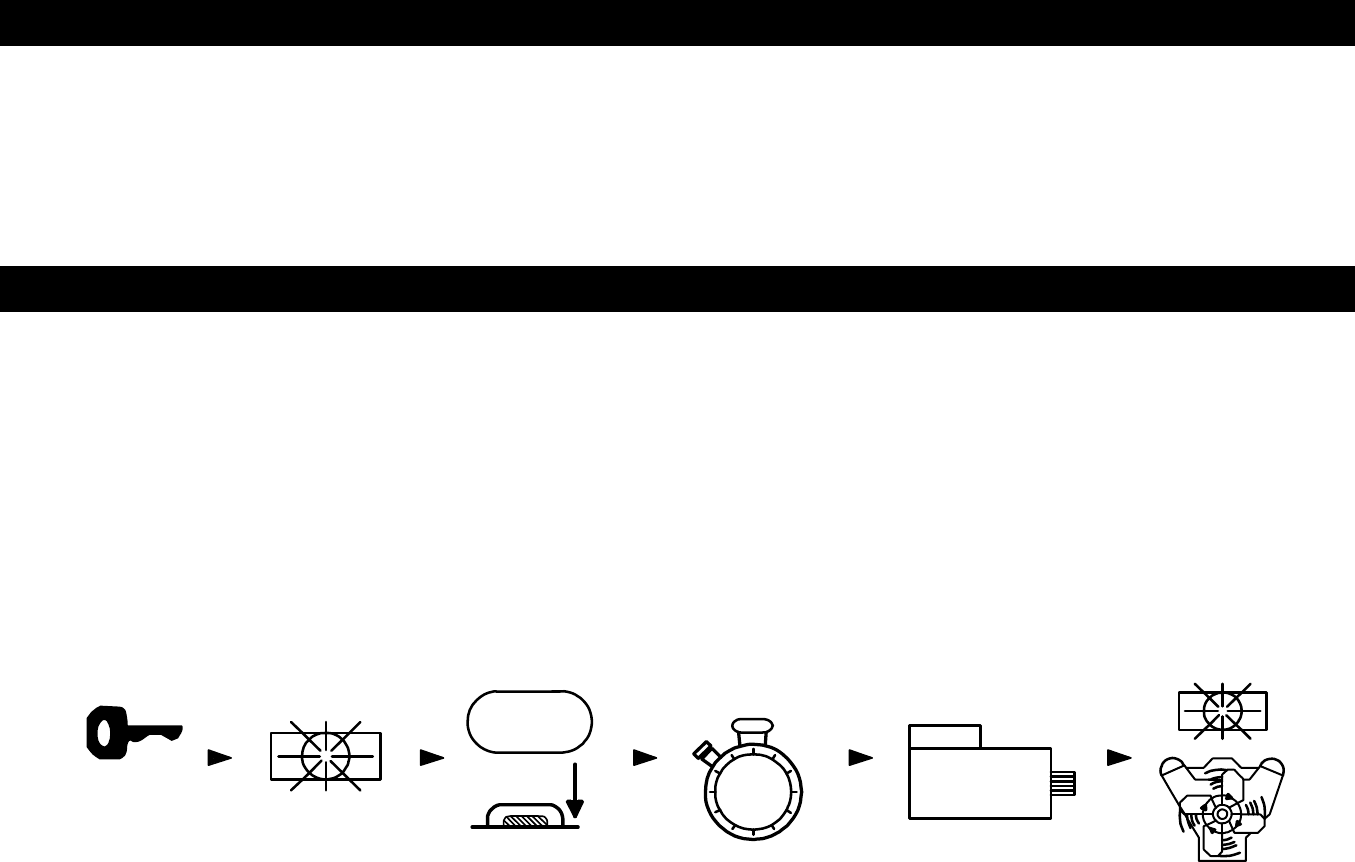

To Activate Turbo mode:
With the engine running by key, press Remote Start Button and release with brake pedal depressed. the
Parking Lights and Status LED will blink the number of minutes for the Turbo Timer. The doors unlock .
REMOVE KEY
FLASH 1-5X
EXIT VEH.
PRESS
AND HOLD
BRAKE
RUNNING RELEASE
BRAKE
LIGHTS
RUNNING
REMAIN
1-5 MIN.
PRESS START
CONVENIENCE AND SAFETY FEATURES
9
KEYLESS ENTRY (Power Door Locks, may require Data Module - Optional)
The doors will lock or unlock with a momentary press of the Start button.
To confirm lock, the parking lights will flash once, the Status LED (on antenna) will start flashing and the horn
will chirp once (selectable option). The remote control will also beep once to confirm lock.
To confirm unlock, the parking lights flash twice, the Status LED turns off and the horn chirps twice (selectable
option). The remote control will flash twice to confirm unlock.
AUTO LOCK / UNLOCK (Option # 2) Default = OFF
The Auto Lock feature controls whether the doors will automatically lock/unlock on your vehicle when driving
or with turning the Ignition ON/OFF. There are 3 choices:
1. Doors Lock and unlock when ignition is turned on or off.
2. Lock with ignition and brake pedal, unlock with ignition off.
3. Auto Lock only, no unlock.
HORN CHIRPS (Option # 16 & 17)
If vehicle horns are connected to the system, they will provide audible confirmation chirps for remote start. The
chirp sound can be programmed from short to long to adjust for different sounding horns. Note: Horn
honk/chirp feature may require extra labor and/or parts to install.
Option 16 = Chirps with Remote Start On/Off.
Option 17 = Short, medium or long Chirp Pulse (15, 20 or 30 milliseconds).
ANTI-GRIND (Optional, relay not included)
This Optional feature prevents the user from accidentally grinding the starter if the Ignition key is turned too far
to the start position while engine is already running from the remote starter. The Anti-Grind requires the use of
an external relay.
CONVENIENCE AND SAFETY FEATURES
VALET MODE (Requires Installation of Valet Switch)
10
Before servicing your vehicle or handing the keys over to a Valet we recommend putting the unit into Valet
Mode. The remote start function WILL NOT operate when in Valet Mode. To enter Valet mode, turn the key
to the ON position, press and hold Program/Valet switch for 5-6 seconds. The Status LED will turn on solid
when the system is in Valet Mode. To exit Valet Mode, perform this procedure again.
HOOD OPEN SAFETY (Requires hood pin switch)
Prevents the engine from being Remote Started with the hood is open. This eliminates risk of injury to
someone working under the hood of the vehicle. If Remote Start button is pressed with the hood open, the
lights will flash twice and the unit will not attempt a start. The system will abort Remote Start any time the hood
is opened. See Remote Start Diagnostics on page 13.
BRAKE PEDAL RESET:
Prevents starting or shuts off a remote started vehicle when this circuit is active. This prevents unauthorized
driving of a remote started vehicle. This circuit shuts the system down immediately when brake pedal is
pressed. Turn the ignition key to the “ON” position before the brake pedal is pressed.
OEM ALARM INTERFACE (May require optional Databus Module)
This feature is designed to Disarm and Re-arm Factory equipped security systems in conjunction with remote
start and keyless entry (if needed for your vehicle). This feature will maintain the original integrity and security
of your vehicle’s factory equipped systems before, during, or after remote start. Some vehicles require an
optional Databus module to operate a factory alarm or keyless entry.
LOCK with REMOTE START and After REMOTE START ABORT:
Option # 8 controls whether the system will automatically lock during and after a remote Start abort or time-out.
There are 4 choices for this option:
1. Lock with Remote Start Only - Default.
2. OFF.
3. Lock with Remote Start and Lock with Remote Start Abort.
4. Lock with Remote Start Abort only.

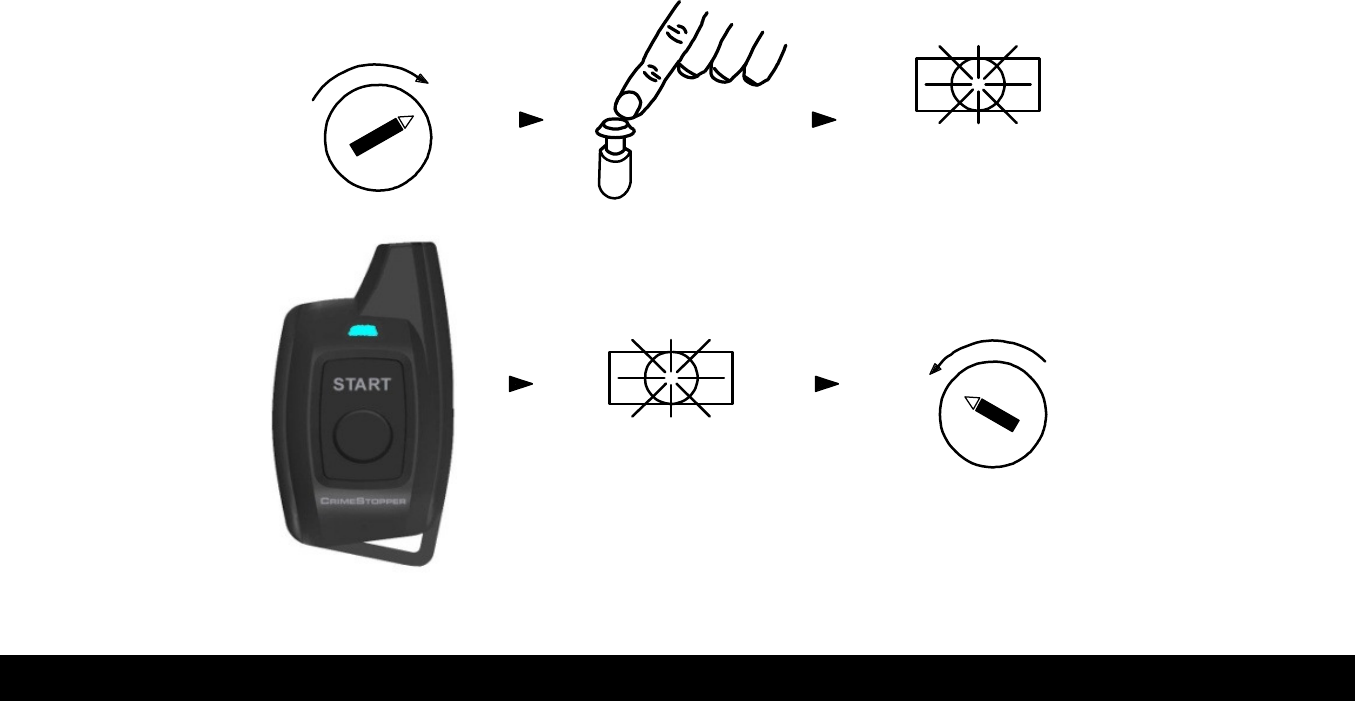

TRANSMITTER PROGRAMMING
Note: All transmitter codes must be learned at time of programming!! The system learns up to 3
different transmitter codes.
11
1. Turn Ignition Key to the ON position.
2. Press Programming button 4 times, then after a few seconds the unit flashes the parking lights 4 times.
3. Press the start button of the first transmitter. You should get 1 light flash confirming the remote is coded,
then press the start button of a second transmitter, the unit will flash 2 times confirming the remote is coded
and so on. If all 3 codes are learned, the unit will automatically exit code learning mode, otherwise turn key
off. See diagram below.
IGN
OFF
WAIT FOR
4 FLASHES
PRESS 4X's
FLASH 1, 2, or 3 X's
IGN
OFF
PRESS START BUTTON
NO FACTORY KEYLESS ENTRY AFTER REMOTE START
Most new cars Do Not allow the factory Remote Keyless Entry to function with the Ignition ON. This means
you can’t use the factory remote to lock or unlock the doors. After remote start you have to use the keys to
12
unlock the door. Also, many new vehicles unlock the doors when disarming the factory alarm. This leaves the
doors unlocked while Remote Started. To resolve this problem, have your installer connect the door locks to
the Remote Start Keyless Entry. The Remote Starter will Re-Lock the doors after remote starting.
POWER ON MEMORY
This system is equipped with circuitry that will allow the system to remember its status if the power is lost and
then reconnected.
PANIC MODE
This mode is used in an emergency situation or you are having trouble finding your vehicle in a parking lot.
The vehicle horns must be connected for this option.
To Activate: Press the start button 3 times within 2 seconds. The horns start honking and parking lights flash
for 30 seconds.
To Deactivate: Press the start button again to stop the horns and Lights.
REMOTE START DIAGNOSTICS
If the system flashes the LED and Parking Lights one to six times and doesn’t attempt remote. The
LED will continue flashing the error code until the ignition is turned on, it means the following:
13
1 Parking Light Flash (1 LED Flash) = Problem with Brake Switch.
2 Parking Light Flashes (2 LED Flashes) = Problem with Hood Switch.
3 Parking Light Flashes (3 LED Flashes) = Tach Problem.
4 Parking Light lashes (4 LED Flashes) = Voltage Sense Problem, battery not charging or to low.
5 Parking Light Flashes (5 LED Flashes) = Problem with (-) Brake Input.
6 Parking Light Flashes (Solid LED) = Valet Service Mode.
Be sure to tell your installer the Diagnostic code when taking vehicle in for service
SYSTEM IS UNSUCCESSFUL AT REMOTE START DURING EXTREME COLD CONDITIONS:
Please be aware that during sub-freezing conditions your remote starter may take more that one attempt to
start or it may not successfully start the vehicle after 3 attempts. During these conditions the vehicle may not
properly start even using the key; therefore trying to start by the remote would also be unsuccessful.
BATTERY REPLACEMENT
To replace the battery: Simply take the case apart as shown below. Remove the two CR-2016 Lithium
batteries and replace. Put case back together and tighten screw.
The 1-Way remote needs two CR-2016 Lithium batteries.
The 2-Way remote needs one CR-2032 Lithium battery.
The 1-Way remote has a low battery indication; The Blue LED will flash once every 5 seconds
The 2-Way remote has a low battery indication; The Red LED will flash once every 5 seconds
14
2-Way DATA PORT
Some vehicles require a Databus Module to Bypass the factory Immobilizer and operate the keyless entry.
Databus modules are used to communicate with the vehicles computer at the OBD2 Data connector or
Canbus wires. This reduces installation error. Crimestopper Systems with DP Series have a direct Data Port
Plug-In for the Databus bypass module. This eliminates conventional wiring between the Alarm/Remote
Starter and the bypass interface module.
15
Features Include:
• Transponder Immobilizer.
• PassLock Immobilizer.
• O.E.M. Alarm Control.
• R.A.P. Shutdown.
• Power Door Locks.
• Priority Unlock.
• Trunk Release.
• Parking Lights.
• Courtesy Lights.
• Tachometer.
• Heated Seats.
• Rear Defrost.
• Driver 1 and 2 Memory presets.
The actual features controlled depend on the vehicle and Databus module.
changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
16
17
www.crimestopper.com
email@crimestopper.com
Phone (800) 998-6880
FAX (805) 581-9500
© 2014 Crimestopper Security Products
ONLINE TECHNICAL SUPPORT
www.crimestopper.com

Navigation menu
