Hardware installation guide
Draft 1A - CISCO CONFIDENTIAL
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL
STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT
SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE
OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required
to correct the interference at their own expense.
The following information is for FCC compliance of Class B devices: The equipment described in this manual generates and may radiate radio-frequency energy. If it is not
installed in accordance with Cisco’s installation instructions, it may cause interference with radio and television reception. This equipment has been tested and found to
comply with the limits for a Class B digital device in accordance with the specifications in part 15 of the FCC rules. These specifications are designed to provide reasonable
protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation.
Modifying the equipment without Cisco’s written authorization may result in the equipment no longer complying with FCC requirements for Class A or Class B digital
devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television
communications at your own expense.
You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco equipment or one of its
peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures:
• Turn the television or radio antenna until the interference stops.
• Move the equipment to one side or the other of the television or radio.
• Move the equipment farther away from the television or radio.
• Plug the equipment into an outlet that is on a different circuit from the television or radio. (That is, make certain the equipment and the television or radio are on circuits
controlled by different circuit breakers or fuses.)
Modifications to this product not authorized by Cisco Systems, Inc. could void the FCC approval and negate your authority to operate the product.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public
domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH
ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT
LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF
DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,
WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO
OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
Copyright © 2005 Cisco Systems, Inc. All rights reserved.
CCSP, CCVP, the Cisco Square Bridge logo, Follow Me Browsing, and StackWise are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn, and
iQuick Study are service marks of Cisco Systems, Inc.; and Access Registrar, Aironet, ASIST, BPX, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, Cisco, the Cisco
Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Empowering the Internet Generation,
Enterprise/Solver, EtherChannel, EtherFast, EtherSwitch, Fast Step, FormShare, GigaDrive, GigaStack, HomeLink, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, iQ
Net Readiness Scorecard, LightStream, Linksys, MeetingPlace, MGX, the Networkers logo, Networking Academy, Network Registrar, Pa cket, PIX, Post-Routing, Pre-Routing,
ProConnect, RateMUX, ScriptShare, SlideCast, SMARTnet, StrataView Plus, TeleRouter, The Fastest Way to Increase Your Internet Quotient, and TransPath are registered
trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.
All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (0502R)
Draft 1A - CISCO CONFIDENTIAL
i
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
CONTENTS
Preface i
Audience i
Purpose i
Organization i
Conventions ii
Related Publications iv
Obtaining Documentation iv
Cisco.com iv
Documentation CD-ROM v
Ordering Documentation v
Documentation Feedback v
Obtaining Technical Assistance vi
Cisco.com vi
Technical Assistance Center vi
Locating the Product Serial Number vii
Cisco TAC Website viii
Cisco TAC Escalation Center viii
Obtaining Additional Publications and Information viii
CHAPTER
1Overview 1-1
Hardware Features 1-2
Dual-Radio Operation 1-4
Antennas Supported 1-4
Ethernet Port 1-4
Console Port 1-4
LEDs 1-5
Power Sources 1-5
UL 2043 Certification 1-6
Anti-Theft Features 1-6
Network Configuration Examples 1-8
Root Unit on a Wired LAN 1-8
Repeater Unit that Extends Wireless Range 1-9
Central Unit in an All-Wireless Network 1-10
Draft 1A - CISCO CONFIDENTIAL
Contents
ii
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
CHAPTER
2Installing the Access Point 2-1
Safety Information 2-2
FCC Safety Compliance Statement 2-2
General Safety Guidelines 2-2
Warnings 2-2
Unpacking the Access Point 2-3
Package Contents 2-3
Basic Installation Guidelines 2-3
Before Beginning the Installation 2-4
Access Point Layout and Connectors 2-4
Installation Summary 2-5
Mounting Overview 2-6
Mounting on a Horizontal or Vertical Surface 2-7
Mounting Below a Suspended Ceiling 2-8
Mounting Above a Suspended Ceiling 2-9
Mounting Access Point on a Desktop or Shelf 2-11
Connecting the Ethernet and Power Cables 2-12
Connecting to an Ethernet Network with an Inline Power Source 2-13
Connecting to an Ethernet Network with Local Power 2-14
Powering Up the Access Point 2-14
Cable Security Bracket 2-15
Removing the Cable Security Bracket 2-15
Attaching the Access Point to the Mounting Plate 2-16
Securing the Access Point 2-17
Using a Security Cable 2-17
Securing the Access Point to the Mounting Plate 2-17
CHAPTER
3Configuring the Access Point for the First Time 3-1
Before You Start 3-2
Resetting the Access Point to Default Settings 3-2
Using the Mode Button 3-2
Using the Web-Browser Interface 3-2
Default IP Address Behavior 3-3
Obtaining and Assigning an IP Address 3-3
Connecting to the Access Point Locally 3-4
Assigning Basic Settings 3-5
Default Settings on the Express Setup Page 3-8
Draft 1A - CISCO CONFIDENTIAL
Contents
iii
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Enabling the Radio Interfaces 3-8
Configuring Basic Security Settings 3-9
Configuring Basic Security Settings 3-10
Understanding Express Security Settings 3-11
Using VLANs 3-11
Express Security Types 3-11
Express Security Limitations 3-12
Using the Express Security Page 3-13
Finding the IP Address Using the CLI 3-13
Assigning an IP Address Using the CLI 3-14
Using a Telnet Session to Access the CLI 3-14
CHAPTER
4Using the Web-Browser Interface 4-1
Using the Web-Browser Interface for the First Time 4-2
Using the Management Pages in the Web-Browser Interface 4-2
Using Action Buttons 4-3
Character Restrictions in Entry Fields 4-5
Using Online Help 4-5
CHAPTER
5Using the Command-Line Interface 5-1
Cisco IOS Command Modes 5-2
Getting Help 5-3
Abbreviating Commands 5-3
Using no and default Forms of Commands 5-4
Understanding CLI Messages 5-4
Using Command History 5-4
Changing the Command History Buffer Size 5-5
Recalling Commands 5-5
Disabling the Command History Feature 5-5
Using Editing Features 5-6
Enabling and Disabling Editing Features 5-6
Editing Commands with Keystrokes 5-6
Editing Command Lines That Wrap 5-7
Searching and Filtering Output of show and more Commands 5-8
Accessing the CLI 5-9
Opening the CLI with Telnet 5-9
Opening the CLI with Secure Shell 5-9
Draft 1A - CISCO CONFIDENTIAL
Contents
iv
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
CHAPTER
6Troubleshooting 6-1
Checking the Access Point LEDs 6-2
Checking Basic Settings 6-4
Default IP Address Behavior 6-4
Enabling the Radio Interfaces 6-5
SSID 6-5
WEP Keys 6-5
Security Settings 6-5
Low Power Condition 6-6
Intelligent Power Management 6-7
Inline Power Status Messages 6-7
Configuring Power Using the CLI 6-9
Issuing the Cisco IOS Command Using the CLI 6-10
Configuring the Access Point System Power Settings Using a Browser 6-11
Running the Carrier Busy Test 6-13
Running the Ping Test 6-14
Resetting to the Default Configuration 6-14
Using the MODE Button 6-15
Using the Web Browser Interface 6-15
Reloading the Access Point Image 6-16
Using the MODE Button 6-16
Web Browser Interface 6-17
Browser HTTP Interface 6-17
Browser TFTP Interface 6-18
Obtaining the Access Point Image File 6-19
Obtaining the TFTP Server Software 6-19
APPENDIX
ATranslated Safety Warnings A-1
Statement 245B—Explosive Device Proximity Warning A-2
Statement 332—Antenna Installation Warning A-3
Statement 353—Power Source Warning A-3
Statement 1001—Work During Lightning Activity Warning A-5
Statement 1004—Installation Instructions Warning A-6
Statement 1005—Circuit Breaker (20A) Warning A-7
APPENDIX
BDeclarations of Conformity and Regulatory Information B-1
Manufacturers Federal Communication Commission Declaration of Conformity Statement B-2
Draft 1A - CISCO CONFIDENTIAL
Contents
v
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Department of Communications—Canada B-3
Canadian Compliance Statement B-3
European Community, Switzerland, Norway, Iceland, and Liechtenstein B-3
Declaration of Conformity with Regard to the R&TTE Directive 1999/5/EC B-4
Declaration of Conformity for RF Exposure B-5
Guidelines for Operating Cisco Aironet Access Points in Japan B-6
Japanese Translation B-6
English Translation B-6
Declaration of Conformity Statements B-7
Declaration of Conformity Statements for European Union Countries B-7
APPENDIX
CAccess Point Specifications C-1
APPENDIX
DChannels and Power Levels D-1
Channels and Maximum Power Levels D-2
IEEE 802.11b/g (2.4-GHz Band) D-2
IEEE 802.11a (5-GHz Band) D-3
Maximum Power Levels in Some Regulatory Domains with External Antennas D-5
APPENDIX
EConsole Cable Pinouts E-1
Overview E-2
Console Port Signals and Pinouts E-2
G
LOSSARY
I
NDEX
Draft 1A - CISCO CONFIDENTIAL
Contents
vi
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Draft 1A - CISCO CONFIDENTIAL
i
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Preface
Audience
This guide is for the networking professional who installs and manages the Cisco Aironet 1240AG Series
Access Point, hereafter referred to as the access point. To use this guide, you should have experience
working with Cisco IOS software and be familiar with the concepts and terminology of wireless local
area networks.
Purpose
This guide provides the information you need to install and configure basic settings for your access
point. For information on using Cisco IOS commands to configure your access point, refer to the Cisco
IOS Software Configuration Guide for Cisco Aironet Access Points. For detailed information about these
Cisco IOS commands, refer to the Cisco IOS Command Reference for Cisco Aironet Access Points and
Bridges for this release. For information about the standard Cisco IOS Release 12.3 commands, refer to
the Cisco IOS documentation set available from the Cisco.com home page at Service and Support >
Technical Documents. On the Cisco Product Documentation home page, select Release 12.3 from the
Cisco IOS Software drop-down menu.
This guide also includes an overview of the access point web-based interface (APWI) but does not
provide field-level descriptions of all the APWI windows nor does it provide the procedures for
configuring all access point options from the APWI. For all APWI window descriptions, refer to the
access point online help, which is available from the Help buttons on the APWI pages.
Organization
This guide is organized into these chapters:
Chapter 1, “Overview,” lists the software and hardware features of the access point and describes the
access point’s role in your network.
Chapter 2, “Installing the Access Point,” describes how to mount the access point on a desktop, wall, or
ceiling, how to connect Ethernet, serial, and power cables, and provides an installation summary, safety
warnings, and general guidelines.
Chapter 3, “Configuring the Access Point for the First Time,” describes how to configure basic settings
on a new access point.
Draft 1A - CISCO CONFIDENTIAL
ii
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Preface
Conventions
Chapter 4, “Using the Web-Browser Interface,” describes how to use the web-browser interface to
configure the access point.
Chapter 5, “Using the Command-Line Interface,” describes how to use the command-line interface
(CLI) to configure the access point.
Chapter 6, “Troubleshooting,” provides troubleshooting procedures for basic problems with the access
point.
Appendix A, “Translated Safety Warnings,” provides translations of the safety warnings that appear in
this publication.
Appendix B, “Declarations of Conformity and Regulatory Information,” provides declarations of
conformity and regulatory information for the access point.
Appendix C, “Access Point Specifications,” lists technical specifications for the access point.
Appendix D, “Channels and Power Levels,” lists the access point radio channels and the maximum
power levels supported by the world’s regulatory domains.
Appendix E, “Console Cable Pinouts,” identifies the pinouts for the serial console cable that connects
to the access point’s serial console port.
Conventions
This publication uses these conventions to convey instructions and information:
Command descriptions use these conventions:
•Commands and keywords are in boldface text.
•Arguments for which you supply values are in italic.
•Square brackets ([ ]) mean optional elements.
•Braces ({ }) group required choices, and vertical bars ( | ) separate the alternative elements.
•Braces and vertical bars within square brackets ([{ | }]) mean a required choice within an optional
element.
Interactive examples use these conventions:
•Terminal sessions and system displays are in screen font.
•Information you enter is in boldface screen font.
•Nonprinting characters, such as passwords or tabs, are in angle brackets (< >).
Notes, cautions, and timesavers use these conventions and symbols:
Tip Means the following will help you solve a problem. The tips information might not be troubleshooting
or even an action, but could be useful information.
Note Means reader take note. Notes contain helpful suggestions or references to materials not contained in
this manual.
Draft 1A - CISCO CONFIDENTIAL
iii
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Preface
Conventions
Caution Means reader be careful. In this situation, you might do something that could result equipment damage
or loss of data.
Warning
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you
work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar
with standard practices for preventing accidents. (To see translations of the warnings that appear
in this publication, refer to the appendix “Translated Safety Warnings.”)
Waarschuwing
Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan
veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij
elektrische schakelingen betrokken risico’s en dient u op de hoogte te zijn van standaard
maatregelen om ongelukken te voorkomen. (Voor vertalingen van de waarschuwingen die in deze
publicatie verschijnen, kunt u het aanhangsel “Translated Safety Warnings” (Vertalingen van
veiligheidsvoorschriften) raadplegen.)
Varoitus
Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa ruumiinvammaan. Ennen
kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä vaaroista ja
tavanomaisista onnettomuuksien ehkäisykeinoista. (Tässä julkaisussa esiintyvien varoitusten
käännökset löydät liitteestä "Translated Safety Warnings" (käännetyt turvallisuutta koskevat
varoitukset).)
Attention
Ce symbole d’avertissement indique un danger. Vous vous trouvez dans une situation pouvant
entraîner des blessures. Avant d’accéder à cet équipement, soyez conscient des dangers posés par
les circuits électriques et familiarisez-vous avec les procédures courantes de prévention des
accidents. Pour obtenir les traductions des mises en garde figurant dans cette publication, veuillez
consulter l’annexe intitulée « Translated Safety Warnings » (Traduction des avis de sécurité).
Warnung
Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu einer
Körperverletzung führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät beginnen, seien Sie
sich der mit elektrischen Stromkreisen verbundenen Gefahren und der Standardpraktiken zur
Vermeidung von Unfällen bewußt. (Übersetzungen der in dieser Veröffentlichung enthaltenen
Warnhinweise finden Sie im Anhang mit dem Titel “Translated Safety Warnings” (Übersetzung der
Warnhinweise).)
Avvertenza
Questo simbolo di avvertenza indica un pericolo. Si è in una situazione che può causare infortuni.
Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli relativi ai circuiti
elettrici ed essere al corrente delle pratiche standard per la prevenzione di incidenti. La traduzione
delle avvertenze riportate in questa pubblicazione si trova nell’appendice, “Translated Safety
Warnings” (Traduzione delle avvertenze di sicurezza).
Advarsel
Dette varselsymbolet betyr fare. Du befinner deg i en situasjon som kan føre til personskade. Før du
utfører arbeid på utstyr, må du være oppmerksom på de faremomentene som elektriske kretser
innebærer, samt gjøre deg kjent med vanlig praksis når det gjelder å unngå ulykker. (Hvis du vil se
oversettelser av de advarslene som finnes i denne publikasjonen, kan du se i vedlegget "Translated
Safety Warnings" [Oversatte sikkerhetsadvarsler].)
Draft 1A - CISCO CONFIDENTIAL
iv
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Preface
Related Publications
Related Publications
These documents provide complete information about the access point:
•Release Notes for Cisco Aironet 1240AG Series Access Point
•Cisco IOS Command Reference for Cisco Aironet Access Points and Bridges
•Cisco IOS Software Configuration Guide for Cisco Aironet Access Points
Click this link to browse to the Cisco Aironet documentation home page:
http://www.cisco.com/univercd/cc/td/doc/product/wireless/index.htm
To browse to the 1240AG series access point documentation, select Aironet 1240AG Series Wireless
LAN Products > Cisco Aironet 1240AG Series Access Points.
Obtaining Documentation
Cisco provides several ways to obtain documentation, technical assistance, and other technical
resources. These sections explain how to obtain technical information from Cisco Systems.
Cisco.com
You can access the most current Cisco documentation on the World Wide Web at this URL:
http://www.cisco.com/univercd/home/home.htm
You can access the Cisco website at this URL:
http://www.cisco.com
International Cisco websites can be accessed from this URL:
http://www.cisco.com/public/countries_languages.shtml
Aviso
Este símbolo de aviso indica perigo. Encontra-se numa situação que lhe poderá causar danos
fisicos. Antes de começar a trabalhar com qualquer equipamento, familiarize-se com os perigos
relacionados com circuitos eléctricos, e com quaisquer práticas comuns que possam prevenir
possíveis acidentes. (Para ver as traduções dos avisos que constam desta publicação, consulte o
apêndice “Translated Safety Warnings” - “Traduções dos Avisos de Segurança”).
¡Advertencia!
Este símbolo de aviso significa peligro. Existe riesgo para su integridad física. Antes de manipular
cualquier equipo, considerar los riesgos que entraña la corriente eléctrica y familiarizarse con los
procedimientos estándar de prevención de accidentes. (Para ver traducciones de las advertencias
que aparecen en esta publicación, consultar el apéndice titulado “Translated Safety Warnings.”)
Varning!
Denna varningssymbol signalerar fara. Du befinner dig i en situation som kan leda till personskada.
Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och
känna till vanligt förfarande för att förebygga skador. (Se förklaringar av de varningar som
förekommer i denna publikation i appendix "Translated Safety Warnings" [Översatta
säkerhetsvarningar].)
Draft 1A - CISCO CONFIDENTIAL
v
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Preface
Obtaining Documentation
Documentation CD-ROM
Cisco documentation and additional literature are available in a Cisco Documentation CD-ROM
package, which may have shipped with your product. The Documentation CD-ROM is updated regularly
and may be more current than printed documentation. The CD-ROM package is available as a single unit
or through an annual or quarterly subscription.
Registered Cisco.com users can order a single Documentation CD-ROM (product number
DOC-CONDOCCD=) through the Cisco Ordering tool:
http://www.cisco.com/en/US/partner/ordering/ordering_place_order_ordering_tool_launch.html
All users can order monthly or quarterly subscriptions through the online Subscription Store:
http://www.cisco.com/go/subscription
Ordering Documentation
You can find instructions for ordering documentation at this URL:
http://www.cisco.com/univercd/cc/td/doc/es_inpck/pdi.htm
You can order Cisco documentation in these ways:
•Registered Cisco.com users (Cisco direct customers) can order Cisco product documentation from
the Networking Products MarketPlace:
http://www.cisco.com/en/US/partner/ordering/index.shtml
•Nonregistered Cisco.com users can order documentation through a local account representative by
calling Cisco Systems Corporate Headquarters (California, U.S.A.) at 408 526-7208 or, elsewhere
in North America, by calling 800 553-NETS (6387).
Documentation Feedback
You can submit comments electronically on Cisco.com. On the Cisco Documentation home page, click
Feedback at the top of the page.
You can e-mail your comments to bug-doc@cisco.com.
You can submit comments by using the response card (if present) behind the front cover of your
document or by writing to the following address:
Cisco Systems
Attn: Customer Document Ordering
170 West Tasman Drive
San Jose, CA 95134-9883
We appreciate your comments.
Draft 1A - CISCO CONFIDENTIAL
vi
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Preface
Obtaining Technical Assistance
Obtaining Technical Assistance
Cisco provides Cisco.com, which includes the Cisco Technical Assistance Center (TAC) website, as a
starting point for all technical assistance. Customers and partners can obtain online documentation,
troubleshooting tips, and sample configurations from the Cisco TAC website. Cisco.com registered users
have complete access to the technical support resources on the Cisco TAC website, including TAC tools
and utilities.
Cisco.com
Cisco.com offers a suite of interactive, networked services that let you access Cisco information,
networking solutions, services, programs, and resources at any time, from anywhere in the world.
Cisco.com provides a broad range of features and services to help you with these tasks:
•Streamline business processes and improve productivity
•Resolve technical issues with online support
•Download and test software packages
•Order Cisco learning materials and merchandise
•Register for online skill assessment, training, and certification programs
To obtain customized information and service, you can self-register on Cisco.com at this URL:
http://tools.cisco.com/RPF/register/register.do
Technical Assistance Center
The Cisco TAC is available to all customers who need technical assistance with a Cisco product,
technology, or solution. Two types of support are available: the Cisco TAC website and the Cisco TAC
Escalation Center. The type of support that you choose depends on the priority of the problem and the
conditions stated in service contracts, when applicable.
We categorize Cisco TAC inquiries according to urgency:
•Priority level 4 (P4)—You need information or assistance concerning Cisco product capabilities,
product installation, or basic product configuration. There is little or no impact to your business
operations.
•Priority level 3 (P3)—Operational performance of the network is impaired, but most business
operations remain functional. You and Cisco are willing to commit resources during normal business
hours to restore service to satisfactory levels.
•Priority level 2 (P2)—Operation of an existing network is severely degraded, or significant aspects
of your business operations are negatively impacted by inadequate performance of Cisco products.
You and Cisco will commit full-time resources during normal business hours to resolve the situation.
•Priority level 1 (P1)—An existing network is “down,” or there is a critical impact to your business
operations. You and Cisco will commit all necessary resources around the clock to resolve the
situation.
Draft 1A - CISCO CONFIDENTIAL
vii
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Preface
Obtaining Technical Assistance
Locating the Product Serial Number
The access point serial number is on the bottom of the housing (refer to Figure 1).
Figure 1 Location of Serial Number Label ---- TBD ----
The access point serial number label contains the following information:
•Model number, such as AIR-AP1240AG-x-k9
•Serial number, such as VDF0636XXXX (11 alphanumeric digits)
•MAC address, such as 00abc65094f3 (12 hexadecimal digits)
•Location of manufacture, such as Made in Singapore
You need your product serial number when requesting support from the Cisco Technical Assistance
Center.
121967 781-00295-01 A0
SN: AAANNNNXXXX
SN: AAANNNNXXXX
Draft 1A - CISCO CONFIDENTIAL
viii
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Preface
Obtaining Additional Publications and Information
Cisco TAC Website
The Cisco TAC website provides online documents and tools to help troubleshoot and resolve technical
issues with Cisco products and technologies. To access the Cisco TAC website, go to this URL:
http://www.cisco.com/tac
All customers, partners, and resellers who have a valid Cisco service contract have complete access to
the technical support resources on the Cisco TAC website. Some services on the Cisco TAC website
require a Cisco.com login ID and password. If you have a valid service contract but do not have a login
ID or password, go to this URL to register:
http://tools.cisco.com/RPF/register/register.do
If you are a Cisco.com registered user, and you cannot resolve your technical issues by using the Cisco
TAC website, you can open a case online at this URL:
http://www.cisco.com/tac/caseopen
If you have Internet access, we recommend that you open P3 and P4 cases online so that you can fully
describe the situation and attach any necessary files.
Cisco TAC Escalation Center
The Cisco TAC Escalation Center addresses priority level 1 or priority level 2 issues. These
classifications are assigned when severe network degradation significantly impacts business operations.
When you contact the TAC Escalation Center with a P1 or P2 problem, a Cisco TAC engineer
automatically opens a case.
To obtain a directory of toll-free Cisco TAC telephone numbers for your country, go to this URL:
http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml
Before calling, please check with your network operations center to determine the Cisco support services
to which your company is entitled: for example, SMARTnet, SMARTnet Onsite, or Network Supported
Accounts (NSA). When you call the center, please have available your service agreement number and
your product serial number.
Obtaining Additional Publications and Information
Information about Cisco products, technologies, and network solutions is available from various online
and printed sources.
•The Cisco Product Catalog describes the networking products offered by Cisco Systems, as well as
ordering and customer support services. Access the Cisco Product Catalog at this URL:
http://www.cisco.com/en/US/products/products_catalog_links_launch.html
•Cisco Press publishes a wide range of networking publications. Cisco suggests these titles for new
and experienced users: Internetworking Terms and Acronyms Dictionary, Internetworking
Technology Handbook, Internetworking Troubleshooting Guide, and the Internetworking Design
Guide. For current Cisco Press titles and other information, go to Cisco Press online at this URL:
http://www.ciscopress.com
Draft 1A - CISCO CONFIDENTIAL
ix
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Preface
Obtaining Additional Publications and Information
•Packet magazine is the Cisco quarterly publication that provides the latest networking trends,
technology breakthroughs, and Cisco products and solutions to help industry professionals get the
most from their networking investment. Included are networking deployment and troubleshooting
tips, configuration examples, customer case studies, tutorials and training, certification information,
and links to numerous in-depth online resources. You can access Packet magazine at this URL:
http://www.cisco.com/go/packet
•iQ Magazine is the Cisco bimonthly publication that delivers the latest information about Internet
business strategies for executives. You can access iQ Magazine at this URL:
http://www.cisco.com/go/iqmagazine
•Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering
professionals involved in designing, developing, and operating public and private internets and
intranets. You can access the Internet Protocol Journal at this URL:
http://www.cisco.com/en/US/about/ac123/ac147/about_cisco_the_internet_protocol_journal.html
•Training—Cisco offers world-class networking training. Current offerings in network training are
listed at this URL:
http://www.cisco.com/en/US/learning/le31/learning_recommended_training_list.html
Draft 1A - CISCO CONFIDENTIAL
x
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Preface
Obtaining Additional Publications and Information
CHAPTER
Draft 1A - CISCO CONFIDENTIAL
1-1
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
1
Overview
Cisco Aironet 1240AG Series Access Points combine mobility and flexibility with the enterprise-class
features required by networking professionals. With a management system based on Cisco IOS software,
the 1240AG series access point is a Wi-Fi certified, wireless LAN transceiver.
The access point contains two integrated radios: a 2.4-GHz radio (IEEE 802.11g) and a 5-GHz radio
(IEEE 802.11a). You can configure the radios separately, using different settings on each.

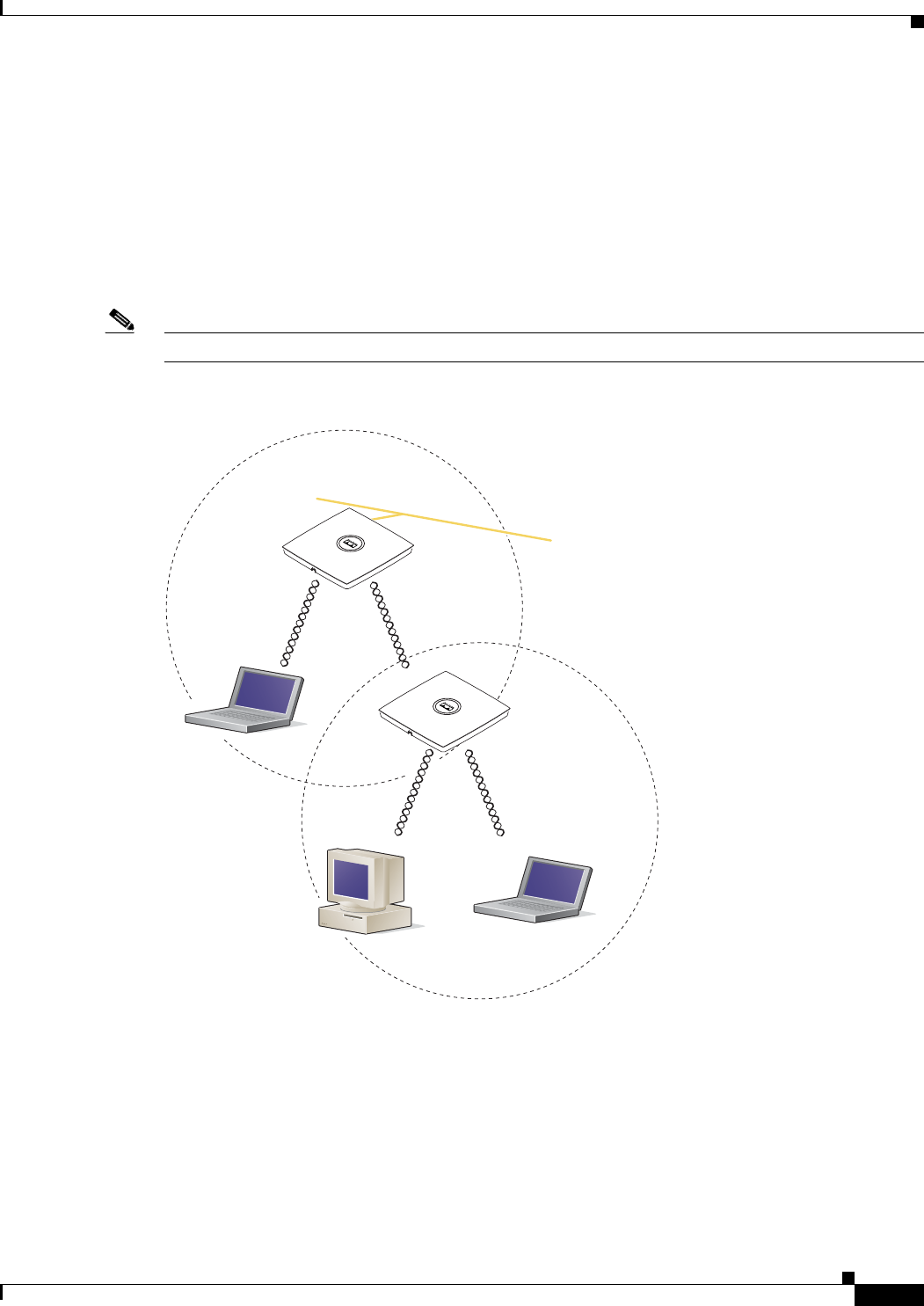

The access point connects wireless and wired networks or is the center point of a stand-alone wireless
network. In large installations, wireless users within radio range of an access point can roam throughout
a facility while maintaining seamless, uninterrupted access to the network.

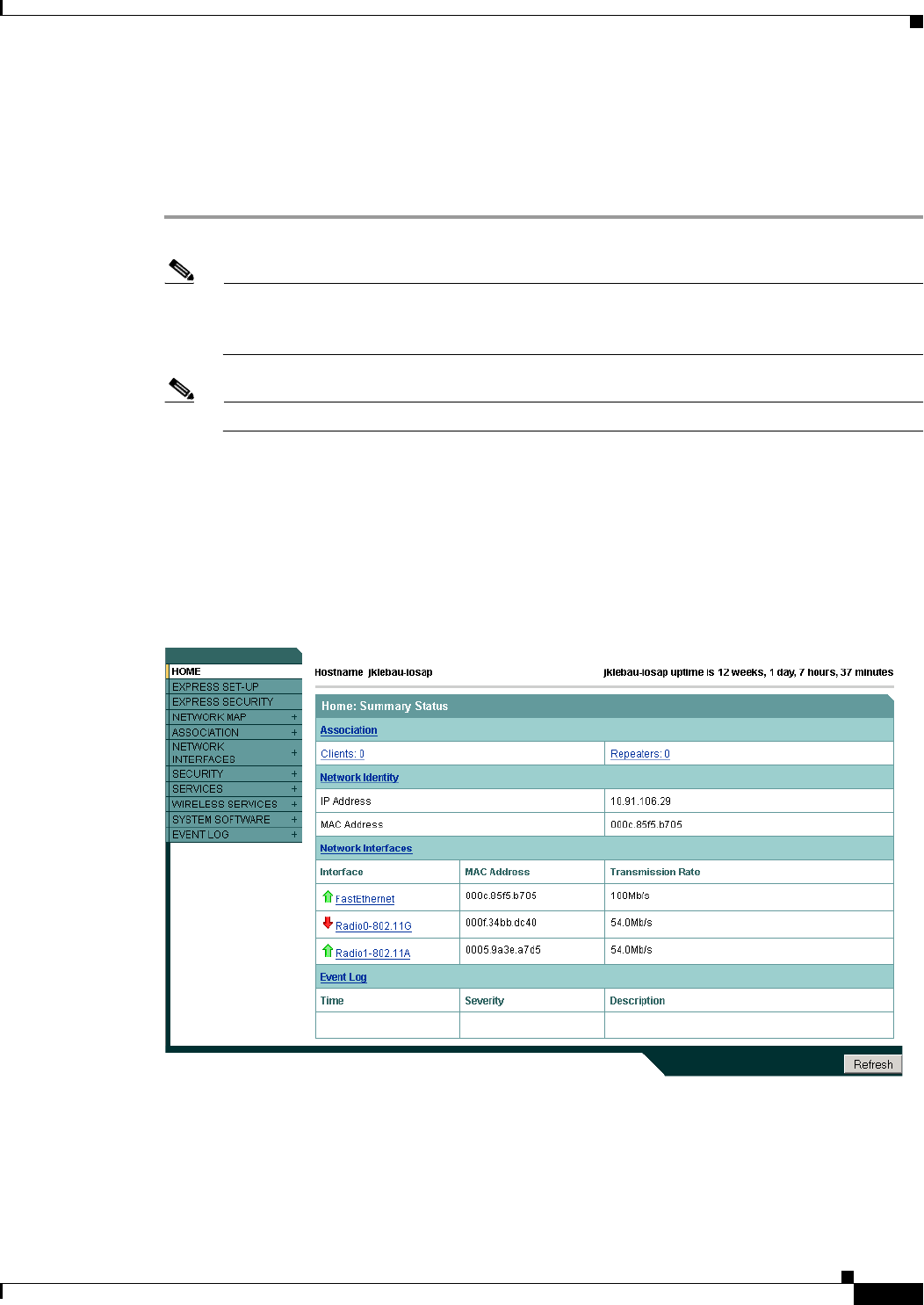

You can configure and monitor the access point using the command-line interface (CLI), the
browser-based management system, Simple Network Management Protocol (SNMP), or Cisco
Structured Wireless-Aware Network (SWAN).
This chapter provides information on the following topics:
•Hardware Features, page 1-2
•Network Configuration Examples, page 1-8
Draft 1A - CISCO CONFIDENTIAL
1-2
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 1 Overview
Hardware Features
Hardware Features
Key hardware features of the access point include:
•Dual-radio operation (see page 1-4)
•Ethernet port (see page 1-4)
•Console port (see page 1-4)
•LEDs, (see page 1-5)
•Multiple power sources (see page 1-5)
•UL 2043 certification (see page 1-6)
•Anti-theft features (see page 1-6)
Refer to Appendix C, “Access Point Specifications,” for a list of access point specifications.
Figure 1-2 shows the access point with antennas.

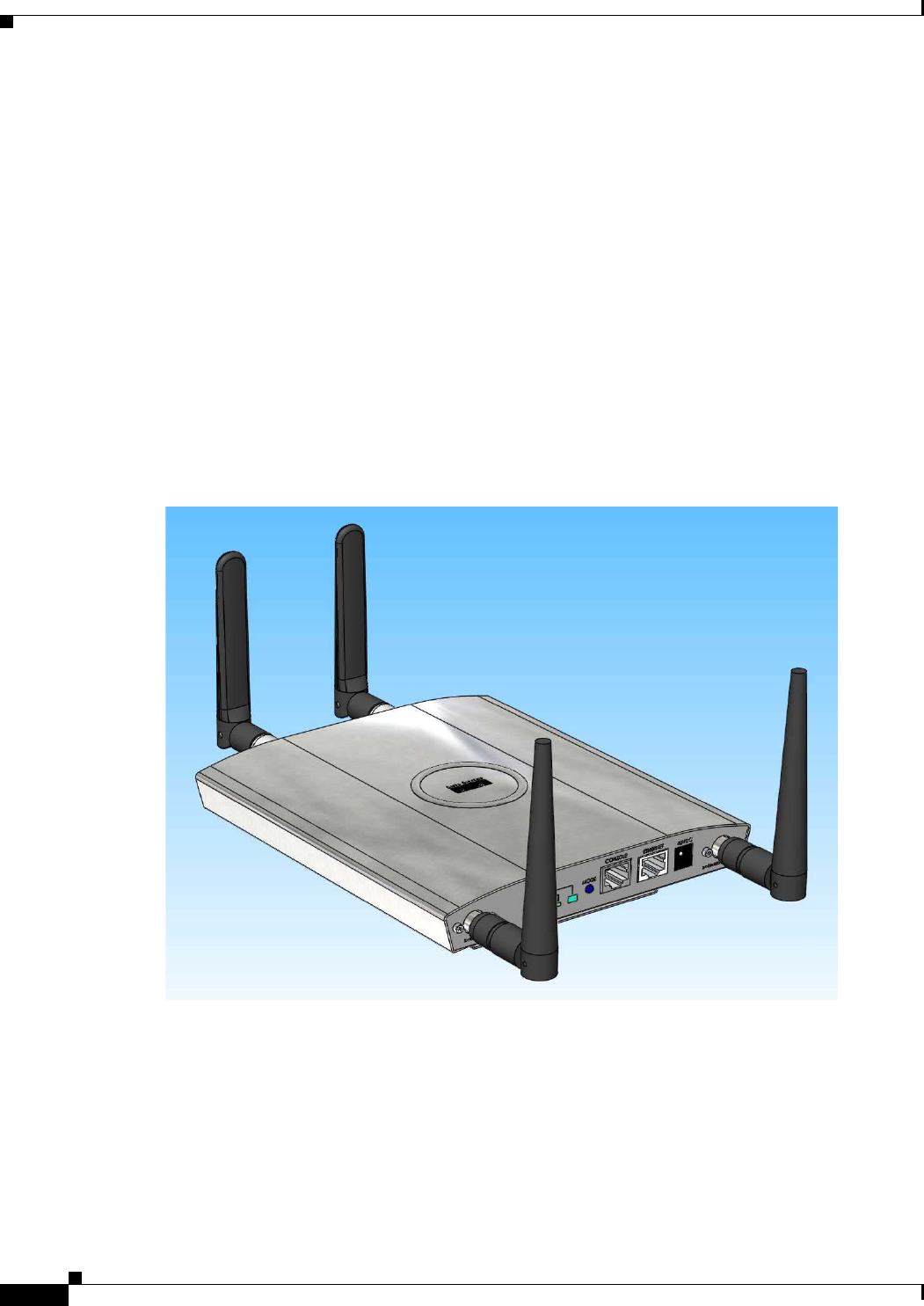

Figure 1-1 Access Point With Antennas
Draft 1A - CISCO CONFIDENTIAL
1-3
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 1 Overview
Hardware Features

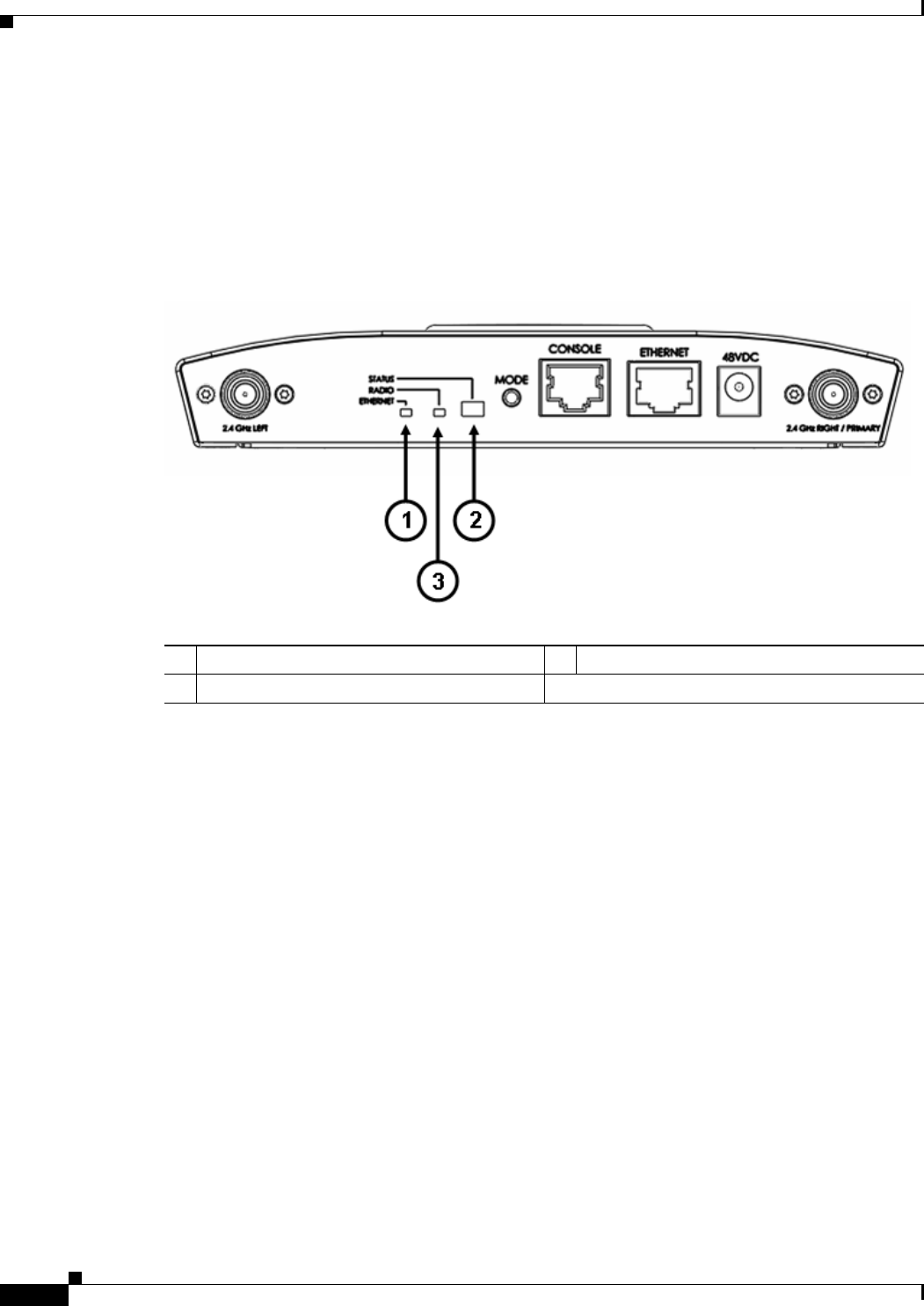

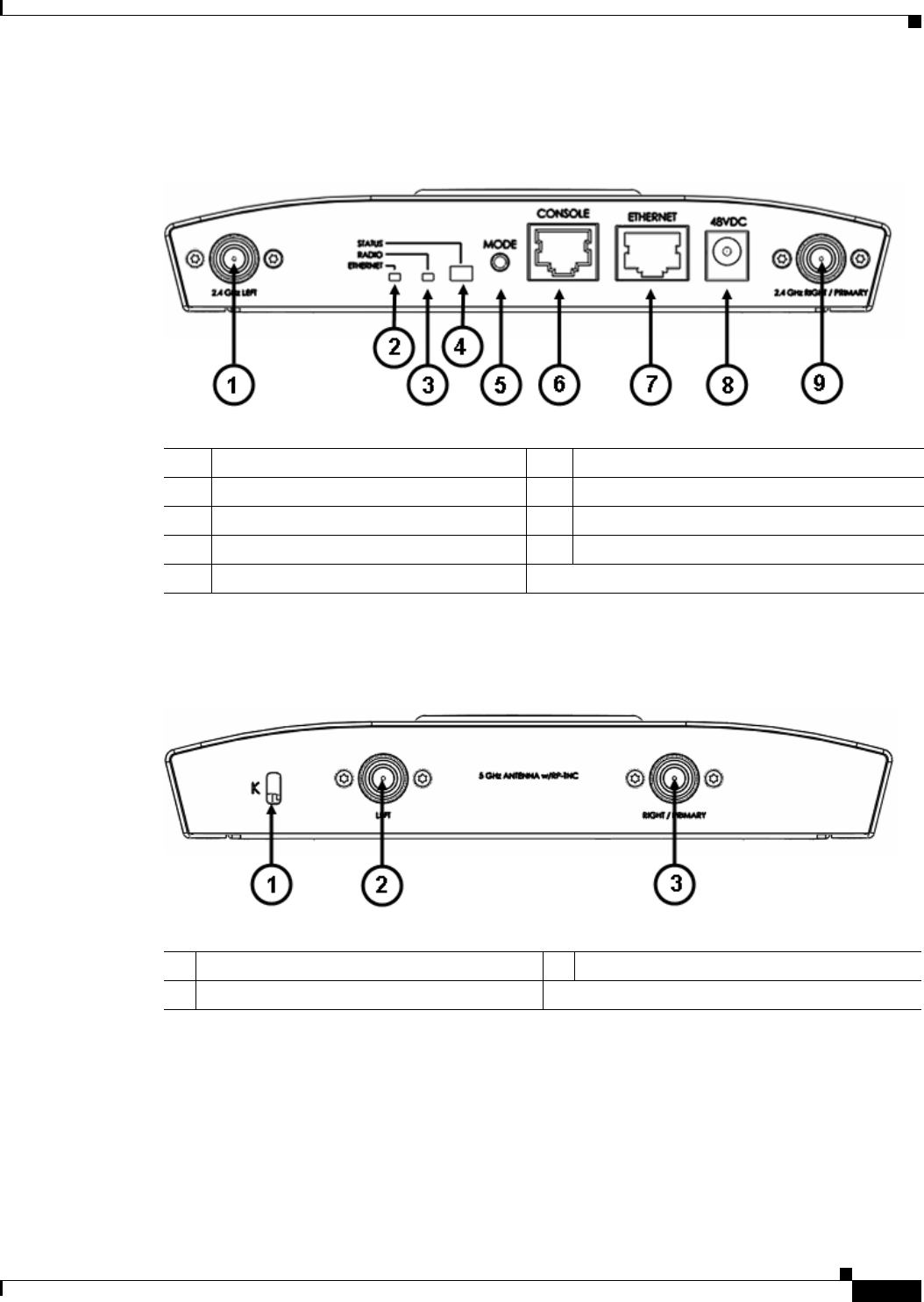

Figure 1-2 illustrates the 2.4-GHz connector end of the access point.

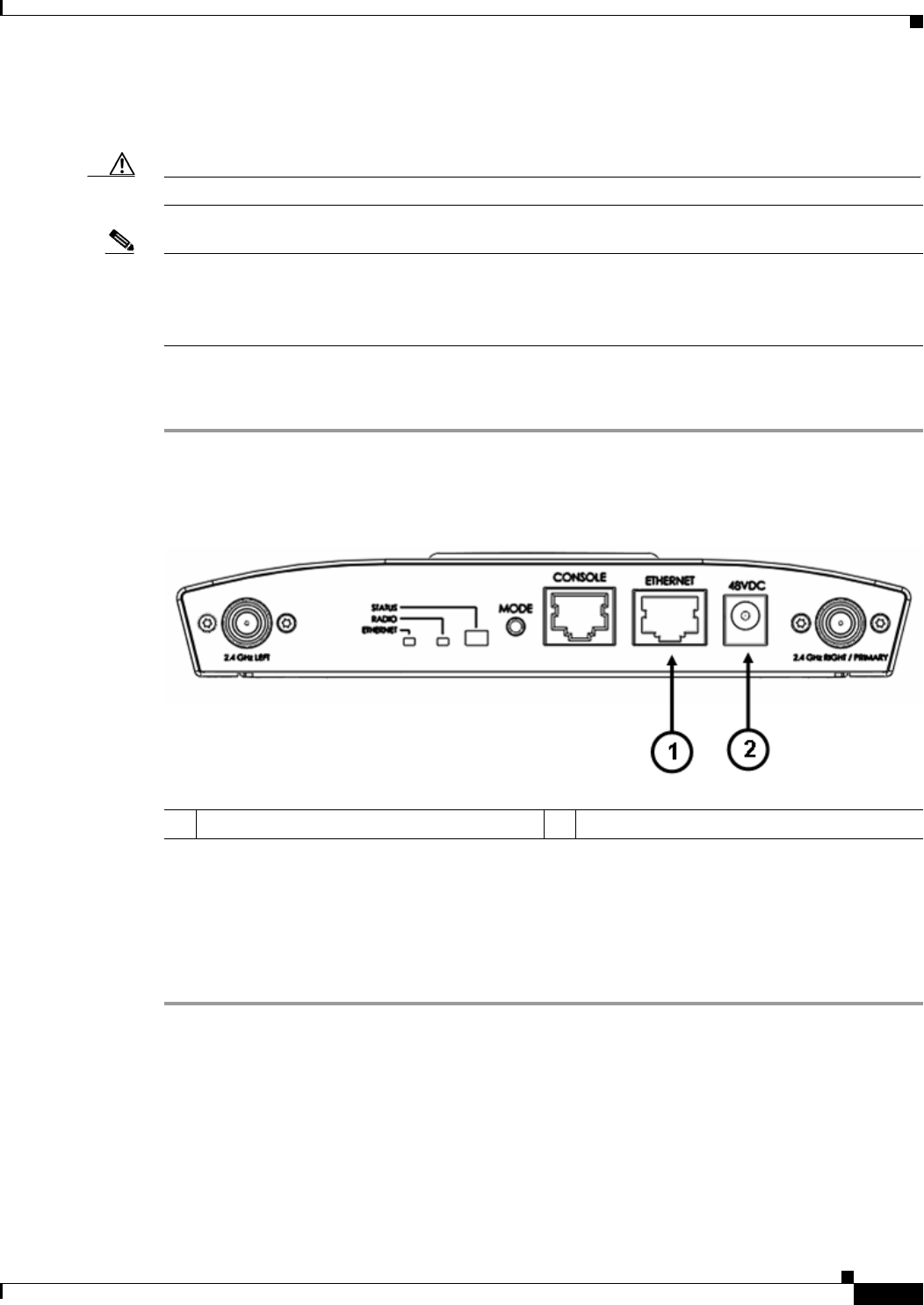

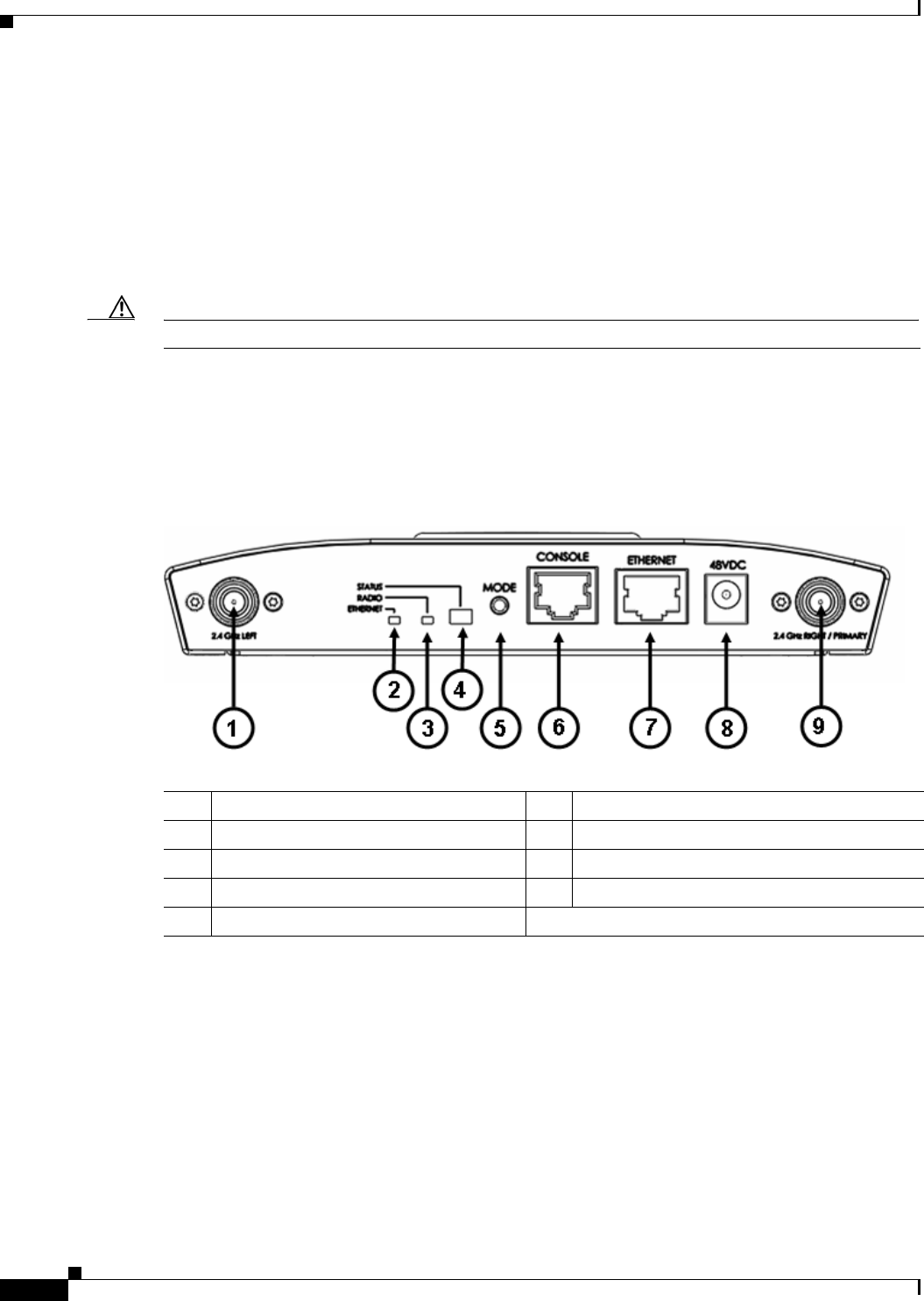

Figure 1-2 Access Point 2.4 GHz Connector End

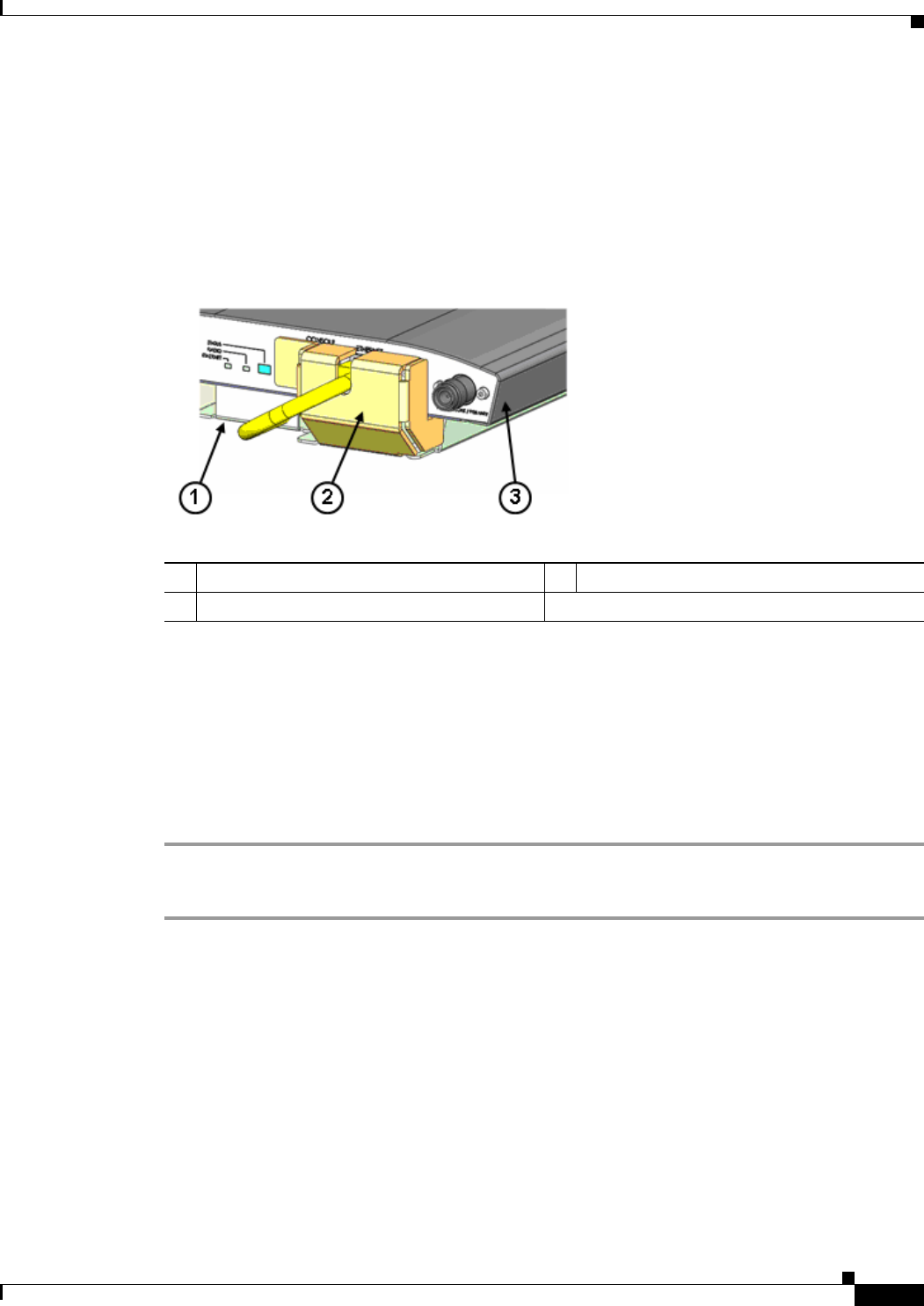

Figure 1-3 illustrates the 5-GHz connector end of the access point.

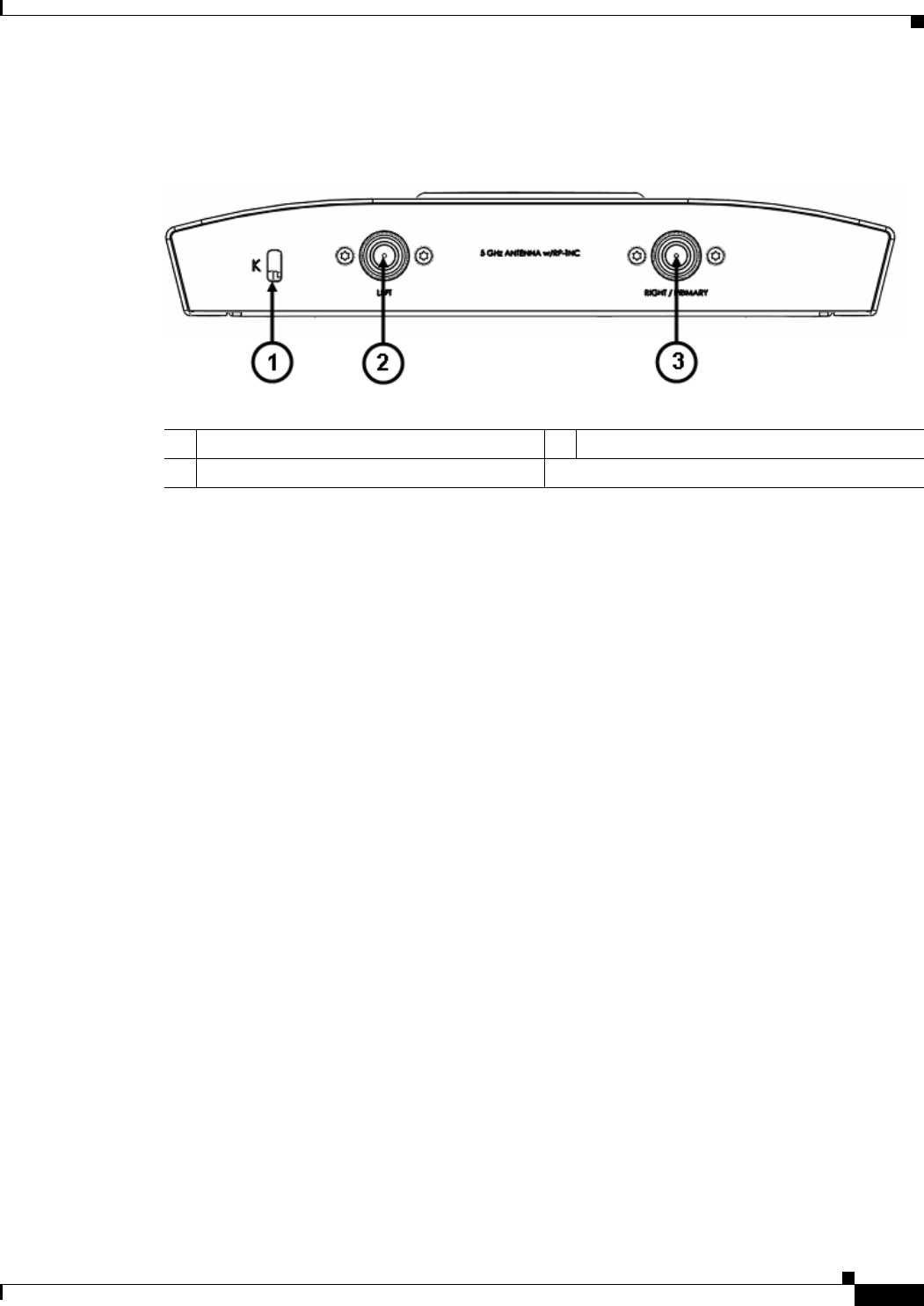

Figure 1-3 Access Point 5-GHz Connector End
12.4-GHz antenna connector (Left) 6Console port (RJ-45)
2Ethernet LED 7Ethernet port (RJ-45)
3Radio LED 848-VDC power port
4Status LED 92.4-GHz antenna connector (right/primary)
5Mode button
1Security key slot 35-GHz antenna connector (right/primary)
25-GHz antenna connector (left)
Draft 1A - CISCO CONFIDENTIAL
1-4
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 1 Overview
Hardware Features
Dual-Radio Operation
The access point supports simultaneous radio operation using a 2.4-GHz 802.11g radio and a 5-GHz
802.11a radio. Each radio uses dual-diversity integrated antennas.
The 5-GHz radio incorporates an Unlicensed National Information Infrastructure (UNII) radio
transceiver operating in the UNII 5-GHz frequency bands. The 802.11g radio is called Radio0 and the
802.11a radio is called Radio1.
Note In Cisco IOS Release 12.3(4)JA and later, the access point radios are disabled by default, and there is no
default SSID. You must create an SSID and enable the radios before the access point allows wireless
associations from other devices.
Antennas Supported
Table 1-1 lists the supported access point antennas.
Ethernet Port
The auto-sensing Ethernet port (see Figure 1-2) accepts an RJ-45 connector, linking the access point to
your 10BASE-T or 100BASE-T Ethernet LAN. The access point can receive power through the Ethernet
cable from a power injector, switch, or power patch panel. The Ethernet MAC address is printed on the
label on the back of the access point (refer to the “Locating the Product Serial Number” section on
page -vii).
Console Port
The serial console port provides access to the access point’s command-line interface (CLI) using a
terminal emulator program. The port is located on the end of the unit (see Figure 1-2). Use an RJ-45 to
DB-9 serial cable to connect your computer’s COM port to the access point’s serial console port. (Refer
to Appendix E, “Console Cable Pinouts,” for a description of the console port pinouts.) Assign the
following port settings to a terminal emulator to open the management system pages: 9600 baud, 8 data
bits, No parity, 1 stop bit, and no flow control.
Table 1-1 Supported Antennas
2.4-GHz Antennas
Gain
(dBi) 5-GHz Antennas
Gain
(dBi)
Diversity ceiling omnidirectional 2 Articulated omnidirectional 3.5
Articulated dipole 2.2 Diversity omnidirectional 4.5
Ceiling omnidirectional 5.2 Omnidirectional 6
Wall patch directional 6 Diversity patch directional 7
Mast mount omnidirectional 5.2 Patch directional 9.5
Diversity pillar omnidirectional 5.2
Diversity patch directional 6.5
Patch directional 9
Yagi directional 10
Draft 1A - CISCO CONFIDENTIAL
1-5
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 1 Overview
Hardware Features
LEDs
The access point has three LEDs (see Figure 1-2) to indicate Ethernet activity, radio activity, and status
indications (refer to the “Checking the Access Point LEDs” section on page 6-2 for additional
information).
•The Status LED provides general operating status and error indications.
•The Ethernet LED signals Ethernet traffic on the wired Ethernet LAN and provides Ethernet error
indications.
•The Radio LED signals that wireless packets are being transmitted or received over the radio
interface and provides radio error indications.
Power Sources
The access point can receive power from an external power module or from inline power using the
Ethernet cable. The access point supports the IEEE 802.3af inline power standard and Cisco CDP Power
Negotiation. Using inline power, you do not need to run a power cord to the access point because power
is supplied over the Ethernet cable.
Warning
This product must be connected to a Power over Ethernet (PoE) IEEE 802.3af compliant power source
or an IEC60950 compliant limited power source.
Statement 353
Caution Be careful when handling the access point; the bottom plate might be hot.
The access point supports the following power sources:
•Power module
•Inline power:
–
Cisco Aironet Power Injector (AIR-PWRINJ3 or AIR-PWRINJ-FIB)
–
An inline power capable switch, such as the Cisco Catalyst 3550 PWR XL, 3560-48PS,
3570-48PS, 4500 with 802.3AF PoE module, or the 6500 with 802.3AF PoE module
–
Other inline power switches supporting the IEEE 802.3af inline power standard
Note Some switches and patch panels might not provide enough power to operate the access point with both
2.4-GHz and 5-GHz radios. At power-up, if the access point is unable to determine that the power source
can supply sufficient power, the access point automatically deactivates both radios to prevent an
over-current condition. The access point also activates a Status LED low power error indication and
creates an error log entry (refer to the “Checking the Access Point LEDs” section on page 6-2 and the
“Low Power Condition” section on page 6-6).
Draft 1A - CISCO CONFIDENTIAL
1-6
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 1 Overview
Hardware Features
UL 2043 Certification
The access point has adequate fire resistance and low smoke-producing characteristics suitable for
operation in a building's environmental air space, such as above suspended ceilings, in accordance with
Section 300-22(c) of the NEC, and with Sections 2-128, 12-010(3) and 12-100 of the Canadian
Electrical Code, Part 1, C22.1.
Caution Only the fiber-optic power injector (AIR-PWRINJ-FIB) has been tested to UL 2043 for operation in a
building’s environmental air space; the AIR-PWRINJ3 power injector and the power module are not
tested to UL 2043 and should not be placed in a building’s environmental air space, such as above
suspended ceilings.

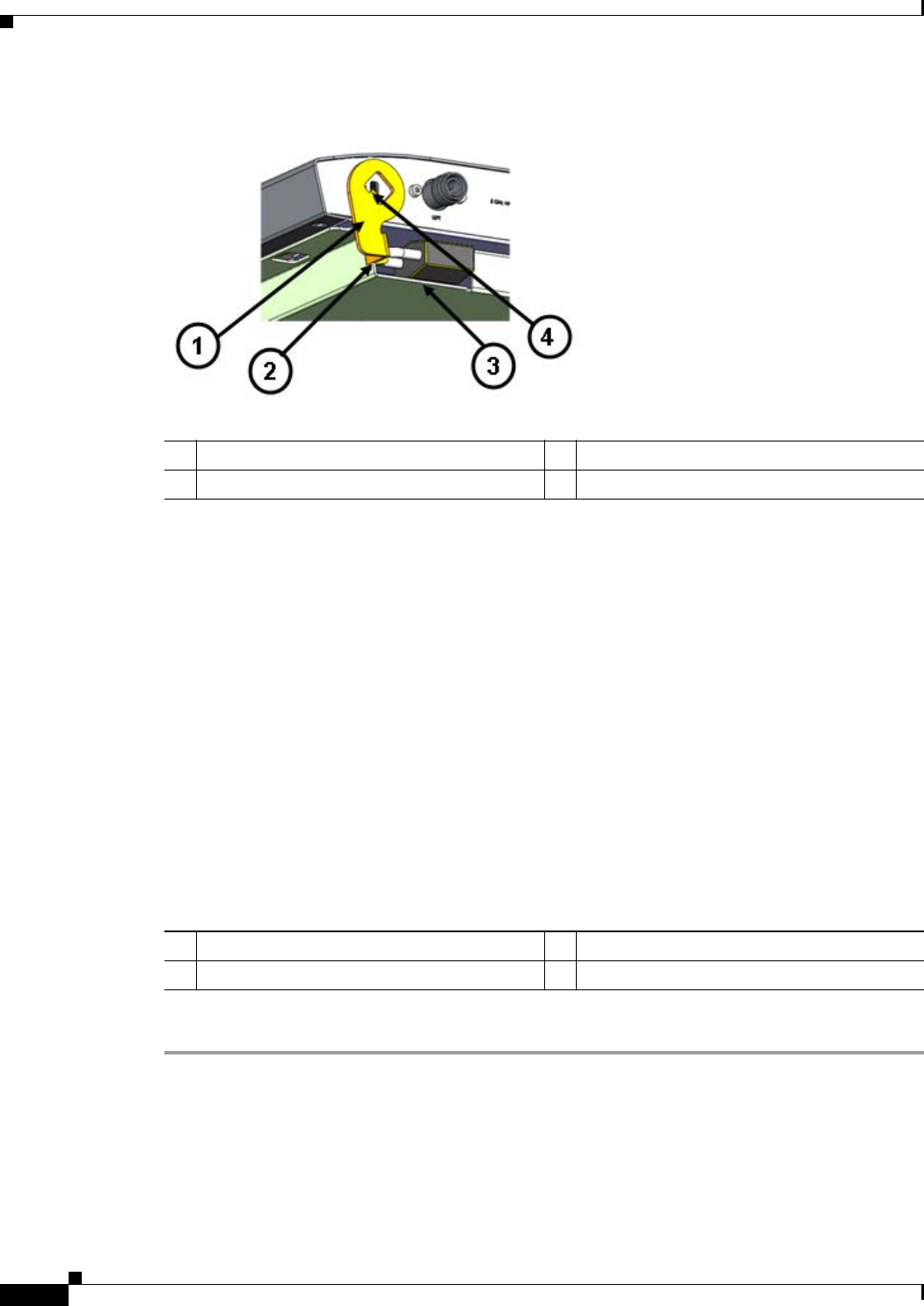

Anti-Theft Features
There are three methods of securing the access point:

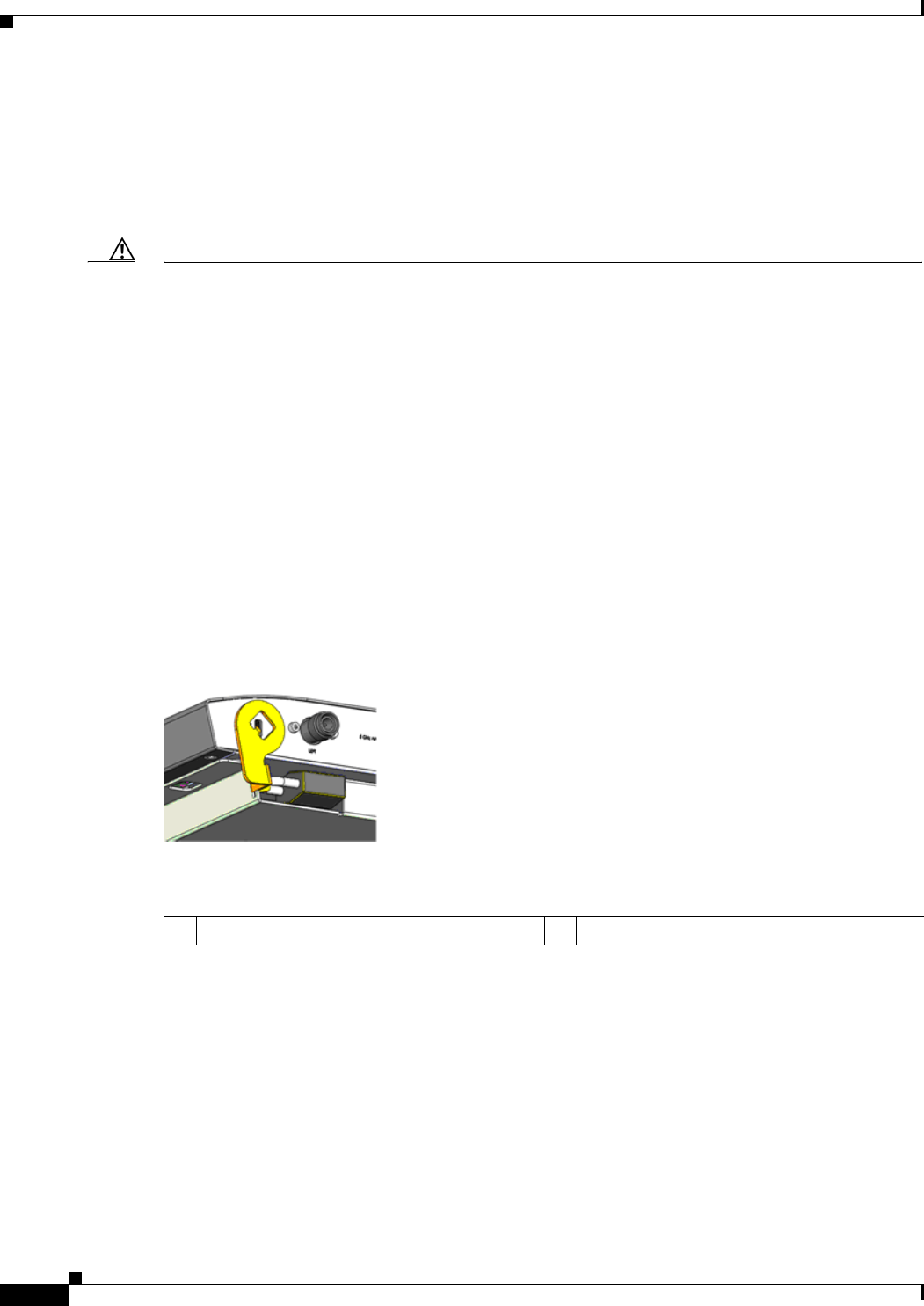

•Security cable keyhole—You can use the security cable slot (see Figure 1-3) to secure the access
point using a standard security cable, like those used on laptop computers (refer to the “Using a
Security Cable” section on page 2-17).

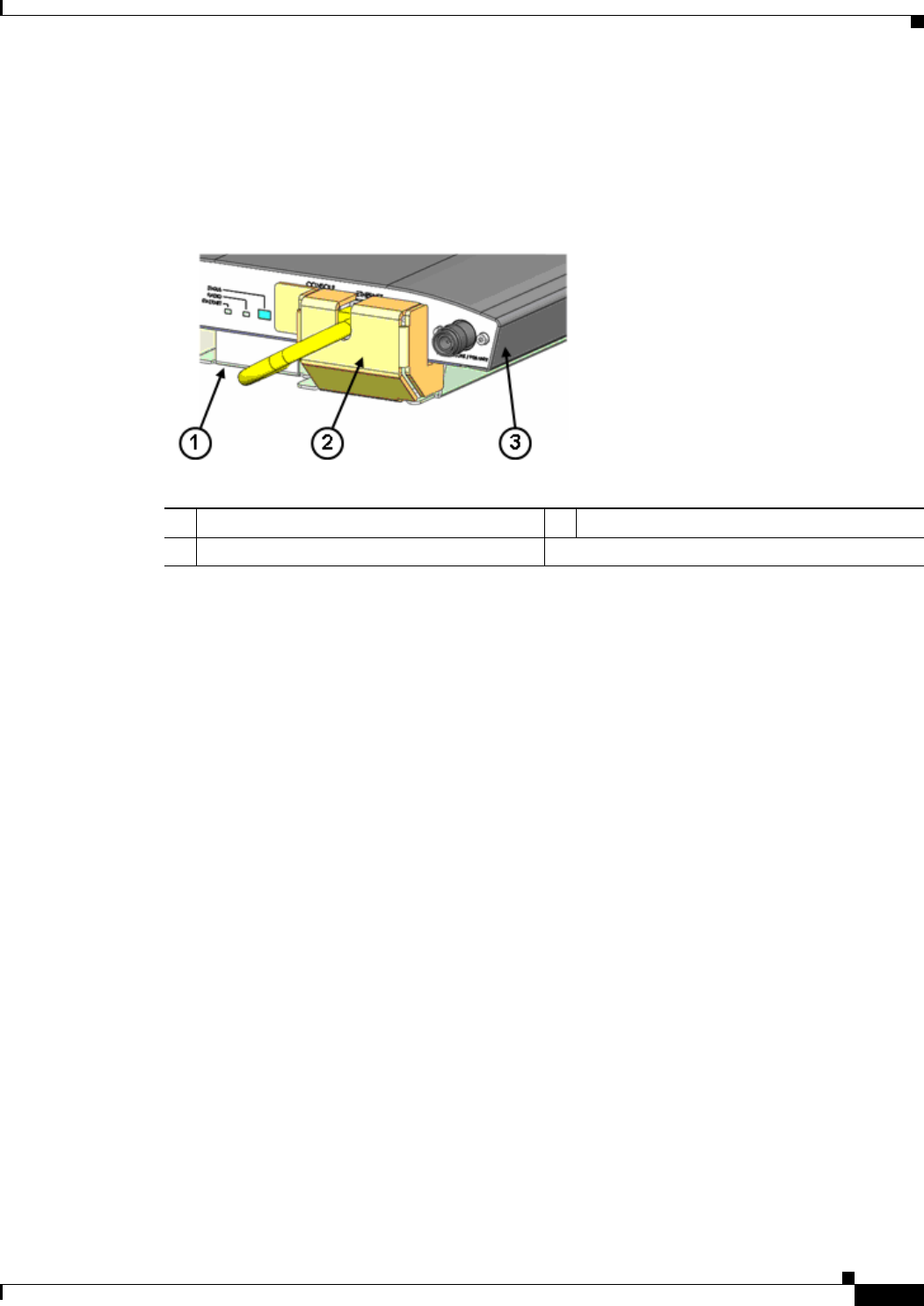

•Security hasp—When you mount the access point on a wall or ceiling using the mounting plate and
the security hasp, you can lock the access point to the plate with a padlock (see Figure 1-4).
Compatible padlocks are Master Lock models 120T and 121T or equivalent.
Figure 1-4 Access Point with Mounting Plate and Security Hasp
1Security hasp 2Security padlock
Draft 1A - CISCO CONFIDENTIAL
1-7
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 1 Overview
Hardware Features
•Cable security bracket—The cable security bracket (see Figure 1-5) attaches to the mounting plate
and covers the console port, Ethernet port, power port, and the mode button to prevent the
installation or removal of the cables or the activation of the mode button. The cable security bracket
is user removable prior to attaching the mounting plate to a ceiling or wall.
Figure 1-5 Access Point with Mounting Plate and Cable Security Bracket
1Mounting plate 3Access point
2Cable security bracket
Draft 1A - CISCO CONFIDENTIAL
1-8
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 1 Overview
Network Configuration Examples
Network Configuration Examples
This section describes the access point’s role in three common wireless network configurations. The
access point’s default configuration is as a root unit connected to a wired LAN or as the central unit in
an all-wireless network. The repeater role requires a specific configuration.
Root Unit on a Wired LAN
An access point connected directly to a wired LAN provides a connection point for wireless users. If
more than one access point is connected to the LAN, users can roam from one area of a facility to another
without losing their connection to the network. Figure 1-6 shows access points acting as root units on a
wired LAN.

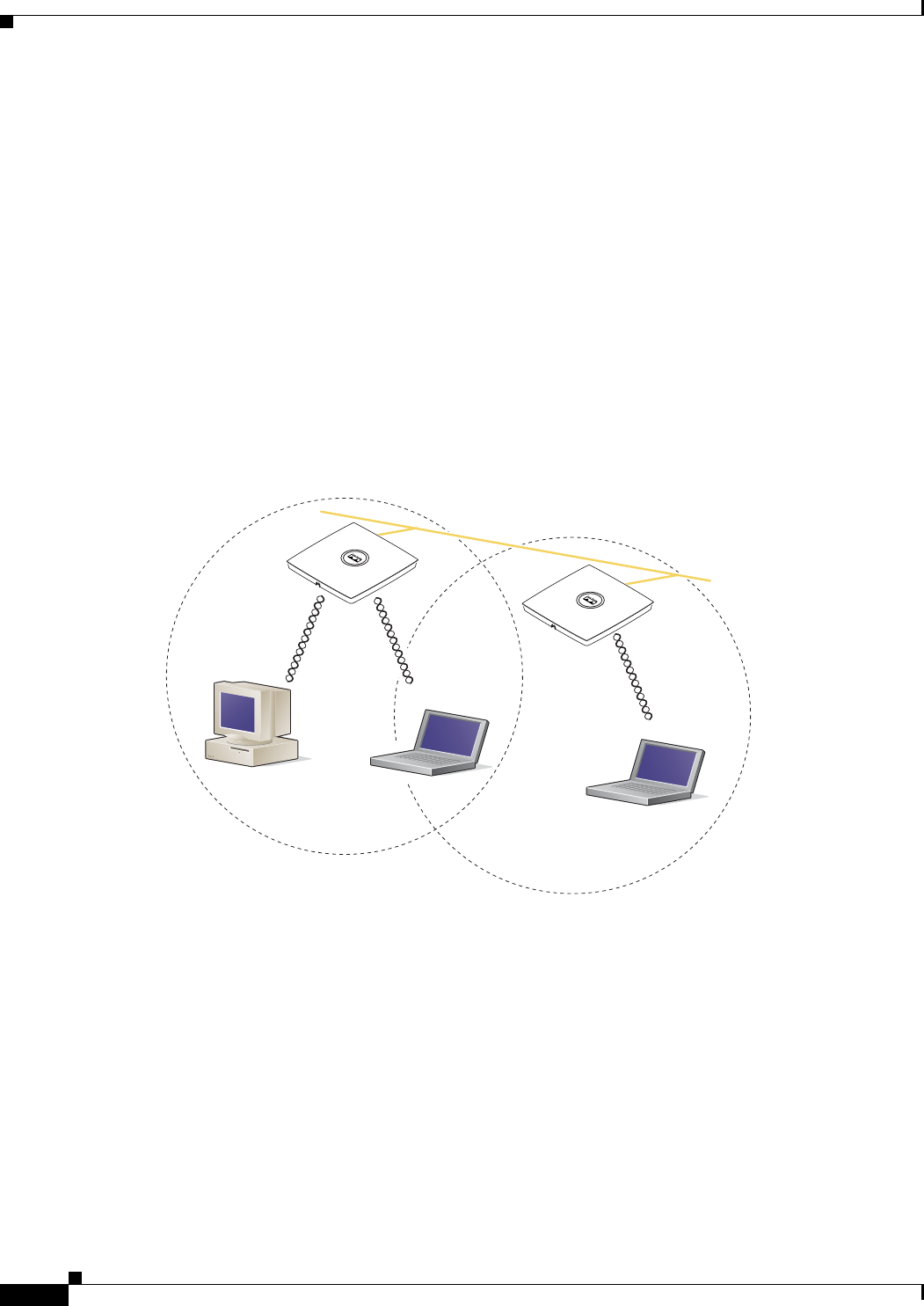

Figure 1-6 Access Points as Root Units on a Wired LAN --- TBD ----
Access Point
(Root Unit)
Access Point
(Root Unit)
121672
Wired LAN
Draft 1A - CISCO CONFIDENTIAL
1-9
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 1 Overview
Network Configuration Examples
Repeater Unit that Extends Wireless Range
An access point can be configured as a stand-alone repeater to extend the range of your infrastructure or
to overcome an obstacle that blocks radio communication. The repeater forwards traffic between
wireless users and the wired LAN by sending packets to either another repeater or to an access point
connected to the wired LAN. The data is sent through the route that provides the best performance for
the client. Figure 1-7 shows an access point acting as a repeater. Consult the Cisco IOS Software
Configuration Guide for Cisco Aironet Access Points for instructions on setting up an access point as a
repeater.
Note Non-Cisco client devices might have difficulty communicating with repeater access points.
Figure 1-7 Access Point as Repeater --- TBD ----
Access Point
(Root Unit)
Access Point
(Repeater)
121673
Wired LAN
Draft 1A - CISCO CONFIDENTIAL
1-10
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 1 Overview
Network Configuration Examples

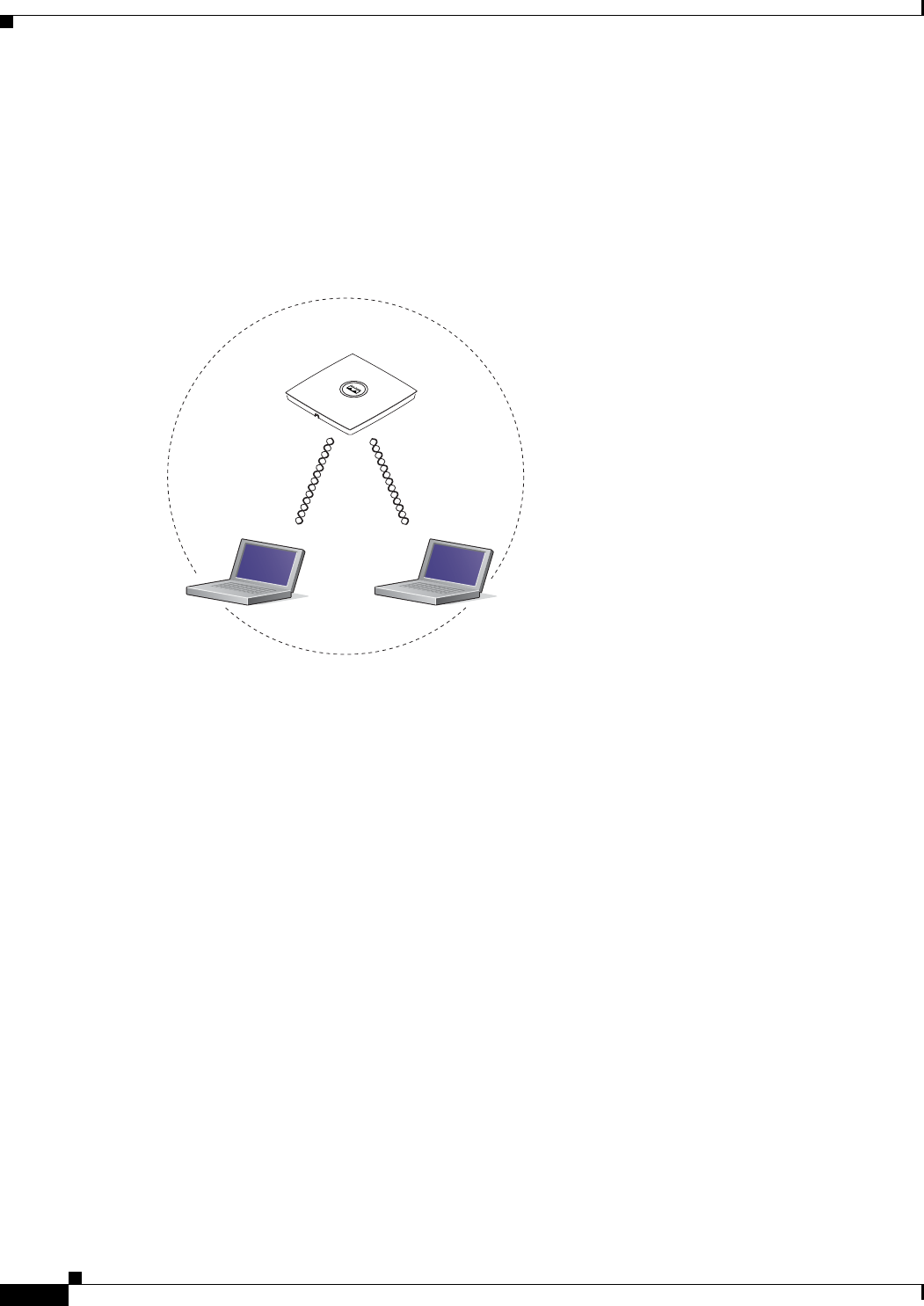

Central Unit in an All-Wireless Network
In an all-wireless network, an access point acts as a stand-alone root unit. The access point is not
attached to a wired LAN; it functions as a hub linking all stations together. The access point serves as
the focal point for communications, increasing the communication range of wireless users. Figure 1-8
shows an access point in an all-wireless network.
Figure 1-8 Access Point as Central Unit in All-Wireless Network --- TBD ----
Access Point
(Root Unit)
121671
CHAPTER
Draft 1A - CISCO CONFIDENTIAL
2-1
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
2
Installing the Access Point
This chapter describes the installation of the access point and includes these sections:
•Safety Information, page 2-2
•Warnings, page 2-2
•Unpacking the Access Point, page 2-3
•Basic Installation Guidelines, page 2-3
•Before Beginning the Installation, page 2-4
•Installation Summary, page 2-5
•Mounting on a Horizontal or Vertical Surface, page 2-7
•Mounting Below a Suspended Ceiling, page 2-8
•Mounting Above a Suspended Ceiling, page 2-9
•Securing the Access Point, page 2-17
•Attaching the Access Point to the Mounting Plate, page 2-16
•Connecting the Ethernet and Power Cables, page 2-12
•Powering Up the Access Point, page 2-14
Draft 1A - CISCO CONFIDENTIAL
2-2
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 2 Installing the Access Point
Safety Information
Safety Information
Follow the guidelines in this section to ensure proper operation and safe use of the access point.
FCC Safety Compliance Statement
The FCC with its action in ET Docket 96-8 has adopted a safety standard for human exposure to radio
frequency (RF) electromagnetic energy emitted by FCC certified equipment. When used with approved
Cisco Aironet antennas, Cisco Aironet products meet the uncontrolled environmental limits found in
OET-65 and ANSI C95.1, 1991. Proper installation of this radio according to the instructions found in
this manual will result in user exposure that is substantially below the FCC recommended limits.
General Safety Guidelines
Do not hold any component containing a radio so that the antenna is very close to or touching any
exposed parts of the body, especially the face or eyes, while transmitting.
Warnings
Translated versions of the following safety warnings are provided in Appendix A, “Translated Safety
Warnings.”
Warning
Read the installation instructions before you connect the system to its power source.
Statement 1004
Warning
This product must be connected to a power-over-ethernet (PoE) IEEE 802.3af compliant power source or an
IEC60950 compliant limited power source.
Statement 353
Warning
This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that
the protective device is rated not greater than: 20A
Statement 1005
Warning
Do not operate your wireless network device near unshielded blasting caps or in an explosive
environment unless the device has been modified to be especially qualified for such use.
Statement 245B
Warning
In order to comply with FCC radio frequency (RF) exposure limits, antennas should be located at a
minimum of 7.9 inches (20 cm) or more from the body of all persons.
Statement 332
Warning
Do not work on the system or connect or disconnect cables during periods of lightning activity.
Statement 1001
Draft 1A - CISCO CONFIDENTIAL
2-3
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 2 Installing the Access Point
Unpacking the Access Point
Unpacking the Access Point
Follow these steps to unpack the access point:
Step 1 Open the shipping container and carefully remove the contents.
Step 2 Return all packing materials to the shipping container and save it.
Step 3 Ensure that all items listed in the “Package Contents” section are included in the shipment. Check each
item for damage. If any item is damaged or missing, notify your authorized Cisco sales representative.
Package Contents
Each access point package contains the following items:
•Cisco Aironet 1240AG Series Access Point
•Cisco Aironet 1240AG Series Power Module (universal power module)–optional
•Mounting hardware kit --- TBD ----
–
One mounting plate
–
Cable security bracket
–
Two suspended ceiling T-rail clips (accomodates standard and recessed T-rails)
–
One security hasp
–
Four 6 x 32 x ¼ in. flat head Phillips machine screws
–
One 8 x 32 x 3/16 in. pan head Phillips machine screw
–
2 #8 plastic wall anchors
–
2 #8 x 32 x 1 in. pan head screws
•Grounding Block ----- TBD -----
•Quick Start Guide: Cisco Aironet 1240AG Series Access Point
•Safety Warnings for Cisco Aironet 1240AG Series Access Points
•Cisco product registration and Cisco documentation feedback cards
Basic Installation Guidelines
Because the access point is a radio device, it is susceptible to interference that can reduce throughput
and range. Follow these basic guidelines to ensure the best possible performance:
•Install the access point in an area where metal structures such as shelving units, bookcases, filing
cabinets, and metal gridwork do not block the radio signals to and from the access point.
•Install the access point away from microwave ovens. Microwave ovens operate on the same
frequency as the access point and can cause signal interference.
Draft 1A - CISCO CONFIDENTIAL
2-4
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 2 Installing the Access Point
Before Beginning the Installation
Before Beginning the Installation
Before you begin the installation, refer to these sections to become familiar with the access point and the
mounting hardware:
•“Access Point Layout and Connectors” section on page 2-4
•“Installation Summary” section on page 2-5
•“Mounting Overview” section on page 2-6
Caution Be careful when handling the access point; the bottom plate might be hot.
Access Point Layout and Connectors
Figure 2-1 illustrates the 2.4-GHz connector end of the access point.
Figure 2-1 Access Point 2.4 GHz Connector End
12.4-GHz antenna connector (Left) 6Console port (RJ-45)
2Ethernet LED 7Ethernet port (RJ-45)
3Radio LED 848-VDC power port
4Status LED 92.4-GHz antenna connector (right/primary)
5MODE button
Draft 1A - CISCO CONFIDENTIAL
2-5
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 2 Installing the Access Point
Installation Summary
Figure 2-2 illustrates the 5-GHz connector end of the access point.
Figure 2-2 Access Point 5-GHz Connector End
Installation Summary
While installing the access point, you will perform these operations:
•Mount the mounting plate on a convenient flat horizontal or vertical surface, such as a desktop, book
shelf, file cabinet, wall, ceiling, or suspended ceiling T-rail. See these sections:
–
“Mounting on a Horizontal or Vertical Surface” section on page 2-7
–
“Mounting Below a Suspended Ceiling” section on page 2-8
–
“Mounting Above a Suspended Ceiling” section on page 2-9
–
“Mounting Access Point on a Desktop or Shelf” section on page 2-11).
•Attach the access point to the mounting plate (see the “Attaching the Access Point to the Mounting
Plate” section on page 2-16).
•Secure the access point (see the “Mounting Below a Suspended Ceiling” section on page 2-8).
•Connect Ethernet and power cables (see the “Connecting the Ethernet and Power Cables” section on
page 2-12).
•Configure basic settings (refer to Chapter 3, “Configuring the Access Point for the First Time”).
•Configure security and other access point options (refer to the Cisco IOS Software Configuration
Guide for Cisco Aironet Access Points).
1Security key slot 35-GHz antenna connector (right/primary)
25-GHz antenna connector (left)
Draft 1A - CISCO CONFIDENTIAL
2-6
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 2 Installing the Access Point
Mounting Overview
Mounting Overview
You can mount the access point on any of the following surfaces:
•Horizontal or vertical flat surfaces, such as walls or ceilings
•Suspended ceilings (below and above)
The access point ships with a detachable mounting plate and the necessary mounting hardware. Because
it is detachable, you can use the mounting plate as a template to mark the positions of the mounting holes
for your installation. You then install the mounting plate and attach the access point when you are ready.
Refer to Figure 2-3 to locate the various mounting holes for the method you intend to use.

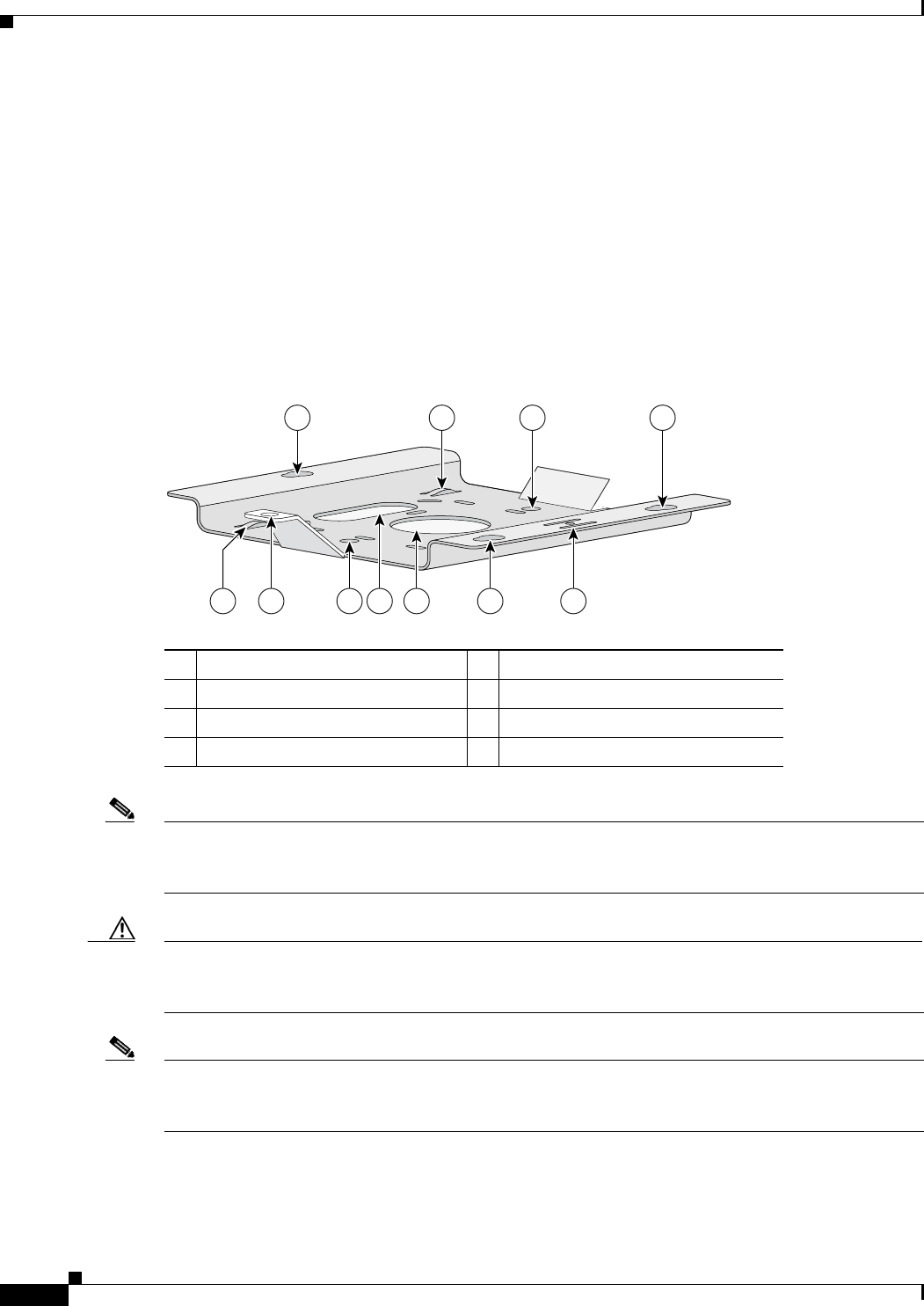

Figure 2-3 Mounting Plate --- TBD ----
Note The Cisco Aironet 1240AG Series Access Point provides adequate fire resistance and low
smoke-producing characteristics suitable for operation in a building's environmental air space (such as
above suspended ceilings) in accordance with Section 300-22(C) of the National Electrical Code (NEC).
Caution Only the fiber-optic power injector (AIR-PWRINJ-FIB) has been tested to UL 2043 for operation in a
building’s environmental air space; no other power injectors or power modules have been tested to UL 2043
and they should not be placed in a building’s environmental air space, such as above suspended ceilings.
Note When mounting the access point in a building’s environmental air space, you must use Ethernet cable
suitable for operation in environmental air space in accordance with Section 300-22(C) of the National
Electrical Code (NEC).
A mounting hardware kit is provided that contains the hardware and fasteners necessary to mount the
access point. Refer to the Table 2-1 to identify the materials you need to mount your access point, then
go to the section containing the specific mounting procedure.
1Access point mount 5Locking detent
2Cable tie points 6Wall cable access
3Ceiling mount holes 7Suspended ceiling cable access
4Access point mounts 8Security hasp
1
546738
2 3 4
65863
2
Draft 1A - CISCO CONFIDENTIAL
2-7
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 2 Installing the Access Point
Mounting on a Horizontal or Vertical Surface
Mounting on a Horizontal or Vertical Surface
Follow these steps to mount the access point on a horizontal or vertical surface.
Step 1 Use the mounting plate as a template to mark the locations of the four mounting holes.
Step 2 Drill one of the following sized holes at the locations you marked:
•3/16 in. (4.7 mm) if you are using wall anchors
•1/8 in. (6.3 mm) if you are not using wall anchors
Step 3 Install the anchors into the wall if you are using them. Otherwise, go to Step 4.
Step 4 Secure the mounting plate to the surface using the #8 fasteners.
Note On a vertical surface, mount the plate with the security hasp slot facing down.
Step 5 Attach the access point to the mounting plate.
Note You can make your installation more secure by mounting it to a stud or major structural member
and using the appropriate fasteners.
Table 2-1 Material Needed to Mount Access Point
Mounting Method Materials Required In Kit
Horizontal or vertical surface Four #8 x 1 in. (25.4 mm) screws
Four wall anchors
3/16 in. (4.7 mm) or 3/32 in. (2.3 mm) drill bit
Drill
Standard screwdriver
Yes
Yes
No
No
No
Suspended ceiling Two T-rail clips with studs
Two plastic spacers
Two 1/4–20 Keps nuts with built-in washers
Standard screwdriver
Appropriate wrench or pliers
Yes
Yes
Yes
No
No
Draft 1A - CISCO CONFIDENTIAL
2-8
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 2 Installing the Access Point
Mounting Below a Suspended Ceiling
Mounting Below a Suspended Ceiling
Note To comply with NEC code, a #10-24 grounding lug is provided on the mounting plate.
You should review Figure 2-4 before beginning the mounting process.

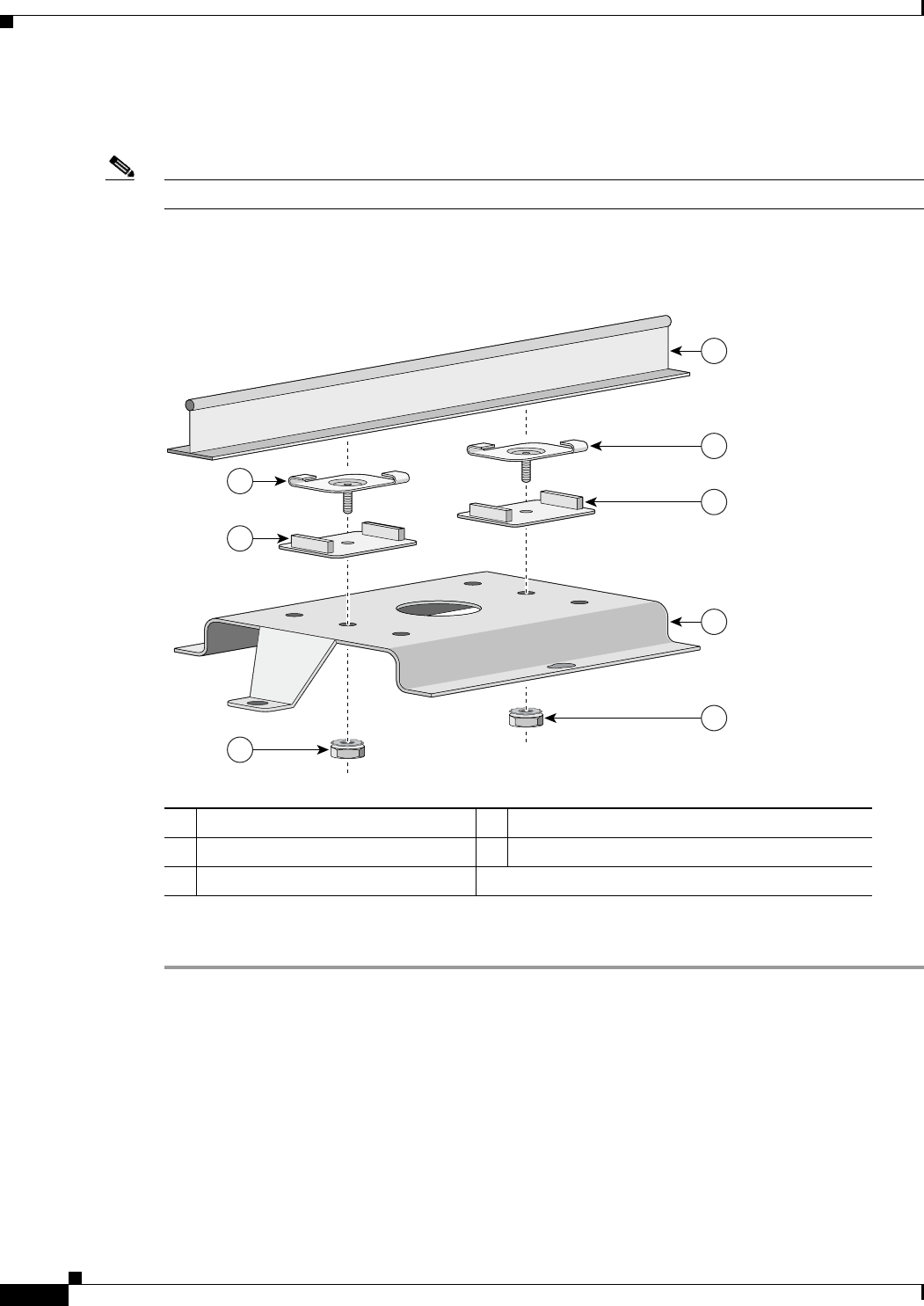

Figure 2-4 T-Rail Mounting Parts ---- TBD -----
Follow these steps to mount your access point on a suspended ceiling:
Step 1 Decide where you want to mount the access point.
Step 2 Attach two T-rail clips to the suspended ceiling T-rail.
Step 3 Use the mounting plate to adjust the distance between the T-rail clips so that they align with the holes in
the mounting plate.
Step 4 Use a standard screwdriver to tighten the T-rail clip studs in place on the suspended ceiling T-rail. Do
not overtighten.
Step 5 Install a plastic spacer on each T-rail clip stud. The spacer’s legs should contact the suspended ceiling
T-rail.
Step 6 Attach the mounting plate to the T-rail clip studs and start a Keps nut on each stud.
1Suspended ceiling T-rail 4mounting plate
2T-rail clips 5Keps nut (contains an attached lock washer)
3Plastic spacer
1
2
2
3
5
3
4
5
74121
Draft 1A - CISCO CONFIDENTIAL
2-9
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 2 Installing the Access Point
Mounting Above a Suspended Ceiling
Step 7 Use a wrench or pliers to tighten the Keps nuts. Do not overtighten.
Step 8 Attach the access point to the mounting plate.
Mounting Above a Suspended Ceiling
The access point mounting plate is designed to be integrated into the T-bar grid above the tiles of a
suspended ceiling. Using a T-bar box hanger and bracket mounting clip (not supplied) such as the
Erico 512A and BHC, you orient the access point antenna just above the top surface of a standard ceiling
tile. You may need to modify a thicker tile to allow room for the antenna.
Caution Only the fiber-optic power injector (AIR-PWRINJ-FIB) has been tested to UL 2043 for operation in a
building’s environmental air space; no other power injectors or power modules have been tested to UL 2043
and they should not be placed in a building’s environmental air space, such as above suspended ceilings.
It may be helpful to refer to Figure 2-5 before proceeding.

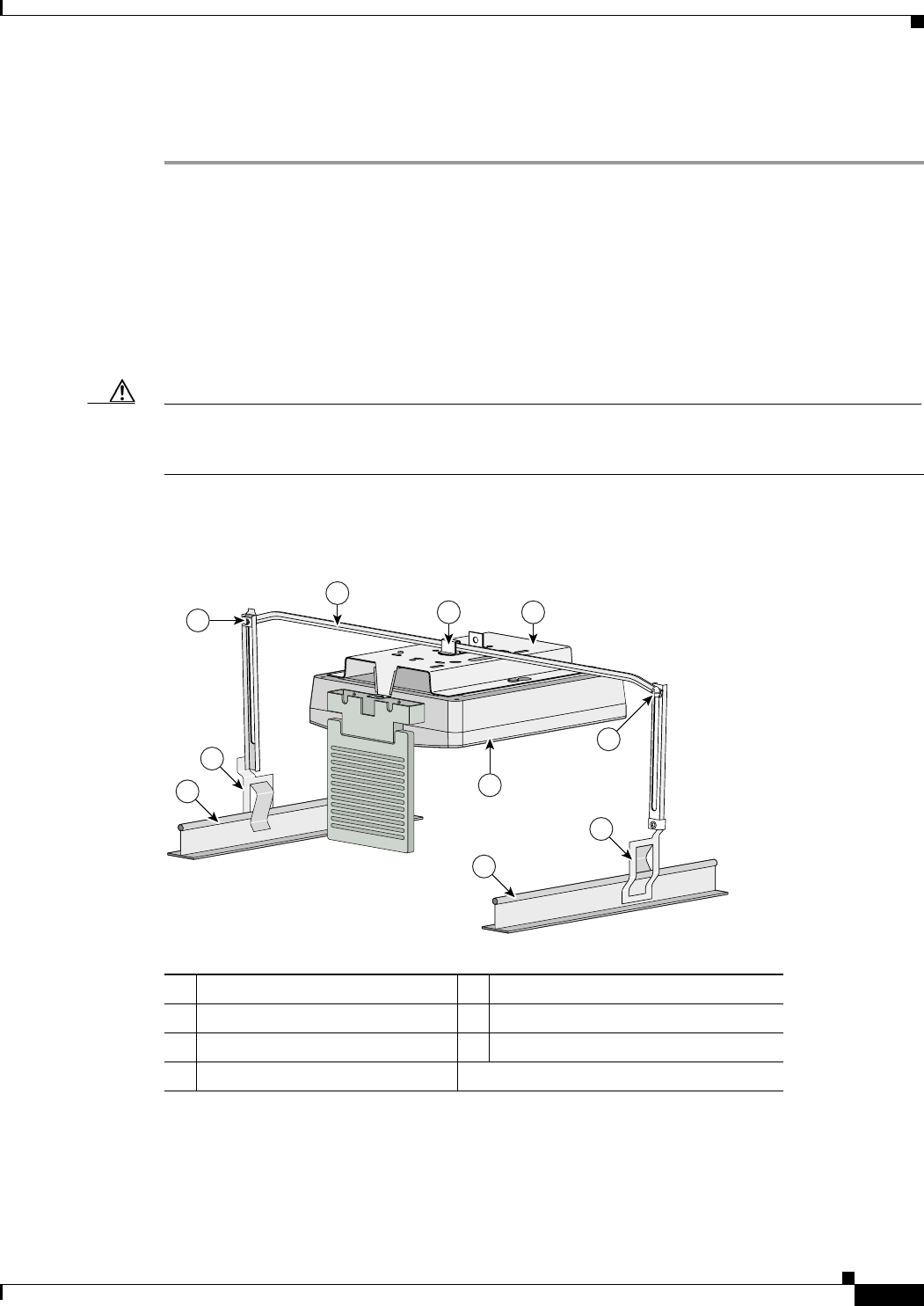

Figure 2-5 Above Suspended Ceiling Parts ------ TBD ------
1Suspended ceiling T-rail 5Bracket mounting clip
2T-rail clip 6Access point mounting plate
3Height adjustment screw 7Access point
4T-bar box hanger
95740
4
56
7
3
3
1
2
2
1
Draft 1A - CISCO CONFIDENTIAL
2-10
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 2 Installing the Access Point
Mounting Above a Suspended Ceiling
The bracket mounting clip requires the use of an access point mounting plate (700-13520-03) with two
extra holes (see Figure 2-6).

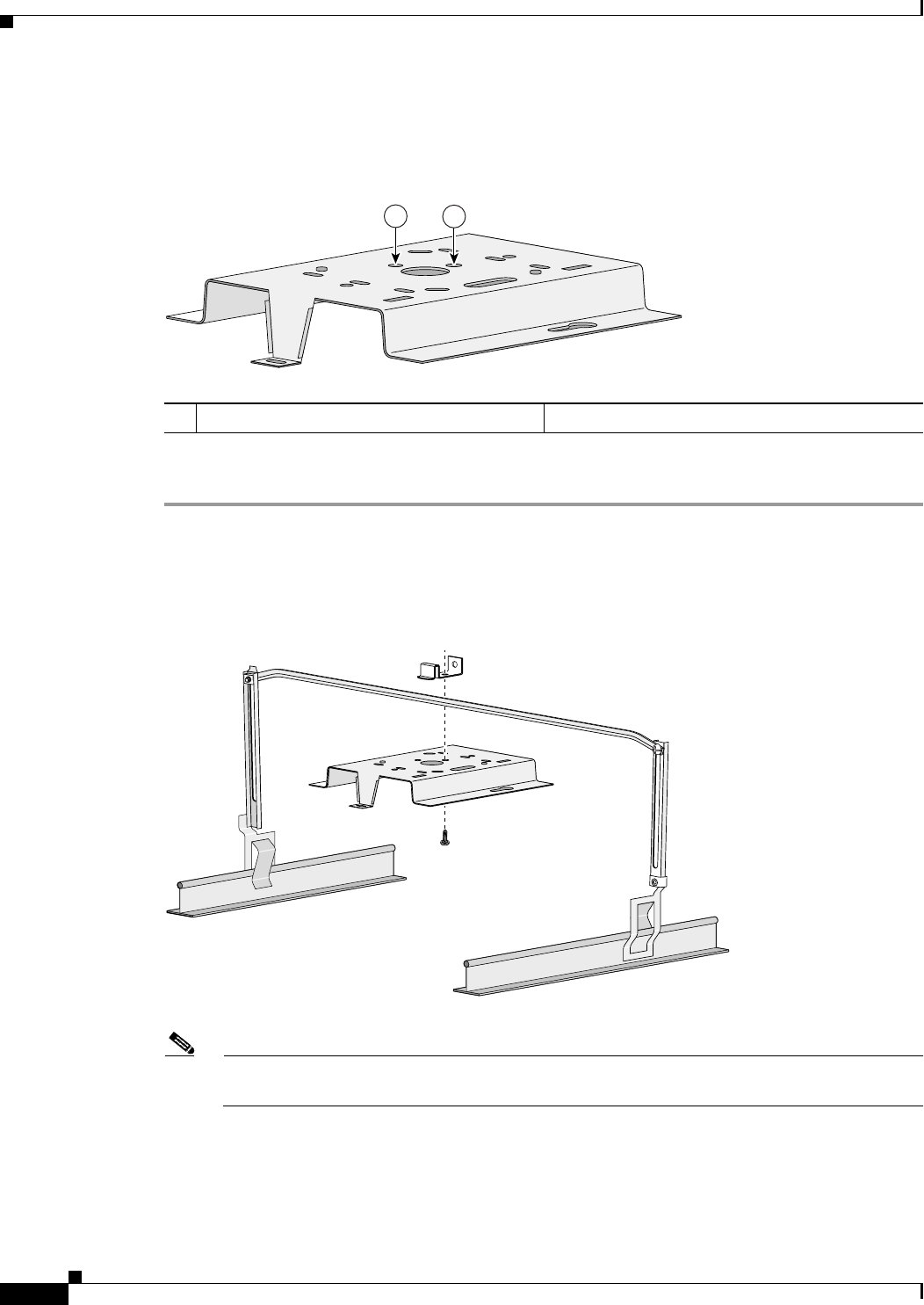

Figure 2-6 Mounting Plate Holes ----- TBD -----
Follow these steps to mount the access point above a suspended ceiling.
Step 1 Insert the bracket mounting clip’s tab into the large hole on the access point mounting plate.
Step 2 Place the clip over the T-bar box hanger and secure it to the access point mounting plate (see Figure 2-7)
with the 1/4-20 fastener (supplied with the T-bar hanger).
Figure 2-7 Access Point Mounting Plate ---- TBD -----
Note The illustration shows the access point mounting plate mounted perpendicular to the T-bar box
hanger. You can also mount the bracket parallel to the T-bar box hanger.
Step 3 Determine the location in the ceiling where you will mount the access point and remove an adjacent
ceiling tile.
Step 4 Orient the access point 2-GHz and 5-GHz antennas so that they are pointing down when mounted on the
T-bar Box hanger.
1Extra holes
95748
11
95739
Draft 1A - CISCO CONFIDENTIAL
2-11
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 2 Installing the Access Point
Mounting Access Point on a Desktop or Shelf
Step 5 Adjust the height of the T-bar box hanger to provide antenna clearance above the ceiling tile using the
height adjusting screws (refer to Figure 2-5).
Step 6 Attach the T-rail clips on each end of the T-bar box hanger to the ceiling grid T-rails. Make sure the clips
are securely attached to the T-rails.
Step 7 Connect a drop wire to a building structural element and through the hole provided in the bracket
mounting clip. This additional support is required in order to comply with the U.S. National Electrical
Safety Code.
Step 8 Attach the access point to the access point mounting plate (refer to the “Attaching the Access Point to
the Mounting Plate” section.
Step 9 Connect the Ethernet cables to the access point.
Step 10 If you need additional security, you can secure the access point to a nearby immovable object using a
Kensington lock and security cable.
Step 11 Verify that the access point is operating before replacing the ceiling tile.
Mounting Access Point on a Desktop or Shelf
When placing the access point on a desktop of shelf, the use of the mounting plate is optional. The
mounting plate can be used to shield the user from the hot bottom surface of the access point when
movement of the access point may be necessary. The access point is shipped with four rubber pads that
you can place on the bottom of the access point or the mounting plate to help prevent sliding or
scratching the surface of your desktop or shelf. For information on connecting the access point cables,
see the “Connecting the Ethernet and Power Cables” section on page 2-12.
Draft 1A - CISCO CONFIDENTIAL
2-12
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 2 Installing the Access Point
Connecting the Ethernet and Power Cables
Connecting the Ethernet and Power Cables
The access point receives power through the Ethernet cable or an external power module. Figure 2-8
shows the power options for the access point.

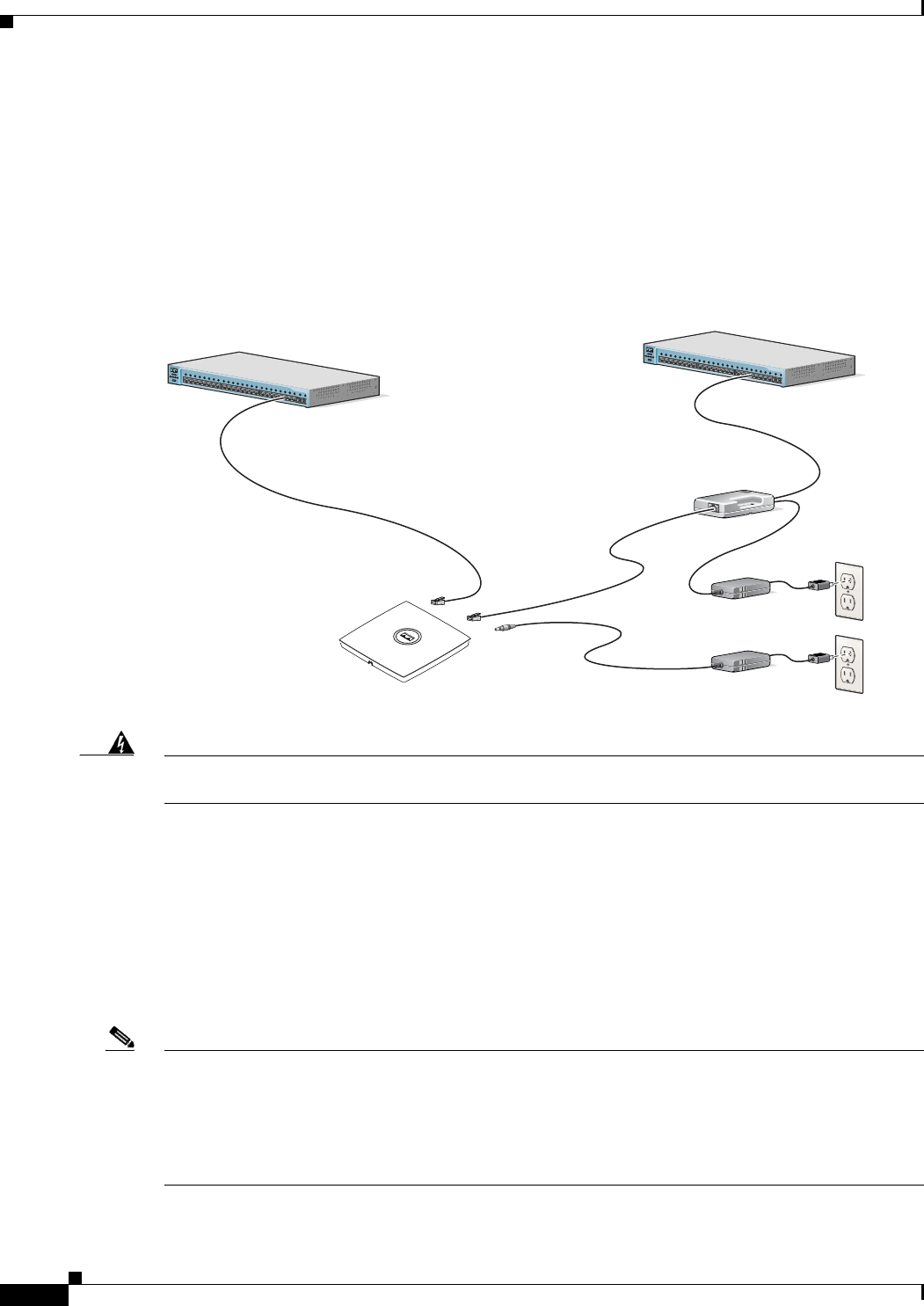

Figure 2-8 Access Point Power Options ---- TBD ----
Warning
This product must be connected to a Power over Ethernet (PoE) IEEE 802.3af compliant power source
or an IEC60950 compliant limited power source.
Statement 353
The access point supports the following power sources:
•Power module
•Inline power:
–
Cisco Aironet Power Injector (AIR-PWRINJ3 or AIR-PWRINJ-FIB)
–
An inline power capable switch, such as the Cisco Catalyst 3550 PWR XL, 3560-48PS,
3570-48PS, 4500 with 802.3AF PoE module, or the 6500 with 802.3AF PoE module
–
Other inline power switches supporting the IEEE 802.3af inline power standard
Note Some older switches and patch panels might not provide enough power to operate the access point. At
power-up, if the access point is unable to determine that the power source can supply sufficient power,
the access point automatically deactivates both radios to prevent an over-current condition. The access
point also activates a Status LED low power error indication and creates an error log entry (refer to the
“Checking the Access Point LEDs” section on page 6-2 and the “Low Power Condition” section on
page 6-6).
Power
cord
Universal
power supply
SYSTRPS
DUPLX
MODE
SPEED
UTIL
ST
A
T
123456789101112 131415 161718 192021222324 2324
10Base-T / 100Base-TX100Base-FX
Catalyst 2950
SERIES
SYSTRPS
DUPLX
MODE
SPEED
UTIL
ST
A
T
1234567891011121314 15161718 1920212223 2423 24
10Base-T / 100Base-TX100Base-FX
Catalyst 2950
SERIES
TO
AP/ BRIDGE
TO
NETWORK
Switch with
inline power
Power injector
Access Point
Switch
(without inline power)
Option 1 Option 2
Option 4
121717
Draft 1A - CISCO CONFIDENTIAL
2-13
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 2 Installing the Access Point
Connecting the Ethernet and Power Cables
Connecting to an Ethernet Network with an Inline Power Source
Caution Be careful when handling the access point; the bottom plate might be hot.
Note If your access point is connected to in-line power, do not connect the power module to the access point.
Using two power sources on the access point might cause the access point to shut down to protect internal
components and might cause the switch to shut down the port to which the access point is connected. If
your access point shuts down, you must remove all power and reconnect only a single power source.
Follow these steps to connect the access point to the Ethernet LAN when you have an inline power
source:
Step 1 Connect a Category 5 Ethernet cable to the RJ-45 Ethernet connector labeled Ethernet on the access
point (see Figure 2-9).
Figure 2-9 Ethernet and Power Ports
Step 2 Connect the other end of the Ethernet cable to one of the following:
•A switch with inline power (see the “Connecting the Ethernet and Power Cables” section on
page 2-12).
•The end of a Cisco Aironet power injector labeled To AP/Bridge. Connect the other end labeled To
Network to your 10/100 Ethernet LAN.
1Ethernet port 248 VDC power port
Draft 1A - CISCO CONFIDENTIAL
2-14
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 2 Installing the Access Point
Powering Up the Access Point
Connecting to an Ethernet Network with Local Power
Caution Be careful when handling the access point; the bottom plate might be hot.
Note If your access point is connected to in-line power, do not connect the power module to the access point.
Using two power sources on the access point might cause the access point to shut down to protect internal
components and might cause the switch to shut down the port to which the access point is connected. If
your access point shuts down, you must remove all power and reconnect only a single power source.
Follow these steps to connect the access point to an Ethernet LAN when you are using a local power
source:
Step 1 Connect a Category 5 Ethernet cable to the RJ-45 Ethernet connector labeled Ethernet on the access
point (see Figure 2-9).
Step 2 Connect the power module output connector to the access point’s 48-VDC power port (see Figure 2-9).
Step 3 Plug the other end of the Ethernet cable into an unpowered Ethernet port on your LAN network.
Step 4 Plug the other end of the power module into an approved 100- to 240-VAC outlet.
For information on securing your access point, see the “Securing the Access Point” section on page 2-17.
Powering Up the Access Point
When power is applied to the access point, it begins a routine power-up sequence that you can monitor
by observing the three LEDs on top of the access point. After you observe all three LEDs turning green
to indicate the starting of the IOS operating system, the Status LED blinks green signifying that IOS is
operational. When in an operational status, the Ethernet LED is steady green when no traffic is being
passed and dark during periods when traffic is being passed. The sequence takes about 1 minute to
complete. Refer to Chapter 6, “Troubleshooting,” for LED descriptions.
When the sequence is complete, you are ready to obtain the access point’s IP address and perform an
initial configuration. Refer to Chapter 3, “Configuring the Access Point for the First Time.” for
instructions on assigning basic settings to the access point.
Caution Be careful when handling the access point; the bottom plate might be hot.
Note If your access point is connected to in-line power, do not connect the power module to the access point.
Using two power sources on the access point might cause the access point to shut down to protect internal
components and might cause the switch to shut down the port to which the access point is connected. If
your access point shuts down, you must remove all power and reconnect only a single power source.
Draft 1A - CISCO CONFIDENTIAL
2-15
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 2 Installing the Access Point
Cable Security Bracket
Cable Security Bracket
The access point mounting plate has an attached cable security bracket that covers the console port,
Ethernet port, power port, and the mode button to prevent the installation or removal of the cables or the
activation of the mode button. If desired, the cable security bracket can be removed prior to attaching the
mounting plate to a ceiling or wall.
Figure 2-10 Access Point with Mounting Plate and Cable Security Bracket
Removing the Cable Security Bracket
The cable security bracket is primarily designed to help prevent someone from using the Mode button to
reset the access point to default values or from using the serial console cable to access the access point’s
CLI interface. If this security protection is not considered necessary, you can remove the cable security
bracket.
To remove the cable security bracket from the access point mounting plate, follow these instructions:
Step 1 Position the mounting plate with the cable security bracket pointing down.
Step 2 Remove the four screws that attach the bracket to the mounting plate using a philips screw driver.
1Mounting plate 3Access point
2Cable security bracket
Draft 1A - CISCO CONFIDENTIAL
2-16
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 2 Installing the Access Point
Attaching the Access Point to the Mounting Plate
Attaching the Access Point to the Mounting Plate
Follow these steps to attach the access point to the mounting plate:
Step 1 If your mounting plate has the cable security bracket, follow these steps:
a. Connect the Ethernet cable to the access point Ethernet port or connect the power module’s power
cable to the access point 48-VDC connector before attaching the access point to the plate.
b. Carefully feed the Ethernet or power cable through the notch on the cable security bracket and slide
the access point towards the bracket.
Note If your access point is connected to Ethernet in-line power, do not connect the local power
module to the access point. Using two power sources on the access point might cause the access
point to shut down to protect internal components and might cause the switch to shut down the
port to which the access point is connected. If your access point shuts down, you must remove
all power and reconnect only a single power source.
Step 2 Line up the four keyhole clips on the mounting plate with the large ends of the keyhole-shaped holes on
the access point.
Note The keyhole clips on each side of the mounting plate are offset and can only be positioned in one
direction onto the access point.
Step 3 Insert the mounting plate clips into the keyhole shaped holes on the access point.
Step 4 Slide the mounting plate towards the 5-GHz end of the access point while exerting slight pressure to
force the access point and mounting plate together. You will hear a slight click when the locking detents
contact the access point and locks it into place.
Step 5 Attach and adjust the antenna(s) or antenna cables to the access point antenna connectors.
Note The 5-GHz antennas and antenna cables have a blue dot or blue label. Connect only antennas or
antenna cables with blue dots or labels to the access point’s 5-GHz antenna connectors.
Step 6 If your access point does not have the cable security bracket, follow these steps:
a. Connect a CAT 5 Ethernet cable to the access point Ethernet port.
b. If using local power, insert the power module’s power cable into the access point’s 48-VDC power
port.
Note If your access point is connected to in-line power, do not connect the power module to the access
point. Using two power sources on the access point might cause the access point to shut down
to protect internal components and might cause the switch to shut down the port to which the
access point is connected. If your access point shuts down, you must remove all power and
reconnect only a single power source.
Draft 1A - CISCO CONFIDENTIAL
2-17
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 2 Installing the Access Point
Securing the Access Point
Securing the Access Point
There are two ways to secure your access point:
•Using a security cable
•Securing the access point to the mounting plate
Using a Security Cable
You can secure the access point by installing a standard security cable (such as the Kensington Notebook
MicroSaver, model number 64068) into the access point security cable slot (see Figure 2-2). The security
cable can be used with any of the mounting methods described in this guide.
Follow these steps to install the security cable.
Step 1 Loop the security cable around a nearby immovable object.
Step 2 Insert the key into the security cable lock.
Step 3 Insert the security cable latch into the security cable slot on the access point.
Step 4 Rotate the key right or left to secure the security cable lock to the access point.
Step 5 Remove the key.
Securing the Access Point to the Mounting Plate
------------- TBD -------------
The security hasp enables you to use a padlock to secure the access point to the mounting plate. Known
compatible padlocks are Master Lock models 120T or 121T.
To install the security hasp, follow these steps:
Step 1 Insert the security hasp’s key pin (see Figure 2-11) into the key slot on the access point (see Figure 2-2)
and rotate counterclockwise towards the mounting plate.
Draft 1A - CISCO CONFIDENTIAL
2-18
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 2 Installing the Access Point
Securing the Access Point to the Mounting Plate
Figure 2-11 Security Hasp
Step 2 Push the security hasp’s padlock flange through the mounting plate’s security slot (see Figure 2-12).
Figure 2-12 Mounting Plate Security Slot -----TBD ------
Step 3 Place your padlock (user supplied) through the padlock hole in the security hasp’s padlock flange.
1Security hasp 3Mounting plate
2Padlock flange and security slot 4Key slot pin
1Mounting plate security slot 3Padlock hole
2Security hasp padlock flange
CHAPTER
Draft 1A - CISCO CONFIDENTIAL
3-1
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
3
Configuring the Access Point for the First Time
This chapter describes how to configure basic settings on your access point for the first time. The
contents of this chapter are similar to the instructions in the quick start guide that shipped with your
access point. You can configure all the settings described in this chapter using the CLI, but it might be
simplest to browse to the access point’s web-browser interface to complete the initial configuration and
then use the CLI to enter additional settings for a more detailed configuration.
This chapter contains these sections:
•Before You Start, page 3-2
•Obtaining and Assigning an IP Address, page 3-3
•Connecting to the Access Point Locally, page 3-4
•Assigning Basic Settings, page 3-5
•Enabling the Radio Interfaces, page 3-8
•Finding the IP Address Using the CLI, page 3-13
•Assigning an IP Address Using the CLI, page 3-14
•Using a Telnet Session to Access the CLI, page 3-14
Draft 1A - CISCO CONFIDENTIAL
3-2
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 3 Configuring the Access Point for the First Time
Before You Start
Before You Start
Before you install the access point, make sure you are using a computer connected to the same network
as the access point, and obtain the following information from your network administrator:
•A system name for the access point
•The case-sensitive wireless service set identifiers (SSIDs) for your 802.11g and 02.11a radio
networks
•If not connected to a DHCP server, a unique IP address for your access point (such as 172.17.25.115)
•If the access point is not on the same subnet as your PC, a default gateway address and subnet mask
•A Simple Network Management Protocol (SNMP) community name and the SNMP file attribute (if
SNMP is in use)
•If you plan on using the Cisco IP Setup Utility (IPSU) to find or assign the access point IP address,
the MAC address from the label on the bottom of the access point (such as 00164625854c)
Resetting the Access Point to Default Settings
Using the Mode Button
If you need to start over during the initial setup process, follow these steps to reset the access point to
factory default settings using the access point MODE button:
Step 1 Disconnect power (the power jack for external power or the Ethernet cable for in-line power) from the
access point.
Step 2 Press and hold the MODE button while you reconnect power to the access point until the Ethernet LED
turns an amber color, approximately 2 to 3 seconds, and release the button. All access point settings
return to factory defaults.
Using the Web-Browser Interface
Prior to using the web-browser interface, you must have the access point IP address (see the “Obtaining
and Assigning an IP Address” section on page 3-3).
Follow these steps to return to default settings using the web-browser interface:
Step 1 Open your web-browser.
Note The access point web-browser interface is fully compatible with Microsoft Internet Explorer
version 6.0 on Windows 98 and 2000 platforms and with Netscape version 7.0 on Windows 98,
Windows 2000, and Solaris platforms.
Note When using the access point browser interface, you should disable your browser pop-up blocker.
Draft 1A - CISCO CONFIDENTIAL
3-3
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 3 Configuring the Access Point for the First Time
Obtaining and Assigning an IP Address
Step 2 Enter the access point’s IP address in the browser address line and press Enter. An Enter Network
Password window displays.
Step 3 Enter your username in the User Name field. The default username is Cisco.
Step 4 Enter the access point password in the Password field and press Enter. The default password is Cisco.
The Summary Status page displays.
Step 5 Click System Software and the System Software page displays.
Step 6 Click System Configuration and the System Configuration page displays.
Step 7 To return to factory default settings, click Reset to Defaults.
Step 8 To retain the IP address and return all other settings to factory default values, click
Reset to Defaults (Except IP).
Default IP Address Behavior
When you connect a 1240 series access point running Cisco IOS Release 12.3(4)JA or later software with
a default configuration to your LAN, the access point requests an IP address from your DHCP server
and, if it does not receive an IP address, continues to send requests indefinitely.
Obtaining and Assigning an IP Address
To browse to the access point’s Express Setup page, you must either obtain or assign the access point’s
IP address using one of the following methods:
Note The access point does not have a default IP address.
•To assign a static IP address to the access point, connect to the access point console port (see the
“Connecting to the Access Point Locally” section on page 3-4) and follow the steps in the
“Assigning an IP Address Using the CLI” section on page 3-14.
•Use a DHCP server (if available) to automatically assign an IP address. You can find out the
DHCP-assigned IP address using one of the following methods:
–
Connect to the access point console port and use a Cisco IOS CLI command to display the IP
address, such as show interface bvi1. Follow the steps in the “Connecting to the Access Point
Locally” section on page 3-4 to connect to the console port.
–
Provide your organization’s network administrator with your access point’s Media Access
Control (MAC) address. Your network administrator will query the DHCP server using the
MAC address to identify the IP address. The access point’s MAC address is on label attached to
the bottom of the access point.
–
Use CLI and the serial port to identify the assigned IP address (refer to the “Finding the IP
Address Using the CLI” section on page 3-13).
Draft 1A - CISCO CONFIDENTIAL
3-4
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 3 Configuring the Access Point for the First Time
Connecting to the Access Point Locally
Connecting to the Access Point Locally
If you need to configure the access point locally (without connecting the access point to a wired LAN),
you can connect a PC to its console port using a DB-9 to RJ-45 serial cable.
Caution Be careful when handling the access point, the bottom plate might be hot.
Note After completing your configuration changes, you must remove the serial cable from the access point.
Follow these steps to open the CLI by connecting to the access point console port:
Step 1 Connect a nine-pin, female DB-9 to RJ-45 serial cable to the RJ-45 console port on the access point and
to the COM port on a computer. To connect to the access point console port, you should loop the cable
as shown in Figure 2-9.
Figure 3-1 shows the console port location.
Figure 3-1 Console Port Location
Note The Cisco part number for the DB-9 to RJ-45 serial cable is AIR-CONCAB1200. Browse to
http://www.cisco.com/go/marketplace to order a serial cable.
Step 2 Set up a terminal emulator on your PC to communicate with the access point. Use the following settings
for the terminal emulator connection: 9600 baud, 8 data bits, no parity, 1 stop bit, and no flow control.
1Console port
Draft 1A - CISCO CONFIDENTIAL
3-5
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 3 Configuring the Access Point for the First Time
Assigning Basic Settings
Assigning Basic Settings
After you determine or assign the access point’s IP address, you can browse to the access point’s Express
Setup page and perform an initial configuration:
Step 1 Open your web-browser.
Note The access point web-browser interface is fully compatible with Microsoft Internet Explorer
version 6.0 on Windows 98 and 2000 platforms, and with Netscape version 7.0 on Windows 98,
Windows 2000, and Solaris platforms.
Note When using the access point browser interface, you should disable your browser pop-up blocker.
Step 2 Enter the access point’s IP address in the browser address line and press Enter. An Enter Network
Password page displays.
Step 3 Enter Cisco in the username field and advance to the Password field.
Step 4 Enter the case-sensitive password Cisco and press Enter. The Summary Status page displays.
Figure 3-2 shows the Summary Status page.
Figure 3-2 Summary Status Page
Draft 1A - CISCO CONFIDENTIAL
3-6
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 3 Configuring the Access Point for the First Time
Assigning Basic Settings
Step 5 Click Express Setup. The Express Setup page displays. Figure 3-3 shows the Express Setup page.

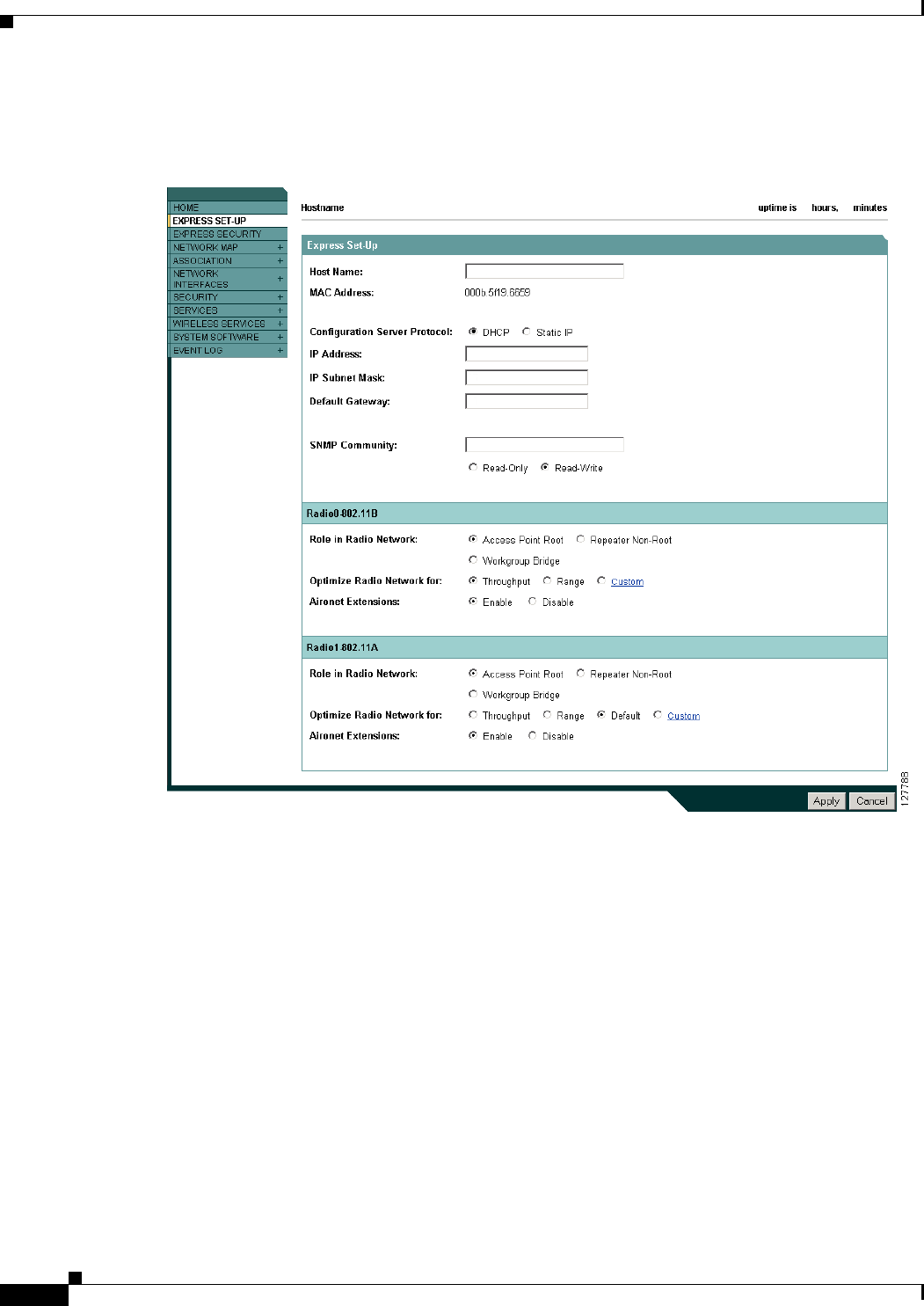

Figure 3-3 Express Setup Page
Step 6 Enter the configuration settings you obtained from your system administrator. The configurable settings
include:
•Host Name— The host name (or system name), while not an essential setting, helps identify the
access point on your network. The system name displays in the titles of the management system
pages.
•Configuration Server Protocol—Click on the button that matches the network’s method of IP
address assignment.
–
DHCP—IP addresses are automatically assigned by your network’s DHCP server.
–
Static IP—The access point uses a static IP address that you enter in the IP address field.
Draft 1A - CISCO CONFIDENTIAL
3-7
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 3 Configuring the Access Point for the First Time
Assigning Basic Settings
•IP Address—Use this setting to assign or change the access point’s IP address. If DHCP is enabled
for your network, leave this field blank.
Note If the access point’s IP address changes while you are configuring the access point using the
web-browser interface or a Telnet session over the wired LAN, you lose your connection to the
access point. If you lose your connection, reconnect to the access point using its new IP address.
Follow the steps in the “Resetting the Access Point to Default Settings” section on page 3-2 if
you need to start over.
•IP Subnet Mask—Enter the IP subnet mask provided by your network administrator so the IP
address can be recognized on the LAN. If DHCP is enabled, leave this field blank.
•Default Gateway—Enter the default gateway IP address provided by your network administrator.
If DHCP is enabled, leave this field blank.
•Web Server—Choose the type of HTTP protocol used by your web browser to access the access
point.
–
Standard (HTTP)—Uses encrypted traffic to transfer data.
–
Secure (HTTPS)—Uses Secure Socket Layer (SSL) encrypted traffic to transfer data.
•SNMP Community—If your network is using SNMP, enter the SNMP Community name provided
by your network administrator and select the attributes of the SNMP data (also provided by your
network administrator).
•Role in Radio Network—Click on the button that describes the role of the access point on your
network. Select Access Point (Root) if your access point is connected to the wired LAN. Select
Repeater (Non-Root) if it is not connected to the wired LAN.
•Optimize Radio Network for—Use this setting to select either preconcerted settings for the access
point radio or customized settings for the access point radio.
–
Throughput—Maximizes the data volume handled by the access point but might reduce its
range.
–
Range—Maximizes the access point’s range but might reduce throughput.
–
Custom—The access point uses settings you enter on the Network Interfaces: Radio-802.11b
Settings page. Clicking Custom takes you to the Network Interfaces: Radio-802.11b Settings
page.
•Aironet Extensions—Enable this setting if there are only Cisco Aironet devices on your wireless
LAN.
Step 7 Click Apply to save your settings. If you changed the IP address, you lose your connection to the access
point. Browse to the new IP address to reconnect to the access point.
Your access point is now running but probably requires additional configuring to conform to your
network’s operational and security requirements. Consult the chapters in this manual for the information
you need to complete the configuration.
Note You can restore the access point to its factory defaults by unplugging the power jack and
plugging it back in while holding the Mode button down until the Ethernet LED turns an amber
color (approximately 2 to 3 seconds).
Draft 1A - CISCO CONFIDENTIAL
3-8
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 3 Configuring the Access Point for the First Time
Assigning Basic Settings
Default Settings on the Express Setup Page
Table 3-1 lists the default settings for the settings on the Express Setup page.
Enabling the Radio Interfaces
In Cisco IOS Release 12.3(4)JA or later, the access point radios are disabled by default, and there is no
default SSID. You must create an SSID and enable the radios before the access point will allow wireless
associations from other devices. These changes to the default configuration improve the security of
newly installed access points. Refer to the “Configuring Basic Security Settings” section on page 3-9 for
instructions on configuring the SSID.
To enable the radio interfaces, follow these instructions:
Step 1 Use your web-browser to access your access point.
Step 2 When the Summary Status page displays, click Network Interfaces > Radio0-802.11b or Network
Interfaces > Radio0-802.11g and the radio status page displays.
Step 3 Click Settings and the radio settings page displays.
Step 4 Click Enable in the Enable Radio field.
Step 5 Click Apply.
Step 6 Click Radio1-802.11A and the radio status page displays.
Step 7 Repeat Steps 3 to 5.
Step 8 Close your web-browser.
Table 3-1 Default Settings on the Express Setup Page
Setting Default
System Name ap
Configuration Server Protocol DHCP
IP Address Assigned by DHCP
Note The access point does not have a default IP address.
IP Subnet Mask Assigned by DHCP
Default Gateway Assigned by DHCP
Role in Radio Network Access point (root)
Web Server Standard (HTTP)
SNMP Community defaultCommunity
Optimize Radio Network for Throughput
Aironet Extensions Enable
Draft 1A - CISCO CONFIDENTIAL
3-9
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 3 Configuring the Access Point for the First Time
Configuring Basic Security Settings
Configuring Basic Security Settings
After you assign basic settings to your access point, you must configure security settings to prevent
unauthorized access to your network. Because it is a radio device, the access point can communicate
beyond the physical boundaries of your building.
Just as you use the Express Setup page to assign basic settings, you can use the Express Security page
to create unique SSIDs and assign one of four security types to them. For detail security information,
refer to the Cisco IOS Software Configuration Guide for Cisco Aironet Access Points.
Draft 1A - CISCO CONFIDENTIAL
3-10
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 3 Configuring the Access Point for the First Time
Configuring Basic Security Settings
Configuring Basic Security Settings
You can use the Express Security page to create unique SSIDs and assign one of four security types to
them. Figure 3-4 shows the Express Security page.

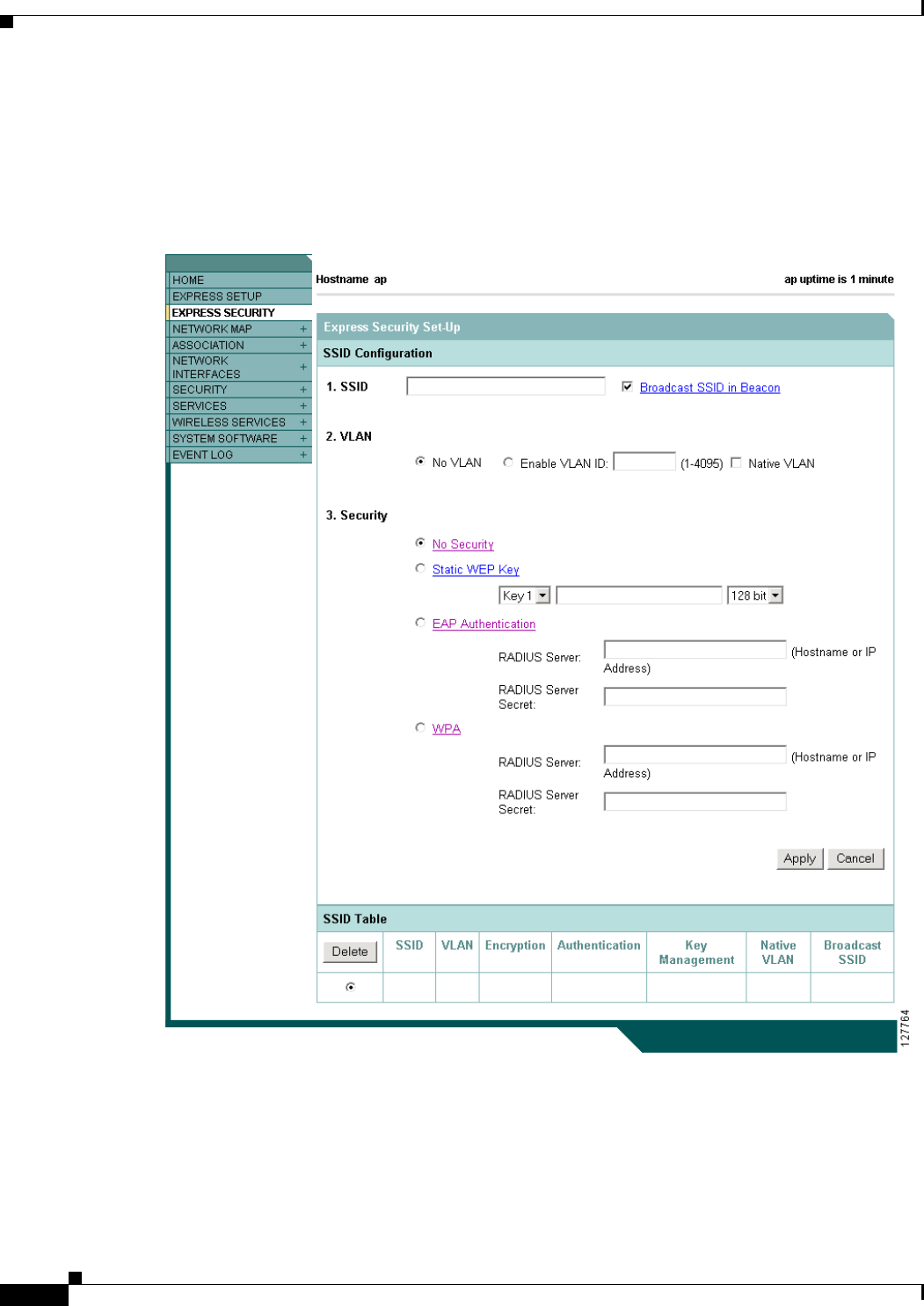

Figure 3-4 Express Security Page
Draft 1A - CISCO CONFIDENTIAL
3-11
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 3 Configuring the Access Point for the First Time
Configuring Basic Security Settings
Understanding Express Security Settings
When the access point configuration is at factory defaults, the first SSID that you create by using the
Express Security page overwrites the default SSID (tsunami), which has no security settings. The SSIDs
that you create appear in the SSID table at the bottom of the page. You can create up to 16 SSIDs on the
access point.
Note In Cisco IOS Release 12.3(4)JA or later, there is no default SSID. You must configure an SSID before
client devices can associate to the access point.
Using VLANs
If you use VLANs on your wireless LAN and assign SSIDs to VLANs, you can create multiple SSIDs
by using any of the four security settings on the Express Security page. However, if you do not use
VLANs on your wireless LAN, the security options that you can assign to SSIDs are limited because on
the Express Security page encryption settings and authentication types are linked. Without VLANs,
encryption settings (WEP and ciphers) apply to an interface, such as the radio, and you cannot use more
than one encryption setting on an interface. For example, when you create an SSID with static WEP with
VLANs disabled, you cannot create additional SSIDs with WPA authentication because they use
different encryption settings. If you find that the security setting for an SSID conflicts with another
SSID, you can delete one or more SSIDs to eliminate the conflict.
If any VLANs are defined on the access point, the trunk port on the switch must be limited to allow only
the VLANs defined on the access point.
Express Security Types
Table 3-2 describes the four security types that you can assign to an SSID.
Ta b l e 3 - 2 S e c u ri t y Ty p e s o n Express Security Setup Page
Security Type Description Security Features Enabled
No Security This is the least secure option. You should
use this option only for SSIDs used in a
public space and assign it to a VLAN that
restricts access to your network.
None.
Static WEP Key This option is more secure than no security.
However, static WEP keys are vulnerable to
attack. If you configure this setting, you
should consider limiting association to the
bridge based on MAC address (refer to the
Cisco IOS Software Configuration Guide
for Cisco Aironet Access Points).
Mandatory WEP. Client devices
cannot associate using this SSID
without a WEP key that matches
the bridge’s key.
Draft 1A - CISCO CONFIDENTIAL
3-12
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 3 Configuring the Access Point for the First Time
Configuring Basic Security Settings
28
Express Security Limitations
Because the Express Security page is designed for simple configuration of basic security, the options
available are a subset of the bridge’s security capabilities. Keep these limitations in mind when using the
Express Security page:
•If the No VLAN option is selected, the static WEP key can be configured once. If you select Enable
VLAN, the static WEP key should be disabled.
•You cannot edit SSIDs. However, you can delete SSIDs and re-create them.
•You cannot assign SSIDs to specific radio interfaces. The SSIDs that you create are enabled on all
radio interfaces. To assign SSIDs to specific radio interfaces, use the Security SSID Manager page.
•You cannot configure multiple authentication servers. To configure multiple authentication servers,
use the Security Server Manager page.
•You cannot configure multiple WEP keys. To configure multiple WEP keys, use the Security
Encryption Manager page.
•You cannot assign an SSID to a VLAN that is already configured on the bridge. To assign an SSID
to an existing VLAN, use the Security SSID Manager page.
•You cannot configure combinations of authentication types on the same SSID (for example, MAC
address authentication and EAP authentication). To configure combinations of authentication types,
use the Security SSID Manager page.
Note For detailed information about security and security settings, refer to the Cisco IOS Software
Configuration Guide for Cisco Aironet Access Points.
EAP
Authentication
This option enables 802.1x authentication
(such as LEAP, PEAP, EAP-TLS,
EAP-GTC, EAP-SIM, and others) and
requires you to enter the IP address and
shared secret for an authentication server on
your network (server authentication port
1645). Because 802.1x authentication
provides dynamic encryption keys, you do
not need to enter a WEP key.
Mandatory 802.1x authentication.
Client devices that associate using
this SSID must perform 802.1x
authentication.
WPA Wi-Fi Protected Access (WPA) permits
wireless access to users authenticated
against a database through the services of
an authentication server, then encrypts their
IP traffic with stronger algorithms than
those used in WEP. As with EAP
authentication, you must enter the IP
address and shared secret for an
authentication server on your network
(server authentication port 1645).
Mandatory WPA authentication.
Client devices that associate using
this SSID must be WPA-capable.
Table 3-2 Security Types on Express Security Setup Page (continued)
Security Type Description Security Features Enabled
Draft 1A - CISCO CONFIDENTIAL
3-13
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 3 Configuring the Access Point for the First Time
Finding the IP Address Using the CLI
Using the Express Security Page
Follow these steps to create an SSID using the Express Security page:
Step 1 Type the SSID in the SSID entry field. The SSID can contain up to 32 alphanumeric characters.
Note These characters are not allowed in the SSID: ?, ", $, [, \, ], and +. In addition, these characters
cannot be the first character: !, #, and ;.
Step 2 To broadcast the SSID in the bridge beacon, check the Broadcast SSID in Beacon check box. When you
broadcast the SSID, devices that do not specify an SSID can associate to the bridge. This is a useful
option for an SSID used by guests or by client devices in a public space. If you do not broadcast the
SSID, client devices cannot associate to the bridge unless their SSID matches this SSID. Only one SSID
can be included in the bridge beacon.
Step 3 (Optional) Check the Enable VLAN ID check box and enter a VLAN number (1 through 4095) to assign
the SSID to a VLAN. You cannot assign an SSID to an existing VLAN.
Step 4 (Optional) Check the Native VLAN check box to mark the VLAN as the native VLAN.
Step 5 Select the security setting for the SSID. The settings are listed in order of robustness, from No Security
to WPA, which is the most secure setting.
•If you select Static WEP Key, choose the key number and encryption key size and enter the
encryption key (10 hexidecimal characters for 40-bit keys or 26 hexidecimal characters for 128-bit
keys).
•If you select EAP Authentication or WPA, enter the IP address and shared secret for the
authentication server on your network.
Note If you do not use VLANs on your wireless LAN, the security options that you can assign to
multiple SSIDs are limited. Refer to the Cisco IOS Software Configuration Guide for Cisco
Aironet Access Points for VLAN details.
Step 6 Click Apply. The SSID appears in the SSID table at the bottom of the page.
Finding the IP Address Using the CLI
When you connect the access point to the wired LAN, the access point links to the network using a bridge
virtual interface (BVI) that it creates automatically. Instead of tracking separate IP addresses for the
access point’s Ethernet and radio ports, the network uses the BVI.
To find the IP address of your access point using the console port, you can use the Cisco IOS CLI show
ip interface brief bvi1 from the privileged EXEC mode. For additional information on the CLI, refer to
the“Using the Command-Line Interface” section on page 5-1.
Draft 1A - CISCO CONFIDENTIAL
3-14
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 3 Configuring the Access Point for the First Time
Assigning an IP Address Using the CLI
Assigning an IP Address Using the CLI
When you assign an IP address to the access point using the CLI, you must assign the address to the BVI.
Beginning in privileged EXEC mode, follow these steps to assign an IP address to the access point’s
BVI:
Using a Telnet Session to Access the CLI
Follow these steps to browse to access the CLI using a Telnet session. These steps are for a PC running
Microsoft Windows with a Telnet terminal application. Check your PC operating instructions for
detailed instructions for your operating system.
Step 1 Choose Start > Programs > Accessories > Telnet.
If Telnet is not listed in your Accessories menu, choose Start > Run, type Telnet in the entry field, and
press Enter.
Step 2 When the Telnet window displays, click Connect and choose Remote System.
Note In Windows 2000, the Telnet window does not contain drop-down menus. To start the Telnet
session in Windows 2000, type open followed by the access point’s IP address.
Step 3 In the Host Name field, type the access point’s IP address and click Connect.
Command Purpose
Step 1 configure terminal Enter global configuration mode.
Step 2 interface bvi1 Enter interface configuration mode for the BVI.
Step 3 ip address address
mask
Assign an IP address and address mask to the BVI.
Note If you are connected to the access point using a Telnet
session, you lose your connection to the access point
when you assign a new IP address to the BVI. If you
need to continue configuring the access point using
Telnet, use the new IP address to open another Telnet
session to the access point.
CHAPTER
Draft 1A - CISCO CONFIDENTIAL
4-1
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
4
Using the Web-Browser Interface
This chapter describes the web-browser interface that you can use to configure the access point. It
contains these sections:
•Using the Web-Browser Interface for the First Time, page 4-2
•Using the Management Pages in the Web-Browser Interface, page 4-2
•Using Online Help, page 4-5
The web-browser interface contains management pages that you use to change access point settings,
upgrade firmware, and monitor and configure other wireless devices on the network.
Note The access point web-browser interface is fully compatible with Microsoft Internet Explorer version 6.0
on Windows 98 and 2000 platforms and with Netscape version 7.0 on Windows 98, Windows 2000, and
Solaris platforms.
Draft 1A - CISCO CONFIDENTIAL
4-2
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 4 Using the Web-Browser Interface
Using the Web-Browser Interface for the First Time
Using the Web-Browser Interface for the First Time
Use the access point’s IP address to browse to the management system. See the “Obtaining and
Assigning an IP Address” section on page 3-3 for instructions on assigning an IP address to the access
point.
Follow these steps to begin using the web-browser interface:
Step 1 Start your Internet browser.
Note The access point web-browser interface is fully compatible with Microsoft Internet Explorer
version 6.0 on Windows 98 and 2000 platforms and with Netscape version 7.0 on Windows 98,
Windows 2000, and Solaris platforms.
Note When using the access point browser interface, you should disable your browser pop-up blocker.
Step 2 Enter the access point’s IP address in the browser address line and press Enter. An Enter Network
Password window displays.
Step 3 Enter your username in the User Name field. The default username is Cisco.
Step 4 Enter the access point password in the Password field and press Enter. The default password is Cisco.
The access point Summary Status page displays.
Using the Management Pages in the Web-Browser Interface
The system management pages use consistent techniques to present and save configuration information.
A navigation bar is on the left side of the page, and configuration action buttons appear at the bottom.
You use the navigation bar to browse to other management pages, and you use the configuration action
buttons to save or cancel changes to the configuration.
Note Changes are applied only when you click Apply. Always remember to click Apply before changing the
page or clicking your browser’s Back button. Clicking Cancel cancels any changes you made on the
page and keeps you on that page.
Draft 1A - CISCO CONFIDENTIAL
4-3
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 4 Using the Web-Browser Interface
Using the Management Pages in the Web-Browser Interface
Figure 4-1 shows the web-browser interface home page.

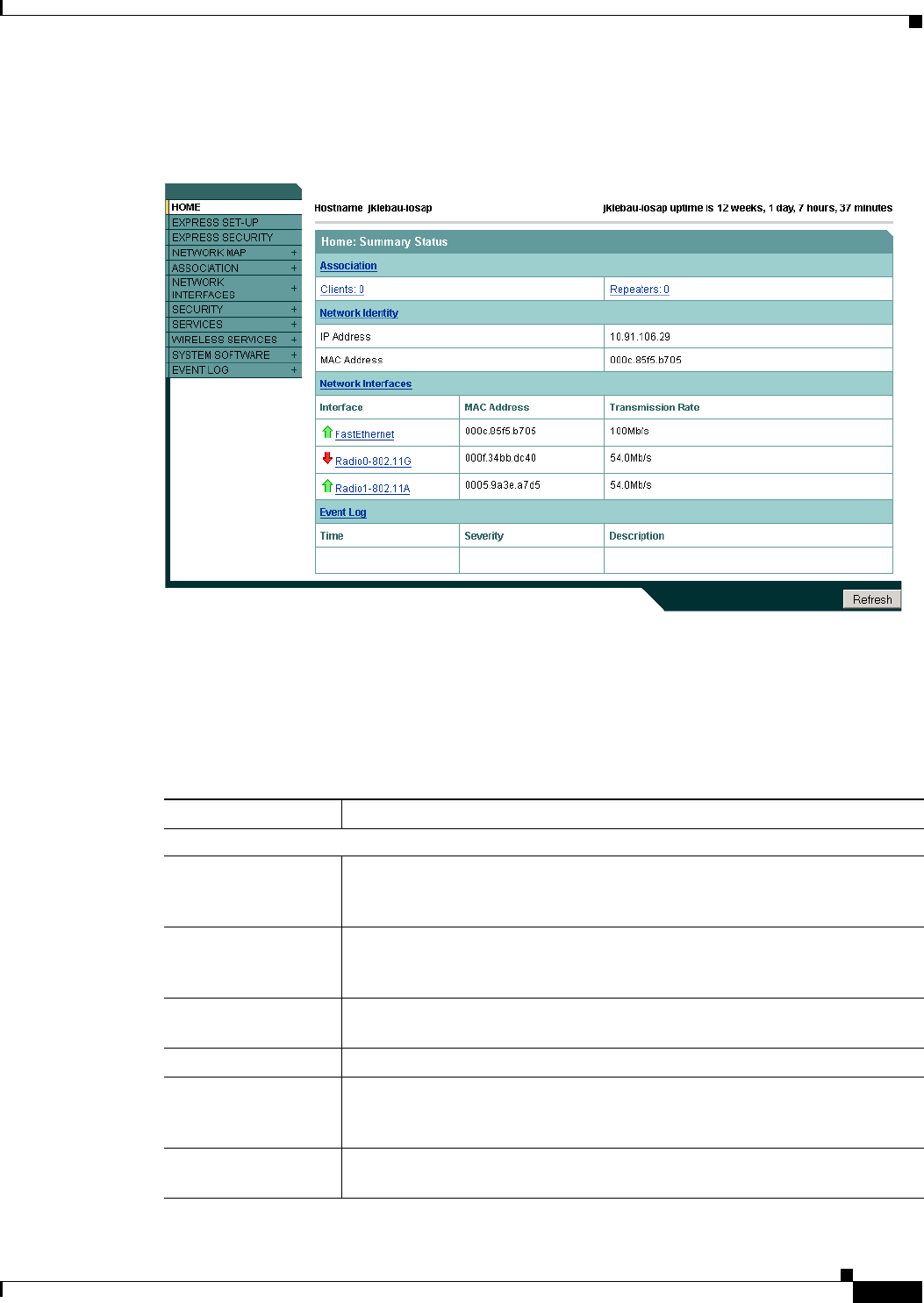

Figure 4-1 Web-Browser Interface Home Page
Using Action Buttons
Table 4-1 lists the page links and buttons that appear on most management pages.
Table 4-1 Common Buttons on Management Pages
Button/Link Description
Navigation Links
Home Displays access point status page with information on the number of radio devices
associated to the access point, the status of the Ethernet and radio interfaces, and
a list of recent access point activity.
Express Setup Displays the Express Setup page that is used to quickly configure basic access
point settings such as system name, IP address, SNMP community, radio roles,
and radio activation or deactivation.
Express Security Displays the Express Security page that is used to quickly setup basic security
settings for both radios such as SSID, VLAN, and the type of security.
Network Map Displays a list of infrastructure devices on your wireless LAN.
Association Displays a list of wireless devices associated to your access point, listing their
system names, IP address, MAC address, parent-client relationships, and the
VLAN.
Network Interfaces Displays status and statistics for the Ethernet and radio interfaces and provides
links to configuration pages for each interface.
Draft 1A - CISCO CONFIDENTIAL
4-4
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 4 Using the Web-Browser Interface
Using the Management Pages in the Web-Browser Interface
Security Displays a summary of security settings and provides links to security
configuration pages that are used to configure all security options for each
radio interface.
Services Displays status for several access point features and links to configuration pages
for Telnet/SSH, CDP, domain name server, filters, proxy Mobile IP, QoS, SNMP,
SNTP, and VLANs.
Wireless Services Displays a summary of wireless services used with CCKM and provides links to
WDS configuration pages.
System Software Displays the version number of the firmware that the access point is running and
provides links to configuration pages for upgrading and managing firmware.
Event Log Displays the access point event log and provides links to configuration pages
where you can select events to be included in traps, set event severity levels, and
set notification methods.
Configuration Action Buttons
Apply Saves changes made on the page and remains on the page.
Cancel Discards changes to the page and remains on the page.
Clear Clears the selected options on the page.
Refresh Updates status information or statistics displayed on a page.
Table 4-1 Common Buttons on Management Pages (continued)
Button/Link Description
Draft 1A - CISCO CONFIDENTIAL
4-5
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 4 Using the Web-Browser Interface
Using Online Help
Character Restrictions in Entry Fields
Because the access point uses Cisco IOS software, there are certain characters that you cannot use in the
entry fields on the web-browser interface. Table 4-2 lists the prohibited characters and the fields in which
you cannot use them.
Using Online Help
Click the help icon at the top of any page in the web-browser interface to display online help. Figure 4-2
shows the help and print icons.
Figure 4-2 Print and Help Icons
When the help page appears in a new browser window, use the Select a Topic drop-down menu to display
the help index or instructions for common configuration tasks, such as configuring VLANs.
Table 4-2 Prohibited Characters for Web-Browser Interface Entry Fields
Entry Field Type Prohibited Characters
Password entry fields ?
“
$
[
+
All other entry fields ?
“
$
[
+
You also cannot use these
three characters as the
first character in an entry
field:
!
#
;
Draft 1A - CISCO CONFIDENTIAL
4-6
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 4 Using the Web-Browser Interface
Using Online Help
CHAPTER
Draft 1A - CISCO CONFIDENTIAL
5-1
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
5
Using the Command-Line Interface
This chapter describes the IOS command-line interface (CLI), which you can use to configure your
access point. This chapter contains these sections:
•Cisco IOS Command Modes, page 5-2
•Getting Help, page 5-3
•Abbreviating Commands, page 5-3
•Using no and default Forms of Commands, page 5-4
•Understanding CLI Messages, page 5-4
•Using Command History, page 5-4
•Using Editing Features, page 5-6
•Searching and Filtering Output of show and more Commands, page 5-8
•Accessing the CLI, page 5-9
Draft 1A - CISCO CONFIDENTIAL
5-2
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 5 Using the Command-Line Interface
Cisco IOS Command Modes
Cisco IOS Command Modes
The Cisco IOS user interface is divided into many different modes. The commands available to you
depend on the mode you are currently using. Enter a question mark (?) at the system prompt to obtain a
list of commands available for each command mode. Refer to the Cisco IOS Command Reference for
Cisco Aironet Access Points and Bridges for a list of the supported Cisco IOS commands.
When you start a session on the access point, you begin in user mode, often called user EXEC mode.
Only a limited subset of the commands are available in user EXEC mode. For example, most of the user
EXEC commands are one-time commands, such as show commands, which show the current
configuration status, and clear commands, which clear counters or interfaces. The user EXEC
commands are not saved when the access point reboots.
To have access to all commands, you must enter privileged EXEC mode. Normally, you must enter a
password to enter privileged EXEC mode. You must enter privileged EXEC mode before you can enter
the global configuration mode.
Using the configuration modes (global, interface, and line), you can make changes to the running
configuration. If you save the configuration, these commands are stored and used when the access point
reboots. To access the various configuration modes, you must start at global configuration mode.
Table 5-1 describes the main command modes, how to access each one, the prompt you see in that mode, how
to exit the mode, and how to use the mode. The examples in the table use the host name ap.
Table 5-1 Command Mode Summary
Mode Access Method Prompt Exit Method Using This Mode
User EXEC Begin a session with
your access point.
ap> Enter logout or quit. Use this mode to:
•Change terminal settings
•Perform basic tests
•Display system
information
Privileged EXEC While in user EXEC
mode, enter the
enable command.
ap# Enter disable to exit. Use this mode to verify
commands. Use a password to
protect access to this mode.
Global configuration While in privileged
EXEC mode, enter
the configure
command.
ap(config)# To exit to privileged
EXEC mode, enter exit or
end, or press Ctrl-Z.
Use this mode to configure
parameters that apply to the
entire access point.
Interface
configuration
While in global
configuration mode,
enter the interface
command (with a
specific interface).
ap(config-if)# To exit to global
configuration mode, enter
exit. To return to
privileged EXEC mode,
press Ctrl-Z or enter end.
Use this mode to configure
parameters for the Ethernet
and radio interfaces. The
2.4-GHz radio is radio 0, and
the 5-GHz radio is radio 1.
Draft 1A - CISCO CONFIDENTIAL
5-3
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 5 Using the Command-Line Interface
Getting Help
Getting Help
You can enter a question mark (?) at the system prompt to display a list of commands available for each
command mode. You can also obtain a list of associated keywords and arguments for any command, as
shown in Table 5-2.
Abbreviating Commands
You have to enter only enough characters for the access point to recognize the command as unique. If
you do not enter enough characters, the access point indicate an error (% Unknown command). This
example shows how to enter the show configuration privileged EXEC command:
ap# show conf
Table 5-2 Help Summary
Command Purpose
help Obtains a brief description of the help system in any command mode.
abbreviated-command-entry?Obtains a list of commands that begin with a particular character string.
For example:
ap# di?
dir disable disconnect
abbreviated-command-entry<Tab> Completes a partial command name.
For example:
ap# sh conf<tab>
ap# show configuration
?Lists all commands available for a particular command mode.
For example:
ap> ?
command ? Lists the associated keywords for a command.
For example:
ap> show ?
command keyword ?Lists the associated arguments for a keyword.
For example:
ap(config)# cdp holdtime ?
<10-255> Length of time (in sec) that receiver must keep this packet
Draft 1A - CISCO CONFIDENTIAL
5-4
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 5 Using the Command-Line Interface
Using no and default Forms of Commands
Using no and default Forms of Commands
Most configuration commands also have a no form. In general, use the no form to disable a feature or
function or reverse the action of a command. For example, the no shutdown interface configuration
command reverses the shutdown of an interface. Use the command without the keyword no to re-enable
a disabled feature or to enable a feature that is disabled by default.
Configuration commands can also have a default form. The default form of a command returns the
command setting to its default. Most commands are disabled by default, so the default form is the same
as the no form. However, some commands are enabled by default and have variables set to certain default
values. In these cases, the default command enables the command and sets variables to their default
values.
Understanding CLI Messages
Table 5-3 lists some error messages that you might encounter while using the CLI to configure your
access point.
Using Command History
The IOS provides a history or record of commands that you have entered. This feature is particularly
useful for recalling long or complex commands or entries, including access lists. You can customize the
command history feature to suit your needs as described in these sections:
•Changing the Command History Buffer Size, page 5-5
•Recalling Commands, page 5-5
•Disabling the Command History Feature, page 5-5
Table 5-3 Common CLI Error Messages
Error Message Meaning How to Get Help
% Ambiguous command:
"show con"
You did not enter enough characters
for your access point to recognize the
command.
Re-enter the command followed by a question mark (?)
with a space between the command and the question
mark.
The possible keywords that you can enter with the
command are displayed.
% Incomplete command. You did not enter all the keywords or
values required by this command.
Re-enter the command followed by a question mark (?)
with a space between the command and the question
mark.
The possible keywords that you can enter with the
command are displayed.
% Invalid input detected
at ‘^’ marker.
You entered the command
incorrectly. The caret (^) marks the
point of the error.
Enter a question mark (?) to display all the commands
that are available in this command mode.
The possible keywords that you can enter with the
command are displayed.
Draft 1A - CISCO CONFIDENTIAL
5-5
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 5 Using the Command-Line Interface
Using Command History
Changing the Command History Buffer Size
By default, the access point records ten command lines in its history buffer. Beginning in privileged
EXEC mode, enter this command to change the number of command lines that the access point records
during the current terminal session:
ap# terminal history [size number-of-lines]
The range is from 0 to 256.
Beginning in line configuration mode, enter this command to configure the number of command lines
the access point records for all sessions on a particular line:
ap(config-line)# history [size number-of-lines]
The range is from 0 to 256.
Recalling Commands
To recall commands from the history buffer, perform one of the actions listed in Table 5-4:
Disabling the Command History Feature
The command history feature is automatically enabled.
To disable the feature during the current terminal session, enter the terminal no history privileged
EXEC command.
To disable command history for the line, enter the no history line configuration command.
Table 5-4 Recalling Commands
Action1
1. The arrow keys function only on ANSI-compatible terminals such as VT100s.
Result
Press Ctrl-P or the up arrow key. Recall commands in the history buffer, beginning with the most recent command.
Repeat the key sequence to recall successively older commands.
Press Ctrl-N or the down arrow key. Return to more recent commands in the history buffer after recalling commands
with Ctrl-P or the up arrow key. Repeat the key sequence to recall successively
more recent commands.
show history While in privileged EXEC mode, list the last several commands that you just
entered. The number of commands that are displayed is determined by the setting
of the terminal history global configuration command and history line
configuration command.
Draft 1A - CISCO CONFIDENTIAL
5-6
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 5 Using the Command-Line Interface
Using Editing Features
Using Editing Features
This section describes the editing features that can help you manipulate the command line. It contains
these sections:
•Enabling and Disabling Editing Features, page 5-6
•Editing Commands with Keystrokes, page 5-6
•Editing Command Lines That Wrap, page 5-7
Enabling and Disabling Editing Features
Although enhanced editing mode is automatically enabled, you can disable it.
To re-enable the enhanced editing mode for the current terminal session, enter this command in
privileged EXEC mode:
ap# terminal editing
To reconfigure a specific line to have enhanced editing mode, enter this command in line configuration
mode:
ap(config-line)# editing
To globally disable enhanced editing mode, enter this command in line configuration mode:
ap(config-line)# no editing
Editing Commands with Keystrokes
Table 5-5 shows the keystrokes that you need to edit command lines.
Table 5-5 Editing Commands with Keystrokes
Capability Keystroke1Purpose
Move around the command line to
make changes or corrections.
Ctrl-B or the left arrow
key
Move the cursor back one character.
Ctrl-F or the right arrow
key
Move the cursor forward one character.
Ctrl-A Move the cursor to the beginning of the command line.
Ctrl-E Move the cursor to the end of the command line.
Esc-B Move the cursor back one word.
Esc-F Move the cursor forward one word.
Ctrl-T Transpose the character to the left of the cursor with the
character located at the cursor.
Recall commands from the buffer and
paste them in the command line. The
access point provides a buffer with
the last ten items that you deleted.
Ctrl-Y Recall the most recent entry in the buffer.
Esc-Y Recall the next buffer entry.
The buffer contains only the last 10 items that you have
deleted or cut. If you press Esc Y more than ten times, you
cycle to the first buffer entry.
Draft 1A - CISCO CONFIDENTIAL
5-7
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 5 Using the Command-Line Interface
Using Editing Features
Editing Command Lines That Wrap
You can use a wrap-around feature for commands that extend beyond a single line on the screen. When
the cursor reaches the right margin, the command line shifts ten spaces to the left. You cannot see the
first ten characters of the line, but you can move back to verify the syntax at the beginning of the
command.
To move back to the beginning of the command entry, press Ctrl-B or the left arrow key repeatedly. You
can also press Ctrl-A to immediately move to the beginning of the line.
Note The arrow keys function only on ANSI-compatible terminals such as VT100s.
Delete entries if you make a mistake
or change your mind.
Delete or Backspace Erase the character to the left of the cursor.
Ctrl-D Delete the character at the cursor.
Ctrl-K Delete all characters from the cursor to the end of the
command line.
Ctrl-U or Ctrl-X Delete all characters from the cursor to the beginning of
the command line.
Ctrl-W Delete the word to the left of the cursor.
Esc-D Delete from the cursor to the end of the word.
Capitalize or lowercase words or
capitalize a set of letters.
Esc-C Capitalize at the cursor.
Esc-L Change the word at the cursor to lowercase.
Esc-U Capitalize letters from the cursor to the end of the word.
Designate a particular keystroke as
an executable command, perhaps as a
shortcut.
Ctrl-V or Esc Q
Scroll down a line or screen on
displays that are longer than the
terminal screen can display.
Note The More prompt appears for
output that has more lines
than can be displayed on the
terminal screen, including
show command output. You
can use the Return and
Space bar keystrokes
whenever you see the More
prompt.
Return Scroll down one line.
Space Scroll down one screen.
Redisplay the current command line
if the access point suddenly sends a
message to your screen.
Ctrl-L or Ctrl-R Redisplay the current command line.
1. The arrow keys function only on ANSI-compatible terminals such as VT100s.
Table 5-5 Editing Commands with Keystrokes (continued)
Capability Keystroke1Purpose
Draft 1A - CISCO CONFIDENTIAL
5-8
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 5 Using the Command-Line Interface
Searching and Filtering Output of show and more Commands
In this example, the access-list global configuration command entry extends beyond one line. When the
cursor first reaches the end of the line, the line is shifted ten spaces to the left and redisplayed. The dollar
sign ($) shows that the line has been moved to the left. Each time the cursor reaches the end of the line,
the line is again shifted ten spaces to the left.
ap(config)# access-list 101 permit tcp 131.108.2.5 255.255.255.0 131.108.1
ap(config)# $ 101 permit tcp 131.108.2.5 255.255.255.0 131.108.1.20 255.25
ap(config)# $t tcp 131.108.2.5 255.255.255.0 131.108.1.20 255.255.255.0 eq
ap(config)# $108.2.5 255.255.255.0 131.108.1.20 255.255.255.0 eq 45
After you complete the entry, press Ctrl-A to verify the complete syntax before pressing the Return key
to execute the command. The dollar sign ($) appears at the end of the line to show that the line has been
shifted to the right:
ap(config)# access-list 101 permit tcp 131.108.2.5 255.255.255.0 131.108.1$
The software assumes you have a terminal screen that is 80 columns wide. If you have a width other than
that, use the terminal width privileged EXEC command to set the width of your terminal.
Use line wrapping with the command history feature to recall and modify previous complex command
entries. For information about recalling previous command entries, see the “Editing Commands with
Keystrokes” section on page 5-6.
Searching and Filtering Output of show and more Commands
You can search and filter the output for show and more commands. This is useful when you need to sort
through large amounts of output or if you want to exclude output that you do not need to see.
To use this functionality, enter a show or more command followed by the pipe character (|), one of the
keywords begin, include, or exclude, and an expression that you want to search for or filter out:
command | {begin | include | exclude} regular-expression
Expressions are case sensitive. For example, if you enter | exclude protocol the lines that contain
protocol are not displayed, but the lines that contain Protocol are displayed.
This example shows how to include in the output display only lines where the expression protocol
appears:
ap# show interfaces | include protocol
Vlan1 is up, line protocol is up
Vlan10 is up, line protocol is down
GigabitEthernet0/1 is up, line protocol is down
GigabitEthernet0/2 is up, line protocol is up
Draft 1A - CISCO CONFIDENTIAL
5-9
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 5 Using the Command-Line Interface
Accessing the CLI
Accessing the CLI
You can open the access point’s CLI using Telnet or Secure Shell (SSH).
Opening the CLI with Telnet
Follow these steps to open the CLI with Telnet. These steps are for a PC running Microsoft Windows
with a Telnet terminal application. Check your PC operating instructions for detailed instructions for
your operating system.
Step 1 Choose Start > Programs > Accessories > Telnet.
If Telnet is not listed in your Accessories menu, choose Start > Run, type Telnet in the entry field, and
press Enter.
Step 2 When the Telnet window appears, click Connect and choose Remote System.
Note In Windows 2000, the Telnet window does not contain drop-down menus. To start the Telnet
session in Windows 2000, type open followed by the access point’s IP address.
Step 3 In the Host Name field, type the access point’s IP address and click Connect.
Step 4 At the username and password prompts, enter your administrator username and password. The default
username is Cisco, and the default password is Cisco. The default enable password is also Cisco.
Usernames and passwords are case-sensitive.
Opening the CLI with Secure Shell
Secure Shell Protocol provides a secure, remote connection to networking devices set up to use it. Secure
Shell (SSH) is a software package that provides secure login sessions by encrypting the entire session.
SSH features strong cryptographic authentication, strong encryption, and integrity protection. For
detailed information on SSH, visit the homepage of SSH Communications Security, Ltd. at this URL:
http://www.ssh.com/
SSH provides more security for remote connections than Telnet by providing strong encryption when a
device is authenticated. See the Cisco IOS Software Configuration Guide for Cisco Aironet Access Points
for detailed instructions on setting up the access point for SSH access.
Draft 1A - CISCO CONFIDENTIAL
5-10
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 5 Using the Command-Line Interface
Accessing the CLI
CHAPTER
Draft 1A - CISCO CONFIDENTIAL
6-1
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
6
Troubleshooting
This chapter provides troubleshooting procedures for basic problems with the access point. For the most
up-to-date, detailed troubleshooting information, refer to the Cisco Technical Support and
Documentation website at the following URL:
http://www.cisco.com/en/US/products/hw/wireless/tsd_products_support_category_home.html
Sections in this chapter include:
•Checking the Access Point LEDs, page 6-2
•Checking Basic Settings, page 6-4
•Low Power Condition, page 6-6
•Running the Carrier Busy Test, page 6-13
•Running the Ping Test, page 6-14
•Resetting to the Default Configuration, page 6-14
•Reloading the Access Point Image, page 6-16
•Obtaining the Access Point Image File, page 6-19
•Obtaining the TFTP Server Software, page 6-19
Draft 1A - CISCO CONFIDENTIAL
6-2
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 6 Troubleshooting
Checking the Access Point LEDs
Checking the Access Point LEDs
If your access point is not working properly, check the Status, Ethernet, and Radio LEDs on the 2.4 GHz
end of the unit. You can use the LED indications to quickly assess the unit’s status. Figure 6-1 shows the
access point LEDs (for additional information refer to the Event Log using the access point browser
interface).
Figure 6-1 Access Point LEDs
1Status LED 3Radio LED
2Ethernet LED
Draft 1A - CISCO CONFIDENTIAL
6-3
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 6 Troubleshooting
Checking the Access Point LEDs
The LED signals are listed in Table 6-1.
Table 6-1 LED Signals
Message type
Cable Bay Area Top of Unit
MeaningEthernet LED Radio LED Status LED
Boot loader status Green Green Green DRAM memory test ok.
Off Blinking
green
Blue-green Initialize Flash file system.
Off Green Pink Flash memory test ok.
Green Off Dark blue Ethernet test ok.
Green Green Green Starting Cisco IOS.
Association status — — Light green Normal operating condition, but no wireless client
devices are associated with the unit.
— — Blue Normal operating condition, at least one wireless
client device is associated with the unit.
Operating status Green — — Ethernet link is operational.
Blinking
green
— — Transmitting or receiving Ethernet packets.
—Blinking
green
— Transmitting or receiving radio packets.
— — Blinking
dark blue
Software upgrade in progress
Boot loader warnings Off Off Yellow Ethernet link not operational.
Red Off Yellow Ethernet failure.
Amber Off Yellow Configuration recovery in progress
(Mode button pressed for 2 to 3 seconds).
Off Red Pink Image recovery
(Mode button pressed for 20 to 30 seconds)
Blinking
green
Red Blinking
pink and off
Image recovery in progress and Mode button is
released.
Draft 1A - CISCO CONFIDENTIAL
6-4
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 6 Troubleshooting
Checking Basic Settings
Checking Basic Settings
Mismatched basic settings are the most common causes of lost connectivity with wireless clients. If the
access point does not communicate with client devices, check the following areas.
Default IP Address Behavior
When you connect a 1240 series access point running Cisco IOS Release 12.3(4)JA or later software with
a default configuration to your LAN, the access point requests an IP address from your DHCP server
and, if it does not receive an IP address, continues to send requests indefinitely.
Boot loader errors Red Red Red DRAM memory test failure.
Off Red Blinking red
and blue
Flash file system failure.
Off Amber Blinking red
and
blue-green
Environment variable (ENVAR) failure.
Amber Off Blinking red
and yellow
Bad MAC address.
Red Off Blinking red
and off
Ethernet failure during image recovery.
Amber Amber Blinking red
and off
Boot environment error.
Red Amber Blinking red
and off
No Cisco IOS image file.
Amber Amber Blinking red
and off
Boot failure.
Cisco IOS errors Blinking
amber
— — Transmit or receive Ethernet errors.
—Blinking
amber
— Maximum retries or buffer full occurred on the radio.
Red Red Amber Software failure; try disconnecting and reconnecting
unit power.
— — Amber General warning, insufficient inline power (see the
Low Power Condition section).
Message type
Cable Bay Area Top of Unit
MeaningEthernet LED Radio LED Status LED
Draft 1A - CISCO CONFIDENTIAL
6-5
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 6 Troubleshooting
Checking Basic Settings
Enabling the Radio Interfaces
In Cisco IOS Release 12.3(4)JA and later, the access point radios are disabled by default, and there is no
default SSID. You must create an SSID and enable the radios before the access point will allow wireless
associations from other devices. These changes to the default configuration improve the security of
newly installed access points. Refer to the “Configuring Basic Security Settings” section on page 3-9 for
instructions on configuring the SSID.
To enable the radio interfaces, follow these instructions:
Step 1 Use your web-browser to access your access point.
Step 2 When the Summary Status page displays, click Network Interfaces > Radio0-802.11G and the radio
status page displays.
Step 3 Click Settings and the radio settings page displays.
Step 4 Click Enable in the Enable Radio field.
Step 5 Click Apply.
Step 6 Click Radio1-802.11A and the radio status page displays.
Step 7 Repeat Steps 3 to 5.
Step 8 Close your web-browser.
SSID
Wireless clients attempting to associate with the access point must use the same SSID as the access point.
If a client device’s SSID does not match the SSID of an access point in radio range, the client device will
not associate.
Note In Cisco IOS Release 12.3(4)JA and later, there is no default SSID. You must configure an SSID before
client devices can associate to the access point.
WEP Keys
The WEP key you use to transmit data must be set up exactly the same on your access point and any
wireless devices with which it associates. For example, if you set WEP Key 3 on your client adapter to
0987654321 and select it as the transmit key, you must also set WEP Key 3 on the access point to exactly
the same value. The access point does not need to use Key 3 as its transmit key, however.
Refer to the Cisco IOS Software Configuration Guide for Cisco Aironet Access Points for instructions
on setting the access point’s WEP keys.
Security Settings
Wireless clients attempting to authenticate with your access point must support the same security options
configured in the access point, such as EAP or LEAP, MAC address authentication, Message Integrity
Check (MIC), WEP key hashing, and 802.1X protocol versions.
Draft 1A - CISCO CONFIDENTIAL
6-6
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 6 Troubleshooting
Low Power Condition
If a wireless client is unable to authenticate with your access point, contact the system administrator for
proper security settings in the client adapter and for the client adapter driver and firmware versions that
are compatible with the access point settings.
Note The access point MAC address that displays on the Status page in the Aironet Client Utility (ACU) is
the MAC address for the access point radio. The MAC address for the access point Ethernet port is
printed on the label on the back of the access point.
Low Power Condition
Warning
This product must be connected to a Power over Ethernet (PoE) IEEE 802.3af compliant power source
or an IEC60950 compliant limited power source.
Statement 353
The access point can be powered from the 48-VDC power module or from an in-line power source. The
access point supports the IEEE 802.3af power standard, Cisco Pre-Standard PoE protocol, and Cisco
Intelligent Power Management for in-line power sources.
For full operation, the access point requires 12.95 W of power. The power module and Cisco Aironet
power injectors are capable of supplying the required power for full operation, but some inline power
sources are not capable of supplying 12.95 W. Also, some high-power inline power sources, might not
be able to provide 12.95 W of power to all ports at the same time.
Note An 802.3af compliant switch (Cisco or non-Cisco) is capable of supplying sufficient power for full
operation.
Note If your access point is connected to in-line power, do not connect the power module to the access point.
Using two power sources on the access point might cause the access point to shut down to protect internal
components and might cause the switch to shut down the port to which the access point is connected. If
your access point shuts down, you must remove all power and reconnect only a single power source.
On power up, the access point is placed into low power mode (both radios are disabled), Cisco IOS
software loads and runs, and power negotiation determines if sufficient power is available. If there is
sufficient power then the radios are turned on; otherwise, the access point remains in low power mode
with the radios disabled to prevent a possible over-current condition. In low power mode, the access
point activates the Status LED low power error indication, displays a low power message on the browser
and serial interfaces, and creates an event log entry (see the “Checking the Access Point LEDs” section
on page 6-2 and “Inline Power Status Messages” section on page 6-7).
Draft 1A - CISCO CONFIDENTIAL
6-7
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 6 Troubleshooting
Low Power Condition
Intelligent Power Management
The access point requires 12.95 W of power for full power operation with both radios, but only needs
6.3 W of power when operating in low power mode with both radios disabled. To help avoid an
over-current condition with low power sources and to optimize power usage on Cisco switches, Cisco
developed Intelligent Power Management, which uses Cisco Discovery Protocol (CDP) to allow
powered devices (such as your access point) to negotiate with a Cisco switch for sufficient power.
The access point supports Intelligent Power Management and as a result of the power negotiations, the
access point will either enter full power mode or remain in low power mode with the radios disabled.
Note Independent of the power negotiations, the access point hardware also uses the 802.3af classification
scheme to indicate the power required from the power source. However, the power source cannot report
the power available to the access point unless the power source also supports Intelligent Power
Management.
Some Cisco switches that are capable of supplying sufficient power require a software upgrade to
support Intelligent Power Management. If the software upgrade is not desired, you can configure the
access point to operate in pre-standard compatibility mode and the access point automatically enters full
power mode if these Cisco switches are detected in the received CDP ID field.
When the access point determines that sufficient power is not available for full power operation, an error
message is logged and the Status LED turns amber to indicate low power mode (see the “Checking the
Access Point LEDs” section on page 6-2 and the “Inline Power Status Messages” section on page 6-7).
Tip If your switch is capable of supplying sufficient power for full operation but the access point remains in
low-power mode, your access point or your switch (or both) might be misconfigured (see Table 6-2 and
Table 6-3).
If your inline power source is not able to supply sufficient power for full operation, you should consider
these options:
•Upgrade to a higher-powered switch
•Use a Cisco Aironet power injector on the switch port
•Use the 48-VDC power module to locally power the access point
Inline Power Status Messages
These messages are logged on the console port by the access point to report the power condition:
•%CDP_PD-4-POWER_OK: Full Power - AC_ADAPTOR inline power source—This message
indicates the access point is using the power module and can support full-power operation.
•%CDP_PD-4-POWER_OK: Full Power - NEGOTIATED inline power source—This message
indicates the access point is operating at full power and has successfully negotiated for 12.95 W of
power from a Cisco switch supporting Cisco Intelligent Power Management.
•%CDP_PD-4-POWER_OK: Full Power - HIGH_POWER_CLASSIC inline power source—This
message indicates the access point is operating at full power because it has been configured for
pre-standard compatibility mode and has detected a Cisco switch that does not support Intelligent
Power Management but is able to supply sufficient power to the access point.
Draft 1A - CISCO CONFIDENTIAL
6-8
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 6 Troubleshooting
Low Power Condition
•%CDP_PD-4-POWER_OK: Full Power - INJECTOR_CONFIGURED_ON_SOURCE inline power
source—This message indicates the access point is operating at full power because it is connected
to a Cisco switch that supports Intelligent Power Management and the switch has been configured
with Power Inline Never.
•%CDP_PD-4-POWER_OK: Full power - INJECTOR_CONFIGURED_LOCAL inline power
source—This message indicates the access point is operating at full power because it has been
configured to expect a power injector on this port.
•%CDP_PD-4-POWER_OK: Full Power - INJECTOR_DETECTED_PD inline power source—This
message indicates the access point is operating at full power because it has detected a CDP packet
from another Cisco powerable device (PD). The access point power is being supplied from a power
injector or a non-Cisco power source because a Cisco power source does not transmit this type of
CDP packet.
•%CDP_PD-4-POWER_OK: Full Power - INJECTOR_DETECTED_MULTIPLE_MACS_ON_
HUB inline power source—This message indicates the access point is operating at full power
because it has detected multiple Cisco devices. The access point power is being supplied from a
power injector or a non-Cisco power source because a Cisco power source does not forward CDP
packets.
•%CDP_PD-4-POWER_OK: Full Power - NON_CISCO-NO_CDP_RECEIVED inline power
source—This message indicates the access point is operating at full power because it has not
received any CDP packets within the timeout period. This condition indicates your access point is
connected to a non-Cisco power source.
Note To prevent possible over-current conditions, the power source must be an
IEEE 802.3af
compliant power source or an IEC60950 compliant limited power source.
•%CDP_PD-2-POWER_LOW: All radios disabled - NEGOTIATED inline power source—This
message indicates the access point is in low power mode with all radios disabled because the Cisco
power source has indicated it is not capable of supplying sufficient power to the access point.
Note A Cisco power injector might be required.
•%CDP_PD-2-POWER_LOW: All radios disabled - LOW_POWER_CLASSIC inline power source
platform=<platform name> MAC address=<xxxx.xxxx.xxxx>—This message indicates the access
point is in low power mode with all radios disabled and has detected a Cisco switch that is unable
to supply sufficient power to the access point.
The< platform name> indicates the CDP device detected by the access point. The <xxxx.xxxx.xxxx>
indicates the MAC address of the CDP device, typically, the switch port.
Note A Cisco power injector might be required. The MAC address of the switch port must be used
when configuring a power injector to this port.
•%CDP_PD-2-POWER_LOW: All radios disabled- HIGH_POWER_CLASSIC_NOT_
CONFIGURED inline power source platform=<platform name> MAC address=
<xxxx.xxxx.xxxx>—This message indicates the access point is in low power mode with all radios
disabled and has detected a Cisco switch that does not support Intelligent Power Management, but
should be able to supply sufficient power. The access point must be configured for pre-standard
compatibility.
Draft 1A - CISCO CONFIDENTIAL
6-9
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 6 Troubleshooting
Low Power Condition
The< platform name> indicates the Cisco platform detected by the access point. The
<xxxx.xxxx.xxxx> indicates the MAC address of the switch port.
Note You need to upgrade the software on the Cisco switch to support Intelligent Power
Management or configure the access point for pre-standard compatibility.
Configuring Power Using the CLI
Intelligent Power Management support is dependent on the version of software resident in the Cisco
switch that is providing power to the access point. Each Cisco switch should be upgraded to support
Intelligent Power Management. Until the software is upgraded, you can configure the access point to
operate with older switch software using the following Cisco IOS CLI command:
[no] power inline negotiation {prestandard source | injector H.H.H}
(where H.H.H is the MAC address of the switch port to which the access point is connected)
You can use this Cisco IOS CLI command to inform the access point of the following:
•The Cisco switch does not support Intelligent Power Management but should be able to supply
sufficient power.
•A power injector is being used to supply sufficient power and the Cisco switch does not support
Intelligent Power Management.
Refer to Table 6-2 for information on when to use this special Cisco IOS command and the
corresponding Cisco switch power command.
Caution If the access point receives power through PoE, the output current of the power sourcing equipment
(PSE) cannot exceed 400 mA per port. The power source must comply with IEEE802.3af or IEC60950
for limited power sources.
Note After completing your configuration changes, you must remove the serial console cable from the access
point.
Table 6-2 Using Cisco IOS Commands
Power Source
Cisco IOS Commands
Access Point Cisco Switch
AC power module None required power inline never
Cisco switch that supports Intelligent Power
Management1
no power inline negotiation prestandard source
no power inline negotiation injector
power inline auto
Cisco switch that does not support Intelligent
Power Management1
power inline negotiation prestandard source
no power inline negotiation injector
power inline auto
Power injector2 used with a Cisco switch that
supports Intelligent Power Management1
no power inline negotiation prestandard source
no power inline negotiation injector
power inline never3
Draft 1A - CISCO CONFIDENTIAL
6-10
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 6 Troubleshooting
Low Power Condition
Issuing the Cisco IOS Command Using the CLI
Follow these steps to issue the Cisco IOS command for your power scenario:
Step 1 Connect a PC to the access point console port and use a terminal emulator to establish a session with the
access point (refer to the “Connecting to the Access Point Locally” section on page 3-4).
Step 2 From the privileged EXEC mode (refer to the “Cisco IOS Command Modes” section on page 5-2), enter
the command below that applies to your power configuration (see Table 6-2):
•power inline negotiation injector xxxx.xxxx.xxxx
(where xxxx.xxxx.xxxx is the MAC address of the switch port to which the access point is
connected)
Note The MAC address might be available from the Inline Power Status message.
•power inline negotiation prestandard source
Step 3 Enter the write memory command to save the setting to the access point memory.
Step 4 Enter the quit command to exit the terminal session.
Power injector2 used with a Cisco switch that
does not support Intelligent Power
Management1
no power inline negotiation prestandard source
power inline negotiation injector xxxx.xxxx.xxxx
(where xxxx.xxxx.xxxx is the MAC address of the
switch port to which the access point is connected)
Note The MAC address might be available from the
Inline Power Status message.
power inline never
Power injector used with a non-Cisco switch None required –
802.3af compliant non-Cisco switches None required –
1. You should check the release notes for your Cisco power source to determine which Cisco IOS release supports Intelligent Power Management. Support
for Intelligent Power Management might not be currently available for your Cisco power source.
2. Power injector must be AIR-PWRINJ3 or AIR-PWRINJ-FIB.
3. Cisco switches that support Intelligent Power Management always configure the use of a power injector at the switch.
Table 6-2 Using Cisco IOS Commands
Power Source
Cisco IOS Commands
Access Point Cisco Switch
Draft 1A - CISCO CONFIDENTIAL
6-11
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 6 Troubleshooting
Low Power Condition
Configuring the Access Point System Power Settings Using a Browser
You can also use your browser to set the access point System Power Settings.
Note The access point web-browser interface is fully compatible with Microsoft Internet Explorer version 6.0
on Windows 98 and 2000 platforms and with Netscape version 7.0 on Windows 98, Windows 2000, and
Solaris platforms.
Note When using the access point browser interface, you should disable your browser pop-up blocker.
Figure 6-2 shows the system power setting options and indicates the power status of the access point.

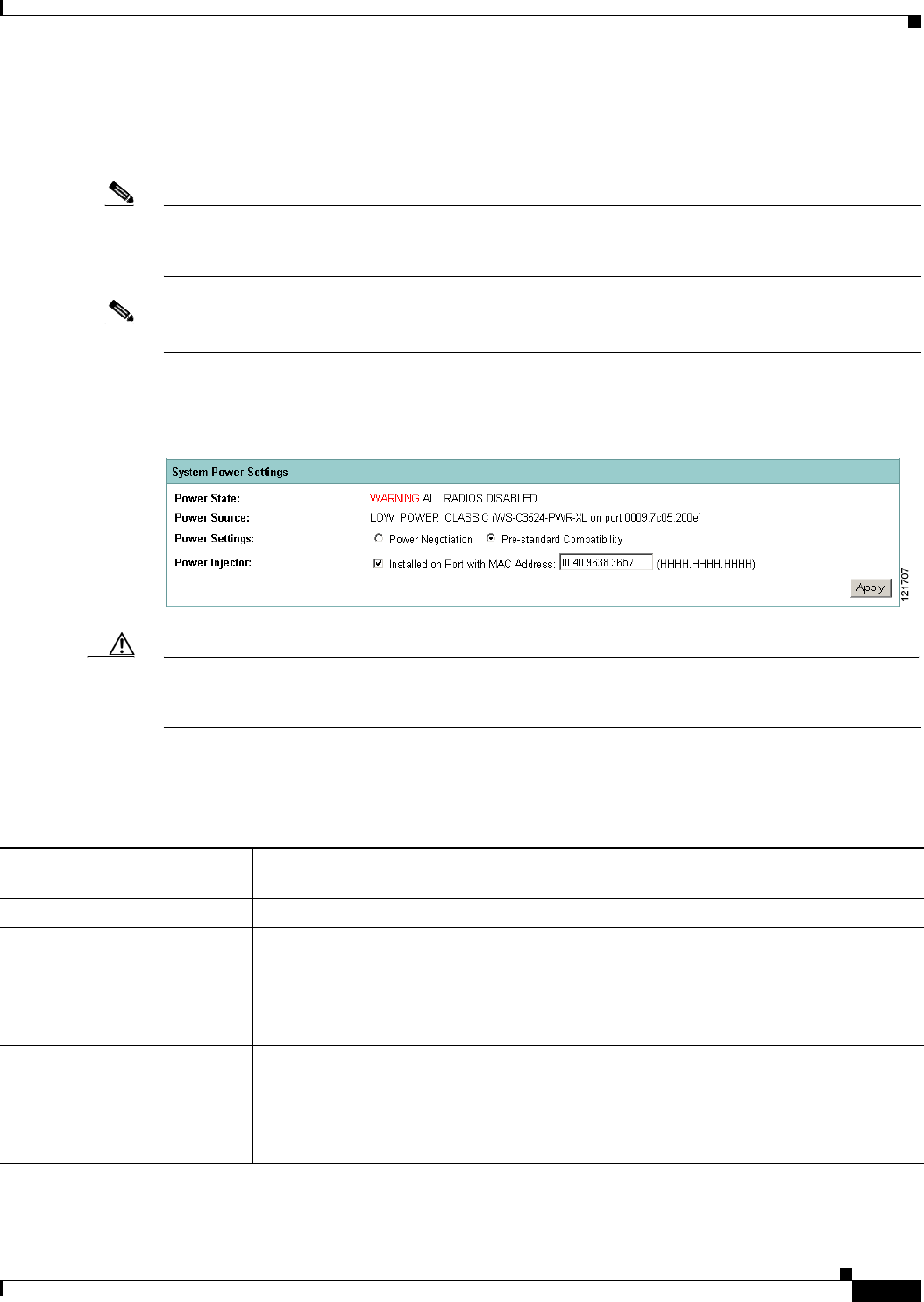

Figure 6-2 System Power Settings
Caution If the access point receives power through PoE, the output current of the power sourcing equipment
(PSE) cannot exceed 400 mA per port. The power source must comply with IEEE802.3af or IEC60950
for limited power sources.
Table 6-3 lists the access point system power settings and the Cisco switch power commands for several
power options.
Table 6-3 Access Point System Power Settings and Cisco Switch Commands
Power Source Access Point System Power Settings
Cisco Switch
Power Command
AC power module Configuration changes are not required power inline never
Cisco switch that supports
Intelligent Power Management1
Power Settings:
Power Negotiation (selected)
Power Injector:
Installed on Port with MAC Address (unchecked)
power inline auto
Cisco switch that does not
support Intelligent Power
Management1
Power Settings:
Pre-standard Compatibility (selected)
Power Injector:
Installed on Port with MAC Address (unchecked)
power inline auto
Draft 1A - CISCO CONFIDENTIAL
6-12
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 6 Troubleshooting
Low Power Condition
Perform these steps to configure your access point power settings using the browser interface:
Step 1 Obtain the access point IP address and browse to your access point.
Step 2 Perform one of these operations:
a. When you browse to your access point operating in low-power mode, a Warning message displays
indicating that all radios are disabled due to insufficient power. Click OK to jump to the System
Power Settings located on the System Software > System Configuration page.
b. When you browse to your access point operating in full-power mode, choose System Software >
System Configuration.
Step 3 Choose one of these Power Settings options (see Figure 6-2):
a. If your Cisco switch supports Intelligent Power Management negotiations, choose Power
Negotiation.
b. If your Cisco switch does not support Intelligent Power Management negotiations, choose
Pre-standard Compatibility.
c. If you are using a non-Cisco switch, changes to the power settings are not required.
Power injector2 used with a
Cisco switch that supports
Intelligent Power Management1
Power Settings:
Power Negotiation (selected)
Power Injector:
Installed on Port with MAC Address (unchecked)
power inline never3
Power injector2 used with a
Cisco switch that does not
support Intelligent Power
Management1
Power Settings:
Power Negotiation (selected)
Power Injector:
Installed on Port with MAC Address (checked)
power inline never
Power injector used with a
non-Cisco switch
Configuration changes are not required –
802.3af compliant non-Cisco
switches
Configuration changes are not required –
1. You should check the release notes for your Cisco power source to determine which Cisco IOS release supports Intelligent Power Management. Support
for Intelligent Power Management might not be currently available for your Cisco power source.
2. Power injector must be AIR-PWRINJ3 or AIR-PWRINJ-FIB.
3. Cisco switches that support Intelligent Power Management always configure the use of a power injector at the switch.
Table 6-3 Access Point System Power Settings and Cisco Switch Commands (continued)
Power Source Access Point System Power Settings
Cisco Switch
Power Command
Draft 1A - CISCO CONFIDENTIAL
6-13
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 6 Troubleshooting
Running the Carrier Busy Test
Step 4 If you are using a power injector with a Cisco switch, choose one of these Power setting options (see
Figure 6-2):
a. If your Cisco switch supports Intelligent Power Management negotiations, uncheck Installed on
Port with MAC address.
b. If your Cisco switch does not support Intelligent Power Management, check Installed on Port with
MAC address and ensure the MAC address for your switch port is displayed in the MAC address
field. The HHHH.HHHH.HHHH indicates the MAC address contains 12 hexadecimal digits.
Note The MAC address field is not case-sensitive.
Step 5 Click Apply and a message displays indicating that you should disable pop-up blockers before
proceeding.
Step 6 Click OK to continue. Your access point reboots and your power settings are configured in the access
point.
Note You might have to refresh your browser page to obtain the latest browser page that indicates your
radios are enabled.
Running the Carrier Busy Test
You can use the carrier busy test to determine the least conjested channel for a radio interface (802.11g
or 802.11a). You should typically run the test several times over several days to obtain the best results
and to avoid temporary activity spikes.
Note The carrier busy test is primarily used for single access points or bridge environments. For sites with
multiple access points, a site survey is typically performed to determine the best operation location and
operating frequency for the access points.
Note All associated clients on the selected radio will be deassociated during the 6 to 8 seconds needed for the
carrier busy test.
Perform these steps to activate the carrier busy test:
Step 1 Use your web browser to access the access point browser interface.
Step 2 Click Network Interfaces and the Network Interface Summary page displays.
Step 3 Choose the radio interface experiencing problems by clicking Radio0-802.11G or Radio1-802.11A.
The respective radio status page displays.
Step 4 Click the Carrier Busy Test tab and the Carrier Busy Test page displays
Draft 1A - CISCO CONFIDENTIAL
6-14
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 6 Troubleshooting
Running the Ping Test
Step 5 Click Start to begin the carrier busy test.
When the test completes, the results are displayed on the page. For each of the channel center
frequencies, the test produces a value indicating the percentage of time that the channel is busy.
Running the Ping Test
You can use the ping test to evaluate the link to and from an associated wireless device. The ping test
provides two modes of operation:
a. Performs a test using a specified number of packets and then displays the test results.
b. Performs a test that continuously operates until you stop the test and then displays the test results.
Follow these steps to activate the ping test:
Step 1 Use your web browser to access the access point browser interface.
Step 2 Click Association and the main association page displays.
Step 3 Click the MAC address of an associated wireless device and the Statistics page for that device displays.
Step 4 Click the Ping/Link Test tab and the Ping/Link Test page displays.
Step 5 If you want to specify the number of packets to use in the test, follow these steps:
a. Enter the number of packets in the Number of Packets field
b. Enter the packet size in the Packet Size field.
c. Click Start.
Step 6 If you want to use a continuous test, follow these steps:
a. Enter the packet size in the Packet Size field.
b. Click Start to activate the test.
c. Click Stop to stop the test.
When the test has completed, the test results are displayed at the bottom of the page. You should check
for any lost packets that can indicate a problem with the wireless link. For best results, you should also
perform this test several times.
Resetting to the Default Configuration
If you forget the password that allows you to configure the access point, you may need to completely
reset the configuration. You can use the MODE button on the access point or the web-browser interface.
Note The following steps reset all configuration settings to factory defaults, including passwords, WEP keys,
the IP address, and the SSID.
Draft 1A - CISCO CONFIDENTIAL
6-15
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 6 Troubleshooting
Resetting to the Default Configuration
Using the MODE Button
Follow these steps to delete the current configuration and return all access point settings to the factory
defaults using the MODE button:
Step 1 Disconnect power (the power jack for external power or the Ethernet cable for in-line power) from the
access point.
Step 2 Press and hold the MODE button while you reconnect power to the access point.
Step 3 Hold the MODE button until the Ethernet LED turns an amber color (approximately 2 to 3 seconds), and
release the button.
Step 4 After the access point reboots, you must reconfigure the access point by using the Web browser interface,
the Telnet interface, or Cisco IOS commands.
Note The access point is configured with the factory default values including the IP address (set to
receive an IP address using DHCP).
Using the Web Browser Interface
Follow these steps to delete the current configuration and return all access point settings to the factory
defaults using the web browser interface.
Step 1 Open your Internet browser.
Note The access point web-browser interface is fully compatible with Microsoft Internet Explorer
version 6.0 on Windows 98 and 2000 platforms and with Netscape version 7.0 on Windows 98,
Windows 2000, and Solaris platforms.
Note When using the access point browser interface, you should disable your browser pop-up blocker.
Step 2 Enter the access point’s IP address in the browser address line and press Enter. An Enter Network
Password page displays.
Step 3 Enter your username in the User Name field.
Step 4 Enter the access point password in the Password field and press Enter. The Summary Status page
displays.
Step 5 Click System Software and the System Software page displays.
Step 6 Click System Configuration and the System Configuration page displays.
Draft 1A - CISCO CONFIDENTIAL
6-16
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 6 Troubleshooting
Reloading the Access Point Image
Step 7 Click the Reset to Defaults button.
Note If the access point is configured with a static IP address, the IP address does not change.
Step 8 After the access point reboots, you must reconfigure the access point by using the Web browser interface,
the Telnet interface, or Cisco IOS commands.
Reloading the Access Point Image
If your access point has a firmware failure, you must reload the complete access point image file using
the Web browser interface or by using the MODE button. You can use the browser interface if the access
point firmware is still fully operational and you want to upgrade the firmware image. However, you can
use the MODE button when the access point has a corrupt firmware image.
Using the MODE Button
You can use the MODE button on the access point to reload the access point image file from an active
Trivial File Transfer Protocol (TFTP) server on your network or on a PC connected to the access point
Ethernet port.
Note If your access point experiences a firmware failure or a corrupt firmware image, indicated by the Status
LED turning an amber color, you must reload the image from a connected TFTP server.
Note This process resets all configuration settings to factory defaults, including passwords, WEP keys, the
access point IP address, and SSIDs.
Follow these steps to reload the access point image file:
Step 1 The PC you intend to use must be configured with a static IP address in the same subnet as the access
point.
Step 2 Place a copy of the access point image file (such as c1240-k9w7-tar.123-4.JA.tar) into the TFTP server
folder on your PC. For additional information, refer to the “Obtaining the Access Point Image File” and
“Obtaining the TFTP Server Software” sections.
Step 3 Rename the access point image file in the TFTP server folder to c1240-k9w7-tar.default.
Step 4 Activate the TFTP server.
Step 5 If using in-line power, use a Category 5 (CAT5) Ethernet cable to connect your PC to the To Network
Ethernet connector on the power injector.
Step 6 Disconnect power (the power jack for external power or the Ethernet cable for in-line power) from the
access point.
Step 7 Press and hold the MODE button while you reconnect power to the access point.
Draft 1A - CISCO CONFIDENTIAL
6-17
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 6 Troubleshooting
Reloading the Access Point Image
Step 8 Hold the MODE button until the Radio LED turns a red color (approximately 20 to 30 seconds), and
release the MODE button.
Step 9 After the access point reboots, you must reconfigure the access point by using the Web interface, the
Telnet interface, or Cisco IOS commands.
Web Browser Interface
You can also use the Web browser interface to reload the access point image file. The Web browser
interface supports loading the image file using HTTP or TFTP interfaces.
Note Your access point configuration is not changed when using the browser to reload the image file.
Browser HTTP Interface
The HTTP interface enables you to browse to the access point image file on your PC and download the
image to the access point. Follow these instructions to use the HTTP interface:
Step 1 Open your Internet browser.
Note The access point web-browser interface is fully compatible with Microsoft Internet Explorer
version 6.0 on Windows 98 and 2000 platforms and with Netscape version 7.0 on Windows 98,
Windows 2000, and Solaris platforms.
Note When using the access point browser interface, you should disable your browser pop-up blocker.
Step 2 Enter the access point’s IP address in the browser address line and press Enter. An Enter Network
Password page displays.
Step 3 Enter your username in the User Name field.
Step 4 Enter the access point password in the Password field and press Enter. The Summary Status page
displays.
Step 5 Click the System Software tab and then click Software Upgrade. The HTTP Upgrade page displays.
Step 6 Click the Browse button to locate the access point image file (such as c1240-k9w7-tar.123-4.JA.tar) on
your PC.
Step 7 Click the Upload button.
For additional information, click the Help icon on the Software Upgrade page.
Draft 1A - CISCO CONFIDENTIAL
6-18
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 6 Troubleshooting
Reloading the Access Point Image
Browser TFTP Interface
The TFTP interface allows you to use a TFTP server on a network device to load the access point image
file. Follow these instructions to use a TFTP server:
Step 1 Open your Internet browser.
Note The access point web-browser interface is fully compatible with Microsoft Internet Explorer
version 6.0 on Windows 98 and 2000 platforms and with Netscape version 7.0 on Windows 98,
Windows 2000, and Solaris platforms.
Note When using the access point browser interface, you should disable your browser pop-up blocker.
Step 2 Enter the access point’s IP address in the browser address line and press Enter. An Enter Network
Password page displays.
Step 3 Enter your username in the User Name field.
Step 4 Enter the access point password in the Password field and press Enter. The Summary Status page
displays.
Step 5 Click the System Software tab and then click Software Upgrade. The HTTP Upgrade page displays.
Step 6 Click the TFTP Upgrade tab.
Step 7 Enter the IP address for the TFTP server in the TFTP Server field.
Step 8 Enter the file name for the access point image file (such as c1240-k9w7-tar.123-4.JA.tar) in the Upload
New System Image Tar File field. If the file is located in a subdirectory of the TFTP server root directory,
include the relative path of the TFTP server root directory with the filename. If the file is located in the
TFTP root directory, enter only the filename.
Step 9 Click the Upload button.
Step 10 When a message displays that indicates the upgrade is complete, click OK.
For additional information click the Help icon on the Software Upgrade page.
Draft 1A - CISCO CONFIDENTIAL
6-19
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 6 Troubleshooting
Obtaining the Access Point Image File
Obtaining the Access Point Image File
The access point image file can be obtained from the Cisco.com software center using these steps:
Step 1 Use your Internet browser to access the Cisco Software Center at the following URL:
http://www.cisco.com/public/sw-center/sw-wireless.shtml
Step 2 Click Option 2: Aironet Wireless Software Display Tables.
Step 3 Find the access point firmware and utilities section and click Cisco Aironet 1240AG Series (Cisco IOS
Software).
Step 4 Click on the access point image file, such as c1240-k9w7-tar.123-4.JA.tar.
Step 5 On the Encryption Authorization Form, enter the requested information, read the encryption
information, and check the boxes that apply.
Step 6 Click Submit.
Step 7 Read and accept the terms and conditions of the Software License Agreement.
Step 8 Select the image file again to download it.
Step 9 Download and save the image file to your hard drive and then exit the Internet browser.
Obtaining the TFTP Server Software
You can download TFTP server software from several web sites. Cisco recommends the shareware TFTP
utility available at this URL:
http://tftpd32.jounin.net
Follow the instructions on the website for installing and using the utility.
Draft 1A - CISCO CONFIDENTIAL
6-20
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Chapter 6 Troubleshooting
Obtaining the TFTP Server Software
Draft 1A - CISCO CONFIDENTIAL
A-1
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
APPENDIX
A
Translated Safety Warnings
This appendix provides translations of the safety warnings that appear in this publication. These
translated warnings apply to other documents in which they appear in English. The following safety
warnings appear in this appendix:
•Statement 245B—Explosive Device Proximity Warning, page A-2
•Statement 332—Antenna Installation Warning, page A-3
•Statement 353—Power Source Warning, page A-3
•Statement 1001—Work During Lightning Activity Warning, page A-5
•Statement 1004—Installation Instructions Warning, page A-6
•Statement 1005—Circuit Breaker (20A) Warning, page A-7
Draft 1A - CISCO CONFIDENTIAL
A-2
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix A Translated Safety Warnings
Statement 245B—Explosive Device Proximity Warning
Statement 245B—Explosive Device Proximity Warning
Warning
Do not operate your wireless network device near unshielded blasting
caps or in an explosive
environment unless the device has been modified to be especially qualified for such use.
Statement 245B
Waarschuwing
Gebruik dit draadloos netwerkapparaat alleen in de buurt van onbeschermde ontstekers of in
een omgeving met explosieven indien het apparaat speciaal is aangepast om aan de eisen voor
een dergelijk gebruik te voldoen.
Varoitus
Älä käytä johdotonta verkkolaitetta suojaamattomien räjäytysnallien läheisyydessä tai
räjäytysalueella, jos laitetta ei ole erityisesti muunnettu sopivaksi sellaiseen käyttöön.
Attention
Ne jamais utiliser un équipement de réseau sans fil à proximité d'un détonateur non blindé ou
dans un lieu présentant des risques d'explosion, sauf si l'équipement a été modifié à cet effet.
Warnung
Benutzen Sie Ihr drahtloses Netzwerkgerät nicht in der Nähe ungeschützter Sprengkapseln oder
anderer explosiver Stoffe, es sei denn, Ihr Gerät wurde eigens für diesen Gebrauch modifiziert
und bestimmt.
Avvertenza
Non utilizzare la periferica di rete senza fili in prossimità di un detonatore non protetto o di
esplosivi a meno che la periferica non sia stata modificata a tale proposito.
Advarsel
Ikke bruk den trådløse nettverksenheten nært inntil uisolerte fenghetter eller i et eksplosivt
miljø med mindre enheten er modifisert slik at den tåler slik bruk.
Aviso
Não opere o dispositivo de rede sem fios perto de cápsulas explosivas não protegidas ou num
ambiente explosivo, a não ser que o dispositivo tenha sido modificado para se qualificar
especialmente para essa utilização.
¡Advertencia!
No utilizar un aparato de la red sin cable cerca de un detonador que no esté protegido ni tampoco
en un entorno explosivo a menos que el aparato haya sido modificado con ese fin.
Varning!
Använd inte den trådlösa nätverksenheten i närheten av oskyddade tändhattar eller i en explosiv
miljö om inte enheten modifierats för att kunna användas i sådana sammanhang.
Draft 1A - CISCO CONFIDENTIAL
A-3
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix A Translated Safety Warnings
Statement 332—Antenna Installation Warning
Statement 332—Antenna Installation Warning
Statement 353—Power Source Warning
Warning
In order to comply with FCC radio frequency (RF) exposure limits, antennas should be located at a
minimum of 7.9 inches (20 cm) or more from the body of all persons.
Statement 332
Waarschuwing
Om te voldoen aan de FCC radiofrequentie (RF) blootstellingslimieten dienen antennes zich minstens
20 cm of meer van de lichamen van alle personen bevinden.
Varoitus
FCC:n antamien radiotaajuuksille altistumista koskevien rajoitusten mukaan antennien on sijaittava
vähintään 20 cm:n päässä kaikista henkilöistä.
Attention
Pour se conformer aux limites d'exposition à la fréquence radio préconisées par la FCC (Federal
Communications Commission), les antennes doivent se situer à un minimum de 20 cm de toute
personne.
Warnung
Um die in den FCC-Richtlinien festgelegten Expositionshöchstgrenzen für Radiofrequenzen (RF)
nicht zu überschreiten, sollten Antennen mindestens 20 cm entfernt von Personen aufgestellt
werden.
Avvertenza
Per conformarsi ai limiti FCC di esposizione a radiofrequenza (RF), le antenne devono stare ad una
distanza minima di 20 cm dal corpo di ogni persona.
Advarsel
I henhold til eksponeringsgrensene for radiofrekvenser (RF), skal antenner befinne seg på en
avstand av minst 20 cm eller mer fra mennesker.
Aviso
Para estar de acordo com as normas FCC de limites de exposição para freqüência de rádio (RF), as
antenas devem estar distantes no mínimo 20 cm (7,9 pol) do corpo de qualquer pessoa.
¡Advertencia!
Para cumplir con los límites de exposición de radio frecuencia (RF) de la Comisión Federal de
Comunicaciones (FCC) es preciso ubicar las antenas a un mínimo de 20 cm (7,9 pulgadas) o más del
cuerpo de las personas.
Varning!
För att följa FCC-exponeringsgränserna för radiofrekvens (RF), bör antenner placeras på minst 20 cm
avstånd från alla människor.
Warning
This product must be connected to a Power over Ethernet (PoE) IEEE 802.3af compliant power source
or an IEC60950 compliant limited power source.
Statement 353
Waarschuwing
Dit product moet worden verbonden met een stroomvoorziening die compatibel is met PoE (Power
over Ethernet) IEEE 802.3af of een beperkte stroomvoorziening die compatibel is met IEC60950.
Draft 1A - CISCO CONFIDENTIAL
A-4
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix A Translated Safety Warnings
Statement 353—Power Source Warning
Varoitus
Tämä tuote on liitettävä PoE (Power over Ethernet) IEEE 802.3af -yhteensopivaan virtalähteeseen tai
IEC60950-yhteensopivaan rajoitettuun virtalähteeseen.
Attention
Ce produit doit être connecté à une source d'alimentation électrique par câble Ethernet (PoE)
conforme à la norme IEEE 802.3af ou à une source d'alimentation limitée conforme à la norme
IEC60950.
Warnung
Dieses Produkt muss entweder an eine Stromquelle angeschlossen sein, die mit dem IEEE
802.3af-Standard Power over Ethernet (PoE) kompatibel ist oder an eine Stromquelle für geringe
Leistungen, die IEC60950-kompatibel ist.
Avvertenza
Questo prodotto deve essere connesso a una fonte di alimentazione di tipo PoE (Power over
Ethernet) conforme a IEEE 802.3af o a una fonte di alimentazione conforme a IEC60950.
Advarsel
Dette produktet må være koblet til en Power over Ethernet (PoE) IEEE 802.3af-kompatibel strømkilde
eller en IEC60950-kompatibel begrenset strømkilde.
Aviso
Este produto tem de estar ligado a uma fonte de alimentação compatível com a norma IEEE 802.3af,
também conhecida pela sigla Power over Ethernet (PoE), ou a uma fonte de alimentação limitada
compatível com a norma IEC60950.
¡Advertencia!
Debe conectar este producto a una fuente de alimentación sobre ethernet (PoE) conforme con el
estándar IEEE 802.3af, o a una fuente limitada conforme con el estándar IEC60950.
Varning!
Denna produkt måste vara ansluten till en PoE IEEE 802.3af-kompatibel strömkälla eller en
IEC60950-kompatibel begränsad strömkälla.
Draft 1A - CISCO CONFIDENTIAL
A-5
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix A Translated Safety Warnings
Statement 1001—Work During Lightning Activity Warning
Statement 1001—Work During Lightning Activity Warning
Warning
Do not work on the system or connect or disconnect cables during periods of lightning activity.
Statement 1001
Waarschuwing
Tijdens onweer dat gepaard gaat met bliksem, dient u niet aan het systeem te werken of kabels aan
te sluiten of te ontkoppelen.
Varoitus
Älä työskentele järjestelmän parissa äläkä yhdistä tai irrota kaapeleita ukkosilmalla.
Attention
Ne pas travailler sur le système ni brancher ou débrancher les câbles pendant un orage.
Warnung
Arbeiten Sie nicht am System und schließen Sie keine Kabel an bzw. trennen Sie keine ab, wenn
es gewittert.
Avvertenza
Non lavorare sul sistema o collegare oppure scollegare i cavi durante un temporale con fulmini.
Advarsel
Utfør aldri arbeid på systemet, eller koble kabler til eller fra systemet når det tordner eller lyner.
Aviso
Não trabalhe no sistema ou ligue e desligue cabos durante períodos de mau tempo (trovoada).
¡Advertencia!
No operar el sistema ni conectar o desconectar cables durante el transcurso de descargas
eléctricas en la atmósfera.
Varning!
Vid åska skall du aldrig utföra arbete på systemet eller ansluta eller koppla loss kablar.
Draft 1A - CISCO CONFIDENTIAL
A-6
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix A Translated Safety Warnings
Statement 1004—Installation Instructions Warning
Statement 1004—Installation Instructions Warning
Warning
Read the installation instructions before connecting the system to the power source.
Statement 1004
Waarschuwing
Raadpleeg de installatie-instructies voordat u het systeem op de voedingsbron aansluit.
Varoitus
Lue asennusohjeet ennen järjestelmän yhdistämistä virtalähteeseen.
Attention
Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation.
Warnung
Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen.
Avvertenza
Consultare le istruzioni di installazione prima di collegare il sistema all'alimentatore.
Advarsel
Les installasjonsinstruksjonene før systemet kobles til strømkilden.
Aviso
Leia as instruções de instalação antes de ligar o sistema à fonte de energia.
¡Advertencia!
Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.
Varning!
Läs installationsanvisningarna innan du kopplar systemet till strömförsörjningsenheten.
Draft 1A - CISCO CONFIDENTIAL
A-7
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix A Translated Safety Warnings
Statement 1005—Circuit Breaker (20A) Warning
Statement 1005—Circuit Breaker (20A) Warning
Warning
This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure
that the protective device is rated not greater than:
20A
Statement 1005
Waarschuwing
Dit product is afhankelijk van de installatie van het gebouw voor beveiliging tegen kortsluiting
(overstroom). Controleer of de beschermingsinrichting niet meer dan:
20A is.
Varoitus
Tämä tuote on riippuvainen rakennukseen asennetusta oikosulkusuojauksesta
(ylivirtasuojauksesta). Varmista, että suojalaitteen mitoitus ei ole yli:
20A
Attention
Pour ce qui est de la protection contre les courts-circuits (surtension), ce produit dépend de
l'installation électrique du local. Vérifiez que le courant nominal du dispositif de protection n'est
pas supérieur à :
20A
Warnung
Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz
installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als:
20A beträgt.
Avvertenza
Questo prodotto dipende dall'impianto dell'edificio per quanto riguarda la protezione contro
cortocircuiti (sovracorrente). Assicurarsi che il dispositivo di protezione non abbia un rating
superiore a:
20A
Advarsel
Dette produktet er avhengig av bygningens installasjoner av kortslutnings (overstrøm)-beskyttelse.
Påse at verneenheten ikke er merket høyere enn:
20A
Aviso
Este produto depende das instalações existentes para proteção contra curto-circuito (sobrecarga).
Assegure-se de que o fusível ou disjuntor não seja superior a:
20A
¡Advertencia!
Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio. Asegúrese
de que el dispositivo de protección no sea superior a:
20A
Varning!
Denna produkt är beroende av i byggnaden installerat kortslutningsskydd (överströmsskydd).
Kontrollera att skyddsanordningen inte har högre märkvärde än:
20A
20A
Draft 1A - CISCO CONFIDENTIAL
A-8
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix A Translated Safety Warnings
Statement 1005—Circuit Breaker (20A) Warning
20A
20A
20A
Draft 1A - CISCO CONFIDENTIAL
B-1
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
APPENDIX
B
Declarations of Conformity and Regulatory
Information
This appendix provides declarations of conformity and regulatory information for the Cisco Aironet
1240AG Series Access Points.
This appendix contains the following sections:
•Manufacturers Federal Communication Commission Declaration of Conformity Statement
•Department of Communications—Canada
•European Community, Switzerland, Norway, Iceland, and Liechtenstein
•Declaration of Conformity for RF Exposure
•Guidelines for Operating Cisco Aironet Access Points in Japan
Draft 1A - CISCO CONFIDENTIAL
B-2
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix B Declarations of Conformity and Regulatory Information
Manufacturers Federal Communication Commission Declaration of Conformity Statement
Manufacturers Federal Communication Commission
Declaration of Conformity Statement
Model:
AIR-AP1242AG-A-K9
FCC Certification number:
LDK102055
Manufacturer:
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
This device complies with Part 15 rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a residential environment. This equipment generates,
uses, and radiates radio frequency energy, and if not installed and used in accordance with the
instructions, may cause harmful interference. However, there is no guarantee that interference will not
occur. If this equipment does cause interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to correct the interference by one of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase separation between the equipment and receiver.
•Connect the equipment to an outlet on a circuit different from which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician.
Caution The Part 15 radio device operates on a non-interference basis with other devices operating at this
frequency when using the integrated antennas. Any changes or modification to the product not expressly
approved by Cisco could void the user’s authority to operate this device.
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
Draft 1A - CISCO CONFIDENTIAL
B-3
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix B Declarations of Conformity and Regulatory Information
Department of Communications—Canada
Caution Within the 5.15 to 5.25 GHz band (5 GHz radio channels 34 to 48) the U-NII devices are restricted to
indoor operations to reduce any potential for harmful interference to co-channel Mobile Satellite System
(MSS) operations.
Department of Communications—Canada
Model:
AIR-AP1242AG-A-K9
Certification number:
2461B-102055
Canadian Compliance Statement
This Class B Digital apparatus meets all the requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numerique de la classe B respecte les exigences du Reglement sur le material broilleur du
Canada.
This device complies with Class B Limits of Industry Canada. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
Cisco Aironet 2.4-GHz Access Points are certified to the requirements of RSS-210 for 2.4-GHz spread
spectrum devices, and Cisco Aironet 54-Mbps, 5-GHz Access Points are certified to the requirements of
RSS-210 for 5-GHz spread spectrum devices.The use of this device in a system operating either partially
or completely outdoors may require the user to obtain a license for the system according to the Canadian
regulations. For further information, contact your local Industry Canada office.
European Community, Switzerland, Norway, Iceland, and
Liechtenstein
Model:
AIR-AP1242AG-E-K9
Draft 1A - CISCO CONFIDENTIAL
B-4
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix B Declarations of Conformity and Regulatory Information
European Community, Switzerland, Norway, Iceland, and Liechtenstein
Declaration of Conformity with Regard to the R&TTE Directive 1999/5/EC
For 2.4 GHz radios, the following standards were applied:
•Radio: EN 300.328-1, EN 300.328-2
•EMC: EN 301.489-1, EN 301.489-17
•Safety: EN 60950
Note This equipment is intended to be used in all EU and EFTA countries. Outdoor use may be restricted to
certain frequencies and/or may require a license for operation. For more details, contact Cisco Corporate
Compliance.
English: This equipment is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Deutsch: Dieses Gerät entspricht den grundlegenden Anforderungen und den weiteren
entsprecheneden Vorgaben der Richtlinie 1999/5/EU.
Dansk: Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante
bestemmelser i Directiv 1999/5/EF.
Español: Este equipo cumple con los requisitos esenciales asi como con otras disposiciones de
la Directive 1999/5/EC.
Έλληνας: Αυτός ο εξοπλισµός συµµορφώνεται µε τις ουσιώδεις απαιτήσεις και τις λοιπές
διατάξεις της Οδηγίας 1999/5/EΚ.
Français: Cet appareil est conforme aux exigencies essentialles et aux autres dispositions
pertinantes de la Directive 1999/5/EC.
Íslenska: Þessi búnaður samrýmist lögboðnum kröfum og öðrum ákvæðum tilskipunar
1999/5/ESB.
Italiano: Questo apparato é conforme ai requisiti essenziali ed agli altri principi sanciti dalla
Direttiva 1999/5/EC.
Nederlands: Deze apparatuur voldoet aan de belangrijkste eisen en andere voorzieningen van
richtlijn 1999/5/EC.
Norsk: Dette utstyret er i samsvar med de grunnleggende krav og andre relevante
bestemmelser i EU-directiv 1999/5/EC.
Português: Este equipamento satisfaz os requisitos essenciais e outras provisões da Directiva
1999/5/EC.
Suomalainen: Tämä laite täyttää direktiivin 1999/5/EY oleelliset vaatimukset ja on siinä asetettujen
muidenkin ehtojen mukainen.
Svenska: Denna utrustning är i överensstämmelse med de väsentliga kraven och andra
relevanta bestämmelser i Direktiv 1999/5/EC.
Draft 1A - CISCO CONFIDENTIAL
B-5
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix B Declarations of Conformity and Regulatory Information
Declaration of Conformity for RF Exposure
For 54 Mbps, 5 GHz access points, the following standards were applied:
•Radio: EN 301.893
•EMC: EN 301.489-1, EN 301.489-17
•Safety: EN 60950
The following CE mark is affixed to the access point with a 2.4 GHz radio and a 54 Mbps, 5 GHz radio:
Declaration of Conformity for RF Exposure
The radio has been found to be compliant to the requirements set forth in CFR 47 Sections 2.1091, and
15.247 (b) (4) addressing RF Exposure from radio frequency devices as defined in Evaluating
Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. The
equipment shoud be installed more than 20 cm (7.9 in.) from your body or nearby persons.
The access point must be installed to maintain a minimum 20 cm (7.9 in.) co-located separation distance
from other FCC approved indoor/outdoor antennas used with the access point. Any antennas or
transmitters not approved by the FCC cannot be co-located with the access point. The access point’s
co-located 2.4 GHz and 5 GHz integrated antennas support a minimum separation distance of
8 cm (3.2 in.) and are compliant with the applicable FCC RF exposure limit when transmitting
simultaneously.
Note Dual antennas used for diversity operation are not considered co-located.
Draft 1A - CISCO CONFIDENTIAL
B-6
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix B Declarations of Conformity and Regulatory Information
Guidelines for Operating Cisco Aironet Access Points in Japan
Guidelines for Operating Cisco Aironet Access Points in Japan
This section provides guidelines for avoiding interference when operating Cisco Aironet access points
in Japan. These guidelines are provided in both Japanese and English.
Model:
AIR-AP1242AG-J-K9
Japanese Translation
English Translation
This equipment operates in the same frequency bandwidth as industrial, scientific, and medical devices
such as microwave ovens and mobile object identification (RF-ID) systems (licensed premises radio
stations and unlicensed specified low-power radio stations) used in factory production lines.
1. Before using this equipment, make sure that no premises radio stations or specified low-power radio
stations of RF-ID are used in the vicinity.
2. If this equipment causes RF interference to a premises radio station of RF-ID, promptly change the
frequency or stop using the device; contact the number below and ask for recommendations on
avoiding radio interference, such as setting partitions.
3. If this equipment causes RF interference to a specified low-power radio station of RF-ID, contact
the number below.
Contact Number: 03-5549-6500
03-5549-6500
43768
Draft 1A - CISCO CONFIDENTIAL
B-7
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix B Declarations of Conformity and Regulatory Information
Declaration of Conformity Statements
Declaration of Conformity Statements
All the Declaration of Conformity statements related to this product can be found at the following URL:
http://www.ciscofax.com
Declaration of Conformity Statements for European Union
Countries
The Declaration of Conformity statement for the European Union countries is listed below:
Draft 1A - CISCO CONFIDENTIAL
B-8
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix B Declarations of Conformity and Regulatory Information
Declaration of Conformity Statements for European Union Countries
Draft 1A - CISCO CONFIDENTIAL
C-1
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
APPENDIX
C
Access Point Specifications
Table C-1 lists the technical specifications for the Cisco Aironet 1240AG Series Access Point.
Table C-1 Access Point Specifications
Category 802.11G Radio Specifications 802.11A Radio Specifications
Size 6.6 in. W x 8.5 in. D x 1.1 in. H
16.8 cm W x 21.6 cm D x 2.8 cm H
Indicators Three indicators on the 2.4 Ghz end panel: Ethernet traffic, status, and radio traffic.
Connectors 2.4 GHz end panel (left to right)
Left RP-TNC antenna connector; RJ-45 connector for serial console port connections; RJ-45
connector for 10BASE-T or 100BASE-T Ethernet connections; power connector (for plug-in
48VDC AC power module); right RP-TNC antenna connector.
5-GHz end panel (left to right)
Left RP-TNC antenna connector; right RP-TNC antenna connector.
Input Voltage 48 VDC (nominal)
Input Power TBD W (typical)
12 W (maximum)
Operating Temperature Base unit:
–4 to 122oF (–20 to 50oC)
1240AG series power module:
32 to 104oF (0 to 40oC)
Weight Without mounting hardware:
2 lbs (0.9 kg)
Power Output 100 mW (20dBm)
50 mW (17 dBm)
25 mW (14 dBm)
10 mW (11 dBm)
5 mW (8 dBm)
3 mW (5 dBm)
1 mW (2 dBm)
0.5 mW (-1 dBm)
(Depending on the regulatory domain in which the access point is
installed)
50 mW (17 dBm)
25 mW (14 dBm)
10 mW (11 dBm)
5 mW (8 dBm)
3 mW (5 dBm)
1 mW (2 dBm)
0.5 mW (-1 dBm)
(Depending on the regulatory
domain in which the access point
is installed)
Draft 1A - CISCO CONFIDENTIAL
C-2
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix C Access Point Specifications
Antenna A diversity system with two external antenna connectors A diversity system with two
external antenna connectors.
Frequency 2.400 to 2.497 GHz
(Depending on the regulatory domain in which the access point is
installed)
5.15 to 5.25 GHz
5.25 to 5.35 GHz
5.725 to 5.85 GHz
(Depending on the regulatory
domain in which the access point
is installed)
Modulation Complementary Code Keying
(CCK)
Orthogonal Frequency Division Multiplex (OFDM)
Subcarrier modulation BPSK (1 Mbps)
QPSK (2 Mbps)
CCK (5.5 and 11 Mbps)
BPSK (6 and 9 Mbps)
QPSK (12 and 18 Mbps)
16-QAM (24 and 36 Mbps)
64-QAM (48 and 54 Mbps)
BPSK (6 Mbps and 9 Mbps)
QPSK (12 Mbps and 18 Mbps)
16-QAM (24 and 36 Mbps)
64-QAM (48 and 54 Mbps)
Data rates 1, 2, 5.5, and 11 Mbps 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
Typical indoor range 450 ft at 1 Mbps
360 ft at 11 Mbps
400 ft at 6 Mbps
100 ft at 54 Mbps
325 ft at 6 Mbps
80 ft at 54 Mbps
Compliance The 1240 series access point complies with UL 2043 for products installed in a building’s
environmental air handling spaces, such as above suspended ceilings.
Caution Only the fiber-optic power injector (AIR-PWRINJ-FIB) has been tested to UL 2043 for
operation in a building’s environmental air space; no other power injectors or power modules
have been tested to UL 2043 and they should not be placed in a building’s environmental
air space, such as above suspended ceilings.
Safety Designed to meet:
UL 60950-1
CAN/CSA C22.2 No. 60950-1
UL 2043
EN 60950-1
IEC 60950-1
Radio Approvals FCC Parts 15.247
Canada RSS-210
Japan ARIB-STD-33B
Japan ARIB-STD-66
Europe EN-300.328
FCC Part 15.407
Canada RSS-210
Japan ARIB STD-T71
EN 301.893
Table C-1 Access Point Specifications (continued)
Category 802.11G Radio Specifications 802.11A Radio Specifications
Draft 1A - CISCO CONFIDENTIAL
C-3
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix C Access Point Specifications
EMI and Susceptibility FCC Part 15.107 and 15.109 Class B
ICES-003 Class B (Canada)
EN 55022 B
AS/NZS 3548 Class B
VCCI Class B
EN 301.489-1
EN 301.489-17
RF Exposure OET-65C
RSS-102
ANSI C95.1
Table C-1 Access Point Specifications (continued)
Category 802.11G Radio Specifications 802.11A Radio Specifications
Draft 1A - CISCO CONFIDENTIAL
C-4
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix C Access Point Specifications
Draft 1A - CISCO CONFIDENTIAL
D-1
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
APPENDIX
D
Channels and Power Levels
This appendix lists the IEEE 802.11b/g (2.4-GHz) and the IEEE 802.11a (5-GHz) channels and
maximum power levels supported by the world’s regulatory domains.
The following topic is covered in this appendix:
•Channels and Maximum Power Levels, page D-2
Draft 1A - CISCO CONFIDENTIAL
D-2
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix D Channels and Power Levels
Channels and Maximum Power Levels
Channels and Maximum Power Levels
IEEE 802.11b/g (2.4-GHz Band)
An improper combination of power level and antenna gain can result in equivalent isotropic radiated
power (EIRP) above the amount allowed per regulatory domain. Table D-1and Table D-2 indicates the
channel identifiers, channel center frequencies, and maximum power levels for each channel allowed by
the regulatory domains:
.
Table D-1 Channels and Maximum Conducted Power for the 802.11b/g Radio with up to 10 dBi Antennas
Channel
Identifier
Center
Frequency
(MHz)
Maximum Conducted Power Levels (dBm) in the Regulatory Domains
Americas
(–A)
China1
(–C)
1. Indicates the power level settings shipped from the factory. You might need to reset the maximum power levels used with your external antenna (see
Table D-4).
EMEA1
(–E)
Japan
(–J)
Japan
(–P)
CCK OFDM CCK OFDM CCK OFDM CCK OFDM CCK OFDM
1 2412 20171717171714141414
2 2417 20171717171714141414
3 2422 20171717171714141414
4 2427 20171717171714141414
5 2432 20171717171714141414
6 2437 20171717171714141414
7 2442 20171717171714141414
8 2447 20171717171714141414
9 2452 20171717171714141414
10 2457 20 17 17 17 17 17 14 14 14 14
11 2462 20 17 17 17 17 17 14 14 14 14
12 2467 – – 17 17 17 17 14 14 14 14
13 2472 – – 17 17 17 17 14 14 14 14
14 2484 – – – – – – 14 – 14 –
Draft 1A - CISCO CONFIDENTIAL
D-3
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix D Channels and Power Levels
Channels and Maximum Power Levels
IEEE 802.11a (5-GHz Band)
An improper combination of power level and antenna gain can result in equivalent isotropic radiated
power (EIRP) above the amount allowed per regulatory domain.
Table D-2 Channels and Maximum Conducted Power for the 802.11b/g Radio with up to 10 dBi Antennas
Channel
Identifier
Center
Frequency
(MHz)
Maximum Conducted Power Levels (dBm) in the Regulatory Domains
South Korea1
(–K)
1. Indicates the power level settings shipped from the factory. You might need to reset the maximum power levels used with your external antenna (see
Table D-4).
North America
(–N)
Singapore1
(–S)
Taiwan
(–T)
Israel1
(–I)
CCK OFDM CCK OFDM CCK OFDM CCK OFDM CCK OFDM
1 2412 1717201717172017 – –
2 2417 1717201717172017 – –
3 2422 1717201717172017 – –
4 2427 1717201717172017 – –
5 2432 17172017171720171717
6 2437 17172017171720171717
7 2442 17172017171720171717
8 2447 17172017171720171717
9 2452 17172017171720171717
10 2457 17 17 20 17 17 17 20 17 17 17
11 2462 17 17 20 17 17 17 20 17 17 17
12 2467 17 17 – – 17 17 – – 17 17
13 2472 17 17 – – 17 17 – – 17 17
14 2484––––––––––
Draft 1A - CISCO CONFIDENTIAL
D-4
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix D Channels and Power Levels
Channels and Maximum Power Levels
Table D-3 indicates the channel identifiers, channel center frequencies, and maximum power levels for
each IEEE 802.11a 20-MHz-wide channel allowed by the regulatory domains:
Table D-3 Channels and Maximum Conducted Power for IEEE 802.11a Radio with up to 9.5 dBi Antennas
Channel
Identifier
Center
Frequency
(MHz)
Maximum Conducted Power Levels (dBm) in the Regulatory Domains
Americas
(–A)
China
(–C)
EMEA1
(–E)
1. Indicates the power level settings shipped from the factory. You might need to reset the maximum power levels used with your external antennas (see
Table D-5).
Japan
(–J)
Japan
(–P)
South
Korea (–K)
North
America (–N)
Singapore
(–S)
Taiwan
(–T)
Israel1
(–I)
UNII-1 (5150-5250 MHz)
34 5170 – – –11– – – – – –
36 5180 11 – 17 – 11 15 11 14 – 17
38 5190 – – –11– – – – – –
40 5200 11 – 17 – 11 15 11 14 – 17
42 5210 – – –11– – – – – –
44 5220 11 – 17 – 11 15 11 14 – 17
46 5230 – – –11– – – – – –
48 5240 11 – 17 11 15 11 14 – 17
5250 to 5350 MHz
52 5260 17 – 17 – 8 17 17 11 – 17
56 5280 17 – 17 – 8 17 17 11 11 17
60 5300 17 – 17 – 8 17 17 11 11 17
64 5320 11 – 17 – 8 17 11 11 11 17
5470 to 5725 MHz
100 5500 17 – 17 – – 17 – – 17 –
104 5520 17 – 17 – – 17 – – 17 –
108 5540 17 – 17 – – 17 – – 17 –
112 5560 17 – 17 – – 17 – – 17 –
116 5580 17 – 17 – – 17 – – 17 –
120 5600 17 – 17 – – 17 – – 17 –
124 5620 17 – 17 – – 17 – – 17 –
128 5640 17 – 17 – – – – – 17 –
132 5660 17 – 17 – – – – – 17 –
136 5680 17 – 17 – – – – – 17 –
140 5700 17 – 17 – – – – – 17 –
5725 to 5850 MHz
149 5745 17 17 – – – 17 17 17 17 –
153 5765 17 17 – – – 17 17 17 17 –
157 5785 14 17 – – – 17 14 17 14 –
161 5805 11 17 – – – 17 11 17 11 –
165 5825 – –––– – – – ––
Draft 1A - CISCO CONFIDENTIAL
D-5
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix D Channels and Power Levels
Channels and Maximum Power Levels
Maximum Power Levels in Some Regulatory Domains with External Antennas
Caution To avoid exceeding maximum conducted power levels in the China (–C), EMEA (-E), South Korea (–K),
Israel (–I), and Singapore (–S) regulatory domains when using an 802.11b/g radio with 2.2- to 10-dBi
external antennas, you must manually set the access point output power level as shown in Table D-4.
Table D-4 Maximum Power Levels for the 802.11b/g Radio in the (–C), (–E), (–K), (–I), and (–S) Regulatory Domains
Channel
Identifier
Center
Frequency
(MHz)
Maximum Power Levels (dBm)
2.2 dBi
Antenna
5.2 dBi
Antenna
6.0 dBi
Antenna
6.5dBi
Antenna
9.0 dBi
Antenna
10 dBi
Antenna
124121714141111 8
224171714141111 8
324221714141111 8
424271714141111 8
524321714141111 8
624371714141111 8
724421714141111 8
824471714141111 8
924521714141111 8
10 2457 17 14 14 11 11 8
11 2462 17 14 14 11 11 8
12 2467 17 14 14 11 11 8
13 2472 17 14 14 11 11 8
142484––––––
Draft 1A - CISCO CONFIDENTIAL
D-6
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix D Channels and Power Levels
Channels and Maximum Power Levels
Caution To avoid exceeding maximum conducted power levels in the EMEA (-E) and Israel (–) regulatory
domains when using a IEEE 802.11a radio with 6.0- to 9.5-dBi external 5-MHz antennas, you must
manually set the access point output power level as shown in Table D-5.
Table D-5 Maximum Power Levels for IEEE 802.11a Radio in the EMEA(–E) and Israel (–I) Regulatory Domains
Channel
Identifier
Center
Frequency
(MHz)
Maximum Power Levels (dBm)
3.5 dBi Antenna 4.5 dBi Antenna 6.0 dBi Antenna 7.0 dBi Antenna 9.5 dBi Antenna
UNII-1 (5150-5250 MHz)
345170 –––––
36 5180 17 17 15 15 11
385190 –––––
40 5200 17 17 15 15 11
425210 –––––
44 5220 17 17 15 15 11
465230 –––––
48 5240 17 17 15 15 11
5250 to 5350 MHz
52 5260 17 17 15 15 11
56 5280 17 17 15 15 11
60 5300 17 17 15 15 11
64 5320 17 17 15 15 11
5470 to 5725 MHz
100 5500 17 17 17 17 17
104 5520 17 17 17 17 17
108 5540 17 17 17 17 17
112 5560 17 17 17 17 17
116 5580 17 17 17 17 17
120 5600 17 17 17 17 17
124 5620 17 17 17 17 17
128 5640 17 17 17 17 17
132 5660 17 17 17 17 17
136 5680 17 17 17 17 17
140 5700 17 17 17 17 17
5725 to 5850 MHz
1495745–––––
1535765–––––
1575785–––––
1615805–––––
1655825–––––
Draft 1A - CISCO CONFIDENTIAL
E-1
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
APPENDIX
E
Console Cable Pinouts
This appendix identifies the pinouts for the serial console cable that connects to the access point’s serial
console port. The appendix contains the following sections:
•Overview, page E-2
•Console Port Signals and Pinouts, page E-2
Draft 1A - CISCO CONFIDENTIAL
E-2
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
Appendix E Console Cable Pinouts
Overview
Overview
The access point requires a special serial cable that connects the access point serial console port (RJ-45
connector) to your PC’s COM port (DB-9 connector). This cable can be purchased from Cisco (part
number AIR-CONCAB1200) or can be built using the pinouts in this appendix.
Console Port Signals and Pinouts
Use the console RJ-45 to DB-9 serial cable to connect the access point’s console port to the COM port
of your PC running a terminal emulation program.
Note Both the Ethernet and console ports use RJ-45 connectors. Be careful to avoid accidently connecting the
serial cable to the Ethernet port connector.
Note After completing your configuration changes, you must remove the serial console cable from the access
point.
Table 1 lists the signals and pinouts for the console RJ-45 to DB-9 serial cable.
Table 1 Signals and Pinouts for a Console RJ-45 to DB-9 Serial Cable
Console Port PC COM Port
RJ-45 DB-9
Pins Signals Pins Signals
1NC
1
1. NC indicates not connected.
––
2NC
1––
3TXD
2
2. TXD indicates transmit data.
2RXD
3
3. RXD indicates receive data.
4GND
4
4. GND indicates ground
5GND
4
5GND
35GND
4
6RXD
53TXD
2
7NC
1––
8NC
1––
Draft 1A - CISCO CONFIDENTIAL
GL-1
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
GLOSSARY
802.11 The IEEE standard that specifies carrier sense media access control and physical
layer specifications for 1- and 2-megabit-per-second (Mbps) wireless LANs
operating in the 2.4-GHz band.
802.11a The IEEE standard that specifies carrier sense media access control and physical
layer specifications for wireless LANs operating in the 5-GHz frequency band.
802.11b The IEEE standard that specifies carrier sense media access control and physical
layer specifications for 5.5- and 11-Mbps wireless LANs operating in the
2.4-GHz frequency band.
802.11g The IEEE standard that specifies carrier sense media access control and physical
layer specifications for 6, 9, 12, 18, 24, 36, 48, and 54 Mbps wireless LANs
operating in the 2.4-GHz frequency band.
A
access point A wireless LAN data transceiver that uses radio waves to connect a wired
network with wireless stations.
ad hoc network A wireless network composed of stations without Access Points.
antenna gain The gain of an antenna is a measure of the antenna’s ability to direct or focus
radio energy over a region of space. High gain antennas have a more focused
radiation pattern in a specific direction.
associated A station is configured properly to allow it to wirelessly communicate with an
Access Point.
B
beacon A wireless LAN packet that signals the availability and presence of the wireless
device. Beacon packets are sent by access points and base stations; however,
client radio cards send beacons when operating in computer to computer (Ad
Hoc) mode.
BOOTP Boot Protocol. A protocol used for the static assignment of IP addresses to
devices on the network.
Draft 1A - CISCO CONFIDENTIAL
Glossary
GL-2
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
BPSK Binary phase shift keying is a modulation technique used by IEEE
802.11b-compliant wireless LANs for transmission at 1 Mbps.
broadcast packet A single data message (packet) sent to all addresses on the same subnet.
C
CCK Complementary Code Keying. A modulation technique used by IEEE
802.11b-compliant wireless LANs for transmission at 5.5 and 11 Mbps.
CCKM Cisco Centralized Key Management. Using CCKM, authenticated client devices
can roam from one access point to another without any perceptible delay during
reassociation. An access point on your network provides wireless domain
services (WDS) and creates a cache of security credentials for CCKM-enabled
client devices on the subnet. The WDS access point's cache of credentials
dramatically reduces the time required for reassociation when a CCKM-enabled
client device roams to a new access point.
cell The area of radio range or coverage in which the wireless devices can
communicate with the base station. The size of the cell depends upon the speed
of the transmission, the type of antenna used, and the physical environment, as
well as other factors.
client A radio device that uses the services of an Access Point to communicate
wirelessly with other devices on a local area network.
CSMA Carrier sense multiple access. A wireless LAN media access method specified
by the IEEE 802.11 specification.
D
data rates The range of data transmission rates supported by a device. Data rates are
measured in megabits per second (Mbps).
dBi A ratio of decibels to an isotropic antenna that is commonly used to measure
antenna gain. The greater the dBi value, the higher the gain, and the more acute
the angle of coverage.
DHCP Dynamic host configuration protocol. A protocol available with many operating
systems that automatically issues IP addresses within a specified range to
devices on the network. The device retains the assigned address for a specific
administrator-defined period.
dipole A type of low-gain (2.2-dBi) antenna consisting of two (often internal) elements.
domain name The text name that refers to a grouping of networks or network resources based
on organization-type or geography; for example: name.com—commercial;
name.edu—educational; name.gov—government; ISPname.net—network
provider (such as an ISP); name.ar—Argentina; name.au—Australia; and so on.
Draft 1A - CISCO CONFIDENTIAL
Glossary
GL-3
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
DNS Domain Name System server. A server that translates text names into IP
addresses. The server maintains a database of host alphanumeric names and their
corresponding IP addresses.
DSSS Direct sequence spread spectrum. A type of spread spectrum radio transmission
that spreads its signal continuously over a wide frequency band.
E
EAP Extensible Authentication Protocol. An optional IEEE 802.1x security feature
ideal for organizations with a large user base and access to an EAP-enabled
Remote Authentication Dial-In User Service (RADIUS) server.
Ethernet The most widely used wired local area network. Ethernet uses carrier sense
multiple access (CSMA) to allow computers to share a network and operates at
10, 100, or 1000 Mbps, depending on the physical layer used.
F
file server A repository for files so that a local area network can share files, mail, and
programs.
firmware Software that is programmed on a memory chip.
G
gateway A device that connects two otherwise incompatible networks together.
GHz Gigahertz. One billion cycles per second. A unit of measure for frequency.
I
IEEE Institute of Electrical and Electronic Engineers. A professional society serving
electrical engineers through its publications, conferences, and standards
development activities. The body responsible for the Ethernet 802.3 and wireless
LAN 802.11 specifications.
infrastructure The wired Ethernet network.
IP Address The Internet Protocol (IP) address of a station.
Draft 1A - CISCO CONFIDENTIAL
Glossary
GL-4
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
IP subnet mask The number used to identify the IP subnetwork, indicating whether the IP
address can be recognized on the LAN or if it must be reached through a
gateway. This number is expressed in a form similar to an IP address; for
example: 255.255.255.0.
isotropic An antenna that radiates its signal in a spherical pattern.
M
MAC Media Access Control address. A unique 48-bit number used in Ethernet data
packets to identify an Ethernet device, such as an access point or your client
adapter.
modulation Any of several techniques for combining user information with a transmitter’s
carrier signal.
multipath The echoes created as a radio signal bounces off of physical objects.
multicast packet A single data message (packet) sent to multiple addresses.
O
omni-directional This typically refers to a primarily circular antenna radiation pattern.
OFDM Orthogonal frequency division multiplex is a modulation technique used by IEEE
802.11a-compliant wireless LANs for transmission at 6, 9, 12, 18, 24, 36, 48,
and 54 Mbps.
P
packet A basic message unit for communication across a network. A packet usually includes routing
information, data, and sometimes error detection information.
Q
QPSK
Quadruple phase shift keying is a modulation technique used by IEEE
802.11b-compliant wireless LANs for transmission at 2 Mbps.
R
range A linear measure of the distance that a transmitter can send a signal.
Draft 1A - CISCO CONFIDENTIAL
Glossary
GL-5
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
receiver sensitivity A measurement of the weakest signal a receiver can receive and still correctly
translate it into data.
RF Radio frequency. A generic term for radio-based technology.
roaming A feature of some Access Points that allows users to move through a facility
while maintaining an unbroken connection to the LAN.
RP-TNC A connector type unique to Cisco Aironet radios and antennas. Part 15.203 of
the FCC rules covering spread spectrum devices limits the types of antennas that
may be used with transmission equipment. In compliance with this rule, Cisco
Aironet, like all other wireless LAN providers, equips its radios and antennas
with a unique connector to prevent attachment of non-approved antennas to
radios.
S
spread spectrum A radio transmission technology that spreads the user information over a much
wider bandwidth than otherwise required in order to gain benefits such as
improved interference tolerance and unlicensed operation.
SSID Service set identifier (also referred to as Radio Network Name). A unique
identifier used to identify a radio network and which stations must use to be able
to communicate with each other or to an access point. The SSID can be any
alphanumeric entry up to a maximum of 32 characters.
T
transmit power The power level of radio transmission.
U
UNII Unlicensed National Information Infrastructure—regulations for UNII devices
operating in the 5.15 to 5.35 GHz and 5.725 to 5.825 GHz frequency bands.
UNII-1 Regulations for UNII devices operating in the 5.15 to 5.25 GHz frequency band.
UNII-2 Regulations for UNII devices operating in the 5.25 to 5.35 GHz frequency band.
UNII-3 Regulations for UNII devices operating in the 5.725 to 5.825 GHz frequency
band.
unicast packet A single data message (packet) sent to a specific IP address.
Draft 1A - CISCO CONFIDENTIAL
Glossary
GL-6
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
W
WDS Wireless Domain Services. An access point providing WDS on your wireless
LAN maintains a cache of credentials for CCKM-capable client devices on your
wireless LAN. When a CCKM-capable client roams from one access point to
another, the WDS access point forwards the client's credentials to the new access
point with the multicast key. Only two packets pass between the client and the
new access point, greatly shortening the reassociation time.
WEP Wired Equivalent Privacy. An optional security mechanism defined within the
802.11 standard designed to make the link integrity of wireless devices equal to
that of a cable.
WLSE Wireless LAN Solutions Engine. The WLSE is a specialized appliance for
managing Cisco Aironet wireless LAN infrastructures. It centrally identifies and
configures access points in customer-defined groups and reports on throughput
and client associations. WLSE's centralized management capabilities are further
enhanced with an integrated template-based configuration tool for added
configuration ease and improved productivity.
WNM Wireless Network Manager.
workstation A computing device with an installed client adapter.
WPA Wi-Fi Protected Access is a standards-based, interoperable security enhancement
that strongly increases the level of data protection and access control for existing
and future wireless LAN systems. It is derived from and will be
forward-compatible with the upcoming IEEE 802.11i standard. WPA leverages
TKIP (Temporal Key Integrity Protocol) for data protection and 802.1X for
authenticated key management.
Draft 1A - CISCO CONFIDENTIAL
IN-1
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
INDEX
A
abbreviating commands 5-3
access point image 6-16
antenna
connectors C-2
Apply button 4-4
B
basic settings, checking 6-4
C
Cancel button 4-4
CLI
abbreviating commands 5-3
command modes 5-2
editing features
enabling and disabling 5-6
keystroke editing 5-6
wrapped lines 5-7
error messages 5-4
filtering command output 5-8
getting help 5-3
history
changing the buffer size 5-5
described 5-4
disabling 5-5
recalling commands 5-5
no and default forms of commands 5-4
terminal emulator settings 3-4
command-line interface
See CLI
command modes 5-2
commands
abbreviating 5-3
no and default 5-4
connectors C-1, C-2
console port E-2
D
data rates C-2
declarations of conformity B-1
default, configuration, resetting 6-14
default commands 5-4
E
editing features
enabling and disabling 5-6
keystrokes used 5-6
wrapped lines 5-7
EIRP, maximum D-2 to ??, D-3 to ??
error messages, during command entry 5-4
extended temperature range 2-3, 2-4
F
FCC Declaration of Conformity B-2
FCC Safety Compliance 2-2
filtering
show and more command output 5-8
frequencies D-2, D-3, D-4, D-5, D-6
frequency range C-2
Draft 1A - CISCO CONFIDENTIAL
Index
IN-2
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
G
global configuration mode 5-2
H
help, for the command line 5-3
history
changing the buffer size 5-5
described 5-4
disabling 5-5
recalling commands 5-5
Home button 4-3
I
indicators 6-2
input power C-1
installation guidelines 2-3
interface configuration mode 5-2
K
key features 1-2
M
management options, CLI 5-1
Mode button 6-16
modulation C-2
N
no commands 5-4
O
OK button 4-4
operating temperature C-1
P
package contents 2-3
password reset 6-14
pinouts, serial cable E-2
power
connecting 2-12
input C-1
output C-1
power level, maximum D-2
privileged EXEC mode 5-2
R
range, radio C-2
regulatory
domains D-2, D-3, D-4, D-5, D-6
regulatory information B-1
reloading access point image 6-16
RF exposure B-5
S
safety warnings, translated A-1
serial
cable E-2
Cisco cable E-2
size C-1
SSH Communications Security, Ltd. 5-9
status indicators C-1
T
Telnet 3-14
temperature
operating C-1
Draft 1A - CISCO CONFIDENTIAL
Index
IN-3
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
terminal emulator 3-4
TFTP server 6-16
troubleshooting 6-1
U
unpacking 2-3
user EXEC mode 5-2
V
voltage range C-1
W
warnings 2-2, A-1
Web-based interface
common buttons 4-3
compatible browsers 4-1
web site, Cisco Software Center 6-19
weight C-1
WEP key 6-5
Wi-Fi Protected Access (WPA) 3-12
Draft 1A - CISCO CONFIDENTIAL
Index
IN-4
Cisco Aironet 1240AG Series Access Point Hardware Installation Guide
OL-7293-01
