Rockwood 570 Cut Sheet 570Cut

User Manual: Rockwood 570 Cut Sheet Cut Sheet

Open the PDF directly: View PDF PDF.
Page Count: 1

Available
Finishes:
• US3/605
• US4/606
• US10/612
• US10B/613
• US10BE/613E
• US26/625
• US26D/626
Specifications:
MATERIAL:
Brass
FASTENERS:
AdjustmentNut;SpannerWrench;2ea.#8x1OvalHeadSheetMetalScrews,2ea.PlasticAnchors;
2ea.#8-32x3/4"OvalHeadMachineScrews,2ea.LeadAnchors
FEATURES:
•WorkswithallRockwoodmanualandautomaticflushbolts
•Removablefaceplateforusewiththresholds
•Adjustableheightforcarpetedareas
SIZE:
FacePlate:13/8"x27/8"
Barrel:Ø7/8"xdp.2"
WEIGHT:
0.4lbs.
ANSIA156.16:
L04021
Architectural
DoorAccessories

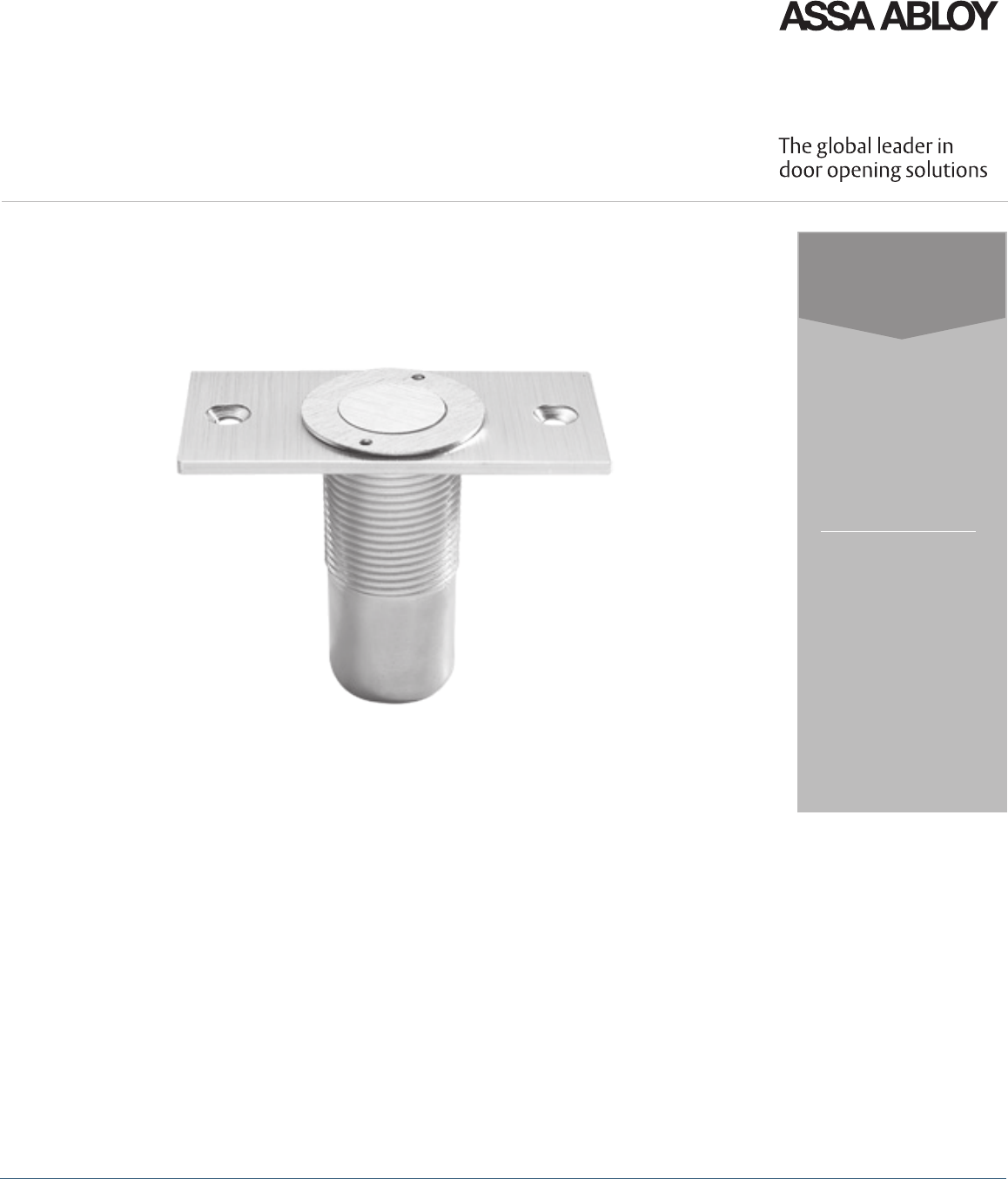

Rockwood570-DustProofStrike
300 Main Street
Rockwood, Pennsylvania 15557
P: 800.458.2424 • F: 800.922.9212
www.rockwoodmfg.com • orders.rockwood@assaabloy.com
Copyright © 2017, Rockwood Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or
in part without the express written permission of Rockwood Manufacturing Company is prohibited. CS-570 1/17
