Users Manual
RMR-C430
Radar and Laser Detector
Owners Manual
SPECIFICATIONS:
Radar & Laser Detector:
Frequencies: 10.525 GHz
24.125 GHz
33-36 GHz
904 Nano-meter
Sensitivity: X-112 Dbm
K-110 Dbm
Ka-wide-102 Dbm
Laser < .5 microwatt
Alarm: Separate for each Band
Variable alarm for Range
Controls: Volume, On/Off, Dim, Mute,
City/Highway, Test
VG-2: Automatic Frequency Shift
Size: 1.4” x 3.0” x 4.4”
The RMR-C430 detector is a full-featured radar and
laser detector.
The radar detector is a dual conversion scanning
super-heterodyne receiver with separate alarms for
each of the radar bands, dim function, city/highway
and mute select. It detects front and rear laser and
radar.
Other:
One-Year Ticket Rebate Program
Three-Year Warranty
FCCID: QKK-C03
This product has been designed and certified to
comply with Part 15 of the FCC Rules. Any
changes or modifications not expressly approved
by Rocky Mountain Radar may void your
authority to use this product. Operation is subject
to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device
must accept any interference received, including
interference that may cause undesired operation.
2

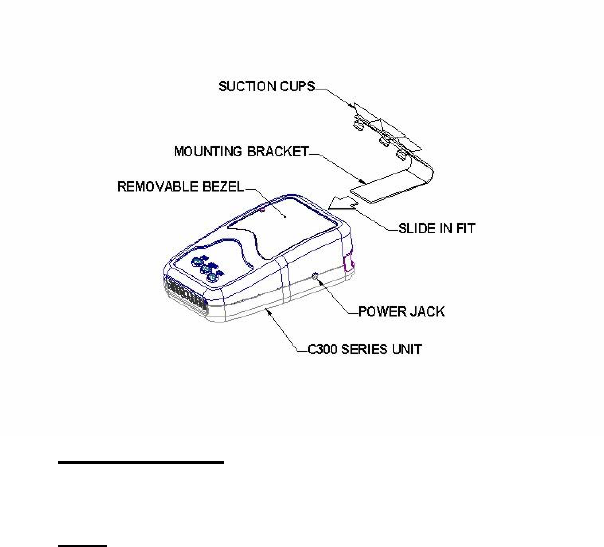

Installation:
1) Attach the windshield bracket to the C430
detector. Align the edge on the bracket with the slot
opening on the front of the case. Slide the bracket
into the case until it locks into place.
2) Place the windshield bracket in the upper center
portion of the windshield. The ideal position will be
right below the rear view mirror. Then press firmly
to seat suction cups. Note: Tinted glass will degrade
the laser performance.
3) Bend the windshield bracket mount to a level
position.
4) The RMR-C430 will hang from the bottom of the
bracket and must have an unobstructed view of the
road ahead.
5) Insert the small end of the power cord gently into
the power jack on the right side of the unit and the
large end into the cigarette lighter receptacle.
Remote mounting is not recommended.
Hard wire: Remove cigarette lighter plug. Connect
the black with white stripe wire to +12 Volts, and
then connect the solid black wire to ground.
3

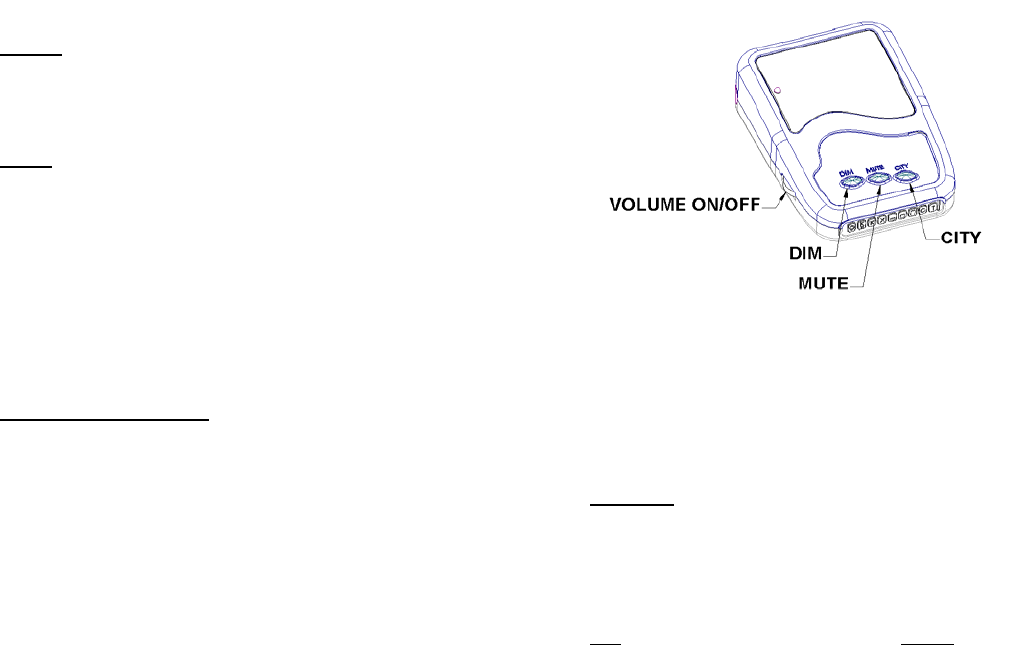

CONTROLS: There are 3 buttons on top of the
C430, Dim, Mute and City
Dim: Press the Dim button for one second to dim
the alarm lights. There are 3 levels of brightness.
To brighten the alarm lights press the dim button
again.
Mute: Press the Mute button for one second to
disable the alarm speaker for quiet operation. To
reactivate the alarm speaker press the Mute button
again for one second.
City: Press the City button for one second to reduce
false alarms in high RF noise areas. The yellow City
light will illuminate to show activation.
Reminder! The C430 will memorize the settings of
the features above when the unit is powered off.
Be sure to readjust the settings to your normal
preferences.
Power and Volume: Power is provided through the
thumb wheel switch on the left side of the unit.
Rotate the wheel forward to turn on and increase the
volume for the alarm.
Rocky Mountain Radar does not condone the use
of excessive speed on the highways, nor does it
endorse breaking the speed limit laws of the
United States of America. Please drive safely when
using this or any other electronic product in your
car.
4

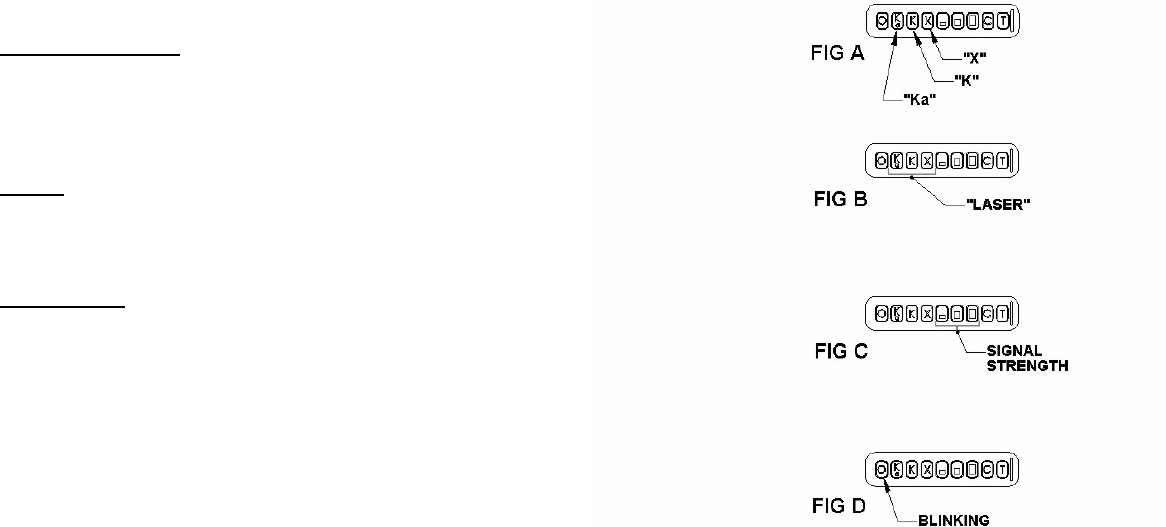

Alarms: A separate alert tone will sound for each
band of Radar encountered with a different colored
light, (Ka-Amber), (K-Yellow), (X-Green)
illuminated. Tone frequency will increase as signal
strength becomes stronger. (Fig. A)
All alarm lights will flash when Laser is detected.
(Fig. B)
Signal Strength: Signal Strength will be first
indicated by the illumination of the LED of the band
detected, then the three red LED’s. When all three
are illuminated the signal is strongest. (Fig C)
VG-2: VG-2 detection is indicated with a separate
alarm along with the green power light blinking.
(Fig. D)
Diagnostics: The RMR-C430 has a full internal
automatic diagnostic system. If the power light goes
off and remains off, check the 2-amp fuse in the
power cord by unscrewing the silver tip and
removing the fuse. If the fuse is good (wire inside the
fuse unbroken), return the unit for service.
5

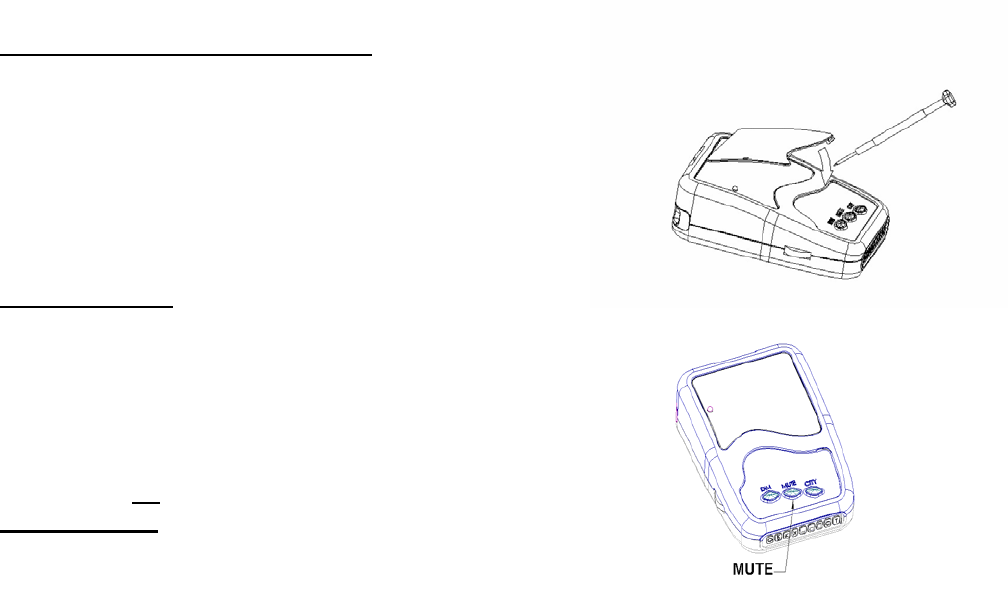

Interchangeable Color Bezel Panels:
The RMR-C430 model has optional removable color
panels. To remove the panel use a small screwdriver,
insert under front of panel (see diagram) and pry
upward gently. To replace, insert rear of panel tabs in
slots on unit and press down. Panel should click and
fit firmly in place if properly installed.
Colored panels have no effect on the performance of
your unit. (Fig A)
Selectable VG-2:
To activate VG-2 detection turn the unit on. After
the self-test has completed, press and hold the
Mute button down for 3~5 seconds until the unit
beeps three times. VG-2 detection is now
activated. To deactivate press and hold the Mute
button for 3~5 seconds until the unit buzzes once.
VG-2 is now off.
Auto Memory: The RMR-C430 has an automatic
memory. Any settings enabled when the unit is
turned off will still be enabled when the unit is turned
back on. If you have set the unit on Mute or have
dimmed the alarm lights be sure to readjust the
settings to your normal preference.
Fig. A
Fig. B
6
Warranty
The RMR-C430 is guaranteed against defects in
workmanship and materials for 36 months from the
date of purchase. Should any malfunction occur, the
unit would be repaired or replaced by the factory at
no charge. You may have your unit checked free of
charge at the factory during this warranty period.
Returns should be sent freight prepaid with an
explanation of the problem, your physical address (no
PO Boxes) and telephone number. Send to:
ROCKY MOUNTAIN RADAR
6469 Doniphan Drive
El Paso TX 79932
Phone: 915-587-0307 Fax: 915-587-6408
We do not accept COD shipments
We do not accept freight collect shipments
Accessories
The following accessories and parts are available:
Windshield mount $ 5.00
Suction Cups (set of 3) $ 2.00
2 amp fuses (two each) $ 2.00
Power Cord $ 5.00
Replacement Owners Manual $ 3.50
Set of Colored Bezel Panels (6) $10.00
Set of Da-Glo Bezel Panels (3) $10.00
A $10.00 shipping and handling fee will be added to
the total of each order.
VISA/MC and Discover Accepted
Tamper Fee
Tampering with, disassembly, or modification of this
product voids the warranty and a tamper fee of
$150.00 will be charged to repair it.
7
Manufactured Exclusively by
Rocky Mountain Radar in the USA
