Broadcasting
Data Sheet | 01.00
R&S®SCx8000
Family of UHF
Trans mitters for TV
A new dimension
in compactness
in compactness
SCx8000_dat_en_5214-1695-32_v0100.indd 1 07.04.2009 11:58:27
![](/img.php?id=1249236&img=bg2.png)
2
The R&S®SCx8000 family of UHF transmitters offers
compactness and cost-effectiveness unique in its
power class. Designed for professional TV broad-
cast networks, the R&S®SCx8000 features intel-
ligent redundancy concepts for the exciter and the
amplifier and allows easy switchover from analog
to digital transmission. The transmitters are innova-
tive, robust, failsafe and easy to put into operation.
This makes them ideal for use at remote sites and in
outdoor applications.
R&S®SCx8000
Family of UHF
Transmitters for TV
At a glance
The R&S®SCx8000 transmitter family covers the analog TV
standards as well as the ATSC, ATSC Mobile DTV, DVB-T,
DVB-H and MediaFLO™ digital TV standards. The trans-
mitters can be switched from analog to digital transmis-
sion. The R&S®SCx8000 comes with broadband precorrec-
tion data for each digital standard.
With output powers from 200 W to 600 W for DVB-T/
DVB-H, the R&S®SCx8000 can be used for expanding
existing transmitter networks and filling coverage gaps.
Rolling out or extending a transmitter network may re-
quire large numbers of transmitters; yet costs must be
kept to a minimum. Here, the R&S®SCx8000 proves to
be the ideal choice: It comes with the high quality that
Rohde & Schwarz stands for and offers an excellent price/
performance ratio. Follow-up costs are just as favorable:
Due to its ultracompact design, the R&S®SCx8000 reduces
infrastructure, rental and installation costs. The transmit-
ter's high efficiency ensures low energy costs throughout
the product lifecycle.
Availability is the crucial factor for operators of trans mitter
systems. The new backup exciter redundancy concept
eliminates the need for a separate transmitter control unit.
This lowers costs and increases system availability. Each
amplifier comes with two power supplies. This ensures
high failsafety, which can be further enhanced by adding a
third, optional power supply.
Key facts
UHF transmitters for TV from 200 W to 600 W
J
Compact and cost-effective transmitter family offering J
the high quality that Rohde & Schwarz stands for
New redundancy concepts for economical use of
J
available space
Highefficiencyforreducedenergycosts
J
Set & go function providing system precorrection J

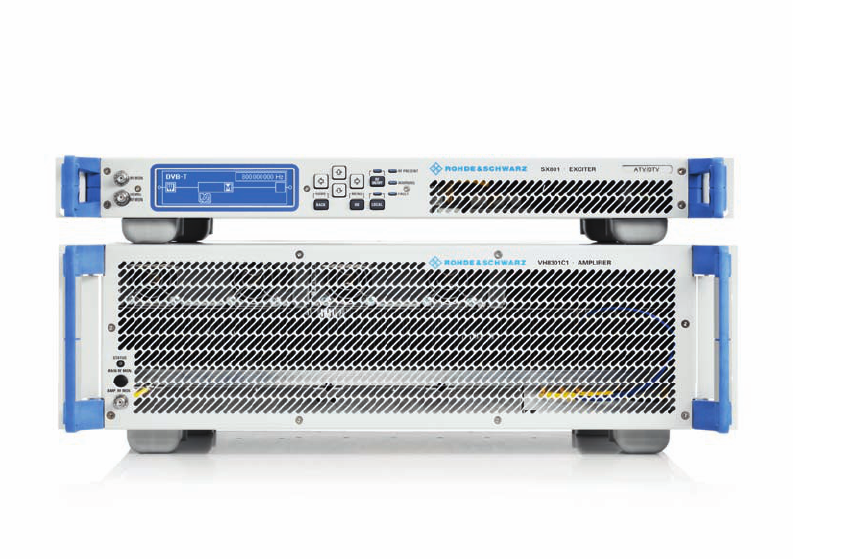

R&S®SCx8000 transmitter configured as
R&S®SCV8301EA with one R&S®SX801 exciter
and one R&S®VH8301C1 UHF amplifier (base
unit).
SCx8000_dat_en_5214-1695-32_v0100.indd 2 07.04.2009 11:58:27
![](/img.php?id=1249236&img=bg3.png)
Rohde & Schwarz R&S®SCx8000 Family of UHF Trans mitters for TV 3
R&S®SCx8000
Family of UHF
Transmitters for TV
Benefits and
key features
Innovative, compact design
Transmitters with high power density
J
Autonomouscoolingconceptforexibleuse J
New redundancy concepts increase availability and save J
space
page 4
▷
Special features for operation
Significantreductionofenergycosts
J
Precorrection for digital standards with set & go function J
Solutions for migrating from analog to digital TV J
Operation either hands-on or via web browser J
Excellent sound level J
page 5 ▷
Continuous coverage
"Everything from a single source" means utmost quality
J
from Rohde & Schwarz
Additional transmitter redundancy concepts
J
Self-monitoring power output stages J
Optimal power supply design J
page 6 ▷

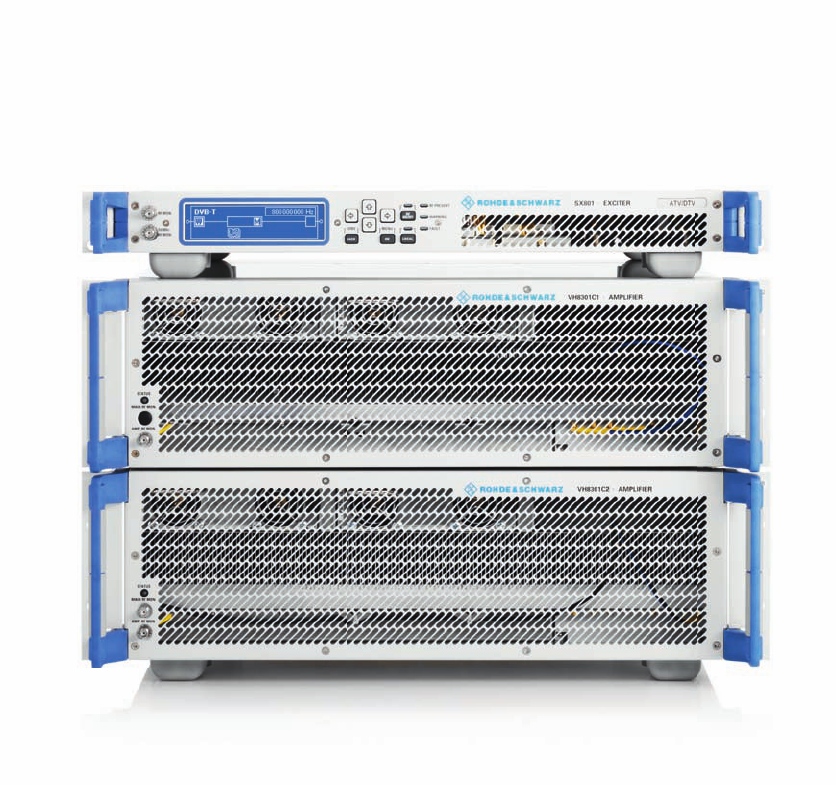

R&S®SCx8000 transmitter configured as
R&S®SCV8302EA with an R&S®SX801 exciter,
an R&S®VH8301C1 UHF amplifier (base
unit) and an R&S®VH8301C2 UHF amplifier
( expansion unit).
SCx8000_dat_en_5214-1695-32_v0100.indd 3 07.04.2009 11:58:29
![](/img.php?id=1249236&img=bg4.png)
4
Innovative,
compact design
Transmitters with high power density
The use of large-scale integrated (LSI) components that
combine various classic transmitter functions results in a
highly compact design. The new R&S®SX801 exciter pro-
vides signal processing and transmitter control functiona-
lity at the same time. It comes with a display on its front
panel.
The base amplifier includes the amplifier unit, an exciter
switch and a signal splitter. In systems with two amplifiers,
an expansion amplifier with an internal power combiner is
added. Both the base and the expansion amplifier come
with an integrated cooling system, each featuring two fans
for redundancy.
The individual components are combined as necessary
for the required output power and application. Due to
the large number of options, including a DVB-T/DVB-H
receiver that adds retransmitter functionality to the
R&S®SCx8000, the transmitter can be tailored to the
specific application.

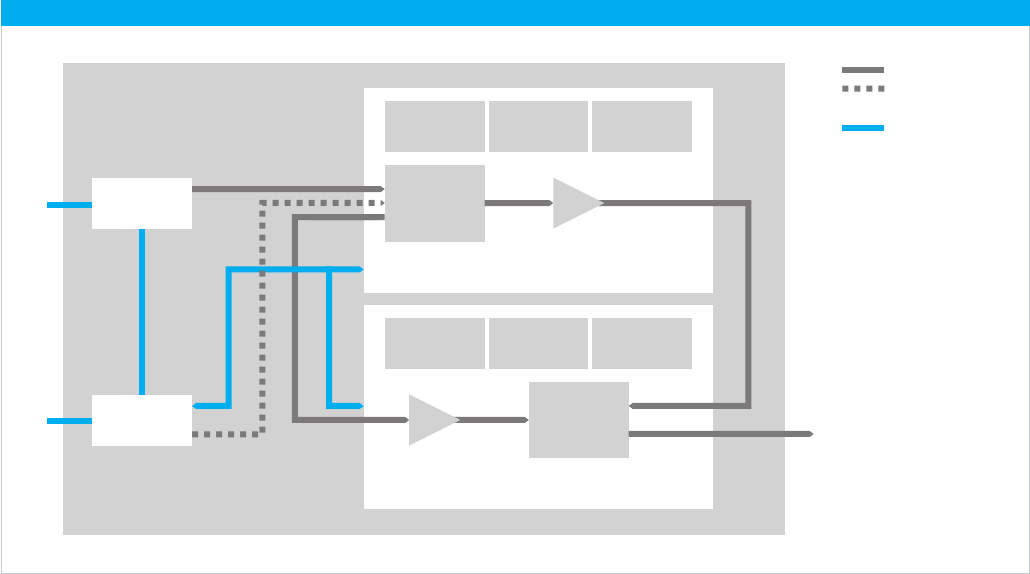

Simplified block diagram of the R&S®SCx8000 with two amplifiers and a backup exciter
Standby power
supply (option)
Power supply
2
Power supply
1
Exciter switch
and
signal splitter
Output stage
Program
exciter
¸VH8301C1 UHF amplifier (base unit)
Standby power
supply (option)
Power supply
2
Power supply
1
Output stage
Standby
exciter
¸VH8301C2 UHF amplifier (expansion unit)
Combiner RF output
RF path
RF path if program
exciter fails
Control
Autonomous cooling concept for flexible use
The compact design and integrated cooling make it easy
to install the transmitter in a broadcast station, even into
unused spaces in crowded racks. The autonomous cooling
concept makes the transmitter ideal also for installation in
outdoor racks; Rohde & Schwarz offers various solutions
for such applications.
New redundancy concepts increase availability and
save space
To create a system that makes the most economical use of
available space, the new backup exciter redundancy con-
cept was developed. RF source redundancy is achieved by
using only two exciters. A central control unit is not requi-
red. The program exciter serves as the RF source and the
backup exciter as the transmitter control unit. If the pro-
gram exciter fails, the backup exciter automatically takes
over RF transmission in addition to providing transmitter
control functionality.
An intelligent power supply standby concept provides
power supply redundancy for the amplifier. Each ampli-
fier contains two power supplies as standard to maintain
interruption-free transmission if one of the power supplies
fails. An optional third power supply can be used to further
enhance transmission reliability.
SCx8000_dat_en_5214-1695-32_v0100.indd 4 07.04.2009 11:58:30
![](/img.php?id=1249236&img=bg5.png)
Rohde & Schwarz R&S®SCx8000 Family of UHF Trans mitters for TV 5
Special features
for operation
Significant reduction of energy costs
At an efficiency of up to 22 %, the R&S®SCx8000 features
energy costs exceptionally low for a transmitter in this
power class. This makes for extremely low cost of owner-
ship throughout the life of the transmitter.
Precorrection for digital standards with set & go
function
The transmitter can be put into operation quickly and ea-
sily and is convenient to operate. The system amplifiers
come ready with broadband precorrection for the speci-
fic digital standard on delivery. Manual precorrection is
therefore not necessary when the transmitter is put into
operation. In the UHF range, each channel can be selected
with nominal power or power reduced by up to 6 dB. The
automatic set & go function loads the precorrection curve
required for the selected frequency and power in the back-
ground. A modulation error ratio (MER) of at least 33 dB is
thus achieved for the output stage without requiring any
time-consuming manual precorrection.
Solutions for migrating from analog to digital TV
The transmitters offer intelligent concepts for network ope-
rators planning migration from analog to digital transmis-
sion. If both analog and digital signals are fed, the desired
input mode and standard can be menu-selected.

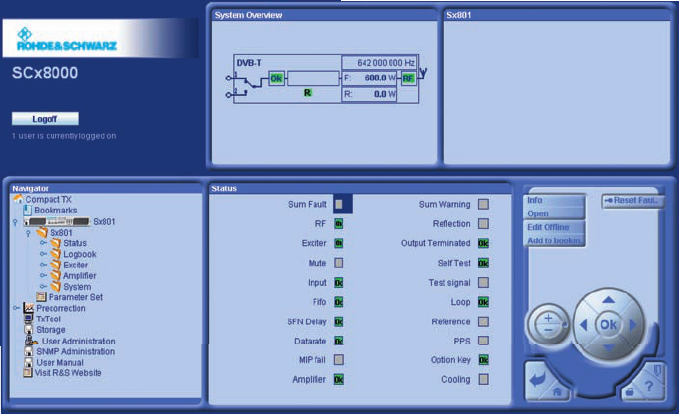

Typical start menu for operation
via the web browser.
The MPEG decoder option allows digital input signals to
be fed as transport streams. These streams are converted
to analog CCVS signals in the exciter FPGA, modulated
and transmitted as analog signals. If digital transmission
is desired at a later date, switchover from analog to digital
transmission can be made easily and without any hard-
ware modification.
Operation either hands-on or via web browser
The exciter has a backlit graphical display and a keypad on
the front panel for hands-on operation. Shortcuts enable
quick access to frequently used menu items. The opera-
ting parameters are indicated by LEDs and displayed in the
overview menu.
The R&S®SCx8000 can also be operated locally or remotely
from a PC running a standard web browser. In addition,
the transmitter can be remotely monitored via an optional
SNMP agent.
In broadcasting networks containing a large number of
devices, efficient and reliable configuration management is
important. Like all modern equipment, the R&S®SCx8000
transmitters can be configured via the Internet from a
central station. In this way, device and system settings can
also be easily saved and transferred from one transmitter
to another.
Excellent sound level
The R&S®SCx8000 stands out for exceptionally silent
operation. Its sound level is typically below 60 dBA,
depending on the configuration.
SCx8000_dat_en_5214-1695-32_v0100.indd 5 07.04.2009 11:58:30
![](/img.php?id=1249236&img=bg6.png)
6
Continuous
coverage
"Everything from a single source" means utmost
quality from Rohde & Schwarz
At Rohde & Schwarz, the entire value added chain lies
in one hand. This is the ideal prerequisite for long-term,
trouble-free operation of transmitter systems, since
Rohde & Schwarz products meet the most stringent
quality requirements. The transmitters were developed
with market requirements in mind right from the start.
Rohde & Schwarz manufactures its products at its own
plants. This ensures short-term, reliable product delivery
independently of external suppliers. An extensive T & M
product portfolio and worldwide service and support
round out the benefits that come with the R&S®SCx8000
family of transmitters – true to the motto: "Everything from
a single source".
Option Description
Retransmitter kit for operating the transmitter as a retransmitter
DVB-T/DVB-H monitoring receiver for monitoring the output signal
GPS receiver integrated receiver for GPS reference signals
SNMP agent remote monitoring and control via standardized network management systems (NMS)
Parallel remote control interface floating contacts for messages and commands
Analog-to-digital switchover for simple switchover from analog to digital transmission
MPEG decoder enables transmission of digital input signals as analog output signals and subsequent switchover from
analog to digital transmission
GPS antenna and cable accessories for GPS receiver
Racks and installation kits for racks available in different sizes and versions
Dummy loads
RF filters
Power feed available in different configurations
Air filters available for amplifier and exciter
Additional transmitter redundancy concepts
In addition to the innovative backup exciter concept,
Rohde & Schwarz will continue to offer the established
solutions featuring the R&S®NetCCU®800 as the central
control unit for dual drive, 1+1 and N+1 standby configu-
rations, which provide additional features in particular with
respect to operating ease.
Self-monitoring power output stages
As is customary for Rohde & Schwarz, all power amplifiers
of the R&S®SCx8000 family of transmitters are equipped
with protective circuits. This prevents the transmitters and
their transistors from being damaged by overtemperature
or high reflected powers.
Optimal power supply design
The use of high-quality single-phase wide-range power
supplies allows the transmitter to be operated on all con-
ventional single-phase voltages. Voltage fluctuations
can thus be compensated, eliminating the need for extra
transformers. The power supplies are able to buffer power
interruptions up to 10 ms.
SCx8000_dat_en_5214-1695-32_v0100.indd 6 07.04.2009 11:58:31
![](/img.php?id=1249236&img=bg7.png)
Rohde & Schwarz R&S®SCx8000 Family of UHF Trans mitters for TV 7
Specifications
R&S®SCx8000 output powers (rms)
1)
Configured as R&S®SCV8201x R&S®SCV8301x R&S®SCV8202x R&S®SCV8302x
DVB-T/DVB-H, MediaFLOTM 200 W 300 W 400 W 600 W
ATSC, ATSC Mobile DTV 300 W 450 W 600 W 900 W
Analog TV (sync peak) 500 W 700 W 1000 W 1400 W
RF output N 7/16
1) Without output filter.
General data
Frequency range
UHF (band IV/V) 470 MHz to 862 MHz
Available standards analog B/G, D/K, M, M1, N, I, I1
digital DVB-T, DVB-H, ATSC, ATSC Mobile DTV,
MediaFLO™
Power supply
AC 100 V to 240 V + 10 %, 47 Hz to 63 Hz
DC (option for exciter) –48 V (–38 V to –72 V)
Synchronization
Reference frequency 10 MHz, –5 dBm to +20 dBm or LVT, BNC
Reference pulse 1 pps (1 Hz, TTL, BNC)
Operation
Display, keypad and status LEDs local operation and display,
200 × 48 pixel color display
Ethernet interface, RJ-45 convenient local or remote control via standard
web browser
Parallel remote control interface optional floating contacts for messages and commands
Environmental conditions
Max. installation height 2000 m above sea level
(>2000 m on request)
Operating temperature range +1 °C to +45 °C
Relative humidity (max.) 95 %, non-condensing
Dimensions (W × H × D) R&S®SCV8201x, R&S®SCV8301x 483 mm (19") × 4 HU × 550 mm
(19 in × 4 HU × 22.7 in)
R&S®SCV8202x, R&S®SCV8302x 483 mm (19") × 7 HU × 550 mm
(19 in × 7 HU × 22.7 in)
Important: To comply with the applicable standards and limit values for the suppression of out-of-band emissions (and in the case of digital standards,
also for maintaining the required shoulder distance), the transmitter may only be operated with suitable filters at the RF output.
Typical configuration of a UHF transmitter for DVB-T, 600 W rms
Designation Type Order No.
R&S®SCV8302E Low-Power Transmitter, UHF (470 MHz to 862 MHz), without rack,
single-phase, AC, 600 W rms DVB-T output power
Exciter, 1 HU, base unit R&S®SX801 2104.4504K02
UHF Amplifier, DVB-T, 300 W rms, base unit R&S®VH8301C1 2104.8000K02
UHF Amplifier, DVB-T, 300 W rms, expansion unit R&S®VH8301C2 2104.8000K02
Your Rohde & Schwarz sales partner will be glad to help
you find the optimal solution that exactly meets your
requirements.
For your local contact, see
www.sales.rohde-schwarz.com
Ordering information
SCx8000_dat_en_5214-1695-32_v0100.indd 7 07.04.2009 11:58:31
![](/img.php?id=1249236&img=bg8.png)
Certied Environmental System
ISO 14001
DQS REG. NO 1954 UM
Certied Quality System
ISO 9001
DQS REG. NO 1954 QM
Rohde & Schwarz GmbH & Co. KG
Mühldorfstraße 15 | 81671 München
Phone +49 89 41 290 | Fax +49 89 41 29 121 64
www.rohde-schwarz.com
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG
Trade names are trademarks of the owners | Printed in Germany (ch)
PD 5214.1695.32 | Version 01.00 | April 2009 | R&S®SCx8000
Data without tolerance limits is not binding | Subject to change
*0.14 €/min within German wireline network; rates may vary in other
networks (wireline and mobile) and countries.
Service you can rely on
J Worldwide
J Local and personalized
J Customizedandexible
J Uncompromising quality
J Long-term dependability
About Rohde & Schwarz
Rohde & Schwarz is an independent group of companies
specializing in electronics. It is a leading supplier of solu-
tions in the fields of test and measurement, broadcasting,
radiomonitoring and radiolocation, as well as secure com-
munications. Established 75 years ago, Rohde & Schwarz
has a global presence and a dedicated service network in
over 70 countries. Company headquarters are in Munich,
Germany.
Regional contact
Europe, Africa, Middle East
+49 1805 12 42 42* or +49 89 4129 137 74
customersupport@rohde-schwarz.com
North America
1 888 TEST RSA (1 888 837 87 72)
customer.support@rsa.rohde-schwarz.com
Latin America
+1 410 910 79 88
customersupport.la@rohde-schwarz.com
Asia/Pacific
+65 65 13 04 88
customersupport.asia@rohde-schwarz.com
SCx8000_dat_en_5214-1695-32_v0100.indd 8 07.04.2009 11:58:31
