Roku N1002 2 x 2 Wi-Fi Module User Manual LiteOn Technology Corp

Roku, Inc. 2 x 2 Wi-Fi Module LiteOn Technology Corp

User Manual

Roku, Inc.
USER MANUAL
Roku Liberty 2T2R Dual Band Wireless LAN Module
WM03, WM04
Version 1.2
Liteon PN: AAZ200003D
This document contains confidential proprietary information and is property of LTC. The contents of this document should not
be disclosed to unauthorized persons without the written consent of LTC.
Change History:
Revision
Date
Author
Change List
Author: Kaysa Lee
Approved by: Sunny Hsieh
Editor: Kaysa Lee
Project Leader: Sunny Hsieh
Roku, Inc.
PRODUCT FEATURES
Operate at 2.4GHz/5GHz band
300Mbps PHY Rate Support
2T2R Modes
USB 2.0 support for date rates up to 12Mbps full speed and 480Mbps high speed
IEEE standards support: IEEE 802.11a/b/g and 802.11n
802.11i- WEP 64/128, AES, TKIP
Support Wi-Fi Direct
RoHS compliance
Low Halogen compliance
Product specifications
Main chipset
MAC/Baseband/RF: Broadcom BCM43236B
Functional Specifications
IEEE802.11b; IEEE 802.11g; IEEE 802.11a ; IEEE802.11n
Universal Serial Bus (USB2.0)
802.11b:
11, 5.5, 2, 1 Mbps
802.11a/g:
54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n:
MCS 0 to 15 for HT20MHz
CSMA/CA with ACK
802.11b:
CCK, DQPSK, DBPSK
802.11a/g:
64QAM, 16 QAM, QPSK, BPSK
802.11n:
BPSK, QPSK, 16QAM, 64QAM
Infrastructure mode
Wi-Fi Direct
Miracast
2.4-2.483 GHz:IEEE Channels 1-11 (USA)
5.0-5.850 GHz:IEEE Channels: 36,40,44,48,149,153,157,161,165 (USA)
802.11b
18.84dBm
802.11g
20.18dBm
802.11a
16.75dBm @band1
19.84dBm @band4
802.11b:
Less than -76dBm
802.11a/g:
Less than -82dBm @ 6Mpbs
Less than -65dBm @54Mbps
802.11n:
Less than -82dBm @ MCS0
Roku, Inc.
Less than -64dBm @ MCS7
64-bit, 128-bit WEP, TKIP, AES, WPA, WPA2, WPS
IEEE 802.11i
3.3V ±9% I/O supply voltage
TX mode: 750 mA
RX mode: 750 mA
Standby mode: 35 mA
Metallic Antenna or MHF RF connector
*Environmental factors dependent

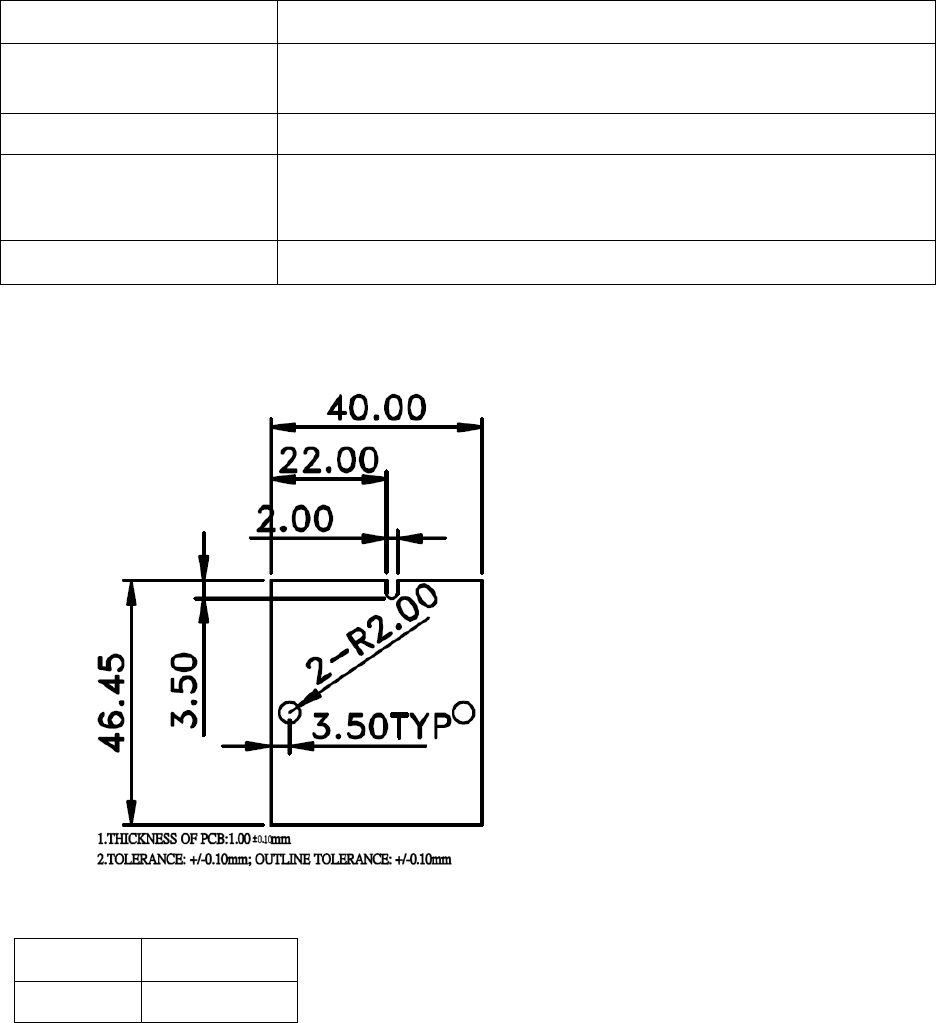

Mechanical
EEPROM INFORMATION
Vendor ID
0x0A5C
Product ID
0xBD17
ENVIRONMENTAL
Operating
Operating Temperature: 0 to 40C
Relative Humidity: 5-90% (non-condensing)
Storage
Temperature: -40 to 80C
Relevant Humidity: 5-80% (non-condensing)
Roku, Inc.
FCC Statement:
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of the
following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be
operated. Selection of other channels is not possible.
This device and its antenna(s) must not be co-located with any other transmitters
except in accordance with FCC multi-transmitter product procedures.
Refering to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be
operated simultaneously without C2P.
This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor
environment only.
Roku, Inc.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is responsible for the
compliance to all the rules that apply to the product into which this certified RF module
is integrated.
Additional testing and certification may be necessary when multiple modules are
used.
20cm minimum distance has to be able to be maintained between the antenna
and the users for the host this module is integrated into. Under such
configuration, the FCC radiation exposure limits set forth for an
population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to
keep at least 20cm separation with the antenna while this end product is
installed and operated. The end user has to be informed that the FCC
radio-frequency exposure guidelines for an uncontrolled environment can be
satisfied. The end user has to also be informed that any changes or
modifications not expressly approved by the manufacturer could void the
user's authority to operate this equipment. If the size of the end product is
smaller than 8x10cm, then additional FCC part 15.19 statement is required to
be available in the users manual: This device complies with Part 15 of FCC
rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following "
Contains TX FCC ID: TC2-N1002". If the size of the end product is larger than
8x10cm, then the following FCC part 15.19 statement has to also be available
on the label: This device complies with Part 15 of FCC rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Roku, Inc.
IC Satement:
CAN ICES-3 (B)/NMB-3( B)
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre
le fonctionnement.
For product available in the USA/Canada market, only channel 1~11 can be
operated. Selection of other channels is not possible.
Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11
peuvent être exploités. Sélection d'autres canaux n'est pas possible.
This device and its antenna(s) must not be co-located with any other transmitters
except in accordance with IC multi-transmitter product procedures.
Refering to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be
operated simultaneously without reassessment permissive change.
Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association
avec une autre antenne ou transmetteur.
Under Industry Canada regulations, this radio transmitter may only operate
using an antenna of a type and maximum (or lesser) gain approved for the
transmitter by Industry Canada. To reduce potential radio interference to other
users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that necessary for
successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour
l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son
Roku, Inc.
gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas
l'intensité nécessaire à l'établissement d'une communication satisfaisante.
The device for the band 5150-5250 MHz is only for indoor usage to reduce
potential for harmful interference to co-channel mobile satellite systems.
les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une
utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de
satellites mobiles utilisant les mêmes canaux.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC
établies pour un environnement non contrôlé. Cet équipement doit être installé
et utilisé avec un minimum de 20 cm de distance entre la source de
rayonnement et votre corps.
This module is intended for OEM integrator. The OEM integrator is still
responsible for the IC compliance requirement of the end product, which
integrates this module.
Any changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate this equipment.
Roku, Inc.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to
keep at least 20cm separation with the antenna while this end product is
installed and operated. The end user has to be informed that the IC
radio-frequency exposure guidelines for an uncontrolled environment can be
satisfied. The end user has to also be informed that any changes or
modifications not expressly approved by the manufacturer could void the
user's authority to operate this equipment. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference and (2) this
device must accept any interference received, including interference that may
cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following "
Contains TX IC : 5959A-N1002".
This radio transmitter (identify the device by certification number, or model
number if Category II) has been approved by Industry Canada to operate with
the antenna types listed below with the maximum permissible gain and
required antenna impedance for each antenna type indicated. Antenna types
not included in this list, having a gain greater than the maximum gain indicated
for that type, are strictly prohibited for use with this device.
Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son
numéro de modèle s'il fait partie du matériel de catégorie I) a été approuvé par Industrie
Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain
admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne
non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont
strictement interdits pour l'exploitation de l'émetteur.
Antenna list
Ant.
Brand
Model Name
Antenna Type
Connector
Gain (dBi)
2.4GHz
5GHz
1
LiteOn
3010000502XD
PIFA Antenna
I-PEX
3.53
3.43
2
LiteOn
30100005046D
PIFA Antenna
N/A
3.29
4.26
